Easy, scalable, fault tolerant stream processing with structured streaming - spark meetup at intel in santa clara

Easy, Scalable, Fault-tolerant
stream processing with
Structured Streaming
Tathagata “TD” Das
@tathadas
Spark Meetup @ Intel
Santa Clara, 23rd March 2017

About Me
Spark PMC Member
Built Spark Streaming in UC Berkeley
Currently focused on building Structured Streaming
Software engineer at Databricks
2

building robust
stream processing
apps is hard
3

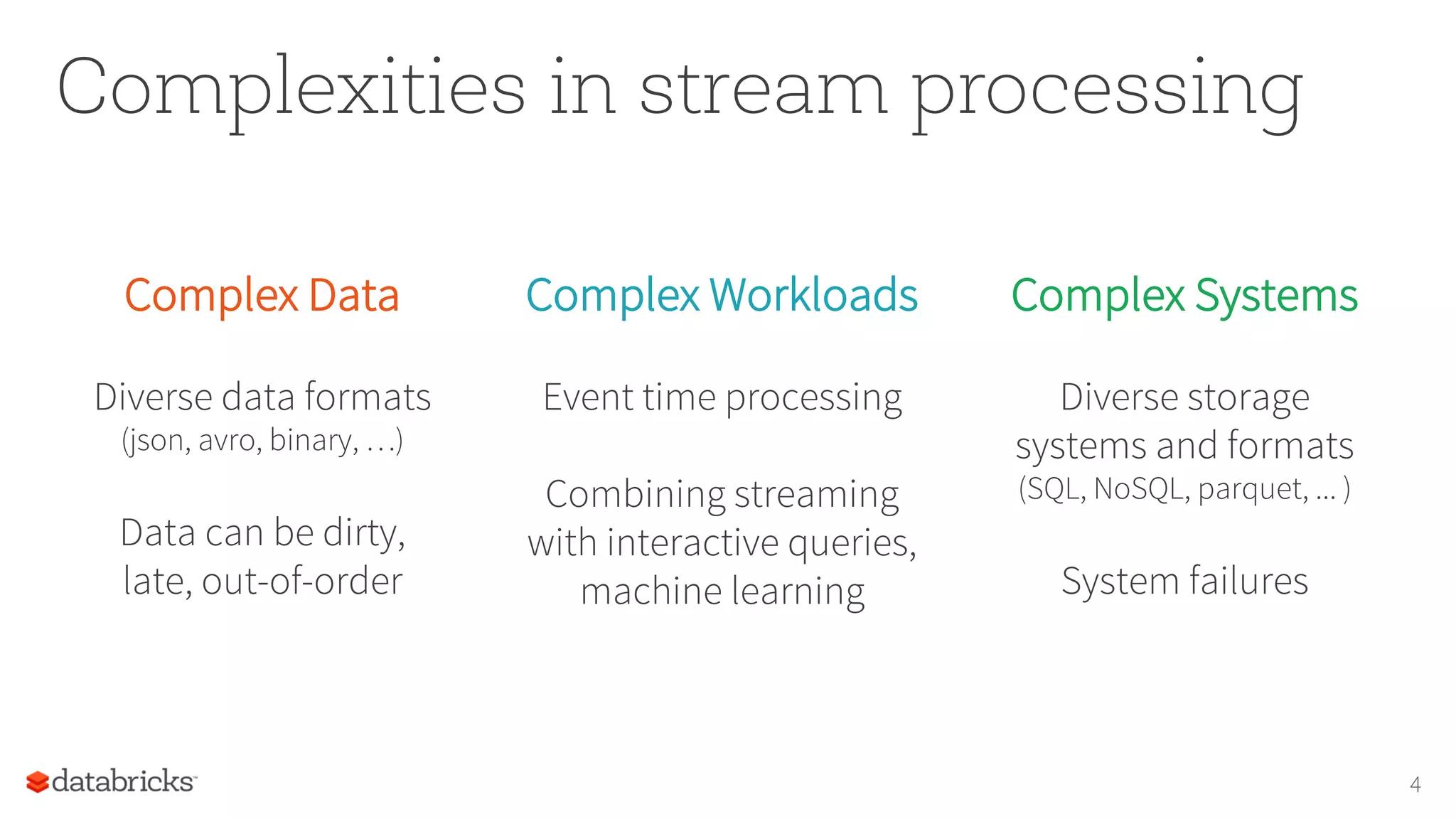

Complexities in stream processing
4
Complex Data
Diverse data formats
(json, avro, binary, …)
Data can be dirty,
late, out-of-order
Complex Systems
Diverse storage
systems and formats
(SQL, NoSQL, parquet, ... )
System failures
Complex Workloads
Event time processing
Combining streaming
with interactive queries,
machine learning

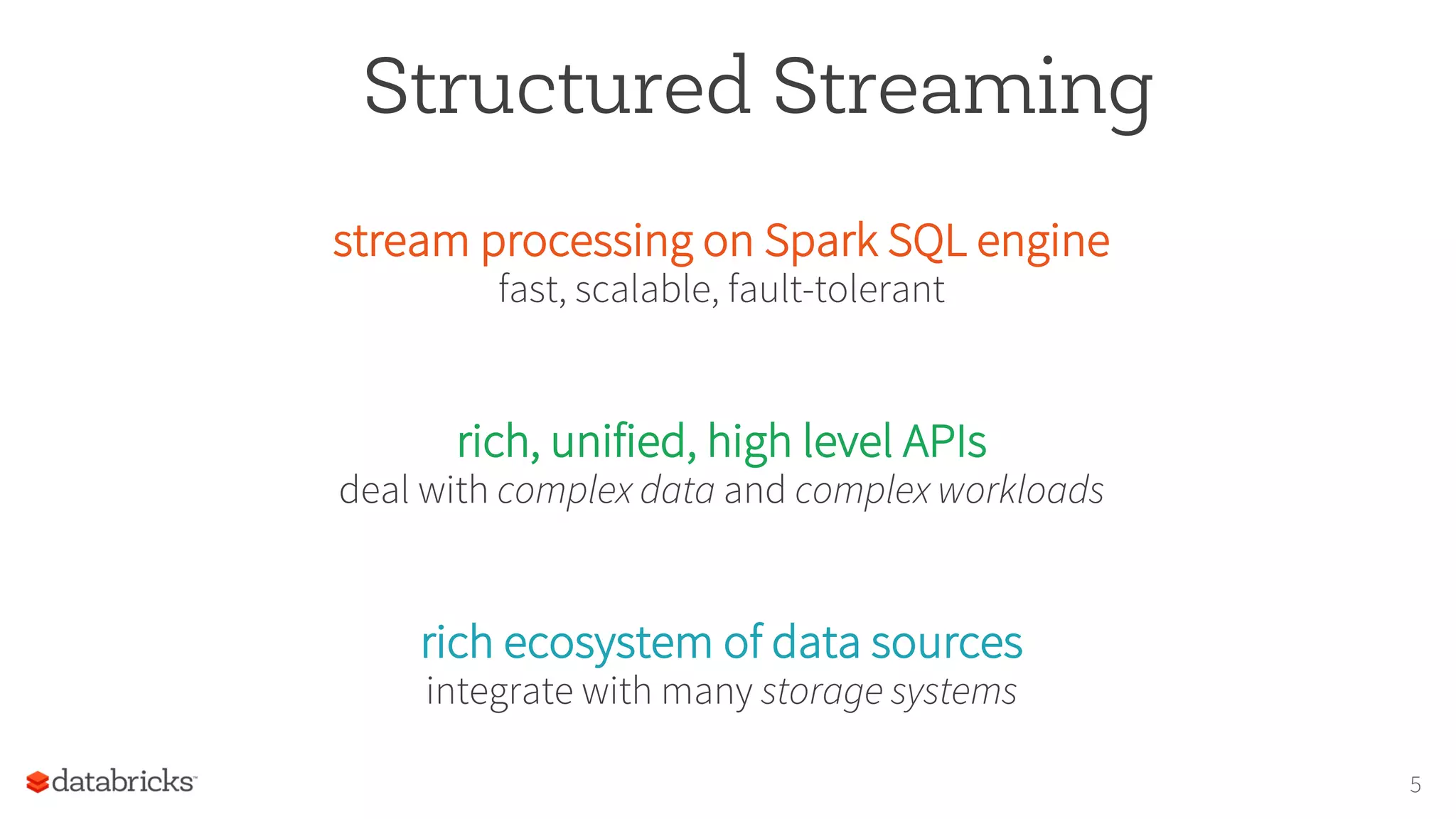

Structured Streaming
stream processing on Spark SQL engine
fast, scalable, fault-tolerant
rich, unified, high level APIs
deal with complex data and complex workloads
rich ecosystem of data sources
integrate with many storage systems
5

you
should not have to
reason about streaming

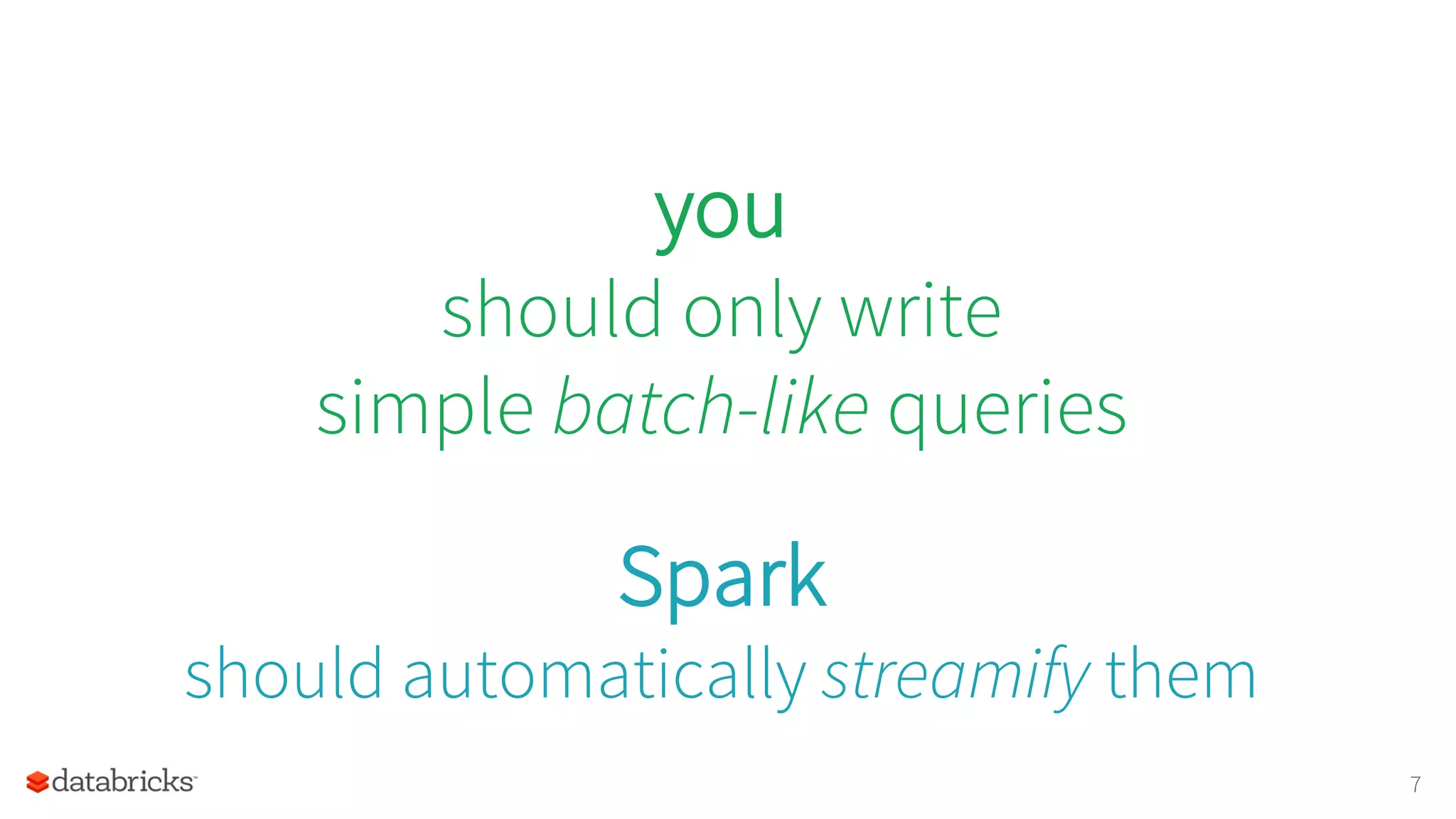

6

you
should only write
simple batch-like queries
Spark
should automatically streamify them
7

Treat Streams as Unbounded Tables
8
data stream unbounded input table

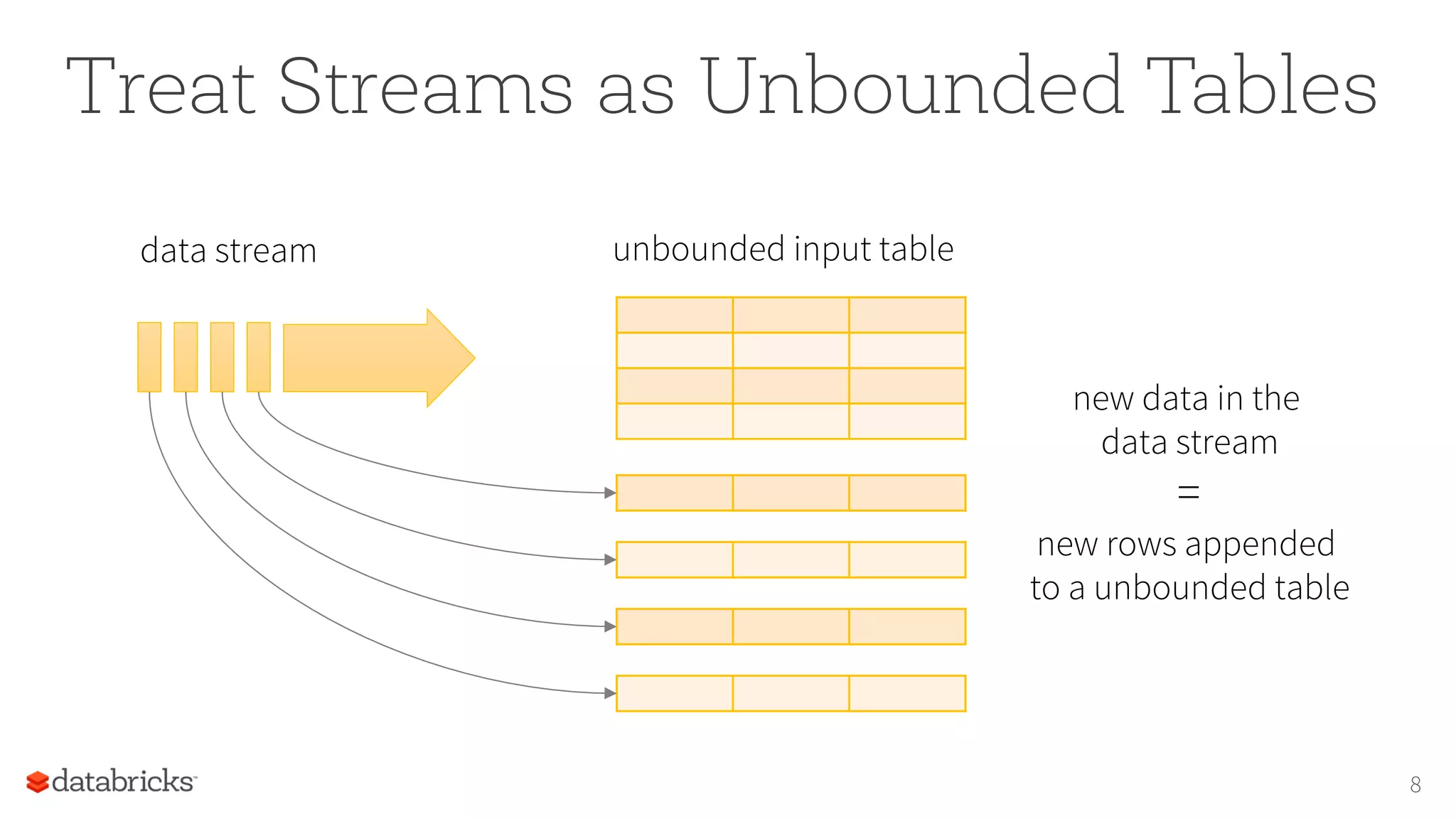

new data in the
data stream
=
new rows appended
to a unbounded table

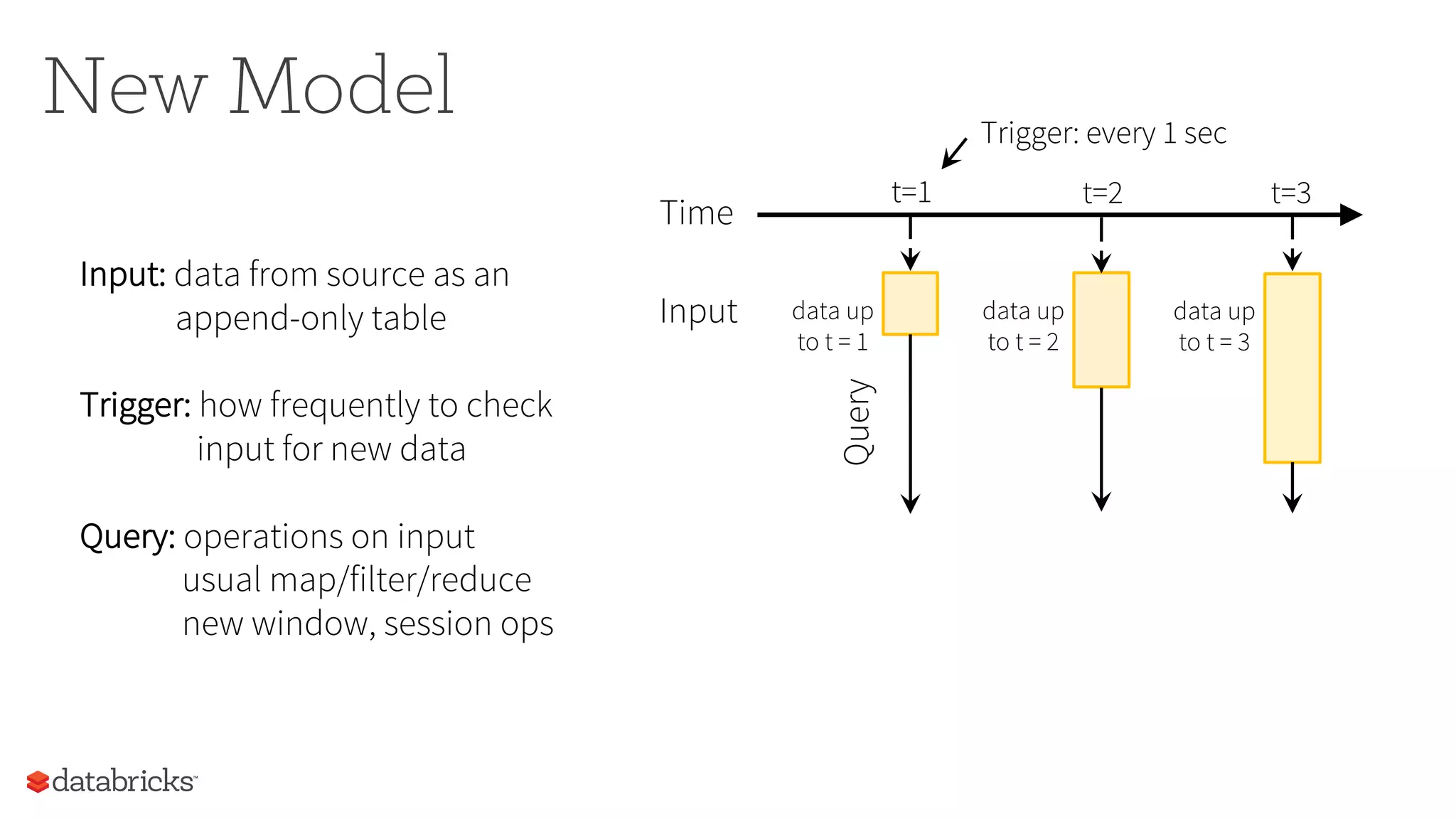

New Model Trigger: every 1 sec
Time
Input data up
to t = 3
Query
Input: data from source as an
append-only table
Trigger: how frequently to check
input for new data
Query: operations on input
usual map/filter/reduce
new window, session ops
t=1 t=2 t=3
data up
to t = 1
data up
to t = 2

New Model
result up
to t = 1
Result
Query
Time
data up
to t = 1
Input data up
to t = 2
result up
to t = 2
data up
to t = 3
result up
to t = 3

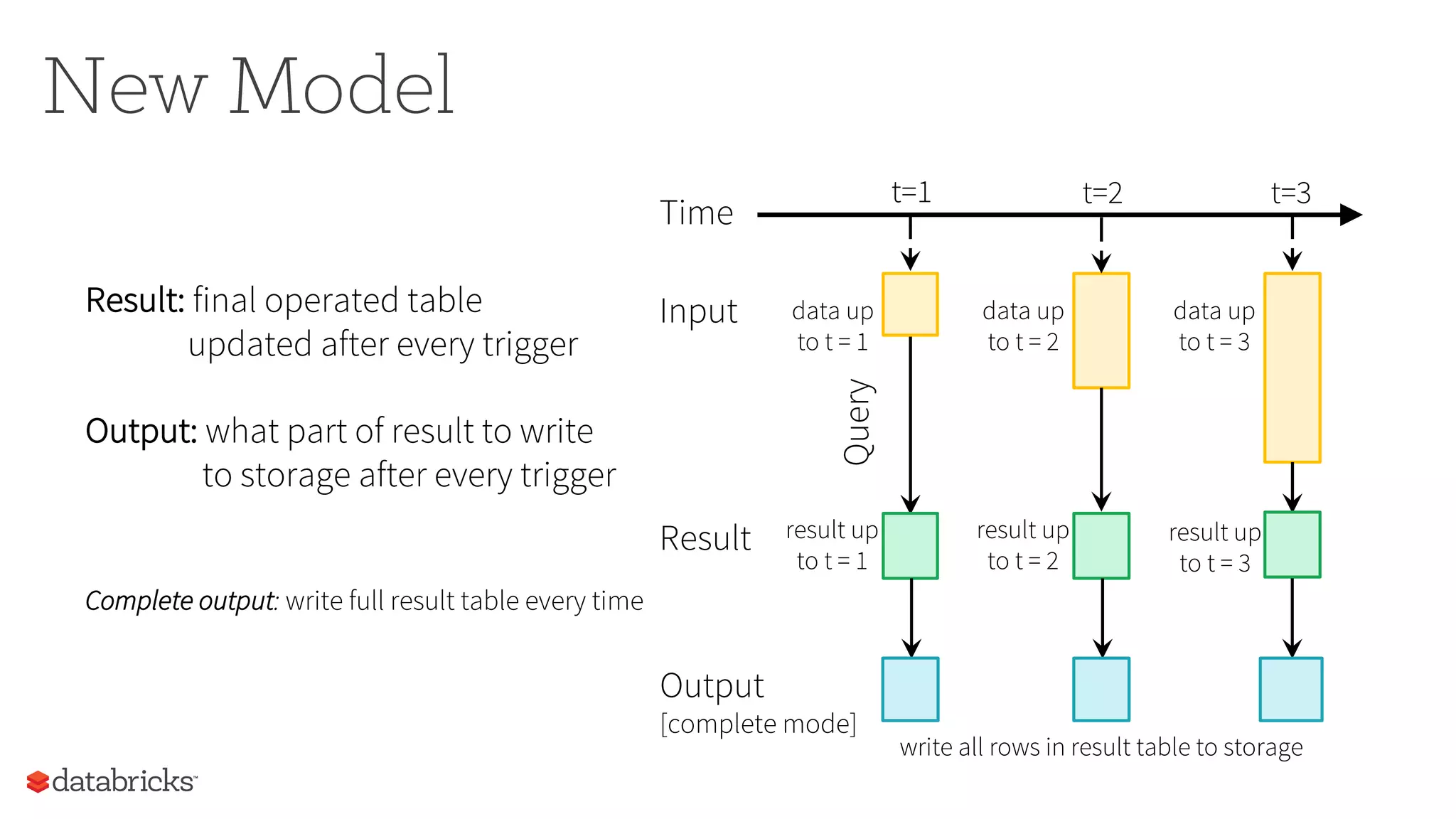

Result: final operated table
updated after every trigger
Output: what part of result to write
to storage after every trigger
Complete output: write full result table every time
Output
[complete mode]
write all rows in result table to storage
t=1 t=2 t=3

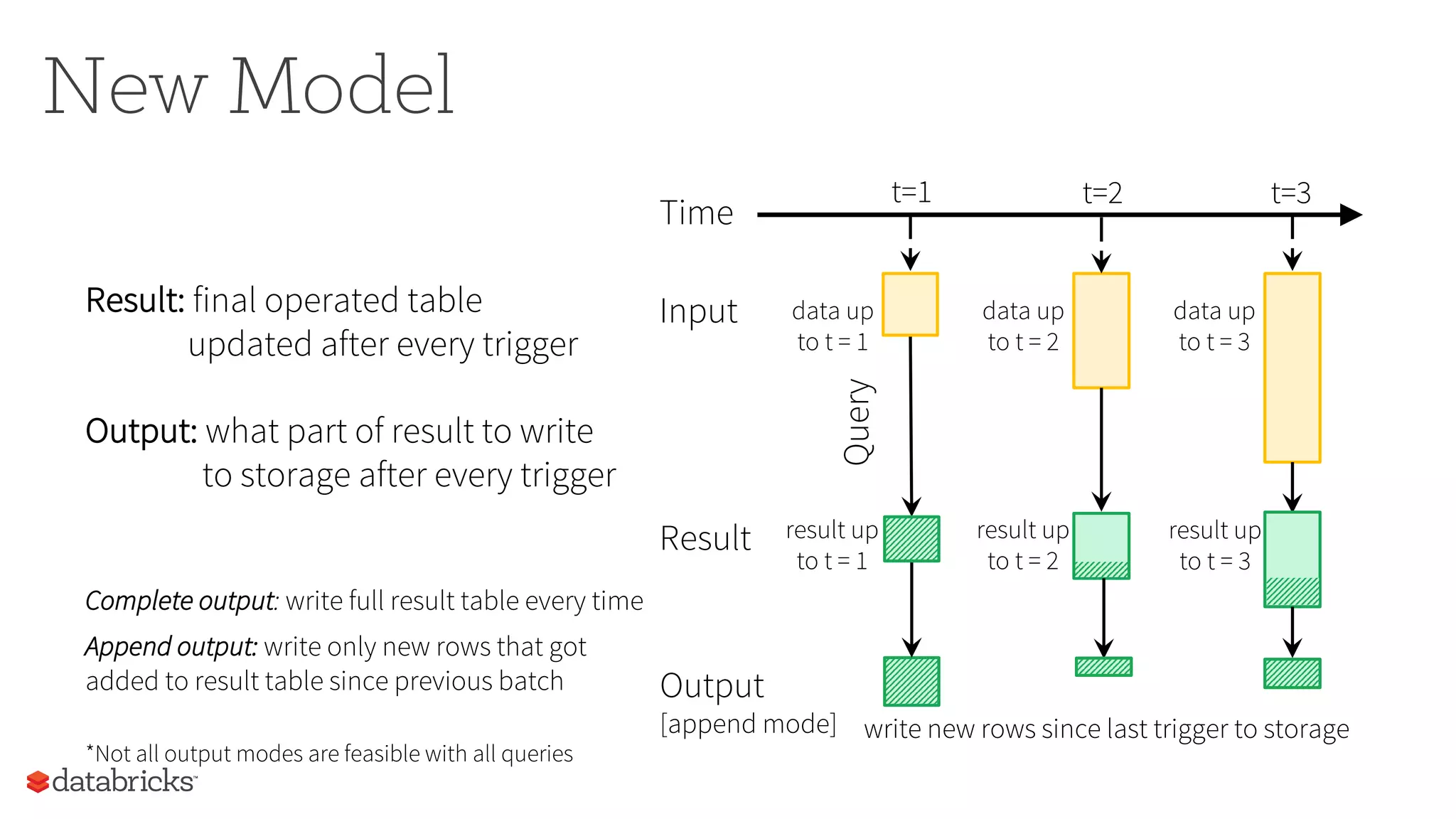

New Model
t=1 t=2 t=3
Result
Query
Time
Input data up
to t = 3
result up
to t = 3
Output
[append mode] write new rows since last trigger to storage
Result: final operated table
updated after every trigger
Output: what part of result to write
to storage after every trigger
Complete output: write full result table every time
Append output: write only new rows that got
added to result table since previous batch
*Not all output modes are feasible with all queries
data up
to t = 1
data up
to t = 2
result up
to t = 1
result up
to t = 2

New Model
t=1 t=2 t=3
Result
Query
Time
Input data up
to t = 3
result up
to t = 3
Output
[append mode] write new rows since last trigger to storage

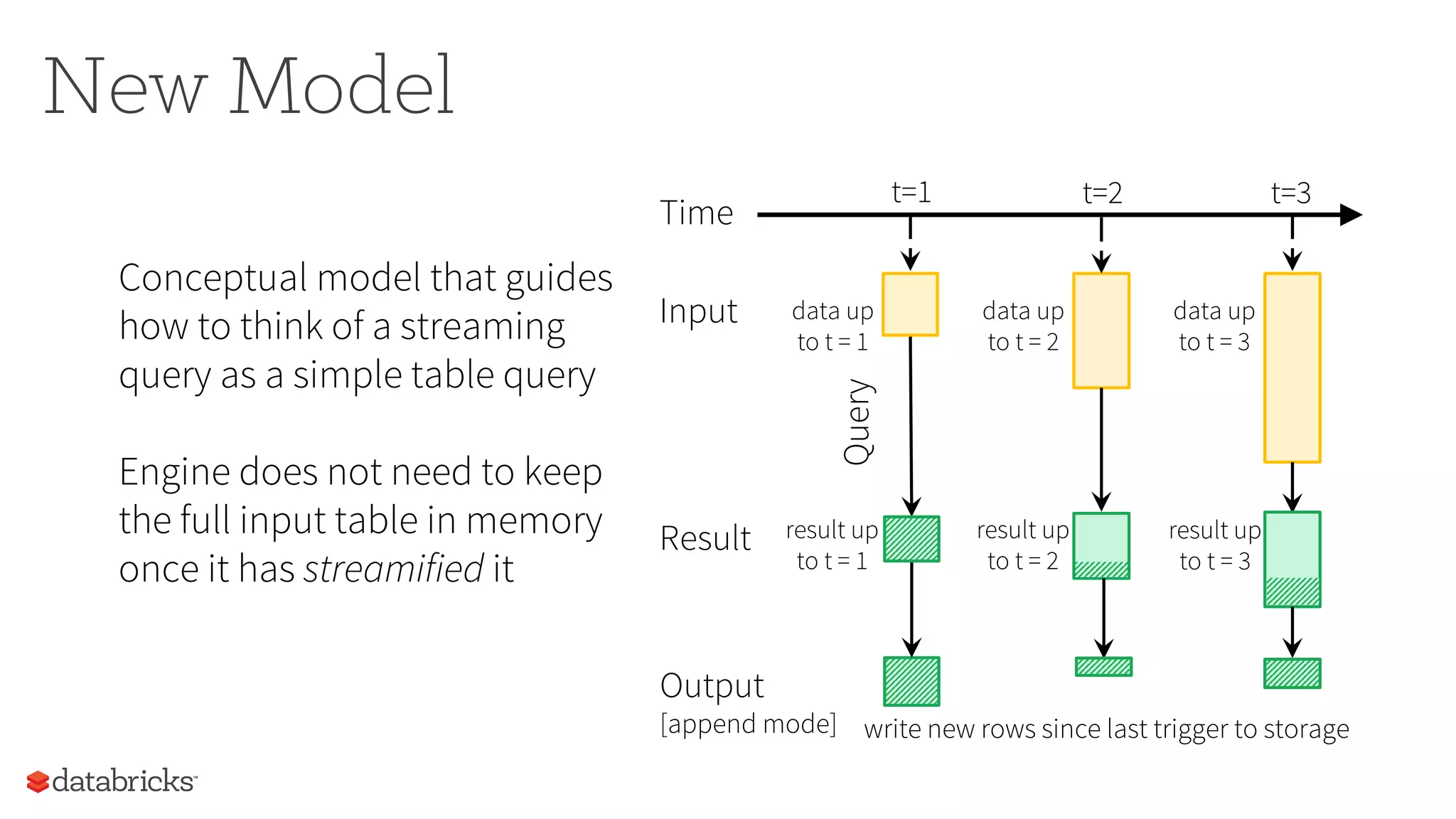

Conceptual model that guides
how to think of a streaming
query as a simple table query
Engine does not need to keep
the full input table in memory
once it has streamified it
data up
to t = 1
data up
to t = 2
result up
to t = 1
result up
to t = 2

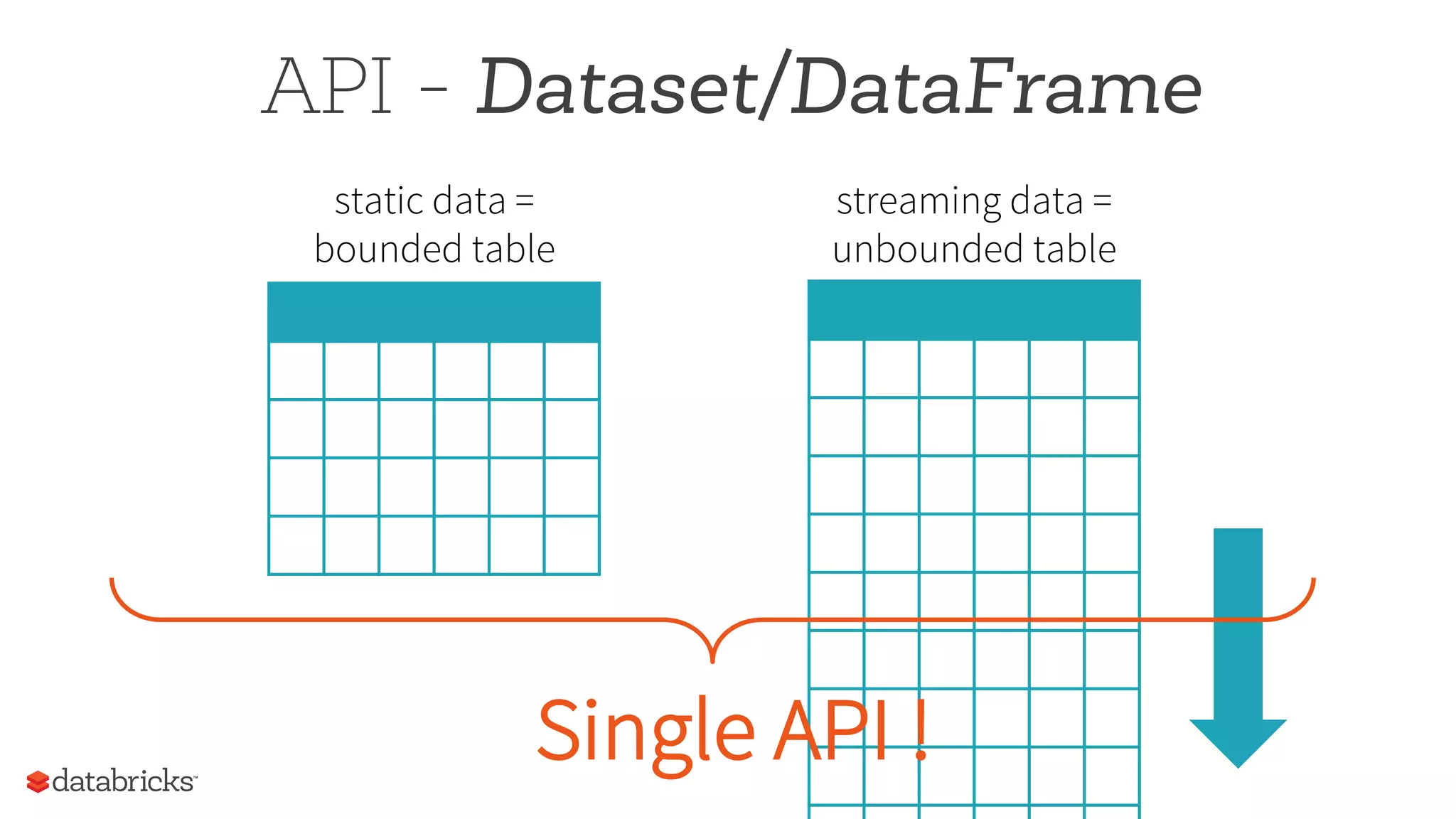

static data =
bounded table
streaming data =
unbounded table
API - Dataset/DataFrame
Single API !

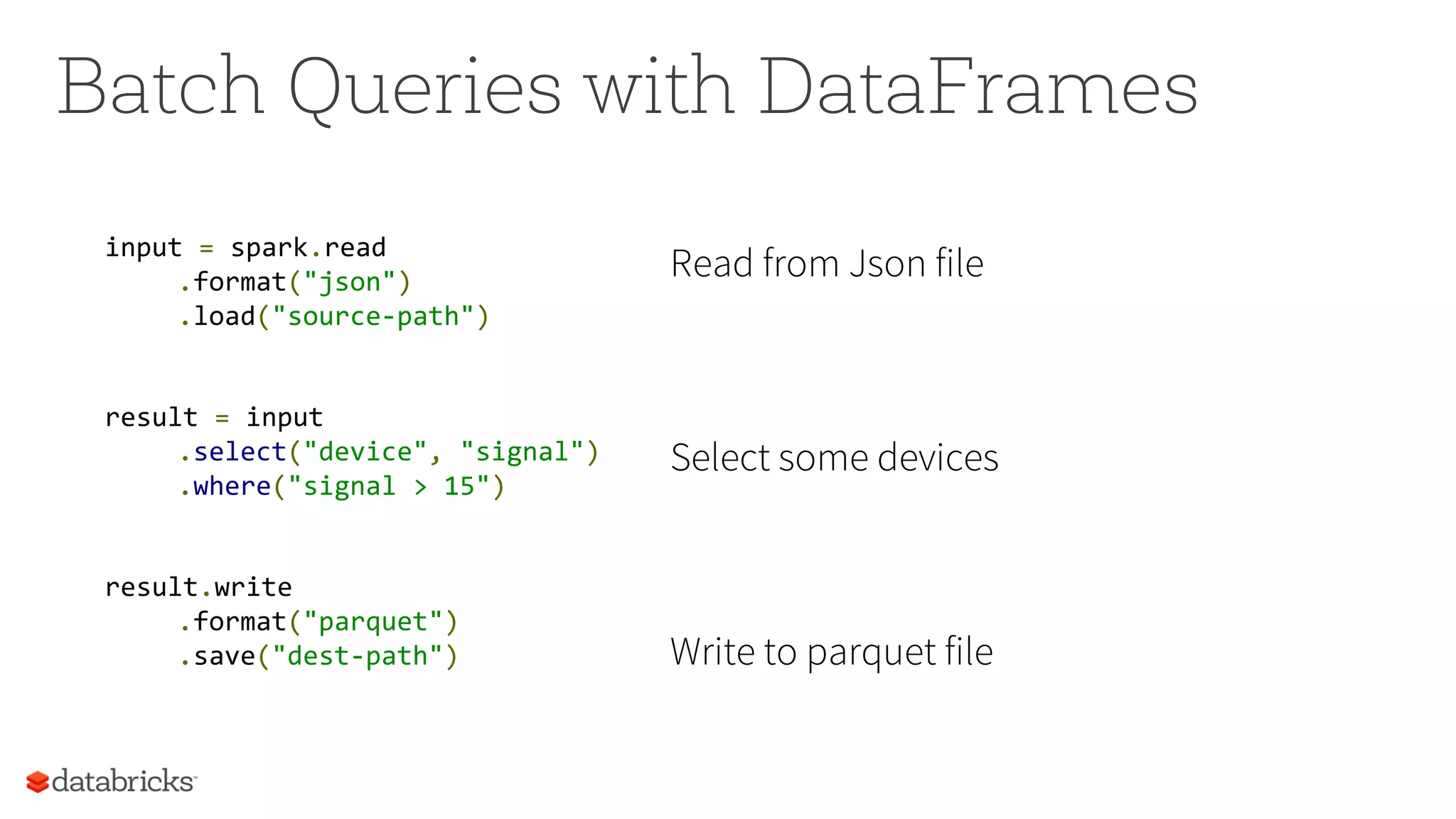

Batch Queries with DataFrames
input = spark.read
.format("json")
.load("source-path")
result = input
.select("device", "signal")
.where("signal > 15")
result.write
.format("parquet")
.save("dest-path")
Read from Json file
Select some devices
Write to parquet file

Streaming Queries with DataFrames

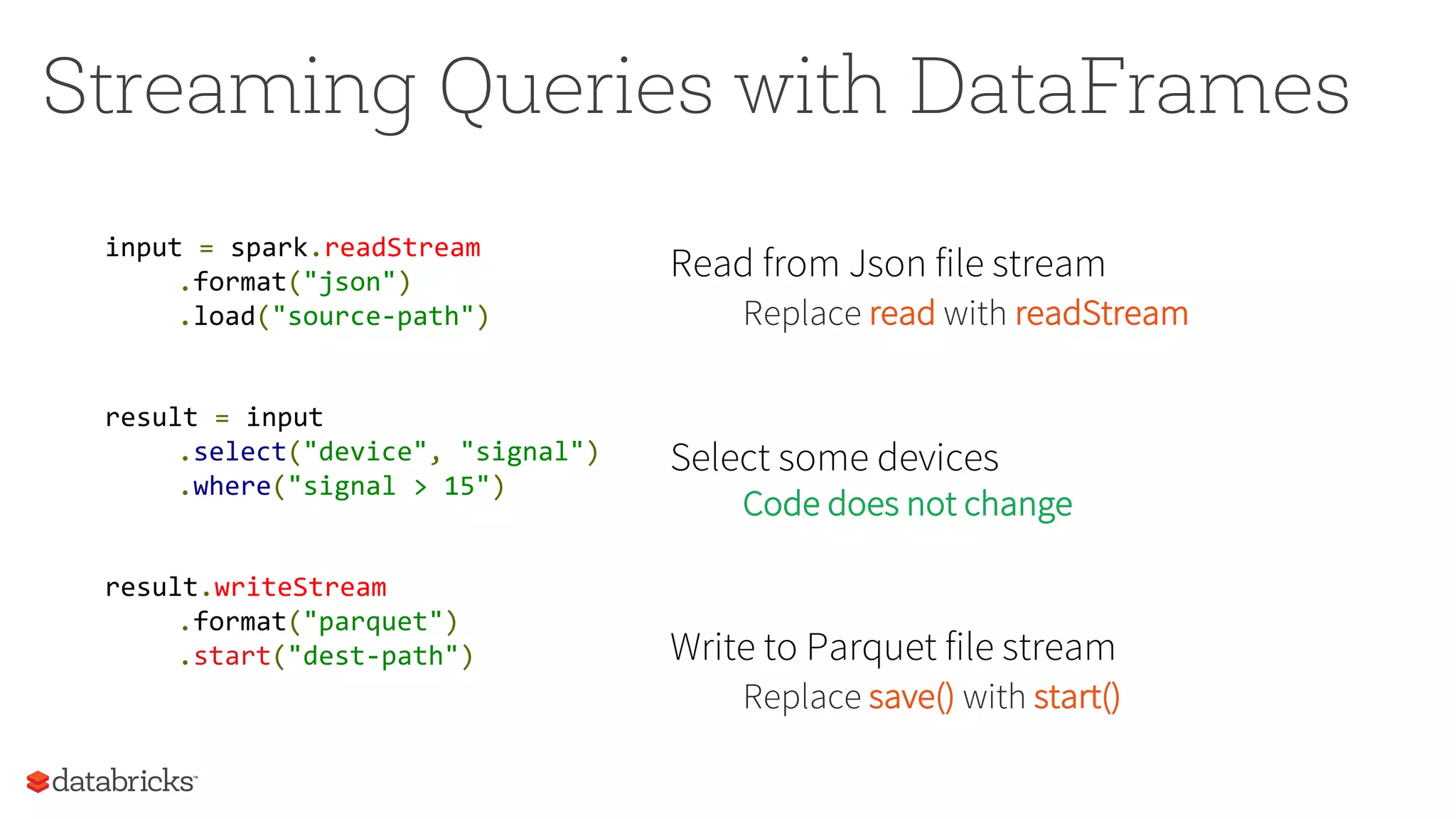

input = spark.readStream
.format("json")
result = input
result.writeStream
.format("parquet")
.start("dest-path")
Read from Json file stream
Replace read with readStream
Select some devices
Code does not change
Write to Parquet file stream
Replace save() with start()

DataFrames,
Datasets, SQL
input = spark.readStream
.format("json")
result = input
result.writeStream
.format("parquet")
.start("dest-path")
Logical Plan
Streaming
Source
Project
device, signal
Filter
signal > 15
Streaming
Sink

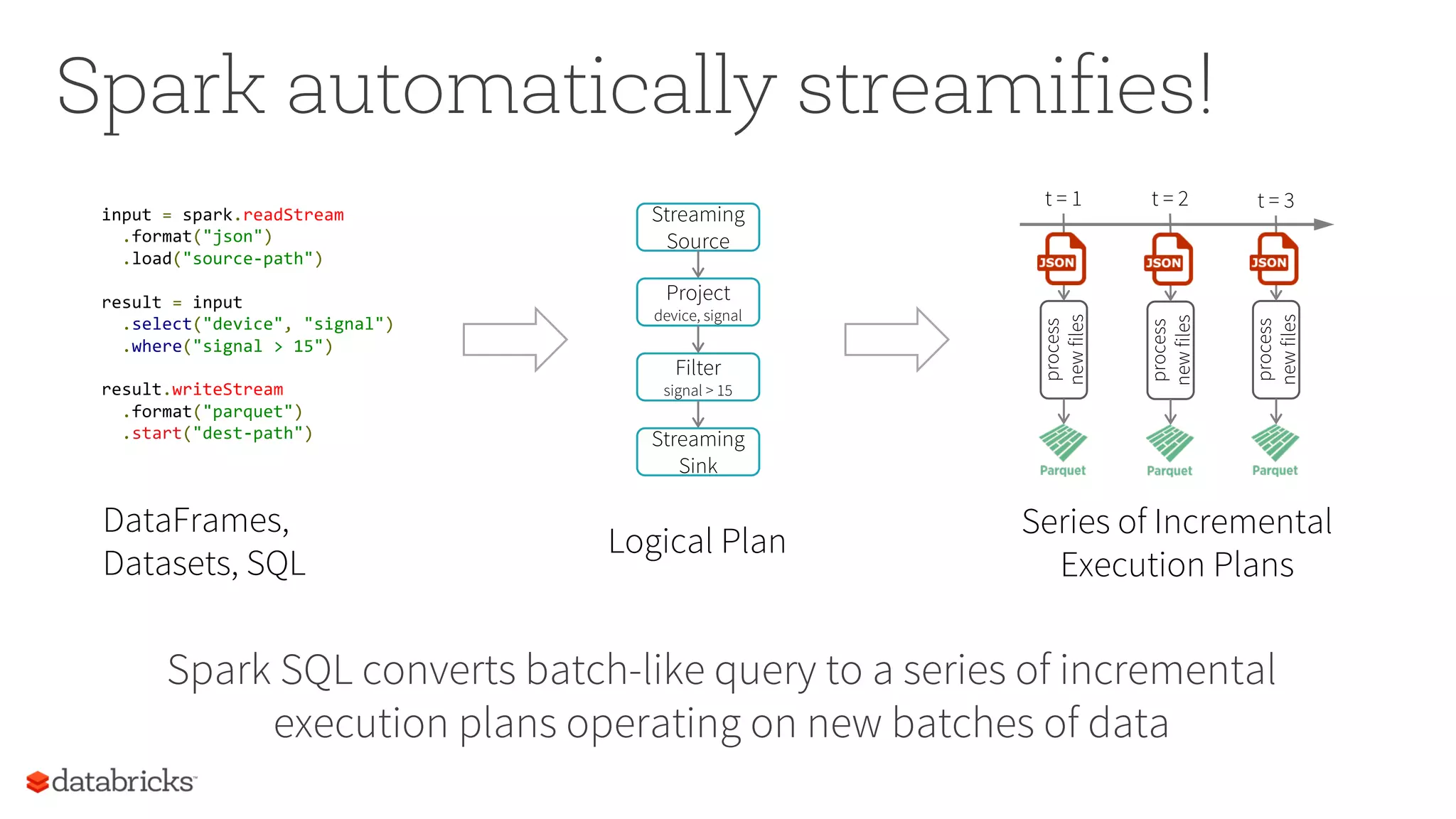

Spark automatically streamifies!
Spark SQL converts batch-like query to a series of incremental
execution plans operating on new batches of data
Series of Incremental
Execution Plans
process
newfiles
t = 1 t = 2 t = 3
process
newfiles
process
newfiles

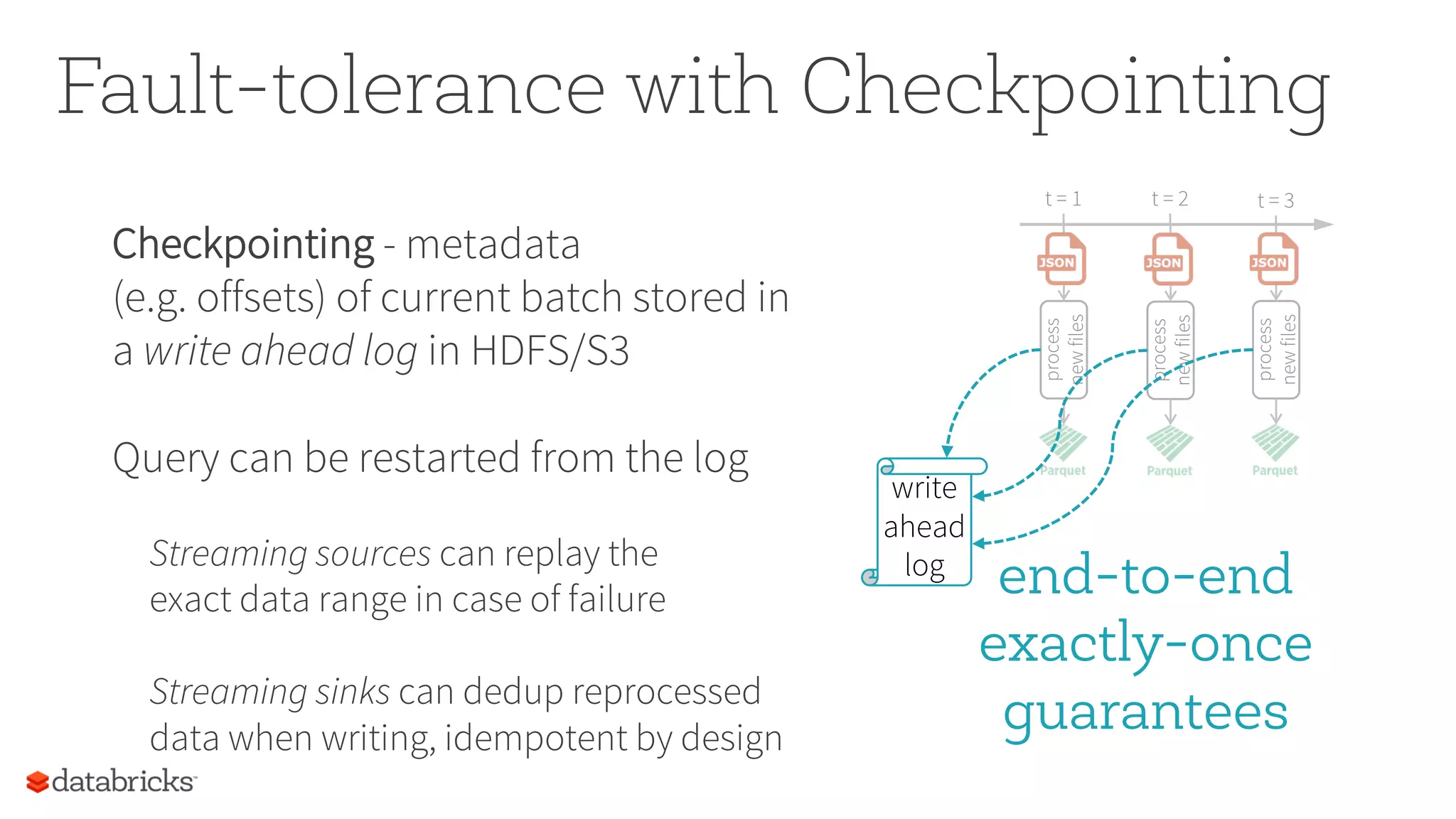

Fault-tolerance with Checkpointing
Checkpointing - metadata
(e.g. offsets) of current batch stored in
a write ahead log in HDFS/S3
Query can be restarted from the log
Streaming sources can replay the
exact data range in case of failure
Streaming sinks can dedup reprocessed
data when writing, idempotent by design
end-to-end
exactly-once
guarantees
process
newfiles
t = 1 t = 2 t = 3
process
newfiles
process
newfiles
write
ahead
log

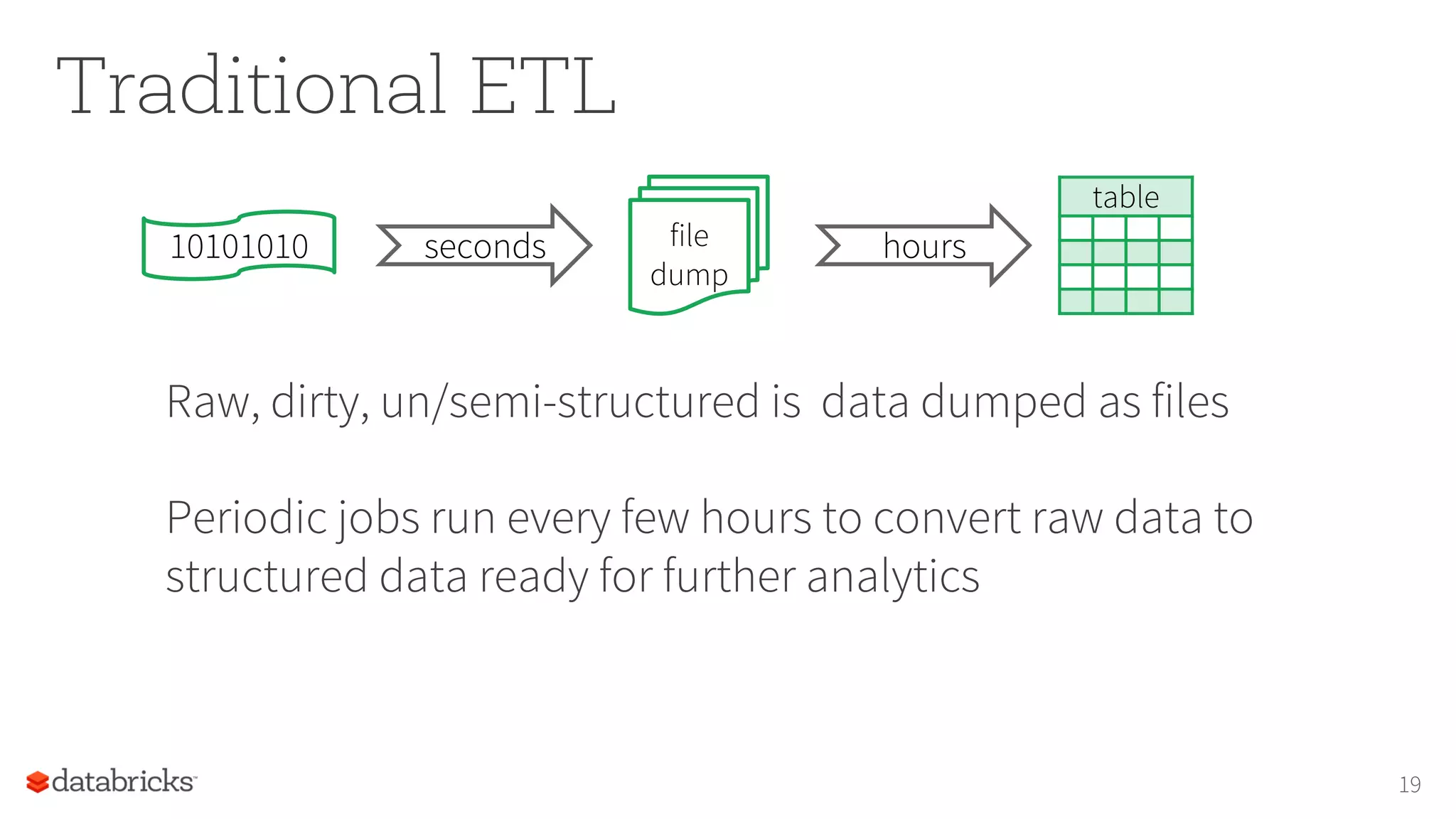

Traditional ETL
Raw, dirty, un/semi-structured is data dumped as files
Periodic jobs run every few hours to convert raw data to
structured data ready for further analytics
19
file
dump
seconds hours
table
10101010

Traditional ETL

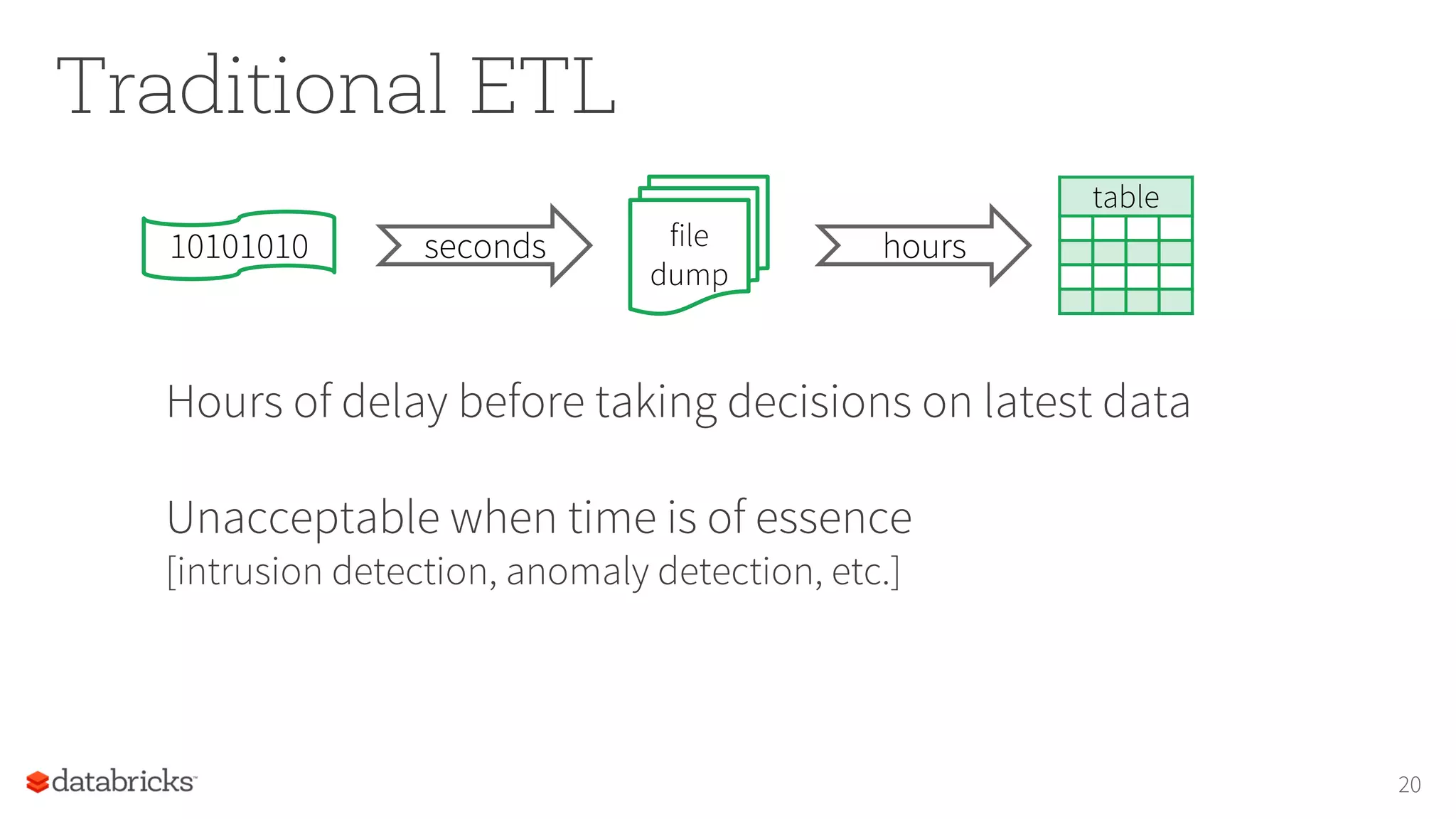

Hours of delay before taking decisions on latest data
Unacceptable when time is of essence
[intrusion detection, anomaly detection, etc.]
20
file
dump
seconds hours
table
10101010

Streaming ETL w/ Structured Streaming

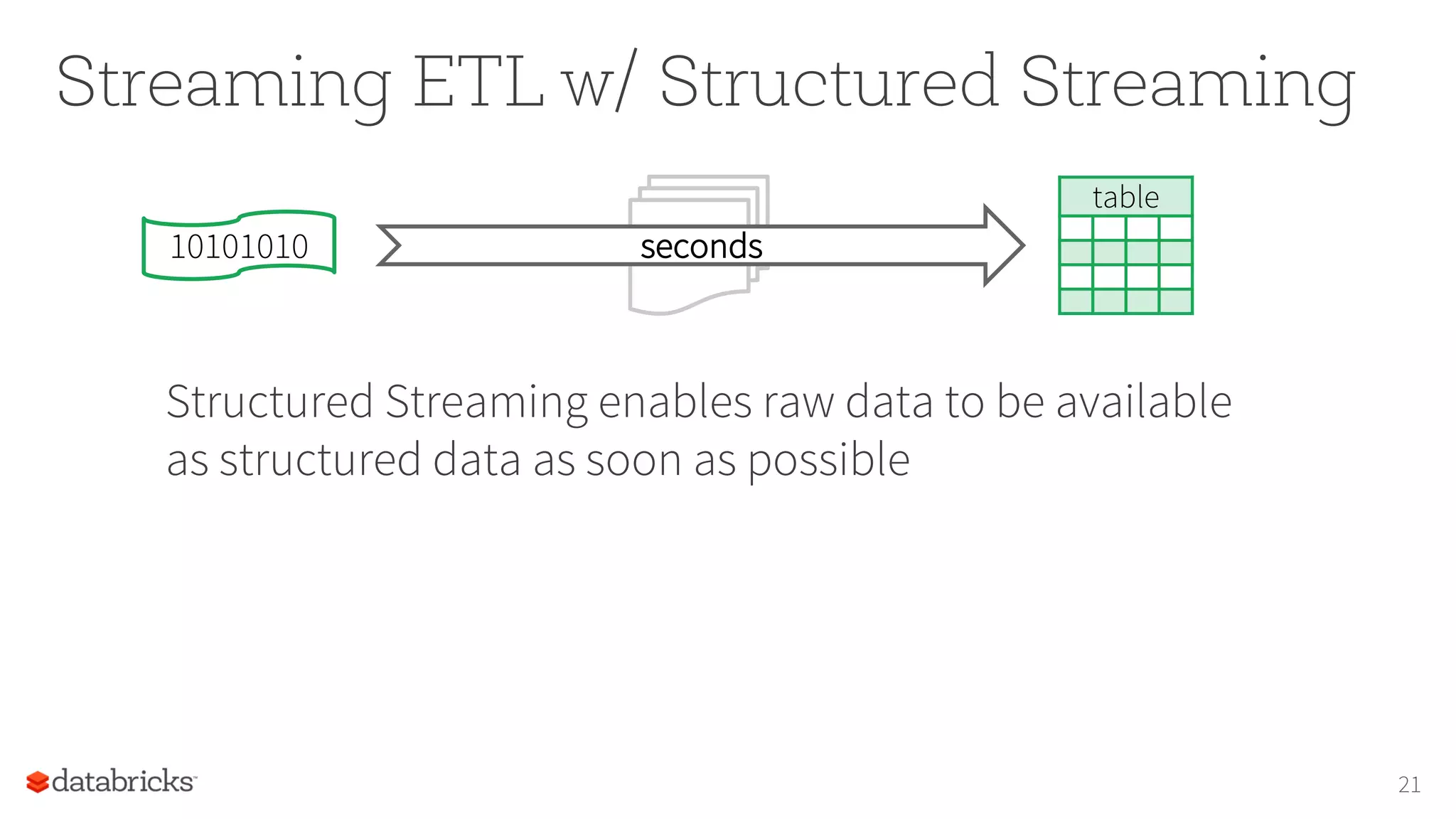

Structured Streaming enables raw data to be available
as structured data as soon as possible
21
table
seconds10101010

Streaming ETL w/ Structured Streaming
22
Example

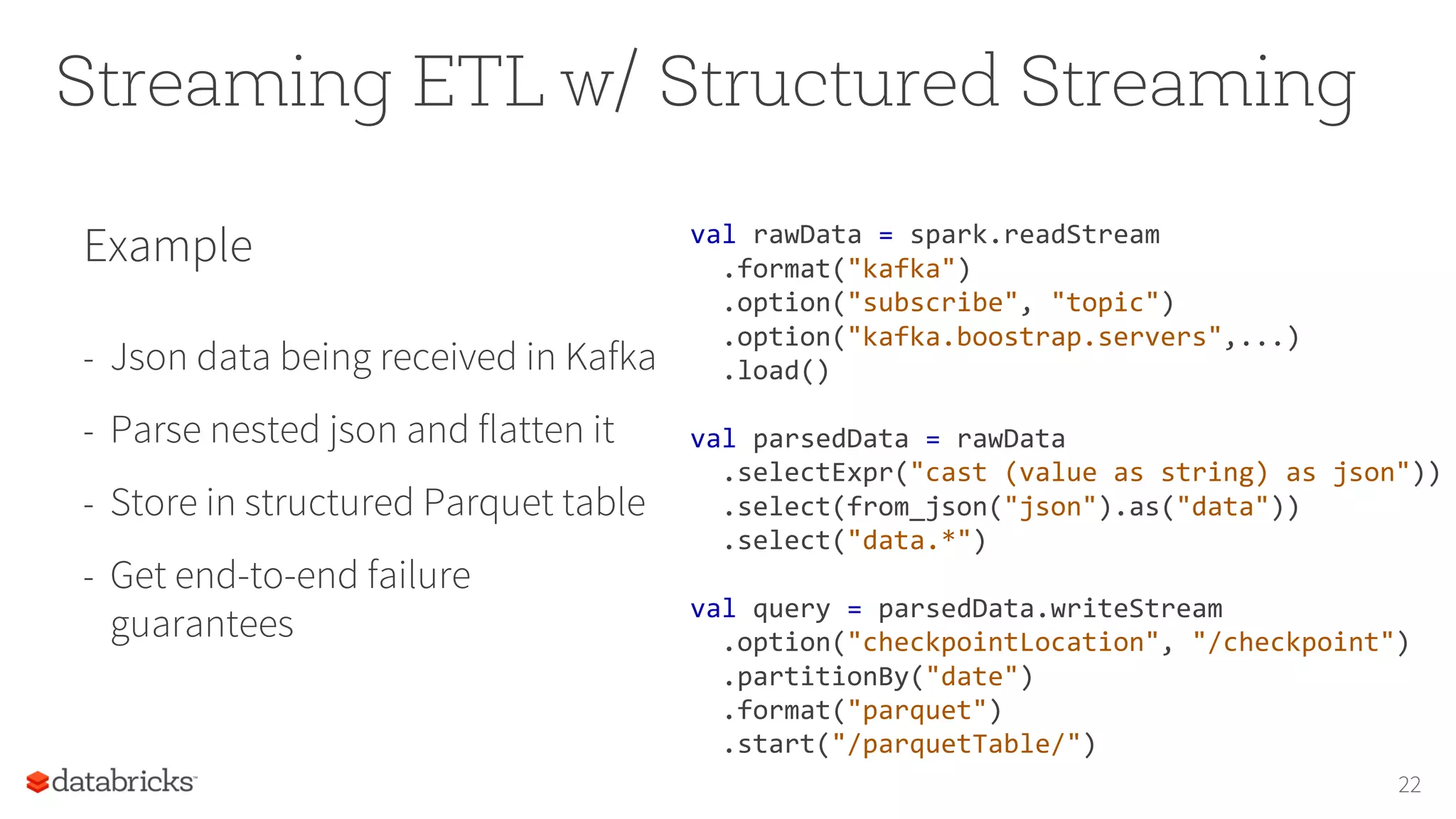

- Json data being received in Kafka
- Parse nested json and flatten it
- Store in structured Parquet table
- Get end-to-end failure
guarantees
val rawData = spark.readStream
.format("kafka")
.option("subscribe", "topic")
.option("kafka.boostrap.servers",...)
.load()
val parsedData = rawData
.selectExpr("cast (value as string) as json"))
.select(from_json("json").as("data"))
.select("data.*")
val query = parsedData.writeStream
.option("checkpointLocation", "/checkpoint")
.partitionBy("date")
.format("parquet")
.start("/parquetTable/")

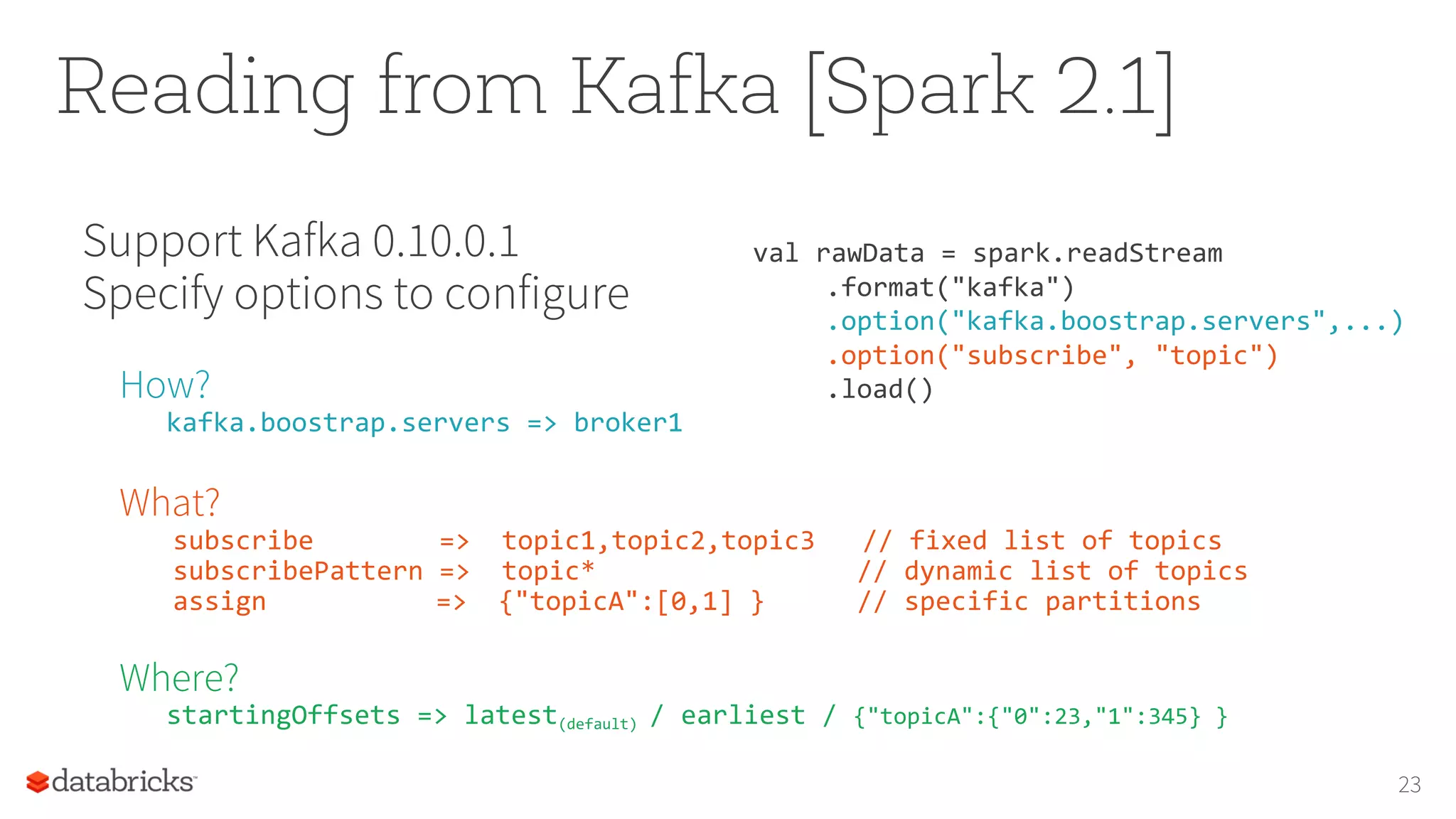

Reading from Kafka [Spark 2.1]
23
Support Kafka 0.10.0.1
Specify options to configure
How?
kafka.boostrap.servers => broker1
What?
subscribe => topic1,topic2,topic3 // fixed list of topics
subscribePattern => topic* // dynamic list of topics
assign => {"topicA":[0,1] } // specific partitions
Where?
startingOffsets => latest(default) / earliest / {"topicA":{"0":23,"1":345} }
.format("kafka")
.load()

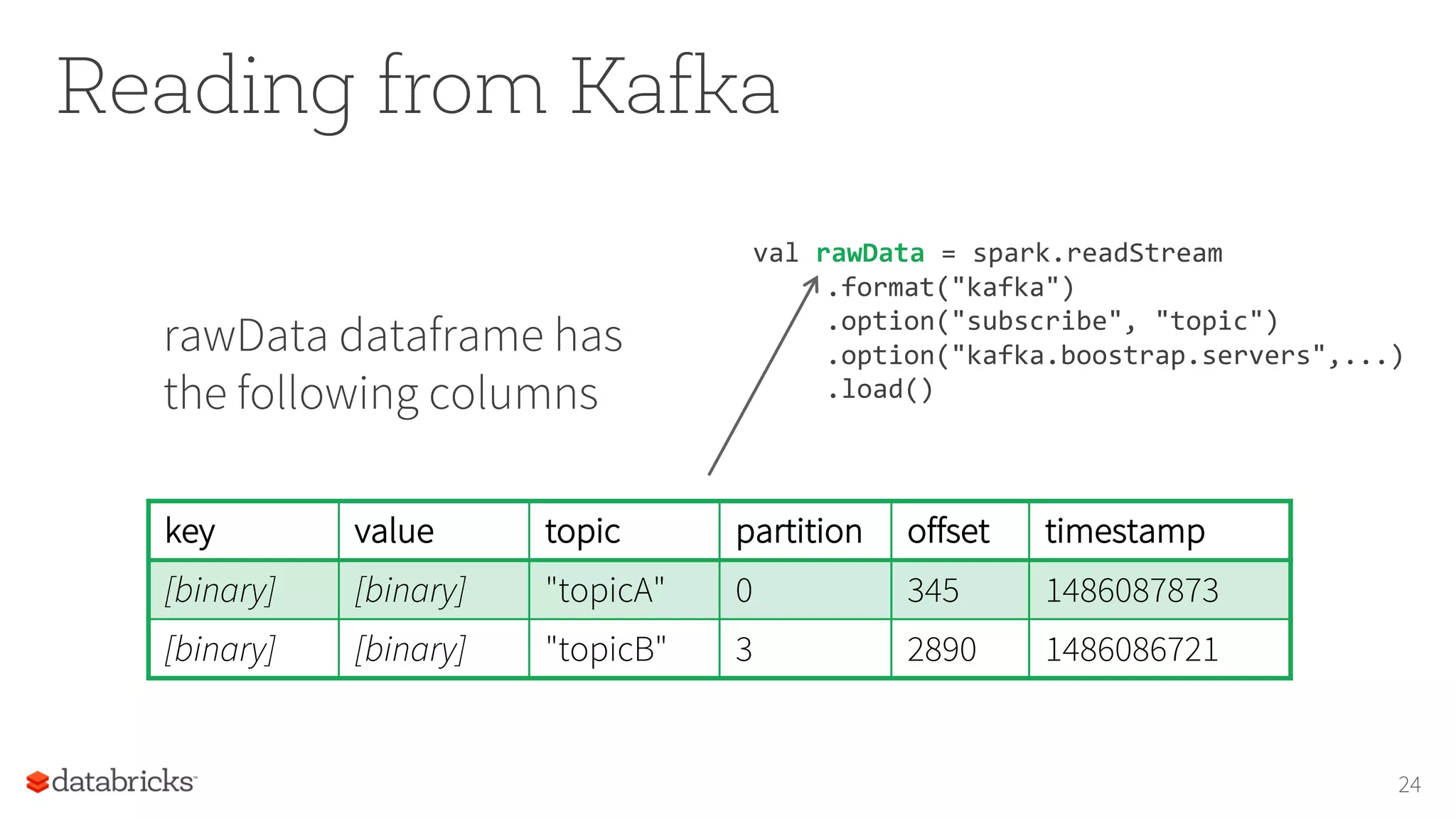

Reading from Kafka
24
.format("kafka")
.load()
rawData dataframe has
the following columns
key value topic partition offset timestamp
[binary] [binary] "topicA" 0 345 1486087873
[binary] [binary] "topicB" 3 2890 1486086721

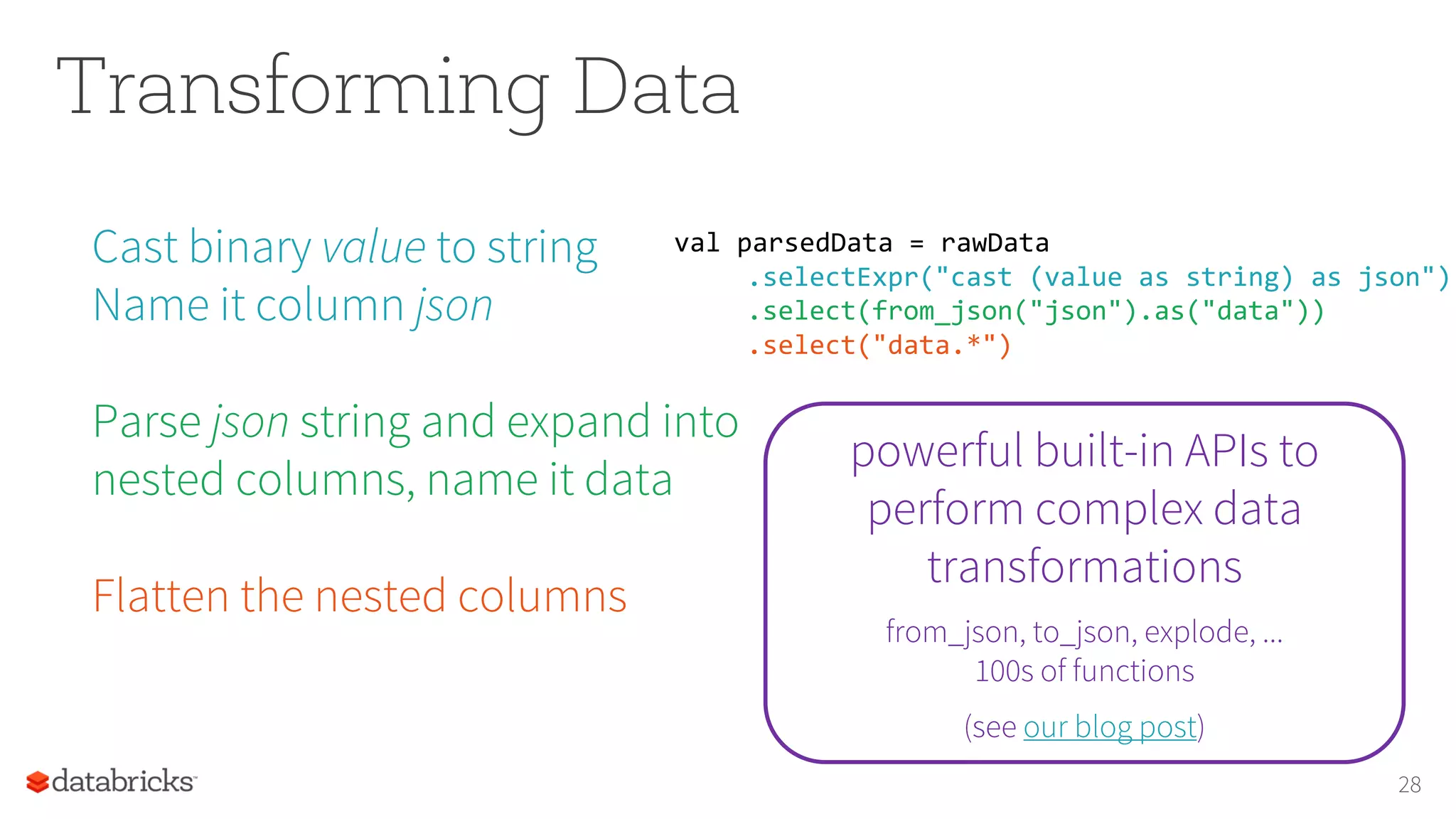

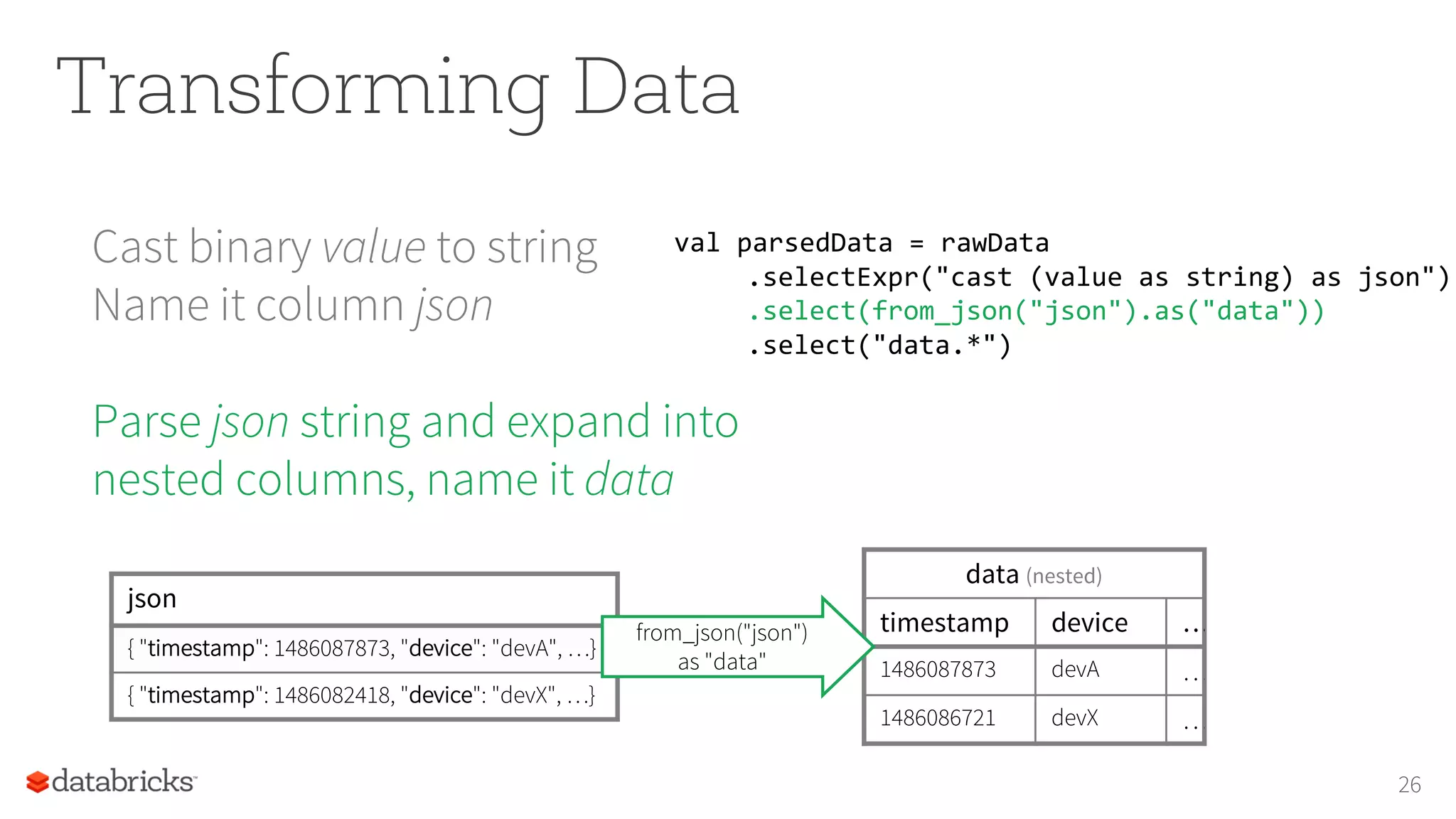

Transforming Data

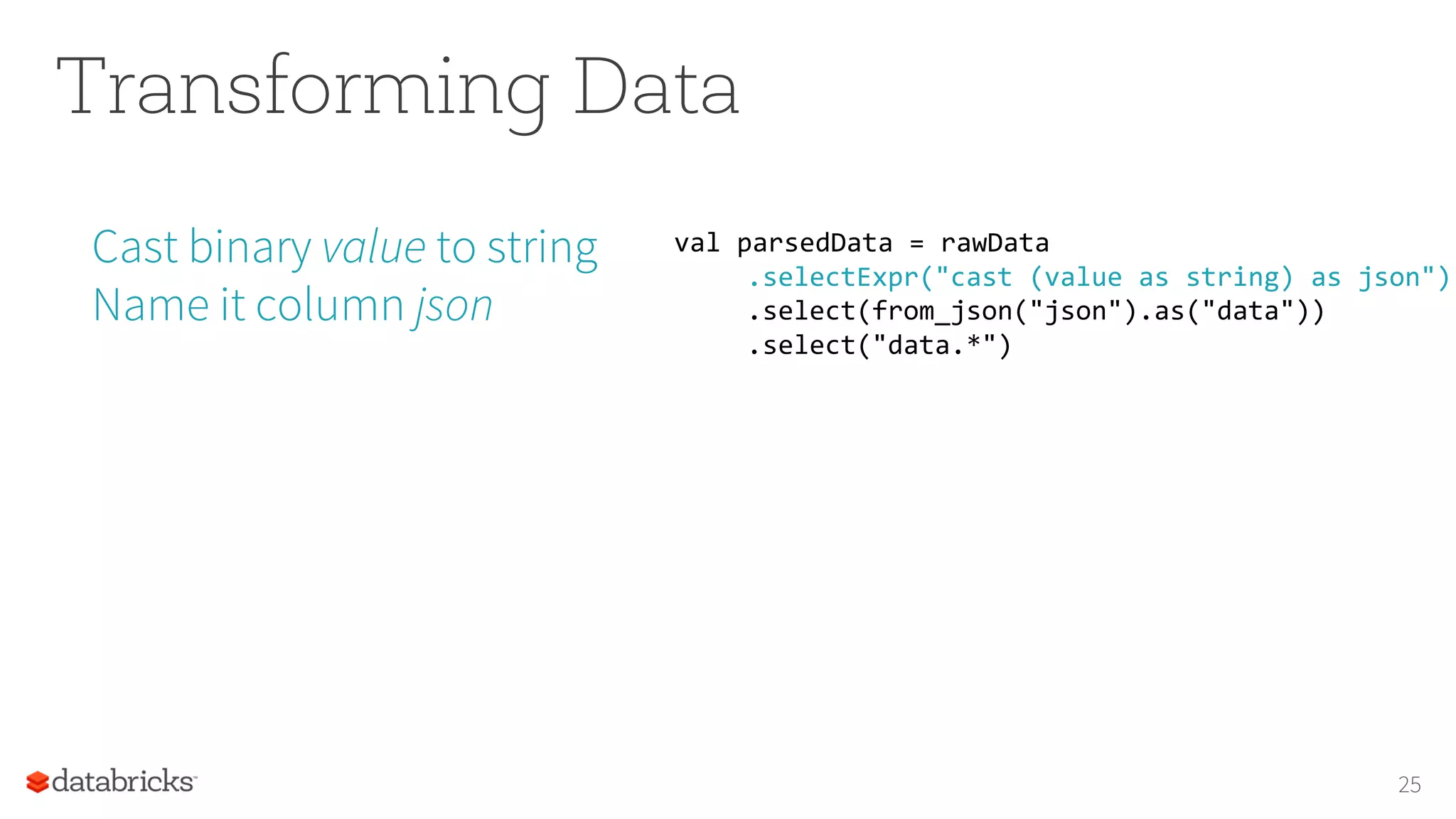

Cast binary value to string
Name it column json
25
.selectExpr("cast (value as string) as json")
.select("data.*")

Transforming Data
Name it column json
Parse json string and expand into
nested columns, name it data
26
.select("data.*")
json
{ "timestamp": 1486087873, "device": "devA", …}
{ "timestamp": 1486082418, "device": "devX", …}
data (nested)
timestamp device …
1486087873 devA …
1486086721 devX …
from_json("json")
as "data"

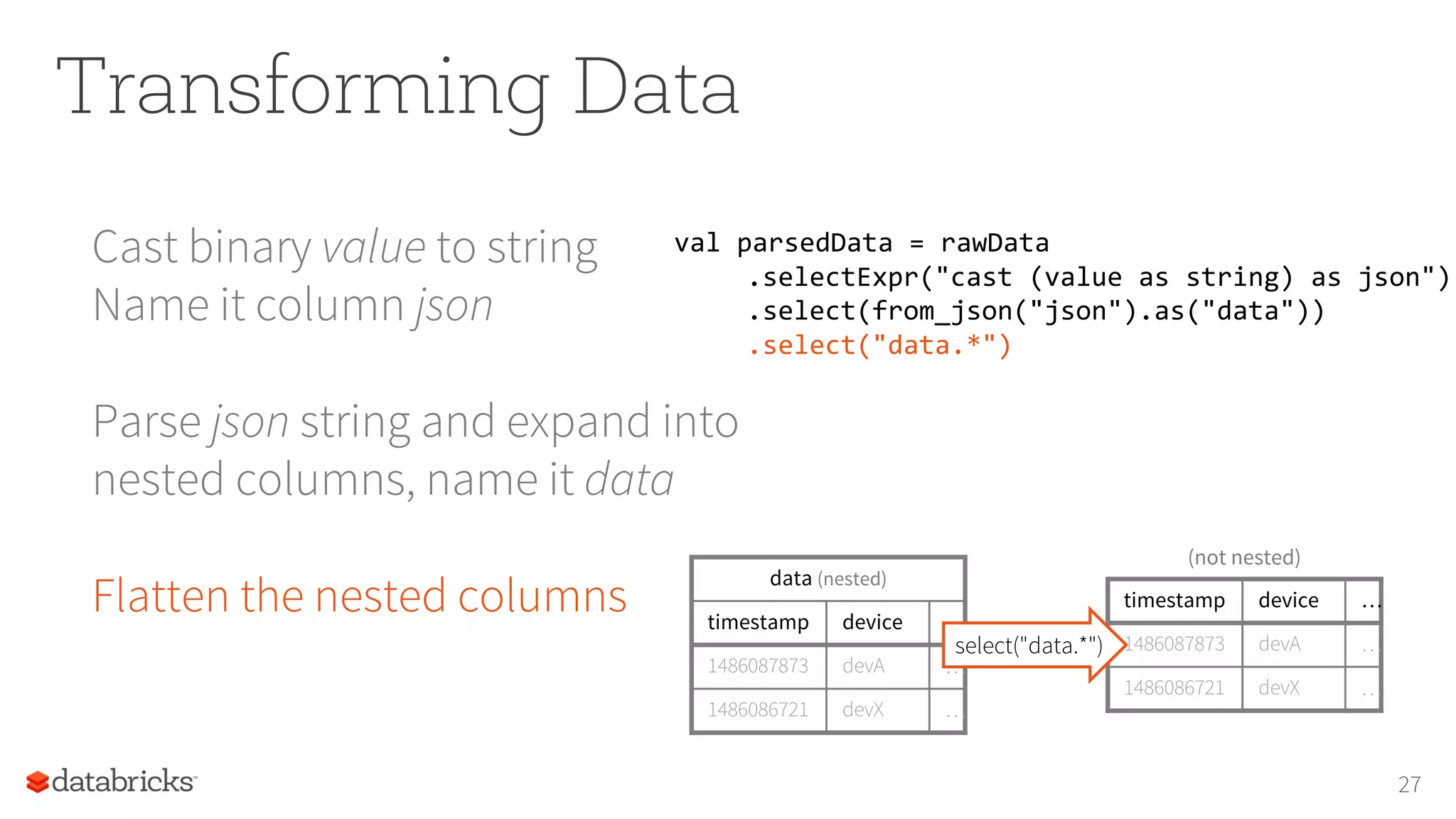

Transforming Data
Name it column json
Flatten the nested columns
27
.select("data.*")
data (nested)
1486087873 devA …
1486086721 devX …
1486087873 devA …
1486086721 devX …
select("data.*")
(not nested)

Transforming Data
Name it column json
Flatten the nested columns
28
.select("data.*")
powerful built-in APIs to
perform complex data
transformations
from_json, to_json, explode, ...
100s of functions
(see our blog post)

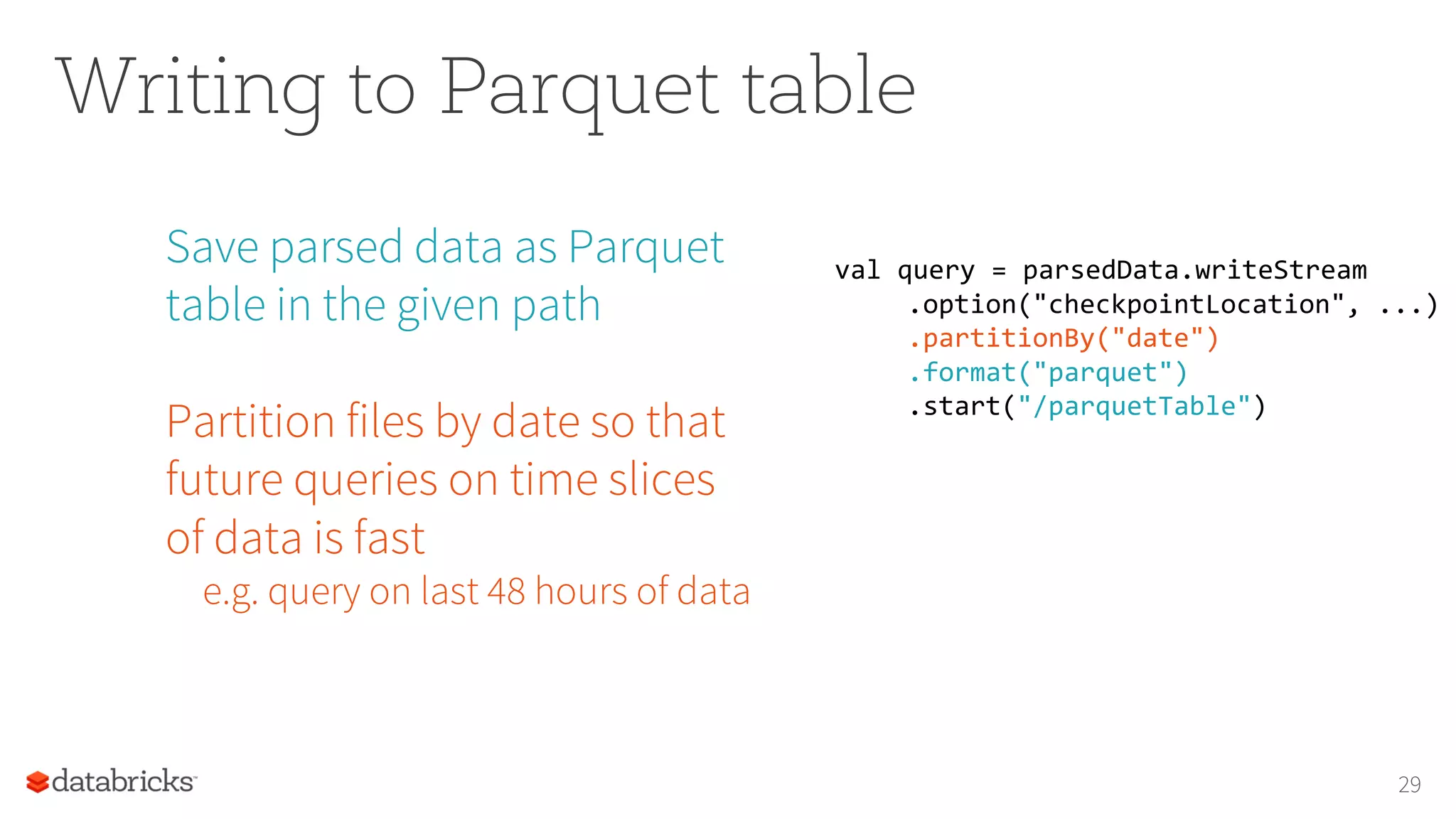

Writing to Parquet table
Save parsed data as Parquet
table in the given path
Partition files by date so that
future queries on time slices
of data is fast
e.g. query on last 48 hours of data
29
.option("checkpointLocation", ...)
.format("parquet")
.start("/parquetTable")

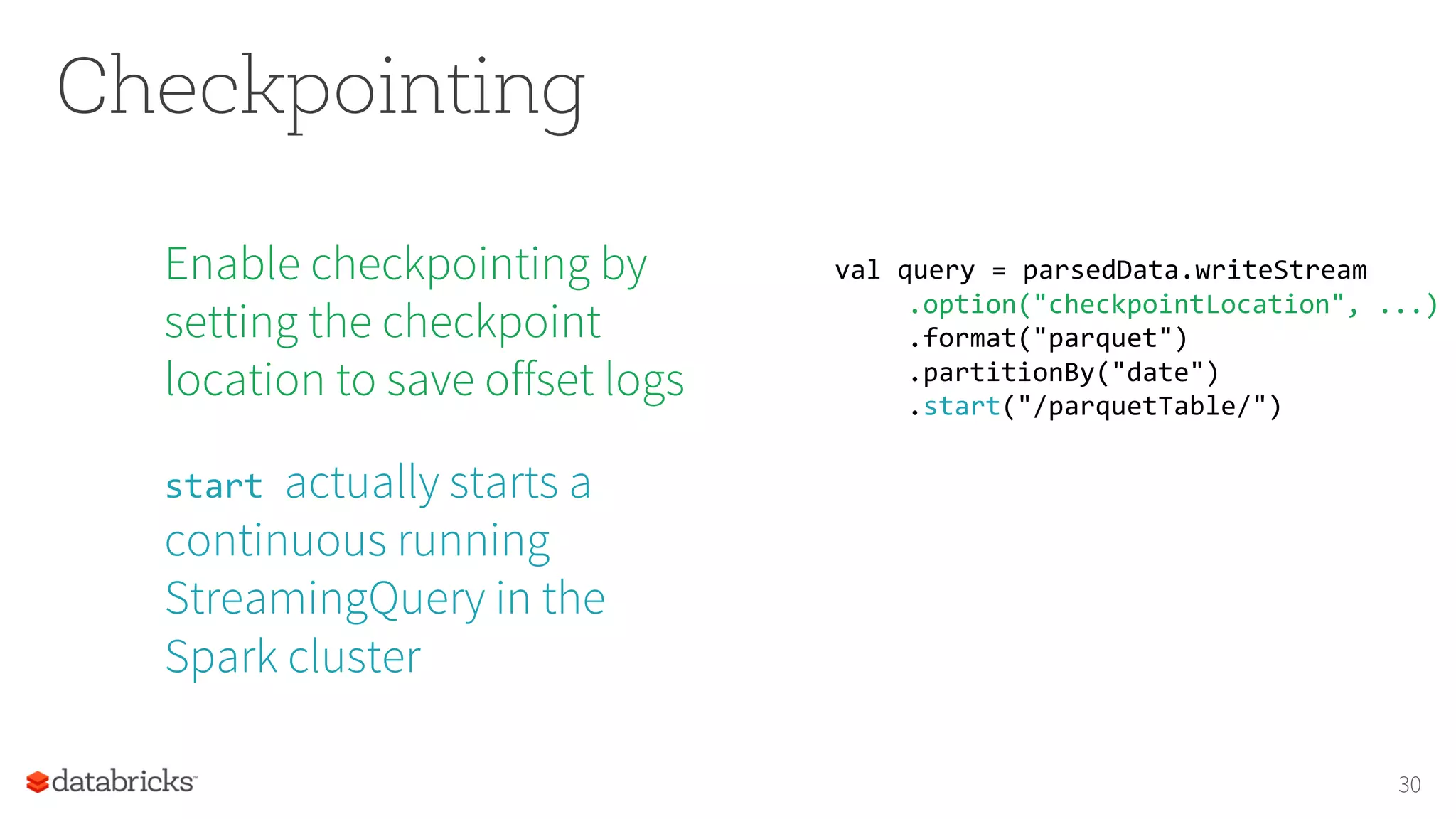

Checkpointing
Enable checkpointing by
setting the checkpoint
location to save offset logs
start actually starts a
continuous running
StreamingQuery in the
Spark cluster
30
.format("parquet")

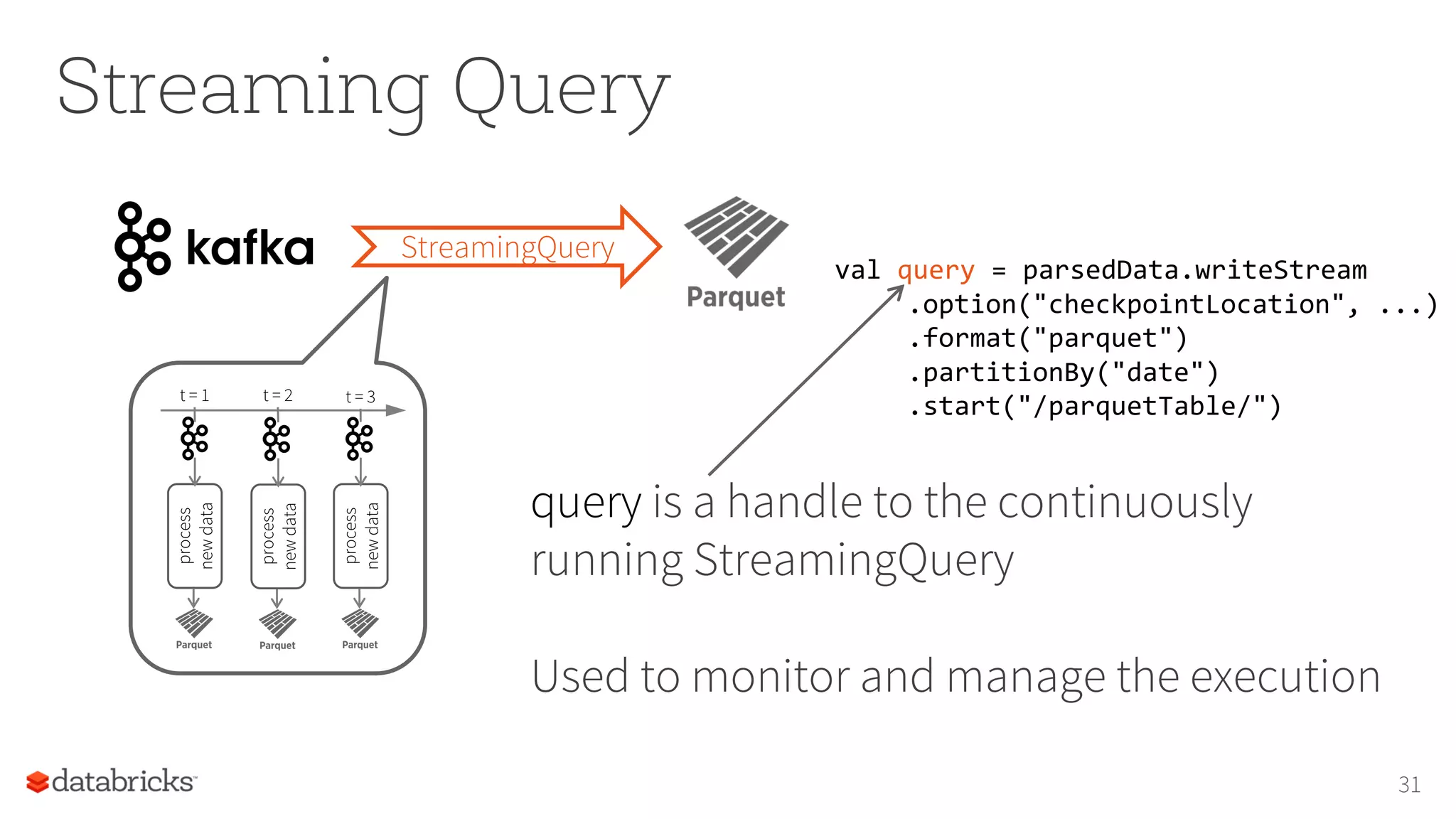

Streaming Query
query is a handle to the continuously
running StreamingQuery
Used to monitor and manage the execution
31
.format("parquet")
process
newdata
t = 1 t = 2 t = 3
process
newdata
process
newdata
StreamingQuery

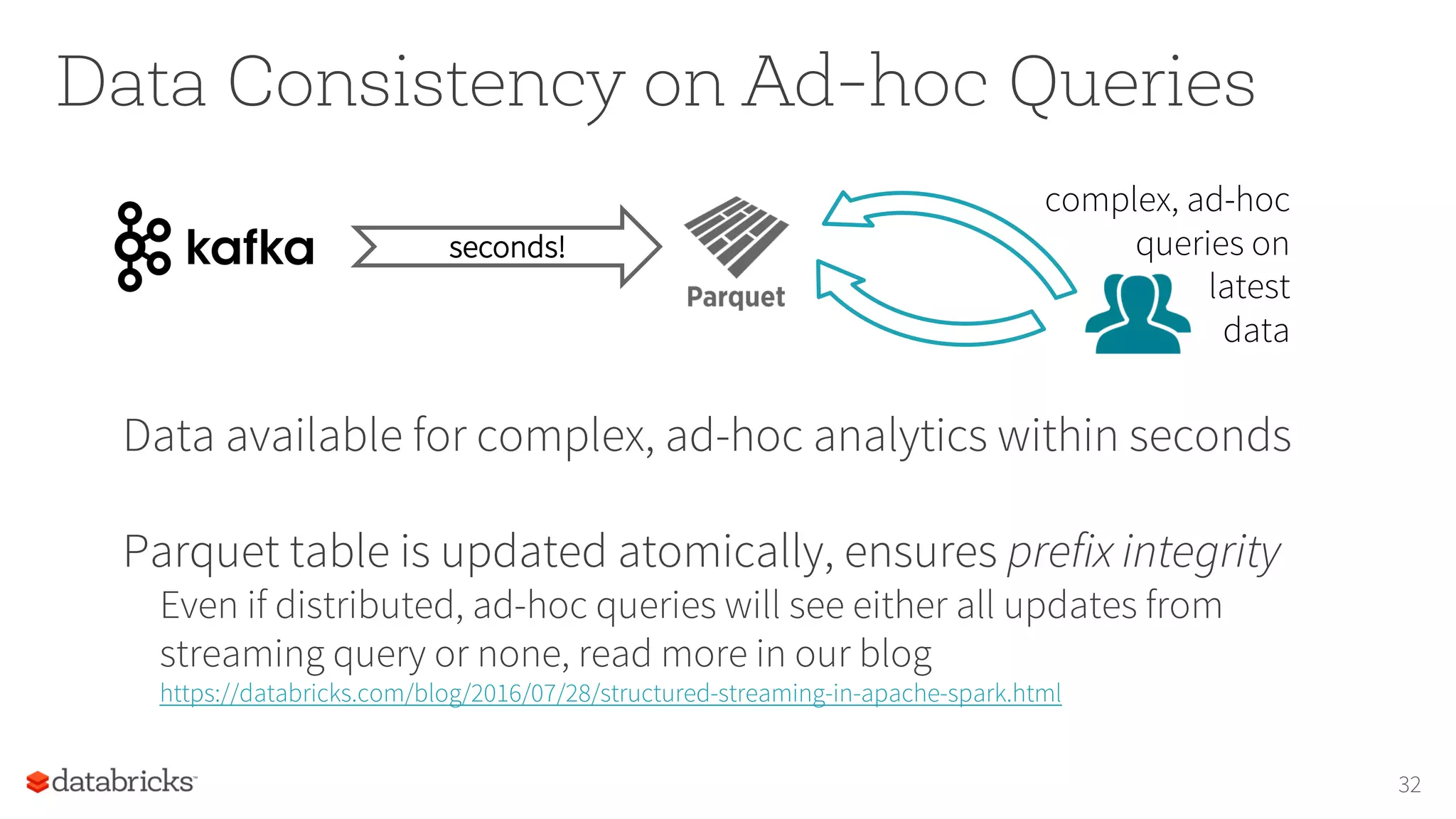

Data Consistency on Ad-hoc Queries
Data available for complex, ad-hoc analytics within seconds
Parquet table is updated atomically, ensures prefix integrity
Even if distributed, ad-hoc queries will see either all updates from
streaming query or none, read more in our blog
https://databricks.com/blog/2016/07/28/structured-streaming-in-apache-spark.html
32
seconds!
complex, ad-hoc
queries on
latest
data

Advanced
Streaming
Analytics
33

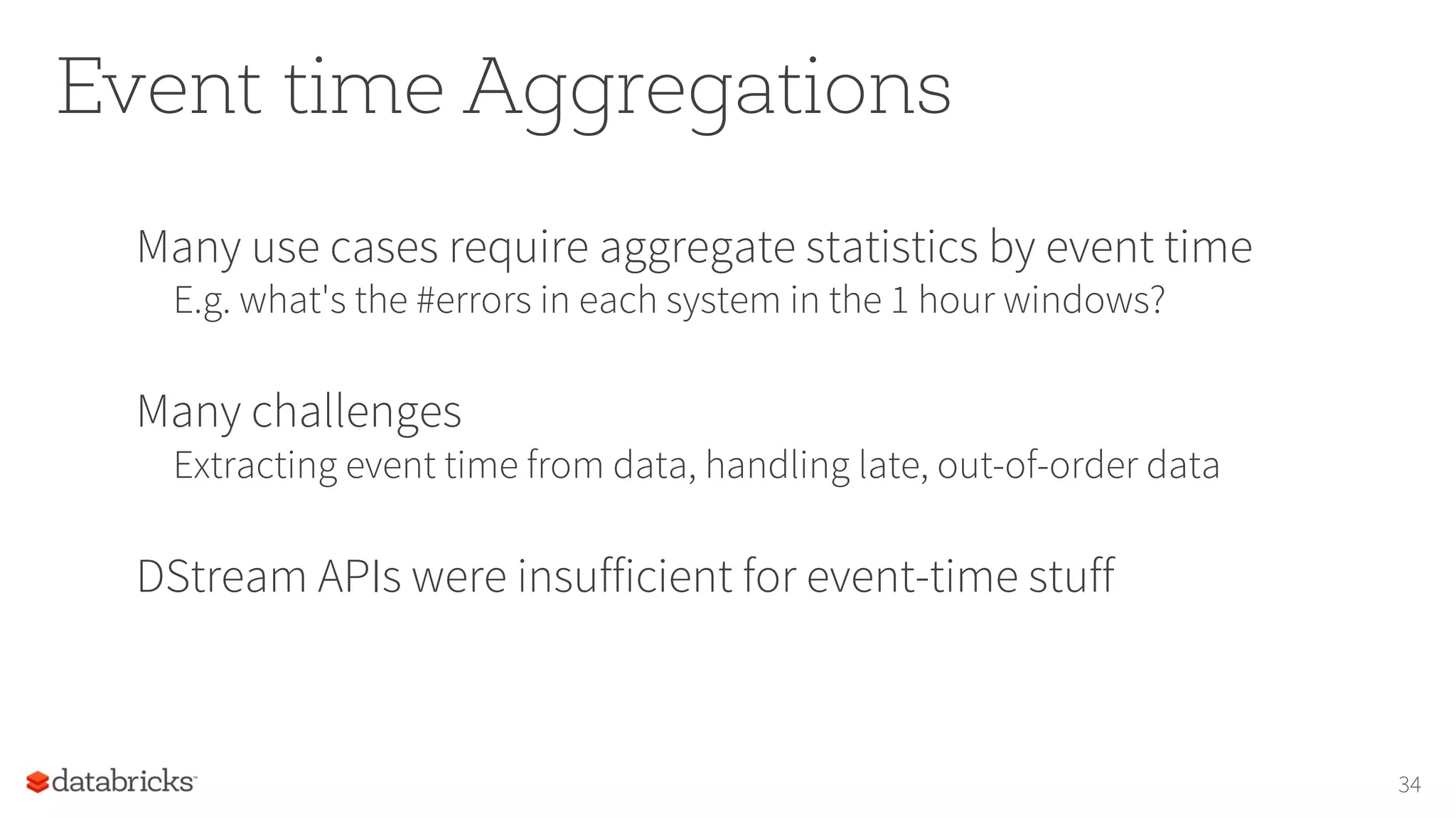

Event time Aggregations
Many use cases require aggregate statistics by event time
E.g. what's the #errors in each system in the 1 hour windows?
Many challenges
Extracting event time from data, handling late, out-of-order data
DStream APIs were insufficient for event-time stuff
34

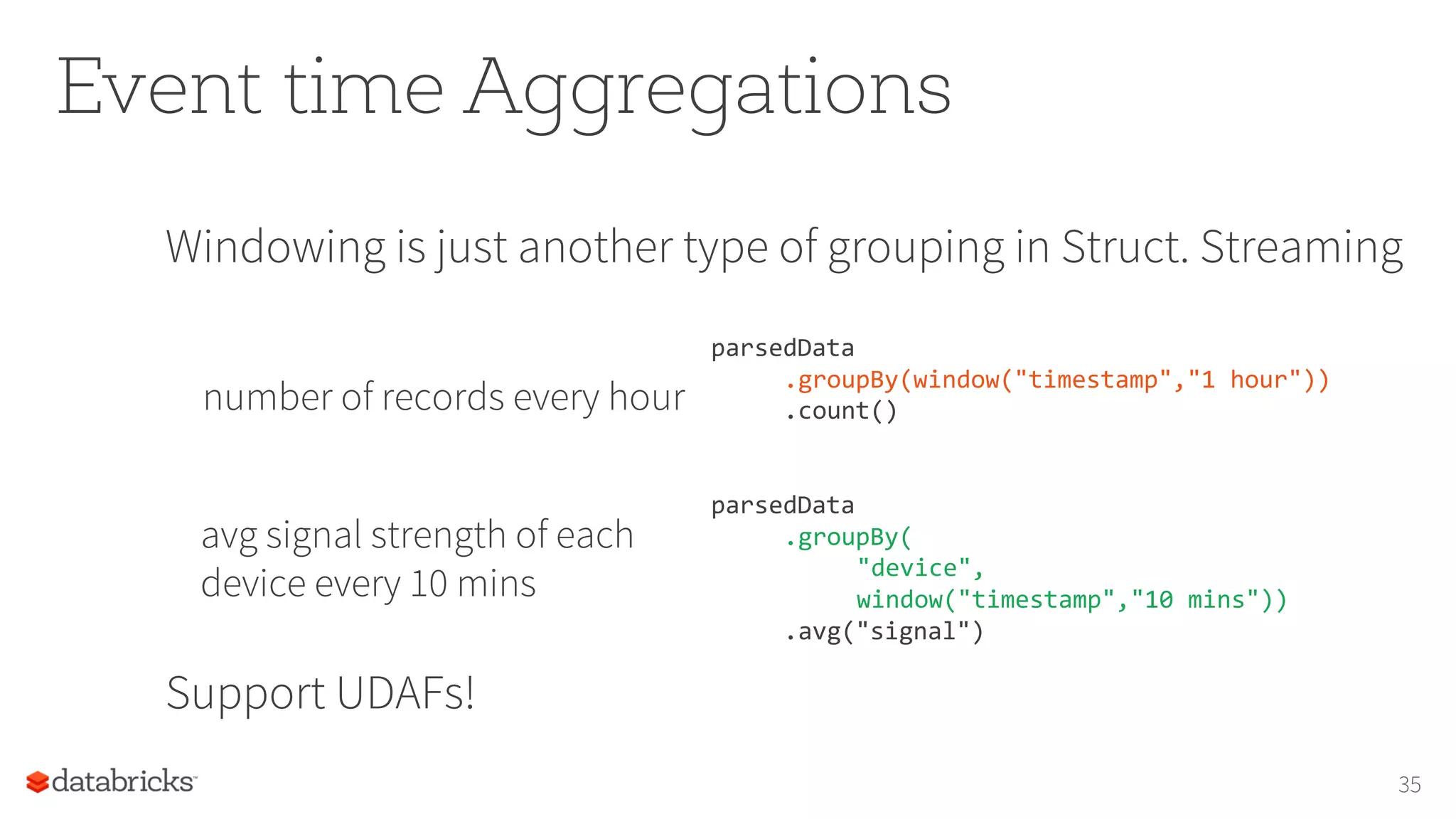

Event time Aggregations
Windowing is just another type of grouping in Struct. Streaming
number of records every hour
Support UDAFs!
35
parsedData
.groupBy(window("timestamp","1 hour"))
.count()
parsedData
.groupBy(
"device",
window("timestamp","10 mins"))
.avg("signal")
avg signal strength of each
device every 10 mins

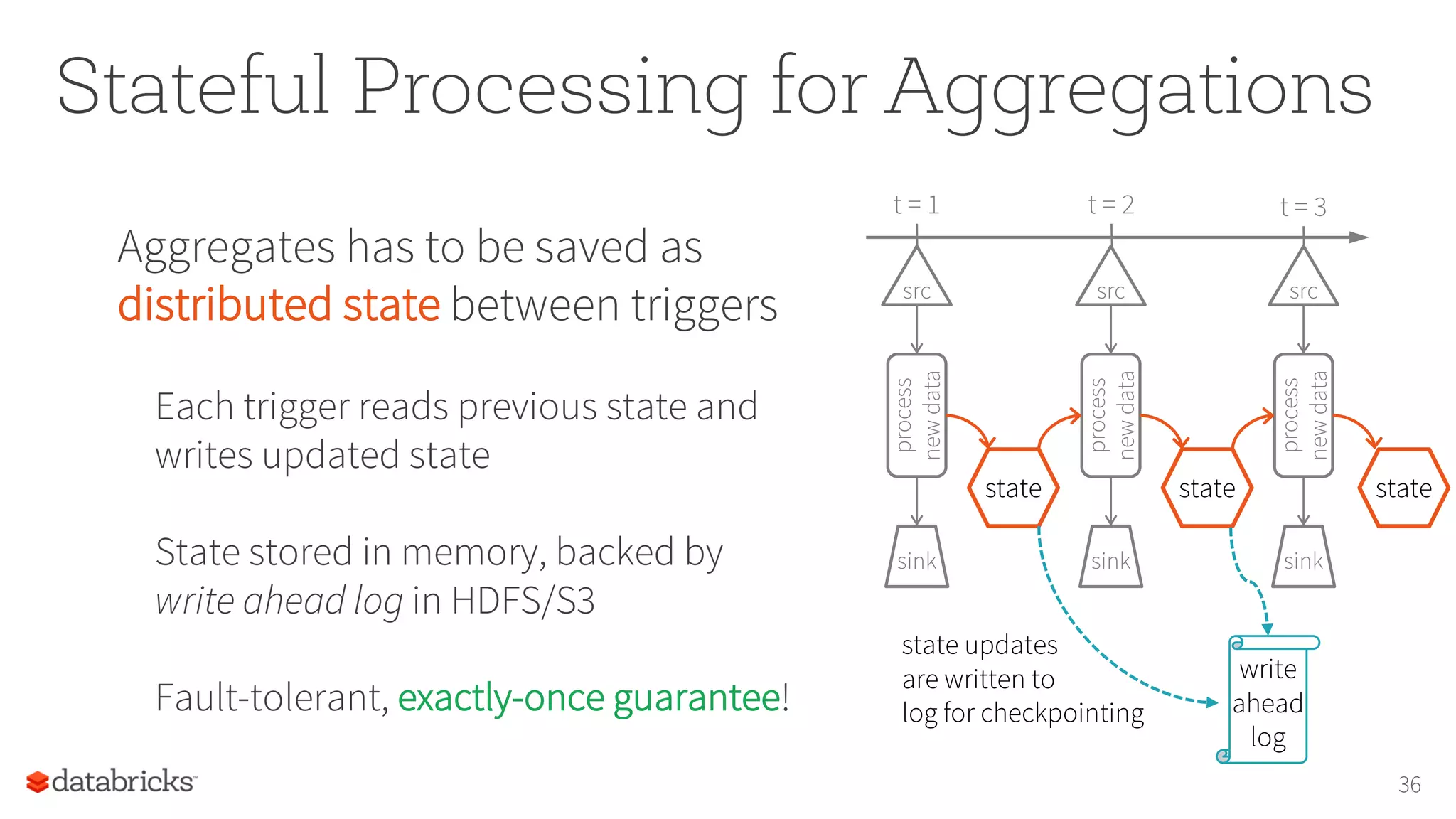

Stateful Processing for Aggregations
Aggregates has to be saved as
distributed state between triggers
Each trigger reads previous state and
writes updated state
State stored in memory, backed by
write ahead log in HDFS/S3
Fault-tolerant, exactly-once guarantee!
36
process
newdata
t = 1
sink
src
t = 2
process
newdata
sink
src
t = 3
process
newdata
sink
src
state state
write
ahead
log
state updates
are written to
log for checkpointing
state

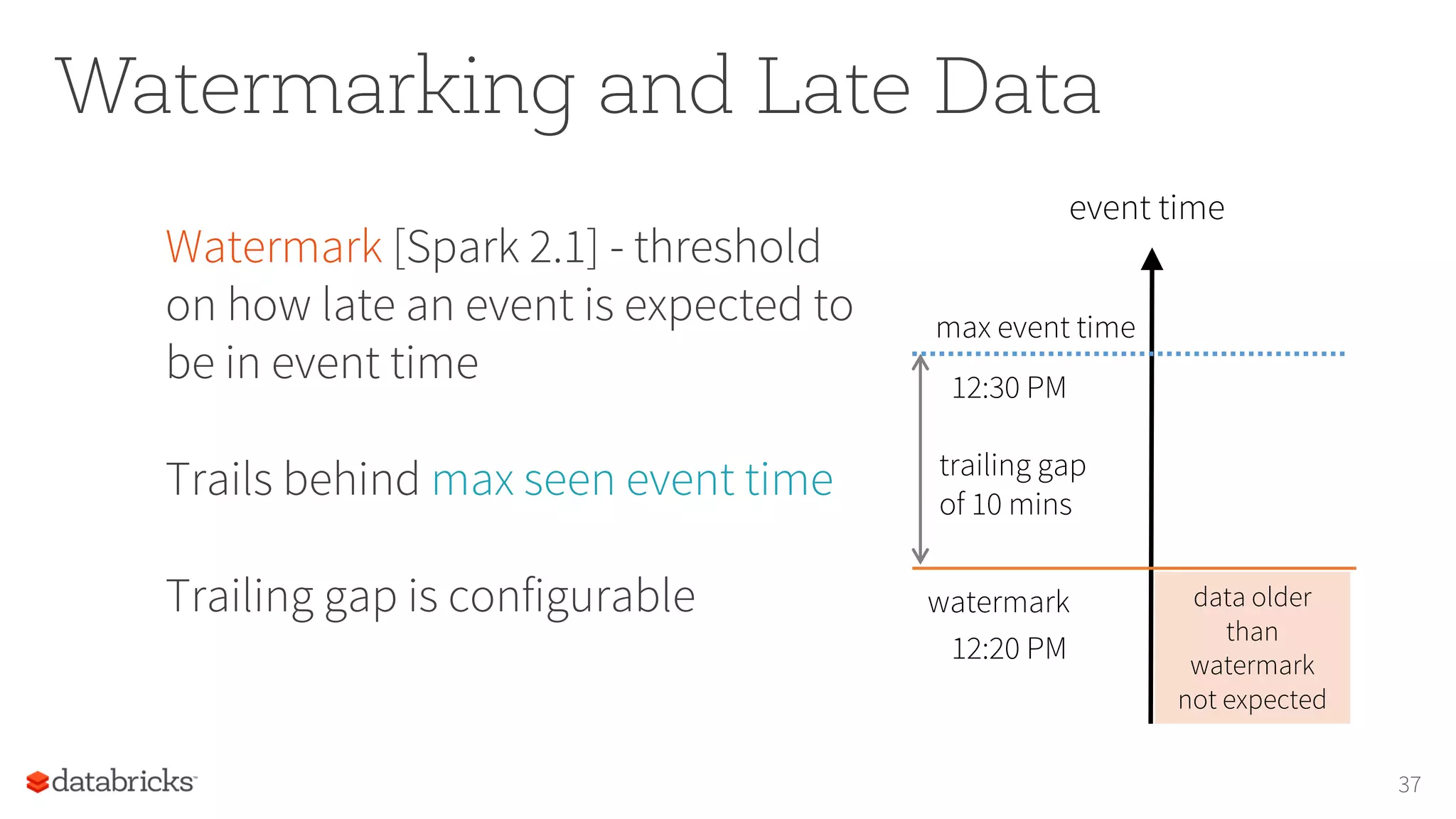

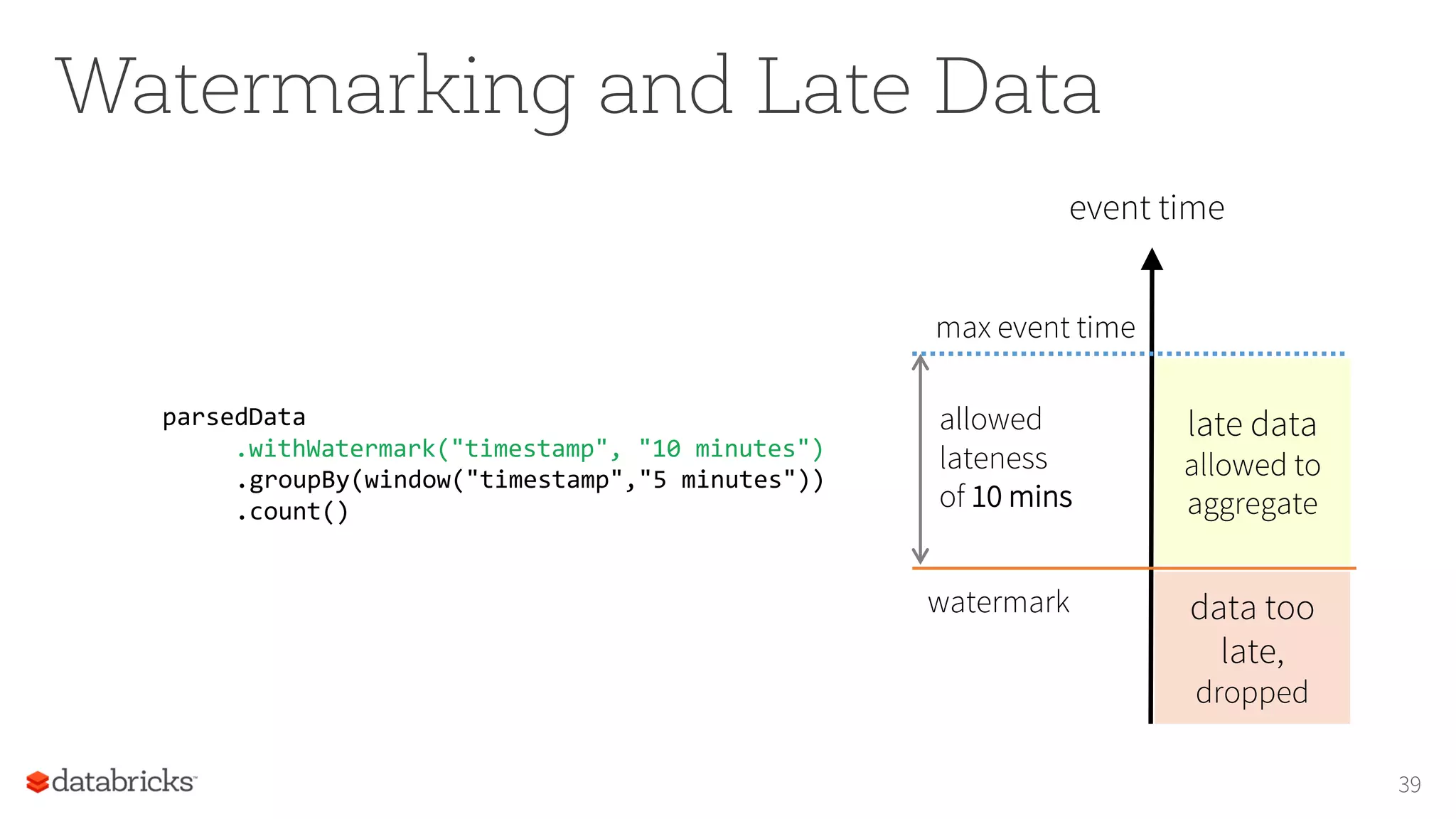

Watermarking and Late Data

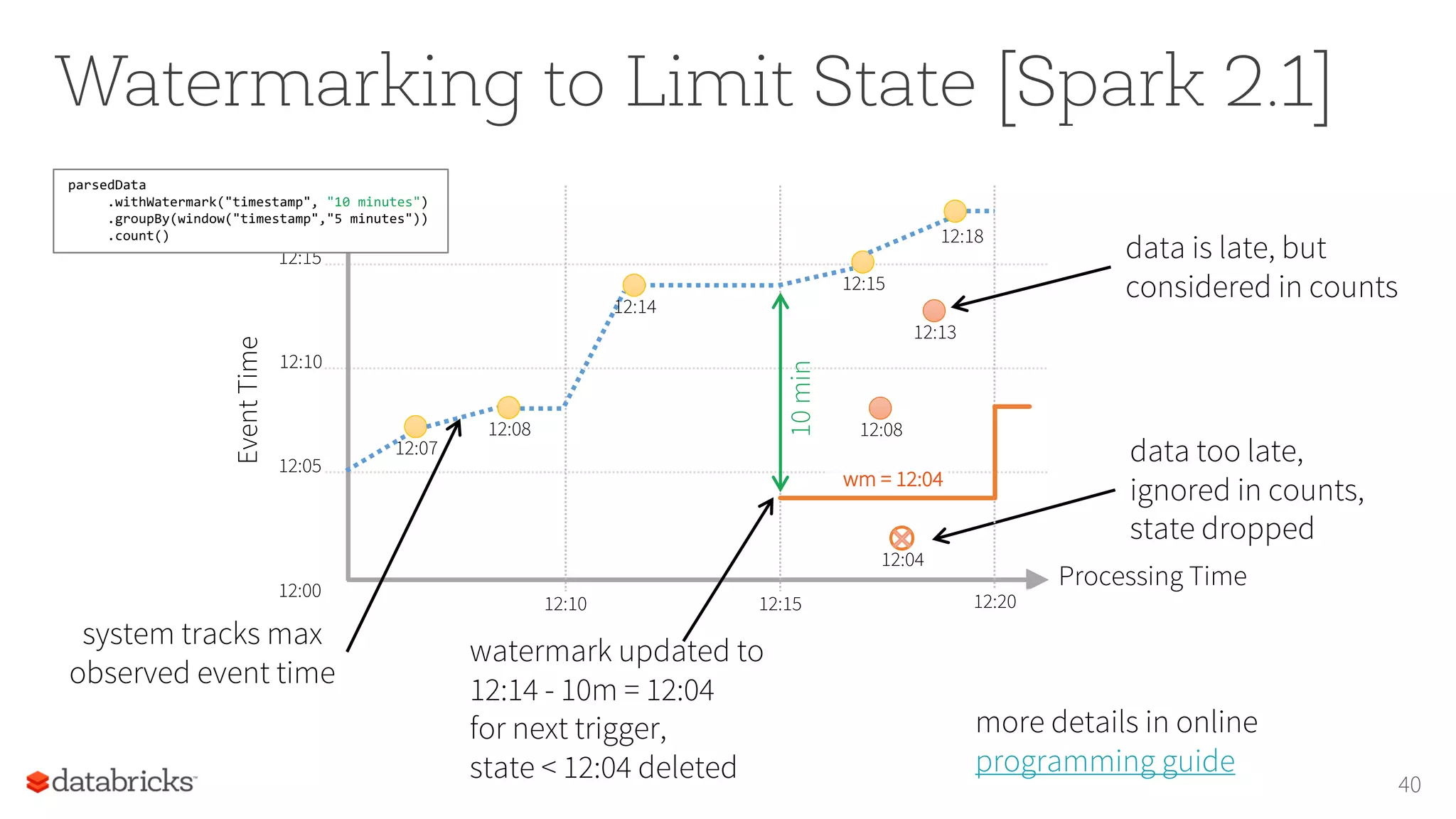

Watermark [Spark 2.1] - threshold
on how late an event is expected to
be in event time
Trails behind max seen event time
Trailing gap is configurable
37
event time
max event time
watermark data older
than
watermark
not expected
12:30 PM
12:20 PM
trailing gap
of 10 mins

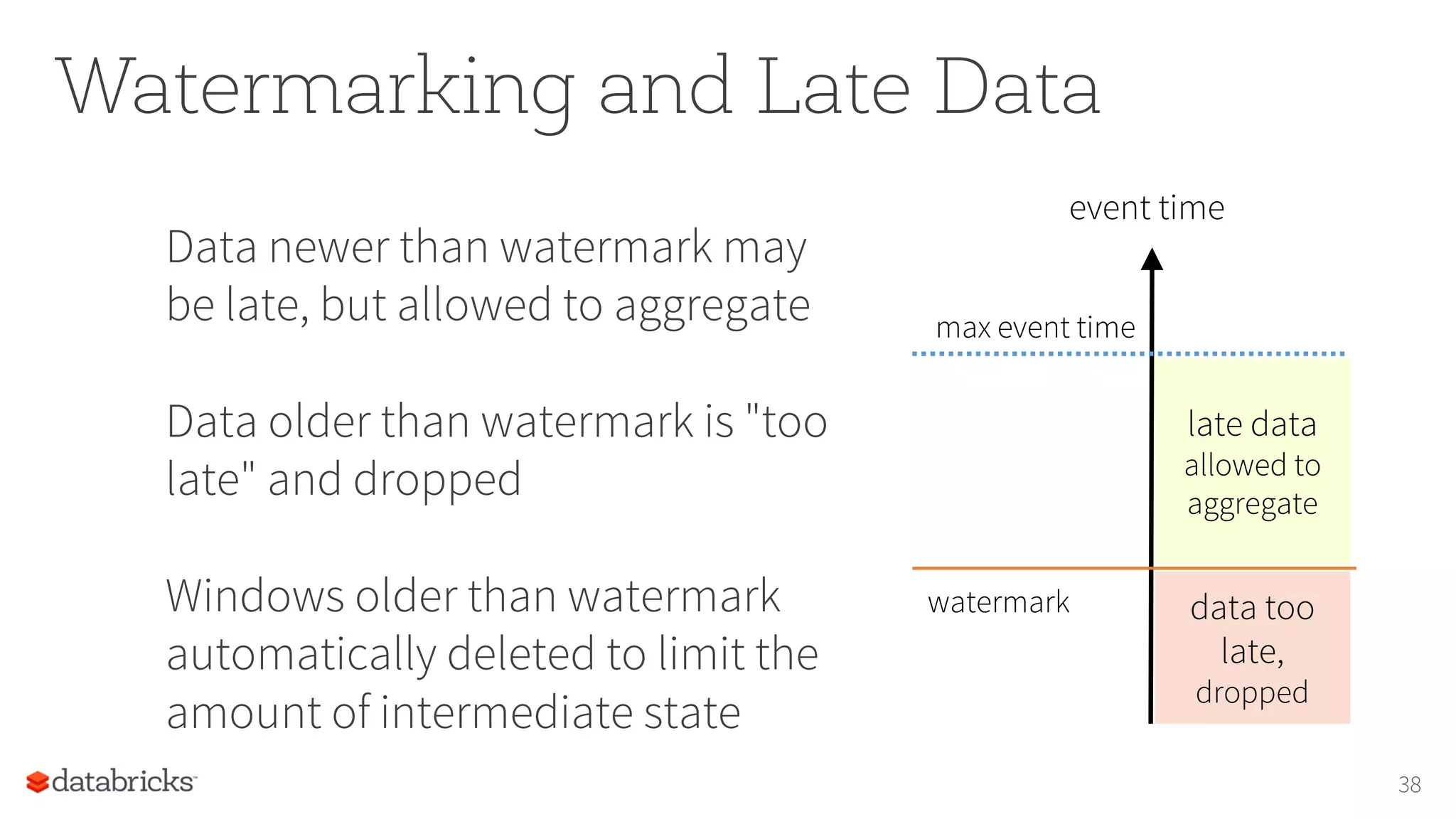

Data newer than watermark may
be late, but allowed to aggregate
Data older than watermark is "too
late" and dropped
Windows older than watermark
automatically deleted to limit the
amount of intermediate state
38
max event time
event time
watermark
late data
allowed to
aggregate
data too
late,
dropped

39
max event time
event time
watermark
allowed
lateness
of 10 mins
parsedData
.withWatermark("timestamp", "10 minutes")
.groupBy(window("timestamp","5 minutes"))
.count()
late data
allowed to
aggregate
data too
late,
dropped

Watermarking to Limit State [Spark 2.1]
40
data too late,
ignored in counts,
state dropped
Processing Time12:00
12:05
12:10
12:15
12:10 12:15 12:20
12:07
12:13
12:08
EventTime
12:15
12:18
12:04
watermark updated to
12:14 - 10m = 12:04
for next trigger,
state < 12:04 deleted
data is late, but
considered in counts
parsedData
.withWatermark("timestamp", "10 minutes")
.groupBy(window("timestamp","5 minutes"))
.count()
system tracks max
observed event time
12:08
wm = 12:04
10min
12:14
more details in online
programming guide

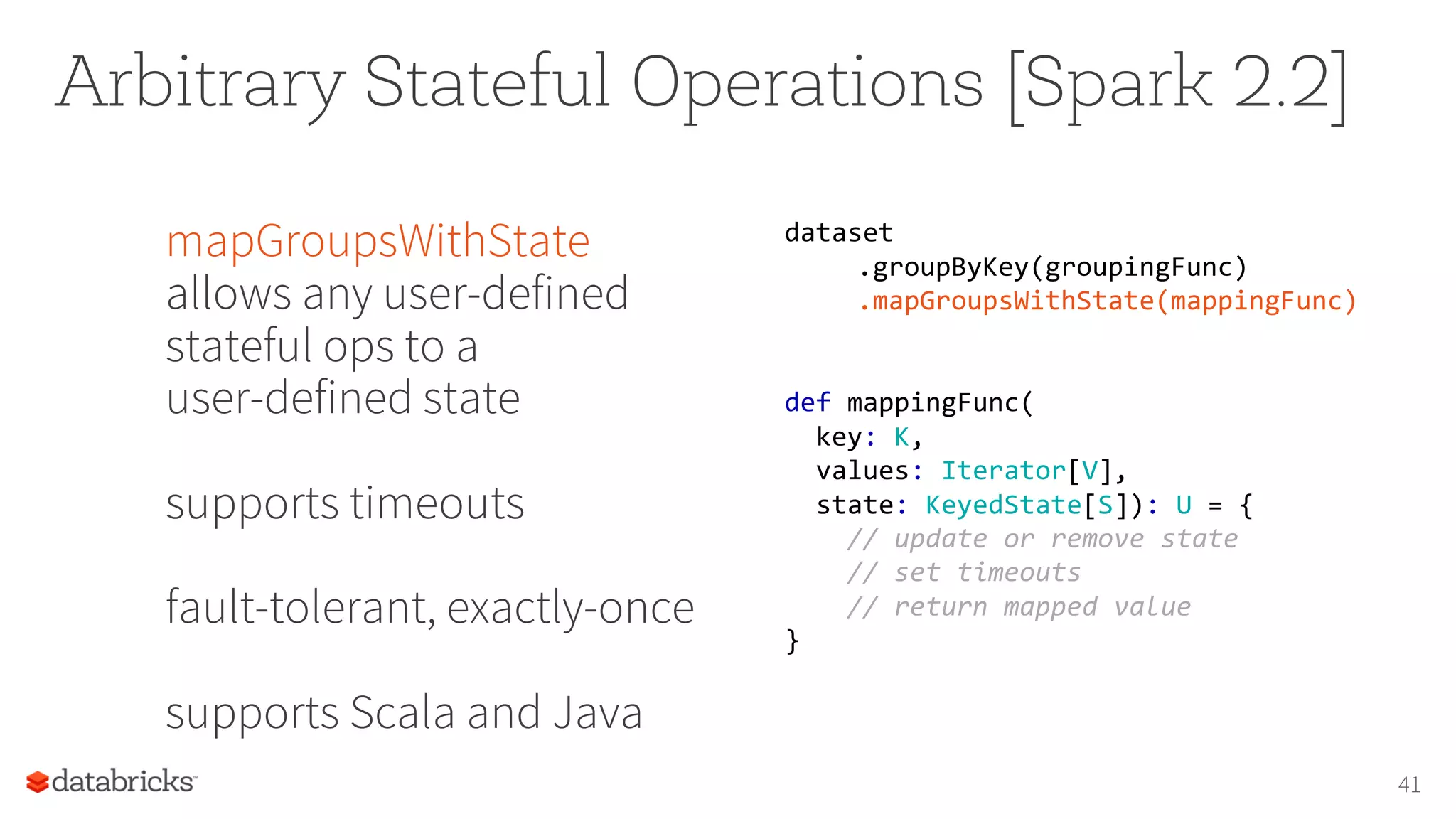

Arbitrary Stateful Operations [Spark 2.2]
mapGroupsWithState
allows any user-defined
stateful ops to a
user-defined state
supports timeouts
fault-tolerant, exactly-once
supports Scala and Java
41
dataset
.groupByKey(groupingFunc)
.mapGroupsWithState(mappingFunc)
def mappingFunc(
key: K,
values: Iterator[V],
state: KeyedState[S]): U = {
// update or remove state
// set timeouts
// return mapped value
}

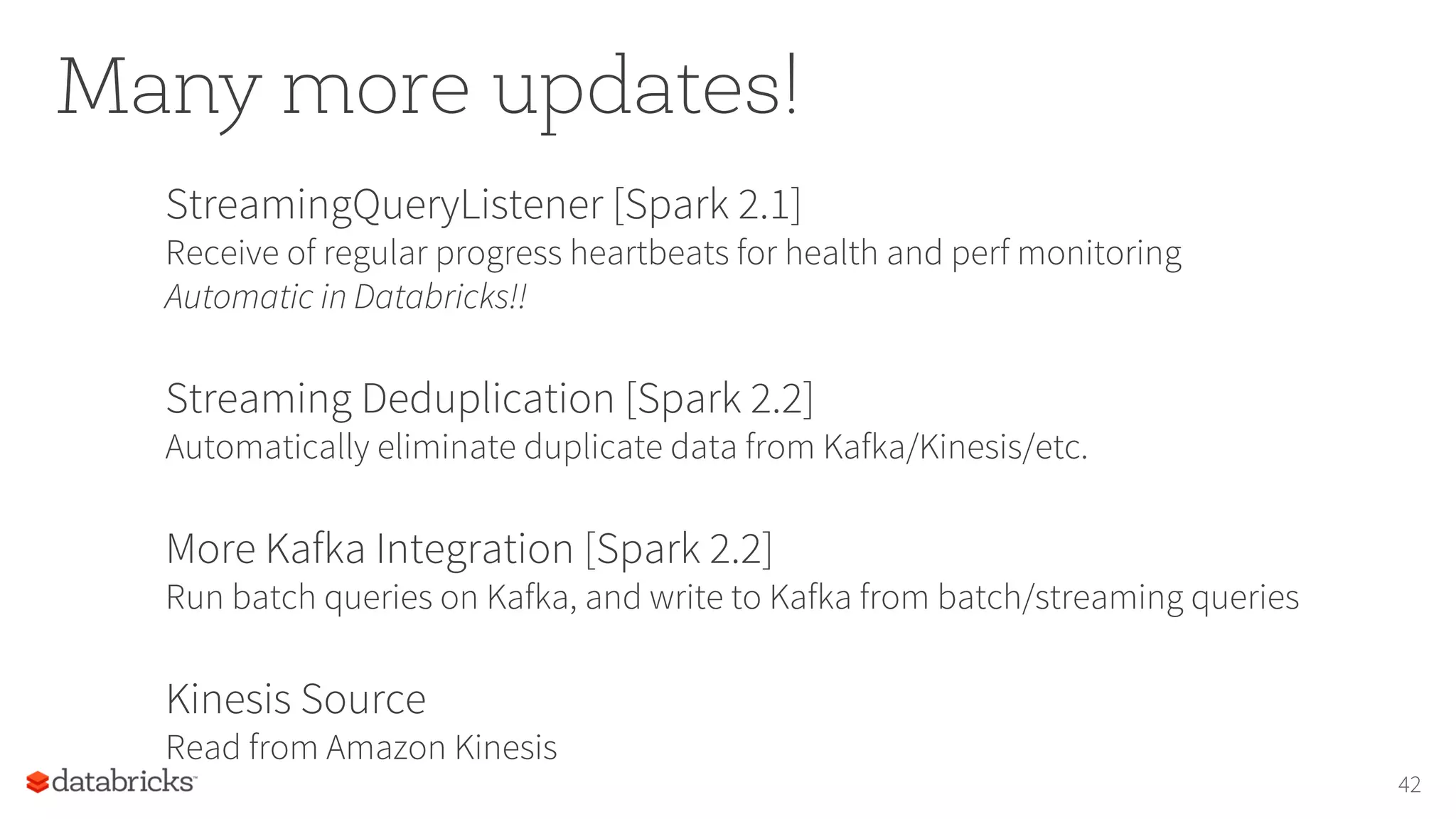

Many more updates!
StreamingQueryListener [Spark 2.1]
Receive of regular progress heartbeats for health and perf monitoring
Automatic in Databricks!!
Streaming Deduplication [Spark 2.2]
Automatically eliminate duplicate data from Kafka/Kinesis/etc.
More Kafka Integration [Spark 2.2]
Run batch queries on Kafka, and write to Kafka from batch/streaming queries
Kinesis Source
Read from Amazon Kinesis
42

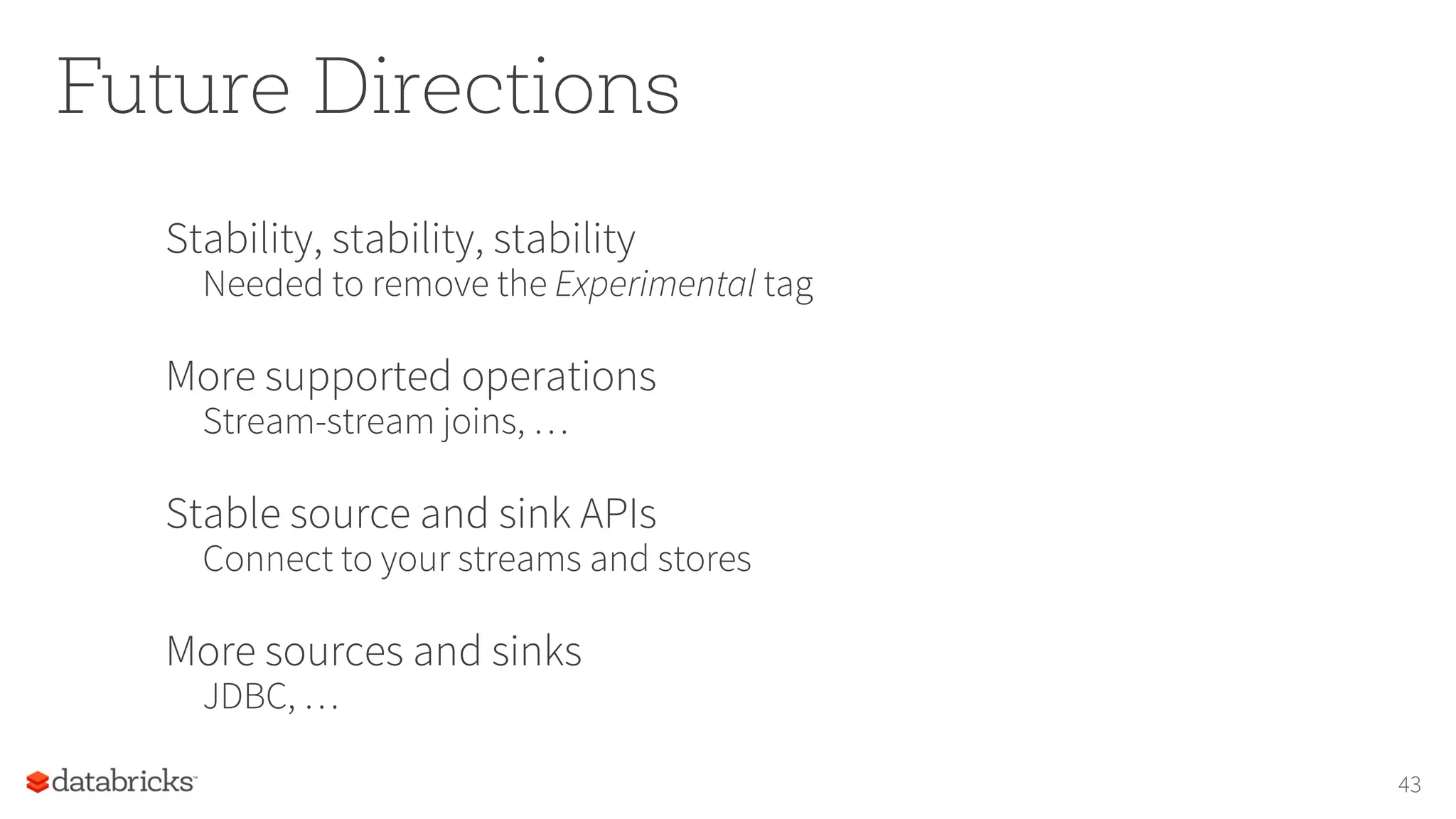

Future Directions
Stability, stability, stability
Needed to remove the Experimental tag
More supported operations
Stream-stream joins, …
Stable source and sink APIs
Connect to your streams and stores
More sources and sinks
JDBC, …
43

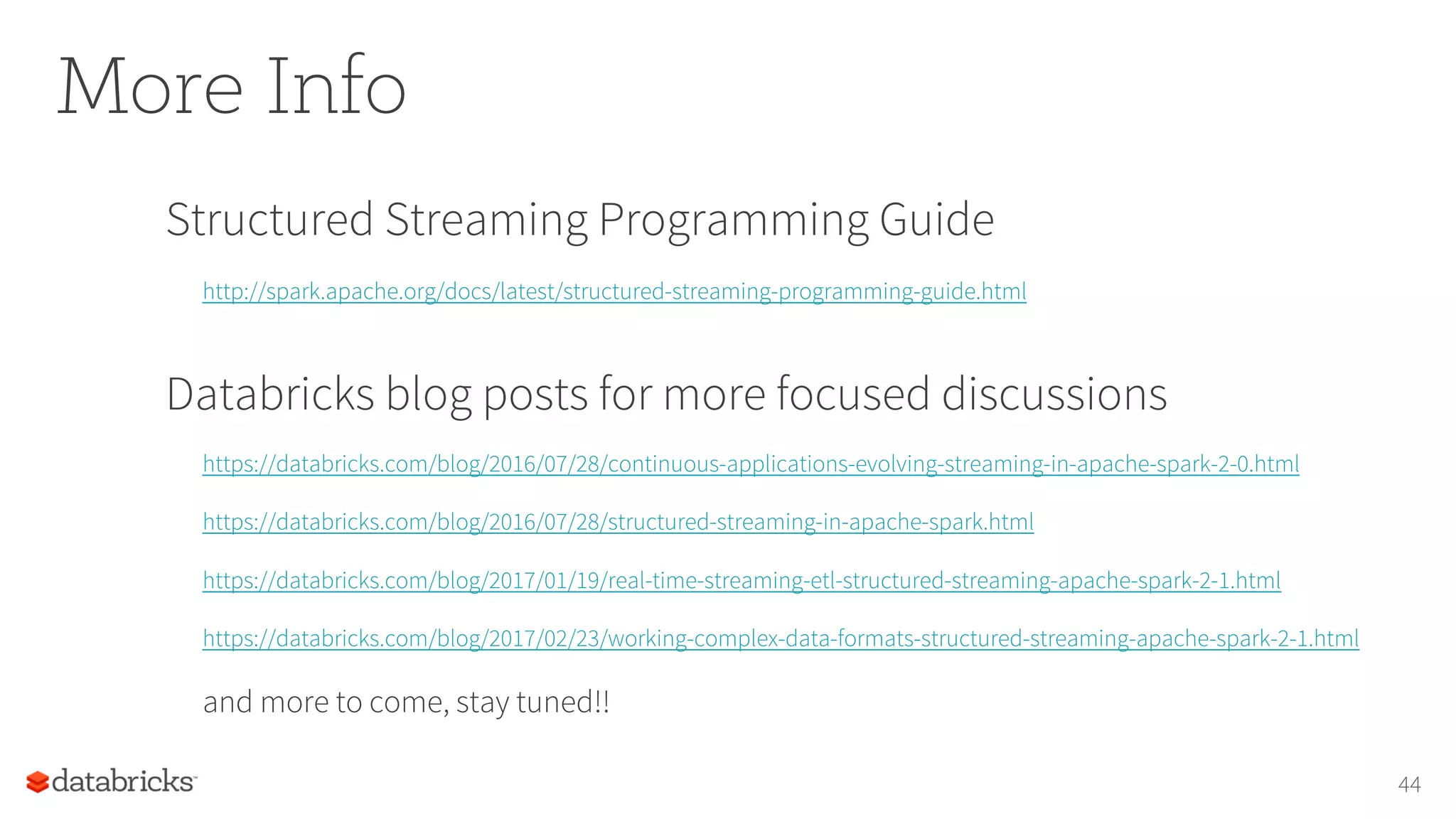

More Info
Structured Streaming Programming Guide
http://spark.apache.org/docs/latest/structured-streaming-programming-guide.html
Databricks blog posts for more focused discussions
https://databricks.com/blog/2016/07/28/continuous-applications-evolving-streaming-in-apache-spark-2-0.html
https://databricks.com/blog/2016/07/28/structured-streaming-in-apache-spark.html
https://databricks.com/blog/2017/01/19/real-time-streaming-etl-structured-streaming-apache-spark-2-1.html
https://databricks.com/blog/2017/02/23/working-complex-data-formats-structured-streaming-apache-spark-2-1.html
and more to come, stay tuned!!
44

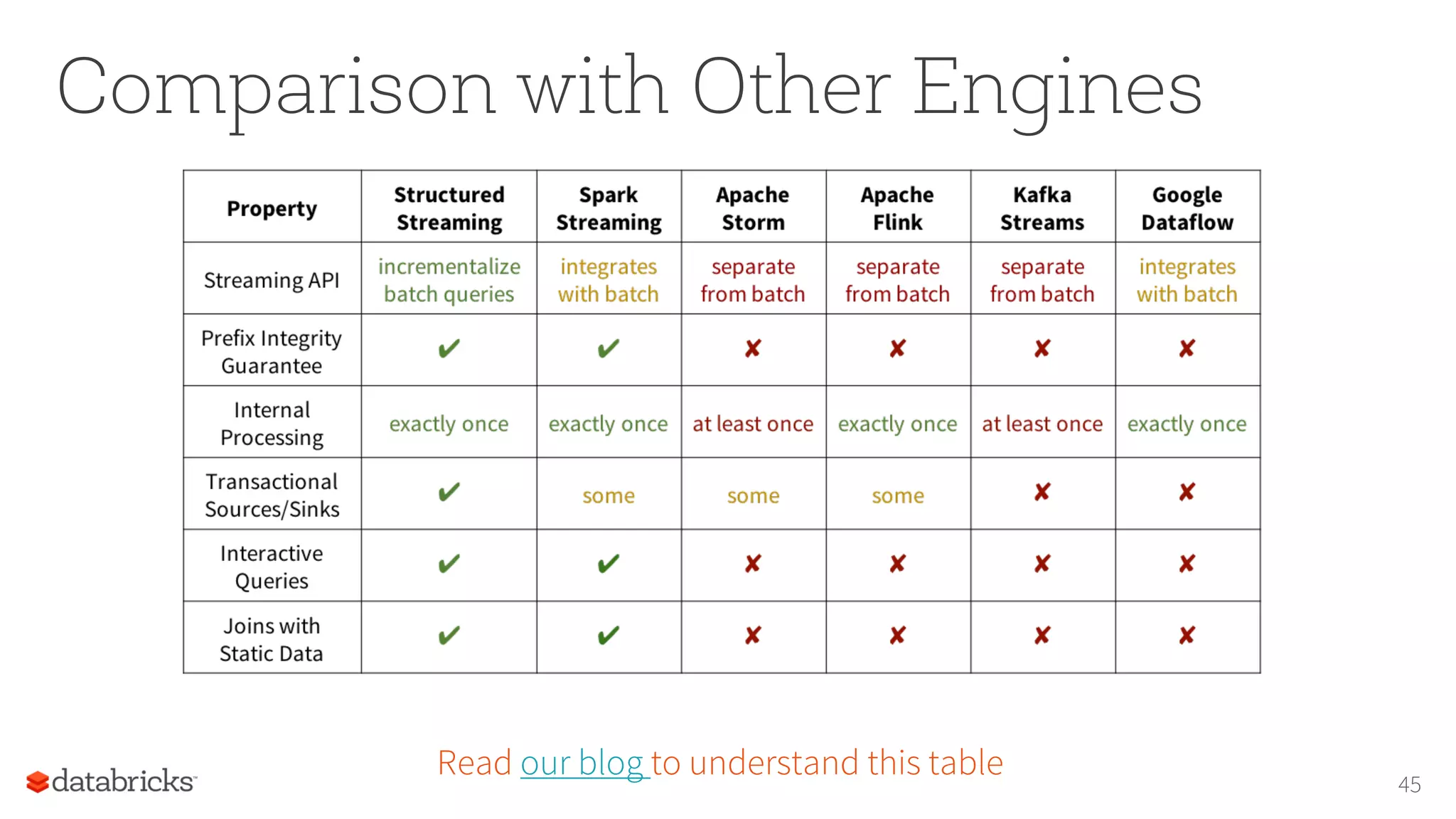

Comparison with Other Engines
45
Read our blog to understand this table

SPARK SUMMIT 2017
DATA SCIENCE AND ENGINEERING AT SCALE
JUNE 5 – 7 | MOSCONE CENTER | SAN FRANCISCO
ORGANIZED BY spark-summit.org/2017

Easy, scalable, fault tolerant stream processing with structured streaming - spark meetup at intel in santa clara

More Related Content

What's hot

Viewers also liked

Similar to Easy, scalable, fault tolerant stream processing with structured streaming - spark meetup at intel in santa clara

More from Databricks

Recently uploaded

Easy, scalable, fault tolerant stream processing with structured streaming - spark meetup at intel in santa clara
