What's Next for MLflow in 2019

What’s Next for in 2019
Matei Zaharia, Corey Zumar, Sid Murching
February 12, 2019

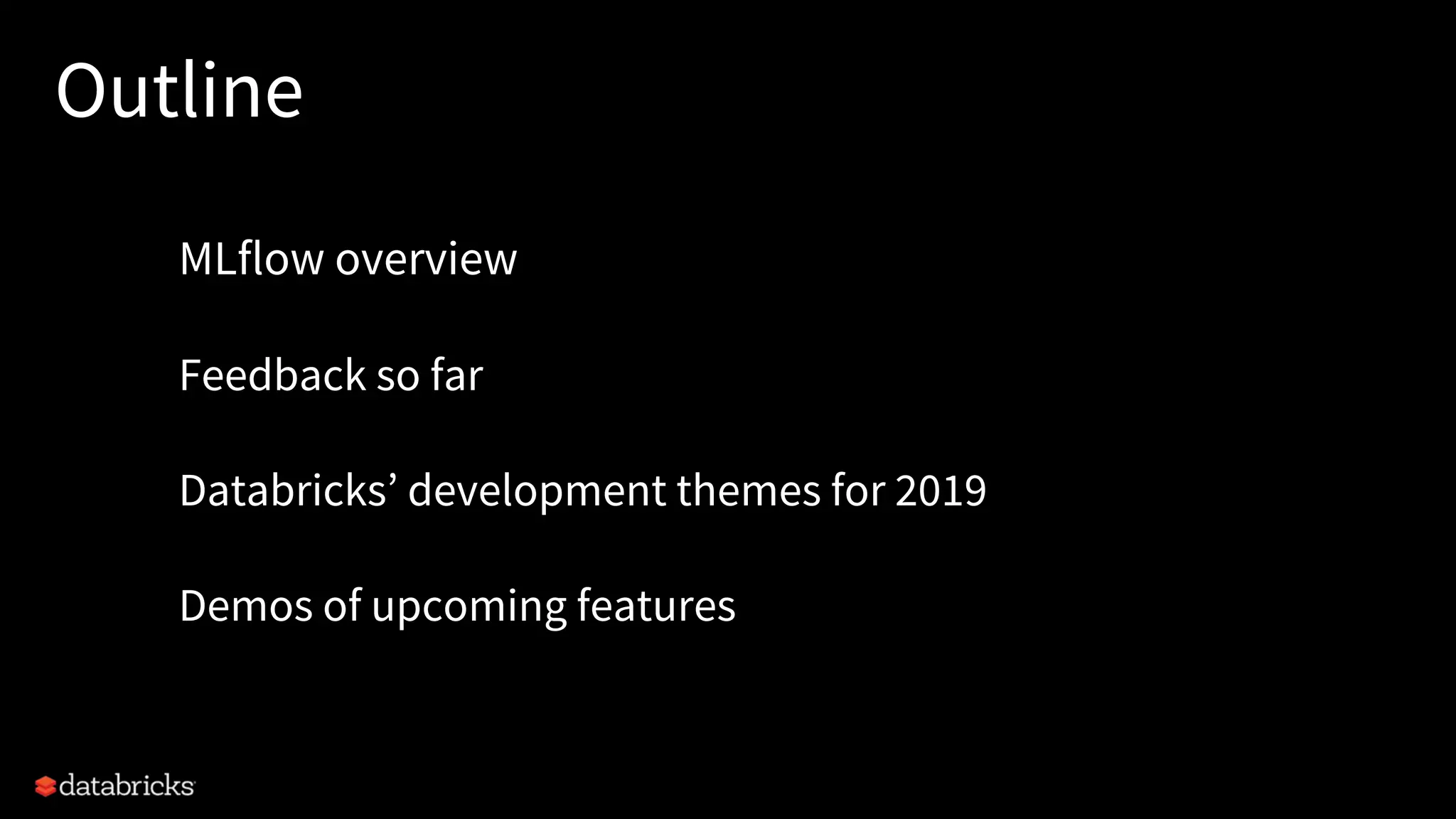

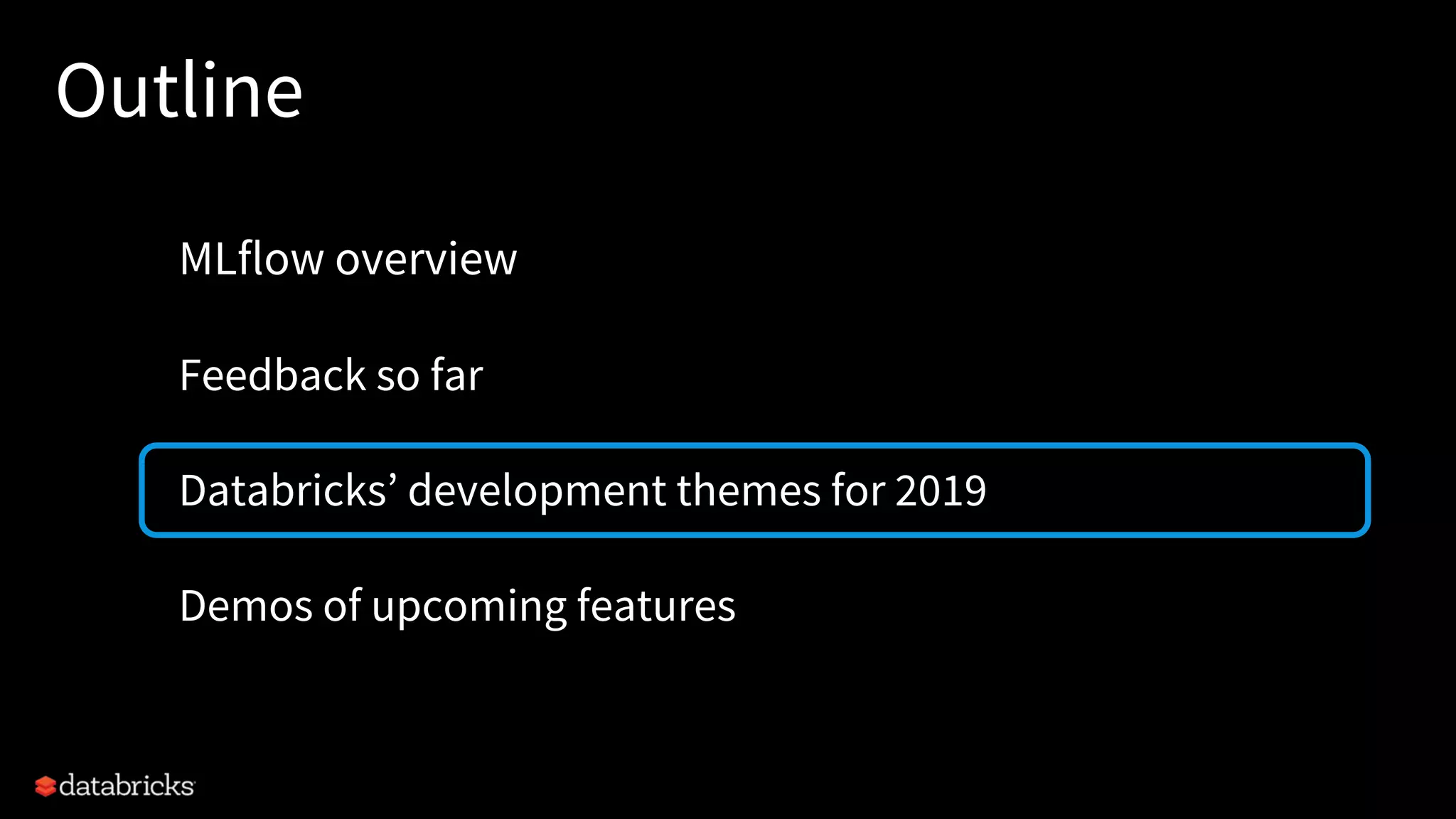

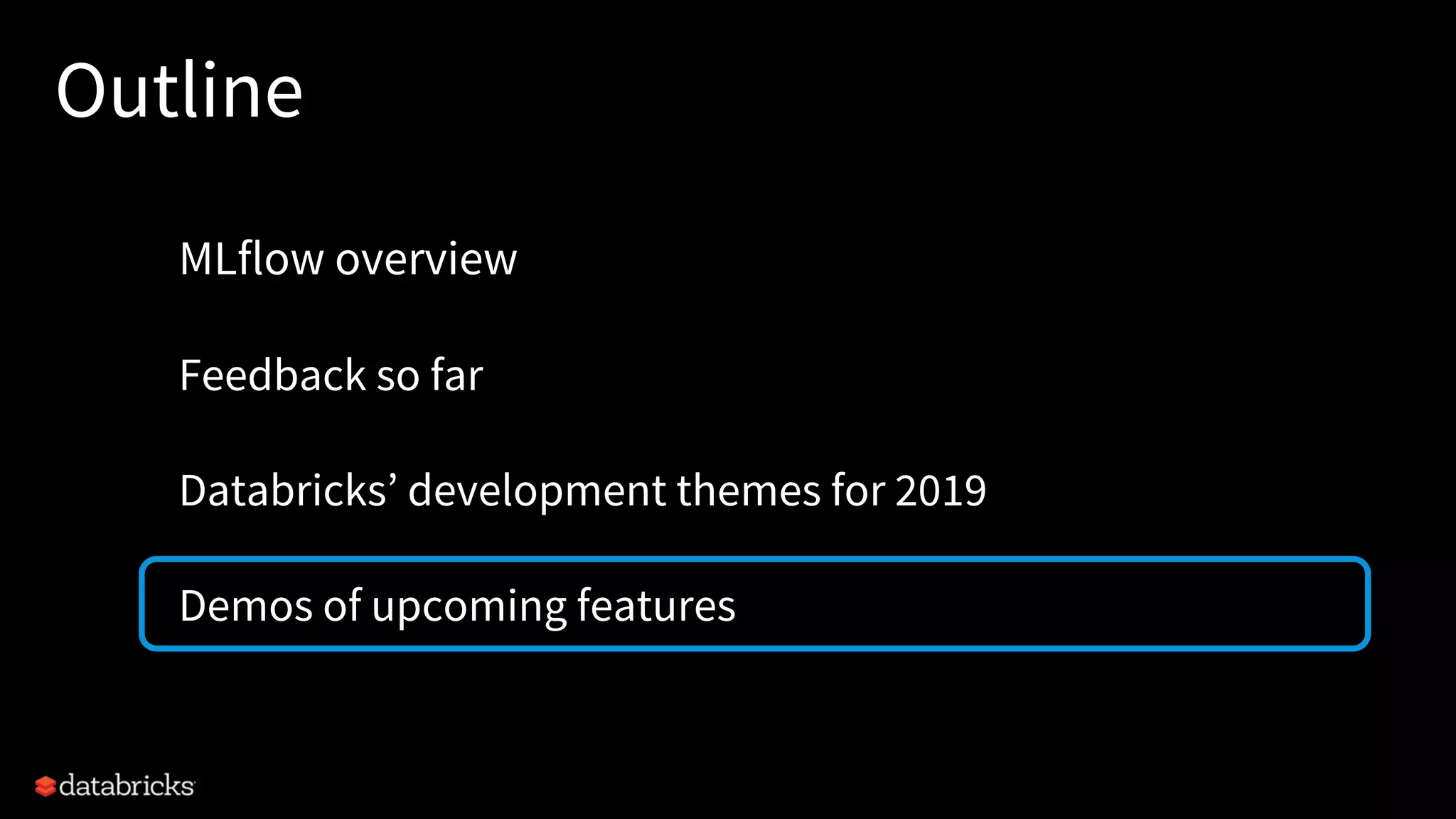

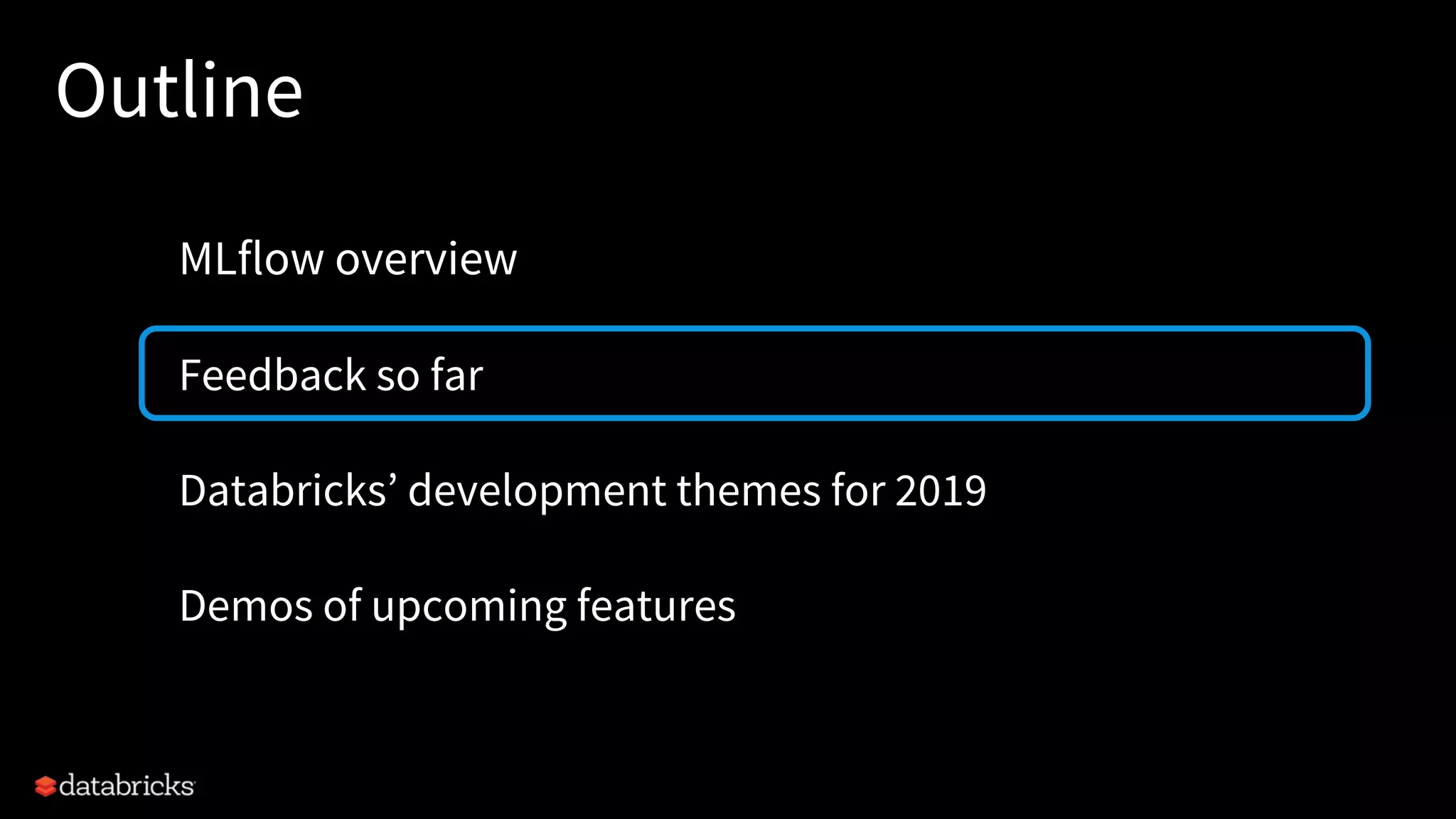

Outline
MLflow overview
Feedback so far
Databricks’ development themes for 2019
Demos of upcoming features

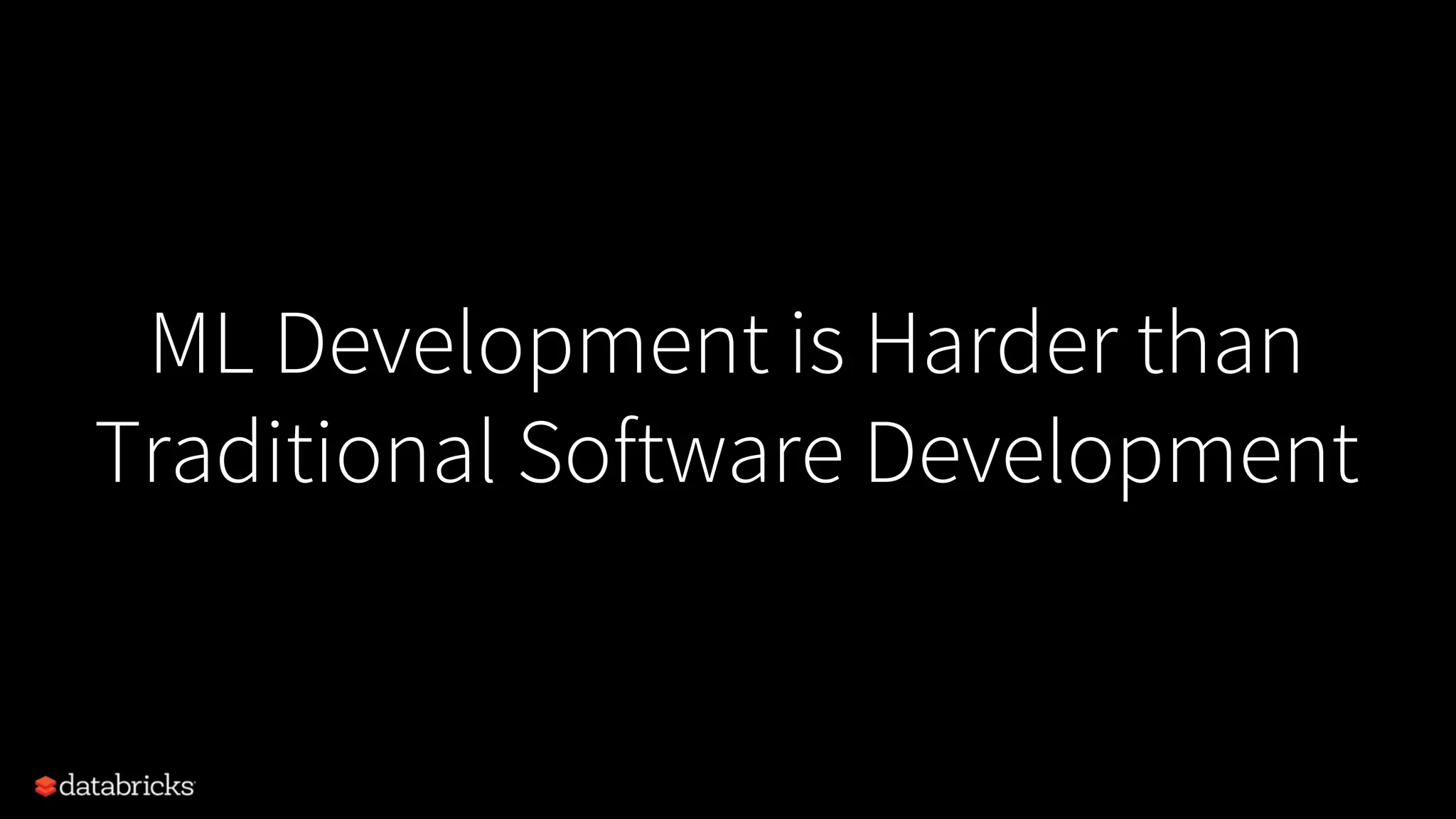

ML Development is Harder than
Traditional Software Development

5

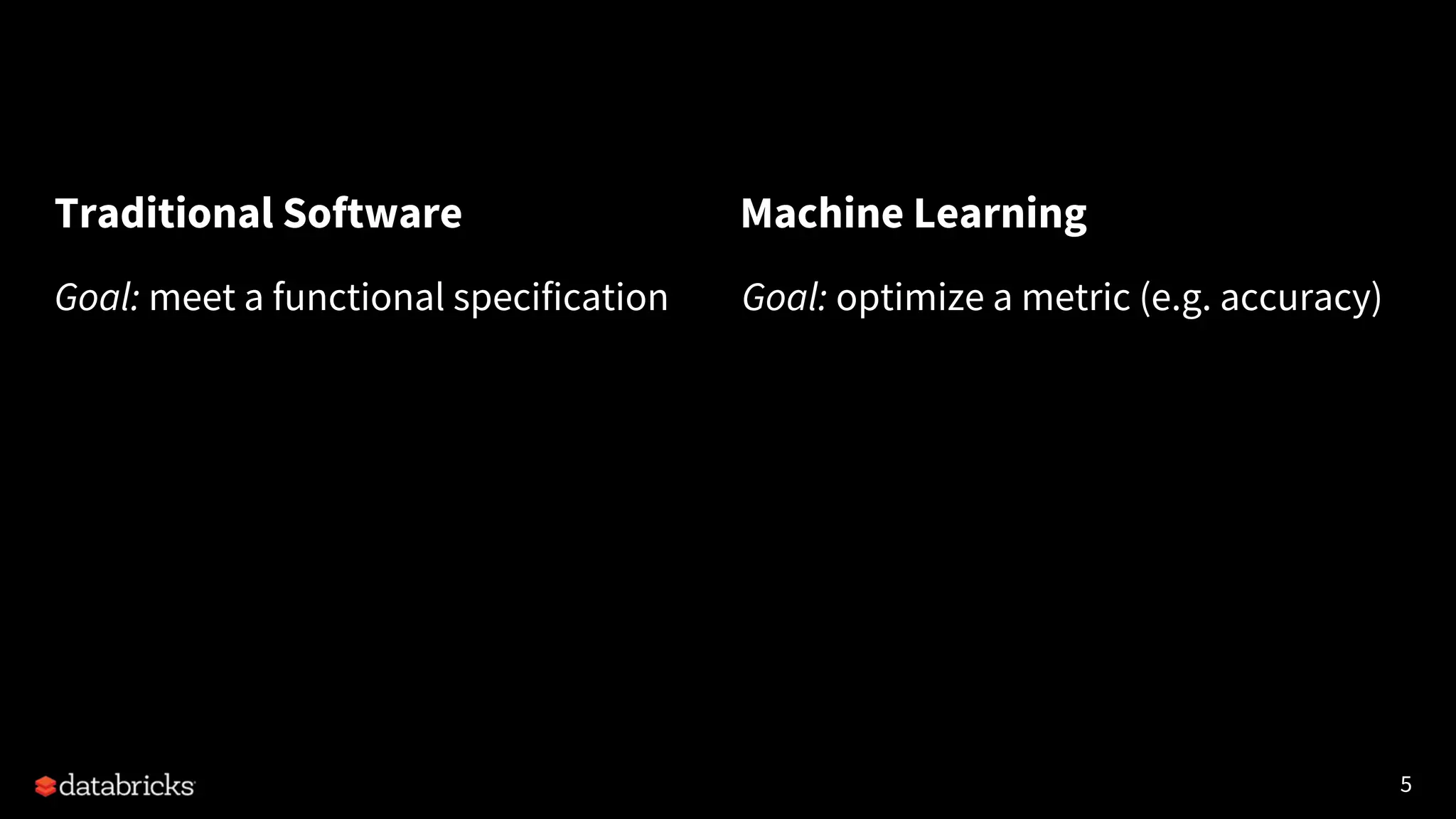

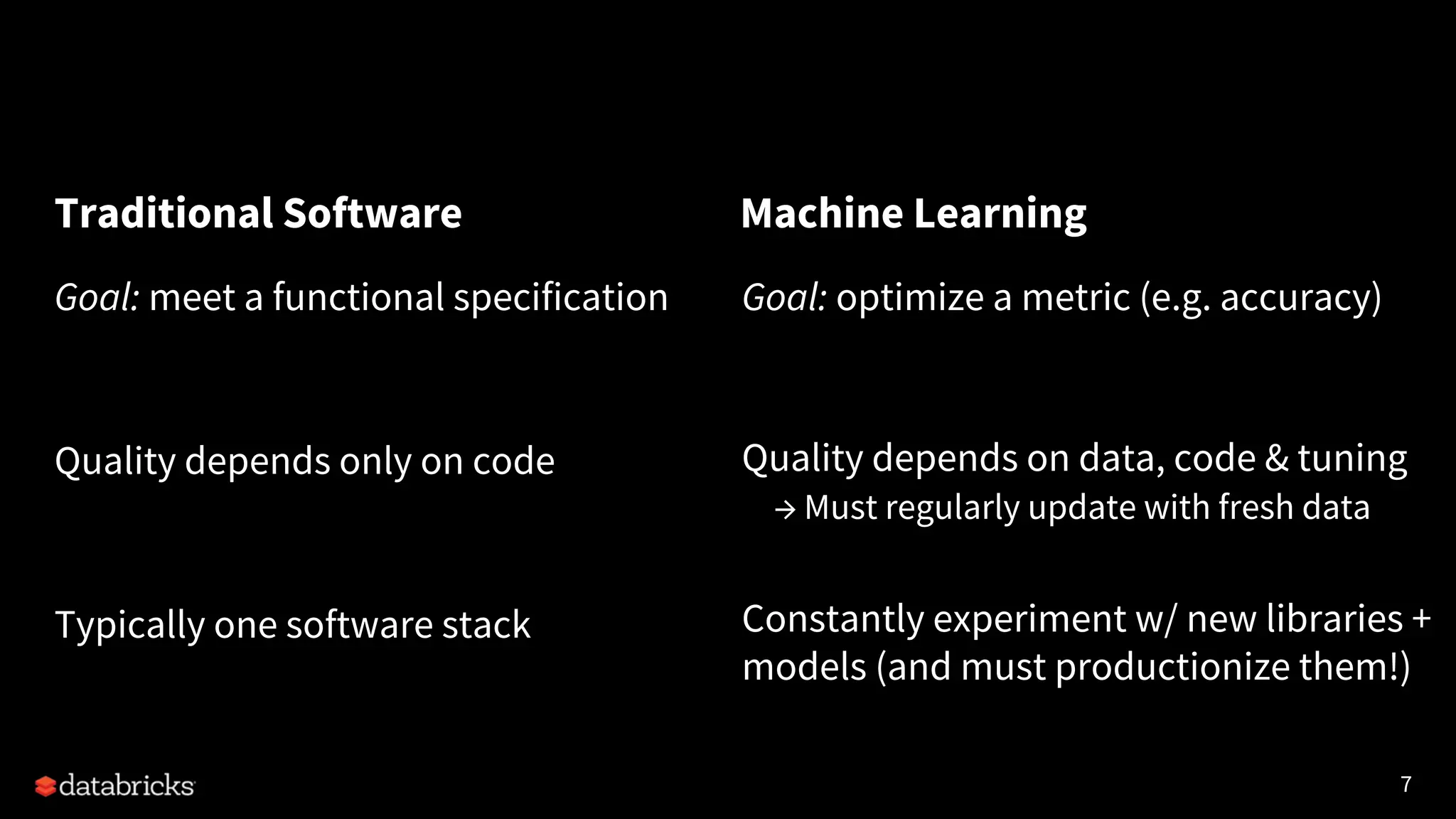

Traditional Software Machine Learning
Goal: optimize a metric (e.g. accuracy)Goal: meet a functional specification

6
Goal: optimize a metric (e.g. accuracy)
Quality depends on data, code & tuning
→ Must regularly update with fresh data
Goal: meet a functional specification
Quality depends only on code

7
Goal: optimize a metric (e.g. accuracy)
Quality depends on data, code & tuning
→ Must regularly update with fresh data
Constantly experiment w/ new libraries +
models (and must productionize them!)
Goal: meet a functional specification
Quality depends only on code
Typically one software stack

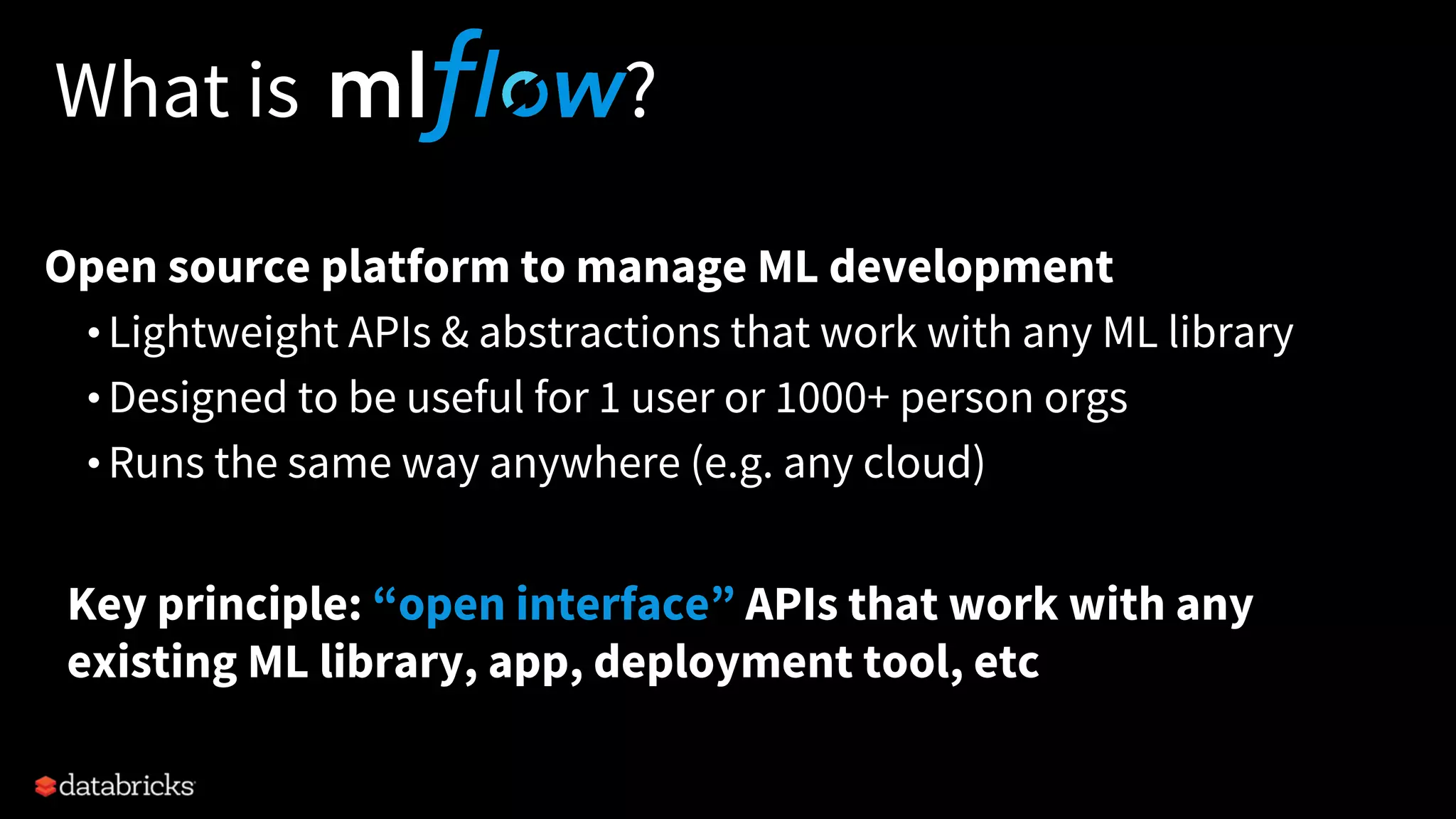

What is ?
Open source platform to manage ML development
• Lightweight APIs & abstractions that work with any ML library
• Designed to be useful for 1 user or 1000+ person orgs
• Runs the same way anywhere (e.g. any cloud)
Key principle: “open interface” APIs that work with any
existing ML library, app, deployment tool, etc

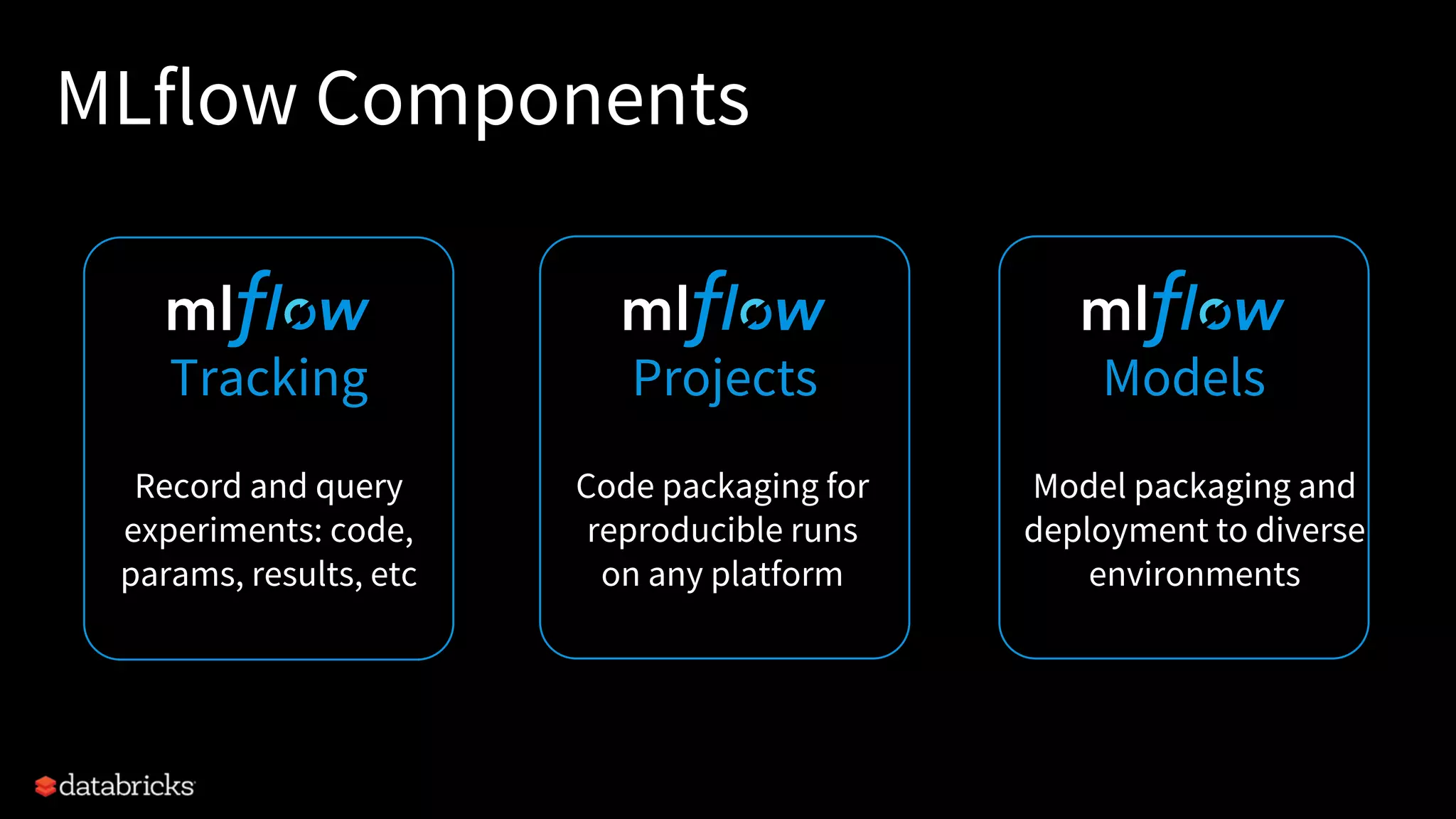

MLflow Components
9
Tracking
Record and query
experiments: code,
params, results, etc
Projects
Code packaging for
reproducible runs
on any platform
Models
Model packaging and
deployment to diverse
environments

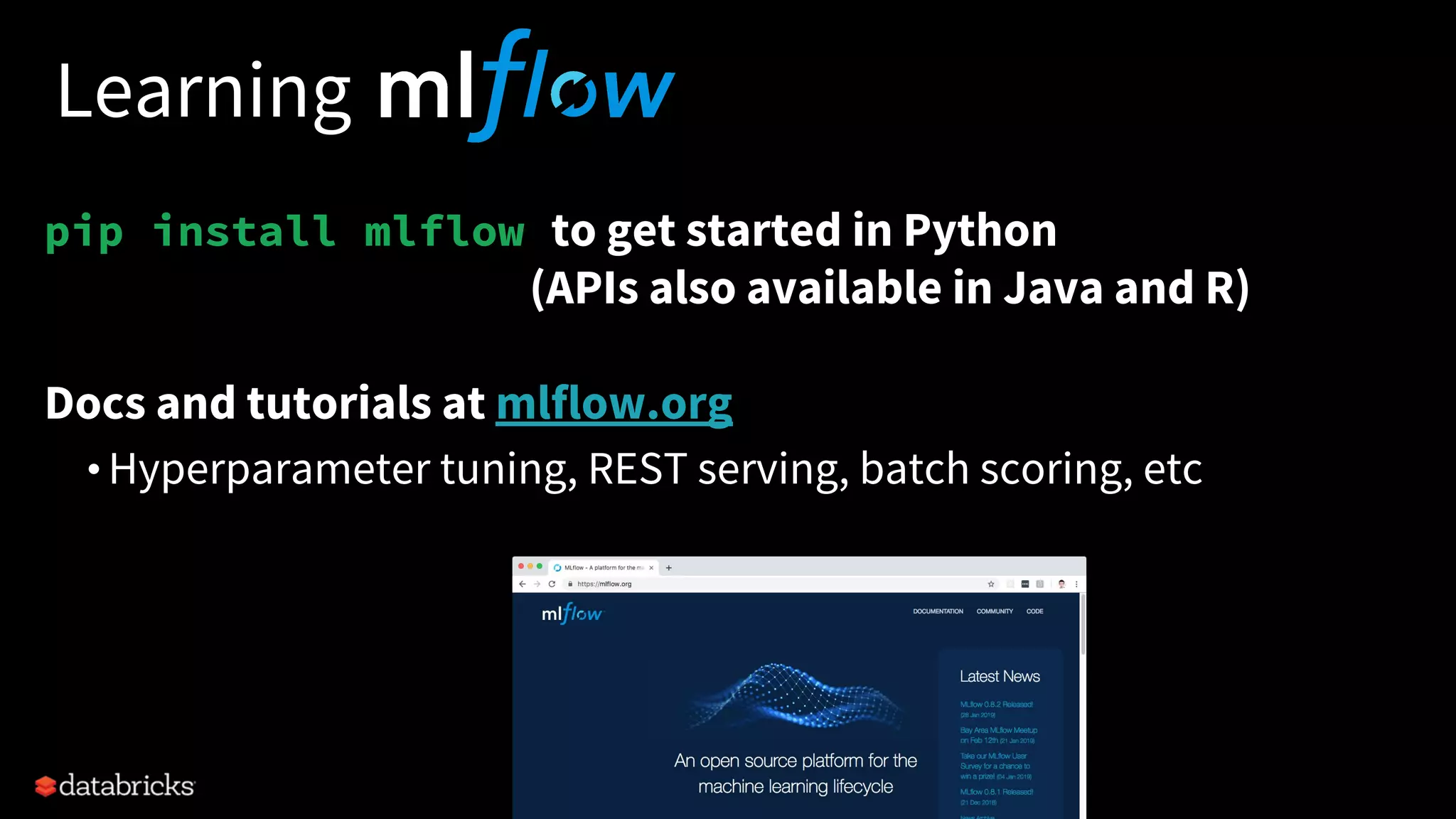

Learning
pip install mlflow to get started in Python
(APIs also available in Java and R)
Docs and tutorials at mlflow.org
• Hyperparameter tuning, REST serving, batch scoring, etc

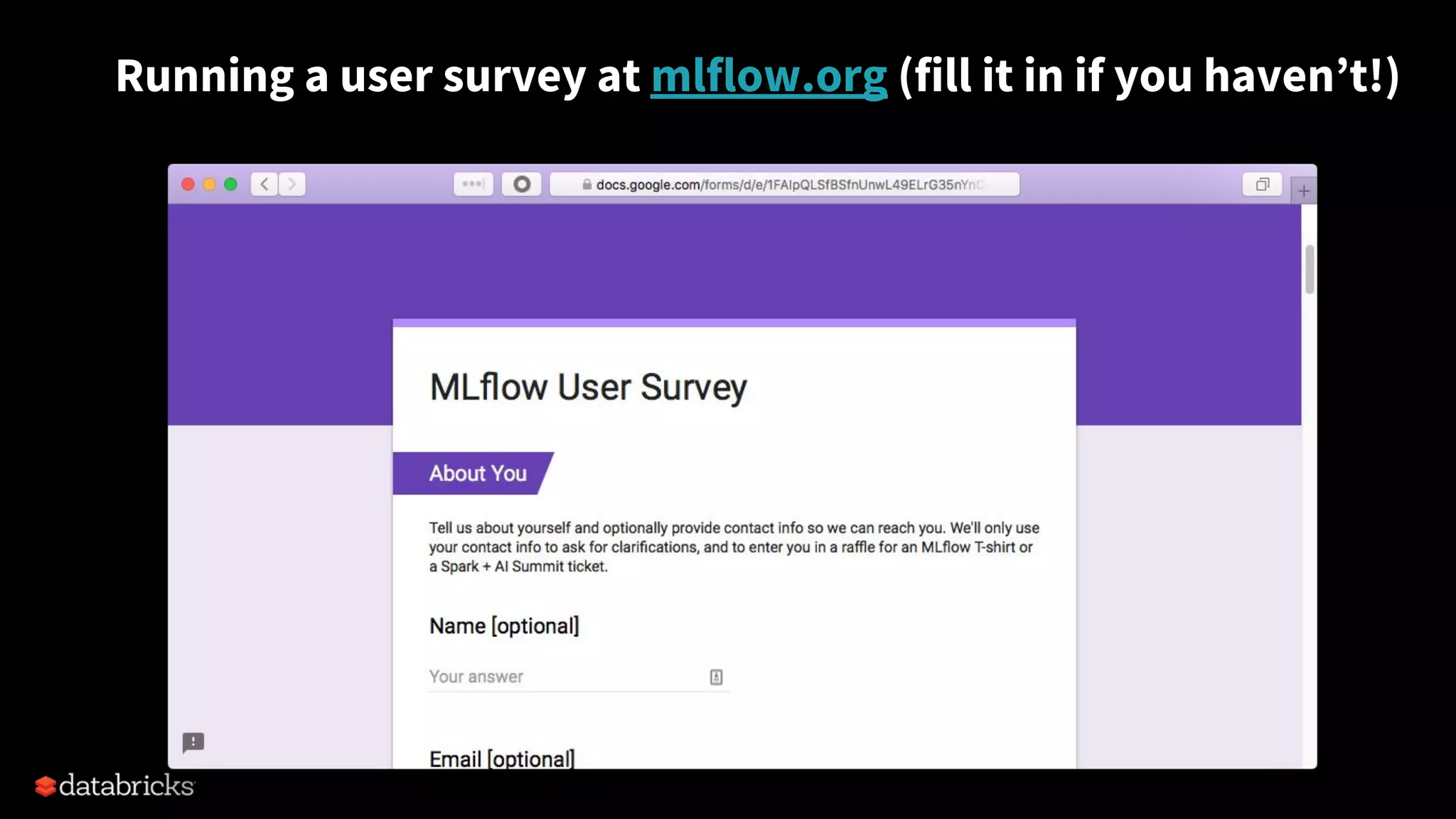

Running a user survey at mlflow.org (fill it in if you haven’t!)

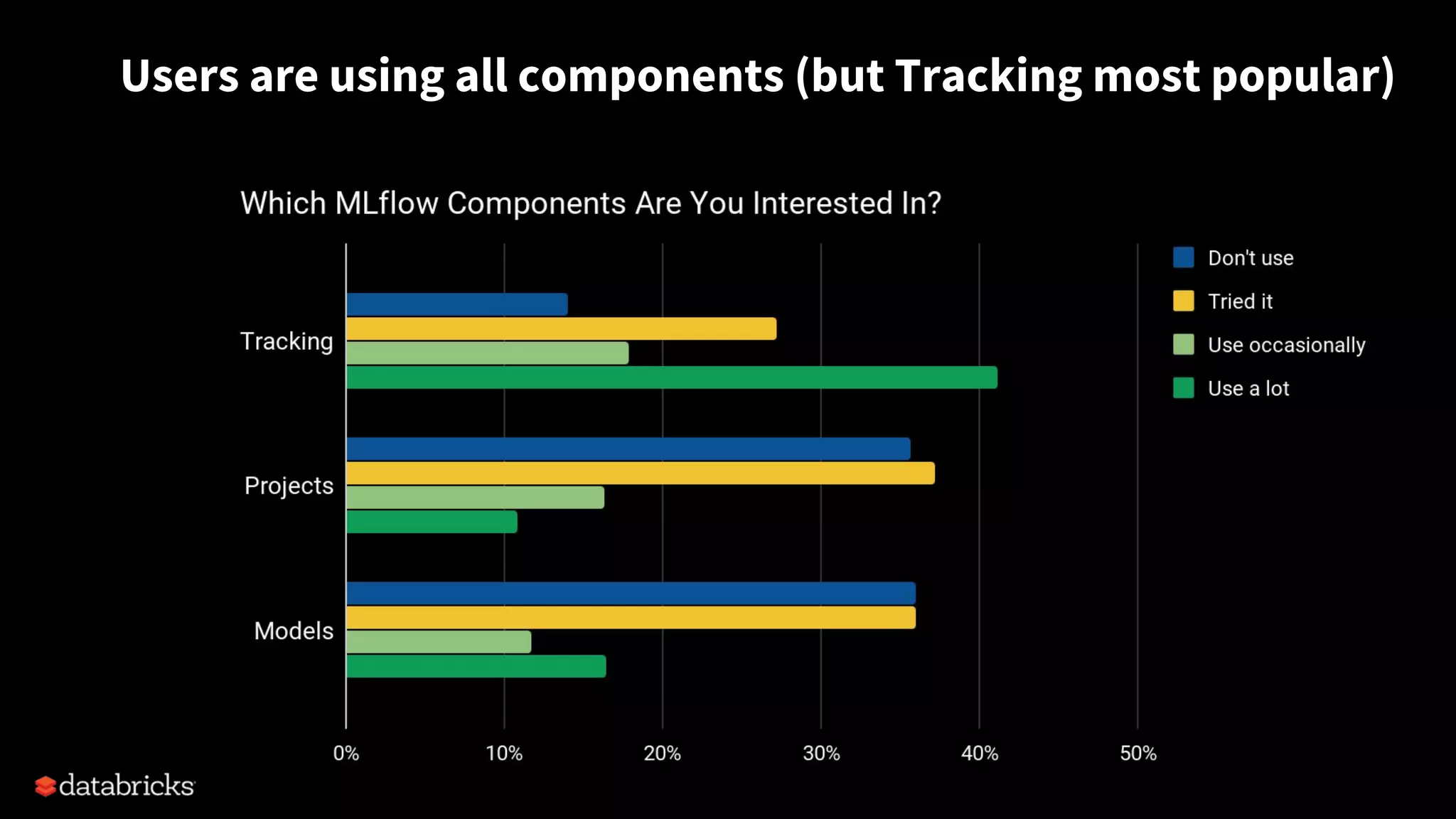

Users are using all components (but Tracking most popular)

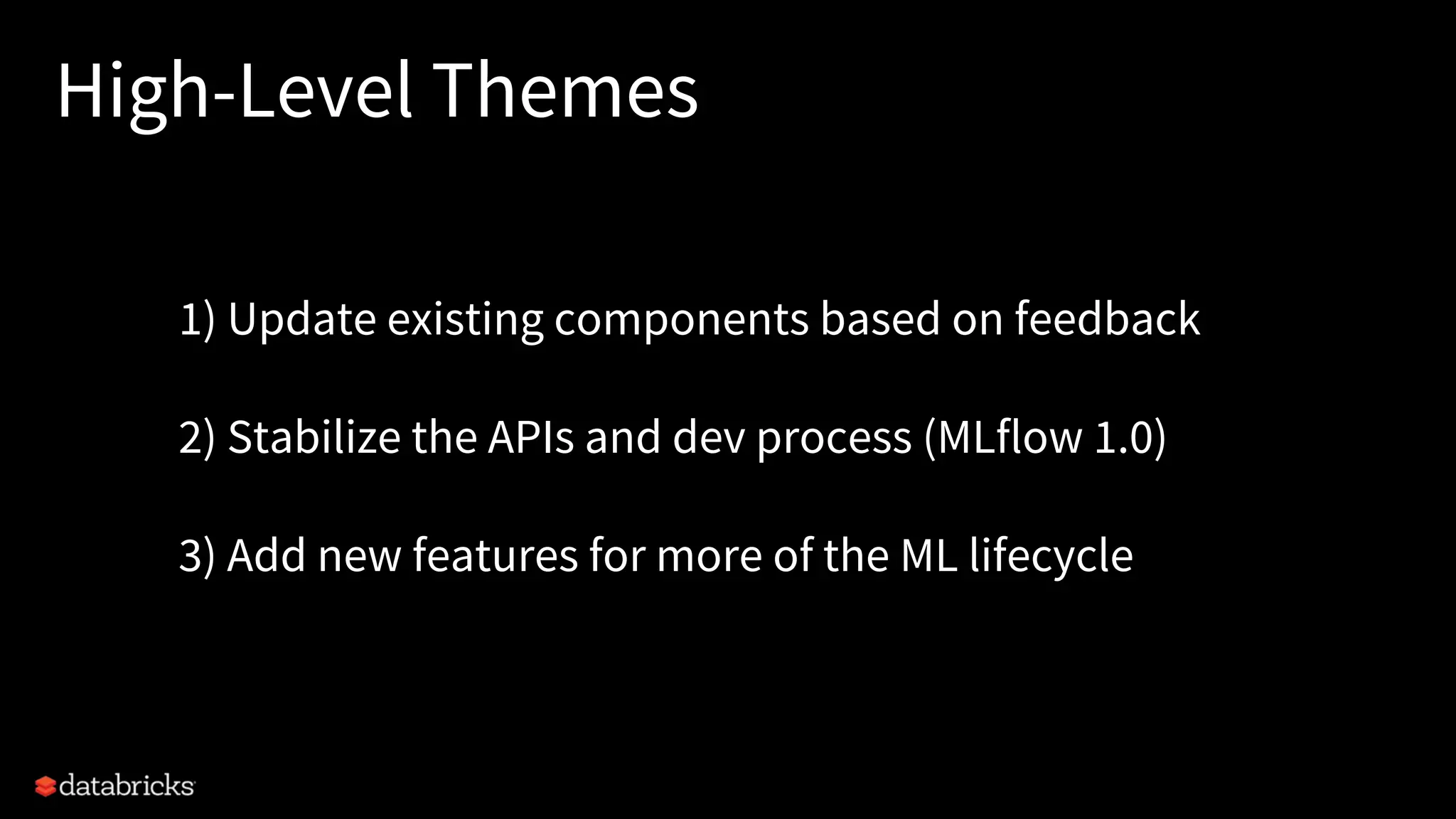

High-Level Themes
1) Update existing components based on feedback
2) Stabilize the APIs and dev process (MLflow 1.0)
3) Add new features for more of the ML lifecycle

Rough Development Timeline
MLflow 0.9, 0.10, etc: in the next few months
MLflow 1.0 and API stabilization: end of April
(stabilize core APIs and mark others as experimental)
After 1.0: continue releasing regularly to get features out

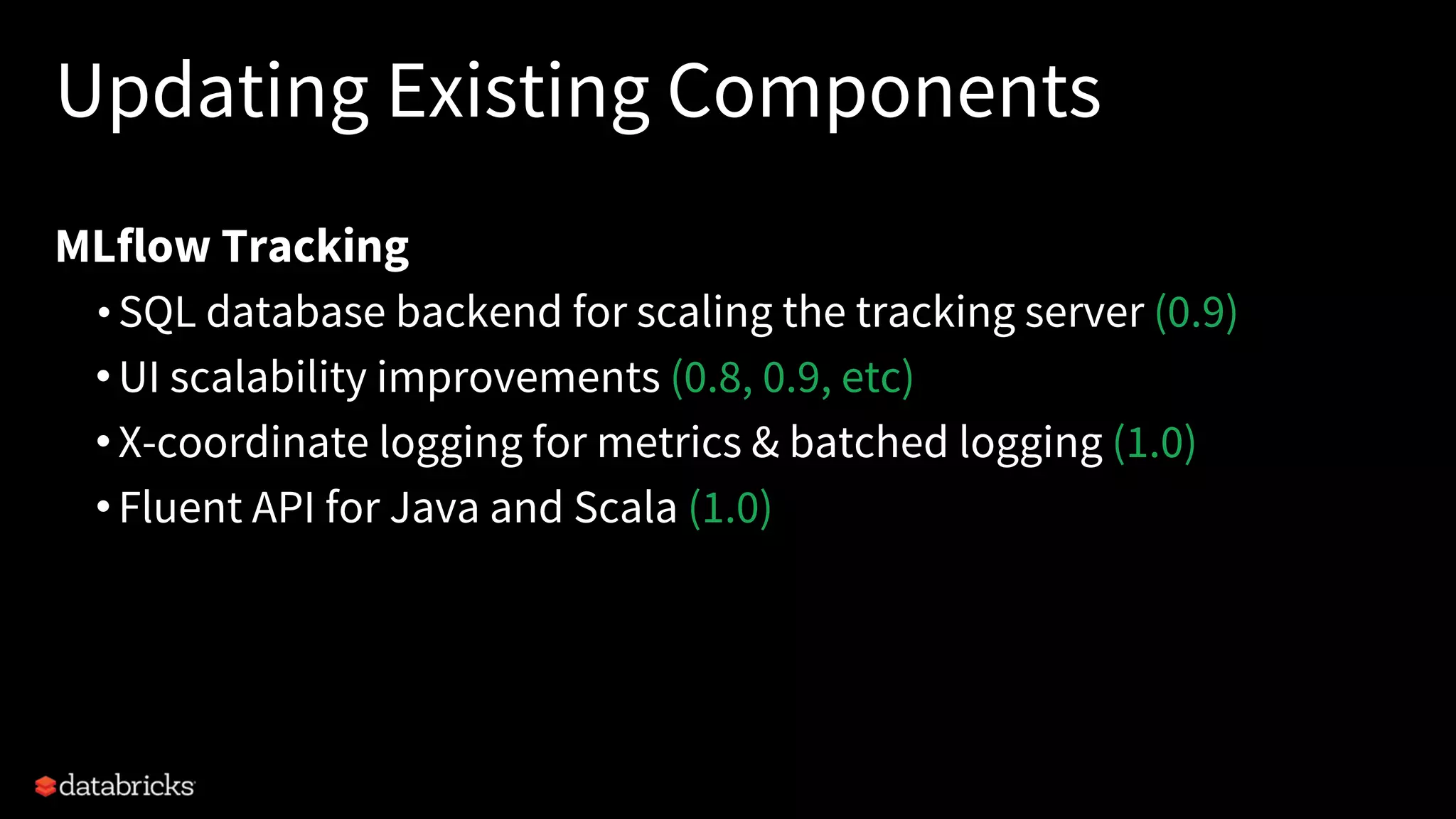

Updating Existing Components
MLflow Tracking
• SQL database backend for scaling the tracking server (0.9)
•UI scalability improvements (0.8, 0.9, etc)
•X-coordinate logging for metrics & batched logging (1.0)
•Fluent API for Java and Scala (1.0)

MLflow Projects
•Docker-based project environment specification (0.9)
•X-coordinate logging for metrics & batched logging (1.0)
•Packaging projects with build steps (1.0+)

MLflow Models
•Custom model logging in Python, R and Java (0.8, 0.9, 1.0)
•Better environment isolation when loading models (1.0)
•Logging schema of models (1.0+)

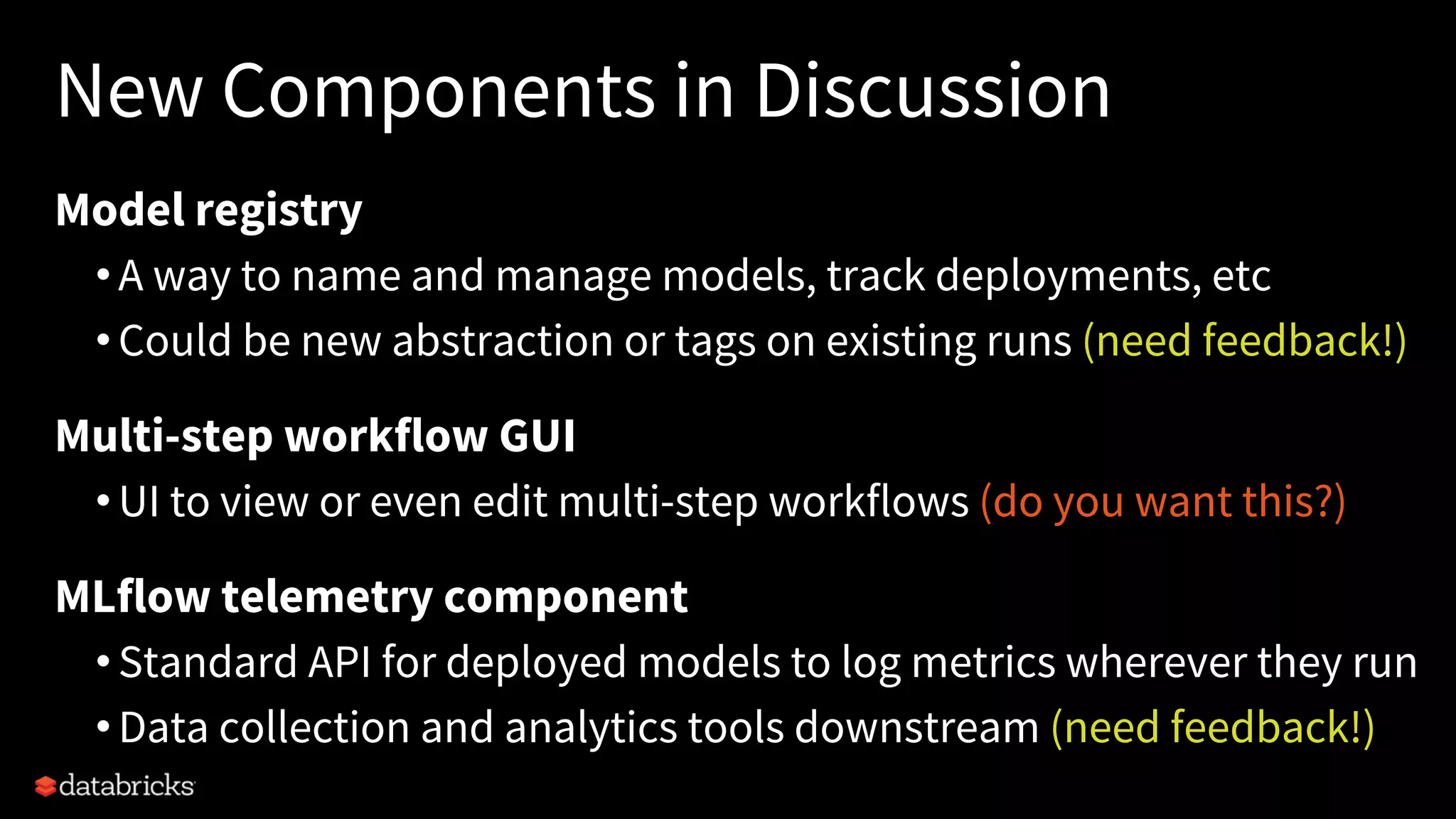

New Components in Discussion
Model registry
•A way to name and manage models, track deployments, etc
•Could be new abstraction or tags on existing runs (need feedback!)
Multi-step workflow GUI
•UI to view or even edit multi-step workflows (do you want this?)
MLflow telemetry component
•Standard API for deployed models to log metrics wherever they run
•Data collection and analytics tools downstream (need feedback!)

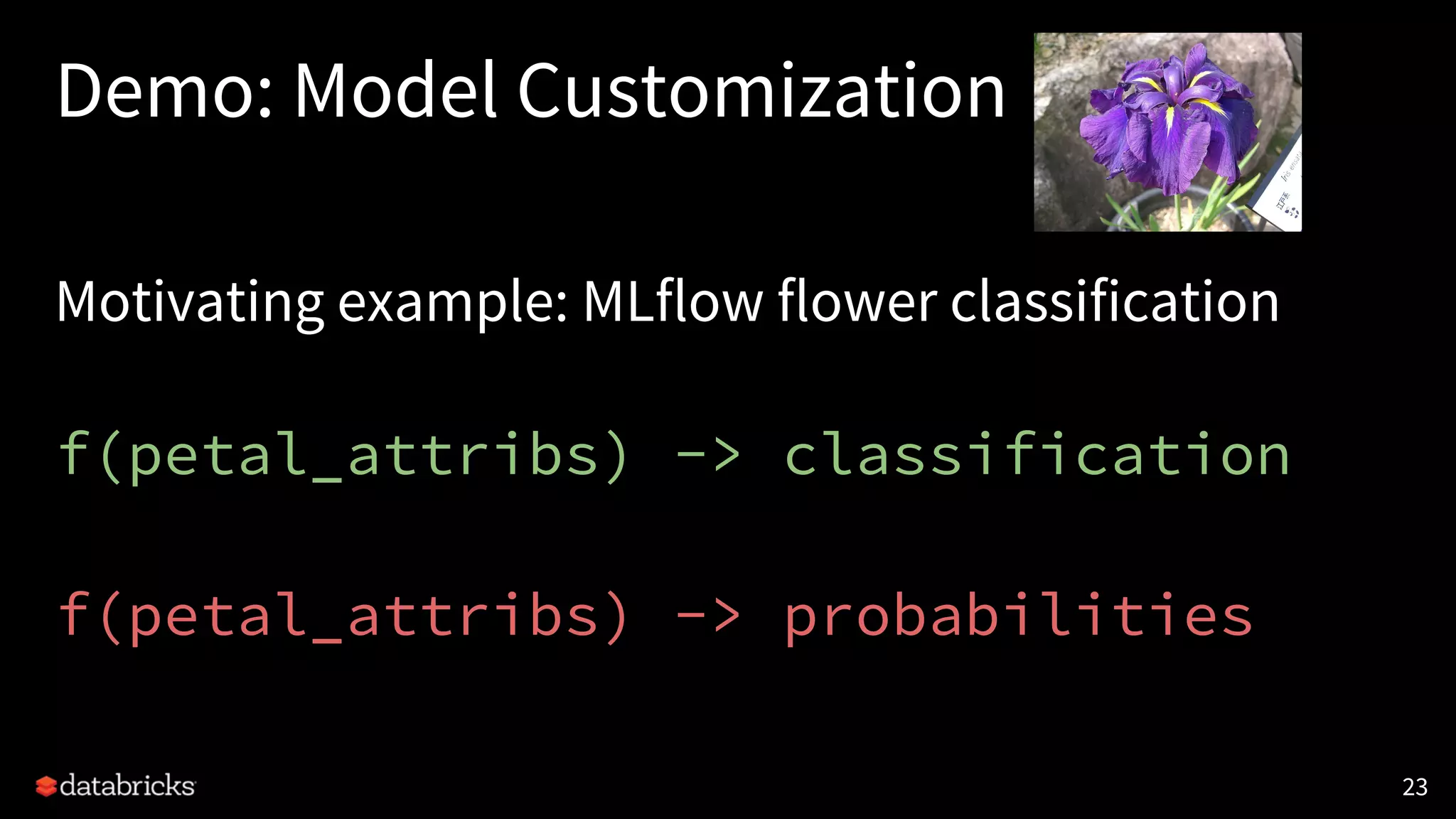

Demo: Model Customization
Motivating example: MLflow flower classification
f(petal_attribs) -> classification
f(petal_attribs) -> probabilities
23

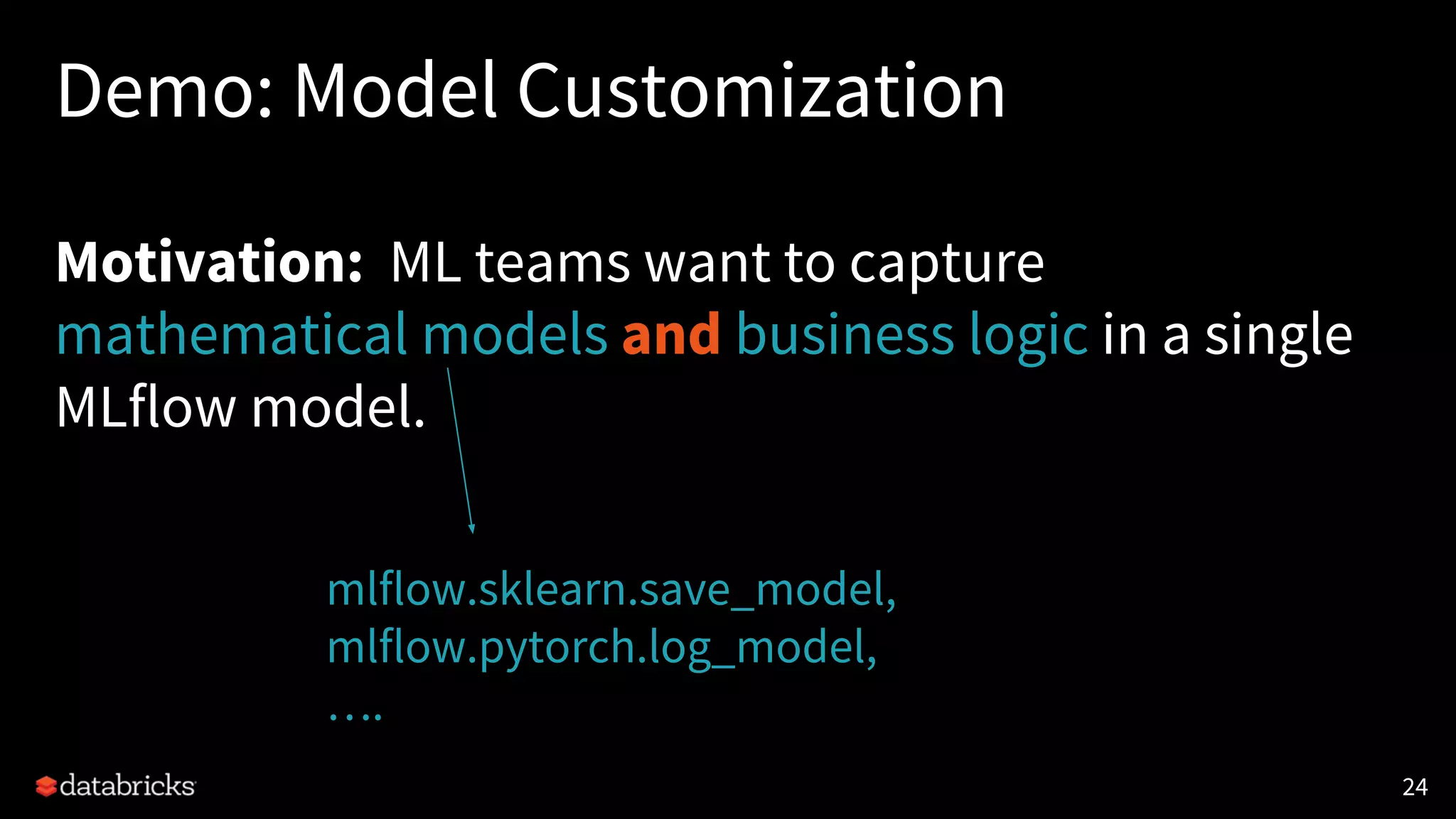

Motivation: ML teams want to capture
mathematical models and business logic in a single
MLflow model.
24
mlflow.sklearn.save_model,
mlflow.pytorch.log_model,
….

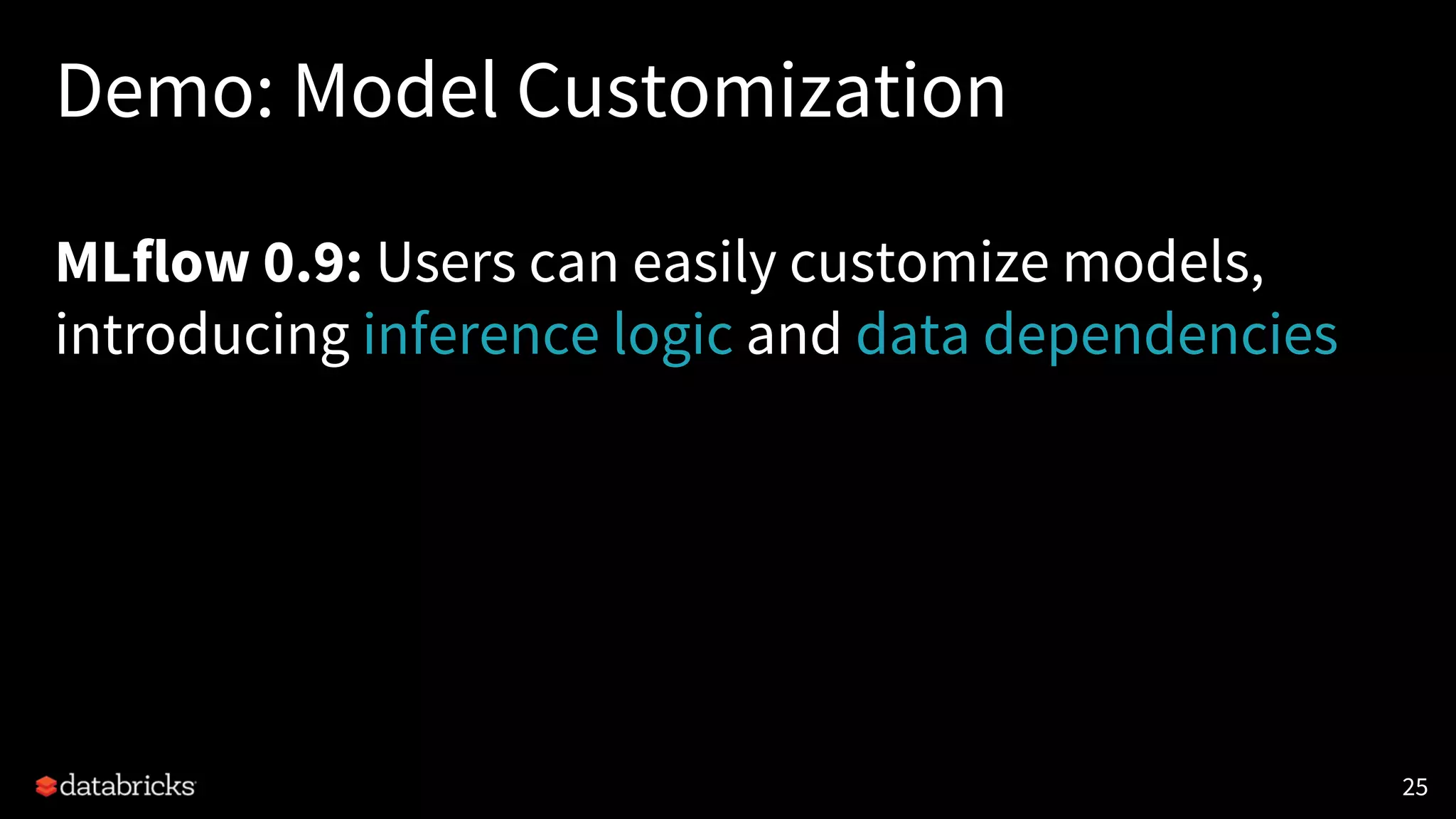

MLflow 0.9: Users can easily customize models,
introducing inference logic and data dependencies
25

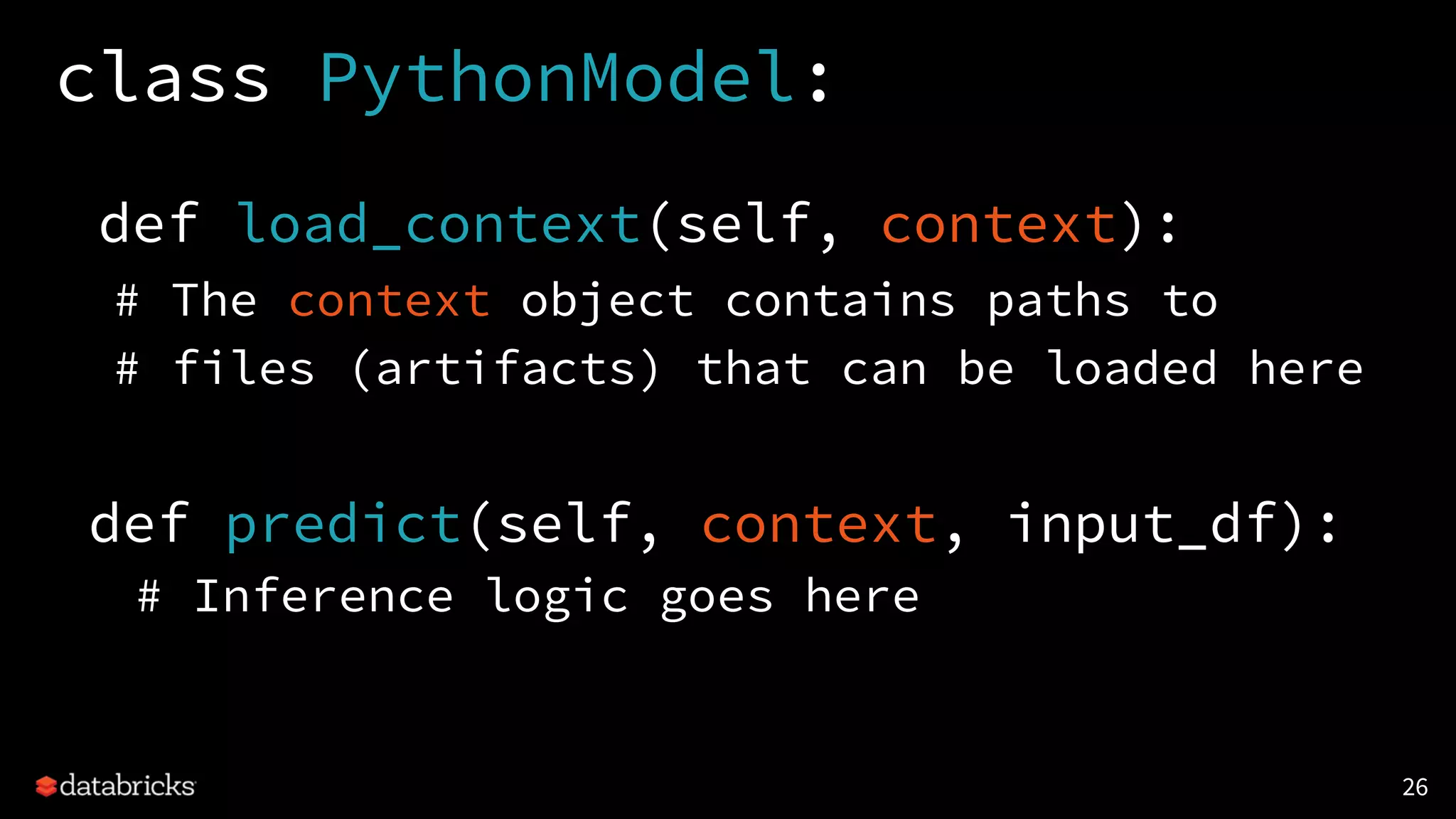

class PythonModel:
def load_context(self, context):
# The context object contains paths to
# files (artifacts) that can be loaded here
def predict(self, context, input_df):
# Inference logic goes here
26

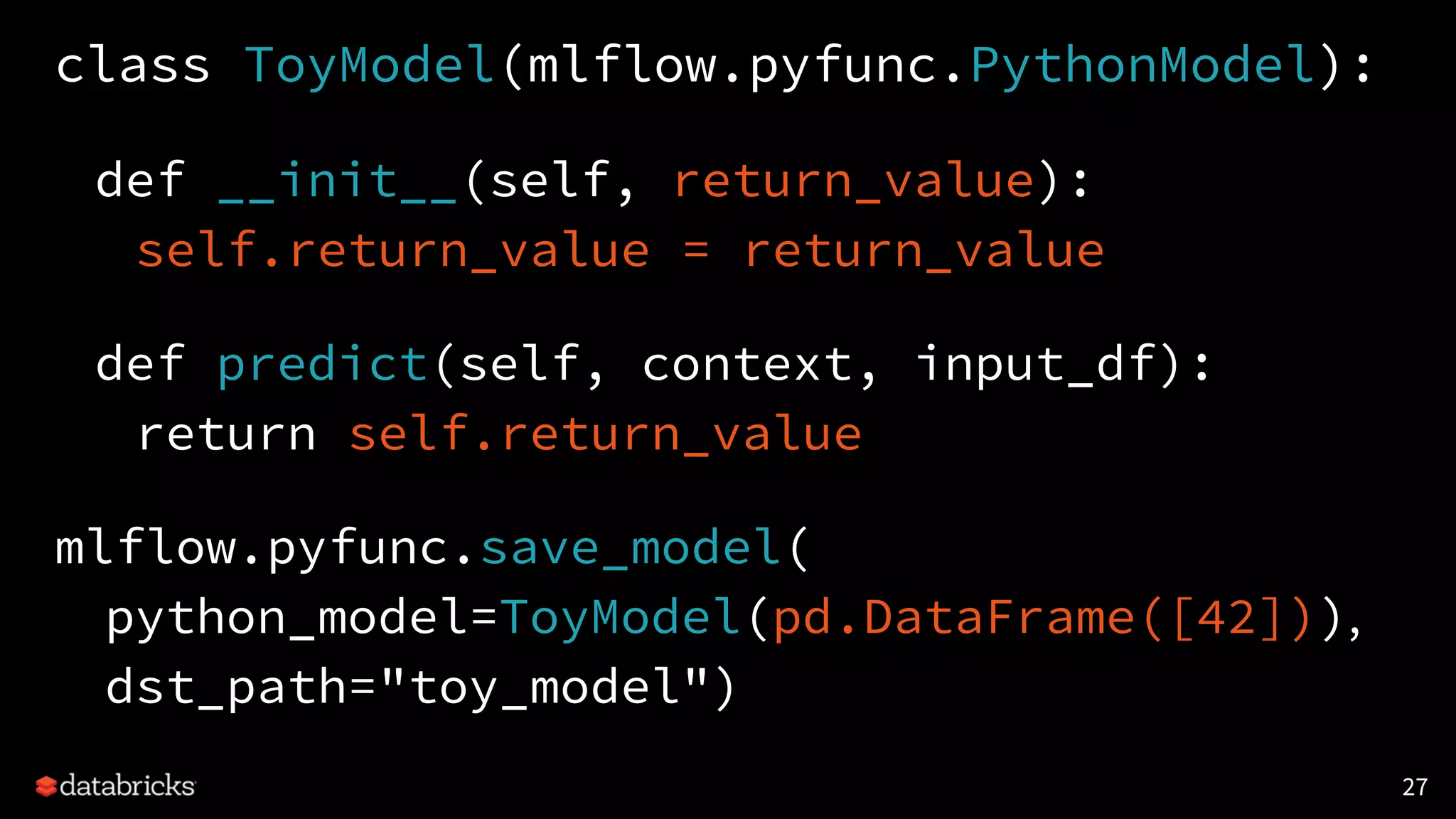

class ToyModel(mlflow.pyfunc.PythonModel):
def __init__(self, return_value):
self.return_value = return_value
return self.return_value
mlflow.pyfunc.save_model(
python_model=ToyModel(pd.DataFrame([42])),
dst_path="toy_model")
27

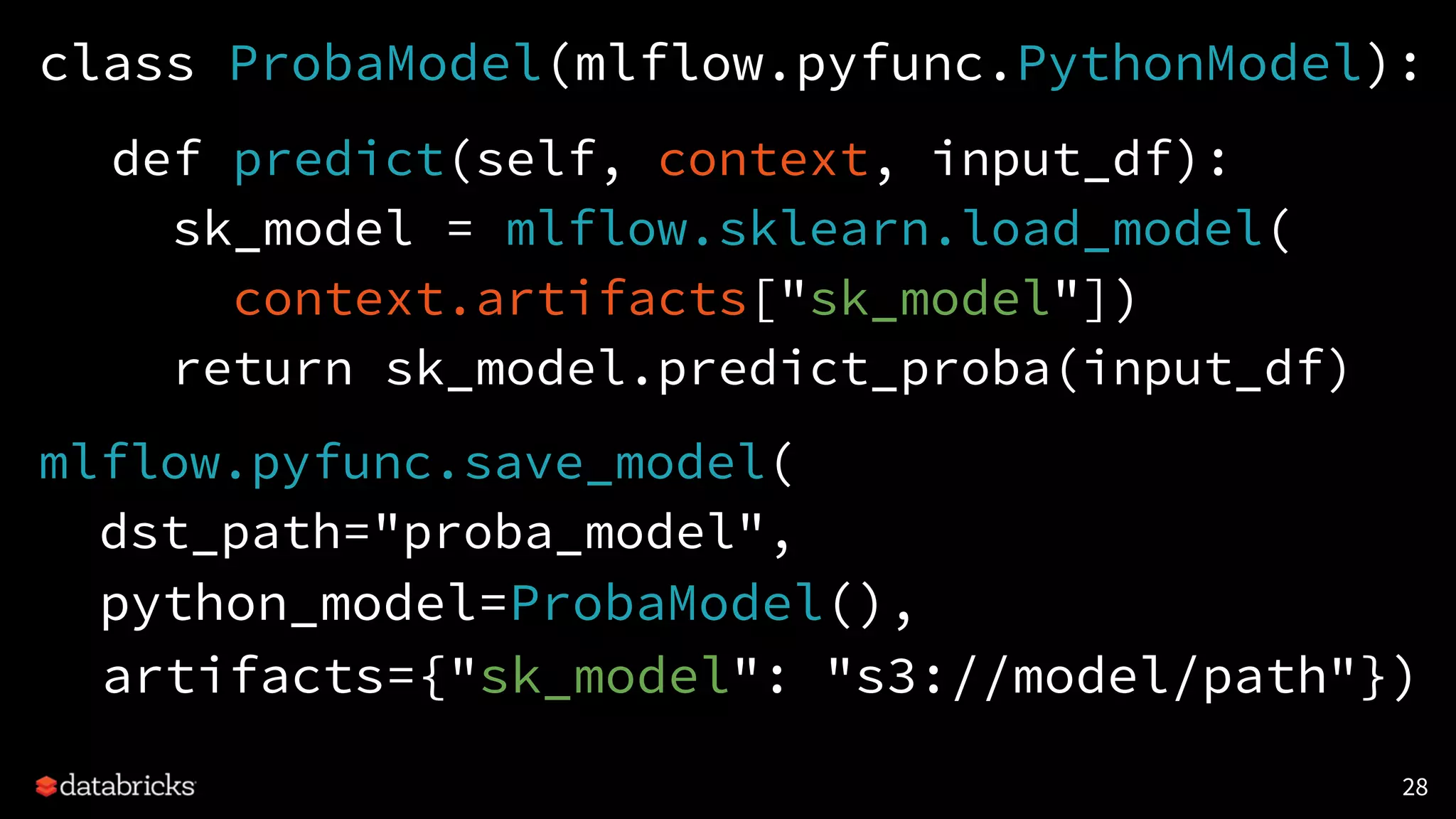

class ProbaModel(mlflow.pyfunc.PythonModel):
sk_model = mlflow.sklearn.load_model(
context.artifacts["sk_model"])
return sk_model.predict_proba(input_df)
mlflow.pyfunc.save_model(
dst_path="proba_model",
python_model=ProbaModel(),
artifacts={"sk_model": "s3://model/path"})
28

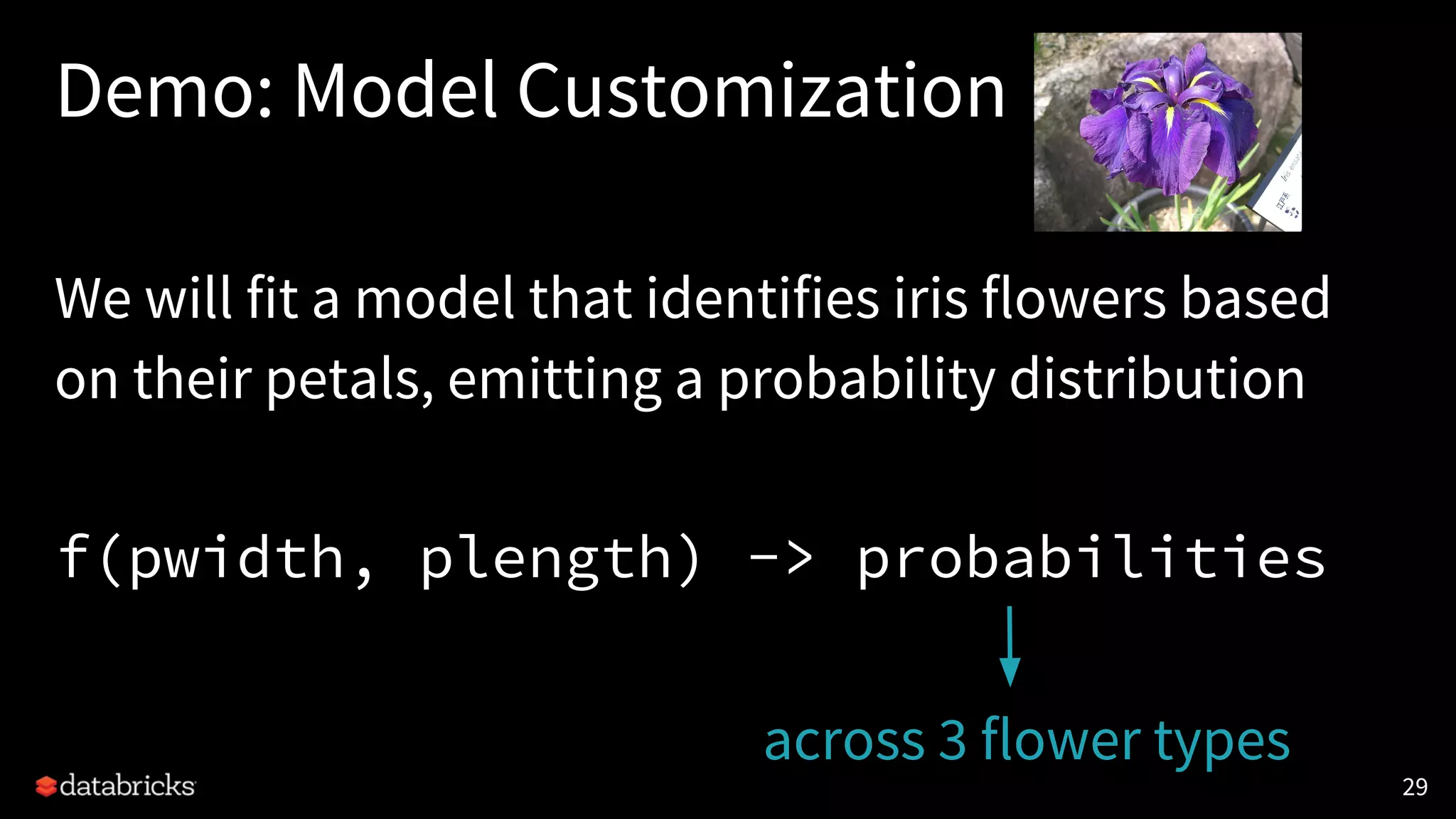

We will fit a model that identifies iris flowers based
on their petals, emitting a probability distribution
f(pwidth, plength) -> probabilities
29
across 3 flower types

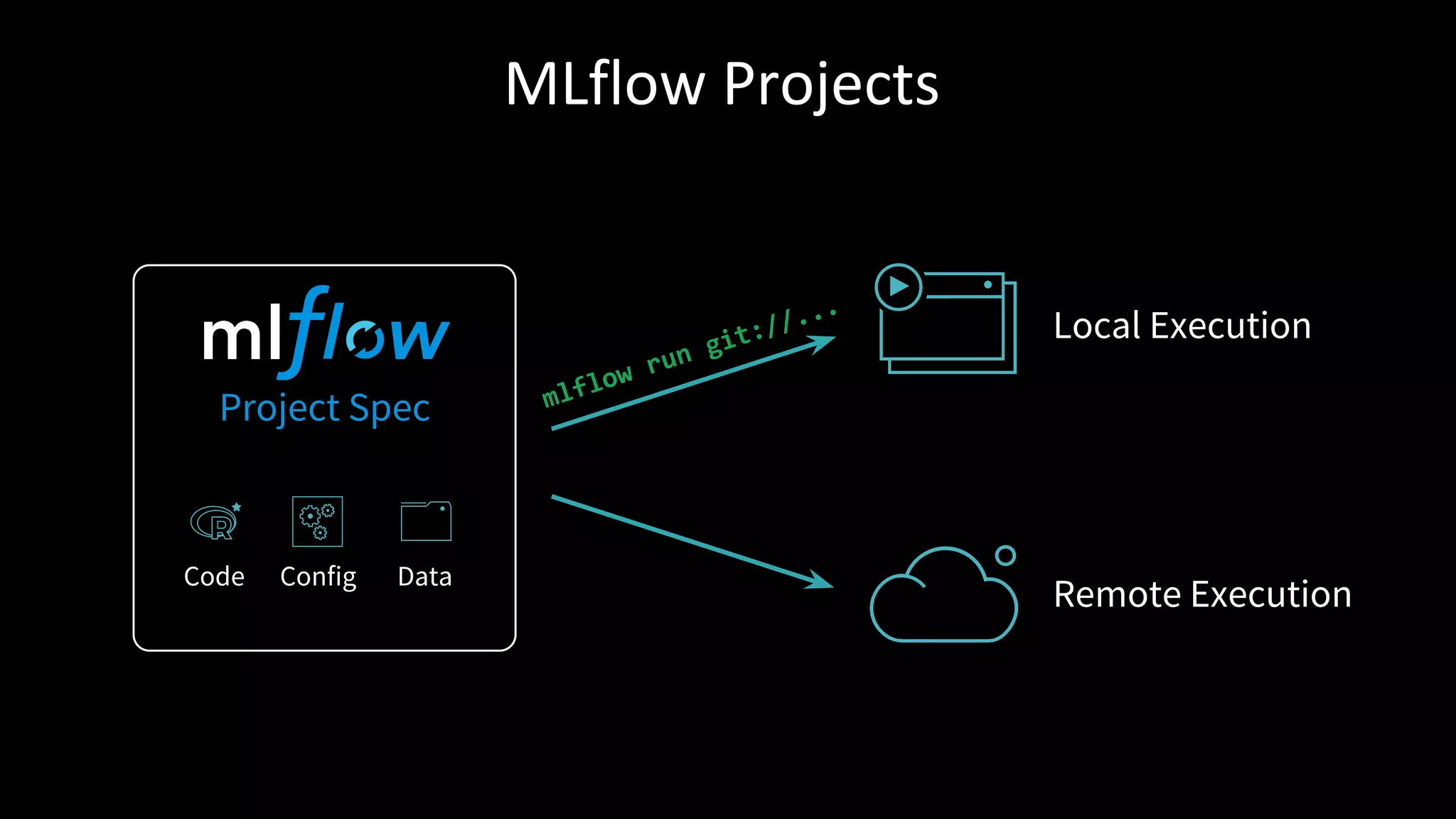

Project Spec
Code DataConfig
Local Execution
Remote Execution
MLflow Projects
mlflow run git://...

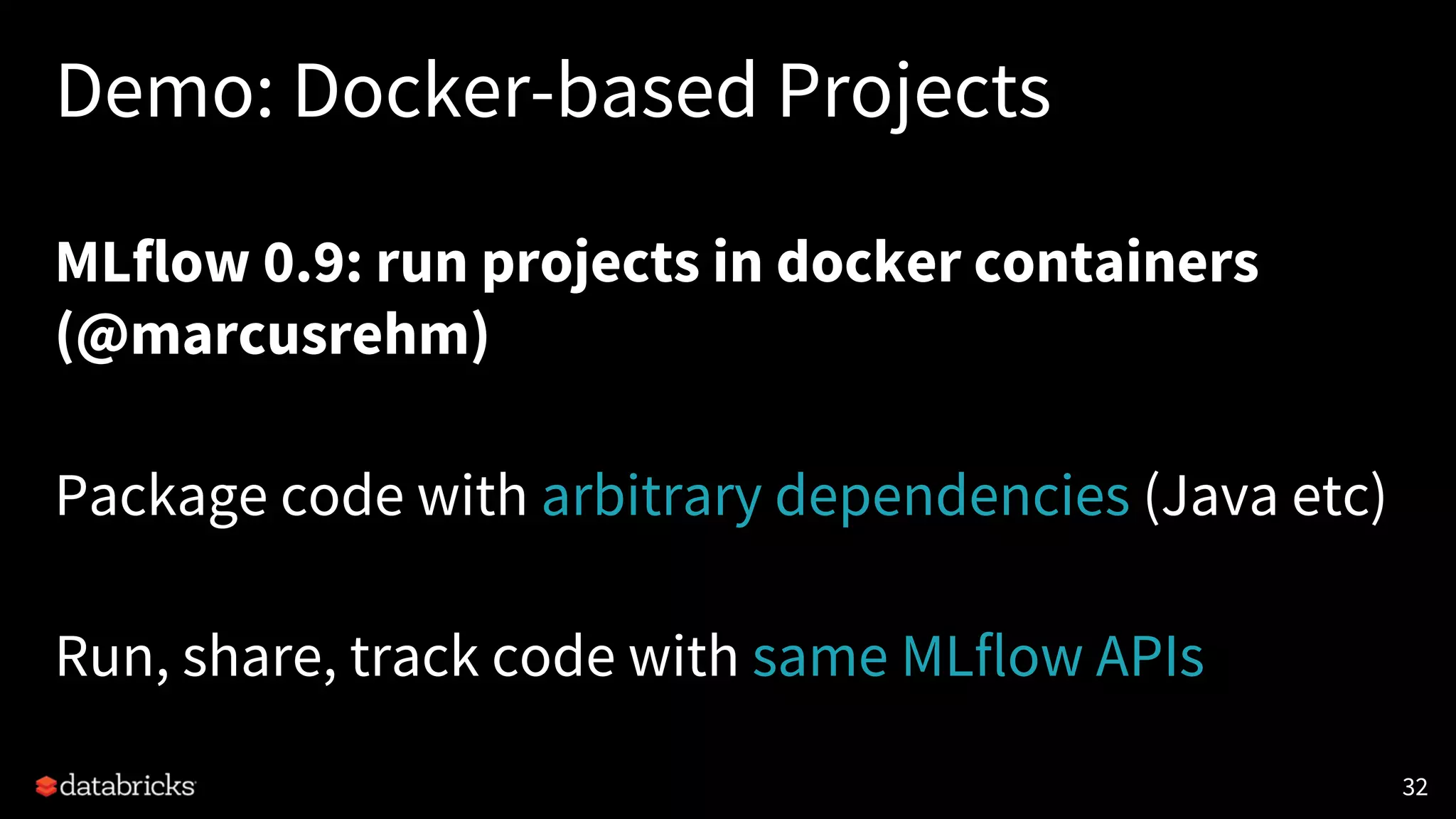

Demo: Docker-based Projects
MLflow 0.9: run projects in docker containers
(@marcusrehm)
Package code with arbitrary dependencies (Java etc)
Run, share, track code with same MLflow APIs
32

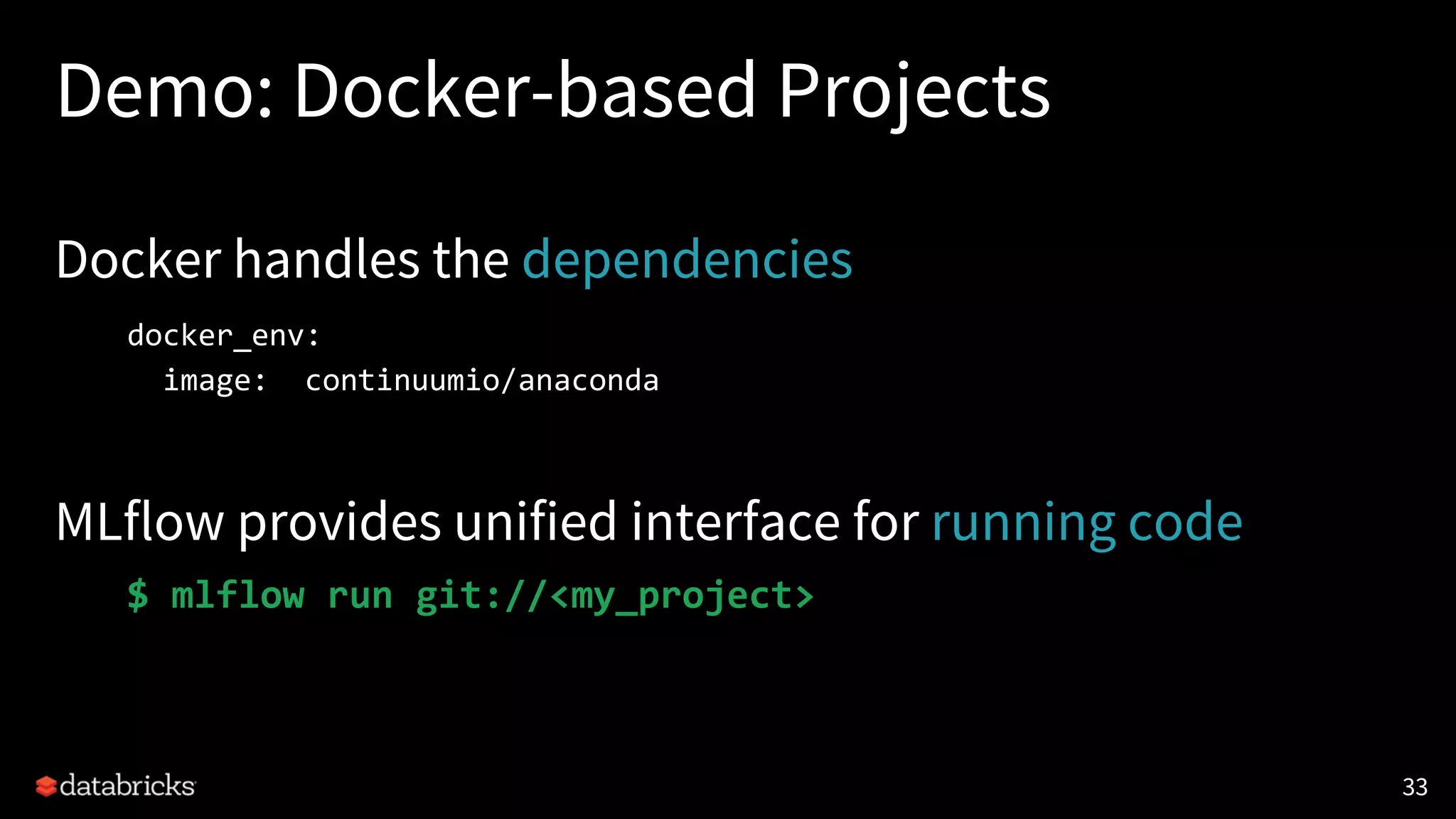

Docker handles the dependencies
docker_env:
image: continuumio/anaconda
MLflow provides unified interface for running code
$ mlflow run git://<my_project>
33

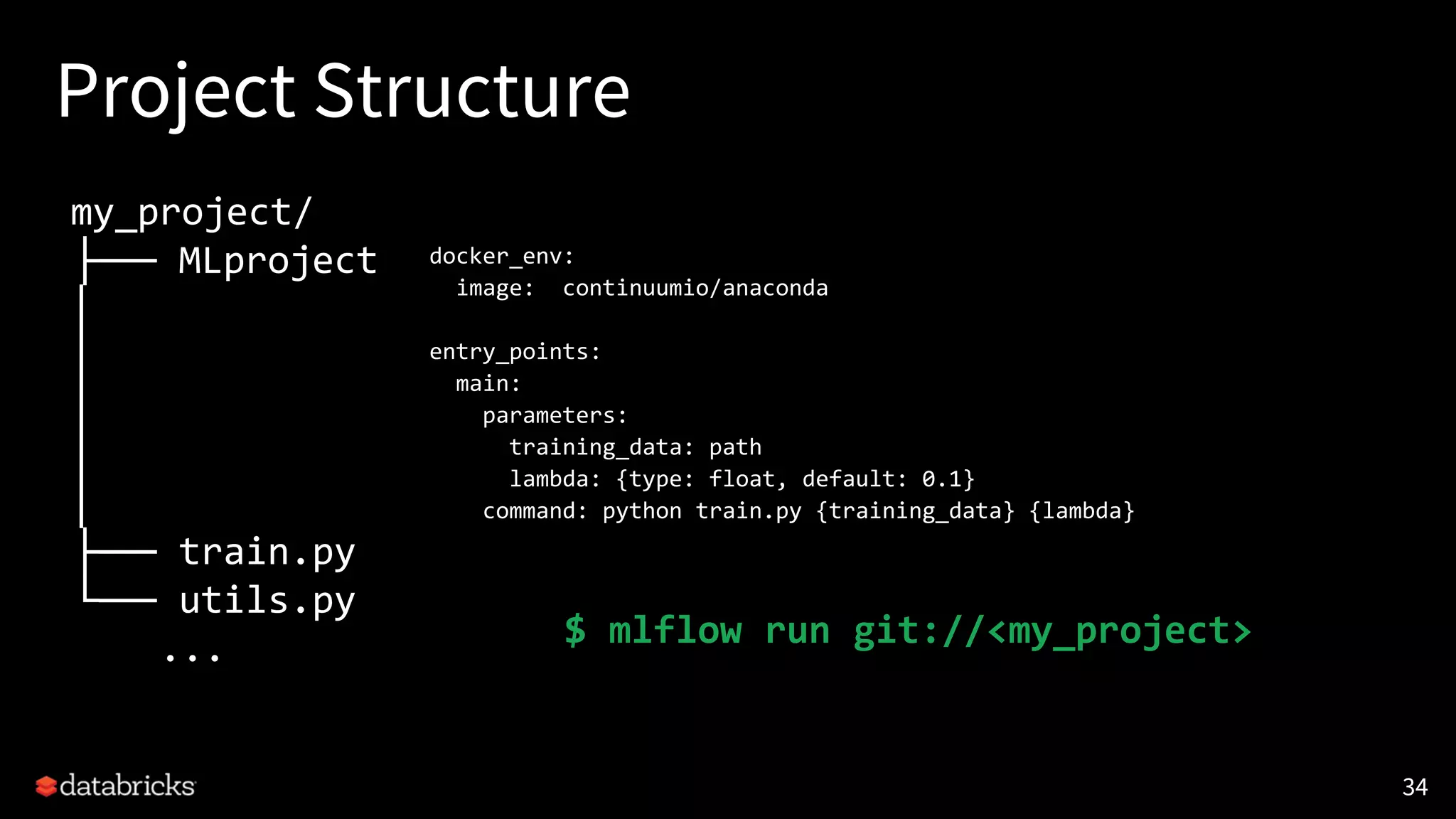

Project Structure
34
my_project/
├── MLproject
│
│
│
│
│
├── train.py
└── utils.py
...
docker_env:
image: continuumio/anaconda
entry_points:
main:
parameters:
training_data: path
lambda: {type: float, default: 0.1}
command: python train.py {training_data} {lambda}
$ mlflow run git://<my_project>

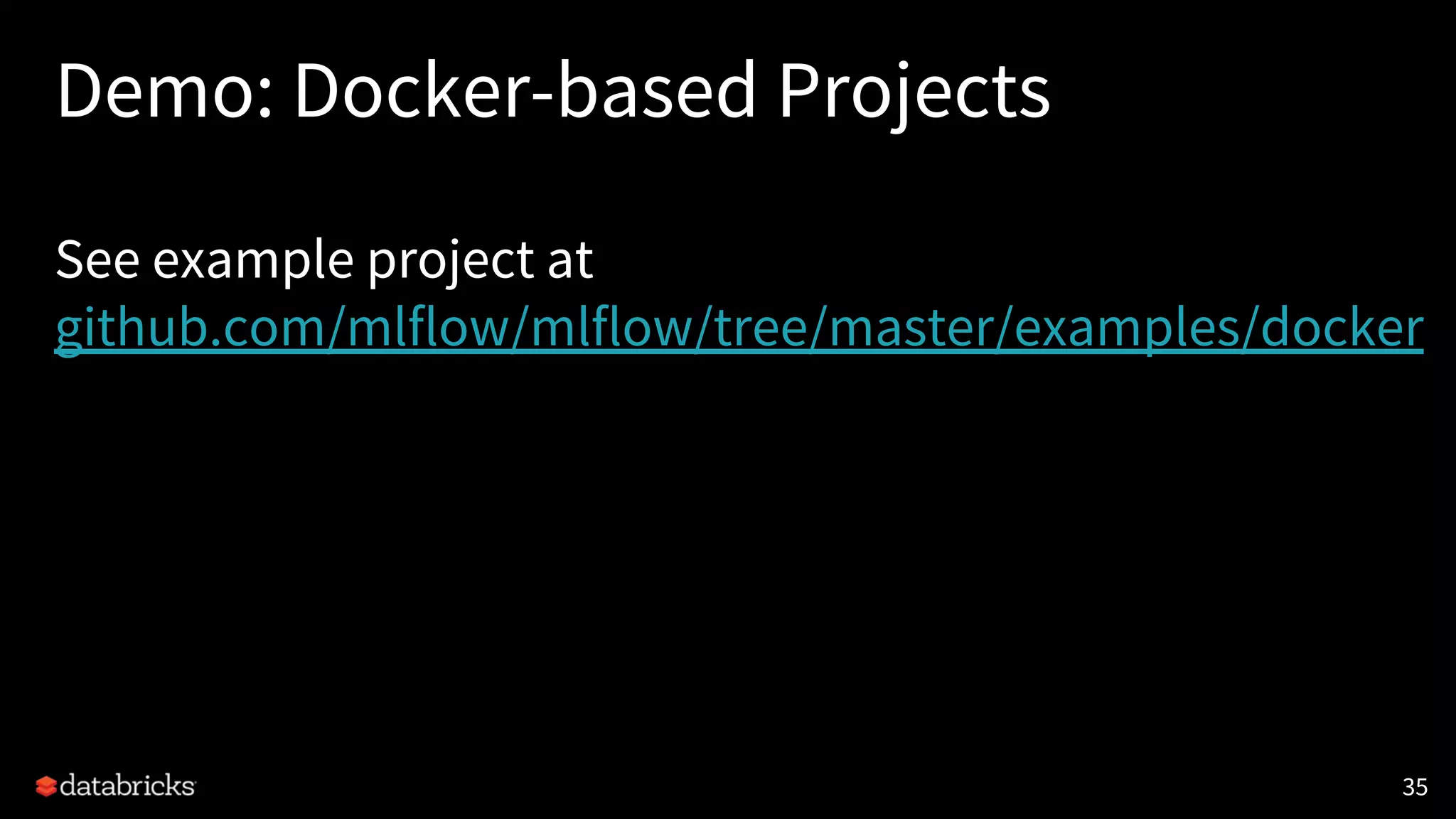

See example project at
github.com/mlflow/mlflow/tree/master/examples/docker
35

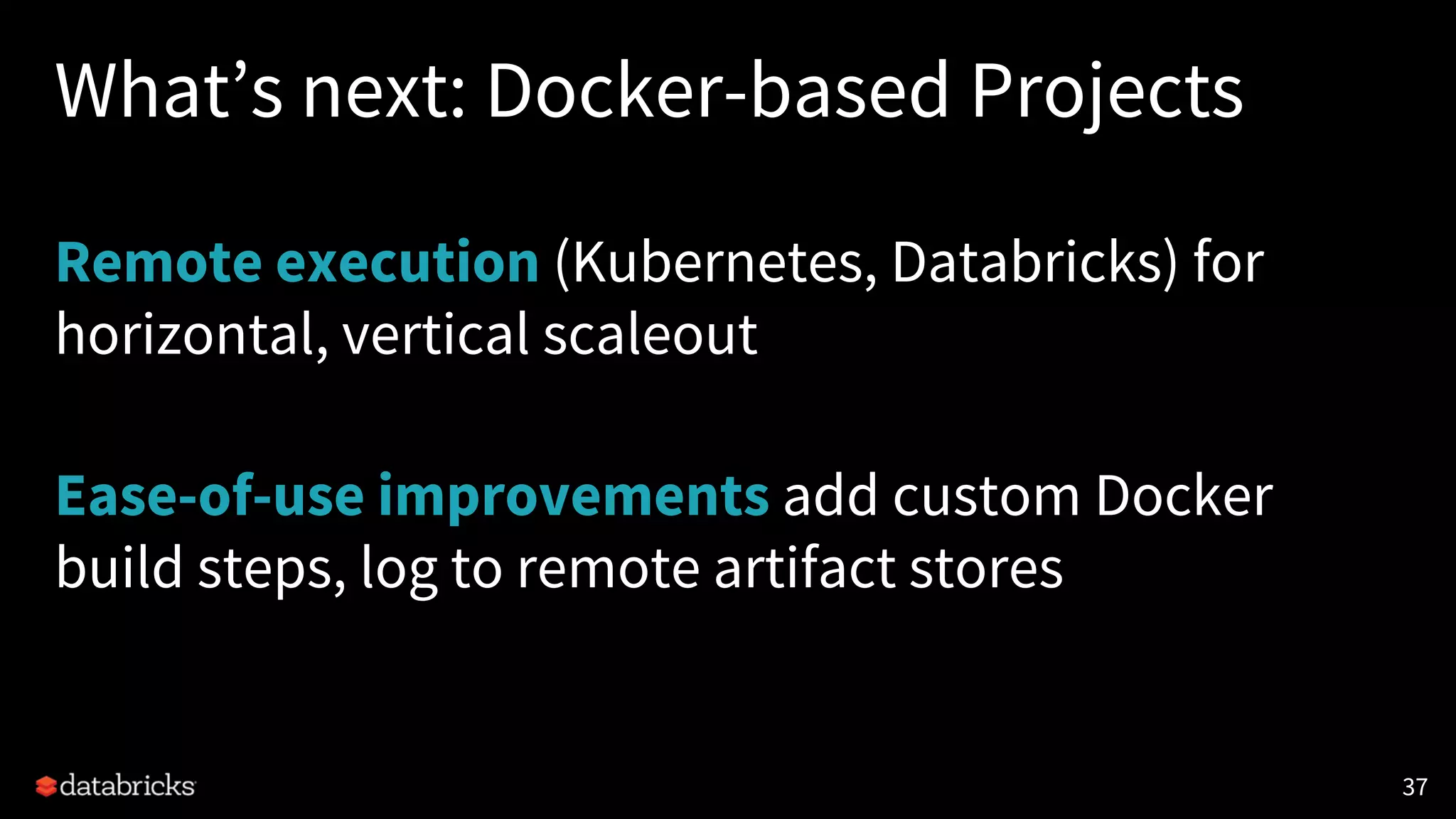

What’s next: Docker-based Projects
Remote execution (Kubernetes, Databricks) for
horizontal, vertical scaleout
Ease-of-use improvements add custom Docker
build steps, log to remote artifact stores
37

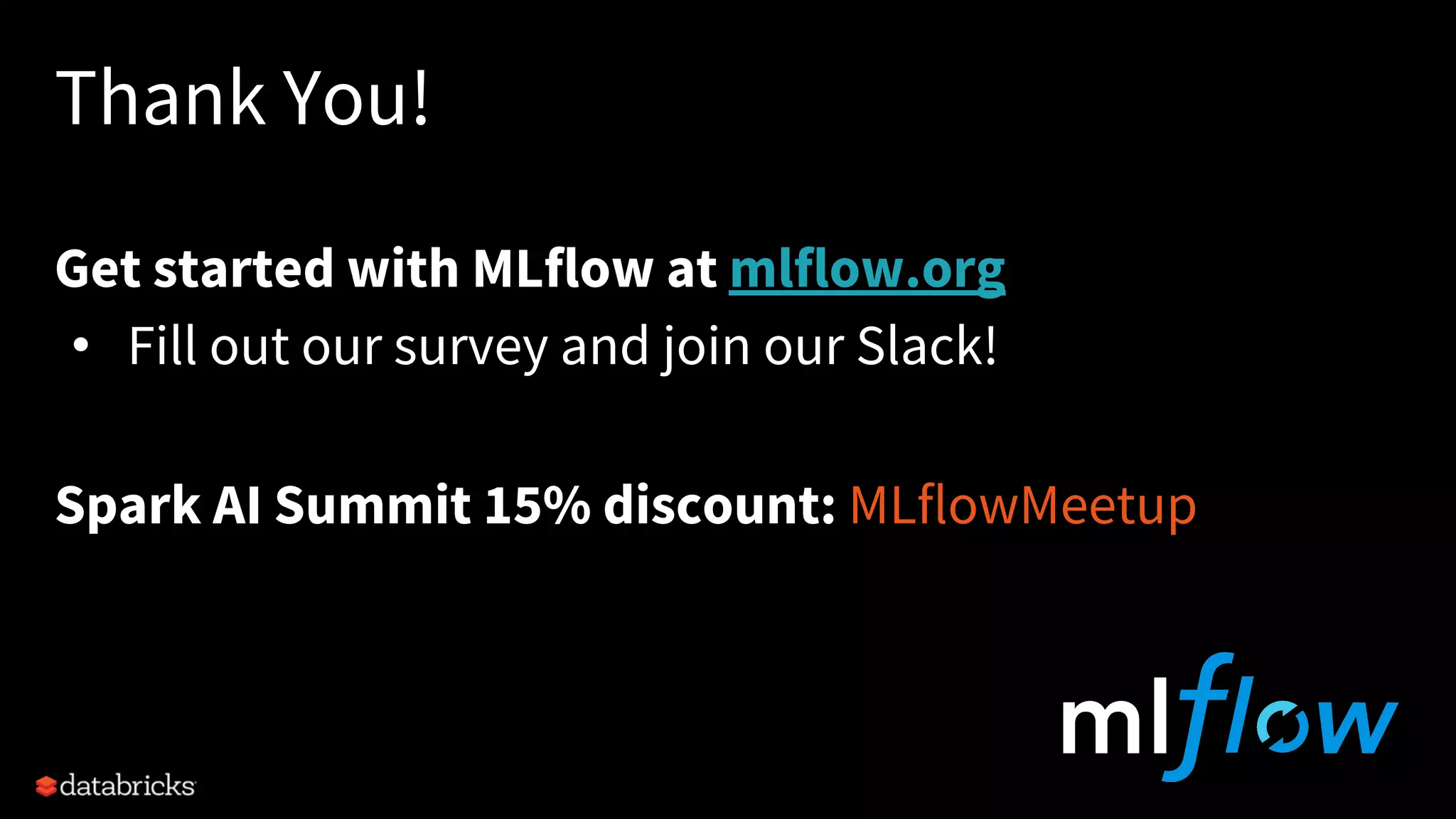

Thank You!
Get started with MLflow at mlflow.org
• Fill out our survey and join our Slack!
Spark AI Summit 15% discount: MLflowMeetup
