Combinatorial Interview Problems
with Backtracking Solutions
From Imperative Procedural Programming
to Declarative Functional Programming
Programming Paradigms
Imperative Declarative
Procedural Object Oriented Functional Logic
@philip_schwarz
slides by https://fpilluminated.org/
𝐼𝑚𝑚𝑢𝑡𝑎𝑏𝑖𝑙𝑖𝑡𝑦
𝐿𝑖𝑠𝑡 𝑀𝑜𝑛𝑎𝑑
𝑀𝑢𝑡𝑎𝑏𝑖𝑙𝑖𝑡𝑦
𝑅𝑒𝑐𝑢𝑟𝑠𝑖𝑜𝑛
𝑑𝑎𝑡𝑎 𝐿𝑖𝑠𝑡 𝑎 = | 𝑎 ∶ [𝑎]
𝑝𝑢𝑟𝑒 𝑥 = 𝑥
𝑥𝑠 ≫= 𝑓 = [𝑦 | 𝑥 ⟵ 𝑥𝑠, 𝑦 ⟵ 𝑓 𝑥]
🔎🧑💻💡

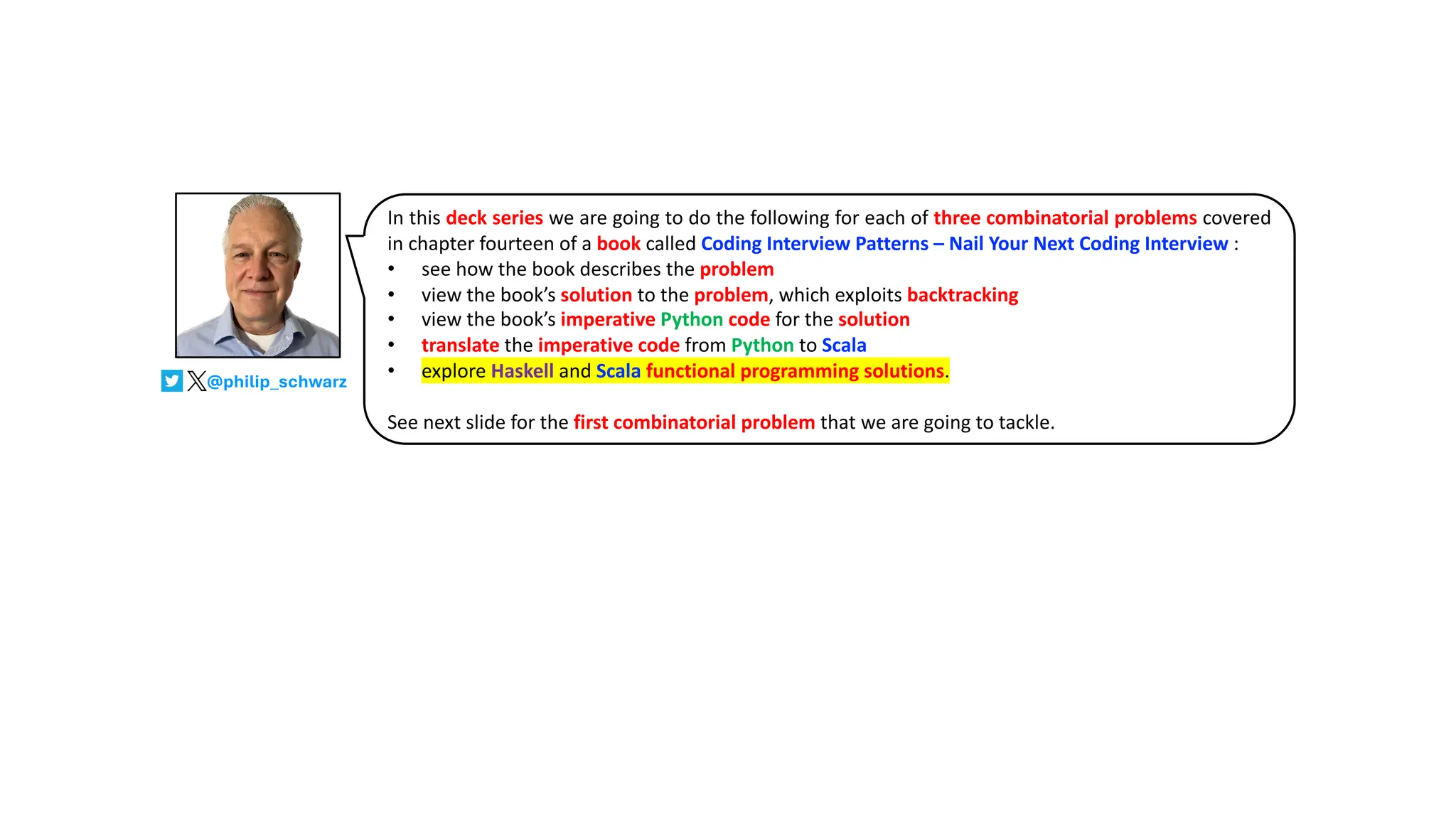

In this deck series we are going to do the following for each of three combinatorial problems covered
in chapter fourteen of a book called Coding Interview Patterns – Nail Your Next Coding Interview :
• see how the book describes the problem
• view the book’s solution to the problem, which exploits backtracking
• view the book’s imperative Python code for the solution
• translate the imperative code from Python to Scala
• explore Haskell and Scala functional programming solutions.
See next slide for the first combinatorial problem that we are going to tackle.
@philip_schwarz

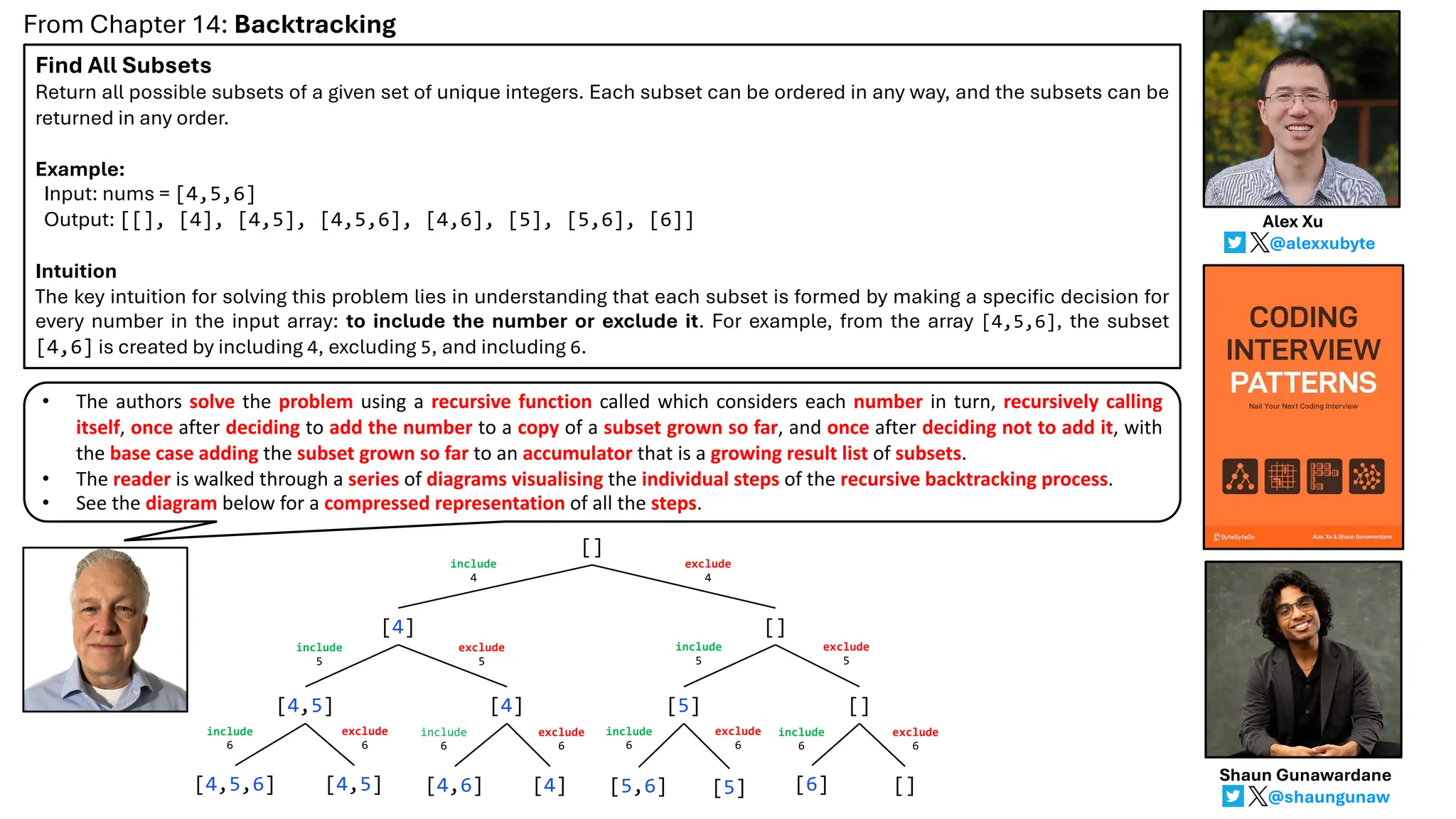

Find All Subsets
Return all possible subsets of a given set of unique integers. Each subset can be ordered in any way, and the subsets can be
returned in any order.
Example:
Input: nums = [4,5,6]
Output: [[], [4], [4,5], [4,5,6], [4,6], [5], [5,6], [6]]
Intuition
The key intuition for solving this problem lies in understanding that each subset is formed by making a specific decision for
every number in the input array: to include the number or exclude it. For example, from the array [4,5,6], the subset
[4,6] is created by including 4, excluding 5, and including 6.
From Chapter 14: Backtracking
@alexxubyte
Alex Xu
@shaungunaw
Shaun Gunawardane
[]
[4] []
[4,5] [4] [5] []
[4,5,6] [4,5] [4,6] [4] [5,6] [5] [6] []
include
4
exclude
4
include
5
exclude
5
include
5
exclude
5
include
6
exclude
6
include
6
exclude
6
include
6
exclude
6
include
6
exclude
6
• The authors solve the problem using a recursive function called which considers each number in turn, recursively calling
itself, once after deciding to add the number to a copy of a subset grown so far, and once after deciding not to add it, with
the base case adding the subset grown so far to an accumulator that is a growing result list of subsets.
• The reader is walked through a series of diagrams visualising the individual steps of the recursive backtracking process.
• See the diagram below for a compressed representation of all the steps.

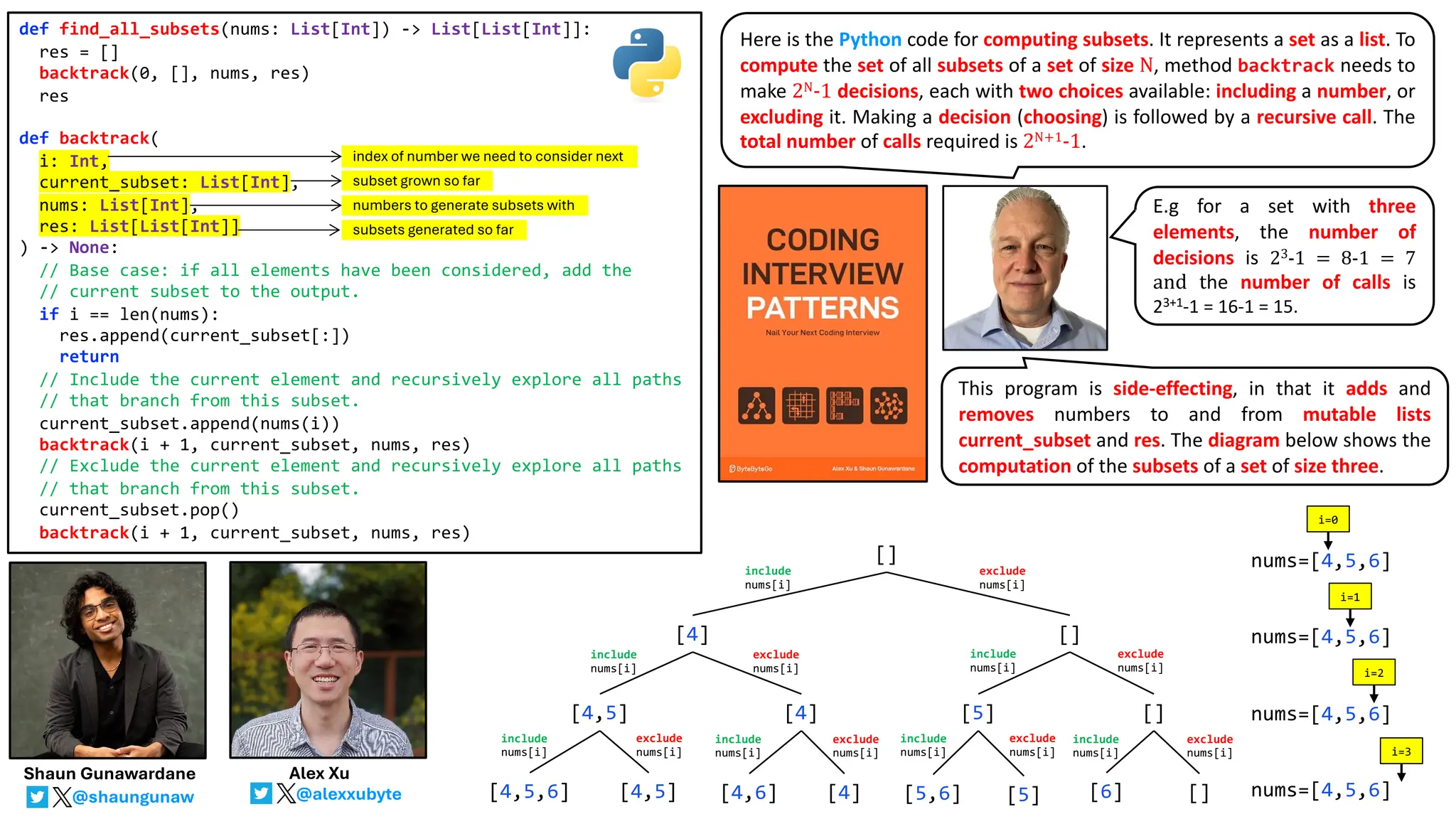

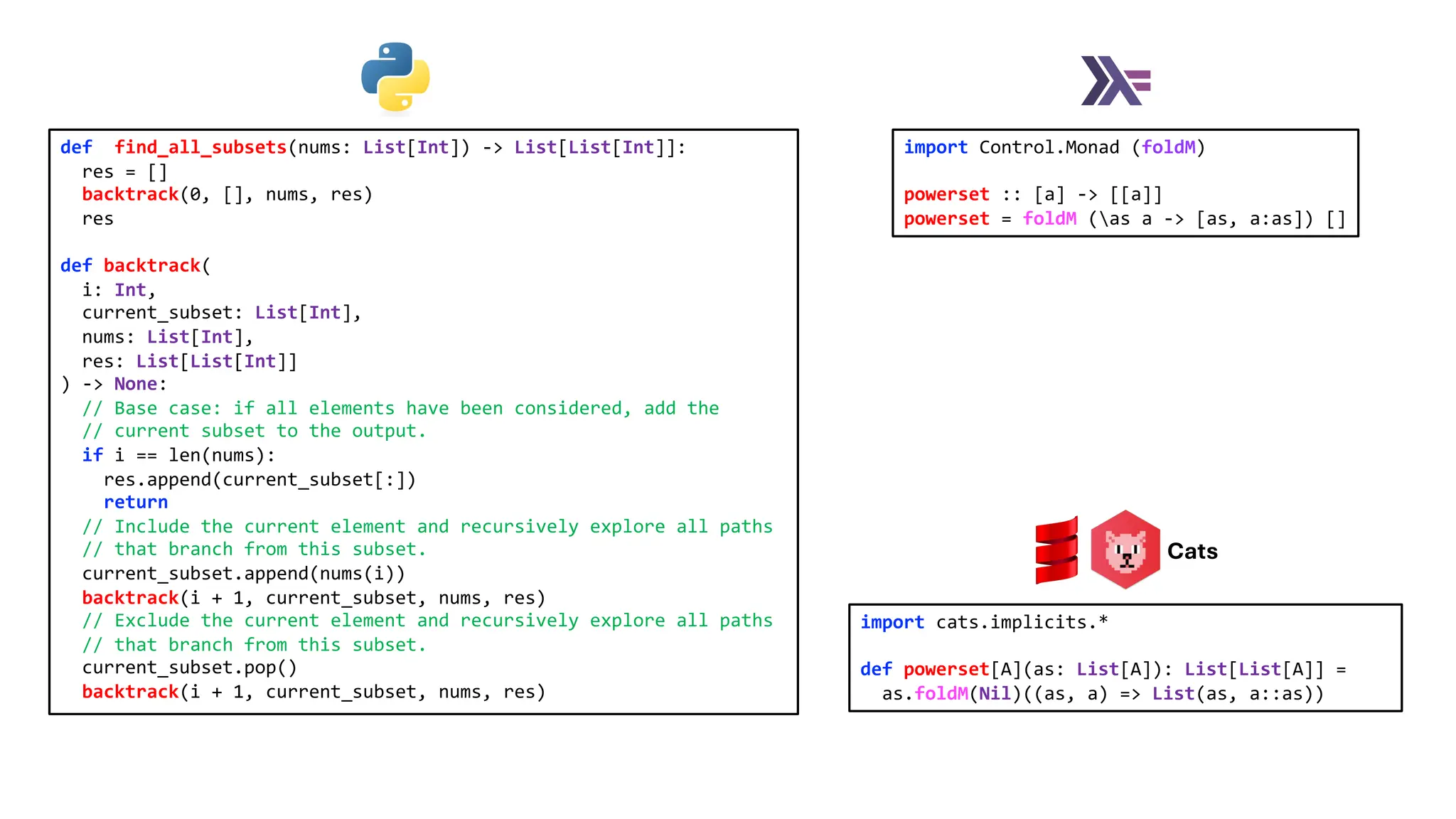

def find_all_subsets(nums: List[Int]) -> List[List[Int]]:
res = []
backtrack(0, [], nums, res)
res
def backtrack(
i: Int,
current_subset: List[Int],
nums: List[Int],
res: List[List[Int]]
) -> None:
// Base case: if all elements have been considered, add the
// current subset to the output.
if i == len(nums):
res.append(current_subset[:])
return
// Include the current element and recursively explore all paths
// that branch from this subset.
current_subset.append(nums(i))
backtrack(i + 1, current_subset, nums, res)
// Exclude the current element and recursively explore all paths
current_subset.pop()
[]
[4] []
[4,5] [4] [5] []
[4,5,6] [4,5] [4,6] [4] [5,6] [5] [6] []
include
nums[i]
exclude
nums[i]
include
nums[i]
exclude
nums[i]
include
nums[i]
exclude
nums[i]
include
nums[i]
exclude
nums[i]
include
nums[i]
exclude
nums[i]
include
nums[i]
exclude
nums[i]
include
nums[i]
exclude
nums[i]
nums=[4,5,6]
nums=[4,5,6]
nums=[4,5,6]
nums=[4,5,6]
i=0
i=1
i=2
i=3
Here is the Python code for computing subsets. It represents a set as a list. To
compute the set of all subsets of a set of size N, method backtrack needs to
make 2N-1 decisions, each with two choices available: including a number, or
excluding it. Making a decision (choosing) is followed by a recursive call. The
total number of calls required is 2N+1-1.
@alexxubyte
Alex Xu
@shaungunaw
Shaun Gunawardane
This program is side-effecting, in that it adds and
removes numbers to and from mutable lists
current_subset and res. The diagram below shows the
computation of the subsets of a set of size three.
E.g for a set with three
elements, the number of
decisions is 23-1 = 8-1 = 7
and the number of calls is
23+1-1 = 16-1 = 15.
index of number we need to consider next
subset grown so far
numbers to generate subsets with
subsets generated so far

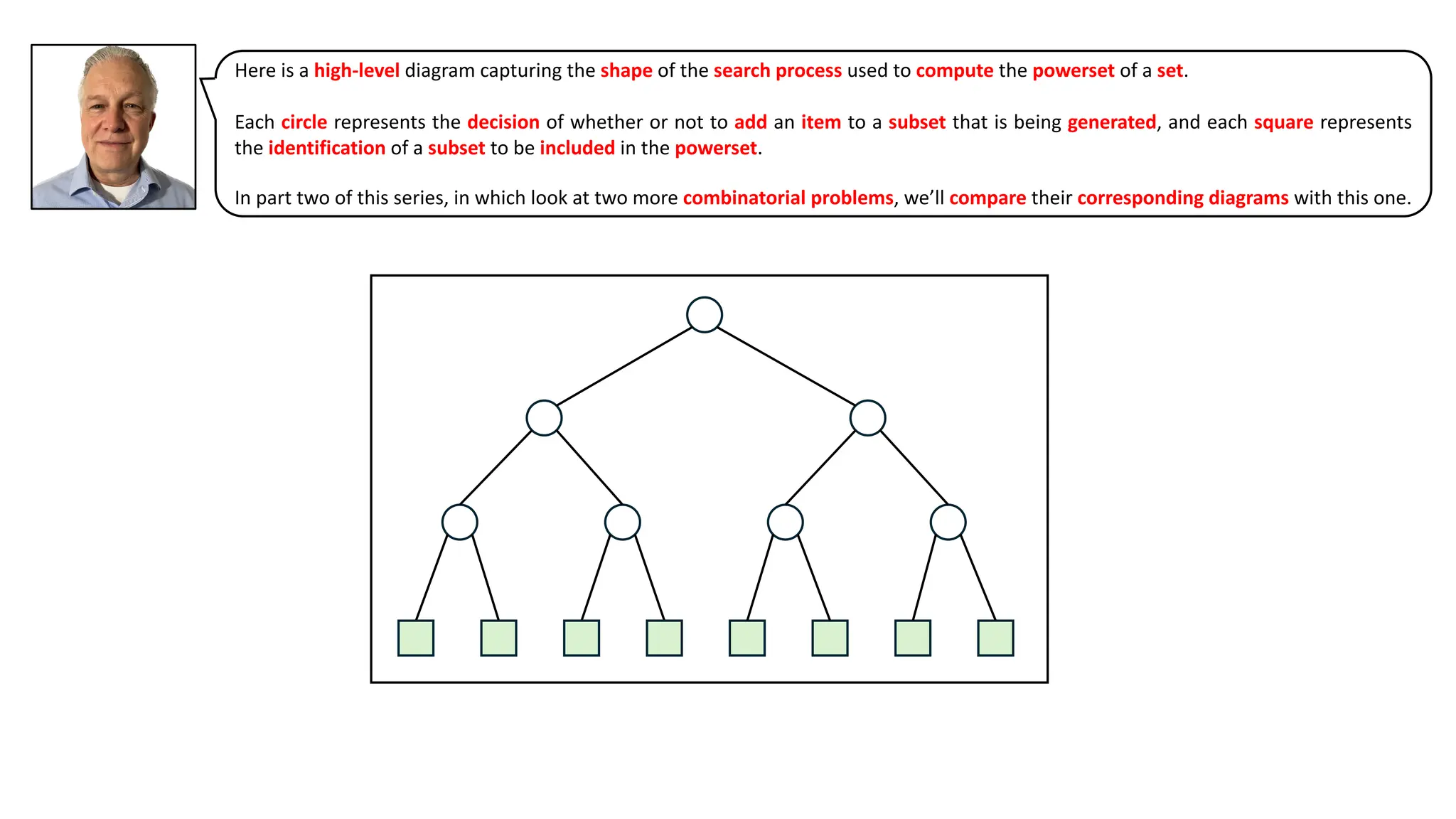

Here is a high-level diagram capturing the shape of the search process used to compute the powerset of a set.
Each circle represents the decision of whether or not to add an item to a subset that is being generated, and each square represents
the identification of a subset to be included in the powerset.
In part two of this series, in which look at two more combinatorial problems, we’ll compare their corresponding diagrams with this one.

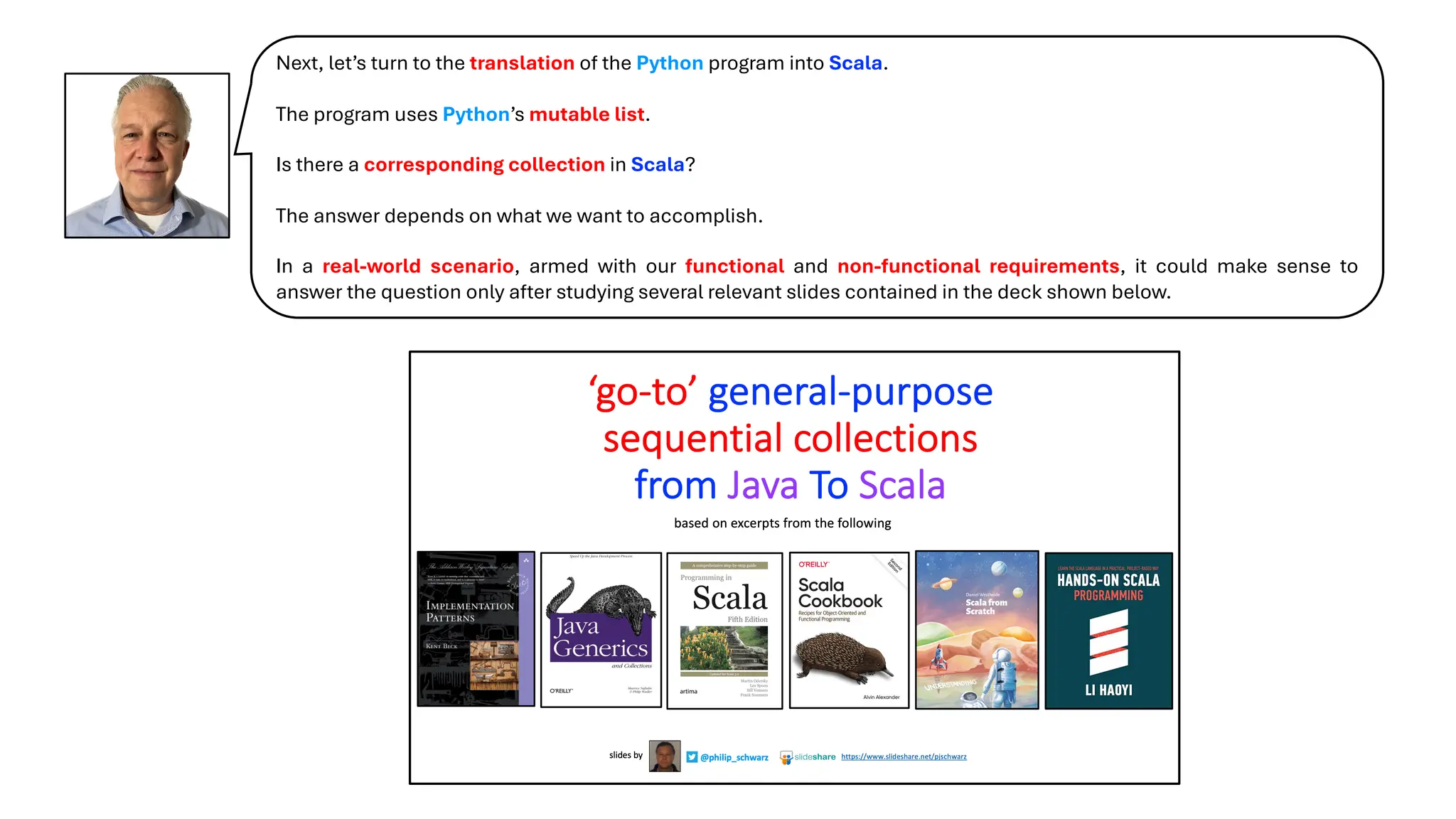

Next, let’s turn to the translation of the Python program into Scala.
The program uses Python’s mutable list.
Is there a corresponding collection in Scala?
The answer depends on what we want to accomplish.
In a real-world scenario, armed with our functional and non-functional requirements, it could make sense to
answer the question only after studying several relevant slides contained in the deck shown below.

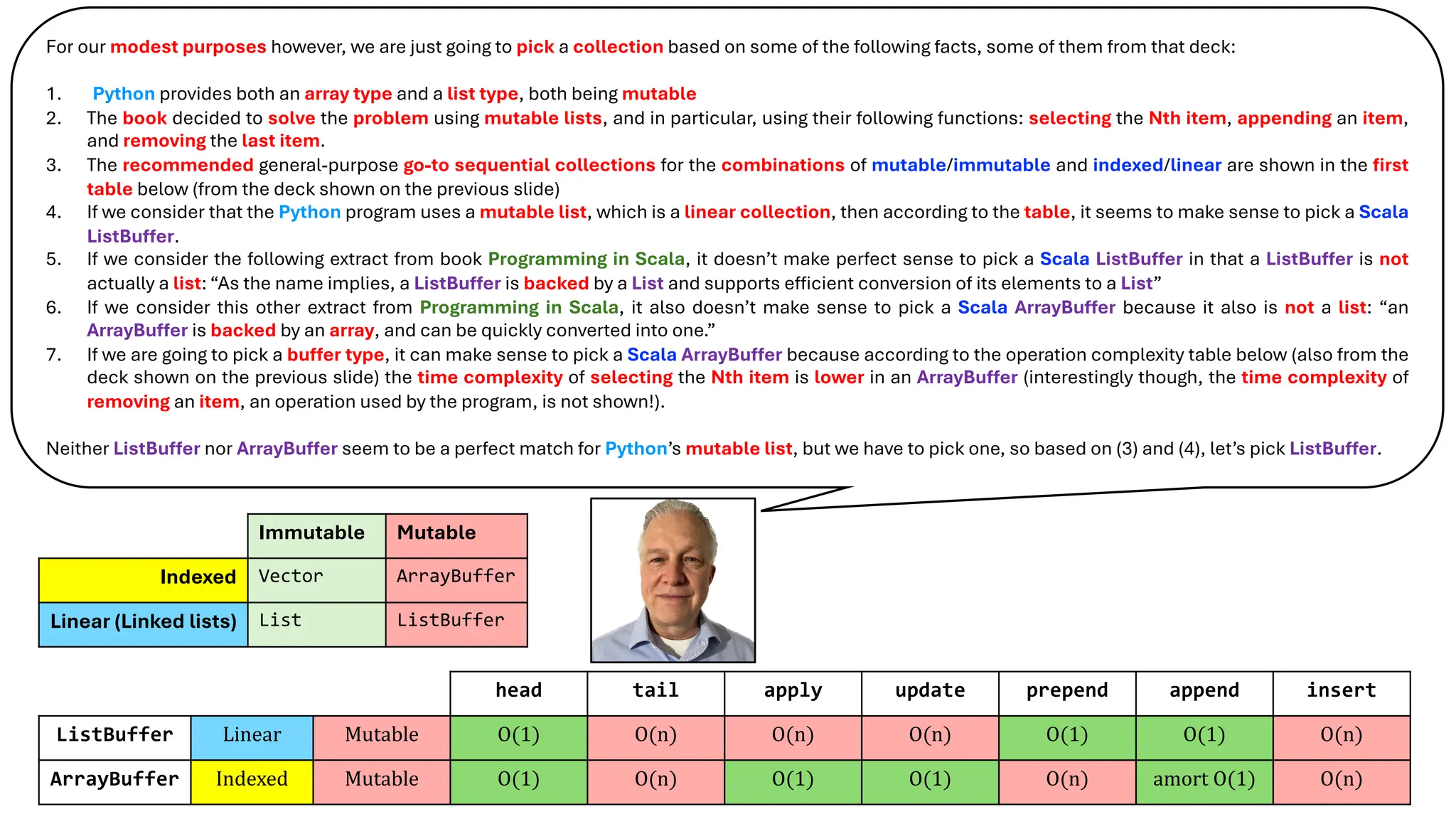

For our modest purposes however, we are just going to pick a collection based on some of the following facts, some of them from that deck:
1. .Python provides both an array type and a list type, both being mutable
2. The book decided to solve the problem using mutable lists, and in particular, using their following functions: selecting the Nth item, appending an item,
and removing the last item.
3. The recommended general-purpose go-to sequential collections for the combinations of mutable/immutable and indexed/linear are shown in the first
table below (from the deck shown on the previous slide)
4. If we consider that the Python program uses a mutable list, which is a linear collection, then according to the table, it seems to make sense to pick a Scala
ListBuffer.
5. If we consider the following extract from book Programming in Scala, it doesn’t make perfect sense to pick a Scala ListBuffer in that a ListBuffer is not
actually a list: “As the name implies, a ListBuffer is backed by a List and supports efficient conversion of its elements to a List”
6. If we consider this other extract from Programming in Scala, it also doesn’t make sense to pick a Scala ArrayBuffer because it also is not a list: “an
ArrayBuffer is backed by an array, and can be quickly converted into one.”
7. If we are going to pick a buffer type, it can make sense to pick a Scala ArrayBuffer because according to the operation complexity table below (also from the
deck shown on the previous slide) the time complexity of selecting the Nth item is lower in an ArrayBuffer (interestingly though, the time complexity of
removing an item, an operation used by the program, is not shown!).
Neither ListBuffer nor ArrayBuffer seem to be a perfect match for Python’s mutable list, but we have to pick one, so based on (3) and (4), let’s pick ListBuffer.
Immutable Mutable
Indexed Vector ArrayBuffer
Linear (Linked lists) List ListBuffer
head tail apply update prepend append insert
ListBuffer Linear Mutable O(1) O(n) O(n) O(n) O(1) O(1) O(n)
ArrayBuffer Indexed Mutable O(1) O(n) O(1) O(1) O(n) amort O(1) O(n)

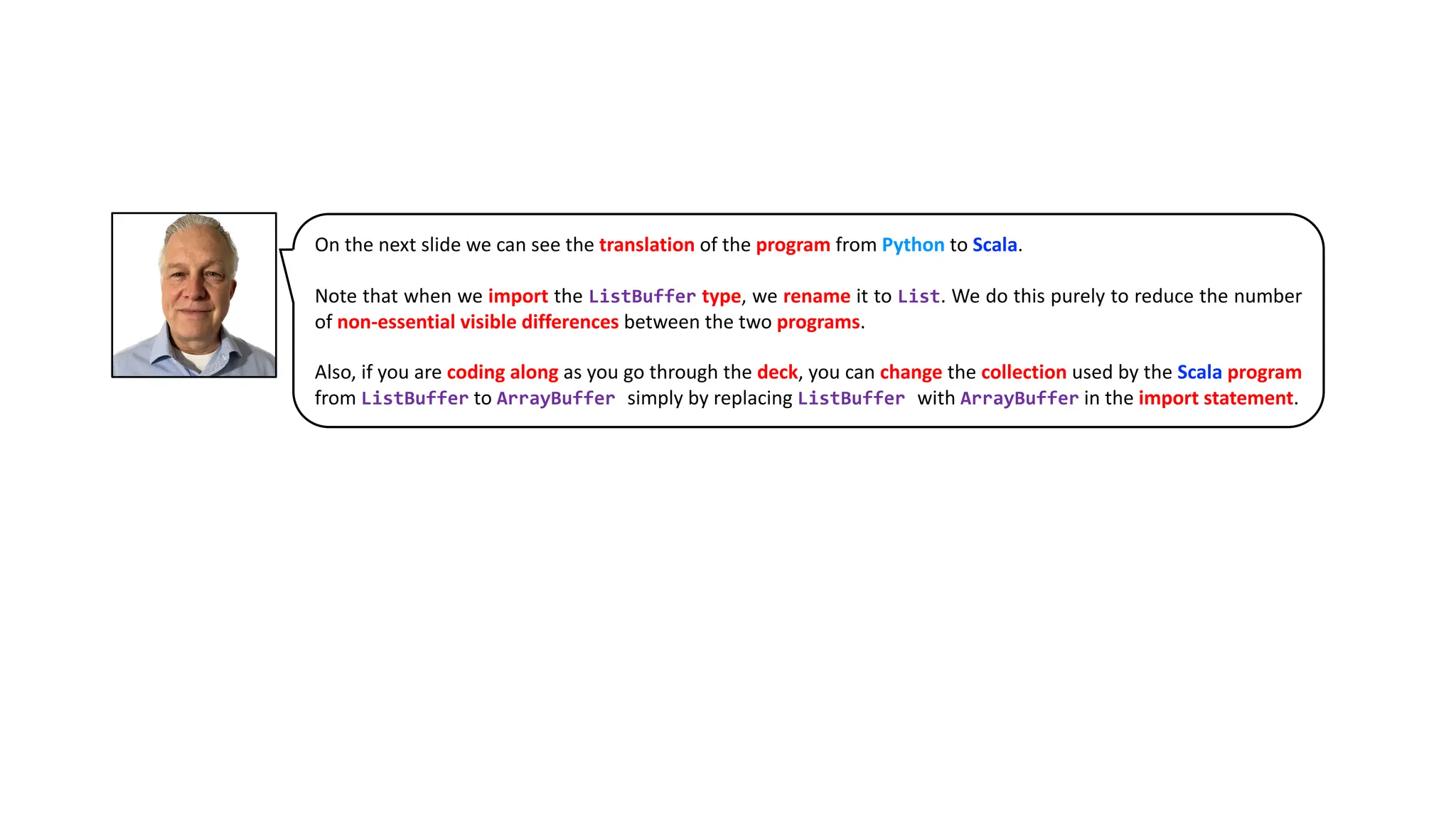

On the next slide we can see the translation of the program from Python to Scala.
Note that when we import the ListBuffer type, we rename it to List. We do this purely to reduce the number
of non-essential visible differences between the two programs.
Also, if you are coding along as you go through the deck, you can change the collection used by the Scala program
from ListBuffer to ArrayBuffer simply by replacing ListBuffer with ArrayBuffer in the import statement.

def find_all_subsets(nums: List[Int]): List[List[Int]] =
val res = List.empty[List[Int]]
backtrack(0, List(), nums, res)
res
def backtrack(
i: Int,
nums: List[Int],
): Unit =
if i == nums.length
then
return res.append(current_subset.clone)
current_subset.dropRightInPlace(1)
res = []
res
def backtrack(
i: Int,
nums: List[Int],
) -> None:
if i == len(nums):
return
import scala.collection.mutable.ListBuffer as List

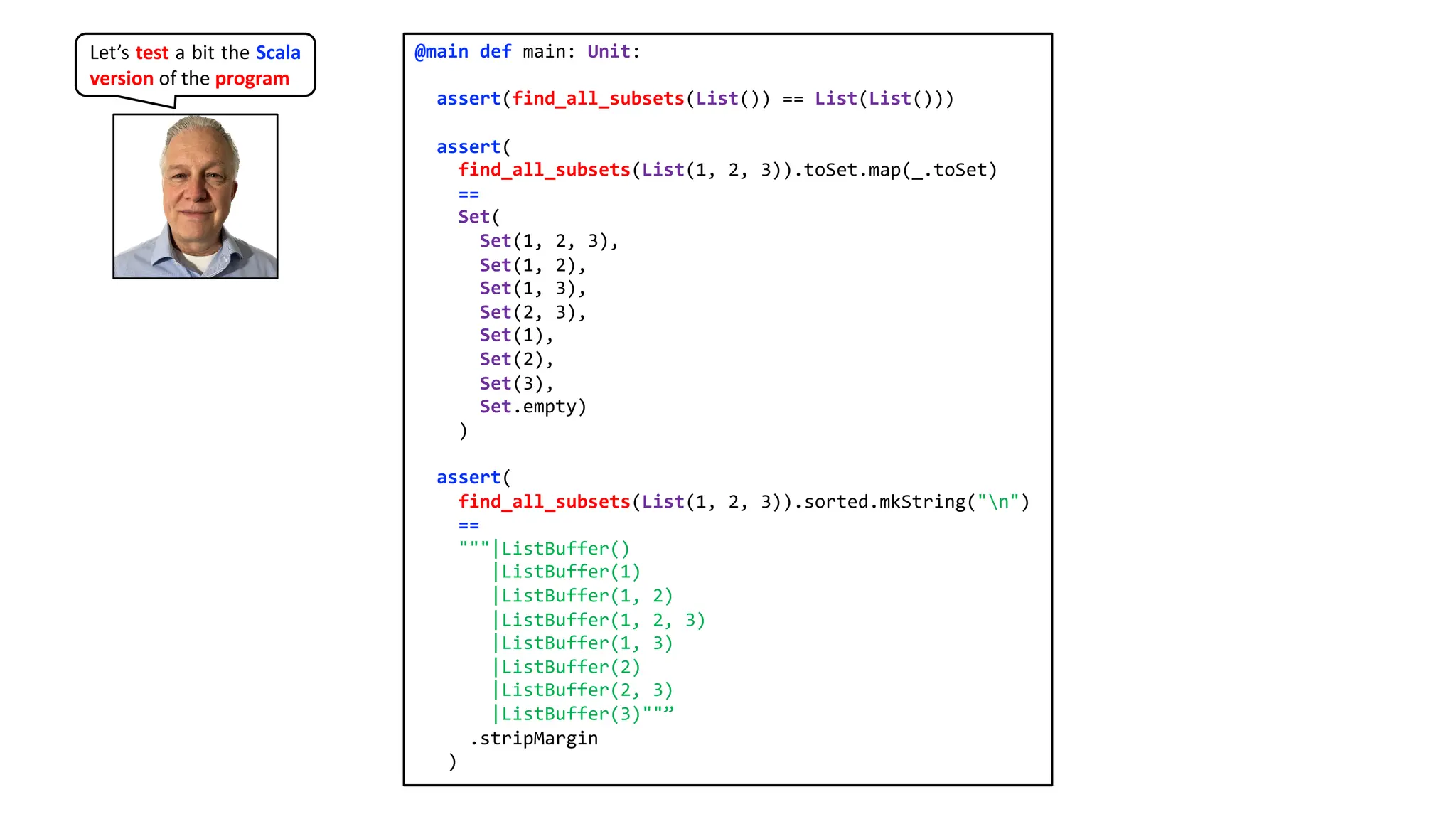

@main def main: Unit:
assert(find_all_subsets(List()) == List(List()))
assert(
find_all_subsets(List(1, 2, 3)).toSet.map(_.toSet)
==
Set(
Set(1, 2, 3),
Set(1, 2),
Set(1, 3),
Set(2, 3),
Set(1),
Set(2),
Set(3),
Set.empty)
)
assert(
find_all_subsets(List(1, 2, 3)).sorted.mkString("n")
==
"""|ListBuffer()
|ListBuffer(1)
|ListBuffer(1, 2)
|ListBuffer(1, 2, 3)
|ListBuffer(1, 3)
|ListBuffer(2)
|ListBuffer(2, 3)
|ListBuffer(3)""”
.stripMargin
)
Let’s test a bit the Scala
version of the program

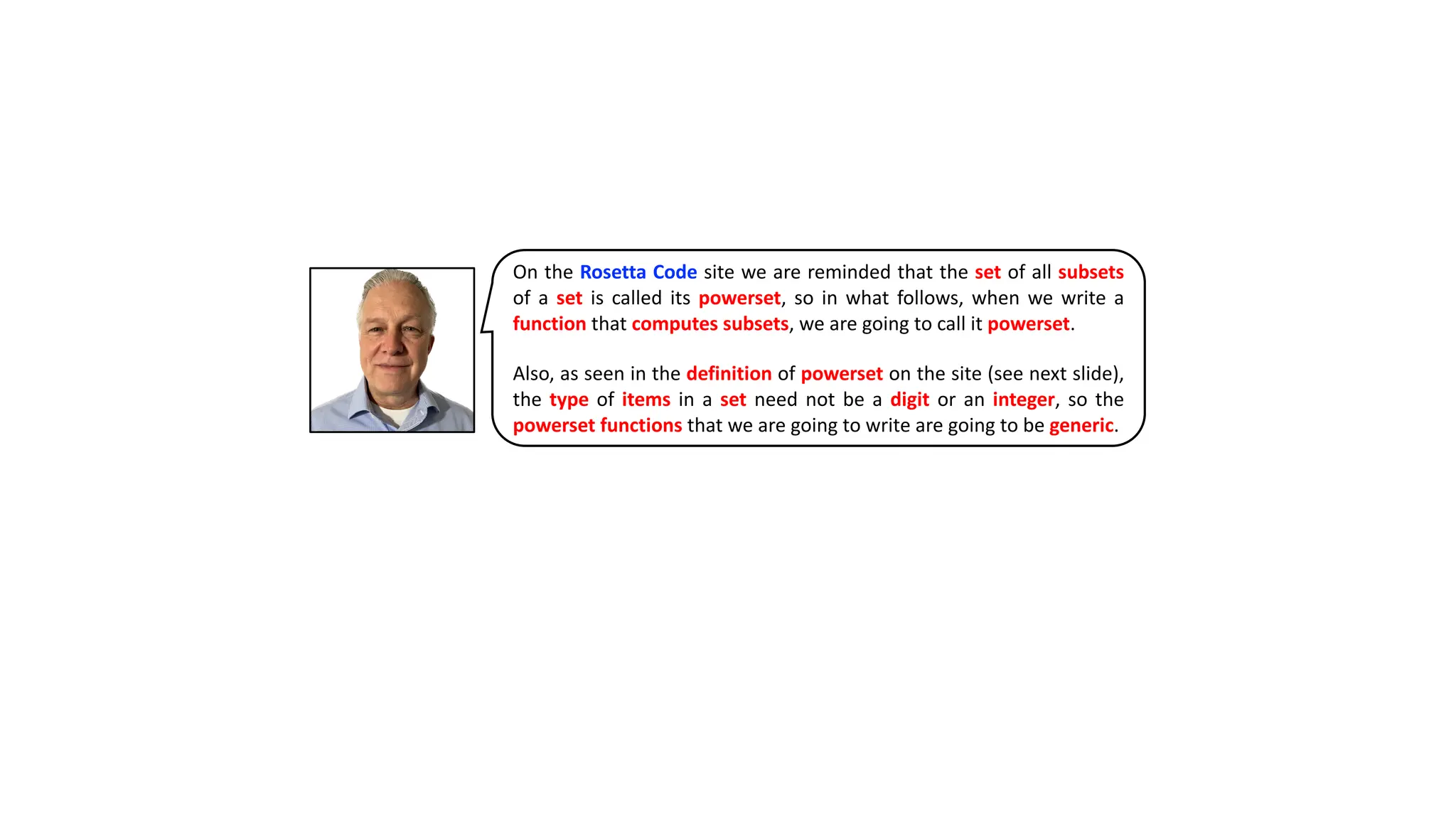

On the Rosetta Code site we are reminded that the set of all subsets
of a set is called its powerset, so in what follows, when we write a
function that computes subsets, we are going to call it powerset.
Also, as seen in the definition of powerset on the site (see next slide),
the type of items in a set need not be a digit or an integer, so the
powerset functions that we are going to write are going to be generic.

Rosetta Code
https://rosettacode.org/wiki/Rosetta_Code

In Introduction to Functional Programming (IFP), there is a Combinatorial
functions section which defines 𝑠𝑢𝑏𝑠, a powerset function which is
recursive, and in which a set is implemented as an immutable list.
Richard Bird
http://www.cs.ox.ac.uk/people/richard.bird/
Philip Wadler
https://github.com/wadler

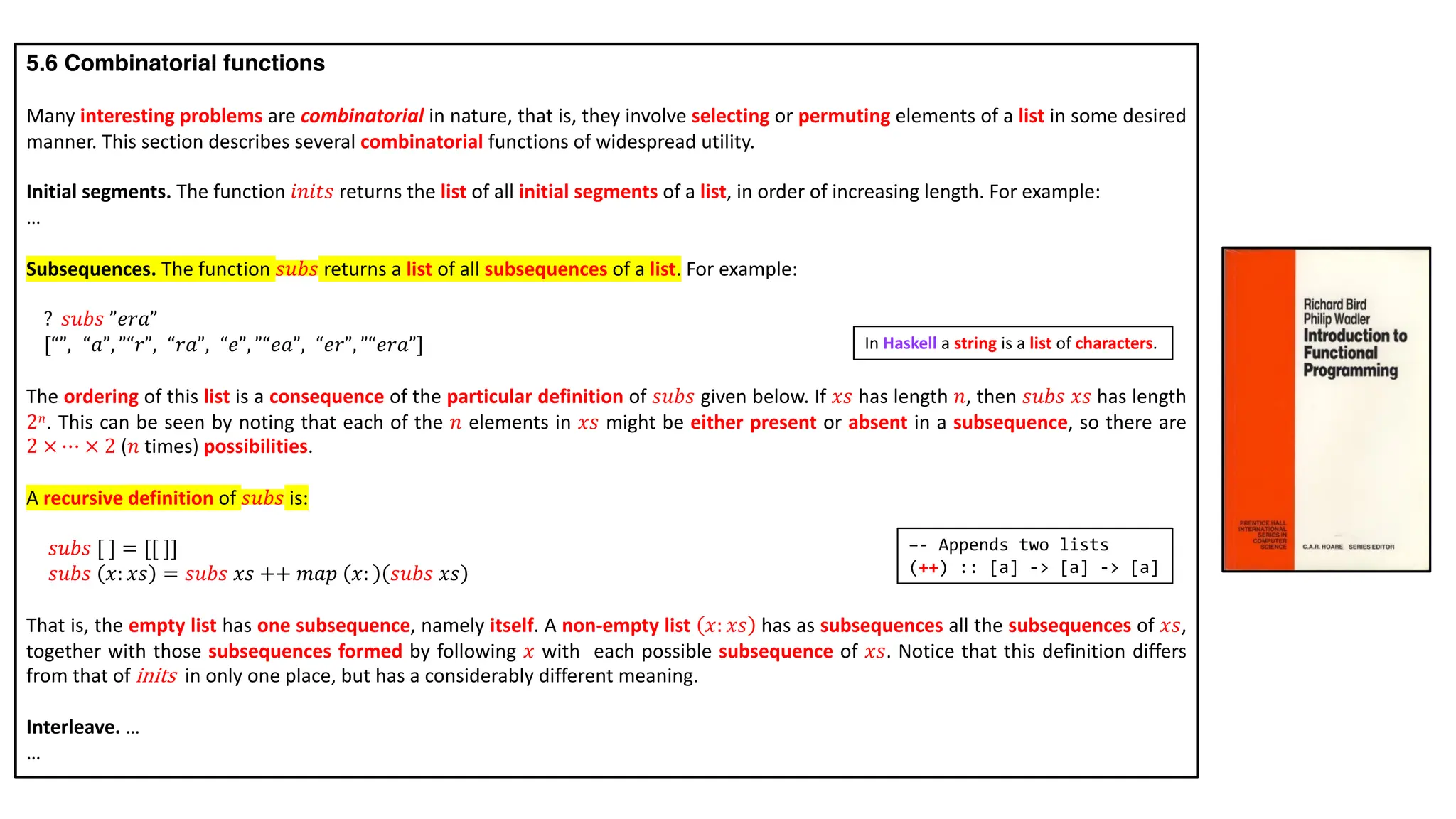

5.6 Combinatorial functions
Many interesting problems are combinatorial in nature, that is, they involve selecting or permuting elements of a list in some desired
manner. This section describes several combinatorial functions of widespread utility.
Initial segments. The function 𝑖𝑛𝑖𝑡𝑠 returns the list of all initial segments of a list, in order of increasing length. For example:
…
Subsequences. The function 𝑠𝑢𝑏𝑠 returns a list of all subsequences of a list. For example:
? 𝑠𝑢𝑏𝑠 ”𝑒𝑟𝑎”
[“”, ”“𝑎”, ”“𝑟”, “𝑟𝑎”, “𝑒”, ”“𝑒𝑎”, “𝑒𝑟”, ”“𝑒𝑟𝑎”]
The ordering of this list is a consequence of the particular definition of 𝑠𝑢𝑏𝑠 given below. If 𝑥𝑠 has length 𝑛, then 𝑠𝑢𝑏𝑠 𝑥𝑠 has length
2𝑛. This can be seen by noting that each of the 𝑛 elements in 𝑥𝑠 might be either present or absent in a subsequence, so there are
2 × ⋯ × 2 (𝑛 times) possibilities.
A recursive definition of 𝑠𝑢𝑏𝑠 is:
𝑠𝑢𝑏𝑠 [ ] = [[ ]]
𝑠𝑢𝑏𝑠 𝑥: 𝑥𝑠 = 𝑠𝑢𝑏𝑠 𝑥𝑠 ++ 𝑚𝑎𝑝 𝑥: 𝑠𝑢𝑏𝑠 𝑥𝑠
That is, the empty list has one subsequence, namely itself. A non-empty list 𝑥: 𝑥𝑠 has as subsequences all the subsequences of 𝑥𝑠,
together with those subsequences formed by following 𝑥 with each possible subsequence of 𝑥𝑠. Notice that this definition differs
from that of inits in only one place, but has a considerably different meaning.
Interleave. …
…
–- Appends two lists
(++) :: [a] -> [a] -> [a]
In Haskell a string is a list of characters.

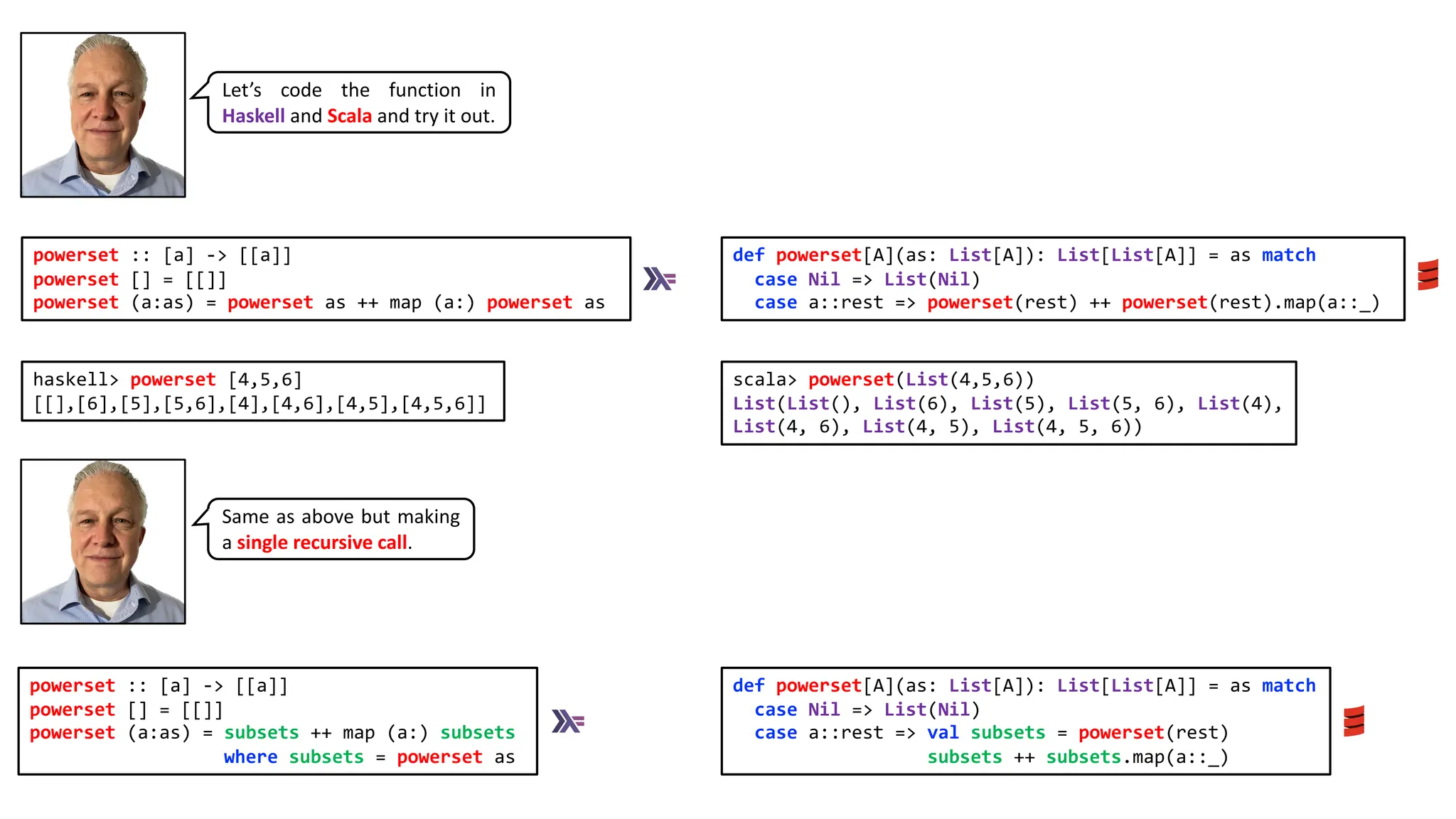

Let’s code the function in
Haskell and Scala and try it out.
def powerset[A](as: List[A]): List[List[A]] = as match
case Nil => List(Nil)
case a::rest => powerset(rest) ++ powerset(rest).map(a::_)
powerset :: [a] -> [[a]]
powerset [] = [[]]
powerset (a:as) = powerset as ++ map (a:) powerset as
haskell> powerset [4,5,6]
[[],[6],[5],[5,6],[4],[4,6],[4,5],[4,5,6]]
scala> powerset(List(4,5,6))
List(List(), List(6), List(5), List(5, 6), List(4),
List(4, 6), List(4, 5), List(4, 5, 6))
case a::rest => val subsets = powerset(rest)
subsets ++ subsets.map(a::_)
powerset [] = [[]]
powerset (a:as) = subsets ++ map (a:) subsets
where subsets = powerset as
Same as above but making
a single recursive call.

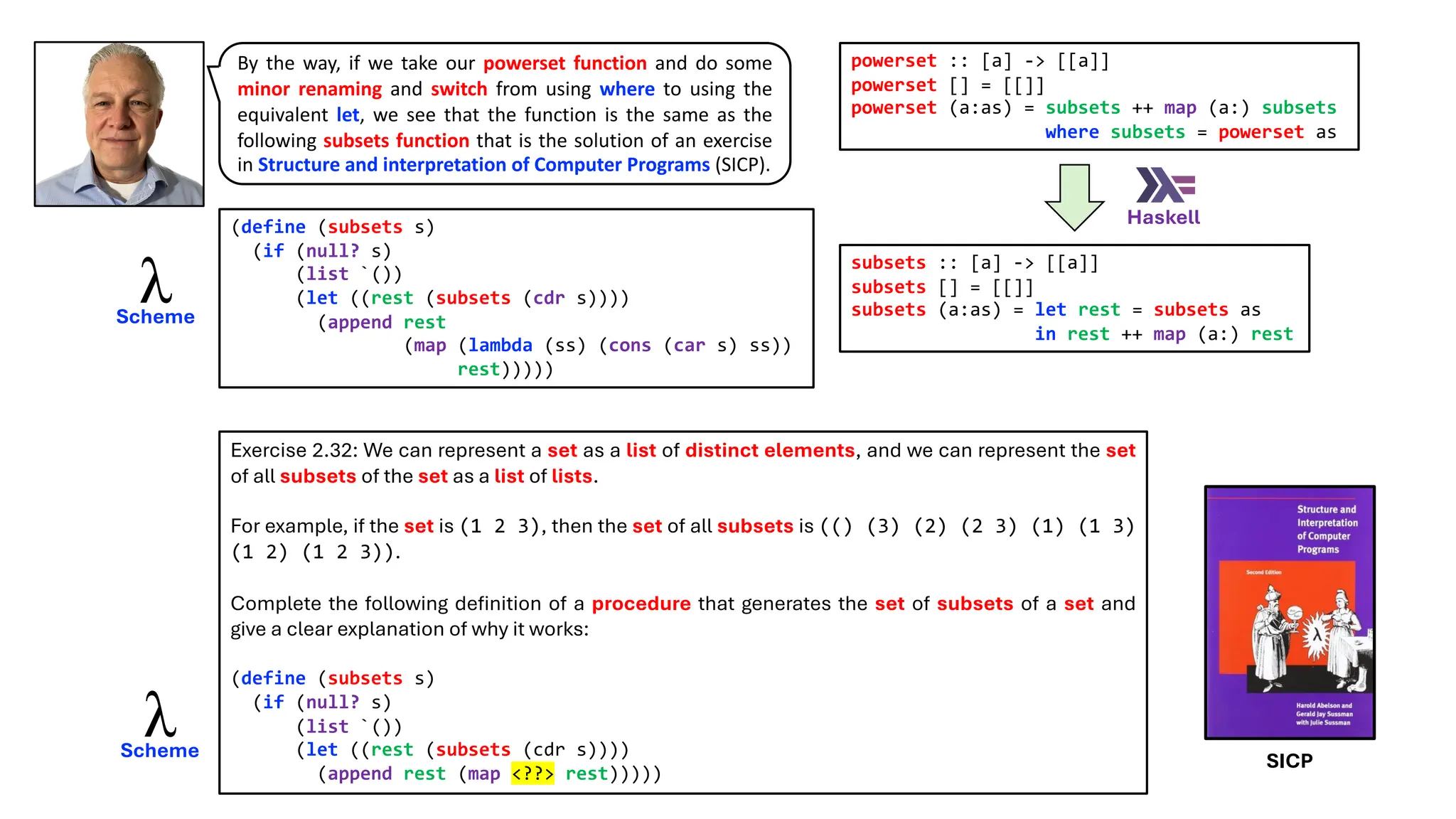

Exercise 2.32: We can represent a set as a list of distinct elements, and we can represent the set
of all subsets of the set as a list of lists.
For example, if the set is (1 2 3), then the set of all subsets is (() (3) (2) (2 3) (1) (1 3)
(1 2) (1 2 3)).
Complete the following definition of a procedure that generates the set of subsets of a set and
give a clear explanation of why it works:
(define (subsets s)
(if (null? s)
(list `())
(let ((rest (subsets (cdr s))))
(append rest (map <??> rest)))))
(define (subsets s)
(if (null? s)
(list `())
(let ((rest (subsets (cdr s))))
(append rest
(map (lambda (ss) (cons (car s) ss))
rest)))))
By the way, if we take our powerset function and do some
minor renaming and switch from using where to using the
equivalent let, we see that the function is the same as the
following subsets function that is the solution of an exercise
in Structure and interpretation of Computer Programs (SICP).
powerset [] = [[]]
subsets :: [a] -> [[a]]
subsets [] = [[]]
subsets (a:as) = let rest = subsets as
in rest ++ map (a:) rest
SICP
Scheme
Scheme
Haskell

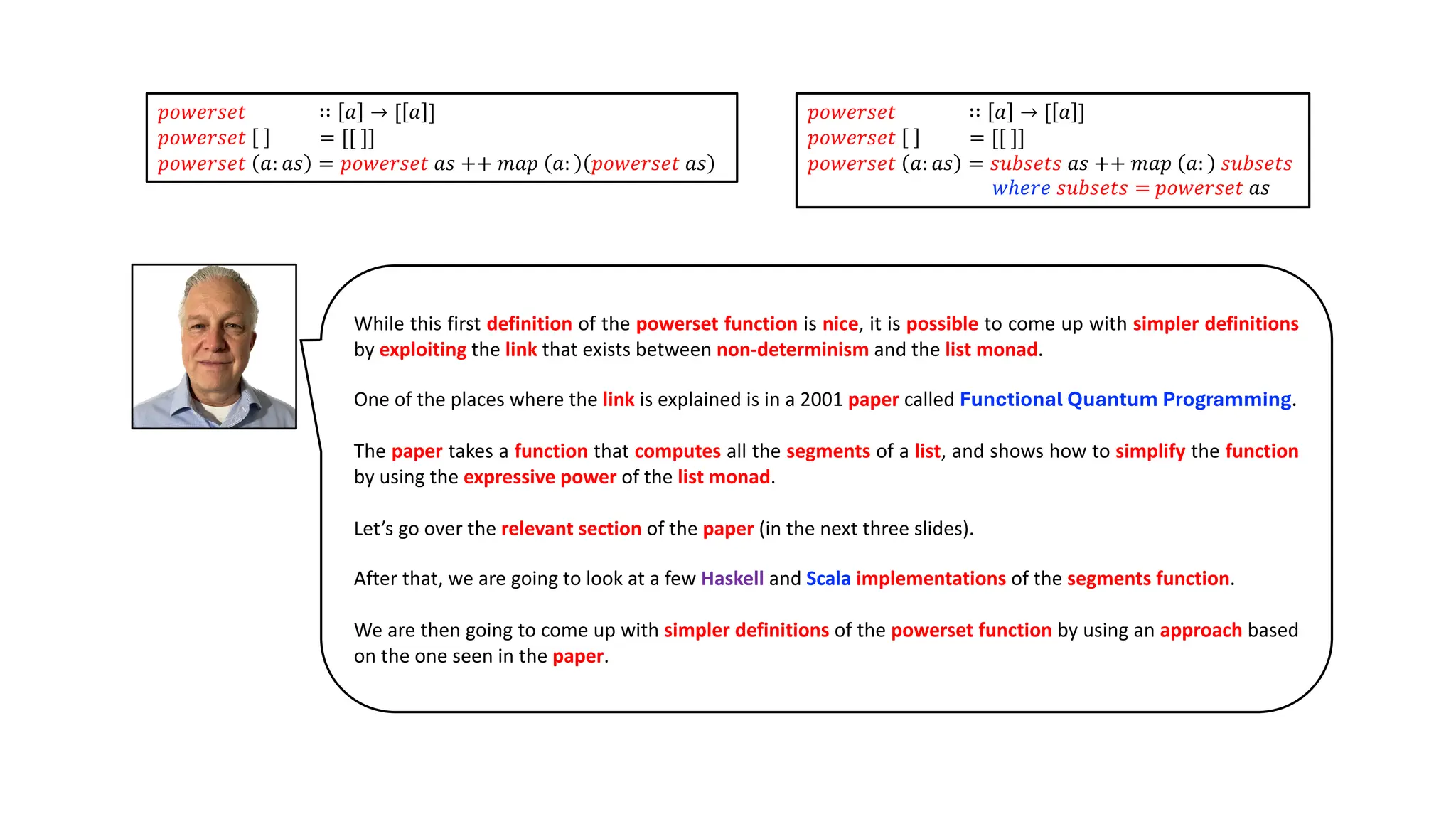

While this first definition of the powerset function is nice, it is possible to come up with simpler definitions
by exploiting the link that exists between non-determinism and the list monad.

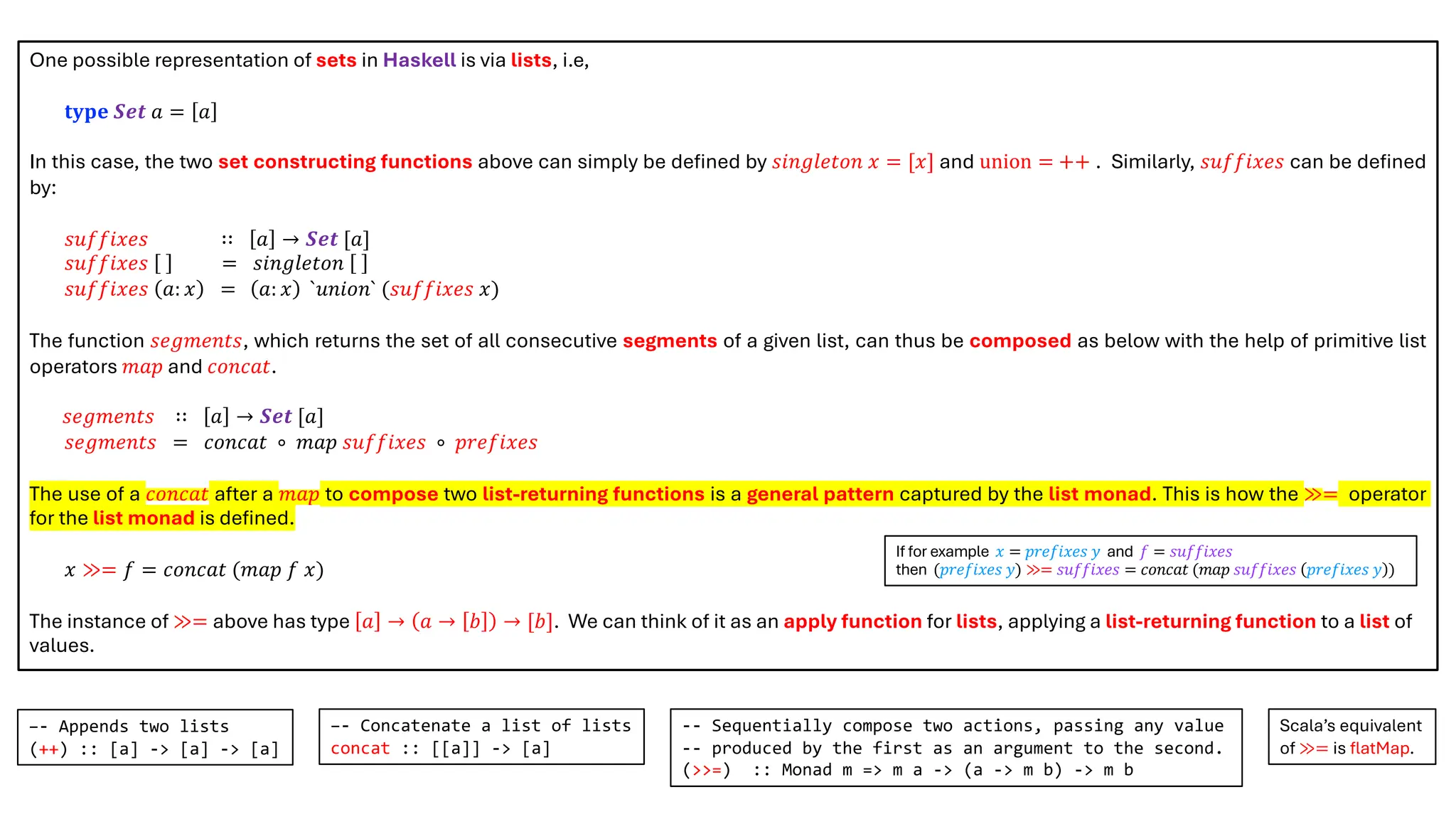

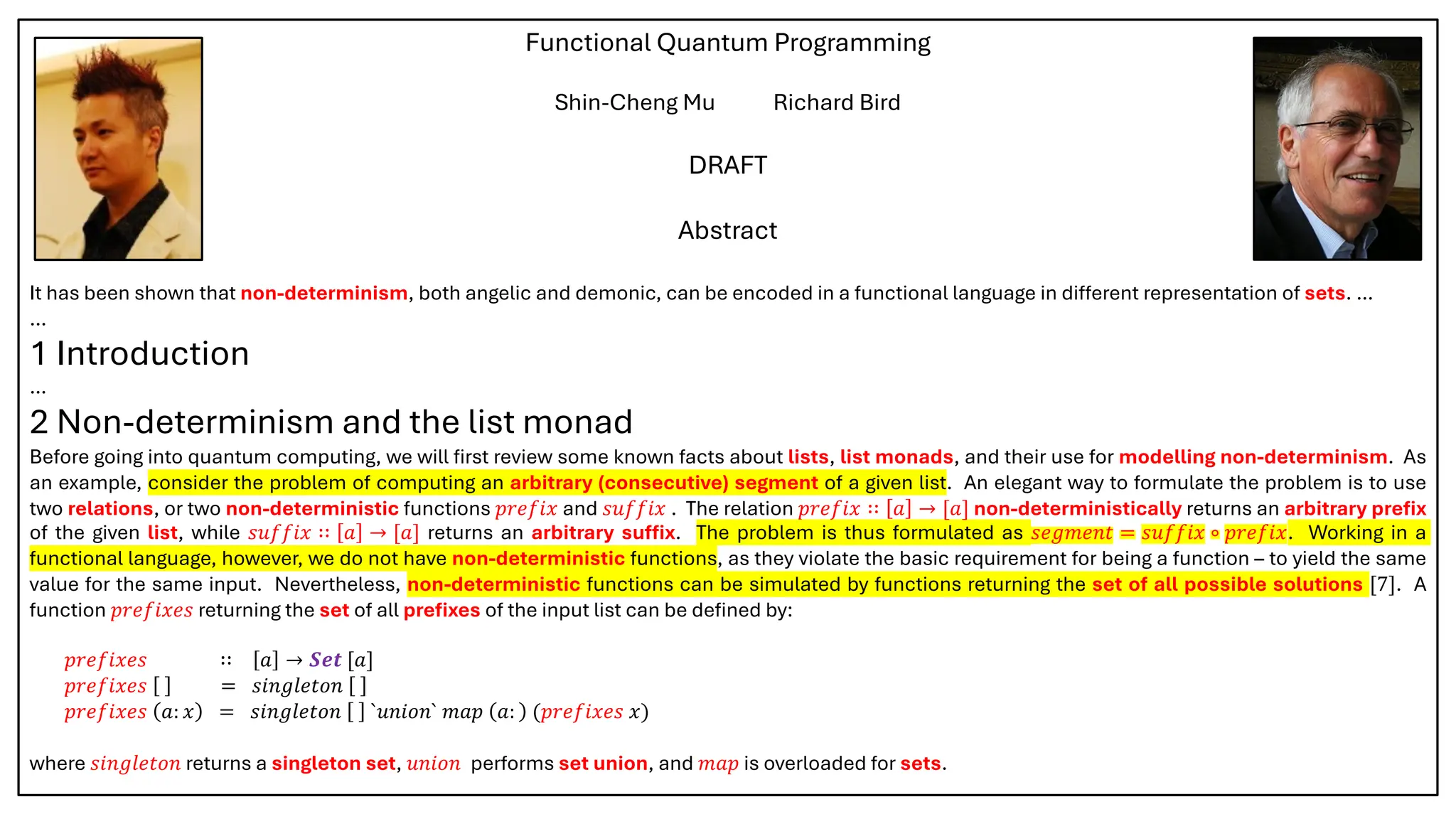

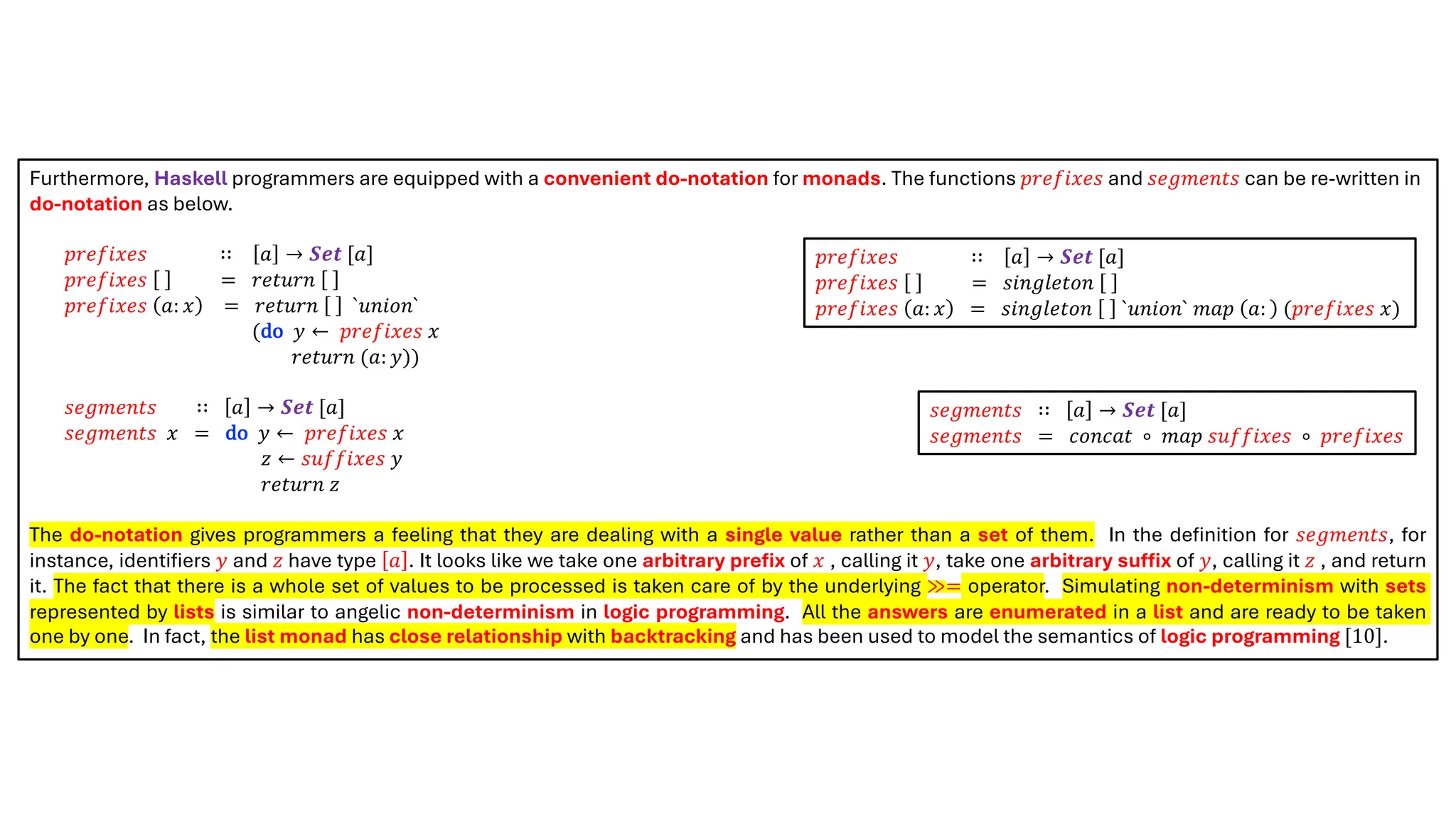

One of the places where the link is explained is in a 2001 paper called Functional Quantum Programming.
The paper takes a function that computes all the segments of a list, and shows how to simplify the function
by using the expressive power of the list monad.
Let’s go over the relevant section of the paper (in the next three slides).
After that, we are going to look at a few Haskell and Scala implementations of the segments function.
We are then going to come up with simpler definitions of the powerset function by using an approach based
on the one seen in the paper.
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 ∷ 𝑎 → [ 𝑎 ]
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 = [[ ]]
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠 ++ 𝑚𝑎𝑝 𝑎: 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = 𝑠𝑢𝑏𝑠𝑒𝑡𝑠 𝑎𝑠 ++ 𝑚𝑎𝑝 𝑎: 𝑠𝑢𝑏𝑠𝑒𝑡𝑠
𝑤ℎ𝑒𝑟𝑒 𝑠𝑢𝑏𝑠𝑒𝑡𝑠 = 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠

Functional Quantum Programming
Shin-Cheng Mu Richard Bird
DRAFT
Abstract
It has been shown that non-determinism, both angelic and demonic, can be encoded in a functional language in different representation of sets. …
…
1 Introduction
…
2 Non-determinism and the list monad
Before going into quantum computing, we will first review some known facts about lists, list monads, and their use for modelling non-determinism. As
an example, consider the problem of computing an arbitrary (consecutive) segment of a given list. An elegant way to formulate the problem is to use
two relations, or two non-deterministic functions 𝑝𝑟𝑒𝑓𝑖𝑥 and 𝑠𝑢𝑓𝑓𝑖𝑥 . The relation 𝑝𝑟𝑒𝑓𝑖𝑥 ∷ 𝑎 → [𝑎] non-deterministically returns an arbitrary prefix
of the given list, while 𝑠𝑢𝑓𝑓𝑖𝑥 ∷ 𝑎 → [𝑎] returns an arbitrary suffix. The problem is thus formulated as 𝑠𝑒𝑔𝑚𝑒𝑛𝑡 = 𝑠𝑢𝑓𝑓𝑖𝑥 ∘ 𝑝𝑟𝑒𝑓𝑖𝑥. Working in a
functional language, however, we do not have non-deterministic functions, as they violate the basic requirement for being a function – to yield the same
value for the same input. Nevertheless, non-deterministic functions can be simulated by functions returning the set of all possible solutions [7]. A
function 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 returning the set of all prefixes of the input list can be defined by:
𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 ∷ 𝑎 → 𝑺𝒆𝒕 [𝑎]
𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 = 𝑠𝑖𝑛𝑔𝑙𝑒𝑡𝑜𝑛
𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑎: 𝑥 = 𝑠𝑖𝑛𝑔𝑙𝑒𝑡𝑜𝑛 `𝑢𝑛𝑖𝑜𝑛` 𝑚𝑎𝑝 𝑎: (𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑥)
where 𝑠𝑖𝑛𝑔𝑙𝑒𝑡𝑜𝑛 returns a singleton set, 𝑢𝑛𝑖𝑜𝑛 performs set union, and 𝑚𝑎𝑝 is overloaded for sets.

One possible representation of sets in Haskell is via lists, i.e,
𝐭𝐲𝐩𝐞 𝑺𝒆𝒕 𝑎 = 𝑎
In this case, the two set constructing functions above can simply be defined by 𝑠𝑖𝑛𝑔𝑙𝑒𝑡𝑜𝑛 𝑥 = [𝑥] and union = ++ . Similarly, 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 can be defined
by:
𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 ∷ 𝑎 → 𝑺𝒆𝒕 [𝑎]
𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 = 𝑠𝑖𝑛𝑔𝑙𝑒𝑡𝑜𝑛
𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 𝑎: 𝑥 = 𝑎: 𝑥 `𝑢𝑛𝑖𝑜𝑛` (𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 𝑥)
The function 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠, which returns the set of all consecutive segments of a given list, can thus be composed as below with the help of primitive list
operators 𝑚𝑎𝑝 and 𝑐𝑜𝑛𝑐𝑎𝑡.
𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠 ∷ 𝑎 → 𝑺𝒆𝒕 [𝑎]
𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠 = 𝑐𝑜𝑛𝑐𝑎𝑡 ∘ 𝑚𝑎𝑝 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 ∘ 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠
The use of a 𝑐𝑜𝑛𝑐𝑎𝑡 after a 𝑚𝑎𝑝 to compose two list-returning functions is a general pattern captured by the list monad. This is how the ≫= operator
for the list monad is defined.
𝑥 ≫= 𝑓 = 𝑐𝑜𝑛𝑐𝑎𝑡 (𝑚𝑎𝑝 𝑓 𝑥)
The instance of ≫= above has type 𝑎 → 𝑎 → 𝑏 → [𝑏]. We can think of it as an apply function for lists, applying a list-returning function to a list of
values.
–- Appends two lists
(++) :: [a] -> [a] -> [a]
Scala’s equivalent
of ≫= is flatMap.
–- Concatenate a list of lists
concat :: [[a]] -> [a]
-- Sequentially compose two actions, passing any value
-- produced by the first as an argument to the second.
(>>=) :: Monad m => m a -> (a -> m b) -> m b
If for example 𝑥 = 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑦 and 𝑓 = 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠
then (𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑦) ≫= 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 = 𝑐𝑜𝑛𝑐𝑎𝑡 (𝑚𝑎𝑝 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑦 )

Furthermore, Haskell programmers are equipped with a convenient do-notation for monads. The functions 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 and 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠 can be re-written in
do-notation as below.
𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 = 𝑟𝑒𝑡𝑢𝑟𝑛
𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑎: 𝑥 = 𝑟𝑒𝑡𝑢𝑟𝑛 `𝑢𝑛𝑖𝑜𝑛`
(do 𝑦 ← 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑥
𝑟𝑒𝑡𝑢𝑟𝑛 (𝑎: 𝑦))
𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠 𝑥 = do 𝑦 ← 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑥
𝑧 ← 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 𝑦
𝑟𝑒𝑡𝑢𝑟𝑛 𝑧
The do-notation gives programmers a feeling that they are dealing with a single value rather than a set of them. In the definition for 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠, for
instance, identifiers 𝑦 and 𝑧 have type 𝑎 . It looks like we take one arbitrary prefix of 𝑥 , calling it 𝑦, take one arbitrary suffix of 𝑦, calling it 𝑧 , and return
it. The fact that there is a whole set of values to be processed is taken care of by the underlying ≫= operator. Simulating non-determinism with sets
represented by lists is similar to angelic non-determinism in logic programming. All the answers are enumerated in a list and are ready to be taken
one by one. In fact, the list monad has close relationship with backtracking and has been used to model the semantics of logic programming [10].

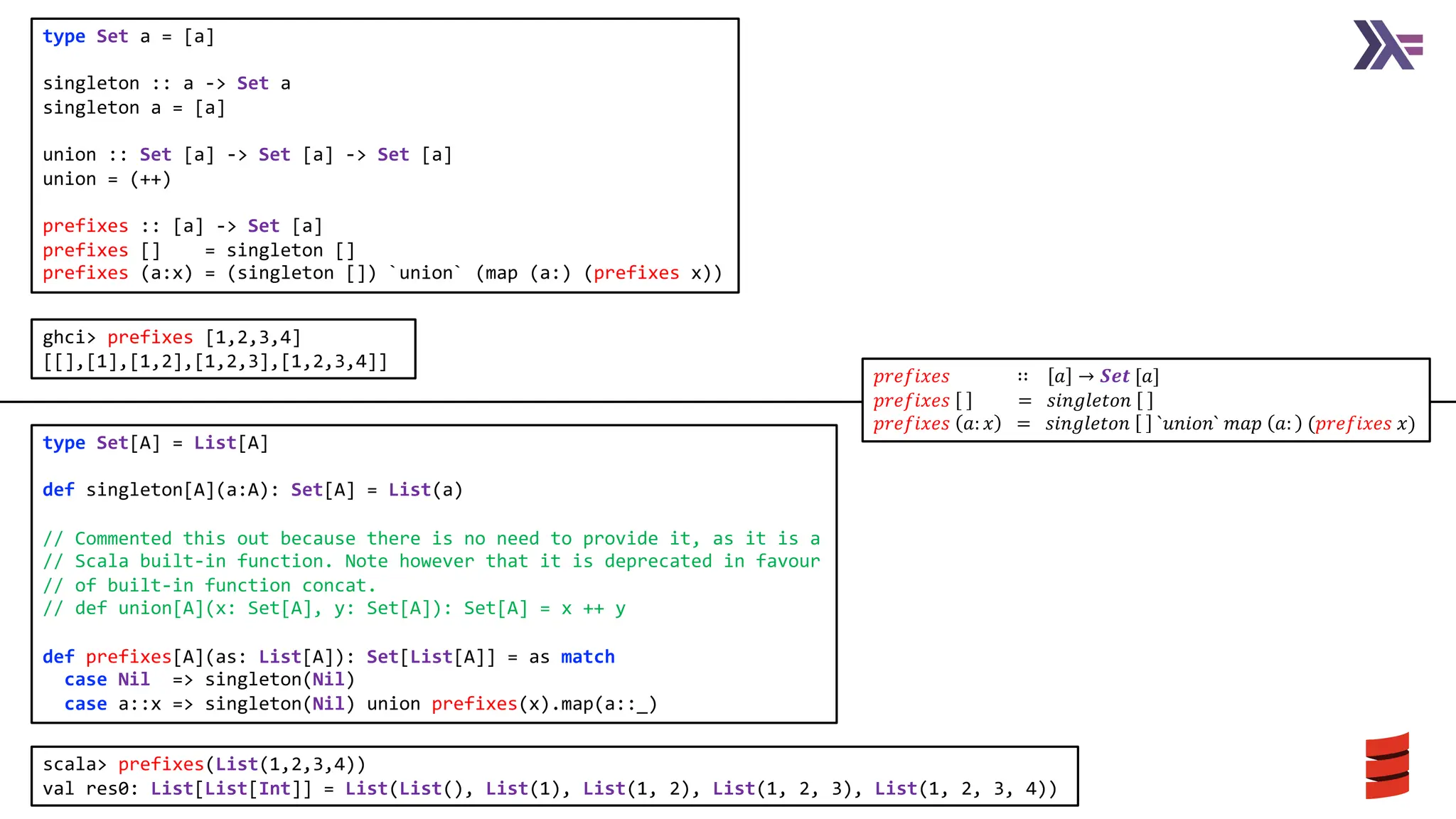

The next three slides show Haskell and Scala code for 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠, 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠
and 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠, together with an example of using each function.

type Set a = [a]
singleton :: a -> Set a
singleton a = [a]
union :: Set [a] -> Set [a] -> Set [a]
union = (++)
prefixes :: [a] -> Set [a]
prefixes [] = singleton []
prefixes (a:x) = (singleton []) `union` (map (a:) (prefixes x))
ghci> prefixes [1,2,3,4]
[[],[1],[1,2],[1,2,3],[1,2,3,4]]
type Set[A] = List[A]
def singleton[A](a:A): Set[A] = List(a)
// Commented this out because there is no need to provide it, as it is a
// Scala built-in function. Note however that it is deprecated in favour
// of built-in function concat.
// def union[A](x: Set[A], y: Set[A]): Set[A] = x ++ y
def prefixes[A](as: List[A]): Set[List[A]] = as match
case Nil => singleton(Nil)
case a::x => singleton(Nil) union prefixes(x).map(a::_)
scala> prefixes(List(1,2,3,4))
val res0: List[List[Int]] = List(List(), List(1), List(1, 2), List(1, 2, 3), List(1, 2, 3, 4))

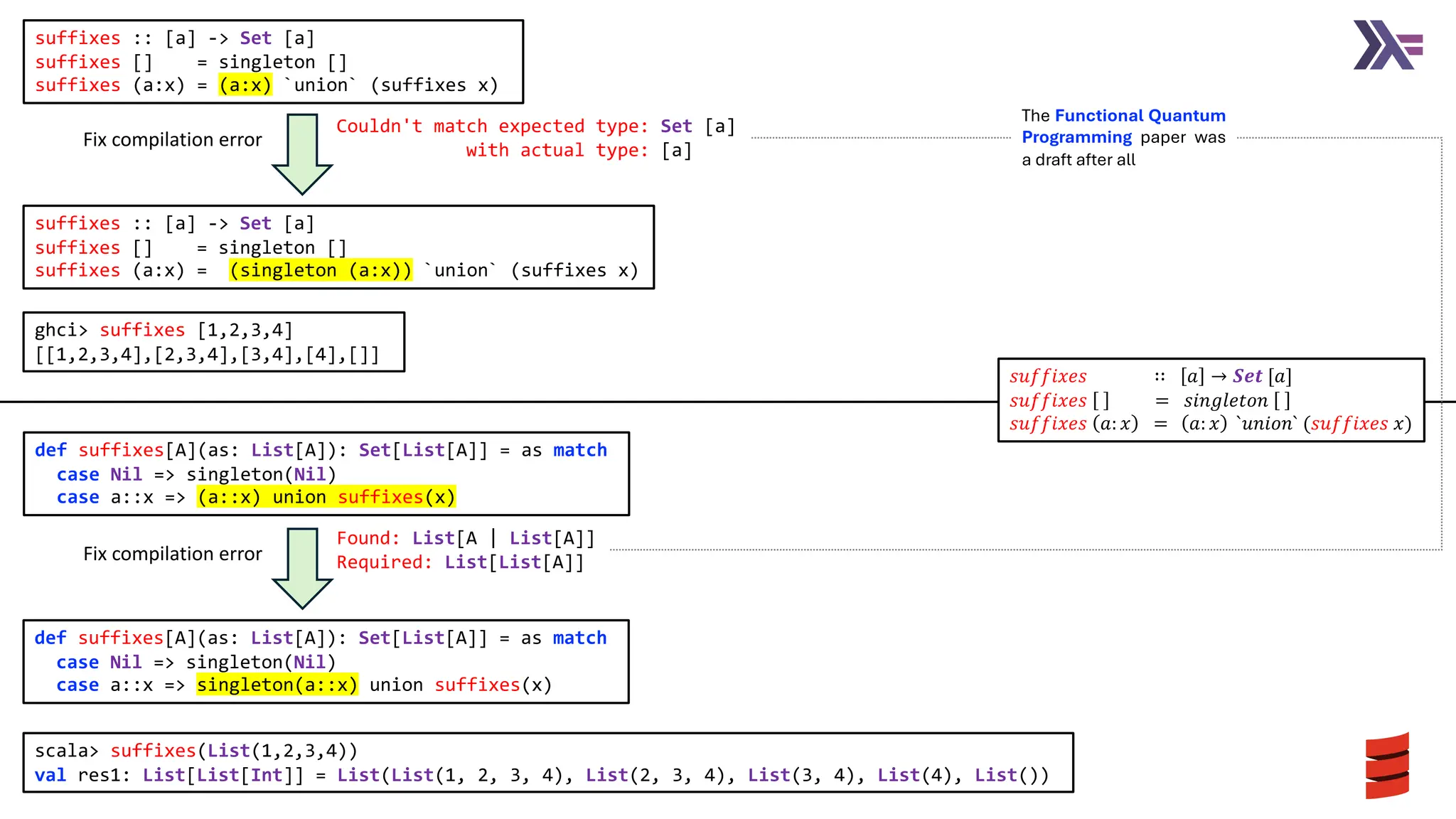

suffixes :: [a] -> Set [a]
suffixes [] = singleton []
suffixes (a:x) = (a:x) `union` (suffixes x)
suffixes :: [a] -> Set [a]
suffixes [] = singleton []
suffixes (a:x) = (singleton (a:x)) `union` (suffixes x)
Couldn't match expected type: Set [a]
with actual type: [a]
ghci> suffixes [1,2,3,4]
[[1,2,3,4],[2,3,4],[3,4],[4],[]]
def suffixes[A](as: List[A]): Set[List[A]] = as match
case a::x => singleton(a::x) union suffixes(x)
def suffixes[A](as: List[A]): Set[List[A]] = as match
case a::x => (a::x) union suffixes(x)
scala> suffixes(List(1,2,3,4))
val res1: List[List[Int]] = List(List(1, 2, 3, 4), List(2, 3, 4), List(3, 4), List(4), List())
Found: List[A | List[A]]
Required: List[List[A]]
Fix compilation error
Fix compilation error
𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 ∷ 𝑎 → 𝑺𝒆𝒕 [𝑎]
𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 = 𝑠𝑖𝑛𝑔𝑙𝑒𝑡𝑜𝑛
𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 𝑎: 𝑥 = 𝑎: 𝑥 `𝑢𝑛𝑖𝑜𝑛` (𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠 𝑥)
The Functional Quantum
Programming paper was
a draft after all

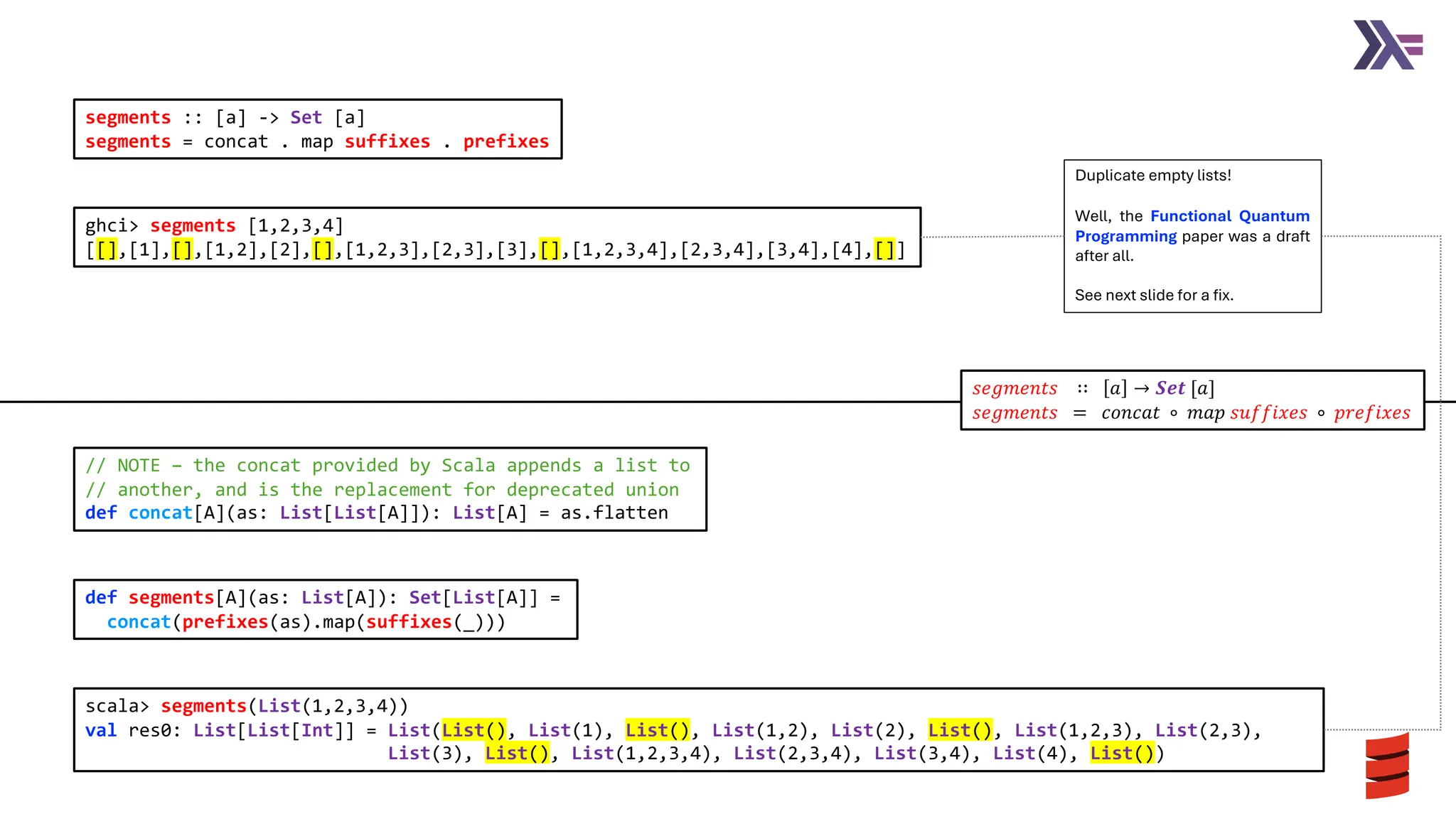

segments :: [a] -> Set [a]
segments = concat . map suffixes . prefixes
def segments[A](as: List[A]): Set[List[A]] =
concat(prefixes(as).map(suffixes(_)))
ghci> segments [1,2,3,4]
[[],[1],[],[1,2],[2],[],[1,2,3],[2,3],[3],[],[1,2,3,4],[2,3,4],[3,4],[4],[]]
scala> segments(List(1,2,3,4))
val res0: List[List[Int]] = List(List(), List(1), List(), List(1,2), List(2), List(), List(1,2,3), List(2,3),
List(3), List(), List(1,2,3,4), List(2,3,4), List(3,4), List(4), List())
// NOTE – the concat provided by Scala appends a list to
// another, and is the replacement for deprecated union
def concat[A](as: List[List[A]]): List[A] = as.flatten
Duplicate empty lists!
Well, the Functional Quantum
Programming paper was a draft
after all.
See next slide for a fix.

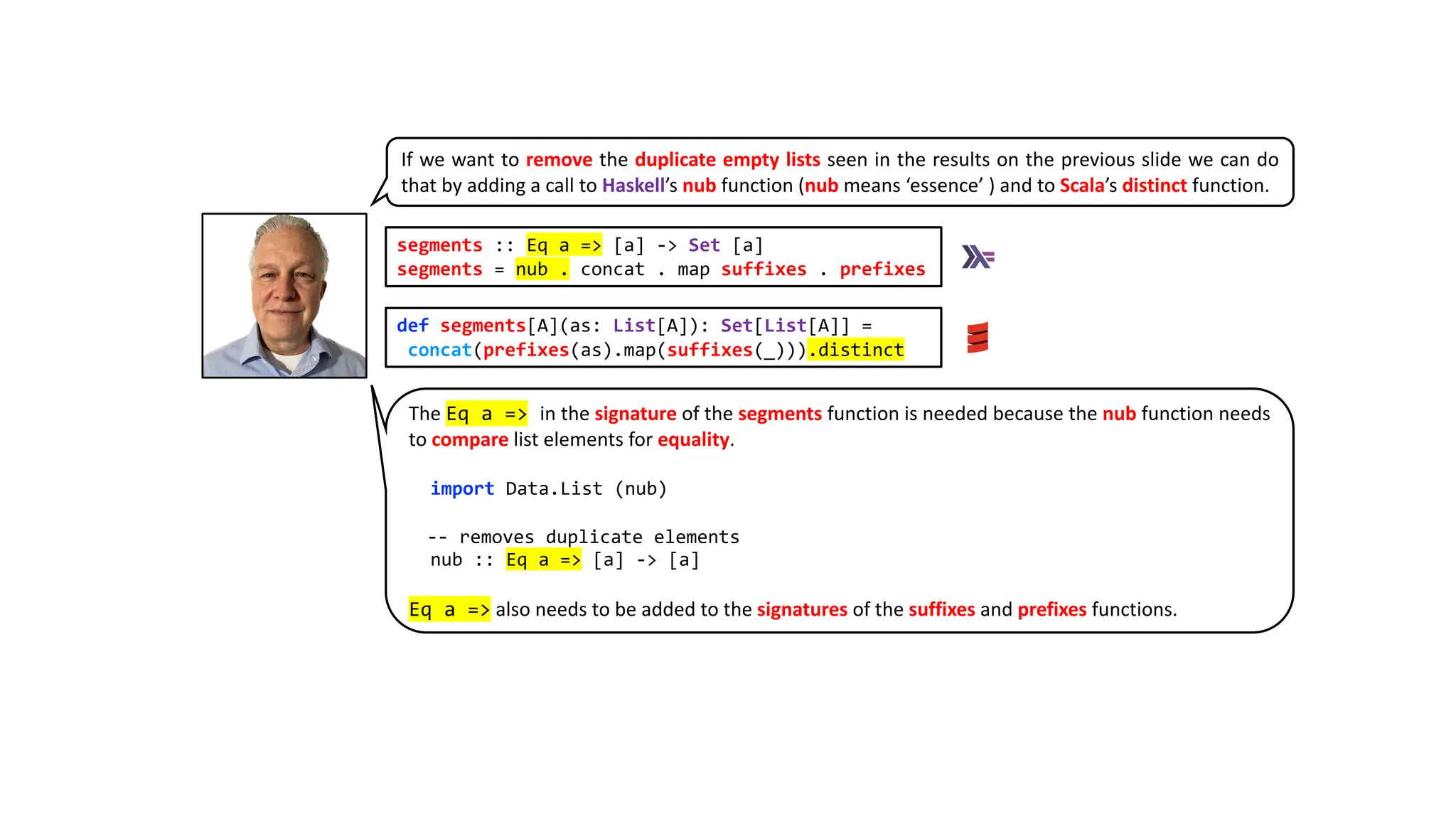

segments :: Eq a => [a] -> Set [a]
segments = nub . concat . map suffixes . prefixes
concat(prefixes(as).map(suffixes(_))).distinct
If we want to remove the duplicate empty lists seen in the results on the previous slide we can do
that by adding a call to Haskell’s nub function (nub means ‘essence’ ) and to Scala’s distinct function.
The Eq a => in the signature of the segments function is needed because the nub function needs
to compare list elements for equality.
import Data.List (nub)
-- removes duplicate elements
nub :: Eq a => [a] -> [a]
Eq a => also needs to be added to the signatures of the suffixes and prefixes functions.

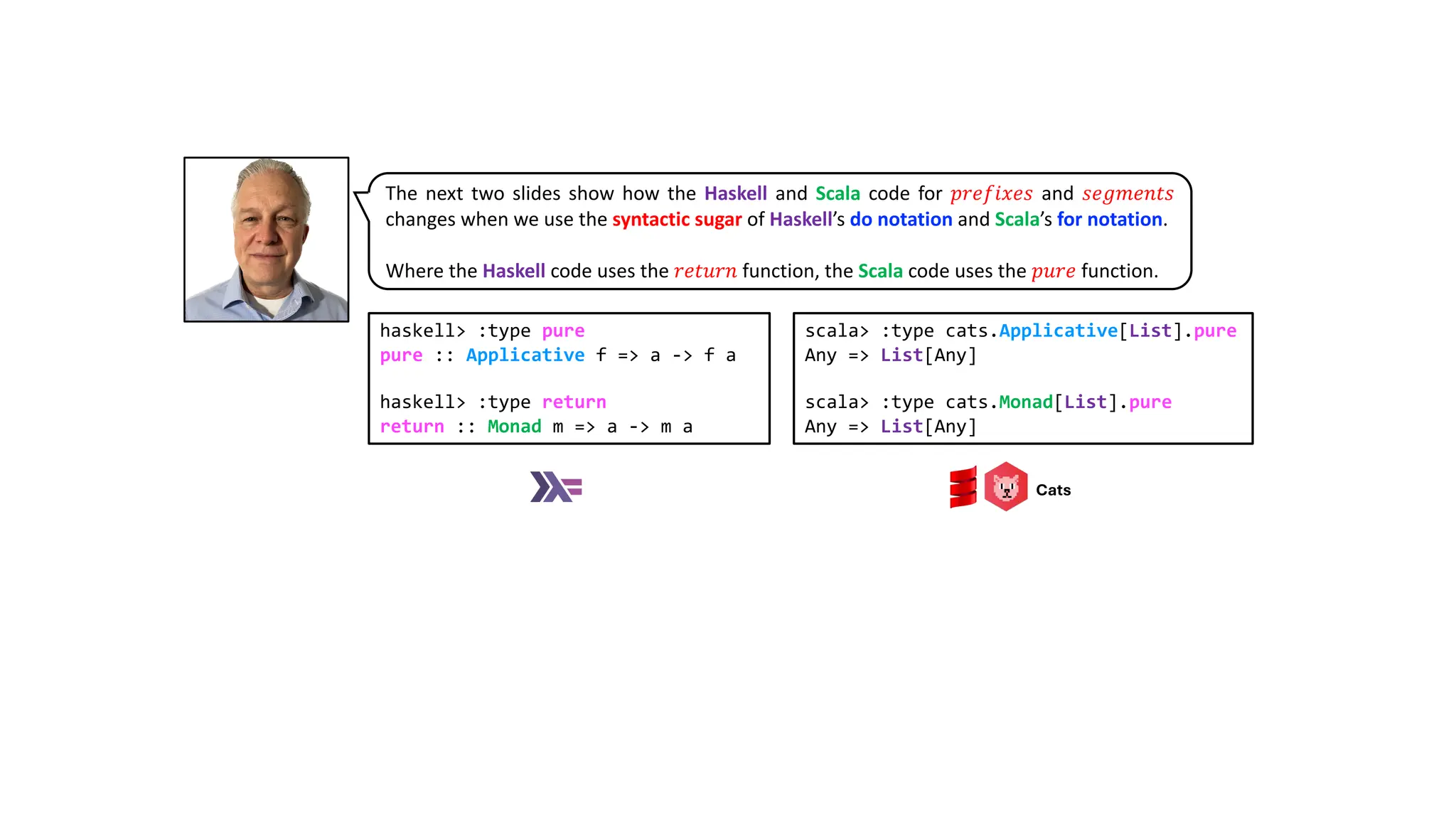

The next two slides show how the Haskell and Scala code for 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 and 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠
changes when we use the syntactic sugar of Haskell’s do notation and Scala’s for notation.
Where the Haskell code uses the 𝑟𝑒𝑡𝑢𝑟𝑛 function, the Scala code uses the 𝑝𝑢𝑟𝑒 function.
haskell> :type pure
pure :: Applicative f => a -> f a
haskell> :type return
return :: Monad m => a -> m a
scala> :type cats.Applicative[List].pure
Any => List[Any]
scala> :type cats.Monad[List].pure
Any => List[Any]
Cats

prefixes [] = singleton []
prefixes (a:x) = (singleton []) `union` (map (a:) (prefixes x))
prefixes [] = return []
prefixes (a:x) = return [] `union`
(do y <- prefixes x
return (a:y))
segments = concat . map suffixes . prefixes
segments x = do y <- prefixes x
z <- suffixes y
return z

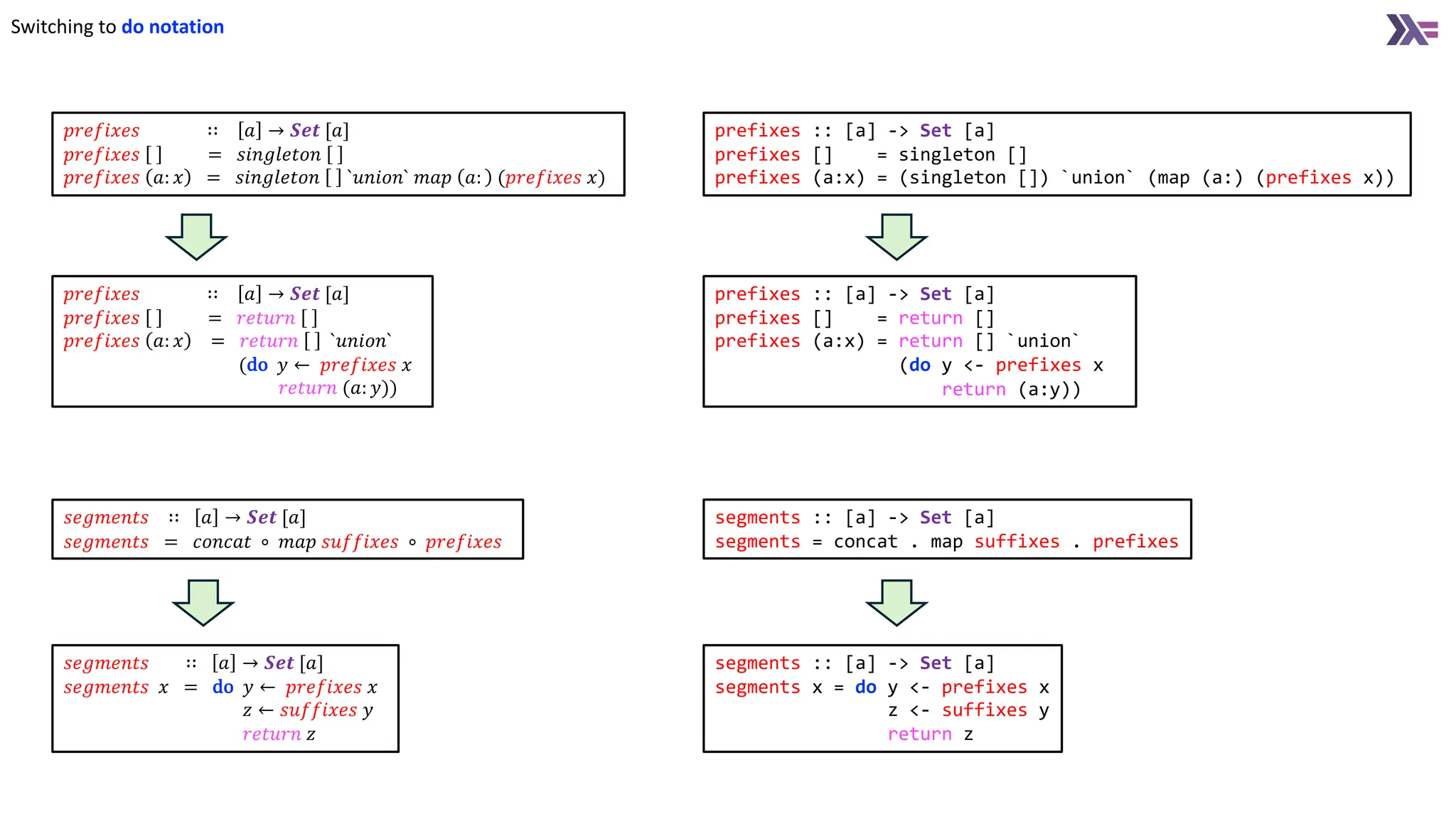

Switching to do notation

case a::x => singleton(Nil) union prefixes(x).map(a::_)
case Nil => Nil.pure
case a::x => Nil.pure union
(for y <- prefixes(x)
yield a::y)
concat(prefixes(as).map(suffixes(_)))
for
y <- prefixes(x)
z <- suffixes(y)
yield z

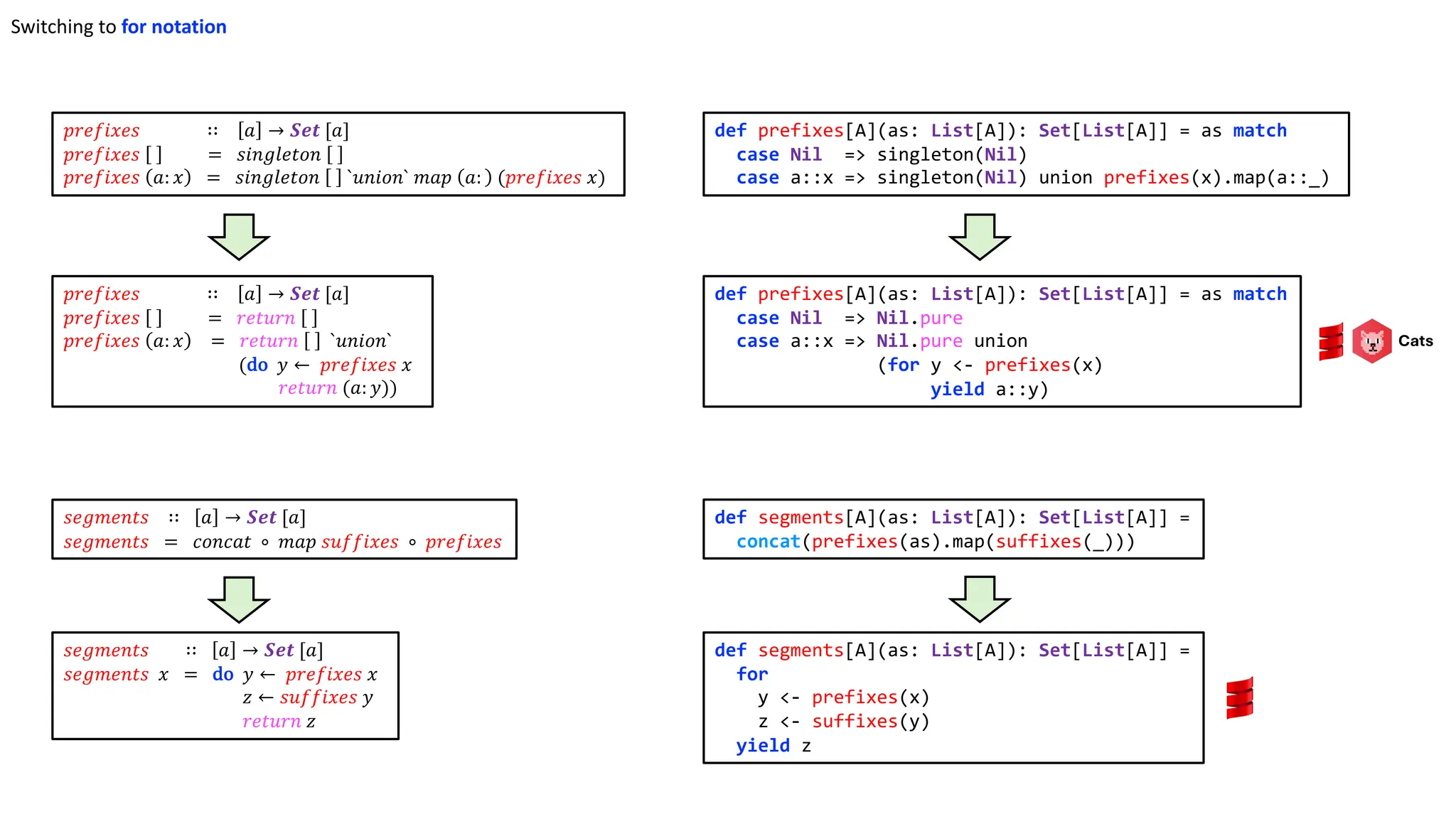

Switching to for notation
Cats

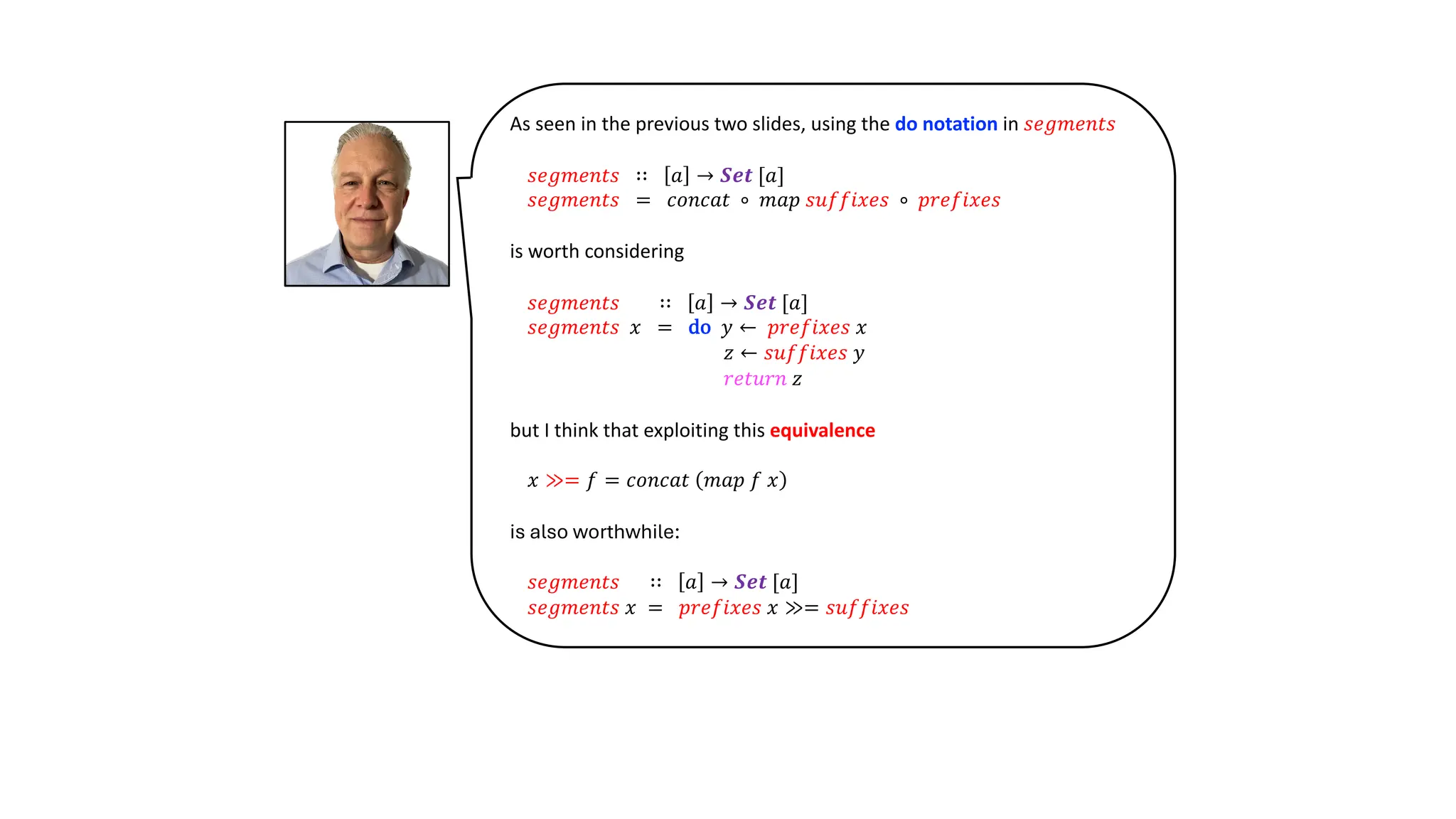

As seen in the previous two slides, using the do notation in 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠
is worth considering
but I think that exploiting this equivalence
𝑥 ≫= 𝑓 = 𝑐𝑜𝑛𝑐𝑎𝑡 𝑚𝑎𝑝 𝑓 𝑥
is also worthwhile:
𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠 𝑥 = 𝑝𝑟𝑒𝑓𝑖𝑥𝑒𝑠 𝑥 ≫= 𝑠𝑢𝑓𝑓𝑖𝑥𝑒𝑠

Having just seen how the definition of 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠 can be simplified using this equivalence
Let’s now go back to our 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 function and see if we are able to do something similar
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠 ++ 𝑚𝑎𝑝 𝑎: 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠
How about using this equivalence?
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑥𝑠 ≫= 𝜆𝑥𝑠. [𝑥𝑠, 𝑥: 𝑥𝑠] = 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠 ++ 𝑚𝑎𝑝 𝑎: (𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠)
Here is how using the equivalence improves the definition of 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠 ≫= 𝜆𝑎𝑠. [𝑎𝑠, 𝑎: 𝑎𝑠]
We can improve this further by extracting an 𝑎𝑑𝑑 function:
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠 ≫= 𝑎𝑑𝑑 𝑎
𝑤ℎ𝑒𝑟𝑒 𝑎𝑑𝑑 𝑎 𝑎𝑠 = [𝑎𝑠, 𝑎: 𝑎𝑠]
I find both versions an improvement on the original.

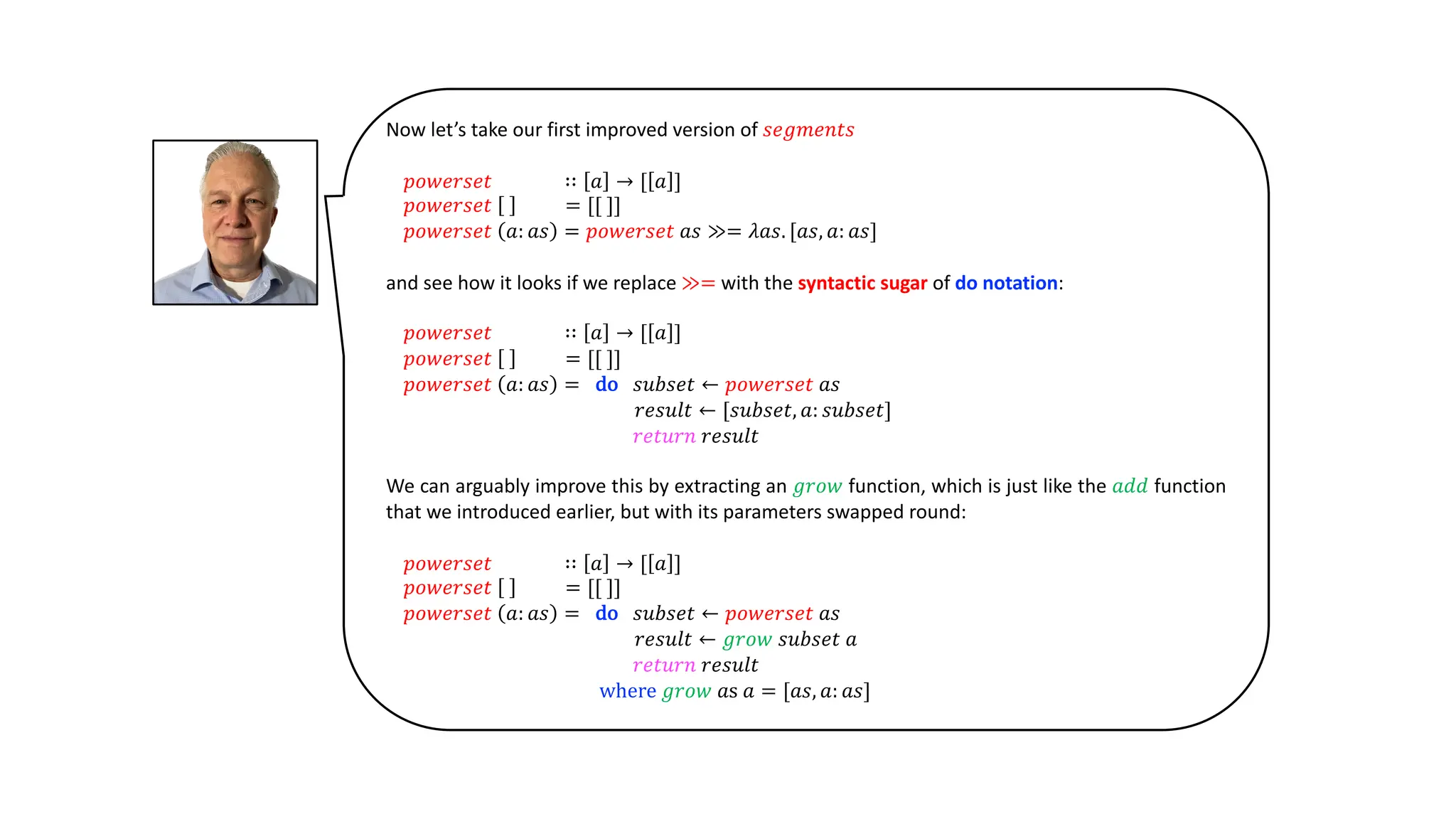

Now let’s take our first improved version of 𝑠𝑒𝑔𝑚𝑒𝑛𝑡𝑠
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠 ≫= 𝜆𝑎𝑠. [𝑎𝑠, 𝑎: 𝑎𝑠]
and see how it looks if we replace ≫= with the syntactic sugar of do notation:
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = do 𝑠𝑢𝑏𝑠𝑒𝑡 ← 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠
𝑟𝑒𝑠𝑢𝑙𝑡 ← [𝑠𝑢𝑏𝑠𝑒𝑡, 𝑎: 𝑠𝑢𝑏𝑠𝑒𝑡]
𝑟𝑒𝑡𝑢𝑟𝑛 𝑟𝑒𝑠𝑢𝑙𝑡
We can arguably improve this by extracting an 𝑔𝑟𝑜𝑤 function, which is just like the 𝑎𝑑𝑑 function
that we introduced earlier, but with its parameters swapped round:
𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎: 𝑎𝑠 = do 𝑠𝑢𝑏𝑠𝑒𝑡 ← 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 𝑎𝑠
𝑟𝑒𝑠𝑢𝑙𝑡 ← 𝑔𝑟𝑜𝑤 𝑠𝑢𝑏𝑠𝑒𝑡 𝑎
𝑟𝑒𝑡𝑢𝑟𝑛 𝑟𝑒𝑠𝑢𝑙𝑡
where 𝑔𝑟𝑜𝑤 𝑎s 𝑎 = [𝑎𝑠, 𝑎: 𝑎𝑠]

case a::rest => val subsets = powerset(rest)
subsets ++ subsets.map(a::_)
powerset [] = [[]]
powerset [] = [[]]
powerset (a:as) = powerset as >>= add a
powerset [] = [[]]
powerset (a:as) = do subset <- powerset as
result <- grow subset a
return result
case a::rest => for subset <- powerset(rest)
result <- grow(subset,a)
yield result
grow :: [a] -> a -> [[a]]
grow subset element = [subset, element:subset]
add :: a -> [a] -> [[a]]
add = flip grow
def grow[A](subset: List[A], element: A) =
List(subset, element::subset)
def add[A](element: A)(subset: List[A]): List[List[A]] =
grow(subset,element)
case a::rest => powerset(rest).flatMap(add(a))
As a recap, here is the code for the three different versions of 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 that we have covered so far,
with some very minor renaming and changes.
Of course we would also have the option, if preferable, to inline subordinate functions add and grow.

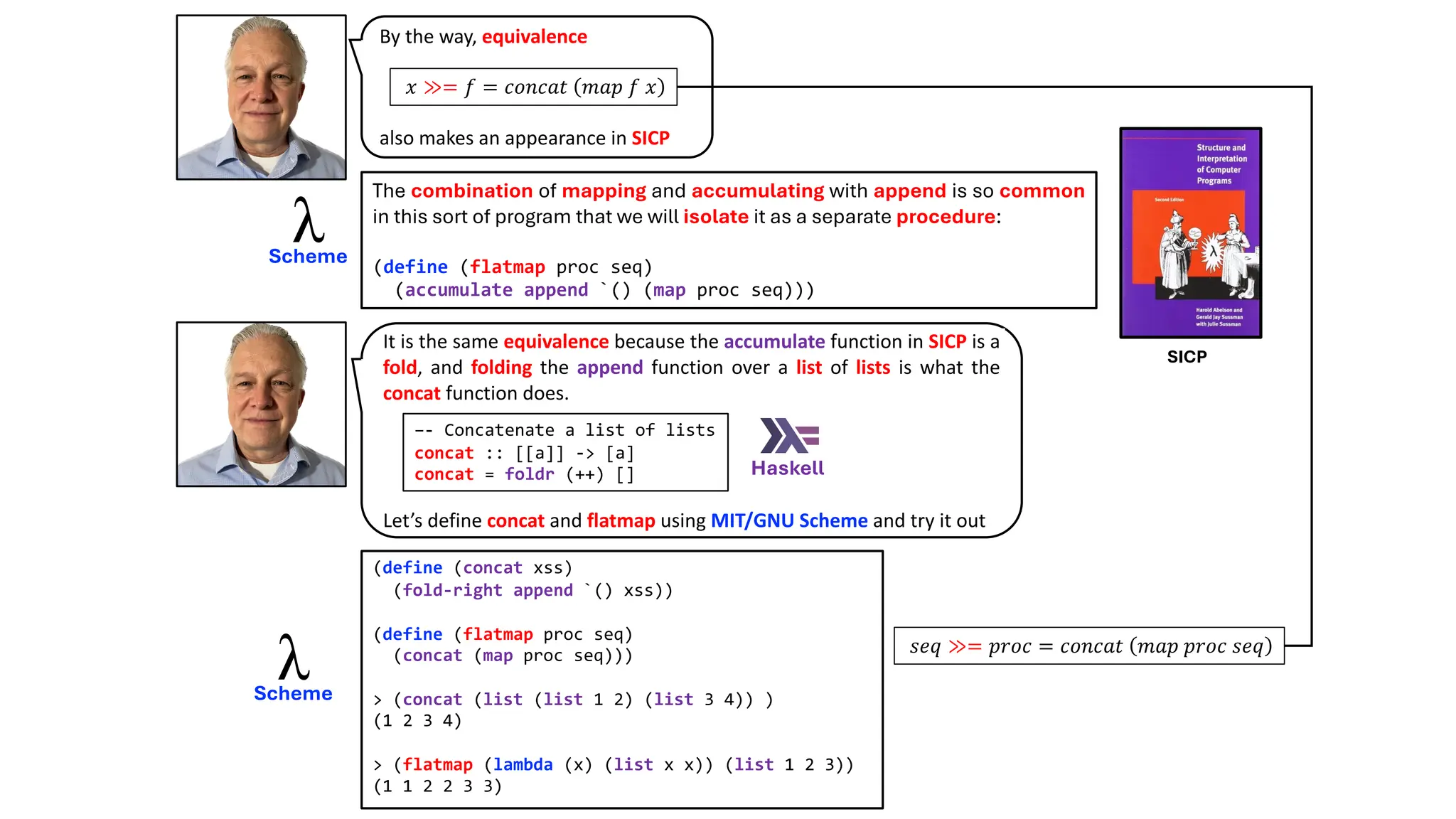

(define (concat xss)
(fold-right append `() xss))
(define (flatmap proc seq)
(concat (map proc seq)))
> (concat (list (list 1 2) (list 3 4)) )
(1 2 3 4)
> (flatmap (lambda (x) (list x x)) (list 1 2 3))
(1 1 2 2 3 3)
By the way, equivalence
also makes an appearance in SICP
SICP
The combination of mapping and accumulating with append is so common
in this sort of program that we will isolate it as a separate procedure:
(define (flatmap proc seq)
(accumulate append `() (map proc seq)))
It is the same equivalence because the accumulate function in SICP is a
fold, and folding the append function over a list of lists is what the
concat function does.
Let’s define concat and flatmap using MIT/GNU Scheme and try it out
–- Concatenate a list of lists
concat :: [[a]] -> [a]
concat = foldr (++) []
𝑠𝑒𝑞 ≫= 𝑝𝑟𝑜𝑐 = 𝑐𝑜𝑛𝑐𝑎𝑡 𝑚𝑎𝑝 𝑝𝑟𝑜𝑐 𝑠𝑒𝑞
Scheme
Haskell
Scheme

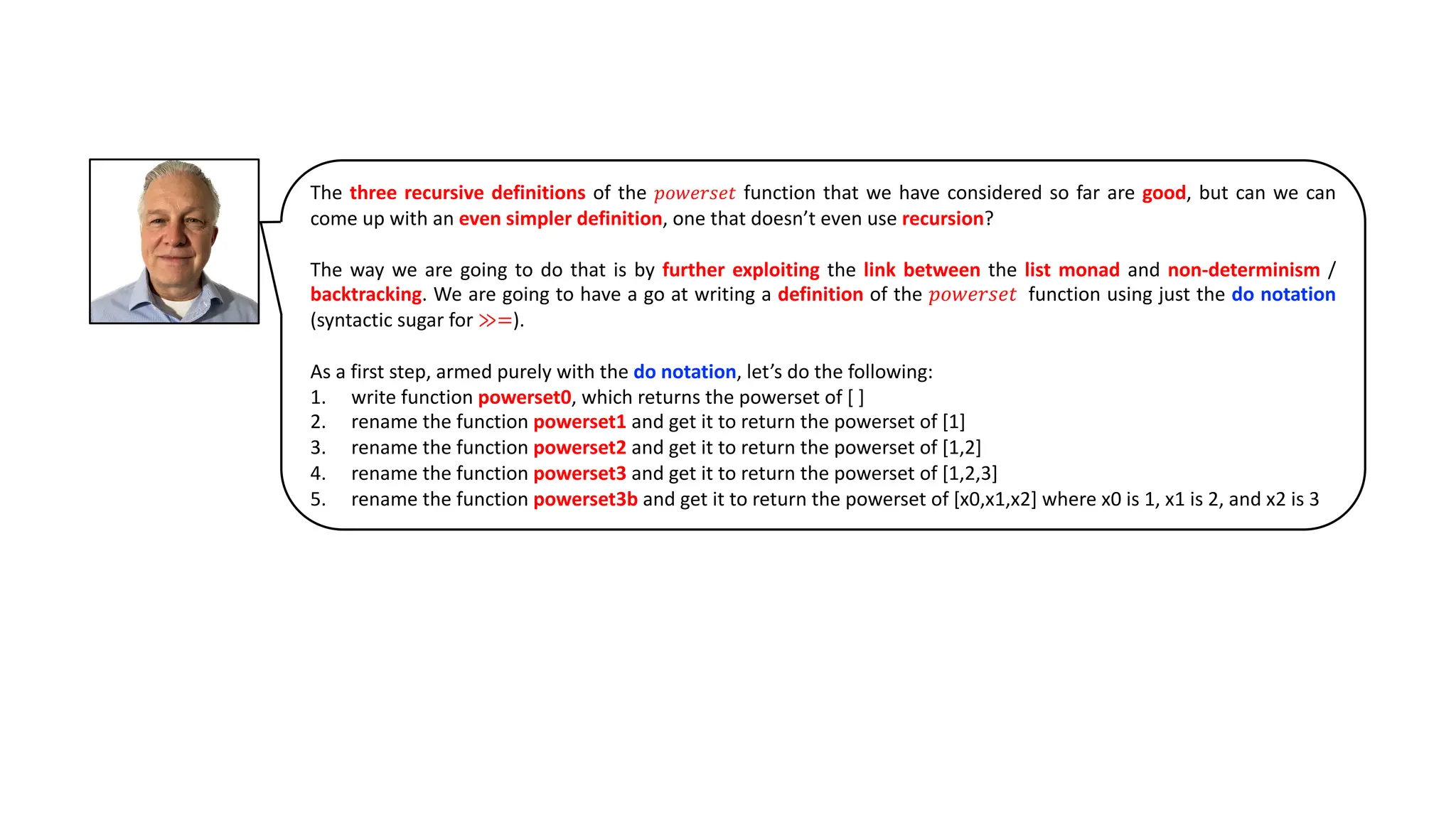

The three recursive definitions of the 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 function that we have considered so far are good, but can we can
come up with an even simpler definition, one that doesn’t even use recursion?
The way we are going to do that is by further exploiting the link between the list monad and non-determinism /
backtracking. We are going to have a go at writing a definition of the 𝑝𝑜𝑤𝑒𝑟𝑠𝑒𝑡 function using just the do notation
(syntactic sugar for ≫=).
As a first step, armed purely with the do notation, let’s do the following:
1. write function powerset0, which returns the powerset of [ ]

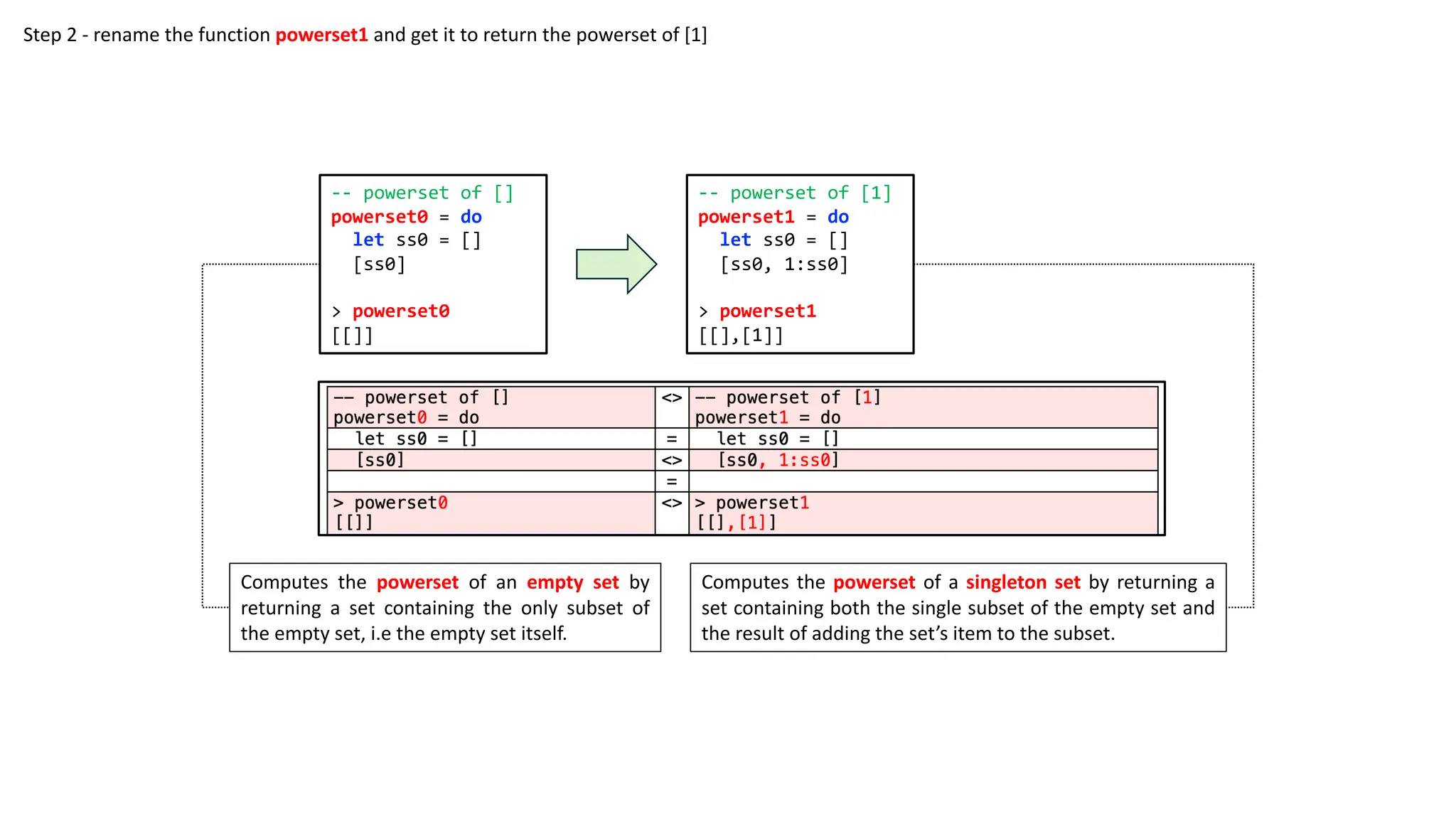

2. rename the function powerset1 and get it to return the powerset of [1]

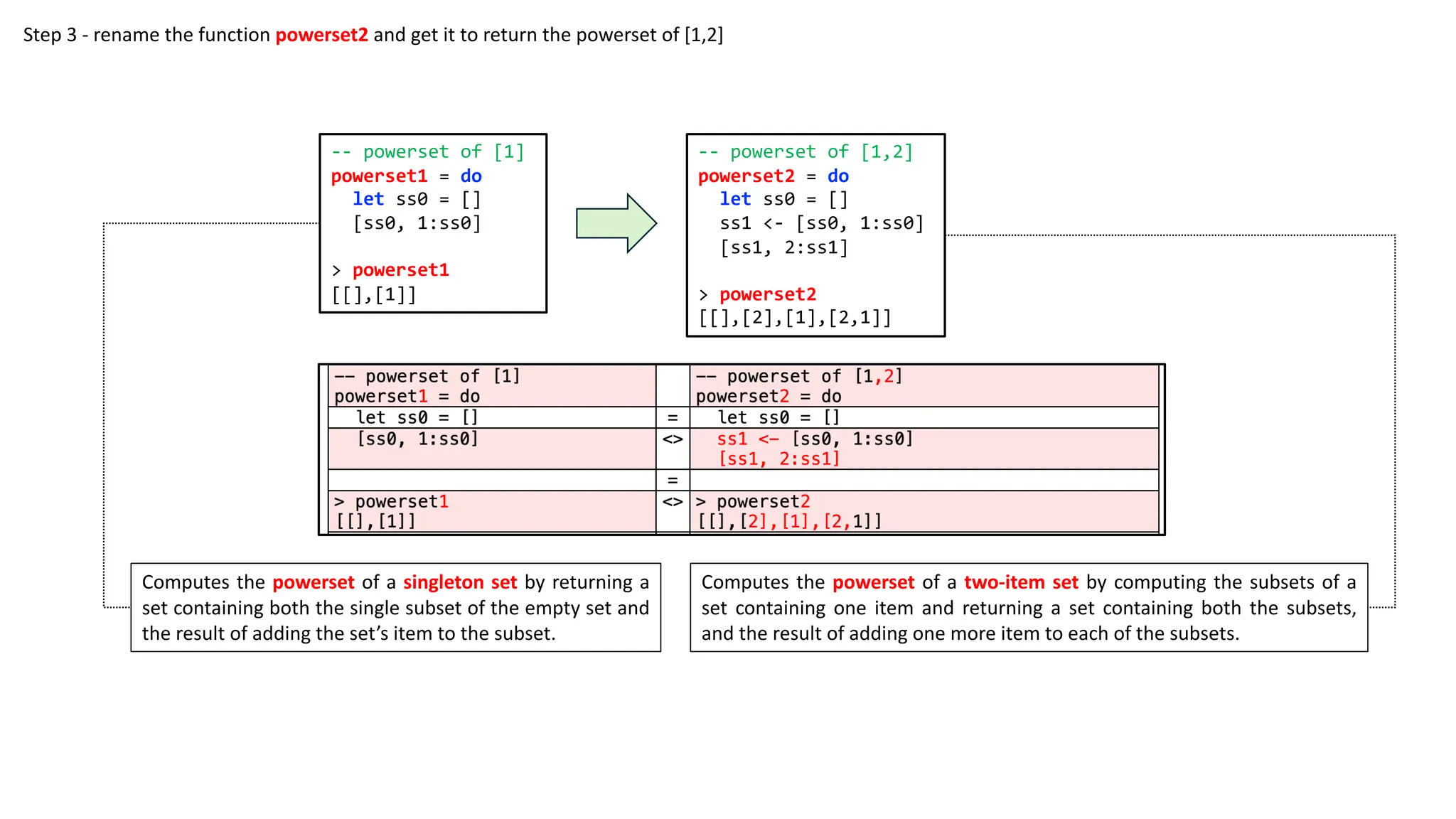

3. rename the function powerset2 and get it to return the powerset of [1,2]

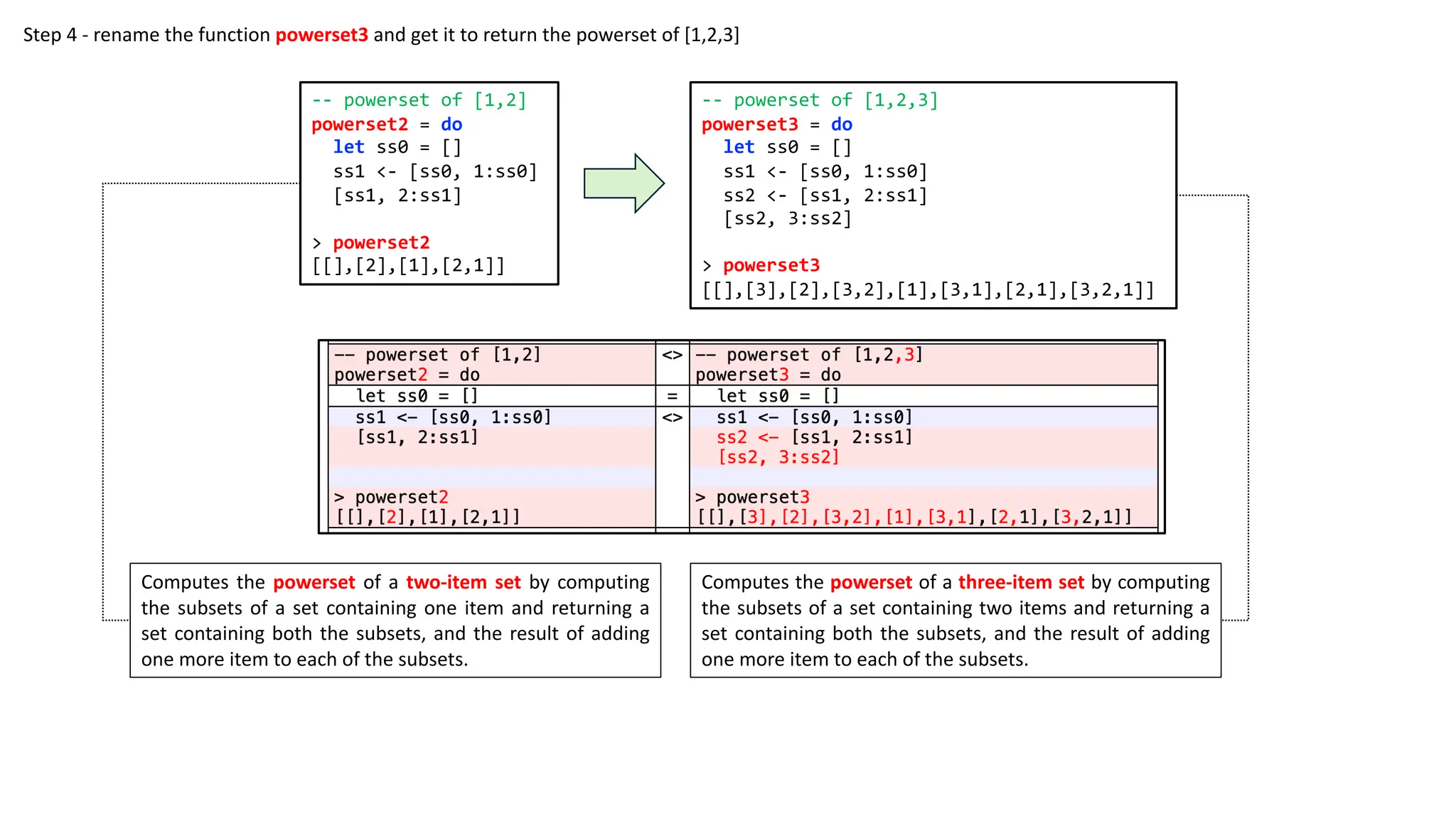

4. rename the function powerset3 and get it to return the powerset of [1,2,3]

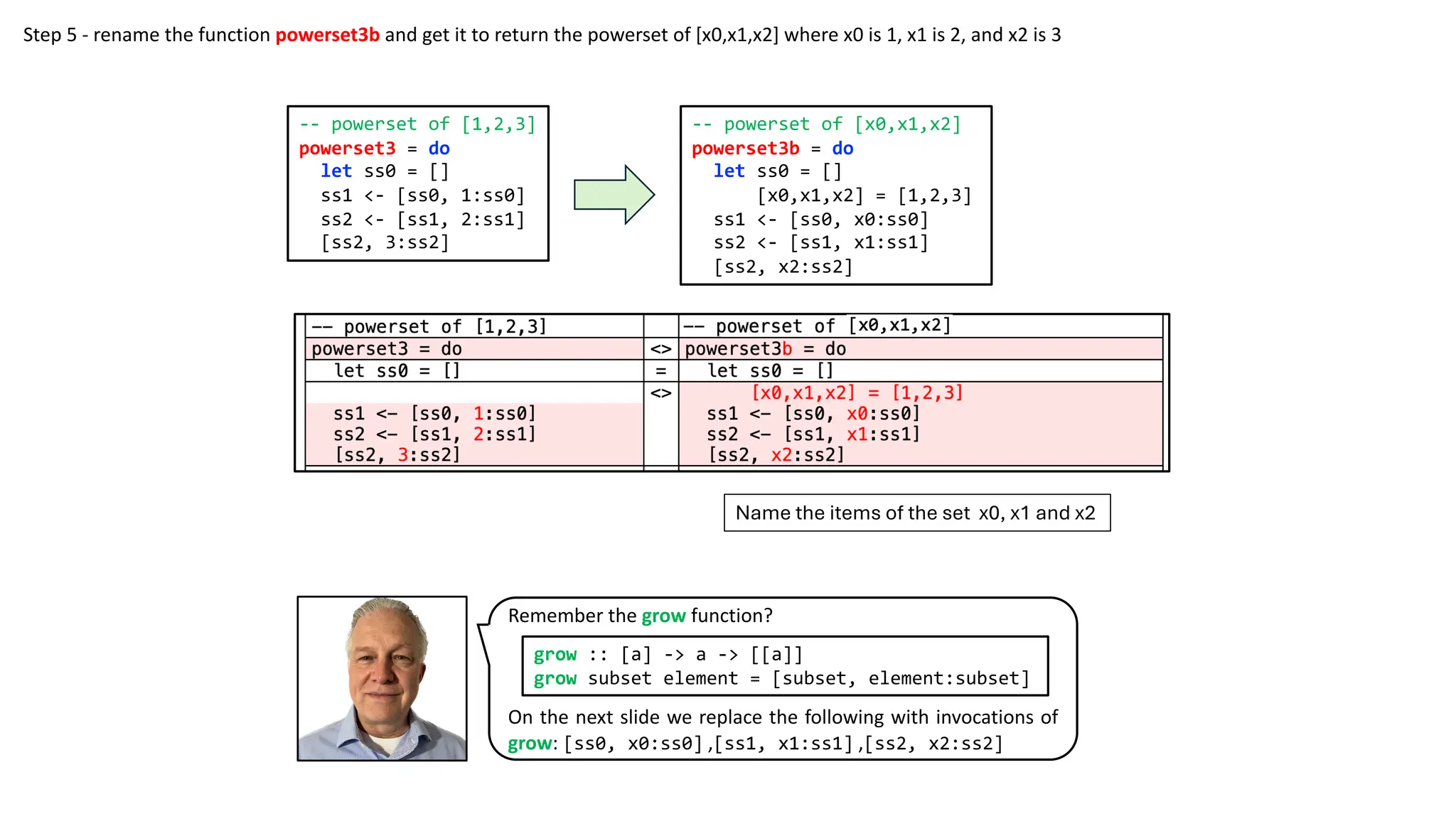

5. rename the function powerset3b and get it to return the powerset of [x0,x1,x2] where x0 is 1, x1 is 2, and x2 is 3

-- powerset of []
powerset0 = do
let ss0 = []
[ss0]
> powerset0
[[]]
Computes the powerset of an empty set by
returning a set containing the only subset of
the empty set, i.e the empty set itself.

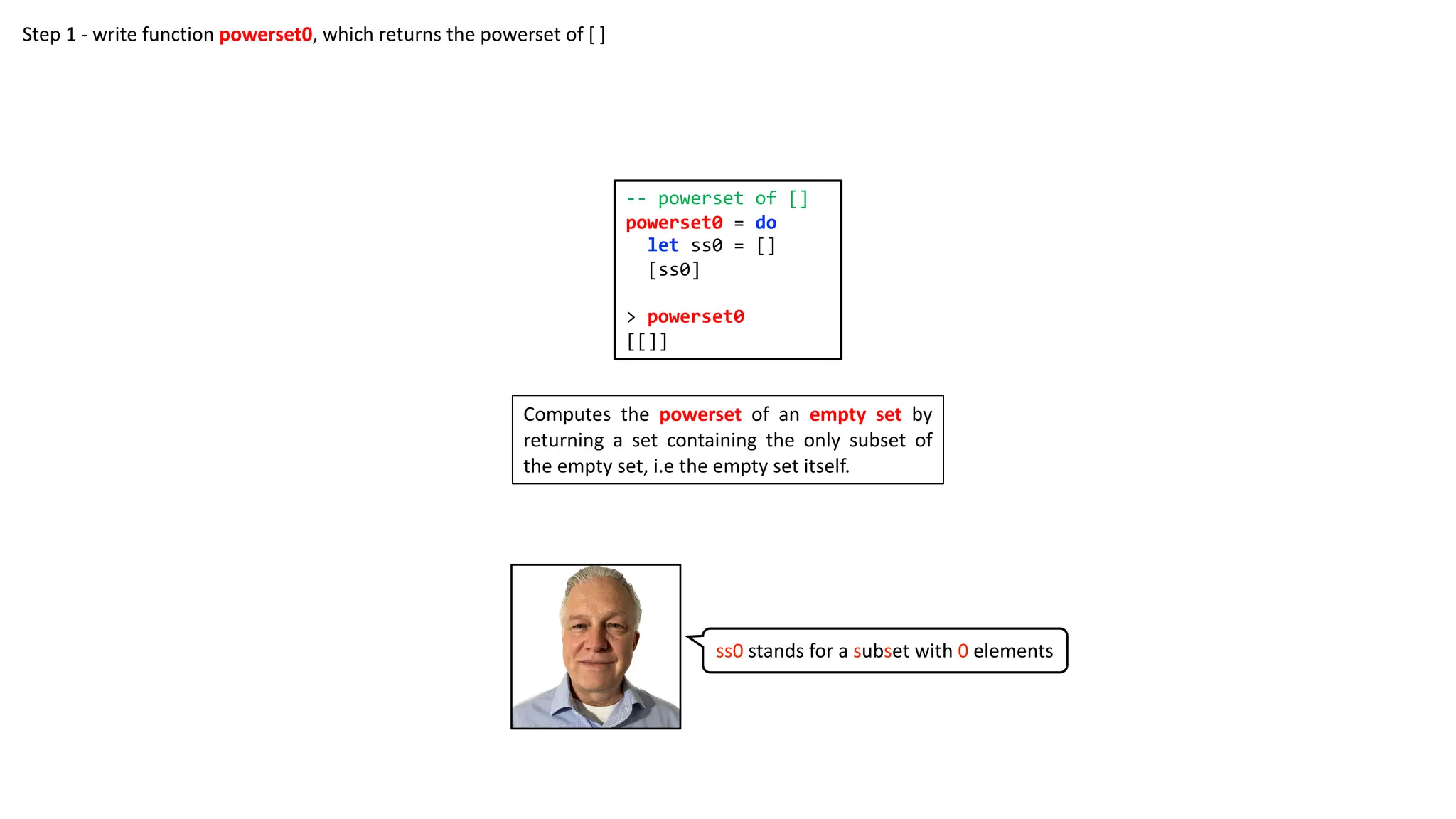

Step 1 - write function powerset0, which returns the powerset of [ ]
ss0 stands for a subset with 0 elements

-- powerset of []
powerset0 = do
let ss0 = []
[ss0]
> powerset0
[[]]
Computes the powerset of an empty set by
returning a set containing the only subset of
the empty set, i.e the empty set itself.
-- powerset of [1]
powerset1 = do
let ss0 = []
[ss0, 1:ss0]
> powerset1
[[],[1]]
Computes the powerset of a singleton set by returning a
set containing both the single subset of the empty set and
the result of adding the set’s item to the subset.
Step 2 - rename the function powerset1 and get it to return the powerset of [1]

Computes the powerset of a singleton set by returning a
set containing both the single subset of the empty set and
the result of adding the set’s item to the subset.
Computes the powerset of a two-item set by computing the subsets of a
set containing one item and returning a set containing both the subsets,
and the result of adding one more item to each of the subsets.
-- powerset of [1,2]
powerset2 = do
let ss0 = []
ss1 <- [ss0, 1:ss0]
[ss1, 2:ss1]
> powerset2
[[],[2],[1],[2,1]]
-- powerset of [1]
powerset1 = do
let ss0 = []
[ss0, 1:ss0]
> powerset1
[[],[1]]
Step 3 - rename the function powerset2 and get it to return the powerset of [1,2]

Computes the powerset of a two-item set by computing
the subsets of a set containing one item and returning a
set containing both the subsets, and the result of adding
one more item to each of the subsets.
Computes the powerset of a three-item set by computing
the subsets of a set containing two items and returning a
set containing both the subsets, and the result of adding
one more item to each of the subsets.
-- powerset of [1,2,3]
powerset3 = do
let ss0 = []
ss1 <- [ss0, 1:ss0]
ss2 <- [ss1, 2:ss1]
[ss2, 3:ss2]
> powerset3
[[],[3],[2],[3,2],[1],[3,1],[2,1],[3,2,1]]
-- powerset of [1,2]
powerset2 = do
let ss0 = []
ss1 <- [ss0, 1:ss0]
[ss1, 2:ss1]
> powerset2
[[],[2],[1],[2,1]]
Step 4 - rename the function powerset3 and get it to return the powerset of [1,2,3]

Name the items of the set x0, x1 and x2
-- powerset of [x0,x1,x2]
powerset3b = do
let ss0 = []
[x0,x1,x2] = [1,2,3]
ss1 <- [ss0, x0:ss0]
ss2 <- [ss1, x1:ss1]
[ss2, x2:ss2]
-- powerset of [1,2,3]
powerset3 = do
let ss0 = []
ss1 <- [ss0, 1:ss0]
ss2 <- [ss1, 2:ss1]
[ss2, 3:ss2]
Step 5 - rename the function powerset3b and get it to return the powerset of [x0,x1,x2] where x0 is 1, x1 is 2, and x2 is 3
grow :: [a] -> a -> [[a]]
grow subset element = [subset, element:subset]
Remember the grow function?
On the next slide we replace the following with invocations of
grow: [ss0, x0:ss0] ,[ss1, x1:ss1] ,[ss2, x2:ss2]

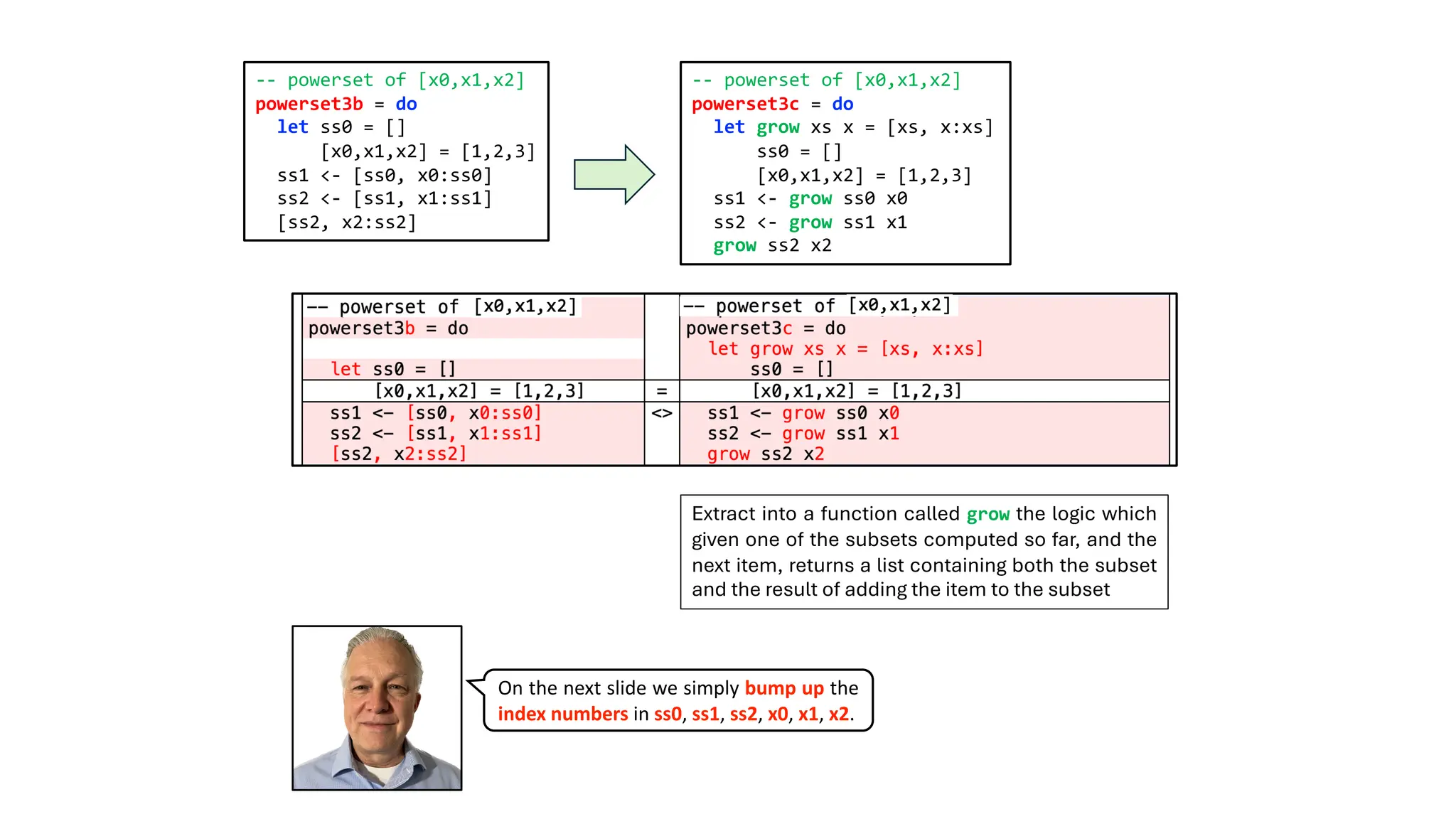

Extract into a function called grow the logic which
given one of the subsets computed so far, and the
next item, returns a list containing both the subset
and the result of adding the item to the subset
powerset3b = do
let ss0 = []
[x0,x1,x2] = [1,2,3]
ss1 <- [ss0, x0:ss0]
ss2 <- [ss1, x1:ss1]
[ss2, x2:ss2]
powerset3c = do
let grow xs x = [xs, x:xs]
ss0 = []
[x0,x1,x2] = [1,2,3]
ss1 <- grow ss0 x0
ss2 <- grow ss1 x1
grow ss2 x2
On the next slide we simply bump up the
index numbers in ss0, ss1, ss2, x0, x1, x2.

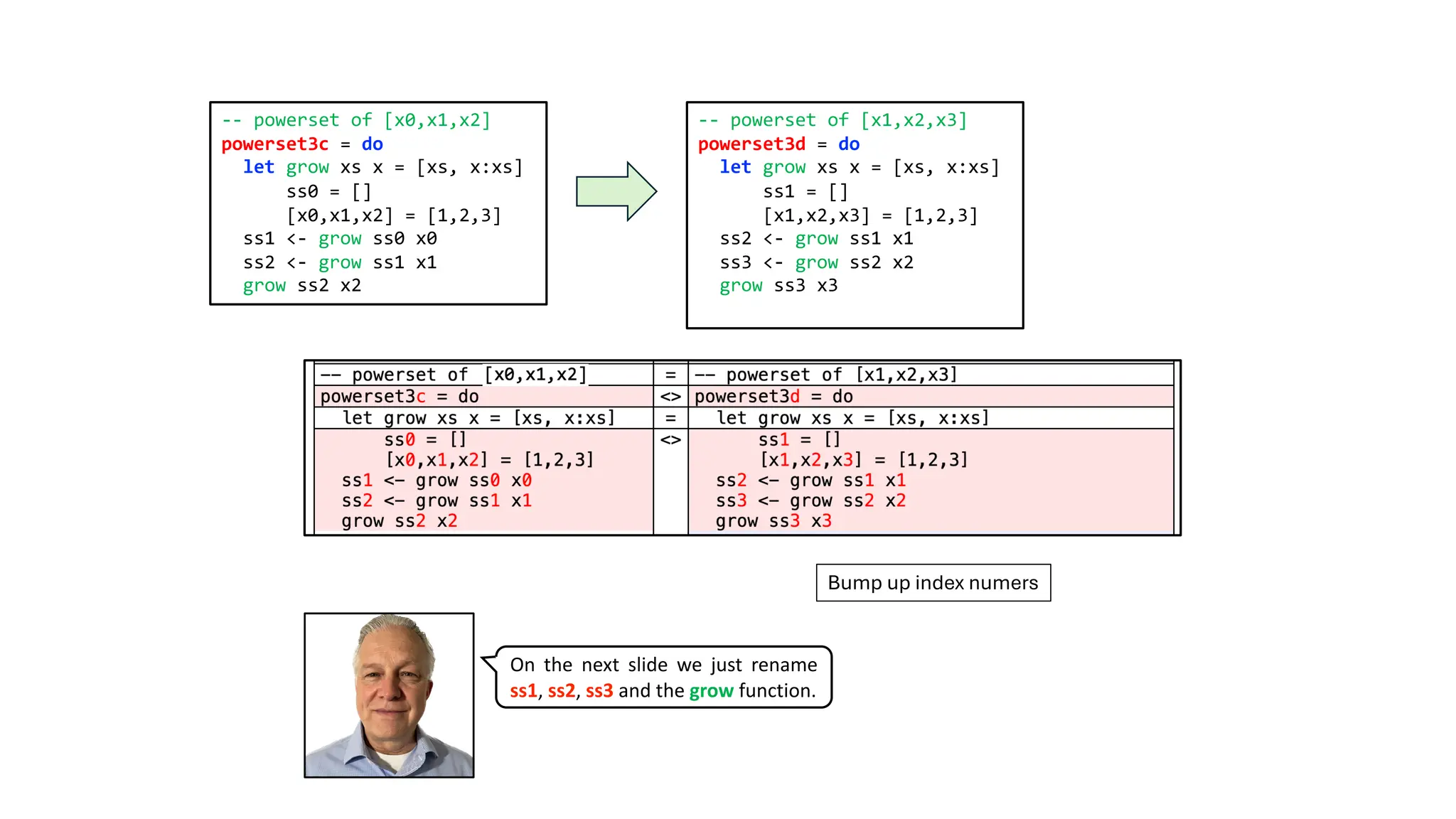

powerset3c = do
ss0 = []
[x0,x1,x2] = [1,2,3]
ss1 <- grow ss0 x0
ss2 <- grow ss1 x1
grow ss2 x2
powerset3d = do
ss1 = []
[x1,x2,x3] = [1,2,3]
ss2 <- grow ss1 x1
ss3 <- grow ss2 x2
grow ss3 x3
Bump up index numers
On the next slide we just rename
ss1, ss2, ss3 and the grow function.

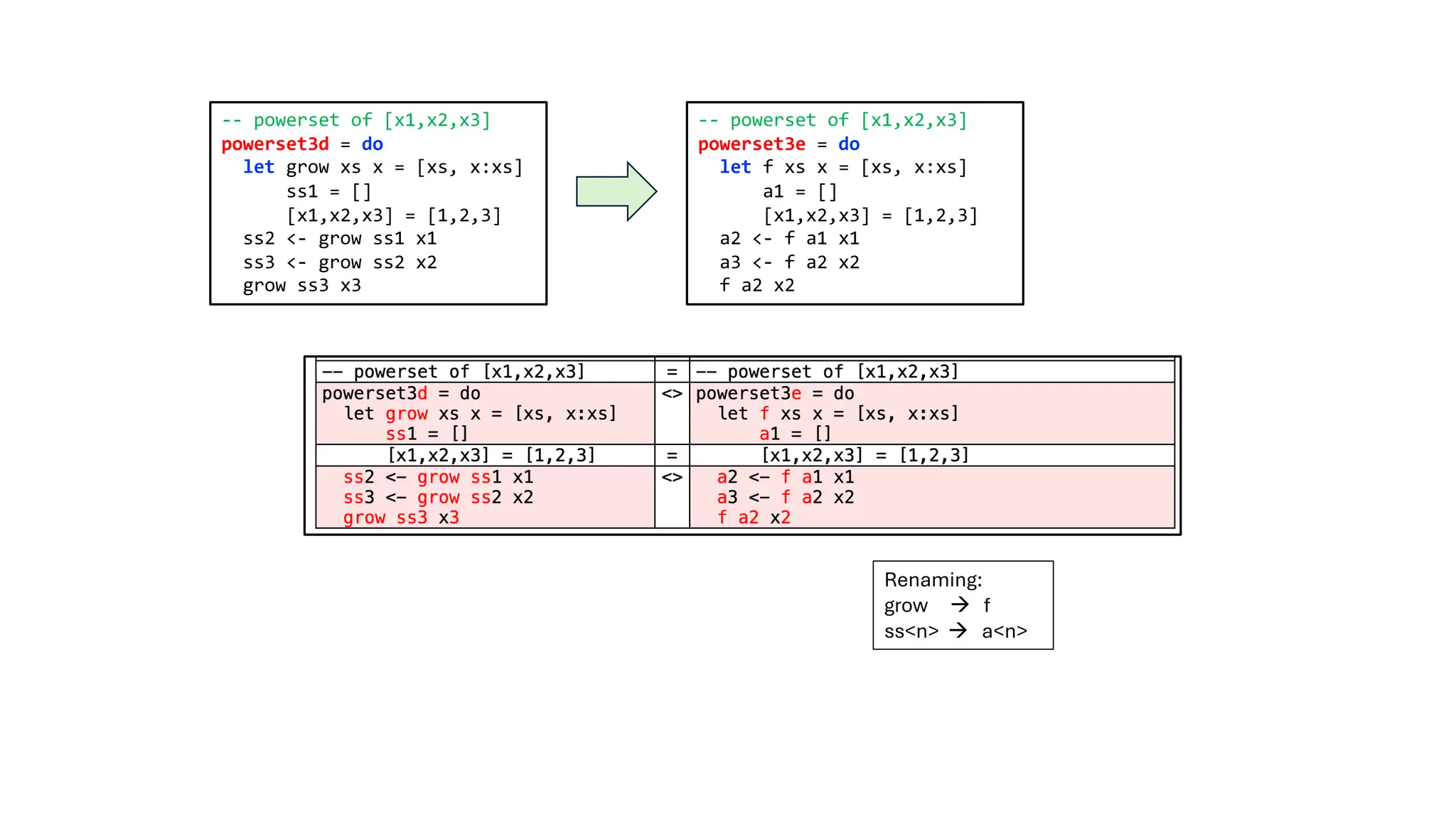

powerset3d = do
ss1 = []
[x1,x2,x3] = [1,2,3]
ss2 <- grow ss1 x1
ss3 <- grow ss2 x2
grow ss3 x3
powerset3e = do
let f xs x = [xs, x:xs]
a1 = []
[x1,x2,x3] = [1,2,3]
a2 <- f a1 x1
a3 <- f a2 x2
f a2 x2
Renaming:
grow à f
ss<n> à a<n>

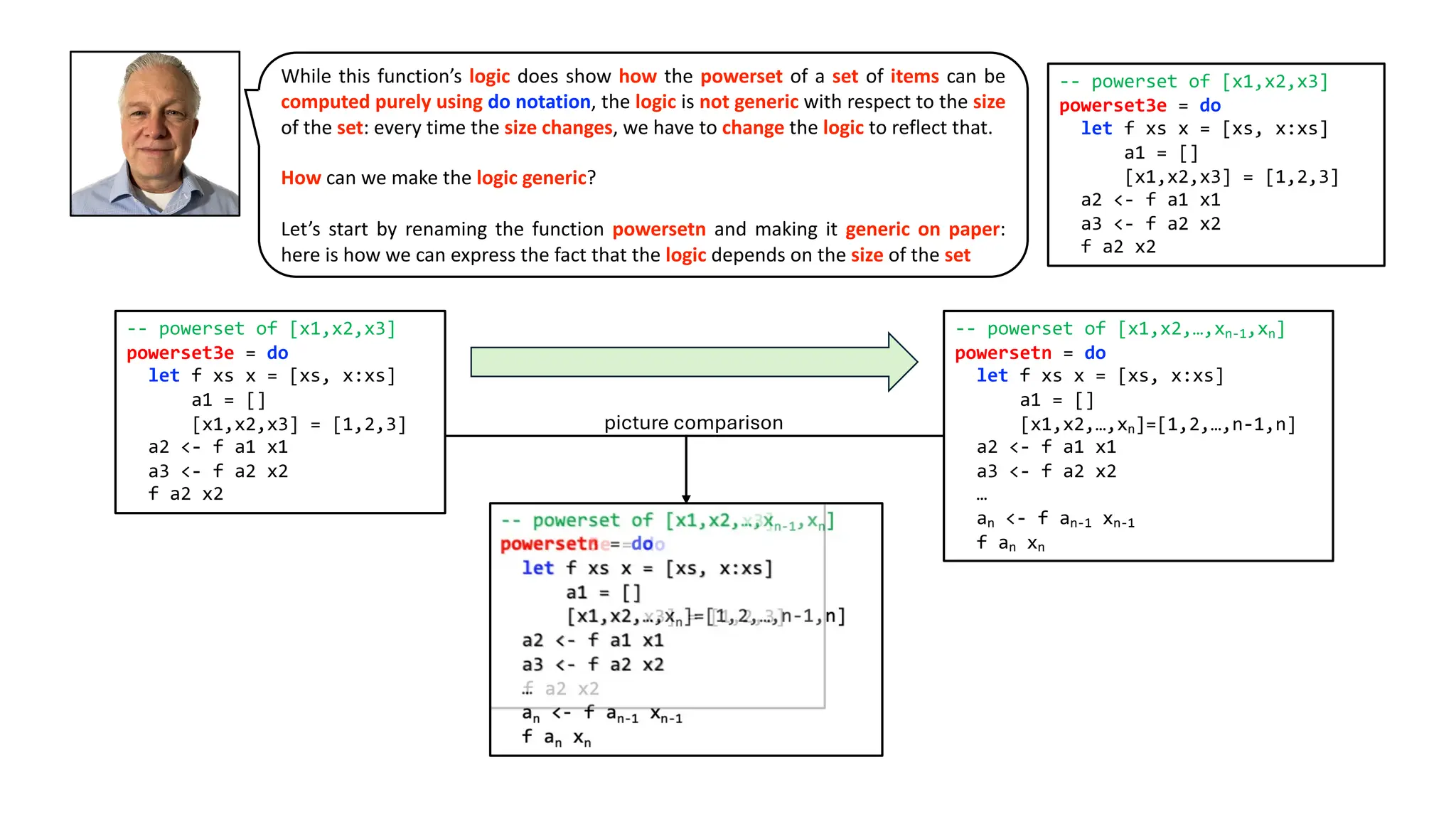

While this function’s logic does show how the powerset of a set of items can be
computed purely using do notation, the logic is not generic with respect to the size
of the set: every time the size changes, we have to change the logic to reflect that.
How can we make the logic generic?
Let’s start by renaming the function powersetn and making it generic on paper:
here is how we can express the fact that the logic depends on the size of the set
powerset3e = do
a1 = []
[x1,x2,x3] = [1,2,3]
a2 <- f a1 x1
a3 <- f a2 x2
f a2 x2
-- powerset of [x1,x2,…,xn-1,xn]
powersetn = do
a1 = []
[x1,x2,…,xn]=[1,2,…,n-1,n]
a2 <- f a1 x1
a3 <- f a2 x2
…
an <- f an-1 xn-1
f an xn
powerset3e = do
a1 = []
[x1,x2,x3] = [1,2,3]
a2 <- f a1 x1
a3 <- f a2 x2
f a2 x2
picture comparison

-- powerset of [x1,x2,…,xm]
powersetm = do
a1 = []
[x1,x2,…,xm]=[1,2,…,m]
a2 <- f a1 x1
a3 <- f a2 x2
…
f am xm
-- powerset of [x1,x2,…,xn-1,xn]
powersetn = do
a1 = []
[x1,x2,…,xn]=[1,2,…,n-1,n]
a2 <- f a1 x1
a3 <- f a2 x2
…
an <- f an-1 xn-1
f an xn
picture comparison

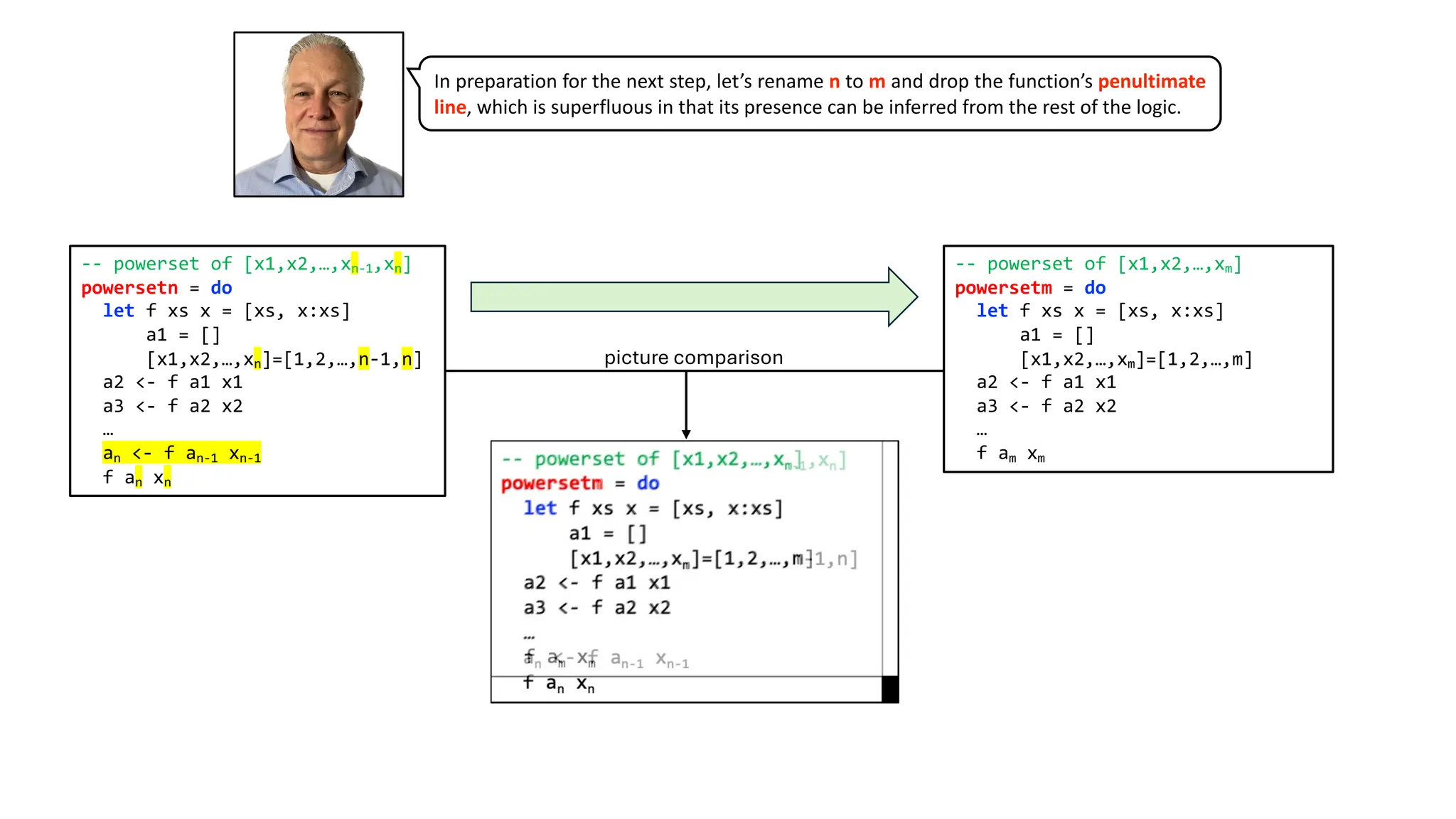

In preparation for the next step, let’s rename n to m and drop the function’s penultimate
line, which is superfluous in that its presence can be inferred from the rest of the logic.

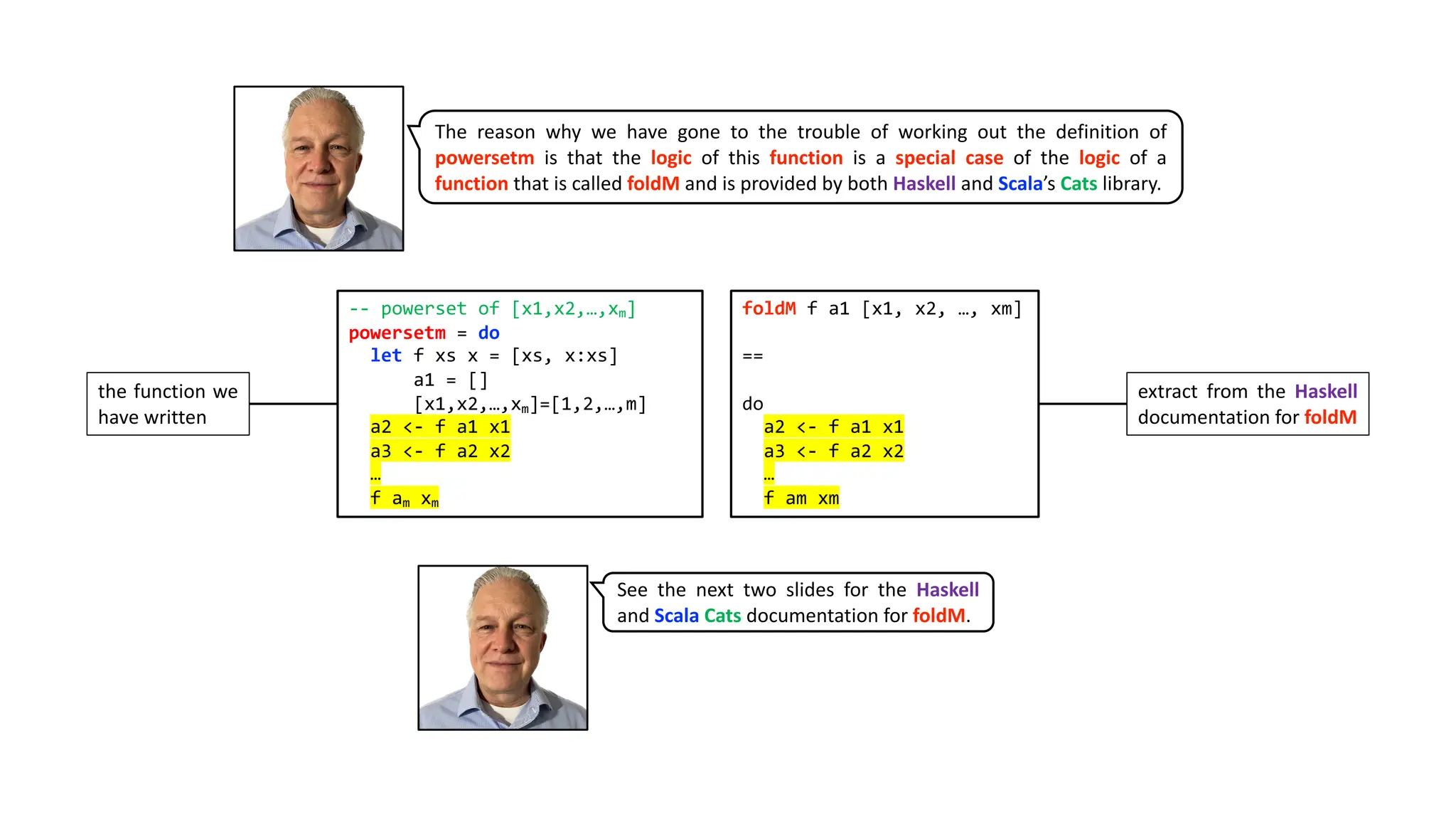

The reason why we have gone to the trouble of working out the definition of
powersetm is that the logic of this function is a special case of the logic of a
function that is called foldM and is provided by both Haskell and Scala’s Cats library.
-- powerset of [x1,x2,…,xm]
powersetm = do
a1 = []
[x1,x2,…,xm]=[1,2,…,m]
a2 <- f a1 x1
a3 <- f a2 x2
…
f am xm
foldM f a1 [x1, x2, …, xm]
==
do
a2 <- f a1 x1
a3 <- f a2 x2
…
f am xm

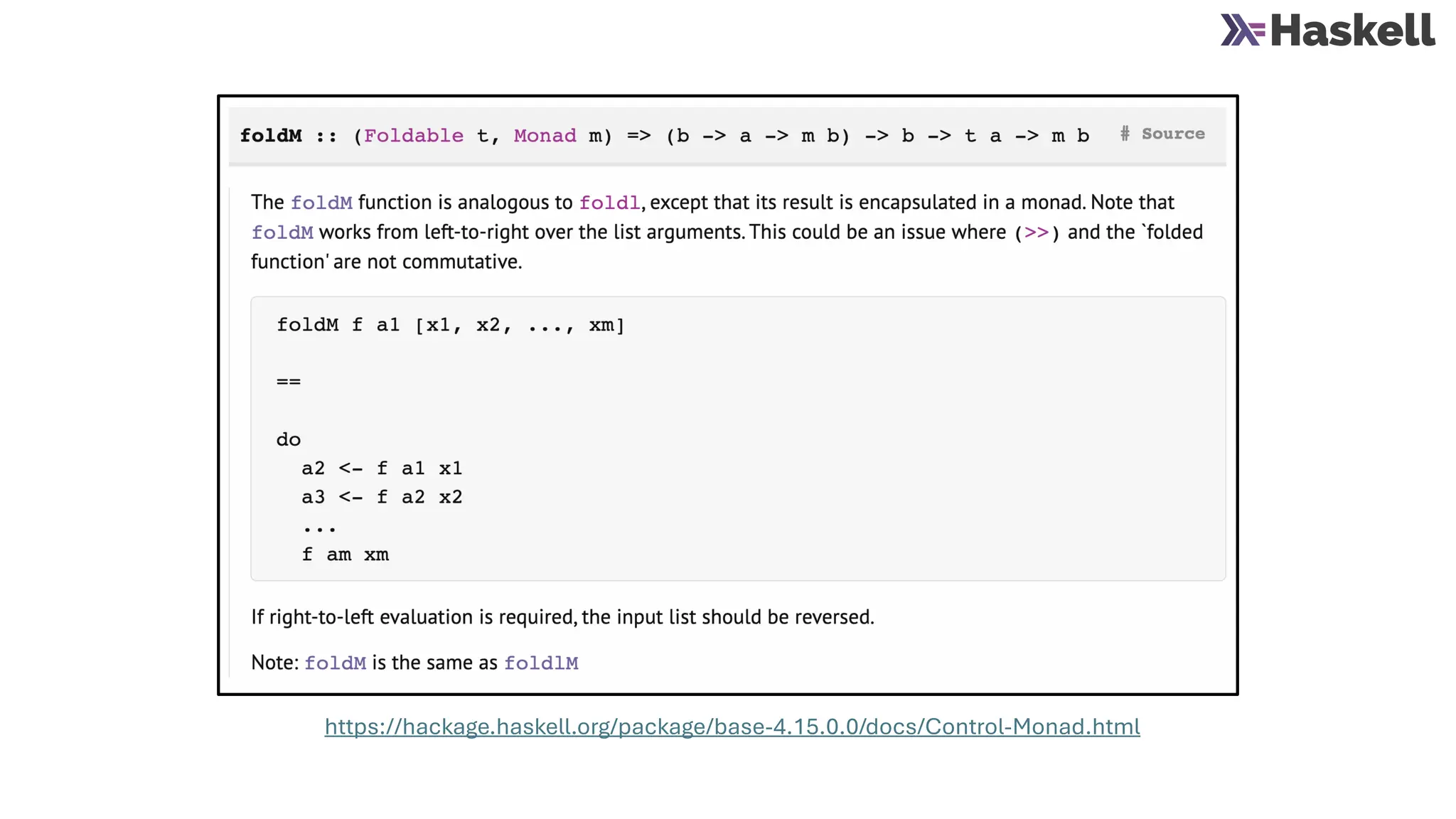

extract from the Haskell
documentation for foldM
the function we
have written
See the next two slides for the Haskell
and Scala Cats documentation for foldM.

https://hackage.haskell.org/package/base-4.15.0.0/docs/Control-Monad.html

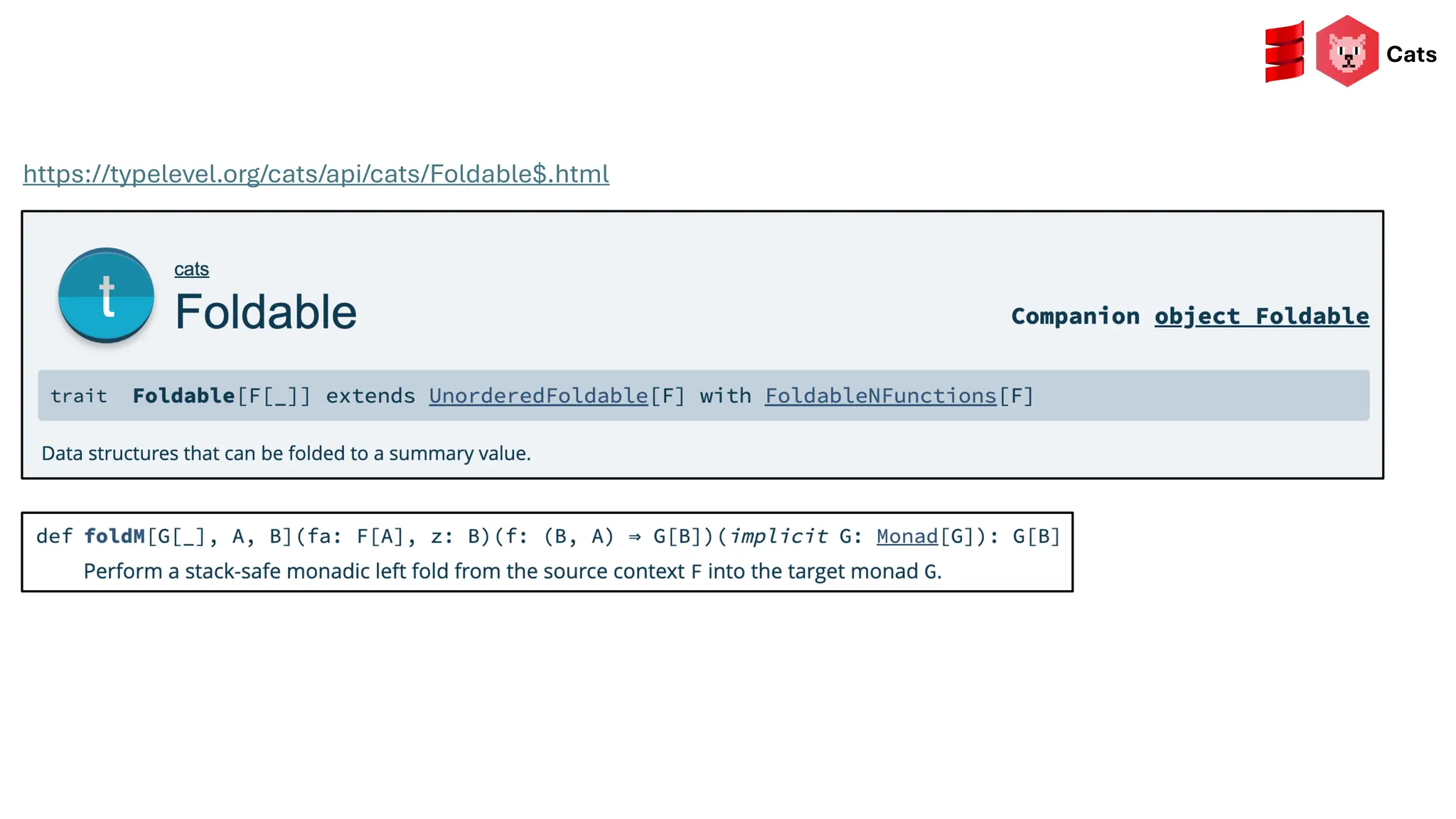

https://typelevel.org/cats/api/cats/Foldable$.html
Cats

powersetm = do
a1 = []
[x1,x2,…,xm]=[1,2,…,m]
a2 <- f a1 x1
a3 <- f a2 x2
…
f am xm
powersetm =
in foldM f [] [1,2,…,m]

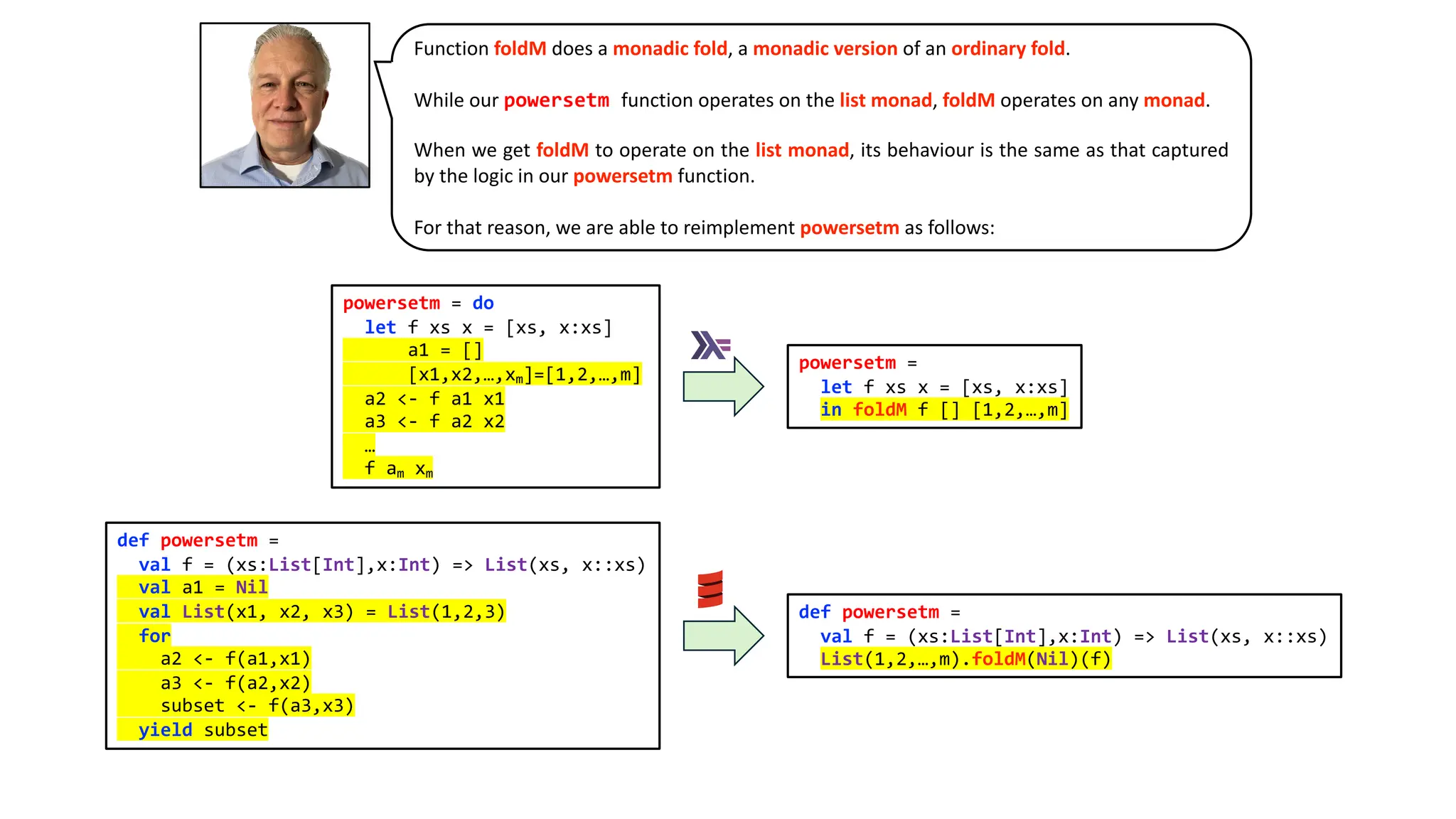

Function foldM does a monadic fold, a monadic version of an ordinary fold.
While our powersetm function operates on the list monad, foldM operates on any monad.
When we get foldM to operate on the list monad, its behaviour is the same as that captured
by the logic in our powersetm function.
For that reason, we are able to reimplement powersetm as follows:
def powersetm =
val f = (xs:List[Int],x:Int) => List(xs, x::xs)
val a1 = Nil
val List(x1, x2, x3) = List(1,2,3)
for
a2 <- f(a1,x1)
a3 <- f(a2,x2)
subset <- f(a3,x3)
yield subset
def powersetm =
List(1,2,…,m).foldM(Nil)(f)

import cats.implicits.*
def powerset[A](as: List[A]): List[List[A]] =
as.foldM(Nil)(grow)
def grow[A](as: List[A], a: A) = List(as, a::as)
import Control.Monad (foldM)
powerset = foldM grow []
grow :: [a] -> a -> [[a]]
grow as a = [as, a:as]
powersetm =
in foldM f [] [1,2,…,m]
def powersetm =
List(1,2,…,m).foldM(Nil)(f)

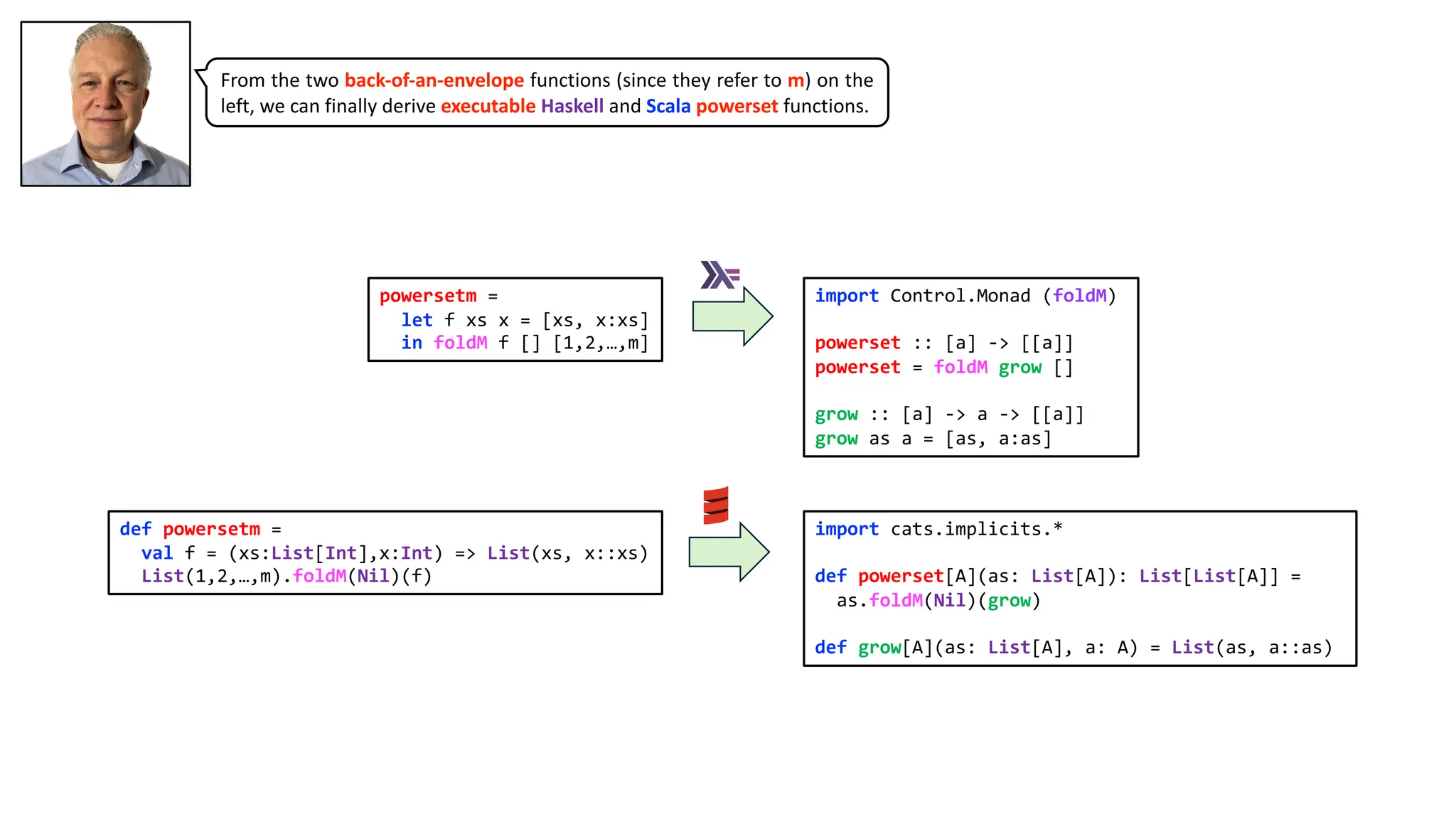

From the two back-of-an-envelope functions (since they refer to m) on the
left, we can finally derive executable Haskell and Scala powerset functions.

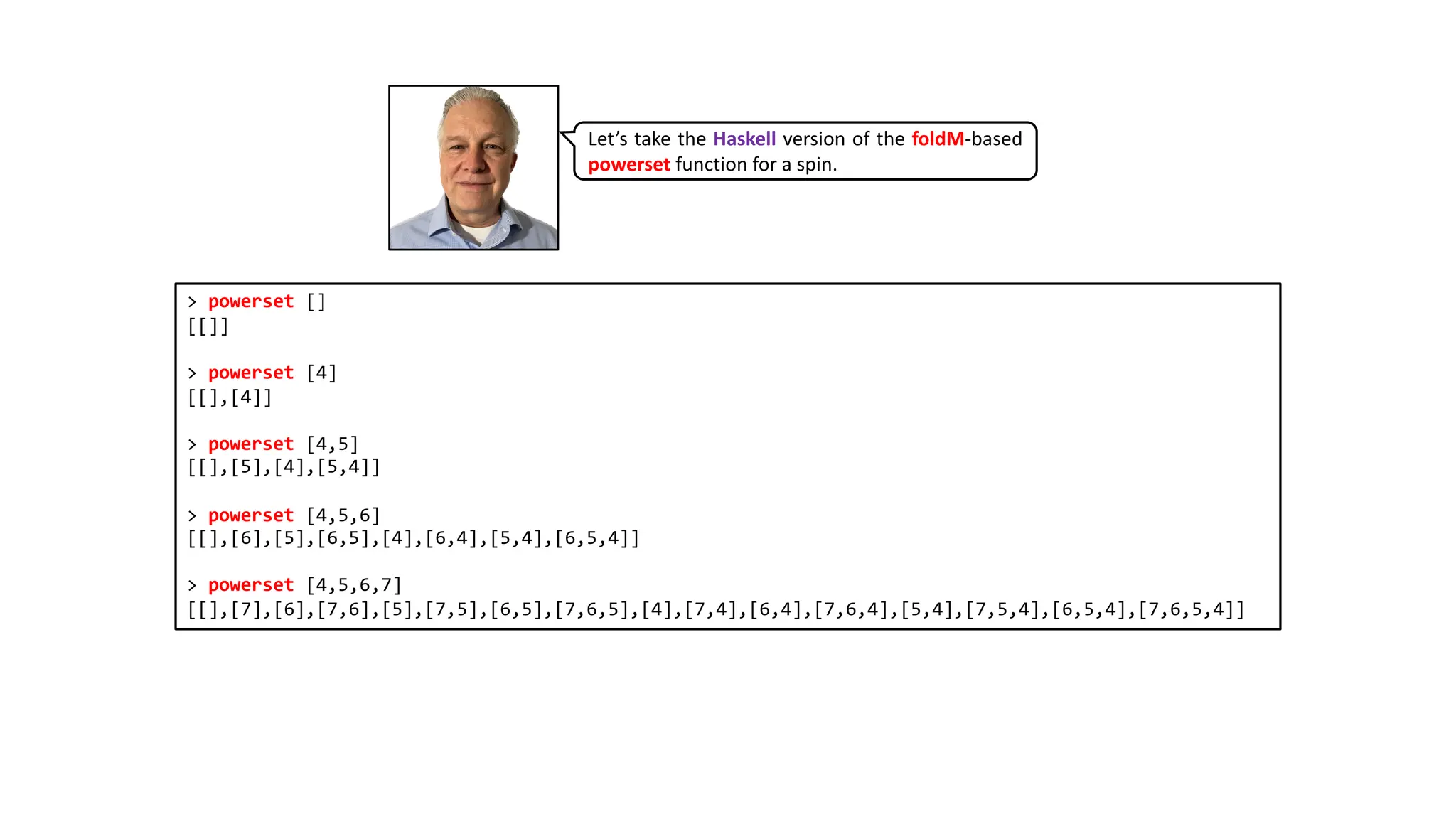

> powerset []
[[]]
> powerset [4]
[[],[4]]
> powerset [4,5]
[[],[5],[4],[5,4]]
> powerset [4,5,6]
[[],[6],[5],[6,5],[4],[6,4],[5,4],[6,5,4]]
> powerset [4,5,6,7]
[[],[7],[6],[7,6],[5],[7,5],[6,5],[7,6,5],[4],[7,4],[6,4],[7,6,4],[5,4],[7,5,4],[6,5,4],[7,6,5,4]]
Let’s take the Haskell version of the foldM-based
powerset function for a spin.

> powerset(Nil)
val res0: List[List[Nothing]] = List(List())
> powerset(List(4))
val res1: List[List[Int]] = List(List(), List(4))
> powerset(List(4,5))
val res2: List[List[Int]] = List(List(), List(5), List(4), List(5, 4))
> powerset(List(4,5,6))
val res3: List[List[Int]] = List(List(), List(6), List(5), List(6, 5), List(4), List(6, 4), List(5, 4), List(6, 5, 4))
> powerset(List(4,5,6,7))
val res4: List[List[Int]] = List(List(), List(7), List(6), List(7, 6), List(5), List(7, 5), List(6, 5), List(7, 6, 5), List(4),
List(7, 4), List(6, 4), List(7, 6, 4), List(5, 4), List(7, 5, 4), List(6, 5, 4), List(7, 6, 5, 4))
And now the Scala version.

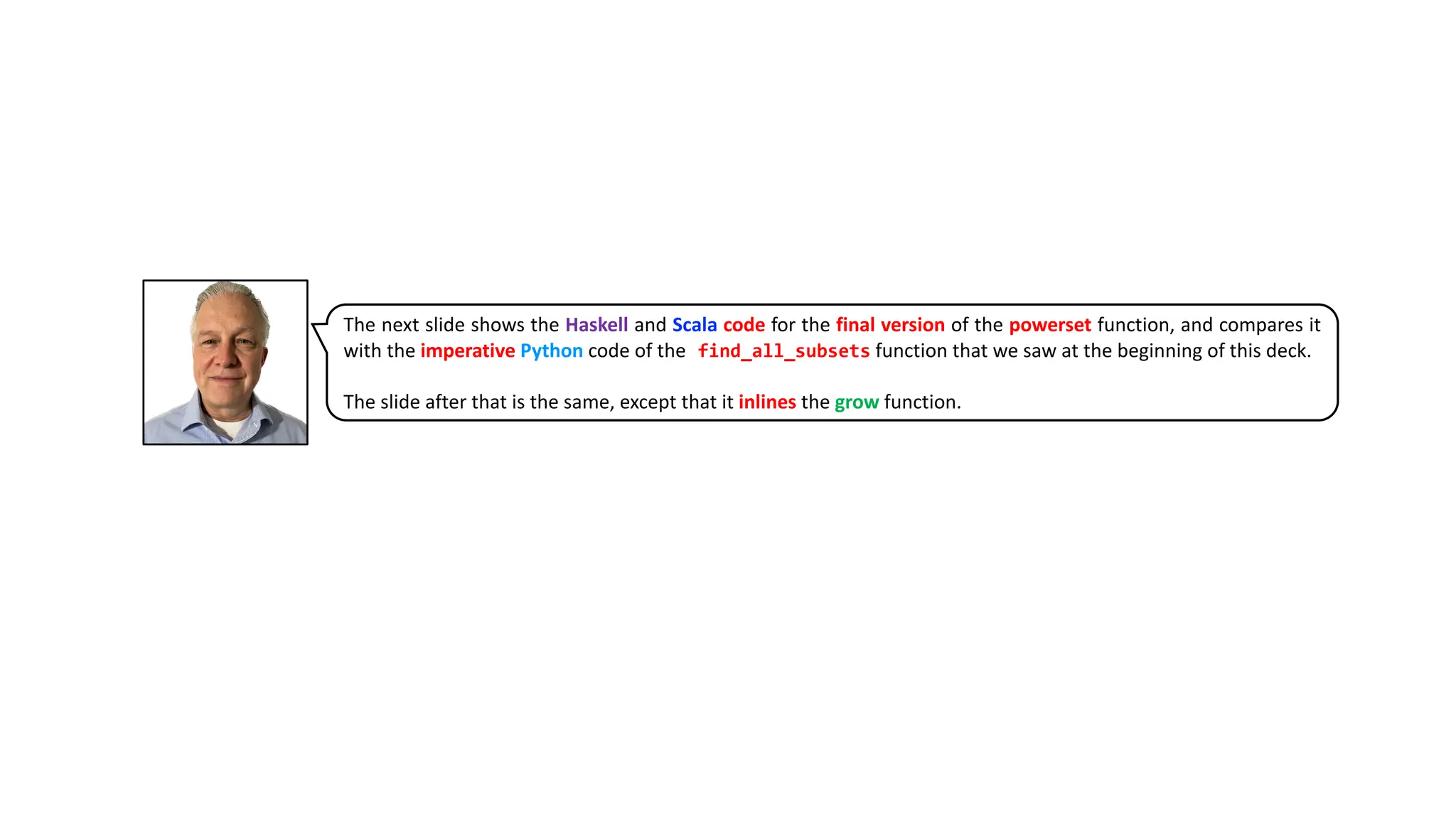

The next slide shows the Haskell and Scala code for the final version of the powerset function, and compares it
with the imperative Python code of the find_all_subsets function that we saw at the beginning of this deck.
The slide after that is the same, except that it inlines the grow function.

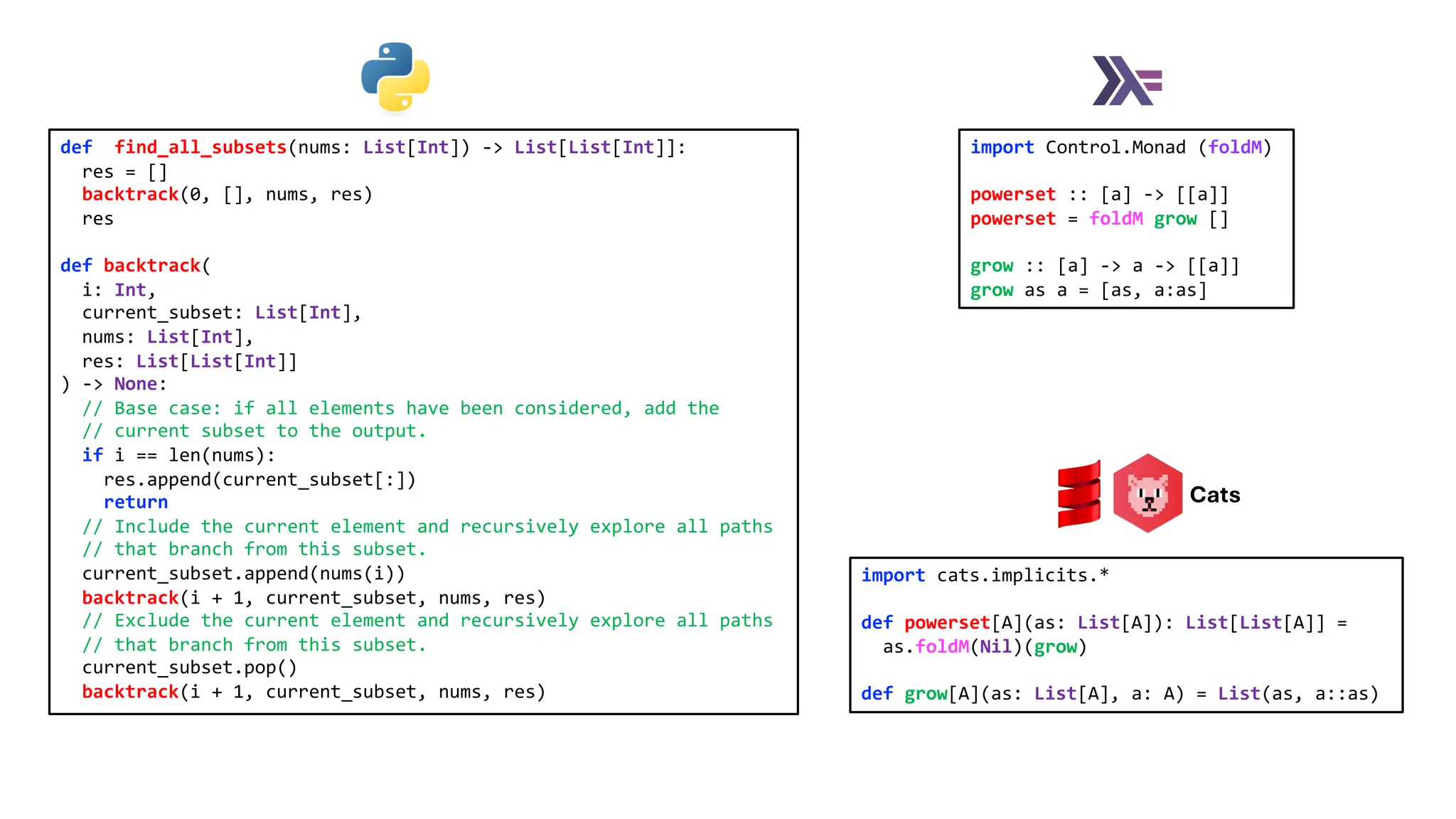

res = []
res
def backtrack(
i: Int,
nums: List[Int],
) -> None:
if i == len(nums):
return
as.foldM(Nil)(grow)
def grow[A](as: List[A], a: A) = List(as, a::as)
powerset = foldM grow []
grow :: [a] -> a -> [[a]]
grow as a = [as, a:as]
Cats

res = []
res
def backtrack(
i: Int,
nums: List[Int],
) -> None:
if i == len(nums):
return
as.foldM(Nil)((as, a) => List(as, a::as))
powerset = foldM (as a -> [as, a:as]) []
Cats

If you want to know more about the foldM function, which is very interesting because its behaviour depends
on the particular Monad that it operates on, see the following deck, or the deck series on the next slide.
https://fpilluminated.org/

That’s all for part one.
I hope you enjoyed it.
See you in part two.

Combinatorial Interview Problems with Backtracking Solutions - From Imperative Procedural Programming to Declarative Functional Programming - Part 1

More Related Content

Similar to Combinatorial Interview Problems with Backtracking Solutions - From Imperative Procedural Programming to Declarative Functional Programming - Part 1

More from Philip Schwarz

Recently uploaded

Combinatorial Interview Problems with Backtracking Solutions - From Imperative Procedural Programming to Declarative Functional Programming - Part 1
