Drawing Heighway’s Dragon
Recursive Function Simplification
From 2n Recursive Invocations
To n Tail-Recursive Invocations Exploiting Self-Similarity
@philip_schwarz
slides by https://fpilluminated.org/
Part 2

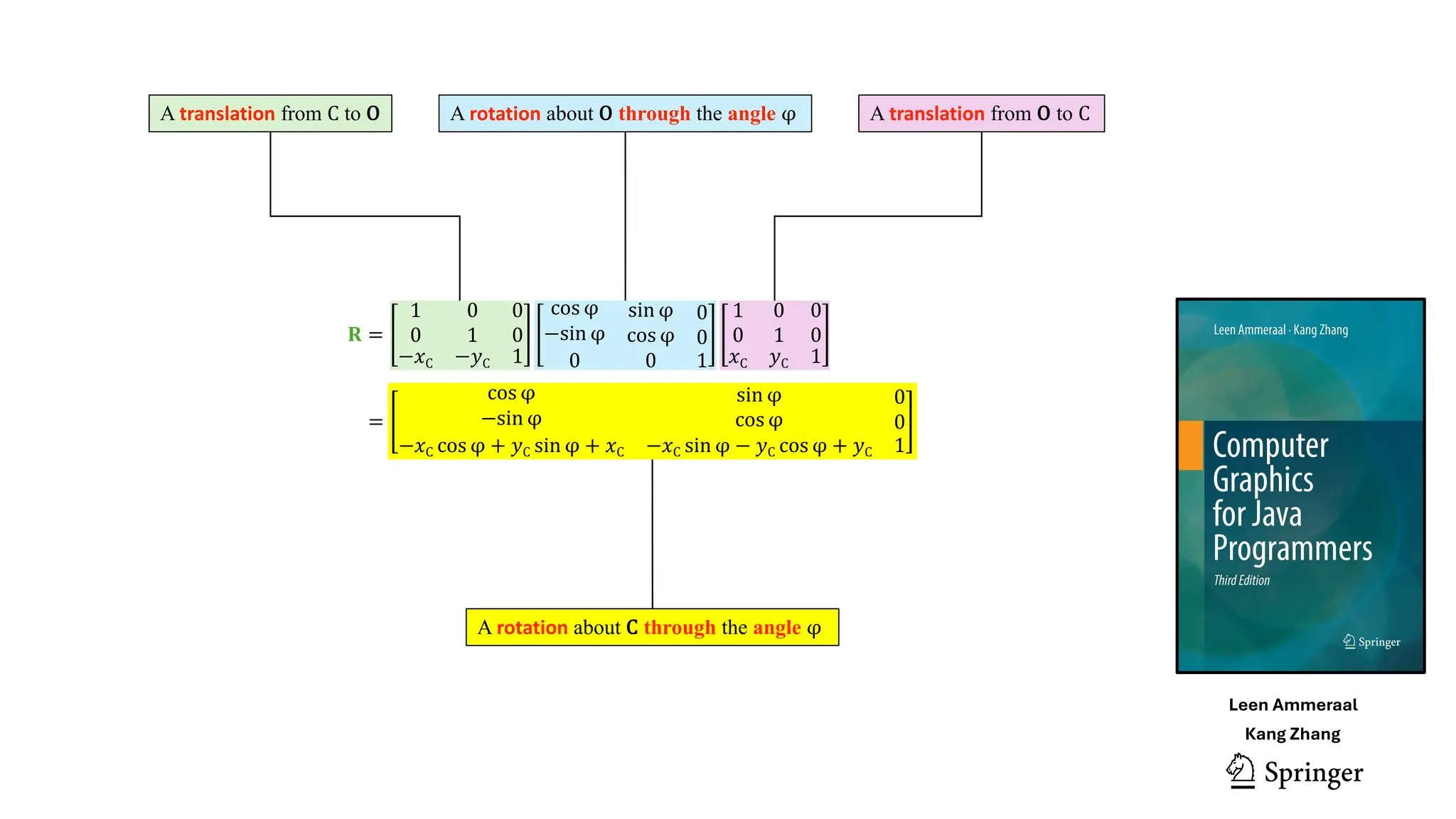

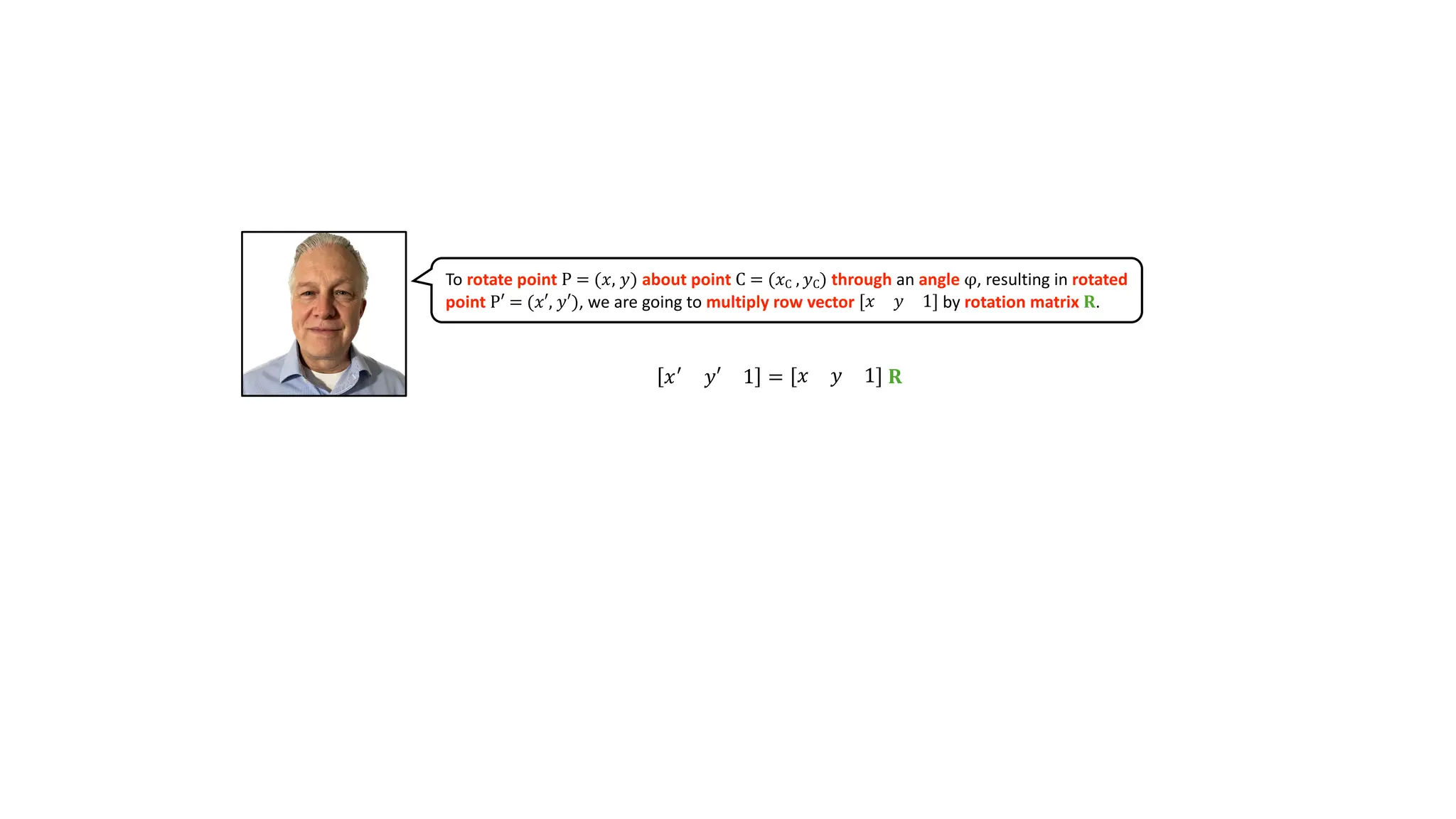

𝑥! 𝑦′ 1 = 𝑥 𝑦 1 𝐑
𝐑 =
?
?
?
?
?
?
? ? ?

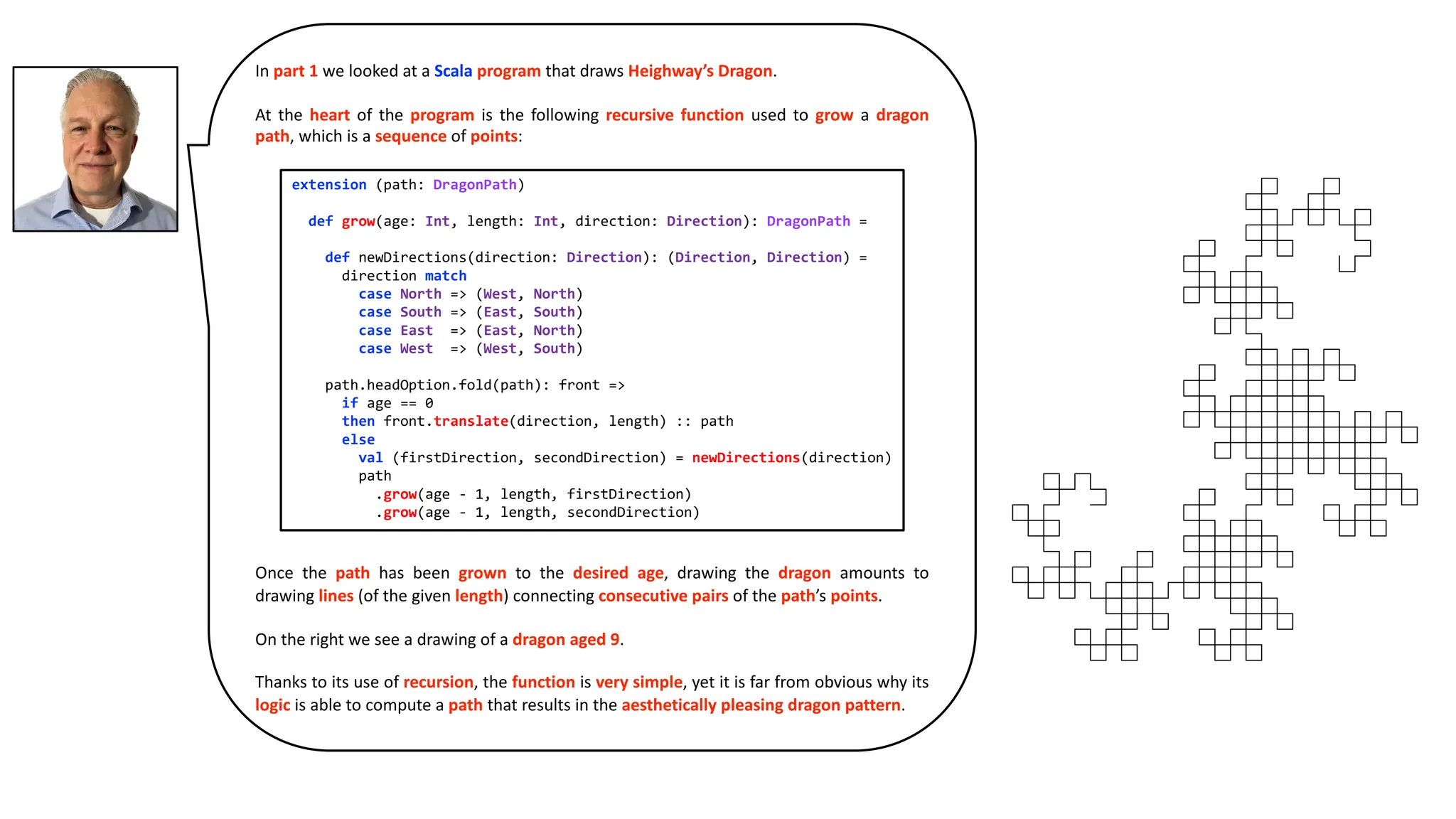

In part 1 we looked at a Scala program that draws Heighway’s Dragon.
At the heart of the program is the following recursive function used to grow a dragon
path, which is a sequence of points:
Once the path has been grown to the desired age, drawing the dragon amounts to
drawing lines (of the given length) connecting consecutive pairs of the path’s points.
On the right we see a drawing of a dragon aged 9.
Thanks to its use of recursion, the function is very simple, yet it is far from obvious why its
logic is able to compute a path that results in the aesthetically pleasing dragon pattern.
extension (path: DragonPath)
def grow(age: Int, length: Int, direction: Direction): DragonPath =
def newDirections(direction: Direction): (Direction, Direction) =
direction match
case North => (West, North)
case South => (East, South)
case East => (East, North)
case West => (West, South)
path.headOption.fold(path): front =>
if age == 0
then front.translate(direction, length) :: path
else
val (firstDirection, secondDirection) = newDirections(direction)
path
.grow(age - 1, length, firstDirection)
.grow(age - 1, length, secondDirection)

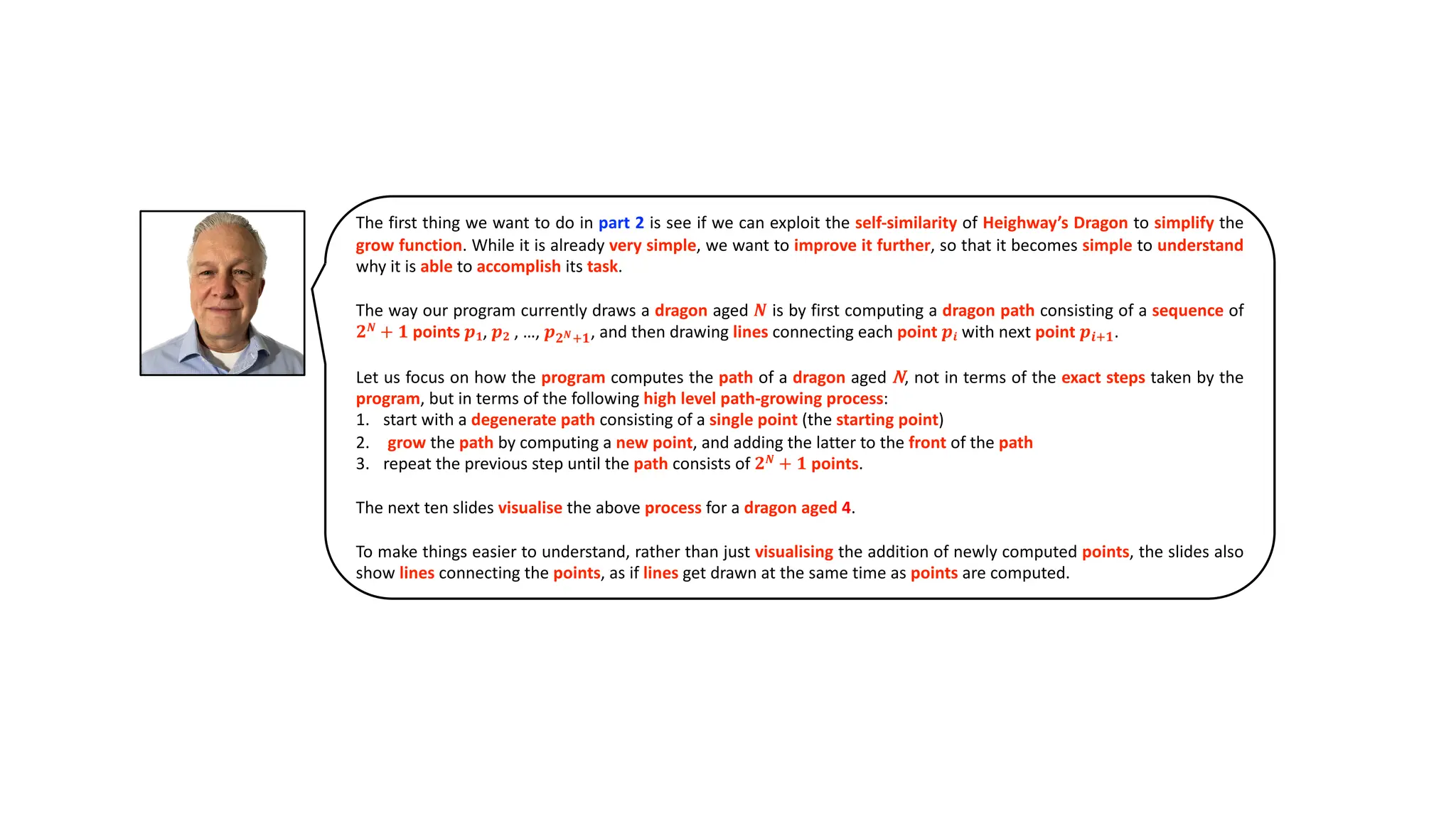

The first thing we want to do in part 2 is see if we can exploit the self-similarity of Heighway’s Dragon to simplify the
grow function. While it is already very simple, we want to improve it further, so that it becomes simple to understand
why it is able to accomplish its task.
The way our program currently draws a dragon aged 𝑵 is by first computing a dragon path consisting of a sequence of
𝟐𝑵
+ 𝟏 points 𝒑𝟏, 𝒑𝟐 , …, 𝒑𝟐𝑵*𝟏, and then drawing lines connecting each point 𝒑𝒊 with next point 𝒑𝒊*𝟏.
Let us focus on how the program computes the path of a dragon aged N, not in terms of the exact steps taken by the
program, but in terms of the following high level path-growing process:
1. start with a degenerate path consisting of a single point (the starting point)
2. .grow the path by computing a new point, and adding the latter to the front of the path
3. repeat the previous step until the path consists of 𝟐𝑵
+ 𝟏 points.
The next ten slides visualise the above process for a dragon aged 4.
To make things easier to understand, rather than just visualising the addition of newly computed points, the slides also
show lines connecting the points, as if lines get drawn at the same time as points are computed.

𝑝1

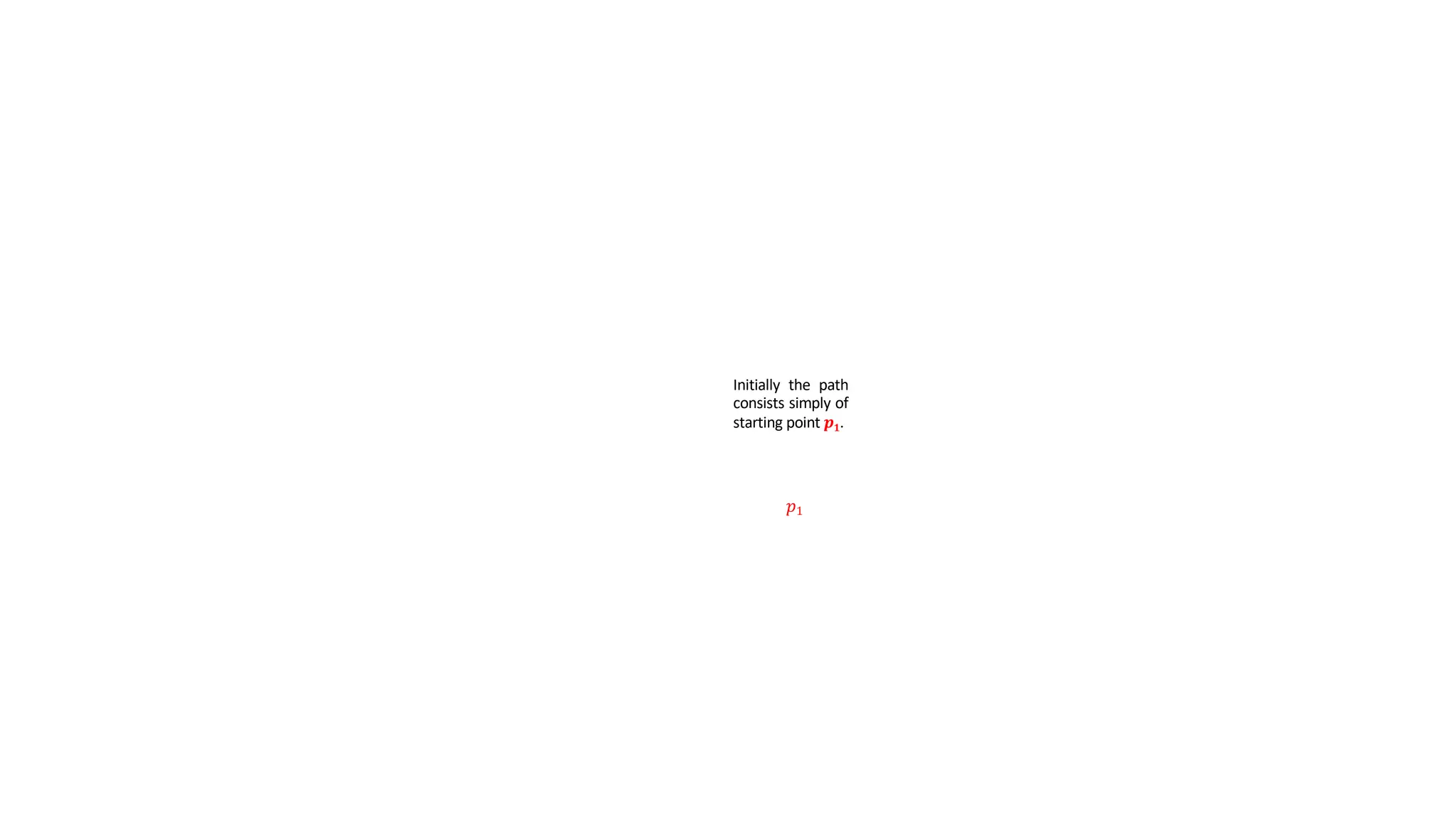

Initially the path
consists simply of
starting point 𝒑𝟏.

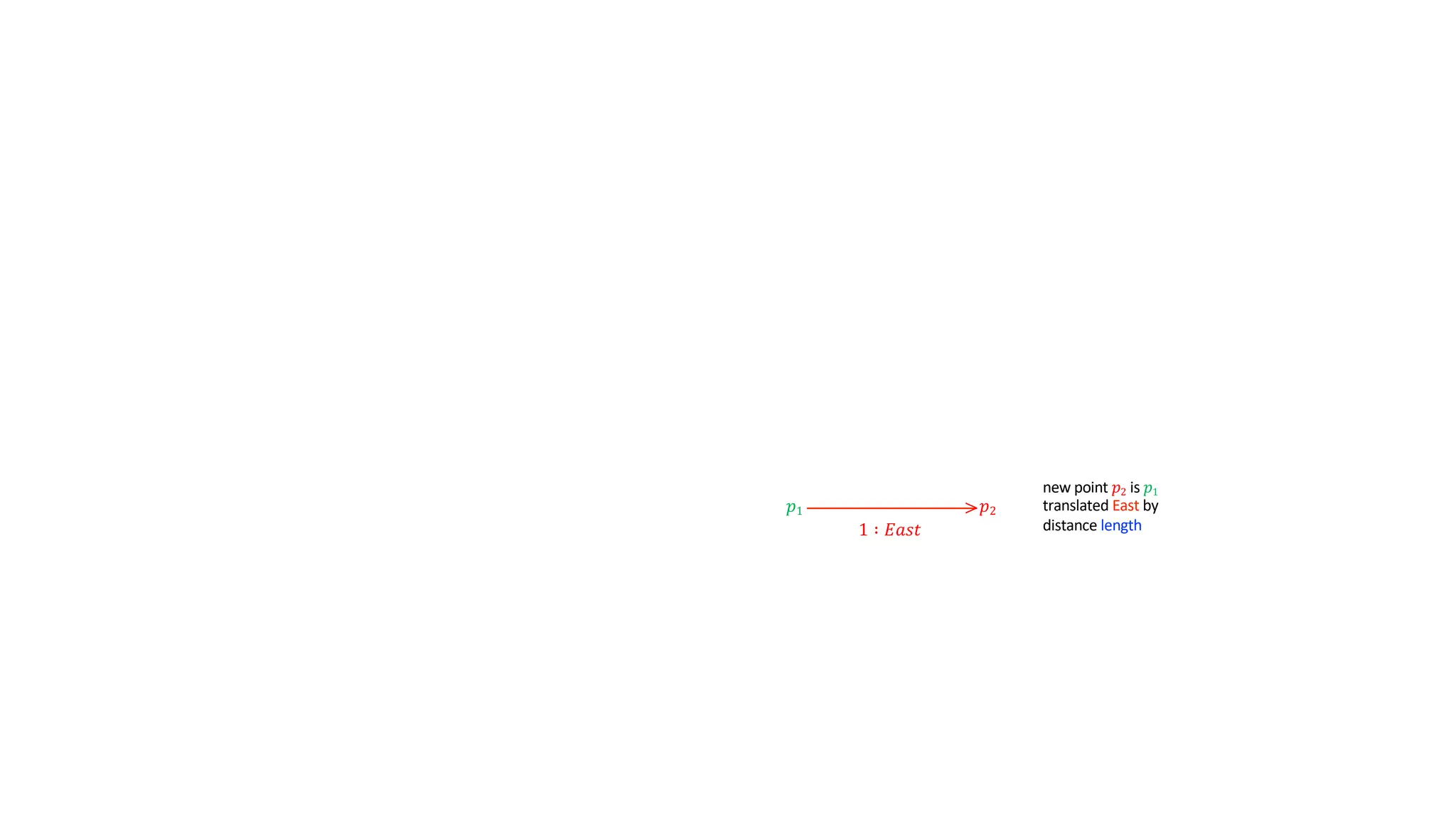

new point 𝑝2 is 𝑝1
translated East by
distance length
𝑝1 𝑝2
>
1 ∶ 𝐸𝑎𝑠𝑡

>

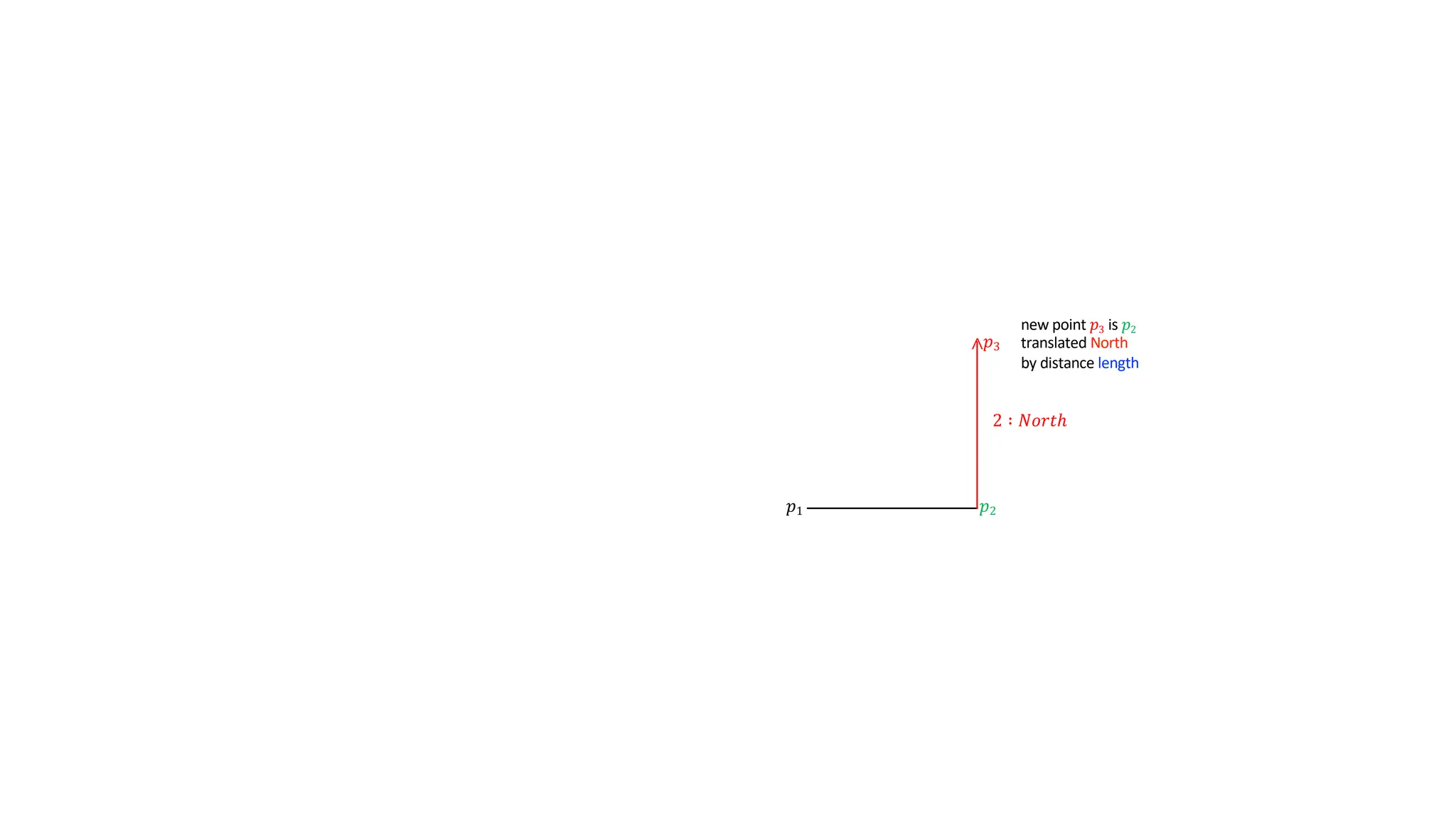

2 ∶ 𝑁𝑜𝑟𝑡ℎ
translated North
by distance length
𝑝1 𝑝2
𝑝3

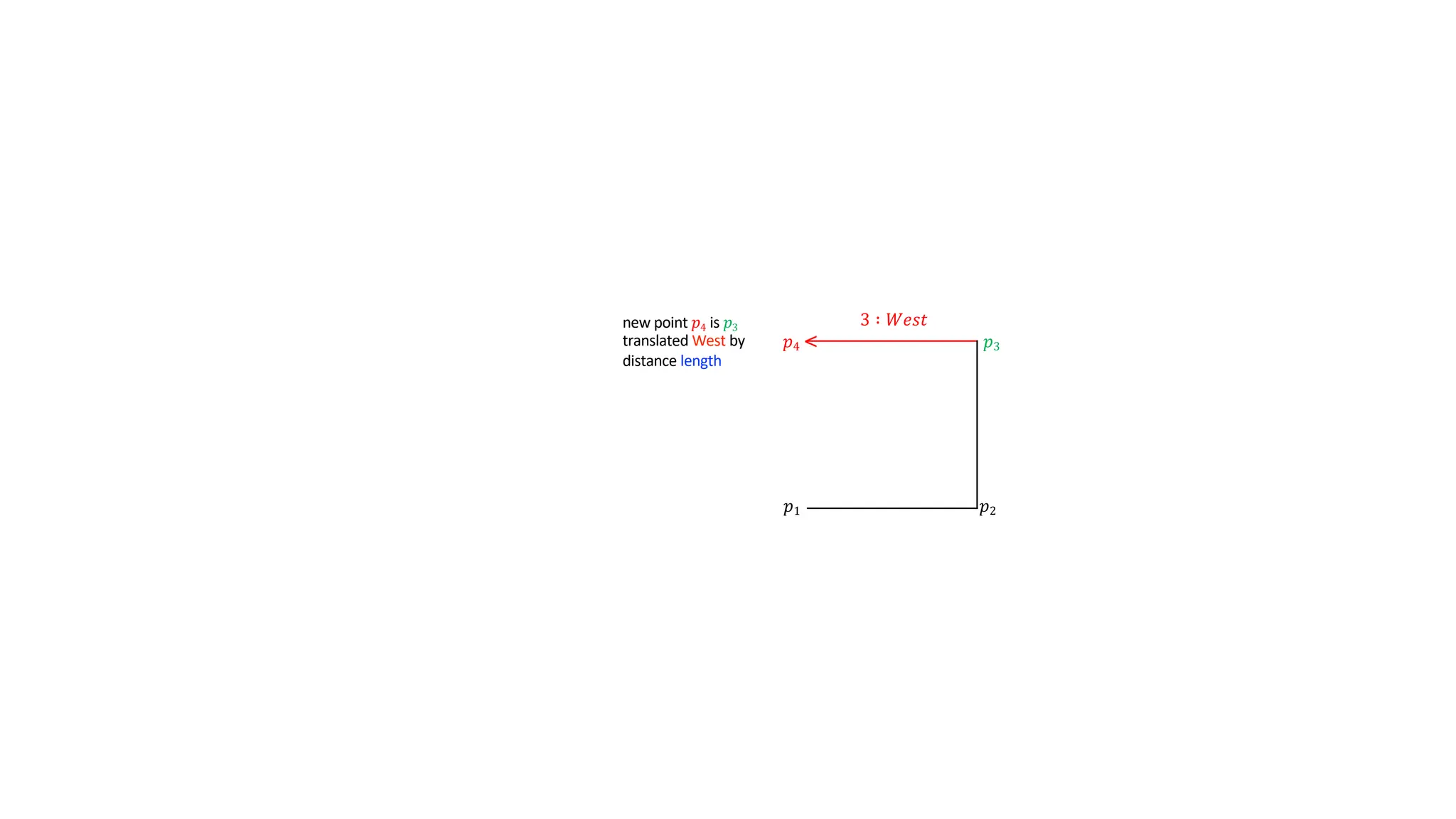

translated West by
distance length
𝑝1 𝑝2
𝑝3
𝑝4
3 ∶ 𝑊𝑒𝑠𝑡

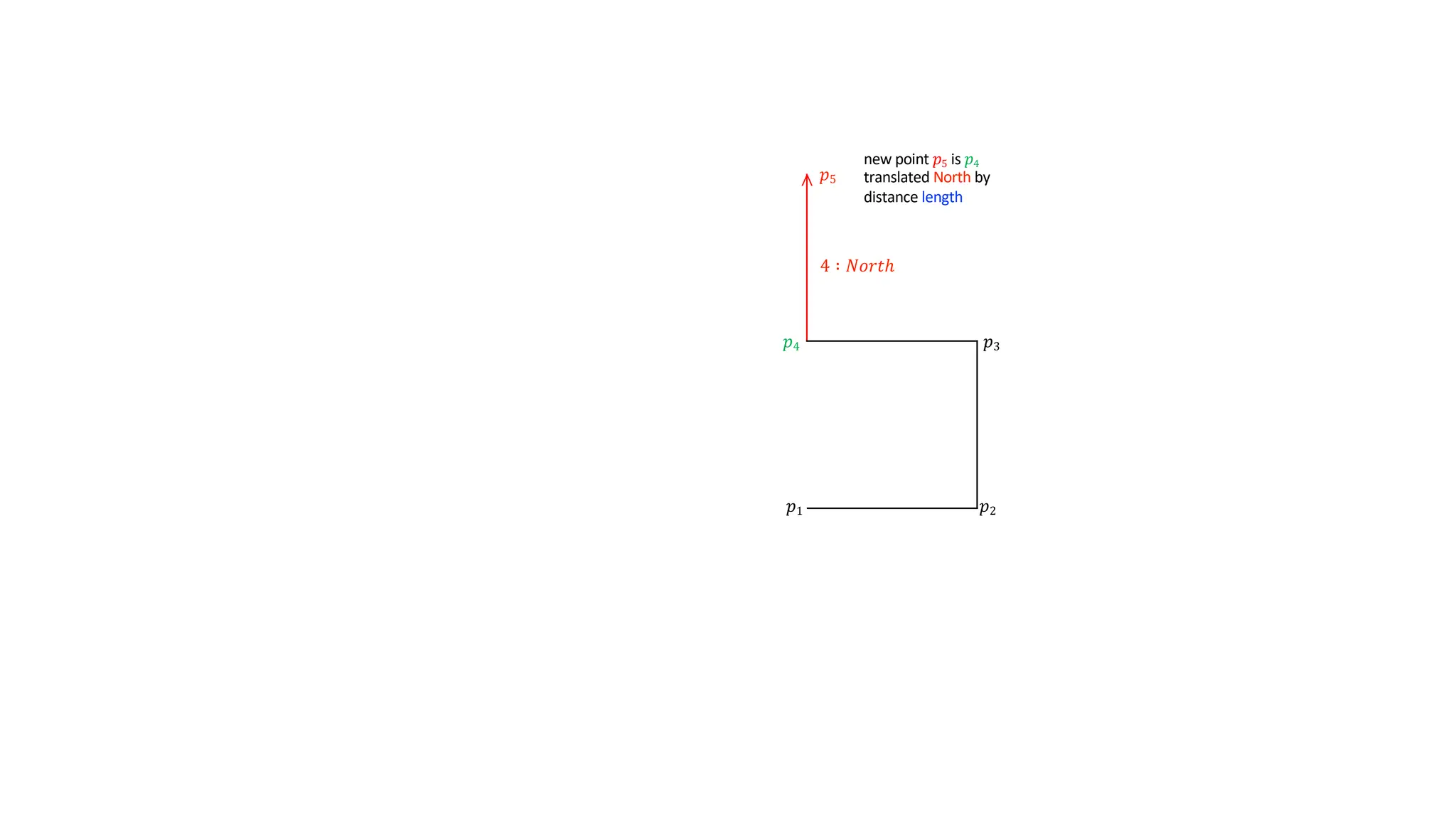

𝑝1 𝑝2
𝑝3
𝑝4
>
𝑝5
translated North by
distance length

𝑝1 𝑝2
𝑝3
𝑝4

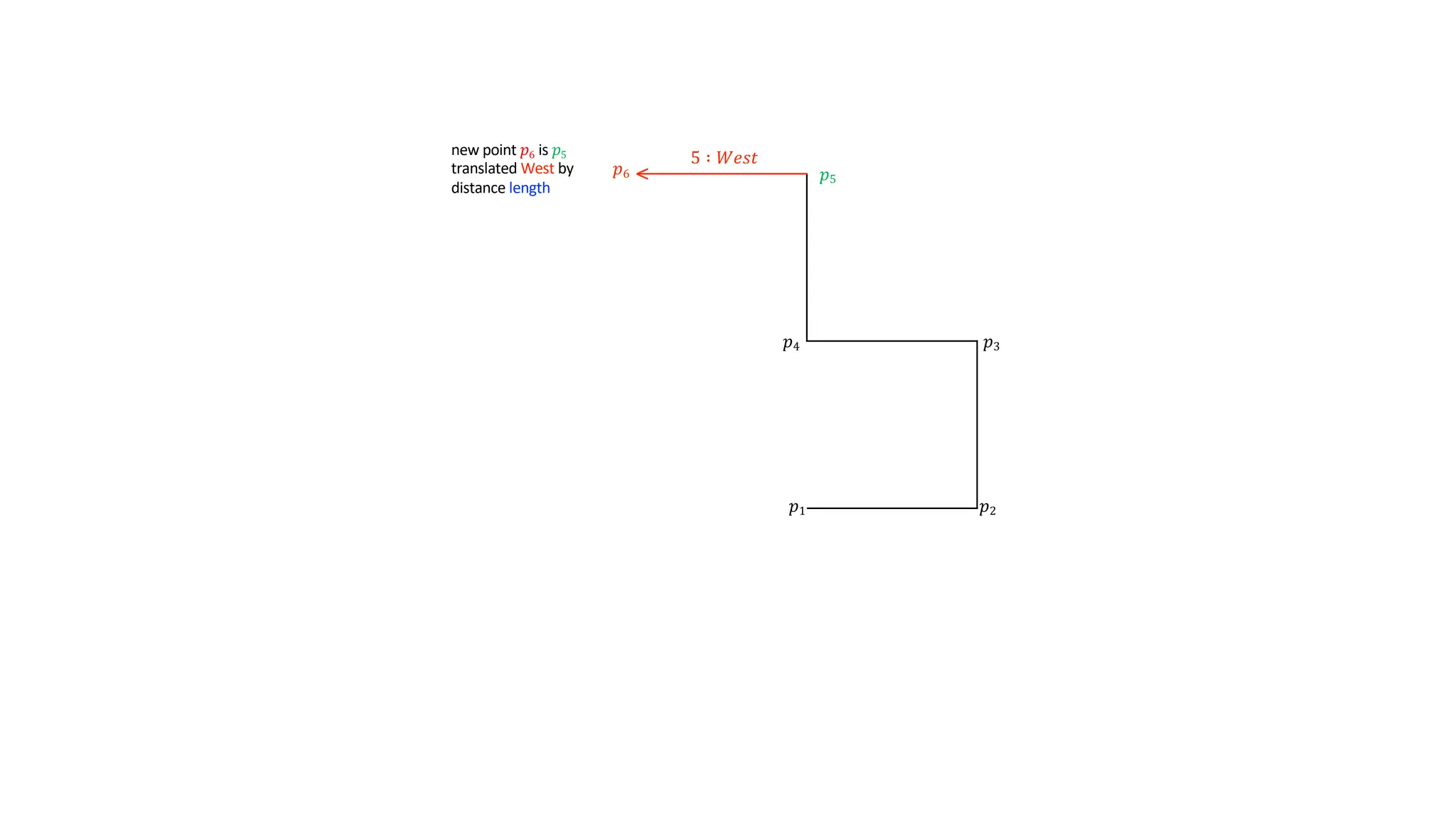

translated West by
distance length
𝑝5
𝑝6

𝑝1 𝑝2
𝑝3
𝑝4

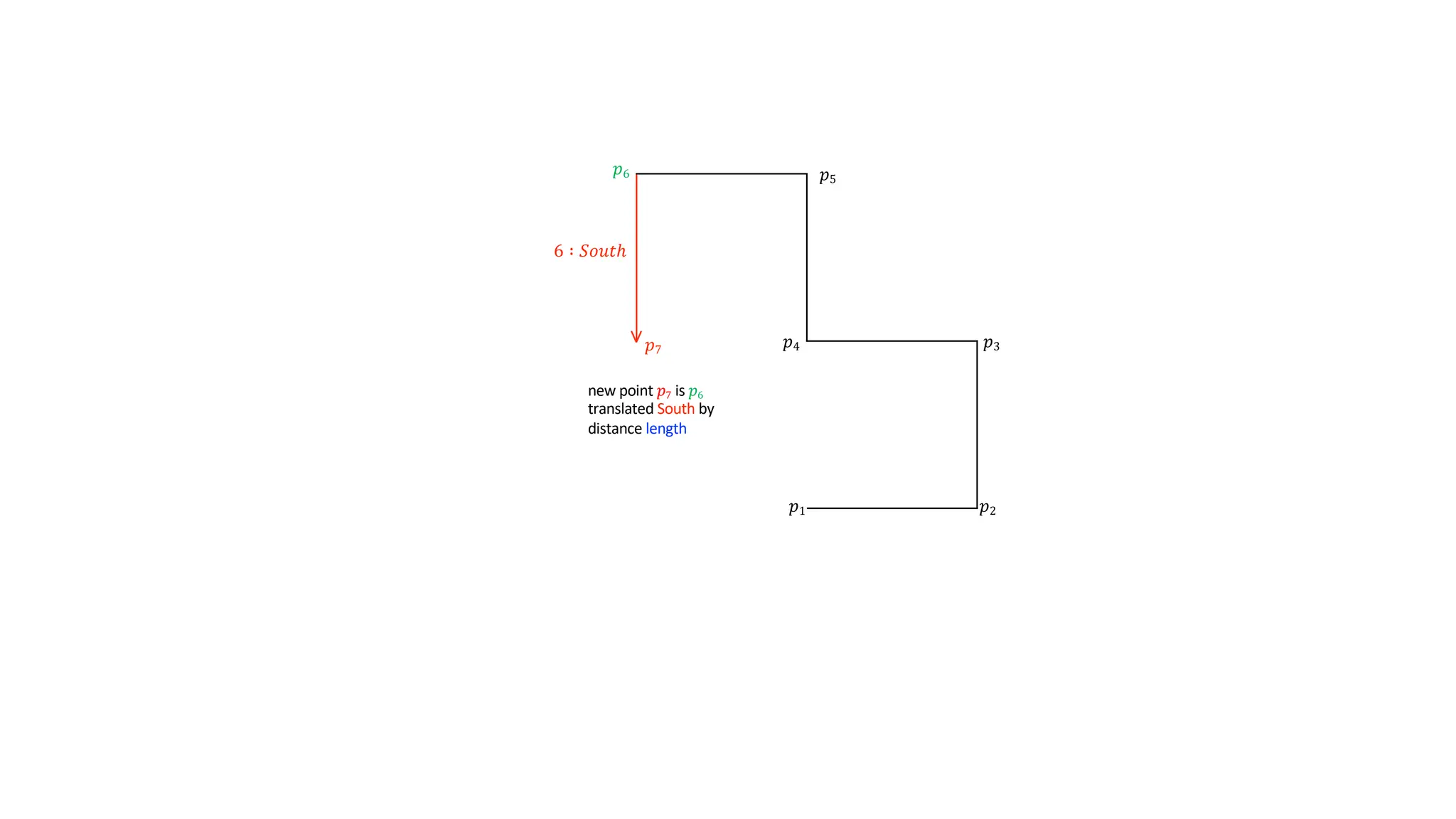

6 ∶ 𝑆𝑜𝑢𝑡ℎ
translated South by
distance length
𝑝5
𝑝6
𝑝7

𝑝1 𝑝2
𝑝3
𝑝4

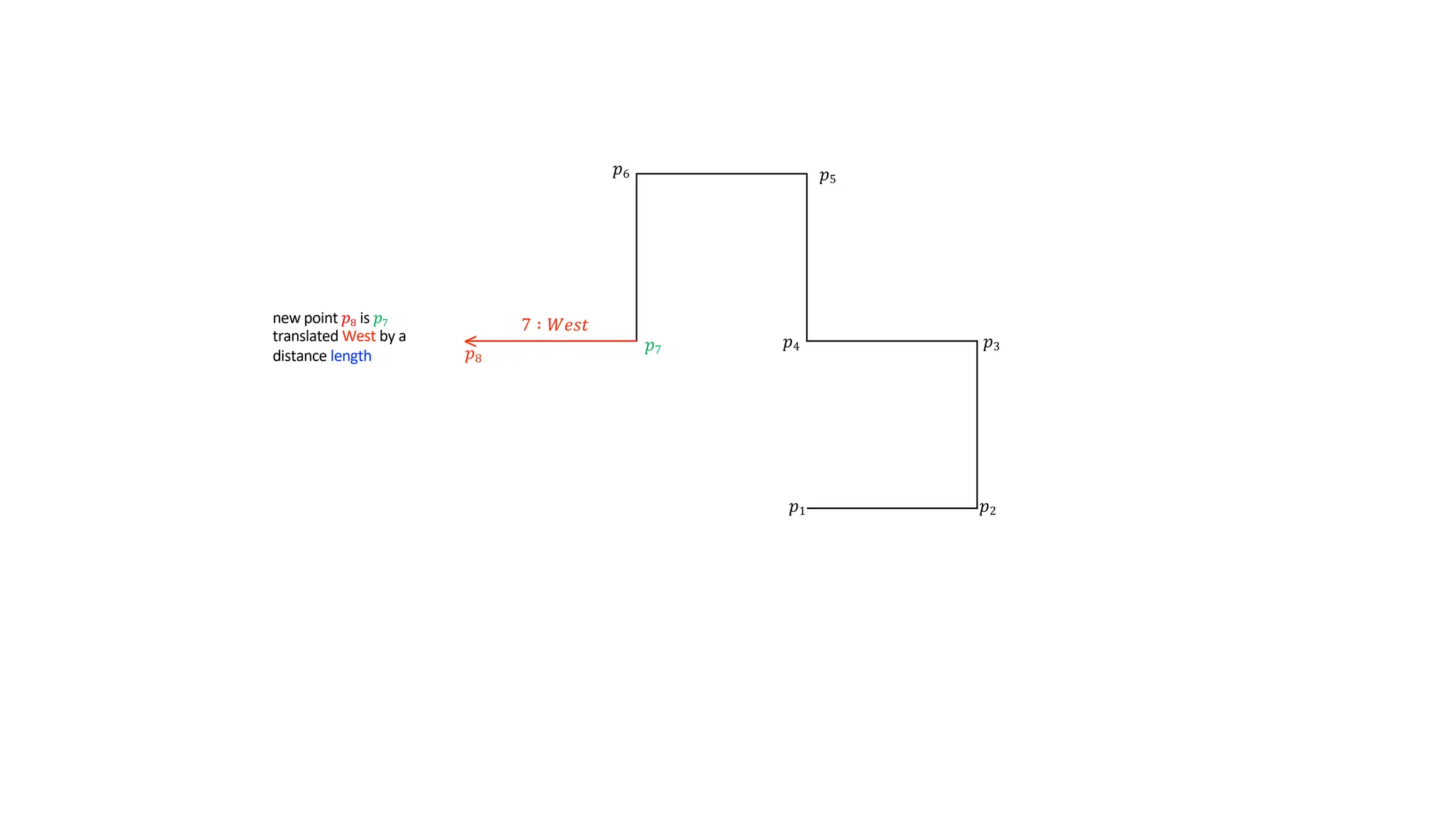

translated West by a
distance length
𝑝5
𝑝6
𝑝7
𝑝8

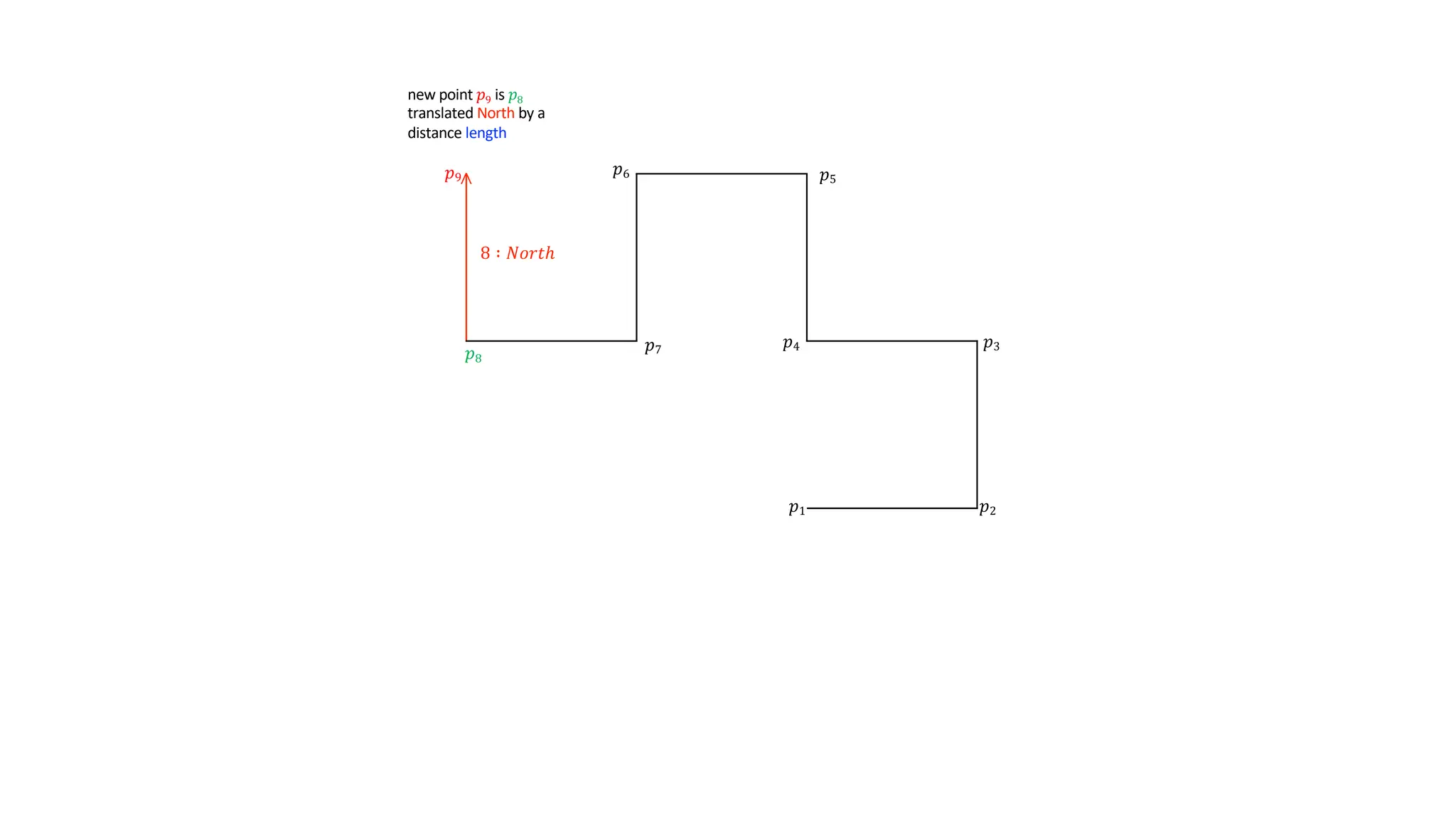

𝑝1 𝑝2
𝑝3
𝑝4
translated North by a
distance length
𝑝5
𝑝6
𝑝7
𝑝8
𝑝9
>

𝑝1 𝑝2
𝑝3
𝑝4
𝑝5
𝑝6
𝑝7
𝑝8
𝑝9
>

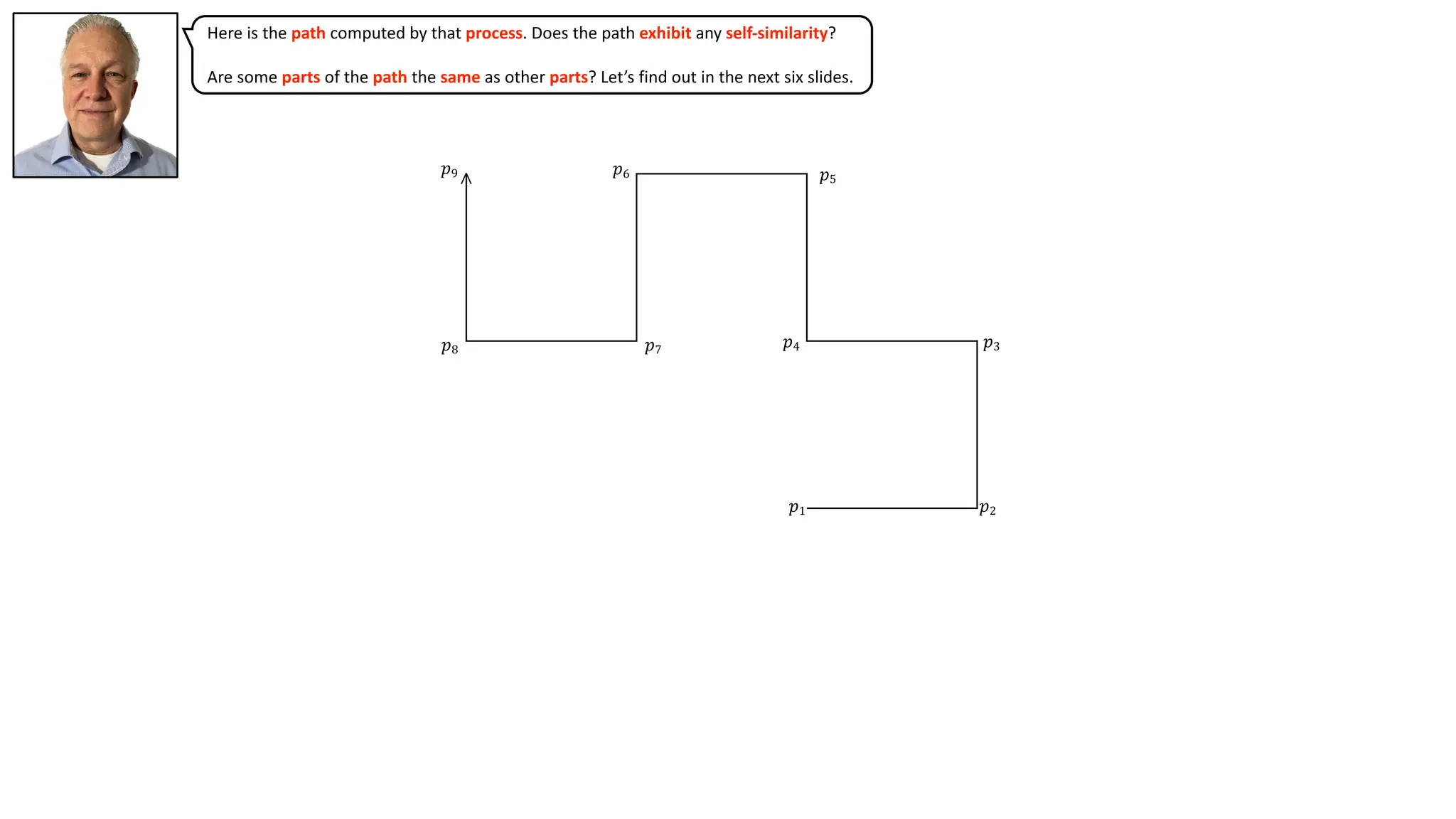

Here is the path computed by that process. Does the path exhibit any self-similarity?
Are some parts of the path the same as other parts? Let’s find out in the next six slides.

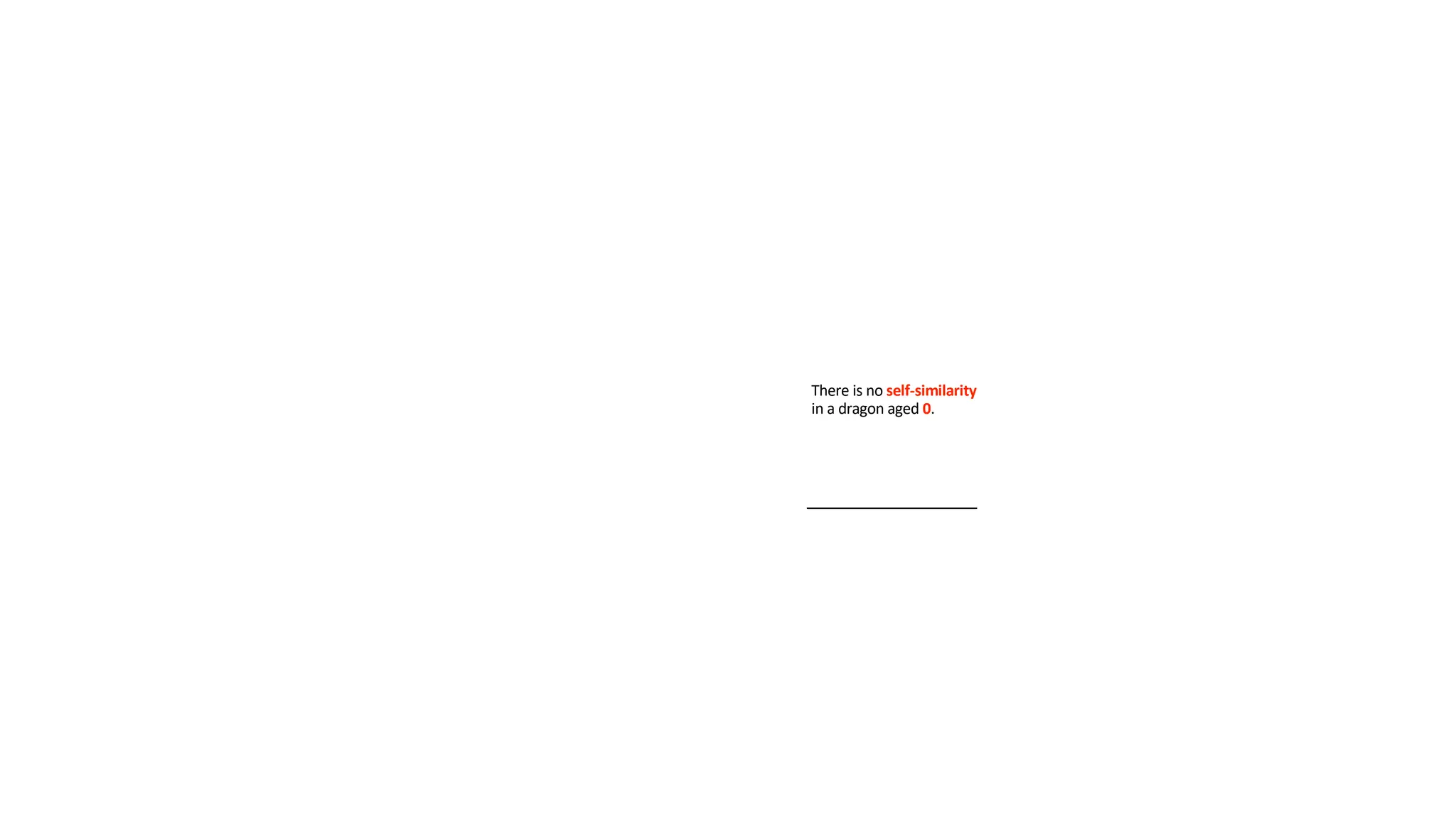

There is no self-similarity
in a dragon aged 0.

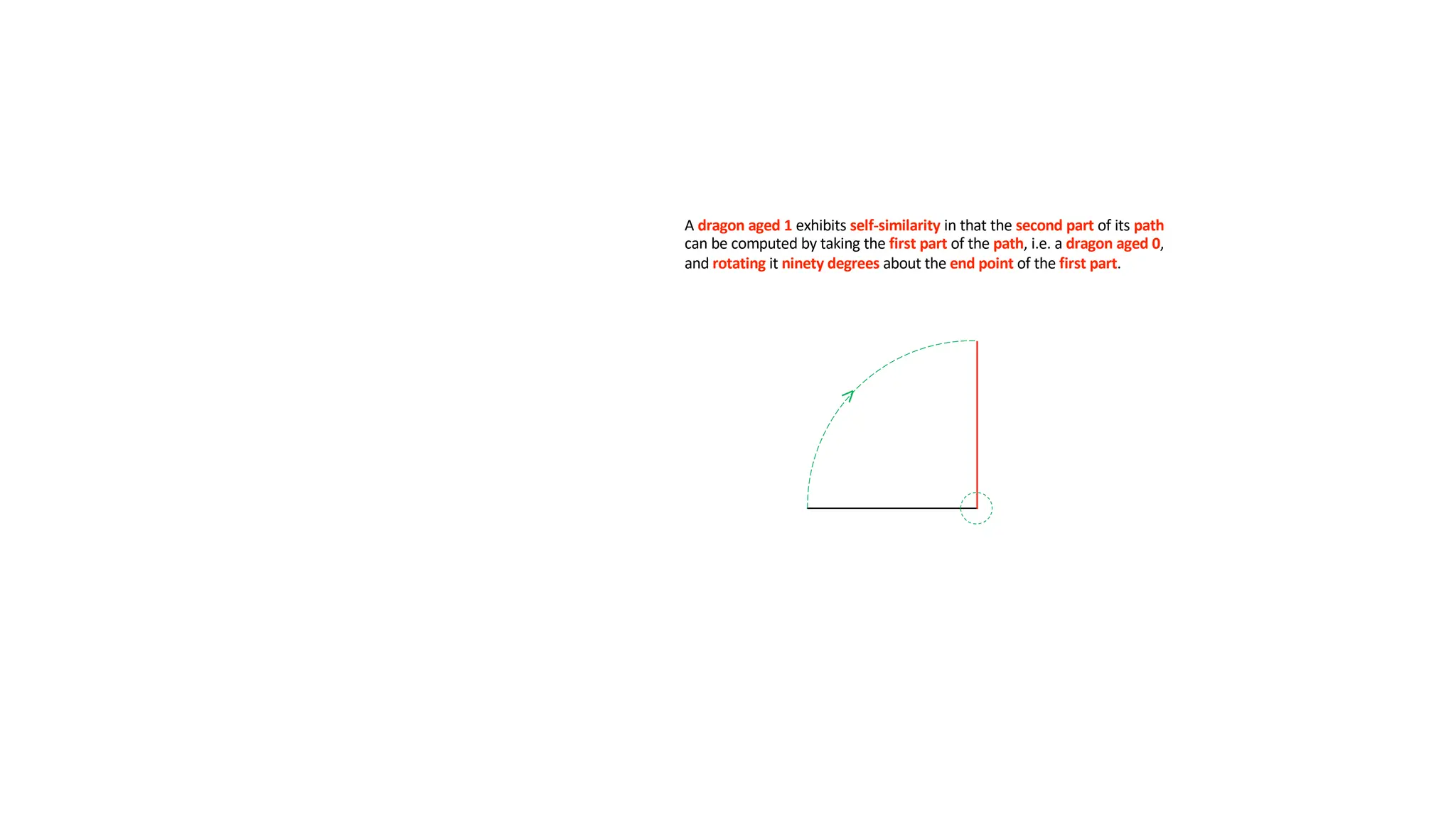

A dragon aged 1 exhibits self-similarity in that the second part of its path
can be computed by taking the first part of the path, i.e. a dragon aged 0,
and rotating it ninety degrees about the end point of the first part.

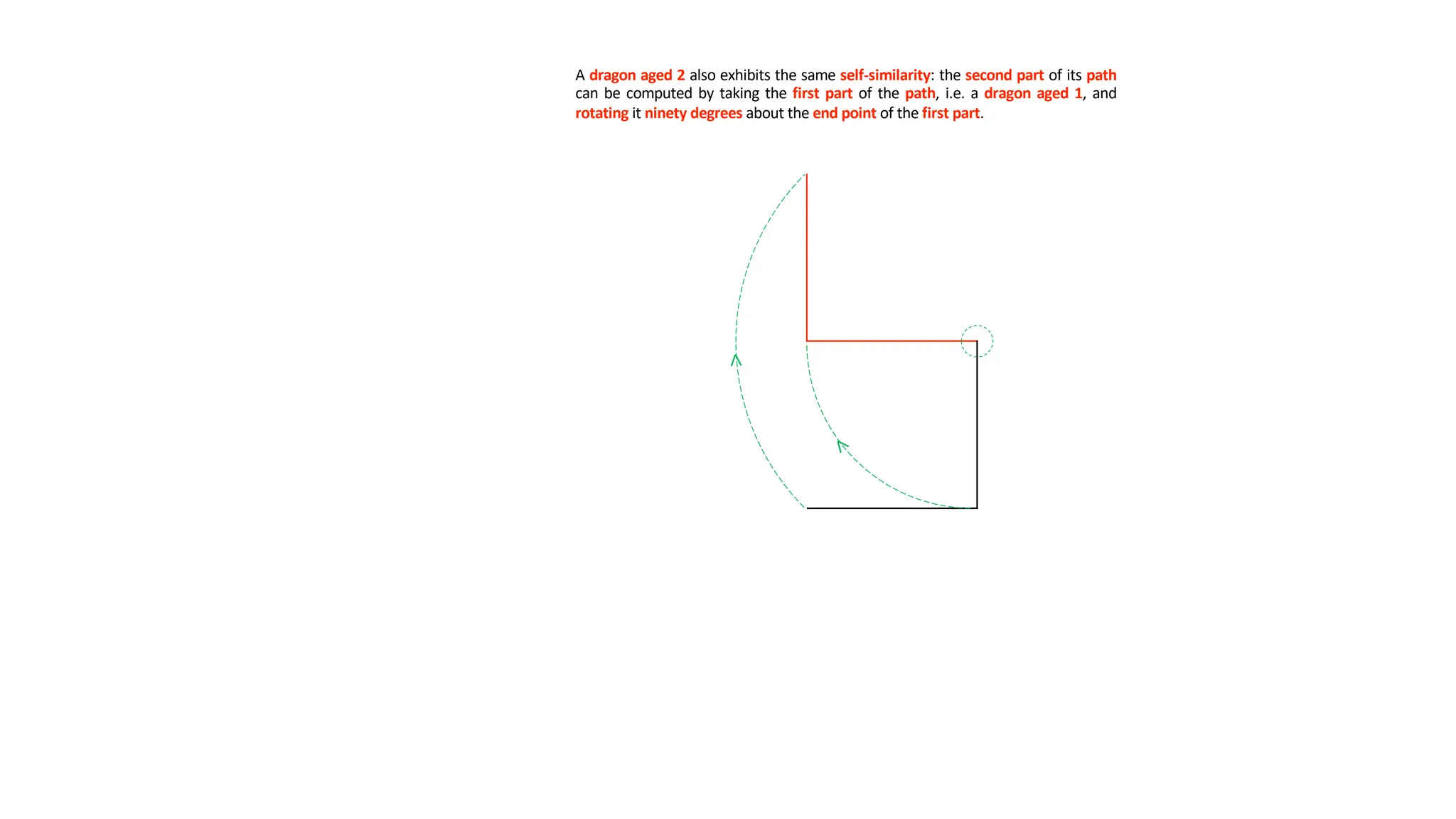

A dragon aged 2 also exhibits the same self-similarity: the second part of its path
can be computed by taking the first part of the path, i.e. a dragon aged 1, and
rotating it ninety degrees about the end point of the first part.

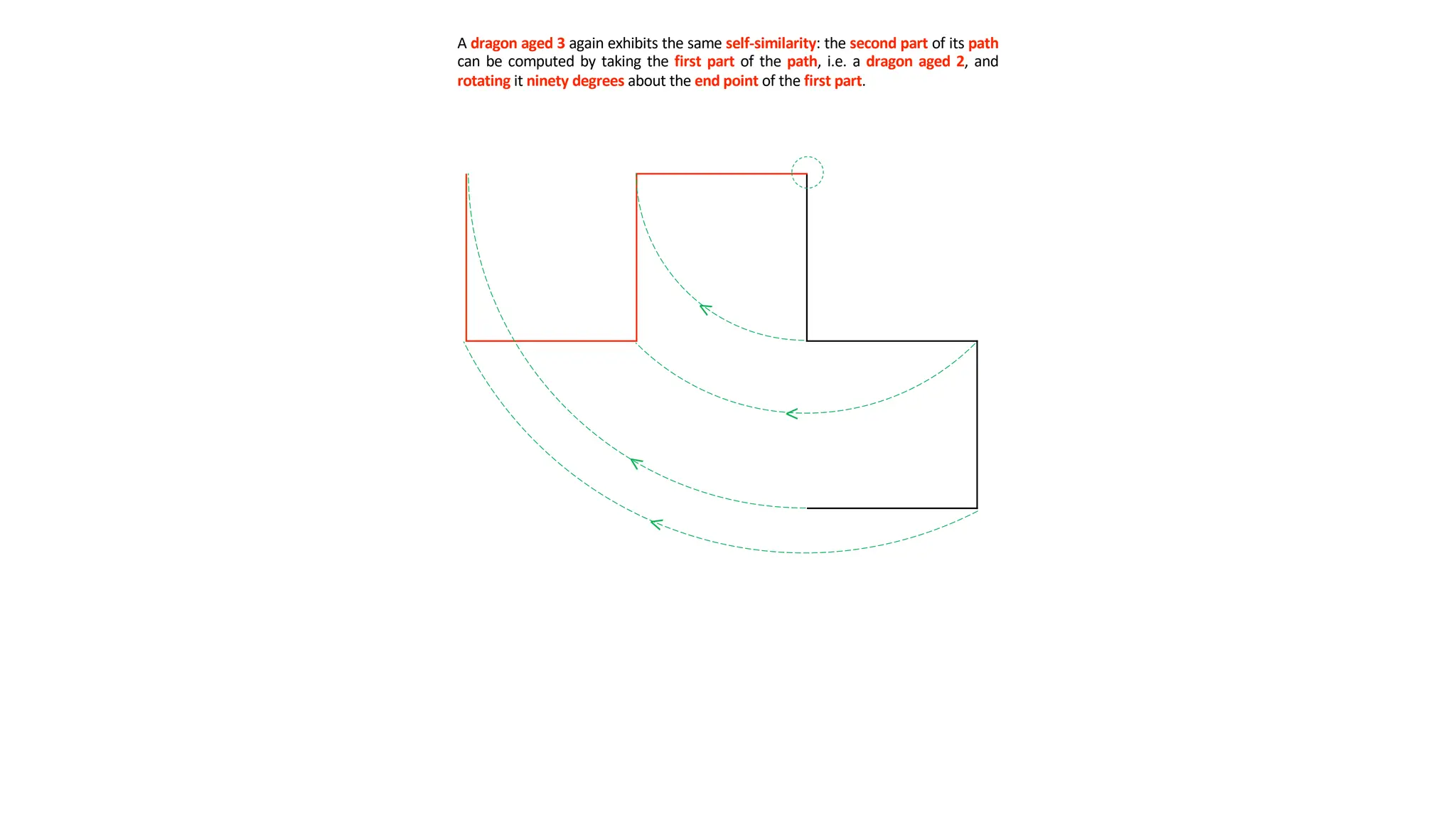

A dragon aged 3 again exhibits the same self-similarity: the second part of its path
can be computed by taking the first part of the path, i.e. a dragon aged 2, and
rotating it ninety degrees about the end point of the first part.

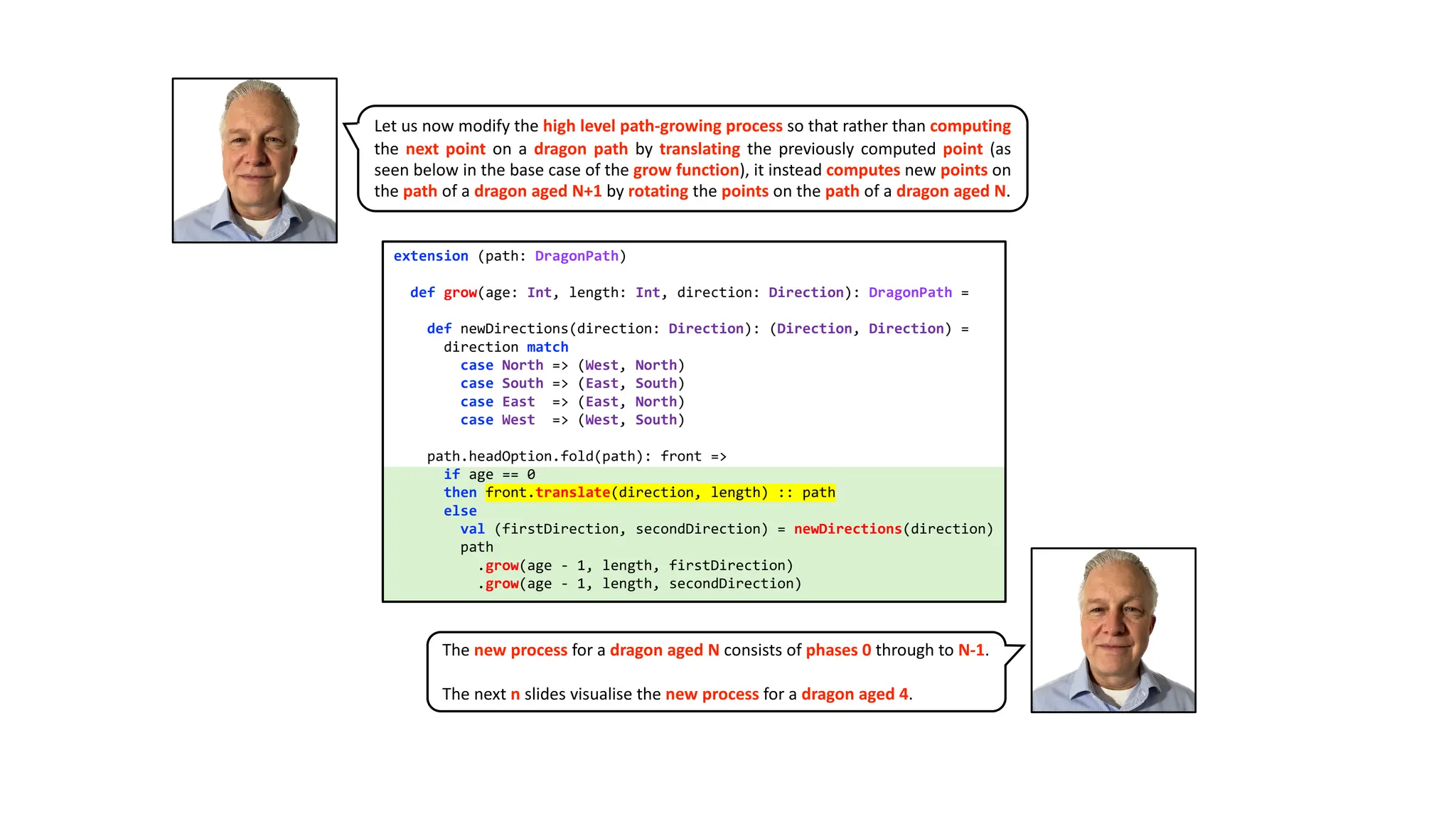

Let us now modify the high level path-growing process so that rather than computing
the next point on a dragon path by translating the previously computed point (as
seen below in the base case of the grow function), it instead computes new points on
the path of a dragon aged N+1 by rotating the points on the path of a dragon aged N.
direction match
if age == 0
else
path
The new process for a dragon aged N consists of phases 0 through to N-1.
The next n slides visualise the new process for a dragon aged 4.

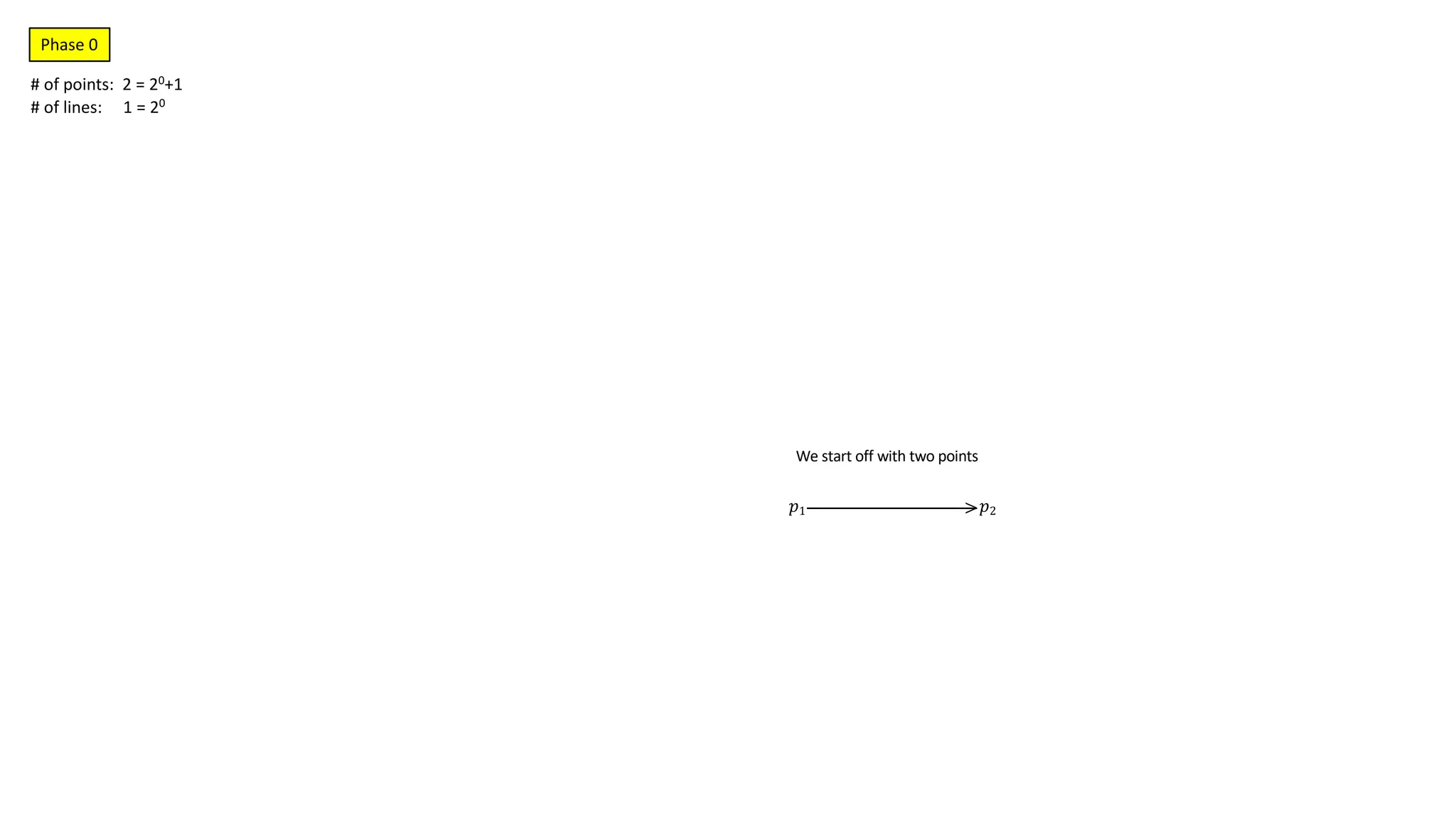

𝑝1 𝑝2
>
Phase 0
# of points: 2 = 20+1
# of lines: 1 = 20
We start off with two points

>
2
𝑝3
𝑝1 𝑝2
rotated 90o about 𝑝2
>

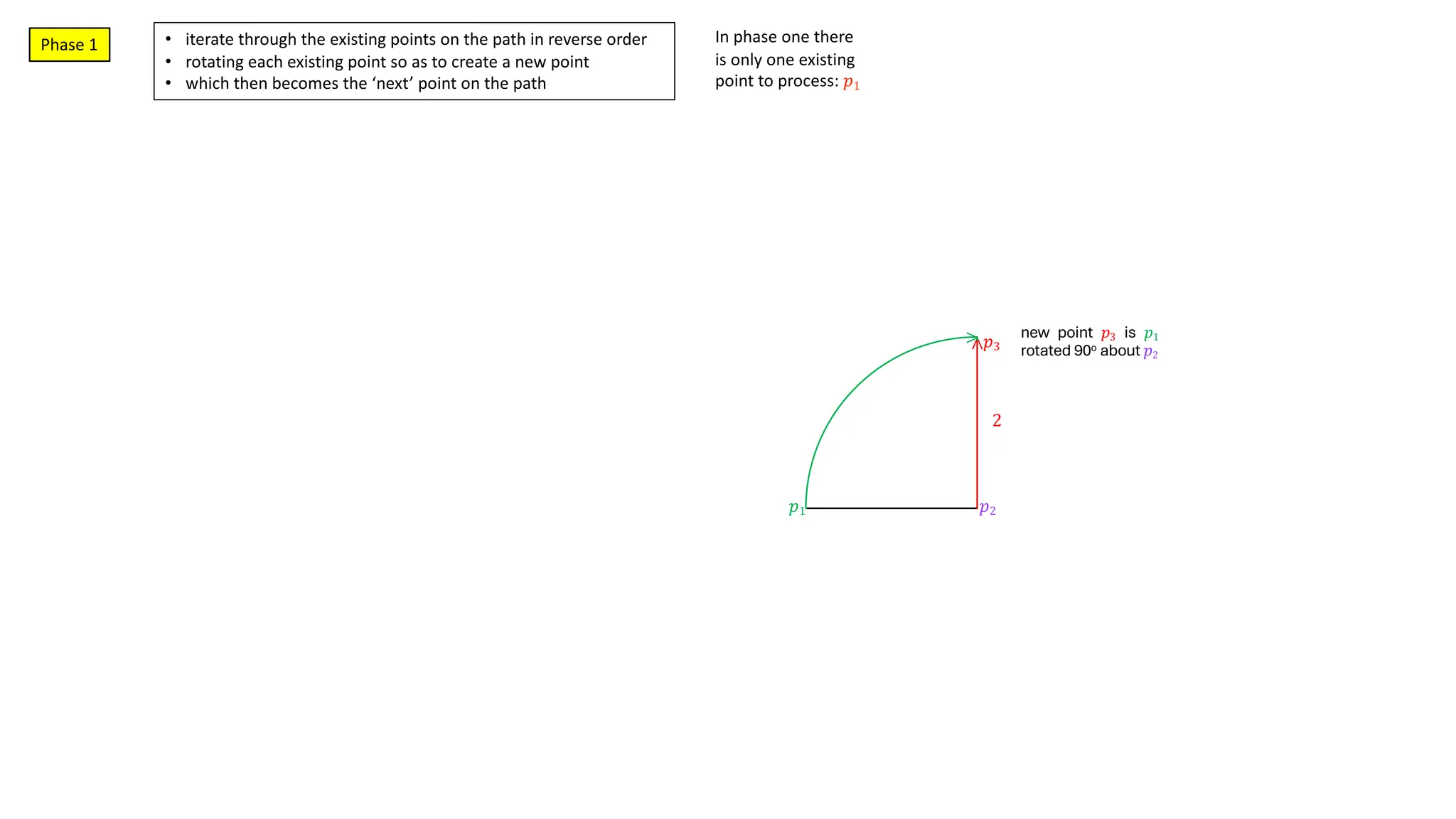

• iterate through the existing points on the path in reverse order
• rotating each existing point so as to create a new point
• which then becomes the ‘next’ point on the path
In phase one there
is only one existing
point to process: 𝑝1
Phase 1

>
𝑝3
𝑝1 𝑝2

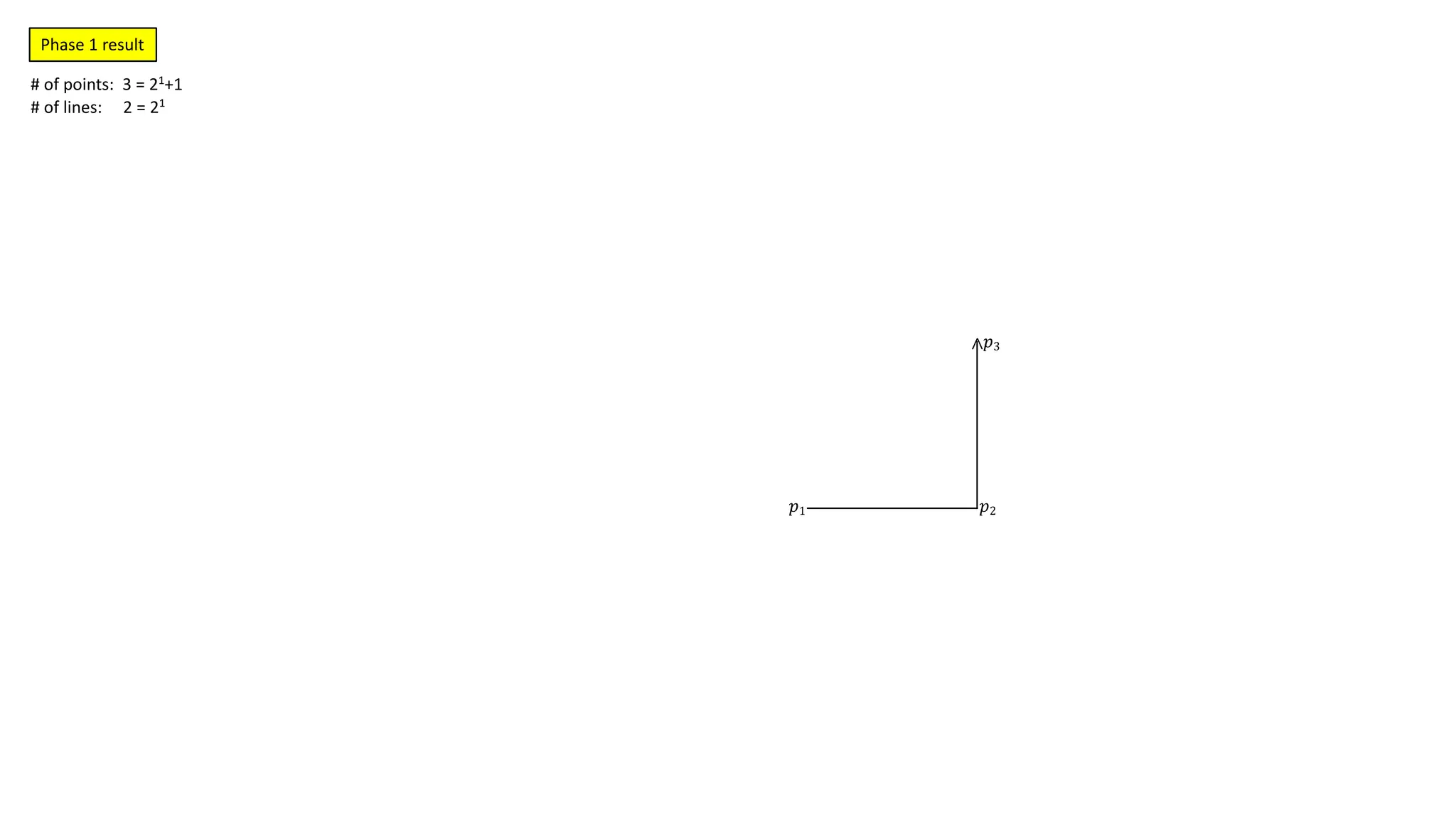

Phase 1 result
# of points: 3 = 21+1
# of lines: 2 = 21

3
𝑝3
𝑝1 𝑝2
𝑝4
>
1st
point

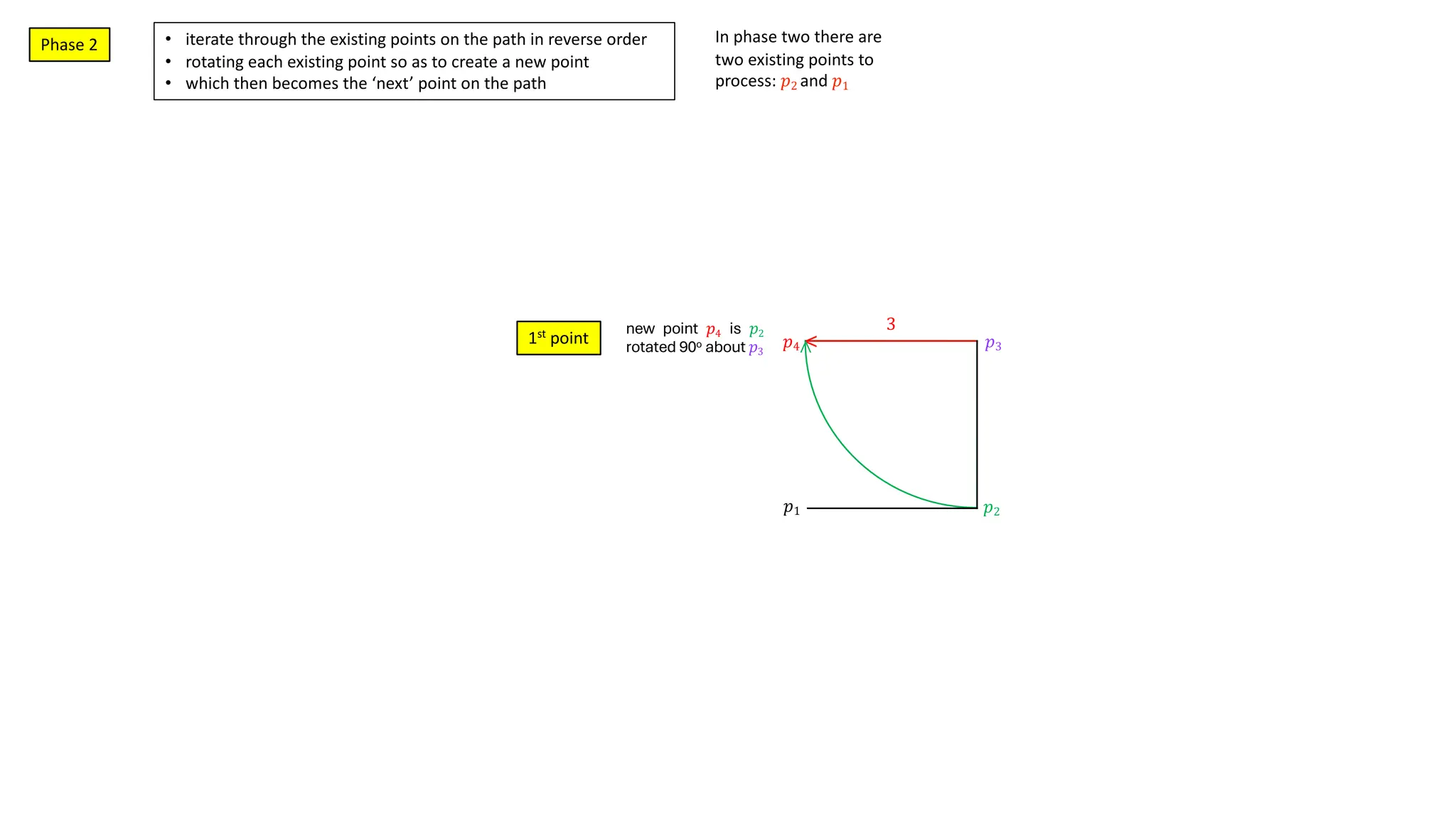

In phase two there are
two existing points to
process: 𝑝2 and 𝑝1
Phase 2

4
𝑝1
𝑝4 𝑝3
𝑝2
𝑝5
>

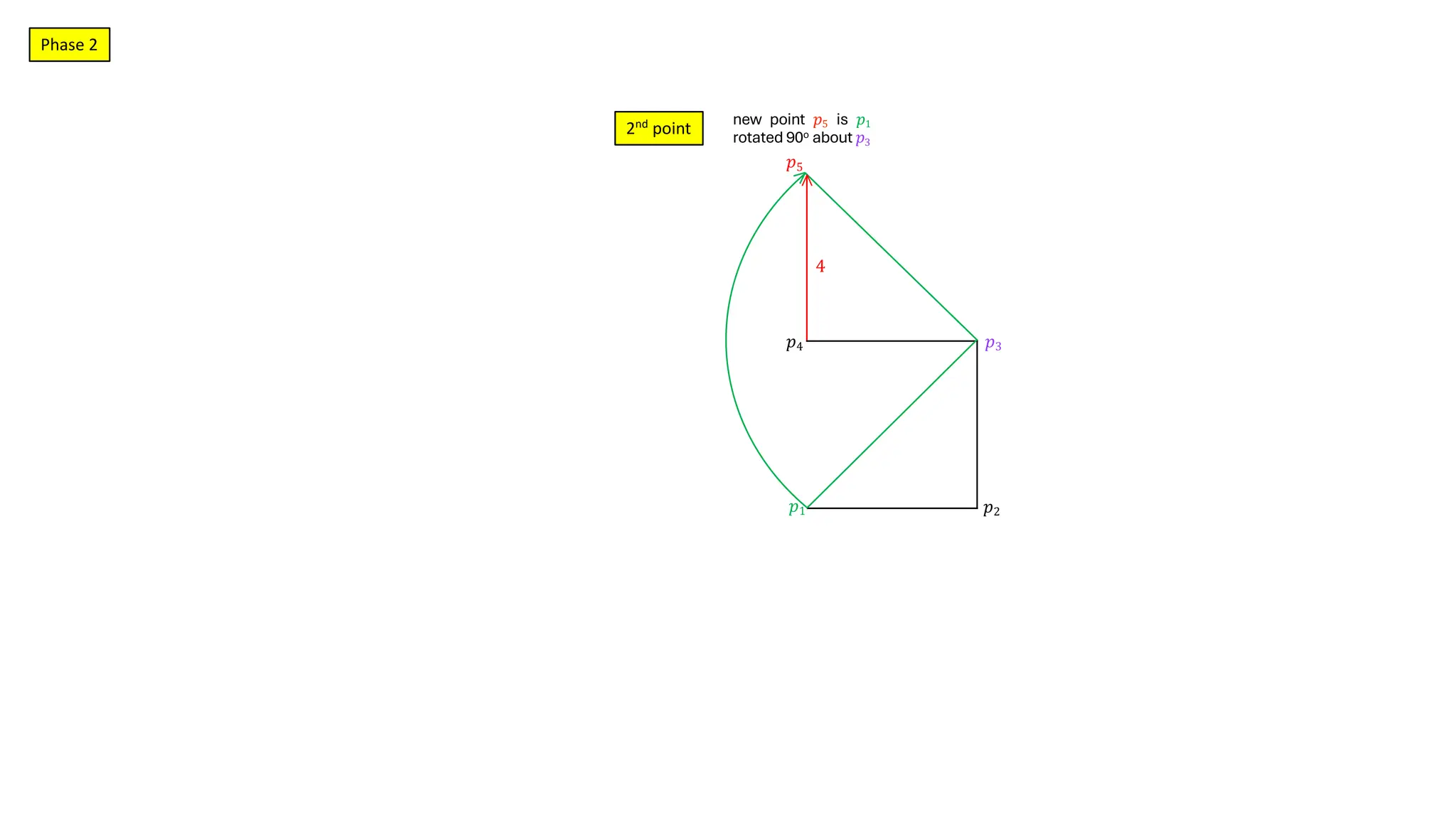

2nd
point
Phase 2

𝑝1
𝑝4 𝑝3
𝑝2
𝑝5
>

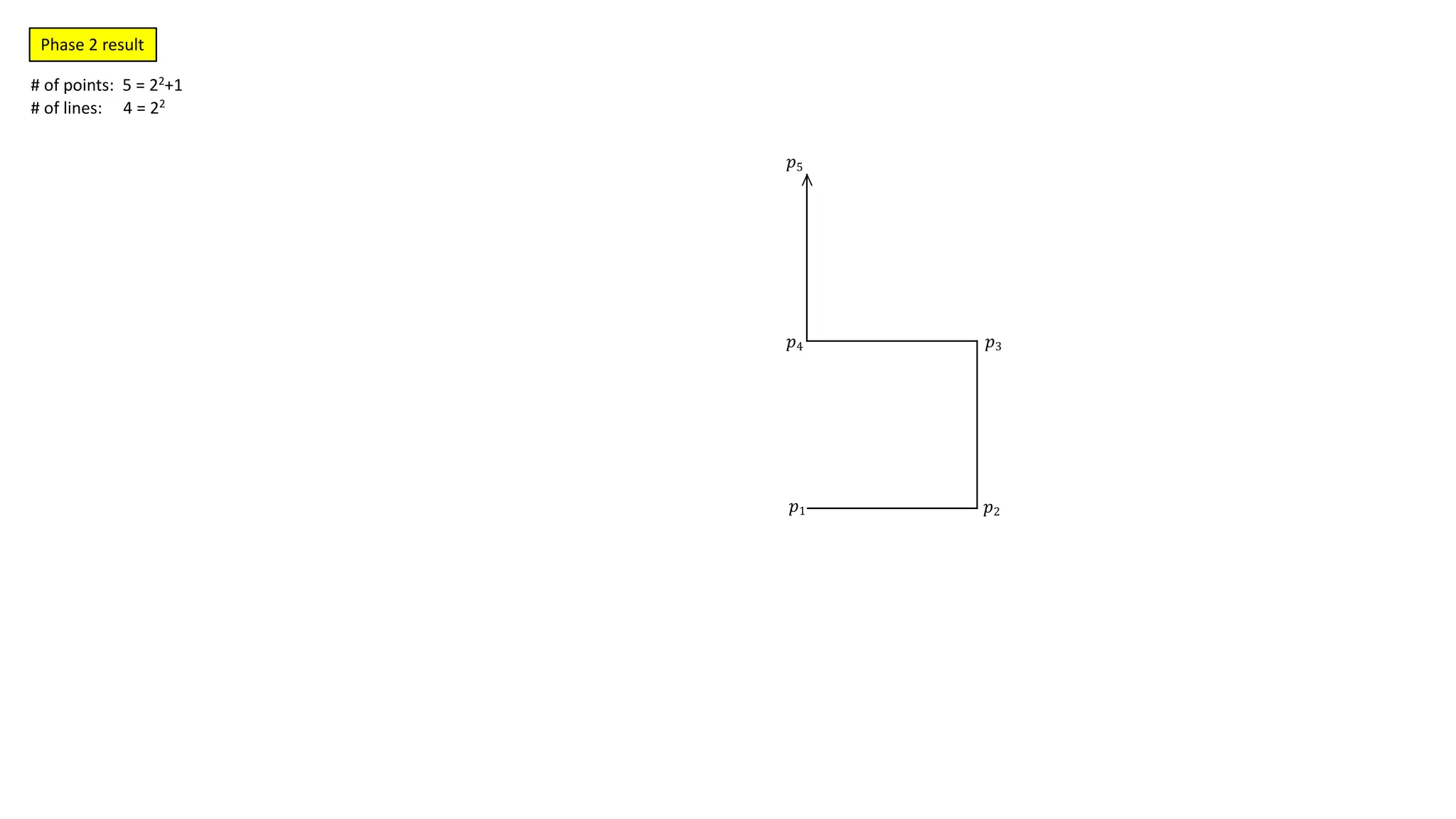

# of points: 5 = 22+1
# of lines: 4 = 22
Phase 2 result

𝑝1
𝑝6
𝑝4
𝑝3
𝑝2
𝑝5
>

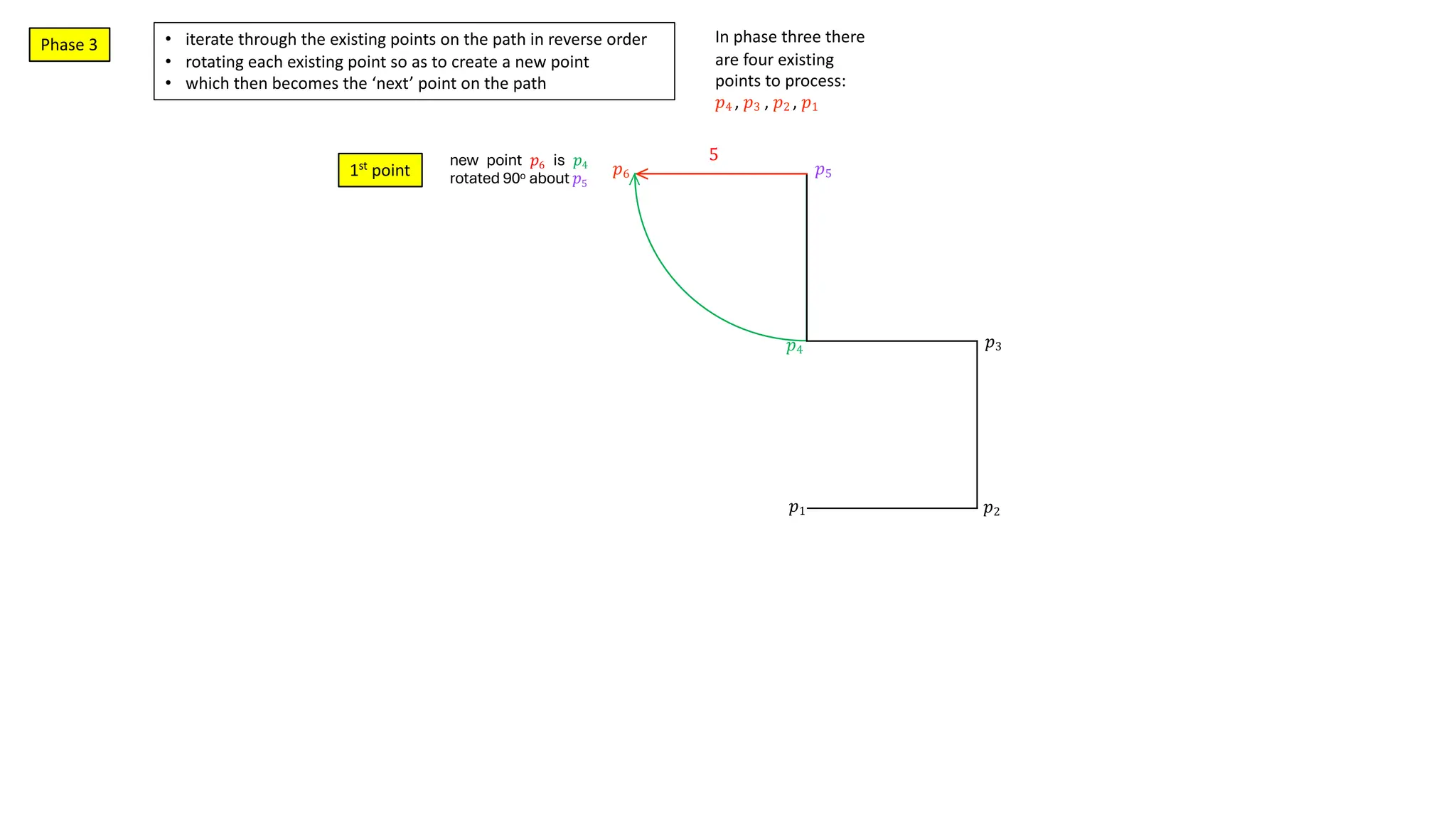

5
1st
point
In phase three there
are four existing
points to process:
𝑝4 , 𝑝3 , 𝑝2 , 𝑝1
Phase 3

𝑝1 𝑝2
𝑝3
𝑝4
𝑝5
𝑝6
𝑝7
>
6

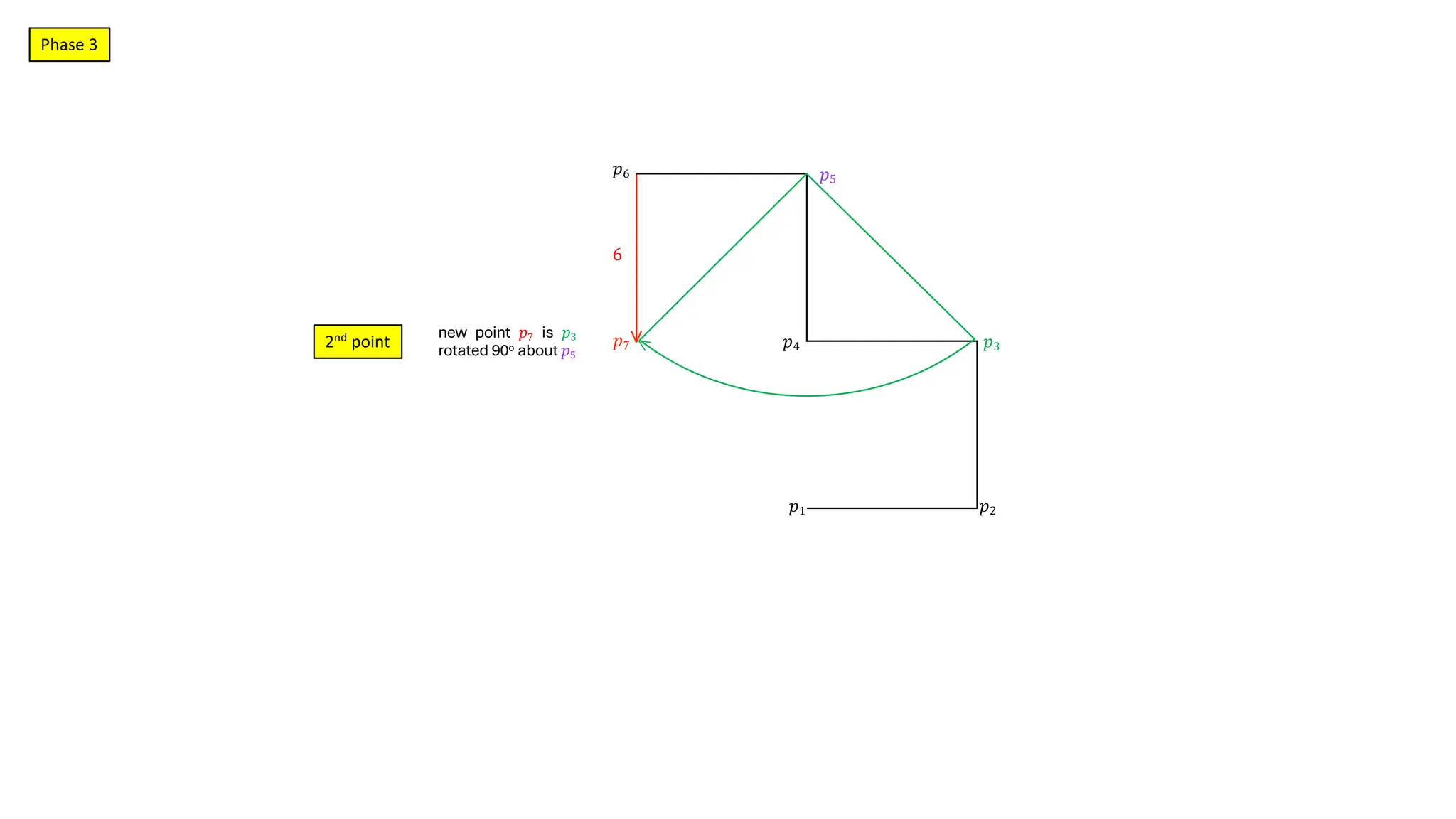

2nd
point
Phase 3

𝑝1 𝑝2
𝑝3
𝑝4
𝑝5
𝑝6
𝑝7
𝑝8
7
>

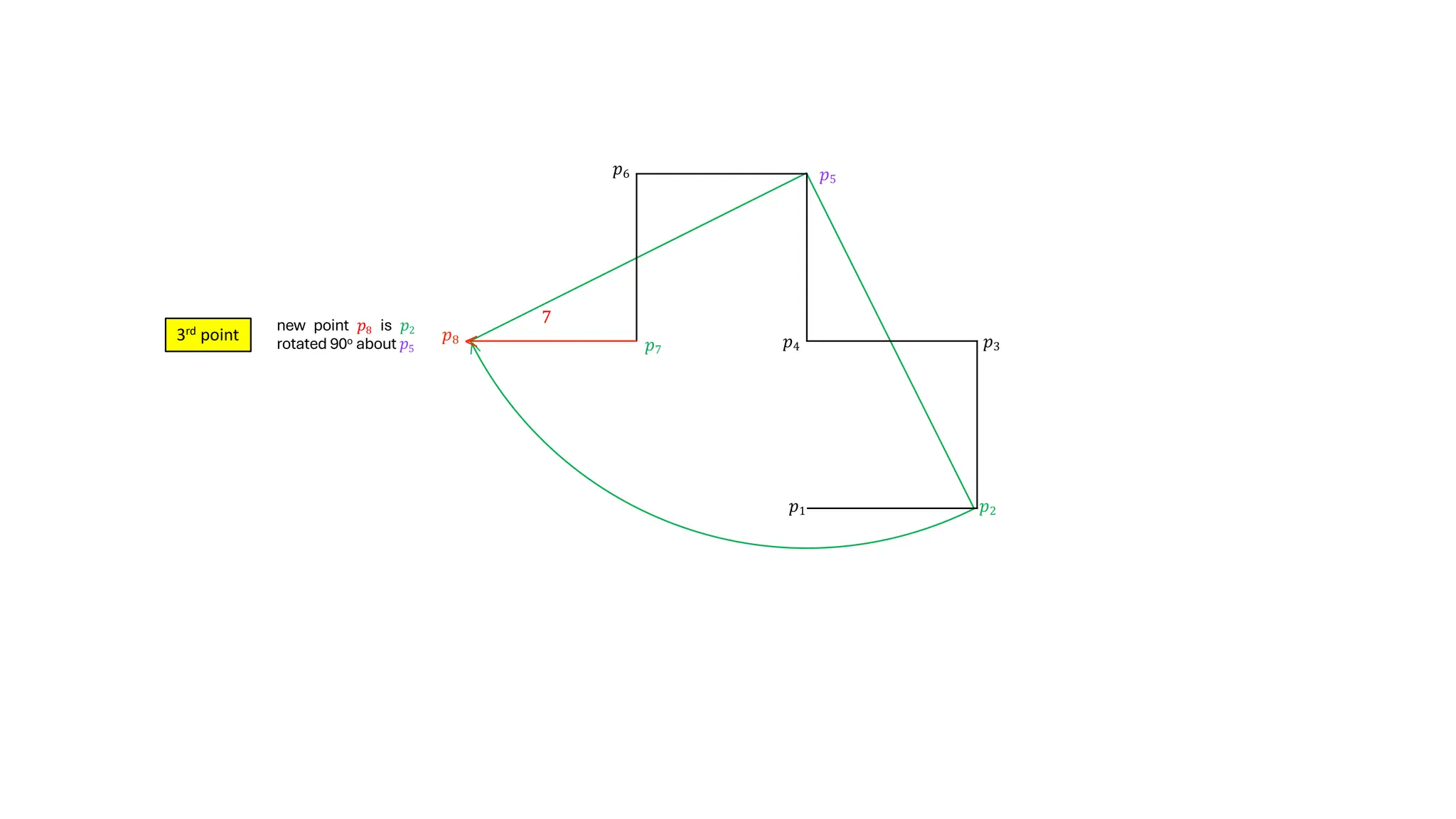

3rd point

𝑝1
𝑝2
𝑝3
𝑝4
𝑝5
𝑝6
𝑝7
𝑝8
𝑝9
>
>

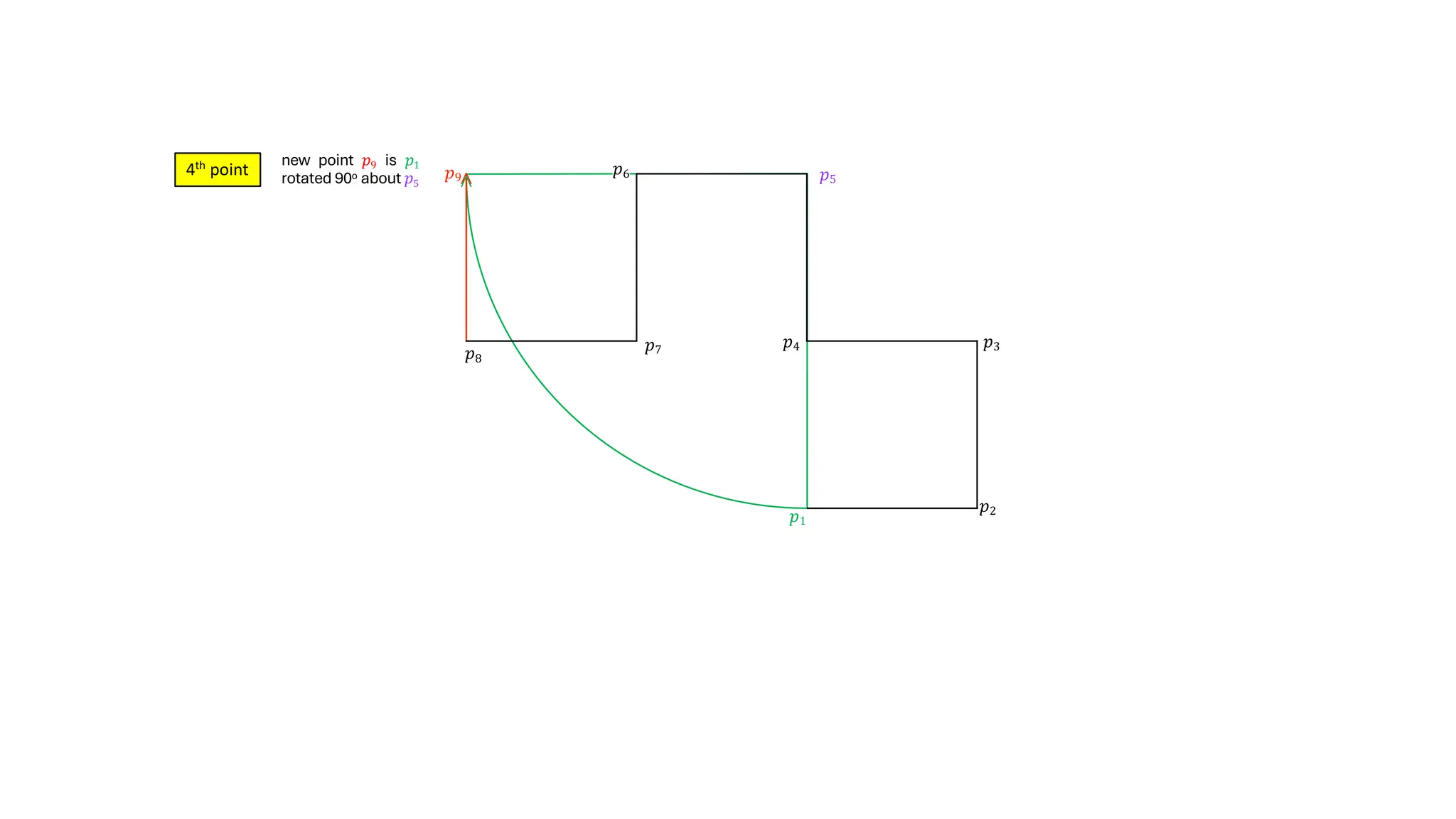

4th point

𝑝1 𝑝2
𝑝3
𝑝4
𝑝5
𝑝6
𝑝7
𝑝8
𝑝9
>

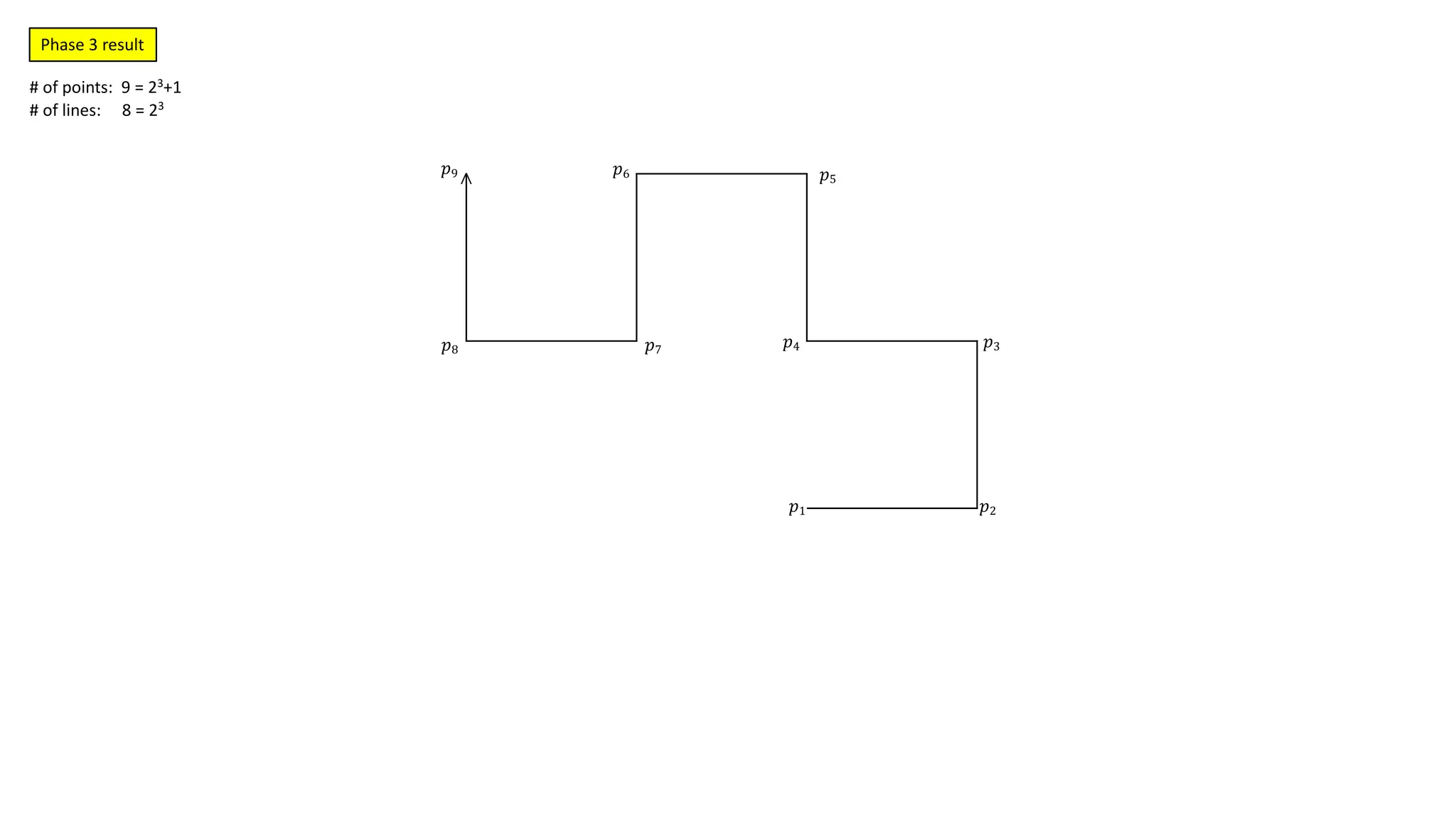

# of points: 9 = 23+1
# of lines: 8 = 23
Phase 3 result

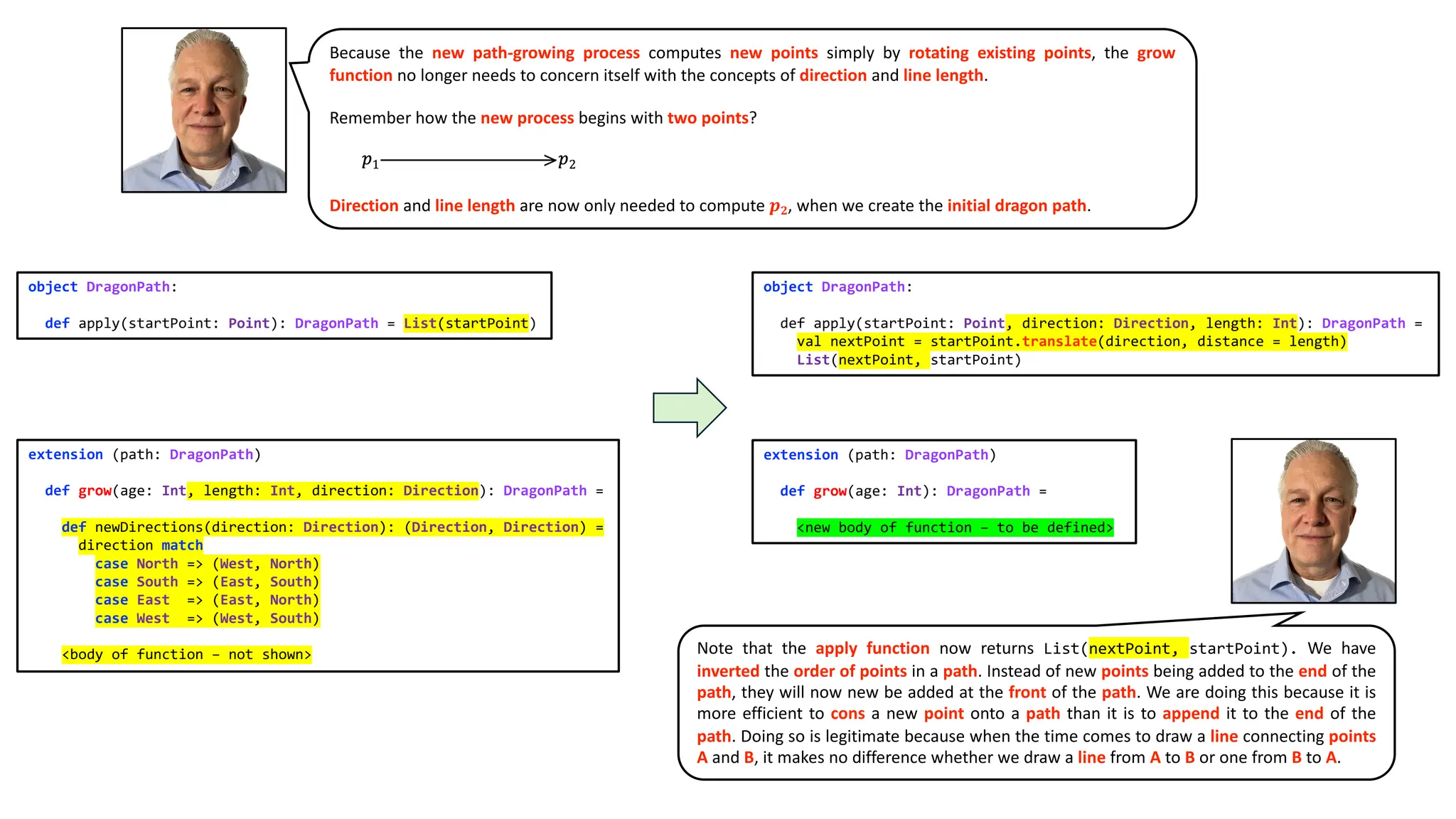

Because the new path-growing process computes new points simply by rotating existing points, the grow
function no longer needs to concern itself with the concepts of direction and line length.
Remember how the new process begins with two points?
Direction and line length are now only needed to compute 𝒑𝟐, when we create the initial dragon path.
object DragonPath:
def apply(startPoint: Point): DragonPath = List(startPoint)
object DragonPath:
def apply(startPoint: Point, direction: Direction, length: Int): DragonPath =
val nextPoint = startPoint.translate(direction, distance = length)
List(nextPoint, startPoint)
direction match
<body of function – not shown>
def grow(age: Int): DragonPath =
<new body of function – to be defined>
Note that the apply function now returns List(nextPoint, startPoint). We have
inverted the order of points in a path. Instead of new points being added to the end of the
path, they will now new be added at the front of the path. We are doing this because it is
more efficient to cons a new point onto a path than it is to append it to the end of the
path. Doing so is legitimate because when the time comes to draw a line connecting points
A and B, it makes no difference whether we draw a line from A to B or one from B to A.

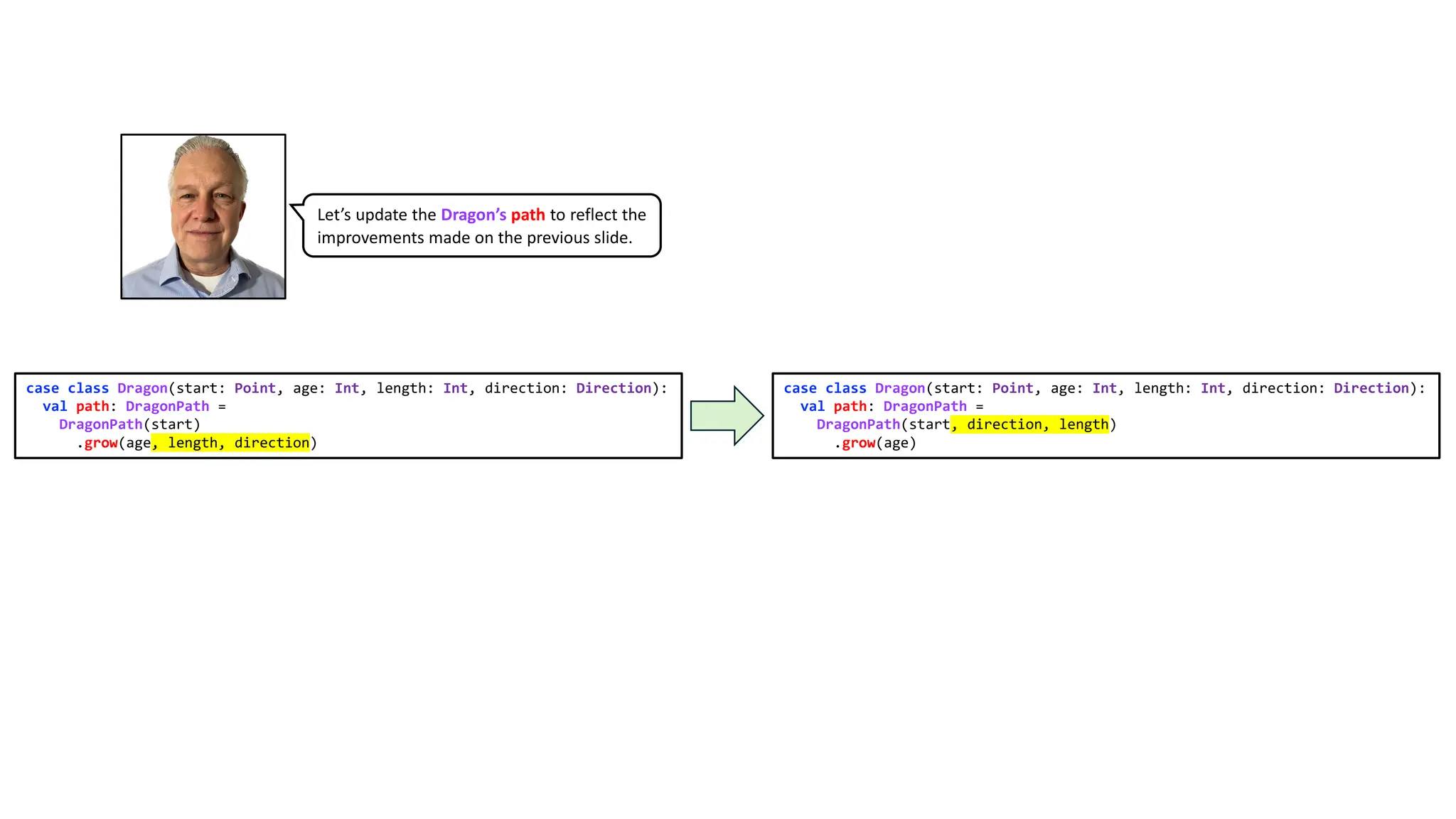

Let’s update the Dragon’s path to reflect the
improvements made on the previous slide.
case class Dragon(start: Point, age: Int, length: Int, direction: Direction):
val path: DragonPath =
DragonPath(start)
.grow(age, length, direction)
DragonPath(start, direction, length)
.grow(age)

<new body of function – to be defined>
@tailrec
if age == 0 || path.size < 2 then path
else path.plusRotatedCopy.grow(age - 1)
private def plusRotatedCopy: DragonPath =
path.reverse.rotate(rotationCentre = path.head, angle = ninetyDegreesClockwise)
++ path
val ninetyDegreesClockwise = -Math.PI / 2

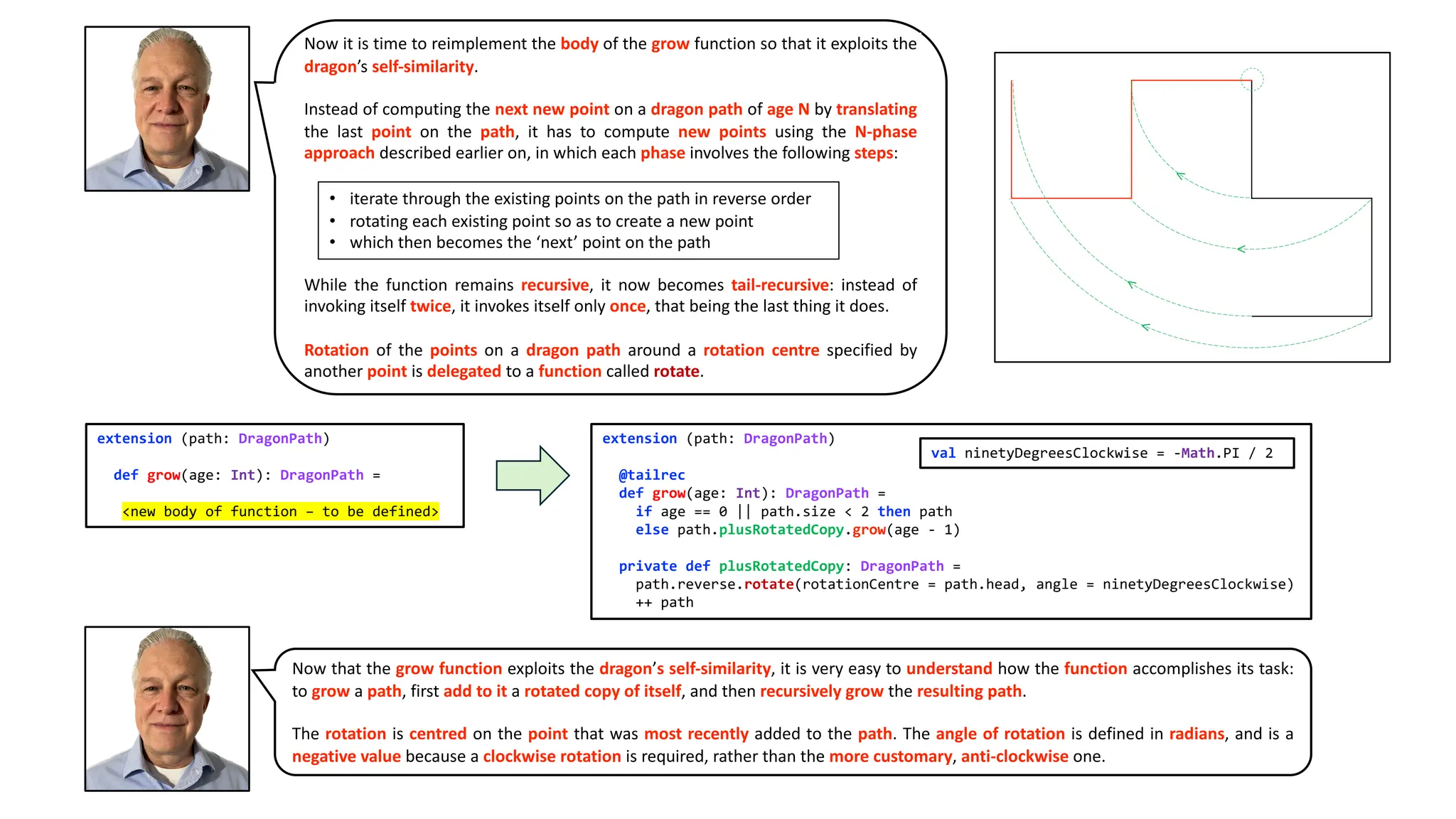

Now it is time to reimplement the body of the grow function so that it exploits the
dragon’s self-similarity.
Instead of computing the next new point on a dragon path of age N by translating
the last point on the path, it has to compute new points using the N-phase
approach described earlier on, in which each phase involves the following steps:
While the function remains recursive, it now becomes tail-recursive: instead of
invoking itself twice, it invokes itself only once, that being the last thing it does.
Rotation of the points on a dragon path around a rotation centre specified by
another point is delegated to a function called rotate.
Now that the grow function exploits the dragon’s self-similarity, it is very easy to understand how the function accomplishes its task:
to grow a path, first add to it a rotated copy of itself, and then recursively grow the resulting path.
The rotation is centred on the point that was most recently added to the path. The angle of rotation is defined in radians, and is a
negative value because a clockwise rotation is required, rather than the more customary, anti-clockwise one.

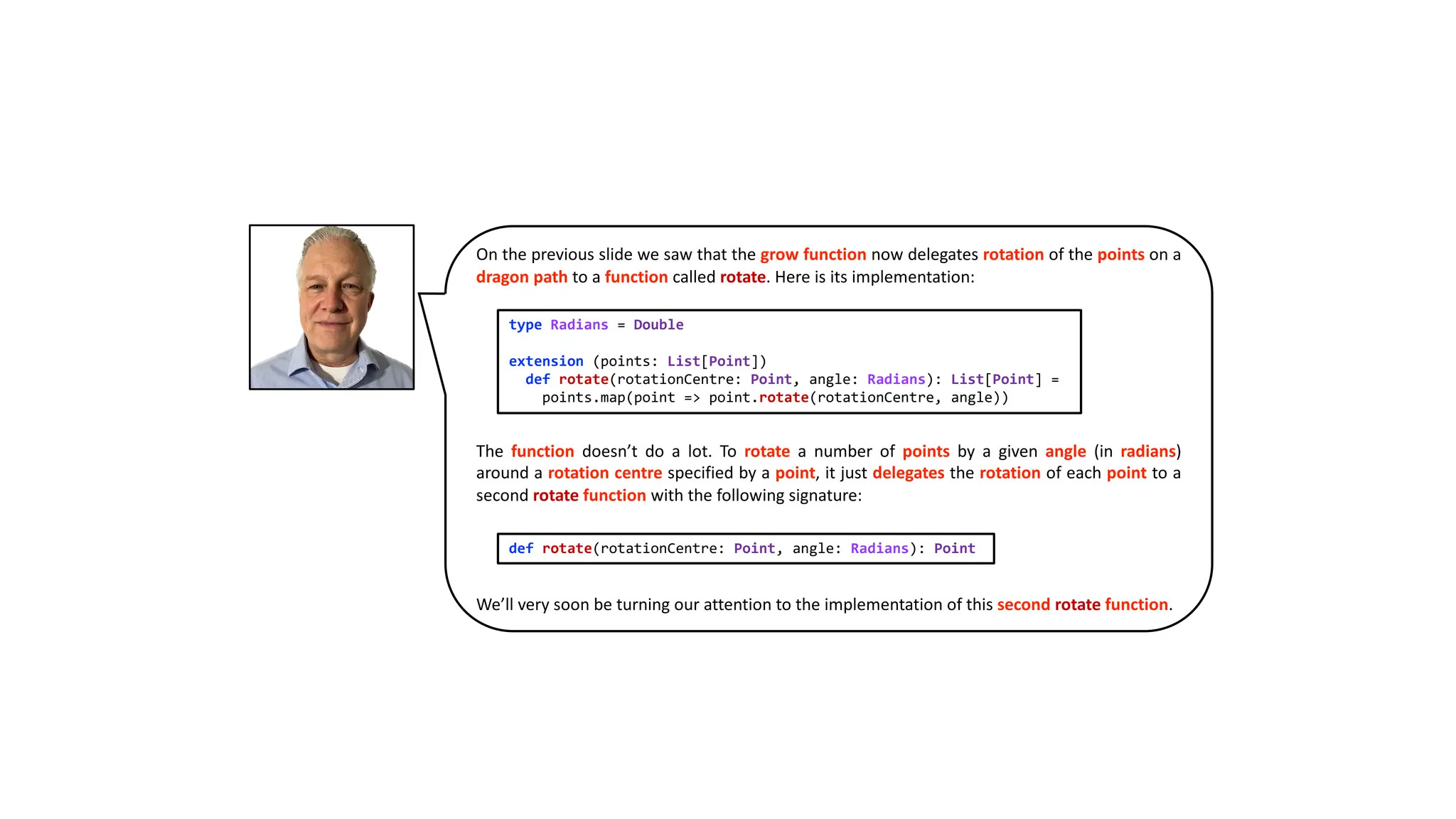

On the previous slide we saw that the grow function now delegates rotation of the points on a
dragon path to a function called rotate. Here is its implementation:
The function doesn’t do a lot. To rotate a number of points by a given angle (in radians)
around a rotation centre specified by a point, it just delegates the rotation of each point to a
second rotate function with the following signature:
We’ll very soon be turning our attention to the implementation of this second rotate function.
type Radians = Double
extension (points: List[Point])
def rotate(rotationCentre: Point, angle: Radians): List[Point] =
points.map(point => point.rotate(rotationCentre, angle))
def rotate(rotationCentre: Point, angle: Radians): Point

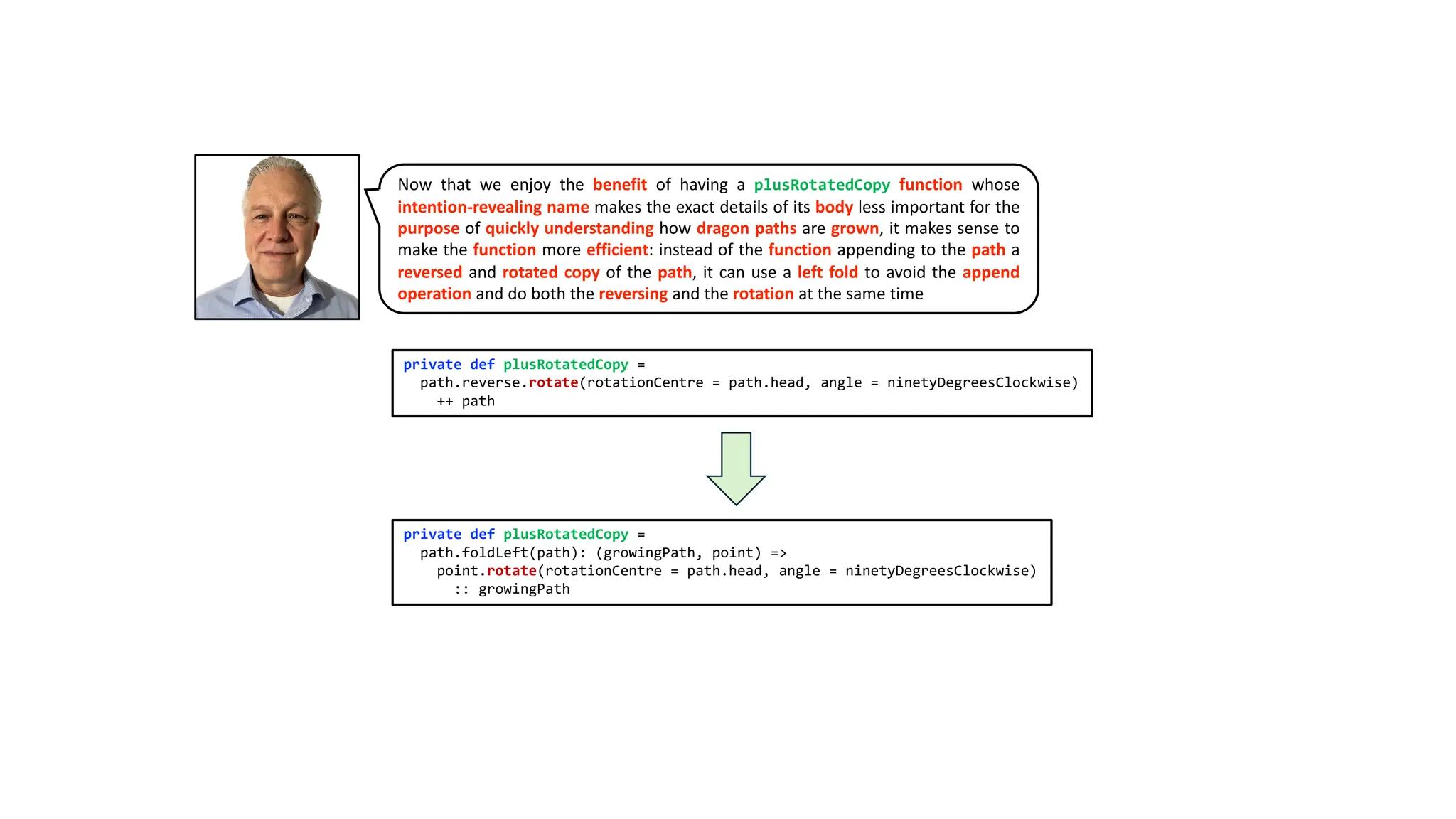

Now that we enjoy the benefit of having a plusRotatedCopy function whose
intention-revealing name makes the exact details of its body less important for the
purpose of quickly understanding how dragon paths are grown, it makes sense to
make the function more efficient: instead of the function appending to the path a
reversed and rotated copy of the path, it can use a left fold to avoid the append
operation and do both the reversing and the rotation at the same time
private def plusRotatedCopy =
path.reverse.rotate(rotationCentre = path.head, angle = ninetyDegreesClockwise)
++ path
path.foldLeft(path): (growingPath, point) =>
point.rotate(rotationCentre = path.head, angle = ninetyDegreesClockwise)
:: growingPath

direction match
if age == 0
else
path
@tailrec
path.foldLeft(path): (growingPath, point) =>
point.rotate(rotationCentre = path.head, angle = ninetyDegreesClockwise)
:: growingPath
val ninetyDegreesClockwise = -Math.PI / 2

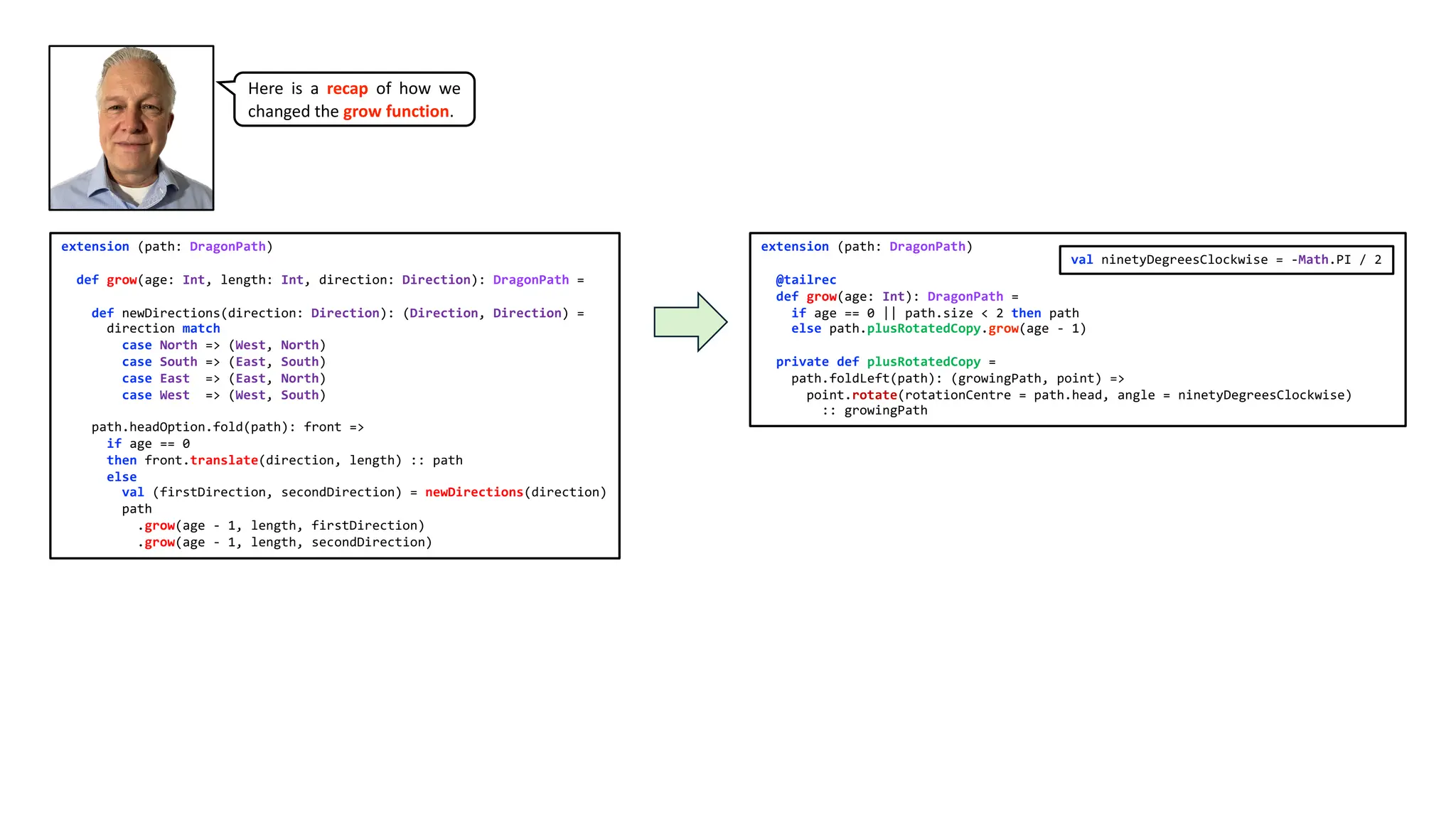

Here is a recap of how we
changed the grow function.

A couple of slides ago we trivially implemented the rotate function that operates on a dragon
path by getting it to delegate the rotation of a single point on that path to a second rotate
function, with the following signature:
How can we implement this function?

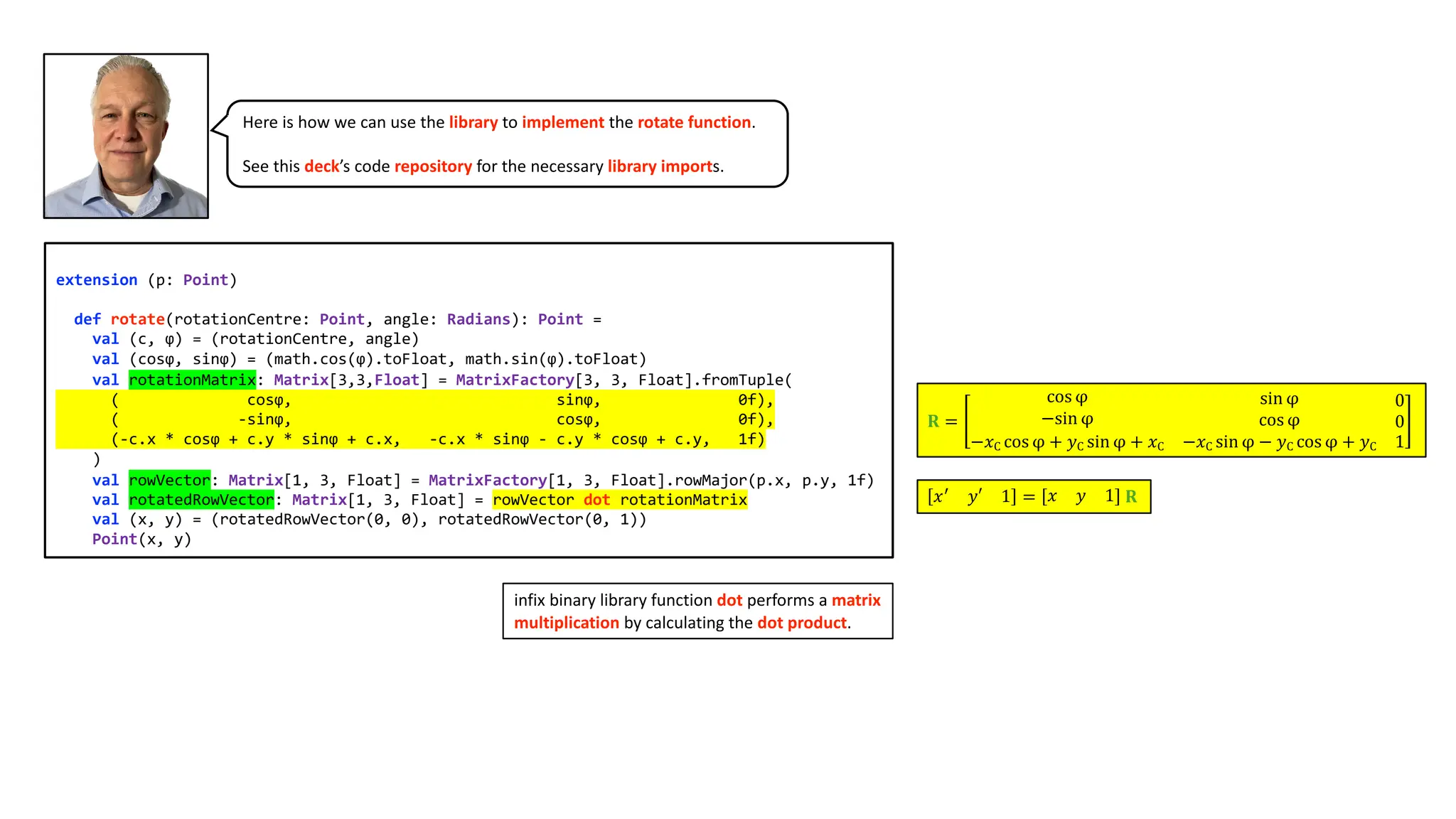

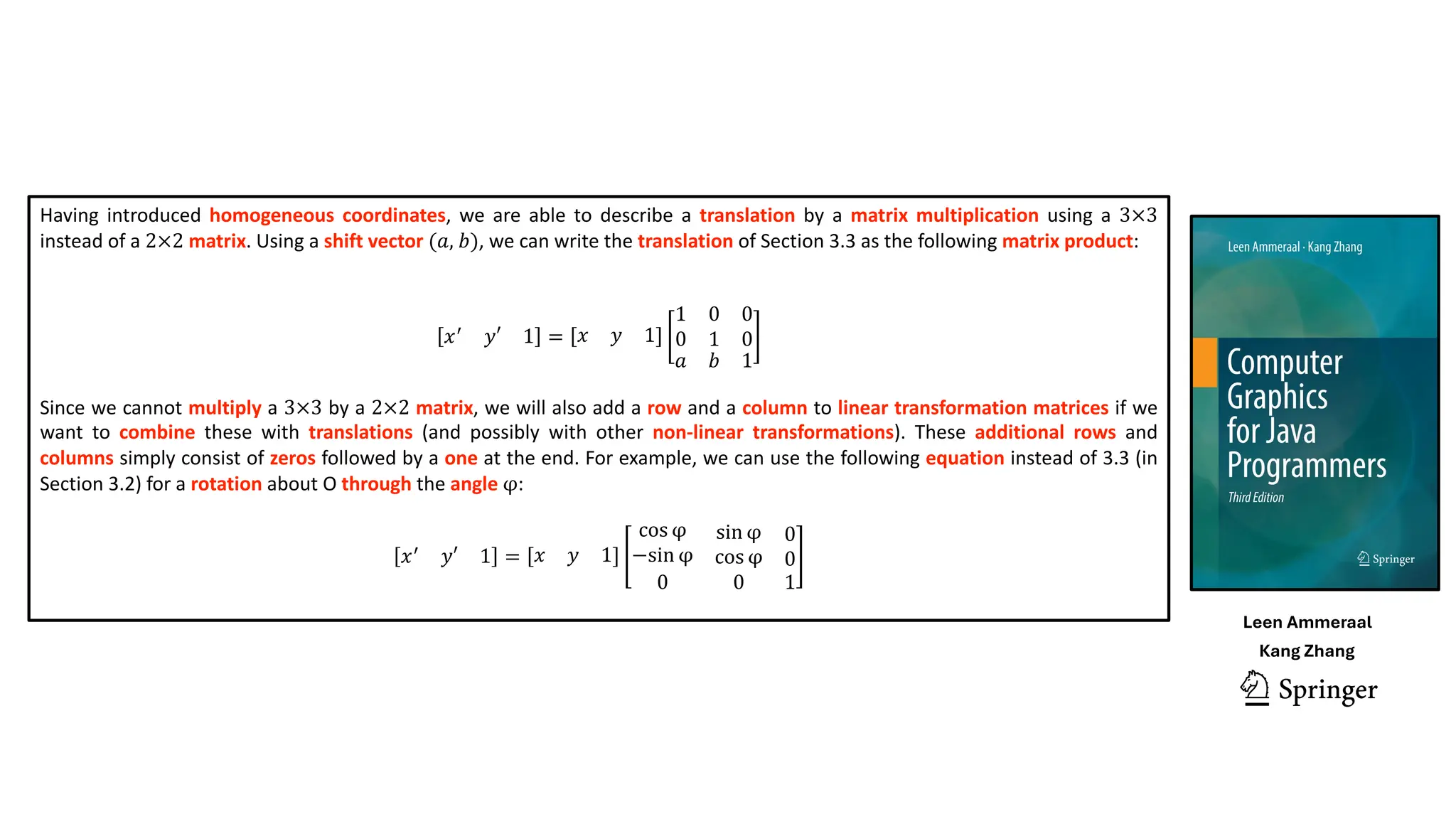

Let’s consult Computer Graphics for Java Programmers and learn (or reacquaint ourselves with)
just enough graphics-related mathematics to be able to implement the function.
def rotate(rotationCentre: Point, angle: Radians): Point
https://www.linkedin.com/in/leen-ammeraal-b97b968/ https://profiles.utdallas.edu/kang.zhang
Leen Ammeraal Kang Zhang

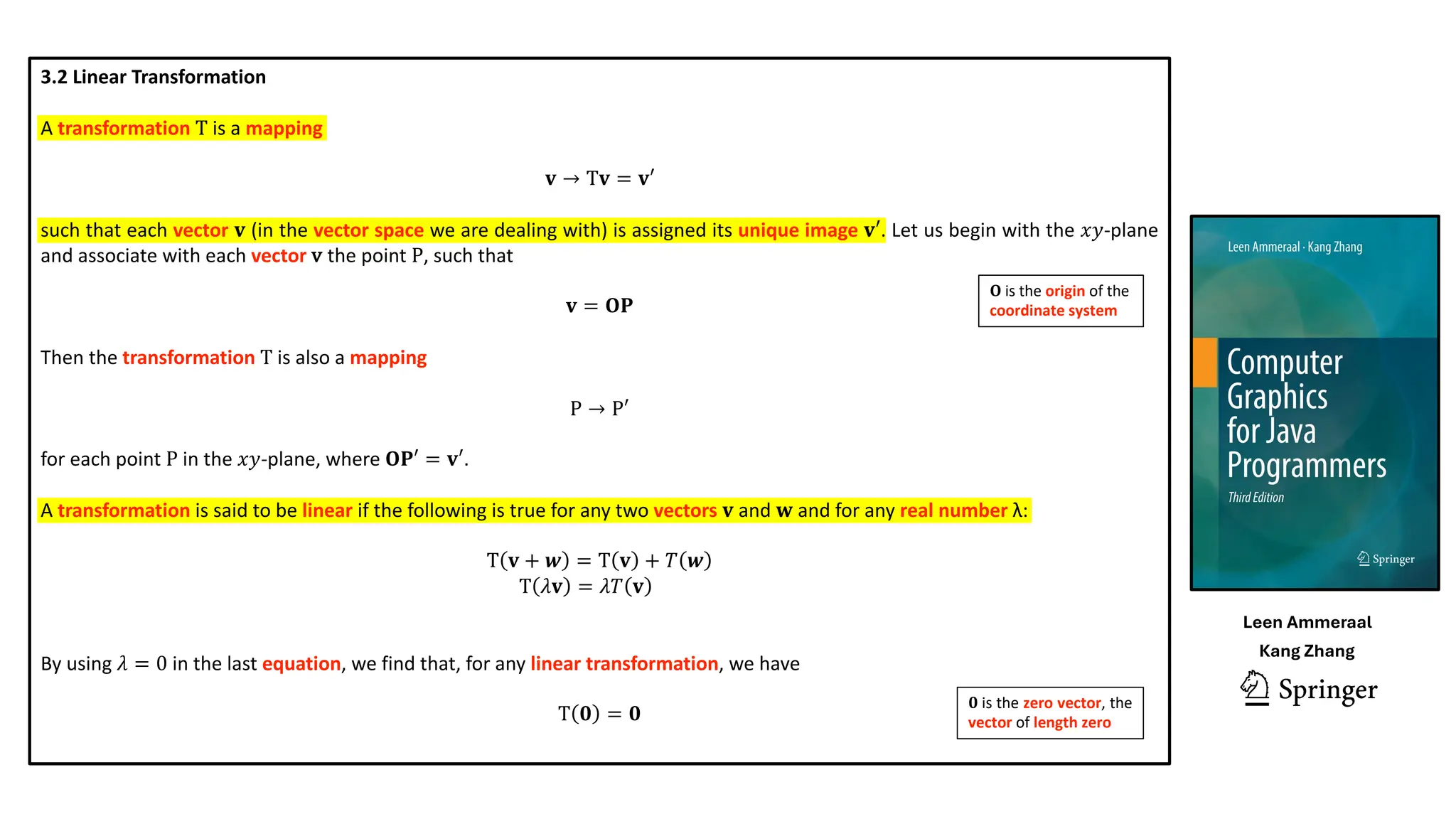

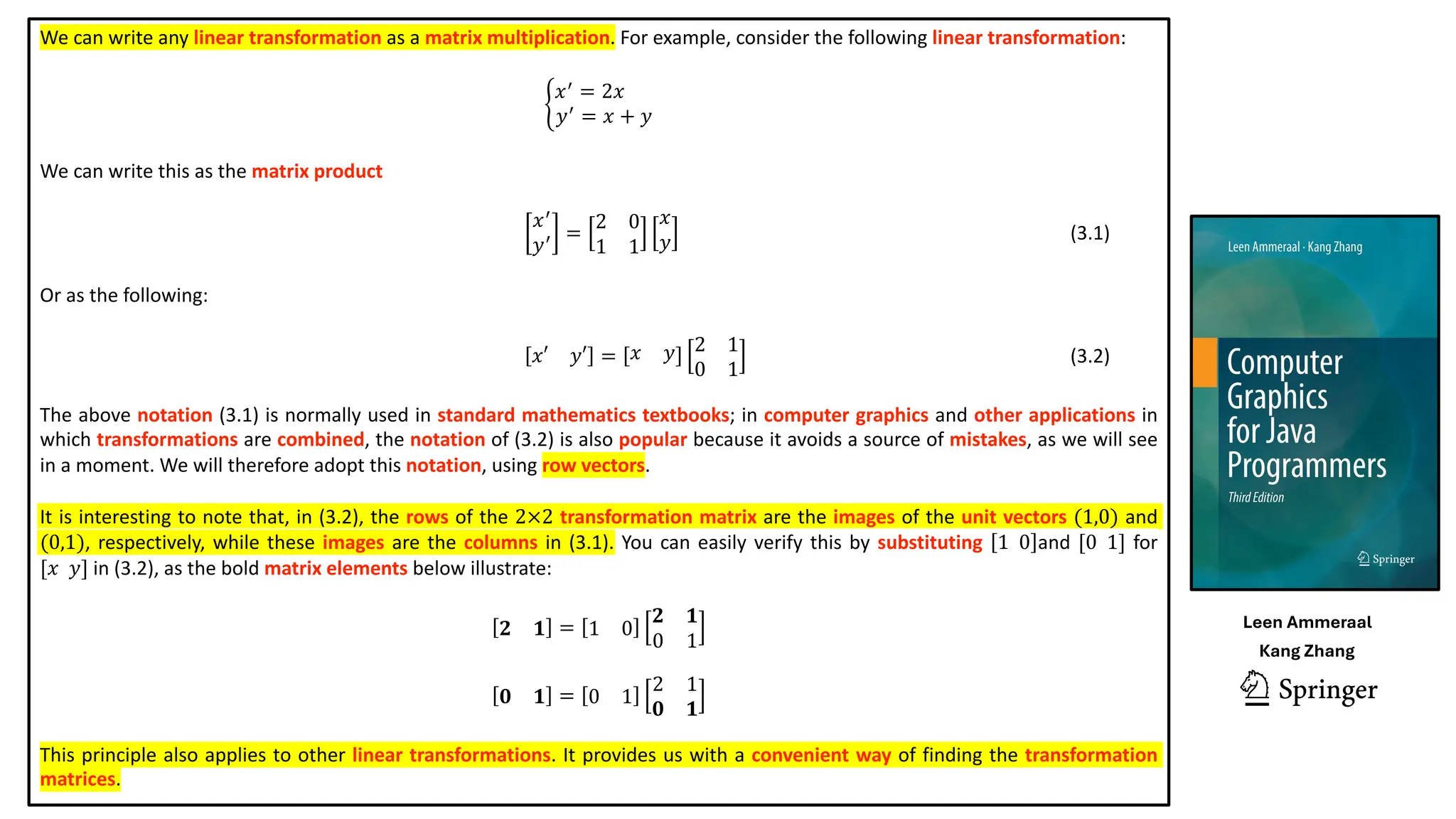

Rotation of a point about the origin of a two-dimensional cartesian
coordinate system is a linear transformation.
A linear transformation maps a vector v to another vector v’.
So the first concept that we need to be familiar with is that of a vector.

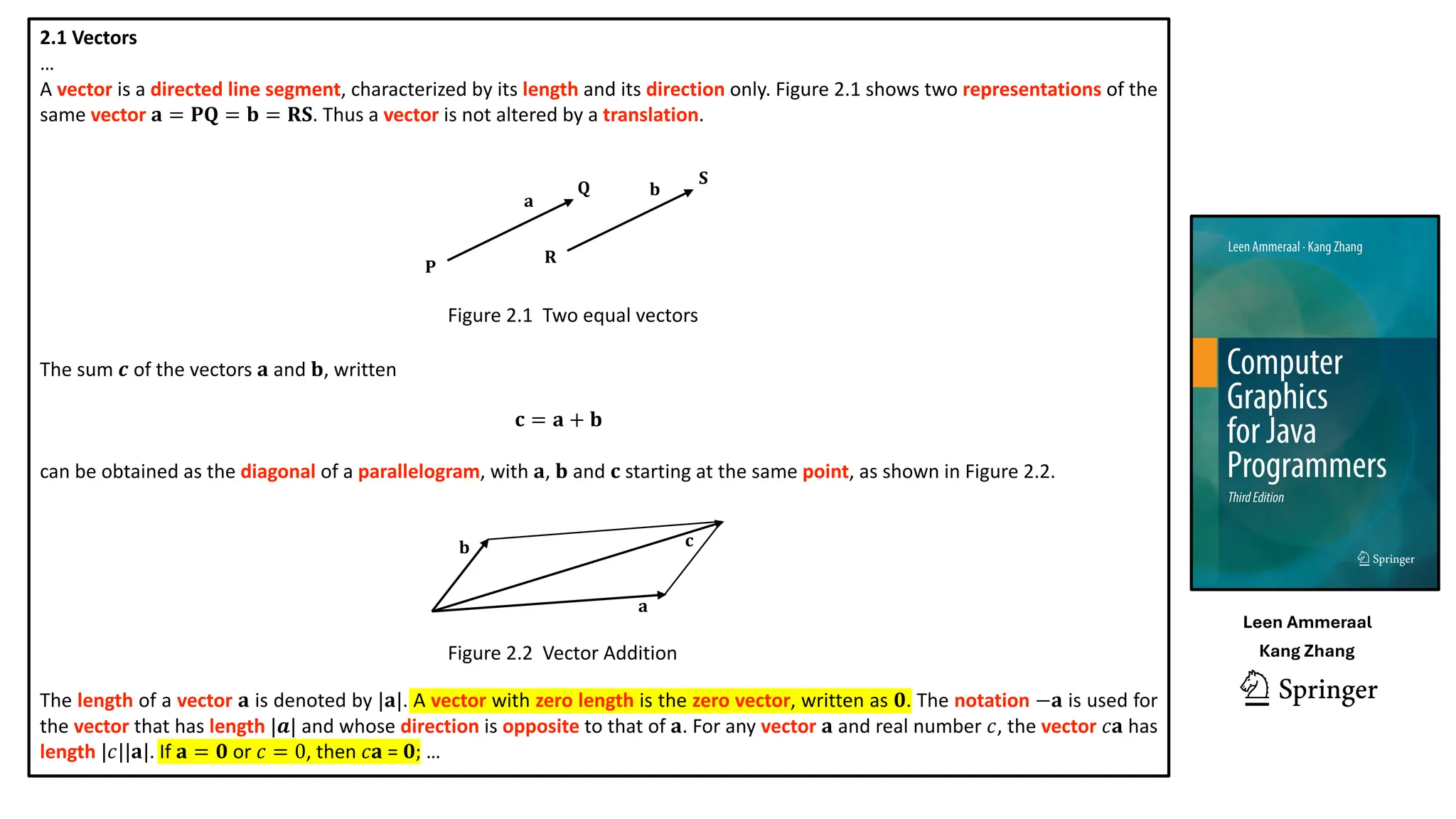

2.1 Vectors
…
A vector is a directed line segment, characterized by its length and its direction only. Figure 2.1 shows two representations of the
same vector 𝐚 = 𝐏𝐐 = 𝐛 = 𝐑𝐒. Thus a vector is not altered by a translation.
The sum 𝒄 of the vectors 𝐚 and 𝐛, written
𝐜 = 𝐚 + 𝐛
can be obtained as the diagonal of a parallelogram, with 𝐚, 𝐛 and 𝐜 starting at the same point, as shown in Figure 2.2.
The length of a vector 𝐚 is denoted by |𝐚|. A vector with zero length is the zero vector, written as 𝟎. The notation −𝐚 is used for
the vector that has length |𝒂| and whose direction is opposite to that of 𝐚. For any vector 𝐚 and real number 𝑐, the vector 𝑐𝐚 has
length |𝑐||𝐚|. If 𝐚 = 𝟎 or 𝑐 = 0, then 𝑐𝐚 = 𝟎; …
Figure 2.1 Two equal vectors
Figure 2.2 Vector Addition
𝐏
𝐐
𝐑
𝐒
𝐚
𝐛
𝐚
𝐛 𝐜
Leen Ammeraal
Kang Zhang

The next slide is only relevant in that it introduces a couple of bits of terminology that will be referenced later.
I recommend just speeding through it, concentrating only on the two sections highlighted in yellow.

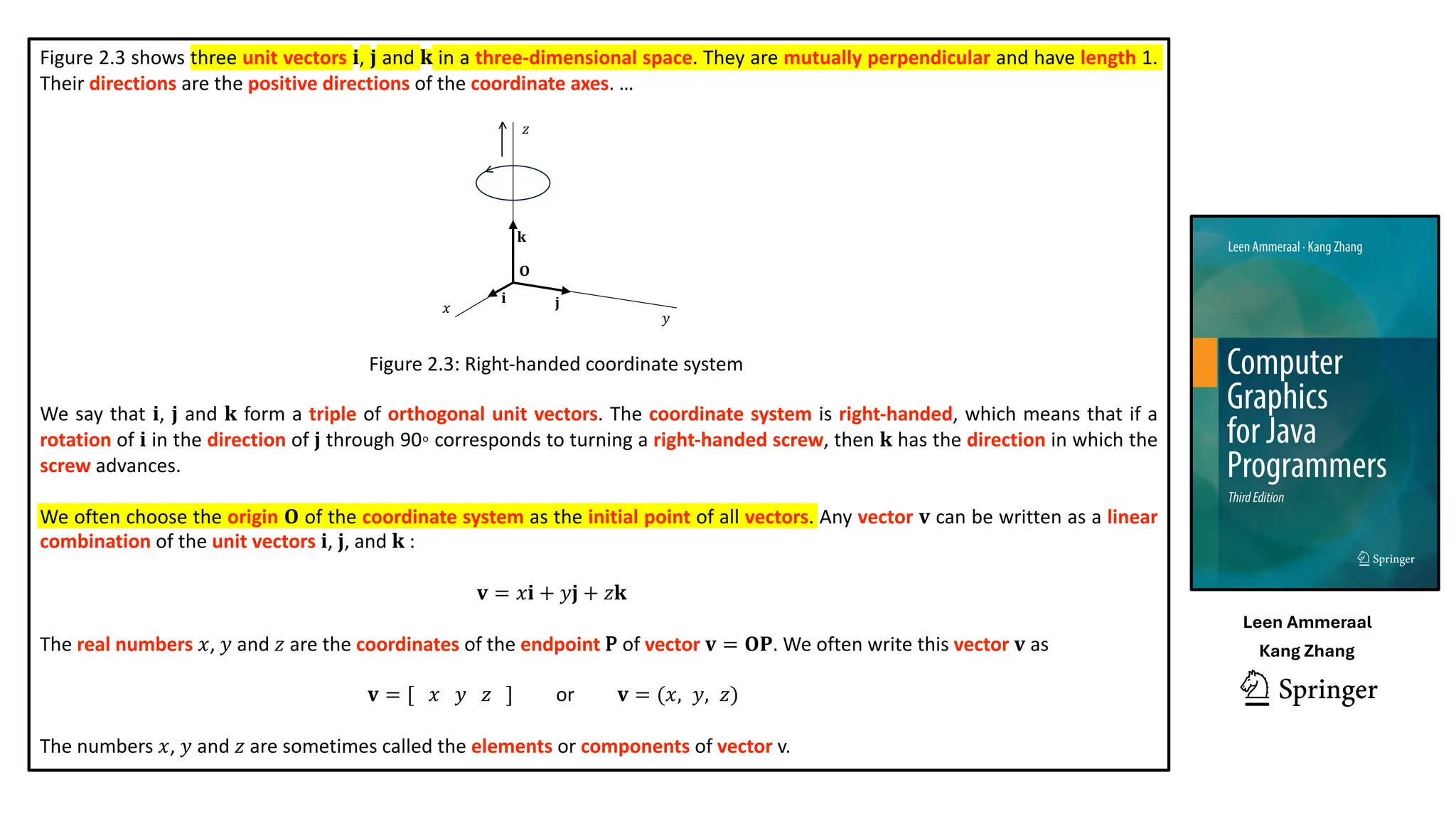

Figure 2.3 shows three unit vectors 𝐢, 𝐣 and 𝐤 in a three-dimensional space. They are mutually perpendicular and have length 1.
Their directions are the positive directions of the coordinate axes. …
Figure 2.3: Right-handed coordinate system
We say that 𝐢, 𝐣 and 𝐤 form a triple of orthogonal unit vectors. The coordinate system is right-handed, which means that if a
rotation of 𝐢 in the direction of 𝐣 through 90◦ corresponds to turning a right-handed screw, then 𝐤 has the direction in which the
screw advances.
We often choose the origin 𝐎 of the coordinate system as the initial point of all vectors. Any vector 𝐯 can be written as a linear
combination of the unit vectors 𝐢, 𝐣, and 𝐤 :
𝐯 = 𝑥𝐢 + 𝑦𝐣 + 𝑧𝐤
The real numbers 𝑥, 𝑦 and 𝑧 are the coordinates of the endpoint P of vector 𝐯 = 𝐎𝐏. We often write this vector 𝐯 as
𝐯 = [ 𝑥 𝑦 𝑧 ] or 𝐯 = (𝑥, 𝑦, 𝑧)
The numbers 𝑥, 𝑦 and 𝑧 are sometimes called the elements or components of vector v.
𝑥
𝑦
𝑧
𝐎
𝐢 𝐣
𝐤
<
<
Leen Ammeraal
Kang Zhang

The reason why we are interested in expressing rotation as a linear transformation, is
that the latter can be written as a matrix multiplication.
So the next concept that we need to be familiar with is that of matrix multiplication.

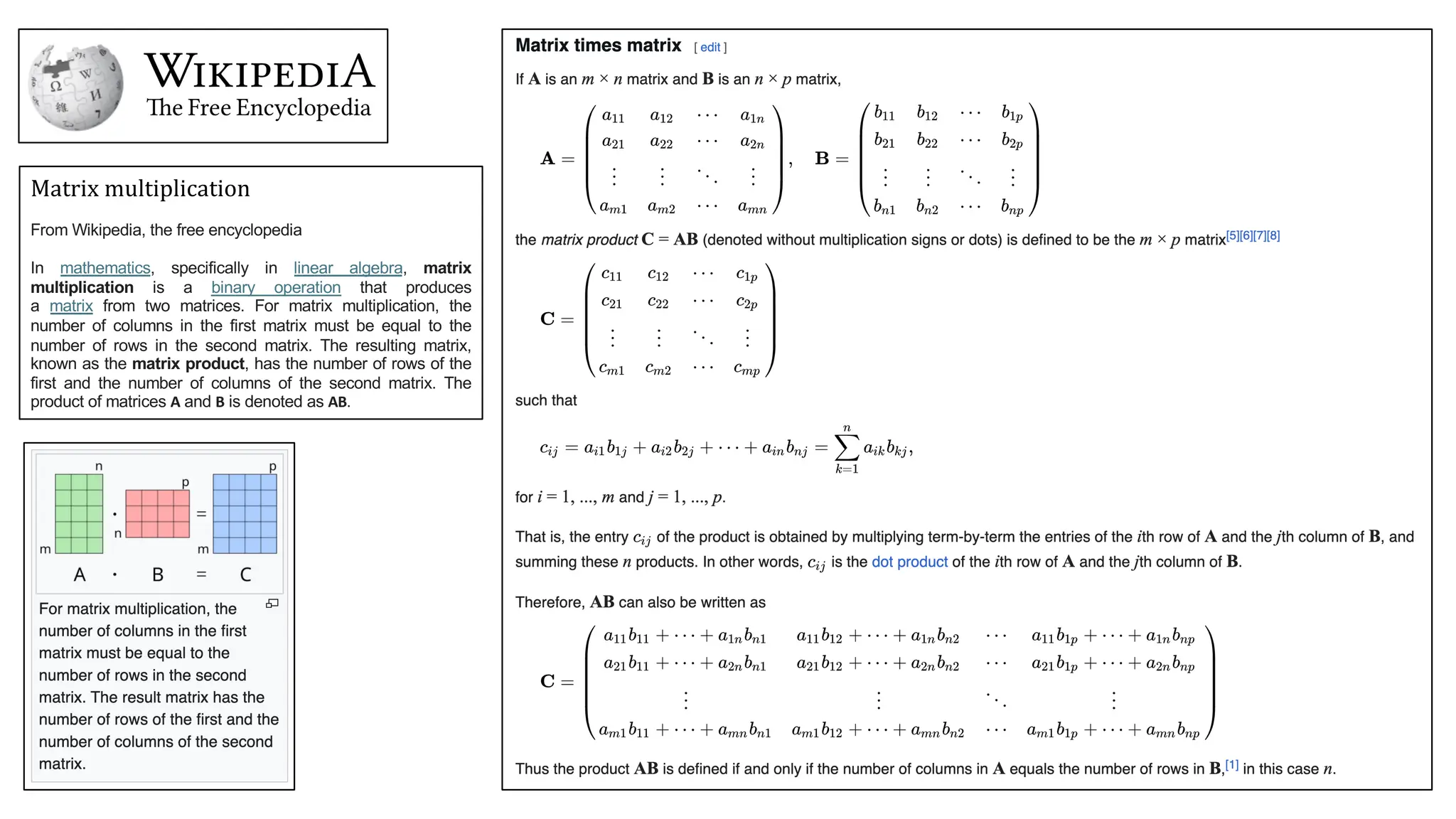

Matrix multiplication
From Wikipedia, the free encyclopedia
In mathematics, specifically in linear algebra, matrix
multiplication is a binary operation that produces
a matrix from two matrices. For matrix multiplication, the
number of columns in the first matrix must be equal to the
number of rows in the second matrix. The resulting matrix,
known as the matrix product, has the number of rows of the
first and the number of columns of the second matrix. The
product of matrices A and B is denoted as AB.

The next concept that we need to be familiar
with is that of a linear transformation.

3.2 Linear Transformation
A transformation T is a mapping
𝐯 → T𝐯 = 𝐯′
such that each vector 𝐯 (in the vector space we are dealing with) is assigned its unique image 𝐯′. Let us begin with the 𝑥𝑦-plane
and associate with each vector v the point P, such that
𝐯 = 𝐎𝐏
Then the transformation T is also a mapping
P → P′
for each point P in the 𝑥𝑦-plane, where 𝐎𝐏′ = 𝐯′.
A transformation is said to be linear if the following is true for any two vectors 𝐯 and 𝐰 and for any real number λ:
T 𝐯 + 𝒘 = T 𝐯 + 𝑇 𝒘
T 𝜆𝐯 = 𝜆𝑇 𝐯 … .
By using 𝜆 = 0 in the last equation, we find that, for any linear transformation, we have
T 𝟎 = 𝟎
𝟎 is the zero vector, the
vector of length zero
𝐎 is the origin of the
coordinate system
Leen Ammeraal
Kang Zhang

We can write any linear transformation as a matrix multiplication. For example, consider the following linear transformation:
K
𝑥(
= 2𝑥
𝑦(
= 𝑥 + 𝑦
We can write this as the matrix product
𝑥(
𝑦( =
2 0
1 1
𝑥
𝑦 (3.1)
Or as the following:
𝑥′ 𝑦′ = 𝑥 𝑦 2 1
0 1
(3.2)
The above notation (3.1) is normally used in standard mathematics textbooks; in computer graphics and other applications in
which transformations are combined, the notation of (3.2) is also popular because it avoids a source of mistakes, as we will see
in a moment. We will therefore adopt this notation, using row vectors.
It is interesting to note that, in (3.2), the rows of the 2×2 transformation matrix are the images of the unit vectors (1,0) and
(0,1), respectively, while these images are the columns in (3.1). You can easily verify this by substituting 1 0 and [0 1] for
[𝑥 𝑦] in (3.2), as the bold matrix elements below illustrate:
𝟐 𝟏 = 1 0
𝟐 𝟏
0 1
𝟎 𝟏 = 0 1
2 1
𝟎 𝟏
This principle also applies to other linear transformations. It provides us with a convenient way of finding the transformation
matrices.
Leen Ammeraal
Kang Zhang

Next, let’s see how in two-dimensional space, rotation of
a point P about the origin can be expressed as the
multiplication of the row vector for 𝐎𝐏 by a 2×2 matrix.

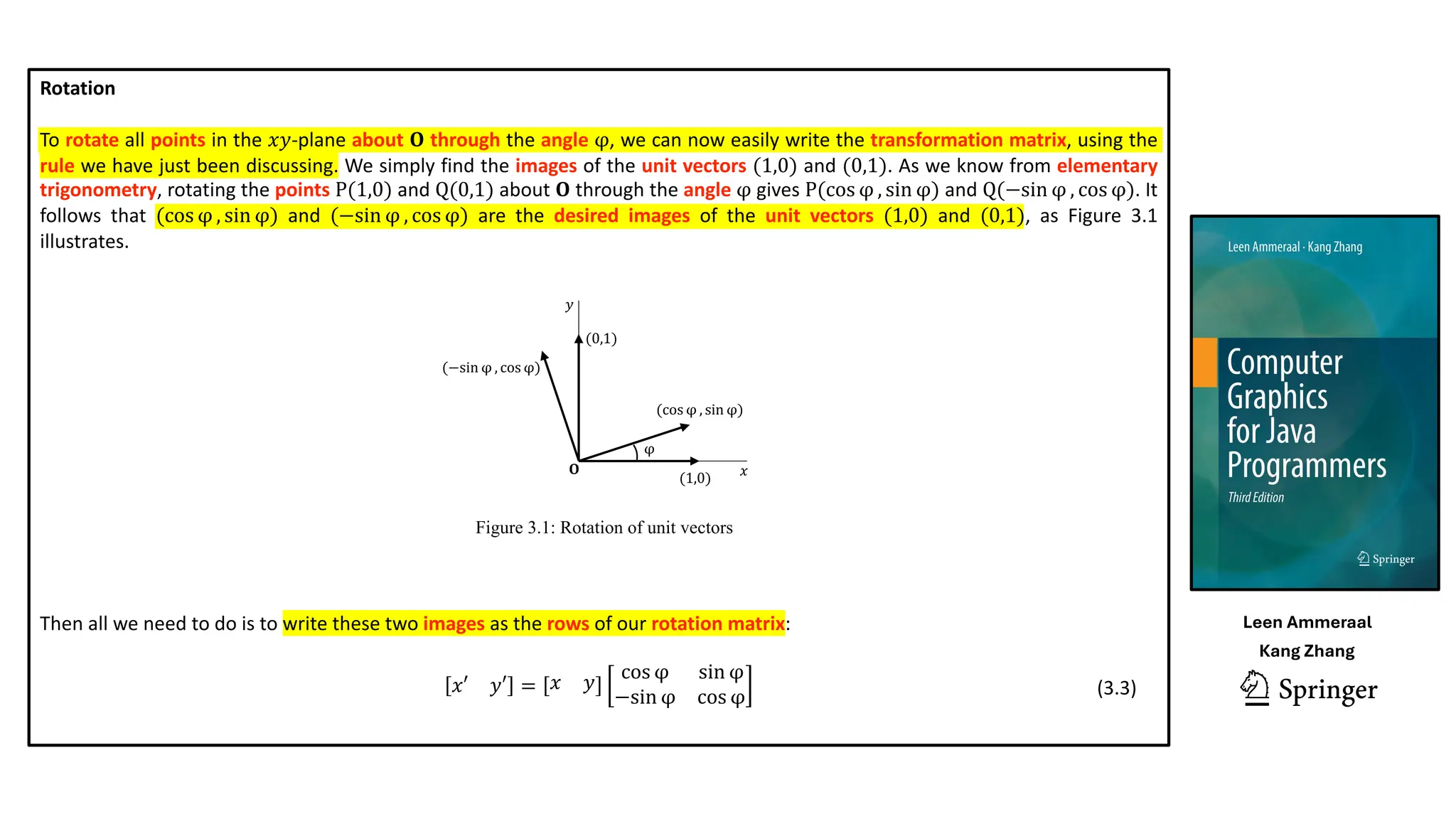

Rotation
To rotate all points in the 𝑥𝑦-plane about 𝐎 through the angle φ, we can now easily write the transformation matrix, using the
rule we have just been discussing. We simply find the images of the unit vectors (1,0) and (0,1). As we know from elementary
trigonometry, rotating the points P(1,0) and Q(0,1) about 𝐎 through the angle φ gives P(cos φ , sin φ) and Q(−sin φ , cos φ). It
follows that (cos φ , sin φ) and (−sin φ , cos φ) are the desired images of the unit vectors (1,0) and (0,1), as Figure 3.1
illustrates.
Then all we need to do is to write these two images as the rows of our rotation matrix:
𝑥′ 𝑦′ = 𝑥 𝑦 cos φ sin φ
−sin φ cos φ
𝑥
𝑦
𝐎
(0,1)
φ
(cos φ , sin φ)
(−sin φ , cos φ)
(1,0)
Figure 3.1: Rotation of unit vectors
(3.3)
Leen Ammeraal
Kang Zhang

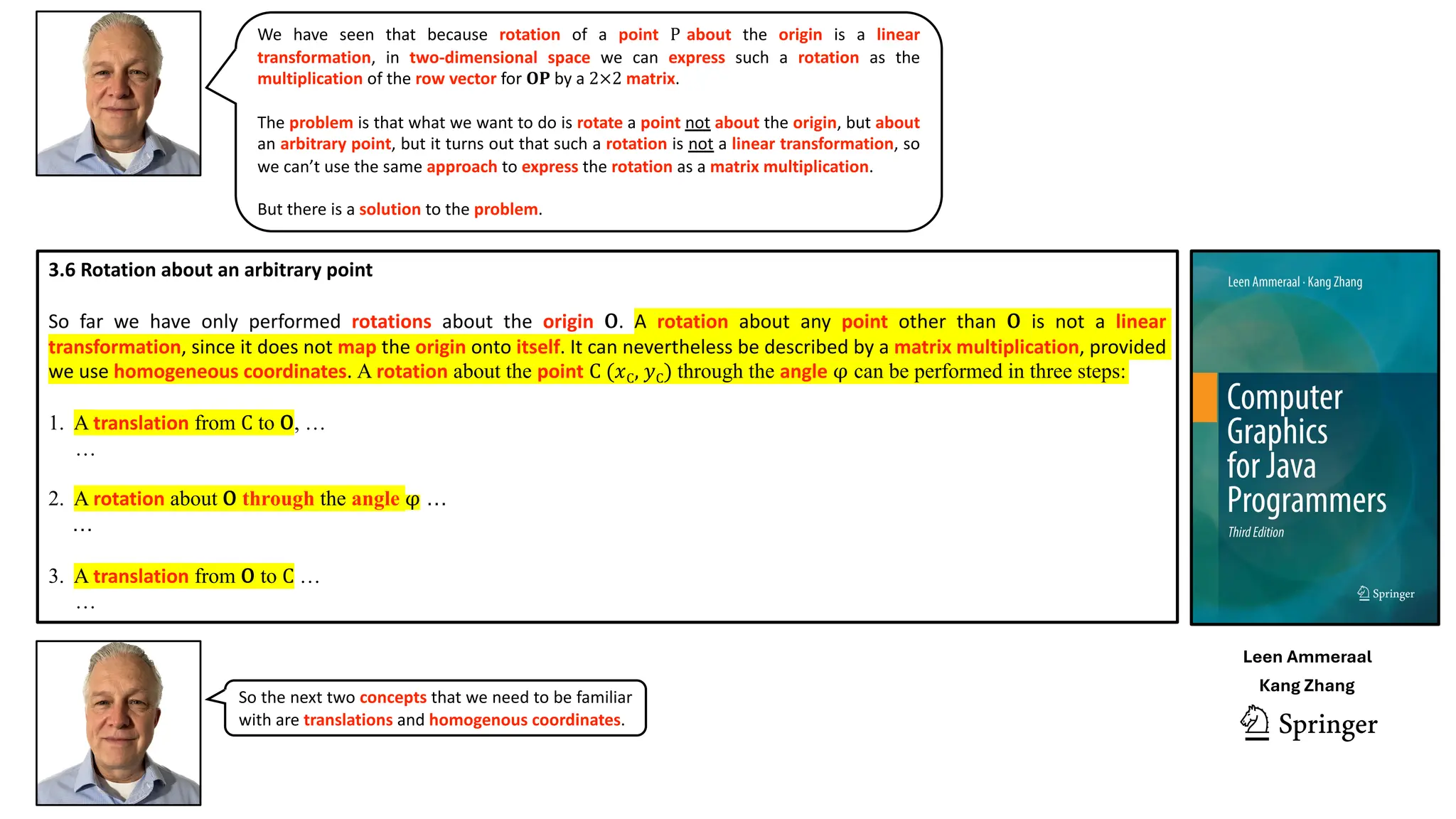

We have seen that because rotation of a point P about the origin is a linear
transformation, in two-dimensional space we can express such a rotation as the
multiplication of the row vector for 𝐎𝐏 by a 2×2 matrix.
The problem is that what we want to do is rotate a point not about the origin, but about
an arbitrary point, but it turns out that such a rotation is not a linear transformation, so
we can’t use the same approach to express the rotation as a matrix multiplication.
But there is a solution to the problem.
3.6 Rotation about an arbitrary point
So far we have only performed rotations about the origin O. A rotation about any point other than O is not a linear
transformation, since it does not map the origin onto itself. It can nevertheless be described by a matrix multiplication, provided
we use homogeneous coordinates. A rotation about the point C (𝑥C, 𝑦C) through the angle φ can be performed in three steps:
1. A translation from C to O, …
…
2. A rotation about O through the angle φ …
…
3. A translation from O to C …
…
So the next two concepts that we need to be familiar
with are translations and homogenous coordinates.
Leen Ammeraal
Kang Zhang

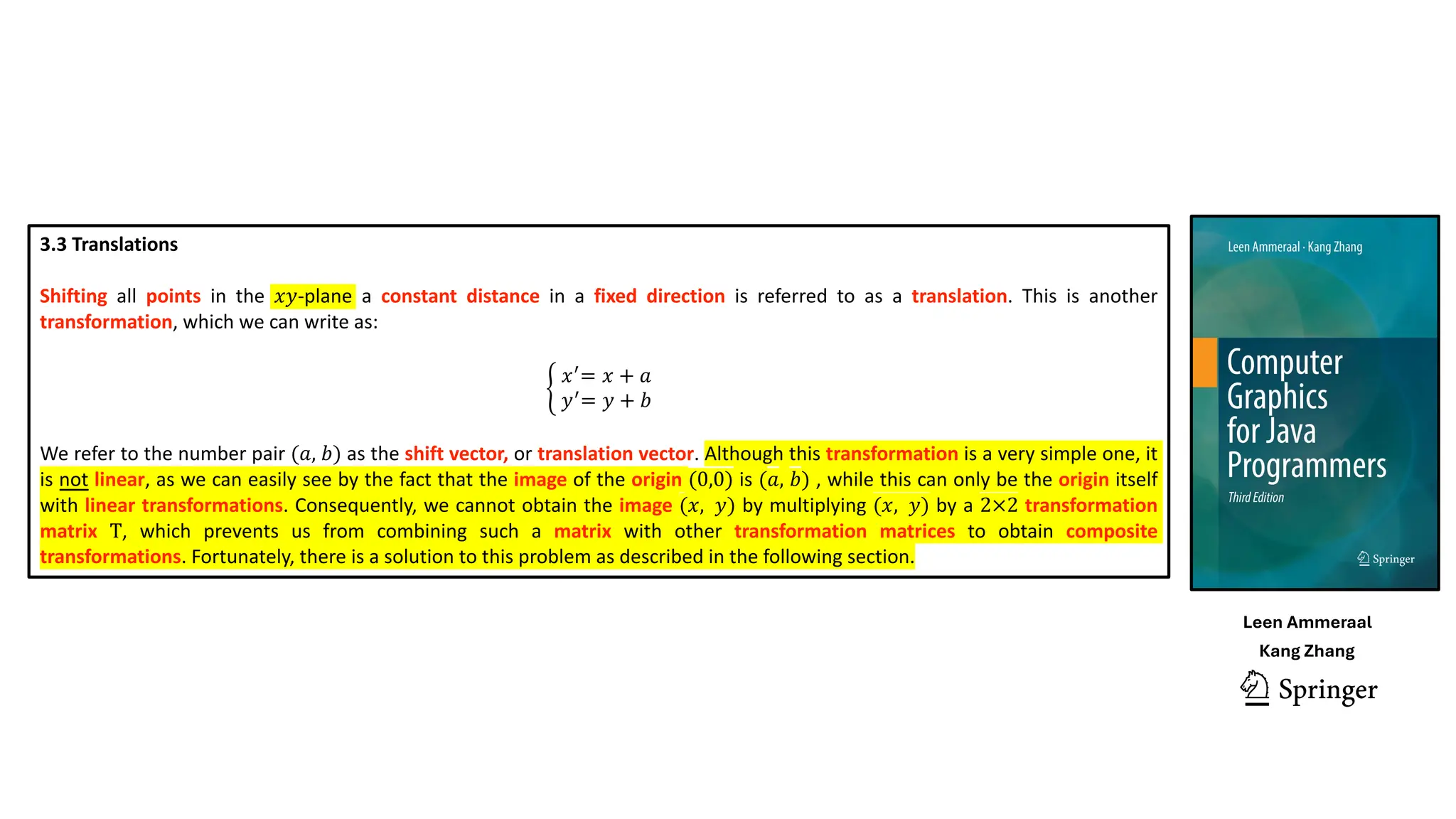

3.3 Translations
Shifting all points in the 𝑥𝑦-plane a constant distance in a fixed direction is referred to as a translation. This is another
transformation, which we can write as:
K
𝑥(
= 𝑥 + 𝑎
𝑦(
= 𝑦 + 𝑏
We refer to the number pair (𝑎, 𝑏) as the shift vector, or translation vector. Although this transformation is a very simple one, it
is not linear, as we can easily see by the fact that the image of the origin (0,0) is (𝑎, 𝑏) , while this can only be the origin itself
with linear transformations. Consequently, we cannot obtain the image (𝑥, 𝑦) by multiplying (𝑥, 𝑦) by a 2×2 transformation
matrix T, which prevents us from combining such a matrix with other transformation matrices to obtain composite
transformations. Fortunately, there is a solution to this problem as described in the following section.
Leen Ammeraal
Kang Zhang

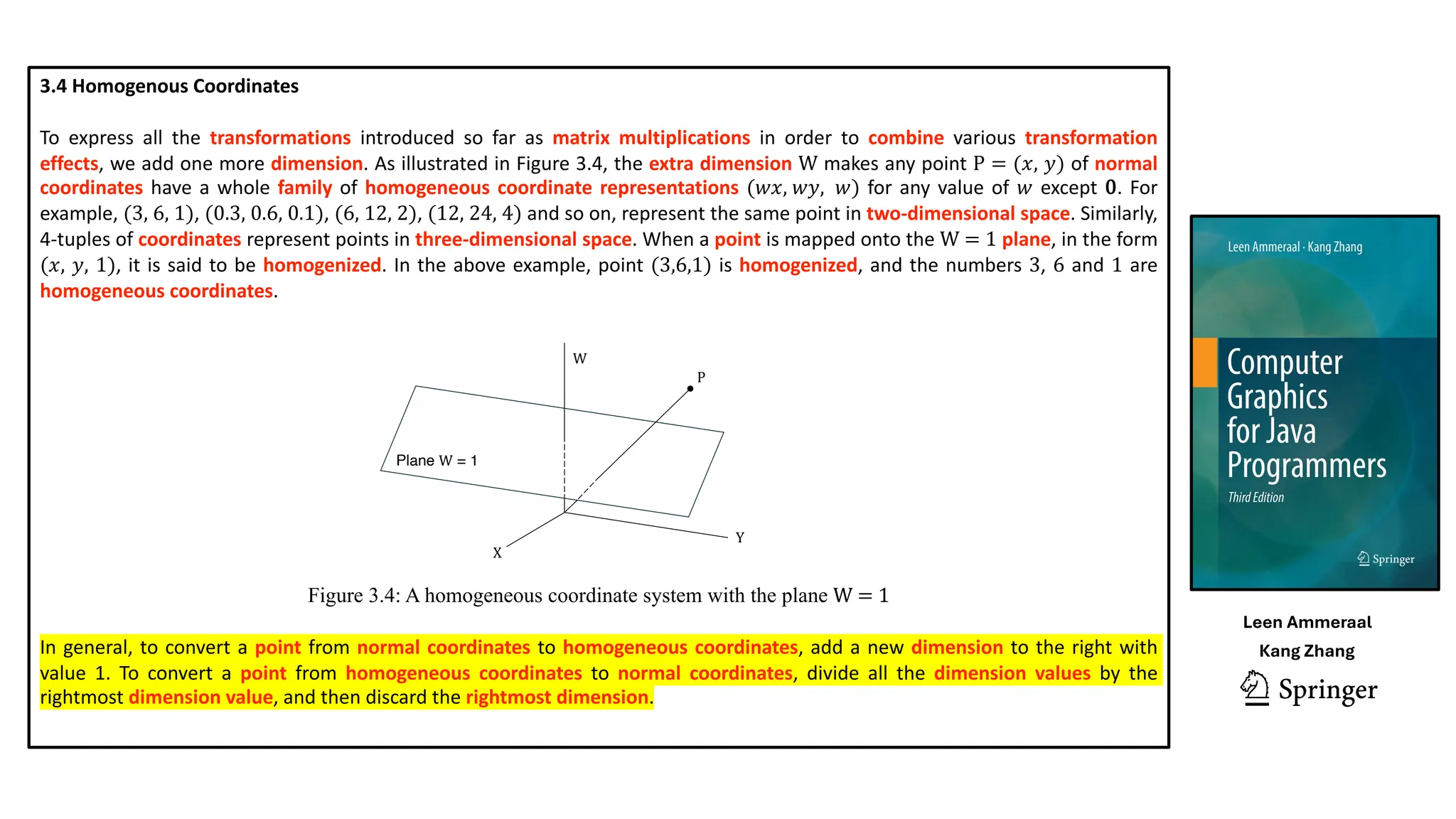

3.4 Homogenous Coordinates
To express all the transformations introduced so far as matrix multiplications in order to combine various transformation
effects, we add one more dimension. As illustrated in Figure 3.4, the extra dimension W makes any point P = (𝑥, 𝑦) of normal
coordinates have a whole family of homogeneous coordinate representations (𝑤𝑥, 𝑤𝑦, 𝑤) for any value of 𝑤 except 0. For
example, (3, 6, 1), (0.3, 0.6, 0.1), (6, 12, 2), (12, 24, 4) and so on, represent the same point in two-dimensional space. Similarly,
4-tuples of coordinates represent points in three-dimensional space. When a point is mapped onto the W = 1 plane, in the form
(𝑥, 𝑦, 1), it is said to be homogenized. In the above example, point (3,6,1) is homogenized, and the numbers 3, 6 and 1 are
homogeneous coordinates.
Figure 3.4: A homogeneous coordinate system with the plane W = 1
In general, to convert a point from normal coordinates to homogeneous coordinates, add a new dimension to the right with
value 1. To convert a point from homogeneous coordinates to normal coordinates, divide all the dimension values by the
rightmost dimension value, and then discard the rightmost dimension.
X
W
Y
P
Plane W = 1
Leen Ammeraal
Kang Zhang

Next, let’s see how translation can be described by
a 3×3 matrix and how the 2×2 rotation matrix that
we saw earlier on can be described as a 3×3 matrix.

Having introduced homogeneous coordinates, we are able to describe a translation by a matrix multiplication using a 3×3
instead of a 2×2 matrix. Using a shift vector (𝑎, 𝑏), we can write the translation of Section 3.3 as the following matrix product:
𝑥(
𝑦′ 1 = 𝑥 𝑦 1
1
0
0
1
0
0
𝑎 𝑏 1
Since we cannot multiply a 3×3 by a 2×2 matrix, we will also add a row and a column to linear transformation matrices if we
want to combine these with translations (and possibly with other non-linear transformations). These additional rows and
columns simply consist of zeros followed by a one at the end. For example, we can use the following equation instead of 3.3 (in
Section 3.2) for a rotation about O through the angle φ:
𝑥(
𝑦′ 1 = 𝑥 𝑦 1
cos φ
−sin φ
sin φ
cos φ
0
0
0 0 1
Leen Ammeraal
Kang Zhang

We are finally ready to see the 3×3 matrix that we can use to
rotate a point about arbitrary point C (𝑥C , 𝑦C) through angle φ.

A translation from C to O A rotation about O through the angle φ A translation from O to C
A rotation about C through the angle φ
𝐑 =
1
0
0
1
0
0
−𝑥C −𝑦C 1
cos φ
−sin φ
sin φ
cos φ
0
0
0 0 1
1
0
0
1
0
0
𝑥C 𝑦C 1
=
cos φ
−sin φ
sin φ
cos φ
0
0
−𝑥C cos φ + 𝑦C sin φ + 𝑥C −𝑥C sin φ − 𝑦C cos φ + 𝑦C 1
Leen Ammeraal
Kang Zhang

𝑥(
𝑦′ 1 = 𝑥 𝑦 1 𝐑
To rotate point P = (𝑥, 𝑦) about point C = (𝑥C , 𝑦C) through an angle φ, resulting in rotated
point P′ = (𝑥′, 𝑦′), we are going to multiply row vector 𝑥 𝑦 1 by rotation matrix 𝐑.

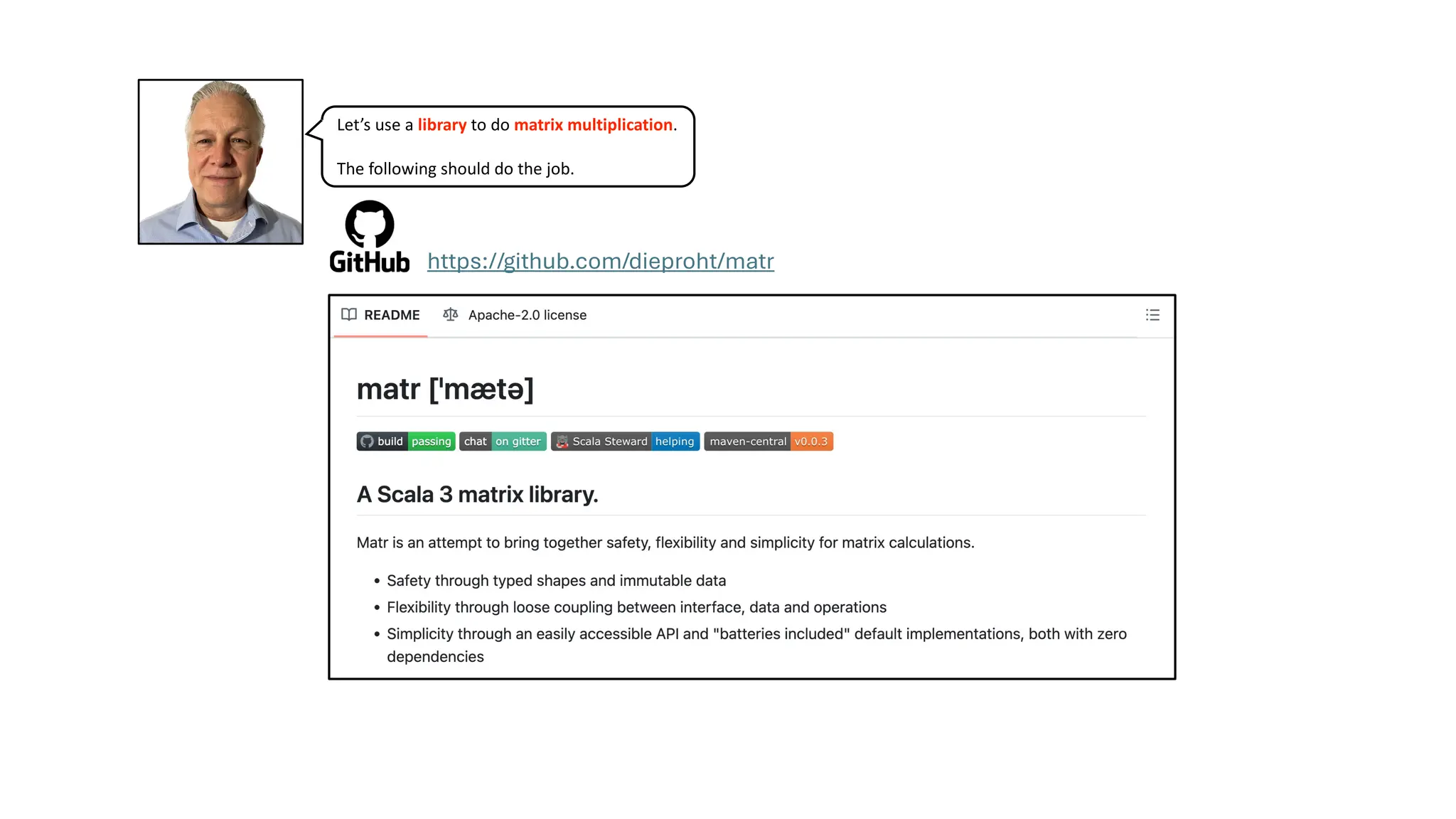

https://github.com/dieproht/matr
Let’s use a library to do matrix multiplication.
The following should do the job.

extension (p: Point)
def rotate(rotationCentre: Point, angle: Radians): Point =
val (c, ϕ) = (rotationCentre, angle)
val (cosϕ, sinϕ) = (math.cos(ϕ).toFloat, math.sin(ϕ).toFloat)
val rotationMatrix: Matrix[3,3,Float] = MatrixFactory[3, 3, Float].fromTuple(
( cosϕ, sinϕ, 0f),
( -sinϕ, cosϕ, 0f),
(-c.x * cosϕ + c.y * sinϕ + c.x, -c.x * sinϕ - c.y * cosϕ + c.y, 1f)
)
val rowVector: Matrix[1, 3, Float] = MatrixFactory[1, 3, Float].rowMajor(p.x, p.y, 1f)
val rotatedRowVector: Matrix[1, 3, Float] = rowVector dot rotationMatrix
val (x, y) = (rotatedRowVector(0, 0), rotatedRowVector(0, 1))
Point(x, y)
infix binary library function dot performs a matrix
multiplication by calculating the dot product.
𝑥. 𝑦′ 1 = 𝑥 𝑦 1 𝐑
𝐑 =
cos φ
−sin φ
sin φ
cos φ
0
0
−𝑥C cos φ + 𝑦C sin φ + 𝑥C −𝑥C sin φ − 𝑦C cos φ + 𝑦C 1
Here is how we can use the library to implement the rotate function.
See this deck’s code repository for the necessary library imports.

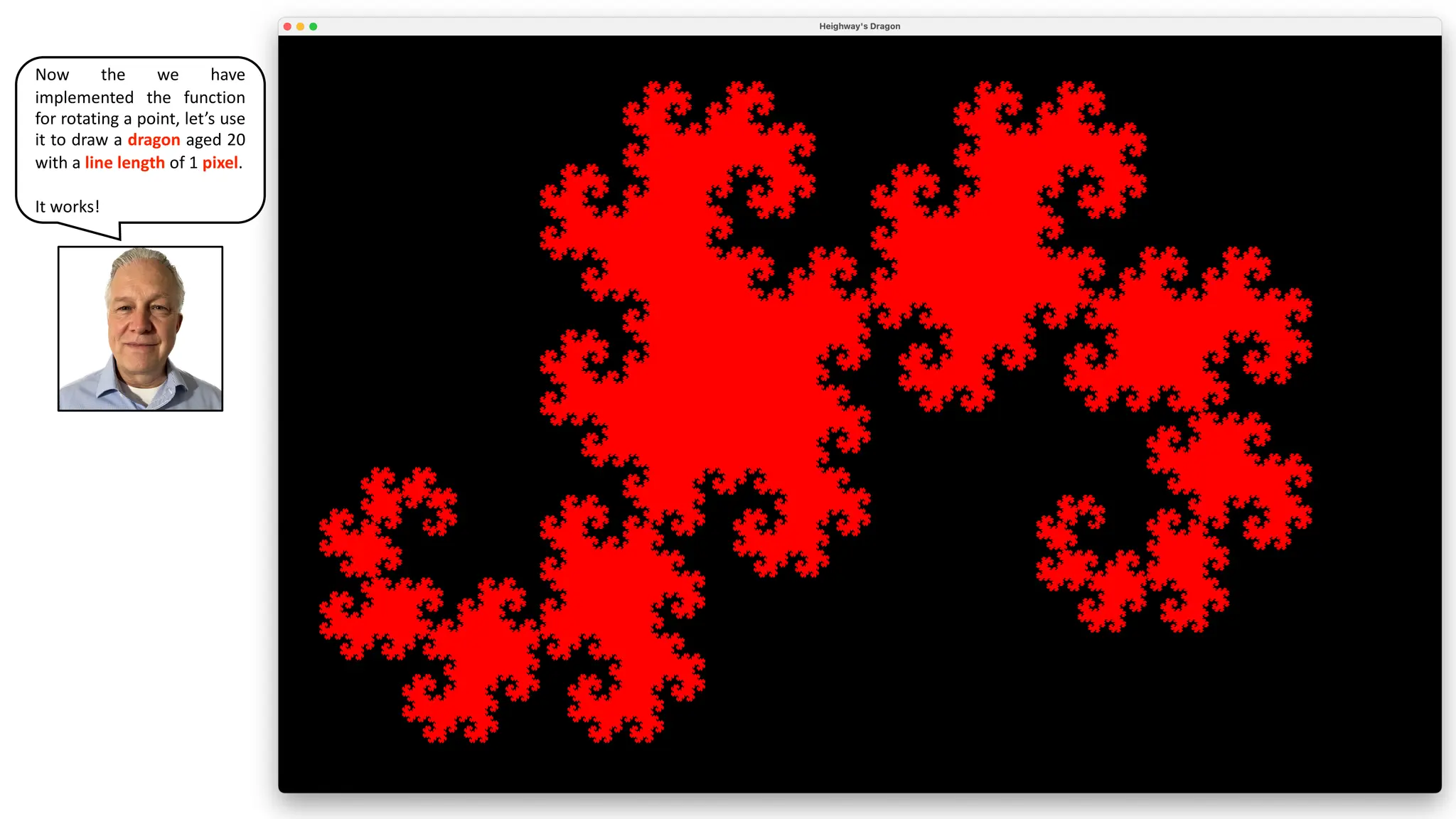

Now the we have
implemented the function
for rotating a point, let’s use
it to draw a dragon aged 20
with a line length of 1 pixel.
It works!

The next slide recaps the code for the imperative shell, which is unchanged
apart from frame size, line colour and background colour.
The slide after that shows the code for the functional core, which is where we
have been making our improvements and simplifications.
Of the two versions of the plusRotatedCopy function, we are showing the one
that is particularly easy to understand, over the one that is more performant.

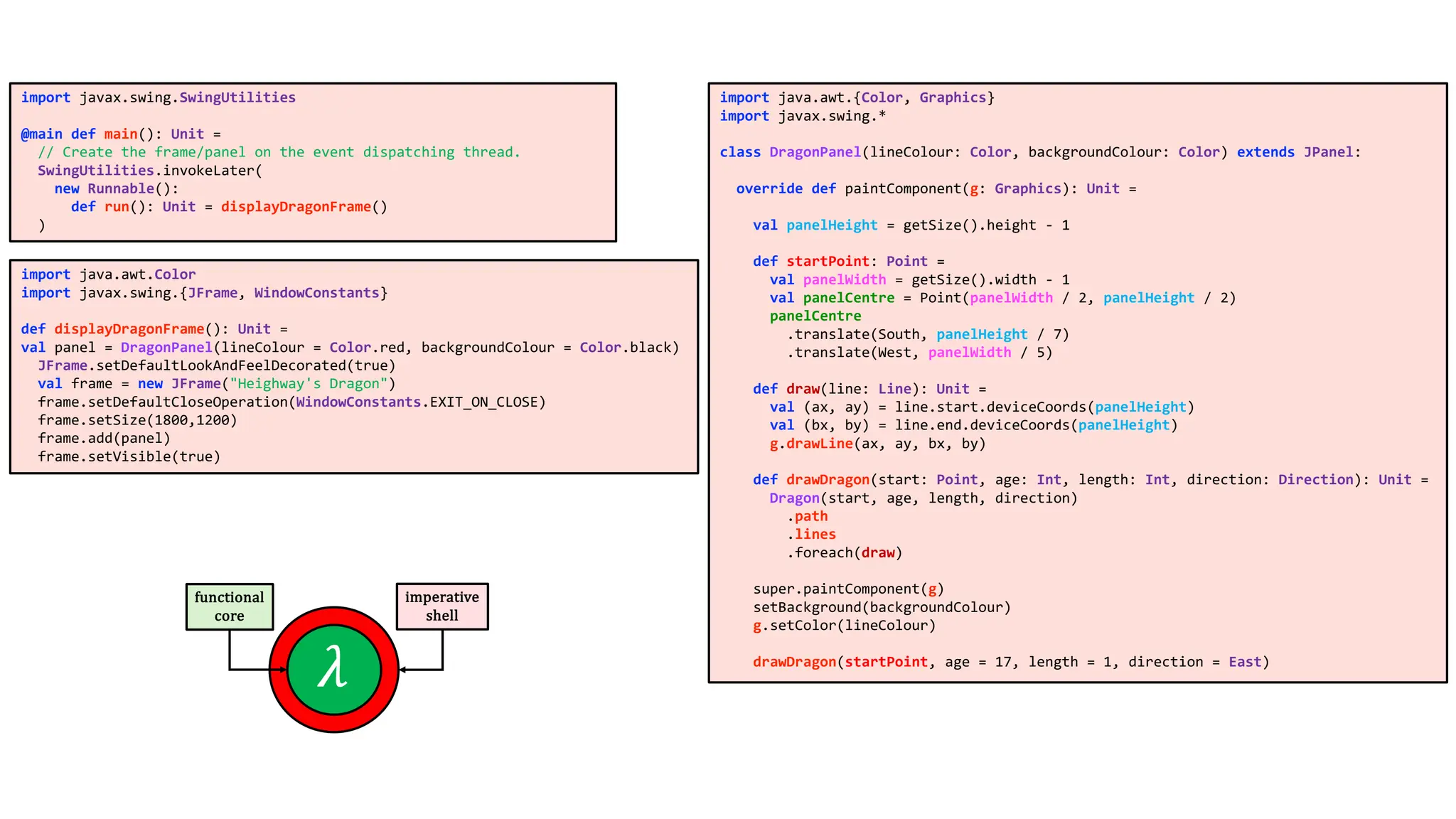

import java.awt.{Color, Graphics}
import javax.swing.*
class DragonPanel(lineColour: Color, backgroundColour: Color) extends JPanel:
override def paintComponent(g: Graphics): Unit =
val panelHeight = getSize().height - 1
def startPoint: Point =
val panelWidth = getSize().width - 1
val panelCentre = Point(panelWidth / 2, panelHeight / 2)
panelCentre
.translate(South, panelHeight / 7)
.translate(West, panelWidth / 5)
def draw(line: Line): Unit =
val (ax, ay) = line.start.deviceCoords(panelHeight)
val (bx, by) = line.end.deviceCoords(panelHeight)
g.drawLine(ax, ay, bx, by)
def drawDragon(start: Point, age: Int, length: Int, direction: Direction): Unit =
Dragon(start, age, length, direction)
.path
.lines
.foreach(draw)
super.paintComponent(g)
setBackground(backgroundColour)
g.setColor(lineColour)
drawDragon(startPoint, age = 17, length = 1, direction = East)
import javax.swing.SwingUtilities
@main def main(): Unit =
// Create the frame/panel on the event dispatching thread.
SwingUtilities.invokeLater(
new Runnable():
def run(): Unit = displayDragonFrame()
)
import java.awt.Color
import javax.swing.{JFrame, WindowConstants}
def displayDragonFrame(): Unit =
val panel = DragonPanel(lineColour = Color.red, backgroundColour = Color.black)
JFrame.setDefaultLookAndFeelDecorated(true)
val frame = new JFrame("Heighway's Dragon")
frame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE)
frame.setSize(1800,1200)
frame.add(panel)
frame.setVisible(true)

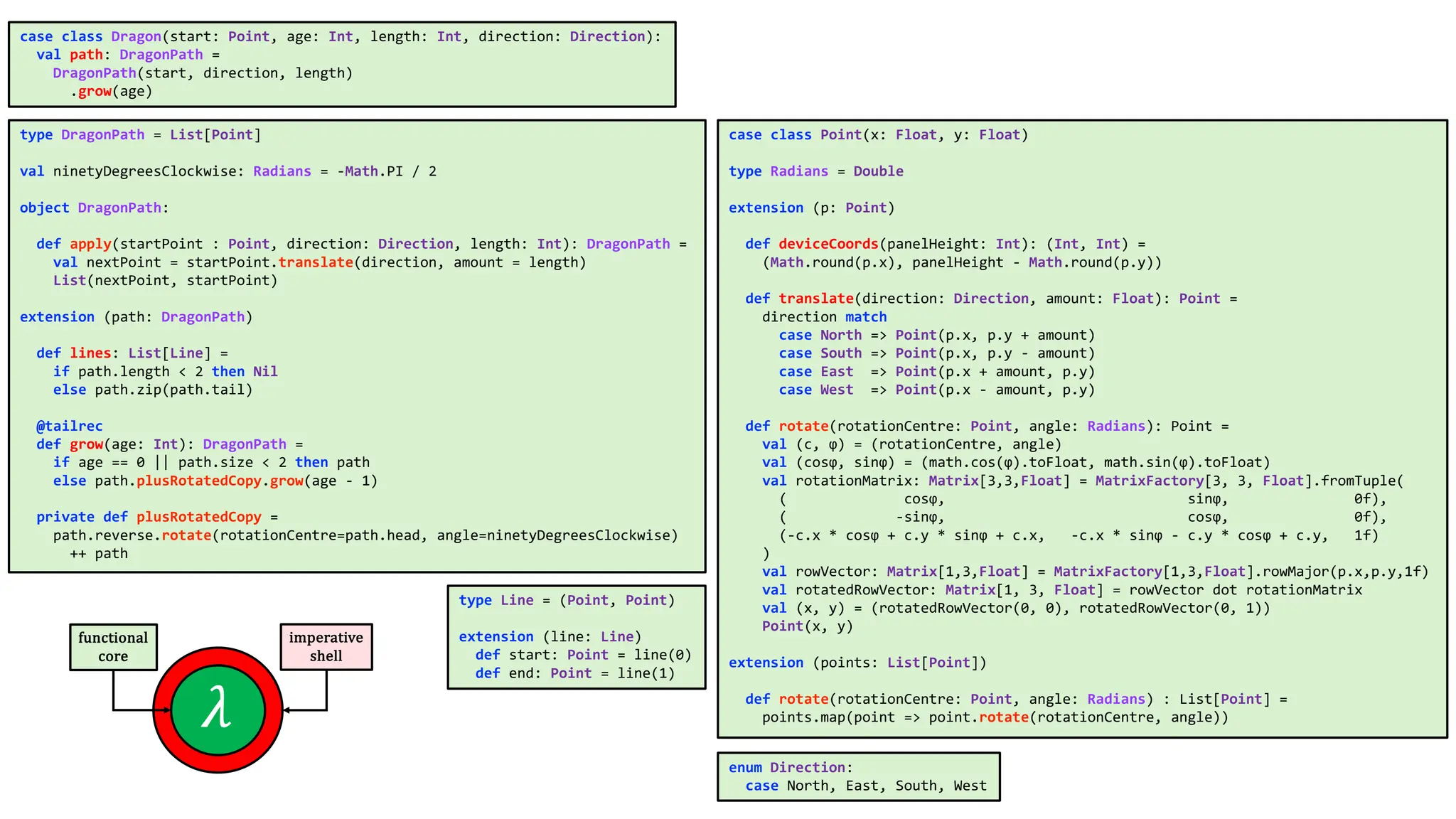

type DragonPath = List[Point]
val ninetyDegreesClockwise: Radians = -Math.PI / 2
object DragonPath:
def apply(startPoint : Point, direction: Direction, length: Int): DragonPath =
val nextPoint = startPoint.translate(direction, amount = length)
List(nextPoint, startPoint)
def lines: List[Line] =
if path.length < 2 then Nil
else path.zip(path.tail)
@tailrec
path.reverse.rotate(rotationCentre=path.head, angle=ninetyDegreesClockwise)
++ path
DragonPath(start, direction, length)
.grow(age)
case class Point(x: Float, y: Float)
type Radians = Double
extension (p: Point)
def deviceCoords(panelHeight: Int): (Int, Int) =
(Math.round(p.x), panelHeight - Math.round(p.y))
def translate(direction: Direction, amount: Float): Point =
direction match
case North => Point(p.x, p.y + amount)
case South => Point(p.x, p.y - amount)
case East => Point(p.x + amount, p.y)
case West => Point(p.x - amount, p.y)
def rotate(rotationCentre: Point, angle: Radians): Point =
val (c, ϕ) = (rotationCentre, angle)
val (cosϕ, sinϕ) = (math.cos(ϕ).toFloat, math.sin(ϕ).toFloat)
val rotationMatrix: Matrix[3,3,Float] = MatrixFactory[3, 3, Float].fromTuple(
( cosϕ, sinϕ, 0f),
( -sinϕ, cosϕ, 0f),
(-c.x * cosϕ + c.y * sinϕ + c.x, -c.x * sinϕ - c.y * cosϕ + c.y, 1f)
)
val rowVector: Matrix[1,3,Float] = MatrixFactory[1,3,Float].rowMajor(p.x,p.y,1f)
val rotatedRowVector: Matrix[1, 3, Float] = rowVector dot rotationMatrix
val (x, y) = (rotatedRowVector(0, 0), rotatedRowVector(0, 1))
Point(x, y)
extension (points: List[Point])
def rotate(rotationCentre: Point, angle: Radians) : List[Point] =
points.map(point => point.rotate(rotationCentre, angle))
type Line = (Point, Point)
extension (line: Line)
def start: Point = line(0)
def end: Point = line(1)
enum Direction:
case North, East, South, West

I hope you enjoyed that.
See you in part three.

Drawing Heighway’s Dragon - Part II - Recursive Function Simplification - From 2^n Recursive Invocations To n Tail-Recursive Invocations Exploiting Self-Similarity

More Related Content

Similar to Drawing Heighway’s Dragon - Part II - Recursive Function Simplification - From 2^n Recursive Invocations To n Tail-Recursive Invocations Exploiting Self-Similarity

More from Philip Schwarz

Recently uploaded

Drawing Heighway’s Dragon - Part II - Recursive Function Simplification - From 2^n Recursive Invocations To n Tail-Recursive Invocations Exploiting Self-Similarity
