Talk on Graph Theory - I

2
Lecture outline
 graph concepts
 vertices, edges, paths
 directed/undirected
 weighting of edges
 cycles and loops
 searching for paths within a graph
 depth-first search
 breadth-first search
 Dijkstra's algorithm
 implementing graphs
 using adjacency lists
 using an adjacency matrix

3
Graphs
 graph: a data structure containing
 a set of vertices V
 a set of edges E, where an edge
represents a connection between 2 vertices
 the graph at right:
 V = {a, b, c}
 E = {(a, b), (b, c), (c, a)}
 Assuming that a graph can only have one edge between a pair of vertices, what is the
maximum number of edges a graph can contain, relative to the size of the vertex set
V?

4
More terminology
 degree: number of edges touching a vertex
 example: W has degree 4
 what is the degree of X? of Z?
 adjacent vertices: connected
directly by an edge
XU
V
W
Z
Y
a
c
b
e
d
f
g
h
i
j

5
Paths
 path: a path from vertex A to B is a sequence of edges that can be
followed starting from A to reach B
 can be represented as vertices visited or edges taken
 example: path from V to Z: {b, h} or {V, X, Z}
 reachability: V1 is reachable
from V2 if a path exists
from V1 to V2
 connected graph: one in
which it's possible to reach
any node from any other
 is this graph connected?
P1
XU
V
W
Z
Y
a
c
b
e
d
f
g
hP2

6

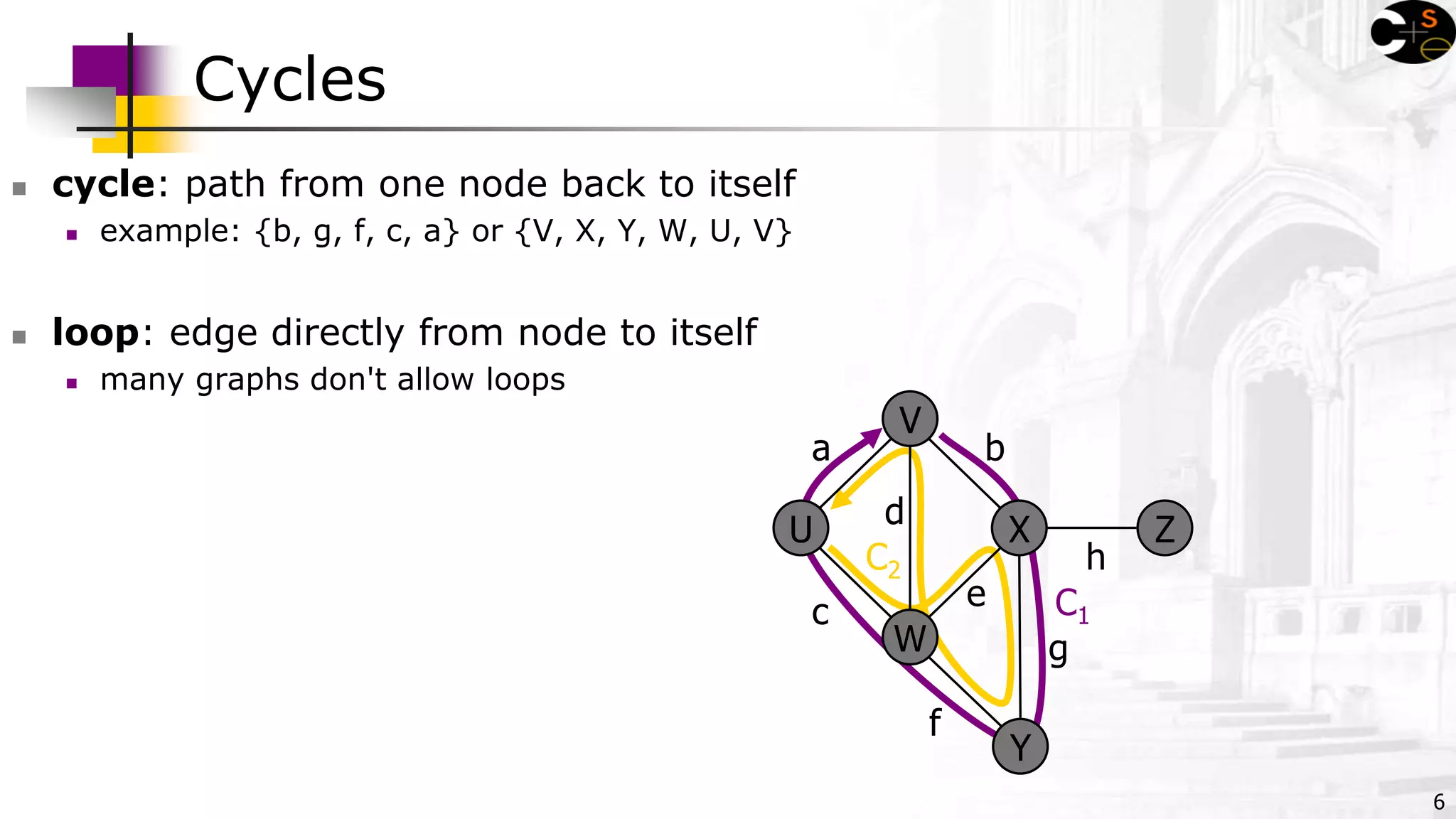

Cycles
 cycle: path from one node back to itself
 example: {b, g, f, c, a} or {V, X, Y, W, U, V}
 loop: edge directly from node to itself
 many graphs don't allow loops
C1
XU
V
W
Z
Y
a
c
b
e
d
f
g
hC2

7
Weighted graphs
 weight: (optional) cost associated with a given edge
 example: graph of airline flights
 vertices: cities (airports) to which the airline flies
 edges: distance between airports in miles
 if we were programming this graph, what information would we have to store for each
vertex / edge?
ORD
PVD
MIA
DFW
SFO
LAX
LGA
HNL

8
Directed graphs
 directed graph (digraph): edges are one-way connections between
vertices
 if graph is directed, a vertex has a separate in/out degree

9
Graph questions
 Are the following graphs directed or not directed?
 Buddy graphs of instant messaging programs?
(vertices = users, edges = user being on another's buddy list)
 bus line graph depicting all of Seattle's bus stations and routes
 graph of the main backbone servers
on the internet
 graph of movies in which actors
have appeared together
 Are these graphs potentially cyclic?
Why or why not?
John
David
Paul
brown.edu
cox.net
cs.brown.edu
att.net
qwest.net
math.brown.edu
cslab1bcslab1a

10
Graph exercise
 Consider a graph of instant messenger buddies.
 What do the vertices represent? What does an edge represent?
 Is this graph directed or undirected? Weighted or unweighted?
 What does a vertex's degree mean? In degree? Out degree?
 Can the graph contain loops? cycles?
 Consider this graph data:
 Marty's buddy list: Mike, Sarah, Amanda.
 Mike's buddy list: Sarah, Emily.
 David's buddy list: Emily, Mike.
 Amanda's buddy list: Emily, Mike.
 Sarah's buddy list: Amanda, Marty.
 Emily's buddy list: Mike.
 Compute the in/out degree of each vertex. Is the graph connected?
 Who is the most popular? Least? Who is the most antisocial?
 If we're having a party and want to distribute the message the most quickly, who should we tell
first?

11
Depth-first search
 depth-first search (DFS): finds a path between two vertices by exploring
each possible path as many steps as possible before backtracking
 often implemented recursively

12

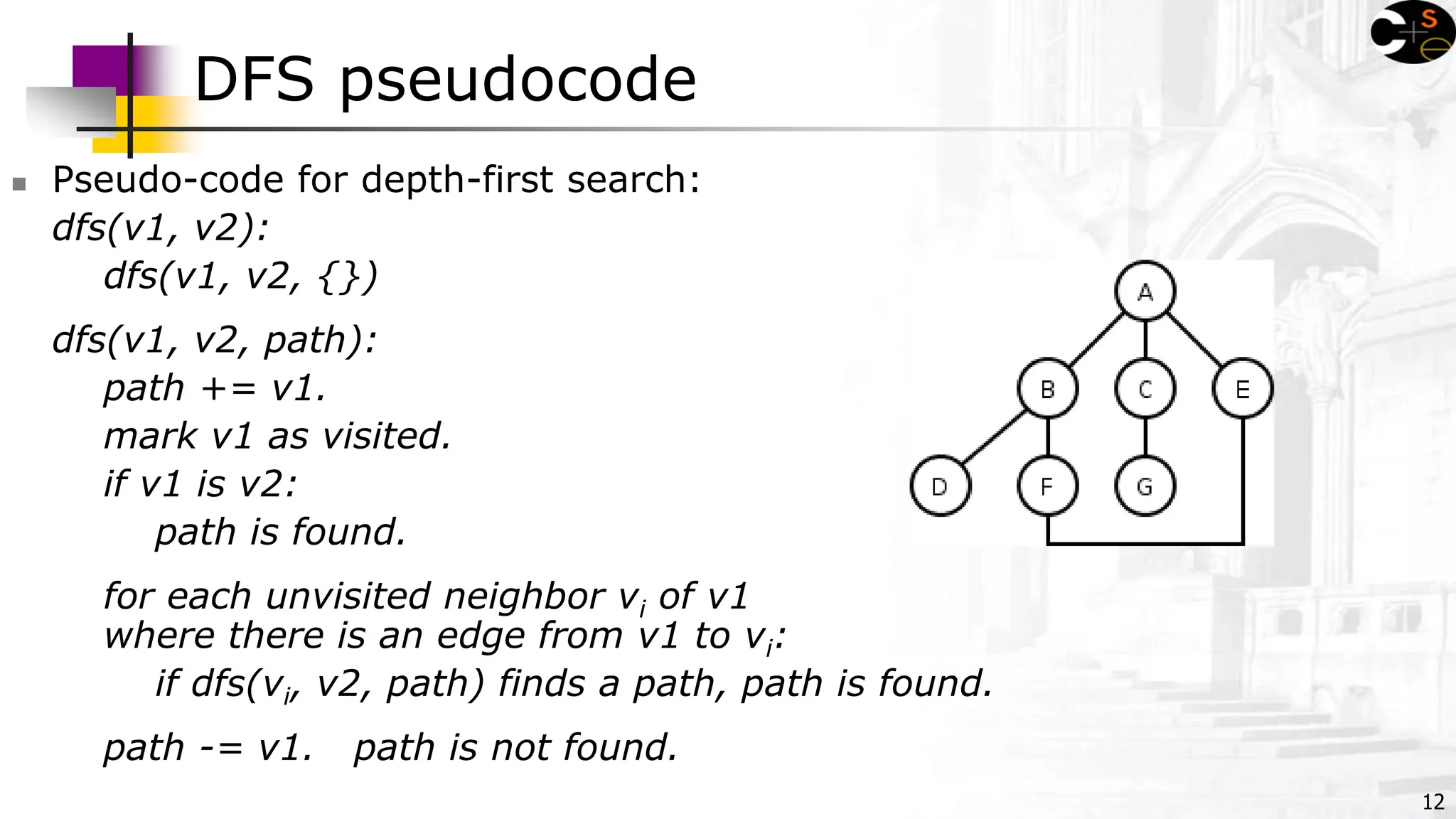

DFS pseudocode
 Pseudo-code for depth-first search:
dfs(v1, v2):
dfs(v1, v2, {})
dfs(v1, v2, path):
path += v1.
mark v1 as visited.
if v1 is v2:
path is found.
for each unvisited neighbor vi of v1
where there is an edge from v1 to vi:
if dfs(vi, v2, path) finds a path, path is found.
path -= v1. path is not found.

13
DFS example
 Paths tried from A to others (assumes ABC edge order)
 A
 A -> B
 A -> B -> D
 A -> B -> F
 A -> B -> F -> E
 A -> C
 A -> C -> G
 A -> E
 A -> E -> F
 A -> E -> F -> B
 A -> E -> F -> B -> D
 What paths would DFS return from D to each vertex?

14

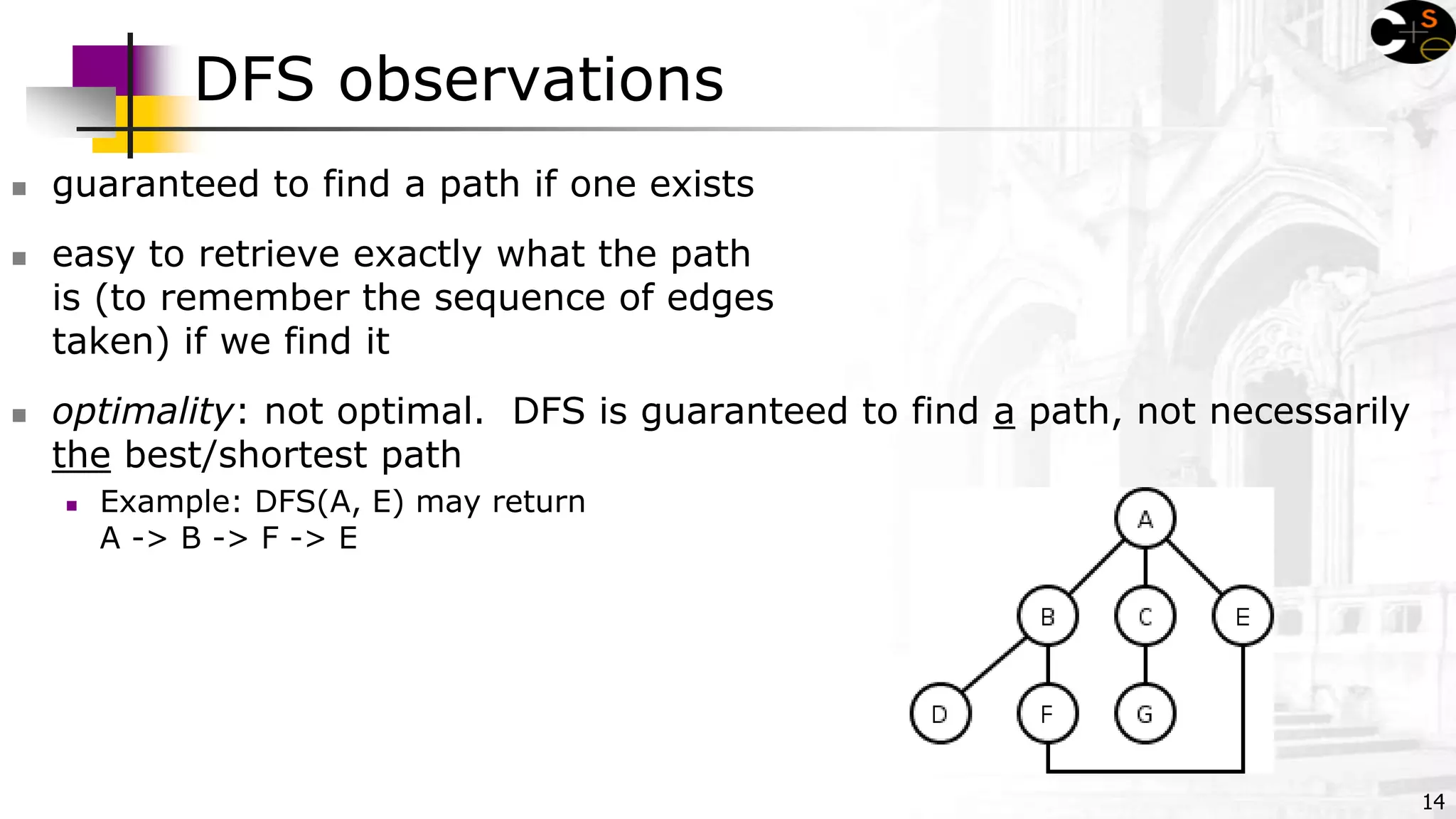

DFS observations
 guaranteed to find a path if one exists
 easy to retrieve exactly what the path
is (to remember the sequence of edges
taken) if we find it
 optimality: not optimal. DFS is guaranteed to find a path, not necessarily
the best/shortest path
 Example: DFS(A, E) may return
A -> B -> F -> E

15

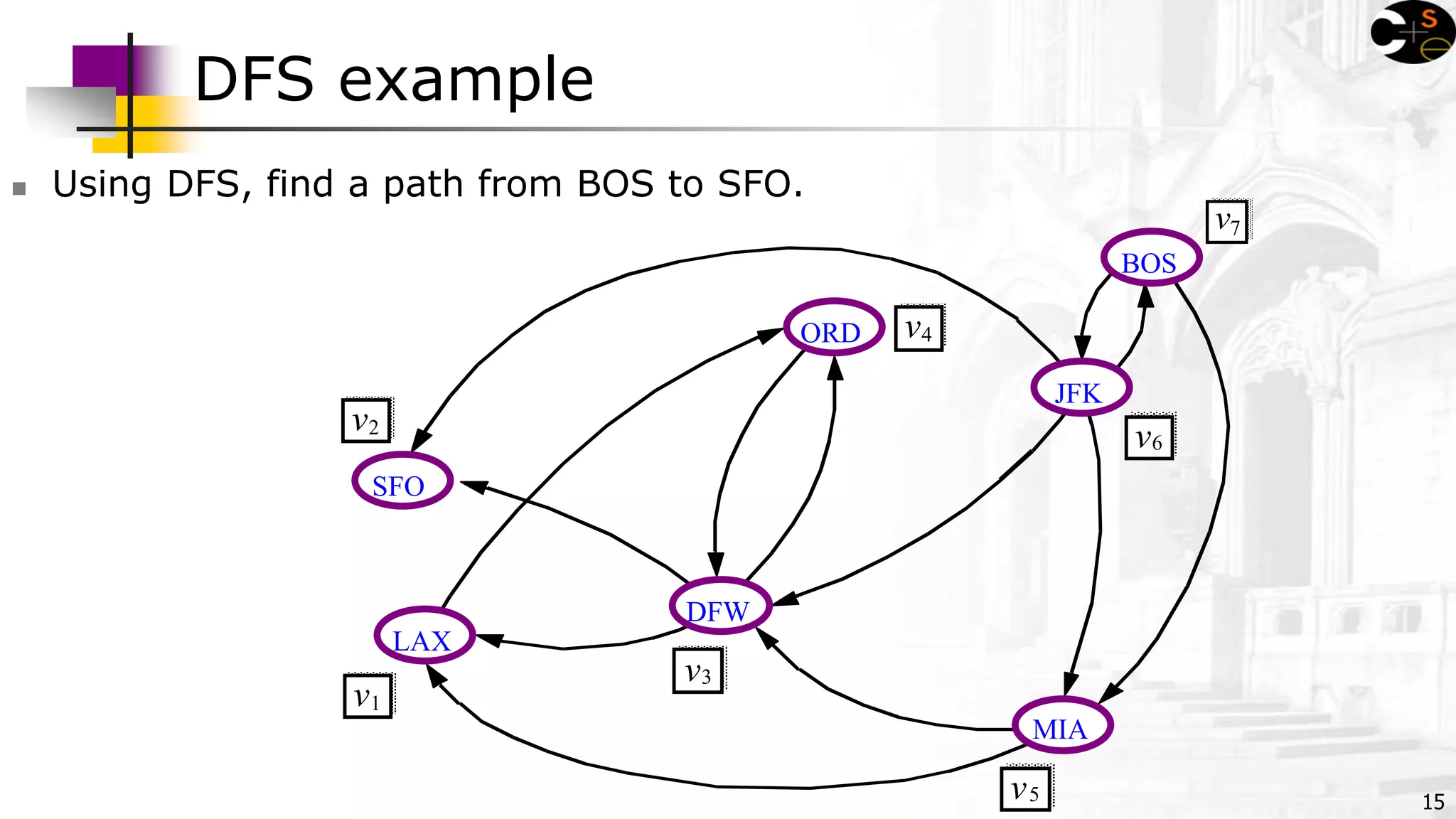

DFS example
 Using DFS, find a path from BOS to SFO.
JFK
BOS
MIA
ORD
LAX
DFW
SFO
v2
v1
v3
v4
v5
v6
v7

16

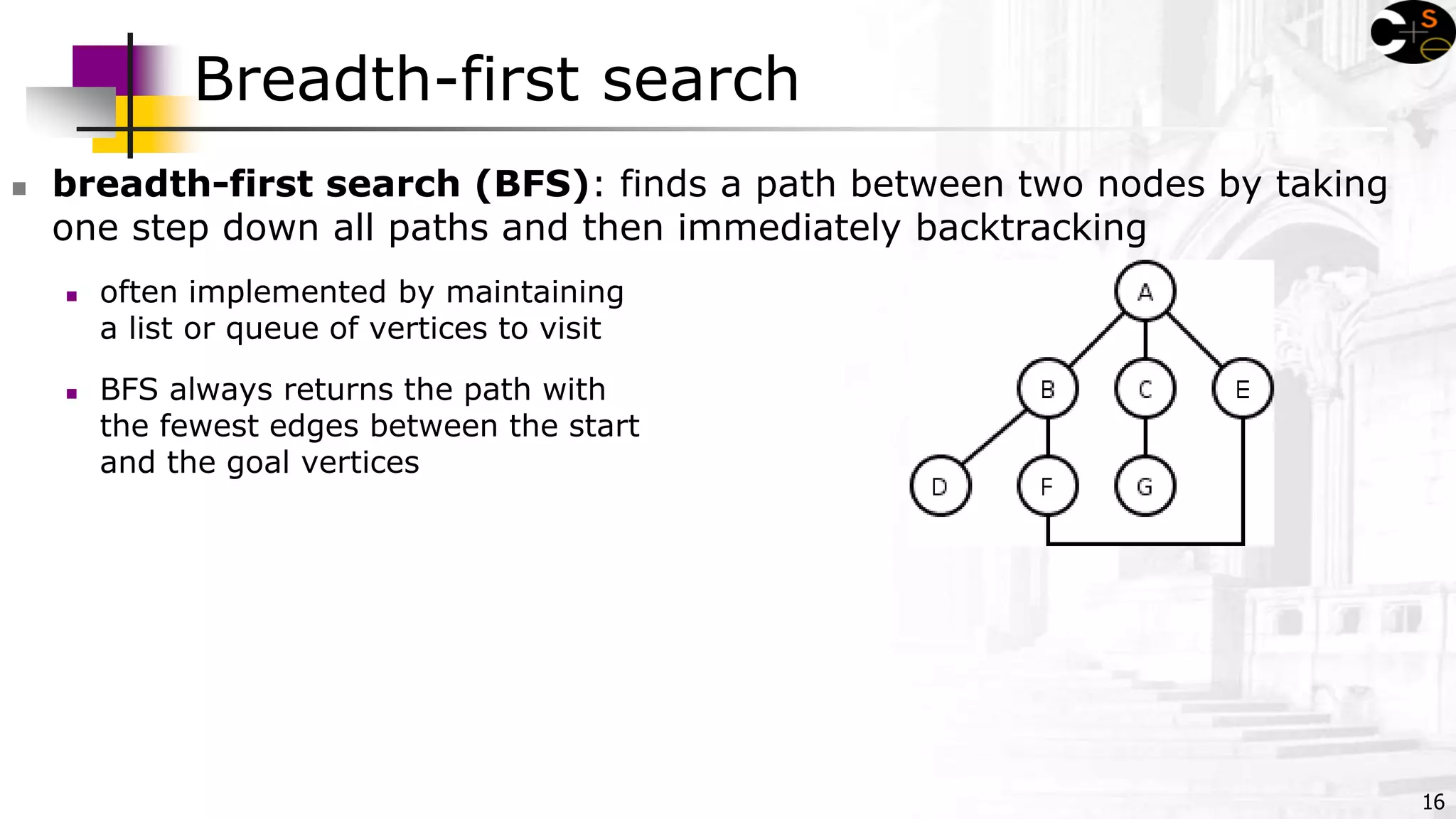

Breadth-first search
 breadth-first search (BFS): finds a path between two nodes by taking
one step down all paths and then immediately backtracking
 often implemented by maintaining
a list or queue of vertices to visit
 BFS always returns the path with
the fewest edges between the start
and the goal vertices

17

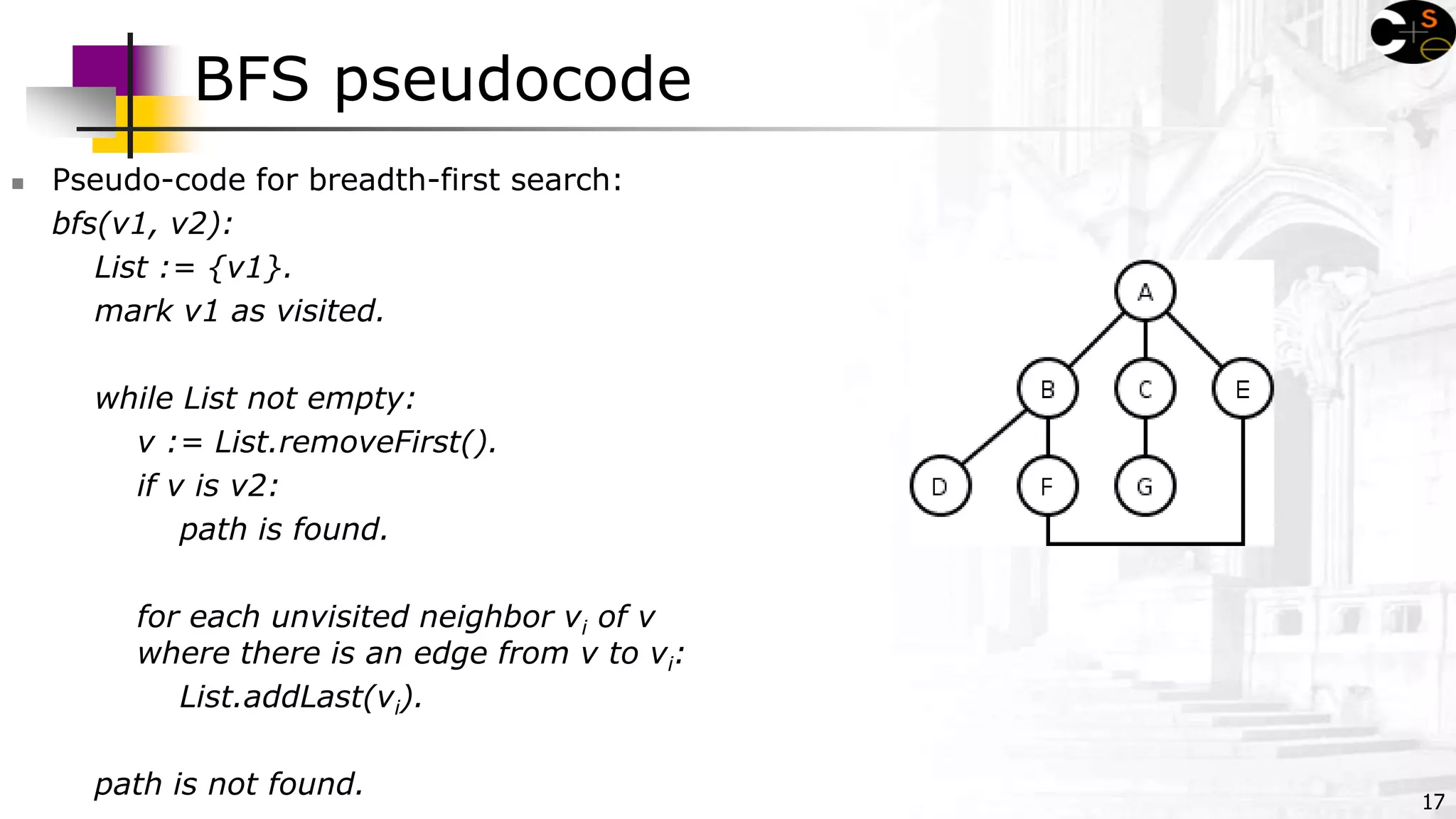

BFS pseudocode
 Pseudo-code for breadth-first search:
bfs(v1, v2):
List := {v1}.
mark v1 as visited.
while List not empty:
v := List.removeFirst().
if v is v2:
path is found.
for each unvisited neighbor vi of v
where there is an edge from v to vi:
List.addLast(vi).
path is not found.

18

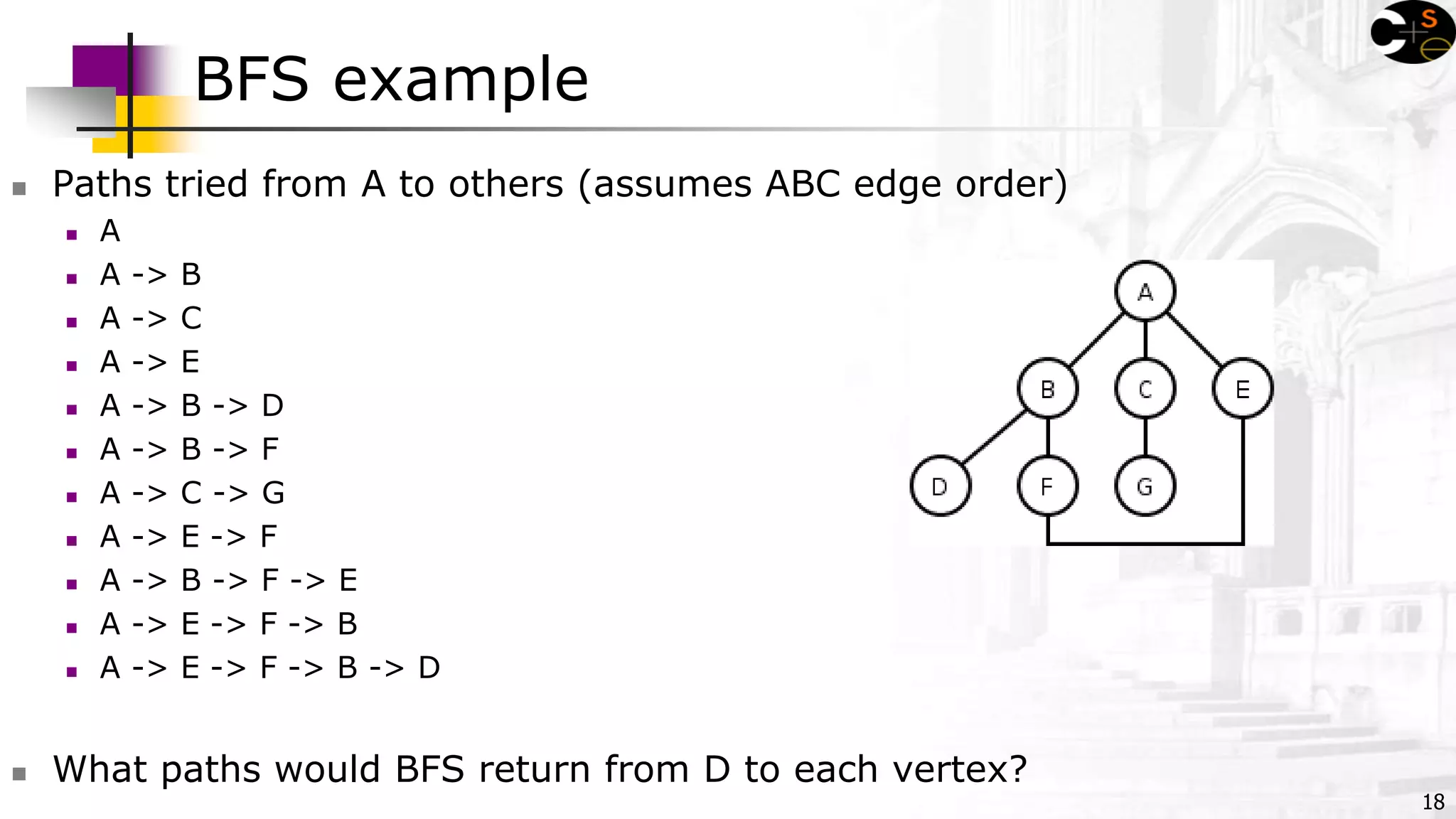

BFS example
 Paths tried from A to others (assumes ABC edge order)
 A
 A -> B
 A -> C
 A -> E
 A -> B -> D
 A -> B -> F
 A -> C -> G
 A -> E -> F
 A -> B -> F -> E
 A -> E -> F -> B
 A -> E -> F -> B -> D
 What paths would BFS return from D to each vertex?

19

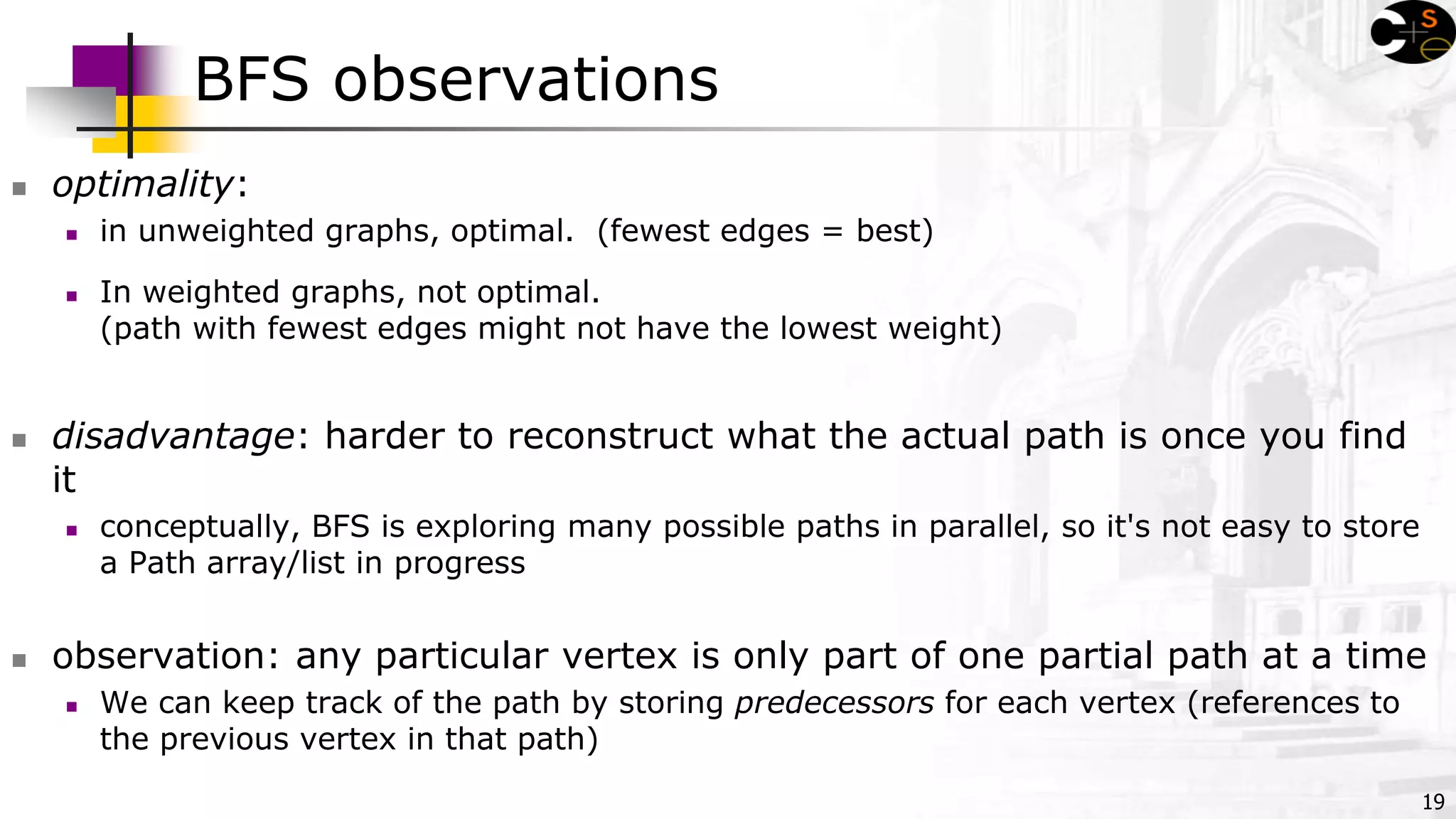

BFS observations
 optimality:
 in unweighted graphs, optimal. (fewest edges = best)
 In weighted graphs, not optimal.
(path with fewest edges might not have the lowest weight)
 disadvantage: harder to reconstruct what the actual path is once you find
it
 conceptually, BFS is exploring many possible paths in parallel, so it's not easy to store
a Path array/list in progress
 observation: any particular vertex is only part of one partial path at a time
 We can keep track of the path by storing predecessors for each vertex (references to
the previous vertex in that path)

20
BFS example
 Using BFS, find a path from BOS to SFO.
JFK
BOS
MIA
ORD
LAX
DFW
SFO
v2
v1
v3
v4
v5
v6
v7

21

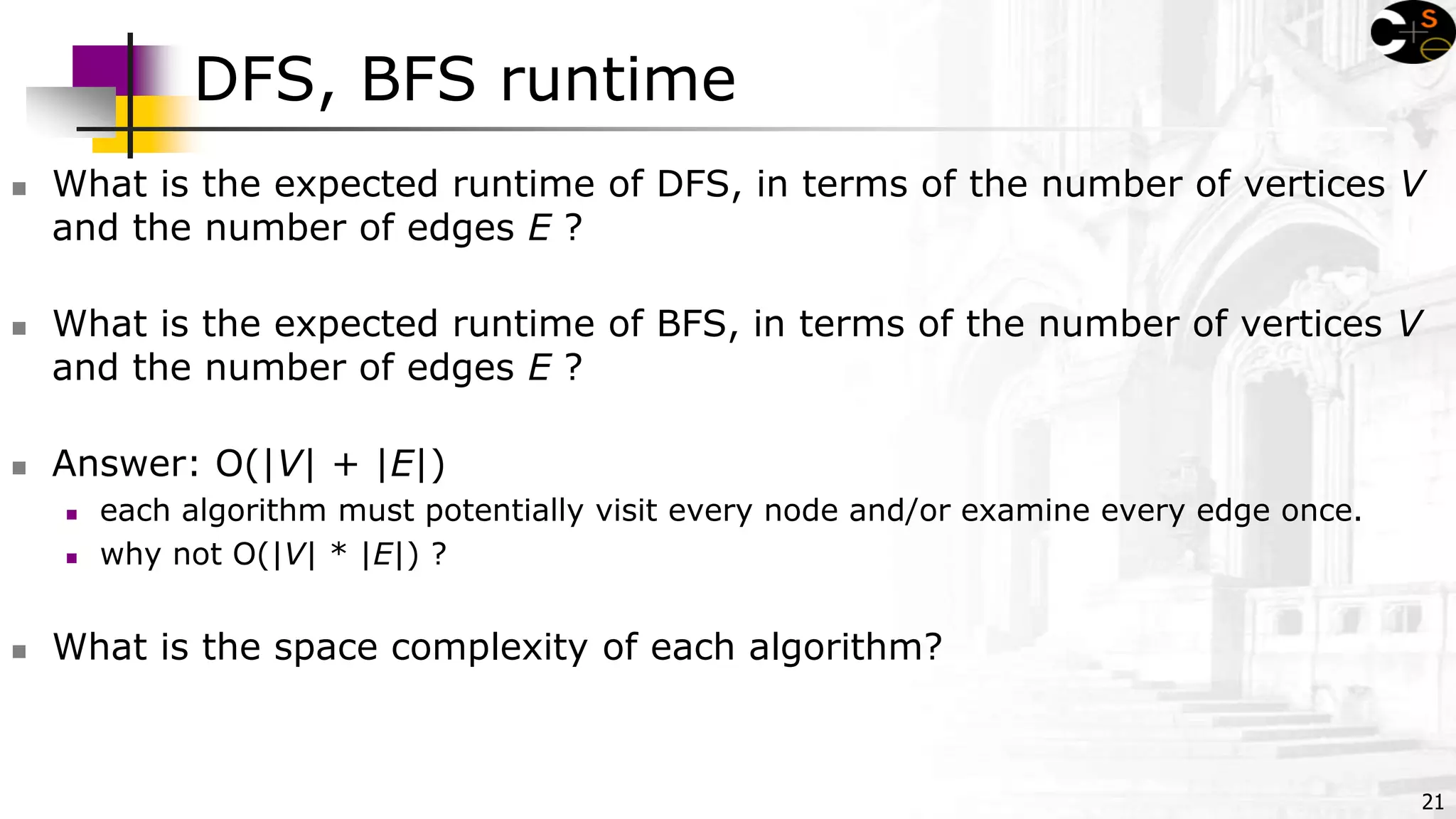

DFS, BFS runtime
 What is the expected runtime of DFS, in terms of the number of vertices V
and the number of edges E ?
 What is the expected runtime of BFS, in terms of the number of vertices V
and the number of edges E ?
 Answer: O(|V| + |E|)
 each algorithm must potentially visit every node and/or examine every edge once.
 why not O(|V| * |E|) ?
 What is the space complexity of each algorithm?

23

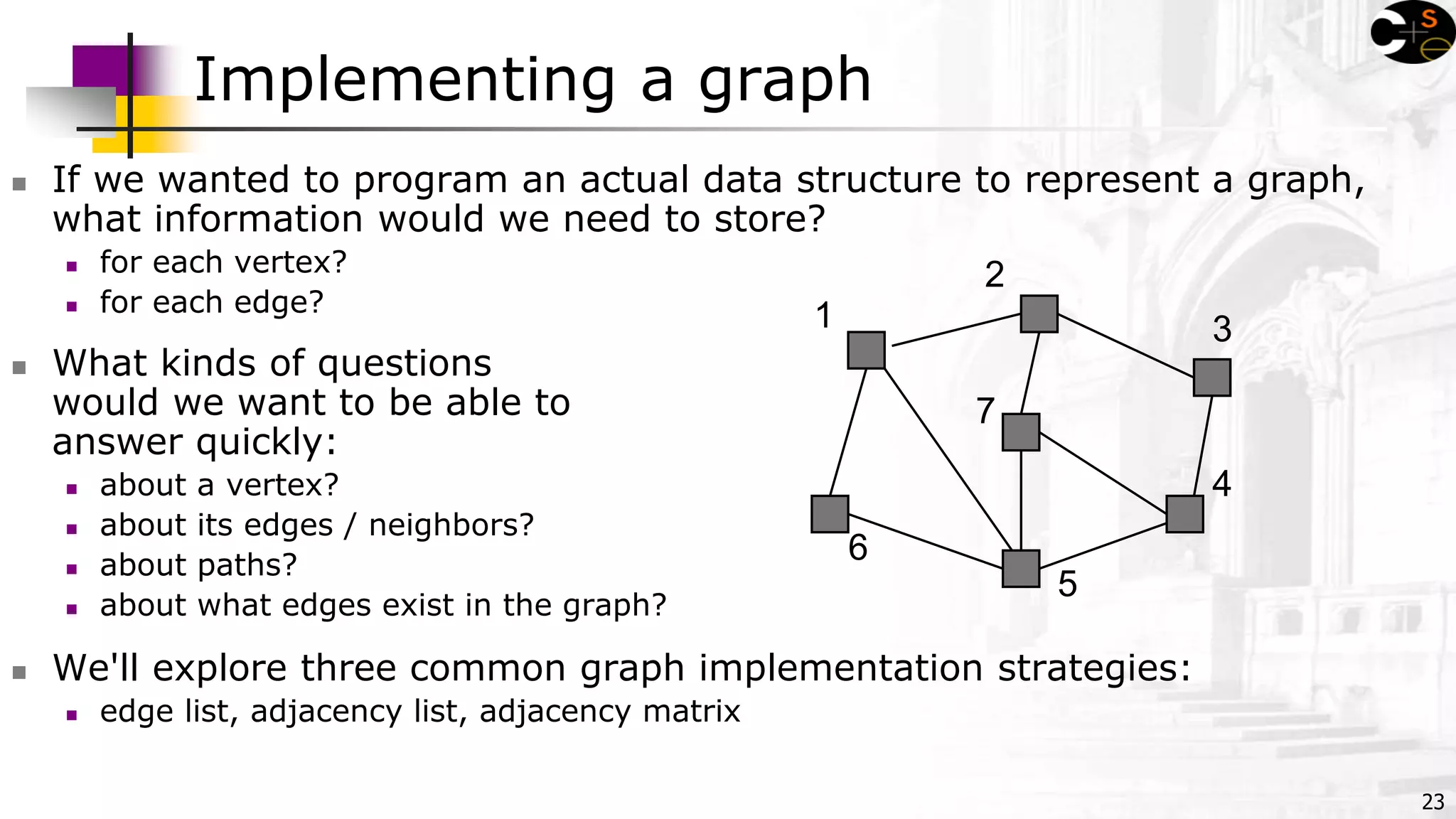

Implementing a graph
 If we wanted to program an actual data structure to represent a graph,
what information would we need to store?
 for each vertex?
 for each edge?
 What kinds of questions
would we want to be able to
answer quickly:
 about a vertex?
 about its edges / neighbors?
 about paths?
 about what edges exist in the graph?
 We'll explore three common graph implementation strategies:
 edge list, adjacency list, adjacency matrix
1
2
3
4
5
6
7

24

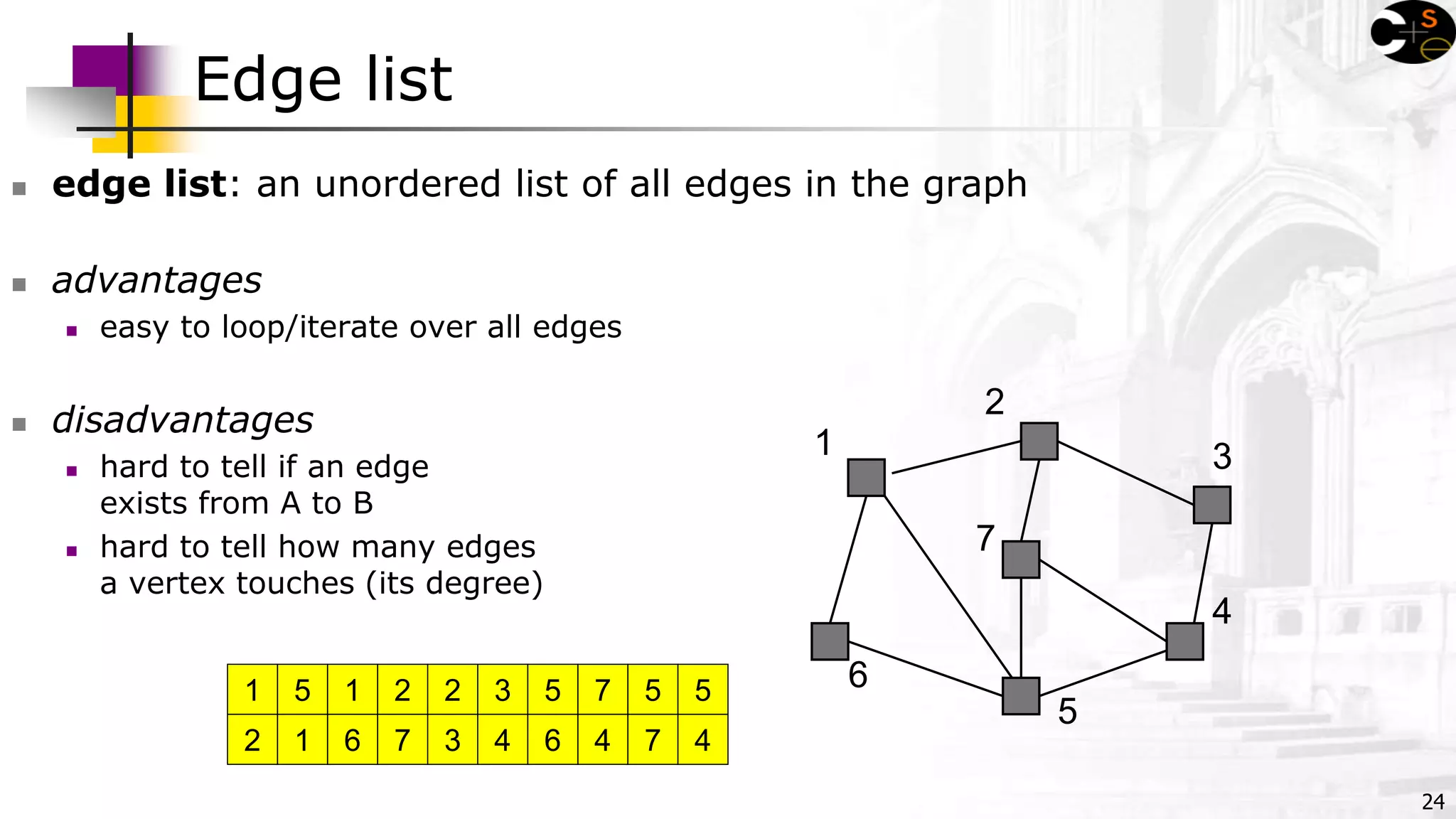

Edge list
 edge list: an unordered list of all edges in the graph
 advantages
 easy to loop/iterate over all edges
 disadvantages
 hard to tell if an edge
exists from A to B
 hard to tell how many edges
a vertex touches (its degree)
1
2
5
1
1
6
2
7
2
3
3
4
7
4
5
6
5
7
5
4
1
2
3
4
5
6
7

25

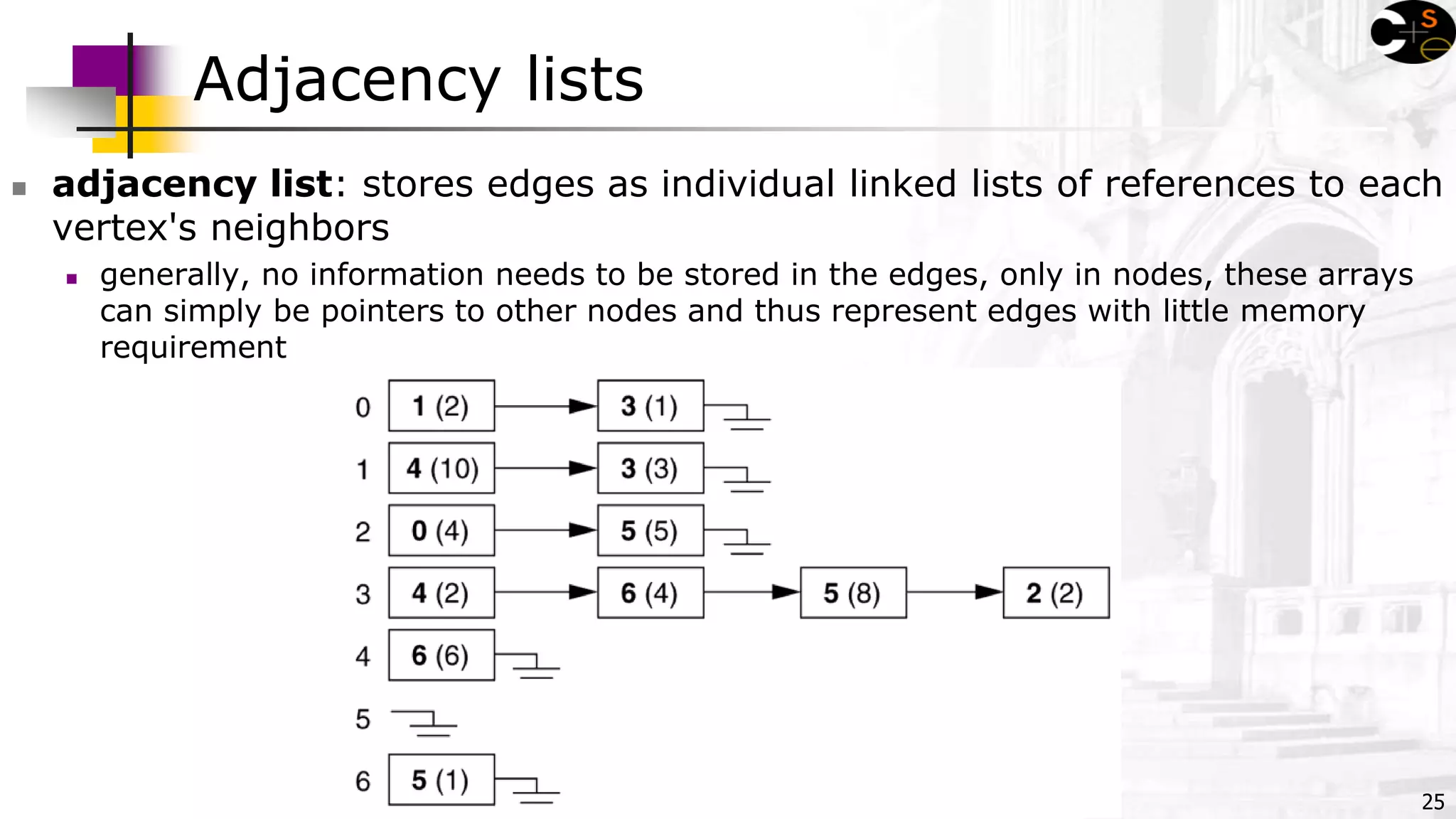

Adjacency lists
 adjacency list: stores edges as individual linked lists of references to each
vertex's neighbors
 generally, no information needs to be stored in the edges, only in nodes, these arrays
can simply be pointers to other nodes and thus represent edges with little memory
requirement

26

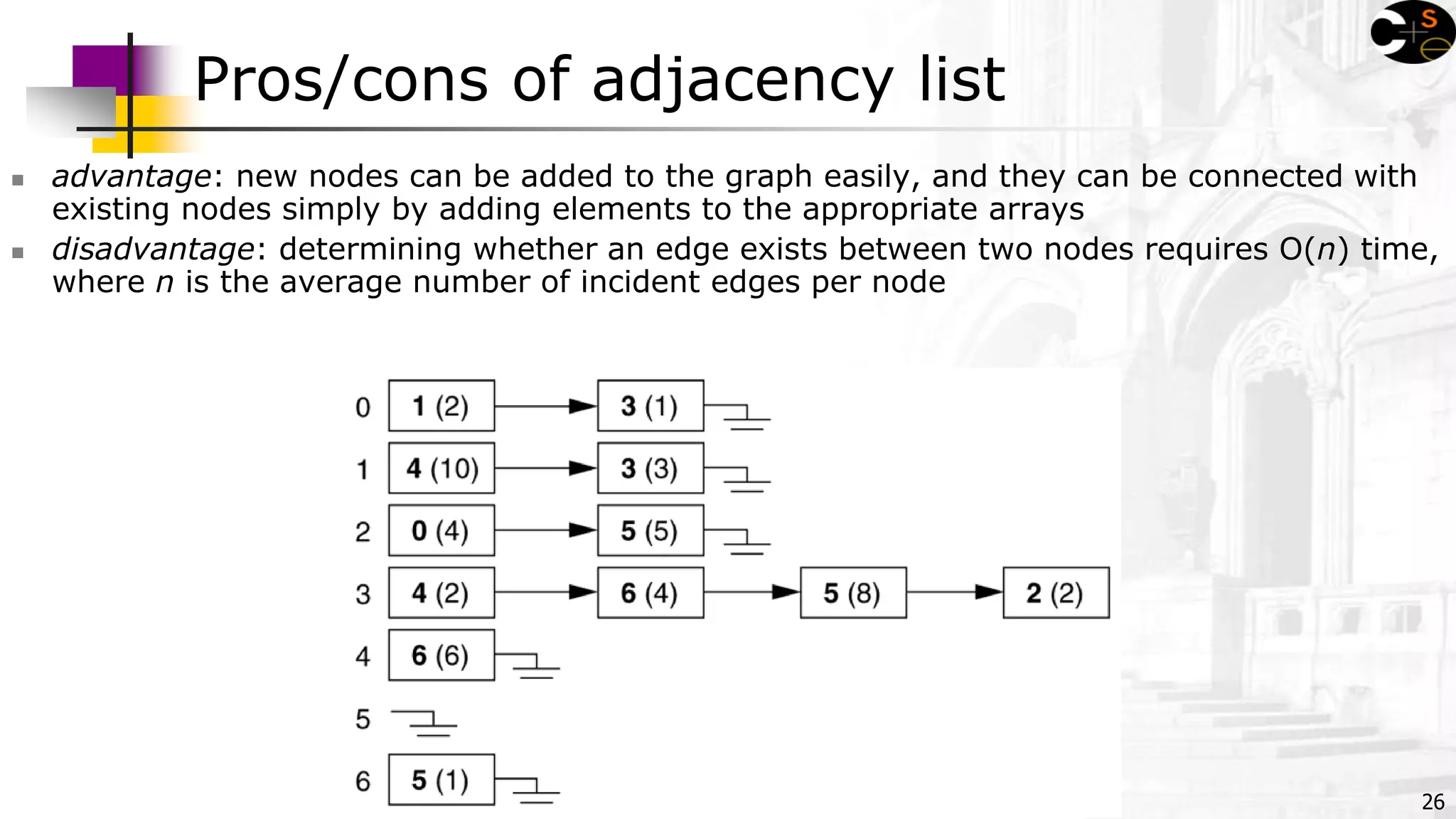

Pros/cons of adjacency list
 advantage: new nodes can be added to the graph easily, and they can be connected with
existing nodes simply by adding elements to the appropriate arrays
 disadvantage: determining whether an edge exists between two nodes requires O(n) time,
where n is the average number of incident edges per node

27

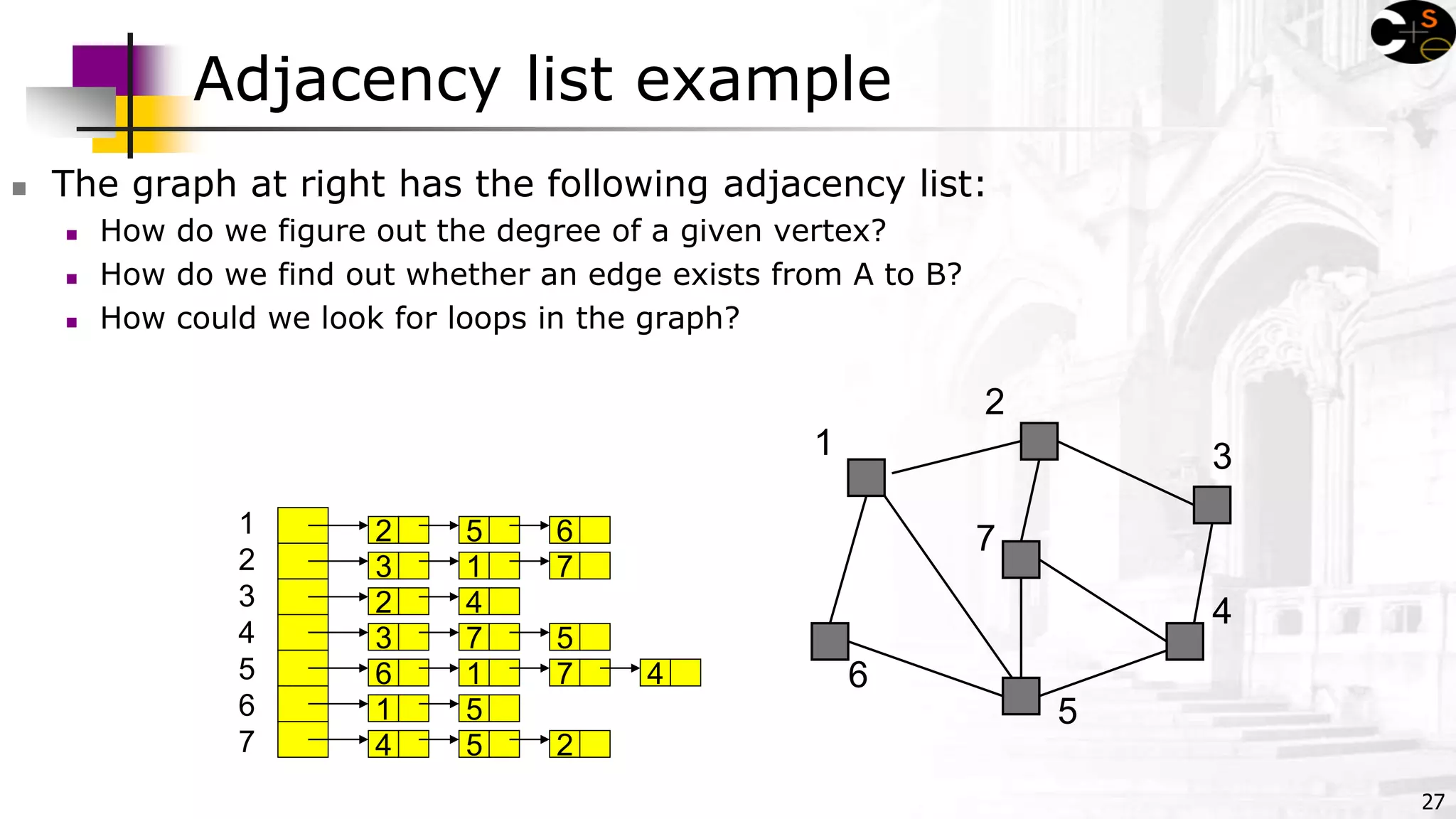

Adjacency list example
 The graph at right has the following adjacency list:
 How do we figure out the degree of a given vertex?
 How do we find out whether an edge exists from A to B?
 How could we look for loops in the graph?
1
2
3
4
5
6
71
2
3
4
5
6
7
2 5 6
3 1 7
2 4
3 7 5
6 1 7 4
1 5
4 5 2

28

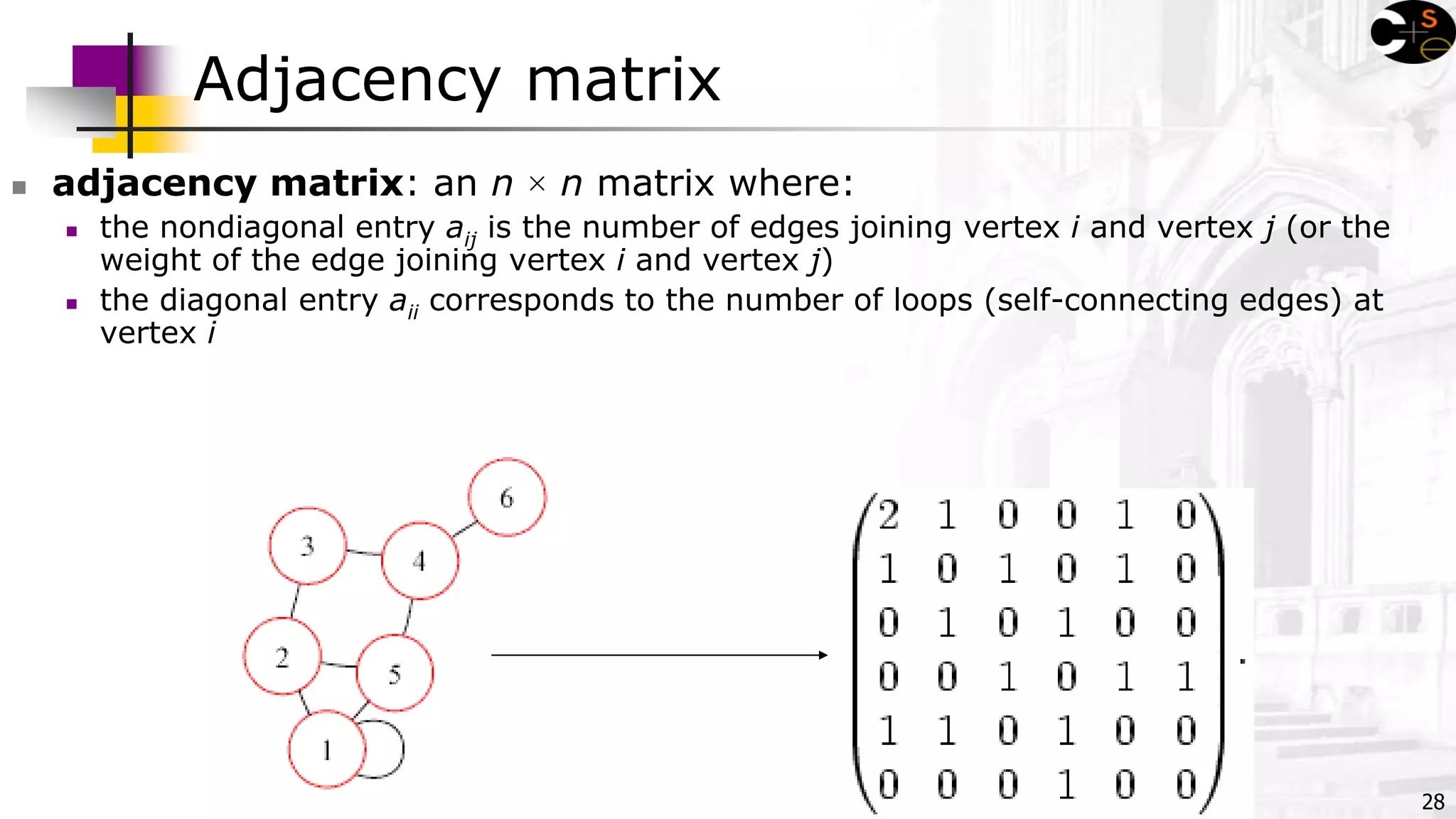

Adjacency matrix
 adjacency matrix: an n × n matrix where:
 the nondiagonal entry aij is the number of edges joining vertex i and vertex j (or the
weight of the edge joining vertex i and vertex j)
 the diagonal entry aii corresponds to the number of loops (self-connecting edges) at
vertex i

29
Pros/cons of Adj. matrix
 advantage: fast to tell whether edge exists between any two vertices i and
j (and to get its weight)
 disadvantage: consumes a lot of memory on sparse graphs (ones with few
edges)

30
Adjacency matrix example
 The graph at right has the following adjacency matrix:
 How do we figure out the degree of a given vertex?
 How do we find out whether an edge exists from A to B?
 How could we look for loops in the graph?
1
2
3
4
5
6
70
1
0
0
1
1
0
1
2
3
4
5
6
7
1
0
1
0
0
0
1
0
1
0
1
0
0
0
0
0
1
0
1
0
1
1
0
0
1
0
1
1
1
0
0
0
1
0
0
0
1
0
1
1
0
0
1 2 3 4 5 6 7

31

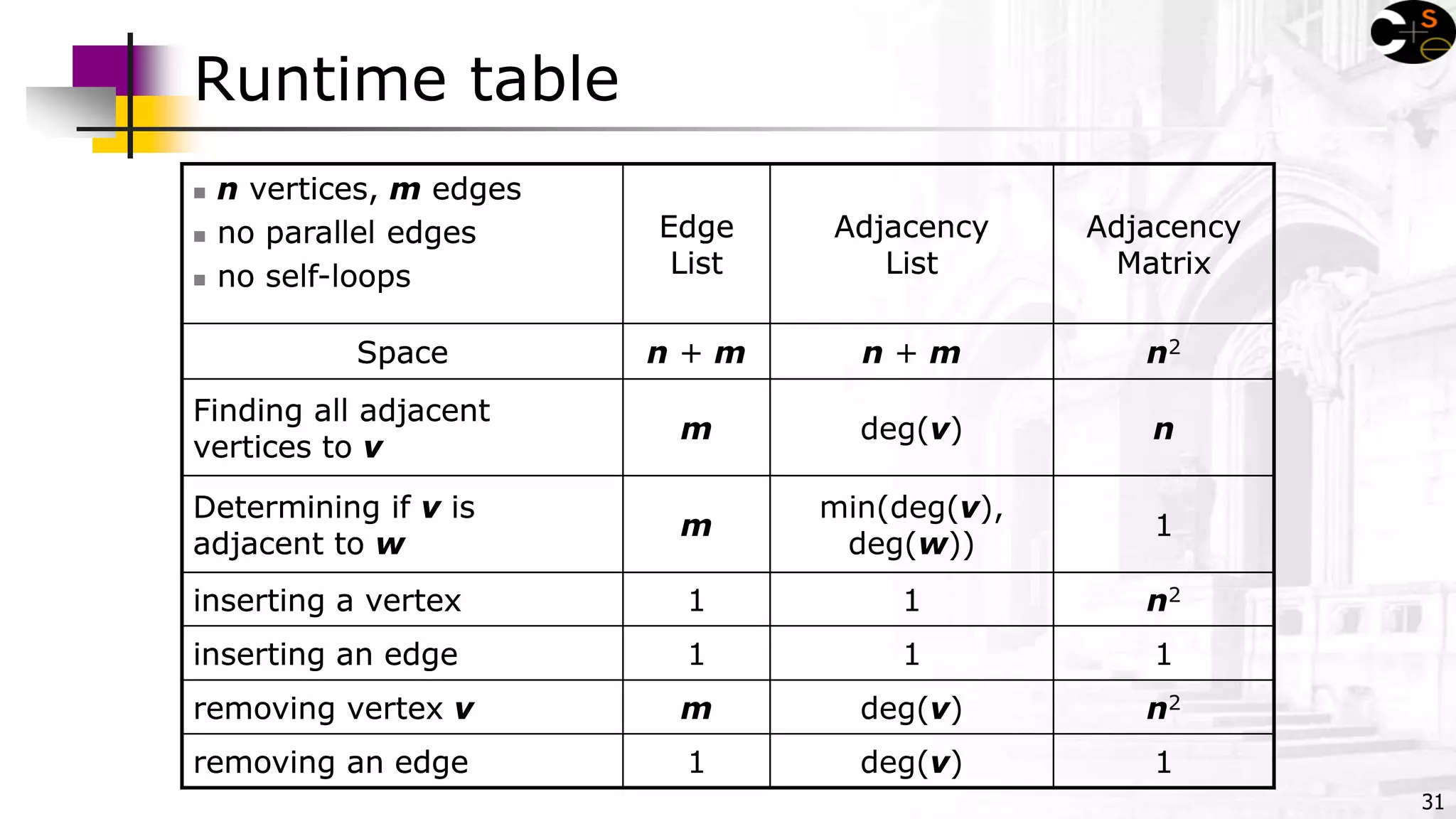

Runtime table
 n vertices, m edges
 no parallel edges
 no self-loops
Edge
List
Adjacency
List
Adjacency
Matrix
Space
Finding all adjacent
vertices to v
Determining if v is
adjacent to w
inserting a vertex
inserting an edge
removing vertex v
removing an edge
 n vertices, m edges
 no parallel edges
 no self-loops
Edge
List
Adjacency
List
Adjacency
Matrix
Space n + m n + m n2
Finding all adjacent
vertices to v
m deg(v) n
Determining if v is
adjacent to w
m
min(deg(v),
deg(w))
1
inserting a vertex 1 1 n2
inserting an edge 1 1 1
removing vertex v m deg(v) n2
removing an edge 1 deg(v) 1

32
0
1
0
1
2
3
1
0
1
0
1
0
0
0
1
1
0
0
1
0
0
0
1
0
1 2 3 4 5 6 7

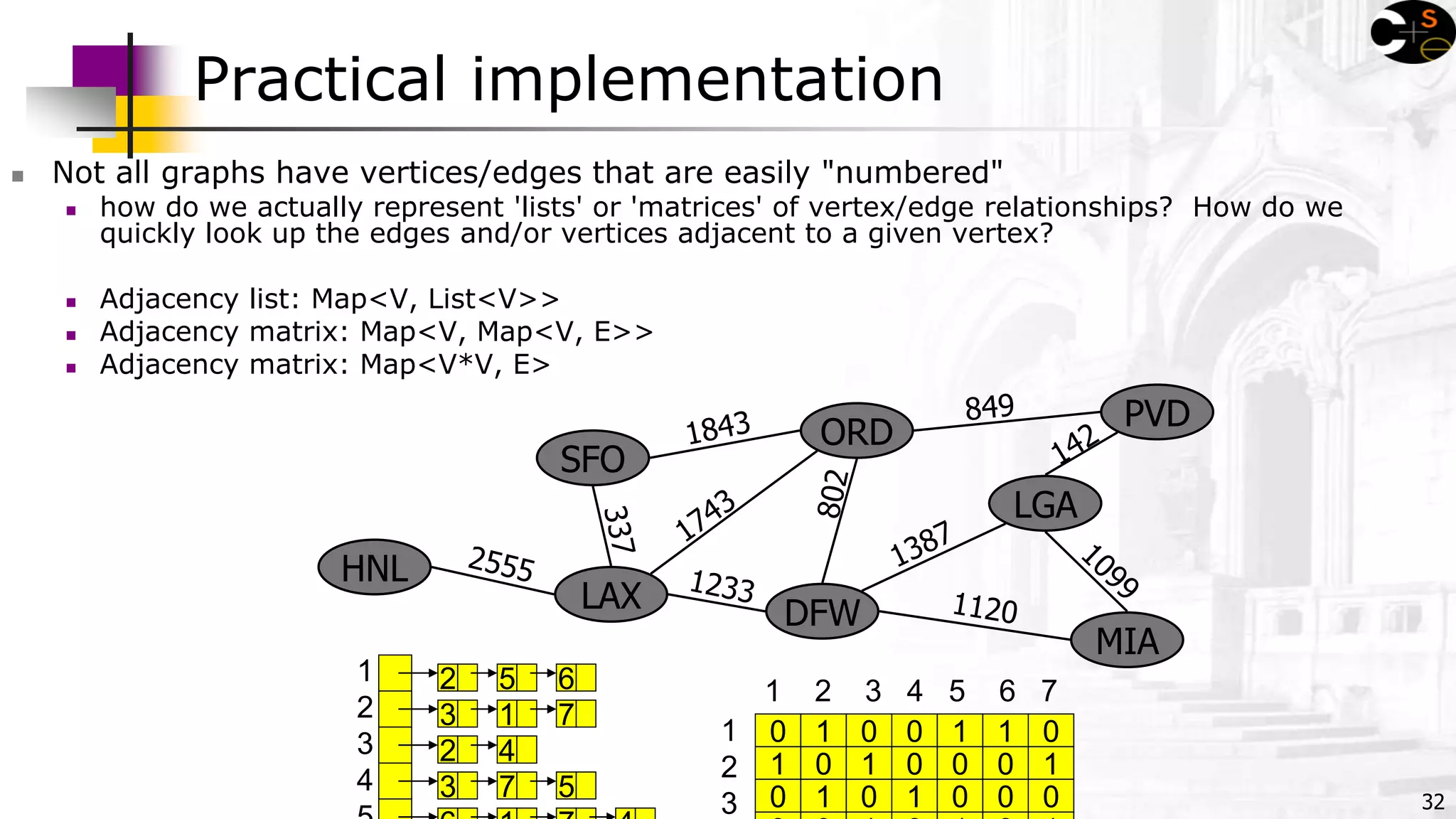

Practical implementation
 Not all graphs have vertices/edges that are easily "numbered"
 how do we actually represent 'lists' or 'matrices' of vertex/edge relationships? How do we
quickly look up the edges and/or vertices adjacent to a given vertex?
 Adjacency list: Map<V, List<V>>
 Adjacency matrix: Map<V, Map<V, E>>
 Adjacency matrix: Map<V*V, E>
ORD
PVD
MIA
DFW
SFO
LAX
LGA
HNL
1
2
3
4
2 5 6
3 1 7
2 4
3 7 5

33
Maps and sets within graphs
since not all vertices can be numbered, we can use:
1. adjacency map
 each Vertex maps to a List of edges or adjacent Vertices
 Vertex --> List of Edges
 to get all edges adjacent to V1, look up
List<Edge> v1neighbors = map.get(V1)
2. adjacency adjacency matrix map
 each Vertex maps to a Hash of adjacent
 Vertex --> (Vertex --> Edge)
 to find out whether there's an edge from V1 to V2, call map.get(V1).containsKey(V2)
 to get the edge from V1 to V2, call map.get(V1).get(V2)

Talk on Graph Theory - I

More Related Content

What's hot

Viewers also liked

Similar to Talk on Graph Theory - I

Recently uploaded

Talk on Graph Theory - I
