  1 CSE 373 Graphs 1:Concepts, Depth/Breadth-First Search reading: Weiss Ch. 9 slides created by Marty Stepp http://www.cs.washington.edu/373/ © University of Washington, all rights reserved.
• 2.
  2 What is agraph? Seattle New York L.A. Tokyo Sydney Seoul 128 140 181 30 16 56
• 3.

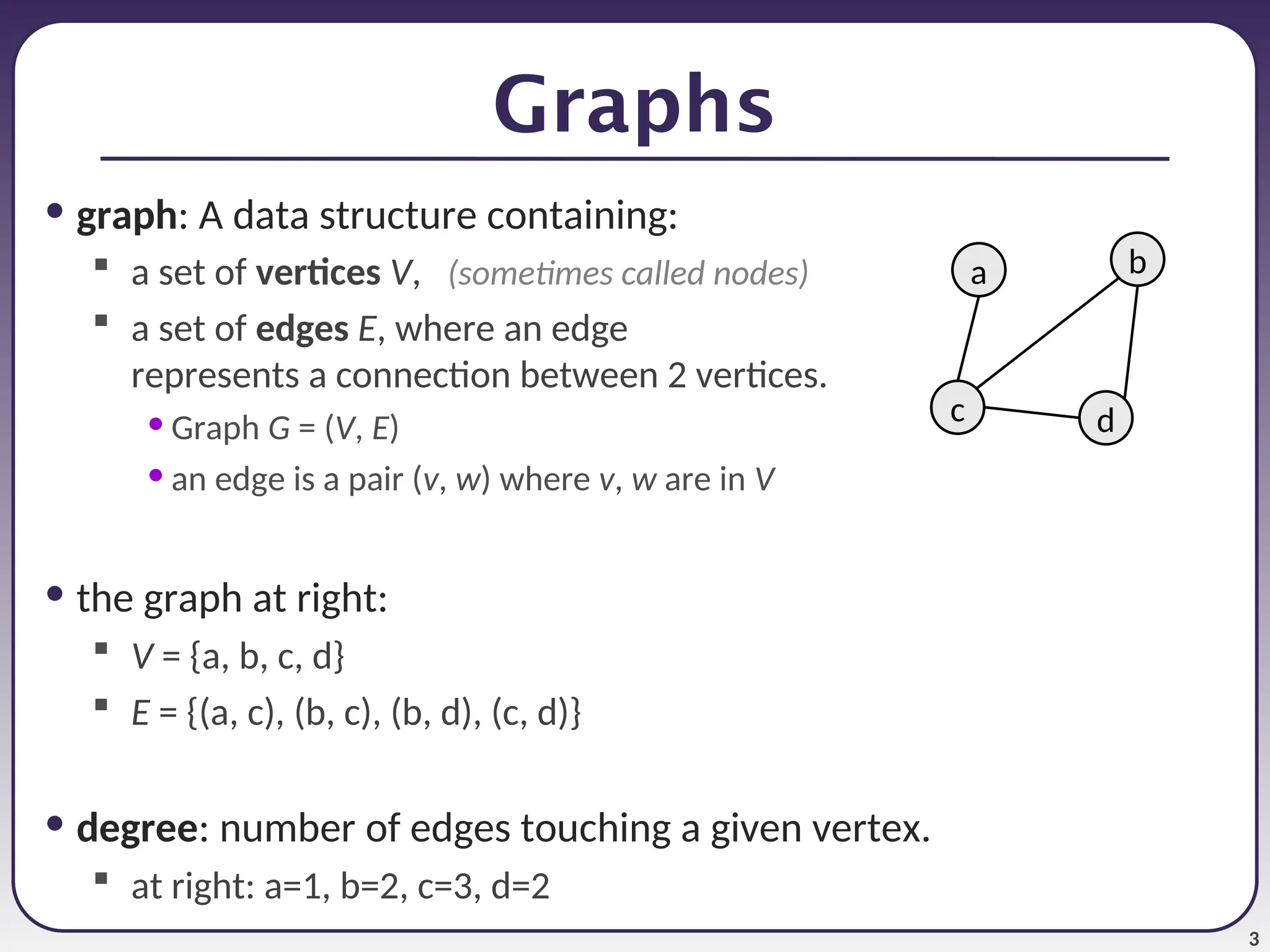

  3 Graphs • graph: Adata structure containing:  a set of vertices V, (sometimes called nodes)  a set of edges E, where an edge represents a connection between 2 vertices. • Graph G = (V, E) • an edge is a pair (v, w) where v, w are in V • the graph at right:  V = {a, b, c, d}  E = {(a, c), (b, c), (b, d), (c, d)} • degree: number of edges touching a given vertex.  at right: a=1, b=2, c=3, d=2 a c b d
• 4.

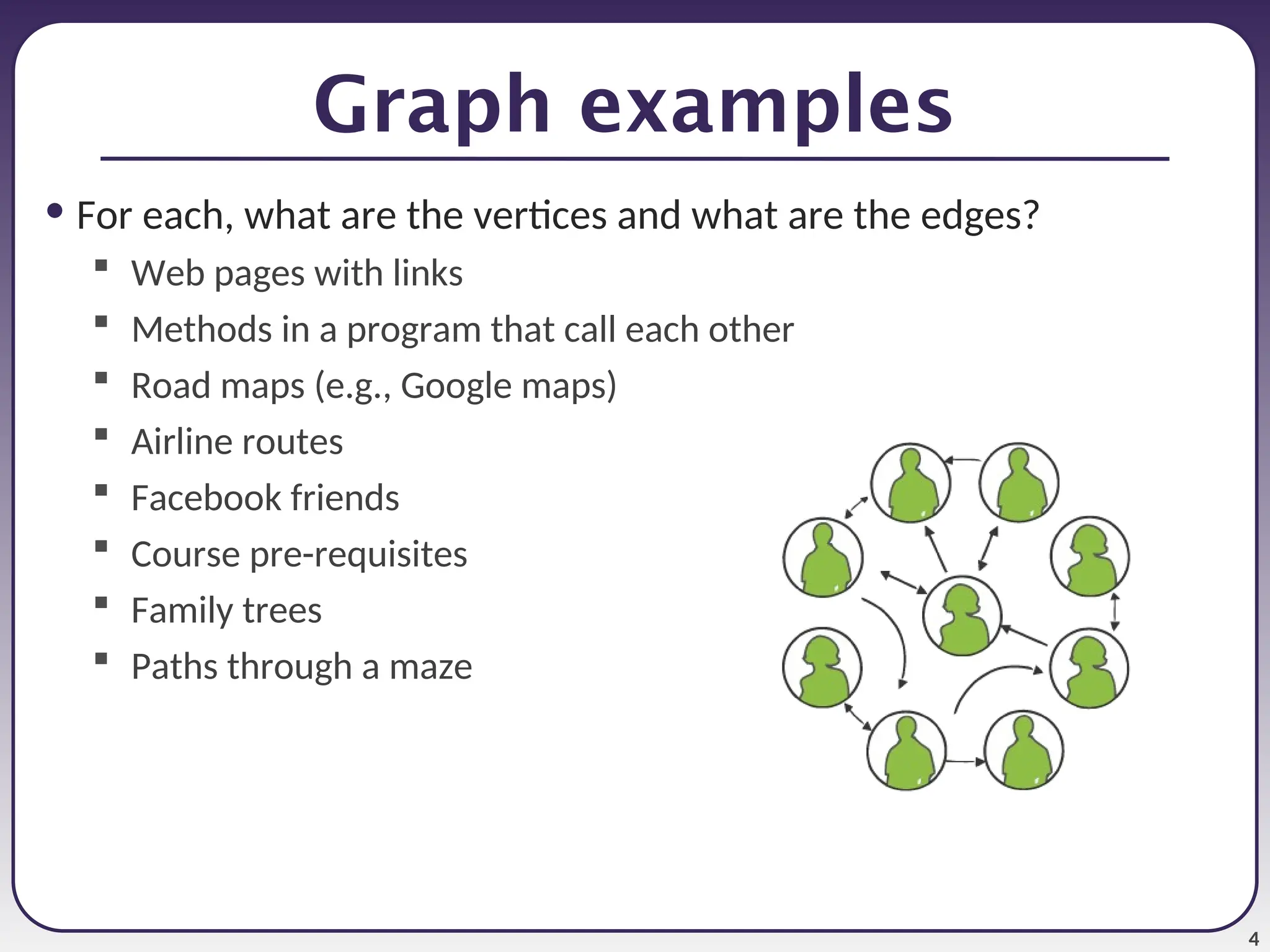

  4 Graph examples • Foreach, what are the vertices and what are the edges?  Web pages with links  Methods in a program that call each other  Road maps (e.g., Google maps)  Airline routes  Facebook friends  Course pre-requisites  Family trees  Paths through a maze
• 5.

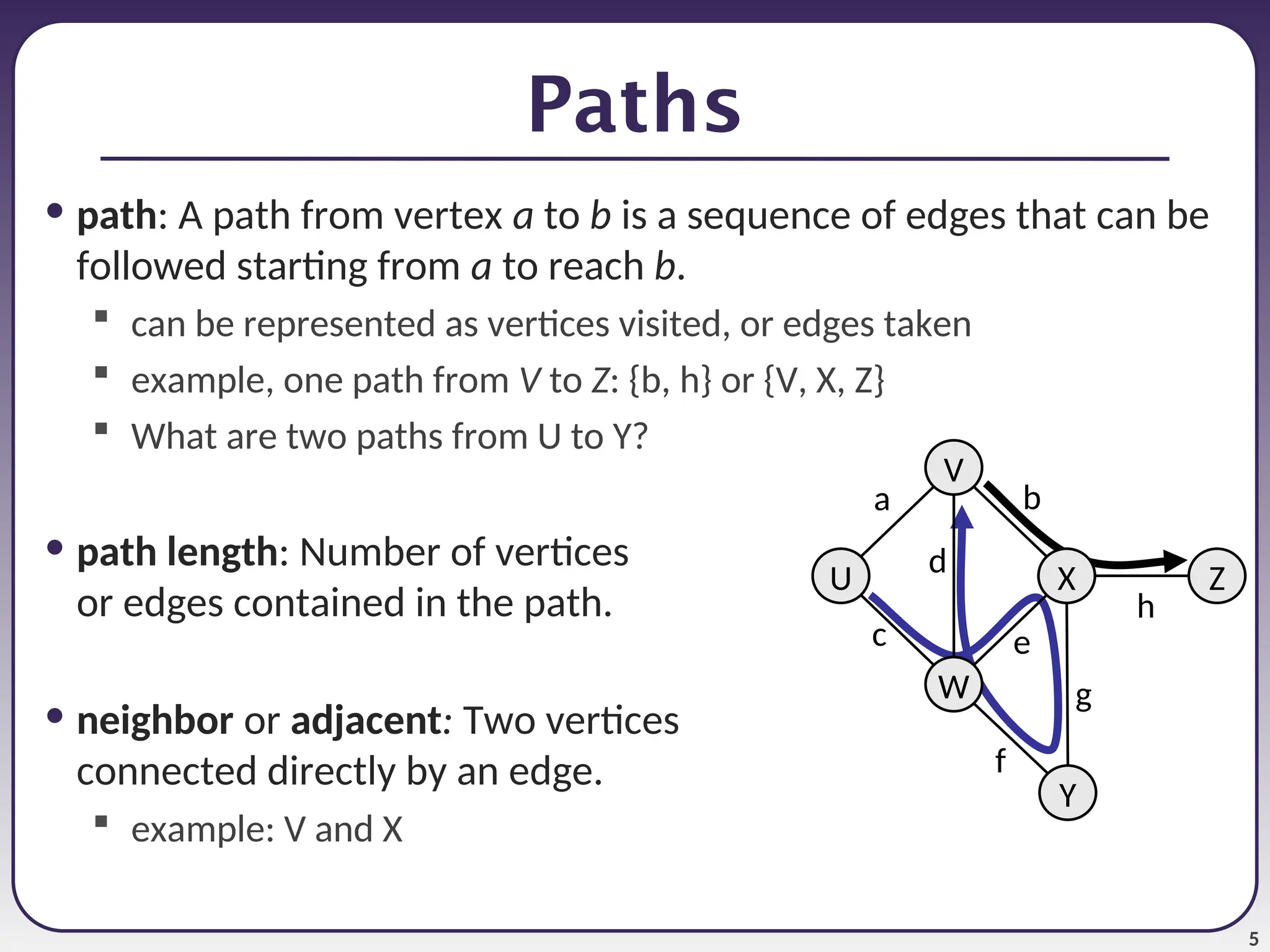

  5 Paths • path: Apath from vertex a to b is a sequence of edges that can be followed starting from a to reach b.  can be represented as vertices visited, or edges taken  example, one path from V to Z: {b, h} or {V, X, Z}  What are two paths from U to Y? • path length: Number of vertices or edges contained in the path. • neighbor or adjacent: Two vertices connected directly by an edge.  example: V and X X U V W Z Y a c b e d f g h
• 6.

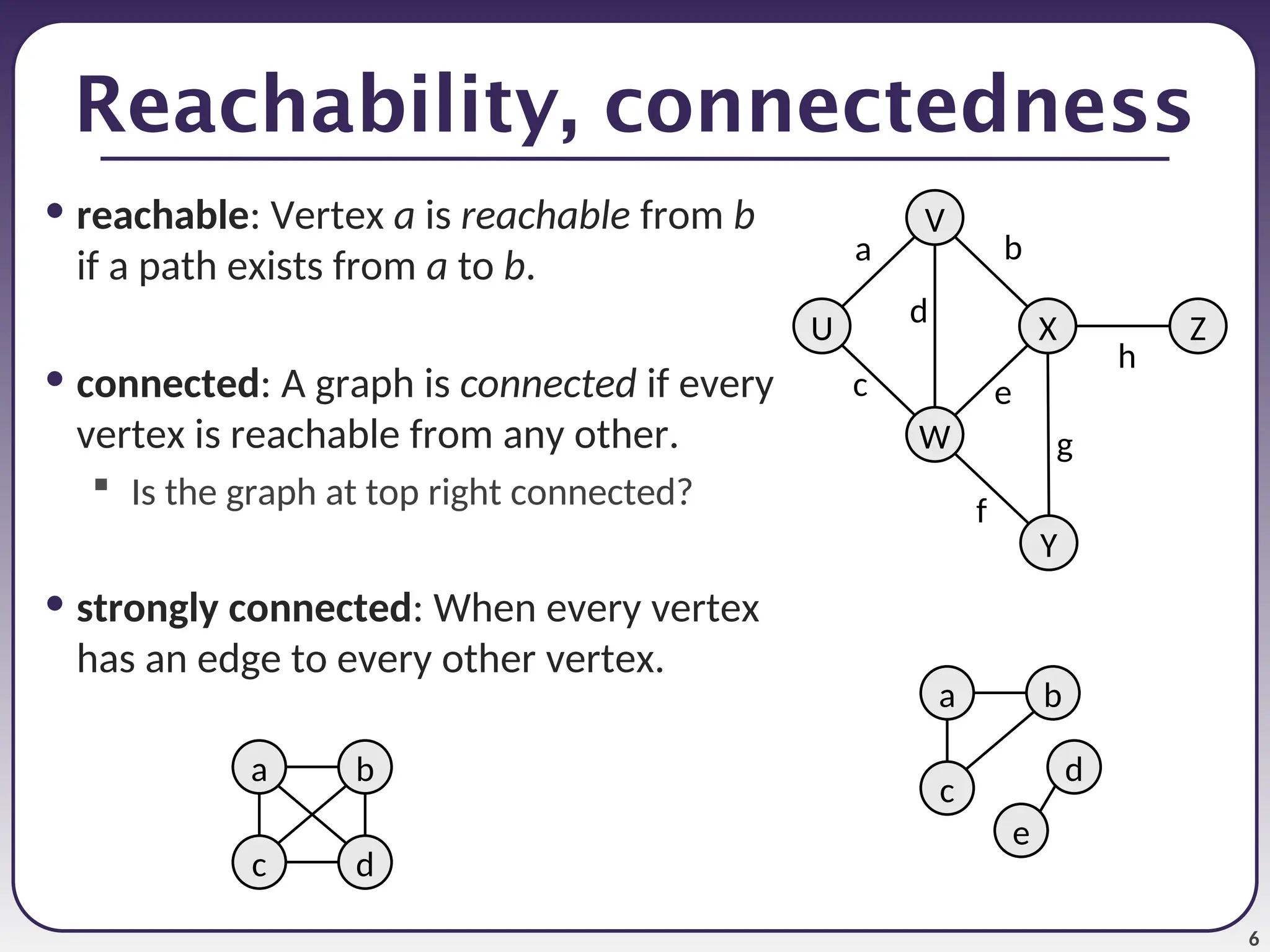

  6 Reachability, connectedness • reachable:Vertex a is reachable from b if a path exists from a to b. • connected: A graph is connected if every vertex is reachable from any other.  Is the graph at top right connected? • strongly connected: When every vertex has an edge to every other vertex. X U V W Z Y a c b e d f g h a c b d a c b d e
• 7.

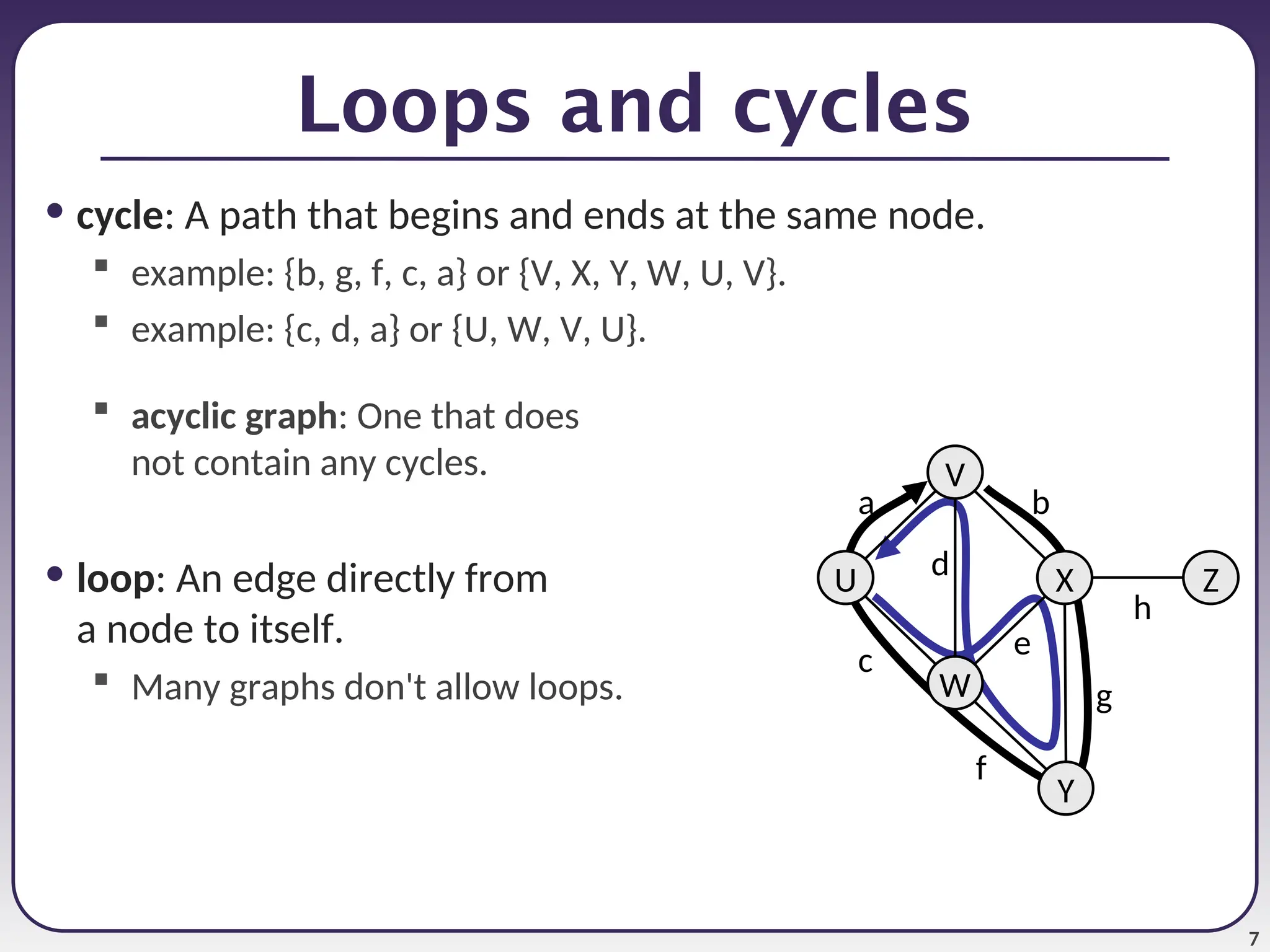

  7 Loops and cycles •cycle: A path that begins and ends at the same node.  example: {b, g, f, c, a} or {V, X, Y, W, U, V}.  example: {c, d, a} or {U, W, V, U}.  acyclic graph: One that does not contain any cycles. • loop: An edge directly from a node to itself.  Many graphs don't allow loops. X U V W Z Y a c b e d f g h
• 8.

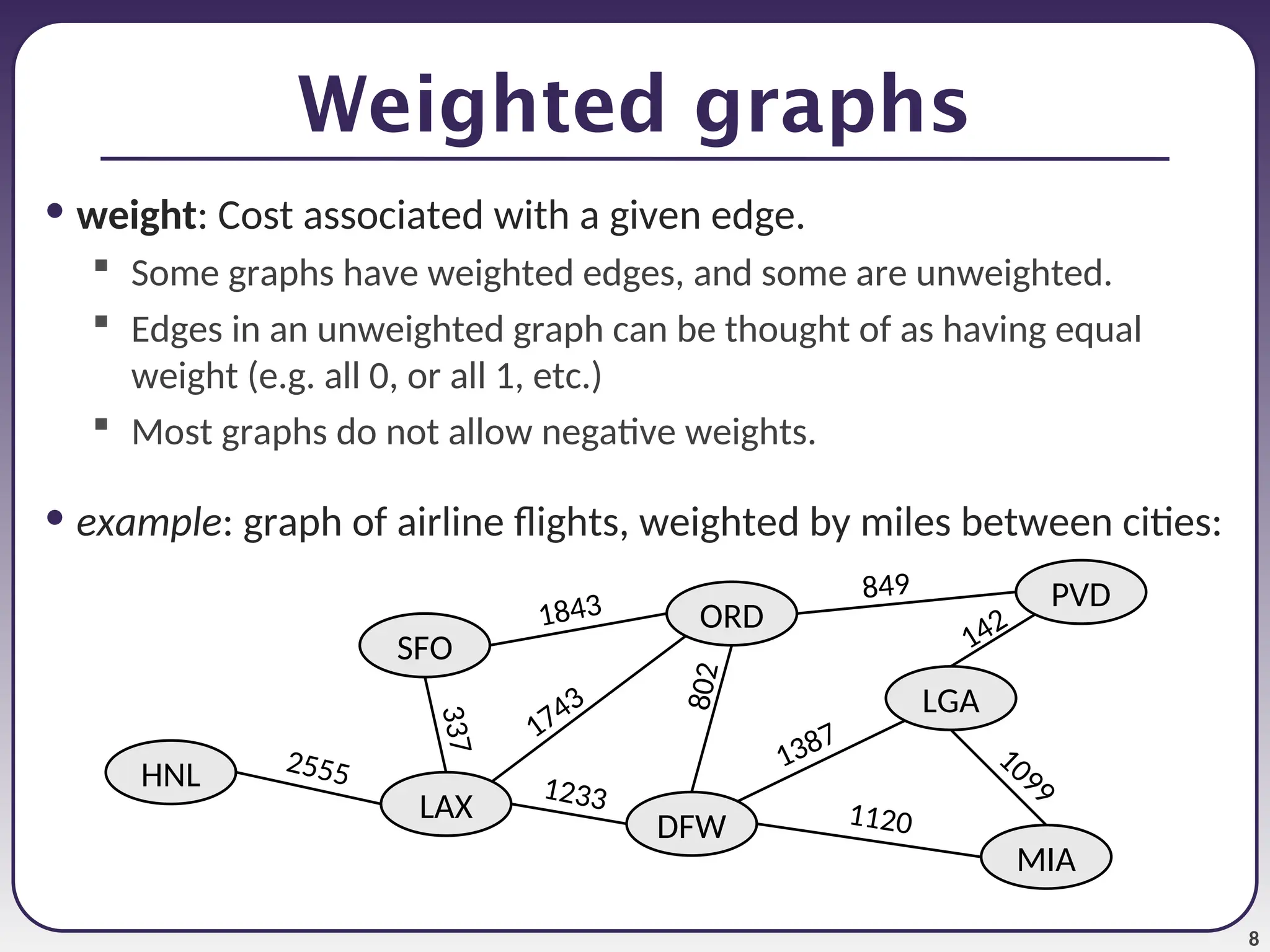

  8 Weighted graphs • weight:Cost associated with a given edge.  Some graphs have weighted edges, and some are unweighted.  Edges in an unweighted graph can be thought of as having equal weight (e.g. all 0, or all 1, etc.)  Most graphs do not allow negative weights. • example: graph of airline flights, weighted by miles between cities: ORD PVD MIA DFW SFO LAX LGA HNL 849 8 0 2 1387 1743 1843 1099 1120 1233 3 3 7 2555 142
• 9.

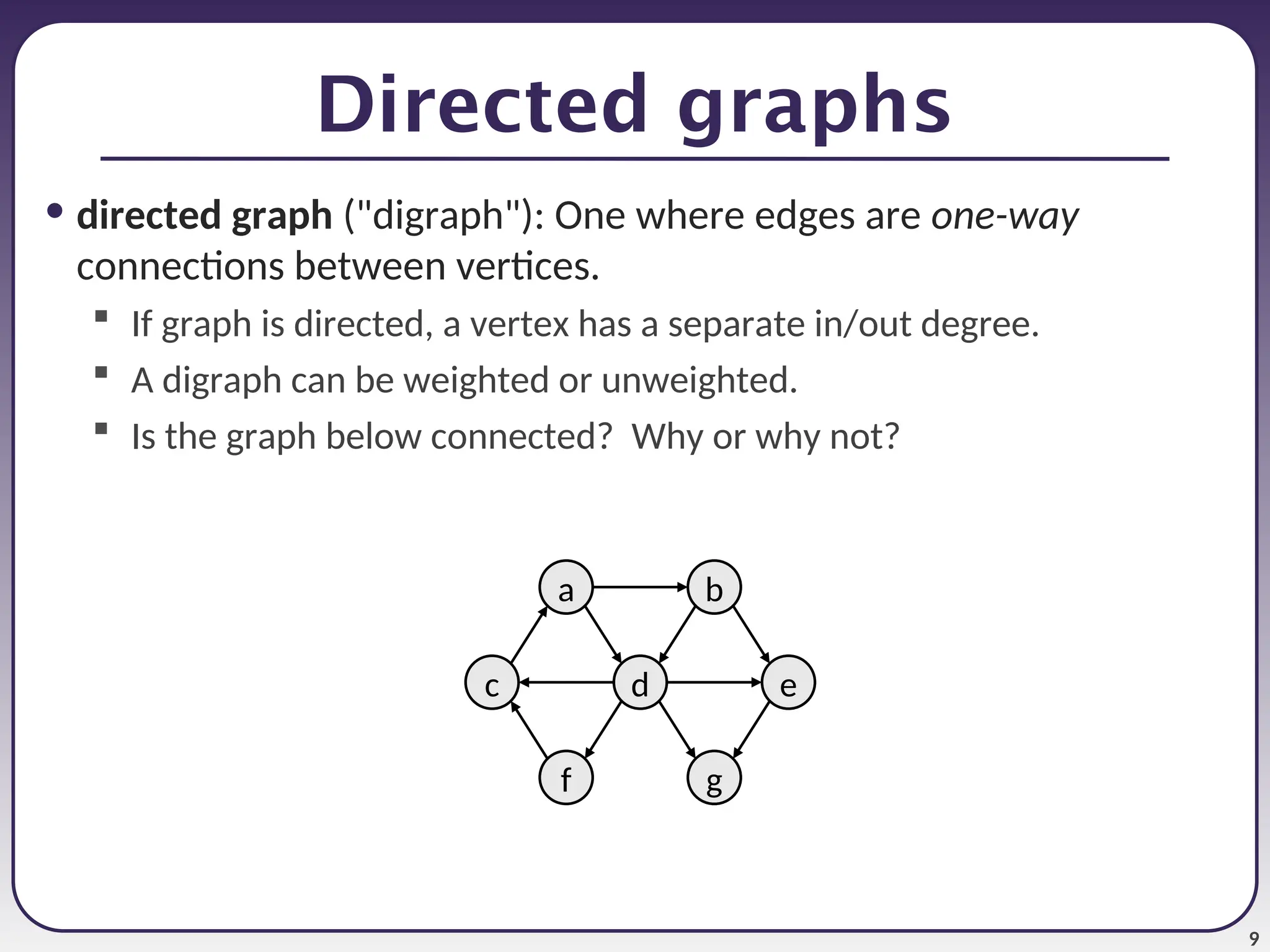

  9 Directed graphs • directedgraph ("digraph"): One where edges are one-way connections between vertices.  If graph is directed, a vertex has a separate in/out degree.  A digraph can be weighted or unweighted.  Is the graph below connected? Why or why not? a d b e g f c
• 10.

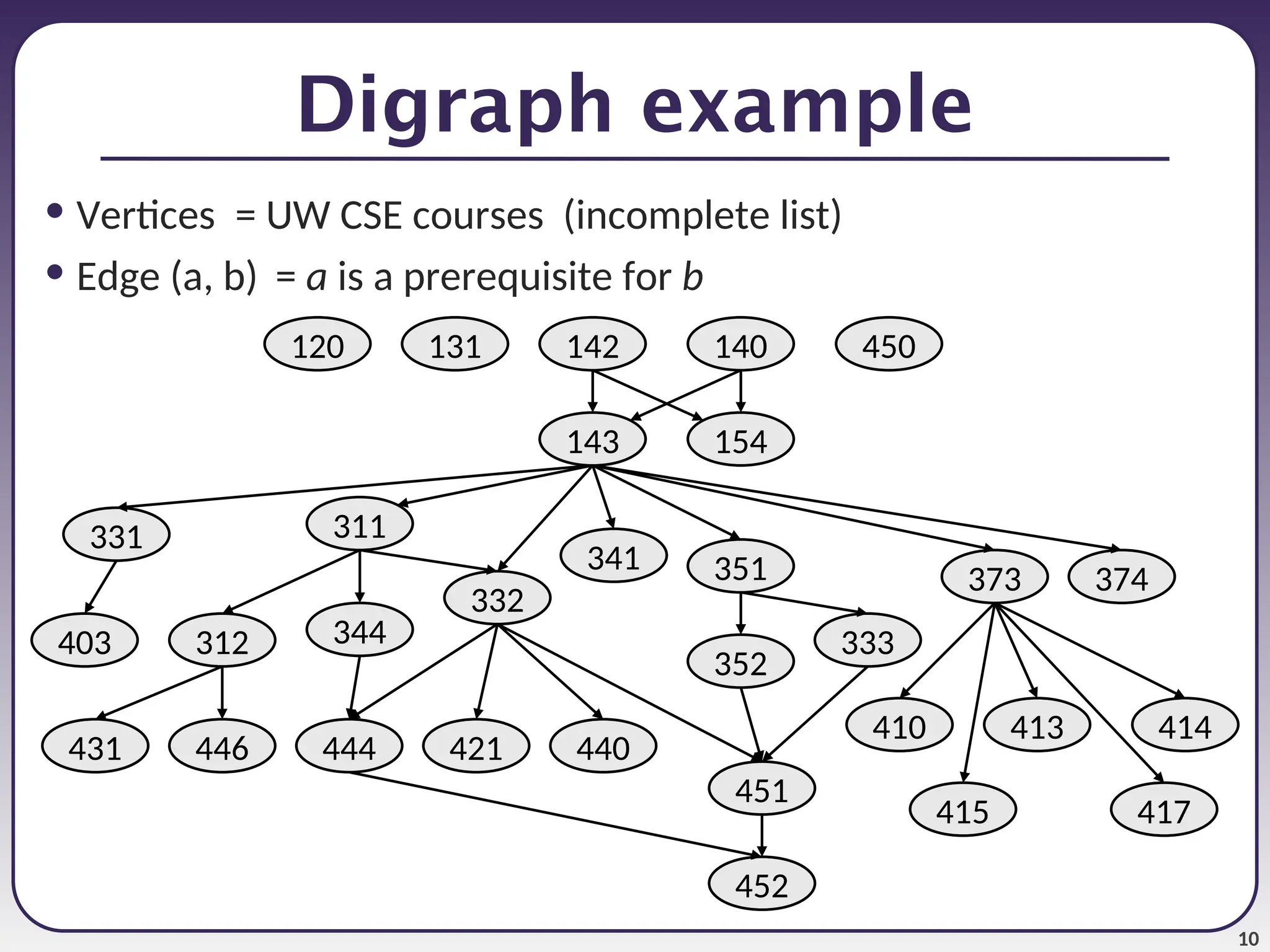

  10 Digraph example • Vertices= UW CSE courses (incomplete list) • Edge (a, b) = a is a prerequisite for b 142 143 154 140 311 312 331 351 333 341 344 403 352 373 120 410 332 374 131 421 431 440 415 413 417 414 444 446 450 451 452
• 11.

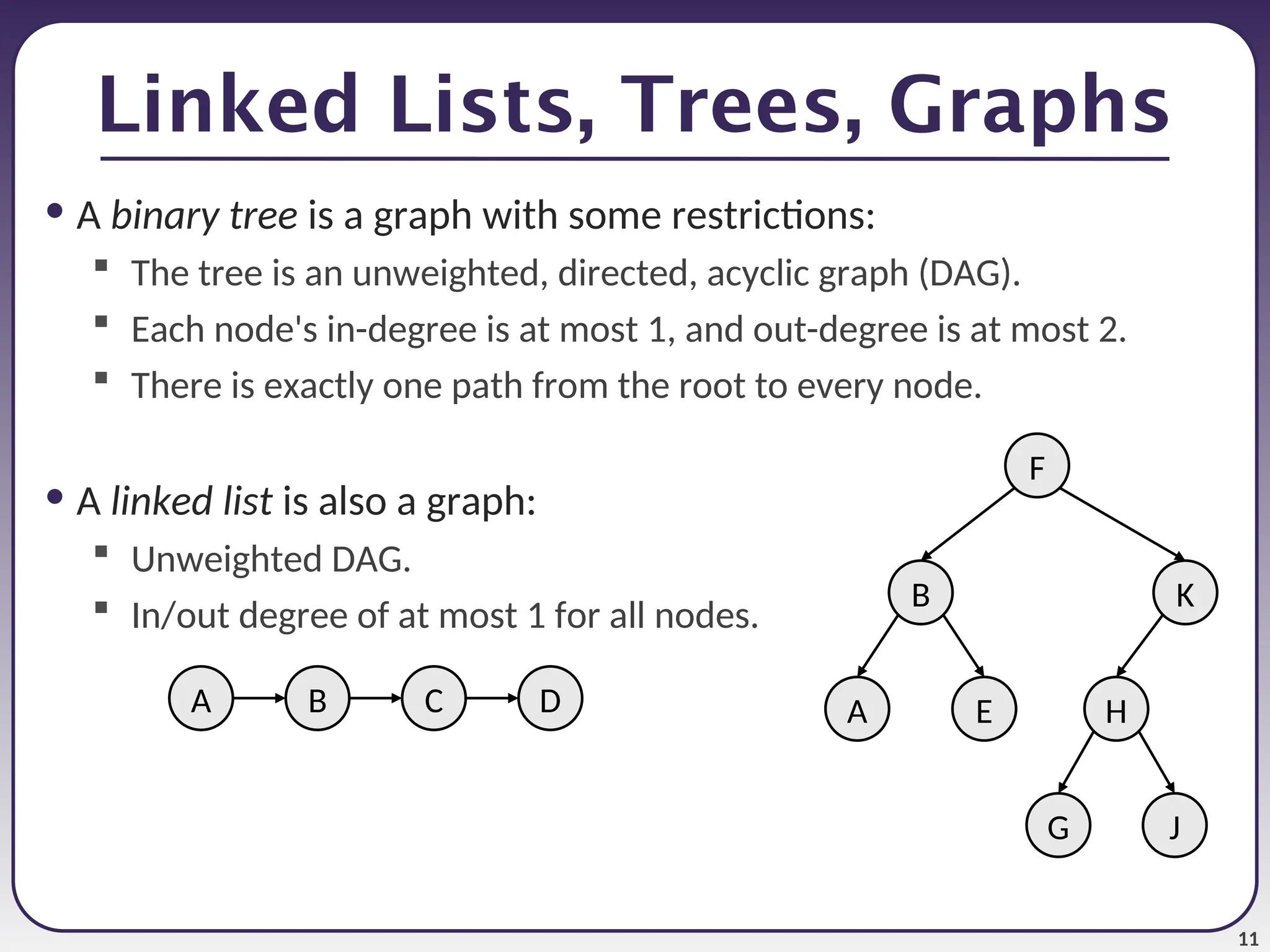

  11 Linked Lists, Trees,Graphs • A binary tree is a graph with some restrictions:  The tree is an unweighted, directed, acyclic graph (DAG).  Each node's in-degree is at most 1, and out-degree is at most 2.  There is exactly one path from the root to every node. • A linked list is also a graph:  Unweighted DAG.  In/out degree of at most 1 for all nodes. F B A E K H J G A B D C
• 12.

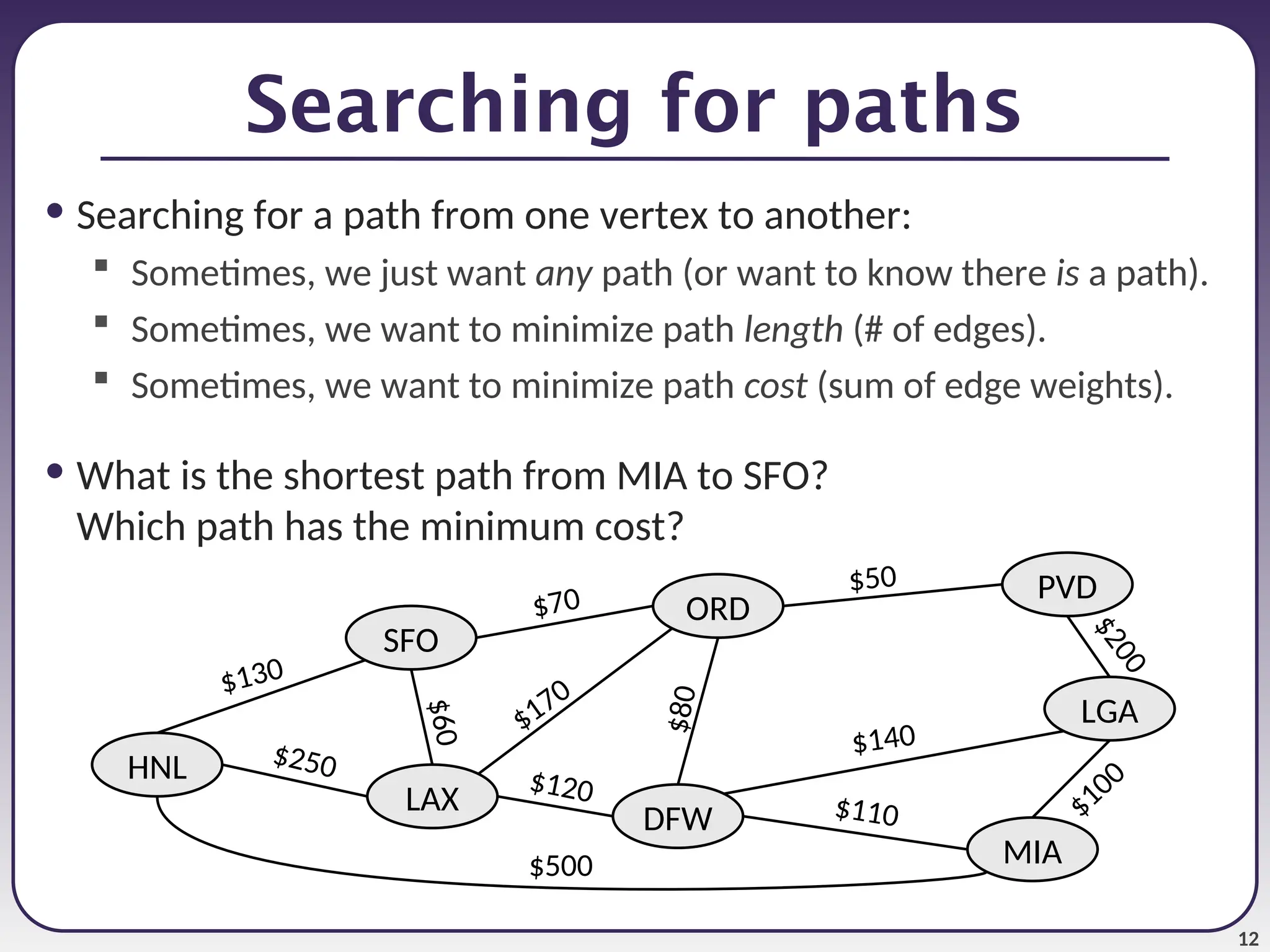

  12 Searching for paths •Searching for a path from one vertex to another:  Sometimes, we just want any path (or want to know there is a path).  Sometimes, we want to minimize path length (# of edges).  Sometimes, we want to minimize path cost (sum of edge weights). • What is the shortest path from MIA to SFO? Which path has the minimum cost? ORD PVD MIA DFW SFO LAX LGA HNL $50 $ 8 0 $140 $170 $70 $100 $110 $120 $ 6 0 $250 $ 2 0 0 $500 $130
• 13.

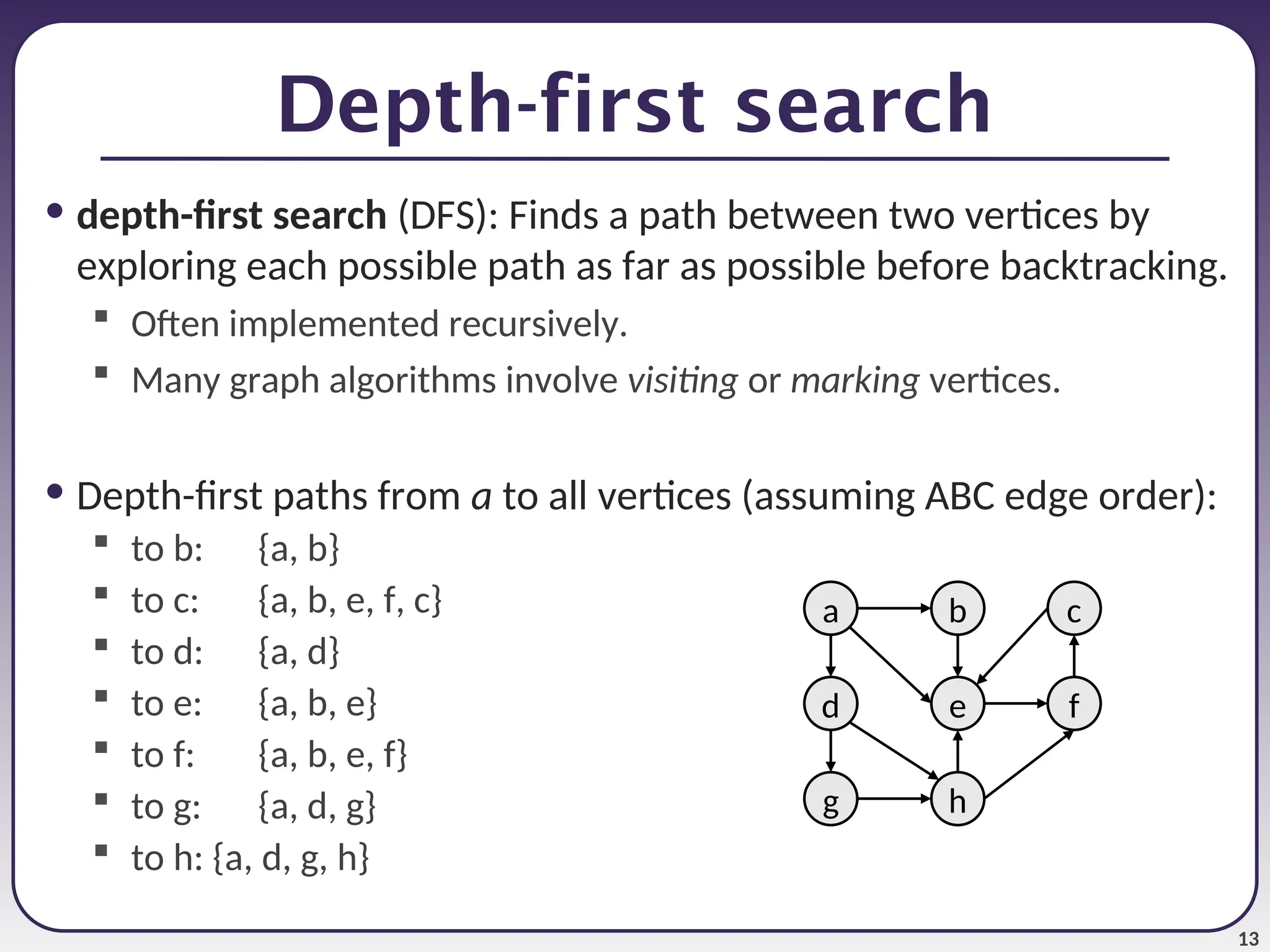

  13 Depth-first search • depth-firstsearch (DFS): Finds a path between two vertices by exploring each possible path as far as possible before backtracking.  Often implemented recursively.  Many graph algorithms involve visiting or marking vertices. • Depth-first paths from a to all vertices (assuming ABC edge order):  to b: {a, b}  to c: {a, b, e, f, c}  to d: {a, d}  to e: {a, b, e}  to f: {a, b, e, f}  to g: {a, d, g}  to h: {a, d, g, h} a e b c h g d f
• 14.

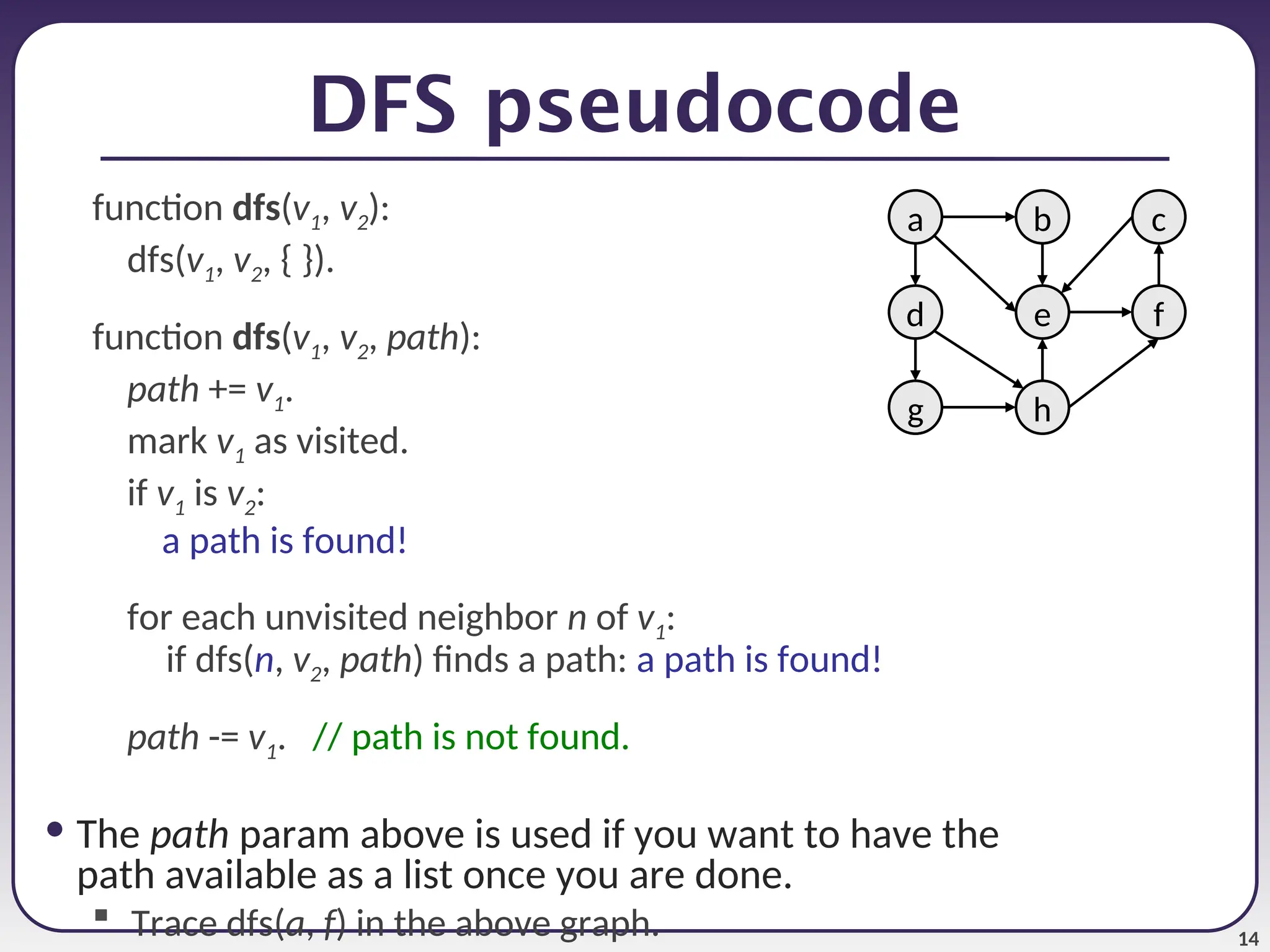

  14 DFS pseudocode function dfs(v1,v2): dfs(v1, v2, { }). function dfs(v1, v2, path): path += v1. mark v1 as visited. if v1 is v2: a path is found! for each unvisited neighbor n of v1: if dfs(n, v2, path) finds a path: a path is found! path -= v1. // path is not found. • The path param above is used if you want to have the path available as a list once you are done.  Trace dfs(a, f) in the above graph. a e b c h g d f
• 15.

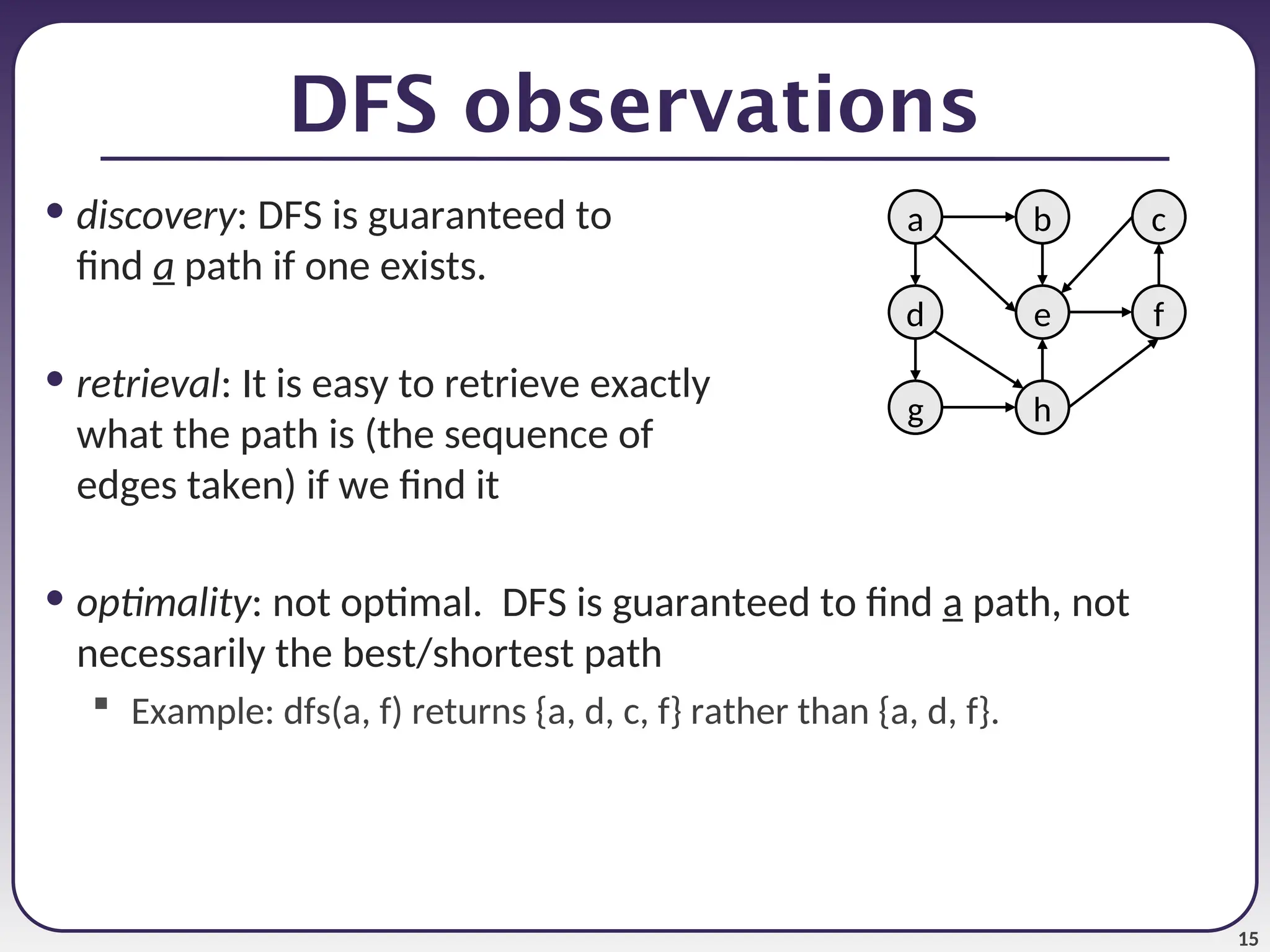

  15 DFS observations • discovery:DFS is guaranteed to find a path if one exists. • retrieval: It is easy to retrieve exactly what the path is (the sequence of edges taken) if we find it • optimality: not optimal. DFS is guaranteed to find a path, not necessarily the best/shortest path  Example: dfs(a, f) returns {a, d, c, f} rather than {a, d, f}. a e b c h g d f
• 16.

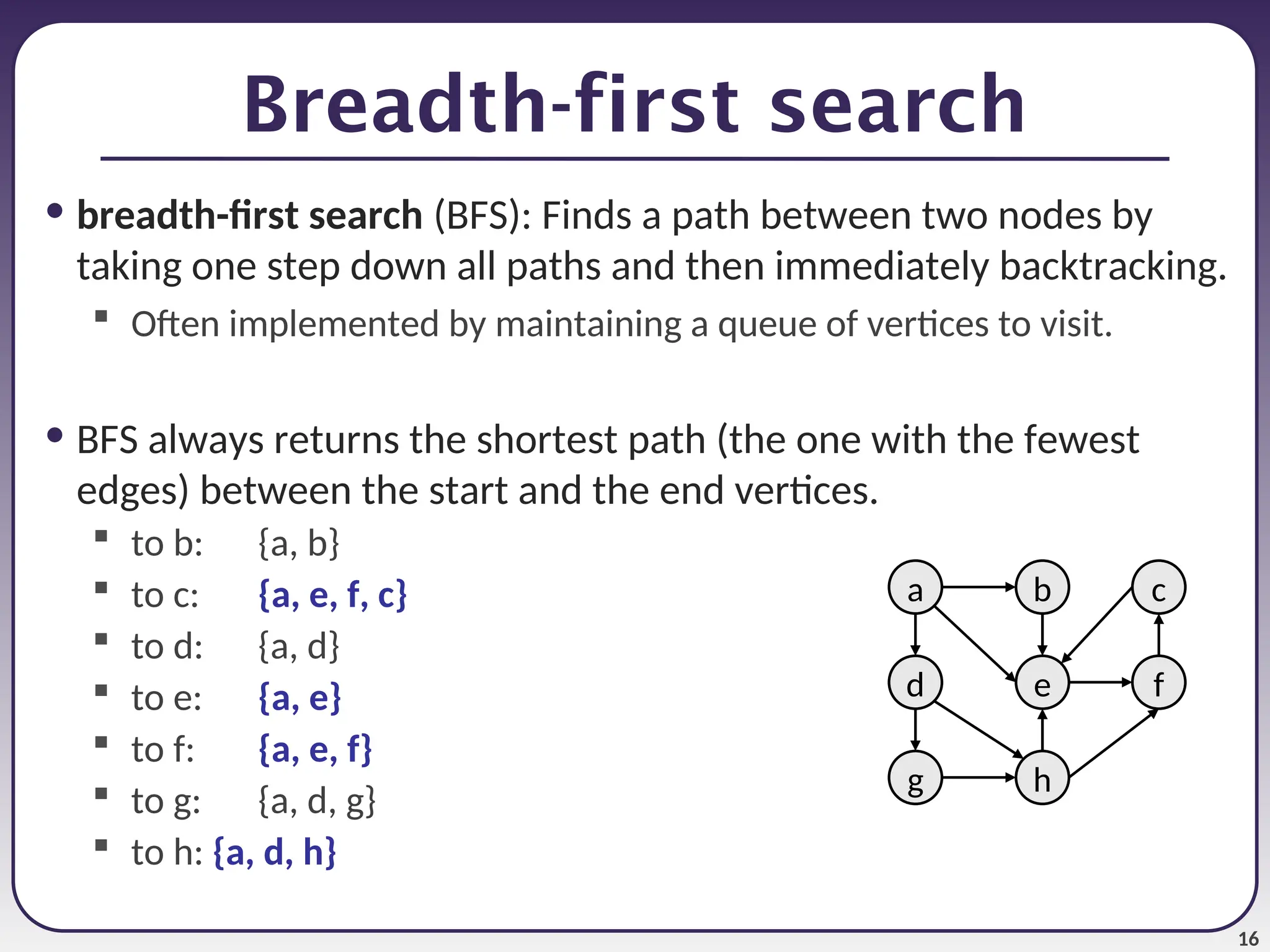

  16 Breadth-first search • breadth-firstsearch (BFS): Finds a path between two nodes by taking one step down all paths and then immediately backtracking.  Often implemented by maintaining a queue of vertices to visit. • BFS always returns the shortest path (the one with the fewest edges) between the start and the end vertices.  to b: {a, b}  to c: {a, e, f, c}  to d: {a, d}  to e: {a, e}  to f: {a, e, f}  to g: {a, d, g}  to h: {a, d, h} a e b c h g d f
• 17.

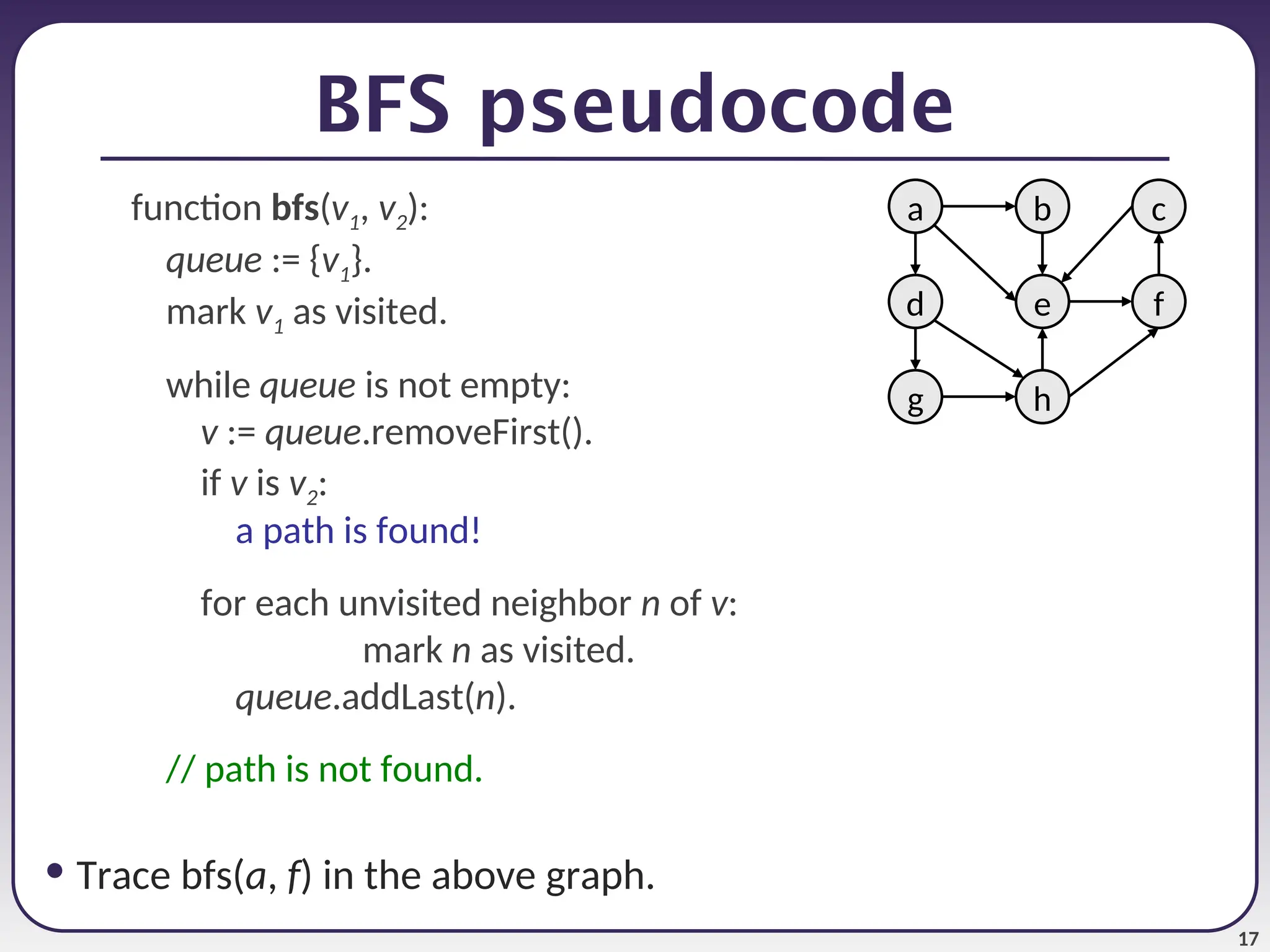

  17 BFS pseudocode function bfs(v1,v2): queue := {v1}. mark v1 as visited. while queue is not empty: v := queue.removeFirst(). if v is v2: a path is found! for each unvisited neighbor n of v: mark n as visited. queue.addLast(n). // path is not found. • Trace bfs(a, f) in the above graph. a e b c h g d f
• 18.

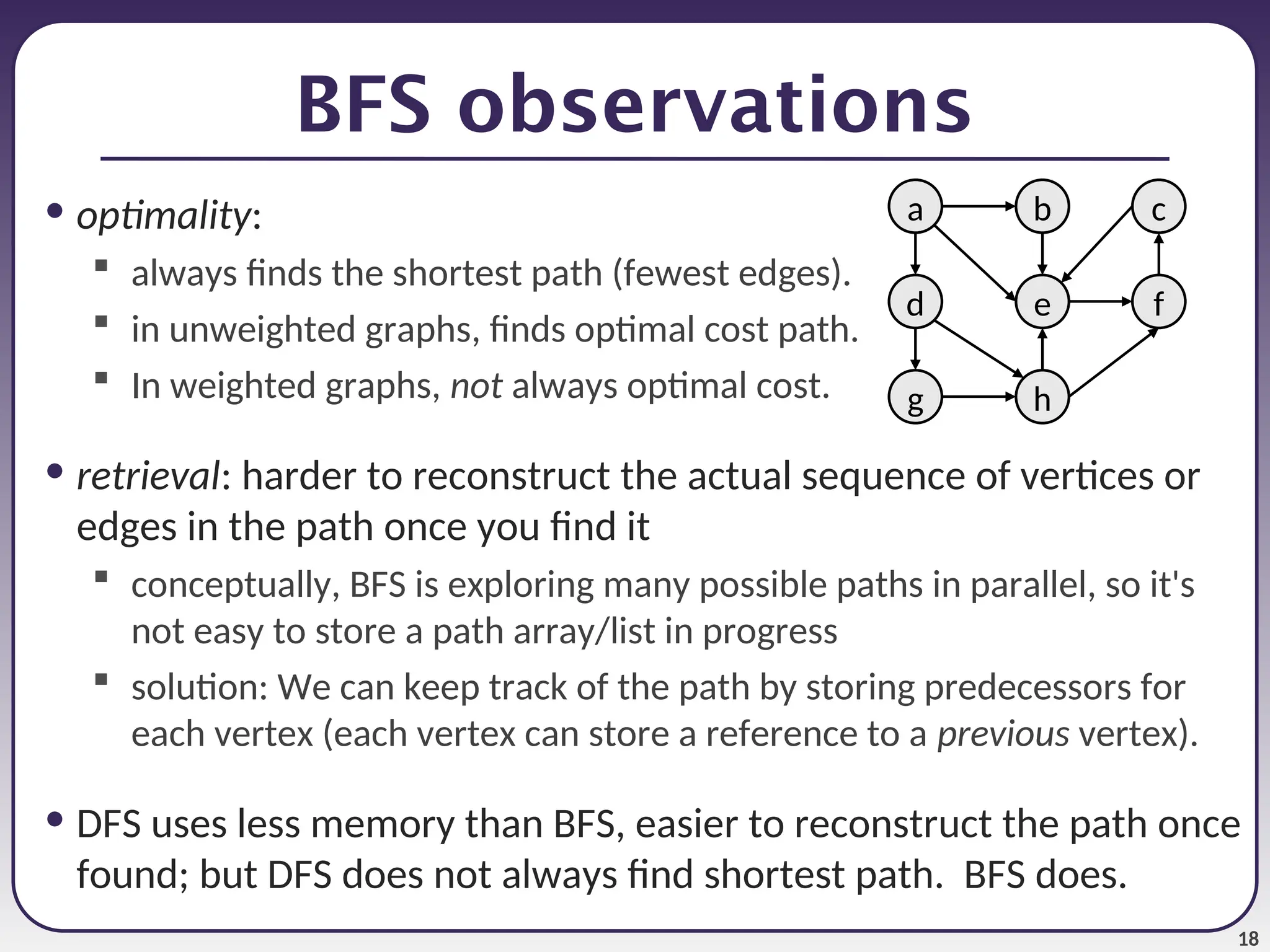

  18 BFS observations • optimality: always finds the shortest path (fewest edges).  in unweighted graphs, finds optimal cost path.  In weighted graphs, not always optimal cost. • retrieval: harder to reconstruct the actual sequence of vertices or edges in the path once you find it  conceptually, BFS is exploring many possible paths in parallel, so it's not easy to store a path array/list in progress  solution: We can keep track of the path by storing predecessors for each vertex (each vertex can store a reference to a previous vertex). • DFS uses less memory than BFS, easier to reconstruct the path once found; but DFS does not always find shortest path. BFS does. a e b c h g d f
• 19.

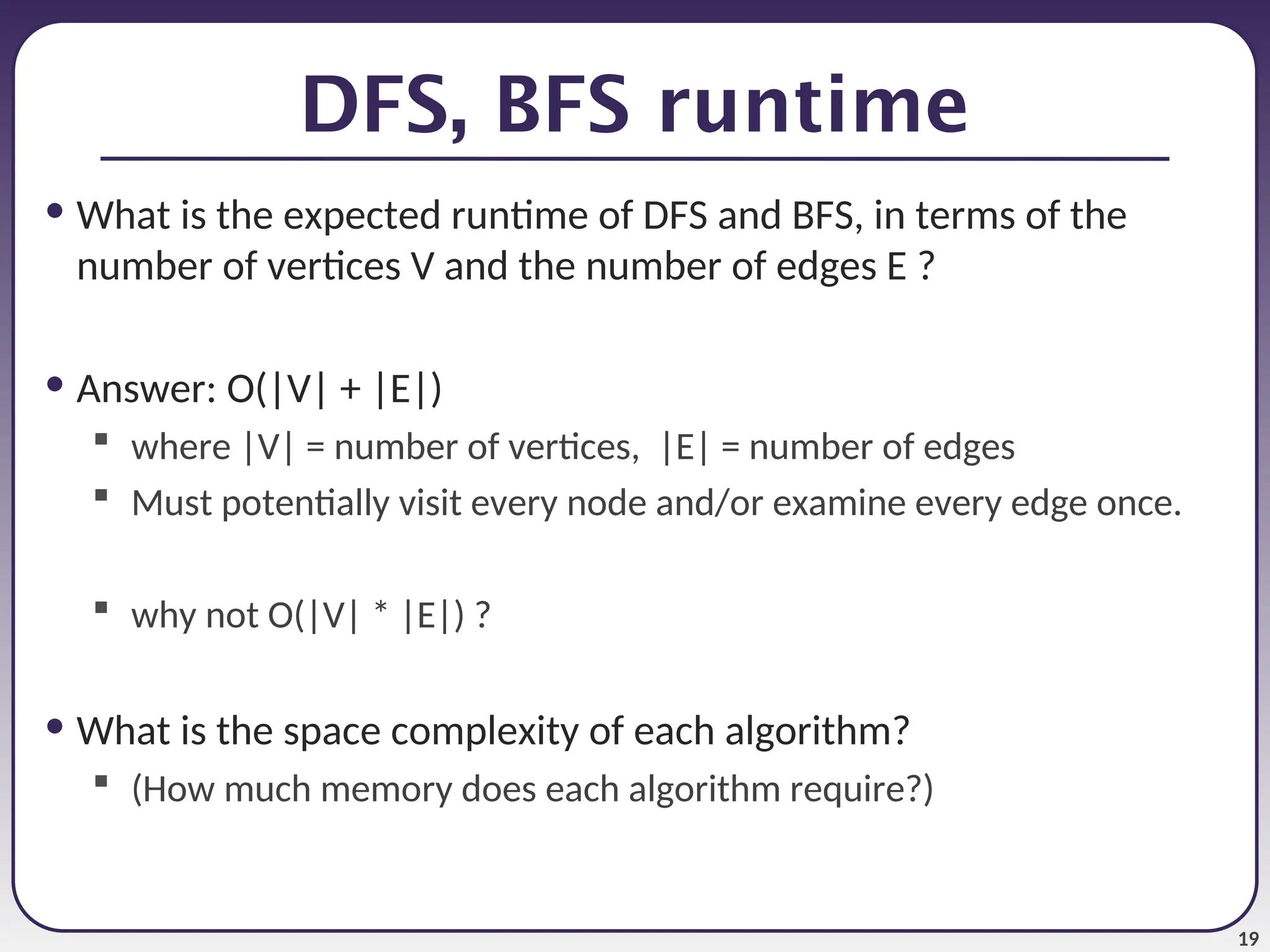

  19 DFS, BFS runtime •What is the expected runtime of DFS and BFS, in terms of the number of vertices V and the number of edges E ? • Answer: O(|V| + |E|)  where |V| = number of vertices, |E| = number of edges  Must potentially visit every node and/or examine every edge once.  why not O(|V| * |E|) ? • What is the space complexity of each algorithm?  (How much memory does each algorithm require?)
• 20.

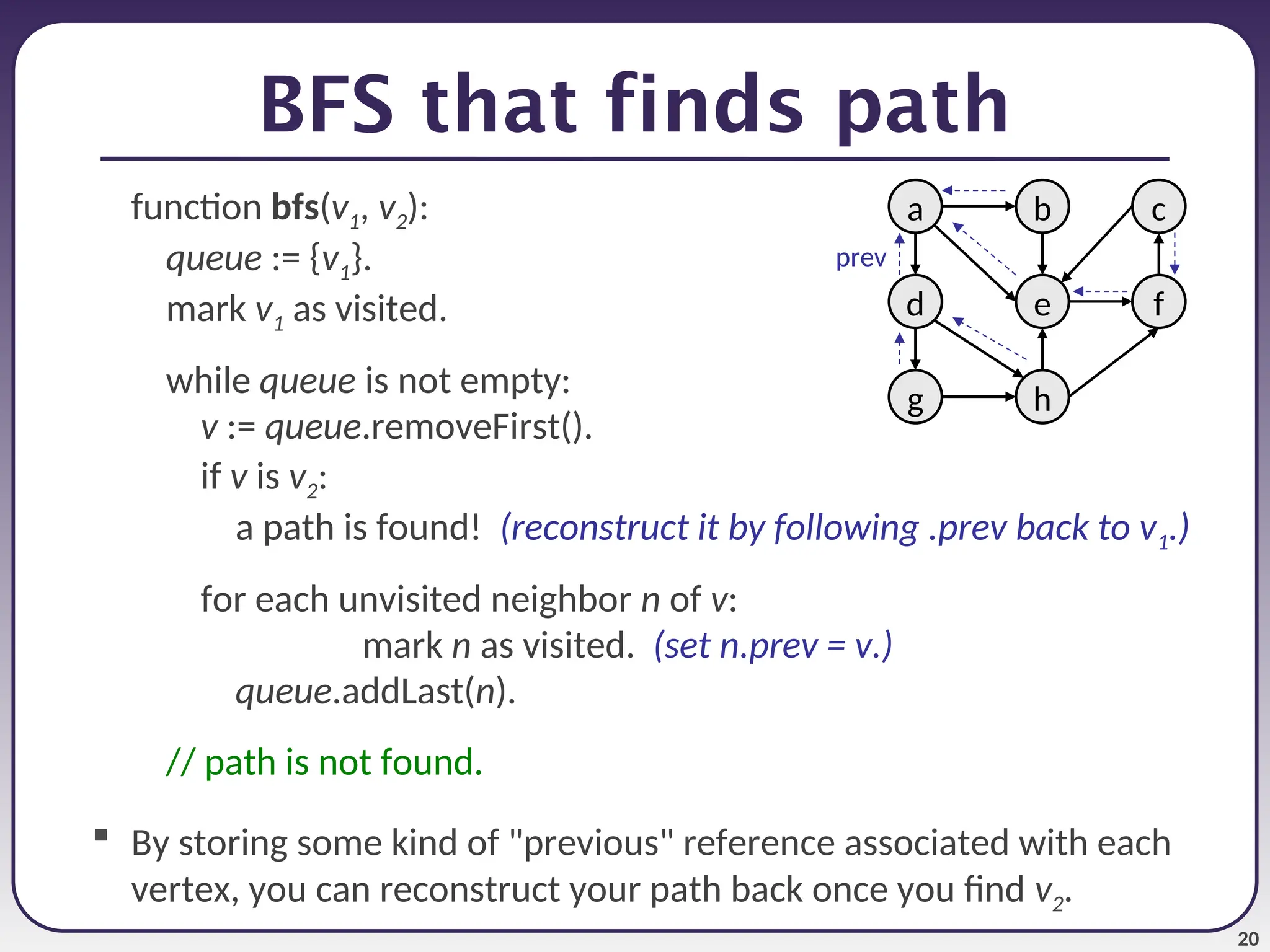

  20 BFS that findspath function bfs(v1, v2): queue := {v1}. mark v1 as visited. while queue is not empty: v := queue.removeFirst(). if v is v2: a path is found! (reconstruct it by following .prev back to v1.) for each unvisited neighbor n of v: mark n as visited. (set n.prev = v.) queue.addLast(n). // path is not found.  By storing some kind of "previous" reference associated with each vertex, you can reconstruct your path back once you find v2. a e b c h g d f prev
