Types of Algorithms in Adversarial Search Minmax Algorithm Alpha-Beta Pruning.ppt
- 1.
- 2. Warm Up • Let’splay some games!

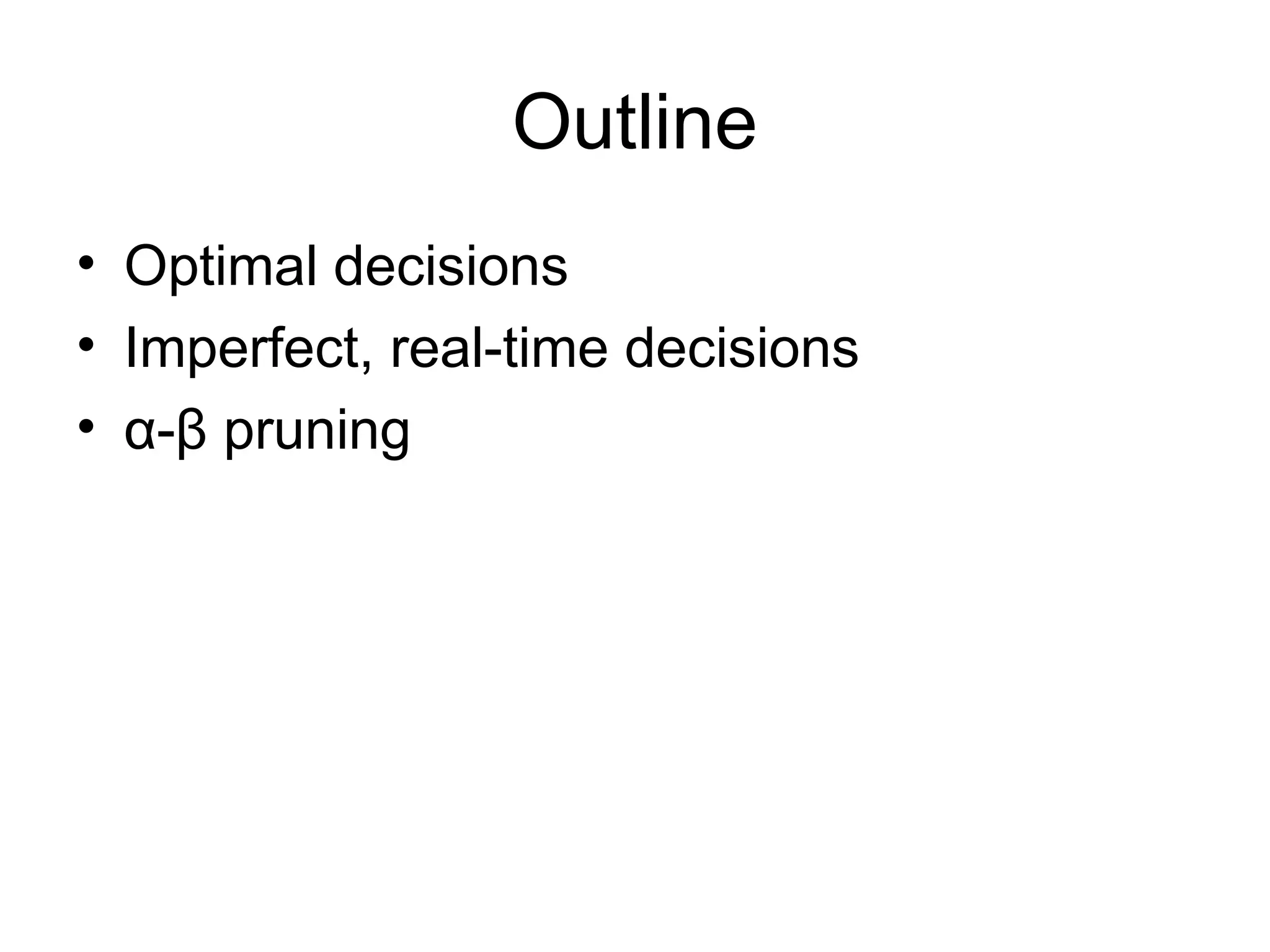

- 3. Outline • Optimal decisions •Imperfect, real-time decisions • α-β pruning

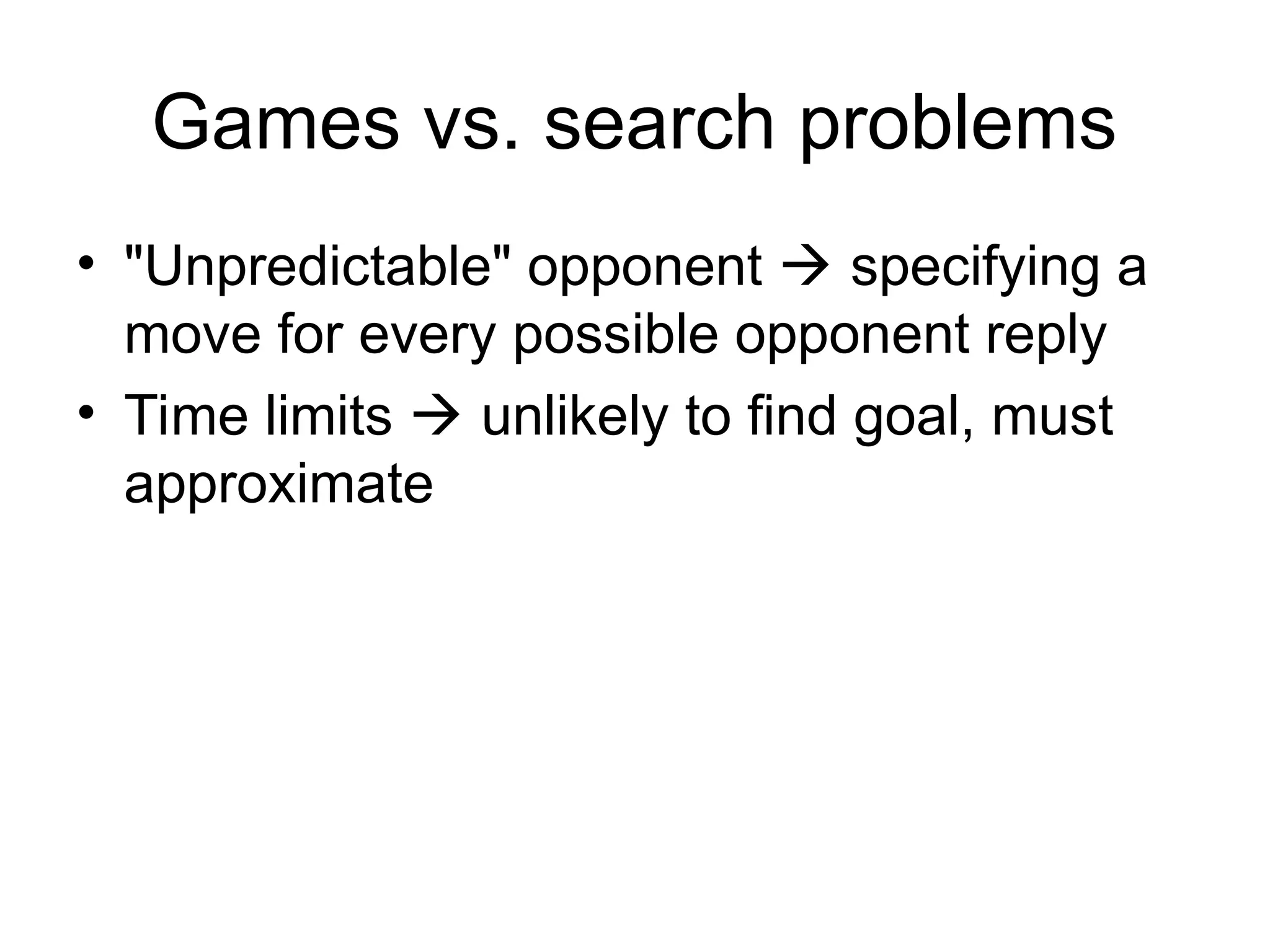

- 4. Games vs. searchproblems • "Unpredictable" opponent specifying a move for every possible opponent reply • Time limits unlikely to find goal, must approximate

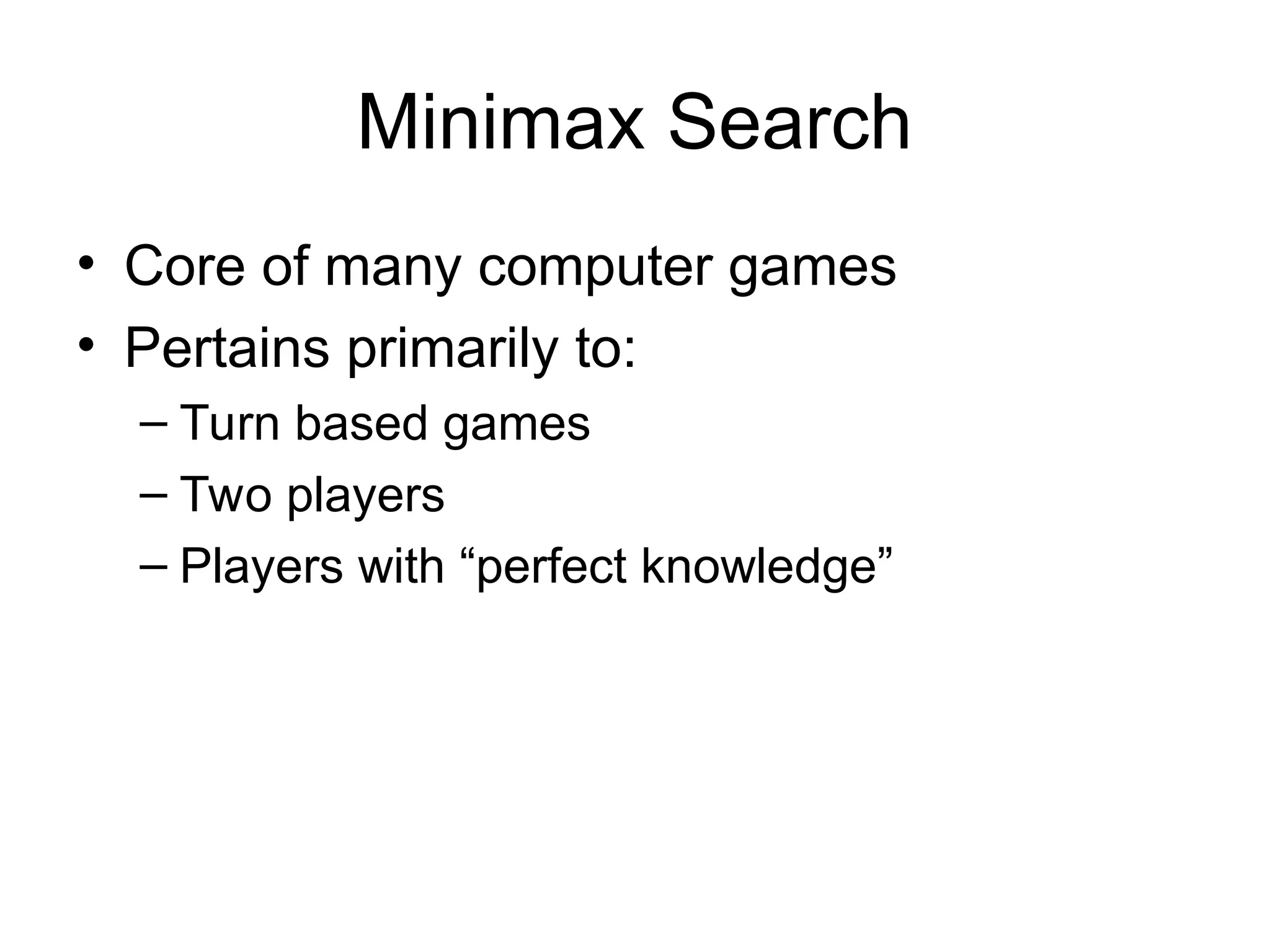

- 5. Minimax Search • Coreof many computer games • Pertains primarily to: – Turn based games – Two players – Players with “perfect knowledge”

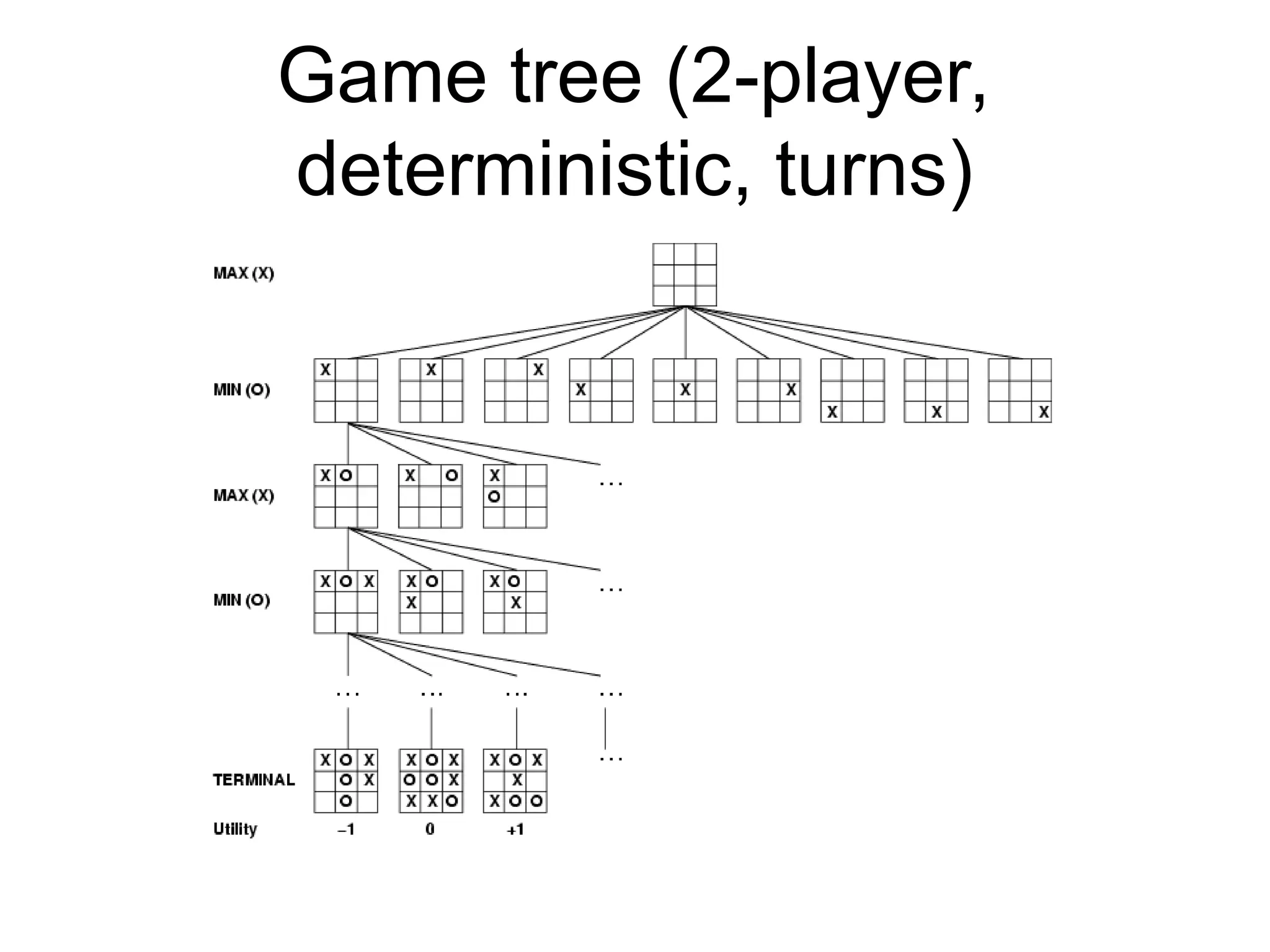

- 6.

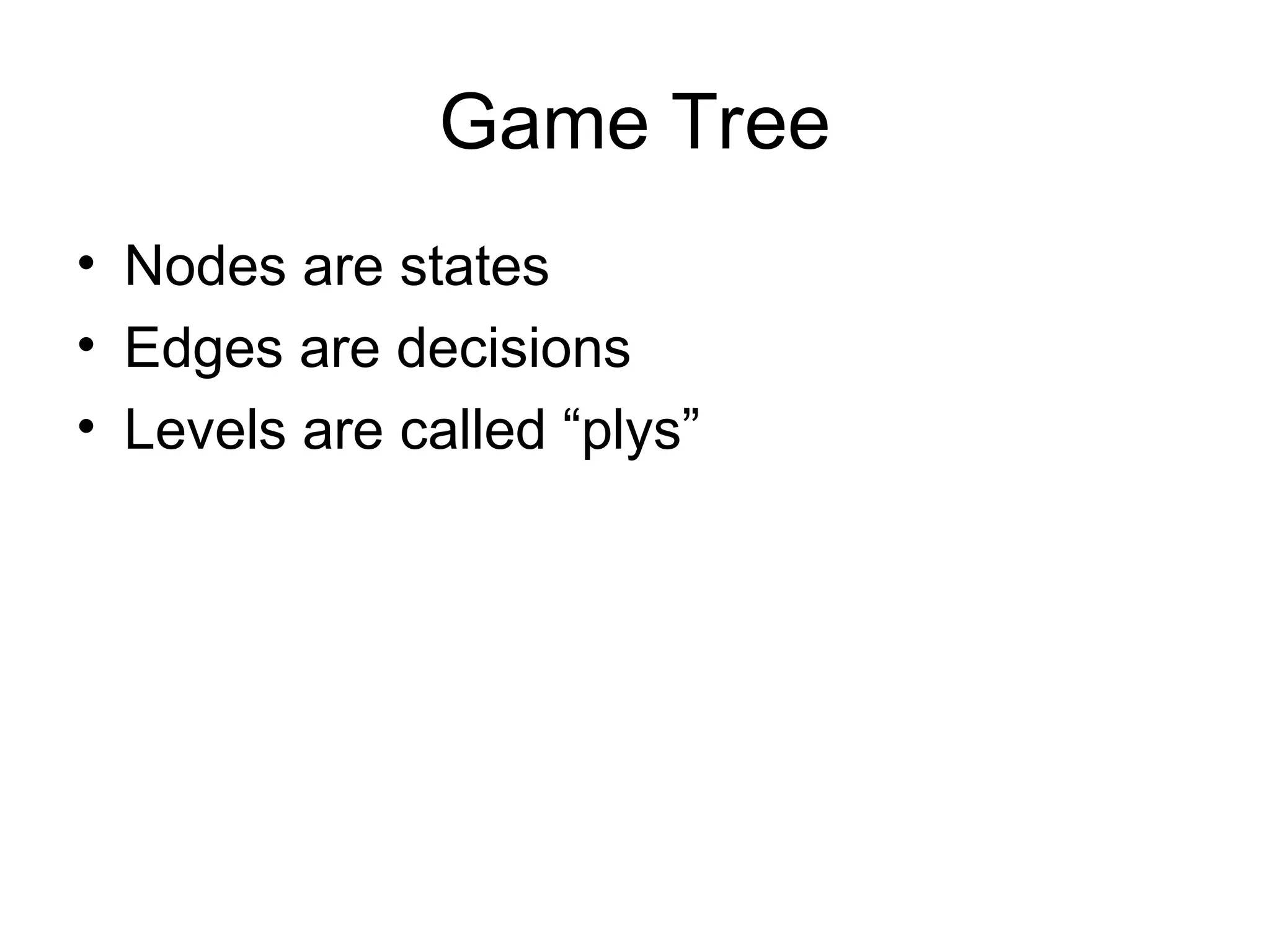

- 7. Game Tree • Nodesare states • Edges are decisions • Levels are called “plys”

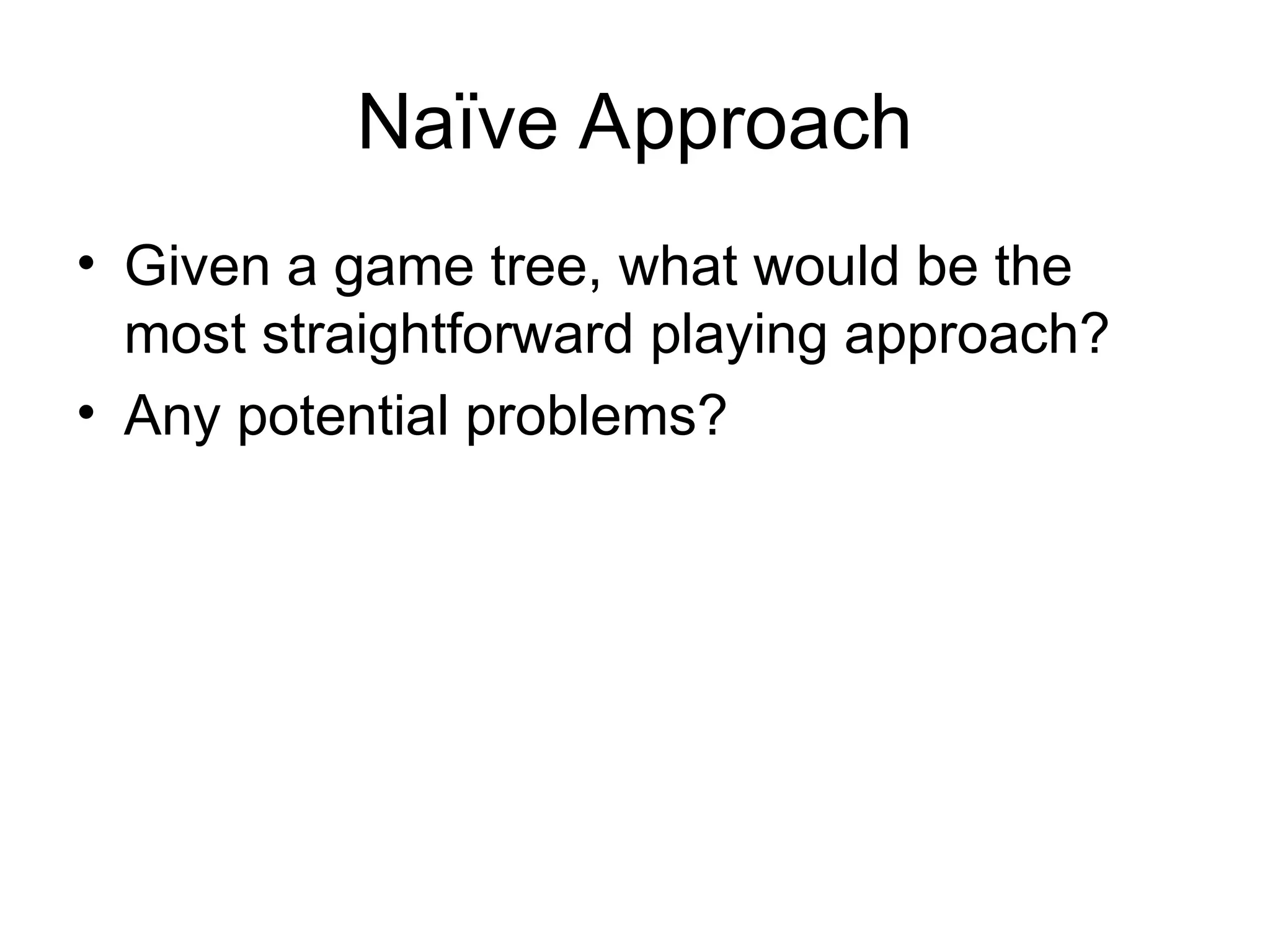

- 8. Naïve Approach • Givena game tree, what would be the most straightforward playing approach? • Any potential problems?

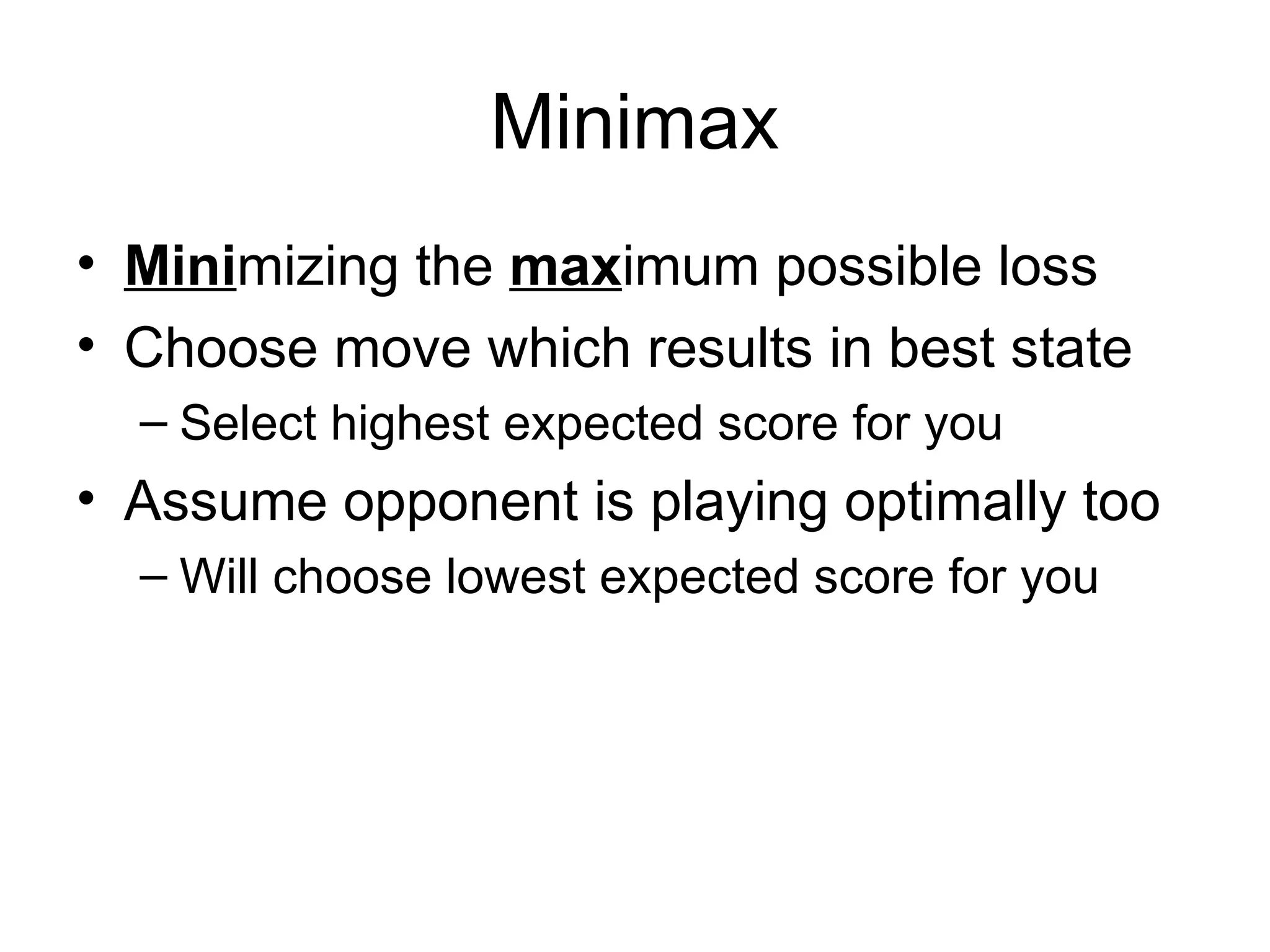

- 9. Minimax • Minimizing themaximum possible loss • Choose move which results in best state – Select highest expected score for you • Assume opponent is playing optimally too – Will choose lowest expected score for you

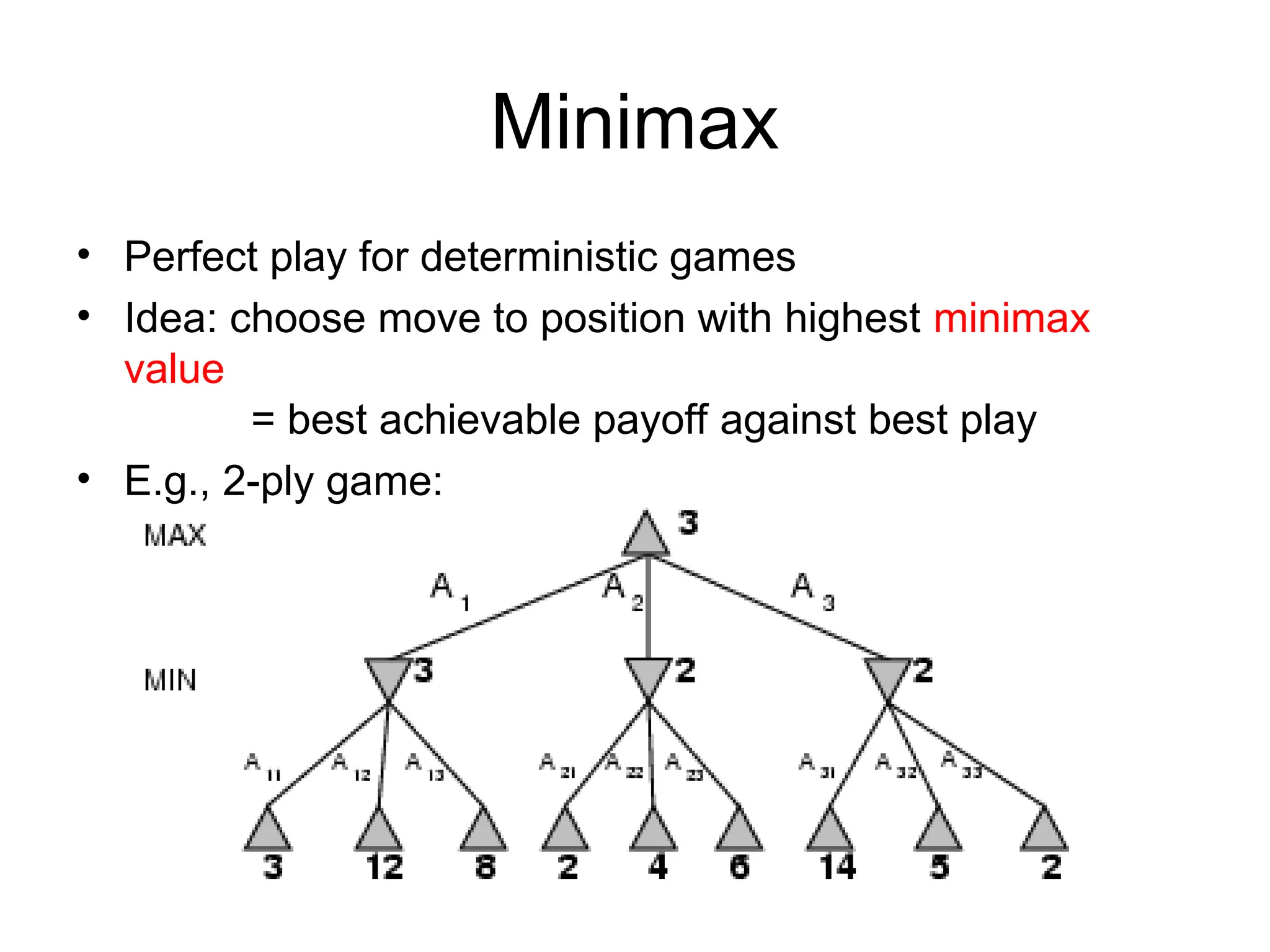

- 10. Minimax • Perfect playfor deterministic games • Idea: choose move to position with highest minimax value = best achievable payoff against best play • E.g., 2-ply game:
- 11.

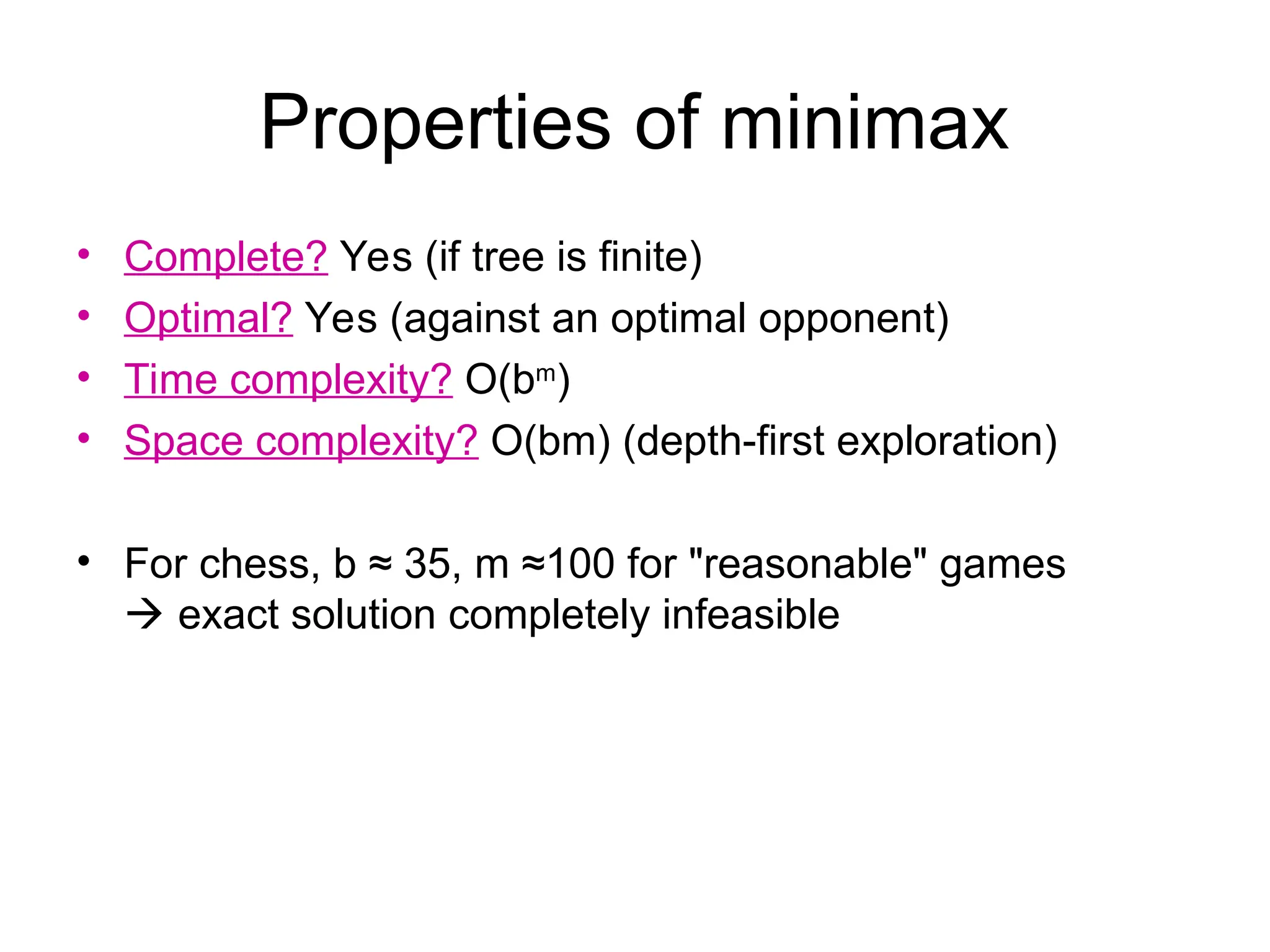

- 12. Properties of minimax •Complete? Yes (if tree is finite) • Optimal? Yes (against an optimal opponent) • Time complexity? O(bm ) • Space complexity? O(bm) (depth-first exploration) • For chess, b ≈ 35, m ≈100 for "reasonable" games exact solution completely infeasible

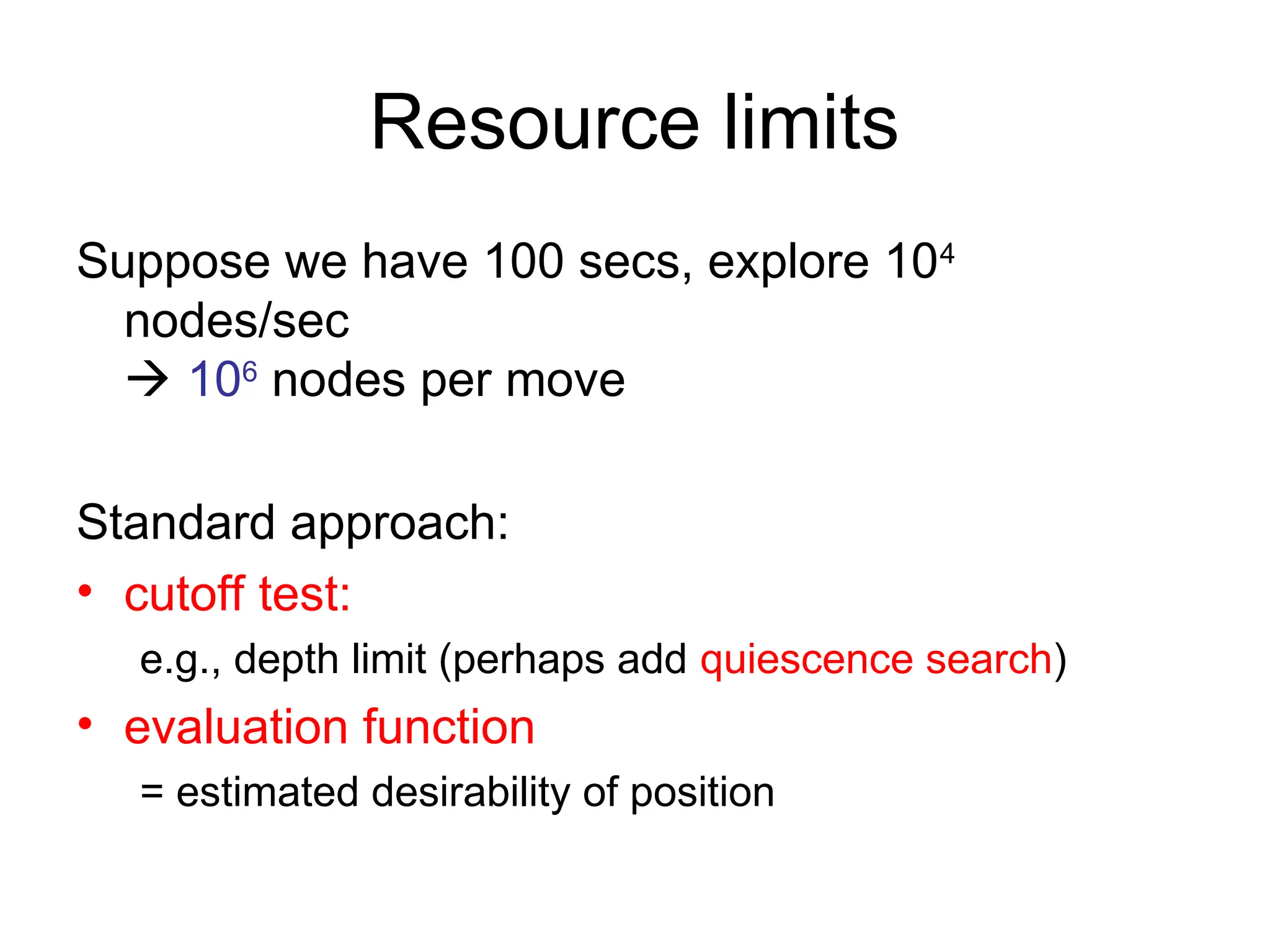

- 13. Resource limits Suppose wehave 100 secs, explore 104 nodes/sec 106 nodes per move Standard approach: • cutoff test: e.g., depth limit (perhaps add quiescence search) • evaluation function = estimated desirability of position

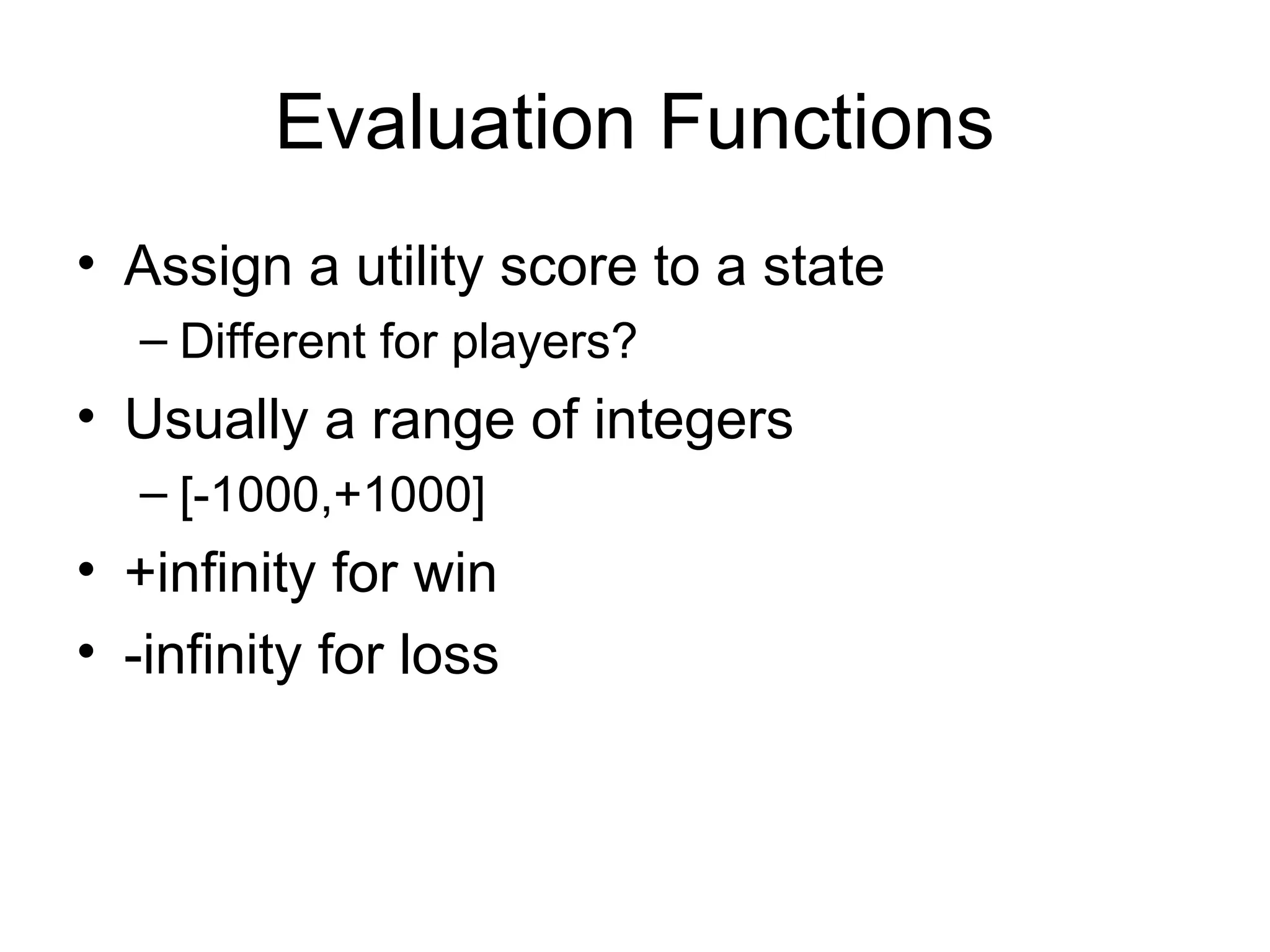

- 14. Evaluation Functions • Assigna utility score to a state – Different for players? • Usually a range of integers – [-1000,+1000] • +infinity for win • -infinity for loss

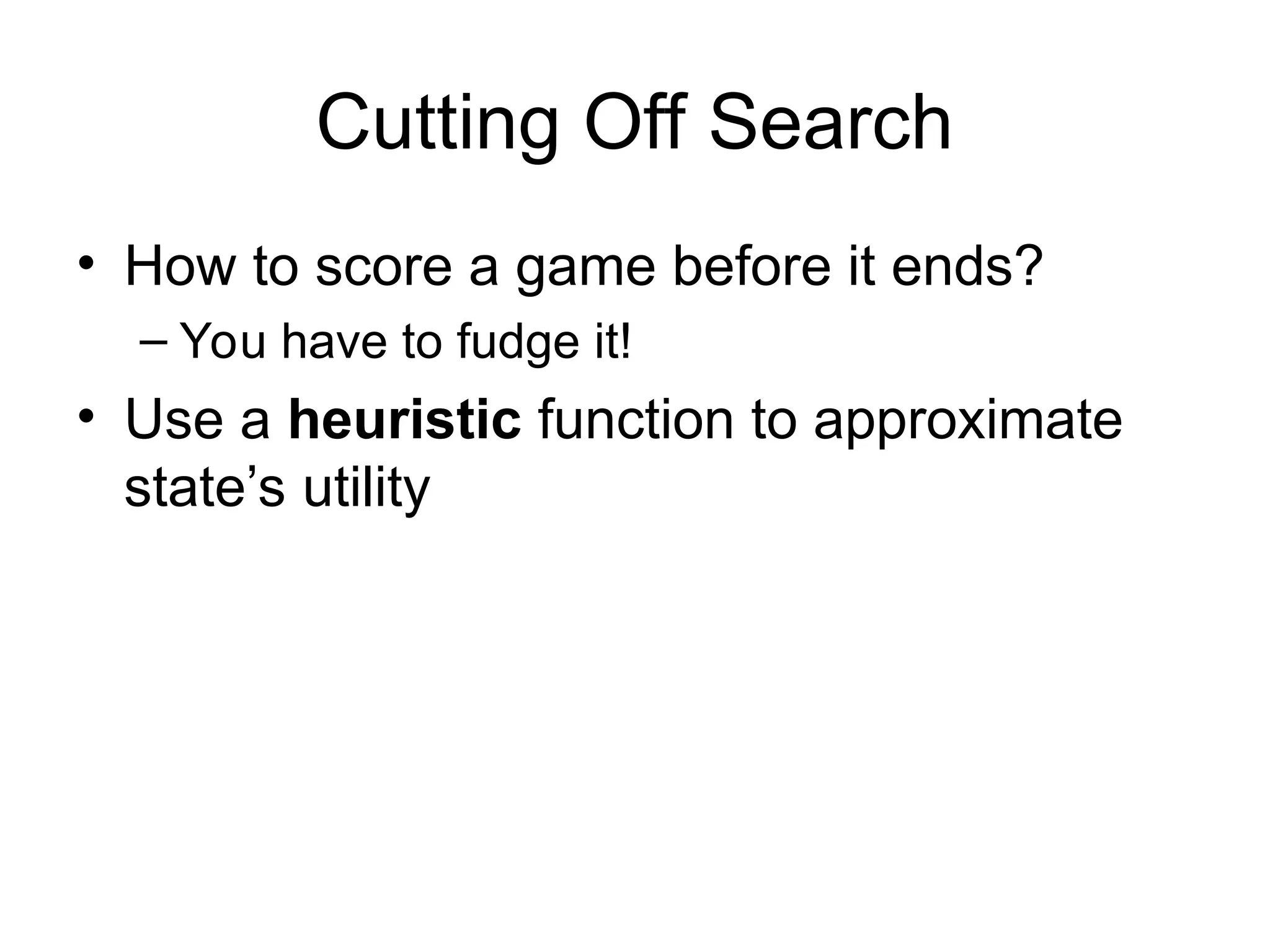

- 15. Cutting Off Search •How to score a game before it ends? – You have to fudge it! • Use a heuristic function to approximate state’s utility

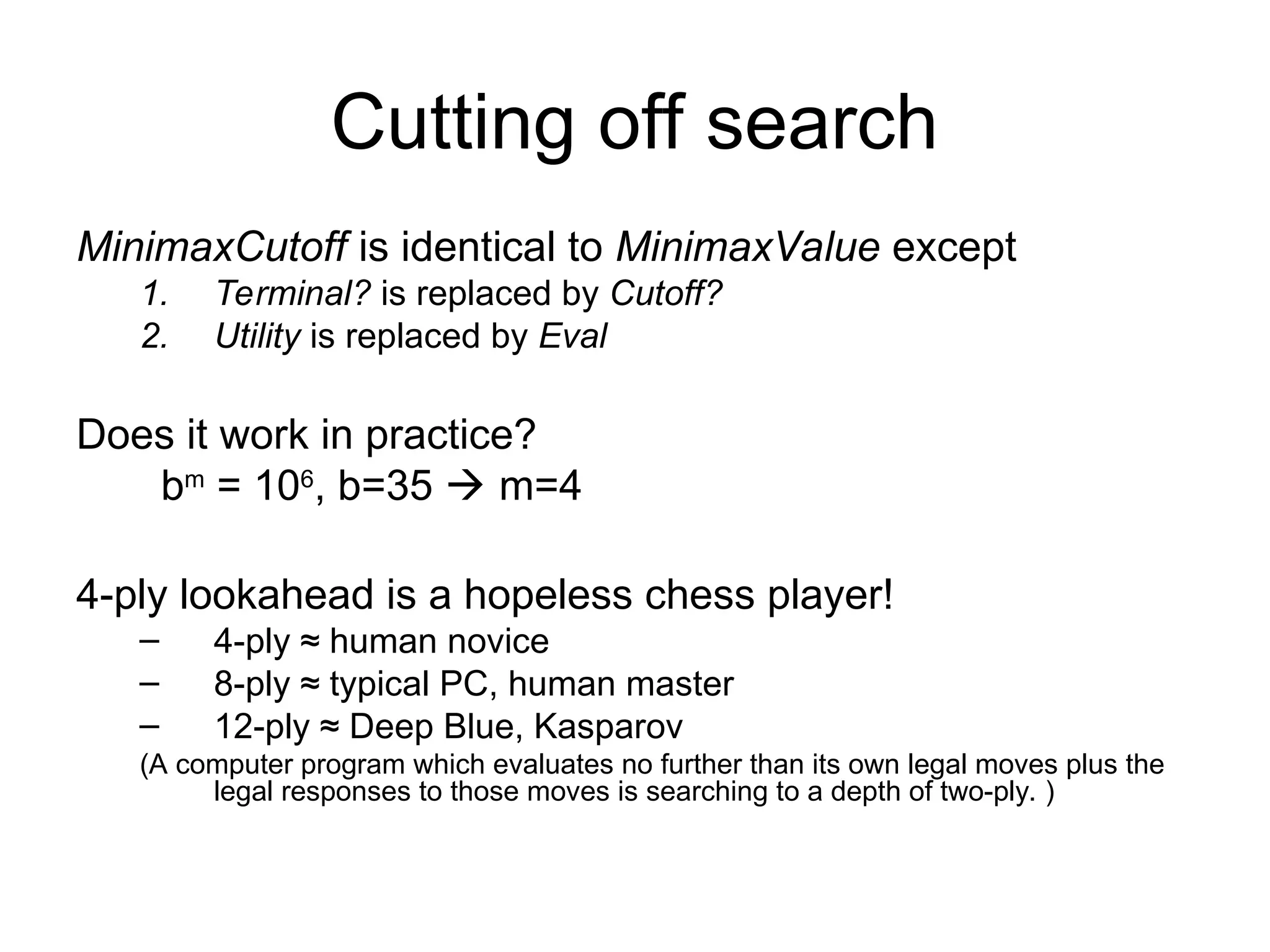

- 16. Cutting off search MinimaxCutoffis identical to MinimaxValue except 1. Terminal? is replaced by Cutoff? 2. Utility is replaced by Eval Does it work in practice? bm = 106 , b=35 m=4 4-ply lookahead is a hopeless chess player! – 4-ply ≈ human novice – 8-ply ≈ typical PC, human master – 12-ply ≈ Deep Blue, Kasparov (A computer program which evaluates no further than its own legal moves plus the legal responses to those moves is searching to a depth of two-ply. )
- 17. Example Evaluation Function •For chess, typically linear weighted sum of features Eval(s) = w1 f1(s) + w2 f2(s) + … + wn fn(s) • e.g., w1 = 9 with f1(s) = (number of white queens) – (number of black queens), etc.

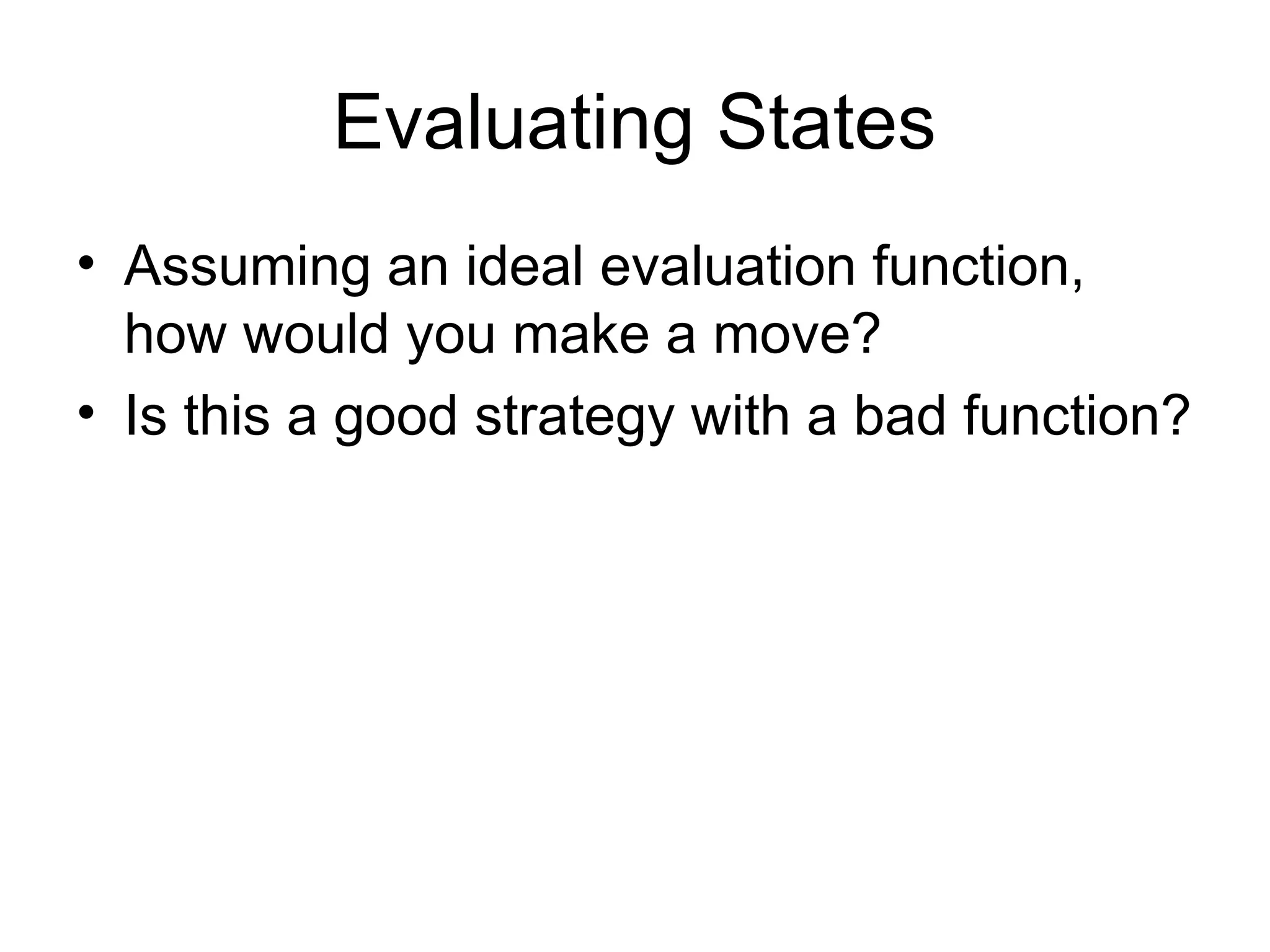

- 18. Evaluating States • Assumingan ideal evaluation function, how would you make a move? • Is this a good strategy with a bad function?

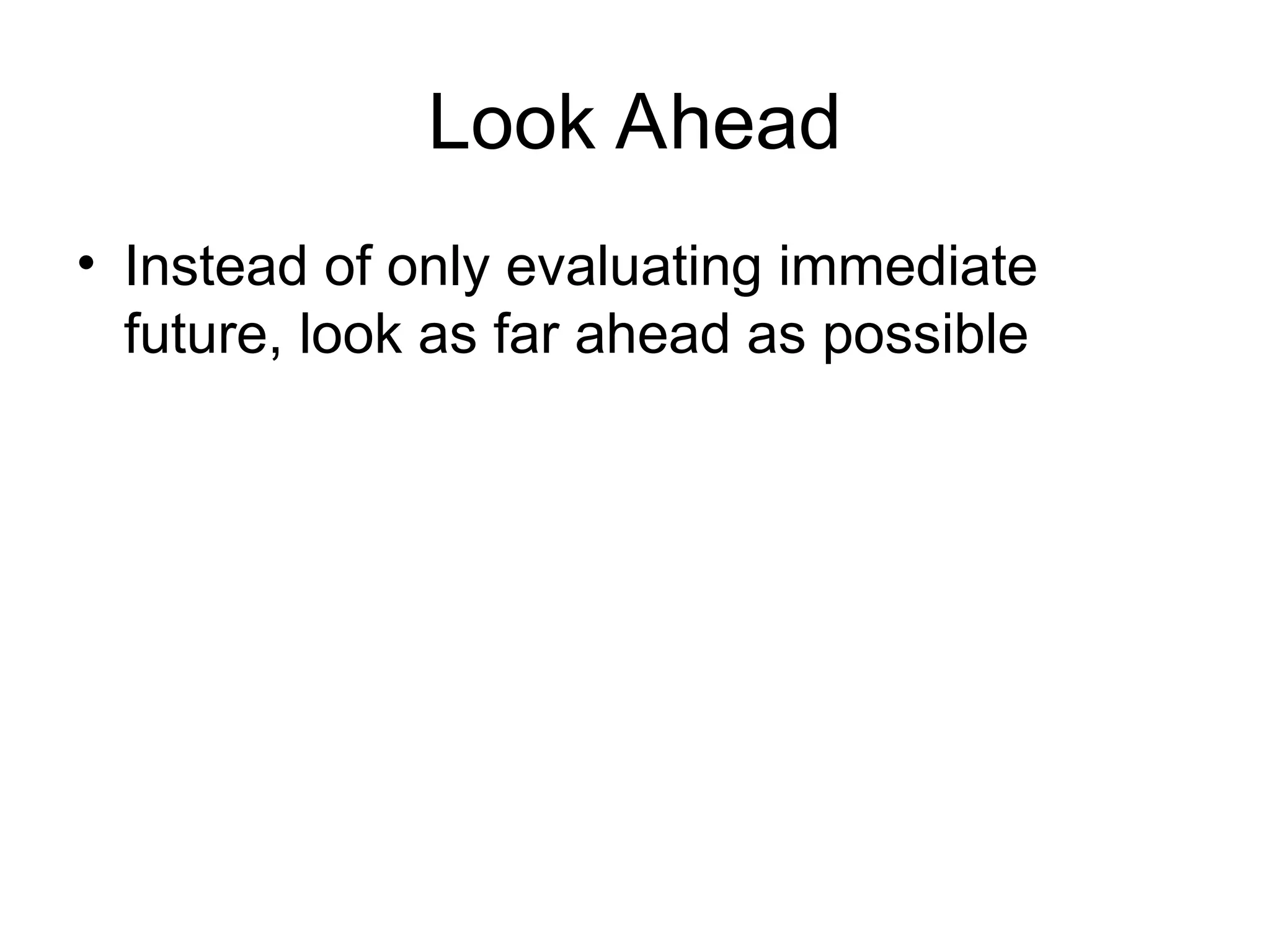

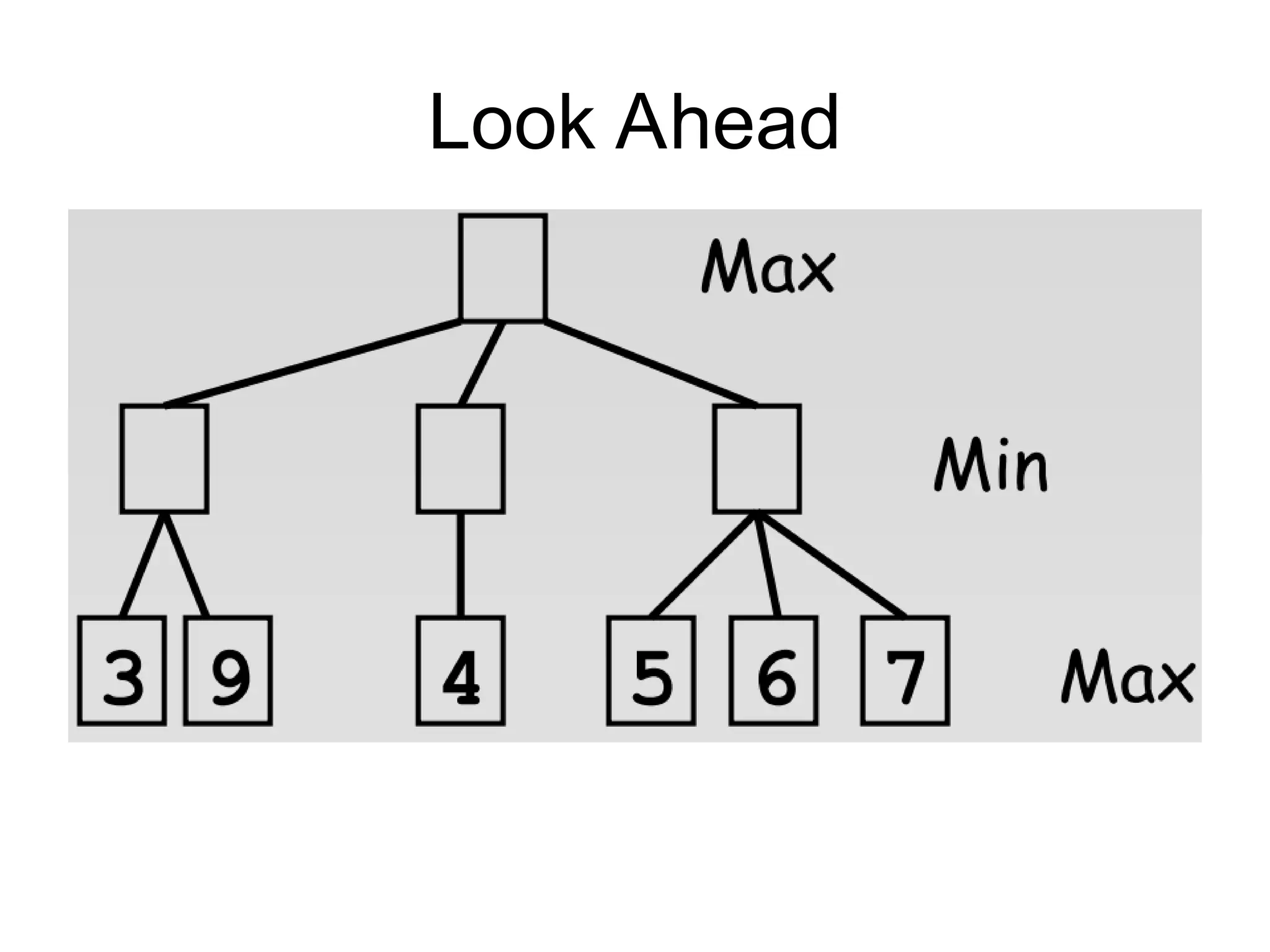

- 19. Look Ahead • Insteadof only evaluating immediate future, look as far ahead as possible
- 20.

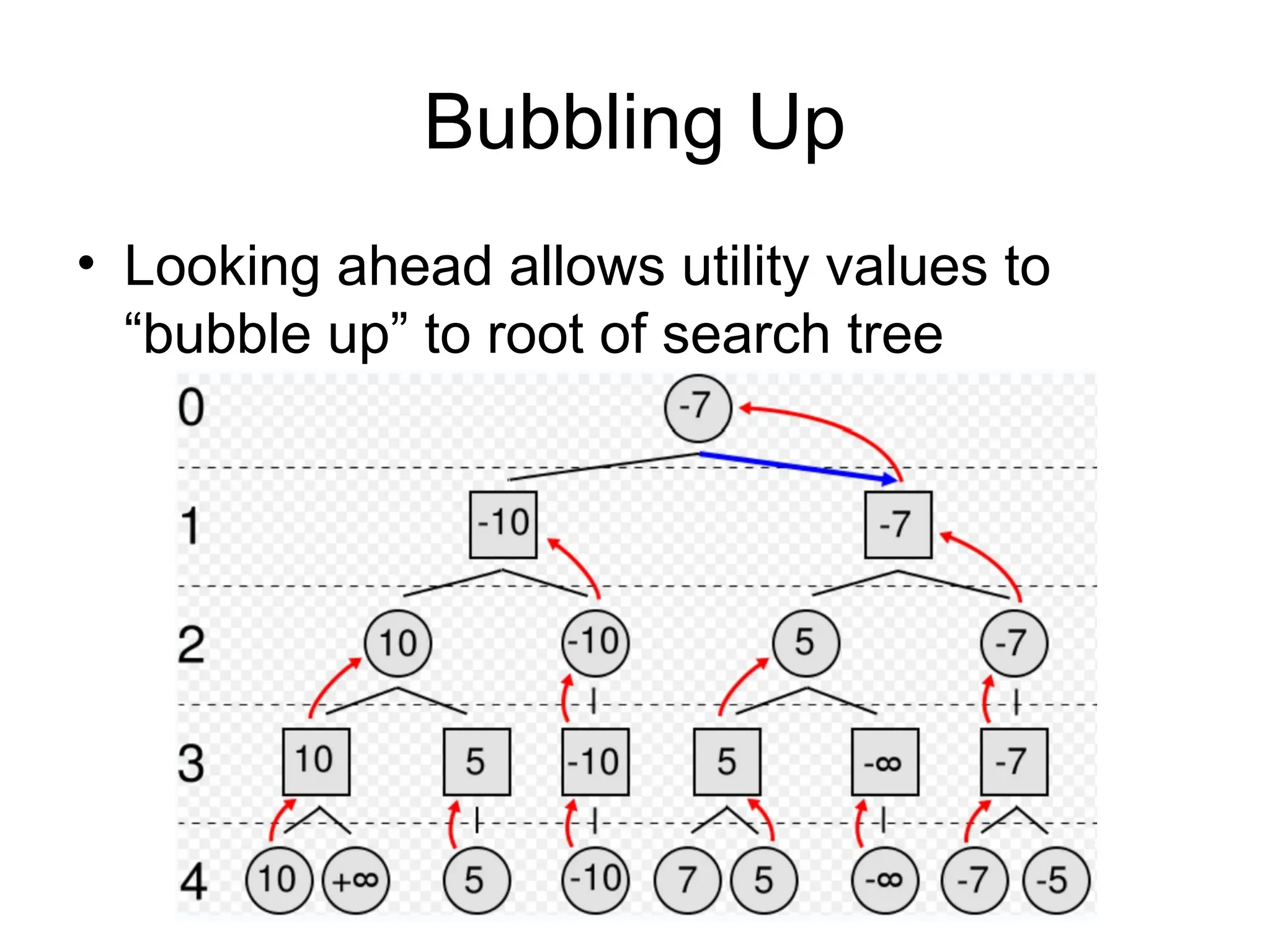

- 21. Bubbling Up • Lookingahead allows utility values to “bubble up” to root of search tree

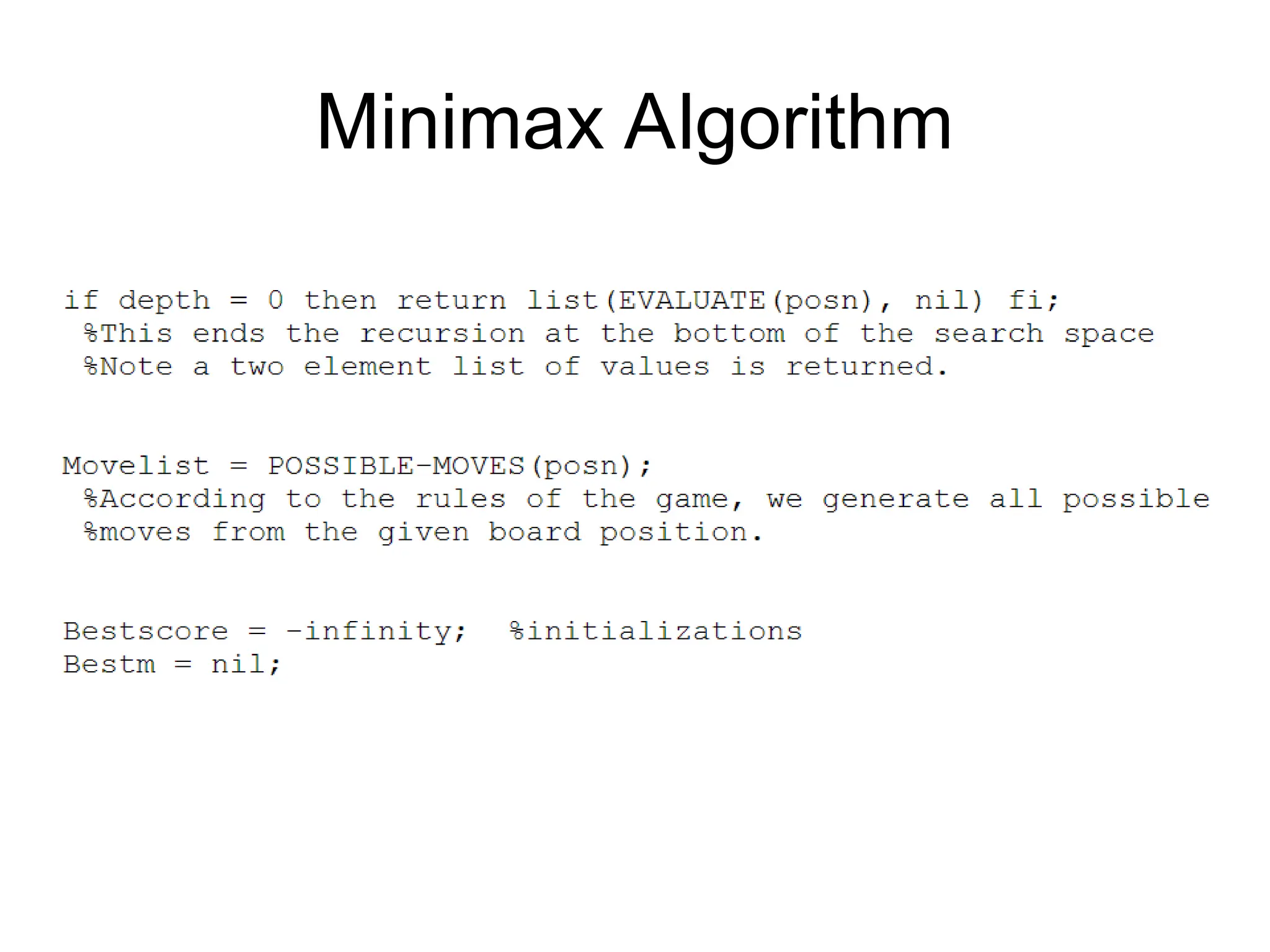

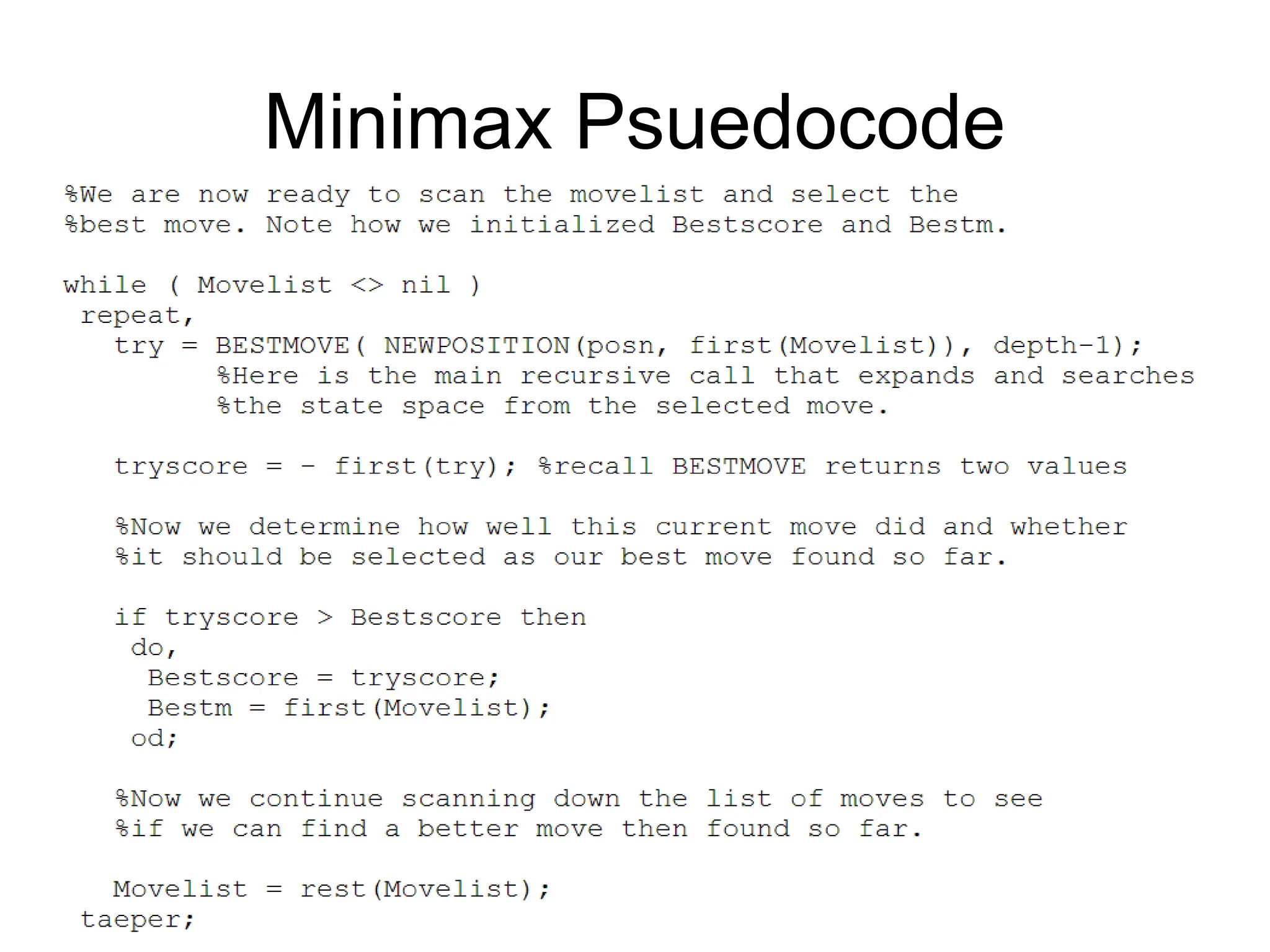

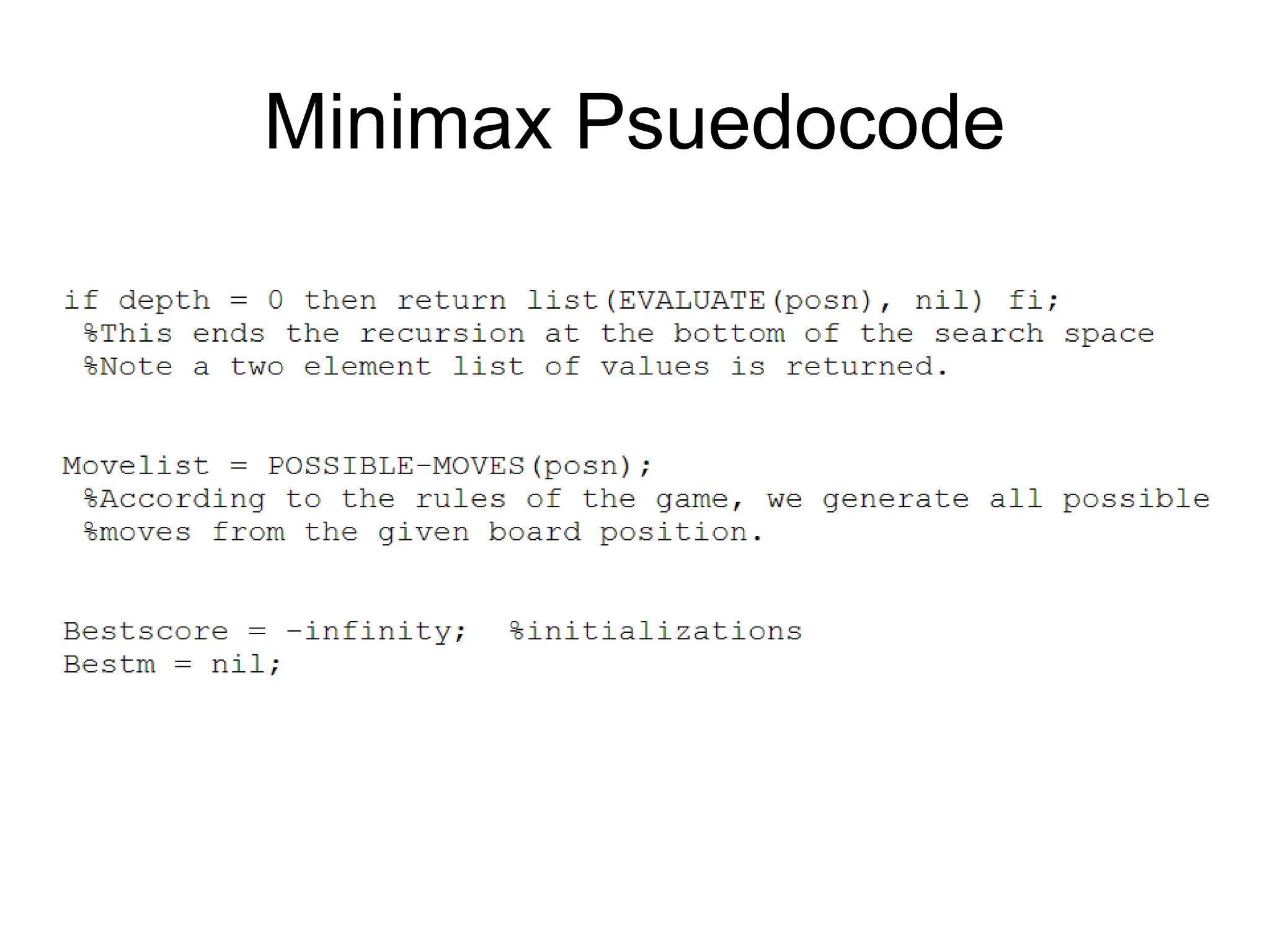

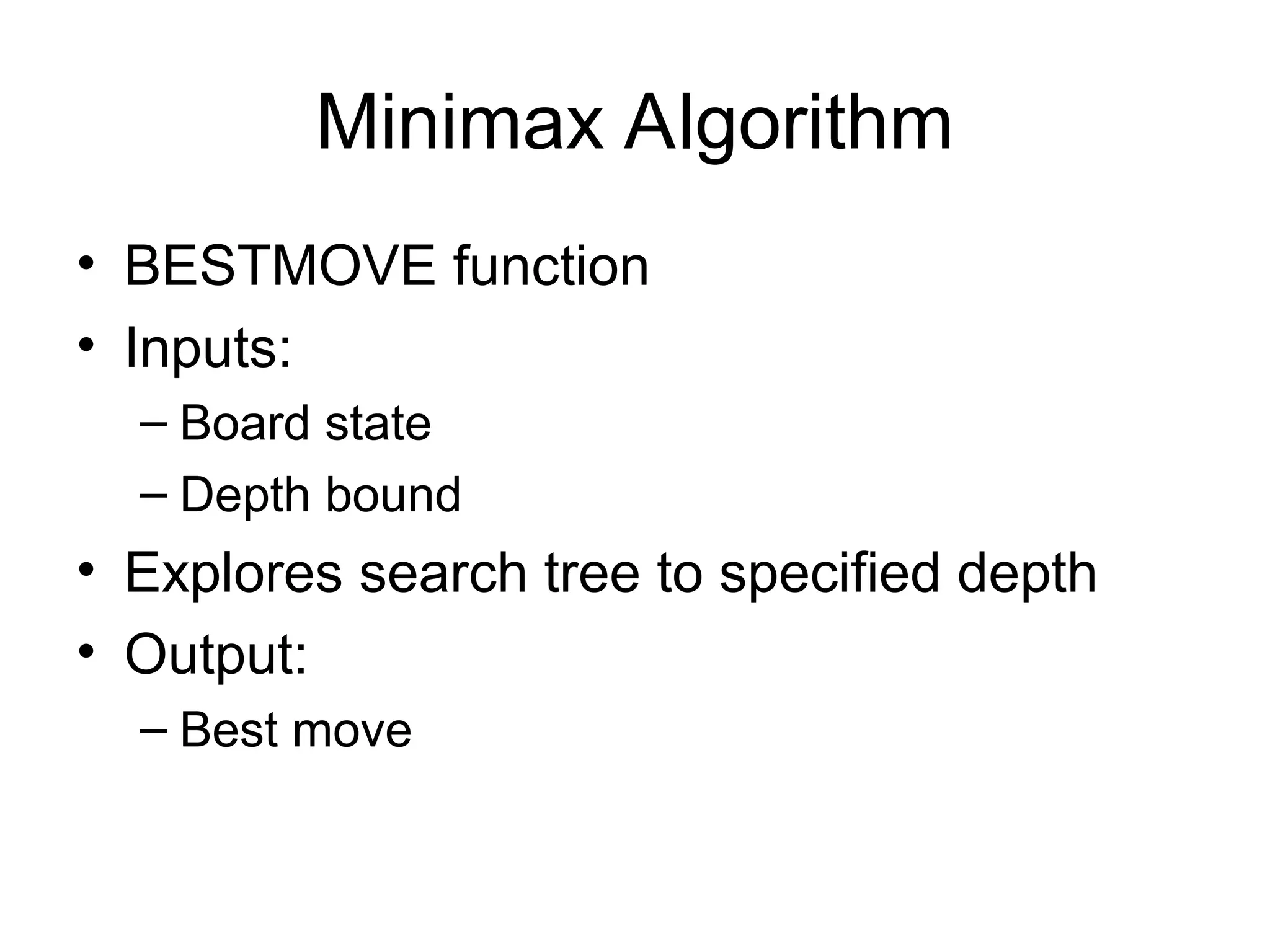

- 22. Minimax Algorithm • BESTMOVEfunction • Inputs: – Board state – Depth bound • Explores search tree to specified depth • Output: – Best move

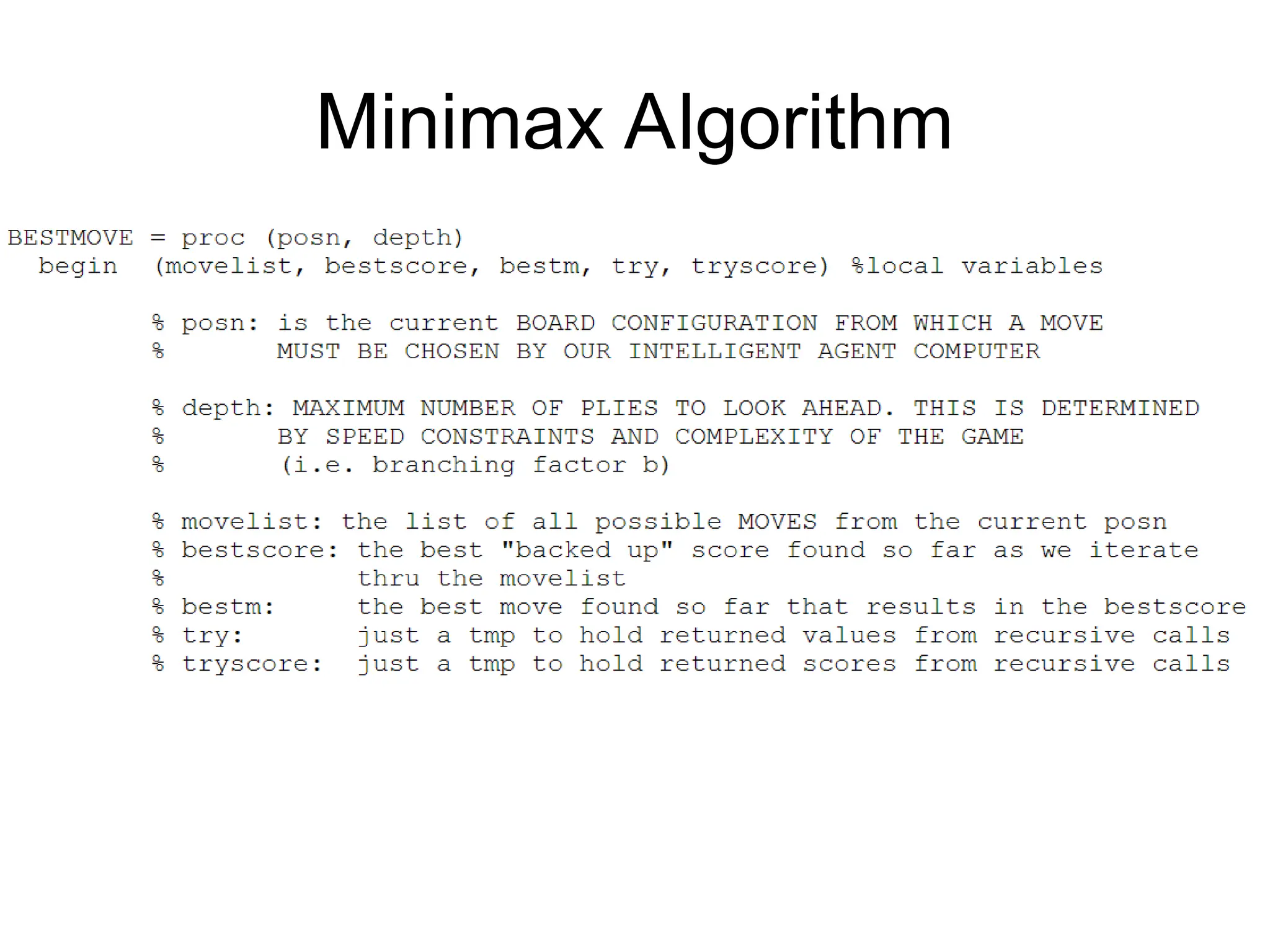

- 23.
- 24.
- 25.
- 26.

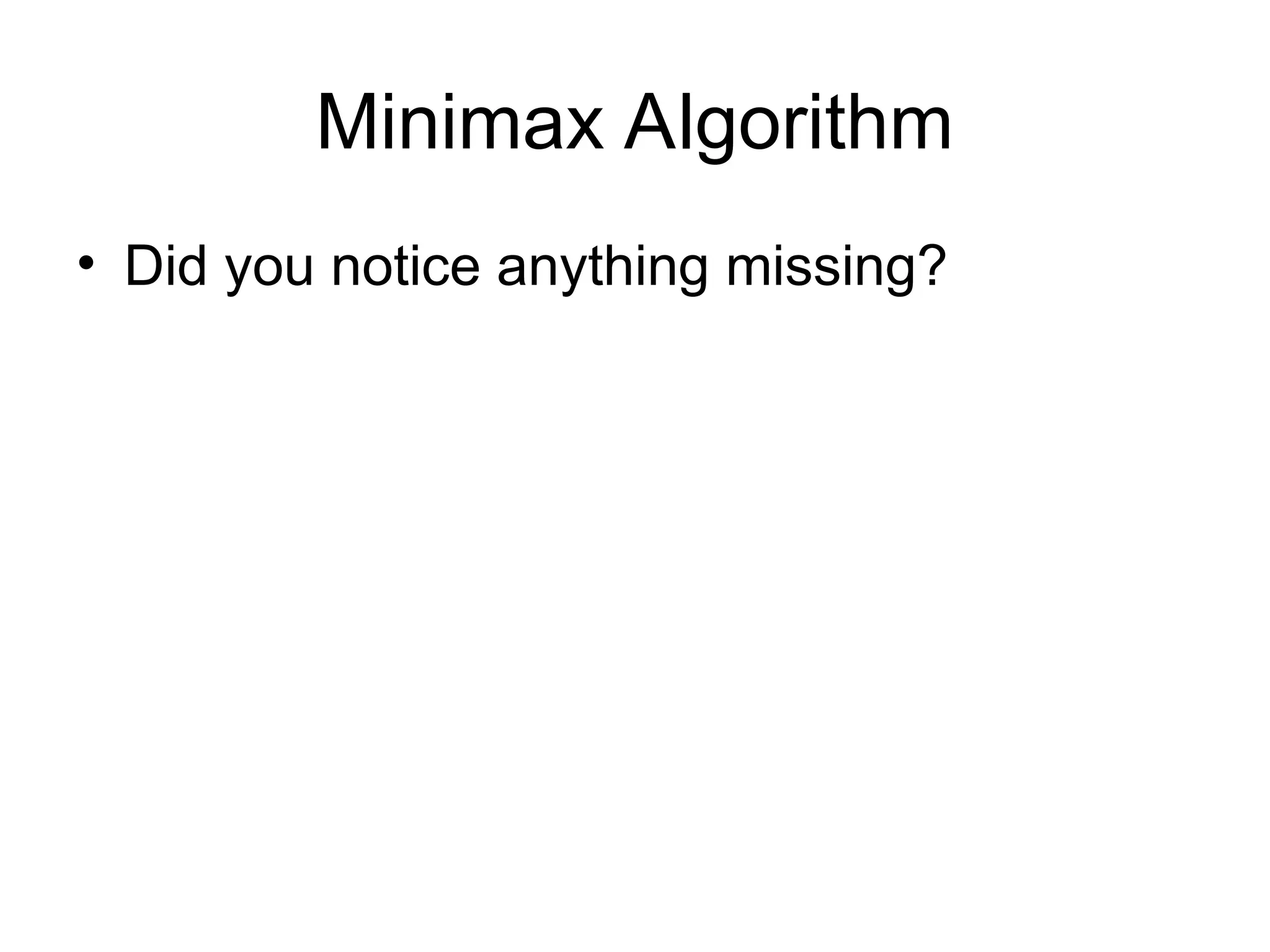

- 27. Minimax Algorithm • Didyou notice anything missing?

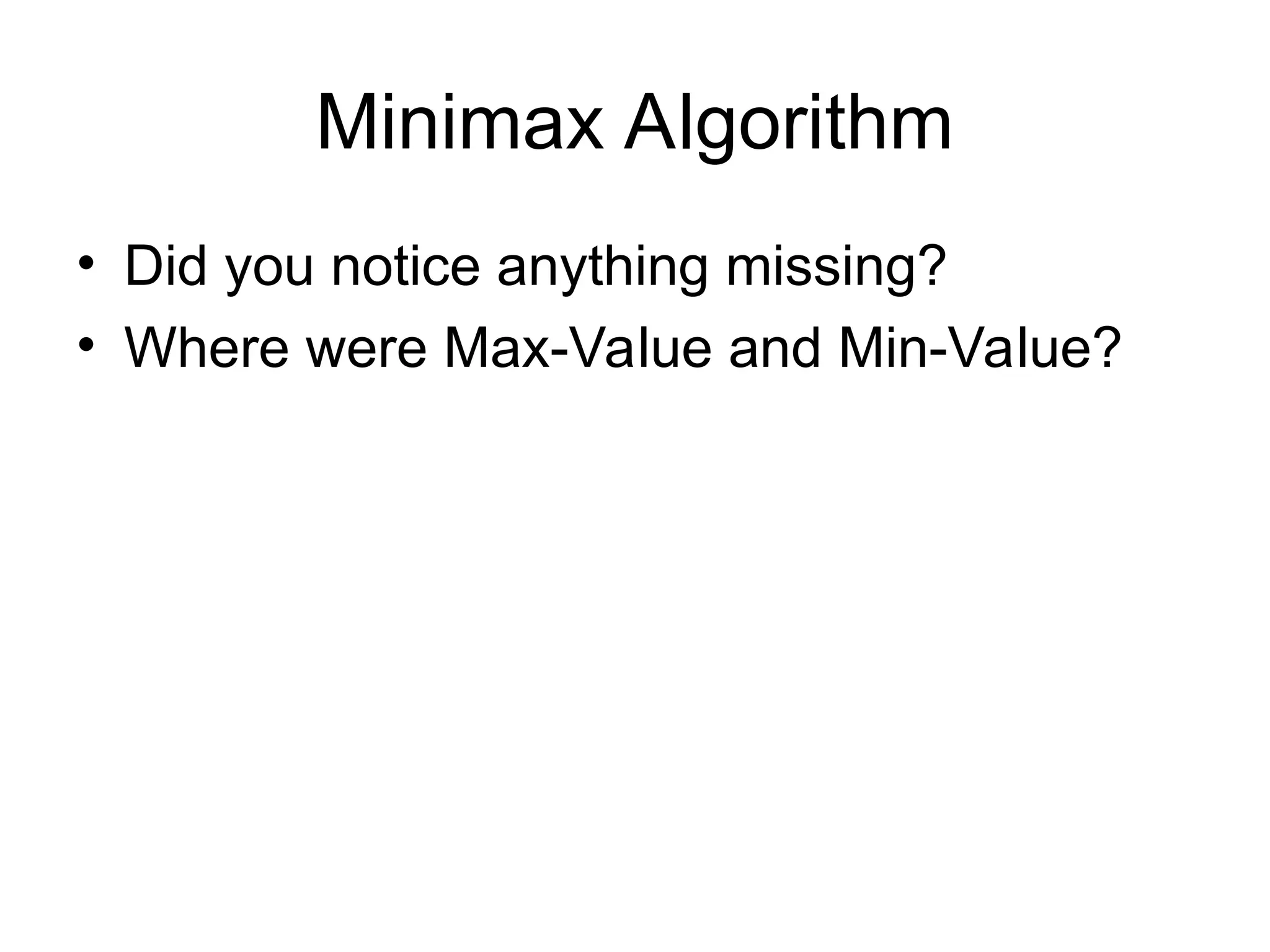

- 28. Minimax Algorithm • Didyou notice anything missing? • Where were Max-Value and Min-Value?

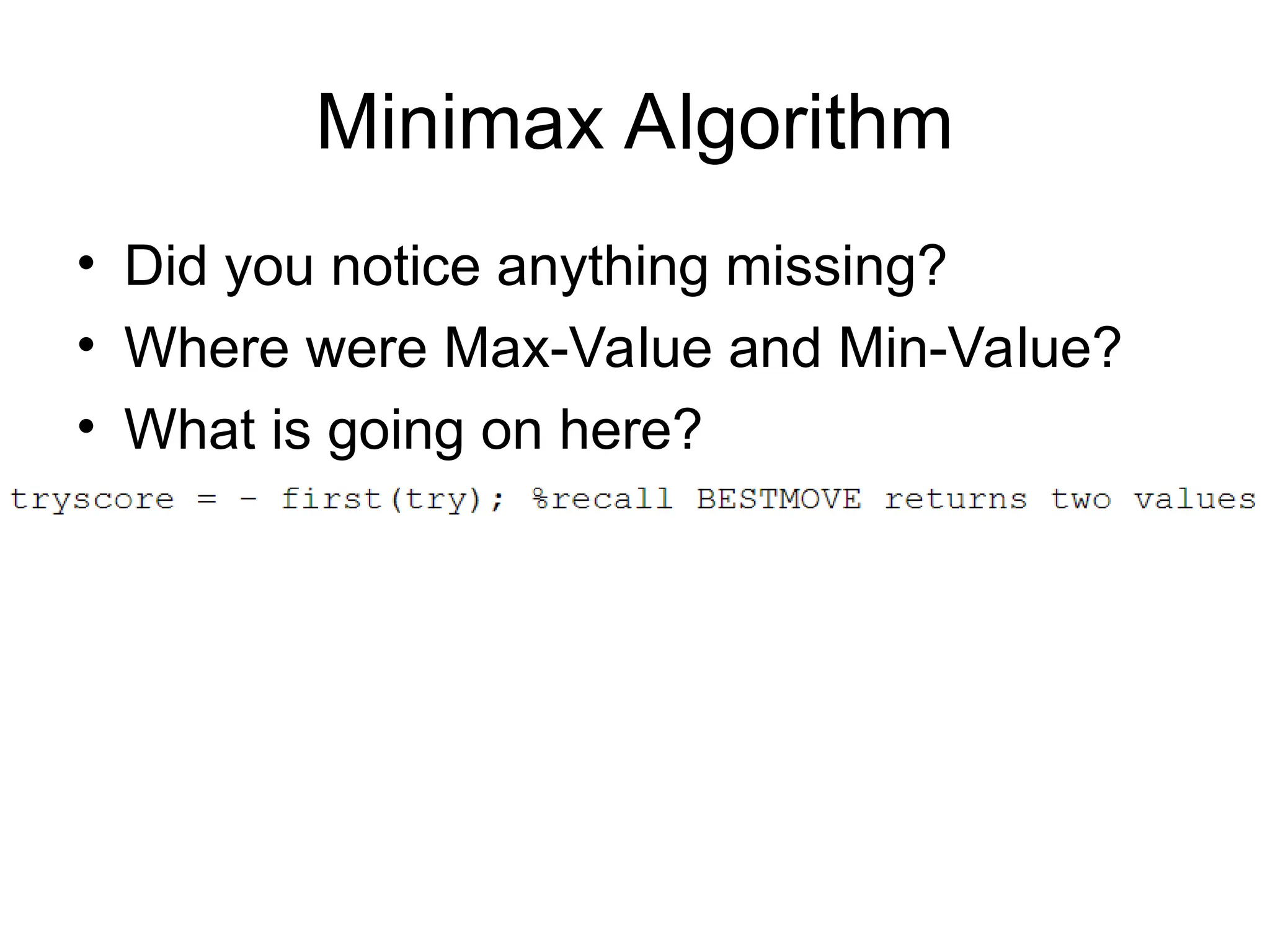

- 29. Minimax Algorithm • Didyou notice anything missing? • Where were Max-Value and Min-Value? • What is going on here?
- 30. Minimax Algorithm • Didyou notice anything missing? • Where were Max-Value and Min-Value? • What is going on here?

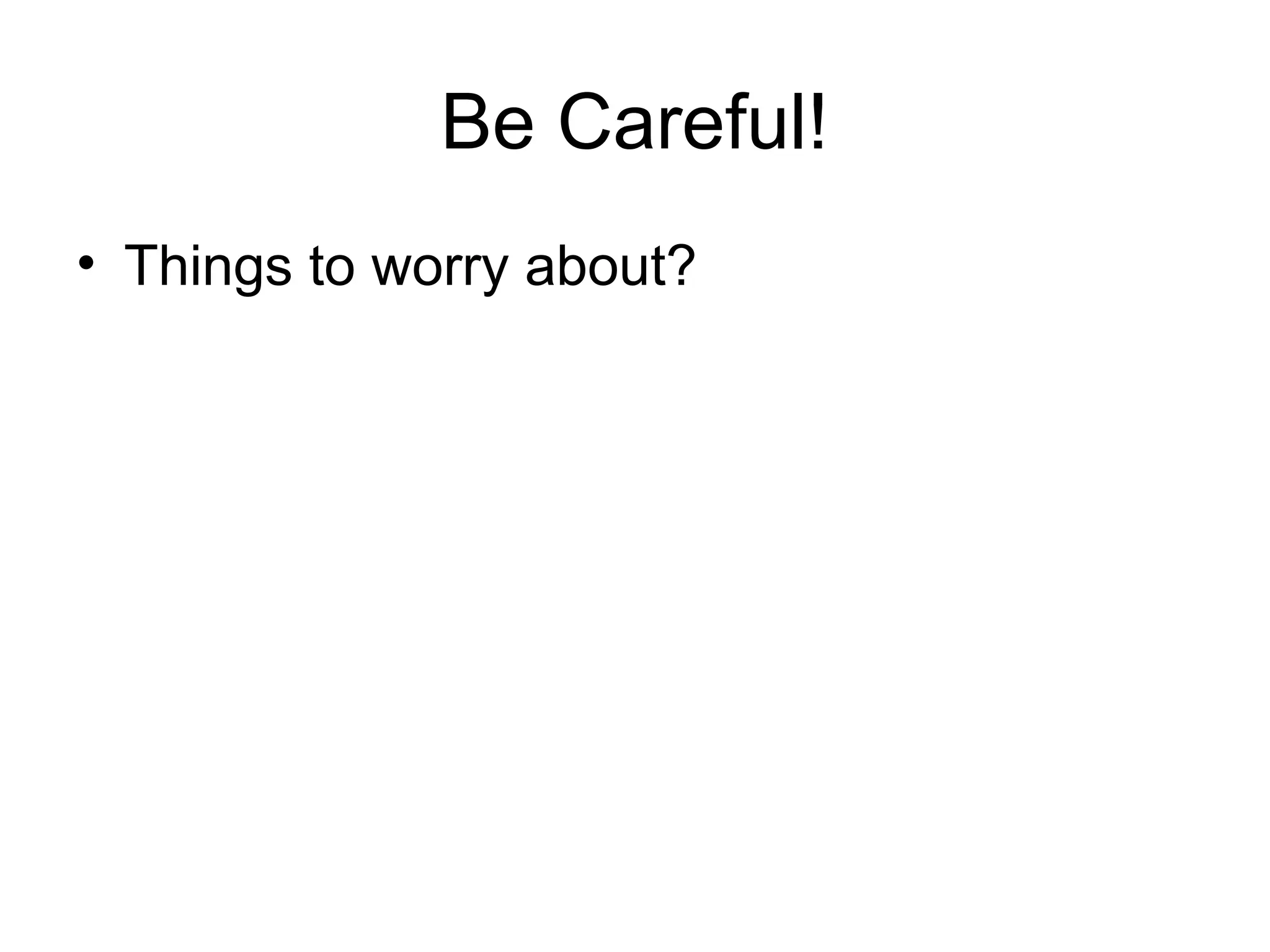

- 31. Be Careful! • Thingsto worry about?

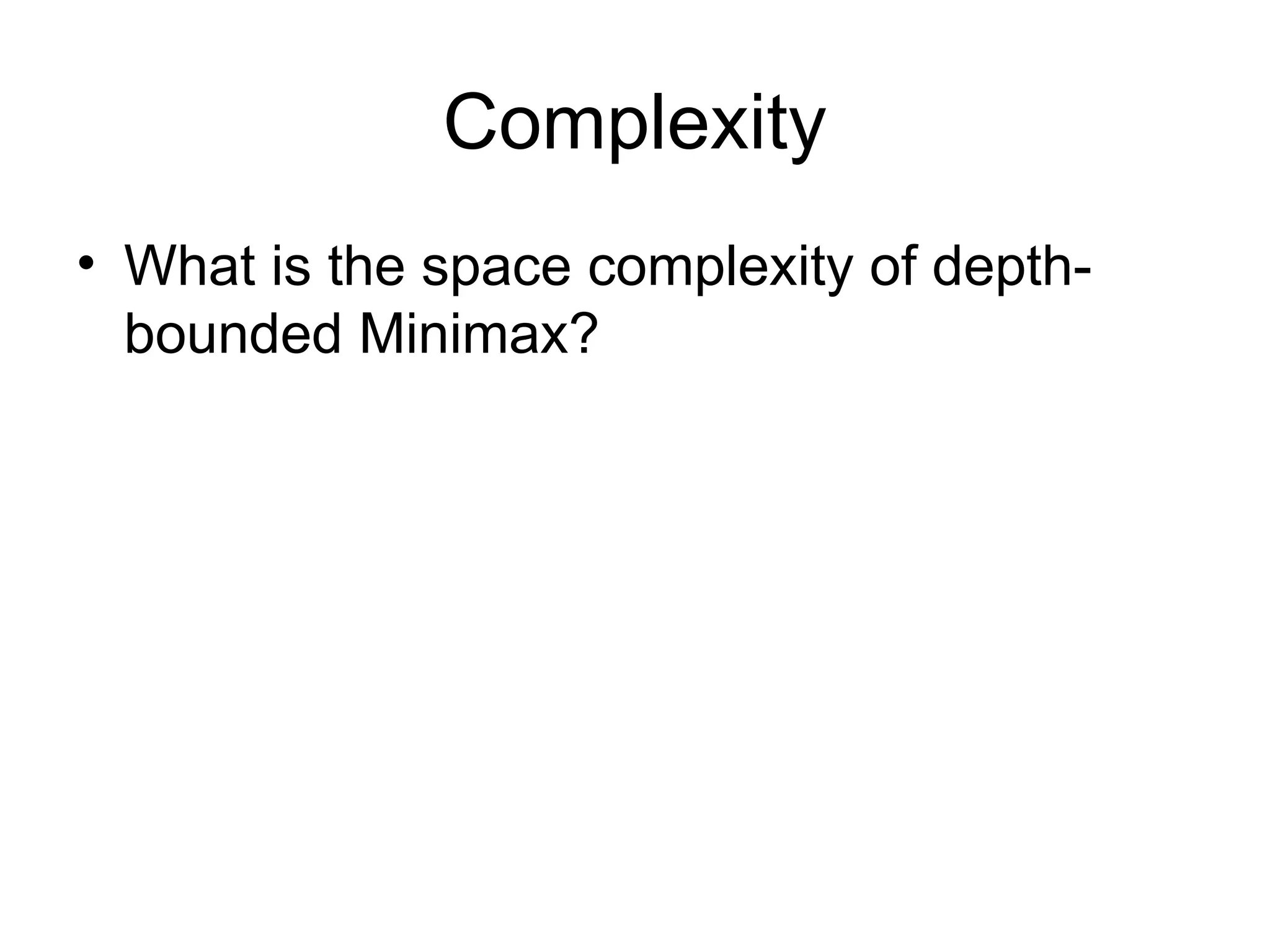

- 32. Complexity • What isthe space complexity of depth- bounded Minimax?

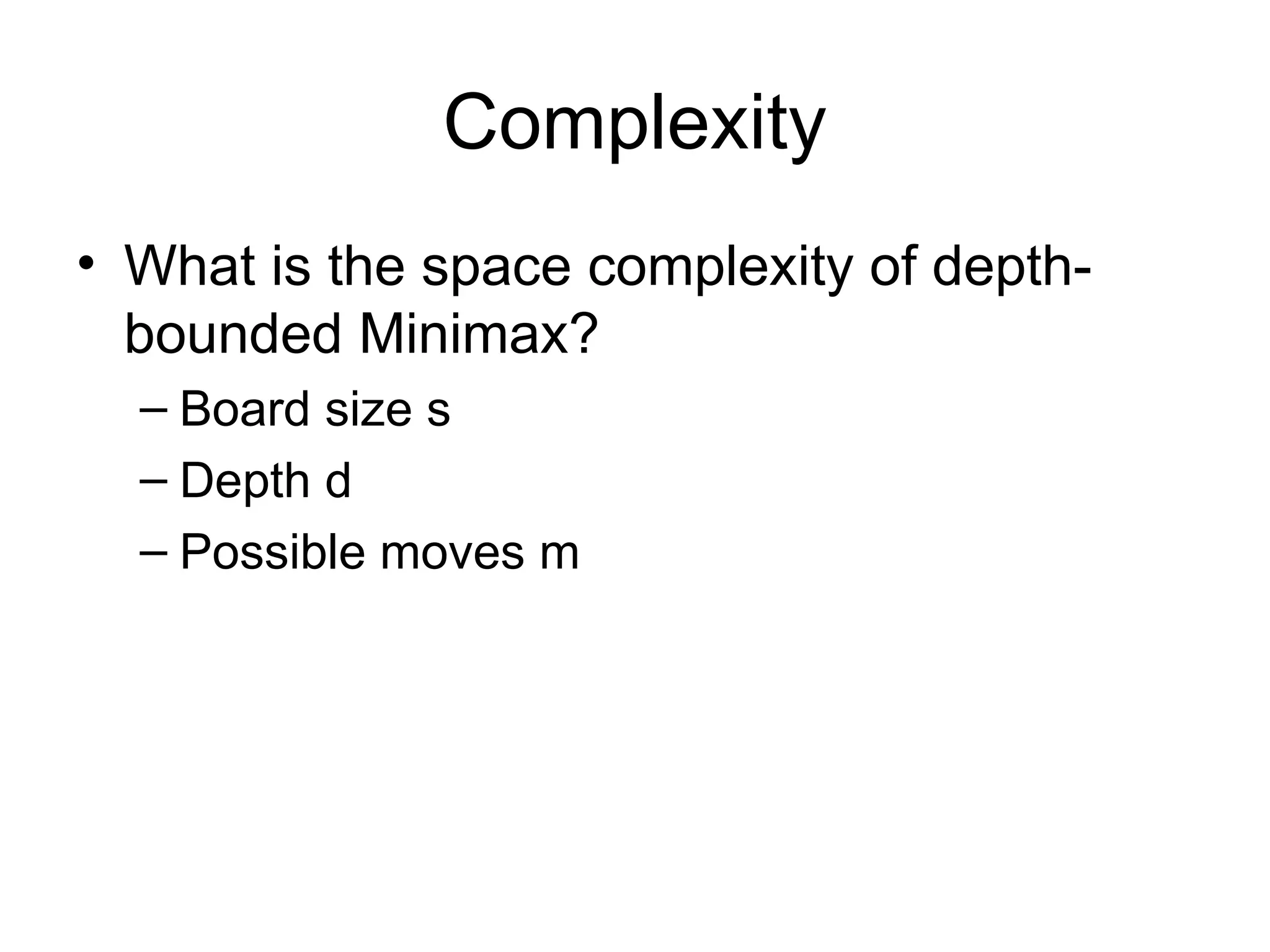

- 33. Complexity • What isthe space complexity of depth- bounded Minimax? – Board size s – Depth d – Possible moves m

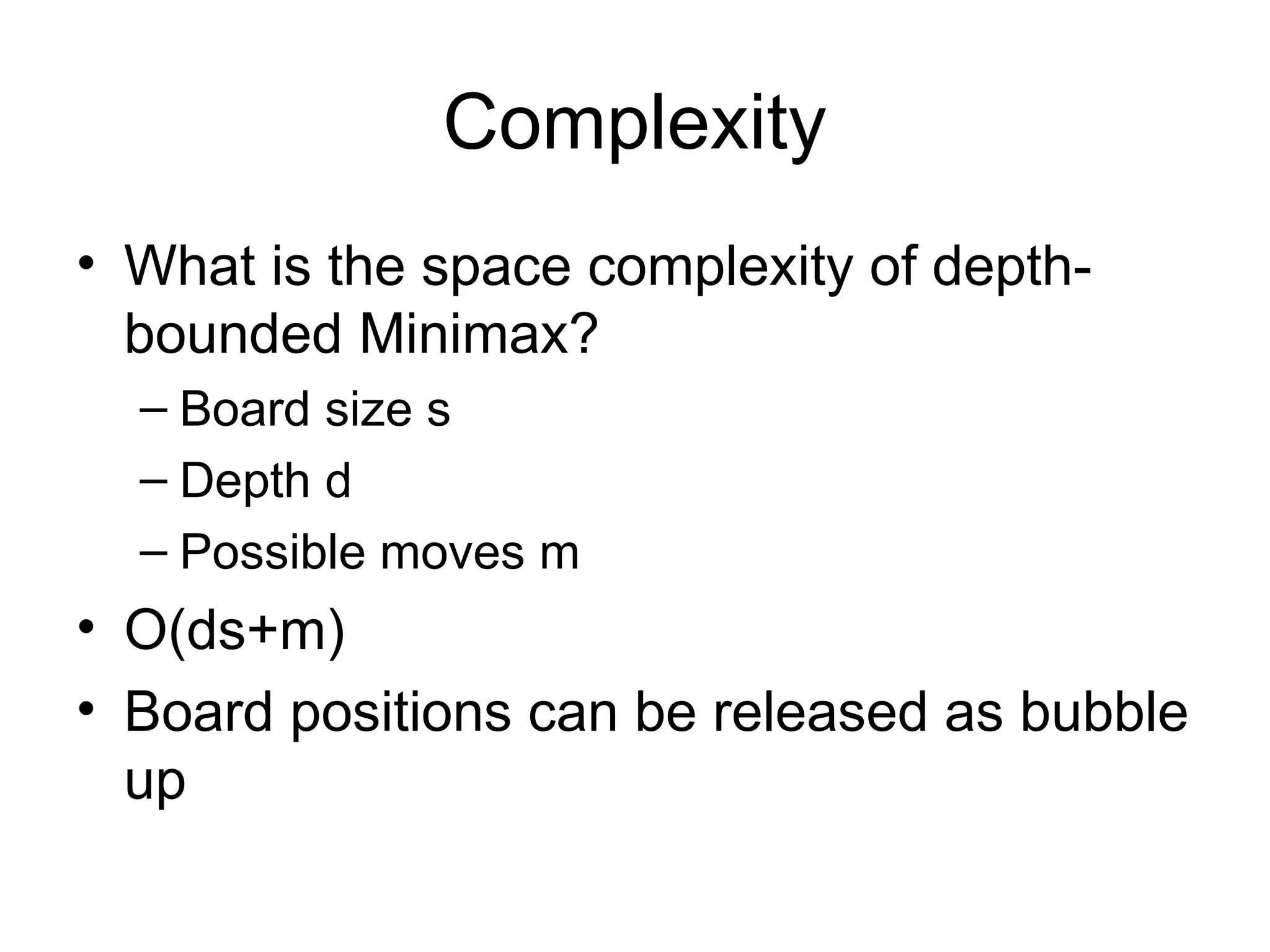

- 34. Complexity • What isthe space complexity of depth- bounded Minimax? – Board size s – Depth d – Possible moves m • O(ds+m) • Board positions can be released as bubble up

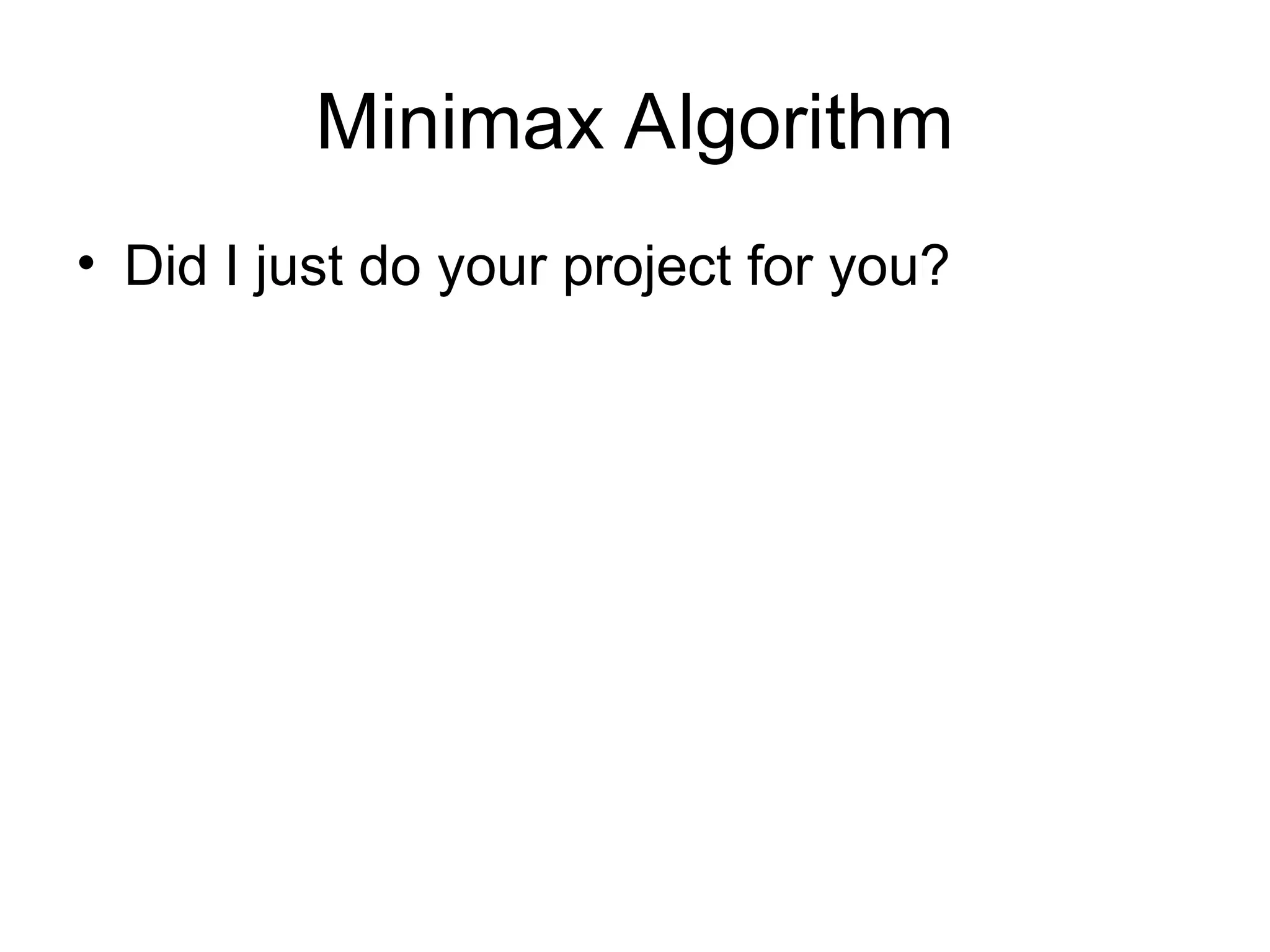

- 35. Minimax Algorithm • DidI just do your project for you?

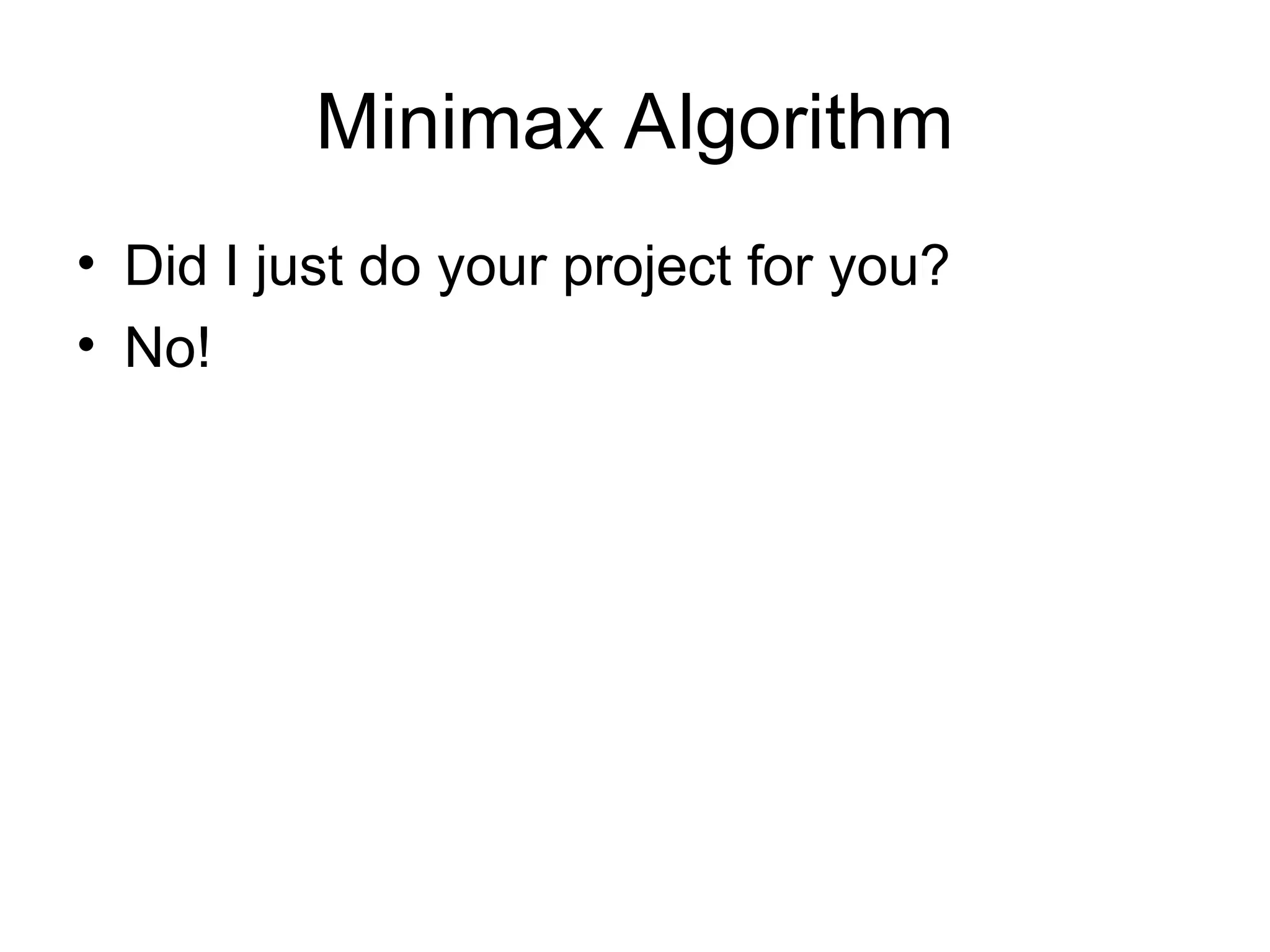

- 36. Minimax Algorithm • DidI just do your project for you? • No!

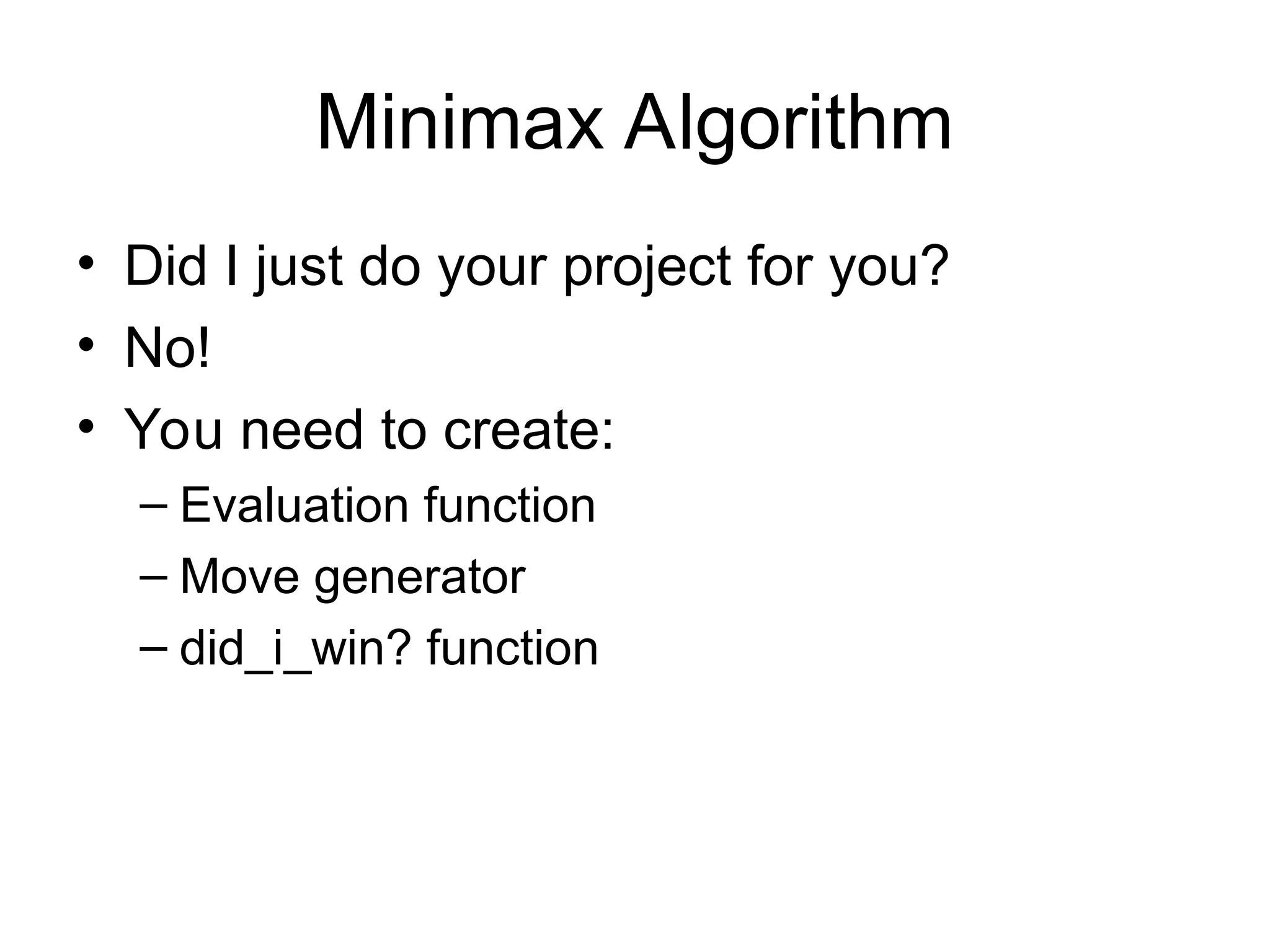

- 37. Minimax Algorithm • DidI just do your project for you? • No! • You need to create: – Evaluation function – Move generator – did_i_win? function

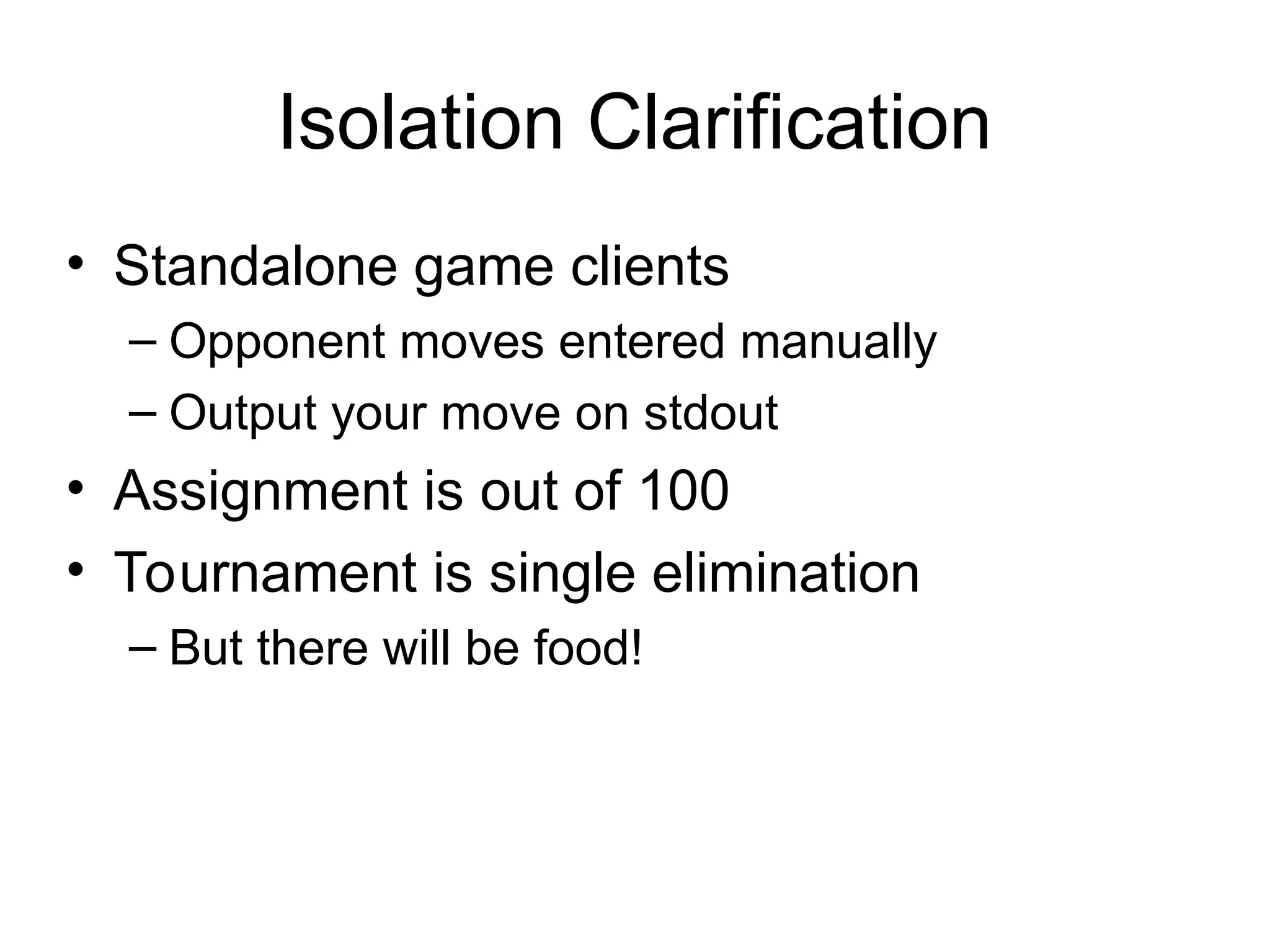

- 38. Isolation Clarification • Standalonegame clients – Opponent moves entered manually – Output your move on stdout • Assignment is out of 100 • Tournament is single elimination – But there will be food!

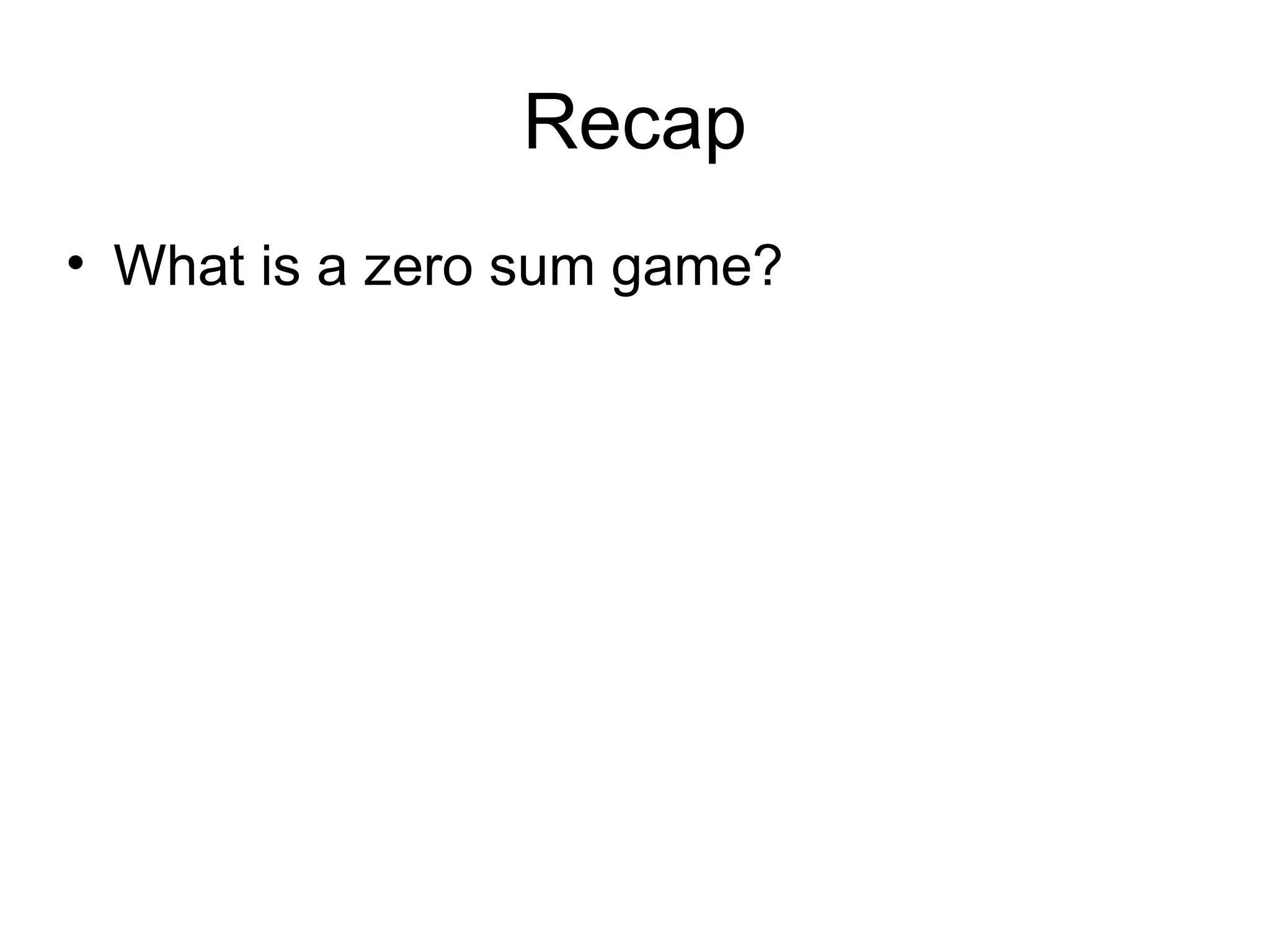

- 39. Recap • What isa zero sum game?

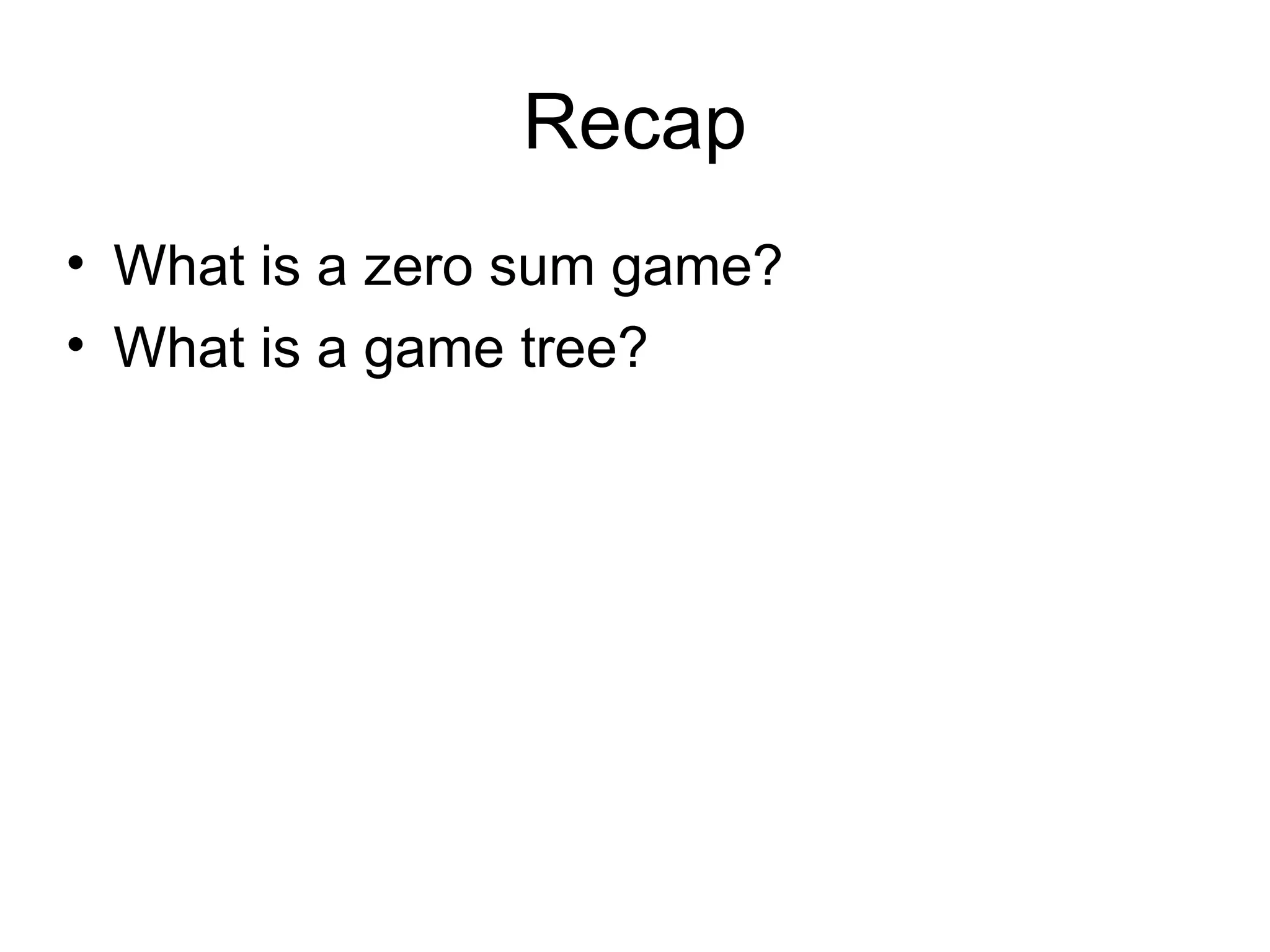

- 40. Recap • What isa zero sum game? • What is a game tree?

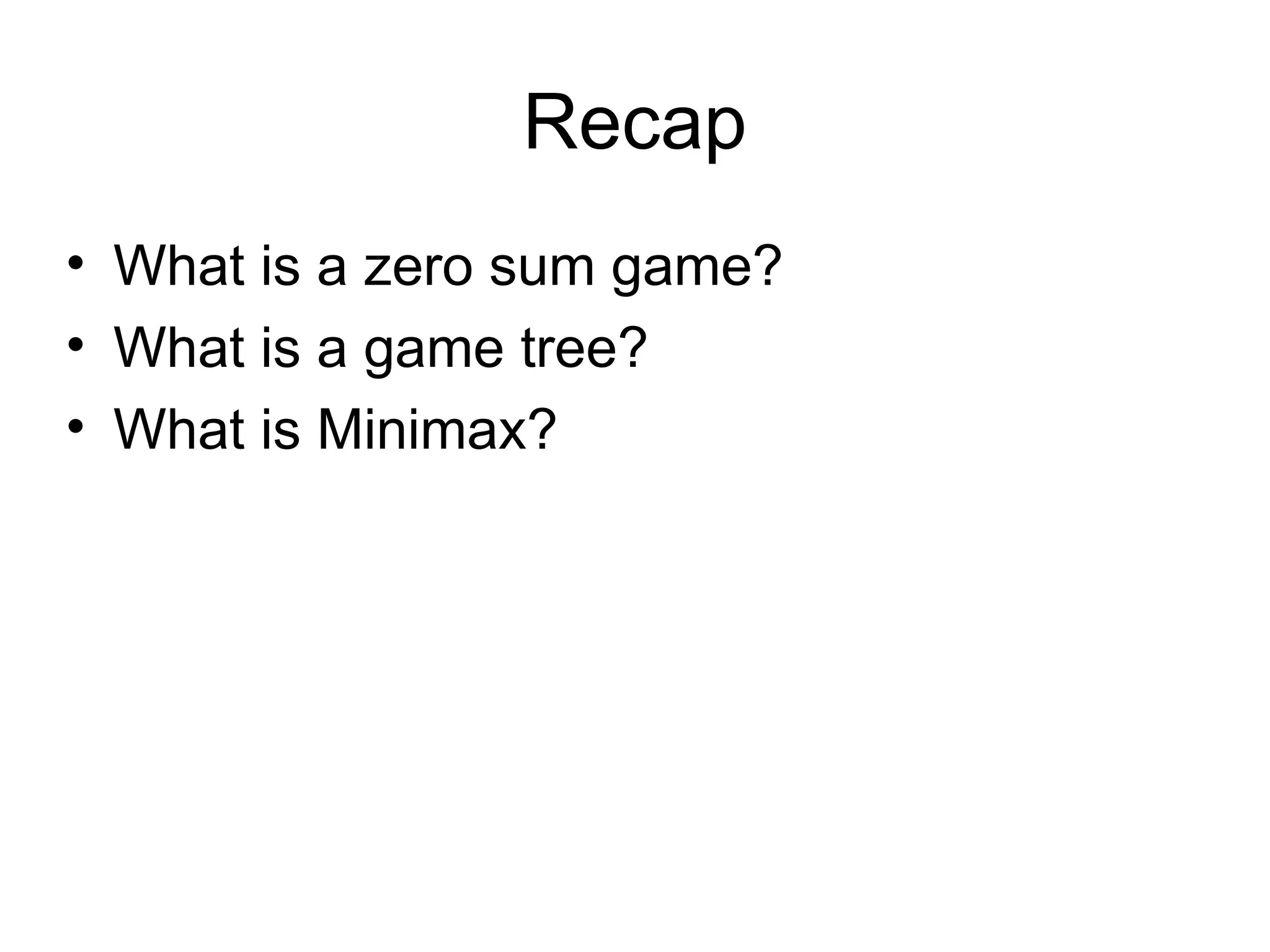

- 41. Recap • What isa zero sum game? • What is a game tree? • What is Minimax?

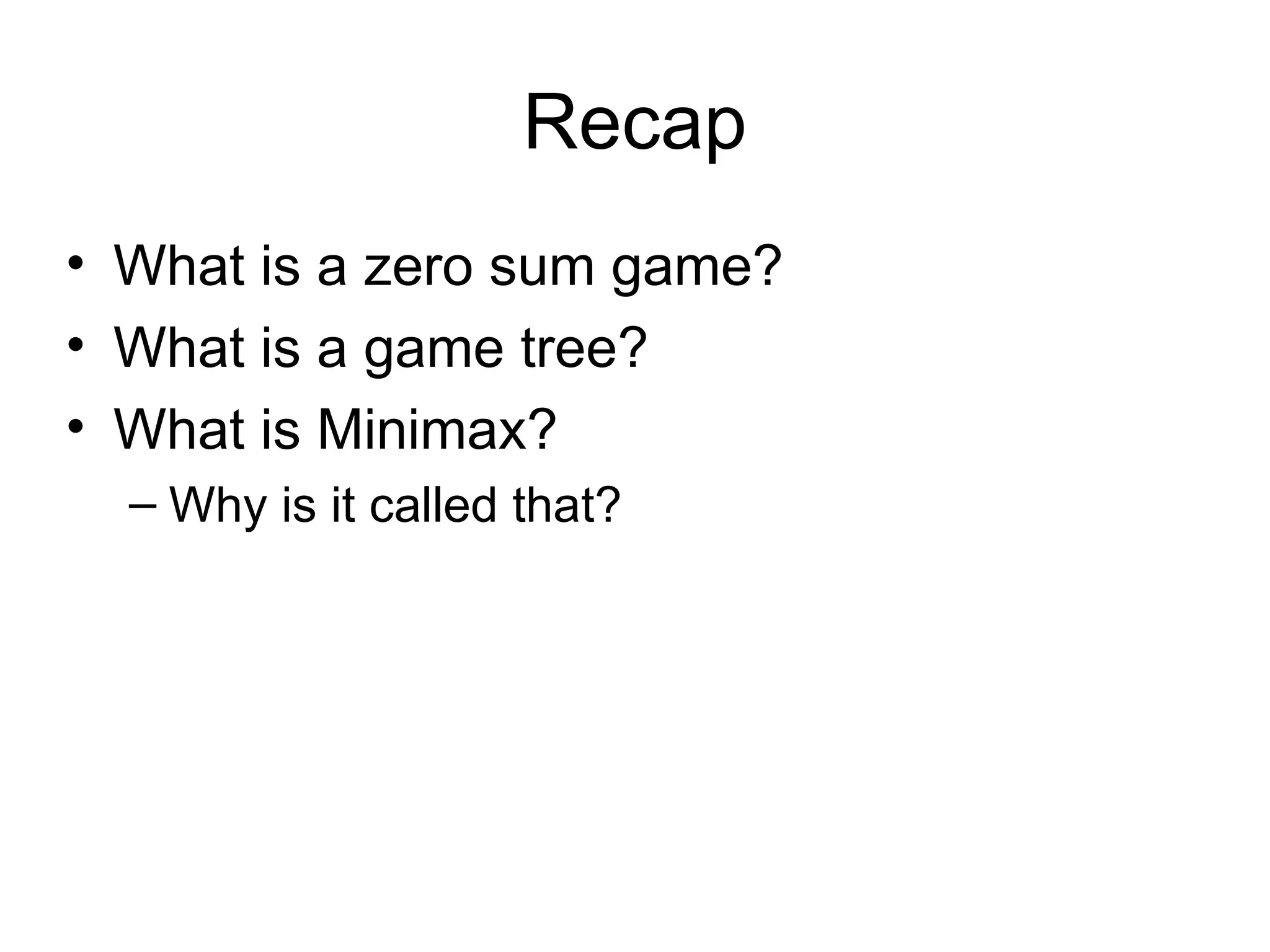

- 42. Recap • What isa zero sum game? • What is a game tree? • What is Minimax? – Why is it called that?

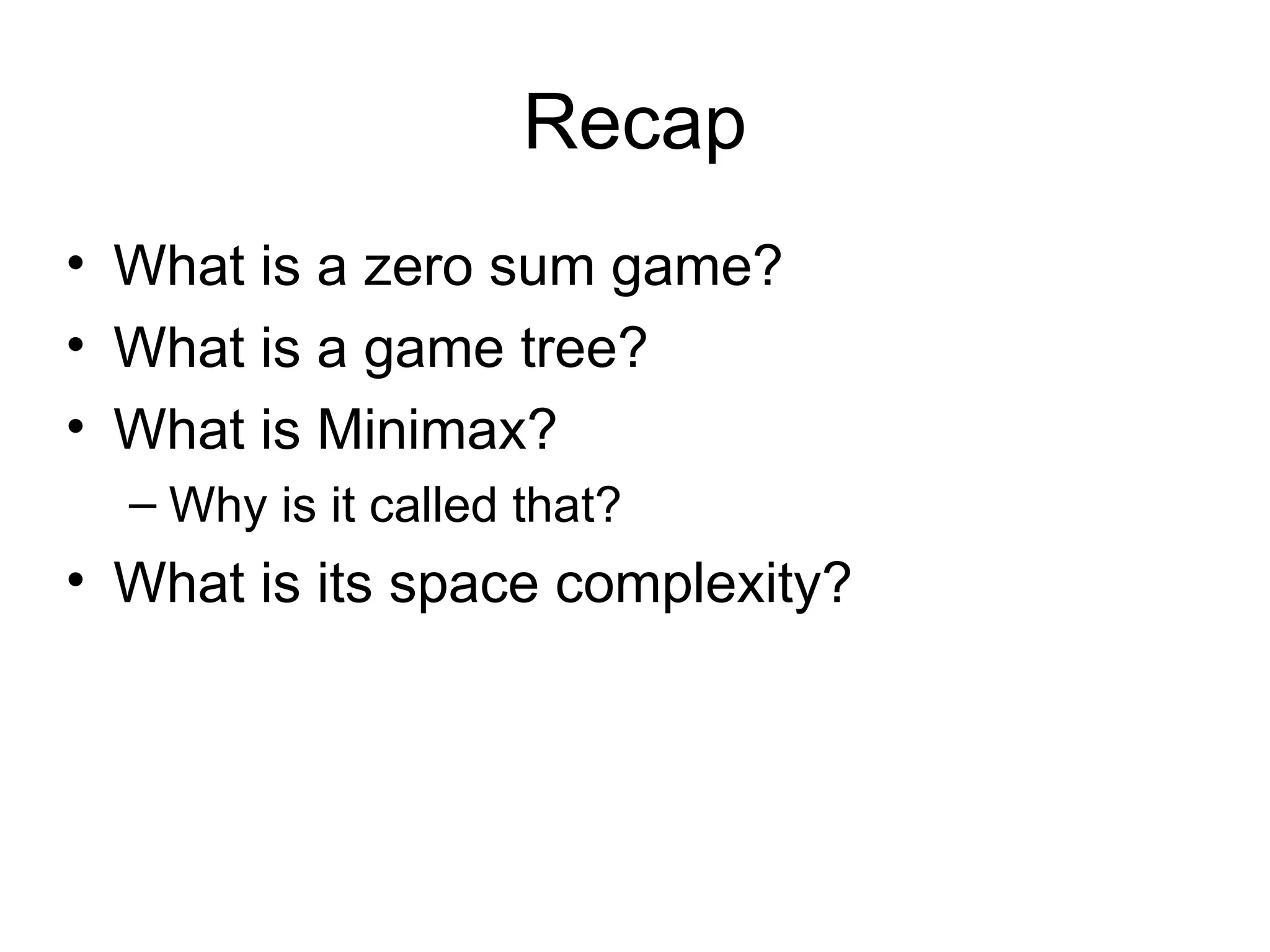

- 43. Recap • What isa zero sum game? • What is a game tree? • What is Minimax? – Why is it called that? • What is its space complexity?
- 44. Recap • What isa zero sum game? • What is a game tree? • What is Minimax? – Why is it called that? • What is its space complexity? • How can the Minimax algorithm be simplified?

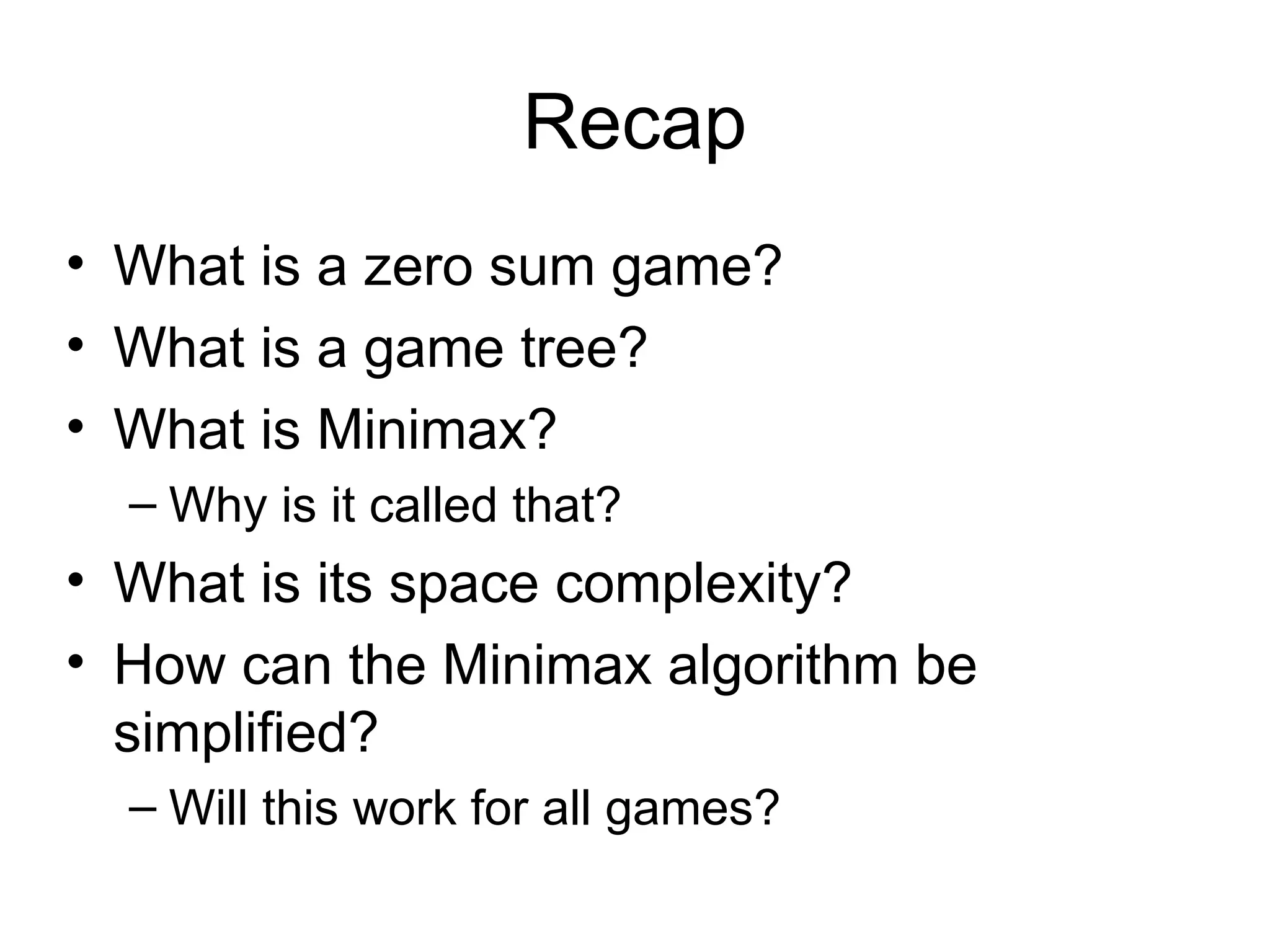

- 45. Recap • What isa zero sum game? • What is a game tree? • What is Minimax? – Why is it called that? • What is its space complexity? • How can the Minimax algorithm be simplified? – Will this work for all games?
- 46. Recap • What isa zero sum game? • What is a game tree? • What is Minimax? – Why is it called that? • What is its space complexity? • How can the Minimax algorithm be simplified? – Will this work for all games?

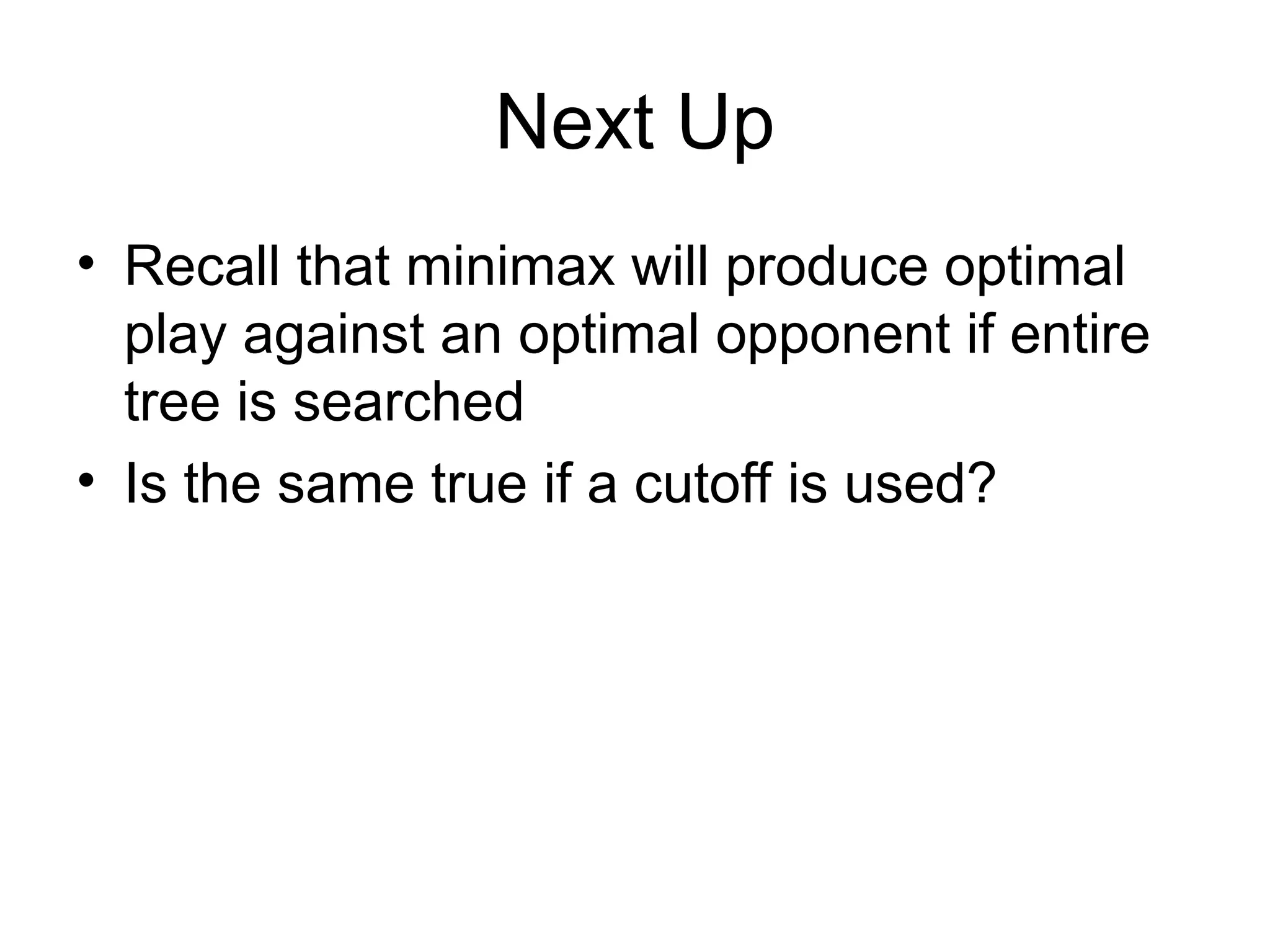

- 47. Next Up • Recallthat minimax will produce optimal play against an optimal opponent if entire tree is searched • Is the same true if a cutoff is used?

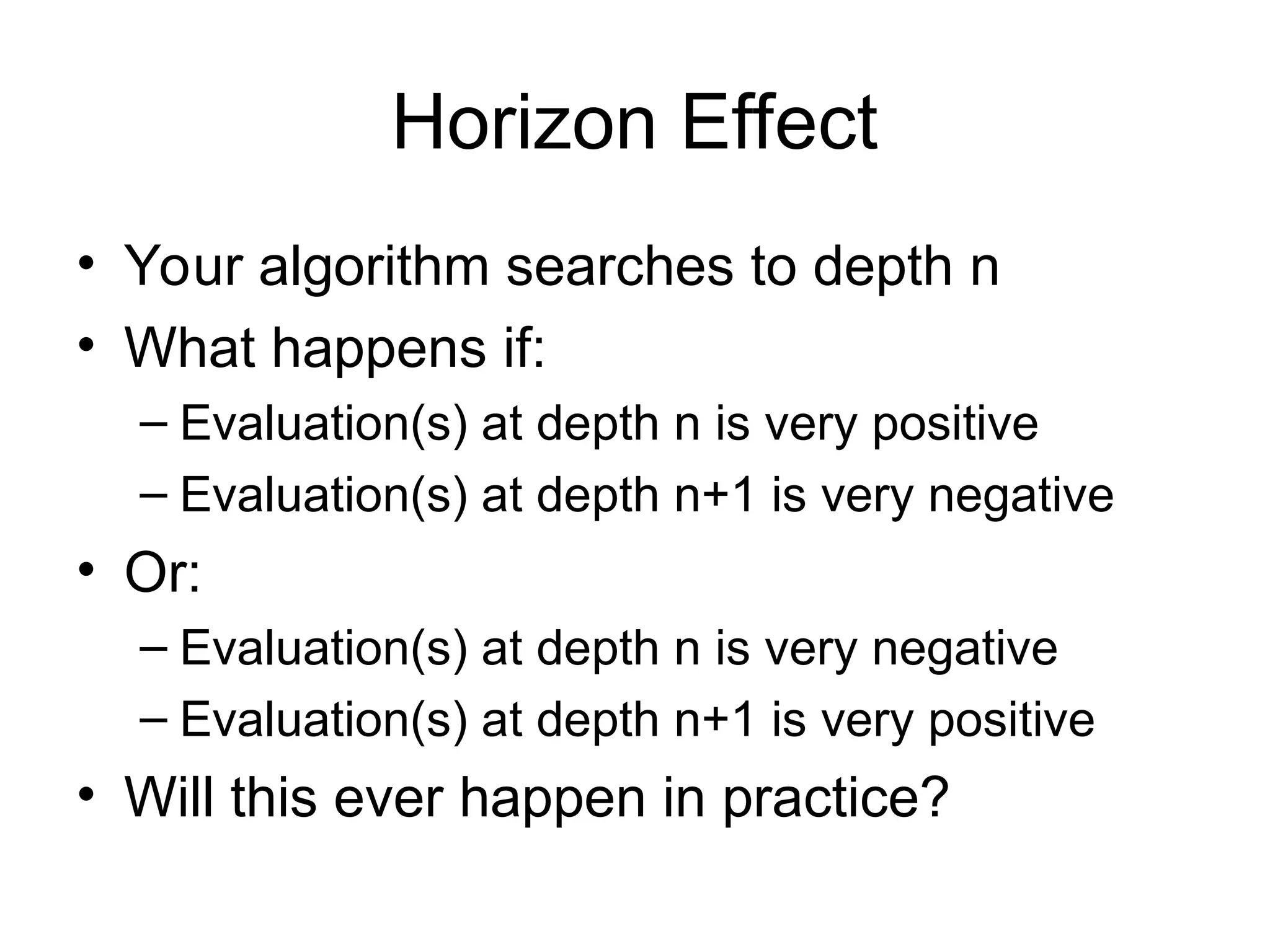

- 48. Horizon Effect • Youralgorithm searches to depth n • What happens if: – Evaluation(s) at depth n is very positive – Evaluation(s) at depth n+1 is very negative • Or: – Evaluation(s) at depth n is very negative – Evaluation(s) at depth n+1 is very positive • Will this ever happen in practice?
- 49.

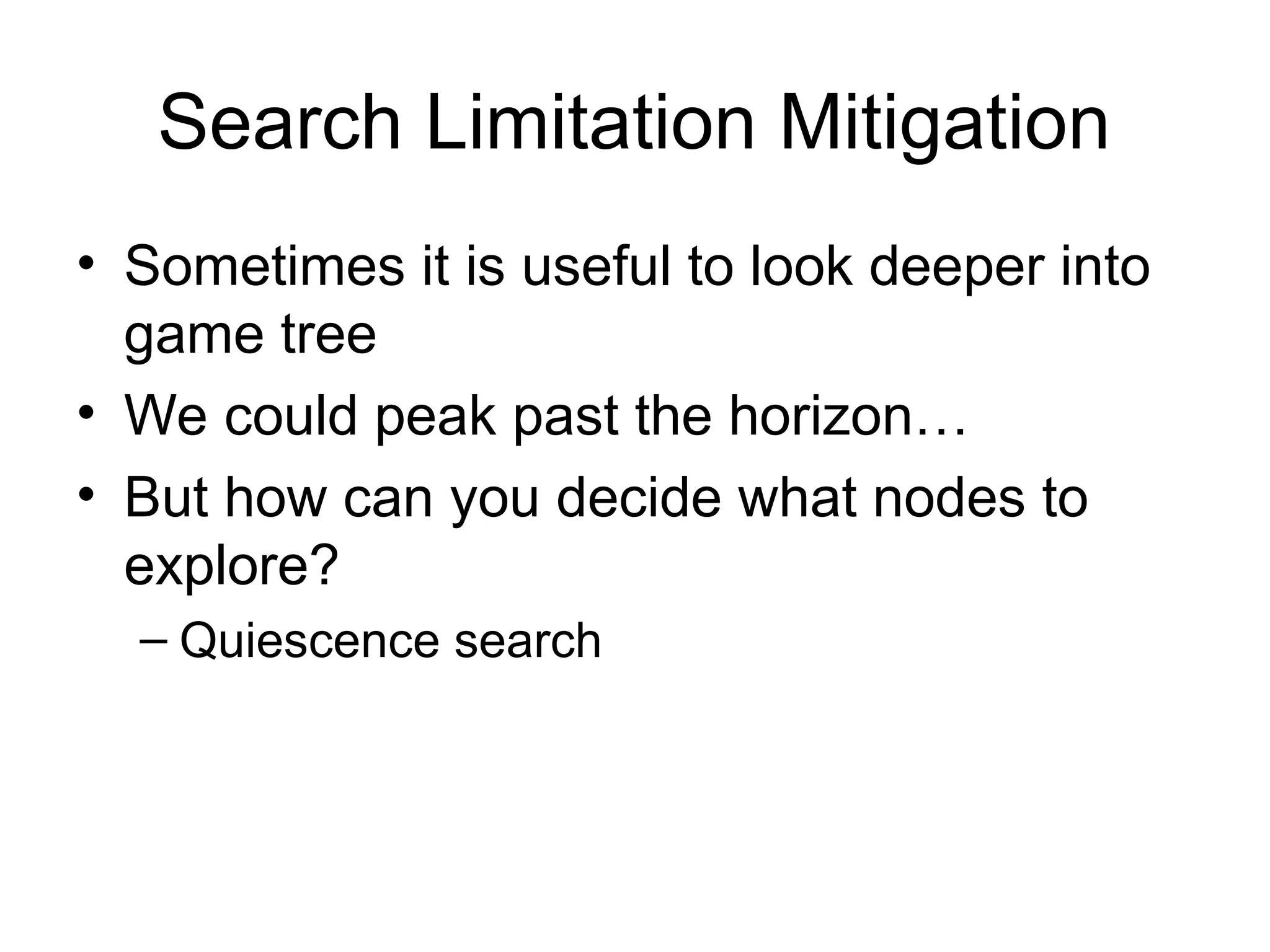

- 50. Search Limitation Mitigation •Sometimes it is useful to look deeper into game tree • We could peak past the horizon… • But how can you decide what nodes to explore? – Quiescence search

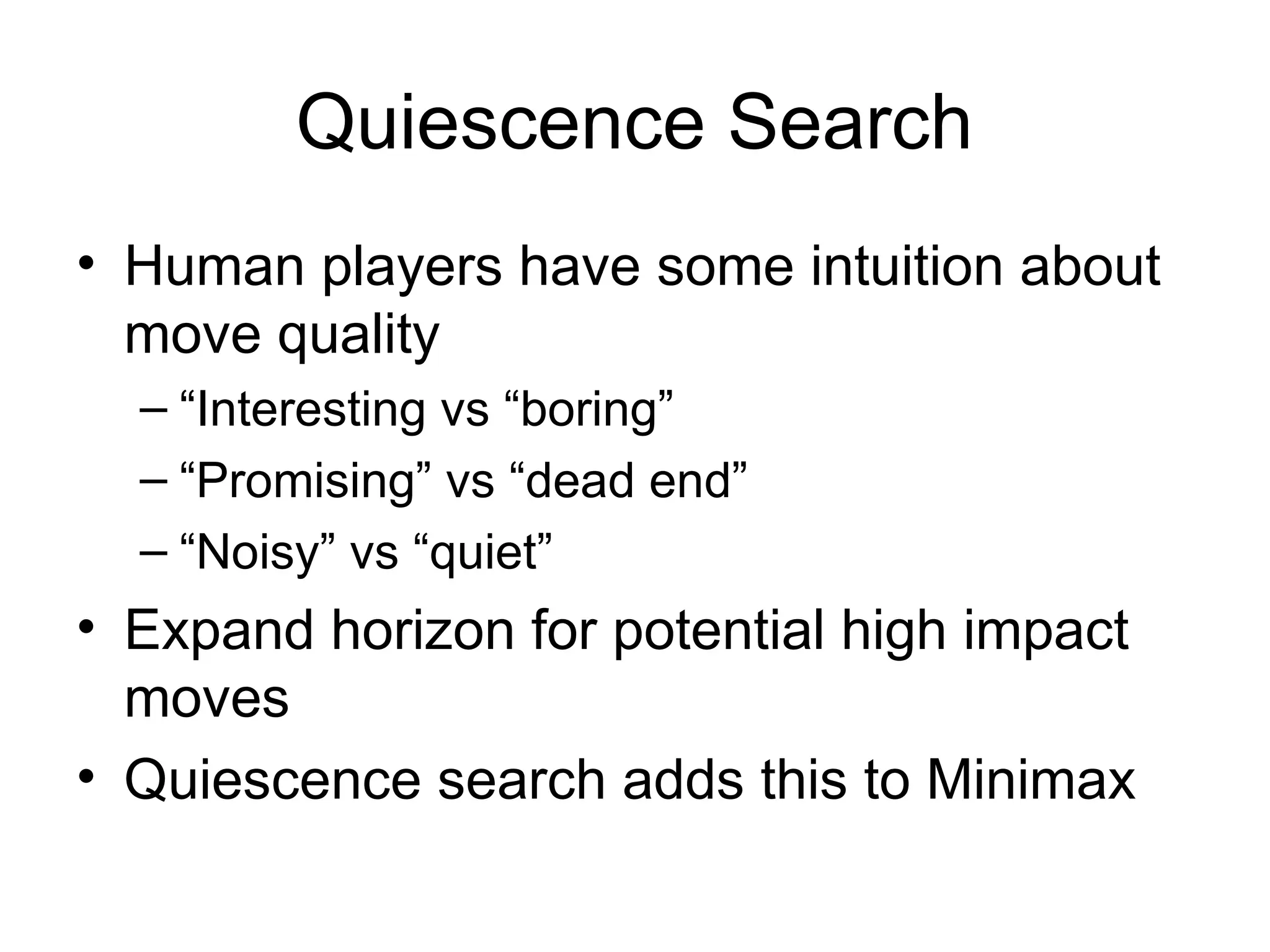

- 51. Quiescence Search • Humanplayers have some intuition about move quality – “Interesting vs “boring” – “Promising” vs “dead end” – “Noisy” vs “quiet” • Expand horizon for potential high impact moves • Quiescence search adds this to Minimax

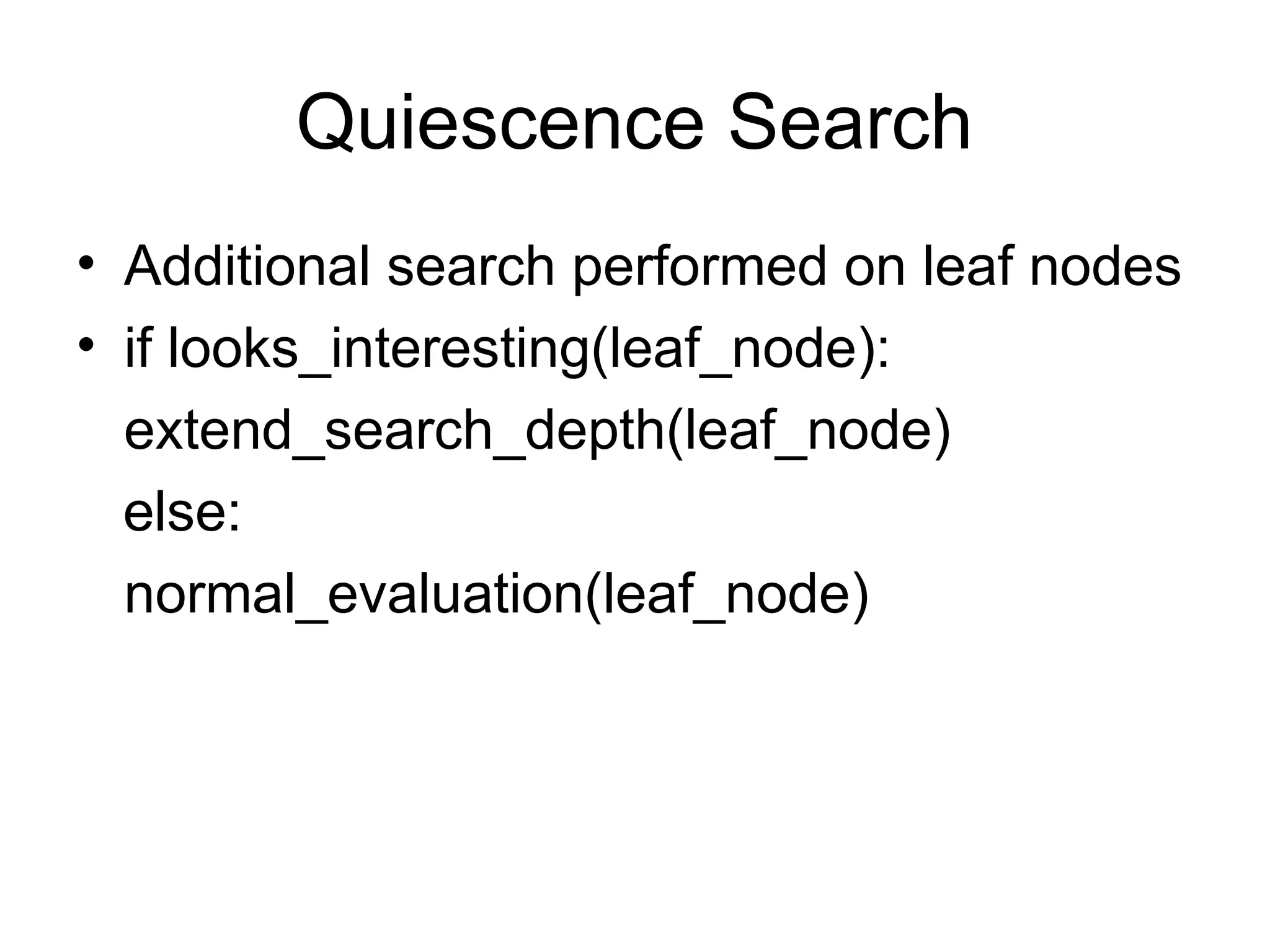

- 52. Quiescence Search • Additionalsearch performed on leaf nodes • if looks_interesting(leaf_node): extend_search_depth(leaf_node) else: normal_evaluation(leaf_node)

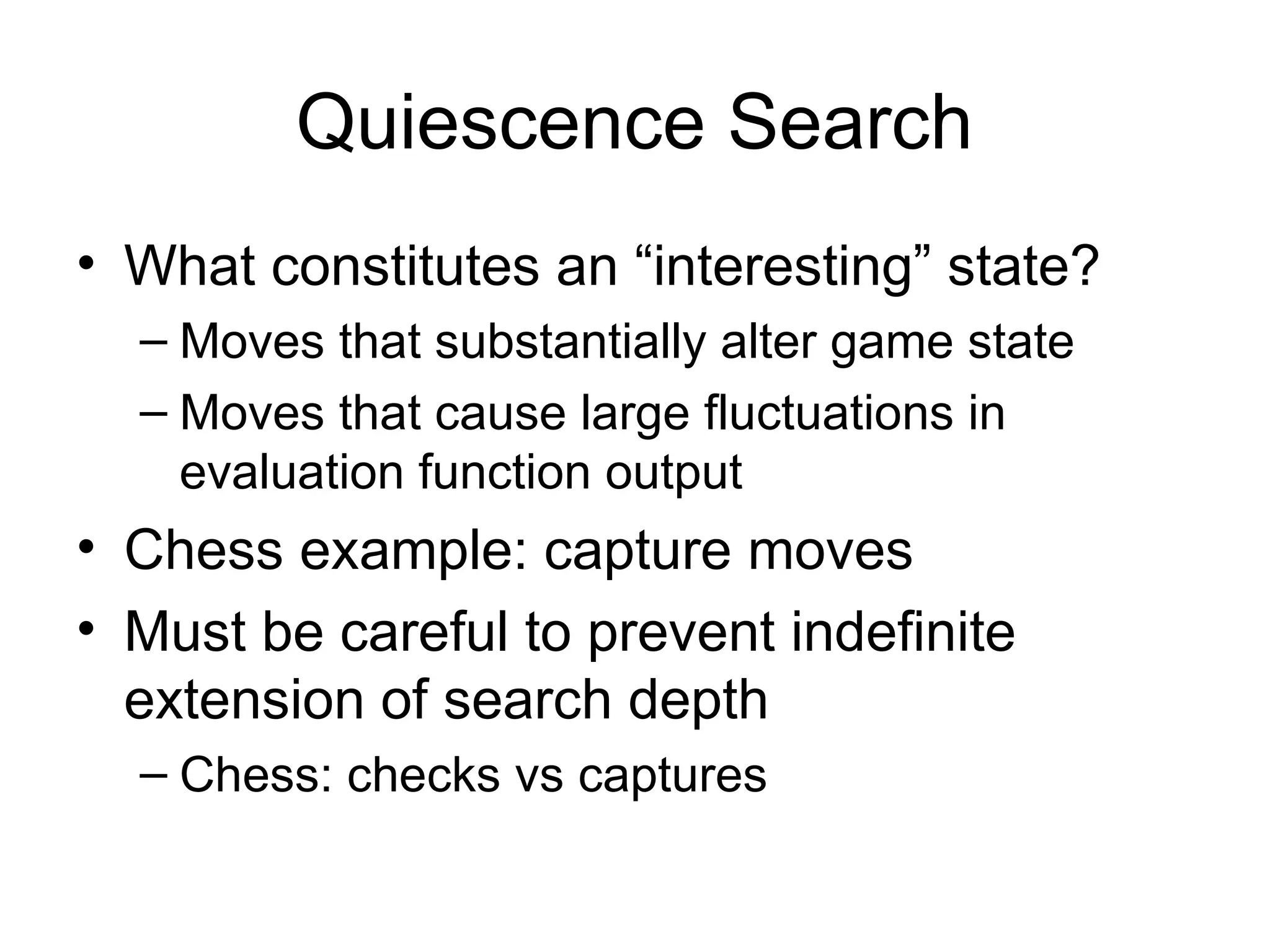

- 53. Quiescence Search • Whatconstitutes an “interesting” state? – Moves that substantially alter game state – Moves that cause large fluctuations in evaluation function output • Chess example: capture moves • Must be careful to prevent indefinite extension of search depth – Chess: checks vs captures

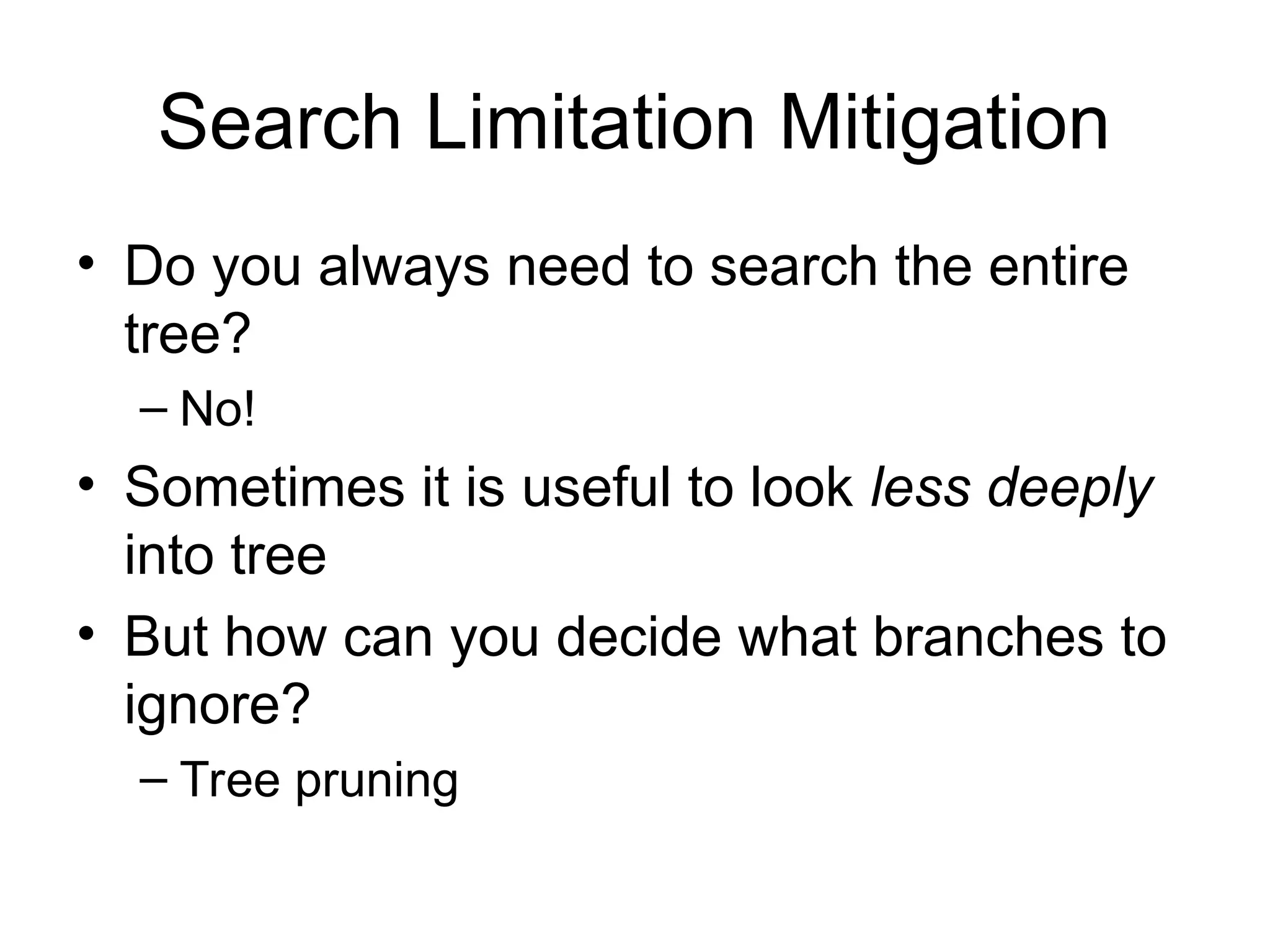

- 54. Search Limitation Mitigation •Do you always need to search the entire tree? – No! • Sometimes it is useful to look less deeply into tree • But how can you decide what branches to ignore? – Tree pruning

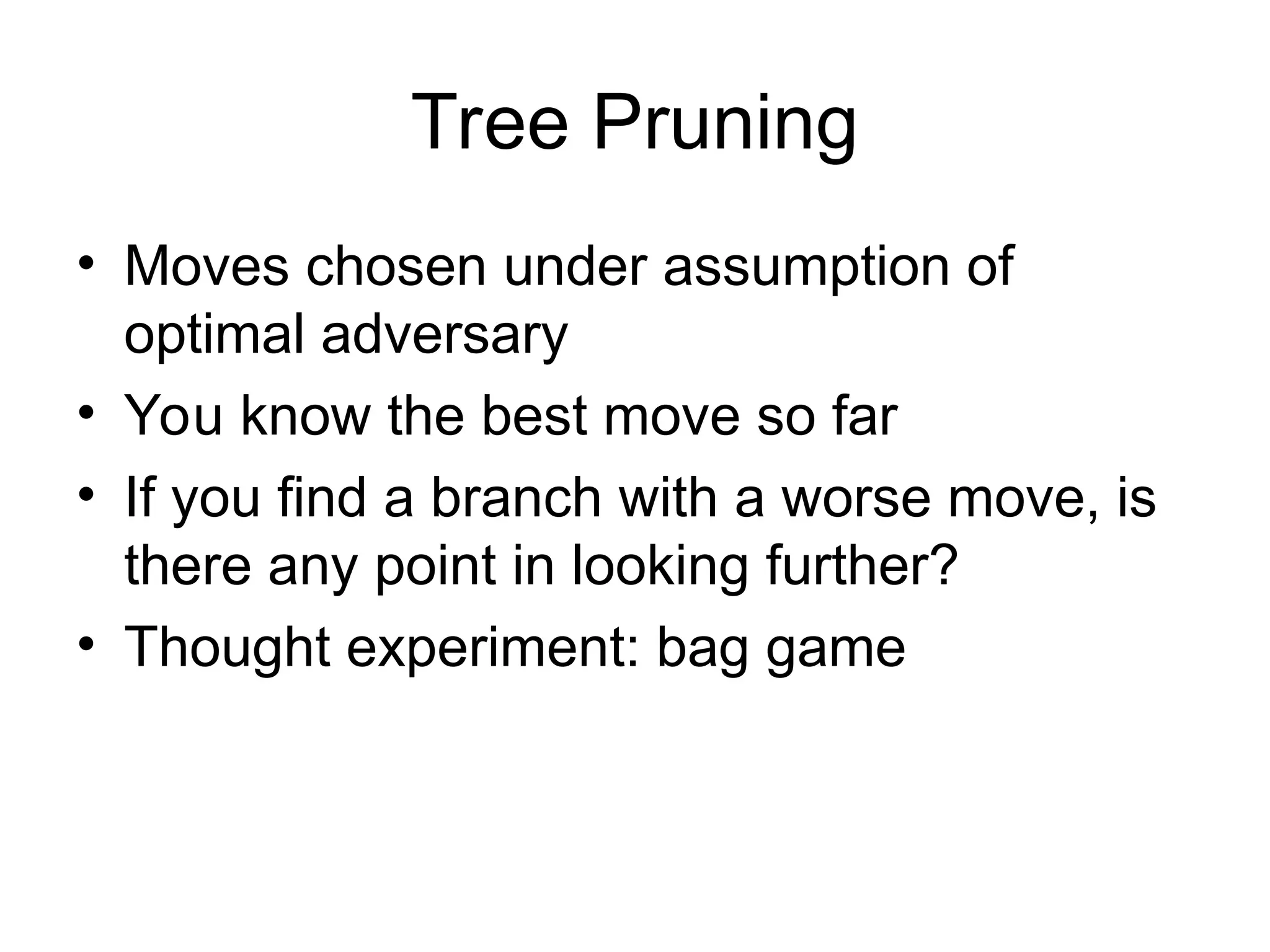

- 55. Tree Pruning • Moveschosen under assumption of optimal adversary • You know the best move so far • If you find a branch with a worse move, is there any point in looking further? • Thought experiment: bag game
- 56.

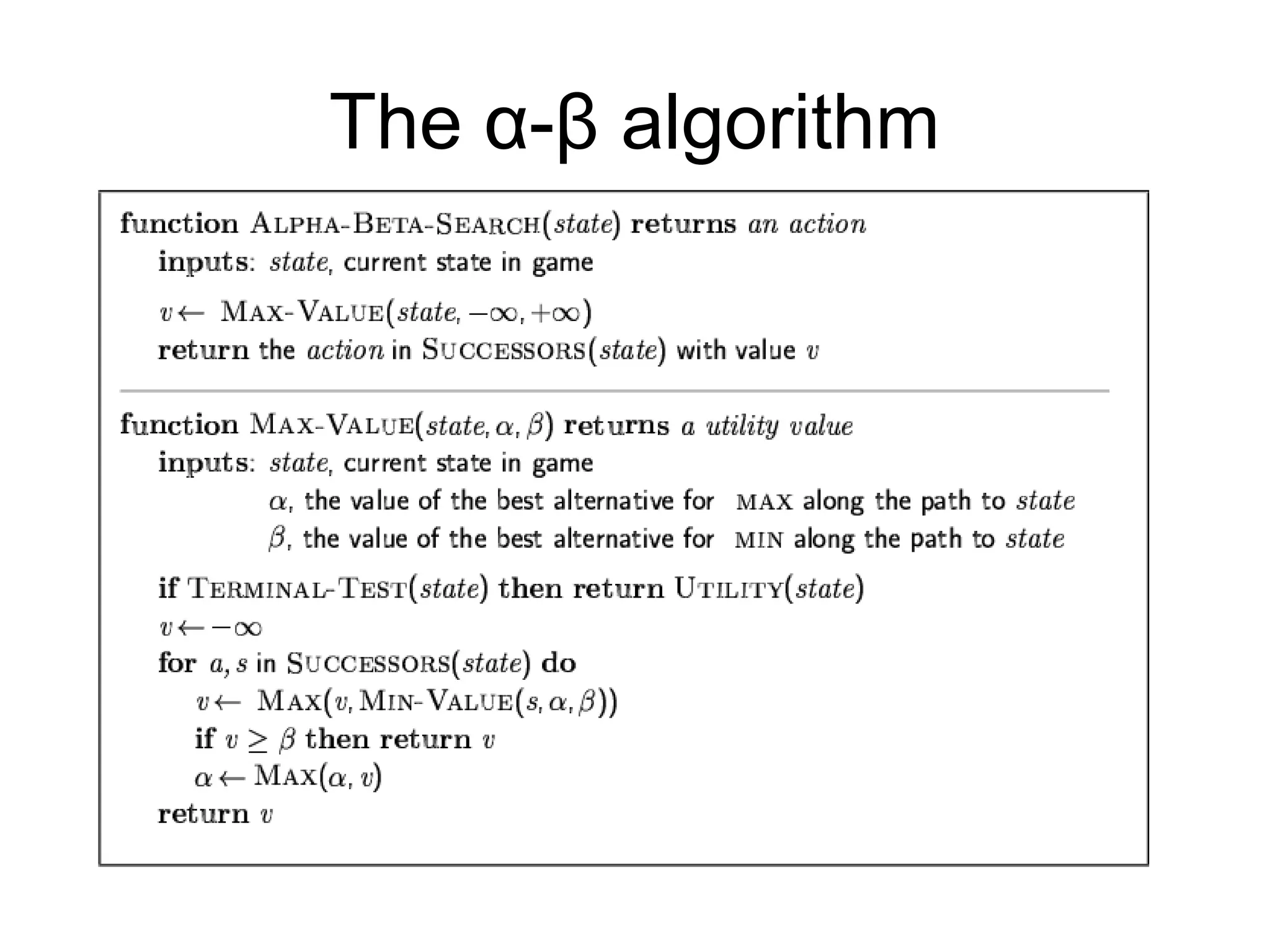

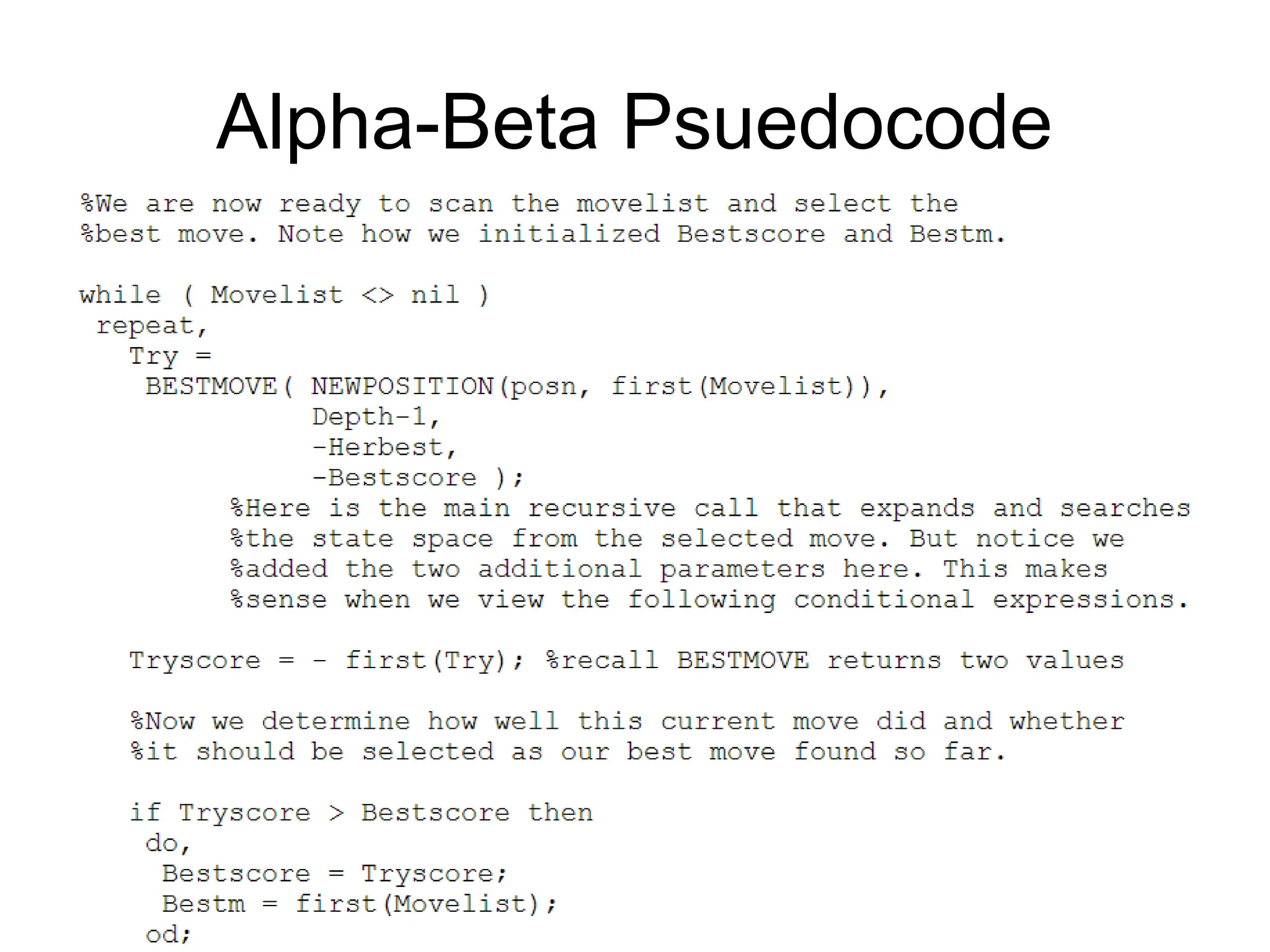

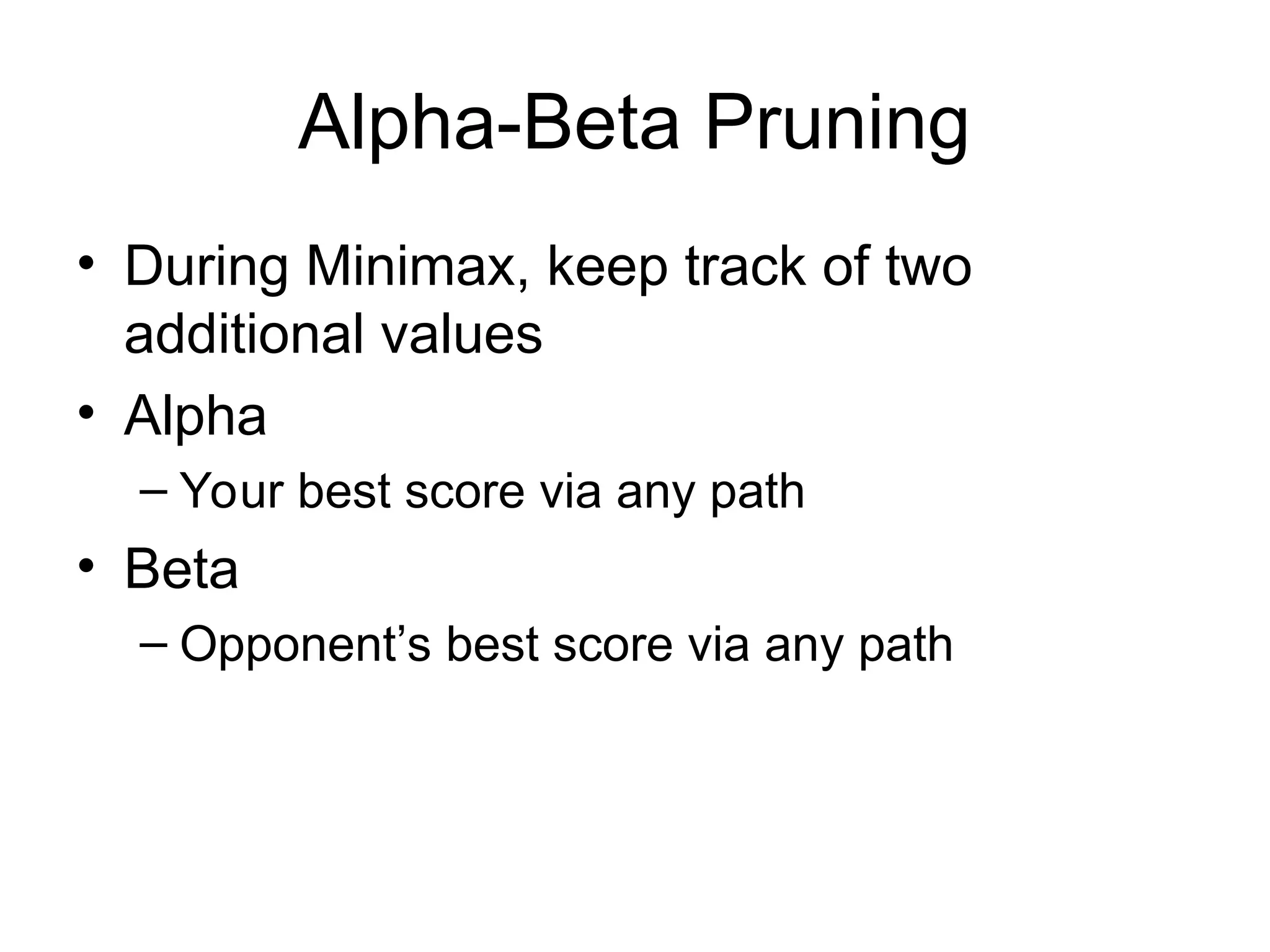

- 57. Alpha-Beta Pruning • DuringMinimax, keep track of two additional values • Alpha – Your best score via any path • Beta – Opponent’s best score via any path

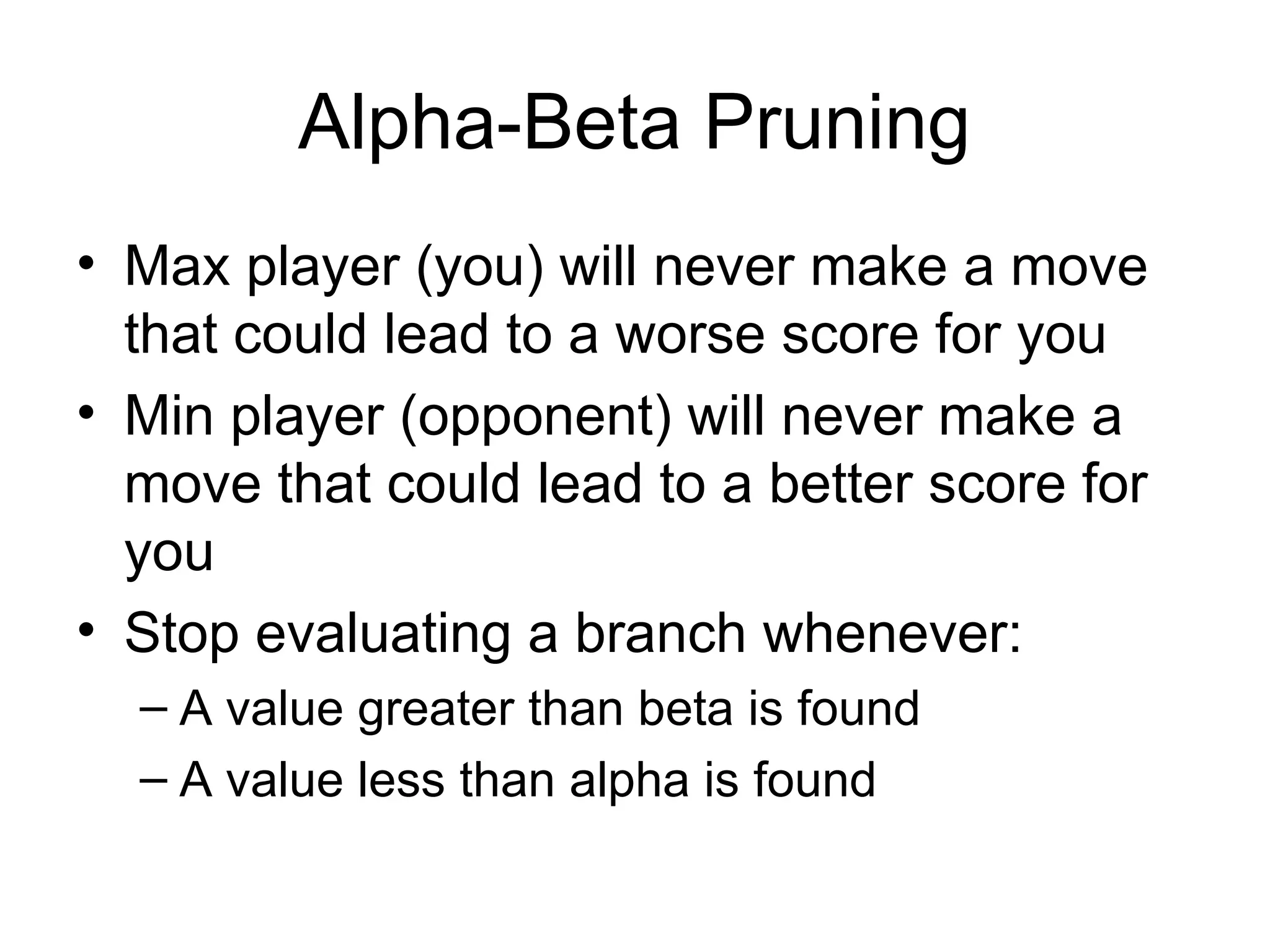

- 58. Alpha-Beta Pruning • Maxplayer (you) will never make a move that could lead to a worse score for you • Min player (opponent) will never make a move that could lead to a better score for you • Stop evaluating a branch whenever: – A value greater than beta is found – A value less than alpha is found

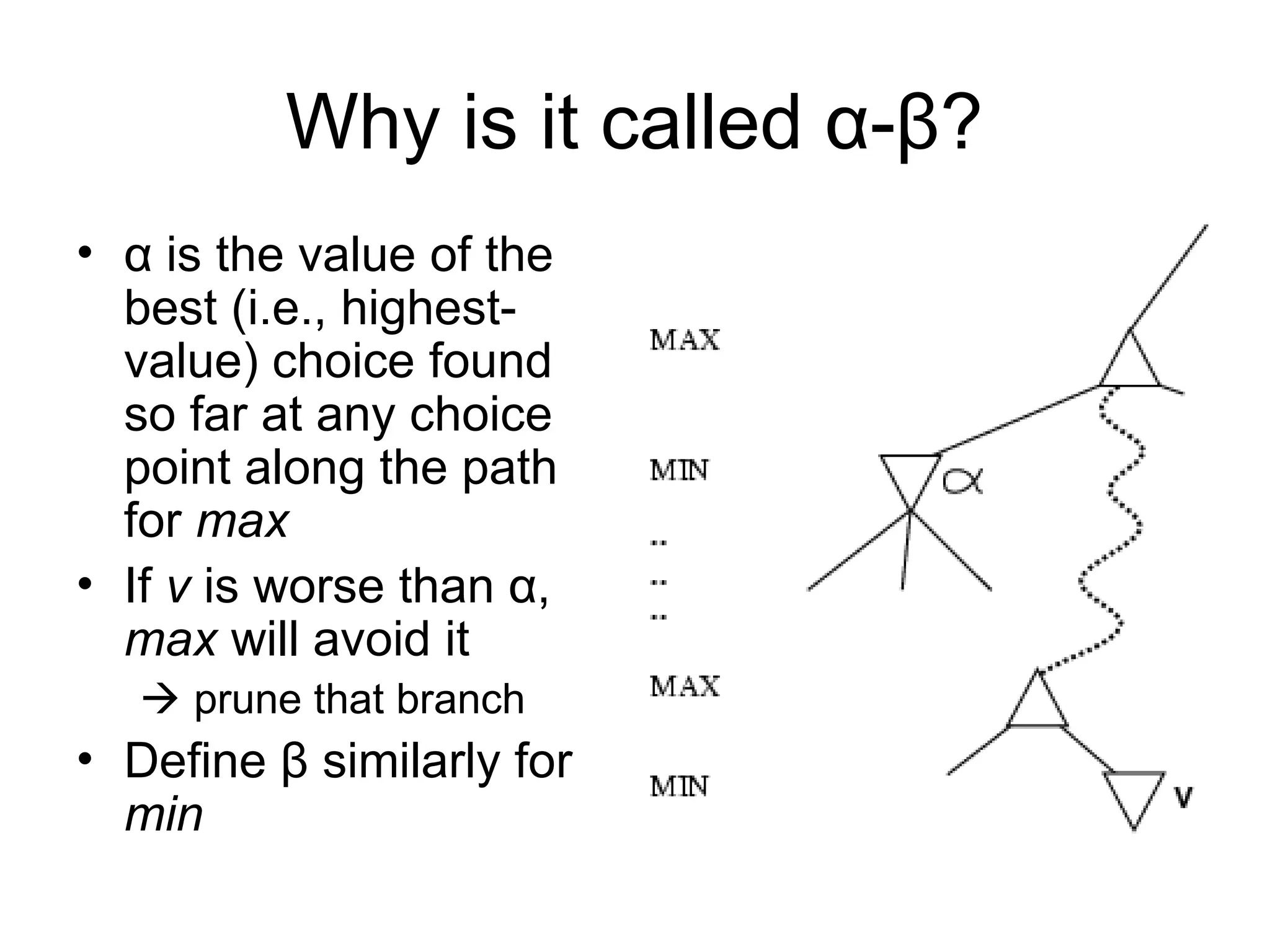

- 59. Why is itcalled α-β? • α is the value of the best (i.e., highest- value) choice found so far at any choice point along the path for max • If v is worse than α, max will avoid it prune that branch • Define β similarly for min

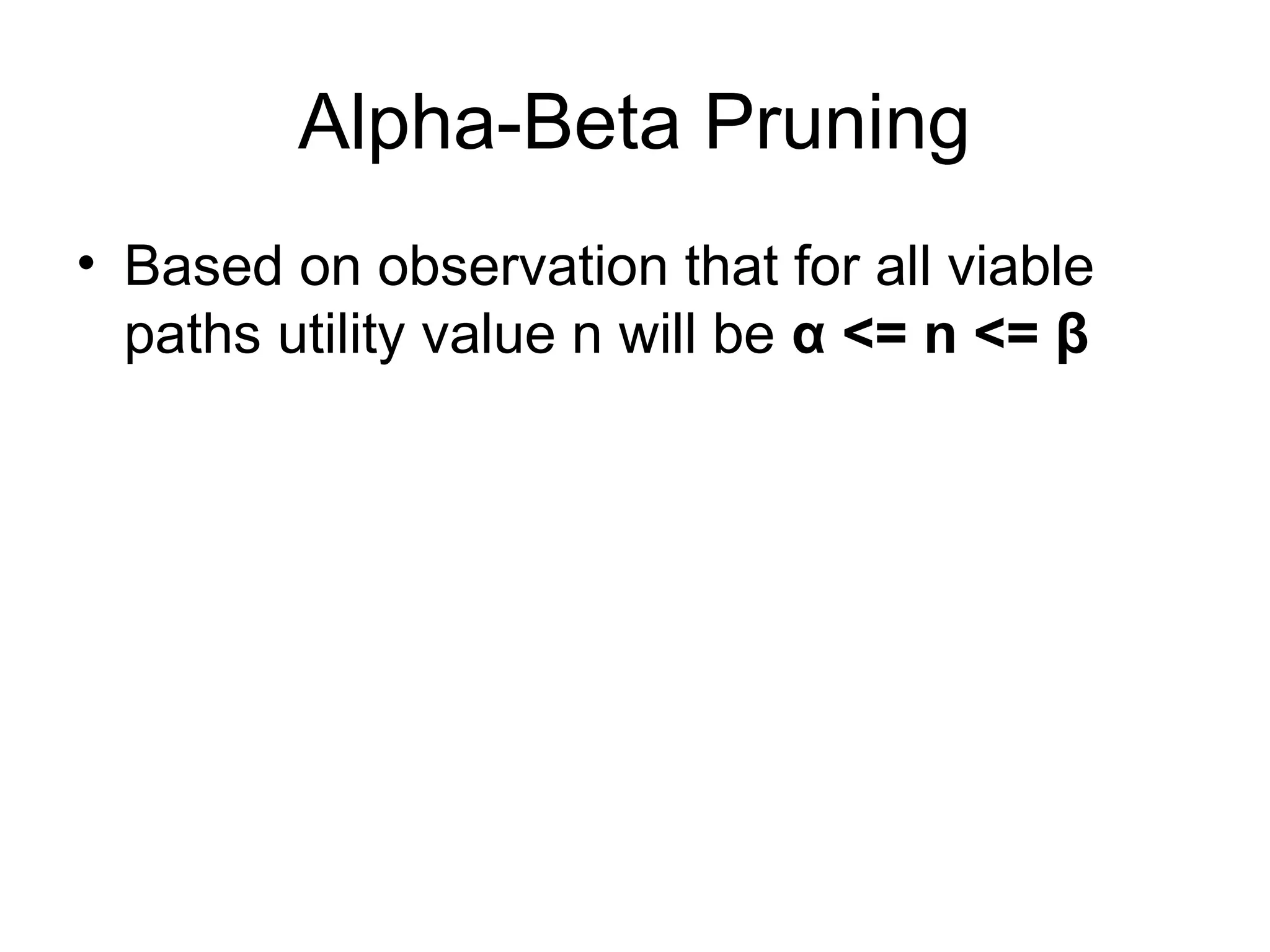

- 60. Alpha-Beta Pruning • Basedon observation that for all viable paths utility value n will be α <= n <= β

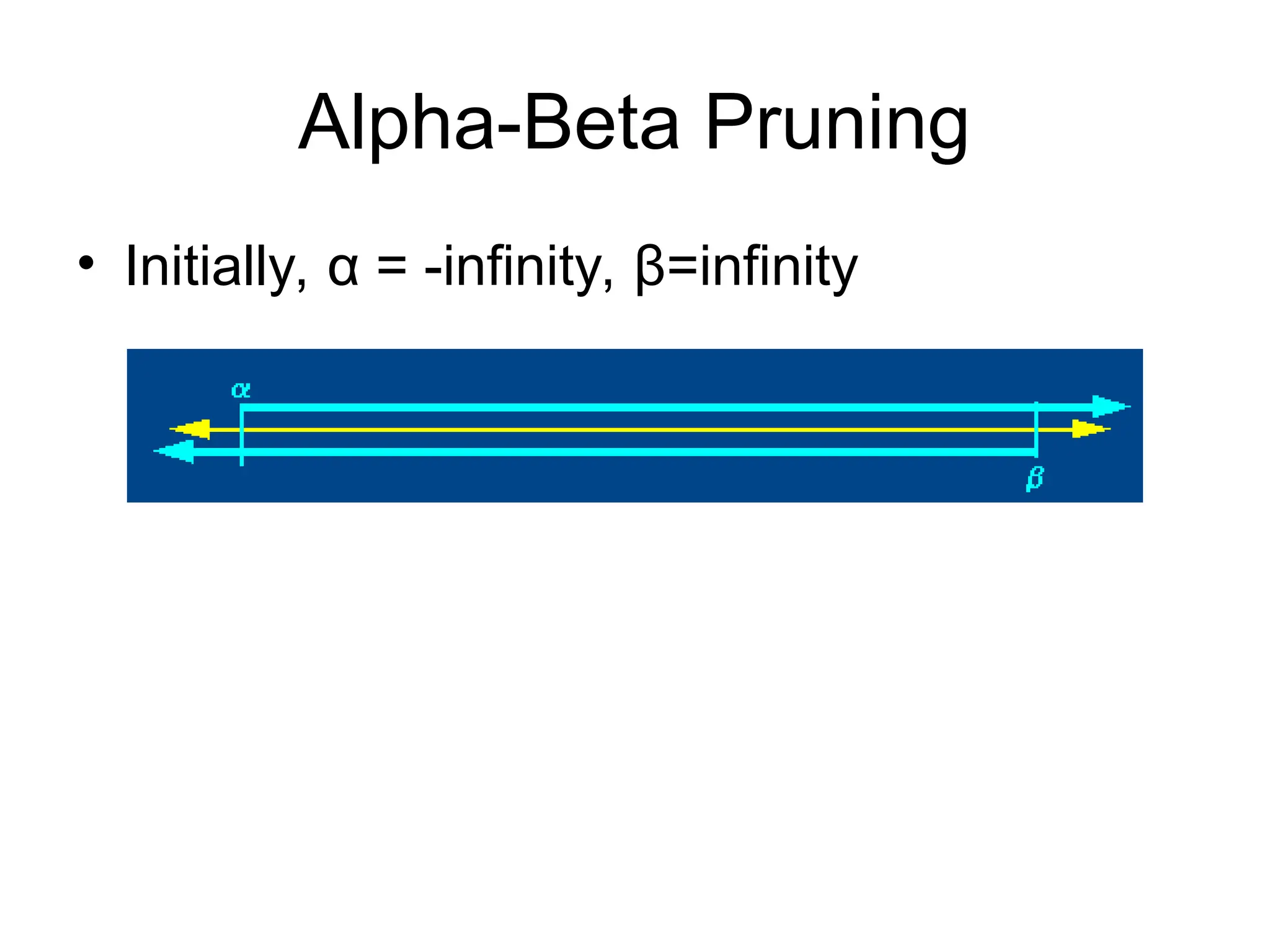

- 61. Alpha-Beta Pruning • Initially,α = -infinity, β=infinity

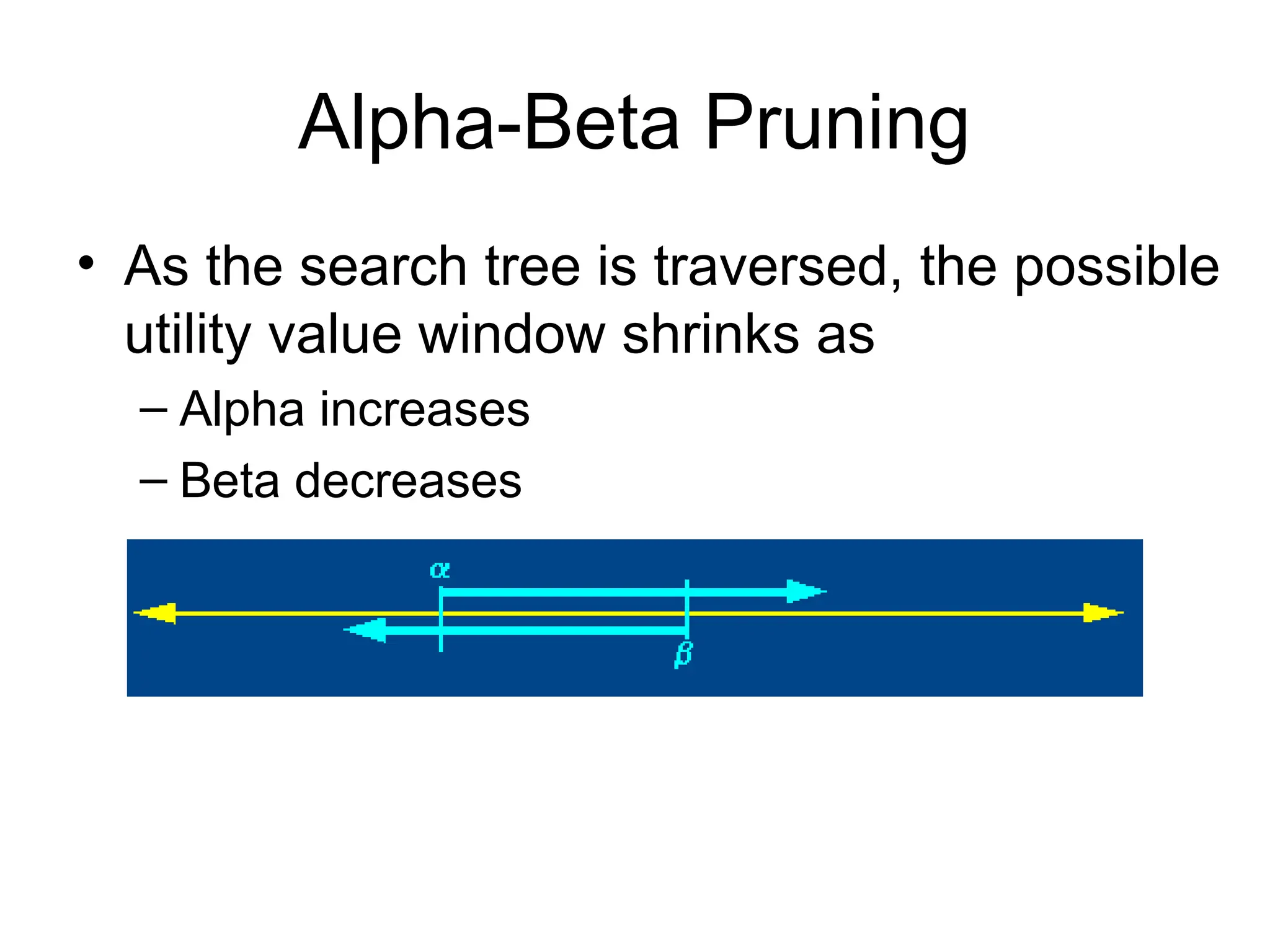

- 62. Alpha-Beta Pruning • Asthe search tree is traversed, the possible utility value window shrinks as – Alpha increases – Beta decreases

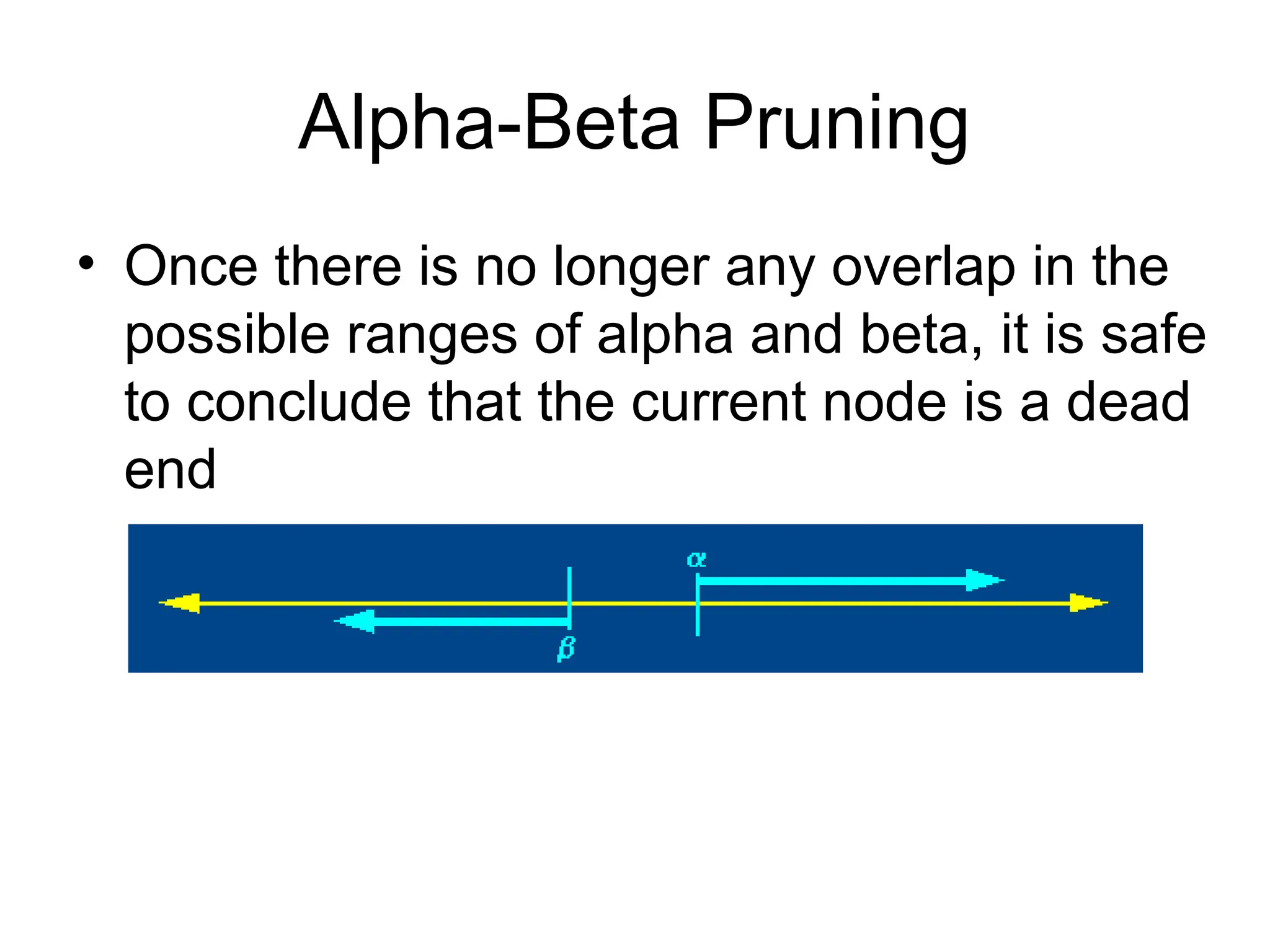

- 63. Alpha-Beta Pruning • Oncethere is no longer any overlap in the possible ranges of alpha and beta, it is safe to conclude that the current node is a dead end
- 64.
- 65.
- 66.
- 67.
- 68.
- 69.

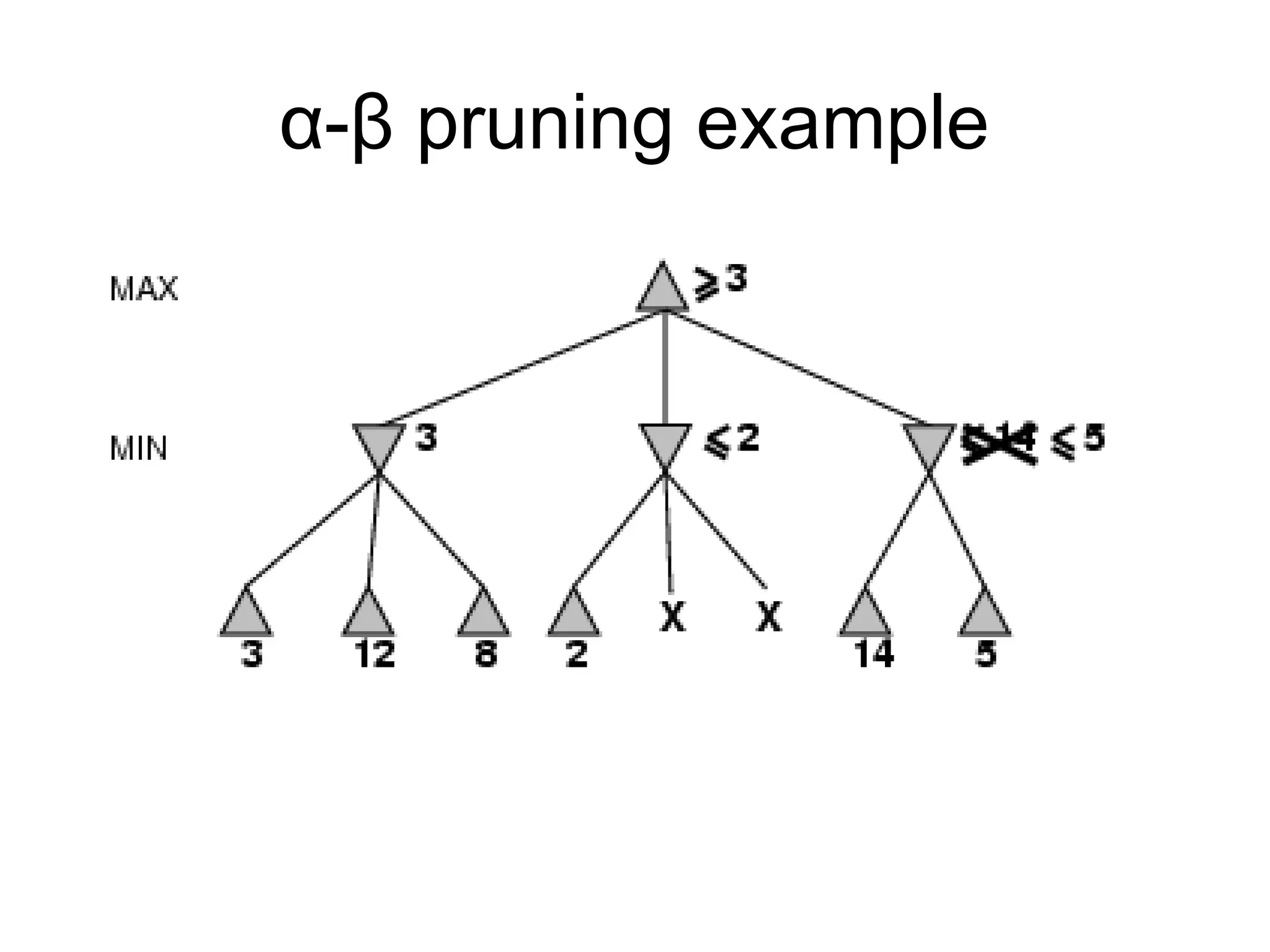

- 70.
- 71.

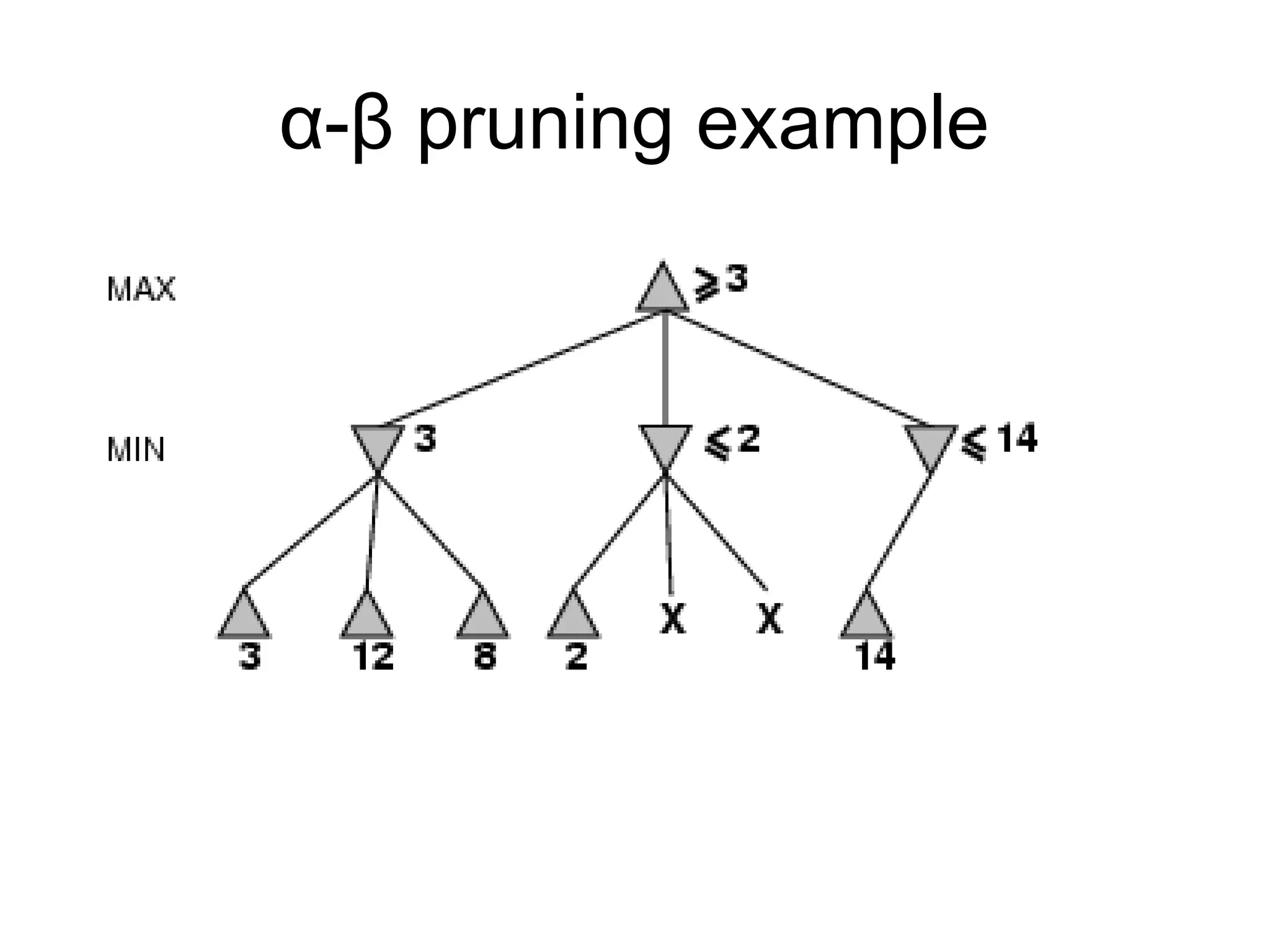

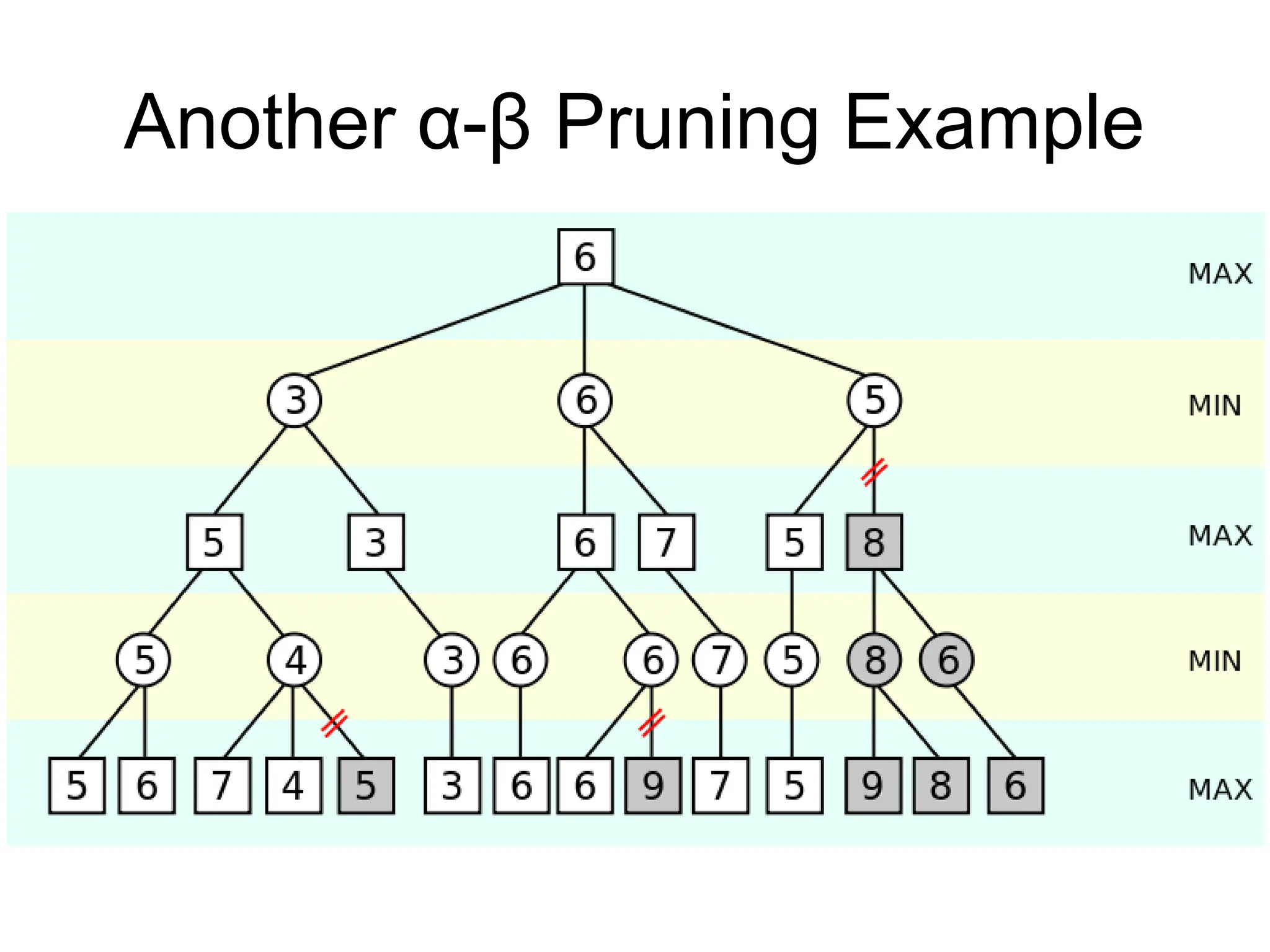

- 72. Another α-β PruningExample
- 73.
- 74.
- 75.
- 76.
- 77.
- 78.
- 79.
- 80.

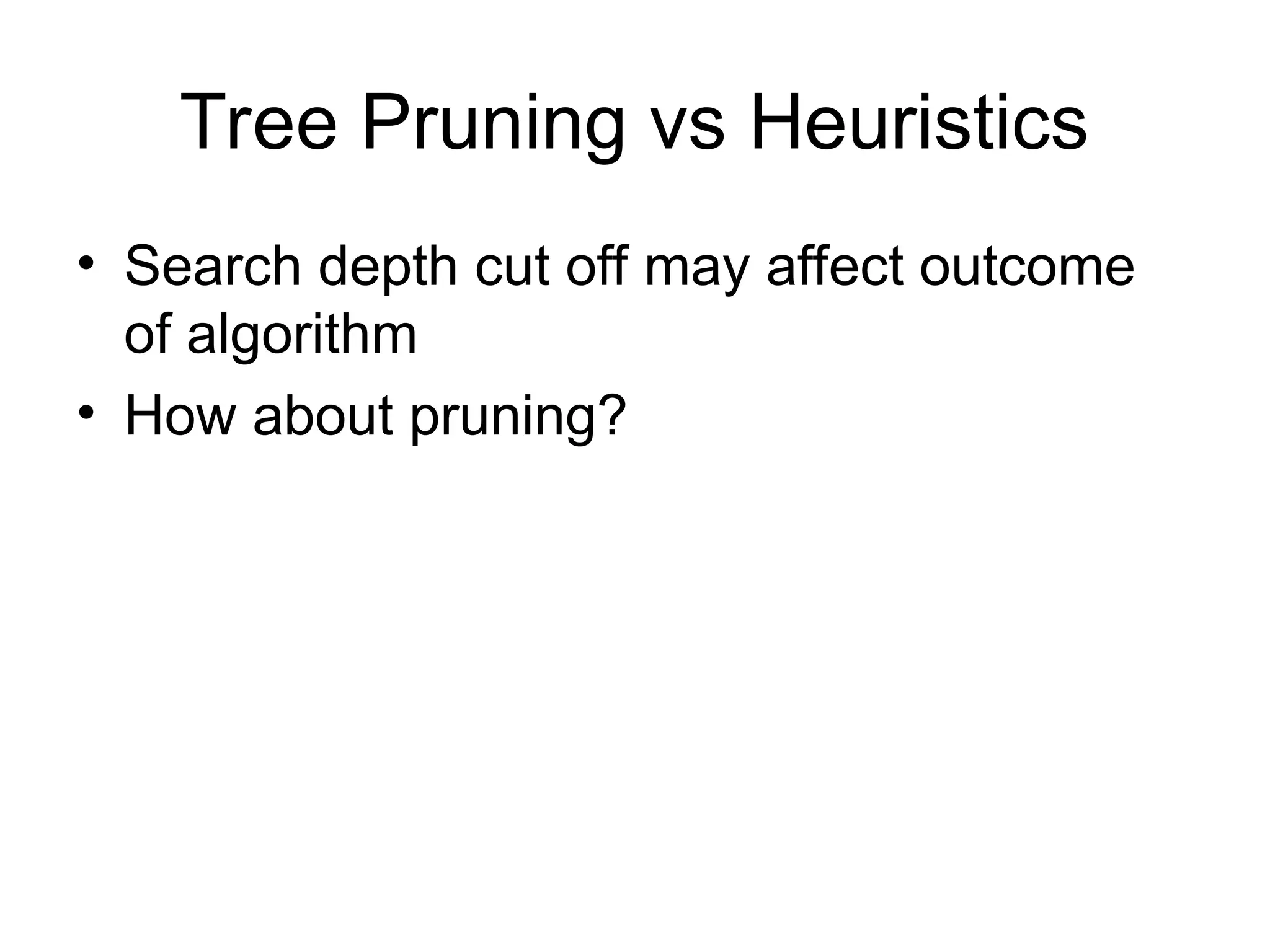

- 81. Tree Pruning vsHeuristics • Search depth cut off may affect outcome of algorithm • How about pruning?

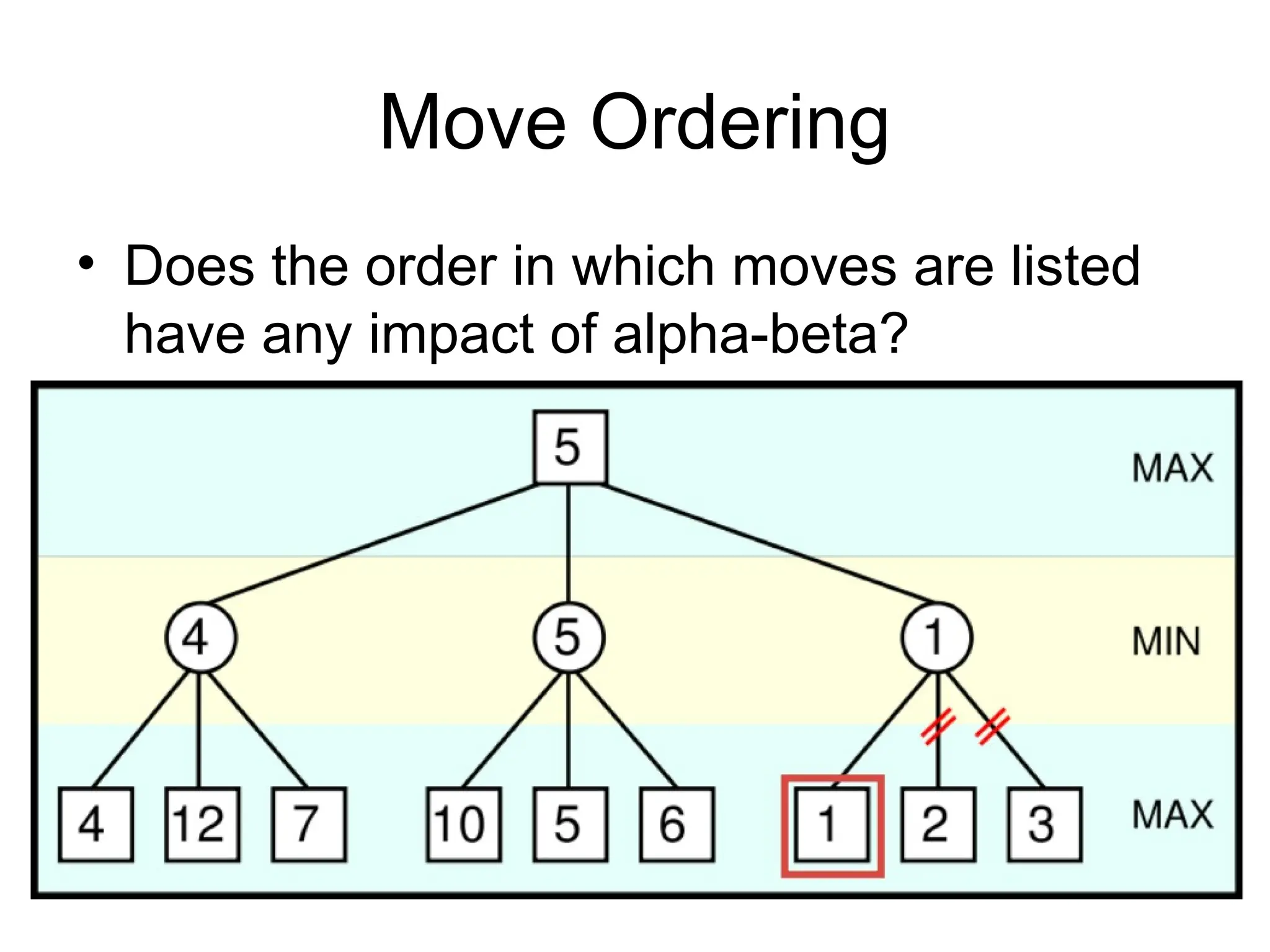

- 82. Move Ordering • Doesthe order in which moves are listed have any impact of alpha-beta?

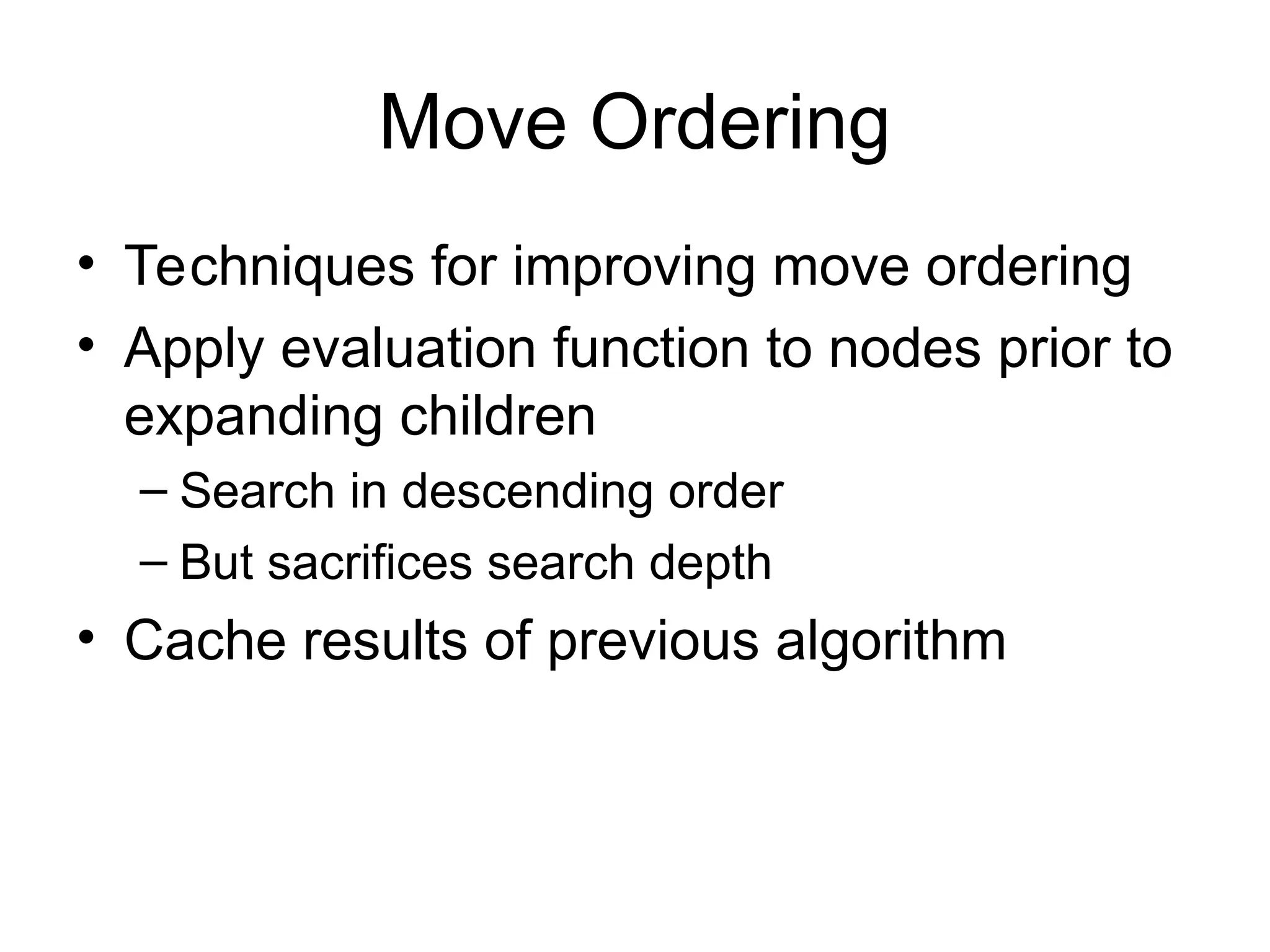

- 83. Move Ordering • Techniquesfor improving move ordering • Apply evaluation function to nodes prior to expanding children – Search in descending order – But sacrifices search depth • Cache results of previous algorithm

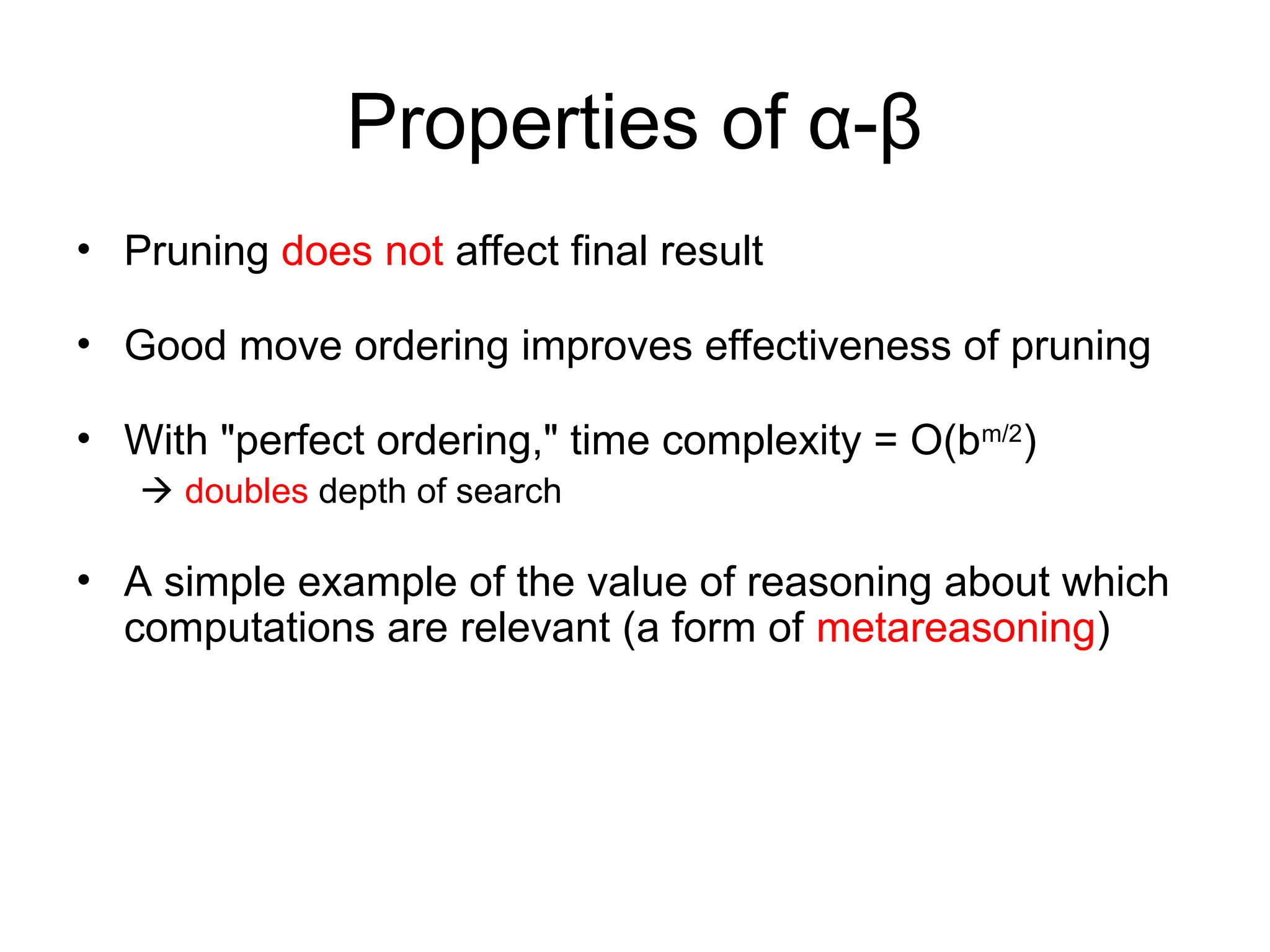

- 84. Properties of α-β •Pruning does not affect final result • Good move ordering improves effectiveness of pruning • With "perfect ordering," time complexity = O(bm/2 ) doubles depth of search • A simple example of the value of reasoning about which computations are relevant (a form of metareasoning)

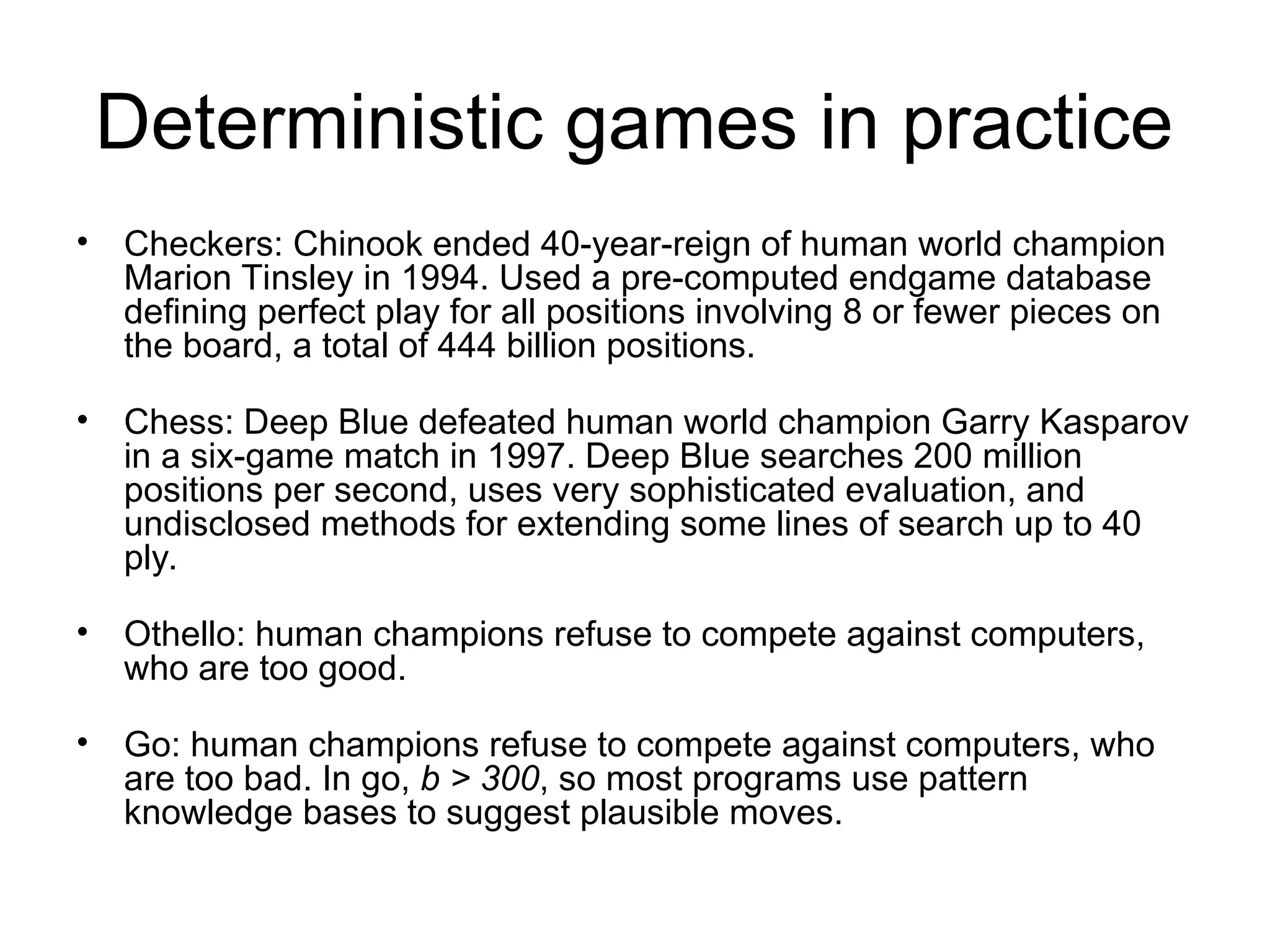

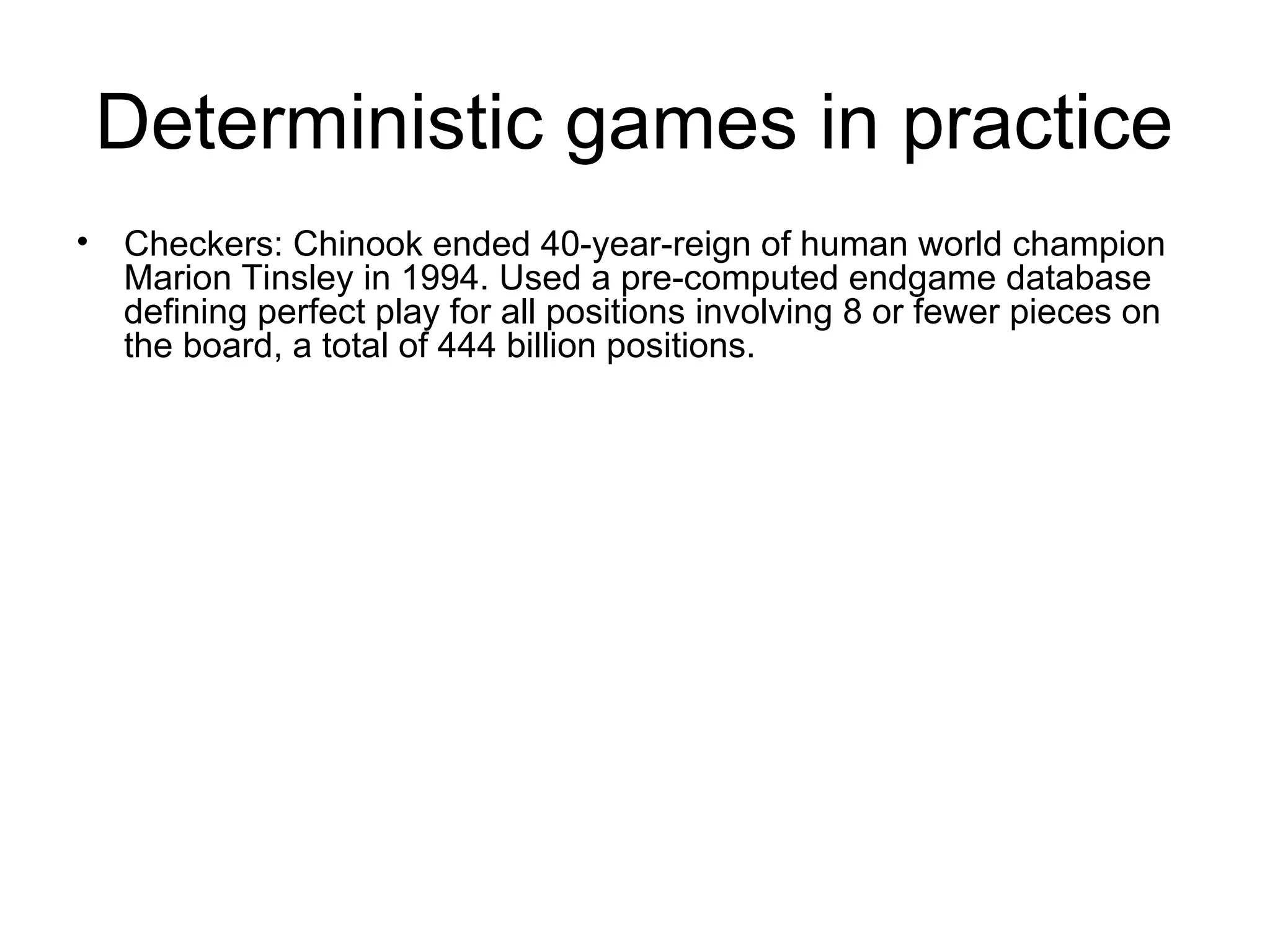

- 85. Deterministic games inpractice • Checkers: Chinook ended 40-year-reign of human world champion Marion Tinsley in 1994. Used a pre-computed endgame database defining perfect play for all positions involving 8 or fewer pieces on the board, a total of 444 billion positions.

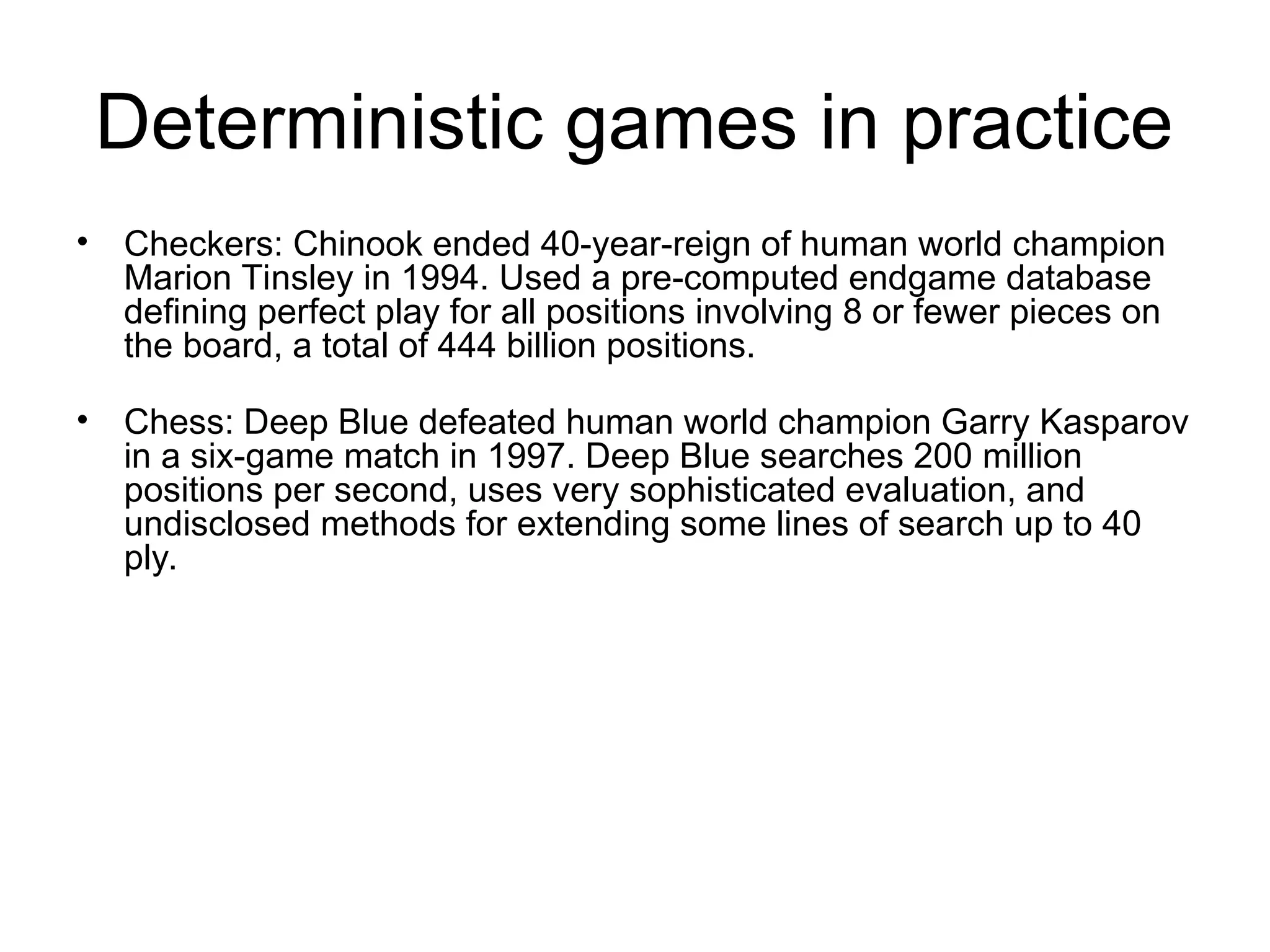

- 86. Deterministic games inpractice • Checkers: Chinook ended 40-year-reign of human world champion Marion Tinsley in 1994. Used a pre-computed endgame database defining perfect play for all positions involving 8 or fewer pieces on the board, a total of 444 billion positions. • Chess: Deep Blue defeated human world champion Garry Kasparov in a six-game match in 1997. Deep Blue searches 200 million positions per second, uses very sophisticated evaluation, and undisclosed methods for extending some lines of search up to 40 ply.
- 87. Deterministic games inpractice • Checkers: Chinook ended 40-year-reign of human world champion Marion Tinsley in 1994. Used a pre-computed endgame database defining perfect play for all positions involving 8 or fewer pieces on the board, a total of 444 billion positions. • Chess: Deep Blue defeated human world champion Garry Kasparov in a six-game match in 1997. Deep Blue searches 200 million positions per second, uses very sophisticated evaluation, and undisclosed methods for extending some lines of search up to 40 ply. • Othello: human champions refuse to compete against computers, who are too good.

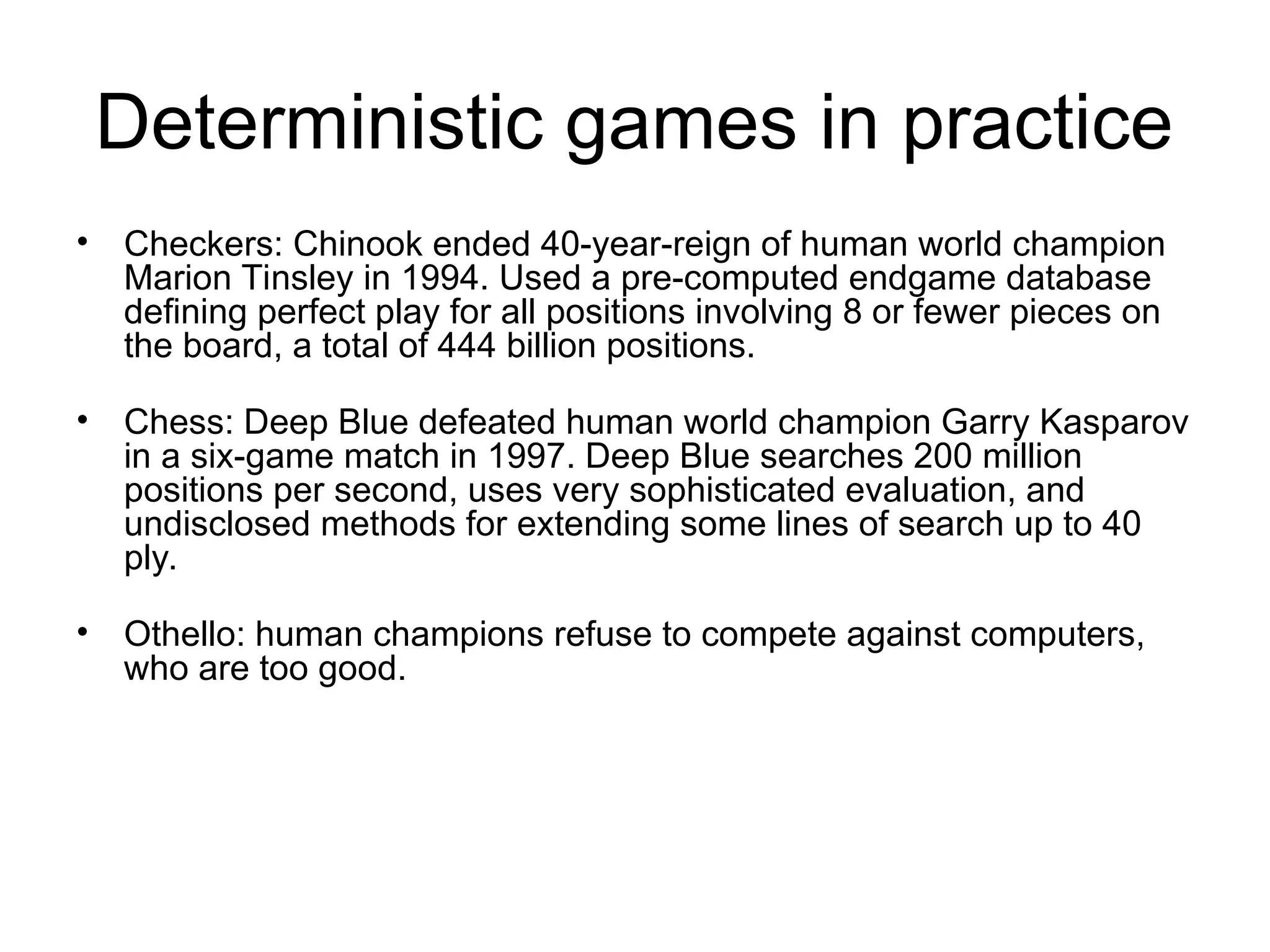

- 88. Deterministic games inpractice • Checkers: Chinook ended 40-year-reign of human world champion Marion Tinsley in 1994. Used a pre-computed endgame database defining perfect play for all positions involving 8 or fewer pieces on the board, a total of 444 billion positions. • Chess: Deep Blue defeated human world champion Garry Kasparov in a six-game match in 1997. Deep Blue searches 200 million positions per second, uses very sophisticated evaluation, and undisclosed methods for extending some lines of search up to 40 ply. • Othello: human champions refuse to compete against computers, who are too good. • Go: human champions refuse to compete against computers, who are too bad. In go, b > 300, so most programs use pattern knowledge bases to suggest plausible moves.

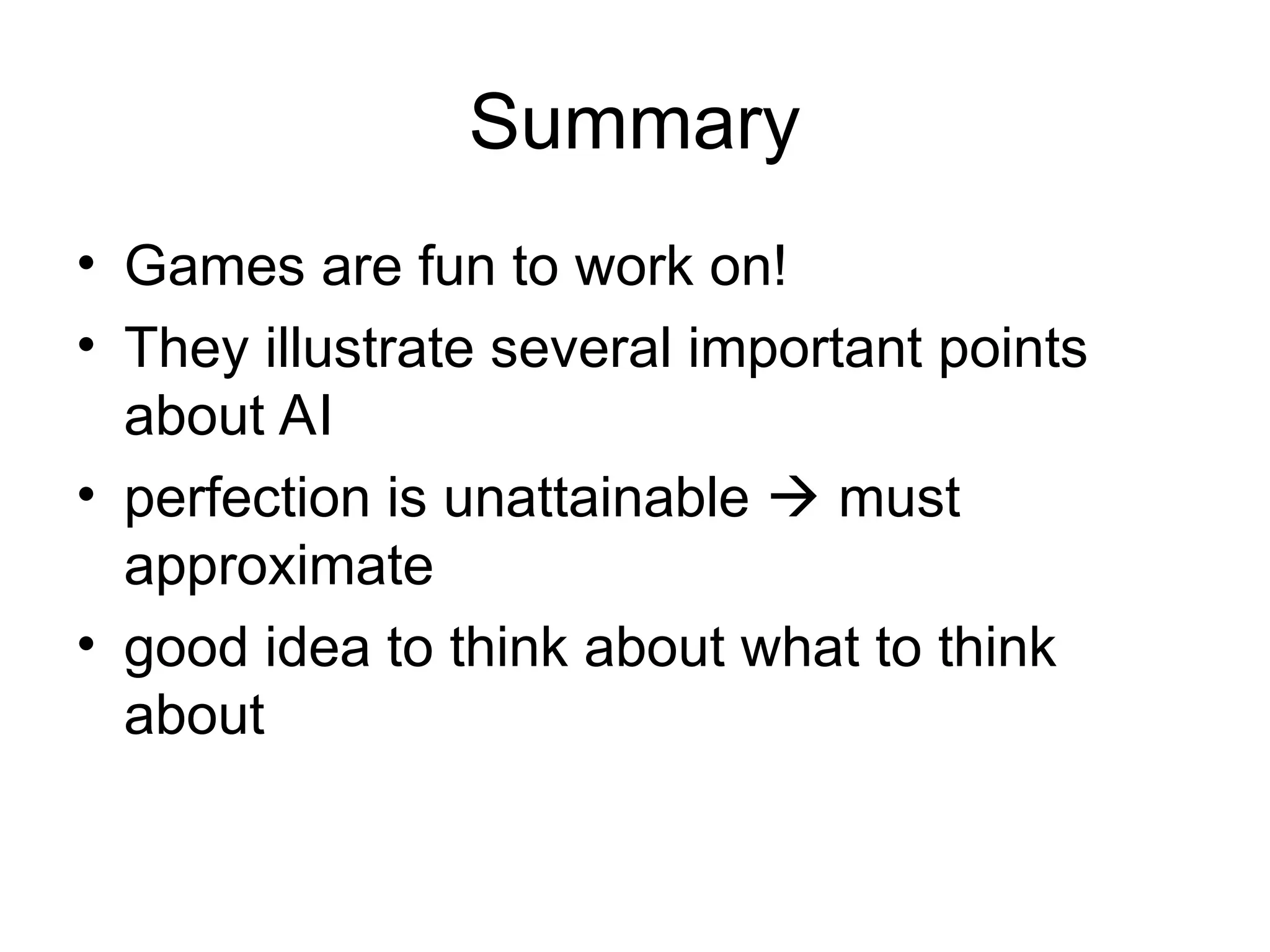

- 89. Summary • Games arefun to work on! • They illustrate several important points about AI • perfection is unattainable must approximate • good idea to think about what to think about
