  Text classification inScikit-learn Jimmy Lai r97922028 [at] ntu.edu.tw http://tw.linkedin.com/pub/jimmy-lai/27/4a/536 2013/06/17
• 2.
  Outline 1. Introduction toData Analysis 2. Setup packages 3. Scikit-learn tutorial 4. Text Classification in Scikit-learn 2
• 3.
  Critical Technologies forBig Data Analysis • Please refer http://www.slideshare.net/jimmy _lai/when-big-data-meet-python for more detail. Collecting User Generated Content Machine Generated Data Storage Computing Analysis Visualization Infrastructure C/JAVA Python/R Javascript 3
• 4.
  Setup all packageson Ubuntu • Packages required: – pip – Numpy – Scipy – Matplotlib – Scikit-learn – Psutil – IPython • Commands sudo apt-get install python-pip sudo apt-get build-dep python- numpy sudo apt-get build-dep python-scipy sudo apt-get build-dep python- matplotlib # install packages in a virtualenv pip install numpy pip install scipy pip matplotlib pip install scikit-learn pip install psutil pip install ipython 4
• 5.
  Setup IPython Notebook •Install: $ pip install ipython • Create config: $ ipython profile create • Edit config: – c.NotebookApp.certfile = u’cert_file’ – c.NotebookApp.password = u’hashed_password’ – c.IPKernelApp.pylab = 'inline' • Run server: $ ipython notebook --ip=* -- port=9999 • Generate cert_file: $ openssl req -x509 -nodes -days 365 -newkey rsa:1024 -keyout mycert.pem -out mycert.pem • Generate hashed_password: In [1]: from IPython.lib import passwd In [2]: passwd() Via http://ipython.org/ipython-doc/dev/interactive/htmlnotebook.html 5
• 6.
  Fast prototyping -IPython Notebook • Write python code in browser: – Exploit the remote server resources – View the graphical results in web page – Sketch code pieces as blocks – Refer http://www.slideshare.net/jimmy_lai/fast-data-mining-flow- prototyping-using-ipython-notebook for more introduction. 6
• 7.
  Scikit-learn Cheat-sheet Via http://peekaboo-vision.blogspot.tw/2013/01/machine-learning-cheat-sheet-for-scikit.html 7
• 8.
  Scikit-learn Tutorial • https://github.com/ogrisel/parallel_ml_tutorial 8
• 9.
  Demo Code • DemoCode: ipython_demo/text_classification_demo.ipynb in https://bitbucket.org/noahsark/slideshare • Ipython Notebook: – Install $ pip install ipython – Execution (under ipython_demo dir) $ ipython notebook --pylab=inline – Open notebook with browser, e.g. http://127.0.0.1:8888 9
• 10.
  Machine learning classification •𝑋𝑖 = [𝑥1, 𝑥2, … , 𝑥 𝑛], 𝑥 𝑛 ∈ 𝑅 • 𝑦𝑖 ∈ 𝑁 • 𝑑𝑎𝑡𝑎𝑠𝑒𝑡 = 𝑋, 𝑌 • 𝑐𝑙𝑎𝑠𝑠𝑖𝑓𝑖𝑒𝑟 𝑓: 𝑦𝑖 = 𝑓(𝑋𝑖) 10
• 11.
  Text classification Feature Generation Feature Selection Classification Model Training Model Parameter Tuning 11
• 12.
  From: zyeh@caspian.usc.edu (zhenghaoyeh) Subject: Re: Newsgroup Split Organization: University of Southern California, Los Angeles, CA Lines: 18 Distribution: world NNTP-Posting-Host: caspian.usc.edu In article <1quvdoINN3e7@srvr1.engin.umich.edu>, tdawson@engin.umich.edu (Chris Herringshaw) writes: |> Concerning the proposed newsgroup split, I personally am not in favor of |> doing this. I learn an awful lot about all aspects of graphics by reading |> this group, from code to hardware to algorithms. I just think making 5 |> different groups out of this is a wate, and will only result in a few posts |> a week per group. I kind of like the convenience of having one big forum |> for discussing all aspects of graphics. Anyone else feel this way? |> Just curious. |> |> |> Daemon |> I agree with you. Of cause I'll try to be a daemon :-) Yeh USC Dataset: 20 newsgroups dataset Text Structured Data 12
• 13.
  Dataset in sklearn •sklearn.datasets – Toy datasets – Download data from http://mldata.org repository • Data format of classification problem – Dataset • data: [raw_data or numerical] • target: [int] • target_names: [str] 13
• 14.
  Feature extraction fromstructured data (1/2) • Count the frequency of keyword and select the keywords as features: ['From', 'Subject', 'Organization', 'Distribution', 'Lines'] • E.g. From: lerxst@wam.umd.edu (where's my thing) Subject: WHAT car is this!? Organization: University of Maryland, College Park Distribution: None Lines: 15 Keyword Count Distribution 2549 Summary 397 Disclaimer 125 File 257 Expires 116 Subject 11612 From 11398 Keywords 943 Originator 291 Organization 10872 Lines 11317 Internet 140 To 106 14
• 15.
  Feature extraction fromstructured data (2/2) • Separate structured data and text data – Text data start from “Line:” • Transform token matrix as numerical matrix by sklearn.feature_extract ionDictVectorizer • E.g. [{‘a’: 1, ‘b’: 1}, {‘c’: 1}] => [[1, 1, 0], [0, 0, 1]] 15
• 16.
  Text Feature extractionin sklearn • sklearn.feature_extraction.text • CountVectorizer – Transform articles into token-count matrix • TfidfVectorizer – Transform articles into token-TFIDF matrix • Usage: – fit(): construct token dictionary given dataset – transform(): generate numerical matrix 16
• 17.
  Text Feature extraction •Analyzer – Preprocessor: str -> str • Default: lowercase • Extra: strip_accents – handle unicode chars – Tokenizer: str -> [str] • Default: re.findall(ur"(?u)bww+b“, string) – Analyzer: str -> [str] 1. Call preprocessor and tokenizer 2. Filter stopwords 3. Generate n-gram tokens 17
• 18.
  18
• 19.
  Feature Selection • Decreasethe number of features: – Reduce the resource usage for faster learning – Remove the most common tokens and the most rare tokens (words with less information): • Parameter for Vectorizer: – max_df – min_df – max_features 19
• 20.
  Classification Model Training •Common classifiers in sklearn: – sklearn.linear_model – sklearn.svm • Usage: – fit(X, Y): train the model – predict(X): get predicted Y 20
• 21.

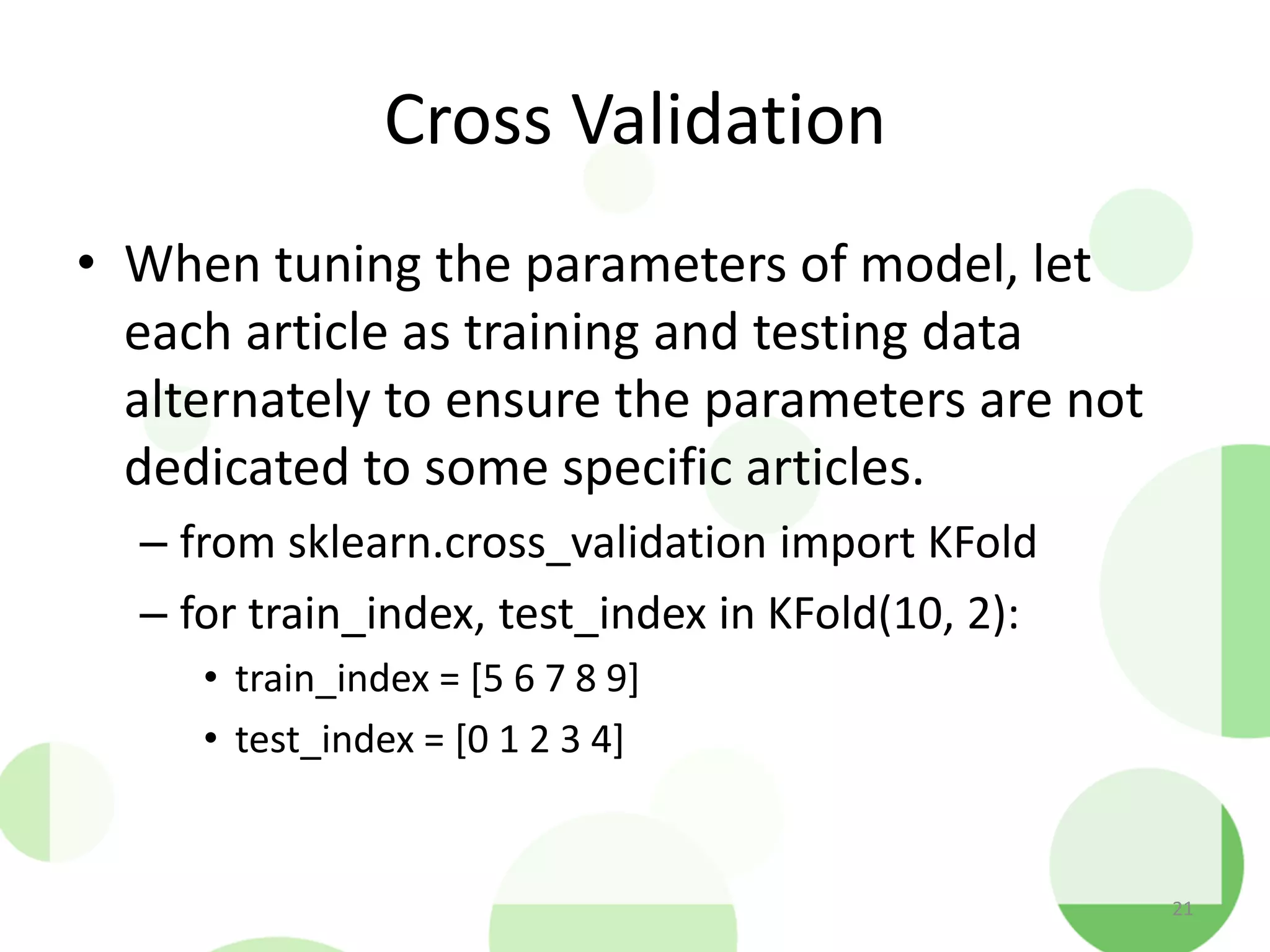

  Cross Validation • Whentuning the parameters of model, let each article as training and testing data alternately to ensure the parameters are not dedicated to some specific articles. – from sklearn.cross_validation import KFold – for train_index, test_index in KFold(10, 2): • train_index = [5 6 7 8 9] • test_index = [0 1 2 3 4] 21
• 22.
  Performance Evaluation • 𝑝𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛= 𝑡𝑝 𝑡𝑝+𝑓𝑝 • 𝑟𝑒𝑐𝑎𝑙𝑙 = 𝑡𝑝 𝑡𝑝+𝑓𝑛 • 𝑓1𝑠𝑐𝑜𝑟𝑒 = 2 𝑝𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛×𝑟𝑒𝑐𝑎𝑙𝑙 𝑝𝑟𝑒𝑐𝑖𝑠𝑖𝑜𝑛+𝑟𝑒𝑐𝑎𝑙𝑙 • sklearn.metrics – precision_score – recall_score – f1_score Source: http://en.wikipedia.org/wiki/Precision_and_recall 22
• 23.
  Visualization 1. Matplotlib 2. plot()function of Series, DataFrame 23
• 24.
  Experiment Result • Futureworks: – Feature selection by statistics or dimension reduction – Parameter tuning – Ensemble models 24
