The journey of asyncio adoption in instagram

THE JOURNEY OF ASYNCIO ADOPTION
IN INSTAGRAM
Jimmy Lai
in PyCon TW 2018

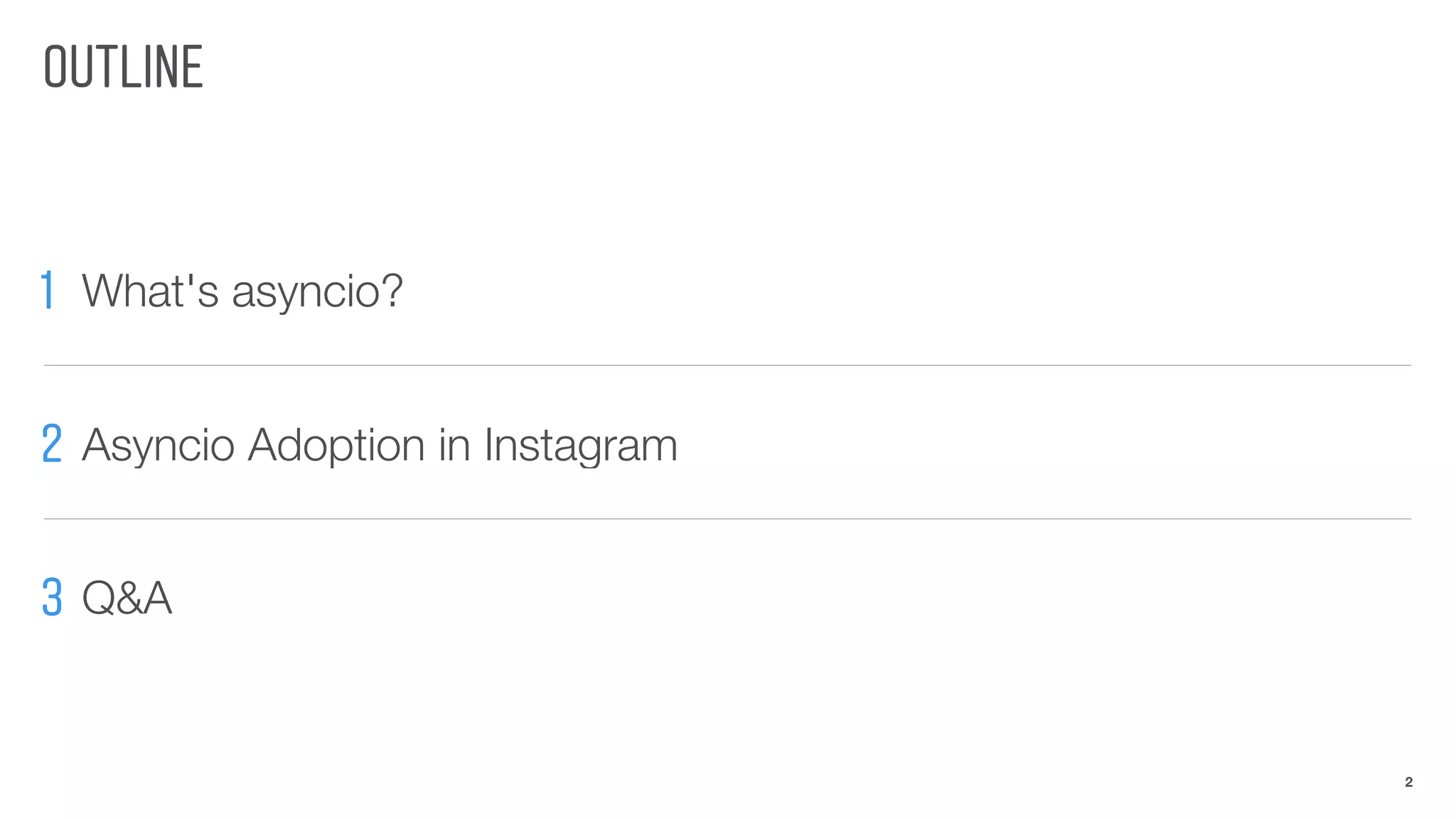

OUTLINE
2
1 What's asyncio?
2 Asyncio Adoption in Instagram
3 Q&A

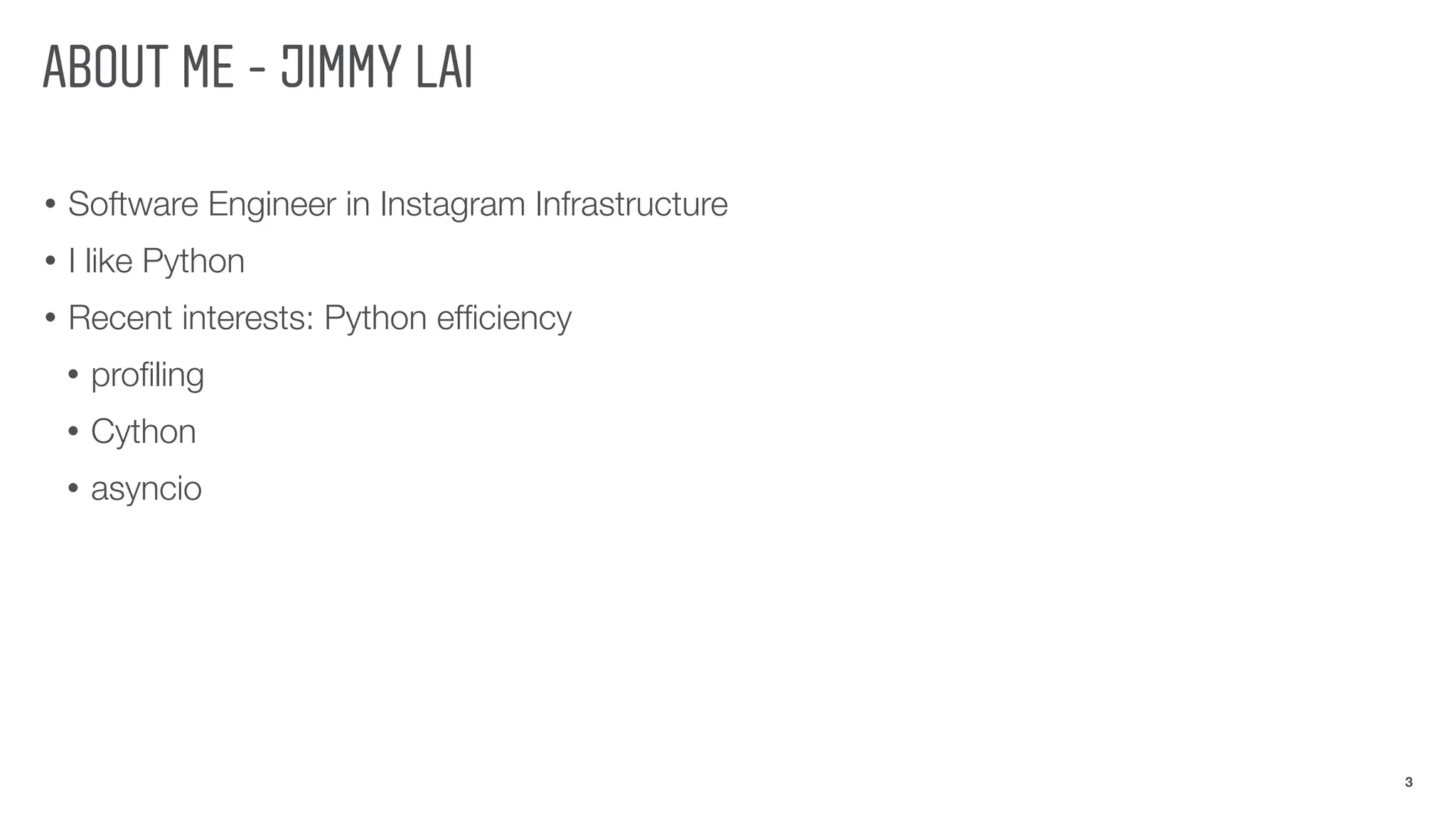

ABOUT ME - JIMMY LAI
• Software Engineer in Instagram Infrastructure
• I like Python
• Recent interests: Python efﬁciency
• proﬁling
• Cython
• asyncio
3

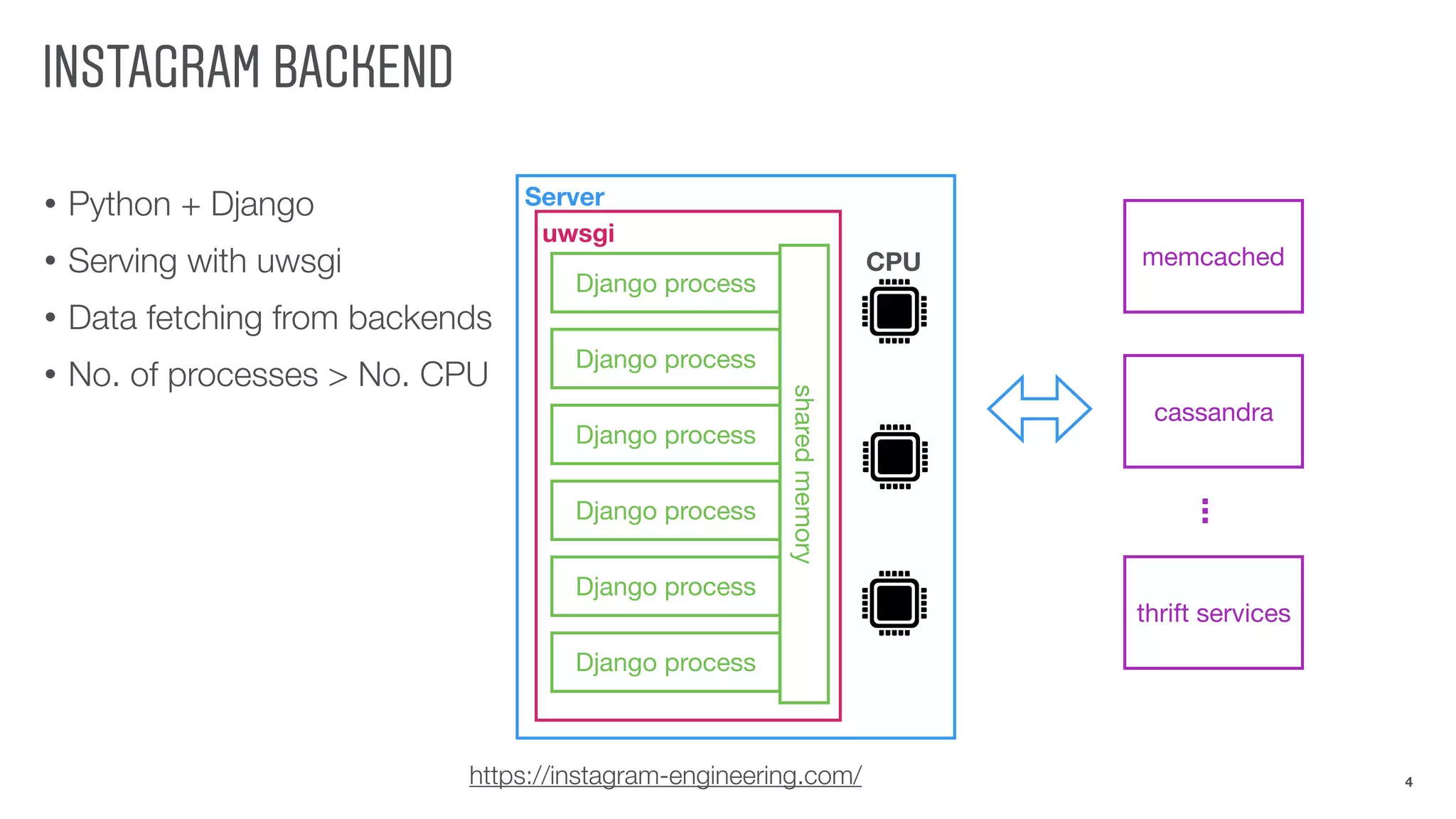

INSTAGRAM BACKEND
• Python + Django
• Serving with uwsgi
• Data fetching from backends
• No. of processes > No. CPU
4
Server
uwsgi
Django process
sharedmemory
memcached
cassandra
thrift services
https://instagram-engineering.com/
...
CPU
Django process
Django process
Django process
Django process
Django process

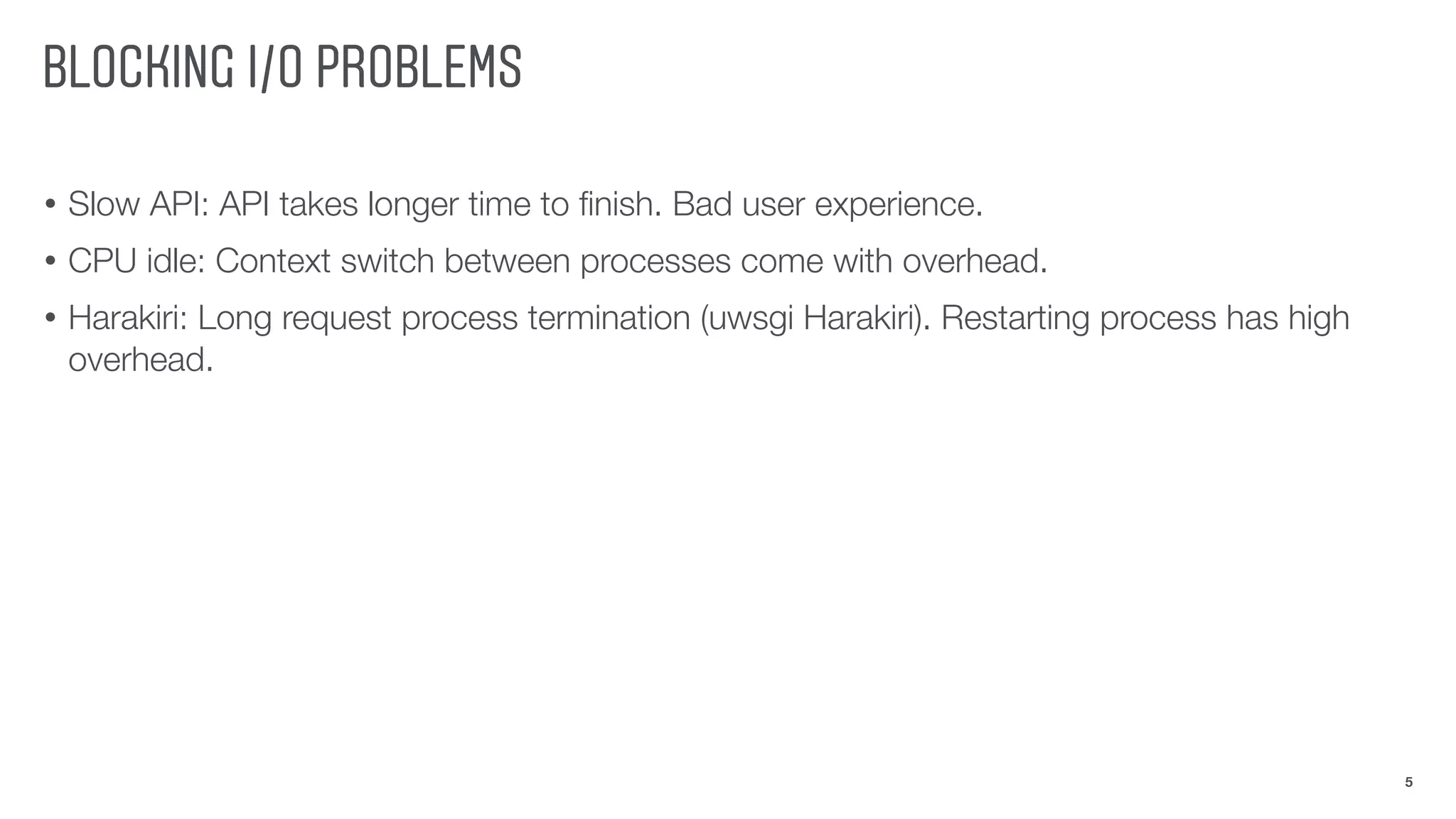

BLOCKING I/O PROBLEMS
• Slow API: API takes longer time to ﬁnish. Bad user experience.
• CPU idle: Context switch between processes come with overhead.
• Harakiri: Long request process termination (uwsgi Harakiri). Restarting process has high
overhead.
5

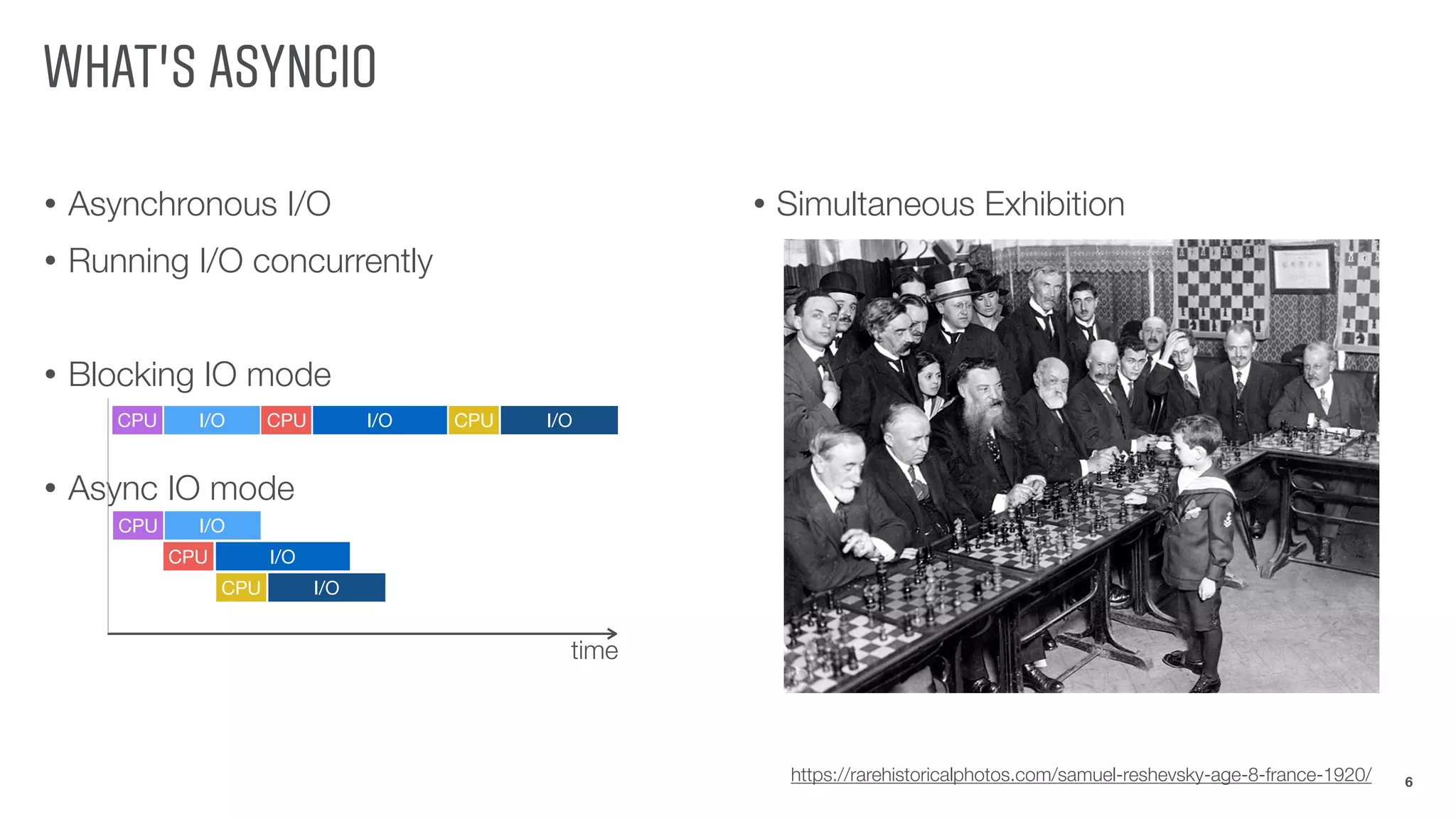

WHAT'S ASYNCIO
• Asynchronous I/O
• Running I/O concurrently
• Blocking IO mode
• Async IO mode
6https://rarehistoricalphotos.com/samuel-reshevsky-age-8-france-1920/
• Simultaneous Exhibition
CPU I/O CPU I/O
CPU I/O
CPU I/O
CPU I/O
CPU I/O
time

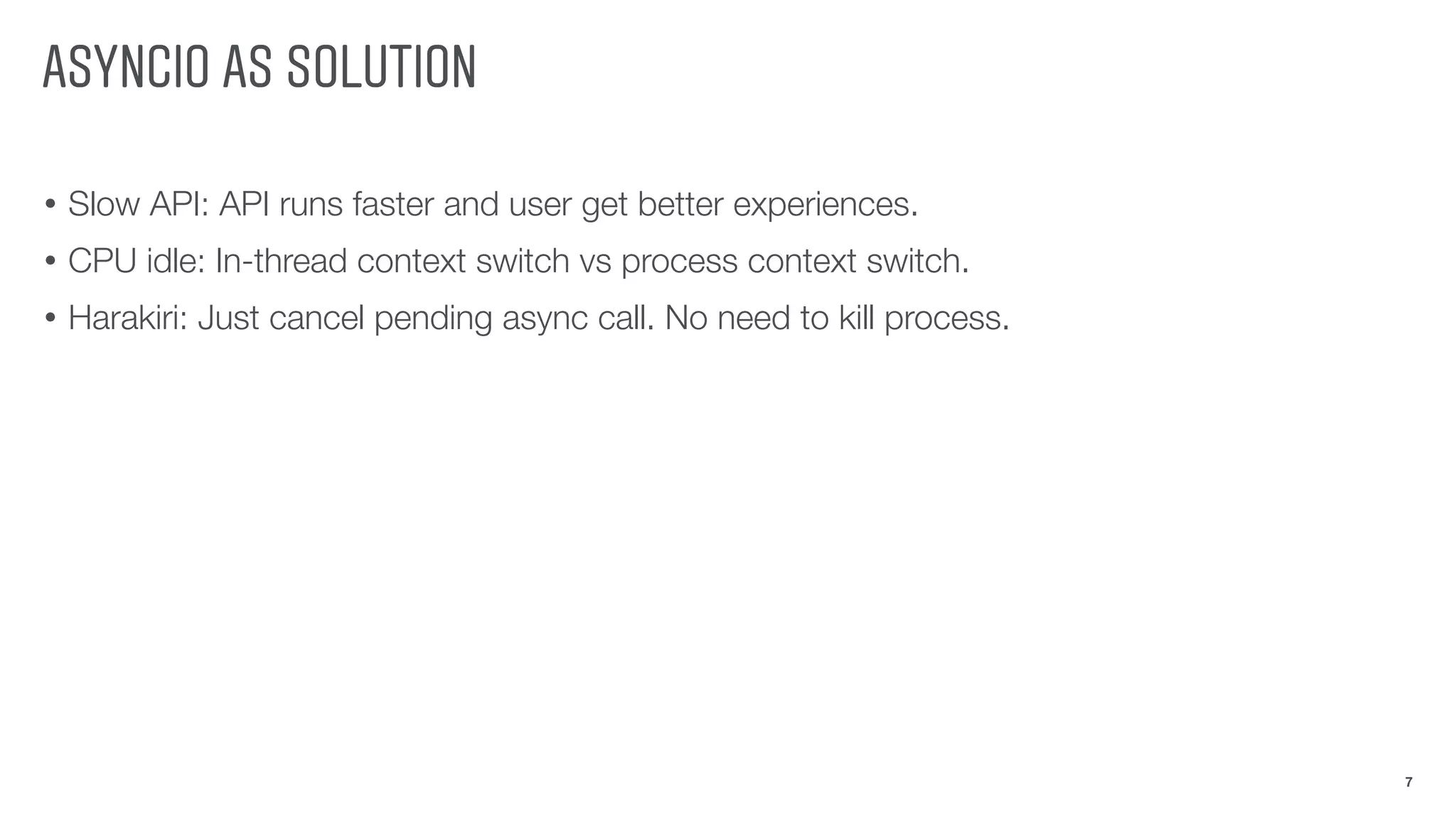

ASYNCIO AS SOLUTION
• Slow API: API runs faster and user get better experiences.
• CPU idle: In-thread context switch vs process context switch.
• Harakiri: Just cancel pending async call. No need to kill process.
7

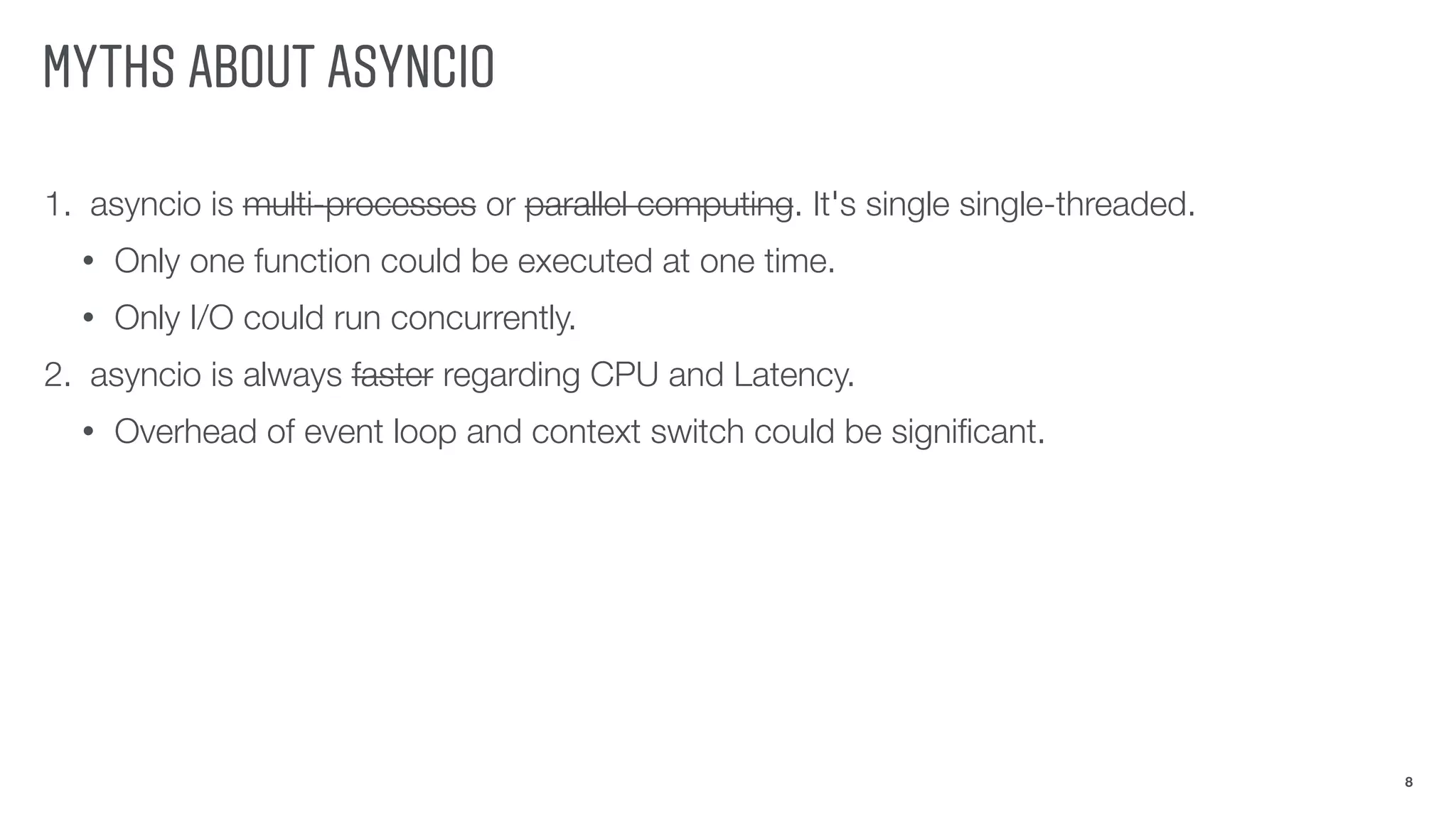

MYTHS ABOUT ASYNCIO
1. asyncio is multi-processes or parallel computing. It's single single-threaded.
• Only one function could be executed at one time.
• Only I/O could run concurrently.
2. asyncio is always faster regarding CPU and Latency.
• Overhead of event loop and context switch could be signiﬁcant.
8

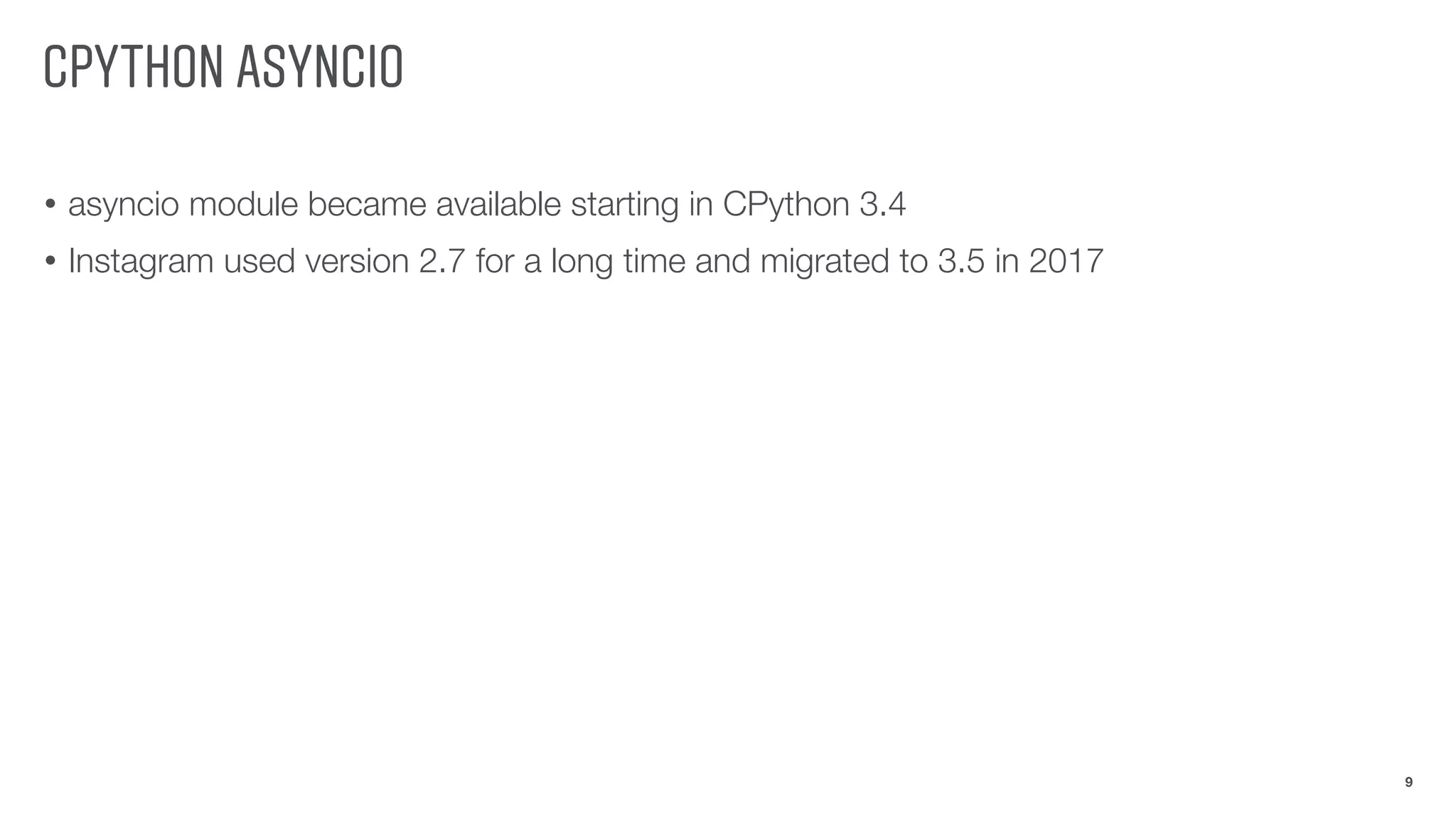

CPYTHON ASYNCIO
• asyncio module became available starting in CPython 3.4
• Instagram used version 2.7 for a long time and migrated to 3.5 in 2017
9

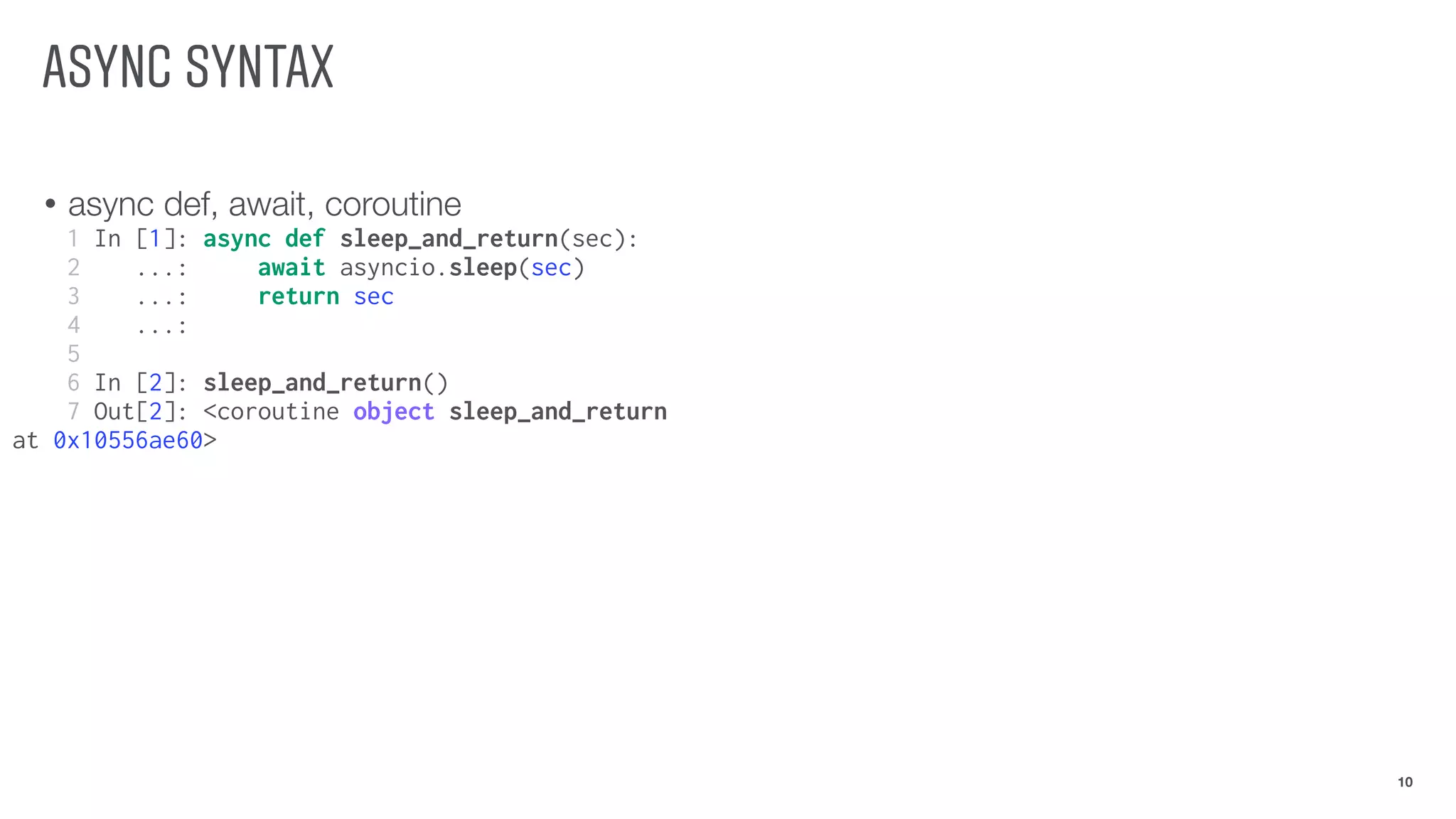

ASYNC SYNTAX
• async def, await, coroutine
10
1 In [1]: async def sleep_and_return(sec):
2 ...: await asyncio.sleep(sec)
3 ...: return sec
4 ...:
5
6 In [2]: sleep_and_return()
7 Out[2]: <coroutine object sleep_and_return
at 0x10556ae60>

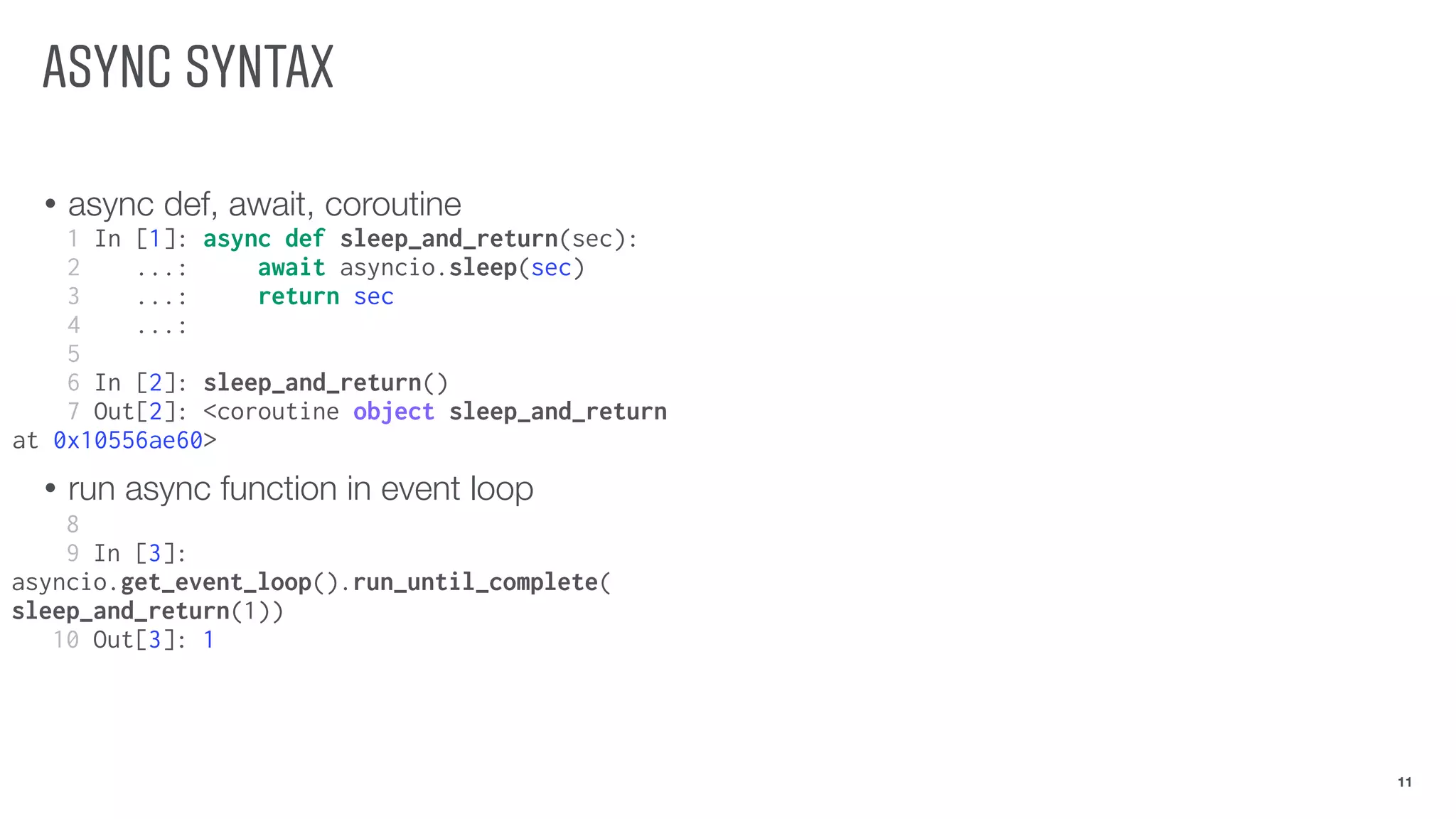

ASYNC SYNTAX
• run async function in event loop
11
3 ...: return sec
4 ...:
5
at 0x10556ae60>
8
9 In [3]:
asyncio.get_event_loop().run_until_complete(
sleep_and_return(1))
10 Out[3]: 1

ASYNC SYNTAX
12
3 ...: return sec
4 ...:
5
at 0x10556ae60>
• gather async functions to run IO concurrently
8
9 In [3]:
10 Out[3]: 1
9 In [3]: async def run():
10 ...: results = await asyncio.gather(
11 ...: sleep_and_return(1),
14 ...: )
15 ...: print(results)
16 ...:
17
18 In [4]: %timeit -r 1
asyncio.get_event_loop().run_until_complete(run())
19 ...:
20 ...:
21 [1, 1, 2]
22 [1, 1, 2]
23 2 s ± 0 ns per loop (mean ± std. dev. of 1
run, 1 loop each)

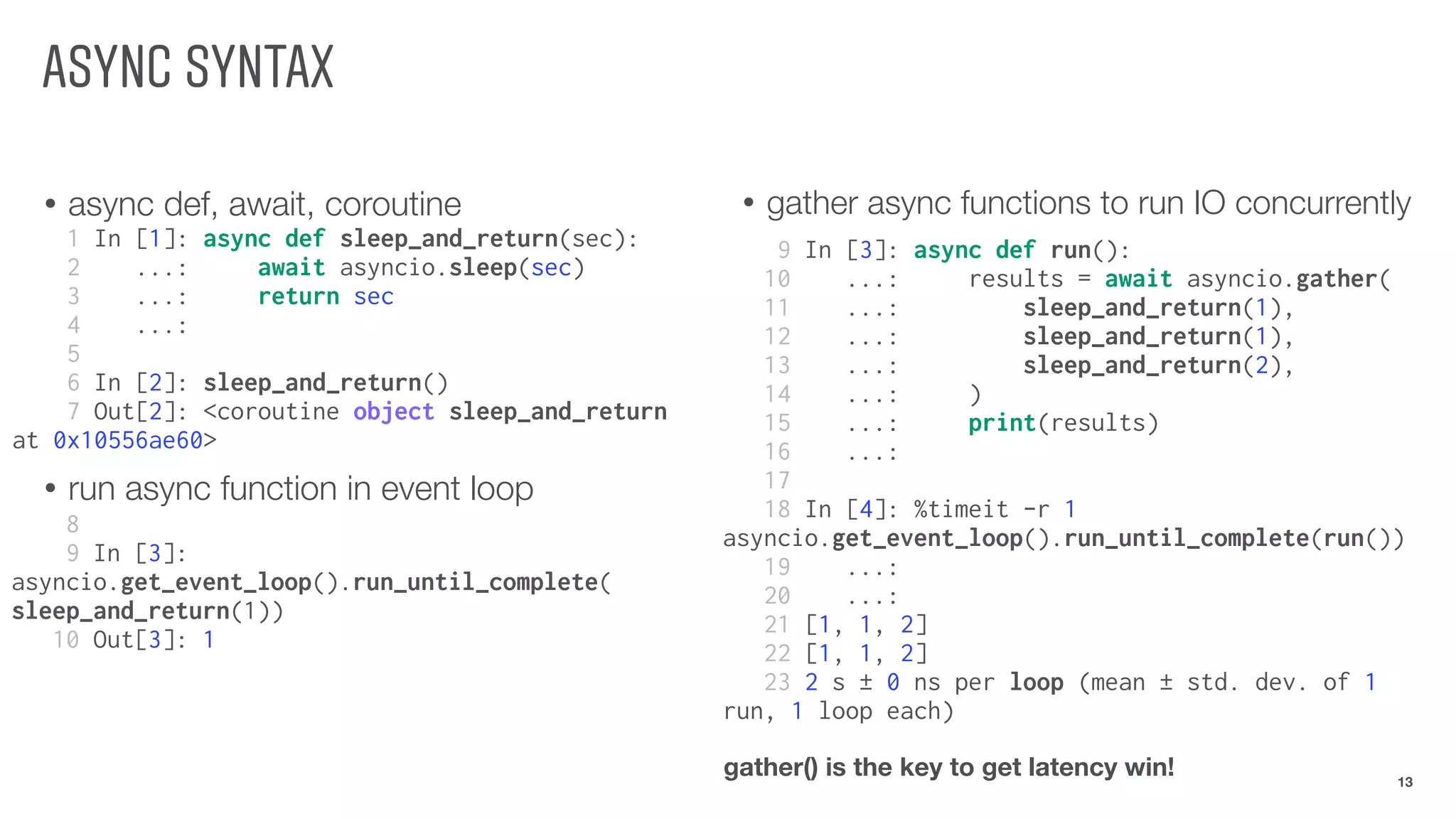

ASYNC SYNTAX
13
3 ...: return sec
4 ...:
5
at 0x10556ae60>
• gather async functions to run IO concurrently
8
9 In [3]:
10 Out[3]: 1
9 In [3]: async def run():
10 ...: results = await asyncio.gather(
14 ...: )
15 ...: print(results)
16 ...:
17
18 In [4]: %timeit -r 1
asyncio.get_event_loop().run_until_complete(run())
19 ...:
20 ...:
21 [1, 1, 2]
22 [1, 1, 2]
23 2 s ± 0 ns per loop (mean ± std. dev. of 1
run, 1 loop each)
gather() is the key to get latency win!

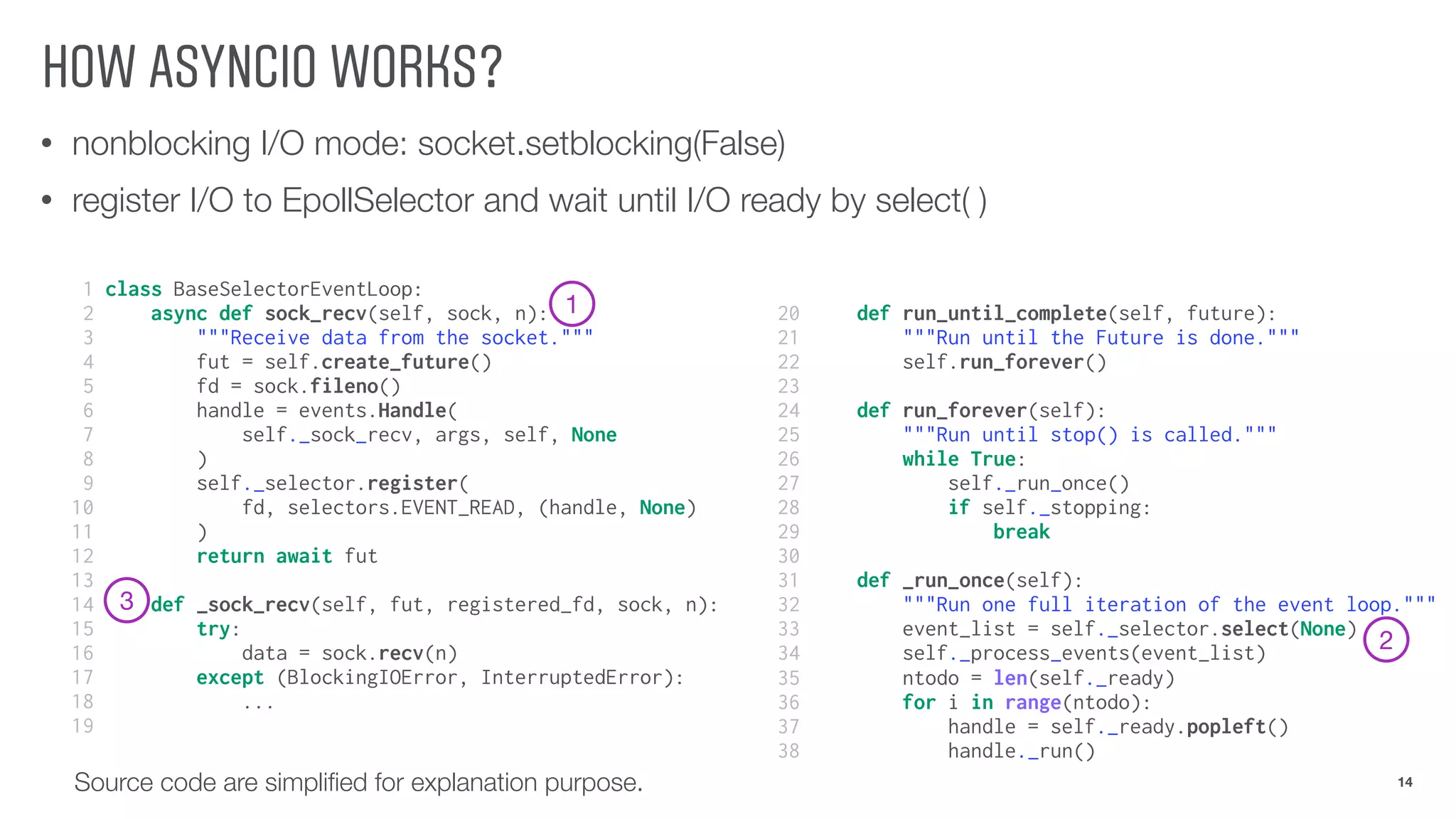

HOW ASYNCIO WORKS?
• nonblocking I/O mode: socket.setblocking(False)
• register I/O to EpollSelector and wait until I/O ready by select( )
14Source code are simpliﬁed for explanation purpose.
1 class BaseSelectorEventLoop:
2 async def sock_recv(self, sock, n):
3 """Receive data from the socket."""
4 fut = self.create_future()
5 fd = sock.fileno()
6 handle = events.Handle(
7 self._sock_recv, args, self, None
8 )
9 self._selector.register(
10 fd, selectors.EVENT_READ, (handle, None)
11 )
12 return await fut
13
14 def _sock_recv(self, fut, registered_fd, sock, n):
15 try:
16 data = sock.recv(n)
17 except (BlockingIOError, InterruptedError):
18 ...
19
20 def run_until_complete(self, future):
21 """Run until the Future is done."""
22 self.run_forever()
23
24 def run_forever(self):
25 """Run until stop() is called."""
26 while True:
27 self._run_once()
28 if self._stopping:
29 break
30
31 def _run_once(self):
32 """Run one full iteration of the event loop."""
33 event_list = self._selector.select(None)
34 self._process_events(event_list)
35 ntodo = len(self._ready)
36 for i in range(ntodo):
37 handle = self._ready.popleft()
38 handle._run()
1
2
3

ASYNCIO ADOPTION IN INSTAGRAM JUST LIKE
decorate some trees in a forest
16
Instagram started using
Django and launched in
2010.
Large repo and many
developers.

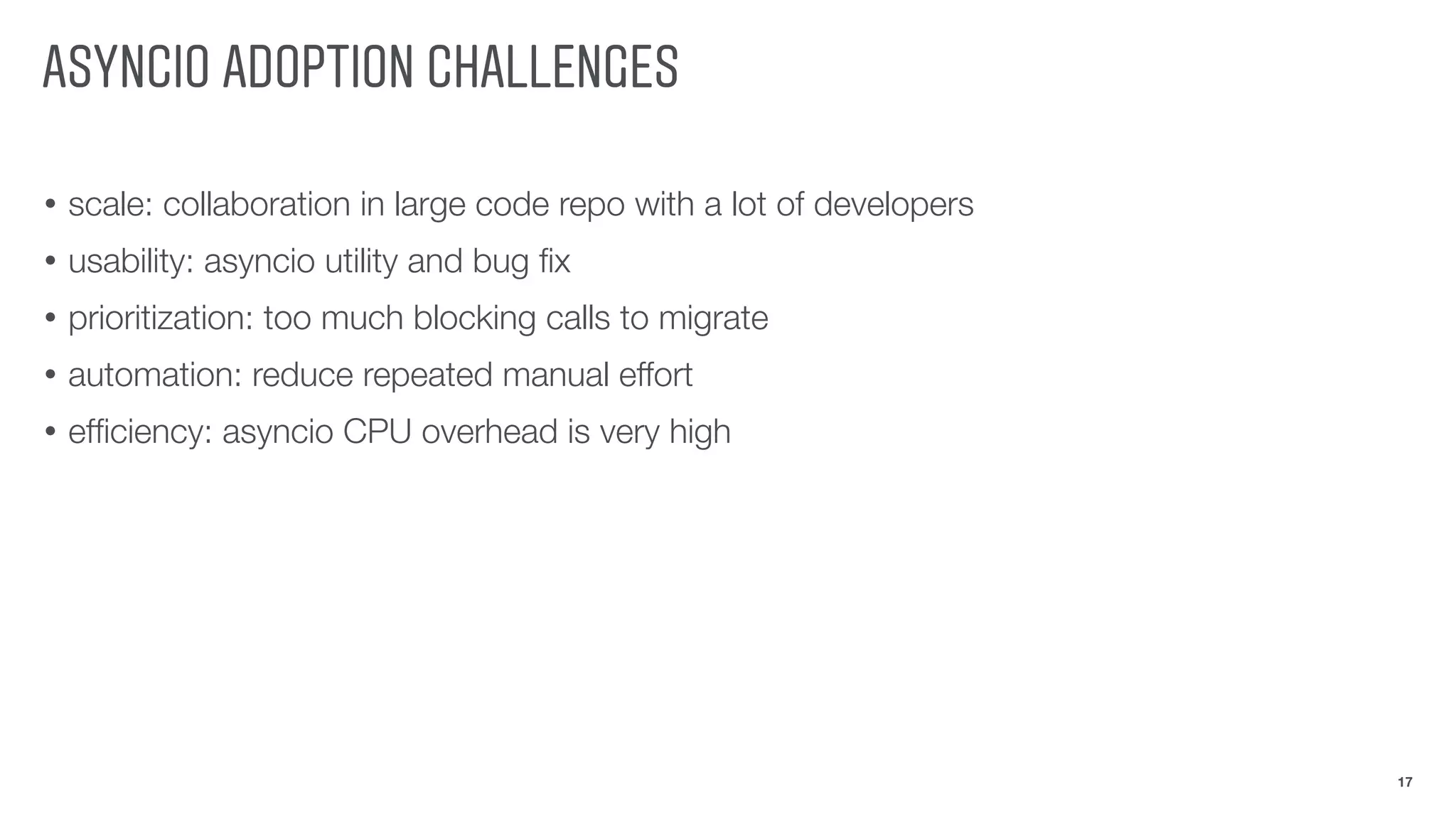

ASYNCIO ADOPTION CHALLENGES
• scale: collaboration in large code repo with a lot of developers
• usability: asyncio utility and bug ﬁx
• prioritization: too much blocking calls to migrate
• automation: reduce repeated manual effort
• efﬁciency: asyncio CPU overhead is very high
17

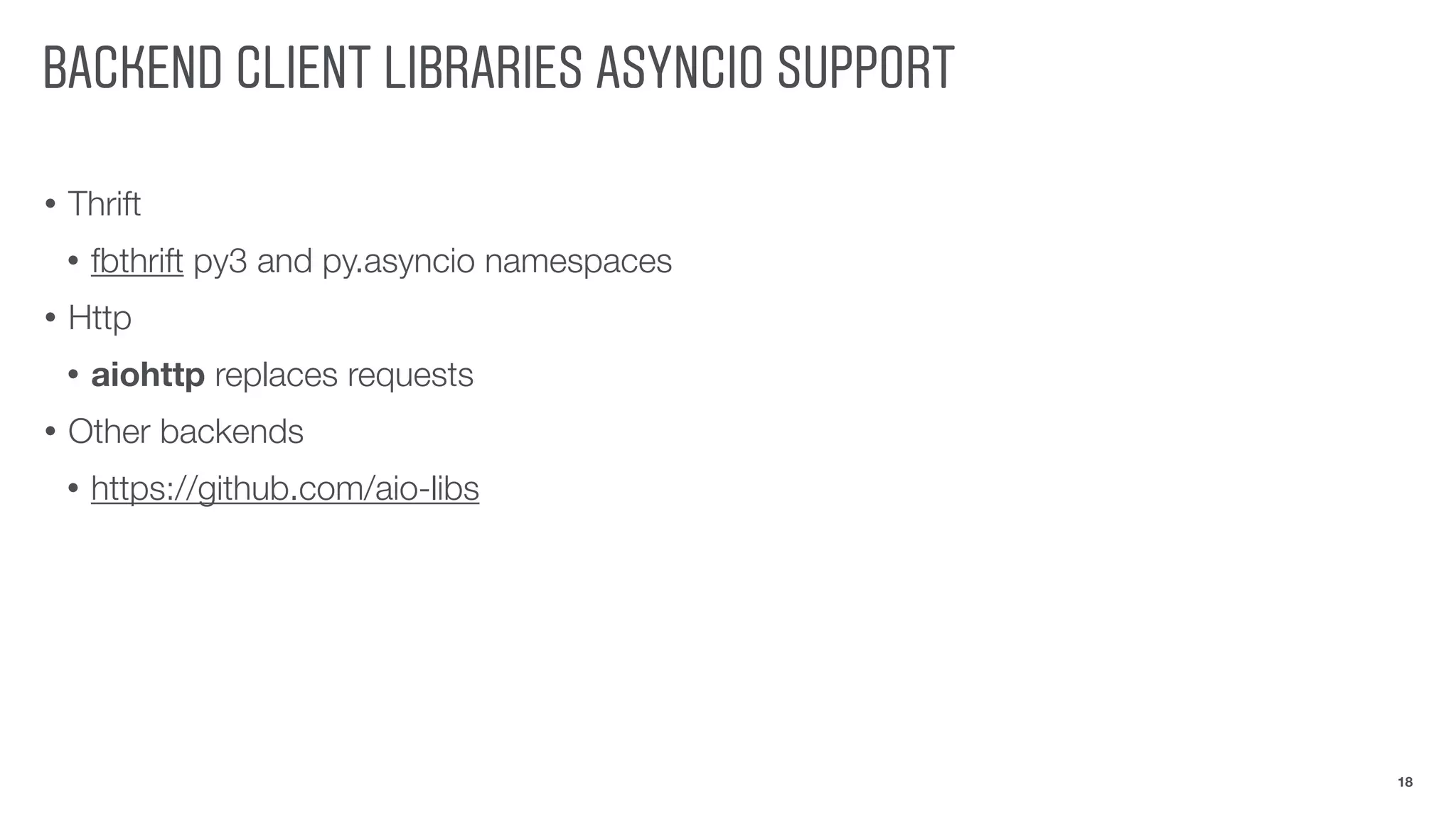

BACKEND CLIENT LIBRARIES ASYNCIO SUPPORT
• Thrift
• fbthrift py3 and py.asyncio namespaces
• Http
• aiohttp replaces requests
• Other backends
• https://github.com/aio-libs
18

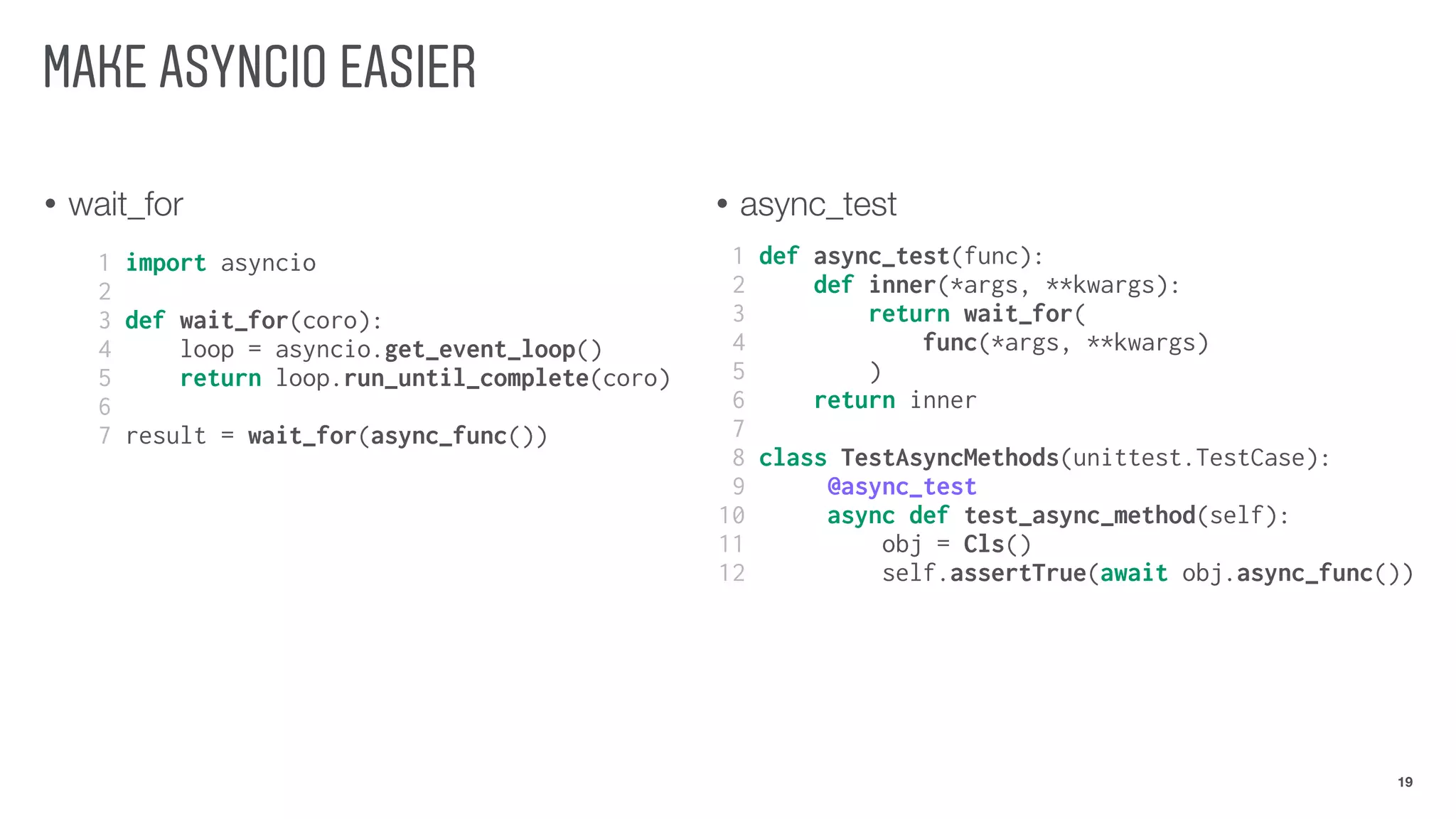

• wait_for • async_test
MAKE ASYNCIO EASIER
19
1 import asyncio
2
3 def wait_for(coro):
4 loop = asyncio.get_event_loop()
5 return loop.run_until_complete(coro)
6
7 result = wait_for(async_func())
1 def async_test(func):
2 def inner(*args, **kwargs):
3 return wait_for(
4 func(*args, **kwargs)
5 )
6 return inner
7
8 class TestAsyncMethods(unittest.TestCase):
9 @async_test
10 async def test_async_method(self):
11 obj = Cls()
12 self.assertTrue(await obj.async_func())

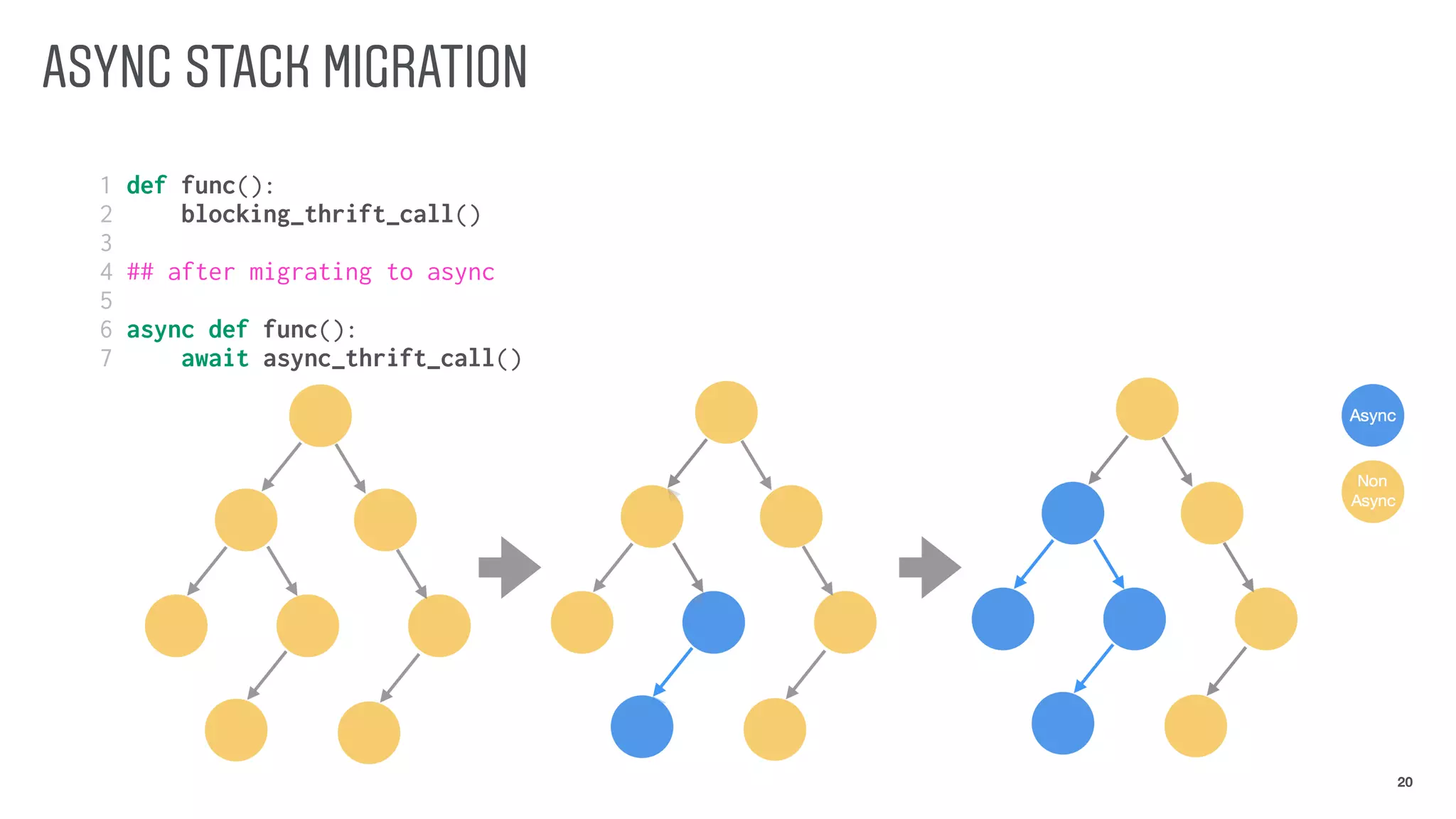

ASYNC STACK MIGRATION
20
1 def func():
2 blocking_thrift_call()
3
4 ## after migrating to async
5
6 async def func():
7 await async_thrift_call()

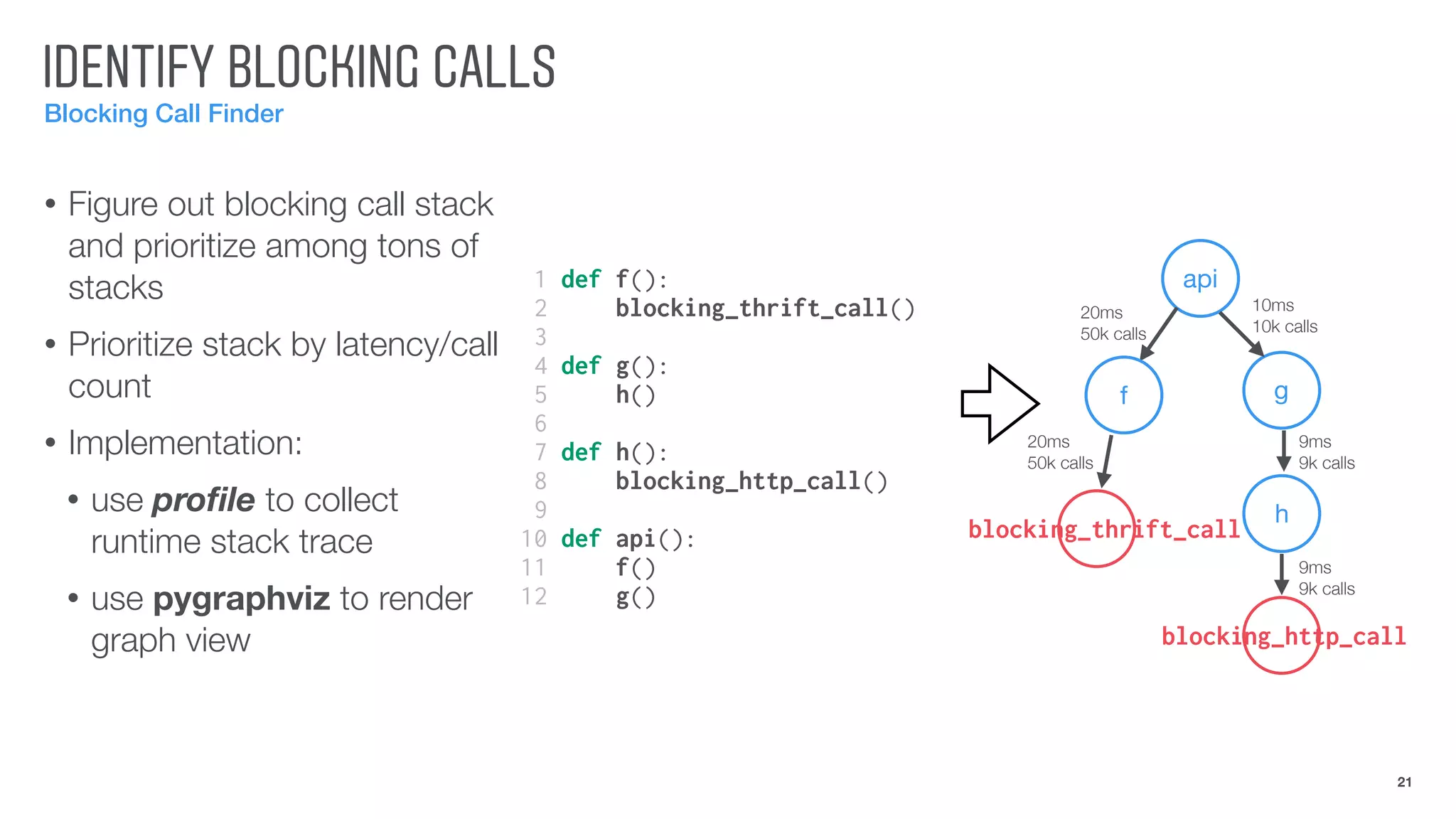

IDENTIFY BLOCKING CALLS
Blocking Call Finder
• Figure out blocking call stack
and prioritize among tons of
stacks
• Prioritize stack by latency/call
count
• Implementation:
• use proﬁle to collect
runtime stack trace
• use pygraphviz to render
graph view
21
1 def f():
2 blocking_thrift_call()
3
4 def g():
5 h()
6
7 def h():
8 blocking_http_call()
9
10 def api():
11 f()
12 g()
api
f g
blocking_thrift_call
h
blocking_http_call
20ms
50k calls
10ms
10k calls
9ms
9k calls
9ms
9k calls
20ms
50k calls

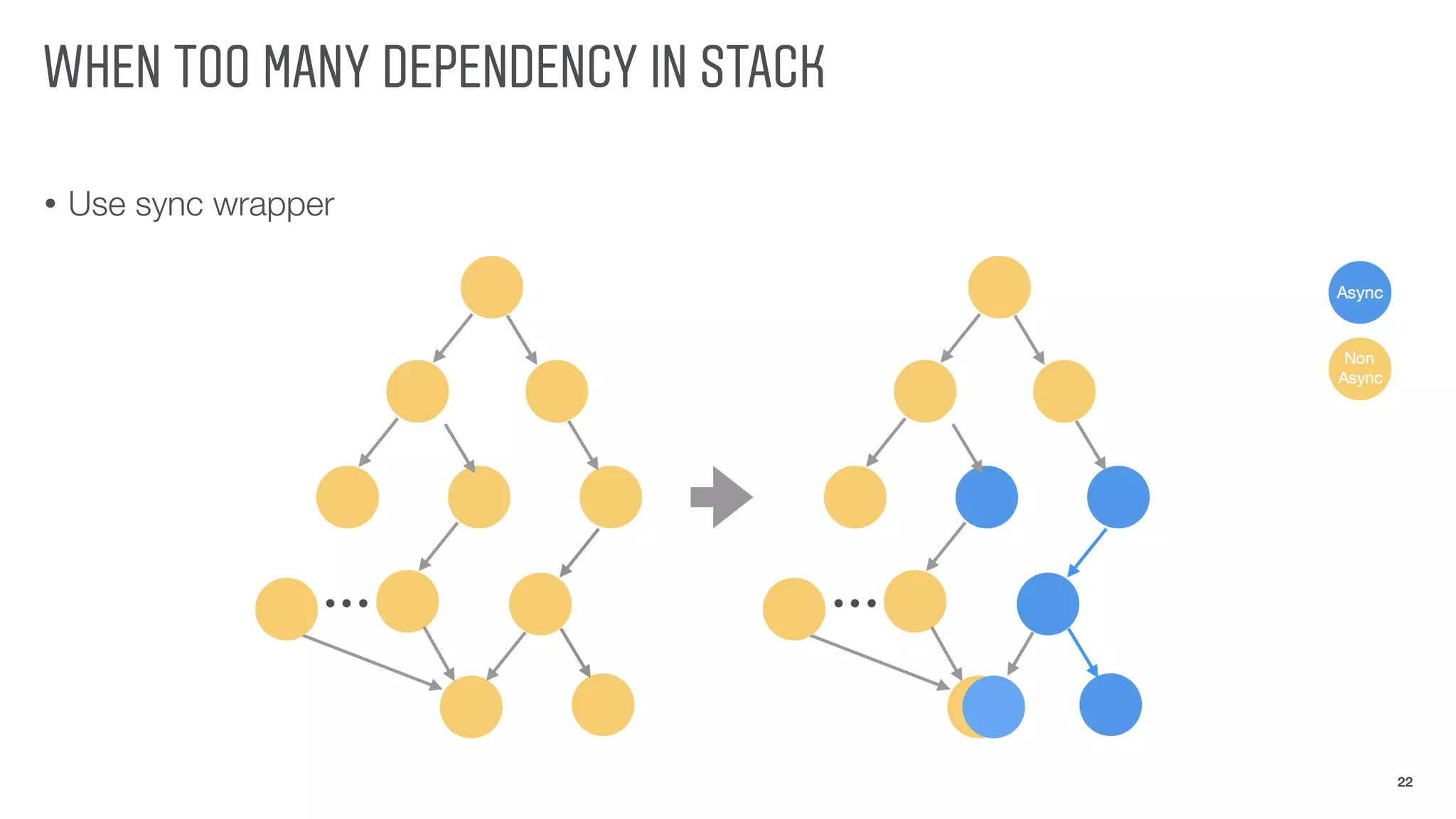

WHEN TOO MANY DEPENDENCY IN STACK
• Use sync wrapper
22

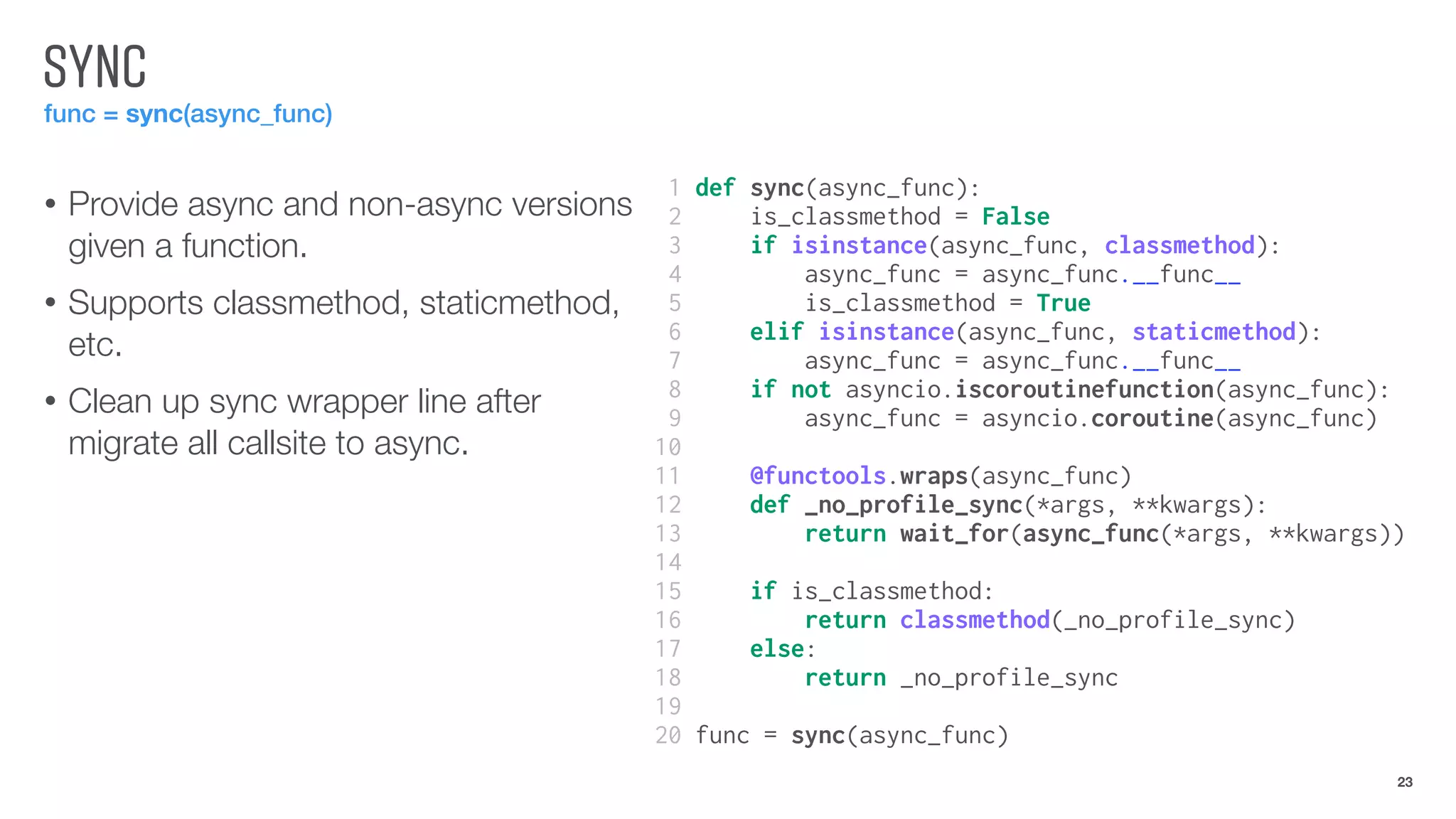

SYNC
func = sync(async_func)
• Provide async and non-async versions
given a function.
• Supports classmethod, staticmethod,
etc.
• Clean up sync wrapper line after
migrate all callsite to async.
23
1 def sync(async_func):
2 is_classmethod = False
3 if isinstance(async_func, classmethod):
4 async_func = async_func.__func__
5 is_classmethod = True
6 elif isinstance(async_func, staticmethod):
7 async_func = async_func.__func__
8 if not asyncio.iscoroutinefunction(async_func):
9 async_func = asyncio.coroutine(async_func)
10
11 @functools.wraps(async_func)
12 def _no_profile_sync(*args, **kwargs):
13 return wait_for(async_func(*args, **kwargs))
14
15 if is_classmethod:
16 return classmethod(_no_profile_sync)
17 else:
18 return _no_profile_sync
19
20 func = sync(async_func)

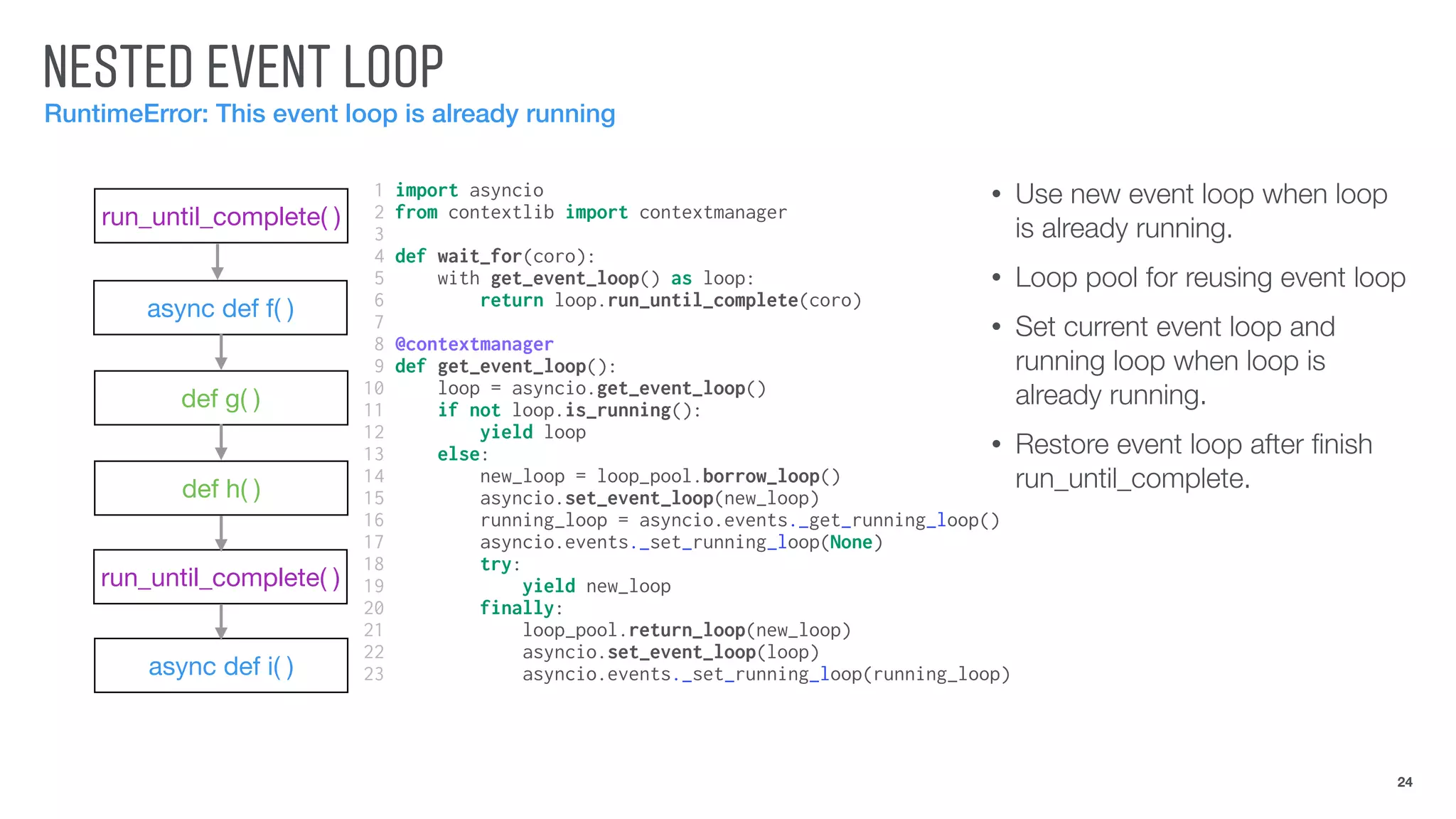

NESTED EVENT LOOP
RuntimeError: This event loop is already running
24
run_until_complete( )
async def f( )
def g( )
def h( )
run_until_complete( )
async def i( )
• Use new event loop when loop
is already running.
• Loop pool for reusing event loop
• Set current event loop and
running loop when loop is
already running.
• Restore event loop after ﬁnish
run_until_complete.
1 import asyncio
2 from contextlib import contextmanager
3
4 def wait_for(coro):
5 with get_event_loop() as loop:
6 return loop.run_until_complete(coro)
7
8 @contextmanager
9 def get_event_loop():
10 loop = asyncio.get_event_loop()
11 if not loop.is_running():
12 yield loop
13 else:
14 new_loop = loop_pool.borrow_loop()
15 asyncio.set_event_loop(new_loop)
16 running_loop = asyncio.events._get_running_loop()
17 asyncio.events._set_running_loop(None)
18 try:
19 yield new_loop
20 finally:
21 loop_pool.return_loop(new_loop)
22 asyncio.set_event_loop(loop)
23 asyncio.events._set_running_loop(running_loop)

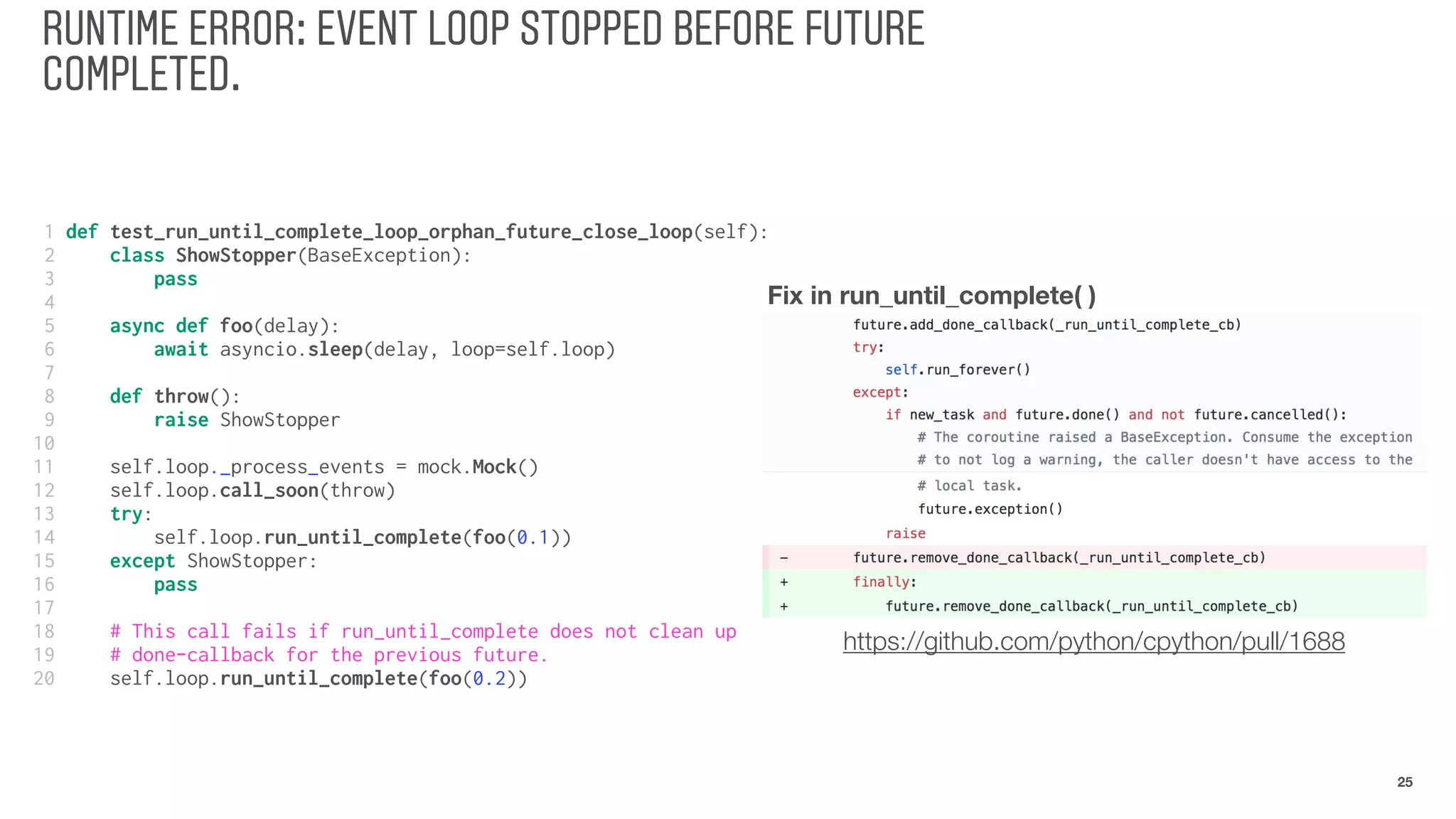

RUNTIME ERROR: EVENT LOOP STOPPED BEFORE FUTURE
COMPLETED.
25
1 def test_run_until_complete_loop_orphan_future_close_loop(self):
2 class ShowStopper(BaseException):
3 pass
4
5 async def foo(delay):
6 await asyncio.sleep(delay, loop=self.loop)
7
8 def throw():
9 raise ShowStopper
10
11 self.loop._process_events = mock.Mock()
12 self.loop.call_soon(throw)
13 try:
14 self.loop.run_until_complete(foo(0.1))
15 except ShowStopper:
16 pass
17
18 # This call fails if run_until_complete does not clean up
19 # done-callback for the previous future.
20 self.loop.run_until_complete(foo(0.2))
Fix in run_until_complete( )
https://github.com/python/cpython/pull/1688

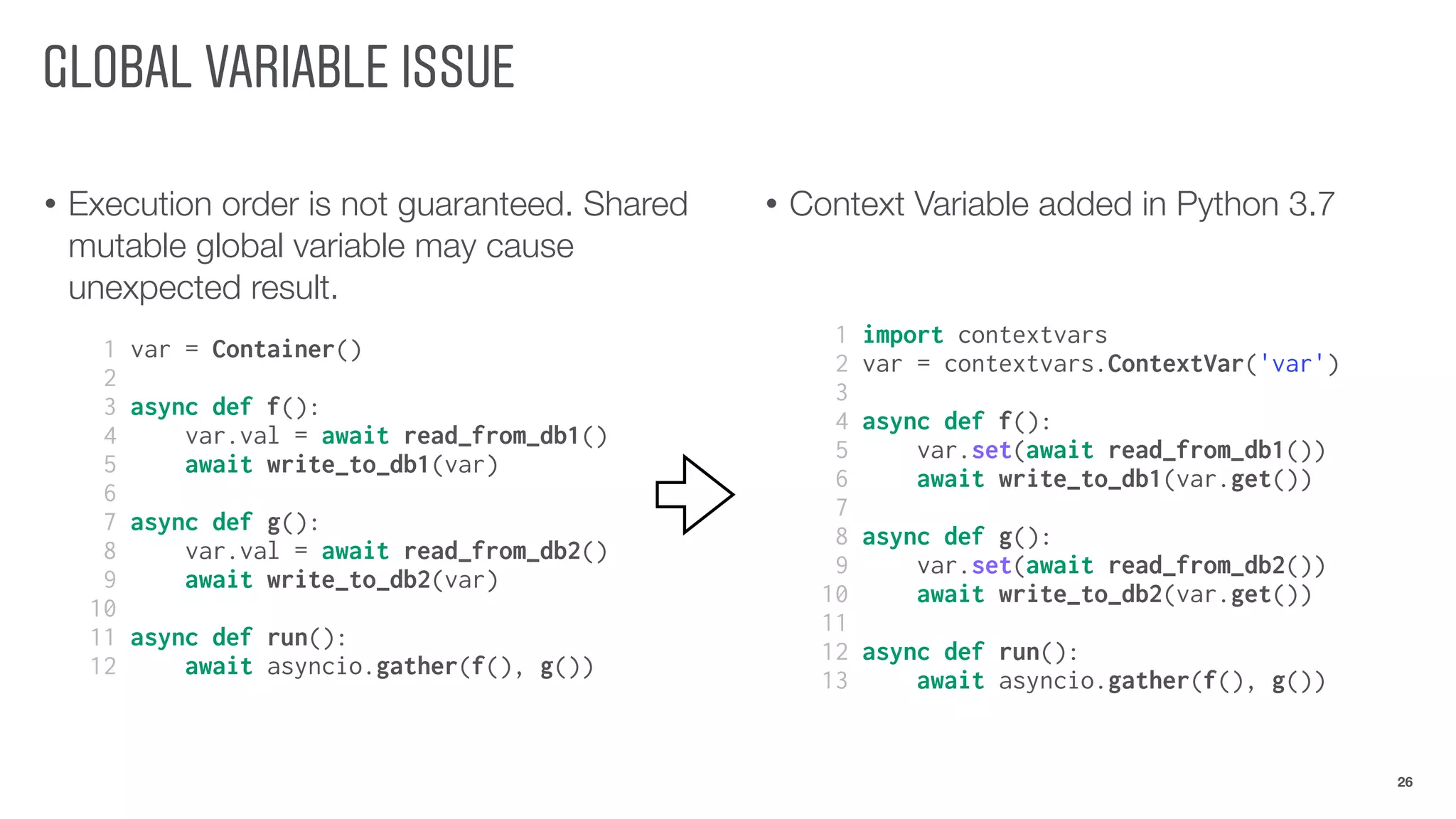

GLOBAL VARIABLE ISSUE
• Execution order is not guaranteed. Shared
mutable global variable may cause
unexpected result.
26
1 var = Container()
2
3 async def f():
4 var.val = await read_from_db1()
5 await write_to_db1(var)
6
7 async def g():
8 var.val = await read_from_db2()
9 await write_to_db2(var)
10
11 async def run():
12 await asyncio.gather(f(), g())
1 import contextvars
2 var = contextvars.ContextVar('var')
3
4 async def f():
5 var.set(await read_from_db1())
6 await write_to_db1(var.get())
7
8 async def g():
9 var.set(await read_from_db2())
10 await write_to_db2(var.get())
11
12 async def run():
13 await asyncio.gather(f(), g())
• Context Variable added in Python 3.7

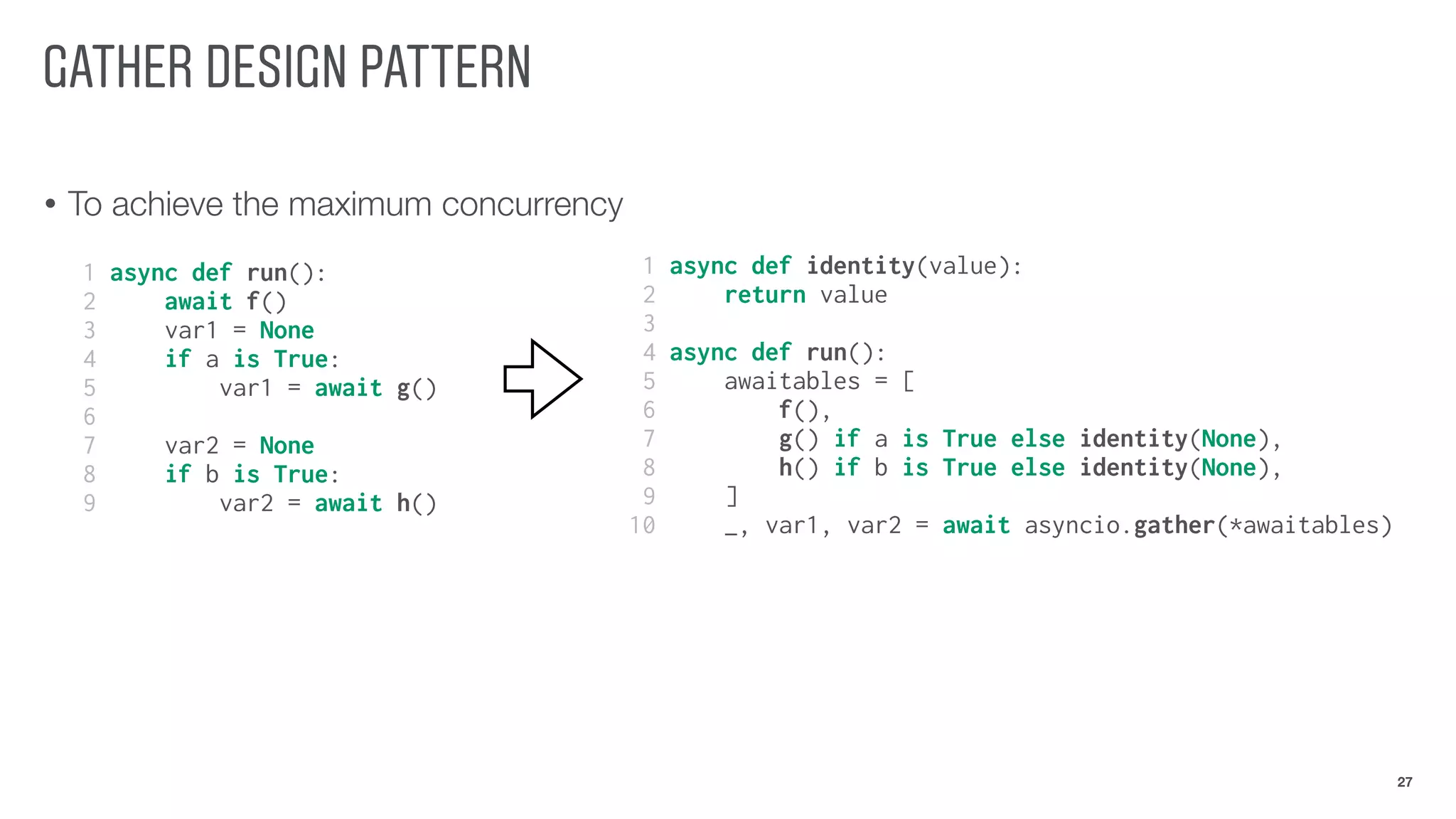

GATHER DESIGN PATTERN
• To achieve the maximum concurrency
27
1 async def identity(value):
2 return value
3
4 async def run():
5 awaitables = [
6 f(),
7 g() if a is True else identity(None),
8 h() if b is True else identity(None),
9 ]
10 _, var1, var2 = await asyncio.gather(*awaitables)
1 async def run():
2 await f()
3 var1 = None
4 if a is True:
5 var1 = await g()
6
7 var2 = None
8 if b is True:
9 var2 = await h()

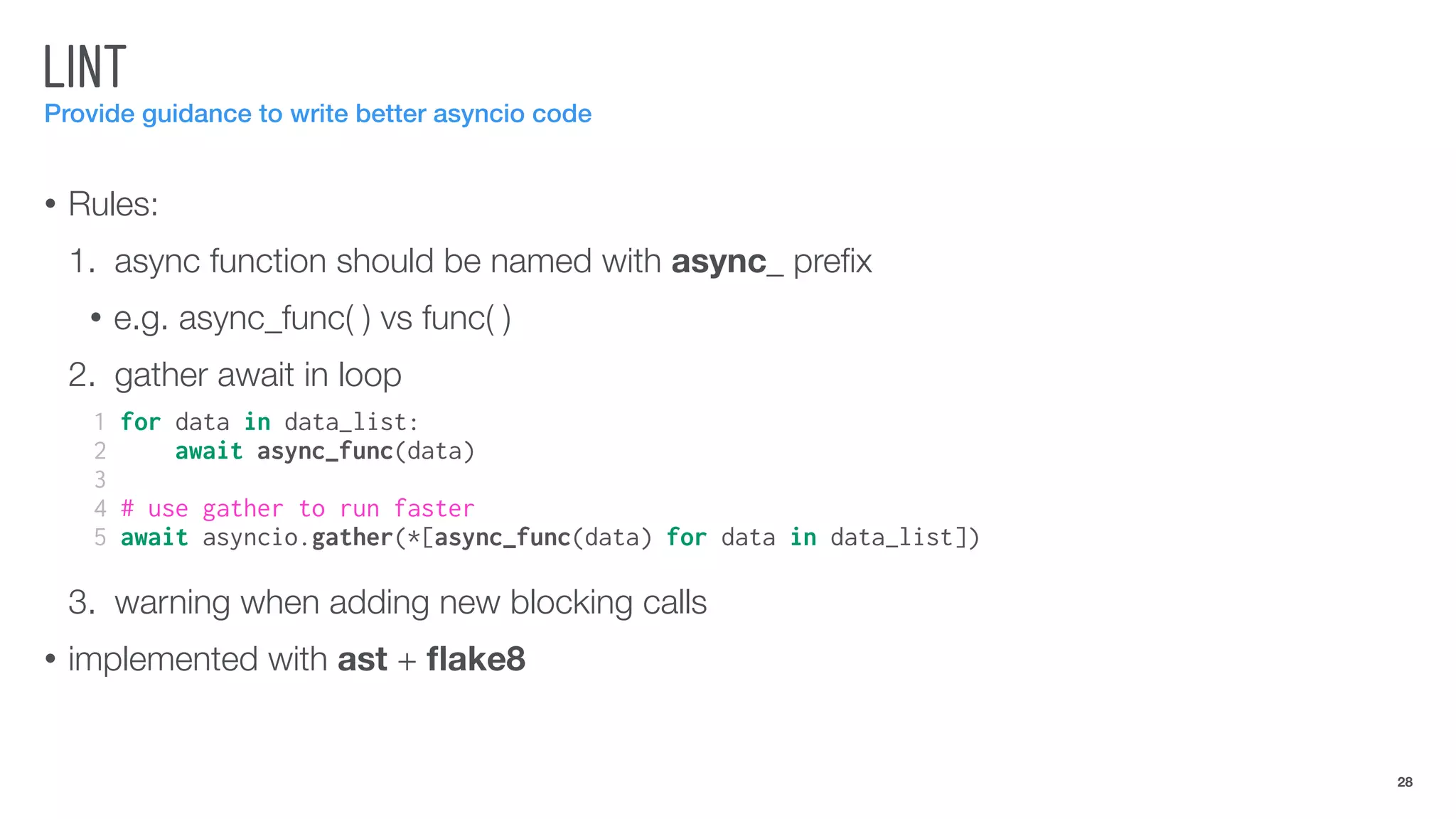

LINT
Provide guidance to write better asyncio code
• Rules:
1. async function should be named with async_ preﬁx
• e.g. async_func( ) vs func( )
2. gather await in loop
3. warning when adding new blocking calls
• implemented with ast + ﬂake8
28
1 for data in data_list:
2 await async_func(data)
3
4 # use gather to run faster
5 await asyncio.gather(*[async_func(data) for data in data_list])

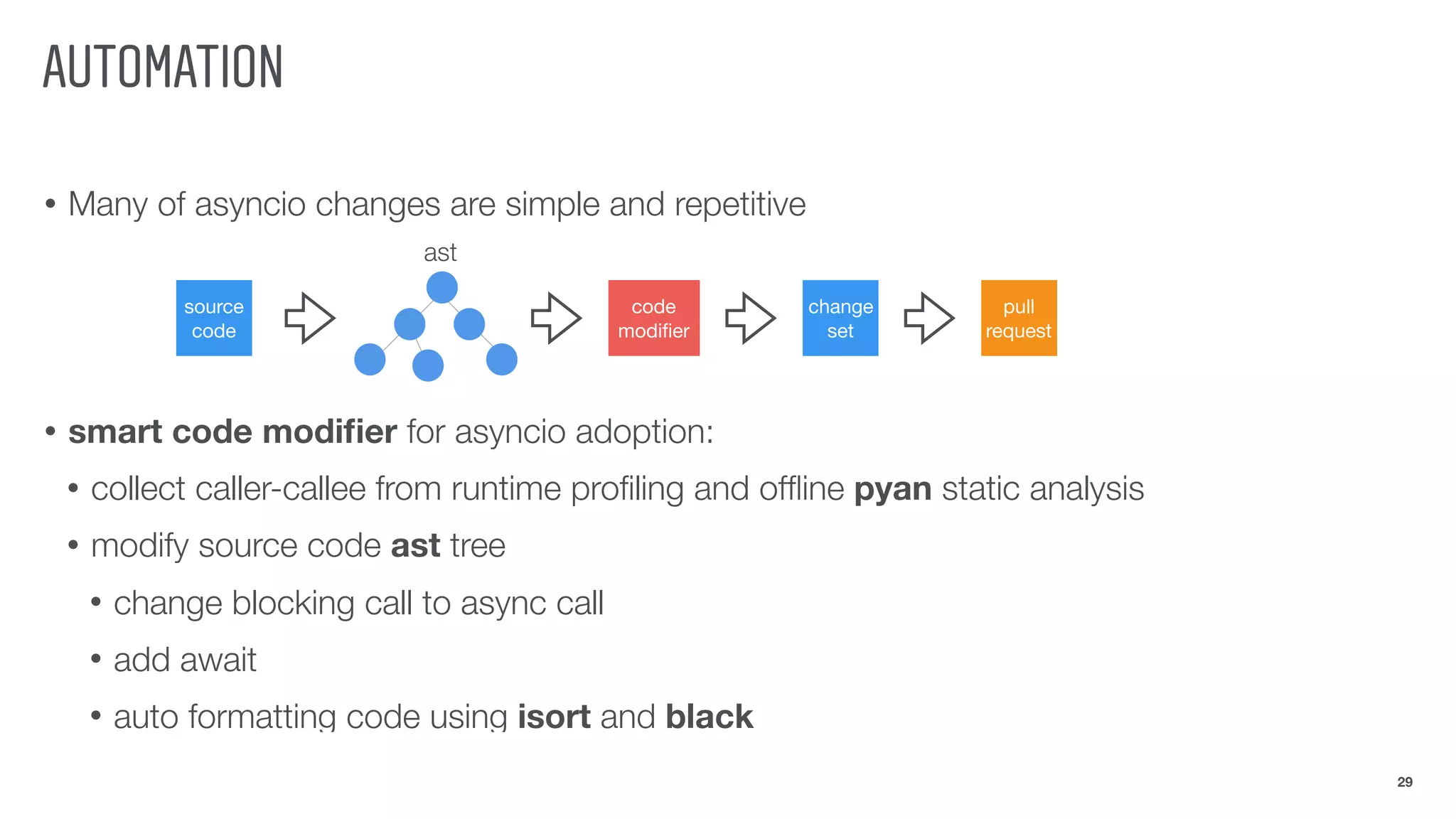

AUTOMATION
• Many of asyncio changes are simple and repetitive
• smart code modifier for asyncio adoption:
• collect caller-callee from runtime profiling and offline pyan static analysis
• modify source code ast tree
• change blocking call to async call
• add await
• auto formatting code using isort and black
29
source
code
ast
code
modifier
change
set
pull
request

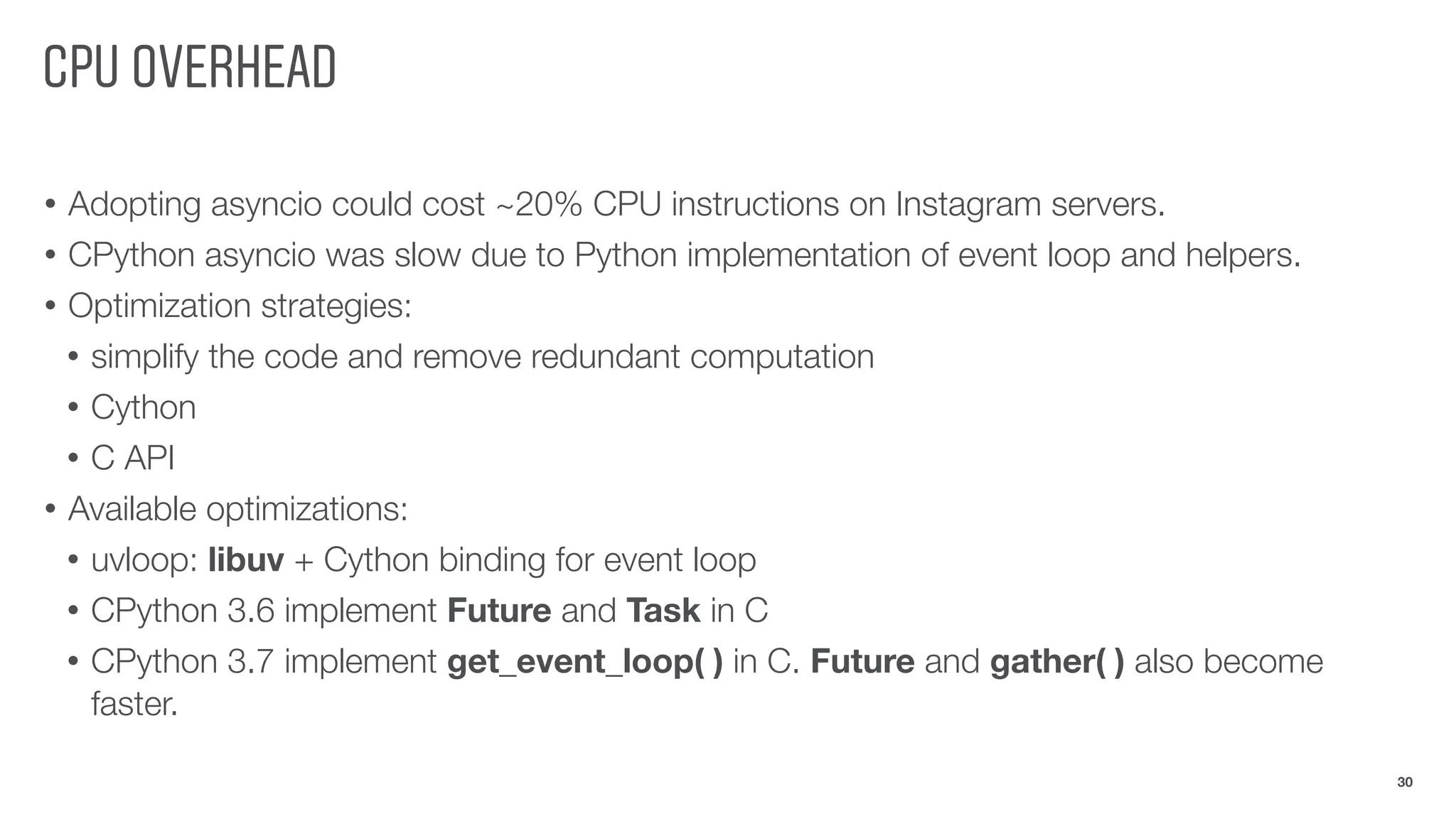

CPU OVERHEAD
• Adopting asyncio could cost ~20% CPU instructions on Instagram servers.
• CPython asyncio was slow due to Python implementation of event loop and helpers.
• Optimization strategies:
• simplify the code and remove redundant computation
• Cython
• C API
• Available optimizations:
• uvloop: libuv + Cython binding for event loop
• CPython 3.6 implement Future and Task in C
• CPython 3.7 implement get_event_loop( ) in C. Future and gather( ) also become
faster.
30

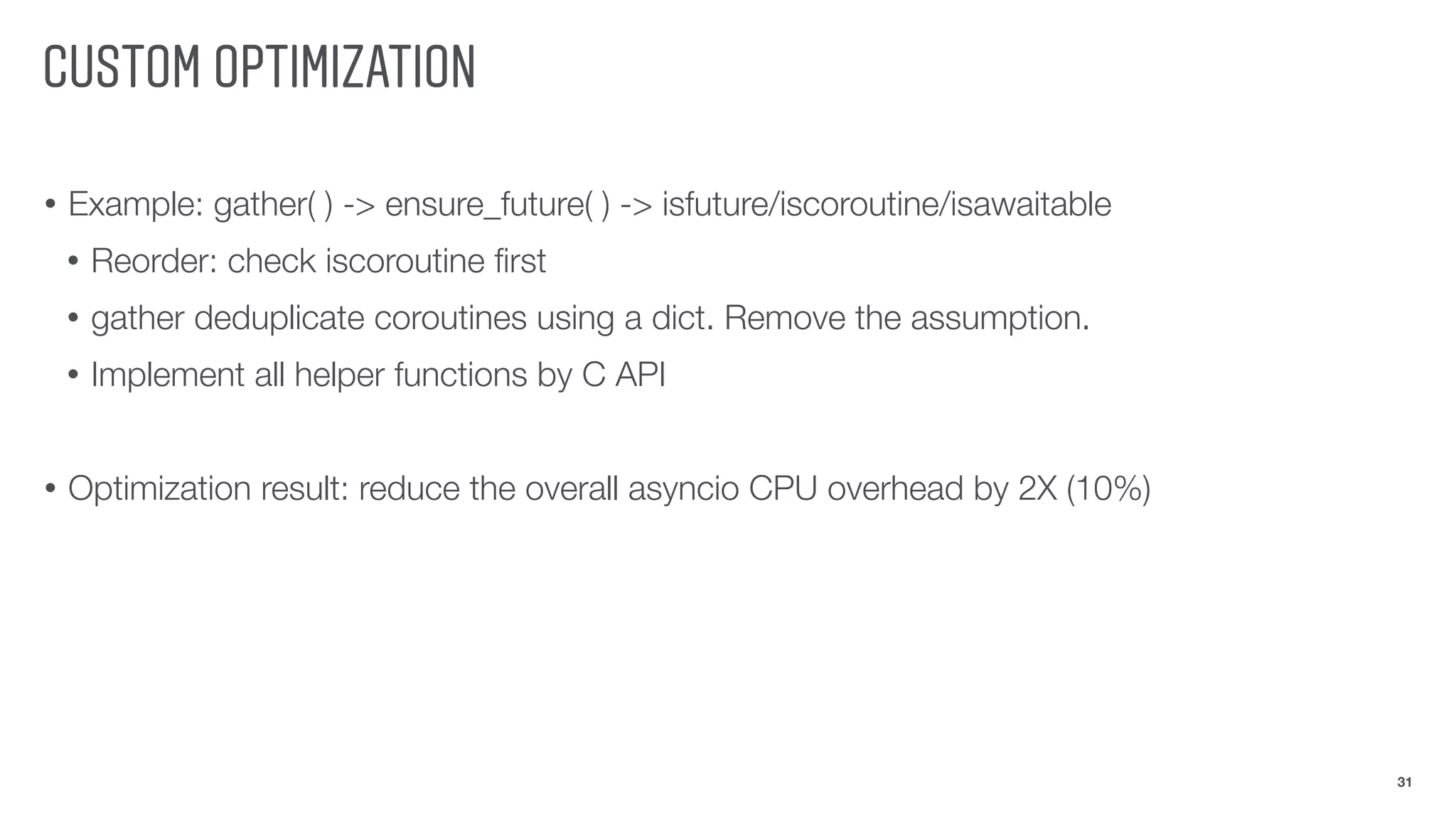

CUSTOM OPTIMIZATION
• Example: gather( ) -> ensure_future( ) -> isfuture/iscoroutine/isawaitable
• Reorder: check iscoroutine ﬁrst
• gather deduplicate coroutines using a dict. Remove the assumption.
• Implement all helper functions by C API
• Optimization result: reduce the overall asyncio CPU overhead by 2X (10%)
31

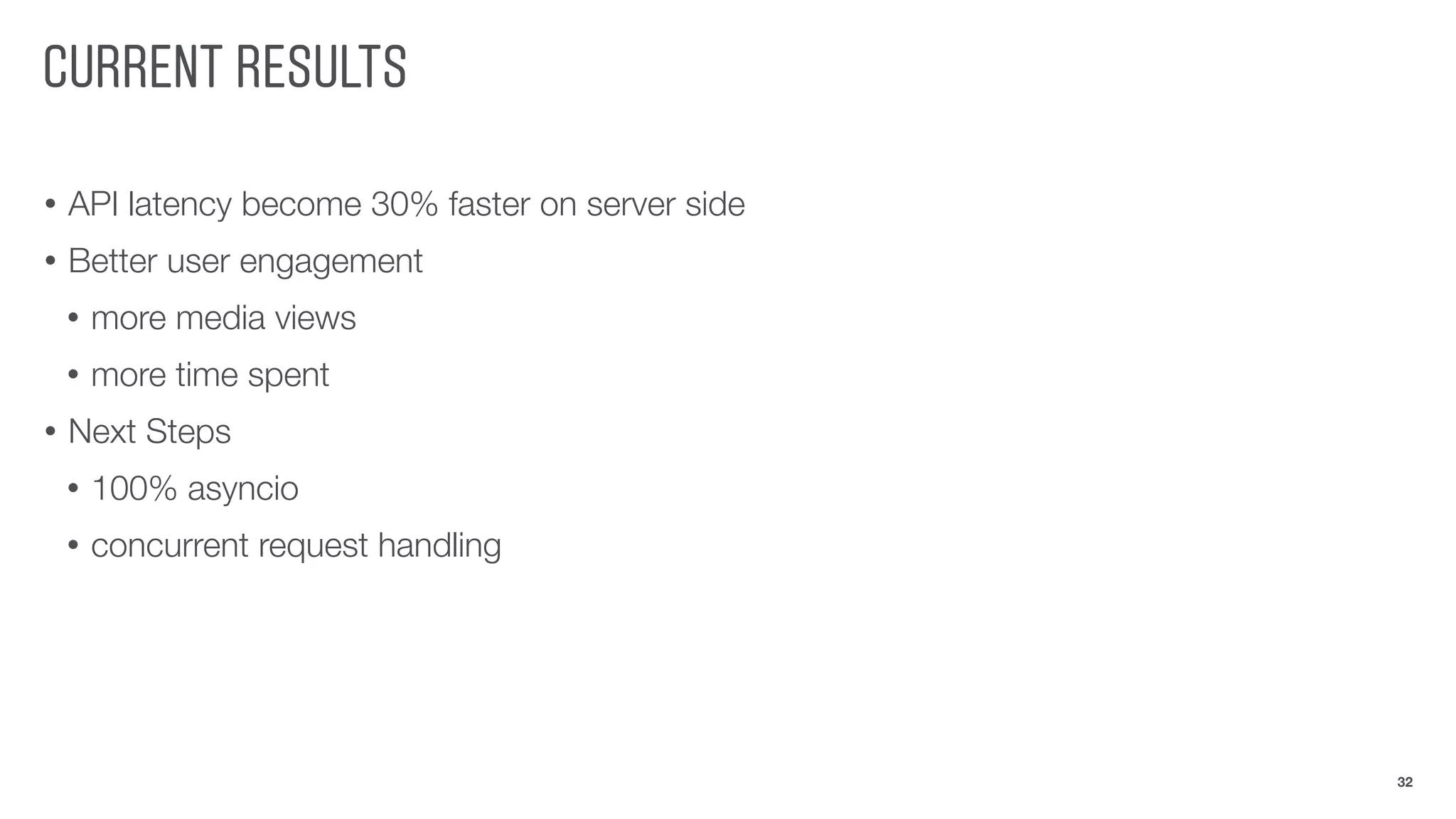

CURRENT RESULTS
• API latency become 30% faster on server side
• Better user engagement
• more media views
• more time spent
• Next Steps
• 100% asyncio
• concurrent request handling
32

The journey of asyncio adoption in instagram

In this document

More Related Content

Similar to The journey of asyncio adoption in instagram

More from Jimmy Lai

Recently uploaded

The journey of asyncio adoption in instagram
