Download as PDF, PPTX

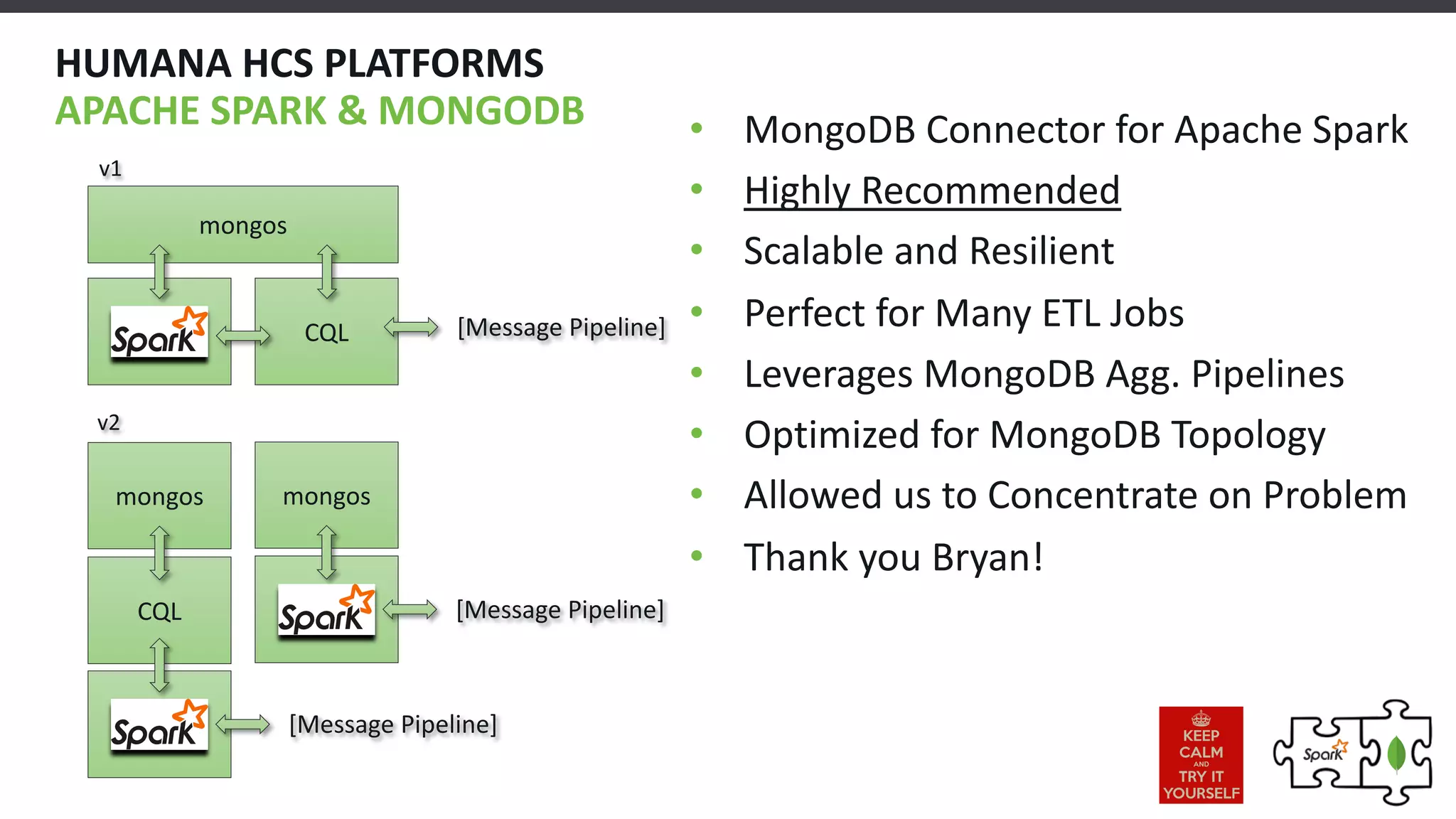

![HUMANA HCS PLATFORMS
APACHE SPARK & MONGODB
mongos
CQL
mongos
CQL
[Message Pipeline]
[Message Pipeline]
mongos
[Message Pipeline]
v1
v2
• MongoDB Connector for Apache Spark
• Highly Recommended
• Scalable and Resilient
• Perfect for Many ETL Jobs
• Leverages MongoDB Agg. Pipelines
• Optimized for MongoDB Topology
• Allowed us to Concentrate on Problem
• Thank you Bryan!](https://image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-21-2048.jpg)

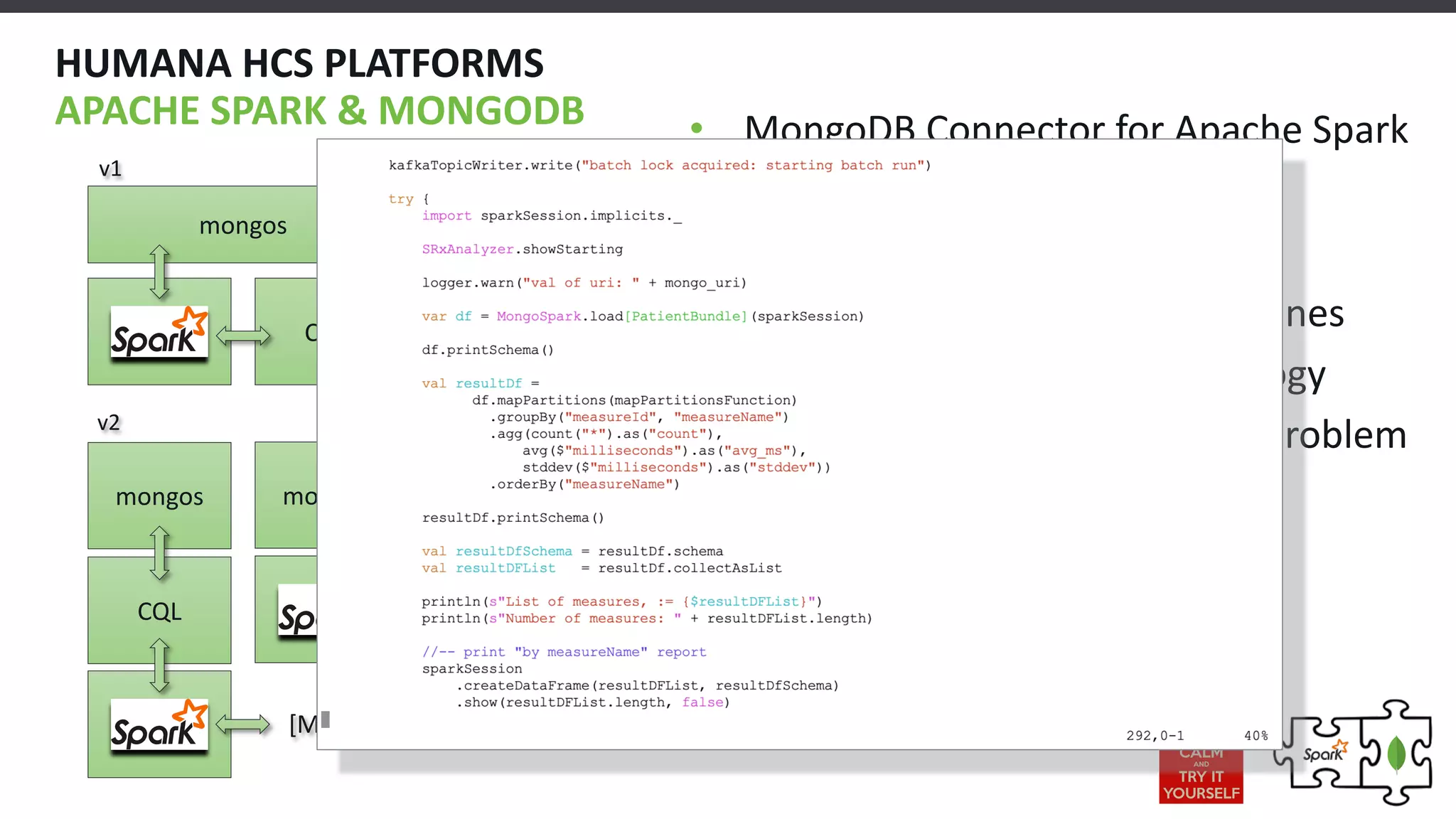

![HUMANA HCS PLATFORMS
APACHE SPARK & MONGODB
mongos
CQL
mongos
CQL
[Message Pipeline]
[Message Pipeline]
mongos
[Message Pipeline]
v1
v2
• MongoDB Connector for Apache Spark
• Scalable and Resilient
• Strong Contender for ETL Jobs
• Leverages MongoDB Agg. Pipelines
• Optimized for MongoDB Topology
• Allowed us to Concentrate on Problem
• Thank you Bryan!](https://image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-22-2048.jpg)

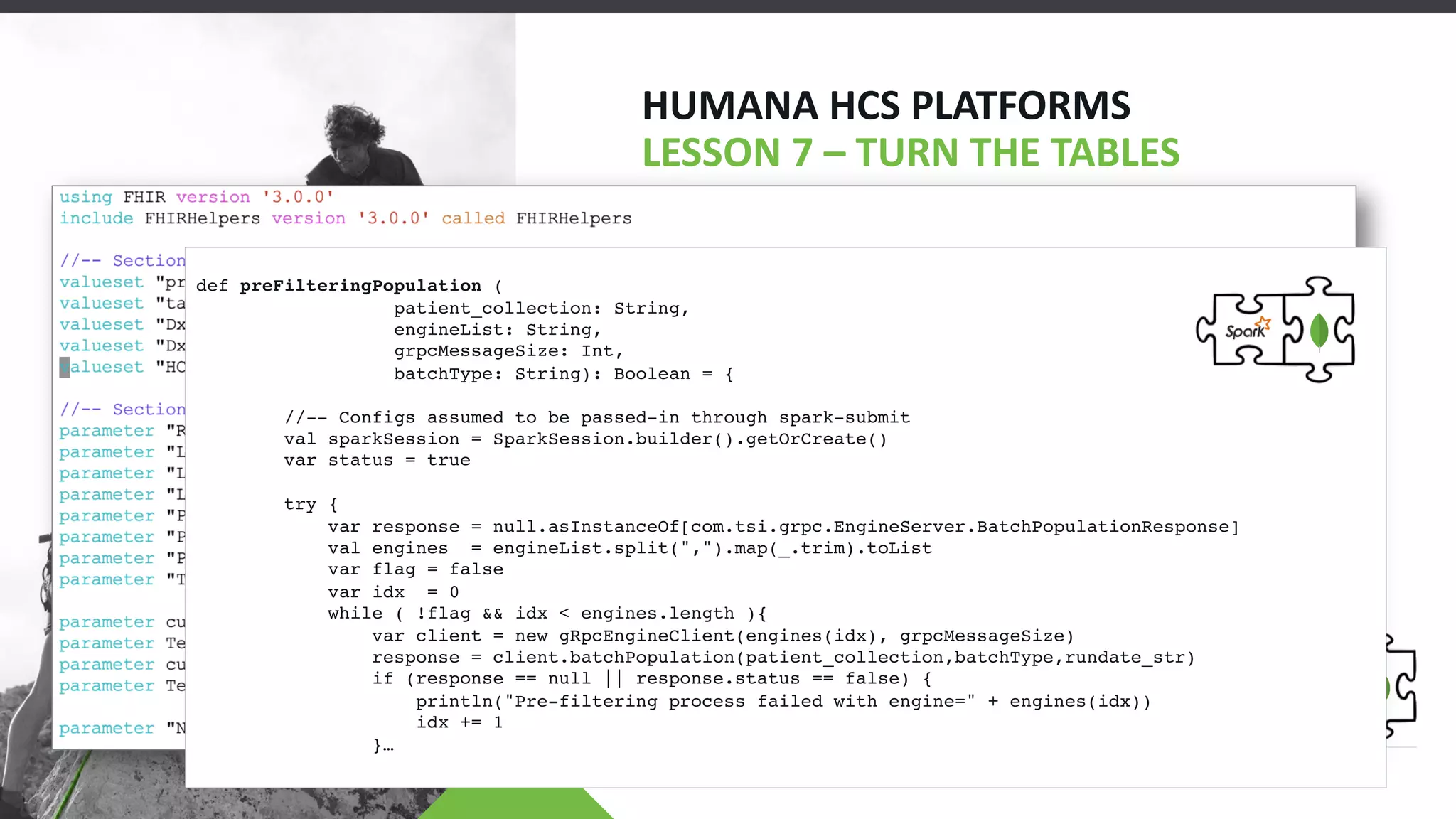

![HUMANA HCS PLATFORMS
LESSON 7 – TURN THE TABLES
• Turn Disadvantages into Advantages
• Active Medications
• Pre-Filtering (CQL)
def preFilteringPopulation (
patient_collection: String,
engineList: String,
grpcMessageSize: Int,
batchType: String): Boolean = {
//-- Configs assumed to be passed-in through spark-submit
val sparkSession = SparkSession.builder().getOrCreate()
var status = true
try {
var response = null.asInstanceOf[com.tsi.grpc.EngineServer.BatchPopulationResponse]
val engines = engineList.split(",").map(_.trim).toList
var flag = false
var idx = 0
while ( !flag && idx < engines.length ){
var client = new gRpcEngineClient(engines(idx), grpcMessageSize)
response = client.batchPopulation(patient_collection,batchType,rundate_str)
if (response == null || response.status == false) {
println("Pre-filtering process failed with engine=" + engines(idx))
idx += 1
}…](https://image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-26-2048.jpg)

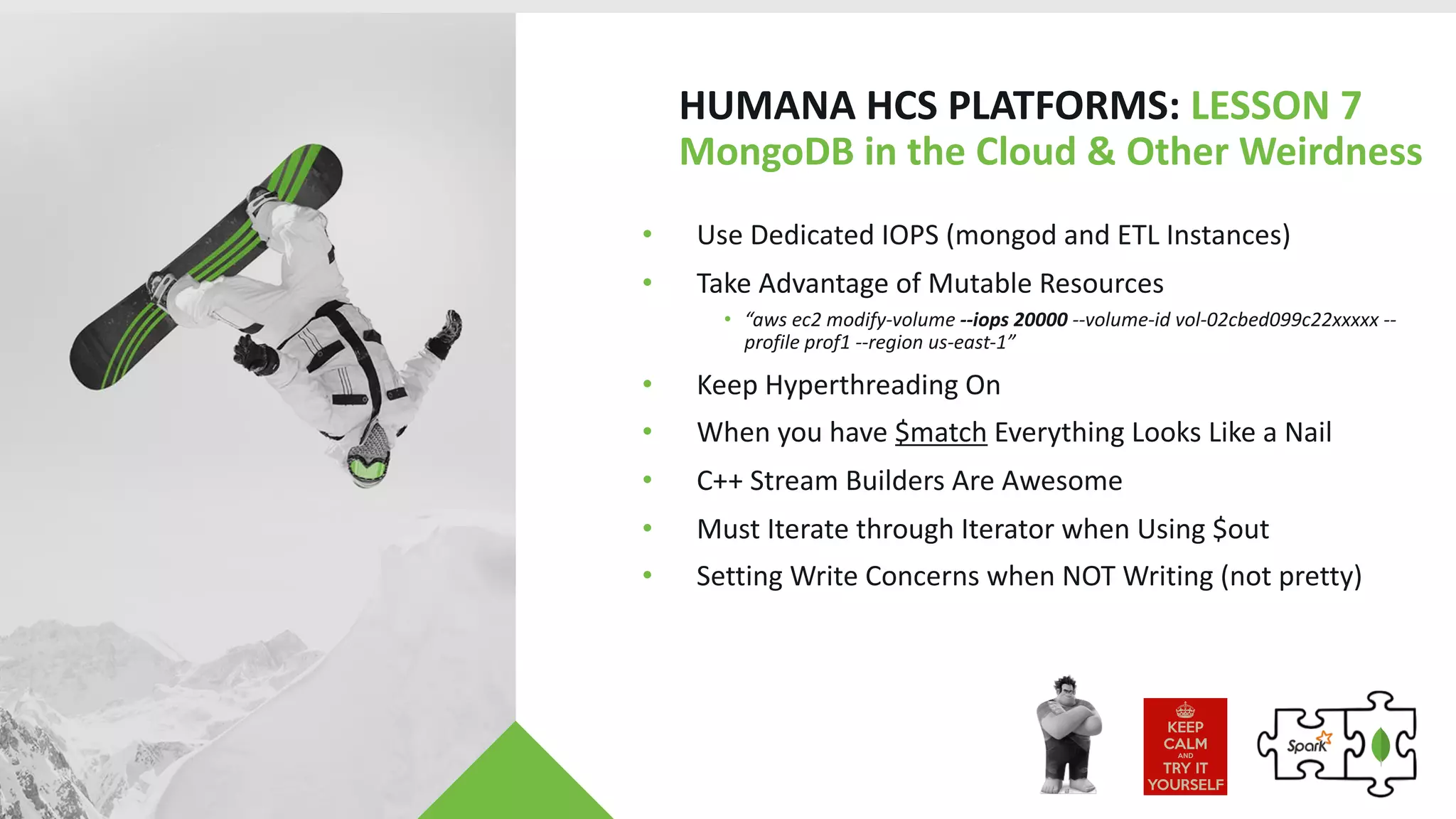

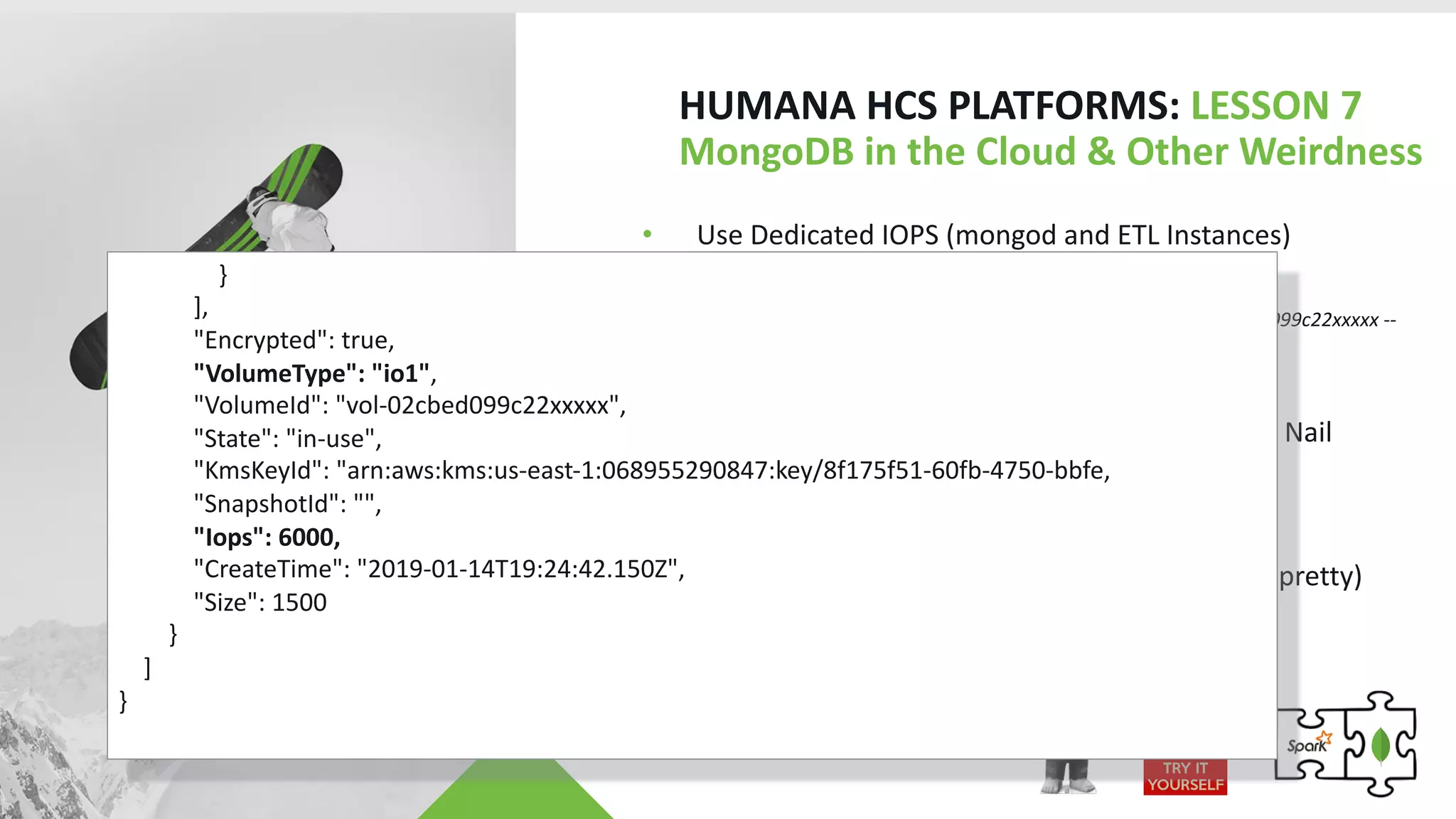

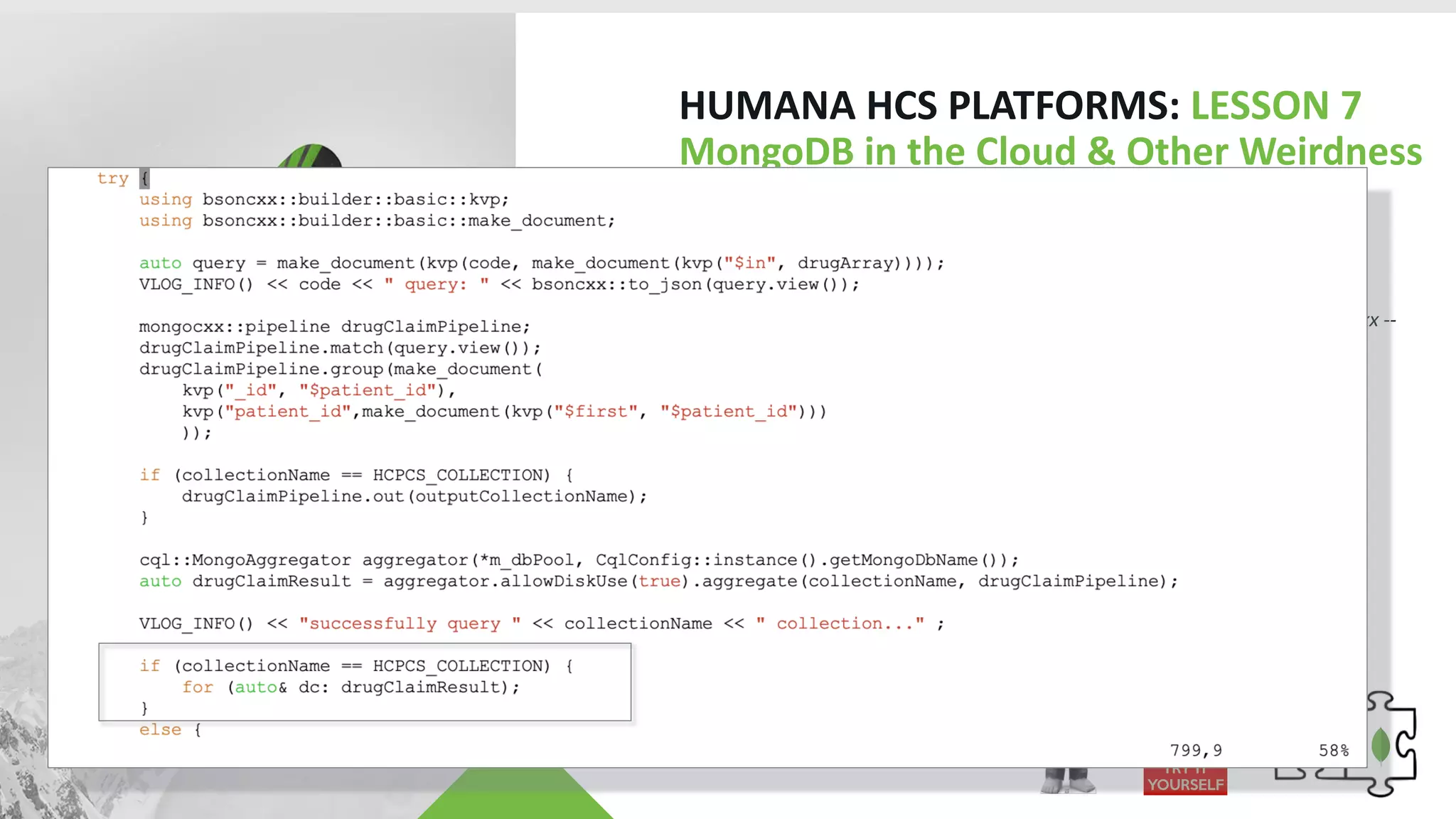

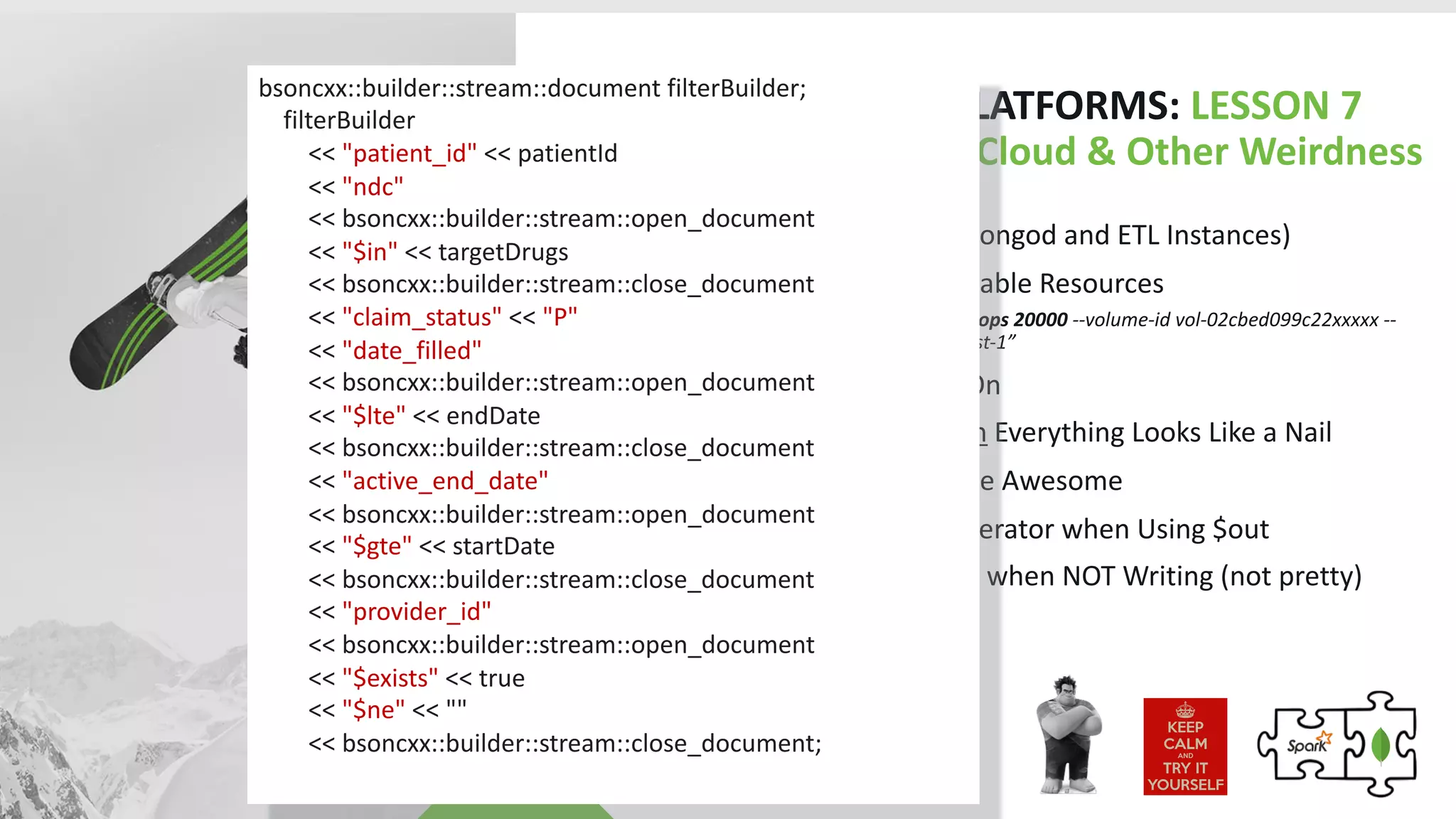

![HUMANA HCS PLATFORMS: LESSON 7
MongoDB in the Cloud & Other Weirdness
• Use Dedicated IOPS (mongod and ETL Instances)
• Take Advantage of Mutable Resources
• “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx --
profile prof1 --region us-east-1”
• Keep Hyperthreading On
• When you have $match Everything Looks Like a Nail
• C++ Stream Builders Are Awesome
• Must Iterate through Iterator when Using $out
• Setting Write Concerns when NOT Writing (not pretty)
}
],
"Encrypted": true,
"VolumeType": "io1",
"VolumeId": "vol-02cbed099c22xxxxx",
"State": "in-use",
"KmsKeyId": "arn:aws:kms:us-east-1:068955290847:key/8f175f51-60fb-4750-bbfe,
"SnapshotId": "",
"Iops": 6000,
"CreateTime": "2019-01-14T19:24:42.150Z",
"Size": 1500
}
]
}](https://image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-28-2048.jpg)
![HUMANA HCS PLATFORMS
APACHE SPARK & MONGODB
mongos
CQL
mongos
CQL
[Message Pipeline]
[Message Pipeline]
mongos
[Message Pipeline]
v1
v2
• MongoDB Connector for Apache Spark
• Highly Recommended
• Scalable and Resilient
• Perfect for Many ETL Jobs
• Leverages MongoDB Agg. Pipelines
• Optimized for MongoDB Topology
• Allowed us to Concentrate on Problem
• Thank you Bryan!](https://crownmelresort.com/image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-21-2048.jpg)
![HUMANA HCS PLATFORMS
APACHE SPARK & MONGODB
mongos
CQL
mongos
CQL
[Message Pipeline]
[Message Pipeline]
mongos
[Message Pipeline]
v1
v2
• MongoDB Connector for Apache Spark
• Scalable and Resilient
• Strong Contender for ETL Jobs
• Leverages MongoDB Agg. Pipelines
• Optimized for MongoDB Topology
• Allowed us to Concentrate on Problem
• Thank you Bryan!](https://crownmelresort.com/image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-22-2048.jpg)
![HUMANA HCS PLATFORMS
LESSON 7 – TURN THE TABLES
• Turn Disadvantages into Advantages
• Active Medications
• Pre-Filtering (CQL)
def preFilteringPopulation (
patient_collection: String,
engineList: String,
grpcMessageSize: Int,
batchType: String): Boolean = {
//-- Configs assumed to be passed-in through spark-submit
val sparkSession = SparkSession.builder().getOrCreate()
var status = true
try {
var response = null.asInstanceOf[com.tsi.grpc.EngineServer.BatchPopulationResponse]
val engines = engineList.split(",").map(_.trim).toList
var flag = false
var idx = 0
while ( !flag && idx < engines.length ){
var client = new gRpcEngineClient(engines(idx), grpcMessageSize)
response = client.batchPopulation(patient_collection,batchType,rundate_str)
if (response == null || response.status == false) {
println("Pre-filtering process failed with engine=" + engines(idx))
idx += 1
}…](https://crownmelresort.com/image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-26-2048.jpg)
![HUMANA HCS PLATFORMS: LESSON 7
MongoDB in the Cloud & Other Weirdness
• Use Dedicated IOPS (mongod and ETL Instances)
• Take Advantage of Mutable Resources
• “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx --
profile prof1 --region us-east-1”
• Keep Hyperthreading On
• When you have $match Everything Looks Like a Nail
• C++ Stream Builders Are Awesome
• Must Iterate through Iterator when Using $out
• Setting Write Concerns when NOT Writing (not pretty)
}
],
"Encrypted": true,
"VolumeType": "io1",
"VolumeId": "vol-02cbed099c22xxxxx",
"State": "in-use",
"KmsKeyId": "arn:aws:kms:us-east-1:068955290847:key/8f175f51-60fb-4750-bbfe,
"SnapshotId": "",
"Iops": 6000,
"CreateTime": "2019-01-14T19:24:42.150Z",
"Size": 1500
}
]
}](https://crownmelresort.com/image.slidesharecdn.com/humanaanalyticsv2-200220155041/75/MongoDB-SoCal-2020-From-Pharmacist-to-Analyst-Leveraging-MongoDB-for-Real-Time-Alerting-to-Improve-Business-Outcomes-28-2048.jpg)
Uploaded byMongoDB
MongoDB SoCal 2020: From Pharmacist to Analyst: Leveraging MongoDB for Real-Time Alerting to Improve Business Outcomes
The document presents David Munguia's insights on leveraging MongoDB for real-time alerting in healthcare, detailing Humana's journey and lessons learned since their kickoff in November 2017. Key lessons include understanding access patterns, utilizing resources effectively, and embracing a mindset shift away from SQL to MongoDB's JSON structure. The presentation culminates in the success of their deployment, which significantly improved ETL processing times and reporting efficiency.
More Related Content
Similar to MongoDB SoCal 2020: From Pharmacist to Analyst: Leveraging MongoDB for Real-Time Alerting to Improve Business Outcomes
![MongoDB .local San Francisco 2020: Powering the new age data demands [Infosys]](https://cdn.slidesharecdn.com/ss_thumbnails/315pminfosysfinalsfoversionvocalpart1-200120221508-thumbnail.jpg?width=640&height=640&fit=bounds)
MongoDB SoCal 2020: From Pharmacist to Analyst: Leveraging MongoDB for Real-Time Alerting to Improve Business Outcomes
- 1. From Pharmacist to Analyst: LeveragingMongoDB for Real-Time Alerting to Improve Business Outcomes Presented by: David Munguia Humana: Healthcare Services / Platforms

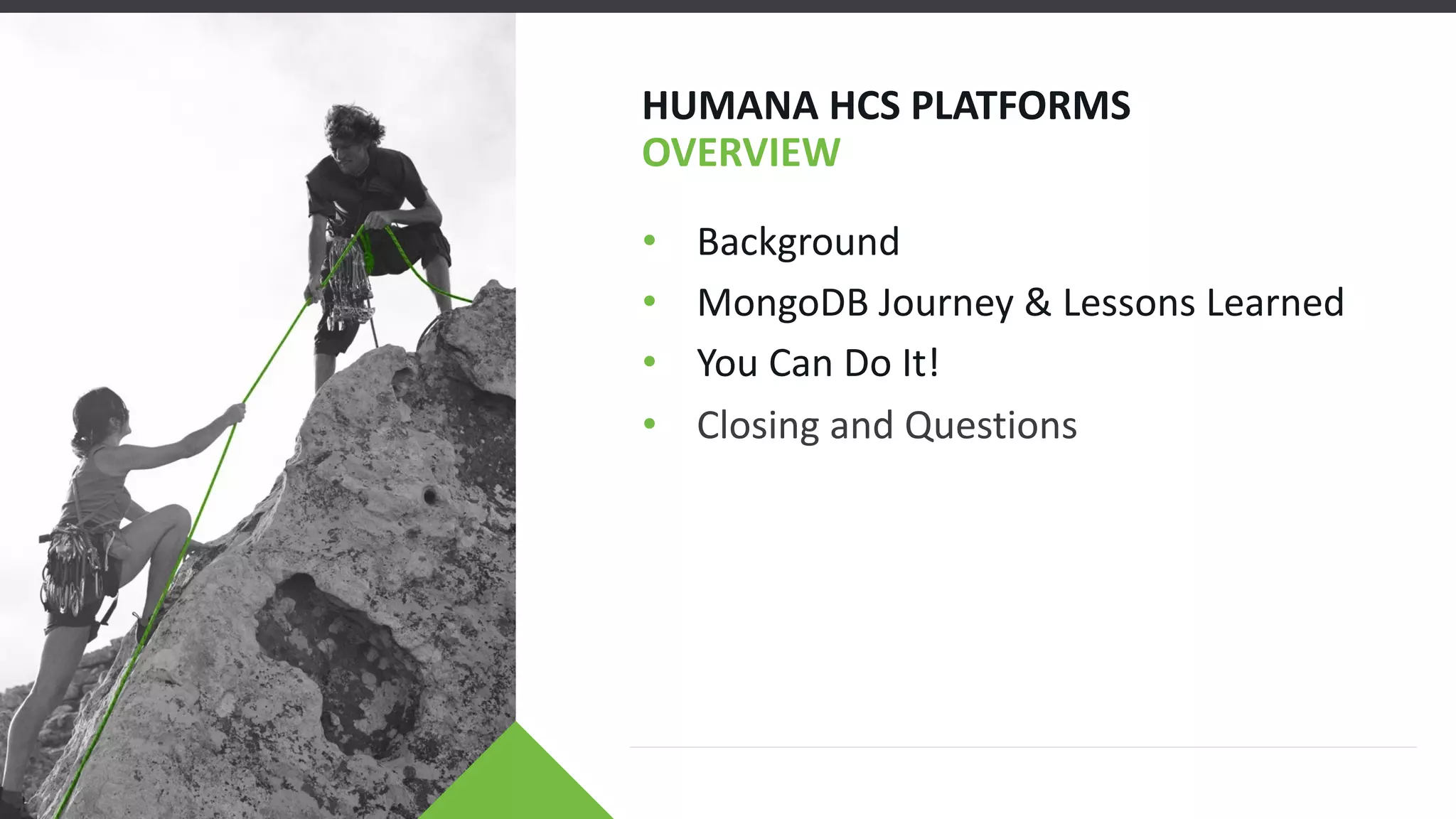

- 2. HUMANA HCS PLATFORMS OVERVIEW •Background • MongoDB Journey & Lessons Learned • You Can Do It! • Closing and Questions

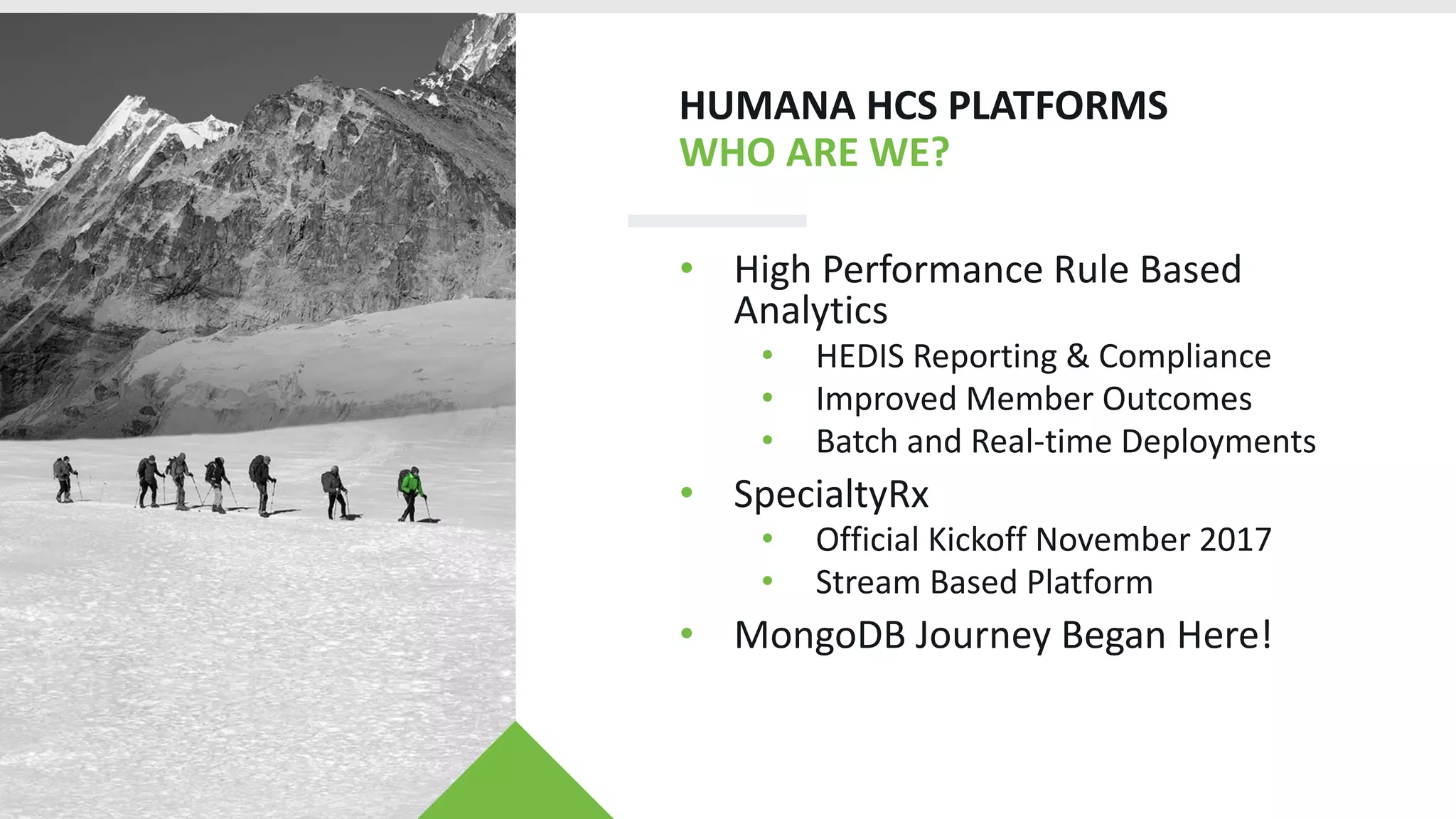

- 3. HUMANA HCS PLATFORMS WHOARE WE? • High Performance Rule Based Analytics • HEDIS Reporting & Compliance • Improved Member Outcomes • Batch and Real-time Deployments • SpecialtyRx • Official Kickoff November 2017 • Stream Based Platform • MongoDB Journey Began Here!

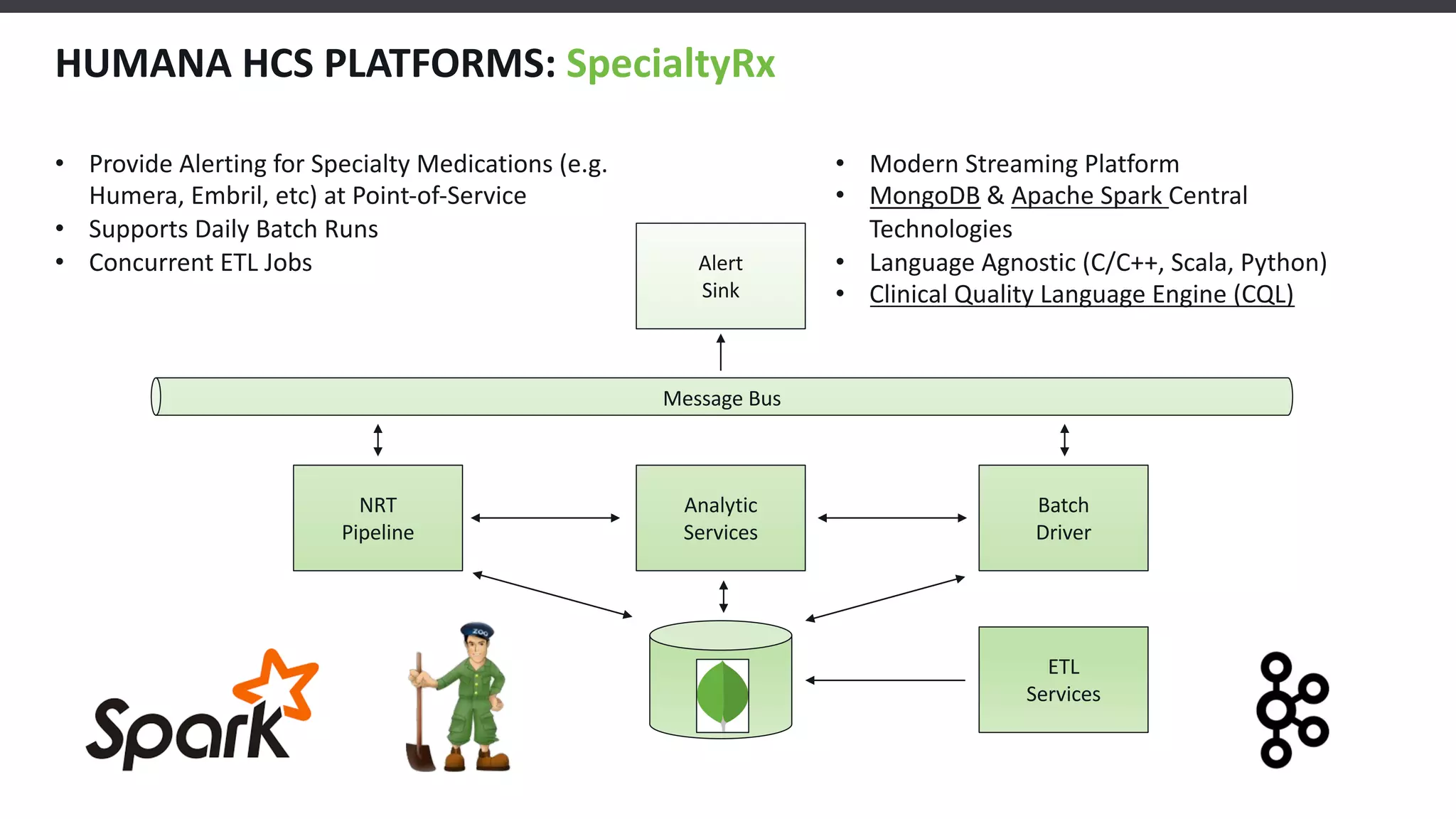

- 4. HUMANA HCS PLATFORMS:SpecialtyRx NRT Pipeline Analytic Services Batch Driver Alert Sink ETL Services Message Bus • Provide Alerting for Specialty Medications (e.g. Humera, Embril, etc) at Point-of-Service • Supports Daily Batch Runs • Concurrent ETL Jobs • Modern Streaming Platform • MongoDB & Apache Spark Central Technologies • Language Agnostic (C/C++, Scala, Python) • Clinical Quality Language Engine (CQL)

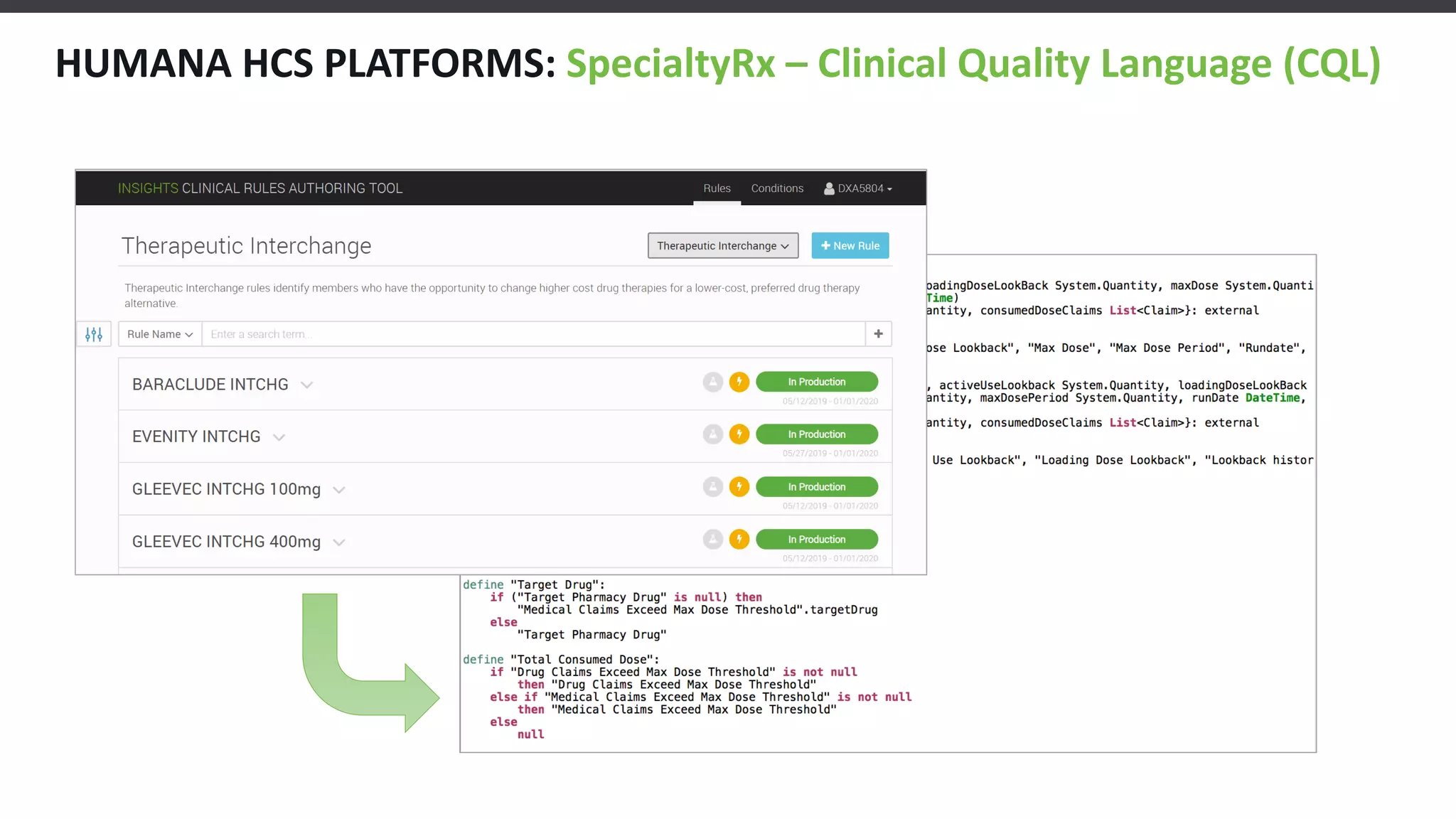

- 5. HUMANA HCS PLATFORMS:SpecialtyRx – Clinical Quality Language (CQL)
- 6. HUMANA HCS PLATFORMS “NoBattle Plan Survives Contact with the Enemy.” Helmuth von Moltke
- 7. HUMANA HCS PLATFORMS “NoBattle Plan Survives Contact with the Enemy.” Helmuth von Moltke “Everyone has a plan ‘till you get punched in the mouth.” Mike Tyson

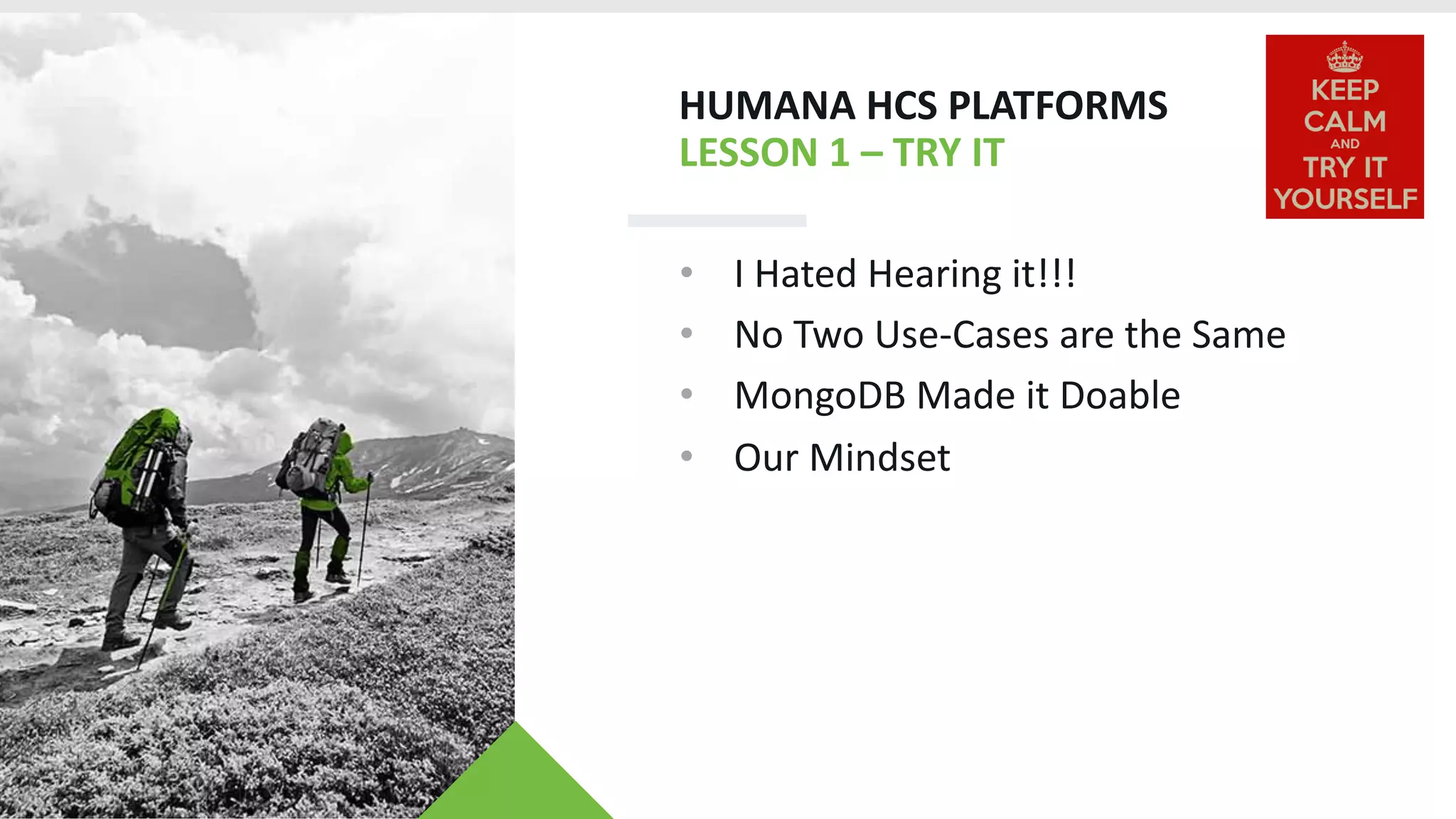

- 8. HUMANA HCS PLATFORMS LESSON1 – TRY IT • I Hated Hearing it!!! • No Two Use-Cases are the Same • MongoDB Made it Doable • Our Mindset

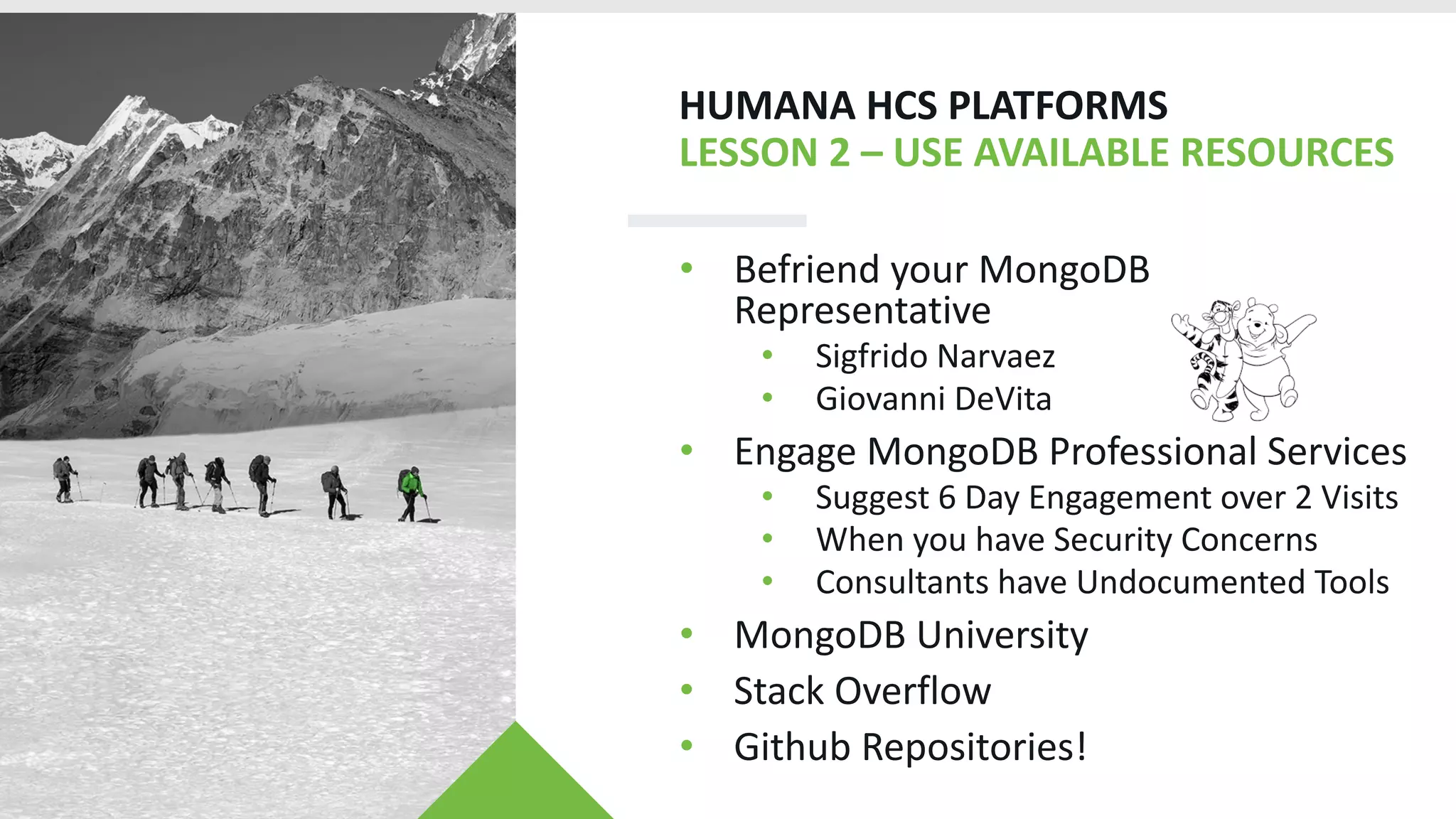

- 9. HUMANA HCS PLATFORMS LESSON2 – USE AVAILABLE RESOURCES • Befriend your MongoDB Representative • Sigfrido Narvaez • Giovanni DeVita • Engage MongoDB Professional Services • Suggest 6 Day Engagement over 2 Visits • When you have Security Concerns • Consultants have Undocumented Tools • MongoDB University • Stack Overflow • Github Repositories!

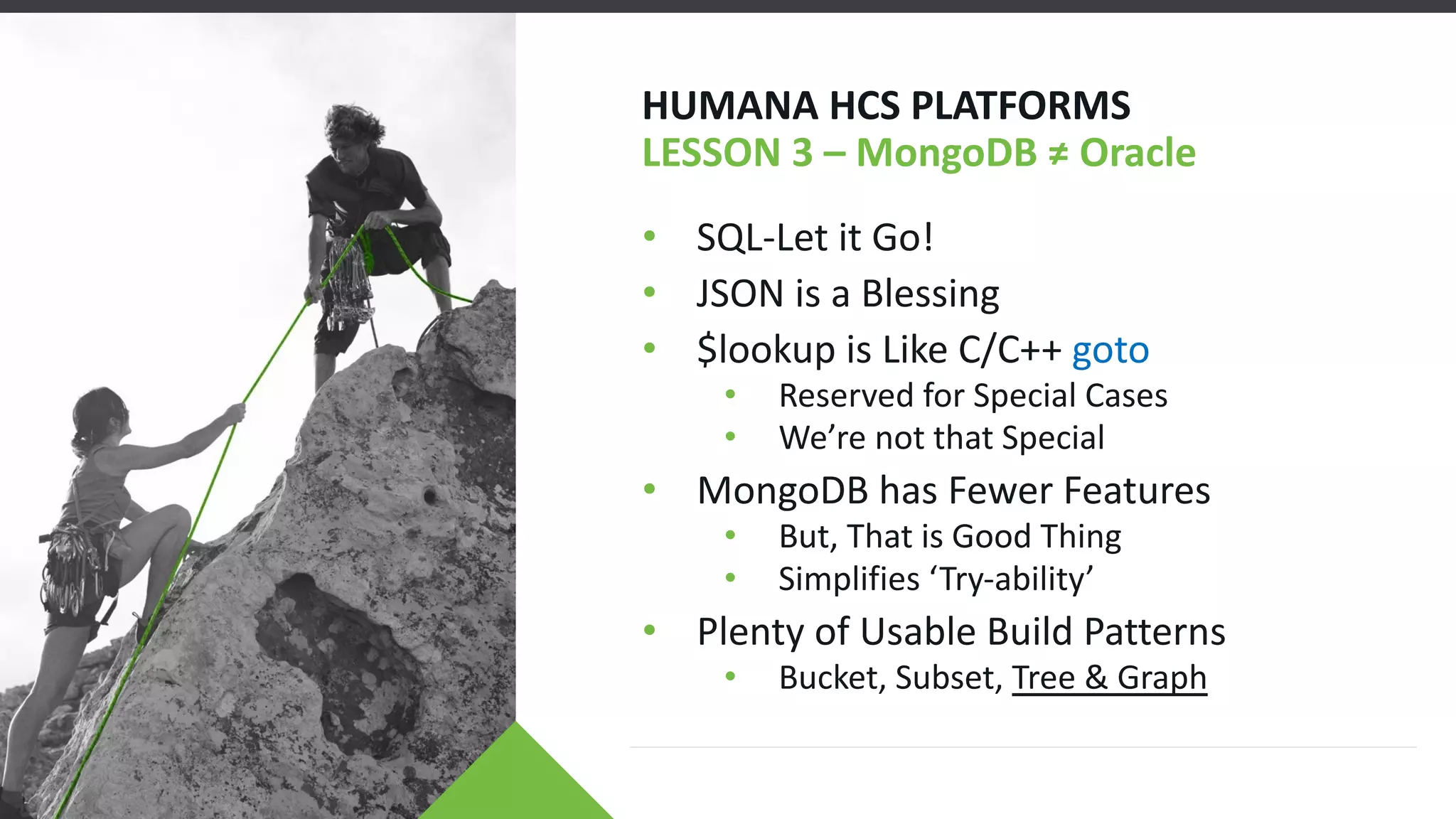

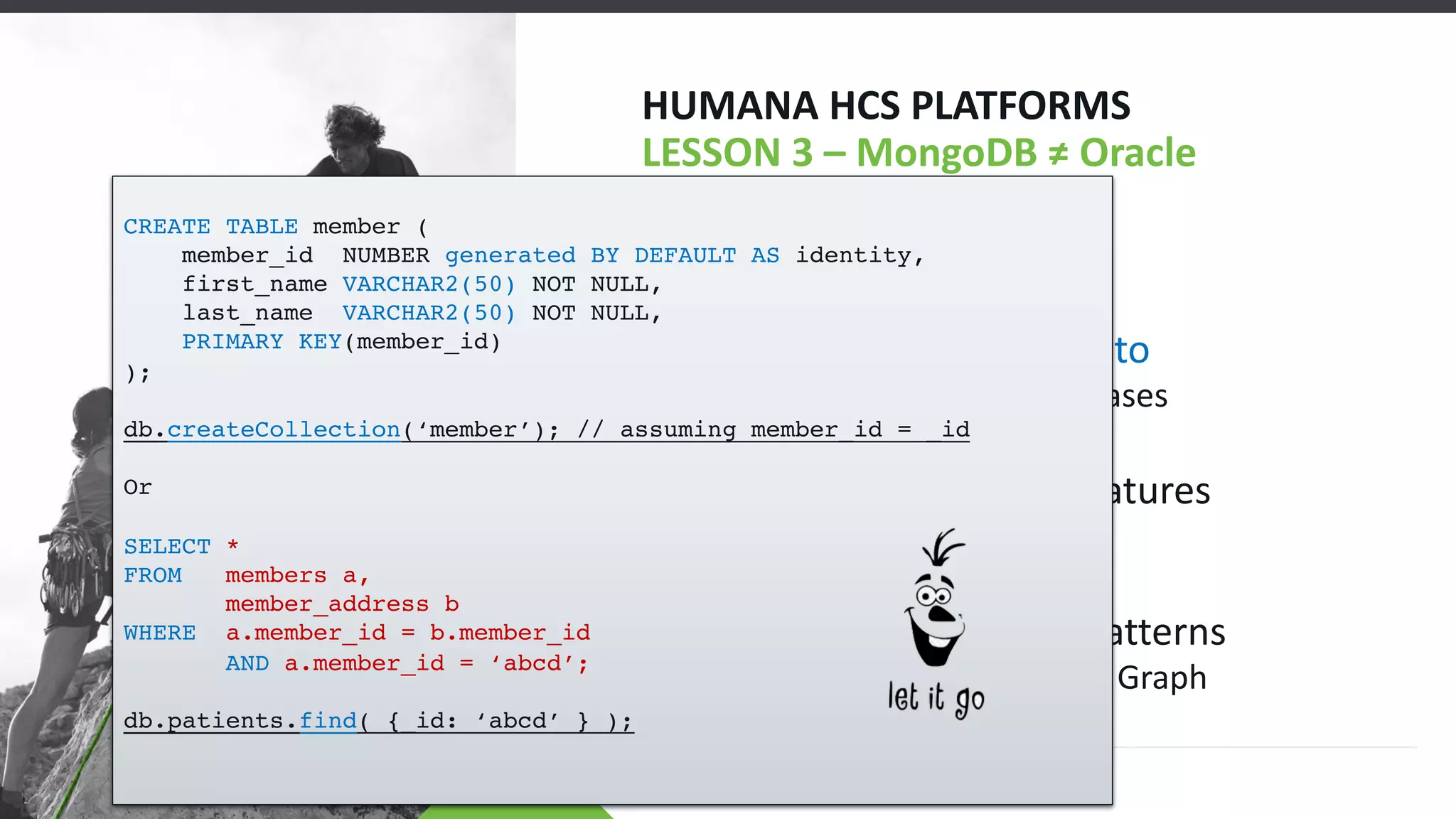

- 10. HUMANA HCS PLATFORMS LESSON3 – MongoDB ≠ Oracle • SQL-Let it Go! • JSON is a Blessing • $lookup is Like C/C++ goto • Reserved for Special Cases • We’re not that Special • MongoDB has Fewer Features • But, That is Good Thing • Simplifies ‘Try-ability’ • Plenty of Usable Build Patterns • Bucket, Subset, Tree & Graph
- 11. HUMANA HCS PLATFORMS LESSON3 – MongoDB ≠ Oracle • SQL-Let it Go! • JSON is a Blessing • $lookup is Like C/C++ goto • Reserved for Special Cases • We’re not that Special • MongoDB has Fewer Features • That is Good • Try-ability • Plenty of Usable Build Patterns • Bucket, Subset, Tree & Graph CREATE TABLE member ( member_id NUMBER generated BY DEFAULT AS identity, first_name VARCHAR2(50) NOT NULL, last_name VARCHAR2(50) NOT NULL, PRIMARY KEY(member_id) ); db.createCollection(‘member’); // assuming member_id = _id Or SELECT * FROM members a, member_address b WHERE a.member_id = b.member_id AND a.member_id = ‘abcd’; db.patients.find( {_id: ‘abcd’ } );
- 12. HUMANA HCS PLATFORMS LESSON4 – SCHEMAS & INDEXING • Have a Complete Understanding of your Access Patterns • Utilize Covered Queries • Index Order Matters • Your First Version will Suck

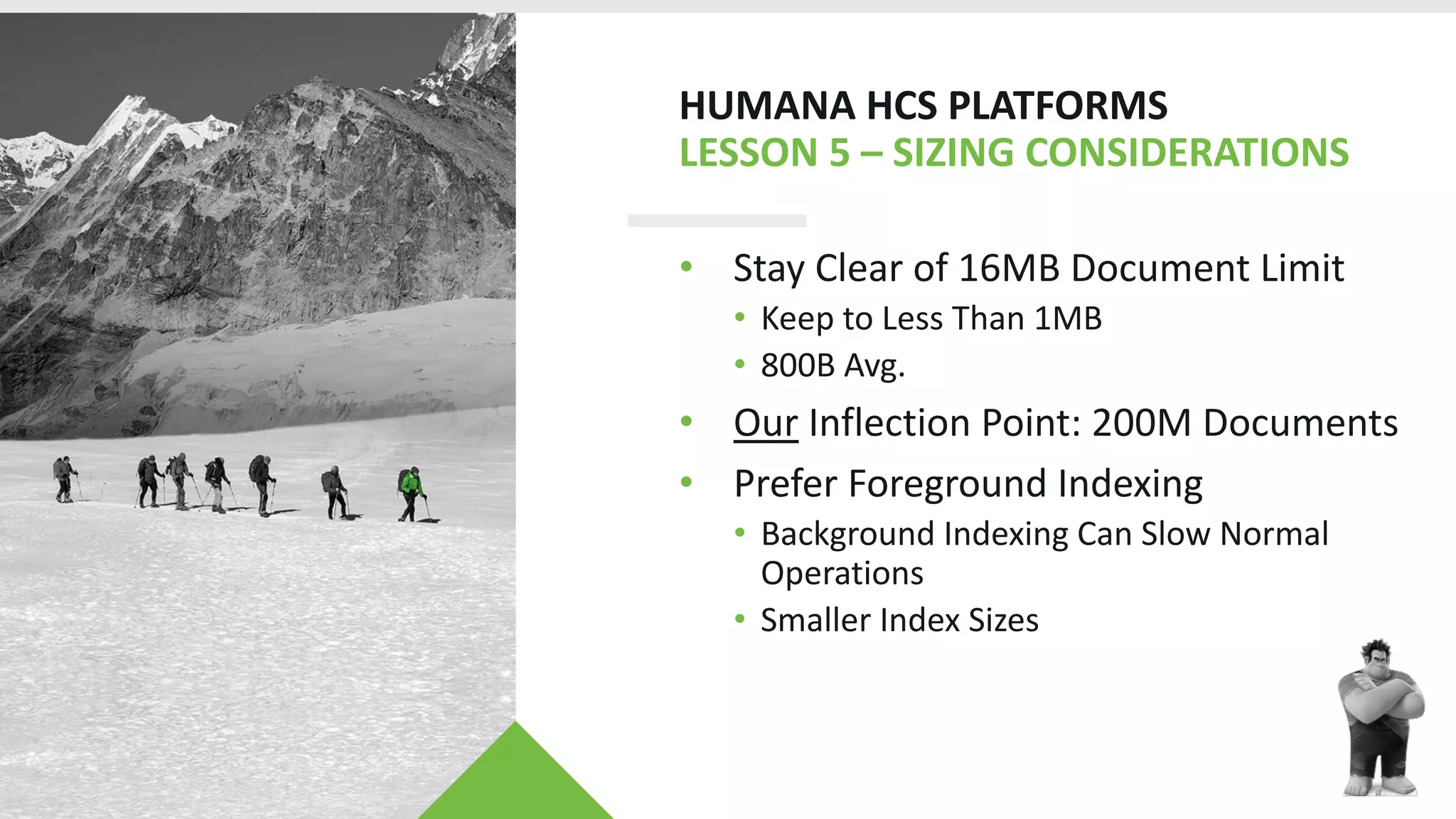

- 13. HUMANA HCS PLATFORMS LESSON5 – SIZING CONSIDERATIONS • Stay Clear of 16MB Document Limit • Keep to Less Than 1MB • 800B Avg. • Our Inflection Point: 200M Documents • Prefer Foreground Indexing • Background Indexing Can Slow Normal Operations • Smaller Index Sizes
- 14. HUMANA HCS PLATFORMS LESSON6 – PRE-SPLITTING • Pre-Splitting is the Process of Pre- Chunking and Balancing Data Blocks • 50% Science, 25% Magic, 25% Voodoo • Automatic Splitting and Balancing is Slow and Consumes Resources • The Choice of Shard Key and Pre-Splitting Strategy is Crucial • When do you Pre-Split? Refer to Lesson 1

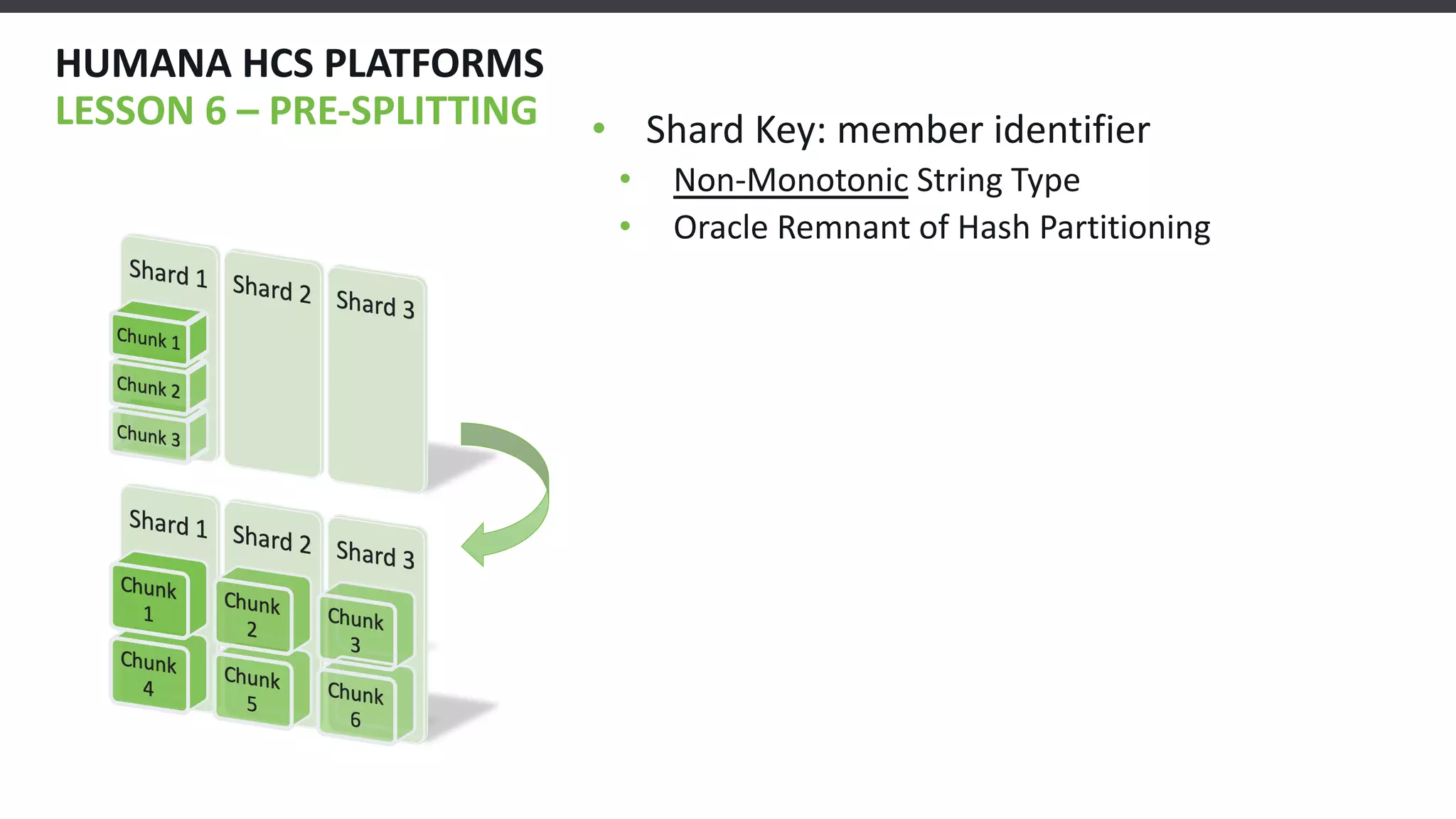

- 15. HUMANA HCS PLATFORMS LESSON6 – PRE-SPLITTING • Shard Key: member identifier • Non-Monotonic String Type • Oracle Remnant of Hash Partitioning

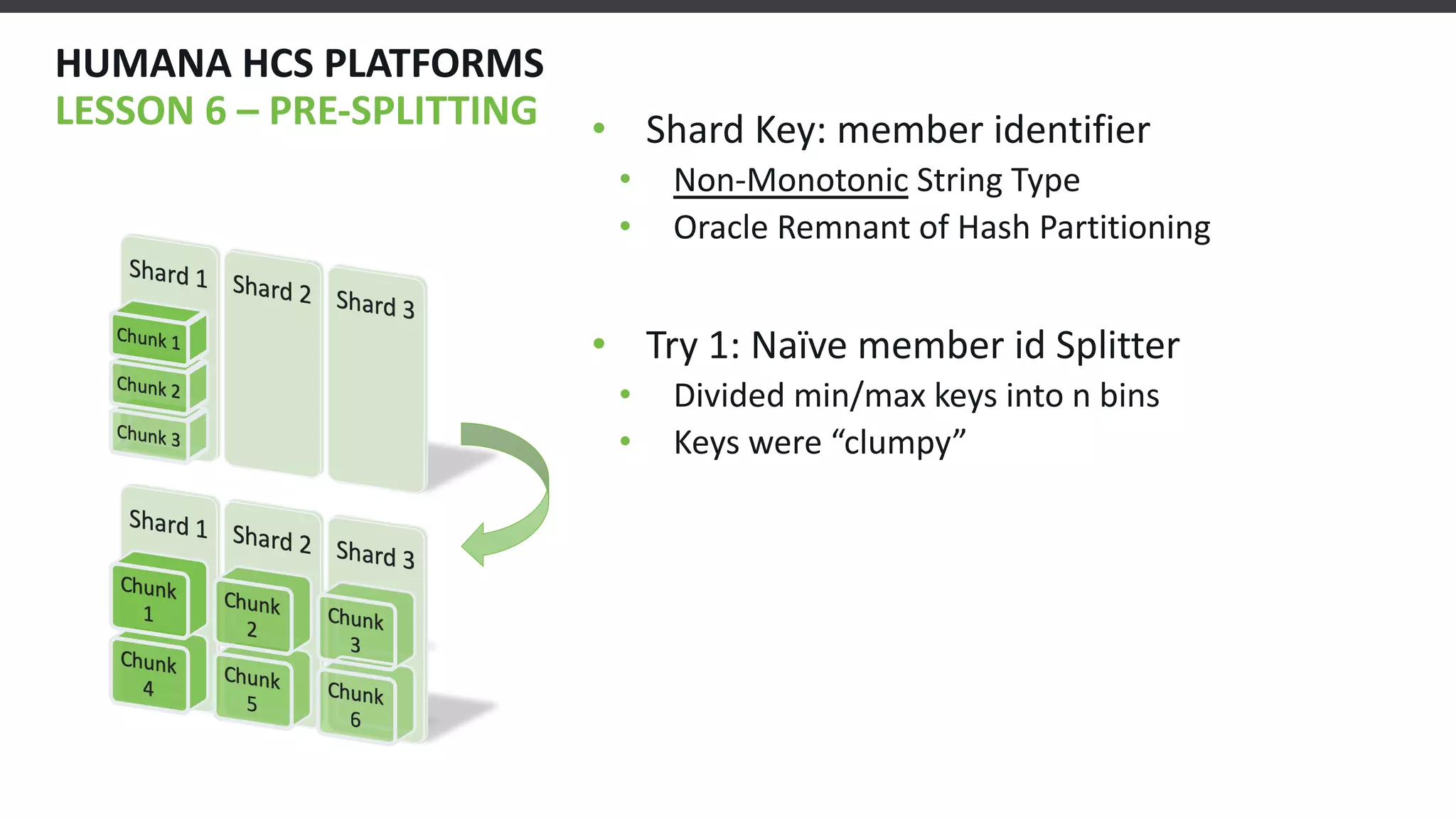

- 16. • Shard Key:member identifier • Non-Monotonic String Type • Oracle Remnant of Hash Partitioning • Try 1: Naïve member id Splitter • Divided min/max keys into n bins • Keys were “clumpy” HUMANA HCS PLATFORMS LESSON 6 – PRE-SPLITTING

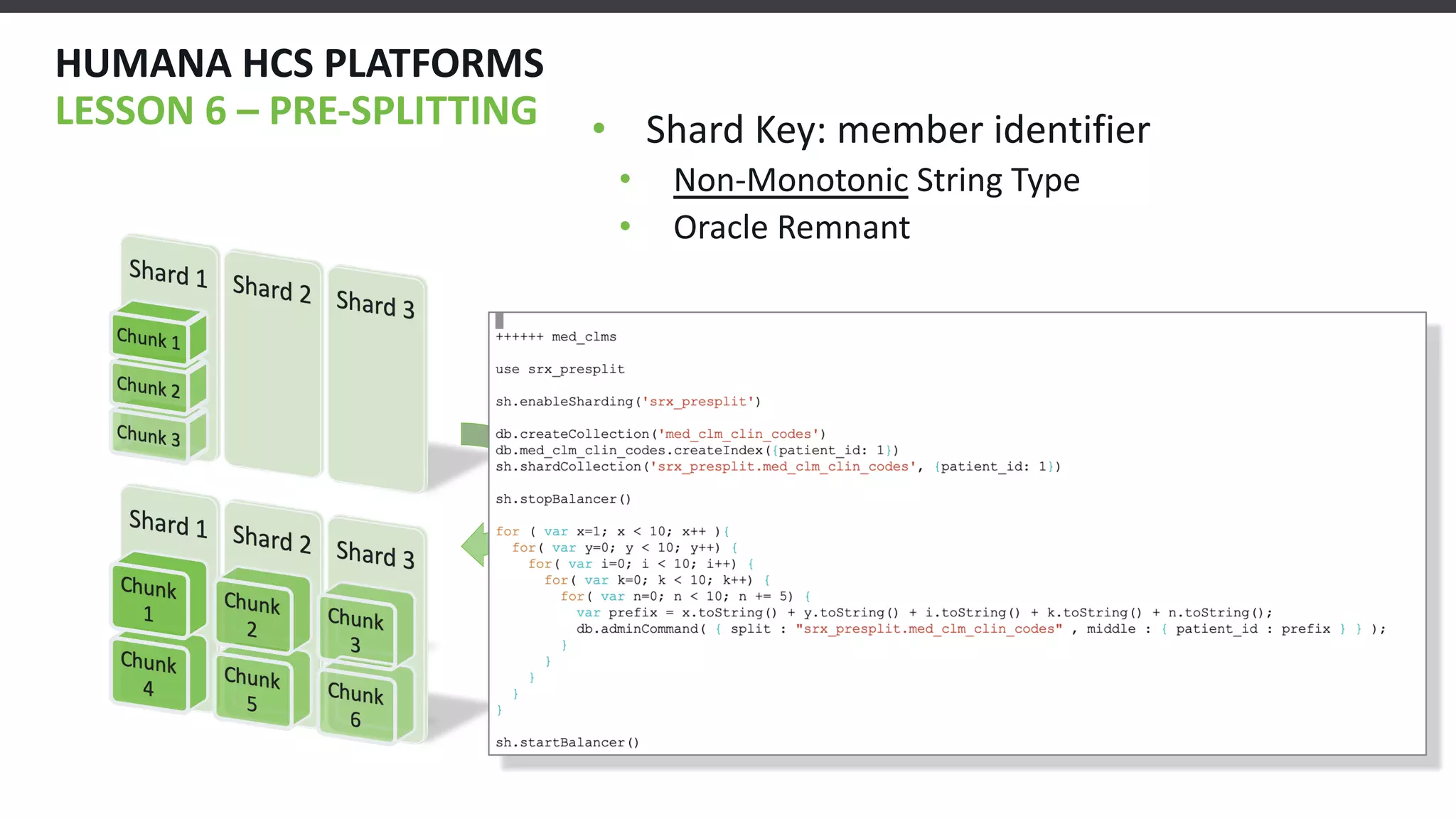

- 17. HUMANA HCS PLATFORMS LESSON6 – PRE-SPLITTING • Shard Key: member identifier • Non-Monotonic String Type • Oracle Remnant • Try 1: Naïve member id Splitter • Divided min/max keys into n bins • Keys were “clumpy”

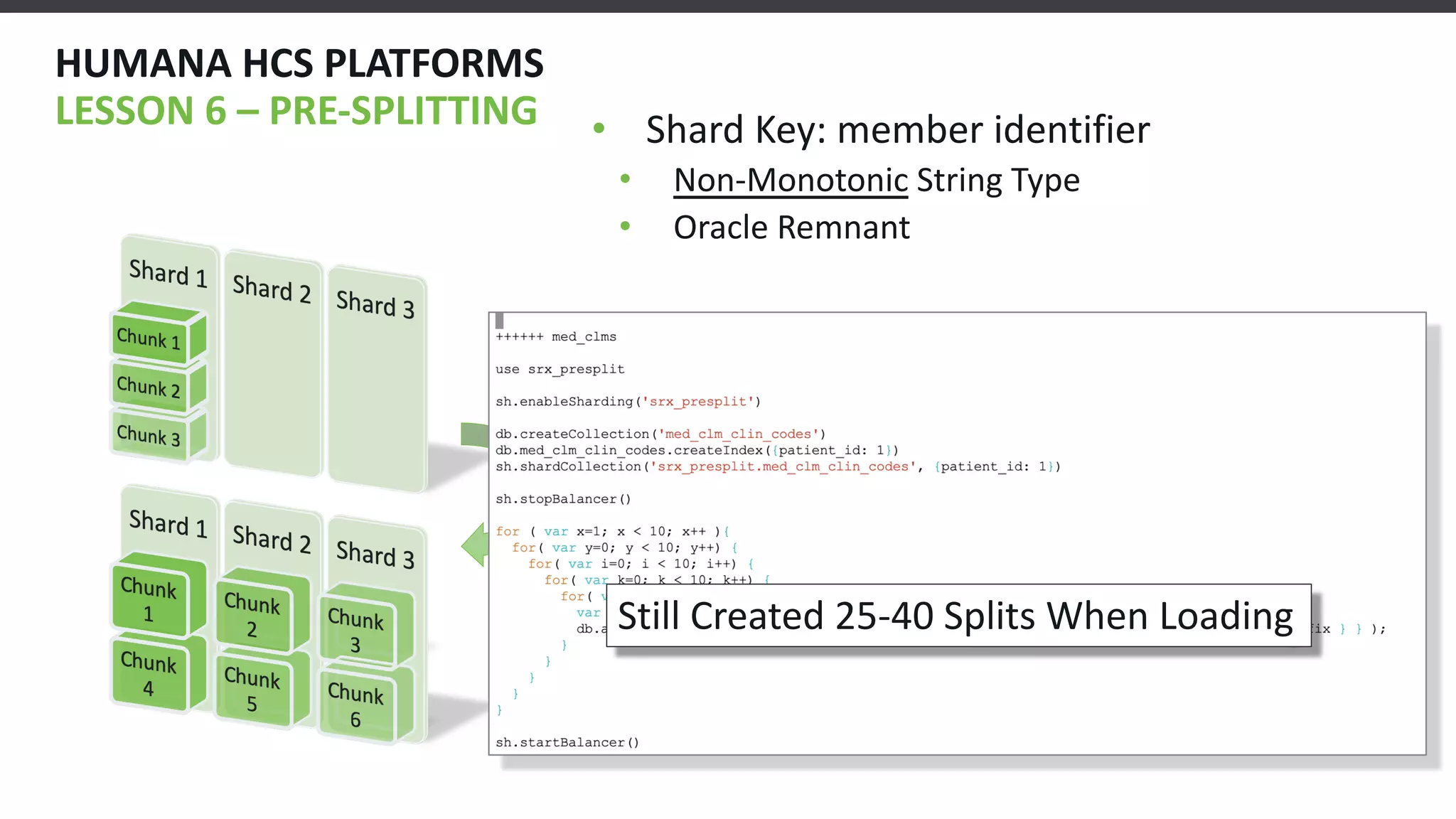

- 18. HUMANA HCS PLATFORMS LESSON6 – PRE-SPLITTING • Shard Key: member identifier • Non-Monotonic String Type • Oracle Remnant • Try 1: Naïve member id Splitter • Divided min/max keys into n bins • Keys were “clumpy” Still Created 25-40 Splits When Loading

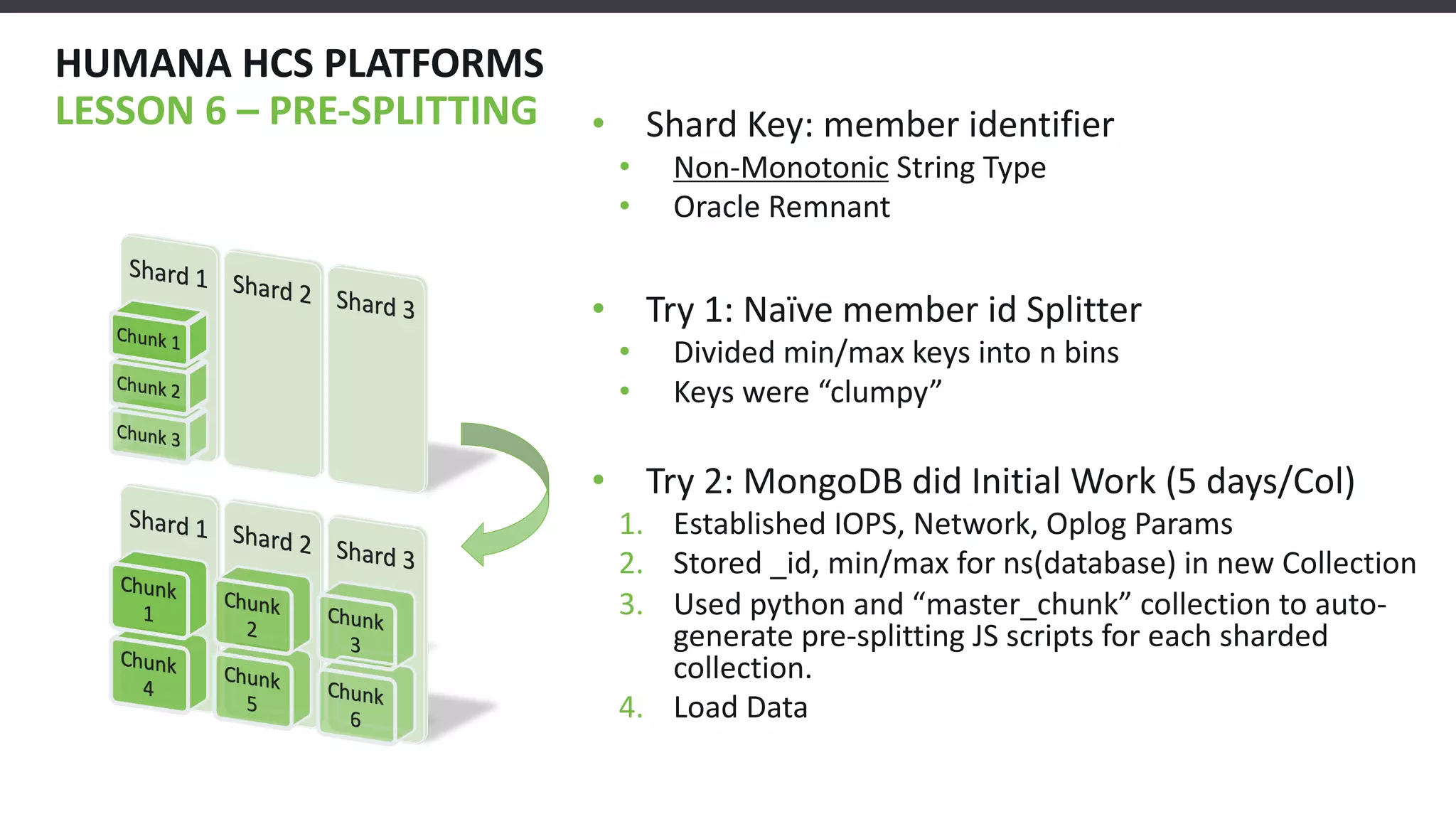

- 19. HUMANA HCS PLATFORMS LESSON6 – PRE-SPLITTING • Shard Key: member identifier • Non-Monotonic String Type • Oracle Remnant • Try 1: Naïve member id Splitter • Divided min/max keys into n bins • Keys were “clumpy” • Try 2: MongoDB did Initial Work (5 days/Col) 1. Established IOPS, Network, Oplog Params 2. Stored _id, min/max for ns(database) in new Collection 3. Used python and “master_chunk” collection to auto- generate pre-splitting JS scripts for each sharded collection. 4. Load Data
- 20. HUMANA HCS PLATFORMS LESSON6 – PRE-SPLITTING • Shard Key: member identifier • Non-Monotonic String Type • Oracle Remnant • Try 1: Naïve member id Splitter • Divided min/max keys into n bins • Keys were “clumpy” • Try 2: MongoDB did Initial Work (5 days/Col) 1. Established IOPS, Network, Oplog Params 2. Stored _id, min/max for ns(database) in new Collection 3. Used python and “master_chunk” collection to auto- generate pre-splitting JS scripts for each sharded collection.
- 21. HUMANA HCS PLATFORMS APACHESPARK & MONGODB mongos CQL mongos CQL [Message Pipeline] [Message Pipeline] mongos [Message Pipeline] v1 v2 • MongoDB Connector for Apache Spark • Highly Recommended • Scalable and Resilient • Perfect for Many ETL Jobs • Leverages MongoDB Agg. Pipelines • Optimized for MongoDB Topology • Allowed us to Concentrate on Problem • Thank you Bryan!
- 22. HUMANA HCS PLATFORMS APACHESPARK & MONGODB mongos CQL mongos CQL [Message Pipeline] [Message Pipeline] mongos [Message Pipeline] v1 v2 • MongoDB Connector for Apache Spark • Scalable and Resilient • Strong Contender for ETL Jobs • Leverages MongoDB Agg. Pipelines • Optimized for MongoDB Topology • Allowed us to Concentrate on Problem • Thank you Bryan!

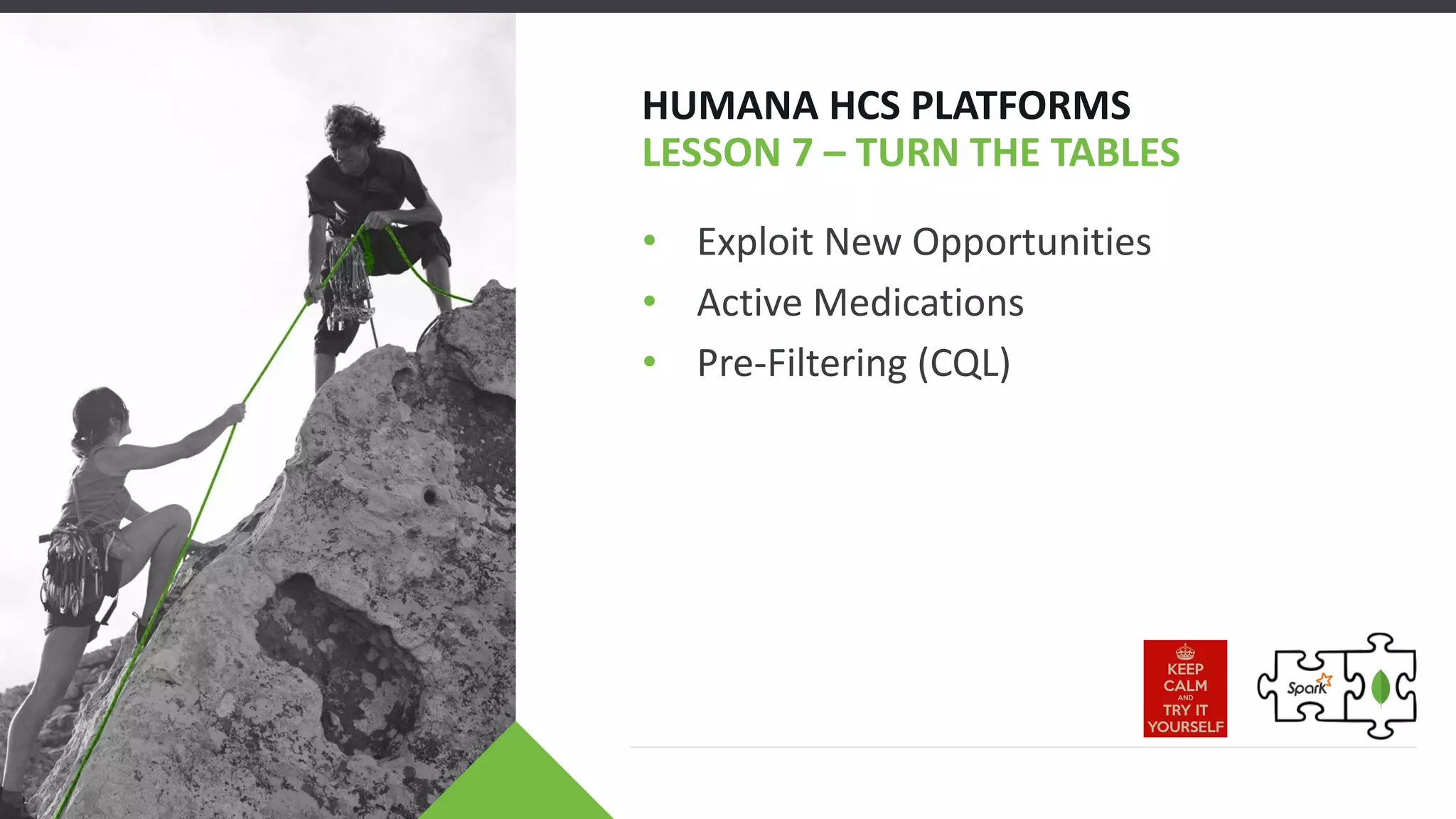

- 23. HUMANA HCS PLATFORMS LESSON7 – TURN THE TABLES • Exploit New Opportunities • Active Medications • Pre-Filtering (CQL)
- 24. • Exploit NewOpportunities • Active Medications • Pre-Filtering (CQL) HUMANA HCS PLATFORMS LESSON 7 – TURN THE TABLES { "_id": "076438350931", "patient_id": "xxxxxxxxxxxxxx", "claim_status": "D", "claim_id": "076438xxxxxx", "ndc": "00310028060", "date_filled": "2017-07-29:00:00.000Z", "dispensed_qty": 90, "days_supply": 90, "avg_qty_per_day": 1, "active_end_date": "2017-11-28T00:00:00.000Z", "rx_number": "000000959377", }
- 25. HUMANA HCS PLATFORMS LESSON7 – TURN THE TABLES • Turn Disadvantages into Advantages • Active Medications • Pre-Filtering (CQL)
- 26. HUMANA HCS PLATFORMS LESSON7 – TURN THE TABLES • Turn Disadvantages into Advantages • Active Medications • Pre-Filtering (CQL) def preFilteringPopulation ( patient_collection: String, engineList: String, grpcMessageSize: Int, batchType: String): Boolean = { //-- Configs assumed to be passed-in through spark-submit val sparkSession = SparkSession.builder().getOrCreate() var status = true try { var response = null.asInstanceOf[com.tsi.grpc.EngineServer.BatchPopulationResponse] val engines = engineList.split(",").map(_.trim).toList var flag = false var idx = 0 while ( !flag && idx < engines.length ){ var client = new gRpcEngineClient(engines(idx), grpcMessageSize) response = client.batchPopulation(patient_collection,batchType,rundate_str) if (response == null || response.status == false) { println("Pre-filtering process failed with engine=" + engines(idx)) idx += 1 }…
- 27. HUMANA HCS PLATFORMS:LESSON 7 MongoDB in the Cloud & Other Weirdness • Use Dedicated IOPS (mongod and ETL Instances) • Take Advantage of Mutable Resources • “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx -- profile prof1 --region us-east-1” • Keep Hyperthreading On • When you have $match Everything Looks Like a Nail • C++ Stream Builders Are Awesome • Must Iterate through Iterator when Using $out • Setting Write Concerns when NOT Writing (not pretty)
- 28. HUMANA HCS PLATFORMS:LESSON 7 MongoDB in the Cloud & Other Weirdness • Use Dedicated IOPS (mongod and ETL Instances) • Take Advantage of Mutable Resources • “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx -- profile prof1 --region us-east-1” • Keep Hyperthreading On • When you have $match Everything Looks Like a Nail • C++ Stream Builders Are Awesome • Must Iterate through Iterator when Using $out • Setting Write Concerns when NOT Writing (not pretty) } ], "Encrypted": true, "VolumeType": "io1", "VolumeId": "vol-02cbed099c22xxxxx", "State": "in-use", "KmsKeyId": "arn:aws:kms:us-east-1:068955290847:key/8f175f51-60fb-4750-bbfe, "SnapshotId": "", "Iops": 6000, "CreateTime": "2019-01-14T19:24:42.150Z", "Size": 1500 } ] }
- 29. HUMANA HCS PLATFORMS:LESSON 7 MongoDB in the Cloud & Other Weirdness • Use Dedicated IOPS (mongod and ETL Instances) • Take Advantage of Mutable Resources • “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx -- profile prof1 --region us-east-1” • Keep Hyperthreading On • When you have $match Everything Looks Like a Nail • C++ Stream Builders Are Awesome • Must Iterate through Iterator when Using $out • Setting Write Concerns when NOT Writing (not pretty)
- 30. HUMANA HCS PLATFORMS:LESSON 7 MongoDB in the Cloud & Other Weirdness • Use Dedicated IOPS (mongod and ETL Instances) • Take Advantage of Mutable Resources • “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx -- profile prof1 --region us-east-1” • Keep Hyperthreading On • When you have $match Everything Looks Like a Nail • C++ Stream Builders Are Awesome • Must Iterate through Iterator when Using $out • Setting Write Concerns when NOT Writing (not pretty) bsoncxx::builder::stream::document filterBuilder; filterBuilder << "patient_id" << patientId << "ndc" << bsoncxx::builder::stream::open_document << "$in" << targetDrugs << bsoncxx::builder::stream::close_document << "claim_status" << "P" << "date_filled" << bsoncxx::builder::stream::open_document << "$lte" << endDate << bsoncxx::builder::stream::close_document << "active_end_date" << bsoncxx::builder::stream::open_document << "$gte" << startDate << bsoncxx::builder::stream::close_document << "provider_id" << bsoncxx::builder::stream::open_document << "$exists" << true << "$ne" << "" << bsoncxx::builder::stream::close_document;
- 31. HUMANA HCS PLATFORMS:LESSON 7 MongoDB in the Cloud & Other Weirdness • Use Dedicated IOPS (mongod and ETL Instances) • Take Advantage of Mutable Resources • “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx -- profile prof1 --region us-east-1” • Keep Hyperthreading On • When you have $match Everything Looks Like a Nail • C++ Stream Builders Are Awesome • Must Iterate through Iterator when Using $out • Setting Write Concerns when NOT Writing (not pretty)
- 32. HUMANA HCS PLATFORMS:LESSON 7 MongoDB in the Cloud & Other Weirdness • Use Dedicated IOPS (mongod and ETL Instances) • Take Advantage of Mutable Resources • “aws ec2 modify-volume --iops 20000 --volume-id vol-02cbed099c22xxxxx -- profile prof1 --region us-east-1” • Keep Hyperthreading On • When you have $match Everything Looks Like a Nail • Must Iterate through Iterator when Using $out • Setting Write Concerns when NOT Writing (not pretty) • C++ Stream Constructors Are Awesome

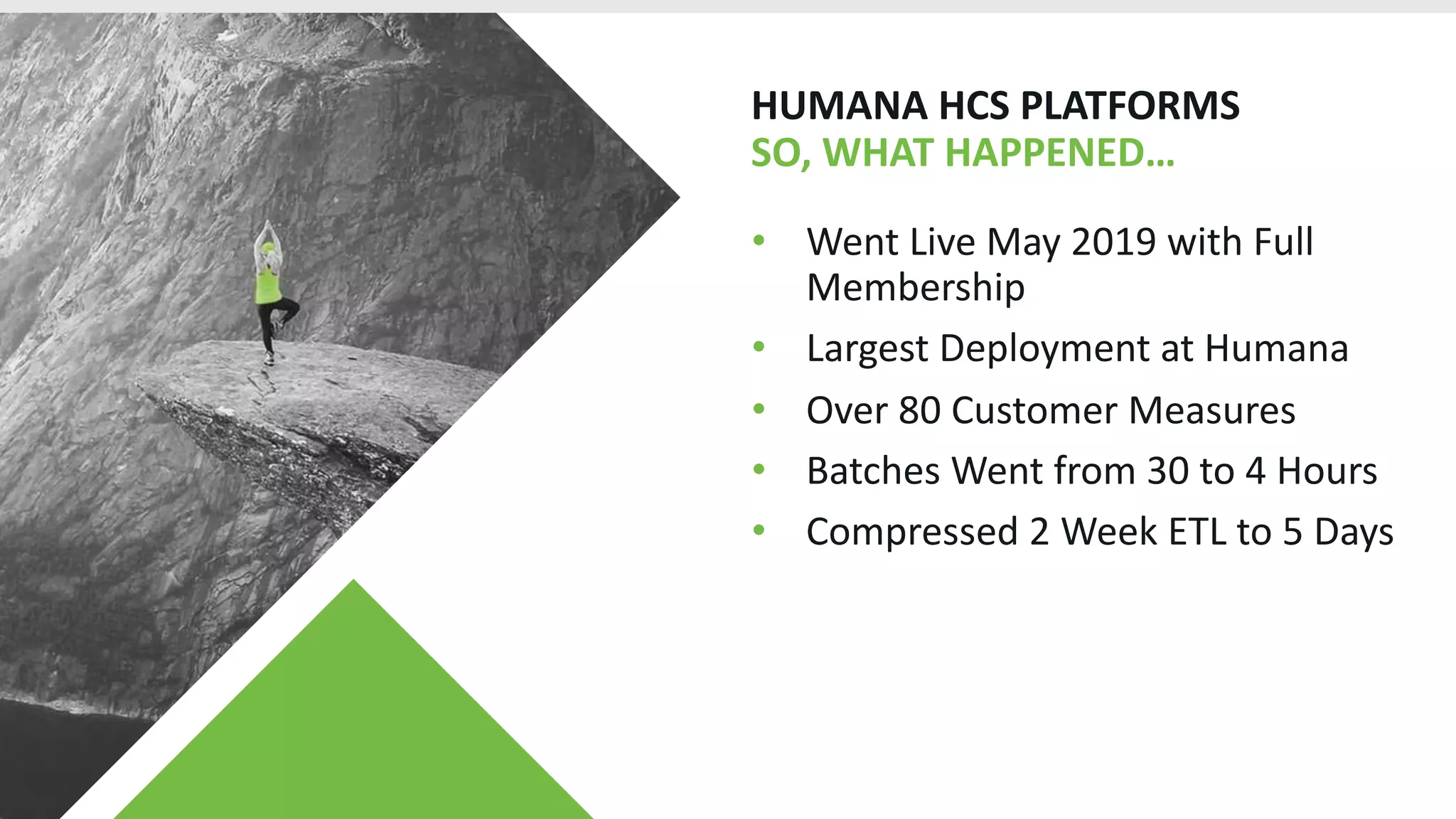

- 33. HUMANA HCS PLATFORMS SO,WHAT HAPPENED… • Went Live May 2019 with Full Membership • Largest Deployment at Humana • Over 80 Customer Measures • Batches Went from 30 to 4 Hours • Compressed 2 Week ETL to 5 Days

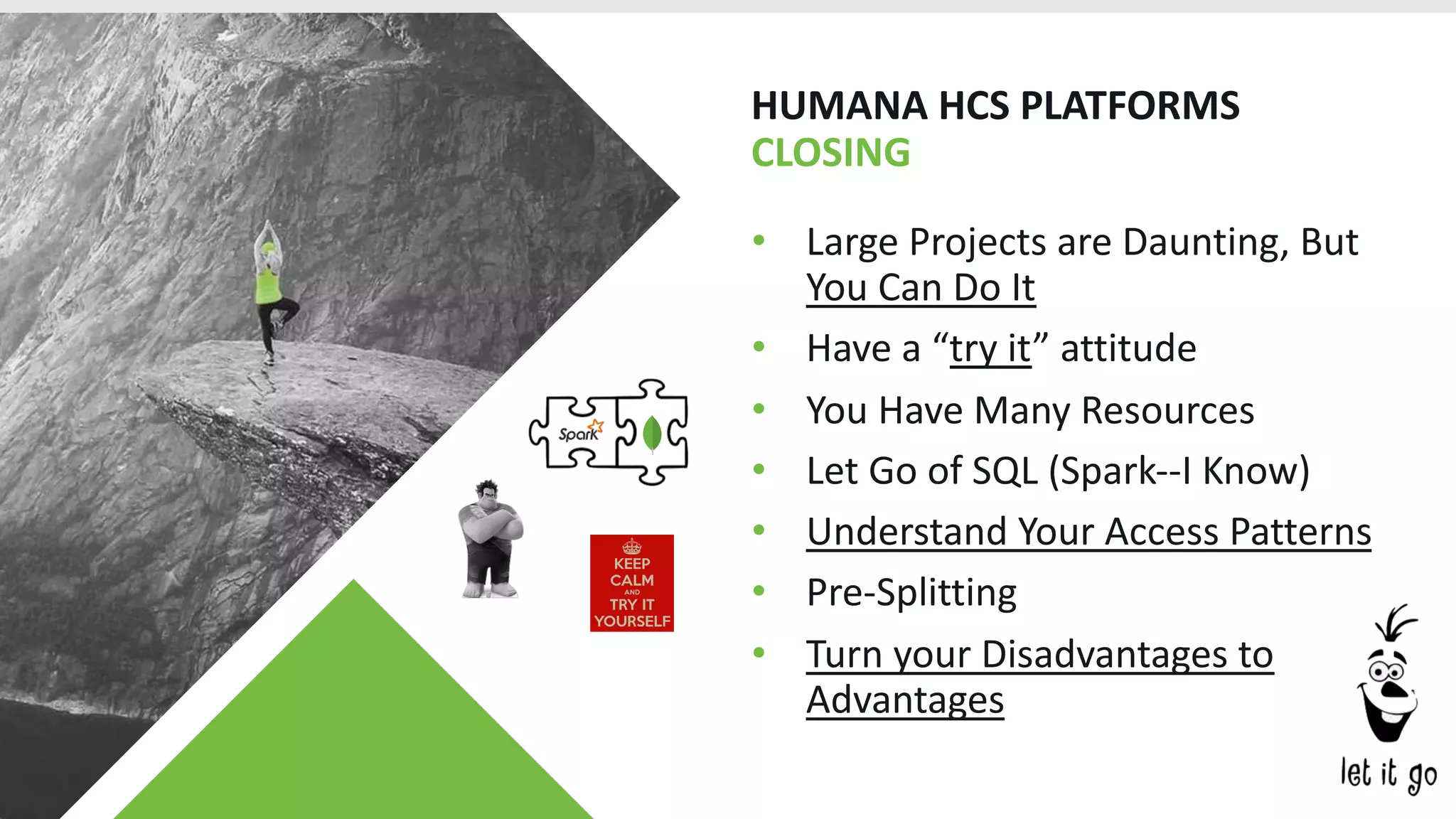

- 34. HUMANA HCS PLATFORMS CLOSING •Large Projects are Daunting, But You Can Do It • Have a “try it” attitude • You Have Many Resources • Let Go of SQL (Spark--I Know) • Understand Your Access Patterns • Pre-Splitting • Turn your Disadvantages to Advantages
- 35. ACKNOWLEDGEMENTS • Humana • ChristopherJaramillo • Sathish John • Raj Basavaraju • Walter von Westphalen • MongoDB • Sigfrido Narvaez • Giovanni DeVita • MongoDB and SoCal Chapter Team Members that made this possible:
- 36. THANK YOUHUMANA HCSINSIGHT PLATFORMS
- 37. Humana: Healthcare Services/ Platforms QUESTIONS!
