Apache Con 2021 : Apache Bookkeeper Key Value Store and use cases

APACHE BOOKKEEPER KV
STORE AND USE CASES
SHIVJI KUMAR JHA
@ShivjiJha
TRACK: MESSAGING
in/shivjijha

About Me
• Senior MTS at Nutanix
• Platform Engineer
– DBs, SOA, Infra, Streams
• Love
– Distributed data systems
– Open-source software (OSS)
• OSS Contributions
– Apache Pulsar
– MySQL

Contents
Why KV
store?
What is
bookkeeper?
How to use
bookkeeper?

A Brief History…
Of Databases
• 1960: Flat Files
• 1960s: Hierarchical Databases
• 1980: SQL / Relational Databases
– High-level language
– Abstractions: Schema, Transactions, Indexes
• 2004: NoSQL
– Scale & Availability above all
– No relational model
• 2010s: Distributed SQL
Image source: https://commons.wikimedia.org/wiki/File:Human_evolution.svg

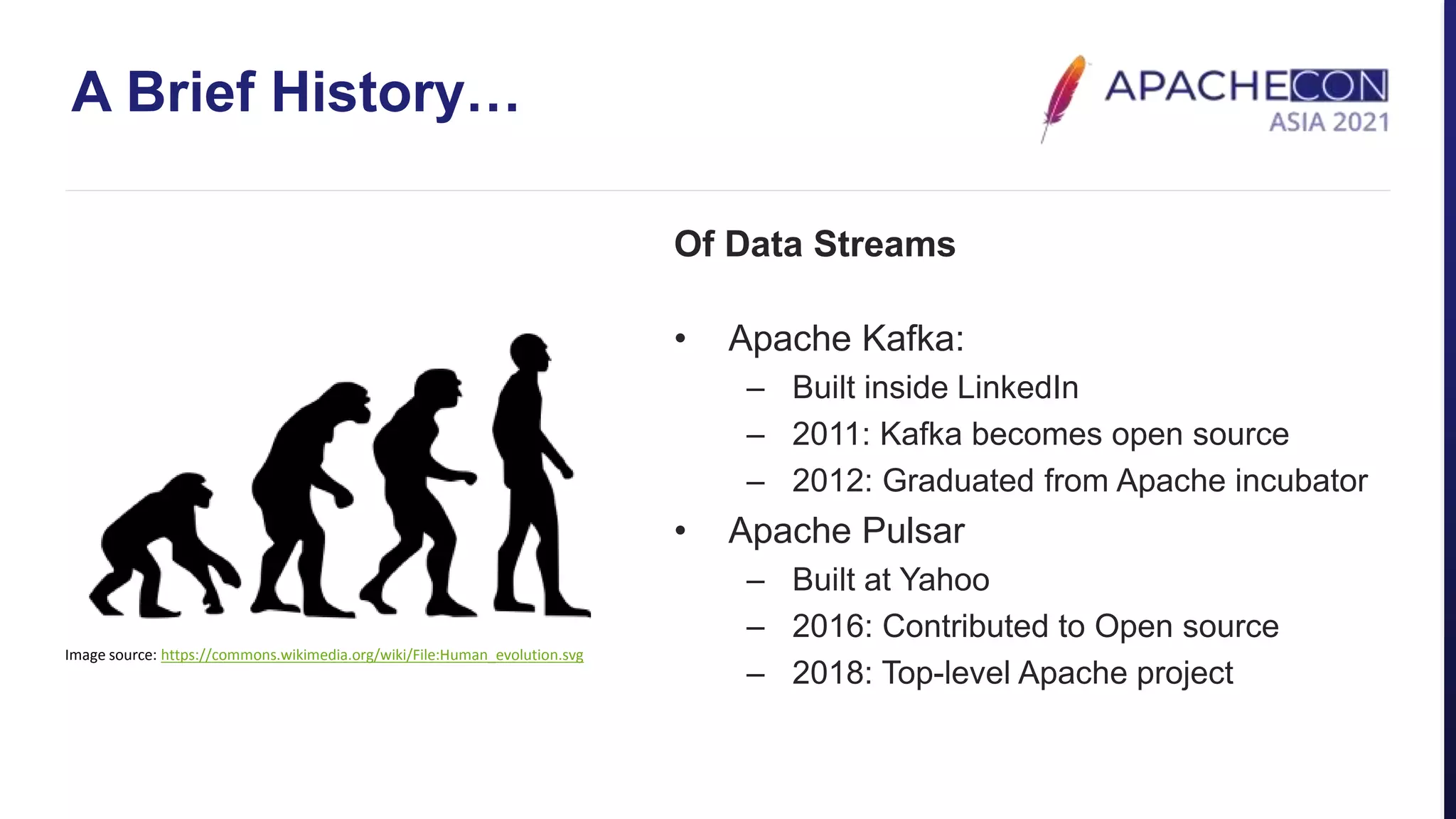

A Brief History…
Of Data Streams
• Apache Kafka:
– Built inside LinkedIn
– 2011: Kafka becomes open source
– 2012: Graduated from Apache incubator
• Apache Pulsar
– Built at Yahoo
– 2016: Contributed to Open source
– 2018: Top-level Apache project
Image source: https://commons.wikimedia.org/wiki/File:Human_evolution.svg

A Brief History…
Of Apache Bookkeeper
• Born at Yahoo! Research
• Evolved from Apache Zookeeper (ZK)
• 2011: Incubated as subproject under ZK
• 2015: Top level Apache Project

Apache Bookkeeper

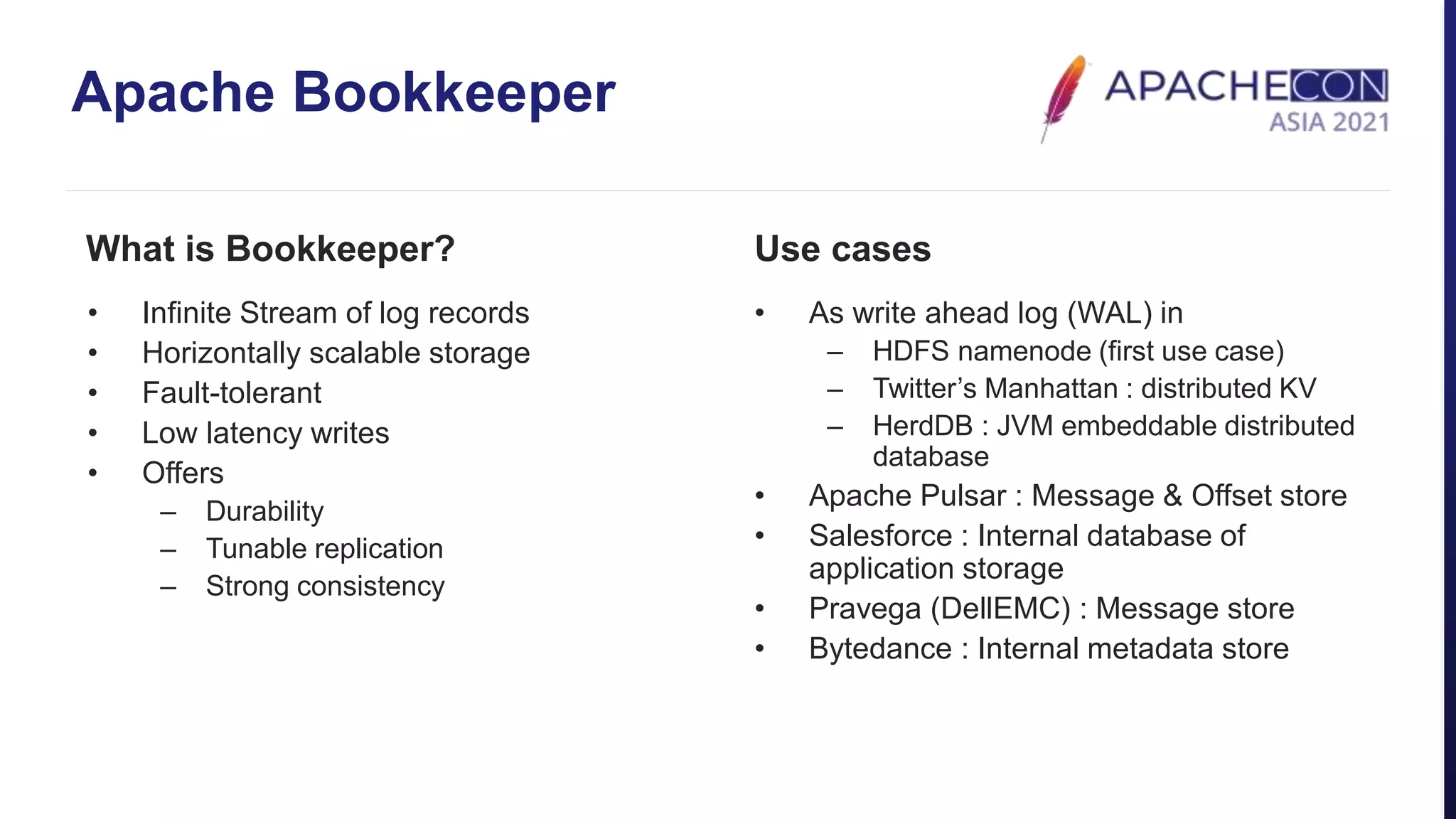

What is Bookkeeper?
• Infinite Stream of log records
• Horizontally scalable storage
• Fault-tolerant
• Low latency writes
• Offers
– Durability
– Tunable replication
– Strong consistency
Use cases
• As write ahead log (WAL) in
– HDFS namenode (first use case)
– Twitter’s Manhattan : distributed KV
– HerdDB : JVM embeddable distributed
database
• Apache Pulsar : Message & Offset store
• Salesforce : Internal database of
application storage
• Pravega (DellEMC) : Message store
• Bytedance : Internal metadata store

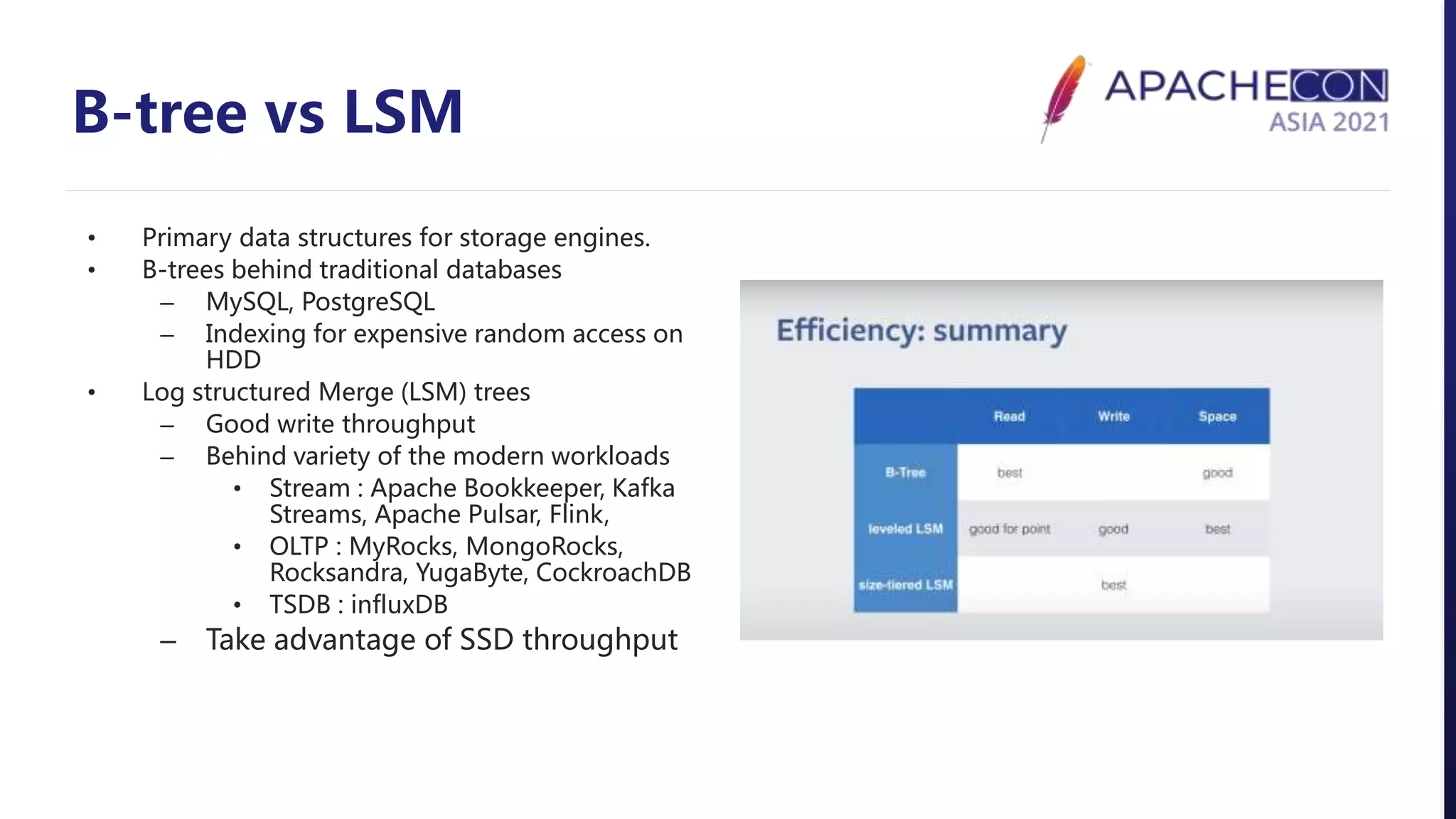

B-tree vs LSM
• Primary data structures for storage engines.
• B-trees behind traditional databases
– MySQL, PostgreSQL
– Indexing for expensive random access on
HDD
• Log structured Merge (LSM) trees
– Good write throughput
– Behind variety of the modern workloads
• Stream : Apache Bookkeeper, Kafka
Streams, Apache Pulsar, Flink,
• OLTP : MyRocks, MongoRocks,
Rocksandra, YugaByte, CockroachDB
• TSDB : influxDB
– Take advantage of SSD throughput

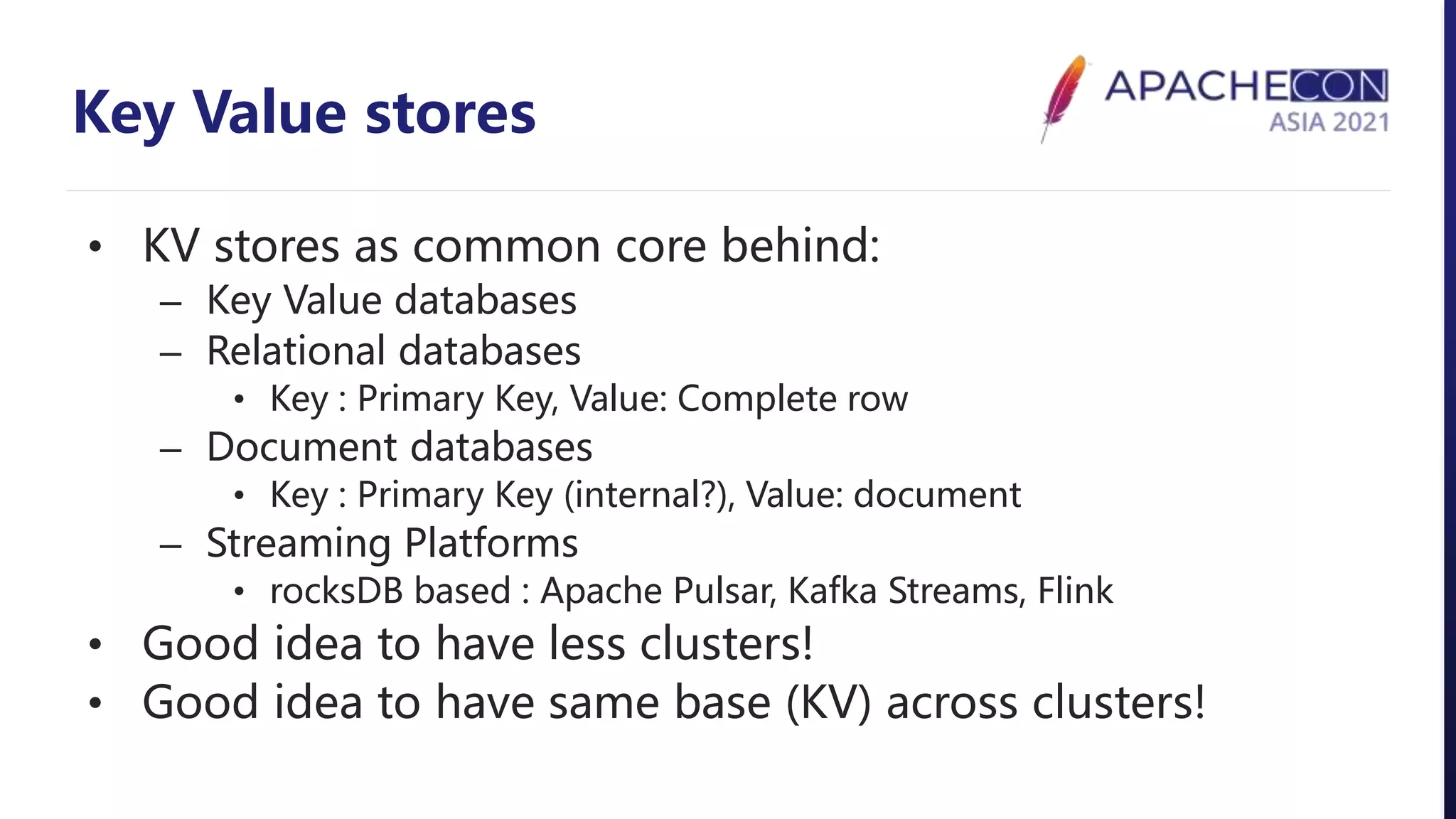

Key Value stores
• KV stores as common core behind:
– Key Value databases
– Relational databases
• Key : Primary Key, Value: Complete row
– Document databases
• Key : Primary Key (internal?), Value: document
– Streaming Platforms
• rocksDB based : Apache Pulsar, Kafka Streams, Flink
• Good idea to have less clusters!
• Good idea to have same base (KV) across clusters!

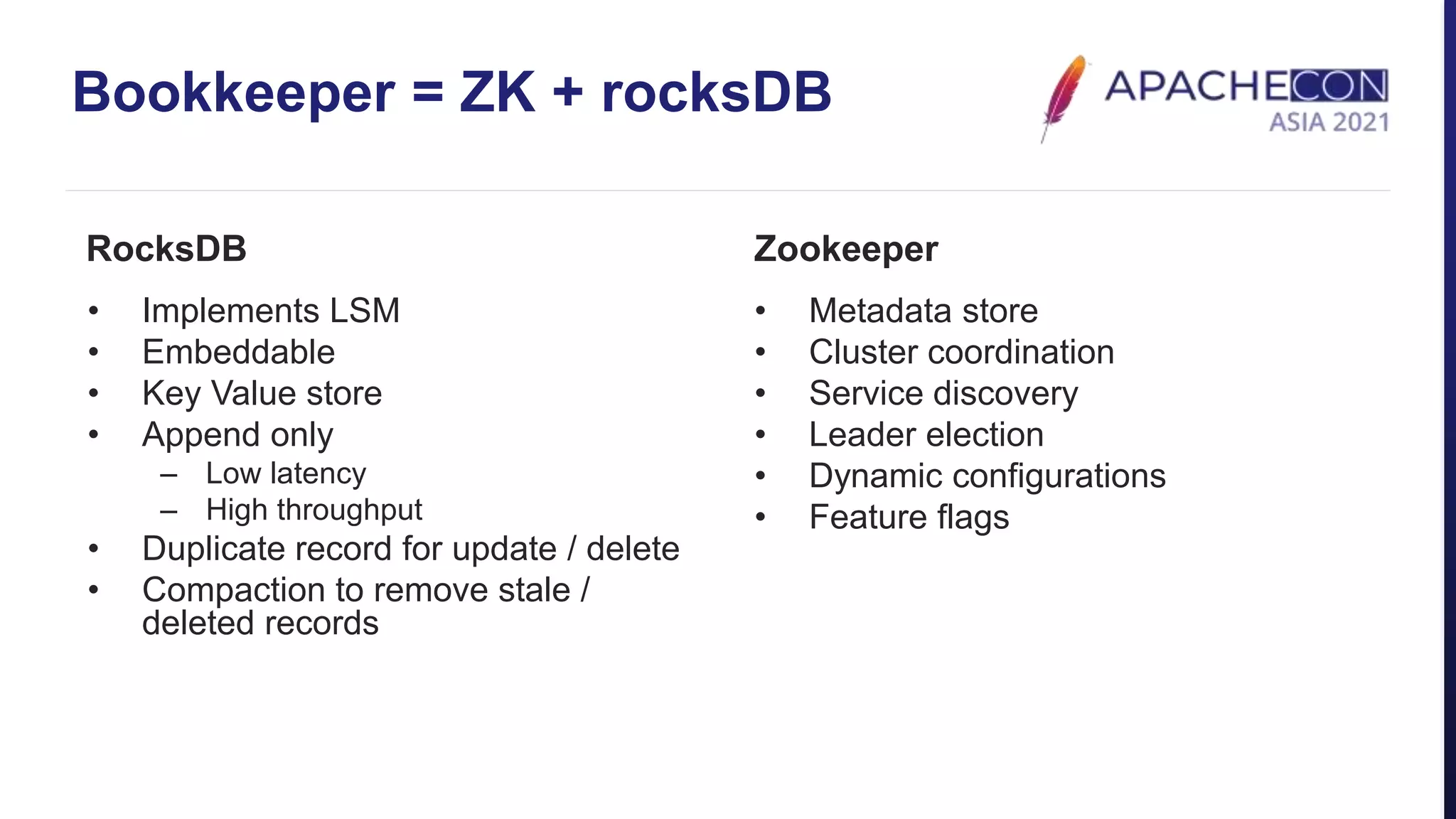

Bookkeeper = ZK + rocksDB
RocksDB
• Implements LSM
• Embeddable
• Key Value store
• Append only
– Low latency
– High throughput
• Duplicate record for update / delete
• Compaction to remove stale /
deleted records
Zookeeper
• Metadata store
• Cluster coordination
• Service discovery
• Leader election
• Dynamic configurations
• Feature flags

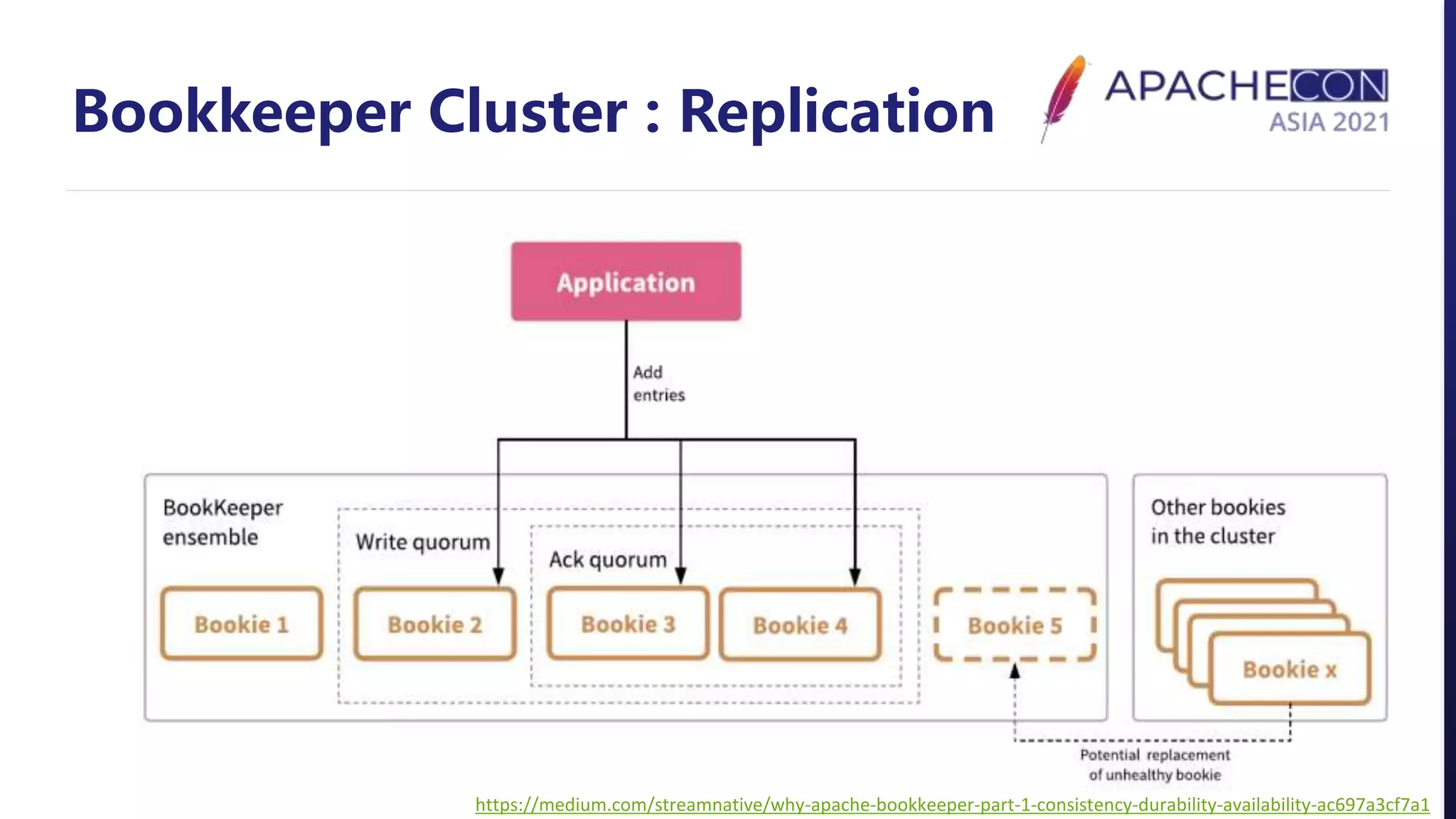

Bookkeeper Cluster : Replication
https://medium.com/streamnative/why-apache-bookkeeper-part-1-consistency-durability-availability-ac697a3cf7a1

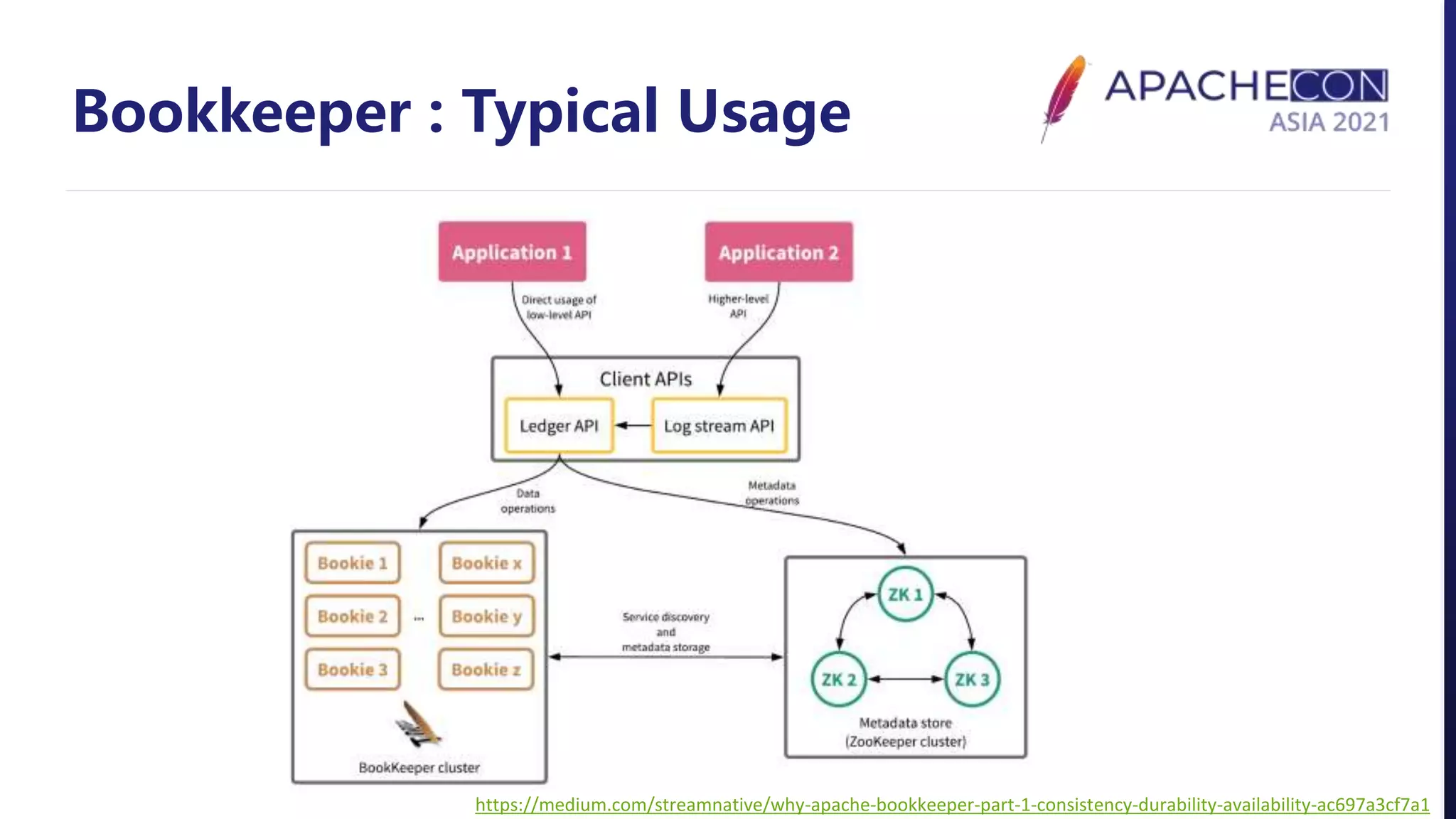

Bookkeeper : Typical Usage
https://medium.com/streamnative/why-apache-bookkeeper-part-1-consistency-durability-availability-ac697a3cf7a1

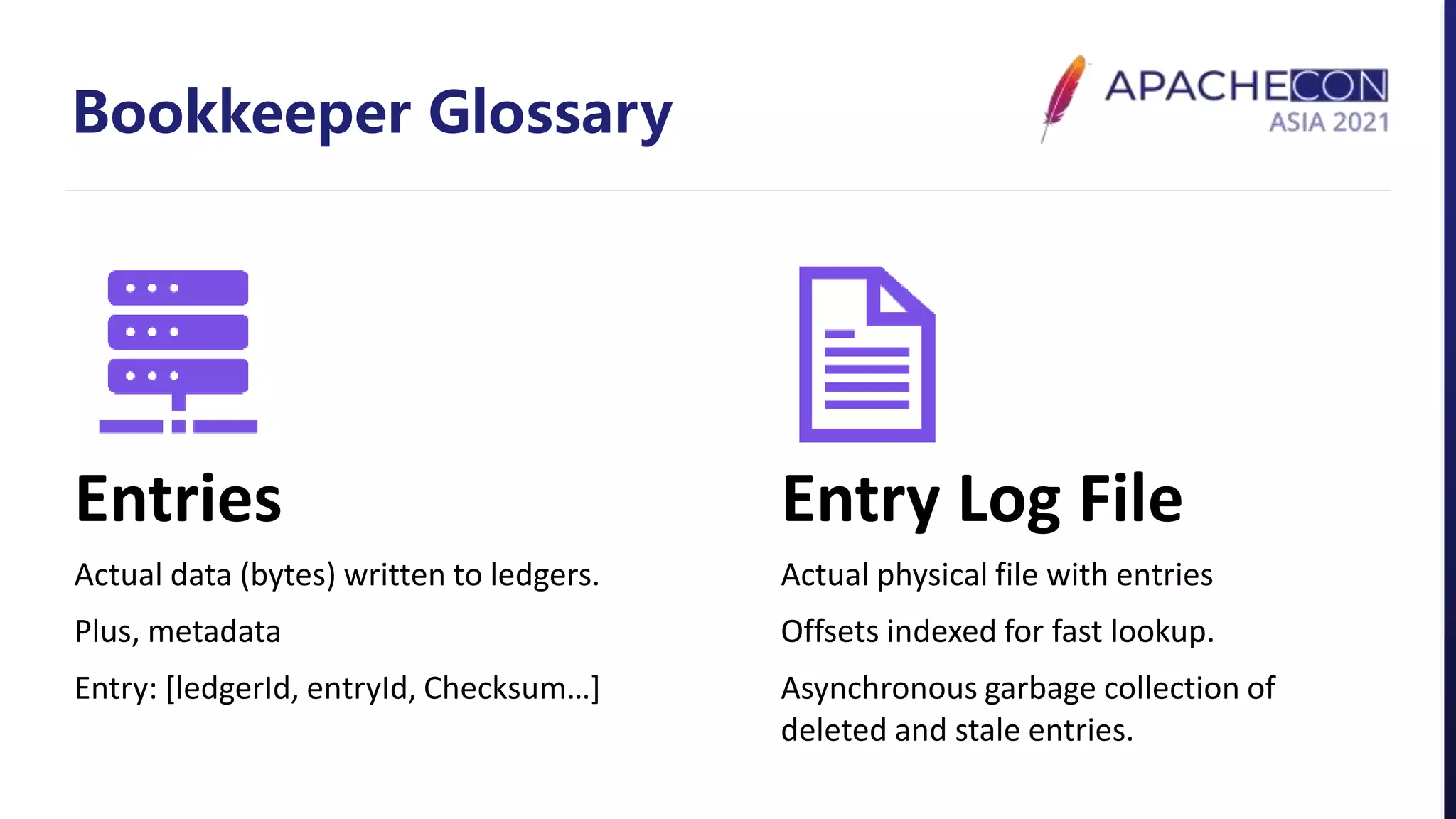

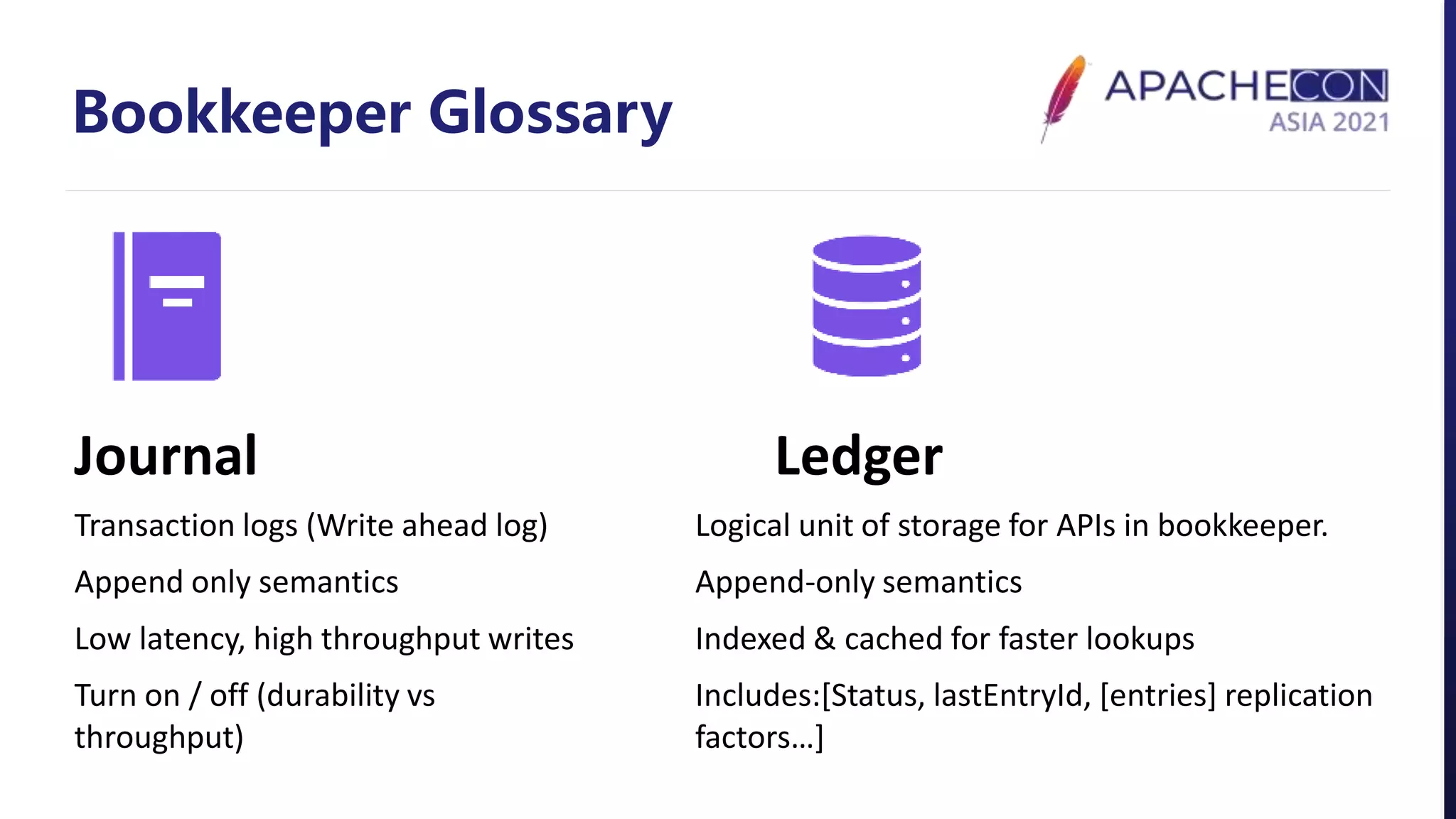

Bookkeeper Glossary
Entries
Actual data (bytes) written to ledgers.
Plus, metadata
Entry: [ledgerId, entryId, Checksum…]
Entry Log File
Actual physical file with entries
Offsets indexed for fast lookup.
Asynchronous garbage collection of
deleted and stale entries.

Bookkeeper Glossary
Journal
Transaction logs (Write ahead log)
Append only semantics
Low latency, high throughput writes
Turn on / off (durability vs
throughput)
Ledger
Logical unit of storage for APIs in bookkeeper.
Append-only semantics
Indexed & cached for faster lookups
Includes:[Status, lastEntryId, [entries] replication
factors…]

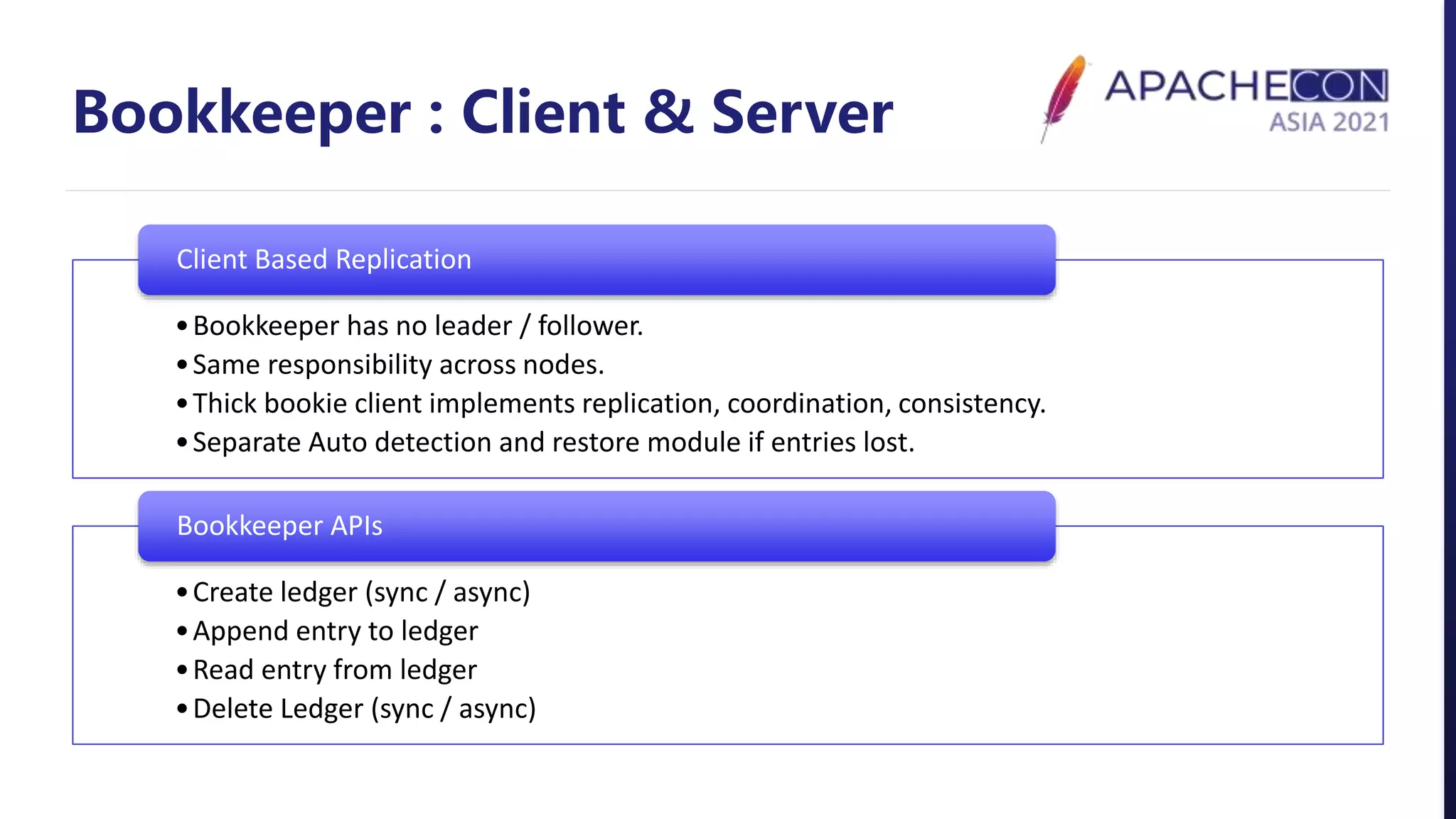

Bookkeeper : Client & Server
•Bookkeeper has no leader / follower.
•Same responsibility across nodes.
•Thick bookie client implements replication, coordination, consistency.
•Separate Auto detection and restore module if entries lost.
Client Based Replication
•Create ledger (sync / async)
•Append entry to ledger
•Read entry from ledger
•Delete Ledger (sync / async)
Bookkeeper APIs

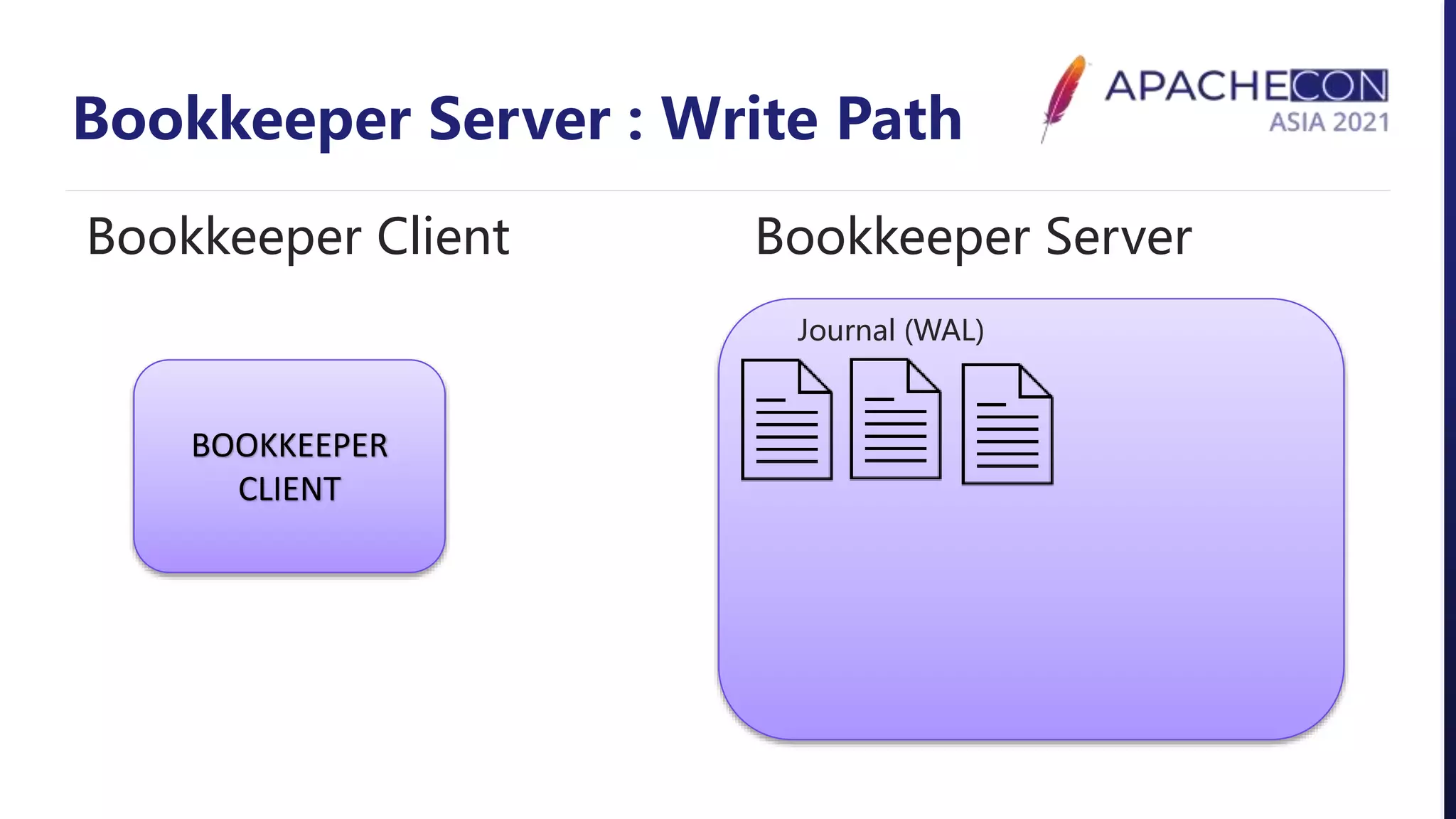

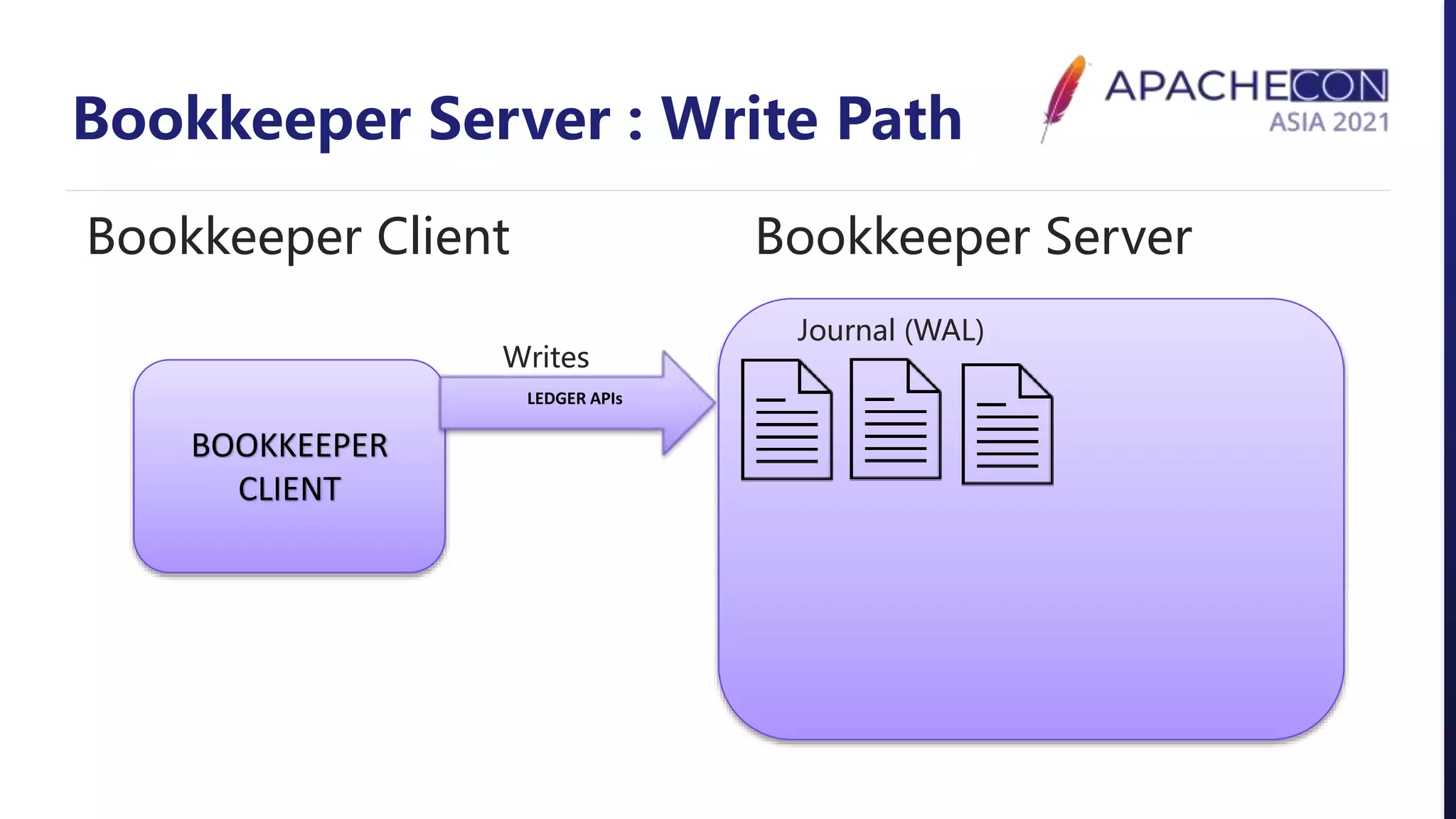

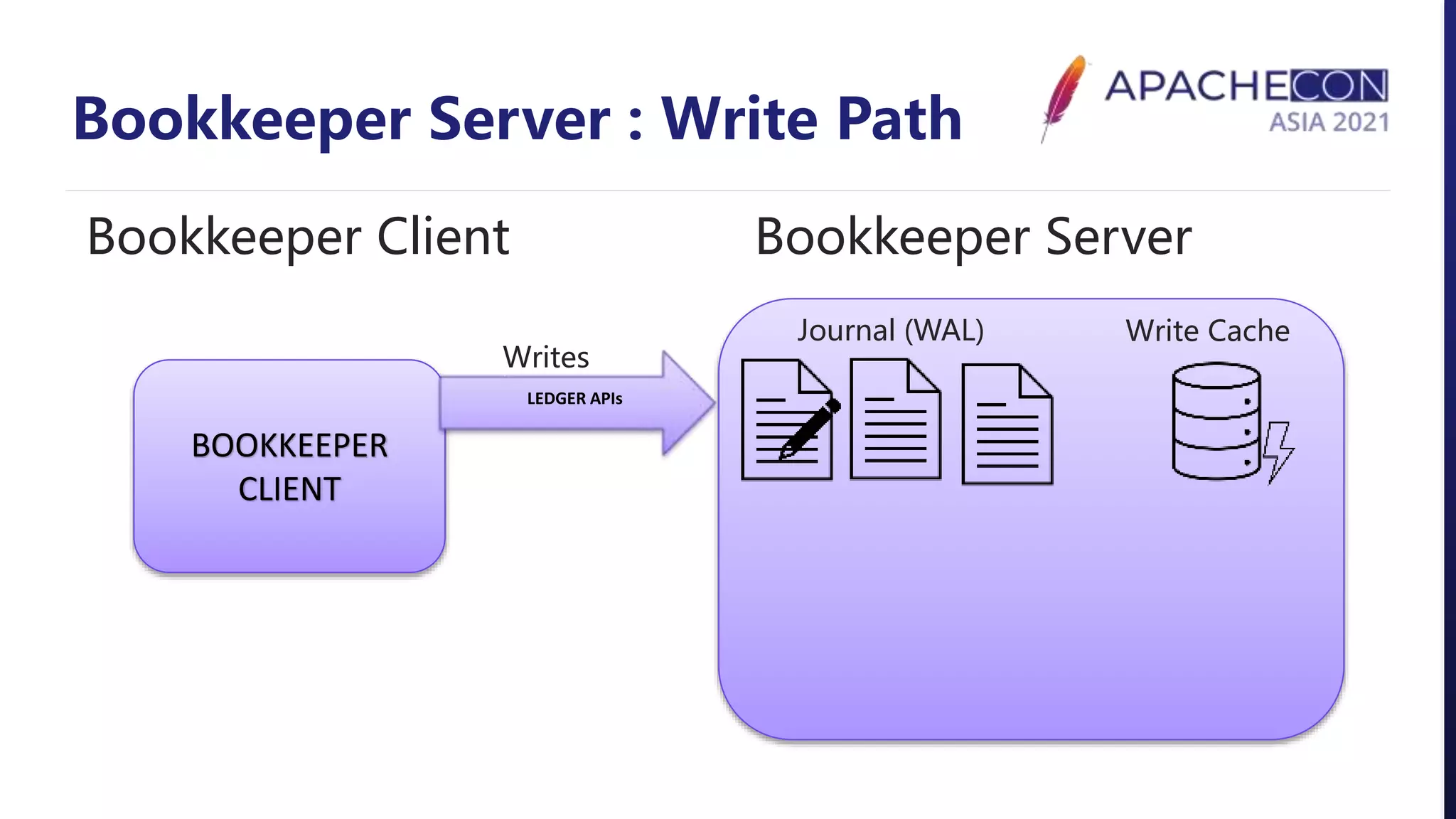

Bookkeeper Server : Write Path
BOOKKEEPER
CLIENT
Bookkeeper Server
Bookkeeper Client
Journal (WAL)

BOOKKEEPER
CLIENT
Bookkeeper Server
Bookkeeper Client
Journal (WAL)
LEDGER APIs
Writes

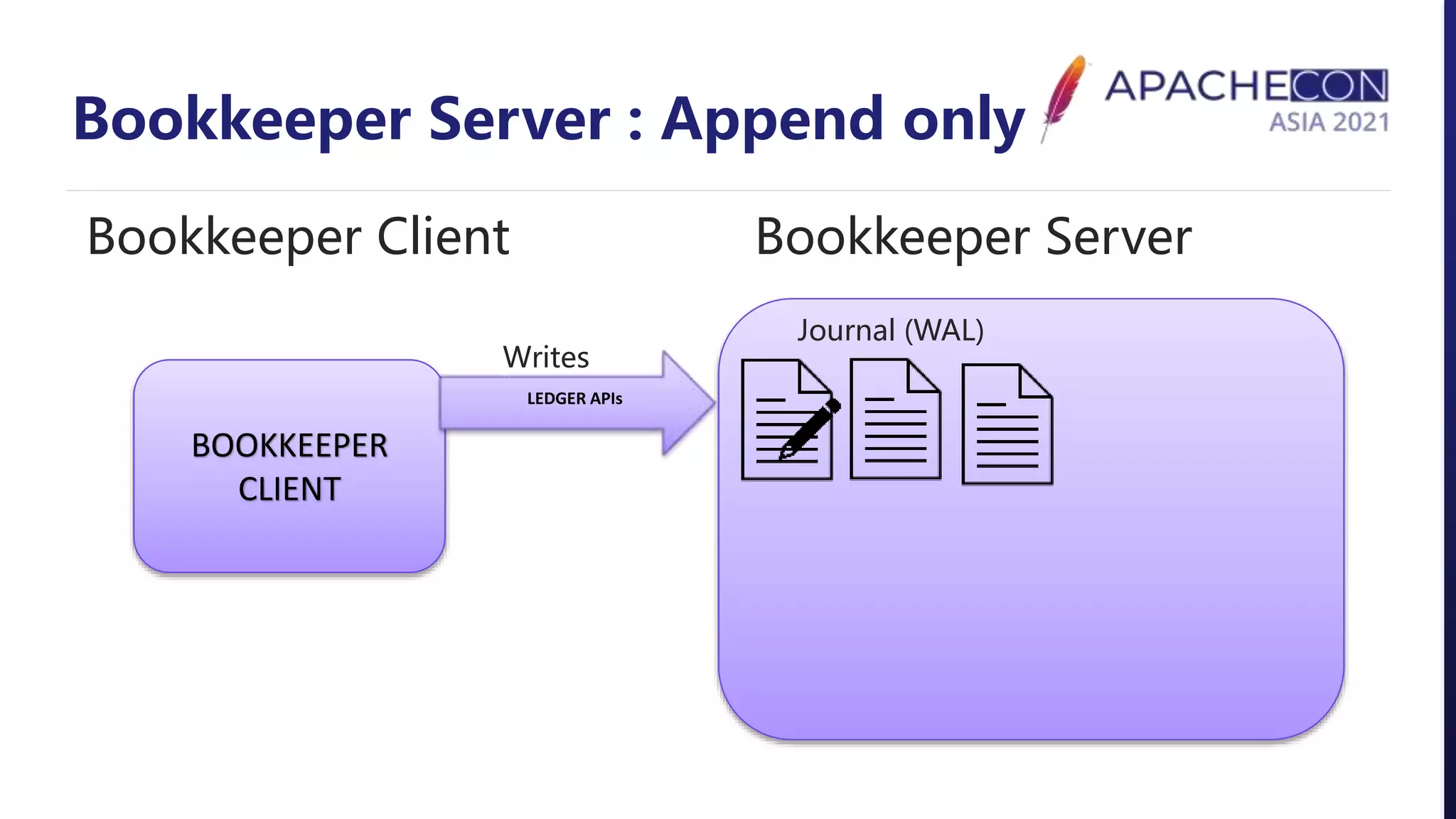

Bookkeeper Server : Append only
BOOKKEEPER
CLIENT
Bookkeeper Client Bookkeeper Server
Journal (WAL)
LEDGER APIs
Writes

BOOKKEEPER
CLIENT
Journal (WAL) Write Cache
LEDGER APIs
Writes

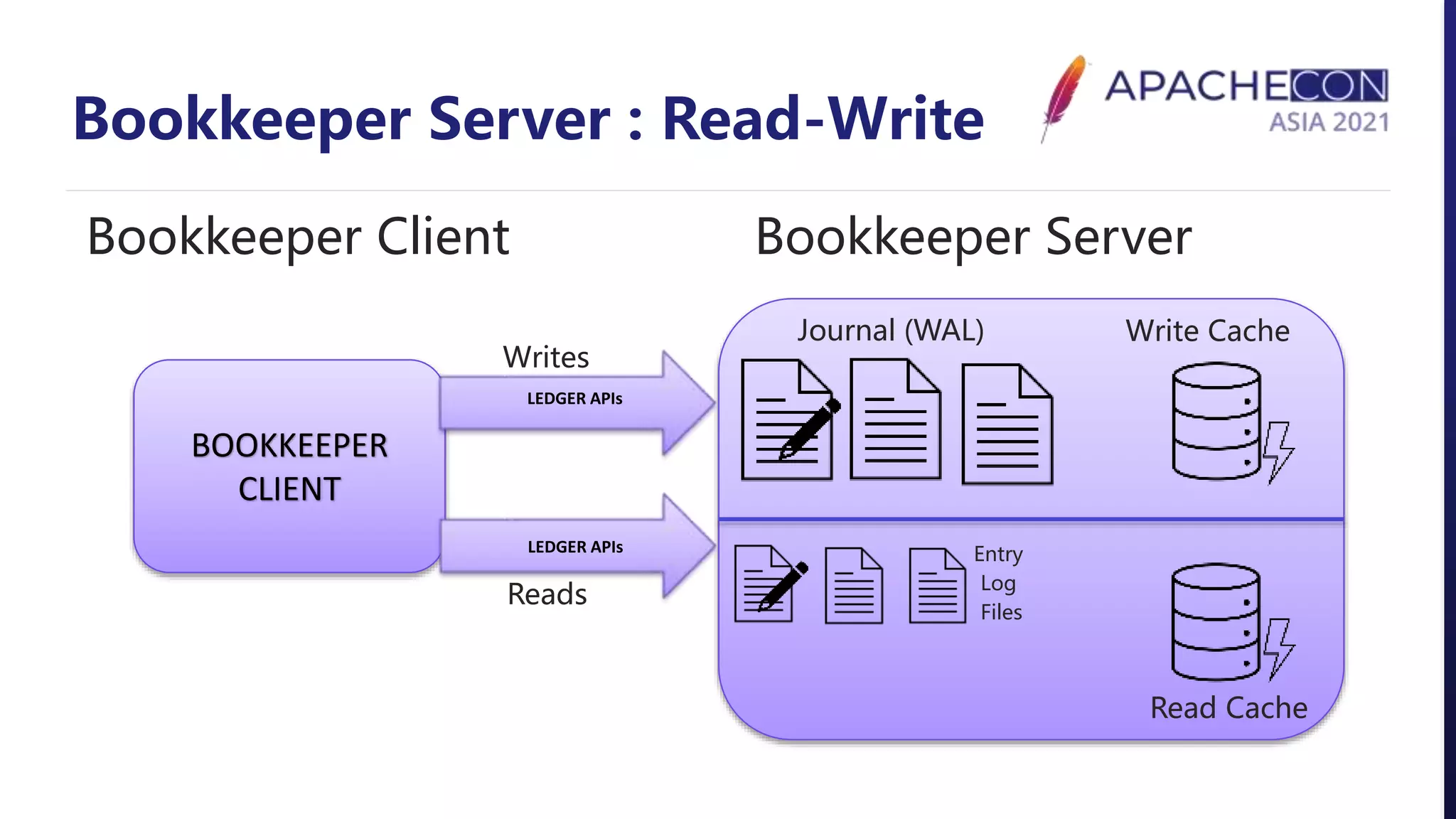

Bookkeeper Server : Read-Write
BOOKKEEPER
CLIENT
Read Cache
LEDGER APIs
LEDGER APIs
Writes
Reads
Entry
Log
Files

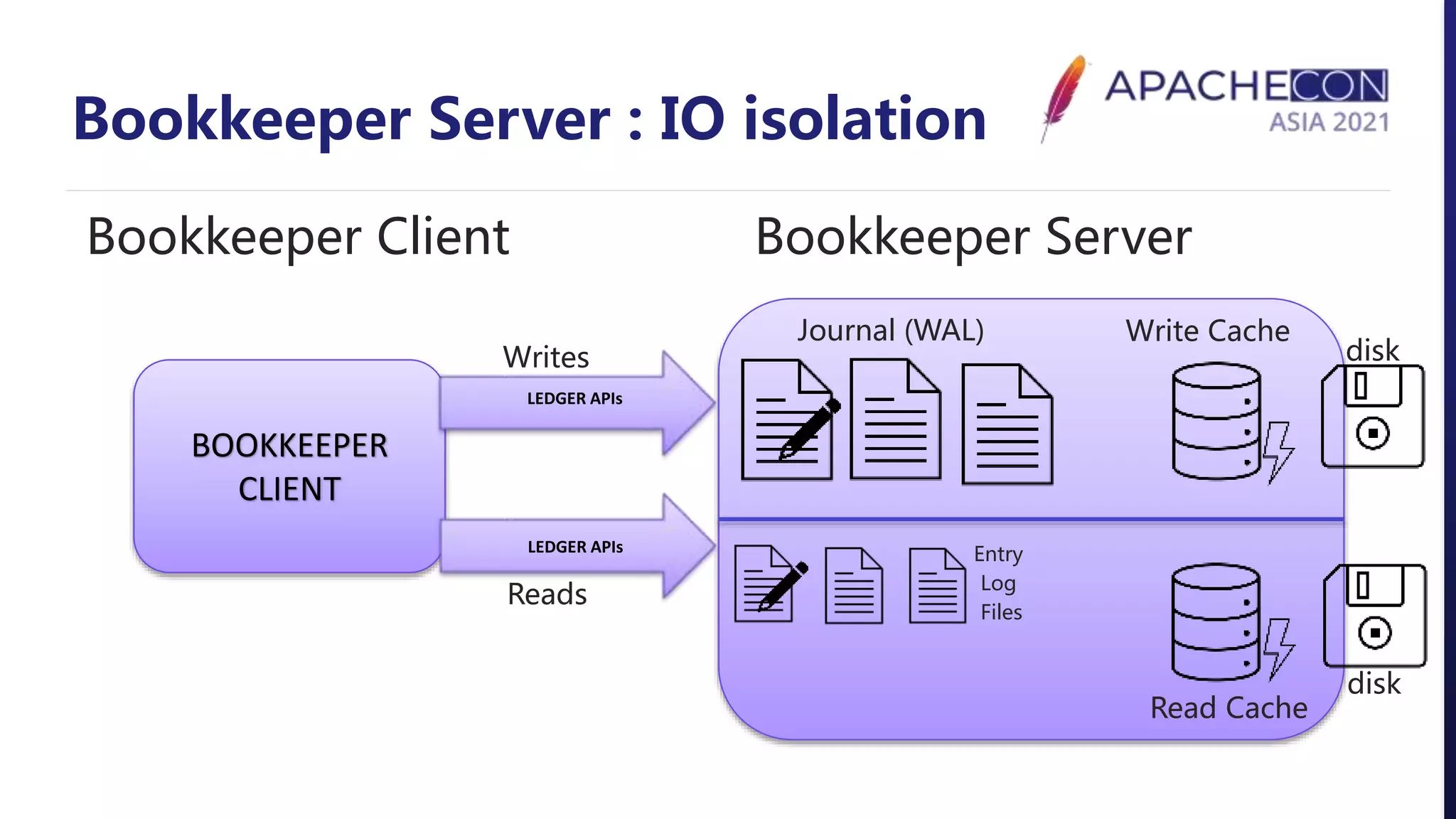

Bookkeeper Server : IO isolation
BOOKKEEPER
CLIENT
Read Cache
LEDGER APIs
LEDGER APIs
disk
disk
Writes
Reads
Entry
Log
Files

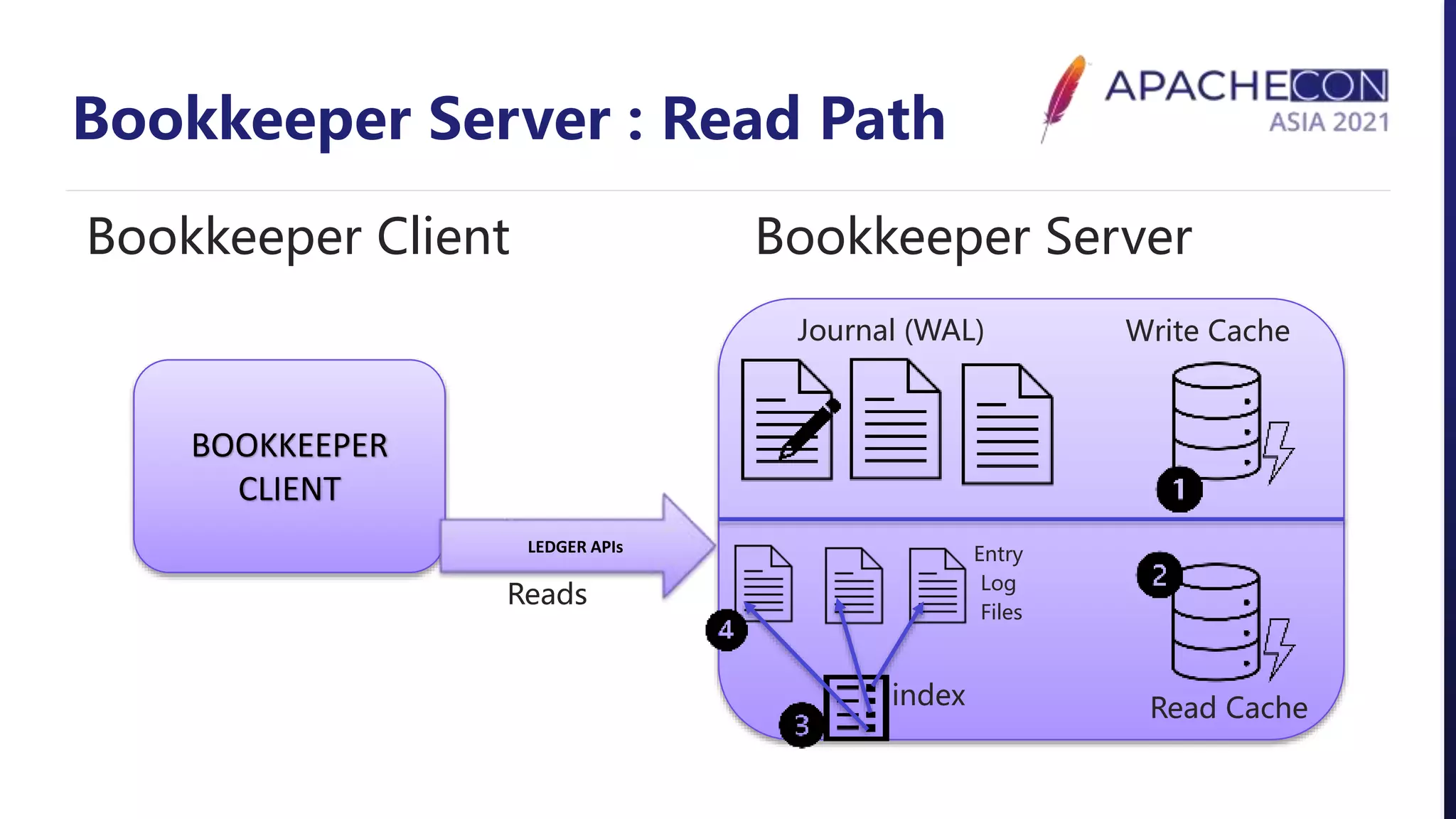

Bookkeeper Server : Read Path
BOOKKEEPER
CLIENT
Entry
Log
Files
Read Cache
LEDGER APIs
Reads
index

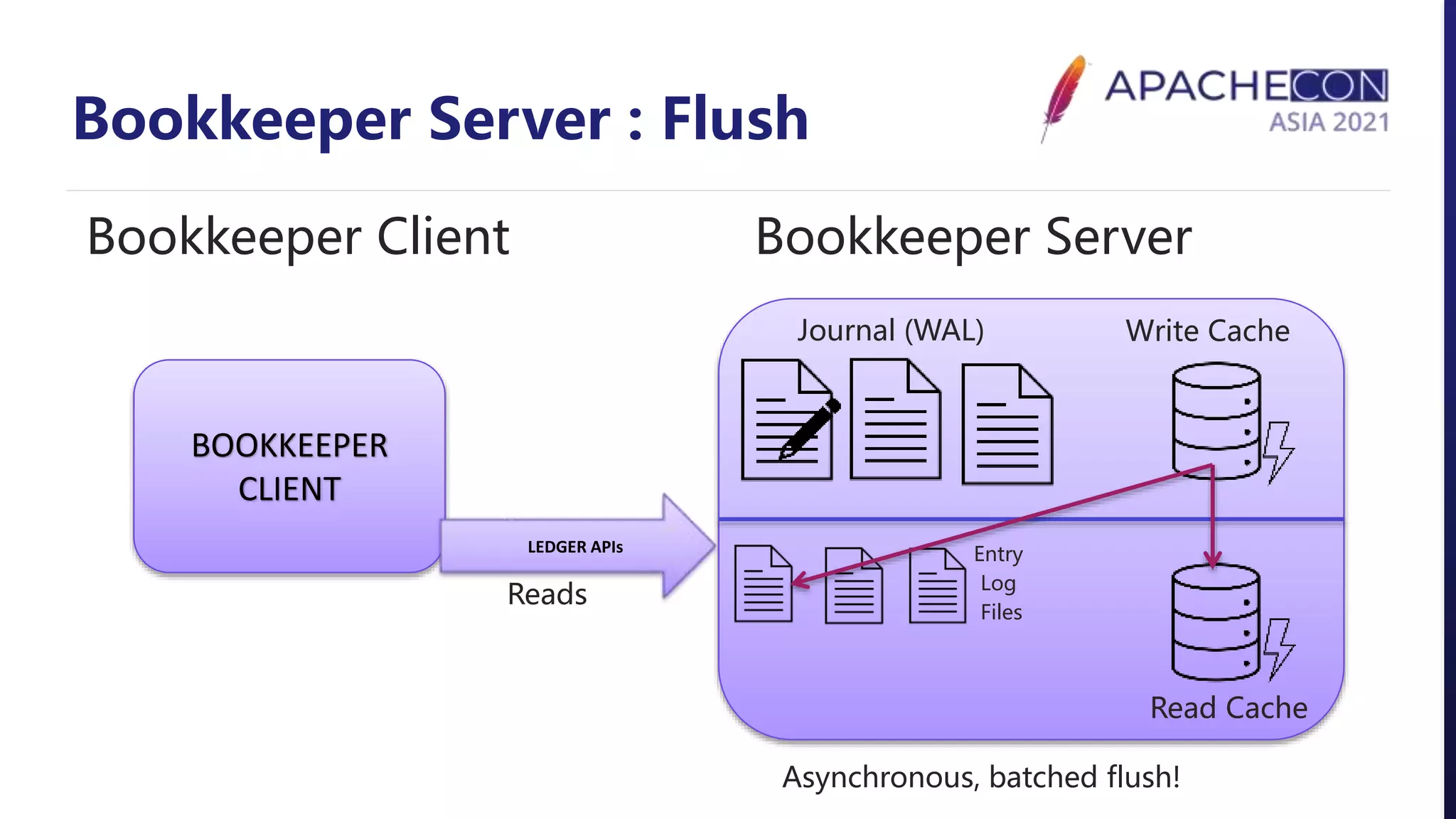

Bookkeeper Server : Flush
BOOKKEEPER
CLIENT
Entry
Log
Files
Read Cache
LEDGER APIs
Reads
Asynchronous, batched flush!

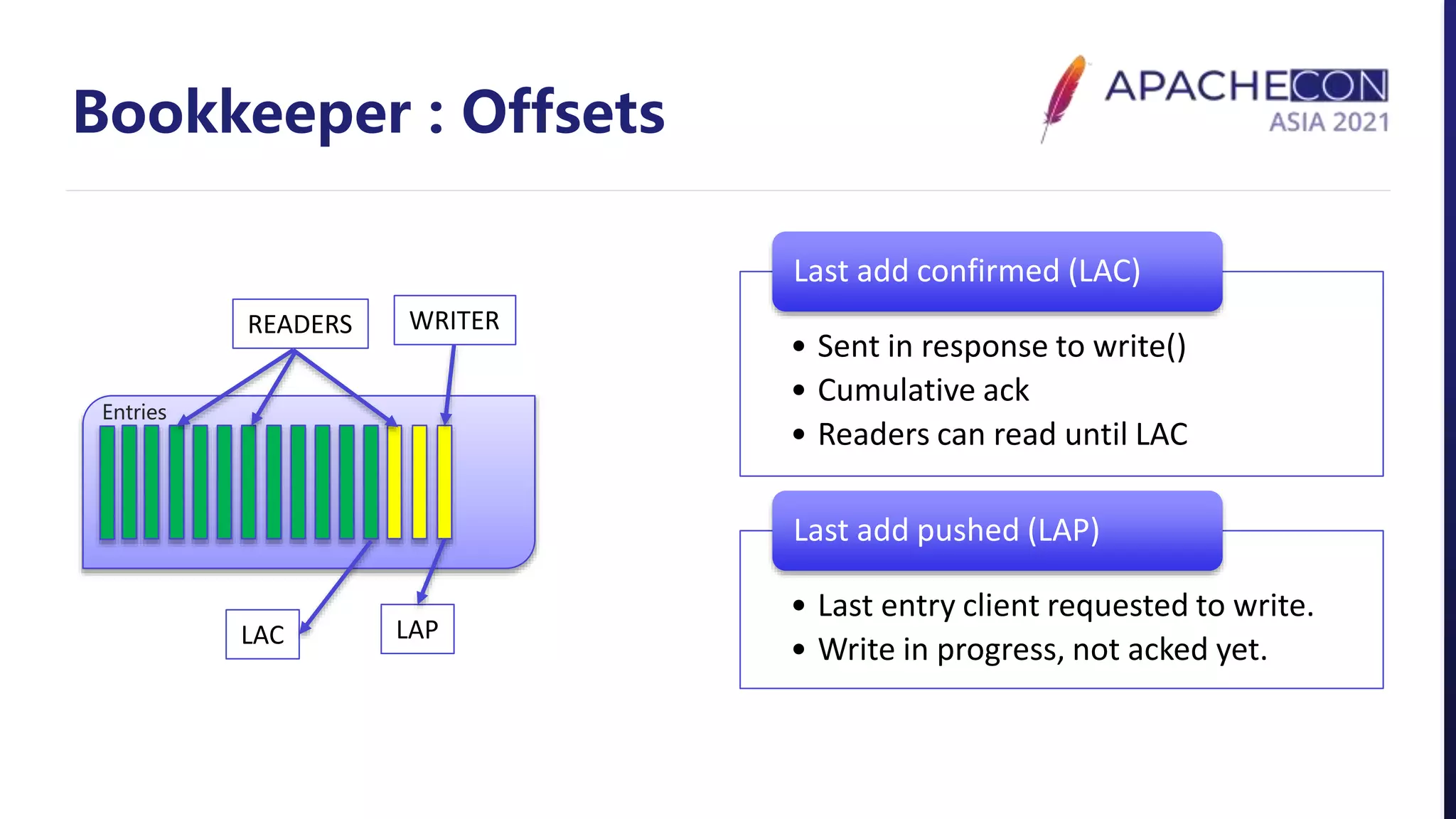

Bookkeeper : Offsets
• Sent in response to write()
• Cumulative ack
• Readers can read until LAC
Last add confirmed (LAC)
• Last entry client requested to write.
• Write in progress, not acked yet.
Last add pushed (LAP)
READERS
LAC LAP
WRITER
Entries

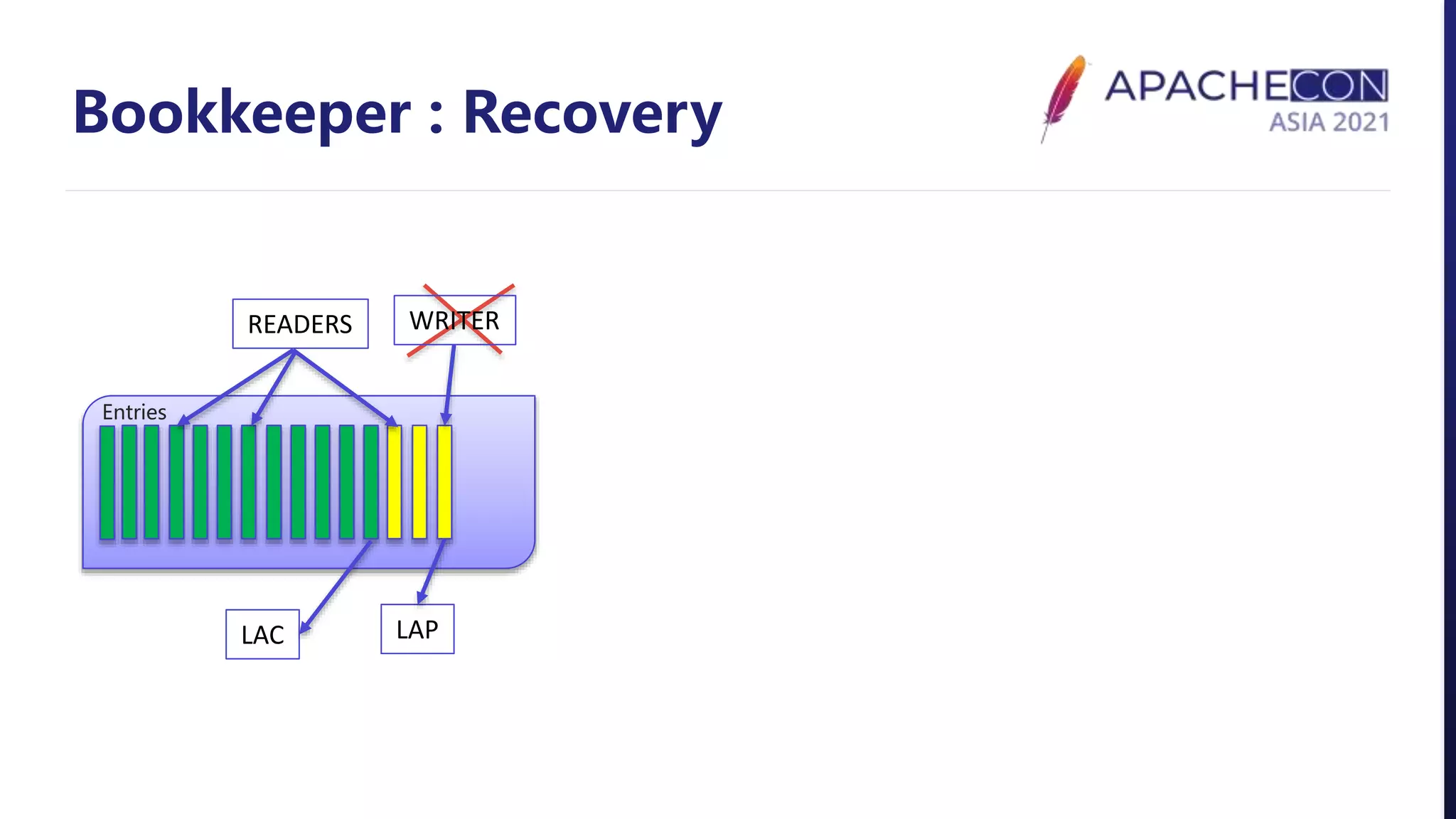

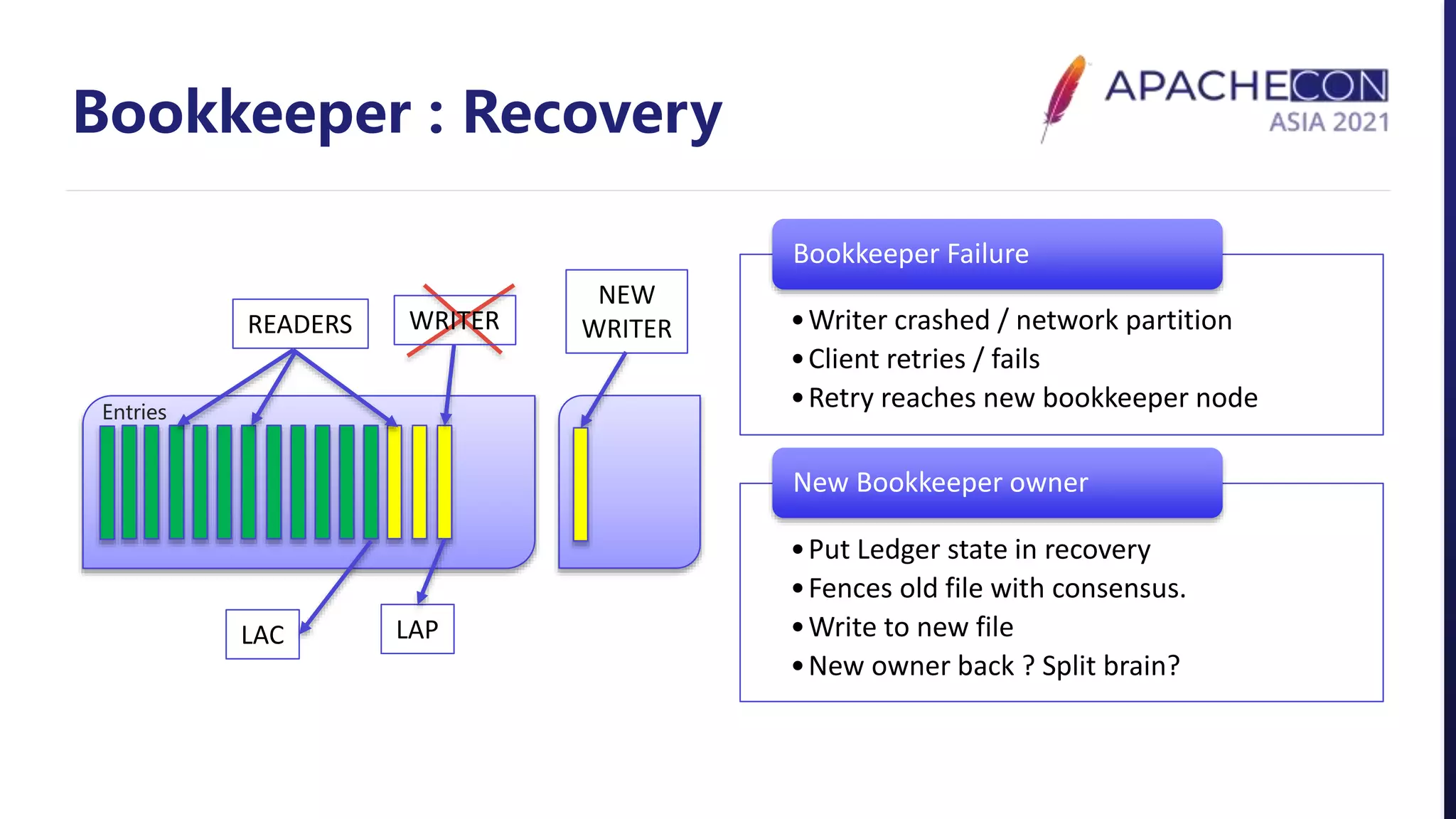

Bookkeeper : Recovery
READERS
LAC LAP
WRITER
Entries

Bookkeeper : Recovery
•Writer crashed / network partition
•Client retries / fails
•Retry reaches new bookkeeper node
Bookkeeper Failure
•Put Ledger state in recovery
•Fences old file with consensus.
•Write to new file
•New owner back ? Split brain?
New Bookkeeper owner
READERS
LAC LAP
WRITER
Entries
NEW
WRITER

Bookkeeper:
A Pulsar Use case
35

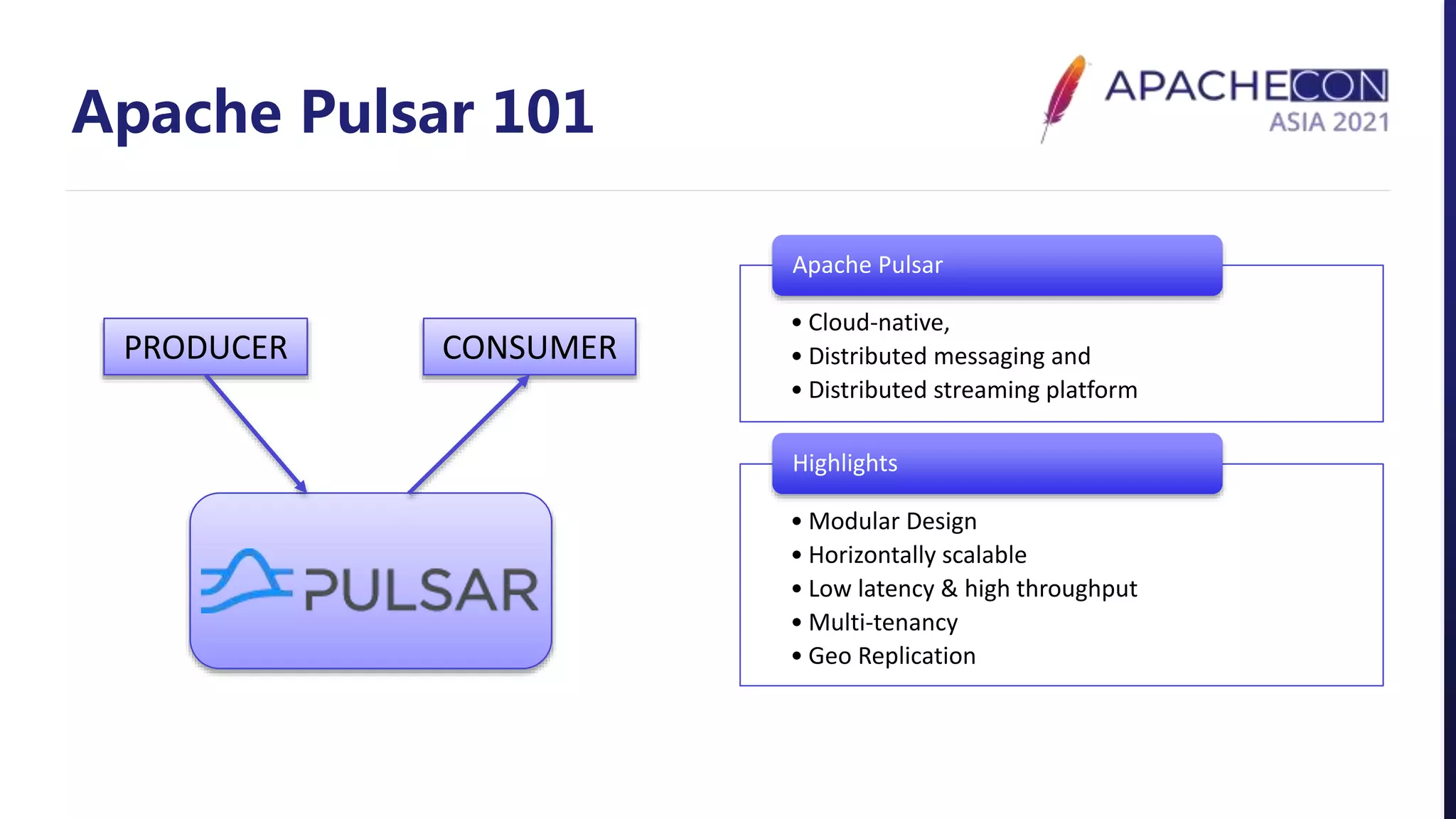

Apache Pulsar 101
PRODUCER CONSUMER
• Cloud-native,
• Distributed messaging and
• Distributed streaming platform
Apache Pulsar
• Modular Design
• Horizontally scalable
• Low latency & high throughput
• Multi-tenancy
• Geo Replication
Highlights

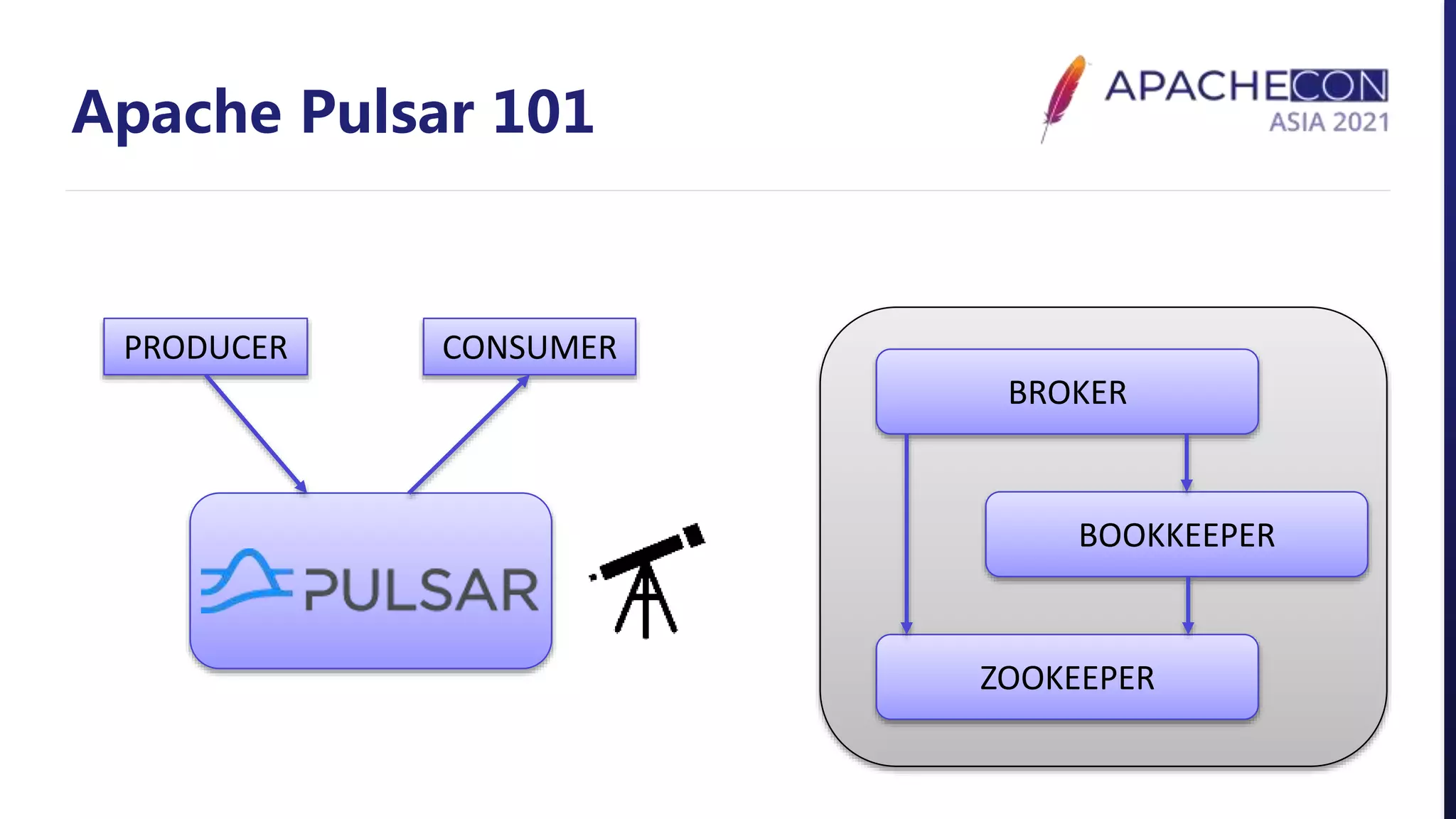

Apache Pulsar 101
PRODUCER CONSUMER
BROKER
BOOKKEEPER
ZOOKEEPER

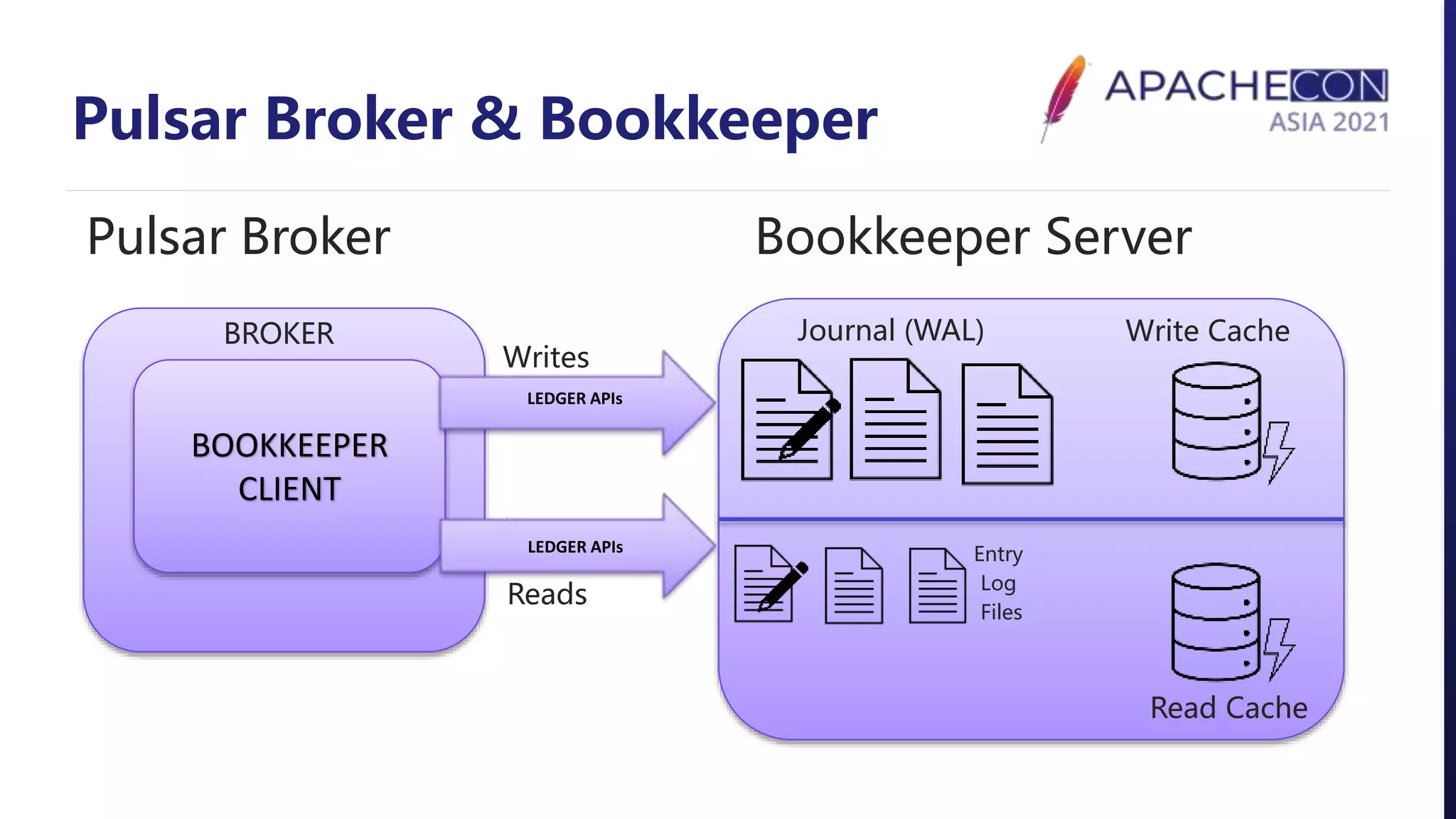

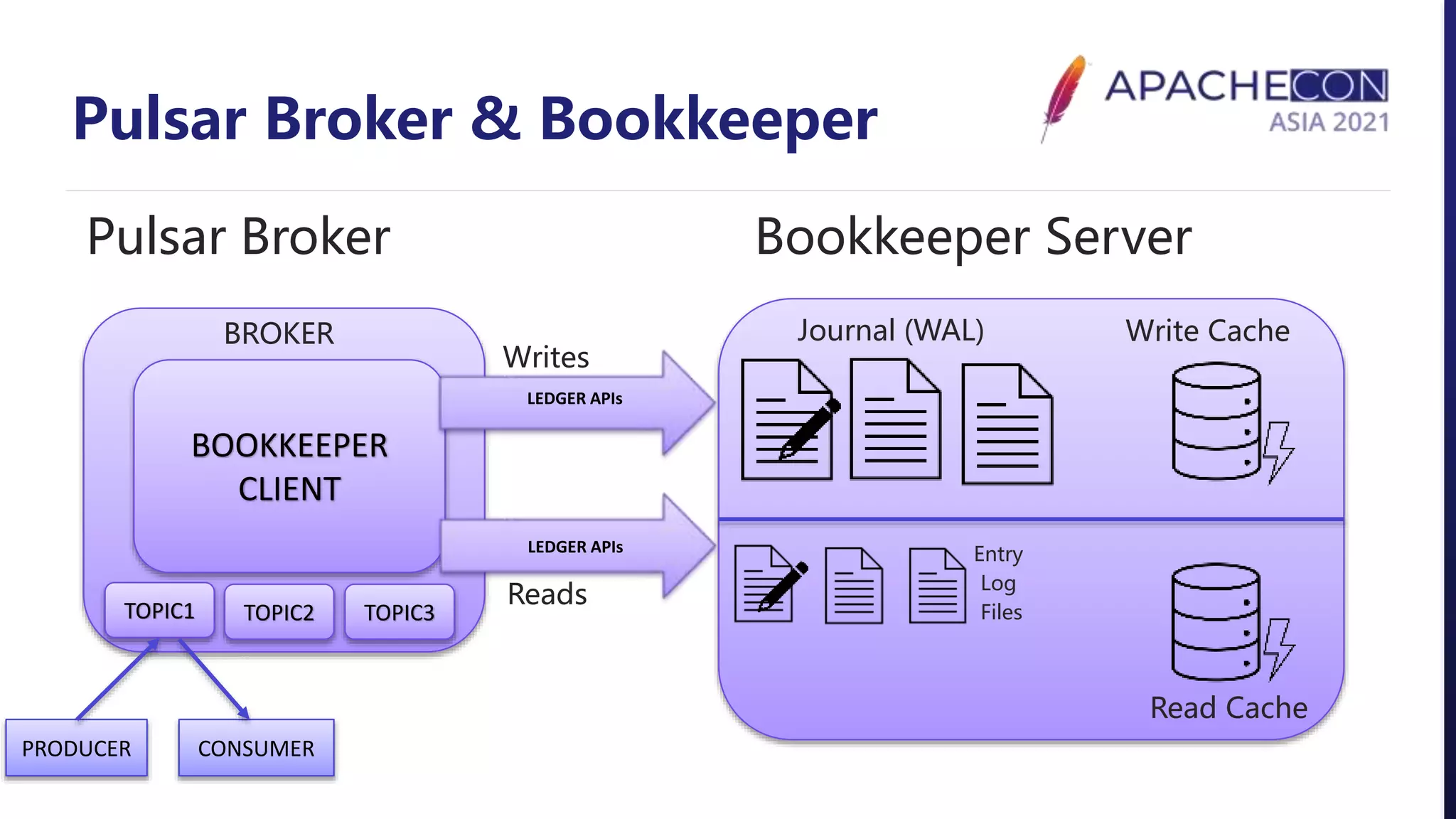

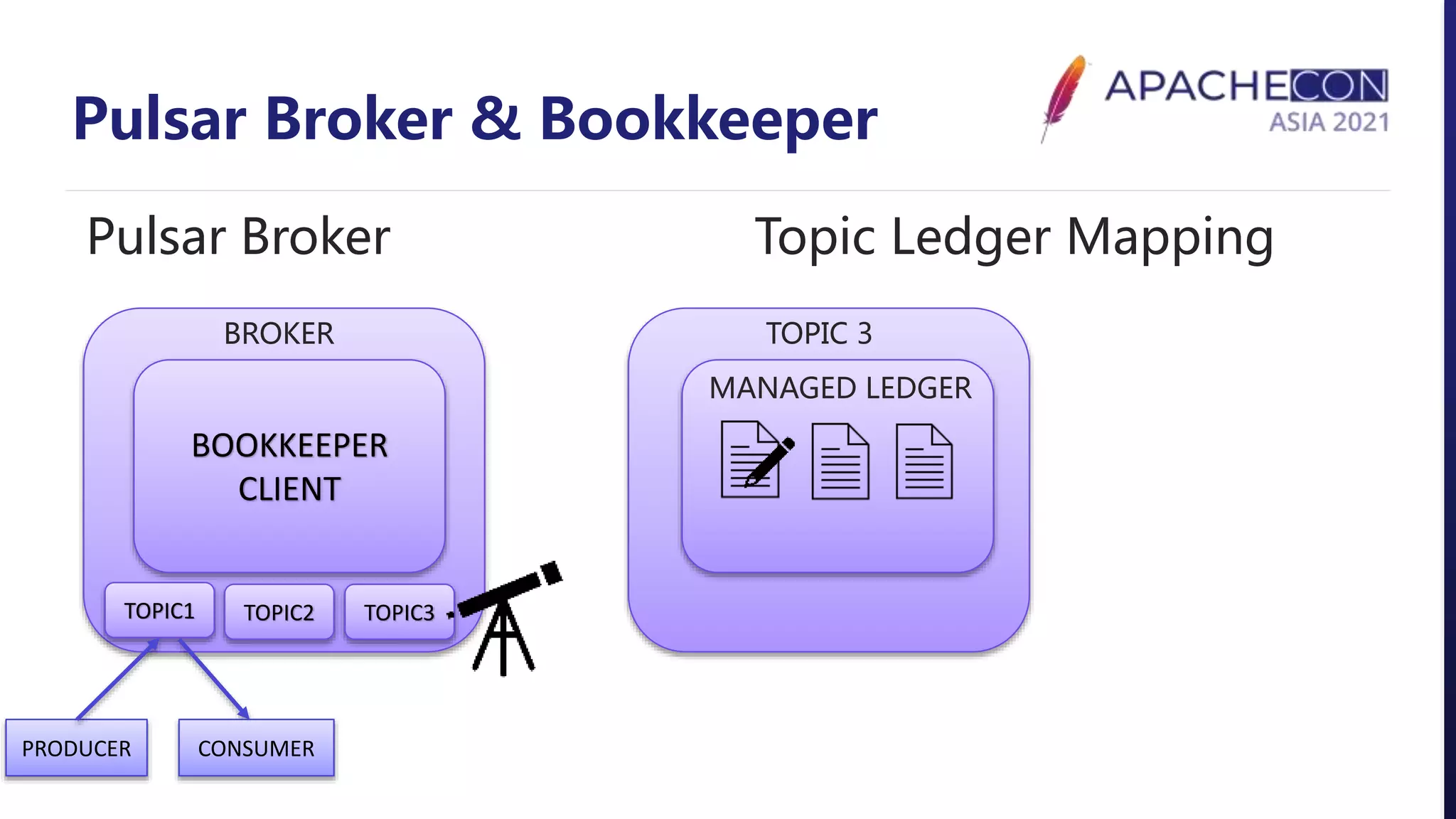

Pulsar Broker & Bookkeeper
BOOKKEEPER
CLIENT
Pulsar Broker Bookkeeper Server
Read Cache
LEDGER APIs
LEDGER APIs
Writes
Reads
Entry
Log
Files
BROKER

BOOKKEEPER
CLIENT
Read Cache
LEDGER APIs
LEDGER APIs
Writes
Reads
Entry
Log
Files
BROKER
TOPIC1 TOPIC2 TOPIC3

BOOKKEEPER
CLIENT
Read Cache
LEDGER APIs
LEDGER APIs
Writes
Reads
Entry
Log
Files
BROKER
PRODUCER CONSUMER

BOOKKEEPER
CLIENT

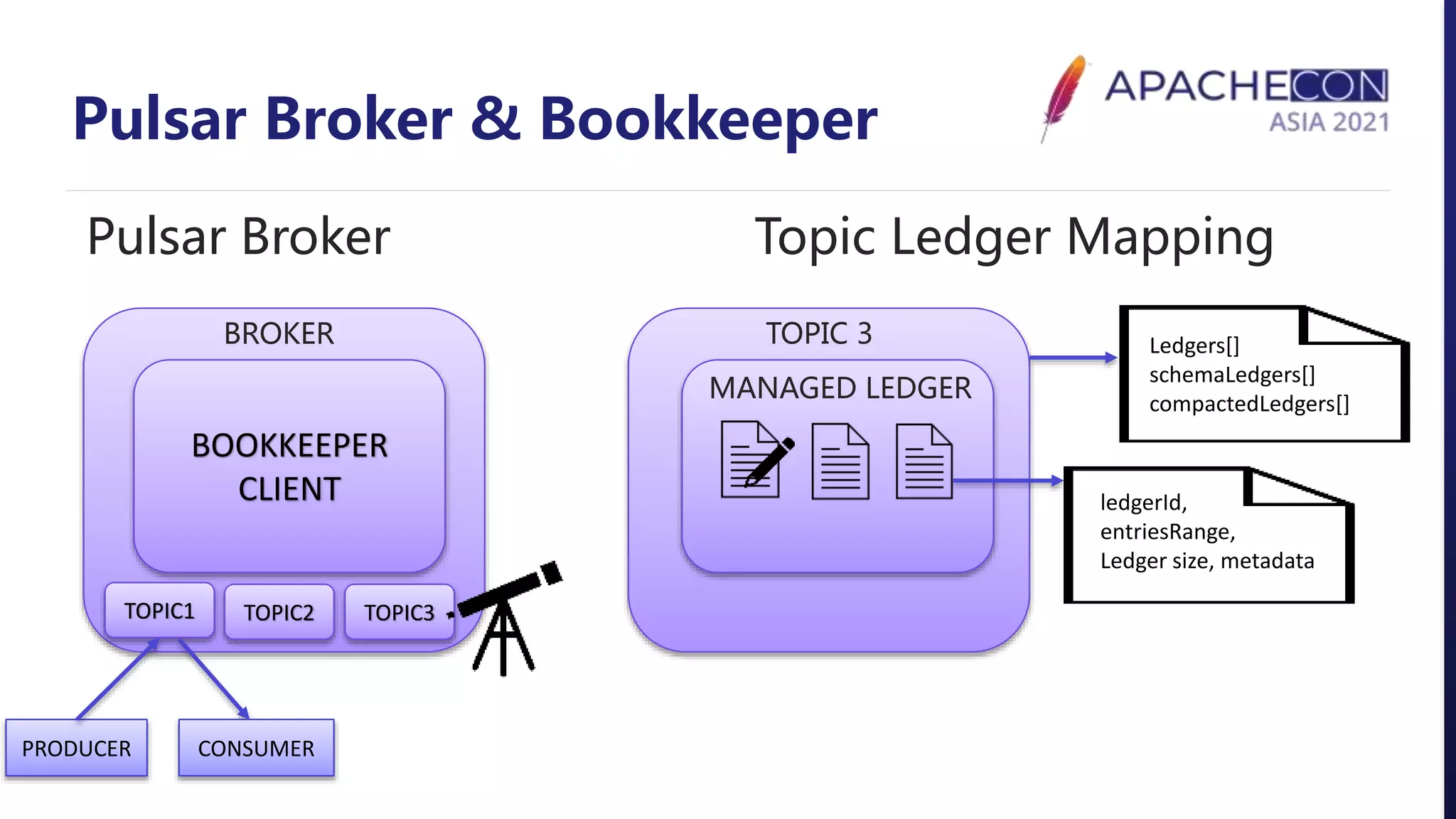

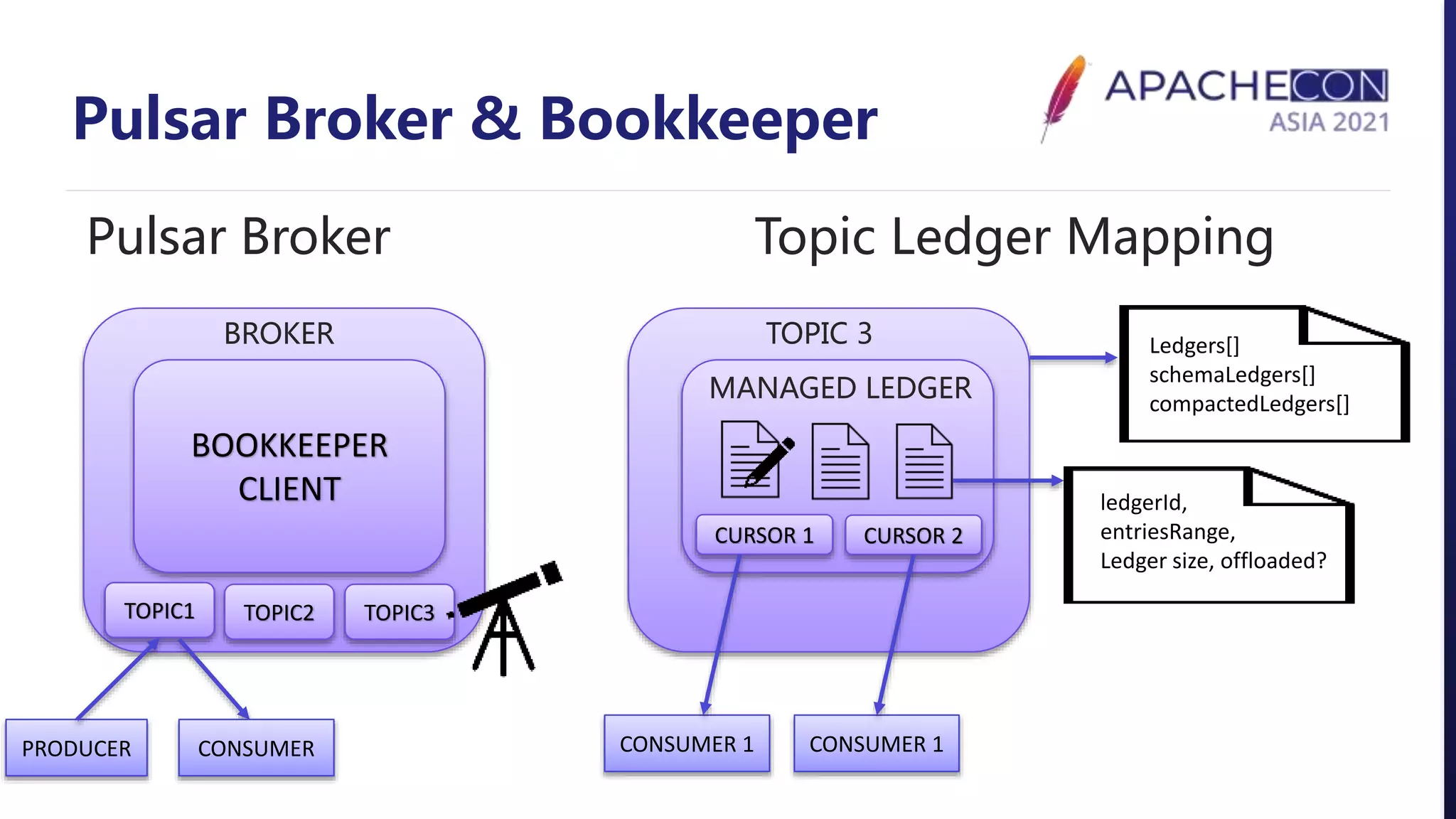

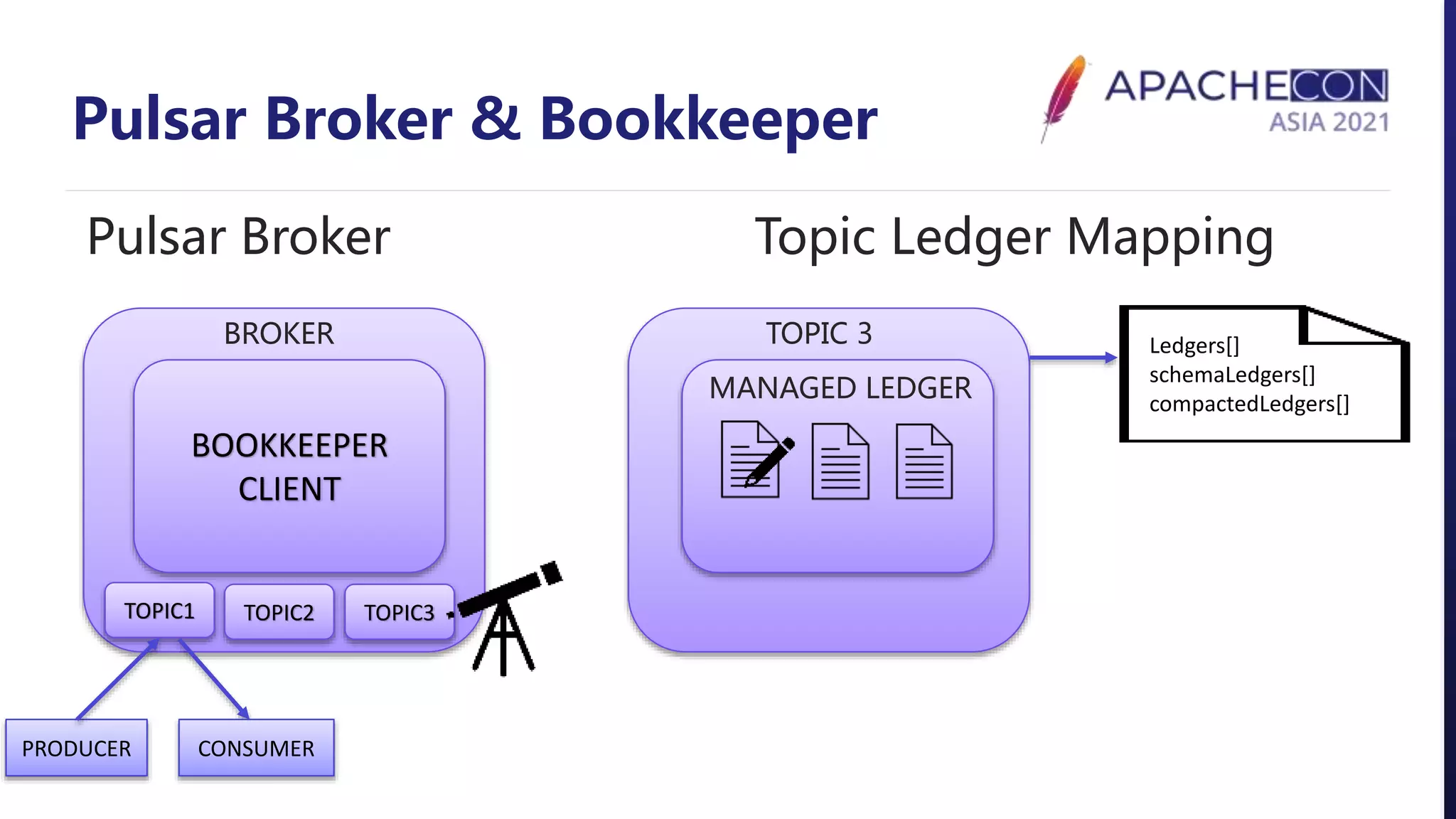

Pulsar Broker Topic Ledger Mapping
BROKER
TOPIC 3
MANAGED LEDGER
PRODUCER CONSUMER

BOOKKEEPER
CLIENT
BROKER
TOPIC 3
MANAGED LEDGER
PRODUCER CONSUMER
Ledgers[]
schemaLedgers[]
compactedLedgers[]

BOOKKEEPER
CLIENT
BROKER
TOPIC 3
MANAGED LEDGER
PRODUCER CONSUMER
Ledgers[]
schemaLedgers[]
compactedLedgers[]
ledgerId,
entriesRange,
Ledger size, metadata

BOOKKEEPER
CLIENT
BROKER
TOPIC 3
MANAGED LEDGER
PRODUCER CONSUMER
Ledgers[]
schemaLedgers[]
compactedLedgers[]
ledgerId,
entriesRange,
Ledger size, offloaded?
CURSOR 1 CURSOR 2
CONSUMER 1 CONSUMER 1

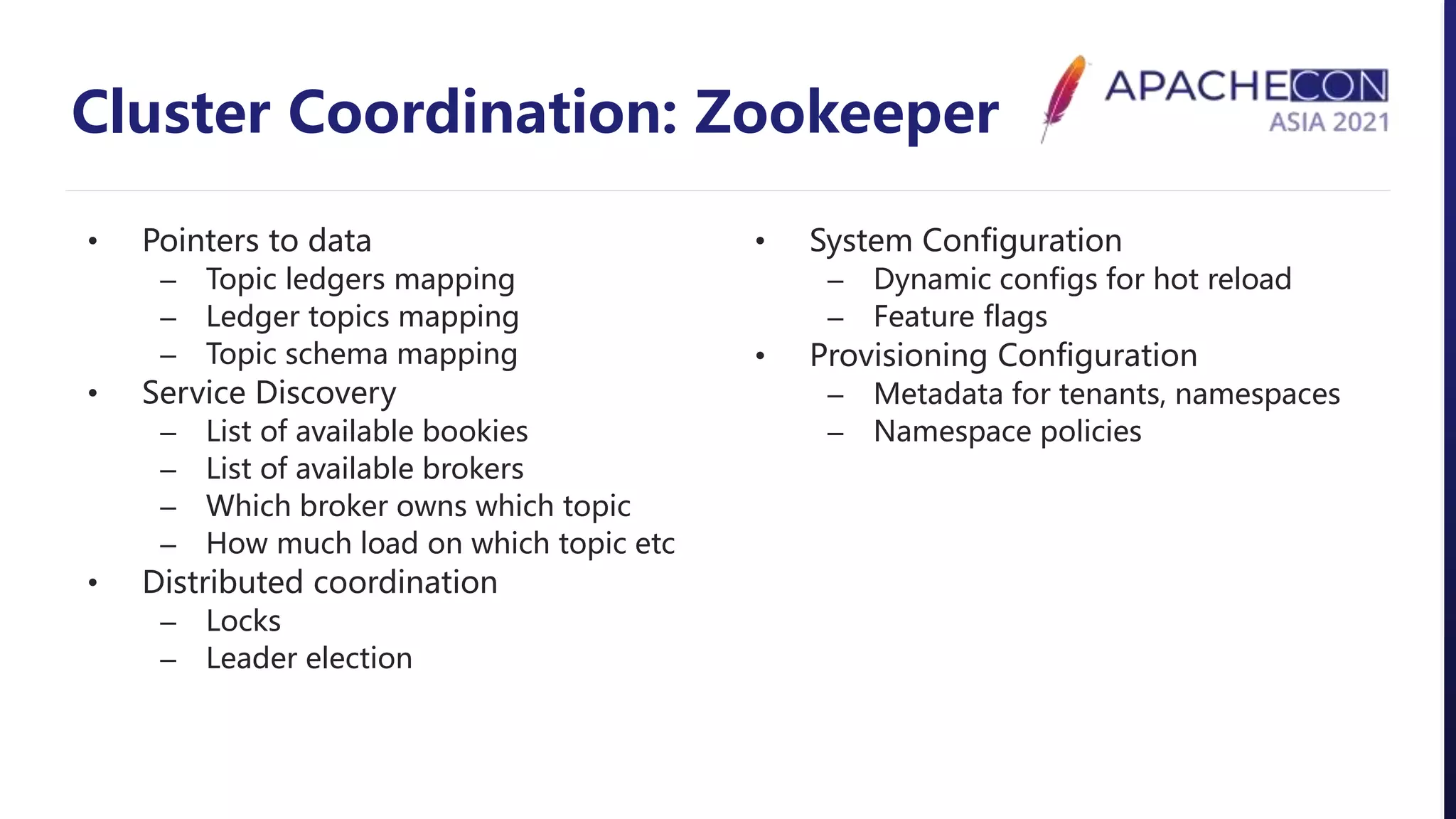

Cluster Coordination: Zookeeper
• Pointers to data
– Topic ledgers mapping
– Ledger topics mapping
– Topic schema mapping
• Service Discovery
– List of available bookies
– List of available brokers
– Which broker owns which topic
– How much load on which topic etc
• Distributed coordination
– Locks
– Leader election
• System Configuration
– Dynamic configs for hot reload
– Feature flags
• Provisioning Configuration
– Metadata for tenants, namespaces
– Namespace policies

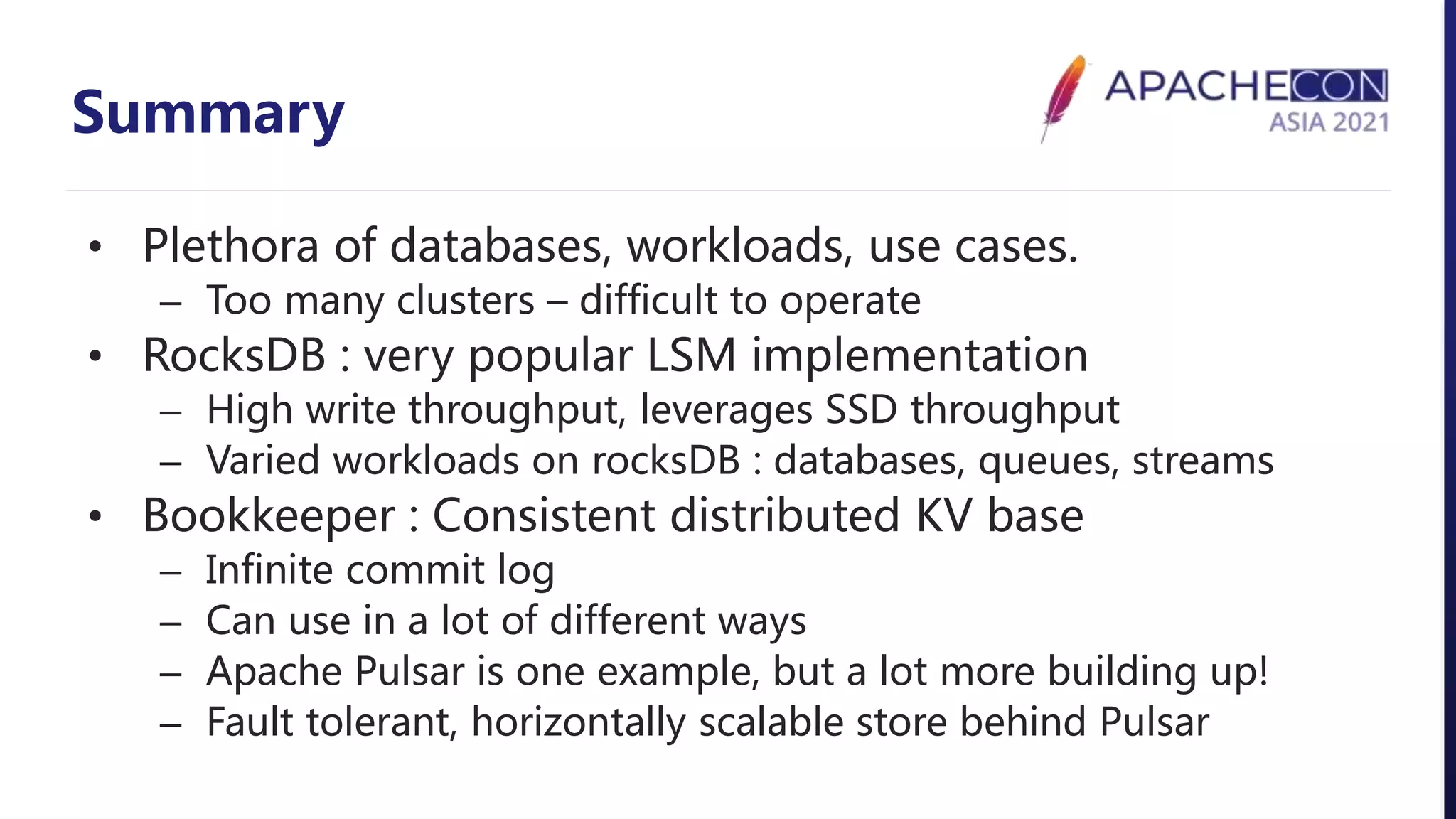

Summary
• Plethora of databases, workloads, use cases.
– Too many clusters – difficult to operate
• RocksDB : very popular LSM implementation
– High write throughput, leverages SSD throughput
– Varied workloads on rocksDB : databases, queues, streams
• Bookkeeper : Consistent distributed KV base
– Infinite commit log
– Can use in a lot of different ways
– Apache Pulsar is one example, but a lot more building up!
– Fault tolerant, horizontally scalable store behind Pulsar

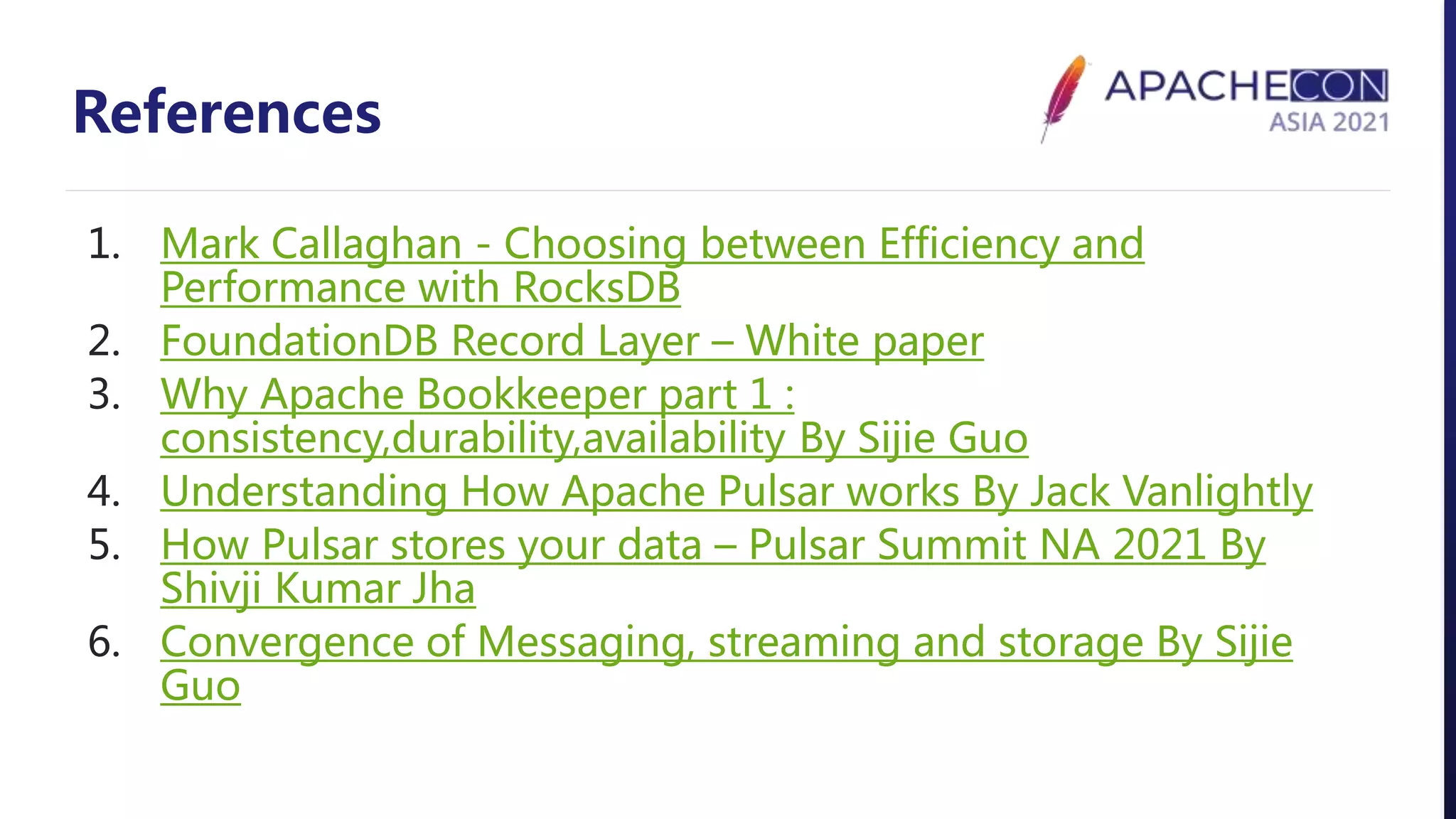

References
1. Mark Callaghan - Choosing between Efficiency and
Performance with RocksDB
2. FoundationDB Record Layer – White paper
3. Why Apache Bookkeeper part 1 :
consistency,durability,availability By Sijie Guo
4. Understanding How Apache Pulsar works By Jack Vanlightly
5. How Pulsar stores your data – Pulsar Summit NA 2021 By
Shivji Kumar Jha
6. Convergence of Messaging, streaming and storage By Sijie
Guo

THANK YOU
QUESTIONS?
@ShivjiJha
shiv4289
in/shivjijha/
ShivjiKumarJha
