Guaranteeing Memory Safety in Rust

Rust
Nicholas Matsakis
Mozilla Research

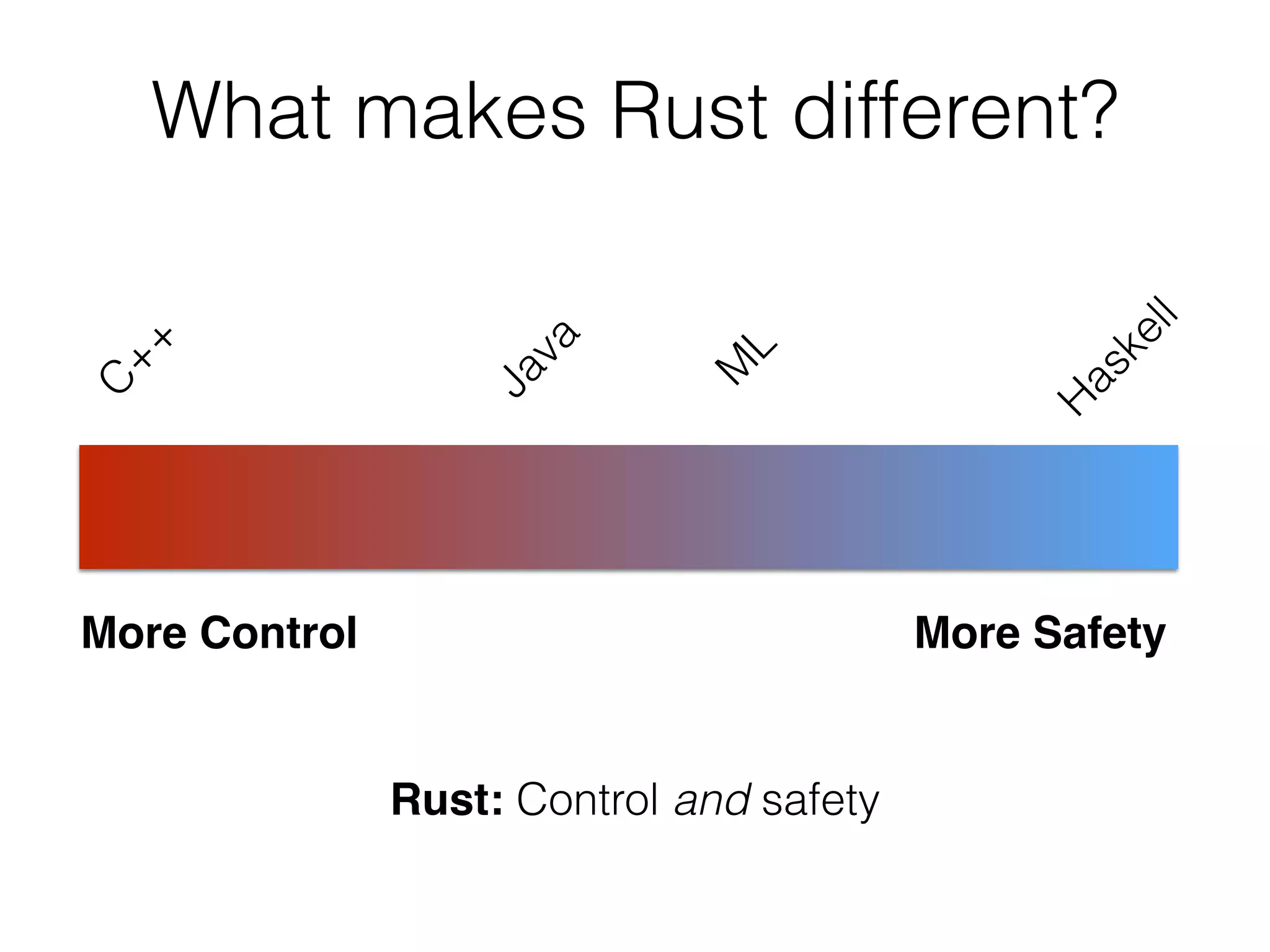

What makes Rust different?
C++
Haskell
Java
ML
More Control More Safety
Rust: Control and safety

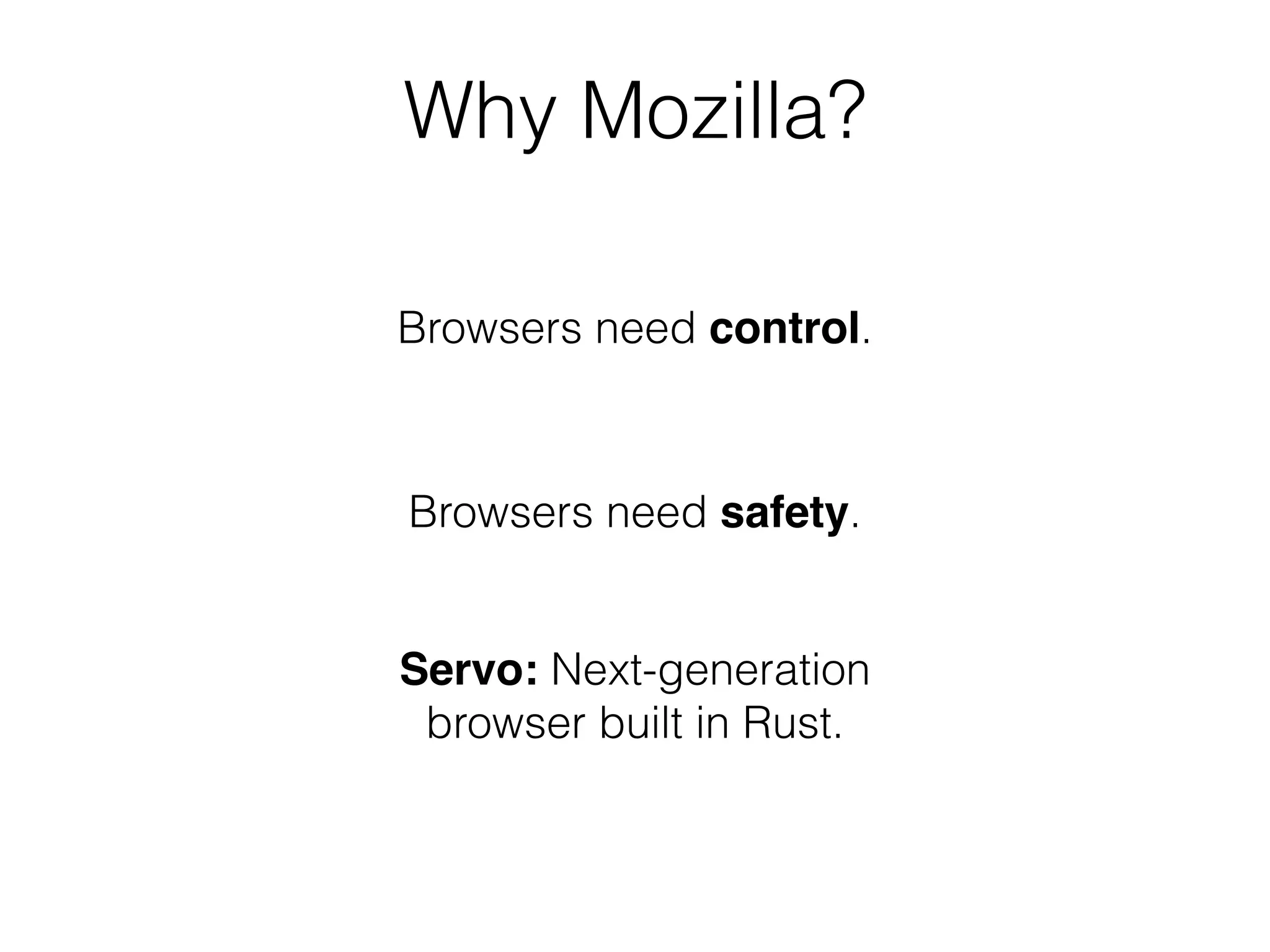

Why Mozilla?
Browsers need control.
Browsers need safety.
Servo: Next-generation
browser built in Rust.

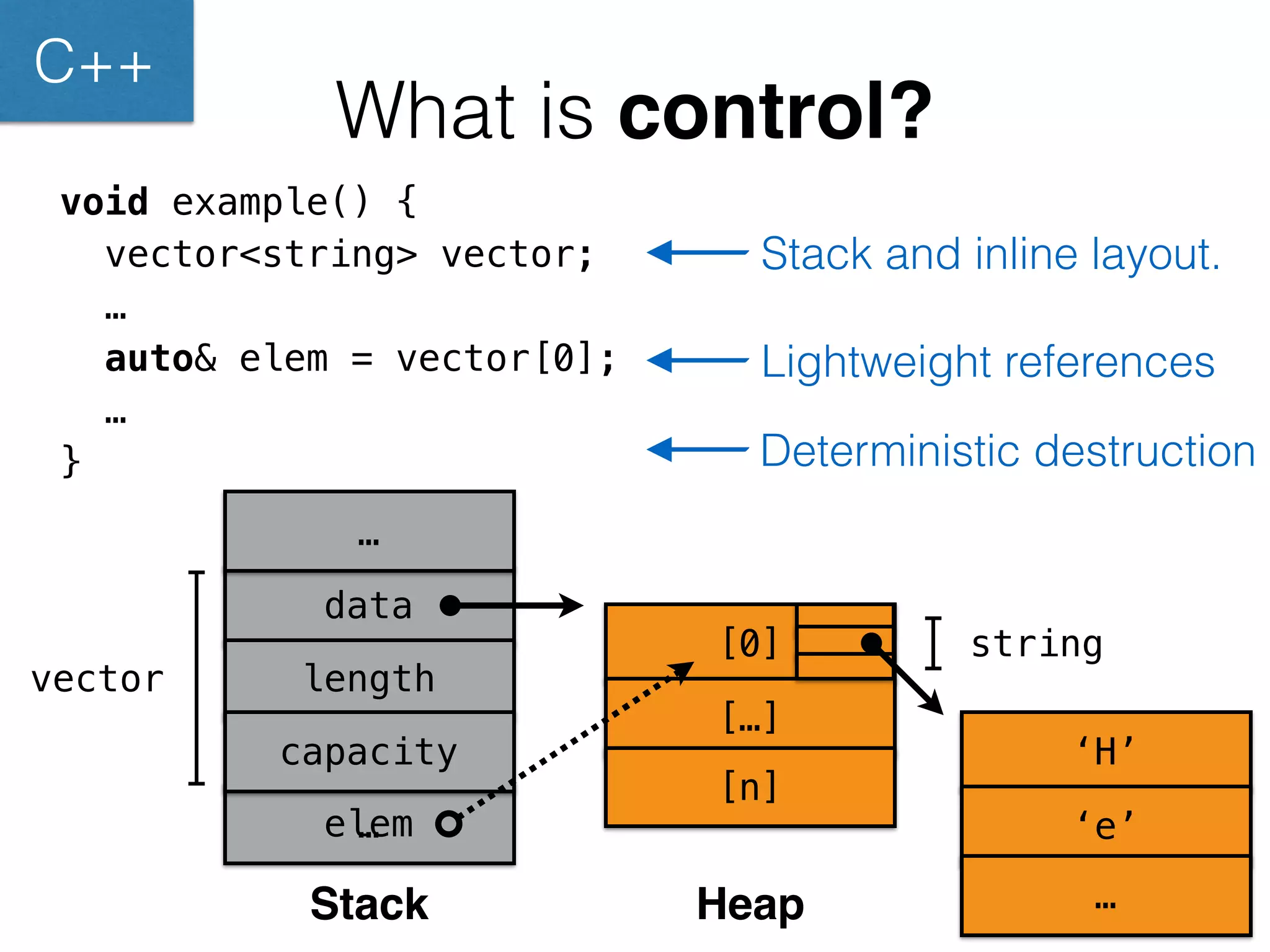

What is control?
void example() {
vector<string> vector;
…
auto& elem = vector[0];
…
}
Stack and inline layout.
Lightweight references
Deterministic destruction
[0]
string
el…em
vector
data
length
capacity
[…]
[n]
…
‘H’
‘e’
…
Stack Heap
C++

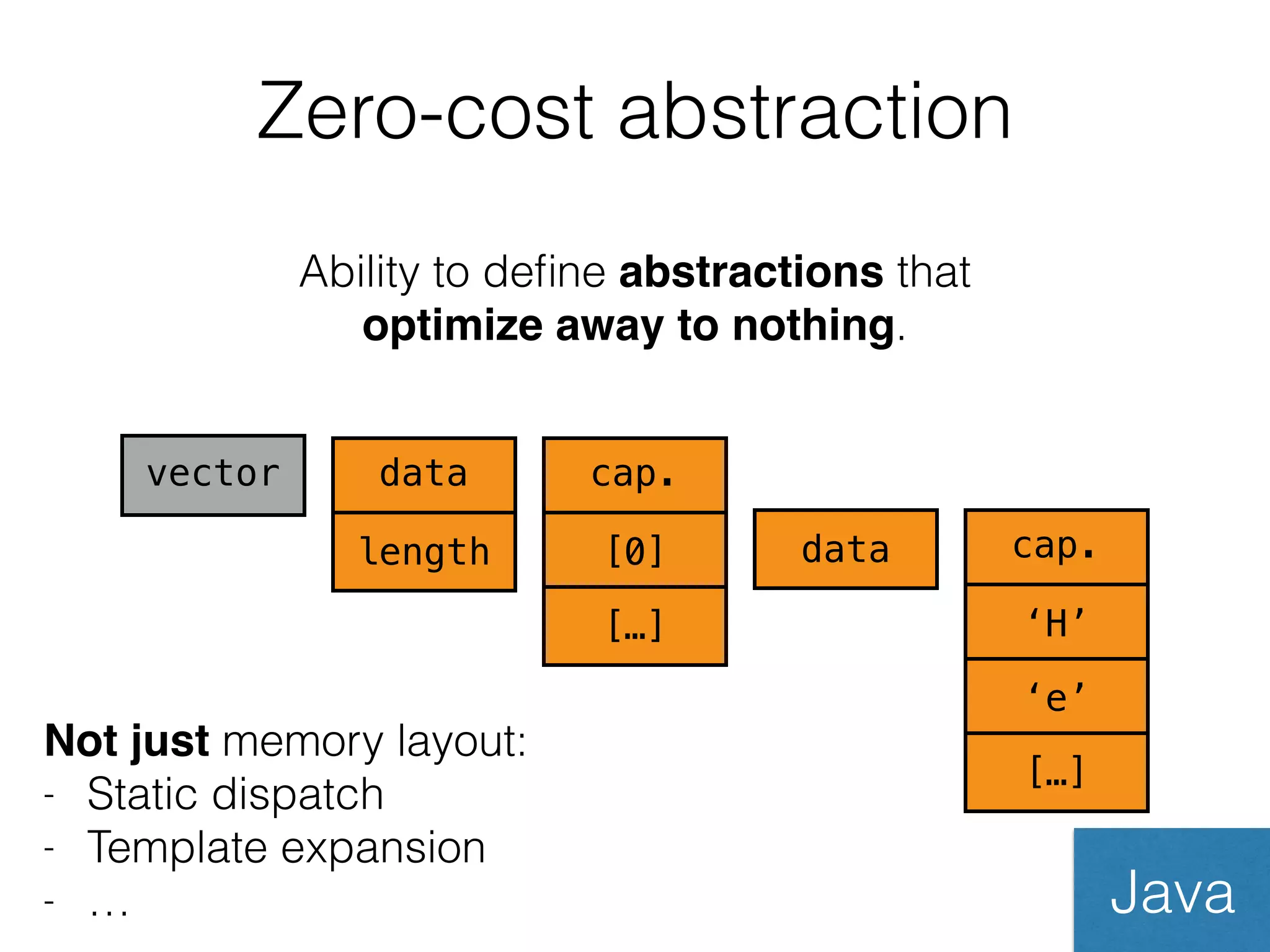

Zero-cost abstraction
Ability to define abstractions that
optimize away to nothing.
vector data
length
cap.
[0]
[…]
data cap.
‘H’
‘e’
[…]
Not just memory layout:
- Static dispatch
- Template expansion
- … Java

What is safety?
void example() {
vector<string> vector;
…
auto& elem = vector[0];
vector.push_back(some_string);
cout << elem;
}
vector
data
length
capacity
[0]
…
[0]
[1]
elem
Aliasing: more than
one pointer to same
memory.
Dangling pointer: pointer
to freed memory.
C++
Mutating the vector
freed old contents.

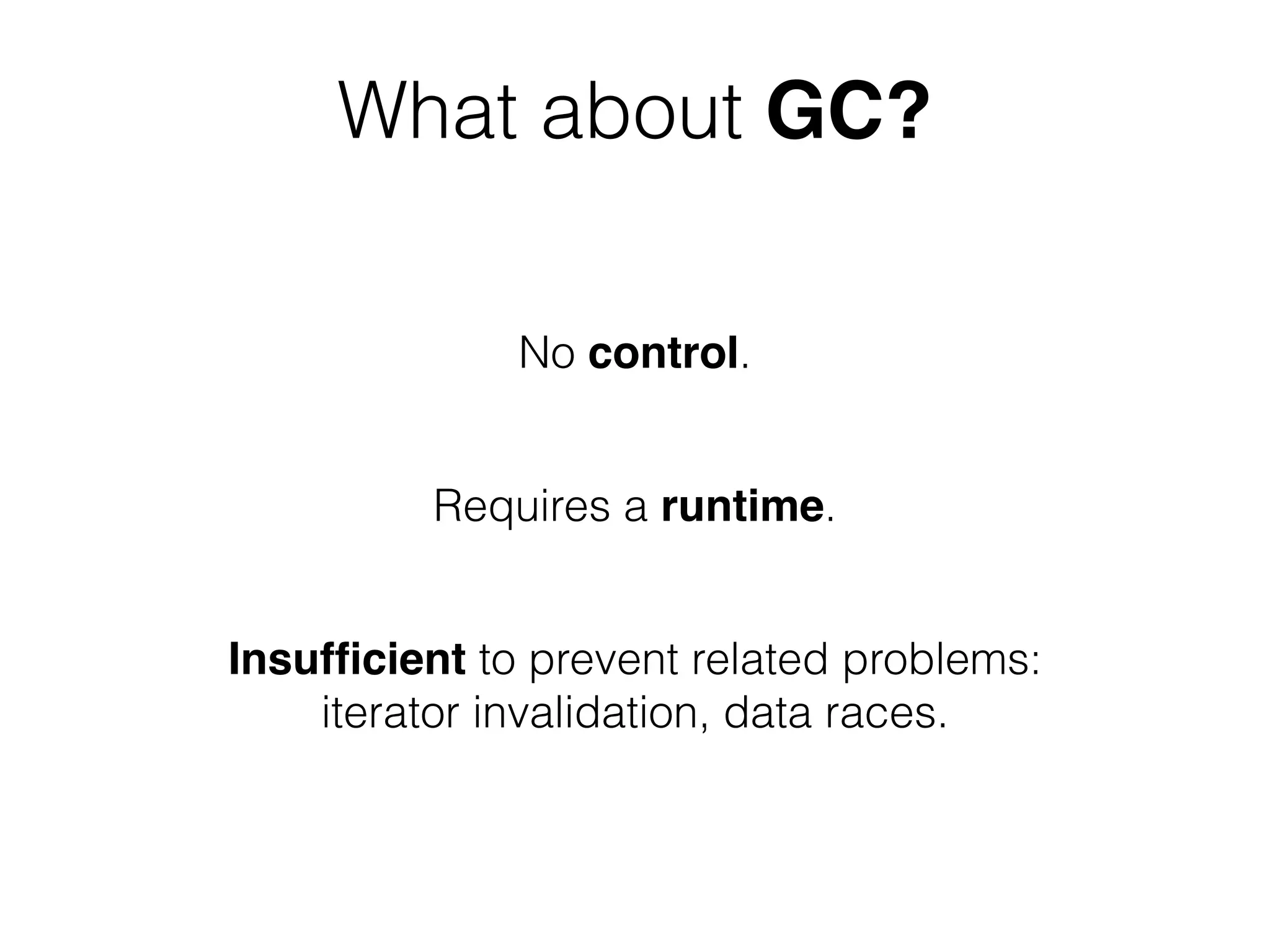

What about GC?
No control.
Requires a runtime.
Insufficient to prevent related problems:
iterator invalidation, data races.

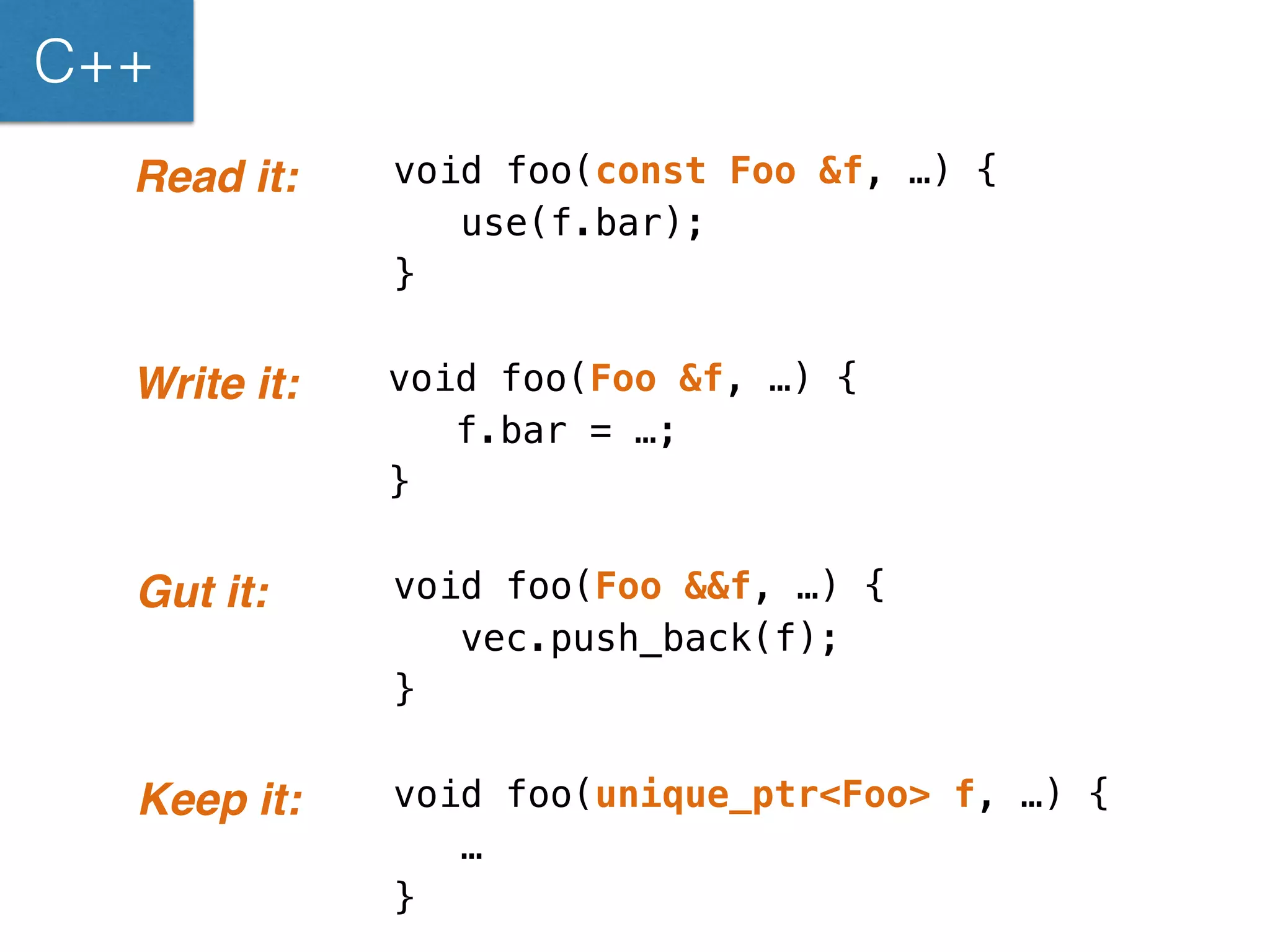

void foo(Foo &&f, …) {
vec.push_back(f);
}
C++
Gut it:
void foo(const Foo &f, …) {
use(f.bar);
}
Read it:
void foo(Foo &f, …) {
f.bar = …;
}
Write it:
void foo(unique_ptr<Foo> f, …) {
…
}
Keep it:

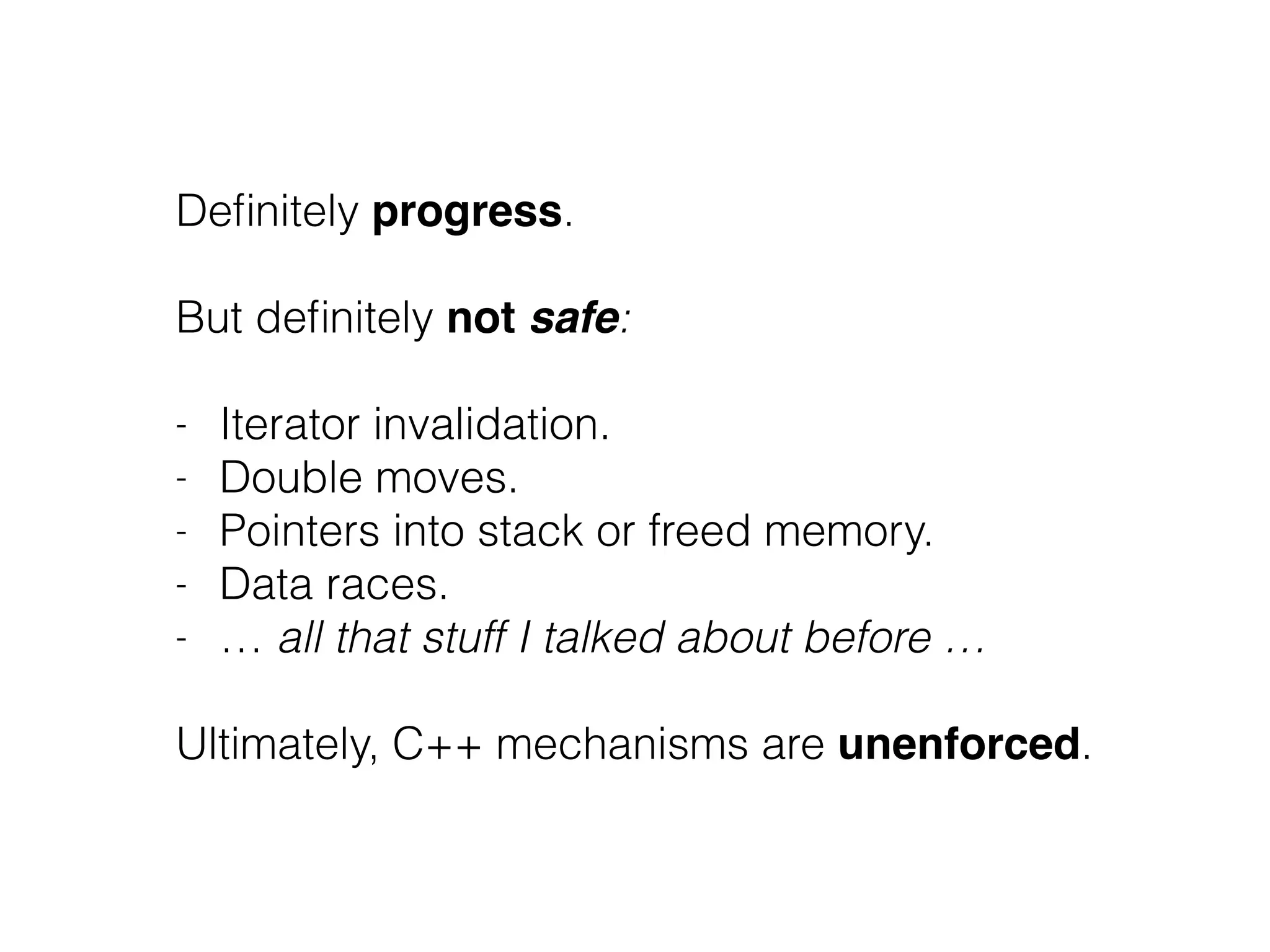

Definitely progress.
!
But definitely not safe:
!
- Iterator invalidation.
- Double moves.
- Pointers into stack or freed memory.
- Data races.
- … all that stuff I talked about before …
!
Ultimately, C++ mechanisms are unenforced.

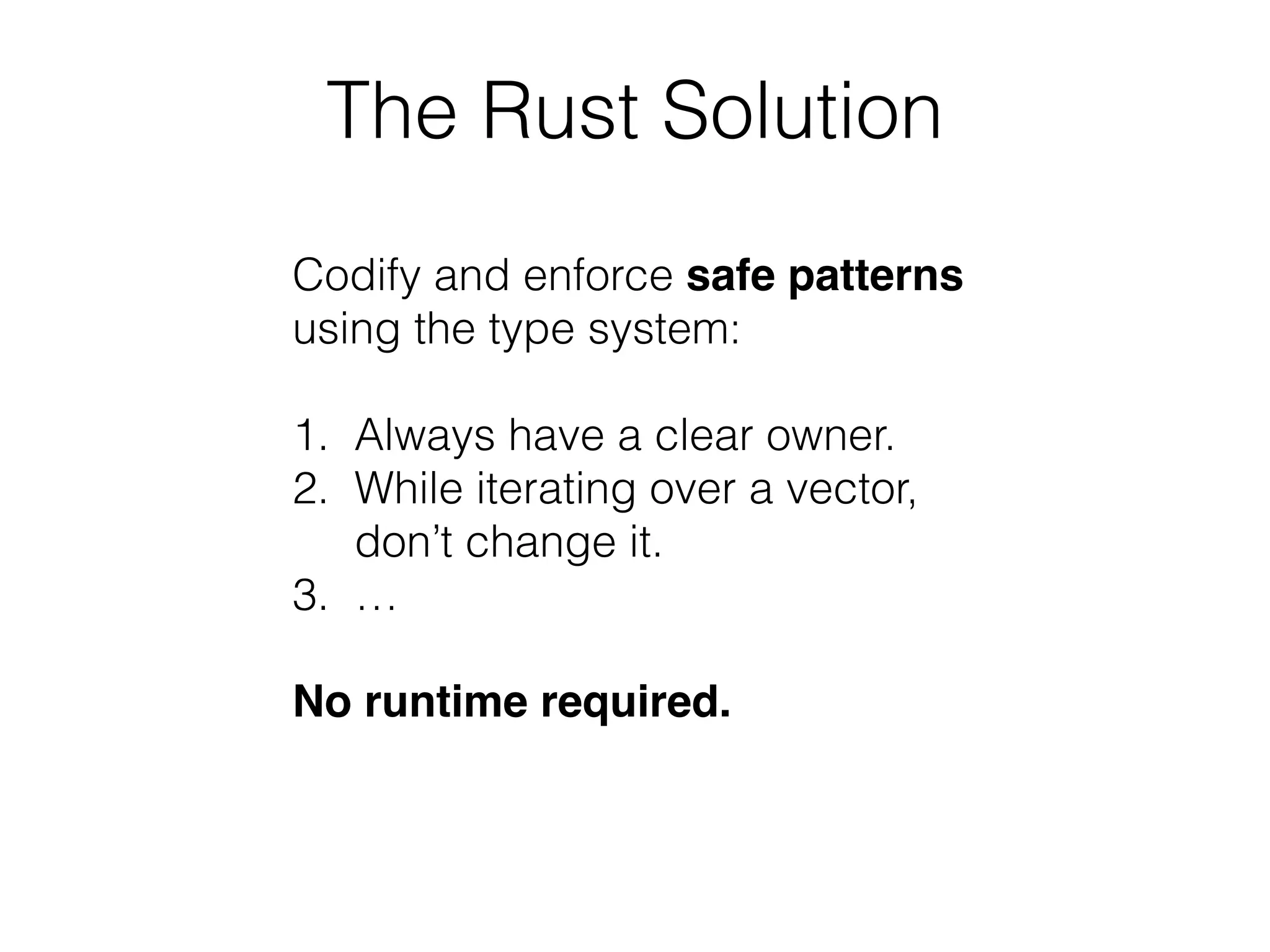

The Rust Solution
Codify and enforce safe patterns
using the type system:
!
1. Always have a clear owner.
2. While iterating over a vector,
don’t change it.
3. …
!
No runtime required.

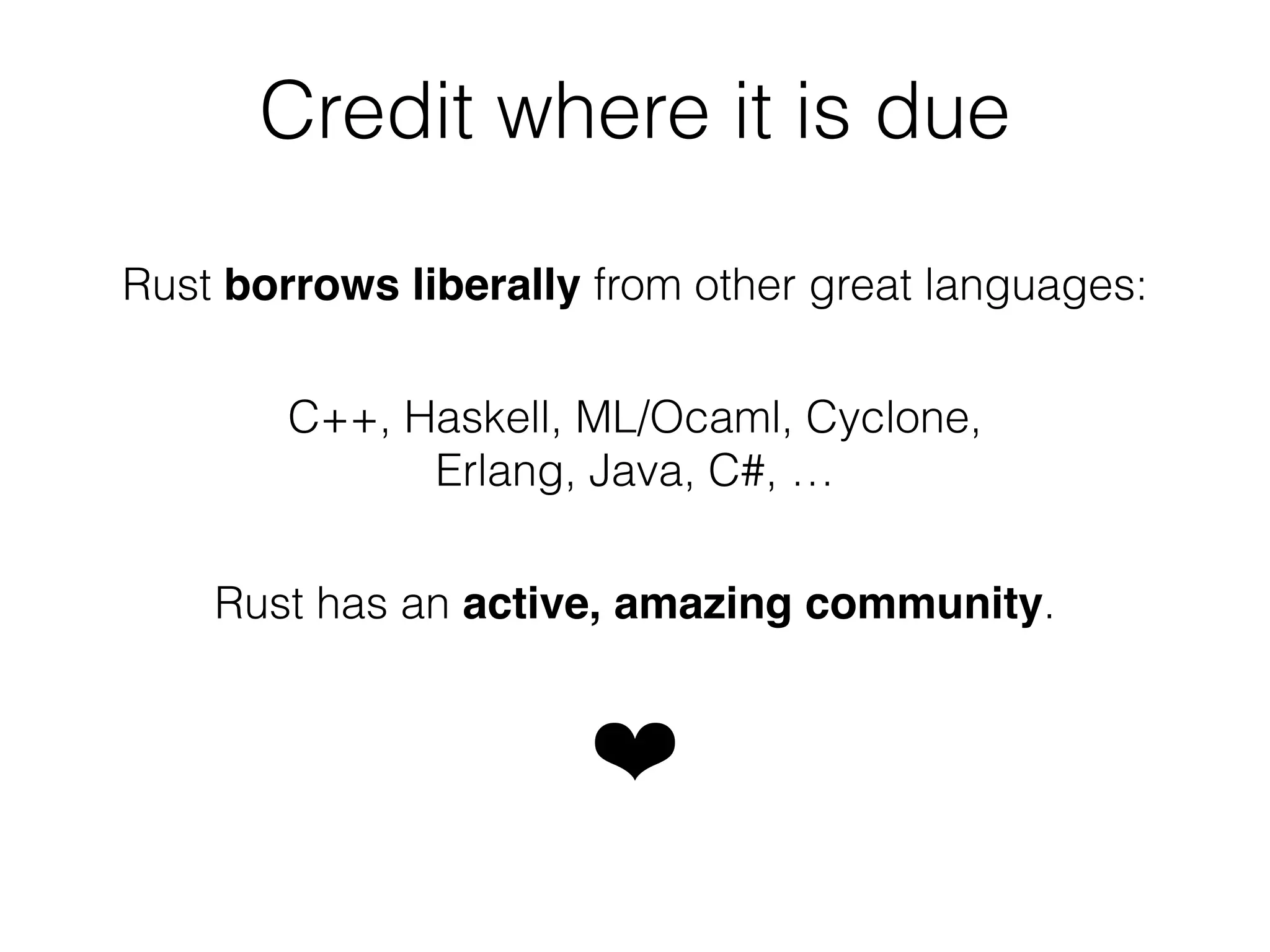

Credit where it is due
Rust borrows liberally from other great languages:
C++, Haskell, ML/Ocaml, Cyclone,
Erlang, Java, C#, …
Rust has an active, amazing community.
❤

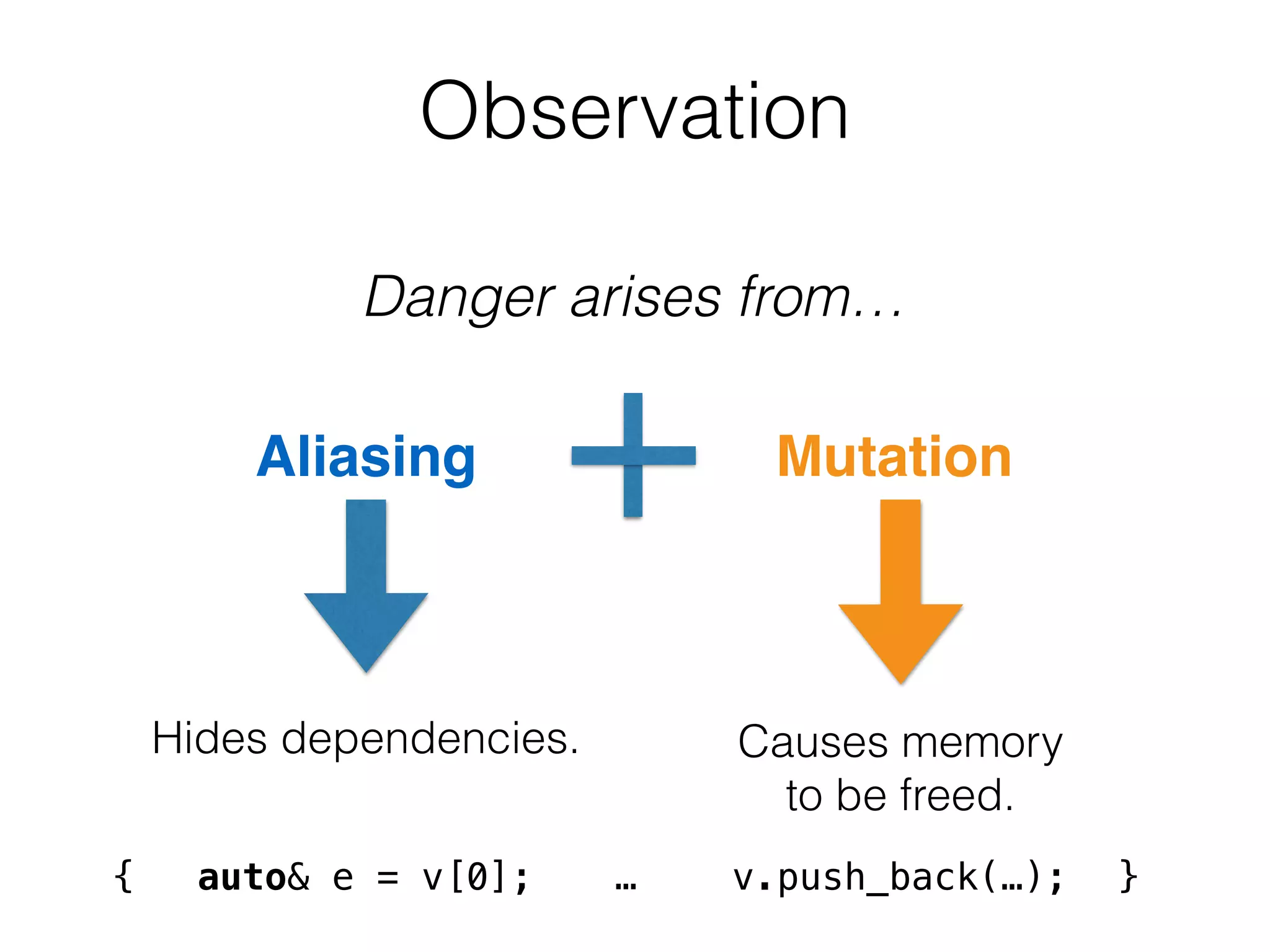

Observation
Danger arises from…
Aliasing Mutation
Hides dependencies. Causes memory
to be freed.
{ auto& e = v[0]; … v.push_back(…); }

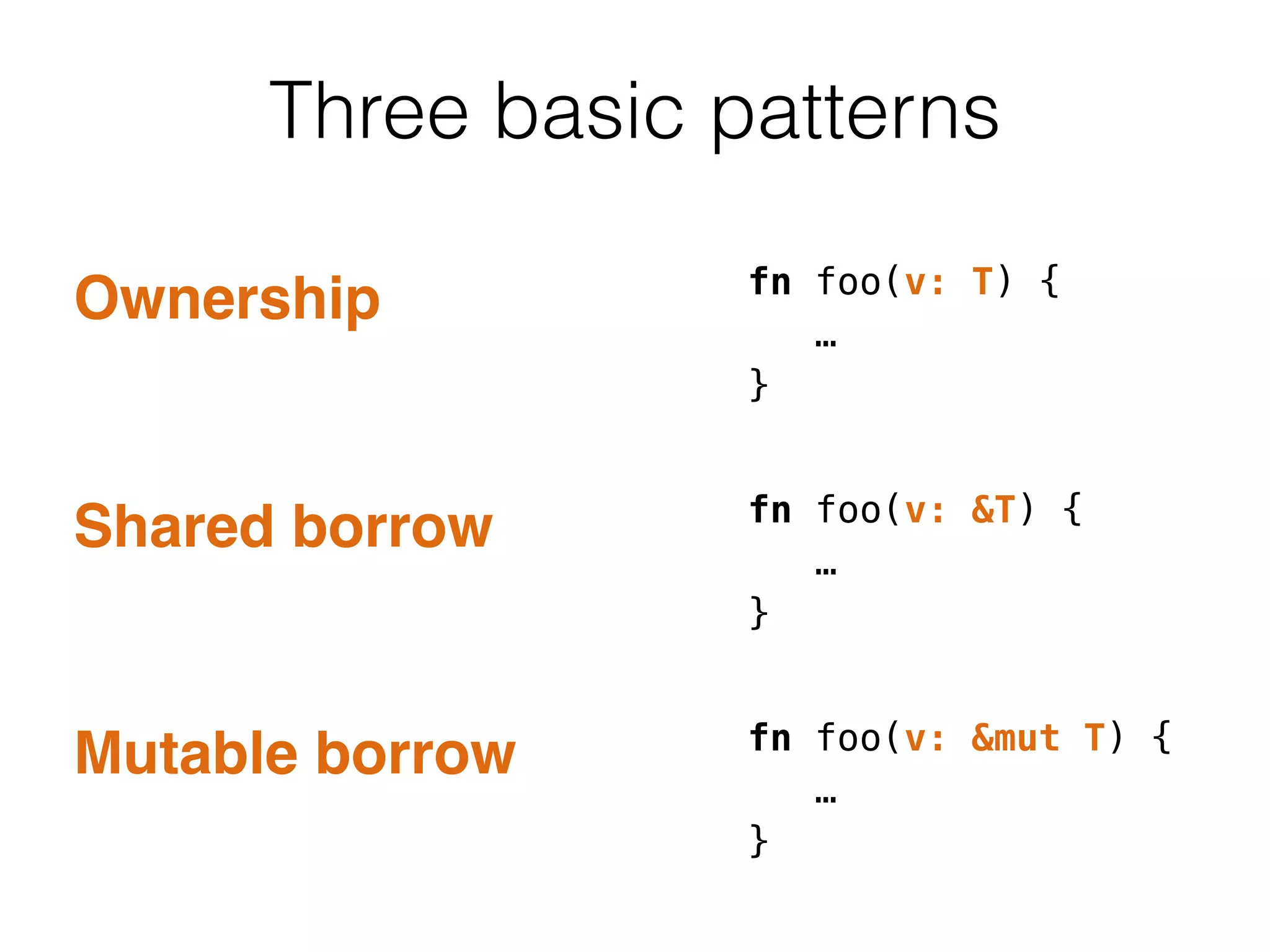

Three basic patterns
fn foo(v: T) {
…
}
Ownership
fn foo(v: &T) {
…
}
Shared borrow
fn foo(v: &mut T) {
…
}
Mutable borrow

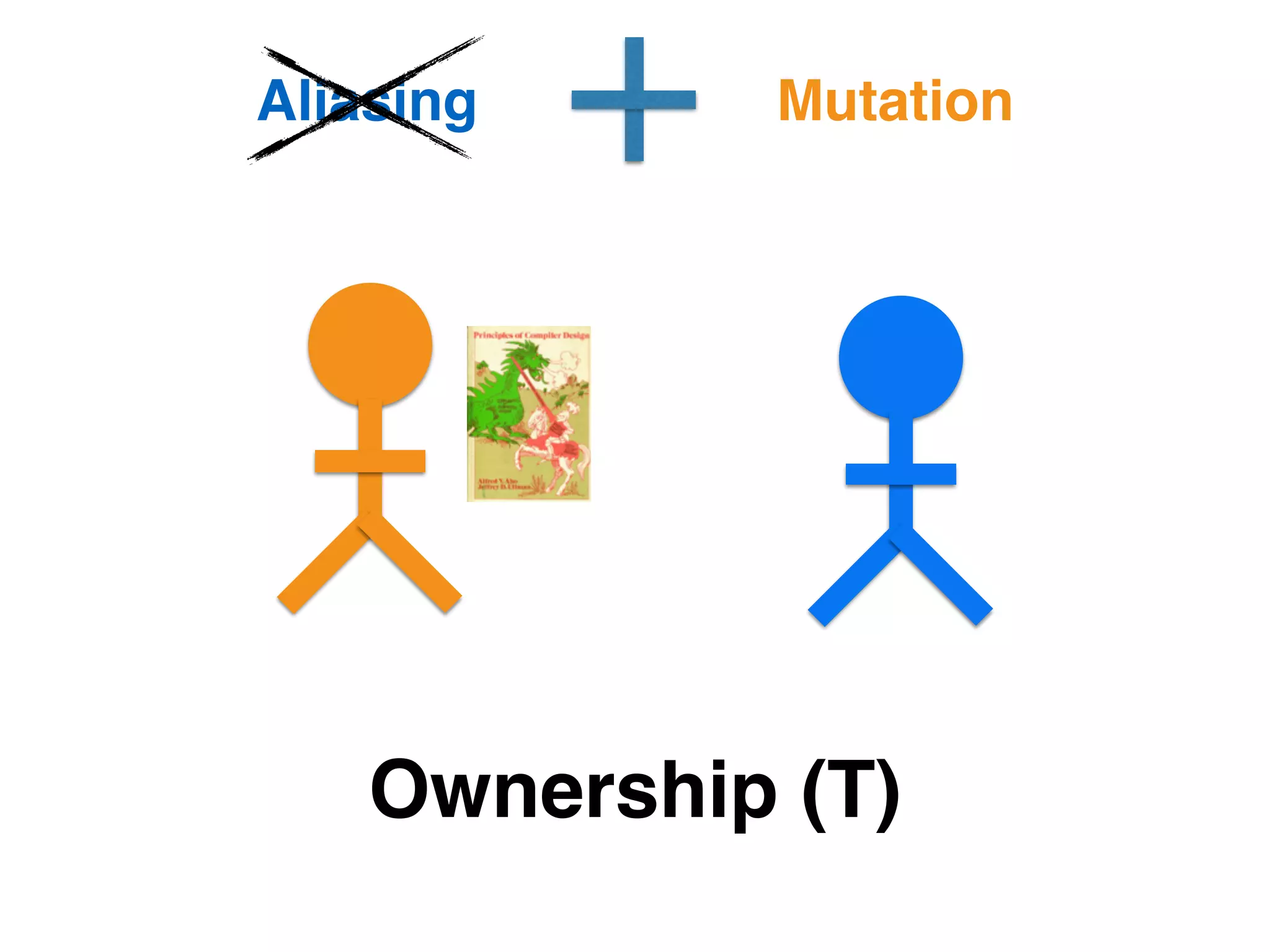

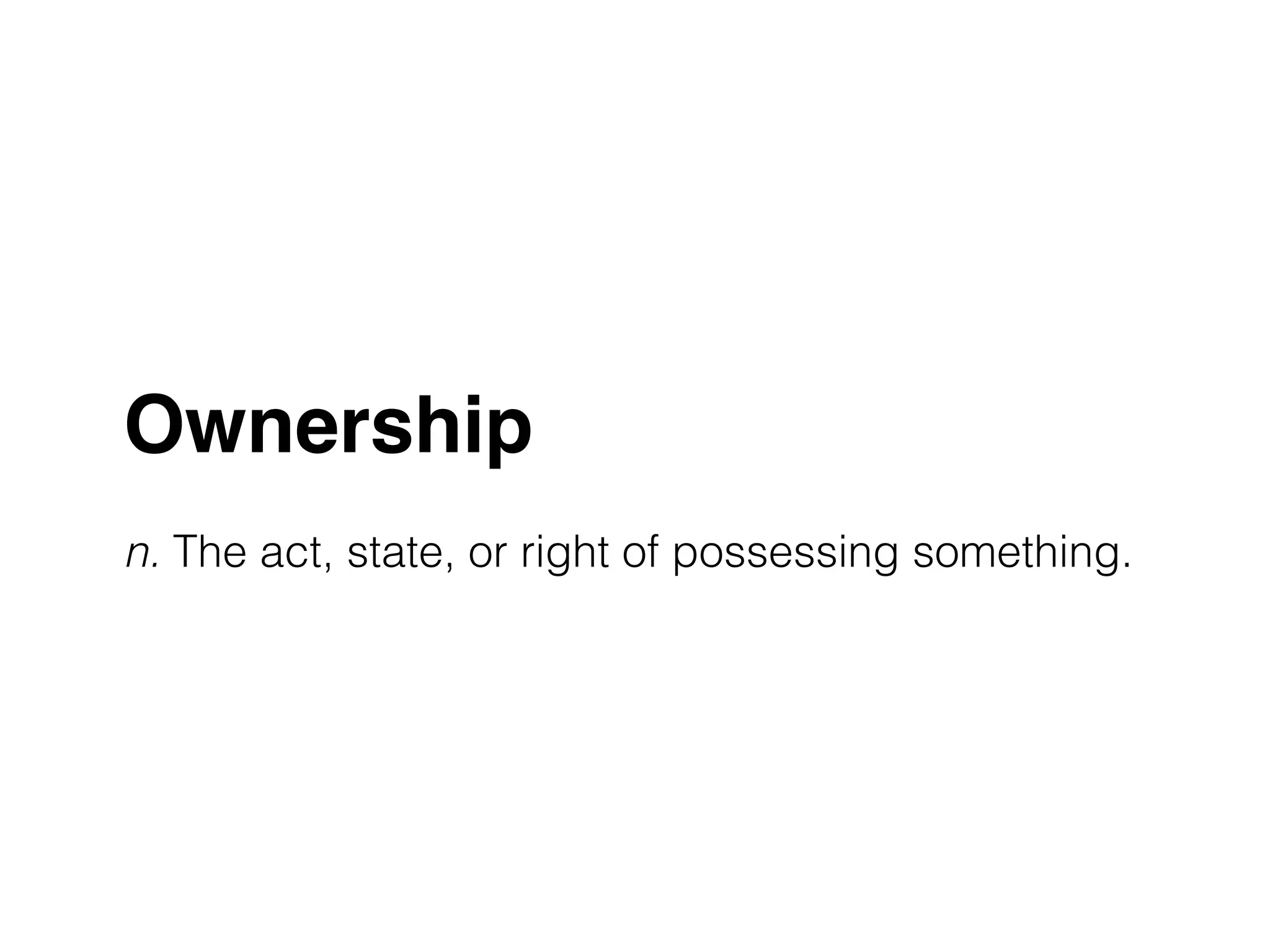

Ownership!
!
n. The act, state, or right of possessing something.

Aliasing Mutation
Ownership (T)

vec
data
length
capacity
1
2

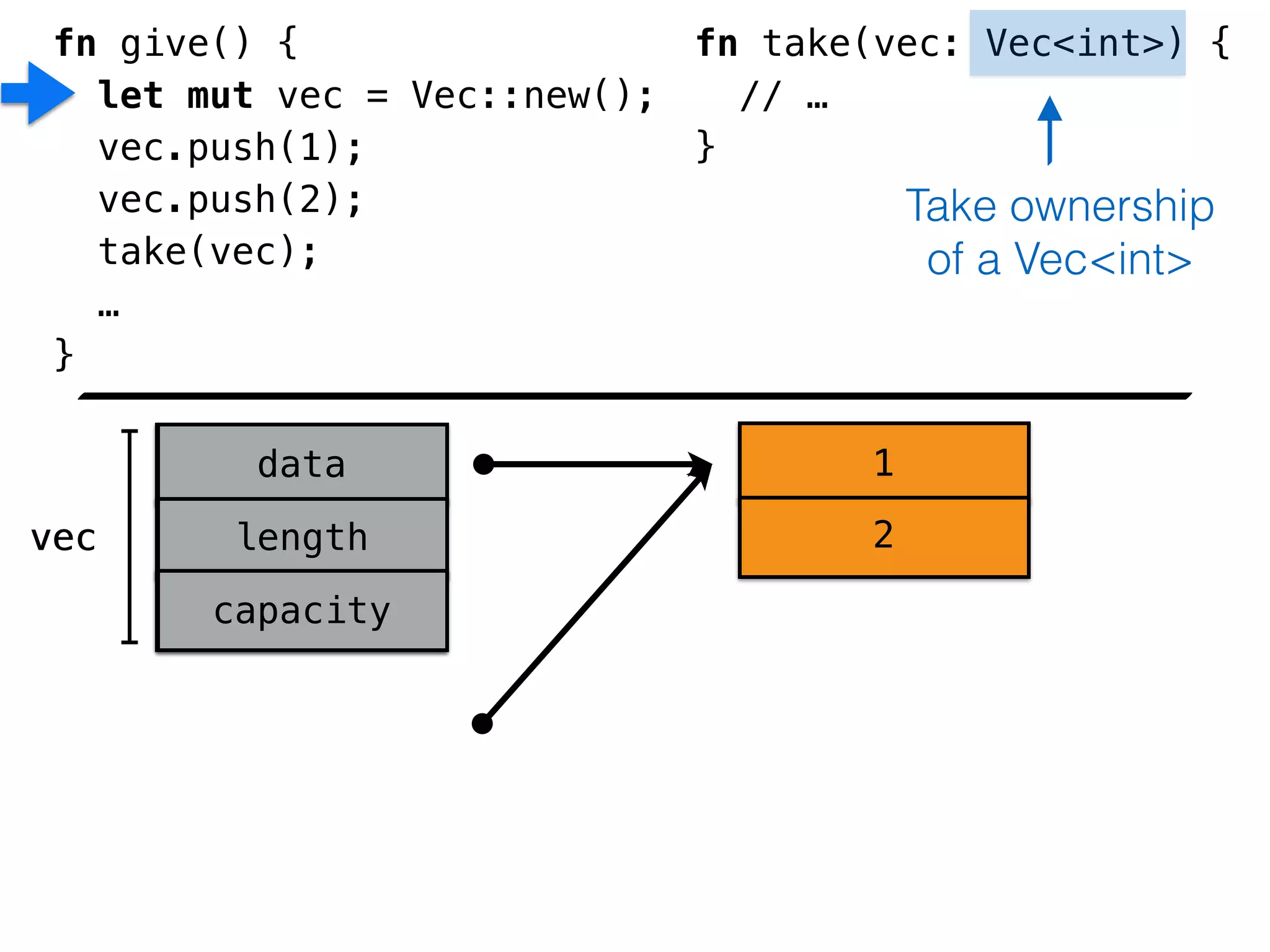

fn give() {
let mut vec = Vec::new();
vec.push(1);
vec.push(2);
take(vec);
…
}
fn take(vec: Vec<int>) {
// …
}
!
Take ownership
!
of a Vec<int>
!

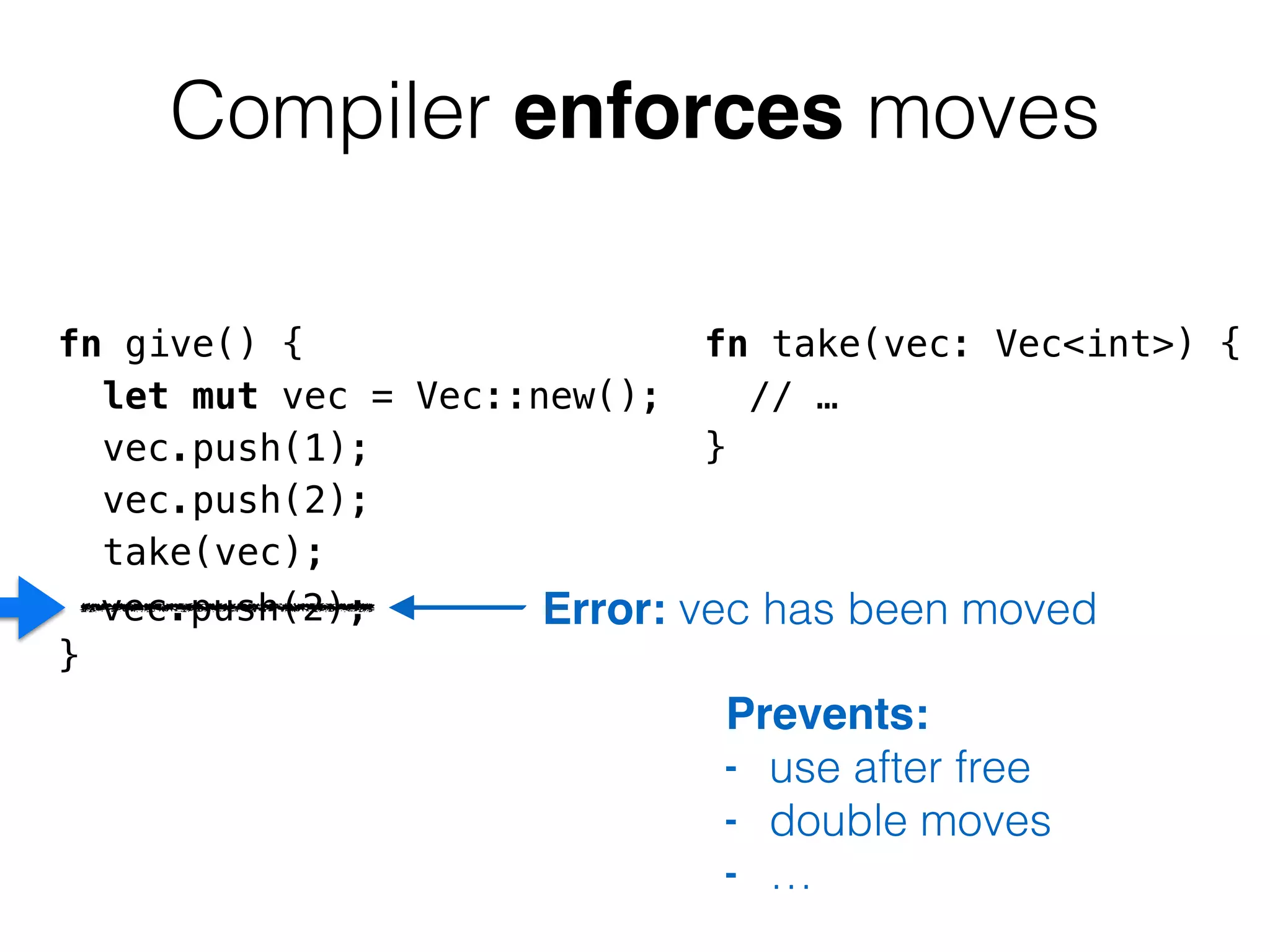

Compiler enforces moves
fn give() {
vec.push(1);
vec.push(2);
take(vec);
vec.…
push(2);
}
fn take(vec: Vec<int>) {
// …
}
!
!
Error: ve! c has been moved
Prevents:
- use after free
- double moves
- …

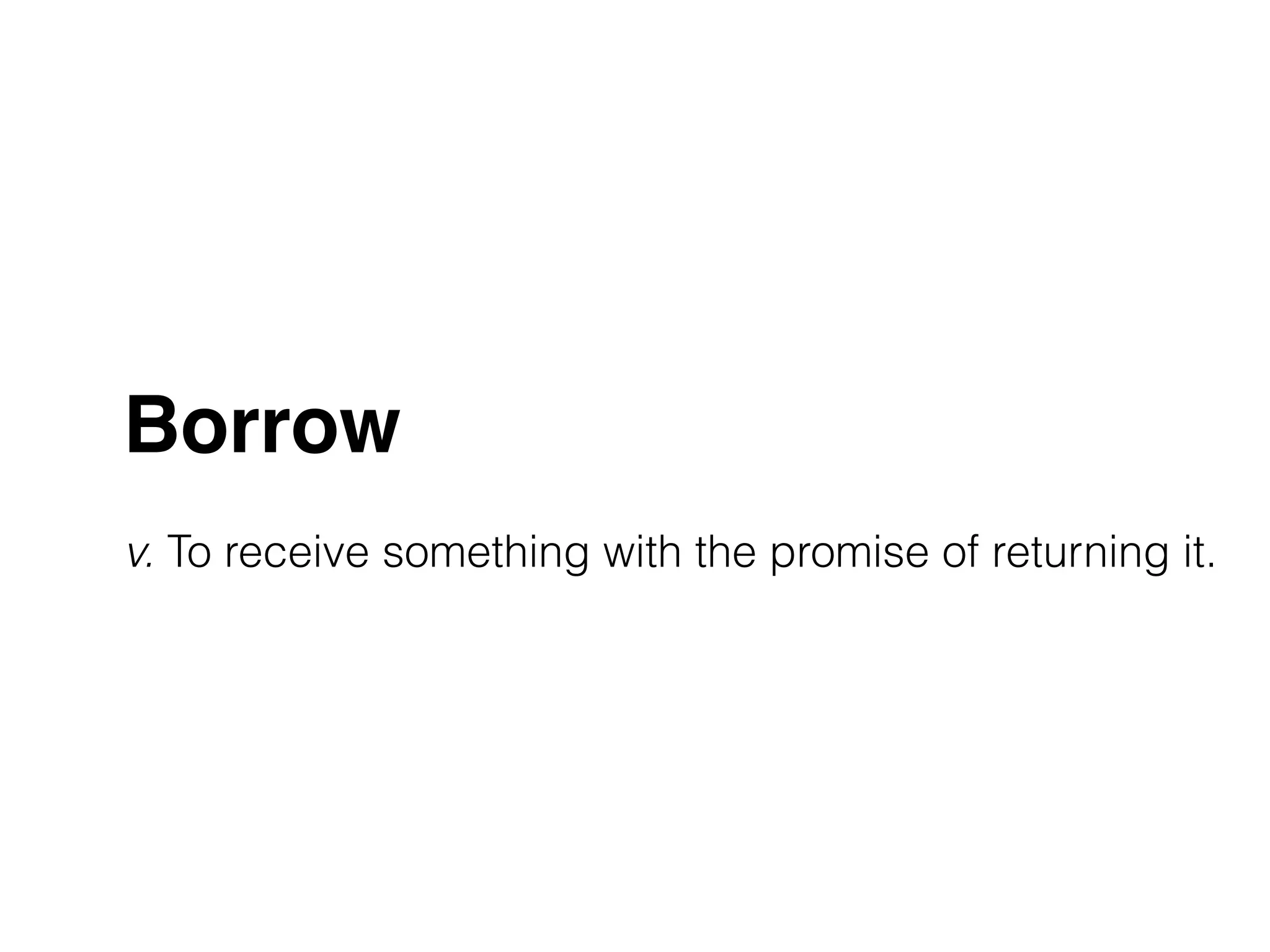

Borrow!
!
v. To receive something with the promise of returning it.

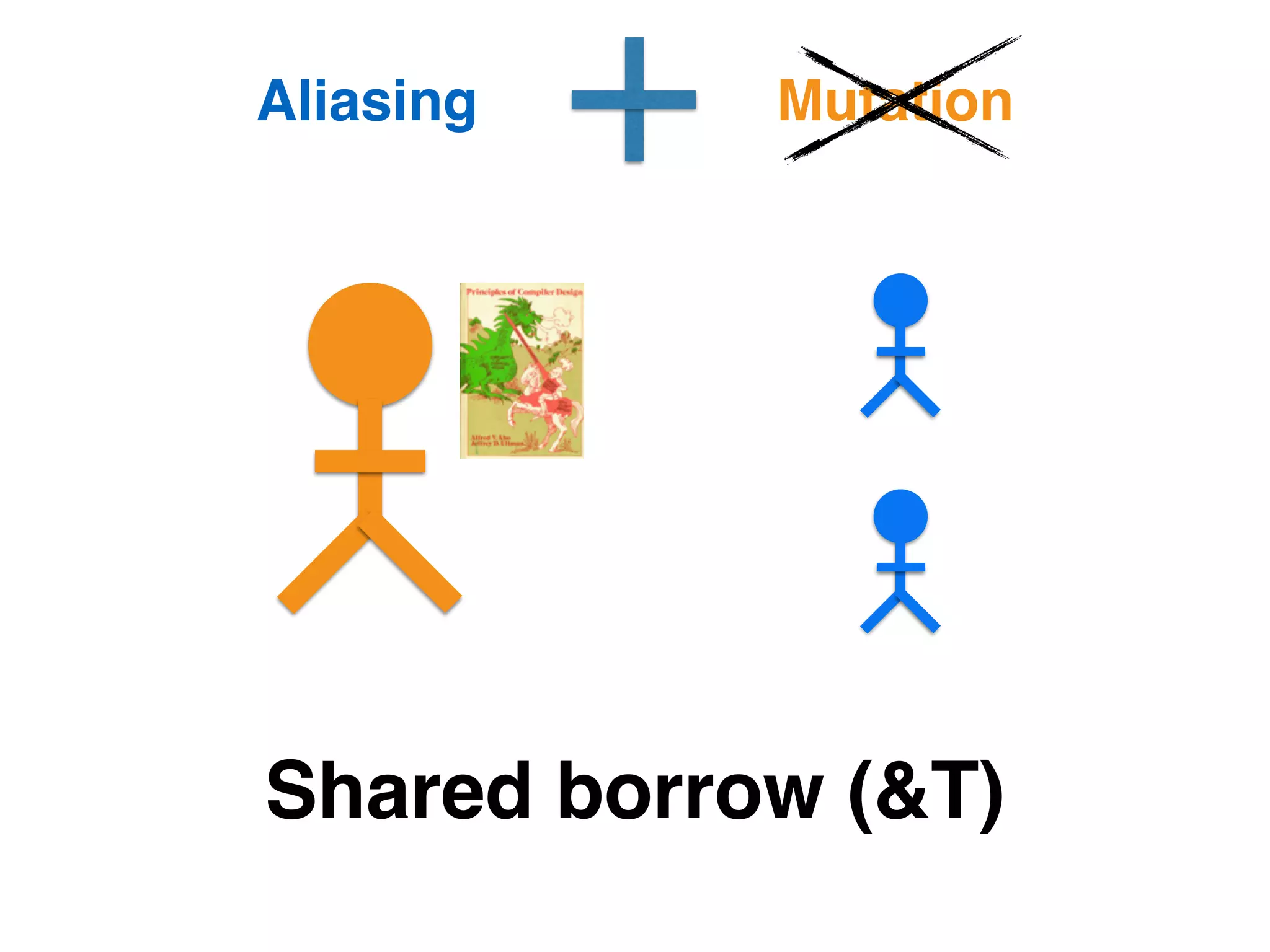

Aliasing Mutation
Shared borrow (&T)

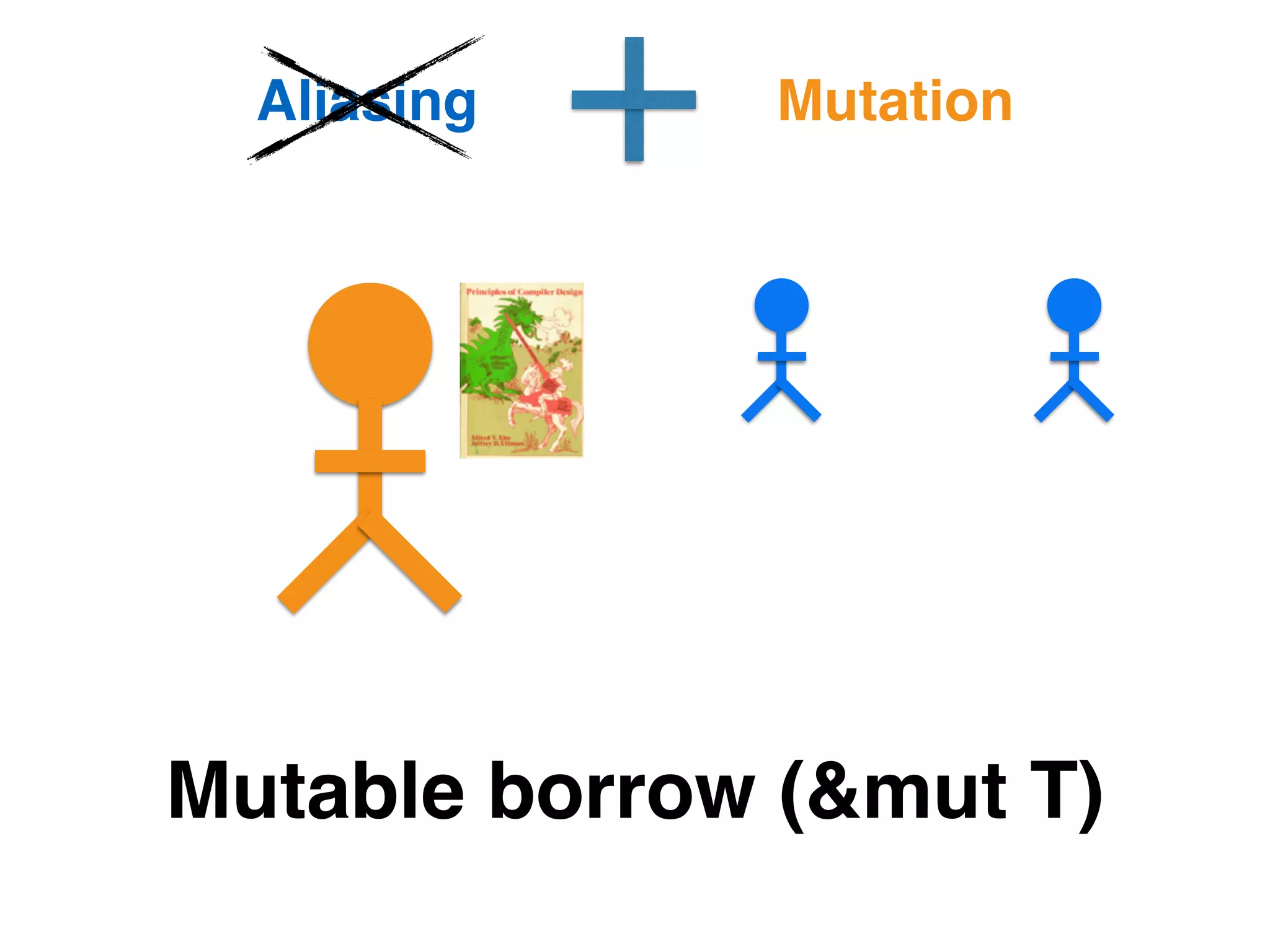

Aliasing Mutation
Mutable borrow (&mut T)

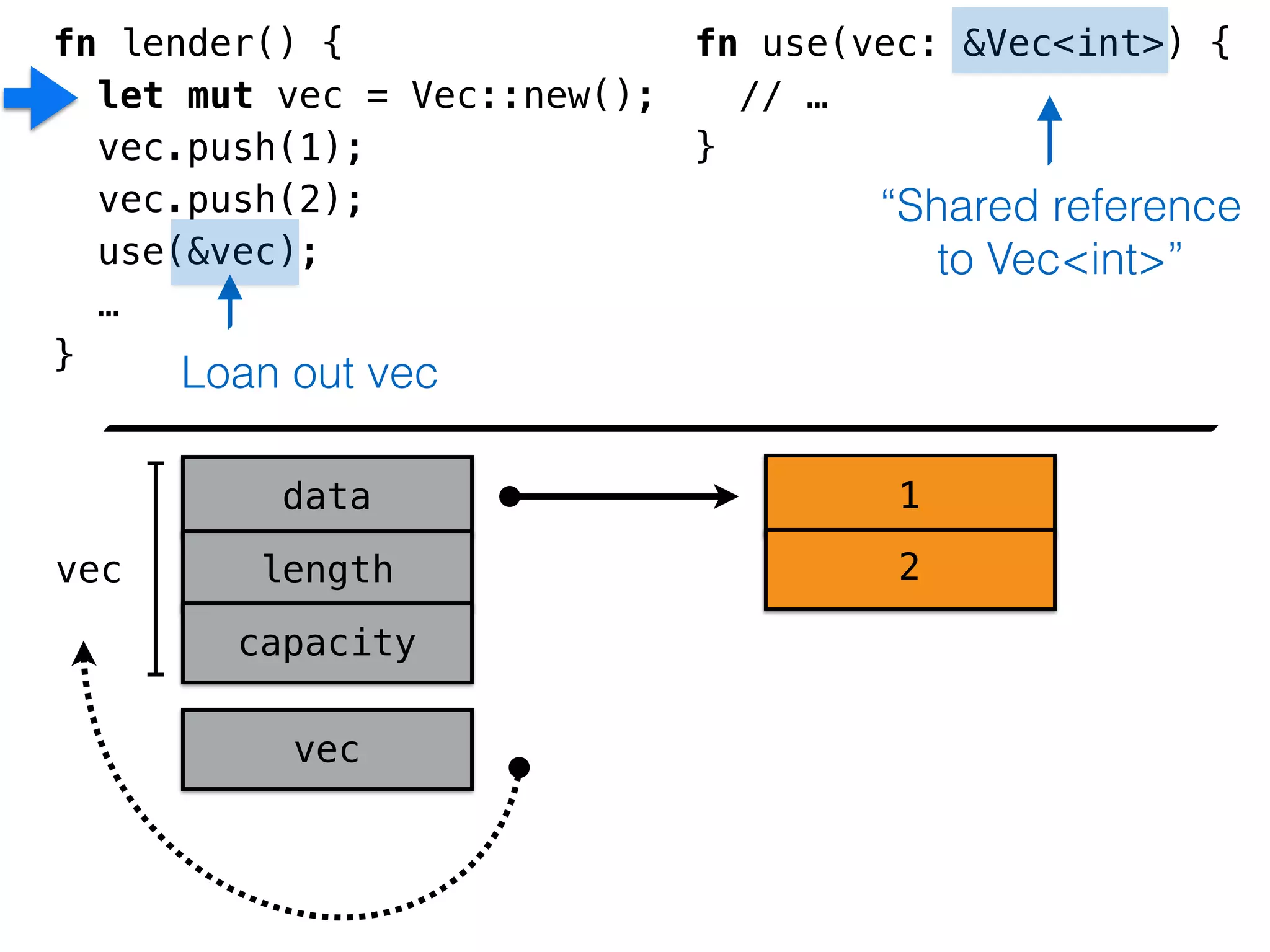

fn lender() {
vec.push(1);
vec.push(2);
use(&vec);
…
}
fn use(vec: &Vec<int>) {
// …
}
!
!
!
1
data
length
capacity
vec 2
vec
“Shared reference
to Vec<int>”
Loan out vec

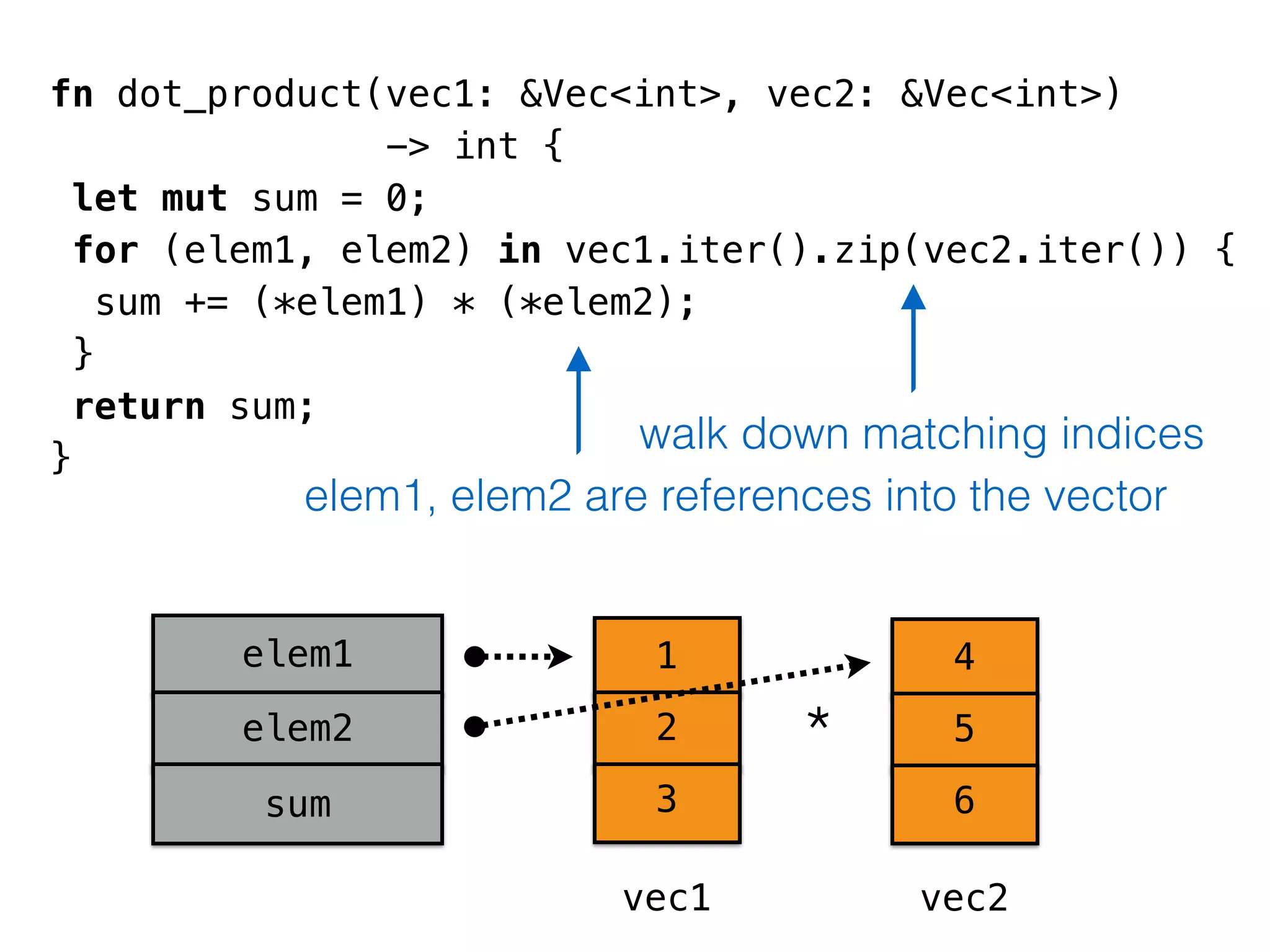

fn dot_product(vec1: &Vec<int>, vec2: &Vec<int>)
elem1
elem2
sum
-> int {
let mut sum = 0;
for (elem1, elem2) in vec1.iter().zip(vec2.iter()) {
sum += (*elem1) * (*elem2);
}
return sum;
} walk down matching indices
elem1, elem2 are references into the vector
1
2
3
4
5
6
*
vec1 vec2

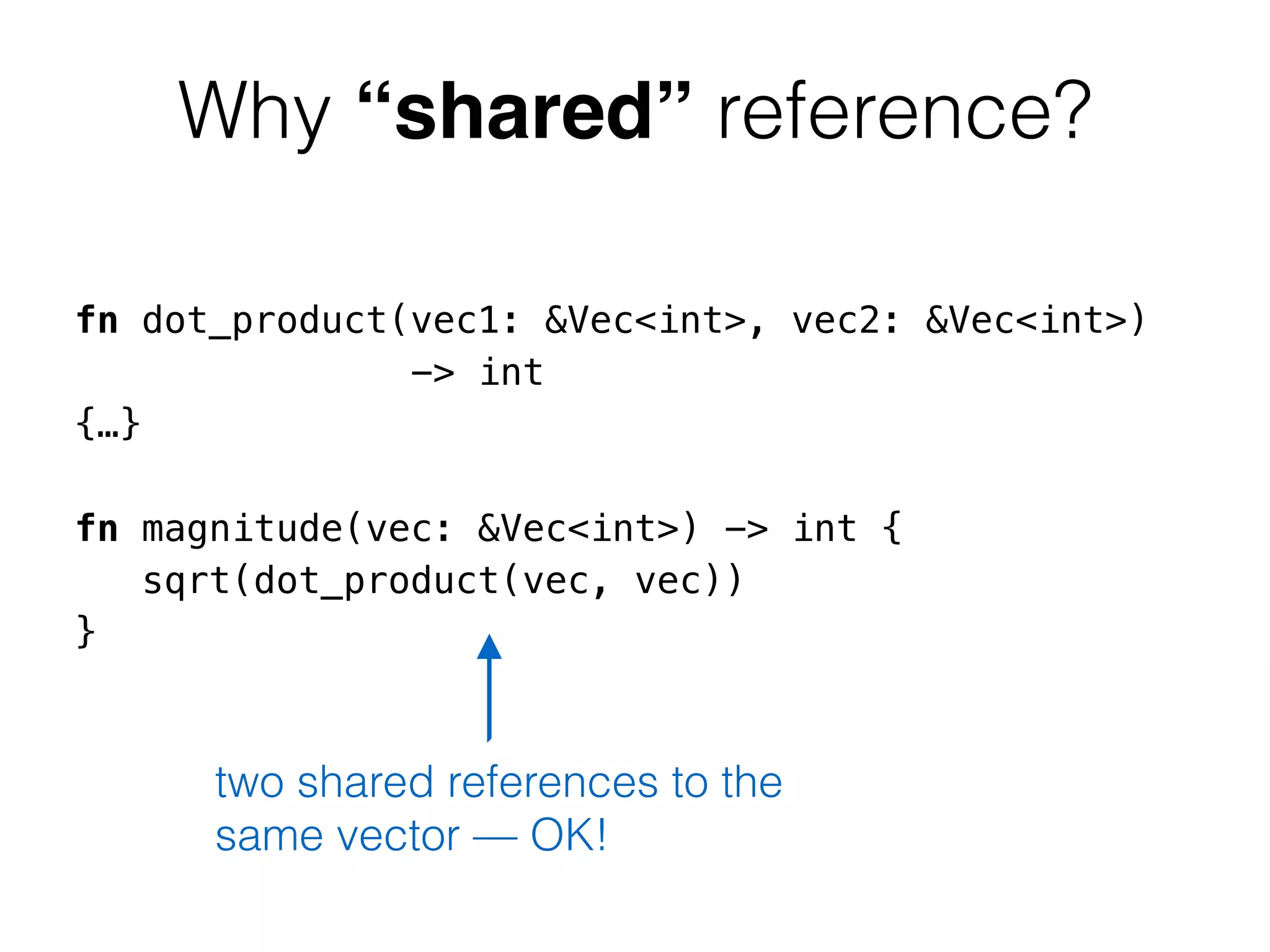

Why “shared” reference?
fn dot_product(vec1: &Vec<int>, vec2: &Vec<int>)
-> int
{…}
!
fn magnitude(vec: &Vec<int>) -> int {
sqrt(dot_product(vec, vec))
}
two shared references to the
same vector — OK!

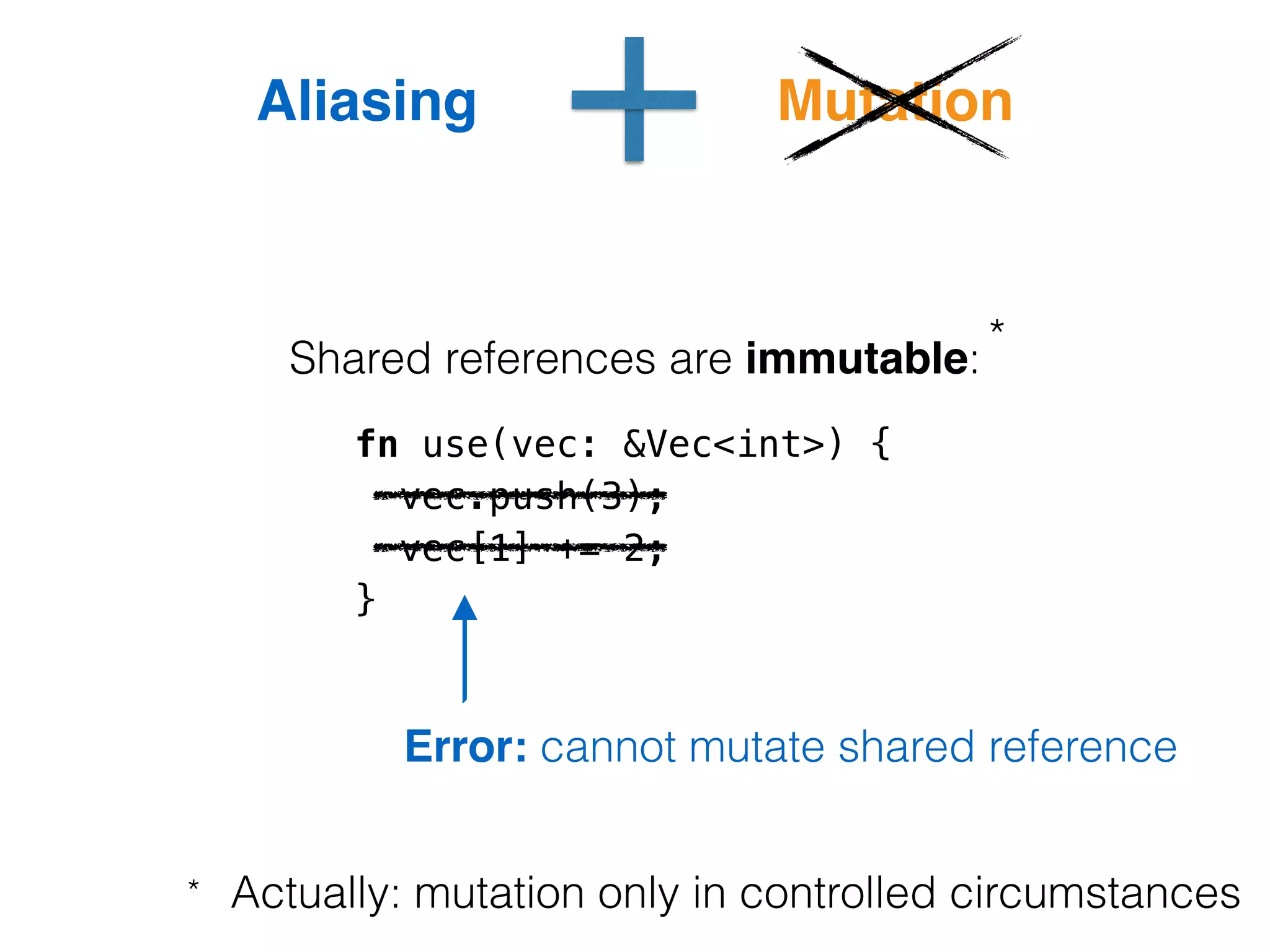

Aliasing Mutation
Shared references are immutable:
fn use(vec: &Vec<int>) {
vec.push(3);
vec[1] += 2;
}
*
Error: cannot mutate shared reference
* Actually: mutation only in controlled circumstances

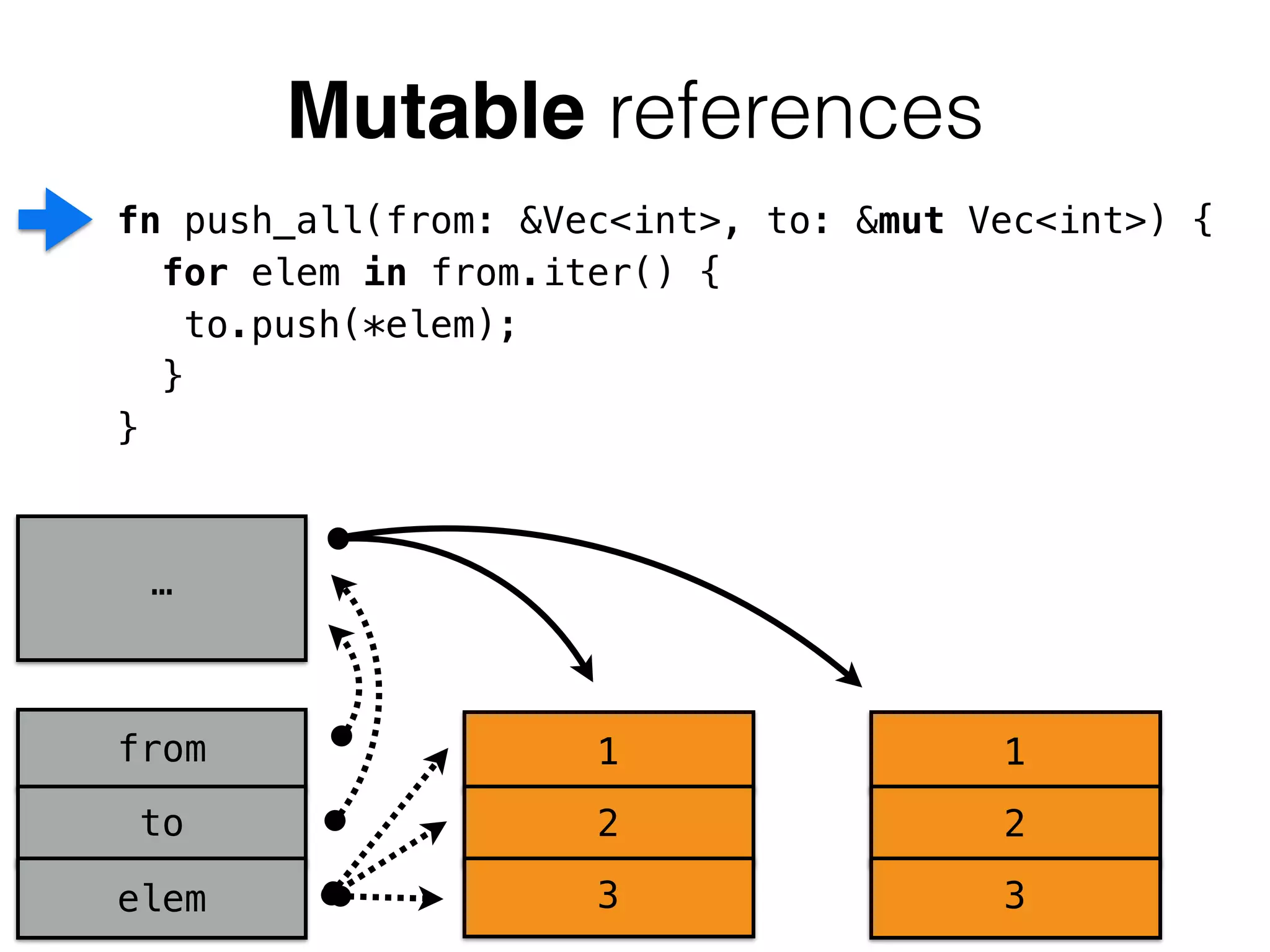

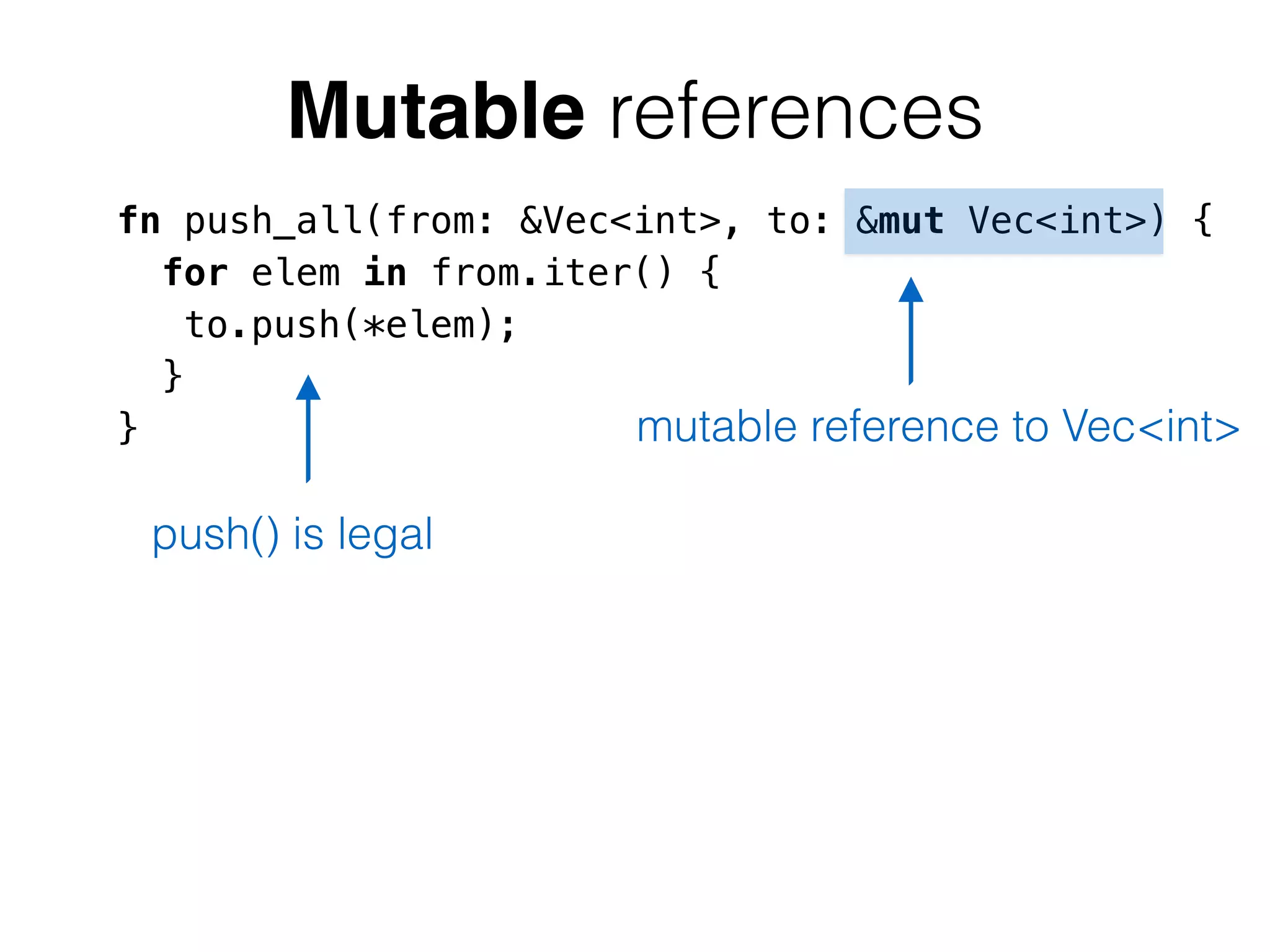

Mutable references
fn push_all(from: &Vec<int>, to: &mut Vec<int>) {
for elem in from.iter() {
to.push(*elem);
}
}
mutable reference to Vec<int>
push() is legal

Mutable references
1
2
3
to.push(*elem);
}
}
from
to
elem
1
2
3
…

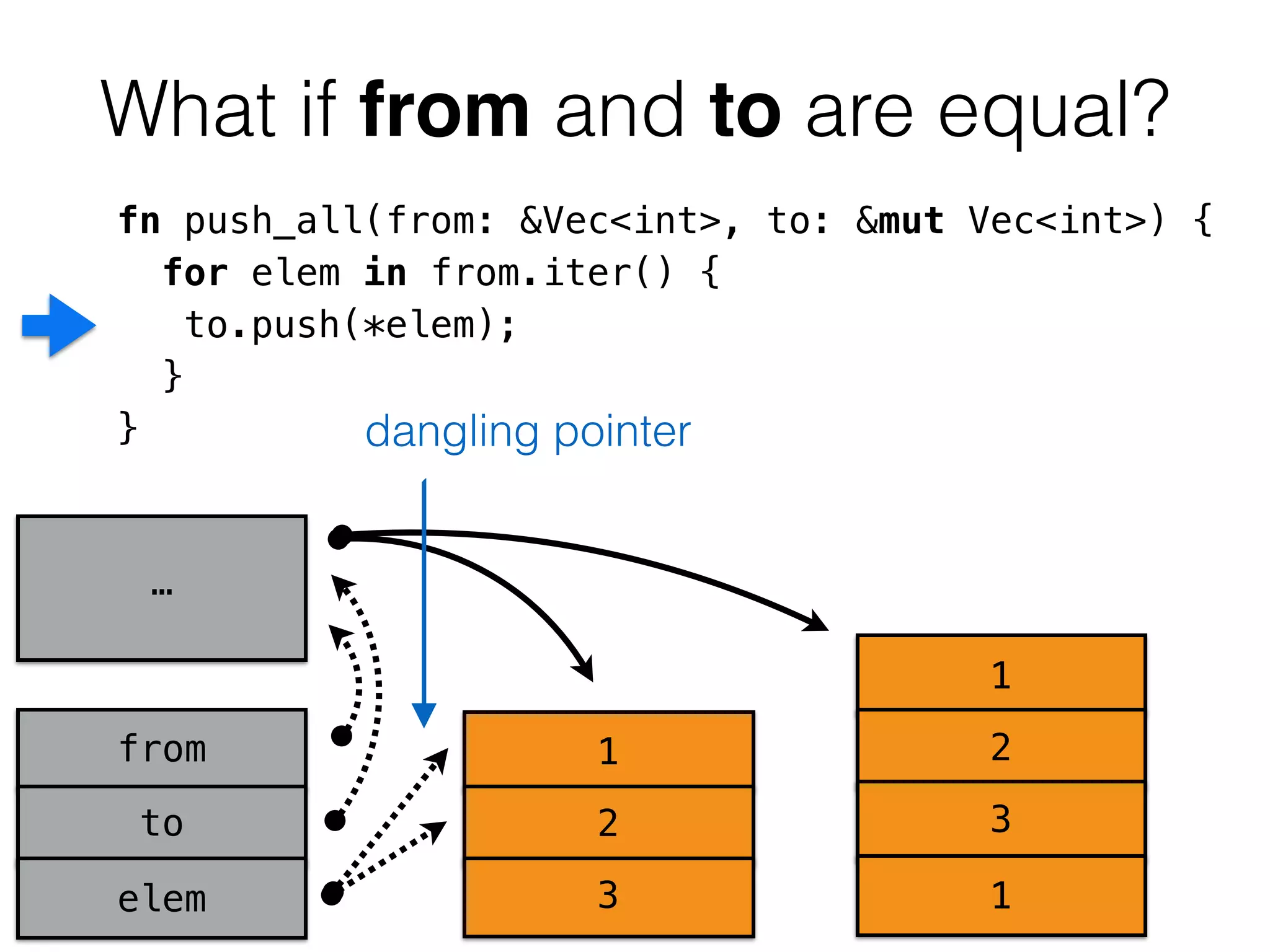

What if from and to are equal?
1
2
3
from
to
elem
1
2
3
…
1
to.push(*elem);
}
} dangling pointer

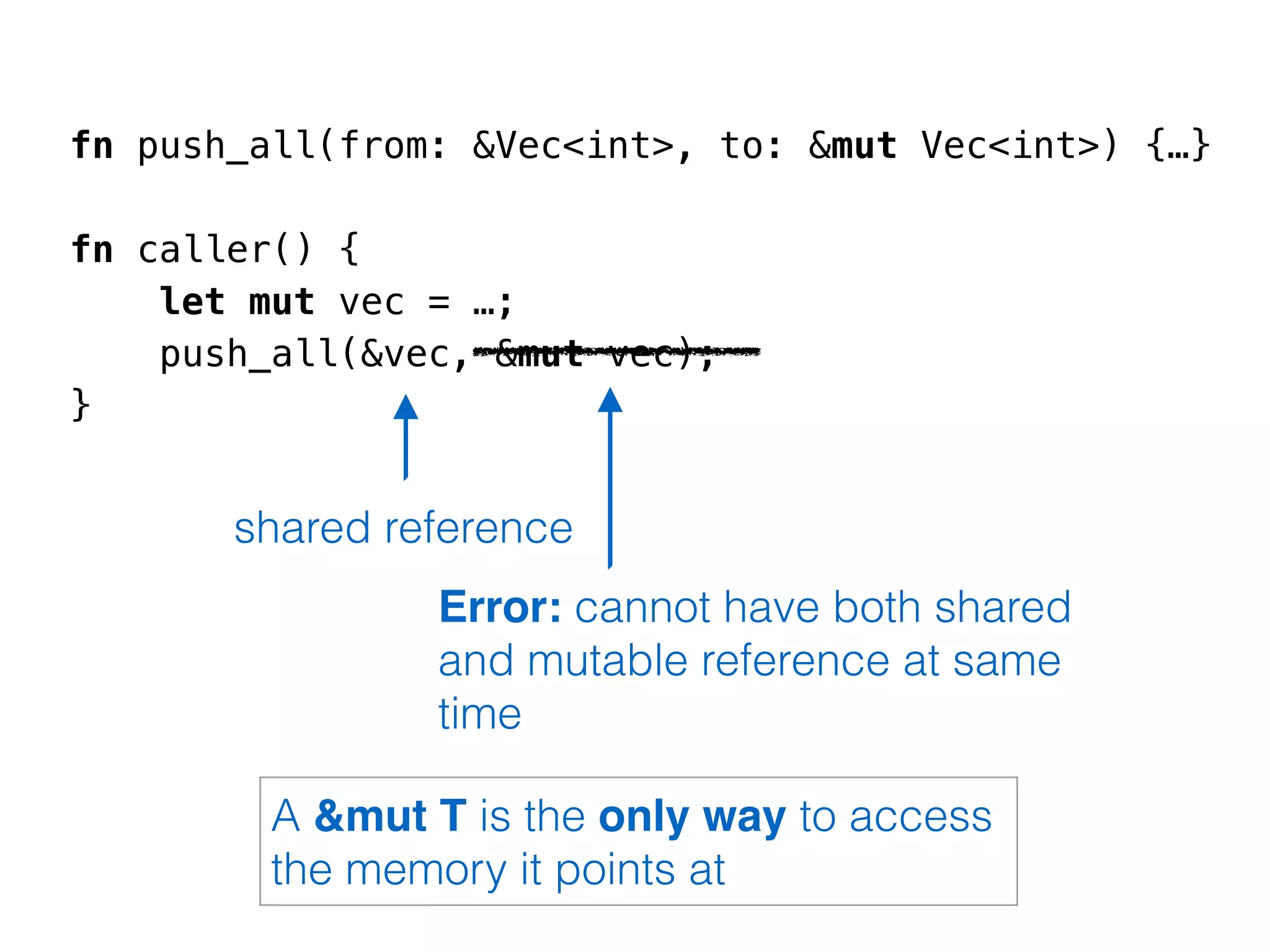

fn push_all(from: &Vec<int>, to: &mut Vec<int>) {…}
!
fn caller() {
let mut vec = …;
push_all(&vec, &mut vec);
}
shared reference
Error: cannot have both shared
and mutable reference at same
time
A &mut T is the only way to access
the memory it points at

{
…

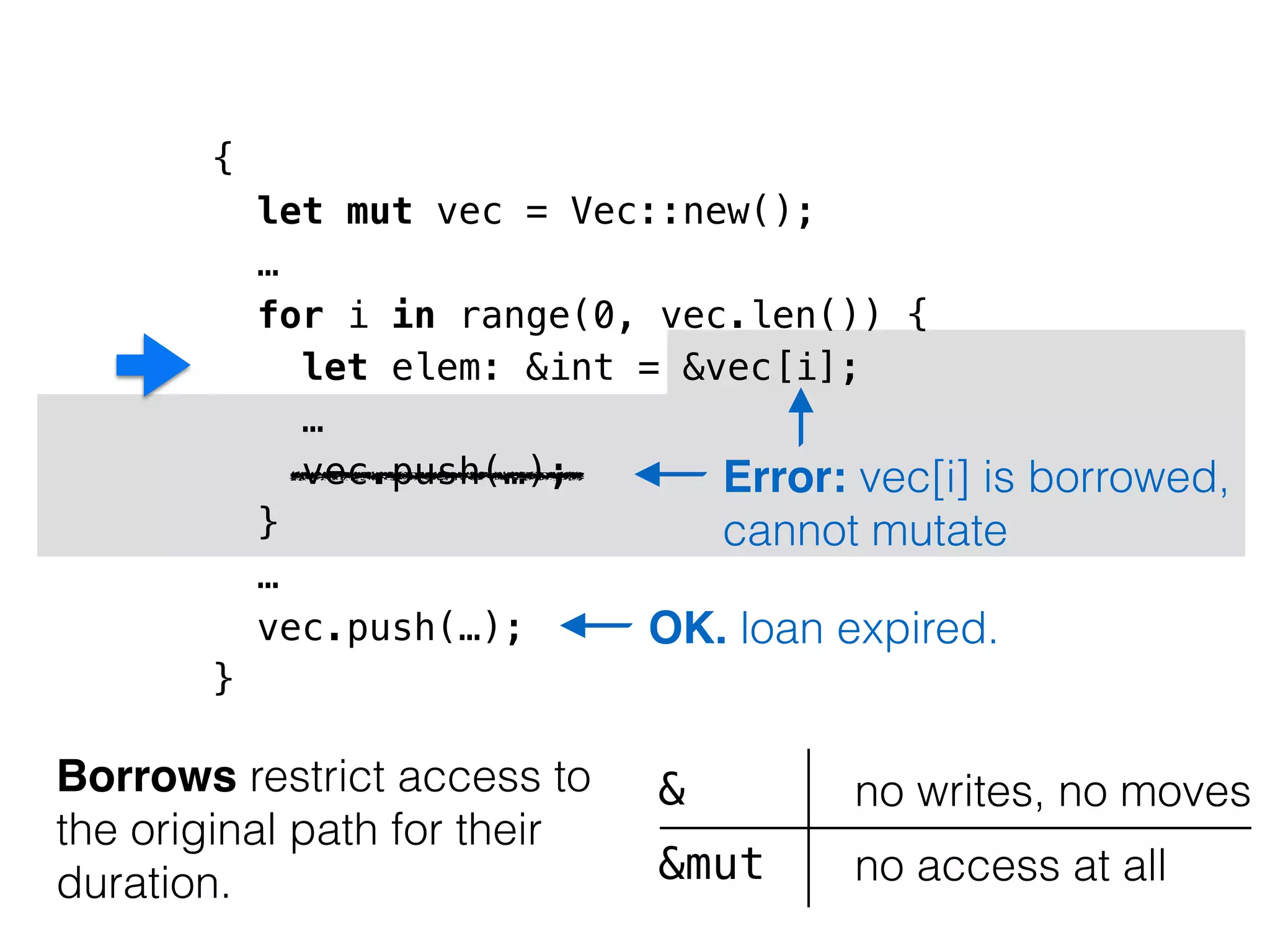

for i in range(0, vec.len()) {
let elem: &int = &vec[i];
…
vec.push(…);
}
…
vec.push(…);
}
Borrows restrict access to
the original path for their
duration.
Error: vec[i] is borrowed,
cannot mutate
OK. loan expired.
&
&mut
no writes, no moves
no access at all

Abstraction!
!
n. freedom from representational qualities in art.

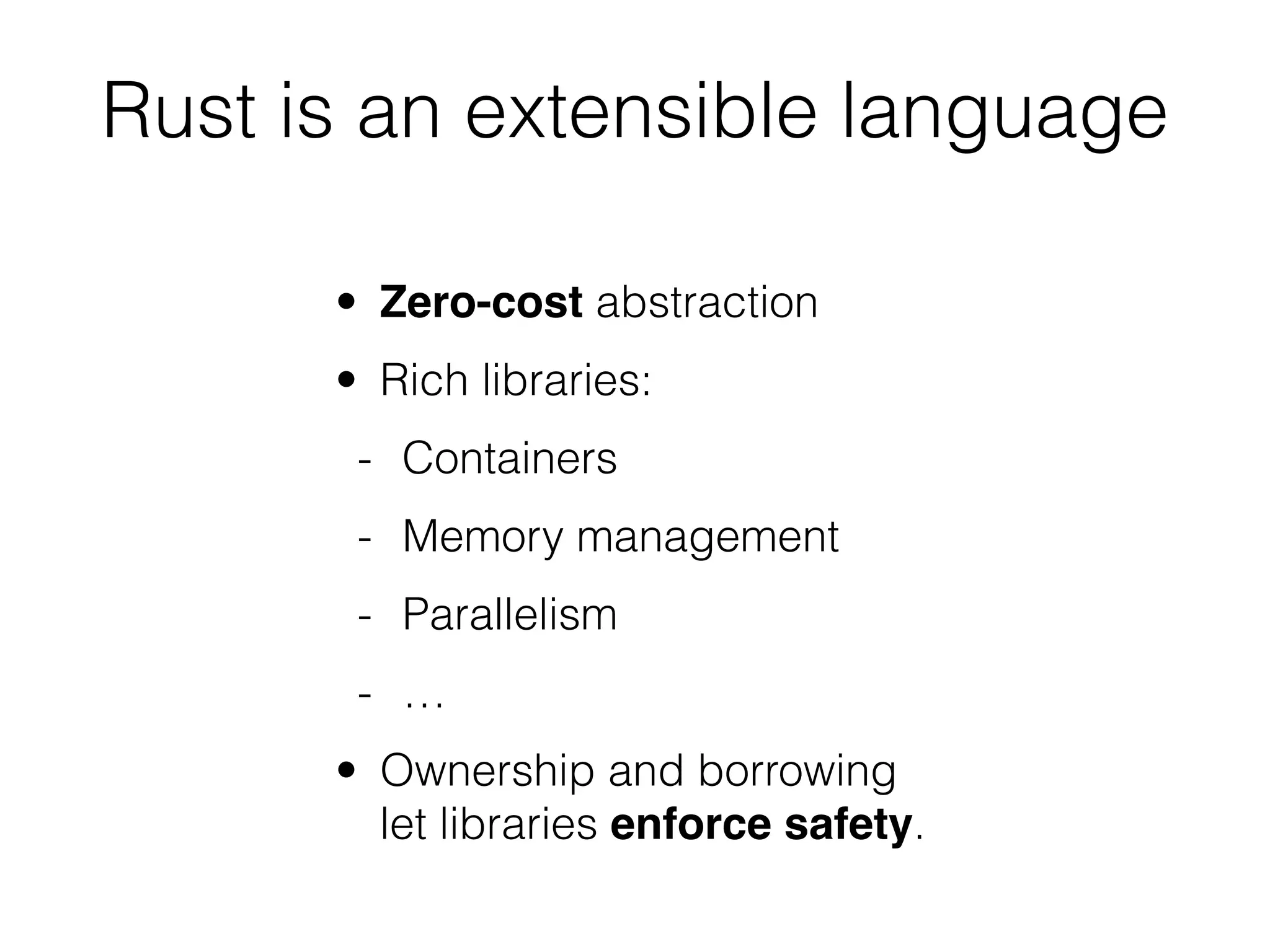

Rust is an extensible language
• Zero-cost abstraction
• Rich libraries:
- Containers
- Memory management
- Parallelism
- …
• Ownership and borrowing
let libraries enforce safety.

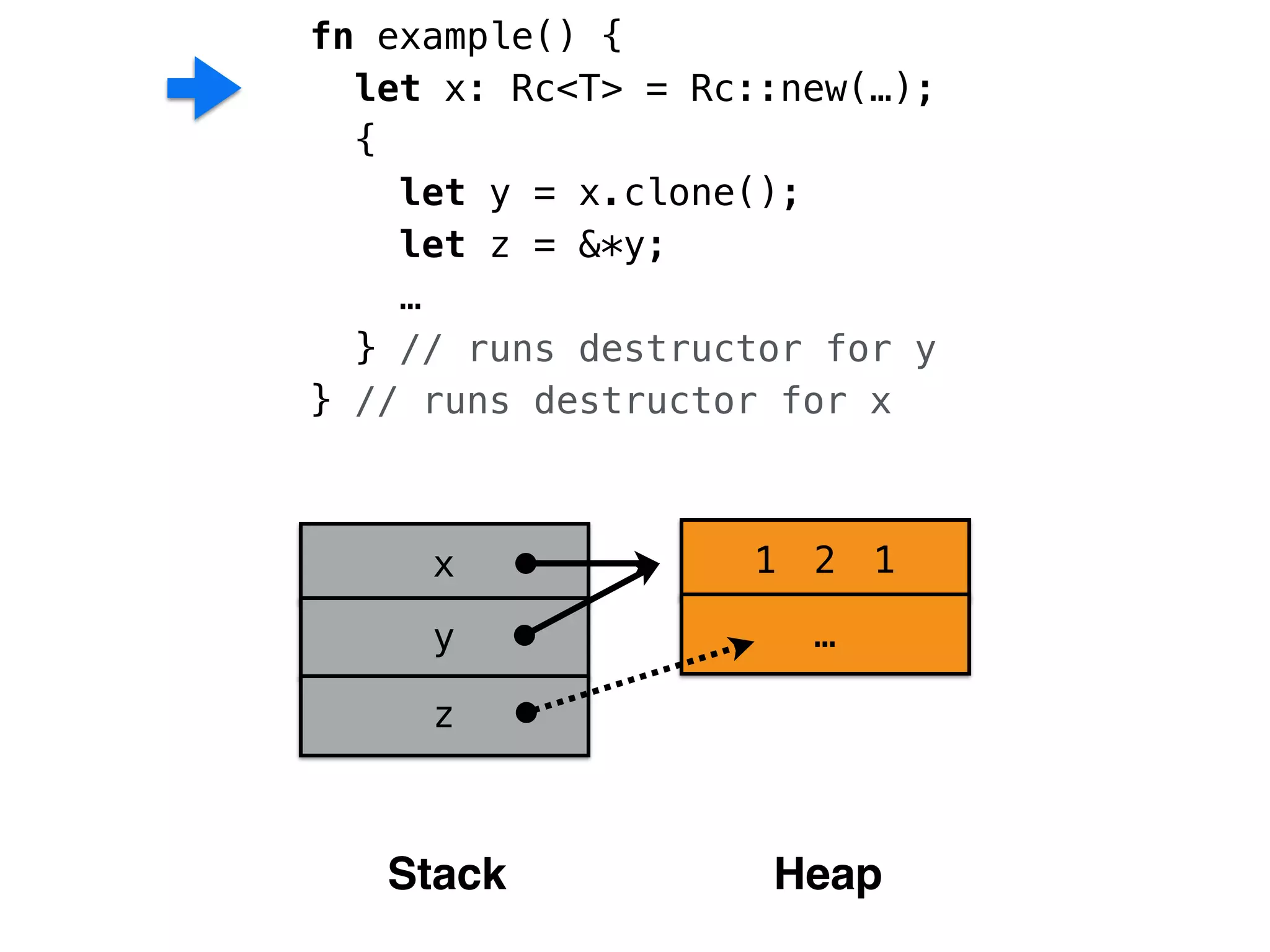

fn example() {
let x: Rc<T> = Rc::new(…);
{
let y = x.clone();
let z = &*y;
…
} // runs destructor for y
} // runs destructor for x
x 1
[0]
y
2 1
…
z
Stack Heap

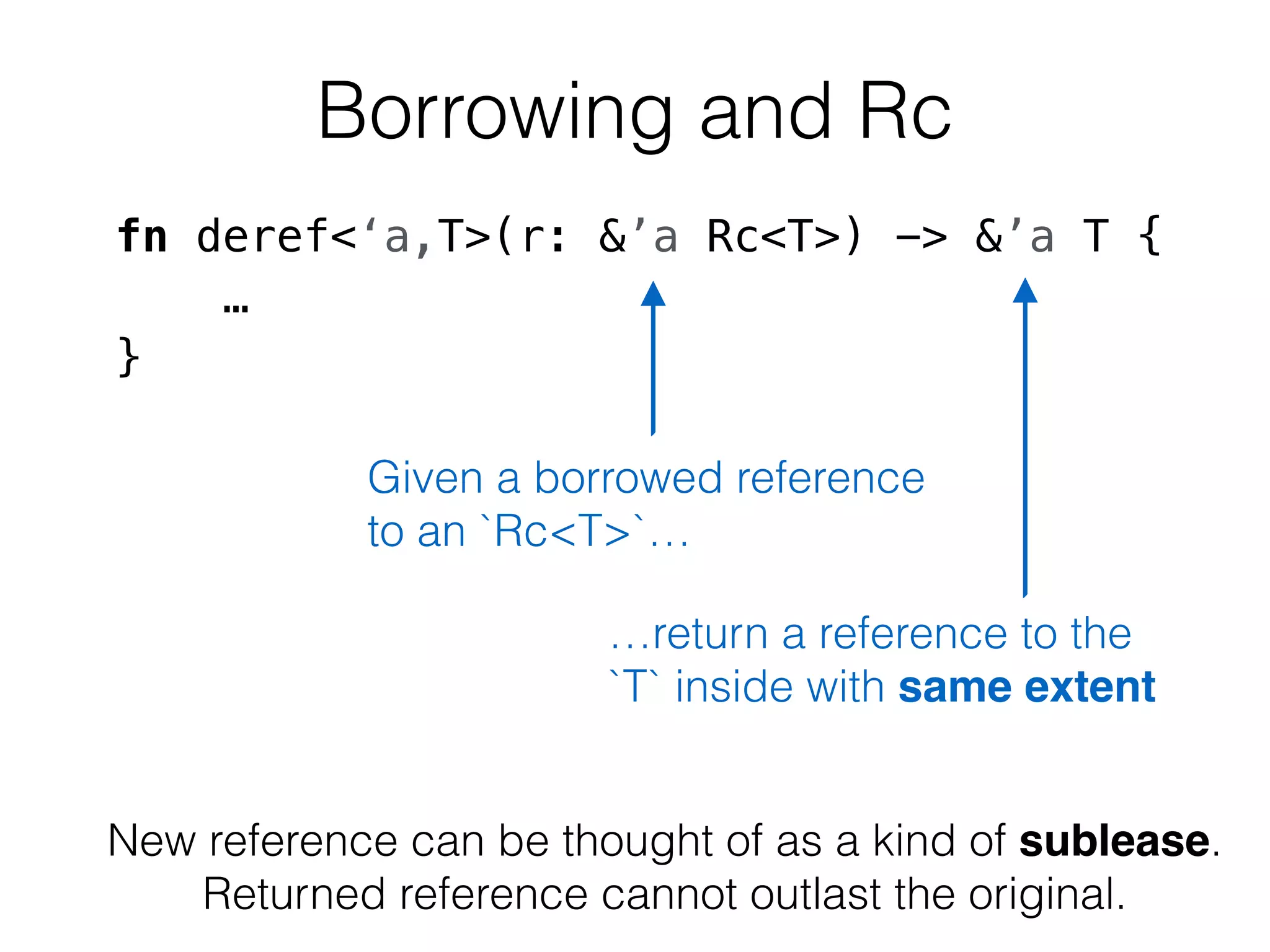

Borrowing and Rc
fn deref<‘a,T>(r: &’a Rc<T>) -> &’a T {
…
}
Given a borrowed reference
to an `Rc<T>`…
…return a reference to the
`T` inside with same extent
New reference can be thought of as a kind of sublease.
Returned reference cannot outlast the original.

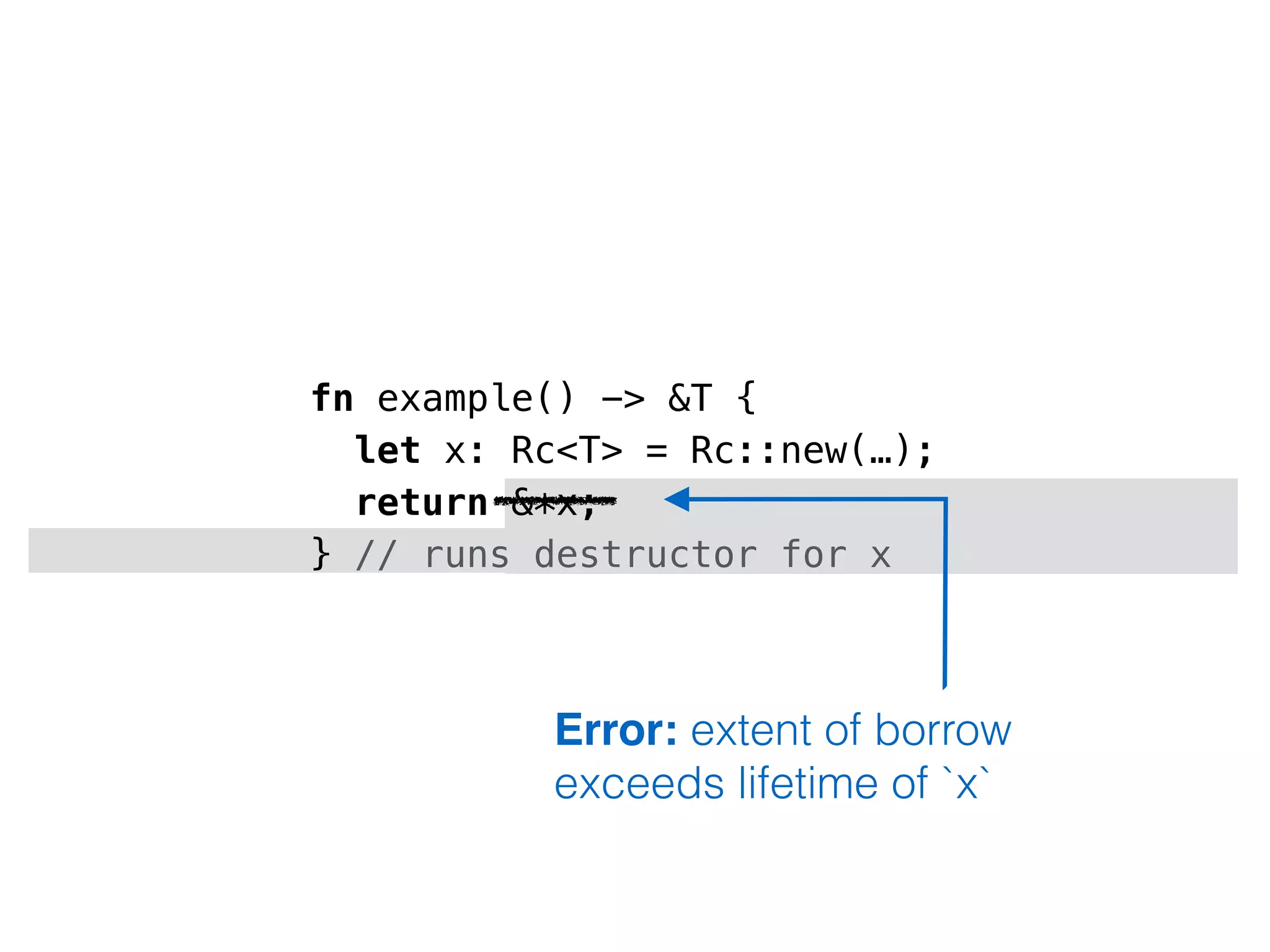

fn example() -> &T {
let x: Rc<T> = Rc::new(…);
return &*x;
} // runs destructor for x
Error: extent of borrow
exceeds lifetime of `x`

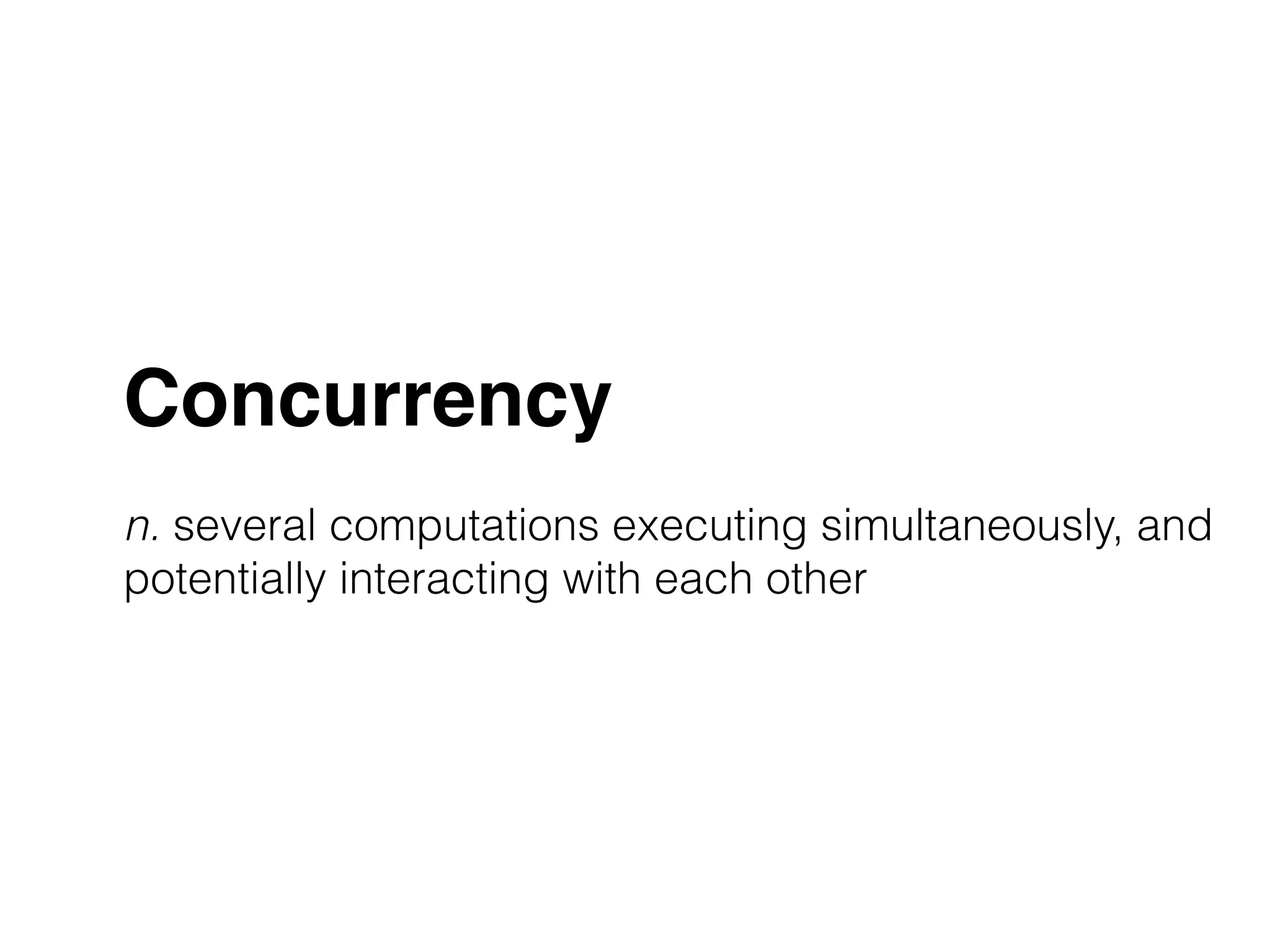

Concurrency!
!
n. several computations executing simultaneously, and
potentially interacting with each other

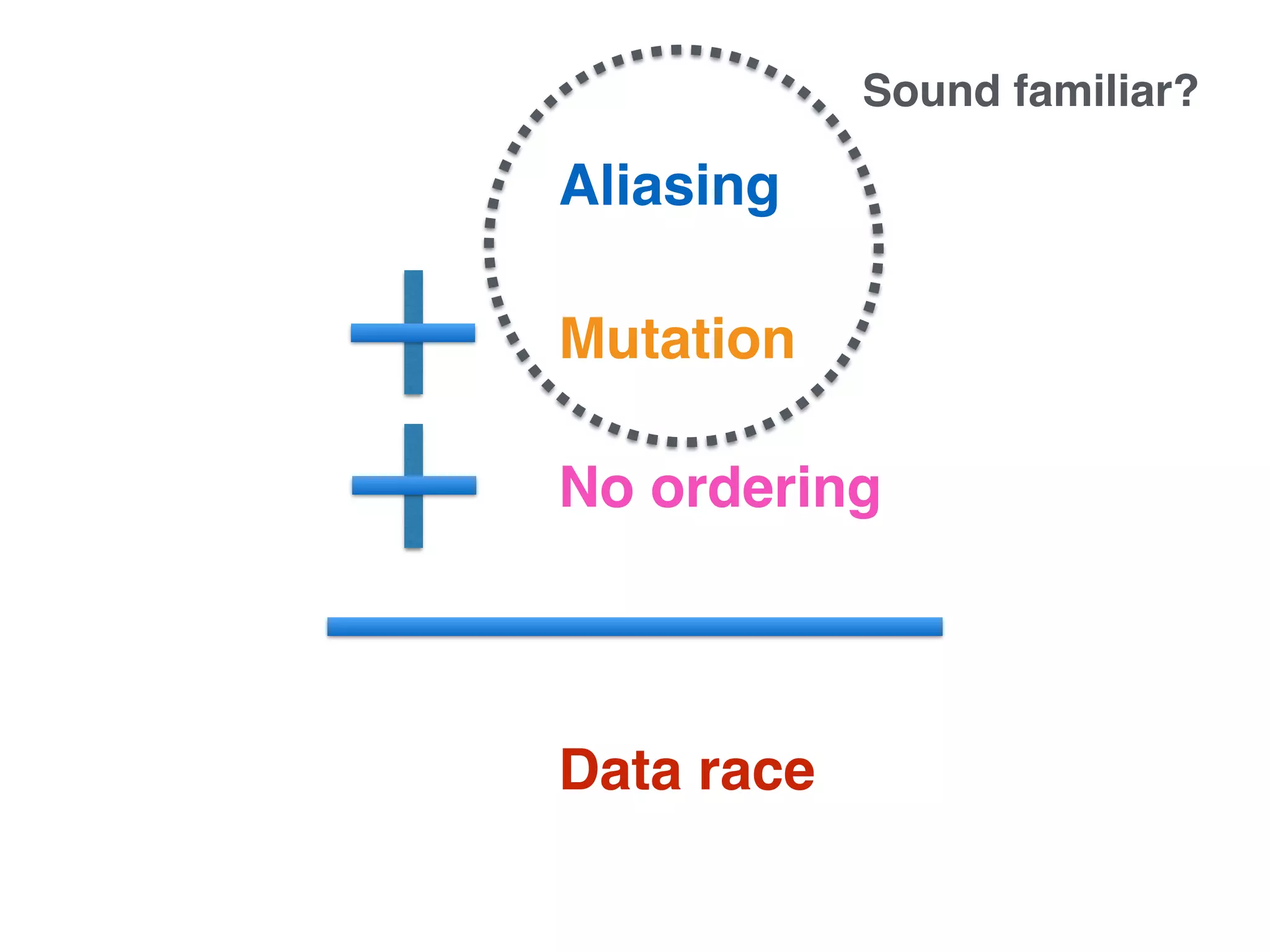

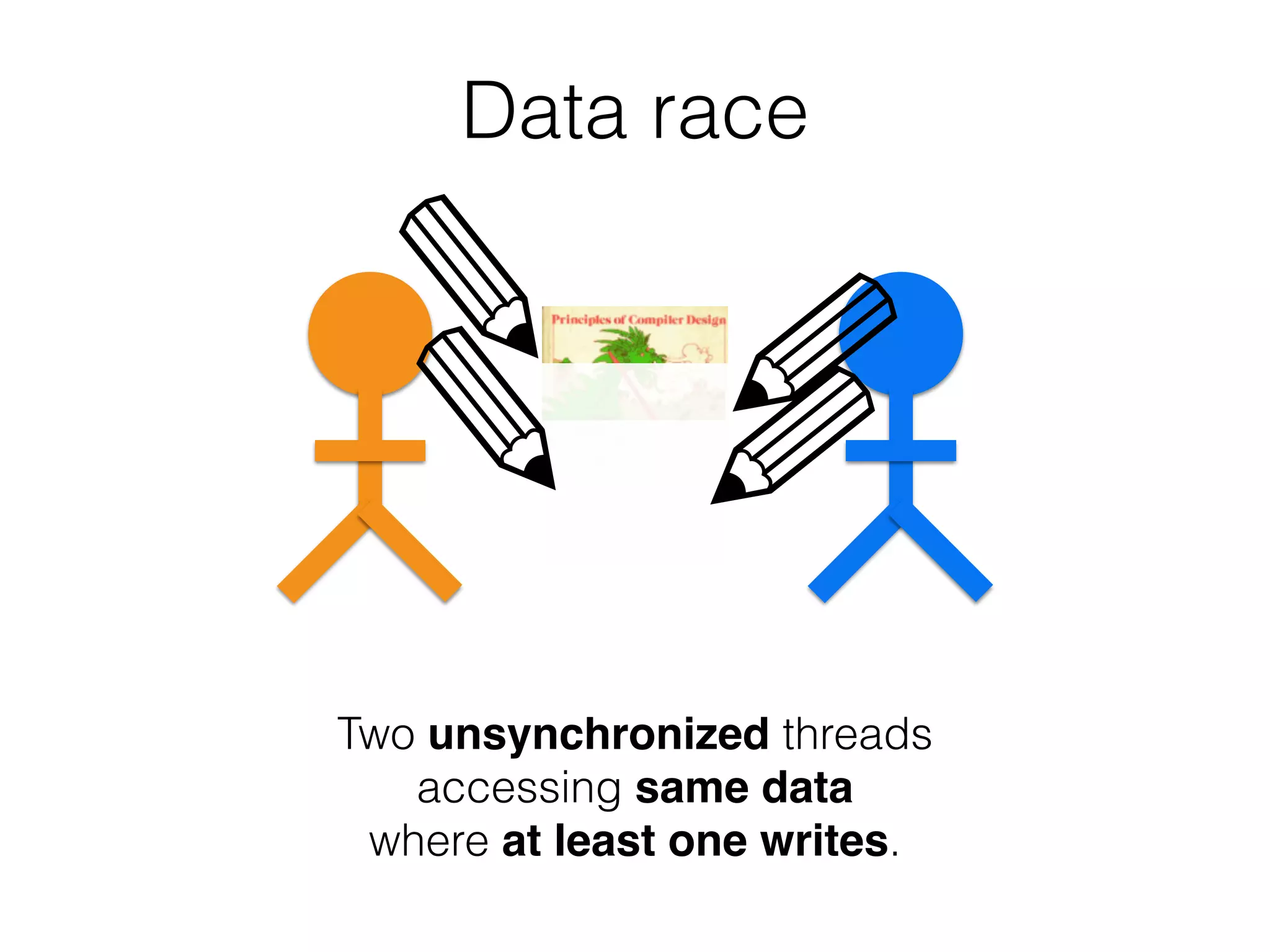

Data race
✎
✎
✎
✎
Two unsynchronized threads
accessing same data!
where at least one writes.

Aliasing
Mutation
No ordering
Data race
Sound familiar?

data
length
capacity

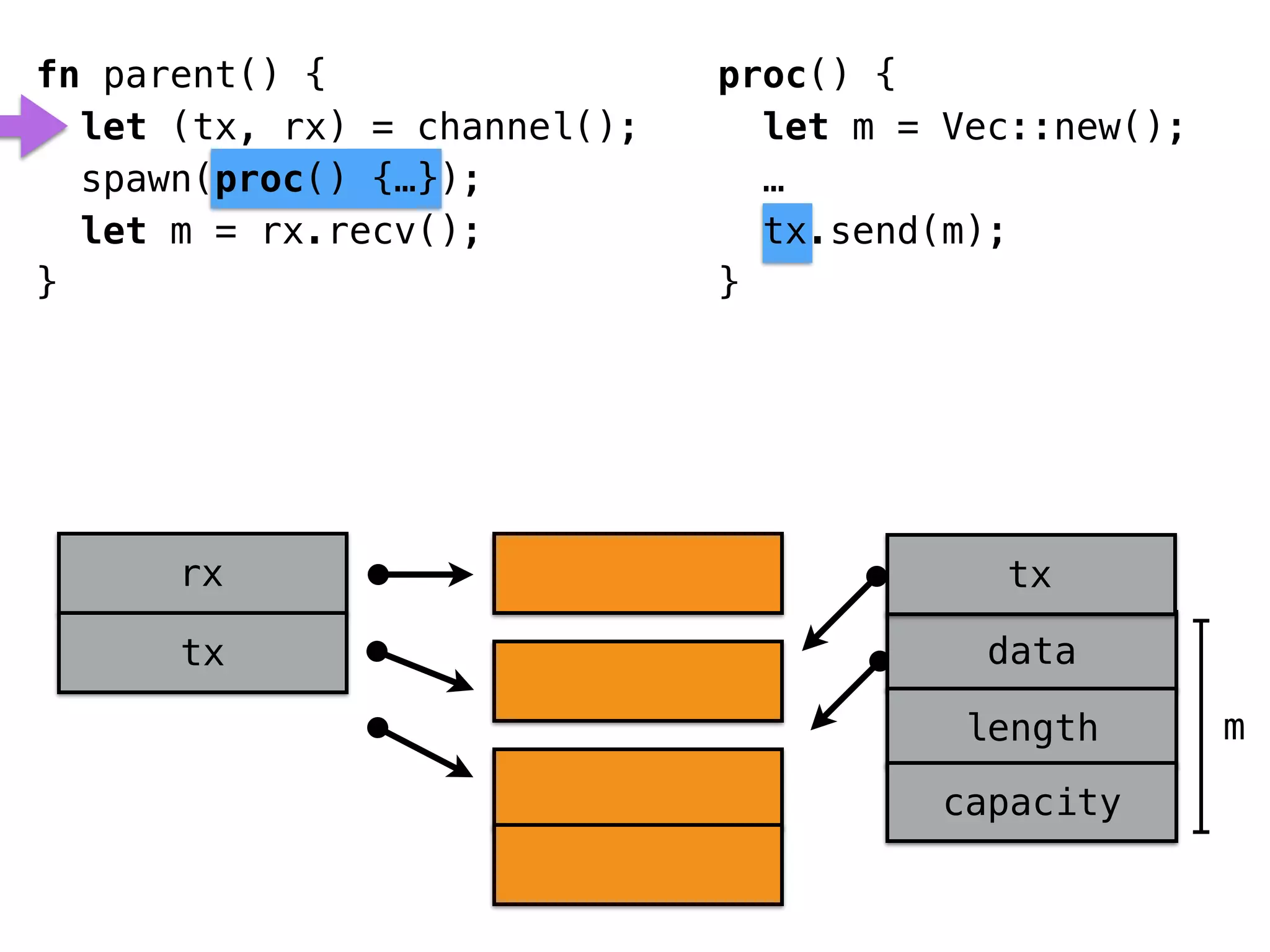

fn parent() {
let (tx, rx) = channel();
spawn(proc() {…});
let m = rx.recv();
}
proc() {
let m = Vec::new();
…
tx.send(m);
}
rx
tx
tx
m

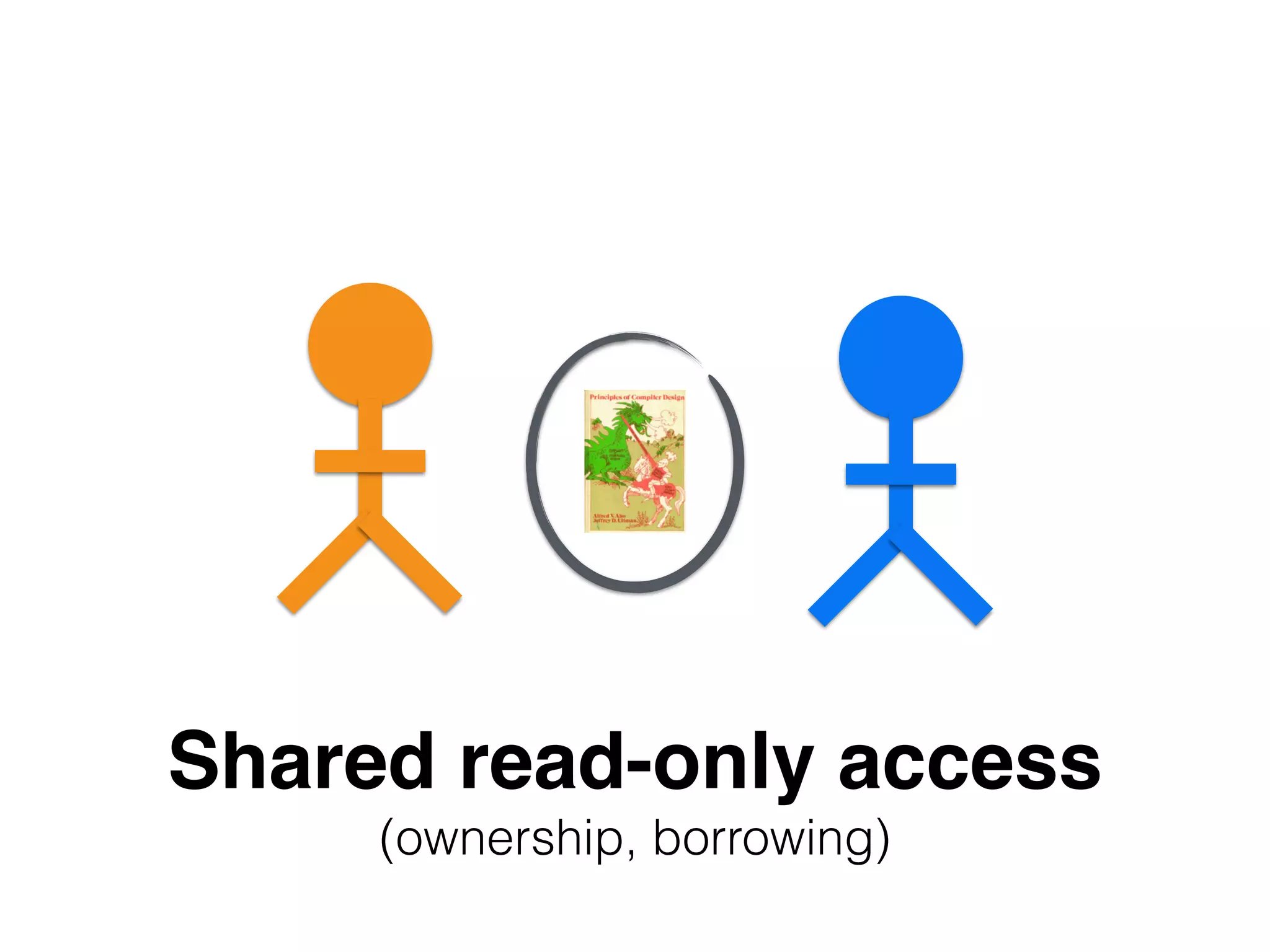

Shared read-only access!
(ownership, borrowing)

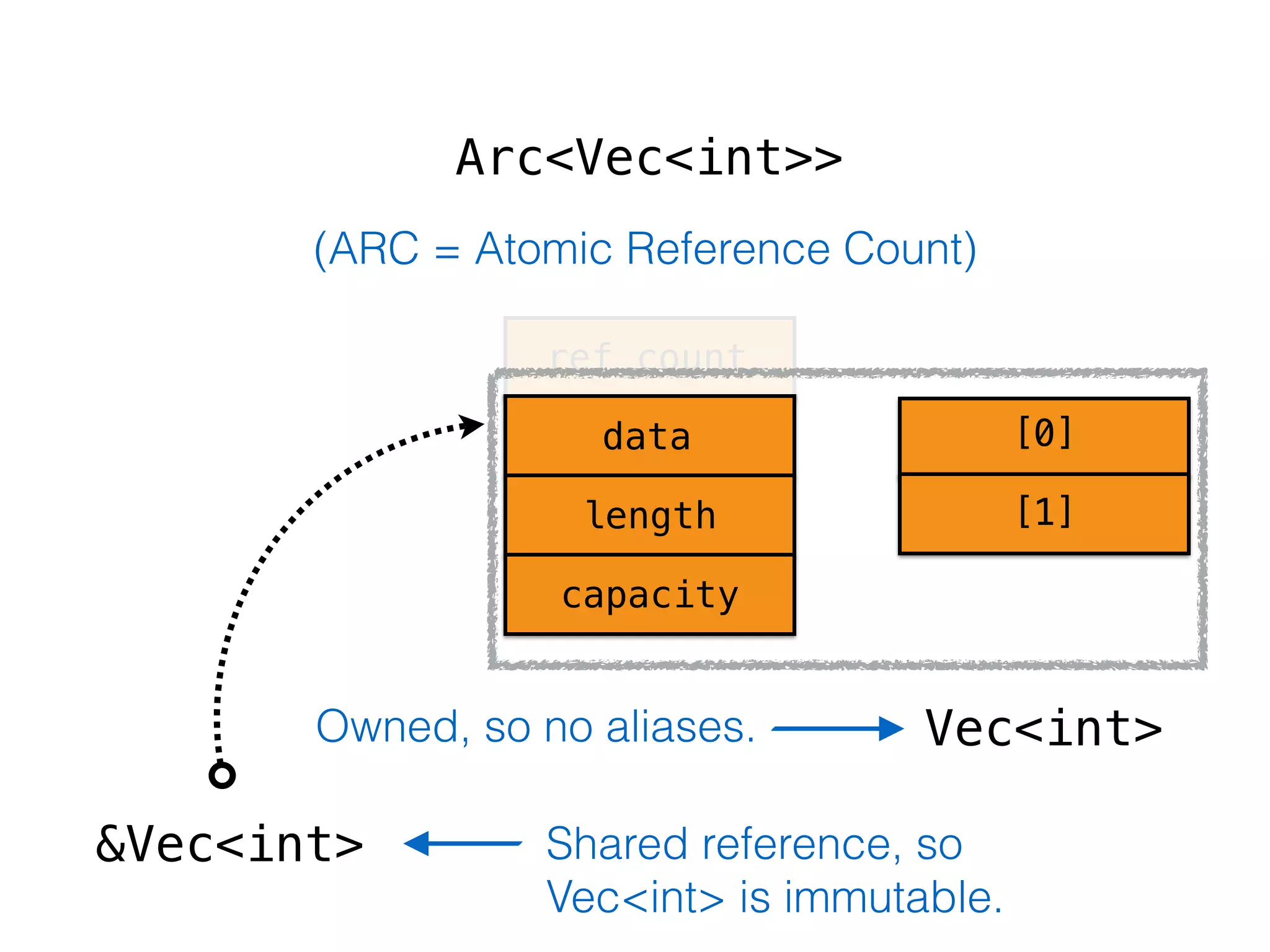

Arc<Vec<int>>
(ARC = Atomic Reference Count)
Owned, so no aliases. Vec<int>
&Vec<int>
ref_count
data
length
capacity
[0]
[1]
Shared reference, so
Vec<int> is immutable.

✎
✎

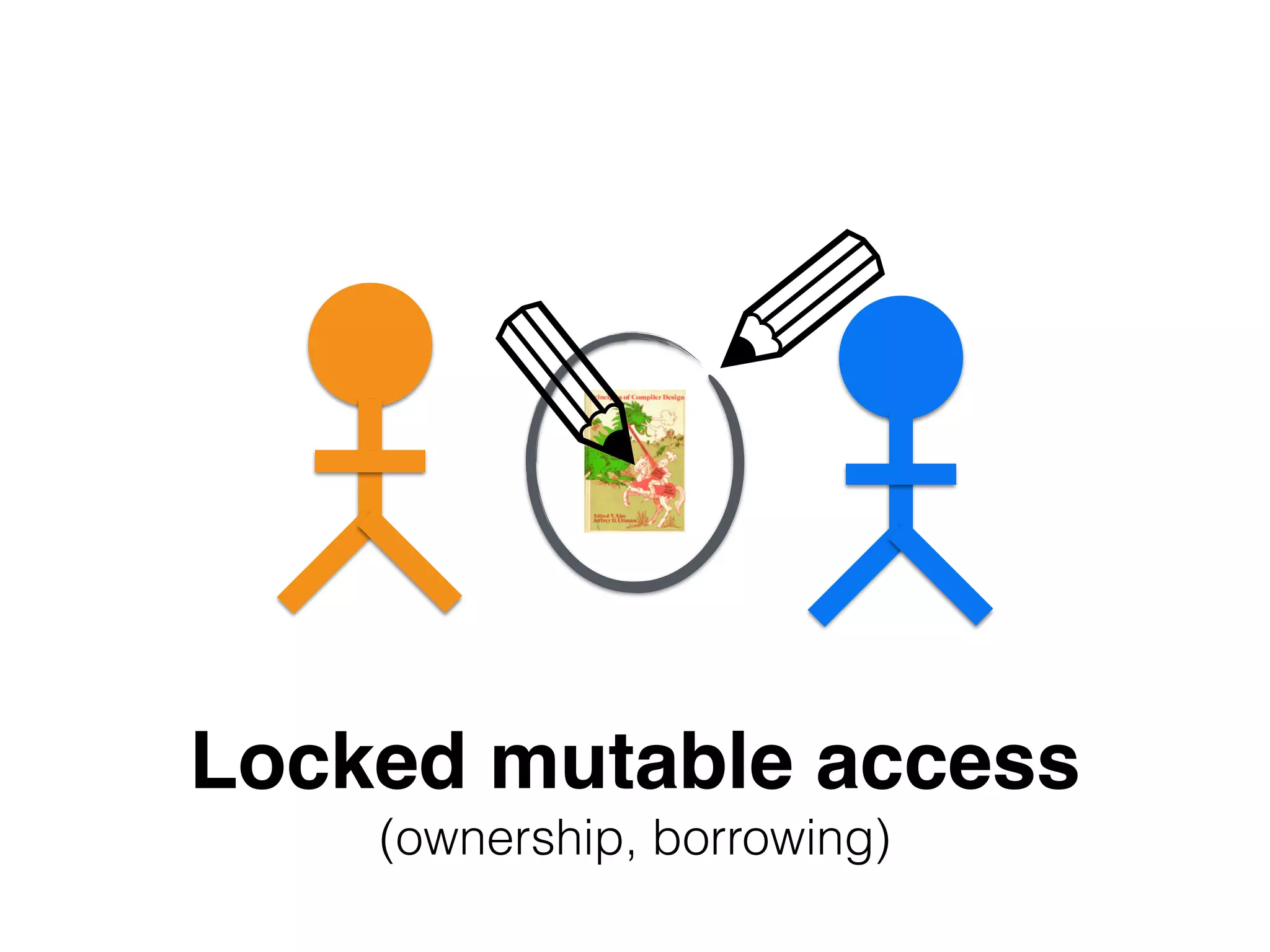

Locked mutable access!
(ownership, borrowing)

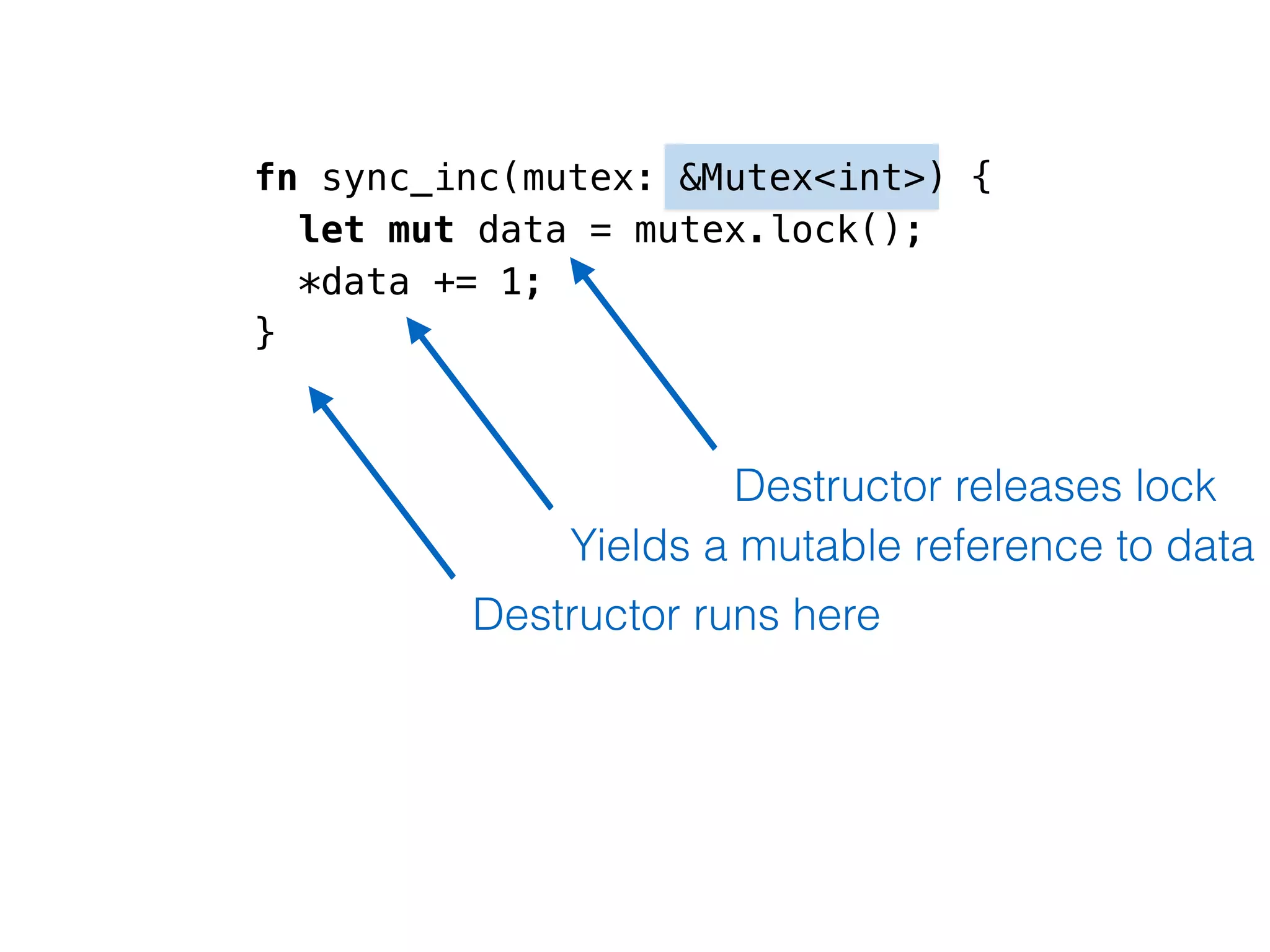

fn sync_inc(mutex: &Mutex<int>) {
let mut data = mutex.lock();
*data += 1;
}
Destructor releases lock
Yields a mutable reference to data
Destructor runs here

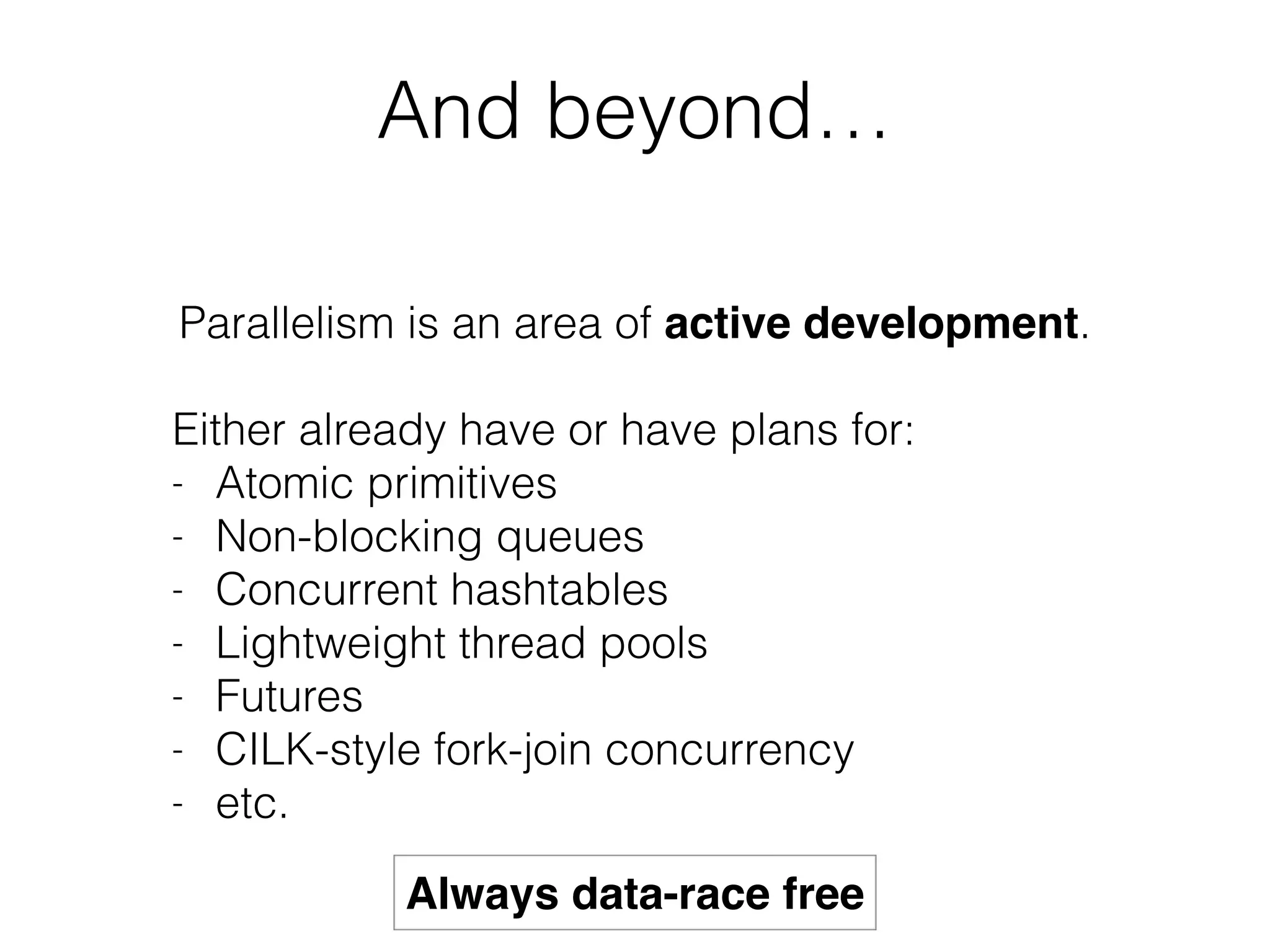

And beyond…
Parallelism is an area of active development.
!
Either already have or have plans for:
- Atomic primitives
- Non-blocking queues
- Concurrent hashtables
- Lightweight thread pools
- Futures
- CILK-style fork-join concurrency
- etc.
Always data-race free

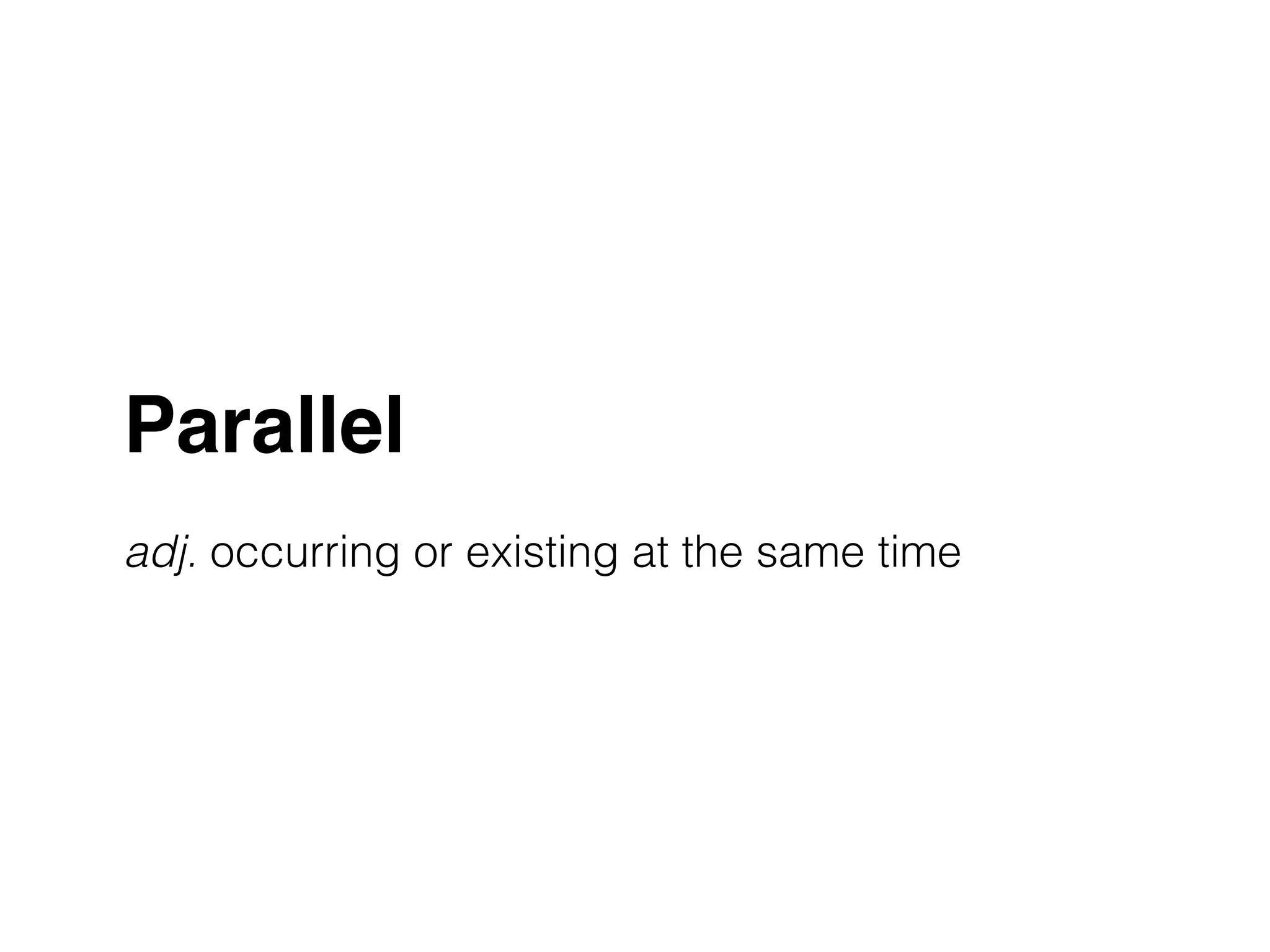

Parallel!
!
adj. occurring or existing at the same time

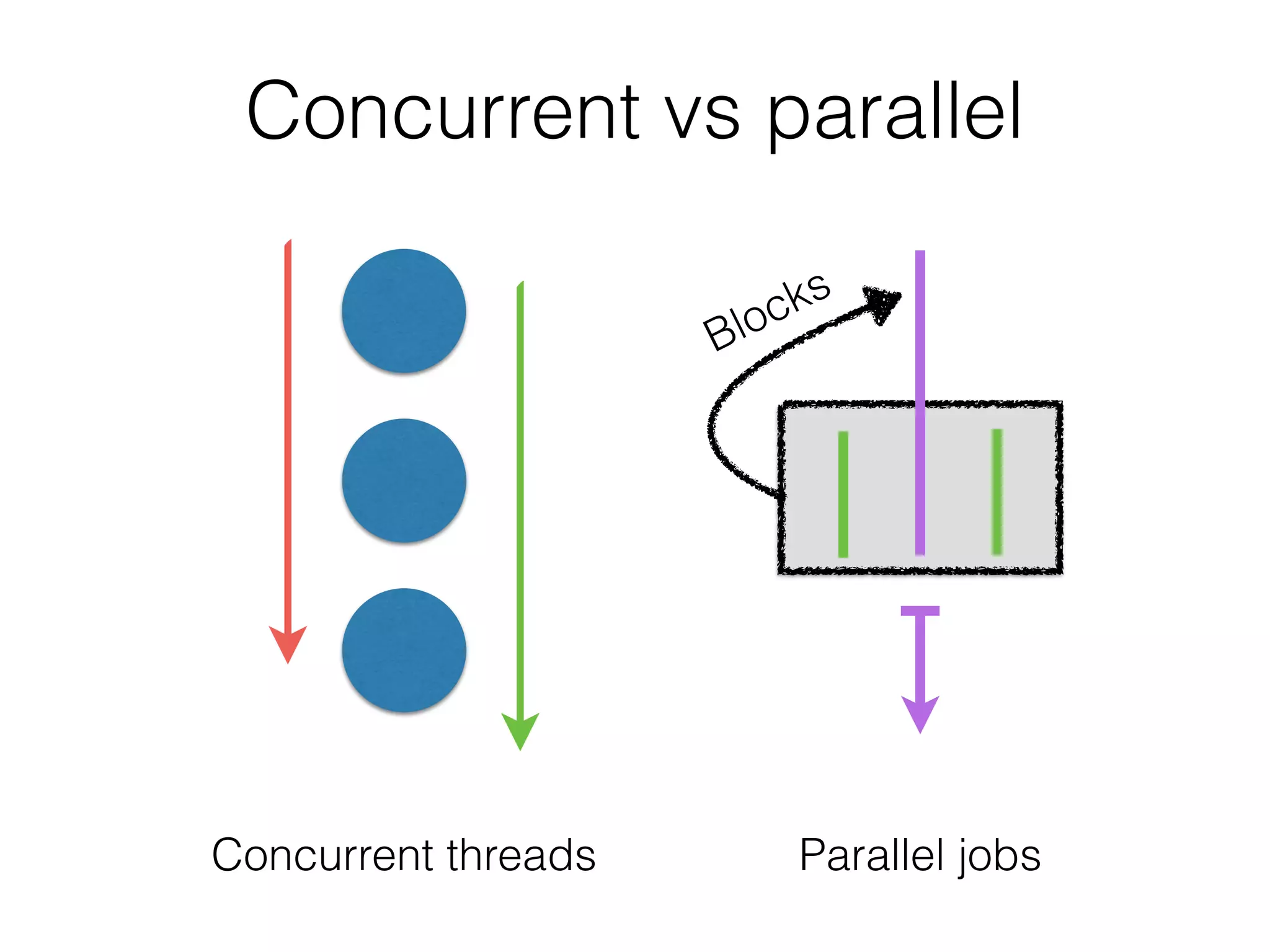

Concurrent vs parallel
Blocks
Concurrent threads Parallel jobs

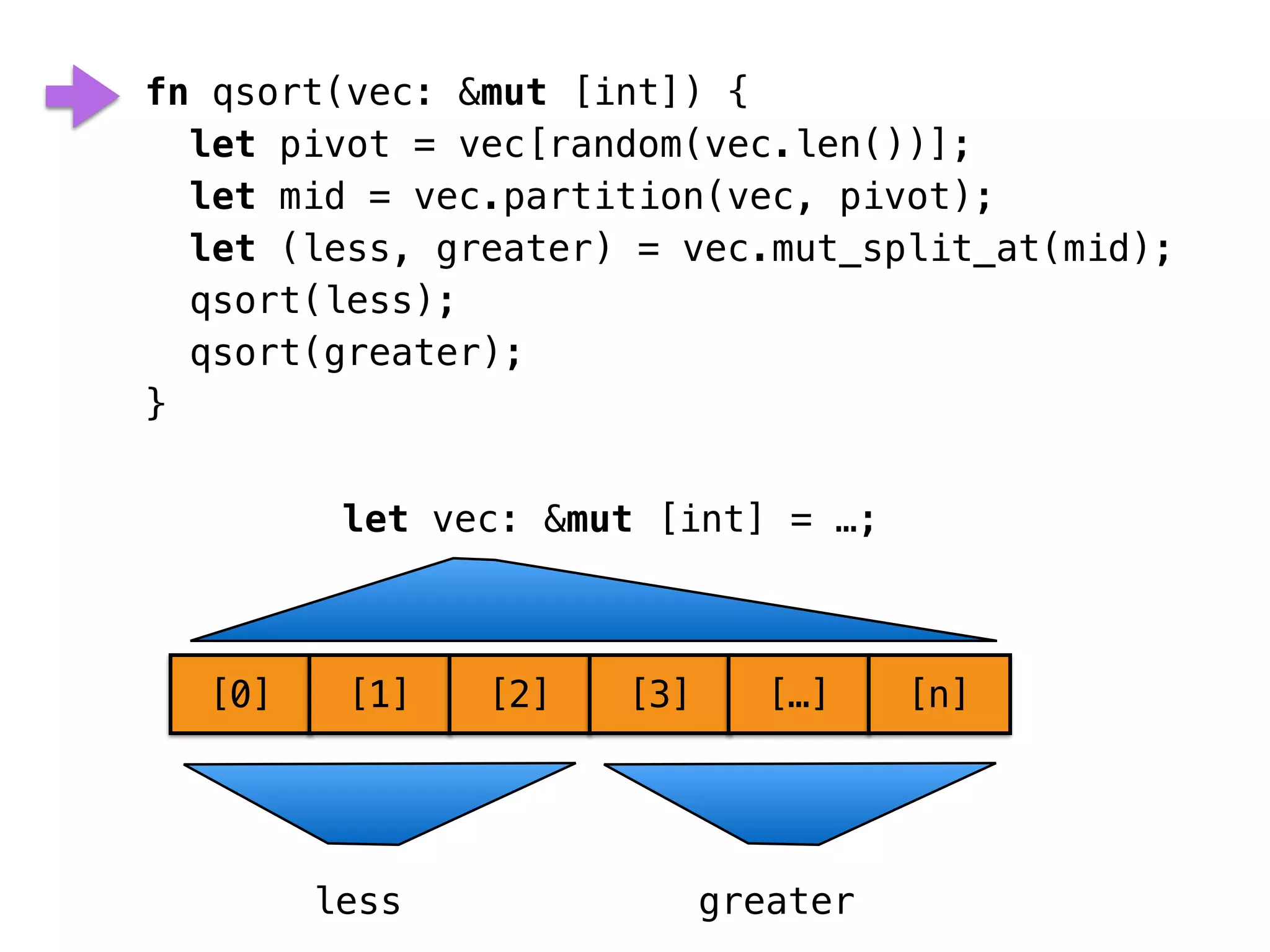

fn qsort(vec: &mut [int]) {
let pivot = vec[random(vec.len())];
let mid = vec.partition(vec, pivot);
let (less, greater) = vec.mut_split_at(mid);
qsort(less);
qsort(greater);
}
let vec: &mut [int] = …;
[0] [1] [2] [3] […] [n]
less greater

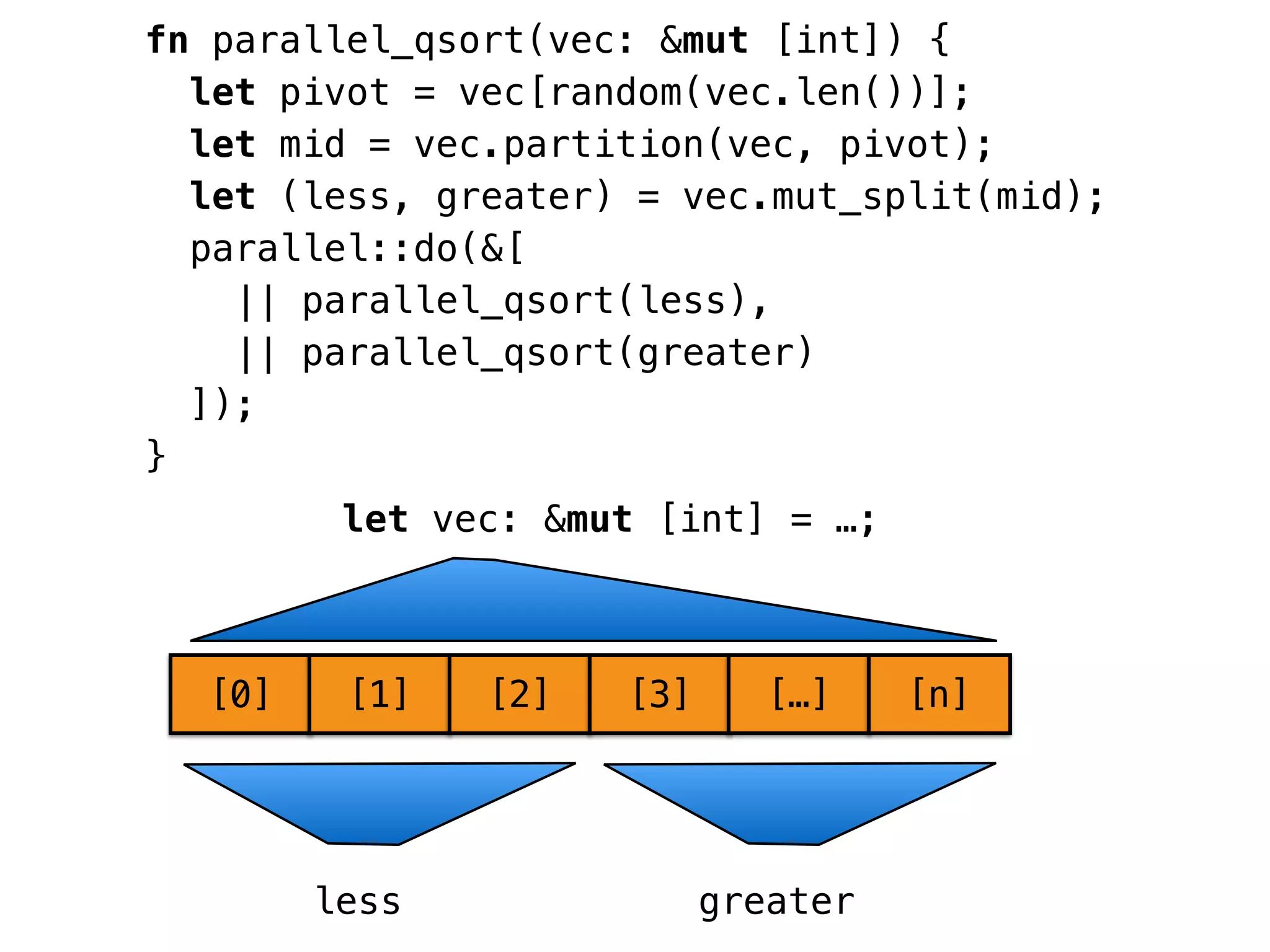

fn parallel_qsort(vec: &mut [int]) {
let pivot = vec[random(vec.len())];
let mid = vec.partition(vec, pivot);
let (less, greater) = vec.mut_split(mid);
parallel::do(&[
|| parallel_qsort(less),
|| parallel_qsort(greater)
]);
}
let vec: &mut [int] = …;
[0] [1] [2] [3] […] [n]
less greater

Unsafe!
!
adj. not safe; hazardous

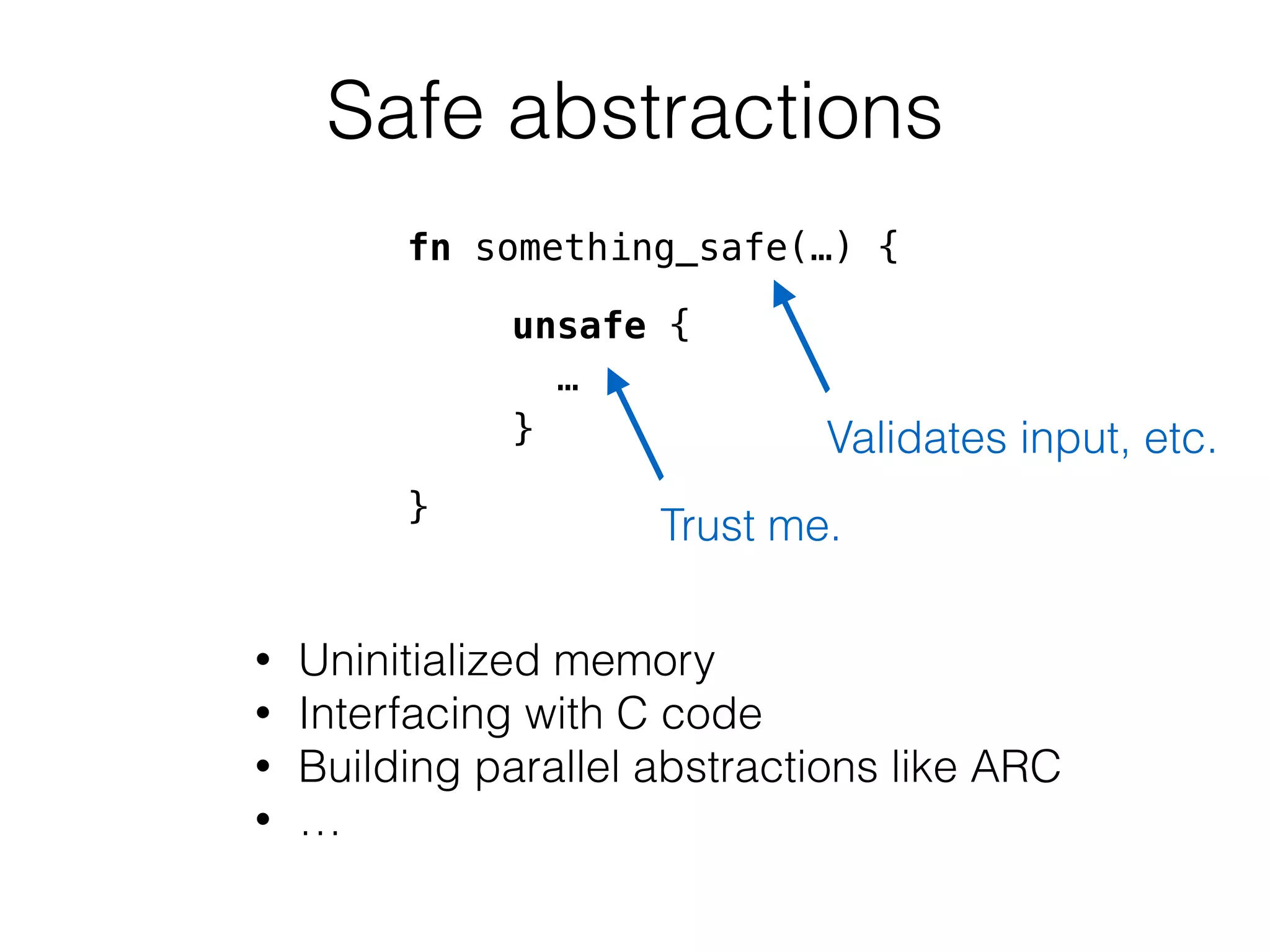

Safe abstractions
fn something_safe(…) {
!
unsafe {
!
…
!
}
!
}
Validates input, etc.
Trust me.
• Uninitialized memory
• Interfacing with C code
• Building parallel abstractions like ARC
• …

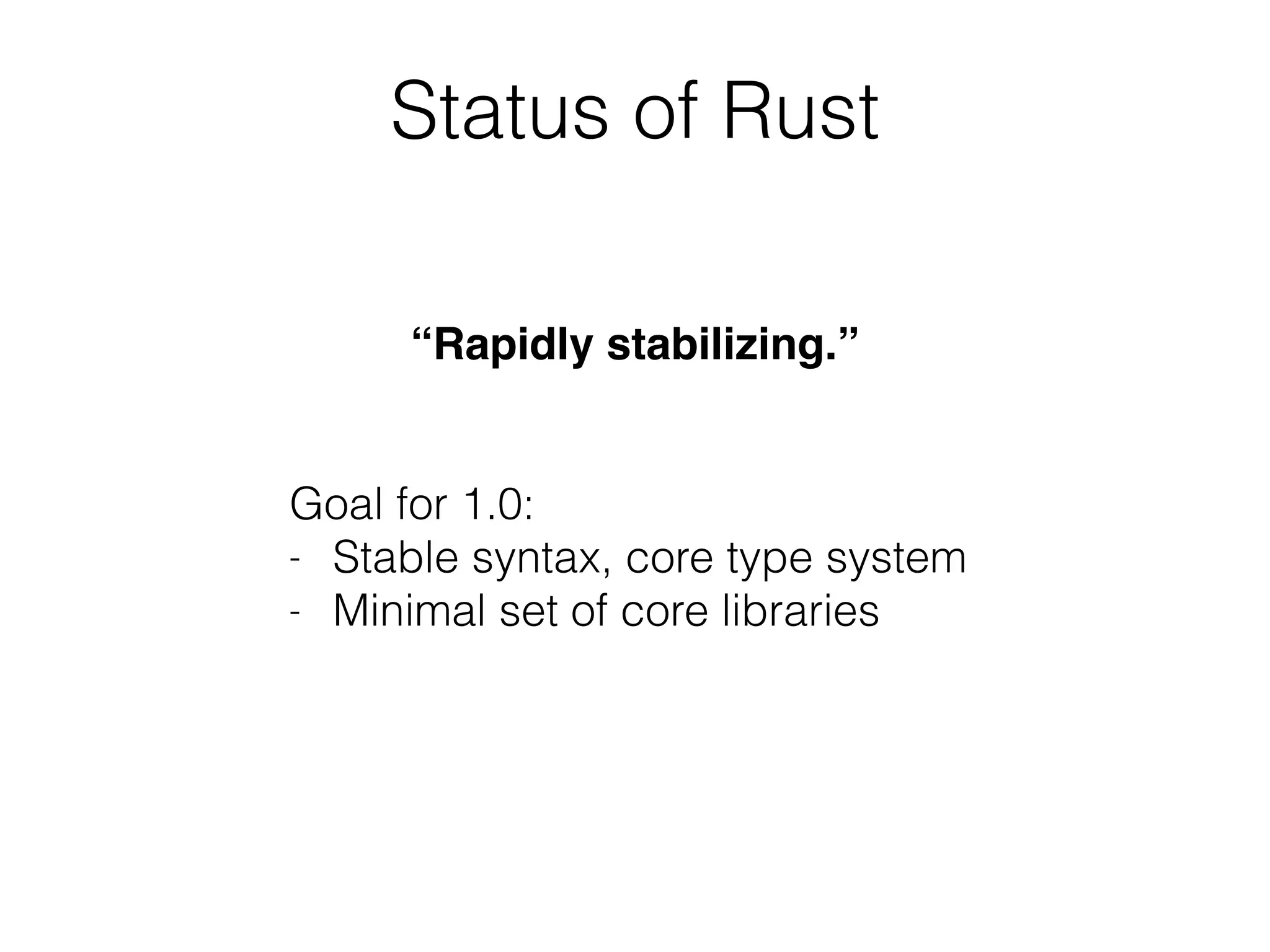

Status of Rust
“Rapidly stabilizing.”!
!
!
Goal for 1.0:
- Stable syntax, core type system
- Minimal set of core libraries

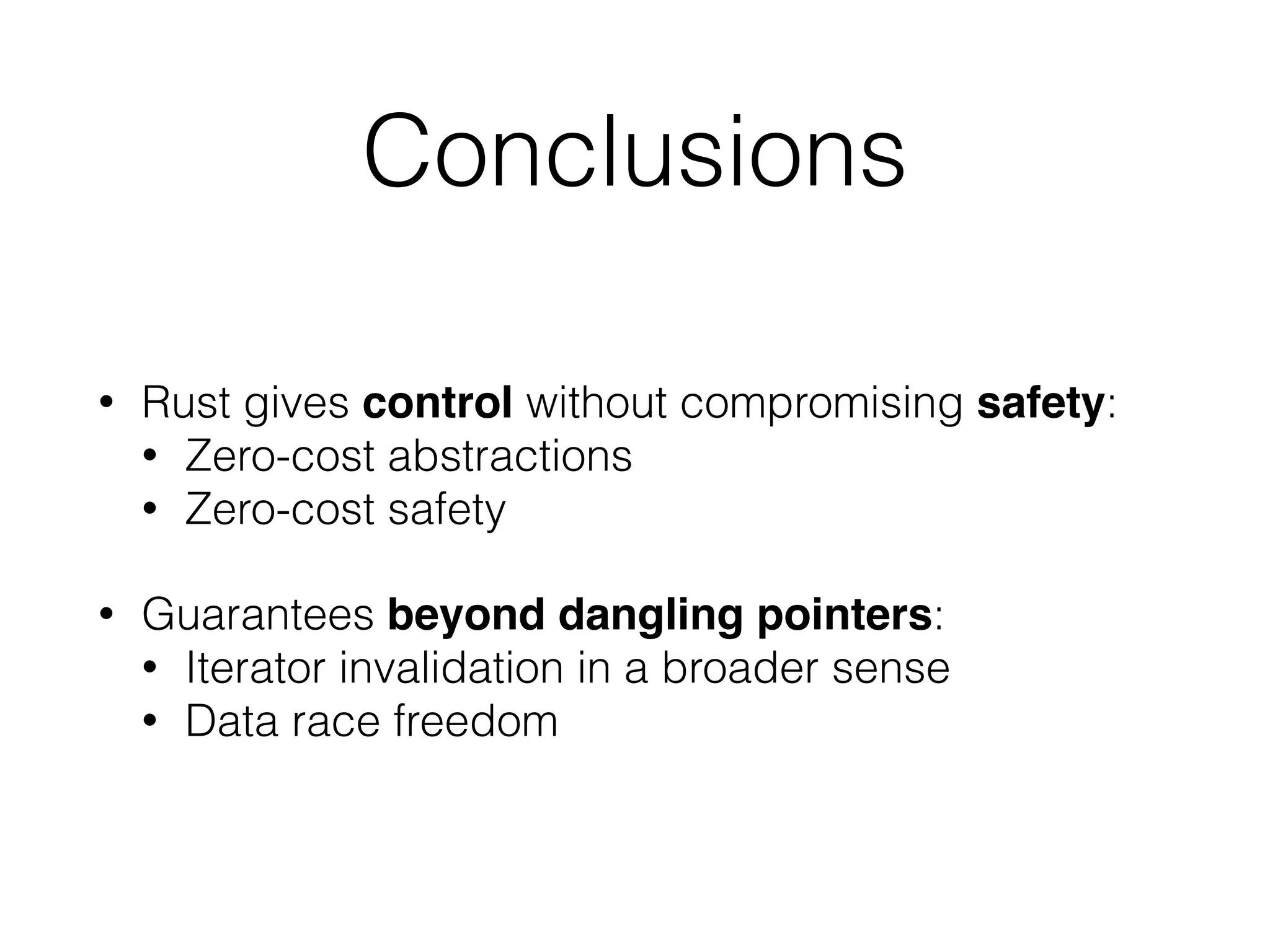

Conclusions
• Rust gives control without compromising safety:
• Zero-cost abstractions
• Zero-cost safety
• Guarantees beyond dangling pointers:
• Iterator invalidation in a broader sense
• Data race freedom
