ENGINEERING FAST INDEXES (DEEP DIVE)
Daniel Lemire
https://lemire.me
Joint work with lots of super smart people

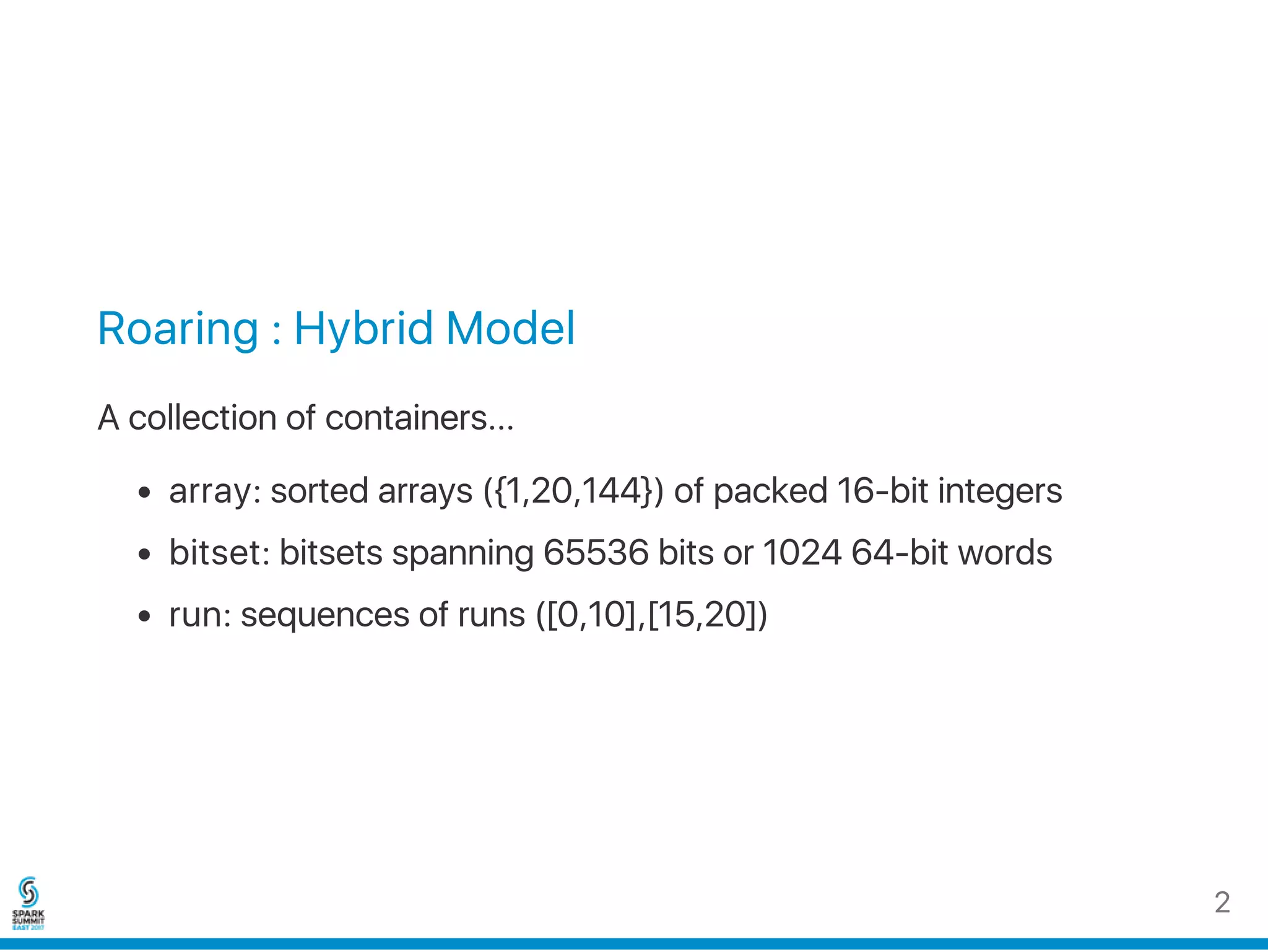

Roaring : Hybrid Model
A collection of containers...
array: sorted arrays ({1,20,144}) of packed 16‑bit integers
bitset: bitsets spanning 65536 bits or 1024 64‑bit words
run: sequences of runs ([0,10],[15,20])
2

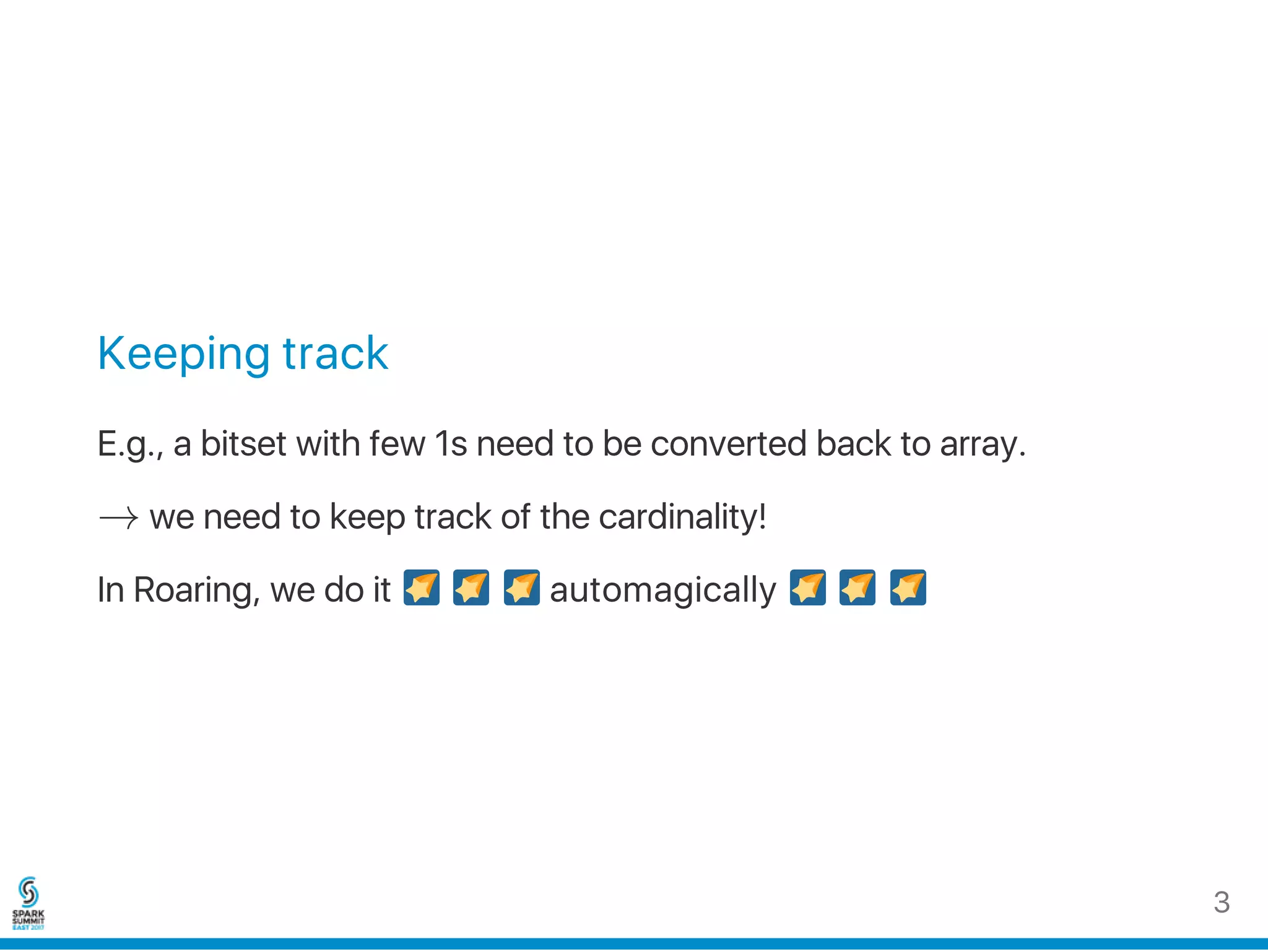

Keeping track
E.g., a bitset with few 1s need to be converted back to array.
→ we need to keep track of the cardinality!
In Roaring, we do it automagically
3

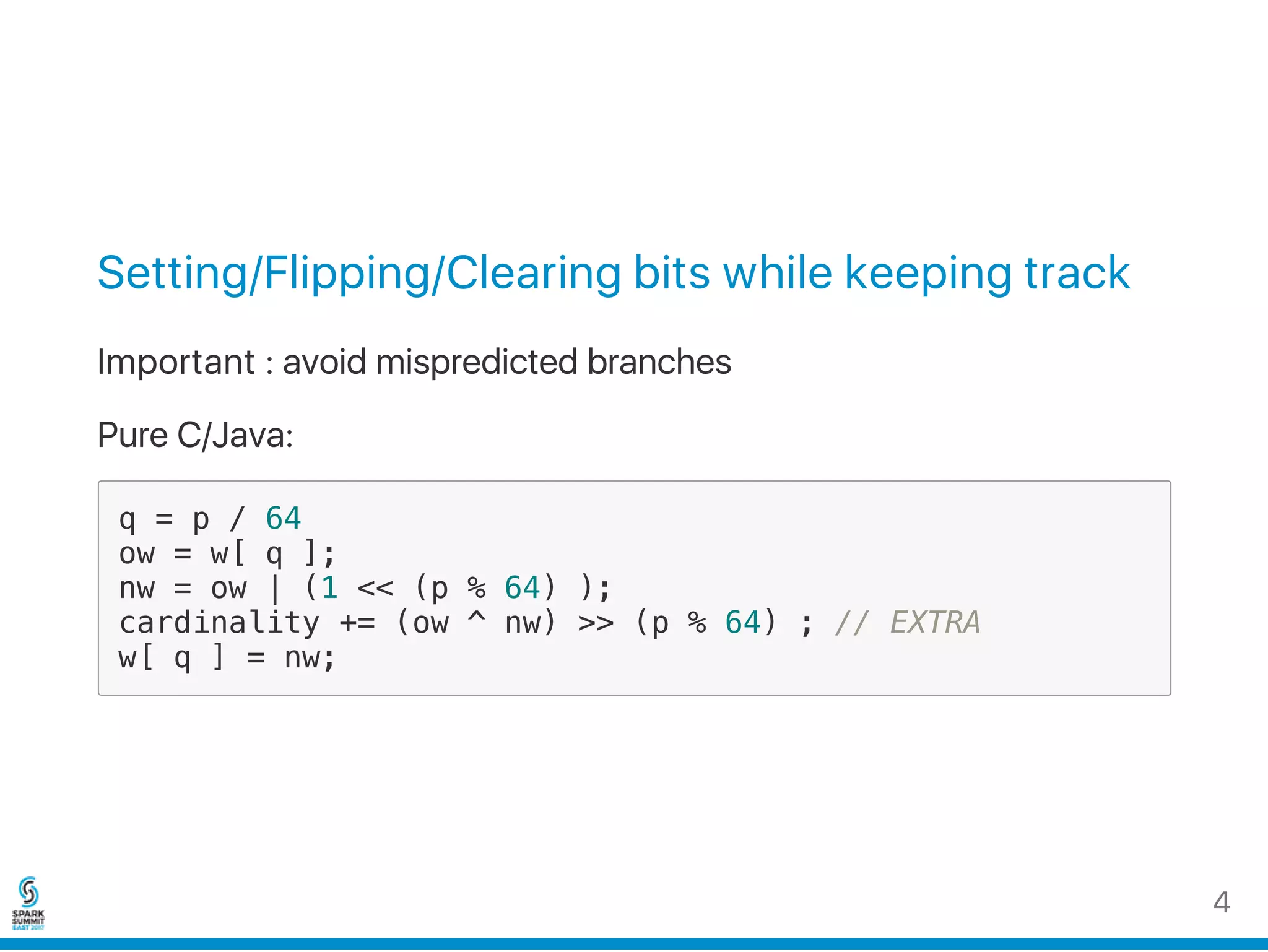

Setting/Flipping/Clearing bits while keeping track
Important : avoid mispredicted branches
Pure C/Java:
q = p / 64
ow = w[ q ];
nw = ow | (1 << (p % 64) );
cardinality += (ow ^ nw) >> (p % 64) ; // EXTRA
w[ q ] = nw;
4

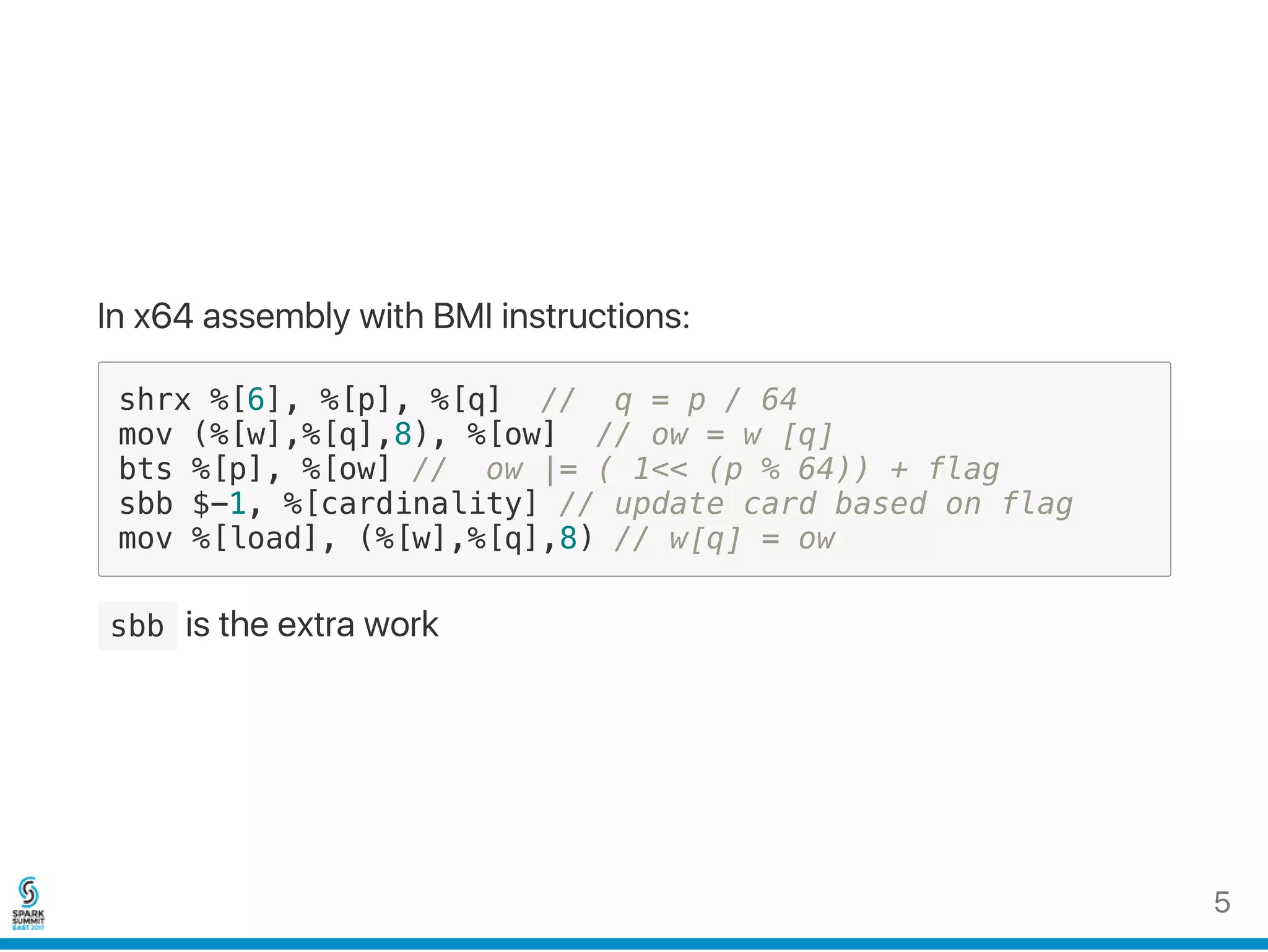

In x64 assembly with BMI instructions:
shrx %[6], %[p], %[q] // q = p / 64
mov (%[w],%[q],8), %[ow] // ow = w [q]
bts %[p], %[ow] // ow |= ( 1<< (p % 64)) + flag
sbb $-1, %[cardinality] // update card based on flag
mov %[load], (%[w],%[q],8) // w[q] = ow
sbb is the extra work
5

For each operation
union
intersection
difference
...
Must specialize by container type:
array bitset run
array ? ? ?
bitset ? ? ?
run ? ? ?
6

High‑level API or Sipping Straw?
7

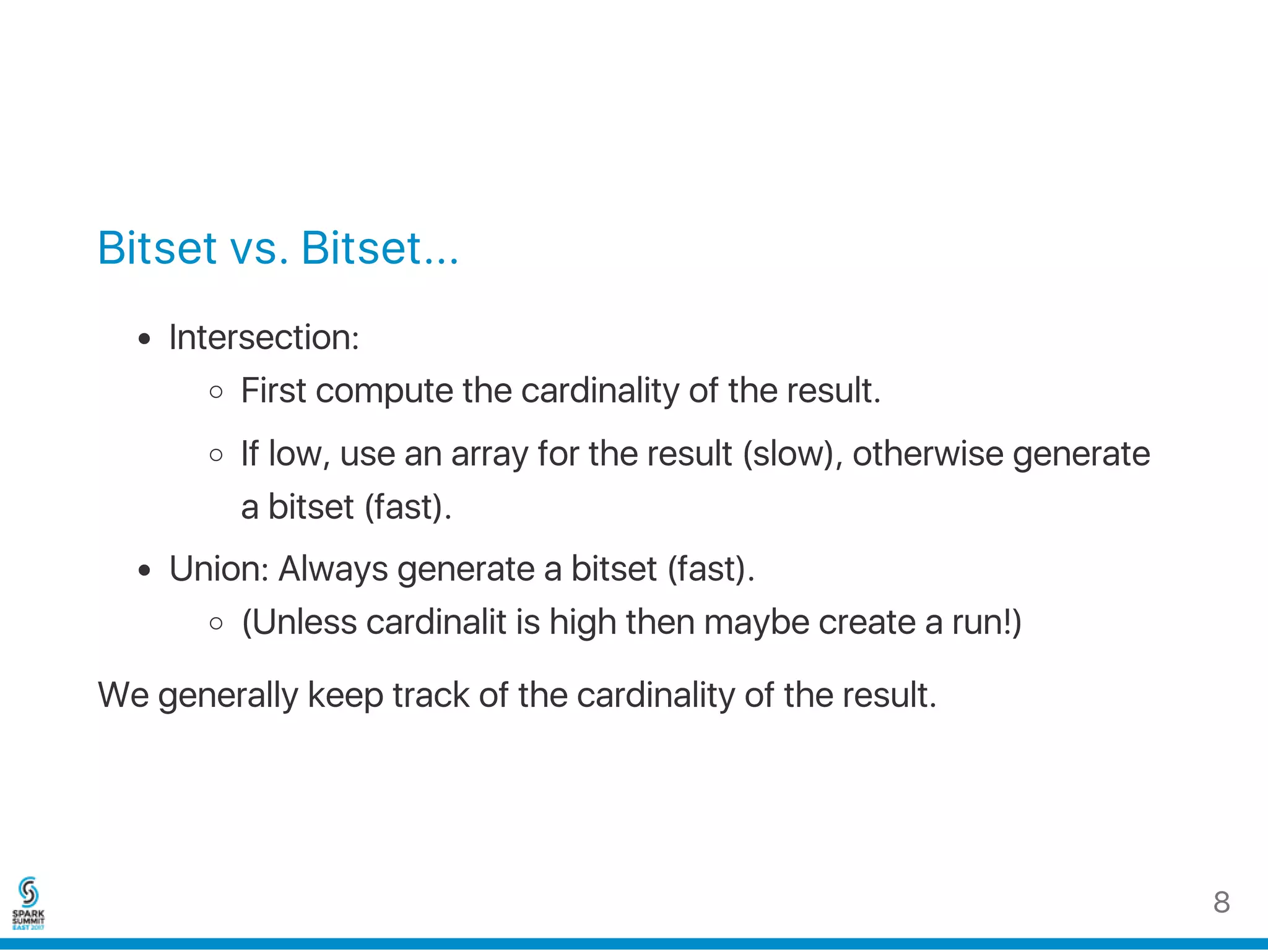

Bitset vs. Bitset...
Intersection:
First compute the cardinality of the result.
If low, use an array for the result (slow), otherwise generate
a bitset (fast).
Union: Always generate a bitset (fast).
(Unless cardinality is high then maybe create a run!)
We generally keep track of the cardinality of the result.
8

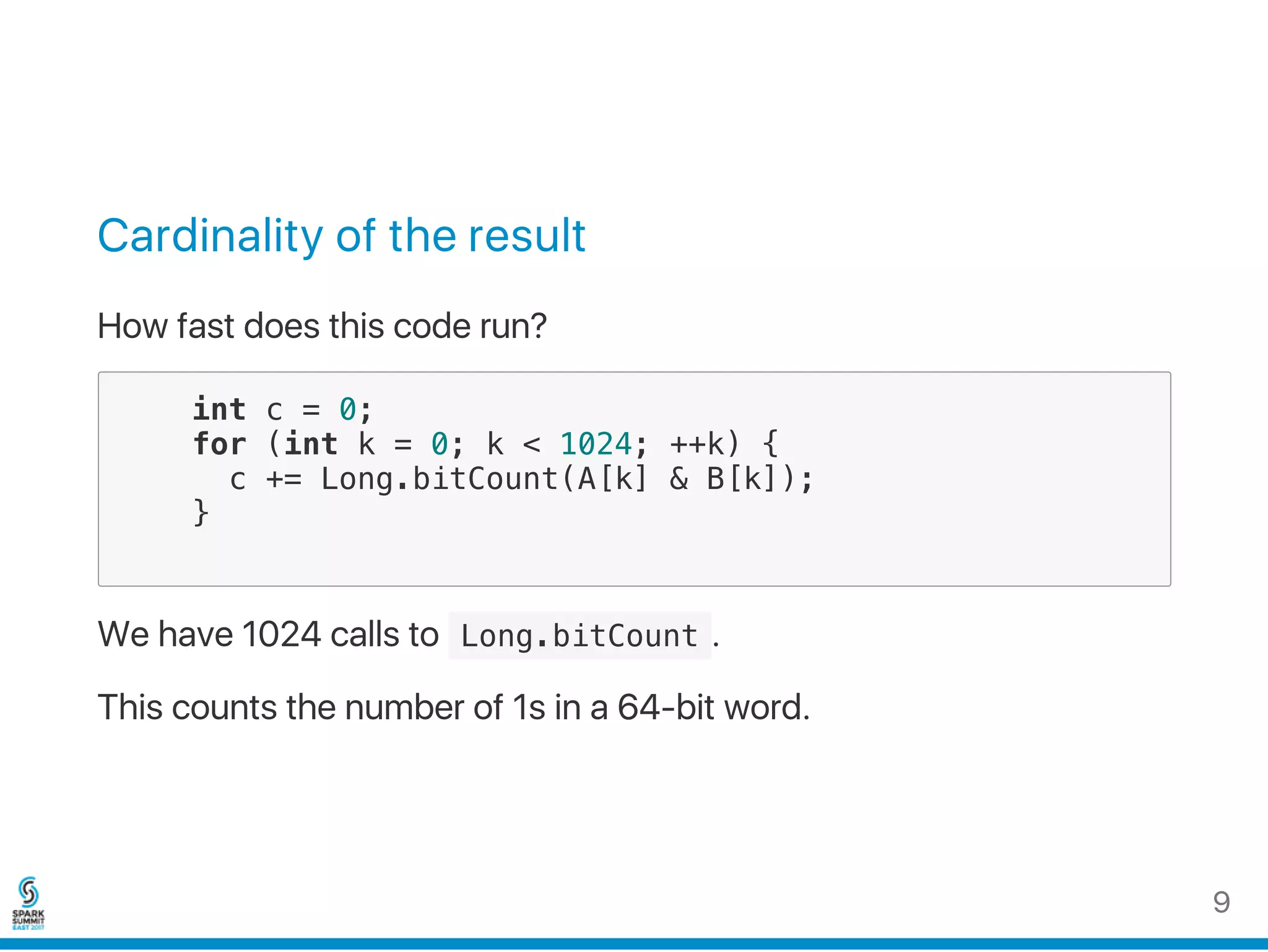

Cardinality of the result
How fast does this code run?
int c = 0;
for (int k = 0; k < 1024; ++k) {
c += Long.bitCount(A[k] & B[k]);
}
We have 1024 calls to Long.bitCount .
This counts the number of 1s in a 64‑bit word.
9

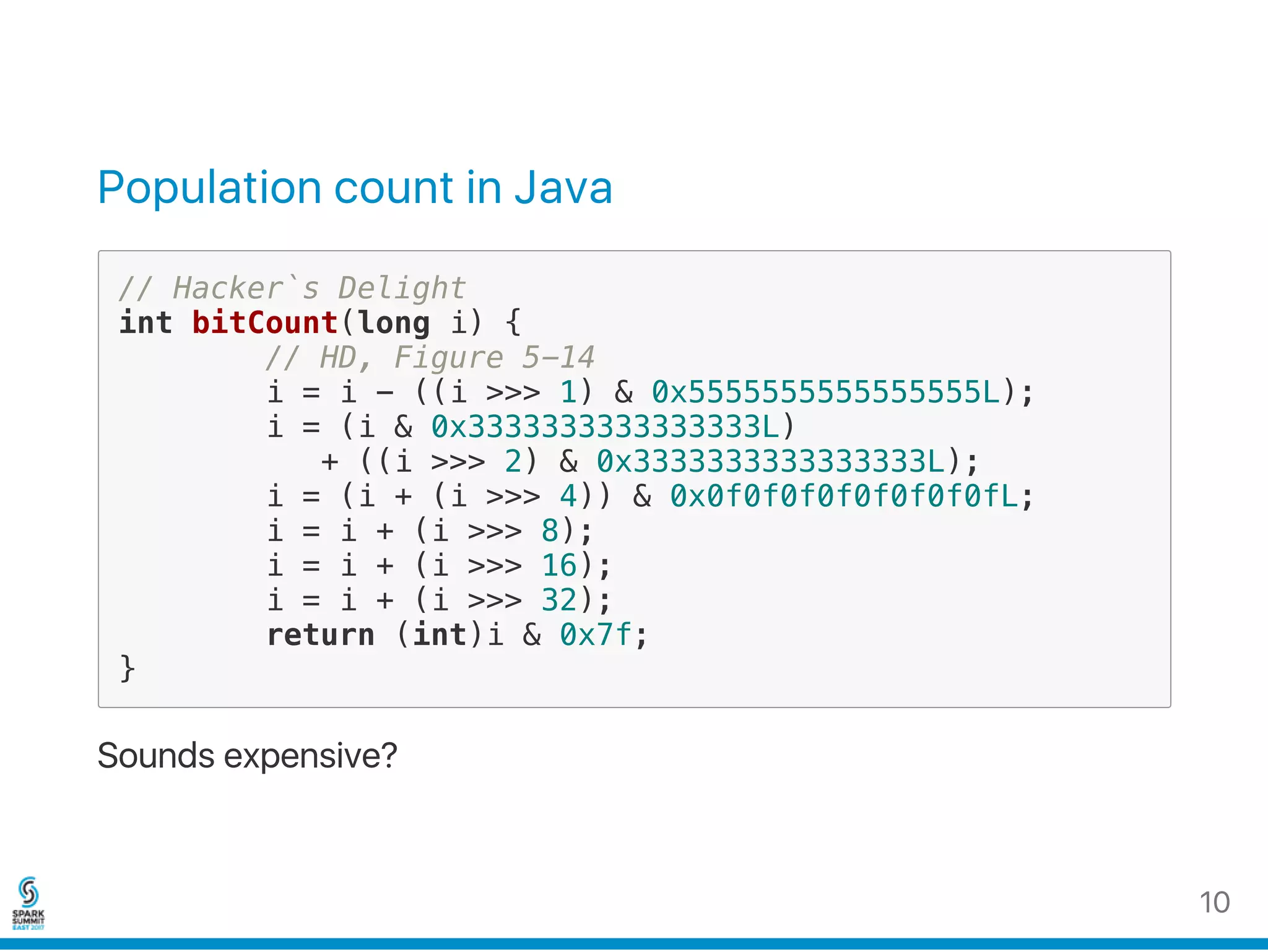

Population count in Java
// Hacker`s Delight
int bitCount(long i) {
// HD, Figure 5-14
i = i - ((i >>> 1) & 0x5555555555555555L);
i = (i & 0x3333333333333333L)
+ ((i >>> 2) & 0x3333333333333333L);
i = (i + (i >>> 4)) & 0x0f0f0f0f0f0f0f0fL;
i = i + (i >>> 8);
i = i + (i >>> 16);
i = i + (i >>> 32);
return (int)i & 0x7f;
}
Sounds expensive?
10

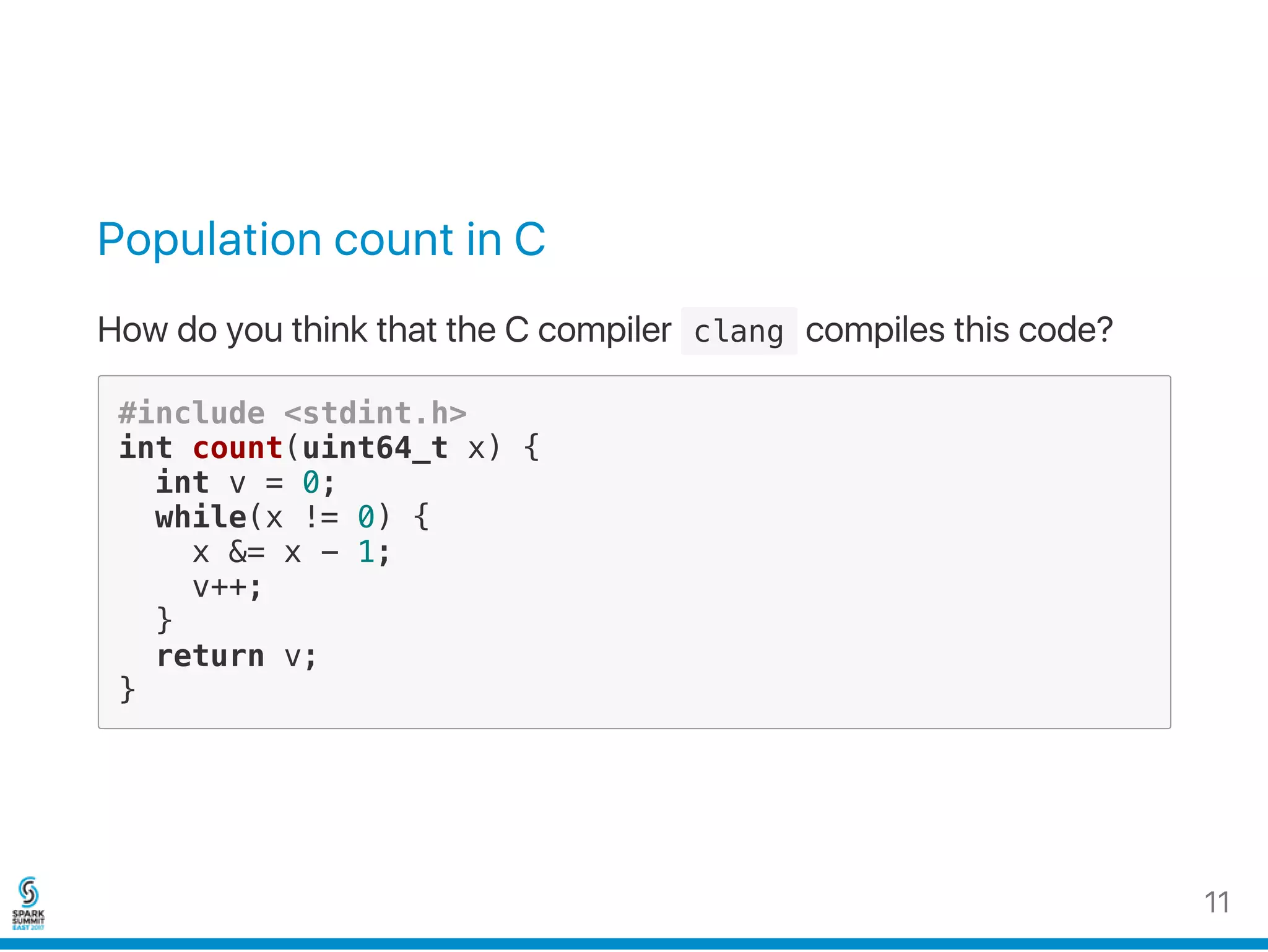

Population count in C
How do you think that the C compiler clang compiles this code?
#include <stdint.h>
int count(uint64_t x) {
int v = 0;
while(x != 0) {
x &= x - 1;
v++;
}
return v;
}
11

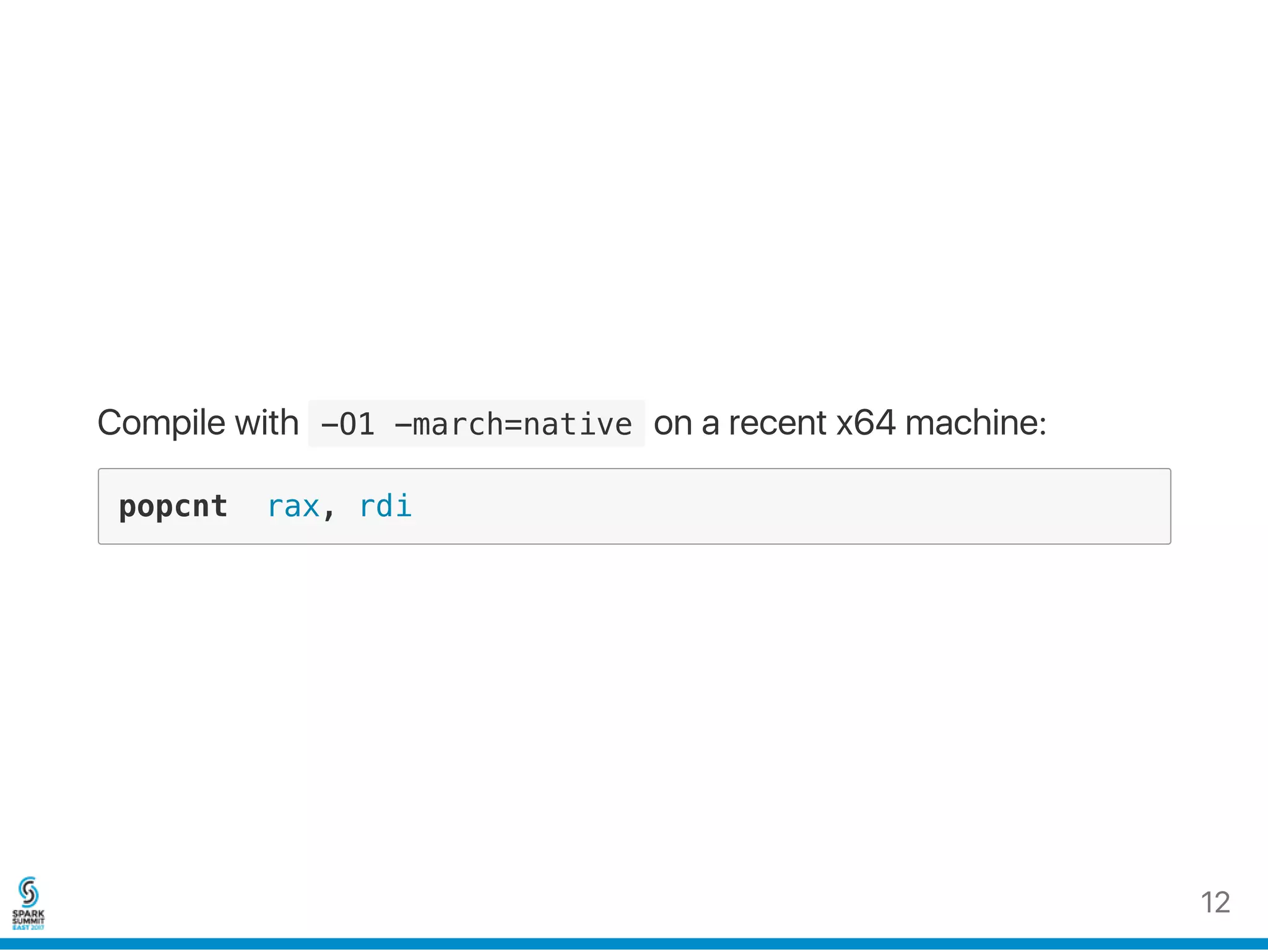

Compile with -O1 -march=native on a recent x64 machine:
popcnt rax, rdi
12

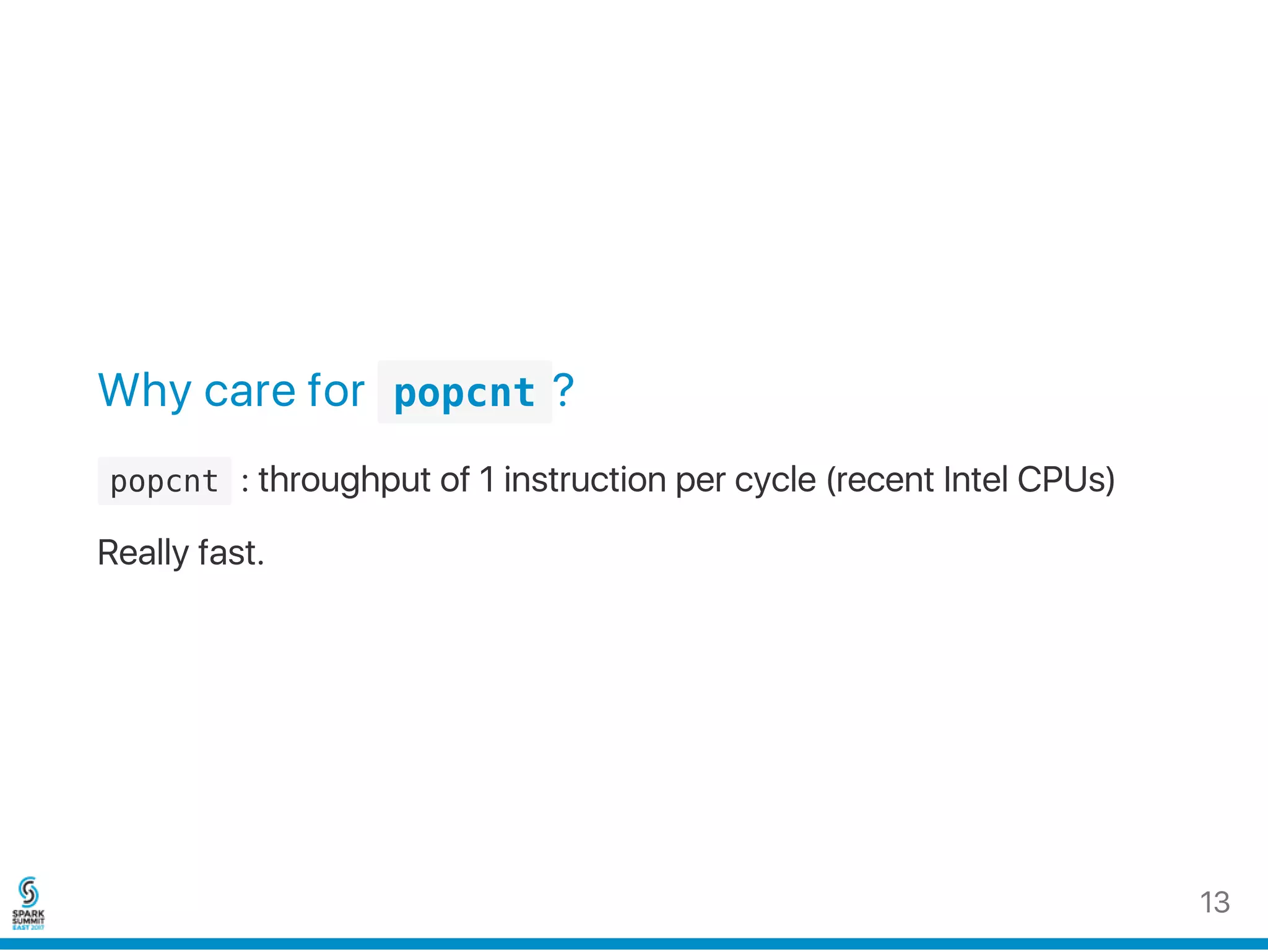

Why care for popcnt ?
popcnt : throughput of 1 instruction per cycle (recent Intel CPUs)
Really fast.
13

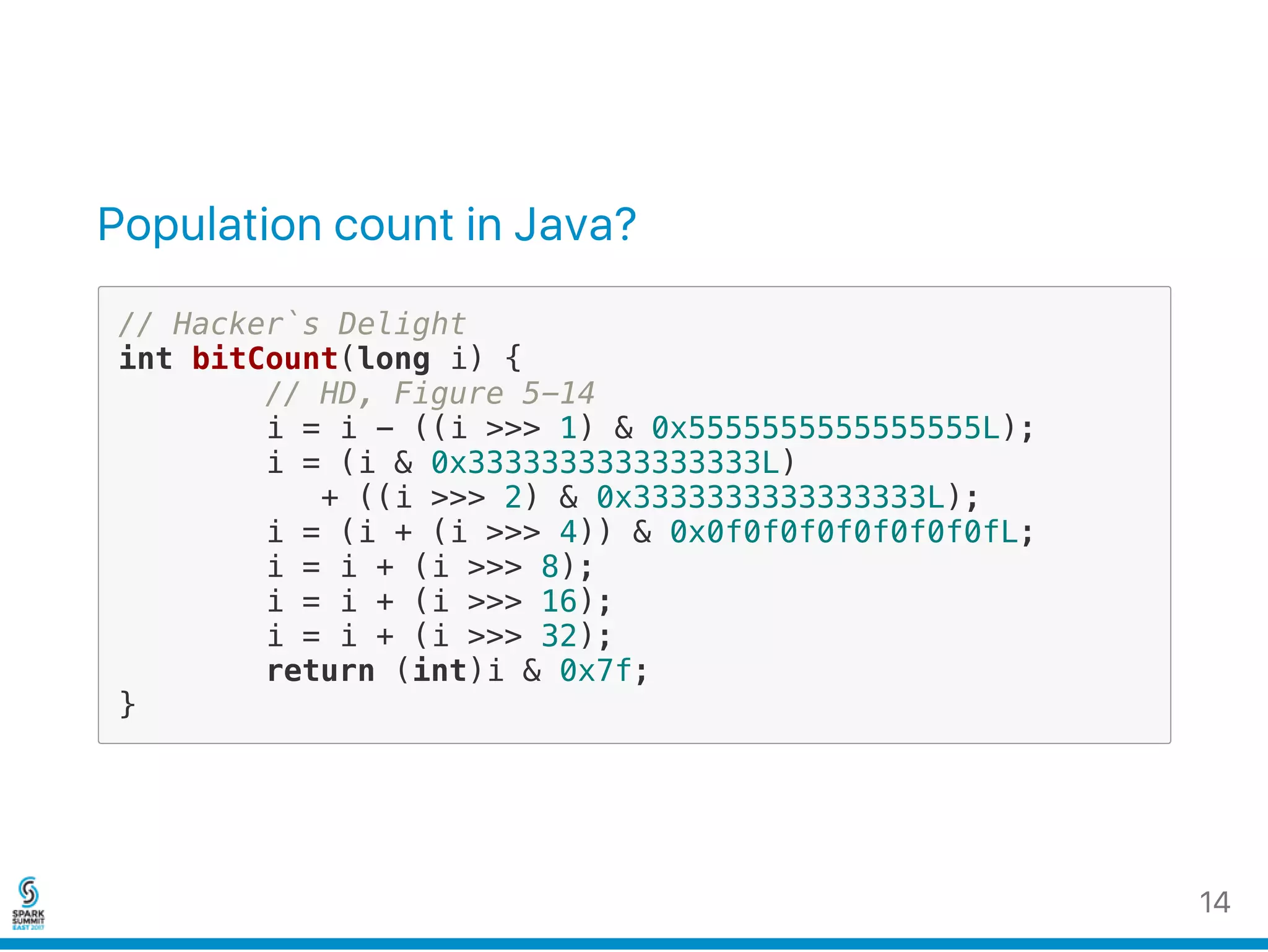

Population count in Java?
// Hacker`s Delight
int bitCount(long i) {
// HD, Figure 5-14
i = i - ((i >>> 1) & 0x5555555555555555L);
i = (i & 0x3333333333333333L)
+ ((i >>> 2) & 0x3333333333333333L);
i = (i + (i >>> 4)) & 0x0f0f0f0f0f0f0f0fL;
i = i + (i >>> 8);
i = i + (i >>> 16);
i = i + (i >>> 32);
return (int)i & 0x7f;
}
14

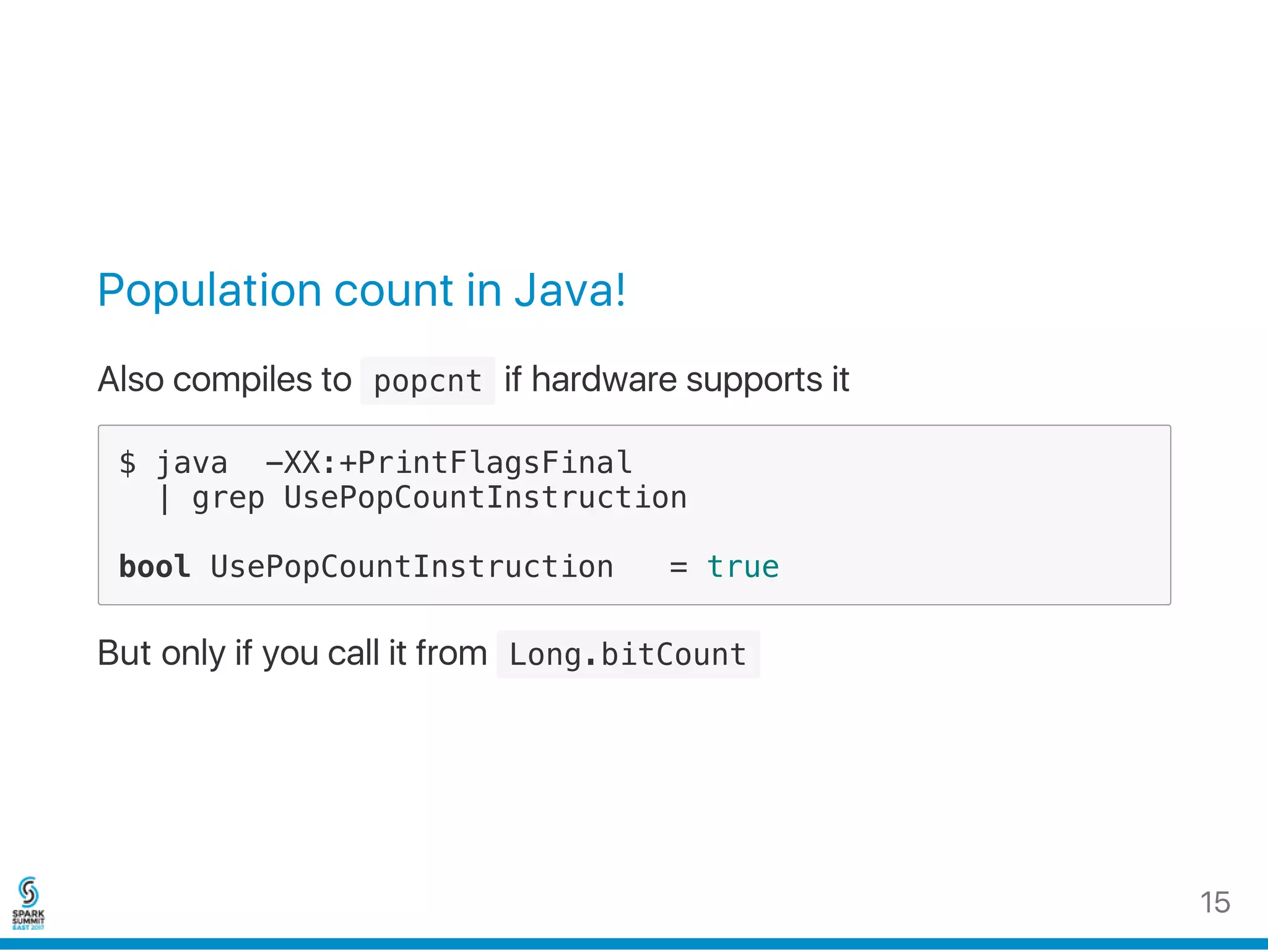

Population count in Java!
Also compiles to popcnt if hardware supports it
$ java -XX:+PrintFlagsFinal
| grep UsePopCountInstruction
bool UsePopCountInstruction = true
But only if you call it from Long.bitCount
15

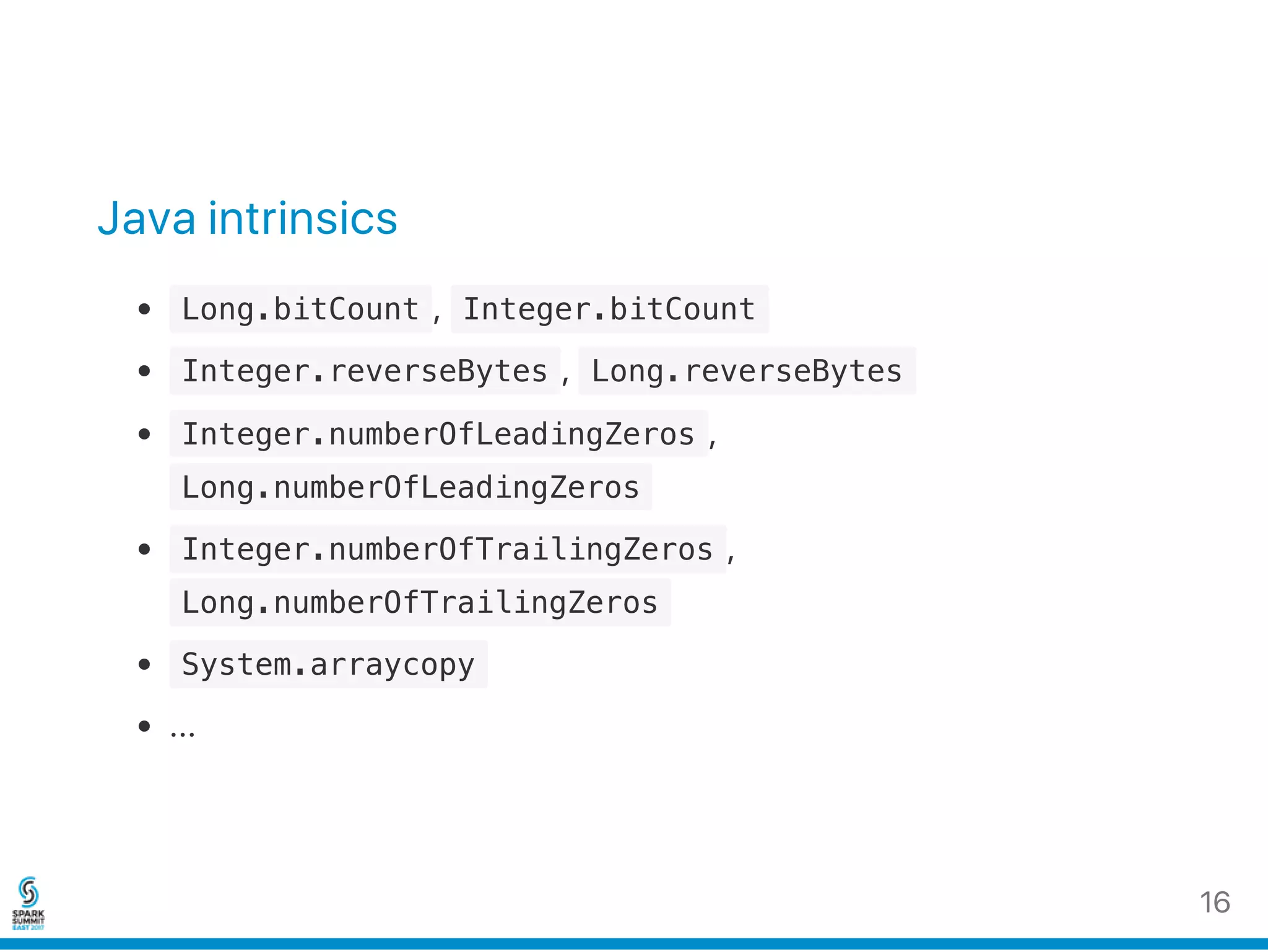

Java intrinsics
Long.bitCount , Integer.bitCount
Integer.reverseBytes , Long.reverseBytes
Integer.numberOfLeadingZeros ,
Long.numberOfLeadingZeros
Integer.numberOfTrailingZeros ,
Long.numberOfTrailingZeros
System.arraycopy
...
16

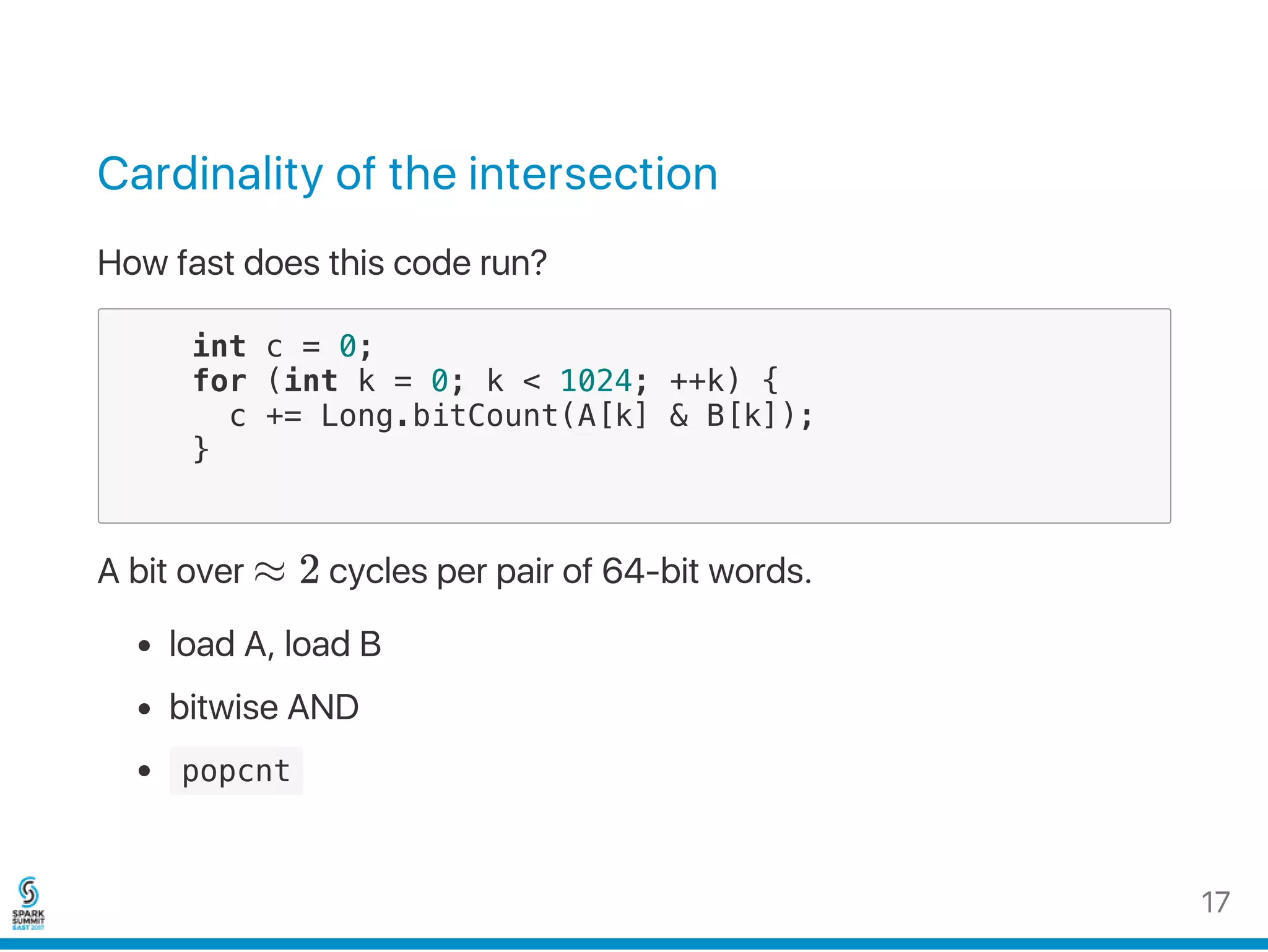

Cardinality of the intersection
How fast does this code run?
int c = 0;
for (int k = 0; k < 1024; ++k) {
c += Long.bitCount(A[k] & B[k]);
}
A bit over ≈ 2 cycles per pair of 64‑bit words.
load A, load B
bitwise AND
popcnt
17

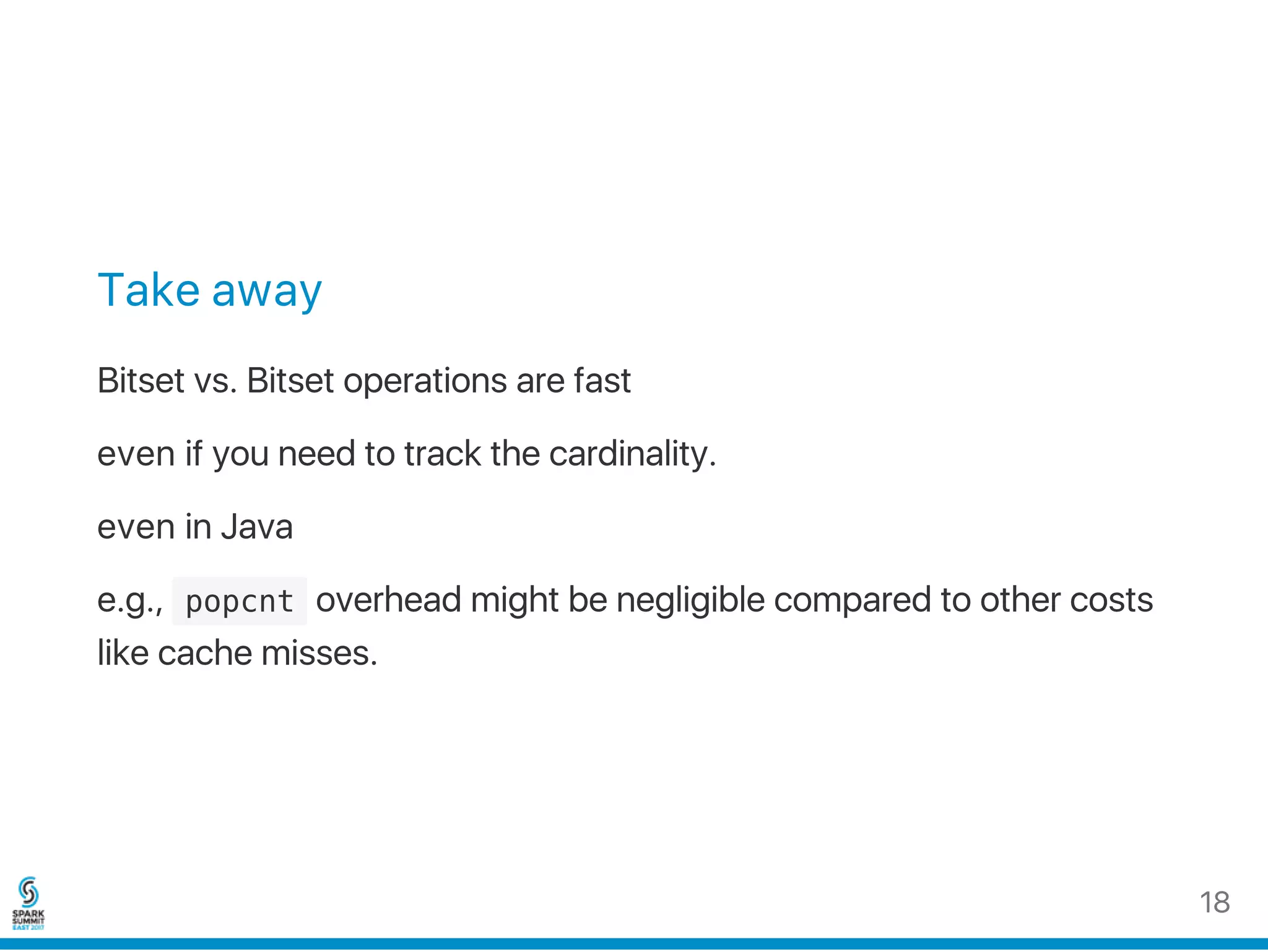

Take away
Bitset vs. Bitset operations are fast
even if you need to track the cardinality.
even in Java
e.g., popcnt overhead might be negligible compared to other costs
like cache misses.
18

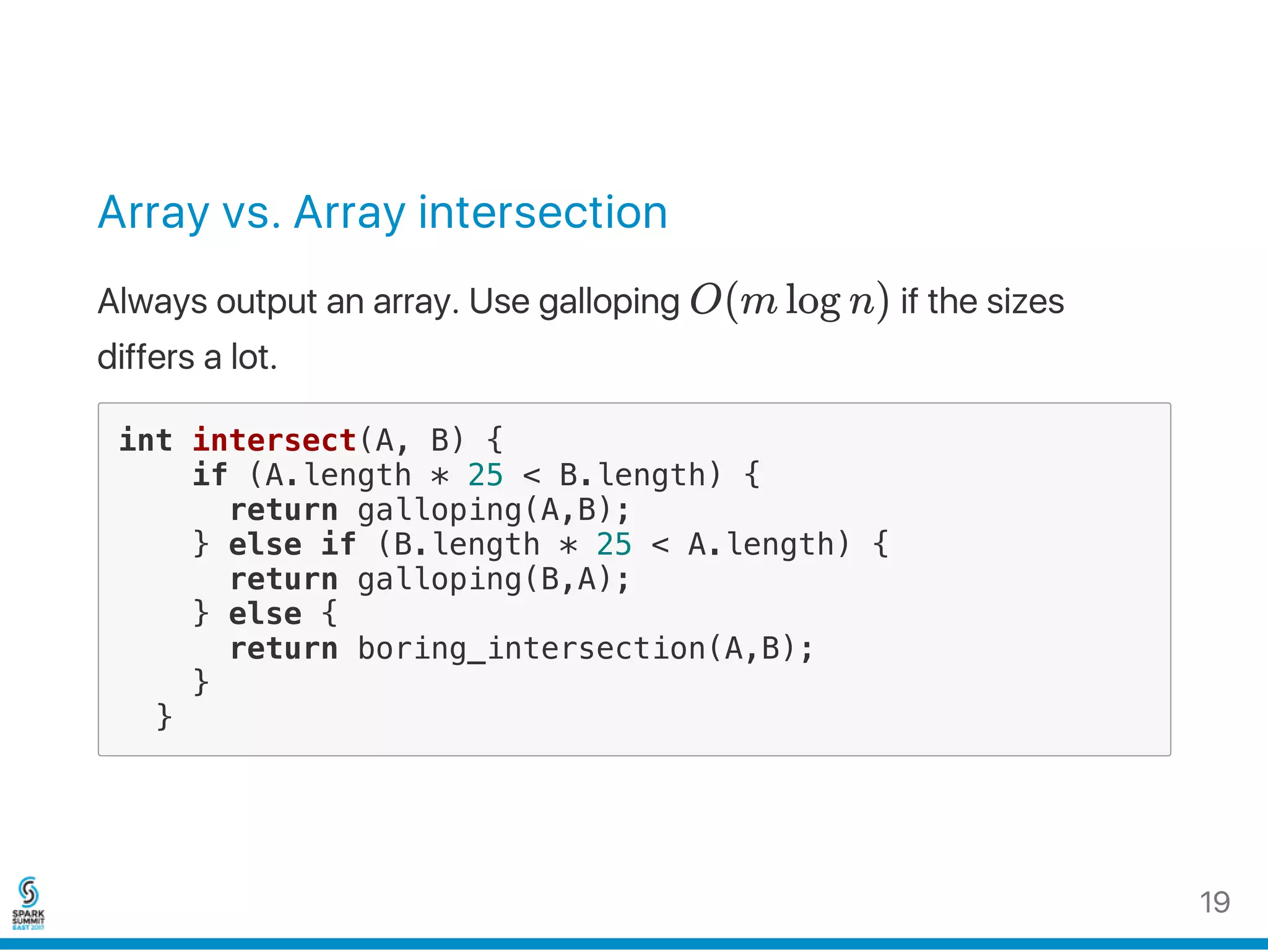

Array vs. Array intersection
Always output an array. Use galloping O(m log n) if the sizes
differs a lot.
int intersect(A, B) {
if (A.length * 25 < B.length) {
return galloping(A,B);
} else if (B.length * 25 < A.length) {
return galloping(B,A);
} else {
return boring_intersection(A,B);
}
}
19

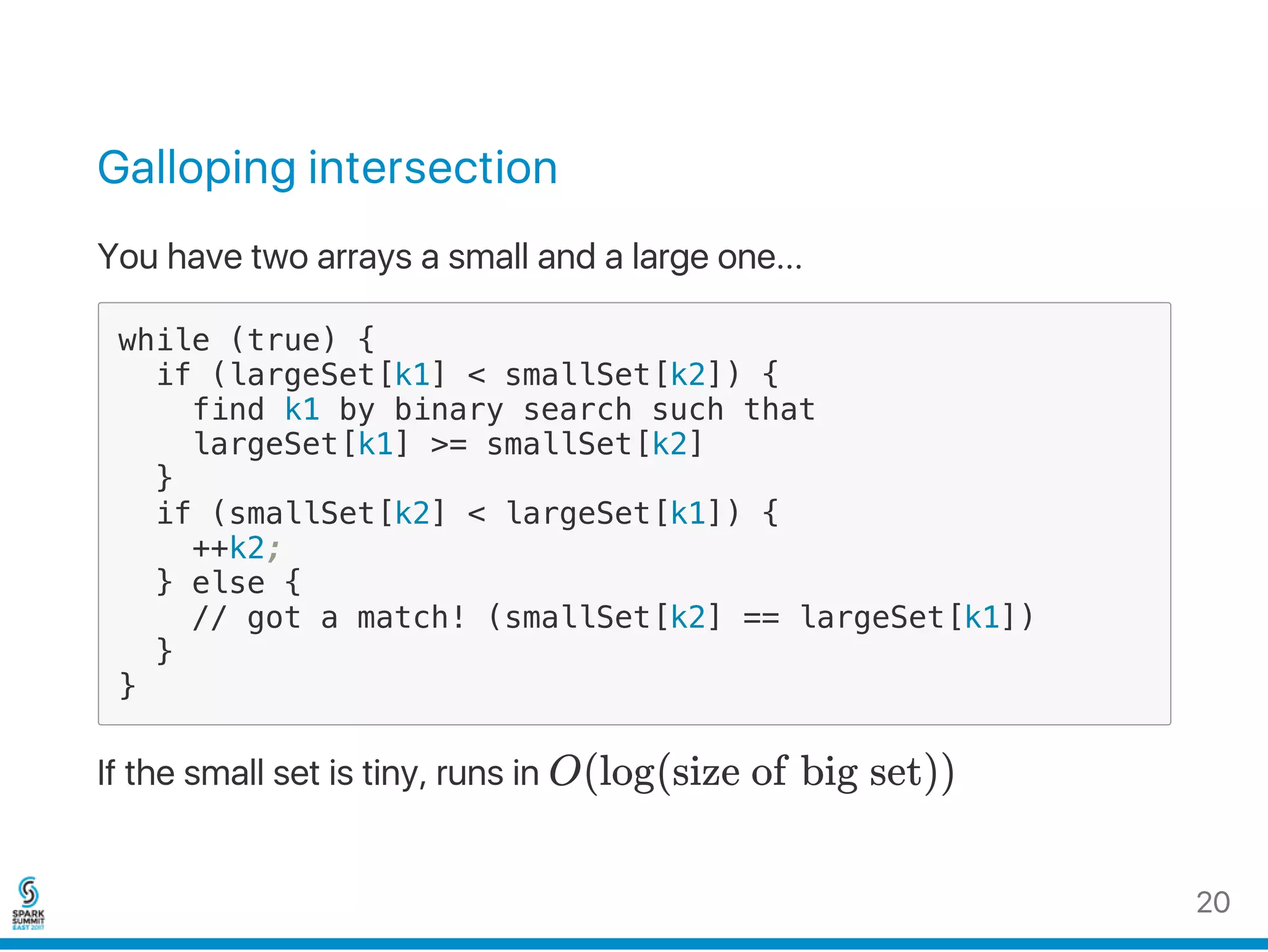

Galloping intersection
You have two arrays a small and a large one...
while (true) {
if (largeSet[k1] < smallSet[k2]) {
find k1 by binary search such that
largeSet[k1] >= smallSet[k2]
}
if (smallSet[k2] < largeSet[k1]) {
++k2;
} else {
// got a match! (smallSet[k2] == largeSet[k1])
}
}
If the small set is tiny, runs in O(log(size of big set))
20

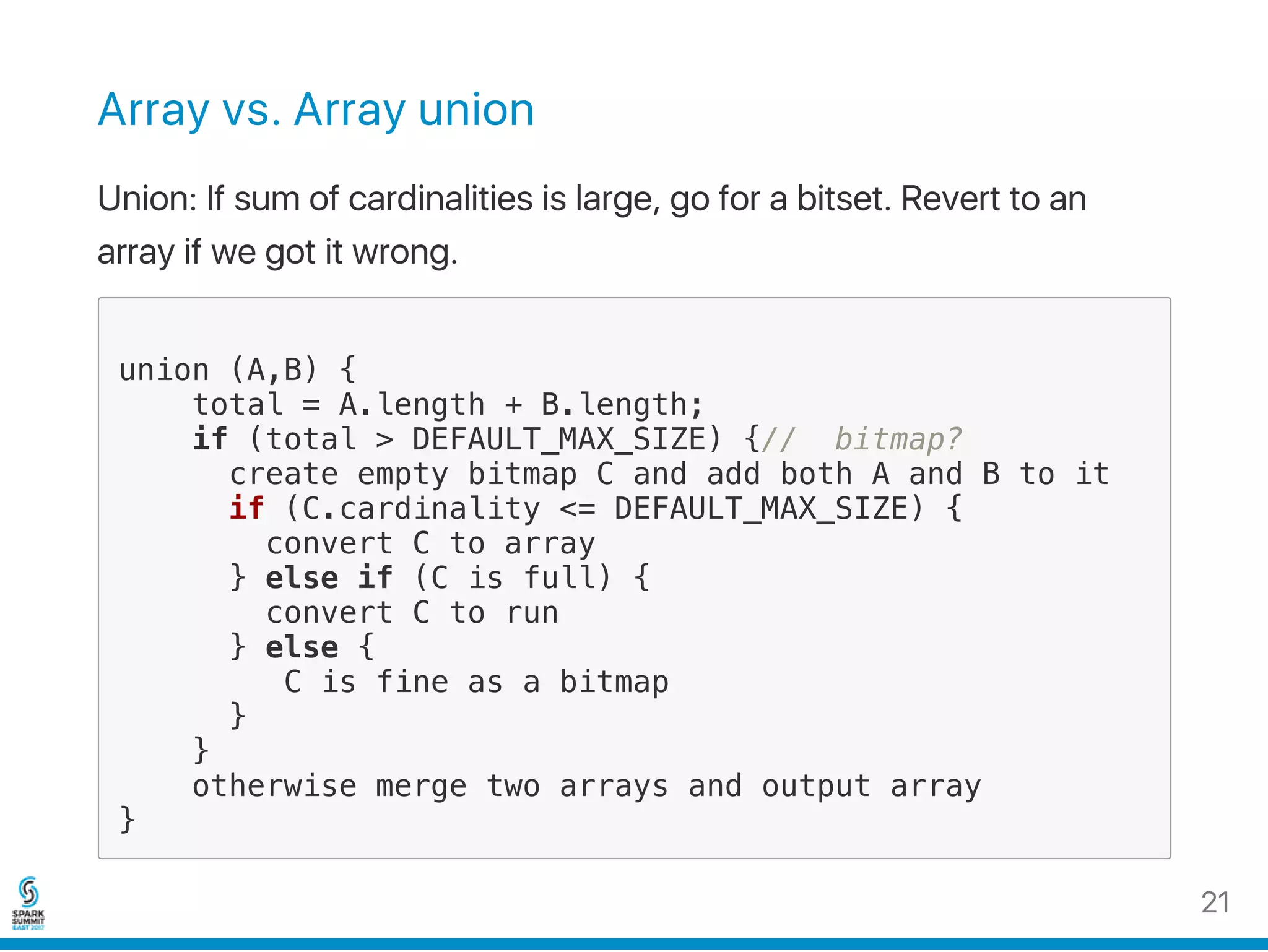

Array vs. Array union
Union: If sum of cardinalities is large, go for a bitset. Revert to an
array if we got it wrong.
union (A,B) {
total = A.length + B.length;
if (total > DEFAULT_MAX_SIZE) {// bitmap?
create empty bitmap C and add both A and B to it
if (C.cardinality <= DEFAULT_MAX_SIZE) {
convert C to array
} else if (C is full) {
convert C to run
} else {
C is fine as a bitmap
}
}
otherwise merge two arrays and output array
}
21

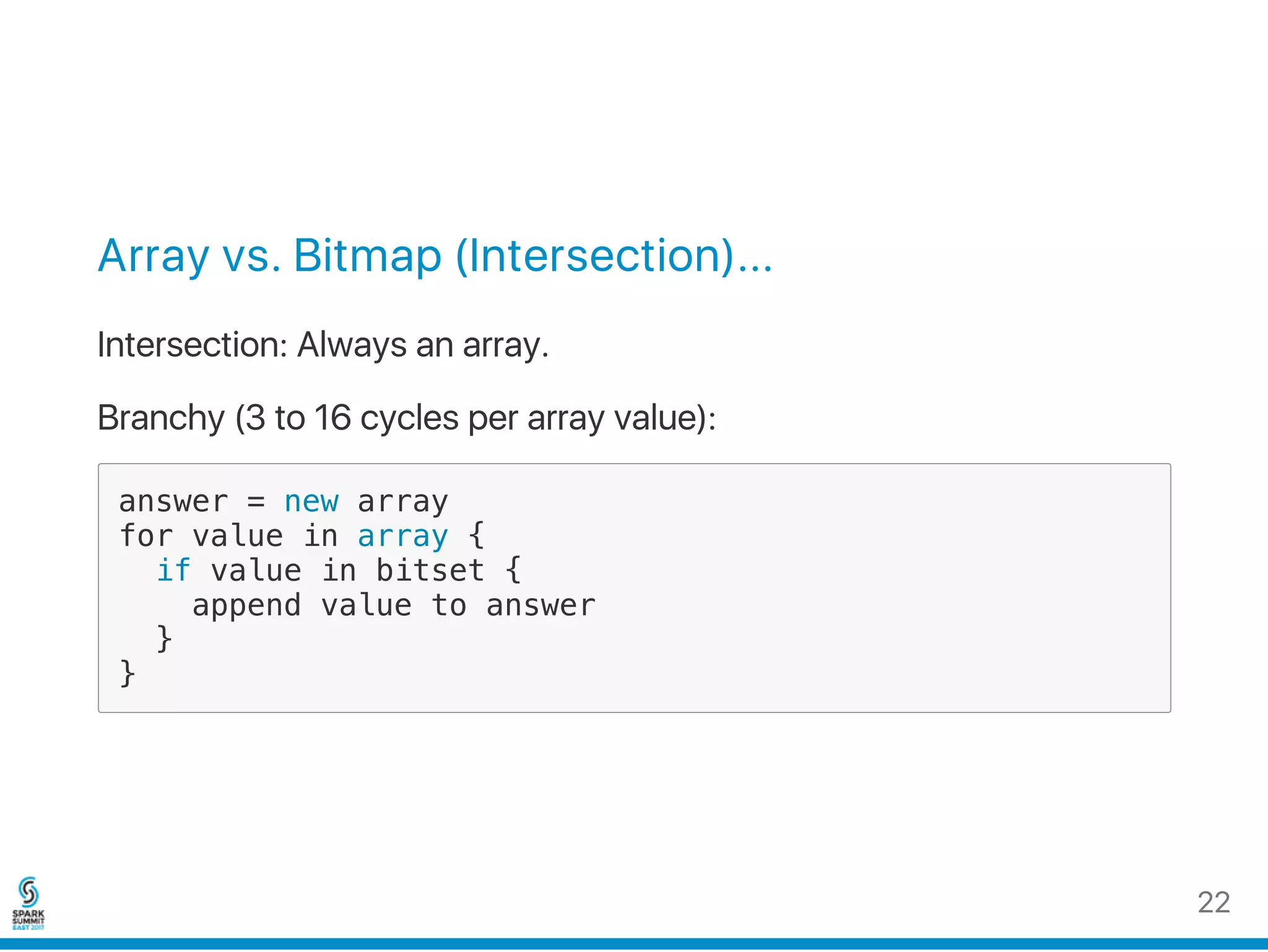

Array vs. Bitmap (Intersection)...
Intersection: Always an array.
Branchy (3 to 16 cycles per array value):
answer = new array
for value in array {
if value in bitset {
append value to answer
}
}
22

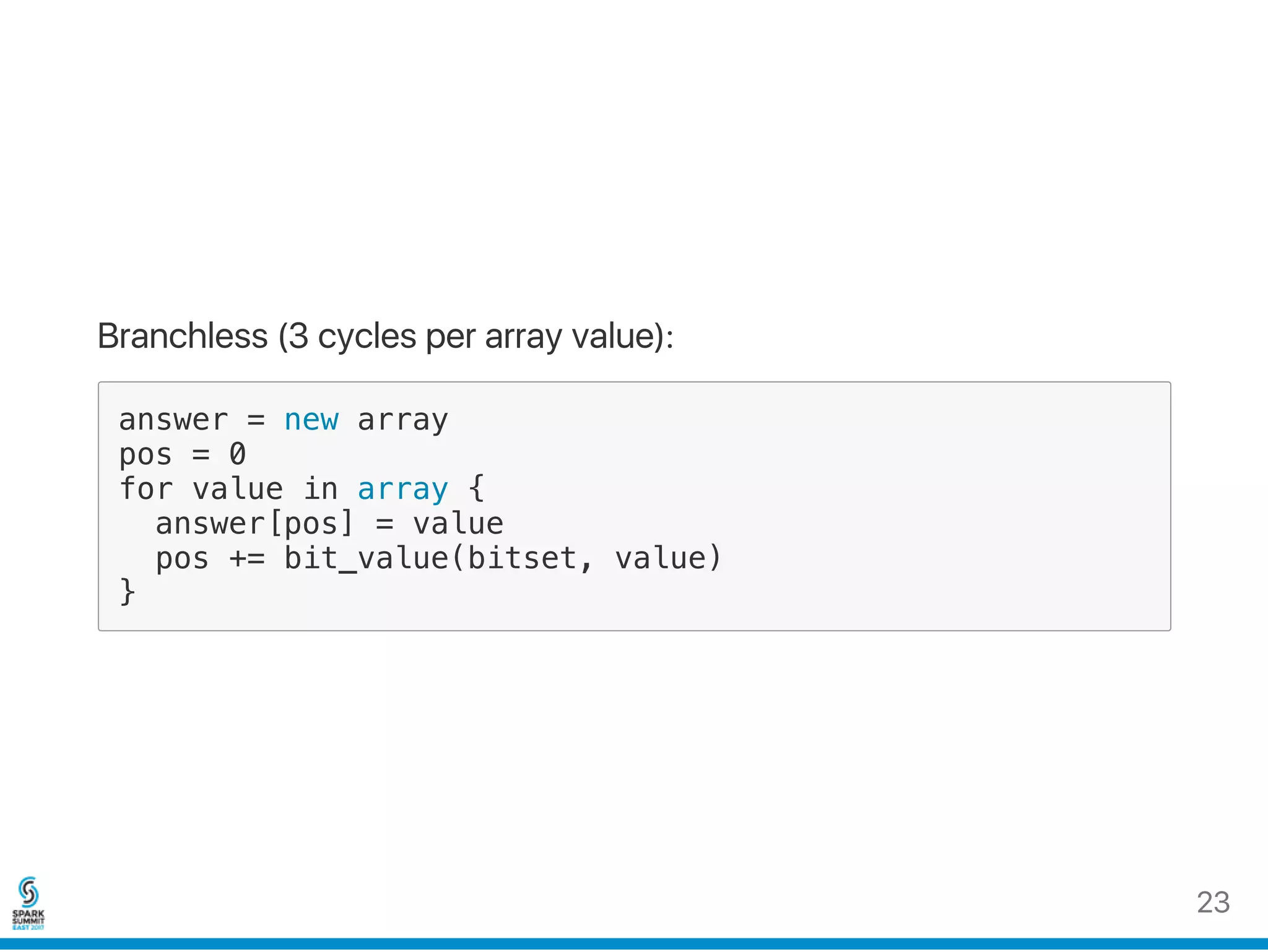

Branchless (3 cycles per array value):
answer = new array
pos = 0
for value in array {
answer[pos] = value
pos += bit_value(bitset, value)
}
23

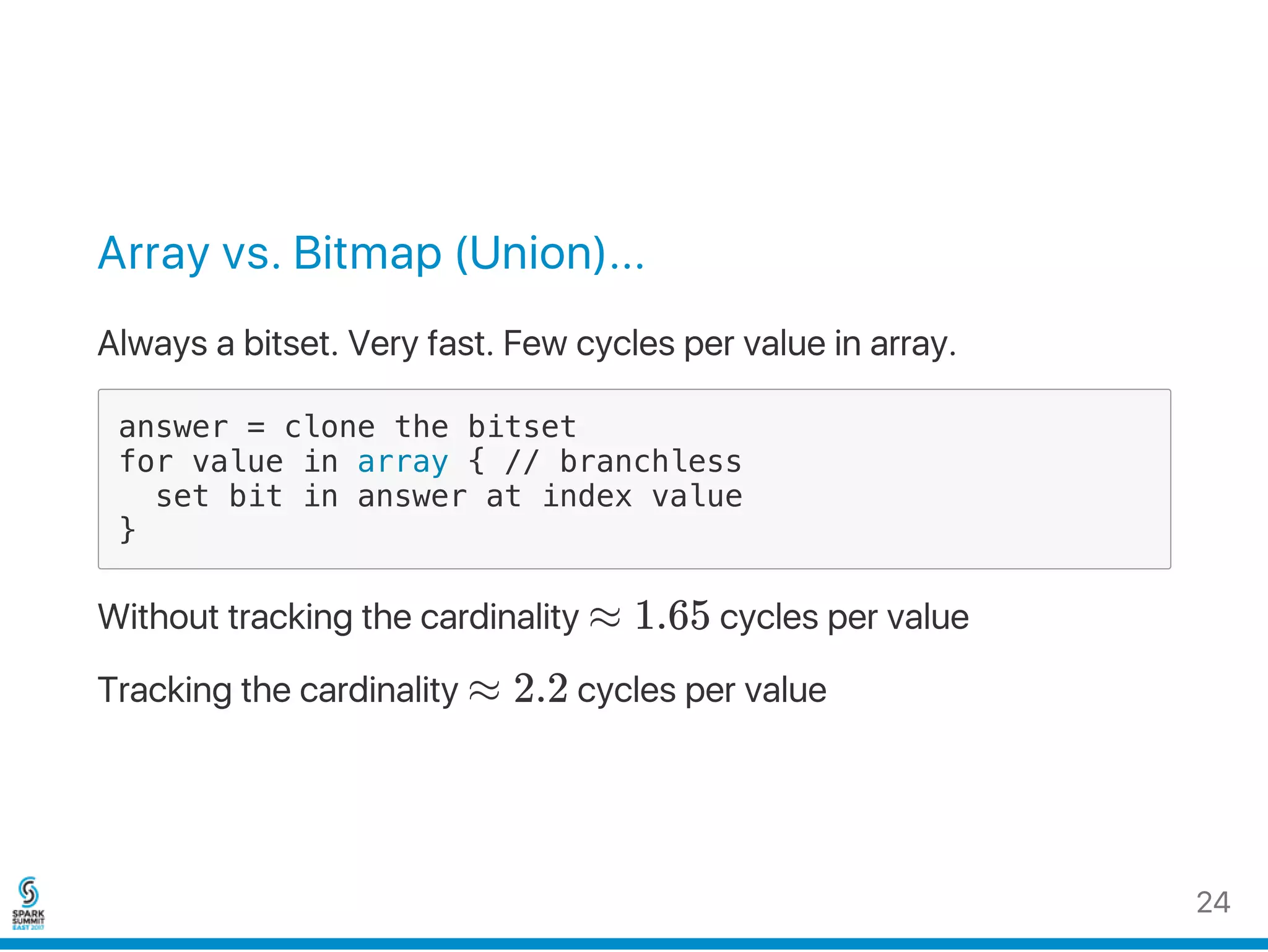

Array vs. Bitmap (Union)...
Always a bitset. Very fast. Few cycles per value in array.
answer = clone the bitset
for value in array { // branchless
set bit in answer at index value
}
Without tracking the cardinality ≈ 1.65 cycles per value
Tracking the cardinality ≈ 2.2 cycles per value
24

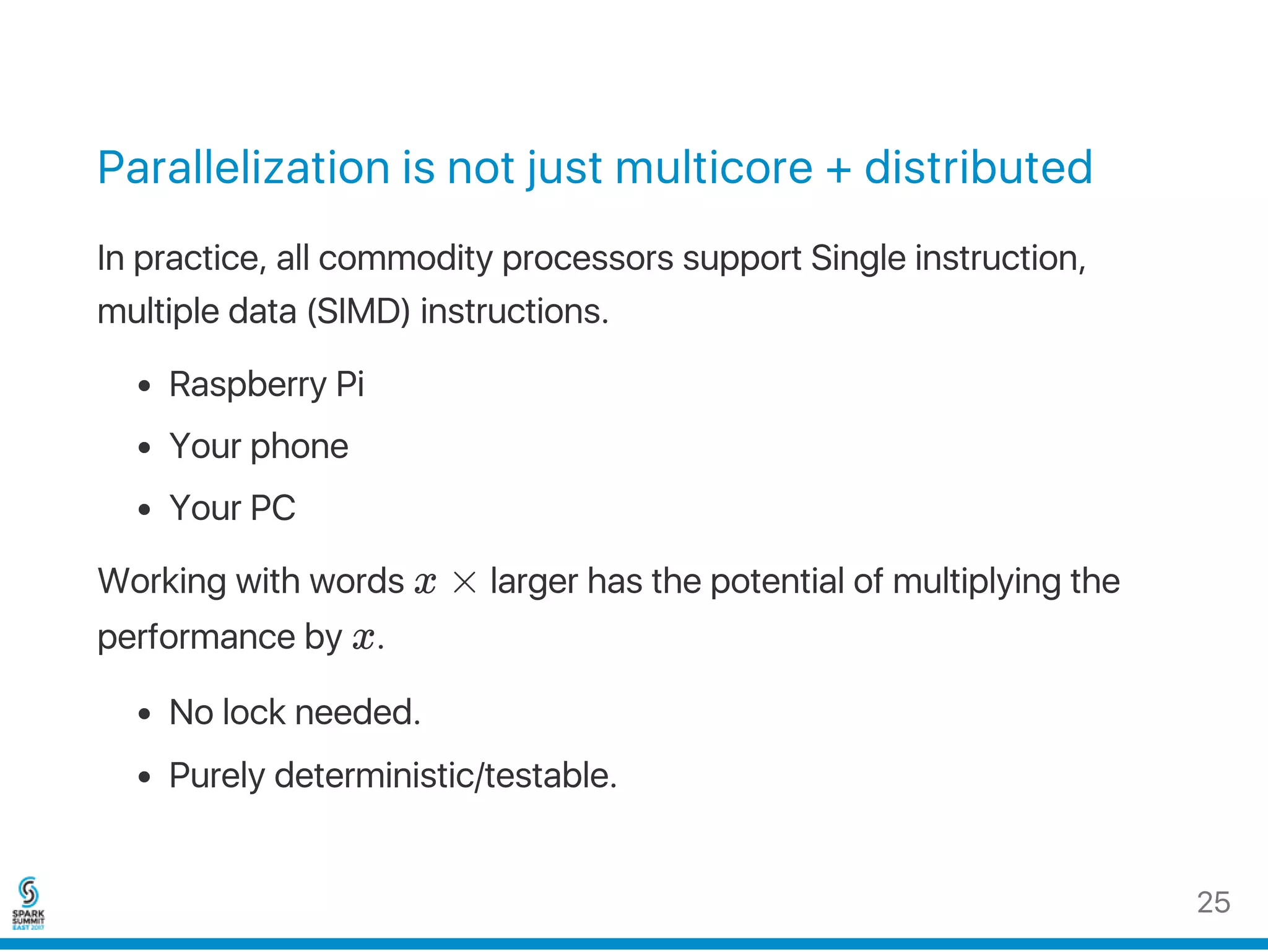

Parallelization is not just multicore + distributed
In practice, all commodity processors support Single instruction,
multiple data (SIMD) instructions.
Raspberry Pi
Your phone
Your PC
Working with words x × larger has the potential of multiplying the
performance by x.
No lock needed.
Purely deterministic/testable.
25

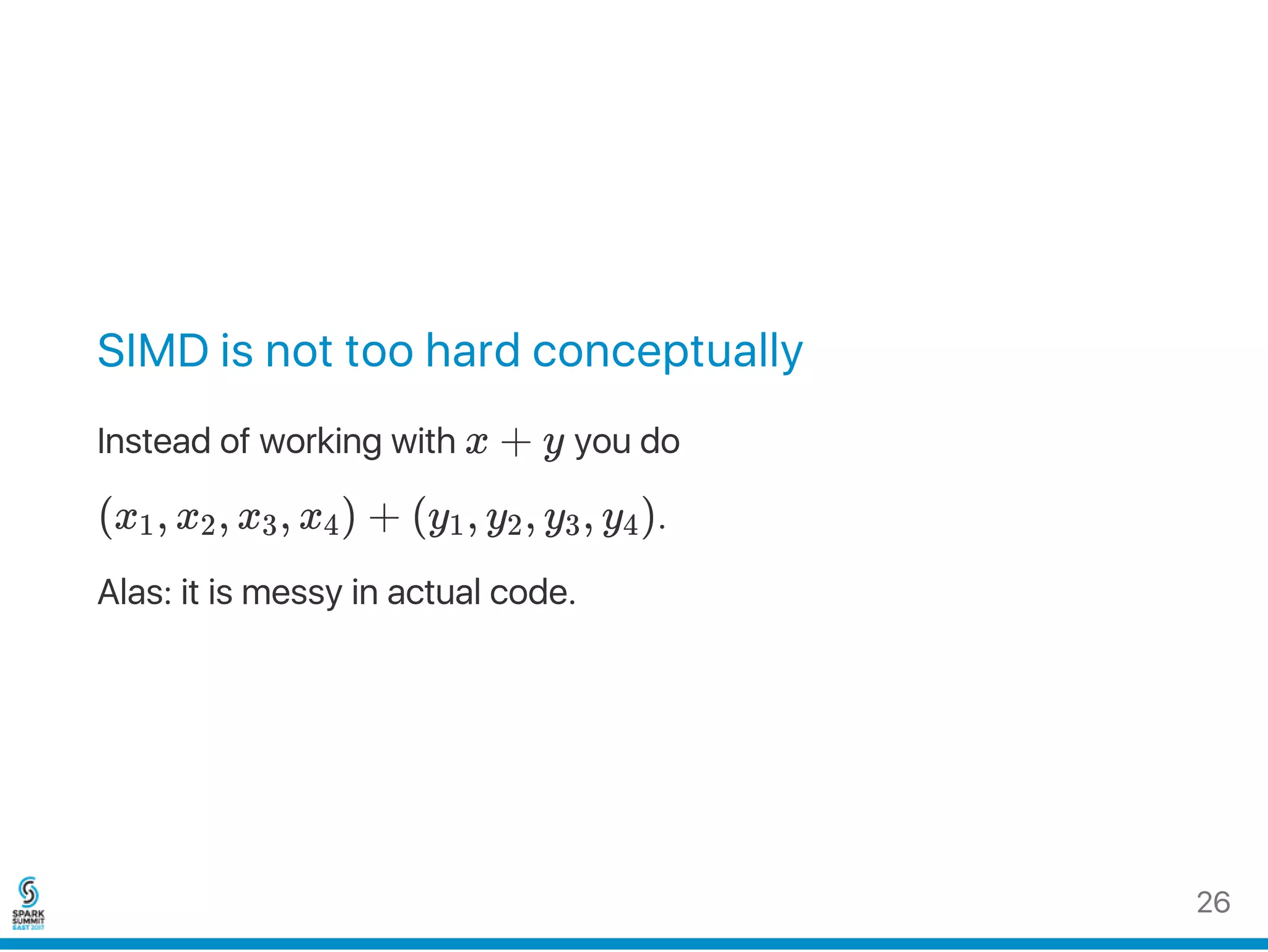

SIMD is not too hard conceptually
Instead of working with x + y you do
(x , x , x , x ) + (y , y , y , y ).
Alas: it is messy in actual code.
1 2 3 4 1 2 3 4
26

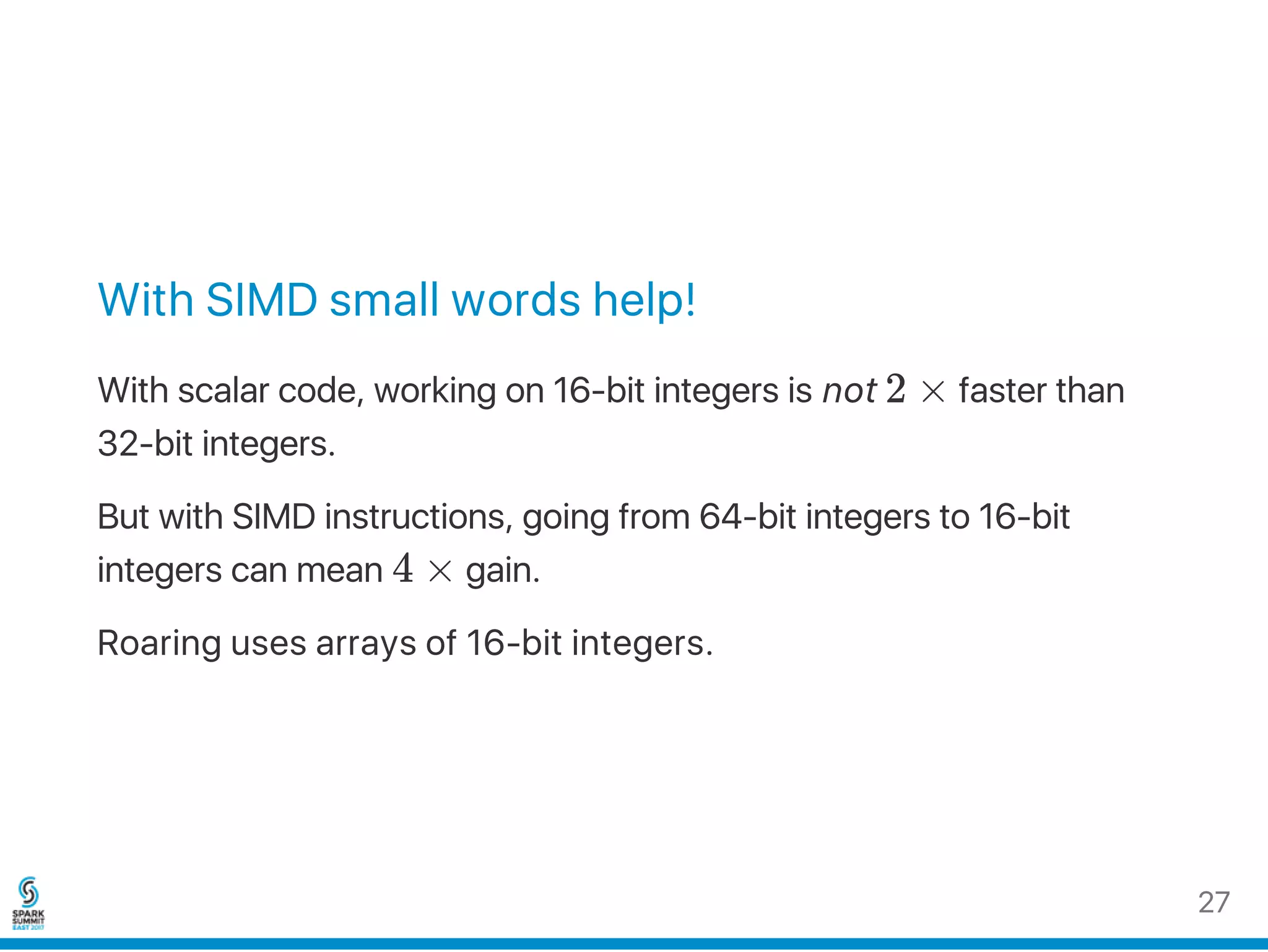

With SIMD small words help!
With scalar code, working on 16‑bit integers is not 2 × faster than
32‑bit integers.
But with SIMD instructions, going from 64‑bit integers to 16‑bit
integers can mean 4 × gain.
Roaring uses arrays of 16‑bit integers.
27

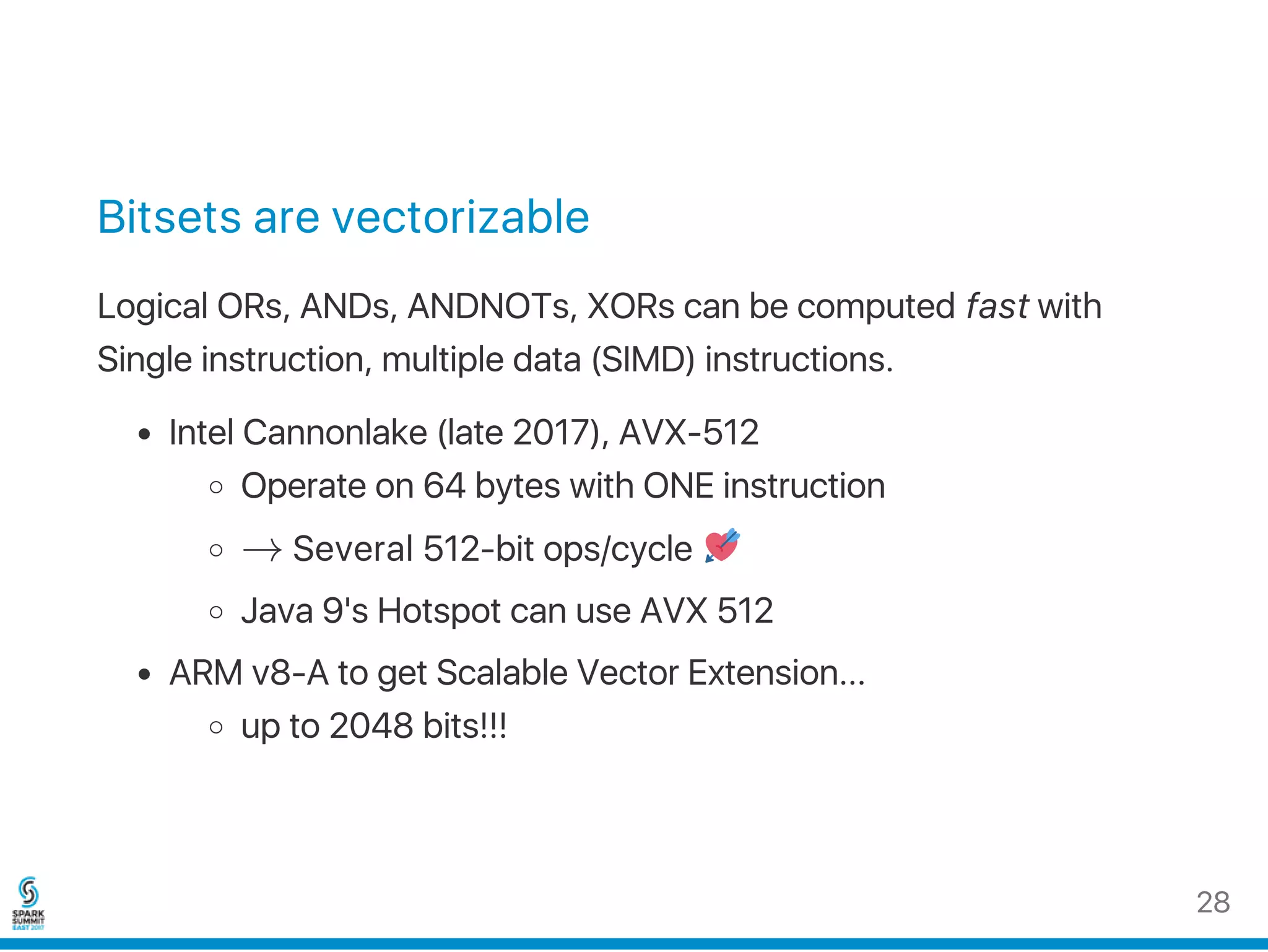

Bitsets are vectorizable
Logical ORs, ANDs, ANDNOTs, XORs can be computed fast with
Single instruction, multiple data (SIMD) instructions.
Intel Cannonlake (late 2017), AVX‑512
Operate on 64 bytes with ONE instruction
→ Several 512‑bit ops/cycle
Java 9's Hotspot can use AVX 512
ARM v8‑A to get Scalable Vector Extension...
up to 2048 bits!!!
28

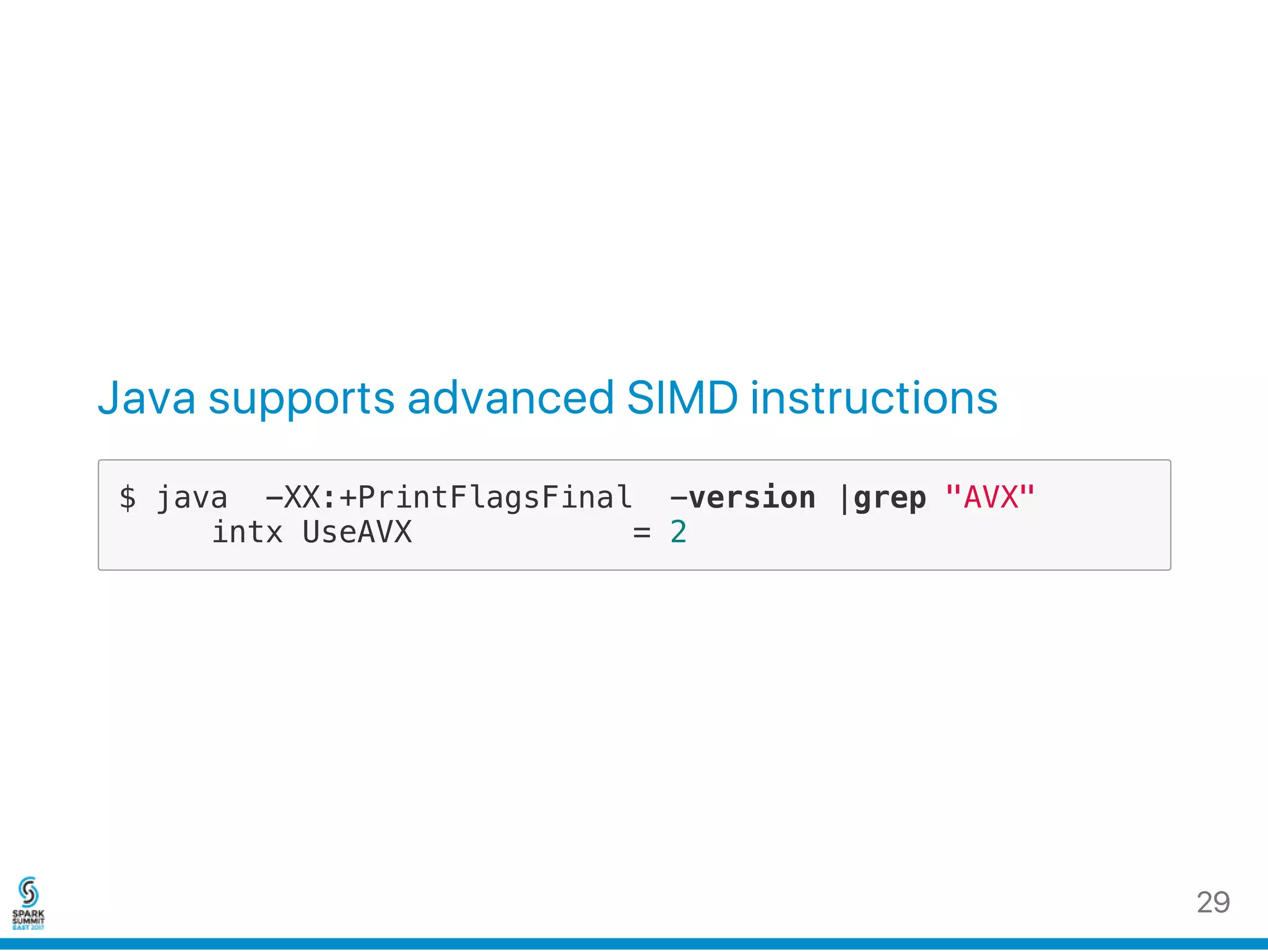

Java supports advanced SIMD instructions
$ java -XX:+PrintFlagsFinal -version |grep "AVX"
intx UseAVX = 2
29

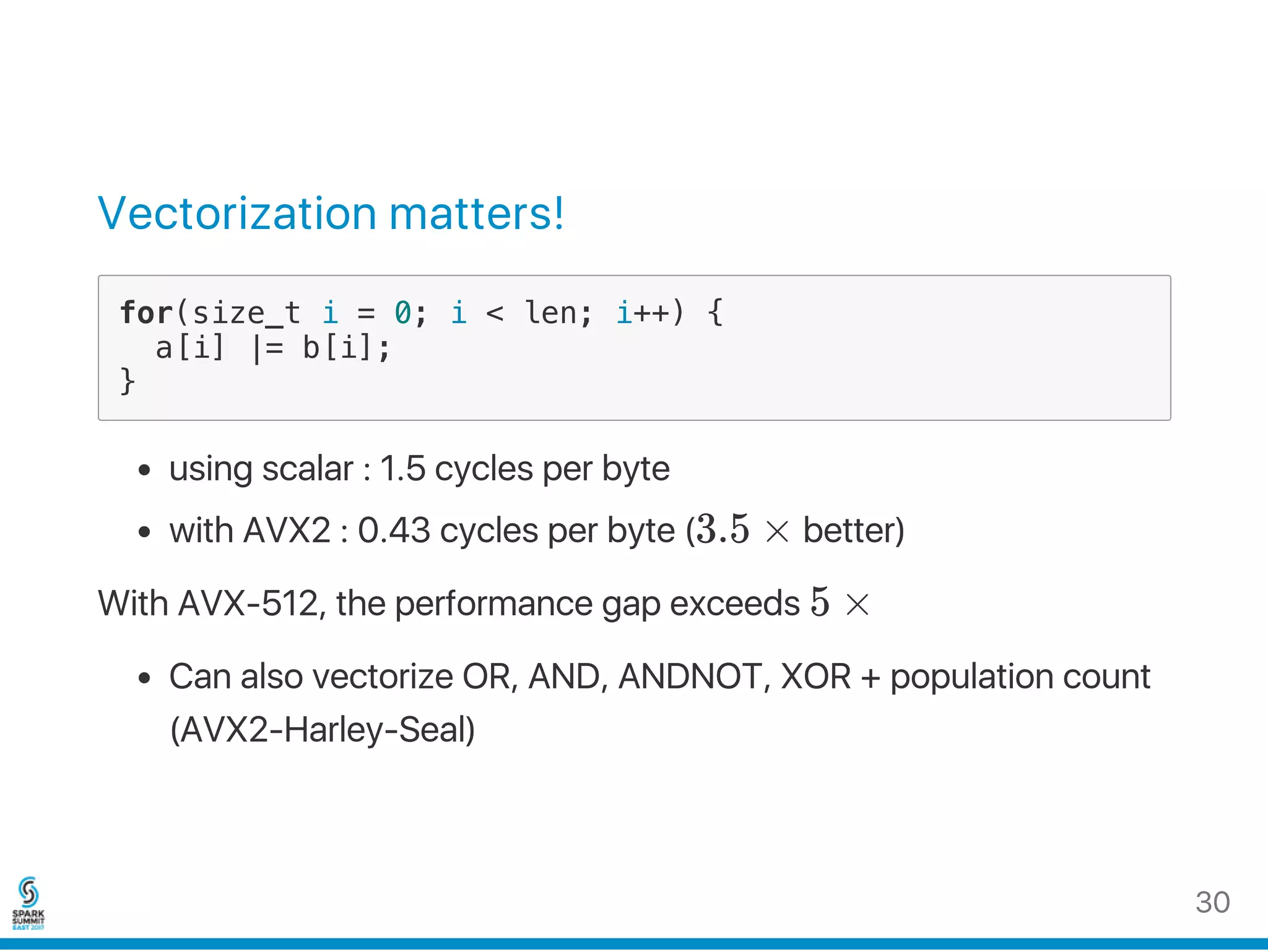

Vectorization matters!
for(size_t i = 0; i < len; i++) {
a[i] |= b[i];
}
using scalar : 1.5 cycles per byte
with AVX2 : 0.43 cycles per byte (3.5 × better)
With AVX‑512, the performance gap exceeds 5 ×
Can also vectorize OR, AND, ANDNOT, XOR + population count
(AVX2‑Harley‑Seal)
30

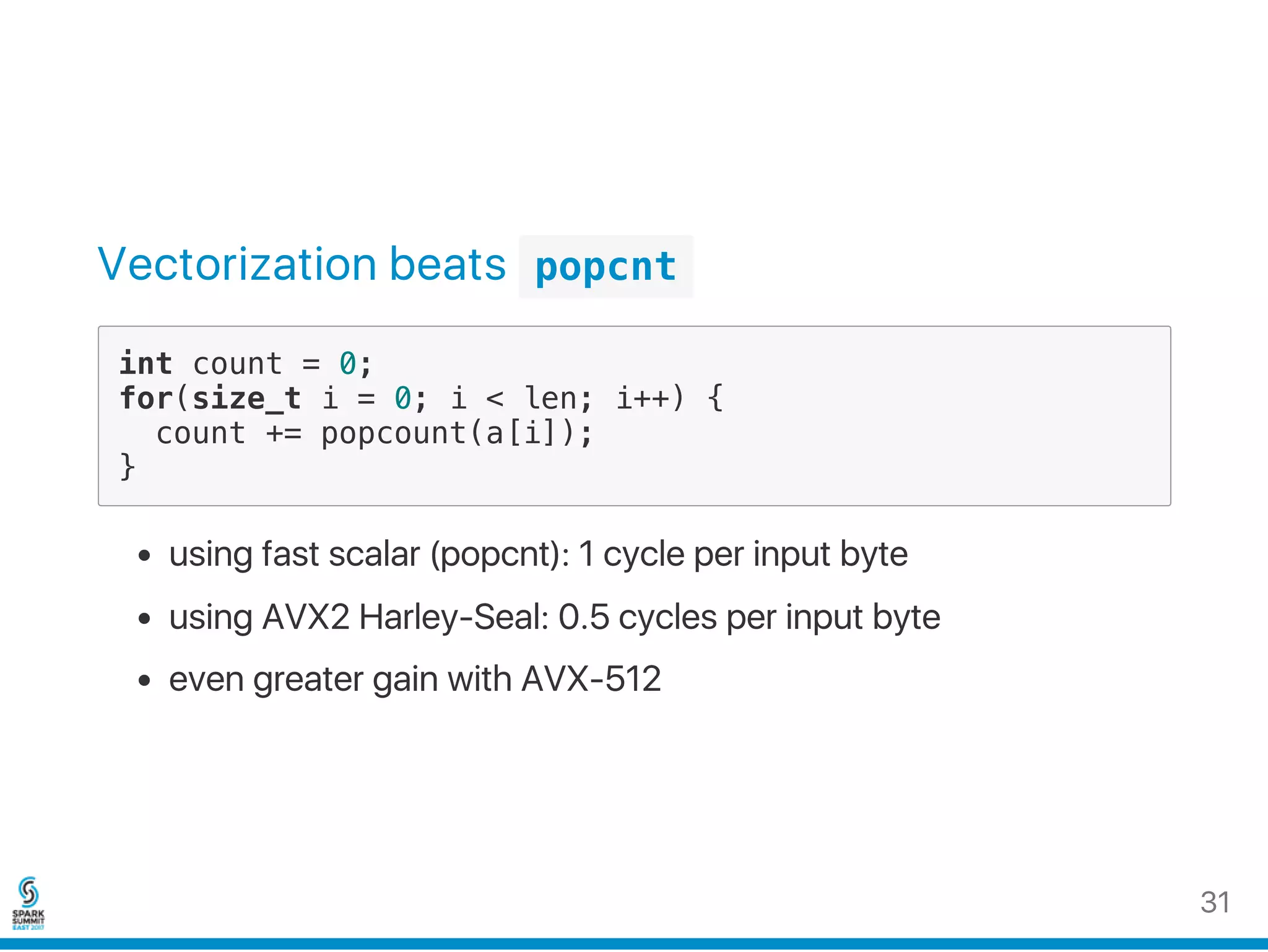

Vectorization beats popcnt
int count = 0;
for(size_t i = 0; i < len; i++) {
count += popcount(a[i]);
}
using fast scalar (popcnt): 1 cycle per input byte
using AVX2 Harley‑Seal: 0.5 cycles per input byte
even greater gain with AVX‑512
31

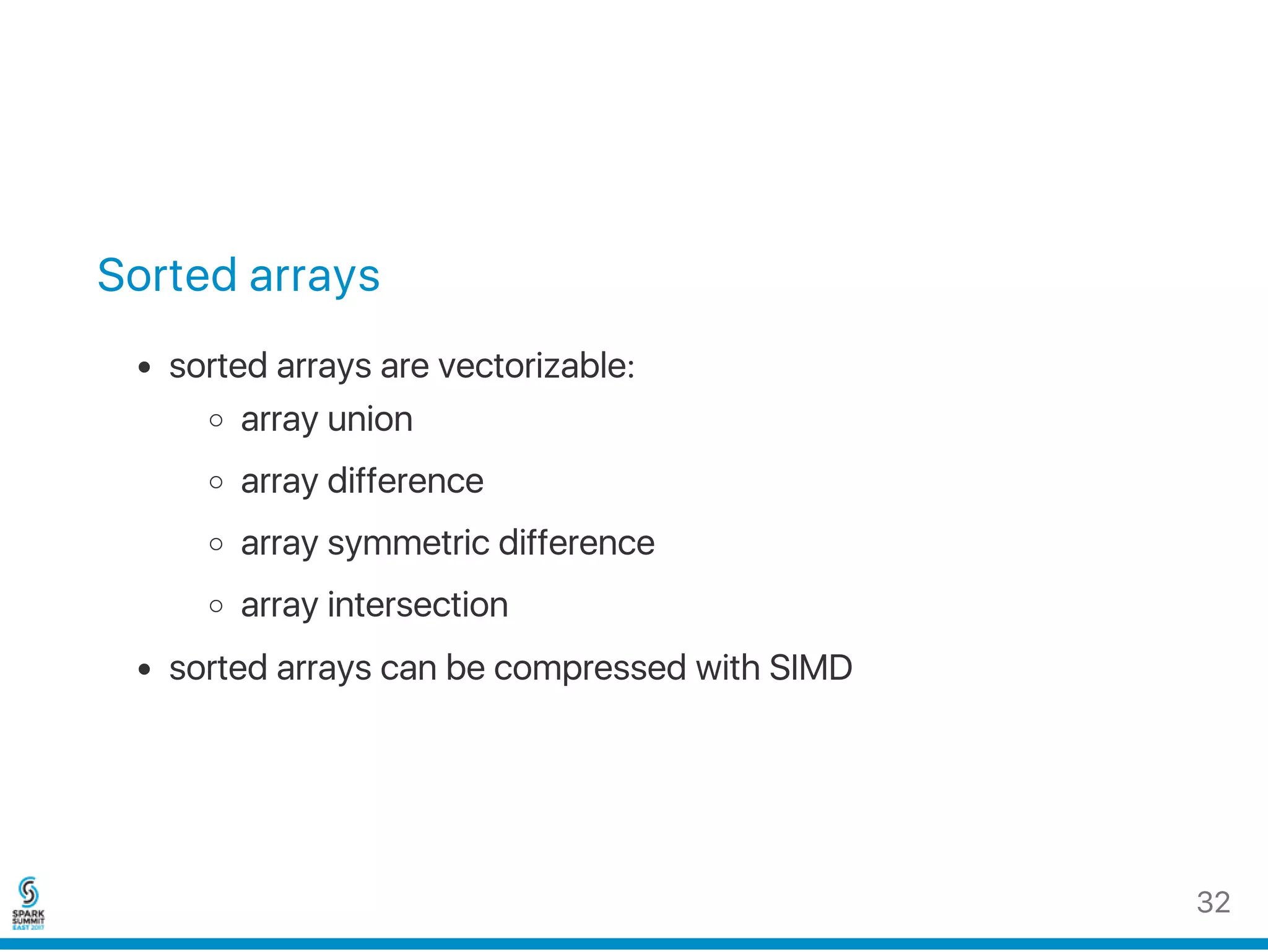

Sorted arrays
sorted arrays are vectorizable:
array union
array difference
array symmetric difference
array intersection
sorted arrays can be compressed with SIMD
32

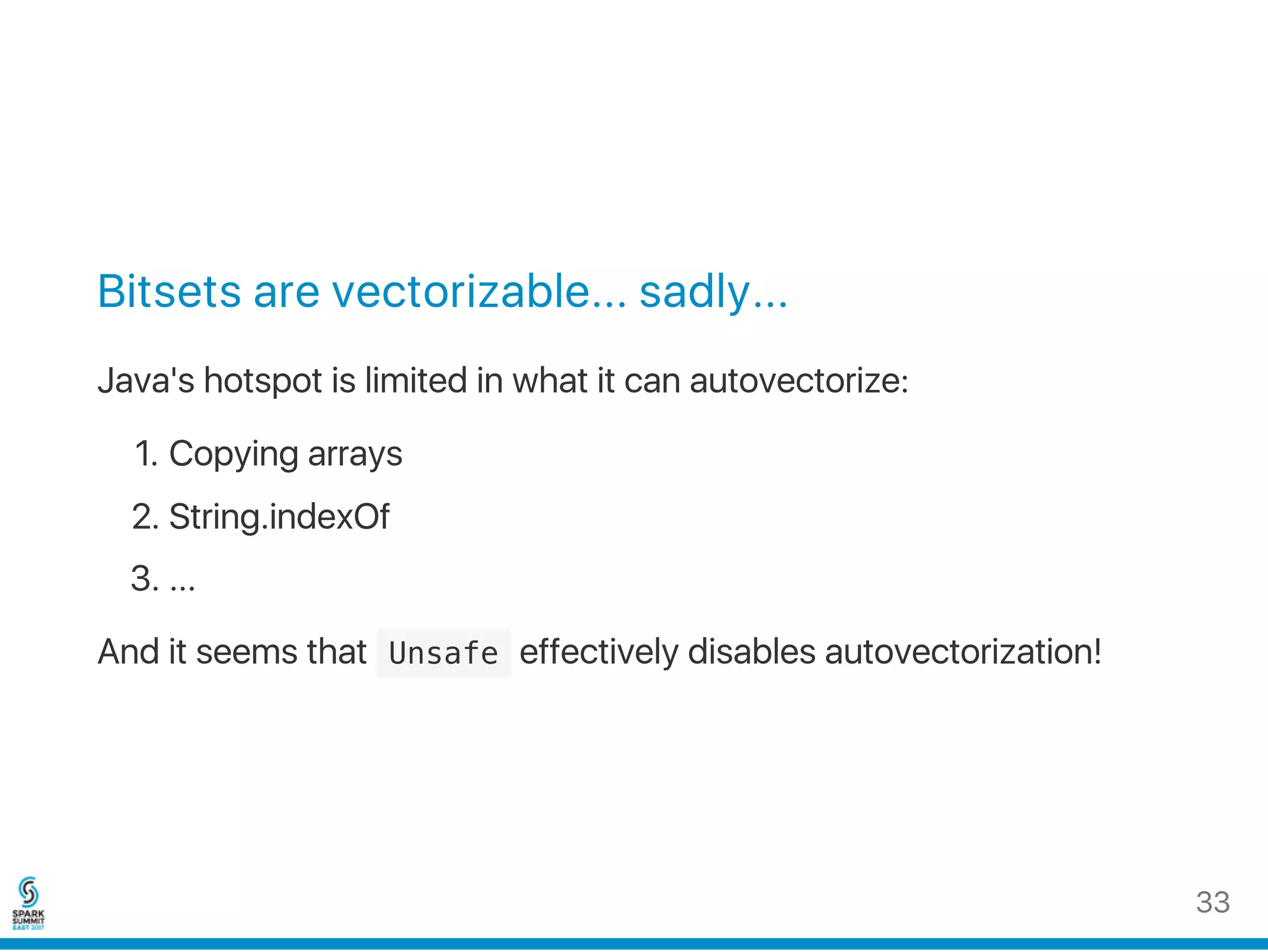

Bitsets are vectorizable... sadly...
Java's hotspot is limited in what it can autovectorize:
1. Copying arrays
2. String.indexOf
3. ...
And it seems that Unsafe effectively disables autovectorization!
33

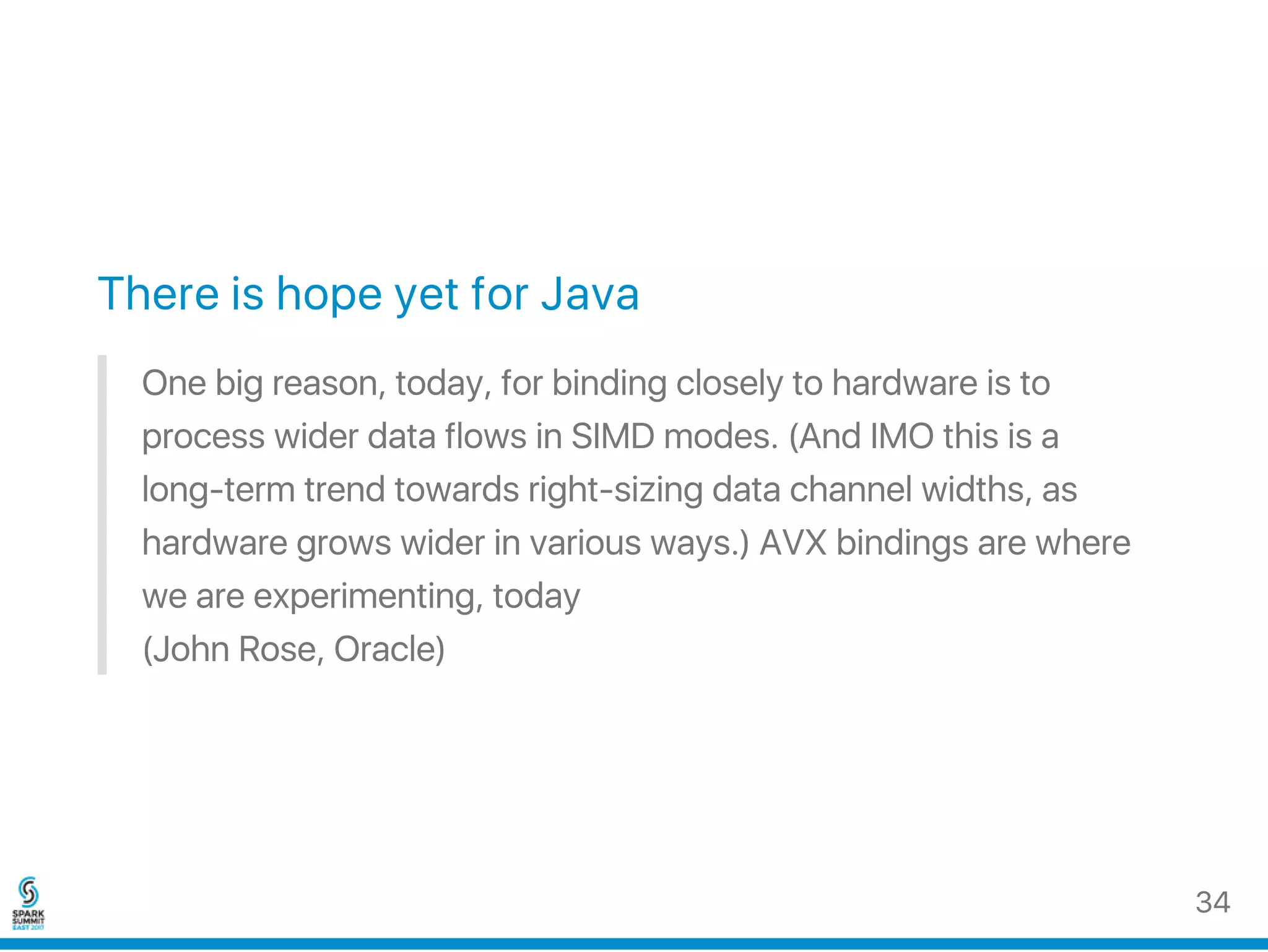

There is hope yet for Java
One big reason, today, for binding closely to hardware is to
process wider data flows in SIMD modes. (And IMO this is a
long‑term trend towards right‑sizing data channel widths, as
hardware grows wider in various ways.) AVX bindings are where
we are experimenting, today
(John Rose, Oracle)
34

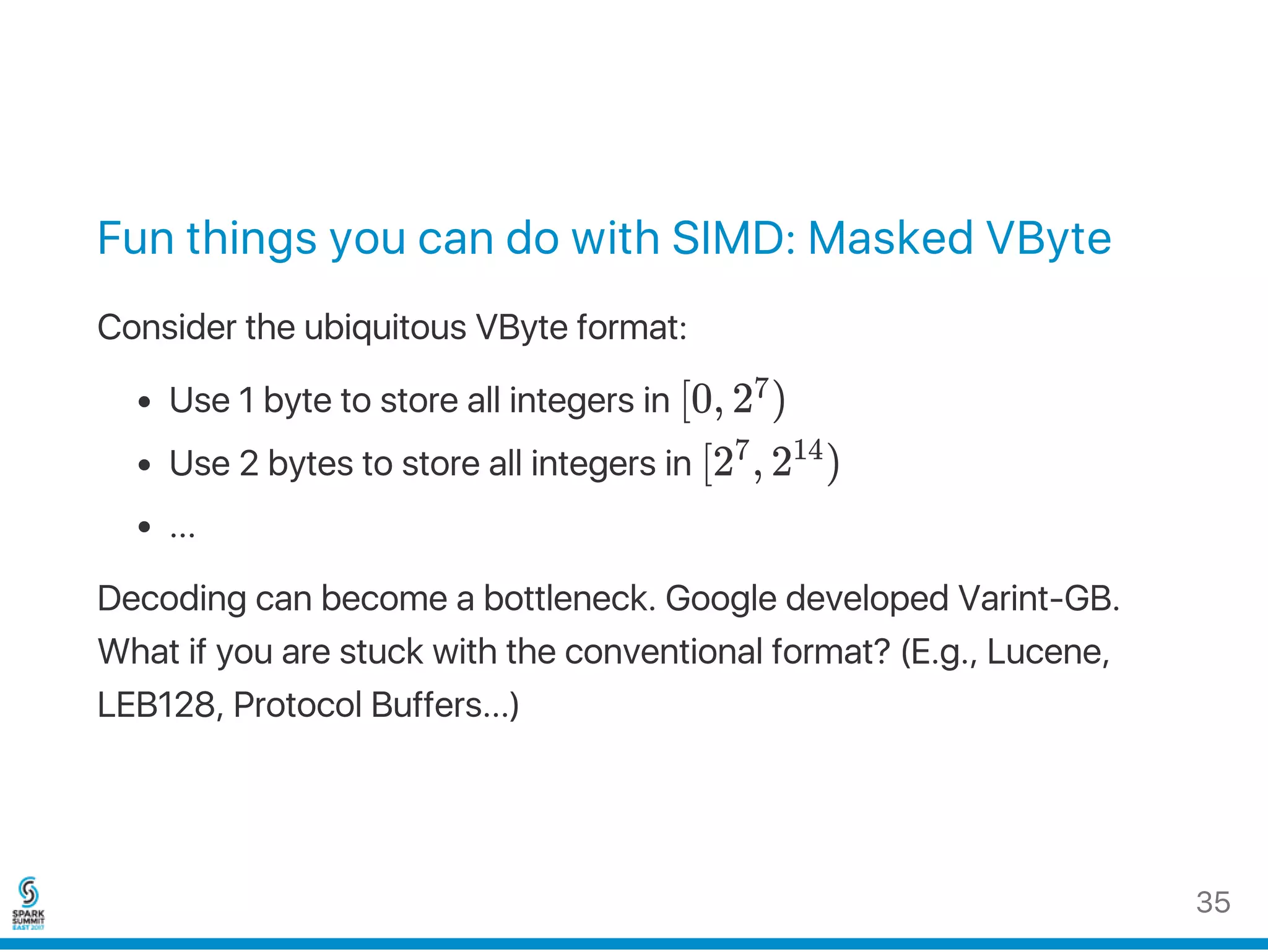

Fun things you can do with SIMD: Masked VByte
Consider the ubiquitous VByte format:
Use 1 byte to store all integers in [0, 2 )
Use 2 bytes to store all integers in [2 , 2 )
...
Decoding can become a bottleneck. Google developed Varint‑GB.
What if you are stuck with the conventional format? (E.g., Lucene,
LEB128, Protocol Buffers...)
7
7 14
35

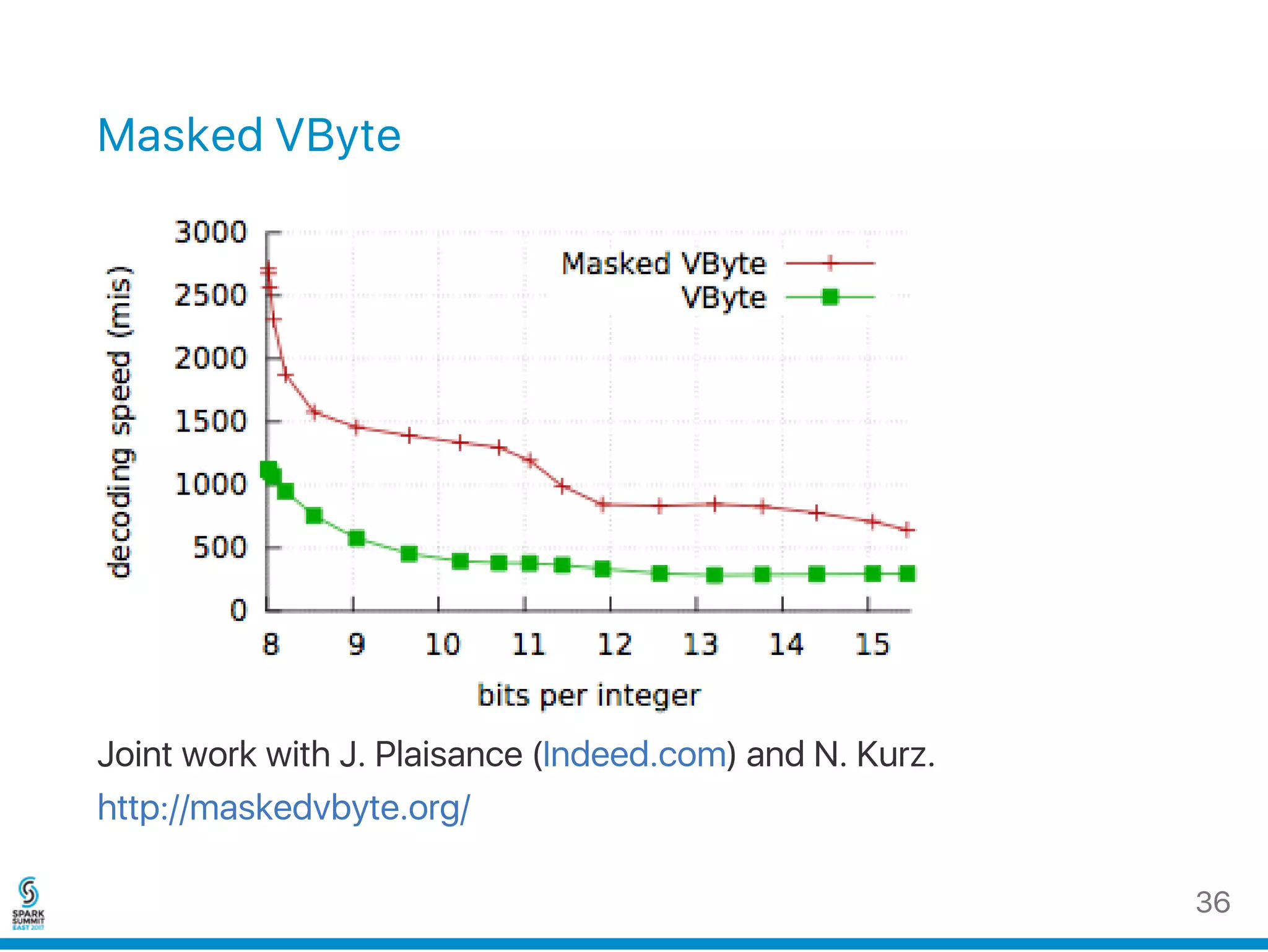

Masked VByte
Joint work with J. Plaisance (Indeed.com) and N. Kurz.
http://maskedvbyte.org/
36

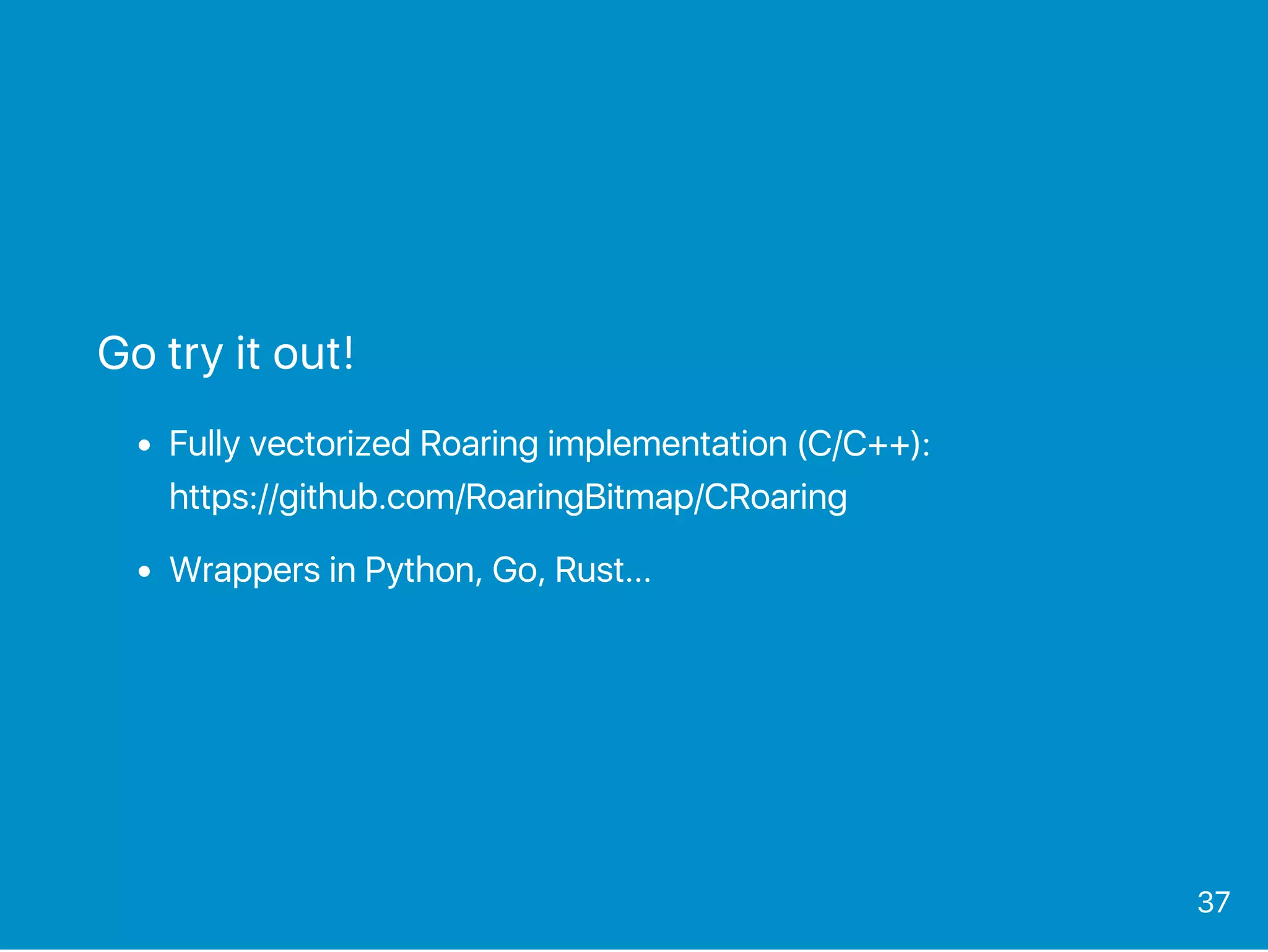

Go try it out!
Fully vectorized Roaring implementation (C/C++):
https://github.com/RoaringBitmap/CRoaring
Wrappers in Python, Go, Rust...
37
