Effective DB Interaction

Effective programming to
interact with DB

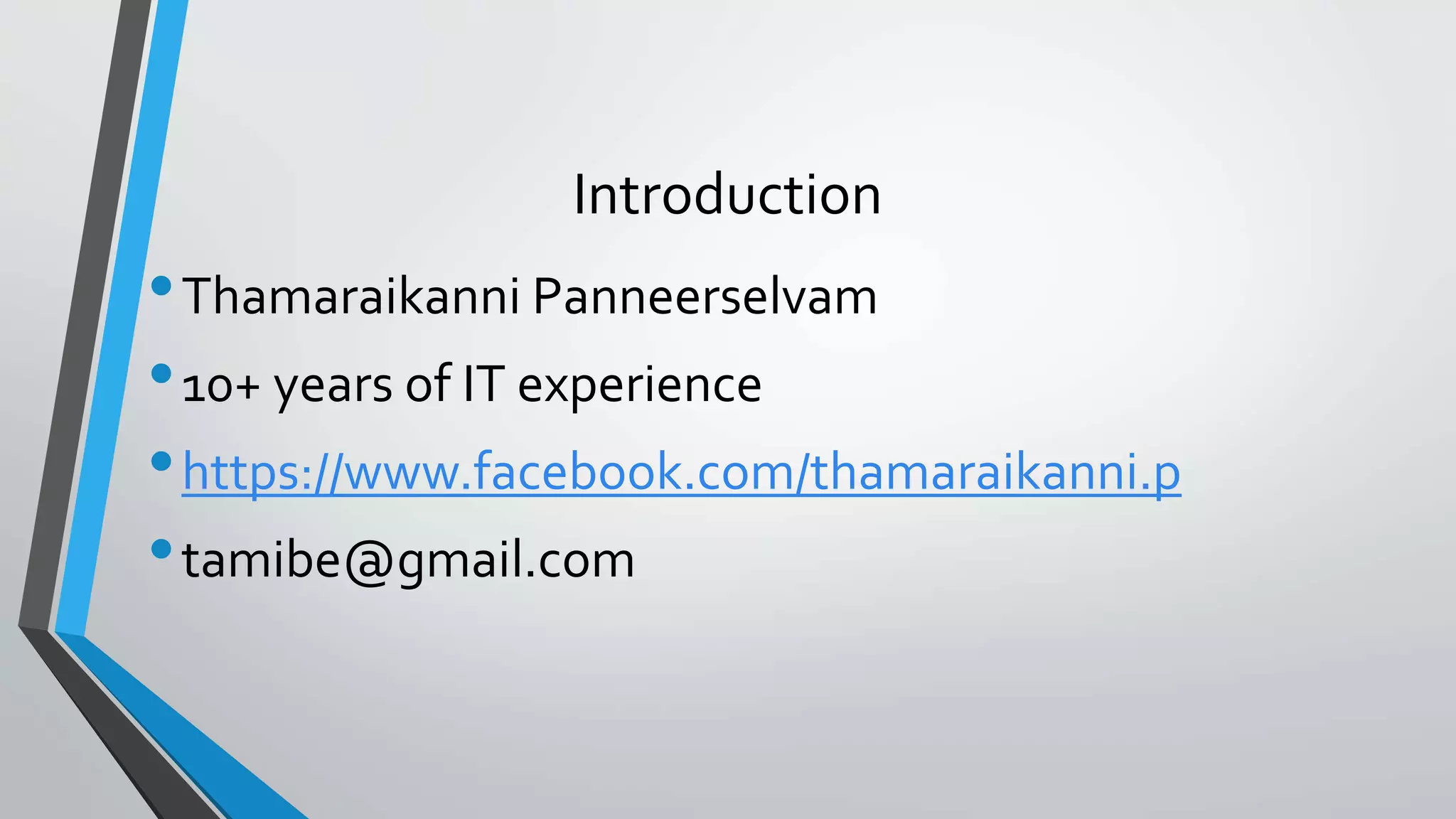

Introduction
•Thamaraikanni Panneerselvam
•10+ years of IT experience
•https://www.facebook.com/thamaraikanni.p
•tamibe@gmail.com

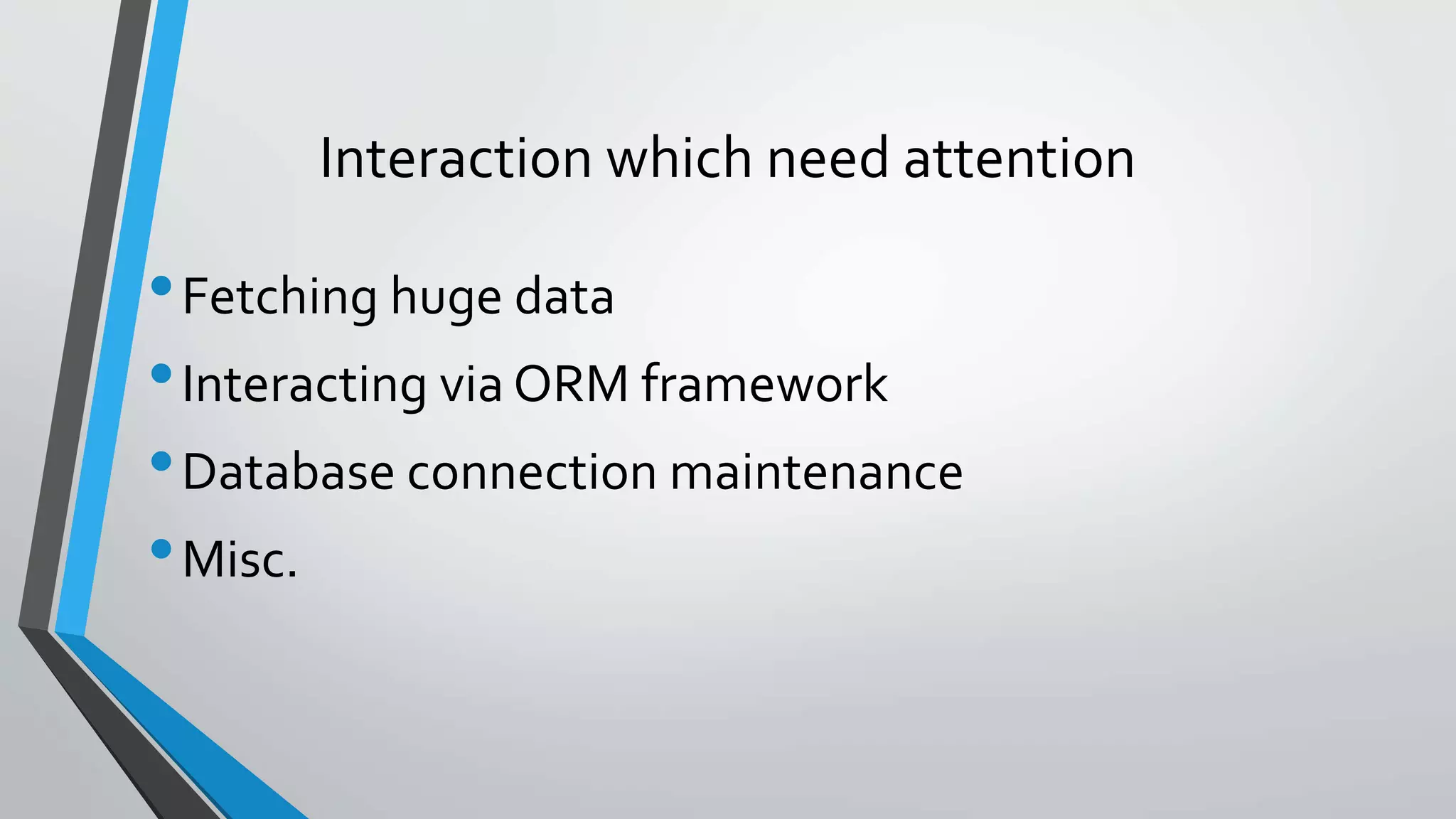

Interaction which need attention
•Fetching huge data
•Interacting via ORM framework
•Database connection maintenance
•Misc.

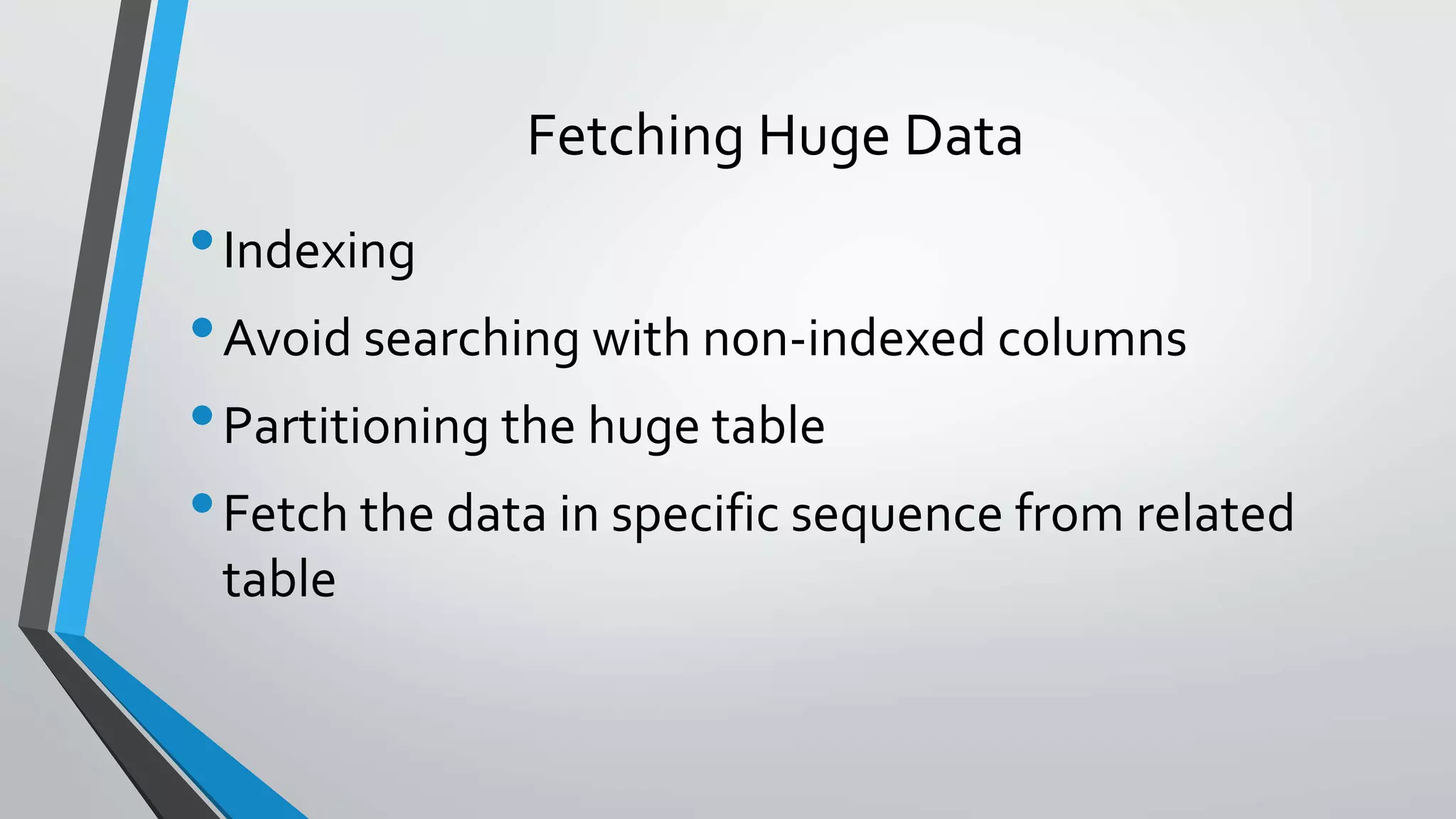

Fetching Huge Data
•Indexing
•Avoid searching with non-indexed columns
•Partitioning the huge table
•Fetch the data in specific sequence from related
table

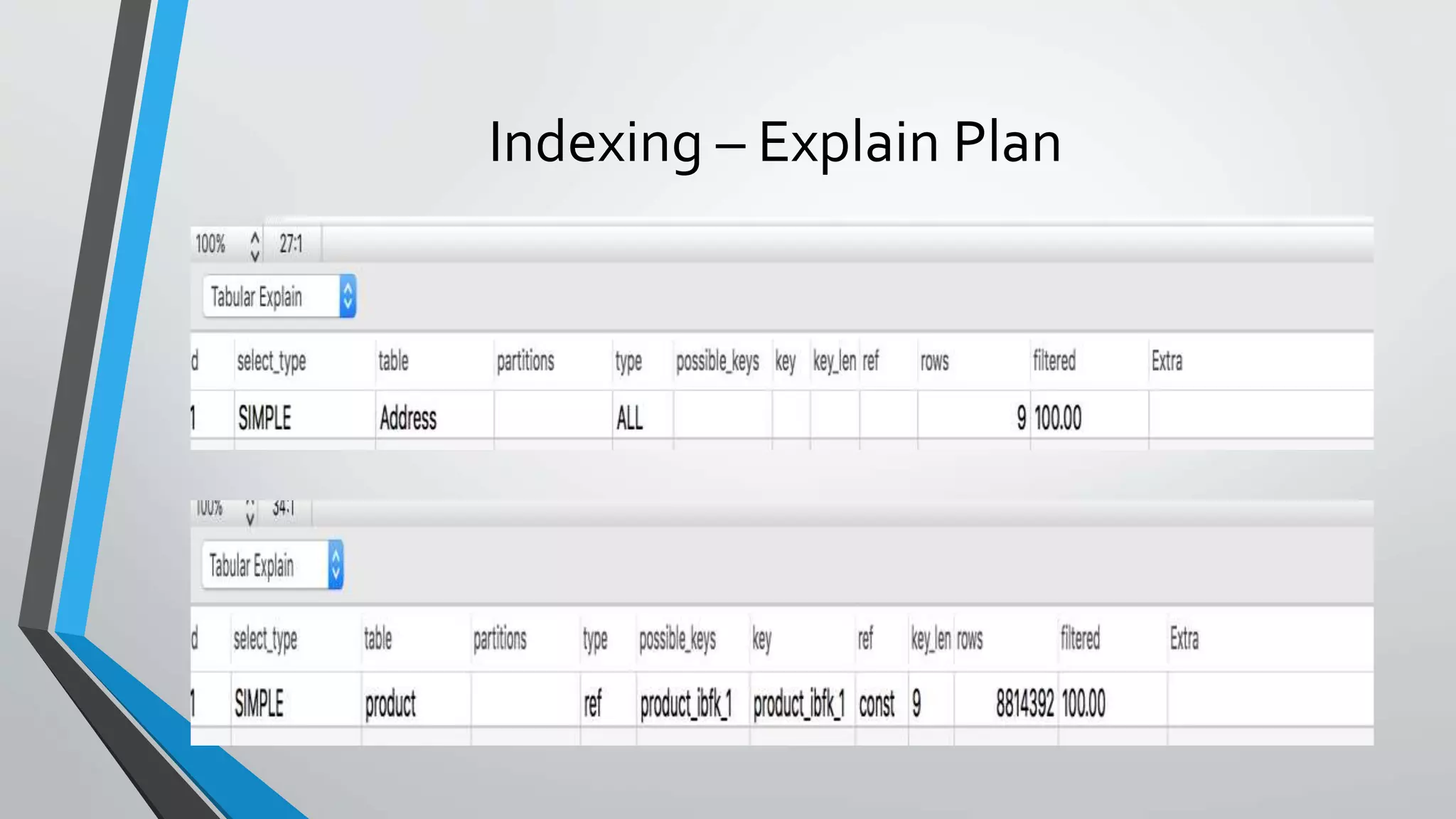

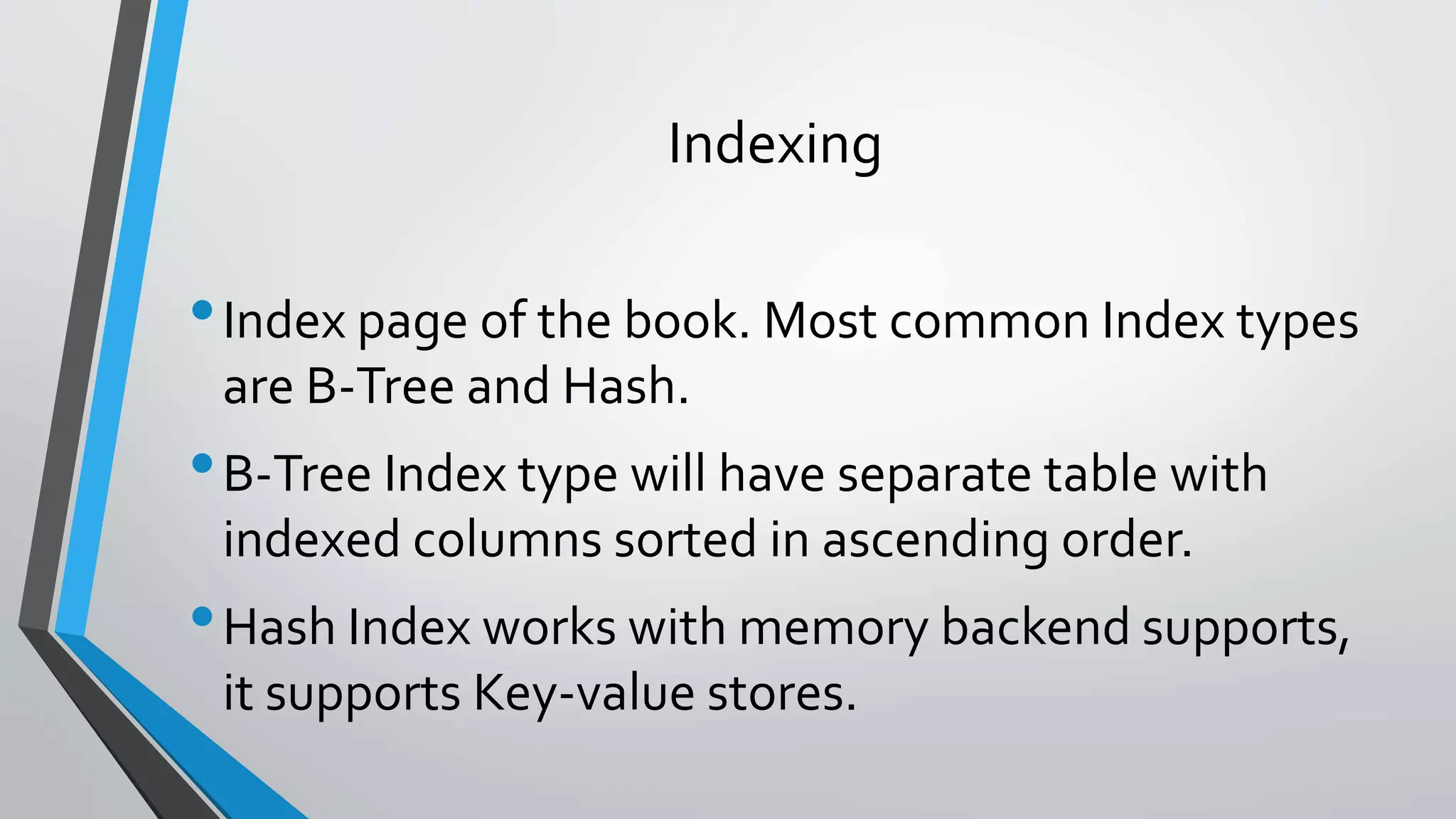

Indexing
•Index page of the book. Most common Index types
are B-Tree and Hash.
•B-Tree Index type will have separate table with
indexed columns sorted in ascending order.
•Hash Index works with memory backend supports,
it supports Key-value stores.

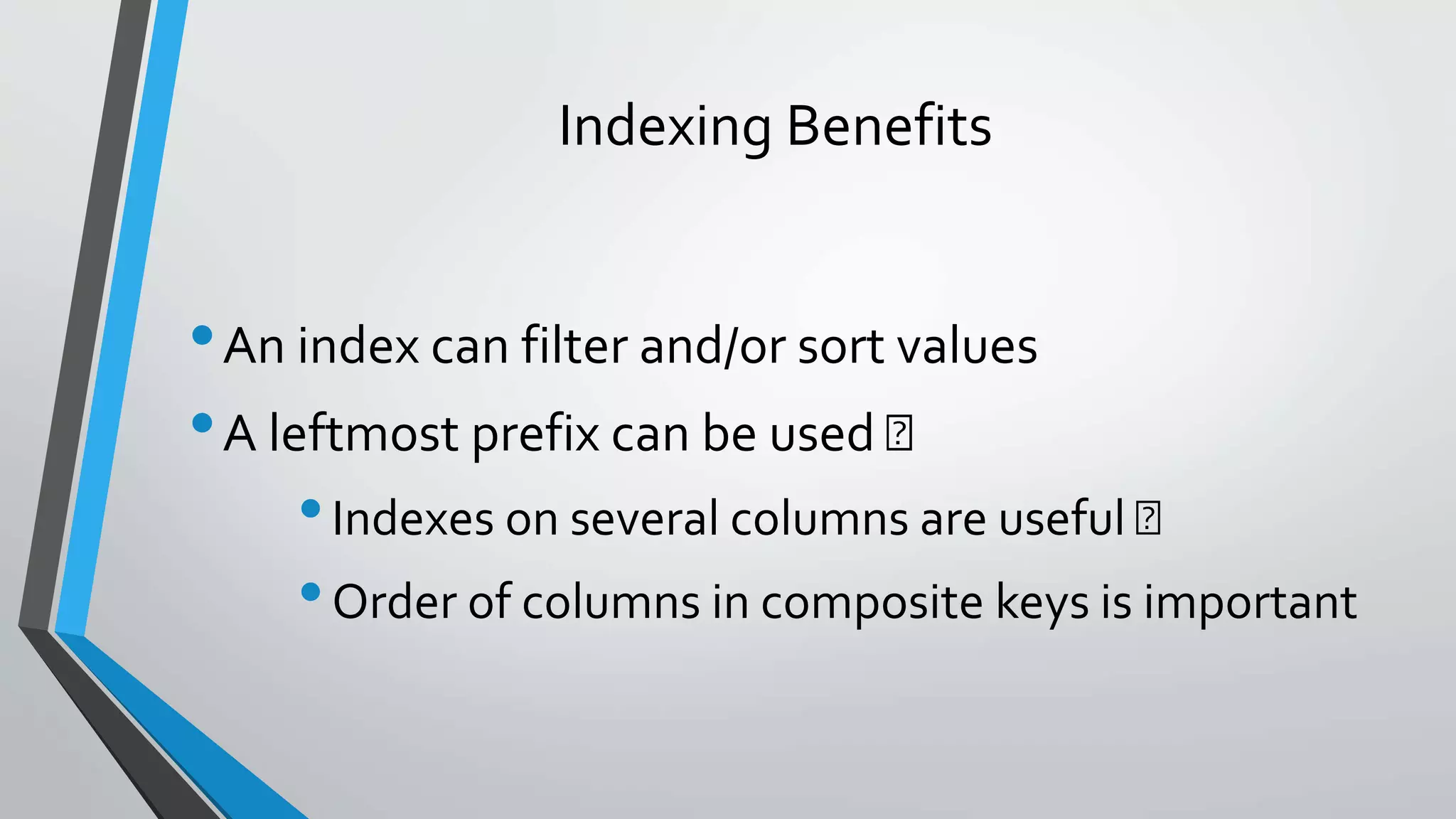

Indexing Benefits
•An index can filter and/or sort values
•A leftmost prefix can be used
•Indexes on several columns are useful
•Order of columns in composite keys is important

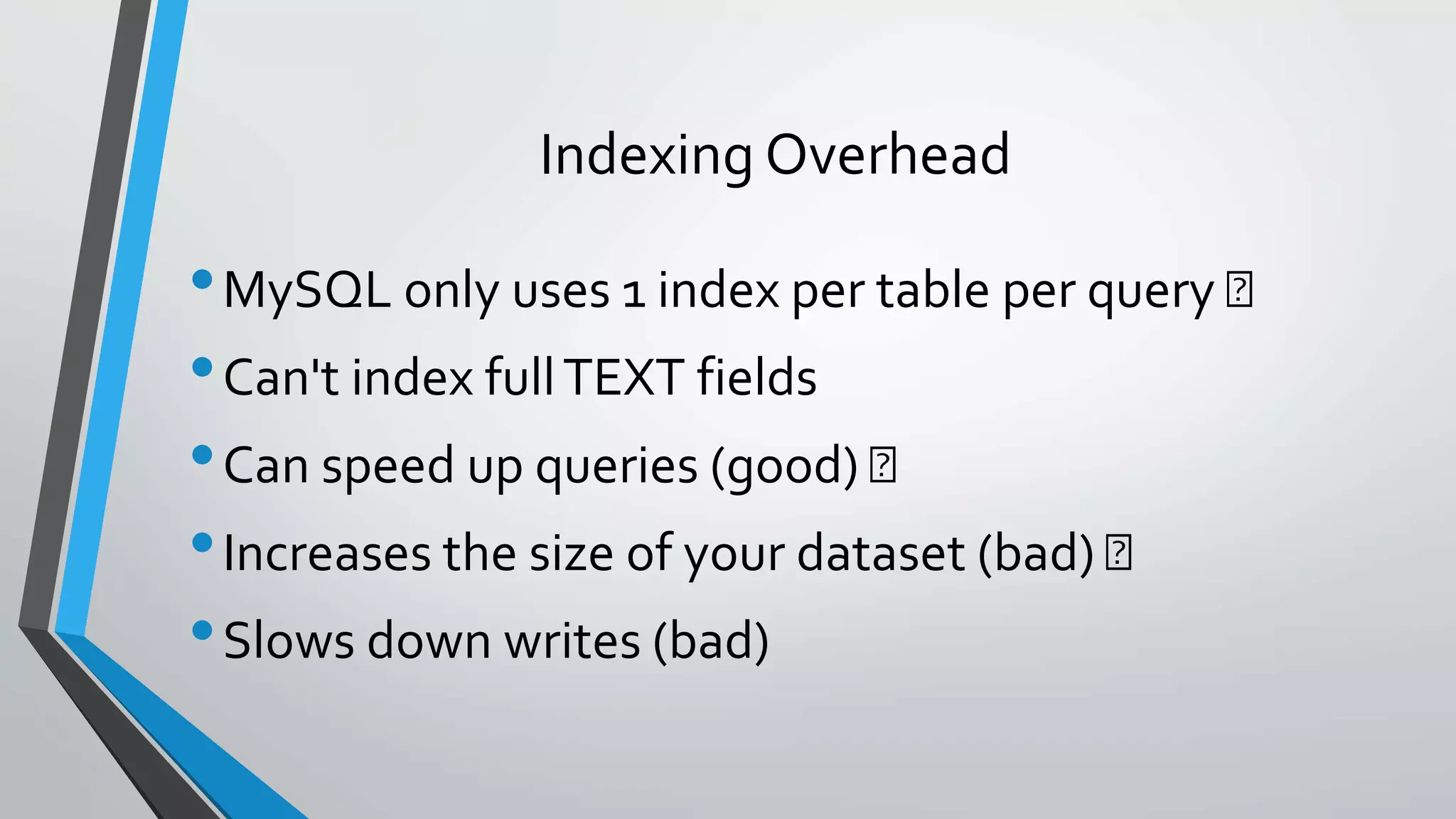

Indexing Overhead
•MySQL only uses 1 index per table per query
•Can't index fullTEXT fields
•Can speed up queries (good)
•Increases the size of your dataset (bad)
•Slows down writes (bad)

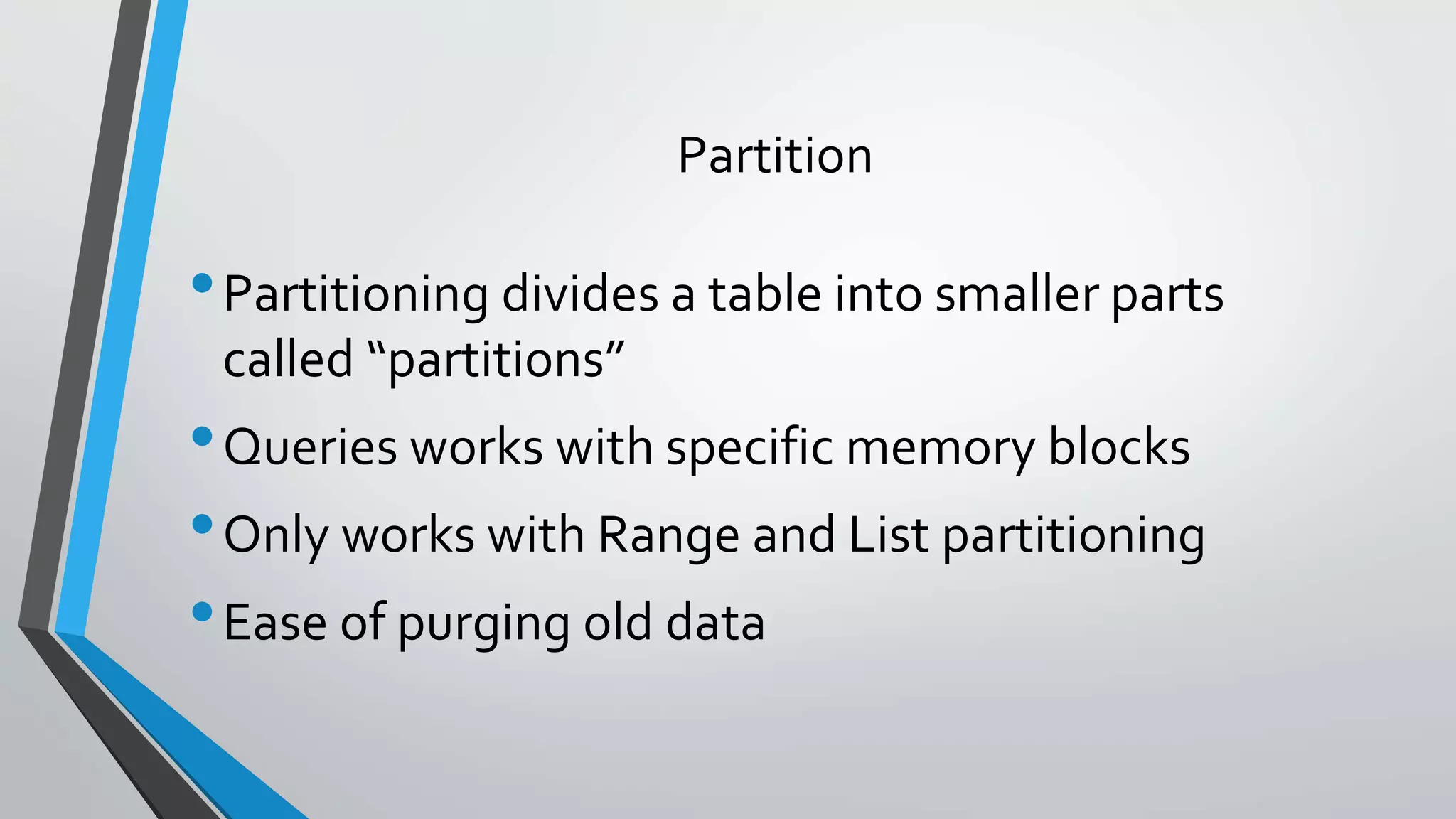

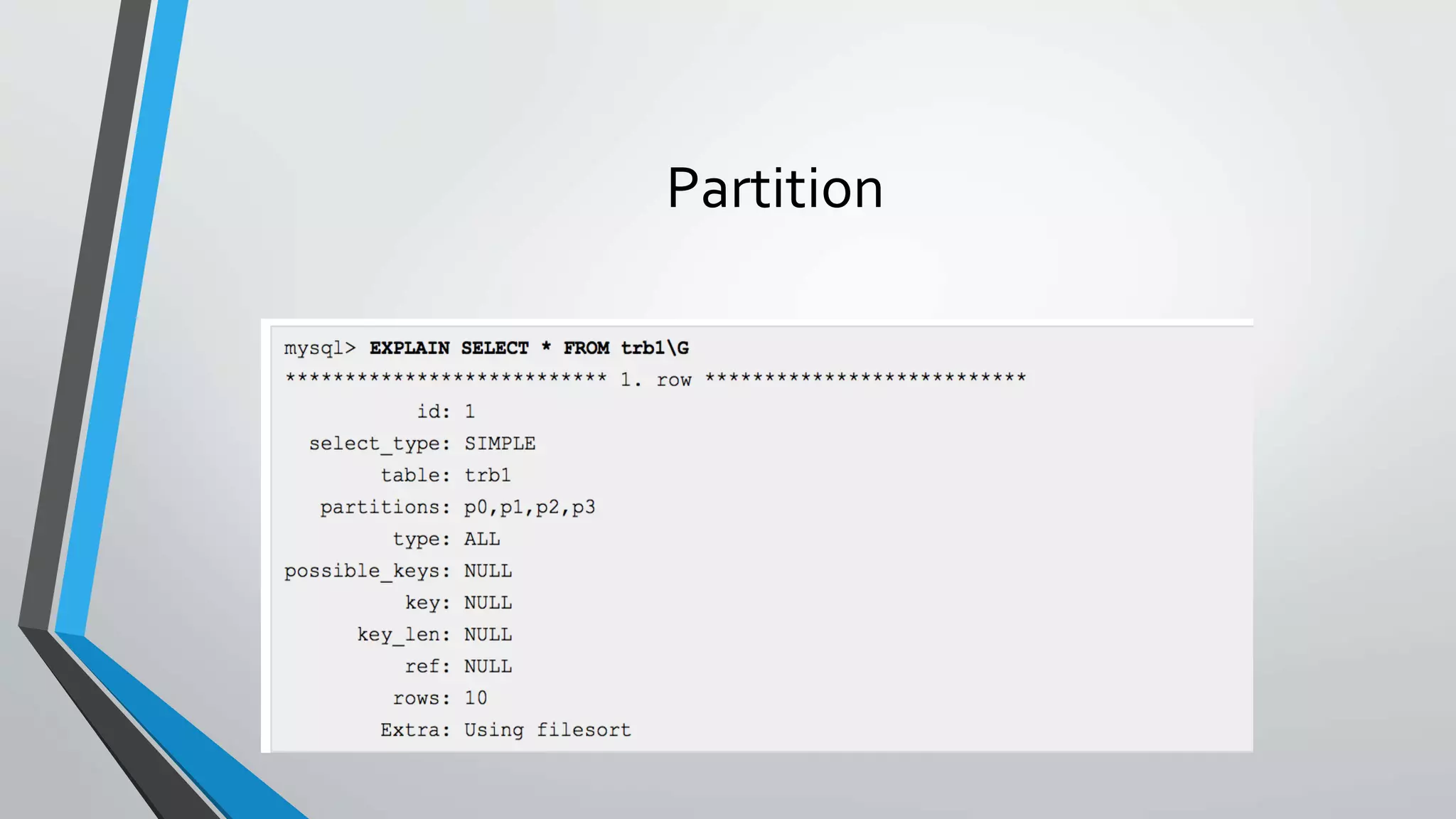

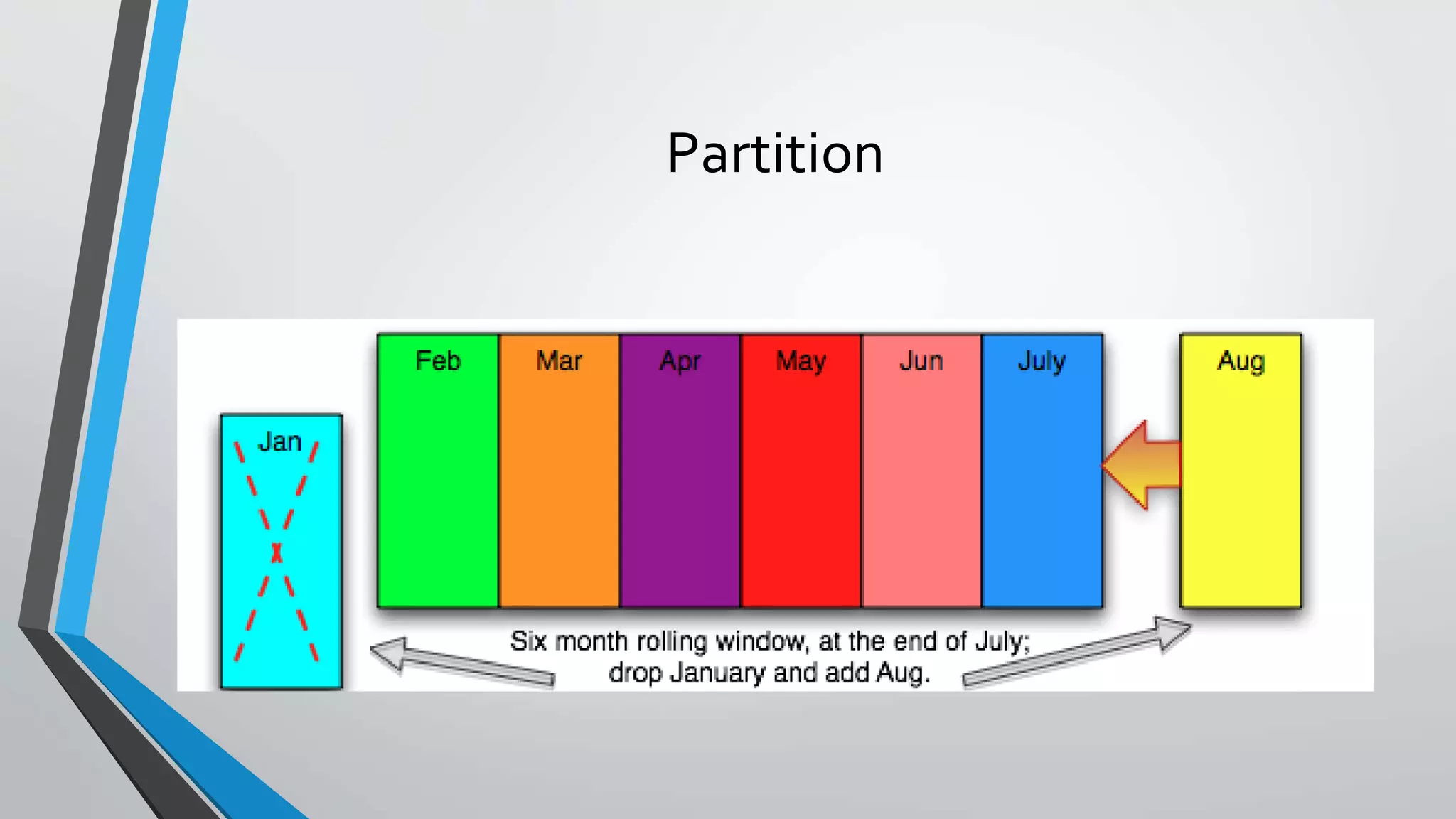

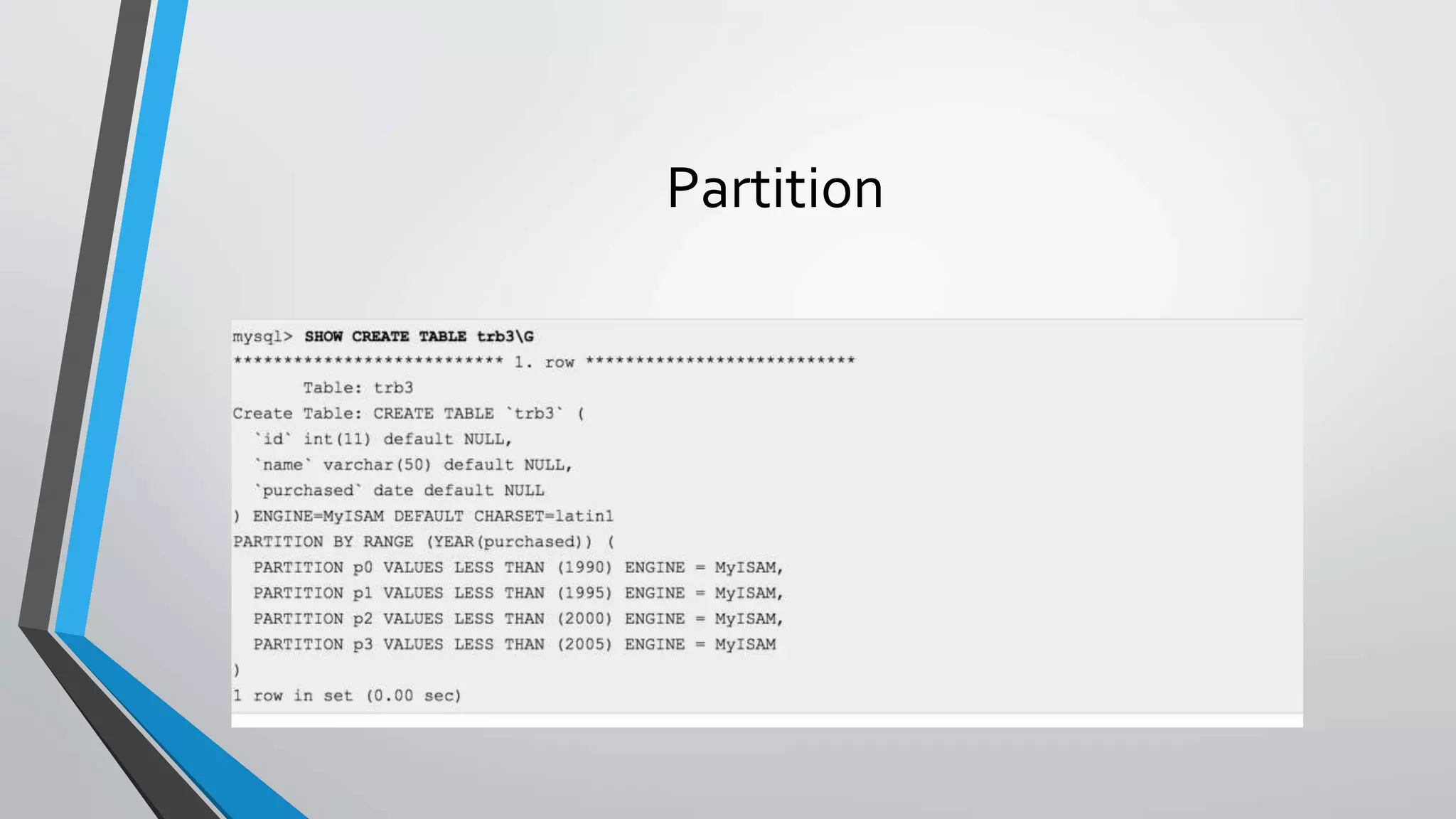

Partition
•Partitioning divides a table into smaller parts
called “partitions”
•Queries works with specific memory blocks
•Only works with Range and List partitioning
•Ease of purging old data

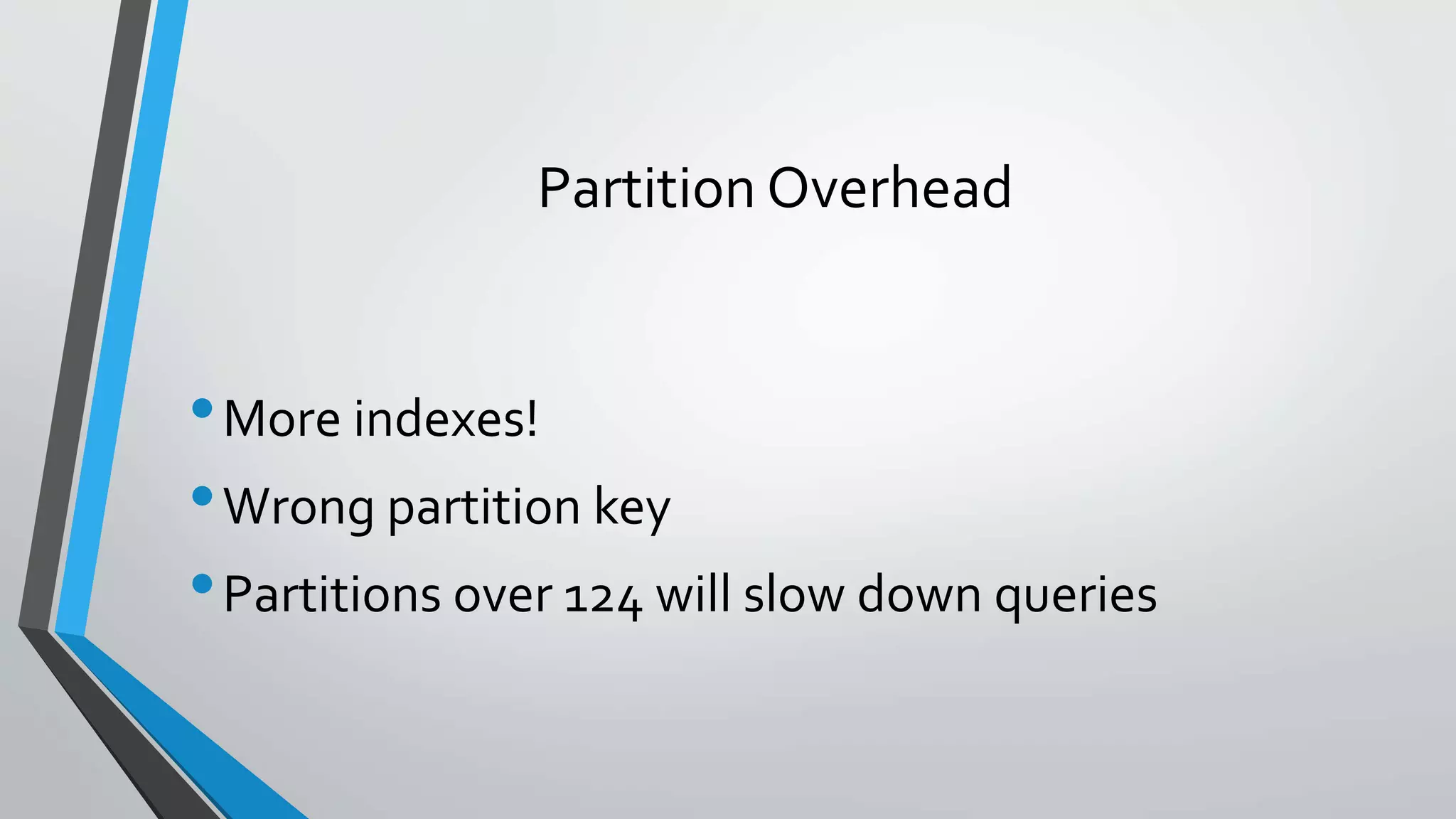

Partition Overhead
•More indexes!
•Wrong partition key
•Partitions over 124 will slow down queries

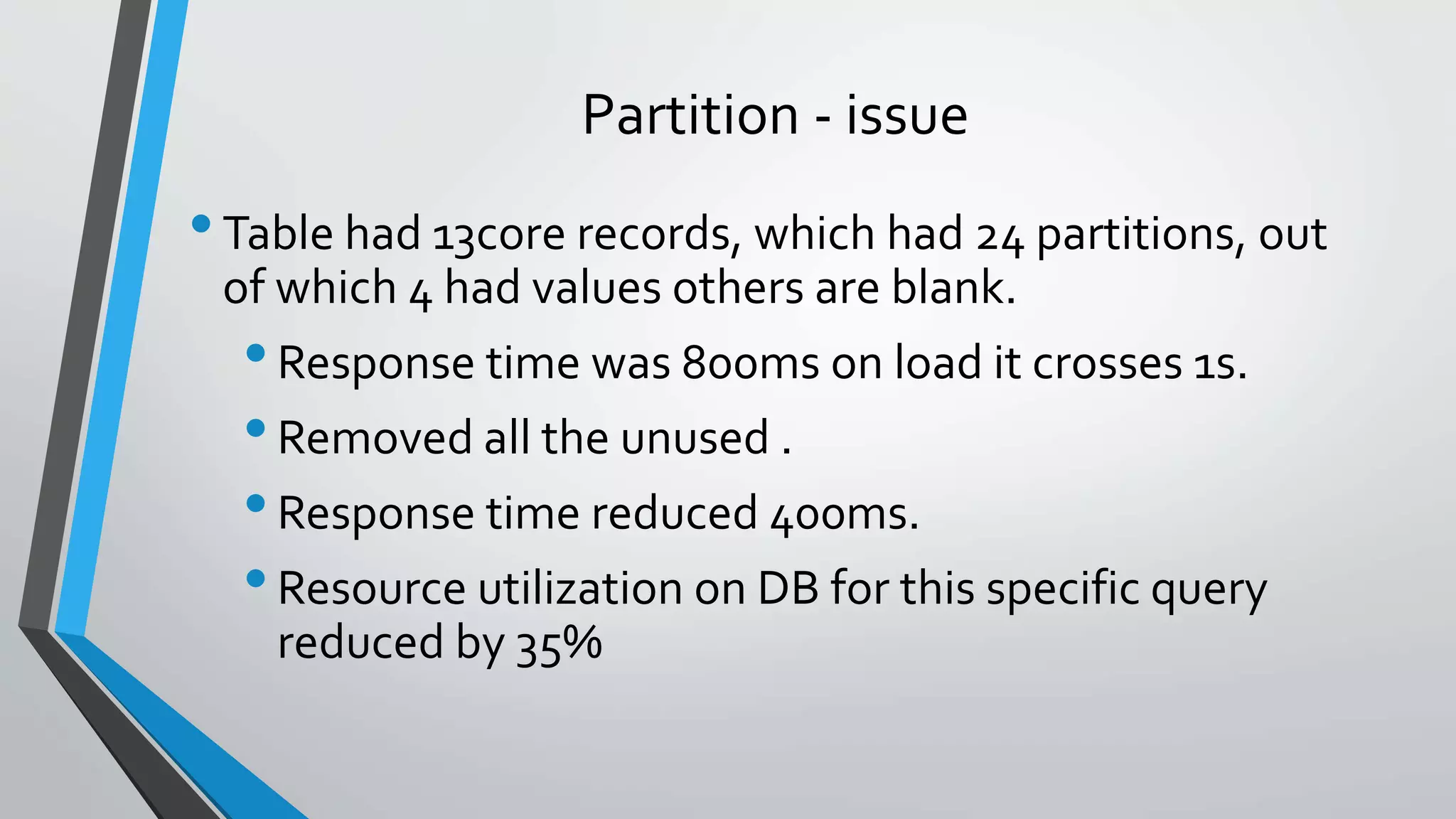

Partition - issue
•Table had 13core records, which had 24 partitions, out
of which 4 had values others are blank.
•Response time was 800ms on load it crosses 1s.
•Removed all the unused .
•Response time reduced 400ms.
•Resource utilization on DB for this specific query
reduced by 35%

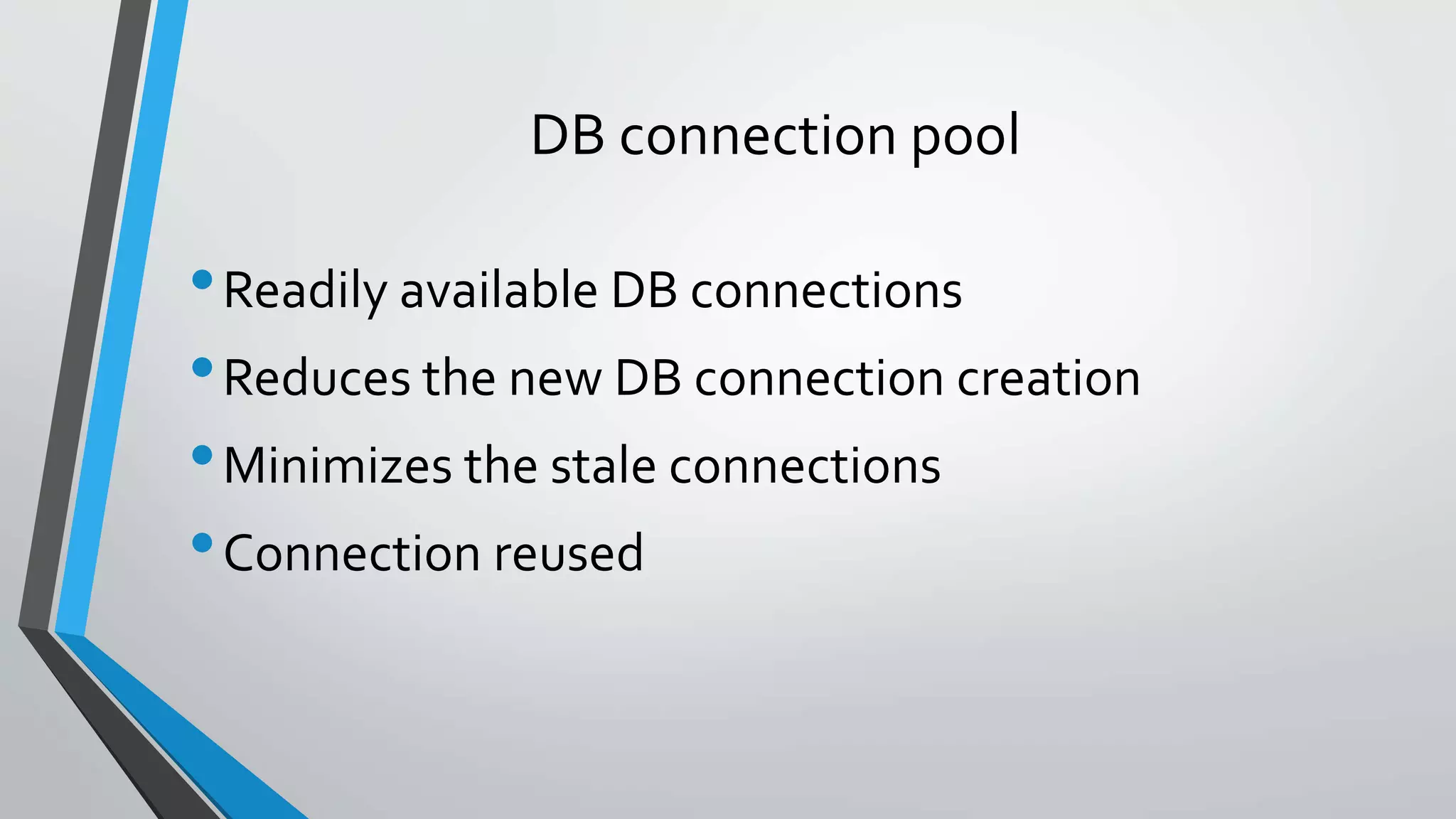

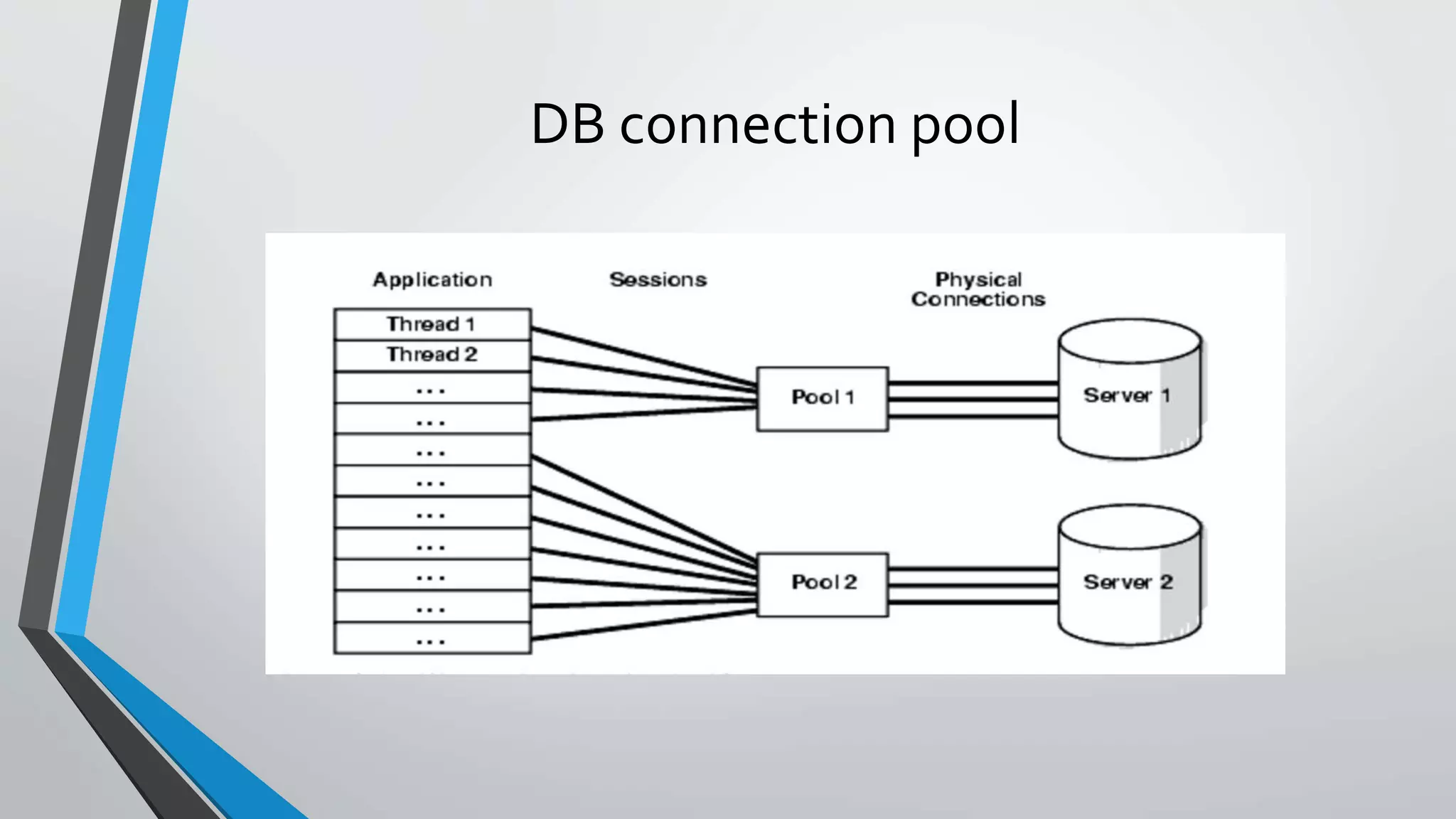

DB connection pool
•Readily available DB connections
•Reduces the new DB connection creation
•Minimizes the stale connections
•Connection reused

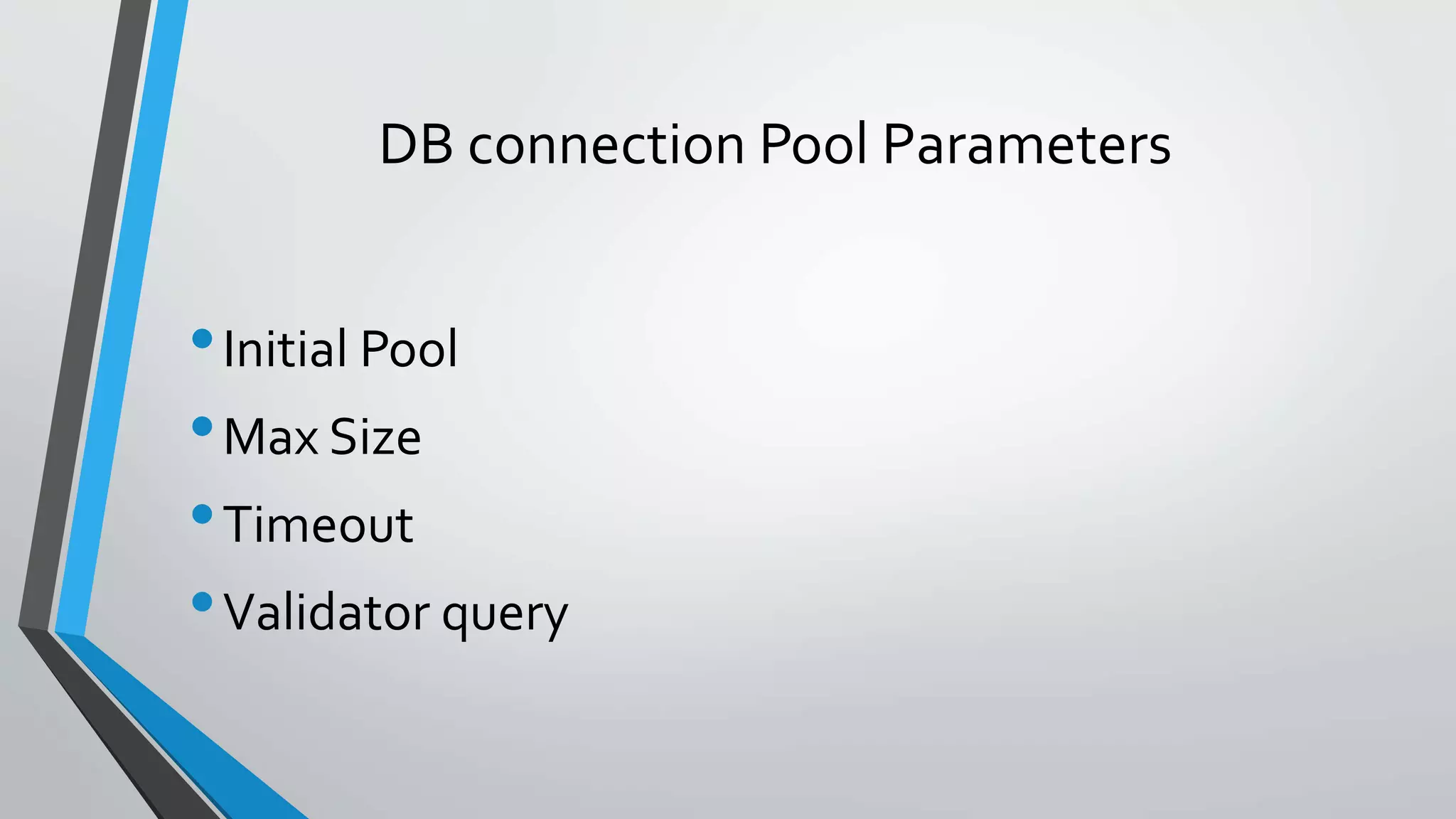

DB connection Pool Parameters
•Initial Pool
•Max Size
•Timeout
•Validator query

DB connection Pool - Issues
•All connections are in use.
•Idle timeout
•Maximum time exceed
•User cancel the operation

ORM framework - Issues
•Loading all the child objects
•Many select queries for related tables
•OneToMany relationship
•Hibernate object are used only for the
persistence, for business service use
transactional objects.

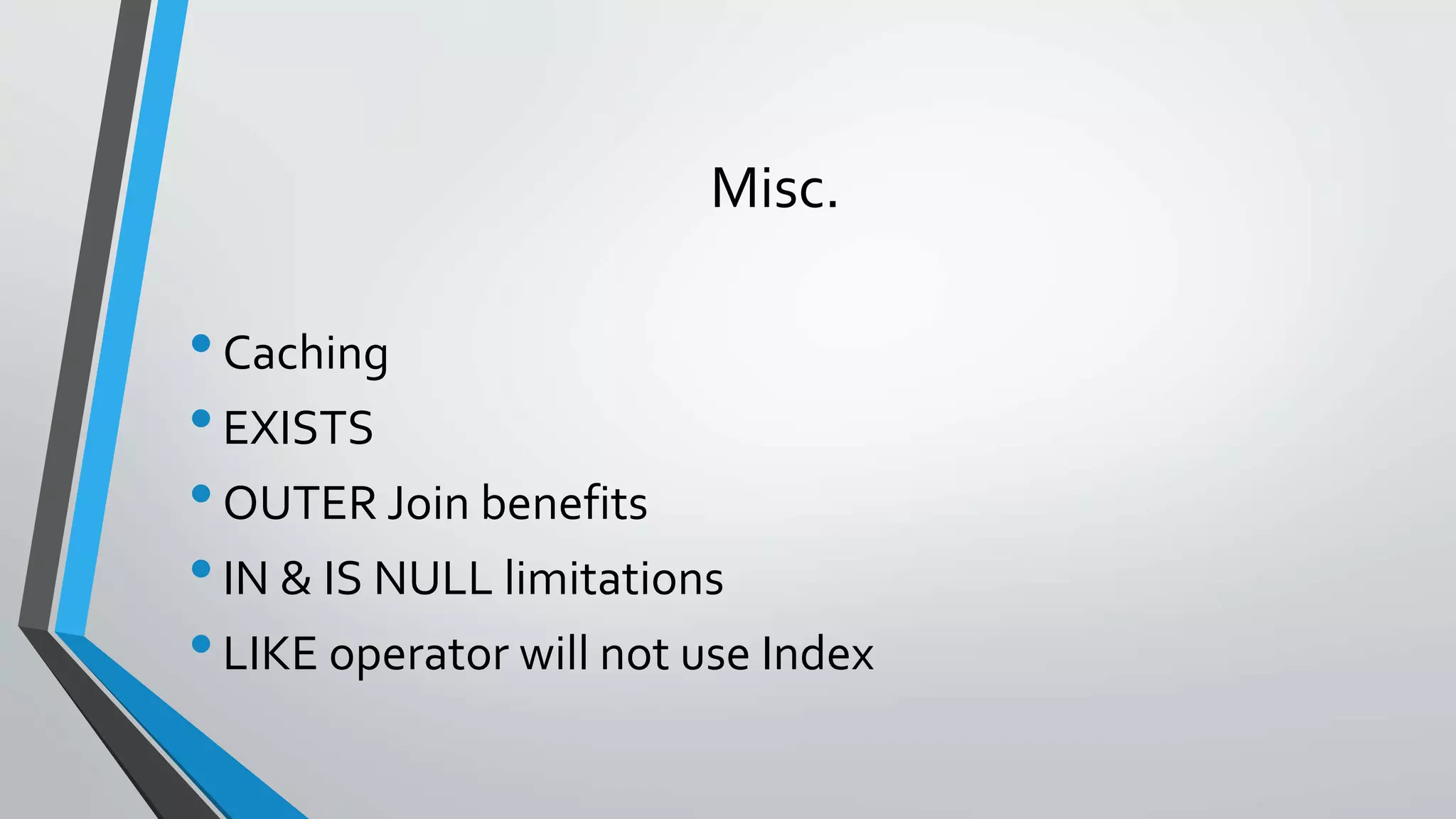

Misc.
•Caching
•EXISTS
•OUTER Join benefits
•IN & IS NULL limitations
•LIKE operator will not use Index

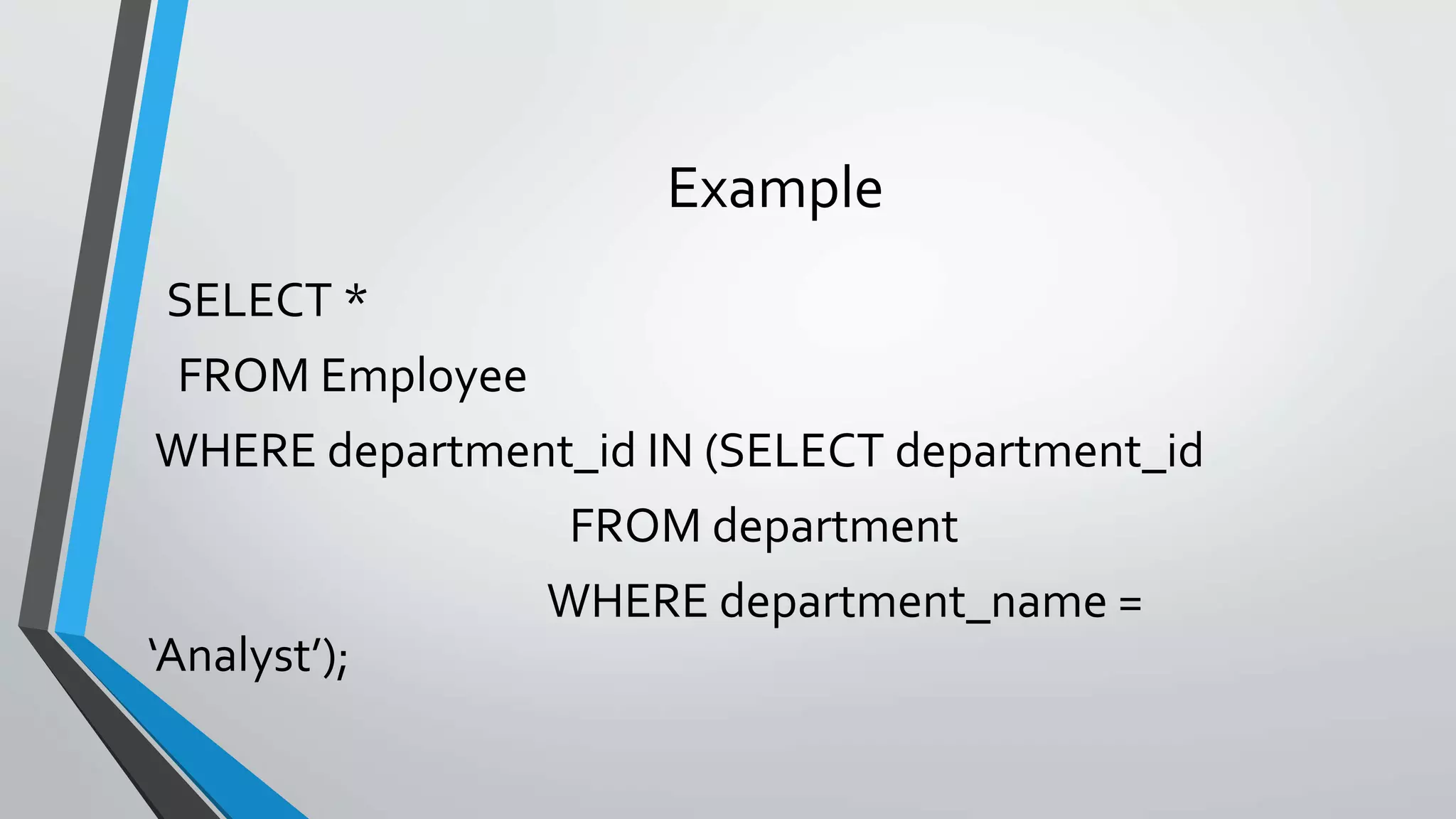

Example
SELECT *
FROM Employee
WHERE department_id IN (SELECT department_id
FROM department
WHERE department_name =
‘Analyst’);

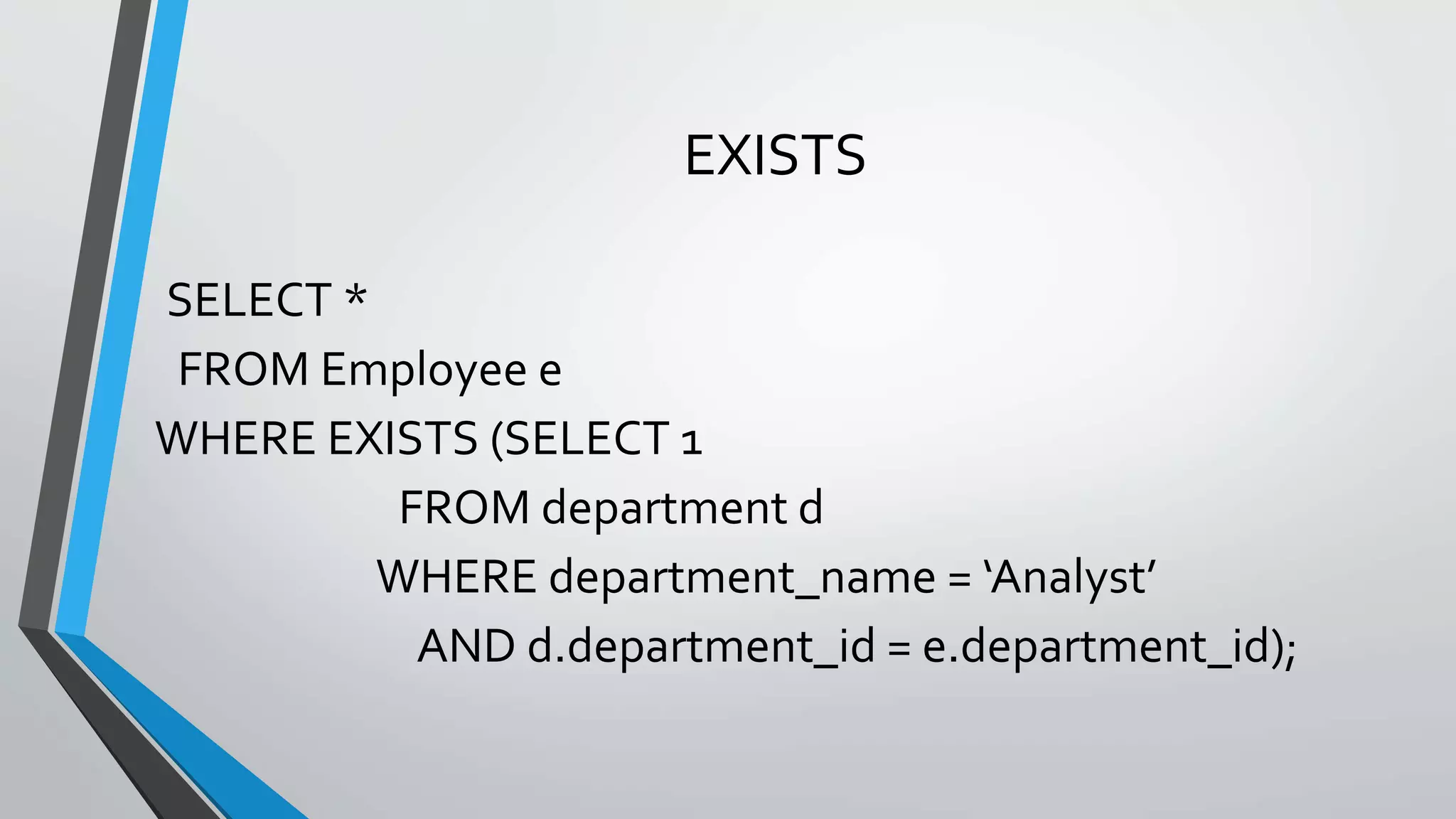

EXISTS
SELECT *
FROM Employee e
WHERE EXISTS (SELECT 1
FROM department d
WHERE department_name = ‘Analyst’
AND d.department_id = e.department_id);

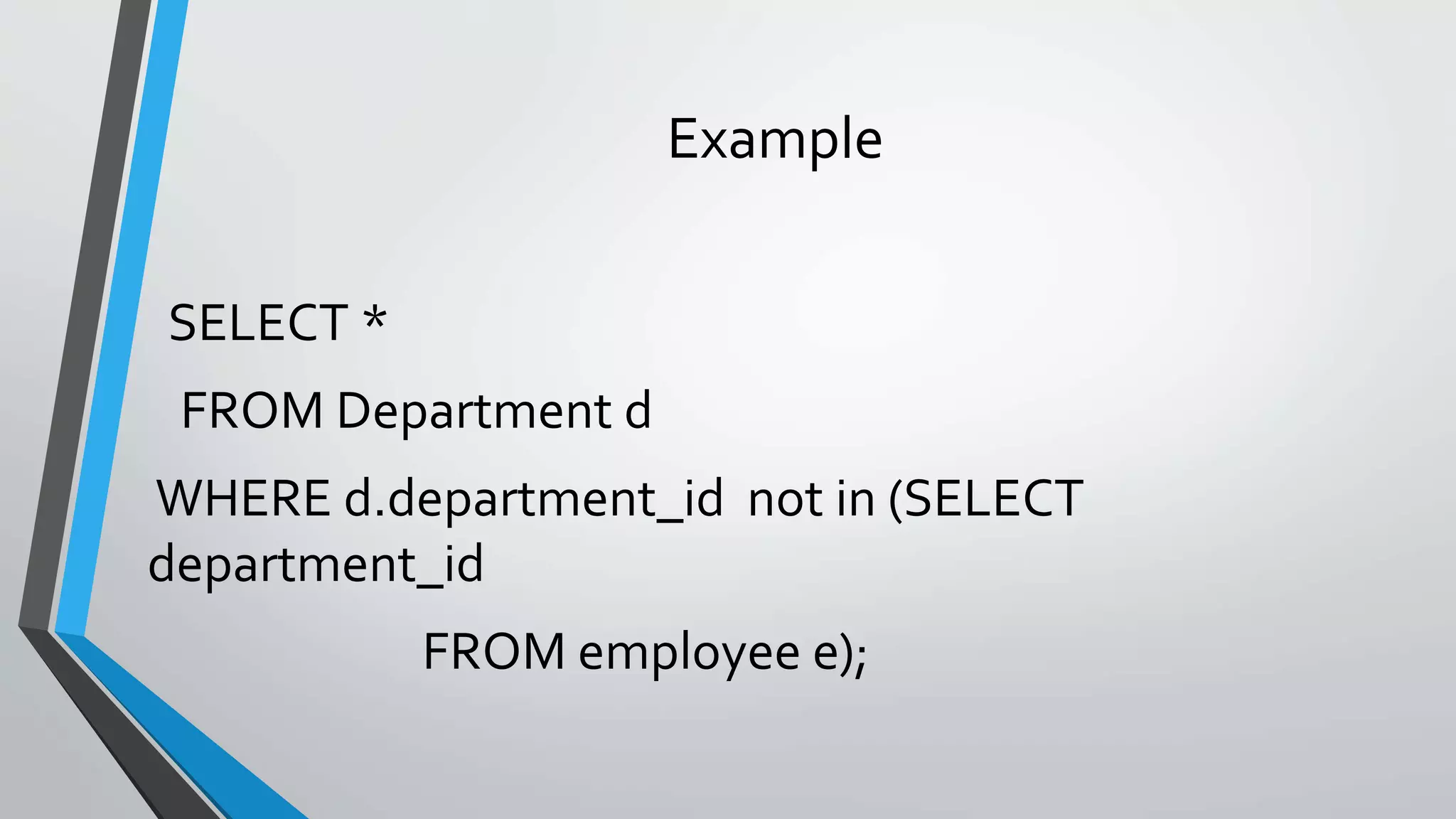

Example
SELECT *
FROM Department d
WHERE d.department_id not in (SELECT
department_id
FROM employee e);

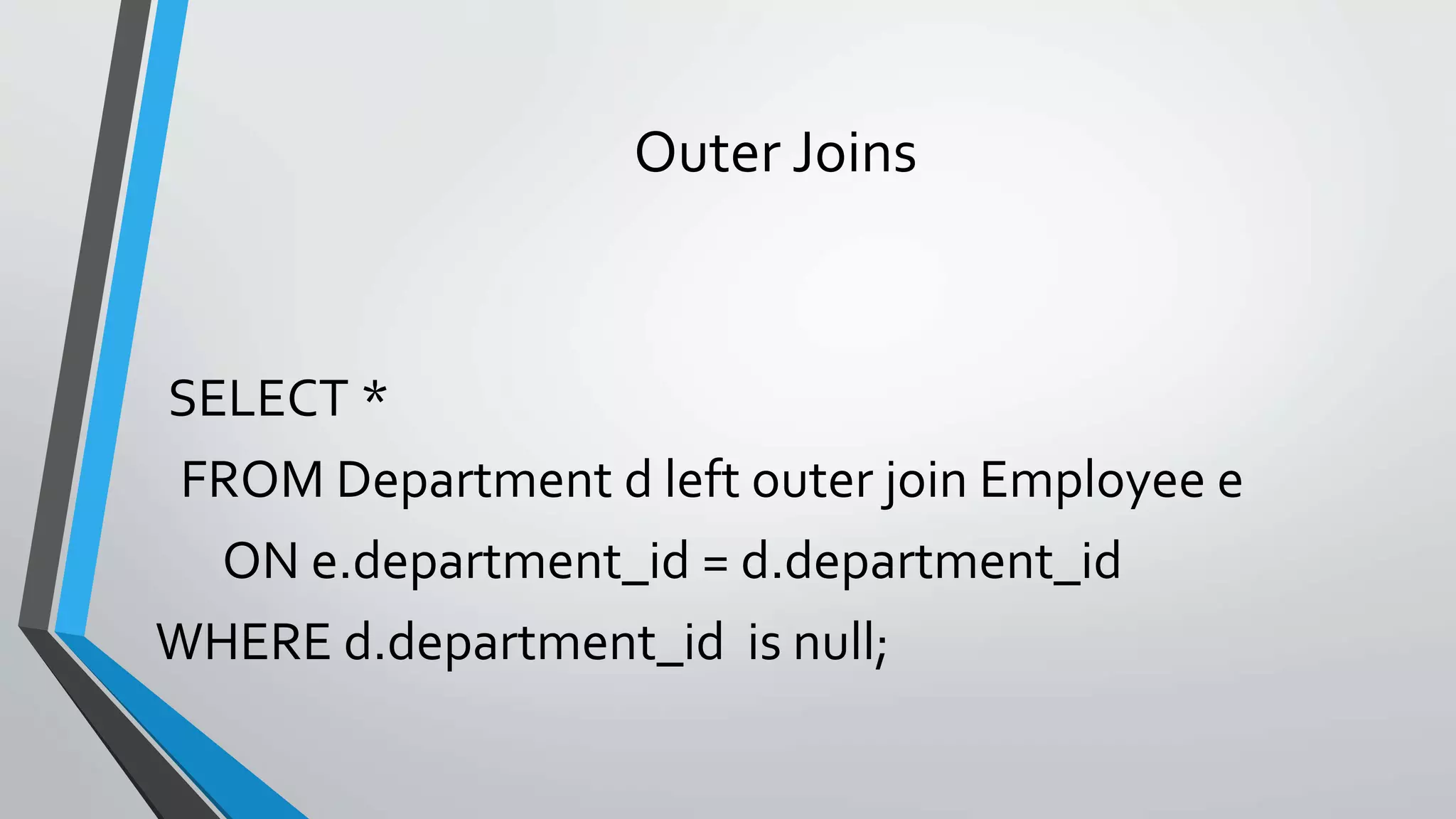

Outer Joins
SELECT *
FROM Department d left outer join Employee e
ON e.department_id = d.department_id
WHERE d.department_id is null;

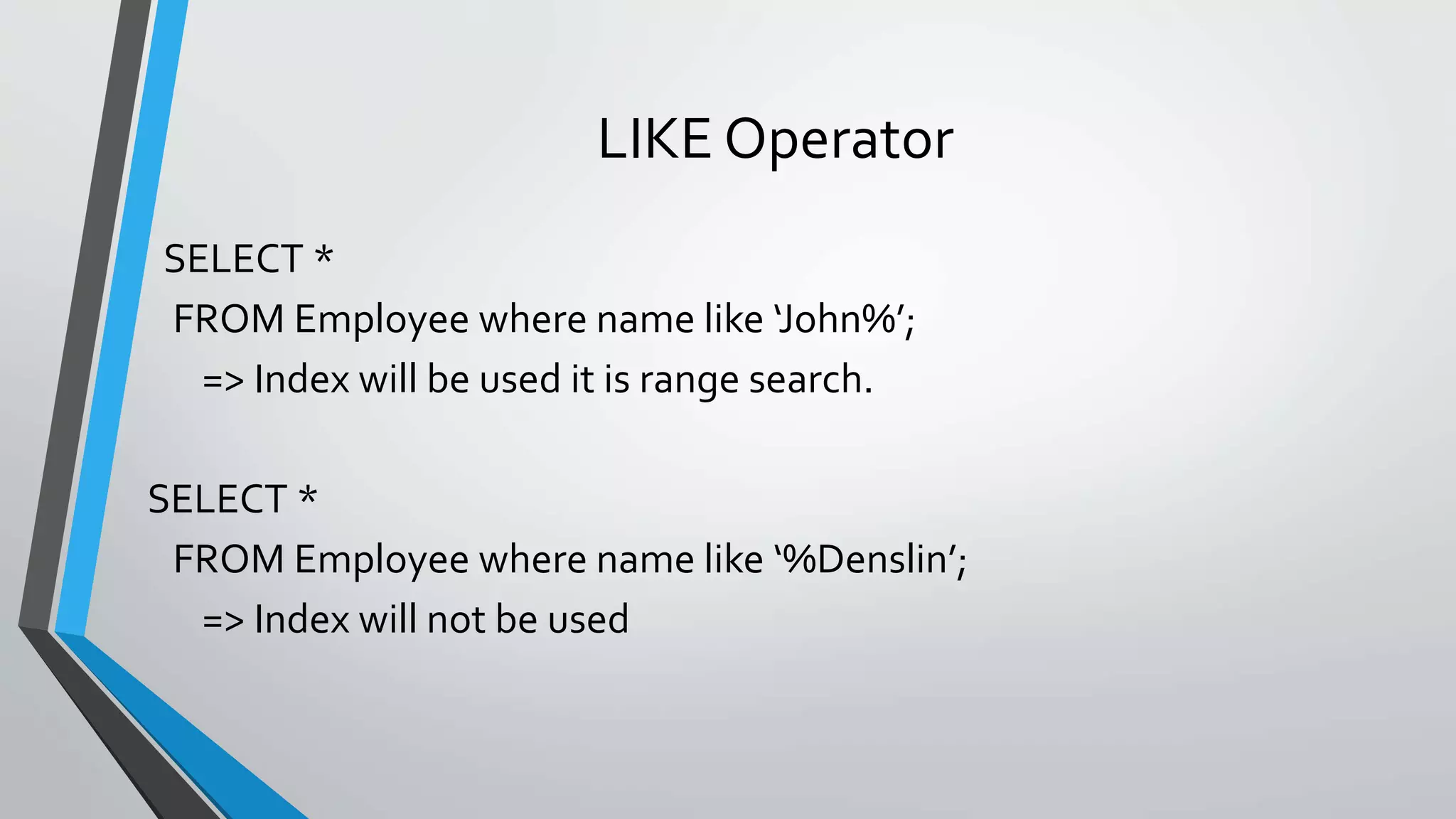

LIKE Operator
SELECT *
FROM Employee where name like ‘John%’;
=> Index will be used it is range search.
SELECT *
FROM Employee where name like ‘%Denslin’;
=> Index will not be used

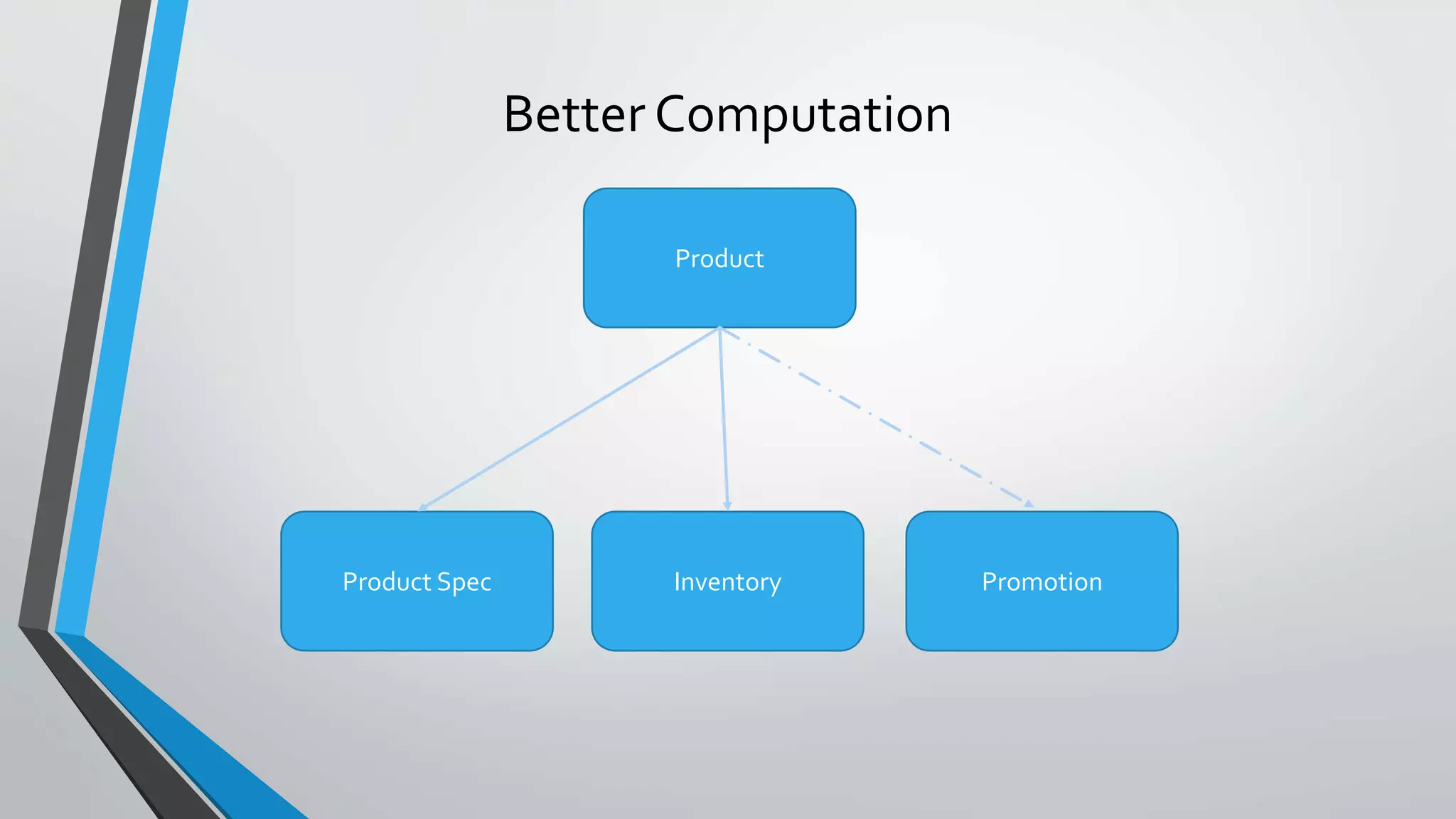

Better Computation
Product
PromotionInventoryProduct Spec

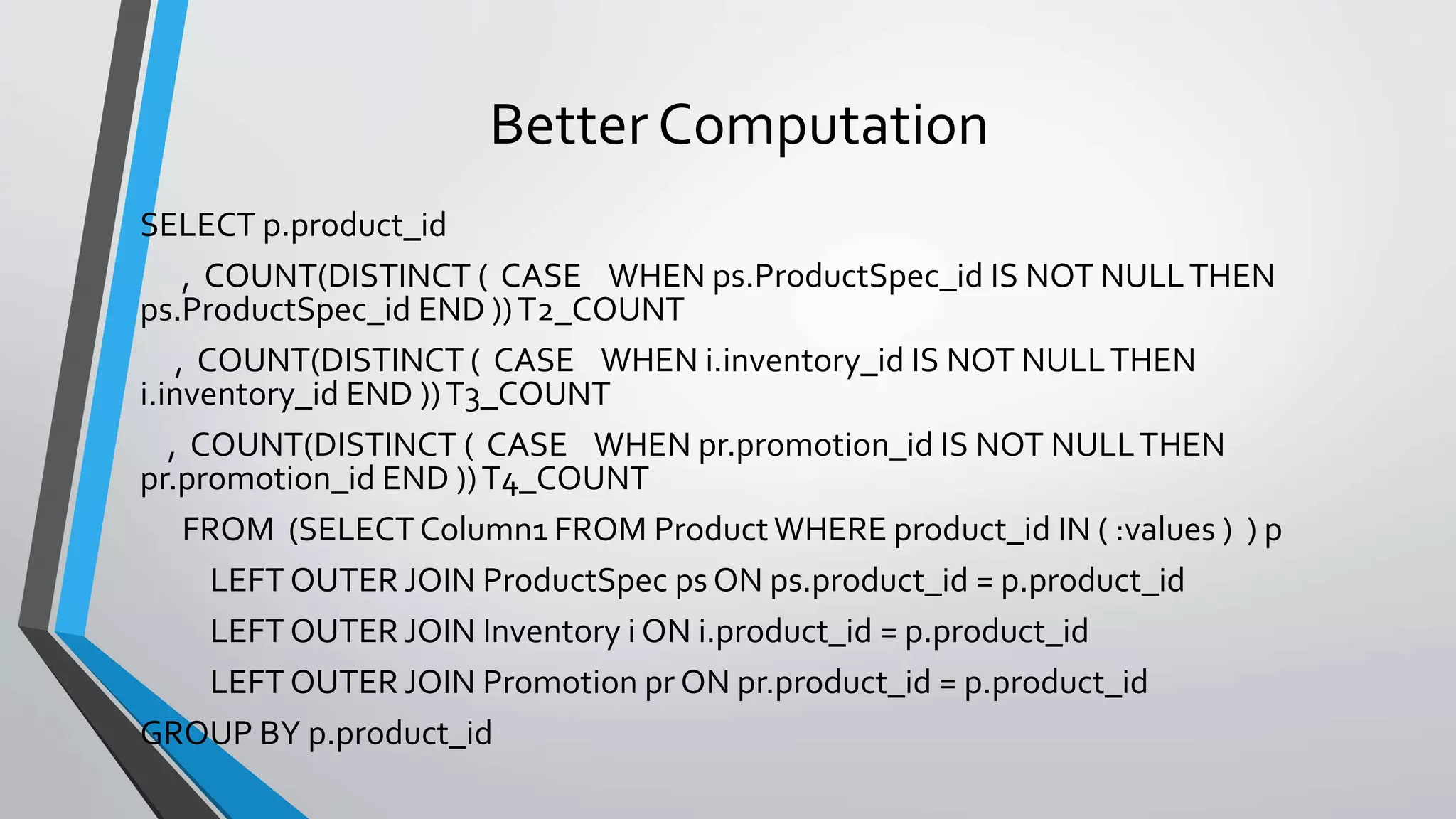

Better Computation
SELECT p.product_id
, COUNT(DISTINCT ( CASE WHEN ps.ProductSpec_id IS NOT NULLTHEN
ps.ProductSpec_id END ))T2_COUNT
, COUNT(DISTINCT ( CASE WHEN i.inventory_id IS NOT NULLTHEN
i.inventory_id END ))T3_COUNT
, COUNT(DISTINCT ( CASE WHEN pr.promotion_id IS NOT NULLTHEN
pr.promotion_id END ))T4_COUNT
FROM (SELECTColumn1 FROM Product WHERE product_id IN ( :values ) ) p
LEFT OUTER JOIN ProductSpec ps ON ps.product_id = p.product_id
LEFT OUTER JOIN Inventory i ON i.product_id = p.product_id
LEFT OUTER JOIN Promotion pr ON pr.product_id = p.product_id
GROUP BY p.product_id

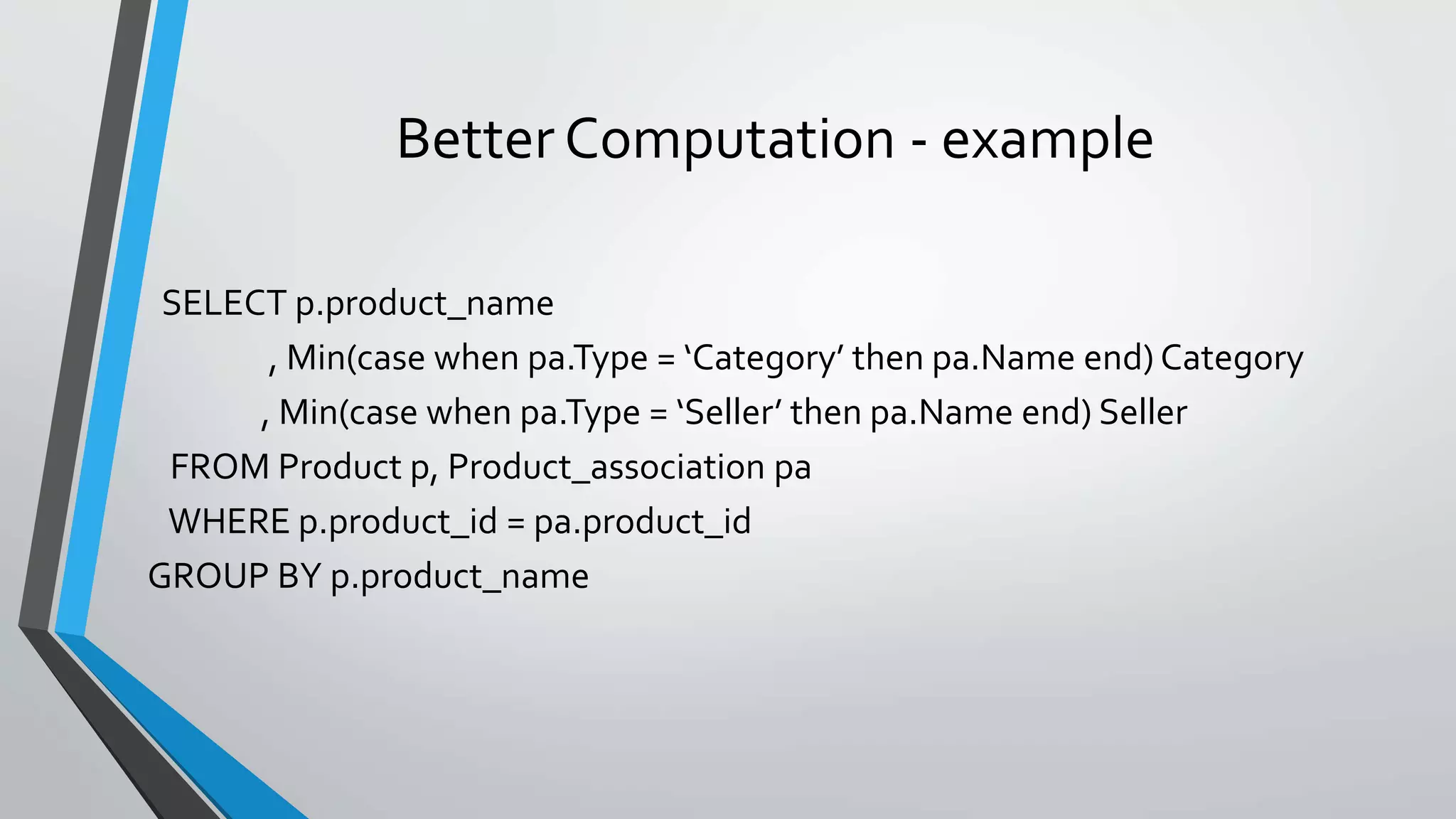

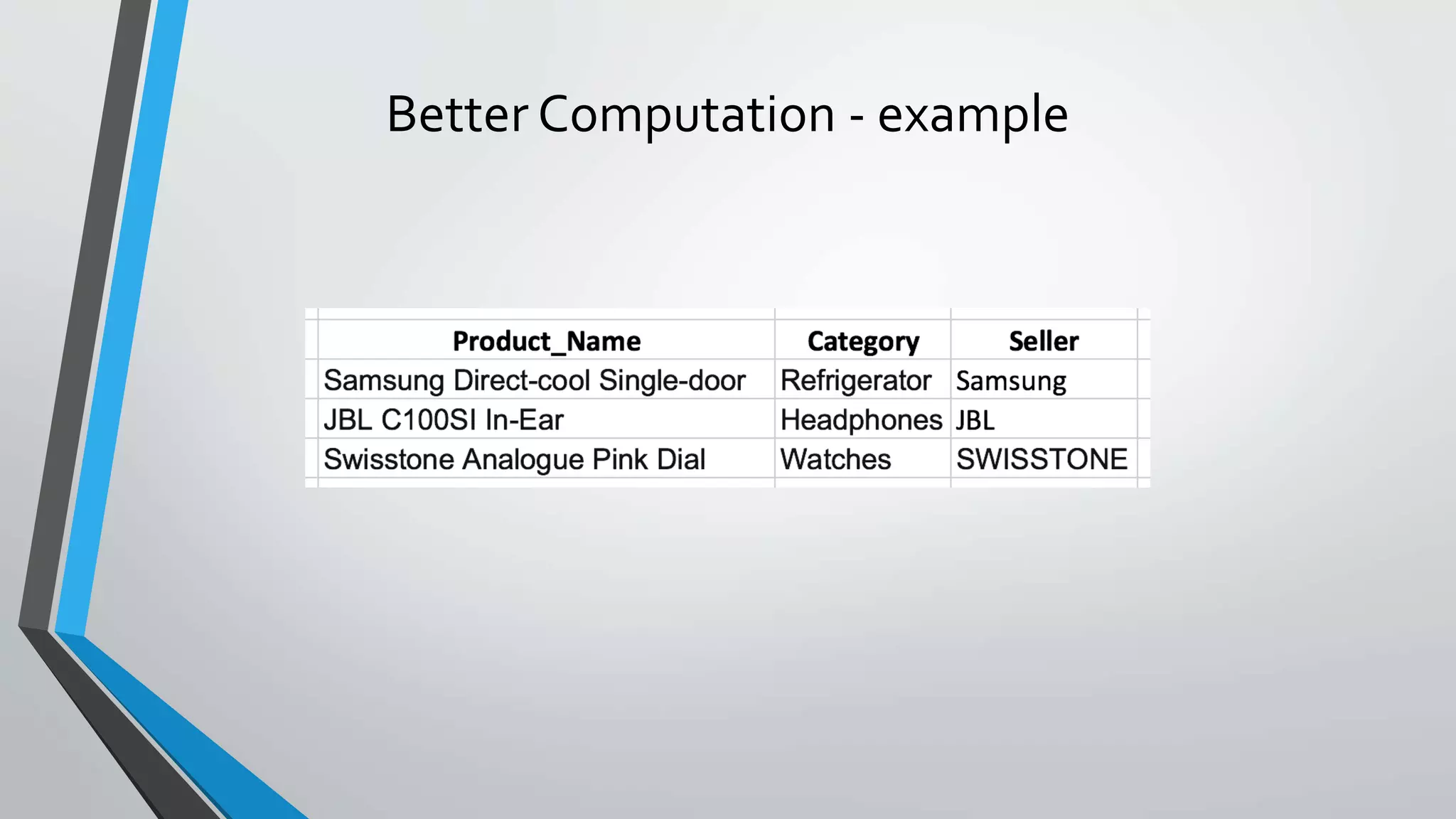

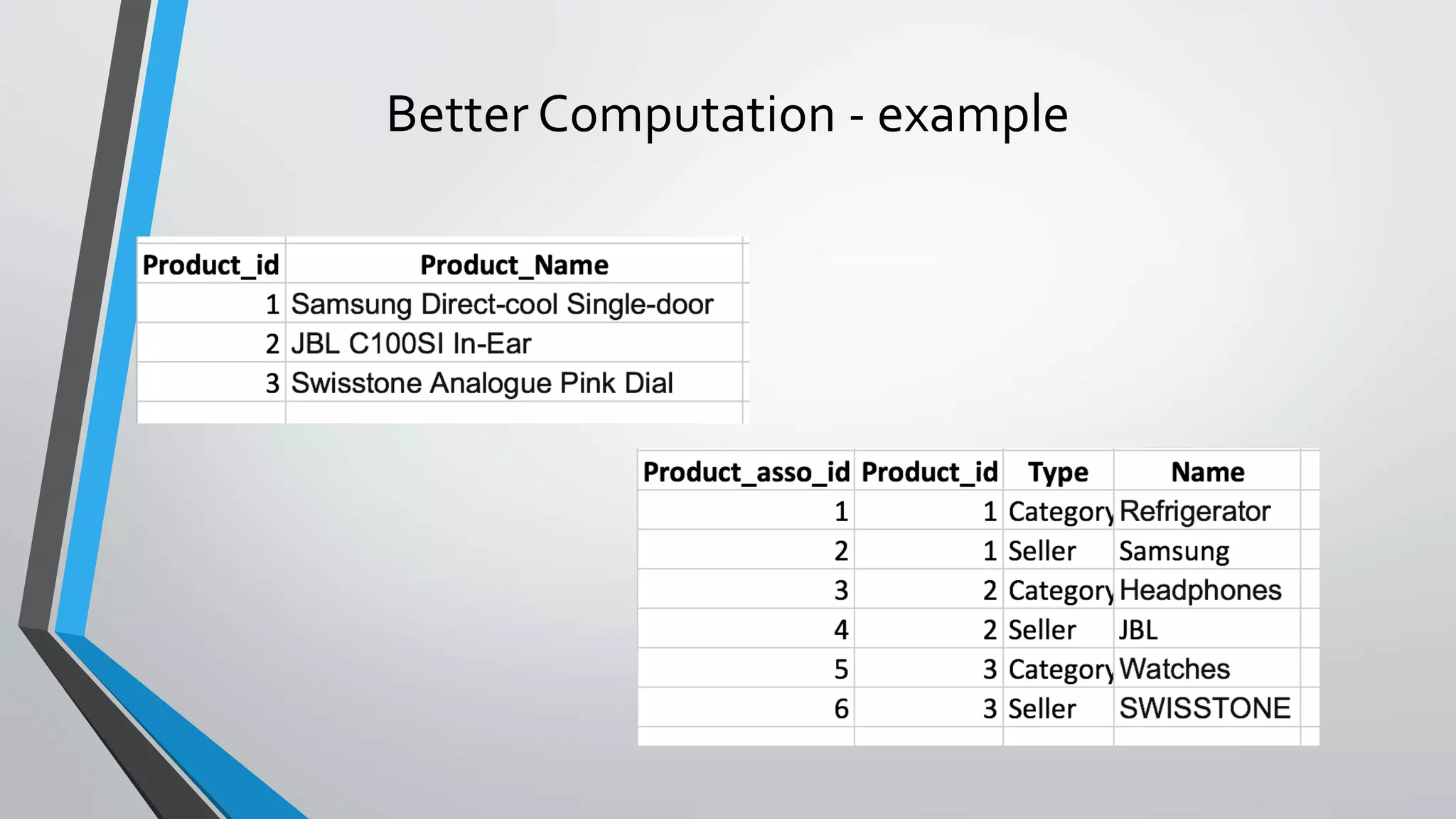

Better Computation - example
SELECT p.product_name
, Min(case when pa.Type = ‘Category’ then pa.Name end) Category
, Min(case when pa.Type = ‘Seller’ then pa.Name end) Seller
FROM Product p, Product_association pa
WHERE p.product_id = pa.product_id
GROUP BY p.product_name
