Decision tree

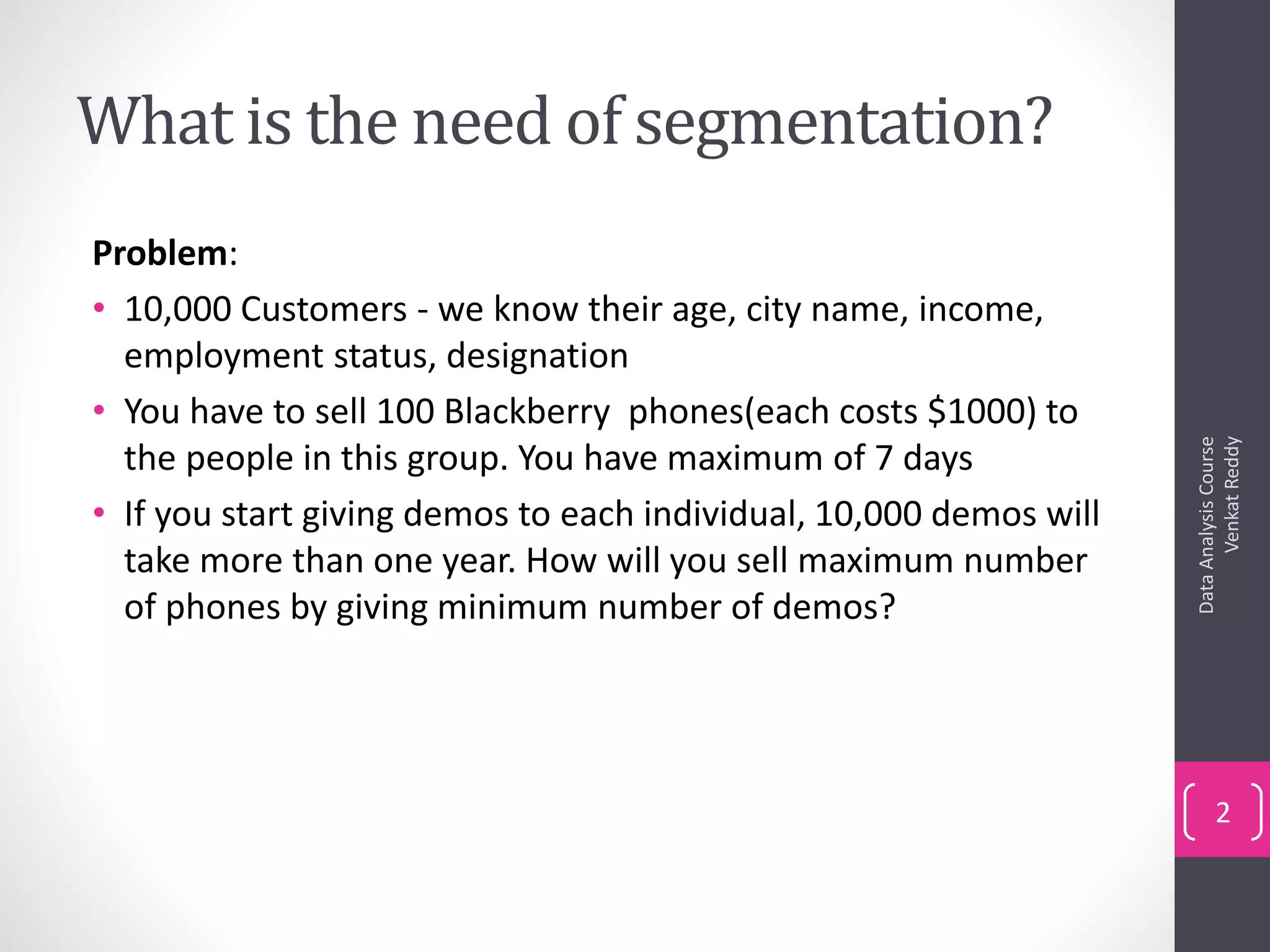

What is the need of segmentation?
Problem:
• 10,000 Customers - we know their age, city name, income,
employment status, designation
• You have to sell 100 Blackberry phones(each costs $1000) to
the people in this group. You have maximum of 7 days
• If you start giving demos to each individual, 10,000 demos will
take more than one year. How will you sell maximum number
of phones by giving minimum number of demos?
DataAnalysisCourse
VenkatReddy
2

What is the need of segmentation?

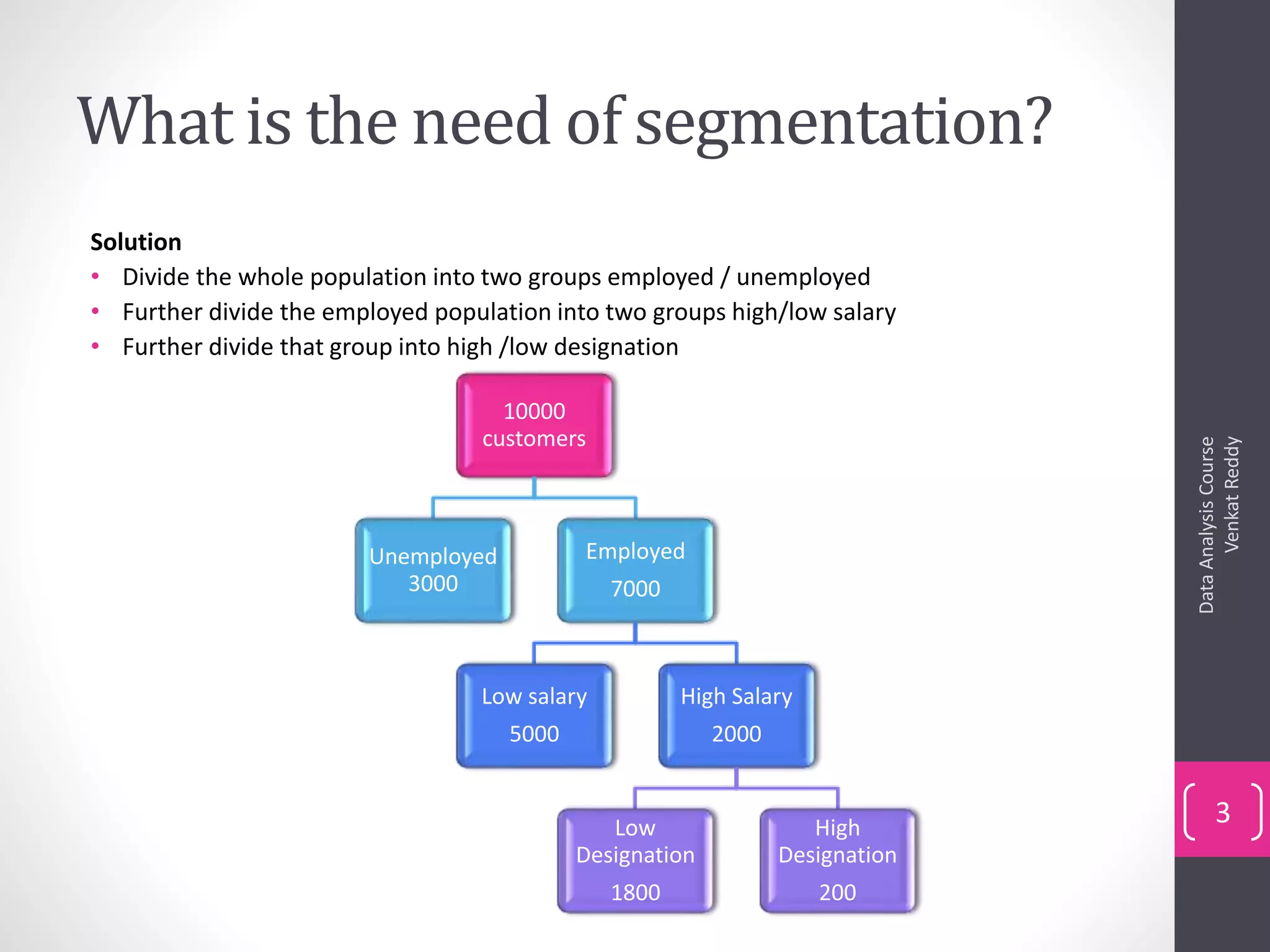

Solution
• Divide the whole population into two groups employed / unemployed
• Further divide the employed population into two groups high/low salary
• Further divide that group into high /low designation
DataAnalysisCourse
VenkatReddy
3
10000
customers
Unemployed
3000
Employed
7000
Low salary
5000
High Salary
2000
Low
Designation
1800
High
Designation
200

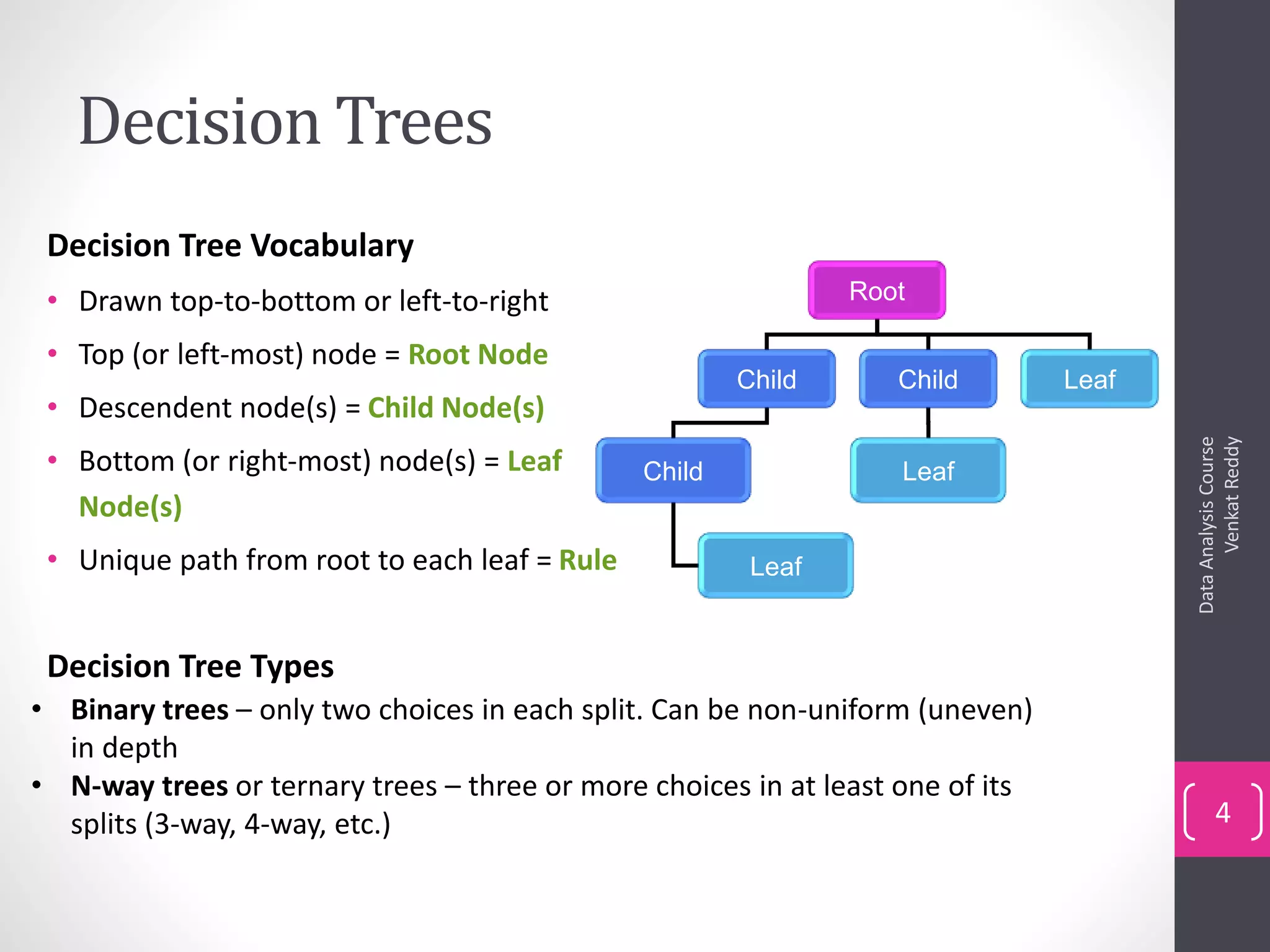

Decision Trees
Decision Tree Vocabulary
• Drawn top-to-bottom or left-to-right
• Top (or left-most) node = Root Node
• Descendent node(s) = Child Node(s)
• Bottom (or right-most) node(s) = Leaf
Node(s)
• Unique path from root to each leaf = Rule
DataAnalysisCourse
VenkatReddy
4
Root
Child Child Leaf
LeafChild
Leaf
Decision Tree Types
• Binary trees – only two choices in each split. Can be non-uniform (uneven)
in depth
• N-way trees or ternary trees – three or more choices in at least one of its
splits (3-way, 4-way, etc.)

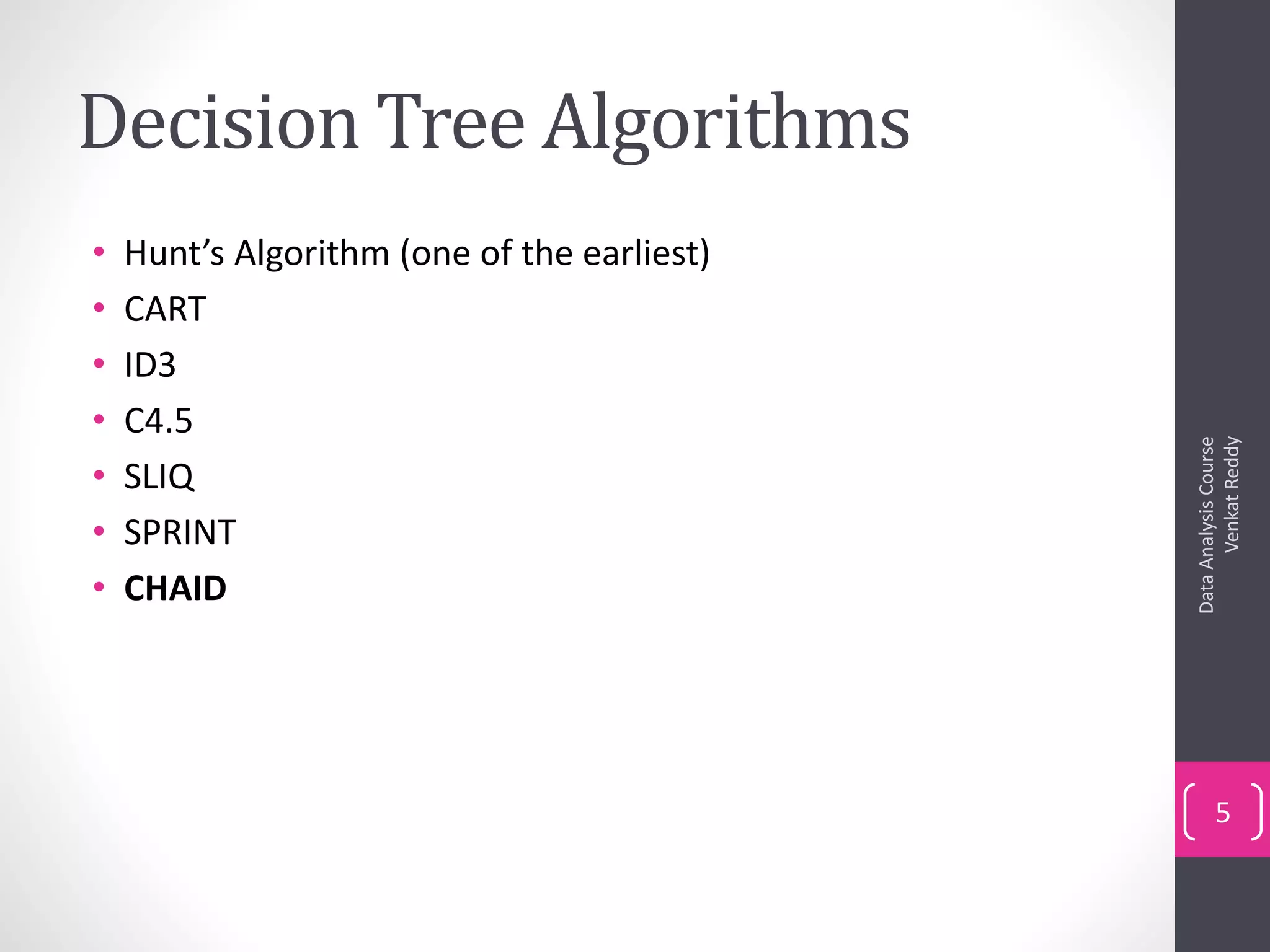

Decision Tree Algorithms
• Hunt’s Algorithm (one of the earliest)
• CART
• ID3
• C4.5
• SLIQ
• SPRINT
• CHAID
DataAnalysisCourse
VenkatReddy
5

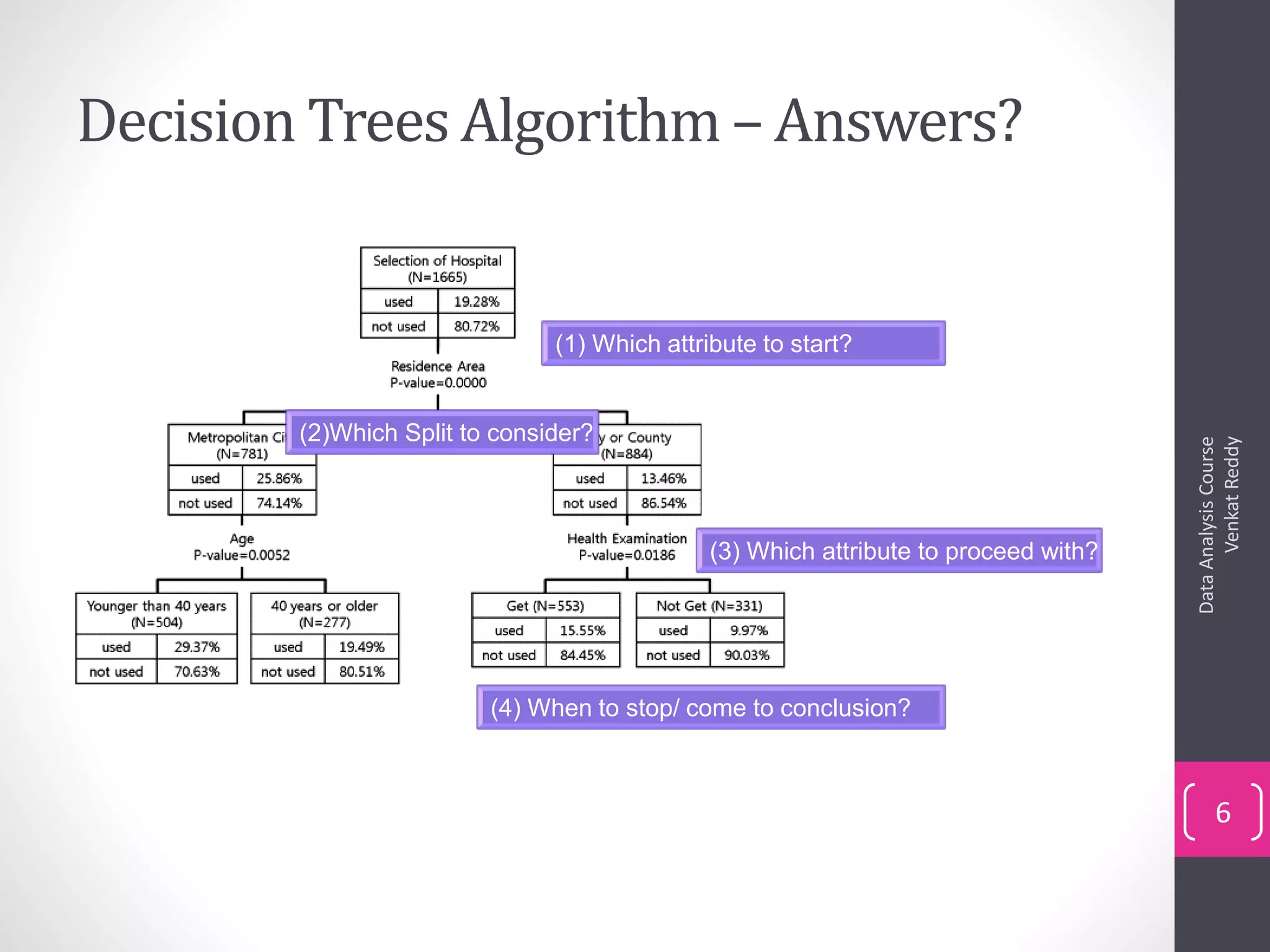

Decision Trees Algorithm – Answers?
DataAnalysisCourse
VenkatReddy
6
(2)Which Split to consider?
(4) When to stop/ come to conclusion?
(1) Which attribute to start?
(3) Which attribute to proceed with?

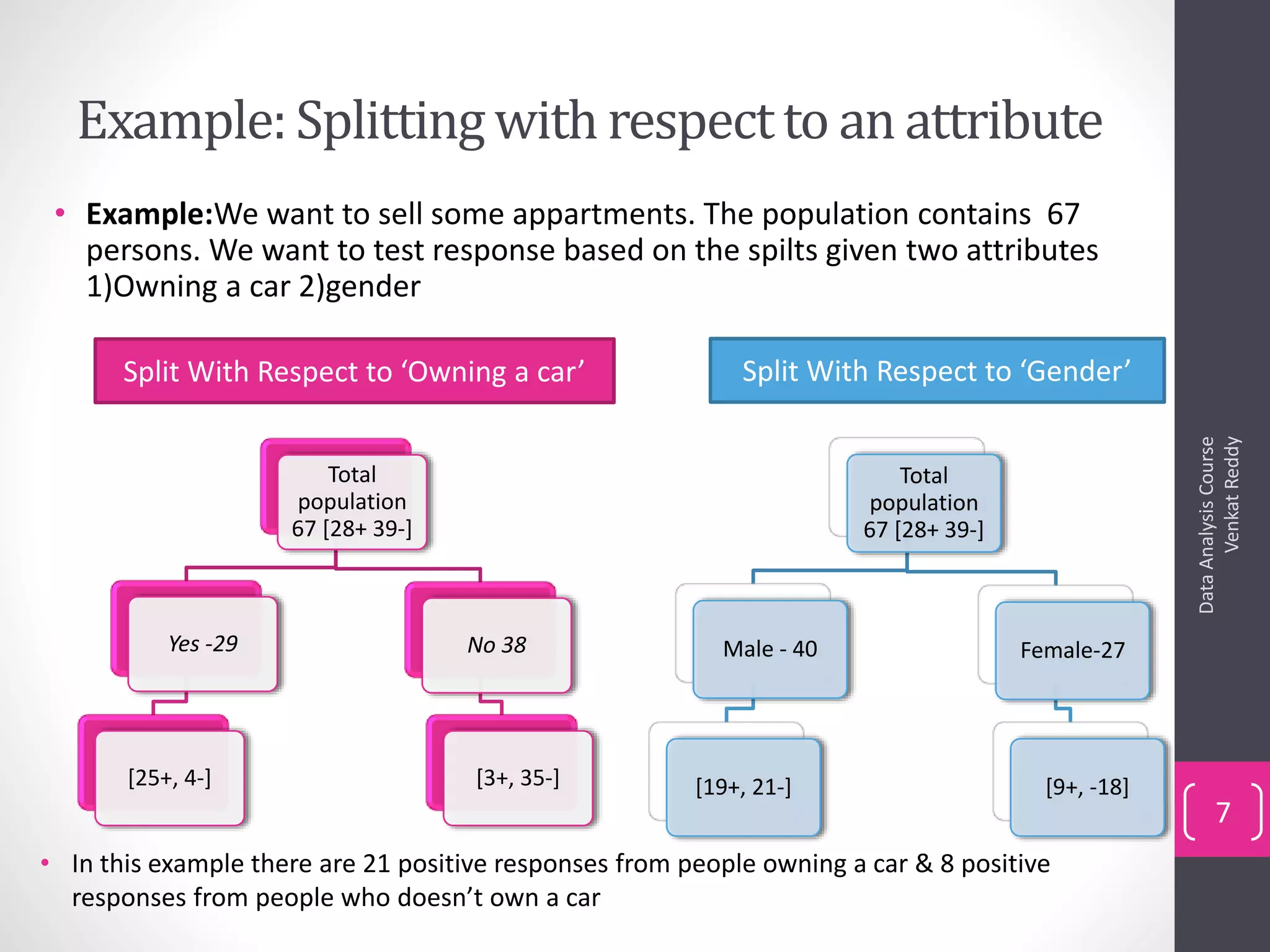

Example:Splittingwith respectto an attribute
• Example:We want to sell some appartments. The population contains 67
persons. We want to test response based on the spilts given two attributes
1)Owning a car 2)gender
DataAnalysisCourse
VenkatReddy
7
Total
population
67 [28+ 39-]
Yes -29
[25+, 4-]
No 38
[3+, 35-]
Split With Respect to ‘Owning a car’
Total
population
67 [28+ 39-]
Male - 40
[19+, 21-]
Female-27
[9+, -18]
Split With Respect to ‘Gender’
• In this example there are 21 positive responses from people owning a car & 8 positive
responses from people who doesn’t own a car

Example:Splittingwith respectto an attribute
DataAnalysisCourse
VenkatReddy
8

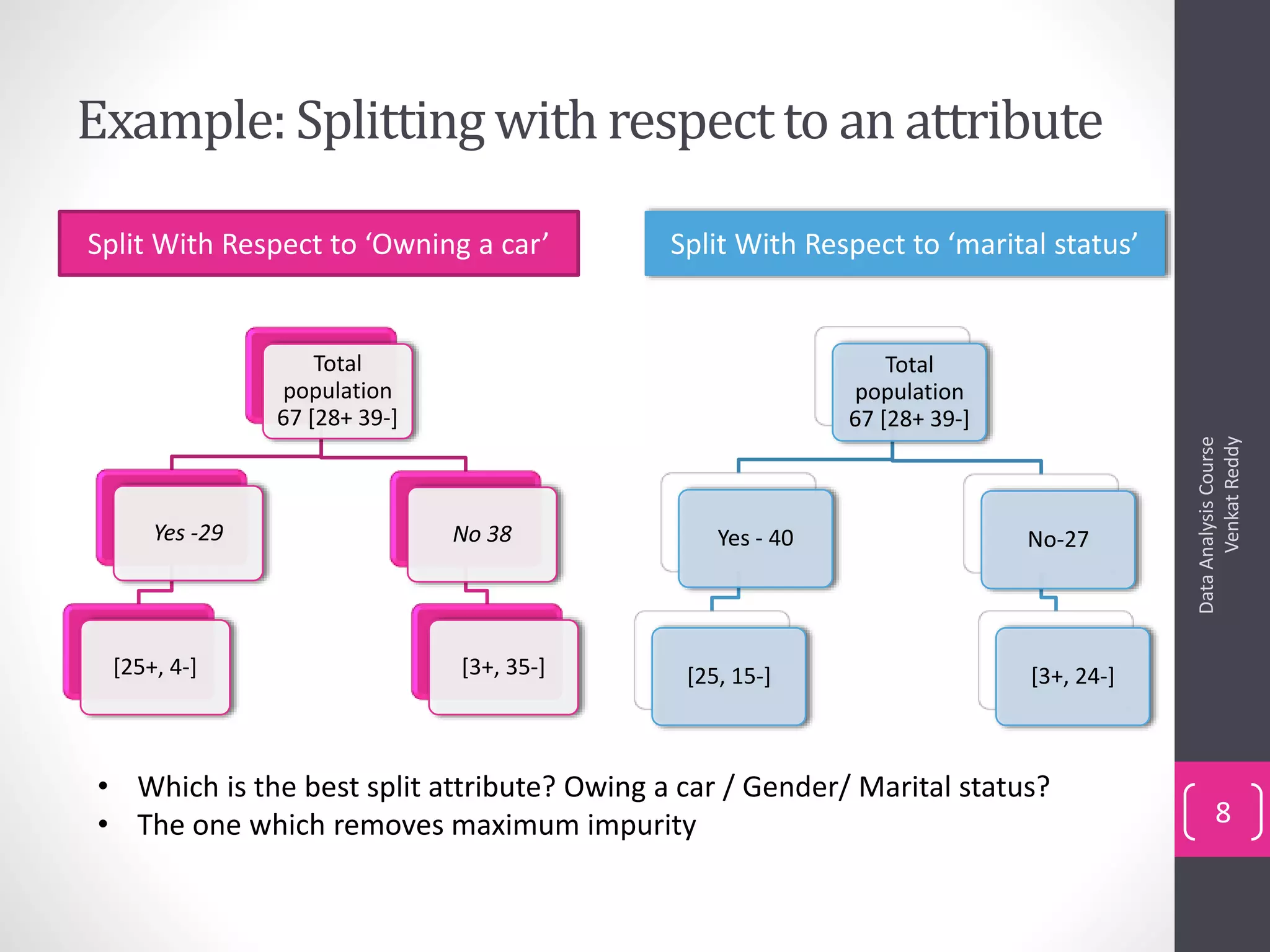

Split With Respect to ‘Owning a car’ Split With Respect to ‘marital status’
Total
population
67 [28+ 39-]
Yes -29
[25+, 4-]
No 38
[3+, 35-]
Total
population
67 [28+ 39-]
Yes - 40
[25, 15-]
No-27
[3+, 24-]
• Which is the best split attribute? Owing a car / Gender/ Marital status?
• The one which removes maximum impurity

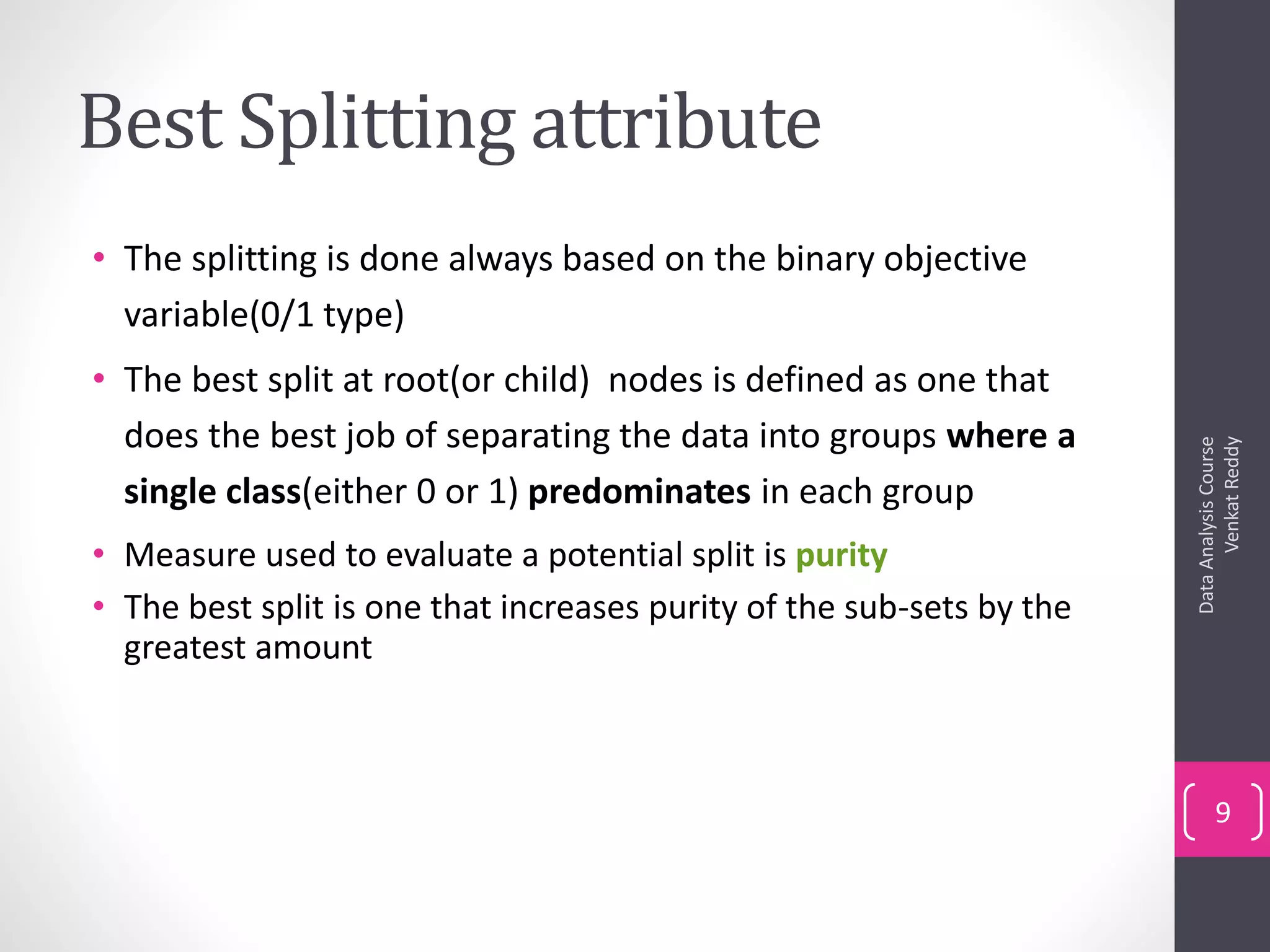

Best Splitting attribute
• The splitting is done always based on the binary objective
variable(0/1 type)
• The best split at root(or child) nodes is defined as one that
does the best job of separating the data into groups where a
single class(either 0 or 1) predominates in each group
• Measure used to evaluate a potential split is purity
• The best split is one that increases purity of the sub-sets by the
greatest amount
DataAnalysisCourse
VenkatReddy
9

Purity (Diversity) Measures:
• Entropy: Characterizes the impurity/diversity of segment (an arbitrary collection
of observations)
• Measure of uncertainty/Impurity
• Expected number of bits to resolve uncertainty
• Entropy measures the information amount in a message
• S is a sample of training examples, p+ is the proportion of positive examples, p-
is the proportion of negative examples
• Entropy(S) = -p+ log2 p+ - p- log2 p-
• General formula for Entropy(S) = - pj x log2(pj)
• Entropy is maximum when p=0.5
• Chi-square measure of association
• Gini Index : Gini(T) = 1 - pj
2
• Information Gain Ratio
• Misclassification error
DataAnalysisCourse
VenkatReddy
10

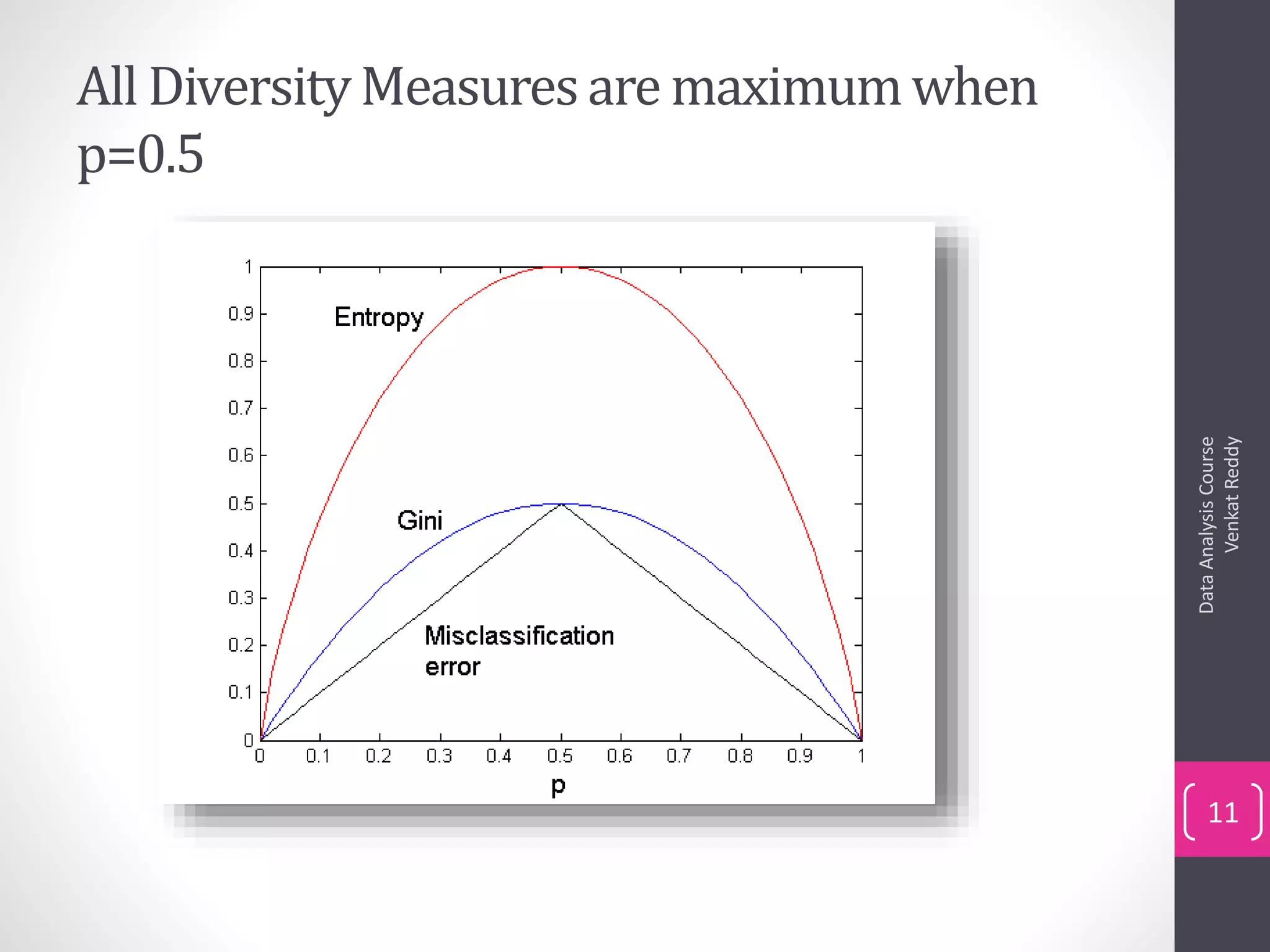

All DiversityMeasuresare maximumwhen
p=0.5
DataAnalysisCourse
VenkatReddy
11

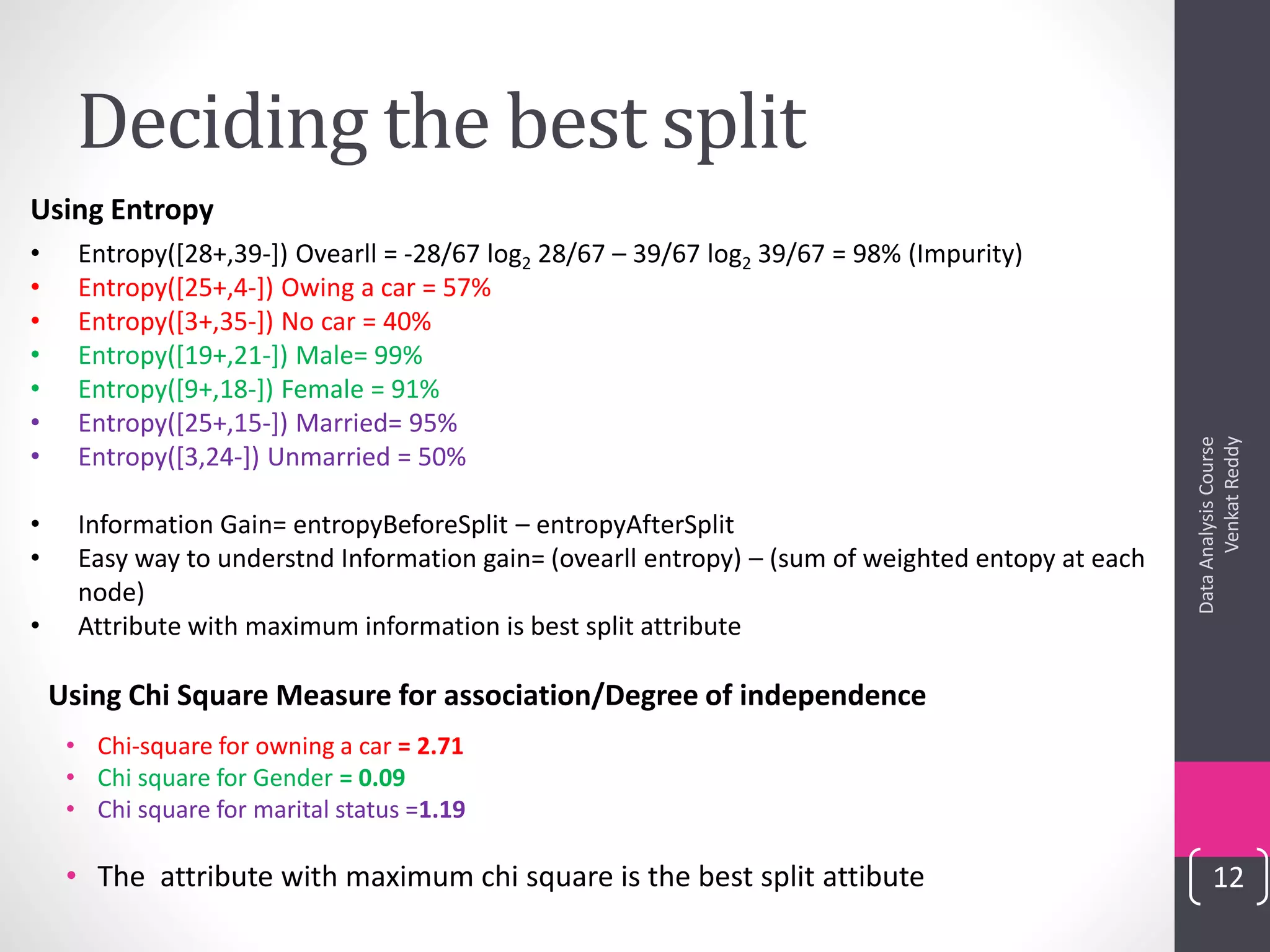

Deciding the best split
DataAnalysisCourse
VenkatReddy
12
• Entropy([28+,39-]) Ovearll = -28/67 log2 28/67 – 39/67 log2 39/67 = 98% (Impurity)
• Entropy([25+,4-]) Owing a car = 57%
• Entropy([3+,35-]) No car = 40%
• Entropy([19+,21-]) Male= 99%
• Entropy([9+,18-]) Female = 91%
• Entropy([25+,15-]) Married= 95%
• Entropy([3,24-]) Unmarried = 50%
• Information Gain= entropyBeforeSplit – entropyAfterSplit
• Easy way to understnd Information gain= (ovearll entropy) – (sum of weighted entopy at each
node)
• Attribute with maximum information is best split attribute
Using Entropy
Using Chi Square Measure for association/Degree of independence
• Chi-square for owning a car = 2.71
• Chi square for Gender = 0.09
• Chi square for marital status =1.19
• The attribute with maximum chi square is the best split attibute

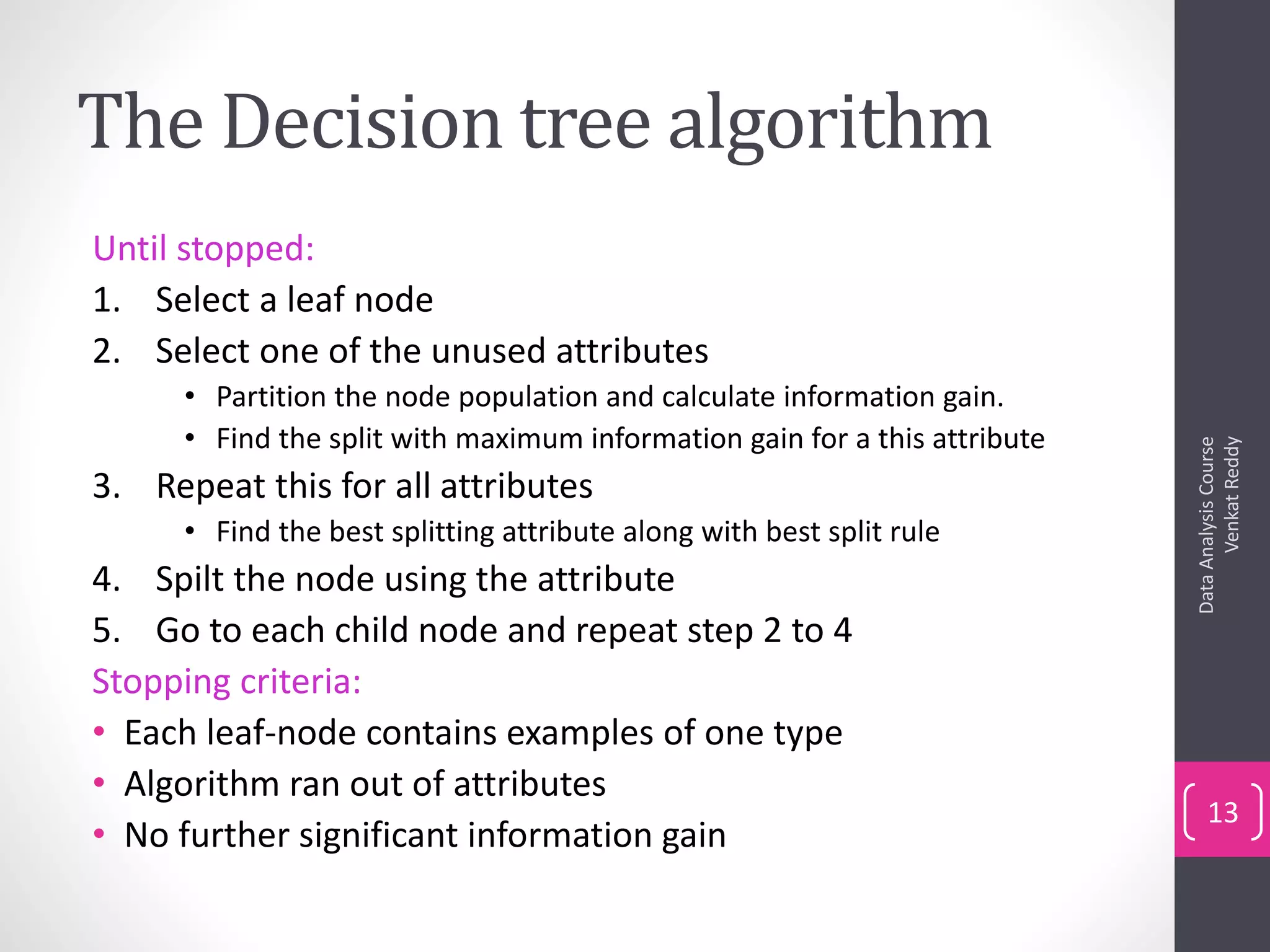

The Decision tree algorithm
Until stopped:
1. Select a leaf node
2. Select one of the unused attributes
• Partition the node population and calculate information gain.
• Find the split with maximum information gain for a this attribute
3. Repeat this for all attributes
• Find the best splitting attribute along with best split rule
4. Spilt the node using the attribute
5. Go to each child node and repeat step 2 to 4
Stopping criteria:
• Each leaf-node contains examples of one type
• Algorithm ran out of attributes
• No further significant information gain
DataAnalysisCourse
VenkatReddy
13

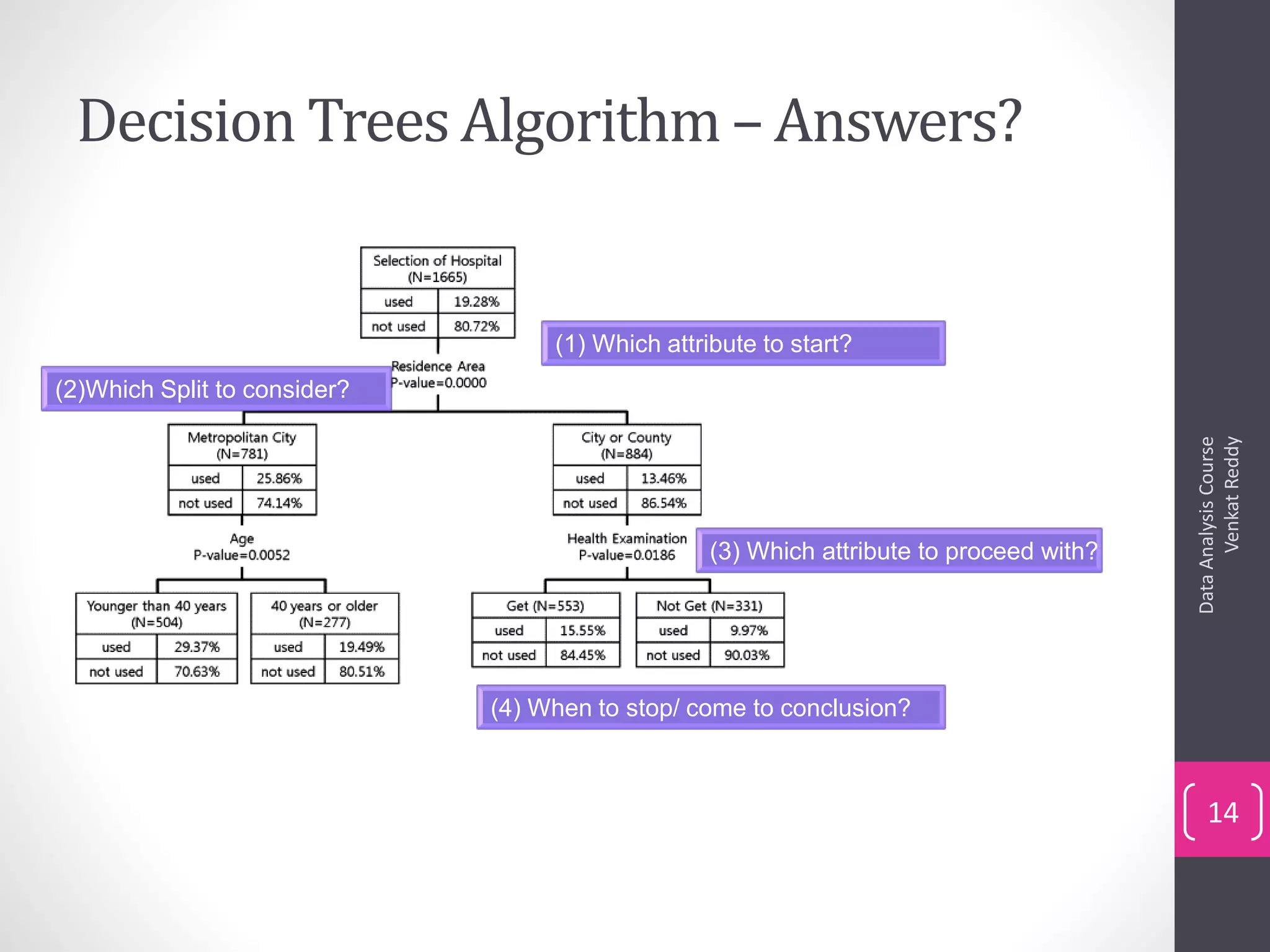

Decision Trees Algorithm – Answers?
DataAnalysisCourse
VenkatReddy
14
(2)Which Split to consider?
(4) When to stop/ come to conclusion?
(1) Which attribute to start?
(3) Which attribute to proceed with?

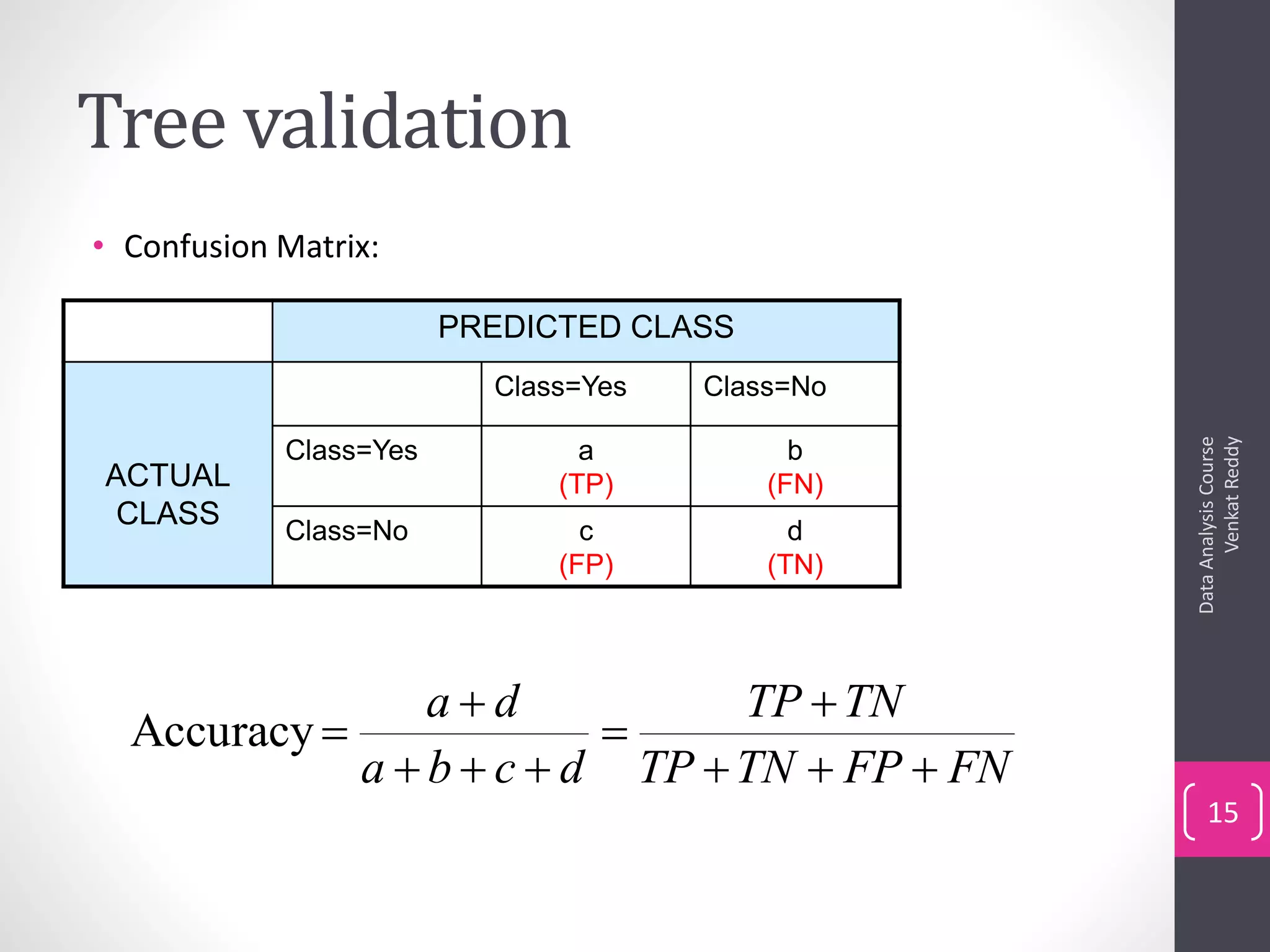

Tree validation
• Confusion Matrix:
DataAnalysisCourse
VenkatReddy
15
PREDICTED CLASS
ACTUAL
CLASS
Class=Yes Class=No
Class=Yes a
(TP)
b
(FN)
Class=No c
(FP)
d
(TN)
FNFPTNTP
TNTP
dcba
da





Accuracy

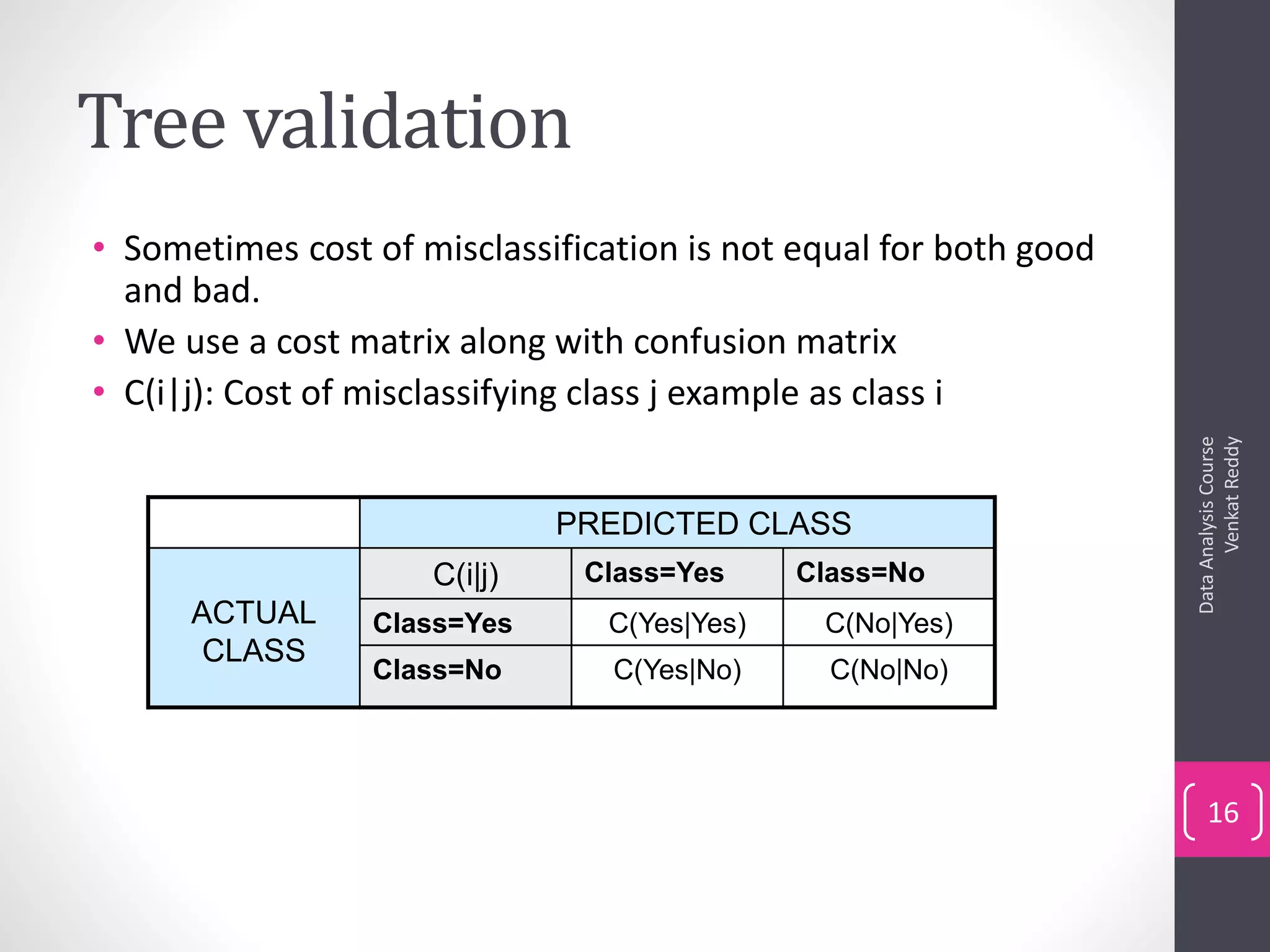

Tree validation
• Sometimes cost of misclassification is not equal for both good
and bad.
• We use a cost matrix along with confusion matrix
• C(i|j): Cost of misclassifying class j example as class i
DataAnalysisCourse
VenkatReddy
16
PREDICTED CLASS
ACTUAL
CLASS
C(i|j) Class=Yes Class=No
Class=Yes C(Yes|Yes) C(No|Yes)
Class=No C(Yes|No) C(No|No)

Tree Validation

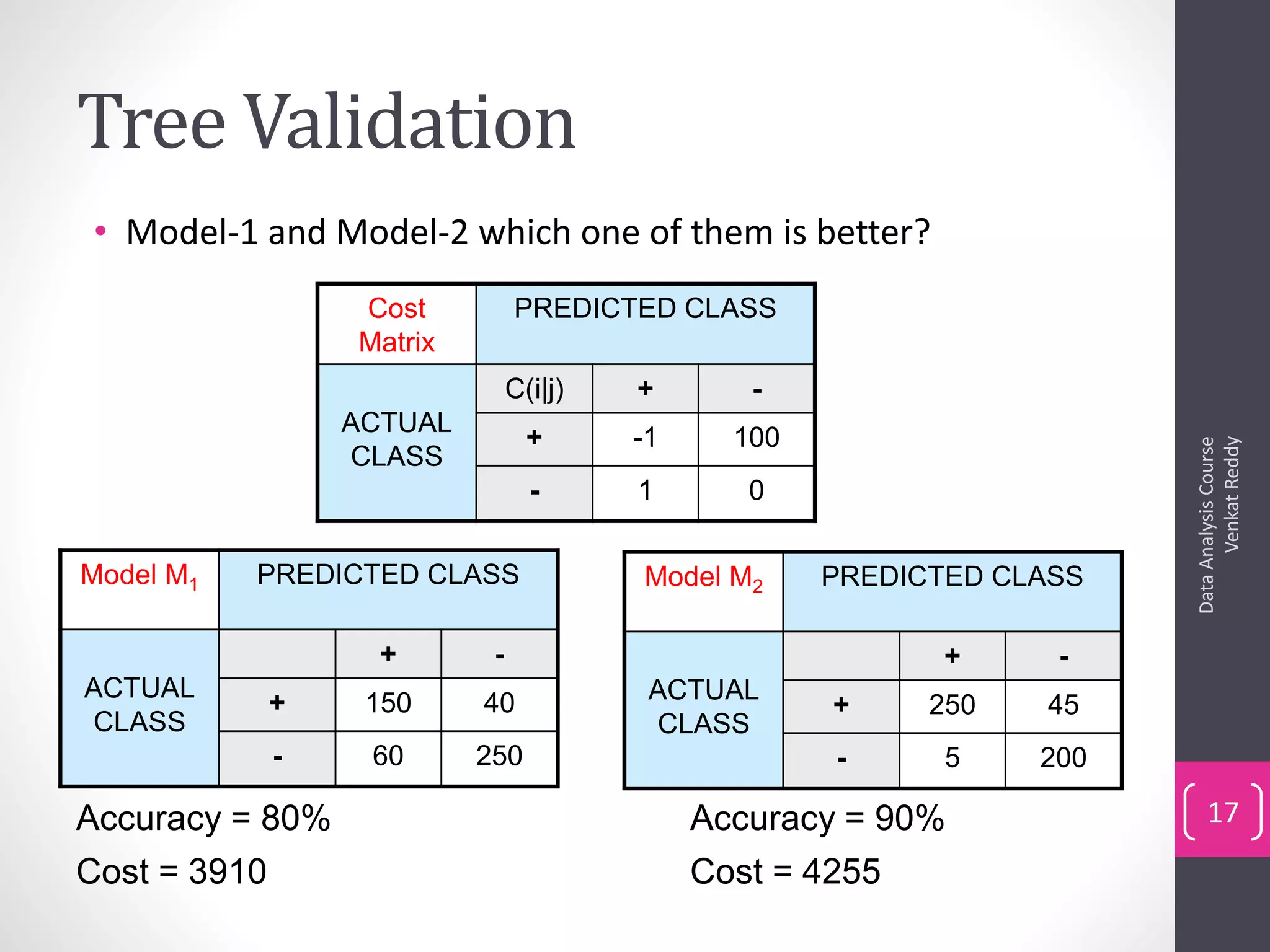

• Model-1 and Model-2 which one of them is better?
DataAnalysisCourse
VenkatReddy
17
Model M1 PREDICTED CLASS
ACTUAL
CLASS
+ -
+ 150 40
- 60 250
Model M2 PREDICTED CLASS
ACTUAL
CLASS
+ -
+ 250 45
- 5 200
Cost
Matrix
PREDICTED CLASS
ACTUAL
CLASS
C(i|j) + -
+ -1 100
- 1 0
Accuracy = 80%
Cost = 3910
Accuracy = 90%
Cost = 4255

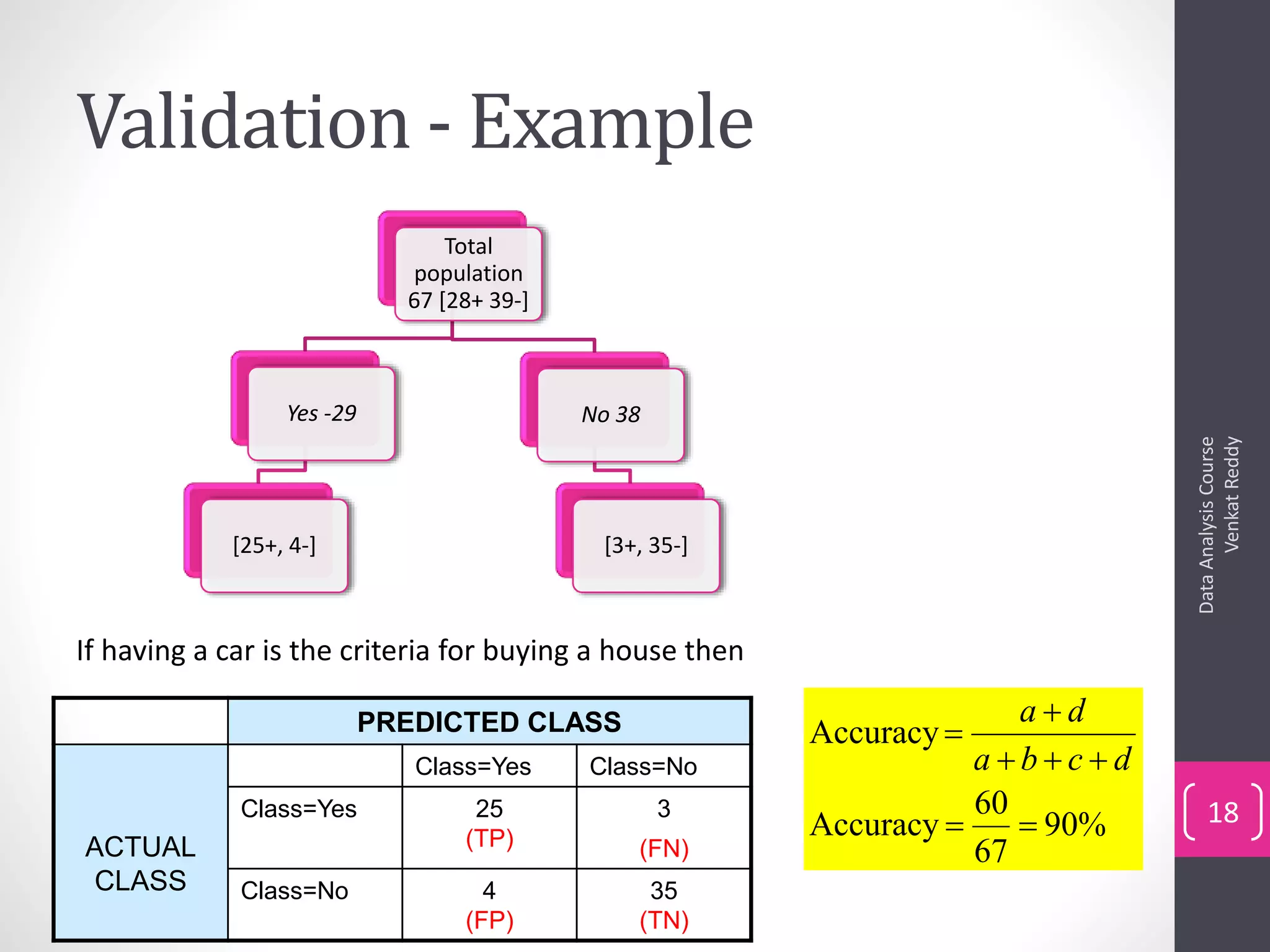

Validation - Example
DataAnalysisCourse
VenkatReddy
18
Total
population
67 [28+ 39-]
Yes -29
[25+, 4-]
No 38
[3+, 35-]
PREDICTED CLASS
ACTUAL
CLASS
Class=Yes Class=No
Class=Yes 25
(TP)
3
(FN)
Class=No 4
(FP)
35
(TN)
If having a car is the criteria for buying a house then
%90
67
60
Accuracy
Accuracy




dcba
da

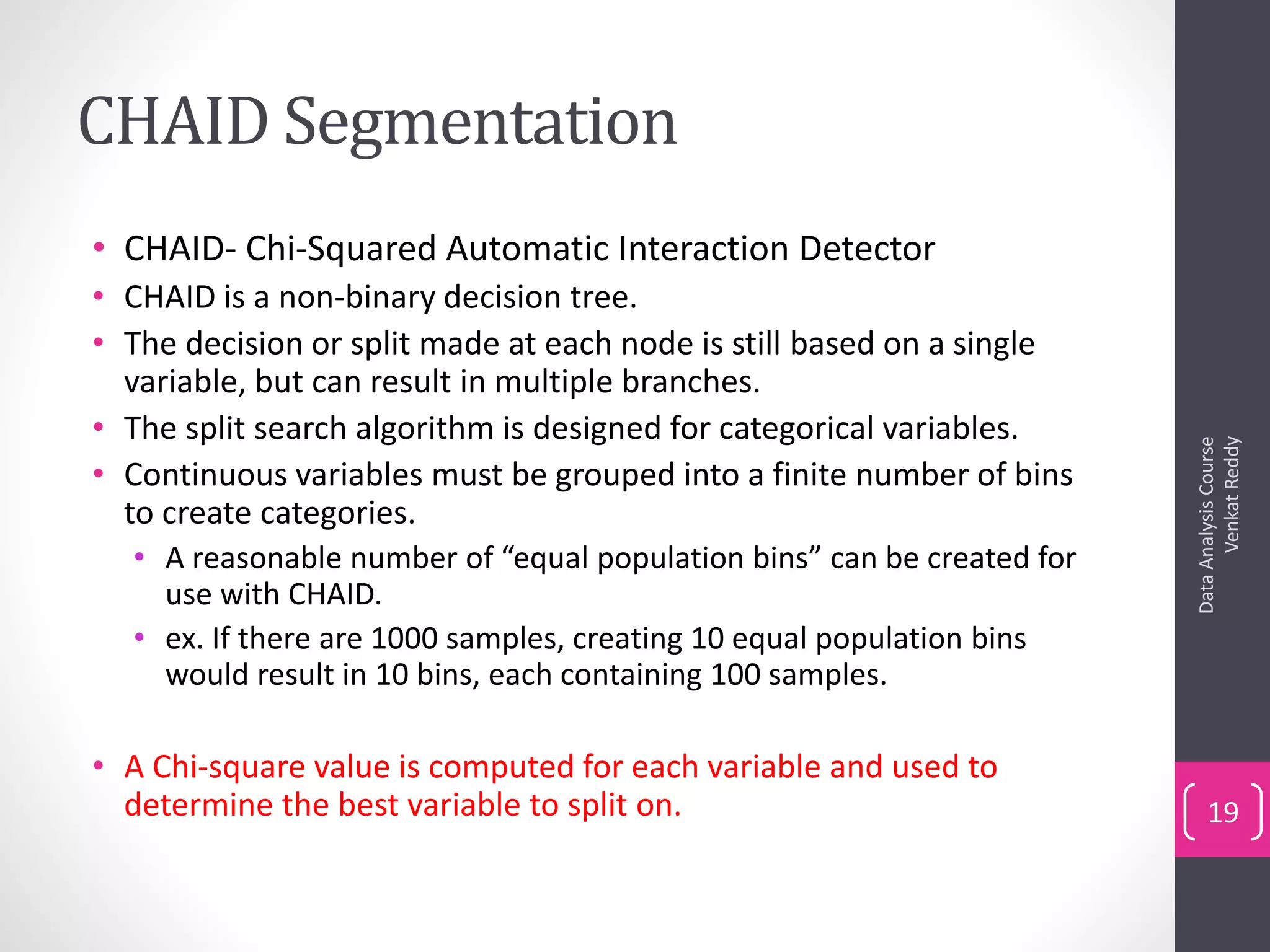

CHAID Segmentation
• CHAID- Chi-Squared Automatic Interaction Detector
• CHAID is a non-binary decision tree.
• The decision or split made at each node is still based on a single
variable, but can result in multiple branches.
• The split search algorithm is designed for categorical variables.
• Continuous variables must be grouped into a finite number of bins
to create categories.
• A reasonable number of “equal population bins” can be created for
use with CHAID.
• ex. If there are 1000 samples, creating 10 equal population bins
would result in 10 bins, each containing 100 samples.
• A Chi-square value is computed for each variable and used to
determine the best variable to split on.
DataAnalysisCourse
VenkatReddy
19

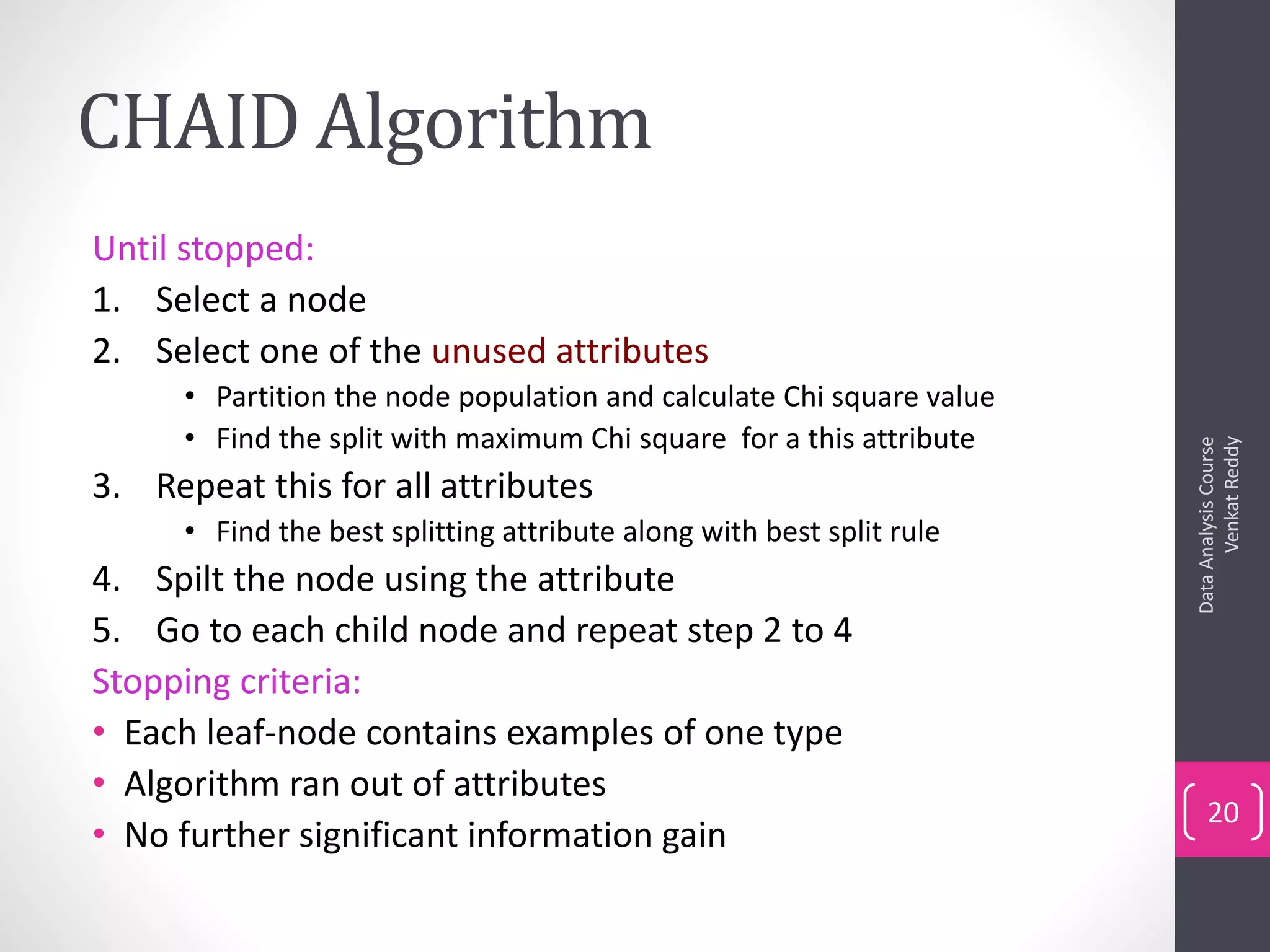

CHAID Algorithm
Until stopped:
1. Select a node
2. Select one of the unused attributes
• Partition the node population and calculate Chi square value
• Find the split with maximum Chi square for a this attribute
3. Repeat this for all attributes
• Find the best splitting attribute along with best split rule
4. Spilt the node using the attribute
5. Go to each child node and repeat step 2 to 4
Stopping criteria:
• Each leaf-node contains examples of one type
• Algorithm ran out of attributes
• No further significant information gain
DataAnalysisCourse
VenkatReddy
20

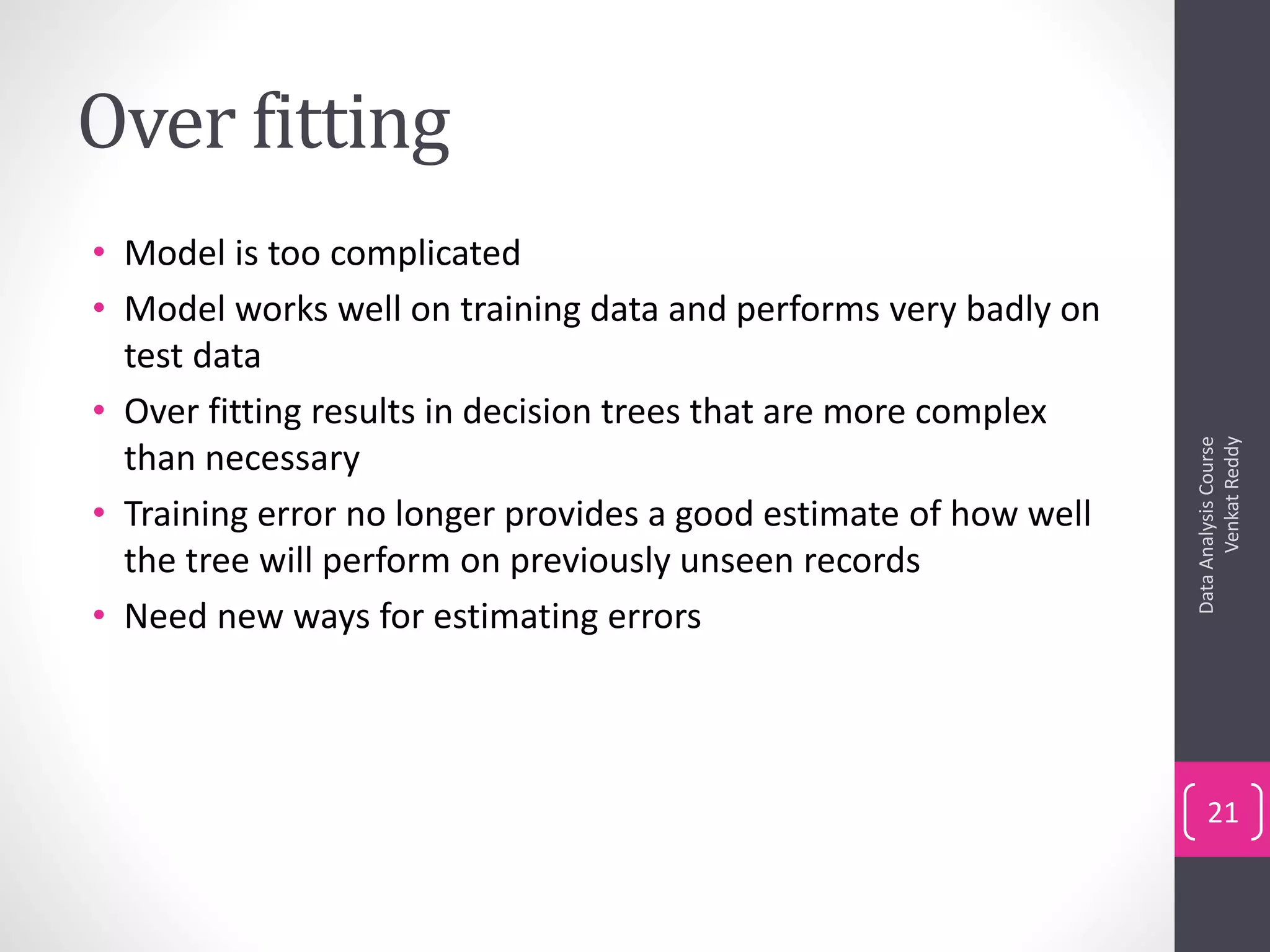

Over fitting
• Model is too complicated
• Model works well on training data and performs very badly on
test data
• Over fitting results in decision trees that are more complex
than necessary
• Training error no longer provides a good estimate of how well
the tree will perform on previously unseen records
• Need new ways for estimating errors
DataAnalysisCourse
VenkatReddy
21

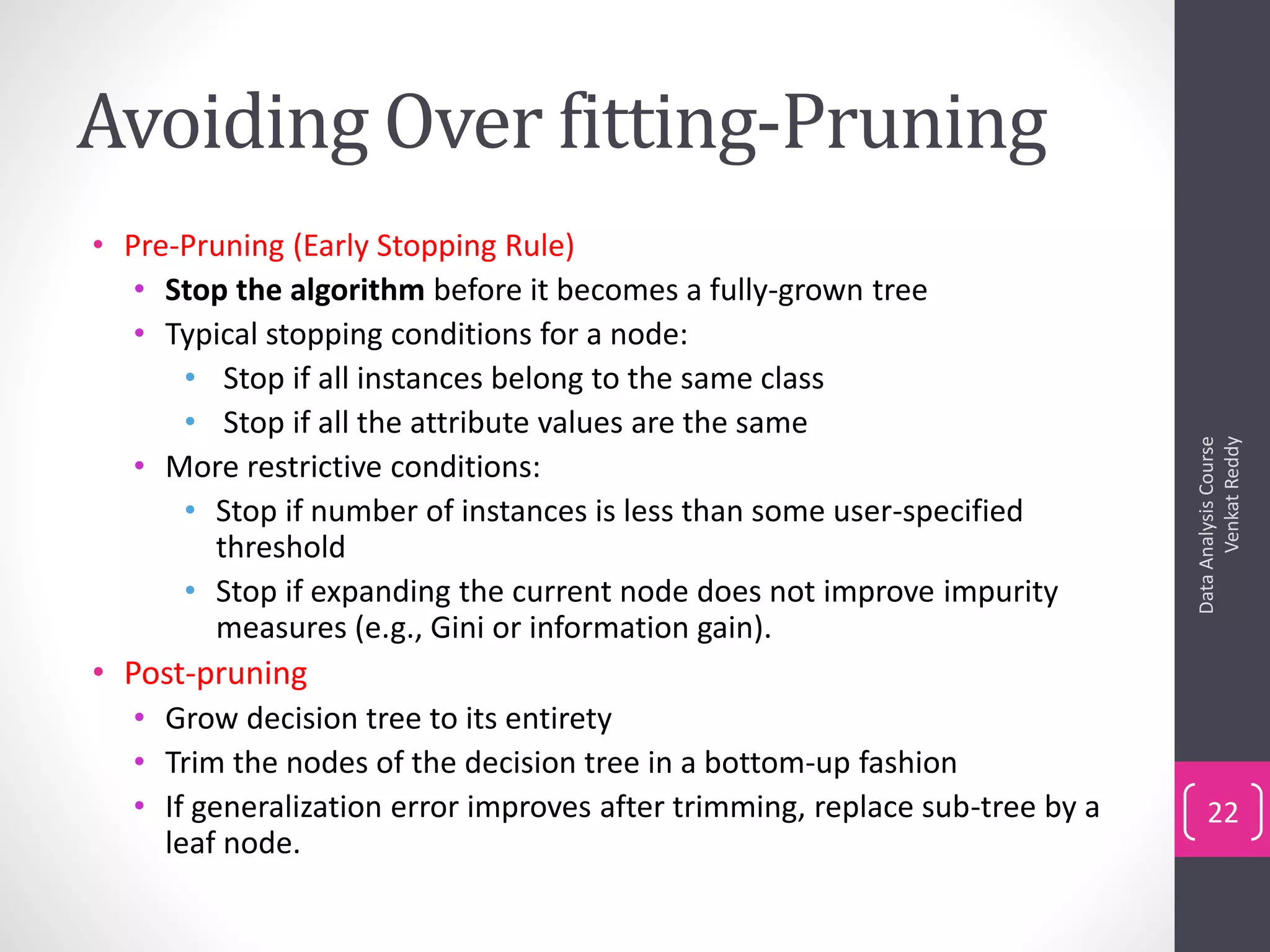

Avoiding Over fitting-Pruning
• Pre-Pruning (Early Stopping Rule)
• Stop the algorithm before it becomes a fully-grown tree
• Typical stopping conditions for a node:
• Stop if all instances belong to the same class
• Stop if all the attribute values are the same
• More restrictive conditions:
• Stop if number of instances is less than some user-specified
threshold
• Stop if expanding the current node does not improve impurity
measures (e.g., Gini or information gain).
• Post-pruning
• Grow decision tree to its entirety
• Trim the nodes of the decision tree in a bottom-up fashion
• If generalization error improves after trimming, replace sub-tree by a
leaf node.
DataAnalysisCourse
VenkatReddy
22

Decision tree
