Debugging Complex Issues in Web Applications
This document discusses methodologies for debugging complex issues in web applications, particularly focusing on HTTP/2 and Tomcat. It outlines specific use cases and the steps taken to identify root causes, including troubleshooting techniques and logging strategies. Additionally, it addresses the importance of repeatability and thoroughness in issue documentation to facilitate debugging processes.
More Related Content
Similar to Debugging Complex Issues in Web Applications
Debugging Complex Issues in Web Applications
- 1. Confidential │ ©2021VMware, Inc. Debugging Complex Issues in Web Applications Mark Thomas (he/him/his) Staff Engineer September 2021
- 2. Confidential │ ©2021VMware, Inc. 2 Introductions Mark Thomas Tomcat committer since 2003 Tomcat PMC member since 2005 markt@apache.org SpringSource / VMware / Pivotal / VMware since 2008 ASF, Eclipse, VMware
- 3. Confidential │ ©2021VMware, Inc. 3 Disclaimer This presentation may contain product features or functionality that are currently under development. This overview of new technology represents no commitment from VMware to deliver these features in any generally available product. Features are subject to change, and must not be included in contracts, purchase orders, or sales agreements of any kind. Technical feasibility and market demand will affect final delivery. Pricing and packaging for any new features/functionality/technology discussed or presented, have not been determined. The information in this presentation is for informational purposes only and may not be incorporated into any contract. There is no commitment or obligation to deliver any items presented herein.

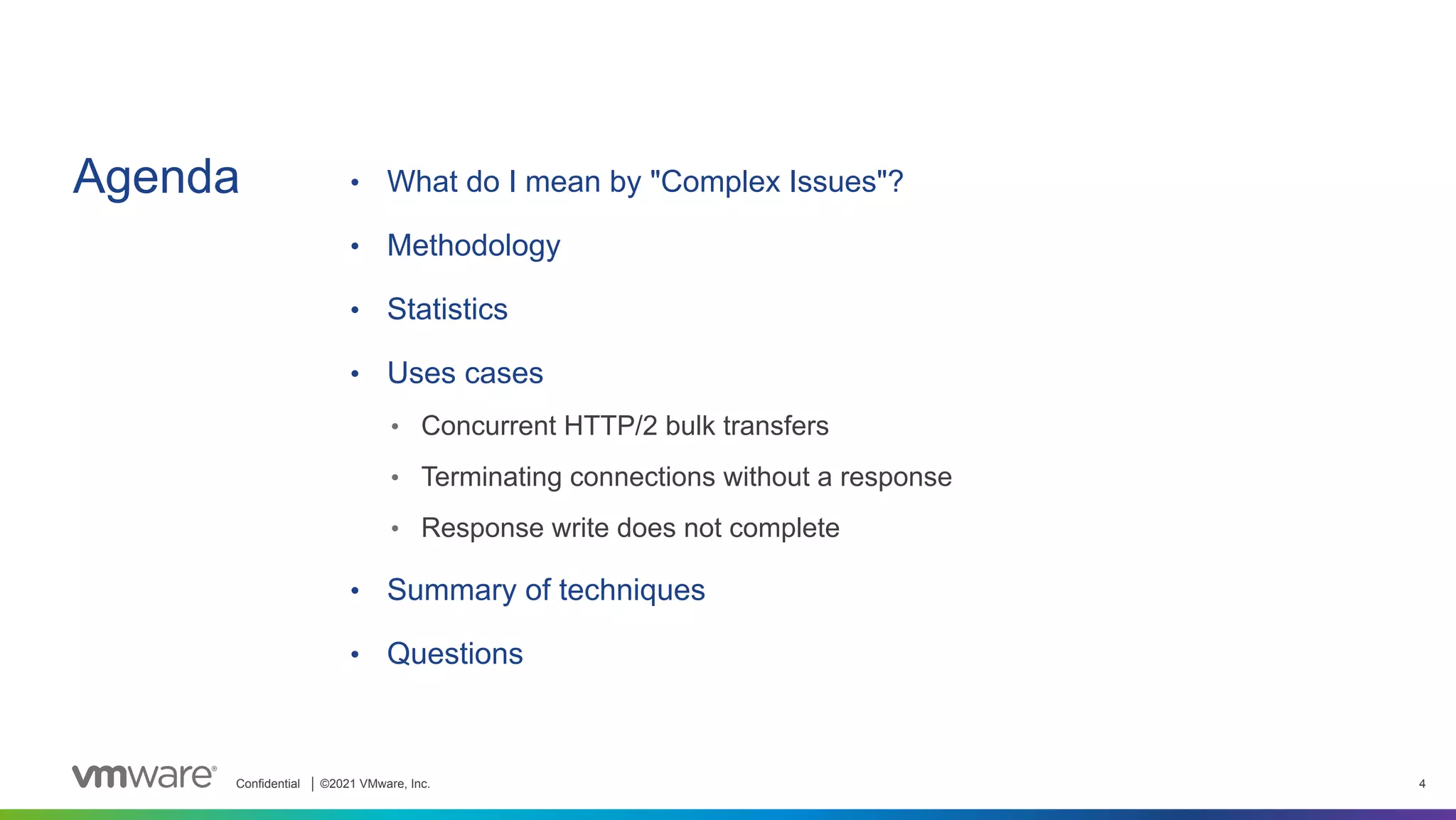

- 4. Confidential │ ©2021VMware, Inc. 4 Agenda Agenda • What do I mean by "Complex Issues"? • Methodology • Statistics • Uses cases • Concurrent HTTP/2 bulk transfers • Terminating connections without a response • Response write does not complete • Summary of techniques • Questions
- 5. Confidential │ ©2021VMware, Inc. 5 Background
- 6. Confidential │ ©2021VMware, Inc. 6 Complex Issues Subjective Not 100% repeatable • Less repeatable typically means harder to debug Only occurs under load Concurrency
- 7. Confidential │ ©2021VMware, Inc. 7 Methodology Issue needs to be sufficiently repeatable that this process is viable Identify, at a high level, where the issue is occurring Record state before Record state after Check the before and after states are consistent with expectations Narrow down the focus • Typically move down the stack • Sometimes record state in more than two locations for speed Aiming for binary “working as expected” / “not working as expected” test

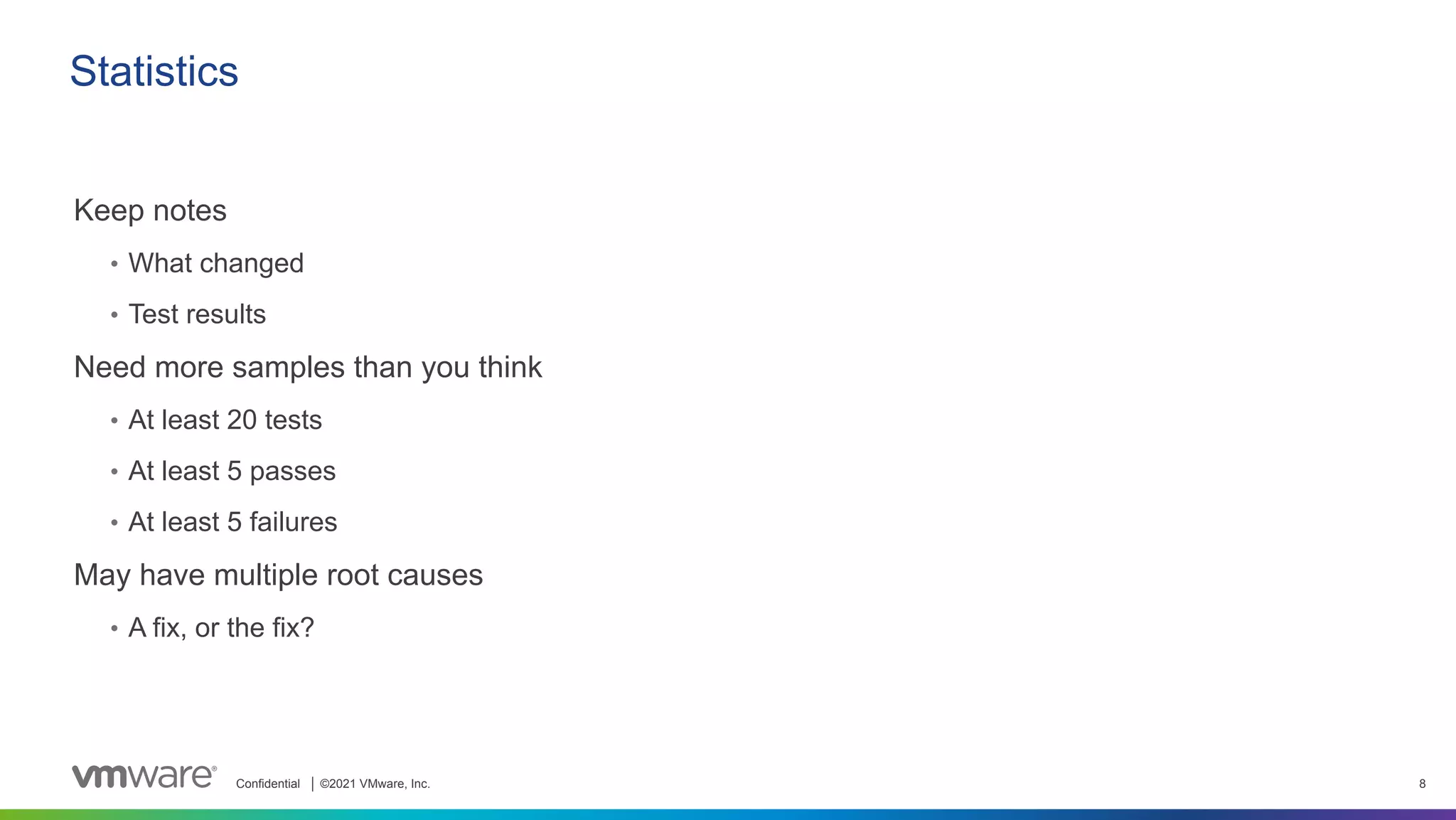

- 8. Confidential │ ©2021VMware, Inc. 8 Statistics Keep notes • What changed • Test results Need more samples than you think • At least 20 tests • At least 5 passes • At least 5 failures May have multiple root causes • A fix, or the fix?
- 9. Confidential │ ©2021VMware, Inc. 9 Use Case 1 Large, concurrent HTTP/2 responses
- 10. Confidential │ ©2021VMware, Inc. 10 Original Report Originated on Tomcat users mailing list • 2021-06-16 • Trouble with HTTP/2 during bulk data transfer (server -> client) • https://tomcat.markmail.org/thread/texcre345tmyn337 Well-written bug report Multiple HTTP/2 steams on same connection are blocked indefinitely Described the scenario in sufficient detail for a test case to be coded • Writing large files • Three or more concurrent streams Described working configurations (HTTP/1.1) and non-working configurations (HTTP/2)
- 11. Confidential │ ©2021VMware, Inc. 11 Original Report (cont.) Described what they tried to vary (non-blocking, IOUtils) Provided all relevant version numbers Provided test case with source code Provided some analysis • HTTP/2 streams were waiting for a semaphore The only thing they didn't mention was repeatability They responded to this question in ~60 mins
- 12. Confidential │ ©2021VMware, Inc. 12 Review relevant source code HTTP/2 Connections are multiplexed • Multiple streams trying to write • Use a semaphore to ensure they write one at a time HTTP/2 uses an internal async writes with a CompletionHandler • If write can't complete, socket is added to the Poller • An writeOperation field holds an OperationState instance that tracks the state of the async write
- 13. Confidential │ ©2021VMware, Inc. 13 Narrow Focus of Investigation Recreated within ~90 mins of original report • Indicator of the quality of the original report • Enables us to quickly include / exclude functionality Rémy suggested disabling asyncIO • This provided a workaround (~4 hours) • Brief discussion on merits of using asyncIO Confirmed NIO2 was unaffected
- 14. Confidential │ ©2021VMware, Inc. 14 Identify Root Cause Could see threads waiting for semaphore • Semaphore released by Poller indicating ready for write Start with code review • Possible root cause – non-volatile interestOps flag • Initial testing was positive, larger sample size ruled it out Decide to debug Socket / Poller interactions
- 15. Confidential │ ©2021VMware, Inc. 15 Debugging the Poller Debug logs change the timing • Issue a lot less repeatable Need to change logging strategy • Copy relevant information to local variables • Log them AFTER the failure / event of interest • Much less likely to affect timing After a lot of debug logging • Poller was working correctly
- 16. Confidential │ ©2021VMware, Inc. 16 Debugging the Write Notification Poller was signaling write was possible • Trace the write notification • OperationState was null so event wasn't processed Why was OperationState null • Code review • Found (potential) root cause
- 17. Confidential │ ©2021VMware, Inc. 17 Fix and Confirm Applied fix • Local testing confirmed fix (0 failures in 20 runs) Explain fix on mailing list • Other committers can check my reasoning Check if same error exists elsewhere • Read also affected
- 18. Confidential │ ©2021VMware, Inc. 18 Explanation For those that want to understand the problem You'll need the code in front of you The write • https://github.com/apache/tomcat/blob/main/java/org/apache/tomcat/util/net/SocketWrapperBase.java#L1364 The associated completion handler • https://github.com/apache/tomcat/blob/main/java/org/apache/tomcat/util/net/SocketWrapperBase.java#L1044
- 19. Confidential │ ©2021VMware, Inc. 19 Code Walk-through T1 obtains the write semaphore (L1366) T1 creates an OperationState and sets writeOperation (L1390) the async write for T1 completes and the completion handler is called T1's completion handler releases the semaphore (L1046) T2 obtains the write semaphore (L1366) T2 creates an OperationState and sets writeOperation (L1390) T1's completion handler clears writeOperation (L1050) the async write for T2 does not complete and the socket is added to the Poller The Poller signals the socket is ready for write The Poller finds writeOperation is null so performs a normal dispatch for write The async write times out as it never receives the notification from the Poller
- 20. Confidential │ ©2021VMware, Inc. 20 Fix The fix is to swap the clearing of writeOperation and the releasing of the semaphore • https://github.com/apache/tomcat/commit/92b91857
- 21. Confidential │ ©2021VMware, Inc. 21 Use Case 2 Connection drops before writing response
- 22. Confidential │ ©2021VMware, Inc. 22 Original report Originated on Tomcat users mailing list • 2020-10-16 • Weirdest Tomcat Behaviour Ever • https://tomcat.markmail.org/thread/bf6oz7ibxccvodd2 Well-written bug report Very occasionally Tomcat does not send a response The access log shows a response No exceptions in the logs Wireshark shows the GET request followed by a TCP FIN from Tomcat All version information provided
- 23. Confidential │ ©2021VMware, Inc. 23 Information Gathering Asked various questions to try and eliminate features and/or possible failure modes The response was small ~1k • Small enough to be buffered entirely at various points in the network stack Typical response time was 60ms • Not going to be timeout related The FIN was sent ~100µs after the request was received • Further confirmation it isn't timeout related The request is fully sent • Not waiting for the rest of the request User agent -> Firewall -> Nginx -> Tomcat
- 24. Confidential │ ©2021VMware, Inc. 24 Information Gathering (cont.) HTTP/1.0 request • Rules out HTTP/2 code Network traces obtained from both nginx and Tomcat • Great to confirm behaviour • Nothing that indicates a possible root cause Application has unique request IDs that aid correlation across logs Custom debug code tricky, but not impossible Issue started in the last month or so • No obvious changes Systems are lightly loaded
- 25. Confidential │ ©2021VMware, Inc. 25 User suggestion Another user suggests using strace • OP didn't see the suggestion • It struck me as too low level at this point • In hindsight, it might have saved some time

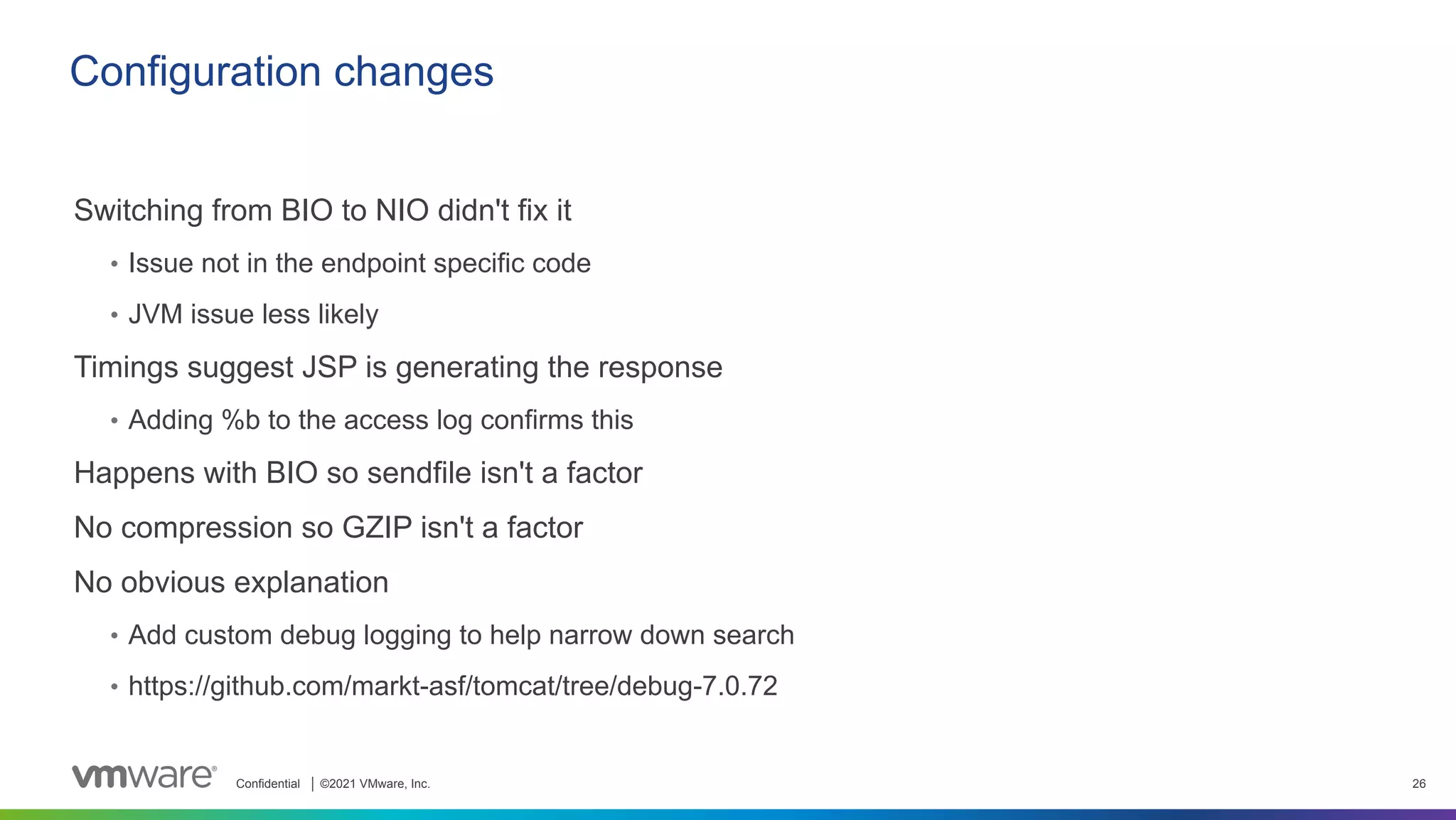

- 26. Confidential │ ©2021VMware, Inc. 26 Configuration changes Switching from BIO to NIO didn't fix it • Issue not in the endpoint specific code • JVM issue less likely Timings suggest JSP is generating the response • Adding %b to the access log confirms this Happens with BIO so sendfile isn't a factor No compression so GZIP isn't a factor No obvious explanation • Add custom debug logging to help narrow down search • https://github.com/markt-asf/tomcat/tree/debug-7.0.72
- 27. Confidential │ ©2021VMware, Inc. 27 Debug logging v1 to v2 Debug logging v1 • Response was written • Socket was closed before this • Correct objects were used Debug logging v2 • Socket closed long before Tomcat tries to write • Neither Tomcat nor the application are closing the socket
- 28. Confidential │ ©2021VMware, Inc. 28 Debug logging v3 to v5 Debug logging v3 • Swallowed exception message "Bad file descriptor" • Exception swallowed because it was assumed to be a dropped client connection • Tomcat changed to log all such exceptions at debug Possibly running out of file descriptors? • No Debug logging v4 • No other active connections between nginx and Tomcat when the issue occurs Debug logging v5 • No indication of JRE mis-handling file descriptors
- 29. Confidential │ ©2021VMware, Inc. 29 strace strace shows that the socket close came from somewhere in the JRE Try to correlate with thread dumps to identify where the close is occurring Possibility it was database related • False alarm strace showed a native library incorrectly managing file descriptors associated with a fork The native library closed a file descriptor twice In same cases, that descriptor has already been re-used for the network connection When this happened, the network connection was closed
- 30. Confidential │ ©2021VMware, Inc. 30 Resolution The vendor accepted the native library was at fault • PDFTron The vendor provided instructions to disable the use of the library that was triggering the issue We recommended a switch to HTTP/1.1 for the nginx / Tomcat connection • Fewer new connections, less chances of file descriptor reuse
- 31. Confidential │ ©2021VMware, Inc. 31 Use Case 3 Response write does not complete
- 32. Confidential │ ©2021VMware, Inc. 32 Original report Originated on Spring Framework’s issue tracker • 2021-01-23 • Response writing fails to complete with WebFlux on Tomcat • https://github.com/spring-projects/spring-framework/issues/26434 Well-written bug report Test case provided Small number of failures under load All version information provided
- 33. Confidential │ ©2021VMware, Inc. 33 Multiple issues identified Spring handling of failed flushes Tomcat error handling • Attempting to flush the error page content after an I/O write error overwrites original error • IO errors in the first call to onWritePossible() were not triggering the error listener • Tomcat assumed an IOException in onWritePossible() would be seen by the container (WebFlux swallowed them) Fixed a Spring issue triggering a IOException: Broken pipe Tomcat now calls error listener before internal error handling And we end with an OS bug • https://bugs.openjdk.java.net/browse/JDK-8263243 • https://bugs.launchpad.net/ubuntu/+source/linux/+bug/1924298
- 34. Confidential │ ©2021VMware, Inc. 34 Techniques
- 35. Confidential │ ©2021VMware, Inc. 35 Other debugging techniques Logging / Wireshark • use a 5 minute rolling window Use ERROR level logs Issues that depend on network latency • simulate latency in the hypervisor Choose you load generator carefully Multiple physical machines • Pull out network cable to simulate lost connection Multiple platforms • VM or bare metal seems to be less of an issue
- 36. Confidential │ ©2021VMware, Inc. 36 Questions
