Talos: Neutralizing Vulnerabilities with Security Workarounds for Rapid Response (S&P'2016)

Talos: Neutralizing Vulnerabilities
with Security Workarounds for
Rapid Response
Zhen Huang, Mariana D’Angelo, Dhaval Miyani, David Lie
Department of Electrical and Computer Engineering
University of Toronto

Drawbacks of Patching
• Patching is the usual way to fix a vulnerability.
• There often exists a delay between the discovery of a
vulnerability and the release of its patch, a pre-patch
window.
2
Discover a vulnerability Apply the patchRelease the patch
pre-patch window
Attackers can exploit the
vulnerability!

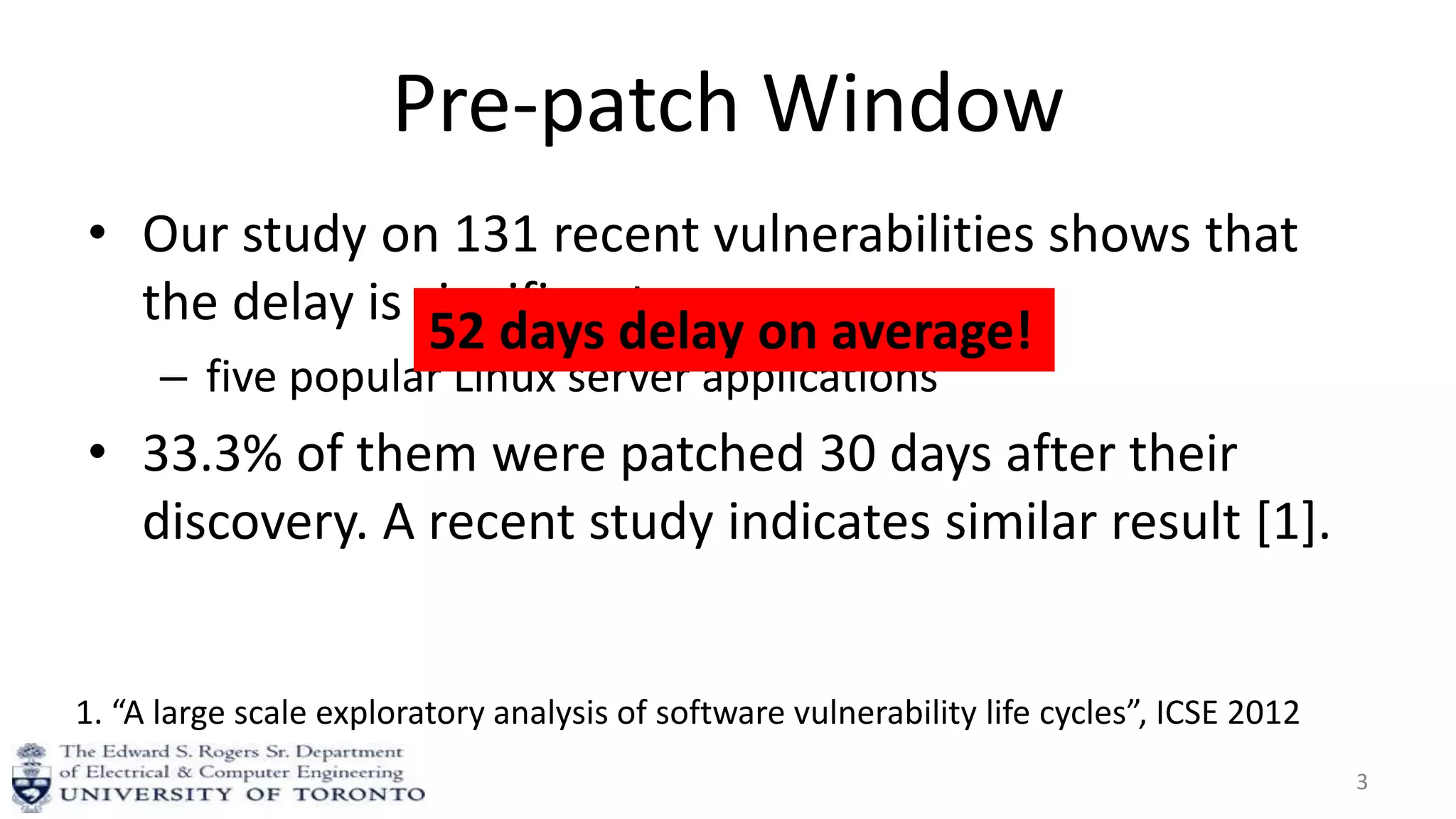

Pre-patch Window
• Our study on 131 recent vulnerabilities shows that
the delay is significant.
– five popular Linux server applications
• 33.3% of them were patched 30 days after their
discovery. A recent study indicates similar result [1].
3
1. “A large scale exploratory analysis of software vulnerability life cycles”, ICSE 2012
52 days delay on average!

Cause of Pre-patch Window
• We study bug reports to understand the time spent on
each step of releasing a patch.
• The complexity of constructing a correct patch is the
major cause.
– We found bug reports for 21 of the 131 vulnerabilities: 89% of
time was spent in constructing the patch for those took more
than one day to patch.
– 9 of them took between two to six attempts to patch correctly.
4
vulnerability triage constructing a patch regression testingconstructing a patch
Multiple attempts of patching (Quotes from a bug report)
The developer: “This updates the previous patch...”
....
The developer: “This patch builds on the previous one...”
....
....
The tester: “I’m afraid I found a bug...”

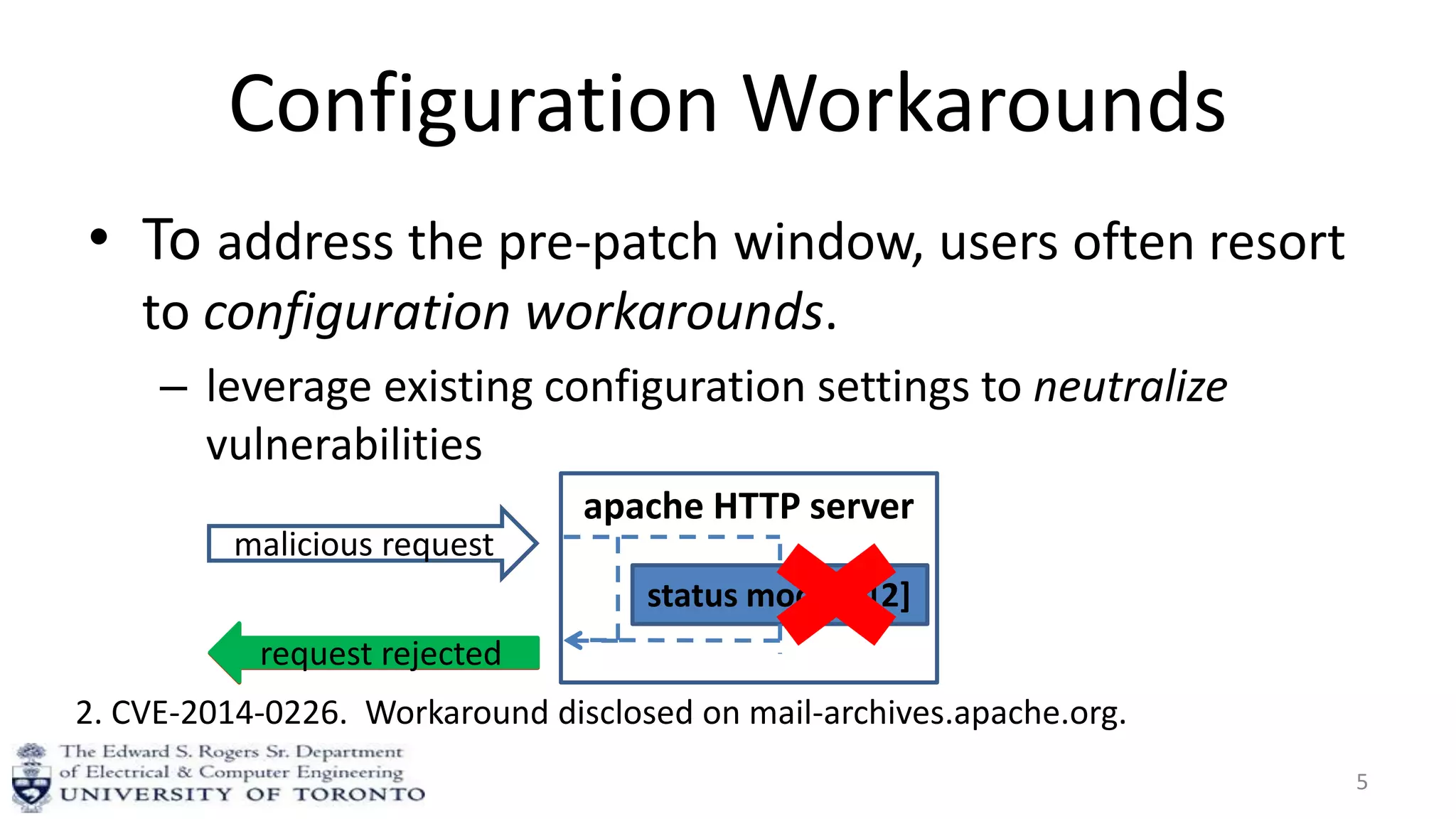

Configuration Workarounds
• To address the pre-patch window, users often resort
to configuration workarounds.
– leverage existing configuration settings to neutralize
vulnerabilities
5
2. CVE-2014-0226. Workaround disclosed on mail-archives.apache.org.
status module [2]
apache HTTP server
malicious request
sensitive datarequest rejected

Weakness of Configuration
Workarounds
• However, configuration workarounds have poor
coverage.
• Our study on 182 vulnerabilities indicates that only
25.2% of them have configuration workarounds.
– four Linux server applications and two Windows client
applications (IE and Office)
6
The vast majority of vulnerabilities do not have
configuration workarounds!

Security Workarounds for Rapid
Response (SWRR)
• SWRRs address the drawbacks of patching and
configuration workarounds.
• Objectives of SWRR:
– security: neutralize vulnerabilities rapidly without
introducing new bugs or vulnerabilities
– coverage: cover many more vulnerabilities than
configuration workarounds
– low cost: apply to existing applications with minimum
engineering effort
7

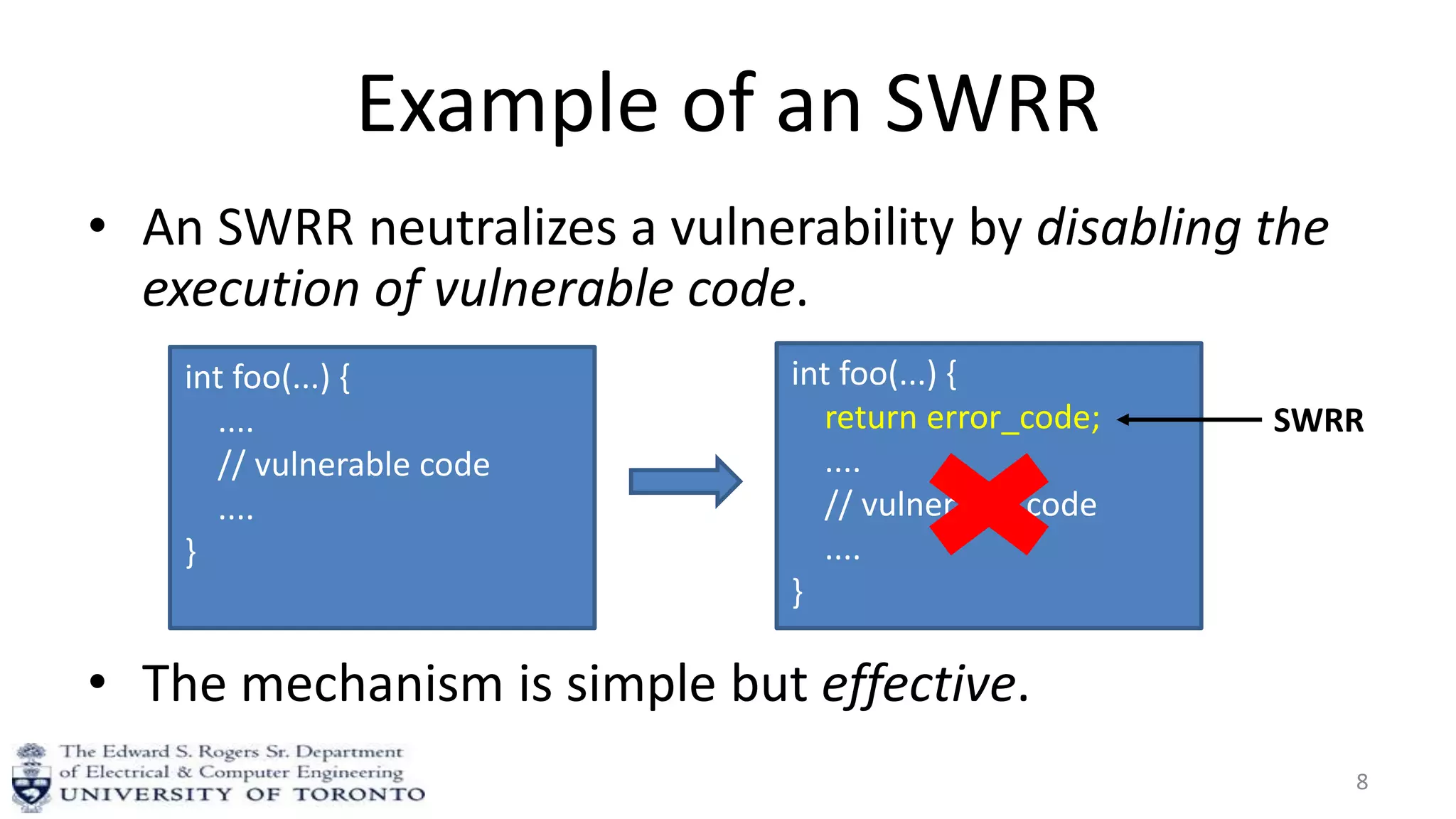

Example of an SWRR
• An SWRR neutralizes a vulnerability by disabling the
execution of vulnerable code.
• The mechanism is simple but effective.
8
int foo(...) {
....
// vulnerable code
....
}
int foo(...) {
return error_code;
....
// vulnerable code
....
}
SWRR

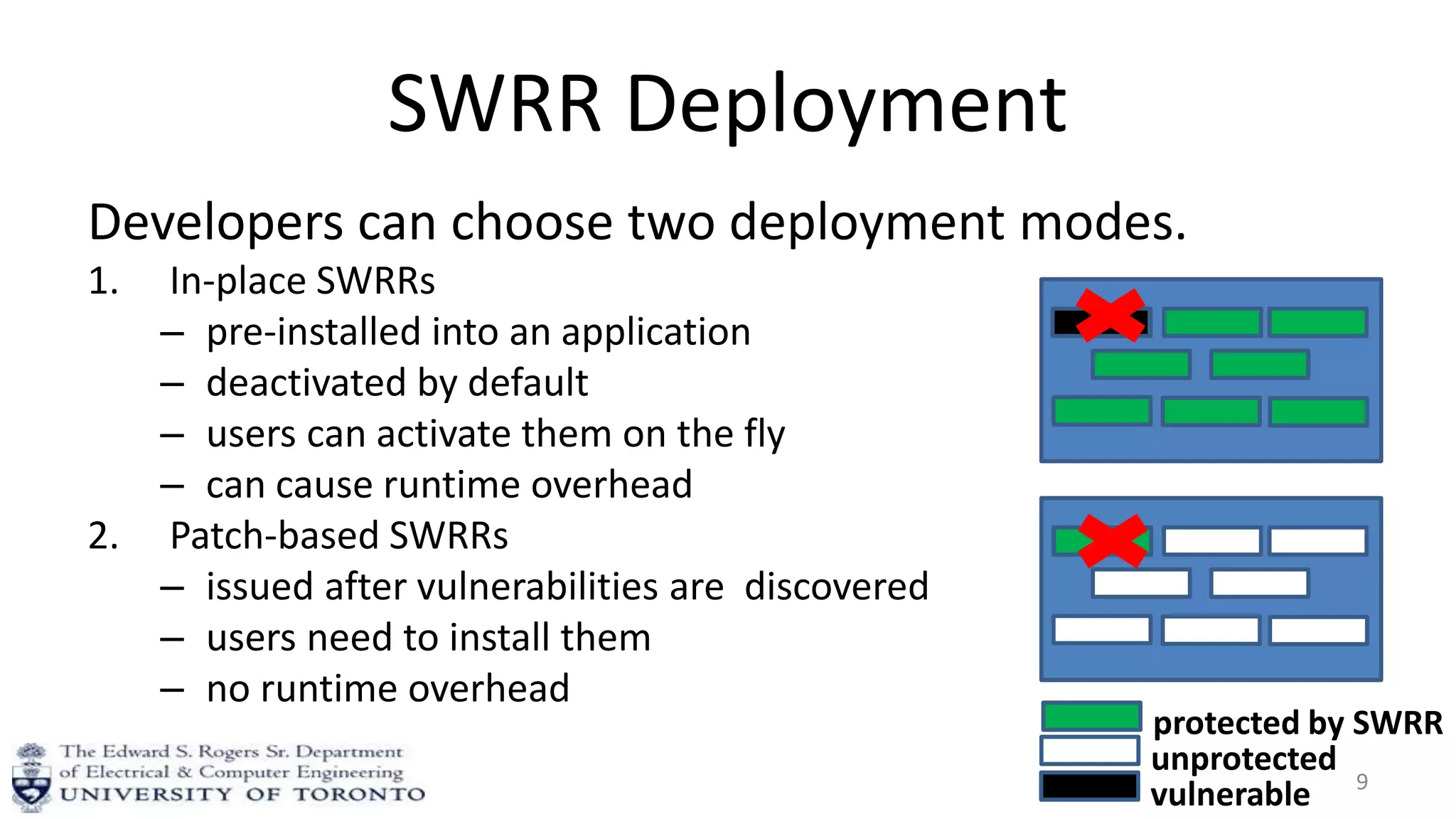

SWRR Deployment
Developers can choose two deployment modes.
1. In-place SWRRs
– pre-installed into an application
– deactivated by default
– users can activate them on the fly
– can cause runtime overhead
2. Patch-based SWRRs
– issued after vulnerabilities are discovered
– users need to install them
– no runtime overhead
9
unprotected
protected by SWRR
vulnerable

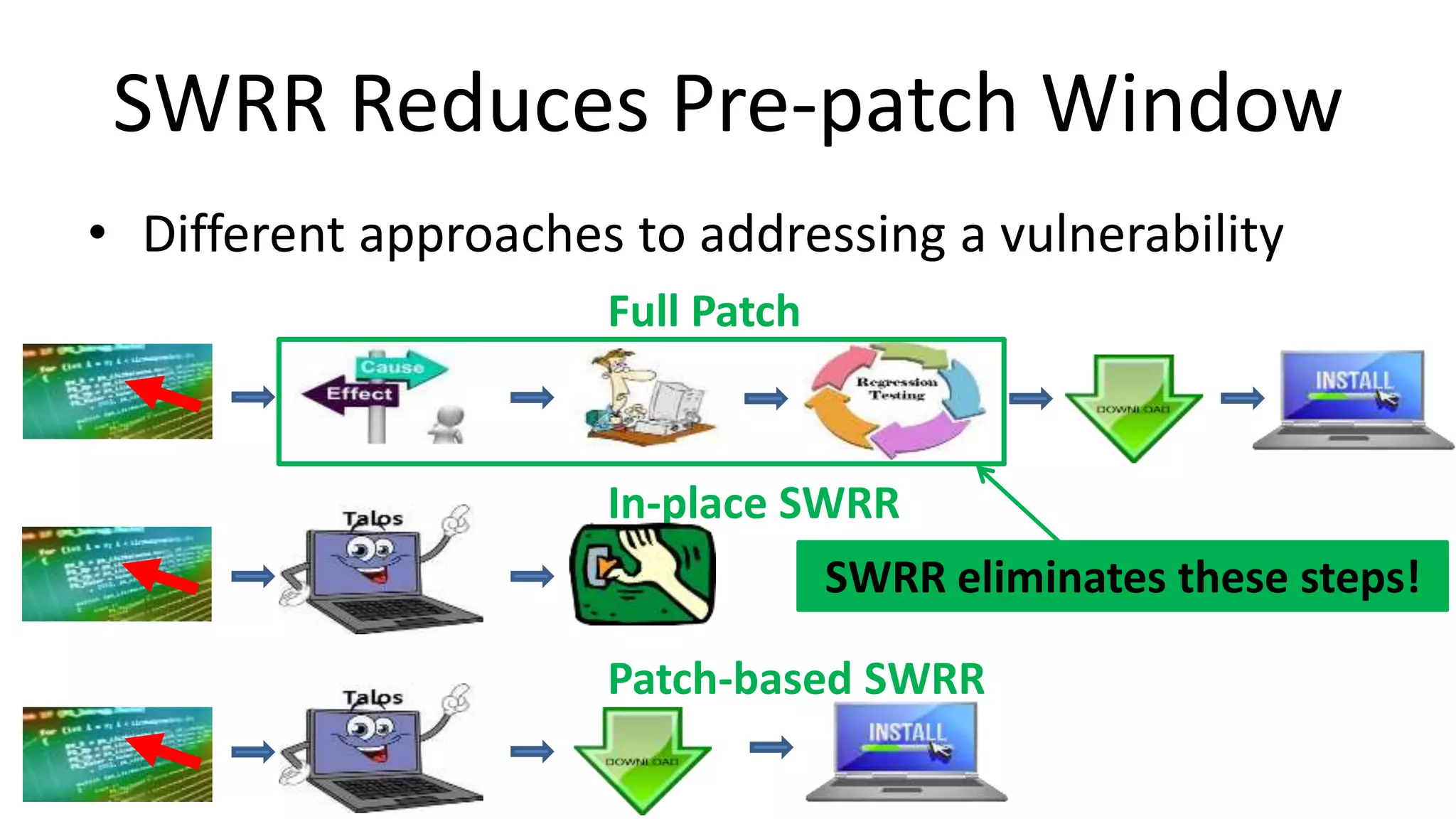

SWRR Reduces Pre-patch Window
Full Patch
In-place SWRR
Patch-based SWRR
SWRR eliminates these steps!
• Different approaches to addressing a vulnerability

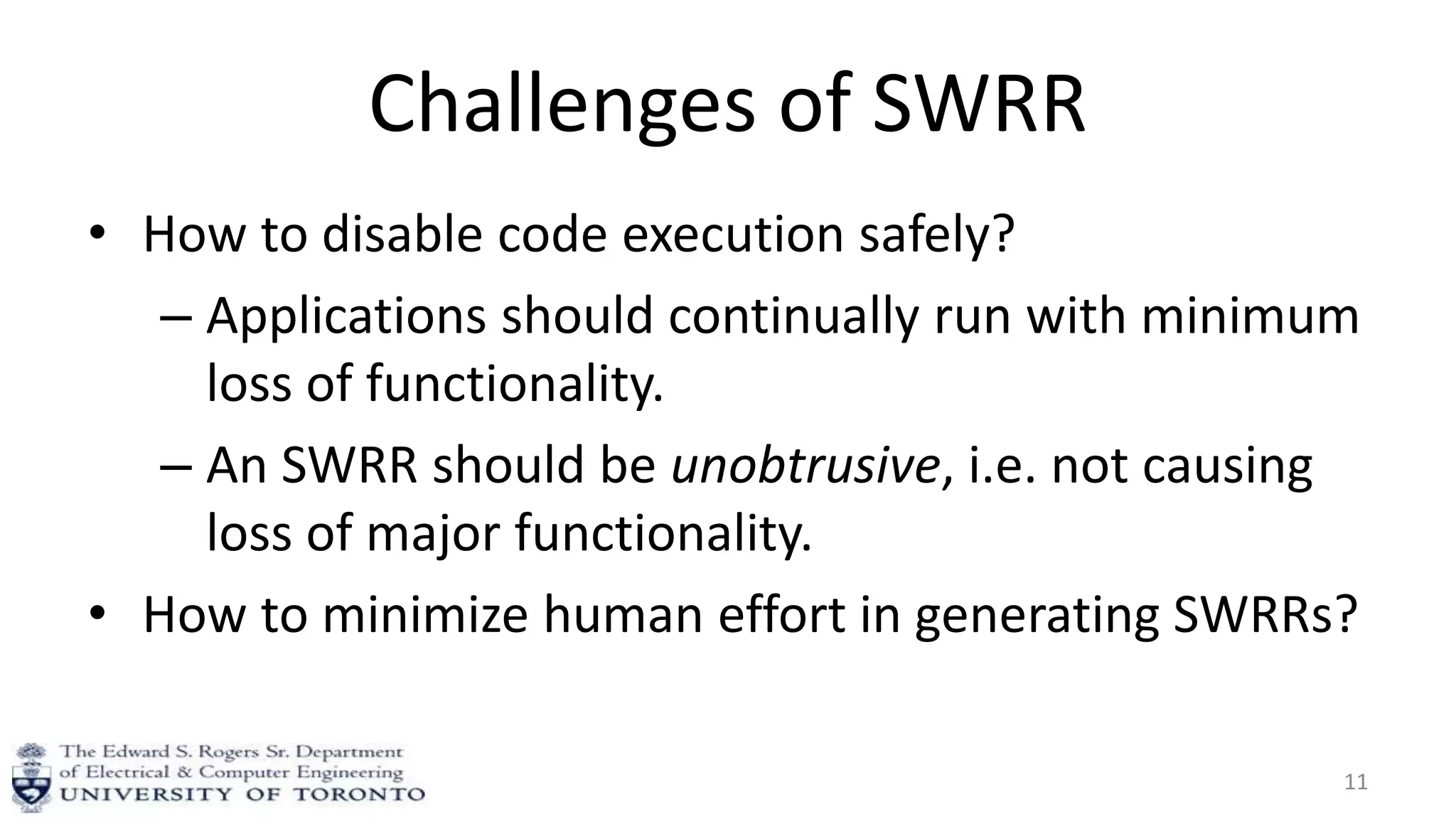

Challenges of SWRR
• How to disable code execution safely?
– Applications should continually run with minimum
loss of functionality.
– An SWRR should be unobtrusive, i.e. not causing
loss of major functionality.
• How to minimize human effort in generating SWRRs?
11

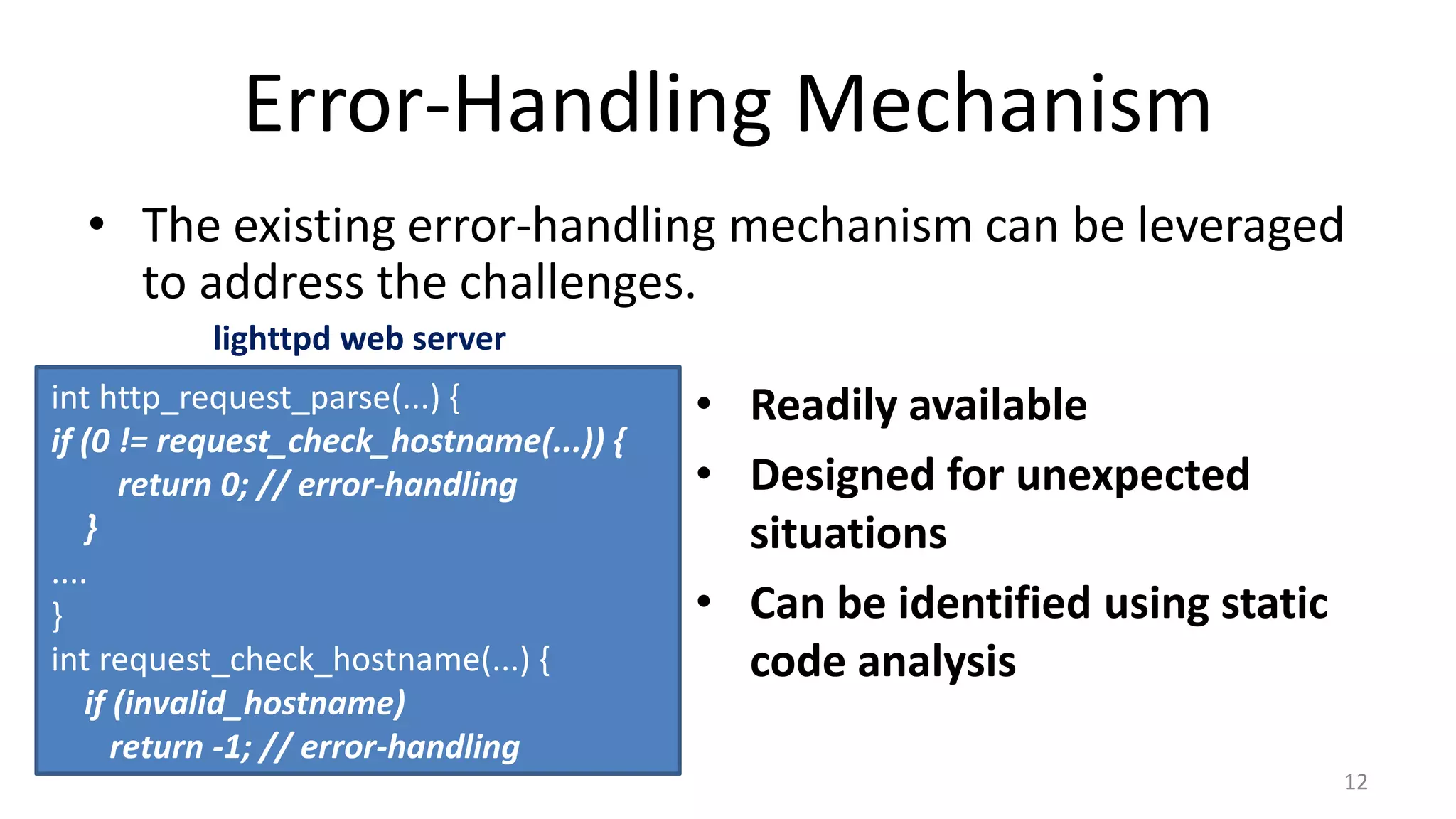

Error-Handling Mechanism
• The existing error-handling mechanism can be leveraged
to address the challenges.
12
• Readily available
• Designed for unexpected
situations
• Can be identified using static
code analysis
int http_request_parse(...) {
if (0 != request_check_hostname(...)) {
return 0; // error-handling
}
....
}
int request_check_hostname(...) {
if (invalid_hostname)
return -1; // error-handling
lighttpd web server

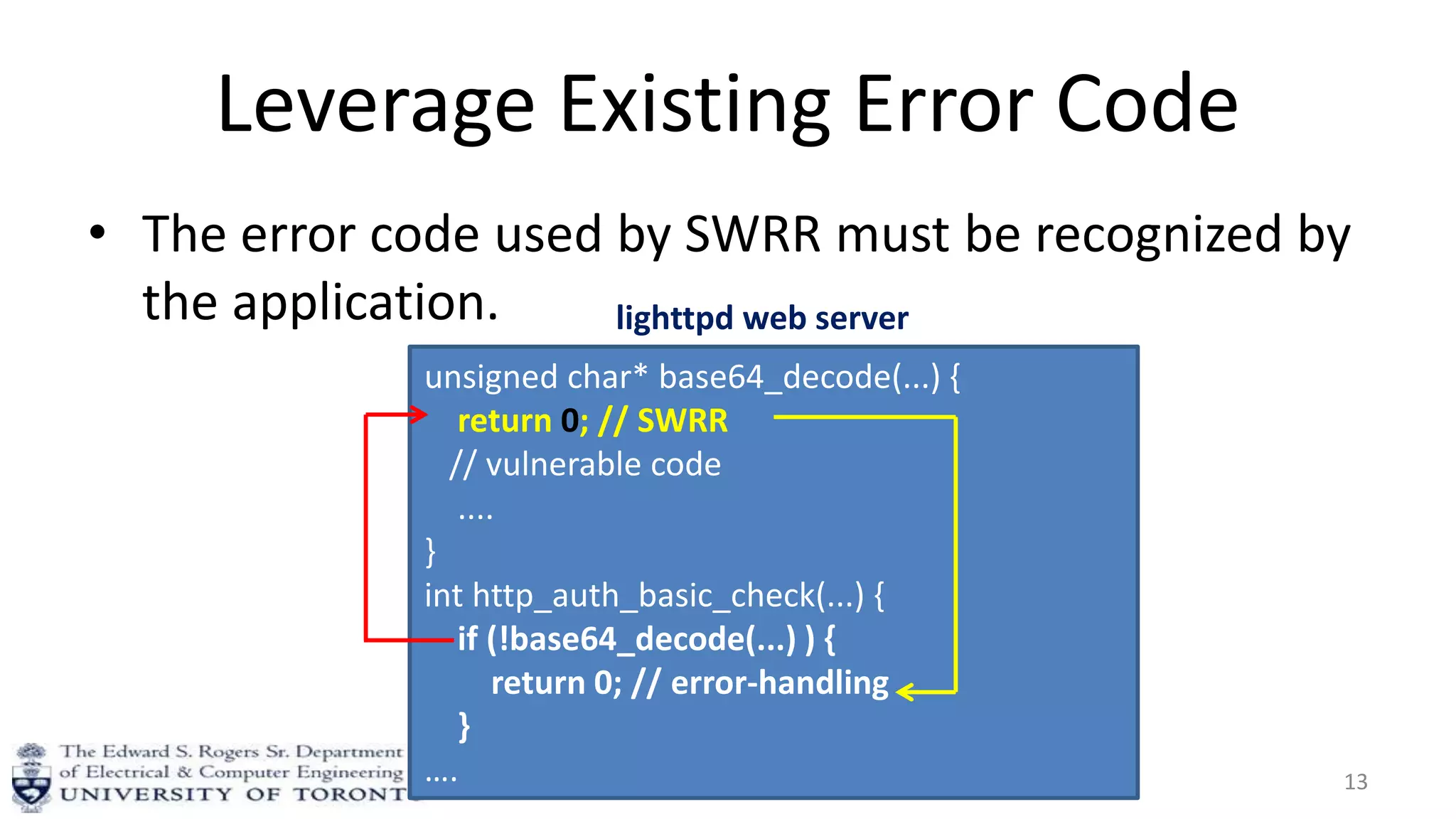

Leverage Existing Error Code
• The error code used by SWRR must be recognized by
the application.
13
unsigned char* base64_decode(...) {
return 0; // SWRR
// vulnerable code
....
}
int http_auth_basic_check(...) {
if (!base64_decode(...) ) {
return 0; // error-handling
}
….
lighttpd web server

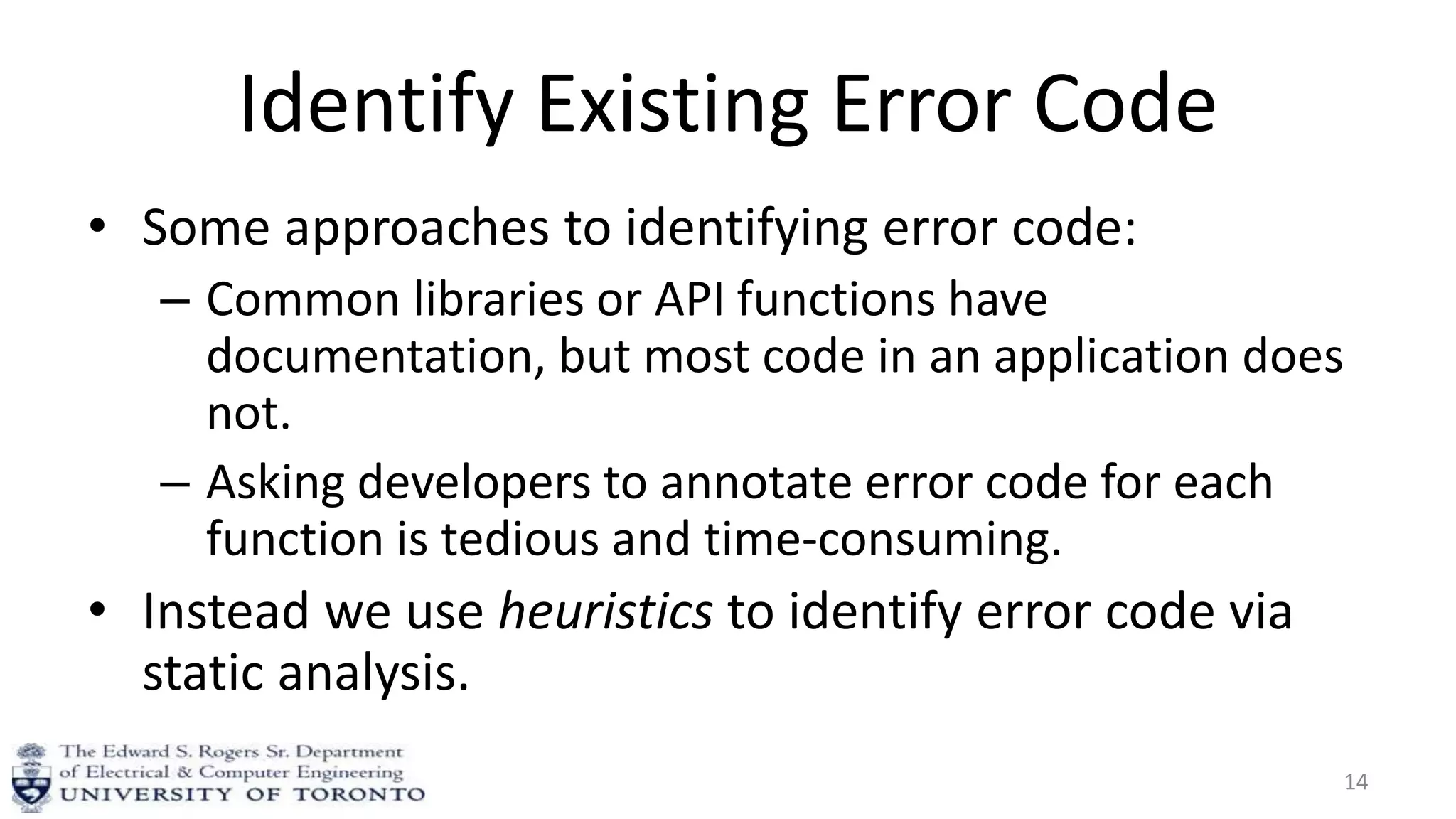

Identify Existing Error Code
• Some approaches to identifying error code:
– Common libraries or API functions have
documentation, but most code in an application does
not.
– Asking developers to annotate error code for each
function is tedious and time-consuming.
• Instead we use heuristics to identify error code via
static analysis.
14

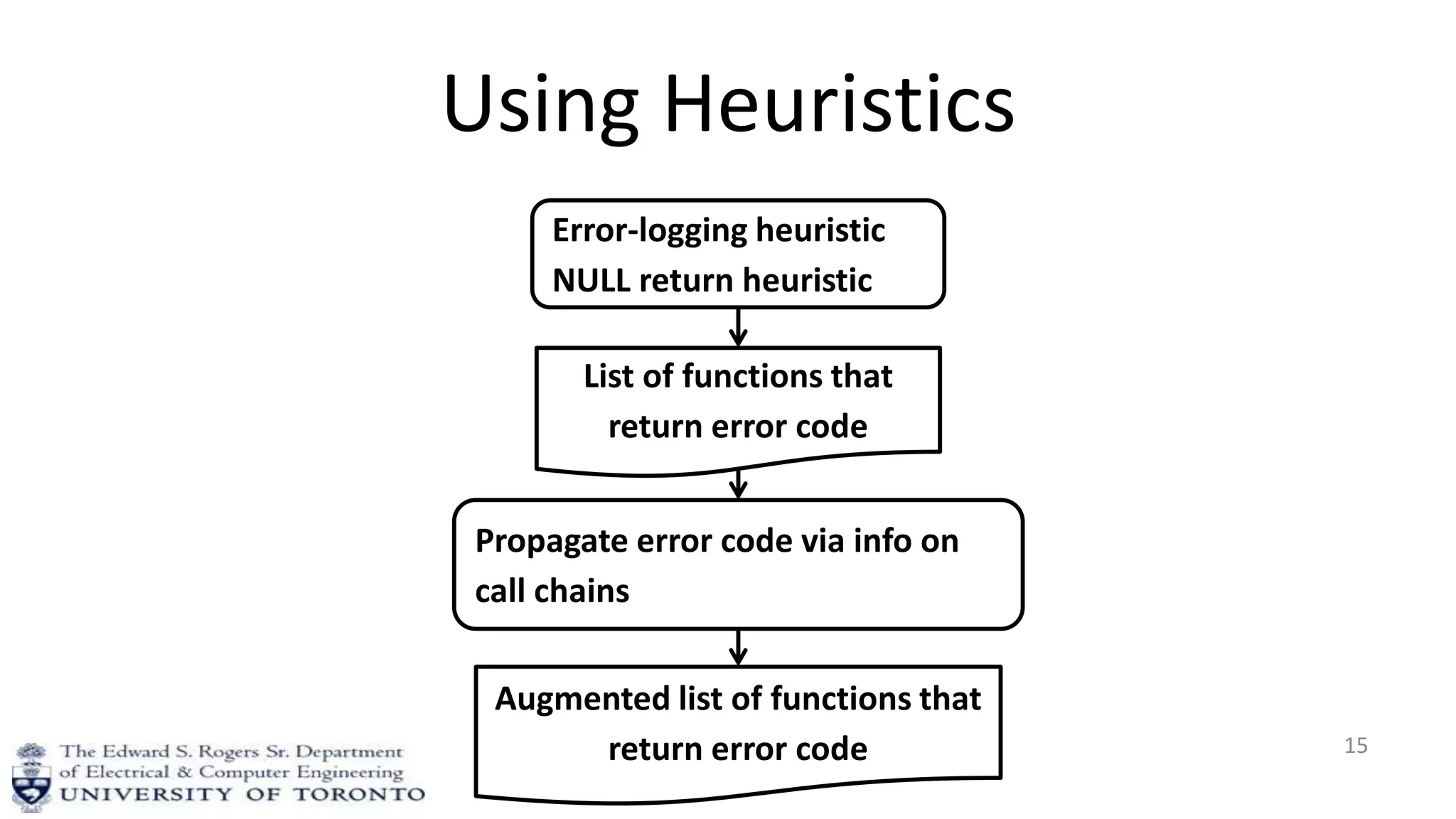

Using Heuristics
15
Error-logging heuristic
NULL return heuristic
List of functions that
return error code
Propagate error code via info on
call chains
Augmented list of functions that
return error code

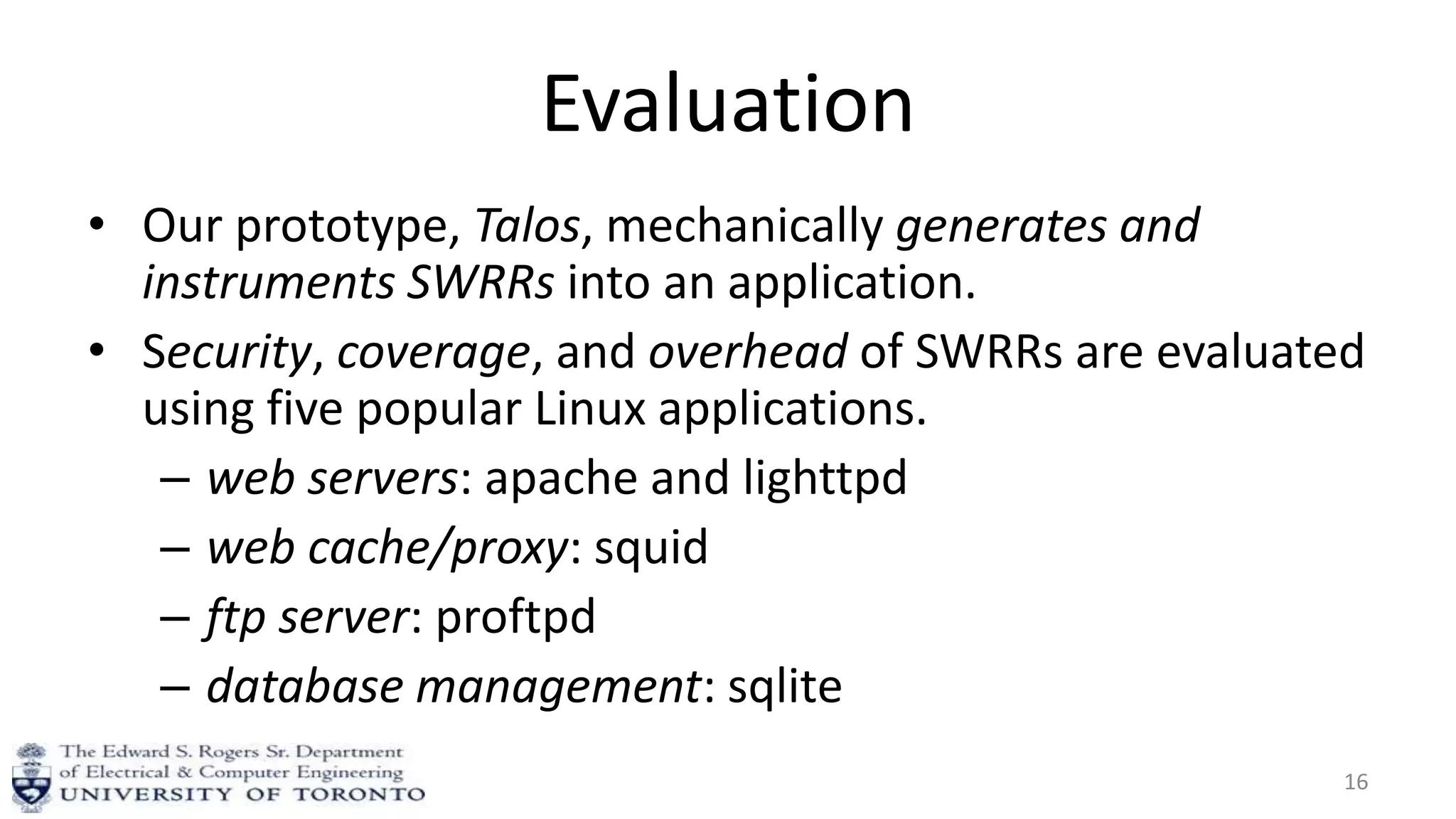

Evaluation
• Our prototype, Talos, mechanically generates and
instruments SWRRs into an application.
• Security, coverage, and overhead of SWRRs are evaluated
using five popular Linux applications.
– web servers: apache and lighttpd
– web cache/proxy: squid
– ftp server: proftpd
– database management: sqlite
16

Security
• Do SWRRs successfully neutralize vulnerabilities?
• Are SWRRs unobtrusive, i.e. not causing loss of
major functionality?
• We analyze effectiveness and unobtrusiveness
of SWRR for 11 real-world vulnerabilities.
– All vulnerabilities are successfully neutralized by
SWRRs.
– 8 SWRRs are unobtrusive.
17
Detailed analysis of each vulnerability
and its SWRR is presented in our
paper.

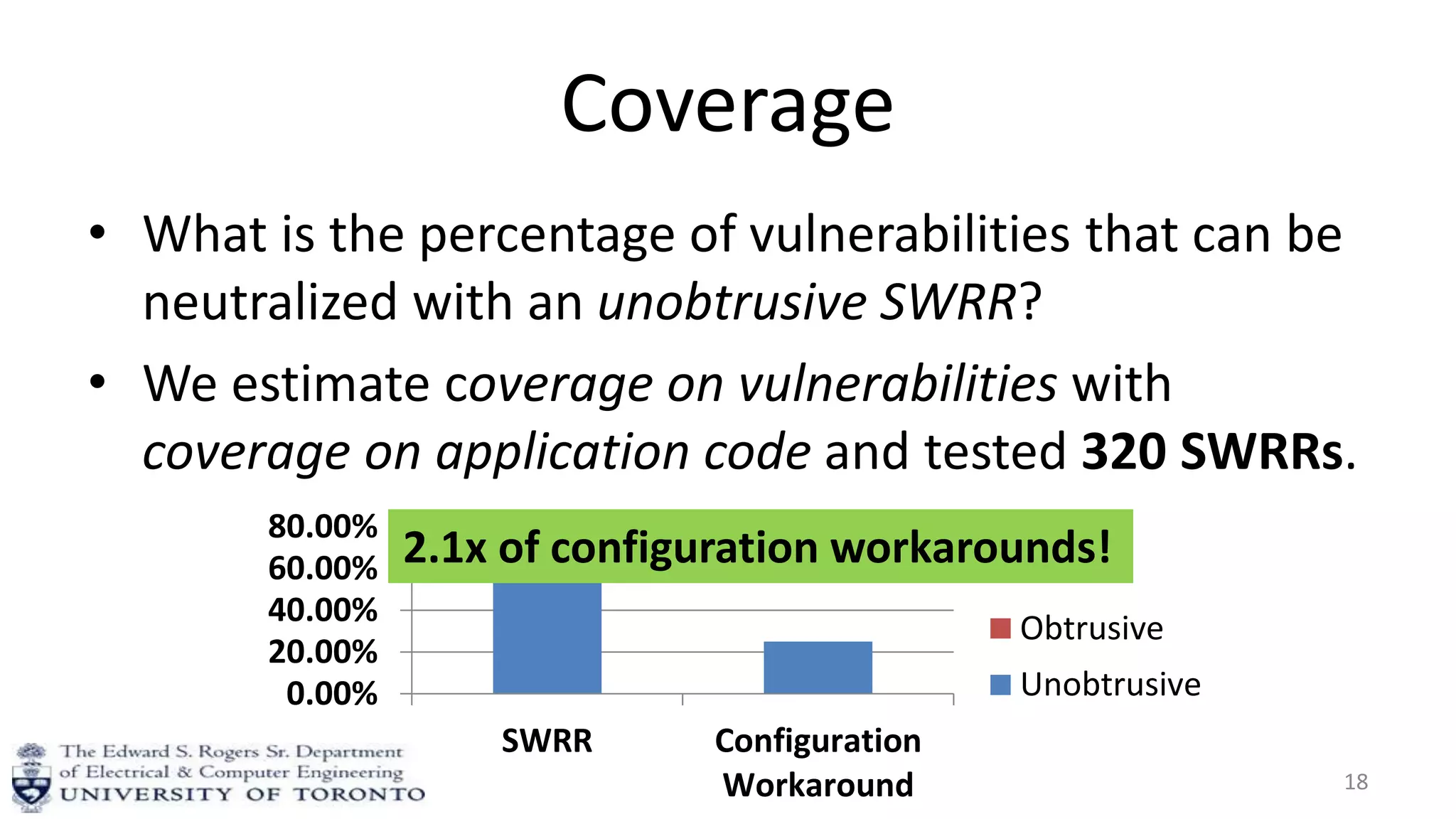

Coverage
• What is the percentage of vulnerabilities that can be
neutralized with an unobtrusive SWRR?
• We estimate coverage on vulnerabilities with
coverage on application code and tested 320 SWRRs.
18
0.00%
20.00%
40.00%
60.00%
80.00%
SWRR Configuration
Workaround
Obtrusive
Unobtrusive
2.1x of configuration workarounds!

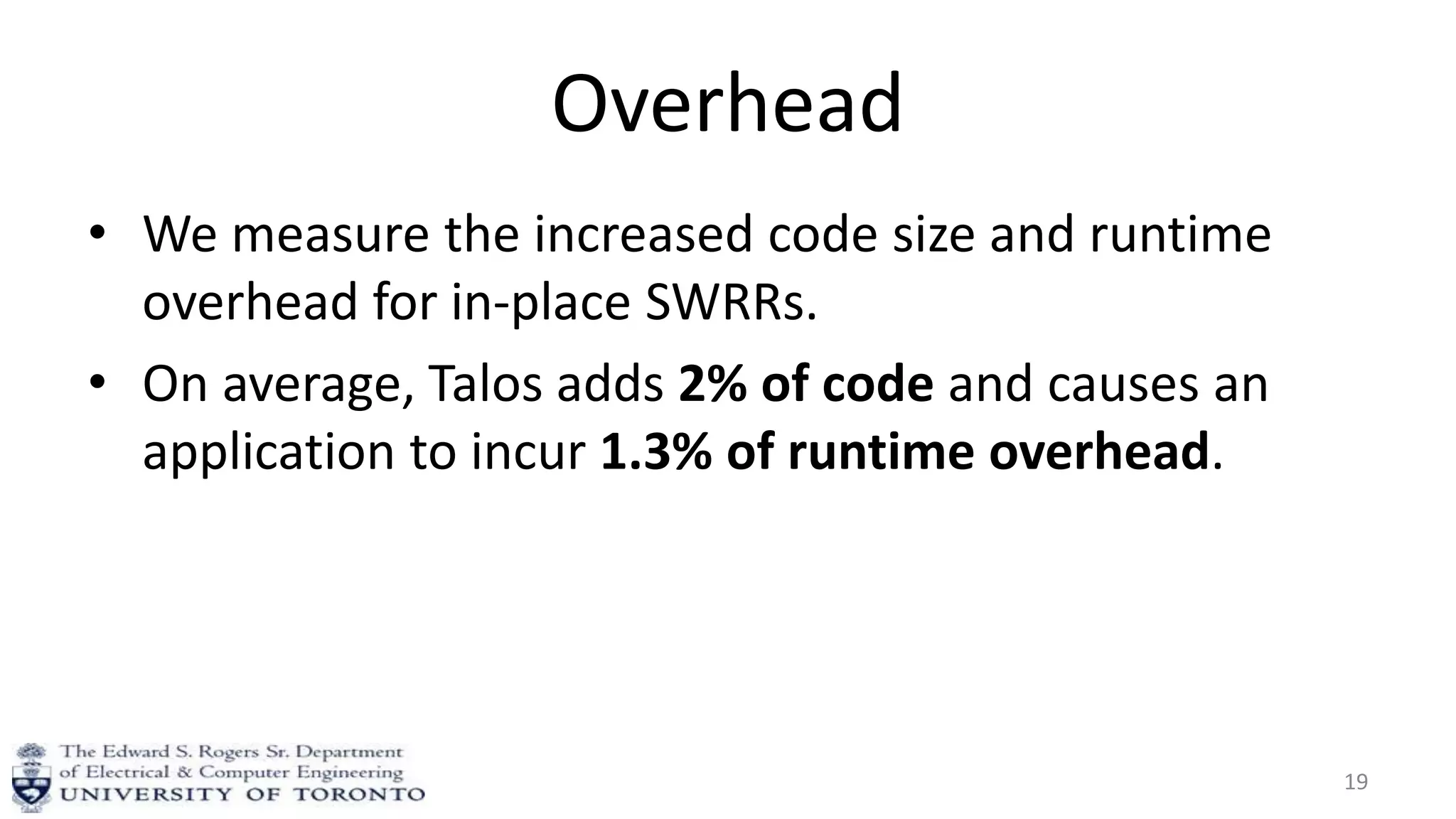

Overhead
• We measure the increased code size and runtime
overhead for in-place SWRRs.
• On average, Talos adds 2% of code and causes an
application to incur 1.3% of runtime overhead.
19

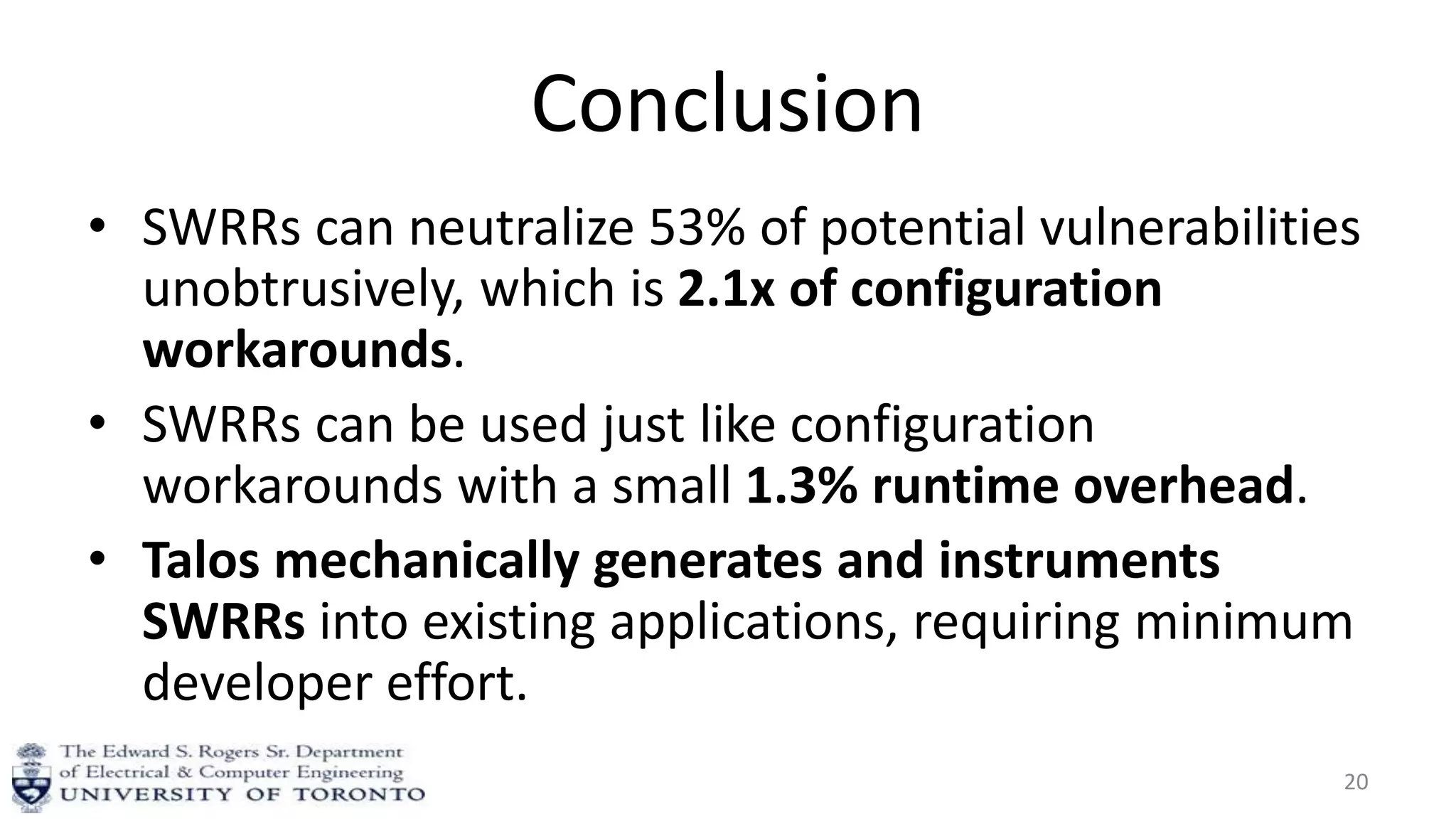

Conclusion
• SWRRs can neutralize 53% of potential vulnerabilities
unobtrusively, which is 2.1x of configuration
workarounds.
• SWRRs can be used just like configuration
workarounds with a small 1.3% runtime overhead.
• Talos mechanically generates and instruments
SWRRs into existing applications, requiring minimum
developer effort.
20

Thank You!
contact: z.huang@mail.utoronto.ca
21

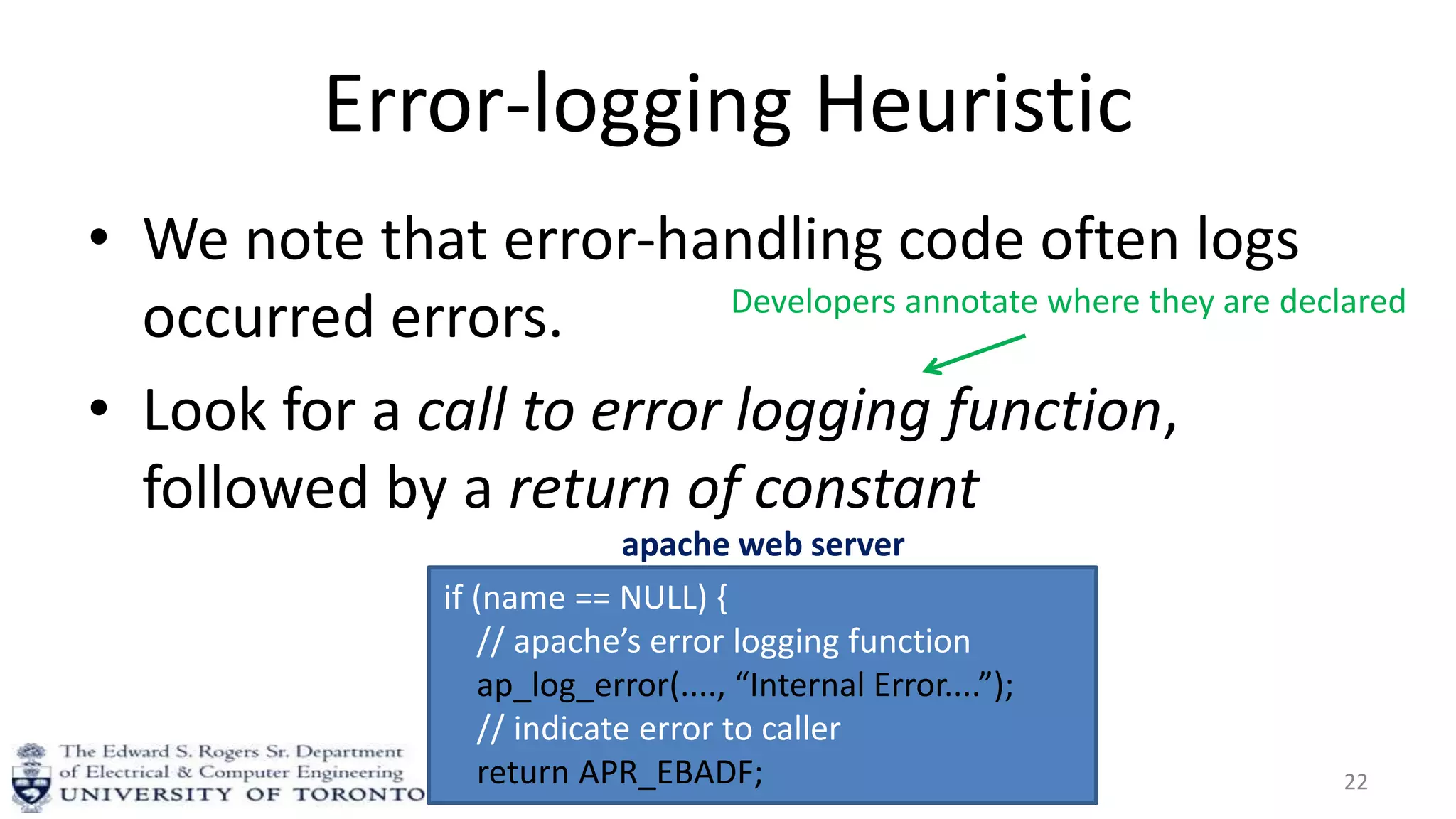

Error-logging Heuristic
• We note that error-handling code often logs
occurred errors.
• Look for a call to error logging function,
followed by a return of constant
22
if (name == NULL) {
// apache’s error logging function
ap_log_error(...., “Internal Error....”);
// indicate error to caller
return APR_EBADF;
apache web server
Developers annotate where they are declared

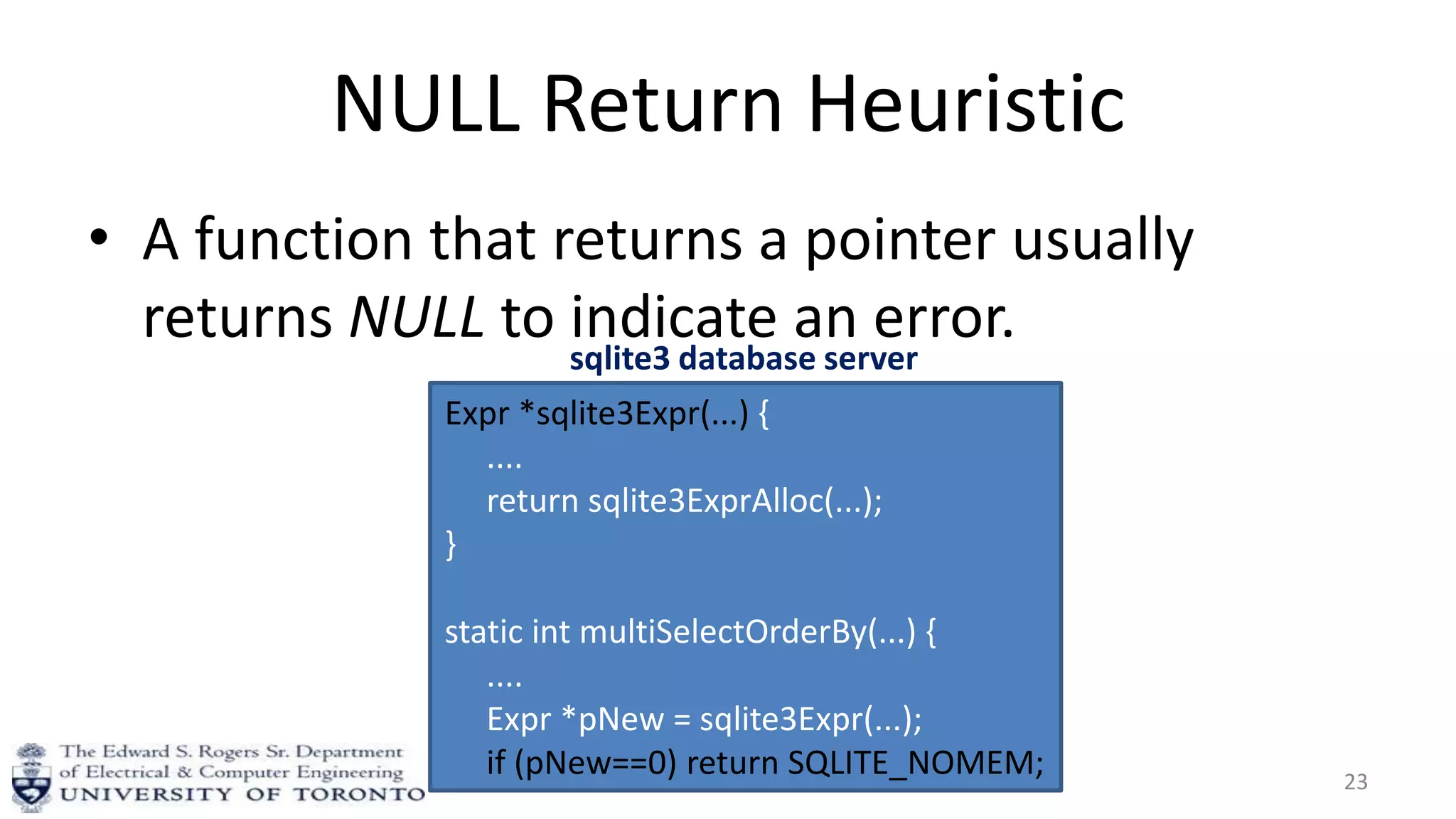

NULL Return Heuristic
• A function that returns a pointer usually
returns NULL to indicate an error.
23
Expr *sqlite3Expr(...) {
....
return sqlite3ExprAlloc(...);
}
static int multiSelectOrderBy(...) {
....
Expr *pNew = sqlite3Expr(...);
if (pNew==0) return SQLITE_NOMEM;
}
sqlite3 database server

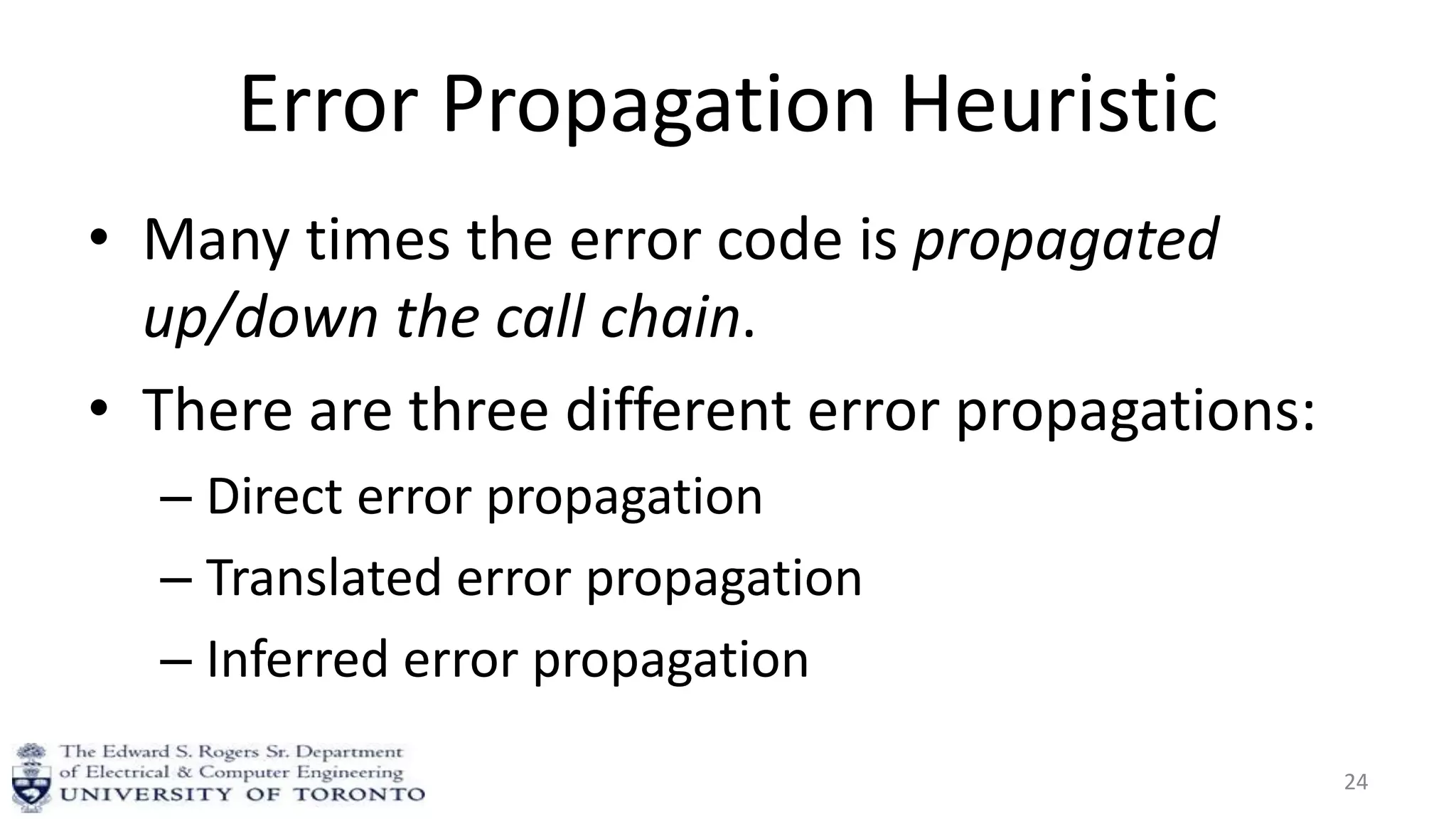

Error Propagation Heuristic
• Many times the error code is propagated
up/down the call chain.
• There are three different error propagations:
– Direct error propagation
– Translated error propagation
– Inferred error propagation
24

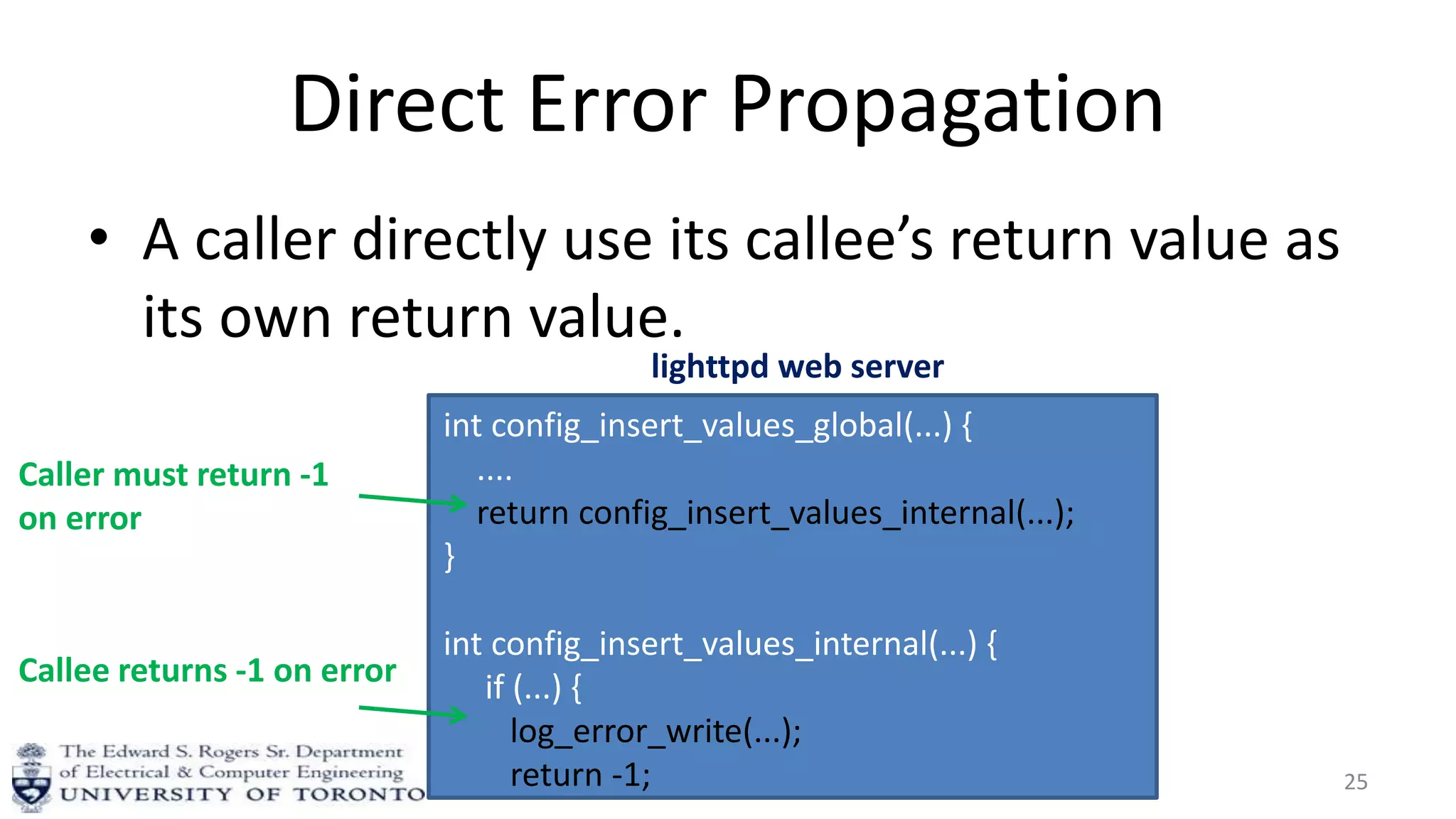

Direct Error Propagation
• A caller directly use its callee’s return value as
its own return value.
25
int config_insert_values_global(...) {
....
return config_insert_values_internal(...);
}
int config_insert_values_internal(...) {
if (...) {
log_error_write(...);
return -1;
Callee returns -1 on error
Caller must return -1
on error
lighttpd web server

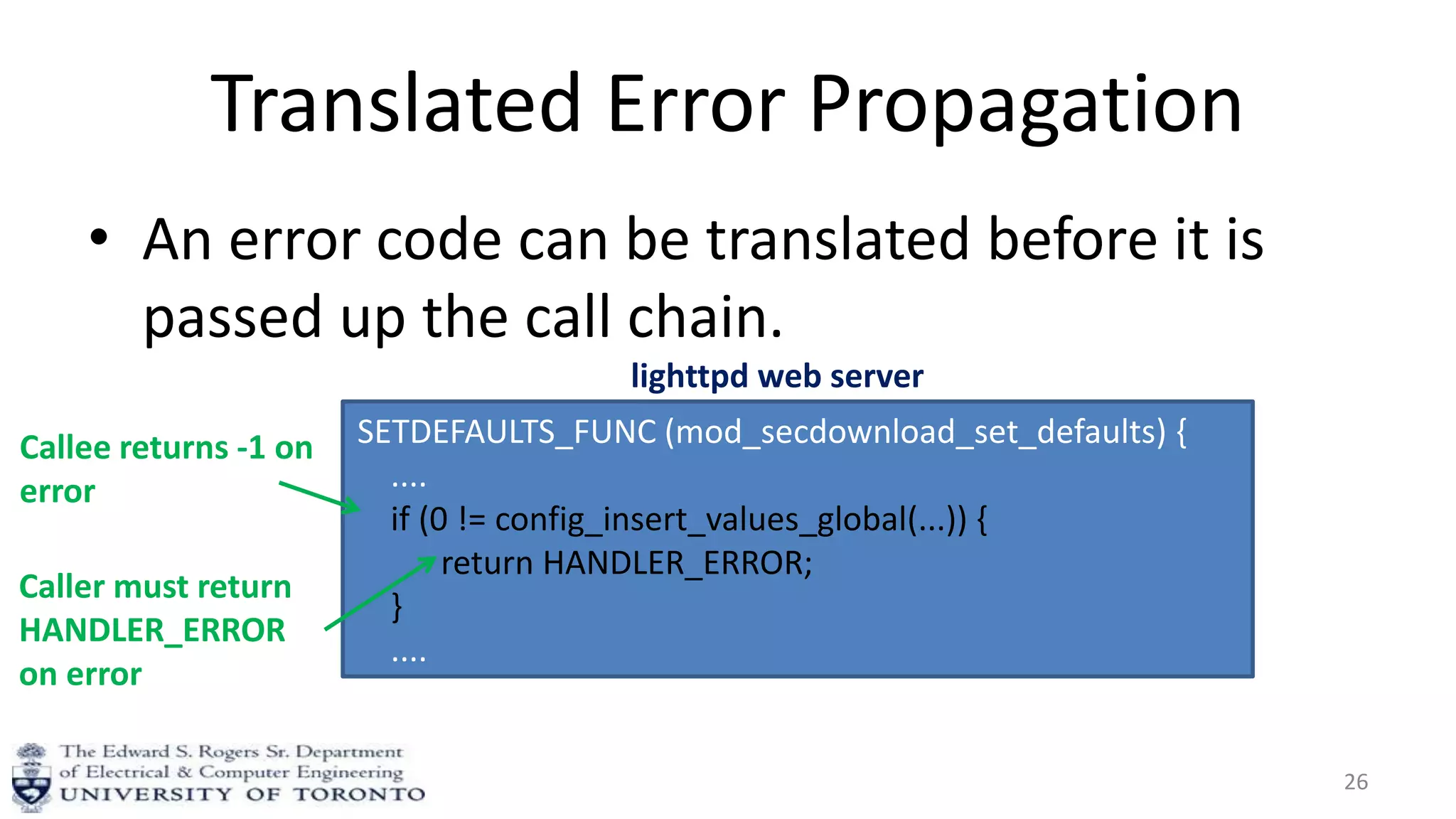

Translated Error Propagation
• An error code can be translated before it is
passed up the call chain.
26
SETDEFAULTS_FUNC (mod_secdownload_set_defaults) {
....
if (0 != config_insert_values_global(...)) {
return HANDLER_ERROR;
}
....
}
Callee returns -1 on
error
lighttpd web server
Caller must return
HANDLER_ERROR
on error

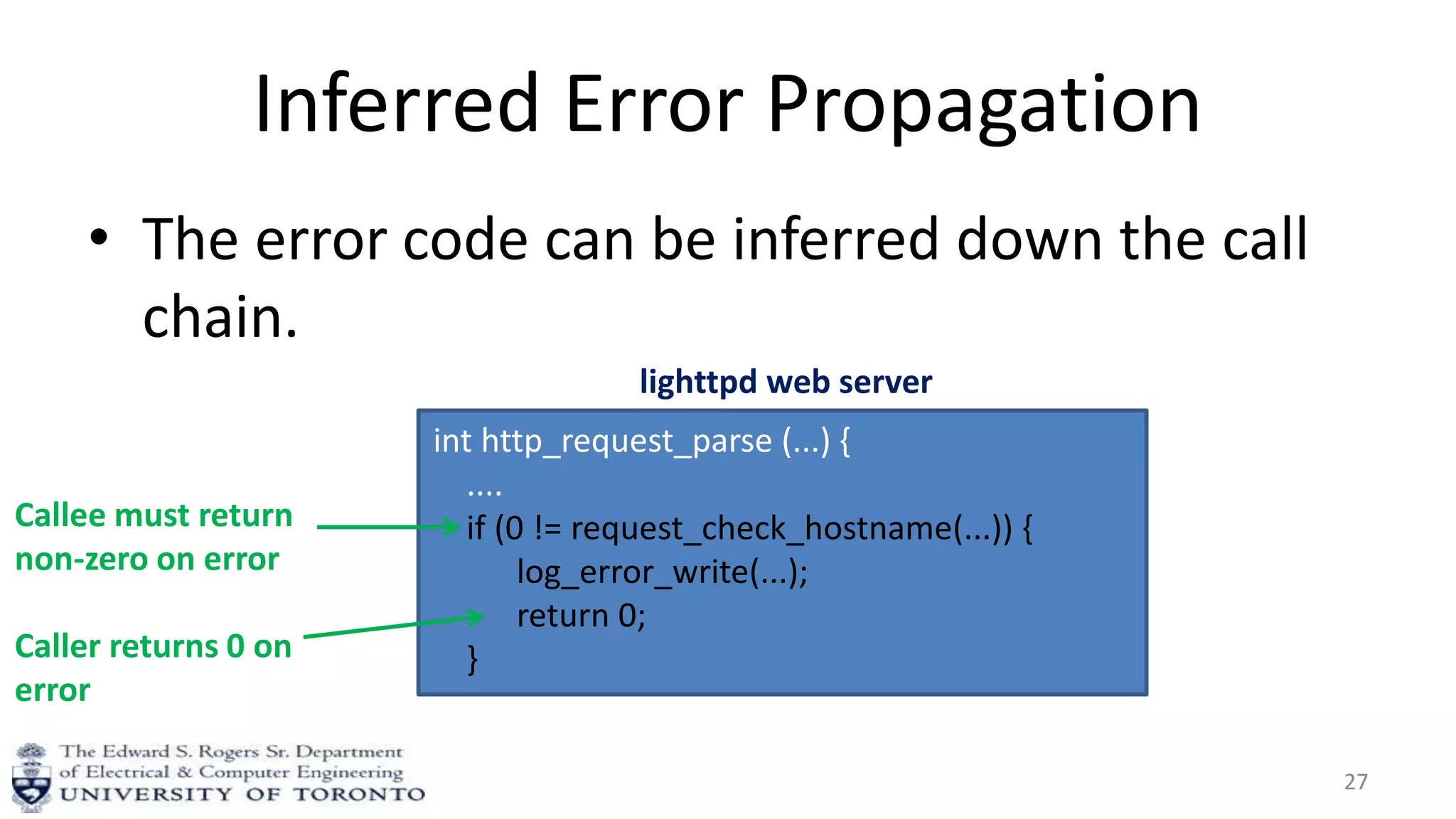

Inferred Error Propagation
• The error code can be inferred down the call
chain.
27
int http_request_parse (...) {
....
if (0 != request_check_hostname(...)) {
log_error_write(...);
return 0;
}
lighttpd web server
Callee must return
non-zero on error
Caller returns 0 on
error

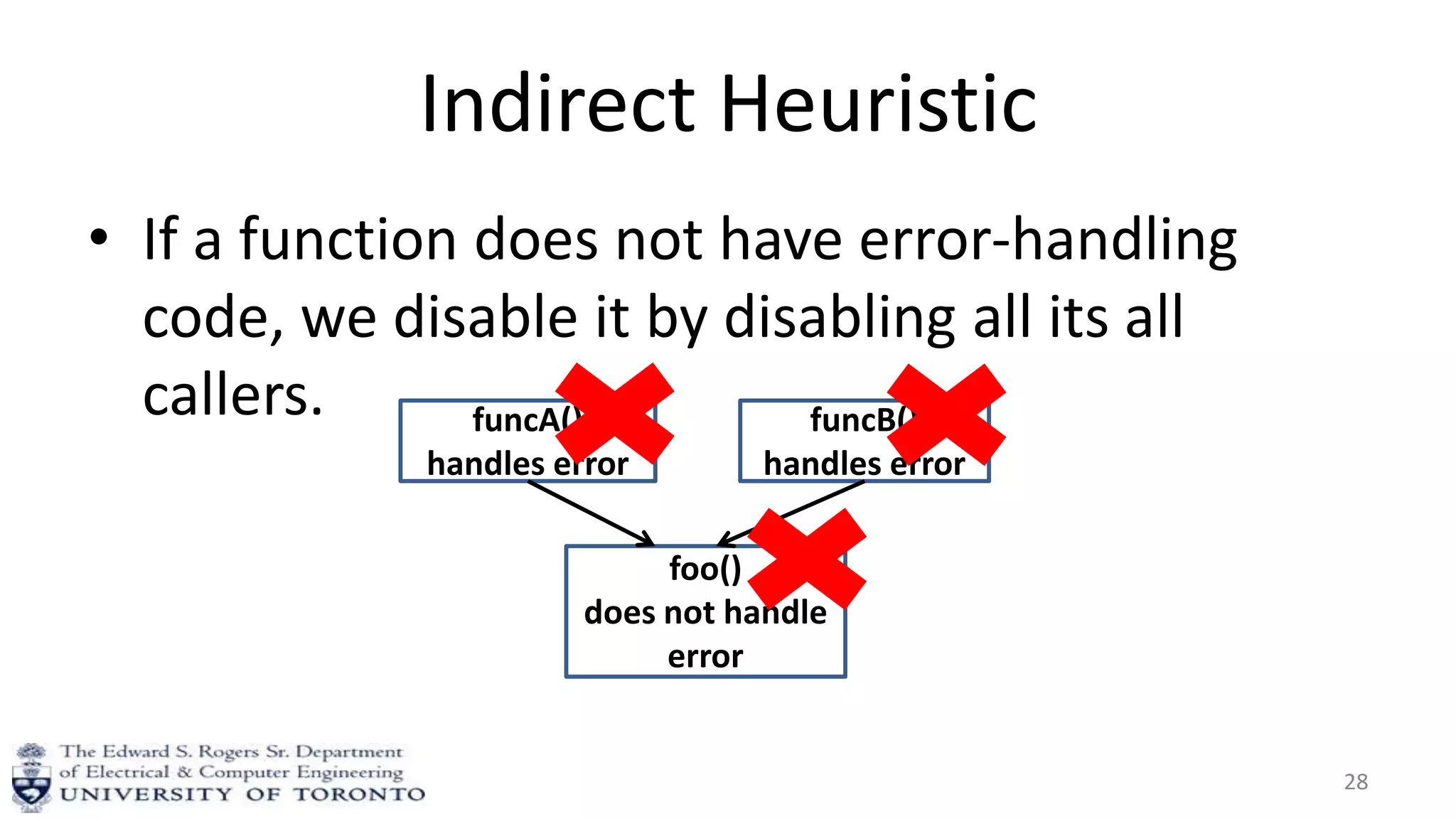

Indirect Heuristic
• If a function does not have error-handling
code, we disable it by disabling all its all
callers.
28
foo()
does not handle
error
funcB()
handles error
funcA()
handles error

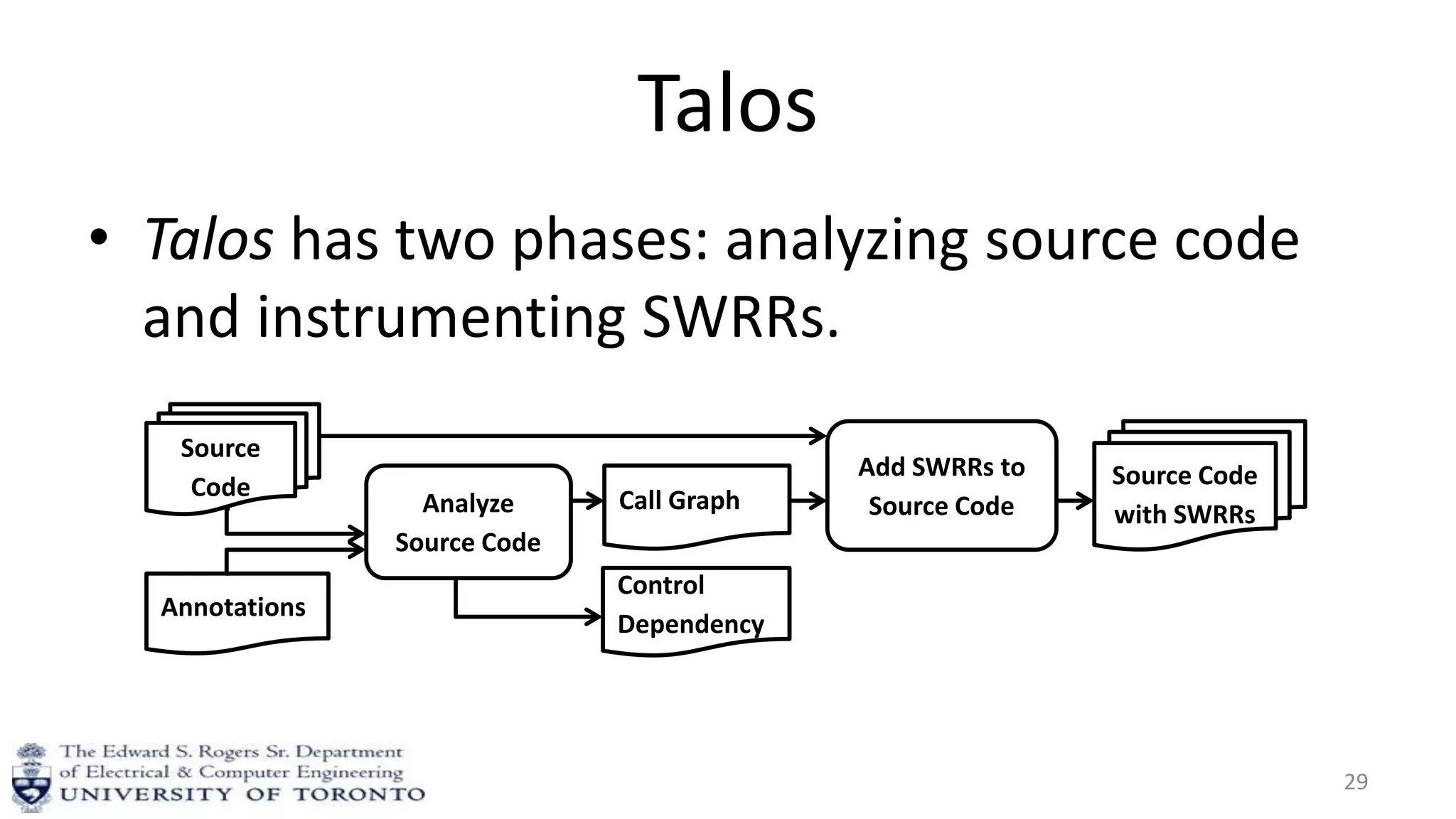

Talos
• Talos has two phases: analyzing source code
and instrumenting SWRRs.
29
Analyze
Source Code
Annotations
Add SWRRs to
Source CodeCall Graph
Control
Dependency
Source Code
with SWRRs
Source
Code
