Apache pulsar
This document discusses Apache Pulsar, which provides a unified solution for messaging, storage, and stream processing. It can handle real-time data processing by unifying messages, computing, and storage. Key features include guaranteed ordering, high throughput, durability, geo-replication, and delivery guarantees. Pulsar uses Apache BookKeeper for storage and supports streaming, queuing, and functions to enable stream processing.
Apache pulsar
- 1.
- 4. 4 What’s the stateof the art

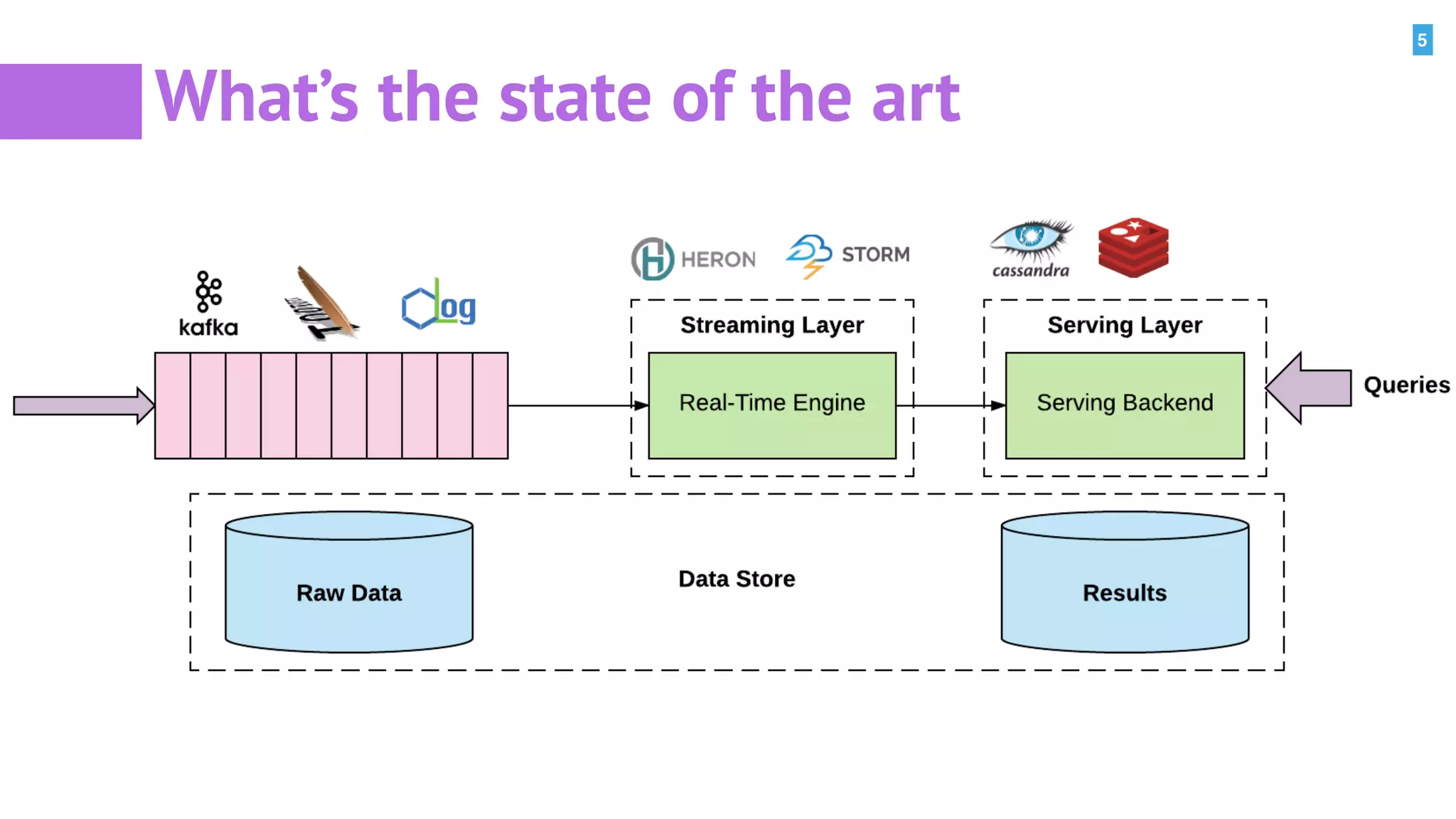

- 5. 5 What’s the stateof the art
- 6. 6 Apache Pulsar —Unify Segment Store Stream Table BookKeeper Messaging Computing Pulsar Broker Pulsar Functions
- 7. 7 Ordering Guaranteed ordering Multi-tenancy A singlecluster can support many tenants and use cases High throughput Can reach 1.8 M messages/s in a single partition Durability Data replicated and synced to disk Geo-replication Out of box support for geographically distributed applications Unified messaging model Support both Streaming and Queuing in a single model Delivery Guarantees At least once, at most once and effectively once Low Latency Low publish latency of 5ms at 99pct Highly scalable Can support millions of topics Why Apache Pulsar?
- 8. 8 Pulsar Architecture Pulsar Broker1 Pulsar Broker 1 Pulsar Broker 1 Bookie 1 Bookie 2 Bookie 3 Bookie 4 Bookie 5 Apache BookKeeper Apache Pulsar Producer Consumer Separate layers between brokers bookies • Broker and bookies can be added independently • Traffic can be shifted very quickly across brokers • New bookies will ramp up on traffic quickly

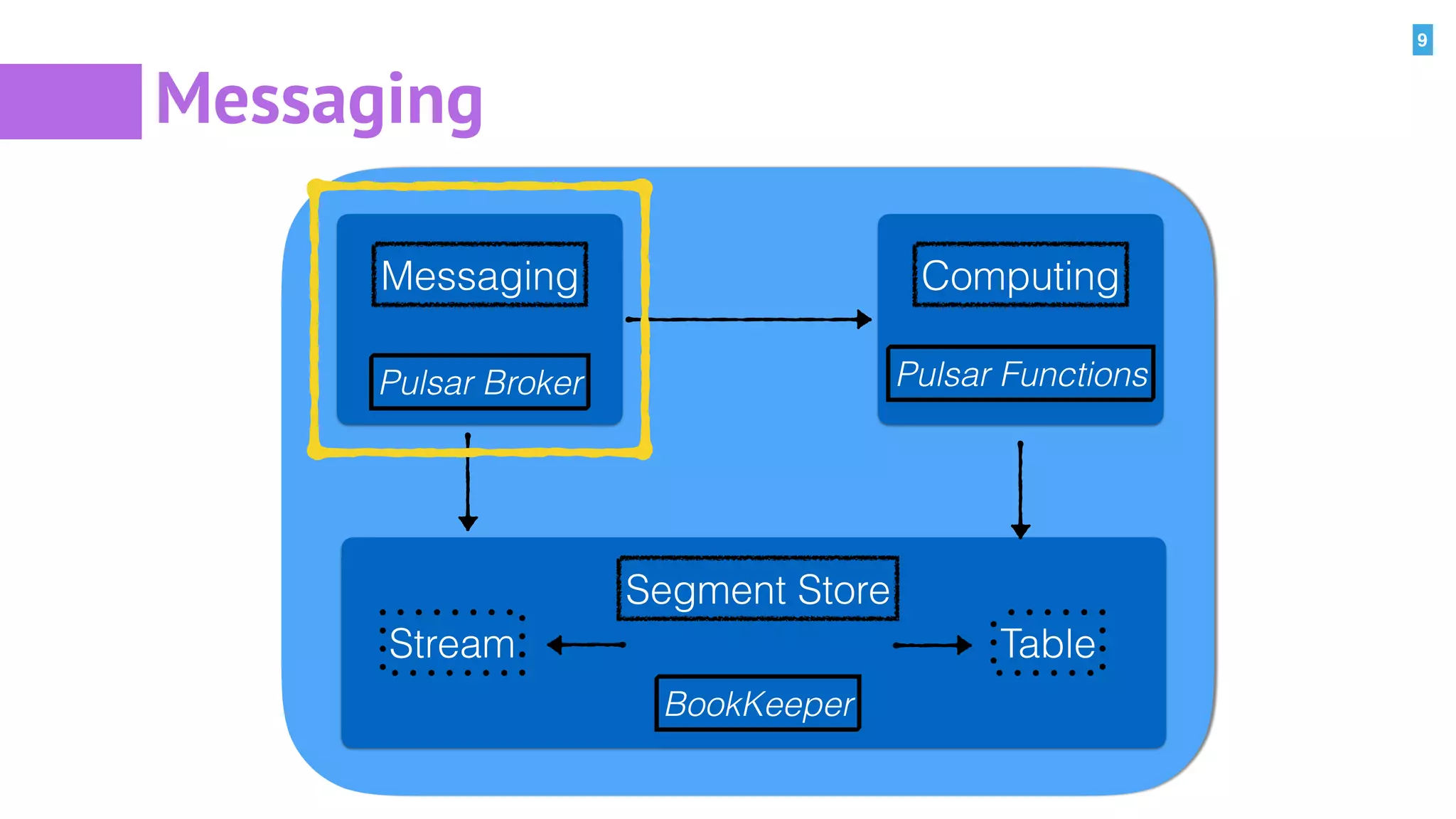

- 9. 9 Messaging Segment Store Stream Table BookKeeper MessagingComputing Pulsar Broker Pulsar Functions
- 10.
- 11.

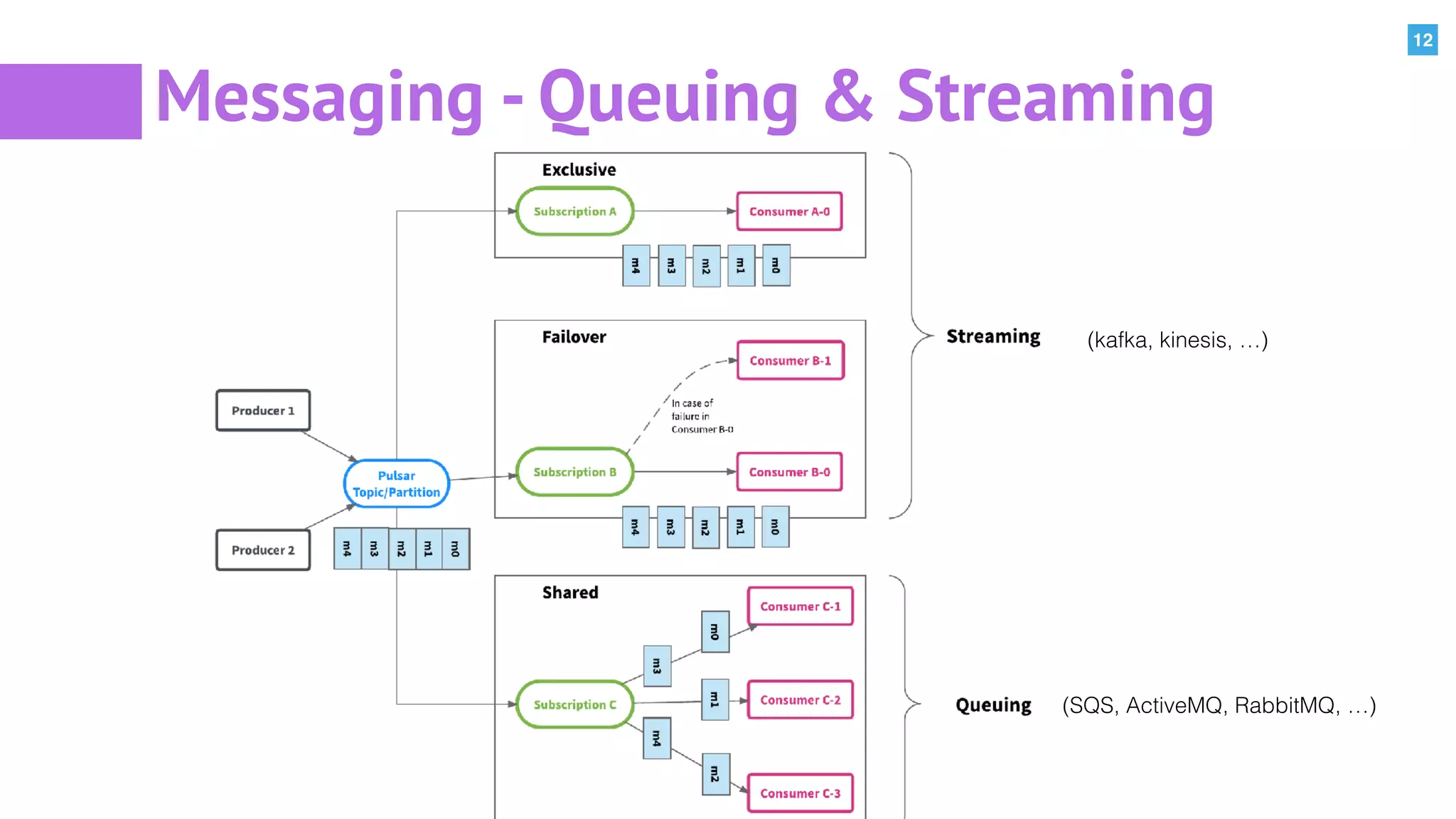

- 12. 12 Messaging - Queuing& Streaming (kafka, kinesis, …) (SQS, ActiveMQ, RabbitMQ, …)
- 13.
- 14.
- 15. 15 Storage Segment Store Stream Table BookKeeper MessagingComputing Pulsar Broker Pulsar Functions

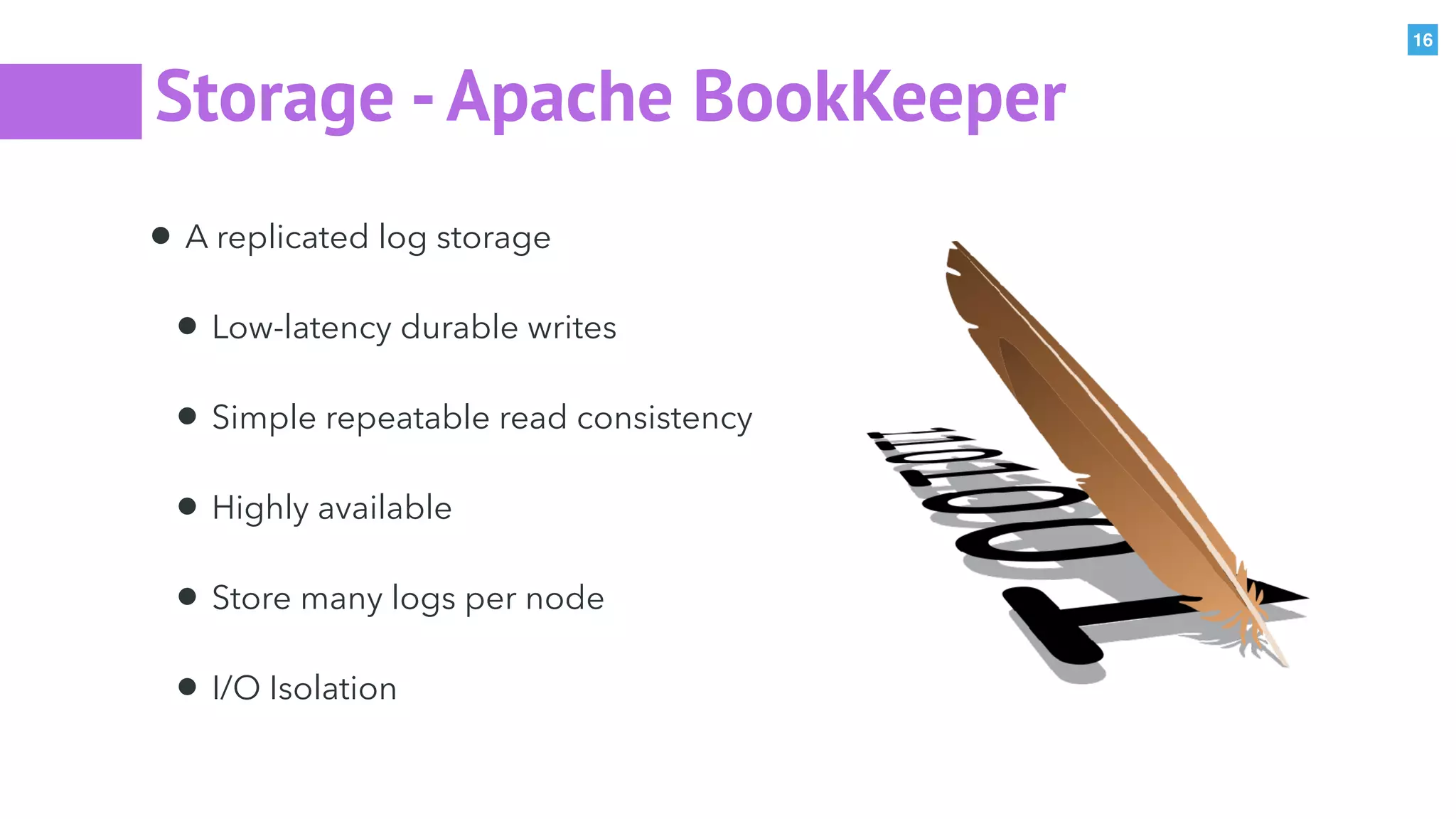

- 16. 16 Storage -Apache BookKeeper •A replicated log storage • Low-latency durable writes • Simple repeatable read consistency • Highly available • Store many logs per node • I/O Isolation
- 17.
- 18. 18 Storage - SegmentCentric

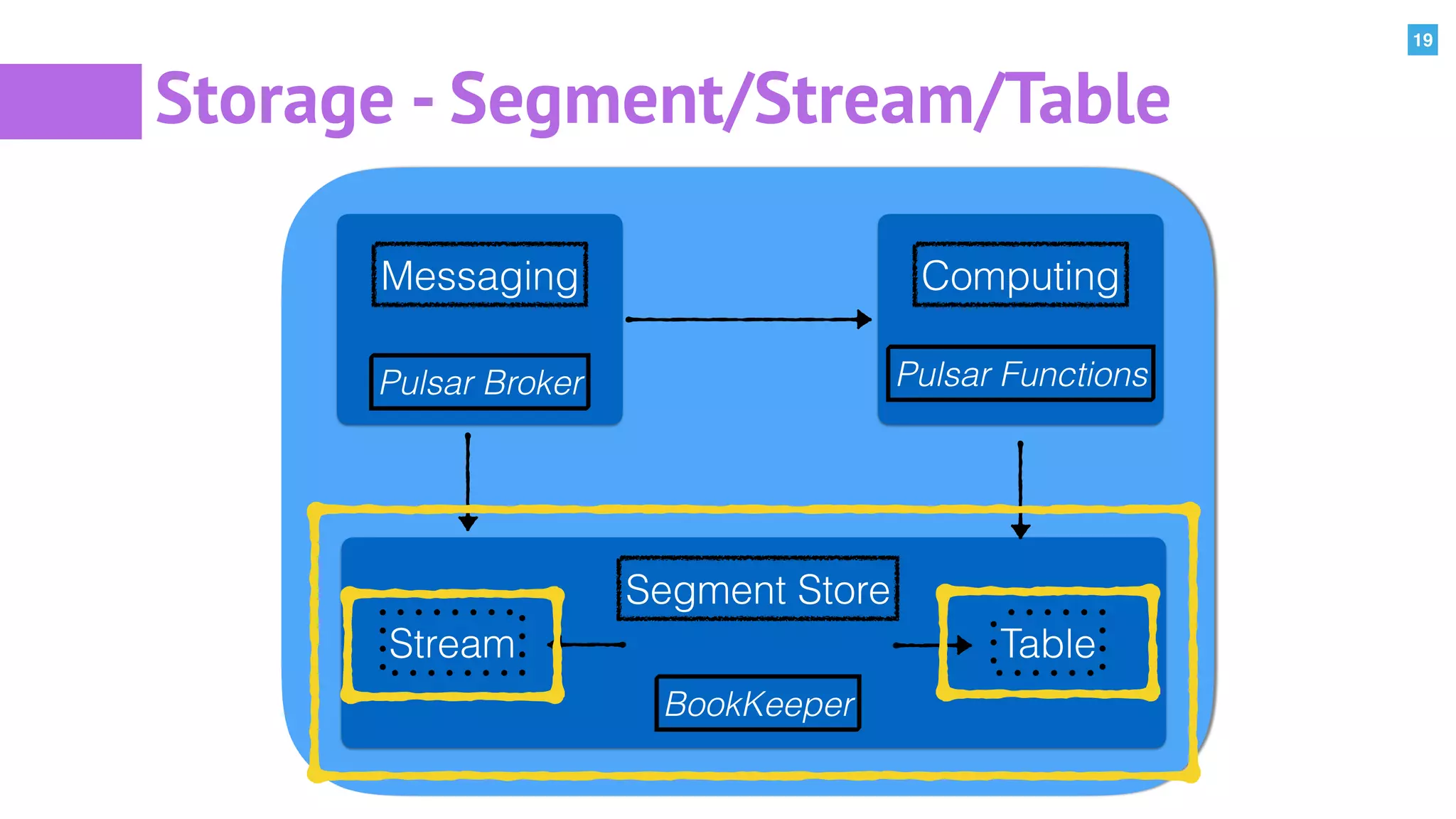

- 19. 19 Storage - Segment/Stream/Table SegmentStore Stream Table BookKeeper Messaging Computing Pulsar Broker Pulsar Functions

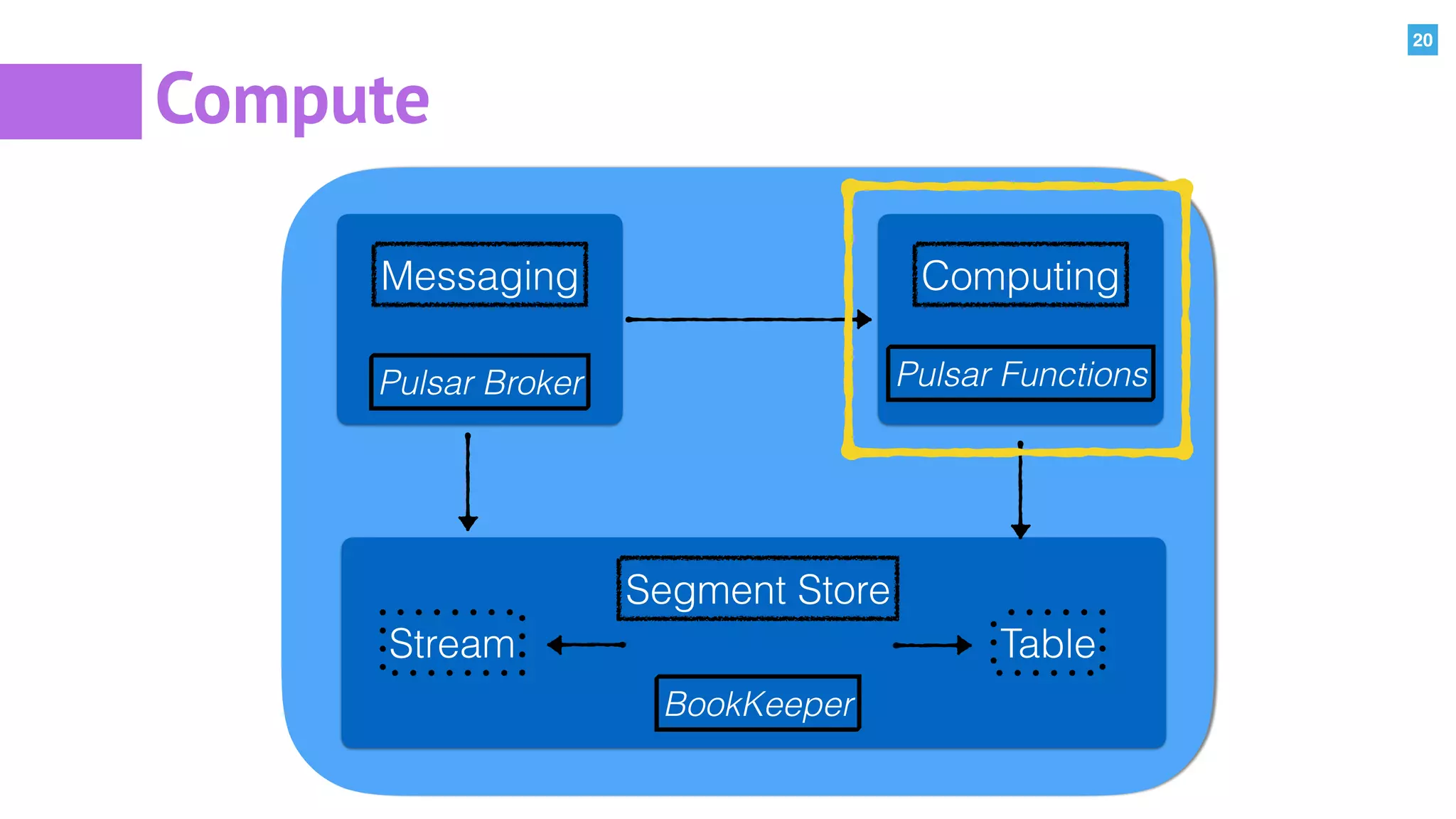

- 20. 20 Compute Segment Store Stream Table BookKeeper MessagingComputing Pulsar Broker Pulsar Functions

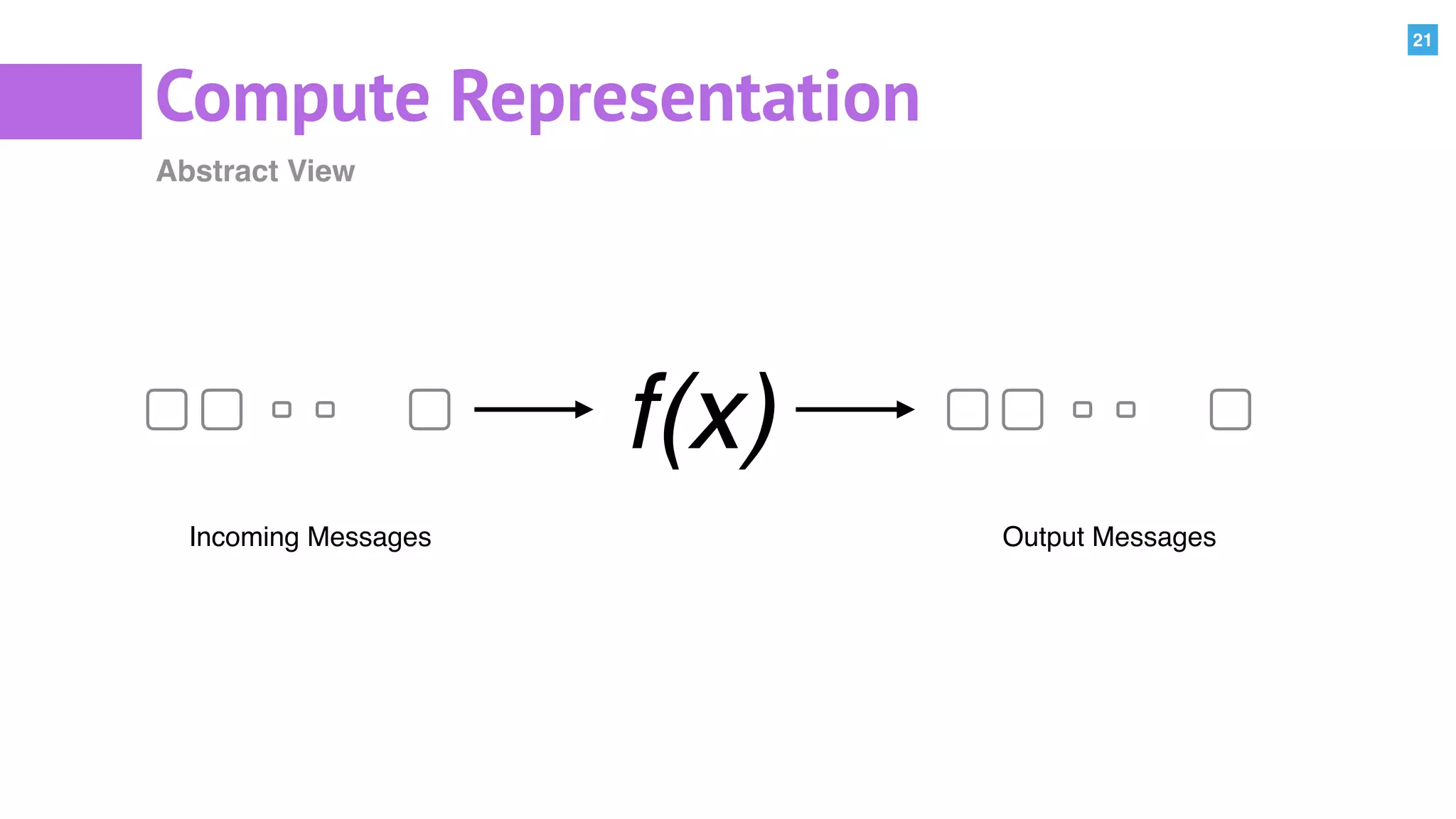

- 21. 21 Compute Representation Abstract View f(x) IncomingMessages Output Messages

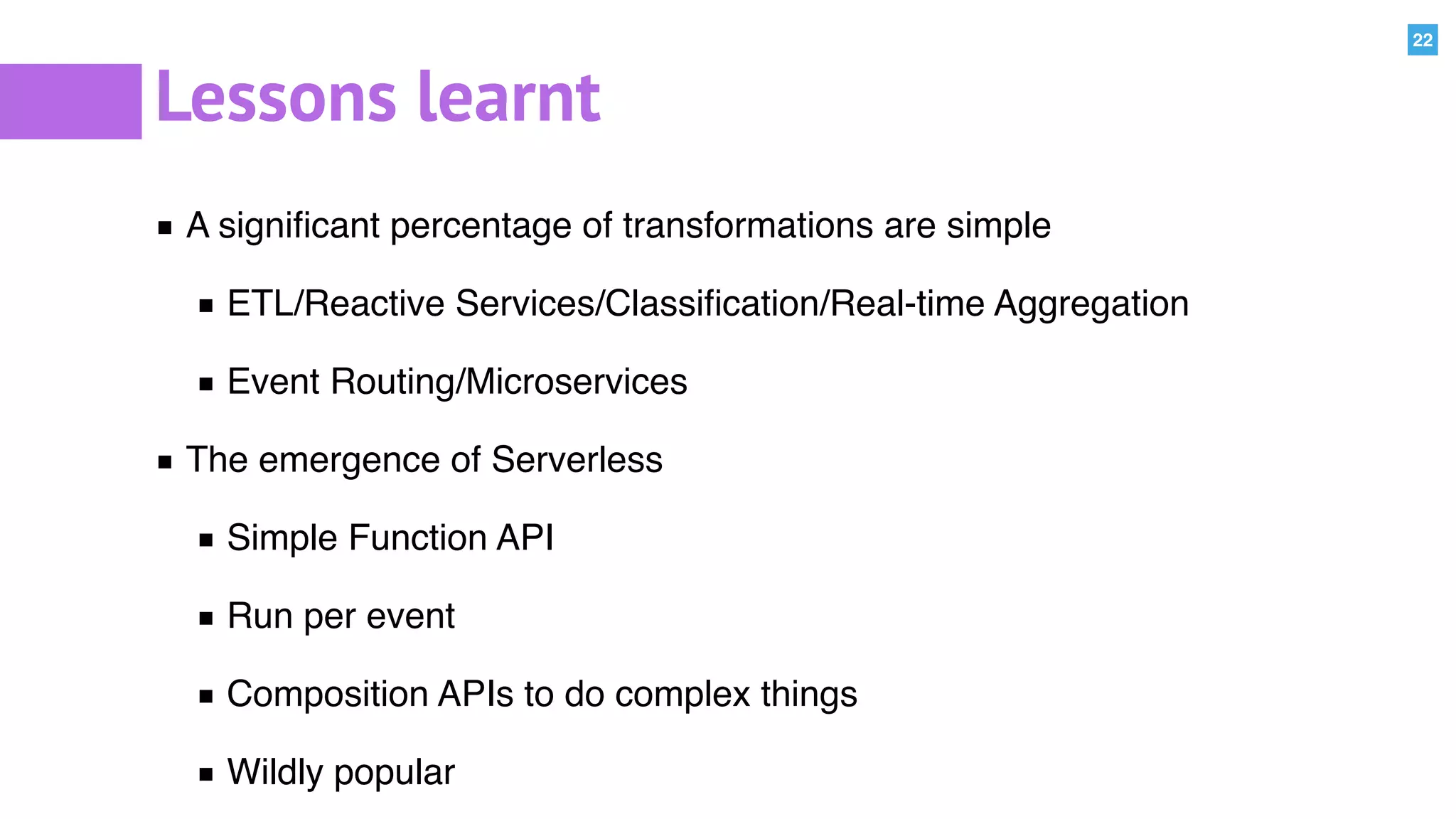

- 22. 22 Lessons learnt A significantpercentage of transformations are simple ETL/Reactive Services/Classification/Real-time Aggregation Event Routing/Microservices The emergence of Serverless Simple Function API Run per event Composition APIs to do complex things Wildly popular
- 23. 23 Whats needed: Stream-NativeCompute Insight gained from serverless Simplest possible API Method/Procedure/Function Multi Language API Scale developers Stream native concepts Input/Output/Log as topics Flexible runtime Simple standalone applications vs system managed applications
- 24. 24 Pulsar Functions —API SDKless API import java.util.function.Function; public class ExclamationFunction implements Function<String, String> { @Override public String apply(String input) { return input + "!"; } } SDK API import org.apache.pulsar.functions.api.PulsarFunction; import org.apache.pulsar.functions.api.Context; public class ExclamationFunction implements PulsarFunction<String, String> { @Override public String process(String input, Context context) { return input + "!"; } }
- 25. 25 Pulsar Functions Running asa standalone application bin/pulsar-admin functions localrun --input persistent://sample/standalone/ns1/test_input --output persistent://sample/standalone/ns1/test_result --className org.mycompany.ExclamationFunction --jar myjar.jar Runs as a standalone process Run as many instances as you want. Framework automatically balances data Run and manage via Mesos/K8/Nomad/your favorite tool
- 26. 26 Pulsar Functions: UseCases Sensor devices generate tons of data Lot of local actions Simple filtering, threshold detection, regex matching, etc Resource Constrained Limited scope for Full blown schedulers/Job Managers Models computed via offline analysis Incoming requests should be classified using the model Function is a natural representation for the classification action Model itself can be stored in Bookkeeper Edge Computing Model Serving
- 27. 27 Pulsar Functions Unify Messagingand Compute cluster into one Function executed for every message of input topic Supports multiple topics as inputs Runtime User Controlled Guarantees: ATMOST_ONCE / ATLEAST_ONCE / EFFECTIVE_ONCE Built-in State Management: Unified Stream & State Store with BookKeeper. Simplified application development
- 28. 28 Unified Streaming Solution SegmentStore Stream Table BookKeeper Messaging Computing Pulsar Broker Pulsar Functions DATA DATA DATA DATA DATA Spark Flink HDFS 。。。
- 29.

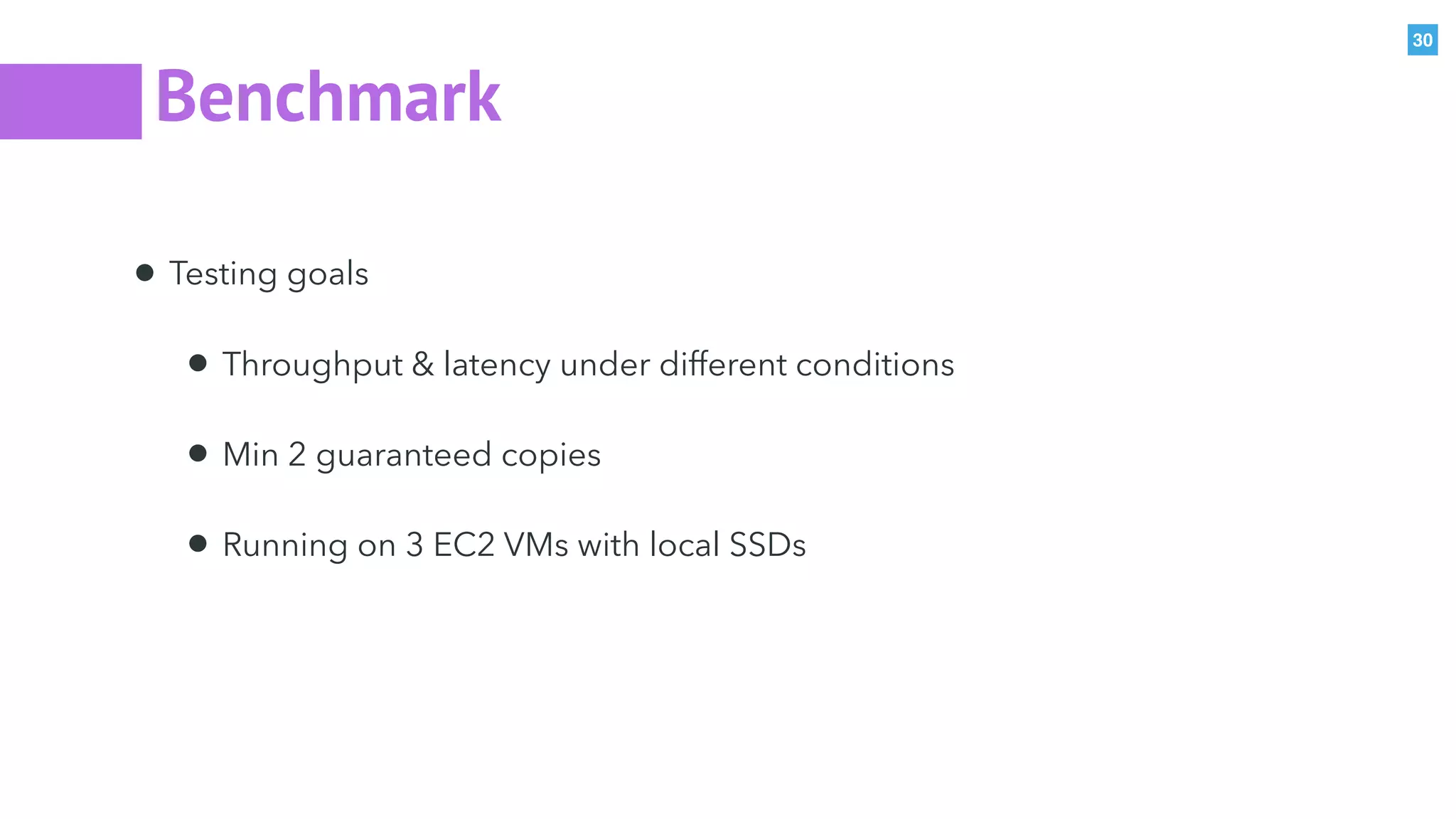

- 30. 30 Benchmark • Testing goals •Throughput & latency under different conditions • Min 2 guaranteed copies • Running on 3 EC2 VMs with local SSDs

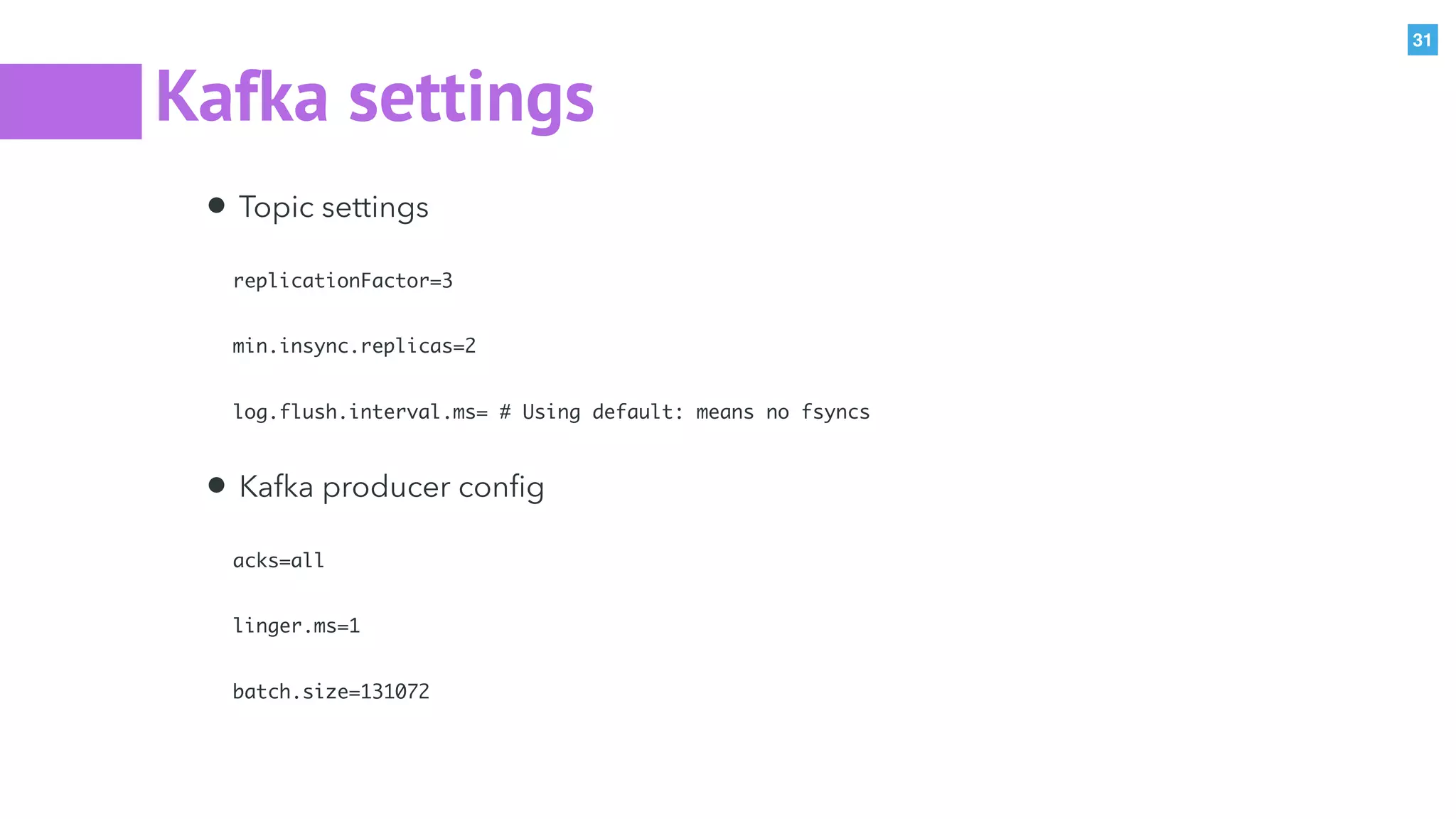

- 31. 31 Kafka settings • Topicsettings replicationFactor=3 min.insync.replicas=2 log.flush.interval.ms= # Using default: means no fsyncs • Kafka producer config acks=all linger.ms=1 batch.size=131072
- 32. 32 Pulsar/BookKeeper settings • Useensemble=3 write=3 ack=2 • Data synced on disk before ack • Pulsar publisher settings: batchingEnabled : true batchingMaxPublishDelayMs : 1 blockIfQueueFull : true

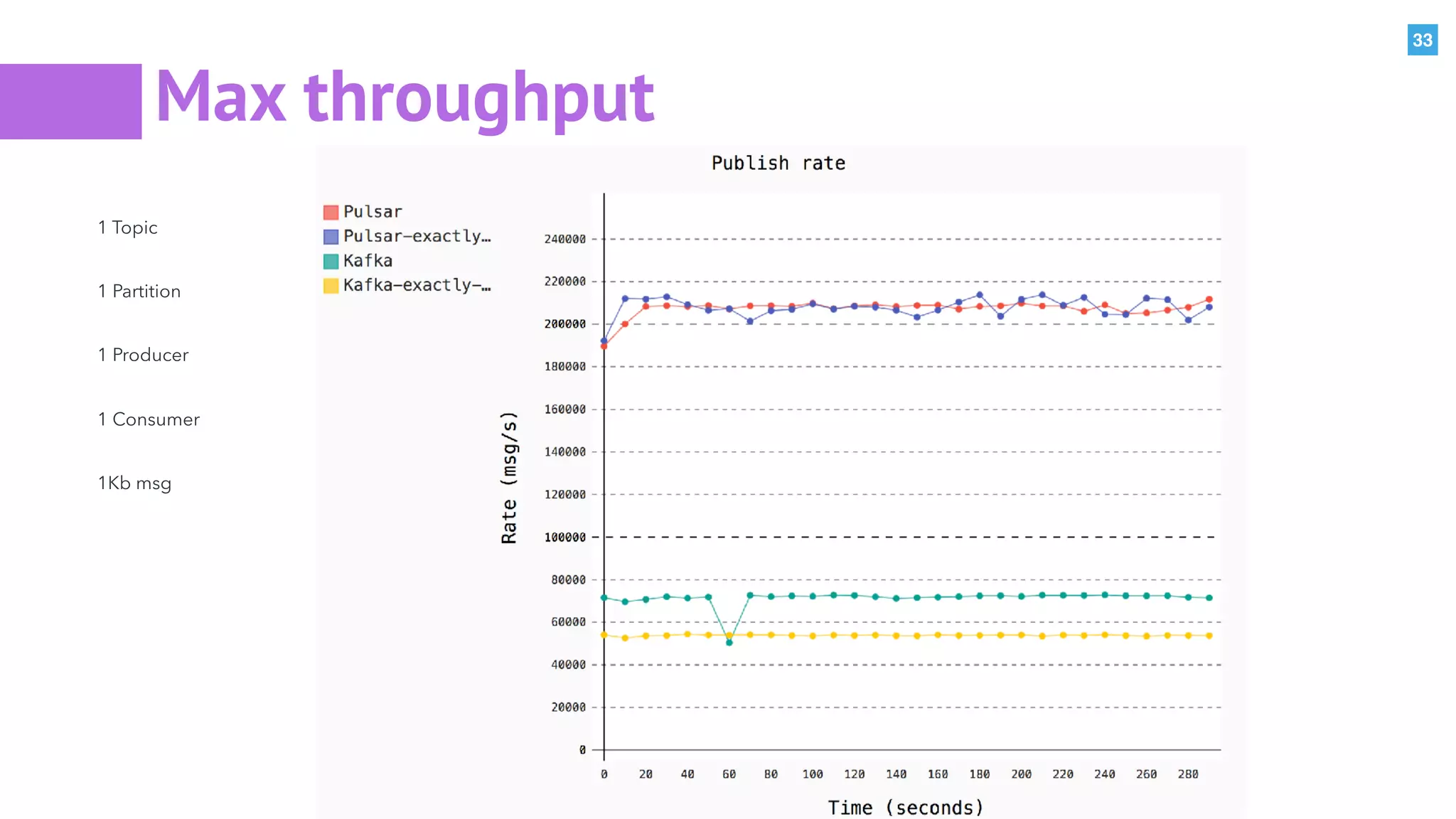

- 33. 33 Max throughput 1 Topic 1Partition 1 Producer 1 Consumer 1Kb msg

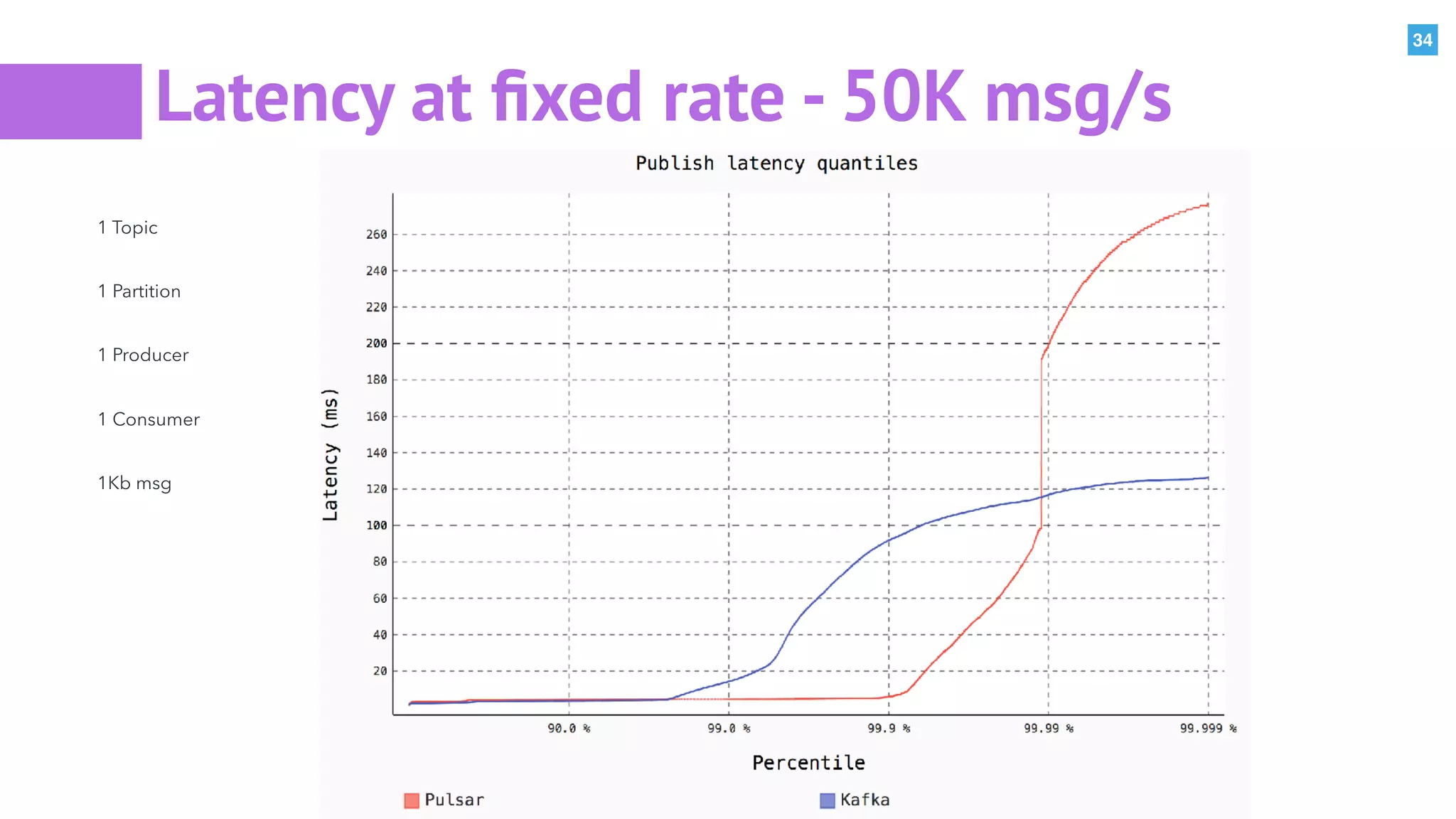

- 34. 34 Latency at fixedrate - 50K msg/s 1 Topic 1 Partition 1 Producer 1 Consumer 1Kb msg

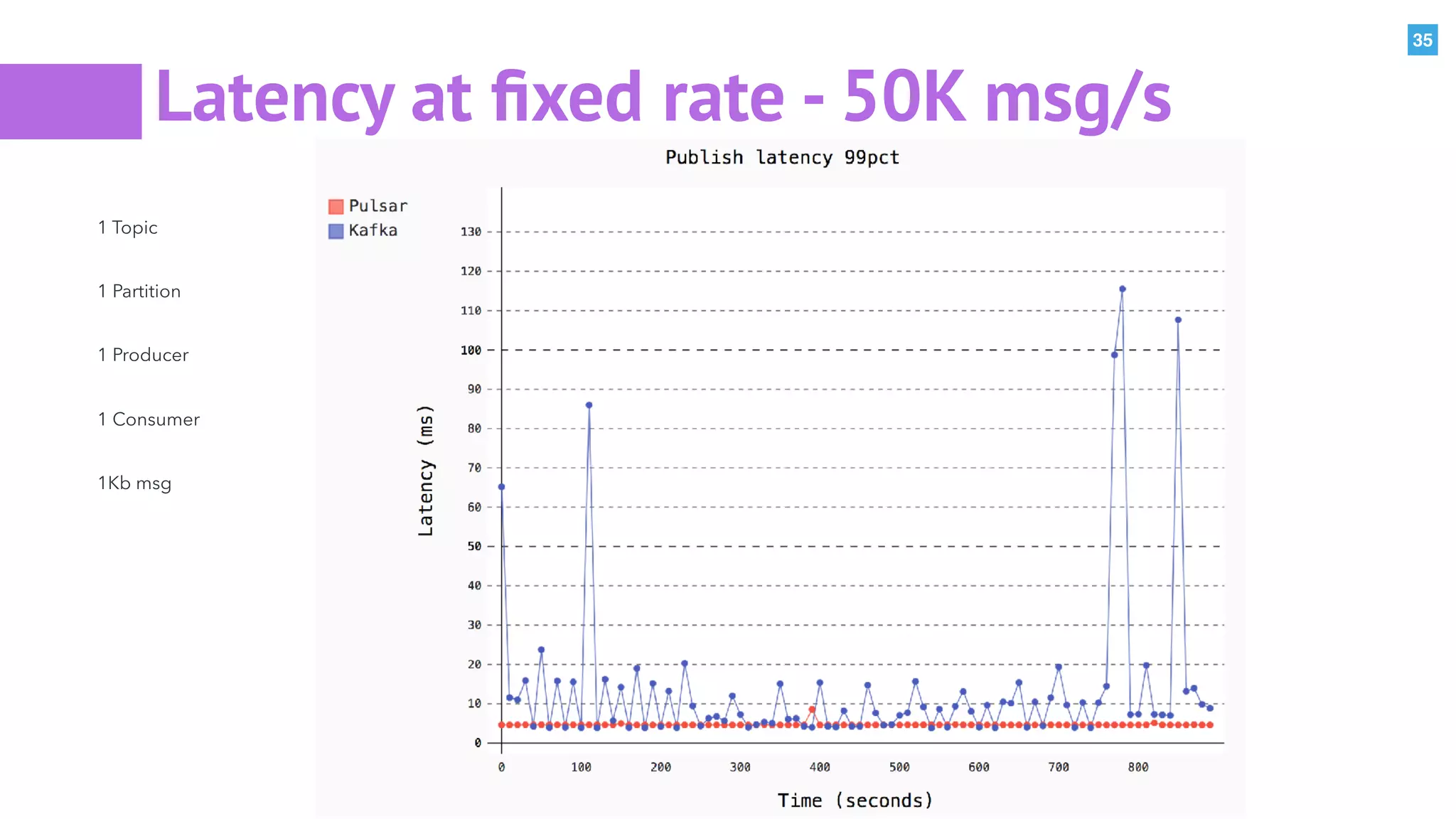

- 35. 35 Latency at fixedrate - 50K msg/s 1 Topic 1 Partition 1 Producer 1 Consumer 1Kb msg

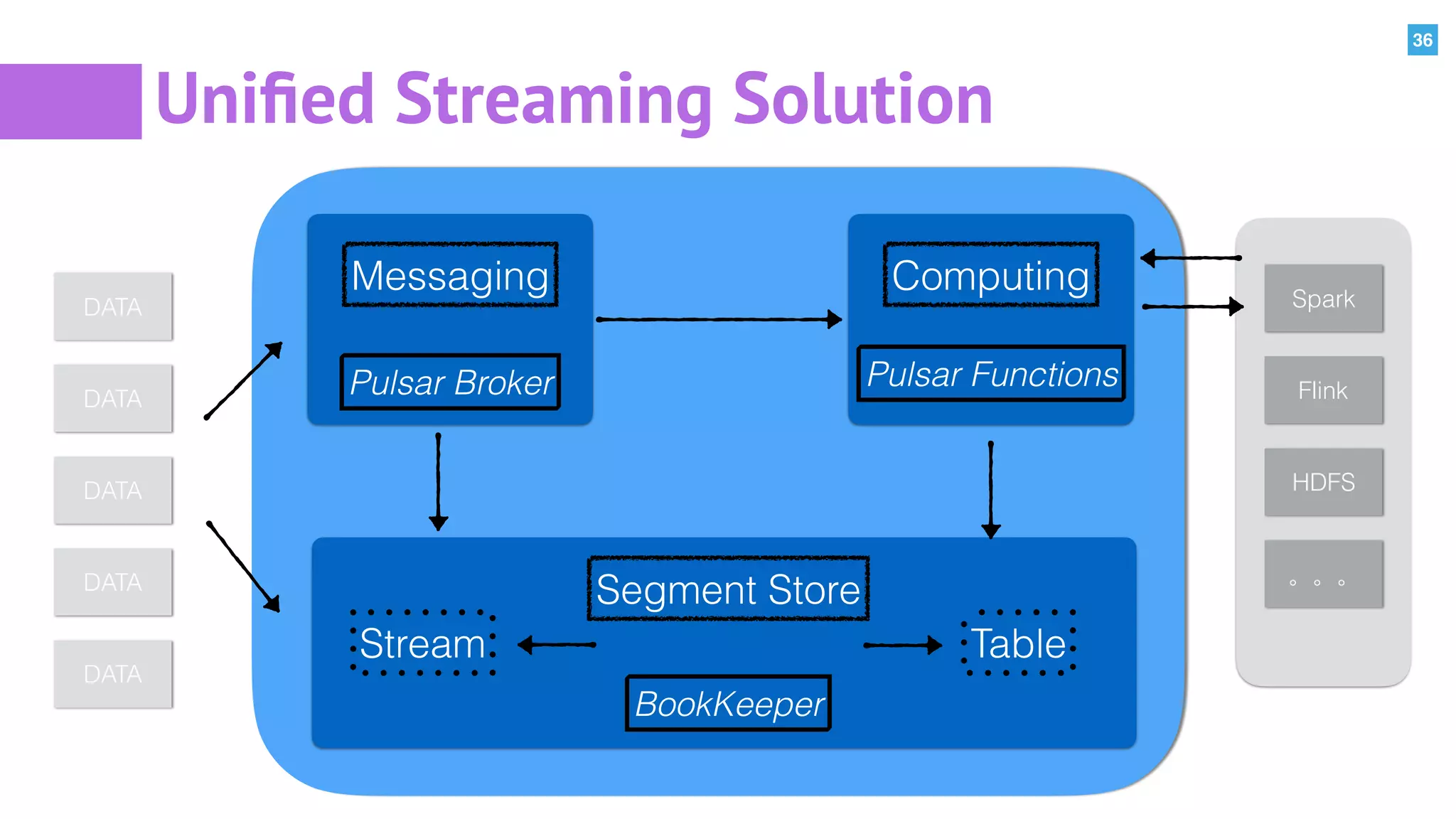

- 36. 36 Unified Streaming Solution SegmentStore Stream Table BookKeeper Messaging Computing Pulsar Broker Pulsar Functions DATA DATA DATA DATA DATA Spark Flink HDFS 。。。
- 37. 37 Curious to LearnMore? • Apache Pulsar : http://pulsar.incubator.apache.org • Apache BookKeeper : http://bookkeeper.apache.org • Technical Blog : https://streaml.io/blog/ • Twitter: @apache_pulsar @asfbookkeeper • slack: • https://apache-pulsar.herokuapp.com/ • https://apachebookkeeper.herokuapp.com/
