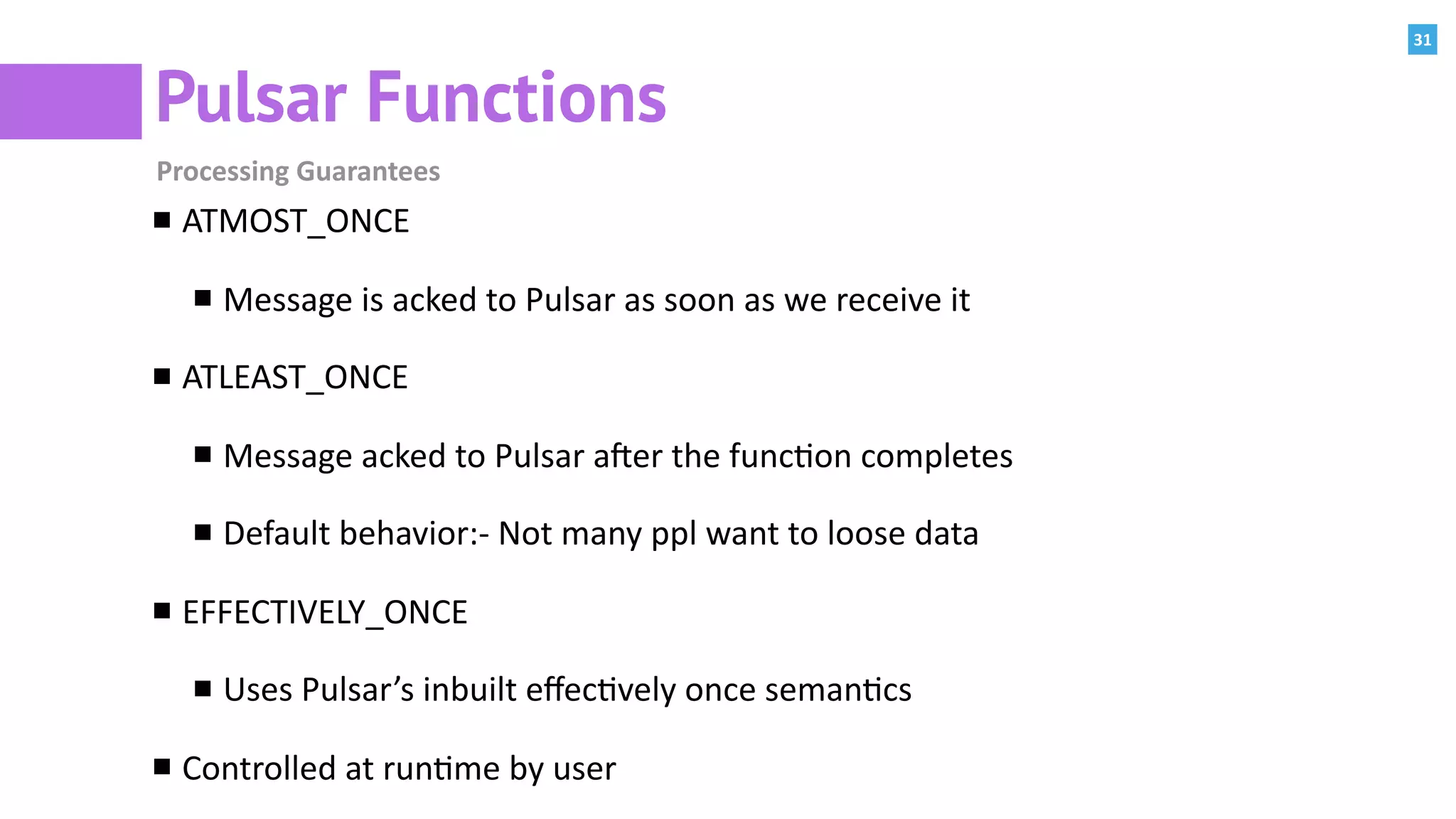

![31
Pulsar Functions
Processing Guarantees
ATMOST_ONCE
Message is acked to Pulsar as soon as we receive it
ATLEAST_ONCE
Message acked to Pulsar a]er the func:on completes
Default behavior:- Not many ppl want to loose data
EFFECTIVELY_ONCE
Uses Pulsar’s inbuilt effec:vely once seman:cs
Controlled at run:me by user](https://crownmelresort.com/image.slidesharecdn.com/serverless-pulsar-functions-180828180725/75/Data-Con-LA-2018-A-Serverless-Approach-to-Data-Processing-using-Apache-Pulsar-by-Karthik-Ramasamy-31-2048.jpg)
Uploaded byData Con LA
Data Con LA 2018 - A Serverless Approach to Data Processing using Apache Pulsar by Karthik Ramasamy
This document discusses Apache Pulsar Functions, a lightweight serverless compute framework built on Apache Pulsar. Pulsar Functions allows users to run stateless and stateful functions against data streams in Pulsar. Functions are simple Java functions that process individual messages. The functions integrate seamlessly with Pulsar for scalable, low-latency processing of streaming data at the edge and in cloud environments.
More Related Content
Similar to Data Con LA 2018 - A Serverless Approach to Data Processing using Apache Pulsar by Karthik Ramasamy
![[AerospikeRoadshow] Apache Pulsar Unifies Streaming and Messaging for Real-Ti...](https://cdn.slidesharecdn.com/ss_thumbnails/aerospikeroadshowapachepulsarunifiesstreamingandmessagingforreal-timedata2-221103174214-18ce3fa2-thumbnail.jpg?width=640&height=640&fit=bounds)
![Support, Monitoring, Continuous Improvement & Scaling Agentic Automation [3/3]](https://cdn.slidesharecdn.com/ss_thumbnails/agenticcommunityseries-day3-cfd-251120170304-ddef8112-thumbnail.jpg?width=640&height=640&fit=bounds)
Data Con LA 2018 - A Serverless Approach to Data Processing using Apache Pulsar by Karthik Ramasamy
- 1. 1 A Serverless Approachto Data Processing using Apache Pulsar Karthik Ramasamy Cofounder and Chief Product Officer karthik@streaml.io
- 2.

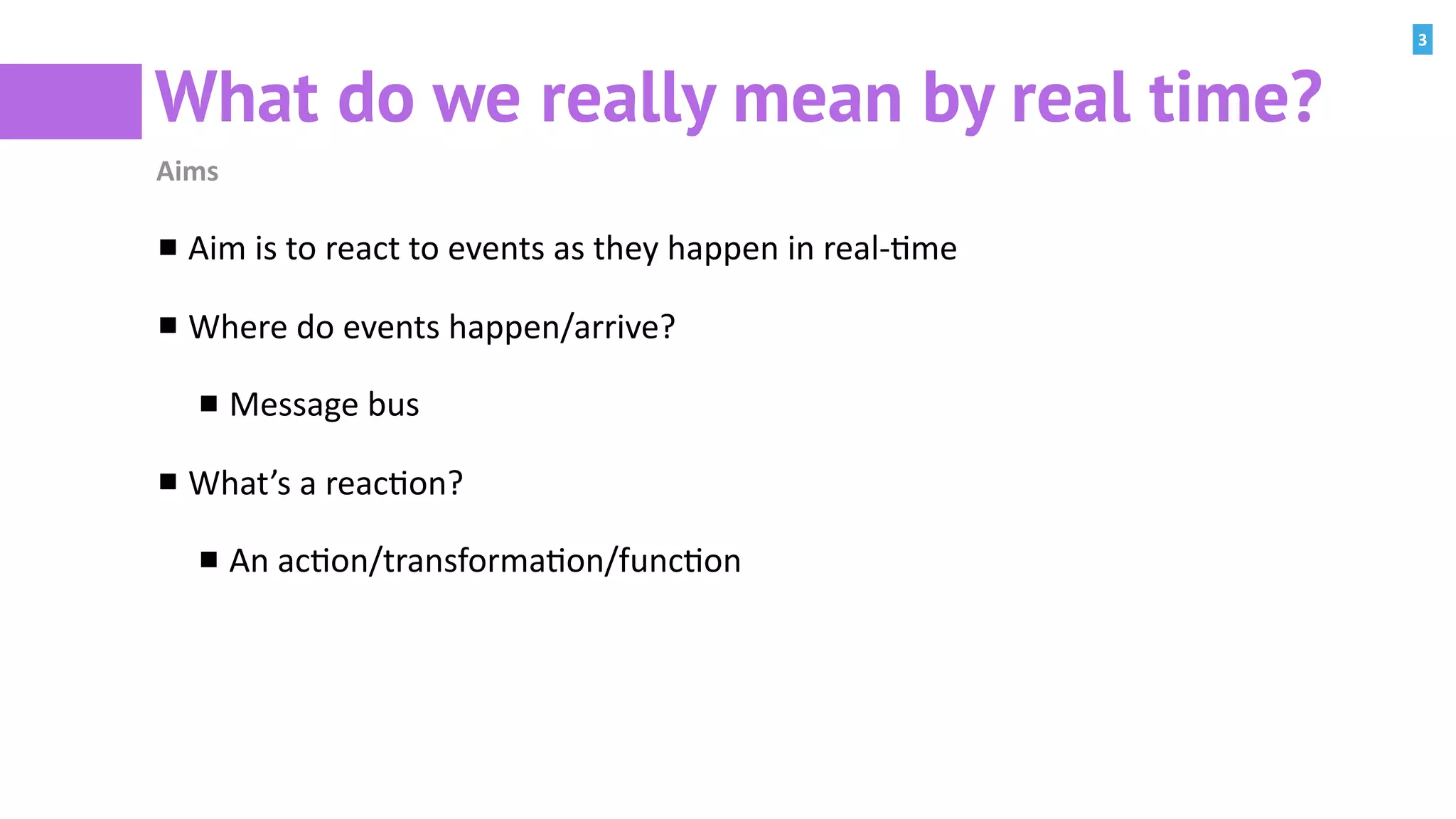

- 3. 3 What do wereally mean by real time? Aims Aim is to react to events as they happen in real-:me Where do events happen/arrive? Message bus What’s a reac:on? An ac:on/transforma:on/func:on
- 4.

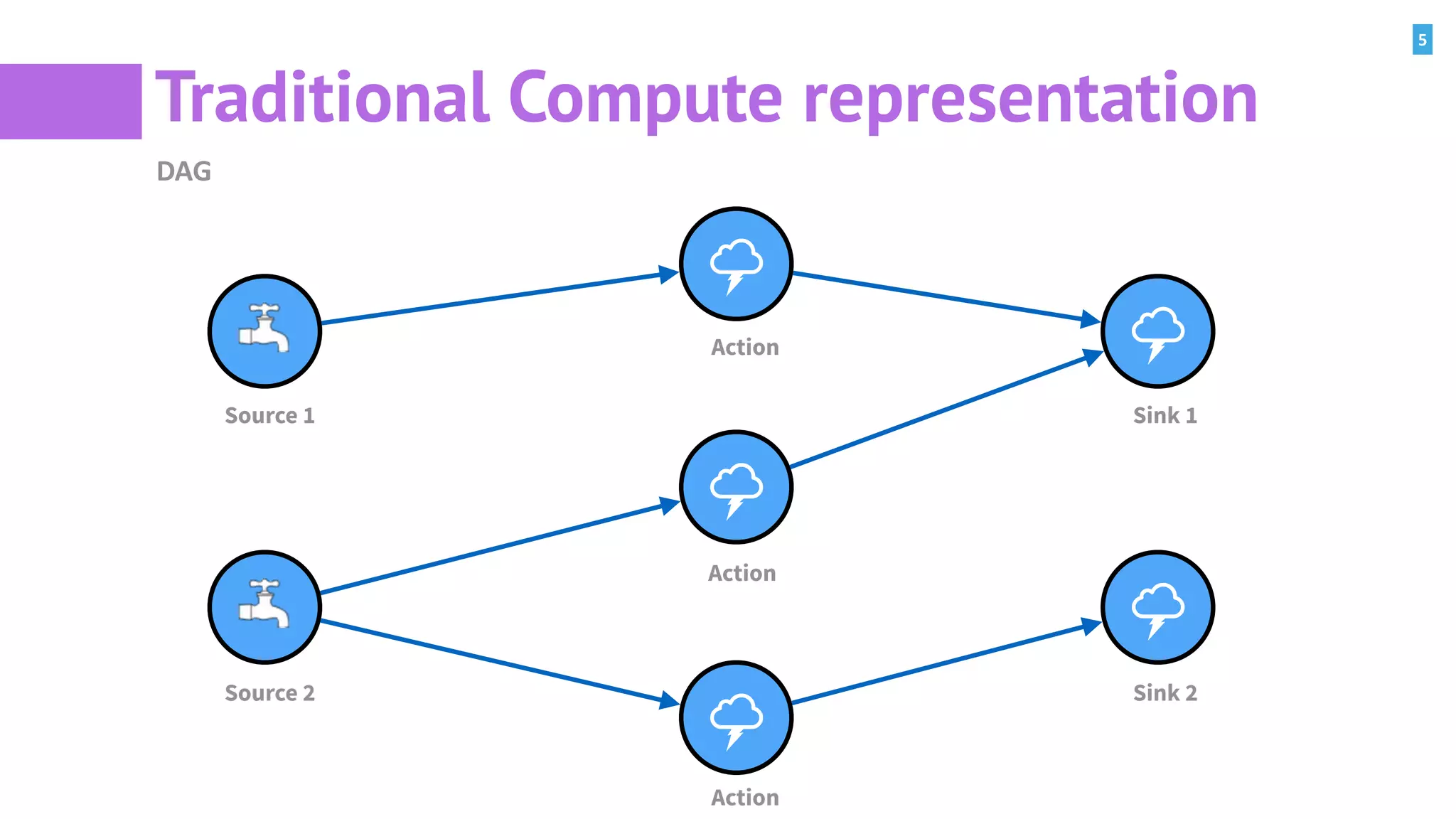

- 5. 5 Traditional Compute representation DAG % % % % % Source1 Source 2 Action Action Action Sink 1 Sink 2

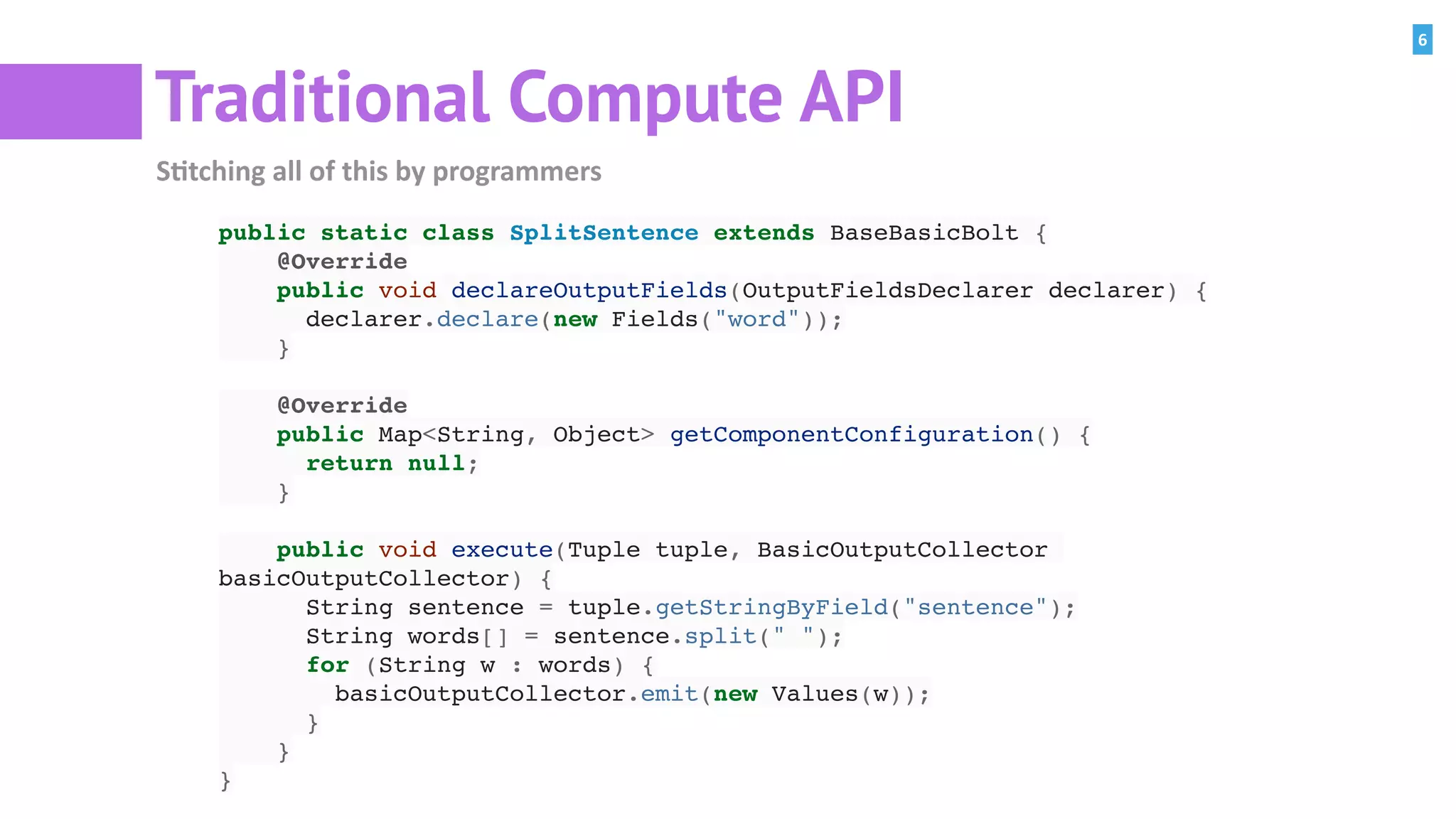

- 6. 6 Traditional Compute API S=tching all of this by programmers publicstatic class SplitSentence extends BaseBasicBolt { @Override public void declareOutputFields(OutputFieldsDeclarer declarer) { declarer.declare(new Fields("word")); } @Override public Map<String, Object> getComponentConfiguration() { return null; } public void execute(Tuple tuple, BasicOutputCollector basicOutputCollector) { String sentence = tuple.getStringByField("sentence"); String words[] = sentence.split(" "); for (String w : words) { basicOutputCollector.emit(new Values(w)); } } }

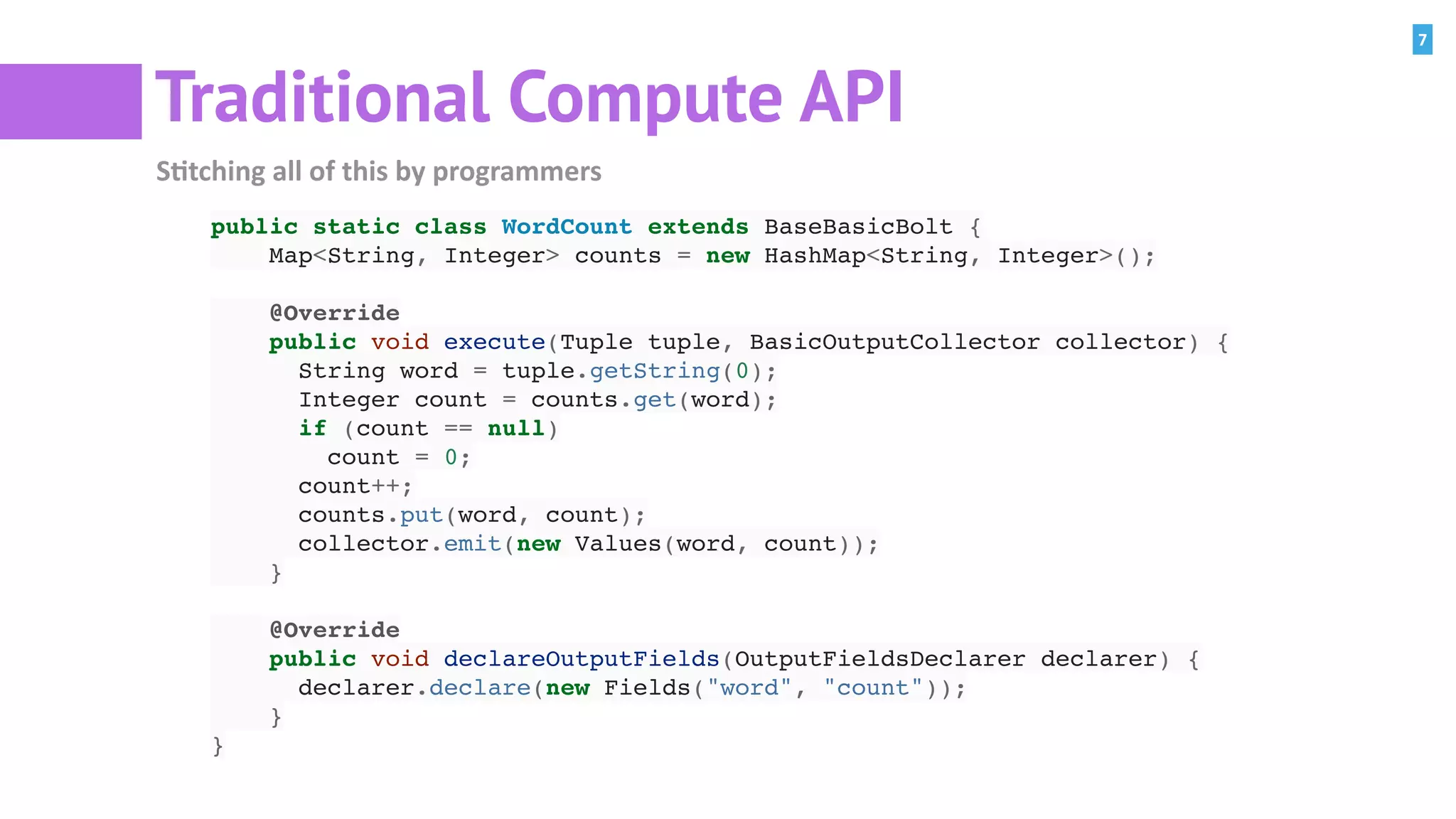

- 7. 7 Traditional Compute API S=tching all of this by programmers publicstatic class WordCount extends BaseBasicBolt { Map<String, Integer> counts = new HashMap<String, Integer>(); @Override public void execute(Tuple tuple, BasicOutputCollector collector) { String word = tuple.getString(0); Integer count = counts.get(word); if (count == null) count = 0; count++; counts.put(word, count); collector.emit(new Values(word, count)); } @Override public void declareOutputFields(OutputFieldsDeclarer declarer) { declarer.declare(new Fields("word", "count")); } }

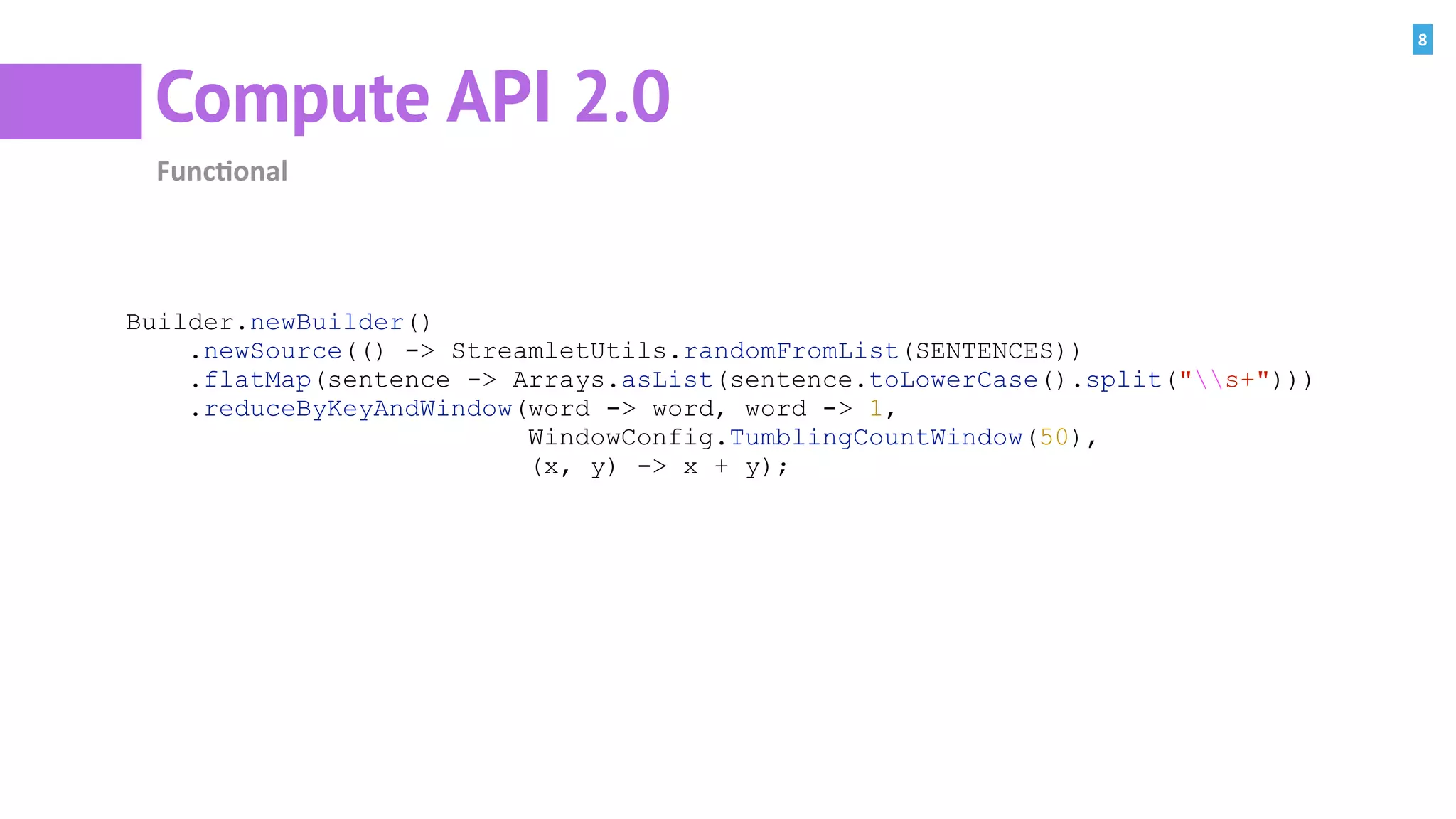

- 8. 8 Compute API 2.0 Func=onal Builder.newBuilder() .newSource(()-> StreamletUtils.randomFromList(SENTENCES)) .flatMap(sentence -> Arrays.asList(sentence.toLowerCase().split("s+"))) .reduceByKeyAndWindow(word -> word, word -> 1, WindowConfig.TumblingCountWindow(50), (x, y) -> x + y);
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.
- 15.

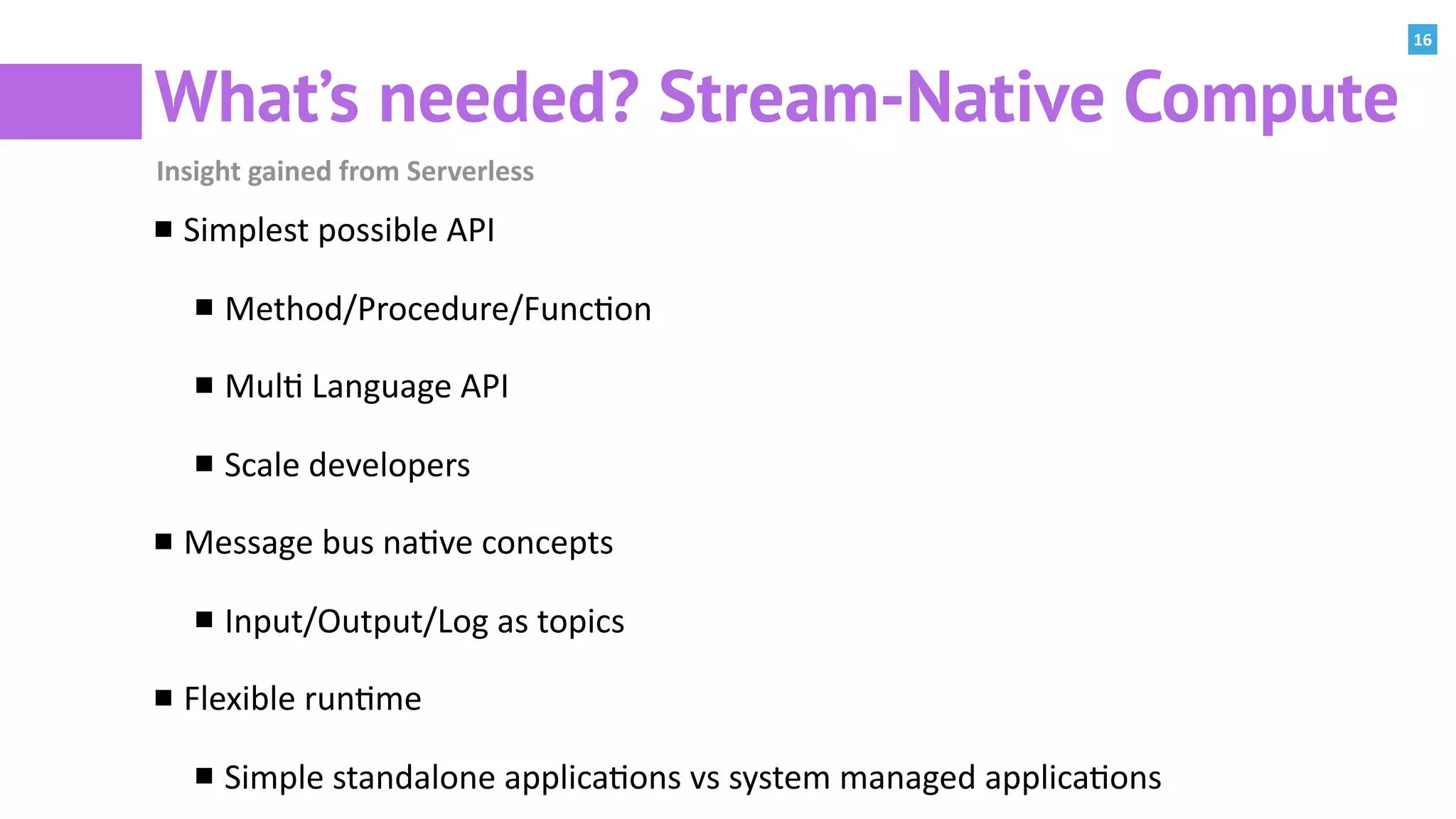

- 16. 16 What’s needed? Stream-NativeCompute Insight gained from Serverless Simplest possible API Method/Procedure/Func:on Mul: Language API Scale developers Message bus na:ve concepts Input/Output/Log as topics Flexible run:me Simple standalone applica:ons vs system managed applica:ons

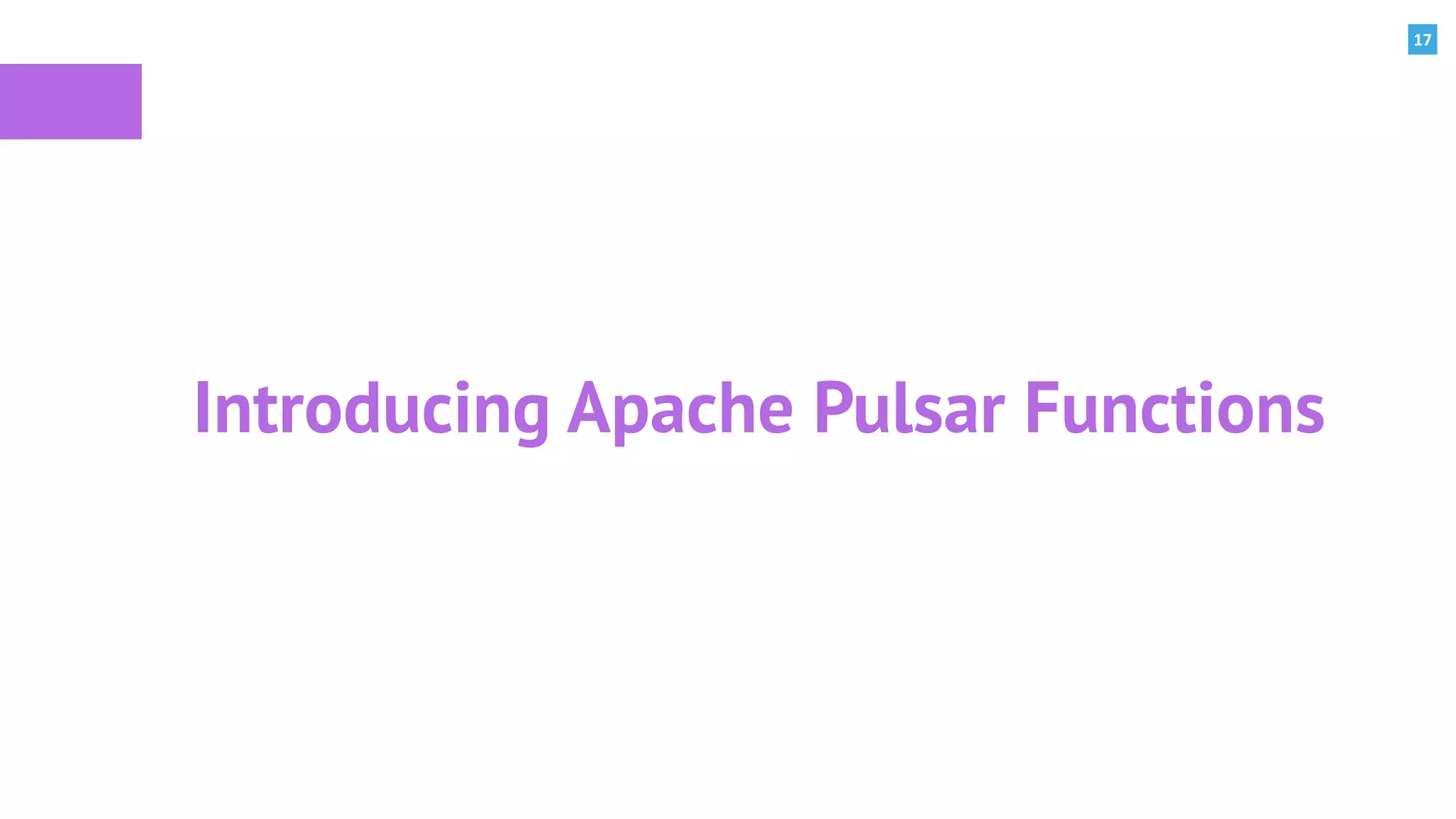

- 17. 17 Introducing Apache PulsarFunctions
- 18.

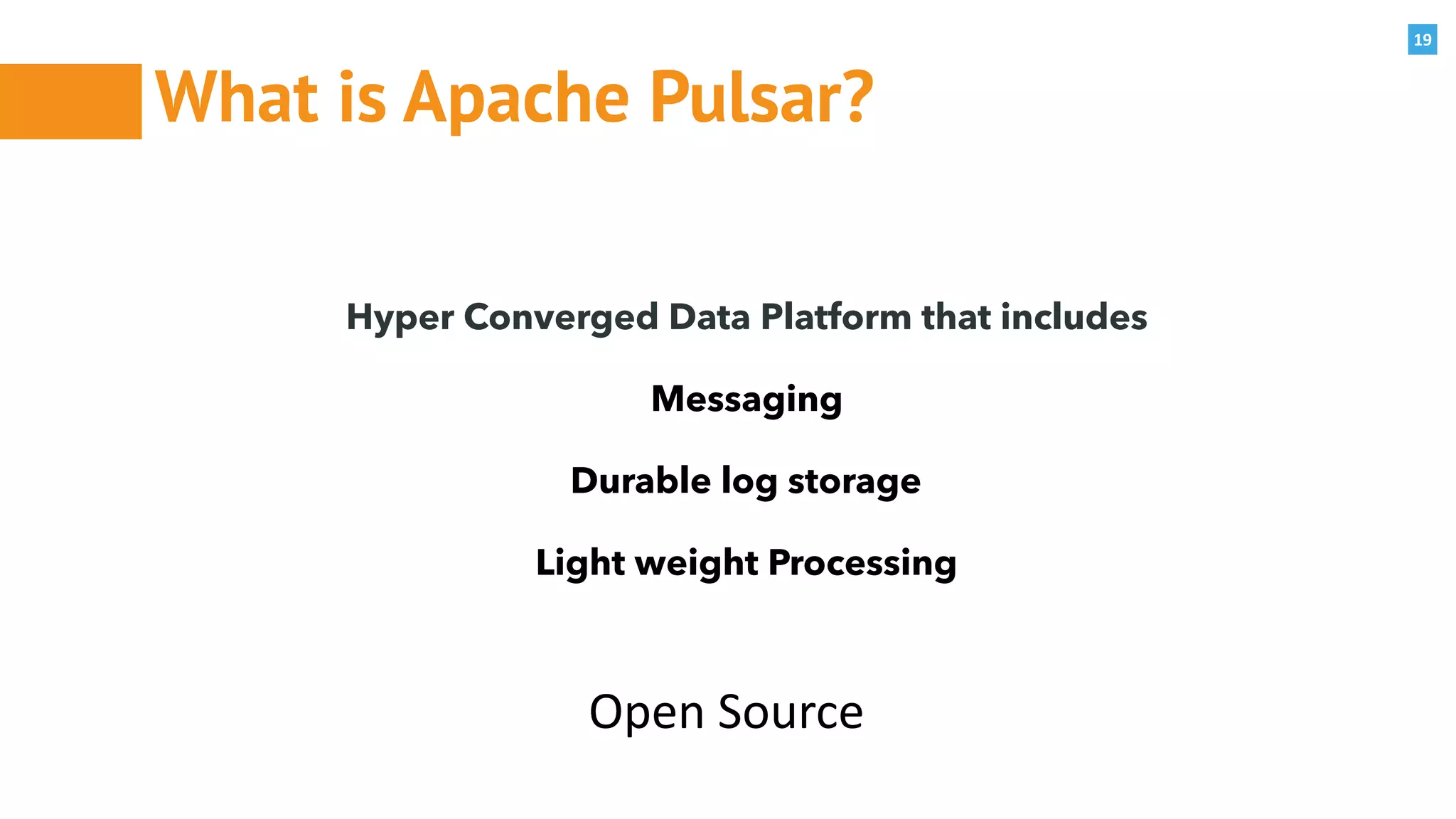

- 19. 19 What is ApachePulsar? Hyper Converged Data Platform that includes Messaging Durable log storage Light weight Processing Open Source

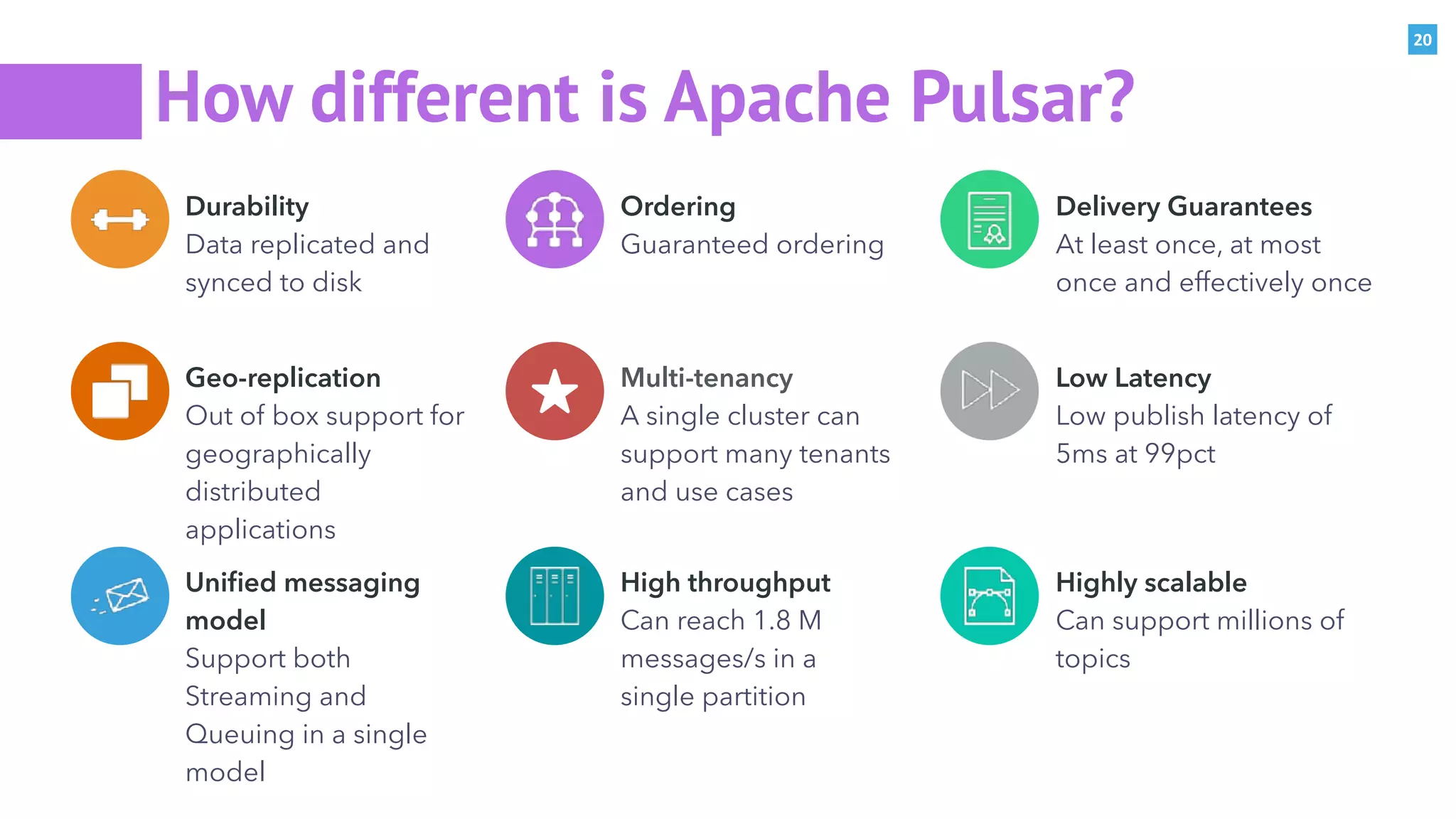

- 20. 20 Ordering Guaranteed ordering Multi-tenancy A singlecluster can support many tenants and use cases High throughput Can reach 1.8 M messages/s in a single partition Durability Data replicated and synced to disk Geo-replication Out of box support for geographically distributed applications Unified messaging model Support both Streaming and Queuing in a single model Delivery Guarantees At least once, at most once and effectively once Low Latency Low publish latency of 5ms at 99pct Highly scalable Can support millions of topics How different is Apache Pulsar?

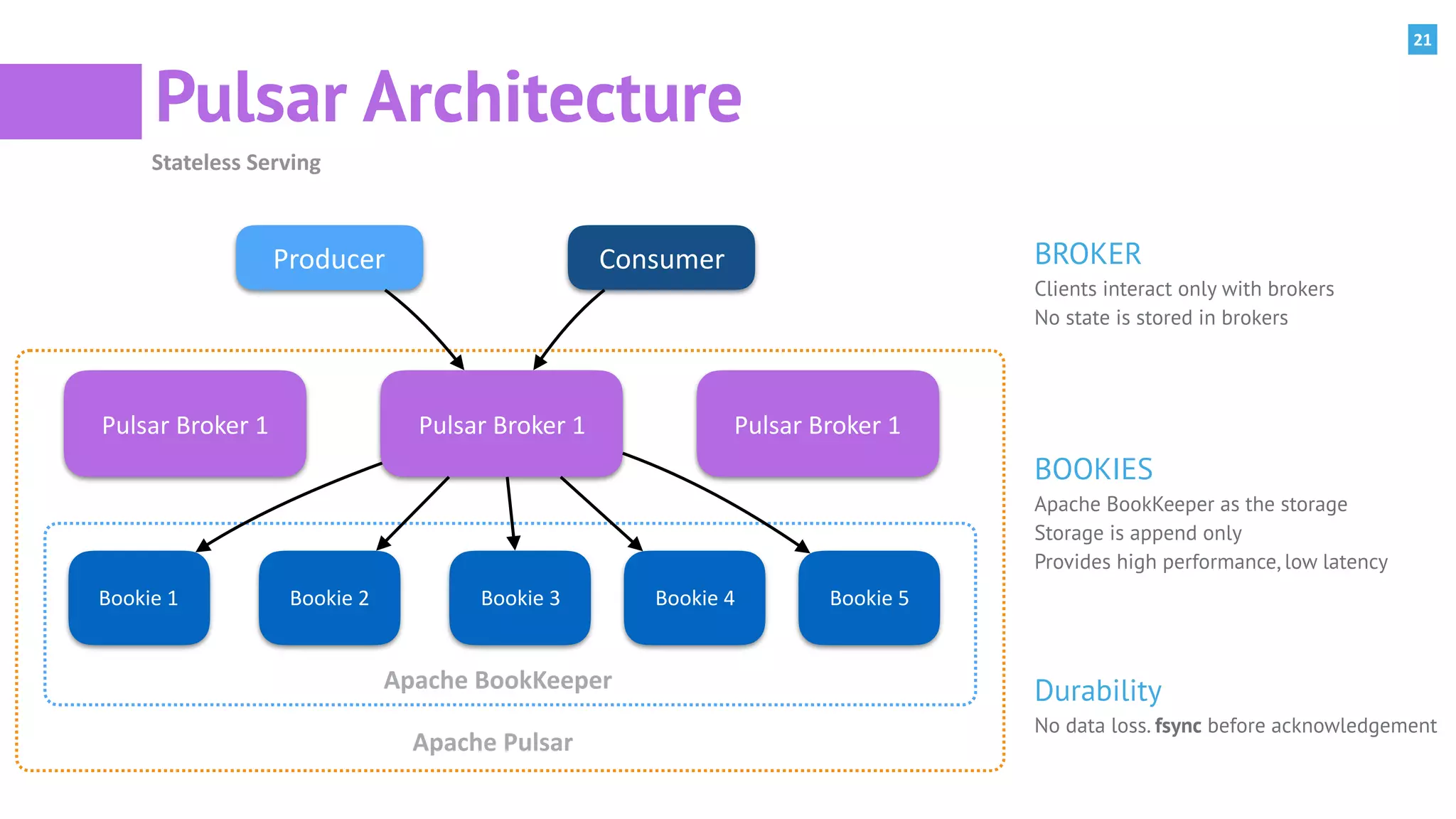

- 21. 21 Pulsar Architecture Pulsar Broker 1 Pulsar Broker 1Pulsar Broker 1 Bookie 1 Bookie 2 Bookie 3 Bookie 4 Bookie 5 Apache BookKeeper Apache Pulsar Producer Consumer Stateless Serving BROKER Clients interact only with brokers No state is stored in brokers BOOKIES Apache BookKeeper as the storage Storage is append only Provides high performance, low latency Durability No data loss. fsync before acknowledgement

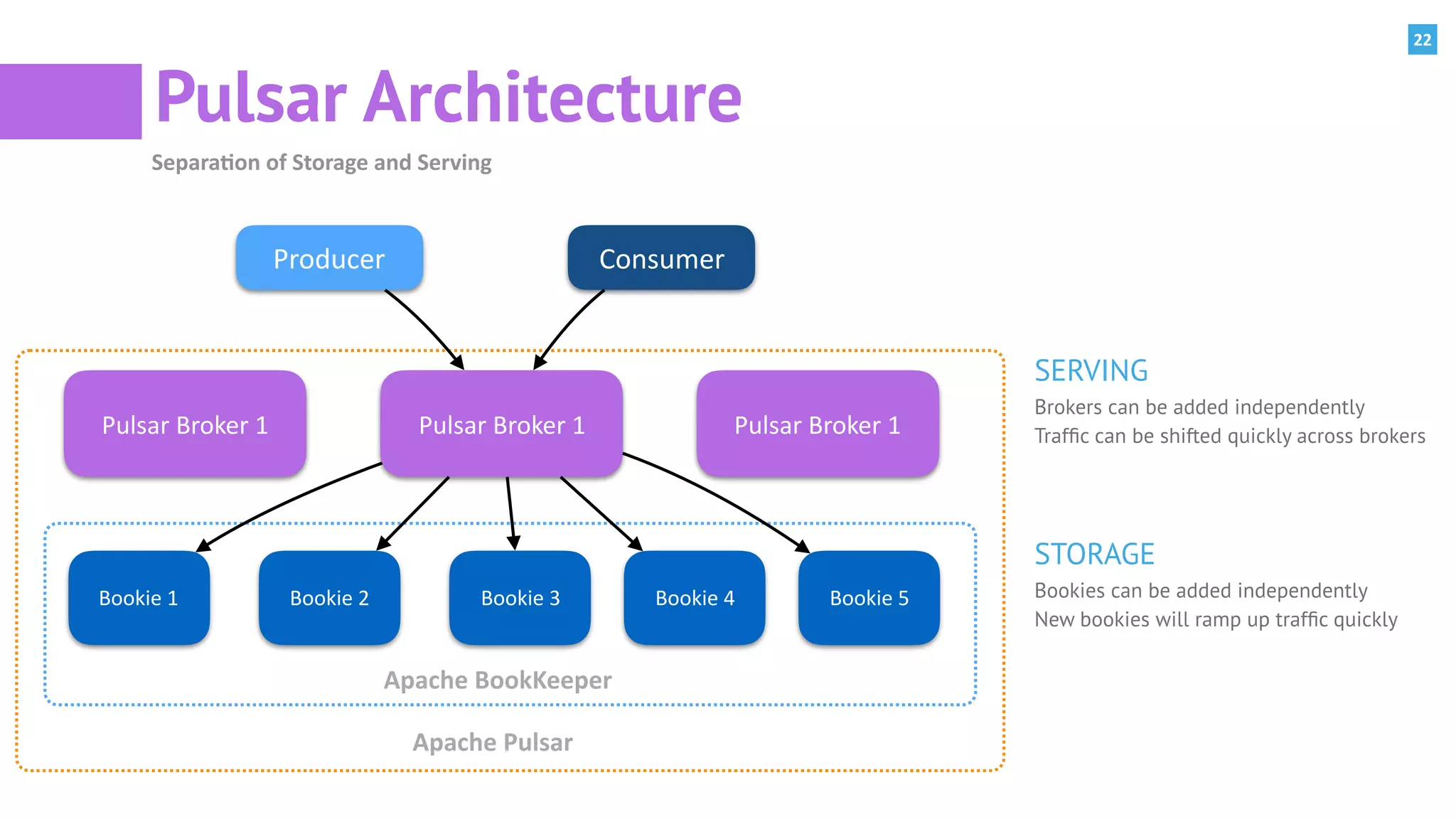

- 22. 22 Pulsar Architecture Pulsar Broker 1 Pulsar Broker 1Pulsar Broker 1 Bookie 1 Bookie 2 Bookie 3 Bookie 4 Bookie 5 Apache BookKeeper Apache Pulsar Producer Consumer Separa=on of Storage and Serving SERVING Brokers can be added independently Traffic can be shifted quickly across brokers STORAGE Bookies can be added independently New bookies will ramp up traffic quickly
- 23.
- 24.
- 25.

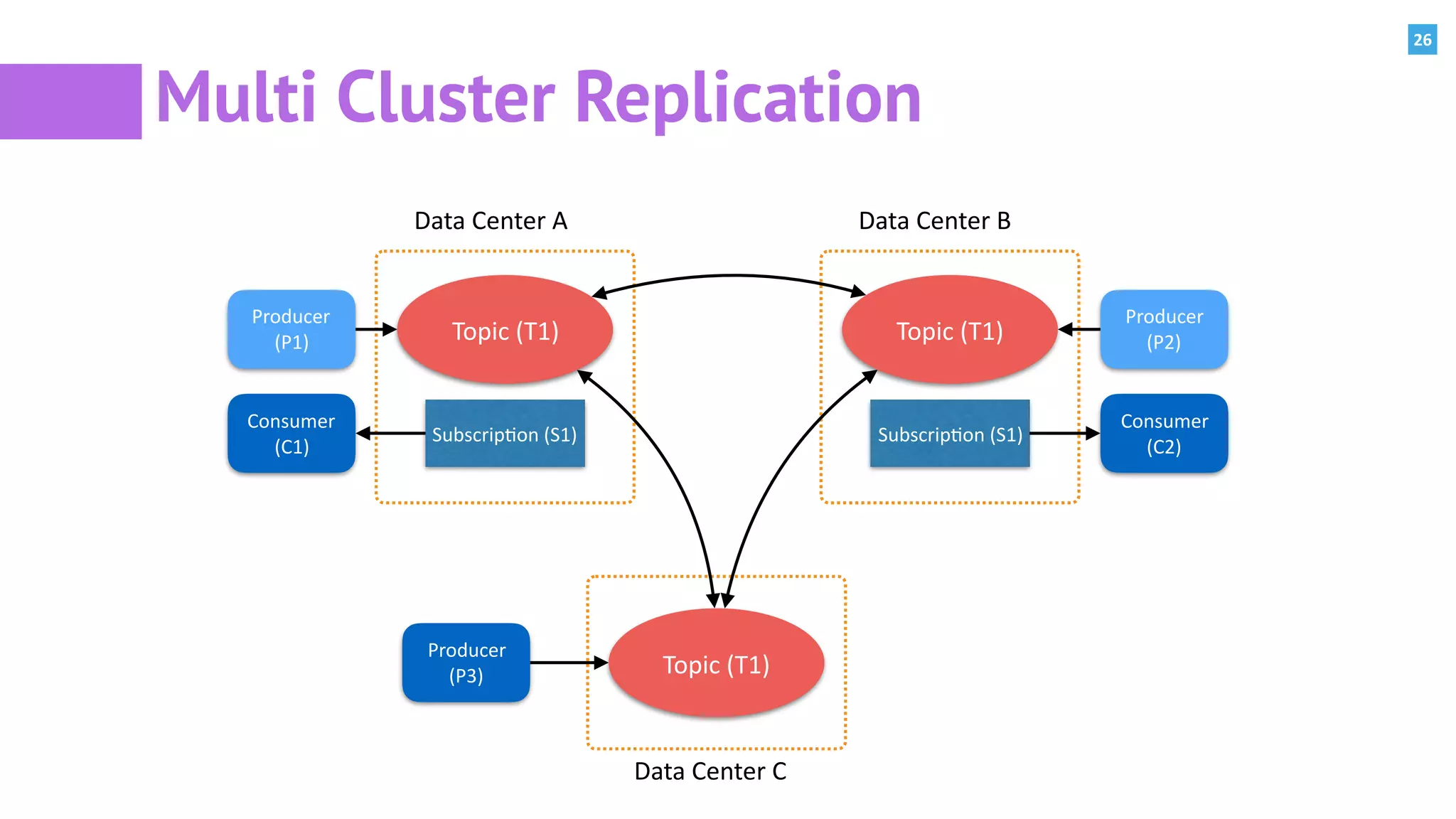

- 26. 26 Topic (T1) Topic (T1) Topic (T1) Subscrip:on (S1) Subscrip:on (S1) Producer (P1) Consumer (C1) Producer (P3) Producer (P2) Consumer (C2) Data Center AData Center B Data Center C Multi Cluster Replication

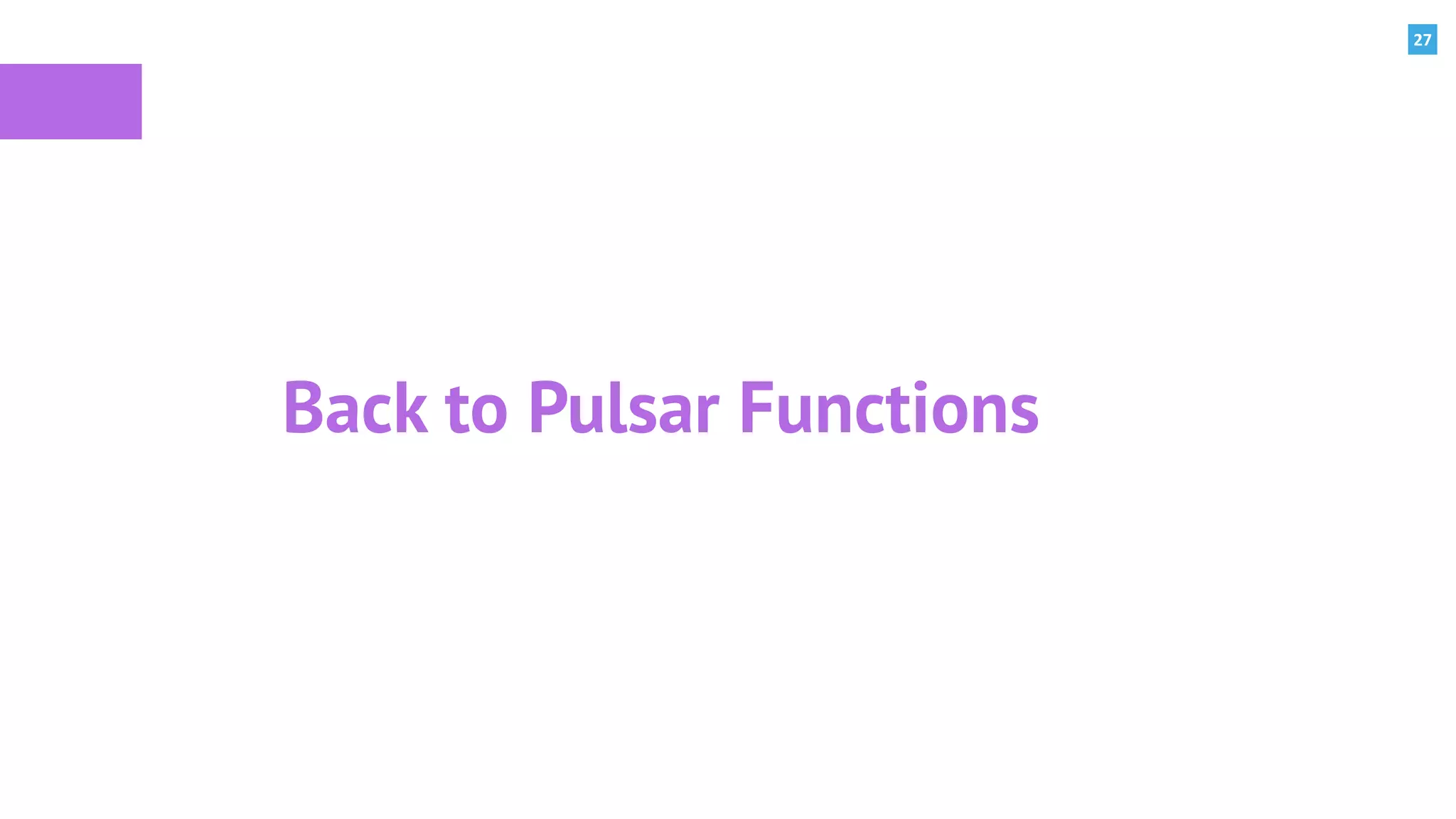

- 27. 27 Back to PulsarFunctions

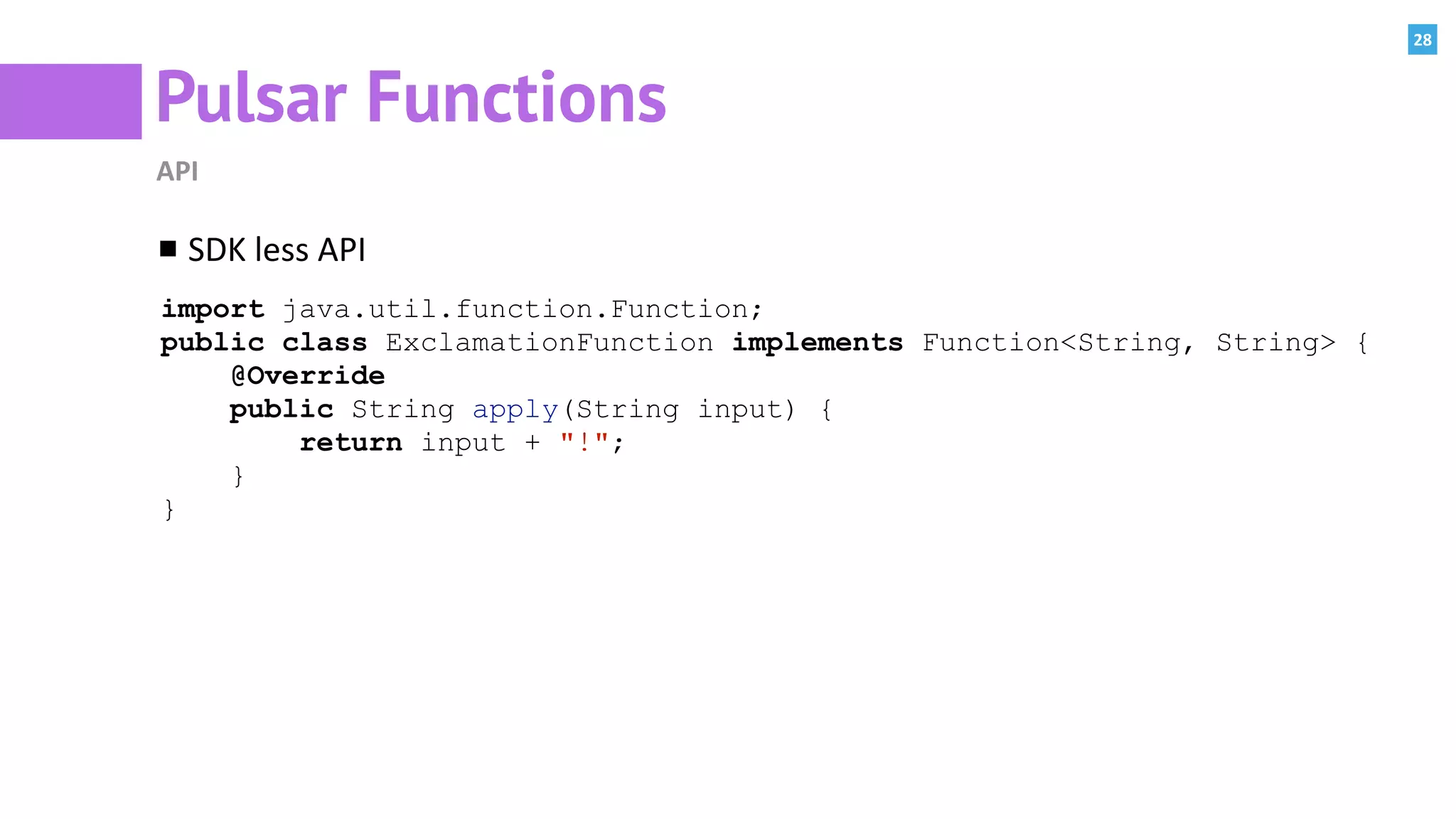

- 28. 28 Pulsar Functions API SDK less API import java.util.function.Function; publicclass ExclamationFunction implements Function<String, String> { @Override public String apply(String input) { return input + "!"; } }

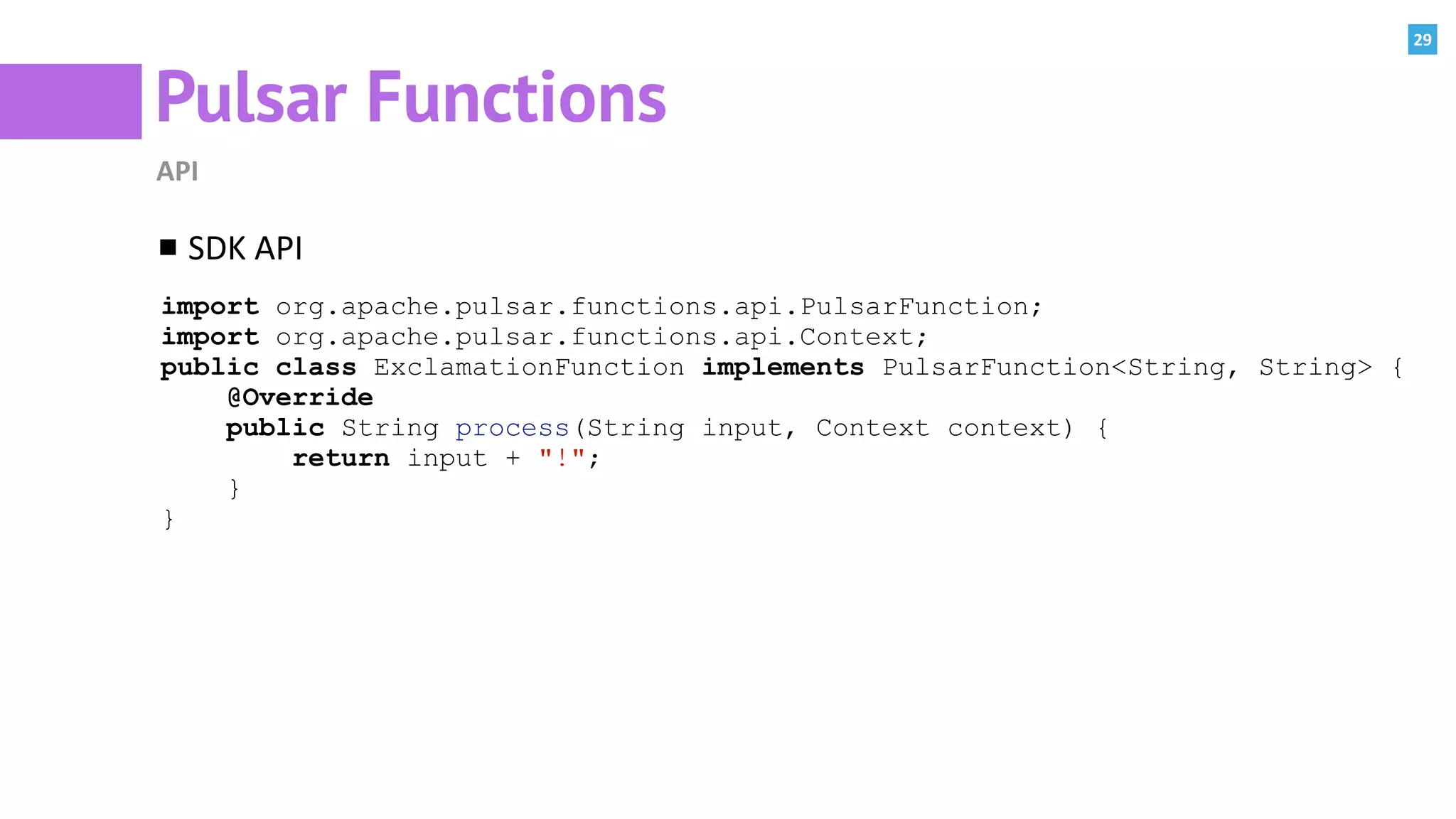

- 29. 29 Pulsar Functions API SDK API import org.apache.pulsar.functions.api.PulsarFunction; importorg.apache.pulsar.functions.api.Context; public class ExclamationFunction implements PulsarFunction<String, String> { @Override public String process(String input, Context context) { return input + "!"; } }
- 30.
- 31.
- 32.

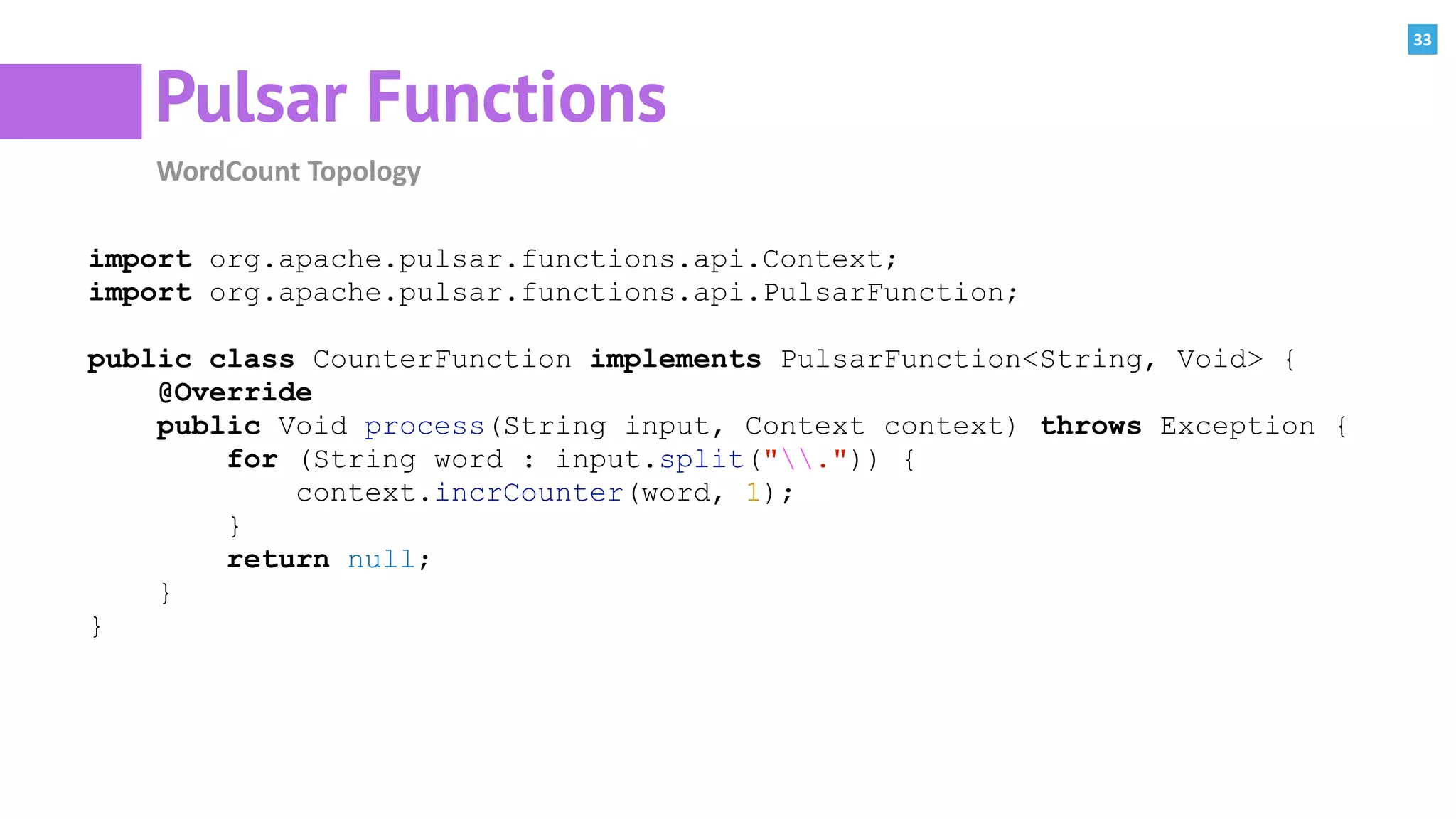

- 33. 33 Pulsar Functions WordCount Topology import org.apache.pulsar.functions.api.Context; importorg.apache.pulsar.functions.api.PulsarFunction; public class CounterFunction implements PulsarFunction<String, Void> { @Override public Void process(String input, Context context) throws Exception { for (String word : input.split(".")) { context.incrCounter(word, 1); } return null; } }
- 34.

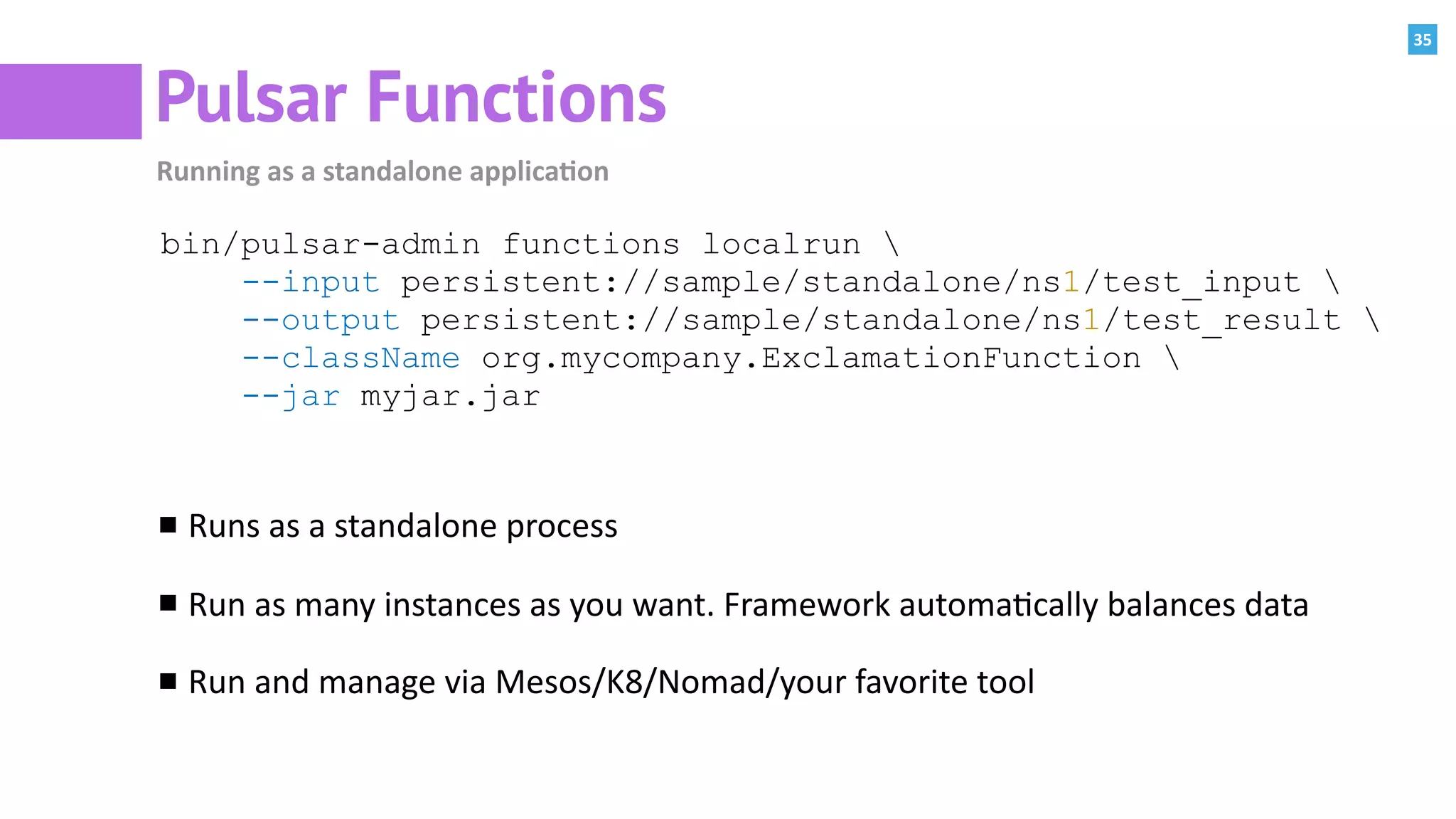

- 35. 35 Pulsar Functions Running as a standalone applica=on bin/pulsar-admin functionslocalrun --input persistent://sample/standalone/ns1/test_input --output persistent://sample/standalone/ns1/test_result --className org.mycompany.ExclamationFunction --jar myjar.jar Runs as a standalone process Run as many instances as you want. Framework automa:cally balances data Run and manage via Mesos/K8/Nomad/your favorite tool
- 36.
- 37.

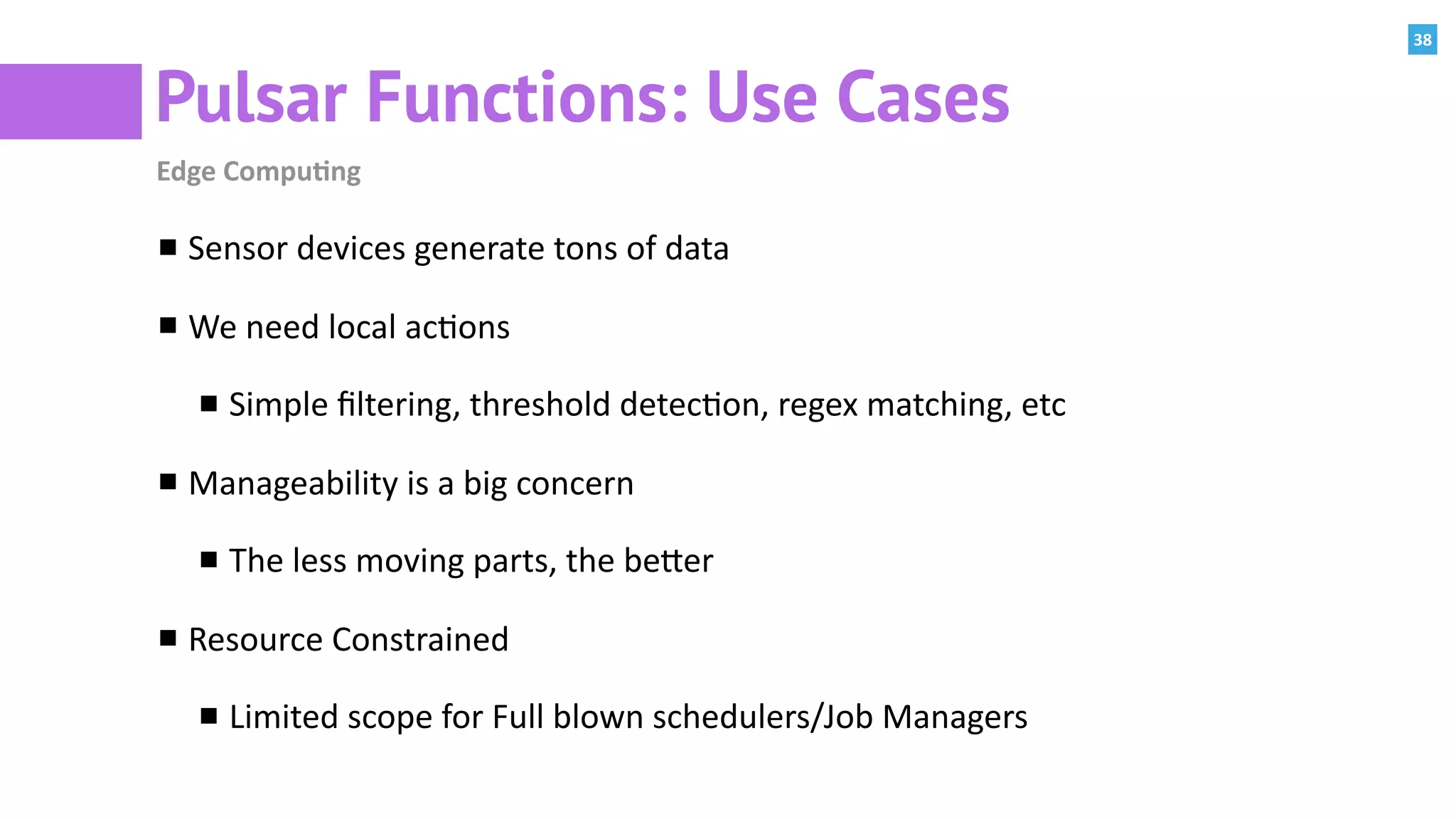

- 38. 38 Pulsar Functions: UseCases Edge Compu=ng Sensor devices generate tons of data We need local ac:ons Simple filtering, threshold detec:on, regex matching, etc Manageability is a big concern The less moving parts, the bePer Resource Constrained Limited scope for Full blown schedulers/Job Managers

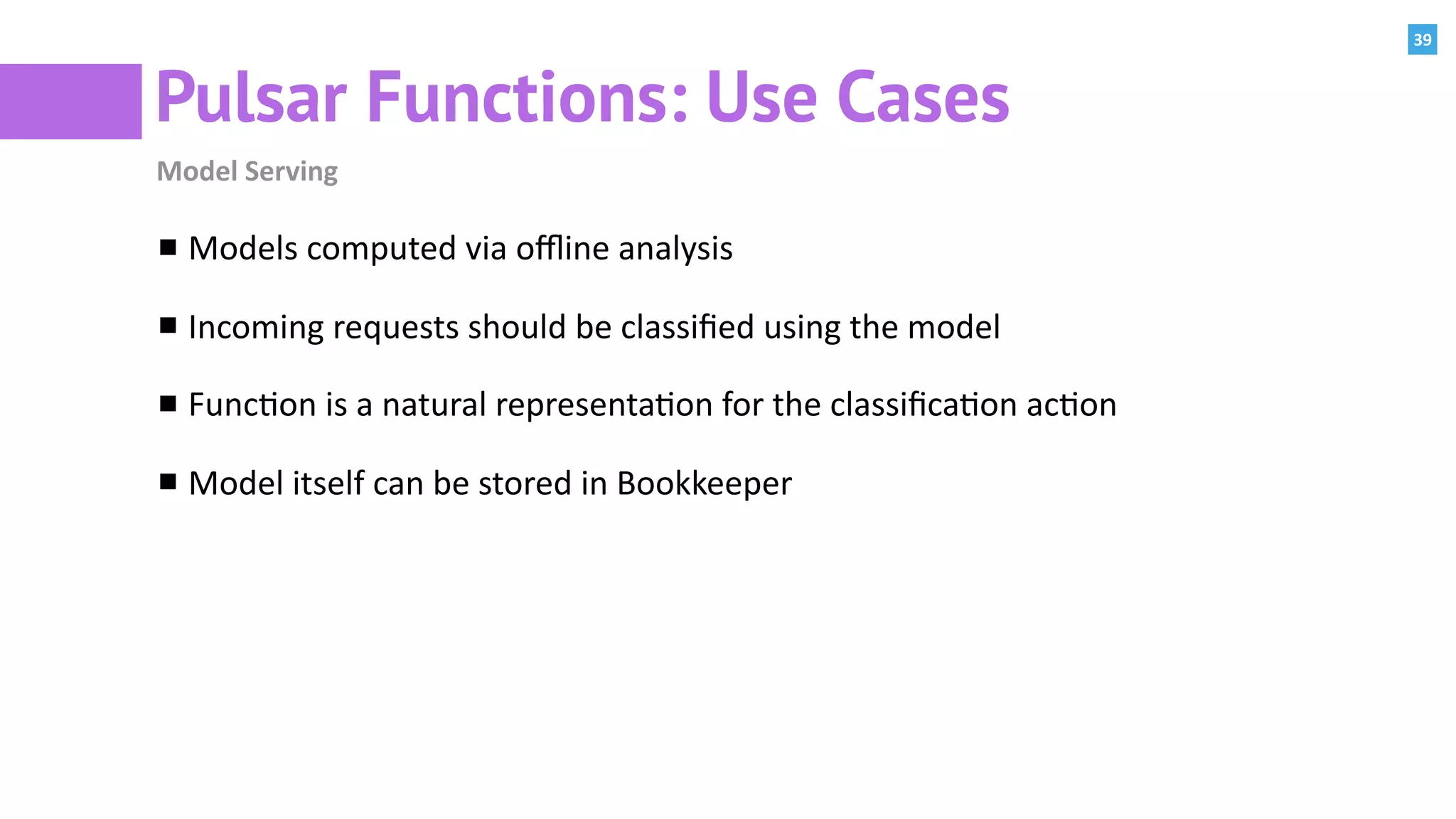

- 39. 39 Pulsar Functions: UseCases Model Serving Models computed via offline analysis Incoming requests should be classified using the model Func:on is a natural representa:on for the classifica:on ac:on Model itself can be stored in Bookkeeper
- 40.

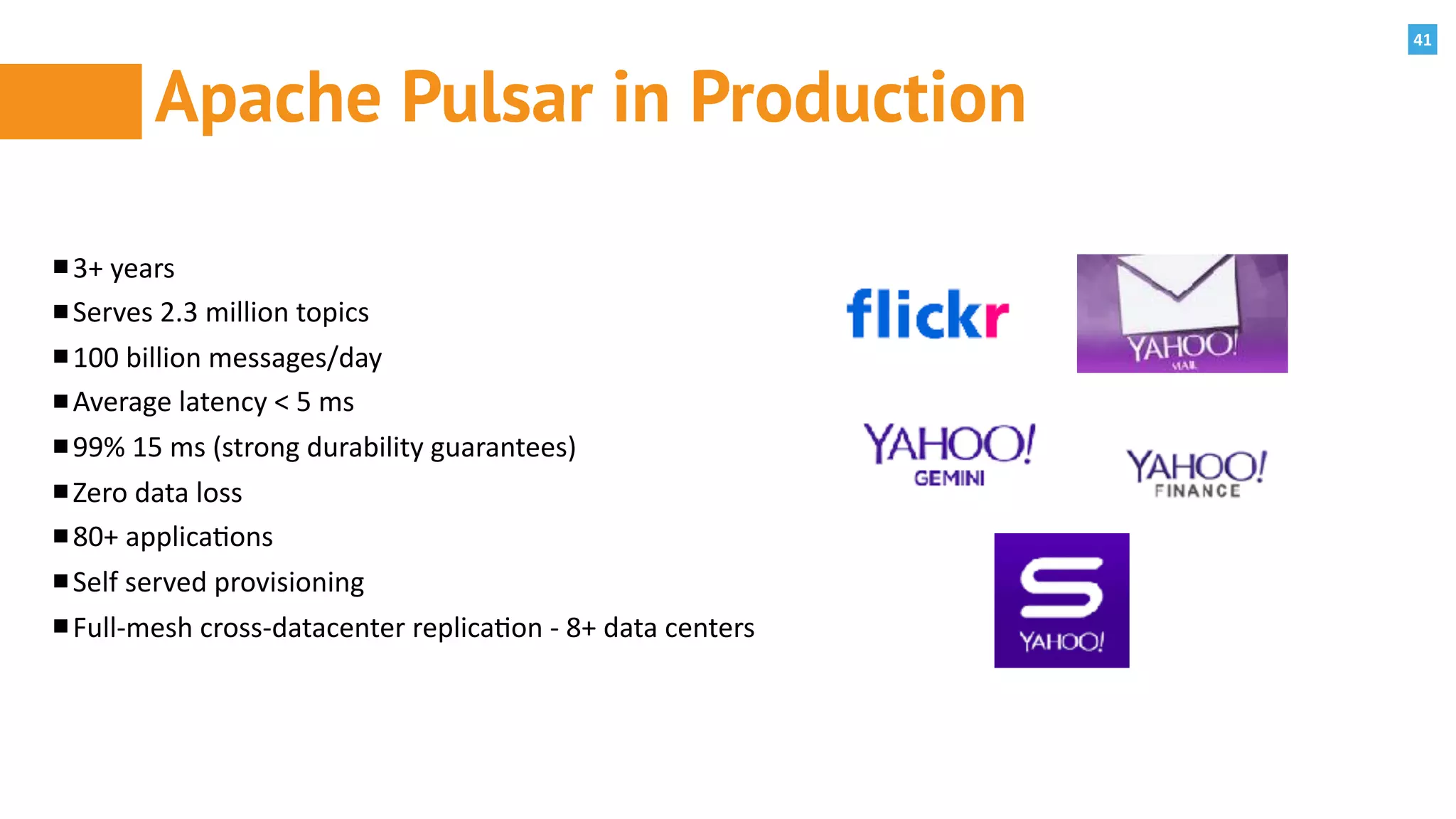

- 41. 41 Apache Pulsar inProduction 3+ years Serves 2.3 million topics 100 billion messages/day Average latency < 5 ms 99% 15 ms (strong durability guarantees) Zero data loss 80+ applica:ons Self served provisioning Full-mesh cross-datacenter replica:on - 8+ data centers
- 42. 42 Companies Using ApachePulsar and BookKeeper
- 43.
- 44. 44 Questions and ThankYou! karthik@streaml.io

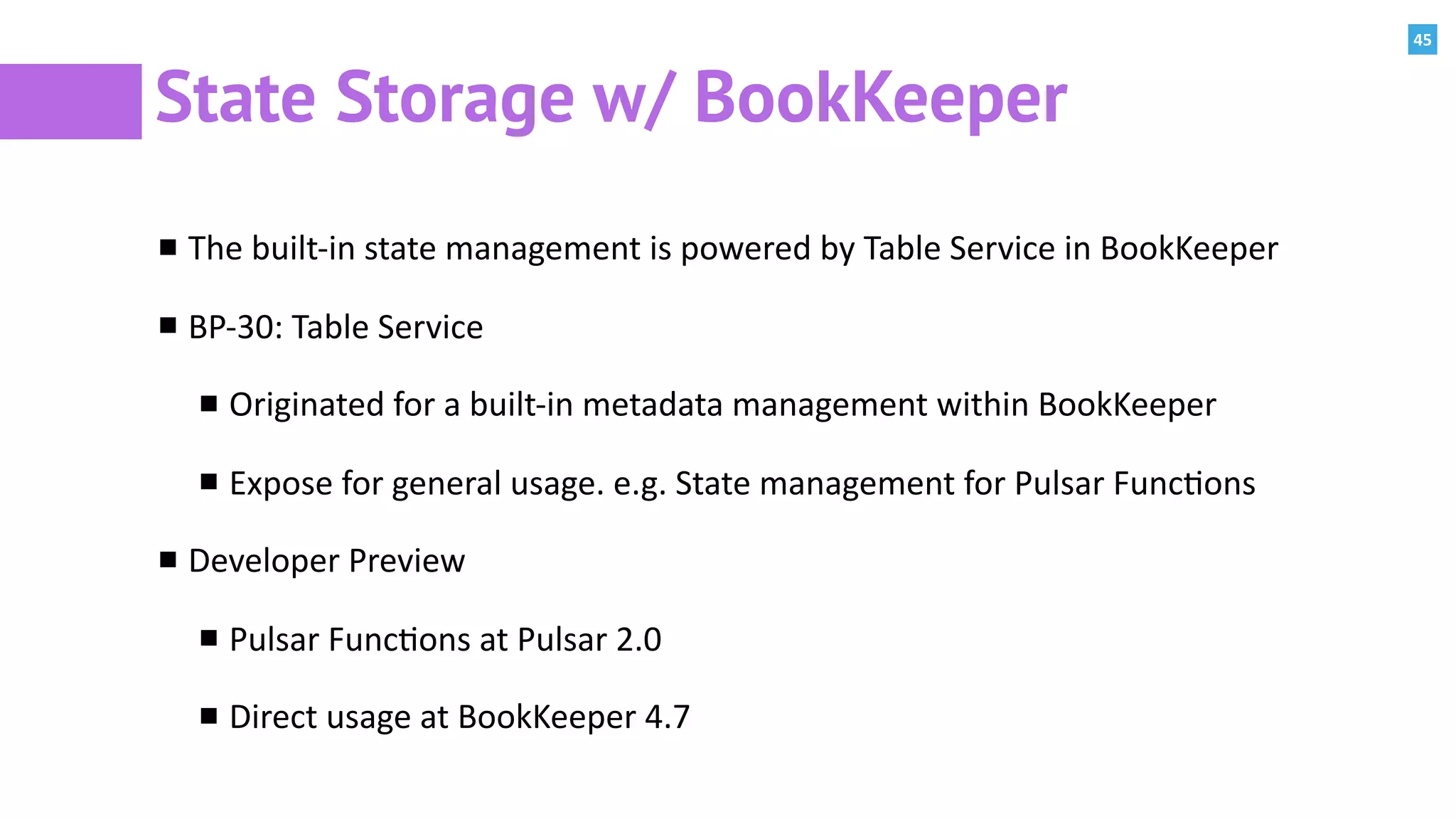

- 45. 45 State Storage w/BookKeeper The built-in state management is powered by Table Service in BookKeeper BP-30: Table Service Originated for a built-in metadata management within BookKeeper Expose for general usage. e.g. State management for Pulsar Func:ons Developer Preview Pulsar Func:ons at Pulsar 2.0 Direct usage at BookKeeper 4.7

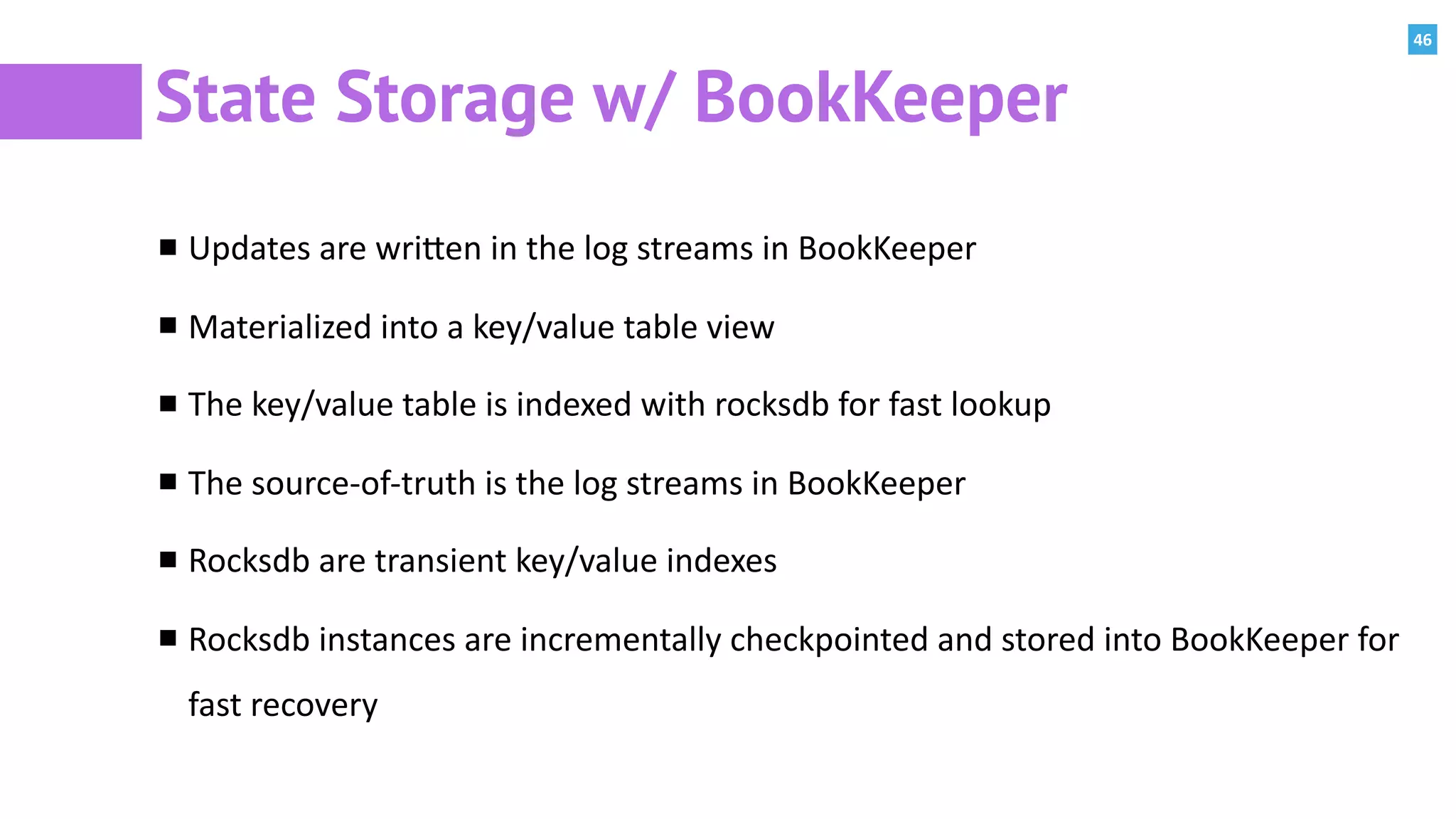

- 46. 46 State Storage w/BookKeeper Updates are wriPen in the log streams in BookKeeper Materialized into a key/value table view The key/value table is indexed with rocksdb for fast lookup The source-of-truth is the log streams in BookKeeper Rocksdb are transient key/value indexes Rocksdb instances are incrementally checkpointed and stored into BookKeeper for fast recovery
