Using Cloud in an Enterprise Environment
- 1. webdev@rgu Using cloud inan enterprise environment
- 2. Different cloud deploymentmodels and their characteristics • Public Cloud • Private Cloud • Hybrid Cloud The Data Protection Act and how it relates to Cloud Computing case study example of using a hybrid cloud model in an enterprise environment Today we are covering…
- 3.
- 4.
- 5.

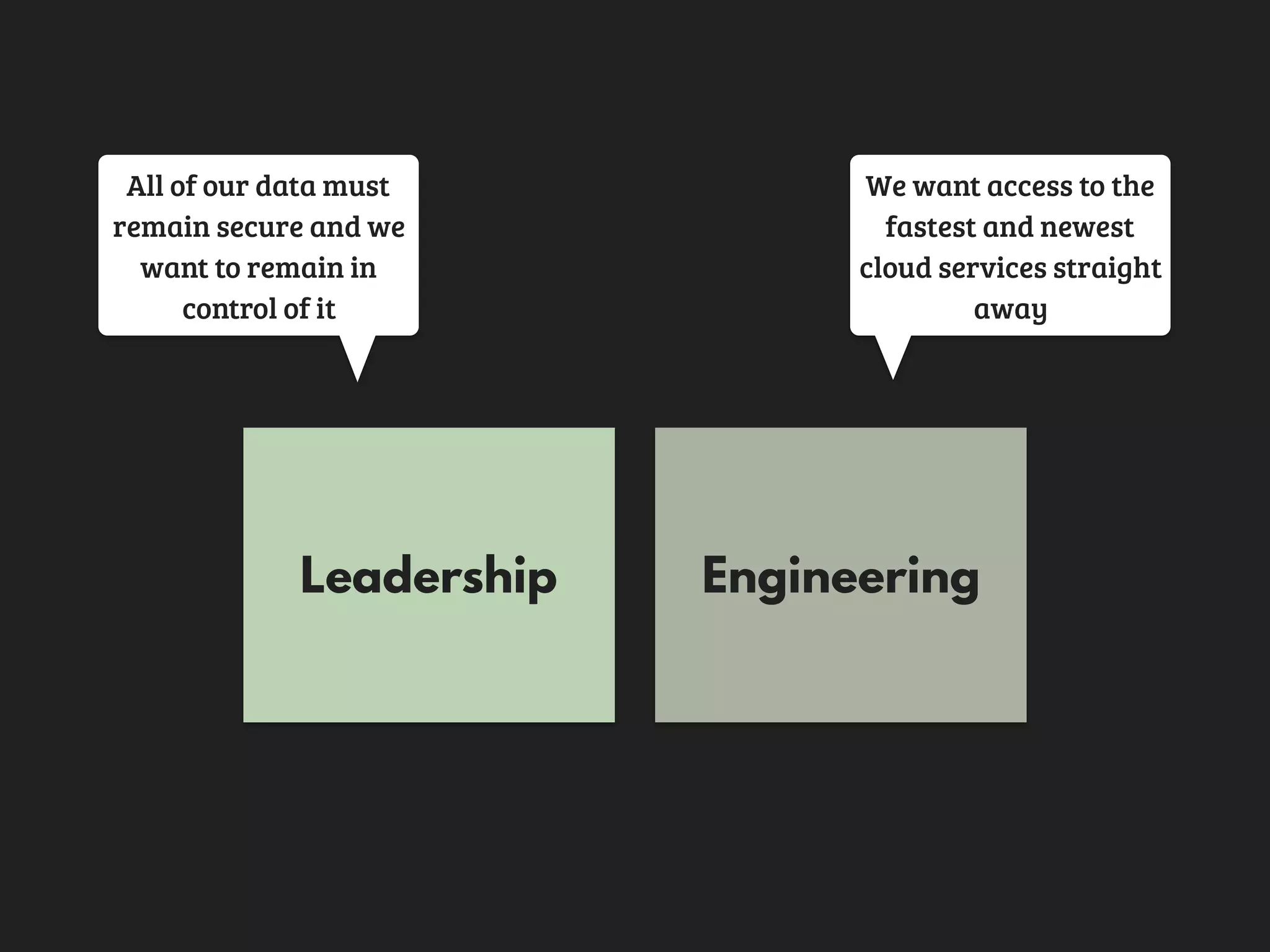

- 6. Leadership Engineering We wantaccess to the fastest and newest cloud services straight away All of our data must remain secure and we want to remain in control of it
- 7. National Institute of Standardsand Technology Cloud computing is a model for enabling ubiquitous, convenient, on-demand network access to a shared opal of configurable computer resources that can be rapidly provisioned and released with minimal management effort or service provider interaction Cloud Computing
- 8. National Institute of Standardsand Technology The cloud infrastructure is provisioned for open use by the general public. It may be owned, managed, and operated by a business, academic, or government organisation, or some combination of them. It exists on the premises of the cloud provider. Public Cloud
- 9. National Institute of Standardsand Technology
- 10. National Institute of Standardsand Technology The cloud infrastructure is provisioned for exclusive use by a single organisation comprising multiple consumers. It may be owned, managed, and operated by the organisation, a third parts, or some combination of them, and it may exist on or off premises Private Cloud
- 11. Elastic Capabilities Opex economics(operational Expense) Ease of operations time to implement data sovereignty environmental control cost predictability capex economics (Capitol Expense)

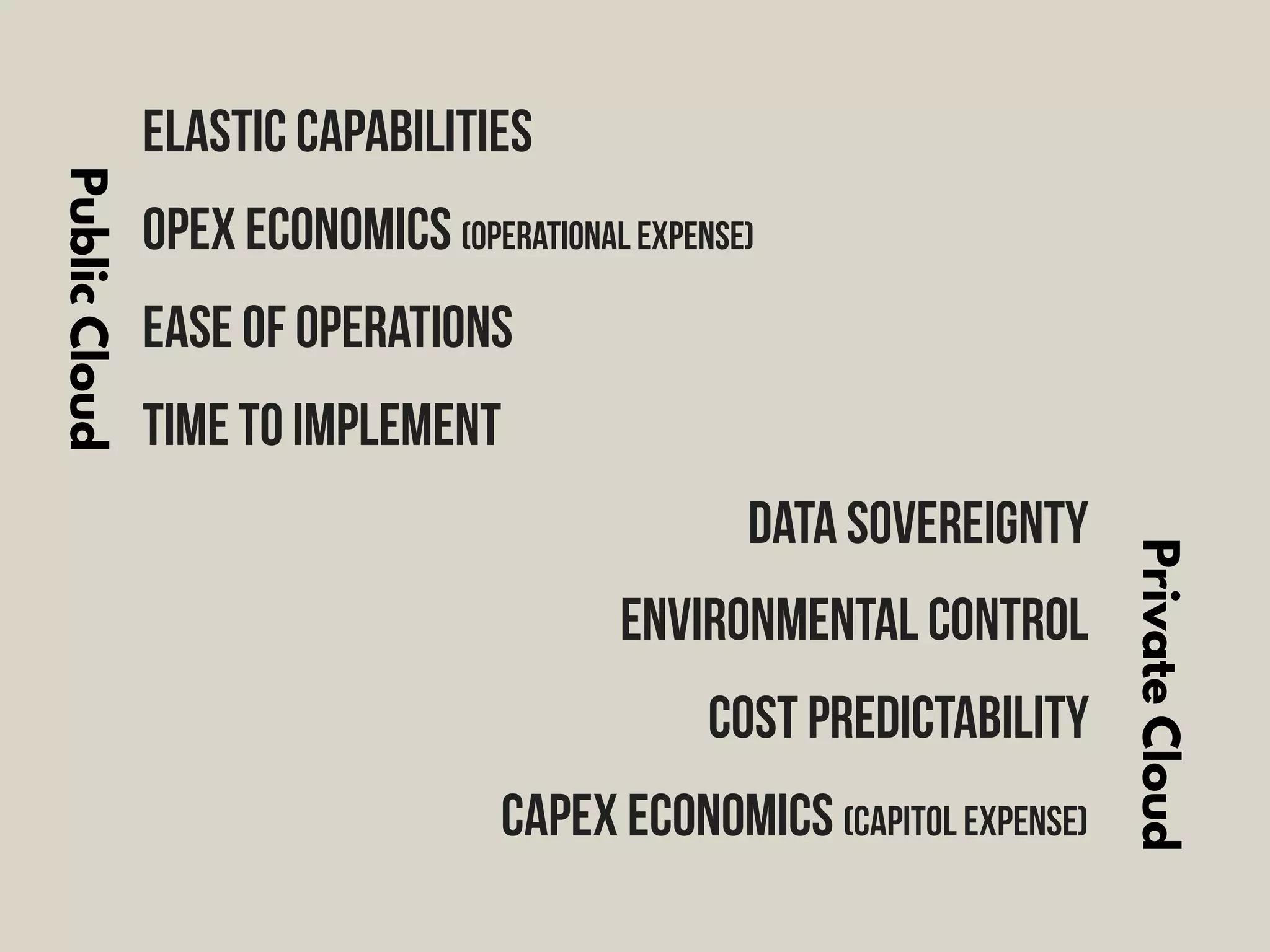

- 12. Elastic Capabilities Opex economics(operational Expense) Ease of operations time to implement data sovereignty environmental control cost predictability capex economics (Capitol Expense) PrivateCloud PublicCloud
- 13. Leadership Engineering We wantaccess to the fastest and newest cloud services straight away All of our data must remain secure and we want to remain in control of it

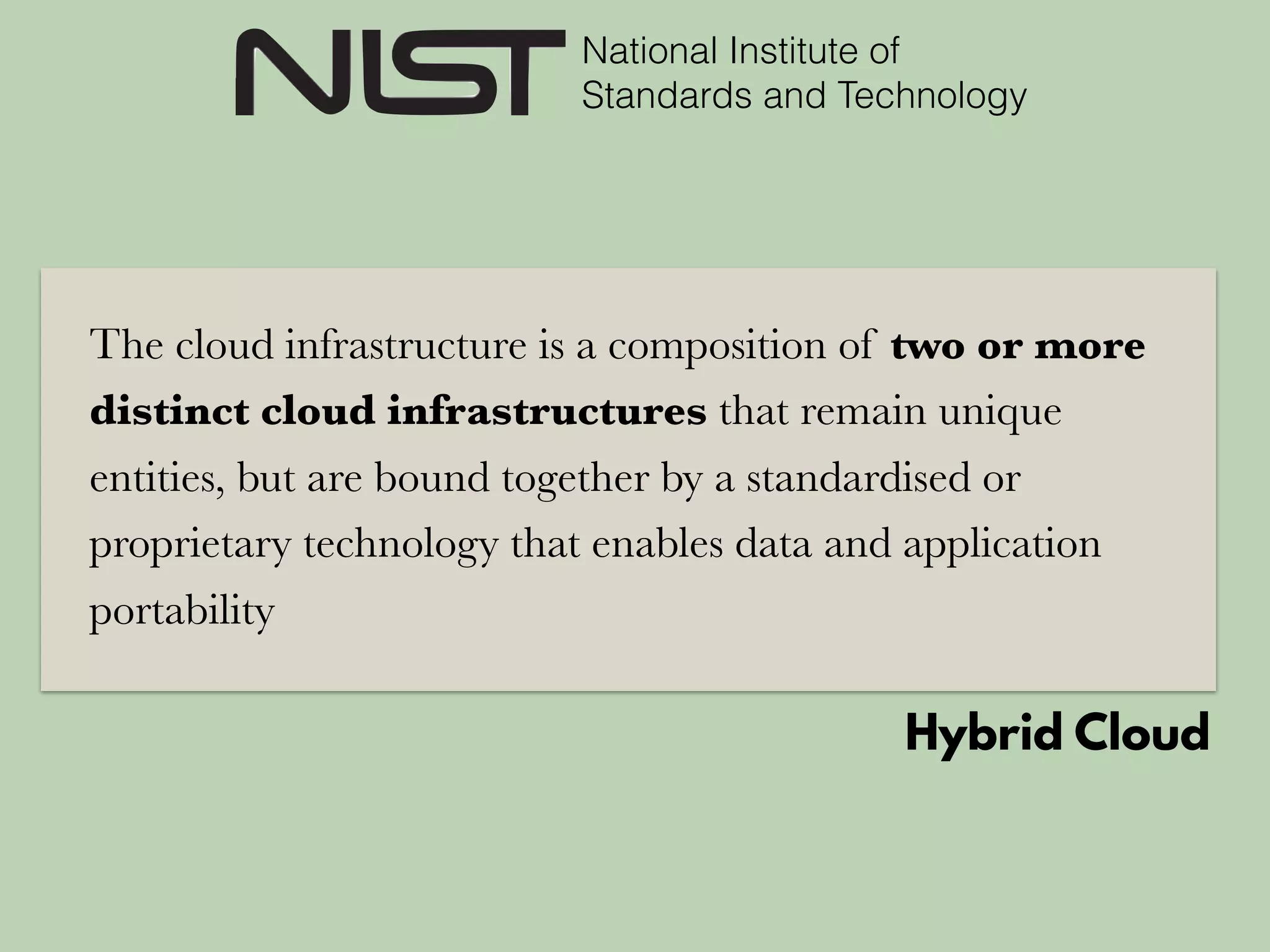

- 14. National Institute of Standardsand Technology The cloud infrastructure is a composition of two or more distinct cloud infrastructures that remain unique entities, but are bound together by a standardised or proprietary technology that enables data and application portability Hybrid Cloud
- 15.

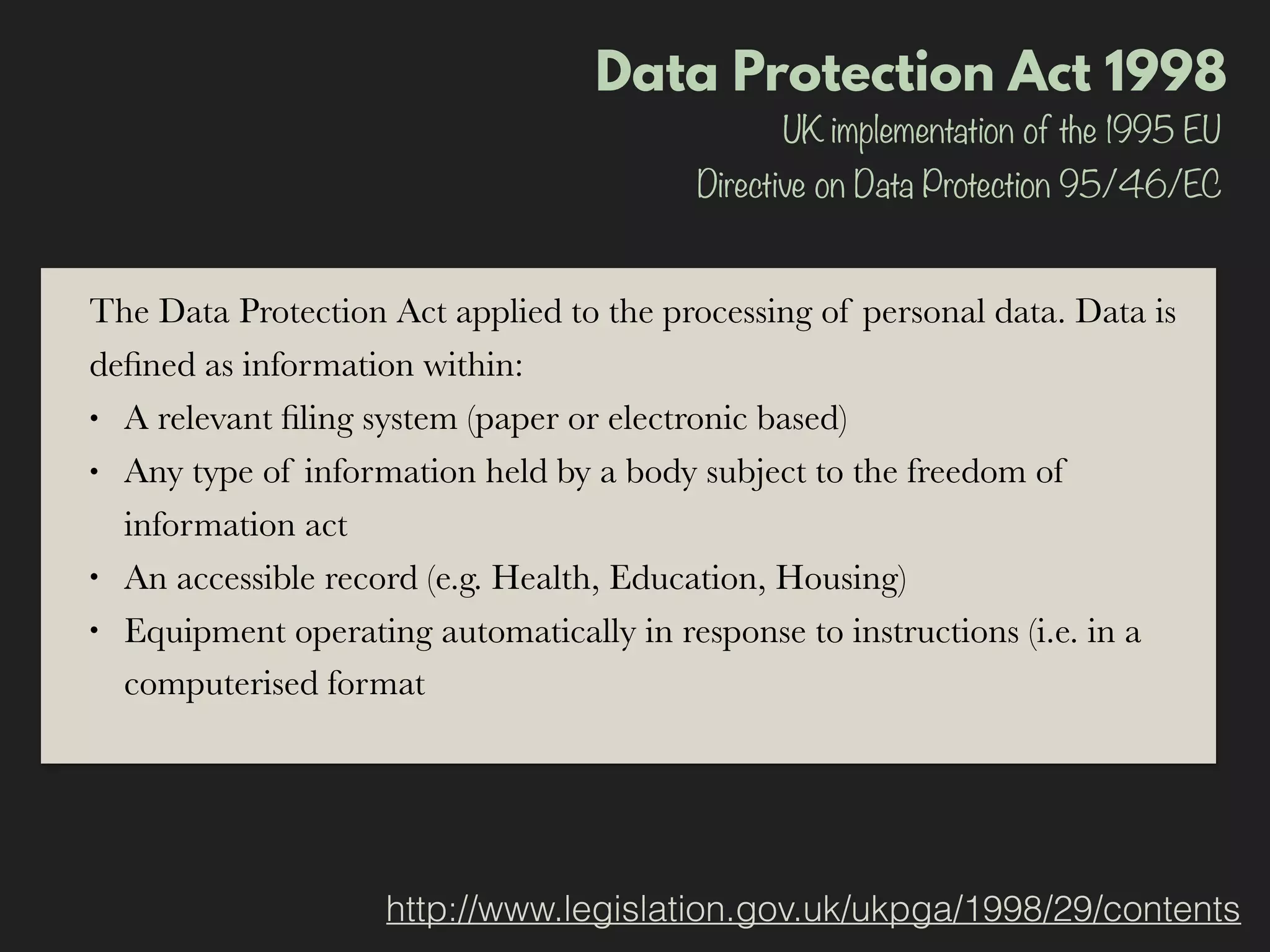

- 16. Data Protection Act1998 http://www.legislation.gov.uk/ukpga/1998/29/contents UK implementation of the 1995 EU Directive on Data Protection 95/46/EC The Data Protection Act applied to the processing of personal data. Data is defined as information within: • A relevant filing system (paper or electronic based) • Any type of information held by a body subject to the freedom of information act • An accessible record (e.g. Health, Education, Housing) • Equipment operating automatically in response to instructions (i.e. in a computerised format

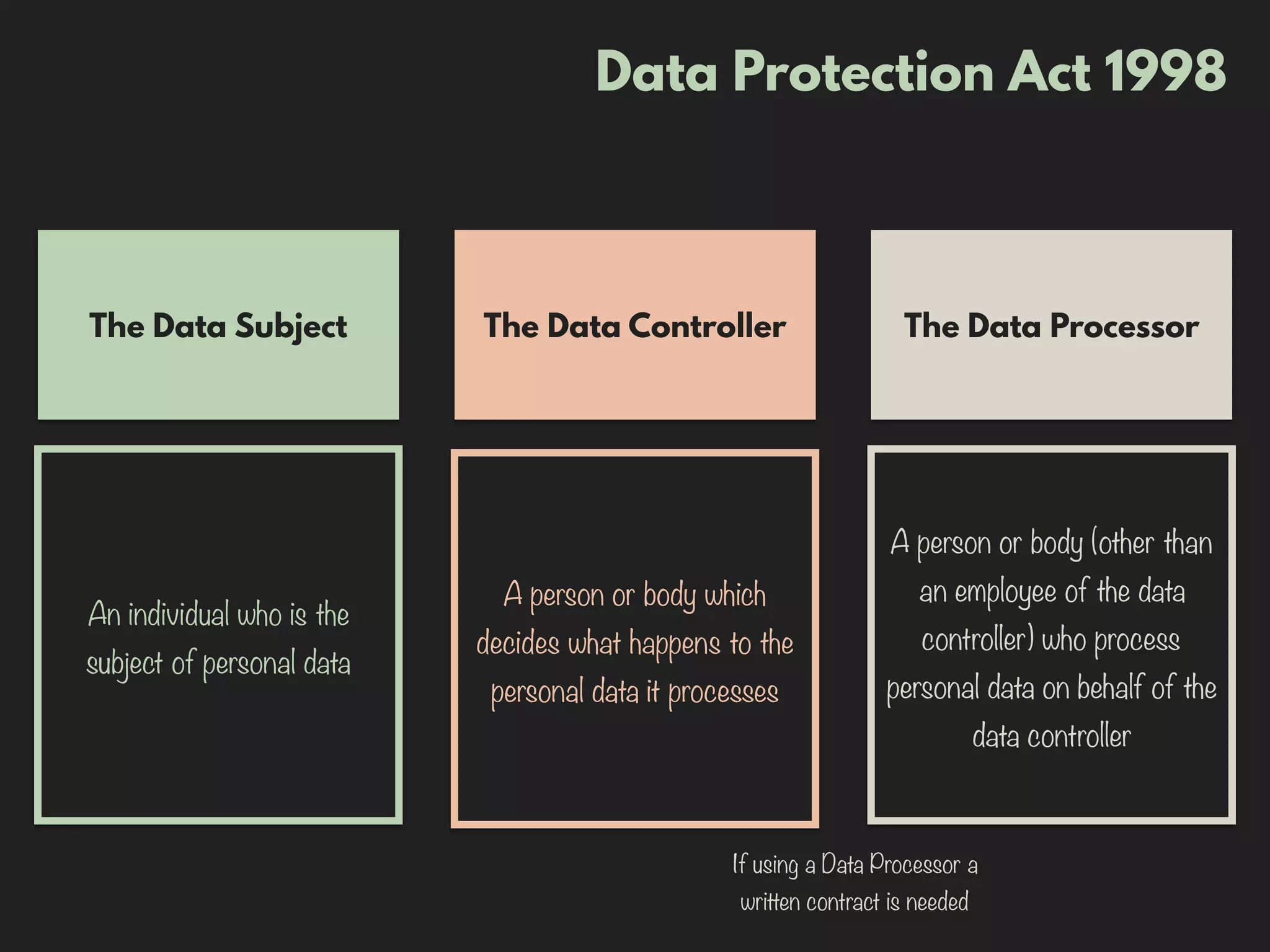

- 17. Data Protection Act1998 The Data Subject The Data ProcessorThe Data Controller An individual who is the subject of personal data A person or body which decides what happens to the personal data it processes A person or body (other than an employee of the data controller) who process personal data on behalf of the data controller If using a Data Processor a written contract is needed

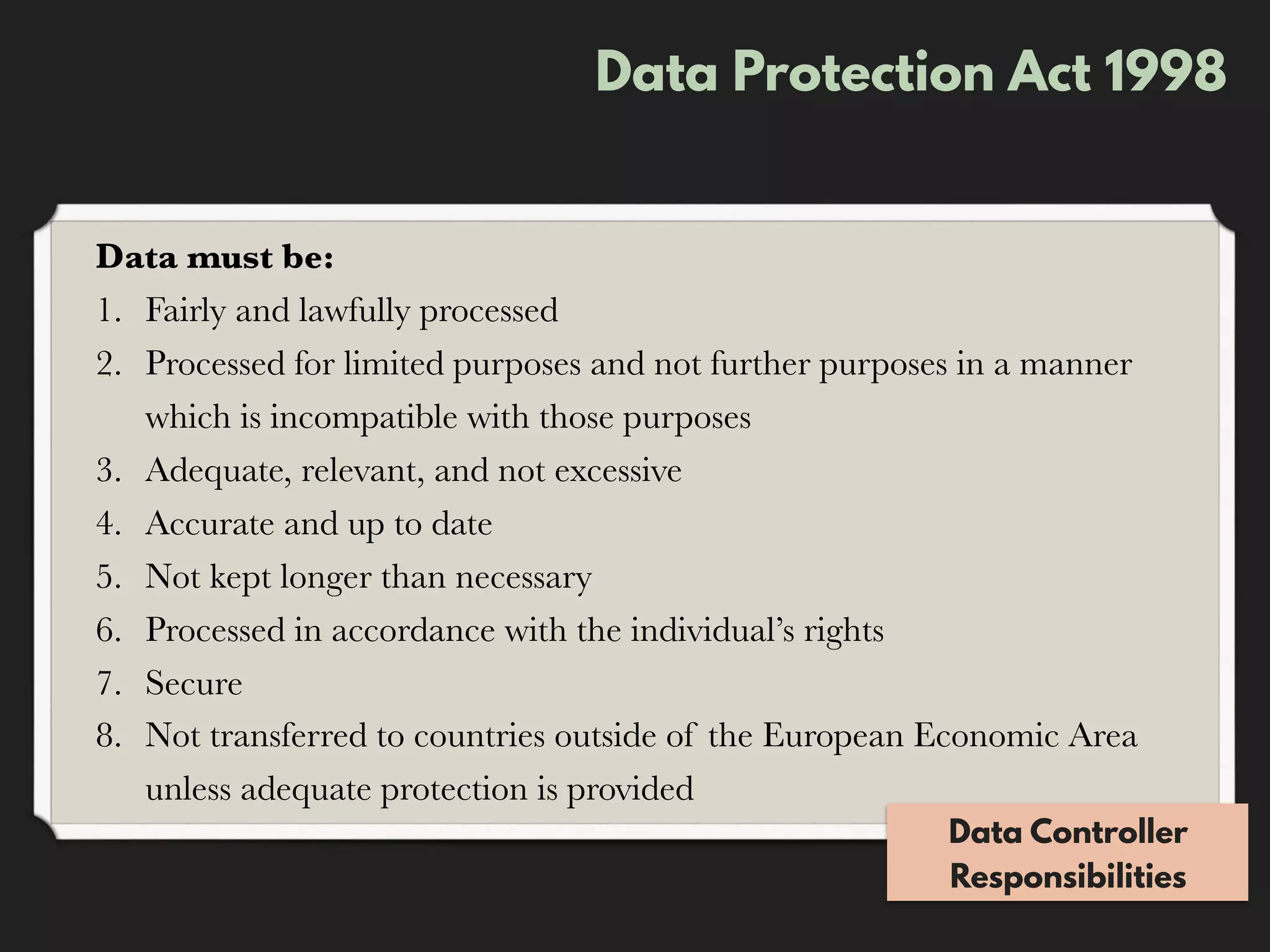

- 18. Data Protection Act1998 Data must be: 1. Fairly and lawfully processed 2. Processed for limited purposes and not further purposes in a manner which is incompatible with those purposes 3. Adequate, relevant, and not excessive 4. Accurate and up to date 5. Not kept longer than necessary 6. Processed in accordance with the individual’s rights 7. Secure 8. Not transferred to countries outside of the European Economic Area unless adequate protection is provided Data Controller Responsibilities

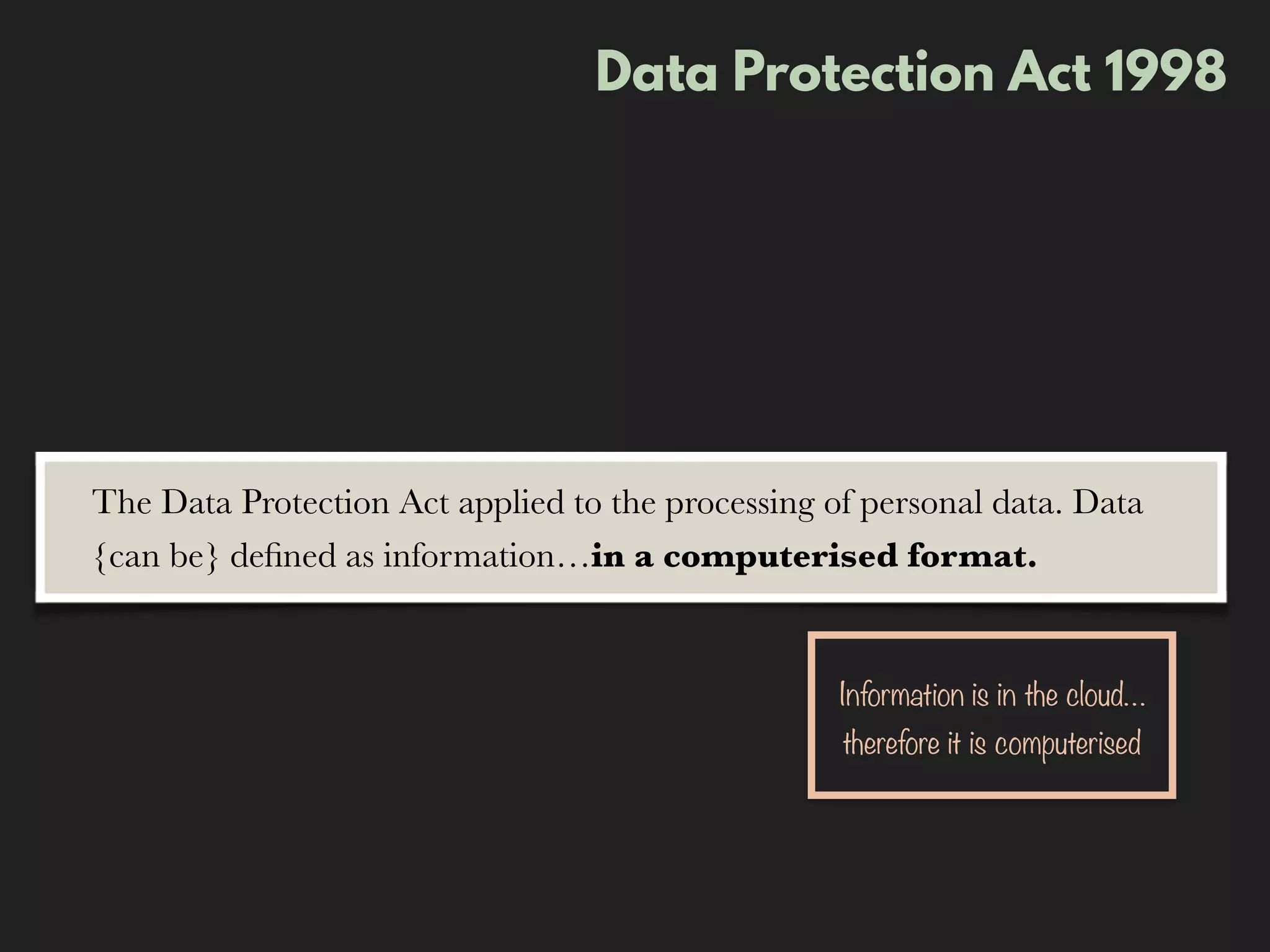

- 19. Data Protection Act1998 The Data Protection Act applied to the processing of personal data. Data {can be} defined as information…in a computerised format. Information is in the cloud… therefore it is computerised

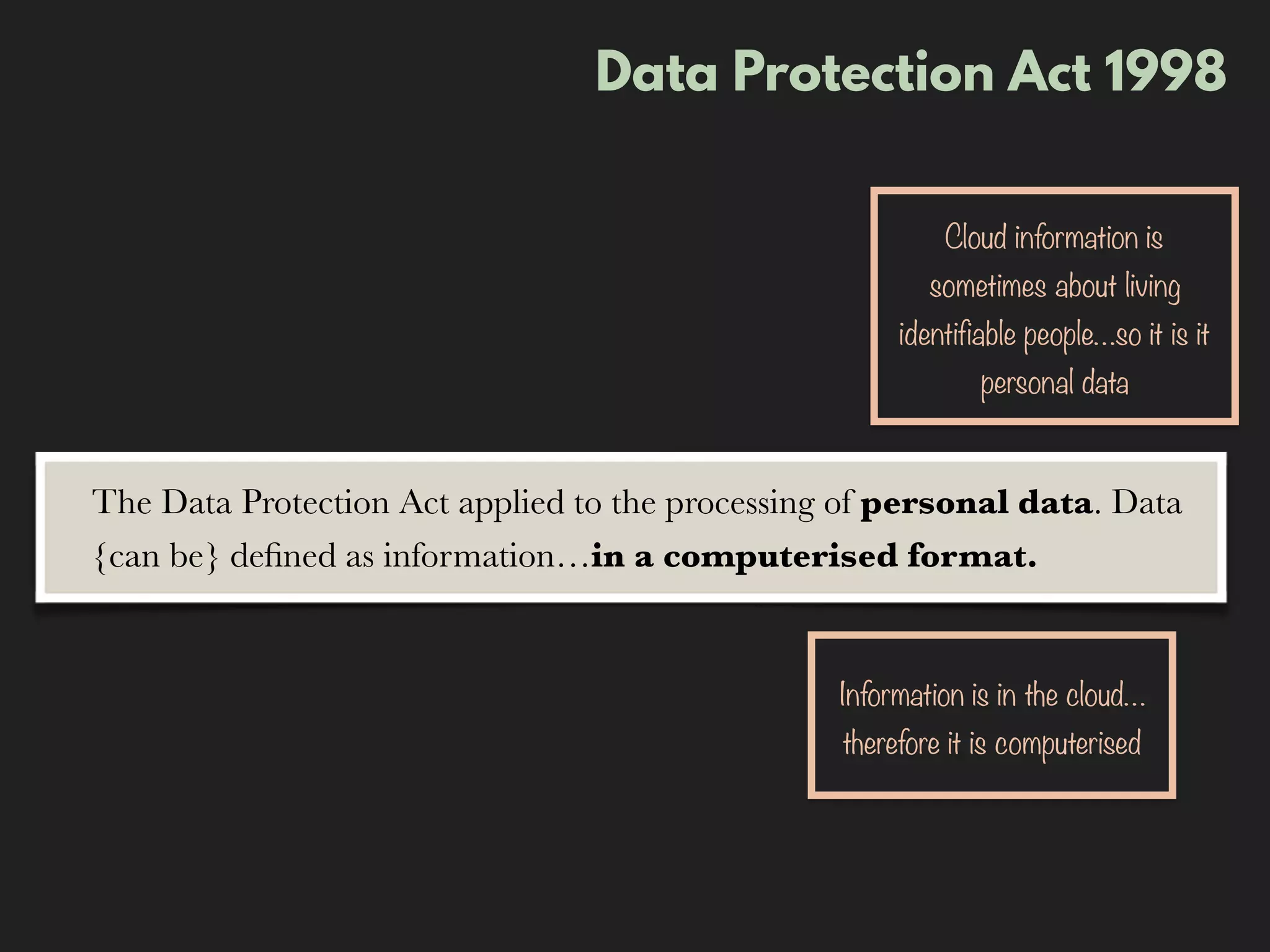

- 20. Data Protection Act1998 The Data Protection Act applied to the processing of personal data. Data {can be} defined as information…in a computerised format. Information is in the cloud… therefore it is computerised Cloud information is sometimes about living identifiable people…so it is it personal data

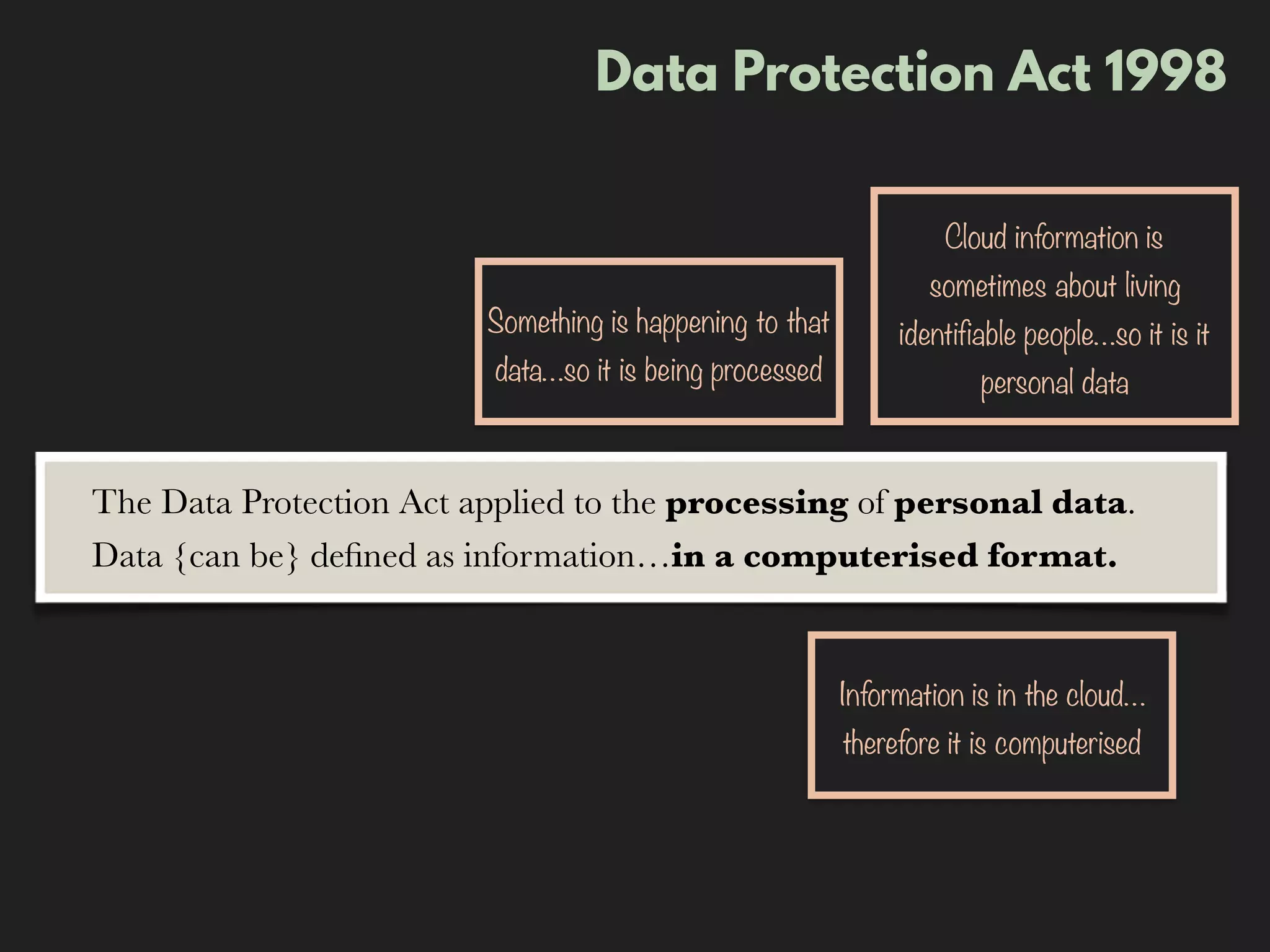

- 21. Data Protection Act1998 The Data Protection Act applied to the processing of personal data. Data {can be} defined as information…in a computerised format. Information is in the cloud… therefore it is computerised Cloud information is sometimes about living identifiable people…so it is it personal data Something is happening to that data…so it is being processed

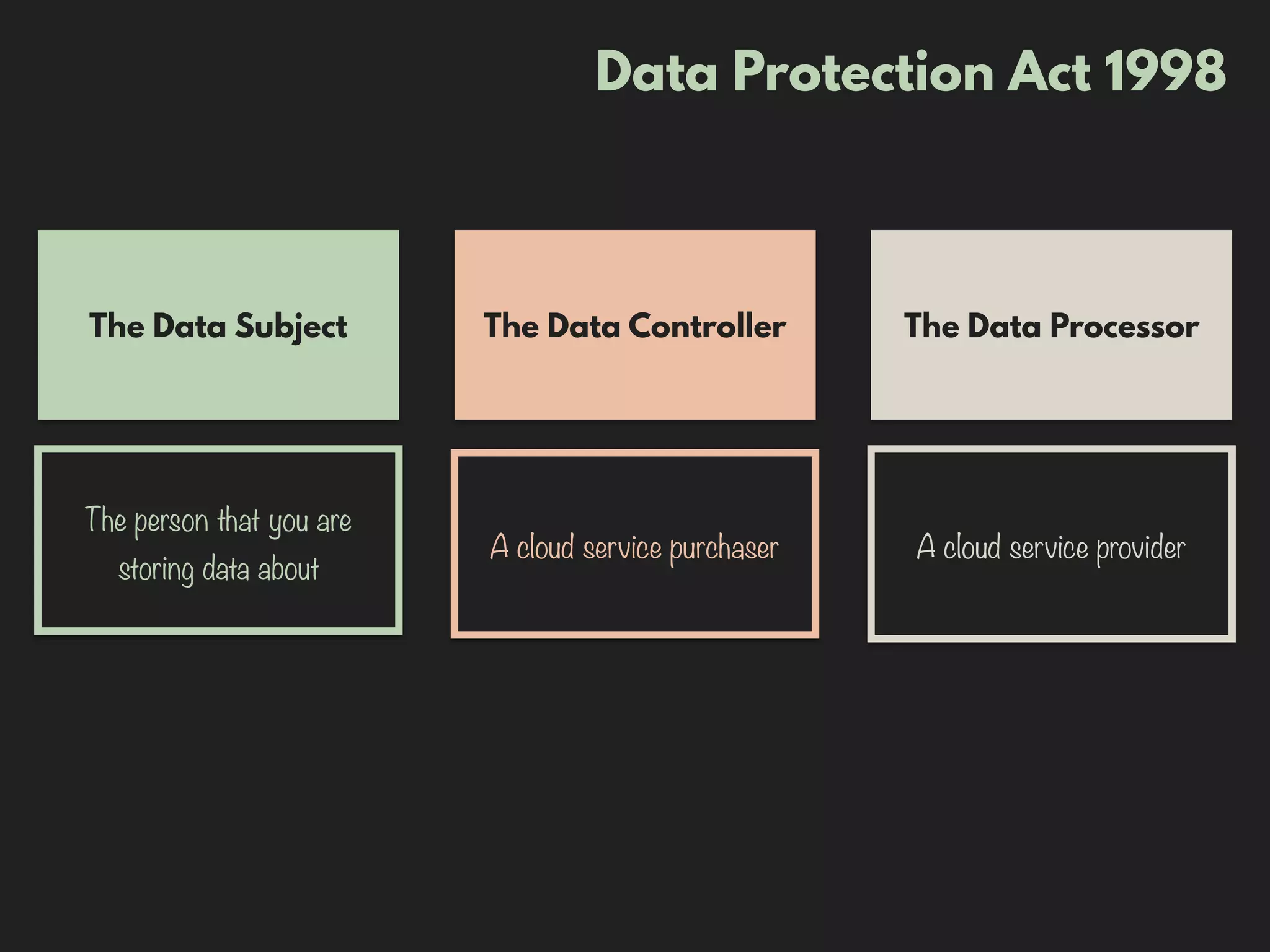

- 22. Data Protection Act1998 The Data Subject The Data ProcessorThe Data Controller The person that you are storing data about A cloud service purchaser A cloud service provider

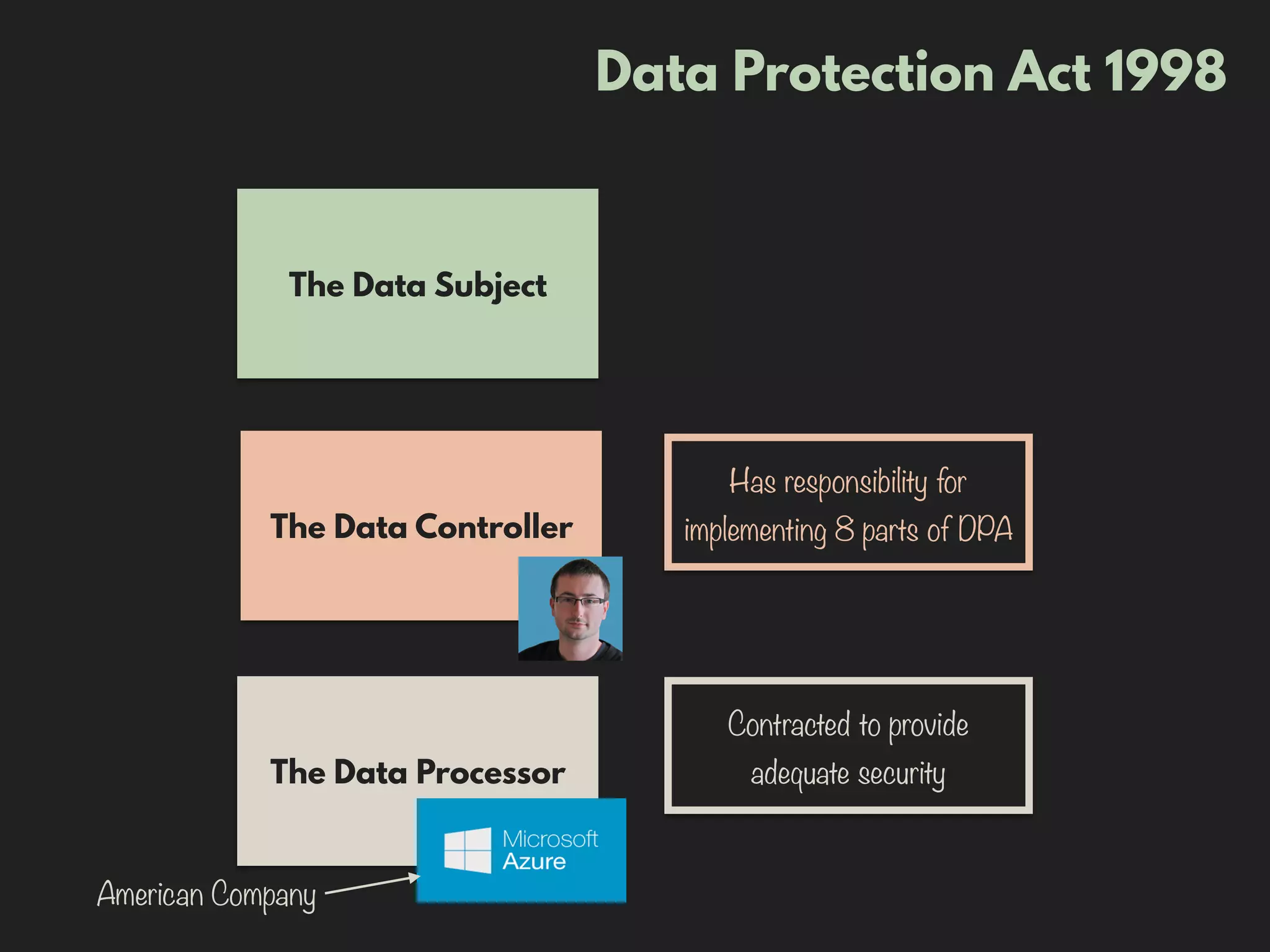

- 23. Data Protection Act1998 The Data Subject The Data Controller The Data Processor Has responsibility for implementing 8 parts of DPA Contracted to provide adequate security American Company
- 24. Uniting and StrengtheningAmerica by Providing Appropriate Tools Required to Intercept and Obstruct Terrorism Act of 2001

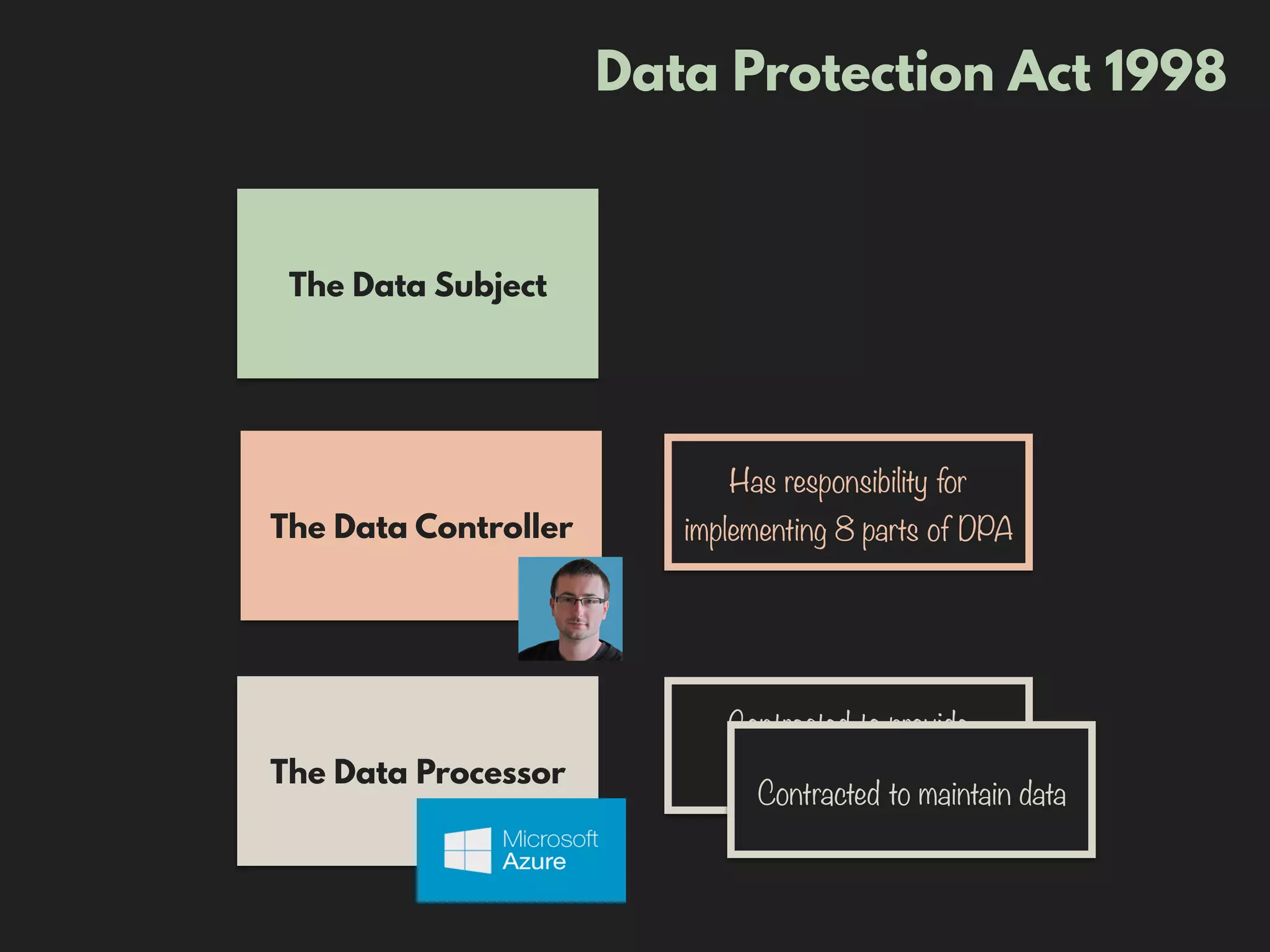

- 25. Data Protection Act1998 The Data Subject The Data Controller The Data Processor Has responsibility for implementing 8 parts of DPA Contracted to provide adequate security Contracted to maintain data

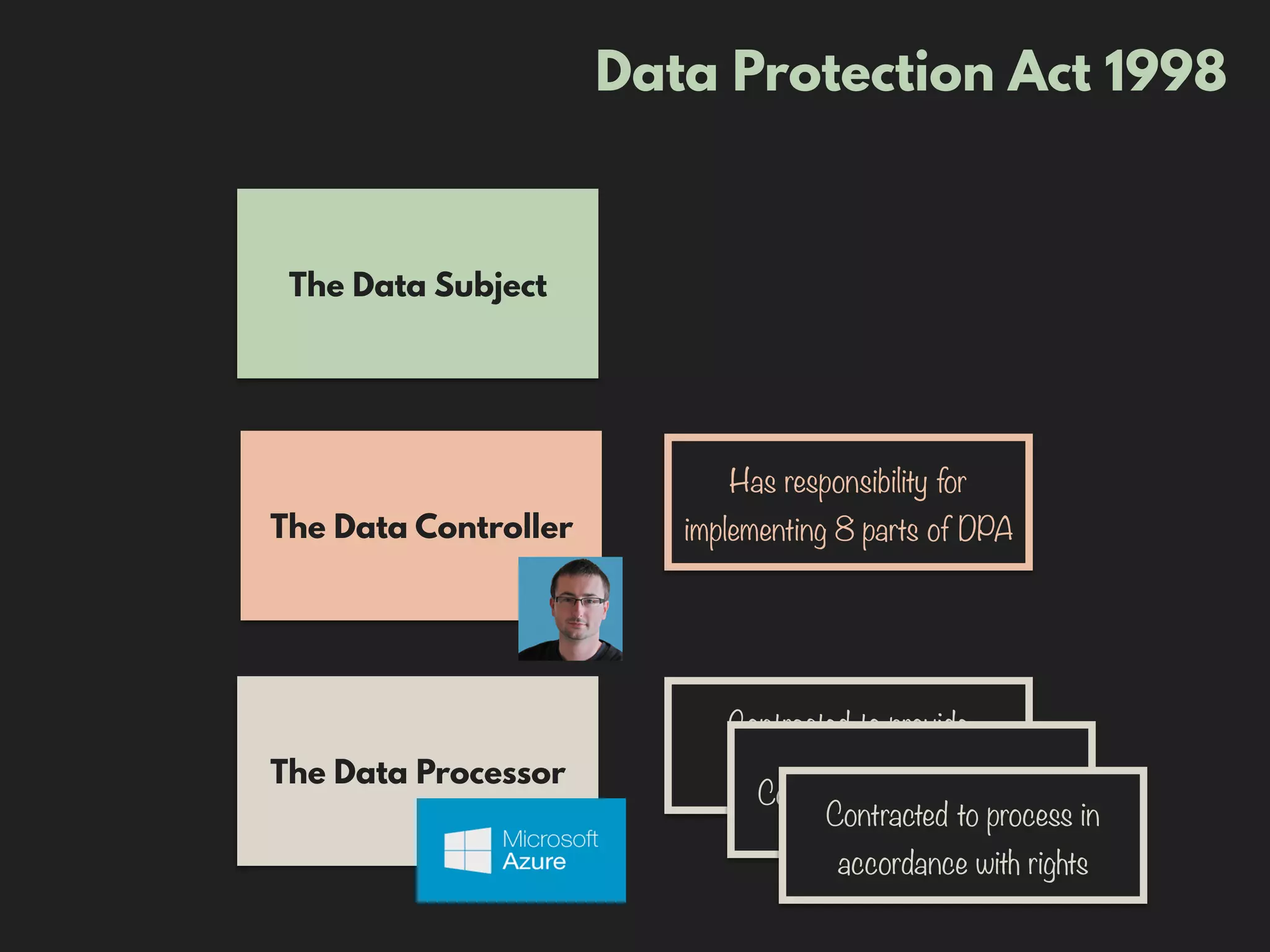

- 27. Data Protection Act1998 The Data Subject The Data Controller The Data Processor Has responsibility for implementing 8 parts of DPA Contracted to provide adequate security Contracted to maintain data Contracted to process in accordance with rights

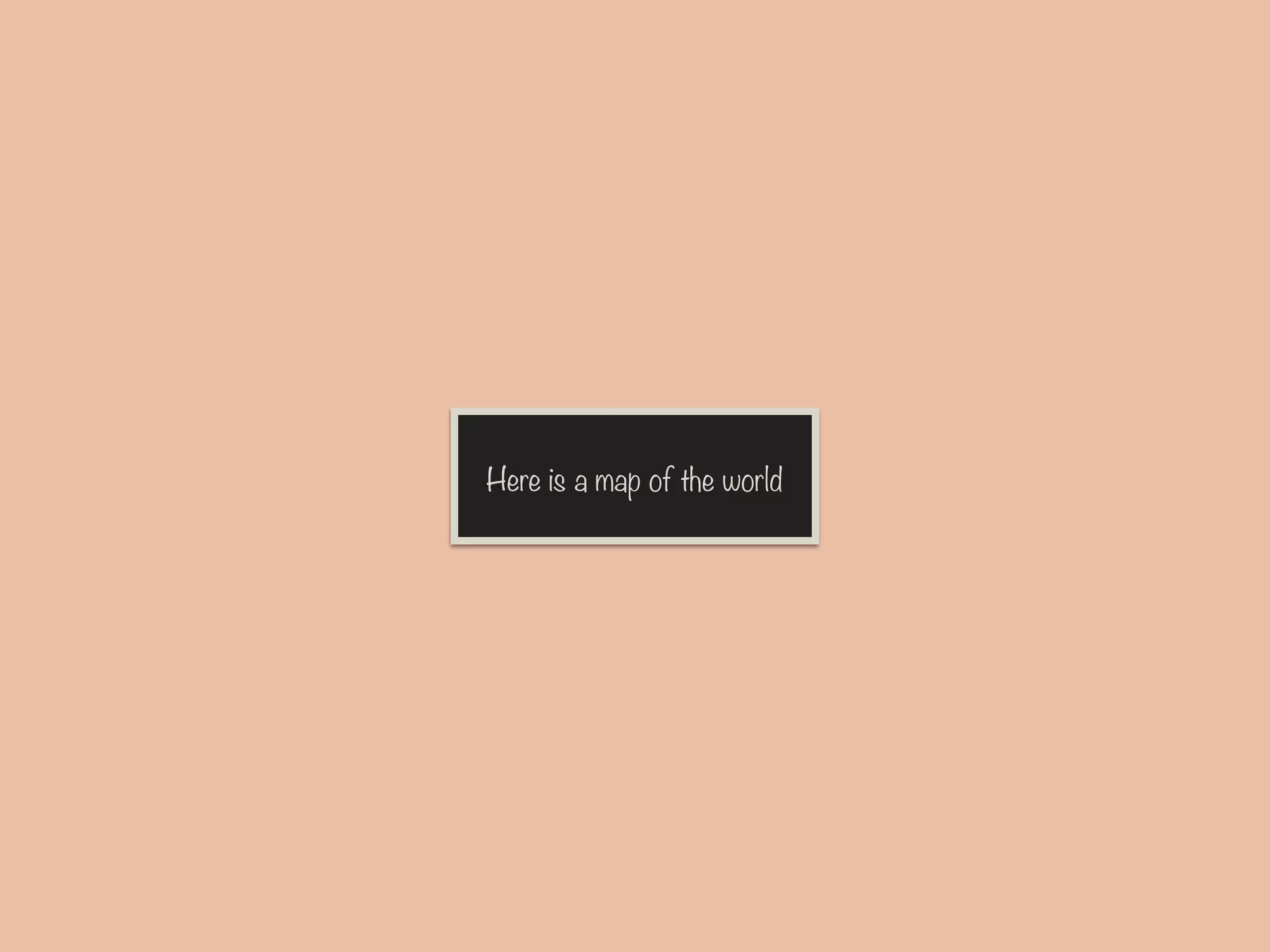

- 28. Here is amap of the world
- 29. Here is amap of the world
- 30. Here is amap of the world that will potentially have the same human rights law as us in a few years time

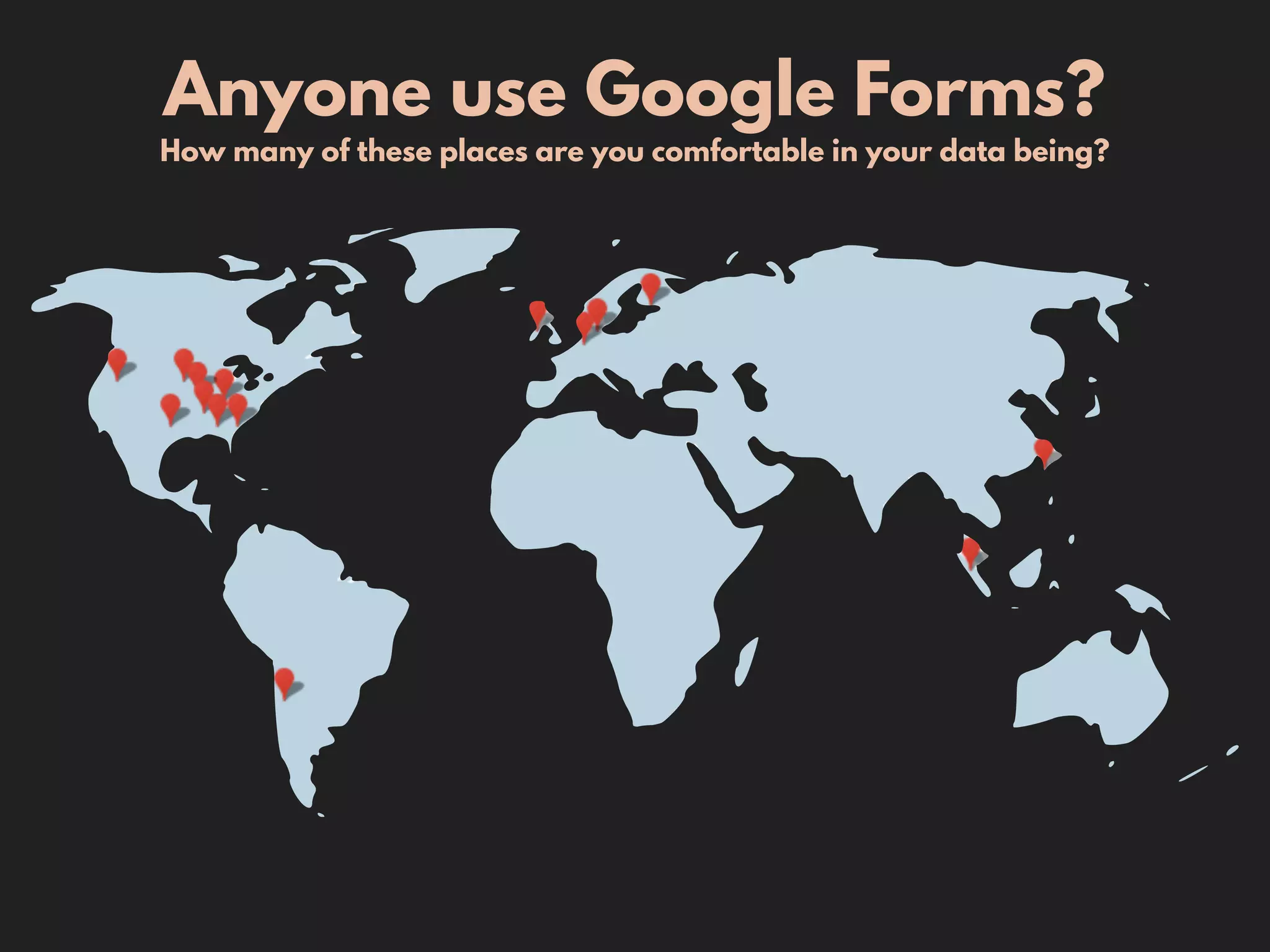

- 32. Anyone use GoogleForms? How many of these places are you comfortable in your data being?
- 33. case study of anenterprise hybrid cloud model
- 34. rgu. My Moodle Web Application Server https://github.com/moodle/moodle Canrun on an AWS T2-Micro 1 v CPU 0.5GB Memory

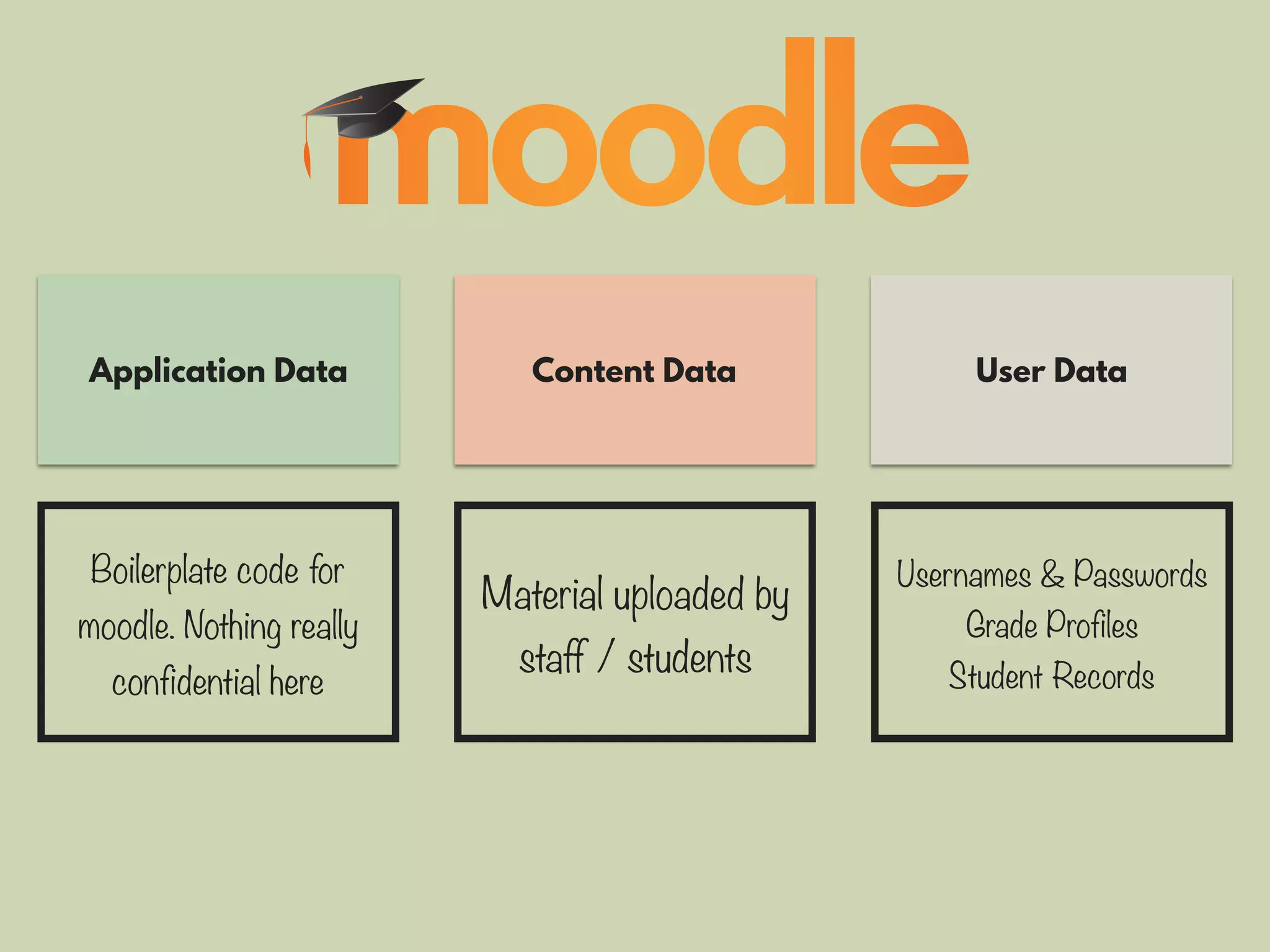

- 35. Application Data UserDataContent Data Boilerplate code for moodle. Nothing really confidential here Material uploaded by staff / students Usernames & Passwords Grade Profiles Student Records
- 36. Application Data Boilerplate codefor moodle. Nothing really confidential here Moodle Source Code Application Data Moodle Database Application Data

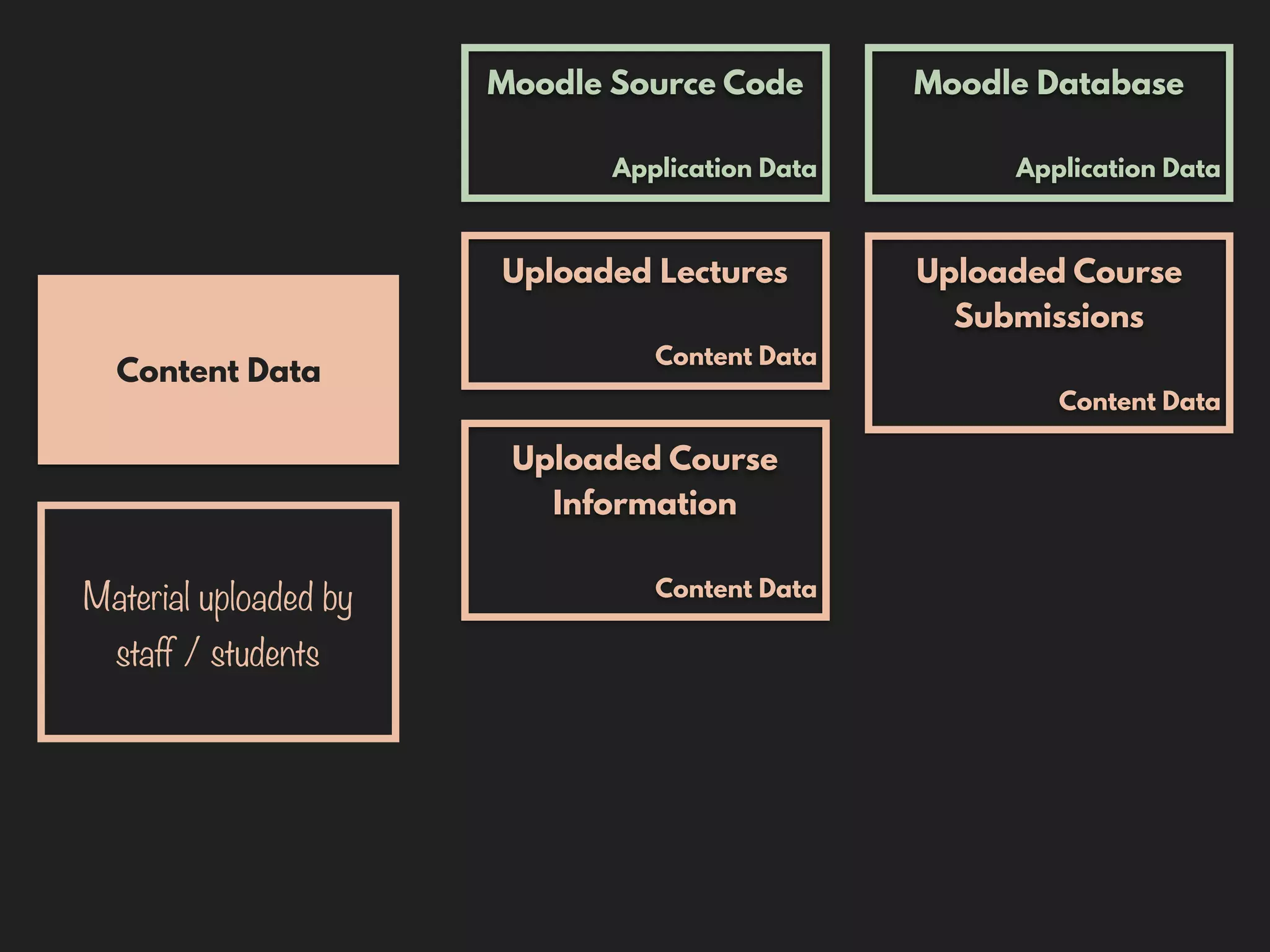

- 37. Material uploaded by staff/ students Moodle Source Code Application Data Moodle Database Application Data Content Data Uploaded Lectures Content Data Uploaded Course Submissions Content Data Uploaded Course Information Content Data

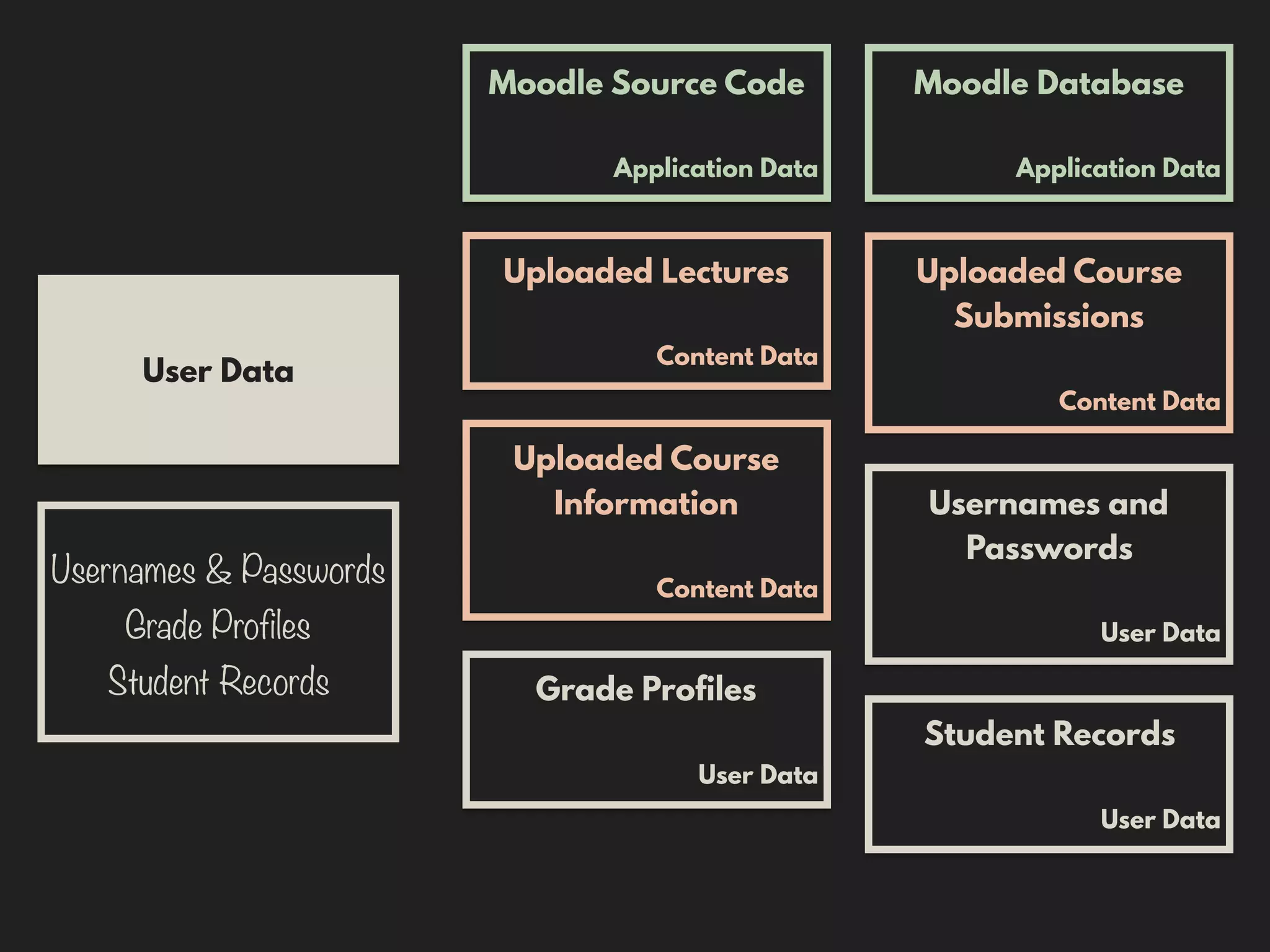

- 38. Usernames & Passwords GradeProfiles Student Records Moodle Source Code Application Data Moodle Database Application Data Uploaded Lectures Content Data Uploaded Course Submissions Content Data Uploaded Course Information Content Data User Data Usernames and Passwords User Data Grade Profiles User Data Student Records User Data

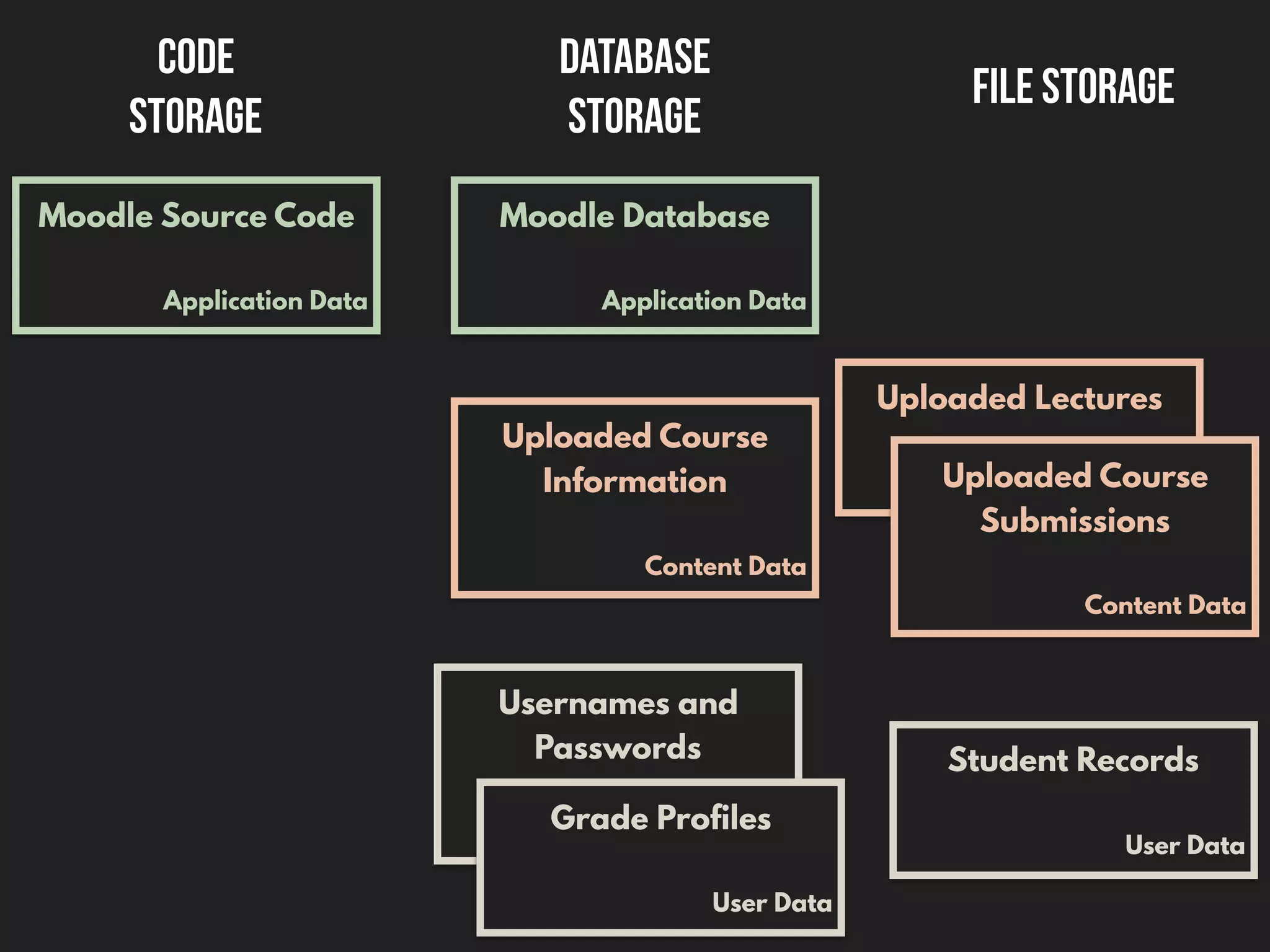

- 39. File Storage Database Storage Code storage Moodle SourceCode Application Data Moodle Database Application Data Uploaded Lectures Content DataUploaded Course Submissions Content Data Uploaded Course Information Content Data Usernames and Passwords User Data Grade Profiles User Data Student Records User Data

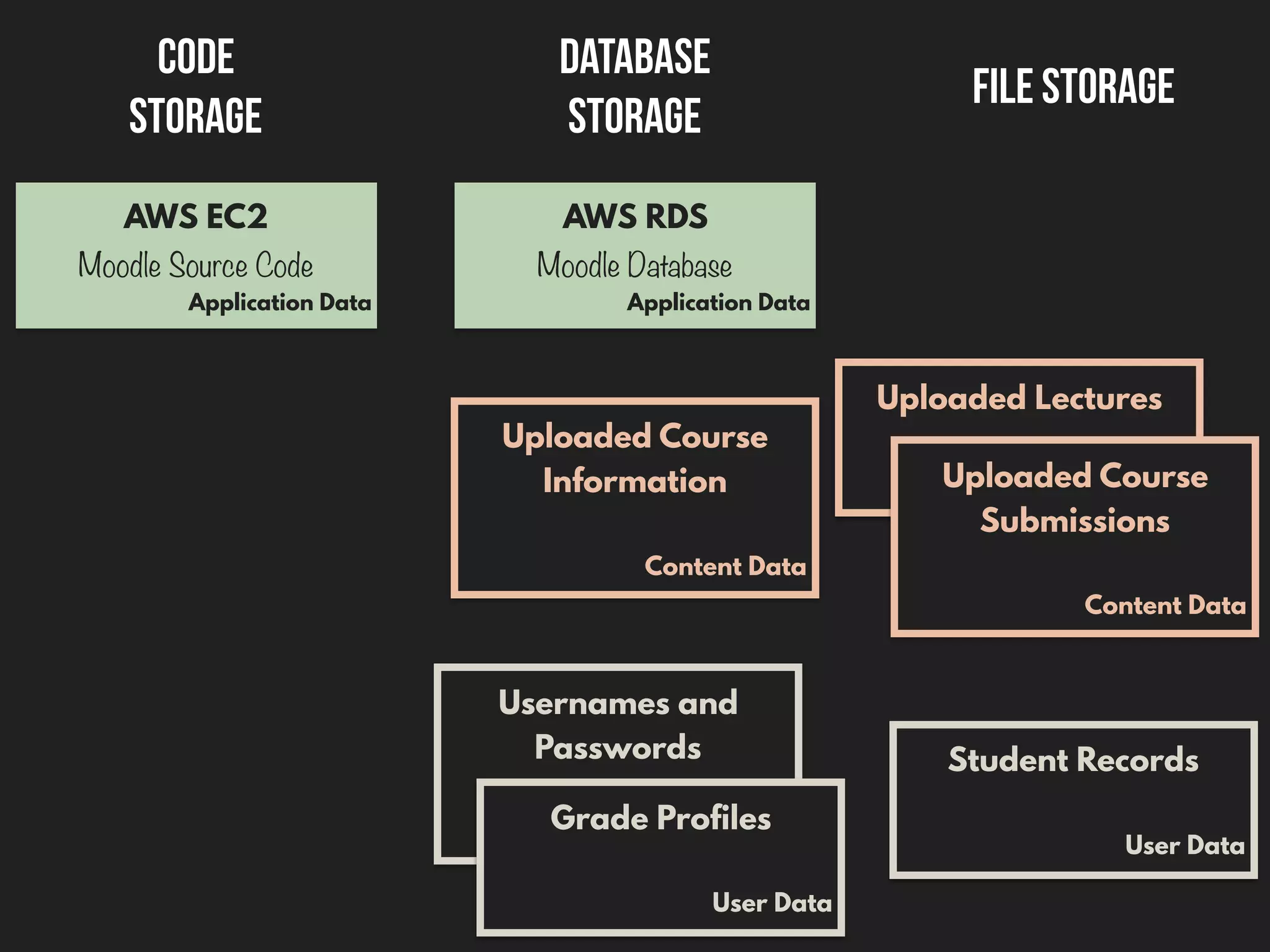

- 40. File Storage Database Storage Code storage Uploaded Lectures ContentDataUploaded Course Submissions Content Data Uploaded Course Information Content Data Usernames and Passwords User Data Grade Profiles User Data Student Records User Data AWS EC2 Moodle Source Code Application Data AWS RDS Moodle Database Application Data
- 41. File Storage Database Storage Code storage Uploaded Lectures ContentDataUploaded Course Submissions Content Data Uploaded Course Information Content Data Pr. C - File Storage Student Records User Data Pr.C - Database Passwords and Grade Profiles User Data AWS EC2 Moodle Source Code Application Data AWS RDS Moodle Database Application Data

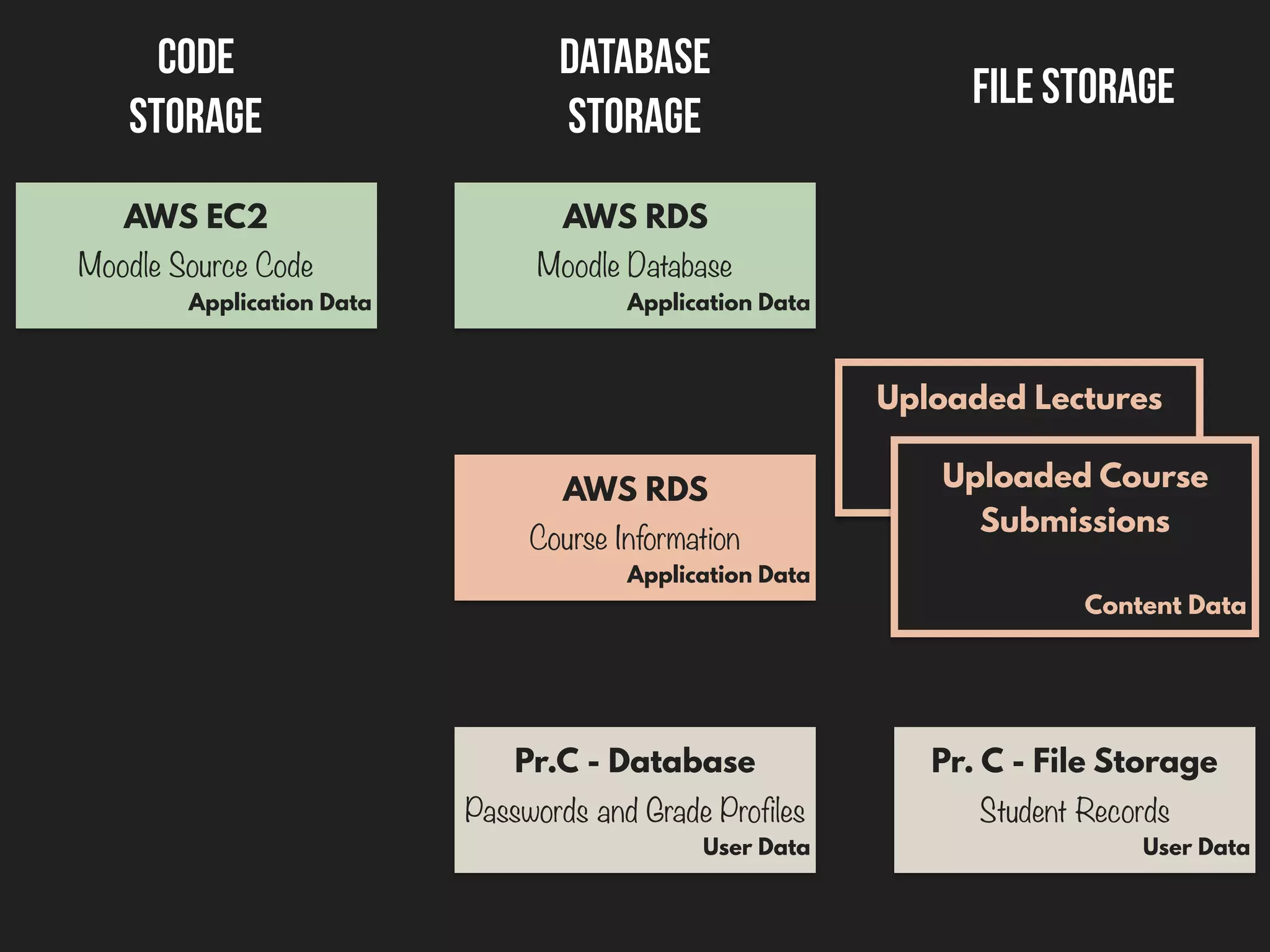

- 42. File Storage Database Storage Code storage Uploaded Lectures ContentDataUploaded Course Submissions Content Data AWS RDS Course Information Application Data Pr. C - File Storage Student Records User Data Pr.C - Database Passwords and Grade Profiles User Data AWS EC2 Moodle Source Code Application Data AWS RDS Moodle Database Application Data

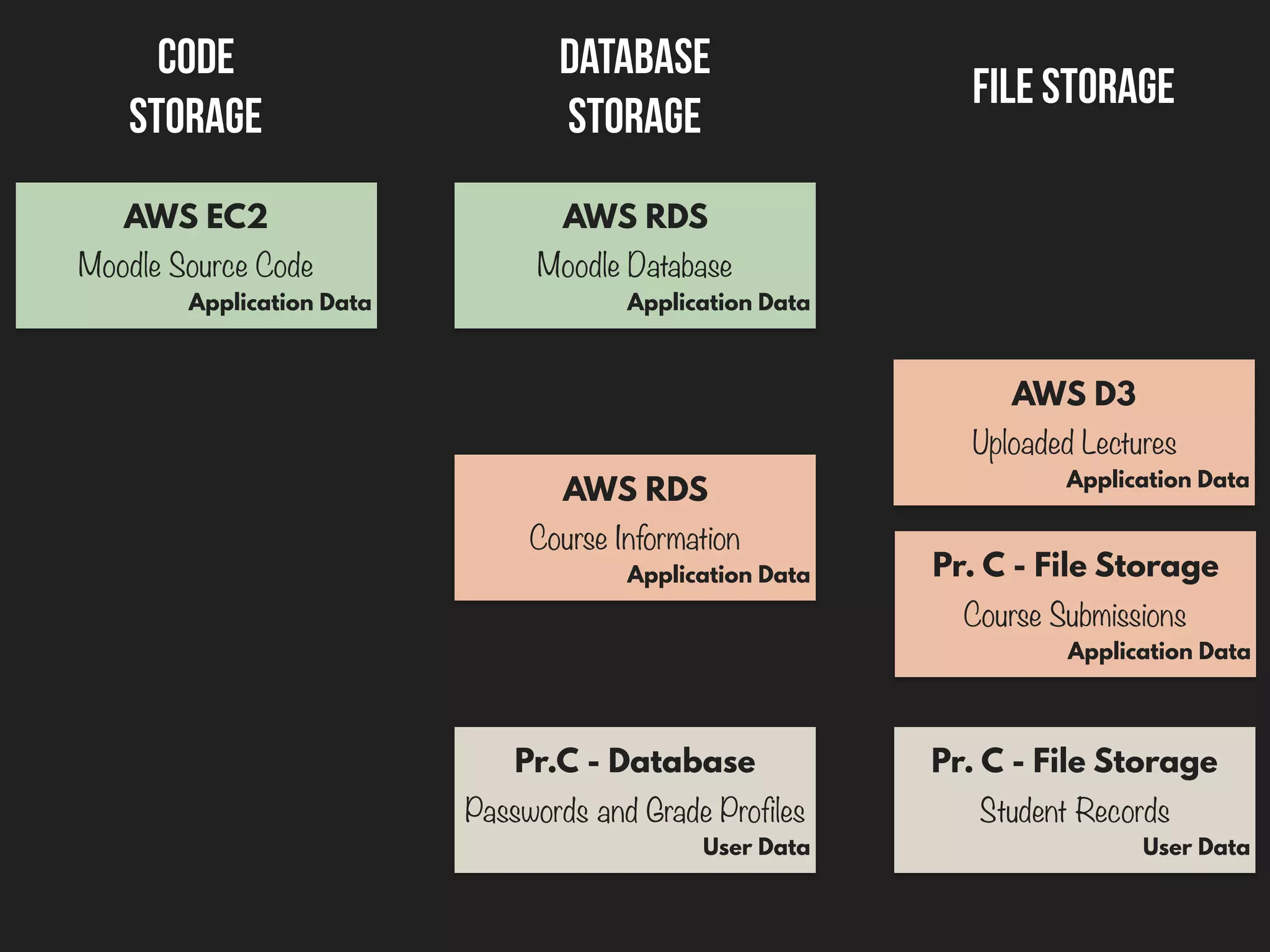

- 43. File Storage Database Storage Code storage AWS RDS CourseInformation Application Data Pr. C - File Storage Student Records User Data Pr.C - Database Passwords and Grade Profiles User Data AWS EC2 Moodle Source Code Application Data AWS RDS Moodle Database Application Data AWS D3 Uploaded Lectures Application Data Pr. C - File Storage Course Submissions Application Data
- 44. AWS RDS Course Information ApplicationData Pr. C - File Storage Student Records User Data Pr.C - Database Passwords and Grade Profiles User Data AWS EC2 Moodle Source Code Application Data AWS RDS Moodle Database Application Data AWS D3 Uploaded Lectures Application Data Pr. C - File Storage Course Submissions Application Data Public Cloud Private Cloud

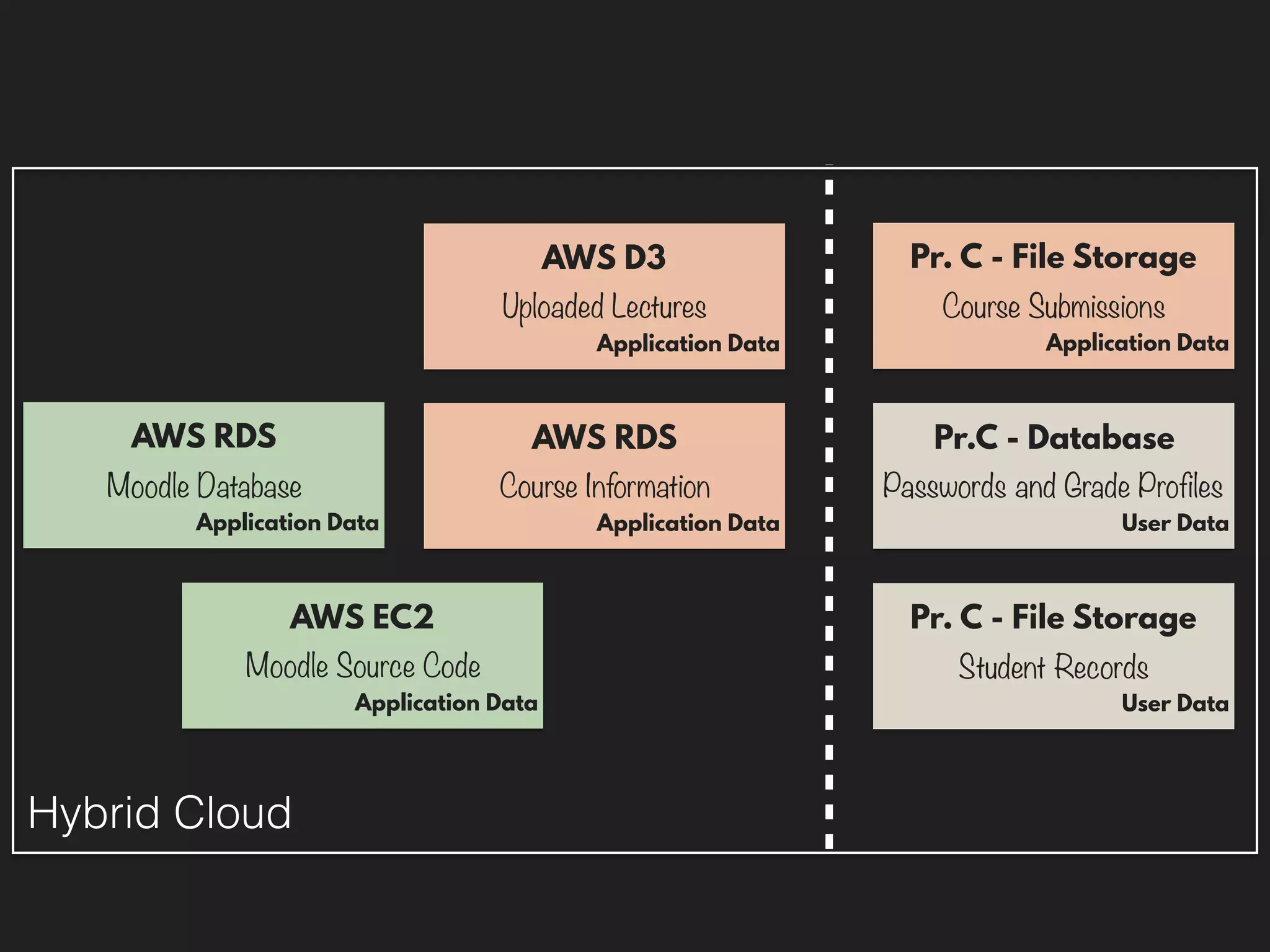

- 45. AWS RDS Course Information ApplicationData Pr. C - File Storage Student Records User Data Pr.C - Database Passwords and Grade Profiles User Data AWS EC2 Moodle Source Code Application Data AWS RDS Moodle Database Application Data AWS D3 Uploaded Lectures Application Data Pr. C - File Storage Course Submissions Application Data Hybrid Cloud
- 46. Different cloud deploymentmodels and their characteristics • Public Cloud • Private Cloud • Hybrid Cloud The Data Protection Act and how it relates to Cloud Computing case study example of using a hybrid cloud model in an enterprise environment
