Apache Storm and Oracle Event Processing for Real-time Analytics

Copyright © 2014, Oracle and/or its affiliates. All rights reserved.1
Storm Overview &
comparison to OEP
Prabhu Thukkaram
Senior Director, Engineering, OEP

 The comparisons and opinions
expressed here are my own and do
not represent the position of my
employer.

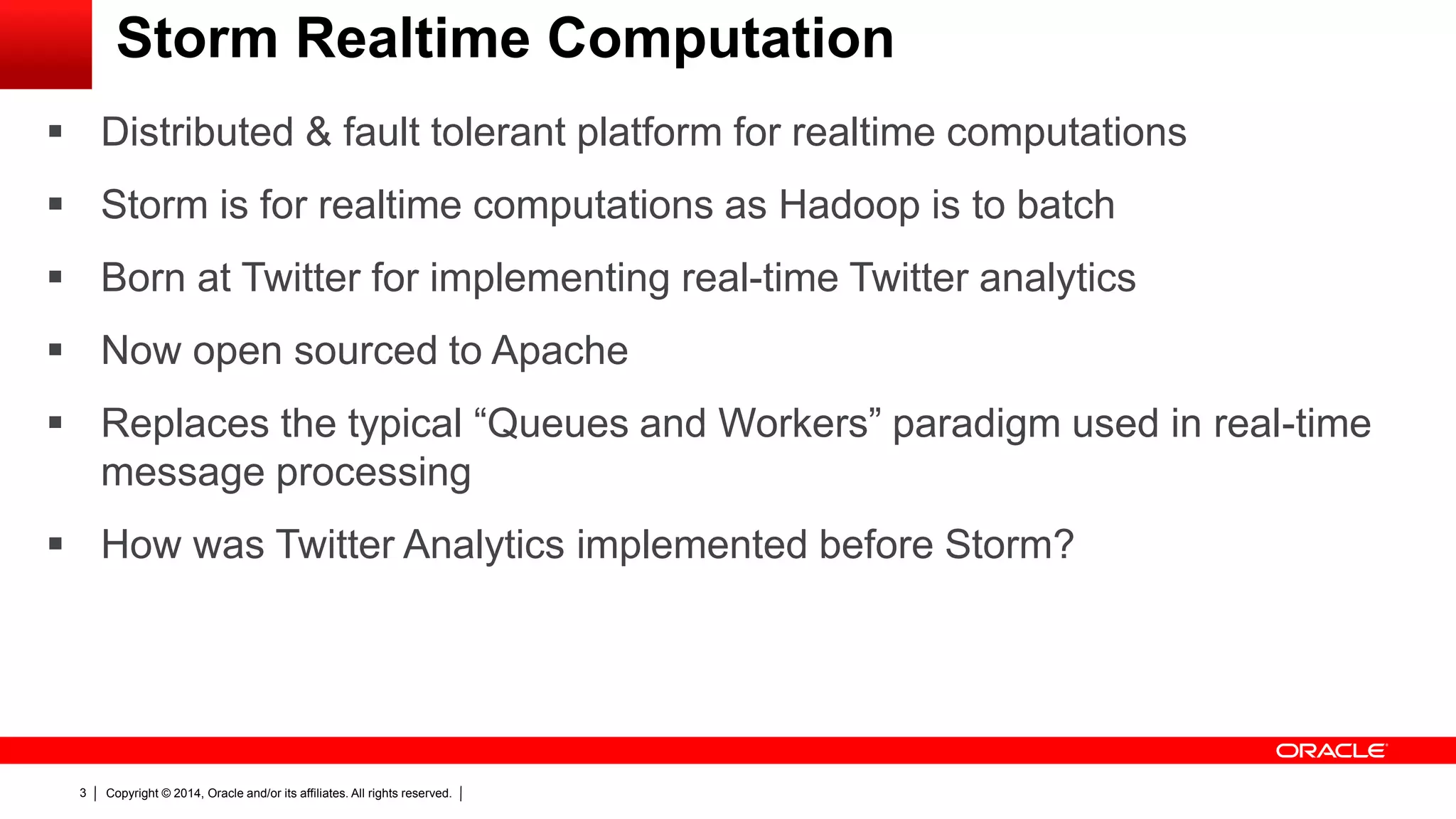

Storm Realtime Computation
 Distributed & fault tolerant platform for realtime computations
 Storm is for realtime computations as Hadoop is to batch
 Born at Twitter for implementing real-time Twitter analytics
 Now open sourced to Apache
 Replaces the typical “Queues and Workers” paradigm used in real-time
message processing

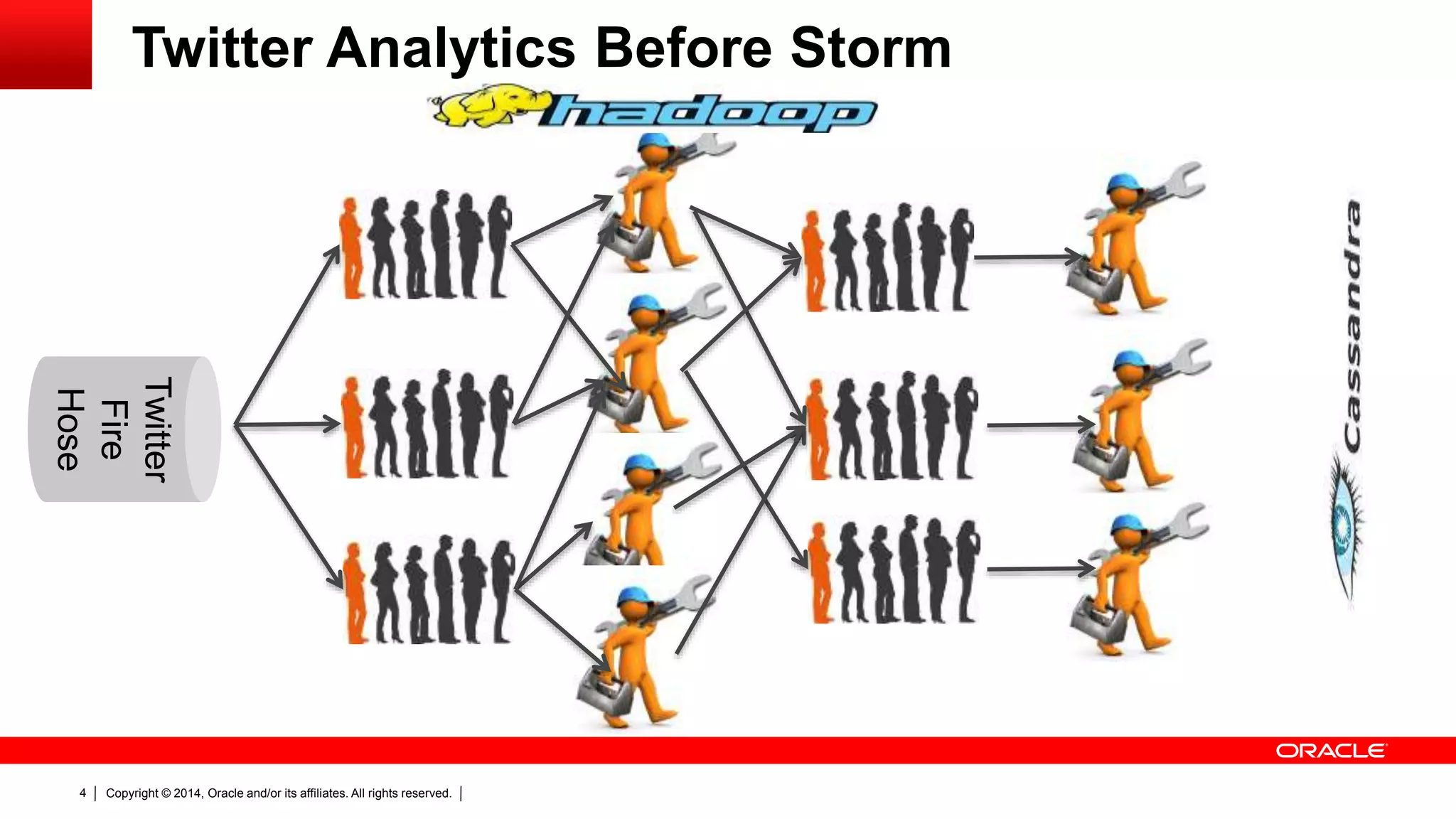

 How was Twitter Analytics implemented before Storm?

Twitter
Fire
Hose Twitter Analytics Before Storm

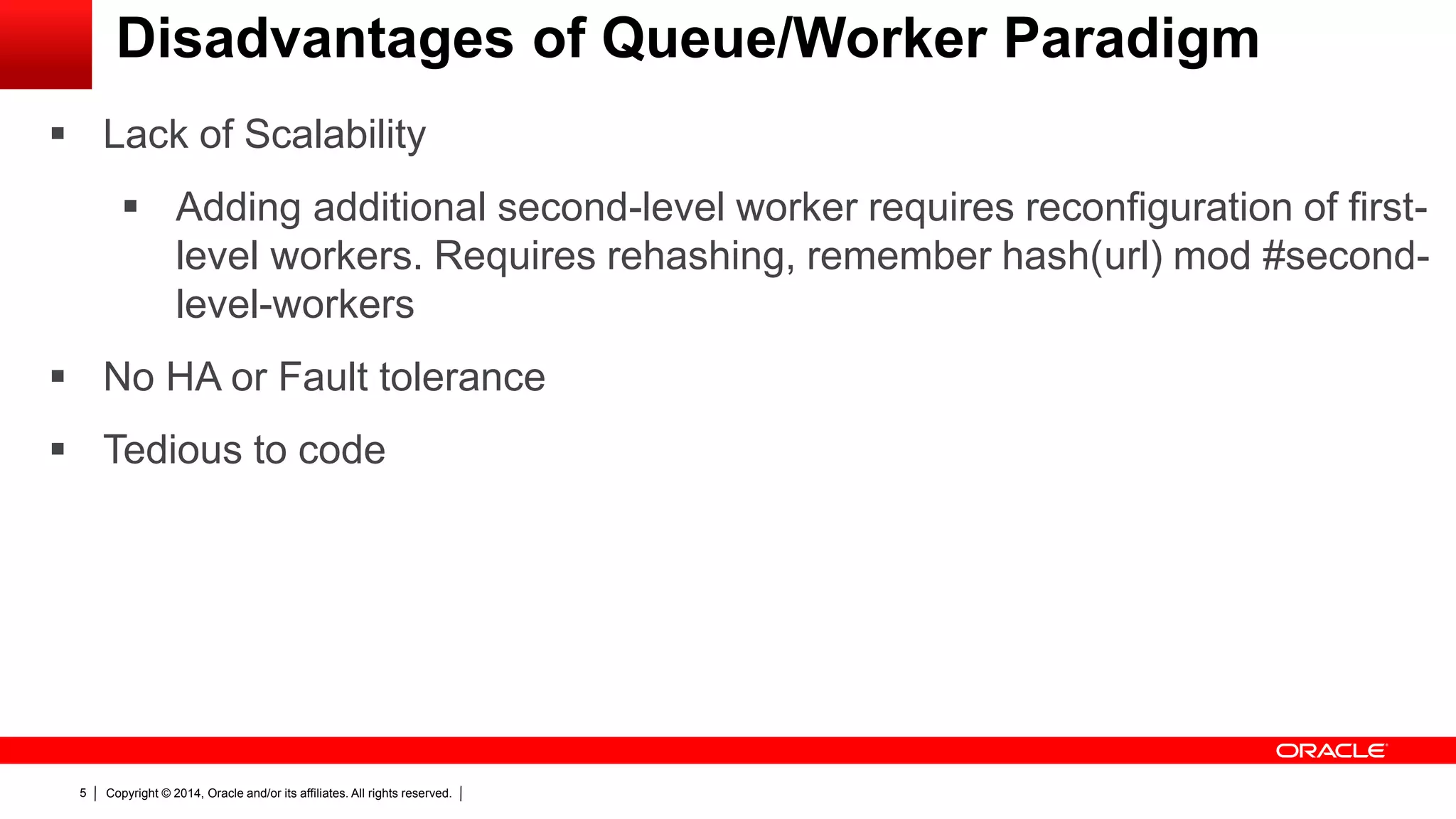

Disadvantages of Queue/Worker Paradigm
 Lack of Scalability
 Adding additional second-level worker requires reconfiguration of first-
level workers. Requires rehashing, remember hash(url) mod #second-
level-workers
 No HA or Fault tolerance
 Tedious to code

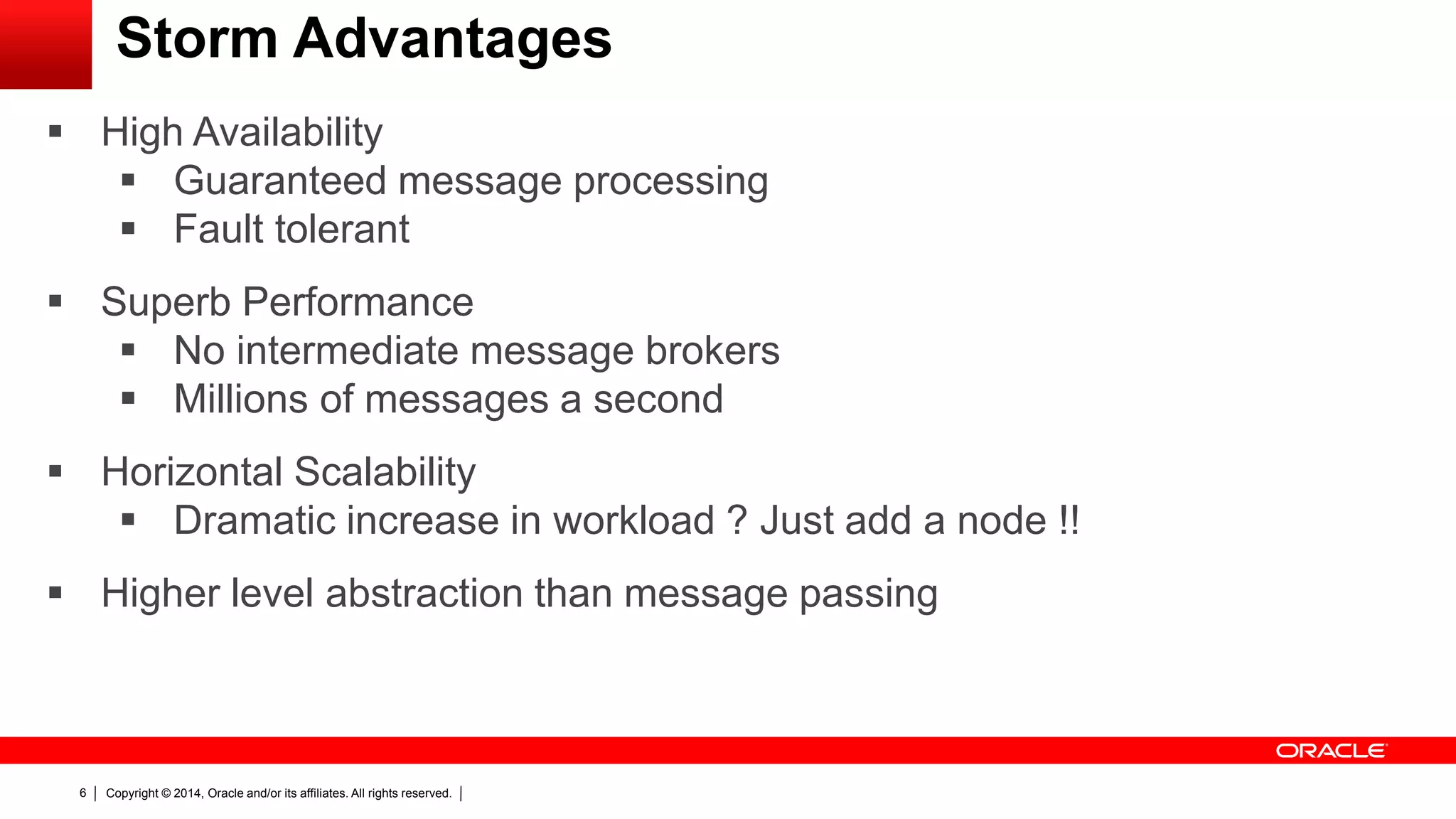

Storm Advantages
 High Availability
 Guaranteed message processing
 Fault tolerant
 Superb Performance
 No intermediate message brokers
 Millions of messages a second
 Horizontal Scalability
 Dramatic increase in workload ? Just add a node !!
 Higher level abstraction than message passing

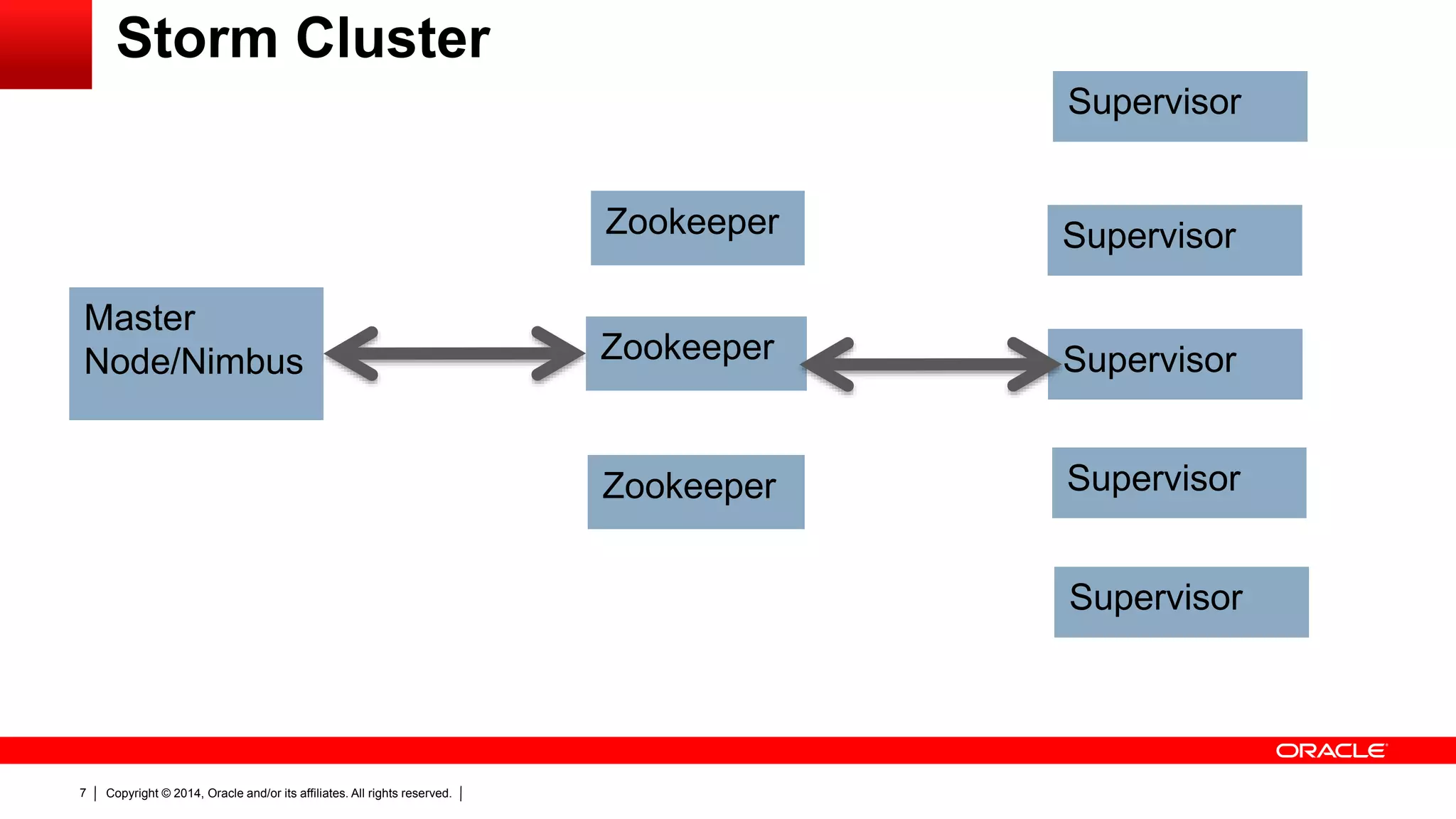

Master
Node/Nimbus
Supervisor
Supervisor
Supervisor
Supervisor
Supervisor
Zookeeper
Zookeeper
Zookeeper
Storm Cluster

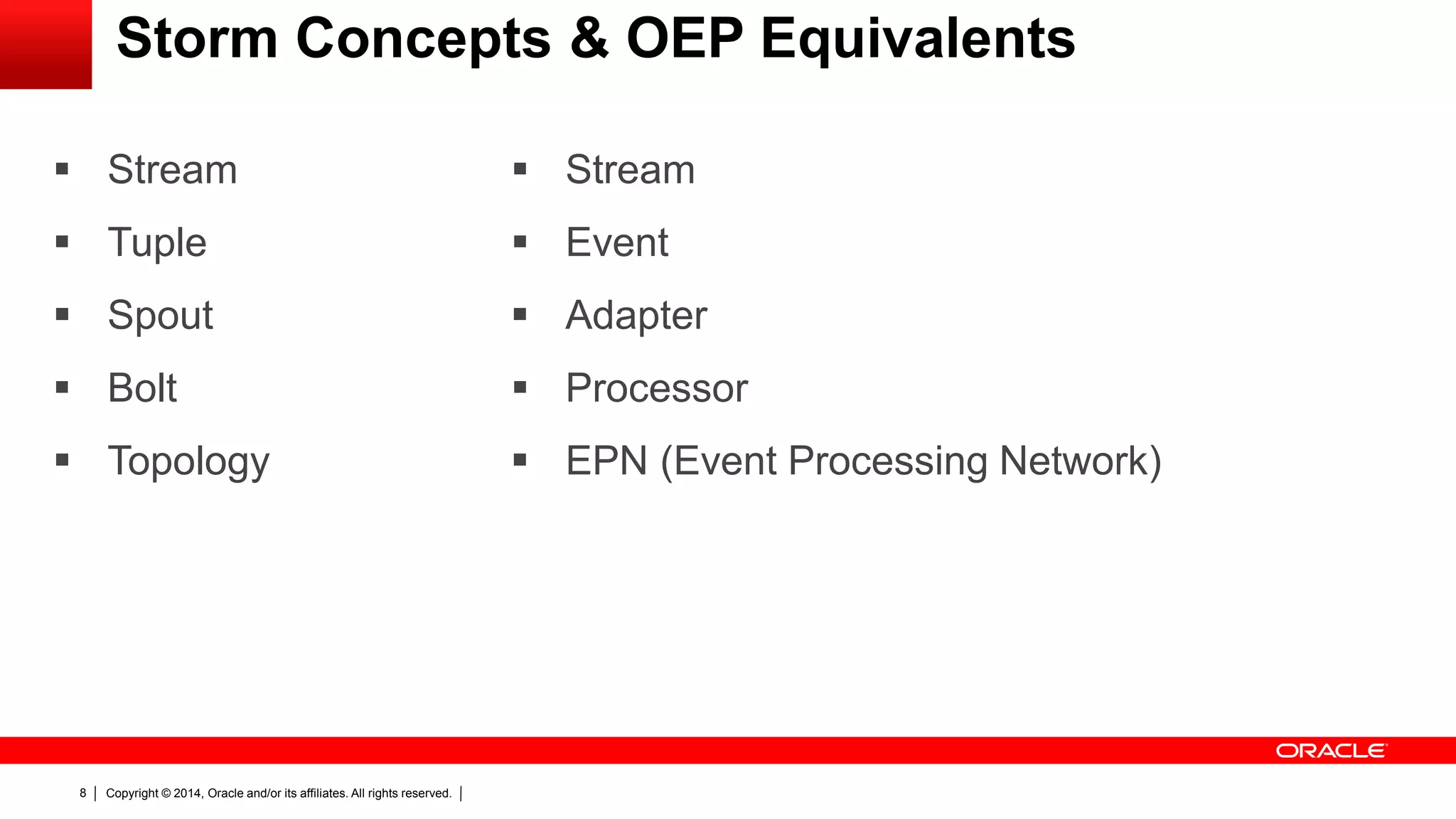

Storm Concepts & OEP Equivalents
 Stream
 Tuple
 Spout
 Bolt
 Topology
 Stream
 Event
 Adapter
 Processor
 EPN (Event Processing Network)

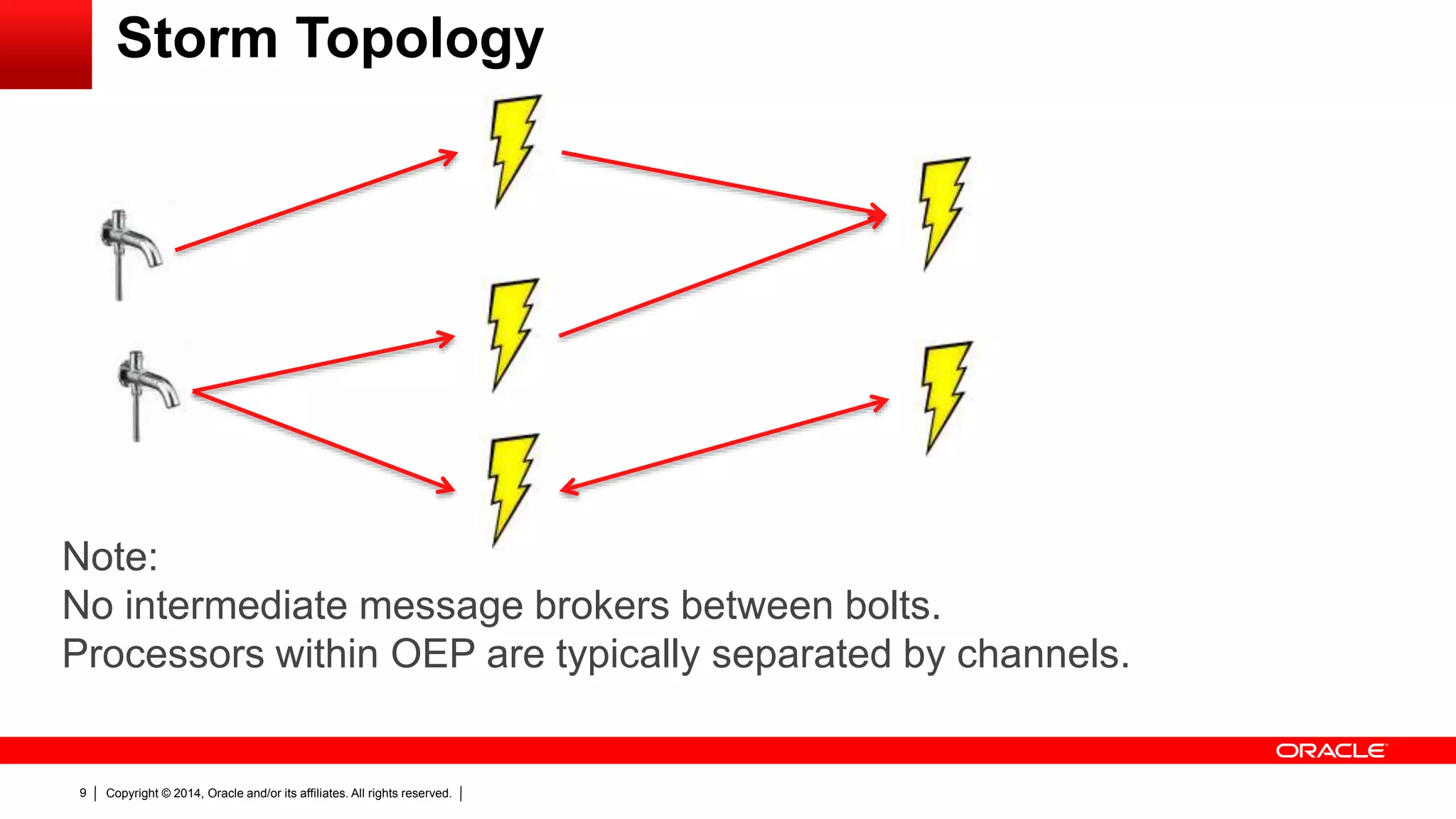

Storm Topology
Note:
No intermediate message brokers between bolts.
Processors within OEP are typically separated by channels.

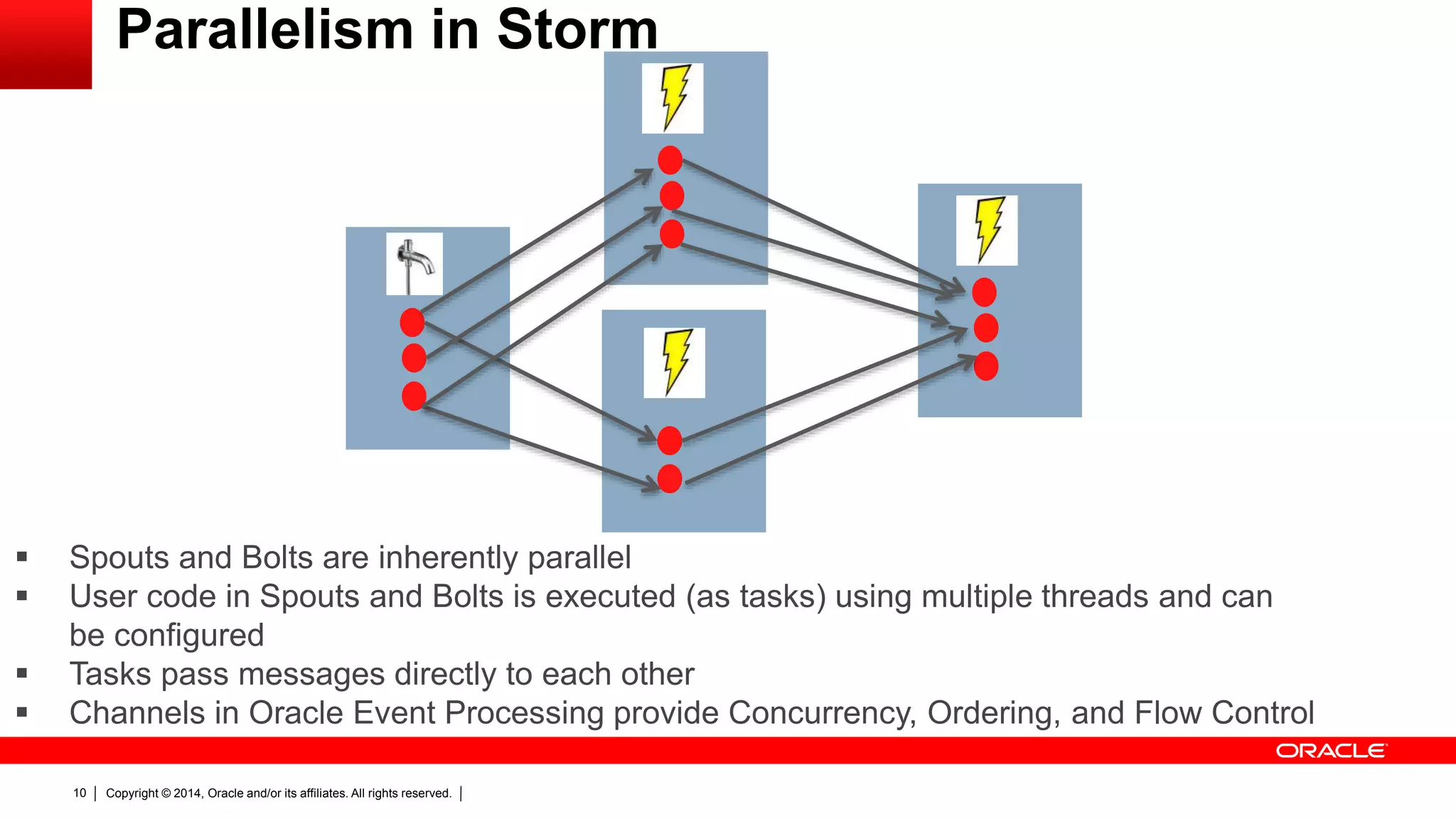

Parallelism in Storm
 Spouts and Bolts are inherently parallel
 User code in Spouts and Bolts is executed (as tasks) using multiple threads and can
be configured
 Tasks pass messages directly to each other
 Channels in Oracle Event Processing provide Concurrency, Ordering, and Flow Control

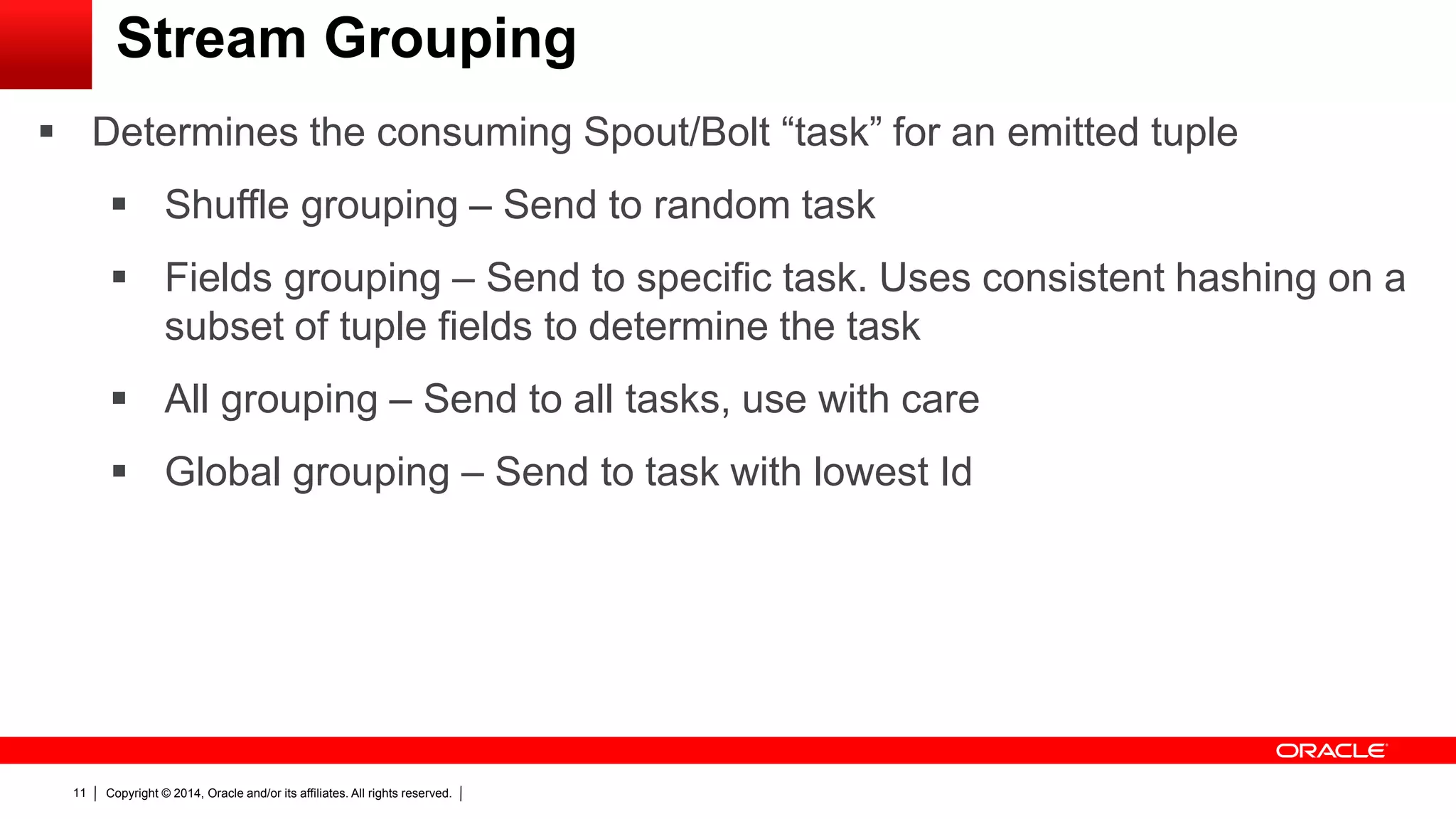

Stream Grouping
 Determines the consuming Spout/Bolt “task” for an emitted tuple
 Shuffle grouping – Send to random task
 Fields grouping – Send to specific task. Uses consistent hashing on a
subset of tuple fields to determine the task
 All grouping – Send to all tasks, use with care
 Global grouping – Send to task with lowest Id

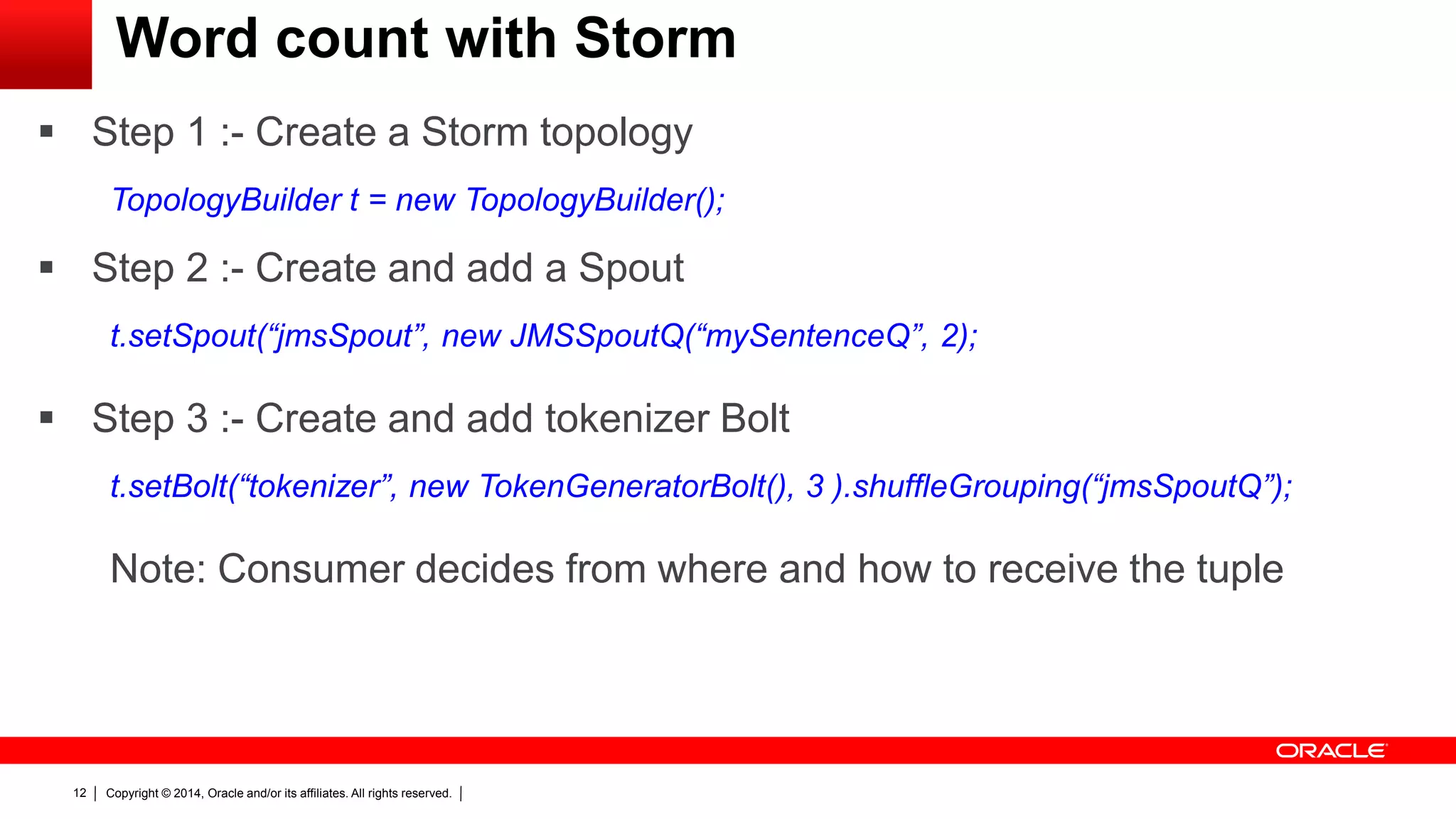

Word count with Storm
 Step 1 :- Create a Storm topology
TopologyBuilder t = new TopologyBuilder();
 Step 2 :- Create and add a Spout
t.setSpout(“jmsSpout”, new JMSSpoutQ(“mySentenceQ”, 2);
 Step 3 :- Create and add tokenizer Bolt
t.setBolt(“tokenizer”, new TokenGeneratorBolt(), 3 ).shuffleGrouping(“jmsSpoutQ”);
Note: Consumer decides from where and how to receive the tuple

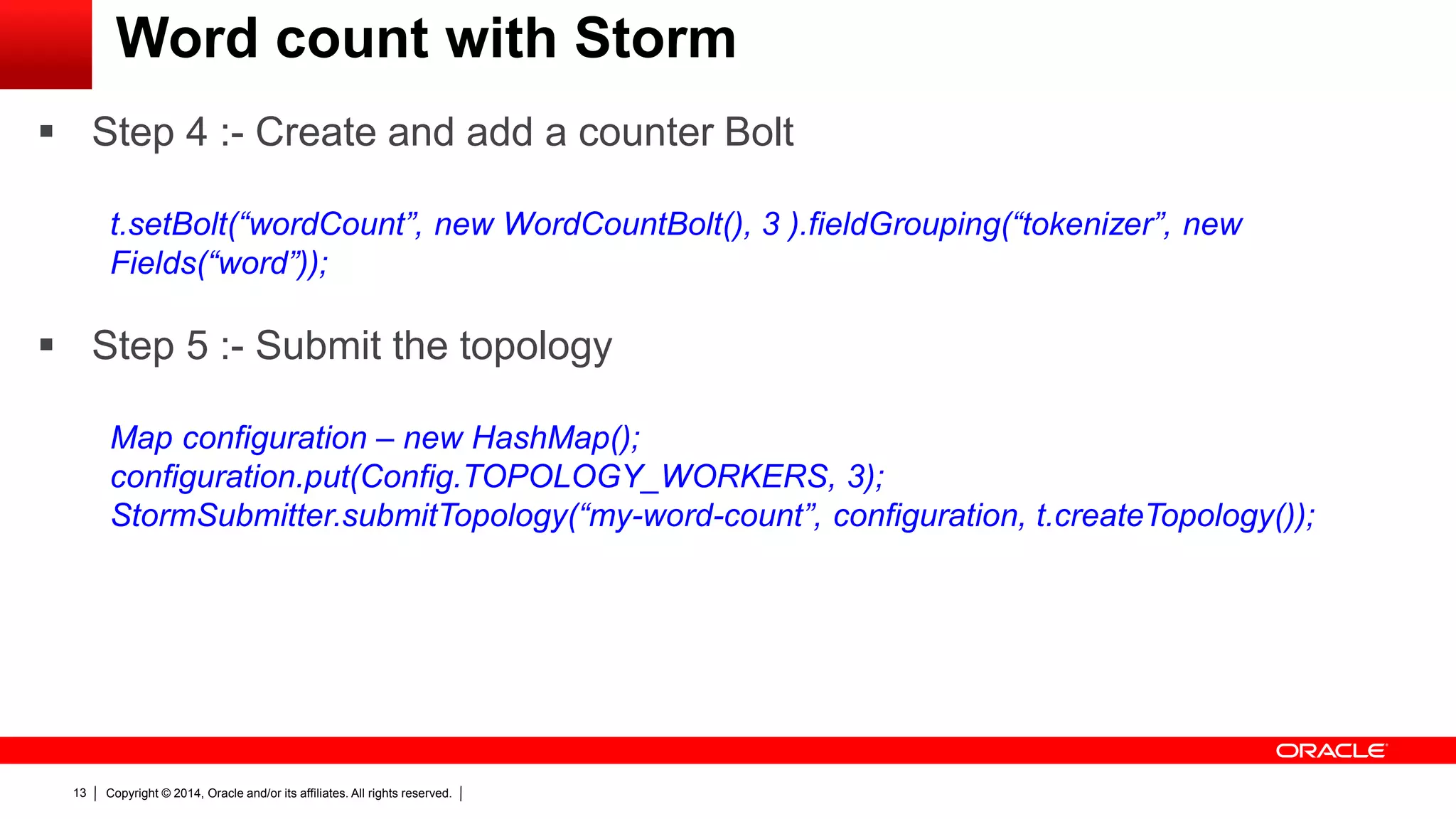

Word count with Storm
 Step 4 :- Create and add a counter Bolt
t.setBolt(“wordCount”, new WordCountBolt(), 3 ).fieldGrouping(“tokenizer”, new
Fields(“word”));
 Step 5 :- Submit the topology
Map configuration – new HashMap();
configuration.put(Config.TOPOLOGY_WORKERS, 3);
StormSubmitter.submitTopology(“my-word-count”, configuration, t.createTopology());

Word count TopologyJMS
jmsSpout
jmsSpout
Complex Event Processing
Oracle Event Processing
tokenizer
tokenizer
tokenizer
wordCount
wordCount
wordCount

 Distributed, scalable, and fault-
tolerant framework for real-time
computation, but how and the
details are really up to the
application developer.
 No OOTB operators for stream or
real-time data processing -
correlation, rolling averages, event
enrichment, pattern matching,
missing events, etc.
 Time windows must be implemented
and maintained by application
 Holistic platform for developing,
running, and managing real-time
stream processing applications.
 Memory optimized query processing
engine for high-volumes, with simple
programming model. E.g. Detecting
a W pattern in a stock-quote stream
is 6 lines of CQL code vs. 260 lines
of Java code
 Engine maintains window states by
automatically including new events
and flushing out expired events
Storm OEP

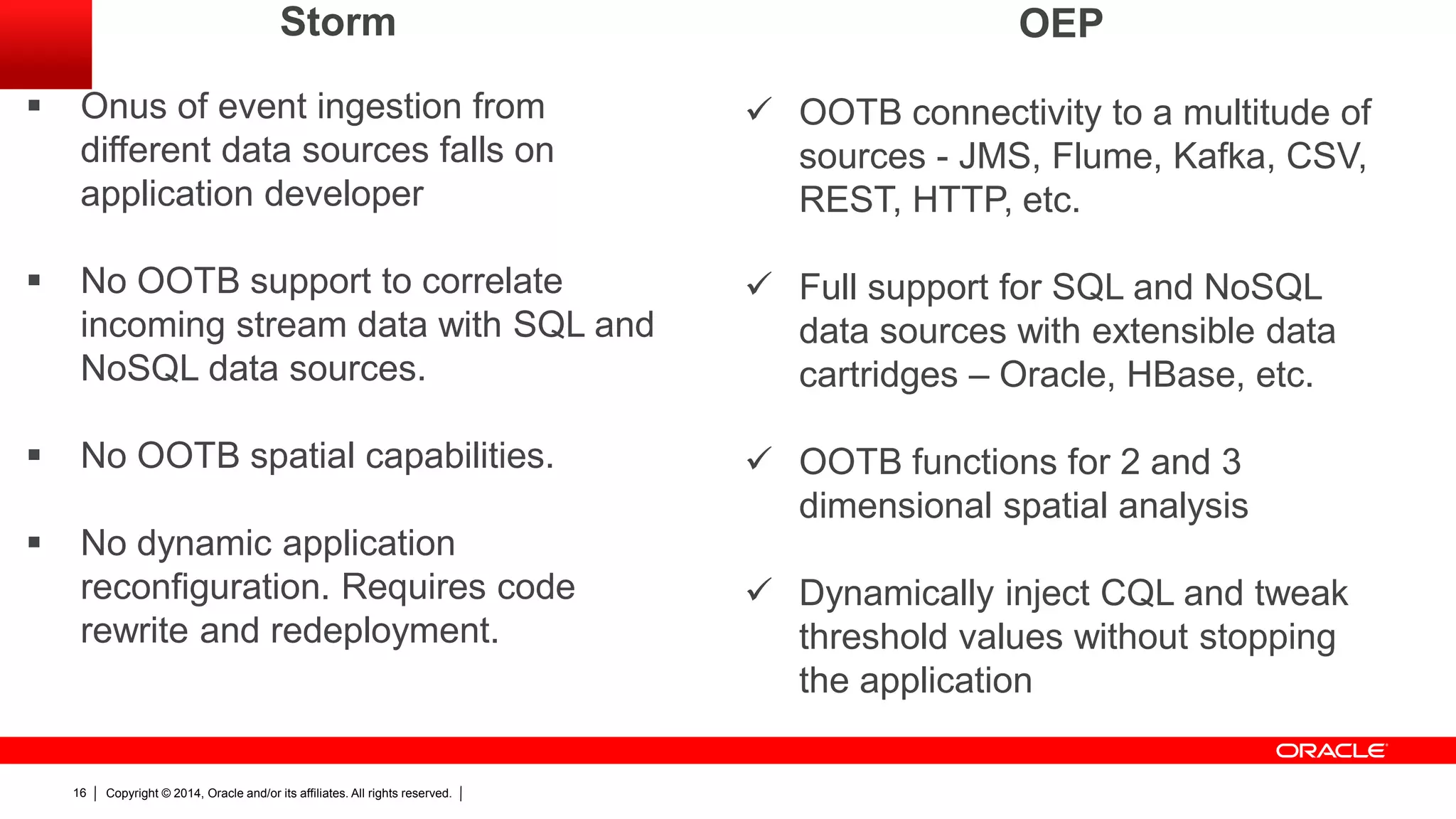

 Onus of event ingestion from
different data sources falls on
application developer
 No OOTB support to correlate
incoming stream data with SQL and
NoSQL data sources.
 No OOTB spatial capabilities.
 No dynamic application
reconfiguration. Requires code
rewrite and redeployment.
 OOTB connectivity to a multitude of
sources - JMS, Flume, Kafka, CSV,
REST, HTTP, etc.
 Full support for SQL and NoSQL
data sources with extensible data
cartridges – Oracle, HBase, etc.
 OOTB functions for 2 and 3
dimensional spatial analysis
 Dynamically inject CQL and tweak
threshold values without stopping
the application
Storm OEP

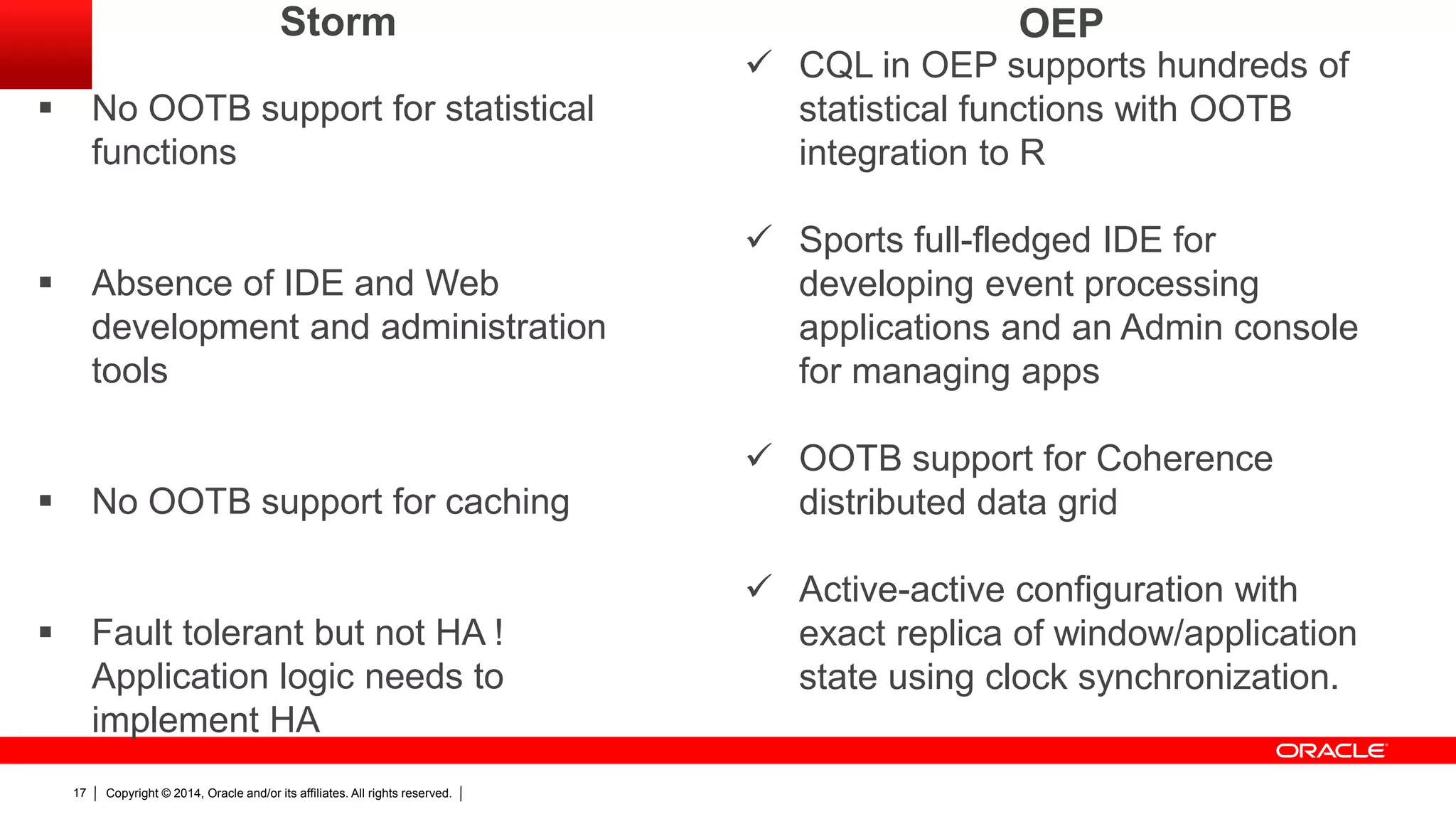

 No OOTB support for statistical
functions
 Absence of IDE and Web
development and administration
tools
 No OOTB support for caching
 Fault tolerant but not HA !
Application logic needs to
implement HA
 CQL in OEP supports hundreds of
statistical functions with OOTB
integration to R
 Sports full-fledged IDE for
developing event processing
applications and an Admin console
for managing apps
 OOTB support for Coherence
distributed data grid
 Active-active configuration with
exact replica of window/application
state using clock synchronization.
Storm OEP
