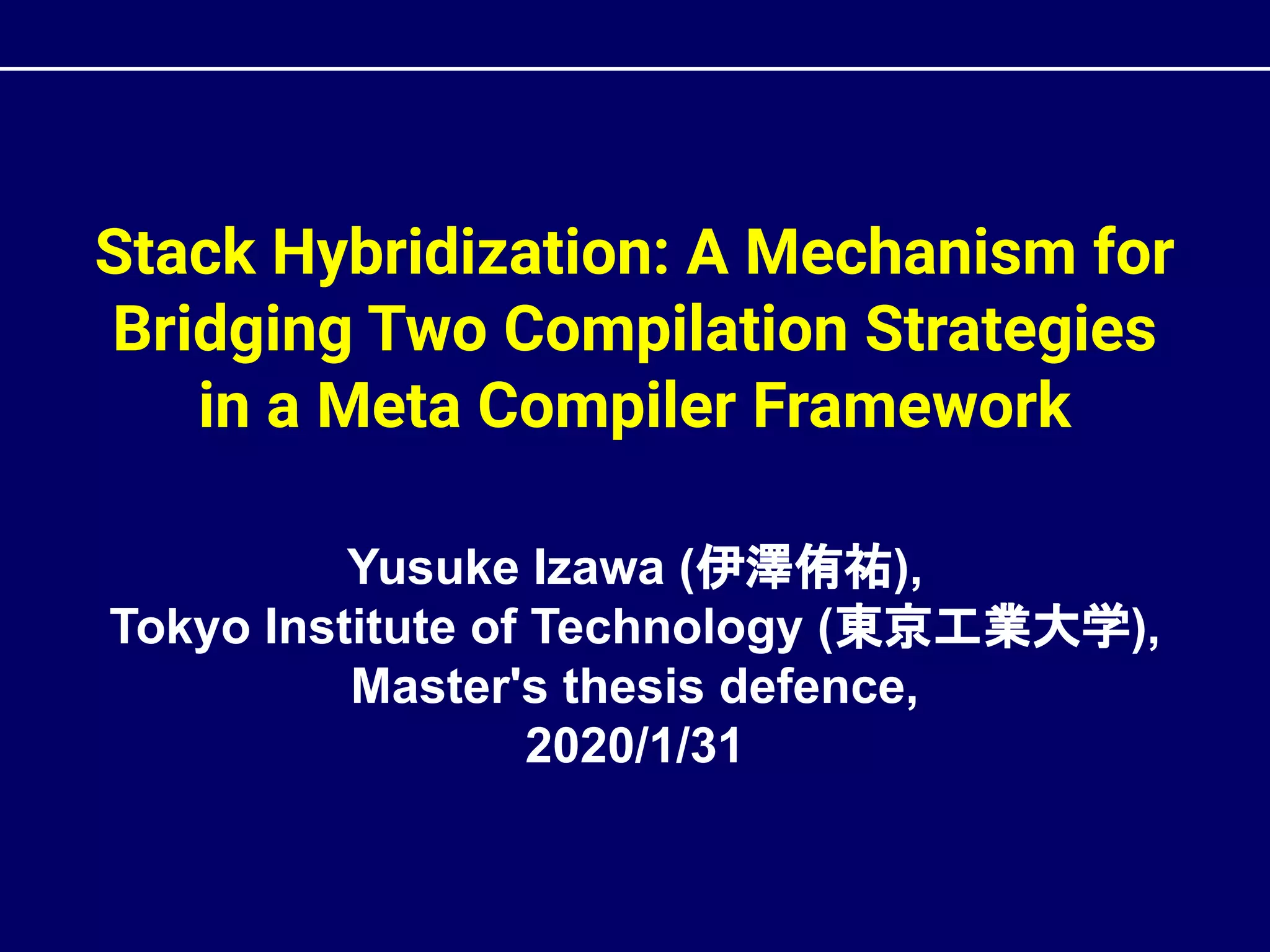

Stack Hybridization: A Mechanism for Bridging Two Compilation Strategies in a Meta Compiler Framework

This document summarizes Yusuke Izawa's master's thesis defense on stack hybridization, a mechanism for bridging two compilation strategies - tracing and method-based - in a meta compiler framework. The proposal extends a meta-tracing just-in-time (JIT) compiler to apply different compilation strategies to different parts of a program based on call context. A proof-of-concept implementation in OCaml showed the hybrid approach was about 1.1x faster than a method-based only approach and over 100x faster than a tracing only approach.

Embed presentation

Download as PDF, PPTX
Stack Hybridization: A Mechanism for Bridging Two Compilation Strategies in a Meta Compiler Framework Yusuke Izawa (伊澤侑祐), Tokyo Institute of Technology (東京工業大学), Master's thesis defence, 2020/1/31

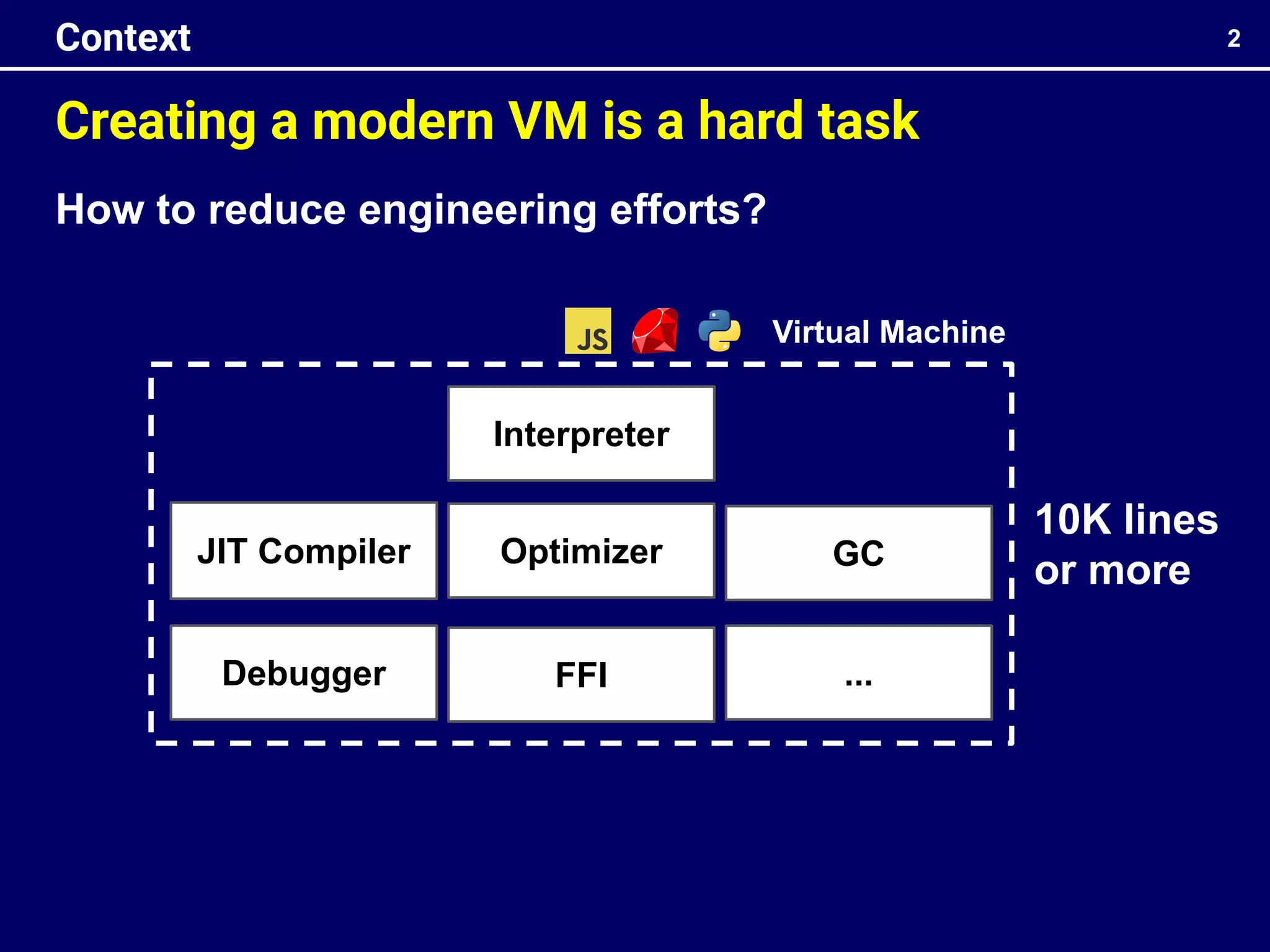

Creating a modern VM is a hard task 2 Context JIT Compiler Interpreter Optimizer FFI GC ... 10K lines or more Virtual Machine Debugger How to reduce engineering efforts?

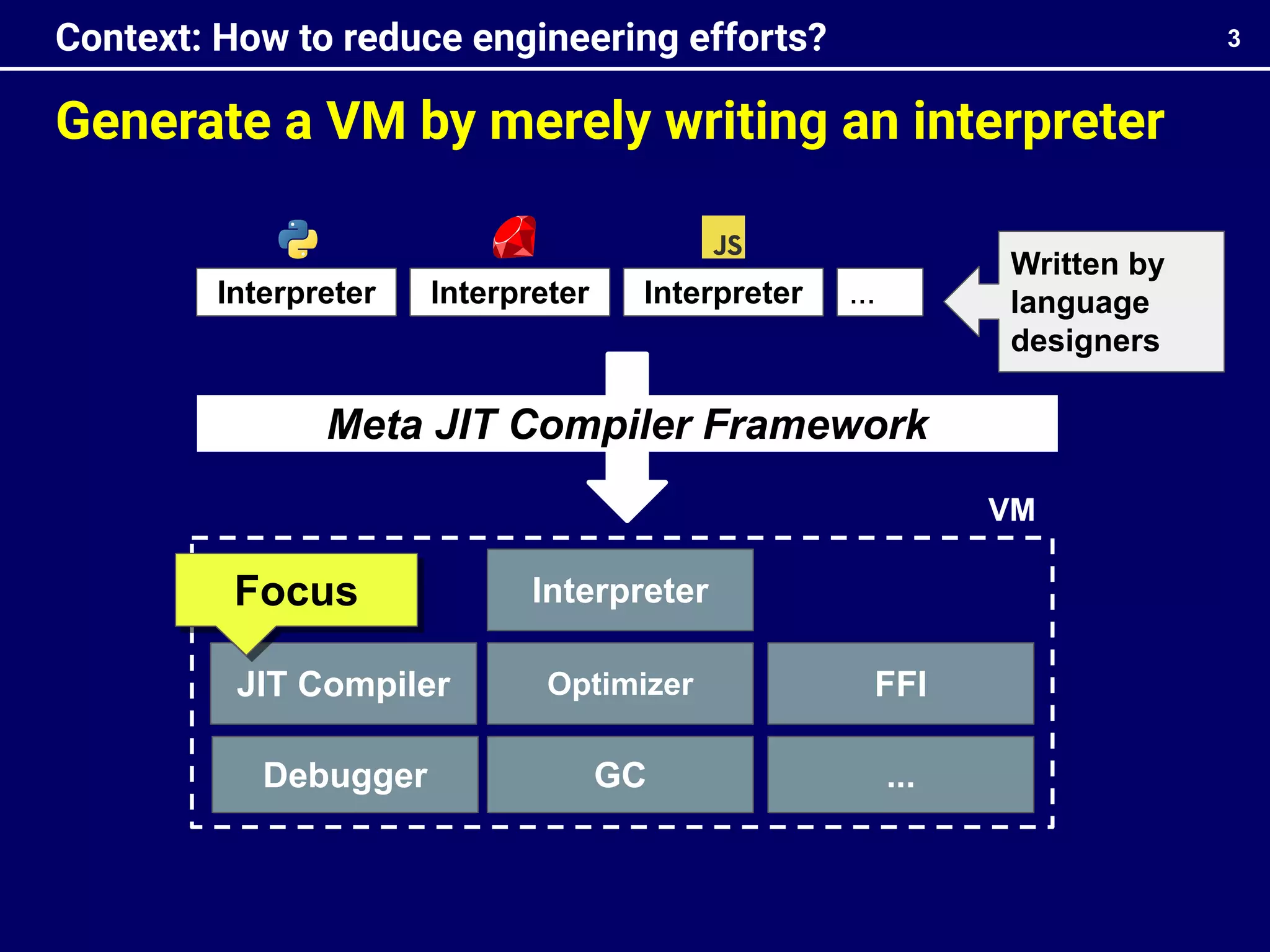

Generate a VM by merely writing an interpreter 3 Context: How to reduce engineering efforts? JIT Compiler Interpreter Optimizer FFI GC ... Interpreter Interpreter ... Focus VM Meta JIT Compiler Framework Interpreter Debugger Written by language designers

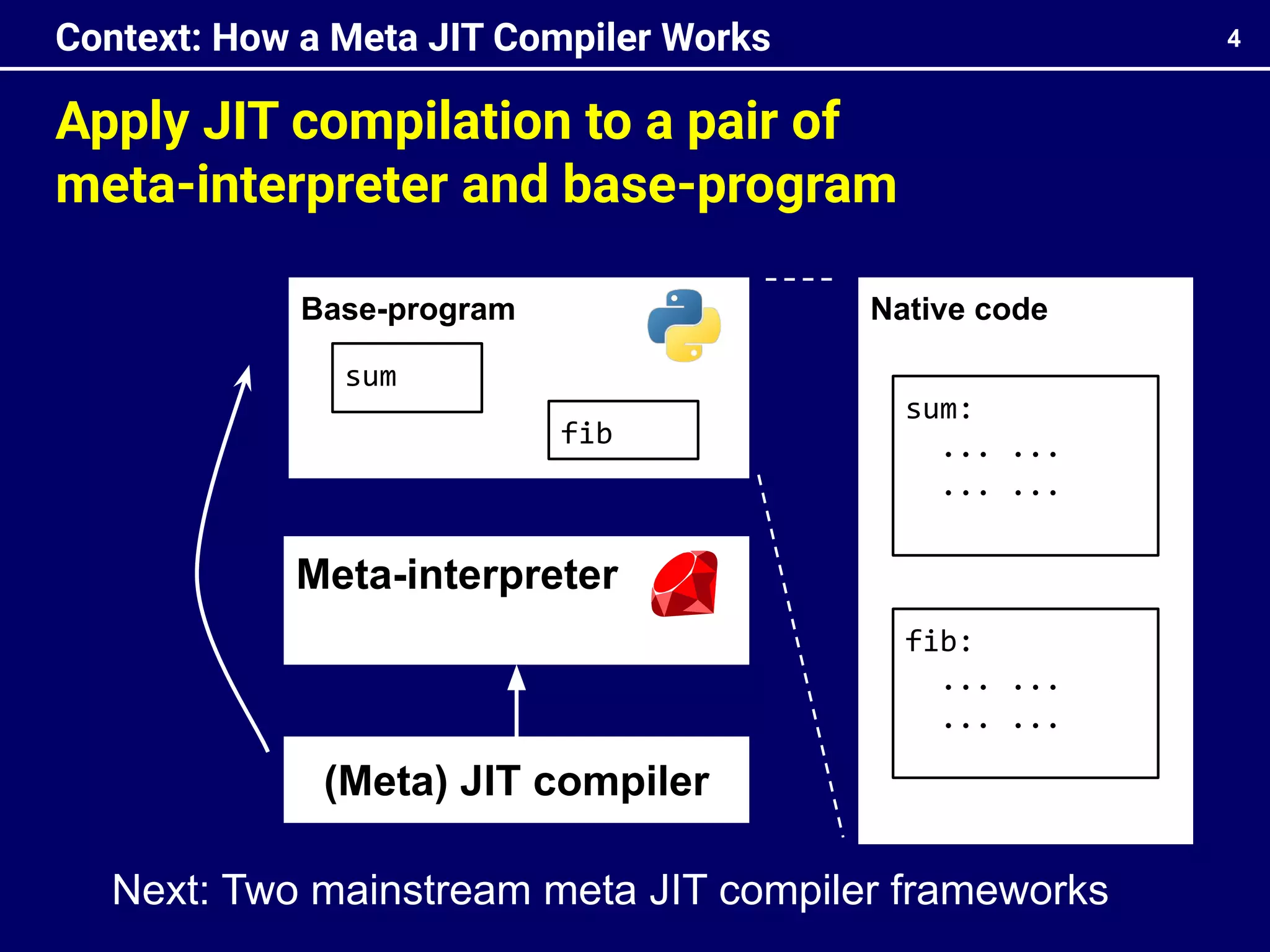

Apply JIT compilation to a pair of meta-interpreter and base-program 4 Context: How a Meta JIT Compiler Works Meta-interpreter (Meta) JIT compiler Base-program sum fib Native code sum: ... ... ... ... fib: ... ... ... ... Next: Two mainstream meta JIT compiler frameworks

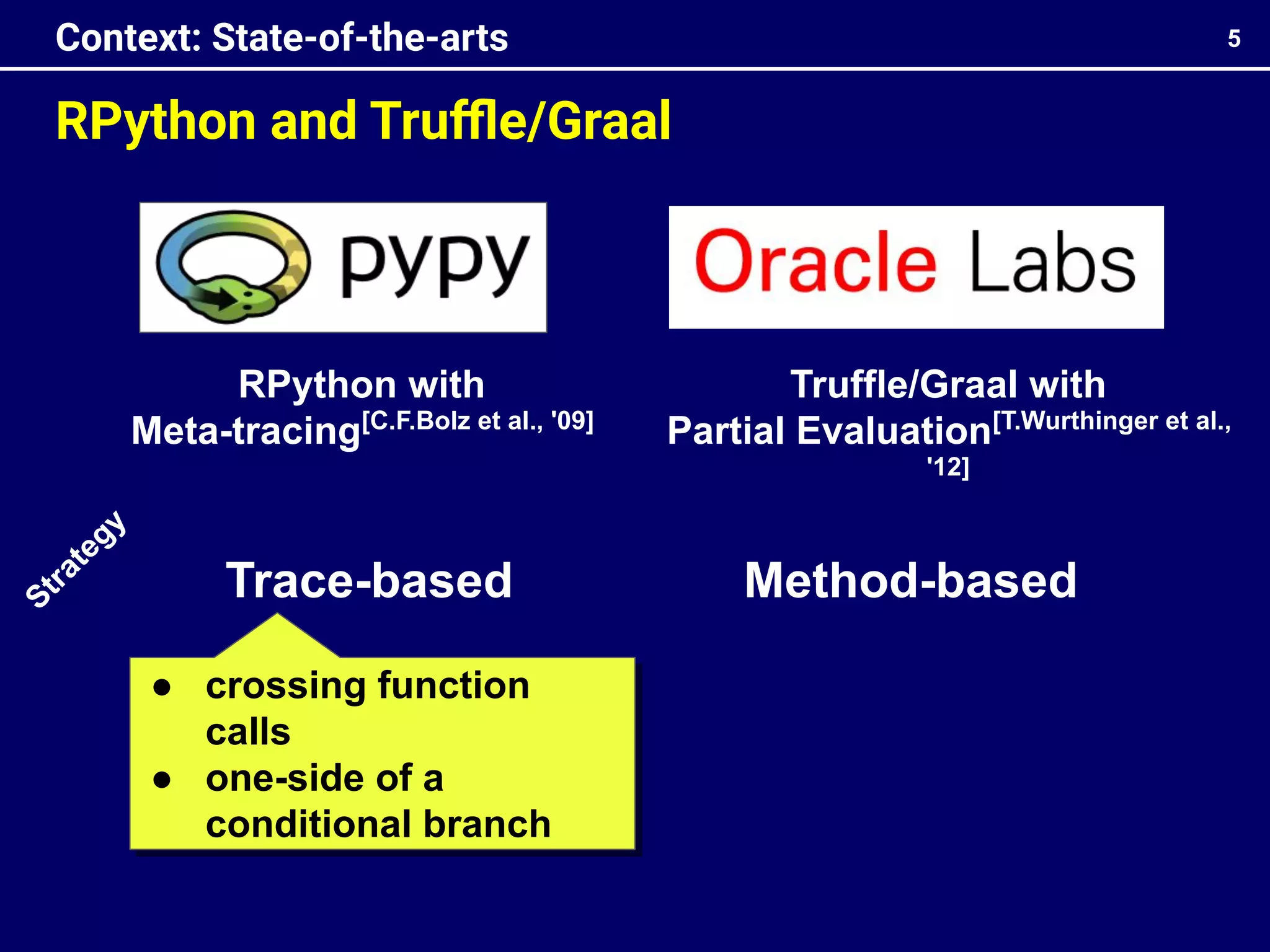

RPython and Truffle/Graal 5 Context: State-of-the-arts RPython with Meta-tracing[C.F.Bolz et al., '09] Truffle/Graal with Partial Evaluation[T.Wurthinger et al., '12] S t r a t e g y Trace-based Method-based ● crossing function calls ● one-side of a conditional branch

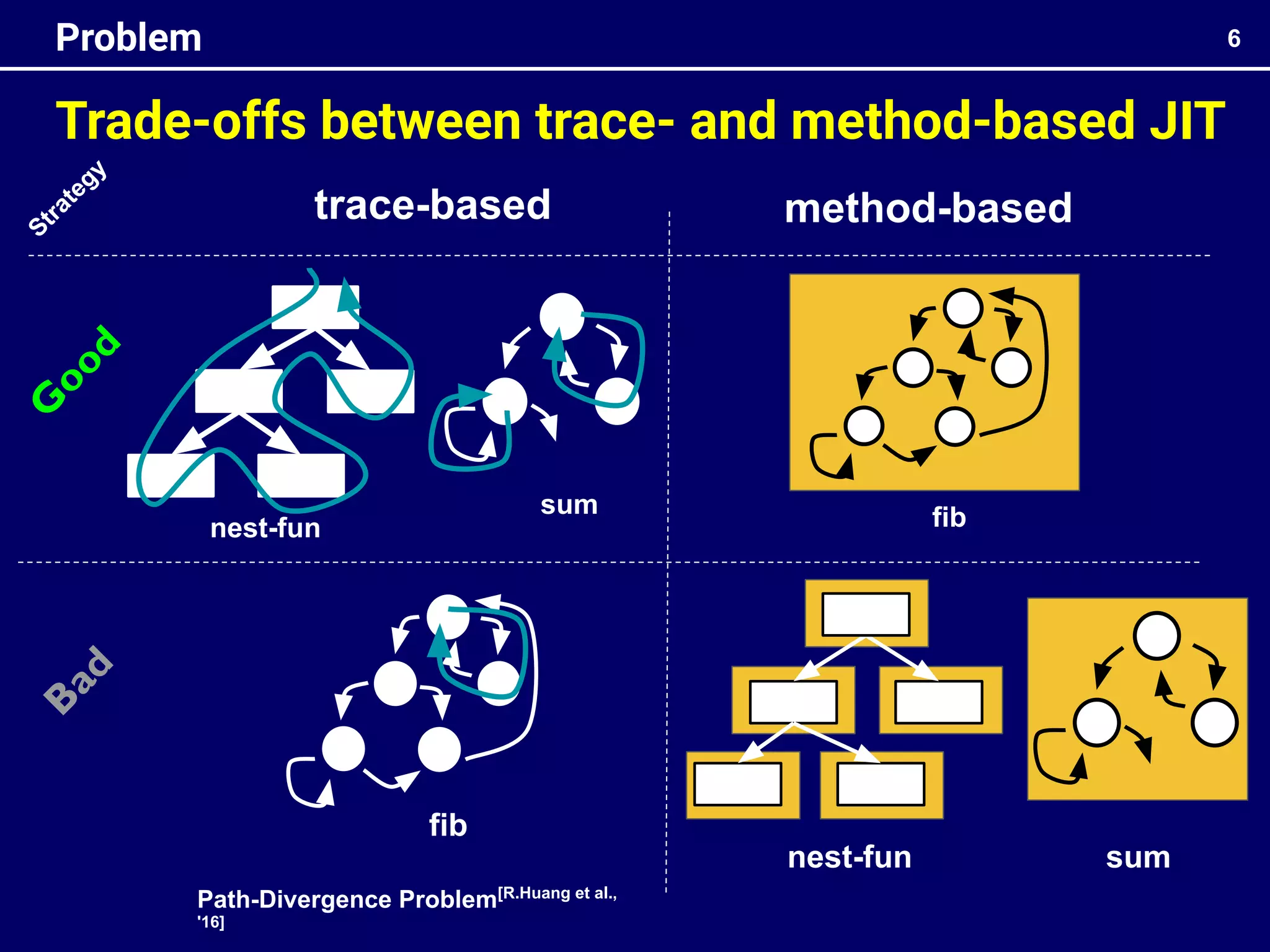

Trade-offs between trace- and method-based JIT 6 Problem trace-based S t r a t e g y method-based fib sum nest-fun fib sum nest-fun G o o d B a d Path-Divergence Problem[R.Huang et al., '16]

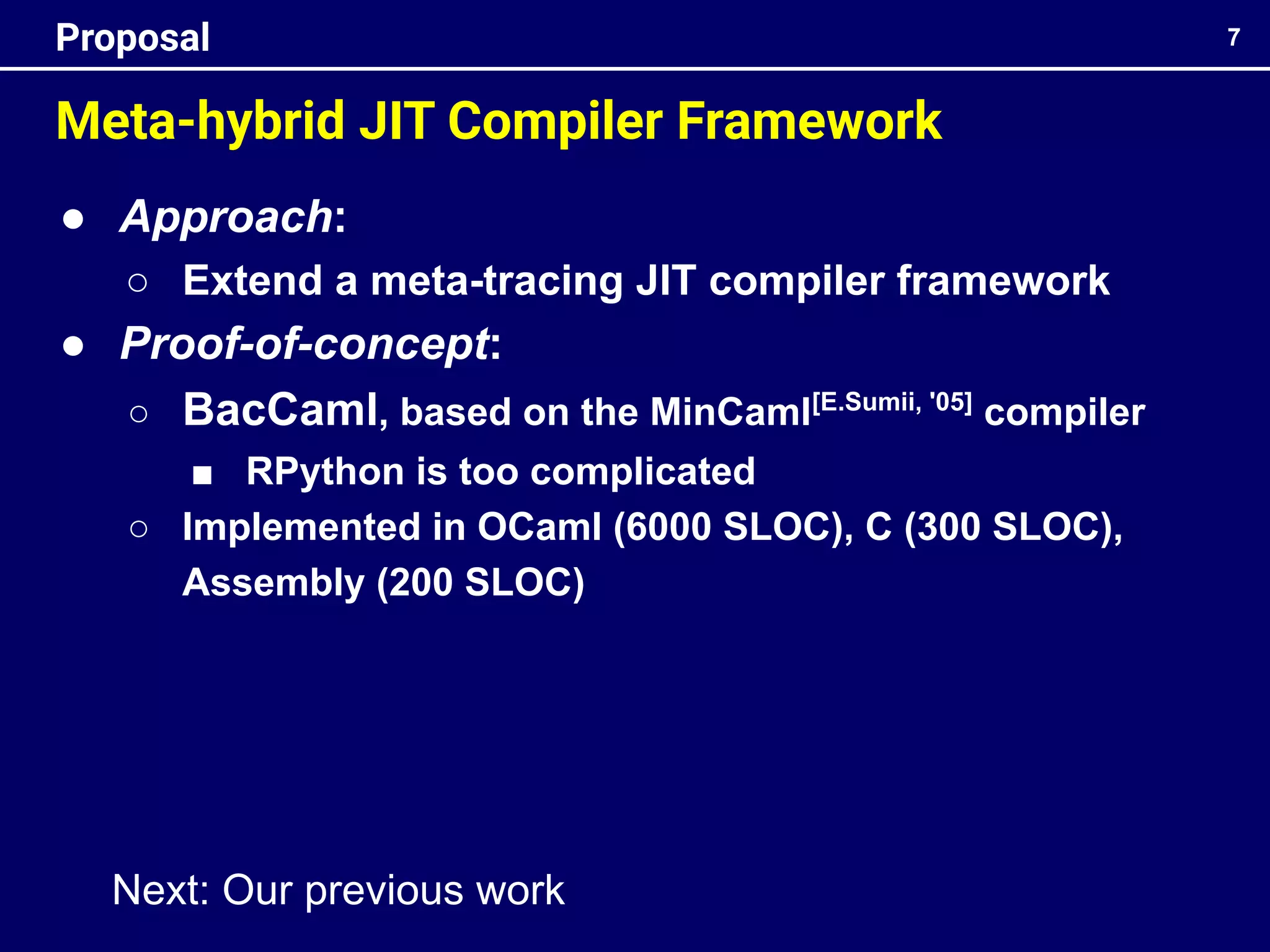

● Approach: ○ Extend a meta-tracing JIT compiler framework ● Proof-of-concept: ○ BacCaml, based on the MinCaml[E.Sumii, '05] compiler ■ RPython is too complicated ○ Implemented in OCaml (6000 SLOC), C (300 SLOC), Assembly (200 SLOC) Meta-hybrid JIT Compiler Framework 7 Proposal Next: Our previous work

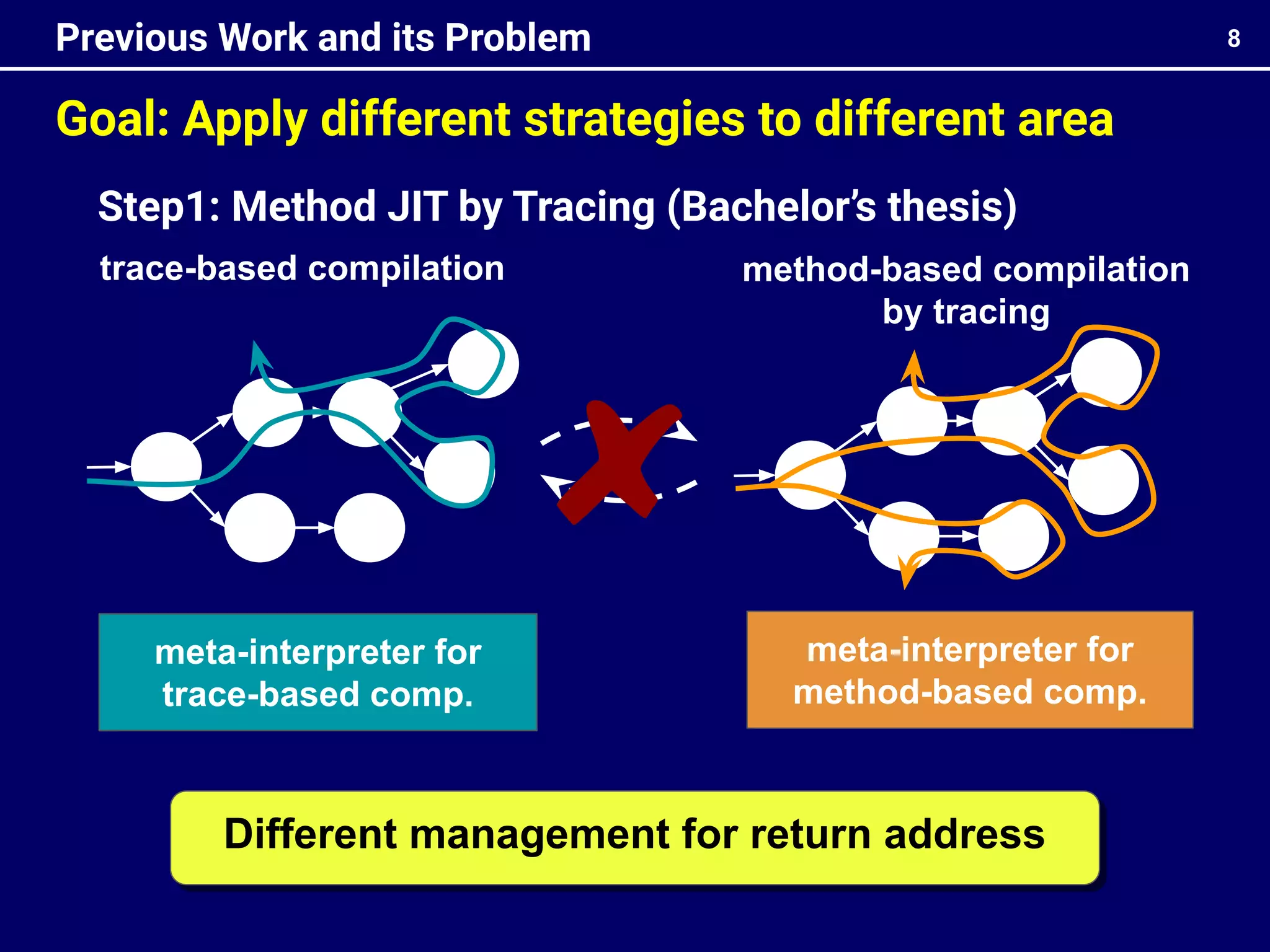

8 Previous Work and its Problem trace-based compilation method-based compilation by tracing Step1: Method JIT by Tracing (Bachelor’s thesis) Goal: Apply different strategies to different area Different management for return address meta-interpreter for trace-based comp. meta-interpreter for method-based comp.

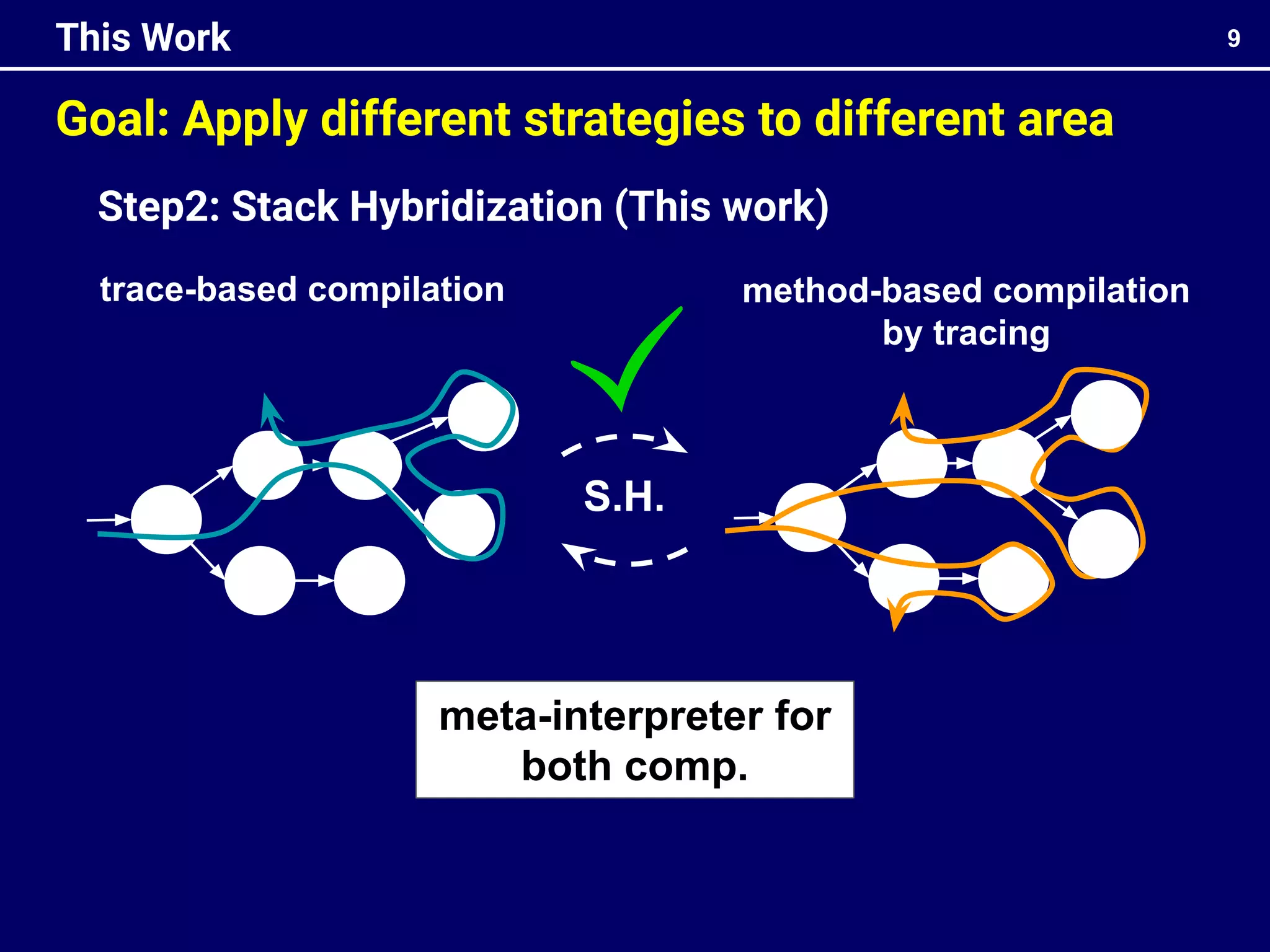

9 This Work trace-based compilation method-based compilation by tracing Step2: Stack Hybridization (This work) Goal: Apply different strategies to different area S.H. meta-interpreter for both comp.
10 Problem on Previous Work Native from trace-JIT Native from method-JIT def interp(pc, user_stack): … while True: … if instr == CALL: addr = bytecode[pc] ret_addr = pc + 1 user_stack.push(ret_addr) pc = addr elsif == RET: v = user_stack.pop() addr = user_stack.pop() user_stack.push(v) pc = addr Different management for return address def interp(pc, user_stack): … while True: … if instr == CALL: addr = bytecode[pc] r = interp(addr) user_stack.push(r) pc += 1 elsif == RET: v = user_stack.pop() return v managed by host-stack Meta-interpreter for trace-JIT Meta-interpreter for method-JIT User-stack style Host-stack style managed by user-stack

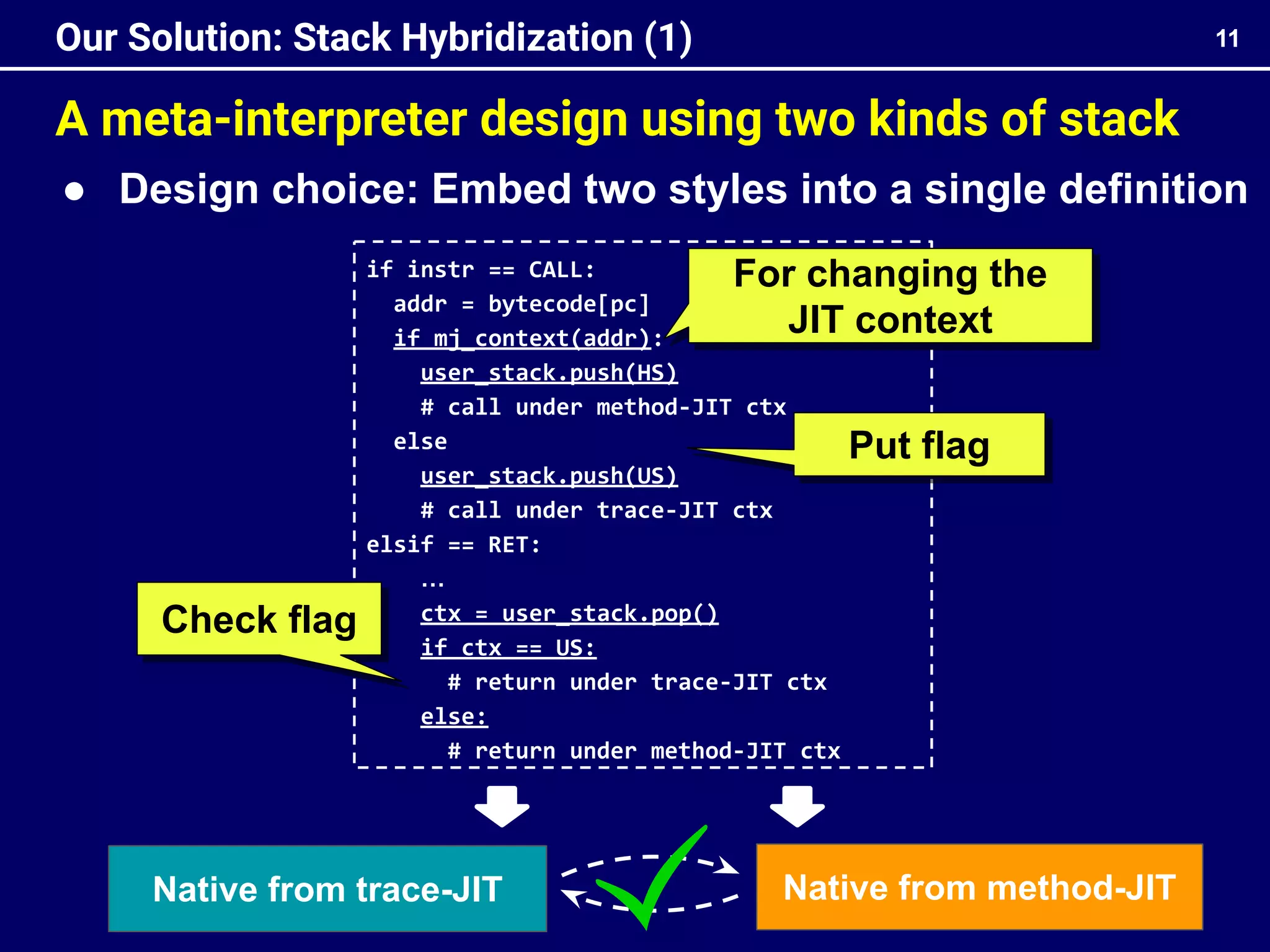

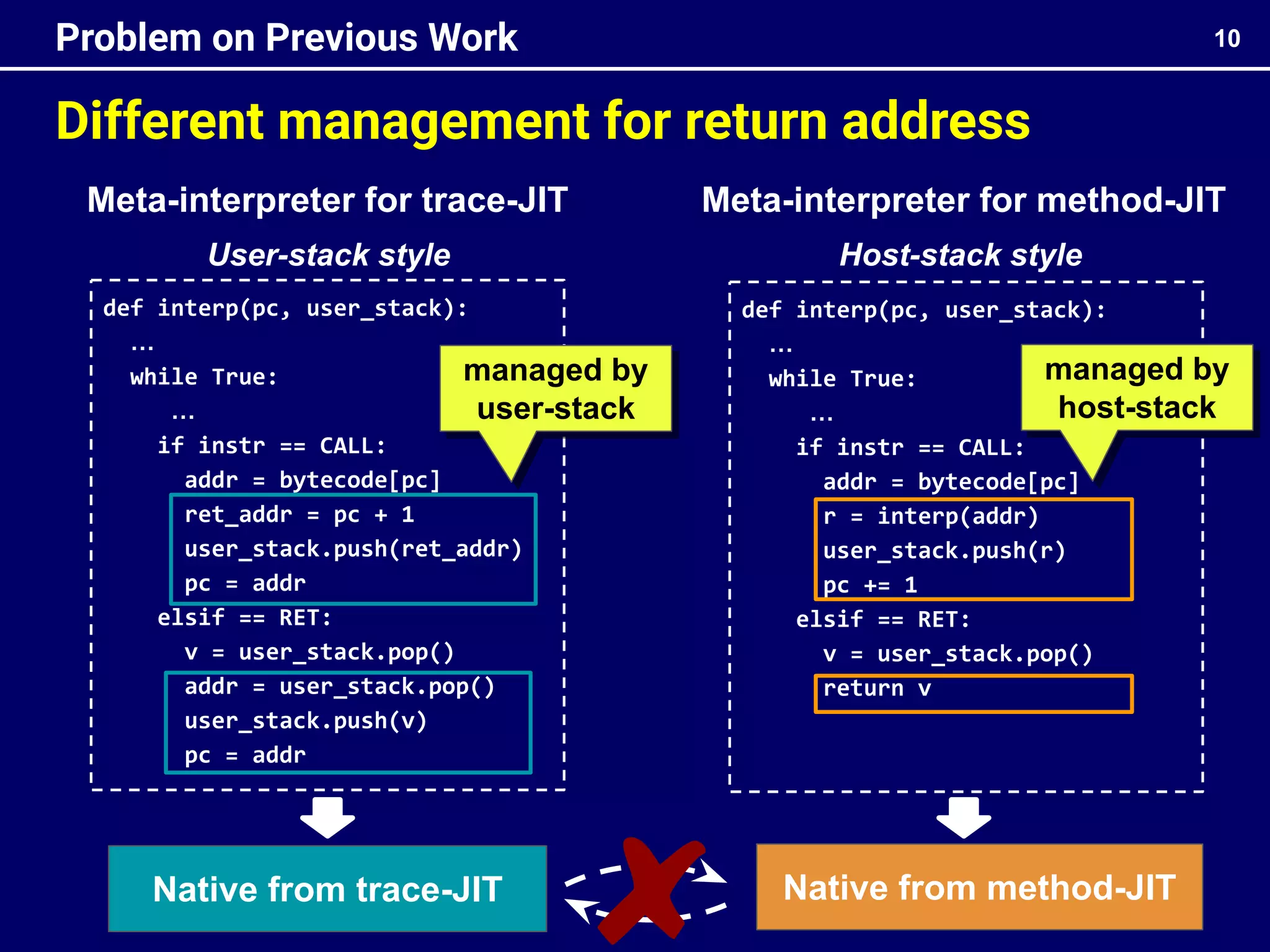

A meta-interpreter design using two kinds of stack 11 Our Solution: Stack Hybridization (1) ● Design choice: Embed two styles into a single definition if instr == CALL: addr = bytecode[pc] if mj_context(addr): user_stack.push(HS) # call under method-JIT ctx else user_stack.push(US) # call under trace-JIT ctx elsif == RET: … ctx = user_stack.pop() if ctx == US: # return under trace-JIT ctx else: # return under method-JIT ctx Put flag Check flag For changing the JIT context Native from trace-JIT Native from method-JIT

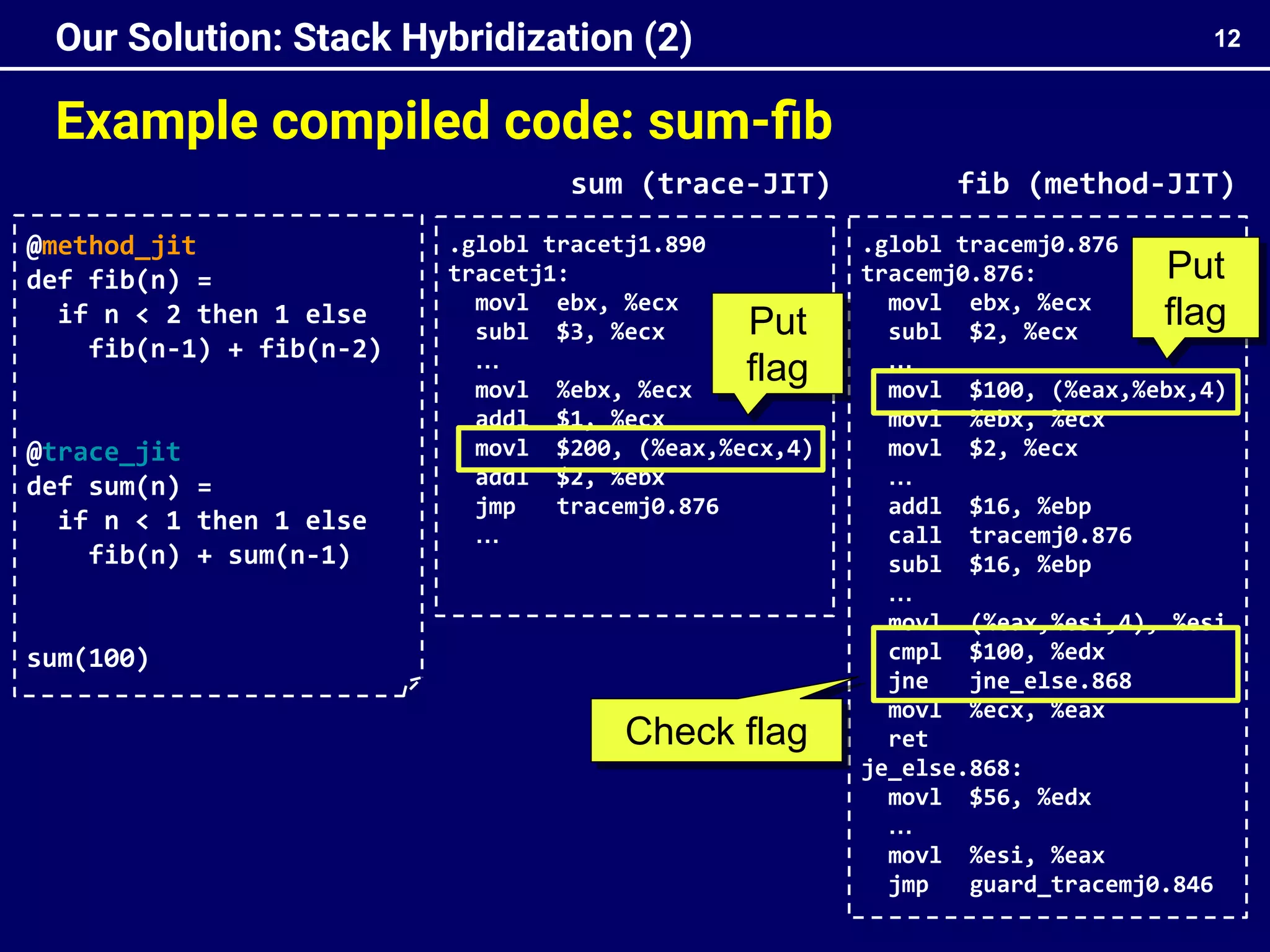

Example compiled code: sum-fib 12 Our Solution: Stack Hybridization (2) sum (trace-JIT) fib (method-JIT) @method_jit def fib(n) = if n < 2 then 1 else fib(n-1) + fib(n-2) @trace_jit def sum(n) = if n < 1 then 1 else fib(n) + sum(n-1) sum(100) .globl tracetj1.890 tracetj1: movl ebx, %ecx subl $3, %ecx … movl %ebx, %ecx addl $1, %ecx movl $200, (%eax,%ecx,4) addl $2, %ebx jmp tracemj0.876 … .globl tracemj0.876 tracemj0.876: movl ebx, %ecx subl $2, %ecx … movl $100, (%eax,%ebx,4) movl %ebx, %ecx movl $2, %ecx … addl $16, %ebp call tracemj0.876 subl $16, %ebp … movl (%eax,%esi,4), %esi cmpl $100, %edx jne jne_else.868 movl %ecx, %eax ret je_else.868: movl $56, %edx … movl %esi, %eax jmp guard_tracemj0.846 Put flag Put flag Check flag

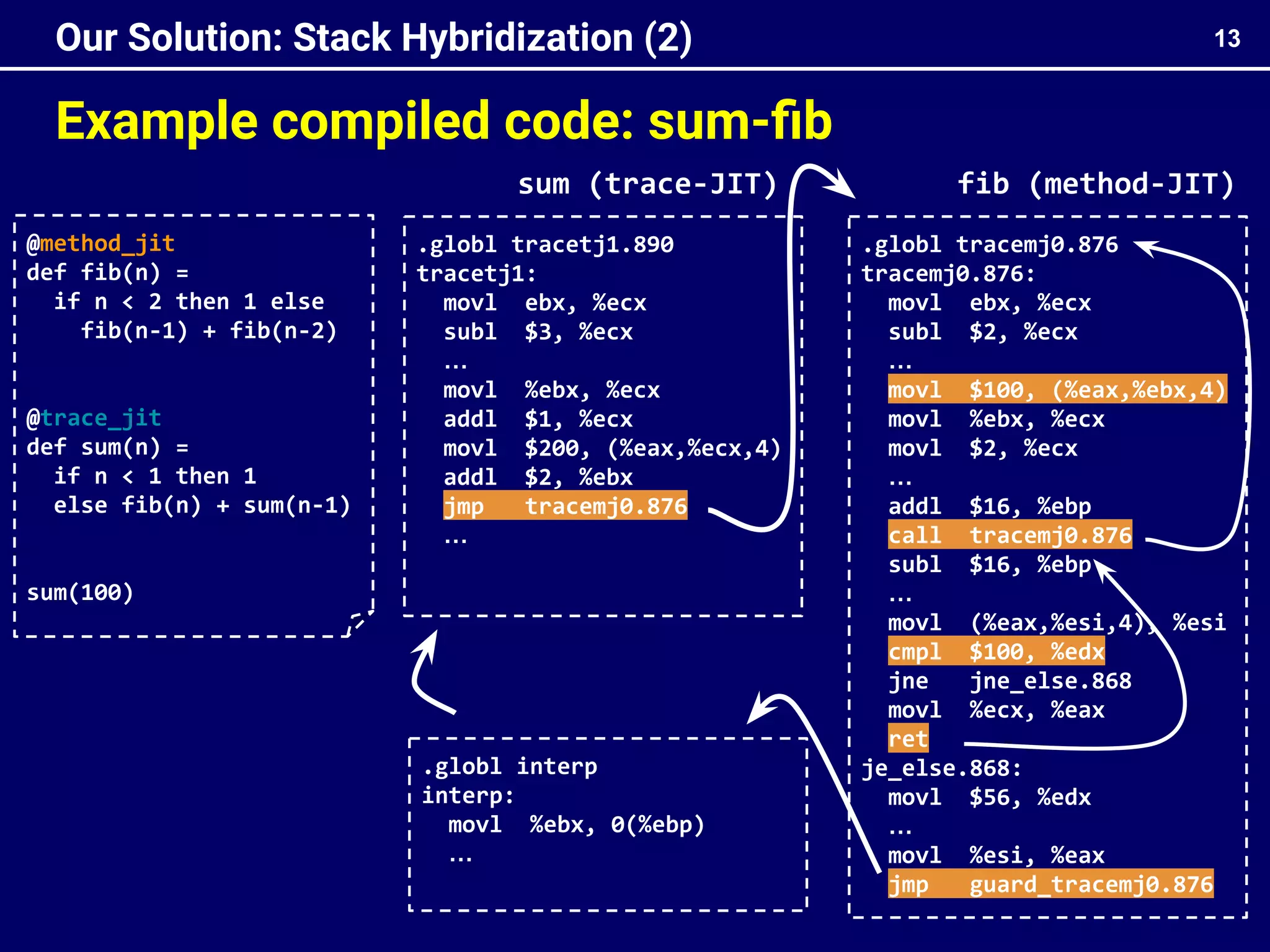

.globl tracemj0.876 tracemj0.876: movl ebx, %ecx subl $2, %ecx … movl $100, (%eax,%ebx,4) movl %ebx, %ecx movl $2, %ecx … addl $16, %ebp call tracemj0.876 subl $16, %ebp … movl (%eax,%esi,4), %esi cmpl $100, %edx jne jne_else.868 movl %ecx, %eax ret je_else.868: movl $56, %edx … movl %esi, %eax jmp guard_tracemj0.876 Example compiled code: sum-fib 13 Our Solution: Stack Hybridization (2) .globl tracetj1.890 tracetj1: movl ebx, %ecx subl $3, %ecx … movl %ebx, %ecx addl $1, %ecx movl $200, (%eax,%ecx,4) addl $2, %ebx jmp tracemj0.876 … .globl interp interp: movl %ebx, 0(%ebp) … sum (trace-JIT) fib (method-JIT) @method_jit def fib(n) = if n < 2 then 1 else fib(n-1) + fib(n-2) @trace_jit def sum(n) = if n < 1 then 1 else fib(n) + sum(n-1) sum(100)

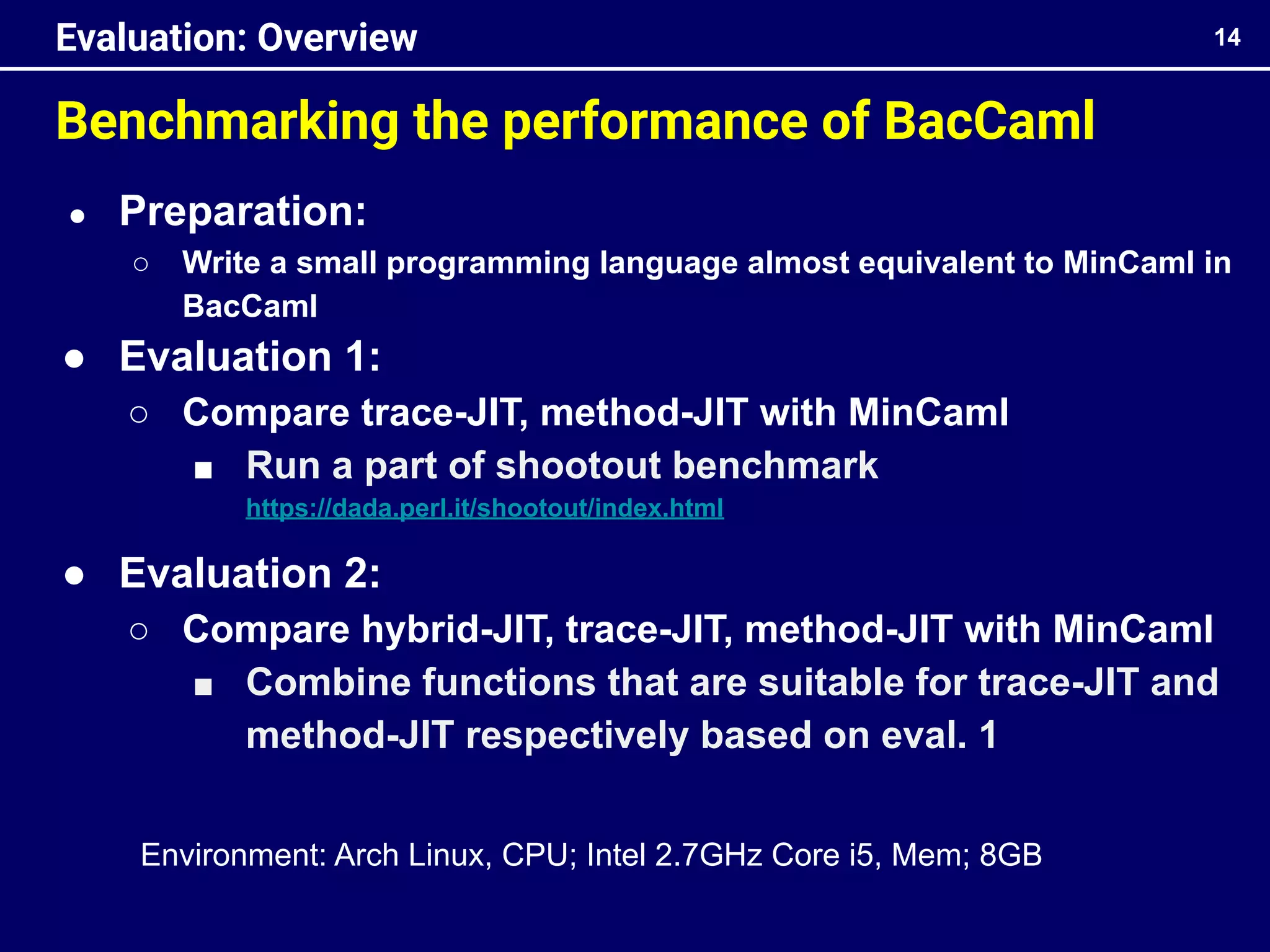

Benchmarking the performance of BacCaml 14 Evaluation: Overview ● Preparation: ○ Write a small programming language almost equivalent to MinCaml in BacCaml ● Evaluation 1: ○ Compare trace-JIT, method-JIT with MinCaml ■ Run a part of shootout benchmark https://dada.perl.it/shootout/index.html ● Evaluation 2: ○ Compare hybrid-JIT, trace-JIT, method-JIT with MinCaml ■ Combine functions that are suitable for trace-JIT and method-JIT respectively based on eval. 1 Environment: Arch Linux, CPU; Intel 2.7GHz Core i5, Mem; 8GB
15 Evaluation 1 better ● Tracing JIT is suitable for branching control flow (1.28x faster than method JIT) ● Method JIT is good for any programs (around 10x ~ 100x faster than tracing JIT)
16 Evaluation 2 better ● Hybrid JIT is about 1.1x better than method JIT only, and over 100x better than tracing JIT only

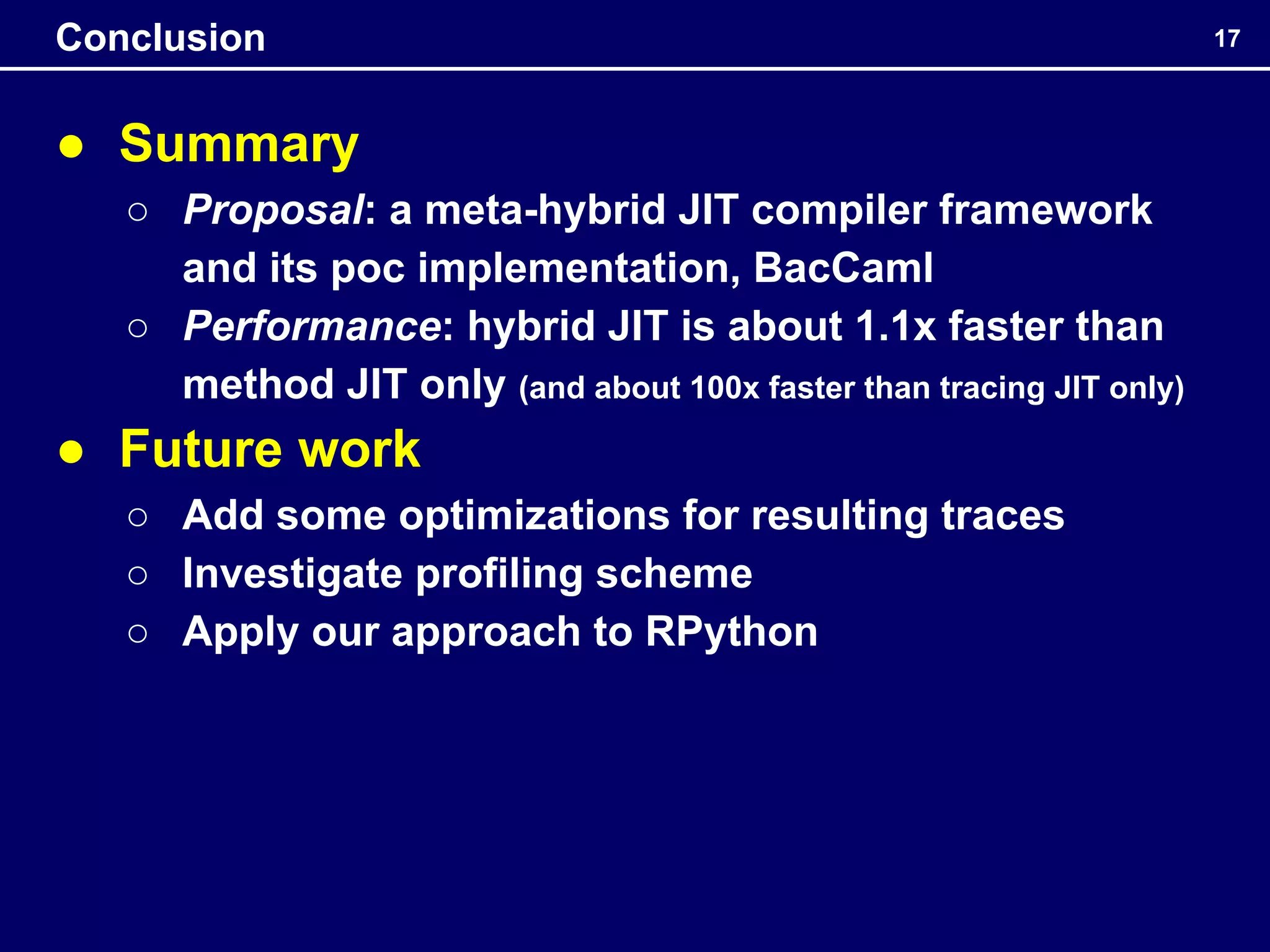

● Summary ○ Proposal: a meta-hybrid JIT compiler framework and its poc implementation, BacCaml ○ Performance: hybrid JIT is about 1.1x faster than method JIT only (and about 100x faster than tracing JIT only) ● Future work ○ Add some optimizations for resulting traces ○ Investigate profiling scheme ○ Apply our approach to RPython 17 Conclusion

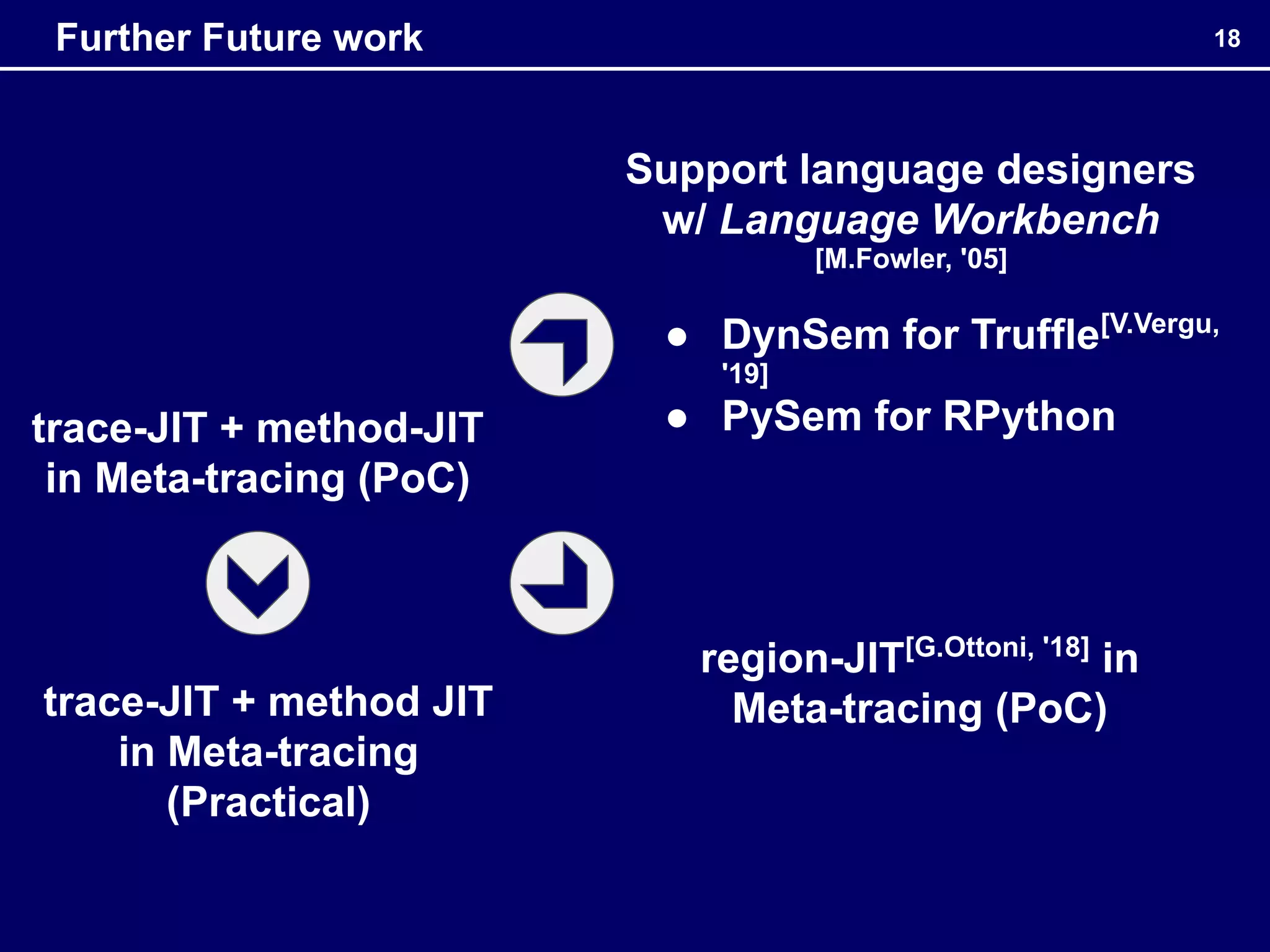

18 Further Future work trace-JIT + method-JIT in Meta-tracing (PoC) Support language designers w/ Language Workbench [M.Fowler, '05] ● DynSem for Truffle[V.Vergu, '19] ● PySem for RPython region-JIT[G.Ottoni, '18] in Meta-tracing (PoC) trace-JIT + method JIT in Meta-tracing (Practical)

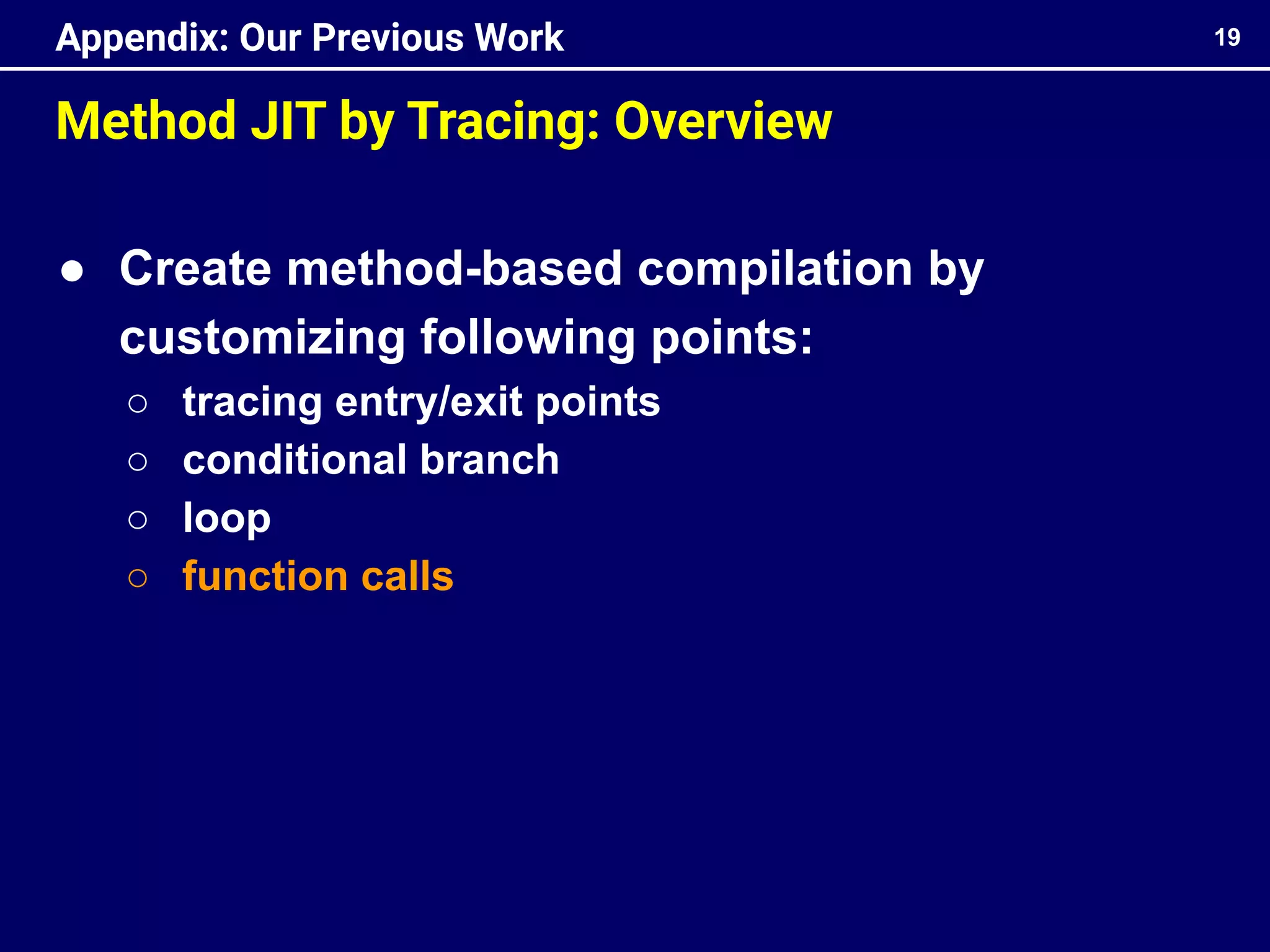

Method JIT by Tracing: Overview ● Create method-based compilation by customizing following points: ○ tracing entry/exit points ○ conditional branch ○ loop ○ function calls 19 Appendix: Our Previous Work
Why We Need Two Different Styles 20 Appendix: Our Previous Work CALL RET def interp(pc, user_stack): … while True: … if instr == CALL: addr = bytecode[pc] r = interp(addr) user_stack.push(r) pc += 1 elsif == RET: v = user_stack.pop() return v base-program meta-interpreter Not inline Emit "CALL" to log log

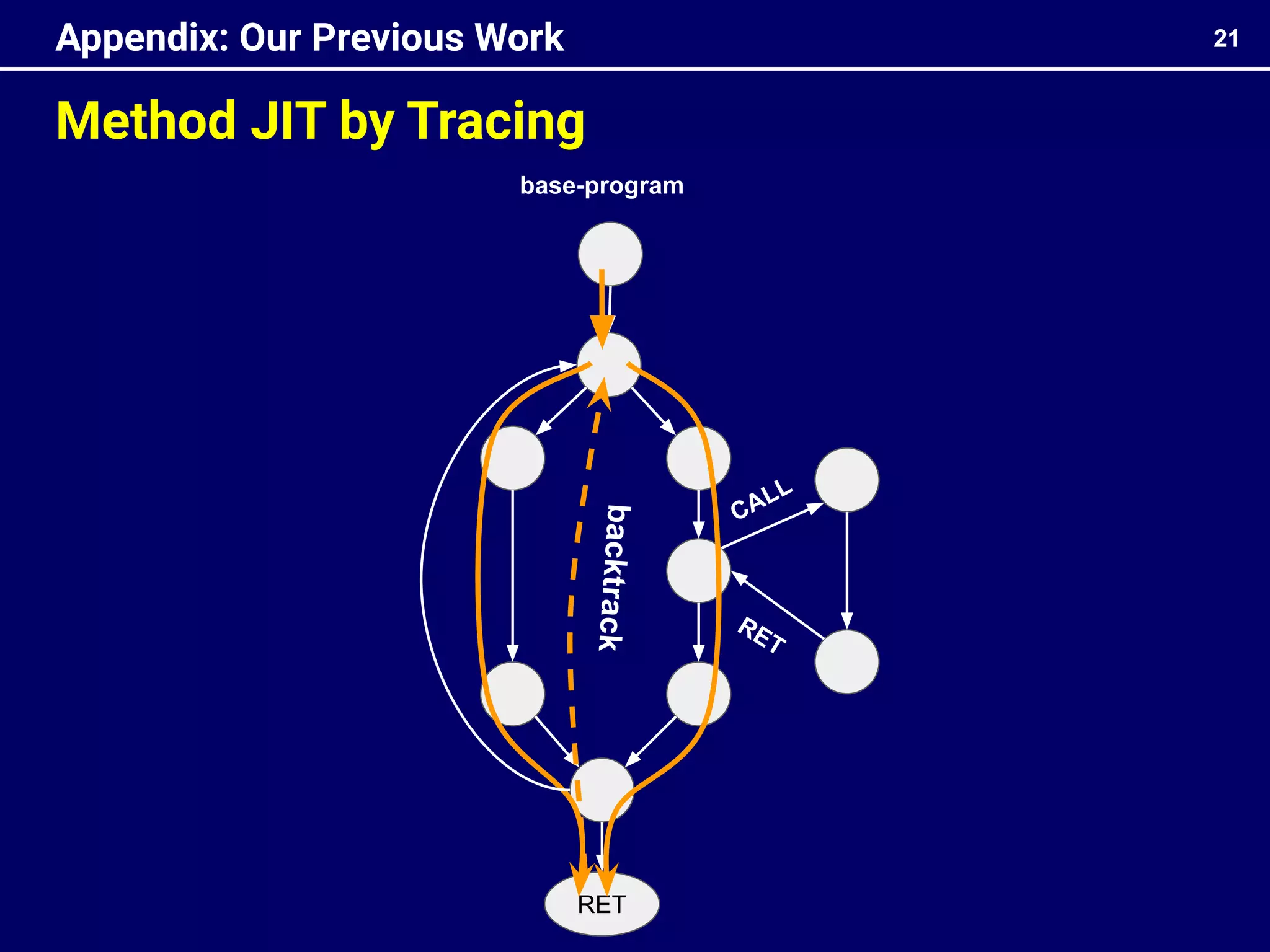

Method JIT by Tracing 21 Appendix: Our Previous Work CALL RET RET b a c k tr a c k base-program

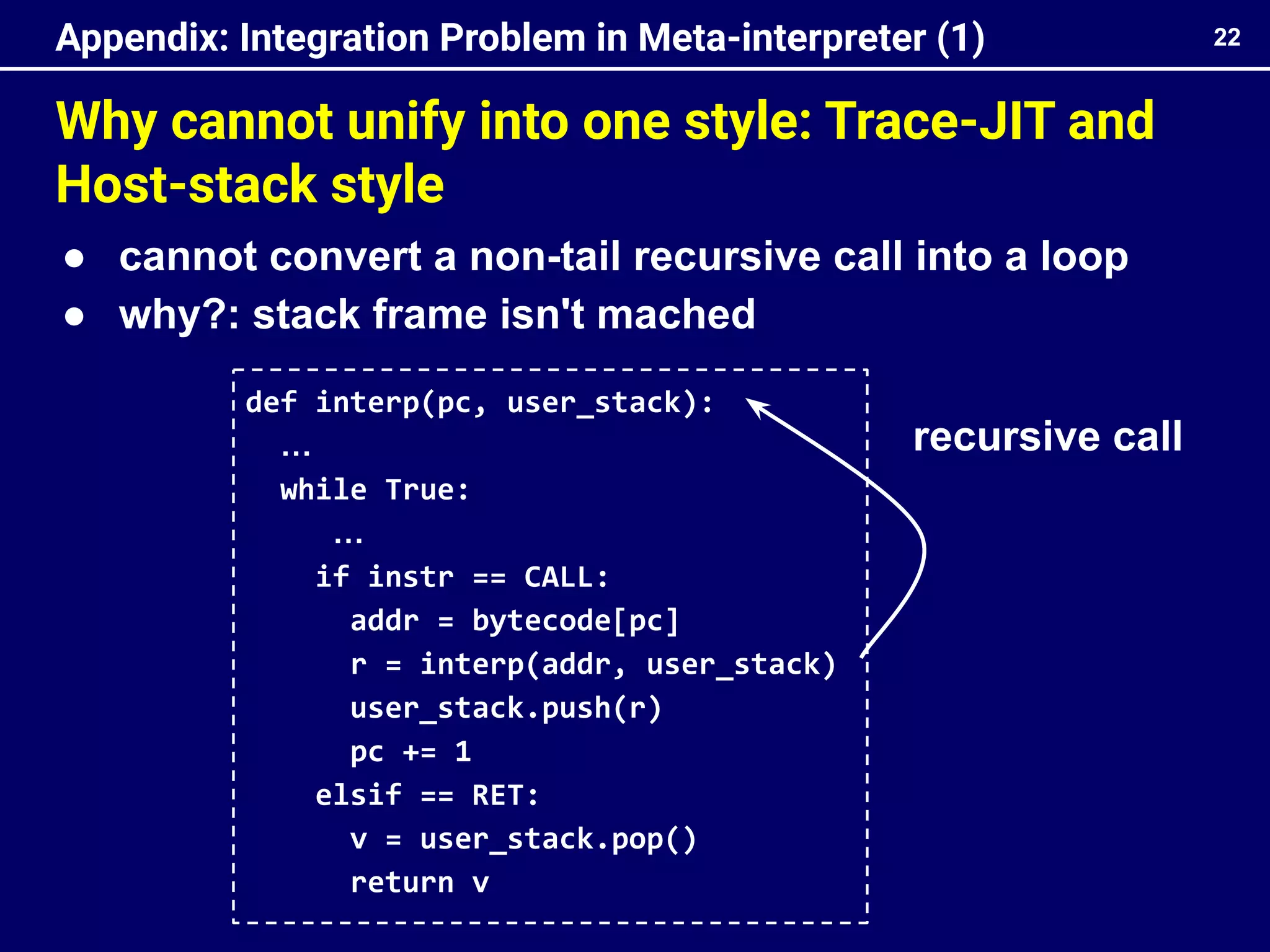

Why cannot unify into one style: Trace-JIT and Host-stack style 22 Appendix: Integration Problem in Meta-interpreter (1) def interp(pc, user_stack): … while True: … if instr == CALL: addr = bytecode[pc] r = interp(addr, user_stack) user_stack.push(r) pc += 1 elsif == RET: v = user_stack.pop() return v ● cannot convert a non-tail recursive call into a loop ● why?: stack frame isn't mached recursive call

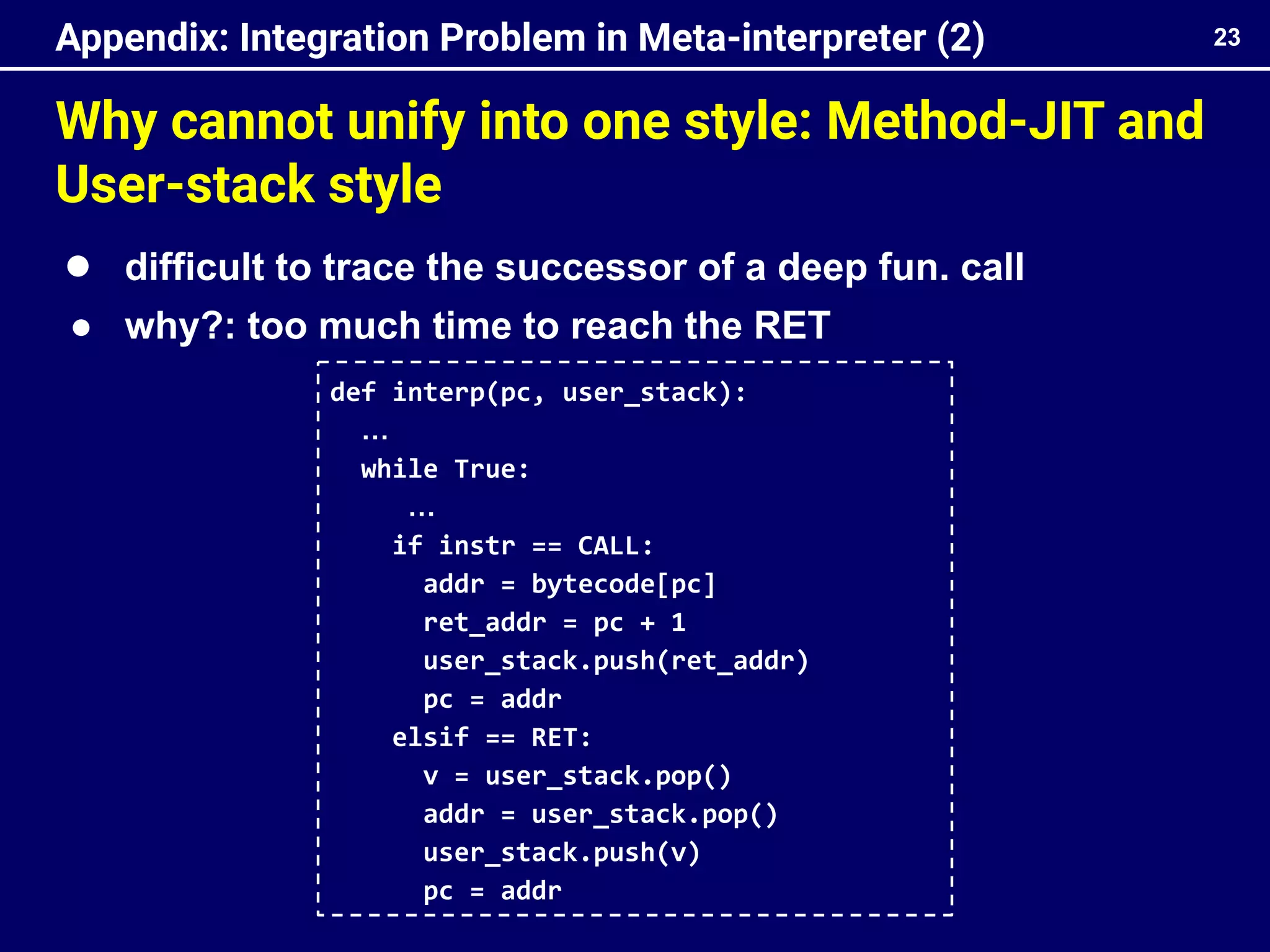

Why cannot unify into one style: Method-JIT and User-stack style 23 Appendix: Integration Problem in Meta-interpreter (2) def interp(pc, user_stack): … while True: … if instr == CALL: addr = bytecode[pc] ret_addr = pc + 1 user_stack.push(ret_addr) pc = addr elsif == RET: v = user_stack.pop() addr = user_stack.pop() user_stack.push(v) pc = addr ● difficult to trace the successor of a deep fun. call ● why?: too much time to reach the RET

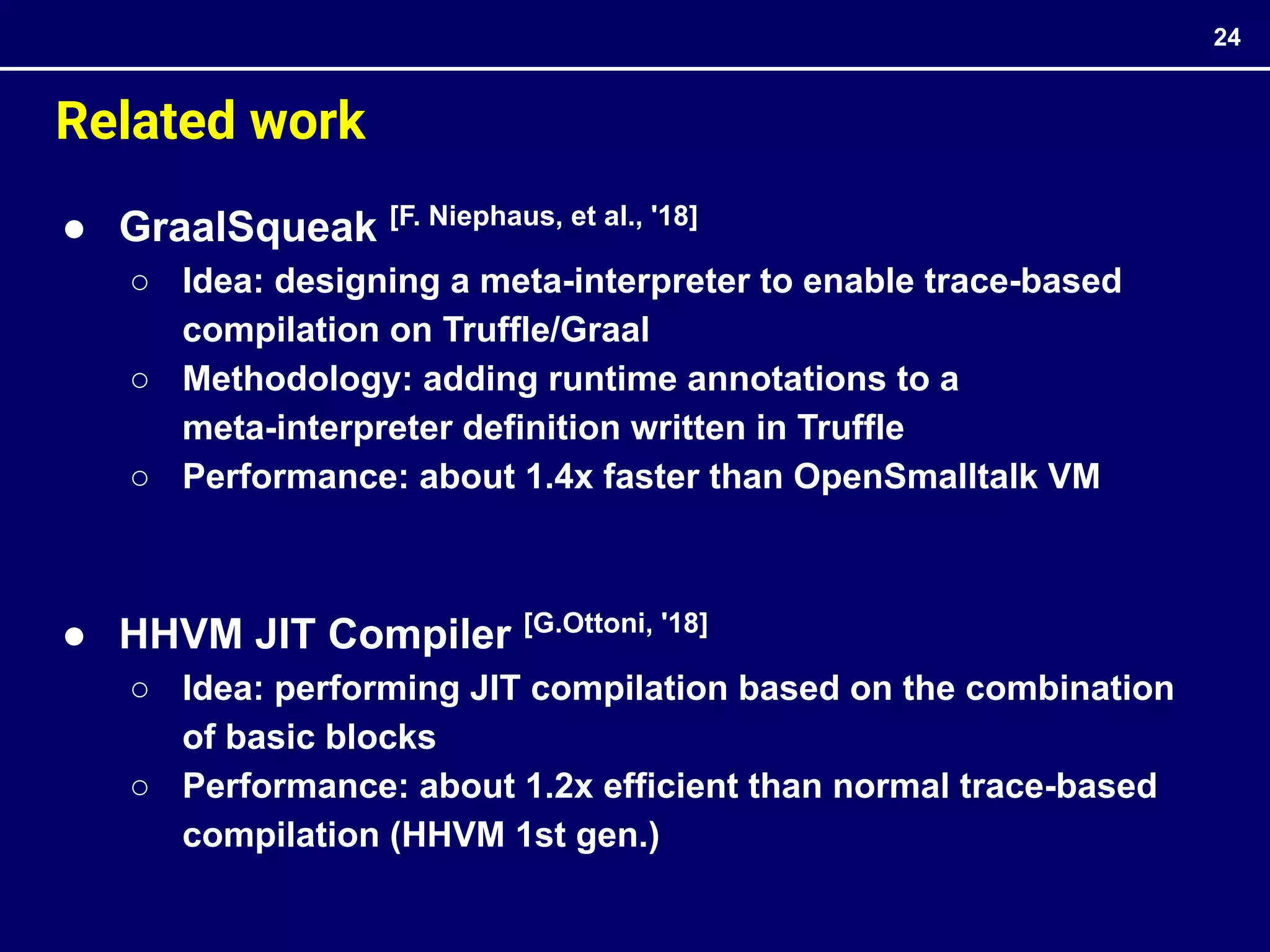

● GraalSqueak [F. Niephaus, et al., '18] ○ Idea: designing a meta-interpreter to enable trace-based compilation on Truffle/Graal ○ Methodology: adding runtime annotations to a meta-interpreter definition written in Truffle ○ Performance: about 1.4x faster than OpenSmalltalk VM ● HHVM JIT Compiler [G.Ottoni, '18] ○ Idea: performing JIT compilation based on the combination of basic blocks ○ Performance: about 1.2x efficient than normal trace-based compilation (HHVM 1st gen.) 24 Related work

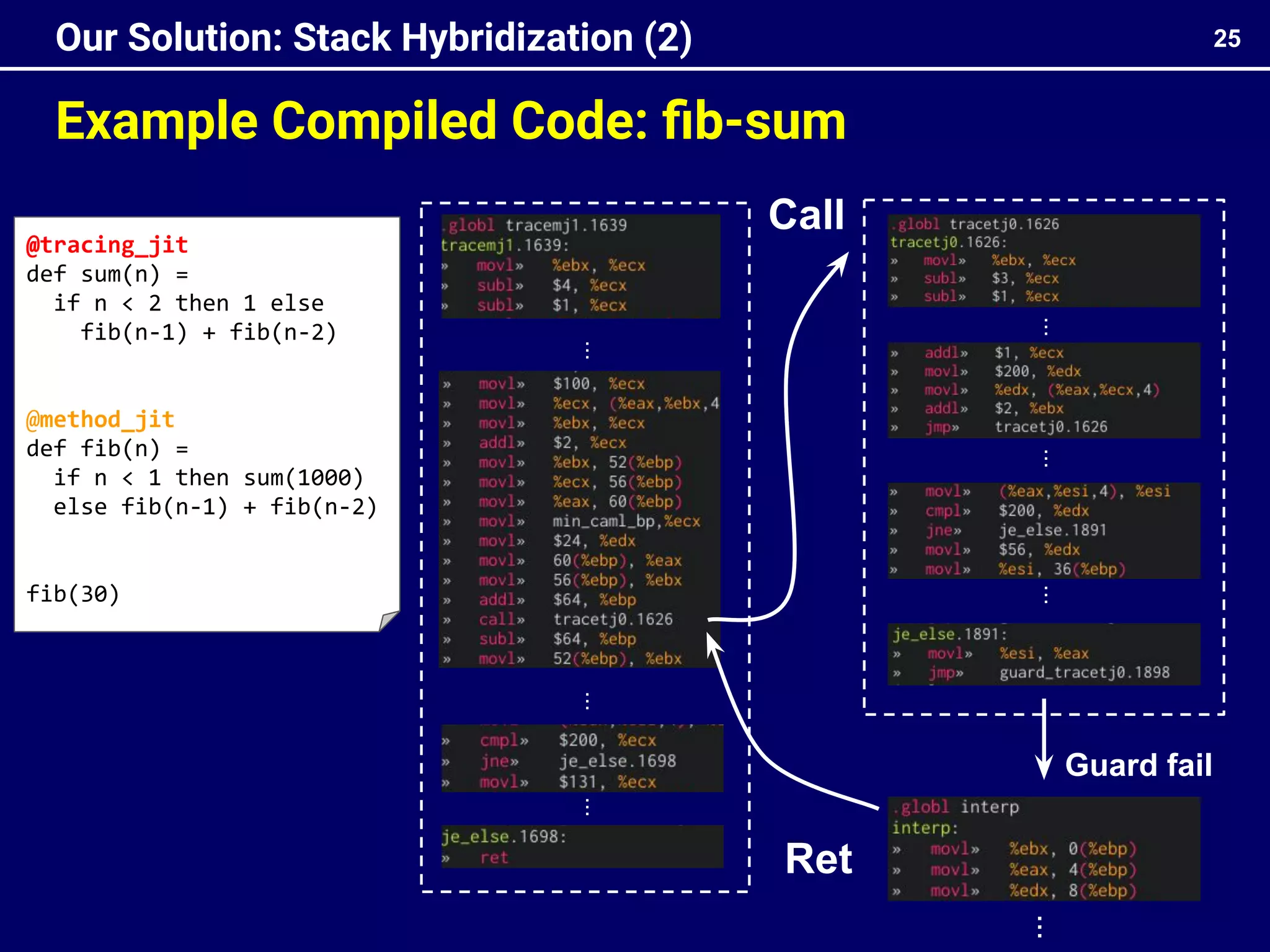

25 Our Solution: Stack Hybridization (2) Example Compiled Code: fib-sum ... Call Guard fail ... ... ... ... ... ... Ret @tracing_jit def sum(n) = if n < 2 then 1 else fib(n-1) + fib(n-2) @method_jit def fib(n) = if n < 1 then sum(1000) else fib(n-1) + fib(n-2) fib(30)

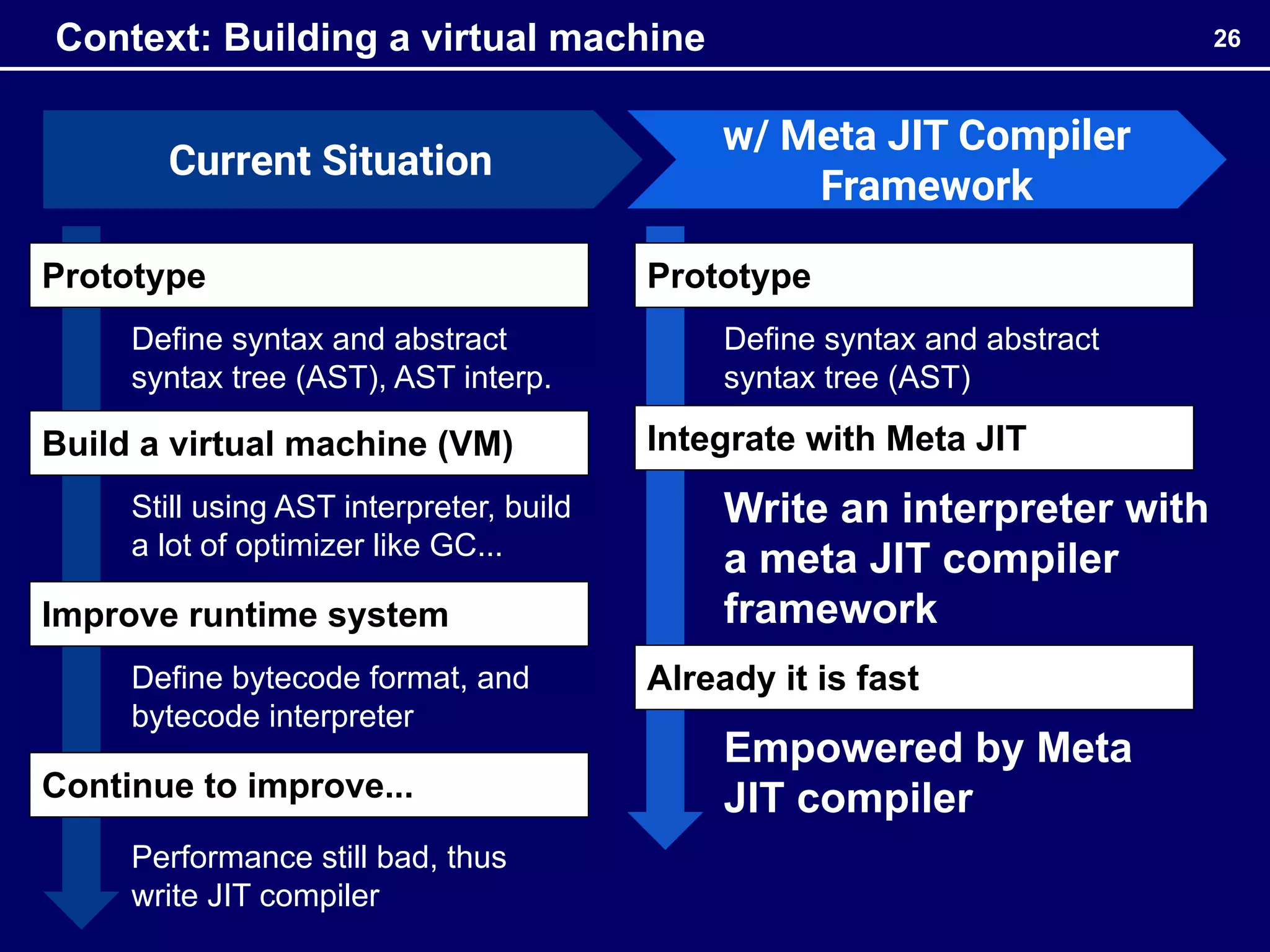

26 Context: Building a virtual machine Current Situation w/ Meta JIT Compiler Framework Prototype Build a virtual machine (VM) Improve runtime system Continue to improve... Define syntax and abstract syntax tree (AST), AST interp. Still using AST interpreter, build a lot of optimizer like GC... Define bytecode format, and bytecode interpreter Performance still bad, thus write JIT compiler Prototype Define syntax and abstract syntax tree (AST) Integrate with Meta JIT Write an interpreter with a meta JIT compiler framework Already it is fast Empowered by Meta JIT compiler

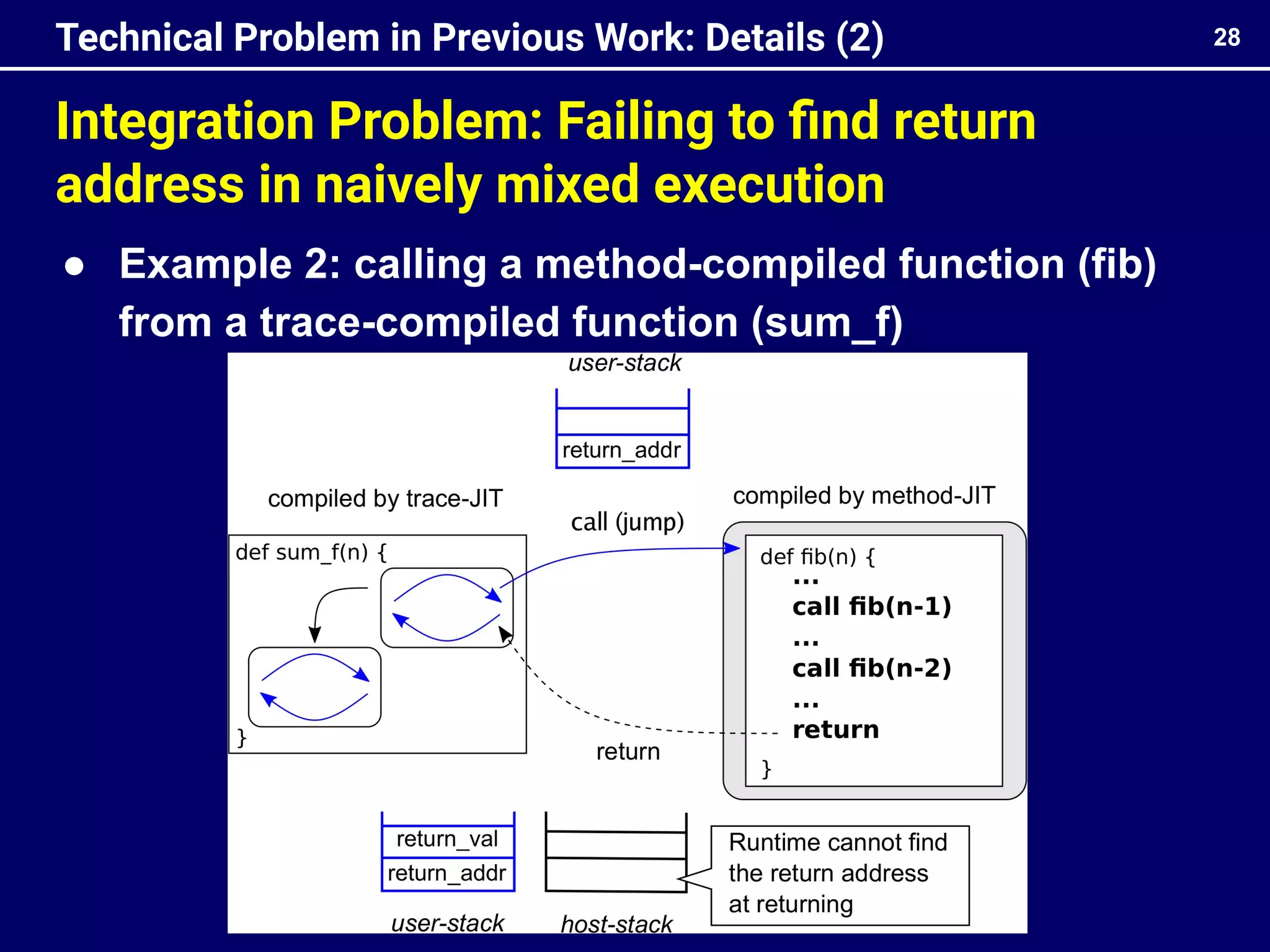

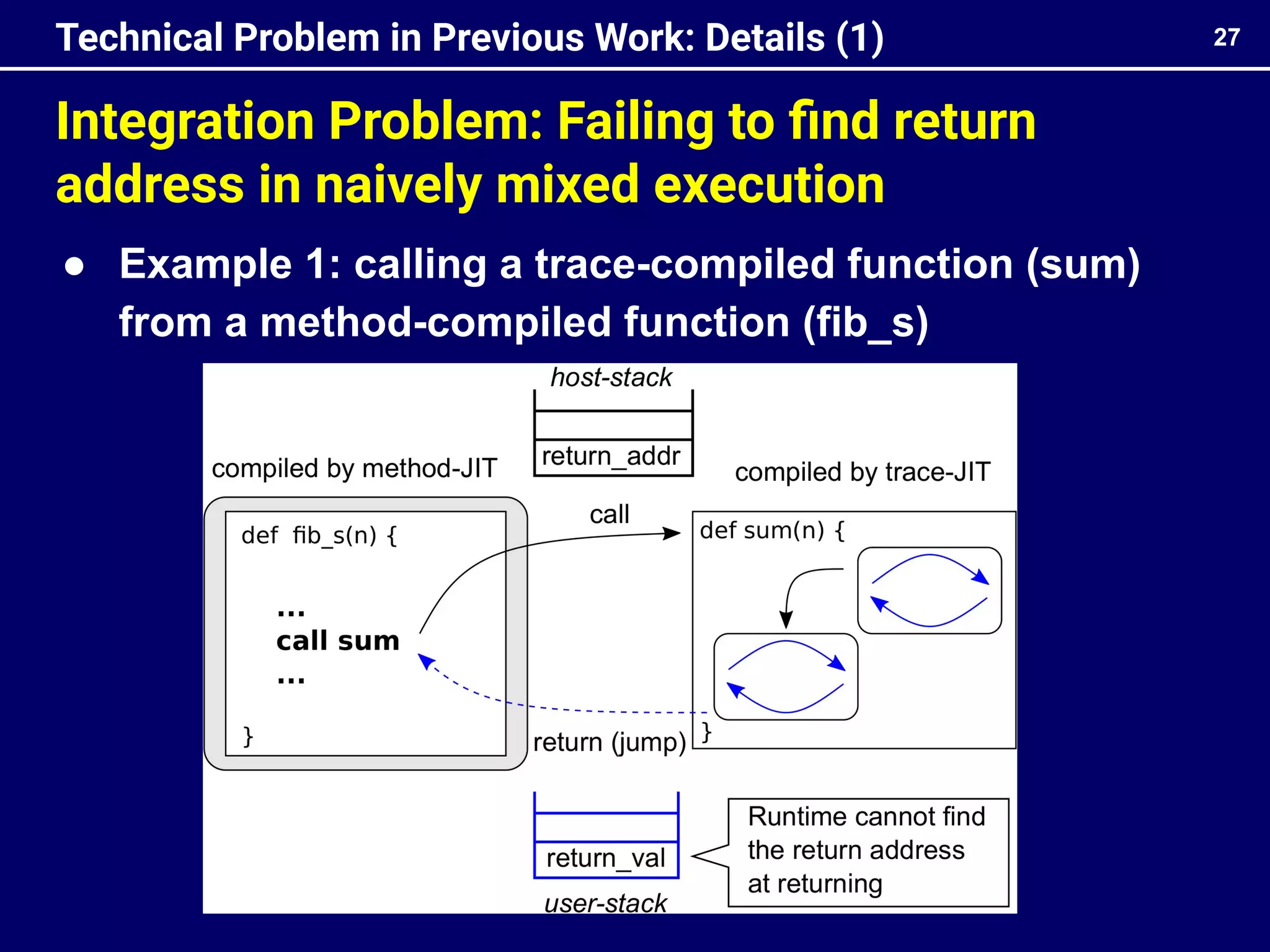

Integration Problem: Failing to find return address in naively mixed execution 27 Technical Problem in Previous Work: Details (1) ● Example 1: calling a trace-compiled function (sum) from a method-compiled function (fib_s)
Integration Problem: Failing to find return address in naively mixed execution 28 Technical Problem in Previous Work: Details (2) ● Example 2: calling a method-compiled function (fib) from a trace-compiled function (sum_f)

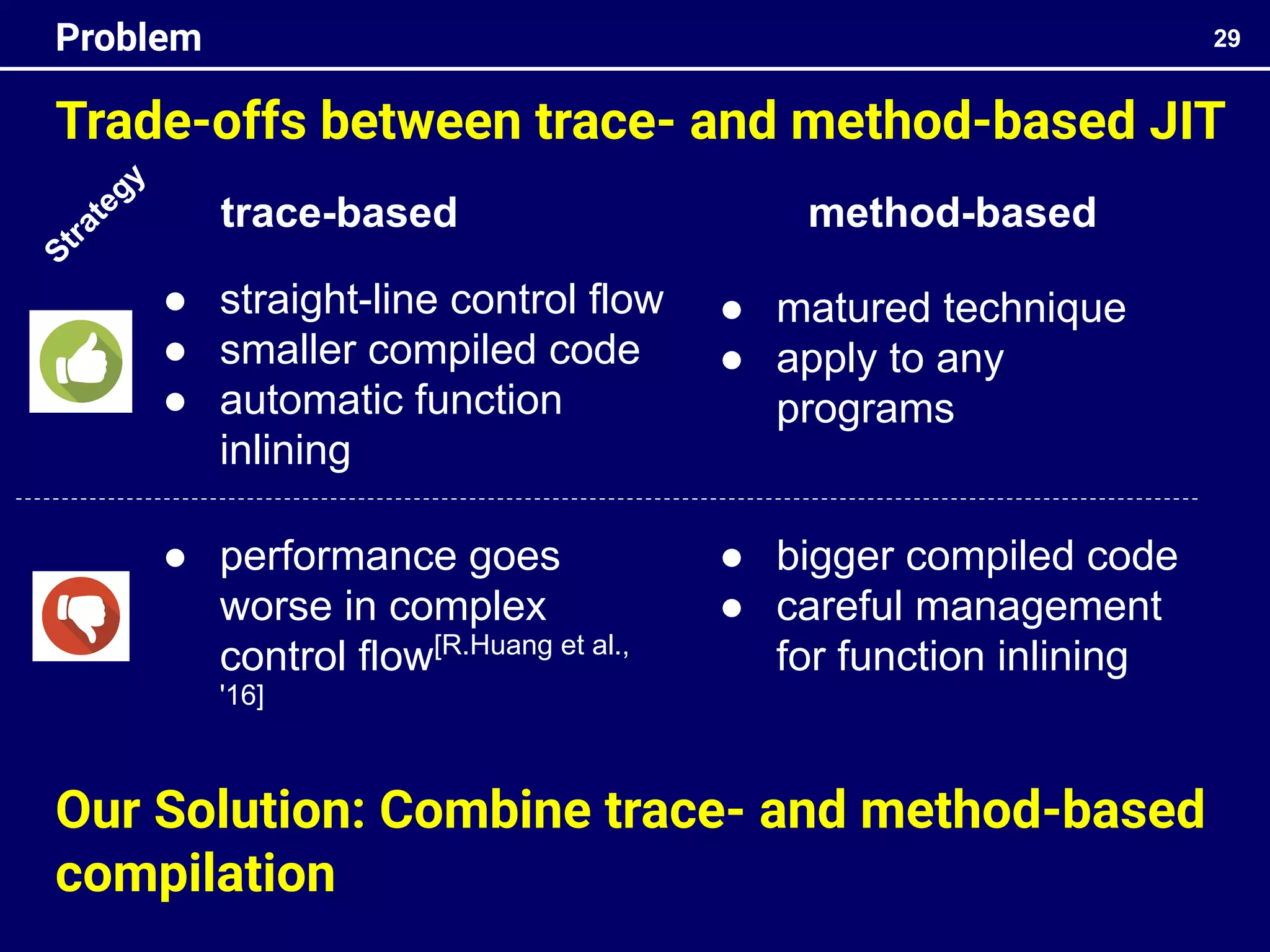

Trade-offs between trace- and method-based JIT 29 Problem ● straight-line control flow ● smaller compiled code ● automatic function inlining ● matured technique ● apply to any programs trace-based ● bigger compiled code ● careful management for function inlining ● performance goes worse in complex control flow[R.Huang et al., '16] S t r a t e g y method-based Our Solution: Combine trace- and method-based compilation
Trade-offs between trace- and method-based JIT 30 Problem ● branching control flow ● smaller compiled code ● good for a deep-nested fun. call ● matured technique ● apply to any programs trace-based ● bigger compiled code ● careful management for function inlining ● performance goes worse in complex control flow[R.Huang et al., '16] S t r a t e g y method-based fib sum nest-fun fib sum nest-fun G o o d B a d

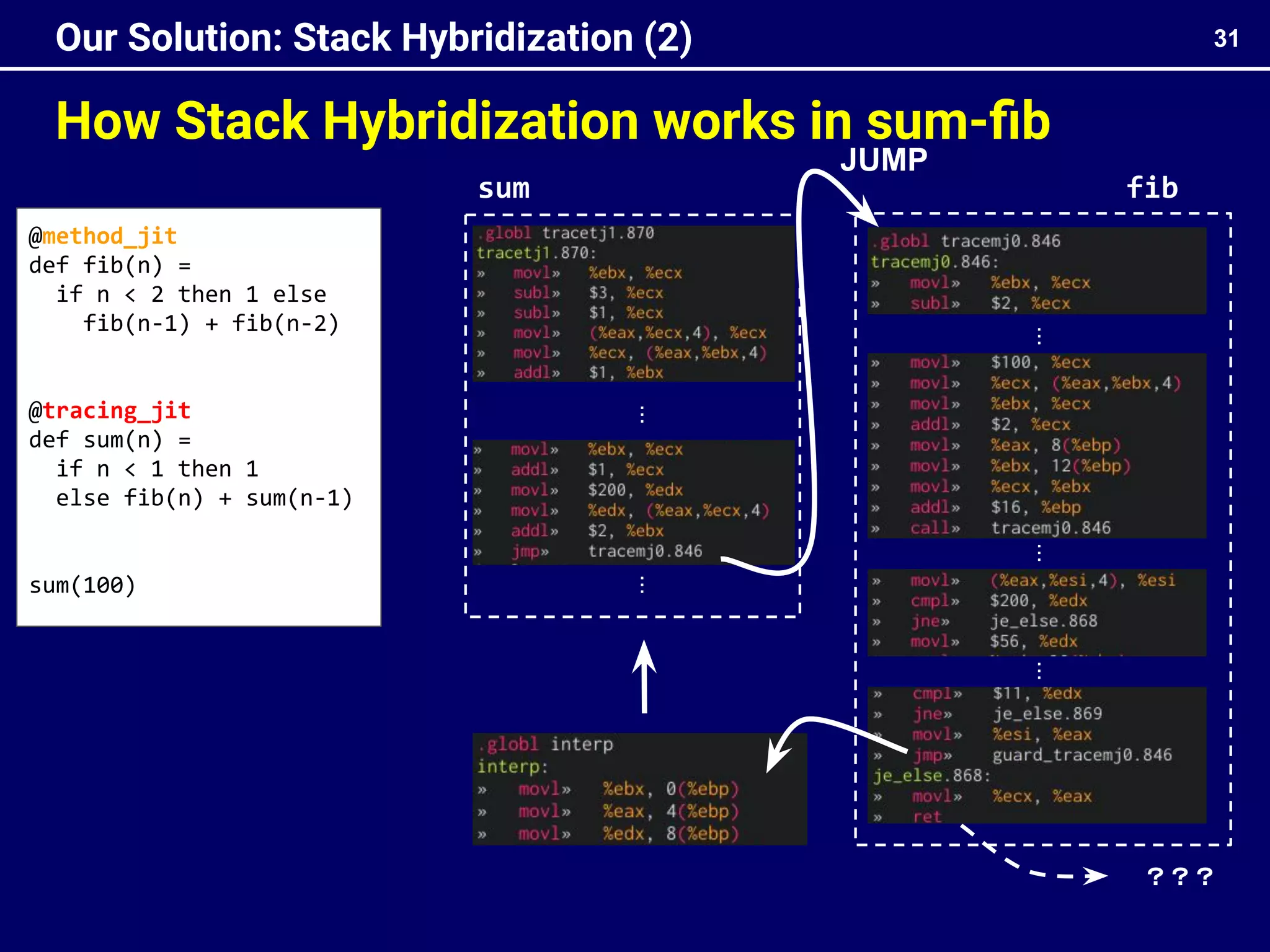

How Stack Hybridization works in sum-fib 31 Our Solution: Stack Hybridization (2) ... ... ... ... JUMP sum fib ？？？ @method_jit def fib(n) = if n < 2 then 1 else fib(n-1) + fib(n-2) @tracing_jit def sum(n) = if n < 1 then 1 else fib(n) + sum(n-1) sum(100) ...

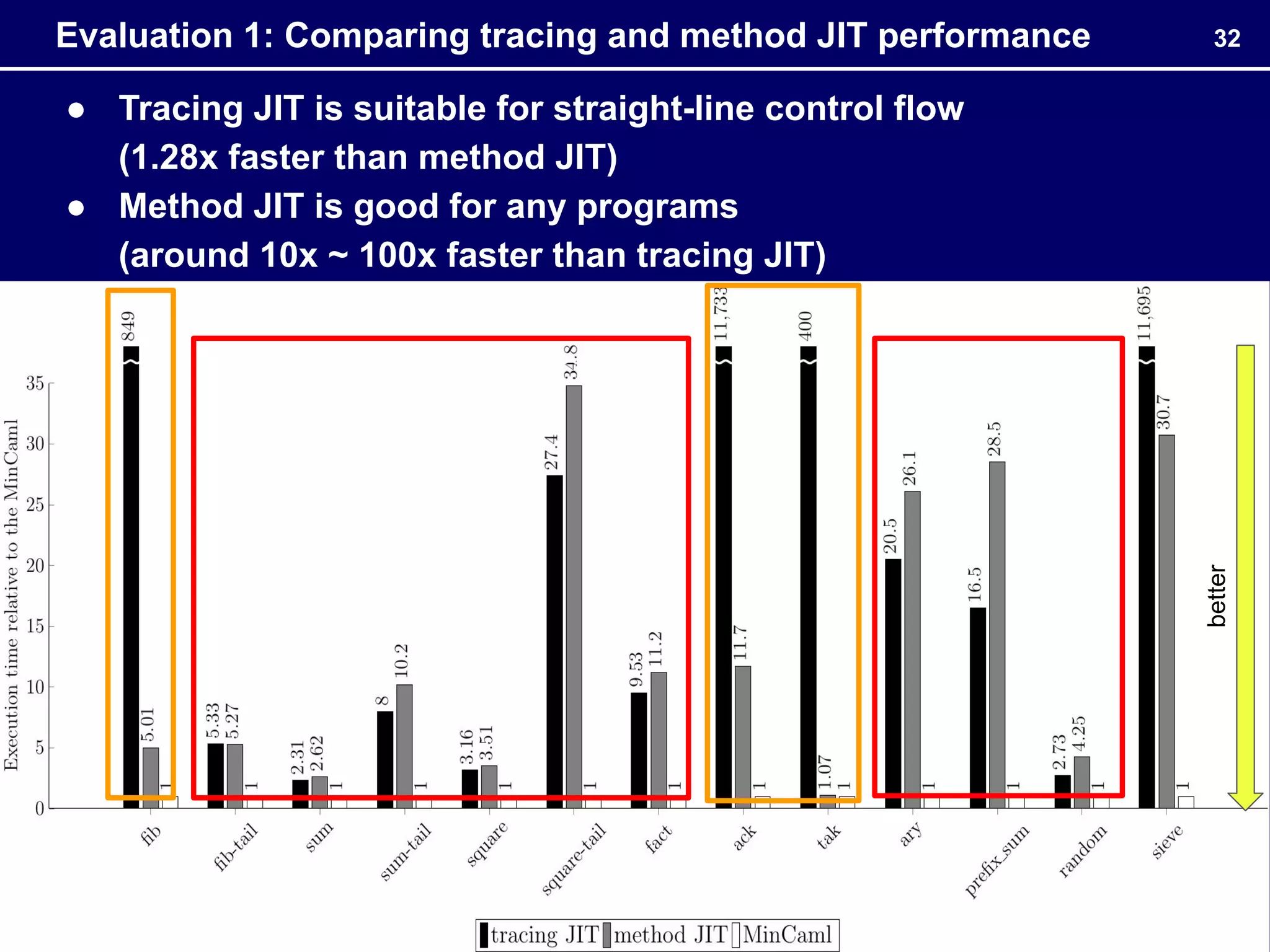

● Tracing JIT is suitable for straight-line control flow (1.28x faster than method JIT) ● Method JIT is good for any programs (around 10x ~ 100x faster than tracing JIT) 32 Evaluation 1: Comparing tracing and method JIT performance better

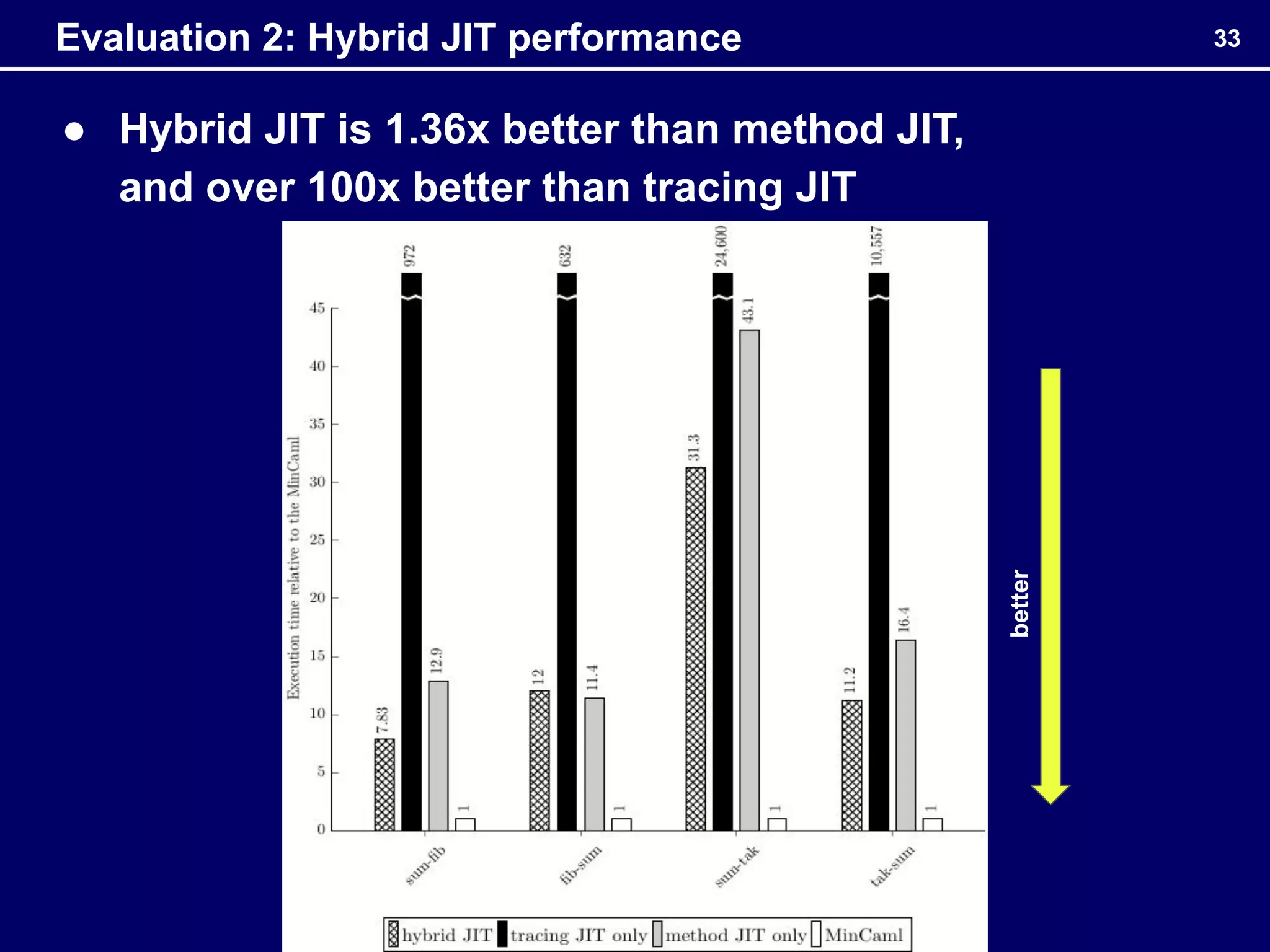

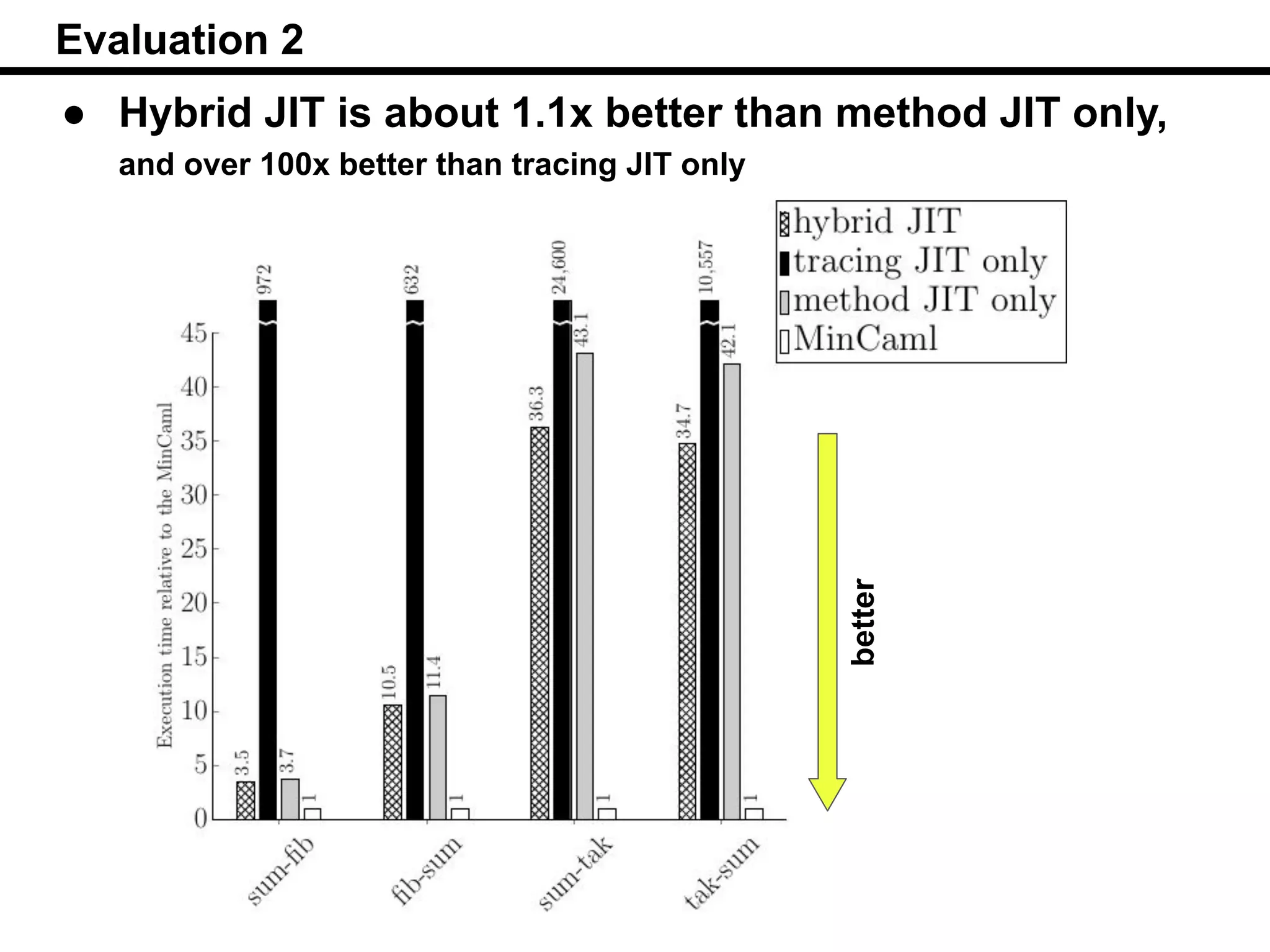

● Hybrid JIT is 1.36x better than method JIT, and over 100x better than tracing JIT 33 Evaluation 2: Hybrid JIT performance better
