Root_Cause_Analysis_RCA

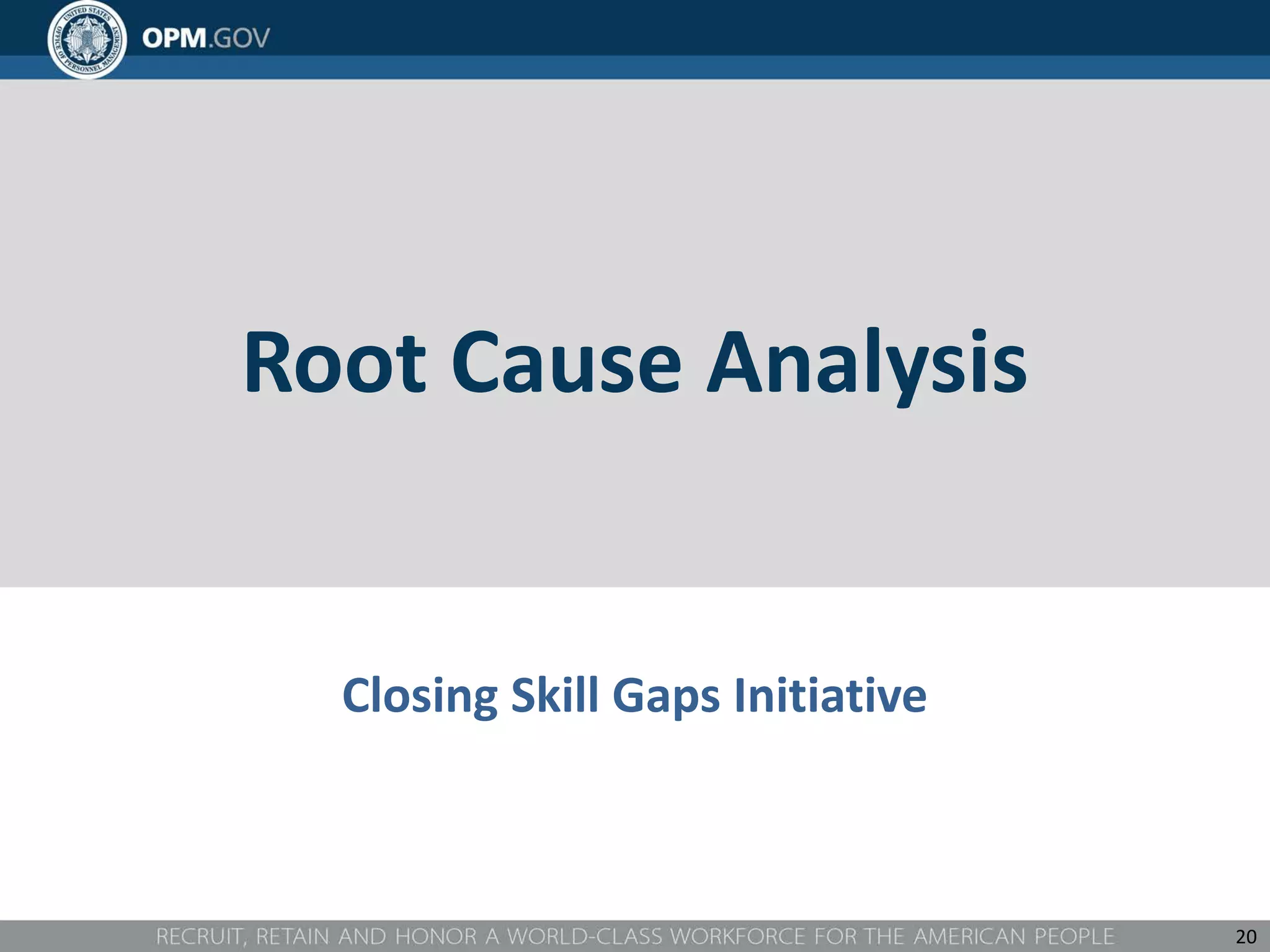

- 1. Root Cause Analysis ClosingSkill Gaps Initiative 20

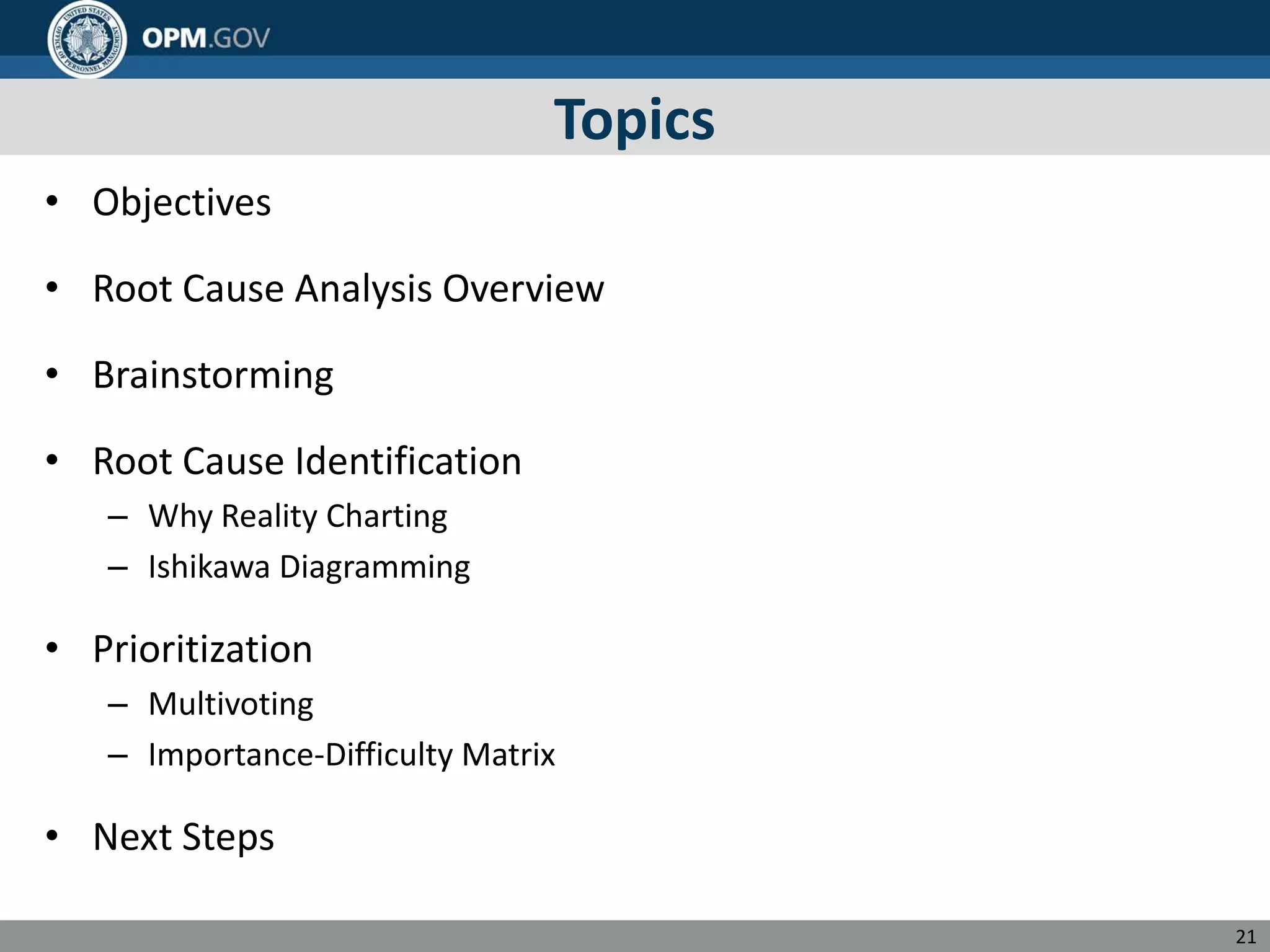

- 2. Topics • Objectives • RootCause Analysis Overview • Brainstorming • Root Cause Identification – Why Reality Charting – Ishikawa Diagramming • Prioritization – Multivoting – Importance-Difficulty Matrix • Next Steps 21

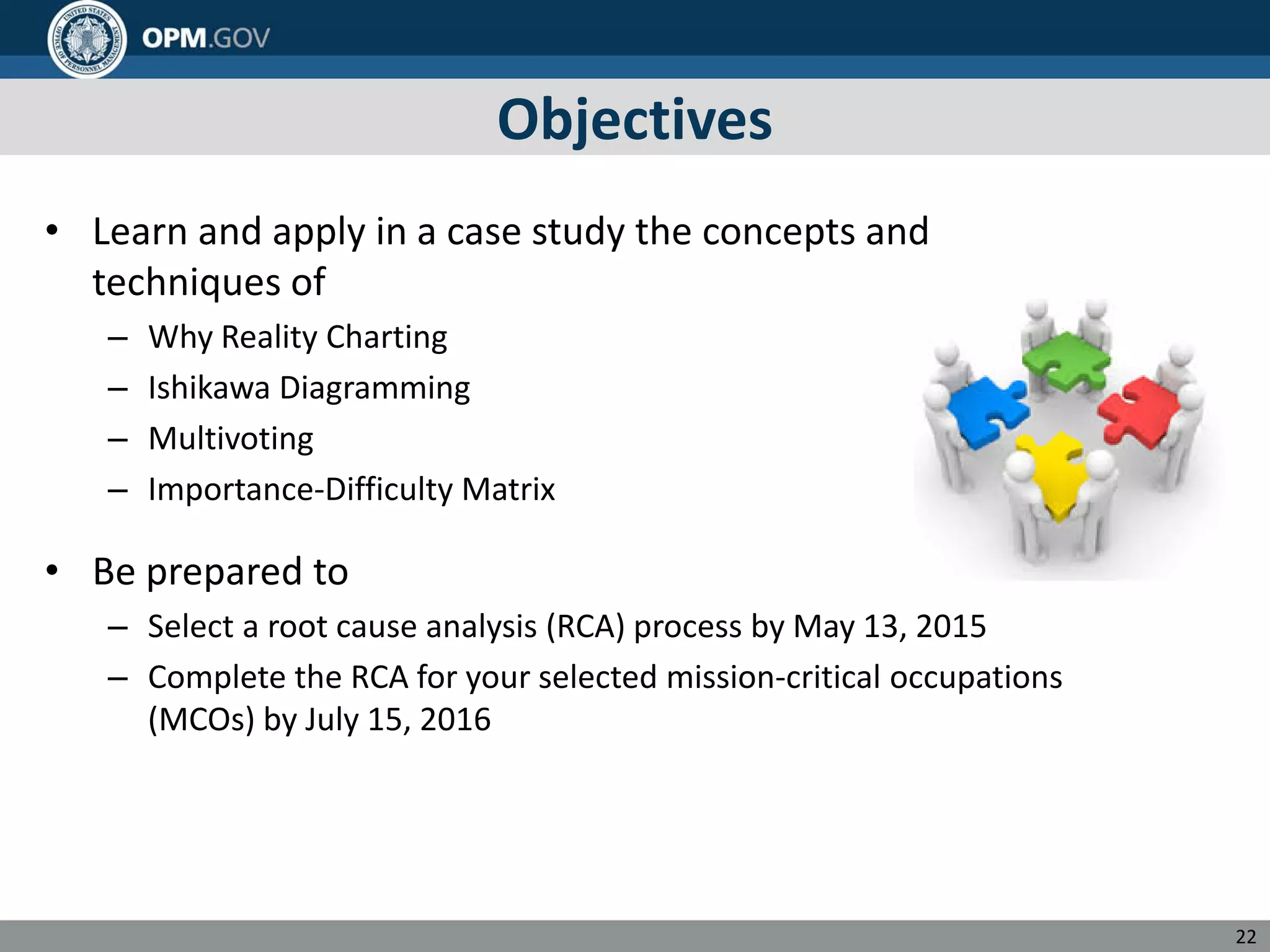

- 3. Objectives • Learn andapply in a case study the concepts and techniques of – Why Reality Charting – Ishikawa Diagramming – Multivoting – Importance-Difficulty Matrix • Be prepared to – Select a root cause analysis (RCA) process by May 13, 2015 – Complete the RCA for your selected mission-critical occupations (MCOs) by July 15, 2016 22
- 4. The Most InterestingDog in the World 23
- 5.
- 6. Root Cause AnalysisOverview 25

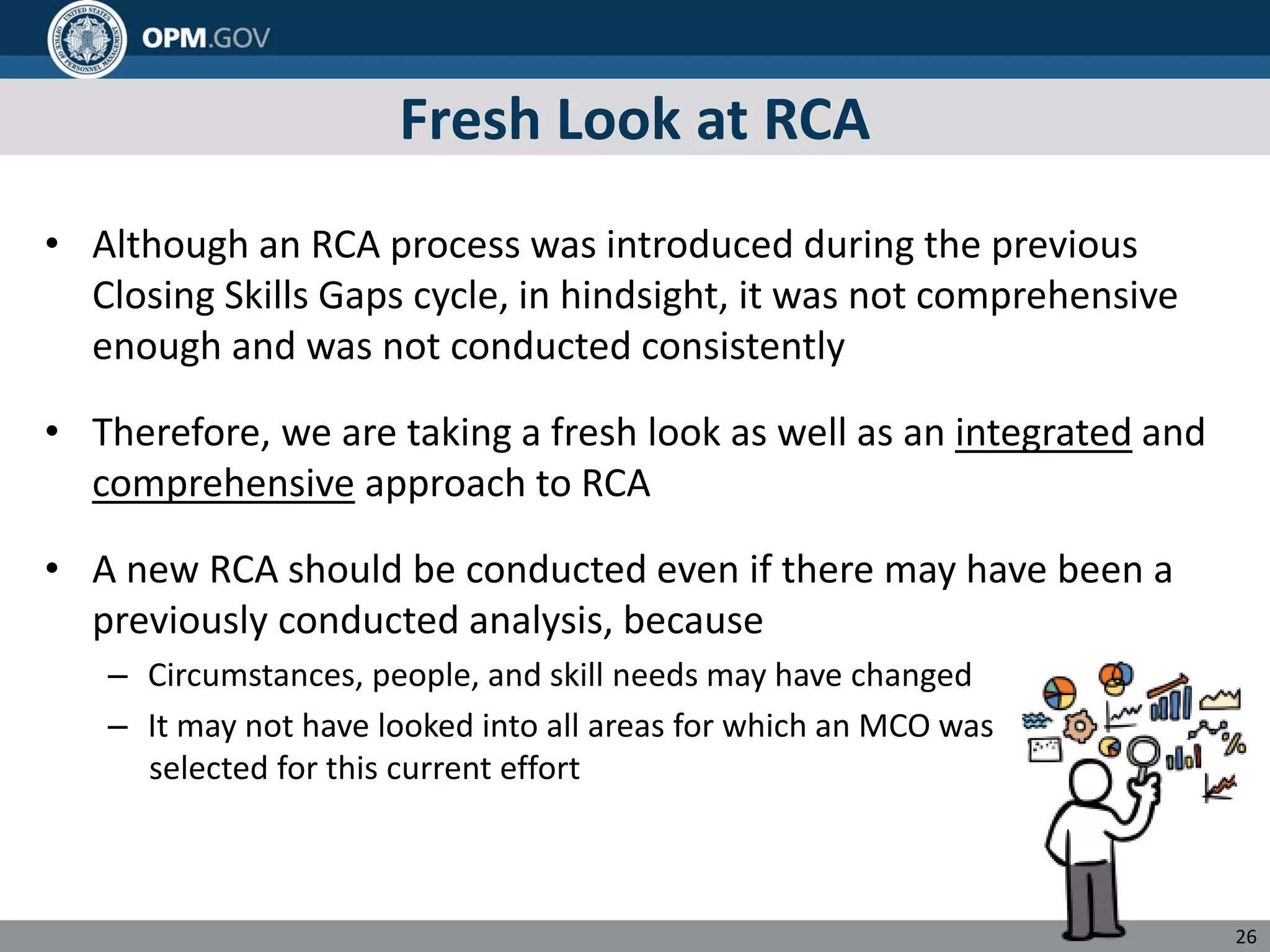

- 7. Fresh Look atRCA • Although an RCA process was introduced during the previous Closing Skills Gaps cycle, in hindsight, it was not comprehensive enough and was not conducted consistently • Therefore, we are taking a fresh look as well as an integrated and comprehensive approach to RCA • A new RCA should be conducted even if there may have been a previously conducted analysis, because – Circumstances, people, and skill needs may have changed – It may not have looked into all areas for which an MCO was selected for this current effort 26

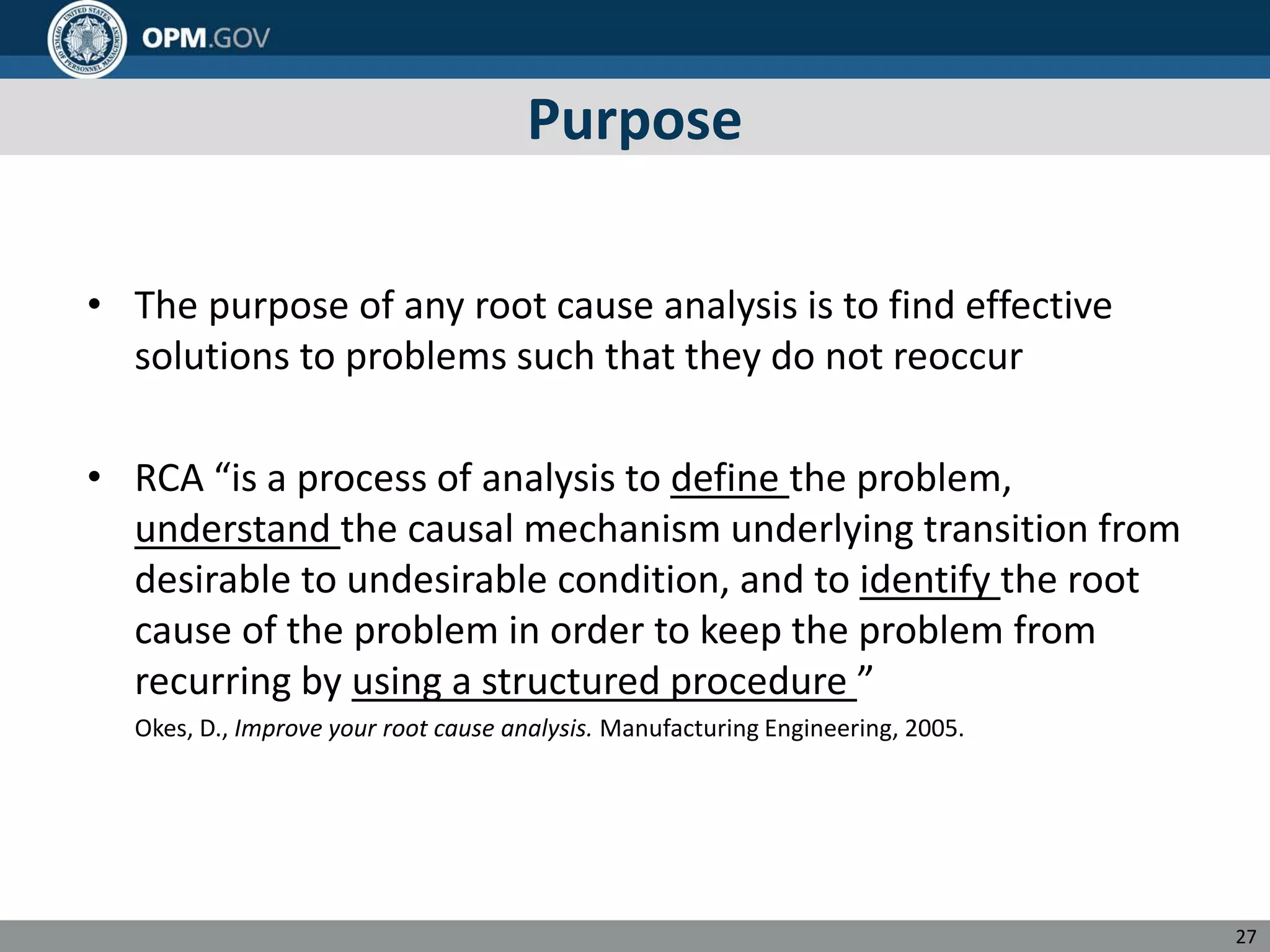

- 8. Purpose • The purposeof any root cause analysis is to find effective solutions to problems such that they do not reoccur • RCA “is a process of analysis to define the problem, understand the causal mechanism underlying transition from desirable to undesirable condition, and to identify the root cause of the problem in order to keep the problem from recurring by using a structured procedure ” Okes, D., Improve your root cause analysis. Manufacturing Engineering, 2005. 27

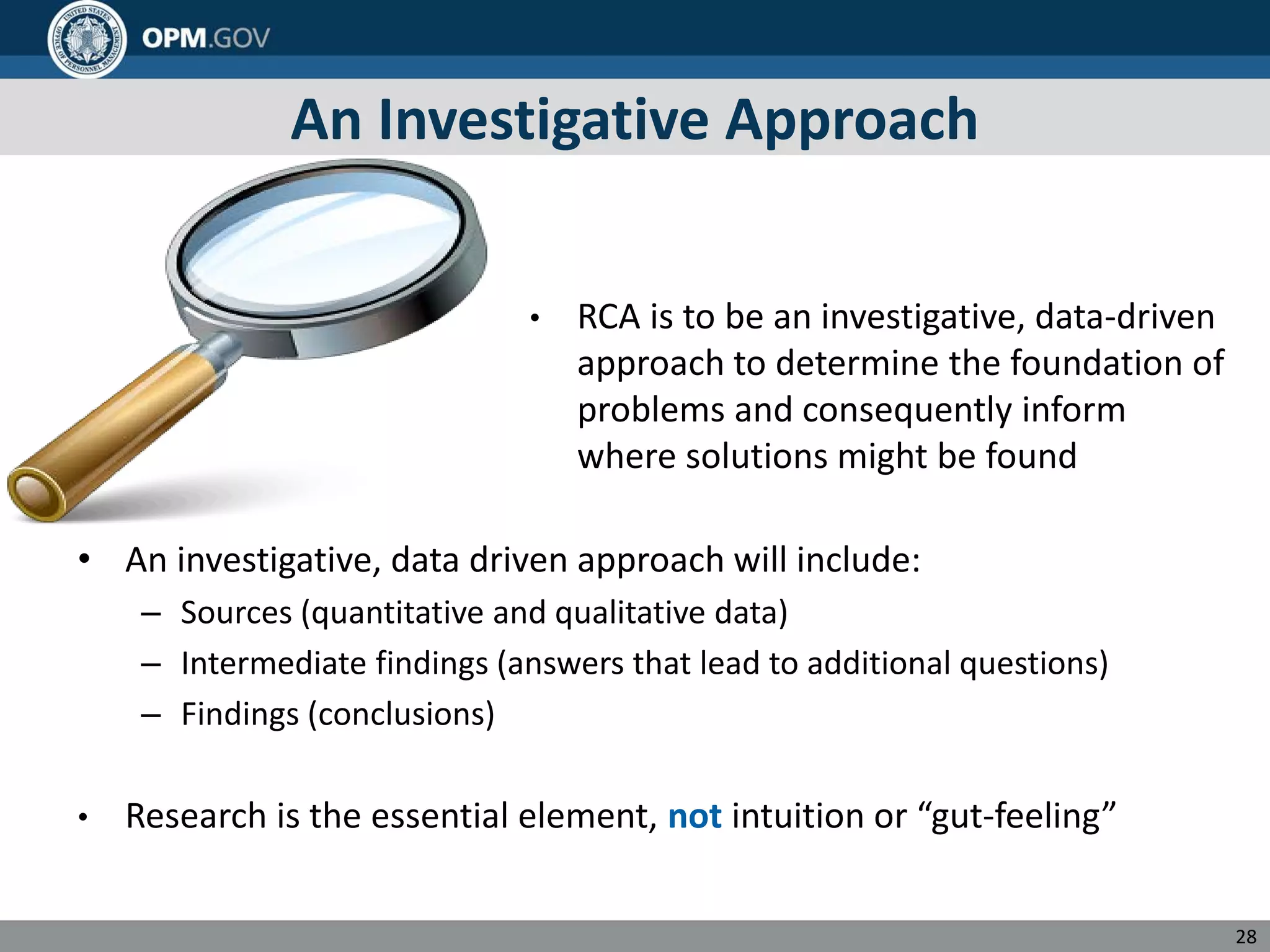

- 9. An Investigative Approach •RCA is to be an investigative, data-driven approach to determine the foundation of problems and consequently inform where solutions might be found • An investigative, data driven approach will include: – Sources (quantitative and qualitative data) – Intermediate findings (answers that lead to additional questions) – Findings (conclusions) • Research is the essential element, not intuition or “gut-feeling” 28

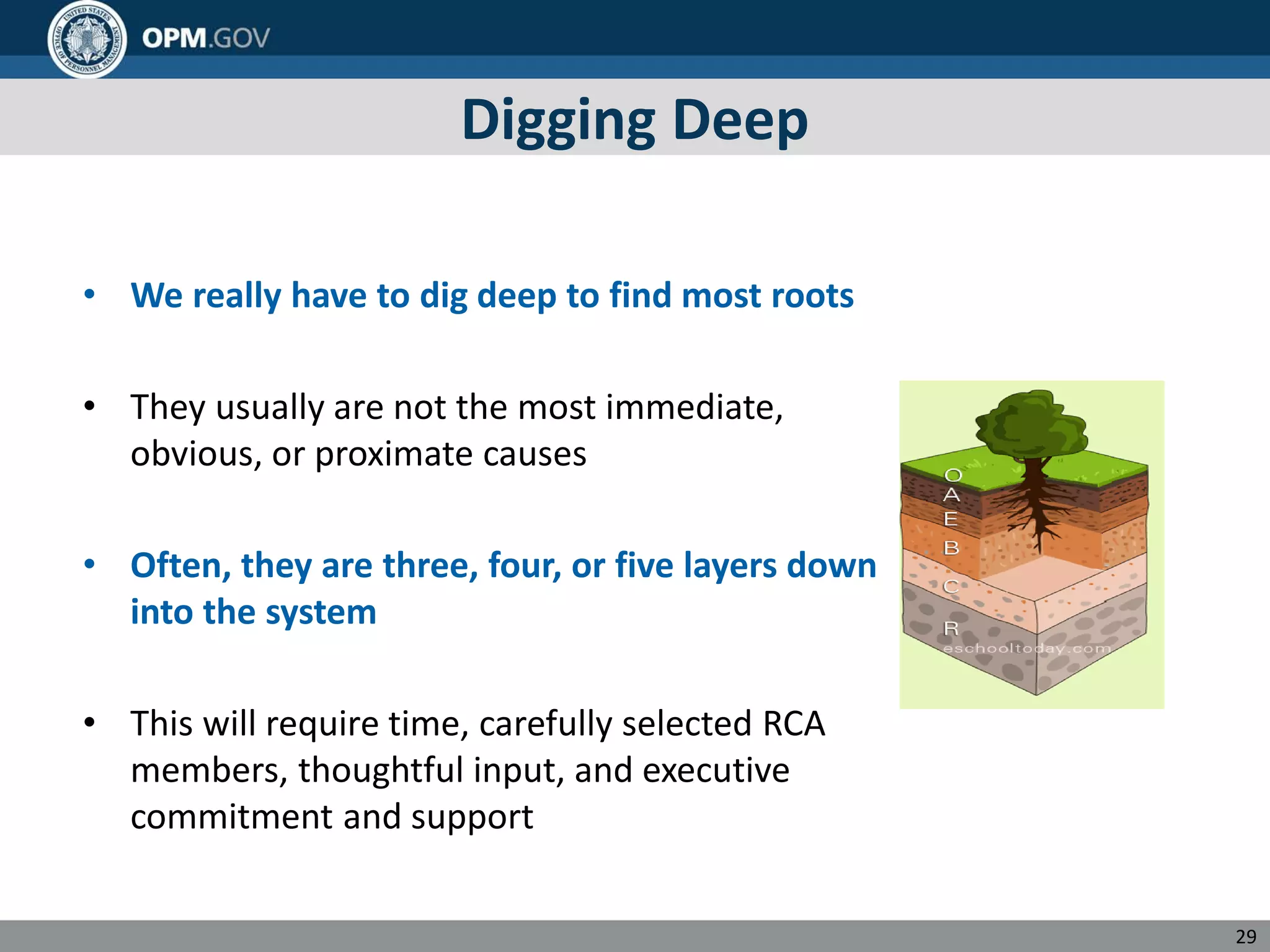

- 10. Digging Deep • Wereally have to dig deep to find most roots • They usually are not the most immediate, obvious, or proximate causes • Often, they are three, four, or five layers down into the system • This will require time, carefully selected RCA members, thoughtful input, and executive commitment and support 29

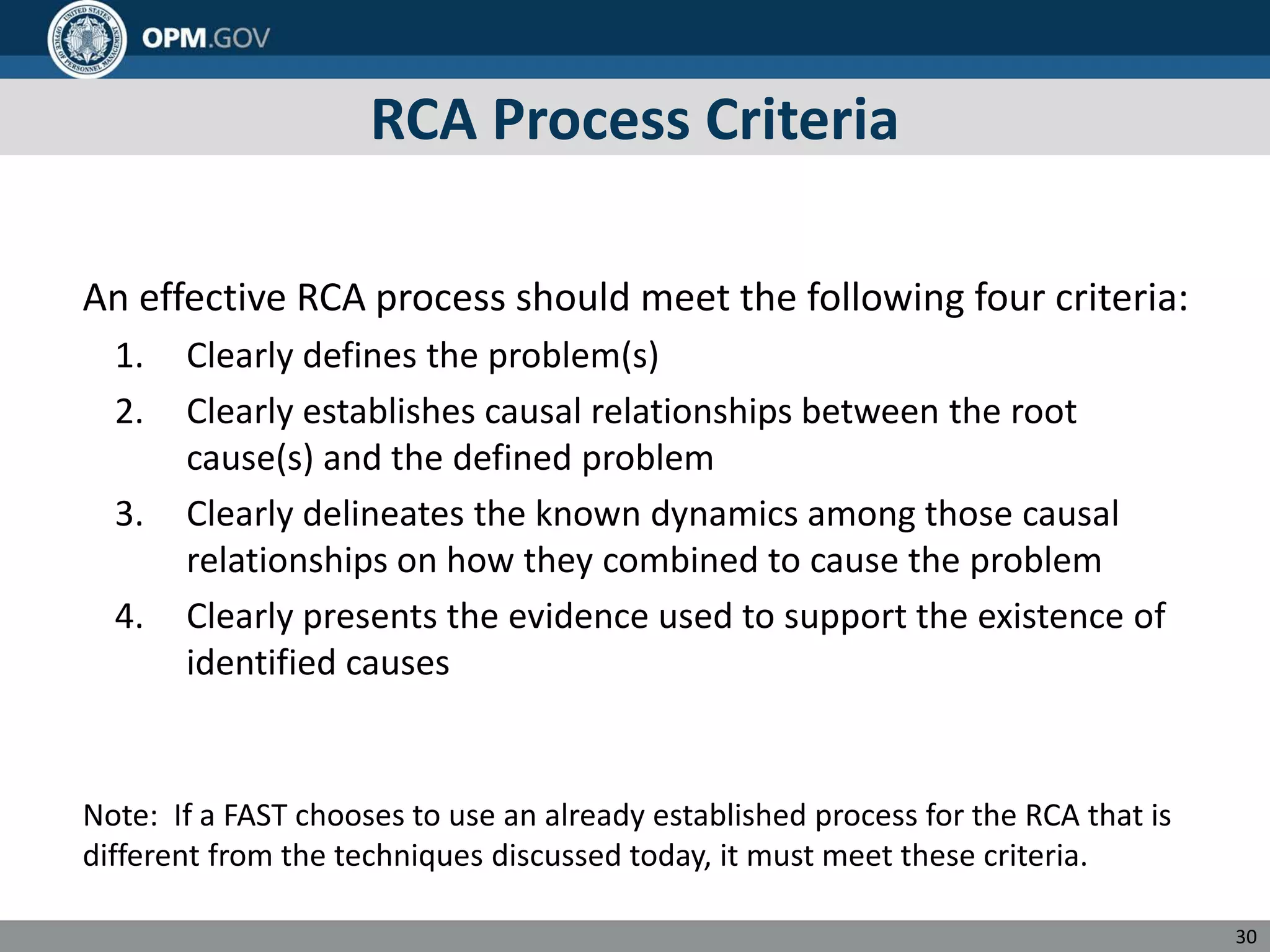

- 11. RCA Process Criteria Aneffective RCA process should meet the following four criteria: 1. Clearly defines the problem(s) 2. Clearly establishes causal relationships between the root cause(s) and the defined problem 3. Clearly delineates the known dynamics among those causal relationships on how they combined to cause the problem 4. Clearly presents the evidence used to support the existence of identified causes Note: If a FAST chooses to use an already established process for the RCA that is different from the techniques discussed today, it must meet these criteria. 30

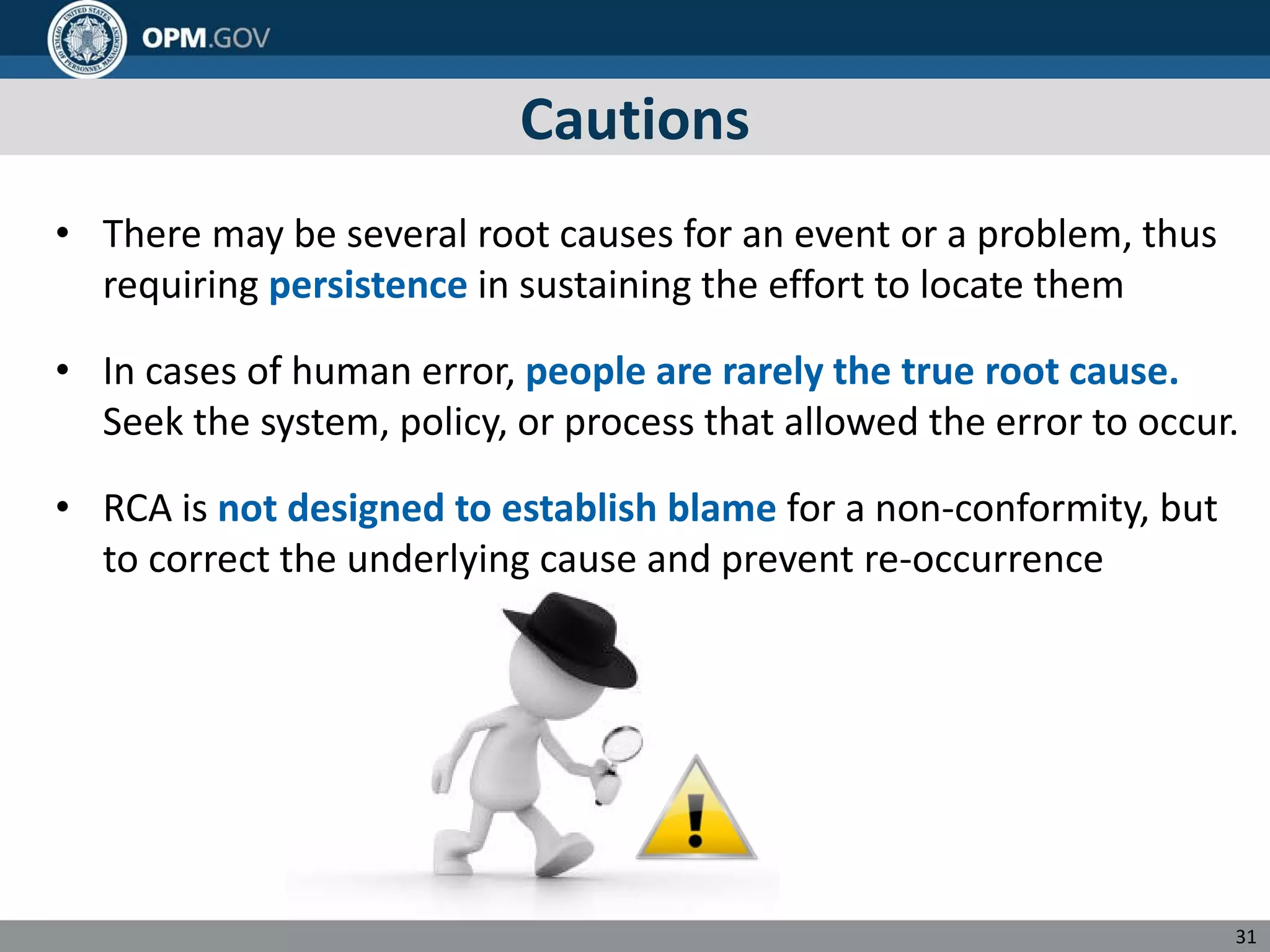

- 12. Cautions • There maybe several root causes for an event or a problem, thus requiring persistence in sustaining the effort to locate them • In cases of human error, people are rarely the true root cause. Seek the system, policy, or process that allowed the error to occur. • RCA is not designed to establish blame for a non-conformity, but to correct the underlying cause and prevent re-occurrence 31
- 13.

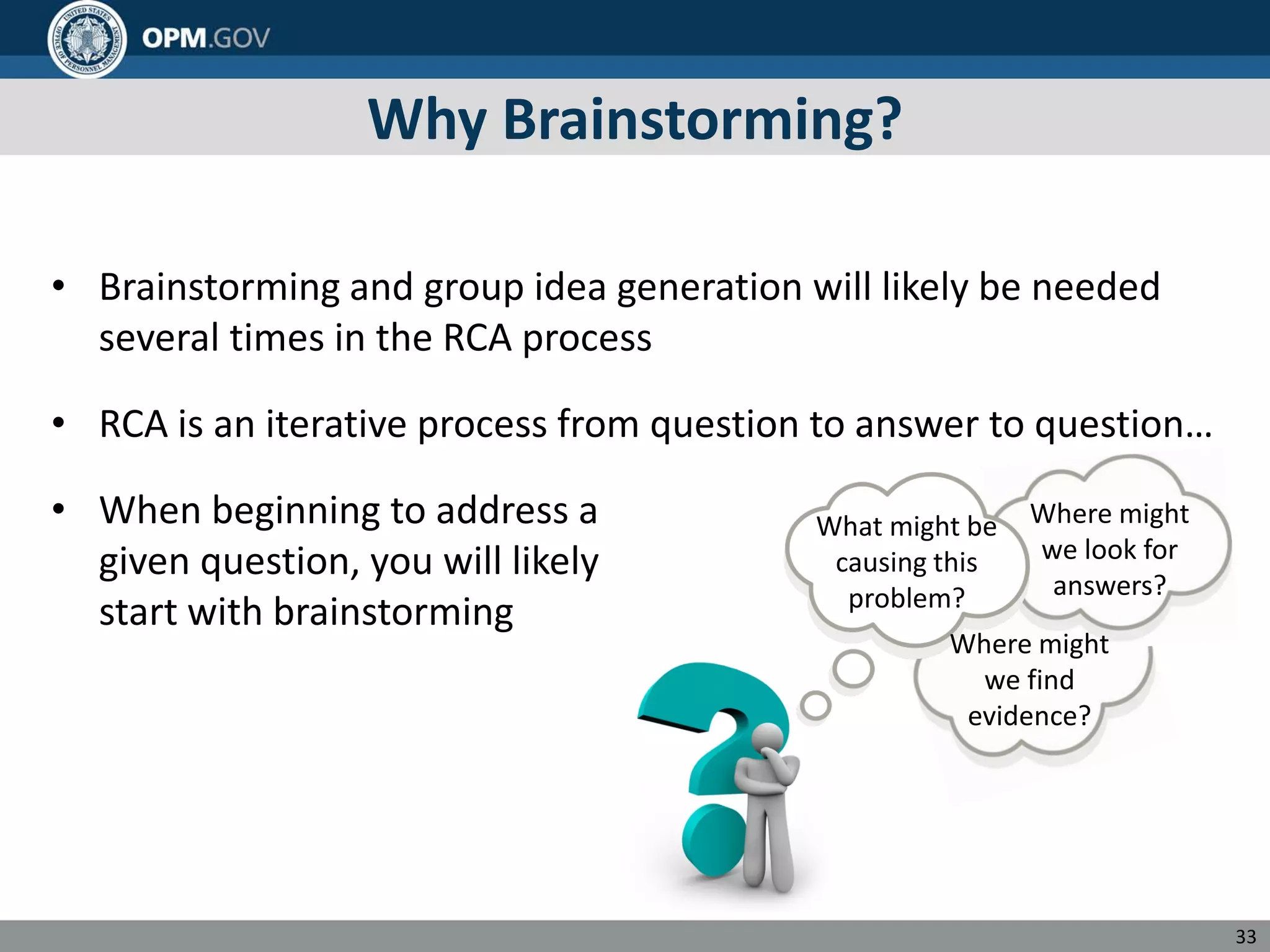

- 14. Why Brainstorming? • Brainstormingand group idea generation will likely be needed several times in the RCA process • • When beginning to address a given question, you will likely start with brainstorming RCA is an iterative process from question to answer to question… Where might we look for answers? What might be causing this problem? Where might we find evidence? 33

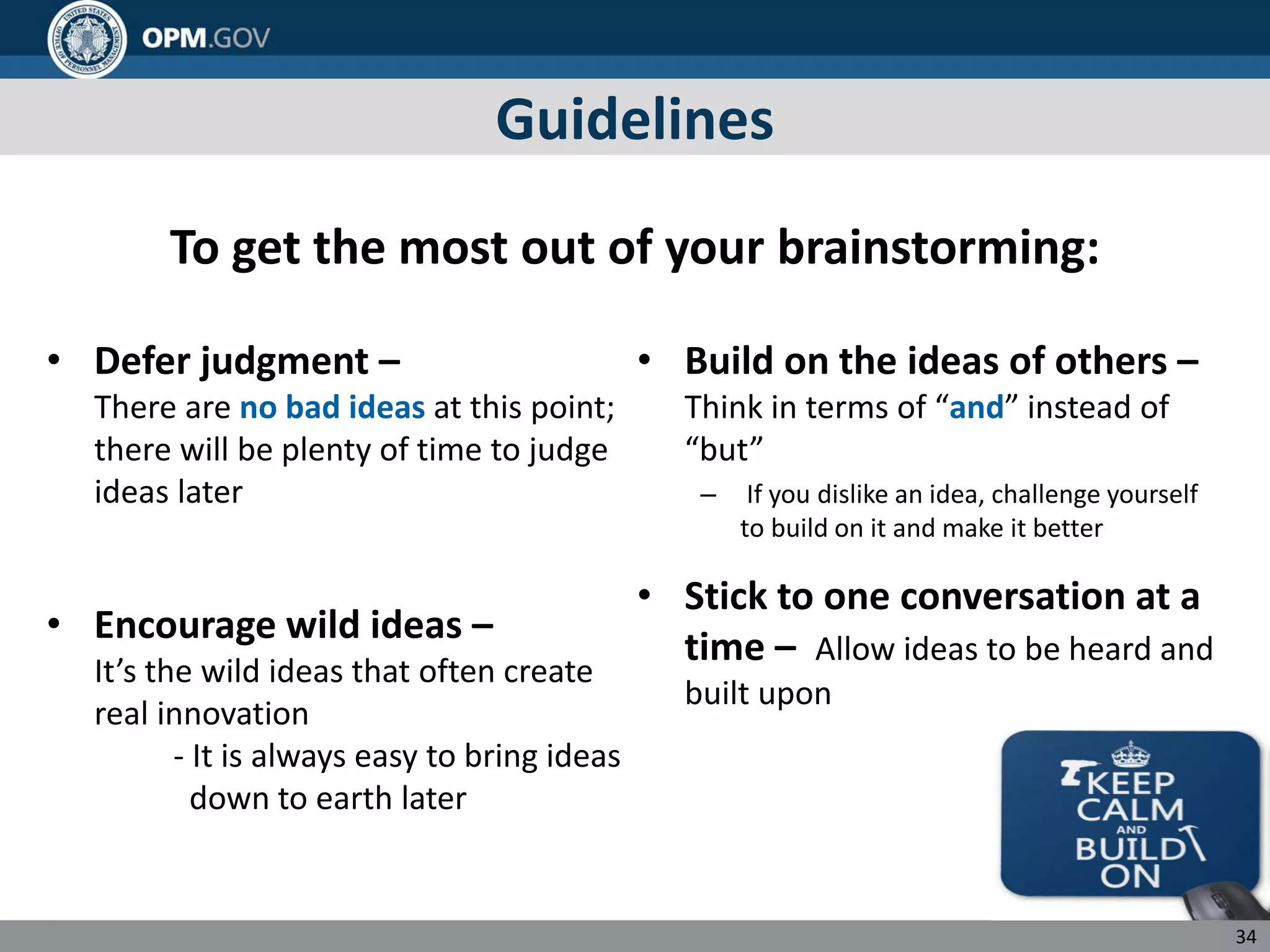

- 15. Guidelines To get themost out of your brainstorming: • Defer judgment – There are no bad ideas at this point; there will be plenty of time to judge ideas later • Encourage wild ideas – It’s the wild ideas that often create real innovation - It is always easy to bring ideas down to earth later • Build on the ideas of others – Think in terms of “and” instead of “but” – If you dislike an idea, challenge yourself to build on it and make it better • Stick to one conversation at a time – Allow ideas to be heard and built upon 34

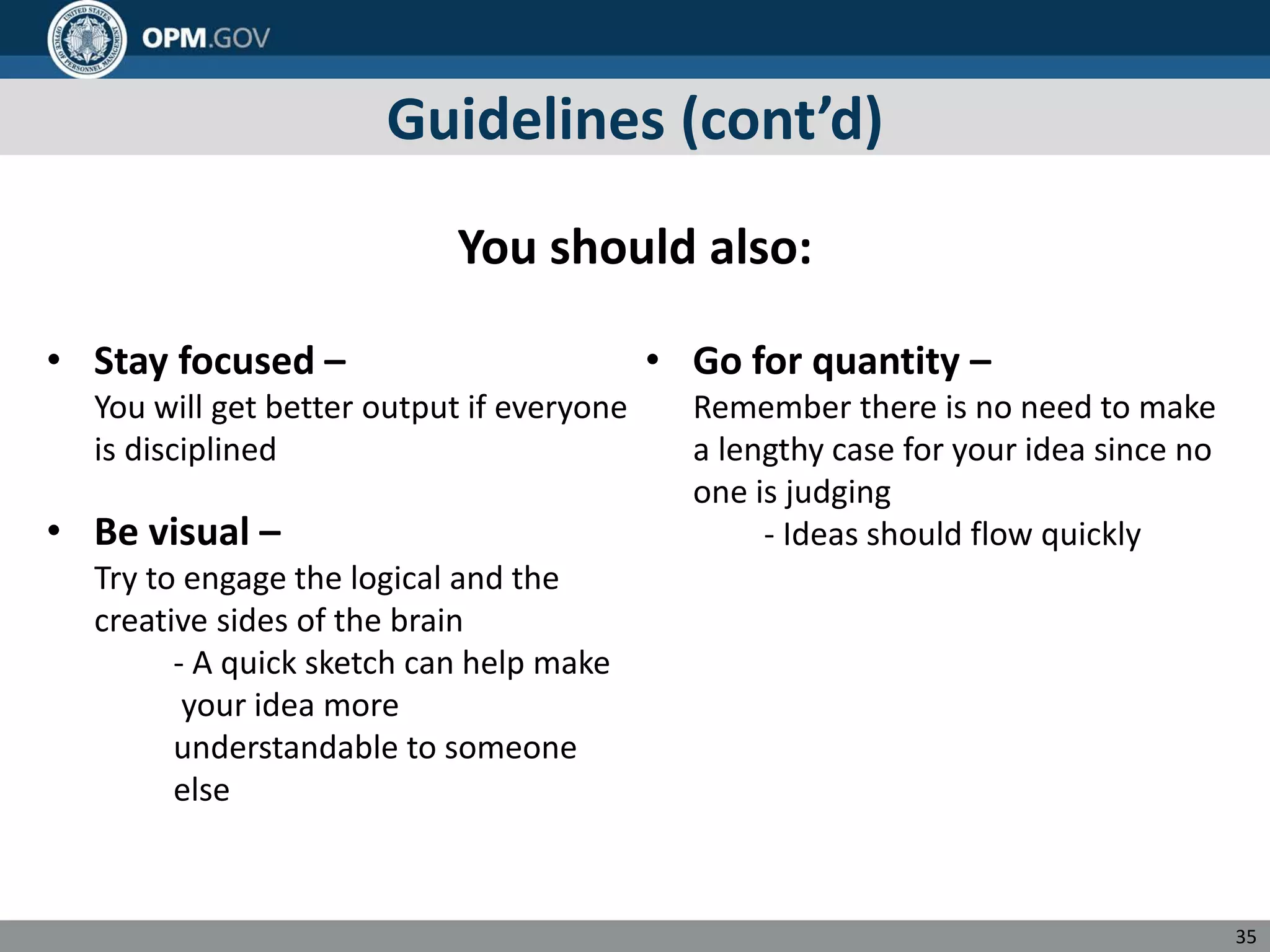

- 16. Guidelines (cont’d) You shouldalso: • Stay focused – • Go for quantity – You will get better output if everyone Remember there is no need to make is disciplined a lengthy case for your idea since no one is judging • Be visual – - Ideas should flow quickly Try to engage the logical and the creative sides of the brain - A quick sketch can help make your idea more understandable to someone else 35

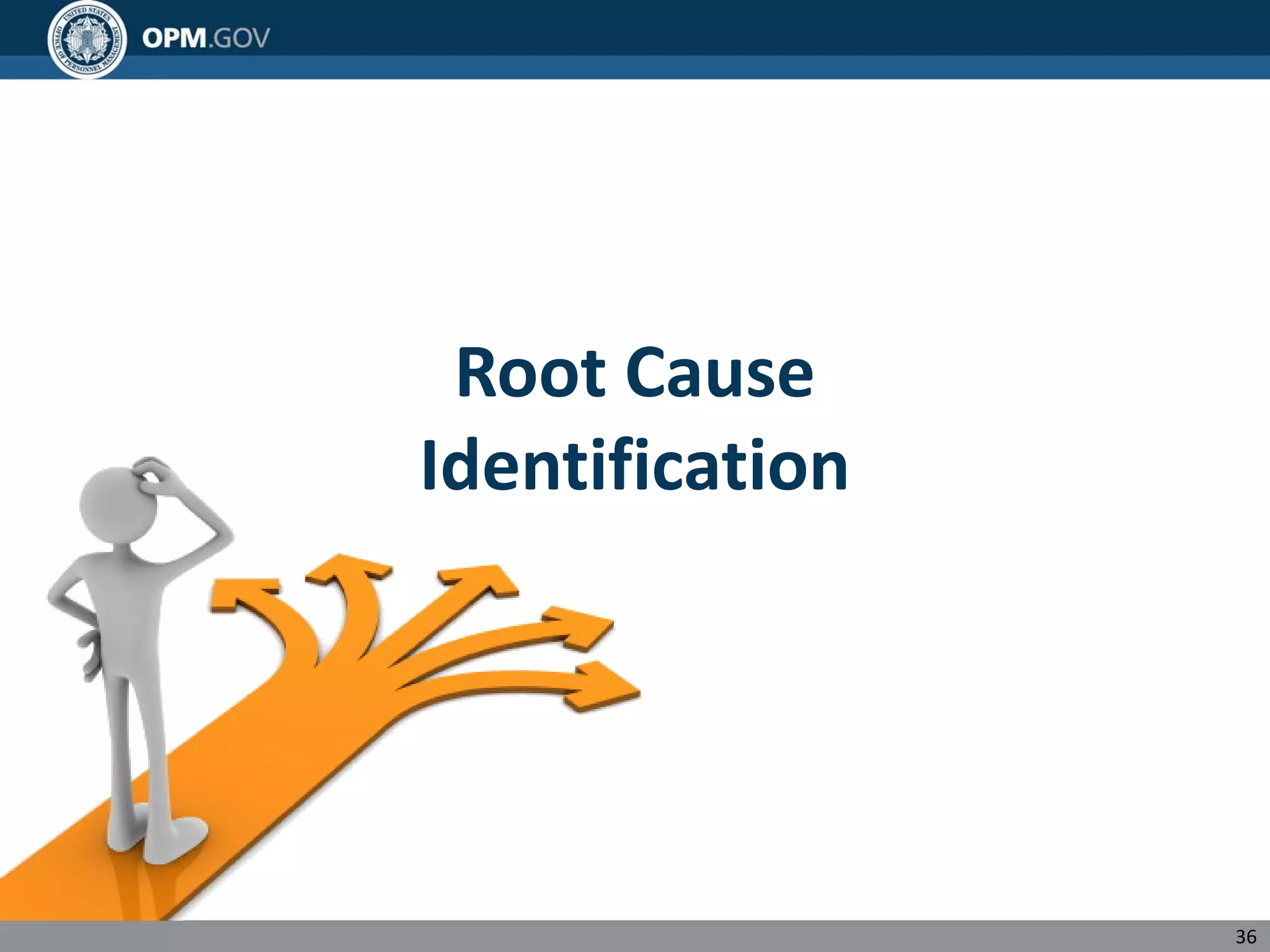

- 17.

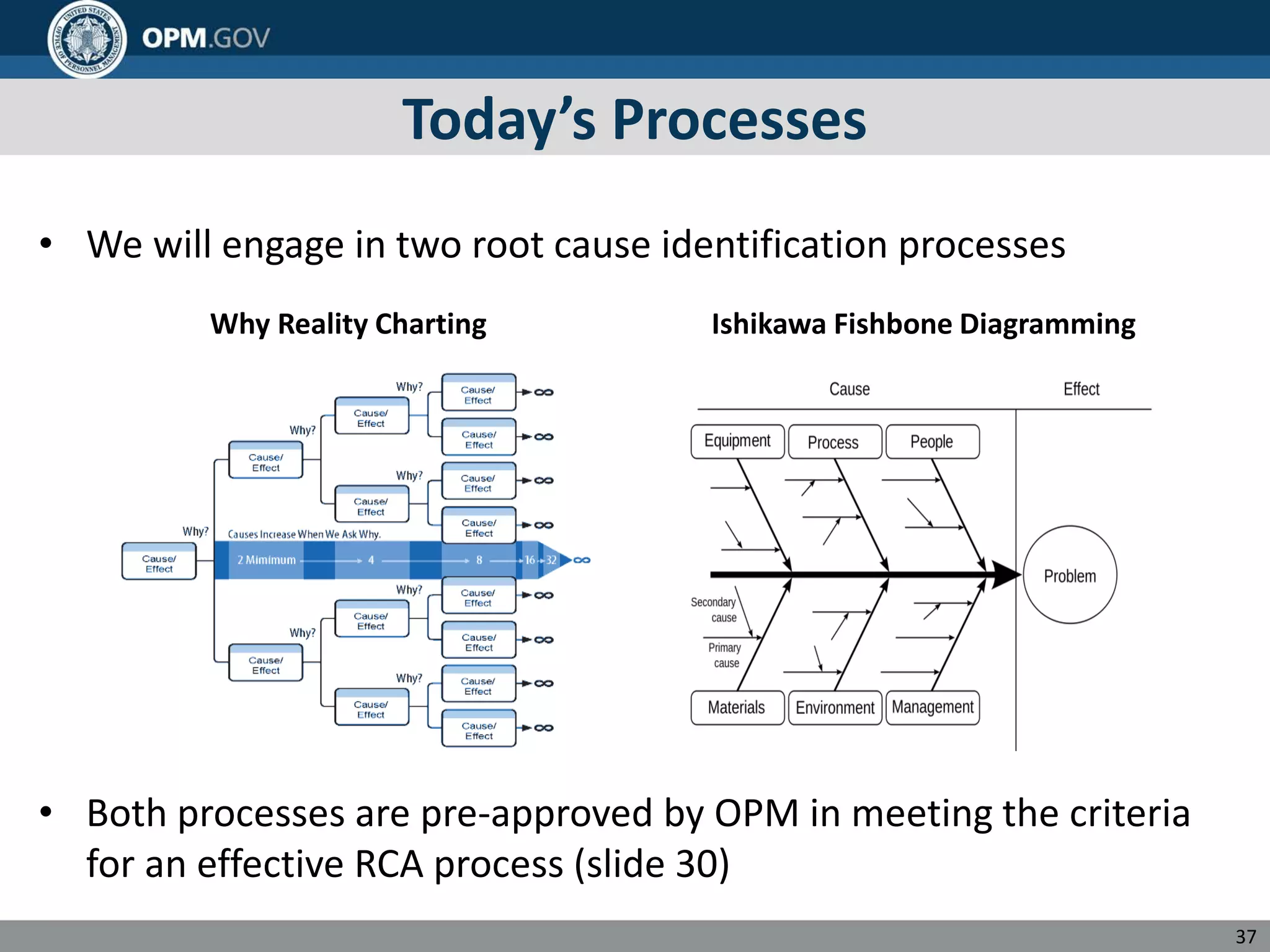

- 18. Today’s Processes • Wewill engage in two root cause identification processes Why Reality Charting Ishikawa Fishbone Diagramming • Both processes are pre-approved by OPM in meeting the criteria for an effective RCA process (slide 30) 37

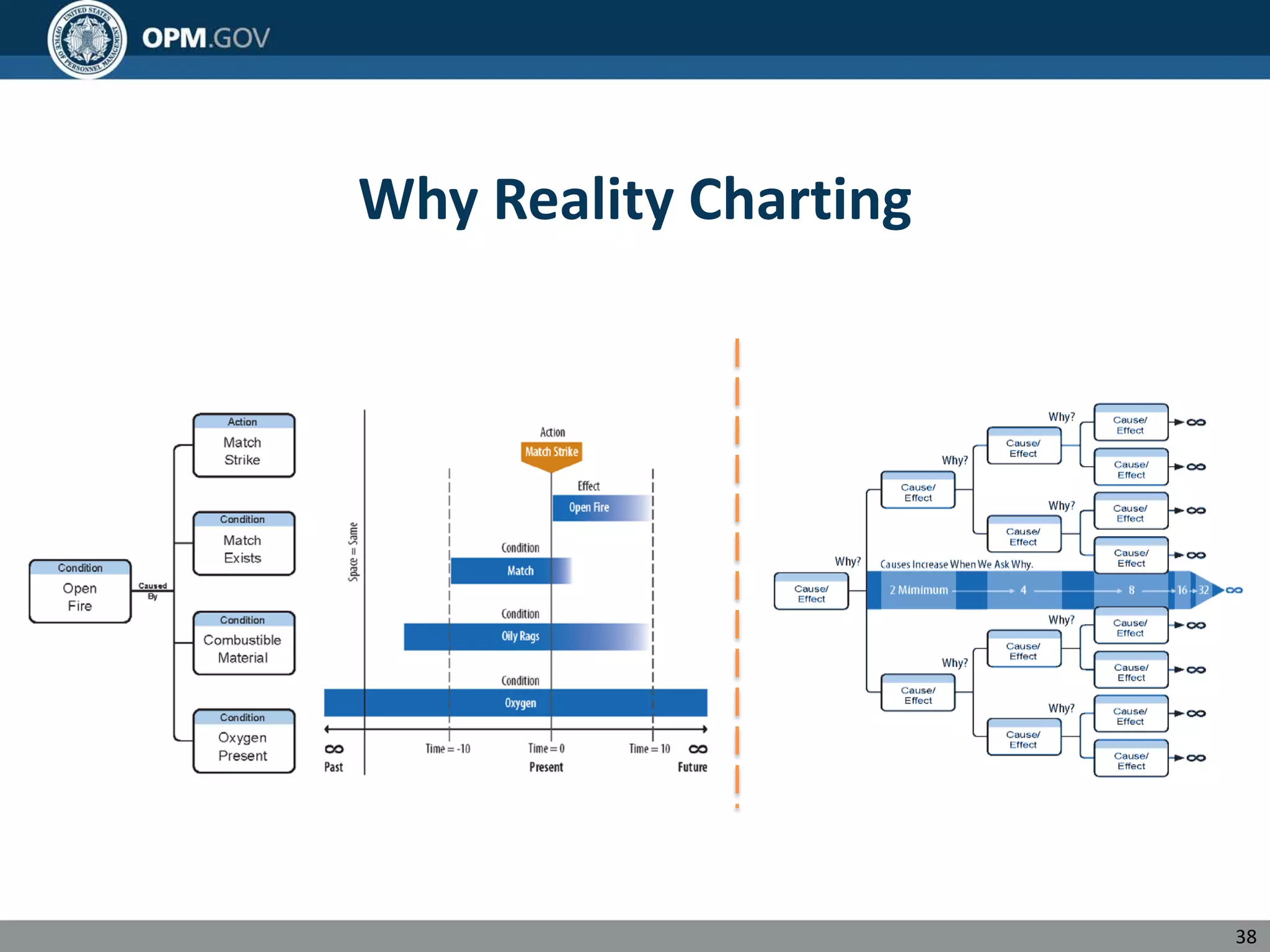

- 19.
- 20. Apollo RCA Principles 1.Cause and effect are the same thing 2. Each effect has at least two causes in the form of actions and conditions 3. Causes and effects are part of an infinite continuum of causes 4. An effect exists only if its cause exists in the same space and time frame 39

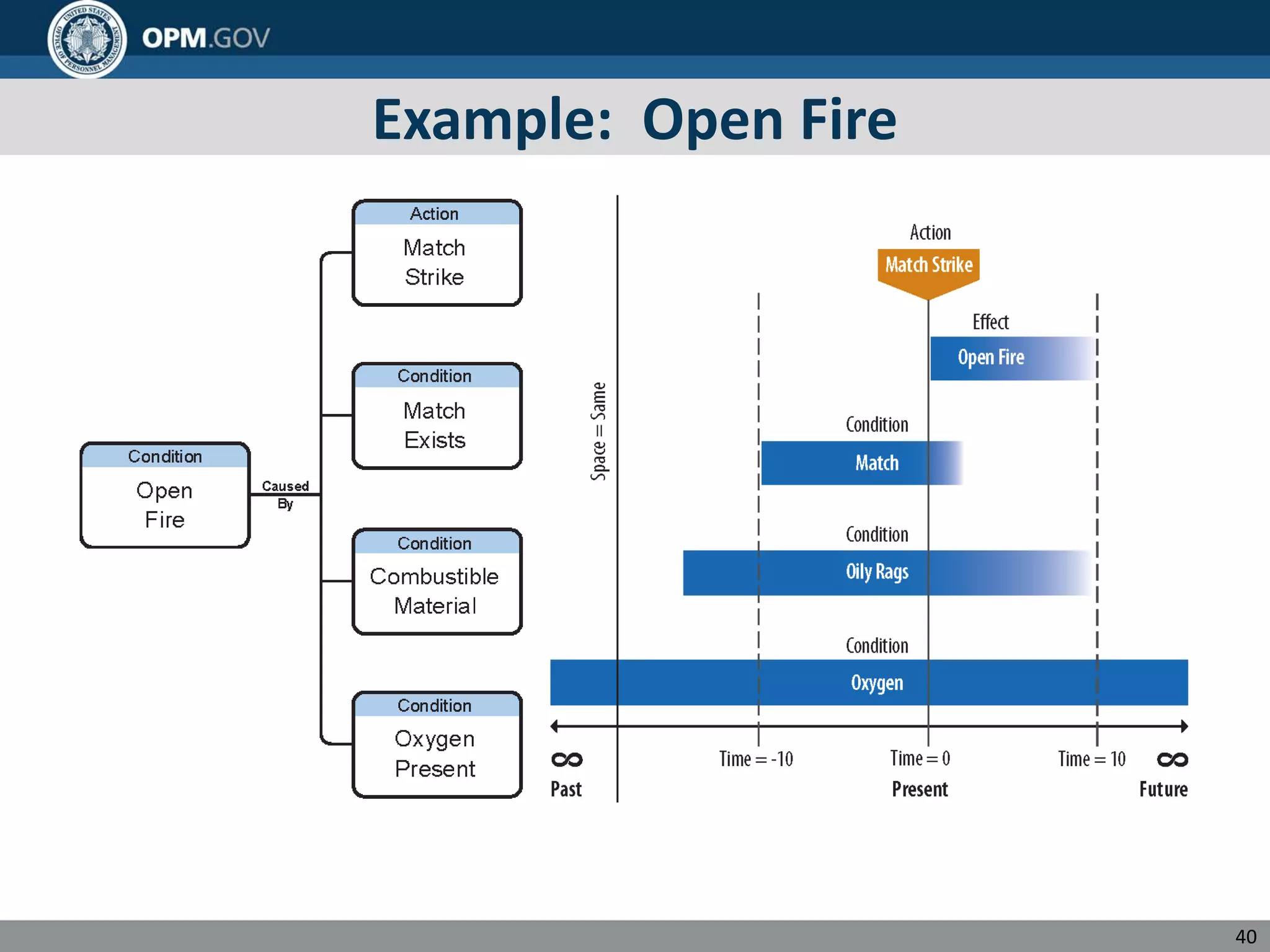

- 21.

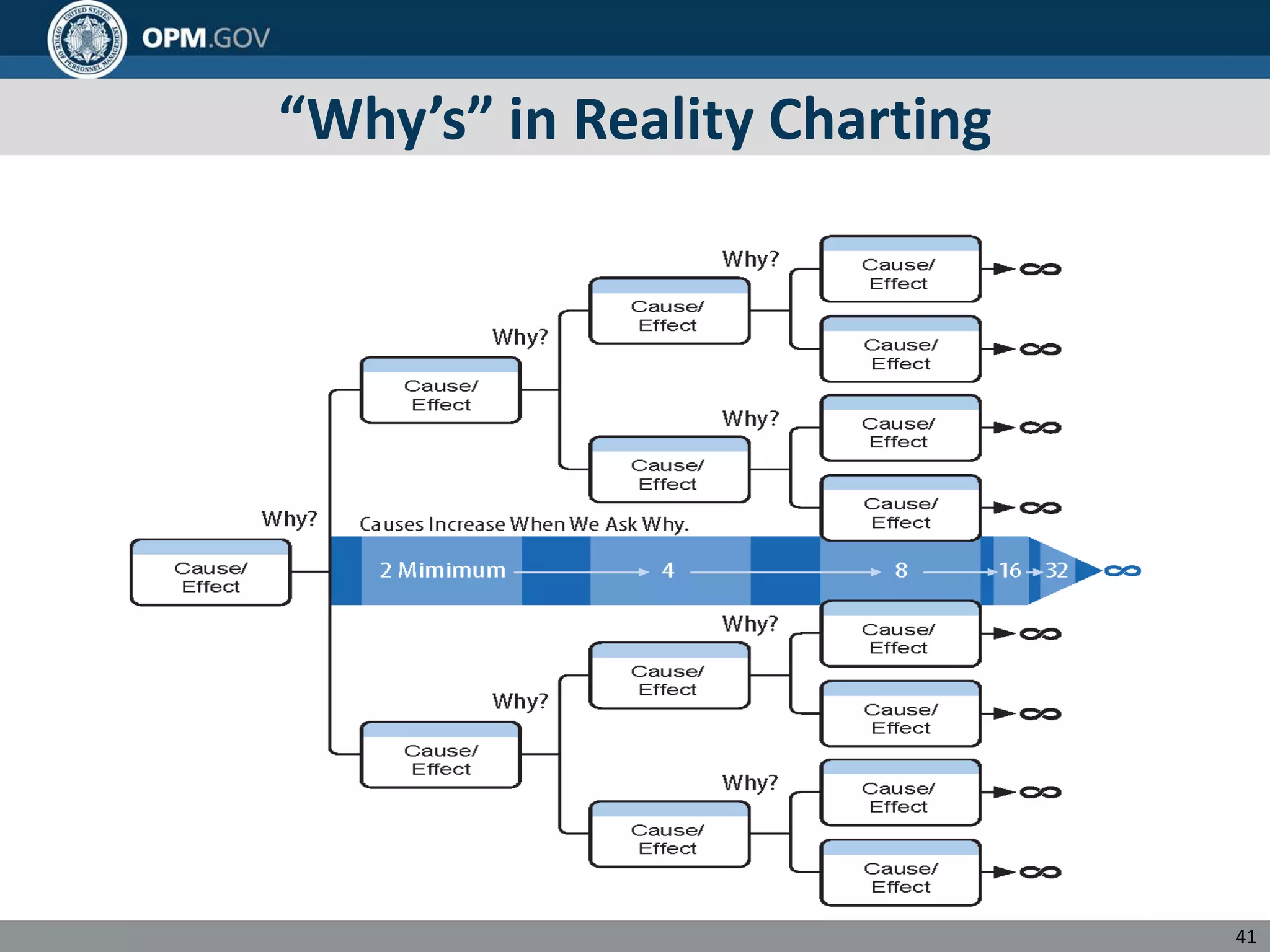

- 22. “Why’s” in RealityCharting 41

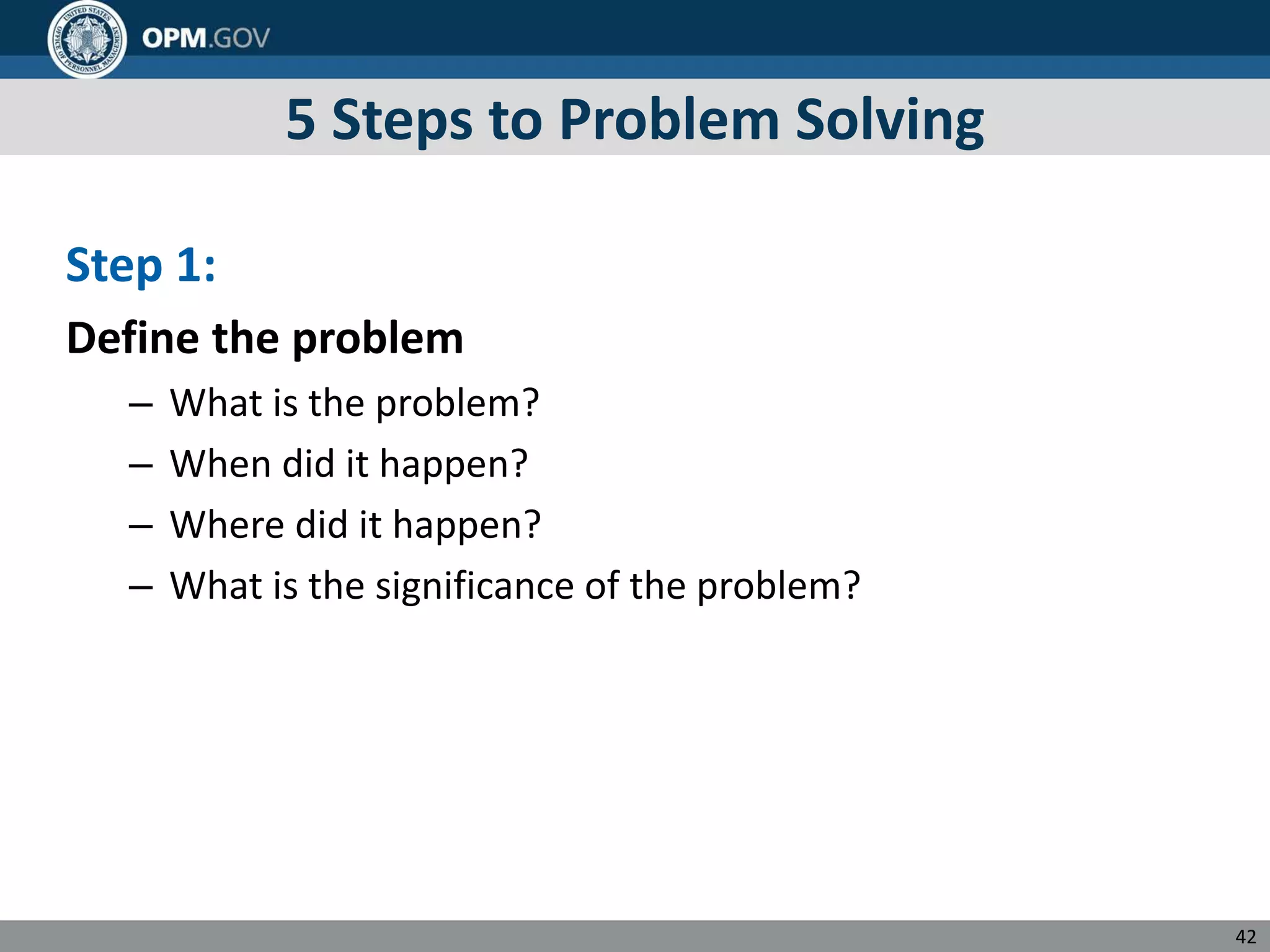

- 23. 5 Steps toProblem Solving Step 1: Define the problem – What is the problem? – When did it happen? – Where did it happen? – What is the significance of the problem? 42

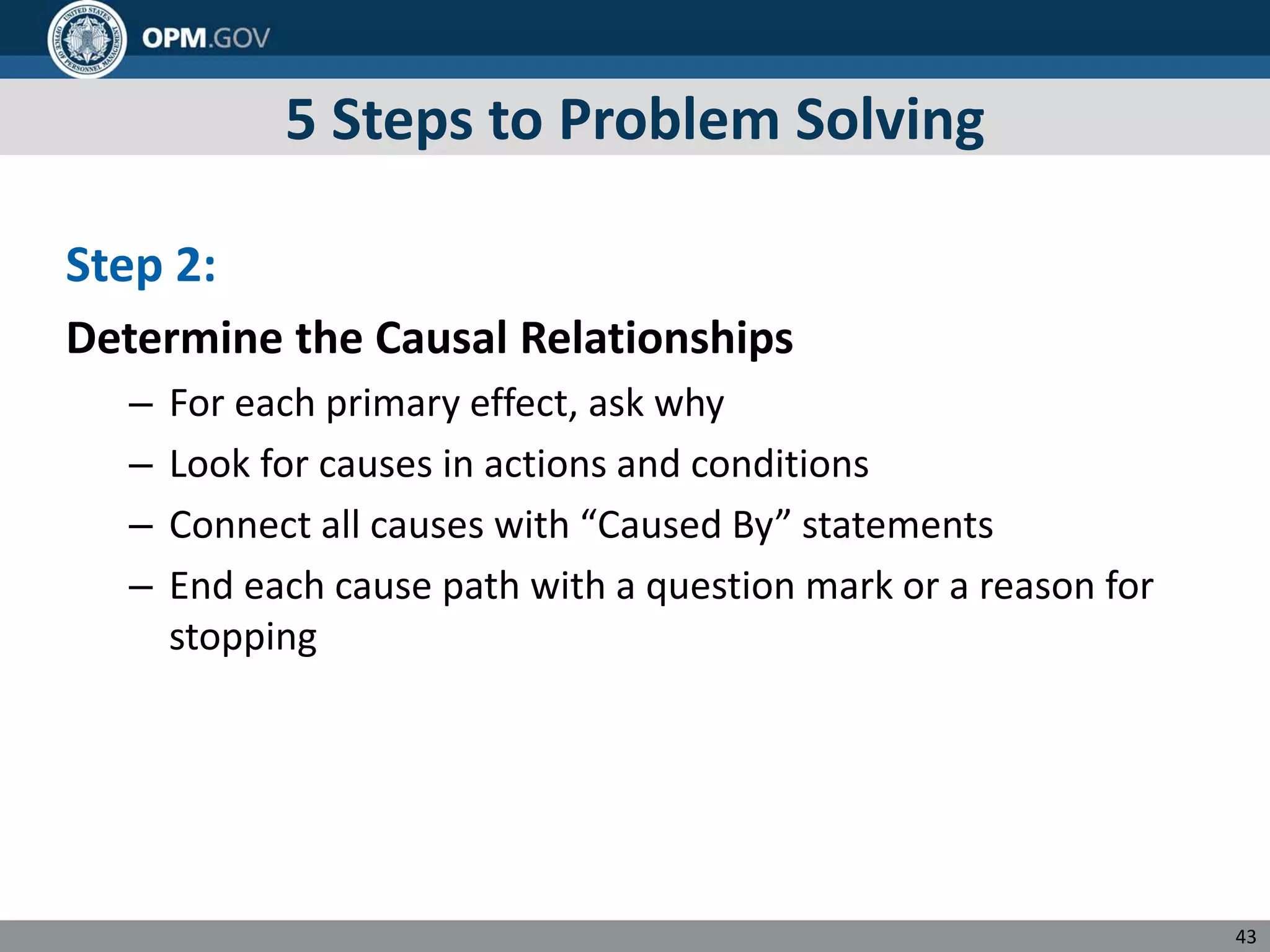

- 24. 5 Steps toProblem Solving Step 2: Determine the Causal Relationships – For each primary effect, ask why – Look for causes in actions and conditions – Connect all causes with “Caused By” statements – End each cause path with a question mark or a reason for stopping 43

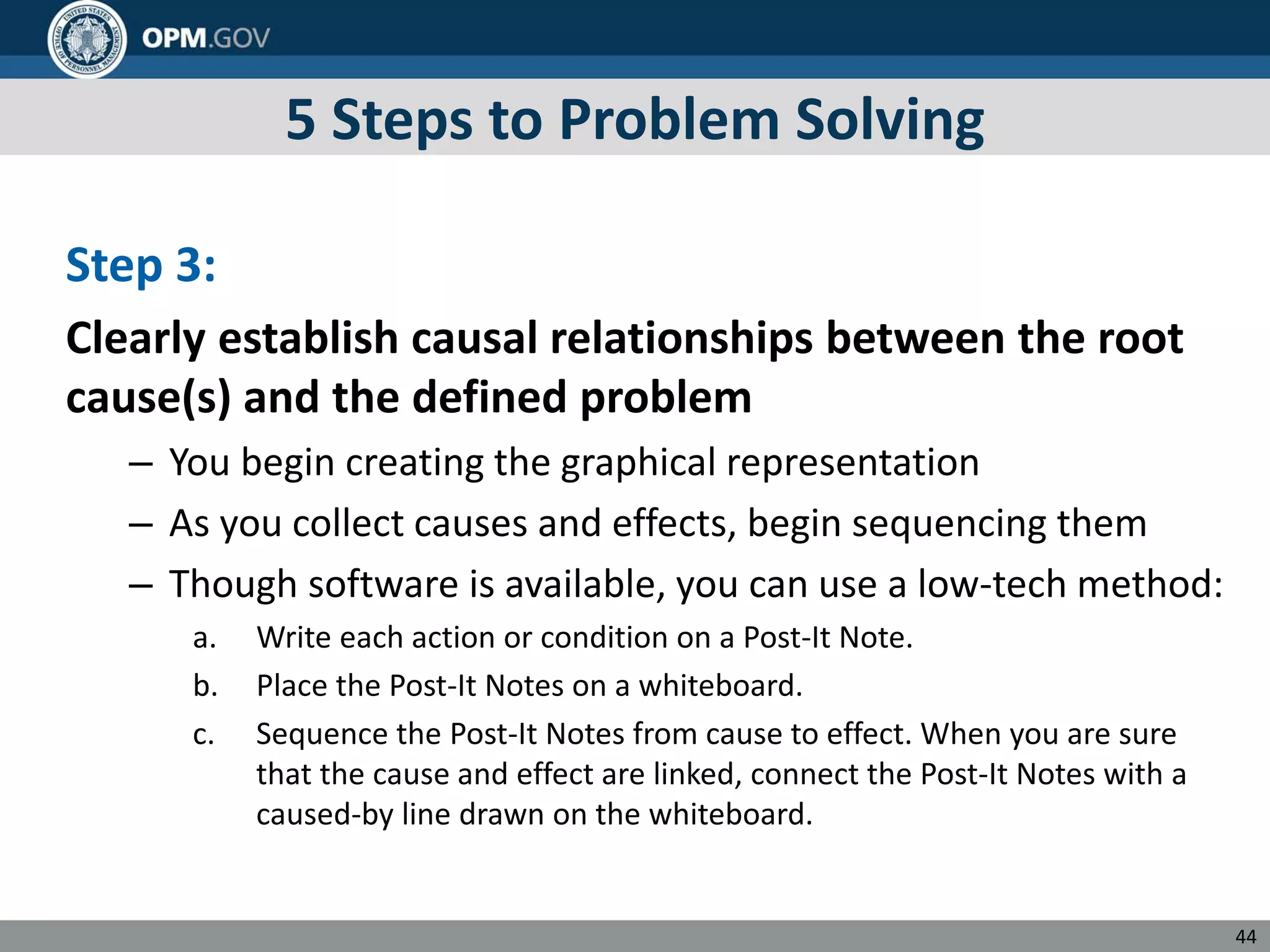

- 25. 5 Steps toProblem Solving Step 3: Clearly establish causal relationships between the root cause(s) and the defined problem – You begin creating the graphical representation – As you collect causes and effects, begin sequencing them – Though software is available, you can use a low-tech method: a. Write each action or condition on a Post-It Note. b. Place the Post-It Notes on a whiteboard. c. Sequence the Post-It Notes from cause to effect. When you are sure that the cause and effect are linked, connect the Post-It Notes with a caused-by line drawn on the whiteboard. 44

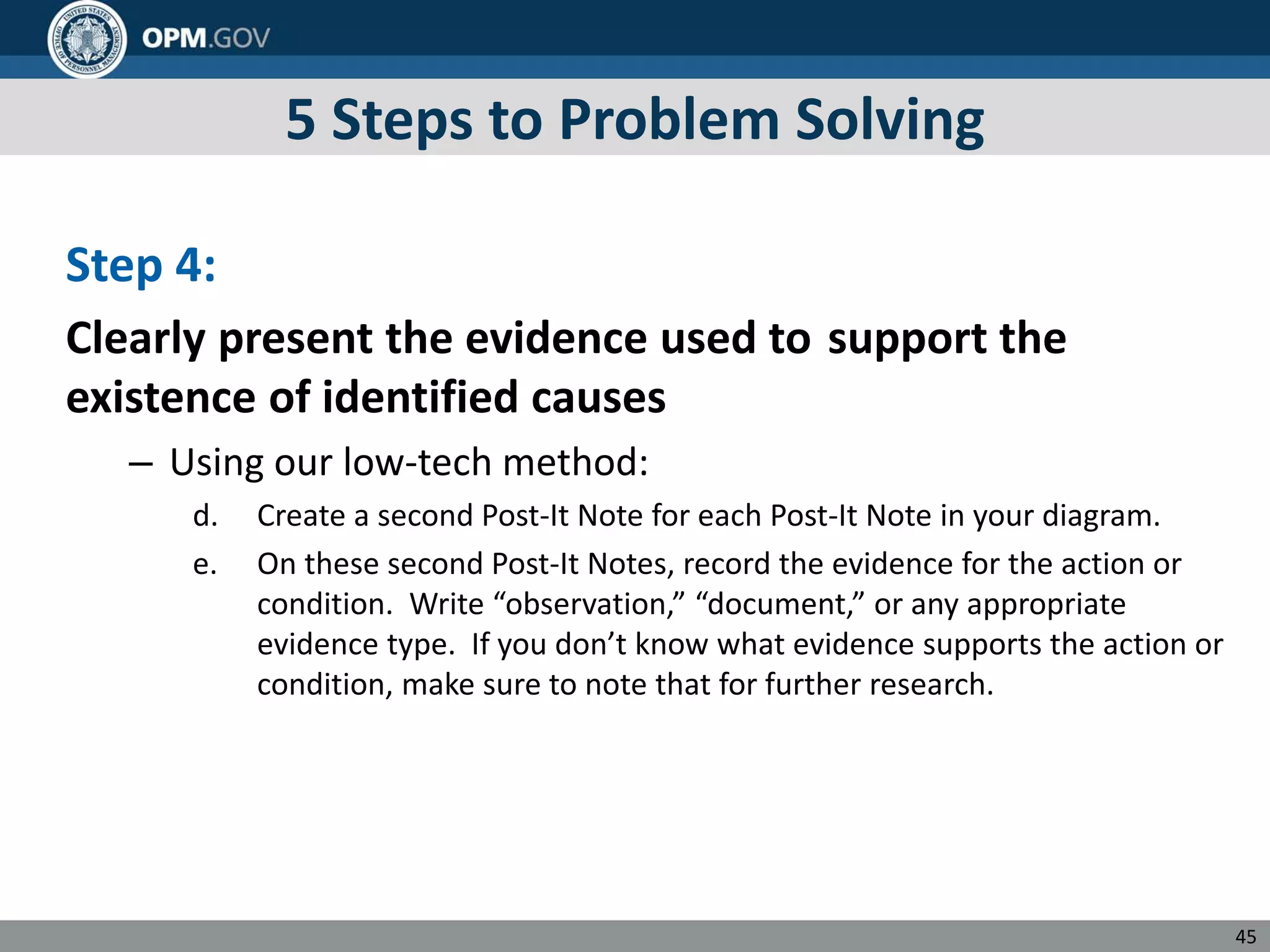

- 26. 5 Steps toProblem Solving Step 4: Clearly present the evidence used to support the existence of identified causes – Using our low-tech method: d. Create a second Post-It Note for each Post-It Note in your diagram. e. On these second Post-It Notes, record the evidence for the action or condition. Write “observation,” “document,” or any appropriate evidence type. If you don’t know what evidence supports the action or condition, make sure to note that for further research. 45

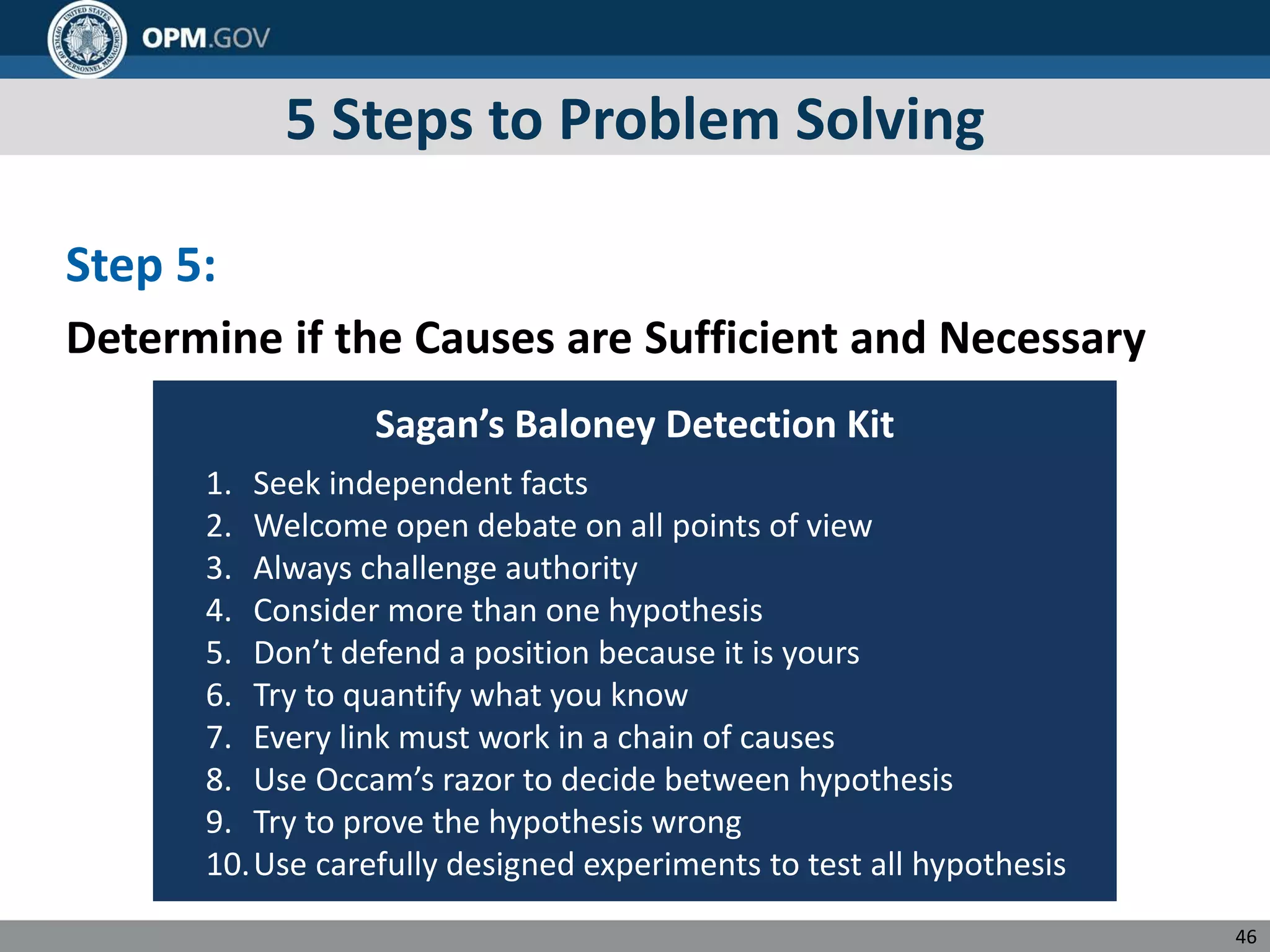

- 27. 5 Steps toProblem Solving Step 5: Determine if the Causes are Sufficient and Necessary Sagan’s Baloney Detection Kit 1. Seek independent facts 2. Welcome open debate on all points of view 3. Always challenge authority 4. Consider more than one hypothesis 5. Don’t defend a position because it is yours 6. Try to quantify what you know 7. Every link must work in a chain of causes 8. Use Occam’s razor to decide between hypothesis 9. Try to prove the hypothesis wrong 10.Use carefully designed experiments to test all hypothesis 46

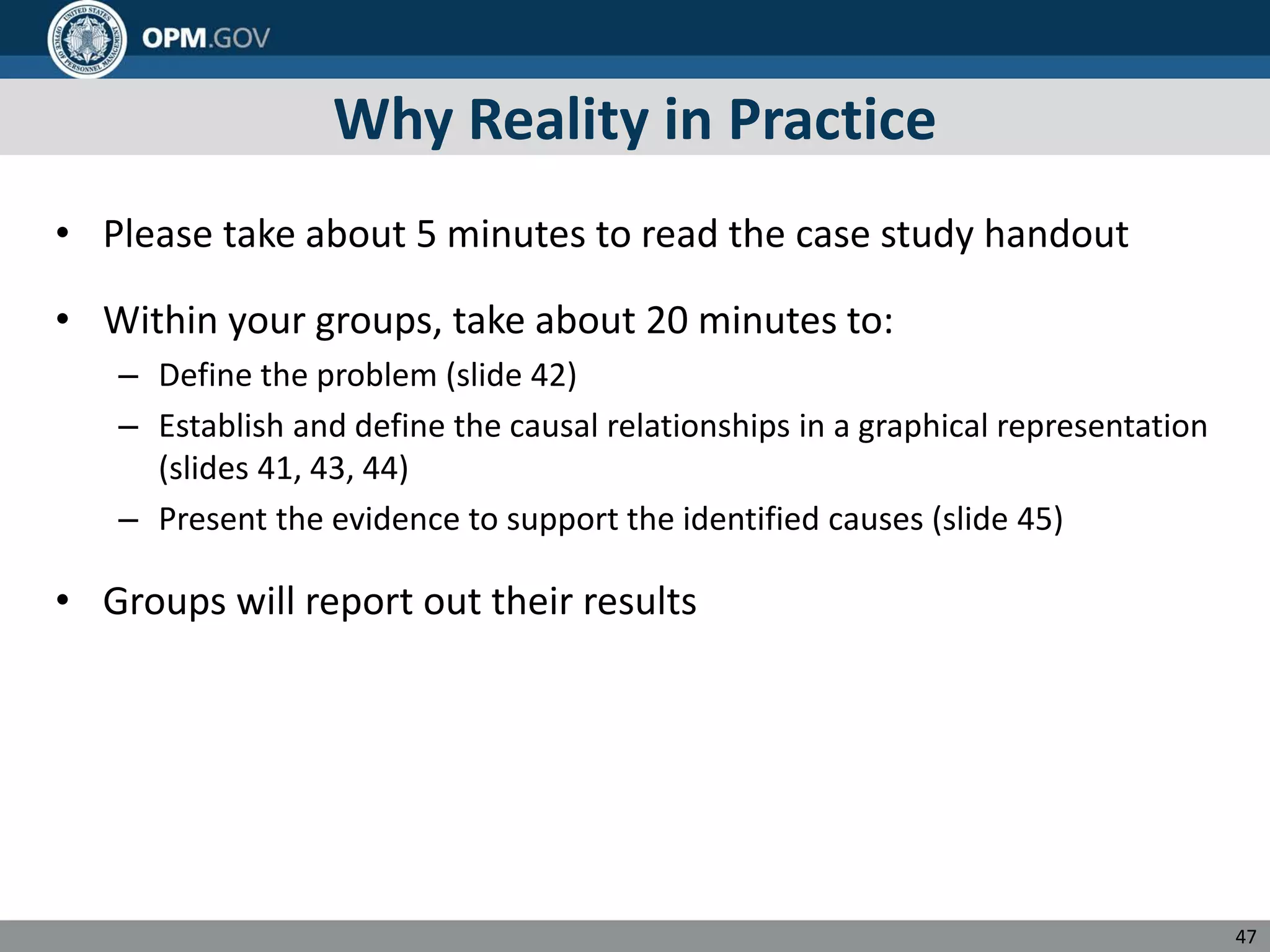

- 28. Why Reality inPractice • Please take about 5 minutes to read the case study handout • Within your groups, take about 20 minutes to: – Define the problem (slide 42) – Establish and define the causal relationships in a graphical representation (slides 41, 43, 44) – Present the evidence to support the identified causes (slide 45) • Groups will report out their results 47

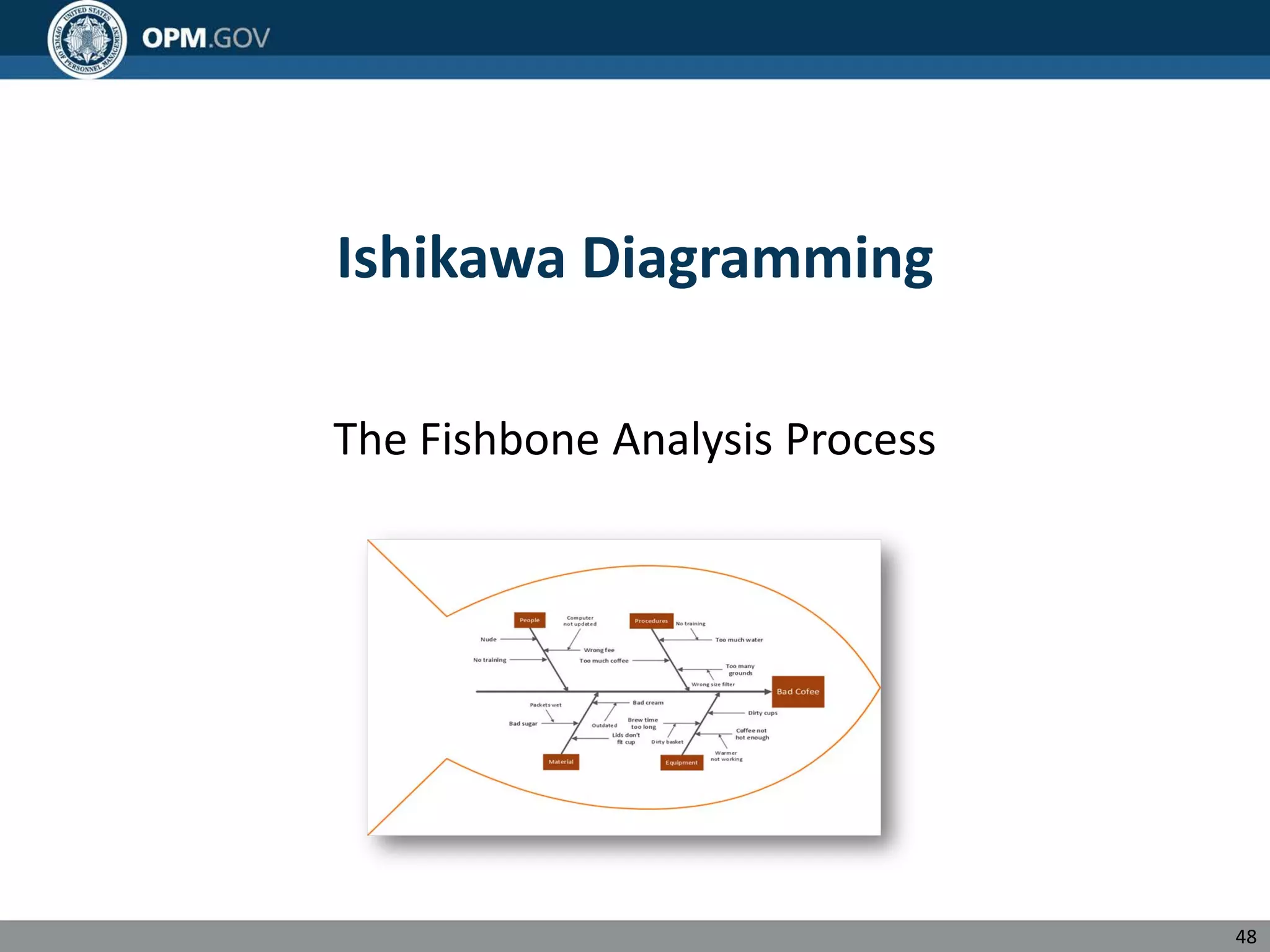

- 29. Ishikawa Diagramming The FishboneAnalysis Process 48

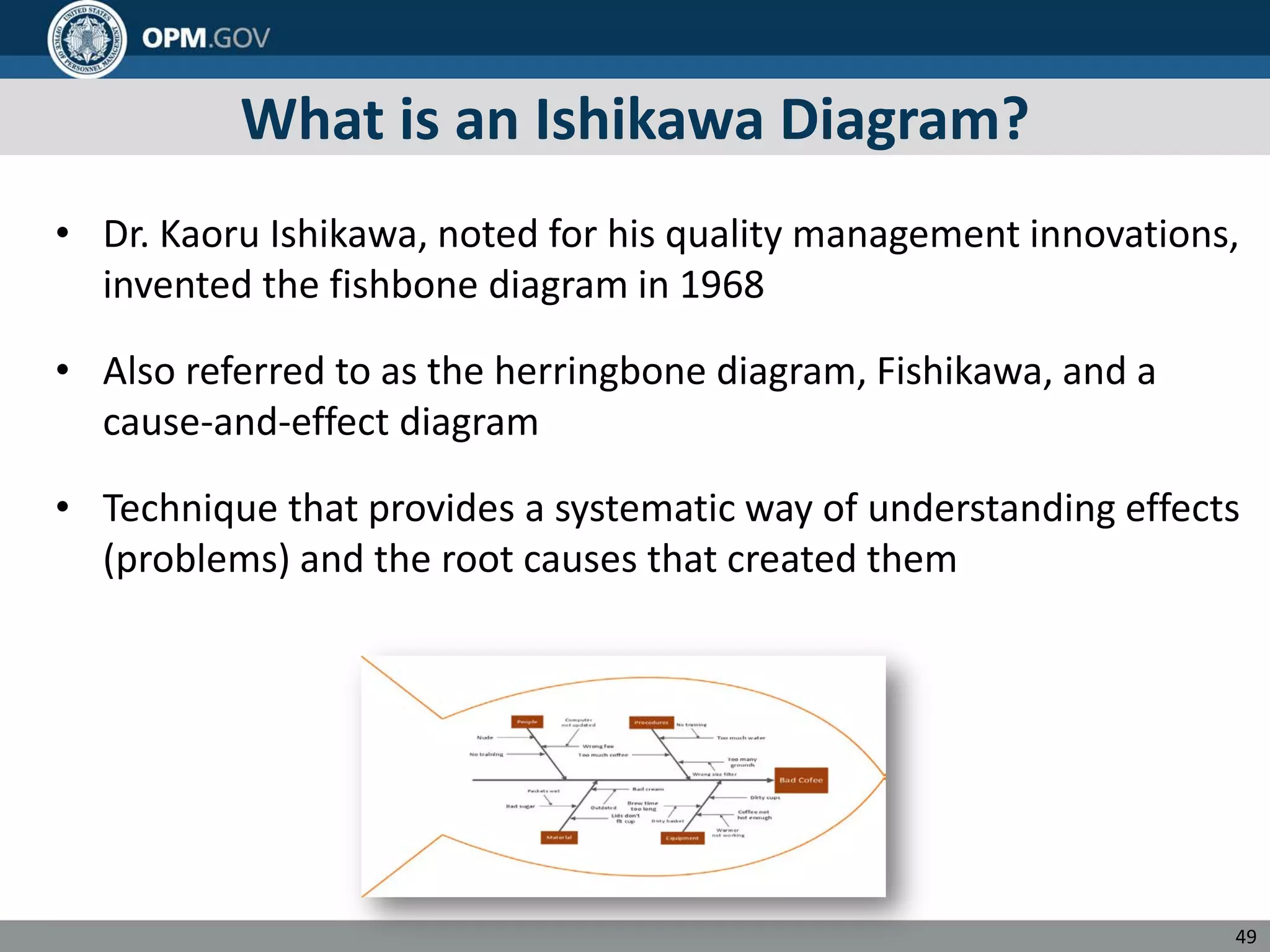

- 30. What is anIshikawa Diagram? • Dr. Kaoru Ishikawa, noted for his quality management innovations, invented the fishbone diagram in 1968 • Also referred to as the herringbone diagram, Fishikawa, and a cause-and-effect diagram • Technique that provides a systematic way of understanding effects (problems) and the root causes that created them 49

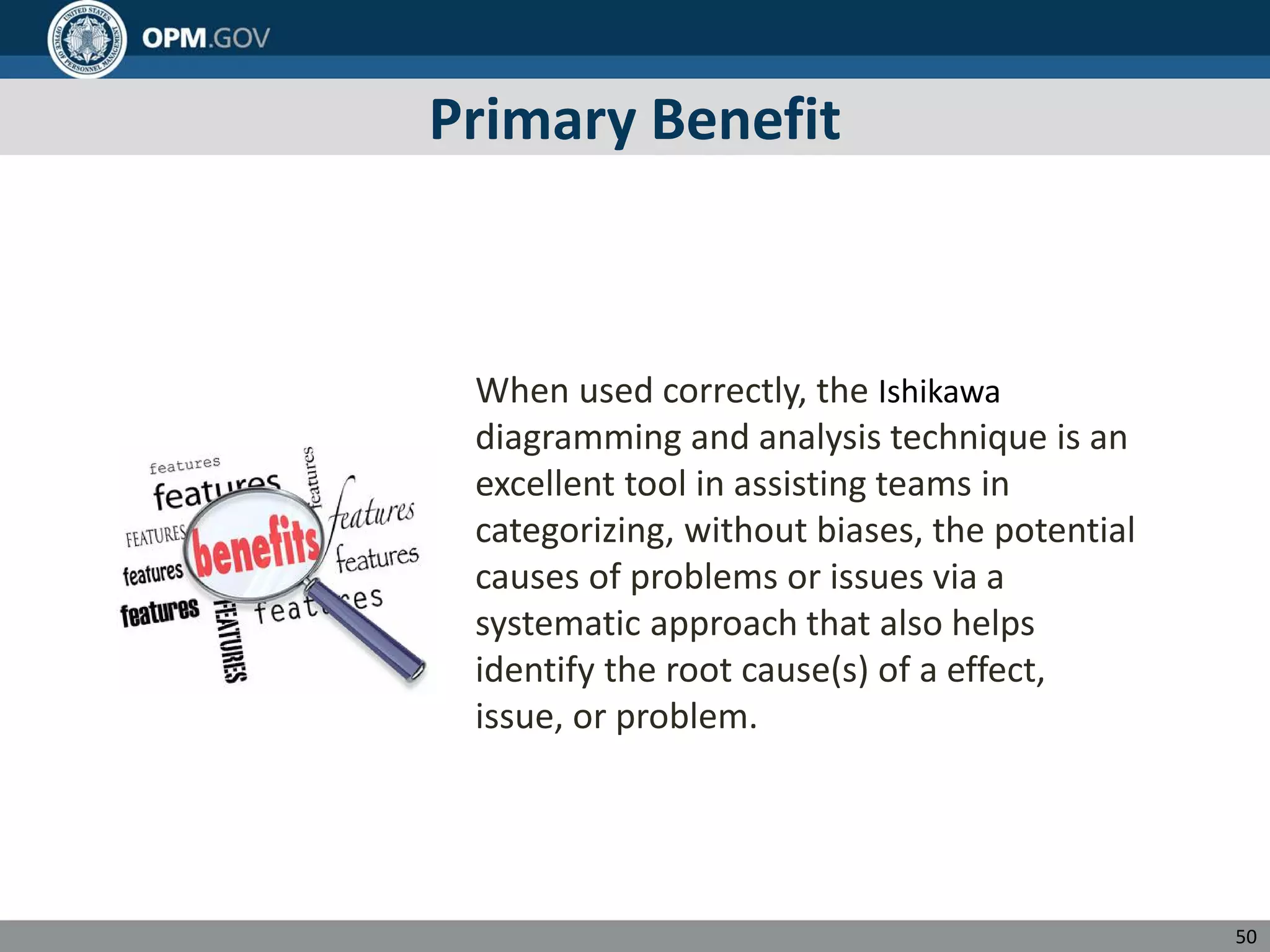

- 31. Primary Benefit When usedcorrectly, the Ishikawa diagramming and analysis technique is an excellent tool in assisting teams in categorizing, without biases, the potential causes of problems or issues via a systematic approach that also helps identify the root cause(s) of a effect, issue, or problem. 50

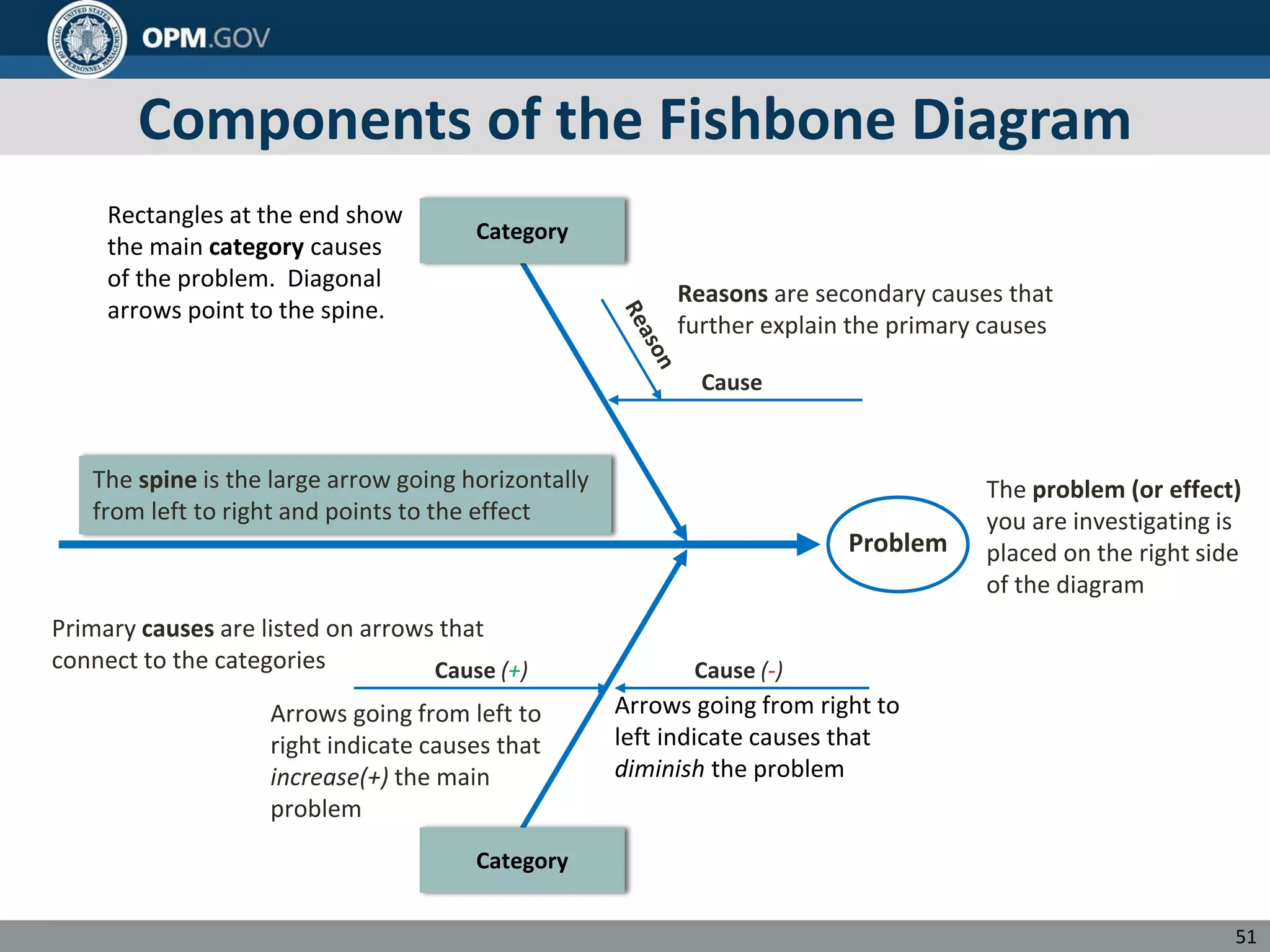

- 32. Components of theFishbone Diagram The spine is the large arrow going horizontally from left to right and points to the effect Category Cause (-) Cause (+) Problem Primary causes are listed on arrows that connect to the categories Arrows going from right to left indicate causes that diminish the problem Arrows going from left to right indicate causes that increase(+) the main problem Rectangles at the end show the main category causes of the problem. Diagonal arrows point to the spine. Category Cause Reasons are secondary causes that further explain the primary causes The problem (or effect) you are investigating is placed on the right side of the diagram 51
- 33.

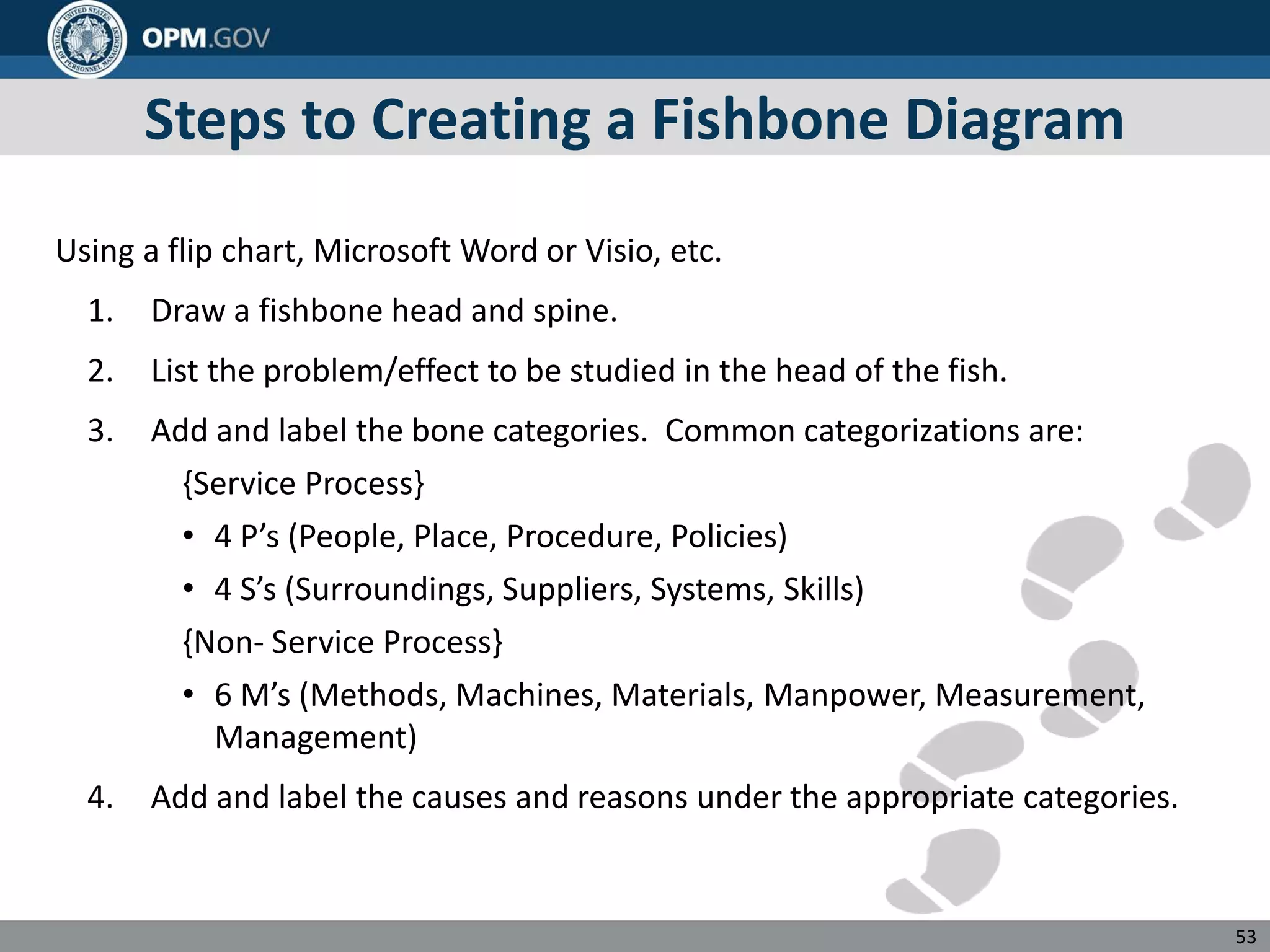

- 34. Steps to Creatinga Fishbone Diagram Using a flip chart, Microsoft Word or Visio, etc. 1. Draw a fishbone head and spine. 2. List the problem/effect to be studied in the head of the fish. 3. Add and label the bone categories. Common categorizations are: {Service Process} • 4 P’s (People, Place, Procedure, Policies) • 4 S’s (Surroundings, Suppliers, Systems, Skills) {Non- Service Process} • 6 M’s (Methods, Machines, Materials, Manpower, Measurement, Management) 4. Add and label the causes and reasons under the appropriate categories. 53

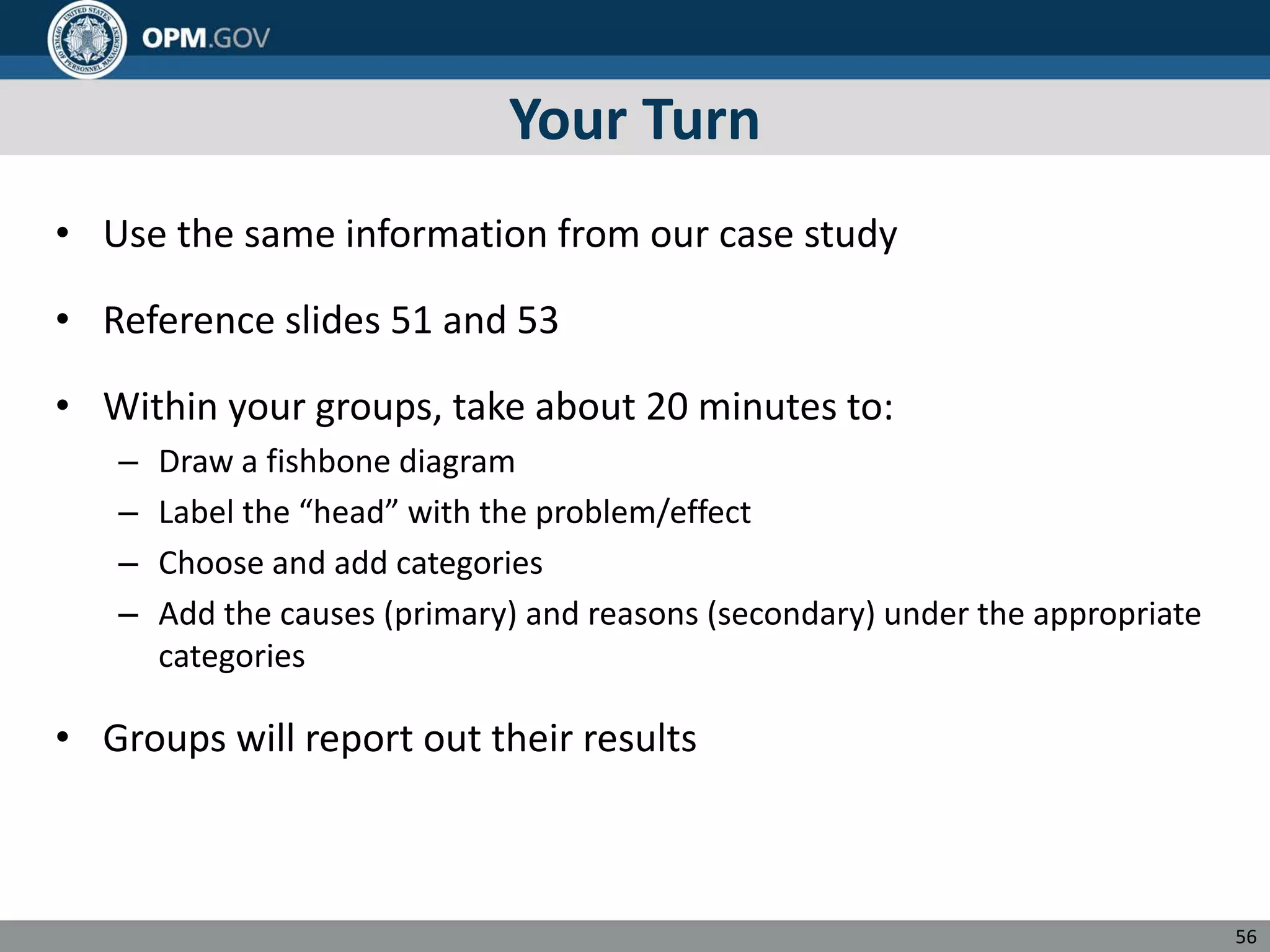

- 35. Your Turn • Usethe same information from our case study • Reference slides 51 and 53 • Within your groups, take about 20 minutes to: – Draw a fishbone diagram – Label the “head” with the problem/effect – Choose and add categories – Add the causes (primary) and reasons (secondary) under the appropriate categories • Groups will report out their results 56
- 36.

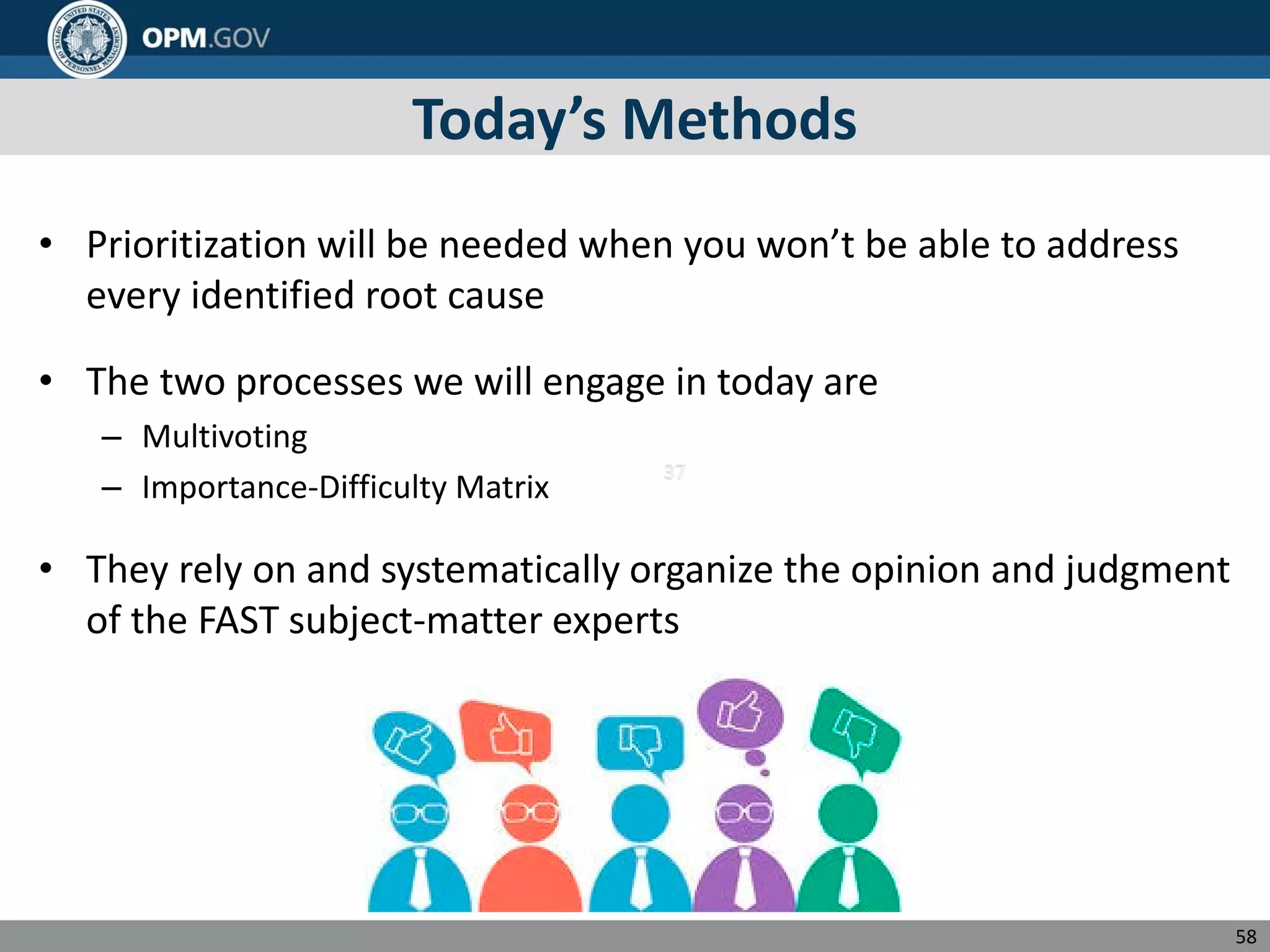

- 37. Today’s Methods • Prioritizationwill be needed when you won’t be able to address every identified root cause • The two processes we will engage in today are – Multivoting – Importance-Difficulty Matrix • They rely on and systematically organize the opinion and judgment of the FAST subject-matter experts 58
- 38.

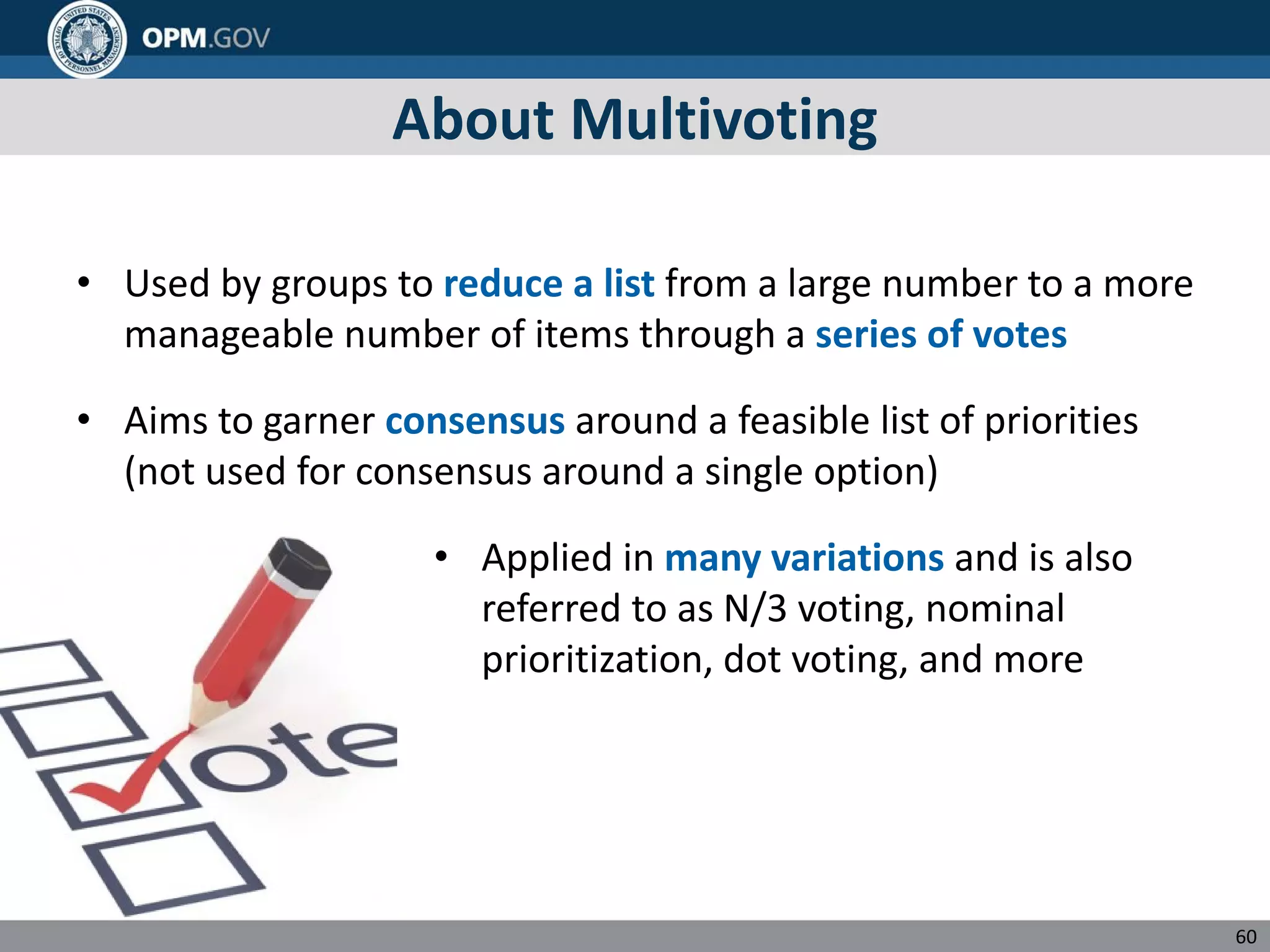

- 39. About Multivoting • Usedby groups to reduce a list from a large number to a more manageable number of items through a series of votes • Aims to garner consensus around a feasible list of priorities (not used for consensus around a single option) • Applied in many variations and is also referred to as N/3 voting, nominal prioritization, dot voting, and more 60

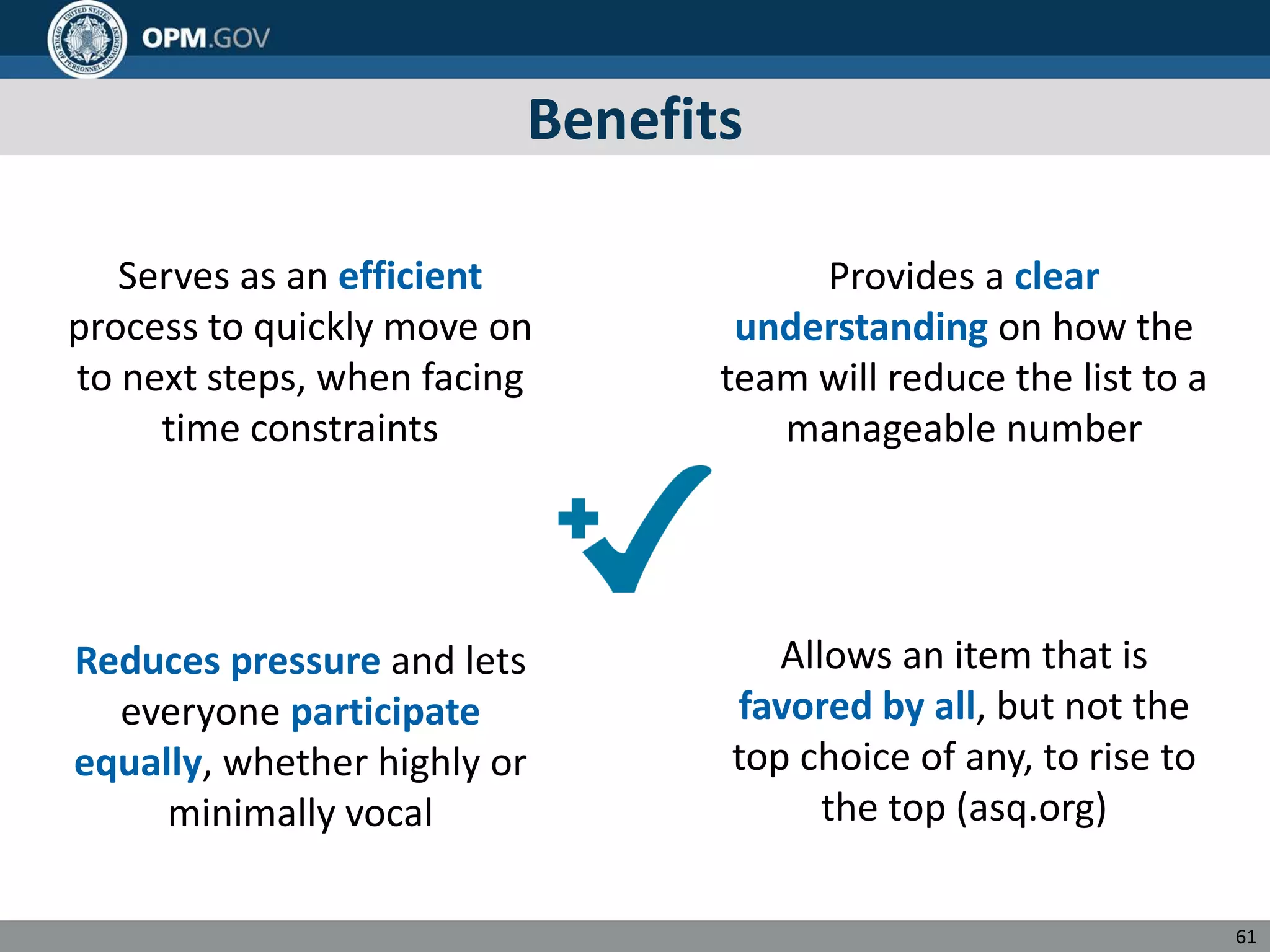

- 40. Benefits Serves as anefficient Provides a clear process to quickly move on understanding on how the to next steps, when facing team will reduce the list to a time constraints manageable number Reduces pressure and lets everyone participate equally, whether highly or minimally vocal Allows an item that is favored by all, but not the top choice of any, to rise to the top (asq.org) 61

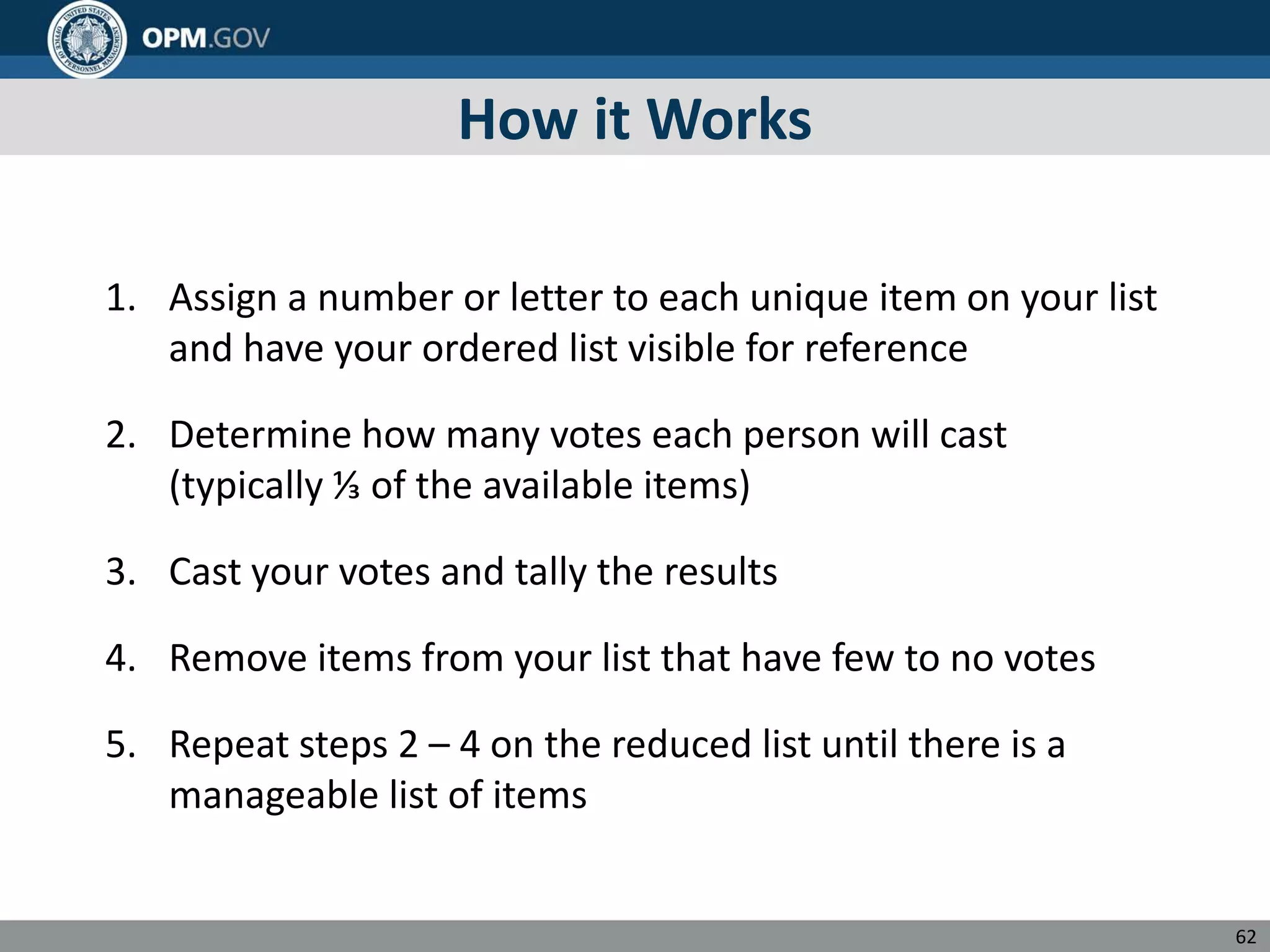

- 41. How it Works 1.Assign a number or letter to each unique item on your list and have your ordered list visible for reference 2. Determine how many votes each person will cast (typically ⅓ of the available items) 3. Cast your votes and tally the results 4. Remove items from your list that have few to no votes 5. Repeat steps 2 – 4 on the reduced list until there is a manageable list of items 62

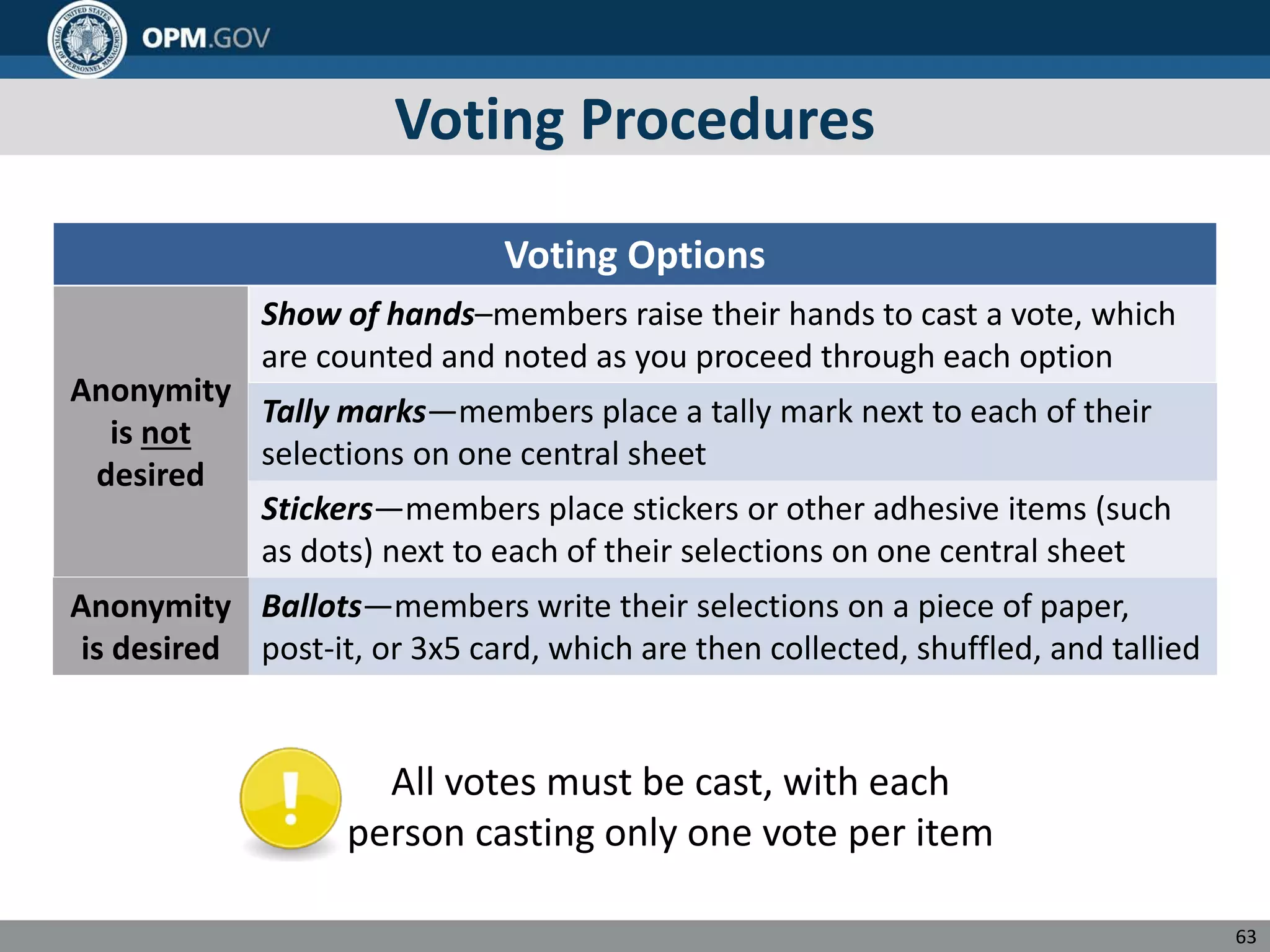

- 42. Voting Procedures Voting Options Anonymity isnot desired Show of hands–members raise their hands to cast a vote, which are counted and noted as you proceed through each option Tally marks—members place a tally mark next to each of their selections on one central sheet Stickers—members place stickers or other adhesive items (such as dots) next to each of their selections on one central sheet Anonymity is desired Ballots—members write their selections on a piece of paper, post-it, or 3x5 card, which are then collected, shuffled, and tallied All votes must be cast, with each person casting only one vote per item 63

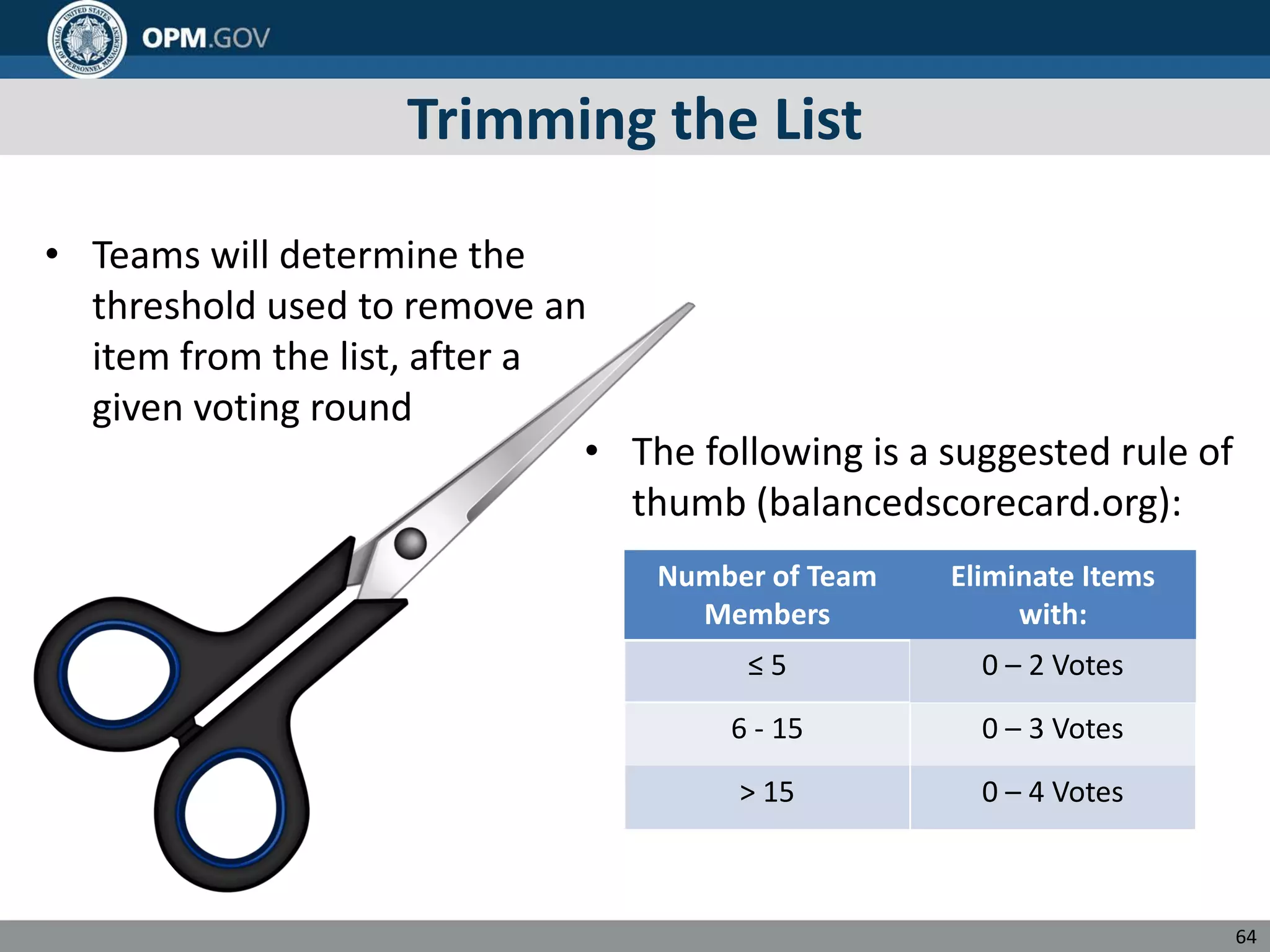

- 43. Trimming the List thresholdused to remove an item from the list, after a given voting round • The following is a suggested rule of thumb (balancedscorecard.org): • Teams will determine the ≤ 5 Number of Team Members Eliminate Items with: 0 – 2 Votes 6 - 15 0 – 3 Votes > 15 0 – 4 Votes 64
- 44. Let’s Multivote! • Usingthe collective unique root causes identified, we will facilitate one multivoting exercise for the room • In each round, every person will vote for ⅓ of the options – Round 1: ____ options ÷ 3 = ____ votes per person – Round 2: ____ options ÷ 3 = ____ votes per person – Round 3: ____ options ÷ 3 = ____ votes per person • We will conduct our voting using a show of hands – Raise your hand when an item you wish to cast your vote for is read aloud – Keep your hand raised until you’re certain it has been counted • Please ensure you cast all of your allocated votes in each round 65
- 45.

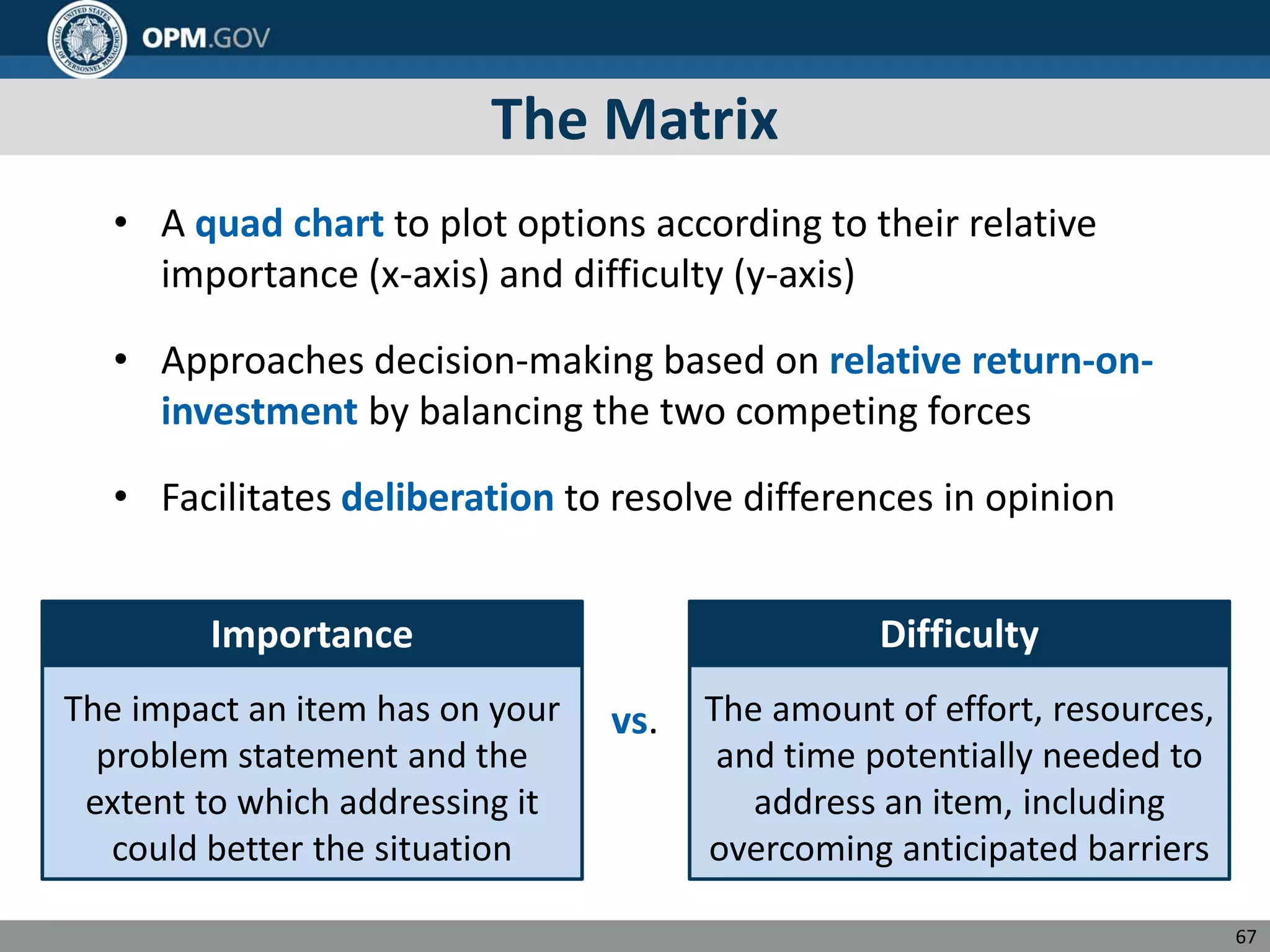

- 46. The Matrix • Aquad chart to plot options according to their relative importance (x-axis) and difficulty (y-axis) • Approaches decision-making based on relative return-on- investment by balancing the two competing forces • Facilitates deliberation to resolve differences in opinion Importance Difficulty The impact an item has on your vs. The amount of effort, resources, problem statement and the and time potentially needed to extent to which addressing it address an item, including could better the situation overcoming anticipated barriers 67

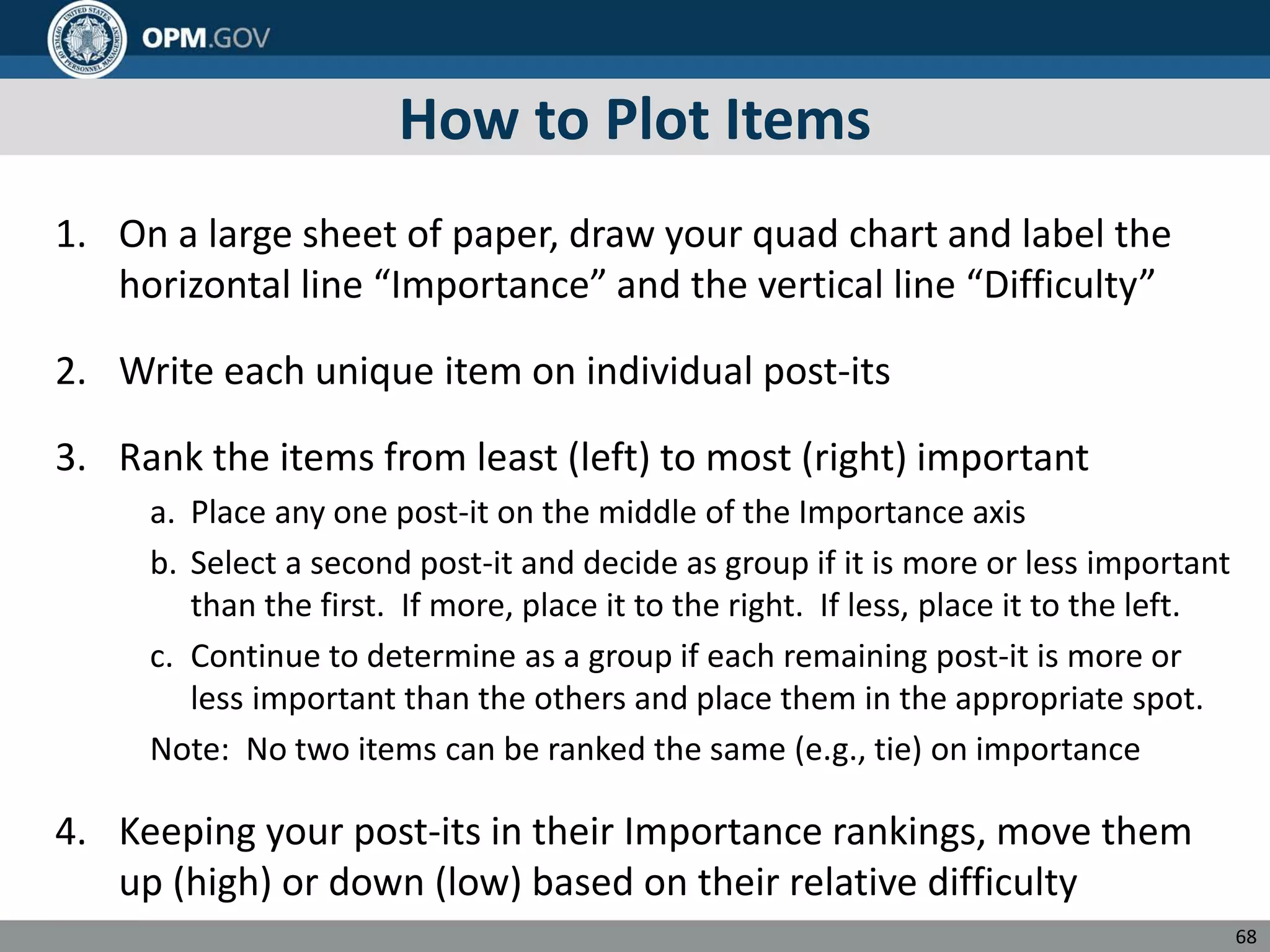

- 47. How to PlotItems 1. On a large sheet of paper, draw your quad chart and label the horizontal line “Importance” and the vertical line “Difficulty” 2. Write each unique item on individual post-its 3. Rank the items from least (left) to most (right) important a. Place any one post-it on the middle of the Importance axis b. Select a second post-it and decide as group if it is more or less important than the first. If more, place it to the right. If less, place it to the left. c. Continue to determine as a group if each remaining post-it is more or less important than the others and place them in the appropriate spot. Note: No two items can be ranked the same (e.g., tie) on importance 4. Keeping your post-its in their Importance rankings, move them up (high) or down (low) based on their relative difficulty 68

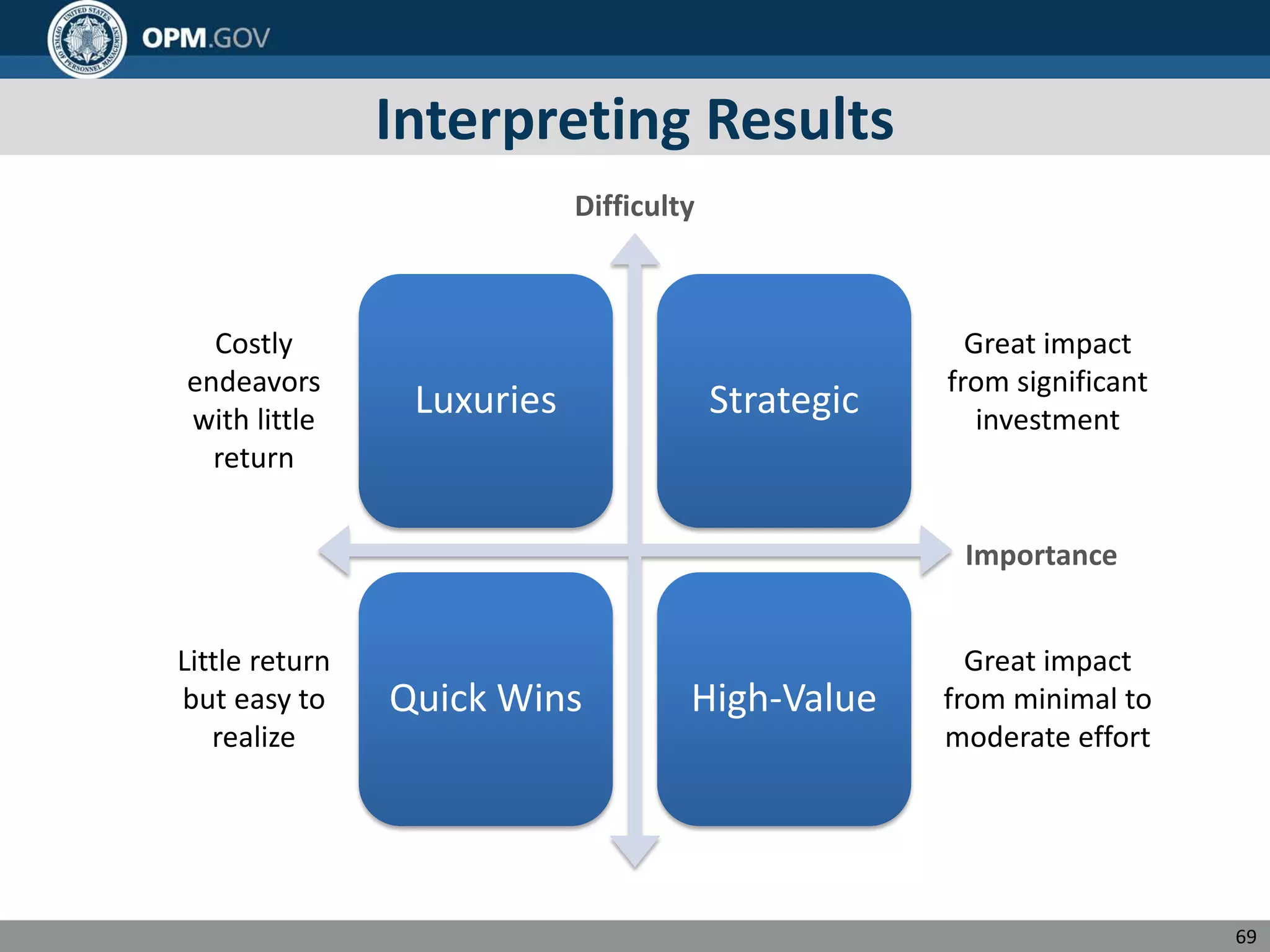

- 48. Interpreting Results Luxuries Strategic QuickWins High-Value Difficulty Importance Costly endeavors with little return Little return but easy to realize Great impact from minimal to moderate effort Great impact from significant investment 69

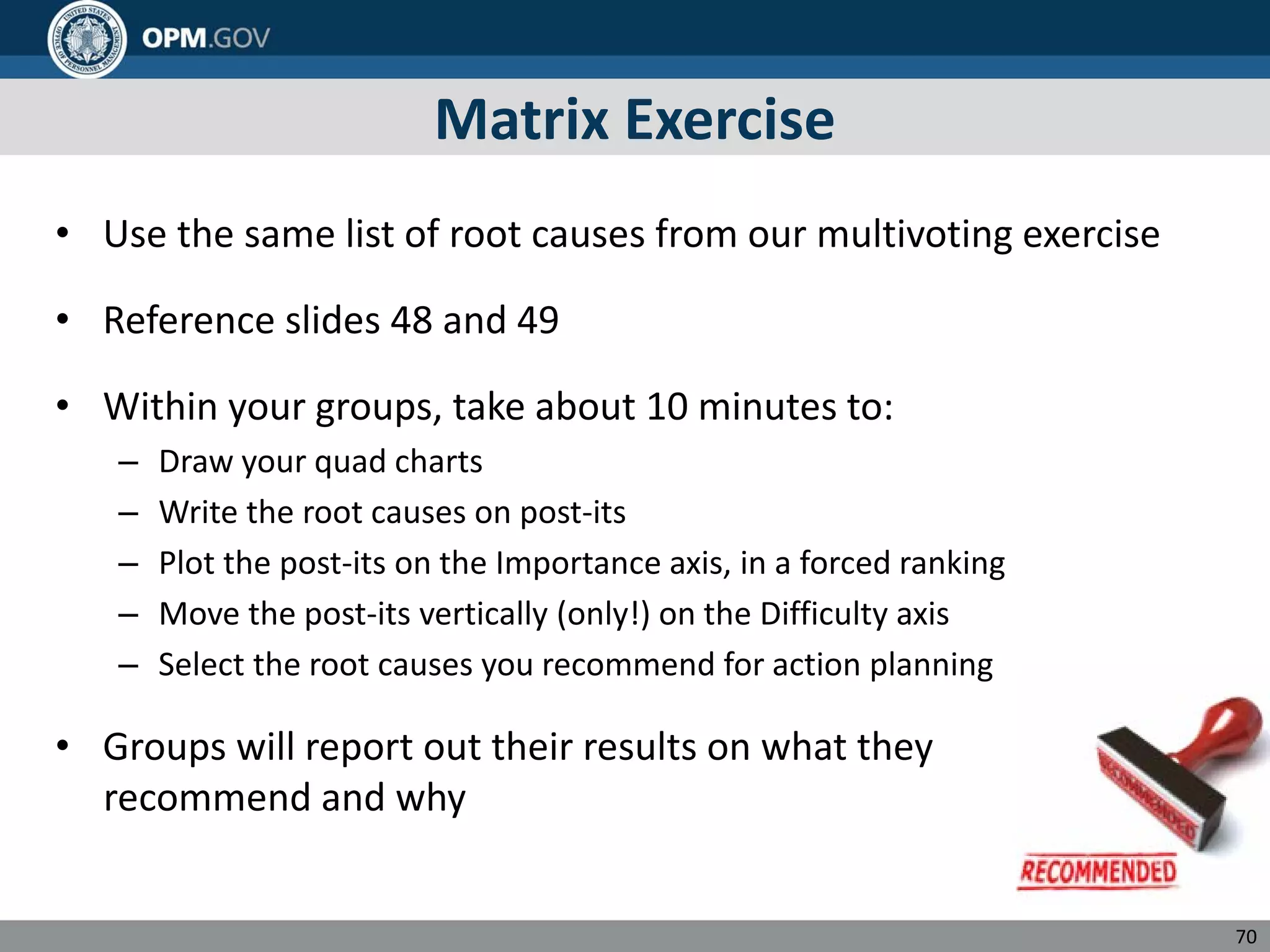

- 49. Matrix Exercise • Usethe same list of root causes from our multivoting exercise • Reference slides 48 and 49 • Within your groups, take about 10 minutes to: – Draw your quad charts – Write the root causes on post-its – Plot the post-its on the Importance axis, in a forced ranking – Move the post-its vertically (only!) on the Difficulty axis – Select the root causes you recommend for action planning • Groups will report out their results on what they recommend and why 70

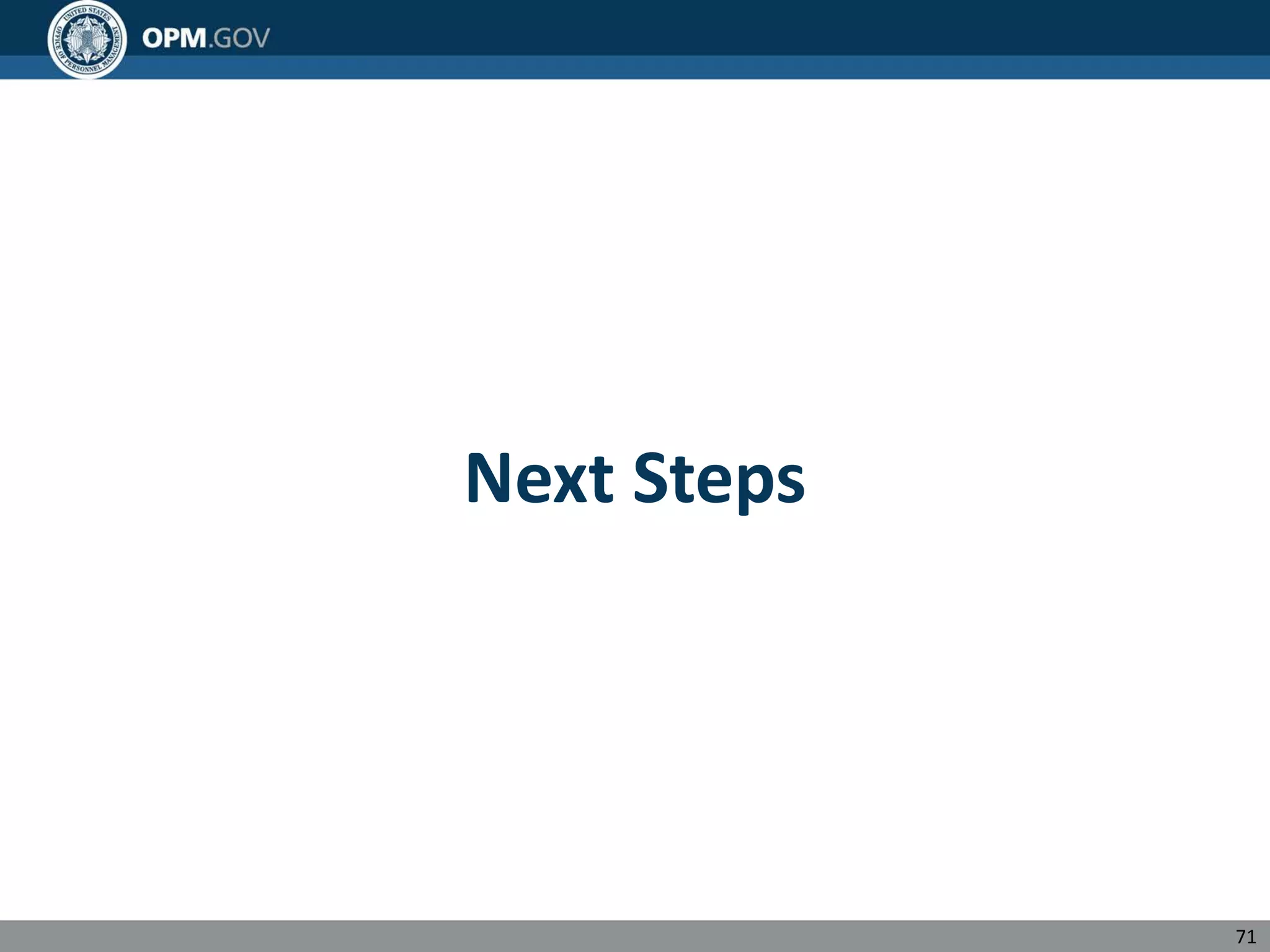

- 50.

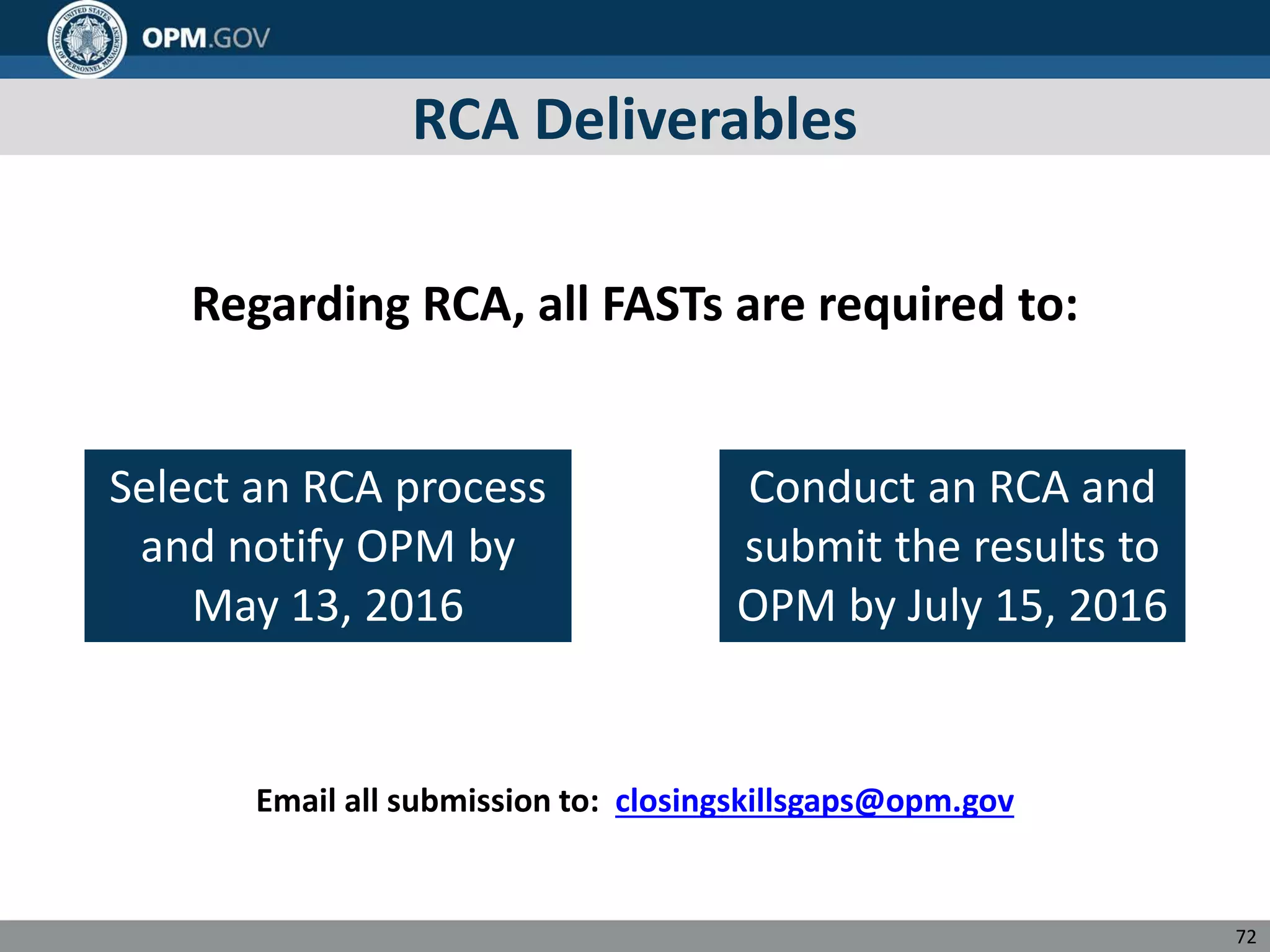

- 51. RCA Deliverables Regarding RCA,all FASTs are required to: Select an RCA process and notify OPM by May 13, 2016 Conduct an RCA and submit the results to OPM by July 15, 2016 Email all submission to: closingskillsgaps@opm.gov 72

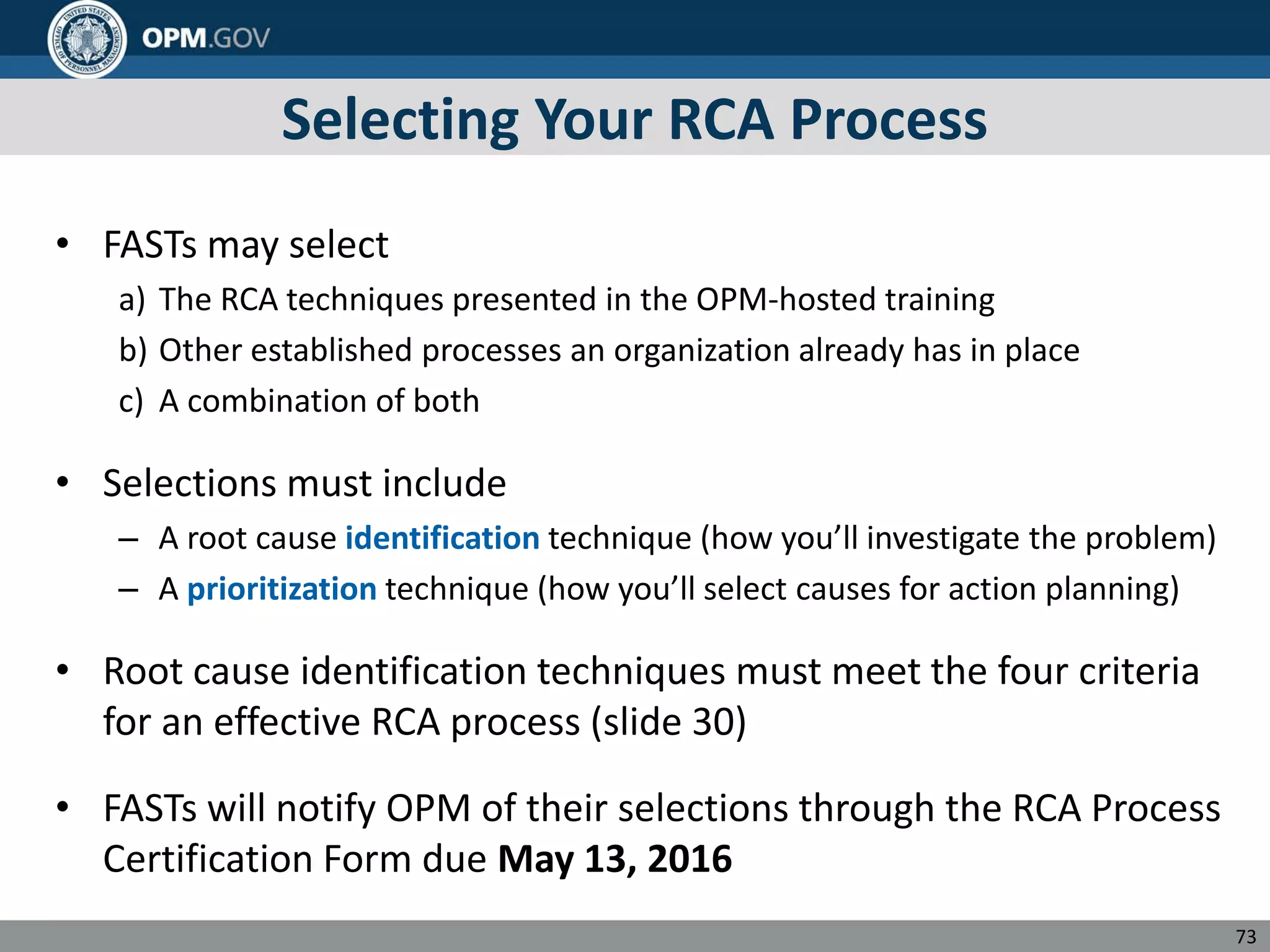

- 52. Selecting Your RCAProcess • FASTs may select a) The RCA techniques presented in the OPM-hosted training b) Other established processes an organization already has in place c) A combination of both • Selections must include – A root cause identification technique (how you’ll investigate the problem) – A prioritization technique (how you’ll select causes for action planning) • Root cause identification techniques must meet the four criteria for an effective RCA process (slide 30) • FASTs will notify OPM of their selections through the RCA Process Certification Form due May 13, 2016 73

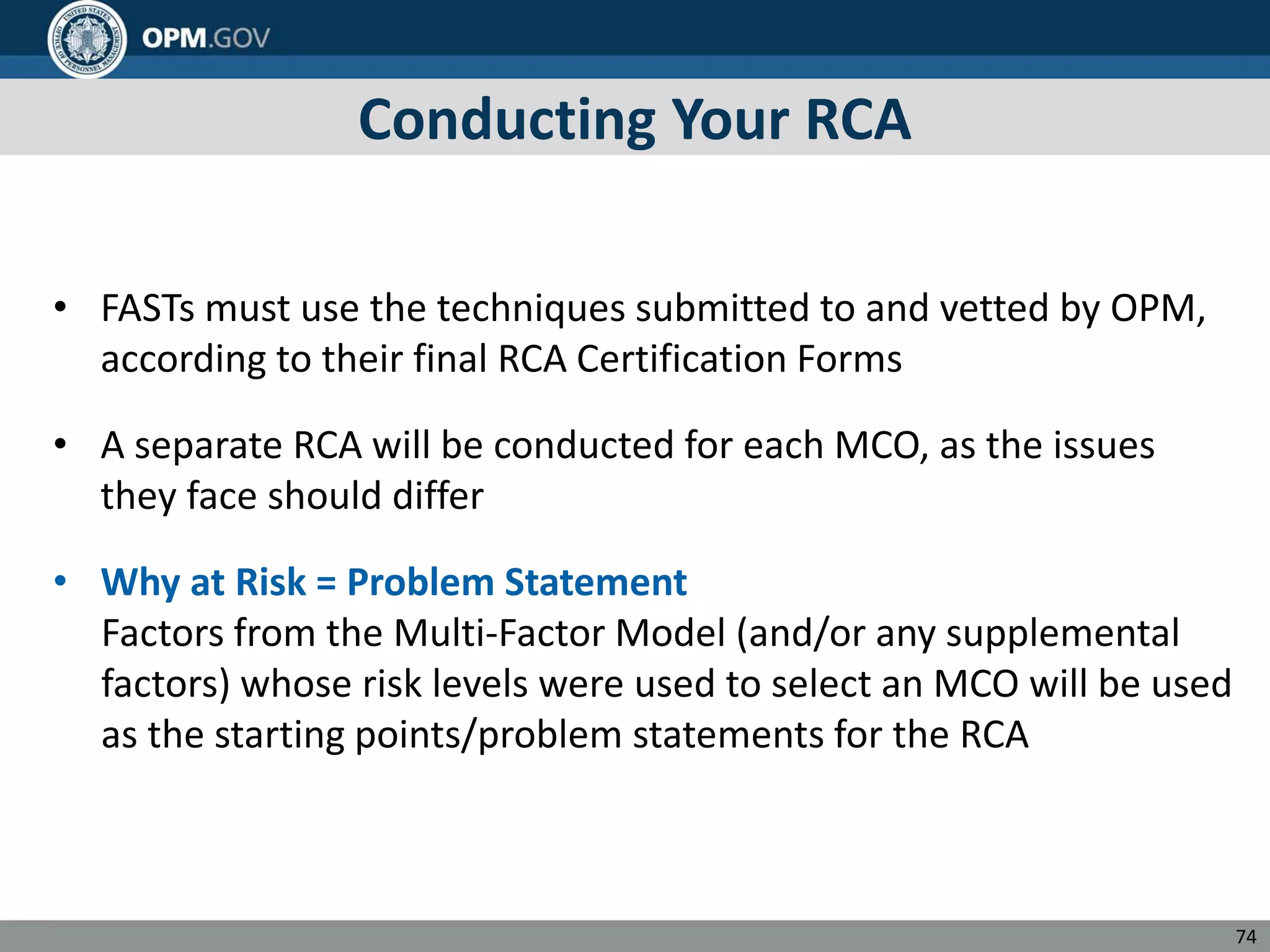

- 53. Conducting Your RCA •FASTs must use the techniques submitted to and vetted by OPM, according to their final RCA Certification Forms • A separate RCA will be conducted for each MCO, as the issues they face should differ • Why at Risk = Problem Statement Factors from the Multi-Factor Model (and/or any supplemental factors) whose risk levels were used to select an MCO will be used as the starting points/problem statements for the RCA 74

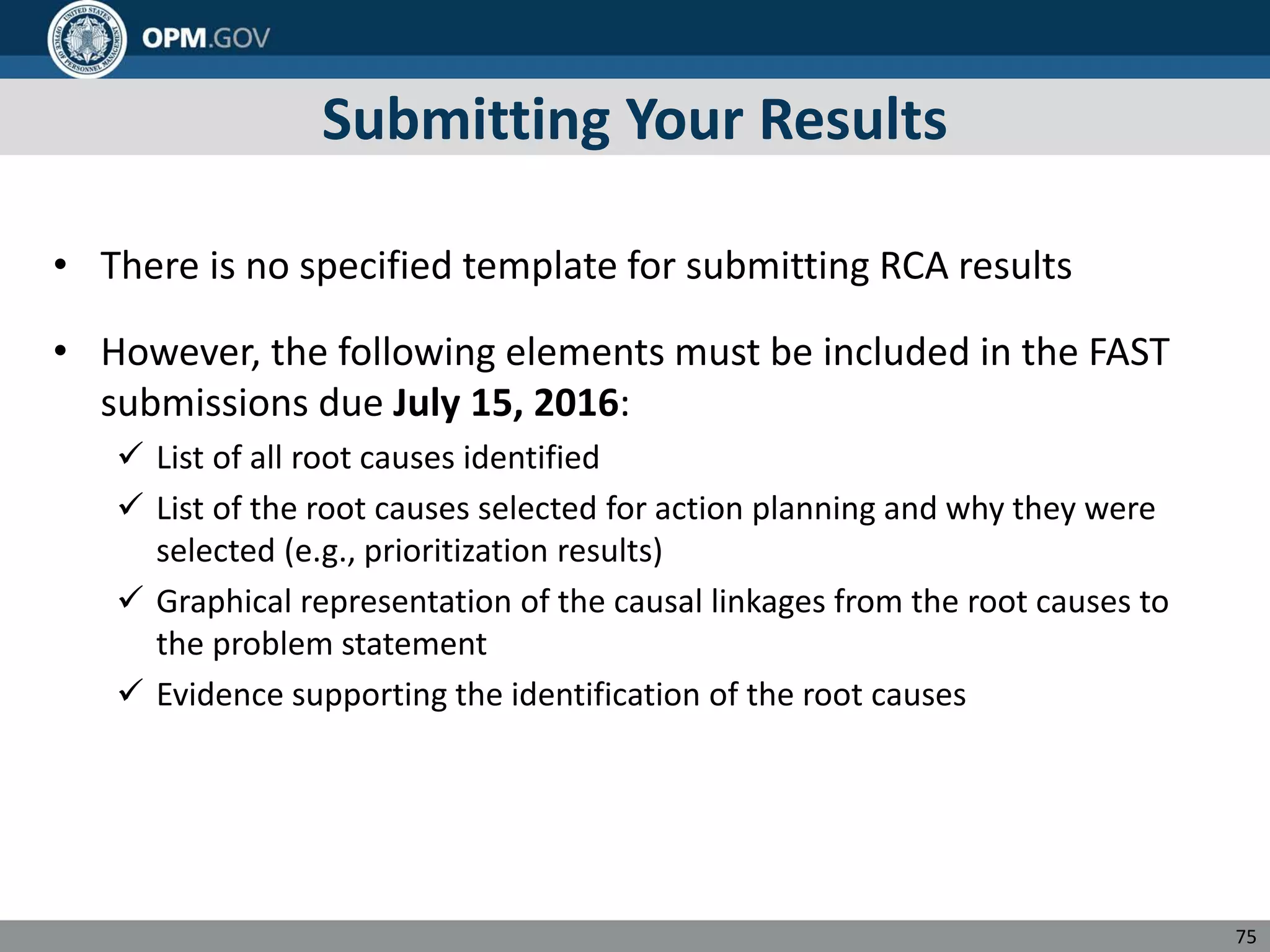

- 54. Submitting Your Results •There is no specified template for submitting RCA results • However, the following elements must be included in the FAST submissions due July 15, 2016: List of all root causes identified List of the root causes selected for action planning and why they were selected (e.g., prioritization results) Graphical representation of the causal linkages from the root causes to the problem statement Evidence supporting the identification of the root causes 75
- 55.
