RISC - Reduced Instruction Set Computing

MEMBERS
 Tushar Swami
 Vikas Prasad
 Tanish Garg
 Anurag Aggarwal

OUTLINE
 What is RISC?
 CISC
 Background and History
 Characteristics
Pipelining
Hardware
 RISC v/s CISC
 Performance Equation
 Applications of RISC
 RISC & CISC Convergence

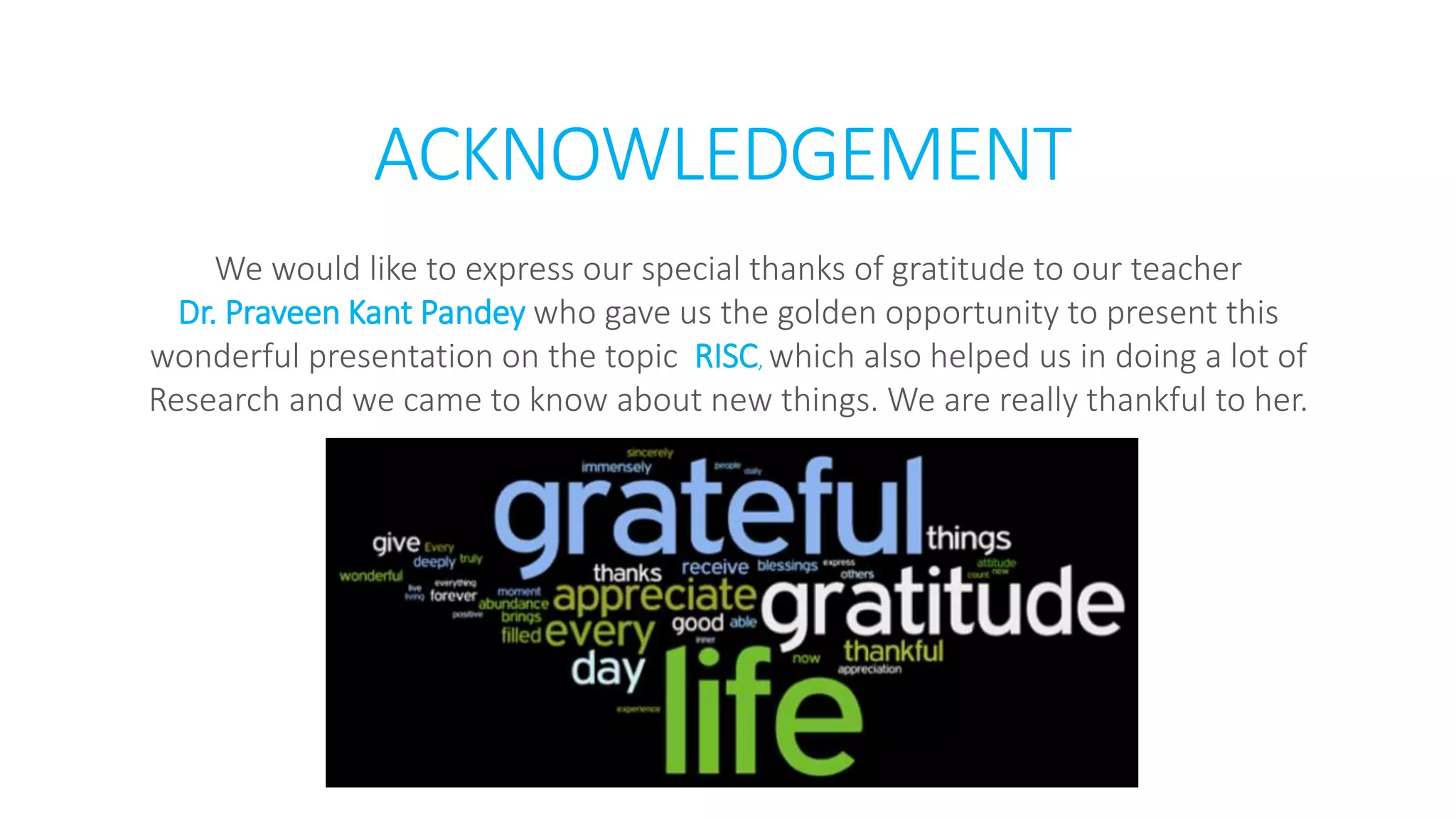

ACKNOWLEDGEMENT
We would like to express our special thanks of gratitude to our teacher
Dr. Praveen Kant Pandey who gave us the golden opportunity to present this
wonderful presentation on the topic RISC, which also helped us in doing a lot of
Research and we came to know about new things. We are really thankful to her.

INTRODUCTION
 RISC – Reduced Instruction Set Computer
 RISC is a type of microprocessor architecture that utilizes
 a small, highly-optimized set of instructions
 rather than a more specialized set of instructions.
 The main alternative for RISC is CISC ,which stands for complex instruction set
computer.
 CISC is the older approach, that came about to maximize performance of earlier
computer’s. Where instructions were executed sequentially.
The instruction set is the
hardware language that tells the
processor what to do.
Sources : http://search400.techtarget.com/definition/RISC

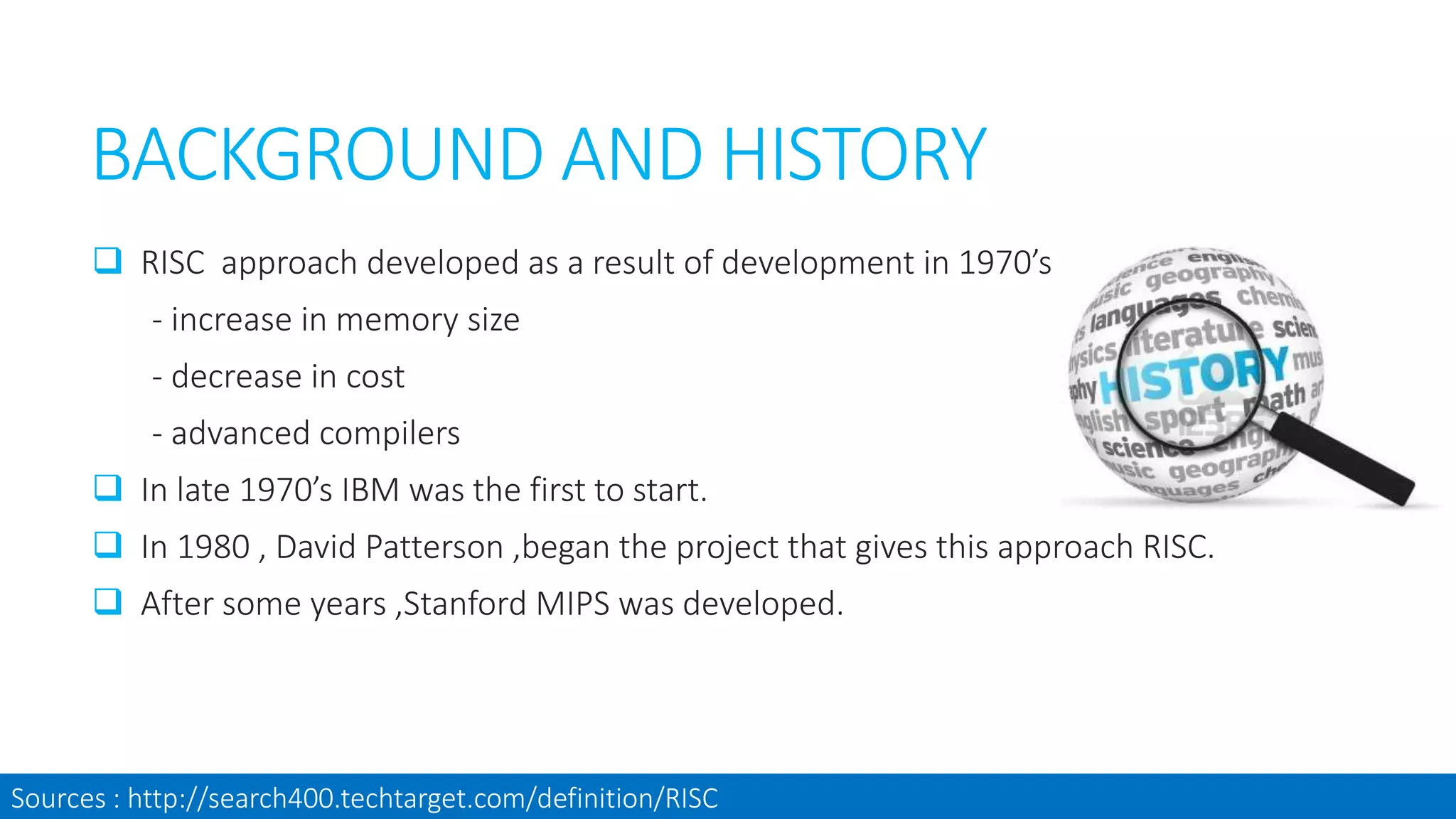

BACKGROUND AND HISTORY
 RISC approach developed as a result of development in 1970’s
- increase in memory size
- decrease in cost
- advanced compilers
 In late 1970’s IBM was the first to start.
 In 1980 , David Patterson ,began the project that gives this approach RISC.
 After some years ,Stanford MIPS was developed.
Sources : http://search400.techtarget.com/definition/RISC

CHARACTERSTICS OF RISC
 Simplified instructions , taking 1 clock cycle.
 Large no. of general purpose registers.
 Circuit is much simpler.
 Fast to decode.
 Fast to execute.
 Pipelining- fetching of next instruction while
previous instruction executes.
Sources : https://cs.stanford.edu/people/eroberts/courses/soco/projects/risc/whatis/index.html

PIPELINING

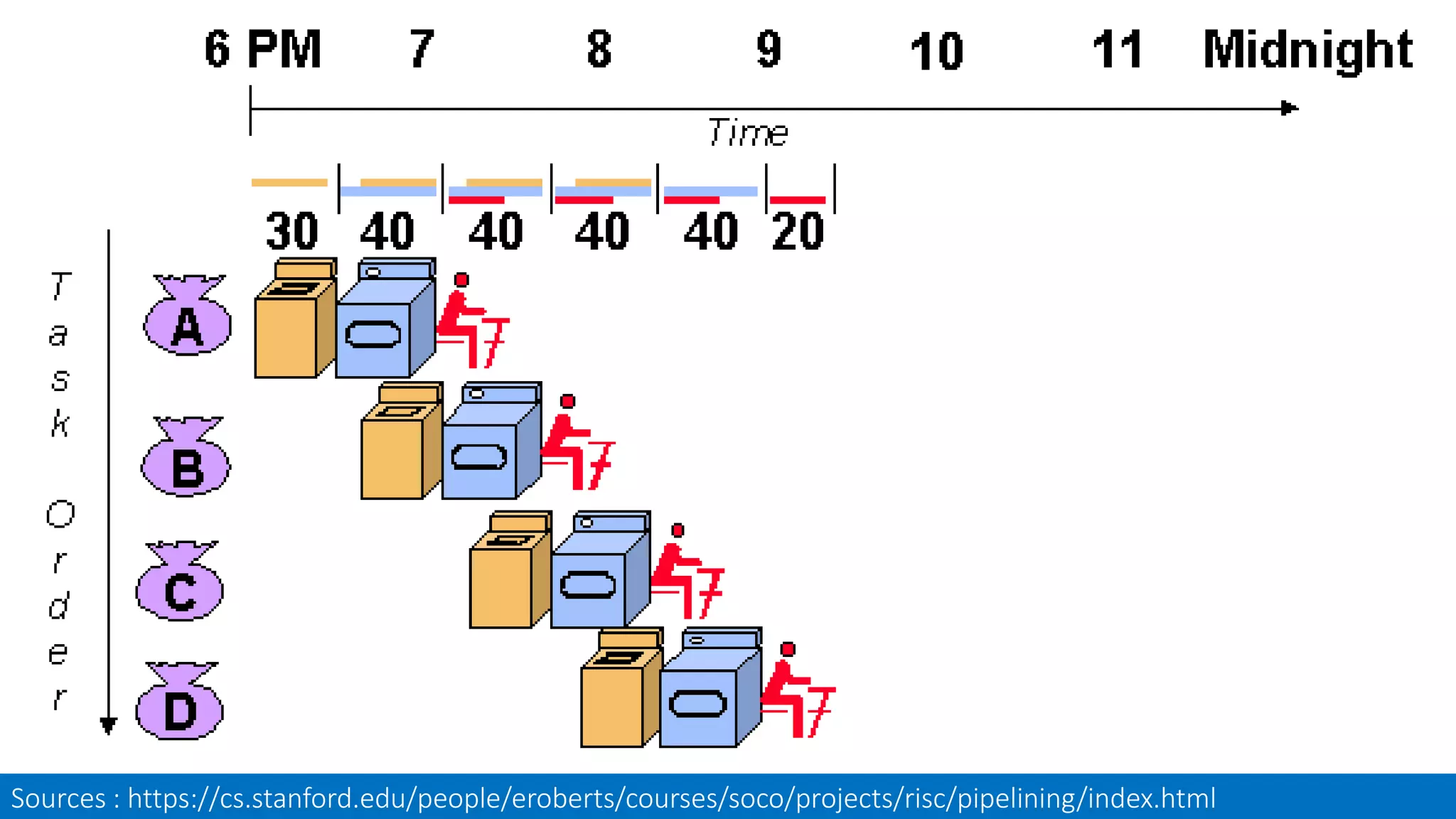

Pipelining, a standard feature in RISC processors, is much like an assembly line.
A useful method of demonstrating this is the laundry analogy.
Let's say that there are four loads of dirty laundry that need
to be washed, dried, and folded.
Washer - 30 minutes
Dry - 40 minutes
Folding - 20 minutes
Sources : https://cs.stanford.edu/people/eroberts/courses/soco/projects/risc/pipelining/index.html

RISC PIPELINES
A RISC processor pipeline operates in much the same way, although the stages in the
pipeline are different
1. fetch instructions from memory
2. read registers and decode the instruction
3. execute the instruction or calculate an address
4. access an operand in data memory
5. write the result into a register

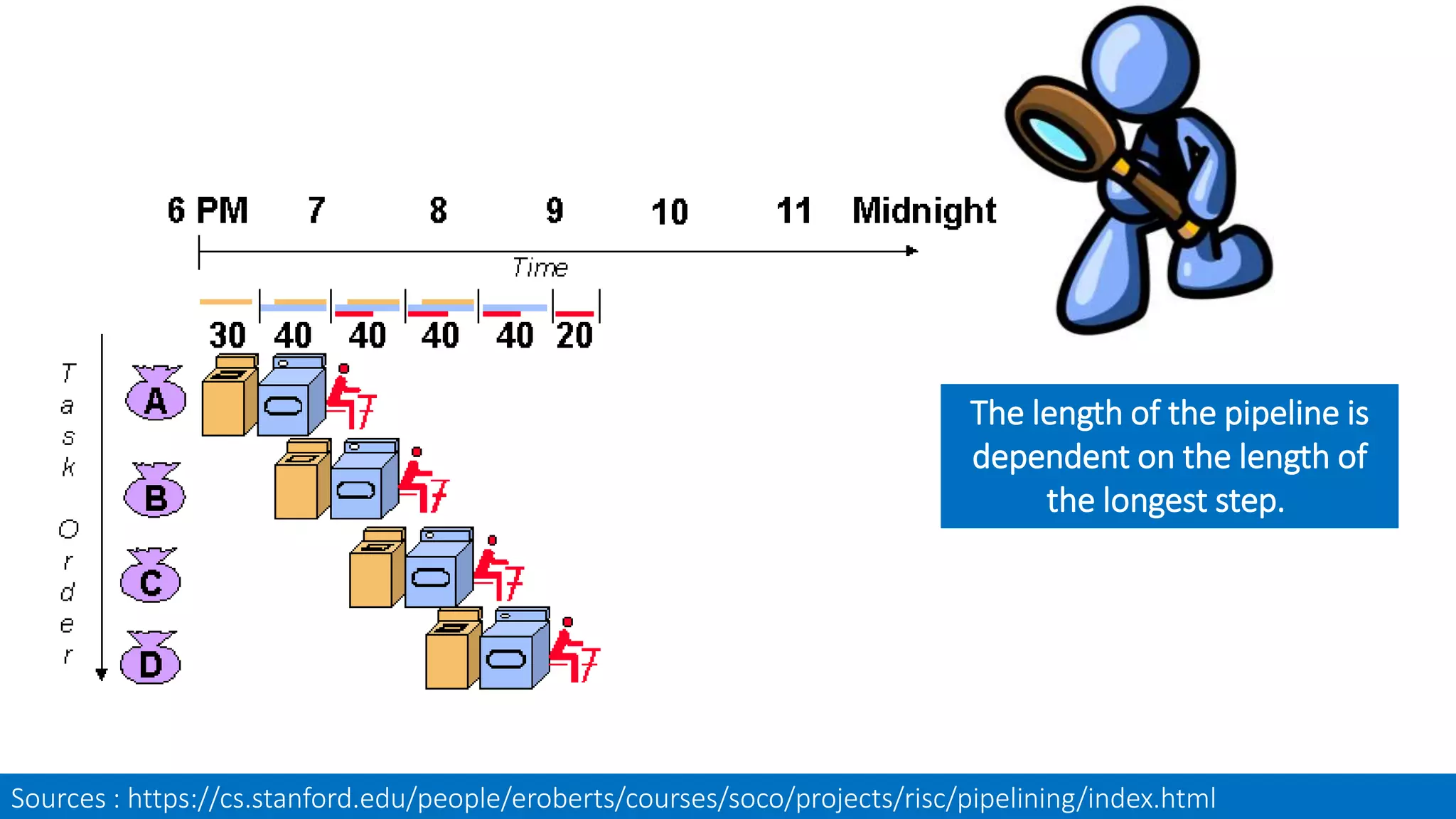

The length of the pipeline is
dependent on the length of
the longest step.

HARDARE UTILIZATION
 For any given level of general performance, a RISC chip will typically have far fewer
transistors dedicated to the core logic which originally allowed designers to increase
the size of the register set.
 RISC designs are also more likely planning to feature a
Harvard memory model, where the instruction stream
and the data stream are conceptually separated.
Sources : https://www.youtube.com/watch?v=mDrUkjOVtAU

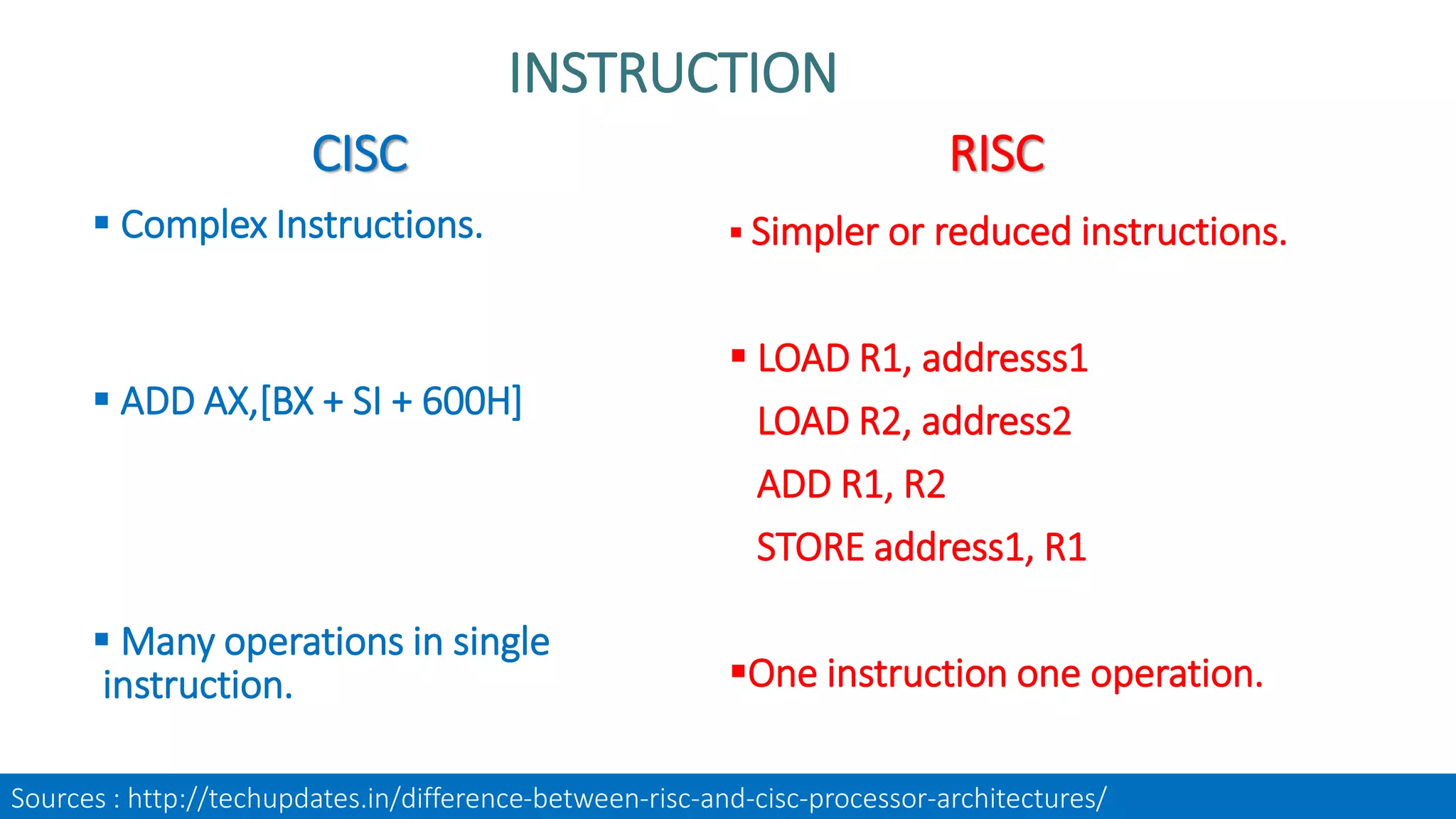

CISC
 Complex Instructions.
 ADD AX,[BX + SI + 600H]
 Many operations in single
instruction.
RISC
 Simpler or reduced instructions.
 LOAD R1, addresss1
LOAD R2, address2
ADD R1, R2
STORE address1, R1
One instruction one operation.
INSTRUCTION
Sources : http://techupdates.in/difference-between-risc-and-cisc-processor-architectures/

CISC RISC
CODE SIZE
Code size is larger but simpler.
Code size is smaller but complicated.

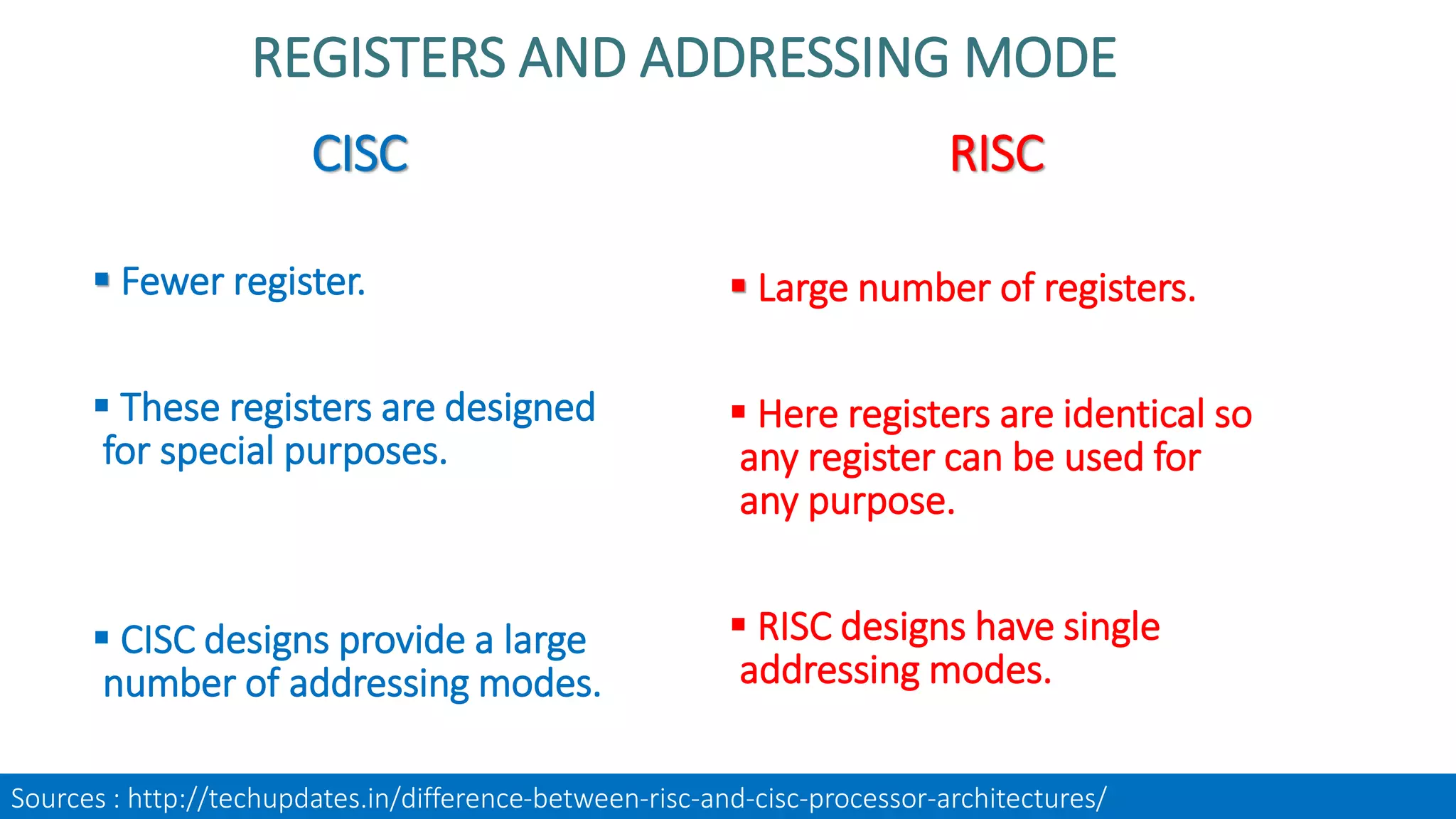

CISC
 Fewer register.
 These registers are designed
for special purposes.
 CISC designs provide a large
number of addressing modes.
RISC
 Large number of registers.
 Here registers are identical so
any register can be used for
any purpose.
 RISC designs have single
addressing modes.
REGISTERS AND ADDRESSING MODE

CISC
 Slower to execute.
 Difficult to decode.
 Instruction size varies in
different instructions.
 Complex circuit design.
RISC
 Faster execution.
 Easy to decode.
 Same instruction size in every
instructions.
 Circuit design is simpler.

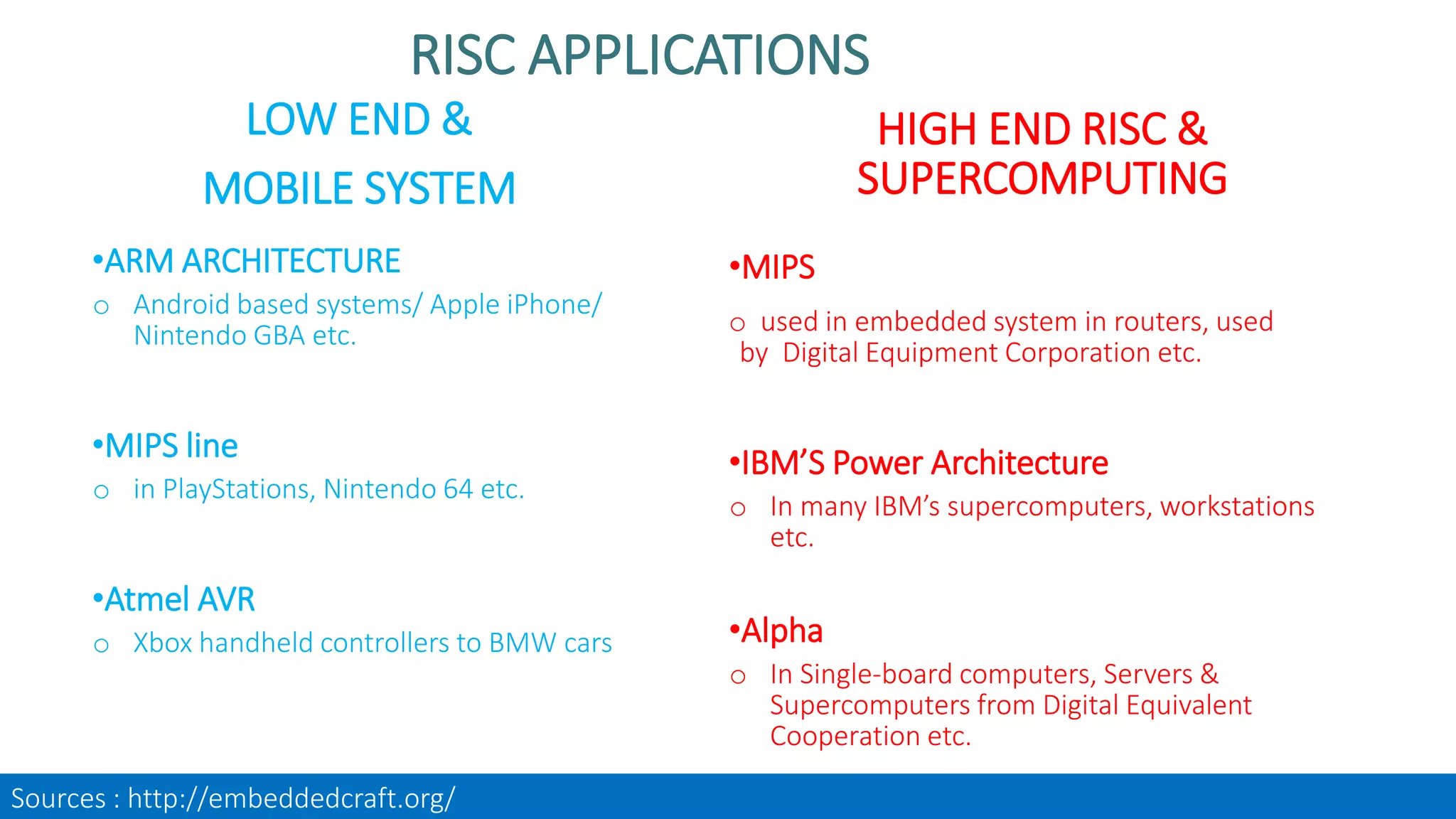

LOW END &
MOBILE SYSTEM
•ARM ARCHITECTURE
o Android based systems/ Apple iPhone/
Nintendo GBA etc.
•MIPS line
o in PlayStations, Nintendo 64 etc.
•Atmel AVR
o Xbox handheld controllers to BMW cars
HIGH END RISC &
SUPERCOMPUTING
•MIPS
o used in embedded system in routers, used
by Digital Equipment Corporation etc.
•IBM’S Power Architecture
o In many IBM’s supercomputers, workstations
etc.
•Alpha
o In Single-board computers, Servers &
Supercomputers from Digital Equivalent
Cooperation etc.
RISC APPLICATIONS
Sources : http://embeddedcraft.org/

ARM Architecture
• Developed by Advanced RISC
Machines (ARM).
• ARM makes 32-bit & 64-bit RISC
multi-core processors.
• Features of ARM architecture:
 A load/store architecture
 An orthogonal instruction set.
 Fixed instruction width
 Mostly single clock-cycle
execution.
 Enhanced power-saving design.
 Hardware virtualization supports.
ARM BASED PRODUCTS.
http://whatis.techtarget.com/definition/ARM-processor

MIPS
• It includes MIPS I, MIPS II, MIPS III,
MIPS IV, MIPS V, MIPS32, and
MIPS64.
• Key concepts:
• five-stage execution pipeline
• regular instruction set, all
instructions are 32-bit
• no status register or instruction side-
effects
• no complex instructions.
• only the load and store instruction
access memory.
• optional coprocessors for system
management and floating-point
• flat address space of 2^32 bytes of
main memory
MIPS- Microprocessor without
Interlocked Pipeline Stages
https://tams.informatik.unihamburg.de/applets/webdemos/mips.html

PERFORMANCE EQUATION
The CISC approach attempts
to minimize the number of
instructions per program,
sacrificing the number of
cycles per instruction.
RISC does the opposite,
reducing the cycles per
instruction at the cost of the
number of instructions per
program.
Sources : https://cs.stanford.edu/people/eroberts/courses/soco/projects/risc/risccisc/index.html

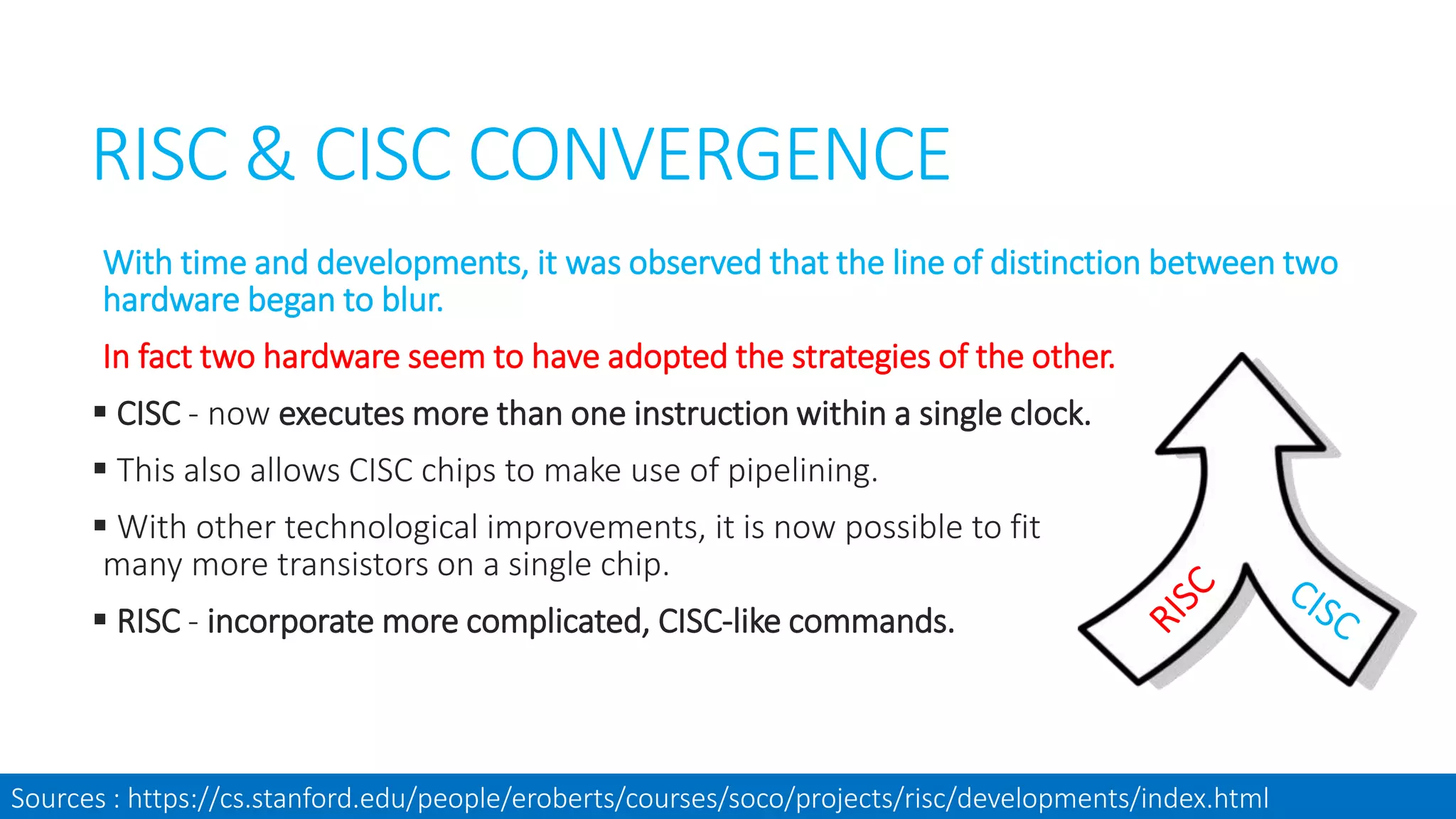

RISC & CISC CONVERGENCE
With time and developments, it was observed that the line of distinction between two
hardware began to blur.
In fact two hardware seem to have adopted the strategies of the other.
 CISC - now executes more than one instruction within a single clock.
 This also allows CISC chips to make use of pipelining.
 With other technological improvements, it is now possible to fit
many more transistors on a single chip.
 RISC - incorporate more complicated, CISC-like commands.
Sources : https://cs.stanford.edu/people/eroberts/courses/soco/projects/risc/developments/index.html

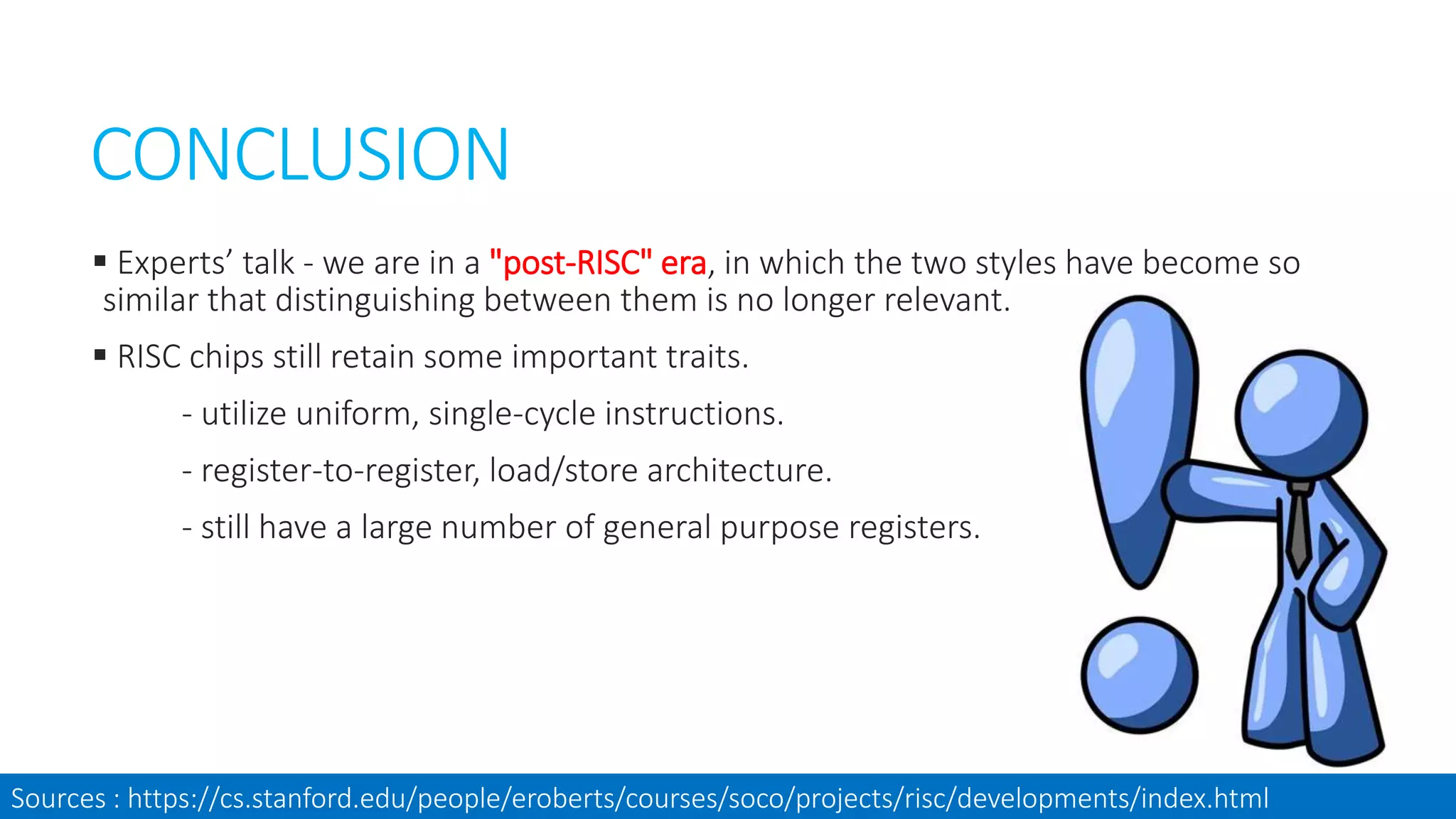

CONCLUSION
 Experts’ talk - we are in a "post-RISC" era, in which the two styles have become so
similar that distinguishing between them is no longer relevant.
 RISC chips still retain some important traits.
- utilize uniform, single-cycle instructions.
- register-to-register, load/store architecture.
- still have a large number of general purpose registers.
Sources : https://cs.stanford.edu/people/eroberts/courses/soco/projects/risc/developments/index.html
