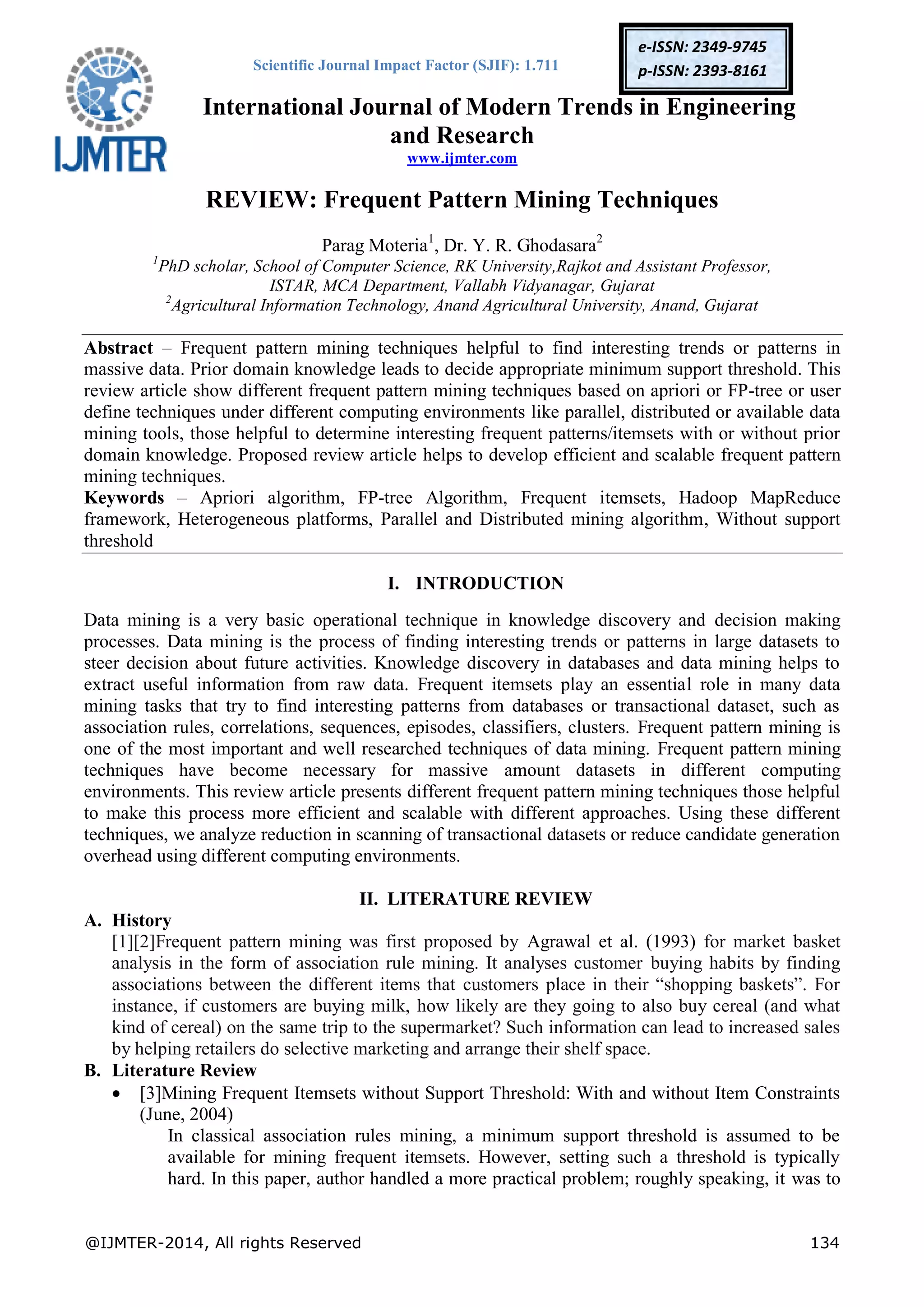

REVIEW: Frequent Pattern Mining Techniques

Scientific Journal Impact Factor (SJIF): 1.711
International Journal of Modern Trends in Engineering
and Research
www.ijmter.com
@IJMTER-2014, All rights Reserved 134
e-ISSN: 2349-9745
p-ISSN: 2393-8161
REVIEW: Frequent Pattern Mining Techniques
Parag Moteria1
, Dr. Y. R. Ghodasara2
1
PhD scholar, School of Computer Science, RK University,Rajkot and Assistant Professor,
ISTAR, MCA Department, Vallabh Vidyanagar, Gujarat
2
Agricultural Information Technology, Anand Agricultural University, Anand, Gujarat
Abstract – Frequent pattern mining techniques helpful to find interesting trends or patterns in
massive data. Prior domain knowledge leads to decide appropriate minimum support threshold. This
review article show different frequent pattern mining techniques based on apriori or FP-tree or user
define techniques under different computing environments like parallel, distributed or available data
mining tools, those helpful to determine interesting frequent patterns/itemsets with or without prior
domain knowledge. Proposed review article helps to develop efficient and scalable frequent pattern
mining techniques.
Keywords – Apriori algorithm, FP-tree Algorithm, Frequent itemsets, Hadoop MapReduce
framework, Heterogeneous platforms, Parallel and Distributed mining algorithm, Without support
threshold
I. INTRODUCTION
Data mining is a very basic operational technique in knowledge discovery and decision making
processes. Data mining is the process of finding interesting trends or patterns in large datasets to
steer decision about future activities. Knowledge discovery in databases and data mining helps to
extract useful information from raw data. Frequent itemsets play an essential role in many data
mining tasks that try to find interesting patterns from databases or transactional dataset, such as
association rules, correlations, sequences, episodes, classifiers, clusters. Frequent pattern mining is
one of the most important and well researched techniques of data mining. Frequent pattern mining
techniques have become necessary for massive amount datasets in different computing
environments. This review article presents different frequent pattern mining techniques those helpful
to make this process more efficient and scalable with different approaches. Using these different
techniques, we analyze reduction in scanning of transactional datasets or reduce candidate generation
overhead using different computing environments.
II. LITERATURE REVIEW
A. History
[1][2]Frequent pattern mining was first proposed by Agrawal et al. (1993) for market basket
analysis in the form of association rule mining. It analyses customer buying habits by finding
associations between the different items that customers place in their “shopping baskets”. For
instance, if customers are buying milk, how likely are they going to also buy cereal (and what
kind of cereal) on the same trip to the supermarket? Such information can lead to increased sales
by helping retailers do selective marketing and arrange their shelf space.
B. Literature Review
 [3]Mining Frequent Itemsets without Support Threshold: With and without Item Constraints
(June, 2004)
In classical association rules mining, a minimum support threshold is assumed to be
available for mining frequent itemsets. However, setting such a threshold is typically
hard. In this paper, author handled a more practical problem; roughly speaking, it was to

International Journal of Modern Trends in Engineering and Research (IJMTER)
Volume 02, Issue 02, [February - 2015] e-ISSN: 2349-9745, p-ISSN: 2393-8161

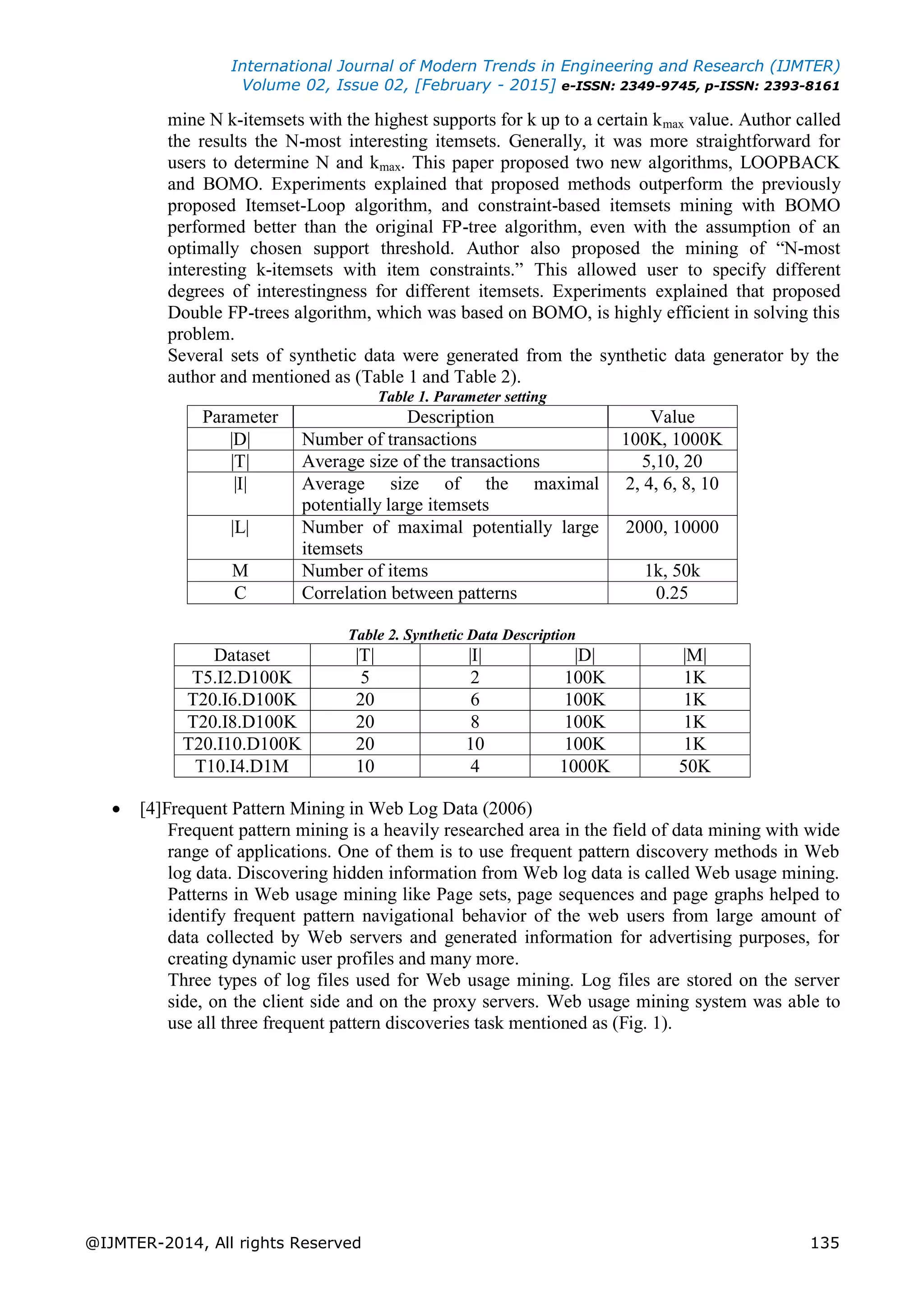

mine N k-itemsets with the highest supports for k up to a certain kmax value. Author called
the results the N-most interesting itemsets. Generally, it was more straightforward for
users to determine N and kmax. This paper proposed two new algorithms, LOOPBACK
and BOMO. Experiments explained that proposed methods outperform the previously
proposed Itemset-Loop algorithm, and constraint-based itemsets mining with BOMO
performed better than the original FP-tree algorithm, even with the assumption of an
optimally chosen support threshold. Author also proposed the mining of “N-most
interesting k-itemsets with item constraints.” This allowed user to specify different
degrees of interestingness for different itemsets. Experiments explained that proposed
Double FP-trees algorithm, which was based on BOMO, is highly efficient in solving this
problem.
Several sets of synthetic data were generated from the synthetic data generator by the
author and mentioned as (Table 1 and Table 2).
Table 1. Parameter setting
Parameter Description Value
|D| Number of transactions 100K, 1000K
|T| Average size of the transactions 5,10, 20
|I| Average size of the maximal
potentially large itemsets
2, 4, 6, 8, 10
|L| Number of maximal potentially large
itemsets
2000, 10000
M Number of items 1k, 50k
C Correlation between patterns 0.25
Table 2. Synthetic Data Description
Dataset |T| |I| |D| |M|
T5.I2.D100K 5 2 100K 1K
T20.I6.D100K 20 6 100K 1K
T20.I8.D100K 20 8 100K 1K
T20.I10.D100K 20 10 100K 1K
T10.I4.D1M 10 4 1000K 50K
 [4]Frequent Pattern Mining in Web Log Data (2006)
Frequent pattern mining is a heavily researched area in the field of data mining with wide
range of applications. One of them is to use frequent pattern discovery methods in Web
log data. Discovering hidden information from Web log data is called Web usage mining.
Patterns in Web usage mining like Page sets, page sequences and page graphs helped to
identify frequent pattern navigational behavior of the web users from large amount of
data collected by Web servers and generated information for advertising purposes, for
creating dynamic user profiles and many more.
Three types of log files used for Web usage mining. Log files are stored on the server
side, on the client side and on the proxy servers. Web usage mining system was able to
use all three frequent pattern discoveries task mentioned as (Fig. 1).

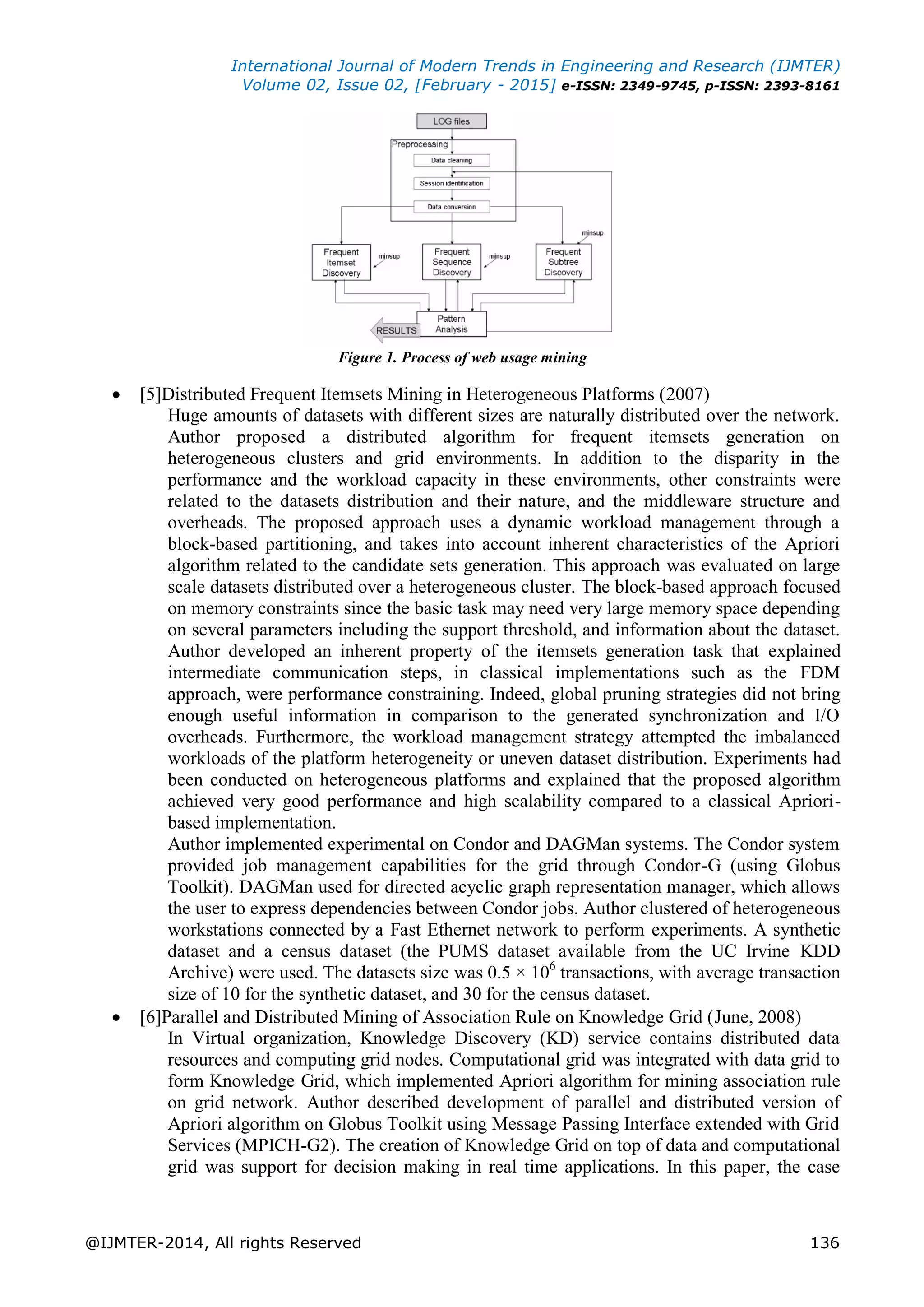

Figure 1. Process of web usage mining
 [5]Distributed Frequent Itemsets Mining in Heterogeneous Platforms (2007)
Huge amounts of datasets with different sizes are naturally distributed over the network.
Author proposed a distributed algorithm for frequent itemsets generation on
heterogeneous clusters and grid environments. In addition to the disparity in the
performance and the workload capacity in these environments, other constraints were
related to the datasets distribution and their nature, and the middleware structure and
overheads. The proposed approach uses a dynamic workload management through a
block-based partitioning, and takes into account inherent characteristics of the Apriori
algorithm related to the candidate sets generation. This approach was evaluated on large
scale datasets distributed over a heterogeneous cluster. The block-based approach focused
on memory constraints since the basic task may need very large memory space depending
on several parameters including the support threshold, and information about the dataset.
Author developed an inherent property of the itemsets generation task that explained
intermediate communication steps, in classical implementations such as the FDM
approach, were performance constraining. Indeed, global pruning strategies did not bring
enough useful information in comparison to the generated synchronization and I/O
overheads. Furthermore, the workload management strategy attempted the imbalanced
workloads of the platform heterogeneity or uneven dataset distribution. Experiments had
been conducted on heterogeneous platforms and explained that the proposed algorithm
achieved very good performance and high scalability compared to a classical Apriori-
based implementation.
Author implemented experimental on Condor and DAGMan systems. The Condor system
provided job management capabilities for the grid through Condor-G (using Globus
Toolkit). DAGMan used for directed acyclic graph representation manager, which allows
the user to express dependencies between Condor jobs. Author clustered of heterogeneous
workstations connected by a Fast Ethernet network to perform experiments. A synthetic
dataset and a census dataset (the PUMS dataset available from the UC Irvine KDD
Archive) were used. The datasets size was 0.5 × 106
transactions, with average transaction
size of 10 for the synthetic dataset, and 30 for the census dataset.
 [6]Parallel and Distributed Mining of Association Rule on Knowledge Grid (June, 2008)
In Virtual organization, Knowledge Discovery (KD) service contains distributed data
resources and computing grid nodes. Computational grid was integrated with data grid to
form Knowledge Grid, which implemented Apriori algorithm for mining association rule
on grid network. Author described development of parallel and distributed version of
Apriori algorithm on Globus Toolkit using Message Passing Interface extended with Grid
Services (MPICH-G2). The creation of Knowledge Grid on top of data and computational
grid was support for decision making in real time applications. In this paper, the case

study described design and implementation of local and global mining of frequent item
sets. The experiments were conducted on different configurations of grid network and
computation time was recorded for each operation. Both grid technology and parallel
mining algorithm reduced the computational time and increase the speed of the
application. In all iteration, the Message Passing Interface extended with Grid services
(MPICH-G2) supported communication of frequent mobility patterns between the grid
nodes in different clusters. The experimental result described that parallel and distributed
version of Apriori algorithm is optimal than distributed algorithm. It performed scalable
in terms of the database size and the number of nodes. Grid technology was used as a
platform for implementing and deploying geographically distributed knowledge and
knowledge management services and applications. The discovered knowledge can be
used by the experts to provide various services to the mobile user in web environment.
The Knowledge Grid (KG) was integrated with grid services system to support distributed
data analysis, knowledge discovery and knowledge management services. Author
analyzed result with various grid configurations and it derived speedup of almost super
linear computation time.
Author designed grid with different configurations to measure the efficiency of parallel
apriori algorithm. Test were conducted on standalone PC and two clusters of three nodes
each and three clusters of three nodes each. Nodes within the cluster were connected by
LAN link and clusters are connected by WAN link. Each node was installed with the
Globus 3 toolkit and deployed with the apriori grid service. Mobile users logs were stored
types of data such as video, voice and image in three different database systems: Oracle
10g, PostGreSQL and MySQL.

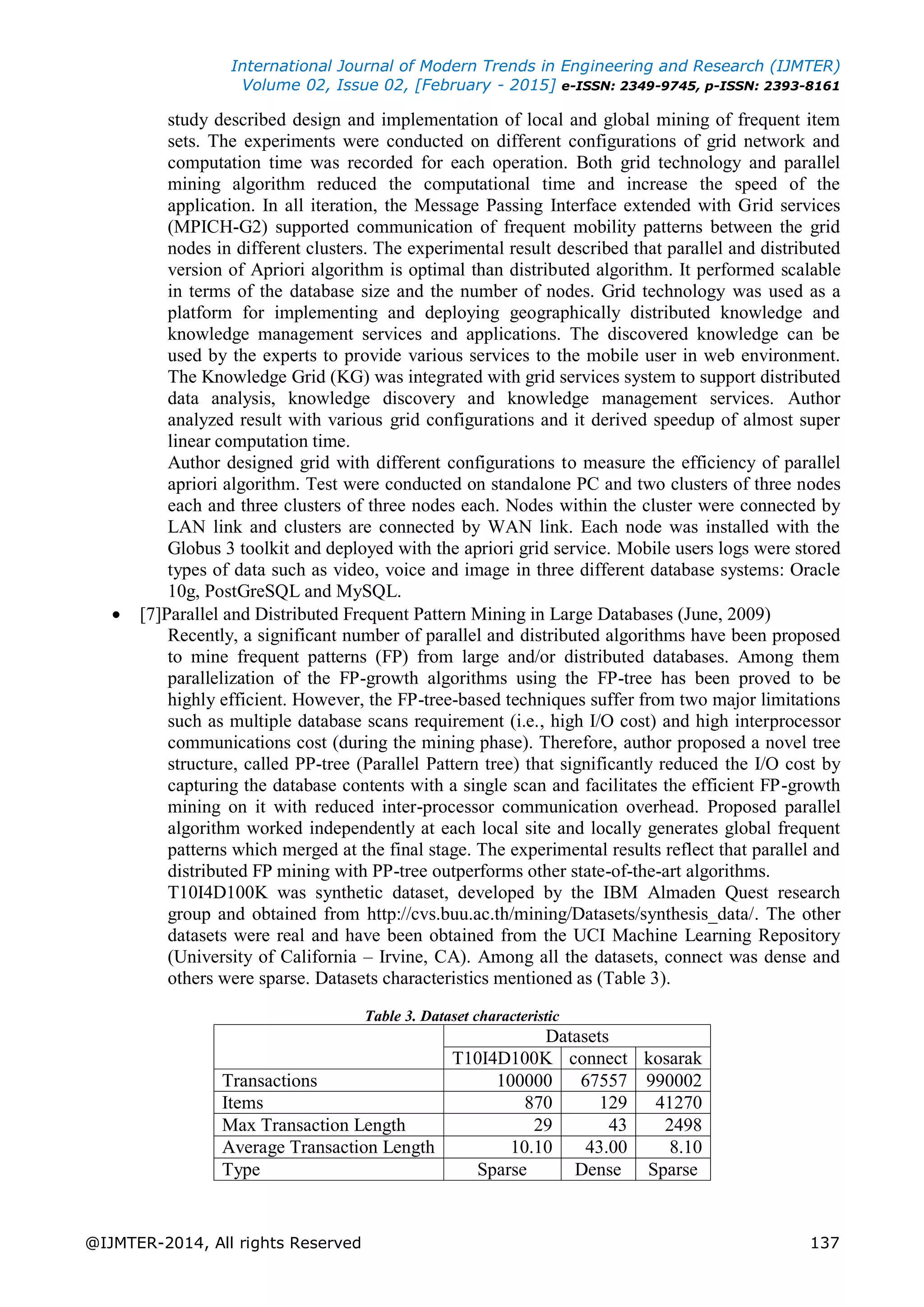

 [7]Parallel and Distributed Frequent Pattern Mining in Large Databases (June, 2009)
Recently, a significant number of parallel and distributed algorithms have been proposed
to mine frequent patterns (FP) from large and/or distributed databases. Among them
parallelization of the FP-growth algorithms using the FP-tree has been proved to be
highly efficient. However, the FP-tree-based techniques suffer from two major limitations
such as multiple database scans requirement (i.e., high I/O cost) and high interprocessor
communications cost (during the mining phase). Therefore, author proposed a novel tree
structure, called PP-tree (Parallel Pattern tree) that significantly reduced the I/O cost by
capturing the database contents with a single scan and facilitates the efficient FP-growth
mining on it with reduced inter-processor communication overhead. Proposed parallel
algorithm worked independently at each local site and locally generates global frequent
patterns which merged at the final stage. The experimental results reflect that parallel and
distributed FP mining with PP-tree outperforms other state-of-the-art algorithms.
T10I4D100K was synthetic dataset, developed by the IBM Almaden Quest research
group and obtained from http://cvs.buu.ac.th/mining/Datasets/synthesis_data/. The other
datasets were real and have been obtained from the UCI Machine Learning Repository
(University of California – Irvine, CA). Among all the datasets, connect was dense and
others were sparse. Datasets characteristics mentioned as (Table 3).
Table 3. Dataset characteristic
Datasets
T10I4D100K connect kosarak
Transactions 100000 67557 990002
Items 870 129 41270
Max Transaction Length 29 43 2498
Average Transaction Length 10.10 43.00 8.10
Type Sparse Dense Sparse

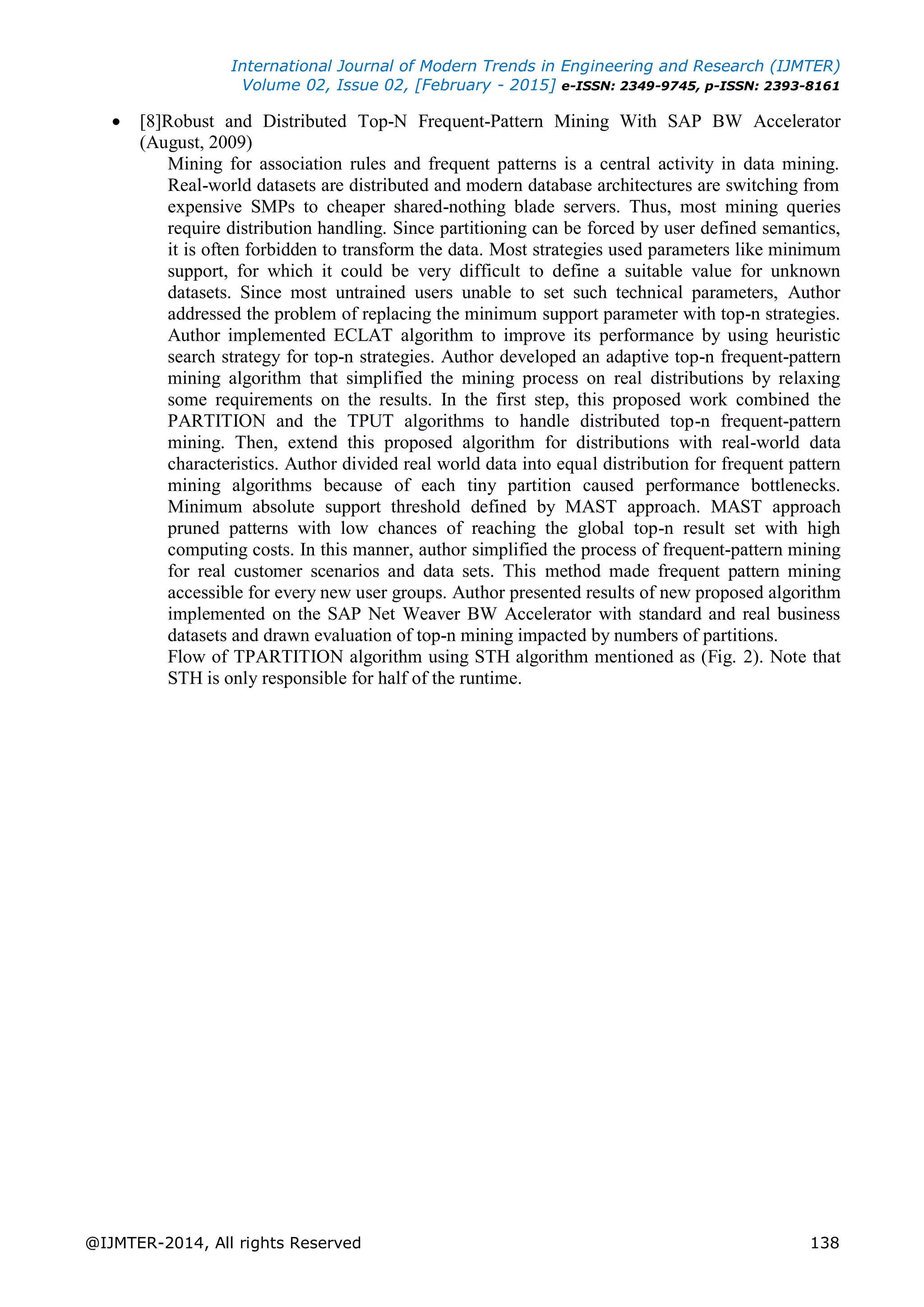

 [8]Robust and Distributed Top-N Frequent-Pattern Mining With SAP BW Accelerator
(August, 2009)
Mining for association rules and frequent patterns is a central activity in data mining.
Real-world datasets are distributed and modern database architectures are switching from
expensive SMPs to cheaper shared-nothing blade servers. Thus, most mining queries
require distribution handling. Since partitioning can be forced by user defined semantics,
it is often forbidden to transform the data. Most strategies used parameters like minimum
support, for which it could be very difficult to define a suitable value for unknown
datasets. Since most untrained users unable to set such technical parameters, Author
addressed the problem of replacing the minimum support parameter with top-n strategies.
Author implemented ECLAT algorithm to improve its performance by using heuristic
search strategy for top-n strategies. Author developed an adaptive top-n frequent-pattern
mining algorithm that simplified the mining process on real distributions by relaxing
some requirements on the results. In the first step, this proposed work combined the
PARTITION and the TPUT algorithms to handle distributed top-n frequent-pattern
mining. Then, extend this proposed algorithm for distributions with real-world data
characteristics. Author divided real world data into equal distribution for frequent pattern
mining algorithms because of each tiny partition caused performance bottlenecks.
Minimum absolute support threshold defined by MAST approach. MAST approach
pruned patterns with low chances of reaching the global top-n result set with high
computing costs. In this manner, author simplified the process of frequent-pattern mining
for real customer scenarios and data sets. This method made frequent pattern mining
accessible for every new user groups. Author presented results of new proposed algorithm
implemented on the SAP Net Weaver BW Accelerator with standard and real business
datasets and drawn evaluation of top-n mining impacted by numbers of partitions.
Flow of TPARTITION algorithm using STH algorithm mentioned as (Fig. 2). Note that
STH is only responsible for half of the runtime.

Figure 2. Distributed top-n frequent pattern mining with TPARTITION
Author used well known artificial and real world dataset for experiments mentioned as
(Table 4).
Table 4. Dataset characteristics
Name of Datasets
SynthA SynthB Retail CustomerA CustomerB
Type Artificial/open Artificial/open Real/open Real/closed Real/closed
Partitions 1, 2, 4, 6, 8,
10,14
1 1, 2 1, 2, 4, 10,
22
40
Transactions 800000 980000 85146 134167 33542000
Average
Transaction
Length
19.9 10.2 9.6 3.0 3.3
Distinct
Items
772 24000 16398 72252 72025

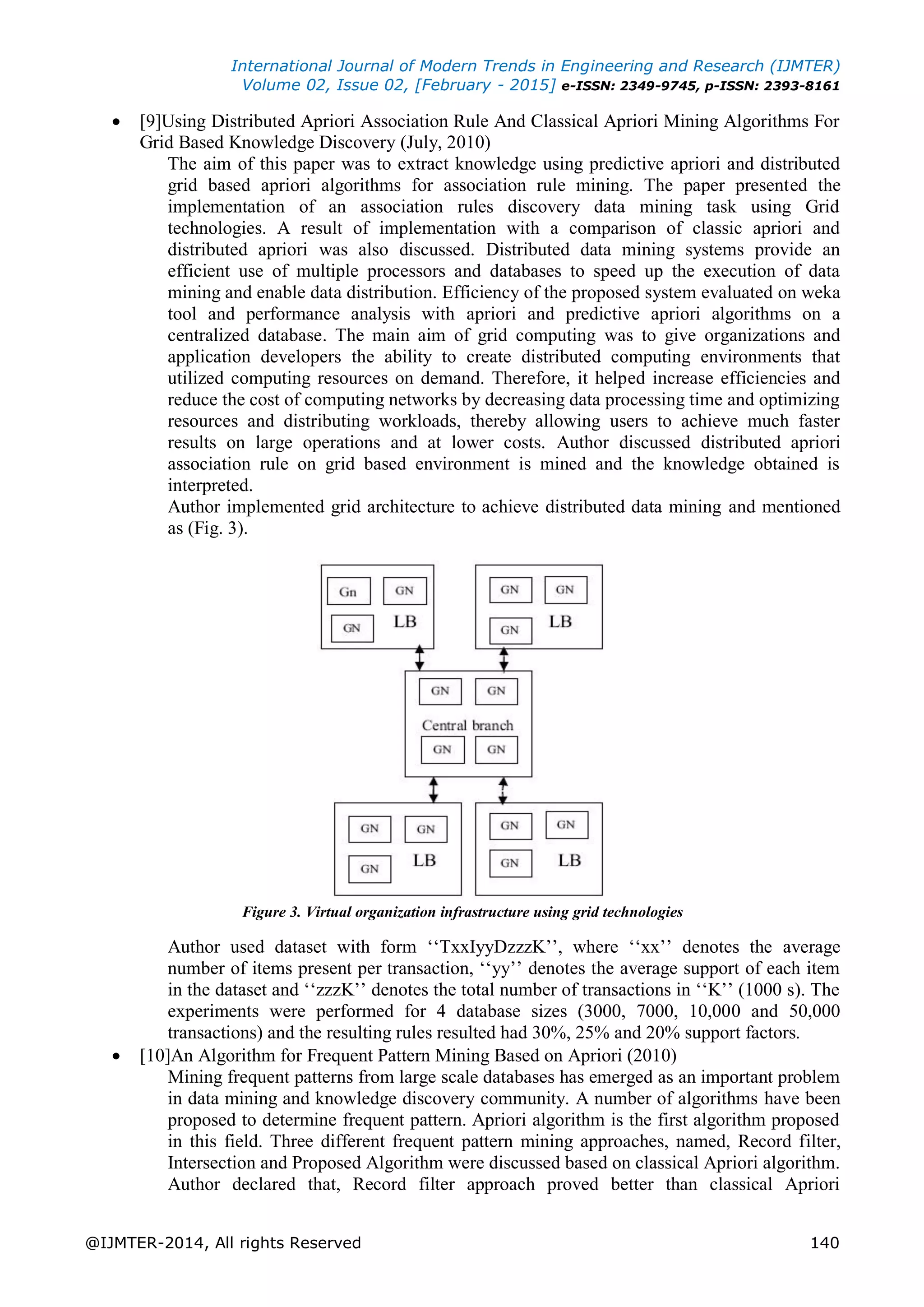

 [9]Using Distributed Apriori Association Rule And Classical Apriori Mining Algorithms For
Grid Based Knowledge Discovery (July, 2010)
The aim of this paper was to extract knowledge using predictive apriori and distributed
grid based apriori algorithms for association rule mining. The paper presented the
implementation of an association rules discovery data mining task using Grid
technologies. A result of implementation with a comparison of classic apriori and
distributed apriori was also discussed. Distributed data mining systems provide an
efficient use of multiple processors and databases to speed up the execution of data
mining and enable data distribution. Efficiency of the proposed system evaluated on weka
tool and performance analysis with apriori and predictive apriori algorithms on a
centralized database. The main aim of grid computing was to give organizations and
application developers the ability to create distributed computing environments that
utilized computing resources on demand. Therefore, it helped increase efficiencies and
reduce the cost of computing networks by decreasing data processing time and optimizing
resources and distributing workloads, thereby allowing users to achieve much faster
results on large operations and at lower costs. Author discussed distributed apriori
association rule on grid based environment is mined and the knowledge obtained is
interpreted.
Author implemented grid architecture to achieve distributed data mining and mentioned
as (Fig. 3).
Figure 3. Virtual organization infrastructure using grid technologies
Author used dataset with form „„TxxIyyDzzzK‟‟, where „„xx‟‟ denotes the average
number of items present per transaction, „„yy‟‟ denotes the average support of each item
in the dataset and „„zzzK‟‟ denotes the total number of transactions in „„K‟‟ (1000 s). The
experiments were performed for 4 database sizes (3000, 7000, 10,000 and 50,000
transactions) and the resulting rules resulted had 30%, 25% and 20% support factors.
 [10]An Algorithm for Frequent Pattern Mining Based on Apriori (2010)
Mining frequent patterns from large scale databases has emerged as an important problem
in data mining and knowledge discovery community. A number of algorithms have been
proposed to determine frequent pattern. Apriori algorithm is the first algorithm proposed
in this field. Three different frequent pattern mining approaches, named, Record filter,
Intersection and Proposed Algorithm were discussed based on classical Apriori algorithm.

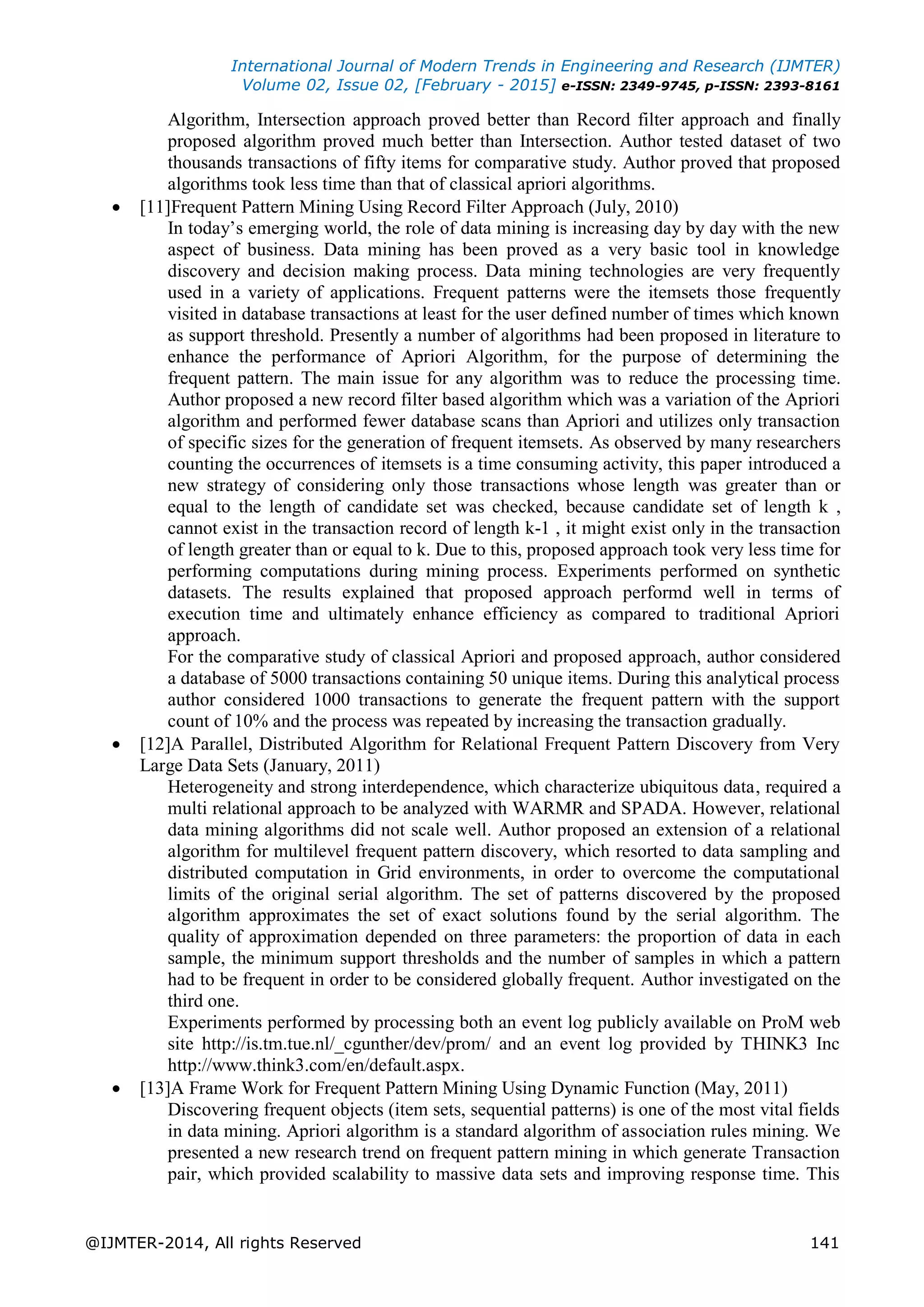

Author declared that, Record filter approach proved better than classical Apriori

Algorithm, Intersection approach proved better than Record filter approach and finally
proposed algorithm proved much better than Intersection. Author tested dataset of two
thousands transactions of fifty items for comparative study. Author proved that proposed
algorithms took less time than that of classical apriori algorithms.
 [11]Frequent Pattern Mining Using Record Filter Approach (July, 2010)
In today‟s emerging world, the role of data mining is increasing day by day with the new
aspect of business. Data mining has been proved as a very basic tool in knowledge
discovery and decision making process. Data mining technologies are very frequently
used in a variety of applications. Frequent patterns were the itemsets those frequently
visited in database transactions at least for the user defined number of times which known
as support threshold. Presently a number of algorithms had been proposed in literature to
enhance the performance of Apriori Algorithm, for the purpose of determining the
frequent pattern. The main issue for any algorithm was to reduce the processing time.
Author proposed a new record filter based algorithm which was a variation of the Apriori
algorithm and performed fewer database scans than Apriori and utilizes only transaction
of specific sizes for the generation of frequent itemsets. As observed by many researchers
counting the occurrences of itemsets is a time consuming activity, this paper introduced a
new strategy of considering only those transactions whose length was greater than or
equal to the length of candidate set was checked, because candidate set of length k ,
cannot exist in the transaction record of length k-1 , it might exist only in the transaction
of length greater than or equal to k. Due to this, proposed approach took very less time for
performing computations during mining process. Experiments performed on synthetic
datasets. The results explained that proposed approach performd well in terms of
execution time and ultimately enhance efficiency as compared to traditional Apriori
approach.
For the comparative study of classical Apriori and proposed approach, author considered
a database of 5000 transactions containing 50 unique items. During this analytical process
author considered 1000 transactions to generate the frequent pattern with the support
count of 10% and the process was repeated by increasing the transaction gradually.
 [12]A Parallel, Distributed Algorithm for Relational Frequent Pattern Discovery from Very
Large Data Sets (January, 2011)
Heterogeneity and strong interdependence, which characterize ubiquitous data, required a
multi relational approach to be analyzed with WARMR and SPADA. However, relational
data mining algorithms did not scale well. Author proposed an extension of a relational
algorithm for multilevel frequent pattern discovery, which resorted to data sampling and
distributed computation in Grid environments, in order to overcome the computational
limits of the original serial algorithm. The set of patterns discovered by the proposed
algorithm approximates the set of exact solutions found by the serial algorithm. The
quality of approximation depended on three parameters: the proportion of data in each
sample, the minimum support thresholds and the number of samples in which a pattern
had to be frequent in order to be considered globally frequent. Author investigated on the
third one.
Experiments performed by processing both an event log publicly available on ProM web
site http://is.tm.tue.nl/_cgunther/dev/prom/ and an event log provided by THINK3 Inc
http://www.think3.com/en/default.aspx.
 [13]A Frame Work for Frequent Pattern Mining Using Dynamic Function (May, 2011)
Discovering frequent objects (item sets, sequential patterns) is one of the most vital fields
in data mining. Apriori algorithm is a standard algorithm of association rules mining. We
presented a new research trend on frequent pattern mining in which generate Transaction
pair, which provided scalability to massive data sets and improving response time. This

framework made pair of transaction instead of item id, so result show more scalable.
Author suggested a novel dynamic algorithm for transposed database, mined in
transaction pair and found longest common subsequence using dynamic function.
Artificial and real-life data sets were tested and result described that proposed FPMDF
algorithm was more scalable than Apriori and FP Growth algorithm.

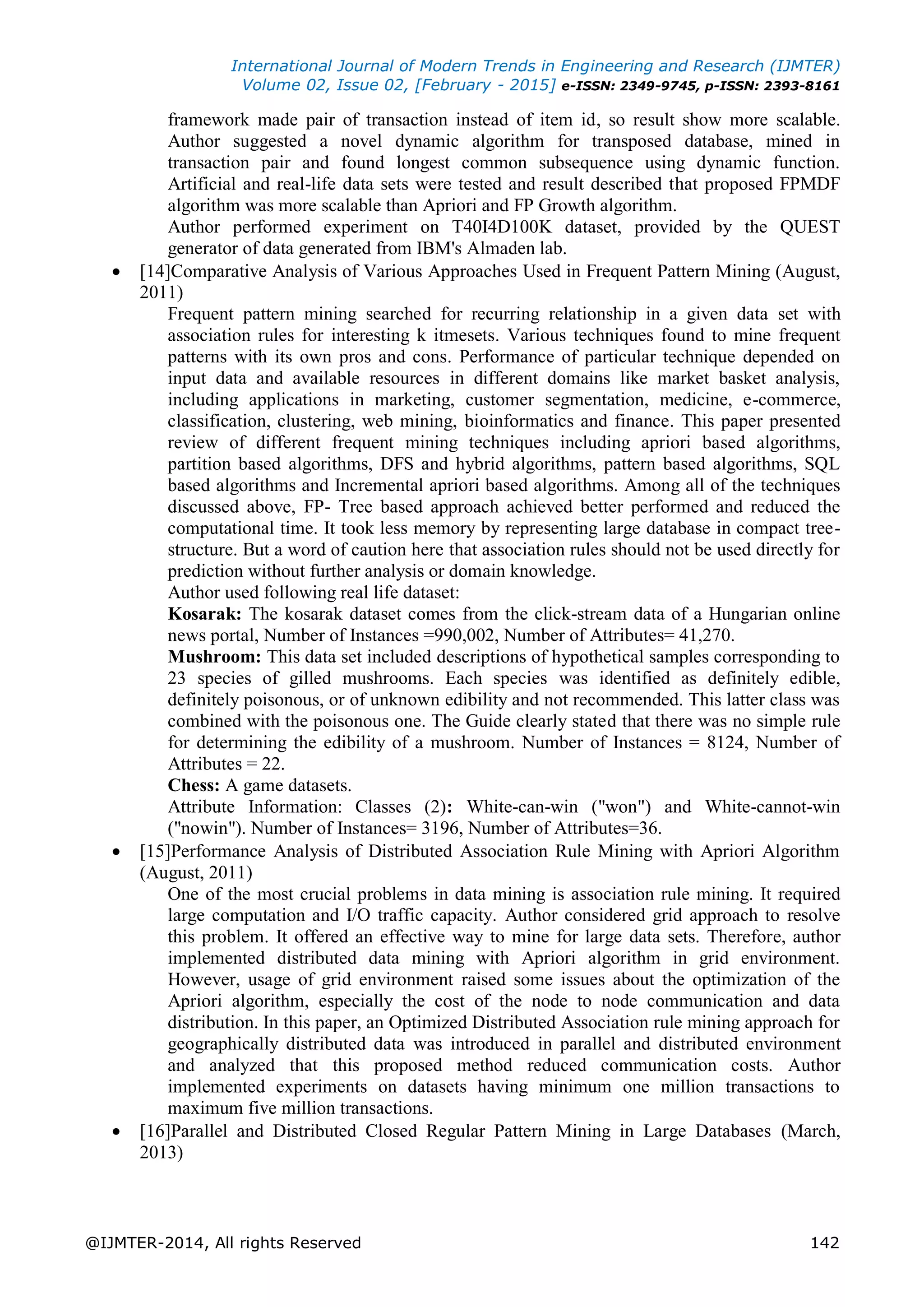

Author performed experiment on T40I4D100K dataset, provided by the QUEST
generator of data generated from IBM's Almaden lab.
 [14]Comparative Analysis of Various Approaches Used in Frequent Pattern Mining (August,
2011)
Frequent pattern mining searched for recurring relationship in a given data set with
association rules for interesting k itmesets. Various techniques found to mine frequent
patterns with its own pros and cons. Performance of particular technique depended on
input data and available resources in different domains like market basket analysis,
including applications in marketing, customer segmentation, medicine, e-commerce,
classification, clustering, web mining, bioinformatics and finance. This paper presented
review of different frequent mining techniques including apriori based algorithms,
partition based algorithms, DFS and hybrid algorithms, pattern based algorithms, SQL
based algorithms and Incremental apriori based algorithms. Among all of the techniques
discussed above, FP- Tree based approach achieved better performed and reduced the
computational time. It took less memory by representing large database in compact tree-
structure. But a word of caution here that association rules should not be used directly for
prediction without further analysis or domain knowledge.
Author used following real life dataset:
Kosarak: The kosarak dataset comes from the click-stream data of a Hungarian online
news portal, Number of Instances =990,002, Number of Attributes= 41,270.
Mushroom: This data set included descriptions of hypothetical samples corresponding to
23 species of gilled mushrooms. Each species was identified as definitely edible,
definitely poisonous, or of unknown edibility and not recommended. This latter class was
combined with the poisonous one. The Guide clearly stated that there was no simple rule
for determining the edibility of a mushroom. Number of Instances = 8124, Number of
Attributes = 22.
Chess: A game datasets.
Attribute Information: Classes (2): White-can-win ("won") and White-cannot-win
("nowin"). Number of Instances= 3196, Number of Attributes=36.
 [15]Performance Analysis of Distributed Association Rule Mining with Apriori Algorithm
(August, 2011)
One of the most crucial problems in data mining is association rule mining. It required
large computation and I/O traffic capacity. Author considered grid approach to resolve
this problem. It offered an effective way to mine for large data sets. Therefore, author
implemented distributed data mining with Apriori algorithm in grid environment.
However, usage of grid environment raised some issues about the optimization of the
Apriori algorithm, especially the cost of the node to node communication and data
distribution. In this paper, an Optimized Distributed Association rule mining approach for
geographically distributed data was introduced in parallel and distributed environment
and analyzed that this proposed method reduced communication costs. Author
implemented experiments on datasets having minimum one million transactions to
maximum five million transactions.

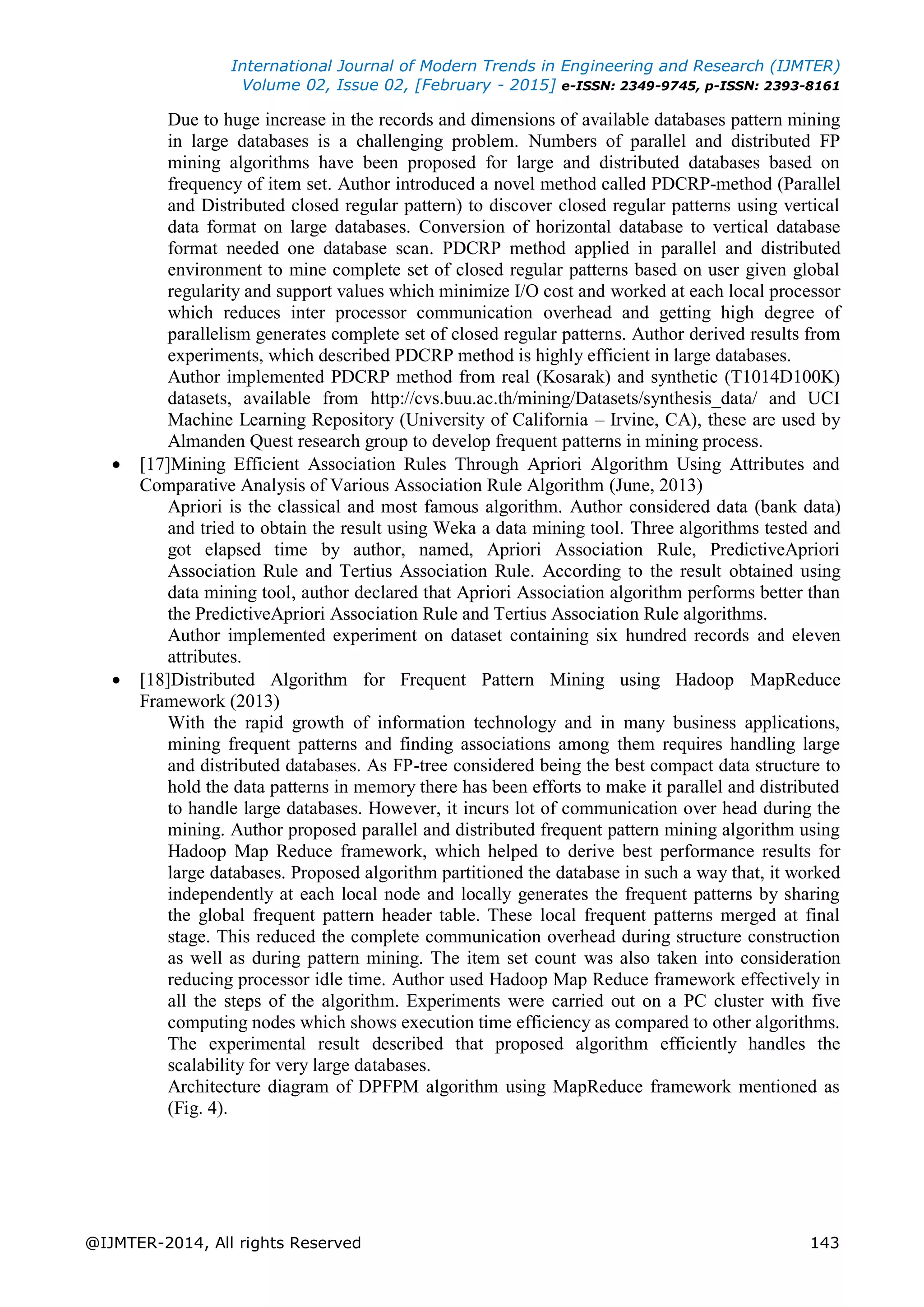

 [16]Parallel and Distributed Closed Regular Pattern Mining in Large Databases (March,
2013)

Due to huge increase in the records and dimensions of available databases pattern mining
in large databases is a challenging problem. Numbers of parallel and distributed FP
mining algorithms have been proposed for large and distributed databases based on
frequency of item set. Author introduced a novel method called PDCRP-method (Parallel
and Distributed closed regular pattern) to discover closed regular patterns using vertical
data format on large databases. Conversion of horizontal database to vertical database
format needed one database scan. PDCRP method applied in parallel and distributed
environment to mine complete set of closed regular patterns based on user given global
regularity and support values which minimize I/O cost and worked at each local processor
which reduces inter processor communication overhead and getting high degree of
parallelism generates complete set of closed regular patterns. Author derived results from
experiments, which described PDCRP method is highly efficient in large databases.
Author implemented PDCRP method from real (Kosarak) and synthetic (T1014D100K)
datasets, available from http://cvs.buu.ac.th/mining/Datasets/synthesis_data/ and UCI
Machine Learning Repository (University of California – Irvine, CA), these are used by
Almanden Quest research group to develop frequent patterns in mining process.
 [17]Mining Efficient Association Rules Through Apriori Algorithm Using Attributes and
Comparative Analysis of Various Association Rule Algorithm (June, 2013)
Apriori is the classical and most famous algorithm. Author considered data (bank data)
and tried to obtain the result using Weka a data mining tool. Three algorithms tested and
got elapsed time by author, named, Apriori Association Rule, PredictiveApriori
Association Rule and Tertius Association Rule. According to the result obtained using
data mining tool, author declared that Apriori Association algorithm performs better than
the PredictiveApriori Association Rule and Tertius Association Rule algorithms.
Author implemented experiment on dataset containing six hundred records and eleven
attributes.
 [18]Distributed Algorithm for Frequent Pattern Mining using Hadoop MapReduce
Framework (2013)
With the rapid growth of information technology and in many business applications,
mining frequent patterns and finding associations among them requires handling large
and distributed databases. As FP-tree considered being the best compact data structure to
hold the data patterns in memory there has been efforts to make it parallel and distributed
to handle large databases. However, it incurs lot of communication over head during the
mining. Author proposed parallel and distributed frequent pattern mining algorithm using
Hadoop Map Reduce framework, which helped to derive best performance results for
large databases. Proposed algorithm partitioned the database in such a way that, it worked
independently at each local node and locally generates the frequent patterns by sharing
the global frequent pattern header table. These local frequent patterns merged at final
stage. This reduced the complete communication overhead during structure construction
as well as during pattern mining. The item set count was also taken into consideration
reducing processor idle time. Author used Hadoop Map Reduce framework effectively in
all the steps of the algorithm. Experiments were carried out on a PC cluster with five
computing nodes which shows execution time efficiency as compared to other algorithms.
The experimental result described that proposed algorithm efficiently handles the
scalability for very large databases.
Architecture diagram of DPFPM algorithm using MapReduce framework mentioned as
(Fig. 4).

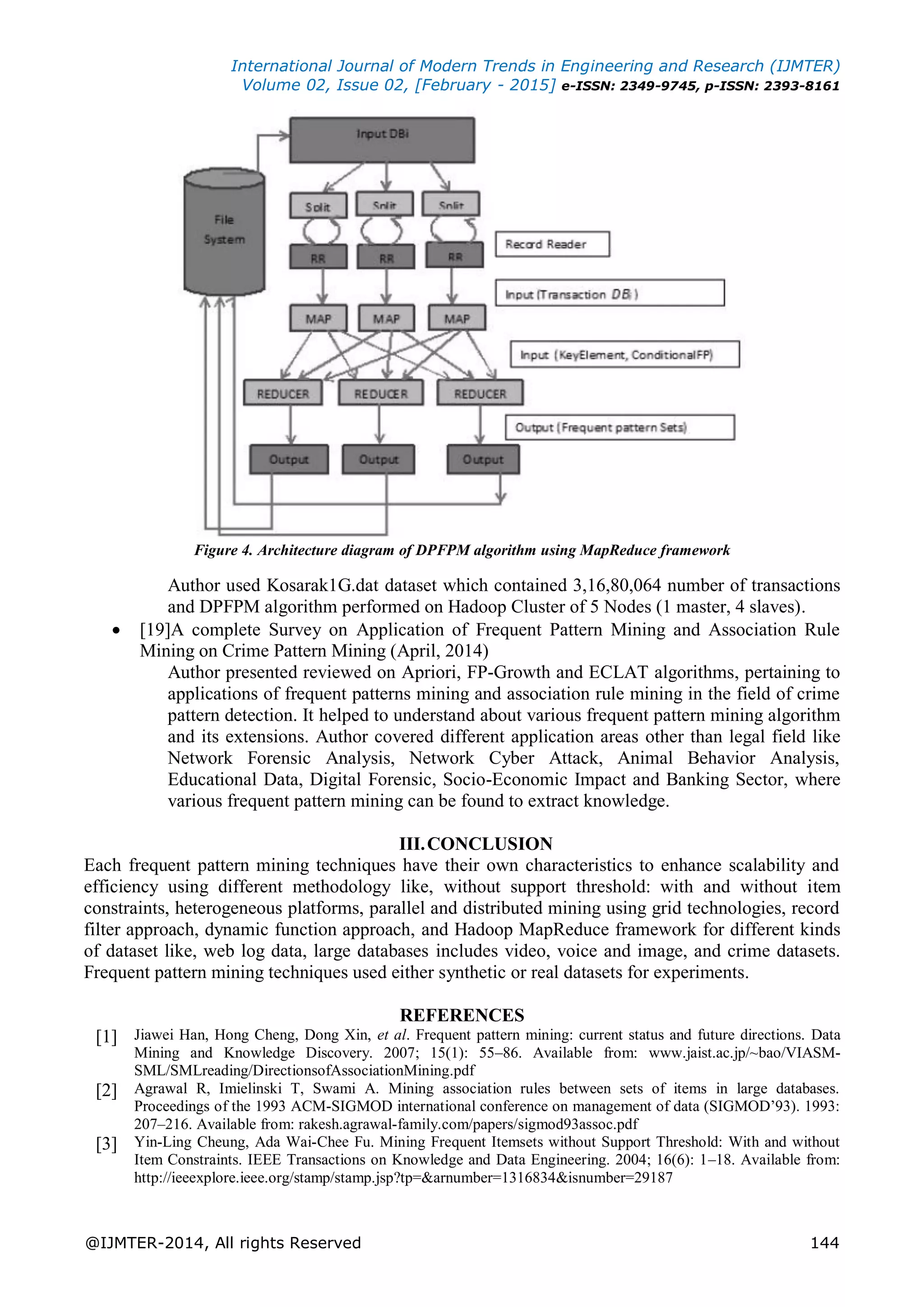

Figure 4. Architecture diagram of DPFPM algorithm using MapReduce framework
Author used Kosarak1G.dat dataset which contained 3,16,80,064 number of transactions
and DPFPM algorithm performed on Hadoop Cluster of 5 Nodes (1 master, 4 slaves).
 [19]A complete Survey on Application of Frequent Pattern Mining and Association Rule
Mining on Crime Pattern Mining (April, 2014)
Author presented reviewed on Apriori, FP-Growth and ECLAT algorithms, pertaining to
applications of frequent patterns mining and association rule mining in the field of crime
pattern detection. It helped to understand about various frequent pattern mining algorithm
and its extensions. Author covered different application areas other than legal field like
Network Forensic Analysis, Network Cyber Attack, Animal Behavior Analysis,
Educational Data, Digital Forensic, Socio-Economic Impact and Banking Sector, where
various frequent pattern mining can be found to extract knowledge.
III.CONCLUSION
Each frequent pattern mining techniques have their own characteristics to enhance scalability and
efficiency using different methodology like, without support threshold: with and without item
constraints, heterogeneous platforms, parallel and distributed mining using grid technologies, record
filter approach, dynamic function approach, and Hadoop MapReduce framework for different kinds
of dataset like, web log data, large databases includes video, voice and image, and crime datasets.
Frequent pattern mining techniques used either synthetic or real datasets for experiments.
REFERENCES
[1] Jiawei Han, Hong Cheng, Dong Xin, et al. Frequent pattern mining: current status and future directions. Data
Mining and Knowledge Discovery. 2007; 15(1): 55–86. Available from: www.jaist.ac.jp/~bao/VIASM-
SML/SMLreading/DirectionsofAssociationMining.pdf
[2] Agrawal R, Imielinski T, Swami A. Mining association rules between sets of items in large databases.
Proceedings of the 1993 ACM-SIGMOD international conference on management of data (SIGMOD‟93). 1993:
207–216. Available from: rakesh.agrawal-family.com/papers/sigmod93assoc.pdf
[3] Yin-Ling Cheung, Ada Wai-Chee Fu. Mining Frequent Itemsets without Support Threshold: With and without
Item Constraints. IEEE Transactions on Knowledge and Data Engineering. 2004; 16(6): 1–18. Available from:
http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=1316834&isnumber=29187

[4] Renata Ivancsy, Istvan Vajk. Frequent Pattern Mining in Web Log Data. Acta Polytechnica Hungarica. 77–90.
Available from: http://www.uni-obuda.hu/journal/Ivancsy_Vajk_5.pdf
[5] Lamine M. Aouad, Nhien-An Le-Khac, Tahar M. Kechadi. Distributed Frequent Itemsets Mining in
Heterogeneous Platforms. Journal of Engineering, Computing and Architecture. 2007; 1(2): 1–12. Available
from: www.scientificjournals.org/journals2007/articles/1239.pdf
[6] U. Sakthi, R. Hemalatha, R.S.Bhuvaneswaran. Parallel and Distributed Mining of Association Rule on
Knowledge Grid. International Scholary and Scientific Research & Innovation. 2008; 2(6): 292–296. Available
from: waste.org/publications/11084/parallel-and-distributed-mining-of- association-rule-on-knowledge-grid
[7] Tanbeer, S.K., Ahmed, C.F., Byeong-Soo Jeong. Parallel and Distributed Frequent Pattern Mining in Large
Databases. High Performance Computing and Communications, 2009. HPCC '09. 11th IEEE International
Conference. 2009; 407(414): 25–27. Available from:
http://ieeexplore.ieee.org/stamp/stamp.jsp?tp=&arnumber=5167021&isnumber=5166954
[8] Thomas Legler, Wolfgang Lehner, Jan Schaffner. Robust and Distributed Top-N Frequent-Pattern Mining With
SAP BW Accelerator. Proceeding of the VLDB Endowment. 2009; 2(2): 1438–1449. Available from:
http://www.vldb.org/pvldb/2/vldb09-970.pdf
[9] Sumithra, R., Paul, S. Using Distributed Apriori Association Rule And Classical Apriori Mining Algorithms For
Grid Based Knowledge Discovery. Computing Communication and Networking Technologies (ICCCNT)
International Conference. 2010; 1(5): 29–31. Available from: http://ieeexplore.ieee.org/stamp/
stamp.jsp?tp=&arnumber=5591577&isnumber=5591555
[10] Goswami D.N., Chaturvedi Anshu, Raghuvanshi C.S.. An Algorithm for Frequent Pattern Mining Based on
Apriori. International Journal on Computer Science and Engineering. 2010; 4(2): 942–947. Available from:
http://www.enggjournals.com/ijcse/doc/IJCSE10-02-04-16.pdf
[11] D.N. Goswami, Anshu Chaturvedi, C.S. Raghuvanshi. Frequent Pattern Mining Using Record Filter Approach.
International Journal of Computer Science Issues. 2010; 7(4): 38–43. Available from: ijcsi.org/papers/7-4-7-38-
43.pdf
[12] Annalisa Appice, Michelangelo Ceci, Antonio Turi, et al. A Parallel, Distributed Algorithm for Relational
Frequent Pattern Discovery from Very Large Data Sets. Intelligent Data Analysis – Ubiquitous Knowledge
Discovery. 2011; 15(1): 69–88. Available from: http://www.di.uniba.it/~ceci/micFiles/papers/IDA.pdf
[13] Sunil Joshi, R S Jadon, R C Jain. A Frame Work for Frequent Pattern Mining Using Dynamic Function.
International Journal of Computer Science. 2011; 8(3): 141–147. Available from: www.IJCSI.org
[14] Deepak Garg, Hemant Sharma. Comparative Analysis of Various Approaches Used in Frequent Pattern Mining.
International Journal of Advanced Computer Science and Applications, Special Issue on Artificial Intelligence.
141–147. Available from: http://thesai.org/Downloads/SpecialIssueNo3/Paper%2023-Comparative%20Analysis
%20of%20Various%20Approaches%20Used%20in%20Frequent%20Pattern%20Mining.pdf
[15] M.A.Mottalib, Kazi Shamsul, Mohmmad Majharul Islam, et al. Performance Analysis of Distributed Association
Rule Mining with Apriori Algorithm. International Journal of Computer Theory and Engineering. 2011; 3(4):
484–488. Available from: www.ijcte.org/papers/354-G475.pdf
[16] M. Sreedevi, L.S.S.Reddy. Parallel and Distributed Closed Regular Pattern Mining in Large Databases. IJCSI
International Journal of Computer Science Issues. 2013; 10(2): 264–269. Available from:
http://ijcsi.org/papers/IJCSI-10-2-2-264-269.pdf
[17] Ms Sweta et al. Mining Efficient Association Rules Through Apriori Algorithm Using Attributes and
Comparative Analysis of Various Association Rule Algorithm. International Journal of Advanced Research in
Computer Science and Software Engineering. 2013; 3(6): 306–312. Available from: http://www.ijarcsse.com
[18] Suhasini A. Itkar, Uday Kulkarni. Distributed Algorithm for Frequent Pattern Mining using HadoopMap Reduce
Framework. Association of Computer Electronics and Electrical Engineers. 2013; 15–24. Available from:
searchdl.org/index.php/conference/view/742
[19] D. Usah, Dr. K. Rameshkumar. A complete Survey on Application of Frequent Pattern Mining and Association
Rule Mining on Crime Pattern Mining. International Journal of Advances Computer Science and Technology.
2014; 3(2): 264–275. Available from: http://warse.org/pdfs/2014/ijacst05342014.pdf

REVIEW: Frequent Pattern Mining Techniques

REVIEW: Frequent Pattern Mining Techniques

More Related Content

What's hot

Similar to REVIEW: Frequent Pattern Mining Techniques

More from Editor IJMTER

Recently uploaded

REVIEW: Frequent Pattern Mining Techniques
