Parallel Computing on the GPU
- 1. Parallel Computing onthe GPU Tilani Gunawardena
- 2. Goals • How toprogram heterogeneous parallel computing system and achieve – High performance and energy efficiency – Functionality and maintainability – Scalability across future generations • Technical subjects – Principles and patterns of parallel algorithms – Programming API, tools and techniques

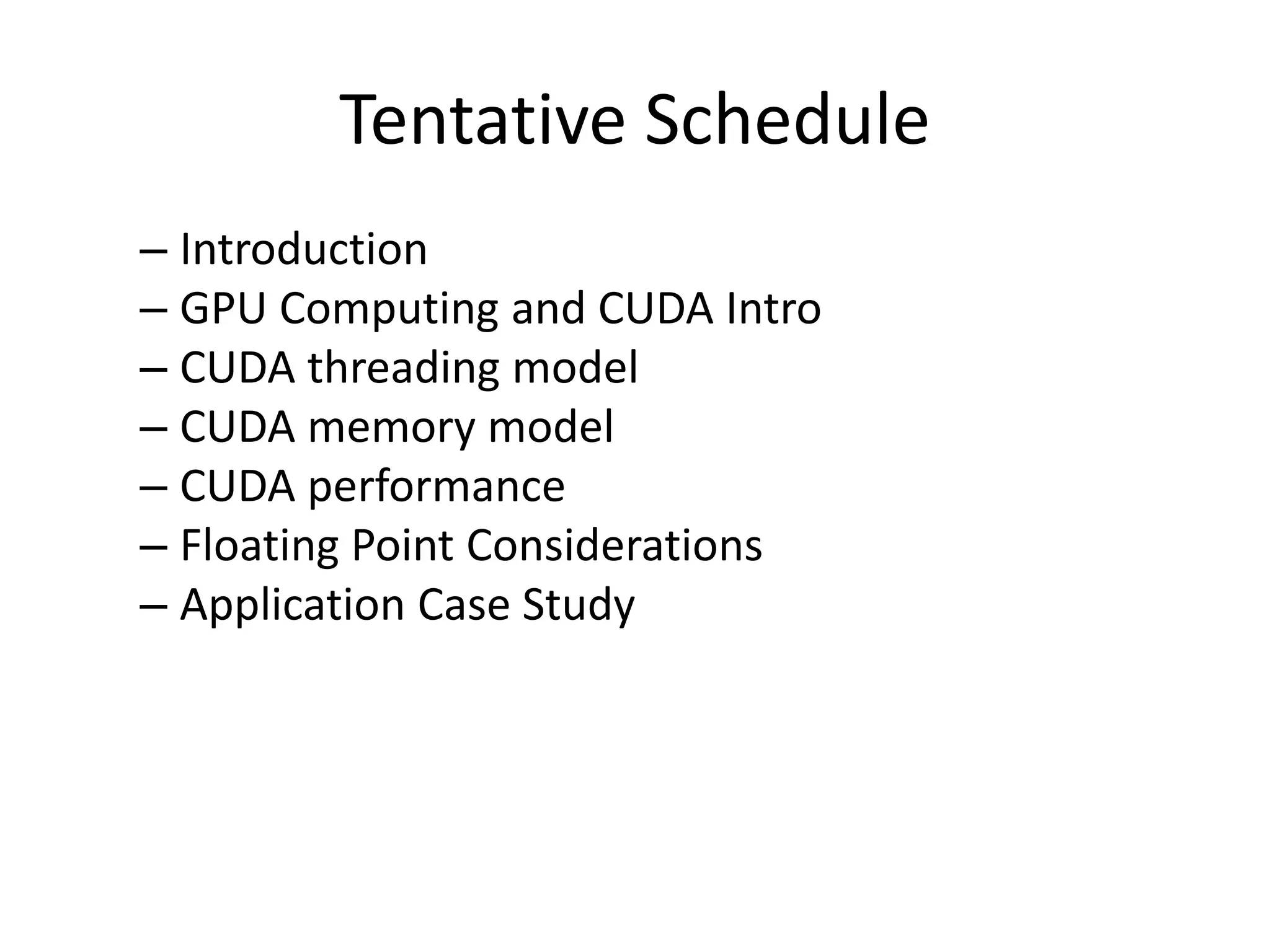

- 3. Tentative Schedule – Introduction –GPU Computing and CUDA Intro – CUDA threading model – CUDA memory model – CUDA performance – Floating Point Considerations – Application Case Study
- 4. Recommended Textbook/Notes • D.Kirk and W. Hwu, “Programming Massively Parallel Processors – A Hands-on Approach,” • http://www.nvidia.com/(Communities CUDA Zone)

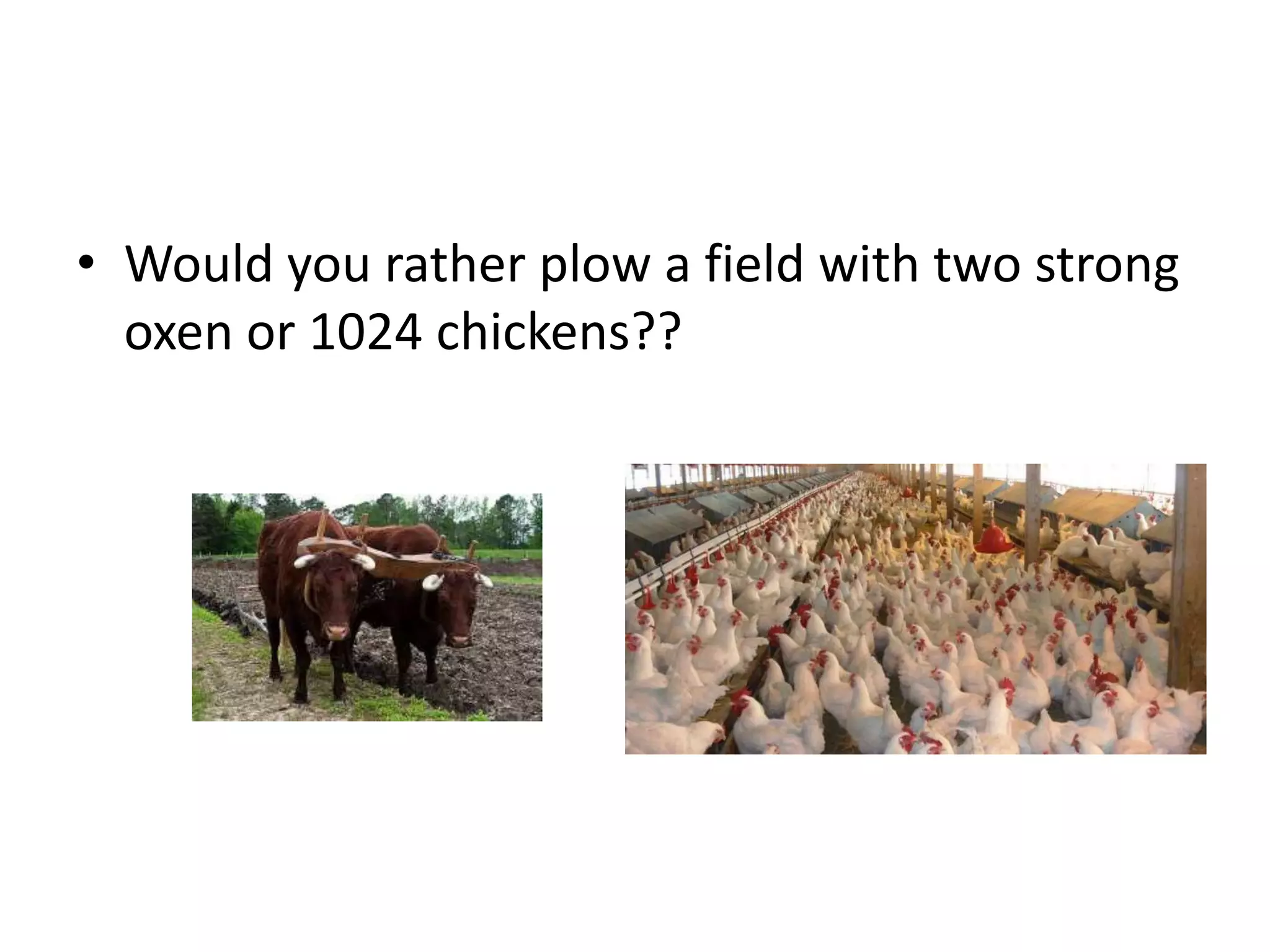

- 5. • Would yourather plow a field with two strong oxen or 1024 chickens??

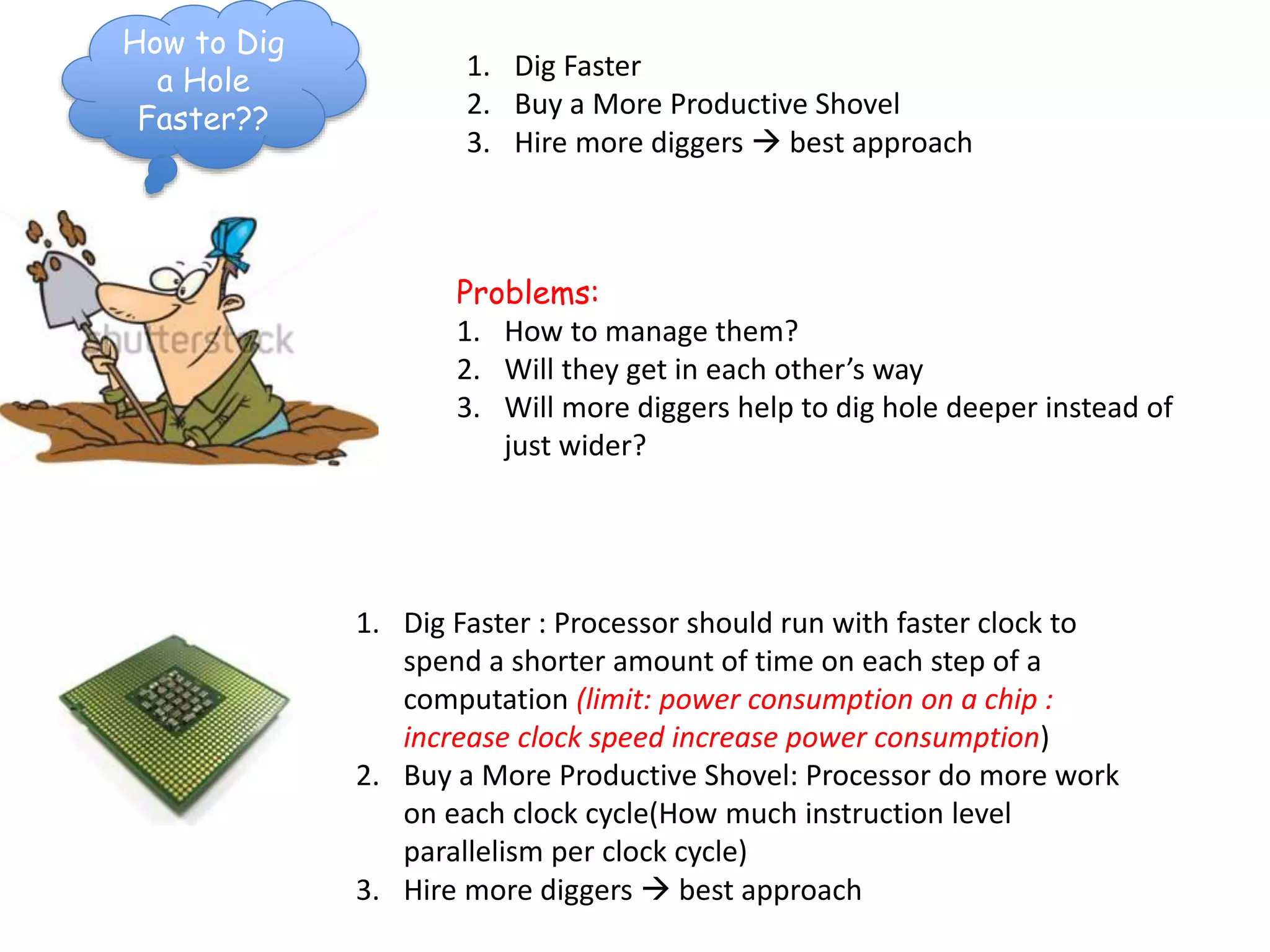

- 6. How to Dig aHole Faster?? 1. Dig Faster 2. Buy a More Productive Shovel 3. Hire more diggers best approach Problems: 1. How to manage them? 2. Will they get in each other’s way 3. Will more diggers help to dig hole deeper instead of just wider? 1. Dig Faster : Processor should run with faster clock to spend a shorter amount of time on each step of a computation (limit: power consumption on a chip : increase clock speed increase power consumption) 2. Buy a More Productive Shovel: Processor do more work on each clock cycle(How much instruction level parallelism per clock cycle) 3. Hire more diggers best approach
- 7. Parallelism • Solve LargeProblems by breaking them into small pieces • Then run smaller pieces at the same time Modern GPU • 1000’s of ALUs • 100’s of processors • Tens of thousands of concurrent threads • Modern GPU – Ex:GeForce GTX Titan X CUDA cores: 3072 8000 million transistors 12GB GDDR5 Memory Memory Bandwidth: 336(GB/s) 65000 concurrent threads

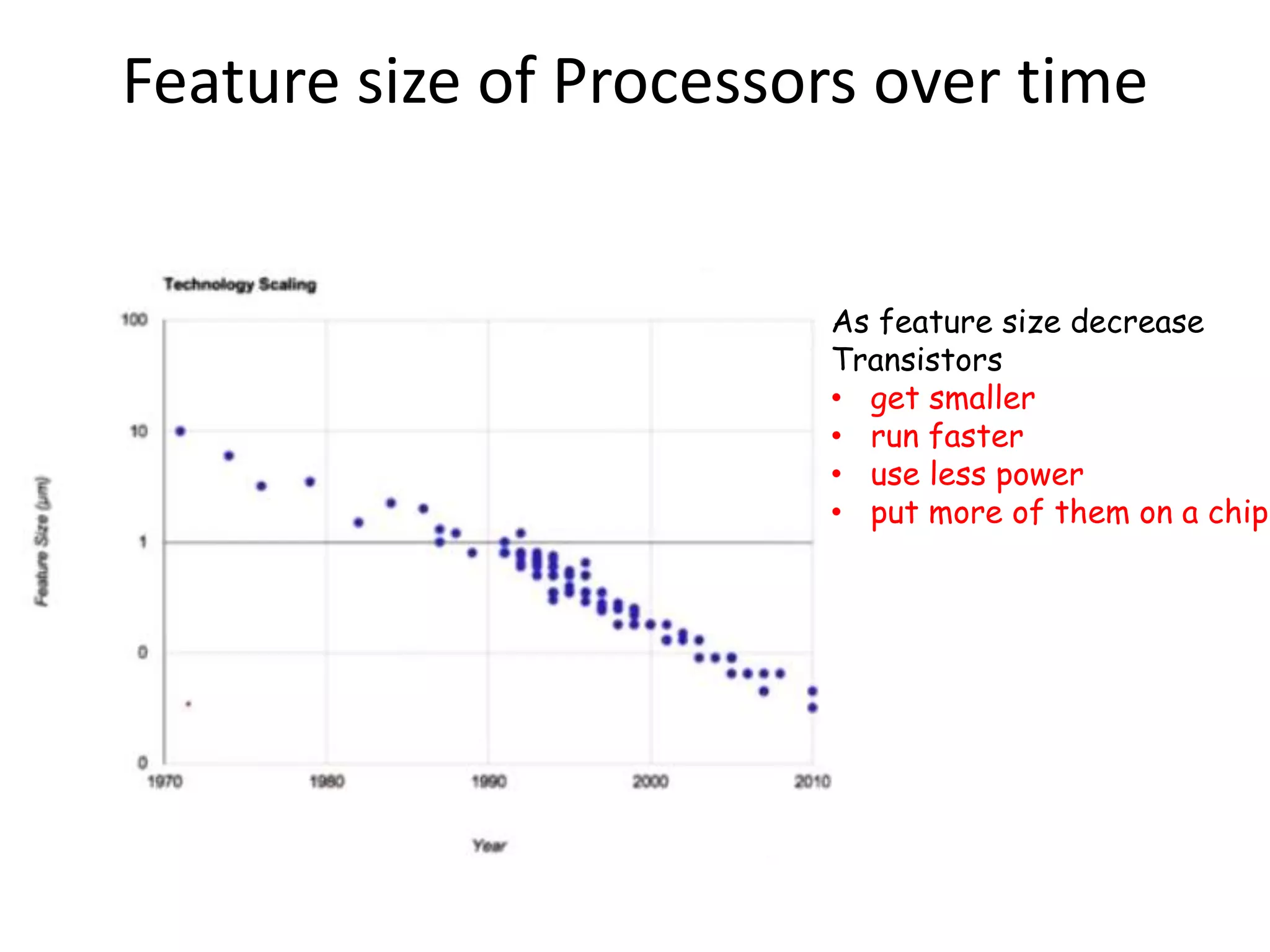

- 8. Feature size ofProcessors over time As feature size decrease Transistors • get smaller • run faster • use less power • put more of them on a chip

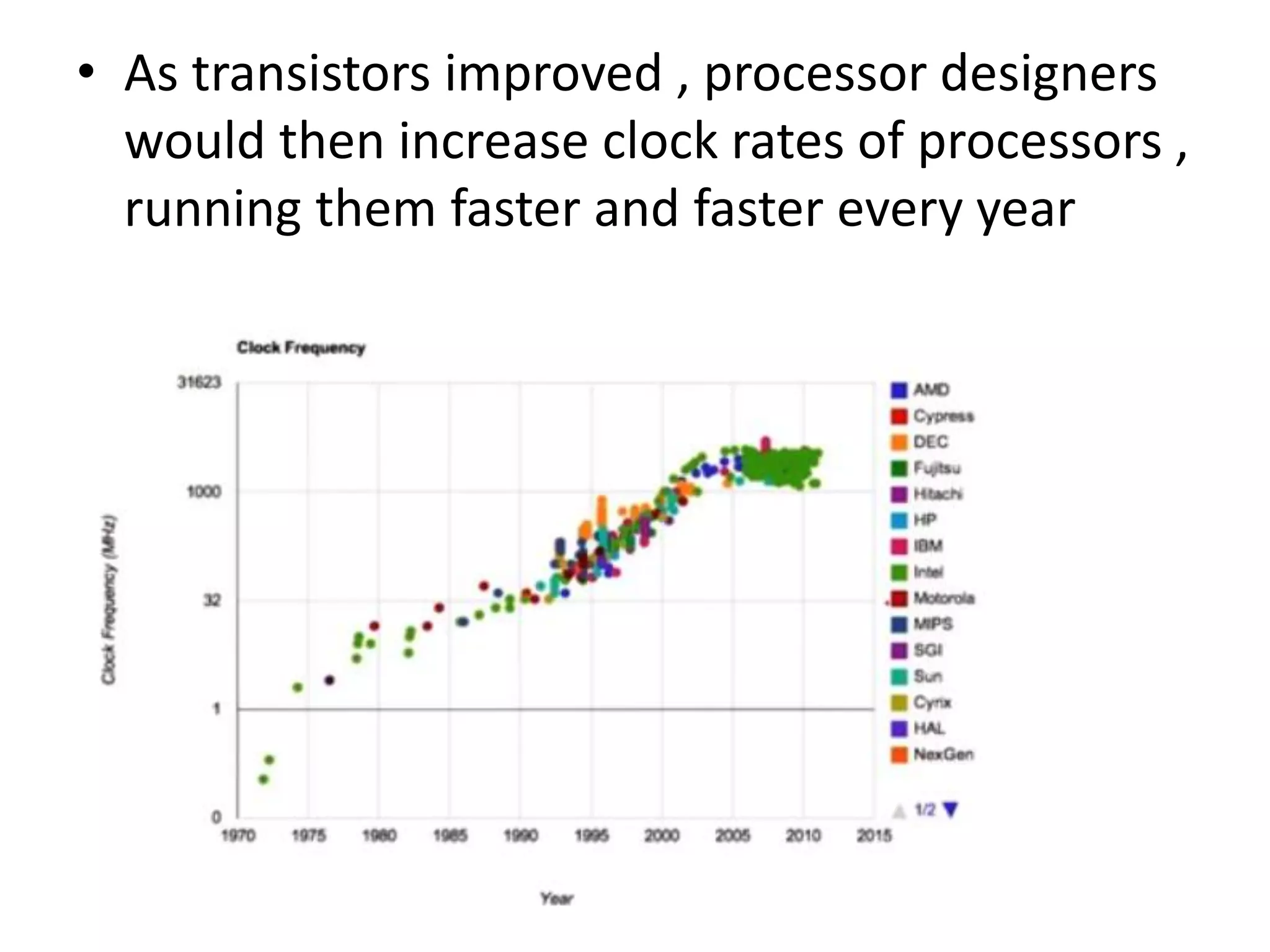

- 9. • As transistorsimproved , processor designers would then increase clock rates of processors , running them faster and faster every year
- 10. • Why don’twe keep increasing clock speed? • Have transistors stopped getting smaller+ faster? – Problem: heat • Even though transistors are continuing to get smaller and faster and consume less energy per transistor … Problem is running billion transistors generate lot of heat and we can not keep all these processors cool • Can not make single processor faster and faster(processors that we cant keep cool) • Processor designers – Smaller, more efficient processors in terms of power – Larger number of efficient processors (rather than faster less efficient processors) • What kind of Processors we build? • CPU – Complex control hardware – Flexibility in performance – Expensive in terms of power • GPU – Simpler control hardware – More haradware for Computation – Potentially more power efficient – More restrictive Programming model

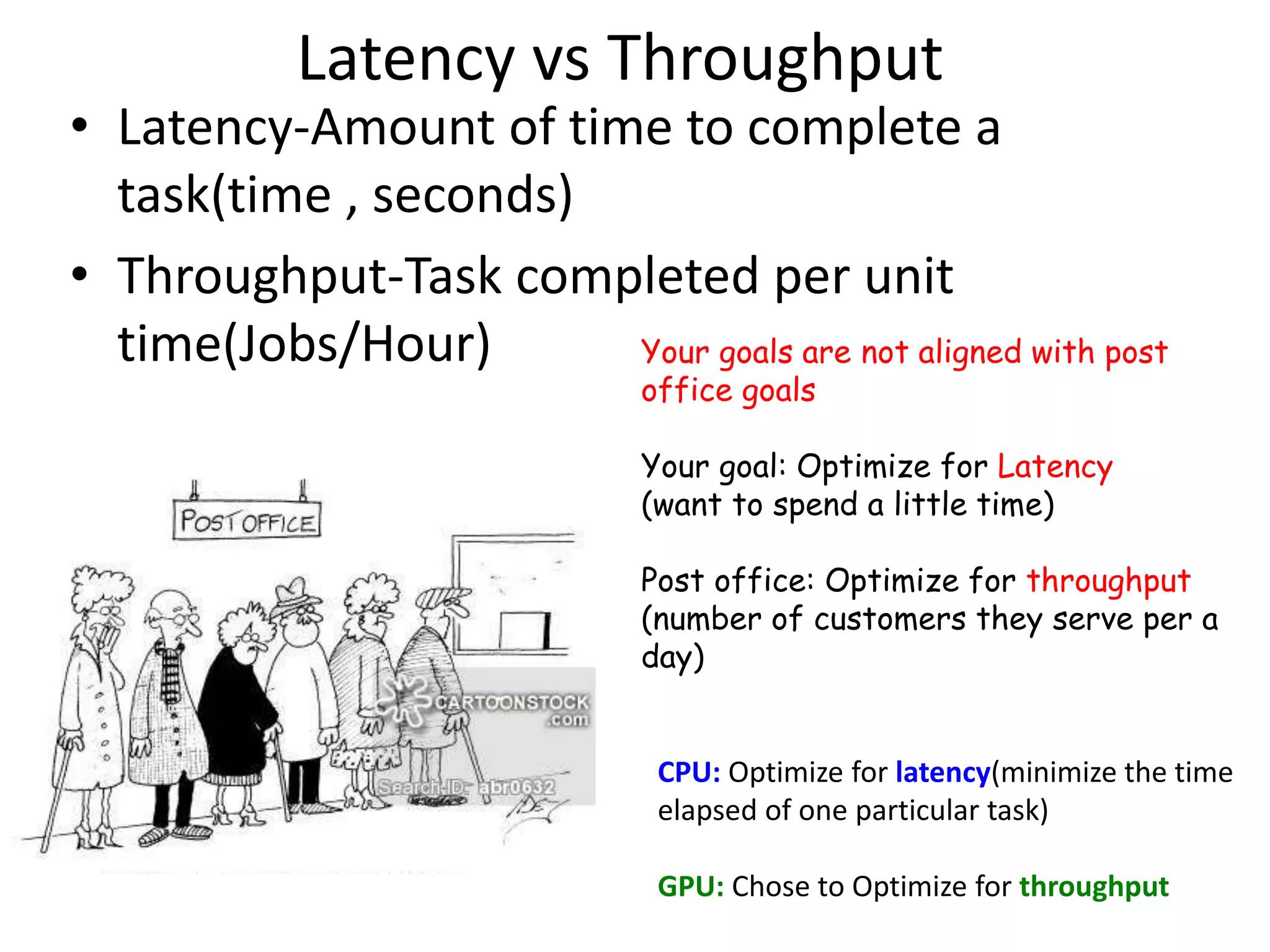

- 11. Latency vs Throughput •Latency-Amount of time to complete a task(time , seconds) • Throughput-Task completed per unit time(Jobs/Hour) Your goals are not aligned with post office goals Your goal: Optimize for Latency (want to spend a little time) Post office: Optimize for throughput (number of customers they serve per a day) CPU: Optimize for latency(minimize the time elapsed of one particular task) GPU: Chose to Optimize for throughput

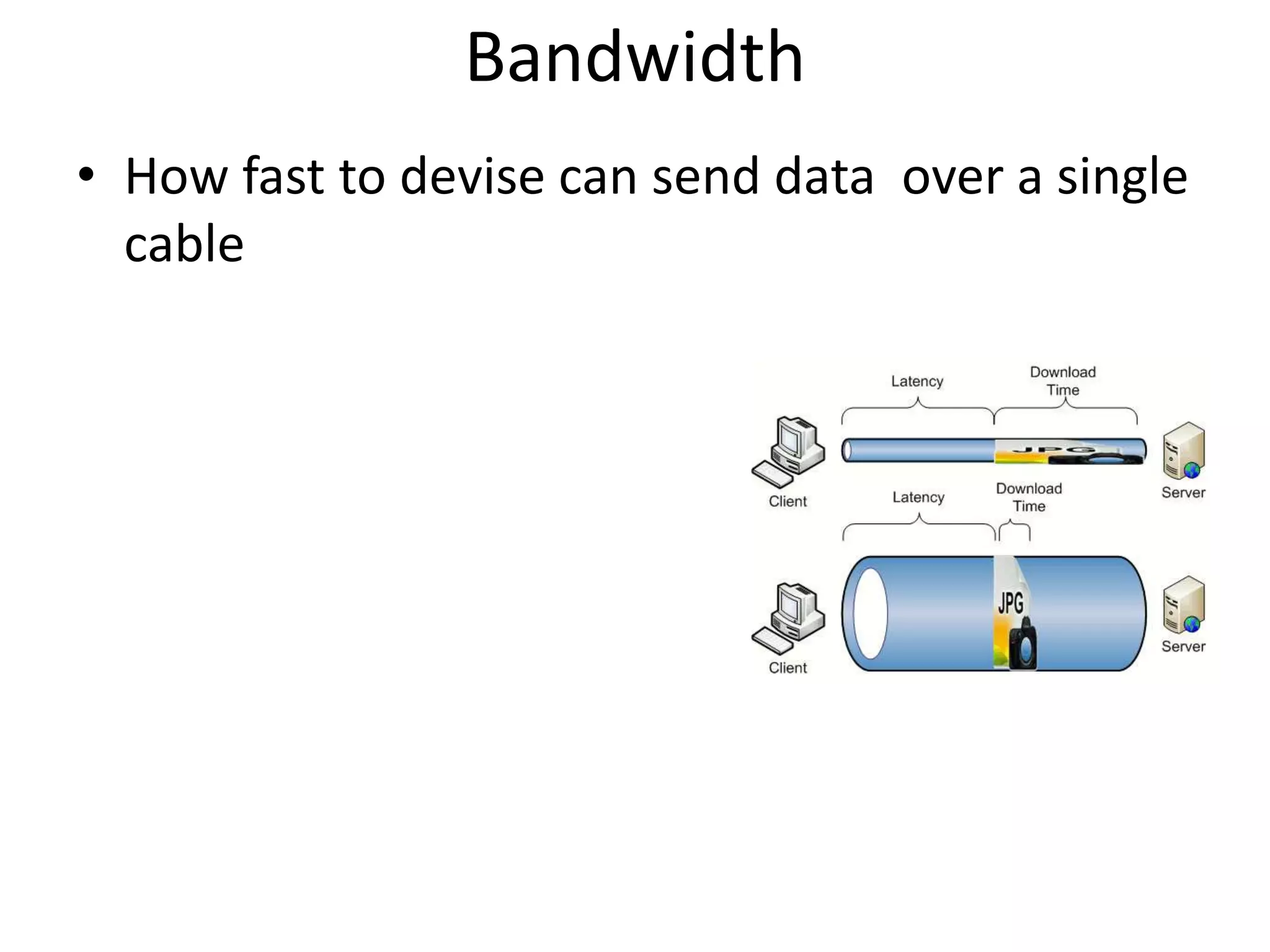

- 12. Bandwidth • How fastto devise can send data over a single cable

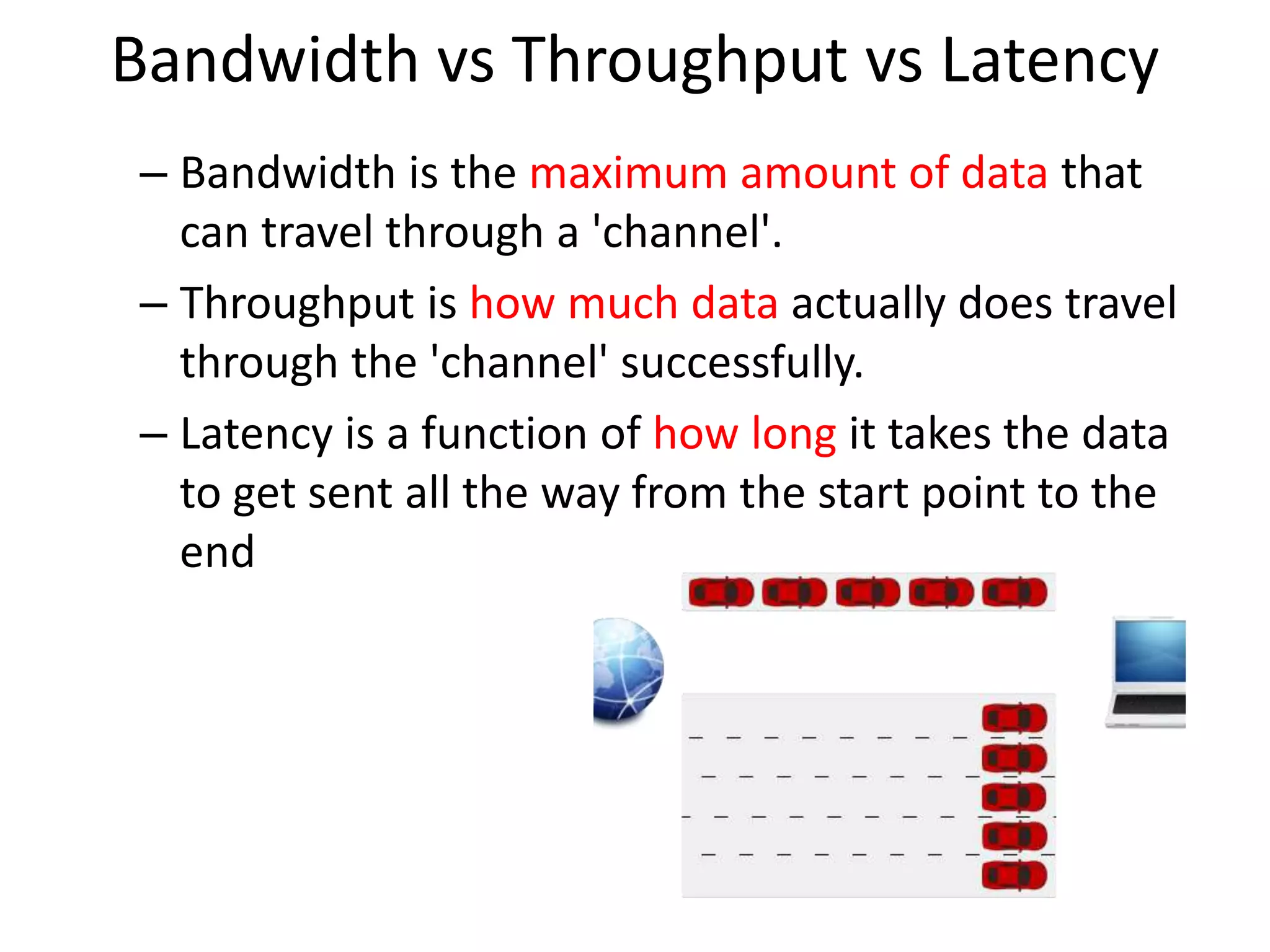

- 13. Bandwidth vs Throughputvs Latency – Bandwidth is the maximum amount of data that can travel through a 'channel'. – Throughput is how much data actually does travel through the 'channel' successfully. – Latency is a function of how long it takes the data to get sent all the way from the start point to the end

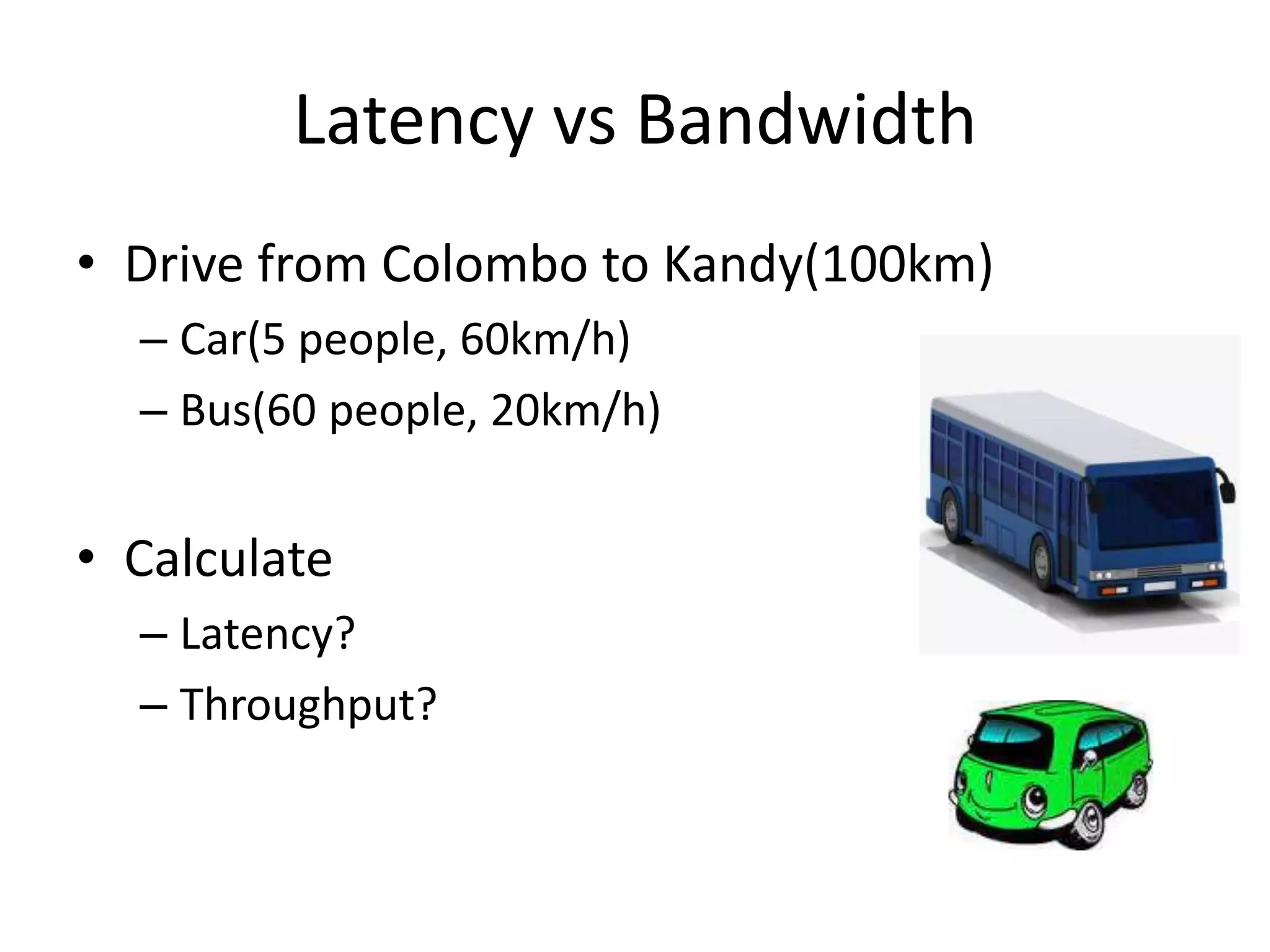

- 14. Latency vs Bandwidth •Drive from Colombo to Kandy(100km) – Car(5 people, 60km/h) – Bus(60 people, 20km/h) • Calculate – Latency? – Throughput?
- 15. GPUs from thepoint of view of the software developer ? • Importance in programing in parallel – 8 core ivy bridge processor(intel) – 8-wide AVX vector operations/Core – 2 threads/core (hyperthreading) 128 way parallelism In this processor if you run a complete serial, C program with no parallelism at all, you are going to use less than 1% of the capability of this machine.

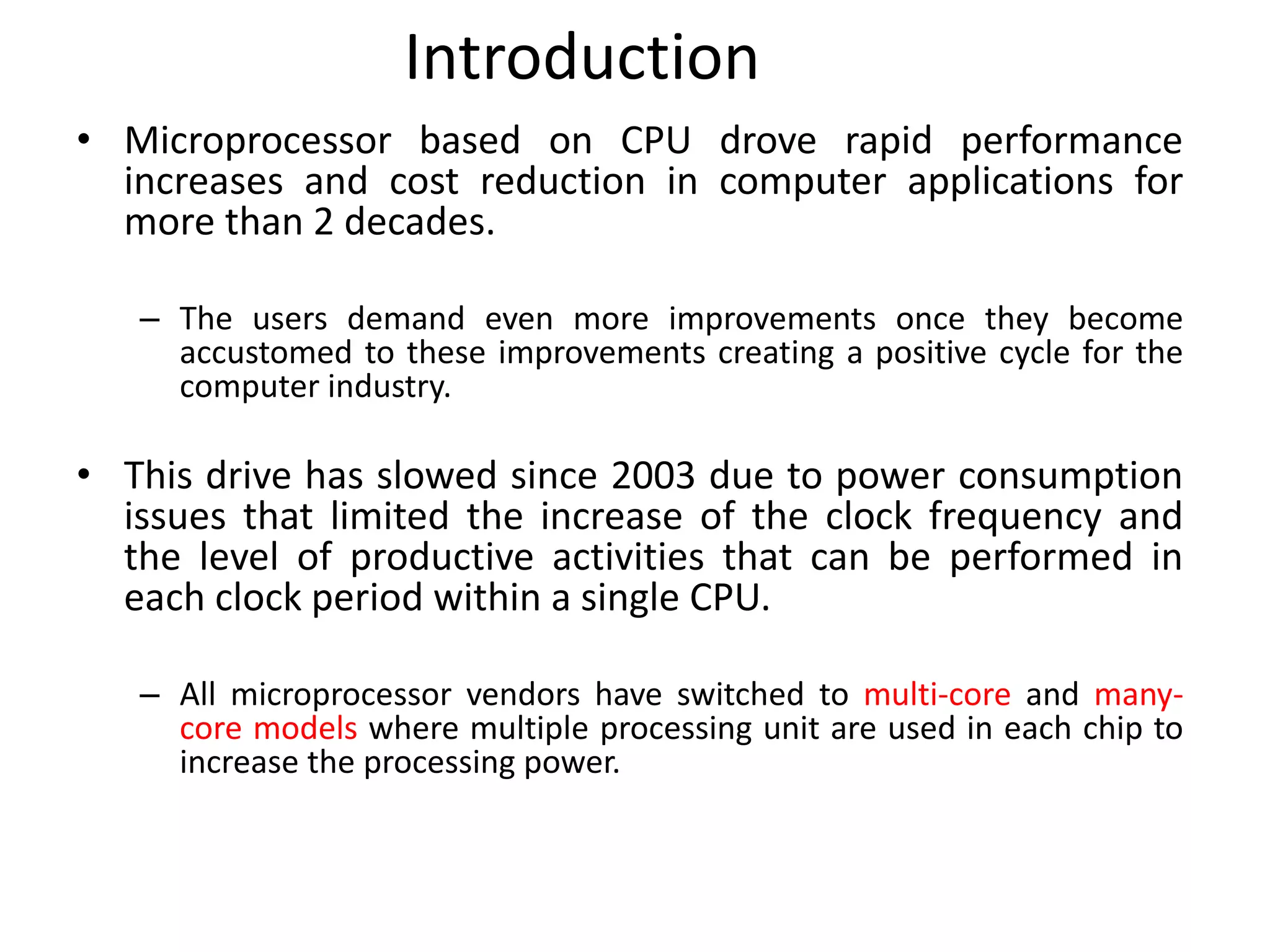

- 16. Introduction • Microprocessor basedon CPU drove rapid performance increases and cost reduction in computer applications for more than 2 decades. – The users demand even more improvements once they become accustomed to these improvements creating a positive cycle for the computer industry. • This drive has slowed since 2003 due to power consumption issues that limited the increase of the clock frequency and the level of productive activities that can be performed in each clock period within a single CPU. – All microprocessor vendors have switched to multi-core and many- core models where multiple processing unit are used in each chip to increase the processing power.

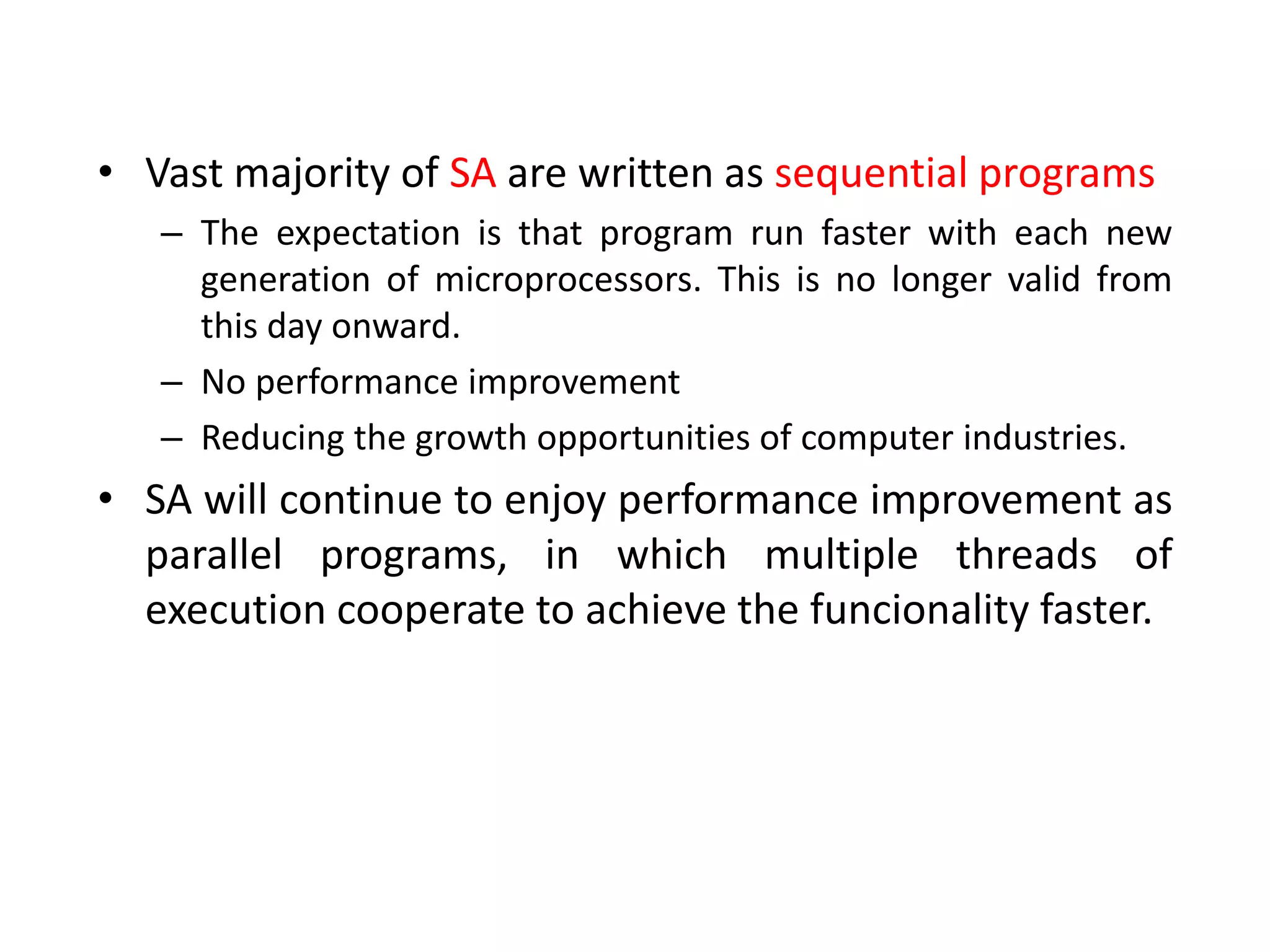

- 17. • Vast majorityof SA are written as sequential programs – The expectation is that program run faster with each new generation of microprocessors. This is no longer valid from this day onward. – No performance improvement – Reducing the growth opportunities of computer industries. • SA will continue to enjoy performance improvement as parallel programs, in which multiple threads of execution cooperate to achieve the funcionality faster.

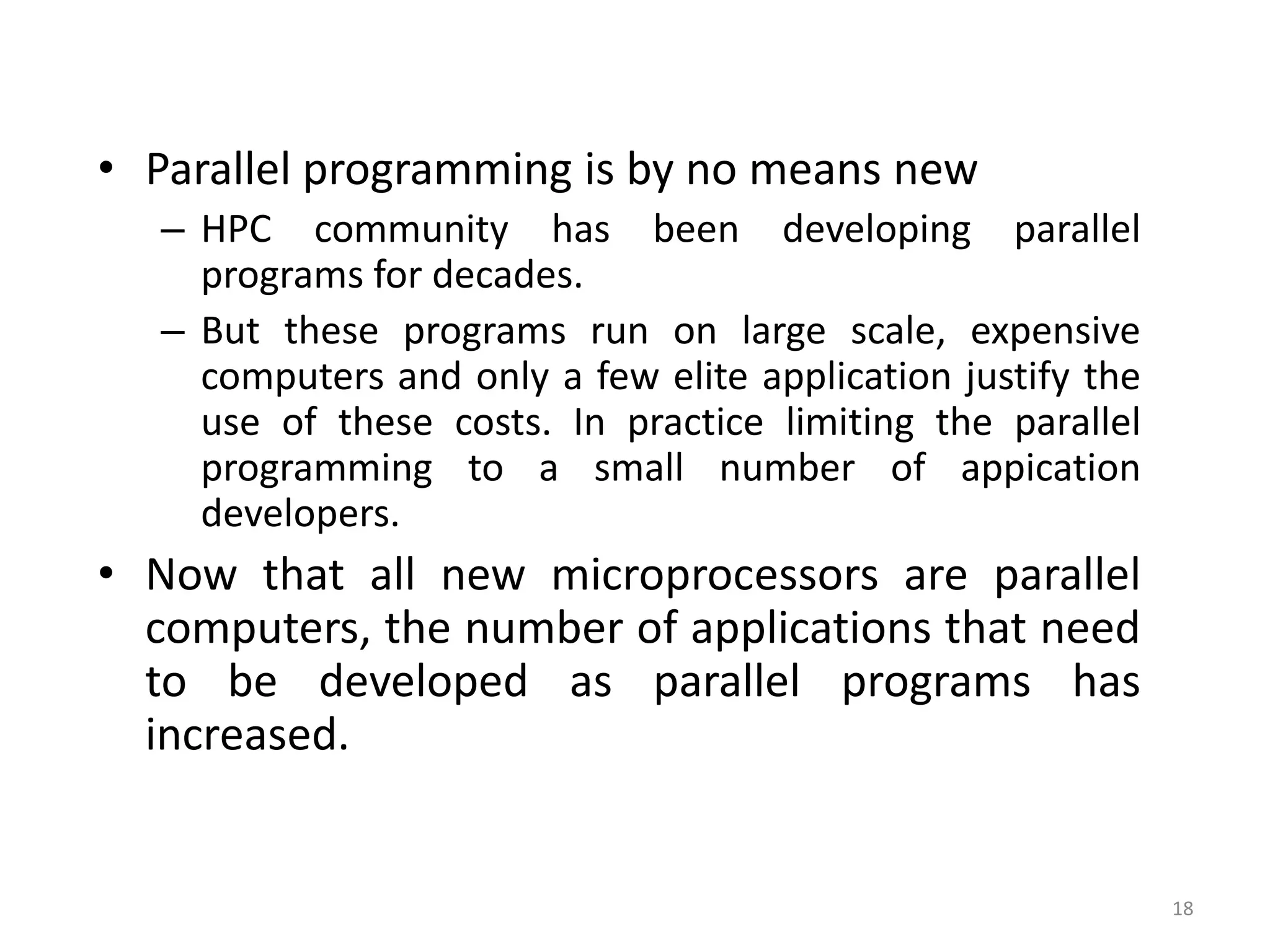

- 18. 18 • Parallel programmingis by no means new – HPC community has been developing parallel programs for decades. – But these programs run on large scale, expensive computers and only a few elite application justify the use of these costs. In practice limiting the parallel programming to a small number of appication developers. • Now that all new microprocessors are parallel computers, the number of applications that need to be developed as parallel programs has increased.

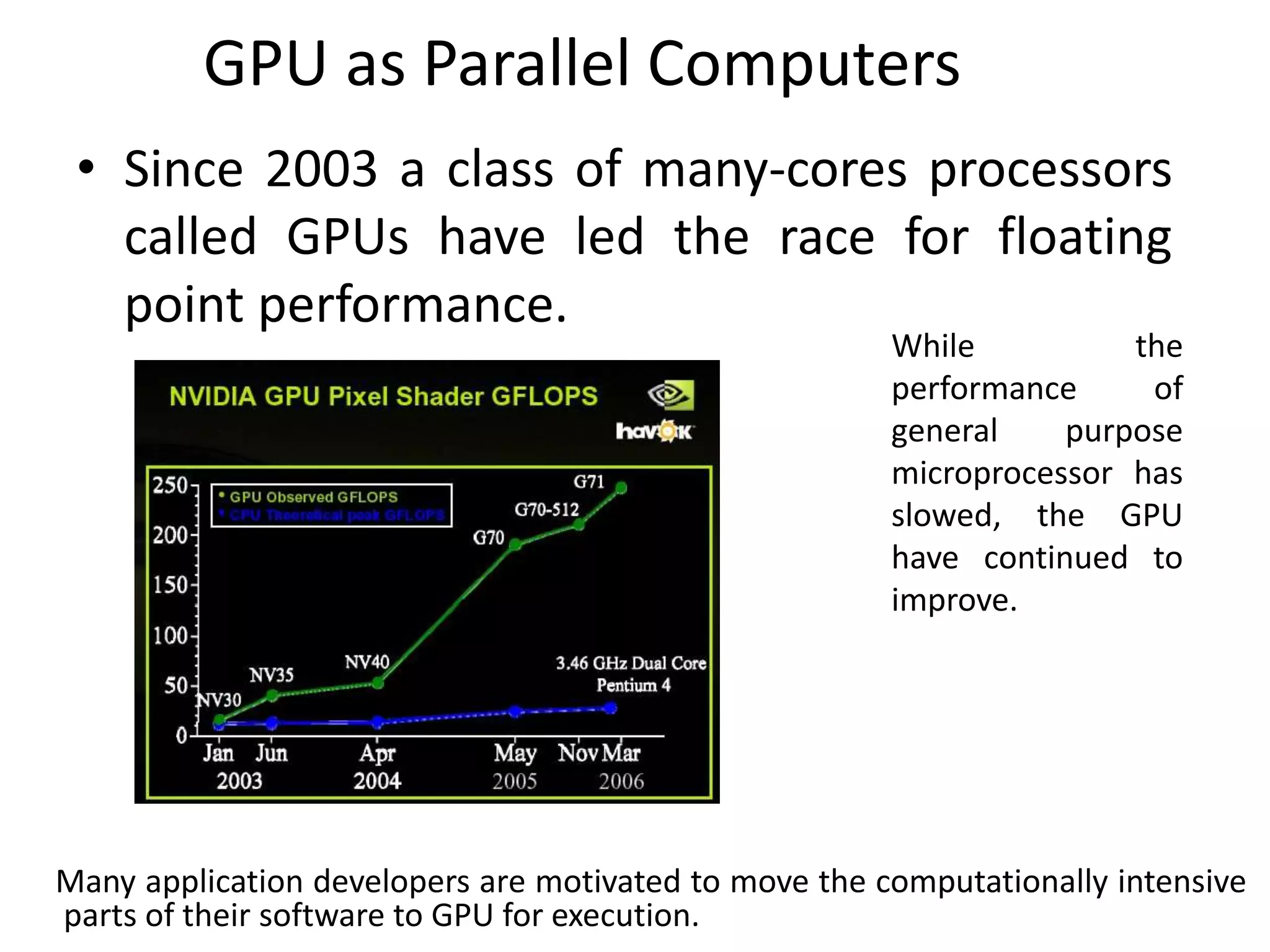

- 19. GPU as ParallelComputers • Since 2003 a class of many-cores processors called GPUs have led the race for floating point performance. While the performance of general purpose microprocessor has slowed, the GPU have continued to improve. Many application developers are motivated to move the computationally intensive parts of their software to GPU for execution.

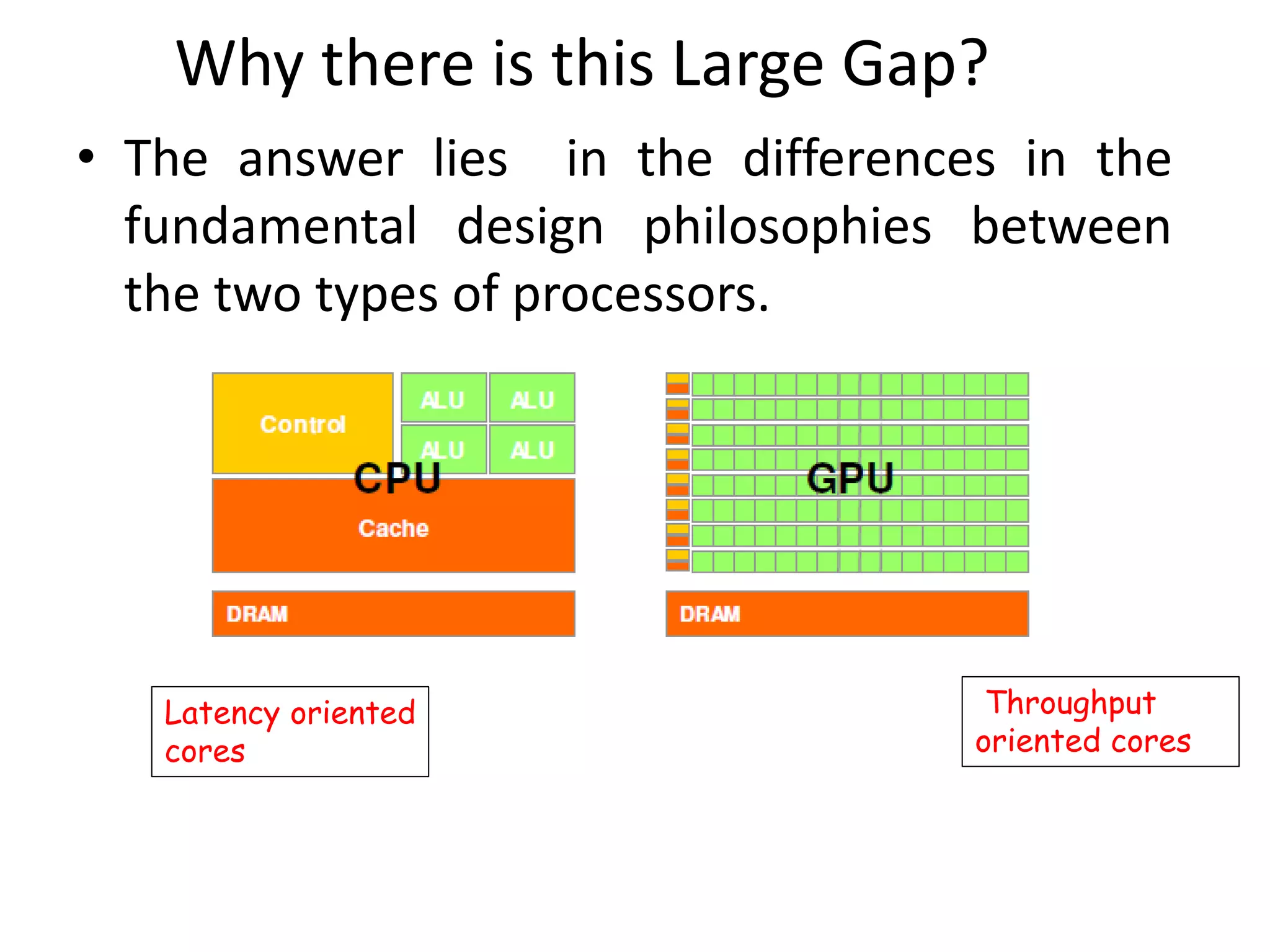

- 20. Why there isthis Large Gap? • The answer lies in the differences in the fundamental design philosophies between the two types of processors. Latency oriented cores Throughput oriented cores

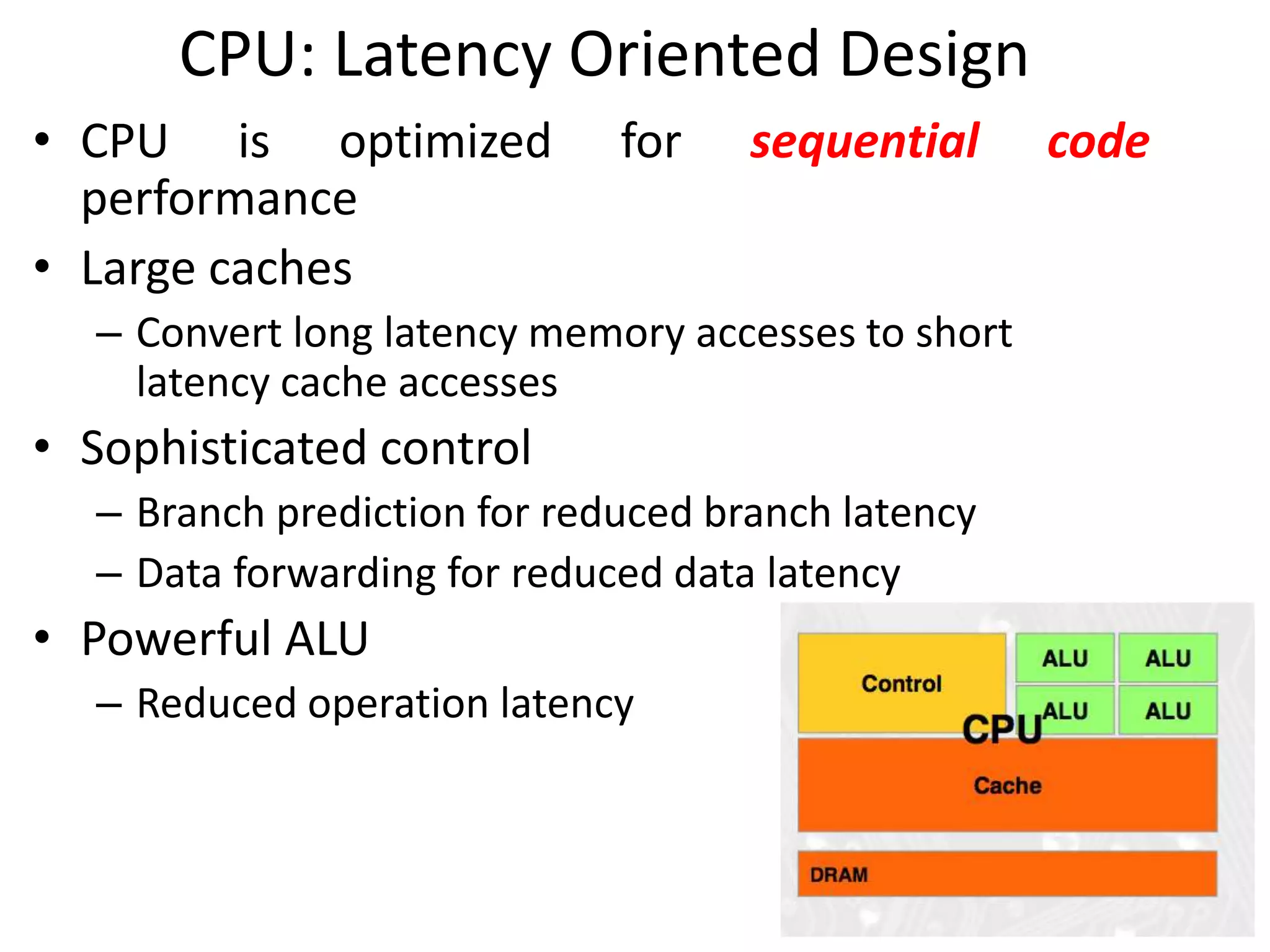

- 21. CPU: Latency OrientedDesign • CPU is optimized for sequential code performance • Large caches – Convert long latency memory accesses to short latency cache accesses • Sophisticated control – Branch prediction for reduced branch latency – Data forwarding for reduced data latency • Powerful ALU – Reduced operation latency

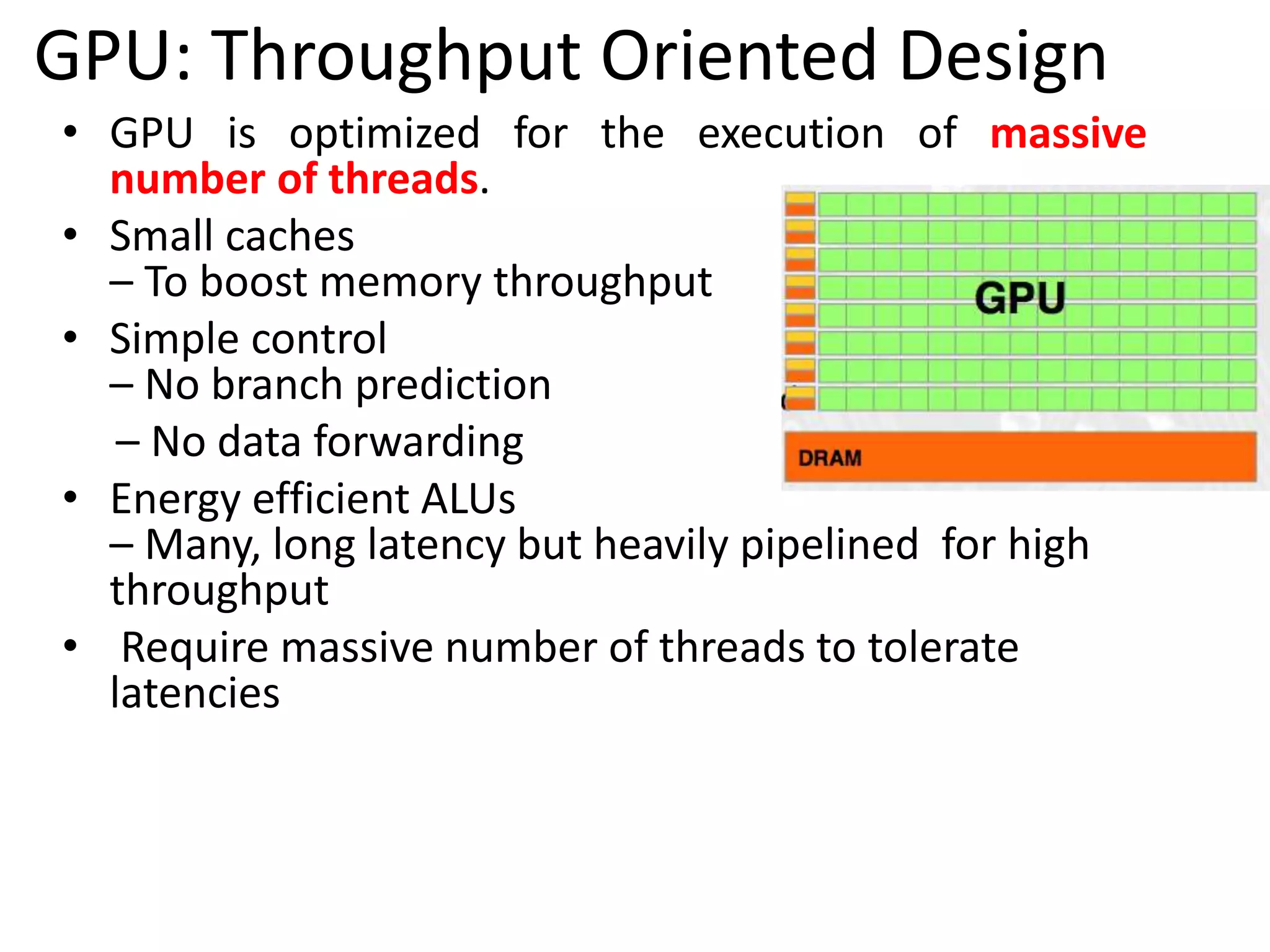

- 22. • GPU isoptimized for the execution of massive number of threads. • Small caches – To boost memory throughput • Simple control – No branch prediction – No data forwarding • Energy efficient ALUs – Many, long latency but heavily pipelined for high throughput • Require massive number of threads to tolerate latencies GPU: Throughput Oriented Design

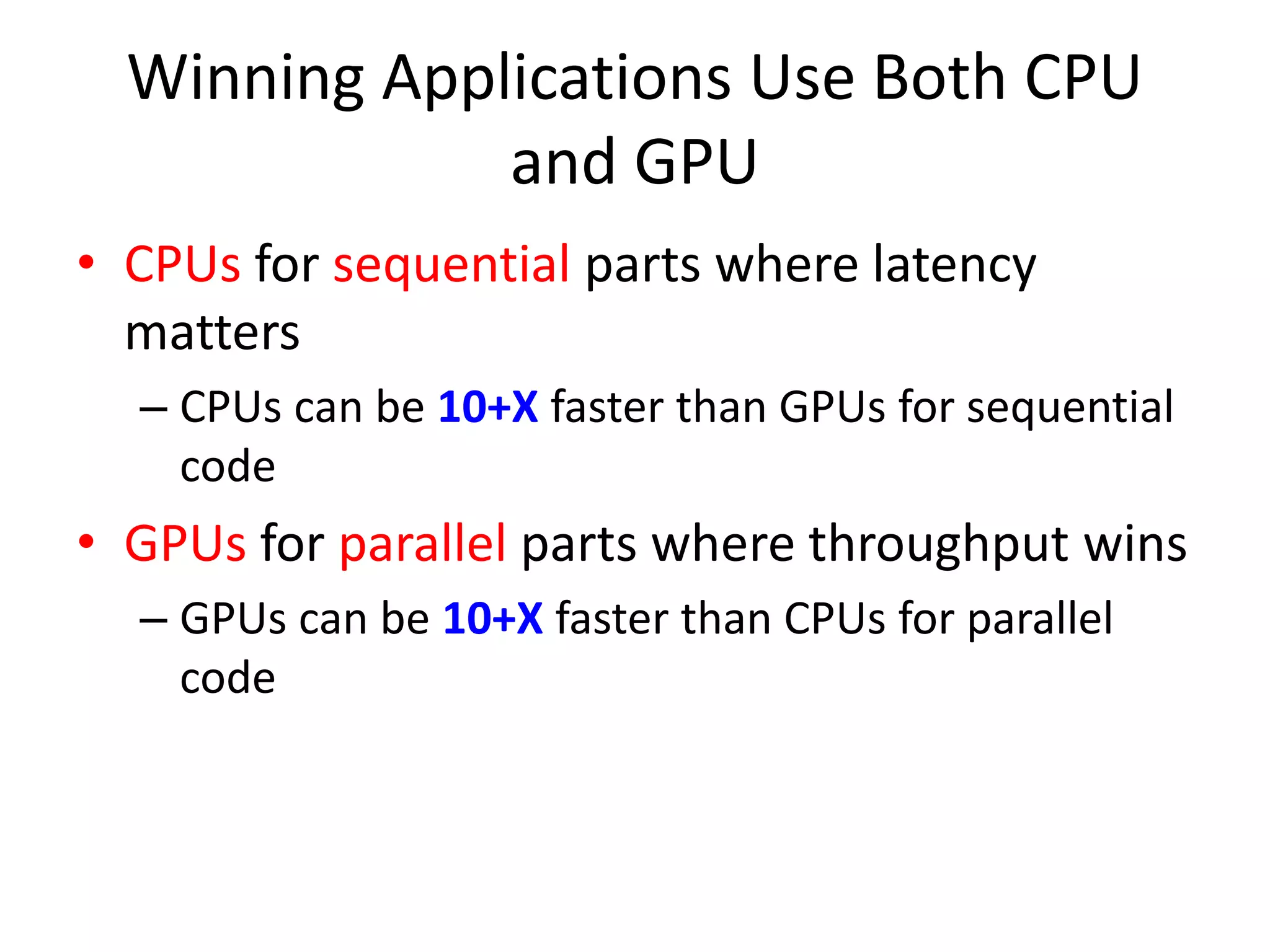

- 23. Winning Applications UseBoth CPU and GPU • CPUs for sequential parts where latency matters – CPUs can be 10+X faster than GPUs for sequential code • GPUs for parallel parts where throughput wins – GPUs can be 10+X faster than CPUs for parallel code

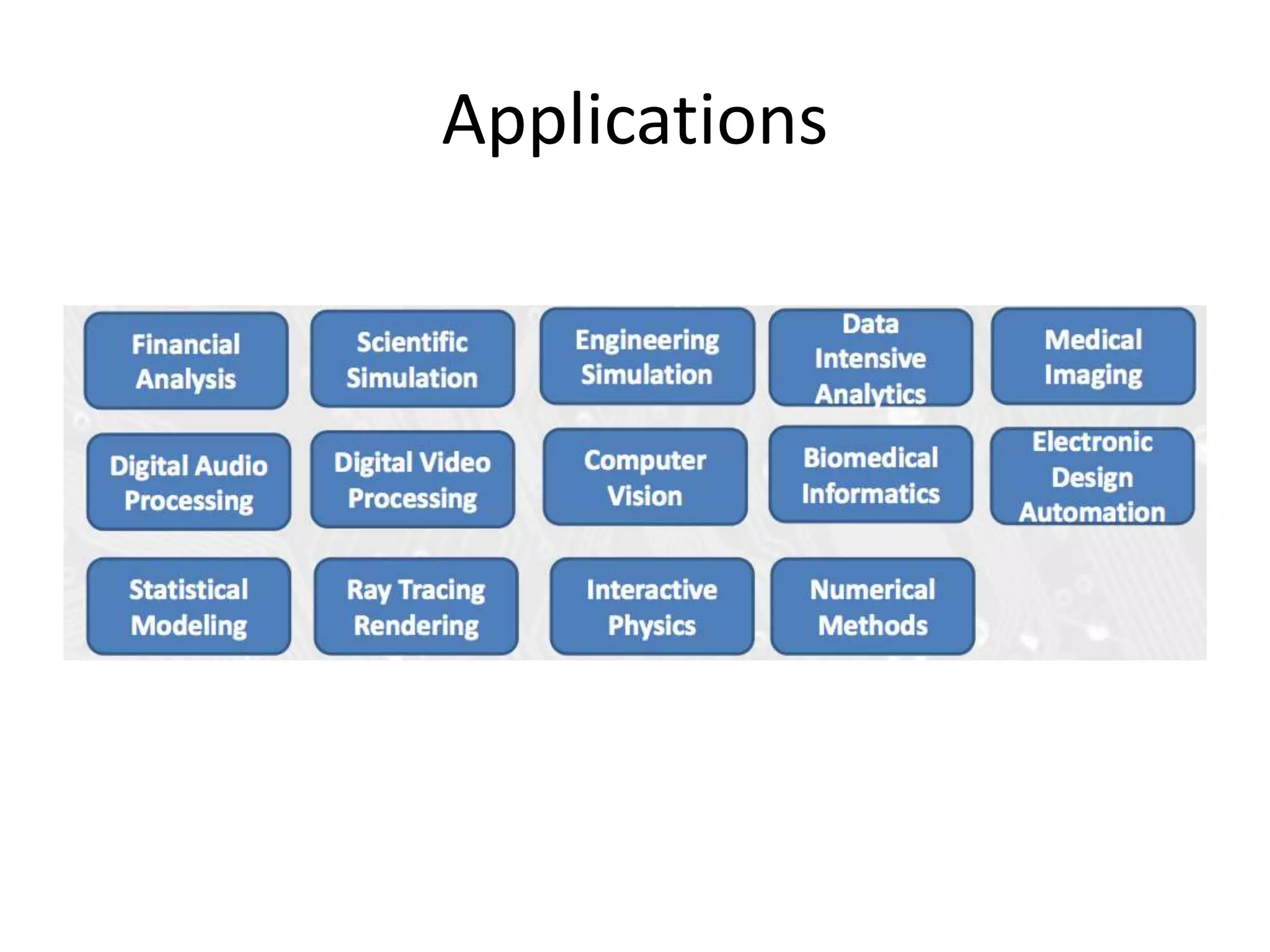

- 24.
Editor's Notes
- #2 Introduction to Parallel Programming
- #3 API-application program interface
- #5 Today worl moving into parallel computing : from mobile device to supercomputers High performace than traditional computers
- #6 Few or more powerful processors –likes the oxen Moden computing products are like the chicken. They have 100’s of processing units harnessing that power requires a different way of thinking than a programming a single processor. In this class I will teach how to program a GPU How to think about programming with parallel lense
- #8 Modern computing products are like chickens: they have hundred of processors that can each run piece of your problem in parallel
- #9 Feature size is : minimum size of a transistor or wire on a chip Feature size in nano meter
- #10 As many years clock speed go up, However the last decade we see that clcok sppedd have essentially remained constant
- #11 Answer?? No Power is the most important factor in modern processor design at all scales From mobile phones u keep in pocket to largest supercomputers
- #12 Ex: municiple counsil or goovernment office This is very frustrating experience. .. You wait in lines a lot .. This is not necessarily the fault in post office though In computer graphics we care more about : Pixels per seconds than the latency of any particular pixel
- #14 Cars can use all the lanes and move along at full speed
- #15 Latency lags throguput
- #16 Hyperthreading: is Intel's proprietary simultaneous multithreading (SMT) implementation used to improve parallelization of computations (doing multiple tasks at once) performed on x86 microprocessors. Advanced Vector Extensions
- #21 CPU: latency for execution instructions GPUs are design throughput in mind : goal is to maximize throughput of instructions . Executing as many instruction possible as same time CPU: optimize latency GPU: maximize throughput
- #22 Sophisticated-complex Reducing latecy of instruction execution Several imprtance design techniques, all oriented towards teducing the latency of execution various instruction Large caches : goal keep data elements as possible in the cache. So when lot of times when we need data we will find the data in cache instead of going to DRAM(dynamic random acess memory which takes long latency . We can get data from chache very quickly in short latency Control Mechanism: Branch prediction logic: reduce branch latency .branches are correspond to the decisions that we make in the source code.and whenever we make a decision sometimes , you know we may take a long time for the data to be available and so that we can make those branch decisions. So that branch prediction logic allows the hardware to immediately predicts whats going to execute after the branch instruction and reduce latency or effective latency for branch instructions Data forwarding: immediately make the output results available from one arithmetic unit or memory access unit to another execution unit Wheneevr a execution unit generates a result . May take some time to go back to the register file and then come out of the register file for use by another operation. But with data forwarfing we immediately use the result produced by one instruction. So that we can be used by another instruction in the immediate next clcok cycle Powerful ALU:Hardware produce results very qucikly eX: floating point multiplication , when we use a lot of hardware transitor to implemet a multiplication array . We will be able to produce multiplication results in very small number of clock cycles Whereas if we use less hardware , we may have to go through a long sequnce of clock cycles before we can produce the floating point multiplication results
- #23 Small Caches: this caches and not mean to keep data unchecked for a long time to reduce latency rather these caches are actually design as staging consolidation , you know when stations where the memory axis is made by a large number of parallel threads could be consolidated into the fewer memory accesses.so that you can reduce the pressure or trafic to DRAM system . Simple control: so these instruction take long time to execute .
- #25 Mobile phones to super computers
