![What happens when a client invokes executeQuery() on a view object instance?
When a client invokes executeQuery() on the view object the following methods defined on the view object are engaged at various stages of
query execution:
• ViewObjectImpl::executeQuery(): This method is invoked when a client calls executeQuery() on the view object. This method
in turn engages the default row set for the view object in the query execution cycle, and delegates the call for further processing.
• ViewObjectImpl::prepareRowSetForQuery(ViewRowSetImpl vrs): This method prepares the row set for query
execution. If you need to assign bind variable values or modify the WHERE clause conditionally, just before executing the query for a
specific row set, then this is the method where you can hook your custom code. This method also gets executed before the count query
methods such as getQueryHitCount()and getCappedQueryHitCount(). The count queries are typically used by UI components such as
tables or tree tables to size their scroll bar.
• ViewObjectImpl::prepareVOForQuery(): This method prepares the view object for build queries. If you need to assign bind
variable values or modify the WHERE clause conditionally, just before executing the query for a view object, then this is the method where
you can hook your custom code. This method is called from prepareRowSetForQuery(). Logically, you will override this method if you want
to alter the query or to set bind variable values at the view object level, which needs to be reflected in all containing row sets.
• ViewObjectImpl::executeQueryForCollection(Object qc, Object[] params, int noUserParams): This
method is invoked right before the row set starts executing the query. If this method is overridden, the custom logic will be applied to all
row sets owned by this view object. In contrast, if the user overrides the view object's executeQuery(), then the custom logic in it applies
only when the user calls executeQuery() on the view object. In other words, if a client calls executeQuery() on secondary row sets, then the
framework will not engage the executeQuery() method during query executions.
• ViewObjectImpl::buildQuery (int noUserParams, boolean forRowCount): This method builds the native SQL
statement. A view object's query statement is normally built from various clauses, such as SELECT, FROM, WHERE, and ORDER BY that you
set for a view object. However, an application can bypass this mechanism either by supplying a user defined query at design time and
selecting an expert mode for the view object or by calling setQuery() on a view object instance at runtime. While generating the query, the
framework also provides database specific interpretation for range paging, view criteria, and effective dated attributes.
• ViewObjectImpl::bindParametersForCollection(QueryCollection qc, Object[] params,
PreparedStatement stm): This method binds parameter values for the SQL statement at runtime. This includes bind parameters
appearing in the query statement as well as the range paging parameters supplied by the framework.
• ViewObjectImpl::setResultSetForCollection(Object qc, ResultSet rs): This method is responsible for storing
results of query execution for further processing. By default, the result set is stored in the corresponding query collection object.
• ViewObjectImpl::hasNextForCollection(Object qc): This method is invoked when a client starts to iterate over the rows
set by calling hasNext() on the row set iterator. This method returns true if there are more rows in the query result.
• ViewObjectImpl::createRowFromResultSet(Object iqc, ResultSet resultSet): This method creates a view row
instance from the query result. The new view rows are created when the client traverses through the result set.
• ViewObjectImpl::releaseUserDataForCollection (Object qc, Object data): This is a callback method which
can be overridden to add some resource cleanup. Runtime invokes this method when the query collection object for the row set is garbage
collected.
901
.](https://image.slidesharecdn.com/batadfstudyguide-student-220910171351-7a041ad5/75/Oracle-ADF-Tutorial-Training-Study-Guide-916-2048.jpg)

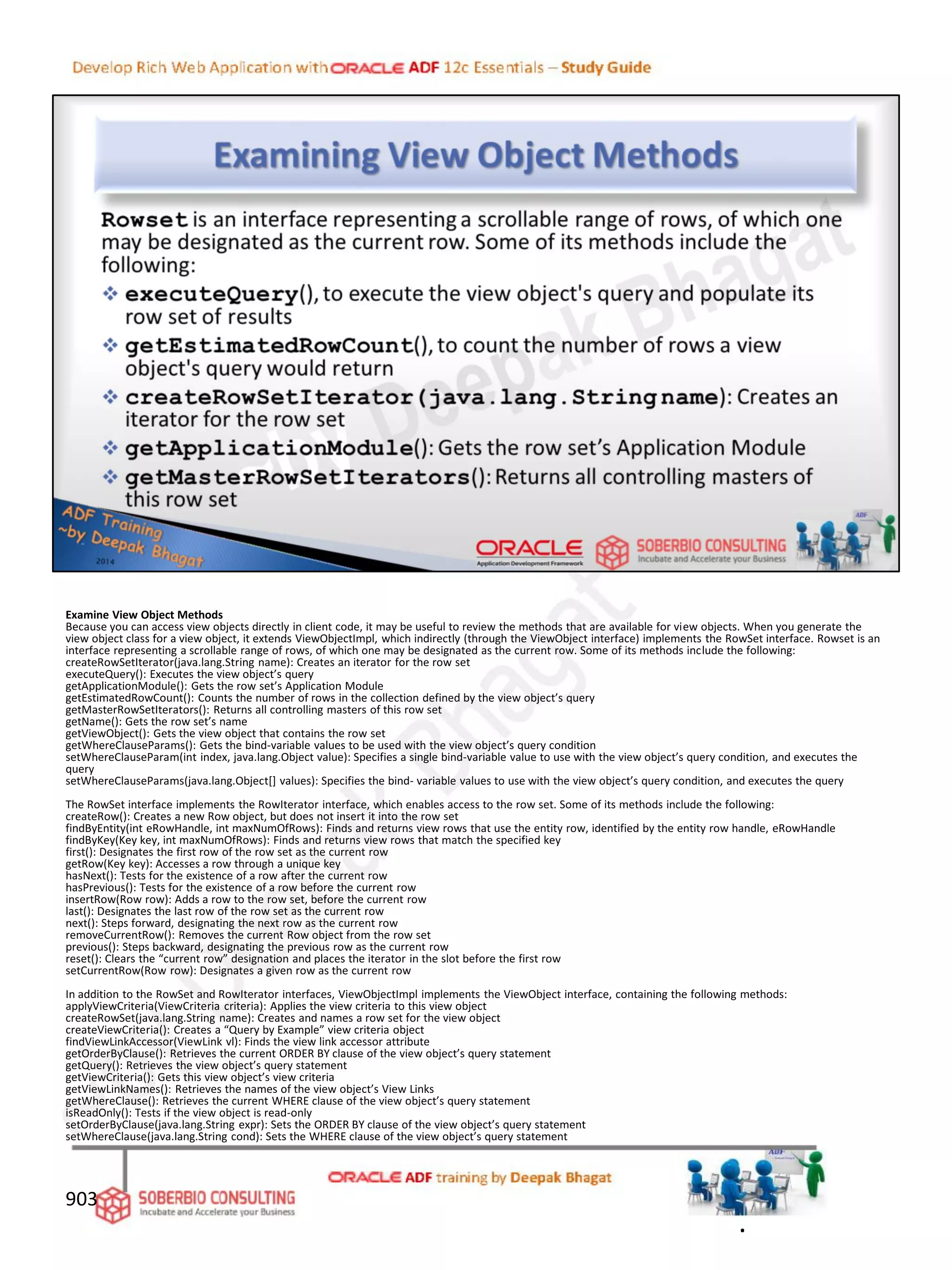

![Examine View Object Methods
Because you can access view objects directly in client code, it may be useful to review the methods that are available for view objects. When you generate the
view object class for a view object, it extends ViewObjectImpl, which indirectly (through the ViewObject interface) implements the RowSet interface. Rowset is an
interface representing a scrollable range of rows, of which one may be designated as the current row. Some of its methods include the following:
createRowSetIterator(java.lang.String name): Creates an iterator for the row set
executeQuery(): Executes the view object’s query
getApplicationModule(): Gets the row set’s Application Module
getEstimatedRowCount(): Counts the number of rows in the collection defined by the view object’s query
getMasterRowSetIterators(): Returns all controlling masters of this row set
getName(): Gets the row set’s name
getViewObject(): Gets the view object that contains the row set
getWhereClauseParams(): Gets the bind-variable values to be used with the view object’s query condition
setWhereClauseParam(int index, java.lang.Object value): Specifies a single bind-variable value to use with the view object’s query condition, and executes the
query
setWhereClauseParams(java.lang.Object[] values): Specifies the bind- variable values to use with the view object’s query condition, and executes the query
The RowSet interface implements the RowIterator interface, which enables access to the row set. Some of its methods include the following:
createRow(): Creates a new Row object, but does not insert it into the row set
findByEntity(int eRowHandle, int maxNumOfRows): Finds and returns view rows that use the entity row, identified by the entity row handle, eRowHandle
findByKey(Key key, int maxNumOfRows): Finds and returns view rows that match the specified key
first(): Designates the first row of the row set as the current row
getRow(Key key): Accesses a row through a unique key
hasNext(): Tests for the existence of a row after the current row
hasPrevious(): Tests for the existence of a row before the current row
insertRow(Row row): Adds a row to the row set, before the current row
last(): Designates the last row of the row set as the current row
next(): Steps forward, designating the next row as the current row
removeCurrentRow(): Removes the current Row object from the row set
previous(): Steps backward, designating the previous row as the current row
reset(): Clears the “current row” designation and places the iterator in the slot before the first row
setCurrentRow(Row row): Designates a given row as the current row
In addition to the RowSet and RowIterator interfaces, ViewObjectImpl implements the ViewObject interface, containing the following methods:
applyViewCriteria(ViewCriteria criteria): Applies the view criteria to this view object
createRowSet(java.lang.String name): Creates and names a row set for the view object
createViewCriteria(): Creates a “Query by Example” view criteria object
findViewLinkAccessor(ViewLink vl): Finds the view link accessor attribute
getOrderByClause(): Retrieves the current ORDER BY clause of the view object’s query statement
getQuery(): Retrieves the view object’s query statement
getViewCriteria(): Gets this view object’s view criteria
getViewLinkNames(): Retrieves the names of the view object’s View Links
getWhereClause(): Retrieves the current WHERE clause of the view object’s query statement
isReadOnly(): Tests if the view object is read-only
setOrderByClause(java.lang.String expr): Sets the ORDER BY clause of the view object’s query statement
setWhereClause(java.lang.String cond): Sets the WHERE clause of the view object’s query statement
903
.](https://image.slidesharecdn.com/batadfstudyguide-student-220910171351-7a041ad5/75/Oracle-ADF-Tutorial-Training-Study-Guide-918-2048.jpg)
![What happens when a client invokes executeQuery() on a view object instance?
When a client invokes executeQuery() on the view object the following methods defined on the view object are engaged at various stages of
query execution:
• ViewObjectImpl::executeQuery(): This method is invoked when a client calls executeQuery() on the view object. This method
in turn engages the default row set for the view object in the query execution cycle, and delegates the call for further processing.
• ViewObjectImpl::prepareRowSetForQuery(ViewRowSetImpl vrs): This method prepares the row set for query
execution. If you need to assign bind variable values or modify the WHERE clause conditionally, just before executing the query for a
specific row set, then this is the method where you can hook your custom code. This method also gets executed before the count query
methods such as getQueryHitCount()and getCappedQueryHitCount(). The count queries are typically used by UI components such as
tables or tree tables to size their scroll bar.
• ViewObjectImpl::prepareVOForQuery(): This method prepares the view object for build queries. If you need to assign bind
variable values or modify the WHERE clause conditionally, just before executing the query for a view object, then this is the method where
you can hook your custom code. This method is called from prepareRowSetForQuery(). Logically, you will override this method if you want
to alter the query or to set bind variable values at the view object level, which needs to be reflected in all containing row sets.
• ViewObjectImpl::executeQueryForCollection(Object qc, Object[] params, int noUserParams): This
method is invoked right before the row set starts executing the query. If this method is overridden, the custom logic will be applied to all
row sets owned by this view object. In contrast, if the user overrides the view object's executeQuery(), then the custom logic in it applies
only when the user calls executeQuery() on the view object. In other words, if a client calls executeQuery() on secondary row sets, then the
framework will not engage the executeQuery() method during query executions.
• ViewObjectImpl::buildQuery (int noUserParams, boolean forRowCount): This method builds the native SQL
statement. A view object's query statement is normally built from various clauses, such as SELECT, FROM, WHERE, and ORDER BY that you
set for a view object. However, an application can bypass this mechanism either by supplying a user defined query at design time and
selecting an expert mode for the view object or by calling setQuery() on a view object instance at runtime. While generating the query, the
framework also provides database specific interpretation for range paging, view criteria, and effective dated attributes.
• ViewObjectImpl::bindParametersForCollection(QueryCollection qc, Object[] params,
PreparedStatement stm): This method binds parameter values for the SQL statement at runtime. This includes bind parameters
appearing in the query statement as well as the range paging parameters supplied by the framework.
• ViewObjectImpl::setResultSetForCollection(Object qc, ResultSet rs): This method is responsible for storing
results of query execution for further processing. By default, the result set is stored in the corresponding query collection object.
• ViewObjectImpl::hasNextForCollection(Object qc): This method is invoked when a client starts to iterate over the rows
set by calling hasNext() on the row set iterator. This method returns true if there are more rows in the query result.
• ViewObjectImpl::createRowFromResultSet(Object iqc, ResultSet resultSet): This method creates a view row
instance from the query result. The new view rows are created when the client traverses through the result set.
• ViewObjectImpl::releaseUserDataForCollection (Object qc, Object data): This is a callback method which
can be overridden to add some resource cleanup. Runtime invokes this method when the query collection object for the row set is garbage
collected.
901
.](https://crownmelresort.com/image.slidesharecdn.com/batadfstudyguide-student-220910171351-7a041ad5/75/Oracle-ADF-Tutorial-Training-Study-Guide-916-2048.jpg)
![Examine View Object Methods
Because you can access view objects directly in client code, it may be useful to review the methods that are available for view objects. When you generate the
view object class for a view object, it extends ViewObjectImpl, which indirectly (through the ViewObject interface) implements the RowSet interface. Rowset is an
interface representing a scrollable range of rows, of which one may be designated as the current row. Some of its methods include the following:
createRowSetIterator(java.lang.String name): Creates an iterator for the row set
executeQuery(): Executes the view object’s query
getApplicationModule(): Gets the row set’s Application Module
getEstimatedRowCount(): Counts the number of rows in the collection defined by the view object’s query
getMasterRowSetIterators(): Returns all controlling masters of this row set
getName(): Gets the row set’s name
getViewObject(): Gets the view object that contains the row set
getWhereClauseParams(): Gets the bind-variable values to be used with the view object’s query condition
setWhereClauseParam(int index, java.lang.Object value): Specifies a single bind-variable value to use with the view object’s query condition, and executes the
query
setWhereClauseParams(java.lang.Object[] values): Specifies the bind- variable values to use with the view object’s query condition, and executes the query
The RowSet interface implements the RowIterator interface, which enables access to the row set. Some of its methods include the following:
createRow(): Creates a new Row object, but does not insert it into the row set
findByEntity(int eRowHandle, int maxNumOfRows): Finds and returns view rows that use the entity row, identified by the entity row handle, eRowHandle
findByKey(Key key, int maxNumOfRows): Finds and returns view rows that match the specified key
first(): Designates the first row of the row set as the current row
getRow(Key key): Accesses a row through a unique key
hasNext(): Tests for the existence of a row after the current row
hasPrevious(): Tests for the existence of a row before the current row
insertRow(Row row): Adds a row to the row set, before the current row
last(): Designates the last row of the row set as the current row
next(): Steps forward, designating the next row as the current row
removeCurrentRow(): Removes the current Row object from the row set
previous(): Steps backward, designating the previous row as the current row
reset(): Clears the “current row” designation and places the iterator in the slot before the first row
setCurrentRow(Row row): Designates a given row as the current row
In addition to the RowSet and RowIterator interfaces, ViewObjectImpl implements the ViewObject interface, containing the following methods:
applyViewCriteria(ViewCriteria criteria): Applies the view criteria to this view object
createRowSet(java.lang.String name): Creates and names a row set for the view object
createViewCriteria(): Creates a “Query by Example” view criteria object
findViewLinkAccessor(ViewLink vl): Finds the view link accessor attribute
getOrderByClause(): Retrieves the current ORDER BY clause of the view object’s query statement
getQuery(): Retrieves the view object’s query statement
getViewCriteria(): Gets this view object’s view criteria
getViewLinkNames(): Retrieves the names of the view object’s View Links
getWhereClause(): Retrieves the current WHERE clause of the view object’s query statement
isReadOnly(): Tests if the view object is read-only
setOrderByClause(java.lang.String expr): Sets the ORDER BY clause of the view object’s query statement
setWhereClause(java.lang.String cond): Sets the WHERE clause of the view object’s query statement
903
.](https://crownmelresort.com/image.slidesharecdn.com/batadfstudyguide-student-220910171351-7a041ad5/75/Oracle-ADF-Tutorial-Training-Study-Guide-918-2048.jpg)
Uploaded byDeepak Bhagat
Oracle ADF Tutorial/Training Study Guide
The document is a comprehensive study guide authored by Deepak Bhagat for developing rich web applications using Oracle ADF 12c Essentials. It covers various aspects of ADF, including architecture, development tools, business components, data persistence, user interface technologies, and best practices for application development. The guide provides detailed sections on building, customizing, and validating applications, making it a valuable resource for ADF developers.
More Related Content
Similar to Oracle ADF Tutorial/Training Study Guide
Oracle ADF Tutorial/Training Study Guide
- 1. Study Guide Author: DeepakBhagat Fusion Functional Consultant, Solution Architect & ADF Corporate Trainer Develop Rich Web Applications with ADF 12c Essentials Free Downloadable Course material: GDrive Link Deepak Bhagat’s Oracle ADF Blogs
- 2. Develop Rich WebApplication with ADF 12c Essentials – Study Guide i Table of Contents PART – I: Introduction and Overview 1. Overview of Fusion Middleware and ADF …………………………..….. 2 1.1. Fusion Middleware (FMW) Architecture 4 1.1.1. IT System Runtime Architecture 1.1.2. Fusion Middleware (FMW) Architecture 1.2. Model View Controller (MVC) Architecture 7 1.2.1. Client-Server Architecture 1.2.2. Model View Controller (MVC) Architecture 1.2.3. How does ADF fall in MVC architecture? 1.3. ADF MVC and Application Architecture 8 1.4. Tech-Stack of Application Development Framework (ADF) 8 1.5. Functionalities of ADF 10 1.6. Challenges Faced when Building J2EE Applications 14 1.7. Overview, Features and Key Benefits of ADF 15 1.8. Advantages of ADF over J2EE 21 1.9. Business Benefits of ADF Over Other Frameworks 25 2. Understanding Development Tool: JDeveloper …………………….. 27 2.1. Overview of Development Tool: JDeveloper 29 2.1.1. Overview of JDeveloper 2.1.2. Starting JDeveloper 2.1.3. Selecting Developer Role 2.2. Configuring Development Environment (IDE) Preferences 35 2.3. Exploring and Working with Windows of JDeveloper 36 2.4. Building an ADF Application, Project and Database Connection 48 2.5. Refactoring JDeveloper Artifacts 54 2.6. Advantages of JDeveloper 55 3. Modeling Database Schema ……………………………………………… 60 3.1. Discussing HR System ER Diagram 62 3.2. Examining Training Hands-on Lab Application – Lab Solution 22 63 3.3. ADF Business Rules in PL/SQL 78 3.4. Controlling Entity Posting Order 80 ADF training by Deepak Bhagat
- 3. ii PART – II:ADF Business Components 4. Building Business Service with ADF Business Components ……... 82 4.1. Tech-stack of ADF Business Components (BC) 85 4.2. Types of Objects of ADF Business Components 86 4.2.1. Understanding Entity Objects 4.2.2. Understanding View Objects 4.2.3. Understanding Application Module 4.3. Functionality of ADF Business Components 88 4.4. Creating and Examining ADF Business Components 89 4.5. Examining Configuration Files of ADF Business Components 92 4.6. Testing with ADF Model Tester 96 4.7. Exposing ADF Business Components as Business Service 108 5. Persisting Data using Entity Objects ………………………………… 110 5.1. Tech-stack of Entity Objects (EO) 112 5.2. Persisting Data using Entity Objects 113 5.3. Entity Objects Attribute Mapping 114 5.4. Creating Entity Objects from Tables, Views or Synonyms 118 5.5. Examining Entity Objects and their Attributes 119 5.6. Synchronizing an EO with Table Structure Changes 128 5.7. Entity Association Types 130 6. Querying Data using View Objects …………………………………… 134 6.1. Tech-stack of View Objects (VO) 136 6.2. Types of View Objects 139 6.3. Read Only View Objects based on SQL Query 140 6.4. Updatable View Objects based on Single Entity Objects 145 6.5. Join View Objects based on Multiple Entity Objects 150 6.5.1. Join View Objects based on Referenced Entity Objects 6.5.2. Join View Objects based on Updatable Entity Objects 6.6. Internationalization of Business Services 182 6.7. Read Only View Objects based on Static List 183 6.8. Features of View Objects 186 6.9. Examining Attribute Settings 187 6.10. Master-Detail relationships using View Links 195 6.11. Compare Join View Objects and View Links 200 6.12. Testing View Objects with ADF Model Tester 201 ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 4. iii 7. Exposing BusinessService through Application Module ……….. 203 7.1. Tech-stack of Application Module (AM) 205 7.2. Ingredients of an AM 206 7.3. Features of AM 208 7.4. Simple and Complex Application Module Data Model 210 7.5. Managing ADF Business Components Transaction by AM 214 7.6. Nested Application Module 215 7.7. Shared Application Module 218 7.8. Application Module Pooling 219 7.9. Handling Application State 221 7.10. Exposing Business Services with ADF Model 224 7.11. Estimating the Size of an Application Module 225 7.12. Creating and Examining an Application Module and Nested AM 226 8. Declaratively Customizing Business Services ………..……………. 228 8.1. Introducing and Using Groovy in ADF 230 8.1.1. Introducing Groovy 8.1.2. Groovy Syntax in ADF 8.1.3. References for Groovy 8.2. Customizing Entity Object’s Default Behavior 237 8.2.1. Customize Attribute Control Hints 8.2.2. Alternate Key Entity Constraints 8.2.3. Synchronize Columns with DBSequence 8.3. Customizing View Object’s Default Behavior 245 8.3.1. Customizing Attribute Control Hints 8.3.2. Performing Calculations: Add Transient Attribute 8.3.3. Projection: Restricting the Columns Retrieved by a Query 8.3.4. Sorting: Reordering Using ORDER BY Clause 8.3.5. Selection: Using WHERE Clause to Restrict the Rows 8.3.6. Selection: Using Parameterized WHERE Clause 8.3.7. Selection: Using Structured Where Clause: View Criteria 8.3.8. Selection: Role of View Criteria in Search 8.3.9. Defining View Accessors (LOV) 8.3.10. Using a List of Values (LOV) 8.3.11. Retaining and Reusing a View Link Accessor Row Set 8.4. Customizing Application Module’s Default Behavior 256 8.4.1. Modifying the Locking Behavior of an Application Module ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 5. iv 9. Validating BusinessServices …………………………………............ 260 9.1. Validation Options for ADF Business Component Applications 262 9.2. Categories of Validations in ADF Business Components 263 9.3. Declarative Validation: Built-in Rules 266 9.3.1. Collection Validator 9.3.2. Unique Key Validator 9.3.3. Compare Validator 9.3.4. Key Exists Validator 9.3.5. Length Validator 9.3.6. List Validator 9.3.7. Range Validator 9.3.8. Regular Expression Validator 9.3.9. Script Expression Validator 9.4. Declarative Validation: Custom Rules: Method Validator 283 9.5. Programmatic Validation: Global Rules 285 9.6. Global Validation Rule: Creating, Examining and Modifying 287 9.7. Domains: Pre-validated Custom Datatypes 290 9.8. Triggering Validation Execution 294 9.9. Failure Handling with Error Message 296 9.10. Supporting Groovy Expressions for Validations 300 9.11. Key Guidelines for using Validation 301 PART – III: ADF Faces 10. Introducing User Interface Technologies ………………………….. 303 10.1. Evolution of J2EE Web UIs 305 10.2. JSF vs. Traditional JSP 312 10.3. Tech-Stack of JSF 315 10.4. Functionalities/ Concepts of JSF 319 10.5. JSF Functionality: JSF Components 321 10.5.1. Components: Tag Libraries 10.5.2. Components: Renderer Kits 10.5.3. Components: Renderers 10.6. JSF Functionality: Navigation using JSF Controller 330 10.7. JSF Functionality: Managed Beans 334 10.8. JSF Functionality: JSF Life Cycle 336 10.9. Features of JSF 340 ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide

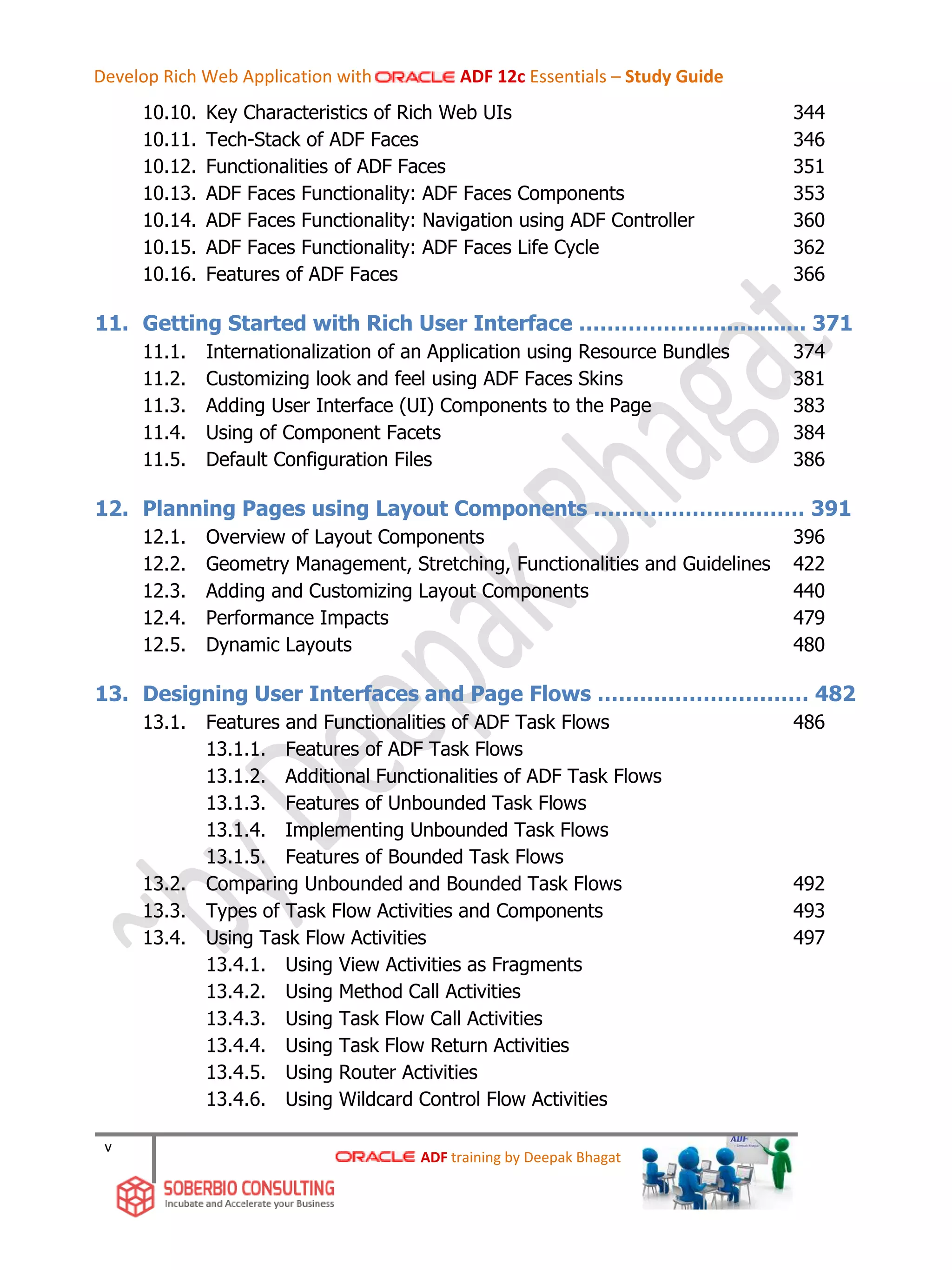

- 6. v 10.10. Key Characteristicsof Rich Web UIs 344 10.11. Tech-Stack of ADF Faces 346 10.12. Functionalities of ADF Faces 351 10.13. ADF Faces Functionality: ADF Faces Components 353 10.14. ADF Faces Functionality: Navigation using ADF Controller 360 10.15. ADF Faces Functionality: ADF Faces Life Cycle 362 10.16. Features of ADF Faces 366 11. Getting Started with Rich User Interface …………………............ 371 11.1. Internationalization of an Application using Resource Bundles 374 11.2. Customizing look and feel using ADF Faces Skins 381 11.3. Adding User Interface (UI) Components to the Page 383 11.4. Using of Component Facets 384 11.5. Default Configuration Files 386 12. Planning Pages using Layout Components ………………………… 391 12.1. Overview of Layout Components 396 12.2. Geometry Management, Stretching, Functionalities and Guidelines 422 12.3. Adding and Customizing Layout Components 440 12.4. Performance Impacts 479 12.5. Dynamic Layouts 480 13. Designing User Interfaces and Page Flows ………………………… 482 13.1. Features and Functionalities of ADF Task Flows 486 13.1.1. Features of ADF Task Flows 13.1.2. Additional Functionalities of ADF Task Flows 13.1.3. Features of Unbounded Task Flows 13.1.4. Implementing Unbounded Task Flows 13.1.5. Features of Bounded Task Flows 13.2. Comparing Unbounded and Bounded Task Flows 492 13.3. Types of Task Flow Activities and Components 493 13.4. Using Task Flow Activities 497 13.4.1. Using View Activities as Fragments 13.4.2. Using Method Call Activities 13.4.3. Using Task Flow Call Activities 13.4.4. Using Task Flow Return Activities 13.4.5. Using Router Activities 13.4.6. Using Wildcard Control Flow Activities ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 7. vi 13.4.7. Using ControlFlow Case Activities 13.4.8. Using URL View Activities 13.4.9. Using Parent Action Activities 13.4.10. Using Save Point Restore Activities 13.5. Exception Handling in Task Flows 507 13.6. ADF Regions: Static and Dynamic 508 13.7. Creating and Using Bounded Task Flow and Fragments 509 13.8. Extracting and Converting Task Flow 518 13.8.1. Extracting a Task Flow 13.8.2. Converting Task Flow to use Page Fragment 13.8.3. Converting to Unbound Task Flow 14. Interactively Controlling with Navigation Components ………… 515 14.1. Overview of Navigation Components 519 14.2. Using Buttons and Links 520 14.3. Using BreadCrumbs and Navigation Panes 522 14.3.1. Using Explicitly Defined Breadcrumbs 14.3.2. Using Navigation Pane 14.4. Using Train Component 526 14.4.1. Defining Sequence of Steps 14.4.2. Skipping Train Stop 14.5. Menu and Toolbar Explorer-type Containers for Navigation 528 14.5.1. Using Menus for Navigation 14.5.2. Printable Page Behavior 14.5.3. Using Toolbar, Toolbar Buttons and Toolboxes 14.6. Creating and Using Secondary Window Layout (Popup) 536 14.6.1. Creating Pop-up Menus 14.6.2. Creating Context Menus 14.7. Performing Navigation 541 14.7.1. JSF Navigation Rules in JDeveloper 14.7.2. JSF Navigation 14.7.3. How Navigation Targets are Determined 14.7.4. Programmatic Navigation 14.7.5. Conditional Navigation 14.7.6. Performing Navigation in ADF 14.8. Accessibility, Access Key and Tool Tip 549 14.8.1. Accessibility 14.8.2. Using Access Key ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 8. vii 15. Ensuring Reusabilityin Web Applications ………………………… 552 15.1. Benefits of Reusability 555 15.2. Designing for Reuse 556 15.3. Types of Reusable Components 557 15.4. Using Resource Catalog and ADF Library 559 15.4.1. Using a Resource Catalog 15.4.2. Creating a Catalog and Adding Resource to a Catalog 15.4.3. Reusing Components through ADF Library 15.4.4. Removing an ADF Library from Project 15.4.5. Restricting BC Visibility in Libraries 15.5. Using Task Flow as Regions 565 15.6. Creating and Using Page Fragments 574 15.6.1. Features of Page Fragment 15.6.2. Using a Page Fragment on a Page 15.7. Creating and Using Page Template 577 15.7.1. Contents in Page Template 15.7.2. Page Template Codes 15.7.3. Page Templates and Databinding 15.7.4. Example: Page Template 15.8. Creating and Using Task Flow Templates 586 15.9. Creating and Using Declarative Components 588 15.10. Deciding Which Reusable Component to Use 593 16. Working with Scopes, Parameters and Partial Page Refresh …. 595 16.1. Using Memory Scopes 600 16.1.1. Using Memory Scope Attributes 16.1.2. Memory Scope Duration with a Called Task Flow 16.1.3. Memory Scope Duration with a Region 16.1.4. Accessing Memory Scoped Attribute Values 16.2. Defining Page, Task Flow and Region Parameters 606 16.2.1. Overview of Parameters 16.2.2. Task Flow– Using Parameters, Passing & Returning Value 16.2.3. Passing a Value to a Region 16.2.4. Deciding the Usage of Parameter 16.3. Partial Page Rendering 619 16.3.1. Partial Page Rendering Attributes 16.3.2. Conditional Rendering 16.3.3. Enabling Automatic PPR ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 9. viii 17. Responding toManaged Beans, Events and Listeners ………….. 630 17.1. Using Managed Beans 633 17.1.1. Adding UI Code 17.1.2. Registering Existing Java Classes as Managed Beans 17.1.3. Configuring Managed Beans 17.1.4. Referencing Managed Beans 17.1.5. Holding Values in Managed Beans 17.1.6. Using Managed Bean Properties 17.1.7. About Managed Properties 17.1.8. About Backing Bean 17.1.9. Creating Managed Beans 17.2. Describing Types of Events and Listeners 647 17.2.1. Demonstrating Events and Listeners 17.2.2. Describing Types of Events 17.2.3. Other ADF Faces Server Events 17.2.4. Describing Types of Event Listeners 17.2.5. Responding to Action Events 17.2.6. Action Listeners in Code 17.2.7. Creating Action Methods 17.2.8. Action Listeners Vs Action Methods 17.2.9. Responding to Value Change Events 17.2.10. Creating Value Change Listeners 17.2.11. Using Value Change Listeners 17.2.12. Event and Listener Execution Order 17.3. Enabling PPR Programmatically 665 17.4. Overview of Contextual Events 666 17.5. Understanding Life Cycle 669 17.5.1. JSF Life Cycle Phases 17.5.2. ADF Life Cycle Phases 17.5.3. JSF and ADF Life Cycle Phases Events 17.5.4. Phase Identifiers 17.5.5. Phase Listener 17.6. Creating ADF Faces Validation 692 17.6.1. Validation 17.6.2. Validation Approaches 17.6.3. Manual Validation 17.6.4. Implicit Automatic Validation 17.6.5. Explicit Automatic Validation ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 10. ix 17.6.6. Example ofExplicit Validation 17.6.7. Creating Custom Validation Method 17.6.8. Custom Validation Components 17.6.9. UI Validation 17.6.10. Input Validation 17.6.11. Additional ADF Faces Validators 17.6.12. Backing Bean Validation 17.7. Creating ADF Faces Convertors 705 17.7.1. JSF Conversion 17.7.2. About Convertors 17.7.3. ADF Faces Convertors 17.7.4. Custom Convertors 18. Binding Model Layer with Business Services ………………………. 712 18.1. Dragging and Dropping Data Bindings 714 18.2. Text and Selection Components 718 18.3. Data Views Components 749 18.4. Data Visualization Components 762 18.5. AJAX with PPR 768 19. Querying Data with Search Components …………………………… 773 19.1. Query Search Component 777 19.2. Quick Query Component 780 20. Implementing Transactions ……………………………………………. 784 20.1. Handling Transactions with ADF Business Components 787 20.1.1. Default ADF Model Transactions 20.1.2. Operations 20.2. Sharing Data Controls 790 20.3. Designating an Exception Handler Activity 793 20.4. Saving for Later 795 20.4.1. Transaction Support Features of Bounded Task Flows 20.4.2. Enabling Explicit Save for Later 20.4.3. Enabling Implicit Save for Later 20.4.4. Restoring Save Points 20.4.5. Setting Global Save for Later Properties 20.5. Implement CRUD Operations 801 20.6. Defining Response to the Back Button 802 ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 11. x 21. Understanding DataControls and Bindings ……………………….. 804 21.1. Describing the ADF Model Layer 812 21.1.1. ADF Binding Layer 21.1.2. Types of Data Controls 21.1.3. Types of Bindings 21.1.4. Types of Bindings: Source View 21.2. ADF Configuration and Metadata Files 820 21.2.1. ADF Binding Control: Run Time 21.2.2. ADF Binding Control: File Hierarchy 21.3. ADF Region Architecture 825 21.4. ADF Binding Validation 828 21.5. ADF Binding Using Expression Language (EL) 830 21.5.1. Expression Language and Bindings 21.5.2. Using Expression Language 21.6. Programmatic Expression Language 835 21.6.1. Class Files in Programmatic Approach 21.6.2. ADF Binding Class Hierarchy 21.6.3. Programmatic Approach of Binding 21.6.4. JUCtrlActionBinding 21.6.5. Specify When to Refresh Binding Executables 21.6.6. Specify Whether to Refresh Binding Executables PART – IV: Advance ADF 22. Programmatically Customizing Business Services ……………….. 851 22.1. Types of programmatic customization of ADF Business Component 853 22.2. Using ADF Business Component APIs 854 22.2.1. Class Diagram of ADF Business Components 22.2.2. File Structure of ADF Business Components 22.3. Programmatically Customizing Entity Object (EO) 861 22.3.1. Default Metadata 22.3.2. Generating Entity Java Classes 22.3.3. Customizing Default Behavior: Business Rule 22.3.4. Business Rule: Method Validation 22.3.5. Customizing Default Behavior: Override Methods 22.3.6. Assigning Primary Key using a Database Sequence 22.3.7. Updating Deleted Flag Instead of Deleting Rows ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 12. xi 22.3.8. Programmatic Operationson EO: Placements 22.3.9. Programmatic Operations on EO: CRUD Operations 22.3.10. Reading EO: Find by Primary Key 22.3.11. Traverse Association: Iterate Master to Detail Hierarchy 22.3.12. Traverse Association: Iterate Detail to Master Hierarchy 22.3.13. Reading EO: Find EO through View Object 22.3.14. Updating an Existing EO Row 22.3.15. Deleting an Existing EO Row 22.3.16. Creating a New EO Row 22.4. Programmatically Customizing View Object (VO) 890 22.4.1. Default Metadata 22.4.2. Generating View Object Java Classes 22.4.3. Customizing Default Behavior: Business Rule 22.4.4. Customizing Default Behavior: Override Methods 22.4.5. Customizing Default Behavior: Examine VO Methods 22.4.6. Programmatic Operations on VO: Placements 22.4.7. Programmatic Operations on VO: CRUD Operations 22.4.8. Reading VO: Find by Key and Update 22.4.9. Reading VO: Traverse Links 22.4.10. Traverse Links: Iterate Master-Detail Hierarchy 22.4.11. Retain and Reuse a View Link Accessor Row Set 22.4.12. Creating a New VO Row 22.4.13. Programmatic Customization of Sorting and Selection 22.4.14. Change WHERE or ORDER BY Clause at Run Time 22.5. Programmatically Customizing Application Module (AM) 930 22.5.1. Default Metadata 22.5.2. Generating Application Module Java Classes 22.5.3. Adding Service Methods to an Application Module 22.5.4. Implement the Service Method 22.5.5. Publishing the Service Method 22.5.6. Testing Services using ADF Model Tester 22.5.7. Accessing Transaction 22.5.8. Committing Transactions 22.5.9. Customizing the Post Phase 22.5.10. Customizing the Commit Phase 22.6. Implementing Java Client for Testing 956 22.6.1. Creating a Test Client ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 13. xii 23. Deploying ADFApplications ……………………………………………. 964 23.1. Building Source Code 968 23.2. Pre Build: Deployment Profiles 972 23.3. Build Tools and Options 984 23.4. Dependency Management 992 23.5. Building and Deploying 995 23.6. Continuous Integration 997 24. Securing ADF Applications ……………………………………………. 1003 24.1. Authentication and Authorization 1005 24.2. Understanding ADF Security Framework 1006 24.3. ADF Security Architecture 1007 24.4. Oracle Platform Security Service (OPSS) 1008 24.5. OPSS Files 1009 25. Debugging and Troubleshooting ADF Applications …………….. 1011 25.1. Troubleshooting the Business Service 1013 25.1.1. ADF Model Tester 25.1.2. Java Test Clients 25.1.3. Unit Test with JUnit 25.2. Troubleshooting the User Interface 1016 25.3. Using Design-Time Code Validation 1017 25.4. Using Diagnostics and Logging using Java and ADF Logger 1019 25.5. Running in Debug Mode 1027 25.6. Using Tools and Utilities 1045 25.7. Obtaining Help 1049 26. ADF Best Practices ……………………………………………………… 1053 26.1. Tuning Tips for Entity Objects 1055 26.2. Tuning Tips for View Objects 1056 26.3. Tuning Tips for Associations and View Links 1057 26.4. Tuning Tips for Application Modules 1058 26.5. Tuning Tips for ADF Model 1059 26.6. Tuning Tips for Pages 1060 26.7. Tuning Tips for Layouts 1061 26.8. Tuning Tips for Task Flows and Memory Scopes 1063 26.9. Designing for Reuse 1064 ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 14. xiii 27. Miscellaneous Topics…………………………………………………... 1070 27.1. ADF 12c New Features 1072 27.2. Sample Projects 1099 28. Advance ADF Topics ……………………………………………………. 1101 28.1. Adding Custom View Criteria 1104 28.2. Publishing and Subscribing Contextual Events 1105 28.2.1. Characteristics 28.2.2. Overview 28.2.3. Coordinate Page Regions 28.3. Active Data Service Framework 1120 PART – V: Integrating ADF 29. Integrating ADF with Web Service ………………………………… 1122 29.1. Types of ADF Integrations with Web Service 1126 29.2. What is Web Service 1129 29.3. Types of Web Service 1130 29.4. REST Vs SOAP 1131 29.5. Creating SOAP Web Service with ADF Business Service 1144 29.6. Build REST Web Service with ADF Business Service 1146 29.7. ADF Mobile REST Data Control 1162 30. Integrating ADF with EJB …………………………………………….. 1164 31. Integrating ADF with SOA ……………………………………………. 1168 32. Integrating ADF with MAF ……………………………………………. 1176 33. Integrating ADF with Oracle Cloud Service ……………………… 1200 34. Integrating ADF with WebCenter …………………………………… 1210 ADF training by Deepak Bhagat Develop Rich Web Application with ADF 12c Essentials – Study Guide
- 15.
- 16.
- 17. Lesson Agenda This lessongives you an overview of Fusion Middleware architecture and components. It introduces you to the essential concepts and structure of ADF and explain how it fits into the Fusion architecture. Here, you would setup training hands-on lab practices environment. These consists of: 1. System Requirements for ADF Training 2. Oracle Technology Resource Account Login 3. Downloading and Installing Oracle XE Database 4. Downloading and Installing JDeveloper 5. Unlocking HR Schema 6. Entity Relation Diagram of HR System 7. Working with JDev IDE Configuration Files 8. Java for Beginners 9. References 10. Grouping of Hands-on Lab Practices 11. Important Abbreviation and Information 12. Downloading Training Materials 3
- 18. Components of OracleFusion Architecture Oracle Fusion Middleware is a standards-based family of products that are often deployed and used in conjunction with one another to develop Java Platform, Enterprise Edition (Java EE) applications, providing the benefits of common security, management, deployment architecture, and development tools. Oracle Fusion Middleware’s architecture enables you to leverage your investments in any existing application, system, or technology. Oracle Fusion Middleware includes the following best-of-breed technologies: • Oracle BPEL Process Manager: A native Business Process Execution Language (BPEL) engine for Web service orchestration, enabling you to design, define, and execute business processes • Oracle Web Services Manager: A console to secure and manage your Web services • Oracle Business Rules Engine: A product to enable agile management of business rules • Oracle Enterprise Service Bus: A standards-based product that connects existing IT systems and business partners as a set of services, and supports event-driven architectures • Oracle Business Activity Monitoring: A product to report insight into business operations • Oracle Services Registry: A Universal Description, Discovery and Integration (UDDI) v3– compliant registry • Oracle JDeveloper: An integrated development environment for creating and composing applications in a unified toolset for all Oracle Fusion Middleware tools. Not only can you use Oracle JDeveloper to build applications, but Oracle developers use JDeveloper to build the other tools. 4
- 19. Components of OracleFusion Architecture Oracle Fusion Middleware is a standards-based family of products that are often deployed and used in conjunction with one another to develop Java Platform, Enterprise Edition (Java EE) applications, providing the benefits of common security, management, deployment architecture, and development tools. Oracle Fusion Middleware’s architecture enables you to leverage your investments in any existing application, system, or technology. Oracle Fusion Middleware includes the following best-of-breed technologies: • Oracle BPEL Process Manager: A native Business Process Execution Language (BPEL) engine for Web service orchestration, enabling you to design, define, and execute business processes • Oracle Web Services Manager: A console to secure and manage your Web services • Oracle Business Rules Engine: A product to enable agile management of business rules • Oracle Enterprise Service Bus: A standards-based product that connects existing IT systems and business partners as a set of services, and supports event-driven architectures • Oracle Business Activity Monitoring: A product to report insight into business operations • Oracle Services Registry: A Universal Description, Discovery and Integration (UDDI) v3– compliant registry • Oracle JDeveloper: An integrated development environment for creating and composing applications in a unified toolset for all Oracle Fusion Middleware tools. Not only can you use Oracle JDeveloper to build applications, but Oracle developers use JDeveloper to build the other tools. 5 .
- 20.
- 21. Model-View-Controller Design Pattern Agood practice when developing applications is to employ design patterns. Design patterns are a convenient way of reusing object-oriented concepts between applications and developers. The idea behind design patterns is simple: document and catalogue common behaviour patterns between objects. Developers can then make use of these patterns rather than re- create them. One of the frequently used design patterns is the Model-View-Controller (MVC) pattern. In the MVC pattern, the user input, the business logic, and the visual feedback to the user are explicitly separated and handled by three types of objects. Each of these objects is specialised for a particular role in the application: • The model manages the data of the application domain, responds to requests for information about its state (usually from the view), and responds to instructions to change state (usually from the controller). • The view manages the presentation of the application output to the user. • The controller interprets the mouse and keyboard inputs from the user, commanding the model and/or the view to change as appropriate. 7 .
- 22. Technology Choices forADF BC Applications In this course, you employ the MVC architecture through the use of Oracle ADF and JavaServer Faces: • Business Services: ADF Business Components (ADF BC) provides the business services that are responsible for representing database tables and persisting user input values to the database. • Model: ADF data binding is accomplished in compliance with JSR-227, a standard data binding and data access facility for Java EE that provides a standard for interactions between UI components and methods available on the business services. With this standard data binding, any Java UI–rendering technology can declaratively bind to any business service. • Controller: The ADF Controller is used to manage page flow and UI input processing. • View: JavaServer Faces and ADF Faces provide render kits that enable the UI components defined by JavaServer Faces or ADF Faces to be rendered differently on different devices. For example, the UI can be rendered on a computer’s browser or on a mobile device such as a cell phone or PDA. • Metadata Service: ADF BC applications can also use Metadata Service (MDS) for customization and personalisation. This is outside the scope of this course. 8 .
- 23.
- 24.
- 25.
- 26.
- 27.
- 28.
- 29. Overview of ApplicationDevelopment Framework (ADF) Oracle ADF is an end-to-end application framework that builds on Java EE standards and open- source technologies to simplify and accelerate implementing Java EE applications. It is fully extensible and customizable by adding or modifying libraries. ADF simplifies the tasks of: • Creating business services • Designing user interfaces to access those services Oracle ADF simplifies Java EE development by minimizing the need to write code that implements design patterns and the application infrastructure. These implementations are provided as part of the framework. Oracle ADF also provides a visual and declarative development experience that minimizes the need to write code and reduces the learning curve for 4GL developers. Business services are implemented as metadata, enabling them to be bound to user interfaces in the same manner regardless of the technology employed in the underlying data model. The use of metadata also enables business rules for databound fields to be specified at the model layer, along with labels, validation, and tool tip properties 15 .
- 30. How the OracleADF Framework Implements MVC In addition to design patterns, developers often use architectural frameworks to build applications that perform in a standard way. ADF is such a framework, and it implements the MVC design pattern as follows: • Business Services: Business services provide the back-end data model that interacts with the data source. It may be a set of Java classes or Web services, or can be Enterprise JavaBeans (EJBs), TopLink, or ADF Business Components. • Model: ADF data binding is accomplished in compliance with JSR-227, a data binding and data access facility for Java EE that provides a standard for interactions between UI components and methods available on the business services. With this standard data binding, any Java UI–rendering technology can declaratively bind to any business service. • Controller: Page flow and UI input processing can be implemented in Struts, JavaServer Faces (JSF), or ADF Controller. The ADF Controller enables you to define task flows, encompassing more than just page flow. The ADF Controller is explained in detail in the lesson titled “Planning the User Interface.” • View: The user interface can be a rich client with ADF Swing components, or can use Java ServerFaces and ADF Faces components. 16 .
- 31.
- 32.
- 33.
- 34.
- 35.
- 36.
- 37.
- 38.
- 39.
- 40.
- 41.
- 42. Lesson Agenda This lessonintroduces you to the JDeveloper IDE. You learn about the features and benefits of JDeveloper and how to use its components in application development. You set preferences for the tool, create an application and project, and create a database connection. In Hands-on lab you would practice: 1 Creating a New Fusion Application and Project 2 Creating a New Database Connection and Initialize the Project 3 Adding ADF Business Components and ADF Faces 4 Exploring JDeveloper and New Application 5 Exploring Windows of JDeveloper 6 Working with Windows 7 Taking Help using F1 key 8 Refactoring JDeveloper Artifacts 9 Setting IDE Preferences 10 Setting Package Levels 28 .
- 43. Overview of DevelopmentTool: JDeveloper Oracle JDeveloper 12c is a comprehensive development tool that provides facilities to build Web applications using a common development tool set. This tool has evolved to provide an integrated environment that enables a developer to design, develop, troubleshoot, optimize, and deploy Java EE applications. JDeveloper is the integrated development environment (IDE) that utilizes the Application Development Framework 29 .
- 44.
- 45.
- 46.
- 47. Launch JDeveloper You canlaunch JDeveloper in one of the following ways: • Selecting Start > All Programs > Oracle > Oracle Home > Oracle JDeveloper Studio > Oracle JDeveloper Studio (or a different location as specified in the Installer) • By double-clicking the JDeveloper executable in the home directory of the JDeveloper installation • From the command line or a shortcut with the following command: <JDev Home>jdevbinjdev.exe By default, JDeveloper’s user directory is the system subdirectory of the <JDev_Home> directory, such as C:OracleMiddlewarejdevelopersystem—that is, where it stores user preferences, such as information about the appearance of the IDE. If you want to use a different directory, start JDeveloper with the –J-Dide.user.dir flag. The following example sets the user directory to a directory where the user customarily stores data: c:JDevjdevbinjdev.exe –J-Dide.user.dir=c:DataJDev. Note: As an alternative to using this flag, you can set the JDEV_USER_DIR environment variable in your operating system. Another flag that you can use when launching JDeveloper is –noreopen, which prevents JDeveloper from opening all the editor windows that were open the last time you closed JDeveloper. This can improve JDeveloper’s startup time. 33 .
- 48. Select a DeveloperRole To begin working in JDeveloper, you need to select a role to use. You then define an application with one or more projects. If your application requires data from a database, you also need to create a reusable database connection. Roles and Shaping: When you start JDeveloper for the first time, you are asked to choose the role that you as a developer want to use. You can change that role later, if desired, by selecting Tools > Preferences from the JDeveloper menu. The JDeveloper environment customizes itself based on the role of the user by removing items that are not needed from the menus, preferences, new gallery, and even individual fields in dialog boxes. This is called shaping, and it can even control the default values for fields in dialog boxes within the tool. 34 .
- 49. Set Development Environment(IDE) Preferences There are many preferences that you can set to affect the display and functionality of the IDE. You access the Preferences window by selecting Tools > Preferences. For example, to change the default naming scheme for ADF Business Components objects, you expand the Business Components node in the Preferences window and select Object Naming. You can specify a suffix for each type of object. 35 .
- 50. Features of JDeveloper Thenext few slides provide an overview of using the features that are listed in this slide. 36 .
- 51.
- 52. Application Window The ApplicationNavigator presents you with a hierarchical view of all the elements in your application. At the top of the Application Navigator is a drop-down list of applications that also enables you to open an application or create a new one. To the right of the drop-down list is an arrow that displays the application menu, enabling you to select actions pertaining to the current application. The Application Navigator contains four panels: • Projects: Shows all the projects that are part of the current application, along with a hierarchical view of the project elements. The project panel contains a toolbar that enables you to display project properties, refresh, filter, or rearrange the display. • Application Resources: Shows application-level resources such as descriptors and connections • Data Controls: Provides a hierarchical view of all the data elements, such as view objects and methods, that are available to access in the user interface. It enables you to use the drag-and-drop functionality to create UI components on a page. It also contains a toolbar that allows you to refresh and filter the display. • Recently Opened Files: Provides quick access to files in the current application that have recently been used You can expand, collapse, minimise, and restore each of these four panels in the Application Navigator: • To expand or collapse, click the arrow to the left of the panel name. • To minimise, select Minimise from the drop-down menu at the right of the panel’s title bar. • To restore, click the ellipsis at the bottom right of the Application Navigator and select the minimised panel that you want to restore. 38 .
- 53. Database Window The DatabaseNavigator provides you with a complete editing environment for online databases. You can use it to create, update, and delete database objects. Much of the functionality available standalone in SQL Developer is also available in JDeveloper. Highlights include: • SQL Worksheet: Script execution, explain plan, autotrace, code snippets (drag and drop), DBMS, and OWA output • Creation of external, index organized, temporary, partitioned (range, hash, and list) tables and materialized views • Extensive context menu options to modify objects (for example, table rename, column additions, compilation, index rebuilds, and database link testing) • Browse, query, update, delete, sort, and filter data including CLOB and BLOB and tracking of changes through message log • Export data in multiple formats, export DDL, import data • Database reports 39 .
- 54. Structure Window The Structurewindow is displayed by default below the Application Navigator. If it is not visible, select View > Structure to display it. When you select anything in a navigator, editor, or the Property Inspector, the Structure window displays the elements of the selected document in a tree format. For example, when you select a availavle source file, the classes, interfaces, methods, and variables are displayed, and you can sort and view them in a variety of ways. You can use the Structure window to quickly locate and navigate to specific areas of code in your Java source files and to browse the class hierarchy. When you are designing a user interface with the visual editor, the Structure window displays the components of the UI and their associated event-handling methods in a hierarchical tree format. The Structure window enables you to create new components in precisely the desired location, whereas such precise placement is often difficult in the visual editor. You can open as many new instances of the Structure window as you would like. New instances will automatically track the active selection in the active view unless frozen. You can freeze and unfreeze the selection in the window by clicking Freeze View. You can click the New View icon to open a new instance of the Structure window that appears docked with the existing window or windows. 40 .
- 55. Using the Editors JDeveloperprovides a variety of editors with which you can: • Edit code: To edit source code, double-click the file in the Application Navigator to display the contents in the appropriate editor. Highlights of the code editor include the following: - Toolbar: Enables quick access to functions such as generate accessors, surround with, override method/implementation interface, reformat, and so on - Auto Code Highlight: Automatically highlights instances of a selected item - Syntax color options: Makes code easily readable - Quick Javadoc - Code folding: Enables you to expand and contract sections of code - Show Whitespace Characters: Renders spaces, new lines, carriage returns, nonbreaking spaces, and tab characters as alternate visible characters - Overview Popup: Enables you to view the source at an overview mark by simply hovering the cursor over the mark - Structure Window Popup: View the source for a method by pressing Ctrl while the cursor is over the desired method in the Structure window. Quick Outline: Provides a new method to quickly navigate to methods and fields of a class and its superclasses. The “ghost” window floats just above the code and contains a tree of the available methods and fields of the current class and its superclasses. Start typing in a filter field to reduce the visible items, allowing quick and easy selection for navigation to the desired place. - Code Peek: Provides the ability to view code in different files without navigating or opening new editors - Last Change Indicator: Provides a marker in the left gutter of code editors provides a quick visual indicator of changes to a file since the last save • Edit properties: Many editors for components are modeless editors that appear in the editor area along with the other editors. They can remain open to enable easy access to component editors while you work on other parts of the application. • Edit Visually - Page Flows: Toolbar enables quick access for modifying the display and marking default activities and exception handlers. - Diagrammers: The internal diagramming framework used to build the UML tools in JDeveloper, the Page Flow diagrams, and other visual editors has been re-architected to be more flexible for internal consumers. The result for end users is more consistent behavior between the different diagrams. - Pages: The breadcrumb bar in the page editor shows the hierarchy of nodes from the current caret position up to the top of the file. Placing the cursor over a node displays some information about the node and clicking the node navigates the caret to the node location. 41 .
- 56. Log Window The Logwindow in JDeveloper enables you to view output from JDeveloper operations such as running, debugging, and profiling. The Log window consists of a Messages tab and optionally, additional tabs for displaying results. The context menu of a log window enables you to select, copy, or save text, clear the text, wrap the entries, find a specified string in the text, or close a tab. There are other context menu options depending on the type of log window displayed on a tab. You can also close individual tabs by clicking the X that appears on the tab when you move the cursor over it, and you can close all log windows by clicking the X on the top tab. If you close all log windows, you can reopen them by selecting View > Log from the main menu. 42 .
- 57. Components Window When youare using any type of visual editor, the Component Palette displays the components that are available to drag to the editor. The Component Palette features are as follows: •A drop-down list at the top of the palette enables you to select the component category to display. •Collapsible panels and divider sections can be used to organize related components. •A quick search field helps you to locate components. You can add commonly used components to your Favorites list for easier access later, and another panel keeps track of your recently used components. 43 .
- 58. Resources Window The ResourcePalette provides a federated view of the contents of one or more otherwise unrelated repositories in a unified search-and-browse user interface. This enables users to find the resources needed for the task at hand easily. Users can locate resources from a wide variety of repositories, search for resources and save searches, preview a resource before using it, and reuse resources by sharing catalog definitions. The Resource Palette contains two expandable and resizable panels: • My Catalogs: Resources are created and published in their source repository. Related resources are grouped into catalogs and are then exposed to the user in the Resource Palette. • Connections: Many types of connections, such as to databases, file systems, or application servers, can be created and displayed in the Resource Palette for use in any application. By using the Resource Palette’s toolbar icon, you can create new or import existing catalogs and connections. You are able to search through all resources. By default, the Resource Palette is displayed on the right of the JDeveloper IDE. If it does not appear, you can display it by selecting View > Resource Palette. 44 .
- 59. Properties Window The PropertyInspector presents a collection of all settable properties for a selected element. Features of the Property Inspector include the following: 1. When you select an element in the Structure window or Visual Editor, the Property Inspector title bar shows the name of the selected element. 2. A toolbar enables you to perform component-level actions, such as rebinding to a different control, freezing/unfreezing, or creating a new view. You can also toggle auto-extend, which enlarges the Inspector when the cursor moves over it. 3. A search function enables you to quickly locate a property on any panel. 4. A Component Help button invokes context-sensitive Help. 5. Expanding a category group on the left displays a panel containing a subset of properties. 6. Drop-down lists of values are available for many properties. 7. If an editor is available for a property, an arrow to the right of the property invokes it. 8. Icons indicate whether property values are databound or whether they are changed from the default. 9. When a property is selected, a brief description of the property is displayed at the bottom of the Inspector. When you change a property, the value is automatically validated and applied when you navigate out of that field. 45 .
- 60.
- 61. Work with Windowsin JDeveloper By now you can see that JDeveloper has many types of windows that display aspects of the IDE. Most JDeveloper windows can be maximized or restored by using the context menu that appears when you right-click its tab. Alternatively, you can double-click the tab to maximize or restore the windows. Other options available from the context menu are splitting or unsplitting the window or closing the window. Another way to close the window is by clicking the X on its tab. To reopen, either double-click the corresponding node in the Application Navigator, or select the window to open from the View menu. You can reposition the window by dragging its tab to a different part of the IDE. You can also undock and redock floating windows by dragging the tab. You can use the mouse to resize all JDeveloper windows. You restore the default arrangement of the IDE windows by selecting Window > Reset Windows to Factory Settings. 47 .
- 62. Requirement to Buildan Application The following slides explain how to create an application, a project, and a database connection. 48 .
- 63. Create a NewADF Application Oracle JDeveloper uses a well-defined structure to manage Java programming applications. The structure is hierarchical and supports applications, projects, images, .html files, and so on. The application is the highest level in the control structure. It is a view of all the objects you currently need while you are working. An application keeps track of the projects you use and the environment settings while you are developing your Java program. You create an application by invoking the Create Application dialog box in one of the following ways: • If there is an application already open in JDeveloper, invoke the application drop-down list and select New Application. If there is no open application, click New Application. • Select File > New, and in the New Gallery dialog box, select General > Applications. Then select either Generic Application, or a specific type of application from the list. Click OK. Enter values for the following properties in the Create Application Wizard: • Application Name: Enter a name for the application. This name is used to categorize all the files in your application. • Directory Name: Enter a top-level directory for the application or click Browse to locate one. This is where all your application files are stored during development. • Application Package Prefix: Enter a prefix for all packages associated with this application. The prefix you assign defines the root package for every project in the application. • Application Template: Select a template for the application. Click Manage Templates to edit an existing template or to create a new one. An application template provides a way to apply best practices to create the project structure for standard applications with the appropriate combination of technologies already specified. The new application that is created from a template appears in the navigator already partitioned into projects, with technology scopes set. Saving Applications Whenever you save an application, you are prompted to save all the current open files. To save the open and modified files, select the Save option (or the Save All option) from the File menu. Italic style is used in the Application Navigator to indicate files that have not yet been saved. Applications are stored in files with the extension .jws. You do not edit an application file directly, but you can view the content of an application file by using any text editor. When you open JDeveloper, the last application used is opened by default so that you can resume your work. 49 .
- 64. Use the ApplicationOverview Page When you first create an application, the Application Overview page appears in the editor area of the IDE. This page provides a listing of all the sources for your application, grouped into helpful categories that are displayed in resizable panels. The Application Overview page gives you a sense of the overall status of your application, such as which sources are incomplete, which have errors, and so on. When you select one of the panels, you have access to a context menu that enables you to create objects. For example, in the Java Files panel, the New menu enables you to create a Java class or interface. You can also edit and delete objects here. In the Application Navigator, select Show Overview from the application menu to display the Application Overview page. 50 .

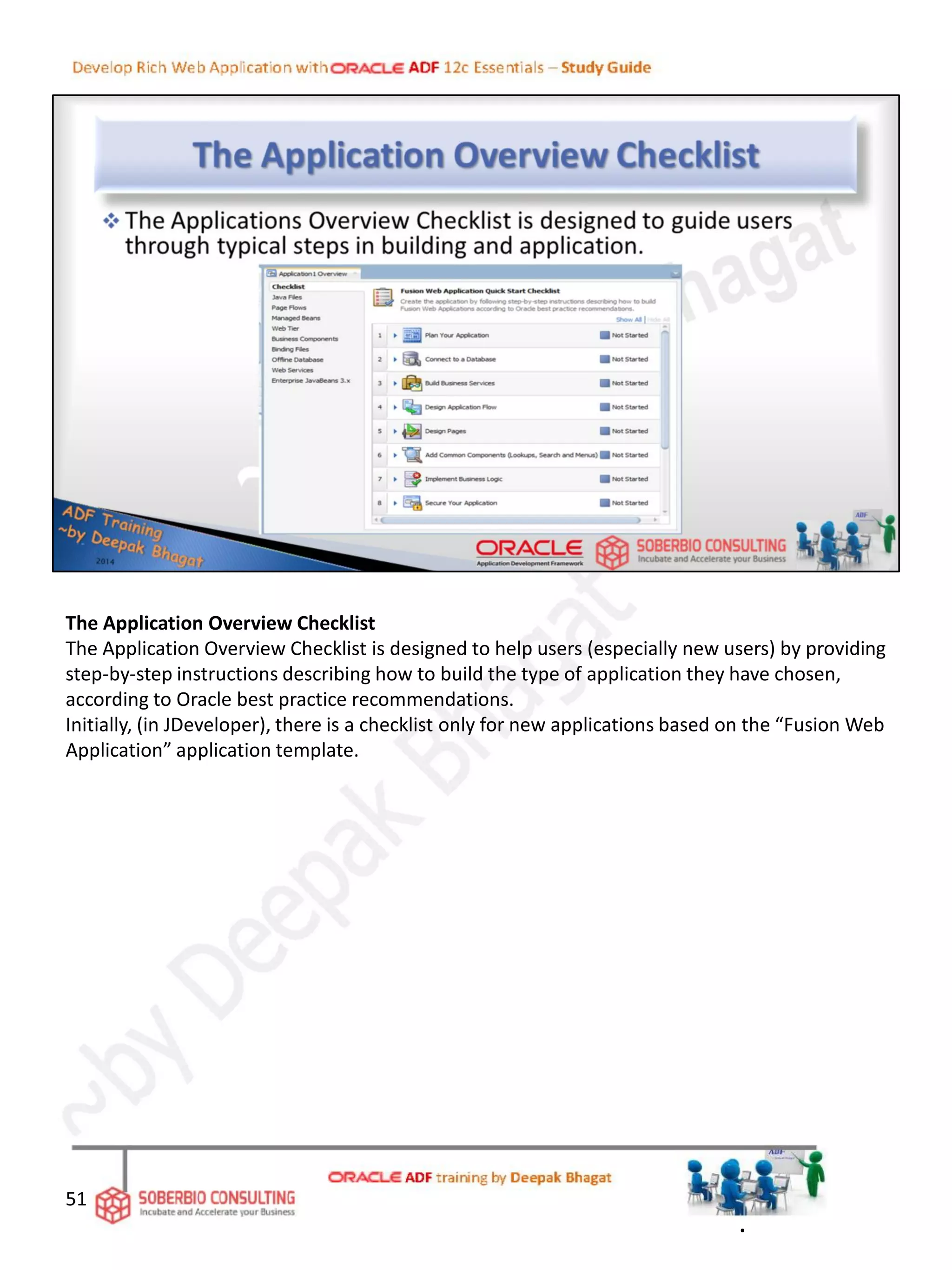

- 65. The Application OverviewChecklist The Application Overview Checklist is designed to help users (especially new users) by providing step-by-step instructions describing how to build the type of application they have chosen, according to Oracle best practice recommendations. Initially, (in JDeveloper), there is a checklist only for new applications based on the “Fusion Web Application” application template. 51 .
- 66. Create a NewProject JDeveloper projects organize the file elements that are used to create your program. In the Applications Navigator, projects are displayed as the second level in the hierarchy under the application. Projects manage environment variables, such as the source and output paths used for compiling and running your program. Projects also maintain compiler, run-time, and debugging options so that you can customize the behavior of those tools for each project. A project file has the file extension .jpr and keeps track of the source files, packages, classes, images, and other elements that may be needed for your program. You can add multiple projects to your application to easily access, modify, and reuse your source code. You can view the content of a project file by using any text editor. There are two ways to create a project in JDeveloper. The first way is when you create an application. Depending on the application template that you select, one or more projects are created automatically. Sometimes you are presented with a wizard page enabling you to name the project and set its technologies. The second method of creating a project is to create a new one. You must first select an existing application to contain the project. Then you can create a new project from the New Gallery in one of the following ways: • Invoke the application menu that appears to the right of the application name in the Applications Navigator, or click the down arrow at the far right of the application name, and select New Project to invoke the New Gallery. • Select File > New from the menu. • Click New on the Toolbar. In the New Gallery, select the type of project to create, and then click OK. When you are presented with the Create Project Wizard, you can name the project and specify where you want to store the project files. Depending on the type of project, you may also need to select the technologies to use, set Java or EJB settings, or define other types of project properties. Note: You can automatically save and compile a project before running it. This preference is set in project properties. You can set default properties for new projects as follows: 1. Select Application > Default Project Properties from the JDeveloper menu. 2. In the tree at the left of the Default Project Properties dialog box, select Run/Debug/Profile. 3. With the Default run configuration selected, click Edit. 4. In the tree at the left of the Edit Run Configuration dialog box, select Tool Settings. 5. In the Before Running section, select the options that you want to perform before running, such as Make Project and Save All. 6. Click OK twice to close both dialog boxes and save your preferences. You can edit preferences for existing projects by right-clicking the project in the Application Navigator and selecting Project Properties. 52 .
- 67. Create Database Connections JDeveloperenables you to define several types of connections, including connections to external data sources. Database connections are visible in the Database Navigator, and are organized by the application that owns them. They can also be added to a Resource Catalog, enabling other developers to share them. All IDE connections are stored in the connections.xml file in the system12.x.x.x.xx.xx.xxo.jdevimpl.rescat2connections subdirectory of the JDeveloper user directory (see “Launching JDeveloper” earlier in this lesson for the location of the user directory). The file system location for an application’s connection descriptor definition information is the connections.xml file in the .adfMETA-INF subdirectory of the application itself. By default, applications are stored in the mywork<Application Name> directory under the root directory in which JDeveloper is installed, although you can choose to save them elsewhere. In JDeveloper’s Database Navigator, you can set up and manage database connections to enable your projects to communicate with external data sources, including the Oracle database. All defined connections are accessible to any application or project. To define a new database connection, perform the following steps: 1. In the Database Navigator, click the New Connection icon at the top left of the navigator to invoke the Create Database Connection Wizard, or right-click an application and select New Connection from the context menu. 2. In the Create Connection In field, select IDE Connections if you want a connection that can be added to any application, or select an application to add the connection for that application only. 3. Provide a name and connection type, and enter a username, a password, and, optionally, a role. If you want to save the password, select the Save Password check box. This option is selected by default. 4. In the Settings section (determined by your Connection Type choice), enter the connection details as requested 5. Click Test Connection. JDeveloper checks the connection by using the information you provided. If the test succeeds, a success message appears in the status text area. If the test does not succeed, an error appears. Click Back and change any previously entered information as needed to correct the error, or check the error content to determine other possible sources of the error. When the test succeeds, click Finish. The new connection name appears under the owning application node (or the IDE Connections node) in the Database Navigator. 53 .
- 68. Refactoring in JDeveloper Youcan use refactoring to rename or move an object: Renaming: When you use a wizard to create entity objects and view objects, associations and view links are created automatically. They are by default given names that are based on the name of the foreign key in the database. It is often desirable to use a more meaningful phrase to rename them. To do so, you right-click the association or view link in the Application Navigator and from the context menu, select Refactor > Rename. A refactoring dialog box appears to enable you to rename the association or view link. Moving: When you create an object, you are given the opportunity to specify which package to place it in. If you later want to change the package where an object resides, you can right-click the object and select Refactor > Move. A dialog box opens to enable you to specify a different package; this package gets created if it does not already exist. When you use refactoring, all references to the object are modified throughout the application. 54 .

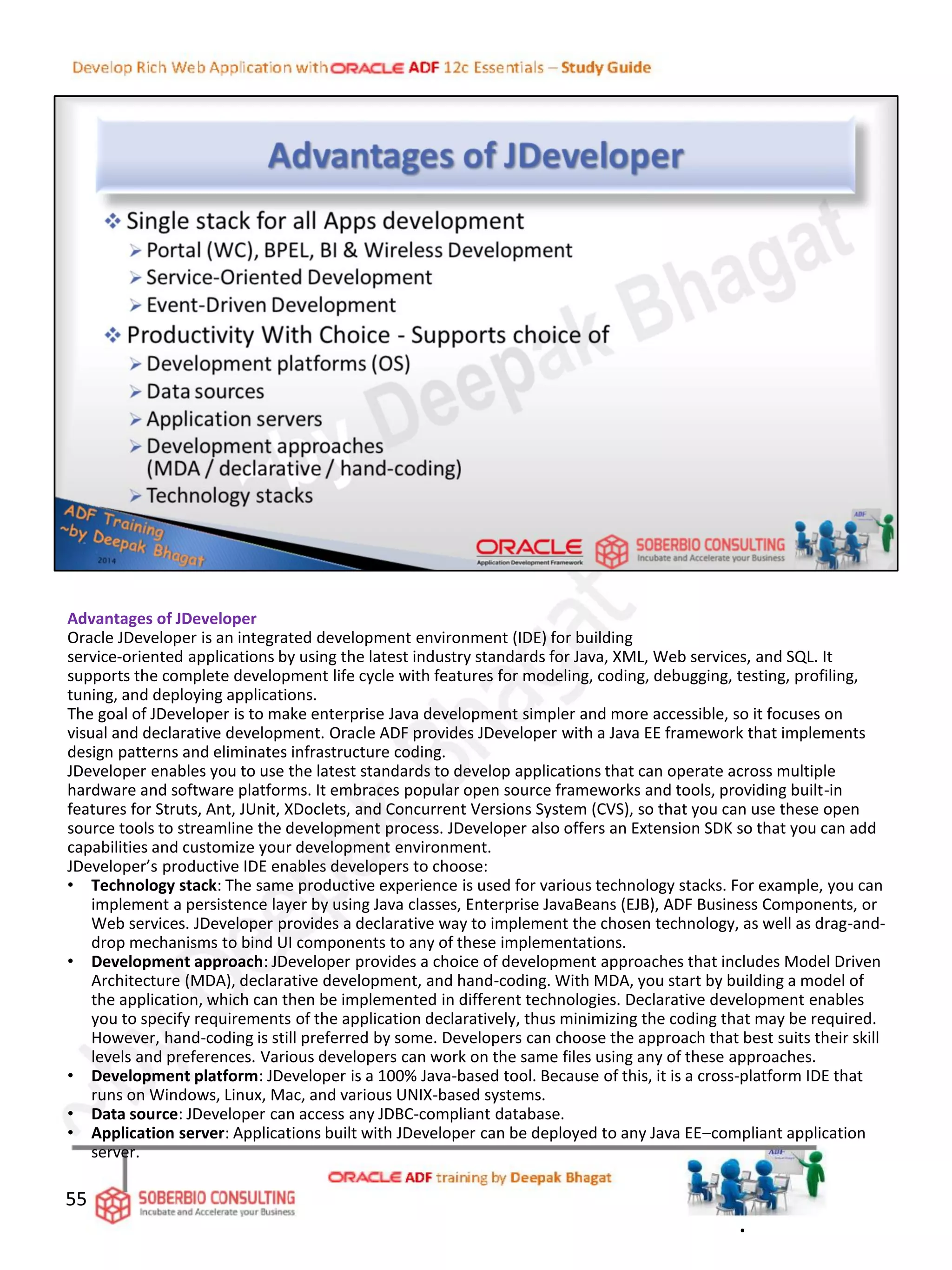

- 69. 55 Advantages of JDeveloper OracleJDeveloper is an integrated development environment (IDE) for building service-oriented applications by using the latest industry standards for Java, XML, Web services, and SQL. It supports the complete development life cycle with features for modeling, coding, debugging, testing, profiling, tuning, and deploying applications. The goal of JDeveloper is to make enterprise Java development simpler and more accessible, so it focuses on visual and declarative development. Oracle ADF provides JDeveloper with a Java EE framework that implements design patterns and eliminates infrastructure coding. JDeveloper enables you to use the latest standards to develop applications that can operate across multiple hardware and software platforms. It embraces popular open source frameworks and tools, providing built-in features for Struts, Ant, JUnit, XDoclets, and Concurrent Versions System (CVS), so that you can use these open source tools to streamline the development process. JDeveloper also offers an Extension SDK so that you can add capabilities and customize your development environment. JDeveloper’s productive IDE enables developers to choose: • Technology stack: The same productive experience is used for various technology stacks. For example, you can implement a persistence layer by using Java classes, Enterprise JavaBeans (EJB), ADF Business Components, or Web services. JDeveloper provides a declarative way to implement the chosen technology, as well as drag-and- drop mechanisms to bind UI components to any of these implementations. • Development approach: JDeveloper provides a choice of development approaches that includes Model Driven Architecture (MDA), declarative development, and hand-coding. With MDA, you start by building a model of the application, which can then be implemented in different technologies. Declarative development enables you to specify requirements of the application declaratively, thus minimizing the coding that may be required. However, hand-coding is still preferred by some. Developers can choose the approach that best suits their skill levels and preferences. Various developers can work on the same files using any of these approaches. • Development platform: JDeveloper is a 100% Java-based tool. Because of this, it is a cross-platform IDE that runs on Windows, Linux, Mac, and various UNIX-based systems. • Data source: JDeveloper can access any JDBC-compliant database. • Application server: Applications built with JDeveloper can be deployed to any Java EE–compliant application server. .
- 70. Oracle JDeveloper isa complete IDE that addresses the full development life cycle for Java Web services and PL/SQL applications. JDeveloper supports the latest standards and provide a platform for extending the IDE. The major focus area of Oracle JDeveloper 10g is ease of use and productivity. JDeveloper is also the development tool for both project fusion (the combined E-business, JD Edwards, Peoplesoft) and the preferred development tool for components of the Oracle Fusion Middleware (BPEL, Portal, BI etc.). 56 .
- 71.
- 72. 58 Oracle JDeveloper 10Gis a comprehensive development tool that provides facilities to build Service-Oriented and Event-Driven Applications using a common development tool set. This tool has been evolved to provide what Gartner Group refers to as an ISSE – an Integrated environment that allows a developer to model and generate SOA; to write SOA in an IDE; or to use wizards to generate SOA. .
- 73.
- 74.
- 75. In Hands-on labone would practice: 1. Exploring HR System ER Diagram 2. Examining Training Lab Application – Lab Solution 22 Optionally you may also practice: 1. Creating an Offline Database Diagram with Existing Schema Objects 2. Adding New Offline Database Schema Objects 3. Generating the SQL Scripts 4. Running the SQL Scripts on Database 5. Invoking PLSQL . 61
- 76.
- 77.
- 78.
- 79.
- 80.
- 81.
- 82.
- 83.
- 84.
- 85.
- 86.
- 87.
- 88.
- 89.
- 90.
- 91.
- 92. ADF Business Rulesin PL/SQL You can write code in the custom Java classes for your business components to invoke database stored procedures and functions. In this lesson, you see some simple examples based on procedures and functions in a PL/SQL package; however, using the same techniques, you also can invoke procedures and functions that are not part of a package. When you build the ADF components, it is better to move the business process logic up into the ADF layer and map the entities to the table level PL/SQL APIs. 78 .
- 93. Typical Environment For thetype of situation you see here, a PL/SQL API has previously been constructed around the tables to protect them from unauthorized write access. In most legacy situations such as this, you do not have any choice but to work with the existing PL/SQL. If you have a PL/SQL package that encapsulates insert, update, and delete access to an underlying table, you can override the default DML processing event for the entity object that represents the table so that you invoke the procedures in your PL/SQL API instead. Often, such PL/SQL packages are used in combination with a companion database view. Client programs read data from the underlying table using the database view and update the table using the procedures in the PL/SQL package. This section considers the code necessary to create a Product entity object based on such a combination of a database view and a PL/SQL package. 79 .
- 94. Controlling Entity PostingOrder to Avoid Constraint Violations Due to database constraints, when you perform DML operations to save changes to a number of related entity objects in the same transaction, the order in which the operations are performed can be significant. If you try to insert a new row that contains foreign key references before you insert the row being referenced, the database can complain with a constraint violation. By default, when you commit the transaction, the entity objects in the pending changes list are processed in chronological order, in other words, the order in which the entities were added to the list. This means that, for example, if you create a new Employee and then a new Department related to the employee, the new Department is inserted first, followed by the new Employee. 80 .
- 95.
- 96.
- 97. Lesson Agenda This lessonprovides students with an overview of ADF Business Components and how they are used as business services to support a Web application. The lesson introduces many topics for which additional details are provided in later lessons. Students create a simple master-detail data model. In Hands-on lab one would practice: 1. Creating another New Application and Projects 2. Creating Default ADF Business Components 3. Examining Generated ADF Business Components Artifacts 4. Testing the Business Service (using Oracle ADF Model Tester) 83 .
- 98.
- 99.
- 100.
- 101. Types of ADFBusiness Components There are two types of Oracle ADF Business Components objects that represent features of your data source. If you have a well-designed data source, the structure of these objects should reflect the structure of the data source. Data sources are represented by the following types of components: • Entity objects, which represent objects in the data source (usually tables, views, and synonyms in a database) • Associations, which represent relationships between these objects (such as foreign key relationships) Other types of ADF BC objects collect data and present it to the client model. They should be designed on the client’s specific data needs. For this reason, they are not as reusable as entity objects and associations. There are three such components: • View objects, which collect data from the data source, usually by a SQL query • View links, which represent relationships (such as master-detail relationships) between view object result sets • Application modules, which provide a single point of access to the view objects and view Links 87 .
- 102.
- 103. Create Business Componentsfrom Tables Wizard: Application Module On the Application Module page of the wizard, you designate whether to add the business components that you are creating to an application module. Application modules enable you to test business components and also to expose them to a user interface. If you choose to use an application module, you can create a default one or specify an existing one to contain instances of all the view objects, joined in a master-detail hierarchy in every possible way by the view link instances that the wizard is creating. If you are creating a new application module, you specify the name of a package to contain it, and you give the application module a name. 89 .
- 104. bc4j.xcfg: The bc4j.xcfgfile contains metadata information about the application module and runtime parameters that have been configured to manage the runtime behavior of each application module instance. When you generate an application module, this file will be automatically generated in common subfolders relative to the folder where you create the application module definition. If you edit an application module configuration by using the editor, the modified values are set in the corresponding bc4j.xcfg file. <ModelProjectName>.jpx: The <ModelProjectName>.jpx file is used by both design-time editors and runtime framework components. JDeveloper uses the <ModelProjectName>.jpx file as a registry to track the contents of the model packages. It also contains metadata for shared application modules present in the project, which is used by both design-time and runtime components. • adf-config.xml: The adf-config.xml file contains application-level settings for various framework components scattered across different layers of the application. These configuration entries are usually determined at deployment time and will be configured in the adf-config.xml file. However, there are cases where an application administrator may want to modify certain parameters at runtime without bringing down the entire application. You can use the Oracle Enterprise Manager (OEM) control to modify the specific settings for business components at runtime without bringing down the application. • adfm.xml: The adfm.xml file contains path information for other registry files used in the model project. You may not see this file in a model project source during development. IDE generates this file with appropriate entries when you build a model project. The adfm.xml records path information for the following files, if they are present in the project: o bc4j.xcfg o <ModelProjectName>.jpx o DataControls.dcx o DataBindings.cpx 90 .
- 105. Create Default ADFBusiness Components To create components, right-click the project that you want to contain the components and select New from the context menu. The New Gallery enables you to create several components in a variety of ways by invoking either a modeler or a wizard. You can create business components by creating a business components diagram. Dragging database tables from the Database Navigator to the diagram creates entity objects for those tables. You can then use the Component Palette to create other types of objects. This enables you to visualize the relationships between the business components as well as to create and modify them visually. This course does not use the business components diagram, but you may want to experiment with it on your own. Another way to create business components is by using wizards. You can use individual wizards, such as the Create Entity Object Wizard, to create one type of object at a time. Alternatively, you can use the Create Business Components from Tables Wizard to create several types of components at once, which is probably the quickest way to get a data model up and running. The next few slides show the pages in the “Create Business Components from Tables” Wizard. Subsequent lessons show you some of the other wizards. Note: JDeveloper automatically invokes the “Create Business Components from Tables” Wizard when you create a new Business Components project. On the Entity Objects page of the “Create Business Components from Tables” Wizard, you can create default entity object definitions for the specified database objects. The wizard also creates associations based on all relevant foreign key relationships, and domains for all needed Oracle object types. This page enables you to create a large number of simple business components quickly and easily. Later you can edit any default business components that you create, and you can add new business components that may be needed. On this page, you specify the name of a package to contain the entities. It is recommended that you keep the business domain components (entities and associations) in a separate package from the data model components. Select the database schema that you want to use, and then click Query to display the Tables, Views, and Synonyms in that schema, or enter a name filter to display only certain ones. Then you can shuttle from the Available list to the Selected list the tables for which you want to create entity objects. You also can change the entity name if desired. On the Updatable View Objects page of the wizard, you can create default view object definitions that are updatable because they are based on the specified entity objects. The wizard also creates view links for all relevant association definitions. The view object definitions that you create on this page expose all attributes in the entity object. On this page, you specify the name of a package to contain the view objects. Then you can shuttle from the Available list to the Selected list the entities for which you want to create view objects. You also can change the view object name if desired On the Read-Only View Objects page of the wizard, you can create read-only view objects and view links for the specified database objects. Note that these are table names, not entity objects as was the case when you were creating updatable view objects. On this page, you specify the name of a package to contain the view objects. Then as with entity objects, you select the database schema that you want to use and click Query to display the Tables, Views, and Synonyms in that schema, or enter a name filter to display only certain ones. Then you can shuttle from the Available list to the Selected list the tables for which you want to create read-only view objects. You also can change the view name if desired 91 .
- 106. Examine Generated Artifacts Thebusiness components and the diagram that were created are shown in the Application Navigator, and if a diagram was created, it opens in the editor. Note that the Application Navigator shows the packages that were specified in the wizard. In addition, each component that was created has an associated XML file to contain the metadata pertaining to that component. By default, no Java files are created. You can create Java files, if desired, for those components to which you want to add code. This is discussed in the lesson titled “Programmatically Customizing Data Services.” 92 .
- 107.
- 108. Business Component Diagram Onthe Diagram page of the wizard, you can choose to create diagram elements on a new or existing business components diagram. Diagramming is optional. If you choose to create a diagram, on this page, you specify the diagram’s package and name. You also can select which types of objects to depict on the diagram. Note that you cannot create diagram elements for objects that do not exist in the package. For example, you cannot create an application module on the diagram unless there is an application module in your business components package. The next page of the wizard displays a Lesson Summary of what you have specified for the wizard to create. Click Finish to create the business components. The individual wizards are similar to this one, except that each creates only a specific type of component. They enable you to more specifically define each component to customize them to the needs of your application. 94 .
- 109. Examining Created Objects Thebusiness components and the diagram that were created are shown in the Application Navigator, and if a diagram was created, it opens in the editor. Note that the Application Navigator shows the packages that were specified in the wizard. In addition, each component that was created has an associated XML file to contain the metadata pertaining to that component. By default, no Java files are created. You can create Java files, if desired, for those components to which you want to add code. This is discussed in the lesson titled “Programmatically Customizing Business Services.” 95 .
- 110. ADF Model Tester JDeveloperprovides a way to test the data model without creating a client application. You can perform this testing by using the Business Components Browser, sometimes also referred to as the Business Components Tester or the BC Tester. To use the Business Components Browser to test the data model, right-click the application module in the Application Navigator and select Run from the context menu. A Connect dialog box appears, where you select your database connection and click Connect. After the connection is established, the Business Components Browser displays a tree with the application module and all of its view object and view link instances. You can double-click a top-level view object instance to view it alone, or double-click a view link instance to view both master and detail in a hierarchy, with the master row displayed in form style and the detail rows displayed in tabular style. You learn more about ADF Business Components and how to test them in subsequent lessons. As explained previously, a view object must be contained in an application module before you can test it. To test a view object, perform the following steps: 1. Right-click its application module in the Applications Navigator and select Run from the context menu. 2. In the Business Component Browser Connect dialog box, select the connection to use, and then click Connect. 3. In Business Component Browser, double-click the view object to execute it. You can then use the toolbar buttons to navigate between records, to set values for bind variables, or to specify view criteria. 96 .

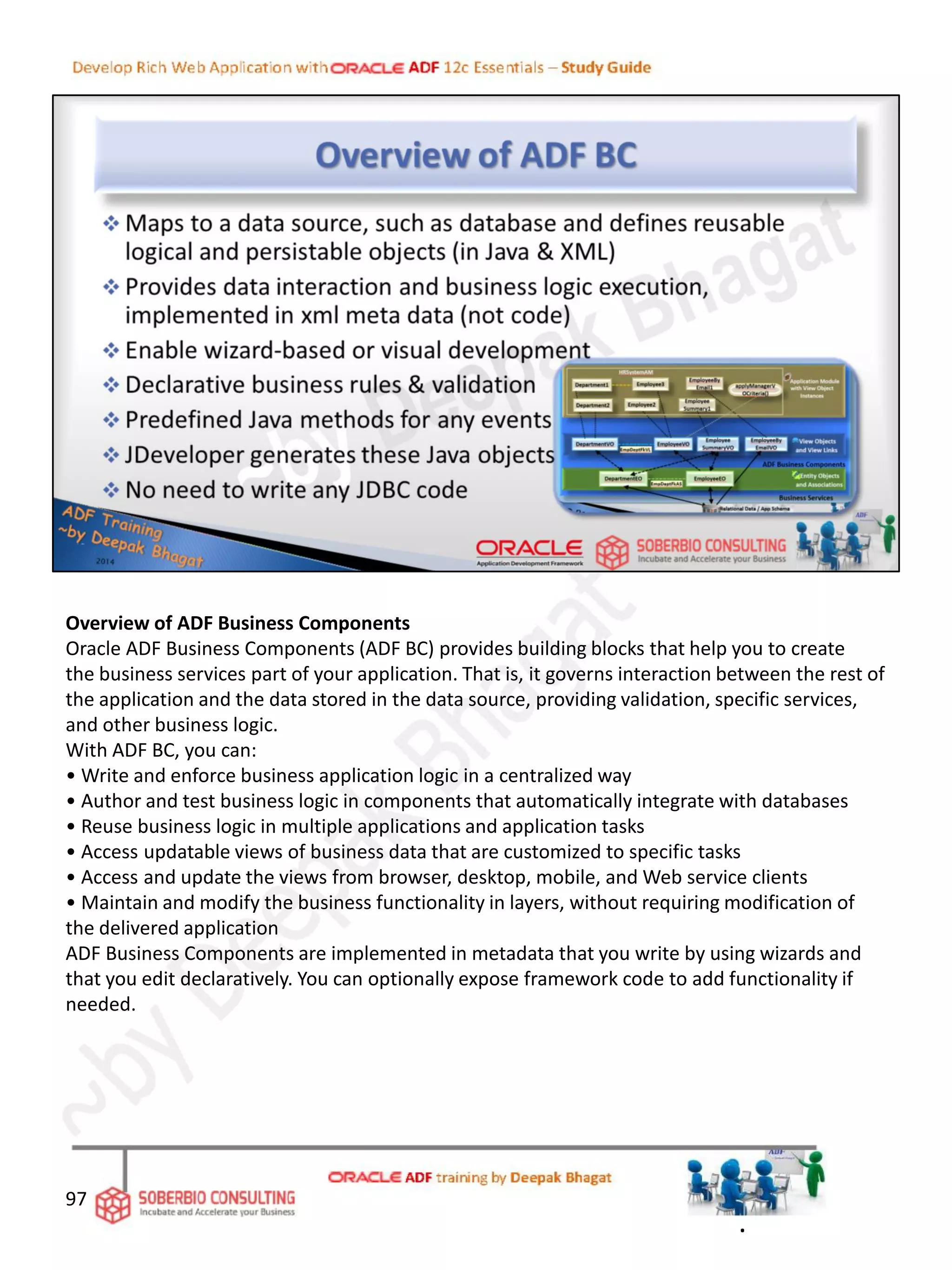

- 111. Overview of ADFBusiness Components Oracle ADF Business Components (ADF BC) provides building blocks that help you to create the business services part of your application. That is, it governs interaction between the rest of the application and the data stored in the data source, providing validation, specific services, and other business logic. With ADF BC, you can: • Write and enforce business application logic in a centralized way • Author and test business logic in components that automatically integrate with databases • Reuse business logic in multiple applications and application tasks • Access updatable views of business data that are customized to specific tasks • Access and update the views from browser, desktop, mobile, and Web service clients • Maintain and modify the business functionality in layers, without requiring modification of the delivered application ADF Business Components are implemented in metadata that you write by using wizards and that you edit declaratively. You can optionally expose framework code to add functionality if needed. 97 .
- 112.
- 113.
- 114. Implementation Architecture ofADF BC Before entering into a detailed discussion on each of the key components in subsequent lessons, it is helpful to understand a few guiding principles that have gone into the design and implementation of this layer of Oracle ADF: • It is based on standard Java and XML. Each component’s run-time behavior is configured in an XML file, whereas the Java source code for the framework is extensible. • It is database and application server agnostic. You can use any environment with a JVM. • It implements all the popular Java EE design patterns, such as Model-View-Controller, Interface/Implementation Separation, and Session Facade. • It organizes components into packages. To ensure that your code does not clash with reusable code from other organizations, you should choose package names that begin with your organization’s name or Web domain name. • Most of the classes and interfaces comprising the ADF BC prebuilt code are in the oracle.jbo or the oracle.jbo.server package. • Components are metadata driven, but you can optionally generate a Java class where you can add code. 100 .
- 115. Expose Business Service OracleADF Model abstracts the UI data binding from the technology that is used to implement the back-end business services. ADF Model implements the JSR-227 service abstraction called the data control, and provides data control implementations for the most common business service technologies—EJB, Web services, TopLink, Java classes, and ADF Business Components. Whichever implementation you choose, JDeveloper and ADF work together to provide you a declarative, drag-and-drop data binding experience as you build the user interface for your application. When you create an ADF BC application module, it is automatically exposed as a data control, including all the view object and view link instances that it contains. The JDeveloper Data Control Palette exposes an application’s data controls in the IDE, and enables you to use the drag-and-drop functionality to create UI components on a page. The UI components created by the Data Control Palette use declarative data binding, which means that the data binding expressions are automatically configured and that, in most cases, you do not have to write any additional code. The data bindings use Expression Language (EL). It does not matter which technology you have used to build your business services—EJB, Web services or business components—the Data Control Palette looks the same and works in exactly the same way. 101 .
- 116.
- 117.
- 118.
- 119.
- 120.
- 121.
- 122. Exposing the ApplicationModule to the User Interface Oracle ADF Model abstracts the UI data binding from the technology that is used to implement the back-end business services. ADF Model implements the JSR-227 service abstraction called the data control, and provides data control implementations for the most common business service technologies—EJB, Web services, TopLink, Java classes, and ADF Business Components. Whichever implementation you choose, JDeveloper and ADF work together to provide you a declarative, drag-and-drop data binding experience as you build the user interface for your application. When you create an ADF BC application module, it is automatically exposed as a data control, including all the view object and view link instances that it contains. The JDeveloper Data Control Palette exposes an application’s data controls in the IDE, and enables you to use the drag-and-drop functionality to create UI components on a page. The UI components created by the Data Control Palette use declarative data binding, which means that the data binding expressions are automatically configured and that, in most cases, you do not have to write any additional code. The data bindings use Expression Language (EL). It does not matter which technology you have used to build your business services—EJB, Web services or business components—the Data Control Palette looks the same and works in exactly the same way. 108 .
- 123.
- 124.
- 125. Lesson Agenda This lessonteaches you how to enable Web applications to query, insert, update, or delete data in the database. You learn how to use ADF BC read-only view objects to provide a reusable mechanism for defining database queries. The entity object is the ADF BC mechanism for persisting data. You create entity objects from selected tables in the database schema, and then create updatable view objects based on them. In Hands-on lab you would practice 1. Creating Multiple Entity Objects at Once 2. Creating an Association 3. Examining Attribute Settings Optionally you may also practice: 1. Creating Entity Object based on Database View 2. Synchronizing an Entity Object with Table Structure Changes 111 .
- 126.
- 127. Using Entity Objectsto Persist Data Entity objects contain attributes, business rules, and persistence information that apply to a specific part of your business model. Entities are used to define a logical structure of your business, such as product lines, departments, divisions, and so on. They can also define physical items, such as warehouses, employees, and equipment. For example, CustomerEO is an entity object. • An entity object is based on a data source; the example in the slide is based on the Customers table. • An entity’s attributes map to the columns of the data source; the CustomerEO entity has attributes called ID, Name, Status, and Email that map to the corresponding columns of the CUSTOMERS table. • You can attach validation rules to an entity object; the Status attribute has a validation rule that restricts status values to a list of valid values. You retrieve and modify entity rows in the context of an application module that provides the database transaction. When your application module creates, modifies, or removes entity object rows and commits the transaction, changes are saved automatically. 113 .
- 128.
- 129. Entity object definitionXML metadata file: This file is an entity descriptor, which holds metadata definition for the entity. This file stores the following configurations for an entity object: This file stores the database object on which the entity is built upon. An entity object can be built from a database table, view, synonyms, or materialized view. This file also stores the attribute definition for each column present in the entity object. This includes the datatype, length, precision, validation rules, and updatability of the attribute. Attribute definition also includes UI hints such as label, tool tip, format type, and control type. °°View accessors and entity accessor attributes' definitions are also stored in this file. View accessors and entity accessor attributes' definitions are used for accessing view objects and associated entity objects, respectively. °°Business event definitions that are used for launching business processes in a service oriented environment. Entity definition: This class acts as a runtime Java class representation for the entity object definition XML metadata file. The default entity definition class used by the ADF Business Components' runtime is oracle.jbo. server.EntityDefImpl, which can be extended to provide custom functionalities, if needed. • Entity object: This class represents individual entity instance created from the entity definition at runtime. The default entity object class used by the ADF business components' runtime is oracle.jbo.server.EntityImpl, which can be extended to provide custom functionalities, if needed. In simple words, an entity object instance represents a row in the datasource. For example, when you query an Employee table in the database by using a view object backed up by the EmployeeEO entity object, the framework creates EmployeeEO entity object instances for storing employee records returned by the SQL query. • Entity collection: This class represents the cache of the entity object class held in memory for a transaction. The default entity collection (entity cache) class used by the ADF Business Components' runtime is oracle.jbo.server. EntityCache, which can be extended to provide custom functionalities, if needed. 115 .
- 130. Lesson Agenda This lessonteaches you how to enable Web applications to query, insert, update, or delete data in the database. You learn how to use ADF BC read-only view objects to provide a reusable mechanism for defining database queries. The entity object is the ADF BC mechanism for persisting data. You create entity objects from selected tables in the database schema, and then create updatable view objects based on them. 116 .
- 131. Features of anEntity Object (EO) An entity object is the ADF BC component that represents a row in a database table and simplifies modifying its data. It enables you to encapsulate domain business logic for those rows to ensure that your business policies and rules are consistently validated. Each entity object maps to a data source, usually a database table or database view. Entity objects handle database caching, so that changes to data are cached in the entity object before being committed to the database. Entity objects are the foundation of the Business Components technology. Each entity object represents a business object, or business entity, in your application. Entity objects handle business rules and validation and can contain custom business methods. 117 .
- 132. Creating Entity Objectsfrom Tables, View, or Synonyms When you create an entity object from an existing table, first JDeveloper uses the online database connection to interrogate the data dictionary to infer the following information: • The Java-friendly entity attribute names from the names of the table’s columns (for example, DEPT_ID becomes DeptId) • The SQL and Java data types of each attribute based on those of the underlying column • The length and precision of each attribute • The primary and unique key attributes (If the table has no primary key, it uses RowID.) • The mandatory flag on attributes, based on NOT NULL constraints • The relationships between the new entity object and other entities based on foreign key constraints JDeveloper then creates the XML component definition file that represents its declarative settings and saves it in the directory that corresponds to the name of its package. If you create an entity object from a view, or from a table without a primary key, by default RowID is used as a primary key. If you create an entity object from a synonym, that entity object behaves as if it is created on the underlying table or view. 118 .
- 133. You can createentity objects with the Create Entity Object Wizard that you invoke from the New Gallery (File > New > Business Tier > ADF Business Components > Entity Object). This wizard contains the following pages: • Name: Specify the name and package for the entity object; select the database schema to use; select one or more check boxes for the types of schema objects to display; select the schema object on which to base the entity object. • Attributes: Add or delete attributes from the entity object. • Attribute Settings: Change the following entity object settings for attributes that you select from a drop-down list: - Name: It is a valid Java identifier. - Type: It is a Java data type. - Property Set: Select a named property set to apply to this attribute. A property set is a version of an existing domain that is XML-only (no Java) and does not enforce a data type. - Value Type: It indicates whether the default value is a literal or an expression. - Value: This is the default value (optional). This value is not propagated from the default value, if any, in the database table. - Persistent: Select this option if the attribute is persistent; deselect for transient attributes. - Mandatory: This is selected by default for columns with NOT NULL constraints. - Change Indicator: Select this option if the column is a change indicator, such as a timestamp, to be used to indicate that a row has been changed by another transaction. (If no columns are specified as change indicators, ADF BC does a column-by-column comparison.) - Derived from SQL Expression: This indicates that this attribute is derived from a SQL expression. When selected, you can enter the column Type and an Expression. - Discriminator: Select this option if this is a discriminator column for a polymorphic entity object. - Primary Key: This is selected by default for columns with PRIMARY KEY constraints. - Unique: Specify that the corresponding table column is to be generated with a UNIQUE constraint. - Queryable: Specify that this attribute can occur in the WHERE clause of a view object (selected by default except for LOBs). - Effective Date: The attribute is either the start or end date of a date range for which the entity row is effective (used for a point of time snapshot to answer such questions as what an employee’s salary was on January 30, 2004.) - History Column: Select to use this column to log changes to the database. You can log changes only if you have implemented Java Authentication and Authorization Service (JAAS) authentication, the selected attribute is persistent, you have not selected Primary Key, Mandatory, or Discriminator, and the attribute is Char, Character, String, Date, Timestamp, or Number. After you have selected History Column, you can select the history column type (created on or modified on for a Date or Timestamp attribute, created by or modified by for a Char, Character, or String attribute, or version number for a Number attribute). - Updatable: You can enable the attribute to always or never be updatable, or enable it to be updated only before the entity is first posted (while new). - Refresh After: Specify whether to retrieve the value from the database after an update or insert. - Database Column: This indicates the name and SQL data type of the column to which the attribute is mapped. • Java: Specify whether to create Java files to implement custom logic for validation and default values in the entity class or to override base class methods. You can opt to create Java files for any or all of the entity collection class, the entity object class, or the entity definition class. Otherwise, only XML files are generated. • Generate: It enables you to create a default view object and application module from this entity object. • Summary: It presents a summary of the selected options. 119 .
- 134.
- 135.
- 136.
- 137.
- 138.
- 139.
- 140.
- 141.
- 142. Synchronizing an EntityObject with Changes to Its Database Table If you alter a table for which you have already created an entity object, the existing entity is not disturbed by the presence of additional attributes in its underlying table. However, if you want to access the new table column in your application, you first need to synchronize the entity object with the database table. To perform this synchronization from JDeveloper, right-click the entity object in question and select “Synchronize with Database” from the context menu. For example, suppose you had issued the following SQL*Plus command to add a new SECURITY_QUESTION column to the USERS table: ALTER TABLE USERS ADD (security_question VARCHAR2(60)); When you use the synchronize feature on the existing User entity, the “Synchronize with Database” dialog box proposes the changes that it can perform for you automatically. By clicking the desired button, you can carry out the synchronization. 128 .

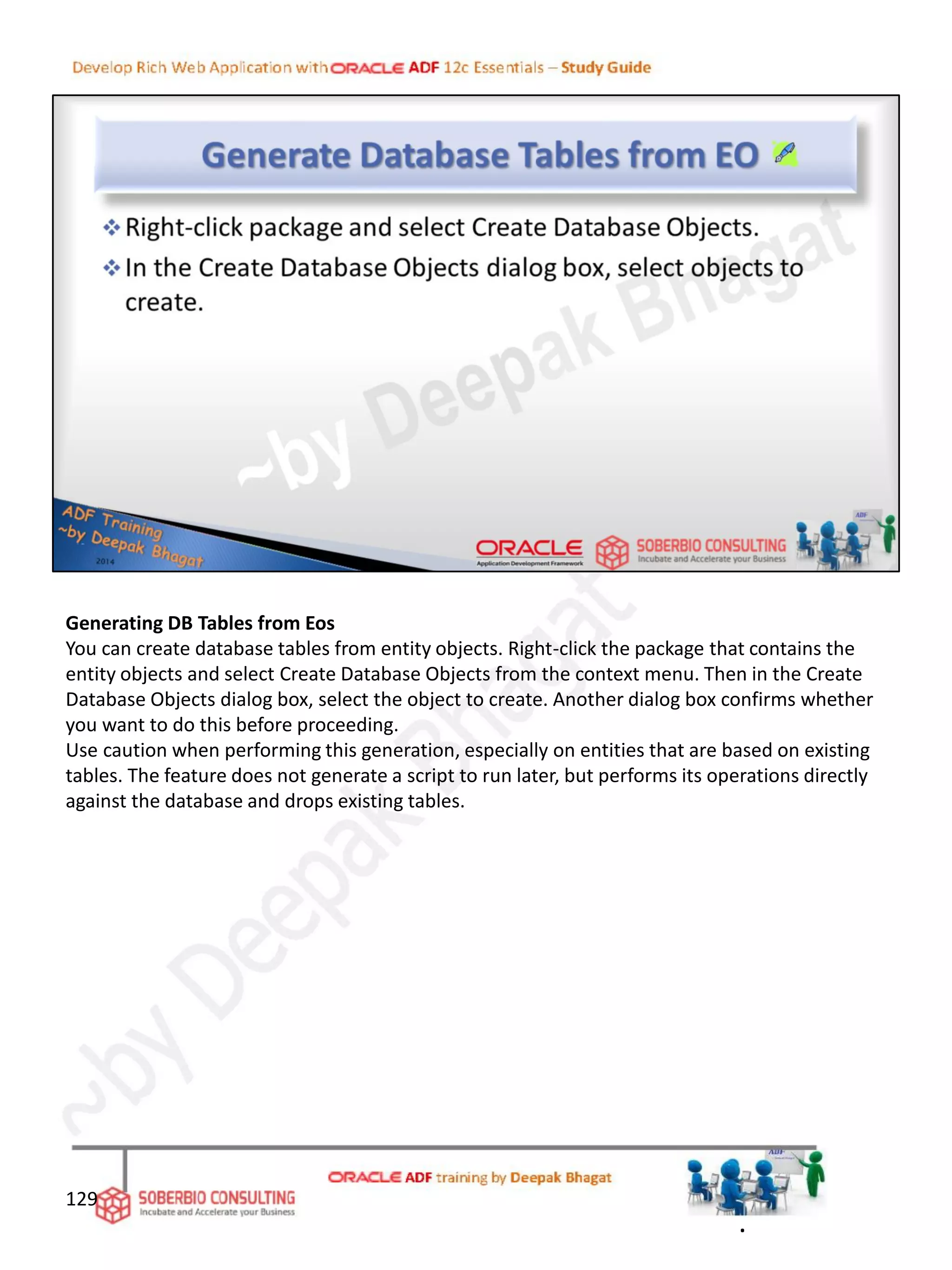

- 143. Generating DB Tablesfrom Eos You can create database tables from entity objects. Right-click the package that contains the entity objects and select Create Database Objects from the context menu. Then in the Create Database Objects dialog box, select the object to create. Another dialog box confirms whether you want to do this before proceeding. Use caution when performing this generation, especially on entities that are based on existing tables. The feature does not generate a script to run later, but performs its operations directly against the database and drops existing tables. 129 .
- 144. Entity Association Types Association:An association is a relationship between two entities that are not completely dependent on each other. Each end of the association may exist without the other, and either may be deleted without deleting the other. In Unified Modeling Language (UML), an association is represented as a line. Composition: A composition relationship means that the source entity owns the destination entity object. The destination entity object cannot exist without the owning entity object existing first. The source entity object is a container for the destination entity object. For example, an order owns the order lines associated with it. In a composition, the source cannot be deleted until all the destination items are deleted. In UML, a composition is represented as a line with a solid diamond shape at the source end. Compositions and Validation When a change is made to the destination entity, a validate message is sent to the source. The source entity’s validate() method is called when the transaction is committed. The composition relationship also dictates the sequence of various operations at run time. For example, child validation is forced before parent. Parent posting is forced before child posting. You can control many additional composition-related features through settings on the Association Properties page of the Create Association Wizard, or via the Association Editor. 130 .
- 145. Features of EntityAssociations As stated earlier, the “Create Business Components from Tables” Wizard in JDeveloper automatically creates associations between entities that represent tables that are joined by a foreign key constraint. Associations are like master-detail relationships in a relational database. However, you can also create an association manually, as follows: • Right-click the package name. • Select New Association from the Context menu. This displays the Create Association Wizard. Viewing the Components of an Association When you select an association in the Application Navigator, the Structure window displays the source (master) entity and the destination (detail) entity. In this example, the PersonEO entity is the source in the association and the OrderEO entity is the destination. That means that each person can have multiple orders, and that every order must belong to one person. The Usefulness of Associations Associations can be useful in helping you to create a more comprehensive representation of the business. For example, they allow you to “walk” between entity objects, using the find-by-primary-key query. When you traverse entity associations in your model, if the entities are not already in the cache, the ADF Business Components framework performs the query to bring the entity (or entities) into the cache. They can also perform autolookups of reference information when foreign key values change. In addition, when working in declarative SQL mode, the view object’s metadata can cause the ADF Business Components run time to generate table joins for you. Generated Files JDeveloper generates only one file for each association: <Association>.xml (for example, OrdersPersonsFkAS.xml), which contains all the metadata for the association. 131 .
- 146. The properties availableunder the Behavior tab are as follows: Use Database Key Constraints: This property does not have any ADF runtime implementation. It is used to create the foreign key constraints in the database when you generate the database table from entity objects, which participate in association. Implement Cascade Delete: This option will allow you to unconditionally delete the composed entities together with composing entities. If this is deselected, runtime will not allow the deletion of a parent entity if it has any child entities. Use this feature if you do not want child entities to exist on removal of parent entity. Optimize for Database Cascade Delete: This option will act as hints for the runtime to optimize the deletion of detailed entities participating in the association. If this option is selected, when you delete the parent, detailed entities will not trigger an individual DELETE command. Your database should have the ON DELETE CASCADE constraint specified to take care of the deletion of entries from the child tale. This feature is useful when you do not want to replicate the database constraints in the middle tier. This approach makes sense, if there is less chance for the application to migrate to a different database (or to a different datasource) in future. Cascade Update Key Attributes: This option will automatically update foreign keys in the child entities when the primary key in the parent tale is changed. Enable this option if the application allows the user to edit the foreign key in the parent row. Update Top-level History Columns: This option will trigger the history column (Modified On or Modified By) update on the parent when the child is removed, modified, or added. This feature is useful if you are working on transaction-sensitive applications where you may need to update the history columns in the parent row when any changes in the child rows are posted to the database. This history column update for the parent row is triggered with this setting even if there is no change in the parent row attributes. Lock Level: This option will issue a lock on the composing parent entity whenever the composed child entity is locked during the data update. The following are the various lock levels that you can choose from: None: No locking is issued on the parent when the framework acquires a lock on the child entity (destination). Lock Container: This option locks the immediate parent entity (source entity in the association definition) when the framework acquires a lock on the child entity (destination entity in the association definition). Lock Top-level Container: Framework locks the topmost entity object in the composition association hierarchy when the framework acquires a lock on the child (destination) entity object. The logic to lock the top level container walks up the association hierarchy and stops either at the top level or when a composition association that has the Lock Top-level Container flag turned off is found. 132 .
- 147.
- 148.
- 149. In Hands-on labyou would practice 1. Creating Read-Only View Object based on SQL Query 2. Creating Updatable Join View Object 3. Adding View Object to Existing Application Module 4. Testing View Objects Optionally you may also practice: 1. Internationalizing through Resource Bundle 2. Creating Read-Only View Object based on Static List 3. Creating Multiple Read-Only View Objects at Once 4. Creating View Link 5. Adding Child VO to Master VO Through Link in Existing AM 6. Testing View Objects and Link 135 .
- 150.
- 151. Overview of ViewObjects View objects provide the ability to query data in ADF BC applications. There are two types of view objects that you can use to retrieve data from the database: • Updatable View through Entity Objects: Using entity object references enables view object instances to update data, use validation and other business rules from the entity object definition, and immediately synchronize data with other view object instances. • Read-only Access View: SQL-only view objects bypass entity cache population and are faster for many applications. Note that view objects of this type save changes in memory only, and are not persisted in the database. You can also populate the rows of a view object programmatically or by using a static list, but these types of view objects are not covered in this course. 137 .
- 152. An ADF viewobject is composed of the following components: • View definition XML file: This is the view object descriptor XML file, which holds metadata definitions. The metadata includes the following: o The SQL SELECT statement used in the view object o Bind parameter definitions used in the SQL SELECT statement o Attribute definition describing each column returned by the query—this includes UI-related metadata, such as UI Hints and UI Categories for attributes o Entity usage information (if there is entity backup for the view object) o Metadata definition for list of values (LOV) and view criteria (query) o View accessor definition for accessing other view objects o Business rules • View definition: This is the runtime Java class representation for the view definition XML file. The default view definition class used by the ADF Business Components' runtime is oracle.jbo.server.ViewDefImpl, which can be extended to provide custom functionalities, if needed. • View object: This class represents a view object instance. The view object instance manages the query execution at runtime. The default view object class used by the ADF Business Components' runtime is oracle.jbo. server.ViewObjectImpl. Developers can extend this class to add custom functionalities, if needed. • View criteria: View criteria will let you define filter conditions for attributes in a view object, which will be used at runtime to filter the query result. This implementation takes the form of a query-by-example approach, which allows the end user to supply values for attributes of the target view object in order to form the desired search condition. • Bind variables: These are placeholder variables in a SQL statement used in a view object. These variables will be replaced with the valid ones before executing the query. • View accessor: This acts as a gateway for a view object to access another view object. This is used in validation and LOV definitions. A view object uses the following framework components to set up the infrastructure for query execution and managing the result set: • Row: A row represents an element in the collection that is a result from a query on a view object. • Row set: View object uses row sets to manage the collection of rows from a query. The framework will create a different row set when the same view object is used as a mechanism to query the datasource in different contexts. Some of these areas act as query for list of values implementation and query for child collection in master-child tree structure. Parameterized conditions used for finding the row sets are maintained at each row set level. • Row set iterator: This enables the client to traverse the row set and work with individual items. A client can create one or more row set iterators to enumerate through the rows. • Query collection: A query collection contains the rows used in a view object. A view object instance may maintain multiple query collection, depending on the row filter (a data structure holding bind variable values) used by different row sets to execute query. Note that a row or row set does not store any data within it, rather they use query collection object for storing rows. • View link: View link connects two view objects, typically used for implementing master-child relationships. 138 .
- 153.
- 154.
- 155. Create Business Componentsfrom Tables Wizard: Read-Only View Objects On the Read-Only View Objects page of the wizard, you can create read-only view objects and view links for the specified database objects. Note that these are table names, not entity objects as was the case when you were creating updatable view objects. On this page, you specify the name of a package to contain the view objects. Then as with entity objects, you select the database schema that you want to use and click Query to display the Tables, Views, and Synonyms in that schema, or enter a name filter to display only certain ones. Then you can shuttle from the Available list to the Selected list the tables for which you want to create read-only view objects. You also can change the view name if desired. 141 .
- 156. Overview of ViewObjects View objects provide the ability to query data in ADF BC applications. There are two types of view objects that you can use to retrieve data from the database: Updatable View through Entity Objects: Using entity object references enables view object instances to update data, use validation and other business rules from the entity object definition, and immediately synchronize data with other view object instances. Read-only Access View: SQL-only view objects bypass entity cache population and are faster for many applications. Note that view objects of this type save changes in memory only, and are not persisted in the database. You can also populate the rows of a view object programmatically or by using a static list, but these types of view objects are not covered in this course. 142 .
- 157.
- 158. Creating Read-Only VOs Tocreate a view object, use the Create View Object Wizard. The wizard is available from the New Gallery in the Business Tier > ADF Business Components category. If it is the first component that you are creating in the project, the Initialize Business Components Project dialog box appears. In this dialog box, you can select a database connection and specify the SQL flavor and type map for your application. The SQL Flavor setting controls the syntax of the SQL statements that your view objects will use and the syntax of the DML statements that your entity objects will use. If JDeveloper detects that you are using an Oracle database driver, it defaults this setting to the Oracle SQL flavor. The supported SQL flavors include: • Oracle– The default, for working with Oracle • Olite– For the Oracle Lite database • SQLServer– For working with a Microsoft SQL Server database • DB2– For working with an IBM DB2 database • SQL92– For working with any other supported SQL92- compliant database The Type Map setting controls whether you want this project to use the optimized set of Oracle data types, or use only the basic Java data types. If JDeveloper detects that you are using an Oracle database driver, it defaults this setting to the Oracletype map. The supported type maps are: • Oracle – Use optimized types in the oracle.jbo.domainpackage • Java– Use basic Java types only Note: You can change the database connection information later by editing project properties, but the SQL flavor and type map cannot be changed after the initialization of the project. Therefore, if you plan to have your application run against both Oracle and non-Oracle databases, you should select the SQL92SQL flavor when you begin building your application, not later. Although this makes the application portable to both Oracle and non-Oracle databases, it sacrifices using some of the Oracle- specific optimizations that are inherent in using the Oracle SQL flavor. The Name page of the Create View Object Wizard enables you to supply the view object name and the package to contain it, as well as the kind of data you need the view object to manage. For the read-only view object, select “Read-only access through SQL query.” The SQL Statement page of the wizard enables you to enter a custom SQL statement and to check its syntax. You also can specify an ORDERBYclause. There are buttons to invoke a query builder, to perform an explain plan, and to test the syntax of the query. You can type in the query if desired, but clicking the Query Builder button enables you to build the query and helps to avoid typing mistakes. In the SQL Statement dialog box of the Query Builder, you can select Quick-pick objects in the tree at the left. Then select the schema and click Query to show the available tables or views, which you can expand to show the attributes. You select the objects from the Available list and shuttle them to the Selected list to populate the query with the desired attributes and FROMclause. Selecting attributes under a foreign key ensures that tables are joined based on the foreign key. You can also define aliases on the Quick-pick objects page. Selecting other elements from the tree at the left displays other pages that enable you to define various clauses or bind variables for the query. After you have written the query, click Test for a syntax check. On the next few pages of the Create View Object Wizard, you can define: • Bind variables • Attribute mappings • Attributes • Attribute settings These pages enable you to create bind variables and set properties on attributes. Bind variables are discussed in a later lesson. If you create the view object without setting values for these pages, you can edit the view object later to set them. Business components by default are defined in .xmlfiles. However, the Java page of the wizard enables you to optionally create .Javafiles where you can add custom code if desired. If you create the view object without creating the Java files, you can create them at a later time. Application modules are discussed in a later lesson, but for now you should understand that application modules provide a way to expose business components to applications. To be able to test your view object, it must be contained in an application module. The last step of the Create View Object Wizard enables you to optionally put the view object into an application module. If you choose not to do so now, you may add the view object to an application module later. 144 .
- 159. Characteristics of UpdatableView Objects So far you have learned to create view objects that are based on a SQL query. Such view objects can be used by client applications to present data in read-only mode. You have also learned that the entity object is the ADF BC mechanism to interact with the database, enabling inserts, updates, and deletes. However, entity objects are not visible to client applications. To retrieve and present to the client application the records to be updated, you need a different type of view object, one that is based on an entity object rather than on a SQL query. This is called an updatable view object. The slide shows an example of a view object, called CustomerStatusVO. An updatable view object is bound to an entity object; this one is based on the CustomerEO entity object. A view object’s attributes map to the attributes of the underlying entity object; the CustomerStatusVO view object has attributes that map to the Name and Status attributes of the underlying entity object. Even though an updatable view object is based on an entity object, it still uses a SQL query (select) to sort and filter data, so you can specify ORDER BY and WHERE clauses for it. 145 .
- 160. Create Business Componentsfrom Tables Wizard: Updatable View Objects On the Updatable View Objects page of the wizard, you can create default view object definitions that are updatable because they are based on the specified entity objects. The wizard also creates view links for all relevant association definitions. The view object definitions that you create on this page expose all attributes in the entity object. On this page, you specify the name of a package to contain the view objects. Then you can shuttle from the Available list to the Selected list the entities for which you want to create view objects. You also can change the view object name if desired. 146 .
- 161. Overview of ViewObjects View objects provide the ability to query data in ADF BC applications. There are two types of view objects that you can use to retrieve data from the database: Updatable View through Entity Objects: Using entity object references enables view object instances to update data, use validation and other business rules from the entity object definition, and immediately synchronize data with other view object instances. Read-only Access View: SQL-only view objects bypass entity cache population and are faster for many applications. Note that view objects of this type save changes in memory only, and are not persisted in the database. You can also populate the rows of a view object programmatically or by using a static list, but these types of view objects are not covered in this course. 147 .
- 162. EO and VOInteraction: Retrieving Data A view object typically gets its data by using a SQL query, and a view object is usually bound to an entity object. This slide should help to explain these two apparently conflicting pieces of information. View objects and entity objects work together when a view object retrieves data: • The view object queries the database, ensuring that its data is current. • Data retrieved by the query is saved to the entity object’s cache. Calculated Attributes A calculated attribute is based only on a database query, not on an entity object’s attribute. Calculated attributes get their data directly from a column expression in the SQL query; the data is stored in the view object’s cache. Entity Objects The data is passed to the entity object to validate business rules stored in the object. The view object determines what data is retrieved. The entity object guarantees that the data follows the defined business rules. Synchronization Values in view object rows and entity object rows remain coordinated. 148 .
- 163. EO and VOInteraction: Updating Data When you update data in the database, the process described in the previous slide is not quite reversed: • The view updates the entity object’s cache. • When the transaction is committed, the entity object updates the database. As stated on the preceding page, the entity object guarantees the validity of the data that is being committed to the database. 149 .
- 164.
- 165.
- 166. Creating a JoinView Object A join view object is one that is based upon multiple entity objects that are related by one or more associations. When you create a join view object, you can select from the following join types: • Inner join (default): Rows that meet query criteria are returned only if related rows exist in both entities. For example, only Person rows with at least one order and only Orders rows that are associated with a person are returned. • Left outer join: All rows that meet the criteria from the first entity object are returned by the query, regardless of whether there are rows in the second entity. For example, all Person rows that meet query criteria are returned, regardless of whether they have an associated order. • Right outer join: All rows that meet the criteria from the second entity object are returned by the query, regardless of whether there are rows in the first entity. For example, all Order rows that meet query criteria are returned, regardless of whether they have an associated person. Shaping the Data It is important to realize that the type of join view object selected will determine how the data will be shaped, specifically as to how it will be used in either the business services or the UI. Therefore, different types of view objects can be used to represent different facets of the data. 152 .
- 167. Overview of ViewObjects View objects provide the ability to query data in ADF BC applications. There are two types of view objects that you can use to retrieve data from the database: Updatable View through Entity Objects: Using entity object references enables view object instances to update data, use validation and other business rules from the entity object definition, and immediately synchronize data with other view object instances. Read-only Access View: SQL-only view objects bypass entity cache population and are faster for many applications. Note that view objects of this type save changes in memory only, and are not persisted in the database. You can also populate the rows of a view object programmatically or by using a static list, but these types of view objects are not covered in this course. 153 .

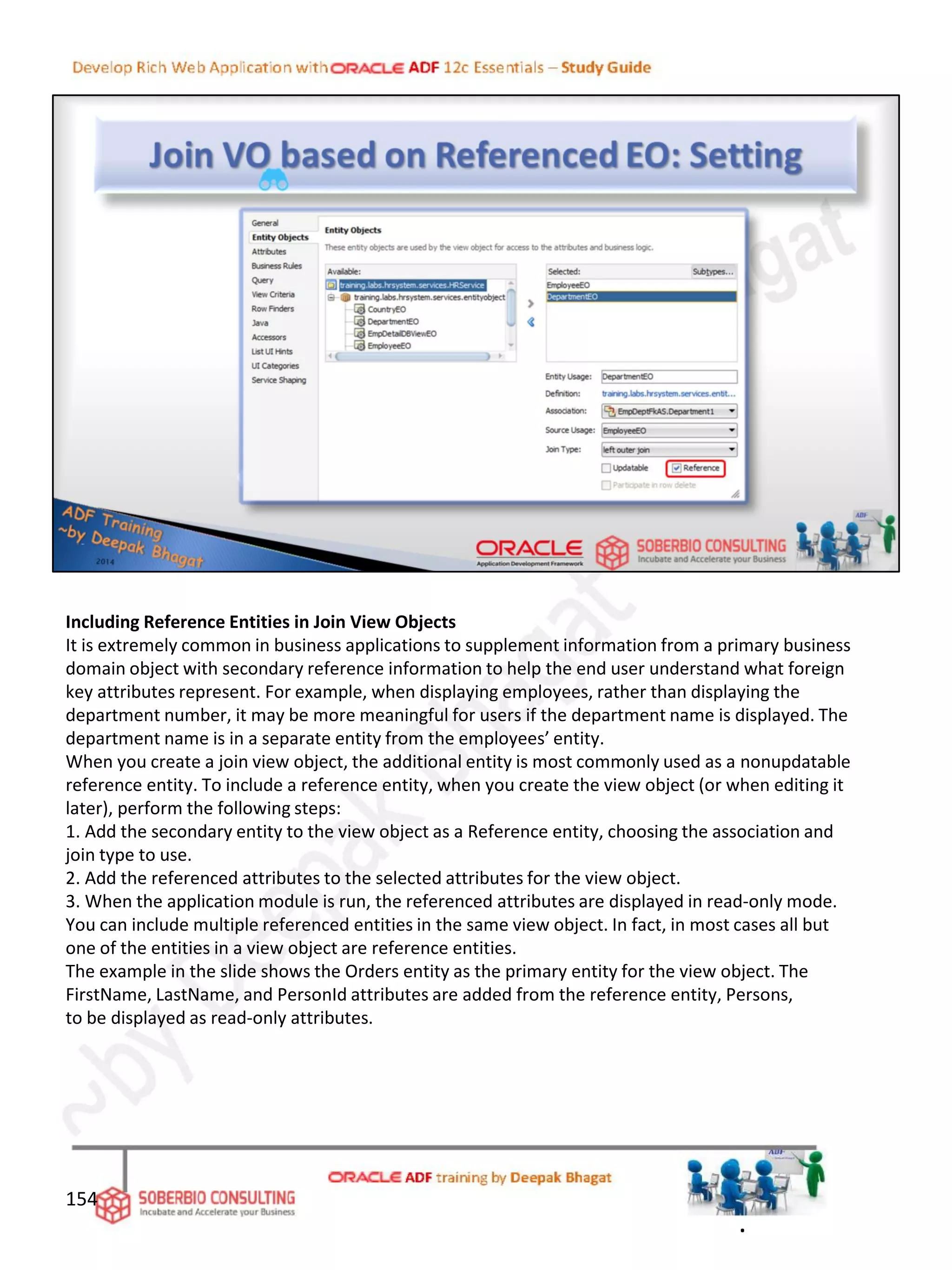

- 168. Including Reference Entitiesin Join View Objects It is extremely common in business applications to supplement information from a primary business domain object with secondary reference information to help the end user understand what foreign key attributes represent. For example, when displaying employees, rather than displaying the department number, it may be more meaningful for users if the department name is displayed. The department name is in a separate entity from the employees’ entity. When you create a join view object, the additional entity is most commonly used as a nonupdatable reference entity. To include a reference entity, when you create the view object (or when editing it later), perform the following steps: 1. Add the secondary entity to the view object as a Reference entity, choosing the association and join type to use. 2. Add the referenced attributes to the selected attributes for the view object. 3. When the application module is run, the referenced attributes are displayed in read-only mode. You can include multiple referenced entities in the same view object. In fact, in most cases all but one of the entities in a view object are reference entities. The example in the slide shows the Orders entity as the primary entity for the view object. The FirstName, LastName, and PersonId attributes are added from the reference entity, Persons, to be displayed as read-only attributes. 154 .
- 169. Including Reference Entitiesin Join VO It is extremely common in business applications to supplement information from a primary business domain object with secondary reference information to help the end user understand what foreign key attributes represent. For example, when displaying employees, rather than displaying the department number, it may be more meaningful for users if the department name is displayed. The department name is in a separate entity from the employees’ entity. When you create a join view object, the additional entity is most commonly used as a nonupdatable reference entity. To include a reference entity, when you create the view object (or when editing it later), perform the following steps: Add the secondary entity to the view object as a Reference entity, choosing the association and join type to use. Add the referenced attributes to the selected attributes for the view object. When the application module is run, the referenced attributes are displayed in read-only mode. You can include multiple referenced entities in the same view object. In fact, in most cases all but one of the entities in a view object are reference entities. The example in the slide shows the Orders entity as the primary entity for the view object. The FirstName, LastName, and PersonId attributes are added from the reference entity, Persons, to be displayed as read-only attributes. 155 .
- 170.

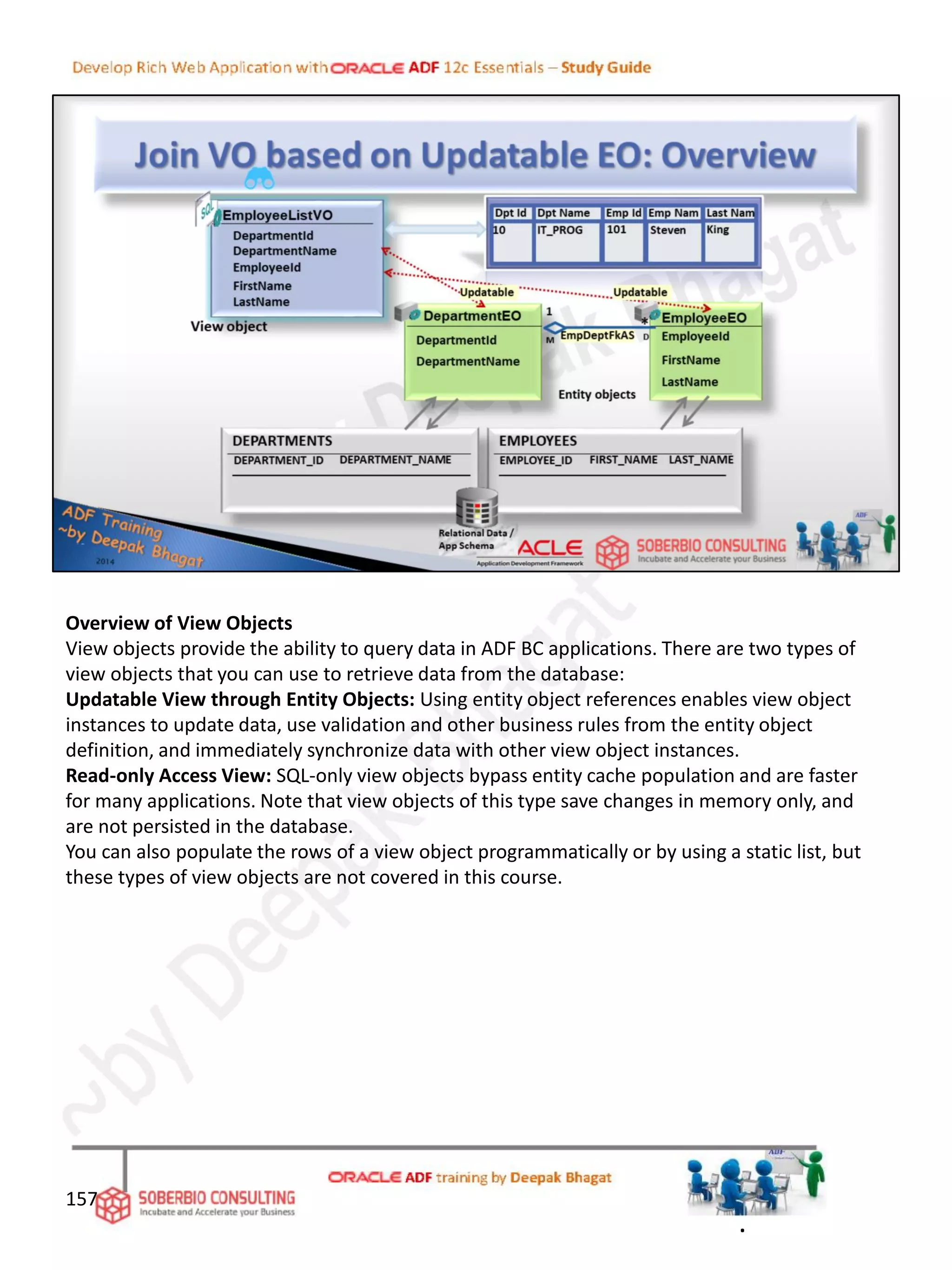

- 171. Overview of ViewObjects View objects provide the ability to query data in ADF BC applications. There are two types of view objects that you can use to retrieve data from the database: Updatable View through Entity Objects: Using entity object references enables view object instances to update data, use validation and other business rules from the entity object definition, and immediately synchronize data with other view object instances. Read-only Access View: SQL-only view objects bypass entity cache population and are faster for many applications. Note that view objects of this type save changes in memory only, and are not persisted in the database. You can also populate the rows of a view object programmatically or by using a static list, but these types of view objects are not covered in this course. 157 .
- 172.
- 173.
- 174.
- 175.
- 176.
- 177.
- 178.
- 179.
- 180.
- 181.
- 182.
- 183.
- 184.
- 185.
- 186.
- 187.
- 188.
- 189.
- 190.
- 191.
- 192.
- 193.
- 194.
- 195.
- 196. Internationalization of BusinessServices Many of the declarative modifications that you make to the data model involve text, such as labels or messages. ADF makes it easy to translate such text by offering the option to store it in resource bundles. You can use one resource bundle for the entire project or a separate one for each file. Resource bundles are properties files containing translatable strings stored with key values and optionally with descriptions that are stored as comments. For example, the label for the OrderDate field of the Orders entity object is stored as: #Used for the label of Orders.OrderDate ORDER_DATE=Order Date where ORDER_DATE is the key, Order Date is the translatable string, and the first line is the description. Although the description suggests the usage, the string can be used anywhere. To provide multiple languages, a translator needs only to copy the properties file and append _<locale> to the name. For example, the properties file depicted in the slide may have a German translation; the name of that file would be Project1Bundle_de.properties. All the translations should be stored in the same directory. When you configure the user interface to support multiple translations as explained in the lesson titled “Planning the User Interface,” which translation is used depends on the client’s browser settings. 182 .
- 197.
- 198.
- 199.
- 200. Features of ViewObjects A view object is a reusable Oracle ADF business component that encapsulates a SQL query and simplifies working with its results. View objects have the following characteristics: • They are defined by providing a SQL query or underlying entity object. • They simplify the job of executing a query and working with the results. • They can be linked to one or more other view objects to create master-detail hierarchies. • They execute the query at run time to produce a row set of rows through which you can iterate by using a row set iterator. • You can filter the row set a view object produces by applying a set of query-by-example criteria. • You can create a view of data that is specific to your application or to a part of your application. • You use view object instances in the context of an application module that provides the database transaction for the view object queries. 186 .
- 201. Creating Updatable ViewObjects The process of creating an updatable view object begins with selecting the view object from the New Gallery to invoke the Create View Object Wizard, just as you did with read-only view objects. However, on the Name page of the wizard, you specify that you want the view object to have updatable access through entity objects, instead of read-only access as you do to create a read-only view object. After you have selected to base the view object on entity objects, the next page of the wizard, the Entity Objects page, enables you to select from existing entity objects. If you select more than one, you can specify the join type and whether the second entity object is updatable or only for reference. These choices are discussed in more detail later. The Attributes page presents all the attributes of the entities that you selected and enables you to select the ones that you want in the view object, thus restricting the columns returned by the query. You can use the arrows at the right to rearrange the order of the attributes, and you can use the New button to create calculated or transient attributes that are not part of the entity (more about these in the lesson titled “Declaratively Customizing Data Services”). The Attribute Settings page of the wizard is similar to the one in the Create Entity Object Wizard. However, these settings apply to this view object only, and if different, override the attribute settings in the entity object. Different views may present data differently. 187 .
- 202.
- 203.
- 204.
- 205.
- 206.
- 207.
- 208.
- 209. Creating Master-Detail Relationshipswith View Objects You can use view links to create master to multiple detail and cascading master-detail relationships between view objects. To create view objects with these characteristics, you need to create view links. 195 .
- 210. Linking View Objects Youhave learned to use associations to define a relationship between entity objects. You have also learned how to join multiple tables in a view object query, producing a single view object that contains attributes from multiple tables. View links enable you to join multiple view objects in a master-detail hierarchy. When your needs call for showing the user a set of master rows, and for each master row a set of coordinated detail rows, then you can create view links to define how you want the master and detail view objects to relate. Note, however, that a query of the detail view object via the master only occurs as long as the view link is included as part of the application module. To define a view link, you can first create a view object that queries the master table and another that queries the detail table. Then you can create a new view link, selecting the attributes of the source (master) and destination (detail) view objects to link on and clicking Add to create the source/destination pair. If multiple attribute pairs are required to define the link between master and detail, you can repeat these steps to add additional source/destination attribute pairs. 196 .
- 211.
- 212.
- 213. Linking VOs (ViewLink) You have learned to use associations to define a relationship between entity objects. You have also learned how to join multiple tables in a view object query, producing a single view object that contains attributes from multiple tables. View links enable you to join multiple view objects in a master-detail hierarchy. When your needs call for showing the user a set of master rows, and for each master row a set of coordinated detail rows, then you can create view links to define how you want the master and detail view objects to relate. Note, however, that a query of the detail view object via the master only occurs as long as the view link is included as part of the application module. To define a view link, you can first create a view object that queries the master table and another that queries the detail table. Then you can create a new view link, selecting the attributes of the source (master) and destination (detail) view objects to link on and clicking Add to create the source/destination pair. If multiple attribute pairs are required to define the link between master and detail, you can repeat these steps to add additional source/destination attribute pairs. 199 .
- 214. Compare Join VOswith View Links A join view query for the example in the previous slide may be as follows: SELECT Orders.ORDER_ID, Orders.ORDER_DATE, Persons.PERSON_ID, Persons.FIRST_NAME, Persons.LAST_NAME FROM PERSONS Persons, ORDERS Orders WHERE Persons.PERSON_ID = Orders.CUSTOMER_ID A query for a view link uses a bind variable in a WHERE clause that is appended to the base query for the source or destination view object. In the example in the previous slide, the WHERE clause that is appended would be something like the following: :Bind_PersonId = Orders.CUSTOMER_ID This would query all the orders for the current customer, displaying orders and customers in a master-detail fashion. 200 .

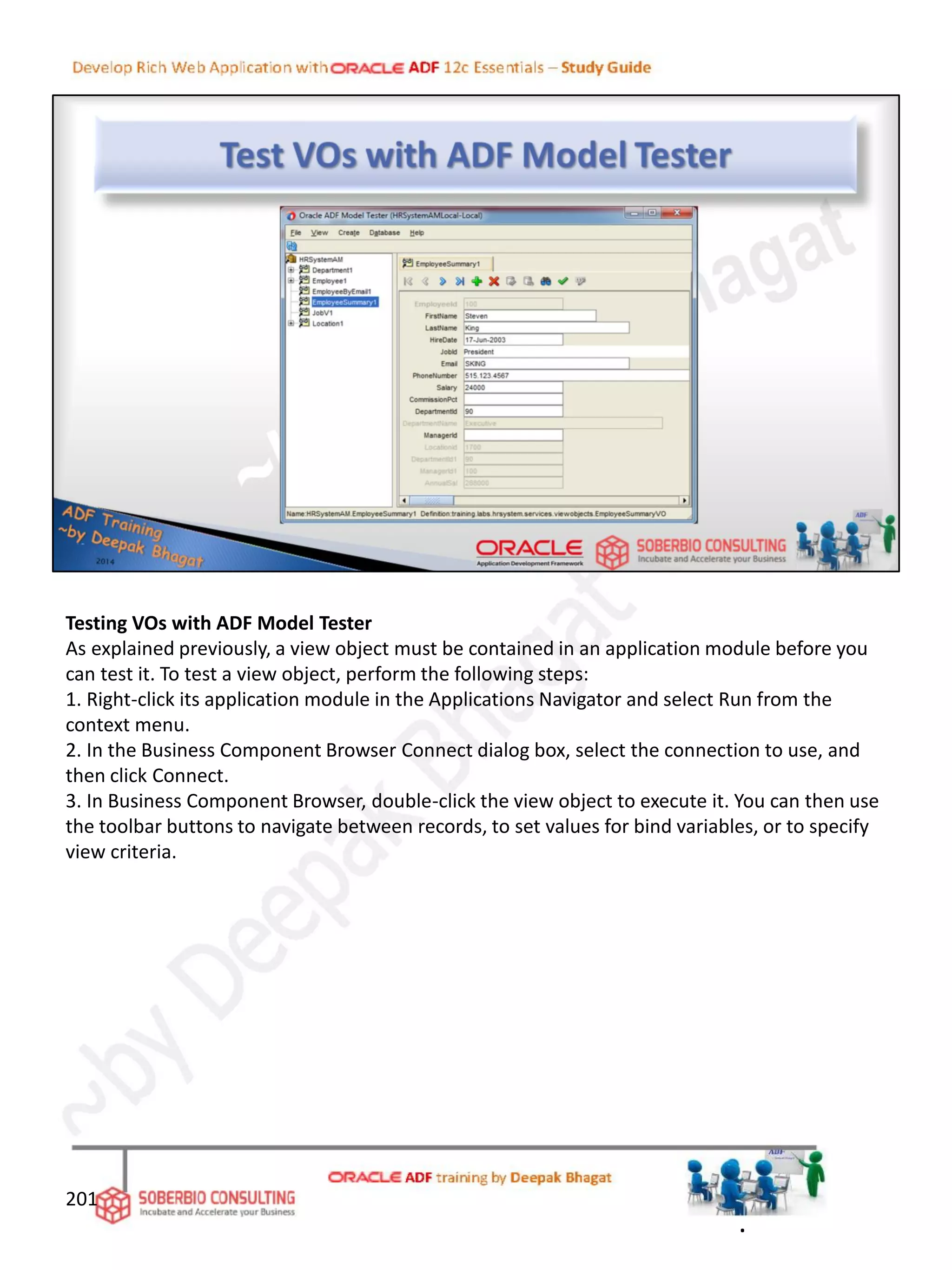

- 215. Testing VOs withADF Model Tester As explained previously, a view object must be contained in an application module before you can test it. To test a view object, perform the following steps: 1. Right-click its application module in the Applications Navigator and select Run from the context menu. 2. In the Business Component Browser Connect dialog box, select the connection to use, and then click Connect. 3. In Business Component Browser, double-click the view object to execute it. You can then use the toolbar buttons to navigate between records, to set values for bind variables, or to specify view criteria. 201 .
- 216.
- 217.
- 218. Lesson Agenda In thislesson, you learn how to expose ADF BC data services to an application. You learn that the application module enables the data services to be used on a Web page, and you learn about how ADF Model abstracts the data for binding to user interface components. You create application modules and test them with the Business Components Tester. In Hands-on lab, optionally you may also practice: Creating New Nested Application Module 204 .
- 219.
- 220. Ingredients of anapplication module An application module comprises of the following components: • Application module XML metadata file: This is the application module descriptor file holding metadata definitions. The metadata includes exposed business methods and data models for use, by clients, such as view objects and associated view criteria, master-child view, objects connected through view links, and nested application modules. • Application module definition: This is the runtime Java class representation of the application module XML metadata file. The default base class for storing the application module definition is oracle.jbo.server. ApplicationModuleDefImpl which can be extended to add custom functionalities if needed. This class stores the runtime metadata for application modules read from the corresponding XML file. • Application module implementation: This class represents an application module instance generated by runtime to serve a request from the client. The default base class used for representing an application module instance is oracle.jbo.server.ApplicationModuleImpl. You will subclass this class to define the custom business logic that must execute in the application's middle tier. • bc4j.xcfg: This file contains metadata for all the application modules present in the same Java package for a project. This file is located in the Common subdirectory relative to the path where the application module's XML component definition is located. An application module's runtime behaviour is controlled by the configuration properties present in this file. The properties stored in this file include the JDBC data source name, application module pooling configurations, database specific configurations, locking mode, and so on. 206 .
- 221. What is ApplicationModule (AM) Oracle ADF application modules are business components that represent particular application tasks. The application module provides a data model for the application task by acting as a sort of “wrapper” for the view object and view link instances required for the task. Although conceptually an application module is a wrapper for the entities, views, associations, and view links in an application task, its data model contains only views and view links. The underlying entities and associations are included by implication. The application module also contains services that help the client accomplish the task. For example, an application module can represent and assist with tasks such as: • Updating customer information • Creating a new order • Processing salary increases Restricted and Unrestricted Views In the application module shown in the slide, PersonsVO1 is an unrestricted view and OrdersVO1 is a restricted view. When you run the application module, PersonsVO1 can display all rows of person data, but OrdersVO1 can display only the order data associated with the current person. When you add a view to your application module’s data model, you can add it as an unrestricted view or as a restricted view. 207 .
- 222. Features of anAM The application module acts as a wrapper for the views and entities in your business model. It also handles all database transactions and performs tasks that are specific to the application. An application module performs a specific application task—for example, logging service requests or processing user information. An application module has the following main characteristics: • It represents the data model that your client uses and has one connection to the database. • It enables you to gather data customized to a client interface (such as a form), so that data can be retrieved in one network round-trip instead of multiple trips. • It can contain other application modules, called nested application modules, enabling you to separately develop, test, and then reuse the application module functionality. • It keeps track of all changes that affect data in the database and defines the transactional model. • It provides remotely accessible methods, which implement the application module behavior. • You can deploy the same application module in multiple configurations. • As discrete units, application modules are easily reused in the business logic tiers of other applications. 208 .
- 223.
- 224. Defining the DataModel for the Application Module The application module contains an active data model of the view objects and view link instances required for the task that the application module performs. When you create the application module, you need to define all the view objects that are part of the application module. All view objects contained within the current package are available to be included. Select the view objects required and click the right arrow to include them in the data model. To remove a view object from the data model, select it in the Data Model section and click the left arrow. By default, the wizard creates instance names for the data model components based on their corresponding view object names. You might want to change the instance name based on its function or hierarchical placement. In the example in the slide, you might rename the nested instance to “AddressesPerPerson,” because the wizard generates a less clear instance name, “AddressesVO1 via PersonAddressVL1” by default. 210 .
- 225.
- 226.
- 227. Using Master-Detail ViewObjects (Data Model) in Application Modules When you run an application module in the Business Components Browser, or when you use an application module’s data control in a user interface, you need to be aware of the levels of VO instances that are shown in the BC Browser or the Data Controls panel: • The first level, displayed just under the application module in the hierarchy, shows independent instances of view objects. • Any subordinate levels show instances of view objects that are accessed via a view link. These are child VO instances of the independent VO instance on the first level, and therefore contain only rows related to the current row of the master VO. There may be multiple detail levels, each showing related records of its direct master VO. In the example in the slide, OrderVO1 contains only the orders belonging to the current row in CustomerVO1. OrderVO2 contains all orders, unless restricted by a WHERE clause or view criteria. 213 .
- 228. Transactions in ADFBC An application module is a transactional container for a logical unit of work, so any updates, inserts, or deletes for all view objects in the application module are committed or rolled back at once. The outermost, or root, application module provides the transaction context for all nested application modules. At run time, the application module delegates transaction management to a companion Transaction object, which provides an entity cache as a work area to hold entity rows involved in the current user’s transaction. Each entity cache contains rows of a single entity type, so a transaction involving two or more entity objects holds the working copies of those entity rows in separate caches. The entity cache is also the place where new entity rows wait to be saved. When an entity row is created, modified, or removed, it is automatically enrolled in the transaction’s list of pending changes. When you call commit() on the Transaction object, it processes its pending changes list, validating new or modified entity rows that might still be invalid. When the entity rows in the pending list are all valid, Transaction issues a database SAVEPOINT and coordinates saving the entity rows to the database. If all goes successfully, it issues the final database COMMIT statement. If anything fails, Transaction performs a ROLLBACK TO SAVEPOINT to allow the user to fix the error and try again. When a root application module contains other nested application modules, they all participate in the root application module’s transaction and share the same database connection and a single set of entity caches. This sharing is handled for you automatically by the root application module and its Transaction object. You should keep this transaction context in mind when designing the application. If you want separate transactions, do not nest the application modules. For example, you may have an InventoryManagerAM application module that has methods to add or subtract from inventory. It would make sense to nest this application module inside a customer-facing ShoppingAM. When the customer submits an order, you could subtract the ordered items from the inventory as a part of the same transaction. If the commit fails, the order does not get submitted, and inventory changes are rolled back as well. It would not make sense, however, for you to nest the inventory management application module inside one that manages human resources. HR transactions, such as hiring or salary changes, should be completely separate transactions from inventory management. 214 .
- 229. Nested Application Module Applicationmodules support the ability to create software components that mimic the modularity of your use cases, for which your higher-level functions might reuse a subfunction that is common to several business workflows. You can implement this modularity by defining composite application modules that you assemble using instances of other application modules. This task is referred to as application module nesting. That is, an application module can logically contain one or more other application modules, as well as view objects. The outermost containing application module is referred to as the root application module. Any application module can be used as a root application module, but it would usually be one that maps to a more complex use case. When a root application module contains other nested application modules, they all participate in the root application module’s transaction and share the same database connection and a single set of entity caches. This sharing is handled for you automatically by the root application module and its Transaction object. When you nest an instance of one application module inside another, you aggregate not only the view objects in its data model, but also any service methods it defines. This feature of nesting, or reusing, an instance of one application module inside of another is one of the most powerful design aspects for implementing larger-scale, real-world application systems. The example in the slide shows that the InventoryAM application module contains nested application module instances of StockAM and ProcureAM, in addition to view object instances. 215 .
- 230.
- 231.
- 232. Shared Application Module Webapplications often utilize data that is required across sessions and does not change much. An example of this type of static data might be displayed in a lookup list. Accessing static data can incur an unnecessary overhead when static data caches are repopulated from the database for each application session on each request. In order to optimize performance, a common practice when working with ADF Business Components is to cache the static data for reuse across sessions and requests. Shared application modules allow requests from multiple sessions to share a single application module instance which is managed by the application pool for the lifetime of the Web server virtual machine. In the case of application-level sharing, any user session will be able to access the same view instances contained in the shared application module. In contrast, the life cycle of the session-level shared application module extends to a user session. In this case, view instances of the application module will be accessible by other components in the same user session. You specify that an application module is to be shared in the Project Properties dialog box: 1. Double-click the name of the project that contains the application module, to invoke the Project Properties dialog box. 2. In the panel on the left, expand the Business Components node and select Application Module Instances. 3. Click the Application or Session tab to define whether the instance is to be application scoped or session scoped. 4. Select the AM to be shared in the Available tree on the left and use the arrow to shuttle it to the Application Module Instances pane on the right. 5. You can change the name of the instance if required. Click OK to create the instance. 218 .

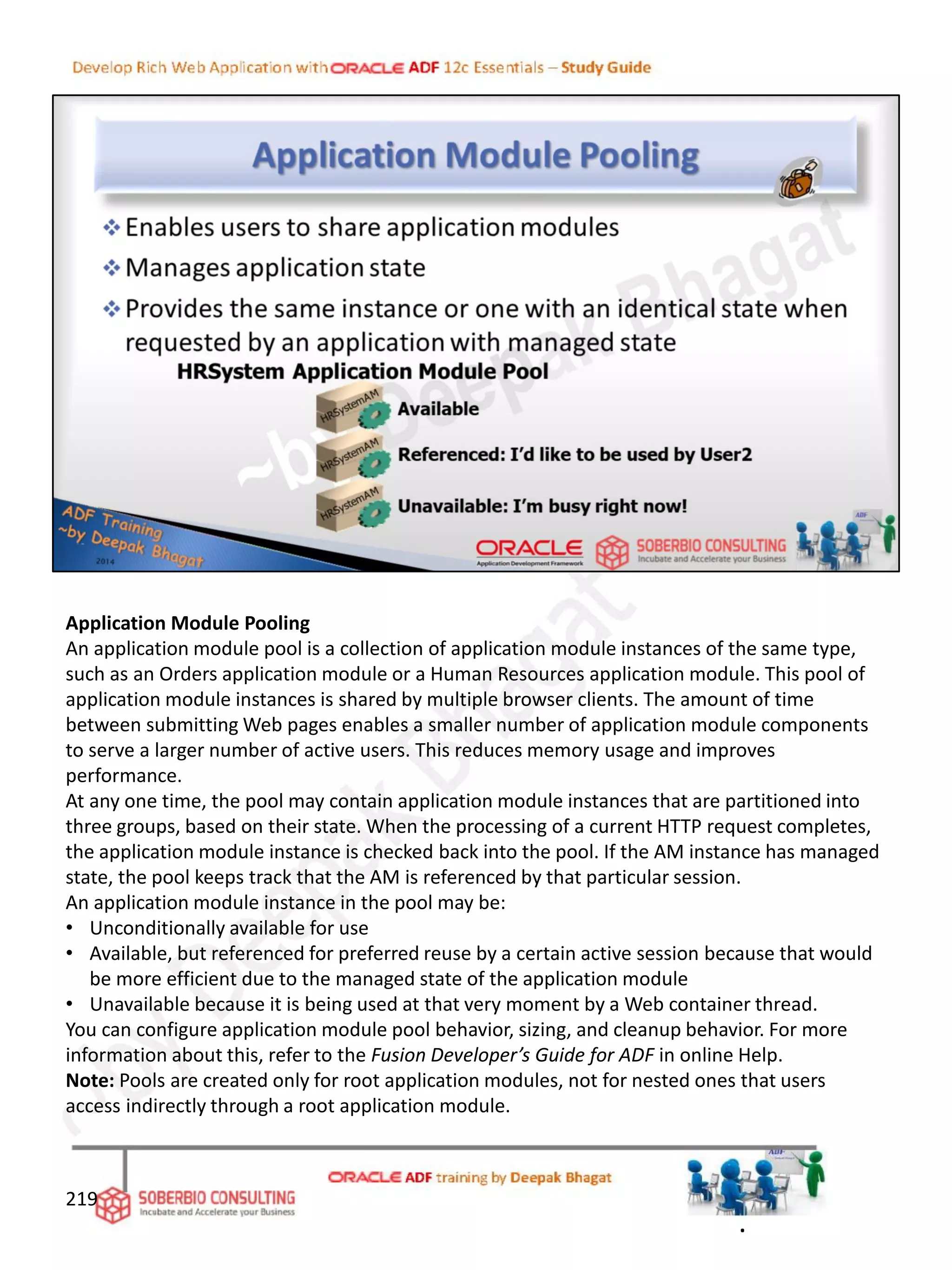

- 233. Application Module Pooling Anapplication module pool is a collection of application module instances of the same type, such as an Orders application module or a Human Resources application module. This pool of application module instances is shared by multiple browser clients. The amount of time between submitting Web pages enables a smaller number of application module components to serve a larger number of active users. This reduces memory usage and improves performance. At any one time, the pool may contain application module instances that are partitioned into three groups, based on their state. When the processing of a current HTTP request completes, the application module instance is checked back into the pool. If the AM instance has managed state, the pool keeps track that the AM is referenced by that particular session. An application module instance in the pool may be: • Unconditionally available for use • Available, but referenced for preferred reuse by a certain active session because that would be more efficient due to the managed state of the application module • Unavailable because it is being used at that very moment by a Web container thread. You can configure application module pool behavior, sizing, and cleanup behavior. For more information about this, refer to the Fusion Developer’s Guide for ADF in online Help. Note: Pools are created only for root application modules, not for nested ones that users access indirectly through a root application module. 219 .
- 234.
- 235.
- 236. State Management inApplication HTTP is a stateless protocol. ADF model supports both stateless applications as well as those involving a unit of work that may span multiple pages. An application module supports passivating its pending transaction state to an XML document, which is stored in the database in a single, generic table, keyed by a unique passivation snapshot ID. It also supports the reverse operation of activating pending transaction state from one of these saved XML “snapshots.” You can demonstrate passivation in the Business Components Browser by making changes without saving them, and then selecting File > Save Transaction State. A dialog box displays the transaction key ID. Then close and reopen the BC Browser; it displays the original data without your changes. Select File > Restore Transaction State to restore the pending changes, which you can then commit to the database if desired. Passivation and activation are performed automatically in an ADF BC application by the application module pool. This automatic state management provides the simplicity of a stateful programming model that is nearly as scalable as a completely stateless application. 222 .
- 237. Application module statemanagement Since an application module is responsible for the transaction management of an application, it includes some of the settings and configurations for high availability and to maintain the state of the application. High availability is a concept in which the state of an application is maintained even when the handshake between servers occurs in a clustered environment. In this context, a handshake means that when a server goes down, the clustered server gets another server up and running to maintain the state of the application. For example, a user connects to a website that is hosted on a clustered server and gets connected to Server1 of that cluster. The user starts creating a new record at the same time that Server1 goes down for maintenance. At such a time, the user data should not be lost, and the user should be allowed to continue with the creation of the record. For this to happen, the state of the application has to be maintained so that the state of the application is transferred from Server1 to Server2, and the user will not see the change in the state of the application. Passivation is done in the server to store the state of the application, and the passivation state can be stored in a flat file or a database. Activation reloads the state of the application at the point where it was left. The two APIs that are helpful in the application module for high availability are assivateState() and activateState().The failover feature is enabled by setting the value of jbo.dofailover to true in the application module. With this setting, the passivation state will occur at the end of every request. 223 .
- 238. ADF Model Developers needa standard way to bind services to Java UIs and to simplify the use of different service implementations in the model. As a developer, you need to know and understand the specifics of the technology that is used to persist data in your application. It is time consuming to write boilerplate code to create interactions between UI components and services. ADF Model provides a generalized approach. ADF Model offers a layer of abstraction, describing the middle-tier business services to the view, so that the developer is insulated from the specifics of the underlying service implementation. Instead of binding the view to the business services, you bind the view to the model, and the model is bound to the business service by a data control and exposed to the developer through a binding. In short, ADF Model provides a common API to bind data from a business service to a UI. Out-of-the-box, ADF Model supports data controls for services based on Java classes, EJB session beans, Web services, and ADF Business Components. Data controls are an ADF Model layer that represents the back-end business services. Each time you create an ADF BC application module, a data control is automatically created that contains all the view object instances and client methods that are exposed in the application module. Data control is what enables you to bind UI components to the back-end data. 224 .
- 239. Estimate the Sizeof an AM An application module represents the logical data model to accomplish a specific user task. In the early analysis phases of application development, architects and designers often use UML use-case techniques to iteratively refine a high-level description of the different kinds of business functions that the system needs to support. Each high-level, end-user use case identified during the design phase should generate the following considerations: The domain business objects involved: What core business data is relevant to the use case? The user-oriented view of business data required: What subset of columns, what filtered set of rows, sorted in what way, grouped in what way is needed to support the use case? 225 .

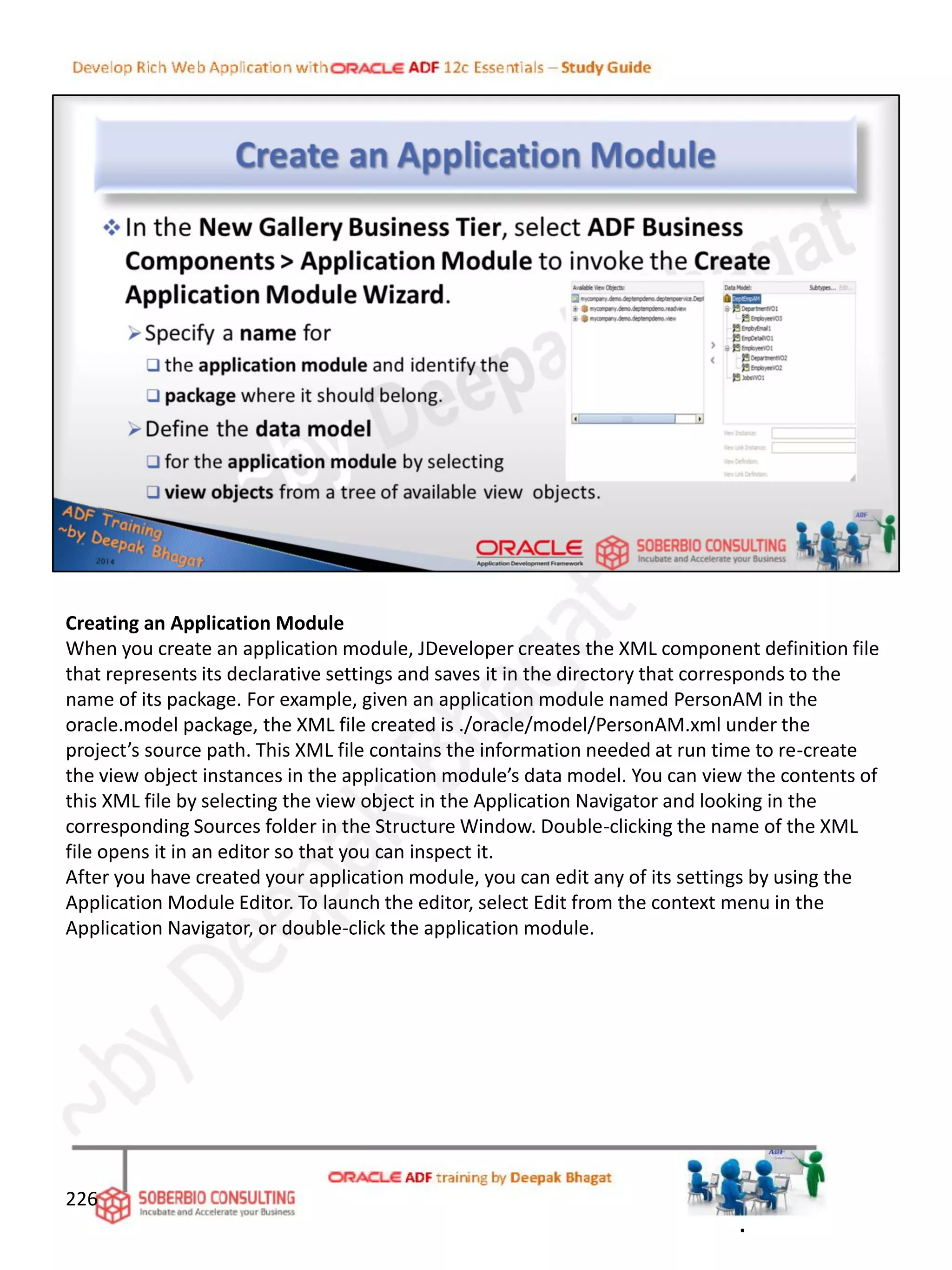

- 240. Creating an ApplicationModule When you create an application module, JDeveloper creates the XML component definition file that represents its declarative settings and saves it in the directory that corresponds to the name of its package. For example, given an application module named PersonAM in the oracle.model package, the XML file created is ./oracle/model/PersonAM.xml under the project’s source path. This XML file contains the information needed at run time to re-create the view object instances in the application module’s data model. You can view the contents of this XML file by selecting the view object in the Application Navigator and looking in the corresponding Sources folder in the Structure Window. Double-clicking the name of the XML file opens it in an editor so that you can inspect it. After you have created your application module, you can edit any of its settings by using the Application Module Editor. To launch the editor, select Edit from the context menu in the Application Navigator, or double-click the application module. 226 .
- 241.
- 242.

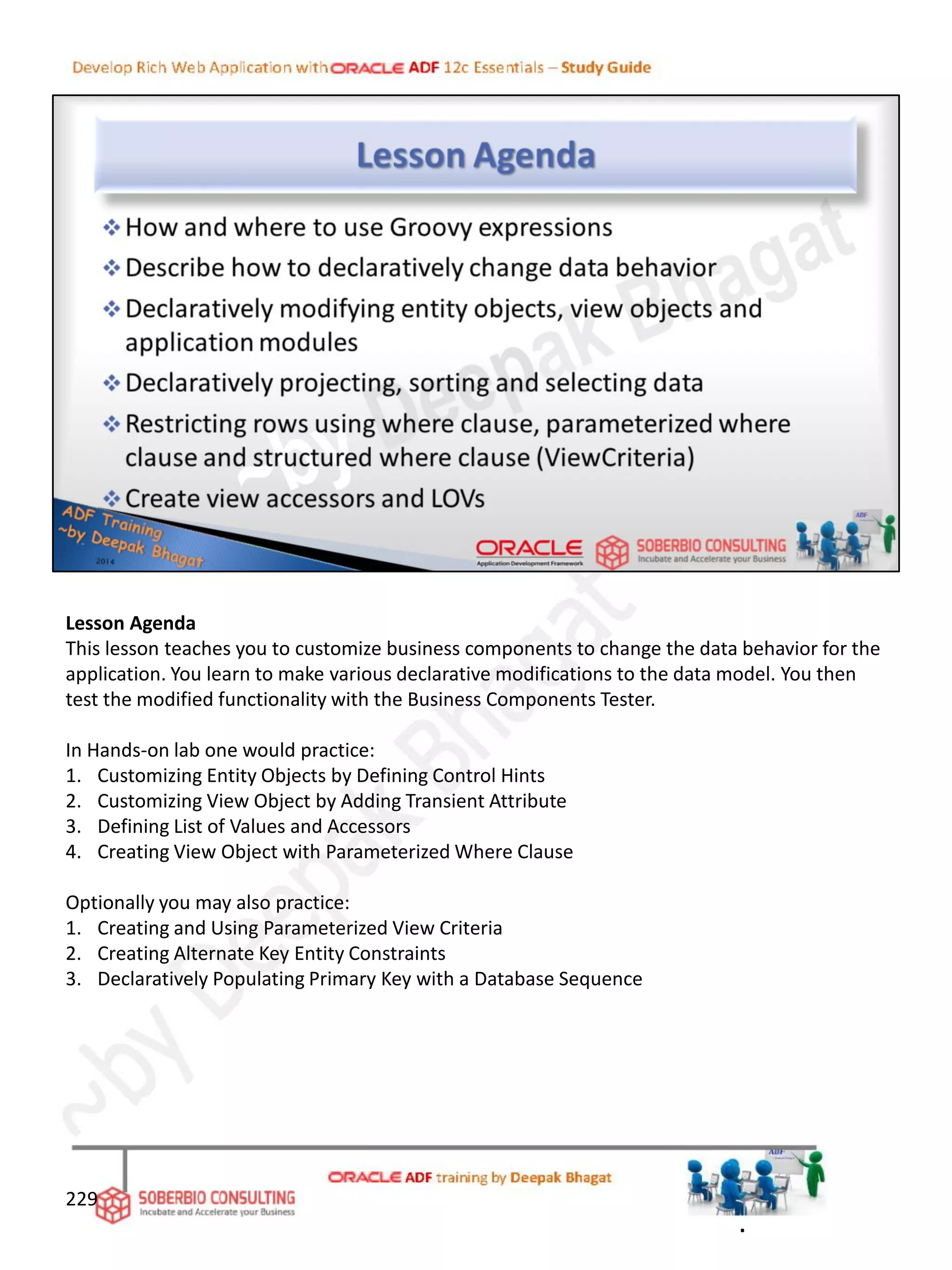

- 243. Lesson Agenda This lessonteaches you to customize business components to change the data behavior for the application. You learn to make various declarative modifications to the data model. You then test the modified functionality with the Business Components Tester. In Hands-on lab one would practice: 1. Customizing Entity Objects by Defining Control Hints 2. Customizing View Object by Adding Transient Attribute 3. Defining List of Values and Accessors 4. Creating View Object with Parameterized Where Clause Optionally you may also practice: 1. Creating and Using Parameterized View Criteria 2. Creating Alternate Key Entity Constraints 3. Declaratively Populating Primary Key with a Database Sequence 229 .
- 244. Introduce Groovy Groovy isan agile, dynamic language for the Java platform, defined as JSR 241. It has many features that were inspired by languages such as Python, Ruby, and Smalltalk, making them available to Java developers with a Java-like syntax. It interoperates seamlessly with any Java class, and can be compiled and interpreted without disturbing normal operations. The latest release of JDeveloper provides integrated support for Groovy. You can use Groovy expressions for all sorts of declarative values, such as bind variables and attribute default values. You can use a Groovy script that returns true or false for declarative validation. You can also use Groovy expressions in error messages. You see examples of using Groovy expressions when these different topics are presented in this lesson and later lessons. Groovy can simplify expressions and make them more concise in that it supports object access via dot-separated notation, so it supports syntax such as Empno instead of getAttribute(EMPNO). You can find out more about Groovy at http://groovy.codehaus.org/ and http://radio.weblogs.com/0118231/2007/05/22.html#a829. Note: Groovy is still a fairly new technology and is missing features such as code completion and debugging capabilities. This makes it difficult to use for large segments of code 230 .
- 245.
- 246.

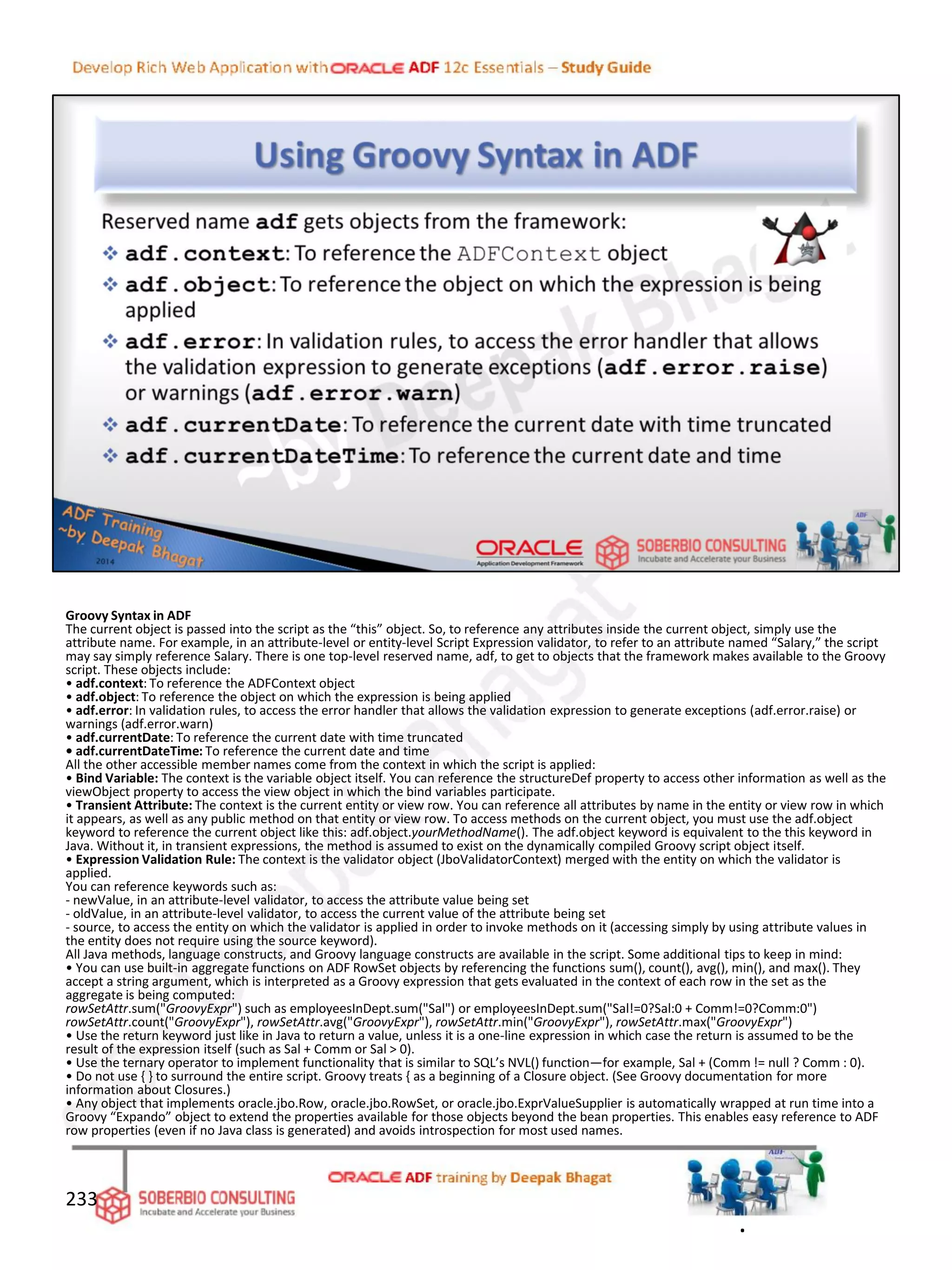

- 247. Groovy Syntax inADF The current object is passed into the script as the “this” object. So, to reference any attributes inside the current object, simply use the attribute name. For example, in an attribute-level or entity-level Script Expression validator, to refer to an attribute named “Salary,” the script may say simply reference Salary. There is one top-level reserved name, adf, to get to objects that the framework makes available to the Groovy script. These objects include: • adf.context: To reference the ADFContext object • adf.object: To reference the object on which the expression is being applied • adf.error: In validation rules, to access the error handler that allows the validation expression to generate exceptions (adf.error.raise) or warnings (adf.error.warn) • adf.currentDate: To reference the current date with time truncated • adf.currentDateTime: To reference the current date and time All the other accessible member names come from the context in which the script is applied: • Bind Variable: The context is the variable object itself. You can reference the structureDef property to access other information as well as the viewObject property to access the view object in which the bind variables participate. • Transient Attribute: The context is the current entity or view row. You can reference all attributes by name in the entity or view row in which it appears, as well as any public method on that entity or view row. To access methods on the current object, you must use the adf.object keyword to reference the current object like this: adf.object.yourMethodName(). The adf.object keyword is equivalent to the this keyword in Java. Without it, in transient expressions, the method is assumed to exist on the dynamically compiled Groovy script object itself. • Expression Validation Rule: The context is the validator object (JboValidatorContext) merged with the entity on which the validator is applied. You can reference keywords such as: - newValue, in an attribute-level validator, to access the attribute value being set - oldValue, in an attribute-level validator, to access the current value of the attribute being set - source, to access the entity on which the validator is applied in order to invoke methods on it (accessing simply by using attribute values in the entity does not require using the source keyword). All Java methods, language constructs, and Groovy language constructs are available in the script. Some additional tips to keep in mind: • You can use built-in aggregate functions on ADF RowSet objects by referencing the functions sum(), count(), avg(), min(), and max(). They accept a string argument, which is interpreted as a Groovy expression that gets evaluated in the context of each row in the set as the aggregate is being computed: rowSetAttr.sum("GroovyExpr") such as employeesInDept.sum("Sal") or employeesInDept.sum("Sal!=0?Sal:0 + Comm!=0?Comm:0") rowSetAttr.count("GroovyExpr"), rowSetAttr.avg("GroovyExpr"), rowSetAttr.min("GroovyExpr"), rowSetAttr.max("GroovyExpr") • Use the return keyword just like in Java to return a value, unless it is a one-line expression in which case the return is assumed to be the result of the expression itself (such as Sal + Comm or Sal > 0). • Use the ternary operator to implement functionality that is similar to SQL’s NVL() function—for example, Sal + (Comm != null ? Comm : 0). • Do not use { } to surround the entire script. Groovy treats { as a beginning of a Closure object. (See Groovy documentation for more information about Closures.) • Any object that implements oracle.jbo.Row, oracle.jbo.RowSet, or oracle.jbo.ExprValueSupplier is automatically wrapped at run time into a Groovy “Expando” object to extend the properties available for those objects beyond the bean properties. This enables easy reference to ADF row properties (even if no Java class is generated) and avoids introspection for most used names. 233 .
- 248.

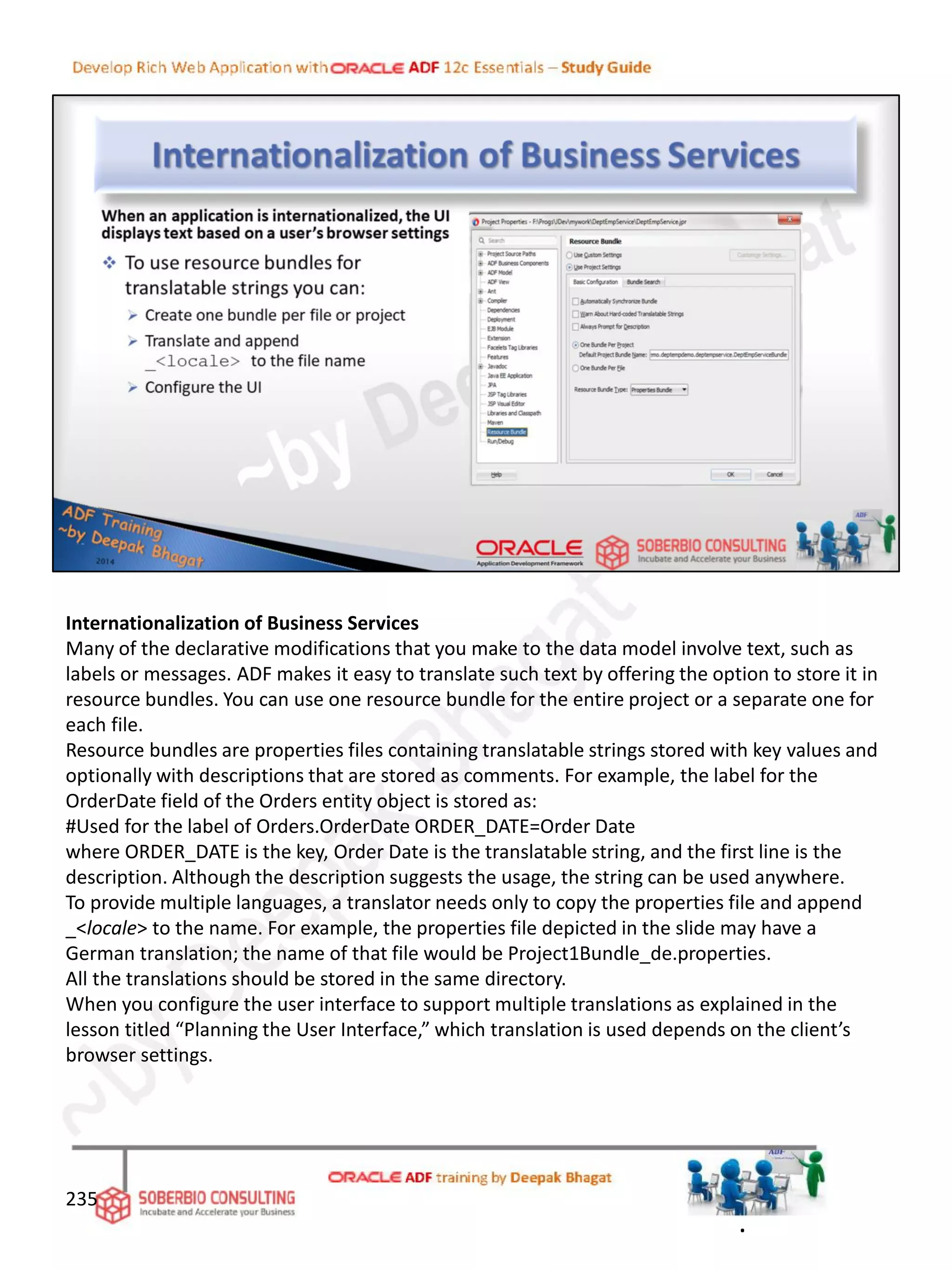

- 249. Internationalization of BusinessServices Many of the declarative modifications that you make to the data model involve text, such as labels or messages. ADF makes it easy to translate such text by offering the option to store it in resource bundles. You can use one resource bundle for the entire project or a separate one for each file. Resource bundles are properties files containing translatable strings stored with key values and optionally with descriptions that are stored as comments. For example, the label for the OrderDate field of the Orders entity object is stored as: #Used for the label of Orders.OrderDate ORDER_DATE=Order Date where ORDER_DATE is the key, Order Date is the translatable string, and the first line is the description. Although the description suggests the usage, the string can be used anywhere. To provide multiple languages, a translator needs only to copy the properties file and append _<locale> to the name. For example, the properties file depicted in the slide may have a German translation; the name of that file would be Project1Bundle_de.properties. All the translations should be stored in the same directory. When you configure the user interface to support multiple translations as explained in the lesson titled “Planning the User Interface,” which translation is used depends on the client’s browser settings. 235 .
- 250. Editing Entity Objects Youcan access all the properties of entity objects, associations, view objects, view links, and application modules by using the object editors and the property inspectors. You can open the flat editor for an object by double-clicking the component in the Application Navigator, or by right-clicking it and selecting Open from the context menu. The flat editor is nonmodal, with collapsible headers. The editor enables you to edit the .xml file for the entity object. You can edit it declaratively on the Overview tab, although in rare instances you may need to edit it directly by clicking the Source tab at the bottom of the editor. The History tab enables you to see changes that have been made and to reverse those changes if desired. In addition to the editors, the Property Inspector enables you to edit business components. If the Property Inspector is not visible, you can display it by selecting View > Property Inspector. The Property Inspector also has tabs to access panels that display various categories of properties for the selected object. If the property is also displayed in the editor, its value is synchronized so that a value change is reflected in both places. The Property Inspector may also display some properties of objects that are not accessible in the editor for that object. The Property Inspector features a search bar and a toolbar; these are described thoroughly in the lesson titled “Getting Started with JDeveloper.” 236 .
- 251. Customize EO’s DefaultBehavior JDeveloper 12c has the ability to define more behaviors declaratively than did earlier JDeveloper versions. This reduces the learning curve and the amount of time it takes to develop applications. The subsequent slides provide some examples of ways to declaratively modify the default behavior of entity objects. 237 .
- 252.
- 253. Customize Attribute ControlHints One of the many powerful, built-in features of ADF Business Components is the ability to define control hints on attributes. Control hints are additional attribute settings that the view layer can use to automatically display the queried information to the user in a consistent, locale-sensitive way. Control hints set on view objects override those set at the entity object level. To add control hints for an entity object or a view object attribute, perform the following steps: Open the object editor, select the Attributes node in the tree at the left, select the attribute, and click Edit. In the attribute editor, click Control Hints, and set the desired properties. To add text to a resource bundle, click the ellipsis (…) next to the text. Add the displayed value, accept the generated key or change it, and then click “Save and Select” to use the new text resource. You can set the following control hints: Display Hint: Determines whether the attribute should be displayed Label Text: Changes the default label for the attribute. Labels are prompts or table headers that precede the value of a field. Tooltip Text: Sets text to appear in tooltip or the <ALT> attribute of HTML Format Type: Sets the formatter to use, such as currency or number for a number attribute Format: Sets the format to use. Select a format from a list or enter any Java format that is valid for that type. Control Type: Specifies the type of control that the UI displays Display Width: Sets the character width to be used by the control that displays this attribute Display Height: Sets the number of character rows to be used by the control that displays this attribute Form Type: Specifies whether the attribute is displayed in detail or Lesson Summary style layout (not valid for Web applications) Auto Submit: When enabled (true) , Auto Submit triggers a partial submit on value changes in the user interface. The default is false. 239 .
- 254. Customize EO’s DefaultBehavior JDeveloper 12c has the ability to define more behaviors declaratively than did earlier JDeveloper versions. This reduces the learning curve and the amount of time it takes to develop applications. The subsequent slides provide some examples of ways to declaratively modify the default behavior of entity objects. 240 .

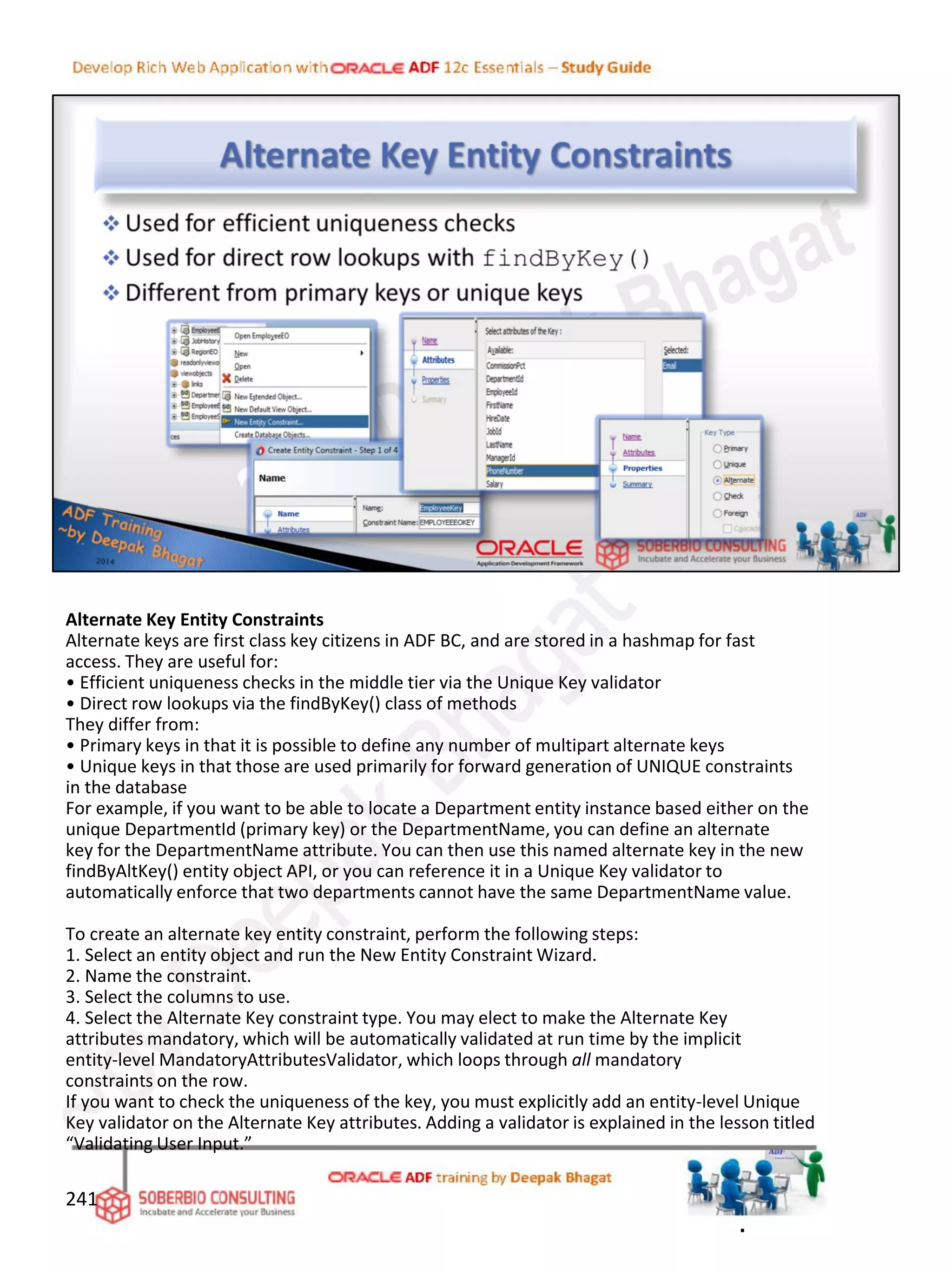

- 255. Alternate Key EntityConstraints Alternate keys are first class key citizens in ADF BC, and are stored in a hashmap for fast access. They are useful for: • Efficient uniqueness checks in the middle tier via the Unique Key validator • Direct row lookups via the findByKey() class of methods They differ from: • Primary keys in that it is possible to define any number of multipart alternate keys • Unique keys in that those are used primarily for forward generation of UNIQUE constraints in the database For example, if you want to be able to locate a Department entity instance based either on the unique DepartmentId (primary key) or the DepartmentName, you can define an alternate key for the DepartmentName attribute. You can then use this named alternate key in the new findByAltKey() entity object API, or you can reference it in a Unique Key validator to automatically enforce that two departments cannot have the same DepartmentName value. To create an alternate key entity constraint, perform the following steps: 1. Select an entity object and run the New Entity Constraint Wizard. 2. Name the constraint. 3. Select the columns to use. 4. Select the Alternate Key constraint type. You may elect to make the Alternate Key attributes mandatory, which will be automatically validated at run time by the implicit entity-level MandatoryAttributesValidator, which loops through all mandatory constraints on the row. If you want to check the uniqueness of the key, you must explicitly add an entity-level Unique Key validator on the Alternate Key attributes. Adding a validator is explained in the lesson titled “Validating User Input.” 241 .

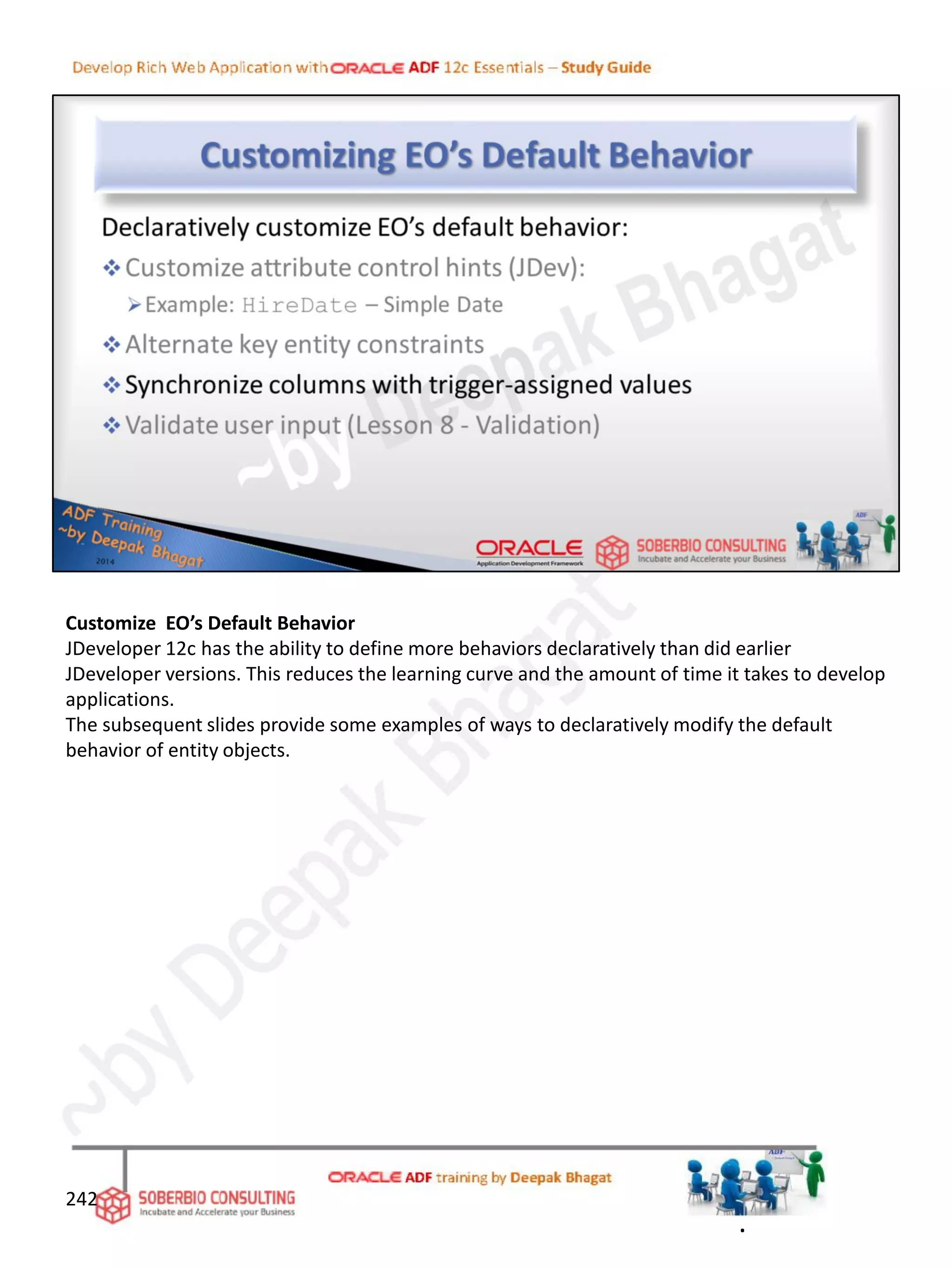

- 256. Customize EO’s DefaultBehavior JDeveloper 12c has the ability to define more behaviors declaratively than did earlier JDeveloper versions. This reduces the learning curve and the amount of time it takes to develop applications. The subsequent slides provide some examples of ways to declaratively modify the default behavior of entity objects. 242 .
- 257. Synchronize Columns withTrigger-Assigned Values When a database trigger updates the underlying column value during insert or update operations, you can select the respective Refresh After Insert or Refresh After Update check boxes to ensure that the framework automatically retrieves the modified value and keeps the entity object and database row in sync. The entity object then uses the Oracle SQL RETURNING INTO feature to return the modified column back to your application in a single database round trip. One common case for Refresh After Insert occurs when a primary key attribute value is assigned by a BEFORE INSERT FOR EACH ROW trigger. Often the trigger assigns the primary key from a database sequence. In this case, you can set the Attribute Type to the built-in data type DBSequence. Setting this data type automatically enables the Refresh After Insert property. When you create a new entity row whose primary key is DBSequence, a unique negative number gets assigned as its temporary value. This value acts as the primary key for the duration of the transaction in which it is created. At transaction commit time, the entity object issues its INSERT operation using the RETURNING INTO clause to retrieve the actual database trigger– assigned primary key value. Any related new entities that previously used the temporary negative value as a foreign key will get that value updated to reflect the actual new primary key of the master. You can set the Updatable property of a DBSequence-valued primary key to Never, because the end user never needs to update this value. Note: The sequence name shown on the Sequence tab applies only at design time when you create a database table from an entity object. The sequence indicated on this tab is created along with the table on which the entity object is based. 243 .
- 258. Editing View Objects Youcan invoke the view object editor by double-clicking the view object in the Application Navigator, or by right-clicking it and selecting Edit <VO Name> from the context menu. The editor enables you to edit the .xml file for the view object. You can edit it declaratively on the Overview tab, although in rare instances you may need to edit it directly by clicking the Source tab at the bottom of the editor. The History tab enables you to see changes that have been made and to reverse those changes if desired. When you click the Overview tab, you are presented with navigation tabs that contain the following categories: • General: Set custom properties, tuning, or alternate keys for the view object. • Entity Objects: Modify or add entity objects on which to base the view object. • Attributes: Modify or add attributes or define custom properties or lists of values. • Query: Modify the SQL query and set bind variables or view criteria. • Java: Generate Java files or expose custom methods to client applications. • View Accessors: Define a set of possible values for a given foreign key; used mainly for validation and for lists of values. • List UI Hints: Specify default display settings for the view object when used as a list in the UI. 244 .
- 259. Customizing VO’s DefaultBehavior The next few slides present several examples of the ways in which you can declaratively modify the default behavior of view objects. 245
- 260. Defining View ObjectControl Hints View objects use the control hints from their associated entity objects, so you would not normally need to define them at the view object level. It is better to define them for the entity object so that displays are consistent throughout the application. However, you can define the same control hints for view objects as you can for entity objects. If there is a control hint defined for a view object, it overrides the one defined at the entity object level. There may be cases where you would want to override the entity object control hints for a specific view, such as the following: • You may need to display the data differently in different views. For example, in an application’s entity objects, you may define the label for all of the primary key items as ID, such as for ProductId, SupplierId, WarehouseId, and so on. But if you have a particular view that displays the IDs of multiple referenced entity objects, for that view object you may want to override the entity-level label for those IDs, as described in the slide. • You may display the same attribute twice in a view. For example, imagine defining the Label UI hint for the Ename attribute of the Emp EO to be the string “Employee’s Name.” If there is an association that relates the Emp EO to itself via the relationship (Emp.Mgr = Emp.Empno), you may create a View Object that includes the Emp EO usage twice, once to include employee information and again to display information about that employee’s manager. In the context of this VO, you might have the Ename attribute from the base Emp EO as well as the Ename attribute to show the name of the employee’s manager. If you allow the inherited EO-level UI hints to be used, both the employee’s name and the manager’s name in this view object will use the inherited UI control hint label of “Employee’s Name.” You can define the VO-attribute-level UI hint for the ManagerEname view object attribute to have the hint “Manager’s Name” to clarify the situation, which will override the inherited “Employee’s Name” hint for that attribute. In addition to the attributes that are based on entity objects, you may have some transient attributes that are defined only at the view object level, so you may want to define control hints for those. 246 .
- 261. Performing Calculations You cancalculate the value of an attribute by entering an expression. For example, a view object based on OrderItemEO may have a transient attribute called LineTotal. To implement a calculation for that attribute, perform the following steps: 1. Invoke the attribute editor for LineTotal. 2. In the View Attribute panel: a. Select the Expression option for Value Type. Expressions can use the Groovy expression language and can reference attributes from the view object definition. b. Enter the calculation for Value: UnitPrice*Quantity. c. In the Dependencies panel, shuttle Quantity and UnitPrice to the Selected list. This ensures that the value for LineTotal is recalculated whenever the value for either Quantity or UnitPrice changes. 247 .
- 262. Projecting (Restricting) andReordering the Columns Retrieved by a Query The Attributes tab of the view object editor enables you to restrict the columns retrieved by the query by deleting attributes. You can also add attributes, either new ones or, for entity-based views, attributes based on columns that exist in the entity object. You can also change the order in which the attributes appear in the query statement. The example in the slide shows an existing query that selects PRINCIPAL_NAME, TITLE, FIRST_NAME, LAST_NAME, and some other columns. After deleting and reordering attributes, the query is changed and no longer selects the deleted PRINCIPAL_NAME and TITLE columns, and the order in which LAST_NAME and FIRST_NAME are selected is reversed. 248 .
- 263. Changing the Orderof Queried Rows You can set an ORDER BY clause on the query by clicking the Query tab of the view object editor. To invoke the Edit Query dialog box, click Edit (pencil icon) in the Query section of the panel. Enter an ORDER BY clause (without the ORDER_BY keyword). If you click Edit to the right of the Order By field, you invoke a dialog box that enables you to select the columns and construct the ORDER BY clause. 249 .
- 264. Use of ViewCriteria Instead of changing WHERE clauses by using string manipulation, you may find it more efficient to use view criteria to assemble complex WHERE clauses. View criteria are named expressions that you can use to assemble a WHERE clause. A view criteria row specifies query-by-example requirements for one or more view object attributes. For example, suppose the view object definition CustOrdVO includes the following attributes: LastName, OrderTotal, and DiscountId. Then a view criteria row for an instance of CustOrdView could specify requirements for each of these attributes, such as: LastName STARTSWITH “S”, OrderTotal > 500, and DiscountId <> NULL. Another view criteria row for this instance could specify different requirements for a different set of attributes, such as: OrderTotal > 1000, and CreditLimit > 5000. For a view criteria row to be satisfied, all of its attribute requirements must be met. View criteria are made up of collections of view criteria rows. For the view criteria to be met, at least one of the rows must be satisfied. For example, if vc1 has the requirements: OrderTotal > 500, CreditLimit > 2500, and DiscountId <> NULL, and vc2 has the requirements: OrderTotal > 1000 and CreditLimit > 5000, then the complete view criteria are equivalent to the following WHERE clause condition: (OrderTotal > 500 AND CreditLimit > 2500 AND DiscountId <> NULL) OR (OrderTotal > 1000 AND CreditLimit > 5000) You can define view criteria at design time and apply them in the Business Components Browser to test them. Also, you can use bind variables for view criteria values. The Query Execution Mode sets the source from which the view object retrieves rows. You can set it to: Database (default): Limits the results of the filtered view object to the database table specified by the query In Memory: Limits the results to the in-memory results of the view object query Uses rows already in the row set Can be used to progressively refine the row set contents through in-memory filtering Prevents unnecessary database access Both: Is useful when you have newly created, but not yet committed, results in the row set that you want to filter and combine with filtered results from the database table 250 .
- 265.
- 266. Role of ViewCriteria in Search The view criteria that you define in the model facilitate the production of search forms required in the UI. The view criteria object is a row set of one or more view criteria rows, whose attributes mirror those in the view object. The view criteria definition comprises query conditions that augment the WHERE clause of the target view object. Query conditions that you specify apply to the individual attributes of the target view object. The Edit View Criteria dialog box lets you create view criteria and save them as part of the view object’s definition, where they appear as named view criteria. You use the Query page of the overview editor to define view criteria for specific view objects. The example in the slide shows the definition of a view criteria, SearchByName, on the BrowseProductVO view object. When the view objects are created and specified as instances in an application module, JDeveloper automatically creates a data control to encapsulate the collections (view instances) that the application module contains. JDeveloper then populates the Data Controls panel with these collections and any view criteria that you have defined, as shown on the right in the example in the slide. The SearchByName named criteria, part of the BrowseProduct collection in the FODProductAMDataControl, is available to be dropped onto the page for the creation of a Search form (as you learn in the lesson titled “Adding Functionality to Pages” in this course). 252 .
- 267. Creating View Accessors Viewaccessors facilitate traversing from a detail record to all the associated master records. For example, a view accessor could enable you to traverse from an employee to all the departments the employee is allowed to join, rather than just to the department the employee is currently in. View accessors are commonly used both in validation, which is discussed in the lesson titled “Validating User Input,” and in lists of values, which is discussed next. You can define view accessors for entity or view objects, but defining them at the entity level is usually preferable because it enables access by any view object that is based on that entity. You can define a view accessor to any view object in the same workspace. Simply click “Create new view accessors” on the View Accessors tab of the EO or VO editor, and then in the View Accessors dialog box, select the view object or objects to access. You can create multiple view accessors at once. If the view accessor retrieves a view object on which view criteria or bind variables are defined, you can optionally use those for the view accessor to restrict the rows that are retrieved, and you can also add an ORDER BY clause. To choose these options, with the view accessor selected in the View Accessors dialog box, click Edit. You can also set these options after creating the view accessor by editing it. 253 .
- 268. Using a Listof Values (LOV) You can define LOVs on view object attributes. LOVs use view accessors as a data source: For an attribute that is mapped to an entity object, you normally use the same underlying entity object view accessor that is used by the Key Exists validator for the underlying EO attribute. The entity object view accessor can be extended at the view object level to either change the UI Hints or change bind expressions. You can define view object view accessors to be used for transient attributes that are not mapped to entity object attributes. 254 .
- 269.
- 270. Customizing AMs The applicationmodule editor contains several tabs that enable you to declaratively modify aspects of the application module, as listed in the slide. You learn more about modifying application modules as you complete the course application. 256 .
- 271. 257 Application Module Parameters Theapplication module pool manager is controlled by parameters that you set in the application module configuration. You find the parameters by editing the application module configuration. To edit the configuration, right-click the application module and select Configurations. Then click the Edit button. This opens the Business Component Configuration Wizard. Click the Properties tab to see and edit the configuration properties. The parameters are listed in alphabetical order by default. The properties that control the application module pool manager begin with jbo.ampool. Removing Instances Application module instances are removed from the pool as follows: The pool manager compares the number of inactive, available instances in the pool against the minimum available instance size. If the number of inactive, available instances is greater than the minimum available instance size, then the pool will attempt to remove any inactive, available instances. An inactive instance is defined as an instance that has been unused for a period longer than the pool’s maximum inactive age. The pool will continue to remove inactive, available application module instances until the minimum available instance size has been reached or there are no more inactive, available instances. .
- 272. Modifying the LockingBehavior of an Application Module By default, the application module uses pessimistic locking, which means that a lock is issued on a database row when an application changes data in that row. Oracle recommends using optimistic locking for Web applications. A lock is acquired only just before posting changes to the database, and the application module instance can be immediately released when a Web page terminates. This provides the best level of performance for Web applications that expect many users to access the application simultaneously. To change your configuration to use optimistic locking, perform the following steps: Click the Configurations tab of the Application Module editor. Select a configuration and click Edit. On the Properties tab of the Configuration Editor, set the value of the jbo.locking.mode property (default value is pessimistic) to one of the following: optimistic: Issues a SELECT FOR UPDATE statement to lock the row for both updates and deletes, then detects whether the row has been changed by another user by comparing the change indicator attribute if there is one, or the values of all the persistent attributes of the current entity as they existed when fetched into the cache optupdate: Optimistic locking only for updates; the UPDATE statement determines whether the row was updated by another user by including a WHERE clause that matches the existing row; an update occurs if attributes remain unchanged since fetch 258 .
- 273.
- 274.
- 275. Lesson Agenda This lessoncovers data validation options for ADF BC applications. You learn when each option is most suitable. You create and use validation methods and declarative validation, and you create and use a domain for validation. In Hands-on lab one would practice: 1. Adding Declarative Validation: Range Validator 2. Generating Java Files for Entity Objects 3. Adding Method Validator Optionally you may also practice: Adding Declarative Validation: Unique Key Validator 261 .
- 276. Validation Options forADF BC Applications There are various options for handling validation in ADF BC applications: Business services: You should build in as much validation as you can when creating the business services in order to protect the integrity of the data in the database and to prevent malicious attacks. There are a multitude of opportunities to add validation at the business services level: - Oracle ADF Business Components provides a number of predefined validation rule classes that enable you to add business logic without writing a single line of code, or you can also add programmatic validation. Database (PL/SQL): You can implement validation in the database; however, such validation cannot be exposed in the UI. For example, you cannot use database validation to expose a list of valid values in the UI. User interface: The ADF Faces input components that you use to build the pages of your application also have built-in validation capabilities. You use these prebuilt ADF Faces validators to ensure that when a user edits or enters data in a field and submits the form, the data is validated against the rules and conditions you have specified. However, UI validation should always have equivalent validation at the business services layer, so that the same validation is applied when the model is exposed in other ways. There are various opportunities for adding validation in ADF BC applications (as shown in the slide), but be aware that they can create an overhead in terms of managing them; keeping them in synch with each other is a manual process. Take the example of a data structure, Person, which represents the concept of a Person entity known to the business. This Person must have a gender and that gender’s value can be either Male or Female. You define a simple business rule with a name, optionality, and domain. This rule can easily end up being implemented in different places (as described below). You create a relational table in the database and create a column called gender and make it a mandatory column. The table’s DDL is one implementation of the part of the rule. If you add a SQL check constraint (gender = male or gender = female), you have completely implemented the rule in the table and have a single location to maintain. However, in most object-oriented (OO) systems today, you need a software object to represent this rule through Object-Relational Mapping (ORM). So now you need a class named Person and an attribute named gender. You could code this in Java and use JEE/JPA or ADF BC to provide the support for ORM. This is not the problem. The problem is that you want to implement that rule closer to the client. You can thus implement the rule in the class itself and have the class test the gender value before it gets back to the database. So, the rule is now implemented in two languages in two places. But if this is a Web application, you might want to have the rule enforced in the client, before getting back to the Java class in the server. So, now you implement the rule in JavaScript. The rule is now implemented in three languages and platforms. And it does not stop there. If you wanted to expose the Person functionality via a Web server, you might code the rule there also, or in different languages for different applications. It would not be unusual, over time to see this same gender rule implemented in DDL, SQL, PL/SQL, Java, JavaScript, an EJB, a Web Service , C++, .Net, BPEL, a rules engine for SOA systems, and so on. Eventually the rule may need to be changed, or extended. How do you know all the places to change it? How do you know if you have found and changed them all? And, how do you know it was changed or implemented correctly and consistently in all the different places? Thus, you see that adding validation in the necessary places to protect your data is only part of the task; managing the maintenance of it is equally important. 262 .
- 277.
- 278. Validation Options forADF BC Applications There are various options for handling validation in ADF BC applications: Business services: You should build in as much validation as you can when creating the business services in order to protect the integrity of the data in the database and to prevent malicious attacks. There are a multitude of opportunities to add validation at the business services level: - Oracle ADF Business Components provides a number of predefined validation rule classes that enable you to add business logic without writing a single line of code, or you can also add programmatic validation. Database (PL/SQL): You can implement validation in the database; however, such validation cannot be exposed in the UI. For example, you cannot use database validation to expose a list of valid values in the UI. User interface: The ADF Faces input components that you use to build the pages of your application also have built-in validation capabilities. You use these prebuilt ADF Faces validators to ensure that when a user edits or enters data in a field and submits the form, the data is validated against the rules and conditions you have specified. However, UI validation should always have equivalent validation at the business services layer, so that the same validation is applied when the model is exposed in other ways. There are various opportunities for adding validation in ADF BC applications (as shown in the slide), but be aware that they can create an overhead in terms of managing them; keeping them in synch with each other is a manual process. Take the example of a data structure, Person, which represents the concept of a Person entity known to the business. This Person must have a gender and that gender’s value can be either Male or Female. You define a simple business rule with a name, optionality, and domain. This rule can easily end up being implemented in different places (as described below). You create a relational table in the database and create a column called gender and make it a mandatory column. The table’s DDL is one implementation of the part of the rule. If you add a SQL check constraint (gender = male or gender = female), you have completely implemented the rule in the table and have a single location to maintain. However, in most object-oriented (OO) systems today, you need a software object to represent this rule through Object-Relational Mapping (ORM). So now you need a class named Person and an attribute named gender. You could code this in Java and use JEE/JPA or ADF BC to provide the support for ORM. This is not the problem. The problem is that you want to implement that rule closer to the client. You can thus implement the rule in the class itself and have the class test the gender value before it gets back to the database. So, the rule is now implemented in two languages in two places. But if this is a Web application, you might want to have the rule enforced in the client, before getting back to the Java class in the server. So, now you implement the rule in JavaScript. The rule is now implemented in three languages and platforms. And it does not stop there. If you wanted to expose the Person functionality via a Web server, you might code the rule there also, or in different languages for different applications. It would not be unusual, over time to see this same gender rule implemented in DDL, SQL, PL/SQL, Java, JavaScript, an EJB, a Web Service , C++, .Net, BPEL, a rules engine for SOA systems, and so on. Eventually the rule may need to be changed, or extended. How do you know all the places to change it? How do you know if you have found and changed them all? And, how do you know it was changed or implemented correctly and consistently in all the different places? Thus, you see that adding validation in the necessary places to protect your data is only part of the task; managing the maintenance of it is equally important. 264 .
- 279. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 265 .
- 280. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 266 .
- 281.
- 282. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 268 .
- 283. Collection Validator You canuse collection validation to: Compute the average, count, sum, min, or max of an attribute in a child of the current entity object Compare the computed value with a literal, a view object attribute, an entity attribute, or the value returned by a SQL query, a view accessor, or an expression For example, you could verify that the total value of an order (the sum of its line items) does not exceed Rs 1,00,000, as depicted in the example in the slide. When you use a Collection validator, a <CollectionValidationBean> tag is added to the XML file. You set the following options to define a Collection validator: Operation: Select sum, average, count, min, or max. Accessor: Select an association that has been defined for the entity. Attribute: Select the child attribute on which the operation is to be performed. Operator: Select equals, not equals, less than, greater than, less than or equal to, or greater than or equal to. Compare With: Select literal value, query result, view object attribute, view accessor attribute, expression, or entity attribute. Enter Literal Value: Select or define the value with which to compare the calculation. 269 .
- 284. Unique Key Validator likean attribute-level validator; users see the validation error when they attempt to tab out of the key attribute that the validator is validating. When you create a Unique Key validator, a <UniqueKeyValidationBean> tag is added to the entity object’s XML file. 270 .
- 285. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 271 .
- 286. Compare Validator The Comparevalidator performs a logical comparison between an entity attribute and another value. You specify the operator and the value to compare. 272 .

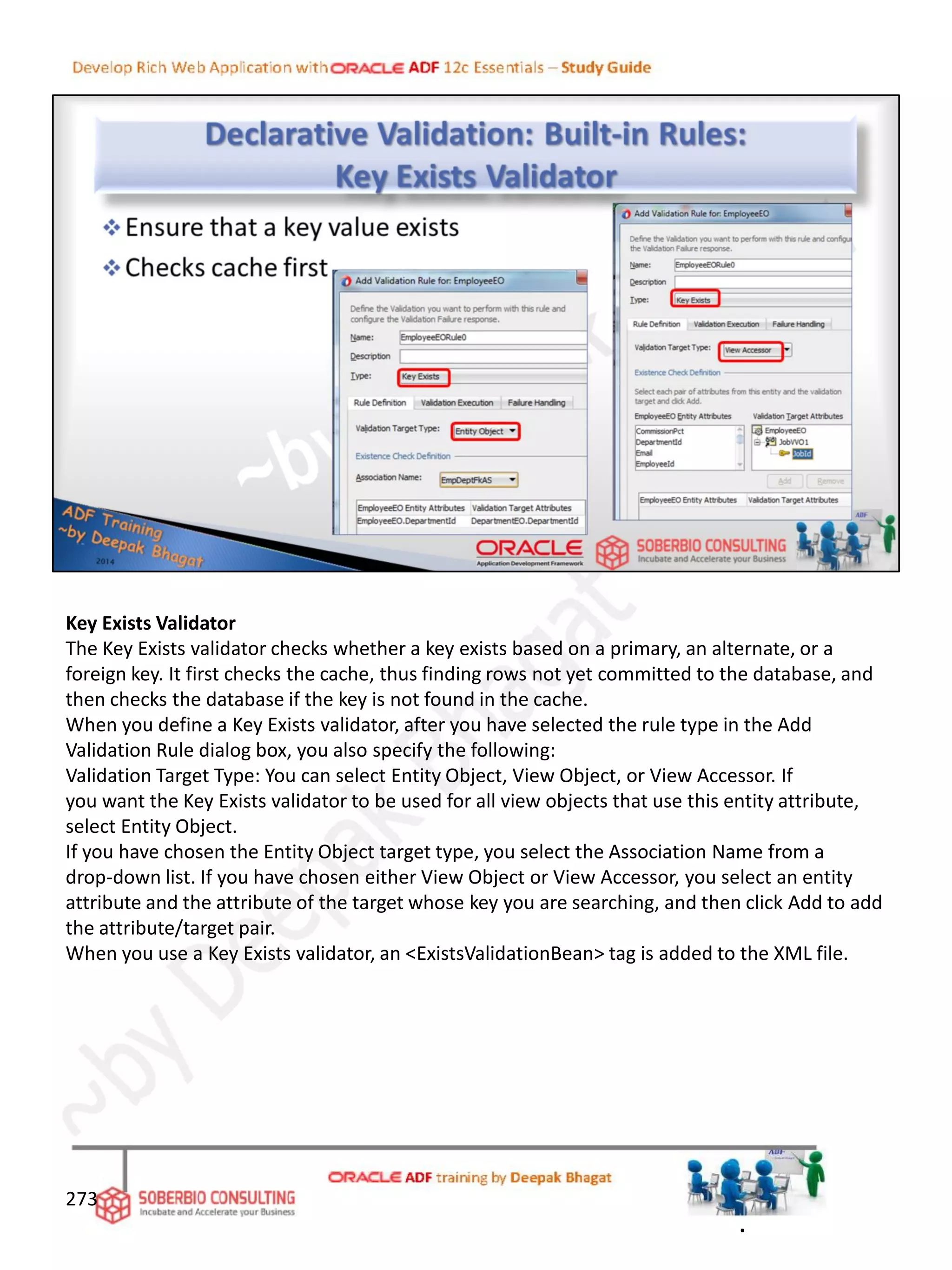

- 287. Key Exists Validator TheKey Exists validator checks whether a key exists based on a primary, an alternate, or a foreign key. It first checks the cache, thus finding rows not yet committed to the database, and then checks the database if the key is not found in the cache. When you define a Key Exists validator, after you have selected the rule type in the Add Validation Rule dialog box, you also specify the following: Validation Target Type: You can select Entity Object, View Object, or View Accessor. If you want the Key Exists validator to be used for all view objects that use this entity attribute, select Entity Object. If you have chosen the Entity Object target type, you select the Association Name from a drop-down list. If you have chosen either View Object or View Accessor, you select an entity attribute and the attribute of the target whose key you are searching, and then click Add to add the attribute/target pair. When you use a Key Exists validator, an <ExistsValidationBean> tag is added to the XML file. 273 .
- 288.
- 289. Length Validator The Lengthvalidator compares the number of characters or bytes in the attribute value against the specified length. You select the operator and comparison type, and then you set the length value. When you use a Length validator, a <LengthValidationBean> tag is added to the XML file. 275 .
- 290. List Validator The Listvalidator compares an attribute against a list that is of one of the following types: Literal value: Ensures that the value is in, or not in, the list of literal values that you define Query result: Ensures that the value is in, or not in, the first column of the query’s result set View attribute: Ensures that the value is in, or not in, the attribute of the specified view object; all rows are retrieved View accessor: Ensures that the value is in, or not in, the specified attribute in all rows of the view object retrieved by the view accessor. This is similar to a view attribute, except that a view accessor is required to be defined when you want to use an LOV in the user interface. The example in the slide shows a List validator that ensures that a valid customer ID is entered for an order. It is based on a view accessor, defined on the OrderEO, that accesses a view object that queries customers. When you use a List validator, a <ListValidationBean> tag is added to the XML file. Note: List validators based on SQL queries or VO attributes retrieve all rows of a query each time validation is performed. It is recommended that you use these types of List validators only for a relatively small set of values. 276 .
- 291.
- 292.
- 293. Range Validator You canuse a Range validator to ensure that an attribute falls within, or outside of, specified minimum and maximum values. This validator performs an inclusive range comparison. When you use a Range validator, a <RangeValidationBean> tag is added to the XML file. 279 .
- 294. Regular Expression Validator Regularexpressions provide a powerful syntax that enables matching strings with particular characters, words, or patterns of characters. This syntax can be quite complex and is outside the scope of this course. To learn about regular expressions, you can visit http://www.regular-expressions.info, or explore the Java tutorial at http://java.sun.com/docs/books/tutorial/essential/regex/index.html. The Regular Expression validator compares attribute values against a mask specified by a Java regular expression. This type of validator enables you to provide a dynamic script for more complex validation rules. Instead of defining an expression in this validator, you can select from a list of predefined expressions. The built-in predefined expressions include telephone number and email address. You can add your own expressions to this list by modifying the PredefinedRegExp.properties file. This file is located in the o.BC4J subdirectory of the JDeveloper system directory (system12.2.1.0.xx.xx.xx), which is a subdirectory of JDeveloper’s user directory. When you use a Regular Expression validator, a <RegExpValidationBean> tag is added to the XML file. 280 .
- 295. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 281 .
- 296. Script Expression Validator AScript Expression validator enables you to use a Groovy expression that returns either true or false for validation, or to use an entire Groovy script. When you define a Script Expression validator, an <ExpressionValidationBean> tag is added to the XML file. The following are some usage notes about the Script Expression validator: All Java methods, language constructs, and Groovy constructs are available in the script. Do not use { } to surround the entire script. Use newValue to refer to the new value of the attribute being validated. Use the return keyword just like in Java to return true or false, unless it is a one-line expression, in which case the return is assumed to be the result of the expression itself—for example, Sal > 0. You must either return true or false, or call adf.error.raise or adf.error.warn to display a message that is defined in your message bundle. You can use built-in aggregate functions on RowSet objects by referencing the functions: sum(String attrName)—for example: sum(”Salary”), count(String attrName), avg(String attrName) Use the ternary operator to implement functionality that is similar to SQL’s NVL() function—for example, Sal + (Comm != null ? Comm : 0). 282 .
- 297. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 283 .

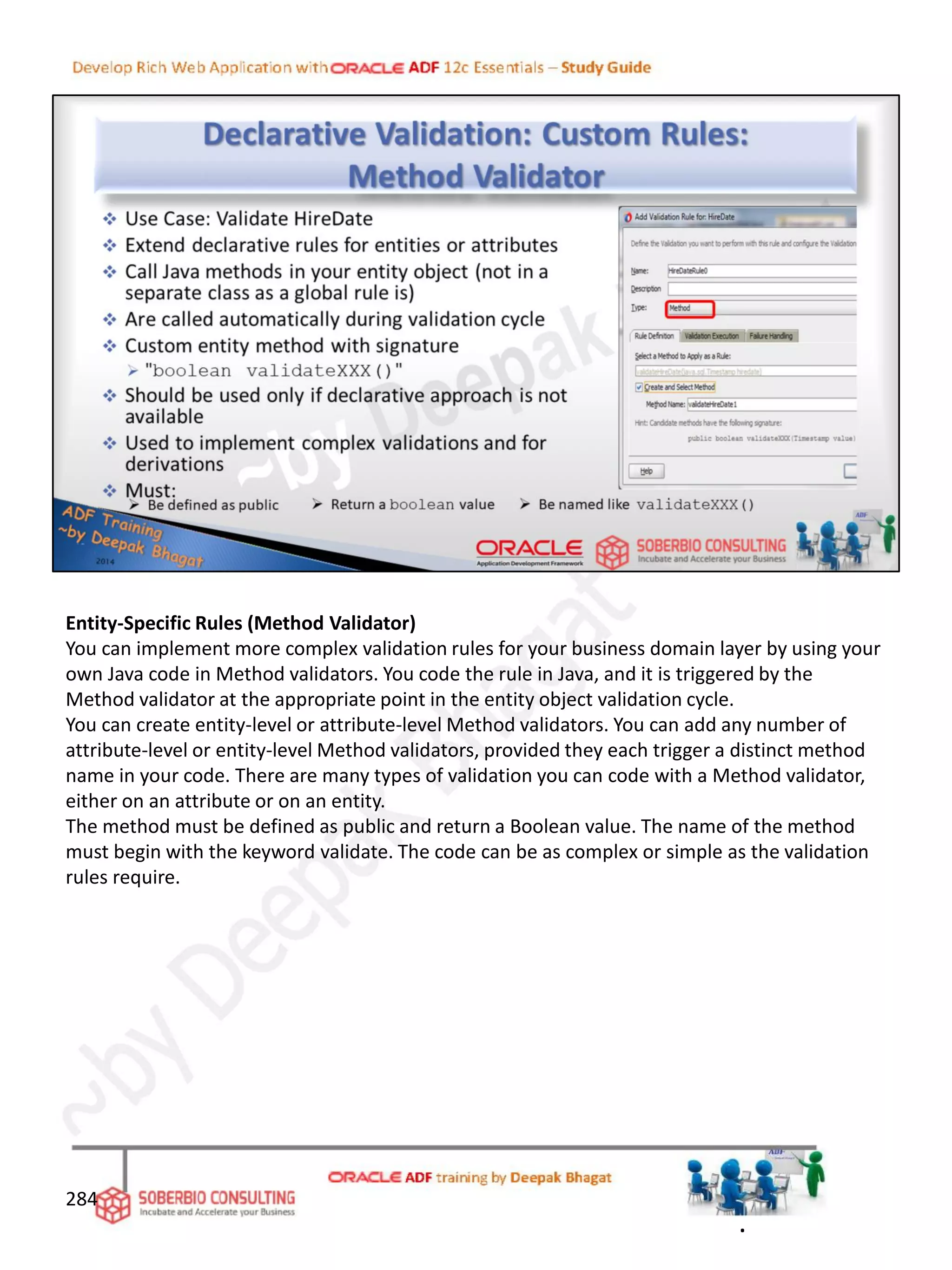

- 298. Entity-Specific Rules (MethodValidator) You can implement more complex validation rules for your business domain layer by using your own Java code in Method validators. You code the rule in Java, and it is triggered by the Method validator at the appropriate point in the entity object validation cycle. You can create entity-level or attribute-level Method validators. You can add any number of attribute-level or entity-level Method validators, provided they each trigger a distinct method name in your code. There are many types of validation you can code with a Method validator, either on an attribute or on an entity. The method must be defined as public and return a Boolean value. The name of the method must begin with the keyword validate. The code can be as complex or simple as the validation rules require. 284 .
- 299. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 285 .

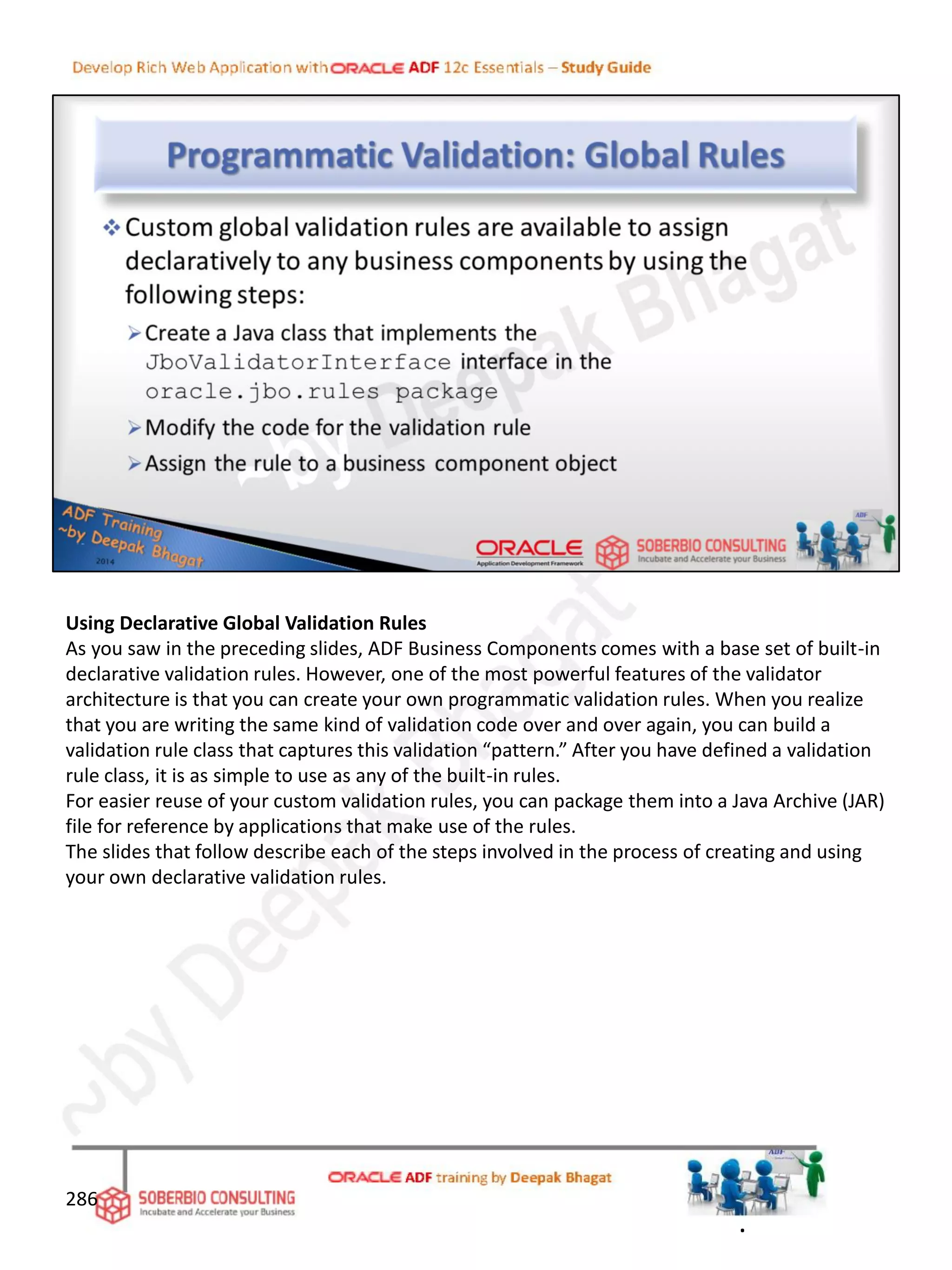

- 300. Using Declarative GlobalValidation Rules As you saw in the preceding slides, ADF Business Components comes with a base set of built-in declarative validation rules. However, one of the most powerful features of the validator architecture is that you can create your own programmatic validation rules. When you realize that you are writing the same kind of validation code over and over again, you can build a validation rule class that captures this validation “pattern.” After you have defined a validation rule class, it is as simple to use as any of the built-in rules. For easier reuse of your custom validation rules, you can package them into a Java Archive (JAR) file for reference by applications that make use of the rules. The slides that follow describe each of the steps involved in the process of creating and using your own declarative validation rules. 286 .
- 301. Create the JavaClass for a Global Rule The Java class needs to implement the JboValidatorInterface interface in the oracle.jbo.rules package. To create the class, invoke the New Gallery and in the Categories list, select Business Tier > ADF Business Components. Select Validation Rule in the Items list to create a class where you can add the validation rule code. In the Create Validation Rule Class dialog box, enter a name and package for the rule, along with a display name and description. The display name should be the name you want to appear in the list of validators to choose from when adding validation to an attribute, whereas the description becomes a comment in the code to describe the validation that is implemented. When you click OK, the Java class is created. The example in the slide shows creating a validation rule that compares two dates, validating that one date is not later than another. The intention is that this rule can be used to compare any two date attributes in any entity object. 287 .
- 302. Examining the GeneratedSkeleton Code The slide shows the skeleton code for the example (without the package name, import statements, or comments). The Java class that is created implements the JboValidatorInterface interface with its three methods: •get Description(): Gets the text description of this validator •setDescription(java.lang.String description ): Sets the text description of this validator •validate(JboValidatorContext ctx): Tests the validity of the object or value as described in the validator context; this is the method that is executed when the validation occurs The newly created class also sets the description that you entered when you defined the rule, and adds its own validateValue() method where you can add the validation code. You can replace the return statement with your own code. After you have created a rule in this way, it is automatically registered in the project and is available for use in your business components. 288 .
- 303. Modifying the Codefor the Global Rule To achieve the goal of comparing any two date attributes in an entity, you modify the skeleton code as follows: 1. You want to use this validation rule to compare any two dates in any entity object, so you first add some properties that will specify which entity attributes should be compared. Add two more private strings and initialize them to null: private String earlierDateAttrName = ""; private String laterDateAttrName = ""; You also generate public accessors for these new properties by right-clicking the editor and selecting Generate Accessors. Accessors are not shown in the example in the slide. 2. Because you intend this to be an entity-level validation rule, you add a method that returns true if the rule is applied at the entity level: private boolean validatorAttachedAtEntityLevel(JboValidatorContext ctx) { return ctx.getOldValue() instanceof EntityImpl; } 3. Next you perform the comparison in the validate() method. You first call the method that you just defined to ensure that the validator is defined at the entity level, and then you call validateValue() to compare the dates, raising an exception if the validation fails: public void validate(JboValidatorContext ctx) { if (validatorAttachedAtEntityLevel(ctx)){ EntityImpl eo = (EntityImpl)ctx.getSource(); Date earlierDate = (Date)eo.getAttribute(getEarlierDateAttrName()); Date laterDate = (Date)eo.getAttribute(getLaterDateAttrName()); if (!validateValue(earlierDate,laterDate)) { throw new ValidationException("model.CompareDates validation failed"); } } else { throw new RuntimeException("Rule must be at entity level"); } } 4. Finally, you modify validateValue() to perform the comparison: private boolean validateValue(Date earlierDate, Date laterDate) { return (earlierDate == null) || (laterDate == null) || (earlierDate.compareTo(laterDate) <= 0); } 289 .
- 304. Use Declarative Validation:Built-in Rules The easiest way to create and manage validation rules is through the declarative validation framework. Oracle ADF is shipped with a number of built-in declarative validation rules that will satisfy many of your business needs. You implement these rules through the entity object editor and they are stored in the entity object’s XML file. You can implement these rules either on the entity object itself, or on its attributes. The next few slides show how to use the built-in declarative validation rules. 290 .
- 305. Using a Domainto Create Custom-Validated Data Types When you find yourself repeating the same sanity-checking validations on the values of similar attributes across multiple entity objects, you can save yourself time and effort by creating your own data types that encapsulate this validation. For example, in your application, you may have numerous entity object attributes that store strings that represent URLs. One technique you could use to ensure that end users always enter a valid URL is to create your own data type (for example, URLDomain) that represents the structure and format of a URL. You can then use URLDomain as the data type of every attribute in your application that represents a URL. When you create a new domain object, JDeveloper generates code in the domain’s constructor to call the validate() method of the domain class. When you add your validation code to this method, it is automatically executed when the domain object is instantiated. The clear benefit of using a domain is that a domain can be used by multiple attributes, whereas a validation rule (other than a global rule) applies to one attribute or entity object only. Note: Domain validation code is executed whenever you query existing data. If existing data fails the check, you need to either correct the existing data or code the check so that existing data is determined to be valid. 291 .
- 306. Create and Usea Domain The slide shows the steps to create and use a domain. You create the domain by right-clicking in the Application Navigator and selecting New Domain, or by invoking the New Gallery (Business Tier > ADF Business Components > Domain). When you create a new domain object, JDeveloper generates code in the domain’s constructor to call the validate() method, as shown in the next slide. Therefore, if you add your validation code to the validate() method, it is automatically executed when the domain object is instantiated. In the final step, you change the type of an entity’s attribute to the domain, such as URLDomain, as shown in the example in the slide. This causes the validation code to be called when the entity object is instantiated 292 .
- 307. When you createa domain object, you are essentially creating a new data type; the example creates the type called URLDomain. You can then change an entity attribute’s type to your new type; in this example, you can change the type of an entity’s attribute to URLDomain. When the entity is instantiated, or when the entity’s attribute is populated or changed, the URLDomain() constructor is called. The constructor executes the validation code that you have written to verify that this attribute is valid. Because String is a base JDK type, a domain based on a String variable aggregates a private mData String member field to hold the value that the domain represents. Note: Domain validation code is executed whenever you query existing data. If existing data fails the check, you need to either correct the existing data or code the check so that existing data is determined to be valid. 293 .
- 308. Trigger Validation Execution Eachentity row tracks whether or not its data is valid. When a user modifies a persistent attribute of an existing entity row or creates a new entity row, the entity is marked as invalid, and any validation that you have implemented is evaluated again before the entity is again considered valid. In validation rules, you can specify when this validation is executed as follows: Validation Level: In an entity validation rule, you can specify whether validation should be performed at the entity-level (the default) or at the transaction level. If you specify that it should be performed at the transaction level, it will be carried out after all entity-level validation. For this reason, you should use this option where you want to ensure that a specific piece of validation is performed at the end of the process. Conditional Execution: You can enter a Boolean condition using a Groovy expression to define conditional validation execution. When the condition evaluates to true, the rule is executed. You have the option to test your expression to see if it is valid. Triggering Attributes: By default, a validator fires on an attribute whenever the entity as a whole is dirty. However, in an entity validation rule, you can choose to trigger validation only when certain attributes change (when one of the triggering attributes is dirty). Validation always occurs before changes are posted to the database. If you must code validation that depends on seeing posted changes, override the beforeCommit() method in the object’s Java file. 294 .
- 309. Specify Validation Order Attributevalidation occurs when focus moves from the attribute, whereas entity validation occurs when the record is committed. With compositions, changing a child entity causes the parent entity to be validated as well, with child entities being validated before parent entities. You can specify the validation order of rules within a certain group (entity or an attribute) by using the up and down arrows to rearrange the validation rules on the Validators page of the editor. For example, although you cannot control the order in which attributes are validated (they are validated in the order in which they appear in the entity definition), you can order validations for a given attribute. If you want to ensure that a Key Exists or an entity-level Method validator is performed at the end of the validation process, you can set it to perform at the transaction level, rather than at the entity level. It is then fired after all entity-level validation is performed. You set the level of validation on the Validation execution tab of a validation rule editor. 295 .
- 310. Handle Validation Errors Whena validation rule throws exceptions, the exceptions are bundled and returned to the client, and any database changes pertaining to the transaction are rolled back. The Failure Handling tab on the Validation page of the Validation Rule page of the entity object editor (or the attribute editor) is where you specify the error message that you want to display to the end user when the validation fails. You use the Validation Failure Severity option buttons to specify whether the message is an Error message (default) or Informational Warning. You can enter Groovy expressions to populate variables in error message text to make the message more meaningful. And you can store messages in a resource bundle or property file to make them translatable. 296 .
- 311. Specifying the Severityof an Error Message If you define the message as an Error message, the end user is not able to navigate out of the current field or record and must revisit the field where the data has failed the validation test. If the message is classified as Informational Warning, the user can continue after the message has been acknowledged. 297 .
- 312. Storing Messages asTranslatable Strings Typically you store error messages in a resource bundle or other property file to facilitate translation and reuse of messages. A resource bundle contains key-value pairs for any messages and data strings in your application that you want to translate or reuse. To use an existing message or create a new stored message, perform the following steps: 1. Click the Select Text Resource button to open the Select Text Resource dialog box. 2. In the Select Text Resource dialog box: - To use an existing message, select it and click Select - To create a new message, enter the message in the Value field. This automatically populates the Key field, but you can change the key to a more meaningful name if desired. You also enter a description, which can assist the translator in knowing how the message is to be used. - Click “Save and Select” to store and use the message 298 .
- 313. Use Groovy Variablesin Error Messages Using Groovy variables in error messages enables you to display dynamic labels and values in your messages. This also makes your messages more reusable when adding to a resource, as described in the next slide. When you create the message, use any variable name, surrounded by braces. JDeveloper automatically adds the variable as a message token in the lower part of the Failure Handling page. You must supply the values for the message tokens. You can use expressions such as source.hints.OrderDate.label to reference the value of the user-friendly display label of the OrderDate attribute of the source entity object being evaluated. To reference the value, simply use the name of the attribute. At run time, the error message is displayed with the specified labels and values. 299 .
- 314. Groovy Expressions forValidation You can use a Groovy expression to return a true/false statement. The Script Expression validator requires that the expression return either true or false. A common use of this feature would be to validate an attribute value, for example, to make sure that an account number is valid or check that one date is later than another, as in the example in the slide. To use Groovy to validate a true/false expression: 1. In the Application Navigator, double-click the desired entity object. 2. On the Business Rules page of the overview editor, select where you want to add the validator. - To add an entity-level validator, select the Entity folder. - To add an attribute-level validator, expand the Attributes folder and select the appropriate attribute. 3. Click the green plus sign to create a new validator. 4. In the Add Validation Rule dialog box, in the Rule Type drop-down list, select Script Expression. 5. Enter a validation expression in the field provided. 6. You can optionally click the Validation Execution tab and enter criteria for the execution of the rule, such as dependent attributes and a precondition expression. 7. Click the Failure Handling tab and enter or select the error message that will be shown to the user if the validation rule fails. 8. Click OK. 300 .
- 315.
- 316.
- 317.

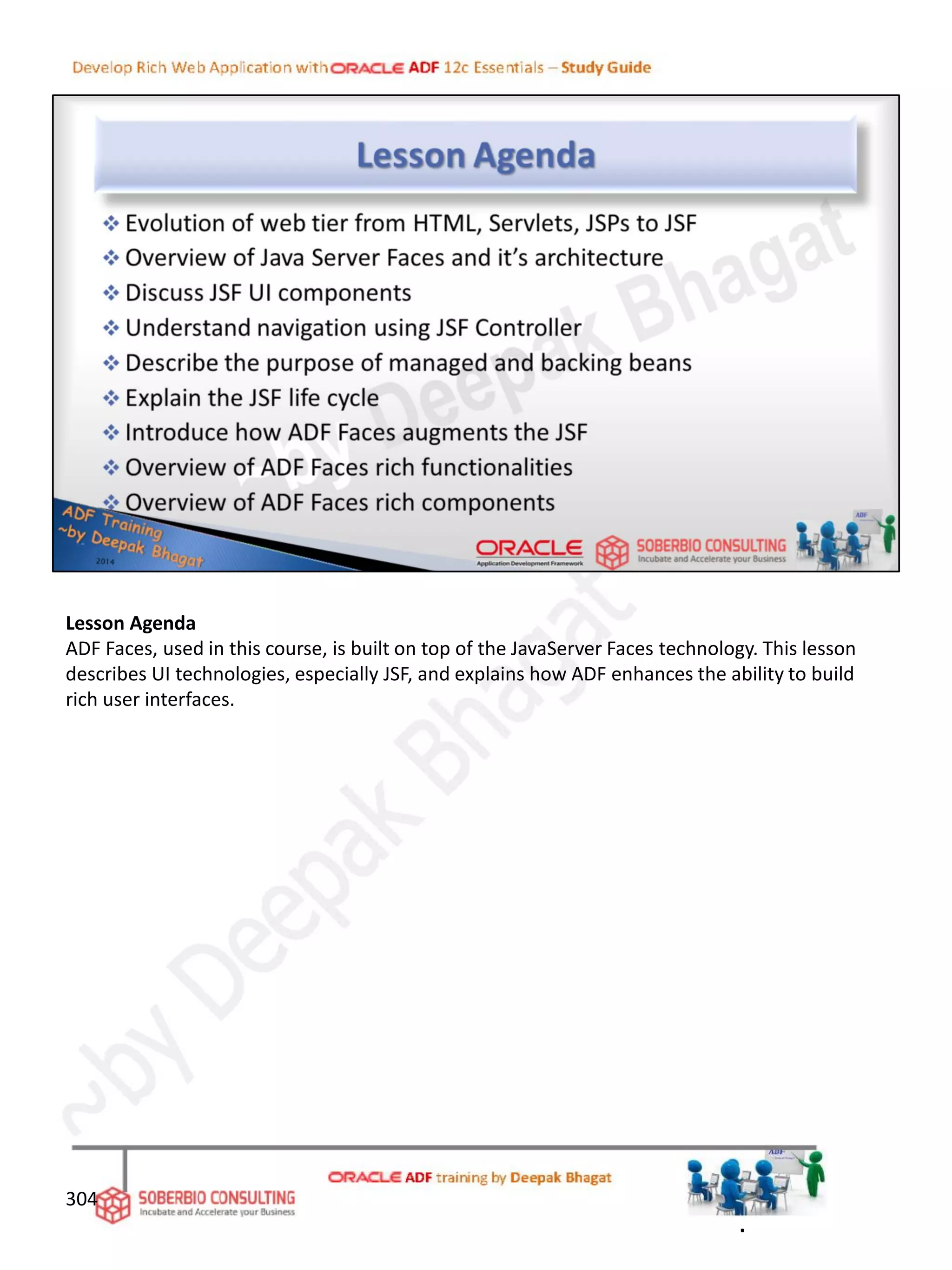

- 318. Lesson Agenda ADF Faces,used in this course, is built on top of the JavaServer Faces technology. This lesson describes UI technologies, especially JSF, and explains how ADF enhances the ability to build rich user interfaces. 304 .
- 319.
- 320. The Web (WWW) HyperTextMarkup Language (HTML) is a markup language for defining Web pages. It consists of tags that describe the elements of a document, such as links, text, paragraphs, lists, and forms. The ability to define hyperlinks to other Web pages was instrumental in the development of the World Wide Web. HTML documents are transmitted to a Web browser from a Web server via the HyperText Transfer Protocol (HTTP), which can also serve images, sound, and other types of content. HTTP is simply a set of rules and standards for exchanging files on the Web. HTTP is a request/response protocol. It sends a request from the client browser to the Web server and returns the response in the form of the requested HTML document or other content. It is a stateless protocol; each request-and-response set has no knowledge of previous requests. With HTTP it is difficult to implement Web sites that react intelligently to user input. One of the technologies intended to overcome this difficulty is Java. 306 .
- 321. Web Development You candesign Java programs as server-based components that form scalable Internet applications. The currently accepted model for Java Internet computing divides the end-to-end application process into several logical tiers. To make use of this model, JavaSoft defined Java Platform, Enterprise Edition (Java EE), which has four logical tiers: Client Tier When Java executes on client machines, it is typically implemented as a browser-based application. But a thin client can be simply Web pages that are delivered from a server as HTML. Web (Presentation) Tier This is executed on a Web server. Code in this tier handles the application’s presentation to the client. Common Java features for this function are servlets, JSP pages (JSPs), and JavaServer Faces (JSF). Servlets and JSPs can each generate dynamic HTML for display as Web pages to clients. Application (Business Logic) Tier You can use Java on an application server to implement shareable, reusable business logic as application components. A common way to implement this is to use component models, such as Enterprise JavaBeans (EJB) and Common Object Request Broker Architecture (CORBA) objects. These two components are also to be considered during design time, when a distributed environment is required. Data Tier The data server not only stores data but also stores and executes Java code, particularly where this code is data intensive or enforces validation rules pertaining to the data. You can also use Business Components, from the Oracle Application Development Framework (ADF), to support your application’s data access. 307 .
- 322. Servlets The servlet technologyis the foundation of Web application programming in Java. A servlet is a server-side Java program that gives Java-enabled servers additional functionality via a request- response programming model. Although servlets can respond to any type of request, they are commonly used to extend the applications hosted by Web servers. Servlets can perform back- end functionality or can dynamically construct user interfaces. The life cycle of a servlet is controlled by the container in which the servlet is deployed. When a request is mapped to a servlet, the container performs the following steps: It loads the servlet class if there is no instance of it, creates an instance of the servlet class, and initializes the servlet instance by calling the init method. It invokes the service method, passing a request and response object. If the container needs to remove the servlet, it finalizes the servlet by calling the servlet’s destroy method. When the browser request is for a servlet, the Web server forwards the request to the servlet container. The servlet dynamically constructs the HTML file, using any parameters that are sent in the URL request, and then the Web server returns the HTML file to the client browser 308 .
- 323. Java Server Pages(JSP) Although servlets are powerful, they have some disadvantages. They can be cumbersome to program, and every change requires the intervention of the servlet programmer. Sun understood this problem and developed JavaServer Pages (JSP) as the solution. JSP combines HTML with JSP tags in a file that has a .jsp extension. When the HTTP request contains this extension, the Web server runs the JSP in the servlet container, which converts it into a servlet. After it is compiled, further requests for the .jsp file run the servlet without the compilation process, unless the .jsp file is changed on the server. Division of labor between a programmer and a page designer is much easier in JSP, and compilation takes place automatically when a JSP page is modified. Note that though JSP is an extension of the servlet technology, it does not make servlets obsolete. In real-world applications, servlets and JSP pages are used together. 309 .
- 324.
- 325.
- 326. 312 16 Make sure toemphasize that JSF here is compared to “traditional” JSP before JSF arrived. Remember JSF works just fine with JSP today. .
- 327.
- 328.
- 329.
- 330.
- 331. WML: Wireless MarkupLanguage SVG: Scalar Vector Graphics L&F: Look and Feel 317 .
- 332. WML: Wireless MarkupLanguage SVG: Scalar Vector Graphics L&F: Look and Feel JSF Architecture One of the key advantages of JSF is that it is both a Java Web UI standard as well as a framework that firmly follows the Model-View-Controller (MVC) design pattern. This makes JSF applications much more manageable because the UI code (View) is cleanly separated from the application data and logic (Model). To prepare the JSF context, which provides application data access to the pages, and to guard against unauthorized or improper access of the pages, all user interactions with the application are handled by a front-end “Faces” servlet (Controller). 318 .
- 333.
- 334. 320 Summary of KeyElements This diagram shows all the key components in the JSF Architecture discussed earlier. In everyday operation, the programmer is concerned only with the red boxes. These are the primary areas where code can be entered. Everything in the blue boxes is generally handled by the framework, although (as in all the aspects of JSF) it can be extended or customized. The view here is the page definition itself and the model represents the back-end integration usually handled by Managed Beans. .
- 335. Standard Component Modelfor Web Development The JSF component model is similar to the Abstract Window Toolkit (AWT) GUI component model. It has events and properties that are similar to the Swing component model. It also has containers that contain components, which are in turn components that can be contained by other containers. In theory, the JSF component model is divorced from HTML and JSP. The standard set of components that ships with JSF has JSP bindings and generates HTML renderings. Examples of JSF components include calendar input components and rich HTML input components. You may never have time to write such components, but what if they already existed? The component model lowers the entry barrier to add more functionality to Web applications by making a commodity of common functionality. 321 .
- 336.
- 337. JSF Model As discussedpreviously, components are used to build JSF views, rather than mark-up documents. The coding paradigm for UI components is based on the JavaBeans model. You set property values or attributes to define the state and attach listeners to respond to value changes or other events, thereby defining behavior. Some components can be nested. In most cases, the purpose of nesting components is to provide a layout for other components, such as a table, within a view. UI components are standardized within JSF, so you can mix and match components from different vendors. However, if you do so, you may not be able to achieve a standard look and feel or be able to support internationalization. JavaServer Faces includes: UI components: Server-side objects that are independent of the target client and render back to the client using external renderer classes. UI components consist of attributes, behaviors, and renderers. Renderers: Classes that reside on the server and are responsible for displaying the UI component in a graphical representation that is understood by the client Render kits: Renderer classes packaged into libraries that enable you to develop a JSF application for different client devices (such as browsers or mobile devices) without altering application code. A render kit for an HTML client is part of standard JSF. 323 .
- 338.
- 339.
- 340.
- 341.
- 342.
- 343.
- 344.
- 345. Traditional Navigation This typeof navigation is also referred to as the Model 1 type. In both cases, if the physical location of the page is changed, you have to modify all the links and forms using it. How can you avoid this maintenance nightmare? JSF controls the pages using a separate XML file, faces-config.xml, that contains all the navigation mechanisms. 331 .
- 346. JSF Navigation In JavaServerFaces, navigation between application pages is not hard coded in the file, but is defined by a set of rules that are centrally defined in the faces-config.xml file. Navigation rules determine the next page to display when a user clicks a navigation component, such as a button or a hyperlink. A navigation rule defines the navigation from one page to one or more other pages. Each navigation rule can have one or more cases, which define where a user can go from that page. For example, if a page has links to several other pages in the application, you can create a single navigation rule for that page and one navigation case for each link to the different pages. The rule itself can define the navigation from: A specific JSF page All pages whose paths match a specified pattern, such as all the pages in one directory, which is called a pattern-based rule All pages in a Java EE Web application, which is called a global navigation rule 332 .
- 347. JSF Expression Language Todisplay data from the data model, Web page UI components are bound to binding objects using JSF EL. These expressions reference a specific binding object in a binding container. At run time, the JSF run time evaluates an EL expression and pulls the value from the binding object to populate the component with data when the page is displayed. If the user updates data in the UI component, the JSF run time pushes the value back into the corresponding binding object based on the same EL expression. 333 .
- 348.
- 349. JSF Managed Bean JSFcomponents are a type of JavaBean, and they are also designed to work with another type of JavaBean called a managed bean. Often managed beans handle events or some manipulation of data that is best handled at the front end rather than placing the logic in a business component. However, all application data and processing should be handled by logic in the business layer of the application. Some typical uses for managed beans are: To hold values that can be used by multiple pages To execute a method in response to user interaction, such as a button click To execute a method when a UI event, such as a value change, takes place Backing beans are a specialized type of managed bean that exposes some or all of the UI components on the page by defining accessors for them. When you create a JSF page, the Page Implementation section of the Create JSF Page dialog box enables you to choose whether to expose the UI components, which you would need to do only if the page requires special code to manipulate its components programmatically. For example, you may set a condition to determine whether to render the component. If you choose to expose components in a managed bean, JDeveloper automatically adds stubs for accessors as you add components to the page. Backing beans are directly related to pages, whereas other types of managed beans can be made available to multiple pages. 335 .
- 350.
- 351.
- 352. JSF Life CyclePhases The life cycle handles both initial requests and postbacks. When a user makes an initial request for a page, the life cycle executes only the Restore View and Render Response phases because there is no user input or actions to process. The life cycle builds the UI tree from the view, and then renders the view, returning a response to the user and saving the view tree for future requests in the FacesContext object. All the component tags, event handlers, converters, and validators on the page have access to the FacesContext instance. When a user executes a postback, a form is submitted that is contained on a page that was previously loaded into the browser as a result of executing an initial request. When the life cycle handles a postback, it restores the view based on the data saved on the server, and then executes the following additional phases: Apply Request Values: Values provided in components that hold a value (such as input fields) have their values applied to their counterparts in the view tree. All events such as ValueChangeEvents (VCE) or ActionEvents (AE) are queued. A VCE means that a value has changed for a specific UI component. An AE means that a button (or any UI component that is a source of an action) was clicked. If a component has its immediate attribute set to true, then validation, conversion, and events associated with the component are processed during this phase. Process Validation: Conversion and validation logic is executed for each component. This means both built-in validation/data conversion and custom validation/conversion are added onto the components. If a validation error is reported, an exception is thrown. The life cycle halts and the response is rendered with validation error messages. At the end of this phase, new component values are set, any validation or conversion error messages and events are queued on FacesContext, and any value change events are delivered. Update Model: The component’s validated local values are moved to the model and the local copies are discarded. If you are using a backing bean for a JSF page to manage your UI components, any managed bean properties that are value-bound to the UI component using the value attribute are updated with the value of the component. Invoke Application: Any action bindings for command components or events are invoked. Navigation is handled here depending on the outcome of action method (if any). Setting the immediate Attribute You can use the immediate attribute to allow components on the page to be validated in the Apply Request Values phase of the life cycle as opposed to the Process Validations phase: Using immediate on an input component means that that component’s value is validated before any input components that do not have the immediate attribute set to true. Therefore, if a validation error occurs on an immediate input component, the life cycle moves from the Apply Request Values phase (where the immediate attribute is evaluated) to the render phase, and validation does not run on any “nonimmediate” input components. Additionally, if the new value of an immediate input component is different from the existing value, then a ValueChangeEvent is raised. However, instead of the event being processed during the Process Validations phase, the event is processed at the end of the Apply Request Values phase. Therefore, any ValueChangeListener associated with the immediate input component executes before any command component’s ActionListener (assuming the command component occurs later on the page). You learn about event listeners in the lesson titled “Responding to Application Events.” For command components, if set to immediate and the component has an action that returns a value for navigation, the life cycle proceeds directly to the Render Response phase. The validation and model update phases are skipped. A Cancel button is an example of when this would be used. 338 .
- 353. JSF Life CycleOverview The life cycle of a JavaServer Faces page is similar to that of a JSP: The client makes an HTTP request for the page, and the server responds with the page translated to HTML. However, because of the extra features that the JavaServer Faces technology offers, the life cycle provides some additional services to process a page. A JavaServer Faces page is represented by a tree of UI components called a view. This tree is a run-time representation of a JSF page. Each UI component tag on a page corresponds to a UI component instance in the tree. The FacesServlet object manages the request processing life cycle in JSF applications. FacesServlet creates an object called FacesContext, which contains the information necessary for request processing, and invokes an object that executes the life cycle. When a client makes a request for the page, the life cycle starts. During the life cycle, the JSF implementation must build the view while considering the state saved from the previous postback. When the client performs a postback of the page, the JavaServer Faces implementation performs several tasks, such as validating the data input of components in the view and converting input data to types specified on the server side. The JSF implementation performs all these tasks as a series of steps in the life cycle. 339 .
- 354.
- 355. Java Server Faces(JSF) JavaServer Faces (JSF) is a component-based architecture, which means that instead of working with markup, the developer works with UI components, similar to Swing. Thus JSF simplifies Web development. The developer need not be concerned with UI implementations, and is able to use declarative definition, making it more robust and extensible. JSF is a server-side UI technology, as opposed to a client-side UI technology such as ADF Swing. Requests are sent from the Web browser or other client to the server, where JSF translates the request into an event that the application logic can process. JSF also ensures that every widget that is defined on the server is correctly displayed on the client. JSF technology establishes the standard for building server-side user interfaces, managing their state, handling events and input validation, defining page navigation, and supporting internationalization and accessibility. JSF hides the complexities of UI management, simplifying the process of building Web Uis. For example, consider what is required to develop a simple order form using traditional Web technologies: HTMLfor your presentation, state management over HTTP, JavaScript for input validation and behavior, and a servlet on the server side to process the order. In JSF, the developer is not concerned with these underlying technologies, but considers a field or a button on a form as a component in terms of a traditional UI. A button is as you think of it in the physical world: It is not an HTML or a JSP tag, but an object that when pressed has an associated behavior. Developers can attach listeners to interpret user interactions with components into business logic, and the JSF infrastructure manages the rest for you. Thus, developing JSF applications is more about user interface design and assigning business logic to components rather than programming against low-level APIs. JSF can automatically synchronize UI components with backing beans, which are Java objects that collect user input and respond to events. It can be used with a variety of clients. The JSF specification was written with tool support facilities built in. The standard JSR-276 (Design Time Metadata for JSF Components, http://www.jcp.org/en/jsr/detail?id=276) aims to ensure that components from different vendors render correctly in IDEs that support JSF. Because JSF is a UI component framework that works with tools and runs inside containers, it appeals to many types of programmers and has wide industry support. There are many Web sites where you can get further information about JSF, such as http://myfaces.apache.org and http://java.sun.com/javaee/javaserverfaces 341 .
- 356.
- 357.
- 358. Features of RichWeb Uis Increased Responsiveness: Traditional Web applications interact with data on the server, resulting in elongated round-trips even for simple activities, such as sorting and filtering. Rich UIs typically cache data sets on the client side, making activities such as sorting and filtering much more responsive because no round-trip to the server is necessary. Asynchronous communication with the server: Traditional Web applications typically render pages in a top-down fashion, so that the length of time that a page takes to load will be no less than the longest operation on the page. Utilizing asynchronous communication with the server eliminates the traditional top-down rendering of a page and can, therefore, give the perception of improved performance. Long operations can be performed asynchronously, with a callback mechanism triggering the rendering of a particular section of the page when the operation is complete. This leads to a natural tendency to create fragments of markup (something both portlets and JSF make very easy) to take advantage of parallelization. Behaviors not available in HTML alone: Rich UIs clearly differ from traditional Web application in their look and feel and in how the end user interacts with and navigates the application; that look and feel cannot be produced through HTML alone. For example, HTML alone cannot open new windows or change color on mouse over. However, such dynamic features, coupled with asynchronous behavior and parallelization, create a highly decorated window into an application. 344 .
- 359.
- 360.
- 361.
- 362. WML: Wireless MarkupLanguage SVG: Scalar Vector Graphics L&F: Look and Feel 348 .
- 363. WML: Wireless MarkupLanguage SVG: Scalar Vector Graphics L&F: Look and Feel 349 .
- 364. WML: Wireless MarkupLanguage SVG: Scalar Vector Graphics L&F: Look and Feel 350 .
- 365.
- 366.
- 367.
- 368.
- 369.
- 370.
- 371.
- 372.
- 373.
- 374.
- 375. ADF Controller ADF Controlleris an enhanced navigation and state management model on top of JavaServer Faces. It enables you to describe page flows declaratively. Page flows can be encapsulated in a task flow, which promotes reuse. Task flows represent activities and the control flow rules that define the transitions between the activities. JSF navigation alone does not provide this task flow concept. In addition to navigation, the ADF Controller provides the ability to call methods, either on managed beans or on Java objects that are not managed beans. It provides support for application tasks such as validation, state management, security, and declarative transaction control. The ADF Controller also enables you to control behavior when navigation is the result of the user clicking the Back button. Subsequent lessons elaborate on the functionality of the ADF Controller. 361 .
- 376.
- 377. JSF Life CyclePhases The life cycle handles both initial requests and postbacks. When a user makes an initial request for a page, the life cycle executes only the Restore View and Render Response phases because there is no user input or actions to process. The life cycle builds the UI tree from the view, and then renders the view, returning a response to the user and saving the view tree for future requests in the FacesContext object. All the component tags, event handlers, converters, and validators on the page have access to the FacesContext instance. When a user executes a postback, a form is submitted that is contained on a page that was previously loaded into the browser as a result of executing an initial request. When the life cycle handles a postback, it restores the view based on the data saved on the server, and then executes the following additional phases: Apply Request Values: Values provided in components that hold a value (such as input fields) have their values applied to their counterparts in the view tree. All events such as ValueChangeEvents (VCE) or ActionEvents (AE) are queued. A VCE means that a value has changed for a specific UI component. An AE means that a button (or any UI component that is a source of an action) was clicked. If a component has its immediate attribute set to true, then validation, conversion, and events associated with the component are processed during this phase. Process Validation: Conversion and validation logic is executed for each component. This means both built-in validation/data conversion and custom validation/conversion are added onto the components. If a validation error is reported, an exception is thrown. The life cycle halts and the response is rendered with validation error messages. At the end of this phase, new component values are set, any validation or conversion error messages and events are queued on FacesContext, and any value change events are delivered. Update Model: The component’s validated local values are moved to the model and the local copies are discarded. If you are using a backing bean for a JSF page to manage your UI components, any managed bean properties that are value-bound to the UI component using the value attribute are updated with the value of the component. Invoke Application: Any action bindings for command components or events are invoked. Navigation is handled here depending on the outcome of action method (if any). Setting the immediate Attribute You can use the immediate attribute to allow components on the page to be validated in the Apply Request Values phase of the life cycle as opposed to the Process Validations phase: Using immediate on an input component means that that component’s value is validated before any input components that do not have the immediate attribute set to true. Therefore, if a validation error occurs on an immediate input component, the life cycle moves from the Apply Request Values phase (where the immediate attribute is evaluated) to the render phase, and validation does not run on any “nonimmediate” input components. Additionally, if the new value of an immediate input component is different from the existing value, then a ValueChangeEvent is raised. However, instead of the event being processed during the Process Validations phase, the event is processed at the end of the Apply Request Values phase. Therefore, any ValueChangeListener associated with the immediate input component executes before any command component’s ActionListener (assuming the command component occurs later on the page). You learn about event listeners in the lesson titled “Responding to Application Events.” For command components, if set to immediate and the component has an action that returns a value for navigation, the life cycle proceeds directly to the Render Response phase. The validation and model update phases are skipped. A Cancel button is an example of when this would be used. 363 .
- 378.
- 379.
- 380.
- 381.
- 382.
- 383.
- 384.
- 385.
- 386. Lesson Agenda This lessondescribes how to use ADF Faces to create a simple page In Hands-on lab one would practice: 1. Creating New Application with only ViewController Project 2. Setting Up the UI Project for Internationalization 3. Setting Up the Skin Preference 372 .
- 387.
- 388. Internationalization of anApplication If you want your application to be viewed by users in more than one country, you can configure it to different locales so that it displays the correct language for the language setting of a user’s browser. For example, if you know that your application will be viewed in Germany, you can localize your application so that when a user’s browser is set to use the German language, the text strings in the application will appear in German. ADF Faces components provide automatic translation. The resource bundles used for the components’ skin (which determines the look and feel as well as the text within it) are translated into 28 languages. If a user sets the browser to use the German language, any text contained within the components is automatically displayed in German. 374 .
- 389.
- 390. To internationalize yourapplication, you need to do the following: 1. Create a base resource bundle that contains all the text strings that are not part of the components themselves. This is a text file with a .propertiesextension that contains key/value pairs: the key is the name of the text resource and the value is the translation— for example, CANCEL=Cancel. This bundle should be in the default language of the application. 2. Create a localized version of the bundle for each locale supported by the application. You can copy the resource bundle file to another file and append the file name with an underscore and the language code, such as _defor German. For example, if the resource bundle file name is StorefrontUIBundle.properties, you would name the German resource bundle StorefrontUIBundle_de.properties. Then translate the values in the file—for example, CANCEL=Annullieren. 3. Register the locales with the application. You do this on the Application page of faces- config.xml. (Click the Overview tab at the foot of the faces-config.xmlfile, and then select Application from the list at the top left. You can specify a default locale and add supported locales in the Locale Configarea.) 4. Use the bundle on your page. a) Note that you need to set your page encoding to be a superset of all supported languages. By default, JDeveloper sets the page encoding to windows-1252. To set the default to a different page encoding, perform the following steps: 1. Select Tools > Preferences. 2. Select Environment from the list at the left, if it is not already selected. 3. Set Encoding to the preferred default. b) Bind all attributes that represent strings of static text on the page to the appropriate key in the resource bundle, using the variable defined in the faces-config.xml file for the <resource-bundle> element. 376 .
- 391. Automatically Create ResourceBundles Resource bundles contain the actual text that you have added to the application. You need to create a version of the resource bundle for each locale where your application will be used, and add a <locale-config> element to define the default and support locales in the application’s faces-config.xml file. You also need to add a <resource-bundle> element to your application’s faces-config.xml file to make the resource bundles available to all the pages in your application without using an <f:loadBundle> tag on every page. (With JSF1.2, you do not need to load the base resource bundle on each page of your application with the <f:loadBundle> tag.) After you have configured and registered a resource bundle, the Expression Language editor will display the key from the bundle, making it easier to reference the bundle on application pages. The first example in the slide shows part of the UIResources.properties file, which displays some of the English-language entries for static text in the StoreFront application. The second example shows the same file named UIResources_de.properties, but with the browser set to use the German language. 377 .
- 392. Automatically Create aText Resource You do not need to manually edit the resource bundle file to create a text resource (name– value pair). The JDeveloper IDE provides a simpler way to do this. 1. In the Property Inspector, click the arrow to the right of the text attribute for which you want to enter a text resource and select Select Text Resource. The first time you do this, the appropriate resource bundle file is created if it does not already exist. 2. In the Select Text Resource dialog box, you can either select an existing text resource or create a new one. a. Enter a Display Value (the text that should be displayed in the UI and that is translatable). b. Enter a key (defaults based on the Display Value, but you can change it). c. Enter a Description (how the text resource is to be used). d. Click “Save and Select” (or Select when choosing an existing text resource). 3. The UI reflects the string, whereas the property shows the EL expression that refers to the text resource. 4. The text resource is added to the resource bundle. 378 .
- 393.
- 394. To internationalize yourapplication, you need to do the following: 1. Create a base resource bundle that contains all the text strings that are not part of the components themselves. This is a text file with a .propertiesextension that contains key/value pairs: the key is the name of the text resource and the value is the translation— for example, CANCEL=Cancel. This bundle should be in the default language of the application. 2. Create a localized version of the bundle for each locale supported by the application. You can copy the resource bundle file to another file and append the file name with an underscore and the language code, such as _defor German. For example, if the resource bundle file name is StorefrontUIBundle.properties, you would name the German resource bundle StorefrontUIBundle_de.properties. Then translate the values in the file—for example, CANCEL=Annullieren. 3. Register the locales with the application. You do this on the Application page of faces- config.xml. (Click the Overview tab at the foot of the faces-config.xmlfile, and then select Application from the list at the top left. You can specify a default locale and add supported locales in the Locale Configarea.) 4. Use the bundle on your page. a) Note that you need to set your page encoding to be a superset of all supported languages. By default, JDeveloper sets the page encoding to windows-1252. To set the default to a different page encoding, perform the following steps: 1. Select Tools > Preferences. 2. Select Environment from the list at the left, if it is not already selected. 3. Set Encoding to the preferred default. b) Bind all attributes that represent strings of static text on the page to the appropriate key in the resource bundle, using the variable defined in the faces-config.xml file for the <resource-bundle> element. 380 .
- 395. ADF Faces Skins Youcan change the appearance or look and feel of an application without having to rewrite the user interface. A skin in ADF Faces is a global style sheet that needs to be set only in one place for the entire application. Every component automatically uses the styles as described by the skin. Any changes to the skin are picked up at run time, so no change to code is needed. Skins are based on the Cascading Style Sheet specification, using CSS 3.0 syntax. In addition to using a CSS file to determine the styles, skins also use a resource bundle to determine the text. For example, the words “Previous” and “Next” in the navigation bar of the ADF Faces table component are determined by using the skin’s resource bundle. All the included skins use the same resource bundle. You set an element in the trinidad-config.xml file that determines which skin to use, and if necessary, under what conditions. In the trinidad-config.xml file, replace the <skin-family> value with the family name for the skin you want to use. For example: <trinidad-config xmlns="http://myfaces.apache.org/trinidad/config"> <skin-family>fusion</skin-family> </trinidad-config> 381 .
- 396. ADF Faces SkinsUsage ADF Faces provides the following skins for you to use in your applications: blafplus-medium: This skin provides a modest amount of styling. This style extends the simple skin. blafplus-rich: This skin extends the blafplus-medium skin. It provides more styling than the blafplus-medium skin. For example, graphics in the blafplus- rich skin have rounded corners. fusion: This defines the default styles for ADF Faces components. This skin provides a significant amount of styling. fusion-projector: This defines the styles for an application that you want to demonstrate to an audience using a projector. This skin modifies a number of elements in the fusion skin so that an application renders appropriately when displayed using table- top projectors (particularly older models of projector). This skin is useful if the audience is present at the same location as the projector. This skin may not be appropriate for an audience that views an application online through a Web conference. simple: This skin contains only minimal formatting. You can learn more about skinning in the course. 382 .
- 397. Add UI Componentsto the Page You can add databound components to a page by using either the Component Palette or the Data Controls panel. You also can right-click in the Structure window or in the Design view in the editor and select from the context menu to insert a component. You can also add components through the Code Editor, using XML. Click the Source tab to display the Code Editor. 383 .
- 398. Use of ComponentFacets When you begin to use components, you see in the Structure window that many of them contain facets. A facet is a placeholder where a developer can add content. For example, the af:showDetailItem component has a facet called toolbar. As the name suggests, the facet is intended as a placeholder for a toolbar, although you could place any content there. In the example in the slide, the application developer has added a toolbar component with a toolbarButton to the toolbar facet of showDetailItem and set the button’s text property value to “I’m a button on the toolbar facet!” At run time, that text is displayed at the place designated for the toolbar facet on the showDetailItem component. It is important to note that a facet can have only one direct child. If the developer adds more buttons to the toolbar facet, they must be added to the direct child of the facet, which is the toolbar component. 384 .
- 399.
- 400. 1. Deploy andrun the Web Service • adf-settings.xml: The adf-settings.xml file keeps the UI project configurations. This file is present in the < project-root >/src/META-INF folder. • faces-config.xml: The faces-config.xml file contains the configurations for a web application built using JSF. This file allows us to configure managed beans, data convertors, and validators used in the UI, navigation cases, global resource bundles, view handlers, page lifecycle phase listeners, and custom lifecycle factory implementation for the application. • adfc-config.xml: ADF Faces is built on top of the JSF with a lot of extra features, which are not covered by the core JSF. ADF Faces uses adfc-config.xml to keep its configurations. As a Fusion developer, you should use adfc- config.xml to configure the navigation cases and managed bean definitions. To run your Fusion web application, you may need both faces-config.xml and adfc-config.xml files—which is true even if you have not added any custom configuration entries in faces-config.xml. • trinidad-config.xml: Apache MyFaces Trinidad forms the base for the ADF Faces component set. In fact, Trinidad components earlier were ADF Faces components, which were donated to Apache Software Foundation later in the journey. By default, the generated trinidad-config.xml file contains only the skin family name. However, trinidad-config.xml can be used to override the default configurations for accessibility settings, locale settings, state management, and so on. • web.xml: The web.xml file acts as deployment descriptor for a Java-based web application. When you generate a Fusion web application by using JDeveloper, a default web.xml file with default settings will be created for you. The default entries include context parameters for configuring the runtime state of the system, security filters, data binding filters for web pages, and resource look up filters. The web.xml file also includes servlet context listeners for initializing the management and monitoring services for view and model layers. • adf-config.xml: The adf-config.xml file contains application-level settings, which manage the runtime infrastructure—such as failover behavior for the application modules, global fetch limit for all the view objects, caching of resource bundles, automated refresh of page bindings, and so on—for your application. • weblogic-application.xml: This file is the WebLogic Server-specific deployment descriptor.
- 401. 387 The adf-faces-config.xml filecontains configuration elements that can be set to override ADF Faces specific functionality such client-side validation, usage of custom skins, control output to the client for debugging purposes. The adf-faces-skins.xml file contains a list of available skins that can be used by the application at runtime. The adf-faces-impl.jar and the adf-faces.api.jar contains the ADF Faces runtime libraries The adfshare.jar (optional) contains common runtime used in context with the rest of Oracle ADF (in particular the ADF binding layer). The af.tld and afh.tld are the JSP tag libraries containing the ADF Faces tags representing the ADF Faces UI components to be used by application developers. .
- 402. 1. Deploy andrun the Web Service .
- 403. 1. <context-param> 2. <param-name>javax.faces.CONFIG_FILES</param-name> 3.<param-value>/WEB-INF/faces-config1.xml,/WEB-INF/faces-config2.xml</param-value> 4. </context-param> .
- 404.
- 405.
- 406. Lesson Agenda One ofthe goals in Web development is to design attractive and usable pages. This lesson describes how to use complex layout components and styles to achieve a desired appearance. Students also learn to use dynamic page layout techniques. In Hands-on lab one would practice: 1. Creating New JSF Page 2. Adding Default Layout Components 3. Customizing Layout Components 392 .
- 407.
- 408.
- 409.
- 410.
- 411.
- 412.
- 413.
- 414.
- 415.
- 416.
- 417.
- 418.
- 419.
- 420.
- 421.
- 422.
- 423.
- 424.
- 425.
- 426. Create Resizable Panes:Panel Splitter When you have groups of unique content to present to users, consider using multiple panes separated by adjustable splitters. When viewing the page in a client browser, users can change the size of panes by dragging a splitter, and also choose to collapse or restore panes. When a pane is collapsed, its contents are hidden; when a pane is restored, the contents are displayed. The af:panelSplitter component enables you to organize contents into two panes separated by an adjustable splitter. Clicking the arrow button on a splitter collapses a pane (and its contents) in the direction of the arrow. The value of the orientation attribute determines whether the panes are horizontal (default) or vertical. The pane contents are specified in the facets first and second. The slide shows a page divided into two horizontal panes (placed left to right), and another page divided into two vertical panes (placed top to bottom). It also shows a nested panelSplitter, created by a horizontal panelSplitter into the first facet of a vertical panelSplitter. The af:panelSplitter component uses geometry management to stretch its child components at run time. This means when the user collapses one pane, the contents in the other pane are explicitly resized to fill up available space. If af:panelSplitter is the root component for your page contents, stretching occurs automatically. 412 .
- 427. Another feature ofthe panel splitter component is that users can collapse or restore its panes. When a pane is collapsed, the pane contents are hidden; when a pane is restored, the contents are displayed. The collapsed attribute on af:panelSplitter determines whether the splitter is in a collapsed (hidden) state. By default, the collapsed attribute is false, which means both panes are displayed. When the user clicks the arrow button on the splitter, collapsed is set to true and one of the panes is hidden. ADF Faces uses the collapsed and positionedFromEnd attributes to determine which pane (that is, the first or second pane) to hide (collapse) when the user clicks the arrow button on the splitter. When collapsed is true and positionedFromEnd is false, the first pane is hidden and the second pane stretches to fill up the available space. When collapsed is true and positionedFromEnd is true, the second pane is hidden instead. Visually, the user can know which pane will be collapsed by looking at the direction of the arrow on the button. When the user clicks the arrow button on the splitter, the pane collapses in the direction of the arrow. The splitterPosition and collapsed attributes are persistable; that is, when the user moves the splitter or collapses a pane, ADF Faces can implicitly persist the attribute value changes for 413 .
- 428.
- 429.
- 430.
- 431.
- 432.
- 433.
- 434.
- 435.
- 436.
- 437.
- 438.
- 439. Panel Collection Component ADFFaces provides a number of layout components that can be used to arrange other components on a page. Usually, you begin building your page with these components. You then add components that provide other functionality (for example, rendering data or rendering buttons) either inside facets or as child components to these layout components. The panelCollection component is a layout component that is very useful for displaying collection components, such as table, tree, and treeTable, because it adds more functionality to the components placed inside it. You can add a toolbar and a status bar to tables, trees, and tree tables by surrounding them with the panelCollection component. The top panel contains a standard menu bar as well as a toolbar that holds menu-type components such as menus and menu options, toolbars and toolbar buttons, and status bars. Some buttons and menus are added by default. For example, when you surround a table, tree, or tree table with a panelCollection component, a toolbar that contains the View menu is added. This menu contains menu items that are specific to the table, tree, or tree table component. 424 .
- 440. Panel Collection You canuse the af:panelCollection component to add menus, toolbars, and status bars to data aggregation components such as tables, trees, and tree tables. You would create the af:panelCollection component, and then add the table, tree, or tree table component as a direct child of panelCollection. The af:panelCollection tag contains a menu facet for af:menu, a toolbar facet for af:toolbar, a secondaryToolbar facet for another af:toolbar, and a statusbar facet. The table, tree, or tree table is added after the last facet. The default top-level menu and toolbar items depends on the child component being used: Tables and trees: The default top-level menu is View. Tables and tree table: The default toolbar menu is Detach. Tree and tree table (when the pathStamp is used): The toolbar buttons Go Up, Go To Top, and Show as Top also appear. The example shown in the slide has the following source code: <af:panelCollection binding="#{editor.component}"> <f:facet name="menus"> <af:menu text="Actions"> <af:commandMenuItem text="Add..." /> <af:commandMenuItem text="Create.." /> <af:commandMenuItem text="Update..." disabled="true"/> <af:commandMenuItem text="Copy"/> <af:commandMenuItem text="Delete"/> <af:commandMenuItem text="Remove" accelerator="control A"/> <af:commandMenuItem text="Preferences"/> </af:menu> </f:facet> <f:facet name="toolbar"> <af:toolbar> <af:commandToolbarButton shortDesc="Create" icon="/new_ena.png"> </af:commandToolbarButton> <af:commandToolbarButton shortDesc="Update" icon="/update_ena.png"> </af:commandToolbarButton> <af:commandToolbarButton shortDesc="Delete" icon="/delete_ena.png"> </af:commandToolbarButton> </af:toolbar> </f:facet> <f:facet name="secondaryToolbar"> </f:facet> <f:facet name="statusbar"> <af:toolbar> <af:outputText id="statusText" ... value="Custom Statusbar Message"/> </af:toolbar> </f:facet> <af:table rowSelection="multiple" columnSelection="multiple" ... <af:column ... </af:column> The panelCollectioncomponent is a naming container. If you want to add its contained component, such as a table, as partialTriggers(described later in this lesson), you must use its fully qualified name. For example, if you have a panelCollectioncomponent with id=entriesCollectionand a contained table with id=deptTable, and you want to update a panelFormon the selection change of the table, you would declare the panelForm's partialTriggersas: <panelForm partialTriggers="entriesCollection:deptTable"> 425 .
- 441.
- 442.
- 443.
- 444.
- 445.
- 446.
- 447.
- 448.
- 449.
- 450.
- 451.
- 452.
- 453.
- 454.
- 455.
- 456.
- 457.
- 458.
- 459.
- 460.
- 461.
- 462.
- 463.
- 464.
- 465.
- 466.
- 467.
- 468.
- 469.
- 470.
- 471.
- 472.
- 473.
- 474.
- 475.
- 476.
- 477.
- 478.
- 479.
- 480.
- 481.
- 482.
- 483.
- 484.
- 485.
- 486.
- 487.
- 488.
- 489.
- 490.
- 491.
- 492.
- 493.
- 494.
- 495.
- 496.
- 497.
- 498. Lesson Agenda The userinterface of a Web application usually comprises multiple pages. In this lesson, you learn how to use the ADF Controller to manage page navigation and task flows. In Hands-on lab one would practice: 1. Creating Bounded Task Flows and Add View Activities 2. Creating New Page Fragments 3. Adding Task Flow Call Activities 4. Adding Return Activities 5. Using Bounded Task Flows as a Region on a page Optionally you may also practice: 1. Using Unbounded Task Flow with View and Control Flow Activities 2. Extracting Part of Task Flow 3. Creating Bounded Task Flow without Fragments 4. Converting Bounded Task Flows to Use Page Fragments 483 .
- 499.
- 500.
- 501. Features of TaskFlows In the lesson titled “Understanding UI Technologies,” you learned that the ADF Controller enhances the JSF navigation model by providing the concept of task flows. ADF task flows provide a modular approach for defining control flow in an application. Instead of representing an application as a single large JSF page flow, you can break it up into a collection of reusable task flows. In each task flow, you identify application activities, the work units that must be performed in order for the application to complete. An activity represents a piece of work that can be performed when running the task flow. The ADF task flow offers the following advantages over standard JSF page flows: The application can be broken into a series of tasks, instead of having to represent the application in a single page flow. You can use activities other than pages in a task flow. You can navigate between activities, not just pages. Task flows are modular and reusable within an application or in different applications. Shared memory scope enables data to be passed between activities within the task flow. The ADF controller supports two types of task flows: 1. Unbounded task flows 2. Bounded task flows 486 .
- 502.
- 503.
- 504. Features of UnboundedTask Flows Although there can be many bounded task flows in an application, there can be only one unbounded task flow, which is assembled at run time by combining one or more adfc- config.xml files. The set of files that is combined to produce the ADF unbounded task flow is referred to as the application’s bootstrap configuration files. The ADF unbounded task flow represents the outermost task flow of an ADF application. The application’s entry point can be a view within the ADF unbounded task flow. As a user navigates within an application, a task flow stack is maintained to keep track of the calls from task flow to task flow. An ADF unbounded task flow always logically exists as the first entry on the task flow stack, but would simply be empty if no unbounded task flow is defined. An unbounded task flow does not contain the well-defined boundary or single entry point of a bounded task flow. You should use an unbounded task flow if your application has multiple points of entry. For example, an end user might enter an application through two different home pages. 489 .
- 505. Implement Unbounded TaskFlows By default, adfc-config.xml is the XML configuration file for an ADF unbounded task flow. You can double-click this file in the Application Navigator to open it in the editor. There are four tabs at the bottom of the editor that enable you to see different views of the source file for the task flow, all of which remain coordinated as you edit them: Diagram: Provides a visual view that enables you to drag source elements, components, or diagram notations from the Component Palette to define the task flow Overview: Contains different panels that enable you to configure the task flow Source: Displays the XML source code, which you can edit directly History: Shows a history of changes A common way of working is to initially create pages and navigation in the unbounded task flow, because that enables you to easily test them in one location. When they are functioning correctly, you can convert portions of the unbounded task flow to a bounded task flow if needed. A typical application is a combination of an unbounded and one or more bounded task flows. Every Fusion Web application contains an unbounded task flow, even if the unbounded task flow is empty. The application can call bounded task flows from activities in the unbounded one. 490 .
- 506. Features of BoundedTask Flows Although there can be only one unbounded task flow in an application, there can be many bounded task flows. You can think of a bounded task flow as a process because it defines a modular block of task flow functionality for reuse. It is the only type of task flow that can be used as a region on a page. Bounded task flows have the following characteristics: • Single entry point and zero or more well-defined exit points • Well-defined boundary with a transaction beginning and end. It consists of its own set of private control flow rules, activities, and managed beans. • Memory scope (pageFlow scope)variables for passing data between activities within the ADF bounded task flow, with a lifespan that is longer than request, but shorter than the session scope • Declarative support for transaction management - Ability to begin a new transaction upon ADF bounded task flow entry - Ability to commit or roll back upon ADF bounded task flow exit • Declarative support for Back button navigation • Ability to pass input parameters from the ADF bounded task flow caller to store within the pageFlow scope • Ability to return values back to ADF bounded task flow caller upon exit • Metadata only loaded on demand • ADF bounded task flow fragment reuse through task flow templates • Addressable, in that when you invoke an ADF bounded task flow, you must specify an identifier and the name of the XML document that contains the identifier Bounded task flows consist of a group of activities and control flows between the activities that enable a user to complete a task. There are different types of task flow activities, including the following: • View activity: Displays a page or page fragment • Router activity: Evaluates a declarative expression to produce a control flow outcome • Method call activity: Invokes application logic (Java method) from within the task flow • Task flow call activity: Calls an ADF bounded task flow • Task flow return activity: Defines an exit point of the task flow • Save point restore activity: Restores an application that supports save for later functionality. This is explained in the lesson titled “Implementing Transactional Capabilities.” • URL view activity: Redirects the view port to any URL addressable resource 491 .
- 507.
- 508.
- 509.
- 510.
- 511.
- 512.
- 513. Define Task FlowReturn Activity When you define a task flow return activity, you need to specify the outcome that is returned to the calling task flow. You can have only one outcome per task flow return. The calling flow should have a control flow rule that corresponds to the outcome that you name in the task flow return activity. If a bounded task flow has its own transaction scope, then the return activity will also control whether a commit or rollback will happen when the task flow returns to its caller. The example in the slide shows the task flow that calls the shopping cart flow. The shopping cart flow has a return activity, depicted on the right of the slide, whose outcome is defined as checkout. The calling task flow has a control flow rule named checkout, so when the called shopping cart flow is exited via the Checkout task flow return activity, navigation in the calling task flow proceeds to the CheckoutFlow. 498 .
- 514.
- 515.
- 516. Define ADF ControlFlow Rules The overall navigation through a JSF application uses a set of rules for choosing the next page to display when, for example, the user clicks a button or link. To define the navigation for your application, you need to define the control flow rules themselves, and then include on the pages the controls that a user can interact with to navigate to another place in the application at run time. ADF Faces components that can be used to implement navigation features on pages include: • Buttons and links, which users click to navigate to another place in the application • Components such as tabs and breadcrumbs • Train components for walking users through sequential steps of a process Control flow rule definitions are stored in configuration files (adfc-config.xml or a similar ml file). You can define the rules directly in the .xml configuration file, or you can use the Navigation Modeler and the Configuration Editor, which offer the following advantages: • Provide a GUI environment for modeling and editing the navigation between pages • Enable you to map out your application navigation using a visual diagram • Update the configuration file for you automatically Use the Navigation Modeler to initially create control flow rules; use the Configuration Editor to create global or pattern-based rules for multiple pages, create default navigation cases, and edit control flow rules. These tools, along with the Structure window, are explained further in subsequent slides. 501 .
- 517. Example of ADFControl Flow Rules An example of an ADF unbounded task flow showing simple navigation: <control-flow-rule> <from-activity-id>browseOrders</from-activity-id> <control-flow-case> <from-outcome>showDetail</from-outcome> <to-activity-id>orderDetail</to-activity-id> </control-flow-case> </control-flow-rule> <control-flow-rule> <from-activity-id>orderDetail</from-activity-id> <control-flow-case> <from-outcome>showOrders</from-outcome> <to-activity-id>browseOrders</to-activity-id> </control-flow-case> </control-flow-rule> A button on each page fragment invokes the appropriate action. For example, the Show Items button on the browseOrders page fragment is defined as follows: <af:commandButton text="Show Items" action="showDetail"/> 502 .
- 518. Use Wild Cards Mostcontrol flow rules specify navigation from one activity to another. However, you can also define global rules that affect all pages by setting the <from-activity-id> element to an asterisk, so that the rule can be called from any page. You can create a global rule by dragging a wildcard control flow rule element from the Component Palette, and then define the flow outcomes for the wildcard rule. The example in the slide shows a wildcard control flow rule that has from-outcome elements to navigate to every page in the task flow. Because of this wildcard rule, any page in the task flow can navigate to any other page. The source XML looks like this: <control-flow-rule> <from-activity-id>*</from-activity-id> <control-flow-case> <from-outcome>shop</from-outcome> <to-activity-id>ProductCatalog</to-activity-id> </control-flow-case> <control-flow-case> <from-outcome>search</from-outcome> <to-activity-id>ProductSearch</to-activity-id> </control-flow-case> <control-flow-case> <from-outcome>details</from-outcome> <to-activity-id>ProductDetails</to-activity-id> </control-flow-case> <control-flow-case> <from-outcome>cart</from-outcome> <to-activity-id>DisplayShoppingCart</to-activity-id> </control-flow-case> <control-flow-case> <from-outcome>add</from-outcome> <to-activity-id>AddShoppingCart</to-activity-id> </control-flow-case> <control-flow-case> <from-outcome>checkout</from-outcome> <to-activity-id>CheckoutFlow</to-activity-id> </control-flow-case> </control-flow-rule> 503 .
- 519.
- 520. Make View ActivitiesBookmarkable You can enable users to easily return to a view activity in an unbounded task flow by designating the activity as bookmarkable. On the Bookmark tab of the Property Inspector, you can set the bookmark property to true. You can optionally add parameters in the URL Parameters section and add an optional method binding in the converter field for a parameter’s value. You can also optionally specify a method in the method field that the ADF Controller should invoke before rendering the view. You can use this method to retrieve additional information based on the parameter values. Instead of making the view activity bookmarkable, you can choose to use the redirect option to create a new browser URL for the view activity. You do this by setting the redirect property to true on the Common panel of the Property Inspector for the view activity. 505 .
- 521. Check for DirtyData SomeDC::isTransactionDirty() works well with those DataControls which have implemented oracle.adf.model.TransactionalDataControl. Apparently it works with ADF BC. However this may not work (as of now) with Bean DC as it lacks the specific transactional context implementation. DCDataControl::isTransactionModified() does not consult underlying model for checking the modified status, rather it keeps track of 'TxnModified' flag and marks it as dirty whenever UI pushes updated data to the binding layer. 506 .
- 522.
- 523.
- 524. Create Bounded TaskFlow To create a new task flow that is bounded, you can invoke the New Gallery and select Web Tier > JSF > ADF Task Flow. In the Create ADF Task Flow dialog box, you perform the following: • Give the task flow a name, location, and unique ID. • Select the “Create as Bounded Task Flow” check box. • Indicate whether to create it with page fragments. If you want to use page fragments (discussed in the lesson titled “Ensuring Reusability”), you need to be aware that you cannot run a page fragment by itself. You may initially create the bounded task flow with pages and convert it to page fragments after the testing of the task flow is complete. • Indicate whether to create the task flow as a train, which is a progression of related pages guiding the end user through a series of steps. Each step in a train contains a UI component showing the user’s progress and enabling the user to return to earlier steps. • Indicate whether to use a template and whether to update the task flow when the template changes. Another way to create a bounded task flow is to extract part of an existing task flow into its own bounded task flow. To do this, click the task flow diagram and drag out an area to surround the activities that you want to include in the separate task flow. Then right-click one of the activities and select Extract Task Flow from the context menu. 509 .
- 525.
- 526. To create anew task flow that is bounded, you can invoke the New Gallery and select Web Tier > JSF > ADF Task Flow. In the Create ADF Task Flow dialog box, you perform the following: • Give the task flow a name, location, and unique ID. • Select the “Create as Bounded Task Flow” check box. • Indicate whether to create it with page fragments. If you want to use page fragments (discussed in the lesson titled “Ensuring Reusability”), you need to be aware that you cannot run a page fragment by itself. You may initially create the bounded task flow with pages and convert it to page fragments after the testing of the task flow is complete. • Indicate whether to create the task flow as a train, which is a progression of related pages guiding the end user through a series of steps. Each step in a train contains a UI component showing the user’s progress and enabling the user to return to earlier steps. • Indicate whether to use a template and whether to update the task flow when the template changes. Another way to create a bounded task flow is to extract part of an existing task flow into its own bounded task flow. To do this, click the task flow diagram and drag out an area to surround the activities that you want to include in the separate task flow. Then right-click one of the activities and select Extract Task Flow from the context menu. 511 .
- 527. Convert a BoundedTask Flow to Use Page Fragments When you are initially developing a bounded task flow, you may use view activities that correspond to pages (.jspx). However, to use a task flow as a region, the view activities cannot be full pages, so you can convert the task flow to one that uses page fragments. You have to only right-click a blank space on the task flow diagram and select Convert To Task Flow With Page Fragments. This converts all pages associated with view activities in the bounded task flow to page fragments. You can optionally save old pages by selecting the Keep Page? check box. New page fragment names default to the names of the old pages. For example, MyPage.jspx becomes MyPage.jsff. Note: It is best practice to use page fragments on other pages only through bounded task flows, even if you have a page flow with only that page fragment. 512 .
- 528.
- 529.
- 530.
- 531. Lesson Agenda ADF Facescontains several components to enhance and implement navigation on pages. This lesson teaches you how to implement such navigation by using ADF Faces navigate on components In Hands-on lab one would practice: 1. Creating Links and Buttons for Navigation 2. Using Menu and Menu Items Optionally you may also practice: 1. Assigning Internationalization and Accessibility 2. Using BreadCrumbs 3. Using Popup Dialog 4. Defining Sequence of Steps (Train) and Use Wild Card Activity 516 .
- 532.
- 533.
- 534. Overview of NavigationComponents Navigation components in ADF Faces include: • Button and link components for navigating to another location with or without server-side actions • Components that render items such as tabs and breadcrumbs for navigating hierarchical pages • Train components for navigating a multistep process 519 .
- 535.
- 536.
- 537. Use Breadcrumbs The af:breadCrumbscomponent enables you to display a path of links for navigation. You can explicitly define the links by using one af:commandNavigationItem component for each. Alternatively, you can define the links dynamically by using the XML Menu Model. You need to add the breadcrumbs to each page that should display them, or use a page fragment or page template, discussed in the lesson titled “Ensuring Reusability.” 522 .
- 538. Use Explicitly DefinedBreadcrumbs To provide a simple navigation hierarchy where you define the navigation items for the breadcrumbs, you can add the af:breadCrumbs component to each page, with one or more af:commandNavigationItem components that you explicitly set. The value of the af:commandNavigationItem component’s attributes may be set to a page or to an EL expression. For example, in a shopping application, you may want to enable the user to follow the breadcrumbs to display categories and subcategories of products, rather than pages, as shown in the example in the slide. Instead of static values, you can use parameters and action listeners to make these breadcrumbs dynamic, displaying the names of the categories and subcategories by using EL expressions that evaluate to changing parameter values. 523 .
- 539.
- 540. Overview of XMLMenu Model For a very simple page hierarchy, you can manually create navigational components, such as breadcrumbs or navigation panes, and add navigation items for each. However, this becomes very cumbersome when a navigational hierarchy encompasses several pages. An ADF menu model enables you to create complex navigational hierarchies without all the tedious manual coding. You can organize related JSF pages in a tree-like hierarchy that users can navigate to drill down or up to another level of the hierarchy by using navigation items in navigation panes or breadcrumbs. The XML Menu Model represents navigation for a page hierarchy in XML format. The hierarchy is described within the menu element. The hierarchy is composed of nodes, each of which can correspond to a page. The menu element can contain the following types of nodes: groupNode: Contains one or more child nodes to navigate to indirectly, and must reference the ID of at least one of its child nodes, which can be an item node or another group node itemNode: A node that performs navigation upon selection sharedNode: References another XML menu, and is used to link or include various menus For more information and examples of creating an XML Menu hierarchy, see the Web User Interface Developer’s Guide for ADF and the Fusion Developer’s Guide for ADF. 525 .
- 541. Define Sequence ofSteps If you have a set of pages that users should visit in a particular order, consider using the af:train component on each page to display a series of navigation items to guide users through the multistep process. Not only does a train display the number of steps in a multistep process, it also indicates the location of the current step in relation to the entire process. Suppose you have eight steps in a multistep process, such as creating a new item in an inventory system. When configured properly, the af:train component would render all eight steps on a page, with each step represented as a train stop, and with all the stops connected by lines. Each train stop has an image (for example, a square block) with a label underneath the image. The slide shows an example of how this train could look on a page. Each train stop corresponds to one step or one page in your multistep process. Users navigate the train stops by clicking an image or label, which causes a new page to display. Typically train stops must be visited in sequence, that is, a user cannot jump to step 3 if the user has not visited step 2. As shown in the slide, a train is actually a specialized type of task flow with linear steps. Note: Internationalization of the text displayed for a train stop is currently not supported. As shown in the slide, the train component provides at least four styles for train stops: The current stop is indicated by a bold font style in the label, and a different image for the stop. Stops visited before the current stop are indicated by a different label font color and image color. The next stop immediately after the current stop appears enabled. Any other stops that have not been visited are disabled. A train stop can include a subprocess train. That is, you can launch a child multistep process from a parent stop, and then return to the correct parent stop after completing the subprocess. Suppose stop #4 has a subprocess train containing three stops. When the user navigates to the first stop in the subprocess train, ADF Faces displays an icon representing the parent train before and after the subprocess train. Adding Navigation Buttons The af:trainButtonBar component may be used in conjunction with the af:train component to provide additional navigation items for the train, in the form of Back and Next buttons. The third example in the slide shows what a rendered af:trainButtonBar component could look like. The Back and Next buttons provided by af:trainButtonBar enable users to navigate only to the next or previous train stop from the current stop. You can also use the af:trainButtonBar component without af:train. The train and train button bar work by having the value attribute bound to a train model of type org.apache.myfaces.trinidad.model.MenuModel. The train menu model contains the information needed to: Control a specific train behavior (that is, how the train advances users through the train stops to complete the multistep process) Dynamically generate the train stops, including the train stop labels, and the status of each stop (that is, whether a stop is currently selected, visited, unvisited, or disabled) 526
- 542. Skip Train Stop Youcan set a train stop to be skipped by setting the skip property to true. You would typically set this property to an EL expression that evaluates to true or false to conditionally skip the train stop. The example in the slide shows the Property Inspector for a view in the task flow of the train. The skip property is set to a managed bean method that is coded to perform some evaluation and conditionally return either true or false. At run time, the user cannot navigate to a skipped train stop. 527 .
- 543. Use Menus forNavigation ADF Faces provides menu bars and toolbars that you can add to a page. Menu items and toolbar buttons enable users to perform some change on a selected object or to navigate somewhere else in the application. A toolbox can be used to group menus and multiple toolbars together. The example in the slide contains both a menu bar and a toolbar. Both menu items and toolbar buttons have the capability to display differently when selected. Additionally, they can both navigate to other pages in the application, and perform any logic needed for navigation in the same way that other command components do. You use the menuBar component to render a bar that contains the menu bar items, such as File in the example. Each item on a menu bar item is rendered by a menu component, which holds a vertical menu. Each vertical menu consists of a list of commandMenuItem components that can invoke some operation on the application. You can nest menu components inside menu components to create submenus. 528 .
- 544.
- 545.
- 546. Printable Page Behavior Theaf:showPrintablePageBehavior operation creates a printable page that the user can print by using the browser’s Print button. To allow printing, place the af:showPrintablePageBehavior component (an Operations component) within the page. The showPrintablePageBehavior tag is an operation, so you can drag it from the Operations components section of the Component Palette to a button or any other component that executes an operation. If the page contains a layout component with panes, such as a panel splitter, place the button that contains the af:showPrintablePageBehavior component in the facet whose pane contents you want users to be able to print. For example, in a panel splitter, if the second facet is the main content area of the af:panelSplitter component, then insert the button that contains the af:showPrintablePageBehavior component into that facet. If you insert af:showPrintablePageBehavior anywhere outside of af:panelSplitter, the printed result may not contain all of the main content area. Therefore, it is important to place the print operation within the af:panelSplitter facet whose pane contents users would normally want to print. If both facets need printing support, insert one af:showPrintablePageBehavior component into each facet. To print contents of both panes, the user then has to execute the print command one pane at a time. 531 .
- 547. Use Toolbar, ToolbarButtons and Toolboxes Along with menus, you can create toolbars in your application that contain toolbar buttons used to initiate some operation in the application. The buttons can display text, an icon, or a combination of both. You can use the group component to group related toolbar buttons. Toolbars can also contain other UI components, such as drop-down lists, command buttons, and command links. However, toolbar buttons provide additional functionality: The af:commandToolbarButton component has a popup facet that enables you to provide pop-up menus from a toolbar button. The flex property of a component can be set to an integer that indicates the ratio of this component to other flexible components within the same container. You can use more than one toolbar component by enclosing them in a toolbox component (in the Layout group of the Component Palette). Doing so stacks the toolbars so that the first toolbar on the page displays on the top, and the last toolbar displays at the bottom. When you use more than one toolbar, you can set the flex attribute on the toolbars to determine which toolbar should be the longest. If you want toolbars to be displayed next to each other (rather than stacked), you can enclose them in a group component. Within a toolbar, you can set one component to stretch so that the toolbar will always equal that of its parent container. When a window is resized such that all the components within the toolbar can no longer be displayed, the toolbar displays an overflow icon. 532 .
- 548.
- 549.
- 550.
- 551.
- 552. Create Pop-up Menus Youcan also have the menu launch in a pop-up window that displays vertically. To create a pop- up menu, perform the following steps: Drag the ToolbarButton component to a toolbar on the JSF page and set the text attribute to display the name of the button. Use the icon attribute to set the image to use on the button. In the Structure window, expand the ToolbarButton facets and drag a Menu component to the popup facet. Drag to the Menu component as many Menu Item components as needed to define the items in the vertical menu. Set properties on the Menu Items as needed. 537 .
- 553.
- 554.
- 555. Creating Context Menus ADFFaces client behavior tags provide declarative solutions to common client operations that you would otherwise have to write yourself using JavaScript, and register on components as client listeners. In this release, ADF Faces supports the client behavior af:showPopupBehavior to use in place of a client listener. You perform the following steps to use af:showPopupBehavior to create a context menu for a component: 1. Create a pop-up menu with af:popup, af:menu, and af:commandMenuItem components. 2. Give the pop-up menu an ID. 3. Create a component to use the context menu. 4. Drag the af:showPopupBehavior operation to the component and set properties: • popupId: Specify the ID of the af:popup component whose contents you want to display in a pop-up. • alignId: Specify the ID of the component to align the pop-up contents with. • align: Specify an alignment position that is relative to the component identified by alignId. • triggerType: Specify the event type to use to trigger the pop-up. Default is action, because typically you would associate af:showPopupBehavior with a command component. When the command component is clicked, an action event is fired, which triggers the pop-up to display. If you associate af:showPopupBehavior with some other noncommand component, such as af:outputText, set triggerType on af:showPopupBehavior to contextMenu, which displays a pop-up context menu. The slide shows a sample code that displays a pop-up menu when users right-click the text rendered by af:outputText. The slide also shows the sample context menu generated at run time. Note: You can use the same general steps to display a pop-up window that contains any components, not just one that contains a menu. 540 .
- 556.
- 557.
- 558. 543 Navigation cases aredefined in the faces-config.xml file and are defined from a page source to a page target based on the outcome of an action. Alternatively the navigation can be from a method source. .
- 559. 544 Definition of thenavigation case in the faces-config.xml: <!ELEMENT navigation-rule (description*, display-name*, icon*, from-view-id?, navigation- case*)> The from-view-id element is the identifier of the page of origin. To describe the navigation rule for a JSP page called index.jsp, the following is the value of the from-view-id subelement: <from-view-id>/index.jsp</from-view-id> <!ELEMENT navigation-rule (description*, display-name*, icon*, from-view-id?, navigation- case*)> The navigation-case element represents a possible target. A navigation-rule element can have zero or several navigation-case subelements. Each navigation-case element specifies the target page for a particular outcome of the from- view-id processing. An outcome can come from the action attribute of the UICommand component in the from-view-id element. .
- 560. 545 Wildcard = * <navigation-rule> <from-view-id>/app/*</from-view-id> <navigation-case>. . . </navigation-case> </navigation-rule> Applies to all pages that are stored within /app/ directory and thus have this string as a viewId prefix Default match looks for “*” only .
- 561. 546 To programmatically seta new navigation target, we need to get a hold onto the ViewHandler to create the new UIViewRoot. Note that you could also restore an existing view if it is still available. However this requires some more complex tracking than what we want to show in this training. Once we have a handle to the ViewHandler, we call its create() method and add the access path to the JSF page we want tp navigate to. The access path is the path that starts in public-html, the directory that JSP pages are based in by default. The SRMain page is located in public- htmlappSRMain.jsp Setting the view root immediately navigates to the new page. To avoid conflicts e.g. if using this in an action event in the backing bean, make sure that this method then returns null. .
- 562.
- 563. Perform Navigation Like anyJSF application, an application that uses ADF Faces components contains a set of rules for choosing the next page to display when, for example, a button or link is clicked. You define the rules in an ADF Faces application by adding control flow rules and cases to task flows. JSF uses an outcome String to select the control flow rule to use to perform a page navigation. ADF Faces navigation components generate an action event when users activate the component. The JSF navigation handler and default ActionListener mechanism use the logical outcome String on the activated component to find a match in the set of control flow rules. When JSF locates a match, the corresponding page is selected and rendered. The example in the slide shows two pages in an ADF task flow: The BrowseOrders page has a control-flow-case whose control flow from-outcome is named showItems, which defines that navigation should go to the OrderItems page. The OrderItems page has a control-flow-case whose control flow from-outcome is named goOrders, which defines that navigation should return to the BrowseOrders page. There are two command buttons on the pages: The BrowseOrders page has a command button whose action is set to showItems. The OrderItems page has a command button whose action is set to goOrders. 548 .
- 564.
- 565. Use Access Key Youcan define access keys (also known as mnemonics or shortcut keys) in the Property Inspector for the component by entering the mnemonic character in the AccessKey property. Use one of the following attributes to specify a keyboard character for an ADF Faces input, command, or go component: accessKey: Use to set the mnemonic character used to gain quick access to the component. For command buttons, command links, go buttons, and go links, the character specified by this attribute must exist in the text attribute of the component; otherwise, ADF Faces does not display the visual indication that the component has an access key. textAndAccessKey: Use to simultaneously set the text and the mnemonic character for a component using the ampersand (&) character. In .jspx files, use & for an ampersand. In JSP files and in the Property Inspector, you need to use only the &. The ampersand should precede the character to be used as an access key. labelAndAccessKey: Use to simultaneously set the label attribute and the accesskey on an input component using conventional ampersand notation valueAndAccessKey: Use to simultaneously set the value attribute and the access key using conventional ampersand notation. The example in the slide specifies the label as Select Date and sets the access key to e, the letter immediately after the ampersand. Reusing Access Keys You can bind the same access key to several components. If the same access key appears in multiple locations on the same page, the rendering agent cycles among the components accessed by the same key. That is, each time the access key is pressed, focus moves from component to component. When the last component is reached, focus returns to the first component. Depending on the browser, if the same access key is assigned to two or more Go components on a page, the browser may activate the first component instead of cycling through the components that are accessed by the same key. Note: If you assign an access key that is already defined as a shortcut menu in the browser, the ADF Faces component access key takes precedence 550 .
- 566.
- 567.
- 568. Lesson Agenda This lessonteaches you to create and use components that are reusable: page templates, page fragments, declarative components, and bounded task flows in regions. It also introduces the concepts of the Resource Catalog and ADF libraries to package components and make them available for reuse. In Hands-on lab one would practice: Creating and Using Reusable Component Optionally you may also practice: 1. Creating Page Templates 2. Applying Template to Existing Page Fragments 3. Creating a New Header Template 4. Applying Template to Existing Page 5. Creating a New Page with Template 6. Adding Panel Springboard Component 7. Converting JSPX to Facelets 553 .
- 569.
- 570. Benefits of Reusability Duplicatingcode or content is one of the worst practices. It can be an easy solution sometimes, but changing the application becomes a lot more difficult, which means that in the long term, you cannot adapt to new user requirements or fix problems quickly. Ideally, an application should not contain multiple versions of the same code and the Web content should not be copied and pasted. Code reuse can increase developer productivity and application maintainability. Instead of reinventing the wheel, you should always look for well-designed frameworks and customizable components. Application-specific code can also be reused across modules and even across related projects. This latter type of reusability allows you to make rapid changes, exploit new features globally, and spend less time testing and debugging. These things might sound like good advice for programmers, but Web developers should pay attention to them too. Oracle ADF Faces provides built-in components along with support for creating additional reusable components. Very often, however, the bits of HTML and JSP markup are copied from one Web page and pasted into other pages, which means that multiplied markup has to be modified everywhere when the Web content changes. In addition, the look of an application becomes inconsistent if some of the pages are not updated. This does not happen if the UI parts are reused across pages so that any change requires editing in exactly one place. 555 .
- 571. Design for Reuse Creatingand consuming reusable components should be included in the early design and architectural phases of software projects. You and your development team should consider which components are candidates for reuse, not only in the current applications but also for future applications and for applications being developed in other departments. When you create reusable components, you should try to create unique and relevant names for the application, project, application module, task flow, or any other relevant file or component. Do not accept the JDeveloper Wizard’s default names, but try to have unique names to avoid name conflicts with other projects or components in the application. You should also consider creating standardized naming conventions so both creators and consumers of ADF Library JARs can readily identify the component functionality. You and your team should decide on the type of repository needed to store the library JARs, where to store them, and how to access them. You should consider how to organize and group the library JARs in a structure that fits your organizational needs. 556 .
- 572. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 557
- 573. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 558
- 574. Use a ResourceCatalog The Resource Catalog is your window into the many disparate resources that your application may need to consume. It enables you to define connections to the resource providers, and to drag those resources into your application as needed. The resource catalog provides a search tool to search all the defined repositories in a single action. Connections can be created for the following types of resource repositories: Application server Database File system UDDI Registry URL adapter WebDAV BAM/Fabric BI Presentation server BPEL MDS connection Portlet producers Virtual Content Repository (VCR) WSDL adapter 559 .
- 575.
- 576. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 561
- 577. Reuse Components In thecourse of application development, certain components are often used more than once. Whether the reuse happens within the same application, or across different applications, it is often advantageous to package these reusable components into a library that can be shared between different developers, across different teams, and even across departments within an organization. ADF Library provides a convenient and practical way to create, deploy, and reuse high-level components. You should design your application with component reusability in mind. If you created components that can be reused, you can package them into JAR files and add them to a resource catalog. If you need a component, you may look into the resource catalog for that component, and then add the library into your project or application. For example, you can create an application module for a domain and package it up to be used as the model project in several different applications. Or, if your application consumes components, you may be able to load a page template component from a repository of ADF Library JARs to create common look-and-feel pages. Then you can put your page flow together by stringing several task flow components pulled from the library. 562 .
- 578. Remove an ADFLibrary from Project You can remove an ADF Library JAR only if there are no dependencies from any components to the ADF Library components. When you remove a JAR, it is no longer in the project class path and all its components are no longer available for use. There are two ways to remove an ADF Library from a project: By using the Resource Palette: Right-click the JAR in the Resource Palette and select “Remove from Active Project.” Manually remove the JAR using the Project Properties window: In the Application Navigator, double-click the project. In the Project Properties dialog box, select “Libraries and Classpath” in the left pane. In the “Libraries and Classpath” list, select ADF Library. Click Edit. In the Edit Library Definition window, select the ADF Library JAR that you want to remove under the Class Path node. Click Remove. Click OK to accept the deletion, and click OK again to exit the Project Properties window. After you have deleted all ADF Library JAR files from the project, an ADF Library placeholder icon may still be present in the Project Properties Libraries window, as shown in the slide. You do not need to remove this icon. 563 .
- 579. Restrict BC Visibilityin Libraries When deploying a library for reuse, there may be some business components that are not intended for reuse, but must be included in the library because other components depend upon them. For example: The library developer wants consuming projects to access components in the library only through services exposed on the application module. All components in the library are private and may not be reused. The library developer wants consuming projects to access an entity object only by using or extending view objects in the library, and the entity object contains attributes that should not be exposed in any view object. In this case, the entity object is private and the view objects are public. You can mark an ADF BC object as public (the default) or private. Setting Library Private to true keeps the object from appearing to the consumer who is browsing the library JAR. To mark a BC object as private, perform the following steps: Open the object in the editor. In the Property Inspector, click the Type tab and set Library Private to true. When an object is marked as private, it is not visible in the Resource Catalog or in the Application Navigator of the consuming project 564 .
- 580. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 565
- 581.
- 582. Wrap a TaskFlow as a Region You can drag to your page a bounded task flow that includes page fragments and create it as a region on the page. The default activity of the task flow appears in the editor and on the page when it is first run. At run time, you can use page navigation (described in the lesson titled “Implementing Navigation on Pages”) to navigate through the task flow. As you do this, the region refreshes without redrawing the entire page (partial page refresh). 567 .
- 583.
- 584.
- 585.
- 586.
- 587.
- 588.
- 589. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 574
- 590. Characteristics of PageFragments As you build Web pages for an application, some pages may quickly become large and unmanageable. One possible way to simplify the process of building and maintaining complex pages is to use page fragments. Large, complex pages broken down into several smaller page fragments are easier to maintain. Depending on how you design a page, the page fragments created for an entire page may also be reused on other pages. For example, suppose different parts of several pages use the same components, then you might find it beneficial to create page fragments containing those components, and reuse those page fragments on several pages or in several places on the same page. Deciding on how many page fragments to create for one or more complex pages depends on your application, the degree to which you want to reuse portions of a page between multiple pages, and the need to simplify complex pages. Page fragments are created and used much like pages, except that page fragments are not defined as a full Web page. This enables page fragments to be used as a smaller part of a larger page. To utilize the capability of page fragments to be used as part of a page, it is likely that most pages for Fusion applications will be built as page fragments. A page fragment does not contain f:view or af:document; its contents are simply enclosed within jsp:root. You cannot run page fragments like you can run complete JSF pages. 575 .
- 591. Use a PageFragment on a Page When you build a JSF page using page fragments, the page can use one or more page fragments that define different portions of the page. The same page fragment can be used more than once on a page, and on multiple pages. To consume a page fragment on a JSF page, at the part of the page that will use the page fragment contents, insert the jsp:include tag to include the desired page fragment file, as in the following example: <jsp:include page="/fragment_page.jsff"/> Another way to use a page fragment is as part of a bounded task flow that you add to a page as a region; this is described shortly. When you modify a page fragment, the pages that consume the page fragment automatically display the modifications. With pages built from page fragments, when you make layout changes, you should check that the overall layout of pages that consume the page fragments still meet requirements. If the consuming page uses Oracle ADF Model data binding, a page fragment used with jsp:include uses the binding container of the consuming page, so its page definition file is not loaded. Only page fragments created as part of ADF bounded task flows can have their own binding context. 576 .
- 592. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 577
- 593. Characteristics of PageTemplate A page template provides a reusable page definition that enforces consistent branding and page layout across the application. It enables developers to change the branding and page layout for all the pages or page fragments that use the page template by changing only the page template definition. Templates can contain attributes and ADF bindings. Page templates use standard ADF components; therefore, all skins are automatically applied. They cannot be nested, or based on another page template. Pages that use the same page template take advantage of partial page refresh—just the content that is specific to a page changes without the need to refresh the template. There are two sets of page template definition files: For each page template there is: A JSP XML file (.jspx), which defines the rendered UI in terms of other JSF components, facet references, and EL expressions resolved against the page template’s UI attributes and model An optional model-specific file—for example, an ADF page definition (.pdm) file Across all page templates there is: A pagetemplate-metadata.xml file, which contains the paths of all the page template definitions in the project, located in the META-INF directory of the project An application or library .cpx file, which contains any application and library-wide model information 578 .
- 594.
- 595.
- 596.
- 597.
- 598.
- 599.
- 600.
- 601. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 586
- 602.
- 603. Types of ReusableComponents The following reusable components are supported by ADF: Data Control: Any data control can be packaged into an ADF Library JAR. Application Module: When you package an application module data control, you also package the business components associated with that application module. Business Components: Business components are the entity objects, view objects, and associations used in the business layer; you can package them by themselves or together with an application module. Task Flows and Task Flow templates: Task flows can be packaged into an ADF Library JAR for reuse. ADF bounded task flows built using pages can be dropped onto pages, creating a link to call the bounded task flow. If an ADF task flow template was created in the same project as the task flow, the ADF task flow template is included in the ADF Library JAR and is reusable. Page Templates: You can package a page template and its artifacts into an ADF Library JAR. If the template uses image files and they are included in a directory within your project, these files are also available for the template during reuse. Declarative Components: You can create declarative components and package them for reuse. The tag libraries associated with the component are included and loaded into the consuming project. 588
- 604.
- 605. Characteristics of DeclarativeComponents Declarative components are reusable, composite UI components that are made up of other existing ADF Faces components. Suppose you are reusing the same components consistently in multiple circumstances. Instead of copying and pasting the commonly used UI elements repeatedly, consider defining a declarative component that contains those components, and then reusing that composite declarative component in multiple places or pages. Any changes to the declarative component affect all pages that use the declarative component. Declarative components do not support ADF Model parameters. They are not databound and contain no business logic. This means that you cannot drag an item from the Data Controls panel when defining the component layout section of a declarative component. However, when consuming a declarative component on a page, you can drop databound content into the facets defined on the declarative component, and the declarative component’s attributes can have data binding. For example, if you want to reuse a databound address object that comprises four input fields on a JSF page, you could create a declarative component with four input components and four parameters, and assign the parameters to the value attributes of the input components. At design time, the page author can bind the input component values (via the declarative component’s attributes in the Property Inspector) to different data sources, including ADF Model data binding. Declarative components are composed of other components. For example, you could design a declarative component to include a facet (placeholder) for the product image component and facets for two text components to display a product description and product cost. You can also hide attributes, such as labels, of a declarative component, so that they cannot be changed by other developers who use the component. A declarative component cannot be changed or customized at run time. It must be defined at design time, and uses the following definition files: • A JSP xml file (.jspx) that defines the rendered UI in terms of other JSF components, Facet references, and EL expressions resolved against the declarative component’s UI attributes. There is one such file for each declarative component • A declarativecomp-metadata.xmlfile that contains the declarative components’ file paths in the project. This file, located in the META-INFdirectory of the project, is shared across all declarative component definitions in an application or library 590 .
- 606. Create a DeclarativeComponent When you invoke the Create JSF Declarative Component dialog box, you can specify the name of the component, its file name and path, and the package in which to place it. You must add a tag library, and you can define facets, attributes, and methods for the component. When you click OK, the .jspx file opens in the editor. You can drag components to the editor to create the component. JDeveloper creates an <af:componentDef> tag in the declarative component definition JSPX fragment. This tag acts as the root of the tag hierarchy. This tag describes the entire declarative component in two sections: af:xmlContent section: Defines the declarative component metadata in facet and attribute elements Component layout section (anything outside of af:xmlContent): Defines the actual UI components that make up the composite declarative component Requires that only one child is defined for the layout, so you can use one of the panel layouts to contain multiple elements Uses af:facetRef tags to reference named facets, and EL expressions containing named attributes to enable page authors to set their own property values for the declarative component 591 .
- 607. Use a DeclarativeComponent on a Page To use a declarative component on a page, you first have to ensure that the component appears in the Component Palette. You then can drag the component to a page just as you would any other component. To use a declarative component in another project, you first must deploy the components’ project as an ADF library JAR file, and then add it to your current project as described previously—but add it as a JSP tag library. After it is added to your project, the library appears in the drop-down list in the Component Palette, and you can use any declarative components defined in that library by dragging them to a JSF JSP. You can use the Property Palette to provide values for the attributes that you defined. If you marked any of the attributes as required, when you drag the component to the page, a dialog box appears to enable you to enter attribute values. 592 .
- 608. Decide Which toUse At first you may be confused about the differences between page templates, declarative components, and bounded task flows and when you would want to use each. You could use a page template when multiple pages have similar layout. For example, you may want to display several data elements with a master at top and detail at the bottom in a panel splitter. You may also want several pages to have a similar look and feel, such as branding, header, footer, or toolbars. A declarative component is a composite of existing components that you define and reuse from the Component Palette. If you often find yourself constructing groupings of components that are the same, you can define a declarative component, so that all you need to do is drag it from the Component Palette to reuse it in multiple pages or applications. For example, you could define an address component that could be used whenever you display an address of any type in any application. That declarative component can be bound to different data, just like any component. Bounded task flows are useful any time you have a set of activities and control flows that needs to be reused, such as a shopping cart or checkout in a shopping application, or creating an account in a banking application. You can call the bounded task flow. When constructed with page fragments, a bounded task flow can be used in a region on a page, so that the activities are displayed in the region without refreshing the entire page. You can create a portlet from a task flow as well. 593 .
- 609.
- 610.
- 611. Lesson Agenda This lessonexplains how to pass parameters and values between UI elements such as pages, regions, and bounded task flows. In Hands-on lab, optionally you may also practice: 1. Implementing Set Action Listener, Scopes and Partial Page Refresh 2. Setting Conditional Display 3. Defining Task Flow Parameters 4. Defining Regions Parameters 5. Using Refresh Property in PageDef 596 .
- 612.
- 613. BAT = BhagatADF Training. PSP = Parameters, Scopes and Partial Page Refresh (PPR). . 598
- 614.
- 615. Memory scopes: • ApplicationScope: The object will be stored for the duration of the current application and it is across user sessions. • Session Scope: The object is available for the current user session and will not be available if the user exits out of the session. We will use the SessionScope API to store the object in the session. In an EL expression we used it as #{sessionScope.param}. You should not reference or use the standard servlet scopes such as session, application, or request to refer to the managed bean. Referring to the managed bean with a standard prefix will fail to instantiate the bean. • Page Flow Scope: The object is available for the duration of the bonded task flow. We use #{pageFlowScope.param} to access the object stored in pageFlowScope. • Request Scope: The object is available only from the HTTP request and the response time is sent back to the client. • Backing Bean Scope: The object is available from the time an HTTP request is made until a response is sent back to the client. The scope is just like Request Scope and is only used for a managed bean and for developing custom components. Each page can have more than one page fragment or a declarative component and we would want to separate the scope instances from each other. The scope is used as #{backingBeanScope.param}. • View Scope: The object is available only for the time the view ID is available and it is unavailable if the ID changes. If we want to store information that needs to be available only for a single page, we will use the View Scope. It is used as #{viewScope.param}. 600 .
- 616.
- 617. Memory Scope Durationwith a Called Task Flow As stated previously, you should store values in the scope with the shortest duration that fits your needs, so it is important to know the duration of memory scopes in an application. The parent task flow depicted in the slide contains three view activities, a router, a method call, and a task flow call. The called bounded task flow has two view activities: a method call and a task flow return. The request scope line shows that the duration of a request scope is from the time a request is issued in a view activity until another view activity creates a request. Routers and method calls do not have a request scope of their own, so values set in RS1 above are available to the router and the method call. If the called task flow had no view activities, RS1 would span the task flow also. However, each of the called task flow’s two view activities creates a request, ending the previous request scope and starting a new one. View scope is similar, except that it begins when a view is rendered and ends when a new view is rendered. As mentioned earlier, the page flow scope attributes are accessible anywhere within a task flow. The called task flow has its own page flow scope, PFS2, that is separate from the parent’s PFS1, and the called task flow cannot access PFS1, so parameters, which are discussed in this lesson, are needed to pass information from the parent to the called task flow. Session scope lasts throughout the user session, while application scope lasts beyond the user session and can share values among all instances of an application. 602 .
- 618. Memory Scope Durationwith a Region This example is similar to the previous one, except that the bounded task flow is contained in a region on the page that is represented as a view activity within the main task flow. It shows the following differences from the previous slide: The backing bean scope is available for the declarative components, and lasts as long as the component is in focus. Each component notifies the controller when it starts and ends being in focus. There is a separate backing bean scope for each declarative component. The page flow scope works differently in this example, because the second task flow is in a region on a view within the main task flow. So the duration of the page flow scope of the main task flow is throughout its entire flow, including the region that contains the other task flow. The bounded task flow represented as a region has its own page flow scope as well. Each task flow’s scope is independent of and cannot access objects in the other task flow’s scope. The view scope for the page fragments in the bounded task flow (in the region on the page represented by the view activity B) is separate from the view scope for the containing page. The views in the region cannot access the view scope of the containing page, and the containing page cannot access the view scopes of the page fragments in the region. 603 .
- 619. Access Memory ScopedAttribute Values You can access memory-scoped attributes in one of the following ways: By using EL: You can access objects stored in memory scopes through EL expressions. The object names must use the name of the scope as a prefix, because EL expressions do not automatically look into any memory scopes. The first example in the slide shows how to have a button’s label provided by a pageFlowScope managed bean, and to have a method on the bean called when the button is selected. (This example is just for illustrative purposes; in practice, you would use resource bundles for the text of labels.) By using Java: pageFlowScope is a java.util.Map that can be accessed from Java code. To get a reference to pageFlowScope, use the getPageFlowScope() method provided by Trinidad in org.apache.myfaces.trinidad.context.RequestContext. The second example in the slide retrieves an object from pageFlowScope. 604 .
- 620.
- 621. Overview of Parameters Thereare several types of parameters that you can use to pass information to different parts of the application. Subsequent slides discuss page parameters, region parameters, task flow parameters, view activity parameters, and task flow call activity parameters. The examples discussed in the next few slides show how to use the first four types of parameters to pass a value from a containing page to a task flow represented as a region on that page. You actually can accomplish this task without using all four types of parameters. However, using more types of parameters enables you to make your pages and task flows more reusable, as shown in the examples. After presenting this example, the remainder of the lesson discusses how to pass values to a called task flow and return values to the calling task flow. 606
- 622. Use Task FlowParameters Building well-defined, parameterized task flows that can be used as regions on pages is a good way to provide reusable and highly maintainable segments of functionality across your application. Parameters and page events are how different regions and portlets on a single page can communicate with each other and pass context to each other without being hard-wired together, or even knowing if the other one is present on the page. For example, a region that shows a graph of types of goods sold for a particular country could take a parameter into the region that specifies the country. That same region could also take in a parameter that specifies whether or not it should display the results as a graph or as a pie chart. Using parameters enables that same region to be reused in a variety of different situations. You define task flow parameters in the task flow’s .xml file. You can define a task flow parameter declaratively, as shown in the slide. The slide shows an example of an input parameter with the name pname, and value #{pageFlowScope.pname}. The parameter works as follows: When the parameter pname is passed into the task flow, its value is stored in the page flow- scoped attribute pname. Inside the task flow, activities and pages can get the value of the page flow-scoped attribute by using the EL expression #{pageFlowScope.pname}. In the lesson titled “Responding to Application Events,” you learn how to set up contextual events to communicate between regions. You can use page parameters and task flow parameters in conjunction with events to coordinate regions. 607 .
- 623. Job of theTask Flow Parameter As previously stated and as depicted in the table in the slide, the bounded task flow parameter receives an input value and stores it in a memory-scoped attribute. The example shows storing it in pageFlowScope, so that the value of that attribute can then be used anywhere in the task flow, such as on a page fragment within the task flow. But where does that input value come from? A task flow is independent of the page that contains it. It cannot receive a value directly from a page parameter of the containing page, so another mechanism is needed. In the example, there needs to be a way to pass the value in the nameToPass page output parameter into the pname task flow input parameter. 608 .
- 624. Pass a Valueto a Task Flow Another situation where you would need to pass values to a task flow is when you call one task flow from another. A called ADF bounded task flow can accept input parameters from another ADF unbounded or bounded task flow and can pass return values to the caller upon exit. To pass an input parameter to a bounded task flow, you must specify: Input parameter on the task flow call activity. This specifies where the calling task flow stores parameter values. Input parameter definition on the called bounded task flow. This specifies where the called bounded task flow can retrieve parameter values. The input parameter name specified for each of the above options should be the same in order to map input parameter values back into the called bounded task flow. The value for each corresponds to the mapping between where the value will be retrieved within the caller and the called task flow. In the input parameter definition for the called bounded task flow, you can specify whether an input parameter is required. If a required input parameter is not received, a run-time error occurs. An input parameter definition that is identified as not required can be ignored during the task flow call activity creation. By default, input parameters are passed by reference, although you can select the pass-by-value check box in the Property Inspector for the task flow call activity to pass by value. Mixing the two, however, can lead to unexpected behavior in cases where parameters reference each other. Task flow call activity input parameters can be passed by reference only if managed bean objects are passed, not individual values, so the pass-by-value check box applies only to managed bean objects and is used to override the default setting of passing by reference. Individual values are only passed by value. If you call a bounded task flow using a URL rather than a task flow call activity, you pass parameters and values on the URL itself. To specify input parameters on the task flow call activity, perform the following steps: Select the task flow call activity in the task flow diagram. In the Property Inspector, click Parameters and expand the Input Parameters section: Click Add and enter a name for the parameter. Enter a parameter value—for example, #{pageFlowScope.callingTaskflowParm}. The value specifies where the parameter value will be taken from within the calling task flow. Optionally, select the pass-by-value check box. (By default, parameters are passed by reference to the called bounded task flow.) After you have specified an input parameter for the task flow call activity, you can specify an input parameter definition for the called ADF bounded task flow as explained previously. 609 .
- 625. Return Values toa Calling Task Flow A task flow return activity causes the ADF bounded task flow to return to the task flow that called it. The called bounded task flow can pass return values back to the calling task flow. To return a value, you must specify: Return value definitions on the called bounded task flow. These specify where the return value is to be taken from upon exit of the called bounded task flow. Return values on the task flow call activity in the calling task flow. These specify where the calling task flow can find return values. The caller of the bounded task flow can choose to ignore the return value definition values by not identifying any task flow call activity return values back to the caller. Return values on the task flow call activity are passed back by reference. Nothing inside the ADF bounded task flow still references them, so there is no need to pass by value and make a copy. To specify a return value for a called ADF bounded task flow, perform the following steps: In the task flow editor, open the called ADF bounded task flow. On the Overview tab, select the Parameters panel and click Add in the Return Value Definitions section to add the return value: In the name field, enter a name to identify the return value—for example, Return1. In the value field, enter an EL expression that specifies where the return value is to be taken from upon exit of the called bounded task flow—for example, #{pageFlowScope.ReturnValueDefinition}. To specify a return value for the calling task flow, perform the following steps: In the task flow editor, open the calling ADF task flow and in the task flow diagram, select the task flow call activity. In the Property Inspector, select the Parameters panel and click Add in the Return Values section. In the name field, enter a name to identify the return value—for example, Return1. The name of the return value must match the name of the return value definition on the called task flow definition. In the value field, enter an EL expression that specifies where the calling task flow can find return values—for example, #{pageFlowScope.ReturnValue}. Tip: If you drop the bounded task flow that you intend to call on the task flow call activity, the name field is already specified. Therefore, the name field for the return value automatically matches the name of the return value definition on the called task flow definition. 610 .
- 626. Use Region Parameters Topass a parameter from a containing page to a task flow, you need a region parameter, which you define as follows: Define a page parameter and a task flow parameter as shown in the previous slides. Pass the page parameter’s value to the input parameter of the task flow. You do this by defining a region parameter in the page definition file of the containing page, either in the Structure window or, with the region selected in the Executables section, in the Property Inspector. Then set the parameter’s value to the EL value of the page parameter. A simpler way to define a region parameter is when you create the region. If the task flow has input parameters defined on it, then when you drag a task flow to a page to create a region, you must define region parameters for the task flow parameters. After you have defined the region parameters, you can access the value within a page on the contained region by using the expression #{pageFlowScope.<input parameter name>}, such as in the following example on the task flow’s default page: <af:outputLabel value="Hello, "/> <af:outputText value="#{pageFlowScope.pname}"/> 611 .
- 627. Job of RegionParameter The region parameter acts as a bridge from the page parameter to the task flow. It takes the value stored in the page parameter and stores it in an output parameter, which should have the same name as the input parameter of the task flow. Now the task flow is able to receive that value and store it in the page flow-scoped attribute that can be used anywhere within that task flow. 612 .
- 628. Job the ViewActivity Parameter The view activity parameter simply takes the value that is stored in one memory-scoped attribute for the task flow and stores it in another—the memory-scoped attribute that is used by the page. In this way, you can integrate independently developed pages into multiple task flows without changing either the task flow or the page. 613 .
- 629. Use Page Parameters Youdefine page parameters in the page definition of the page. The example in the slide shows setting a page parameter to a String value by using Expression Language, because the value of the parameter must be an expression. You could also set the page parameter to a value contained in a managed bean, in the binding container, or in a memory-scoped attribute. For example: <parameters> <parameter id="myDeptId" value="#{DepartmentBean.deptId}"/> <parameter id= "fname" value="#{bindings.FirstName.InputValue}"/> <parameter id= "lname" value="#{pageFlowScope.lastName}"/> </parameters> You can access the parameter value in EL as #{bindings.<param name>}. You can use page parameters to, for example, pass values into a page template, enabling the use of the same template for a variety of different pages. Another example of using a page parameter is to set a value in a containing page to pass to a region (task flow) on the page. 614 .
- 630. Job of thePage Parameter It is often necessary to pass values between pages. In this example, there is a bounded task flow that is represented as a region on a page. The task flow contains a view activity that represents a page fragment, and the requirement is to pass a value from the containing page to that page fragment. As depicted in the table in the slide, the parameter of a containing page takes a value that is assigned to it and stores it in a parameter in the binding container. Subsequent slides build this table to show the functions of different types of parameters. 615 .
- 631. Develop a PageIndependently of a Task Flow To make a page (or page fragment) reusable in different task flows, it should be independent of the task flow. The page flow-scoped attributes that are referenced on the page may not be named the same as the task flow’s page flow-scoped attributes. So pages that are developed independently and used in different task flows need another mechanism to be able to use the values that are stored in page flow-scoped attributes for a particular task flow. 616 .
- 632. Pass a Valueto a Region The more types of parameters you use, the more reusable your components are. The page fragment in this diagram is represented as a view activity in a task flow used as a region on a containing page, like the example that was just discussed. Because parameters are used at each level, the page can be developed independently of all other components without regard to the names of memory-scoped attributes that are used on the page: The containing page uses a page parameter to pass its value to the region. The region uses a region parameter to pass the value on to the task flow, so the task flow can be developed independently of the page and reused on multiple pages. The task flow uses a task flow parameter to pass the value to its view activity. The view activity uses a view activity parameter to store the value in the memory-scoped attribute that is used by the page fragment. All of these parameters could be named differently, as long as the output parameter of one level has the same name as the input parameter of the next level. For example, the region’s output parameter would have the same name as the task flow’s input parameter. Page and region parameters are stored in the page’s binding container, so you define them in the page definition file for the page. Task flow and view activity parameters are defined in the .xml file for the bounded task flow. 617
- 633. Decide the Usageof Parameter As you have seen in this lesson, the use of one type of parameter does not preclude the use of another, because they all have different functions. Defining parameters is all about providing reusability. Defining parameters on a task flow improves reusability of that task flow. Defining parameters on a page or page fragment improves its reusability. Parameters also make an object much more encapsulated (self-contained). For example, if you have a bounded task flow that updates customers, you could have it take in CustomerId as a parameter. The task flow can then make sure that the correct customer is queried to edit—and there is no reliance on the consumer of that bounded task flow setting the current row in a view object in some application module that this bounded task flow uses. This ensures that the interface between consumer and producer is much better documented and separated from the internal implementation. If you want to make the page a more reusable component, you may provide a parameter on the page for exactly the same reasons. 618 .
- 634. Features of PartialPage Rendering Unlike standard JSF events, ADF Faces events support AJAX-style partial postbacks to enable partial page rendering, which enables refreshing portions of page content that have minimal processing without the need to redraw the entire page. In ADF Faces components, this is implemented by a hidden IFrame, which is automatically added to a Web page when one of the following ADF Faces elements is used: af:document, afh:body, or af:panelPartialRoot. Two main AJAX patterns are implemented with PPR: Single component refresh: Implemented natively. For example, the ADF Faces table component comes with a built-in functionality that enables you to scroll through the table, sort the table by clicking a column header, mark a line or several lines for selection, and expand specific rows in the table—all through declarative property settings with no coding needed Cross-component refresh: Implemented declaratively or programmatically by the application developer by defining ADF Faces UI components to act either as a trigger for a partial update or as a partial listener to be updated 619 .
- 635. 620 AJAX – verytrendy – Asynchronous JavaScript with XML basically the ability to send requests to the server down a different pipe within the browser. The whole page is not submitted, rather a separate communication takes place behind the scenes which can send packets of Info to the server to process and then parse the results and update the screen with new data .
- 636.
- 637.
- 638. 623 A good exampleof PPR in action is the Status list box in the SREdit screen. Changing the status to Closed automatically disables some other input fields .
- 639.
- 640.
- 641. Use EL toConditionally Display Components In JSF, you use a simple Expression Language (EL) to work with the information you want to present. At run time, a generic expression evaluator returns the value of expressions, automating access to the individual objects and their properties without requiring code. Because any attribute of a component can be assigned a value by using an EL expression, it is easy to build dynamic, data-driven user interfaces. Following are some examples of how to use EL: For the component’s value: At run time, the value of a JSF UI component is determined by its value attribute. Although a component can have static text as its value, typically the value attribute contains an EL expression that the run-time infrastructure evaluates to determine what data to display. To hide a component when a set of objects you need to display is empty: Use a Boolean- valued expression such as #{not empty ProductList.selectedProducts} in the UI component’s rendered attribute. If the list of selected products in the object named ProductsList is empty, the rendered attribute evaluates to false and the component disappears from the page. For more information about Expression Language, see: http://java.sun.com/j2ee/1.4/docs/tutorial/doc/JSPIntro7.html http://www.oracle.com/technology/sample_code/tutorials/jsp20/simpleel.html 626 .
- 642. 627 Rendered property referencesa managed bean and calls the method isStaff which returns true or false, based on the internal Java evaluation .
- 643. Enable Automatic PPR ConfiguringPPR manually can be tedious and error-prone, especially when back-end business logic is added to the mix. The complexity rises further when page developers use back-end components that are developed by another team because they may not be aware of how the back- end logic changes values. To resolve this difficulty, you can enable automatic partial page refresh on the bindings of any page. This causes components whose values change as a result of back-end business logic to be automatically repainted. At run time, the binding layer is notified of value changes, and appropriate components are added to the PPR targets list. This feature enables you to avoid much of the manual PPR configuration, so that you can focus on building the UI or business logic. 628 .
- 644.
- 645.
- 646. In Hands-on labone would practice: 1. Creating Managed Bean 2. Creating Action Listener and Adding Method Binding 3. Creating Value Change Listener Optionally you may also practice: 1. Adding Phase Listener 2. Adding Validator 3. Adding Converter . 631
- 647.
- 648. Adding UI Code Youcan add UI code to the task flow by using managed beans. Managed beans are Java classes with a no-argument constructor that you register with the application in the task flow .xml files. When the JSF application starts up, it parses these files and makes the beans available to be referenced in EL expressions (you learn about these in the lesson titled “Implementing Transactional Capabilities”) or Java code, enabling access to the beans’ properties and methods. Whenever a managed bean is referenced for the first time and it does not already exist, the Managed Bean Creation Facility instantiates the bean by calling the default constructor method on the bean. If any properties are also declared, they are populated with the declared default values. 633 .
- 649. Register Existing JavaClasses as Managed Beans To register an existing class as a managed bean, open the task flow in the editor, click the Overview tab, select the Managed Beans panel, and click Create. Enter values for the managed bean attributes in the Property Inspector, browsing to locate the existing class 634 .
- 650. Configure Managed Beans Managedbeans can be defined only in ADF Controller source files (adfc-config.xml or bootstrap source files, and task flow definition files). They are not allowed in the faces- config.xml file. Managed beans are defined in the .xml files by using the <managed- bean> tag. Attributes of the managed bean, as shown in the example in the slide, are as follows: <managed-bean-name>: Specifies the name that is used to refer to the managed bean throughout the application <managed-bean-class>: Contains the fully qualified class name for the JavaBean <managed-bean-scope>: Defines the scope of the JavaBean. The possible values for this element are application, session, request, pageFlow, view, backingBean, or none. (These are described in the lesson titled “Passing Values Between UI Elements.”) If the value of the managed-bean-scope element is something other than none, the JavaBean created is stored in the corresponding object. For example, if the value is request, the JavaBean is stored in the request object of a given user. If you have created a new Java class for your bean, JDeveloper creates the skeleton code to which you need to add your own code. 635 .
- 651. Context Objects FacesContext canbe accessed across JSF as a static class. It provides access to the JSF APIs and functions, such as the message stack, which is compiled throughout the Faces request life cycle. ExternalContext allows developers to work with the servlet API, as they are used to working with JSP and Struts. However, it is recommended that you use FacesContext for as long as possible. FacesContext and ADFFacesContext are static classes. 636 .
- 652. Reference Managed Beans Youcan reference managed beans by using either Expression Language (EL) or Java, as shown in the examples in the slide. Expression language is described in the lesson titled “Implementing Transactional Capabilities.” What the Java code in the slide does is to assign the value of a managed bean (whose name is expressed in EL) to a User object. It uses the following classes and methods: FacesContext is a class that contains all of the per-request state information related to the processing of a single JSF request, and the rendering of the corresponding response. It is passed to, and potentially modified by, each phase of the request processing life cycle. (You learn about life-cycle phases in the next few slides.) ELContext is a class that is used to evaluate an expression. ExpressionFactory is a class that parses a String into a value expression (as in the code in the slide) or a method expression for later evaluation. The createValueExpression() method parses expressions that evaluate to values. The expression must be first parsed, and then evaluated. The ValueExpression class encapsulates a parsed expression, and its getValue() method evaluates the expression relative to the provided context, and returns the resulting value. 637 .
- 653. Hold Values inManaged Beans Managed beans enable you to hold values, either in the properties of the managed bean or in the scoped managed bean attributes. You learn more about configuring and coding managed beans in the lesson titled “Responding to Application Events.” You can pass values between pages by using managed beans to hold the values. The JSF run time manages instantiating these beans on demand when any EL expression references them for the first time. When displaying a value, the JSF run time evaluates the EL expression and pulls the value from the managed bean to populate the component with data when the page is displayed. If the user updates data in the UI component, the JSF run time pushes the value back into the corresponding managed bean based on the same EL expression. 638 .
- 654. Use Managed BeanProperties Managed properties are bean attributes that are exposed through the setter and getter methods for write and read access. All attributes that are not explicitly set as managed properties retain the default values upon bean instantiation. The <managed-property> element represents an individual property of a managed bean. A managed property calls the equivalent setter method of the bean on bean initialization. The <managed-property> element is nested within the <managed-bean> element. Managed properties must have a name and a value. Optionally, they can have a property class, a description, a display name, and an icon. The last three elements are for tools to display the property and have no meaning for the JSF application at run time. The property class does not need to be mentioned for simple types because JSF will figure this out. Although null is among the possible values for a managed property, it is allowed only if the property is an object. This means that null cannot be used for types of int, boolean, and so on. 639 .
- 655.
- 656.
- 657. 642 Example using anArrayList <managed-bean> <managed-bean-name>MyBookmarksMap</managed-bean-name> <managed-bean-class>java.util.ArrayList</managed-bean-class> <managed-bean-scope>application</managed-bean-scope> <list-entries> <value> http://otn.oracle.com/products/ias</value> <value>http://otn.oracle.com/products/jdev</value> </list-entries> </managed-bean> .
- 658. 643 In the exampleabove the value bar should be set on the property foo, which is an instance of FooBean. Using nested managed properties is not an option on JavaServer Faces because all managed properties must be properties of the owning class and not a class referenced by this class. Configuring the two managed beans as in our example will populate the myBean property foo with an instance of FooBean that has a property “bar” set via the managed properties. This way the property value “Hello World” is accessible” from myBean. .
- 659. 644 Backing beans arecreated and stored with the application using the managed bean creation facility, which is configured in the application configuration resource file. To bind UI component values and instances to backing bean properties or to reference backing bean methods from UI component tags, page authors use the JavaServer Faces expression language (EL) syntax. This syntax uses the delimiters #{}. A JavaServer Faces expression can be a value-binding expression (for binding UI components or their values to external data sources) or a method-binding expression (for referencing backing bean methods). .
- 660. 645 Managed beans canbe created as Java classes in a project before configuring them as a managed bean, or created on the fly when binding a command button. Double click on the command button to launch the binding editor. Choose to create a new class as a managed bean or to reuse an existing class. To reuse an existing class, choose a backing bean or search the classpath. If searching the classpath, select the Java class you want to become a managed bean and press okay. The class will be configured as a managed bean in the faces-config.xml file. The new method then can be created and the command button bound to it. .
- 661. 646 Auto binding isa feature that can be convenient when developing JavaServer Faces, but at the same time it produces a lot of unwanted overhead. When creating a page with auto-binding enabled, then JDeveloper created a bean representation of the JSF page that contains instance variables for all UI components added to the page. Instance variables will also be created for frames and panels. Having the instance variables and the associated getter and setter methods created is quite useful for programmatic component modification. However, the generated backing bean classes become very big soon and are not easy to read for this reason. If you decide to have backing beans auto generated, then the recommendation is to a) Manually clean up the backing bean. Remove all the instance variables and getter and setter methods that you don’t want to perform any programmatically operation on. Make sure that you don’t leave any reference to the removed instance variables behind in the UI component properties. b) Check the “Binding” property of the UI component. The error message that JSF presents at runtime when a value binding exists for a non-existing instance variable is not very meaningful and doesn’t point to the problem. So be careful. .
- 662. Use Event Listeners Componentscan generate events, which are occurrences that take place as users interact with an application, such as when they click a button or change a value. There are also events, such as gaining or losing focus, that are not the result of user interactions. If there is a listener for the event, the event communicates some information about what happened, so that the listener can respond. An event, then, is a component’s way of letting a listener know that something happened. An event listener is a class that implements one of the listener interfaces and contains code to respond to the event. A component has mechanisms to register and deregister event listeners for the types of events that are generated by the component. 647 .
- 663.
- 664.
- 665. Describe Types ofEvents In traditional JSF applications, event handling typically takes place on the server. JSF event handling is based on the JavaBeans event model, where event classes and event listener interfaces are used by the JSF application to handle events generated by components. For a JSF application to be able to respond to user events, you typically register event listeners on the components that would generate events. The following types of events are supported: A phase event or listener is executed as part of the standard JSF life cycle. You can add to the standard behavior by implementing your own phase listener. An action event occurs when a command component is activated. For example, when a user clicks a button or a link, the form containing the component is submitted, and the component creates an event object that stores information about the event and identifies the component that generated the event. The event is also added to an event queue. At the appropriate time in the JSF life cycle, JSF tells the component to broadcast the event to the appropriate registered listener, which invokes the listener method that processes the event. Events may trigger a change in the user interface or invoke the back-end application code, or both. The return value of an action event is usually used for navigation. A value change event occurs when the local value of an input component changes; it fires only after component value validation and form submission. 650 .
- 666. In addition toserver-side action and value change events, ADF Faces components also fire other kinds of server events. ADF Faces server events, and the components that generate them, include the following: • ActionEvent: All command components • DialogEvent: dialog • DisclosureEvent: showDetail, showDetailHeader, showDetailItem • FocusEvent(generated when focusing in on a specific subtree, which is not the same as a client-side keyboard focus event ): tree, treeTable • LaunchEvent: All command components • LaunchPopupEvent: inputListOfValues, inputComboboxListOfValues • PollEvent: poll • QueryEvent: query, quickQuery, table • QueryOperationEvent: query, queryCriteria, quickQuery • RangeChangeEvent: table • RegionNavigationEvent: region • ReturnEvent: All command components • ReturnPopupDataEvent: inputListOfValues, inputComboboxListOfValues • ReturnPopupEvent: inputListOfValues, inputComboboxListOfValues • RowDisclosureEvent: tree, treeTable • SelectionEvent: tree, treeTable, table • SortEvent: treeTable, table • ValueChangeEvent: All input and select components (components that implement EditableValueHolder) All server events have associated event listeners. For example, to process a LaunchEvent event, you would create a LaunchListener event listener implementation. All server event listener implementations must override a processEvent() method, where Event is the event type. For example, LaunchListener accepts an instance of LaunchEvent as the single argument; in your implementation, you must override the event processing method, as shown in the method signature here: public void processLaunch (LaunchEvent evt) { // your code here } Instead of creating an event listener implementation, you can create an event listener method in a backing bean. Any event listener method must be a public method that accepts the event as the only parameter and returns void. As you can see by the examples in the slide, the Property Inspector in JDeveloper exposes the proper listeners for the type of ADF Faces component being used. 651 .
- 667.
- 668.
- 669. Respond to ActionEvents Action events are events that are associated with command components (such as commandButton, commandLink, or commandMenuItem). An action event enables you to define an action method that returns an outcome to be used for navigation. Instead of entering a control flow outcome directly in the action property of a command component, you refer to a bean method that returns a string that corresponds to the control flow outcome. An example is shown in the next slide. Action method code can be either in the page-backing bean or in a separate class. The benefit of having the code in the backing bean is that the code that is associated with a specific page is all local to the page (single source). However, the benefit of a separate class is reusability. For example, if you have standard code that should be executed regardless of the page, the separate class approach makes more sense. If you use the backing bean approach, JDeveloper creates a method stub for you; all you have to do is add your custom code. JDeveloper also registers the action in the page source. When the page is submitted, the action method is added to the queue of application events to be executed. Action methods are the last to fire in the application phase of the life cycle. For this reason, they are generally used to determine navigation. 654 .
- 670.
- 671. Create Action Methods Youcan create an action in JDeveloper by performing the following steps: Invoke the action-binding editor by either double-clicking the component in the editor or by right-clicking it in the Structure window and select “Create Method Binding for Action.” In the action-binding editor, you can accept the proposed method name or change it to a name of your choice. You can select to create a new bean and method if desired. You then add whatever code you need to the action method. Remember that action methods can be used for controlling the UI, modifying values, or navigation; however, action methods return a String outcome. For example, the myBean.selectWhere method depicted in the slide could have code similar to the following: public String selectWhere() { if <some condition> { return (“cart”); /* navigate to shopping cart */ } else { return(“prod”); /* navigate to Product page */ }} 656 .
- 672. Use Action Listeners Commandcomponents, such as buttons and links, generate actions when clicked. Action listeners are event listeners that define code to execute in response to that action. Action listeners contain code that processes the action event object passed to it by the command component. 657 .
- 673. Value Change Events Valuechange events are attached to input and select components. When there is a change to the value of a component, a value change event is added to the queue of application events to be executed. Just like action events, the code can be either in the backing bean or in a separate class. JDeveloper creates the method stub in the backing bean and registers the listener in the page source by using the valueChangeListener property of the component tag. The registered value change listener is added to the queue of listeners to be processed before any action events. Action events, which are linked to navigation, are executed last. 658 .
- 674.
- 675. Listen for ValueChange Events You create value change events by entering the name of the method in the valueChangeListener property of the component. If you are creating a new method, JDeveloper adds the method stub to the Java class. You then add your custom code. 660 .
- 676. 661 The following implementationof processValueChange() method writes the name of the component that raises the value change event to the the message list. To display the message, drop a message element to the page public class MyValueChangeListener implements ValueChangeListener { public MyValueChangeListener() { } public void processValueChange(ValueChangeEvent ValueChangeEvent) throws AbortProcessingException { // print out the source name FacesContext ctx = FacesContext.getCurrentInstance(); String eventSource; if (ValueChangeEvent.getSource() instanceof HtmlInputText){ eventSource = ((HtmlInputText) ValueChangeEvent.getSource()).getId(); } else{ eventSource = "Instance of "+ValueChangeEvent.getSource().getClass().toString(); } FacesMessage fm = new FacesMessage(FacesMessage.SEVERITY_INFO,ValueChangeEvent.getSource()+eventSource+" said hello", null); ctx.addMessage("MyValueChangeListener",fm); } } Note that you can use one ValueChangeListener with different UI component. To obtain the component value, you need to perform proper type casting .
- 677.
- 678. Event and ListenerExecution Order There is a specific order in which the events and listeners are executed. The validators are fired first within the Process Validation phase of the JSF life cycle. The next phase is the Invoke Application phase that handles all the events and listeners. The value change listeners are executed first, followed by the action listeners. The action method is executed last because that is what determines navigation. Any of these listeners can raise an AbortProcessingException to abort the process. If an action listener raises an exception, it does not prevent navigation. In most cases, however, you would not want to navigate, but rather redisplay the page with an error message. To implement that behavior, in the action property, you can call a method that returns null if there is an exception, but otherwise returns the String outcome to use for navigation. For example, the selectWhere() method referenced in the Action property of the Update Order button shown in the slide may contain code to navigate to a manager task flow call if the value of the order is over a certain amount, or to a commit method for an order below that amount. The navigation is dependent on the String outcome returned by the selectWhere() method. 663 .
- 679. ADF Faces EnhancedEvent Handling Like standard JSF components, ADF Faces command components deliver ActionEvent events when the components are activated, and ADF Faces input and select components deliver ValueChangeEvent events when the component local values change. Though ADF Faces adheres to standard JSF event handling techniques, it also enhances event handling. Unlike standard JSF events, ADF Faces events support AJAX-style partial postbacks to enable partial page rendering (PPR). Instead of full page rendering, ADF Faces events and components can trigger partial page rendering, that is, only portions of a page refresh upon request. 664 .
- 680. Enable PPR Programmatically Ifyou need to execute some logic to determine whether a component should be refreshed, you cannot handle the refresh using partial triggers, but need to use a different technique. Also, if you need to refresh a component only when a certain event occurs (such as when the selection changes), and not when other events are triggered, using partial triggers may not be the most efficient method to use because when you use partial triggers, the component is refreshed for all events that are fired by those trigger components. For example, a table supports multiple events, such as sorting and selecting events. Similarly, for components that display the results of complicated queries, if you want to refresh the component only when the selection changes, a more efficient way than using partial triggers is to use a selection listener. The addPartialTarget() method enables you to add a component as a partial target for an event, so that when that event is triggered, the partial target component is refreshed. With this technique, you can associate the component you want to have refreshed with the event that is to trigger the refresh. The following example, part of a managed bean, adds a UI component as a partial target: public void doPartialRefresh(UIComponent uc){ AdfFacesContext adfctx = AdfFacesContext.getCurrentInstance(); adfctx.addPartialTarget(uc);} 665 .
- 681. Contextual Events: Example Asan example of using the Contextual Event Framework, consider a containing page that contains two regions representing two task flows. The task flows in the separate regions have no knowledge of one another, as if there is a wall between them. Only the containing page has knowledge of both regions, so it is the containing page that must coordinate the interaction between them. The goal of creating a contextual event in this example is to accomplish the following: • Pass information from the first region to the second region. • React in the second region based on the information that is passed. When an action, such as a button click, occurs in the first region, the event is initiated. There is a method defined that constructs the payload for the event, that is, the information that is being passed to the other region. There is another method on the target, or consumer region, that specifies how that region should respond. The job of the containing page is to map the event: specify which is the payload method, which is the handler method, and so on. 666 .
- 682. There are severalaspects that define a contextual event: 1. A container page that contains the regions to be coordinated 2. A producer that invokes a method to raise the event and provide a payload (information needed by the event) 3. A consumer that is the target of the event 4. A handler method that is bound either to the consumer page fragment or to the page containing the regions 5. An event mapping on the container page definition that specifies: - The producer region and payload method - The event name - The consumer and event handler - The parameter (payload) to pass to the event 667 .
- 683. Characteristics of theContextual Event Framework When a page contains multiple regions that need to work together to display relevant information to the user, the need to communicate between regions becomes very important. This communication can be handled through an event framework called the Contextual Event Framework. This framework provides the page with the ability to map events to be produced and consumed by the page’s various regions, along with the information to be passed to the consumer regions. In a typical scenario, a consumer would need to register with the producer to get event notification. However, the Contextual Event Framework in ADF enables the producer and consumer to be tied through an event routing mechanism. The producer publishes the contextual event it is going to raise. The page listens for the event and then routes it to the consumer. The Contextual Event Framework includes the following characteristics: A contextual event can go across data controls. A contextual event can be raised or consumed only with a method action binding that must be only data control methods, not managed bean methods. Event payload can either be primitive or any serializable object. 668 .
- 684. JSF Life CyclePhases The life cycle handles both initial requests and postbacks. When a user makes an initial request for a page, the life cycle executes only the Restore View and Render Response phases because there is no user input or actions to process. The life cycle builds the UI tree from the view, and then renders the view, returning a response to the user and saving the view tree for future requests in the FacesContext object. All the component tags, event handlers, converters, and validators on the page have access to the FacesContext instance. When a user executes a postback, a form is submitted that is contained on a page that was previously loaded into the browser as a result of executing an initial request. When the life cycle handles a postback, it restores the view based on the data saved on the server, and then executes the following additional phases: Apply Request Values: Values provided in components that hold a value (such as input fields) have their values applied to their counterparts in the view tree. All events such as ValueChangeEvents (VCE) or ActionEvents (AE) are queued. A VCE means that a value has changed for a specific UI component. An AE means that a button (or any UI component that is a source of an action) was clicked. If a component has its immediate attribute set to true, then validation, conversion, and events associated with the component are processed during this phase. Process Validation: Conversion and validation logic is executed for each component. This means both built-in validation/data conversion and custom validation/conversion are added onto the components. If a validation error is reported, an exception is thrown. The life cycle halts and the response is rendered with validation error messages. At the end of this phase, new component values are set, any validation or conversion error messages and events are queued on FacesContext, and any value change events are delivered. Update Model: The component’s validated local values are moved to the model and the local copies are discarded. If you are using a backing bean for a JSF page to manage your UI components, any managed bean properties that are value-bound to the UI component using the value attribute are updated with the value of the component. Invoke Application: Any action bindings for command components or events are invoked. Navigation is handled here depending on the outcome of action method (if any). Setting the immediate Attribute You can use the immediate attribute to allow components on the page to be validated in the Apply Request Values phase of the life cycle as opposed to the Process Validations phase: Using immediate on an input component means that that component’s value is validated before any input components that do not have the immediate attribute set to true. Therefore, if a validation error occurs on an immediate input component, the life cycle moves from the Apply Request Values phase (where the immediate attribute is evaluated) to the render phase, and validation does not run on any “nonimmediate” input components. Additionally, if the new value of an immediate input component is different from the existing value, then a ValueChangeEvent is raised. However, instead of the event being processed during the Process Validations phase, the event is processed at the end of the Apply Request Values phase. Therefore, any ValueChangeListener associated with the immediate input component executes before any command component’s ActionListener (assuming the command component occurs later on the page). You learn about event listeners in the lesson titled “Responding to Application Events.” For command components, if set to immediate and the component has an action that returns a value for navigation, the life cycle proceeds directly to the Render Response phase. The validation and model update phases are skipped. A Cancel button is an example of when this would be used. 669 .
- 685. JSF Request LifeCycle: Restore View In the Restore View phase of the JSF life cycle, a request comes through the FacesServlet controller. The controller examines the request and extracts the view ID, which is determined by the name of the JSP page. The JSF framework controller uses the view ID to look up the components for the current view. If the view does not already exist, the JSF controller creates it. If the view already exists, the JSF controller uses it. The view contains all the graphical user interface (GUI) components. This phase of the life cycle presents three view instances: new view, initial view, and postback, with each one handled differently. In the case of a new view, JSF builds the view of the Faces page in the form of a component tree, and it wires the event handlers and validators to the components. The view is saved in a FacesContext object, which holds all the information needed to process a single request. The FacesContext object can be accessed by all the components of the application, event handlers, converters, and validators. 670 .
- 686. JSF Request LifeCycle: Apply Request Values The purpose of the Apply Request Values phase is for each component to retrieve its current state. The components must first be retrieved or created from the FacesContext object, followed by their values. Component values are typically retrieved from the request parameters, although they can also be retrieved from cookies or headers. If a component’s immediate event handling property is set to true, the component’s value is validated during this phase. If the validation fails, an error message is generated and queued in FacesContext, where it is displayed during the Render Response phase along with any other validation errors. Setting the component’s immediate property to true does not cause any of the life cycle phases to be skipped unless validation fails, in which case, the processing jumps to the Render Response phase to display the current view with the validation errors. If you want to jump to the Render Response phase in other cases, you can use a value change listener. This is described in a later slide in this lesson. 671 .
- 687. JSF Request LifeCycle: Process Validations The first event handling of the life cycle takes place after the Apply Request Values phase. At this stage, each component’s values are validated against the application’s validation rules. The validation rules can be predefined (shipped with JSF) or defined by the developer. Values entered by the user are compared with the validation rules. If an entered value is invalid, an error message is added to FacesContext, and the component is marked invalid. If a component is marked invalid, JSF advances to the Render Response phase, which displays the current view with the validation error messages. If there are no validation errors, JSF advances to the Update Model Values phase. Conversion also occurs during the Process Validations phase. For example, if the field is bound to an Integer property, the value is converted to an Integer. If the value conversion fails, an error message is generated and queued in FacesContext, where it is displayed during the Render Response phase, along with any validation errors. The converted value is then stored in the component. At the end of the Process Validations phase, new component values are set, any validation or conversion error messages and events are queued in FacesContext, and any value change events are delivered. 672 .
- 688. JSF Request LifeCycle: Update Model Values The Update Model Values phase updates the actual values of the server-side model by updating the properties of your backing beans or ADF Business Components. Only those bean properties that are bound to a component’s value are updated. Note that this phase happens after validation, so you can be sure that the values copied to your bean’s properties are valid (at least at the formfield level; they may still be invalid at the business-rule level). 673 .
- 689. JSF Request LifeCycle: Invoke Application In the Invoke Application phase, the JSF controller invokes the application to handle Form submissions. The component values have been converted, validated, and applied to the model objects, so you can now use them to execute the application’s business logic. In this phase, you also get to specify the next logical view for a given sequence or number of possible sequences. For this, you define a specific outcome for a successful Form submission and return the outcome. For example, if the outcome is successful, move the user to the next page. For this navigation to work, you must create a mapping to the successful outcome as a navigation rule in the faces-config.xml file. After the navigation occurs, you move to the final phase of the life cycle. 674 .
- 690. JSF Request LifeCycle: Render Response In the Render Response phase, you display the view with its components in their current state. If the request is a postback and errors were encountered during the Apply Request Values phase, Process Validations phase, or Update Model Values phase, the original page is rendered during the Render Response phase. After the content of the view is rendered, the state of the response is saved so that subsequent requests can access it and it is available to the Restore View phase. 675 .
- 691. Using the immediateAttribute In the Apply Request Values phase, each component in the tree extracts new values from the request parameters (using its decode method) and stores it locally. Most associated events are queued for later processing. If you set a component’s immediate attribute to true, the validation, conversion, and events associated with the component are processed during this phase and the life cycle skips the Process Validations, Update Model Values, and Invoke Application phases. Additionally, any associated iterators are invoked. 676 .
- 692. The Big Picture Alllife cycle classes use a life cycle context to provide the parameters needed by the life cycle methods. You can customize the behavior of these ADF life cycle classes by overriding the life cycle methods, but you cannot change the order in which the methods are called. 677 .
- 693.
- 694. Describing JSF andADF Life-Cycle Roles When a page is submitted and a new page requested, the application invokes both the JSF request life cycle and the ADF page life cycle. The JSF life cycle handles the submission of values on the page, validation for components, navigation, and displaying the components on the resulting page and saving and restoring state. The JSF life-cycle phases use a UI component tree to manage the display of the faces components. This tree is a run-time representation of a JSF page: each UI component tag on a page corresponds to a UI component instance in the tree. The FacesServlet object manages the request processing life cycle in JSF applications. FacesServlet creates an object called FacesContext, which contains the information necessary for request processing, and invokes an object that executes the life cycle. The ADF life cycle handles preparing and updating the data model, validating the data at the model layer, and executing methods on the business layer. The ADF life cycle uses the binding container to make data available for easy referencing by the page during the current page request. 679 .
- 695.
- 696.
- 697.
- 698.
- 699.
- 700.
- 701.
- 702.
- 703.
- 704.
- 705.
- 706.
- 707. Validation ADF Faces providesthe following types of validation: UI component attributes: ADF Faces input components have attributes that can be used to validate data. For example, you can set the required attribute on a component to specify whether a value must be entered. When set to true, the component must have a value. Default ADF Faces validators: The standard validators supplied by ADF Faces and the JSF reference implementation provide common validation checks, such as validating date ranges and validating the length of entered data. Custom ADF Faces validators: You can create your own validators, and then select them to be used in conjunction with UI components. You can use UI validation to provide immediate feedback and meaningful error messages to users. However, UI validation should always have equivalent validation at the business services layer, so that the same validation is applied when the model is exposed in other ways. 692 .
- 708.
- 709.
- 710.
- 711.
- 712.
- 713.
- 714.
- 715. UI Validation You canadd UI code to the task flow by using managed beans. You learn how to code and register managed beans in the lesson titled “Responding to Application Events.” However, a brief mention of managed beans is included in this lesson on task flows because managed beans are specific to task flows and are configured in the task flow’s XML file. Managed beans are Java classes with a no-argument constructor that you register with the application in task flow .xml files. When the JSF application starts up, it parses these files and makes the beans available to be referenced in EL expressions or Java code, enabling access to the beans’ properties and methods. Whenever a managed bean is referenced for the first time and it does not already exist, the Managed Bean Creation Facility instantiates the bean by calling the default constructor method on the bean. If any properties are also declared, they are populated with the declared default values. 700 .
- 716.
- 717. 702 The regular expressionin the example allows characters only and no digits. The input length is limited to 1 – 10 characters, which also means it cannot be null Presenters should point out the power of the RegEx validator – this is incredibly powerful for any kind of format related validation .
- 718. 703 To create abacking bean validator, select a component in the UI, open the Property Inspector and type a name for the method, e.g “validateDepartment”. JDeveloper automatically creates the backing binding code for it. Arguments passed to the method =============================== -Faces context instance -The UI component that has the validator assigned so you can have access to it e.g. to disable it. Don’t forget to perform proper type casting if needed for the operation. -The object, which is actually the value contained added or contained in the field .
- 719.
- 720.
- 721.
- 722. 707 ColorConverter ============================ Color Format Syntax: Tospecify the color format use a color pattern string. In this pattern, all ASCII letters are reserved as pattern letters, which are defined as the following: Symbol Meaning Presentation Example ------ ------- ------------ ------- r red component (Number) 242 g green component (Number) 242 b blue component (Number) 242 a alpha component (Number) 255 R red component (Hex) F2 G green component (Hex) F2 B blue component (Hex) F2 A alpha component (Hex) FF ' escape for text (Delimiter) '' single quote (Literal) ' Examples: Format Pattern Result -------------- ------- "#RRGGBB" ->> #6609CC "rrr,ggg,bbb" - >> 102,009,204 "t" ->> Transparent (when alpha is zero) .
- 723.
- 724.
- 725.
- 726.
- 727.
- 728. Lesson Agenda In thislesson we are learn to using data control panel, how to bind data to ui pages and binding programmatically In Hands-on lab one would practice: Creating a Read Only ADF Tables with Row Selection Optionally you may also practice: 1. Customizing Data and UI Components 2. Creating a Detail Forms 3. Making a Table Non-Selectable 4. Using setCurrentRowWithKey 5. Using setCurrentRowWithKeyValue 6. Creating a Graph Component 7. Creating a Read Only Tree 713 .
- 729.
- 730.
- 731.
- 732.
- 733. Output Components ADF Facesprovides components for displaying text, icons, and images, and for playing audio and video clips on application pages. You can output error or warning messages with the af:message or af:messages component. Read-only text, either specified explicitly or from a resource bundle or bean, is displayed using the af:outputText and af:outputFormatted components. As implied by the names of the components, you can specify a certain amount of formatting for text displayed using the af:outputFormatted component. For styling output text, setting the whole of the text to some style, you use the styling features available with both components. Each skin used for the presentation of an application provides icons representing standard functions, such as an error or a warning, which you can display using the af:icon component with the name of the type of icon (required, warning, info, error, or logo). Many other ADF Faces components can have icons associated with them, such as a menu where each of the menu items can have an associated icon. You identify the image to use for each one as the value of an icon attribute for the component itself. To play back an audio clip or a video clip, you use the af:media component. These components have attributes for you to define how the item is presented on the page. 718 .
- 734.
- 735.
- 736.
- 737.
- 738.
- 739.
- 740.
- 741.
- 742.
- 743.
- 744.
- 745.
- 746.
- 747.
- 748.
- 749. Selection components The selectioncomponents allow end users to select single or multiple values from a list or group of items. ADF Faces provides a number of different selection components that range from simple Boolean checkboxes and radio buttons to order shuttle boxes that allow the user to select multiple items and order them. Almost all of the selection components present items as either multiple tags of af:selectItem orf:selectItem or one tag of f:selectItems. This rule applies to all select components except for the selectBooleanCheckbox and selectBooleanRadio components. The following list explains different select components: selectBooleanCheckbox – This is a component that is used to create an HTML checkbox as shown in the following screenshot; its value must always be a boolean or java.lang.Booleanand not an object as with other select components. It toggles between selected (true) or unselected (false) states. selectBooleanRadio – This component is exactly like the selectBooleanCheckboxcomponent but in a radio button format (as shown in the following screenshot). It also allows grouping multiple selectBooleanRadio components together using the same group attribute. selectOneRadio – This is a component that is used to create a list of radio buttons through which the user can select a single value from a list. It returns a single object. The following screenshot shows the list of radio buttons created using selectOneRadio: selectManyCheckbox – This is a component that is used to create a list of checkboxes from which the user can select one or more values. It returns a list of objects. The following screenshot shows one such list of checkboxes: selectOneListbox – This is a component that allows the user to select a single value from a list of items displayed in a listbox, as shown in the following screenshot. It returns a single object. selectManyListbox – Like selectOneListbox, this component shows a list that allows the user to select one or more items from the list; it also provides the All option that selects all items of the list and returns a list of objects. The following screenshot shows an example of such a list: selectOneChoice – This is a component that allows the end user to select items from a drop-down list (also known as combobox) and returns a single object. The following screenshot shows an example of this list: selectManyChoice – This is a component that allows the user to select multiple values from a list of items displayed in a combobox and returns a list of objects, as shown in the following screenshot. This component can be configured to include the All option, just like selectManyListbox. selectManyShuttle – This is a component that presents end users with two different list boxes, namely, Available Values and Selected Values, as shown in the following screenshot. The end users can shuttle from one list to the other using different arrows provided between the lists. This component returns a list of objects (the items of the Selected Values list). selectOrderShuttle – This is similar to the selectManyShuttle component, but additionally, it includes the up and down arrow buttons that the users can use to reorder values in the Selected Values list box as shown in the following screenshot: In this recipe, we will add the DepartmentId attribute as selectOneChoice inside the Employeesform we created in the first recipe. 734 .
- 750. Single-Selection Components In orderto add the selectOneChoice component, follow the ensuing steps: Open the inputComponets.jsf page. Drag the DepartmentId attribute under EmployeesView1 inChapter4AppModuleDataControl from the Data Control pane and drop it inside the panel form layout. Select Single Selection and choose ADF Select One Choice. Save everything. Run the inputComponents.jsf page. You should now see the following output page: 735 .
- 751.
- 752.
- 753.
- 754.
- 755.
- 756.
- 757.
- 758.
- 759.
- 760.
- 761.
- 762. Define a List Youcan define a list in one of two ways: At the model layer: You can define lists of values (LOVs) on view object attributes declaratively, including the ability to: Configure the display style (including both inline drop-down lists for shorter lists and pop-up windows for longer lists) Filter the choices in the list based on user input Autofill the attribute value if user input identifies a unique match Automatically use other attribute values in the current row to parameterize “cascading” lists In the UI, by binding a selection component to model data When you define lists at the model layer, they appear in a consistent manner regardless of the type of UI that you use. In addition, you can test them with the Business Components Browser. Because defining lists at the model layer is a best practice, that is the method discussed in this lesson. 747 .
- 763. Select a Date Aswith other components, you can create a calendar component by dragging from the Component Palette or the Data Controls panel. However, when a default component is created for a date attribute, it is automatically created as an af:inputDate component. This component presents a text input field for entering dates and a button for picking dates from a calendar. The default date format is the short date format appropriate for the current locale. For example, in U.S. English, the format is mm/dd/yy. However, you can override the format using af:convertDateTime. The same component can also include the selection of time if the column is of the timeStamp type. When you use the af:inputDate component, an af:convertDateTime subcomponent is included. This subcomponent converts a String into java.util.Date, and vice versa, based on the pattern and style set. You can set the following attributes on the af:inputDate component, either programmatically or by using the Property Inspector: label: Specify a label for the component. chooseId: Specify the ID of the af:chooseDate component, which can be used to pick the Date value for this af:inputDate. value: Specify the initial value of the component. minValue: Specify the minimum value allowed for the date value. When set to a fixed value on a tag, this is parsed as an ISO 8601 date. ISO 8601 dates are of the format yyyy-MM-dd (for example, 2002-02-15). All other uses require java.util.Date objects. •maxValue: Specify the maximum value allowed for the date value. When set to a fixed value on a tag, this is parsed as an ISO 8601 date. ISO 8601 dates are of the format yyyy-MM-dd (for example, 2002-02-15). All other uses require java.util.Date objects. •disableDays Specify a binding to an implementation of the org.apache.myfaces.trinidad.model.DateListProvider interface. The getDateList method should generate a List of individual java.util.Date objects, which should be rendered as disabled. The dates must be in the context of the given base calendar. Note: This binding requires periodic round-trips. If you just want to disable certain weekdays (for example, Saturday and Sunday), use the disabledDaysOfWeek attribute. •disableDaysOfWeek: Specify a space-delimited list of weekdays that should be rendered as disabled in every week. The list should consist of one or more of the following abbreviations: sun, mon, tue, wed, thu, fri, sat. By default, all days are enabled. •disableMonths: Specify a space-delimited list of months that should be rendered as disabled in every year. The list should consist of one or more of the following abbreviations: jan, feb, mar, apr, may, jun, jul, aug, sep, oct, nov, dec. By default, all months are enabled. Note: ADF Faces pop-up components, such as dialog boxes, pop-up windows (af:popup), LOVs, and calendar components, are not normal browser windows, but rather DHTML overlays that current pop-up blocker technology does not detect. They are, therefore, not affected by pop-up blockers. 748 .
- 764.
- 765.
- 766. Use Tables The ADFFaces table component af:table is similar to the standard JSF component but provides additional features, including the ability to sort columns by clicking the column header, filtering data, reordering columns, and selecting a single row or multiple rows. Table attributes enable you to specify the look and feel of the table, whether users will be able to select rows, or reorder columns, as well as identifying the data to be displayed. The immediate children of a table component must all be column components, af:column. Each visible column component is displayed as a separate column in the table. For sets of columns that are related in some way, you can group them into column groups, with one heading spanning several columns. Attributes of each column specify details of the column, such as the alignment of values, whether values are allowed to wrap within cells, and whether the column can be sorted, and if so, on which property it is to be sorted. To specify the headers and footers for columns, header and footer facets are available. Within a column, both ADF Faces and standard JSF tags can be used for displaying the data. 751 .
- 767.
- 768.
- 769. Use Tree Tables TheADF Faces tree table component af:treeTable displays hierarchical data in the form of a table. The display is more elaborate than the display of an af:tree component. The af:treeTable component can display columns of data for each tree node in the hierarchy. The component includes mechanisms for focusing in on subtrees within the main tree, as well as expanding and collapsing elements in the hierarchy. The immediate children of an af:treeTable component must be af:column components, in the same way as for af:table components. The af:treeTable component has a nodeStamp facet, which renders the object name column. This is the column that contains the primary identifier of an element in the hierarchy. For example, in a hierarchy of products, the object name column might be the category name or the product name. The af:treeTable component supports the same vertical and horizontal grid lines and banding as the table component. Both the af:tree and af:treeTable components render icons that the user can click to expand or collapse a subtree. When the user clicks one of these icons, the component generates a RowDisclosureEvent. (You learn more about events in the lesson titled “Responding to Application Events.”) The event has two RowKeySet objects: RemovedSet for all the collapsed nodes and AddedSet for all the expanded nodes. The component expands the subtrees under all nodes in the added set and collapses the subtrees under all nodes in the removed set. You can register custom RowDisclosureListener instances, which can do post processing, on the tree component. The af:tree and af:treeTable components use an instance of the oracle.adf.view.rich.model.RowKeySet class to keep track of which elements are expanded. This instance is stored as the disclosedRowKeys attribute on the component. You can use this instance to control the expand or collapse state of an element in the hierarchy programmatically. Any element contained by the RowKeySet instance is expanded, and all other elements are collapsed. The addAll() method adds all elements to the set, and the removeAll() method removes all elements from the set. 754 .
- 770. Use Table ModelMethods in a Selection Listener The ADF Faces table components use a model to access the data in the underlying list. The specific model class is oracle.adf.view.rich.model.CollectionModel. You may also use other model instances, such as java.util.List, java.util.Array, and javax.faces.model.DataModel. If you use one of these other classes, the table component automatically converts the instance into a CollectionModel. You can use table model methods, for example, in a method called by a selection listener on the table. You can programmatically manipulate the table in the following ways: To make a row current, call setRowIndex() with the appropriate index into the list or with the appropriate rowKey. To access a particular row in the list, first make that row current, and then call the getRowData() method on the table. To obtain the total number of rows in the list, call getRowCount(); if the model does not yet know the total number of rows that are available, getRowCount() returns -1. The table has an isRowAvailable() method that returns true if the current row is available. This method is especially useful when the total number of rows is unknown. You cannot use af:forEach to iterate over data within a table component; you can use af:iterator instead. 755 .
- 771. Use Tree ModelMethods in a Selection Listener The ADF Faces tree components use a model to access the data in the underlying hierarchy. The specific model class is oracle.adf.view.rich.model.TreeModel, which extends CollectionModel. You can use code from this class in a managed bean method and call it from a tree’s selection listener. The TreeModel is a collection of rows. It has an isContainer() method that returns true if the current row contains child rows. To access the children of the current row, call the enterContainer() method. Calling this method results in the TreeModel instance changing to become a collection of the child rows. To revert to the parent collection, call the exitContainer() method. The oracle.adf.view.faces.model.ChildPropertyTreeModel class can be useful when constructing a TreeModel. 756 .
- 772.
- 773.
- 774.
- 775.
- 776.
- 777.
- 778. Use Data VisualizationComponents (DVT) ADF Data Visualization components are a set of rich interactive ADF Faces components that provide significant graphical and tabular capabilities for analyzing data. ADF Data Visualization components have the following characteristics in common: You create them at design time by using the Data Controls panel, the visual editor, the Property Inspector, and the Component Palette. Design time provides a live data preview. You can bind data to standard rowset data controls, as well as hierarchical, BAM, and BI data controls. To see a demo of these components, go to http://www.oracle.com/technology/products/jdev/viewlets/11/index.html and select Data Visualization and Graphs for JSF. 763 .
- 779. The following listidentifies the data visualization components: •Graph: Supports more than 50 types of graphs, including bar, pie, line, scatter, and stock graphs, enabling you to evaluate data points on multiple axes in a variety of ways. Part of JDeveloper since 10g, Graph is now a JSF component with many new features added: -There are several new graph types, including funnel, floating bar, and fit to curve. -Graphs can render in Flash or in Portable Network Graphics (PNG), an XML-based language for drawing two-dimensional graphics. -Interactivity features include zooming and scrolling, time selector window, line and legend highlighting and fading, and dynamic reference lines and areas. -The JSF graph tag is improved, with simplified tags for 17 commonly used graph types. •Hierarchy Viewer: The hierarchy viewer component displays hierarchical data as a set of linked nodes in a diagram. The nodes and links correspond to the elements and relationships to the data. The component supports pan and zoom operations, expanding and collapsing of the nodes, rendering of simple ADF Faces components within the nodes, and search of the hierarchy viewer data. A common use of the hierarchy viewer is to display an organization chart, as shown in the slide. •Gauge: A new data visualization component in JDeveloper 11g that focuses on identification of problems in data. Supported gauge types are: -Dial: Standard and Threshold -Status Meter: Standard and Threshold -LED •Geographic map: A new data visualization component in JDeveloper 11g that provides functionality of Oracle Spatial within the ADF framework. It enables you to represent business data on a geographic map, and supports superimposing multiple layers of information on a single map. Available map types are: -Thematic -Pie -Bar -Point •Pivot table: A new data visualization component in JDeveloper 11g that supports multiple layers of data labels on a row or a column edge and automatic calculation of subtotals and totals. It enables you to switch data labels from one edge to another to obtain different views of your data. Supported features include: -Horizontal and vertical scrolling -Header and cell formatting -Drag and drop pivoting -Automatic totals and subtotals against ADF BC Data Control -Drilling against BI Data Control •Gantt chart: A new data visualization component in JDeveloper 11g that provides the ability to track tasks and resources on a time axis. Its purpose is to assist in project planning. The following Gantt Chart types are supported: -Project Gantt: Focuses on project management -Scheduling Gantt: Focuses on resource management 764 .
- 780.
- 781.
- 782.
- 783. Asynchronous JavaScript andXML (AJAX) combined with the component-based approach of JavaServer Faces (JSF) is the technology behind ADF Faces’ highly interactive components. ADF Rich Client components automatically provide various AJAX-like interactions, such as sorting on table components 768 .
- 784.
- 785. Delete and InsertRows 770 .
- 786. Run and Testthe Page To test the page, run it either from the task flow diagram or from the page itself. To run the page, right-click it in the editor and select Run. To run as part of the task flow, right-click the view in the task flow and select Run. To make testing quicker, you can retest the page without rerunning it if the page definition (data binding information) has not changed. To do so, remove the parameters (everything from ? to the end) from the URL in the browser and reload the page. You can also retest it by clicking the link that displays in the Log window. Make sure to recompile and save any changes before retesting. Then test the functionality. The example in the slide depicts a default ADF Search Form. To test the functionality, you must enter one or more query criteria, and then click Search to retrieve the queried data. 771 .
- 787.
- 788.
- 789. Lesson Agenda In thislesson you can learn how to use different types of tree and table components and DVT components In Hands-on lab one would practice: Adding Query Search and Result Optionally you may also practice: 1. Customizing Query Search and Result 2. Adding Quick Search 774 .
- 790.
- 791.
- 792. The af:query componentis used for transactional searches, providing a comprehensive set of search criteria and controls. The query component is a full-featured component that can support multiple search criteria, dynamically adding and deleting criteria, selectable search operators, match all/any selections, seeded or saved searches, basic and advanced modes, and personalization of searches. It has the following two modes that the user can toggle by clicking a button that appears if the ModeChangeVisibleproperty of the query component is set to true: •Basic mode query form features include: -Drop-down list of selectable search criteria operators -Custom list of operators -Custom operators -Selectable whereclause conjunction of either andor or(match all or match any) -Saved searches and seeded searches -Personalizing saved searches •Advanced mode query form features include the ability for a user to dynamically add search criteria by selecting from a list of searchable attributes. The user can subsequently delete any criteria that were added. When you drop an af:querycomponent onto a JSF page, the component provides a search panel that includes one or more input fields for entering search criteria values. The user can select from the drop-down list of operators to create a SQL Query WHEREclause for the search. You can configure an input field to be a list of values (LOV), a number spinner, a date picker, or other control. A Match All/Match Any radio group further modifies the query. A Match All selection is essentially an ANDfunction. The query returns only rows that match all of the selected criteria. A Match Any selection is an ORfunction, where the query returns all rows that match any one of the criteria. After users enter all the search criteria values (including null values) and select the Match All/Any option button, they can click the Search button to initiate the query. The query results can be displayed in any output component. Typically the output component is a table or tree table, but you can associate other display components such as af:form, af:outputText, and graphics to display the results component. If you enable the Basic/Advanced button, the user can toggle between the two modes. Each mode displays only the search criteria that were defined for that mode. You can define a search criteria field to appear only for basic, only for advanced, or for both modes. In advanced mode, the control panel also includes an Add More button that displays a pop-up list of searchable attributes. When the user selects any of these attributes, a dynamically generated search criteria input field and drop-down operator appears. All search criteria input fields are positioned in the order in which the attributes are defined in the data source. Any newly created search criteria fields will also follow this rule. For example, if the attributes in the underlying data source are ordered A, B, C, D, and E, and the default search fields are A, C, and If the user adds D, the search fields appear in the order A, C, D, E. This newly created search criteria field also has a delete icon next to it. The user can subsequently click this icon to delete the added field. The originally defined search criteria fields do not have a delete icon and, therefore, the user cannot delete them. Search criteria can be saved and reaccessed using a given search name, but only if the application is configured to use persistence. Note: Certain properties set on the view criteria in the ADF BC layer affect the run-time behavior of the query, such as the following: •Requiredproperty of view criteria row: Determines whether a view criteria item is a required or optional part of the attribute value comparison in the generated WHEREclause. The default is optional, which means that no exception is generated for nullvalues. If set to required, an exception is thrown when no value is supplied. If set to Selectively Required, the view criteria item is ignored at run time if no value is supplied and another criteria item at the same level has a value; otherwise, an exception is thrown. •modeproperty of view criteria: Determines the initial mode, Basicor Advanced 777 .
- 793. Create Query SearchForm You create a query search form by dropping a named view criteria item from the Data Control panel onto a page. The named criteria represent the view criteria that have been defined for the data collection in the model. When you drop a named view criteria onto a page, that view criteria is the basis for the initial search form. All other view criteria defined against that data collection appear in the Saved Search drop-down list. Users can then select any of the view criteria search forms, and also any saved searches. You have a choice of dropping only a search panel, dropping a search with a results table, or dropping a search with a tree table. If you choose to drop the search panel with a table, you can select the filtering option to create a filtered table. Normally, you would drop a query search panel with the results table or tree. JDeveloper automatically wires up the results table or tree with the query panel. If you drop the query search panel without the results table or tree, you can designate a component that is based on the query’s data collection as a results component. In the Property Inspector for the query panel, copy the value of the ResultsComponentId field, and then paste that value into the Id field for the component that you want to designate as a results component. 778 .
- 794. Modify Query Behavior Whenyou define the view criteria in a view object, you specify the attributes and conjunctions that form the query statement and serve as a basis for the query search form. You can also specify some of the default properties of the search form after it has been dropped onto the page. These properties include setting the basic/advanced mode, automatic query execution, and search criteria field rendering. After the query search form is created, you can set other properties such as setting the ID of the results table or component. For example, to hide the Basic/Advanced toggle button, you can set the ModeChangeVisible field to false. Additionally, you can add a Cancel button to the footer facet of the query search form and use it to call code in the business or model layer that would cancel a long-running query. 779 .
- 795. Quick Query Component Thequick query component has a single search criteria input field. The user can select which attribute to search by selecting from a drop-down list. The available searchable attributes are drawn from the model or from a managed bean. The user can search against the selected attribute or against all attributes. The search criteria field type will automatically match the attribute type. For example, if the selected search field is of type VARCHAR, an Input Text component is rendered. Quick query components may be used as the starting point of a more complex transactional search that uses a query component. For example, the user may perform a quick query search on one attribute, and if successful, may want to continue to a more complex search. The quick query component supports this by having a built-in advanced link that is an af:commandLink component. You can create a managed bean to enable the user to switch from a quick query to a query component. Under the af:quickQuery tag are several attributes that define the quick query properties. The attributes of interest include: The id attribute, which uniquely identifies the quick query. This value should be set to match the results table or the component’s partialTriggers value. The Layout attribute, which specifies the quick query layout to be either horizontal or vertical The Label attribute, which specifies the name to be displayed at the top of the search panel. It is usually an af:outputText component. The af:quickQuery tag supports the following three facets: The criteriaItems facet specifies the component that displays the search attributes of the search object. This component is usually an af:selectOneChoice, but other components can be specified. You are responsible for connecting the quick query component with the model and implementing the queryListener in the model. The criterionValue facet specifies the component that displays or accepts the value of the search attribute of the search object. This component is usually an input component, such as af:inputText, but other components can be specified. You are responsible for connecting the quick query component with the model and implementing queryListener in the model. The end facet, where you can add a command component to enable users to change from a quick query to a query (advanced mode) The example shown in the slide has the following source code: <af:quickQuery id="personsViewCriteriaOneQueryId" label="Search" value="#{bindings.PersonsViewCriteriaOneQuery.queryDescriptor}" queryListener="#{bindings.PersonsViewCriteriaOneQuery.quickSearch}" layout="vertical"> <f:facet name="criteriaItems"> <af:selectOneChoice label="criteriaItems" simple="true" shortDesc="value" value="#{bindings.PersonsViewCriteriaOneQuery.selectedItem.value}"> <f:selectItems value="#{bindings.PersonsViewCriteriaOneQuery.searchableItems}"/> </af:selectOneChoice> </f:facet> <f:facet name="criterionValue"> <af:inputText label="criterionValue" simple="true" shortDesc="value" value="#{bindings.PersonsViewCriteriaOneQuery.selectedItem.criterionValue}"/> </f:facet> <f:facet name="end"> <af:commandLink text="Advanced" rendered=“true"/> </f:facet> </af:quickQuery> 780 .
- 796.
- 797. Schematic Representation ofa Query Process The sequential process of how a page sends a value to be used to return records to the page is as follows: 1. You enter a wildcard in the Department field. This is a parameter for an executable binding (ExecuteDepartmentsWithParams). 2. Click Find to execute the find_action method using the ExecuteDepartmentsWithParams method. 3. The parameter value is passed into the deptNameVar1 variable for execution. 4. The ExecuteWithParams method is passed into the find_action method. 5. The source of the binding is the Data Control, which is part of the (6) Department View Object, which is represented in the page definition file as an iterator (7). 6. In the page definition, DepartmentsView1 contains all the attributes that are used to display on the page (9). 782 .
- 798.
- 799.
- 800. Lesson Agenda This lessondescribes how to build pages to support a multipage transaction. You add transaction capability to the checkout flow and also define pages to insert, update, and delete suppliers. In Hands-on lab one would practice: Implementing Create Operation Optionally you may also practice: 1. Implementing Delete Operation and Creating Helper Method 2. Implementing Update Operation 785 .
- 801.
- 802. Handle Transactions withADF BC A transaction is a persisted collection of work that can be committed or rolled back together as a group. The Business Components framework handles all transactions at the application module level. The application module provides a transaction context, with a single database connection. When you commit a change, the commit applies to all view objects in the application module. For nested application modules, the outermost or root application module provides the transaction context for all nested application modules. 787 .
- 803. Default ADF ModelTransactions The default behavior when an ADF model change is committed is to issue the commit directly to the Transaction object of the current associated ADF BC application module instance to handle the transaction. 788 .
- 804. Operations: Operations are theactions bounded within the application module or the view object collection. The exposed operations are mapped to an action component to invoke the action and execute the operation. For the application module, we have the default operations defined. They are the Commit and Rollback operations. The operations available for the view object collection are as follows: • Create: This operation is available to create a new record for the table component. The newly created record will not be inserted and is not displayed in the UI for a table component. For a form-based component, this method will create a new record and will display the information. • CreateInsert: This operation will create a new record and will also insert a blank record if there is no default value assigned for the attributes of the record. The newly created row is displayed in the UI for the table component. • Create with parameters: This method will allow the user to create a new record with some parameters, and the values passed as parameters will be predefined for the created row. • Delete: This operation is used to delete the current row from the view object collection. • Execute: This operation will execute and refresh the current collection. • Find: To find a specific record in the collection object. • First: This method sets the current row so that the first row is shown to the user. • Last: This operation is used to set the last row of the view object collection as the current row. • Next: This operation is used to refer to the next row in the collection as the current row. • Next Set: This operation is used to move to the next set in the collection. • Previous: This method is used to set the previous record as the current row. • Previous Set: This method is used to move to the previous set in the view object collection. • removeRowWithKey: The key value is provided for this operation to remove the row matching the corresponding key. • setCurrentRowWithKey: The current row in the collection is set to the row matching the corresponding key passed using this operation. • setCurrentRowWithKeyValue: This operation will set the row to the matching key value. 789 .
- 805. Share Data Controls TheADF Model layer provides a scoping mechanism for data controls called a DataControlFrame. At any given time there is one current DataControlFrame. Whenever a data control is referenced, for example, by the EL expression #{bindings.foo}, the ADF Model layer goes to the current DataControlFrame to find the data control. By default, the called task flow shares all data control instances with its caller (shared data control scope). You can change that by deselecting the “Share data controls with calling task flow” check box. With this setting, a DataControlFrame is created for each task flow that is entered, with the result that each task flow has its own unique instance of any data controls it uses—it is isolated from its caller and does not share any data control instances. The model layer uses the DataControlFrame to manage the transaction that the data controls within the frame participate in. The behavior of various task flow transactional settings is dependent on the data control scope, as shown in the following table: Synchronizing with the Model By default, a transaction is not committed until the task flow is exited, because that is when the DataControlFrameis committed. If you attempt to commit in the middle of the task flow, the state of the UI gets out of synchronization with the state of the model. However, you can enable a midtask flow commit by manually committing the DataControlFrame, as in the following example: static public void saveAndContinue() { Map sessionMap = FacesContext.getCurrentInstance().getExternalContext().getSessionMap(); BindingContext context = (BindingContext)sessionMap.get(BindingContext.CONTEXT_ID); String currentFrameName = context.getCurrentDataControlFrame(); DataControlFrame dcFrame = context.findDataControlFrame(currentFrameName); dcFrame.commit(); dcFrame.beginTransaction(null);} FacesContextcontains the information necessary for request processing, and invokes an object that executes the life cycle. BindingContextis a container object that defines a hierarchy of data controls and data binding objects derived from the Oracle ADF Model Layer. It is the handle through which the client accesses the data binding layer, and is represented by the bindingsvariable in EL data binding expressions. 790 .
- 806.
- 807.
- 808. Handle Transaction Exceptions Duringthe execution of an ADF task flow, exceptions can occur that may require some kind of exception handling, such as when a method call activity throws an exception or when a user is not authorized to execute the activity. To handle exceptions thrown from an activity or caused by some other type of ADF controller error, you can create an exception handler for an ADF bounded or unbounded task flow. When an exception is raised within the task flow, the control flow passes to the designated exception handling activity. The exception handler activity can be any supported activity type, for example, a view that displays an error message, or a router activity that passes the control flow to a method, based on an expression that evaluates the type of exception. As a best practice, any ADF bounded task flow representing a managed transaction should designate an exception handling activity. When running an ADF bounded task flow managed transaction, the ADF controller attempts to commit the transaction when it reaches a task flow return activity identified in metadata for a commit. If the commit throws an exception, the control is passed to the ADF bounded task flow’s exception handling activity. This provides the end user a chance to correct any data and then reattempt to commit it. You can use the exception handling activity to display a warning message on a page that tells the user to correct the data and attempt to commit it again. 793 .
- 809. Designate an ExceptionHandler Activity To designate an activity as an exception handler for a task flow, perform the following steps: Right-click the activity in the task flow diagram, and then select Mark Activity > Exception Handler. A red exclamation mark is superimposed on the activity in the task flow to indicate that it is an exception handler. To unmark the activity, right-click the activity in the task flow diagram, and then select Unmark Activity > Exception Handler. If you mark an activity as an exception handler in a task flow that already has a designated exception handler, the old handler is unmarked. After you designate that an activity is the exception handling activity for a task flow, the task flow metadata updates with an <exception-handler> element that specifies the ID of the activity, as shown in the slide. 794 .
- 810. Transaction Support Featuresof Bounded Task Flows Transaction options on the called task flow definition specify whether a called ADF bounded task flow should join an existing transaction, create a new one, or create a new one only if there is no existing transaction. Savepoints: ADF creates a savepoint when a task flow is entered with an existing transaction. The savepoint is a snapshot of the model state at the time the task flow was entered. The savepoint enables the model state to be restored to what it was at the time the task flow was entered. If the called ADF bounded task flow is able to start a new transaction (based on the transaction option that you select), you can specify whether the transaction is committed or rolled back when the task flow returns to its caller. In a called task flow definition, you can specify two different return task flow activities that result in either committing or rolling back a transaction in the called ADF bounded task flow. You can enable users to save the state of the UI and model at any point and come back to it later. You can specify how a page should behave when users navigate to it by using the Back button. 795 .
- 811. Save for Later Insome applications, an end user may need to stop without completing a task, for example, when additional information is needed to answer questions. As the developer of the application, you may want to retain the current state of the task if a user leaves a page without finalizing it. You can also enable the user to complete the rest of the task at a future point, with former unsaved values restored to the page. The ability to save the current application state is called save for later. There are two general categories of saving for later: Explicit: For example, a page contains a button that the user can click to save all the data entered so far on the page. Explicit save for later is available for both ADF unbounded and bounded task flows. For example, a user may click a button to save, but not submit, a partial expense report, and then may cancel out of the application. Later the user can invoke a list of saved expense reports and select the one to continue working on. Implicit: For example, a user accidentally closes a browser window without saving data entered on a page, a user logs out without saving the data, or the session times out. Implicit save for later can originate only from a bounded task flow. Save for later saves the data without enforcing validation rules or submitting it. The end user can resume working on the application later with the same data that was saved at the point when save for later was performed. Save for later is implemented by using a save-point-id that captures a snapshot of the ADF application at a specific point in time. This includes everything from the time the savepoint is created in the originating task flow up the call stack. Application state information is also saved, including: UI state, including table sort order and selected tabs, check boxes, table rows, and so on Managed beans: Saves the state information that is saved in memory scopes, except for request scope and application scope Navigation state: Task flow call stack, which tracks where the user is in the application and the navigational path for getting there, and also the starting point of any data transactions Model state: Any data model updates made since beginning the current bounded task flow, subject to limits imposed by the model layer on the saved state lifetime The same save-point-id can be used when the same user repeatedly performs a save for later on the same instance of a task flow within the same browser window within the same session. If a user performs a save for later following every page of a task flow, only one save- point-id is created and is overlaid each time. An example of when you might use an explicit save for later is an expense report application. A user may click a button to save, but not submit, the partial expense report, and then may cancel out of the application. Later the user can invoke a list of saved expense reports and select the one to continue working on. 796 .
- 812. Enable Explicit Savefor Later To enable explicit save for later, you must incorporate a call to the createSavePoint() API to create a savepoint. The save-point-idsaves data and state information about a region, view port, or portlet. Later, you use the Save Point Restore activity to restore application state and data associated with a save-point-id. A save-point-idis stored in a database table or Java object cache, depending on the value that you have specified for the savepoint-managerconfiguration option (discussed later in this lesson). When save-point-idis restored, it is deleted from the database or Java object cache. To add the save for later capability to a task flow, perform the following steps: 1. Drag a method call activity from the ADF Task Flow page of the Component Palette to the diagram for the ADF bounded task flow. 2. In the diagram, select the Method Call activity. 3. On the Common page of the Property Inspector, enter an ID for the method—for example, callCreateSavePoint. 4. In the method field, enter an EL expression for the savepoint method, for example, #{controllerContext.currentViewPort.createSavePoint}. If you created your own method to call createSavePoint, enter that method name instead (see the example that follows this list of steps). 5. After adding the method call activity to the diagram, connect it to the other existing activities in the diagram using control flows. 6. You can optionally set properties in the adfc-config.xmlfile, such as the savepoint default expiration time and where savepoints are stored. This is described later in this lesson. You can access the createSavePoint()method under the currentViewPortnode under ADF Controller Objects. Instead of calling this method directly, you may want to create your own method that calls createSavePoint(), as shown in the following example: (If you do this, you can update save-point-idwith any attributes you create on your method.) package viewcontroller; You can override the global settings for individual savepoints for the amount of time that a savepoint remains in effect by calling the setSavePointTimeToLive()method. You can include this in the same method that you use to create the savepoint. The method signature is: void setSavePointTimeToLive(long timeInSeconds) 797 .
- 813. Enable Implicit Savefor Later Implicit save points are generated only if a critical task flow is present in any of the page flow stacks for any view port under the current root view port. An implicit savepoint is not generated if the request is a request for an ADF Controller resource, such as: The task flow call activity The task flow return activity A Save Point Restore activity A dialog Implicit savepoints are deleted when the task flow at the bottom of the stack completes or a new implicit savepoint is generated, whichever comes earlier. If you want an implicit save for later to occur when the session times out, the user logs out without saving the data, or the user closes the only browser window, then you can select the Critical check box on the Behavior panel of the Overview tab for the task flow definition, or set Critical to true on the Behavior panel of the Property Inspector. You must also set an attribute in the adfc-config.xml file, as described later in this lesson. If multiple windows are open when the implicit savepoint is created, a different save-point- id is created for each browser window. This includes everything from the root view port of the browser window and down. To return a list of implicitly saved savepoints, you can use controllerContext.savePointManager.listSavePointIds. 798 .
- 814. Restore Save Points Restoringa save-point-idreturns the end user back to the part of the application where the ID was created and restores the application state. Use the Save Point Restore activity to restore a previously persistent savepoint for an application. When a savepoint is restored, the ADF controller terminates the saved application and restarts the application that was executing when the end user performed a save. The end user’s original location in the application is displayed. After the save-point-idis restored, it is deleted from its method of persistence (database or Java object cache). A Save Point Restore activity is not required within every individual application supporting save for later capabilities. It is only required within the applications responsible for restoring the previously persistent save-point-id. For example, a Save Point Restore activity would not be required within a Create Expense Report application, but would be within the application used to select previously saved Expense Reports for further updates. Save Point Restore Finalizers When used in conjunction with a Save Point Restore activity, a Save Point Restore Finalizer contains application-specific logic that may need to be performed to restore the application’s state. The Save Point Restore Finalizer is a method that is invoked after the ADF bounded task flow’s state has been restored. This method performs any necessary application logic to ensure that the application's state is correct before proceeding with the restore. For example, you might use a Save Point Restore Finalizer to restore logic for time validations. During the restore process, each bounded task flow on the call stack being restored gets a chance to verify that its restored state is valid and to perform any restore-specific logic it might need. To add a Save Point Restore Finalizer method to an ADF bounded task flow, perform the following steps: 1. In the editor, open the ADF bounded task flow on which you want to execute a Save Point Restore Finalizer method. This is the ADF bounded task flow being restored, not the task flow executing the Save Point Restore activity. 2. In the editor, click the Overview tab and click Common. 3. Click the button next to the Finalizer. 4. In the dialog box, specify a custom Save Point Restore Finalizer method on a managed bean—for example: #{pageFlowScope.taskflowBean.finalizerMethod} 799 .
- 815. Set Global Savefor Later Properties In the adfc-config.xml file, you can set the following properties that govern the save for later behavior: savepoint-expiration: Number of seconds that, by default, savepoints in an application are retained. The default is 86400 (24 hours). You can override for individual savepoints by setting time-to-live on the savepoint. savepoint-manager: Type of savepoint persistence. The default is DATABASE, but can alternatively be set to JOC (Java object cache). savepoint-datasource: The JNDI name of the data source, such as jdbc/MyConnectionDS (Typically, this is the name of the database connection appended with DS.) enable-implicit-savepoints: Set to true to enable implicit save for later. 800 .
- 816.
- 817. Define Response tothe Back Button To deal with cases in which the end user clicks the Back button to navigate back into an ADF bounded task flow that was already exited, you can specify the following task-flow- reentry options for the task flow definition that specify whether a page in the ADF bounded task flow can be reentered: reentry-allowed: Reentry is allowed on any view activity within the ADF bounded task flow. reentry-not-allowed: Reentry of the ADF bounded task flow is not allowed. An end user can still click the browser’s Back button and return to a page within the bounded task flow. However, if the user does anything on the page such as clicking a button, an exception (for example, InvalidTaskFlowReentry) is thrown indicating that the bounded task flow was reentered improperly. The actual reentry condition is identified upon the submit of the reentered page. reentry-outcome-dependent: Reentry of an ADF bounded task flow using the browser’s Back button is dependent on the outcome that was received when the same ADF bounded task flow was previously exited via task flow return activities. For example, a task flow representing a shopping cart can be reentered if the user exited by canceling an order, but not if the user exited by completing the order. Upon reentry, ADF bounded task flow input parameters are evaluated using the current state of the application, not the application state existing at the time of the original ADF bounded task flow entry. If the Task Flow Reentry property of the task flow is set to reentry-outcome- dependent, a property of the task flow return activity determines whether the user can use the Back button to navigate back to the called task flow. On the Behavior tab of the task flow return’s Property Inspector, you can set the Reentry property to reentry-allowed or reentry-not-allowed. This enables you to specify a different response to the Back button depending on the outcome that is returned to the calling task flow. When an end user reenters an ADF bounded task flow by using the browser’s Back button and reentry is allowed, the value of a managed bean on the reentered task flow is set back to its original value—the same value that it was before the end user left the original task flow. This results in the managed bean value resetting back to its original value before a view activity in the reentered task flow is rendered. Any changes that occurred before reentry are lost. To change this behavior, specify the <redirect> element on the view activity in the reentered bounded task flow. When the end user reenters the bounded task flow using the Back button, the managed bean has the new value from the parent task flow, not the original value from the child task flow that is reentered. 802 .
- 818.
- 819.
- 820. In Hands-on labone would practice: Examining the Page’s Data Bindings 805 .
- 821.
- 822.
- 823.
- 824.
- 825. What Is DataBinding? Having an easy and declarative way to bind Business Services to UI components is critical to simplifying the development of Java EE applications that can be accessed from different interfaces. In the Model layer, Oracle ADF Model implements the JSR-227 service abstraction, which is called the data control, and provides out-of-box data control implementations for the most common business service technologies. ADF Model: Overview In the Model layer, Oracle ADF Model implements the JSR-227 service abstraction called the data control. Data controls abstract the implementation technology of a business service by using standard metadata interfaces to describe the service’s operations and data collections, including information about the properties, methods, and types involved. Using JDeveloper, you can view the information as icons that you can then drag onto a page. JDeveloper then automatically creates the bindings from the page to the services. At run time, the ADF Model layer reads the information that describes your data controls and data bindings from appropriate XML files and implements the two- way connection between your UI and your business service. Oracle ADF provides out-of-the-box data control implementations for the most common business service technologies. Using JDeveloper and Oracle ADF together provides you with a declarative, drag-and-drop data binding experience as you build your user interfaces. Along with support for ADF application modules, the ADF Model also provides support for the following service technologies: • Enterprise JavaBeans (EJB) session beans and JPA entities • JavaBeans • Web services • XML • CSV files The Heart of ADF: ADFm The key aspect of the ADF Model is the implementation of the JSR-227 specification, which provides the interface between the Business Services layer and the UI layer. The ADF Model, also known as ADF data binding, was introduced in JDeveloper 9.0.5. Previously, you defined the binding between your client and your Business Services. For example, you used ADF BC JavaServer Pages (JSP) tags to bind a text field in a JSP to a View Object (VO) attribute. The ADF Model introduces another layer of abstraction; instead of binding the client to the Business Services, you bind the client to the model and bind the model to the Business Services. The ADF Model describes the middle tier data model to the client. This description has the same metadata format for any business service type. JDeveloper helps to create data-bound user interfaces with the ADF Model by using: • Drag-and-drop data binding • Data control wizards • Binding editors • Page-definition editing ADF Model Bindings In JavaServer Faces (JSF), you use a simple EL to bind to the information that you want to present and/or modify. For example, you use expressions such as #{UserList.selectedUsers} to reference a set of selected users, #{user.name} to reference a particular user’s name, and #{user.role == 'manager'} to evaluate whether a user is a manager or not. At run time, a generic expression evaluator returns the List, String, and Boolean values of these respective expressions, automating access to the individual objects and their properties without requiring code. 810 .
- 826.
- 827. ADF Model DataControl Concepts The Oracle ADF Model layer uses Extensible Markup Language (XML) configuration files to direct generic data-binding features. Data controls abstract the implementation technology of a business service by using standard metadata interfaces to describe the service’s operations and data collections, including information about the properties, methods, and types involved. At design time, visual tools such as JDeveloper can leverage the standard service metadata to simplify binding UI components to any data control operation or data collection. At run time, the generic Oracle ADF Model layer reads the information describing your data controls and bindings from appropriate XML files and implements the two-way “wiring” that connects your UI to your business service. This combination enables three key benefits: • You write less code, so there are fewer lines to test and debug. • You work the same way with any UI and business service technology. • You gain useful run-time features because you do not have to code them yourself. ADFm: Data Controls and Data Bindings The ADF Model implements two concepts in JSR-227 that enable decoupling the UI technology from the business service implementation. This technology has two parts: • Declarative bindings describe and manage the characteristic interactions between specific kinds of UI components (View and Controller layers) and the methods provided by a Business Service (Model layer). • Data controls provide supplemental metadata about the Business Service’s capabilities and constraints, as well as a simple interface to normalize typical transactional interactions with the service. 812 .
- 828. ADF Data Controls: •They exposes Business Services to Bindings Layer. • UI Layer interacts with Bindings and Bindings interact with data Controls. • Each user gets its own instance of Data Controls • By default there is a data control for each Root Application Module in Business Components • All the instances in AM Datamodel and methods are exposed in data Controls 813 .
- 829. 814 Different types ofdata controls support different functionality out of the box; the table shows which types of data controls support transactions, sorting and updates. Support for transactions, sorting and updates are defined by attributes in the .dcx file: SupportsTransactions, SupportsSortCollection, and SupportsUpdates. If you want to change this support you need to change the setting in the dcx file and extend your data control to implement the appropriate methods. For example, if you want to support transactions for a JavaBean data control you must change SupportsTransactions to true and implement commitTransaction() and rollbackTransaction() in your data control. .
- 830.
- 831. Page Definition Files Thepage definitionfile is created automaticallythe first time you create a binding on a page. Alternatively,if you select “Go to Page Definition” for a page that does not currentlyhave a page definition, you are prompted to create the page definitionfile. Page definition files are named <pagename>PageDef.xml. If you rename a page definitionfile, you must also change the name of the file in DataBindings.cpx. A page definition file includes the following elements: • <parameters>: Defines page-level parameters that are EL accessible. These parameters store information that is local to the page request. • <executables>: Defines the list of items (methods and iterators) to execute during the prepareModel phase of the ADF page life cycle. The execution is performed in the sequence listed in the <executables> section, depending on the item’s refresh and refreshConditionattribute values. • <bindings>: Refers to an entry in <executables> to get the collection from which bindings extract or submit attribute-level data ADF Data Bindings Concepts Data bindings abstract the details of accessing data from data collections in a data control and of invoking its operations. There are three basic kinds of data binding objects that automate the key aspects of data binding that all enterprise applications require: • “Iteratorbindings” to bind to an iterator that tracks the current row in a data collection • “Value bindings” to connect the UI components to the attributes in a data collection • “Action bindings” to invoke custom or built-inoperations on a data control or its data Collections Iterator binding: Keeps track of the current row in a data collection • Iterator • Method iterator • Accessor iterator • Variable iterator Value binding: Connects UI components to attributes in a data collection—for example, attributebinding, tree binding, list binding, and table binding Action binding: Invokes a method or operation Binding Objectsin the Executables Section The followingtypes of binding objects are availablein the executables section: • iterator: Is the basic link from data to binding • methodIterator: Links the results of a method call to a binding • accessorIterator: Links to detail collections for nested objects (not used with ADF BC) • variableIterator: Accesses local data defined in the page definitionfile - Most often used for method arguments - Not linked to a data control • invokeAction: Allows the invocation of a method binding automaticallywithin the life cycle (an alternativeto invocationusing a user action—for example, clickinga button). This type of binding was used in earlier versions of JDeveloper to invoke a method, but in the current version, it is better to use a method call in a task flow, which gives you better control over when the method is executed. Controlling the Execution of Executables Refreshing an invoke action binding invokes the action. Determining When to Refresh You can use the Refresh property on iterator bindings and invoke action executables in your page definitionfile to control when each is evaluated during the ADF page life cycle. Valid values for the Refresh property are: • deferred (the default): Enforces execution whenever it is demanded for the first time, such as when a binding value is referenced in an EL expression. When it is called, it does not re-execute unless the binding itself or any parameter values for the binding have changed. • prepareModel: Refreshes during the Prepare Model phase • renderModel: Refreshes during the Prepare Render phase Note: The key distinctionbetween the Prepare Model phase and the Prepare Render phase is that one comes before JSF’s Invoke Applicationphase and the other after it. Because action listeners fire in JSF’s Invoke Application phase, if you need your iterator to refresh after these action listeners have performedtheir processing, you may want to set the Refresh property to renderModel. • ifNeeded: Refreshes the iterator only if it has not been refreshed, based on the refresh condition or if no condition is specified, during the Prepare Model phase • prepareModelIfNeeded: Same as ifNeeded, during the Prepare Model phase Refreshing an invoke action binding invokes the action. Determining When to Refresh (continued) • renderModelIfNeeded: Is the same as ifNeeded, during the Render Model phase • RefreshAfter: Specifies that one executable refreshes after another (you also need to set the RefreshAfter property in addition to the Refresh property); used to handle dependencies between executables • never (valid for iterator bindings only): Refreshes only when your own code calls getRowSetIterator() on the iterator binding • always (valid for iterator bindings only): Iterator is always refreshed during both the Prepare Model and Prepare Render phases Determining Whetherto Refresh Before refreshing any bindings, the ADF run time evaluates the refreshCondition attributeof the executables, which specifies the conditions under which the executable should be refreshed. You can specify the refreshCondition value using a Boolean EL expression (defaultis true.) If an iterator binding is not refreshed during the life cycle, it does not point to any row set iteratorfor that request. This results in the value bindings related to that iterator binding not having any data to display. This can be a desirable result when, for example, you want a page such as a search page to initiallyshow no data. To achieve this, you can use the refreshConditionof: #{adfFacesContext.initialRender}, which evaluates to true when a page is first rendered. You should set the Refresh property of an executable to renderModel when refreshConditionis dependent on the model. So if you want to use the #{adfFacesContext.initialRender} expression in refreshCondition of an executable, you must set the Refresh property to either renderModel or renderModelIfNeeded, which causes the method to be executed during the prepareRender phase. Another attribute, which determines whether to refresh the executableis refreshAfter. It specifies the condition after which the page should be refreshed. Refresh the iterator when the cart already has an ID or if the order status is OPEN. 816 .
- 832. Attribute Values: • Isused to access single value from collection/ Iterator executable • They are accessed using #{bindings.<bindingName>.inputValue> Page Definition File: • Each page/fragment has a page definition file • It’s a XML file that stores bindings of the corresponding page • They are created by default when any UI component is created on the page associated to DC for the first time. E.g. drag and drop VO as Table • Gets created in Application Sources in ViewController Project • One can go to page definition through bindings tab of the page Executables: • Bindings must refer executables • Executables are Iterators/collection models from data controls • Iterators sync the current row accessed in the UI to the row in collection model and remembers it • VO Iterators are created whenever any VO is dragged to the page to create a component • Variable iterator are used to save values between the requests 817 .
- 833. • IDE addsADF Faces Components to the JSF page. Common attributes of the UI components are defaulted by using the attribute definitions present in the model, referred through Expression Language (EL). • It creates DataBindings.cpx if it is not found in the default view package under the ADFm source directory. The default location of the ADF model source is the adfmsrc folder located under the view project. • It creates adfm.xml if it is not found in the META-INF folder under the adfmsrc directory. This is considered as a registry of all metadata registries used by the view project. When IDE creates a data binding cpx file (DataBindings.cpx), an entry is made in adfm.xml to keep track of all the cpx files present in a web application. • It creates the page definition XML (<PageName>PageDef.xml) file if it is not already present for the page. This is located in the pageDefs folder under the view project package, which is found under the adfmsrc directory. This file contains the binding metadata for each data bound UI element present on the page. When IDE creates a page definition file for the JSF page, it also adds a mapping entry between the JSF and page definition file in the DataBindings.cpx file. • It adds the required library dependencies to the view project. • It updates web.xml to add runtime configurations such as ADFBindingFilter, which is required by the ADF Faces Components runtime. 818 .
- 834.
- 835. adf-config.xml: The adf-config.xmlfile specifies application-level settings that are usually determined at deployment and are often changed at runtime. You can use a deployment profile to specify settings that are used at application deploy time. You can change some of the settings at runtime using Oracle Enterprise Manager. JDeveloper generates the adf-config.xml file when you create an application using the Fusion Web Application (ADF) template. It stores the file in the following directory:application_root.adfMETA-INF faces-config.xml: Used to register JSF application resources, like default renderer kit and resource bundle. adfc-config.xml: Is the source file for the ADF unbounded task flow that JDeveloper creates by default when you create an application. By default, JDeveloper stores the adfc-config.xml file in the following directory: application_rootViewControllerWeb ContentWEB-INF web.xml: Sets up the ADFBindingFilter. When you create a project in JDeveloper that uses JSF technology, a starter web.xml file with default settings is created for you in the /WEB-INF folder. To edit the file, double-click web.xml in the Application Navigator to open it in the XML editor. Contains the configuration parameters needed to run an ADF Faces application, such as: where to save the application view state, servlets and filters, registered mime types and session time-out period. trinidad-config.xml: This file defines custom look and feel of JDeveloper i.e., skins. adfm.xml: The file registry is used extensively by the ADF Library resource catalog browsing implementations, by the ADF model layer design time, and at runtime during merge and discovery. When a developer creates a binding on a page, JDeveloper adds metadata files (for example, page definitions) in the project source tree. The adfm.xml file then notes the location of each. In short, it defines the location of .cpx, .jpx, .xcfg files. DataControls.dcx: Is the registry for the data controls in the application. It contains information about the type of data control needed to work with a particular service (e.g. EJB, JavaBean, XML, Webservice, etc..) and how to construct the data control at runtime. DataBindings.cpx: Contains mapping of pages, page definitions references and data control reference. The DataBindings.cpx file defines the Oracle ADF binding context for the entire application, hence also known as Binding Context. It also has Default Exception Handler which can be modified using ErrorHandlerClass attribute. <pagename>PageDef.xml: Is the page definition XML file. This file is created each time you design a new web page. It binds iterators to VO and iterator bindings to iterators . It is also know as Binding Container. Model.jpx: The.jpx file contains configuration information that JDeveloper uses in the design time to allow you to create the data model project with ADF Business Components. bc4j.xcfg: The bc4j.xcfg file contains metadata information about application module names, the database connection used by the application module, and the runtime parameters the user has configured for the application module. task-flow-definition.xml: The default file name that JDeveloper proposes for the source file of the first ADF bounded task flow that you create is task-flow-definition.xml. This file stores the metadata for a bounded task flow. It contains entries for each view activity, method call activity, task flow call, and so on that you add to the bounded task flow. <page>.jspx or .jsff: References bindings defined in the page definition file. <AM>.xml: Defines VO names and locations. 820 .
- 836. At run time,the objects created from these files interact in the following sequence: 1. When you first request for an ADF data-bound Web page, the servlet registers the ADFBindingFilter Oracle ADF servlet filter named in the web.xml file. 2. The binding filter creates an empty binding context. 3. When a page is rendered, the binding filter asks the binding context to load a corresponding <page>PageDef.xml file for the page. 4. The binding context creates the binding container by loading the <pagename> file as referenced by the <pagemap> element from the DataBindings.cpx file. 5. adfm.xml loads the .cpx contents and finds the right PageDef.xml based on the <pagemap> element. 6. The binding container’s prepareModel phase prepares or refreshes all relevant executables. (By default, most are marked deferred.) 7. An iterator binding is executed by referencing the named method on the data control found via the data control factory named in the bc4j.xcfg file. 8. The binding container also creates the bindings defined in the <bindings> section of the <pagename>PageDef.xml file for the mapped Web page. 9. The Web page references ADF bindings through EL using the expression #{bindings}, which get resolved when you access the binding container of the page. 10. The page pulls the available data from the bindings on the binding container. 821 .
- 837. 1. When thefirst request for an ADF databound web page occurs, the servlet registers the Oracle ADF servlet filter (Binding Filter) ADFBindingFilter named in the web.xml file. 2. ADF Binding filter asks the adfm.xml file to load the Binding Context DataBindings.cpx. 3. Binding Context loads two things. First it finds or creates Application Module configuration (bc4j.xcfg) and data controls (if any). 4. Then binding context creates the binding container by loading the <page> file as referenced by the <pagemap> element in the DataBindings.cpx file. 5. When a page is rendered, the binding container creates the bindings defined in the <bindings> section of the pagenamePageDef.xml file for the mapped web page. 6. The binding container's prepareModel phase prepares and refreshes all relevant executables (most are marked deferred by default). 7. An iterator binding gets executed by referencing the named method on the data control found through the data control factory named in the case of ADF Business Components in the bc4j.xcfg file ------------------------------------------------------------------------------------------ 822 .
- 838.
- 839. What just happened? Usingthe action performed in the previous section, we learned how to create the bindings in the page definition file. The Commit action binding will be displayed in the binding container of the page definition file. In the Create Action Binding dialog, the operation is populated automatically because Commit and Rollback are the options available by default in EmpDirectoryModuleDataControl. Adding executables: Just like creating the bindings for the component, we can add the executable for the page definition by clicking on the Add buttn in the Executables section of the page definition file. Some of the items in the Executables section are as follows: accessorIterator: acessorIterator is used to iterate the Accessor hierarchy from the data control layer. The CacheResults property will manage the collection between requests. ChangeEventPolicy will control the behavior of the refresh action. The options available are as follows: • none: The iterator is refreshed based on the refresh condition provided. • push: Asynchronous data changes will automatically be refreshed. • ppr: ppr is a partial page rendering, which will refresh only some part of the page. The setting will help the iterator to be refreshed if the current row of the iterator is changed and the ppr action occurs. invokeAction: We create this executable to invoke an action on a specific condition. For example, if we want to invoke the Commit action on a condition and on a page load, we will map the invokeAction item to the Commit operation binding and then move the invokeAction item to the top as the first executable in the list of executables in the page definition. The invokeAction item provides a Refresh property, which will allow the accessor method based on the option provided. The options available are as follows: • always: This option refreshes the executable always. • deferred: If the refresh is based on another executable, this option refreshes the executable accordingly. • ifNeeded: The refresh is taken care of whenever needed by the framework. This is the default for executables. • never: Never refreshes the executable. • prepareModel: Refreshes every time the binding is prepared. • prepareModelIfNeeded: Only refreshes if needed and/or if the page binding container is prepared. • refreshAfter: Sets the dependent executable to execute the current executable after the one mentioned. • renderModel: Refreshes the executable when the page is rendered. • renderModeIfNeeded: Refreshes the executable only if it is needed by the framework when the page is rendered. The RefreshCondition item will hold the condition on which the refresh is to happen. RefreshAfter will hold the condition after which the executable is refreshed. iterator The iterator item simply references a collection to traverse the records. We can have the refresh condition and parameters set to change the behavior of the iterator item. Iterator also has properties such as Refresh, RefreshCondition, and cacheResults. The RangeSize property for the Iterator item will represent the number of rows displayed in the Iterator collection. Page: We can have a nested page definition specified within another page definition as a container using this executable. This is primarily used to ensure that bindings of a template are referenced at runtime. searchRegion: The searchRegion item is an executable for querying the data using view criteria. The query component will make use of the searchRegion executable to query information from the database through the view criteria from the model layer. shuttleRegion: The shuttleRegion executable is useful for the shuttle component to display the shuttle elements. The available and the selected list of elements is maintained within the shuttleRegion executable. 824 .
- 840.
- 841.
- 842.
- 843. 828 ADF validation isadded like JSF validation as an additional element to the attribute binding. This is very similar to the way that validators are added to JavaServer Faces. Since client side validation can be fooled it may be considered as best practices to use the two validations in combination. In future developments ADF may provide a central definition for validation rules that then is automatically read on the different layers. .
- 844. 829 ADF business componentshas always had declarative validation and control hints; now these features are available for data controls (all types except ADF BC) and bindings. 10.1.3 onwards also supports binding-level authorization (ADF BC only) .
- 845. 830 Access Bindings fromPage: • Bindings are accessed in page/fragment using EL • Bindings variable (#{bindings}) contain all the bindings from the page definition of current page in which it is accessed .
- 846. 831 . The example onthe page shows an ADF Faces inputText component (a text field with label) that will display the employee name. The text field’s attributes are all set using EL expressions; the dot-separated expressions in the example all start with bindings, the binding variable that represents the binding context of the current page. The attributes are evaluated as follows: •value=“#{bindings.Ename.inputValue}”: The value of the inputText component is set to the value of the Ename attribute •label=“#{bindings.Ename.label}”: The label is set to the label property of the Ename attribute. If you have assigned a custom label to Ename, then the label property is your custom label, otherwise the label property is the same as the attribute name. •required=“#{bindings.Ename.mandatory}”: required is a boolean attribute that determines whether a value must be entered in the field. In this case required evaluates to the mandatory property of the Ename attribute: if Ename is a mandatory attribute, then the inputText requires a value and will be displayed with a required indicator (*) next to the field.
- 847. Use Expression Language(EL) You can use a simple Expression Language (EL) to work with information. EL is part of JSP Standard Tag Library (JSTL), and it defines a standard syntax for accessing dynamic values without using Java scriptlets in JSPs. The standard syntax is #{object.attribute} for a JSF expression or ${expression} for a standard JSTL expression. Binding expressions can use either a $ or #prefix, but EL expressions in JSF pages can use only the # prefix. At run time, a generic expression evaluator returns the value of expressions, automating access to the individual objects and their properties without requiring code. You use EL expressions throughout an ADF Faces application to bind attributes to object values determined at run time. The value of certain UI components (such as an input text component) is determined at run time by the value attribute. Though a component can have static text as its value, typically the value attribute contains an EL expression that the run-time infrastructure evaluates to determine what data to display. Because any attribute of a component (and not just the value attribute) can be assigned a value by using an EL expression, it is easy to build dynamic, data-driven user interfaces. You can create EL expressions declaratively by using the JDeveloper Expression Builder. You can access the builder from the Property Inspector by selecting Expression Builder from the drop- down list of an attribute. 832 .
- 848. Immediate EL Syntax:${} Occasionally, you may notice an expression that begins with $ rather than #. This indicates a read-only expression that is evaluated immediately when a page is rendered. 833 .
- 849. Deferred EL Syntax:#{} An expression, which begins with “#” uses deferred evaluation. This means that the expression is evaluated at an appropriate time in the page life cycle, depending on how the expression I used on the page. 834 .
- 850.
- 851.
- 852.
- 853.
- 854.
- 855.
- 856.
- 857.
- 858.
- 859.
- 860.
- 861. Specify When toRefresh Binding Executables Refreshing Iterator Bindings For scalability reasons, at run time the iterator bindings in the binding container release any reference they have to a row set iterator at the end of each request. During the next request, the iterator bindings are refreshed to again point at a “live” row set iterator that is tracking the current row of some data collection. The act of refreshing an ADF iterator binding during the ADF page life cycle is the operation of accessing the row set iterator to reunite the binding to the row set iterator to which it is bound. Refreshing Invoke Action Bindings Refreshing an invoke action binding invokes the action. Determining When to Refresh You can use the Refresh property on iterator bindings and invoke action executables in your page definition file to control when each is evaluated during the ADF page life cycle. The valid values for the Refresh property are as follows: deferred (the default): Enforces execution whenever demanded the first time, such as when a binding value is referenced in an EL expression. After it is called, it does not reexecute unless the binding itself or any parameter values for the binding have changed. prepareModel: Refreshes just during the Prepare Model phase renderModel: Refreshes just during the Prepare Render phase Note: The key distinction between the Prepare Model phase and the Prepare Render phase is that one comes before JSF’s Invoke Application phase, and the other after. Because JSF’s Invoke Application phase is when action listeners fire, if you need your iterator to refresh after these action listeners have performed their processing, you will want to set the Refresh property to renderModel. ifNeeded: Refreshes the iterator only if it has not been refreshed, based on the refresh condition or if no condition is specified, during the Prepare Model phase prepareModelIfNeeded: Same as ifNeeded, during the Prepare Model phase renderModelIfNeeded: Same as ifNeeded, during the Render Model phase RefreshAfter: Specifies that one executable refreshes after another (you also then need to set the RefreshAfter property in addition to the Refresh property). RefreshAfter is used to handle dependencies between executables. never (valid for iterator bindings only): Refreshes only when your own code calls getRowSetIterator() on the iterator binding always (valid for iterator bindings only): Iterator always refreshed during both the Prepare Model and Prepare Render phases Note: Refreshing an iterator binding does not forcibly reexecute its query each time. The first time the view object instance’s row set iterator is accessed during a particular user’s unit of work, this implicitly executes the view object’s query if it was not already executed. Subsequent refreshing of the iterator binding related to that view object instance on page requests that are part of the same logical unit of work only accesses the row set iterator again, but does not forcibly reexecute the query. When you want to reexecute the query to refresh its data, use the Execute or ExecuteWithParams built-in operation, or programmatically call the executeQuery() method on the iterator binding. 846 .
- 862. Specify Whether toRefresh Binding Executables The Refresh property determines the phase in which to invoke the executable, whereas the RefreshCondition property determines whether to refresh the binding. Before refreshing any bindings, the ADF run-time evaluates the RefreshCondition attribute of the executables, which specifies the conditions under which the executable should be refreshed. You can specify the RefreshCondition value using a Boolean EL expression (default is true). If an iterator binding is not refreshed during the life cycle, it is not pointing to any row set iterator for that request. This results in the value bindings related to that iterator binding not having any data to display. This can be a desirable result when, for example, you want a page, such as a search page, to initially show no data. To achieve this, you can use the expression #{adfFacesContext.isInitialRender}, which evaluates to true when a page is first rendered. So that data does not display when the page is first rendered, use a RefreshCondition of: #{!adfFacesContext.isInitialRender}. You should set the Refresh attribute of an executable to renderModel when the RefreshCondition is dependent on the model. So if you want to use the #{adfFacesContext.isInitialRender} expression in a RefreshCondition of an executable, you must set the Refresh property to either renderModel or renderModelIfNeeded, so that the executable refreshes during the Prepare Render phase. 847 .
- 863. Task Flow andADF Life Cycle Task flows associated with ADF regions are initially refreshed when their parent page is first displayed. The task flow’s bindings are refreshed based on the Refresh and RefreshCondition attributes. Regions, like pop-ups, that are not initially displayed are also initialized at page startup. You can use a task-flow router activity to defer region initialization. An ADF region initially refreshes when the parent JSF page on which the region is located first displays. To execute the ADF task flow at the same time that the region renders, you must trigger a task flow binding refresh at the same time that the region renders. During initial refresh, any binding parameter values for the ADF region task flow are passed in from the parent page. The parameter values are used to display the initial page fragment within the ADF region. If the ADF-bounded task flow relies on input parameter values that are not available when the page is first created, ensure that your task flow behaves correctly if the input parameter values are null. An ADF region task flow binding can be refreshed again based on one of the following task flow binding attributes: • Neither Refresh nor RefreshCondition attributes specified (default) • RefreshCondition="#{EL.expression}" • Refresh="ifNeeded" If the ADF region task flow binding does not have parameters, Refresh="ifNeeded" is equivalent to not specifying the Refresh attribute. If you set Refresh to ifNeeded, the RefreshCondition attribute should not be specified. 848 .
- 864. Declarative Control overIndividual Page Life Cycle Refresh="ifNeeded": Any change to a task flow binding parameter value causes the ADF region to refresh. There are no values other than ifNeeded for the Refresh attribute. RefreshCondition="#{EL.expression}": The ADF region is refreshed a single time when its RefreshCondition evaluates to true. RefreshCondition must evaluate to a Boolean value. At the time RefreshCondition is evaluated, if the bindings variable is used within the EL expression, the context refers to the binding container of the parent page, not the page fragment displayed within the ADF Region. RefreshCondition is independent of the change of value of the binding parameters. If the task flow binding parameters do not change, nothing within the ADF region changes. 849 .
- 865.
- 866.
- 867. Lesson Agenda This lessonteaches you to implement business logic programmatically. You add business logic to entity and view object classes and add service methods to an application module. You learn to use ADF BC client APIs to change the behavior of business components, and then test the modified functionality by creating and running a test client. 852 .
- 868.
- 869.
- 870. Using Client APIs TheJava interfaces of the oracle.jbo package provide a client-accessible API for your business service. This package intentionally does not contain an Entity interface, or any methods that would allow clients to directly work with entity objects. Instead, client code works with interfaces such as: ApplicationModule: To work with the application module ViewObject: To work with the view object Row: To work with the view rows For a list of the most commonly used methods in the oracle.jbo interfaces, see Appendix E in the Fusion Developer’s Guide for ADF. 855 .
- 871.
- 872.
- 873.
- 874.
- 875.
- 876.
- 877. Entity object definitionXML metadata file: This file is an entity descriptor, which holds metadata definition for the entity. This file stores the following configurations for an entity object: This file stores the database object on which the entity is built upon. An entity object can be built from a database table, view, synonyms, or materialized view. This file also stores the attribute definition for each column present in the entity object. This includes the datatype, length, precision, validation rules, and updatability of the attribute. Attribute definition also includes UI hints such as label, tool tip, format type, and control type. °°View accessors and entity accessor attributes' definitions are also stored in this file. View accessors and entity accessor attributes' definitions are used for accessing view objects and associated entity objects, respectively. °°Business event definitions that are used for launching business processes in a service oriented environment. Entity definition: This class acts as a runtime Java class representation for the entity object definition XML metadata file. The default entity definition class used by the ADF Business Components' runtime is oracle.jbo. server.EntityDefImpl, which can be extended to provide custom functionalities, if needed. • Entity object: This class represents individual entity instance created from the entity definition at runtime. The default entity object class used by the ADF business components' runtime is oracle.jbo.server.EntityImpl, which can be extended to provide custom functionalities, if needed. In simple words, an entity object instance represents a row in the datasource. For example, when you query an Employee table in the database by using a view object backed up by the EmployeeEO entity object, the framework creates EmployeeEO entity object instances for storing employee records returned by the SQL query. • Entity collection: This class represents the cache of the entity object class held in memory for a transaction. The default entity collection (entity cache) class used by the ADF Business Components' runtime is oracle.jbo.server. EntityCache, which can be extended to provide custom functionalities, if needed. 862 .
- 878.
- 879.
- 880.
- 881. Generate Java Classesfor Adding Code ADF enables you to customize the behavior of your business components to the requirements of your application. Although an increasing number of modifications can be accomplished declaratively, there are cases where you must add code to meet the requirements. By default, the only files generated for business components are the metadata files in XML. If you need to add Java code, you can optionally generate Java classes on the Java tab of the component’s editor as follows: Click Edit (the pencil icon). In the Select Java Options dialog box, select the check boxes for the class and methods that you want to generate. Click OK to generate the class. Then add to the class the methods that you want to code. Just as with the XML definition file, JDeveloper keeps the generated code in your Java classes up to date with any changes you make in the editor. To delete a Java class that has already been generated, follow the same process, but deselect those classes that you want to delete. Any code that you may have added to those classes is lost when you delete the class. 866 .
- 882. Supporting Entity JavaClasses There are three base Java classes that implement entity objects: EntityImpl: This is the entity object class. At run time, one entity object is instantiated for each row of data. This class contains methods to get and set entity attribute values. All entity object classes extend this class. The EntityImpl.java class provides methods to insert, update, delete, and lock rows. The ADF Business Components technology uses this class to manage instances of each entity. When you generate the entity object class, you can also generate: Accessors: Generate typesafe accessors for the entity object’s attributes. Data Manipulation Methods: Generate methods to override DML methods, such as lock() and doDML(). Create Method: Select to override the create() method to modify or add initialization features to the create logic. Remove Method: Select to override the remove() method to modify or add clean- up code to the remove logic. EntityDefImpl: This is the entity definition class. At run time, one entity definition is instantiated for each entity. You can add methods to this class that are used by all entity object instances. For example, you could override a method to globally change the default format mask for number attributes. EntityCollImpl: This class represents the set of rows from the entity that is stored in the internal ADF Business Component cache. You do not usually need to generate or modify this class, but if you do, you may also choose to generate bind variable accessors and typesafe getters and setters for named bind variables. An example of when you might want to generate this class is if you need to programmatically retain and reuse an association accessor row set. When you choose to generate Java classes for entity objects, the classes that are generated extend the base classes. The classes that you generate use the entity name, followed by Impl, DefImpl, or CollImpl (such as PersonEOImpl.java). These classes provide methods to manipulate either row-level data or the definition of the entity itself. You can use the generated classes to add custom validation or business logic. You learn later in this lesson about the base classes for view objects and application modules. 867 .
- 883.
- 884.
- 885.
- 886.
- 887.
- 888.
- 889. Eagerly Assign Valuesfrom a Database Sequence As you learned in the lesson titled “Declaratively Customizing Data Services,” you can declaratively assign the DBSequence type for primary key attributes whose values are populated by a database trigger at commit time. However, you can also eagerly allocate a sequence number to use as a default value for an attribute so that: The user can see its value The value does not change when the data is saved To accomplish this, use the SequenceImpl helper class in the oracle.jbo.server package: You override the initDefaults() method, as shown in the example in the slide. It shows code from the Java class of a ProductEO entity object. Call the initDefaults()method of the parent class. Create a new instance of the SequenceImpl object to get a handle to the database sequence. Obtain the next number from the database sequence. Assign the next sequence number to the ProdId. The disadvantage of using a database sequence in this manner is that it results in more gaps in the numbers assigned to primary keys, because if the user does not commit the record, the sequence number is wasted. 874 .
- 890. Update Deleted FlagInstead of Deleting Rows Your requirements may demand that rows are never physically deleted from a table, but rather only have the value of a DELETED column changed from N to Y to mark it as deleted. There are two method overrides required to alter an entity object’s default behavior to achieve this effect: Update a DELETED flag when a row is removed: Generate a Java class for your entity object and override the remove() method to set the deleted flag before calling the super.remove() method. The row will still be removed from the row set, but it will have the value of its DELETED flag modified to Y in the entity cache. It is important to set the attribute before calling super.remove(), because an attempt to set the attribute of a deleted row causes DeadEntityAccessException. Force an update instead of a delete: Override the doDML() method and write code that conditionally changes the operation flag. When the operation flag equals DML_DELETE, your code will change it to DML_UPDATE instead. With this overridden doDML() method in place to complement the overridden remove() method, any attempt to remove an entity row through any view object based on that entity will update the DELETED column instead of physically deleting the row. However, to prevent rows that are marked deleted from appearing in view object query results, you need to include DELETED = 'N' as part of the WHERE clause of each view object. 875 .
- 891.
- 892.
- 893.
- 894.
- 895.
- 896.
- 897. Traverse Associations By default,JDeveloper generates accessor methods for each association: a getter and a setter in the destination to retrieve the source, and a getter in the source to get the destination. These accessor methods are generated in the entity object classes on either end of the association. The client code does not access the entity object code directly, so you could use these methods in application module service methods or in programmatic view object or entity object code. Example of Accessor Methods: The PersonEO and OrderEO entities are linked by the PersonEOToOrderEO association. JDeveloper generates two methods in OrderEOImpl.java (the destination entity object) for traversing the association from destination to source: public PersonEOImpl getPersonEO(): Get the department to which this employee belongs. public void setPersonEO(PersonEOImpl value): Set the value of the department to which this employee belongs. To retrieve an attribute’s value from the source entity while in the destination entity, use the get<Source>() method plus the get() method for the attribute that you want to retrieve, as shown in the above example for retrieving the email address from the PersonEO entity. The PersonEO entity has only the getOrderEO accessor, with no setter. 882 .
- 898. Traverse Associations By default,JDeveloper generates accessor methods for each association: a getter and a setter in the destination to retrieve the source, and a getter in the source to get the destination. These accessor methods are generated in the entity object classes on either end of the association. The client code does not access the entity object code directly, so you could use these methods in application module service methods or in programmatic view object or entity object code. Example of Accessor Methods: The PersonEO and OrderEO entities are linked by the PersonEOToOrderEO association. JDeveloper generates two methods in OrderEOImpl.java (the destination entity object) for traversing the association from destination to source: public PersonEOImpl getPersonEO(): Get the department to which this employee belongs. public void setPersonEO(PersonEOImpl value): Set the value of the department to which this employee belongs. To retrieve an attribute’s value from the source entity while in the destination entity, use the get<Source>() method plus the get() method for the attribute that you want to retrieve, as shown in the above example for retrieving the email address from the PersonEO entity. The PersonEO entity has only the getOrderEO accessor, with no setter. 883 .
- 899.
- 900. Update or Removean Existing Entity Row You can add a method to update or remove a row. For example, you can add an application module method to update an employee row by performing the following steps: Find the Employee by ID: This example assumes that you have defined a helper method named retrieveEmployeeById() that retrieves the EmployeeEO entity object by its primary key. Set one or more attributes to new values: Use the setAttribute() method of the EntityImpl class to update the value of the Email attribute to the new value passed in. Commit the transaction: Use the application module’s getDBTransaction() method to access the current transaction object and call its commit() method to commit the transaction. The example for removing an entity row would be the same as this, except that after finding the existing entity, you would use the following line instead to remove the entity before committing the transaction: emp.remove(); 885 .
- 901. Update or Removean Existing Entity Row You can add a method to update or remove a row. For example, you can add an application module method to update an employee row by performing the following steps: Find the Employee by ID: This example assumes that you have defined a helper method named retrieveEmployeeById() that retrieves the EmployeeEO entity object by its primary key. Set one or more attributes to new values: Use the setAttribute() method of the EntityImpl class to update the value of the Email attribute to the new value passed in. Commit the transaction: Use the application module’s getDBTransaction() method to access the current transaction object and call its commit() method to commit the transaction. The example for removing an entity row would be the same as this, except that after finding the existing entity, you would use the following line instead to remove the entity before committing the transaction: emp.remove(); 886 .
- 902. Create a NewEntity Row In addition to using the entity definition for finding existing entity rows, you can also use it to create new ones. For example, you could write a createProduct() method to accept the name and description of a new product, and return the new product ID assigned to it. Assume that the ProdId attribute of the Product entity object has been updated to have the DBSequence type, so that its value is automatically refreshed to reflect the value that the ASSIGN_PRODUCT_ID trigger on the PRODUCTS table assigns to it from the PRODUCTS_SEQ sequence in the database schema. The example follows these steps: Find the entity definition: Use EntityDefImpl.findDefObject() to find the entity definition for the ProductEO entity. Create a new instance: Use the createInstance2() method on the entity definition to create a new instance of the entity object. (The method name really has a 2 at the end. The regular createInstance() method has protected access and is designed to be customized by developers. The second argument of AttributeList type is used to supply attribute values that must be supplied at create time; it is not used to initialize the values of all attributes found in the list. For example, when creating a new instance of acomposed child entity row using this API, you must supply the value of a composing parent entity’s foreign key attribute in the AttributeList object passed as the second argument. Failure to do so results in an InvalidOwnerException. Set attribute values: Use the setAttribute() method on the entity object to assign values for the Name and Description attributes in the new entity row. Commit the transaction: Call commit() on the current transaction object to commit the transaction. Return the trigger-assigned product ID to the caller: Use getAttribute() to retrieve the ProdId attribute as a DBSequence, and then call getSequenceNumber().longValue() to return the sequence number as a long value to the caller. 887 .
- 903.
- 904.
- 905.
- 906. An ADF viewobject is composed of the following components: • View definition XML file: This is the view object descriptor XML file, which holds metadata definitions. The metadata includes the following: o The SQL SELECT statement used in the view object o Bind parameter definitions used in the SQL SELECT statement o Attribute definition describing each column returned by the query—this includes UI-related metadata, such as UI Hints and UI Categories for attributes o Entity usage information (if there is entity backup for the view object) o Metadata definition for list of values (LOV) and view criteria (query) o View accessor definition for accessing other view objects o Business rules • View definition: This is the runtime Java class representation for the view definition XML file. The default view definition class used by the ADF Business Components' runtime is oracle.jbo.server.ViewDefImpl, which can be extended to provide custom functionalities, if needed. • View object: This class represents a view object instance. The view object instance manages the query execution at runtime. The default view object class used by the ADF Business Components' runtime is oracle.jbo. server.ViewObjectImpl. Developers can extend this class to add custom functionalities, if needed. • View criteria: View criteria will let you define filter conditions for attributes in a view object, which will be used at runtime to filter the query result. This implementation takes the form of a query-by-example approach, which allows the end user to supply values for attributes of the target view object in order to form the desired search condition. • Bind variables: These are placeholder variables in a SQL statement used in a view object. These variables will be replaced with the valid ones before executing the query. • View accessor: This acts as a gateway for a view object to access another view object. This is used in validation and LOV definitions. A view object uses the following framework components to set up the infrastructure for query execution and managing the result set: • Row: A row represents an element in the collection that is a result from a query on a view object. • Row set: View object uses row sets to manage the collection of rows from a query. The framework will create a different row set when the same view object is used as a mechanism to query the datasource in different contexts. Some of these areas act as query for list of values implementation and query for child collection in master-child tree structure. Parameterized conditions used for finding the row sets are maintained at each row set level. • Row set iterator: This enables the client to traverse the row set and work with individual items. A client can create one or more row set iterators to enumerate through the rows. • Query collection: A query collection contains the rows used in a view object. A view object instance may maintain multiple query collection, depending on the row filter (a data structure holding bind variable values) used by different row sets to execute query. Note that a row or row set does not store any data within it, rather they use query collection object for storing rows. • View link: View link connects two view objects, typically used for implementing master-child relationships. 891 .
- 907.
- 908.
- 909. To generate Javaclasses for a view object, double-click on the view object to display the overview editor. In the overview editor, go to the Java tab and click on Edit Java Options icon. In the Select Java Options dialog, select the types of Java classes that you want to generate. • View object class: This class is customized to add business methods and to override the default lifecycle of view object instances. For example, to build programmatic a view object, you must generate a view object class for the desired view object and override the lifecycle call back methods to hook the custom logic. • View row class: This class represents a row in the result collection in a view object. If you want to modify the default read and write operations for specific attributes, this is the class you need to extend. For example, if you have any transient attributes defined in the view object whose value is derived from other attributes in the row, you can override the get<AttributeName> method and add the logic over there. • View object definition class: This class manages the view definition implementation and controls view row creations. You may rarely customize this class to override the properties at runtime. For example, if you want to modify the properties or attributes of a view object at runtime, you can override the resolveDefObject() method in the oracle.jbo.server. ViewDefImpl class and add custom logic for altering the definition before returning to the caller. • Service data object (SDO) class: This is useful if you want to expose the view object as a web service abstracting the data of the view object. This is typically used in service-oriented architecture when you need to expose functionalities of a view object as web service. The SDO standardizes the way that data structures are passed between Java and XML. 894 .
- 910. Generate Java Classesfor Adding Code ADF enables you to customize the behavior of your business components to the requirements of your application. Although an increasing number of modifications can be accomplished declaratively, there are cases where you must add code to meet the requirements. By default, the only files generated for business components are the metadata files in XML. If you need to add Java code, you can optionally generate Java classes on the Java tab of the component’s editor as follows: Click Edit (the pencil icon). In the Select Java Options dialog box, select the check boxes for the class and methods that you want to generate. Click OK to generate the class. Then add to the class the methods that you want to code. Just as with the XML definition file, JDeveloper keeps the generated code in your Java classes up to date with any changes you make in the editor. To delete a Java class that has already been generated, follow the same process, but deselect those classes that you want to delete. Any code that you may have added to those classes is lost when you delete the class. 895 .
- 911. Support View ObjectJava Classes There are three base Java classes that implement view objects: ViewObjectImpl.java: This is the view object class. All view object classes extend this class. The ADF Business Components technology uses this class to manage instances of each view. When you generate the view object class, you can also generate bind variable accessors (typesafe accessors for the view object’s named bind variables) or custom Java data source methods. ViewDefImpl: This is the view definition class. At run time, one view definition is instantiated for each view. You can add methods to this class that are used by all view object instances. ViewRowImpl.java: This is the view row class. When you generate the view row class, you can also generate: Accessors: Typesafe accessors for the view row’s attributes Expose Accessors to the Client: Turns all accessors into client methods When you choose to generate Java classes for view objects, the classes that are generated extend the base classes. The classes that you generate use the entity name, followed by ViewImpl, ViewRowImpl, or ViewDefImpl (such as OrdersViewImpl.java). 896 .
- 912.
- 913.
- 914.
- 915.
- 916. What happens whena client invokes executeQuery() on a view object instance? When a client invokes executeQuery() on the view object the following methods defined on the view object are engaged at various stages of query execution: • ViewObjectImpl::executeQuery(): This method is invoked when a client calls executeQuery() on the view object. This method in turn engages the default row set for the view object in the query execution cycle, and delegates the call for further processing. • ViewObjectImpl::prepareRowSetForQuery(ViewRowSetImpl vrs): This method prepares the row set for query execution. If you need to assign bind variable values or modify the WHERE clause conditionally, just before executing the query for a specific row set, then this is the method where you can hook your custom code. This method also gets executed before the count query methods such as getQueryHitCount()and getCappedQueryHitCount(). The count queries are typically used by UI components such as tables or tree tables to size their scroll bar. • ViewObjectImpl::prepareVOForQuery(): This method prepares the view object for build queries. If you need to assign bind variable values or modify the WHERE clause conditionally, just before executing the query for a view object, then this is the method where you can hook your custom code. This method is called from prepareRowSetForQuery(). Logically, you will override this method if you want to alter the query or to set bind variable values at the view object level, which needs to be reflected in all containing row sets. • ViewObjectImpl::executeQueryForCollection(Object qc, Object[] params, int noUserParams): This method is invoked right before the row set starts executing the query. If this method is overridden, the custom logic will be applied to all row sets owned by this view object. In contrast, if the user overrides the view object's executeQuery(), then the custom logic in it applies only when the user calls executeQuery() on the view object. In other words, if a client calls executeQuery() on secondary row sets, then the framework will not engage the executeQuery() method during query executions. • ViewObjectImpl::buildQuery (int noUserParams, boolean forRowCount): This method builds the native SQL statement. A view object's query statement is normally built from various clauses, such as SELECT, FROM, WHERE, and ORDER BY that you set for a view object. However, an application can bypass this mechanism either by supplying a user defined query at design time and selecting an expert mode for the view object or by calling setQuery() on a view object instance at runtime. While generating the query, the framework also provides database specific interpretation for range paging, view criteria, and effective dated attributes. • ViewObjectImpl::bindParametersForCollection(QueryCollection qc, Object[] params, PreparedStatement stm): This method binds parameter values for the SQL statement at runtime. This includes bind parameters appearing in the query statement as well as the range paging parameters supplied by the framework. • ViewObjectImpl::setResultSetForCollection(Object qc, ResultSet rs): This method is responsible for storing results of query execution for further processing. By default, the result set is stored in the corresponding query collection object. • ViewObjectImpl::hasNextForCollection(Object qc): This method is invoked when a client starts to iterate over the rows set by calling hasNext() on the row set iterator. This method returns true if there are more rows in the query result. • ViewObjectImpl::createRowFromResultSet(Object iqc, ResultSet resultSet): This method creates a view row instance from the query result. The new view rows are created when the client traverses through the result set. • ViewObjectImpl::releaseUserDataForCollection (Object qc, Object data): This is a callback method which can be overridden to add some resource cleanup. Runtime invokes this method when the query collection object for the row set is garbage collected. 901 .
- 917.
- 918. Examine View ObjectMethods Because you can access view objects directly in client code, it may be useful to review the methods that are available for view objects. When you generate the view object class for a view object, it extends ViewObjectImpl, which indirectly (through the ViewObject interface) implements the RowSet interface. Rowset is an interface representing a scrollable range of rows, of which one may be designated as the current row. Some of its methods include the following: createRowSetIterator(java.lang.String name): Creates an iterator for the row set executeQuery(): Executes the view object’s query getApplicationModule(): Gets the row set’s Application Module getEstimatedRowCount(): Counts the number of rows in the collection defined by the view object’s query getMasterRowSetIterators(): Returns all controlling masters of this row set getName(): Gets the row set’s name getViewObject(): Gets the view object that contains the row set getWhereClauseParams(): Gets the bind-variable values to be used with the view object’s query condition setWhereClauseParam(int index, java.lang.Object value): Specifies a single bind-variable value to use with the view object’s query condition, and executes the query setWhereClauseParams(java.lang.Object[] values): Specifies the bind- variable values to use with the view object’s query condition, and executes the query The RowSet interface implements the RowIterator interface, which enables access to the row set. Some of its methods include the following: createRow(): Creates a new Row object, but does not insert it into the row set findByEntity(int eRowHandle, int maxNumOfRows): Finds and returns view rows that use the entity row, identified by the entity row handle, eRowHandle findByKey(Key key, int maxNumOfRows): Finds and returns view rows that match the specified key first(): Designates the first row of the row set as the current row getRow(Key key): Accesses a row through a unique key hasNext(): Tests for the existence of a row after the current row hasPrevious(): Tests for the existence of a row before the current row insertRow(Row row): Adds a row to the row set, before the current row last(): Designates the last row of the row set as the current row next(): Steps forward, designating the next row as the current row removeCurrentRow(): Removes the current Row object from the row set previous(): Steps backward, designating the previous row as the current row reset(): Clears the “current row” designation and places the iterator in the slot before the first row setCurrentRow(Row row): Designates a given row as the current row In addition to the RowSet and RowIterator interfaces, ViewObjectImpl implements the ViewObject interface, containing the following methods: applyViewCriteria(ViewCriteria criteria): Applies the view criteria to this view object createRowSet(java.lang.String name): Creates and names a row set for the view object createViewCriteria(): Creates a “Query by Example” view criteria object findViewLinkAccessor(ViewLink vl): Finds the view link accessor attribute getOrderByClause(): Retrieves the current ORDER BY clause of the view object’s query statement getQuery(): Retrieves the view object’s query statement getViewCriteria(): Gets this view object’s view criteria getViewLinkNames(): Retrieves the names of the view object’s View Links getWhereClause(): Retrieves the current WHERE clause of the view object’s query statement isReadOnly(): Tests if the view object is read-only setOrderByClause(java.lang.String expr): Sets the ORDER BY clause of the view object’s query statement setWhereClause(java.lang.String cond): Sets the WHERE clause of the view object’s query statement 903 .
- 919.
- 920.
- 921.
- 922.
- 923.
- 924.
- 925.
- 926.
- 927.
- 928.
- 929. Find a Rowand Update a Foreign Key Value This sample code looks up an employee and reassigns the employee to a different department. It uses the following steps: Finds the employees view object Constructs a key to find employee number 101 Finds the row that matches this key Prints the employee’s name Prints the current value of the employee’s department Assigns the employee to a different department Prints the new value of the employee’s department Rolls back the transaction Here is the output of this code: Employee Name: Kochhar Employee is in department 90 Employee reassigned to department 60 Transaction cancelled 914 .
- 930. Traverse Links Traversing aview link is similar to traversing an association. You use the accessor method in the source (master) view object to get the RowIterator object that contains all the associated rows in the destination (detail) view object. You can also traverse a view link from destination (detail) to source (master). Similar to the example in the slide, the OrdersViewRowImpl class contains a method to return a single row containing OrdersView. Using this method, you can determine and manipulate detail information about the Order to which the current OrderItem belongs. By default, a view link is a one-way relationship that enables the current row of the source (master) to access a set of related rows in the destination (detail) view object. This is accomplished because, by default, an accessor is generated only in the master view object. On the View Link Properties page of the Create View Link Wizard, you can change the default behavior by generating an accessor in the detail view object. At run time, the getAttribute() method on a Row enables you to access by name the value of any attribute of a row in the view object’s result set. The view link accessor behaves like an additional attribute in the current row of the source view object, so you can use the same getAttribute() method to retrieve its value. The only practical difference between a regular view attribute and a view link accessor attribute is its data type. Whereas a regular view attribute typically has a scalar data type with a value such as 303 or ahunold, the value of a view link accessor attribute is a row set of zero or more correlated detail rows. Assuming that curOrder is a Row from some instance of the Orders view object, you can write a line of code to retrieve the detail row set of order items: RowSet lineItems = (RowSet)curOrder.getAttribute(“LineItems"); The RowSet is closed when you iterate and retrieve the last row from it. If you stop the iteration before retrieving the last row, you can programmatically close the RowSet if you want to release all the rows it contains. You can do this using the closeRowSet() API. Note: If you generate the custom Java class for your view row, the type of the view link accessor will be RowIterator. At run time, the return value will always be a RowSet, so it is safe to cast the view link attribute value to a RowSet. 915 .
- 931. Iterate Master-Detail Hierarchy Thesample code, placed in a test client, iterates over all departments and their associated employees in a master-detail hierarchy. The beginning of the code sets up standard test client code, which you learn to do shortly. The remaining code performs the following actions: Finds the DepartmentsView1 view object Executes the view object query Iterates over the resulting rows Prints out the department name Gets the related RowSet of employees by using the view link accessor Iterates over the employees rows Prints out the last name of each employee The beginning of the resulting output looks like this: Department 10 Employee Name: Whalen Department 20 Employee Name: Hartstein Employee Name: Fay 916 .
- 932. Programmatically Retain andReuse a View Link Accessor Row Set In the lesson titled “Declaratively Customizing Data Services,” you learned how to declaratively retain and reuse a view link accessor row set and why it may be advisable to do so. It is also possible to perform this caching of the row set programmatically. To use the view link accessor retention feature, perform the following steps: Generate a Java class for your view object. In that Java class, override the create() method. (The optional @Override annotation tells the compiler that a superclass method is being overridden; if not done correctly, a compile error occurs.) Add a line after super.create() that calls the setViewLinkAccessorRetained() method , passing true as the parameter Because this is a method of the view definition class ViewDefImpl, this affects all view link accessor attributes for that view object. When this feature is enabled for a view object, because the view link accessor row set is not re-created each time, the current row of its default row set iterator is also retained as a side effect. Because of this, before calling code that iterates through the row set, your code needs to explicitly call the reset() method on the row set that you retrieve from the view link accessor. This resets the current row in its default row set iterator back to just before the first row. 917 .
- 933. Creating a NewRow To create a new employee, you perform the following steps: Find the employees view object. Create a new row and insert it into the row set. Set the value of some required attributes in the row. Commit the transaction. Display a message. The output is: Added employee 999 to Department 60 You can view the table by browsing it from the Navigator to see that the record was added. 918 .
- 934.
- 935.
- 936.
- 937.
- 938.
- 939.
- 940. Architecture of viewcriteria A view criteria can include multiple view criteria or view criteria rows linked by various criteria conjunction types such as AND, OR, and UNION. Each view criteria row can optionally include multiple view criteria items. The query execution mode that you set for the view criteria decides the source to read rows: • Database: In this mode view criteria is used for database query. This is the default mode. You can use the ViewCriteria.CRITERIA_MODE_QUERY constant to refer this mode programmatically. • In-memory: In this mode, view criteria is used for in-memory filtering. You can use the ViewCriteria.CRITERIA_MODE_CACHE constant to refer this mode programmatically. • Both (database and in-memory): In this mode, view criteria is used for a database query first and then for in-memory row filtering. You can combine the ViewCriteria.CRITERIA_MODE_QUERY and ViewCriteria.CRITERIA_ MODE_CACHE constants in order to refer this mode programmatically: ViewCriteria.CRITERIA_MODE_QUERY | ViewCriteria.CRITERIA_MODE_ CACHE View criteria with in-memory execution mode supports all the SQL operators discussed under RowMatch. 925 .
- 941.
- 942.
- 943.
- 944. Change View ObjectWHERE or ORDER BY Clause at Run Time You can change the WHERE and ORDER BY clauses of a query at run time by calling setWhereClause() or setOrderByClause() on the view object. Although setWhereClause() is the easiest way to change a view object’s query, it often is not the most efficient. If you can, you should use parameterized WHERE clauses or structured WHERE clauses. To change the WHERE clause of a query at run time, perform the following steps: Create a String containing the new WHERE clause. Do not include the word WHERE. If you want to remove the WHERE clause entirely, use null. For example, either of the following could be appropriate definitions: String whereClause = "ORDER_TOTAL > 500"; String whereClause = null; Pass this string into setWhereClause(). For example, if OrdVO is a variable containing the view object instance to be changed, you would call: ordVO.setWhereClause(whereClause); If there is an existing design-time WHERE clause, using setWhereClause() adds to it, further restricting the query results. To change the ORDER BY clause of a query at run time, perform the following steps: Create a String containing the new ORDER BY clause. Do not include the words ORDER BY. If you want to remove the ORDER BY clause entirely, use null. For example, either of the following could be appropriate definitions: String orderByClause = "ORDER_TOTAL"; String orderByClause = null; Pass this string into setOrderByClause(). For example, if OrdVO is a variable containing the view object instance to be changed, you would call: ordVO.setOrderByClause(orderByClause); 929 .
- 945.
- 946. Ingredients of anapplication module An application module comprises of the following components: • Application module XML metadata file: This is the application module descriptor file holding metadata definitions. The metadata includes exposed business methods and data models for use, by clients, such as view objects and associated view criteria, master-child view, objects connected through view links, and nested application modules. • Application module definition: This is the runtime Java class representation of the application module XML metadata file. The default base class for storing the application module definition is oracle.jbo.server. ApplicationModuleDefImpl which can be extended to add custom functionalities if needed. This class stores the runtime metadata for application modules read from the corresponding XML file. • Application module implementation: This class represents an application module instance generated by runtime to serve a request from the client. The default base class used for representing an application module instance is oracle.jbo.server.ApplicationModuleImpl. You will subclass this class to define the custom business logic that must execute in the application's middle tier. • bc4j.xcfg: This file contains metadata for all the application modules present in the same Java package for a project. This file is located in the Common subdirectory relative to the path where the application module's XML component definition is located. An application module's runtime behaviour is controlled by the configuration properties present in this file. The properties stored in this file include the JDBC data source name, application module pooling configurations, database specific configurations, locking mode, and so on. 931 .
- 947.
- 948.
- 949.
- 950.
- 951.
- 952. Generate Java Classesfor Adding Code ADF enables you to customize the behavior of your business components to the requirements of your application. Although an increasing number of modifications can be accomplished declaratively, there are cases where you must add code to meet the requirements. By default, the only files generated for business components are the metadata files in XML. If you need to add Java code, you can optionally generate Java classes on the Java tab of the component’s editor as follows: Click Edit (the pencil icon). In the Select Java Options dialog box, select the check boxes for the class and methods that you want to generate. Click OK to generate the class. Then add to the class the methods that you want to code. Just as with the XML definition file, JDeveloper keeps the generated code in your Java classes up to date with any changes you make in the editor. To delete a Java class that has already been generated, follow the same process, but deselect those classes that you want to delete. Any code that you may have added to those classes is lost when you delete the class. 937 .
- 953. Application Module Files Fourmain files control the behavior of the application module. <AppMod>.xml: The metadata file that contains all the definitions for every object included in the module. It includes all the attribute definitions needed during design time for all the view objects and view links in the module. This is the file that you edit declaratively when editing the application module. bc4j.xcfg: Contains all the configuration information including the JDeveloper connection details. This file is used by the BC Tester while running the module. You edit this file declaratively by using project properties (Business Components) to edit connection details, and by right-clicking the application module and selecting Configurations to edit configuration details. <AppMod>Impl.java: Contains all the methods and behaviors for the application module for which you have defined code. You need to generate this file only if you have to programmatically modify the behavior of the application module. <AppMod>Def.java: The application module definition class. At run time, one application module definition is instantiated for each application module. You can add methods to this class that are used by all instances, but this file is not used as often as <AppMod>Impl.java. 938 .
- 954.
- 955. Add Service Methodsto an Application Module Service methods are methods that are specific to an application module. These methods may be independent of any view in the application. For example, you may need a method that determines the number of current orders for a specific item in inventory. That method can be used from any client without needing to instantiate an inventory or order view. You can also add code that affects the behavior of a particular view object in the application module; for example, you can change the WHERE or ORDER BY clause of a view object. You would do this if you were reusing a view object in multiple application modules and wanted the view object to behave differently in different application modules. 940 .
- 956. Code the ServiceMethod Add the Java code for the custom method to the <name>AMImpl.java file. The example in the slide shows a retrievePersonById() method in the PersonAMImpl.java class for the PersonAM application module. It uses the getDefinitionObject() method of the PersonEOImpl entity object class to access its related entity definition, uses the createPrimaryKey() method on the entity object class to create an appropriate Key object to look up the person, and then uses the findByPrimaryKey() method on the entity definition to find the entity row in the entity cache. It returns the LastName attribute of the PersonEOImpl object. 941 .
- 957. Publish the ServiceMethod When you add a public custom method to your application module class, if you want clients to be able to invoke it, you need to include the method on the application module’s client interface. To do this, perform the following steps: Click the Java finger tab in the Application Module Editor. Click the Edit application module client interface icon (the Pencil icon). Shuttle the method you want to publish from the Available pane to the Selected pane, and then click OK. JDeveloper creates a Java interface with the same name as the application module in the common subpackage of the package where your application module resides. The interface extends the base ApplicationModule interface in the oracle.jbo package, reflecting that a client can access all the functionality that your application module inherits from the ApplicationModuleImpl class. The interface created by the example in the slide includes the retrievePersonById() method that was added to the client interface of the application module. Each time a method is added to or removed from the Selected list in the Edit Client Interface dialog box, the corresponding service interface page is updated automatically JDeveloper also generates a client proxy class that is used when you deploy your application module for access by a remote client. All the generated files are displayed in the Navigator under the application module’s node. Note: If your method does not appear in the Available list in the Edit Client Interface dialog box, it may be that it contravenes one or more of the rules for inclusion. Only public methods with parameter and return types that are primitives or that implement the Serializable interface are included in the list. 942 .
- 958. Test Service Methodsin the Business Components Browser You can use the Business Components Browser to test service methods. Double-click the application module in the tree at the left to show it. Select the method to test from the Method drop-down list, and supply values for any required parameters. When you click Execute, the results, including a return value if any, are displayed in the lower part of the window. 943 .
- 959.
- 960.
- 961.
- 962. Access Transaction You accessan application module’s transaction context through the Transaction and DBTransaction interfaces. You can access the methods in these interfaces through the getTransaction() and getDBTransaction() methods in the ApplicationModuleImpl class. Some useful methods of the Transaction interface with regard to application modules are: commit: Commits the transaction, and saves all the changes to the database. If the database connection is established, the transaction is implicitly started. connect: Attempts to establish a connection to the given database URL disconnect: Disconnects the server from the database getLockingMode: Gets the preferred locking mode for this transaction. In ADF BC, the locking mode defaults to LOCK_PESSIMISTIC; however, Oracle Fusion applications use optimistic locking by default. rollback: Rolls back the transaction, and discards all the changes setLockingMode: Sets the preferred locking mode for this transaction. Changing the locking mode affects only the subsequent locks that are placed. The Transaction interface contains a standard set of methods that include commit(), setLockingMode(), and getLockingMode(). The DBTransaction interface extends Transaction. It contains some more specialized methods that deal with entity objects. Some of the methods are findByPrimaryKey(), getSession(), and getEnvironment(). For the most part, the Transaction interface provides the methods you will use most often. JDeveloper’s online Help contains the Javadoc for oracle.jbo.Transaction and oracle.jbo.server.DBTransaction. Refer to the Javadoc for a complete list of available methods. 947 .
- 963.
- 964.
- 965.
- 966. Customize the PostPhase You can customize the behavior of the post operation by overriding EntityImpl.postChanges(), which is the method that is used, by default, to perform the post operation. The slide shows an example of this, with code that intercepts a delete action and only marks the deleted rows as deleted, without actually removing them from the table. You could use this technique if you want to preserve history of deleted rows. The code in the example calls getPostState() to determine the entity’s post state. The post state is the state of the entity object’s data relative to the transaction’s corresponding database data. The Entity interface contains a number of constants that define the possible values for an entity’s post state. The post state is set to STATUS_UNMODIFIED when the data is posted to the database. 951 .
- 967. Customize the CommitPhase The TransactionListener interface defines beforeCommit() and afterCommit() methods. You can implement a transaction listener and add it to the transactions list of event listeners by calling the transaction’s addTransactionListener() method. For example, in an entity object’s code, call: getTransaction().addTransactionListener(myTransListener); Your entity objects are also transaction listeners, and are already on your transaction’s list of event listeners. Because of this, you can also override an entity object’s beforeCommit() and afterCommit() methods. The simple example in the slide shows adding a printed notification that a record has been committed; however, you could perform any action, such as notifying an employee’s manager by email that information about an employee has been updated. Customize Rollback The procedure for Customize rollback behavior is similar to the procedure for customizing commit behavior. The TransactionListener interface also defines beforeRollback() and afterRollback() methods that are called before and after a rollback operation. 952 .
- 968.
- 969.
- 970.
- 971.
- 972.
- 973. If you wantto test custom code, you can create a test client program. Create a Java class by using the Create Java Class Wizard that you invoke from the New Gallery under the General category. Enter a class name and a package. In Optional Attributes, deselect the “Constructors from Superclass” and Implement Abstract Methods check boxes. Select the Main Method check box. Click OK to create the class. The file opens in the editor to show you the skeleton code: Place the cursor on a blank line inside the body of the main() method and use the bc4jclient code template to create the few lines of necessary code. To use this predefined code template, enter the characters bc4jclient, and then press Ctrl + Enter to expand the code template. Adjust the values of the amDef and config variables to reflect the names of the application module definition and the configuration that you want to use, respectively, such as module.FODCategoryAM and FODCategoryAMLocal. Finally, change the view object instance name in the call to findViewObject() to be the one you want to work with. Specify the name exactly as it appears in the Data Model tree on the Data Model panel of the Application Module editor, such as CategoryVO1. 958 .
- 974.
- 975.
- 976.
- 977.
- 978.
- 979.
- 980. In Hands-on labone would practice: 1. Creating a Business Service Deployment Profile 2. Creating a Web Module Deployment Profile 3. Creating an Application Deployment Profile 4. Starting Integrated Weblogic Server 5. Deploying the Application from Jdeveloper 6. Running the Application 7. Undeploying the Application . 965
- 981.
- 982.
- 983.
- 984.
- 985.
- 986.
- 987.
- 988.
- 989.
- 990.
- 991.
- 992. Overview Deploying an applicationis as important as developing the application. There is an option for us to deploy the application to a different application server provided that the server contains all runtime libraries to support the ADF application. The ADF runtime libraries, which are called Java Resource Files (JRF), are provided by default for the WebLogic server, WebSphere, and GlassFish. The ADF application is deployed to the server as a packaged enterprise archive which contains the required web content and related resource files. All the deployment library properties are configured from the Deployment option in the Project properties and Application properties options. The different archives that are helpful at different stages of the ADF web application deployments are as follows: • Java Archive (JAR): Java archive is a Java specific archive that is used to package all the Java class files related to the project. For example, we can bundle all the utility class files as a Java archive file and then use it in any other project. JAR files are used as libraries in the Model and Viewcontroller projects. The file structure includes a class file and a META-INF folder that contains the MANIFEST.MF file. • Web Application Archive (WAR): Web archive is a package of all the web-related files. The Web Archive option is available from the Viewcontroller project that contains the web resources. All files such as .html, .jspx, .jsff, and .jsf are packaged as WAR files. The file structure contains a WEB-INF folder that contains adfc-config.xml, web.xml, weblogic.xml, faces- config.xml, trinidad-config.xml, and so on. The classes folder contains the Java classes such as backing or managed bean added in the UI project. The lib folder will include all the dependent libraries that are required to compile the web archive file. • ADF library (JAR): The ADF library is an archive that is specific to the ADF framework. The ADF library is different from a Java archive file because the ADF library will pull all related libraries referenced by the files and add it to the manifest file. The dependent libraries are pulled by JDeveloper and added as a secondary import. The ADF library will expose the ADF task flows and other ADF-specific metadata files that are not exposed by a normal Java archive file. ADF libraries may contain task flows but are also used for declarative components and page templates. Using the ADF library, we can drag- and-drop the task flow onto the page as a region. The structure includes the META-INF folder containing the manifest file along with the jar-connection.xml and jar-adf-config.xml files specific to the ADF library. The ADF library can contain configuration files for the ADF application. • Enterprise Archive (EAR): Most of the web applications which involve model data interaction will be packaged using the enterprise archive. The business logic which interacts with the data layer and the presentation layer is collectively bundled into a single archive. The presentation layer information is bundled internally using the web archive and then it is added to the enterprise archive. • Metadata Archive (MAR): This archive will package all the metadata files needed for the customization of the web pages. Customization includes a few XML files that will have the delta details for different users. The metadata archive will package the XML files along with the configuration files to support the user customization. 977 .
- 993.
- 994.
- 995.
- 996.
- 997.
- 998.
- 999.
- 1000.
- 1001.
- 1002.
- 1003.
- 1004.
- 1005.
- 1006.
- 1007.
- 1008.
- 1009.
- 1010.
- 1011.
- 1012.
- 1013.
- 1014.
- 1015.
- 1016.
- 1017.
- 1018.
- 1019. In Hands-on lab,optionally you may practice: 1. Configuring the Application to use ADF Security 2. Defining Users in the Identity Store 3. Defining Application Roles 4. Implementing Security on Task Flows and Pages 5. Testing Application Authentication and Authorization . 1004
- 1020.
- 1021.
- 1022. web.xml This file canbe found in the public_html/WEB-INF folder. web.xml is the deployment descriptor for the entire application. The changes that are made as part of enabling security are: • The initialization parameter remove.anonymous.role is set to false for the JpsFilter filter as this filter is the first filter defined in the file. • Filter mapping for adfBindings along with adfAuthentication is added. This is added for the authentication servlet. • The servlet and the servlet mapping are added for adfAuthentication. • The security constraint is added for the authentication servlet so that when the framework invokes it, authentication gets triggered. weblogic.xml This file is used as the deployment descriptor for the web application deployed in the WebLogic server. The security role is assigned in the weblogic.xml file, which is located in the same folder as that of the web.xml file, using the following code: <security-role-assignment> <role-name>valid-users</role-name> <principal-name>users</principal-name> </security-role-assignment> adf-config.xml The runtime configurations for the ADF web application are added to this file. The metadata for the UI page is configured using adf-config.xml. The JaasSecurityContext element is added for the file located in the .adf/META-INF folder. The authorizationEnforce and authenticationRequire options will be set to true for the property using the following code: <sec:JaasSecurityContext initialContextFactoryClass="oracle.adf.share.security.JAASInitialContextFactory“ jaasProviderClass="oracle.adf.share.security.providers.jps.JpsSecurity Context"authorizationEnforce="true" authenticationRequire="true"/> jps-config.xml This file is located in the src/META-INF folder. The security service is provided and the service instances are defined in this file.Oracle Platform Security Services (OPSS) are defined for different security stores. Credential Store Service Provider, Login Module Service Provider, XML-based IdStore Provider, XML-based PolicyStore Provider, and Anonymous Service Provider are the service providers added to the file. Different login modules are added. The equivalent file in the WebLogic server is used for security. jazn-data.xml This file is primarily a policy store. The default security realm is added to this file in the same folder. The security realm is determined by the file in the WebLogic server domain using the following code: <jazn-realm default="jazn.com"> <realm> <name>jazn.com</name> </realm> </jazn-realm> 1007 .
- 1023.
- 1024.
- 1025.
- 1026.
- 1027. Lesson Agenda As anapplication is being built, it is advisable to test it whenever a functionality is added, so that errors are caught as early as possible. This makes problems easier to diagnose and correct. This lesson discusses ways to track down application problems and create test cases to improve software quality. It discusses tools to help you troubleshoot Fusion applications, including FileMon, JUnit, ADF Logger, ADF Diagnostics, and the JDeveloper Debugger. You also learn how to obtain assistance with JDeveloper and application problems. In Hands-on lab one would practice: 1. Copying Solution 2. Discovering Application Problems 3. Setting Breakpoints in the Debugger 4. Running Application Module in Debug Mode 1012 .
- 1028. Troubleshoot the BusinessService You have already learned about two ways to test business services without the need to define a user interface: Business Components Browser (see the lessons titled “Building a Business Model with ADF Business Components” and “Querying and Persisting Data”). If you want to troubleshoot problems with Java code in your model, you can set breakpoints in the code, and then run the BC Browser in debug mode as follows: In the Structure window, right- click the application module’s <AppModuleName>Impl.java file (for example, EmpModuleImpl.java), and select Debug from the context menu. Java test client (see the lesson titled “Programmatically Customizing Data Services”) This lesson discusses various other methods that you can use to diagnose problems with the business service model. Test Java Code with JUnit JUnit is an open source regression-testing framework for Java (see http://www.junit.org). JUnit is more of a testing tool than a troubleshooting tool, but if you are developing an application of any complexity, it could be useful to create a suite of JUnit tests to quickly verify your Java code. For example, you could write a JUnit test for each ADF BC view object to instantiate the view object and execute its query. JDeveloper provides two JUnit extensions: JUnit integration and JUnit integration for business components. You can install these extensions by selecting Tools > Preferences > Extensions > “Check for Updates.” Unit Test with JUnit Testing code as it is being developed, before it goes to QA, can improve code quality and drastically reduce maintenance and debug time. A unit test: Is highly localized Is designed to test code only within a single package Does not test interactions between packages (functional testing does that) JUnit is the most popular framework for unit testing, enabling developers to write and run repeatable tests. Its features include: Assertions to test expected results Fixtures for sharing test data Test suites that organize and run tests Graphical and textual test runners JUnit works by performing many small tests, reporting success or failure of each; it is not intended to report multiple failures per test. Improving the testability of code usually results in better design. JUnit enables you to automate tests for repeatability and to collect tests into suites for regression testing. 1013 .
- 1029. Test Java Codewith JUnit JUnit is an open source regression-testing framework for Java (see http://www.junit.org). JUnit is more of a testing tool than a troubleshooting tool, but if you are developing an application of any complexity, it could be useful to create a suite of JUnit tests to quickly verify your Java code. For example, you could write a JUnit test for each ADF BC view object to instantiate the view object and execute its query. JDeveloper provides two JUnit extensions: JUnit integration and JUnit integration for business components. You can install these extensions by selecting Tools > Preferences > Extensions > “Check for Updates.” 1014 .
- 1030. Unit Test withJUnit Testing code as it is being developed, before it goes to QA, can improve code quality and drastically reduce maintenance and debug time. A unit test: Is highly localized Is designed to test code only within a single package Does not test interactions between packages (functional testing does that) JUnit is the most popular framework for unit testing, enabling developers to write and run repeatable tests. Its features include: Assertions to test expected results Fixtures for sharing test data Test suites that organize and run tests Graphical and textual test runners JUnit works by performing many small tests, reporting success or failure of each; it is not intended to report multiple failures per test. Improving the testability of code usually results in better design. JUnit enables you to automate tests for repeatability and to collect tests into suites for regression testing. 1015 .
- 1031. Troubleshoot the UI Someof the methods that you learn in this lesson are also useful for troubleshooting problems with the user interface 1016 .
- 1032.
- 1033. Use Design-Time CodeValidation In addition to providing features such as code insight, JDeveloper’s source editor provides code validation, error cues, and correction suggestions. The following slides discuss how this works with Java, XML, and JSPX files. Design-Time XML Validation All XML documents that have a schema (XSD) or a document type definition (DTD) registered with JDeveloper (such as page definition files, .cpx files, page definition files, faces configuration files, web.xml, and so on) provide validation, as well as code insight, and adherence to audit rules. When you create Web pages and work with the ADF data controls to create the ADF binding definitions in JDeveloper, the Oracle ADF declarative files that you edit must conform to the XML schema defined by Oracle ADF. When an XML syntax error occurs, the JDeveloper XML compiler immediately displays the error in the Structure window. You can double-click the error to open the file in the XML editor. Design-Time JSPX Validation JSPX source and design time both flag errors as well as deprecated components, and perform other validations specific to JSPX and JSF. 1018 .
- 1034.
- 1035. Use Logging andDiagnostics Java and Oracle provide logging frameworks: The Java logging framework, introduced in JDK 1.4, provides extensive logging APIs through the java.util.logging package. You can find an overview of the java.util.logging package at http://java.sun.com/j2se/1.4.2/docs/api/overview- Lesson Summary.html. For an overview of the Java logging framework, visit http://java.sun.com/j2se/1.4.2/docs/guide/util/logging/overview.html. Oracle’s logging framework complements the standard Java framework to automatically integrate log data with Oracle log analysis tools. In the ODL framework, log files are formatted in XML, enabling them to be more easily parsed and reused. The ODL framework provides support for managing log files, including log file rotation. The maximum log file size and the maximum size of log directories can also be defined. 1020 .
- 1036. Use ADF Logging OracleDiagnostic Logging (ODL) enables the automatic capture of context information for meaningful analysis. You have control over which messages are logged, through logging level and module filter. By using ODL, ADF Logging messages are handled in the same way as all logging messages in the application server—they are output in a common format, and loaded into a common repository where they can be viewed as a single stream or analyzed in different ways. ADF Faces leverages the Java Logging API (java.util.logging.Logger) to provide logging functionality. 1021 .
- 1037. Java Logging The loggingAPI is part of the Java Platform, Standard Edition (Java SE) in JDK 1.4 and later versions, and the java.util.logging package is shipped with the JDK. It is designed to enable a Java program to produce messages of interest to end users, system administrators, and software developers. It is useful in production environments where you cannot run the debugger, or where running the debugger might hide the problem. For example, timing-related problems often cannot be reproduced when running in the debugger. The primary class in the logging facility is Logger. A Logger represents a sort of channel through which logging messages can be sent. Usually each class has its own Logger. A Logger is configured with a Level. This is a class that indicates the severity of the problem being reported or the level of detail required for that individual class, or both. The predefined levels are as follows: SEVERE: Extremely important messages such as fatal errors WARNING: Warning messages INFO: Informational run-time messages CONFIG: Informational messages about configuration settings FINE: Used for greater detail when diagnosing problems FINER: Even greater detail FINEST: Greatest detail There are two other values: ALL (log all messages) and NONE (no messages). A LogRecord is an object that represents a message that should be written to a log. It contains a variety of information, including the message to be printed, the name of the Logger to which it was originally sent, the Level and creation time and date of the message being sent, and the thread ID of the caller. In ADF, Java logging is particularly useful for tracing Expression Language (EL) evaluation in Faces, although the JDeveloper Debugger has been enhanced to enable you to evaluate EL expressions. 1022 .
- 1038. Configure ADF Logging OracleWebLogic Server (WLS) uses logging.xml to configure the ODL loggers globally. You can access the overview editor for Oracle Diagnostic Logging Configuration from the Application Server Navigator or from the Log window. The slide shows the Actions menu in the Log window. There are several ADF loggers that you can configure in the ODL configuration file. A logging level is a threshold set by the system administrator to control the logging of messages. The logging can be set to any one of the following seven severities for each logger individually: Failure reporting: SEVERE: Highest level of severity to catch any unexpected errors during normal execution WARNING: For internal errors or exceptions for which the user was not notified Progress reporting: INFO: Key flow steps CONFIG: Configuration properties and environment settings FINE: High-level logging message (This is the level that Oracle recommends.) FINER: Entry or exit from a routine FINEST: Low-level logging messages giving maximum detail After a level is set, only messages that have a severity greater than or equal to the defined level will be logged. For example, setting the level to WARNING means that logging occurs for WARNING and SEVERE messages. Setting the level to the lowest severity, FINEST, means that messages of all seven severities are logged. A module filter is an optional comma-delimited list of non-case-sensitive strings. You can define a filter, so only messages that match the filter criteria get logged. Use of a wildcard (%) is supported—for example, MODULE=store%, jtf%. 1023 .
- 1039. ODL Configuration OverviewEditor You configure logging levels or view existing log settings in the ODL Configuration Overview Editor. To configure log levels, perform the following steps: In the overview editor, click the Overview tab, and then select ODL Log Levels or Java Log Levels for the logger types that you want to view. If you want to see only persistent loggers, select Hide Transient Loggers. To add a logger: If the server is running, click the Add icon drop-down menu, and select Add Persistent Logger or Add Transient Logger. If the server is not running, click Add to add a persistent logger. You cannot add a transient logger. In the Add Logger dialog box, enter a logger name. Select the logging level. Click OK. For any logger, including a newly created logger, you can specify its handlers by selecting from a list of available handlers by clicking the Add icon in the Handler Declarations section. 1024 .
- 1040. Create Log Configurationsin JDeveloper To create an Oracle ADF Model debugging configuration, perform the following steps: In the Application Navigator, double-click the user interface project. In the Project Properties dialog box, click Run/Debug/Profile and create a new run configuration, for example, named ADF Debugging. Double-click the new run configuration to edit the properties. In the Edit Run Configuration dialog box, for Launch Settings, enter the following Java options for the default virtual machine: -Djbo.debugoutput=adflogger -Djbo.adflogger.level=FINE Oracle recommends level=FINE for detailed diagnostic messages. On the Run menu, select the new configuration as the active run configuration (Run > Choose Active Run Configuration). 1025 .
- 1041. View ODL Logs Fromthe main menu, select Tools > Oracle Diagnostic Log Analyzer. In the editor for Oracle Diagnostic Log Analyzer, navigate to the log file or enter the path and name of the log file. From the drop-down list, select ODL Log Level or Java Log Level. Select the corresponding check box for each type of log entry you want to view. You must select at least one type. The available ODL log level types are Incident Error, Error, Warning, Notification, Trace, and Unknown. The available Java log level types are Severe, Warning, Info, Config, Fine, Finer, Finest, and Unknown. Specify a time period for the entries you want to view. You can select the most recent period or a range. To filter the results, use the query panel to search on a text pattern. For additional query panels, click Add. To initiate the filters and display the log messages, click Search. To order the results by the message ID, select the Group by Id check box. To group the messages by time period or by request, in the Related column, select either Related by Time or Related by Request. To show or hide columns for display, select from the Column drop-down list. 1026 .
- 1042.
- 1043. Use the JDeveloperDebugger JDeveloper’s integrated debugger is very useful for finding and fixing problems in your code. The following are some key places to set breakpoints: Source breakpoint in the doIt() method of the JUCtrlActionBinding class (oracle.jbo.uicli.binding package): This is the method that executes when any ADF action binding is invoked, and you can step into the logic and look at parameters if relevant. Method breakpoints in: oracle.jbo.server.ViewObjectImpl.executeQueryForCollection method: This is the method that is called when a view object executes its SQL query. oracle.jbo.server.ViewRowImpl.setAttributeInternal method: This is the method that is called when any view row attribute is set. oracle.jbo.server.EntityImpl.setAttributeInternal method: This is the method that is called when any entity object attribute is set. ADF Structure Window and ADF Data Window The ADF Declarative Debugger provides standard debugging features such as the ability to examine variable and stack data. When an application pauses at any breakpoint (ADF Declarative or Java code breakpoint), you can examine the application status using a variety of windows: You can check where the break occurs in the Breakpoint window. You can check the call stack for the current thread using the Stack window. When you select a line in the Stack window, information in the Data window, Watches window, and all Inspector windows is updated to show relevant data. You can use the Data window to display information about arguments, local variables, and static fields in your application. The ADF Structure window displays the run-time structure of the project. The ADF Data window automatically changes its display information based on the selection in the ADF Structure window. For example, if a task flow node is selected, the ADF Data window displays the relevant debugging information for task flows. Use Quick Javadoc After you have added the ADF Source library to your project, you instantly have access to the helpful Quick Javadoc feature that the JDeveloper code editor makes available. You can right-click a class or method, or press Ctrl + D, to invoke it. This not only helps when writing code, but also when debugging it. 1028 .
- 1044. Understand Breakpoint Types Thereare several different types of breakpoints, each with different uses: Exception: An exception of this class (or a subclass) is thrown. This is useful when you do not know where the exception occurs, but you know what kind of exception it is, such as a java.lang.NullPointerException. The check box options enable you to control whether to break on caught or uncaught exceptions of this class. The Browse button helps you find the fully qualified class name of the exception. The Exception Class combo box remembers the most recently used exception breakpoint classes. Note that this is the default breakpoint type when you create a breakpoint in the breakpoints window. Source: A particular source line in a particular class in a particular package is run. You can create a source breakpoint in the New Breakpoint window, but it is usually easier to create it by clicking in the breakpoint margin in the editor at the left of the line you want to break on. Method: A method in a given class is invoked. This is handy to set breakpoints on a particular method that you might have seen in the call stack while debugging a problem. Of course, if you have the source, you can set a source breakpoint wherever you want in that class, but this kind of breakpoint enables you to stop in the debugger even when you do not have a source for a class. Class: Any method in a given class is invoked. This can be handy when you might only know the class involved in the problem, but not the exact method you want to stop on. Again, this kind of breakpoint does not require source. The Browse button helps you quickly find the fully qualified class name you want to break on. Watchpoint: A given field is accessed or modified. This can be helpful to find a problem if the code inside a class modifies a member field directly from several different places (instead of going through setter or getter methods each time). You can stop the debugger in its tracks when any field is modified. You can create a breakpoint of this type by using the Toggle Watchpoint menu item on the shortcut menu when pointing at a member field in the source of the class. To see the Debugger Breakpoints window, use the View > Breakpoints menu choice from the main JDeveloper menu, or optionally the key accelerator for this: Ctrl + Shift + R. You can create a new breakpoint by selecting Add Breakpoint from the context menu anywhere in the Breakpoints window or by clicking the plus sign on the Breakpoints toolbar. ADF Framework Debugging You use the ADF Declarative Debugger in JDeveloper to set breakpoints on ADF task flow activities, page definition executables, and method, action, and value bindings. Instead of needing to know all the internal constructs of the ADF code, such as method names and class names, you can set breakpoints at the highest level of object abstraction. You can set or remove such breakpoints by right-clicking task flow activities or bindings and selecting Toggle Breakpoint; you can also set or remove breakpoints on executables or bindings by clicking the margin in the binding editor. For example, when you set a breakpoint on the Choose Action router activity in the CheckoutFlow, a red dot icon appears on the activity, as shown in the slide. When the breakpoint is reached, the application pauses and the icon changes, as shown. After the application pauses at the breakpoint, you can view the run-time structure of the objects as a tree in the ADF Structure window, as shown in the slide. The ADF Data window displays a list of data for a given object selected in the ADF Structure window. 1029 .
- 1045. Use Breakpoints You canuse breakpoints for more than just stopping code execution. JDeveloper supports advanced breakpoint actions and conditions for fine-tuning when a breakpoint is triggered and what action happens. Virtually any Boolean expression can be a breakpoint condition, and it can be applied to all threads, or a specific set of named threads. The first of the conditional breakpoint examples in the slide breaks only when the variable value is a Date type. The second breaks only when the status is “shipped.” The third breaks only when the variable i is greater than 50. The third example (i>50) is particularly useful if you have a breakpoint inside a loop (with i as the loop variable) but you know your problem occurs only when the loop has executed a number of times. For actions, breakpoints typically just break into the code. However, you can beep, log a message or an expression result to the log console, dump the stack, or enable or disable a group of breakpoints. 1030 .
- 1046. Object Preferences An excellentbut often overlooked feature of the JDeveloper Debugger is the ability to filter for the members that you want to see in the debugger window for any class. In the debugger’s Data window, pointing at any item and selecting Object Preferences from the context menu opens a dialog box that enables you to customize which members appear in the debugger and (more importantly sometimes) which members do not appear. These preferences are set by class type and can really simplify the amount of scrolling you need to do in the debugger Data window. This is especially useful while debugging when you might be interested only in a few members of a class. Displaying fewer fields narrows your focus when debugging and may make it easier to locate and isolate potential problems in your program. For example, you can create filters for classes in the Data windows so that the debugger displays only the fields of interest to you. This drastically reduces clutter and allows you to find the relevant data more quickly. 1031 .
- 1047. Use the ELEvaluator When you debug and reach a breakpoint, you can use the EL Evaluator to examine the value of an EL expression. The EL Evaluator appears as a tab in the debugger window area; you can select View > Debugger > EL Evaluator if it is not visible. Enter an EL expression in the input field. When you enter #{ in the field, a discovery function helps you to select the correct expression to evaluate, and auto-completion also facilitates expression entry. You can evaluate several EL expressions at the same time by separating them with semicolons. After you have entered the expression or expressions, click Evaluate. If the EL expression no longer applies within the current context, the expression evaluates to null. The EL Evaluator is different from the Watches window in that EL evaluation occurs only when stopped at a breakpoint, not when stopped at subsequent debugging steps. 1032 .
- 1048. Use Oracle ADFSource Code for Debugging Adding Oracle ADF source code to your application debugging session will: Provide access to the JDeveloper Quick Javadocs feature in the code editor. Without the source code, you will have only standard Javadocs. Enhance the use of breakpoints by showing the Oracle source code that is being executed when the breakpoint is encountered. You can also set breakpoints more easily by clicking the margin in the source code line you want to break on. Without the source code, you will have to know the class, method, or line number in order to set a breakpoint within Oracle code. Allow you to see the values of all local variables and member fields in the debugger. If you have valid Oracle ADF support, you can obtain the complete source code for Oracle ADF by opening a service request with Oracle Worldwide Support. You can request a specific version of the Oracle ADF source code 1033 .
- 1049. Set Up OracleADF Source Code for Debugging After you receive or download the source file archive, extract it to a working directory. You create libraries of the source code Jave Archive (JAR) files in this directory, and then add the libraries to your JDeveloper projects. To add the ADF source zip file into the user library, perform the following steps: Select Tools > Manage Libraries to display the Manage Libraries dialog box. With the Libraries tab selected, click New. In the Create Library window, enter a library name for the source that identifies the type of library and select the Source Path node in the tree structure. Do not enter a value for the Class Path. Click Add Entry. In the Select Path Entry window, browse to the source file directory and select the source zip file. Click Select. In the Create Library window, verify that the Source Path entry has the correct path to the source zip file, and deselect the “Deployed by Default” check box. Click OK. Click OK to close the Manage Libraries dialog box. After the source library has been added to the list of available libraries, add it to the project you want to debug, as you would add any library. 1034 .
- 1050. Set Breakpoints inSource Code After adding the source code to your project, you can debug any Oracle ADF code for the current project in the same way as you have been doing for your own Java code. This means that you can press Ctrl + – (the minus sign) to open a “Go to Java Class” dialog box, in which you can enter any class name in Oracle ADF. When you select the class and click OK, JDeveloper opens the source file automatically, so you can set breakpoints as desired. Hint: In the “Go to Java Class” dialog box, you can enter just the uppercase letters from a class name. For example, to find JUMethodIteratorDef, you can enter JUMI and the class is located. 1035 .
- 1051. Use Common OracleADF Breakpoints If you loaded Oracle ADF source code, you can use additional breakpoints to debug your application. By looking at the stack window when you hit these breakpoints and stepping through the source, you can get a better idea of what is going on. These breakpoints are useful for debugging declarative functionality. Commonly used ADF breakpoints include: oracle.jbo.JboException: Exception breakpoint that is the base class of all ADF BC run-time exceptions oracle.jbo.DMLException: Exception breakpoint that is the base class forexceptions originating from the database doIt(): Method exception from the class oracle.jbo.uicli.binding.JUCtrlActionBinding: Executes when any ADF action binding is invoked, so you can step into the logic and look at parameters if relevant oracle.jbo.server.ViewObjectImpl.executeQueryForCollection: Method exception; called when a VO executes its SQL query oracle.jbo.server.ViewRowImpl.setAttributeInternal: Method exception; called when any view row attribute is set oracle.jbo.server.EntityImpl.setAttributeInternal: Method exception; called when any entity object attribute is set 1036 .
- 1052. 1037 ADF Faces providesoptimized markup to the client such as content compression and rendering optimized markup to the client. The debug-output flag will force ADF Faces runtime to render nicely formatted and readable markup to the client, whereas the context parameter will ensure that style class names and ID are not compressed to 0x and instead render the full name e.g. OraSelectInput This makes debugging client side much easier, but will also effect performance. Ensure to turn this off when deploying to production environment. .
- 1053. Debug Interactions withthe Model Layer The processing of your JSF page in combination with Oracle ADF Model is controlled by two classes: oracle.adf.controller.faces.lifecycle.FacesPageLifecycle: Provides the default implementation of the phase of the ADF life cycle. oracle.adf.controller.v2.lifecycle.PageLifecycleImpl: Provides the starting point for creating the objects of the Oracle ADF binding context FacesPageLifecycle implements certain methods of PageLifecycleImpl to provide customized error-handling behavior for ADF Faces applications. A good place to set a breakpoint in the FacesPageLifecycle class is on the prepareModel() method because it initiates the first phase of the ADF life cycle. Generally, however, you set breakpoints on PageLifecycleImpl because it is the starting point. The successful interaction between the Web page and these objects of the Oracle ADF binding context ensures that the page’s components are displayed with correct and complete data, that methods and actions produce the desired result, and that the page renders properly with the appropriate validation errors. 1038 .
- 1054. Correct Failures toDisplay Data After BindingContainer is created by BindingContext, the ADF life cycle initiates the Prepare Model and the Render Model phases before data can be displayed on the Web page. Before the bindings are resolved and data can appear on the Web page, the page parameters must be set and the Iterator and Method executables must be refreshed by executing the named service methods and ADF iterator bindings. The ADF life cycle enters the Prepare Model phase by calling BindingContainer.refresh(PREPARE_MODEL). During the Prepare Model phase, BindingContainer page parameters get prepared and then evaluated. Next, BindingContainer executables get refreshed based on the order of entry in the pagedef.xml file’s <executables> section and on the evaluation of their Refresh and RefreshCondition properties (if present). When an executable leads to an iterator binding refresh, the corresponding data control is executed, and that leads to the execution of one or more collections in the service objects. If an iterator binding fails to refresh, a JBO exception is thrown and the data is not available to display. 1039 .
- 1055. Correct Failures toInvoke Actions and Methods When the executables are refreshed, actions and custom methods may be invoked on the page. At this stage, the corresponding action or method binding is refreshed. If an executable or its target binding is not executed, the action is ignored. The entry point for action and method execution is the DCDataControl.invokeOperation() method. Debugging on that method enables you to work with the same method that the data control uses to invoke the method. This is preferred because some adapter data controls can interpret the method name in a custom way rather than leave it to ADF to call the method. To debug the action or method invocation for the binding container, perform the following steps: In the oracle.adf.model.binding.DCDataControl class, set a breakpoint on invokeOperation() as the entry point to debug an action or method invocation. When processing pauses, step into the method to verify that instanceName in the Data window shows that the method being invoked is the intended method on the desired object. Verify that args in the Data window shows that the parameter value for each parameter being passed into your method is as expected. To debug an invocation of a coded method for the binding container, perform the following steps: In your class, set a breakpoint on the desired method. In the oracle.adf.model.generic.DCGenericDataControl class, set a breakpoint on invokeMethod() to halt processing before looking into the Data window. When processing pauses, step into the method to verify that instanceName in the Data window shows that the method being invoked is the intended method on the desired object. Verify that args in the Data window shows that the parameter value for each parameter being passed into your method is as expected. If the debugger does not reach a breakpoint that you set on an action in the binding container, then the error is most likely a result of the way the executable’s Refresh and RefreshCondition attributes were defined. Examine the attribute definitions. Whether the <invokeAction> executable is refreshed during the Prepare Model phase, depends on the value of Refresh and RefreshCondition (if they exist). If Refresh is set to prepareModel, or if no value is supplied (that is, it uses the default ifneeded), then the RefreshCondition attribute value is evaluated. If no RefreshCondition value exists, the executable is invoked. If a value for RefreshCondition exists, then that value is evaluated, and if the return value of the evaluation is true, then the executable is invoked. If the value evaluates to false, the executable is not invoked. The default value always enforces execution. 1040 .
- 1056. Debug Life CycleEvents: Task Flows This slide describes where to set breakpoints if you want to stop at specific points in a task flow. 1041 .
- 1057. Debug Life CycleEvents: Parameters and Methods The execute() method for each activity type’s implementation logic is always called from oracle.adfinternal.controller.engine.ControlFlowEngine.doRouting (). If you want to track your progression through the page flow graph, this is a useful place to set a breakpoint. 1042 .
- 1058. Debug Life CycleEvents: Switching Between the Main Page and Regions 1043 .
- 1059. ADF Structure Windowand ADF Data Window The ADF Declarative Debugger provides standard debugging features such as the ability to examine variable and stack data. When an application pauses at any breakpoint (ADF Declarative or Java code breakpoint), you can examine the application status using a variety of windows: You can check where the break occurs in the Breakpoint window. You can check the call stack for the current thread using the Stack window. When you select a line in the Stack window, information in the Data window, Watches window, and all Inspector windows is updated to show relevant data. You can use the Data window to display information about arguments, local variables, and static fields in your application. The ADF Structure window displays the run-time structure of the project. The ADF Data window automatically changes its display information based on the selection in the ADF Structure window. For example, if a task flow node is selected, the ADF Data window displays the relevant debugging information for task flows. 1044 .
- 1060.
- 1061. Identif Search Pathson Windows with FileMon FileMon is a free Windows utility that you can download from http://www.sysinternals.com. Its purpose is to show where a running application searches for the files that it needs, so it is useful for resolving problems with CLASSPATH settings. To use FileMon, perform the following steps: Run filemon.exe. Set a filter for the file type in which you are interested. FileMon produces a lot of output; you probably want to set a filter to restrict the output to a more readable size. To set a filter, click the Filter button on the FileMon toolbar. For example, you can use the filter **.jsp to monitor all .jsp files that your application is trying to open. If desired, save the output to a log file. Note: You can also get information about the classes that load by using the JVM option -verbose:class. 1046 .
- 1062. Use Audit Profiles Tocreate an audit profile: From the main menu, select Tools > Preferences. The Preferences dialog box appears. Select the Audit > Profiles page. From the Profile drop-down menu, select a profile to copy. Select the rules, assists, and metrics to enable in the new profile. Configure the selected rules, assists, and metrics, if required. Click Save As. Enter a name for the new profile and click Save. The new profile name is shown in the Audit Profiles preferences page’s Profile box. Click OK. 1047 .
- 1063. Use JDeveloper’s Profiler JDeveloperincludes a profiler that you can use to gather statistics on your program so that you can more easily diagnose performance issues. With it you can examine and analyze the performance of your program. You can perform the following types of profiling: CPU profiling: Tabulates the processing time of specific methods Memory profiling: Tabulates the allocation and freeing of data objects You can start a CPU or memory profiling session for a project or any of its runnable files, and you can have multiple sessions running, depending on the availability of system resources. Note: For a simple CPU profile report that is sent to standard output, you can use the –Xprof JVM option. To use this utility, edit the project properties and select Run/Debug/Profile. Edit an existing configuration or create a new one. In the Launch Settings, add –Xprof to the Java Options field. You can also easily get garbage collection information by using the -verbose:gc JVM option. Run the Profiler Profilers are invoked from the Run menu, as alternative ways to run a program. First from the Run menu, you select the active run configuration that corresponds to the profiler options that you defined. Then you select from the Run menu again to specify which profiler to run. As you run the program (such as an ADF BC application module in the Business Components Browser), the profiler information is displayed in the JDeveloper IDE. 1048 .
- 1064.
- 1065. Obtain Help The informationthat you are able to obtain from troubleshooting can be used to search various sources of help. You can search for error numbers, exceptions, and so on. 1050 .
- 1066. Request Help If youask a forum for help, try to include as much relevant information as possible. You are not expected to include all the information listed for every problem, just what is appropriate. Give your post a meaningful subject line. For example, “Need help” is less likely to get anyone to look at your post than “Unable to refresh detail when clicking tree node.” Including stack trace information in your posting can be extremely useful. JDeveloper’s Stack window makes communicating this information easy. Whenever the debugger is paused, you can view the Stack window to see the program flow as a stack of method calls that got you to the current line, and use the context menu to set some helpful options: Preferences: You can set the Stack window to include the line number information as well as the class and method name that are there by default. Export: Save the current stack information to an external text file. Provide concrete examples in your request for help rather than abstract descriptions. For example, you might start a problem description as follows: “My page contains an input form for editing customer information. Each customer can have one or more phone numbers.” This is easier to understand than an abstract description, such as: “My page contains an input form for editing an object, one of whose attributes can have one or more values.” When you solve your problem, you should post the solution to the forum thread, so that others can benefit from it. 1051 .
- 1067.
- 1068.
- 1069.
- 1070.
- 1071. In a viewobject, you will have the custom logic to work on SQL queries and the data that is displayed in the UI layer. The following are some of the advanced concepts for view objects: • Tuning: View object tuning plays an important role in the performance of an application. Some of the common tuning concepts are discussed here in this section. • MaxFetchSize: MaxFetchSize is the maximum number of rows fetched from a database for the current view object.-1 will retrieve an unlimited number of rows or all the rows returned from a query. The value 0 will cause no query execution and no rows will be returned. • FetchSize: This is the number of rows that is returned on a single database round trip. This setting will determine how many rows will be returned for a particular view object at runtime on a single query. • FetchMode: This is the mode that controls how the rows are retrieved in a JDBC result set. Some of the modes allowed for this function are as follows: o FETCH_ALL: This mode will fetch all the rows at once o FETCH_AS_NEEDED: This mode will fetch the number of rows defined by FetchSize first, and the rows are again fetched upon further request • RowFetchLimit: This option is provided in the adf-config.xml file to limit the number of rows fetched by the view object query, and it is applied to the entire view object in an application. • Forward-only mode: This setting is used to manage one row and the next row. The navigation proceeds in a linearly forward manner. • ListRangeSize: This is the setting for the list of values that are added to the attribute in the view object. The value of this setting will be set to a lesser value to reduce a large number of rows being returned unnecessarily. The value -1 will retrieve all the rows. • RangeSize: This is the setting that is added in combination with the ListRangeSize setting in the UI binding iterator. A value of -1 will include all the rows to be displayed in the iterator range. • AccessMode: This defines how the row is accessed in a view object. The modes are as follows: o SCROLLABLE: This mode is used to cache rows in a collection. o FORWARD_ONLY: This mode is used for sequential access to rows in a collection. o RANGE_PAGING: The paging is done based on the defined value of RangeSize. If the rows that are requested are not in the range, the rows are fetched from the database using the ROWNUM query. o RANGE_PAGING_AUTO_POST: The rowset will post any changes in the transaction for rows out of the current range. • Query Optimizer: These are hints added to a query to help retrieve the record efficiently. This will influence the execution plan of the query. The modes are as follows: o ALL_ROWS: This mode fetches all rows as quickly as possible o FIRST_ROWS: This mode fetches the first row as quickly as possible • SQL Mode: Use the view object SQL mode to control the area from which the rows have to be retrieved. You can combine the following query modes to retrieve records efficiently: o QUERY_MODE_SCAN_DATABASE_TABLES: This mode is used to scan rows from the database. This is the default mode. o QUERY_MODE_SCAN_VIEW_ROWS: This mode is used to scan rows from the view cache. This mode uses the existing rows and will not go back to the database. o QUERY_MODE_SCAN_ENTITY_ROWS: This mode is used to scan rows from the entity cache. This mode uses the entity object rows that are valid for entity-based view objects. • Association Consistent: When using two view objects that have the same entity type, one view object is notified about the changes made to an entity through the other view object via the flag to view link consistency. The flag to view link consistency is jbo.viewlink.consistent in the AM configurations, which can be performed programmatically using setAssociationConsistent(true). 1056 .
- 1072.
- 1073. Configuring Locking Modefor an ADF application The jbo.locking.mode configuration property controls how entities are locked. This property is configurable from two places: • Per application module level: Open the application modules in the editor and then select the desired configuration. Click on the yellow edit icon to open up the Edit configuration dialog box. Click on the Properties tab and modify jbo.locking.mode to the desired value. • Application level: Double-click on the adf-config.xml file in the ADF META-INF folder in the Application Resources under the Descriptors panel view in Application Navigator. Click on the Business Components tab on the adf-config.xml editor window and set Locking Mode appropriately. Supported values for jbo.locking.mode are as follows: • None: This implies the case where no locking is done when the user updates a row. • Pessimistic: The pessimistic locking mode will try to lock an entity instance in advance before allowing any changes by explicitly firing SELECT FOR UPDATE on the underlying database row, and the row will remain locked till you commit the transactions. This is not recommended for a web application in optimistic mode, because during recycling of application modules framework will issue a rollback on JDBC connection and potentially client may loss all the lock associated with database connection. • Optimistic: The optimistic locking mode will try to lock the entity before posting modified data to the database, followed by a check for stale data. • Optupdate: The optupdate locking mode will not issue lock on the row, it will just see if all row attributes that are participating in the update have the latest value from the database table. 1058 .
- 1074.
- 1075.
- 1076.
- 1077.
- 1078.
- 1079. Design for Reuse Creatingand consuming reusable components should be included in the early design and architectural phases of software projects. You and your development team should consider which components are candidates for reuse, not only in the current applications but also for future applications and for applications being developed in other departments. When you create reusable components, you should try to create unique and relevant names for the application, project, application module, task flow, or any other relevant file or component. Do not accept the JDeveloper Wizard’s default names, but try to have unique names to avoid name conflicts with other projects or components in the application. You should also consider creating standardized naming conventions so both creators and consumers of ADF Library JARs can readily identify the component functionality. You and your team should decide on the type of repository needed to store the library JARs, where to store them, and how to access them. You should consider how to organize and group the library JARs in a structure that fits your organizational needs. 1064 .
- 1080. Conform to PPRGuidelines When PPR is implemented correctly, it improves application performance as follows: Rendering performance is improved by generating only a subset of the page. Network traffic is reduced by sending only a subset of the page’s contents to the browser. User perception of performance is improved because of not spending time looking at a blank page. When performance improvement is not possible with PPR, it should not be implemented, thus avoiding unnecessary code bloat. PPR should not be invoked in the following contexts: When navigating to another page, because some page elements, such as page titles, do not change during PPR When response times may be long (user is blocked during a partial page submit), such as: Database queries or database maintenance operations Processes that demand significant middle-tier processing When multiple sections of the page need to be redrawn, such as: Action or choices that affect more than half the content of the page Inline messaging, which features a message box at the top of the page, and may insert inline messages below multiple fields 1065 .
- 1081.
- 1082.
- 1083.
- 1084.
- 1085.
- 1086.
- 1087.
- 1088.
- 1089.
- 1090.
- 1091.
- 1092.
- 1093.
- 1094.
- 1095.
- 1096.
- 1097.
- 1098.
- 1099.
- 1100.
- 1101.
- 1102.
- 1103.
- 1104.
- 1105.
- 1106.
- 1107.
- 1108.
- 1109.
- 1110.
- 1111.
- 1112.
- 1113.
- 1114.
- 1115.
- 1116.
- 1117. Hands-on Lab practicesprovides sample and steps to learn following advance but common features: 1. Custom View Criteria 2. Traversing and deleting master-detail 3. Creating an Application Module base class 4. Programmatically calling EL, scopes and conditional display 5. Adding Router Activity 6. Programmatically handling confirm Dialog Yes and No 7. Programmatically invoking Popup 8. Programmatically closing Popup 9. Rendering Dynamic Region 10. Add Context Menu 11. Creating Data Control Method from Backing Bean 12. Contextual Events 13. Programmatically adding PPR 14. Programmatically handling UI CRUD transactions . 1102
- 1118. Hands-on lab practiceapplication design. . 1103
- 1119. Hands-on lab practiceapplication design. . 1104
- 1120. Hands-on lab practiceapplication design. . 1105
- 1121. Characteristics of theContextual Event Framework When a page contains multiple regions that need to work together to display relevant information to the user, the need to communicate between regions becomes very important. This communication can be handled through an event framework called the Contextual Event Framework. This framework provides the page with the ability to map events to be produced and consumed by the page’s various regions, along with the information to be passed to the consumer regions. In a typical scenario, a consumer would need to register with the producer to get event notification. However, the Contextual Event Framework in ADF enables the producer and consumer to be tied through an event routing mechanism. The producer publishes the contextual event it is going to raise. The page listens for the event and then routes it to the consumer. The Contextual Event Framework includes the following characteristics: • A contextual event can go across data controls. • A contextual event can be raised or consumed only with a method action binding that must be only data control methods, not managed bean methods. • Event payload can either be primitive or any serializable object. 1106 .
- 1122. Contextual Events: Example Asan example of using the Contextual Event Framework, consider a containing page that contains two regions representing two task flows. The task flows in the separate regions have no knowledge of one another, as if there is a wall between them. Only the containing page has knowledge of both regions, so it is the containing page that must coordinate the interaction between them. The goal of creating a contextual event in this example is to accomplish the following: • Pass information from the first region to the second region. • React in the second region based on the information that is passed. When an action, such as a button click, occurs in the first region, the event is initiated. There is a method defined that constructs the payload for the event, that is, the information that is being passed to the other region. There is another method on the target, or consumer region, that specifies how that region should respond. The job of the containing page is to map the event: specify which is the payload method, which is the handler method, and so on. 1107 .
- 1123. Using Contextual Events Thereare several aspects that define a contextual event: 1. A container page that contains the regions to be coordinated 2. A producer that invokes a method to raise the event and provide a payload (information needed by the event) 3. A consumer that is the target of the event 4. A handler method that is bound either to the consumer page fragment or to the page containing the regions 5. An event mapping on the container page definition that specifies: - The producer region and payload method - The event name - The consumer and event handler - The parameter (payload) to pass to the event The steps required to set up a contextual event are described in the next few slides. 1108 .
- 1124. Using Contextual Events:Step 1 Although they do not need to be performed exactly in order, defining a contextual event requires several steps as explained in this and the following slides: 1. Create the container, producer, and consumer: If you have two regions on a containing page that you want to coordinate by using contextual events, you first need to decide which is the producer and which is the consumer. For example, you may want the data in the consumer region to display differently depending on what is clicked in the producer region, such as displaying products or categories when the user clicks a subcategory or a root category in a category tree. (This is the example that is used in the course application.) 1109 .
- 1125. Using Contextual Events:Step 2 2. Create the method that constructs the payload and expose it as a data control: After you have designated the producer and the consumer, you can determine what data, or payload, the consumer of the event requires to refresh its region appropriately. This can be as simple as passing a foreign key value, but some complex business logic may be required to produce the data needed by the consumer region. In any case, you need to create a method to construct the event payload. This can be in a separate Java class, or it can be a service method in the application module. The method must always return the event payload. No matter how you create the method, you must expose it as a data control. If it is in a separate Java class, you can simply drag it to the Data Control Palette. If it is an application module method, you must expose it to the client interface. 1110 .
- 1126. Using Contextual Events:Step 3 3. Invoke the payload method: You need to call the method that you just created, so you can create a command component (button or link) on the producer region’s page and drag the method to that component from the Data Control Palette. 1111 .
- 1127. Using Contextual Events:Step 4 4. Supply values for the payload method arguments, if any: The previous step creates a method action binding in the producer page definition. In that page definition file, you may need to supply a value for any arguments that are passed to the method. In the Structure window, select the method argument and set its value in the Property Inspector. You can use EL to pass a value from the data that is on the page. 1112 .
- 1128. Using Contextual Events:Step 5 5. Raise the event when the payload method is invoked: You need to specify that an event be raised when the payload method is invoked. In the Structure window for the page definition for the producer page fragment, insert <events> inside the method binding, and insert <event> inside <events>. Specify the event name to be raised as any meaningful name. Note: One method action can raise one or more events. You can also use the Contextual Events tab in the page definition file for the producer page to define an event. (This is explained in the next slide.) 1113 .
- 1129. Using Contextual Events:Step 5 You can also use the Contextual Events tab in the page definition file itself to define a contextual event on the producer page. 1. In the overview editor for the producer page definition, click the Contextual Events tab. 2. In the Events section, click the Add icon. 3. In the Publish Contextual Events dialog box, perform the following steps: a. Select Create New Event. b. Enter the name of the event. c. Select Pass Custom Value from if you want to pass payLoad data to the consumer. d. If you are passing payload data, select the type of data from the drop-down list. e. You can conditionally raise the event by entering an EL expression on the Raise Condition tab. f. Click OK. The event is created on the page, but it is not ready for publishing until it is associated with the component binding. 1114 .
- 1130. Using Contextual Events:Step 6 6. Create an event handler method and expose as a data control: You also need to create an event handler that specifies what happens in the consumer region after the event is raised. Does it need to requery, using the payload data, or does it simply need to refresh the region? Again, this event handler method, which can be defined in a separate class or as an application module service method, must be exposed as a data control. The handler method expects event parameters or the event payload itself. 1115 .
- 1131. Using Contextual Events:Step 7 7. Create a method binding for the event handler method: Depending on the situation, you need to bind that handler method to either the consumer page fragment or the containing page (the one that contains the regions). You do this by opening the page definition for that page and creating method action as a generic binding. A dialog box enables you to select the data control and operation for the method action. 1116 .
- 1132. Using Contextual Events:Step 8 8. Map the event: Event mapping means that you tell the containing page how to route the event. You do this on the page that contains the regions to be coordinated. In the Structure window for its page definition, right-click the root node and select Edit Event Map. In the upper portion of the Event Map editor, you specify the mapping: - Select the Producer (the method on the producer page fragment that constructs the payload for the event). This should populate the Event Name for you, because in the page definition file for the producer page fragment, you have already specified the event to be raised when the method is invoked. - Select the consumer, which is the method to be invoked to handle the event. - Click the ellipsis button beside Parameters to supply the payload for the event. The Edit Consumer Params dialog box enables you to name the parameter and to use EL to specify the payload, which must be ${payLoad}. You can click the ellipsis in the Param Value column to use Expression Builder to choose this value from Payload Data. - After you have defined the mapping, click Add New to add it to the Event Entries Summary. You can also use the Contextual Events tab in the page definition file to map an event (explained in the next slide). 1117 .
- 1133. Using Contextual Events:Step 8 Alternatively, you can use the Contextual Events tab in the page definition file for the parent page to create a map for the contextual event – defining subscribers to, and consumers of, the event. 1. In the overview editor of the parent page definition, click the Contextual Events tab. 2. On the right of the page, click the Subscribers tab, and click the Add icon in the Event Subscribers section. 3. In the Subscribe to Contextual Event dialog box, click the Search icon. 4. In the Select Contextual Event dialog box, select the event you want to subscribe to from the tree and click OK. 5. Click the Search icon next to the Handler field. 6. In the Select Handler dialog box, select the event handler from the tree and click OK. 7. The Parameters tab enables you to specify consumer parameters for the event. Click Add, and enter name-value pair as parameters. 8. If you want to conditionally handle the event, click the Handle Condition tab, and enter an EL Expression that determines the conditions under which the handler will process the event. 9. Click OK. 10. In the Publish Contextual Events dialog: a. Select Create New Event. b. Enter the name of the event. c. Select Pass Custom Value from if you want to pass payLoad data to the consumer. d. If you are passing payload data, select the type of data from the dropdown list. e. You can conditionally raise the event by entering an EL expression in the Raise Condition tab. f. Click OK. The event is created on the page, but it is not ready for publishing until it is associated with the component binding. 1118 .
- 1134. Using Contextual Events:Step 9 9. Specify region refreshing: You also need to define how the regions will be refreshed: - Producer region: Typically you do not want to refresh the producer region, so for the button that invokes the event, set the PartialSubmit property to true. - Consumer region: If you are performing an action in the handler method that refreshes the page (such as requerying), then you do not need to worry about refreshing the consumer page fragment or region. The event consumer processes the payload and updates its model accordingly. Otherwise, you need to set refresh and refreshCondition appropriately for the consumer region on the page definition for the containing page. At run time, when the user clicks the button or link in the producer task flow, a PPR action submit in the event producer region invokes a method action in the event producer task flow. When the method action in the event producer task flow is invoked, it raises an ADFm event. The ADFm event is consumed by a method action inside the consumer task flow according to the event mapping defined in the containing page’s page definition. The event consumer processes the payload and updates its model accordingly. 1119 .
- 1135. The Active DataServices framework The Active Data Service (ADS) framework is a server-side push framework that allows UI information to be refreshed, with the value as a particular interval of time. The ADF Faces components that support the Active Data Service framework are activeCommandButton, activeImage, activeOutputText, table, tree, and treeTable. The ADS framework consists of the following interfaces: • ActiveDataModel: This interface is responsible for starting and stopping active data. This will keep track of the active data's event ID as well. • Event Manager: This interface listens and raises a push event for the active data. It manages and retrieves the active data. • Push Service: This interface transmits the active data to the client for a refresh. • Active Data Manager: This interface delivers the active data to the client. It handles multiple client interfaces using a shared channel. • Active Data Proxy: This interface listens to the data change event and delegates to JSF models. 1120 .
- 1136.
- 1137.
- 1138.
- 1139. Hands-on lab practiceapplication provides sample and steps to learn following features: 1. Create REST Web Service with ADF Business Service 2. Create SOAP Web Service with ADF Business Service 3. Consume REST Web Service (ADF) 4. Consume REST Web Service (Generic) 5. Consume SOAP Web Service . 1124
- 1140.
- 1141.
- 1142.
- 1143.
- 1144.
- 1145.
- 1146.
- 1147.
- 1148.
- 1149.
- 1150.
- 1151.
- 1152.
- 1153.
- 1154.
- 1155.
- 1156.
- 1157.
- 1158.
- 1159.
- 1160.
- 1161.
- 1162.
- 1163.
- 1164.
- 1165.
- 1166.
- 1167.
- 1168.
- 1169.
- 1170.
- 1171.
- 1172.
- 1173.
- 1174.
- 1175.
- 1176.
- 1177.
- 1178.
- 1179.
- 1180. In Hands-on labone would practice: Consuming EJB Data Control . 1165
- 1181.
- 1182.
- 1183.
- 1184. In Hands-on labone would practice: Integrating SOA . 1169
- 1185.
- 1186. Fusion Architecture The basicFusion architecture is depicted in the graphic in the slide. The upper part comprises the core application and the lower part comprises the integration SOA layer. On top, you have the Model-View-Control (MVC) model for development, which supports better reusability and easier changes. At the bottom, you see all the business activities and components and how they fit into the MVC model. You also have integration with manual processes and metrics for making changes. 1171 .
- 1187.
- 1188. Oracle SOA Platform Younever start SOA from the beginning. You would always want to reuse existing assets, whether it is legacy services, Commercial Off The Shelf (COTS), or even interaction with your business partners. The first thing that you need to do is to normalize these heterogeneous sources via adapters, or in the case of external partners, via a B2B gateway that provides all the security and framework required to extend your SOA beyond the boundaries of your enterprise. After normalization, you need to enable data flows in a reliable and flexible fashion. Additionally, you want to virtualize all these data sources to ensure loose coupling and maximum flexibility as you move forward. Now that you have the necessary foundation, you can start building new value, declaratively, through orchestration of these assets. For example, you could start building a brand new employee hiring application that would leverage your existing PeopleSoft HR coupled with BMC Remedy and additional homegrown systems that used to be disconnected. 1173 .
- 1189. Orchestrating Services BPEL isthe core part of the overall SOA solution that also includes Enterprise Service Bus (ESB) for messaging between systems. A rule engine repository is available to dynamically and easily change the rules governing the process flow. 1174 .
- 1190.
- 1191.
- 1192. In Hands-on labone would practice: Working with Mobile Application Framework (MAF) . 1177
- 1193.
- 1194.
- 1195.
- 1196.
- 1197.
- 1198.
- 1199.
- 1200.
- 1201.
- 1202.
- 1203.
- 1204.
- 1205.
- 1206.
- 1207.
- 1208.
- 1209.
- 1210.
- 1211.
- 1212.
- 1213.
- 1214.
- 1215.
- 1216.
- 1217.
- 1218.
- 1219.
- 1220.
- 1221.
- 1222.
- 1223.
- 1224.
- 1225.
- 1226.
- 1227. What Is WebCenter? WebCenterimplements the (run-time) customization and personalization requirements, allows consumption of third party, external portlets (that also bridge technologies), provides many Web 2.0/E2.0 Services (Blog, Wiki, Content Integration, Tagging, Linking, Email/VOIP/IM integration, and so on) and Community Workspaces and Search and Recent Activities. 1212 .
- 1228. Key Benefits ofOracle WebCenter As a developer, Oracle WebCenter enables you to: • Develop applications using industry standards that are supported in Java EE, portals, content integration, SOA, and presence servers • Easily integrate your application into an existing infrastructure, such as content management, Web 2.0 services, security, application server and database infrastructure, search, and collaboration • Use a single paradigm to build all your UIs. You use the same development model for all UI components: composite applications, portals, and business intelligence. • Extend your Java EE and SOA applications. Oracle WebCenter injects new capabilities into the standard JavaServer Faces development environment to allow you to create context-rich applications that satisfy your business needs. Oracle WebCenter also provides natural user interaction environment for your SOA applications and allows you to leverage all types of services to create a more effective user experience. • Reduce your development time by leveraging the Web 2.0 services that ship with Oracle WebCenter 1213 .
- 1229.
- 1230.
- 1231.
- 1232.
- 1233.
- 1234. Oracle WebCenter PortalComponents How did Oracle WebCenter come to be? It started with Java Server Faces (JSF). JSF is the development platform for the user interface of WebCenter applications. JSF offers component-based development that provides benefits such as drag-and drop support and easy editing of component properties. JSF frees the developer from writing HTML code as is necessary when developing applications by using servlet and JSP technologies. Oracle’s Application Development Framework (ADF) provides another level of productivity that you need as an enterprise application developer. ADF simplifies Java EE development by providing out-of-the-box implementation design patterns and infrastructure code. ADF provides a choice of development approach, technologies used, and deployment platform. In combination with the visual development environment of Oracle JDeveloper, ADF increases the productivity of the Java developer. Functionality typically found in portals, such as consuming portlets and content integration, has proven to be useful in enterprise applications. WebCenter Framework is created to address these requirements. Similarly, Web 2.0 capabilities that support collaboration and communication among information workers are beneficial in enterprise applications. WebCenter Services provides a number of these capabilities. Run-time editing and customizing applications is a much-requested feature of modern enterprise applications. Oracle Composer provides a collection of components, processes, and an API to accomplish this. Recognizing the advantages that these capabilities—portal-like features, Web 2.0 services, runtime editing and customization—bring to the enterprise, Oracle integrated them with the functionality of JSF and ADF, and developed a new platform for user interaction: Oracle WebCenter. Using these capabilities, application developers can create custom WebCenter applications, such as composite applications that focus on the use of Web 2.0 services or enterprise portals, by utilizing more of the run-time editing capabilities. Using all these components and features, Oracle created an out-of-the-box application, WebCenter Spaces, which provides you with the latest technology for social networking, communication, collaboration, and personal productivity. Oracle JDeveloper is the tool of choice to develop WebCenter applications. JDeveloper contains extensions to support declarative development of applications using WebCenter features, and supports drag-and-drop to add Web 2.0 services to the application. Oracle’s strategy is to build the next versions of its business applications with the same open, standards-based UI technology stack that is offered to its customers. Therefore, WebCenter is key to the development of Oracle Fusion Applications, the next generation of Oracle E-Business, JD Edwards, PeopleSoft, and Siebel applications. 1219 .
- 1235. WebCenter Framework Oracle WebCenterFramework augments the JSF declarative development environment with additional components, integration, and run-time options by integrating capabilities that are historically included only in portal products. These capabilities enable you to: • Integrate content from many different content stores through standard interfaces • Build and consume rich standards-based portlets • Make the application customizable at run time, which empowers end users to edit application pages according to their requirements using Oracle Composer WebCenter supports portlets that are written using two different APIs, the industry standard JSR 168 and Oracle’s propriety PDK-Java API. JSF (ADF) pages and task flows can be portletized using the JSF Portlet Bridge, that is, other applications can consume JSF pages or task flows as portlets. WebCenter also comes with a set of useful, predeployed portlets. 1220 .
- 1236. WebCenter Services Oracle WebCenterServices includes a complete set of Web 2.0 content, search, collaboration, communication, and social networking services that you can add directly to your applications to create a dynamic and interactive environment for your users. These services are delivered as reusable, out-of-the-box components, and are available during development (JDeveloper) and at run time (Oracle Composer) to create and extend your application. Each service is designed for the enterprise and adheres to a consistent security model across all services, a set of standardized framework extensions, including life cycle, user provisioning, search, and a standards-based UI for Web 2.0 services. The WebCenter services add Web 2.0 capabilities such as presence, wiki, blogs, tagging, and so on, to your ADF application. You integrate them into your application through a set of task flows. You can easily integrate Web 2.0 services in your ADF application to get: • Thin adapter layer to abstract back-end services - Email Adapter: IMAP, MS Exchange • Back-end systems represented by unified connection architecture 1221 .
- 1237. WebCenter Portal Spaces WebCenterSpaces is an out-of-the-box solution that delivers enterprise-ready line of business (LOB) portals, communities, and team sites. It is designed for business users to quickly build a workspace. It is pre-integrated with Composer, Business Dictionary, and WebCenter Enterprise 2.0 Services. IT can extend and customize Spaces using WebCenter Framework and extensive Spaces Web Services APIs (for example, mobile access). 1222 .
- 1238. There are threekey areas of WebCenter Spaces. They are: Personal Space • Focuses on personal information • Provides personalized environment to suit individual needs • Brings business context to the end user • Enables targeted interaction with peers Group Space • Focuses on team group collaboration and social networking • Connects users with a common goal or interest • Integrates relevant applications Business Role Pages • Is created for a group, department, organization, or everyone • Is controlled by the WebCenter Spaces administrator 1223 .
- 1239.
- 1240.
- 1241. Oracle Composer Oracle Composeris a browser-based platform that enables information workers to easily customize and personalize pages at run time. Pages can be easily modified by rearranging components on a page and by editing components in place. The layered customization model of Oracle Composer separates metadata from code. This means that you can build a single application that individuals, departments, and organizations throughout the company can customize without changing the core application. Subsequently, the core application can be patched or upgraded without loss of customizations. Oracle Composer provides a rich feature set to tailor fit the application to business and personal requirements. This includes: • A Resource Catalog containing view components and data available to build the page • A sandbox to view the page design and commit the changes only when ready WebCenter also provides a rich API to enable run time creation of pages. Several page templates are provided out of the box to make the creation process easy and quick. After creation, these pages can be shared among users, and edited and customized using Oracle Composer. 1226 .
- 1242.
- 1243. Metadata Services Metadata Servicesis a persistent store for application metadata. With customization, this metadata defines the changes made on application pages. Because the application pages are defined as XML documents, the changes are represented as XML elements. These changes are not stored in the original base document, but as separate XML files. Changes describe the insertion or removal of components, or moving a component to a different place in the container hierarchy, that is, changing the component’s parent. Component attributes can also be set or changed. When the page is rendered, the rendering engine merges the base document with the modifications stored in MDS. MDS offers layered store for the modifications. For example, the same page can be modified in three ways: for a particular site, for all application users, or for individual users. Rendering applies all these layers, depending on the run-time context when the page is accessed. MDS provides a persistence store of the modifications. During development or in simple installations, MDS can use the file system to store the modifications. However, in large, highly available systems, MDS uses a database schema. 1228 .
- 1244. The Metadata Servicesframework The Oracle Metadata Services framework is used to provide customization features for ADF users in an ADF web application. Users have the ability to customize the way a web application is presented to them. The customer can add more custom features at runtime using Metadata Services (MDS). For example, in the above screenshot, the base document for the page is displayed with customization for User1 and without customization for User2, at the same time. 1229 .
- 1245.
- 1246. What Is aPortlet? A portlet is a reusable and pluggable Web component that runs remotely and provides a dynamic view of an information source, such as a stock ticker or weather outlook. By placing portlets that derive data from different data sources on a common page, you can provide users a single-source experience. Because of their dynamic nature, portlets are often used to display excerpts of other Web sites, generate summaries of key information, perform searches, and access assembled collections of information from a variety of data sources. Portlets are as varied as the interests of users. The content source of the portlet can be a document, an application, or a commonly requested piece of information, such as a report, an employee list, or external information from the Internet. The portlet code can run remotely on a different server than the servers running the applications that consume the portlet. When an application consumes a portlet, the application – the consumer – will display the portlet’s HTML output embedded in the application’s page. Oracle WebCenter offers a set of prebuilt portlets for use in enterprise applications. In addition, Oracle has created a partner initiative to support a community of independent software vendors and content providers who create standard portlets for their applications and services. Portlets typically offer customization and/or personalization, that is, users can change and configure their behavior at run time. Portlets store customization data so the next time the portlet is displayed, this data controls its appearance and behavior. 1231 .
- 1247. Consuming a Portlet:Overview This slides illustrates the steps to consume portlets. First, you must register the producer with your WebCenter application. The purpose of registration is to provide the WebCenter application with the information that it needs to communicate with the portlet producer and with the portlets through the producer. After the registration, you can drag any of the producer’s portlets to the page, creating an instance of that portlet in your application. 1232 .
- 1248.
- 1249.
- 1250.
- 1251.
