- 1. REMINDER Check in onthe COLLABORATE mobile app Go Beyond Basic R12 Subledger Accounting - A Deep Dive Into the Supporting References Functionality Prepared by: Prithis Das Dynamique Solutions LLC Session ID#: 13950
- 2. Presenter’s background ■ Over18 years in the Oracle EBS sphere ■ Over 22 years of business process improvement experience ■ Consulting experience with Big 5 and other major organizations ■ Oracle Certified Specialist in General Ledger ■ Chartered Accountant and Management Accountant from India ■ Authored and presented papers on SLA, Web ADI, Reports Manager at several OAUG and local events ■ Currently on a major R12 upgrade ■ Contact: ▪ Cell: +1.630.3649457 ▪ Email: prithis.das@dynamique.us ▪ Web: www.dynamique.us

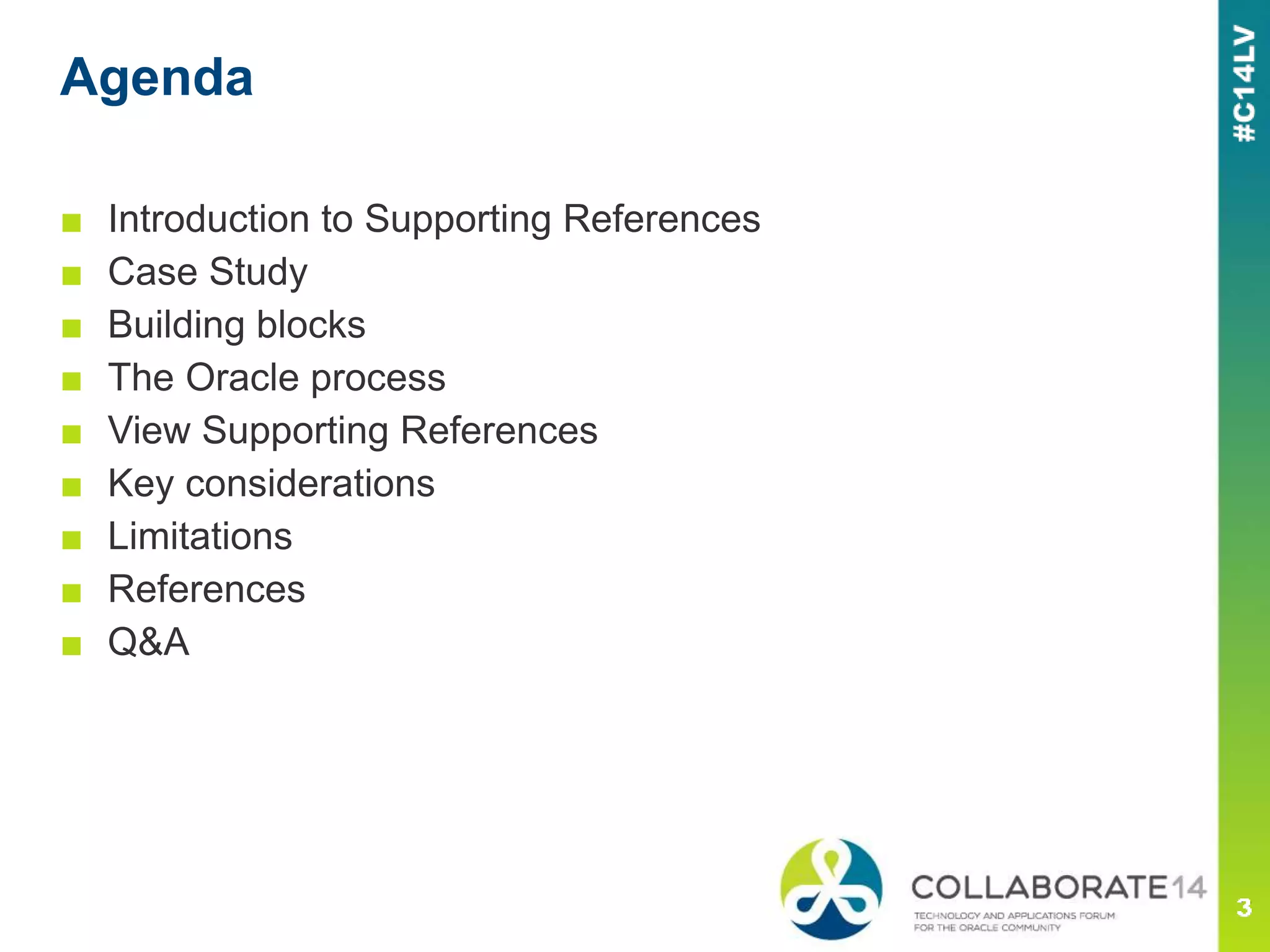

- 3. Agenda ■ Introduction toSupporting References ■ Case Study ■ Building blocks ■ The Oracle process ■ View Supporting References ■ Key considerations ■ Limitations ■ References ■ Q&A
- 4.

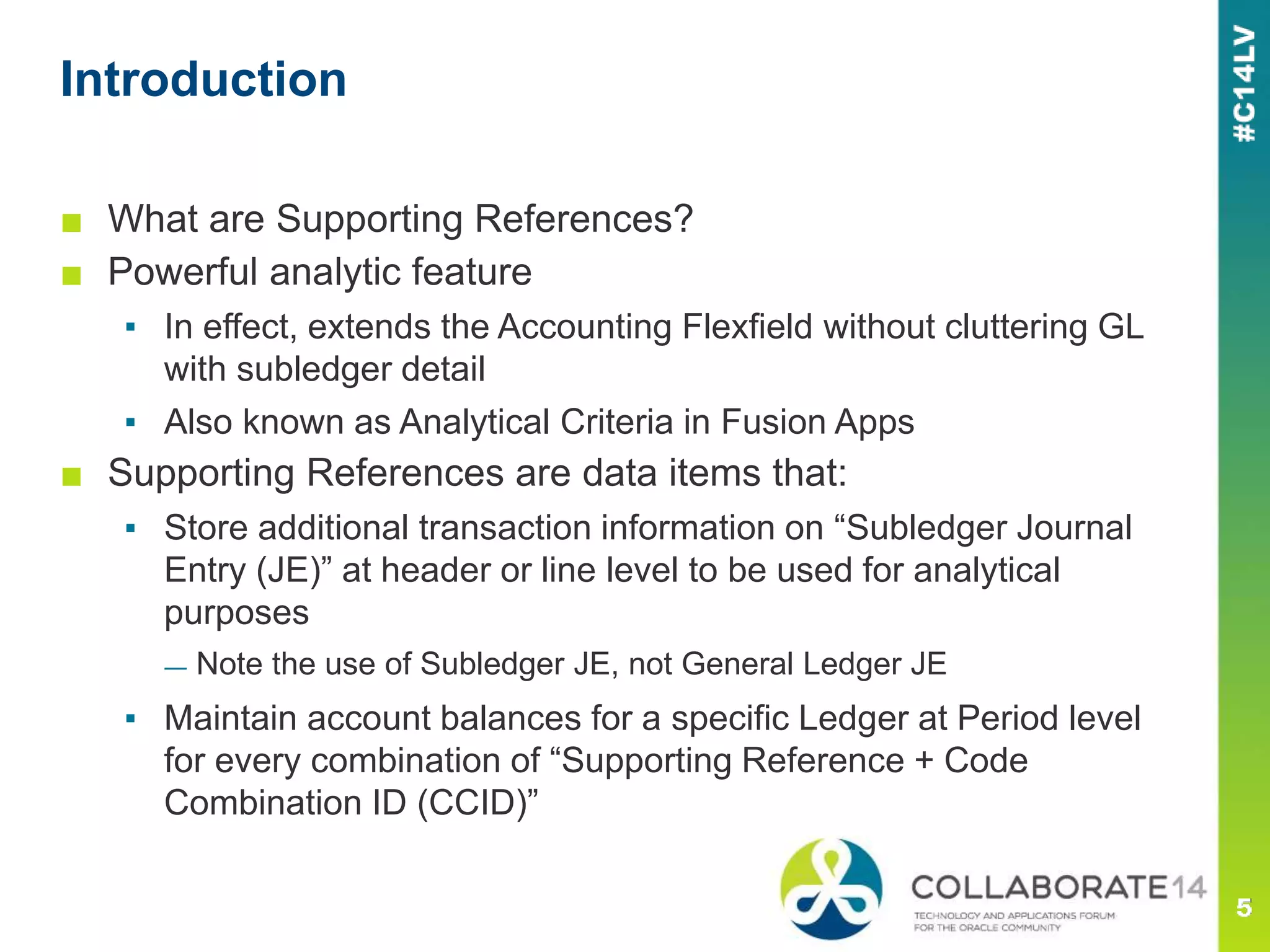

- 5. ■ What areSupporting References? ■ Powerful analytic feature ▪ In effect, extends the Accounting Flexfield without cluttering GL with subledger detail ▪ Also known as Analytical Criteria in Fusion Apps ■ Supporting References are data items that: ▪ Store additional transaction information on “Subledger Journal Entry (JE)” at header or line level to be used for analytical purposes — Note the use of Subledger JE, not General Ledger JE ▪ Maintain account balances for a specific Ledger at Period level for every combination of “Supporting Reference + Code Combination ID (CCID)” Introduction

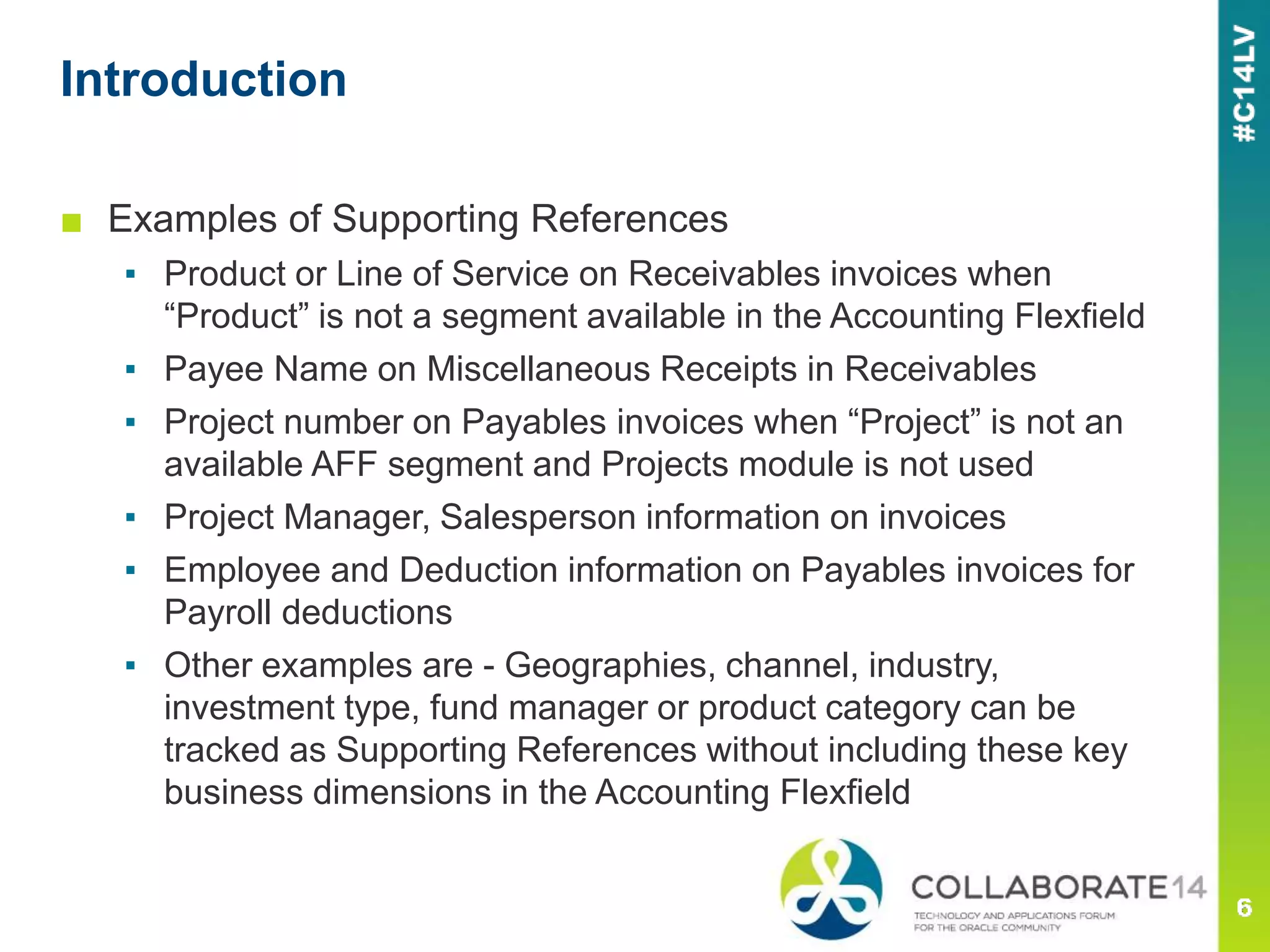

- 6. ■ Examples ofSupporting References ▪ Product or Line of Service on Receivables invoices when “Product” is not a segment available in the Accounting Flexfield ▪ Payee Name on Miscellaneous Receipts in Receivables ▪ Project number on Payables invoices when “Project” is not an available AFF segment and Projects module is not used ▪ Project Manager, Salesperson information on invoices ▪ Employee and Deduction information on Payables invoices for Payroll deductions ▪ Other examples are - Geographies, channel, industry, investment type, fund manager or product category can be tracked as Supporting References without including these key business dimensions in the Accounting Flexfield Introduction
- 7.

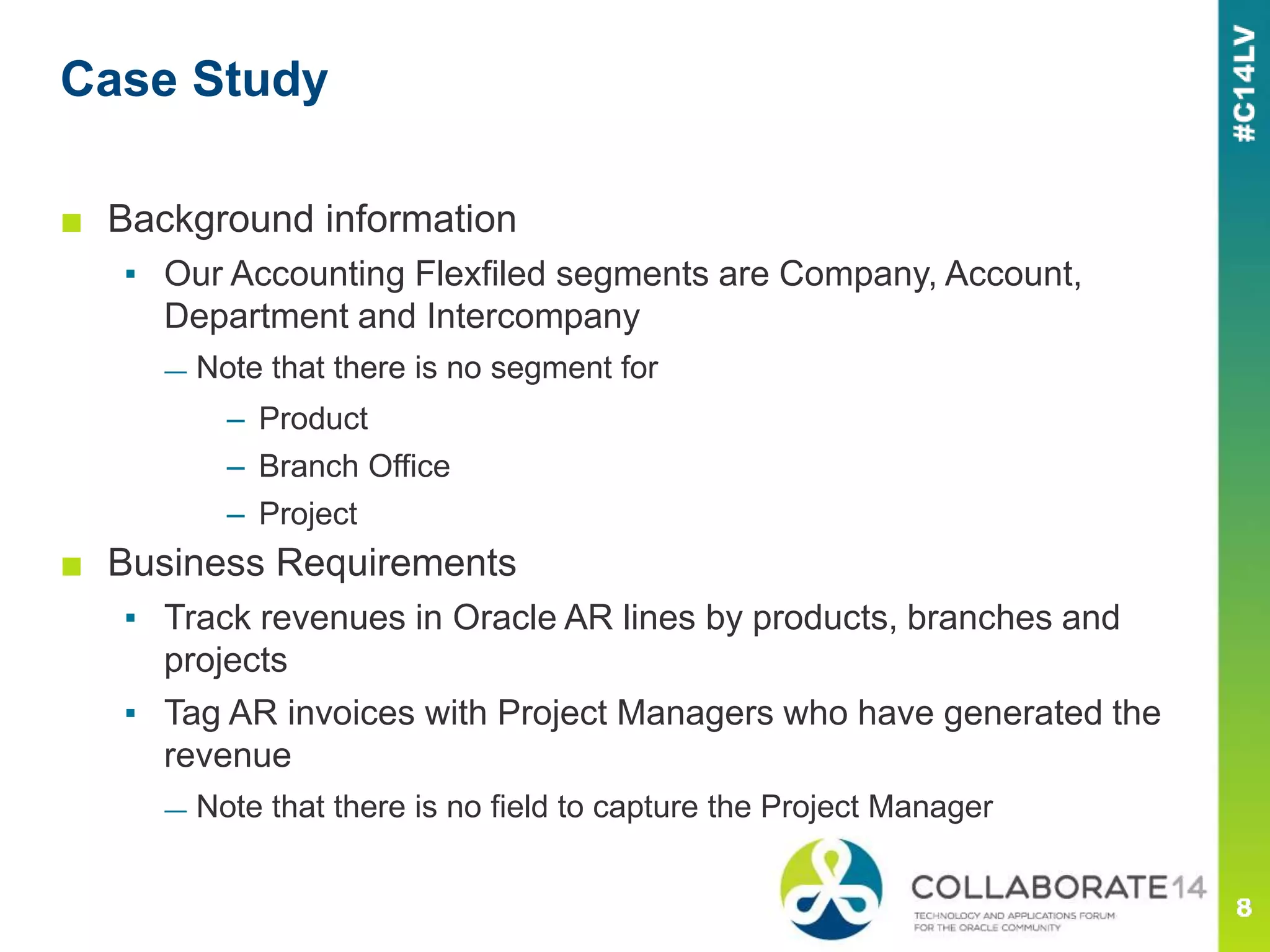

- 8. ■ Background information ▪Our Accounting Flexfiled segments are Company, Account, Department and Intercompany — Note that there is no segment for – Product – Branch Office – Project ■ Business Requirements ▪ Track revenues in Oracle AR lines by products, branches and projects ▪ Tag AR invoices with Project Managers who have generated the revenue — Note that there is no field to capture the Project Manager Case Study
- 9.
- 10. ■ Receivables DescriptiveFlexfield configurations ▪ Invoice Line Information Descriptive Flexfield ▪ Value Sets to hold DFF values ■ Supporting References Headers, Details and Sources ■ Subledger Accounting configurations ▪ Subledger Accounting Method ▪ Application Accounting Definition ▪ Event Class “Invoice” — Supporting Reference for PM will be attached as a Header Assignment ▪ Journal Line Definition ▪ Journal Line Type — Supporting Reference for Line Attributes will be attached to the JLT Building Blocks

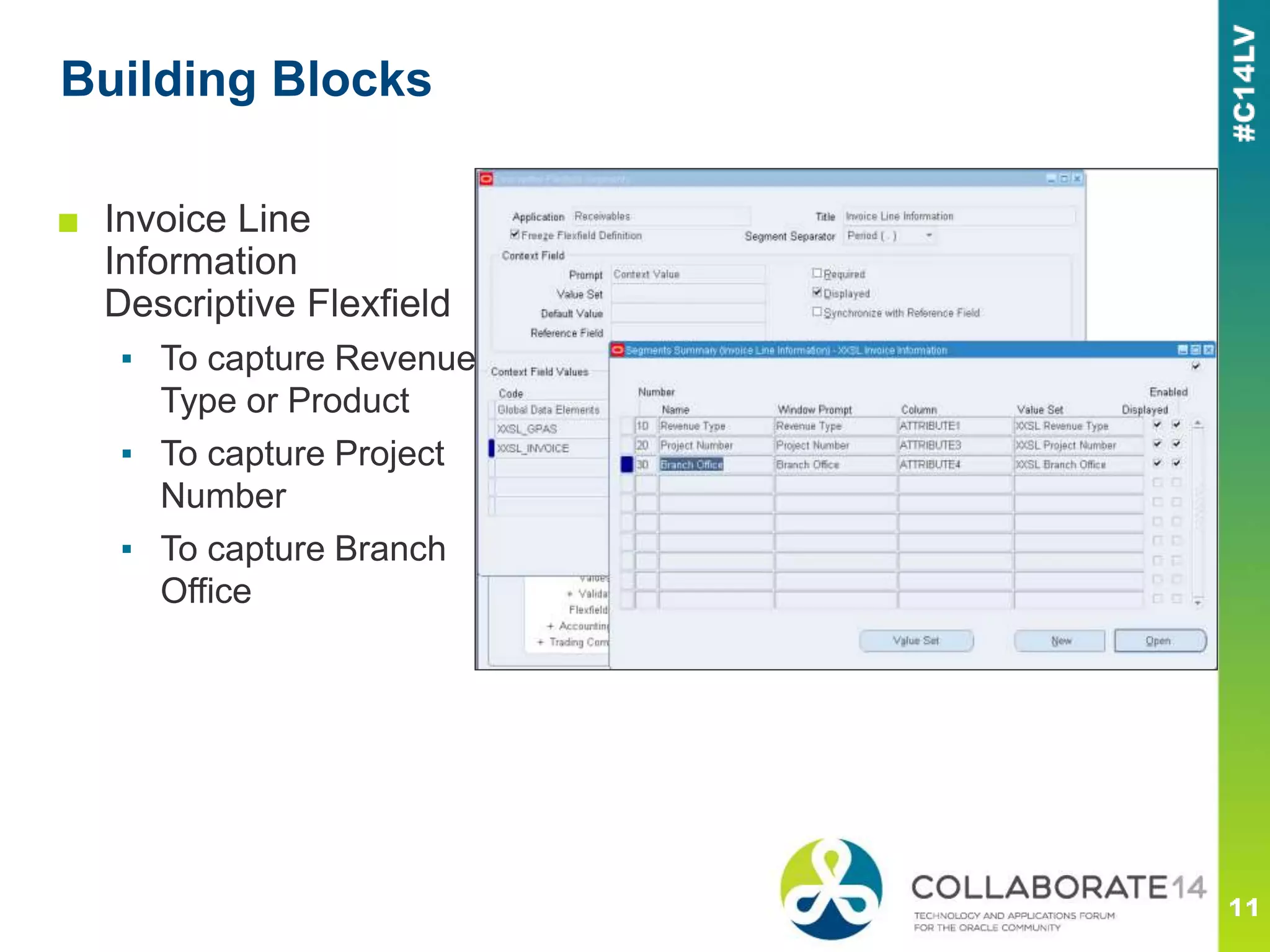

- 11. ■ Invoice Line Information DescriptiveFlexfield ▪ To capture Revenue Type or Product ▪ To capture Project Number ▪ To capture Branch Office Building Blocks

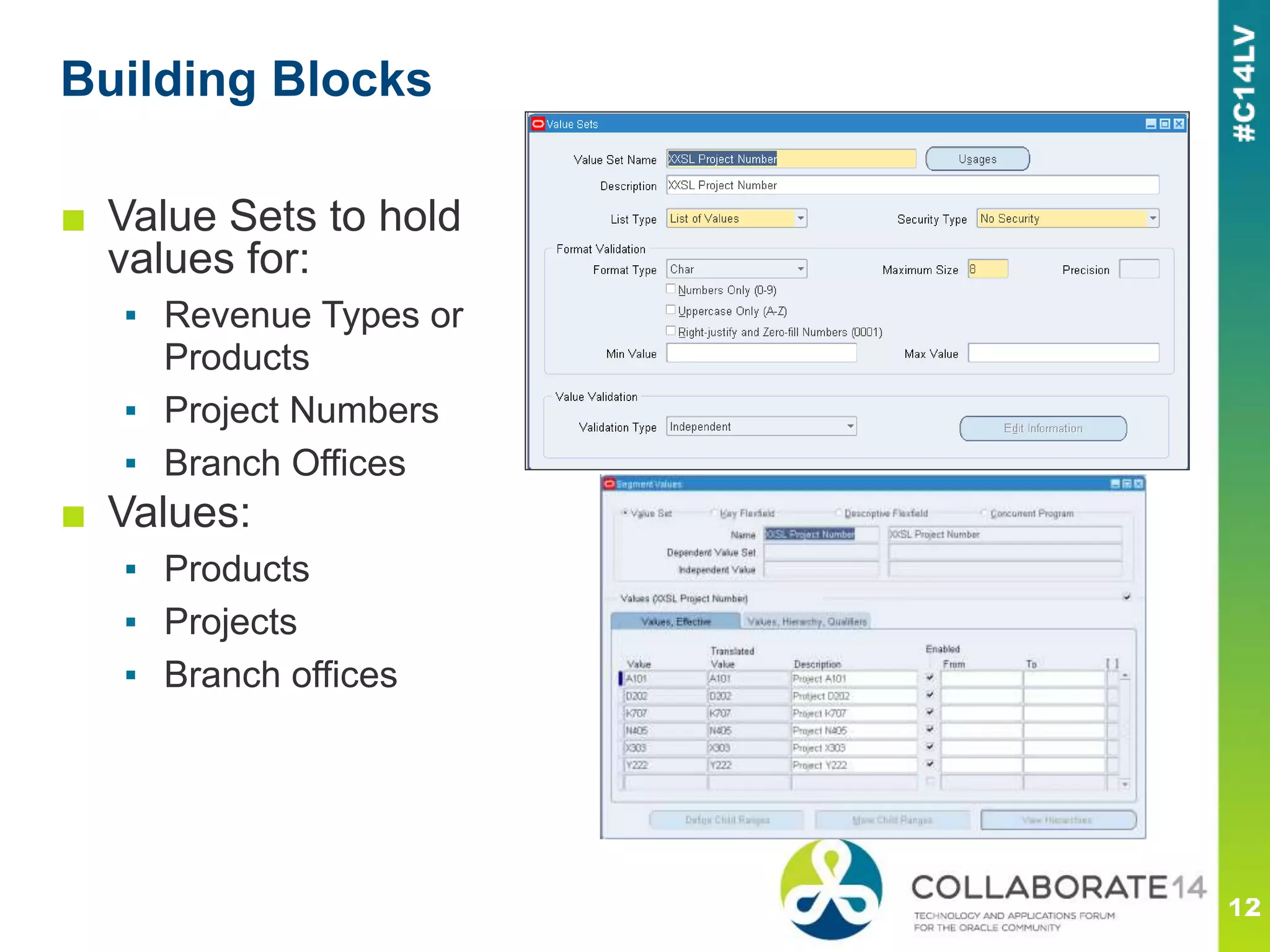

- 12. ■ Value Setsto hold values for: ▪ Revenue Types or Products ▪ Project Numbers ▪ Branch Offices ■ Values: ▪ Products ▪ Projects ▪ Branch offices Building Blocks

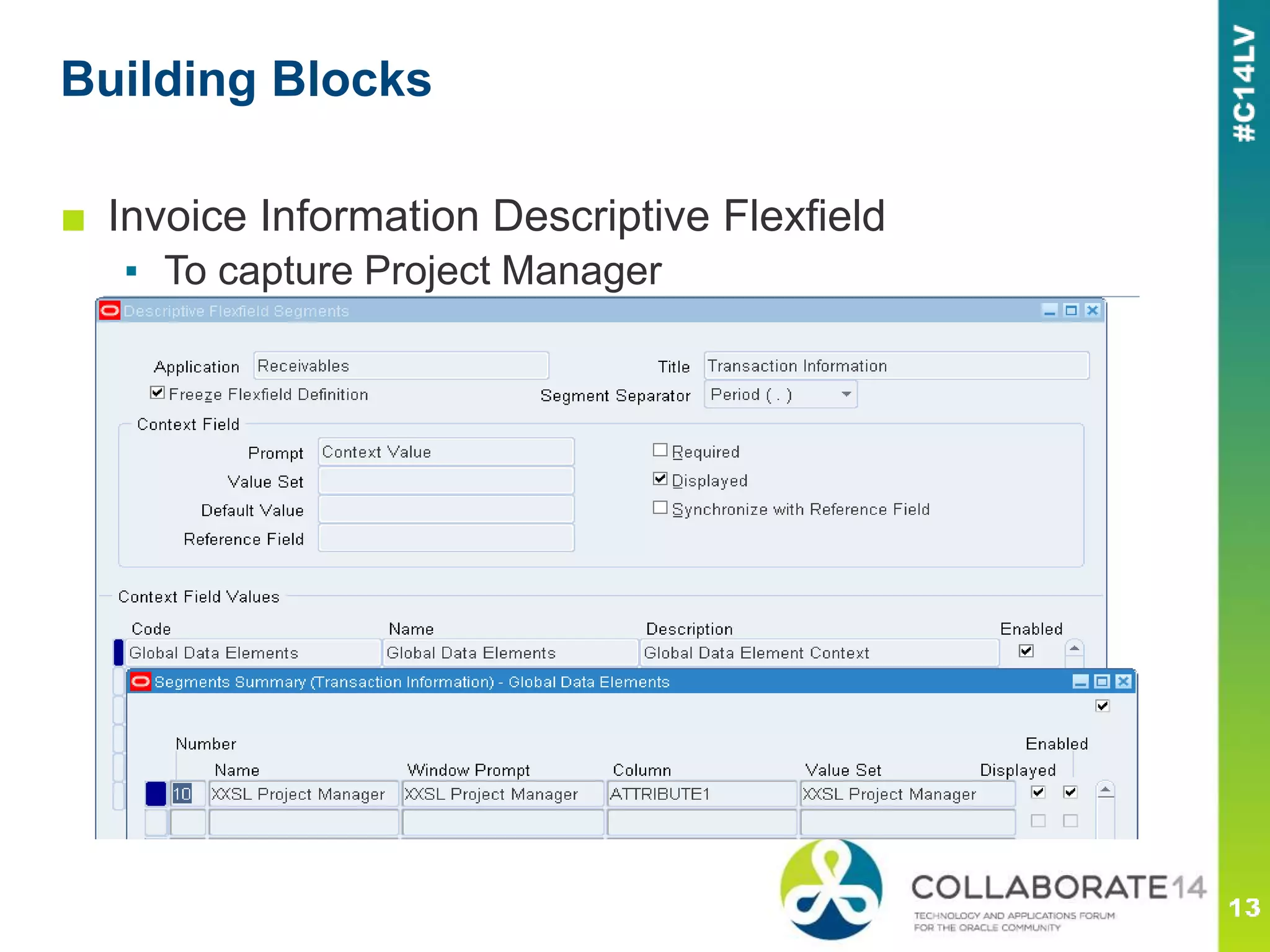

- 13. ■ Invoice InformationDescriptive Flexfield ▪ To capture Project Manager Building Blocks

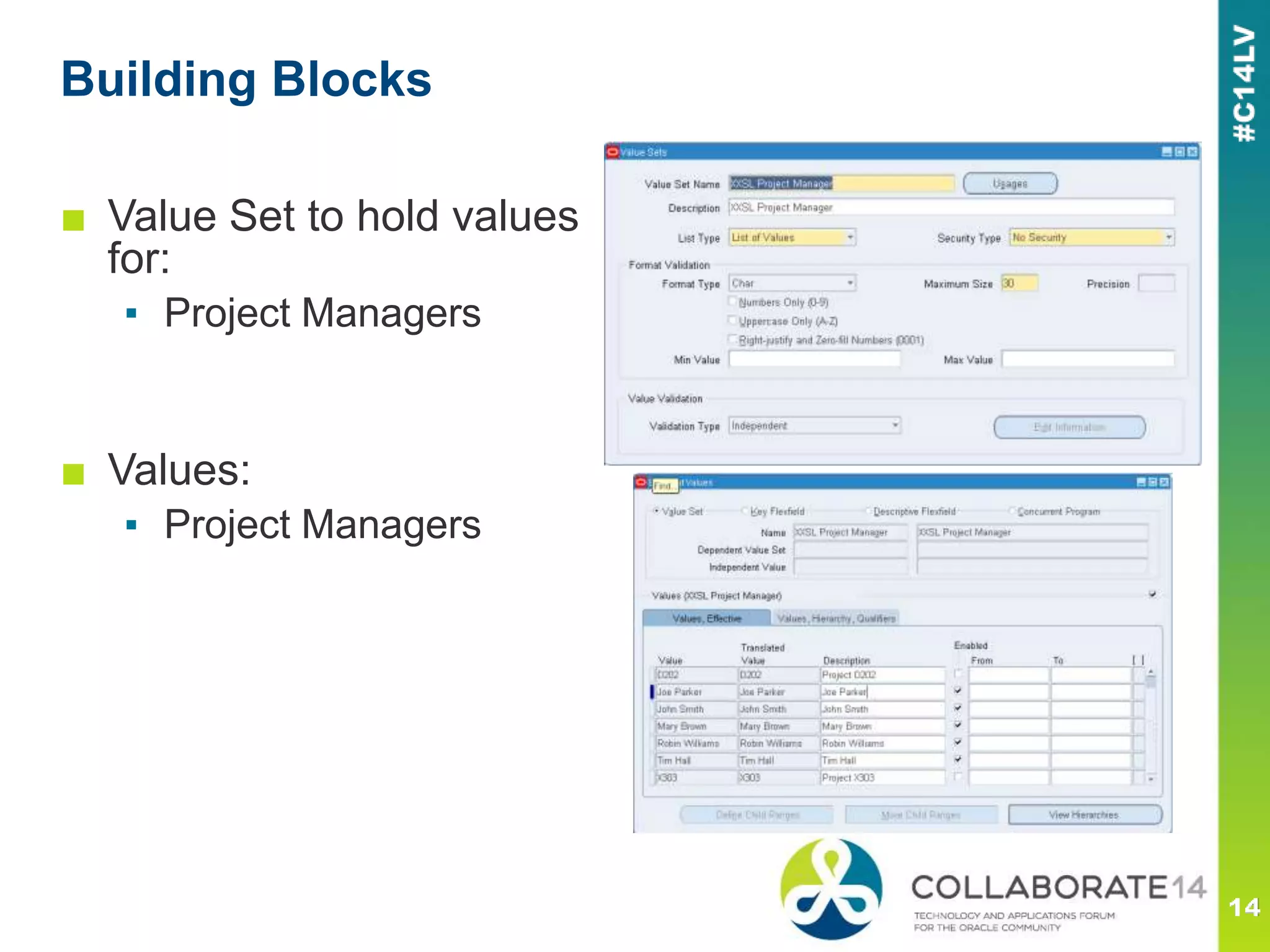

- 14. ■ Value Setto hold values for: ▪ Project Managers ■ Values: ▪ Project Managers Building Blocks

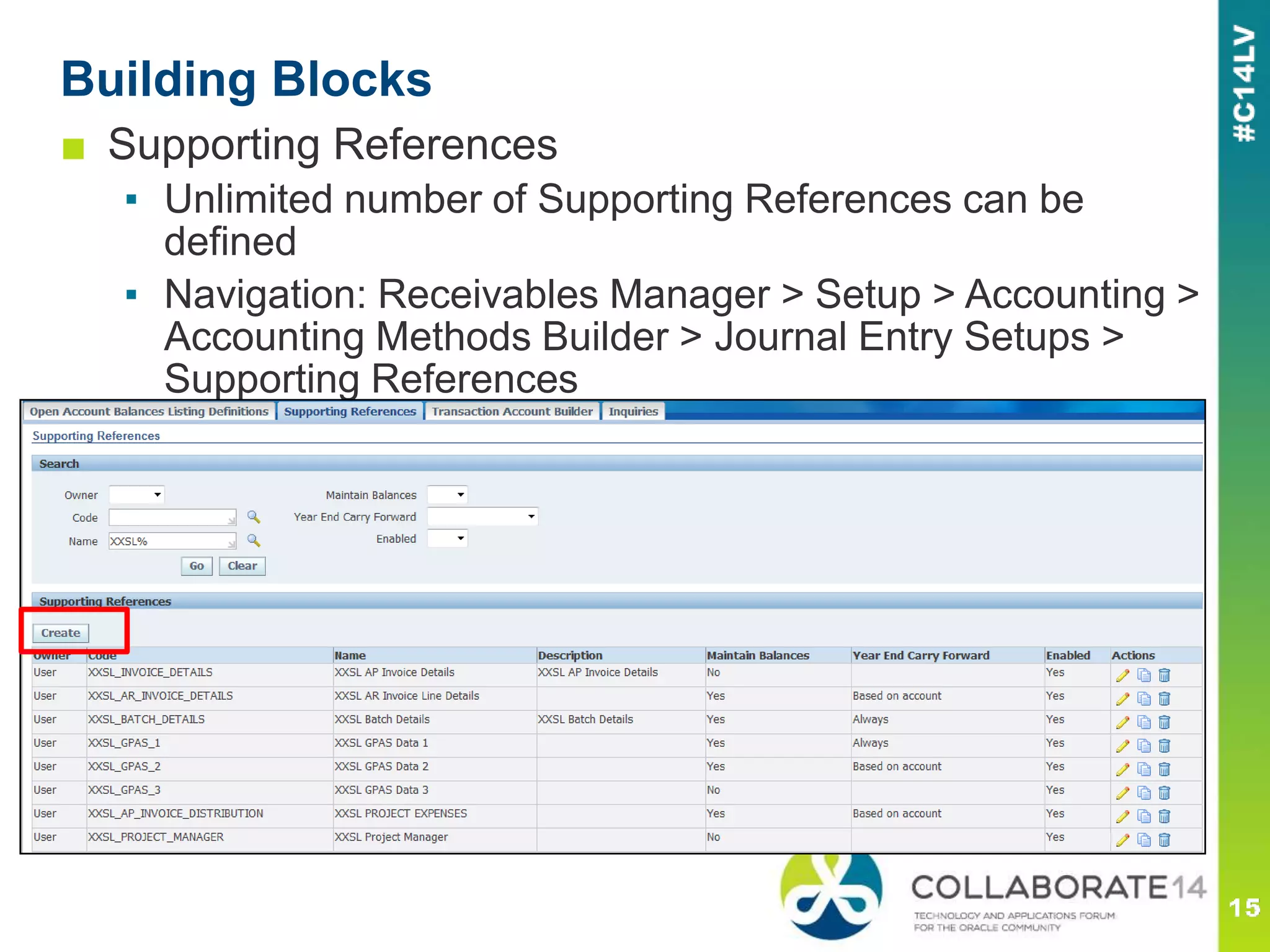

- 15. ■ Supporting References ▪Unlimited number of Supporting References can be defined ▪ Navigation: Receivables Manager > Setup > Accounting > Accounting Methods Builder > Journal Entry Setups > Supporting References Building Blocks

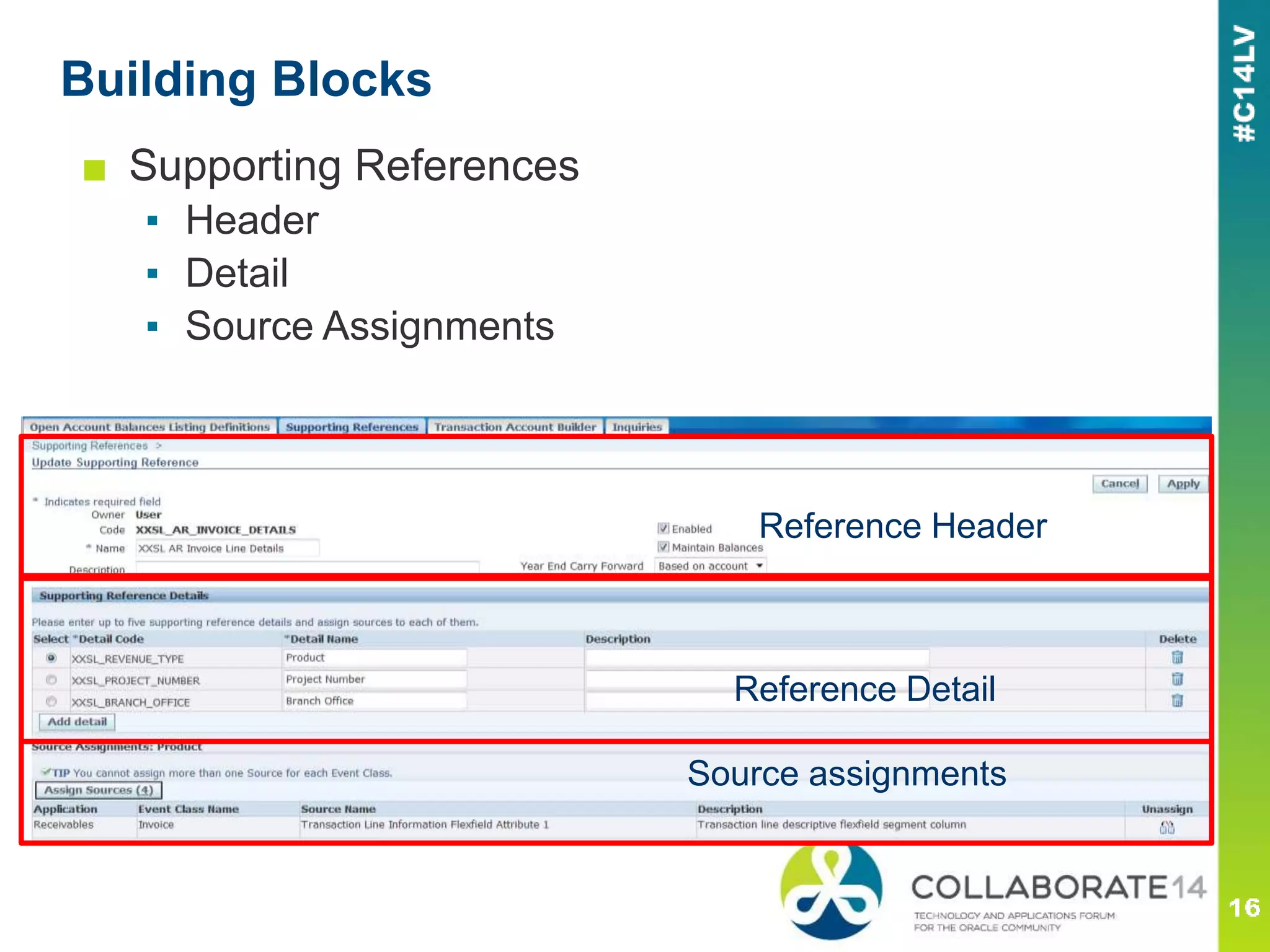

- 16. Building Blocks Reference Detail ReferenceHeader Source assignments ■ Supporting References ▪ Header ▪ Detail ▪ Source Assignments

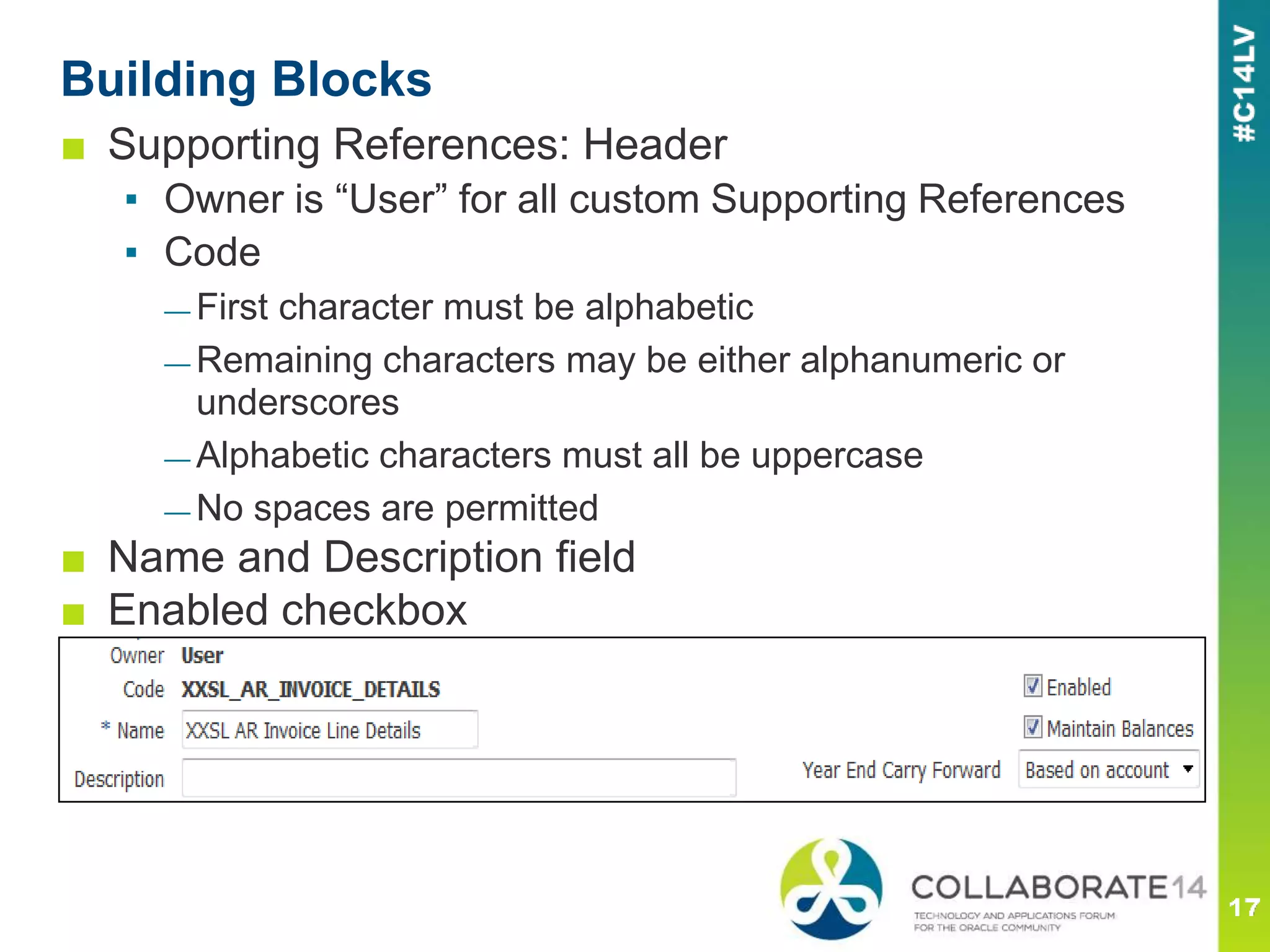

- 17. ■ Supporting References:Header ▪ Owner is “User” for all custom Supporting References ▪ Code — First character must be alphabetic — Remaining characters may be either alphanumeric or underscores — Alphabetic characters must all be uppercase — No spaces are permitted ■ Name and Description field ■ Enabled checkbox Building Blocks

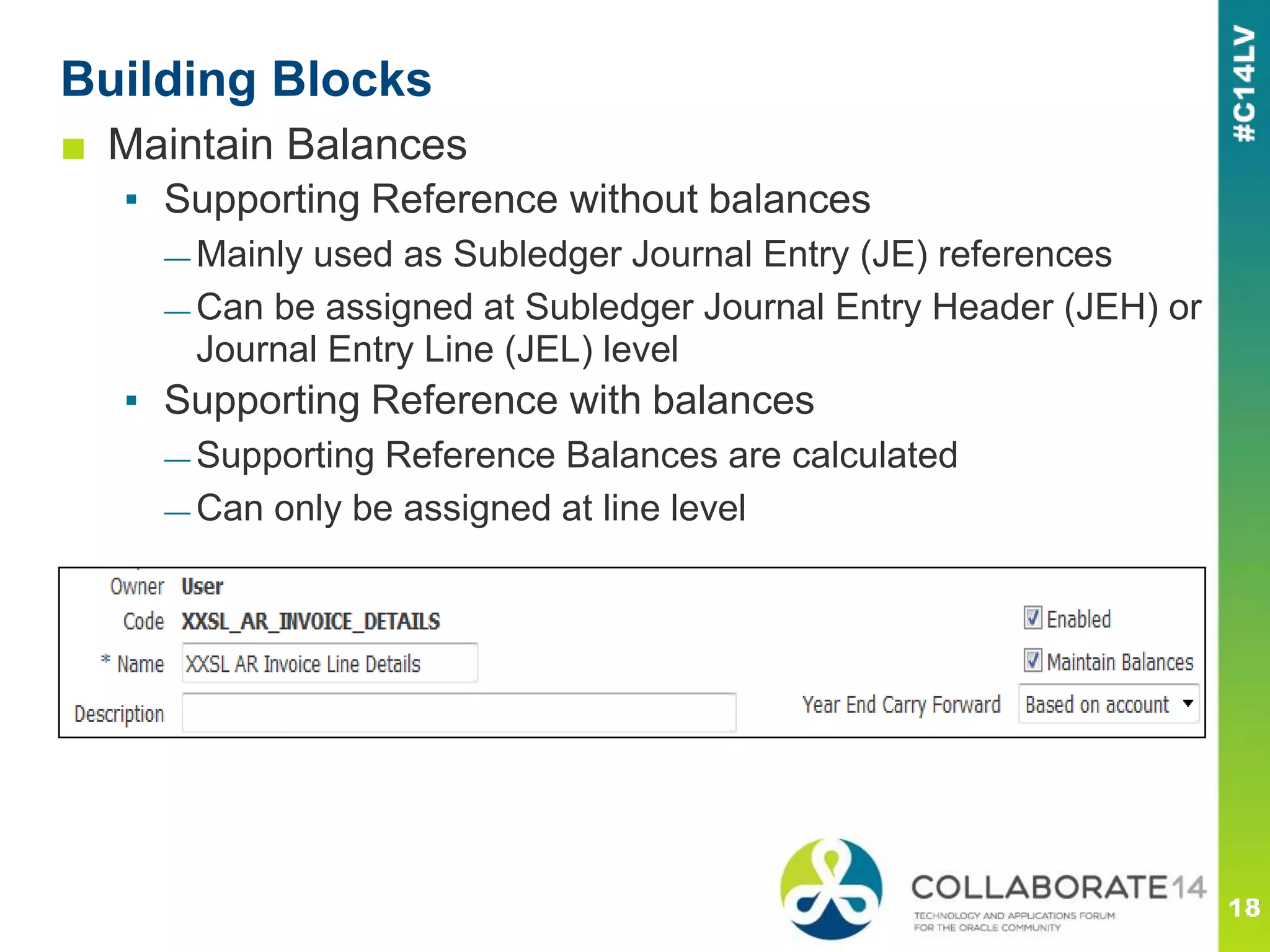

- 18. ■ Maintain Balances ▪Supporting Reference without balances — Mainly used as Subledger Journal Entry (JE) references — Can be assigned at Subledger Journal Entry Header (JEH) or Journal Entry Line (JEL) level ▪ Supporting Reference with balances — Supporting Reference Balances are calculated — Can only be assigned at line level Building Blocks

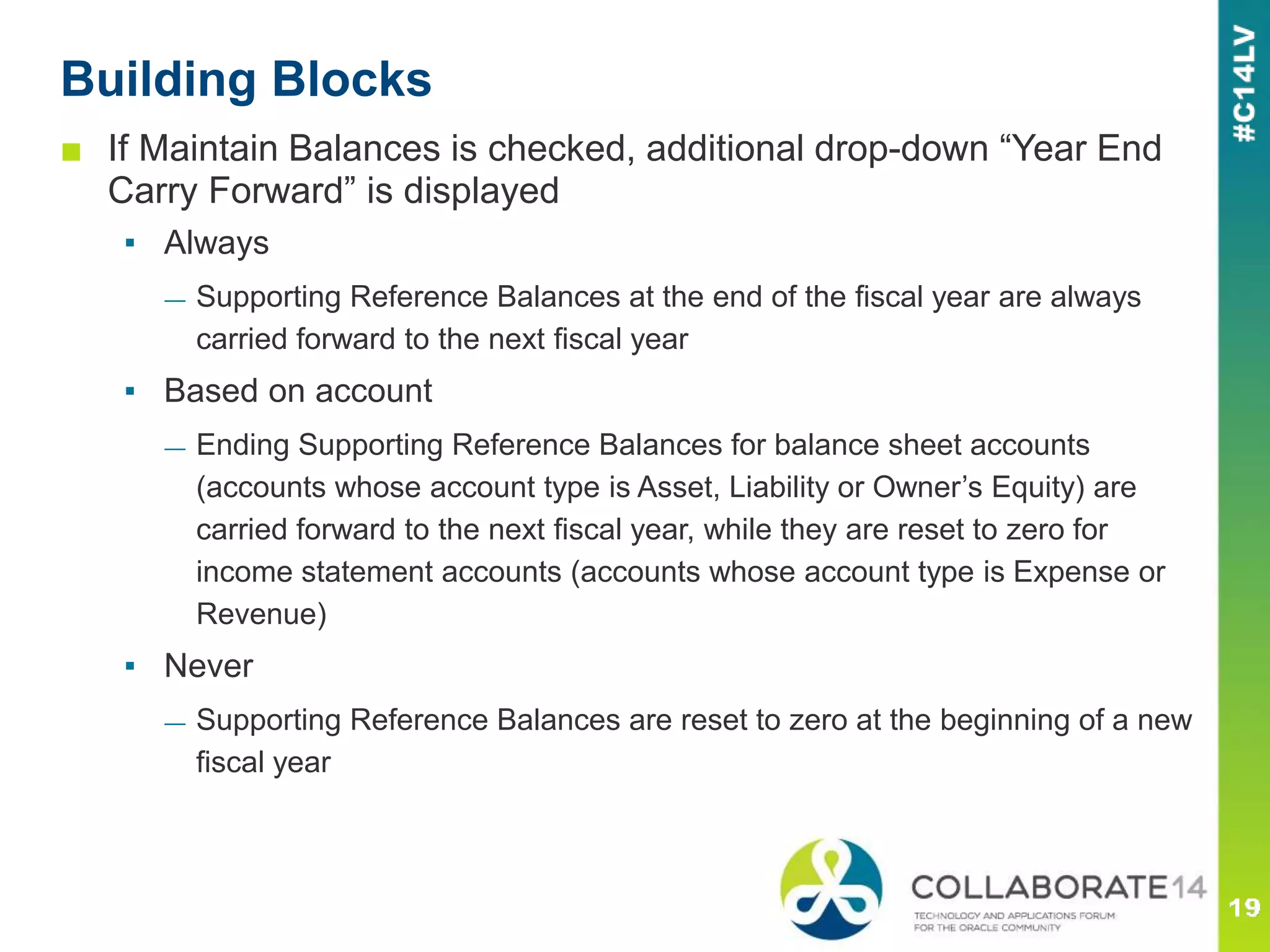

- 19. ■ If MaintainBalances is checked, additional drop-down “Year End Carry Forward” is displayed ▪ Always — Supporting Reference Balances at the end of the fiscal year are always carried forward to the next fiscal year ▪ Based on account — Ending Supporting Reference Balances for balance sheet accounts (accounts whose account type is Asset, Liability or Owner’s Equity) are carried forward to the next fiscal year, while they are reset to zero for income statement accounts (accounts whose account type is Expense or Revenue) ▪ Never — Supporting Reference Balances are reset to zero at the beginning of a new fiscal year Building Blocks

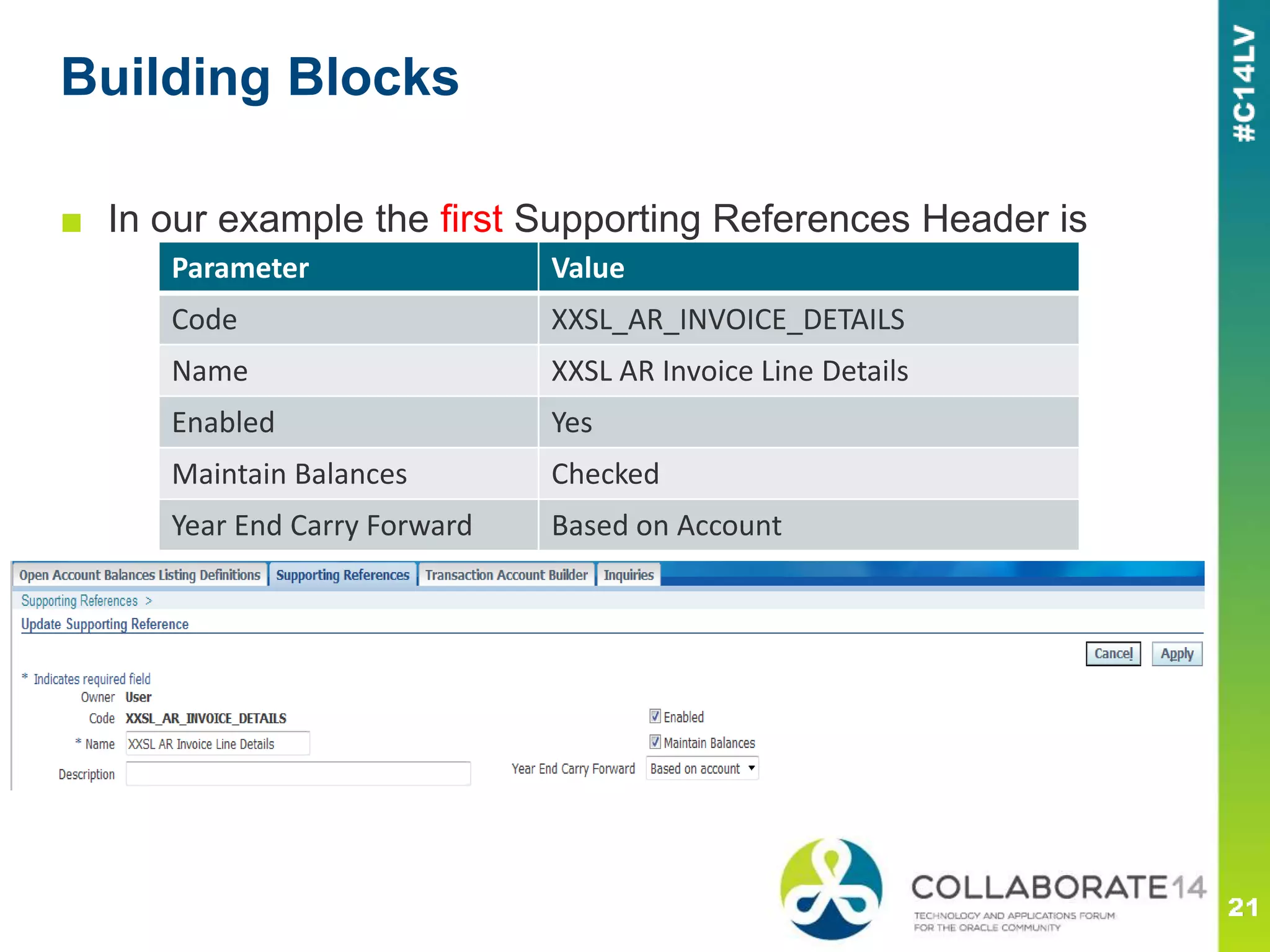

- 20. Building Blocks ■ Inour example the first Supporting References Header is Parameter Value Code XXSL_AR_INVOICE_DETAILS Name XXSL AR Invoice Line Details Enabled Yes Maintain Balances Checked Year End Carry Forward Based on Account

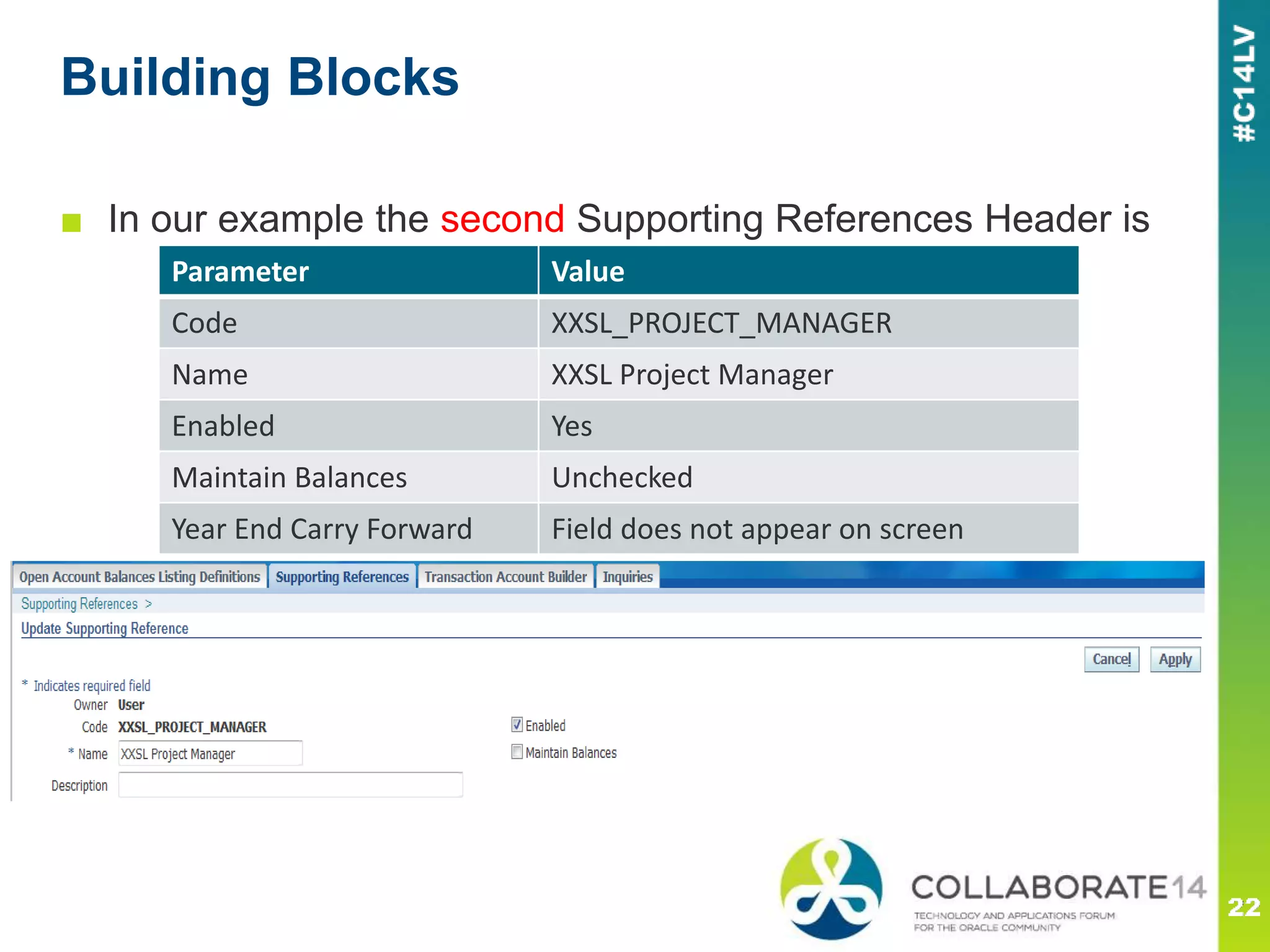

- 21. Building Blocks ■ Inour example the second Supporting References Header is Parameter Value Code XXSL_PROJECT_MANAGER Name XXSL Project Manager Enabled Yes Maintain Balances Unchecked Year End Carry Forward Field does not appear on screen

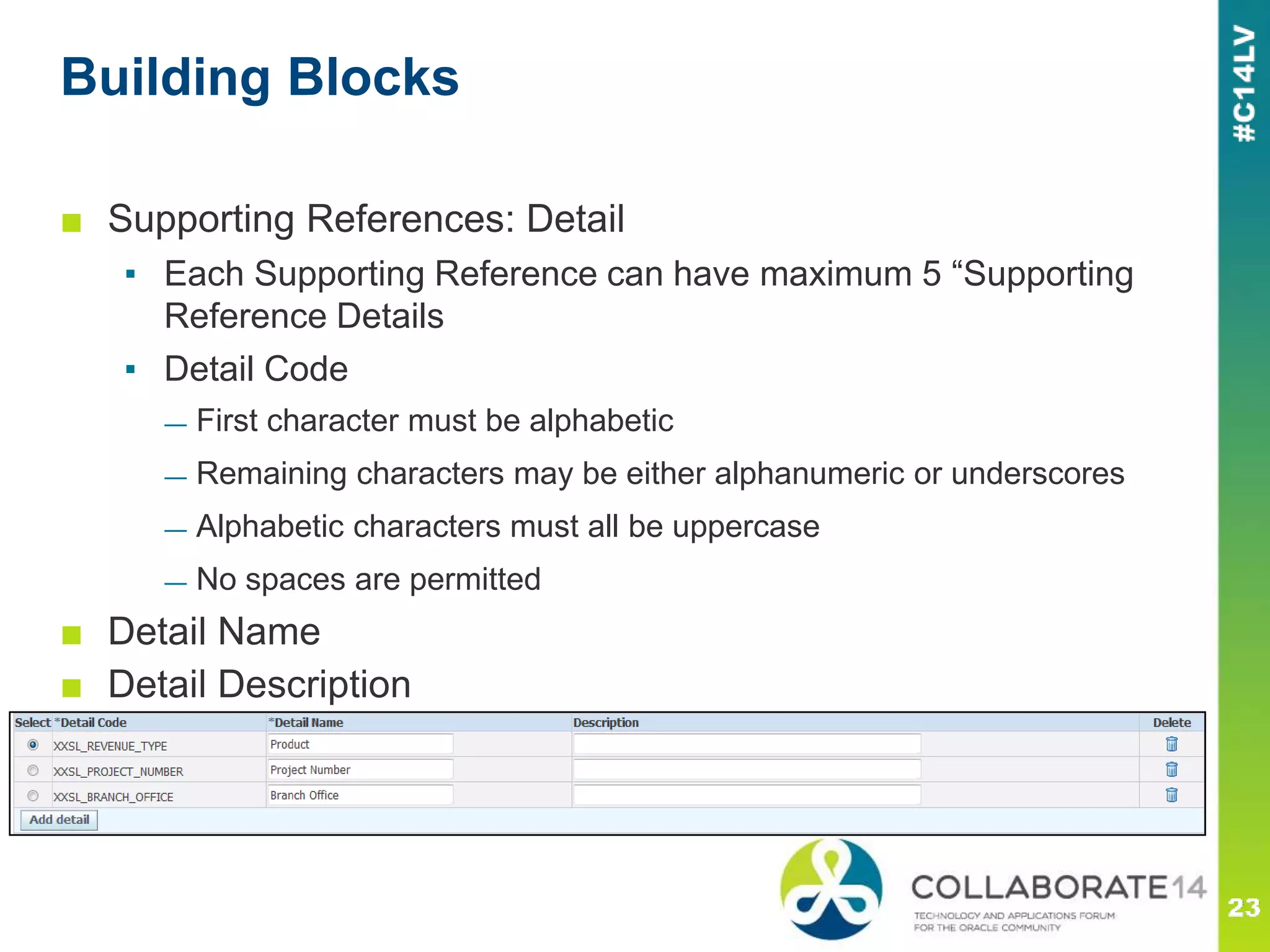

- 22. Building Blocks ■ SupportingReferences: Detail ▪ Each Supporting Reference can have maximum 5 “Supporting Reference Details ▪ Detail Code — First character must be alphabetic — Remaining characters may be either alphanumeric or underscores — Alphabetic characters must all be uppercase — No spaces are permitted ■ Detail Name ■ Detail Description

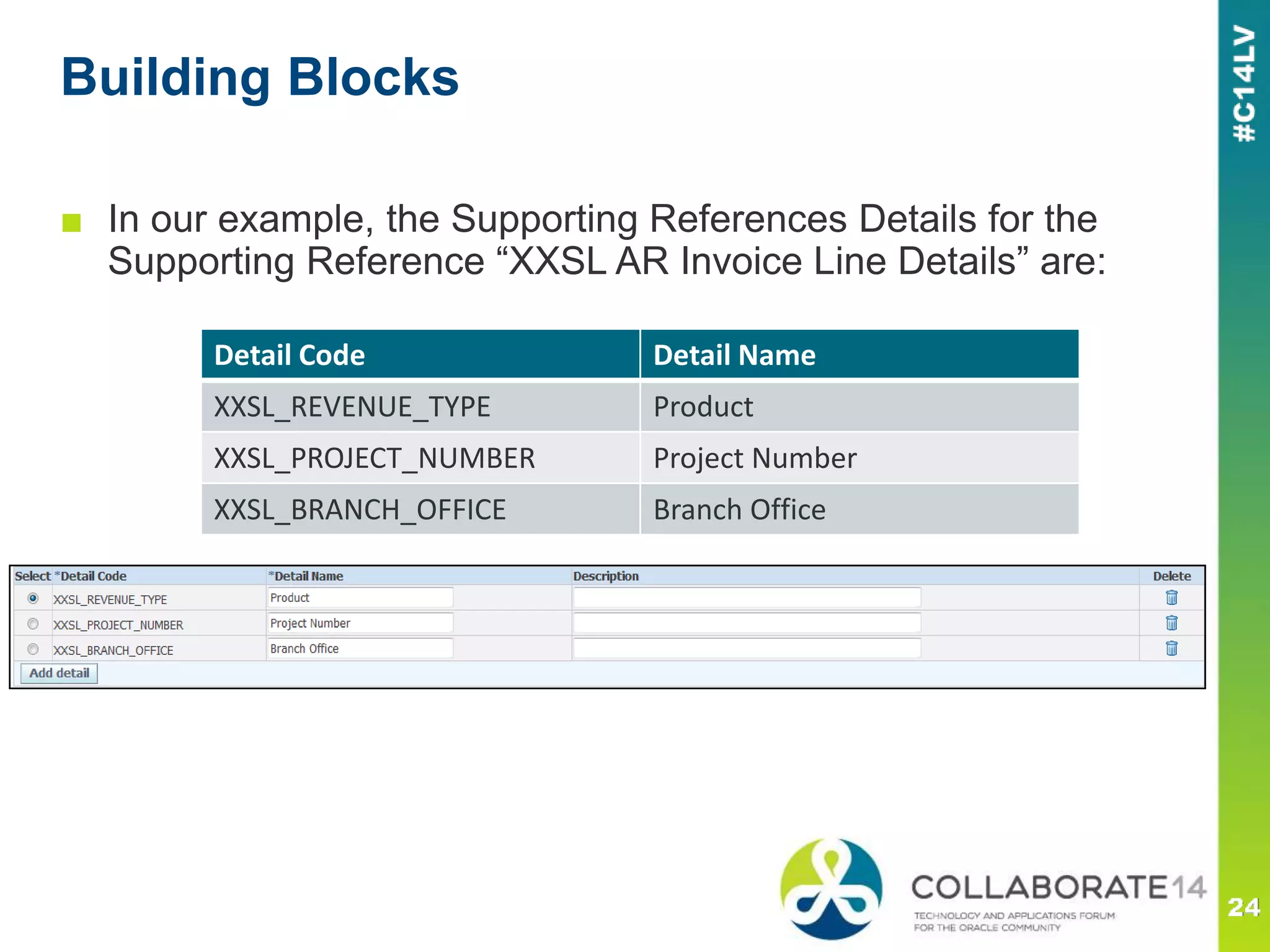

- 23. Building Blocks ■ Inour example, the Supporting References Details for the Supporting Reference “XXSL AR Invoice Line Details” are: Detail Code Detail Name XXSL_REVENUE_TYPE Product XXSL_PROJECT_NUMBER Project Number XXSL_BRANCH_OFFICE Branch Office

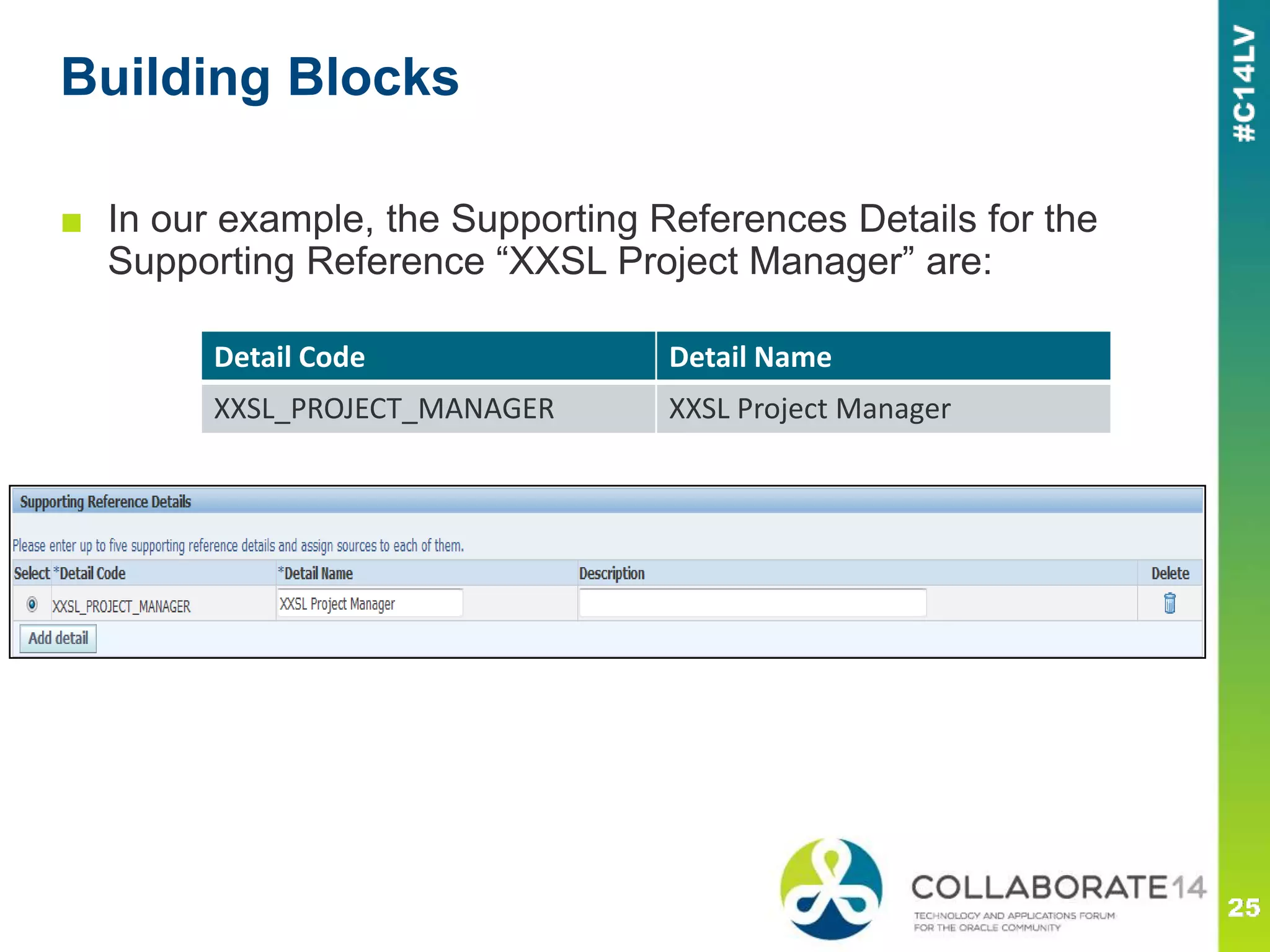

- 24. Building Blocks ■ Inour example, the Supporting References Details for the Supporting Reference “XXSL Project Manager” are: Detail Code Detail Name XXSL_PROJECT_MANAGER XXSL Project Manager

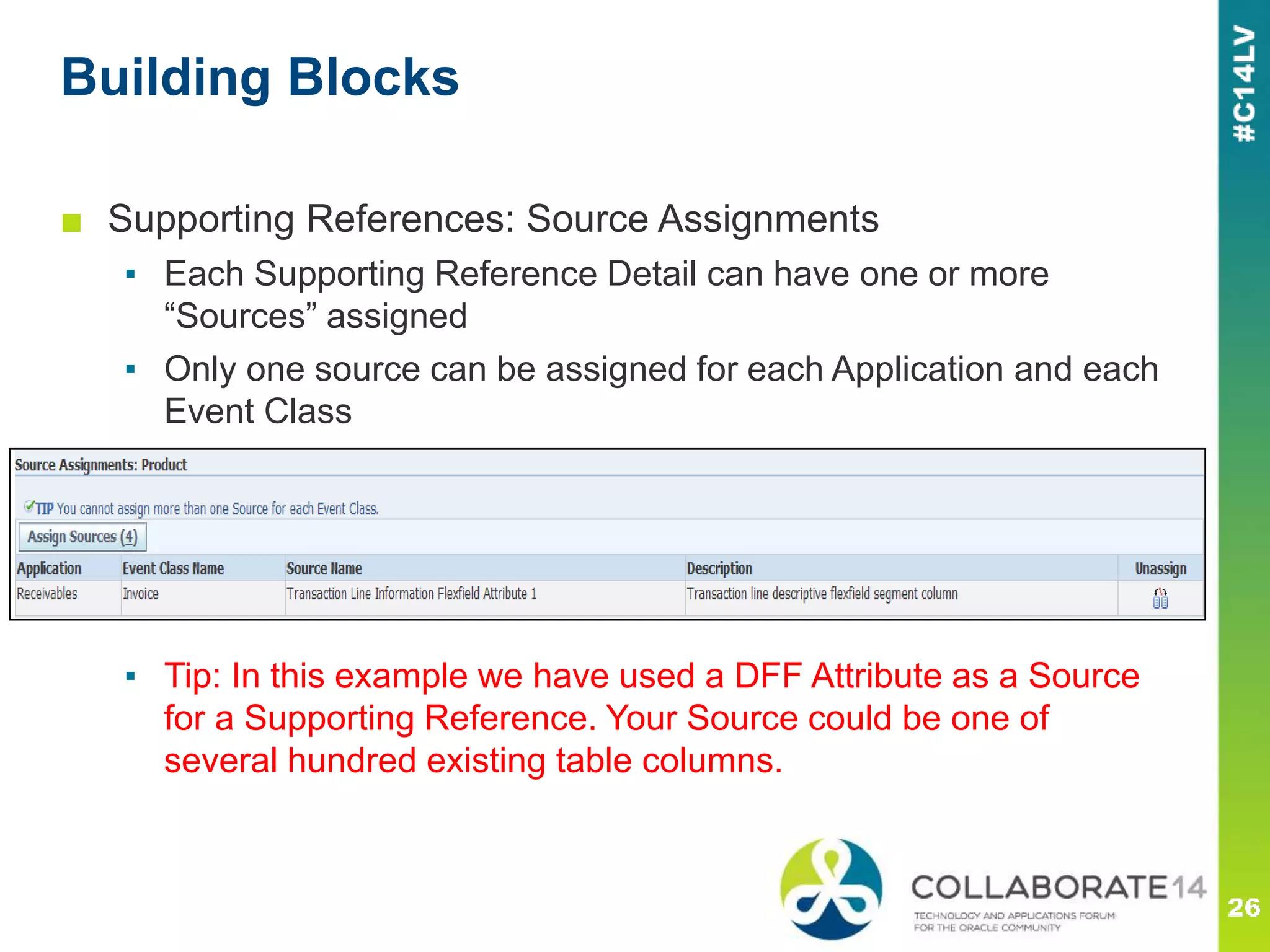

- 25. Building Blocks ■ SupportingReferences: Source Assignments ▪ Each Supporting Reference Detail can have one or more “Sources” assigned ▪ Only one source can be assigned for each Application and each Event Class ▪ Tip: In this example we have used a DFF Attribute as a Source for a Supporting Reference. Your Source could be one of several hundred existing table columns.

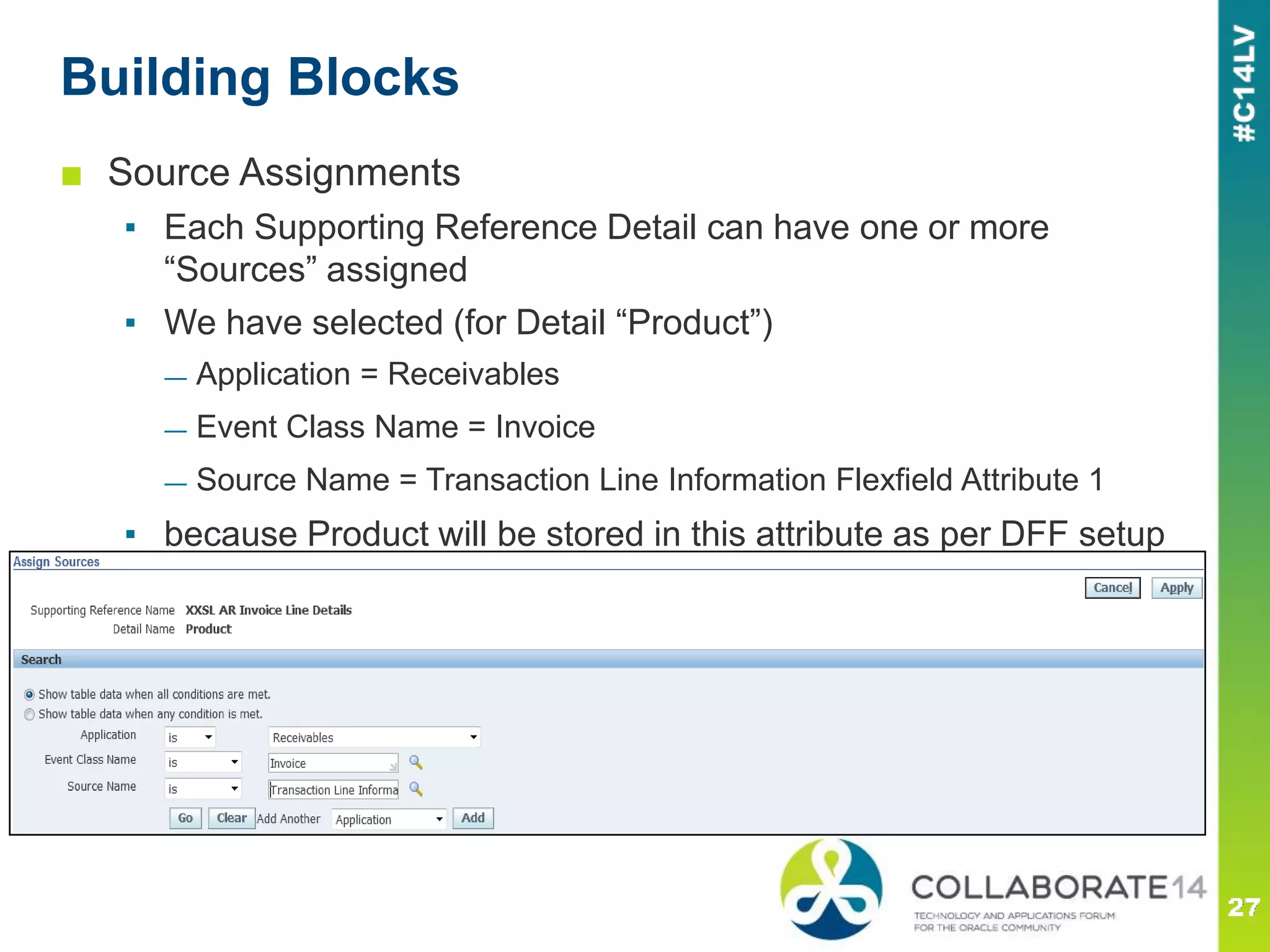

- 26. Building Blocks ■ SourceAssignments ▪ Each Supporting Reference Detail can have one or more “Sources” assigned ▪ We have selected (for Detail “Product”) — Application = Receivables — Event Class Name = Invoice — Source Name = Transaction Line Information Flexfield Attribute 1 ▪ because Product will be stored in this attribute as per DFF setup

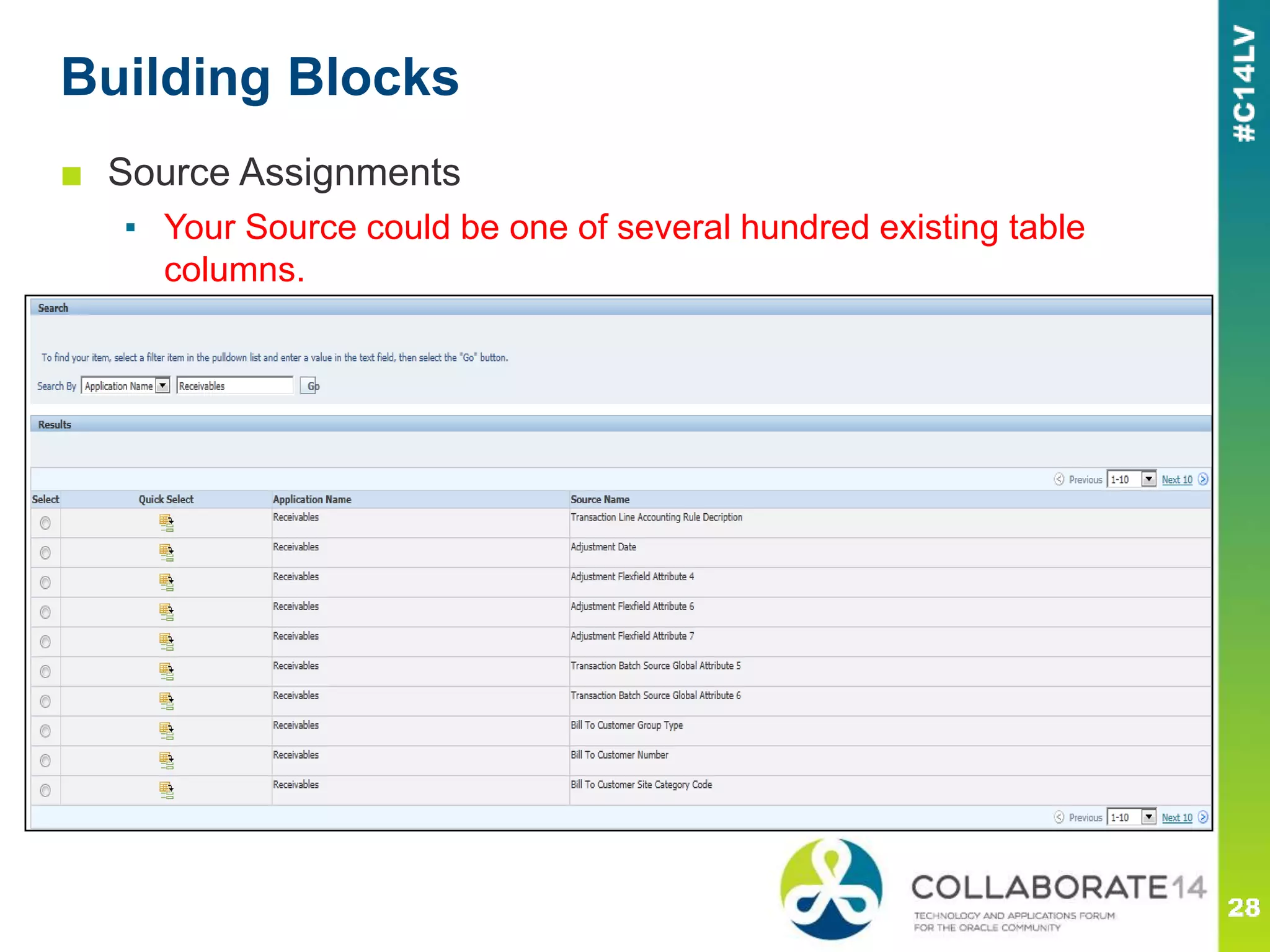

- 27. Building Blocks ■ SourceAssignments ▪ Your Source could be one of several hundred existing table columns.

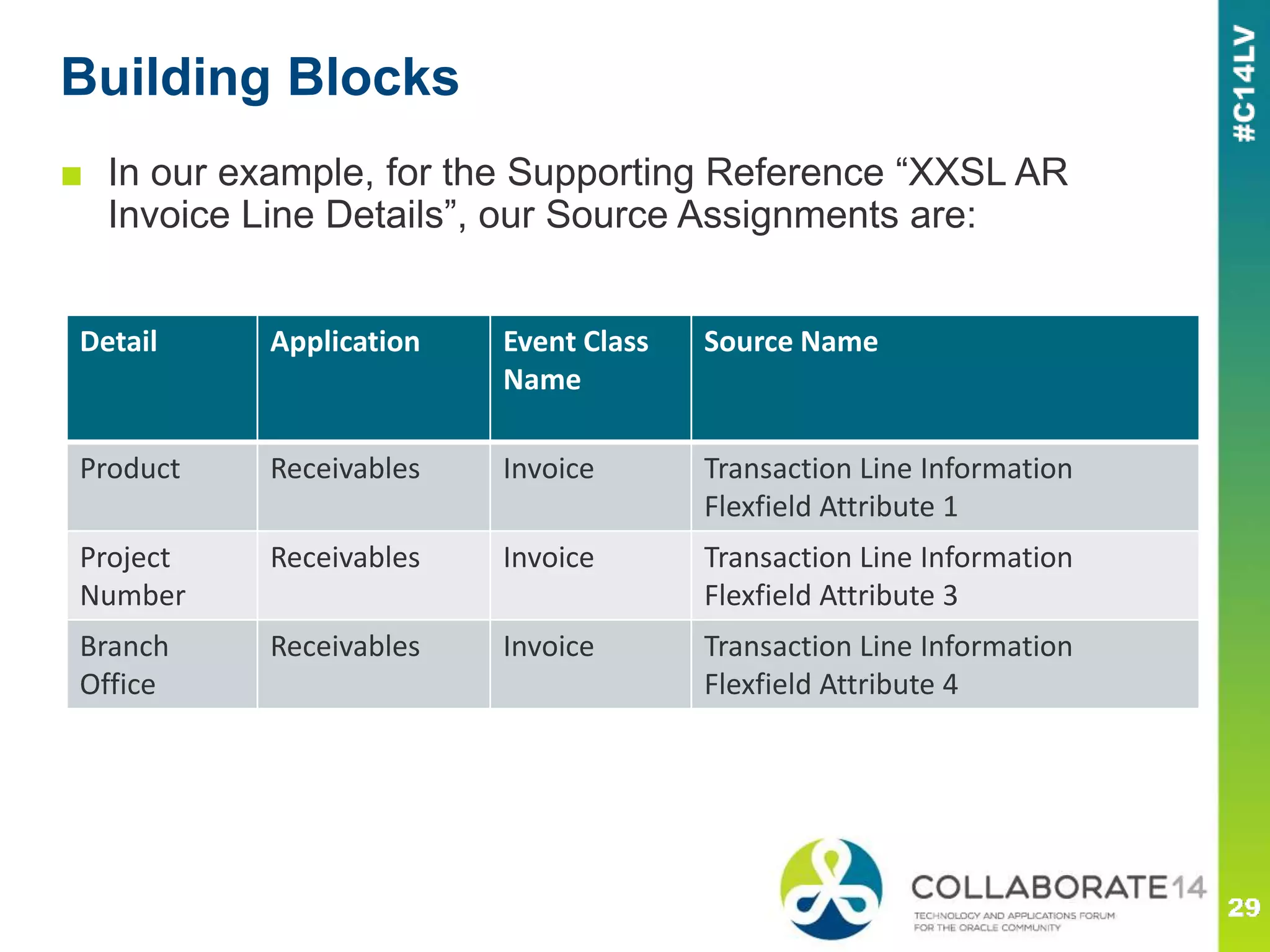

- 28. Building Blocks ■ Inour example, for the Supporting Reference “XXSL AR Invoice Line Details”, our Source Assignments are: Detail Application Event Class Name Source Name Product Receivables Invoice Transaction Line Information Flexfield Attribute 1 Project Number Receivables Invoice Transaction Line Information Flexfield Attribute 3 Branch Office Receivables Invoice Transaction Line Information Flexfield Attribute 4

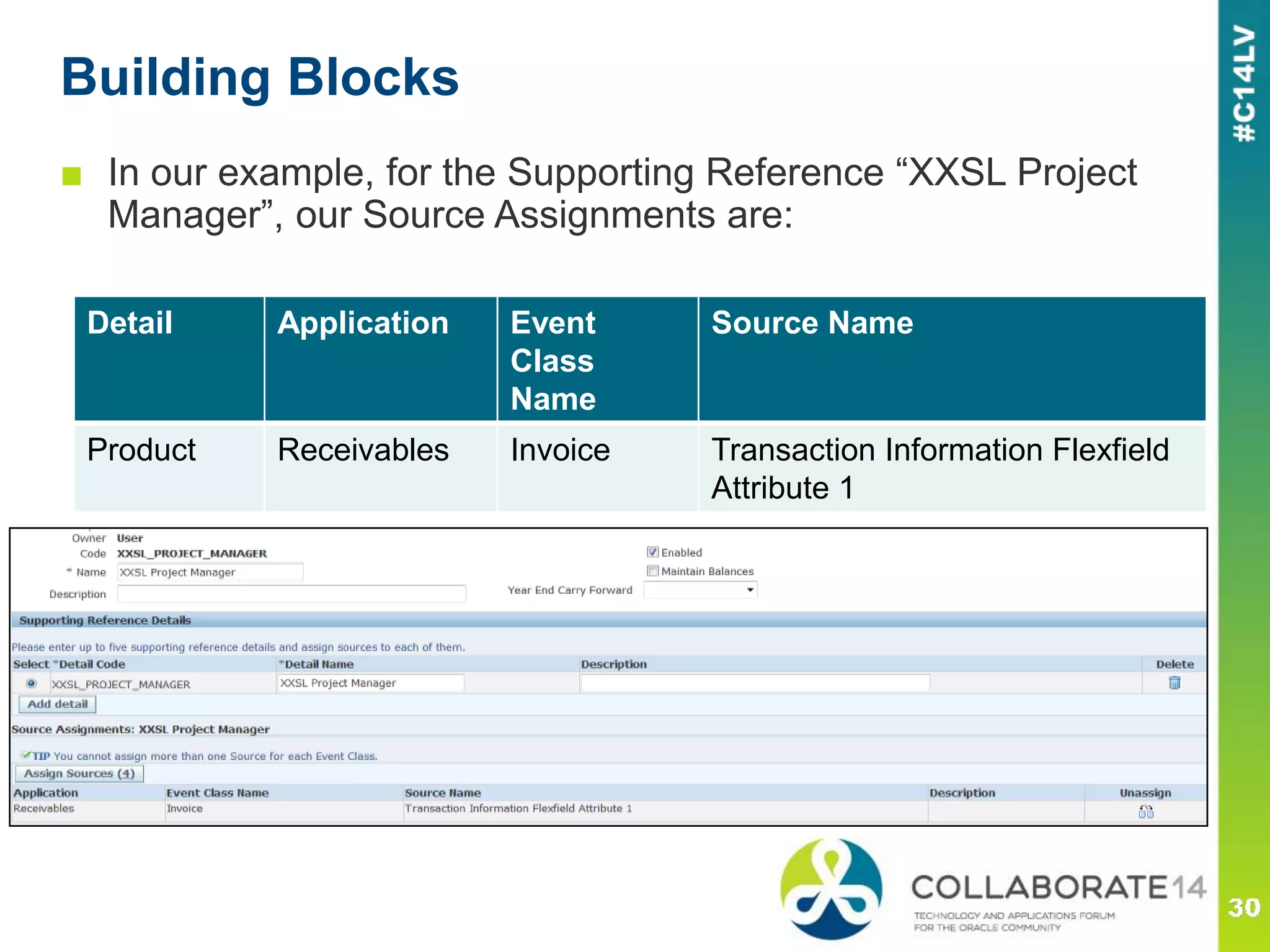

- 29. Building Blocks ■ Inour example, for the Supporting Reference “XXSL Project Manager”, our Source Assignments are: Detail Application Event Class Name Source Name Product Receivables Invoice Transaction Information Flexfield Attribute 1

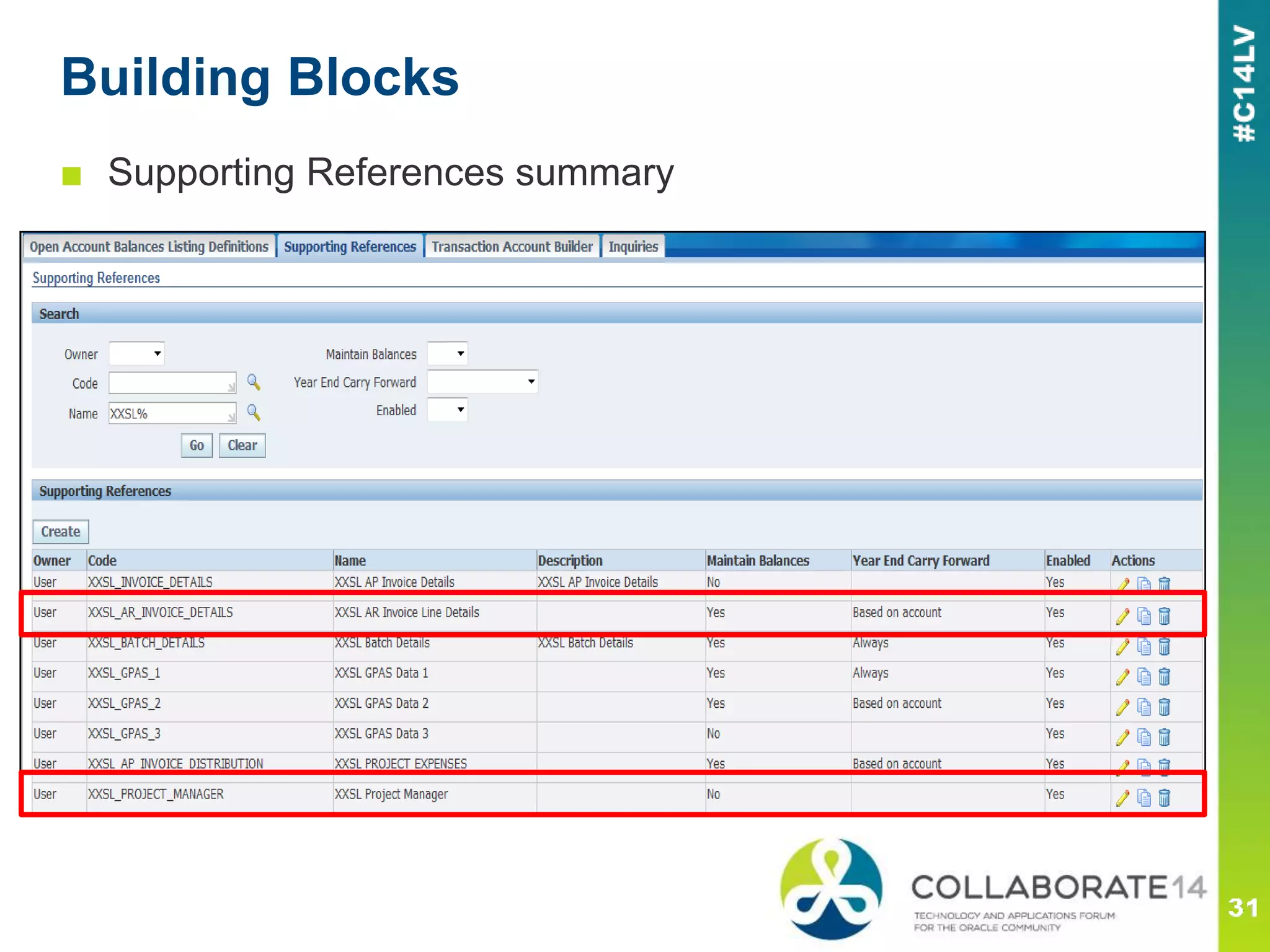

- 30. Building Blocks ■ SupportingReferences summary

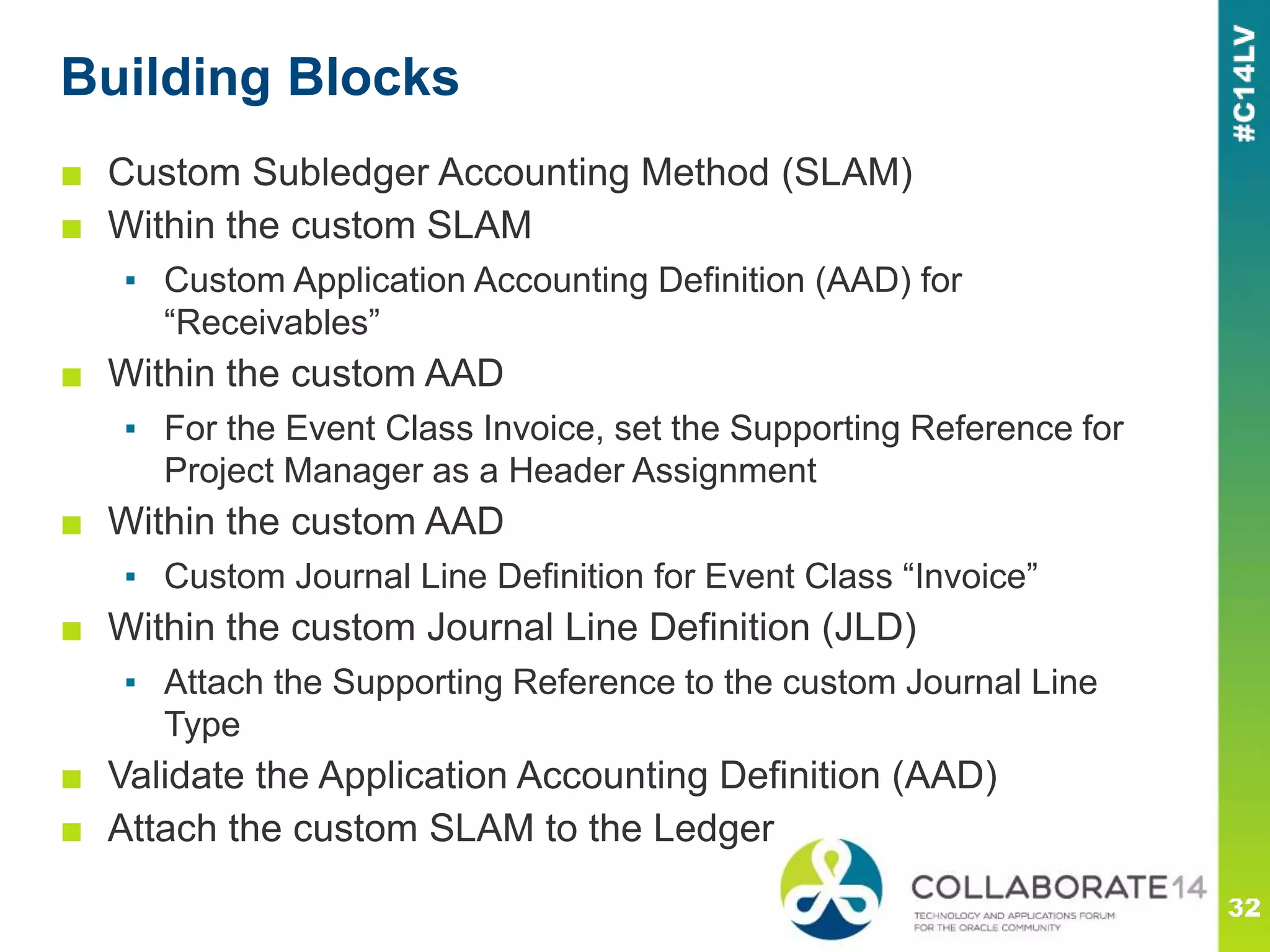

- 31. Building Blocks ■ CustomSubledger Accounting Method (SLAM) ■ Within the custom SLAM ▪ Custom Application Accounting Definition (AAD) for “Receivables” ■ Within the custom AAD ▪ For the Event Class Invoice, set the Supporting Reference for Project Manager as a Header Assignment ■ Within the custom AAD ▪ Custom Journal Line Definition for Event Class “Invoice” ■ Within the custom Journal Line Definition (JLD) ▪ Attach the Supporting Reference to the custom Journal Line Type ■ Validate the Application Accounting Definition (AAD) ■ Attach the custom SLAM to the Ledger

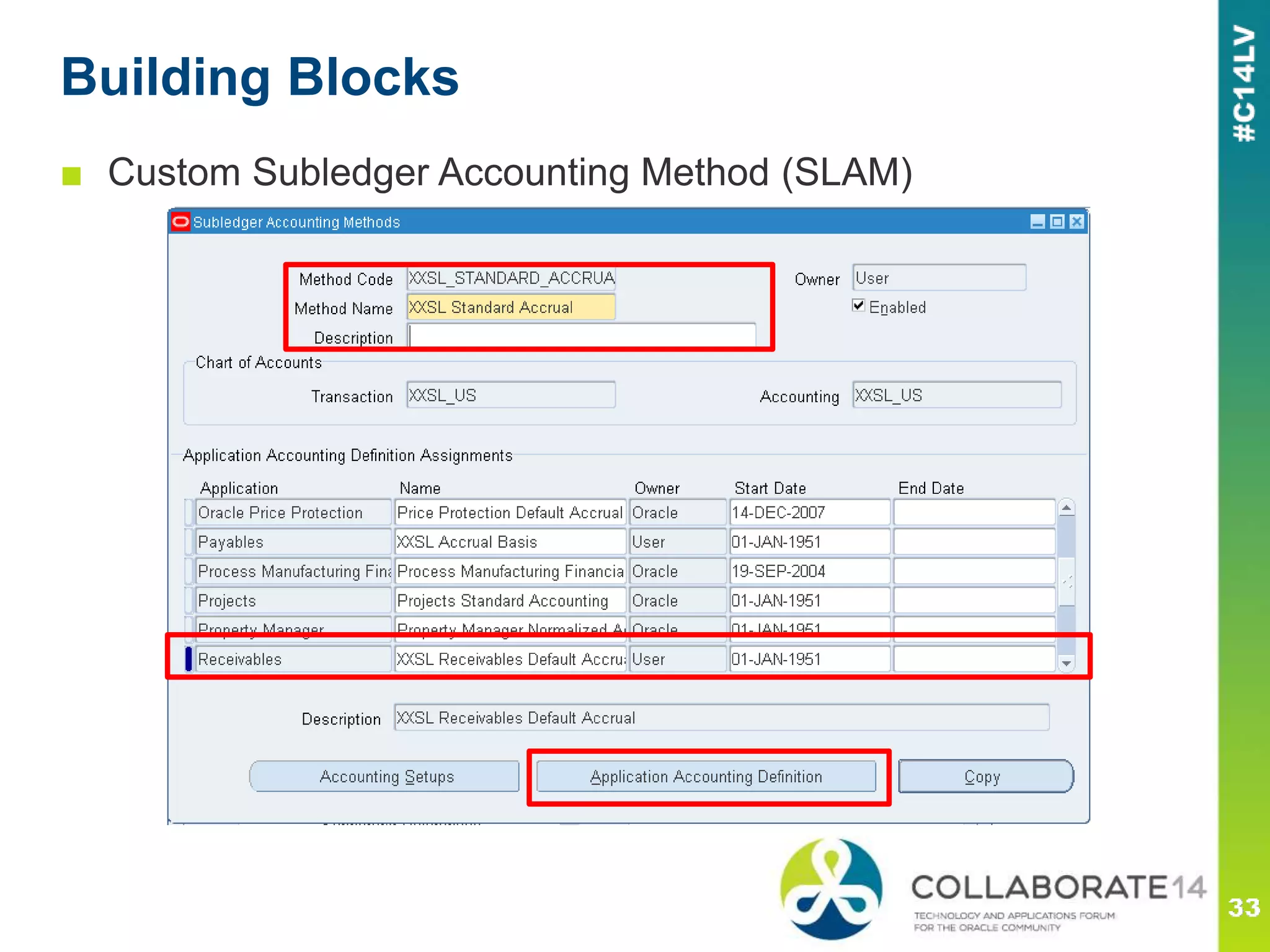

- 32. Building Blocks ■ CustomSubledger Accounting Method (SLAM)

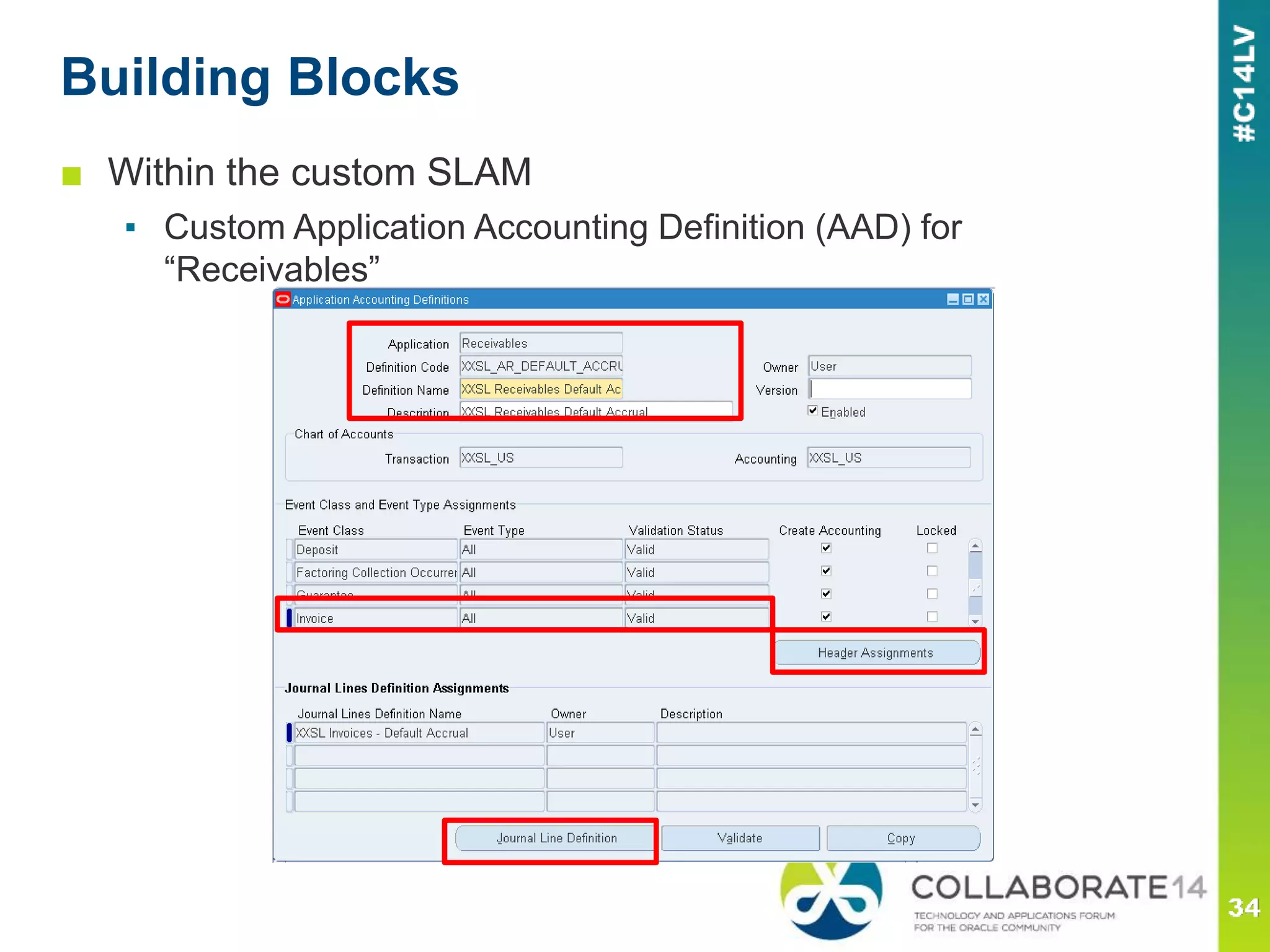

- 33. Building Blocks ■ Withinthe custom SLAM ▪ Custom Application Accounting Definition (AAD) for “Receivables”

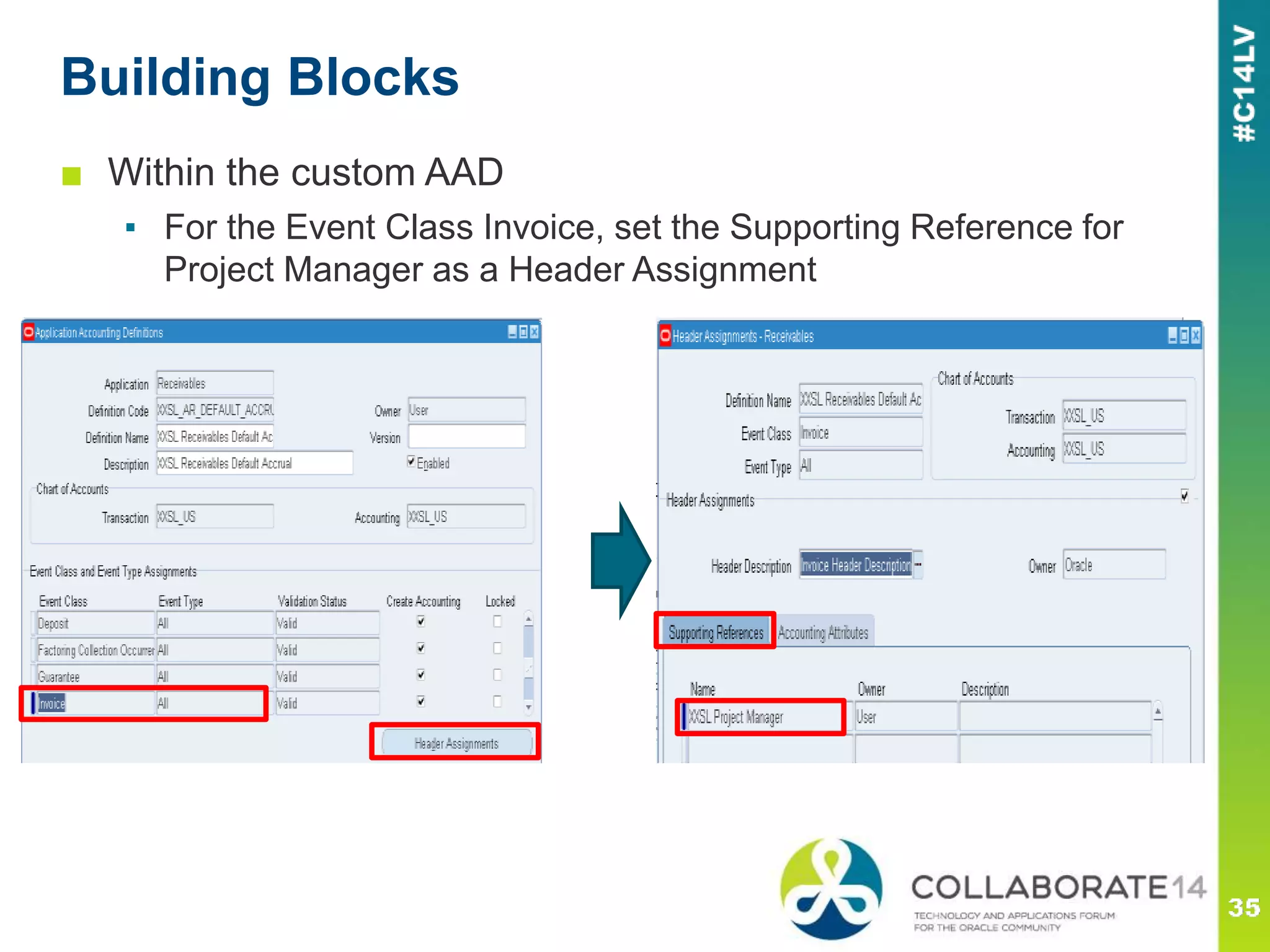

- 34. Building Blocks ■ Withinthe custom AAD ▪ For the Event Class Invoice, set the Supporting Reference for Project Manager as a Header Assignment

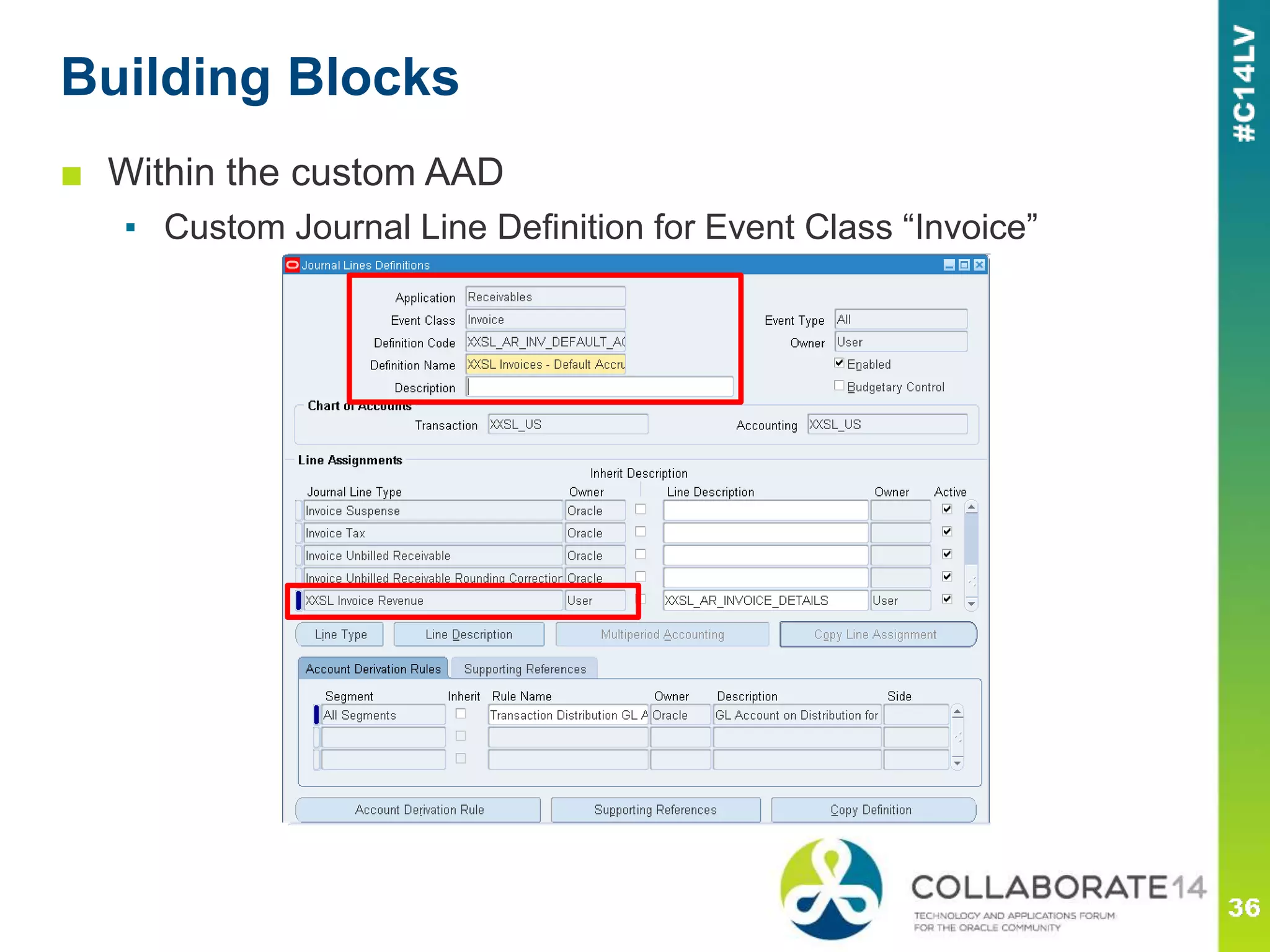

- 35. Building Blocks ■ Withinthe custom AAD ▪ Custom Journal Line Definition for Event Class “Invoice”

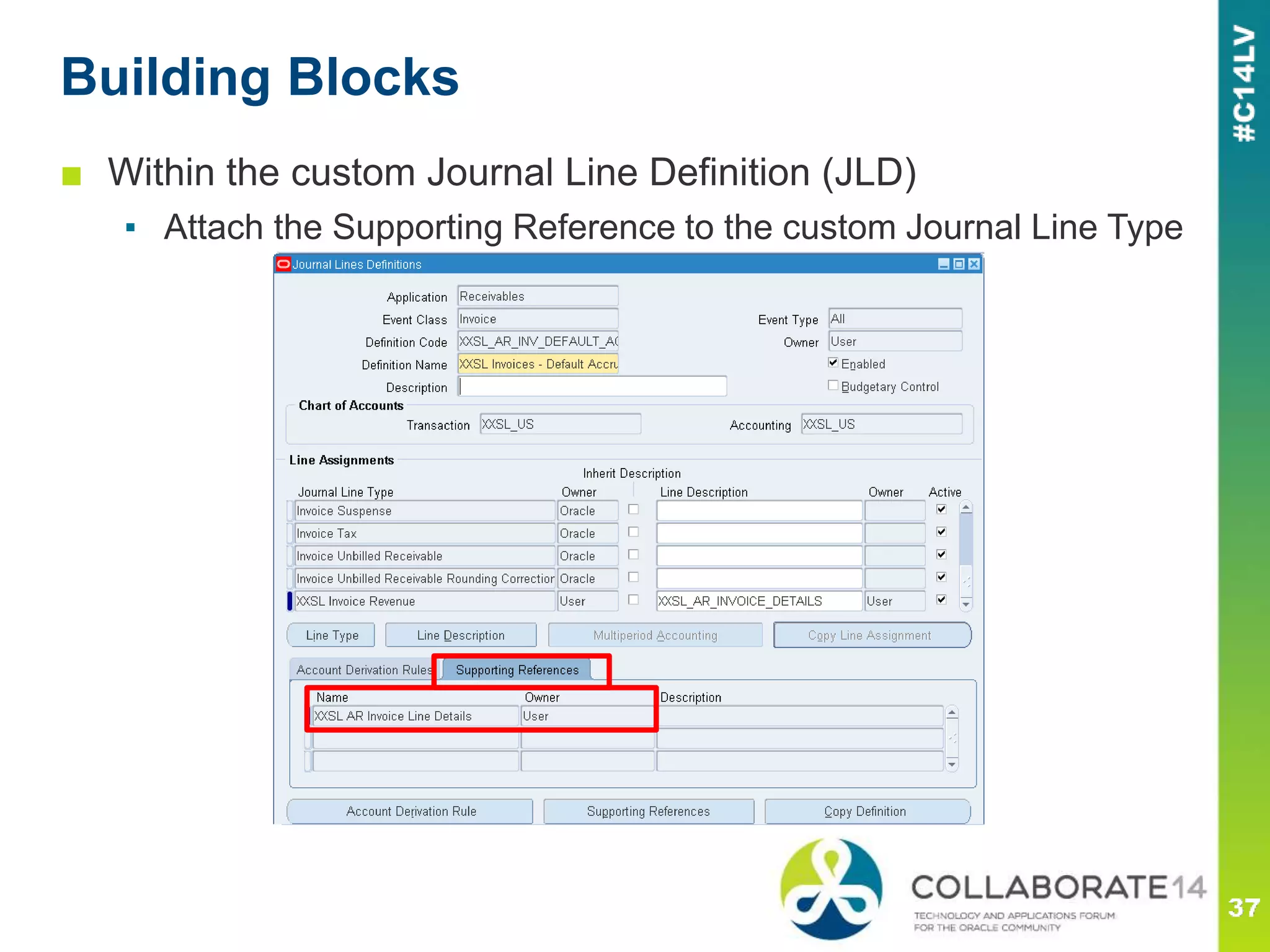

- 36. Building Blocks ■ Withinthe custom Journal Line Definition (JLD) ▪ Attach the Supporting Reference to the custom Journal Line Type

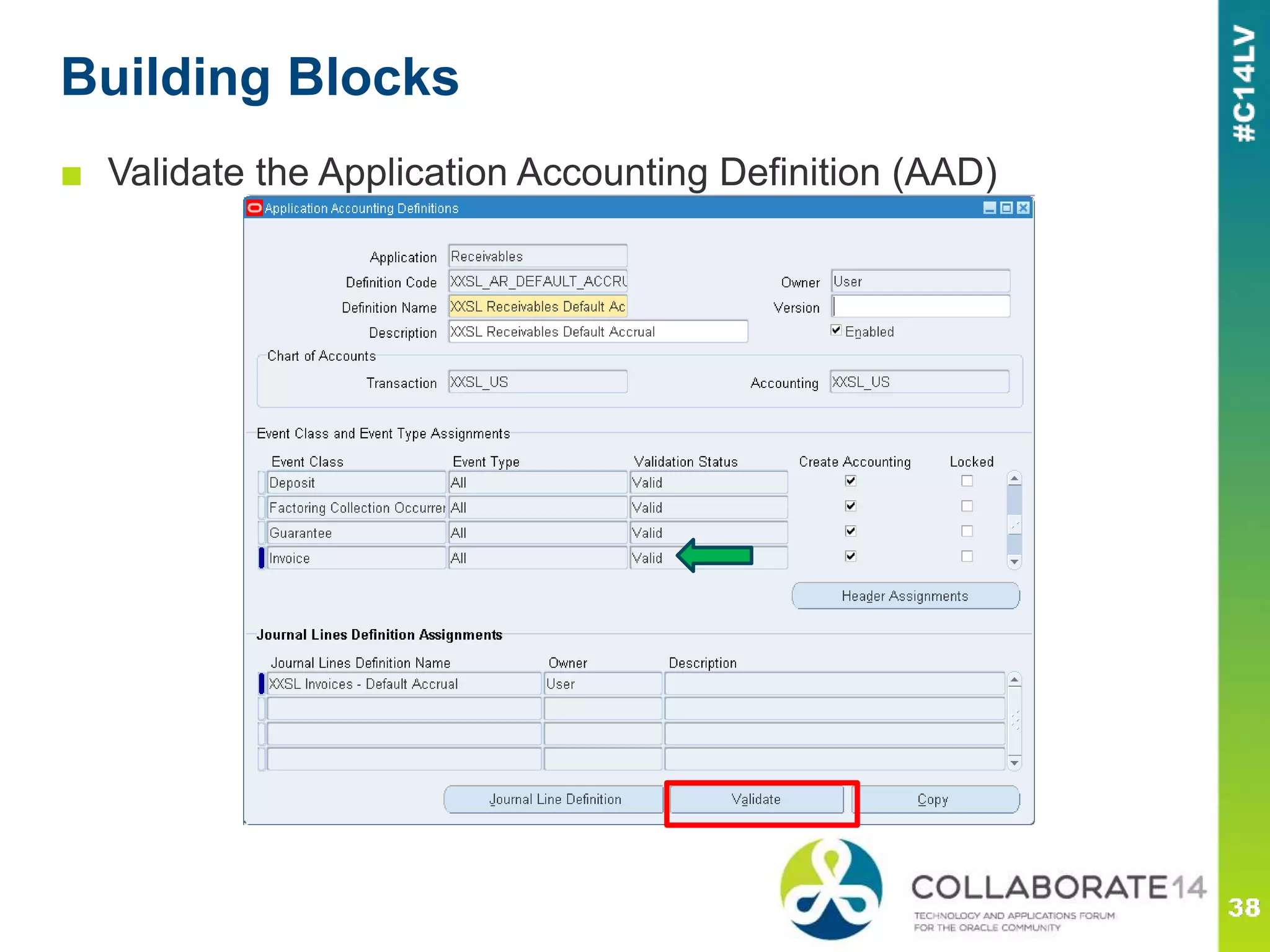

- 37. Building Blocks ■ Validatethe Application Accounting Definition (AAD)

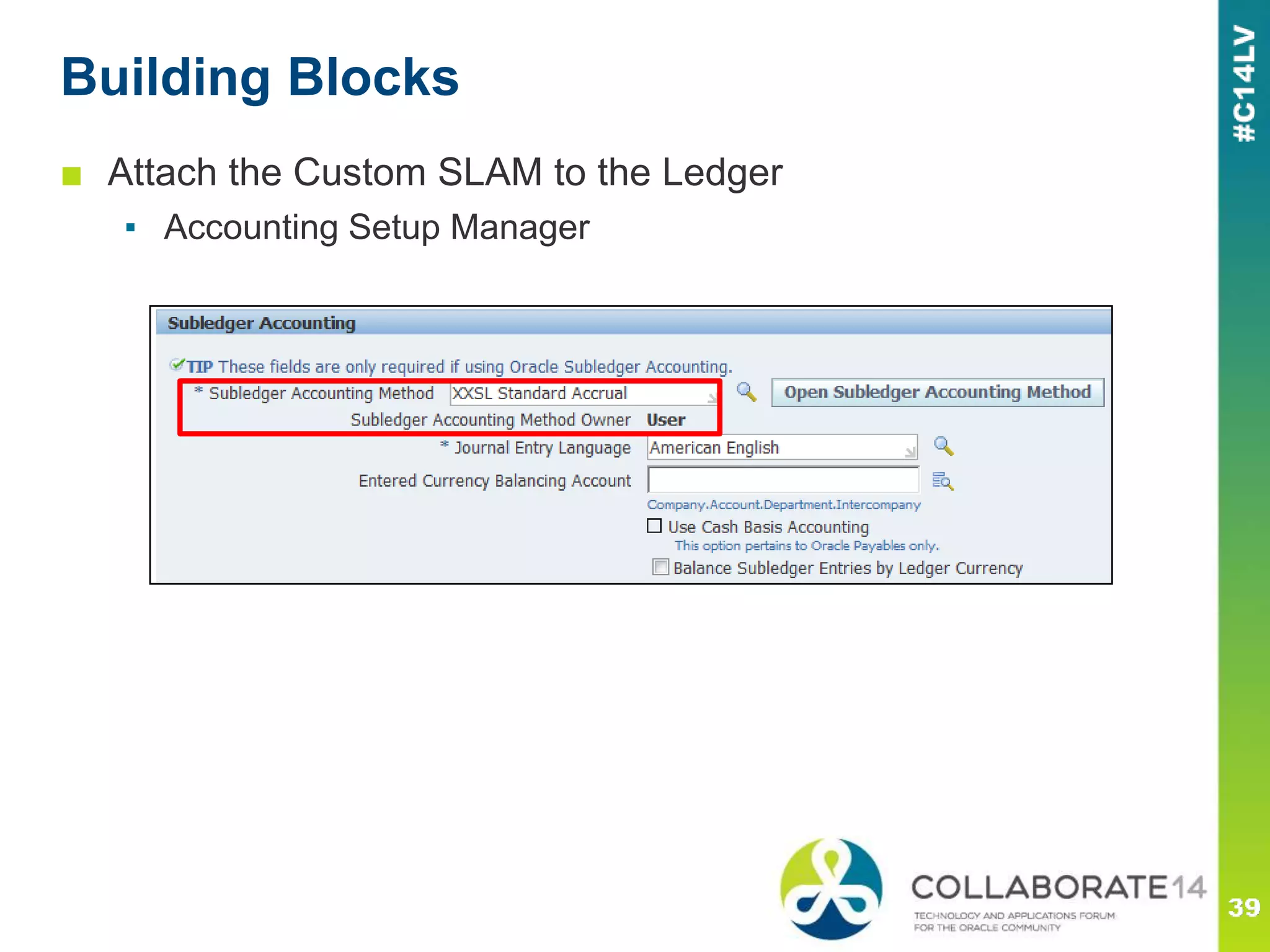

- 38. Building Blocks ■ Attachthe Custom SLAM to the Ledger ▪ Accounting Setup Manager
- 39.

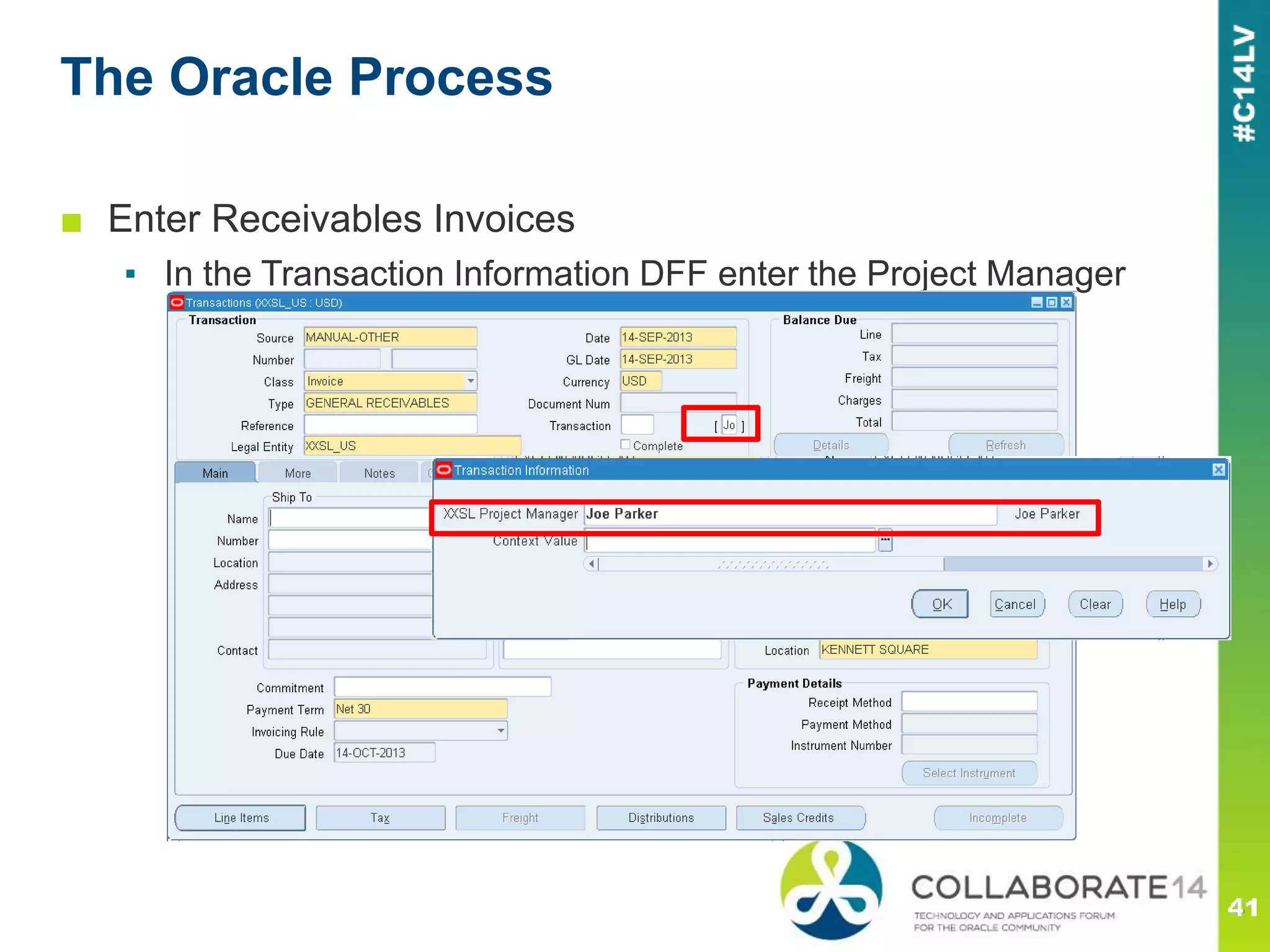

- 40. The Oracle Process ■Enter Receivables Invoices ▪ In the Transaction Information DFF enter the Project Manager
- 41. The Oracle Process ■Enter Invoice Line ▪ In the DFF, enter Product, Project, Branch Office

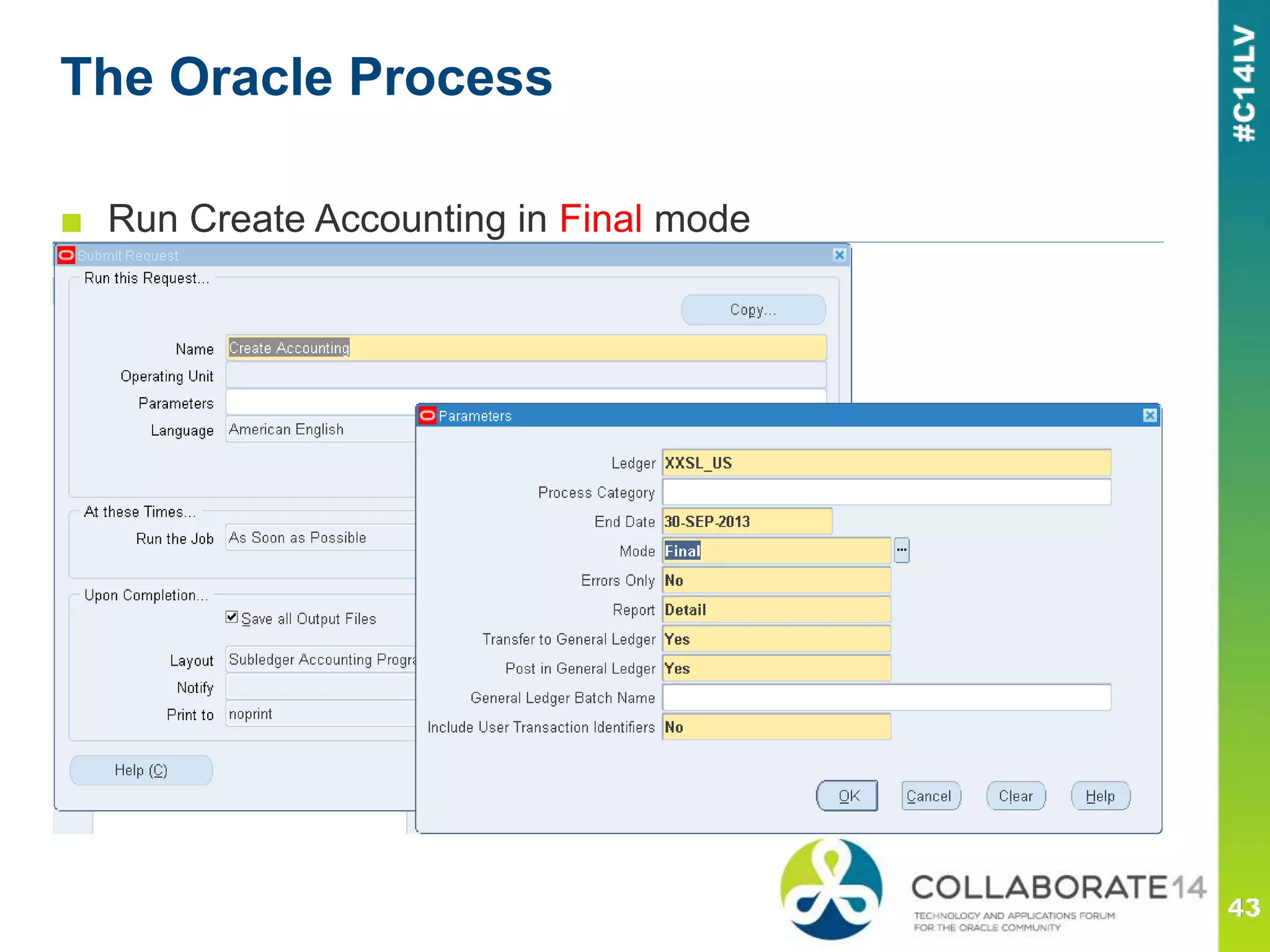

- 42. The Oracle Process ■Run Create Accounting in Final mode

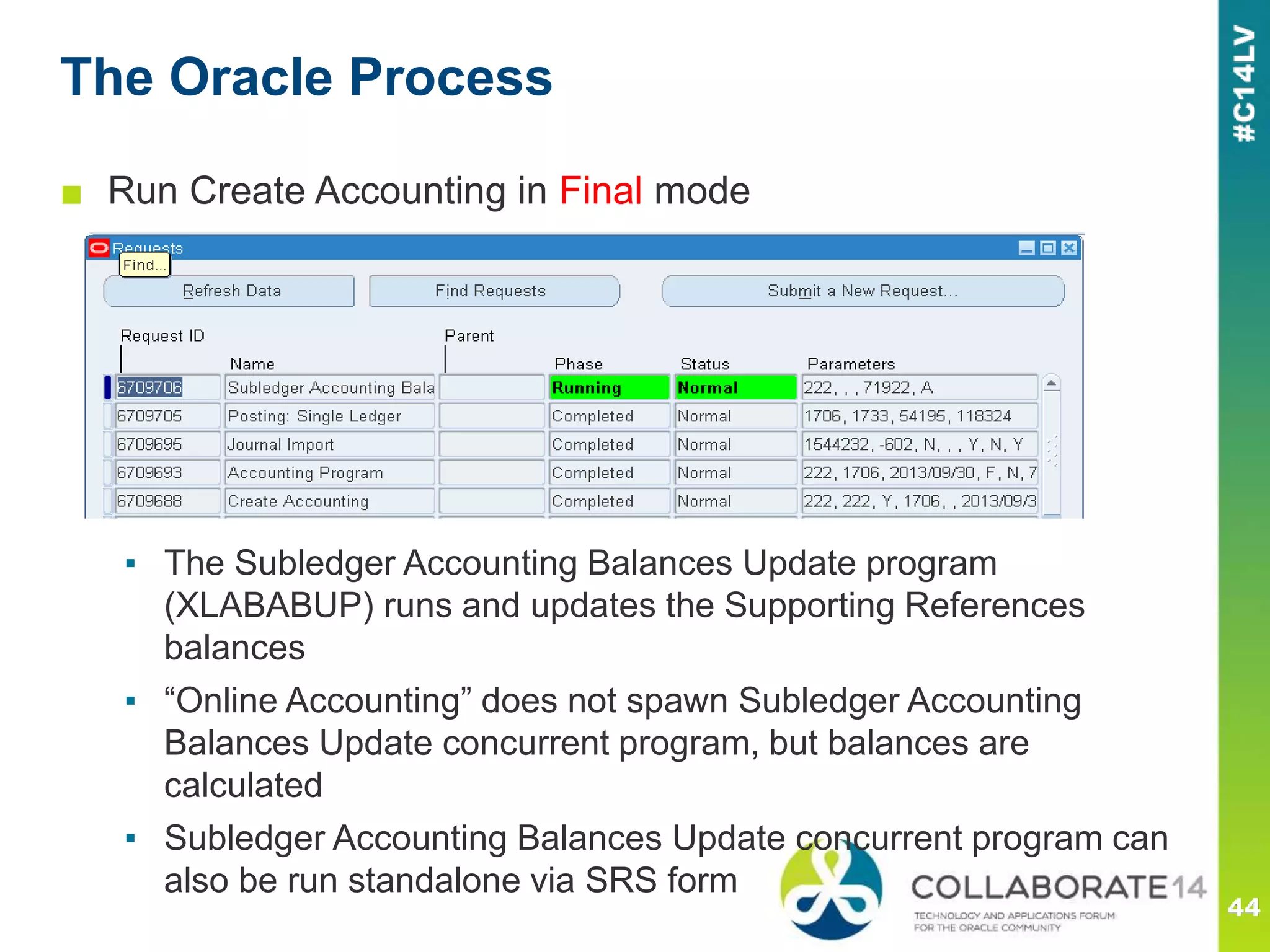

- 43. The Oracle Process ■Run Create Accounting in Final mode ▪ The Subledger Accounting Balances Update program (XLABABUP) runs and updates the Supporting References balances ▪ “Online Accounting” does not spawn Subledger Accounting Balances Update concurrent program, but balances are calculated ▪ Subledger Accounting Balances Update concurrent program can also be run standalone via SRS form

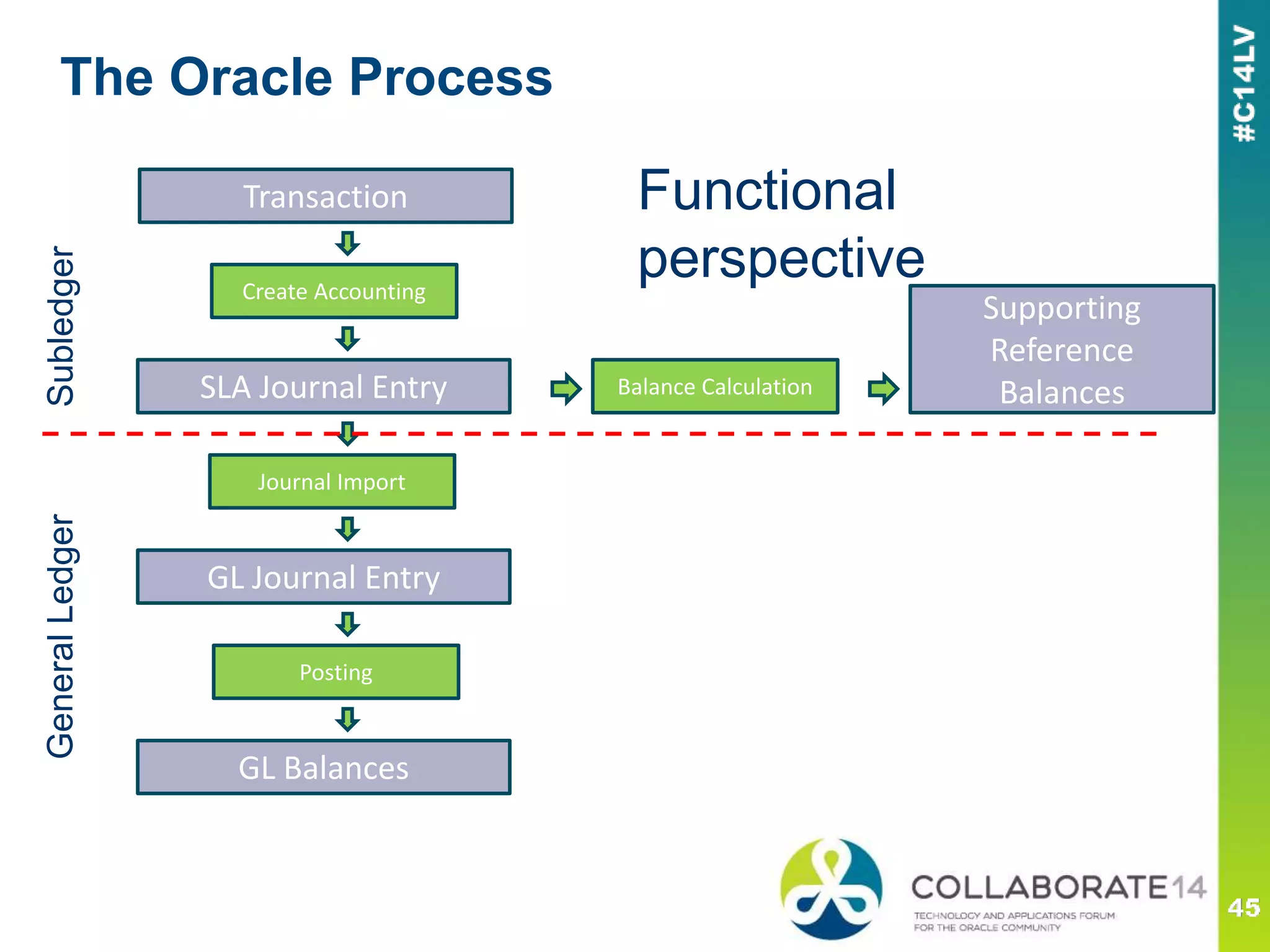

- 44. The Oracle Process Transaction SLAJournal Entry GL Journal Entry GL Balances Create Accounting Journal Import Posting Supporting Reference BalancesBalance Calculation Functional perspective SubledgerGeneralLedger

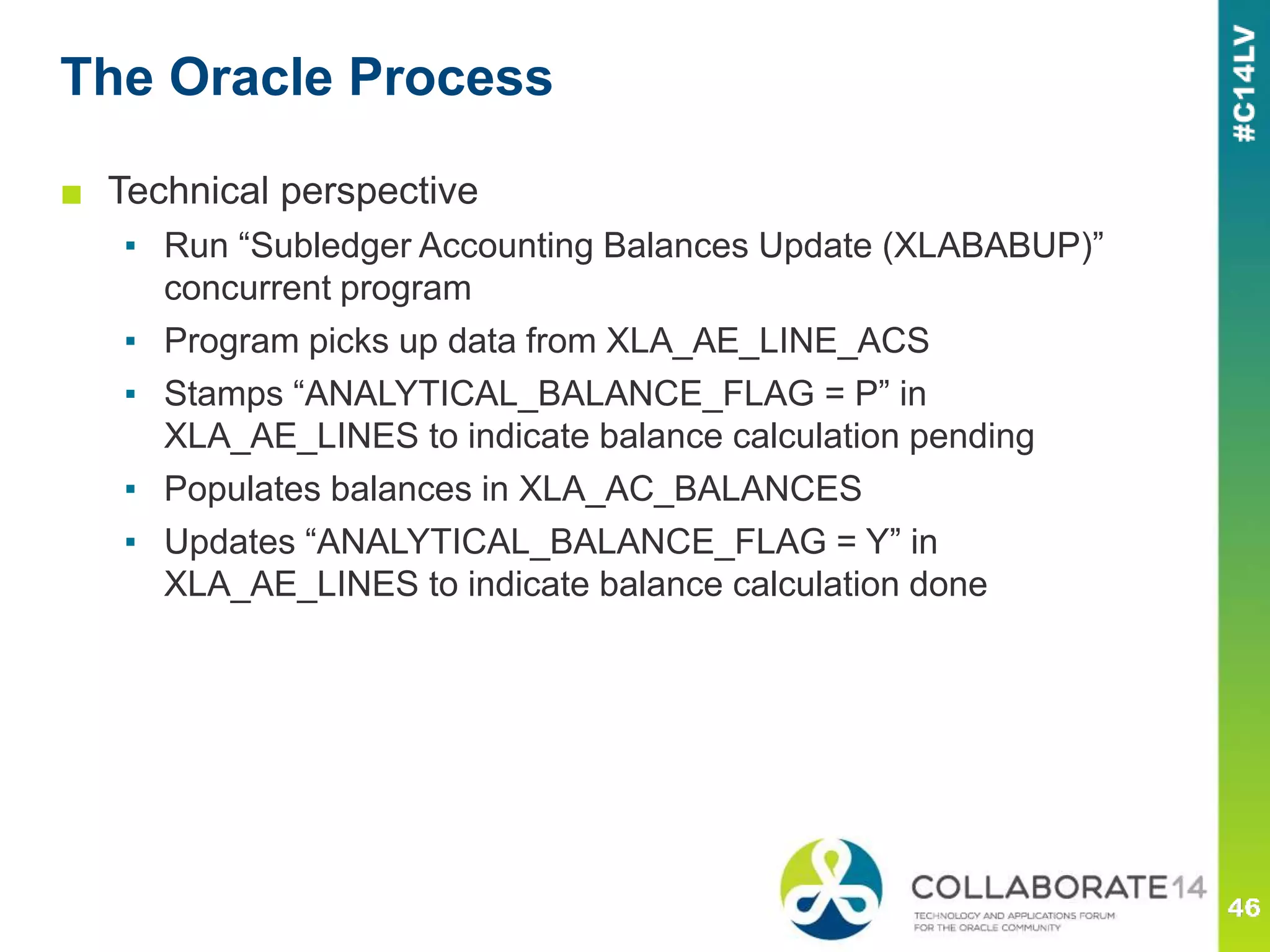

- 45. The Oracle Process ■Technical perspective ▪ Run “Subledger Accounting Balances Update (XLABABUP)” concurrent program ▪ Program picks up data from XLA_AE_LINE_ACS ▪ Stamps “ANALYTICAL_BALANCE_FLAG = P” in XLA_AE_LINES to indicate balance calculation pending ▪ Populates balances in XLA_AC_BALANCES ▪ Updates “ANALYTICAL_BALANCE_FLAG = Y” in XLA_AE_LINES to indicate balance calculation done
- 46.

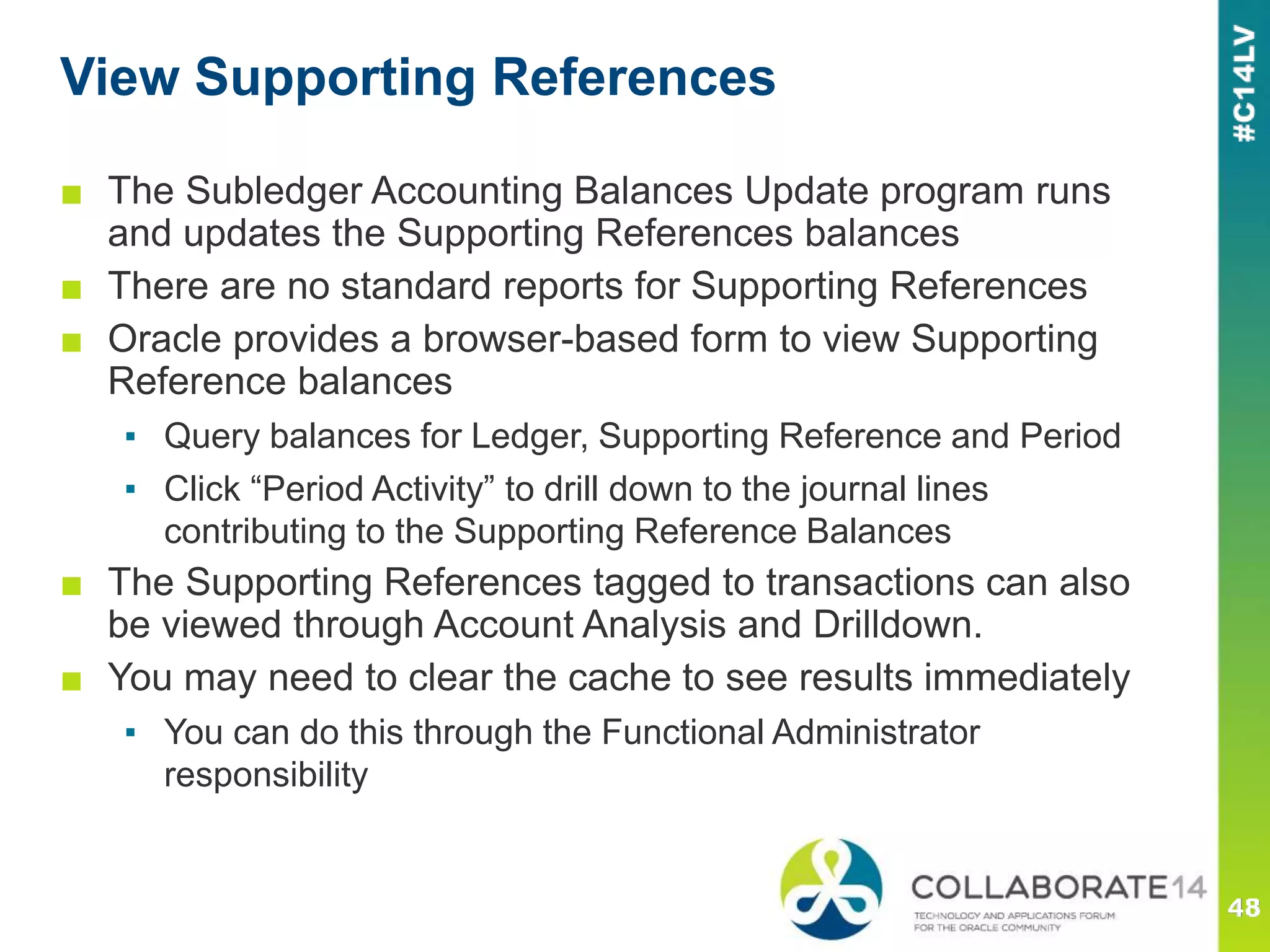

- 47. View Supporting References ■The Subledger Accounting Balances Update program runs and updates the Supporting References balances ■ There are no standard reports for Supporting References ■ Oracle provides a browser-based form to view Supporting Reference balances ▪ Query balances for Ledger, Supporting Reference and Period ▪ Click “Period Activity” to drill down to the journal lines contributing to the Supporting Reference Balances ■ The Supporting References tagged to transactions can also be viewed through Account Analysis and Drilldown. ■ You may need to clear the cache to see results immediately ▪ You can do this through the Functional Administrator responsibility

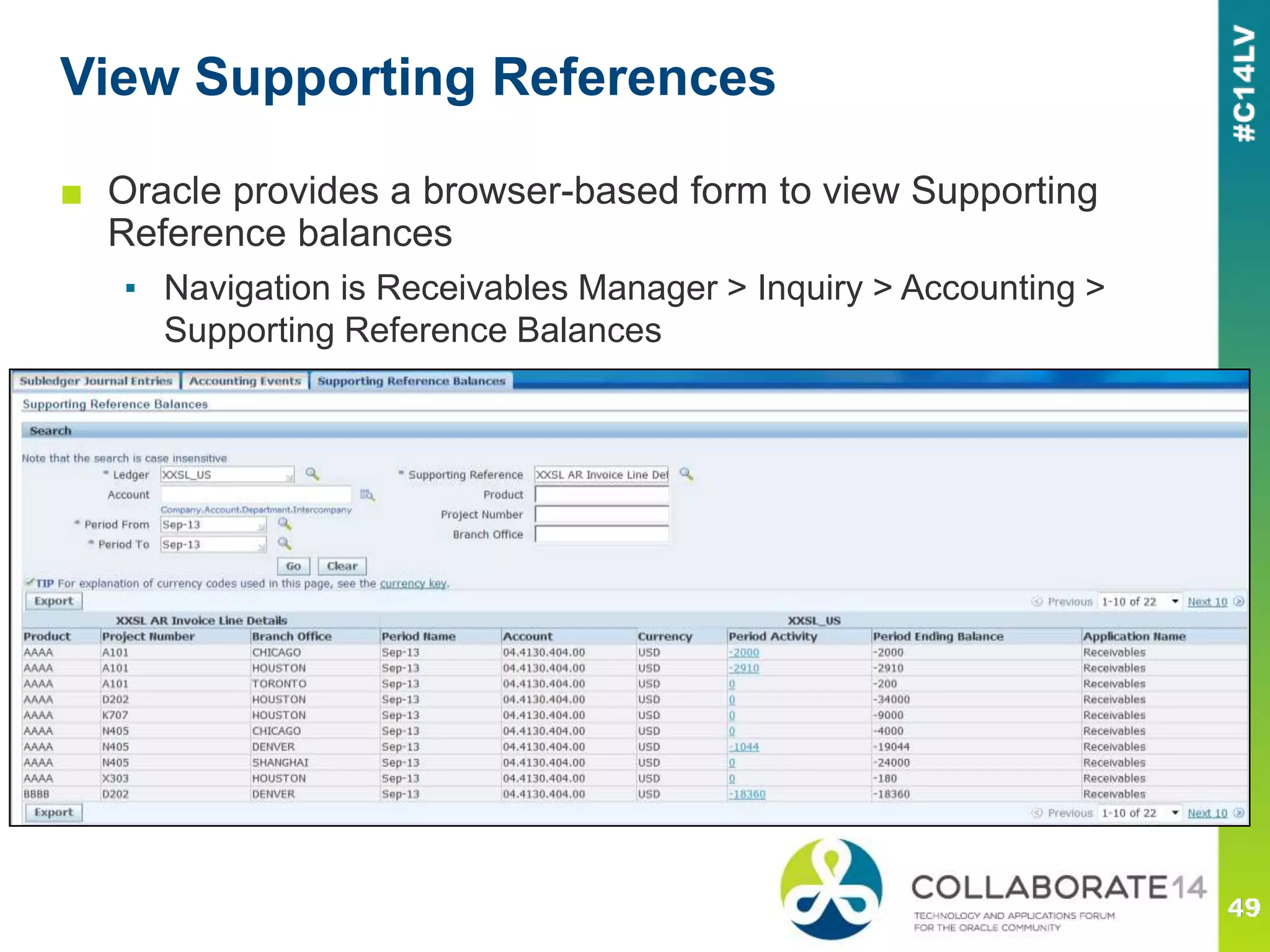

- 48. View Supporting References ■Oracle provides a browser-based form to view Supporting Reference balances ▪ Navigation is Receivables Manager > Inquiry > Accounting > Supporting Reference Balances

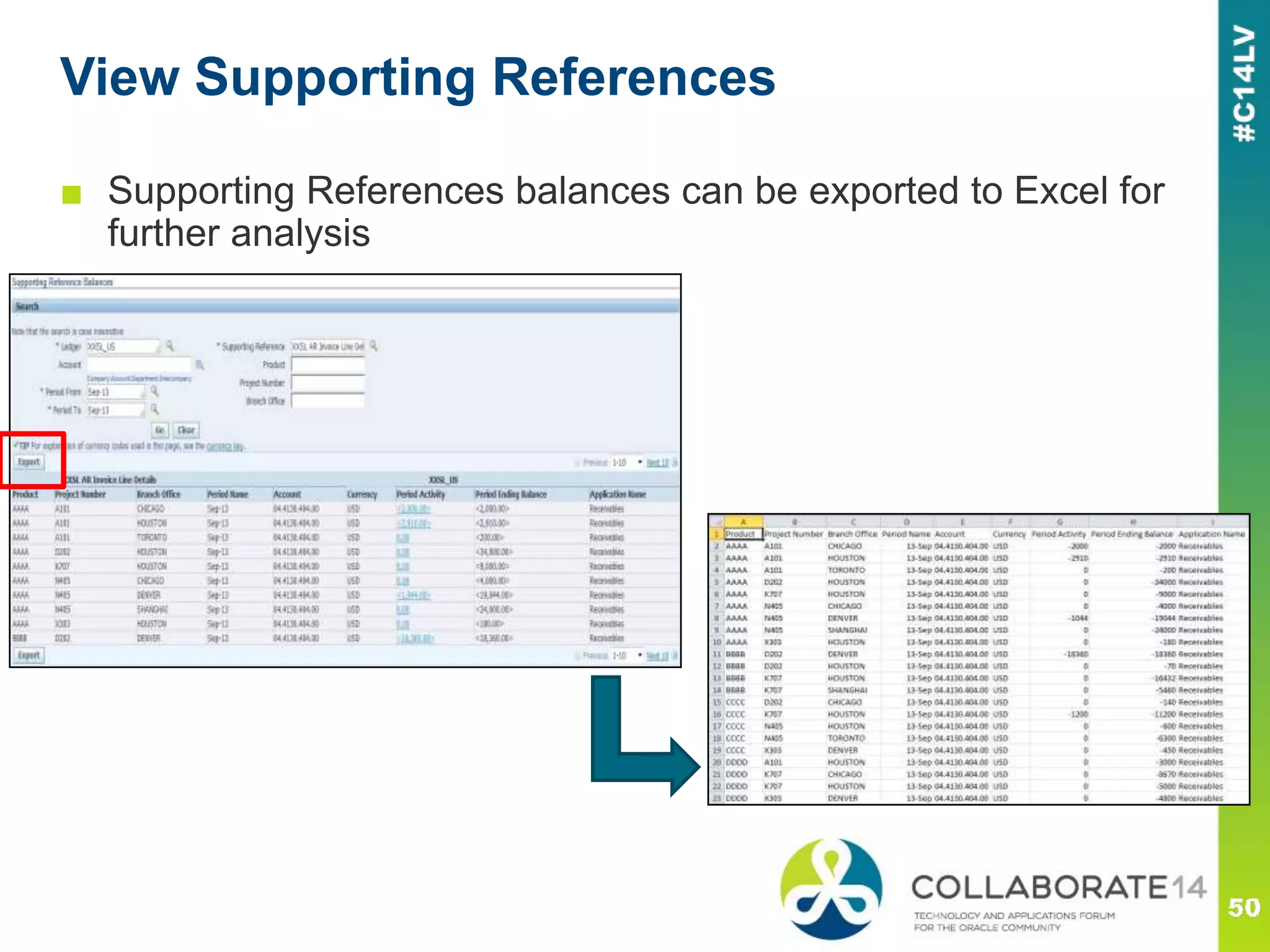

- 49. View Supporting References ■Supporting References balances can be exported to Excel for further analysis

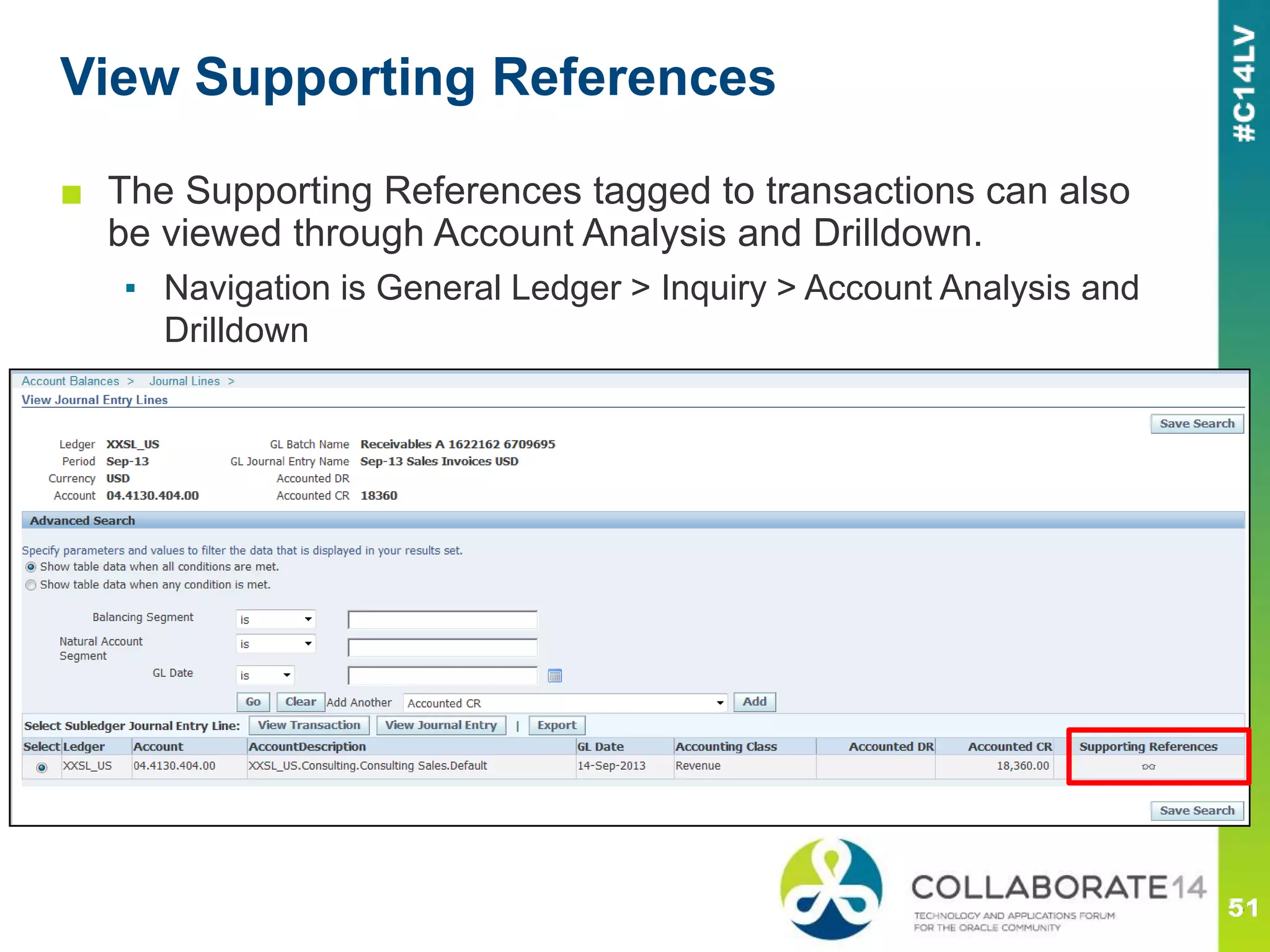

- 50. View Supporting References ■The Supporting References tagged to transactions can also be viewed through Account Analysis and Drilldown. ▪ Navigation is General Ledger > Inquiry > Account Analysis and Drilldown

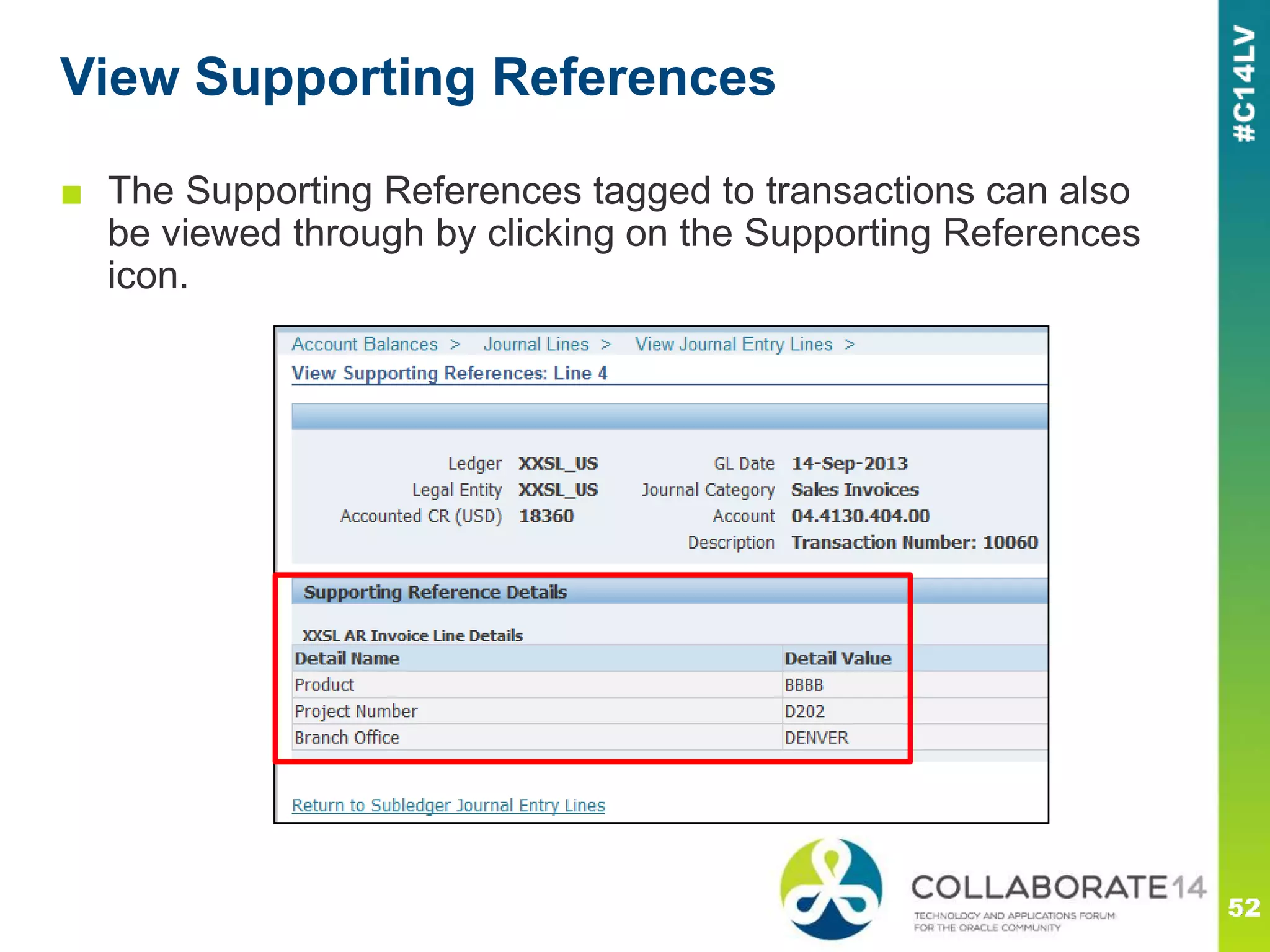

- 51. View Supporting References ■The Supporting References tagged to transactions can also be viewed through by clicking on the Supporting References icon.
- 52. View Supporting References ■Supporting References balances can be viewed from Subledger Journal Entries ▪ Drill down into SL JE from GL JE Line, using Line Drilldown button

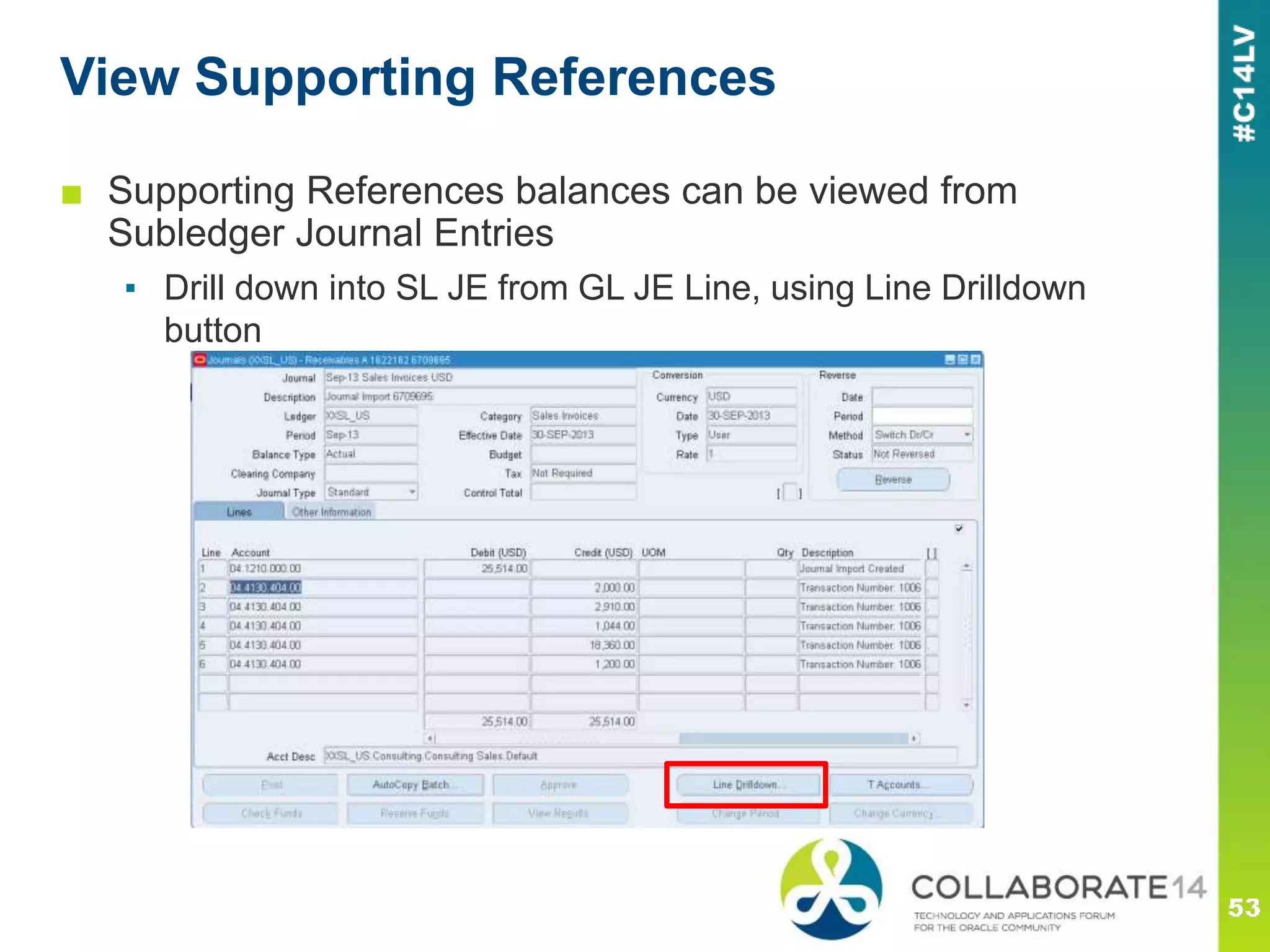

- 53. View Supporting References ■Supporting References balances can be viewed from Subledger Journal Entries ▪ Drill down into SL JE from GL JE Line, using Line Drilldown button

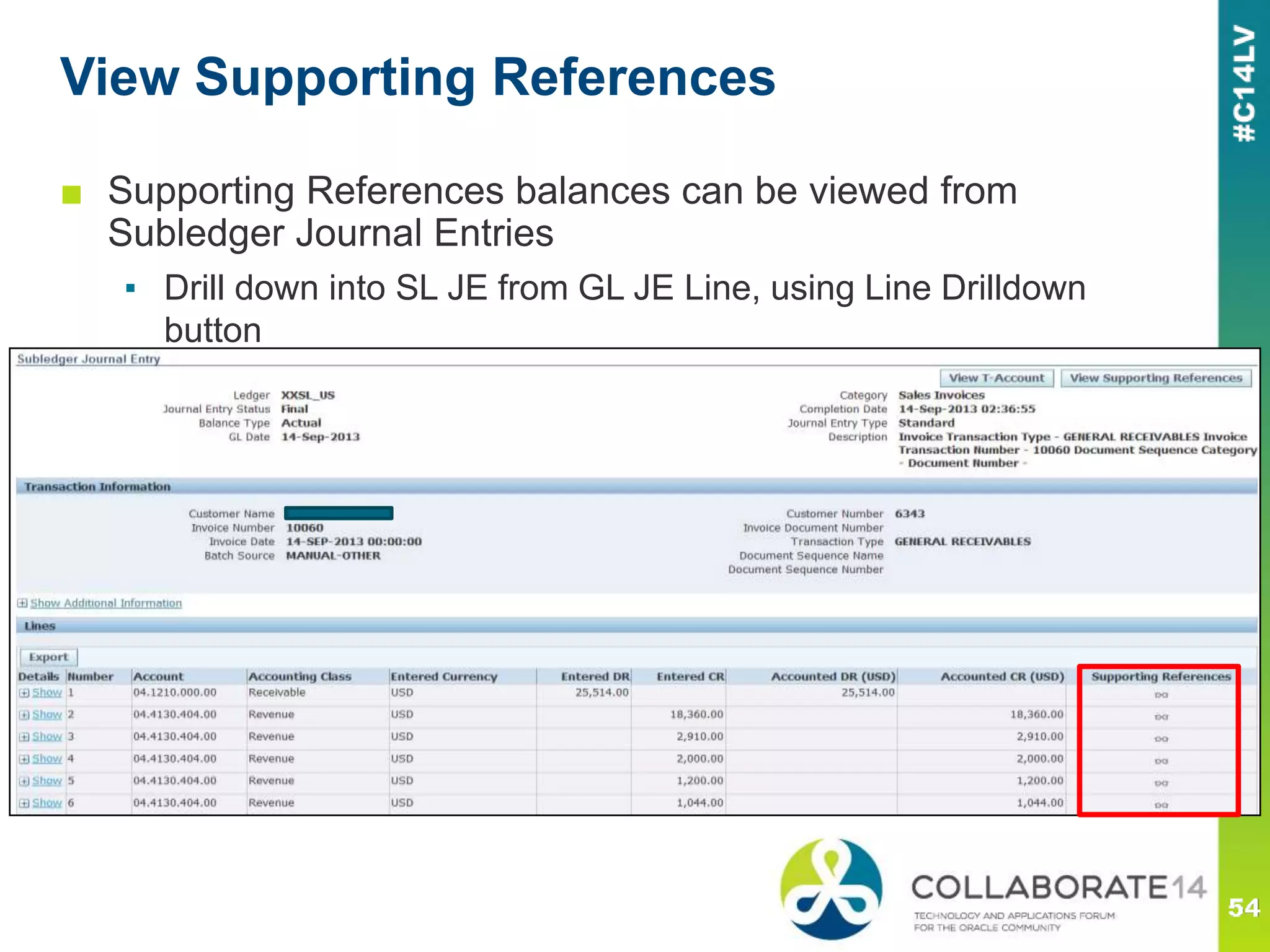

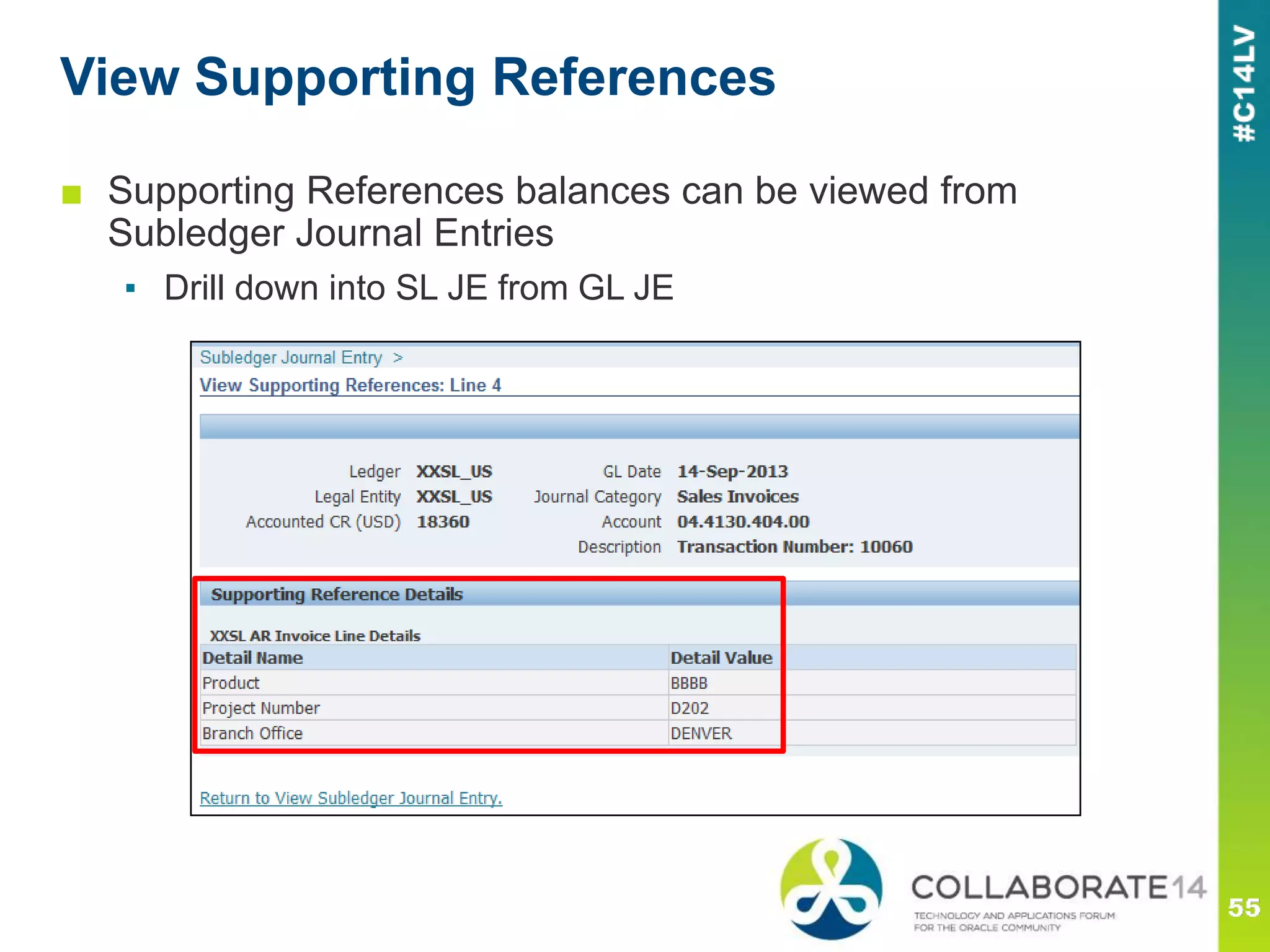

- 54. View Supporting References ■Supporting References balances can be viewed from Subledger Journal Entries ▪ Drill down into SL JE from GL JE
- 55.

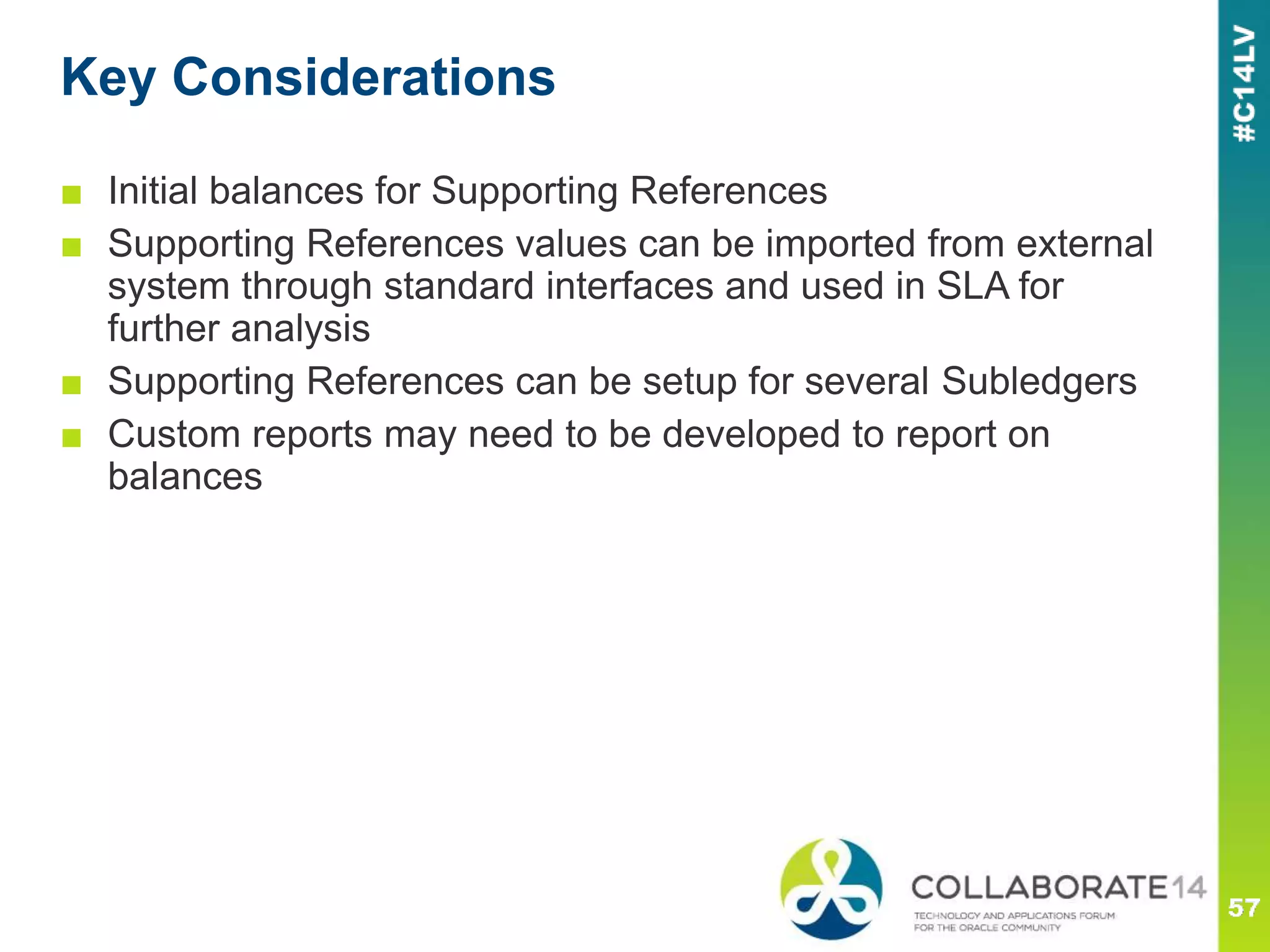

- 56. Key Considerations ■ Initialbalances for Supporting References ■ Supporting References values can be imported from external system through standard interfaces and used in SLA for further analysis ■ Supporting References can be setup for several Subledgers ■ Custom reports may need to be developed to report on balances

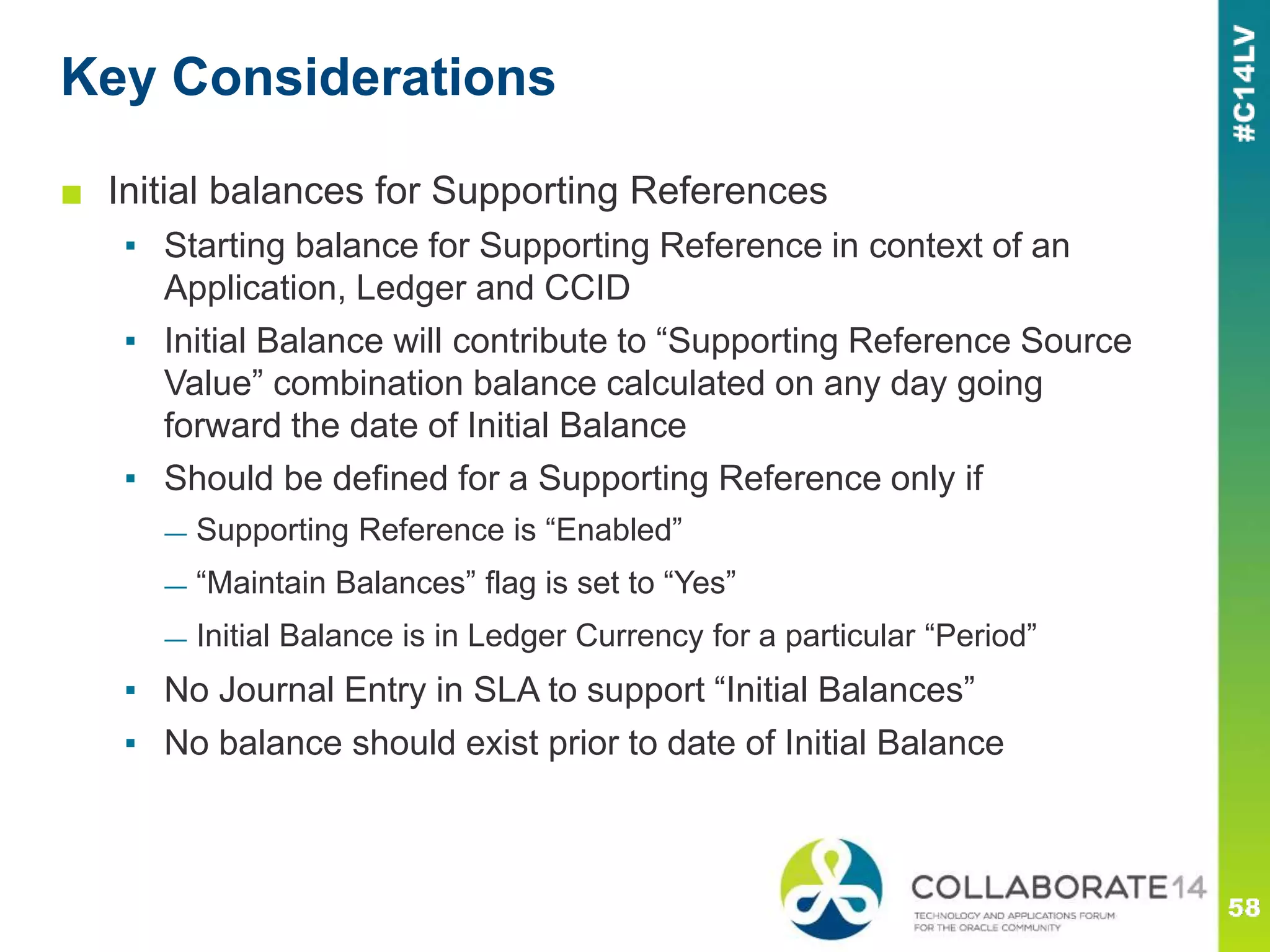

- 57. Key Considerations ■ Initialbalances for Supporting References ▪ Starting balance for Supporting Reference in context of an Application, Ledger and CCID ▪ Initial Balance will contribute to “Supporting Reference Source Value” combination balance calculated on any day going forward the date of Initial Balance ▪ Should be defined for a Supporting Reference only if — Supporting Reference is “Enabled” — “Maintain Balances” flag is set to “Yes” — Initial Balance is in Ledger Currency for a particular “Period” ▪ No Journal Entry in SLA to support “Initial Balances” ▪ No balance should exist prior to date of Initial Balance

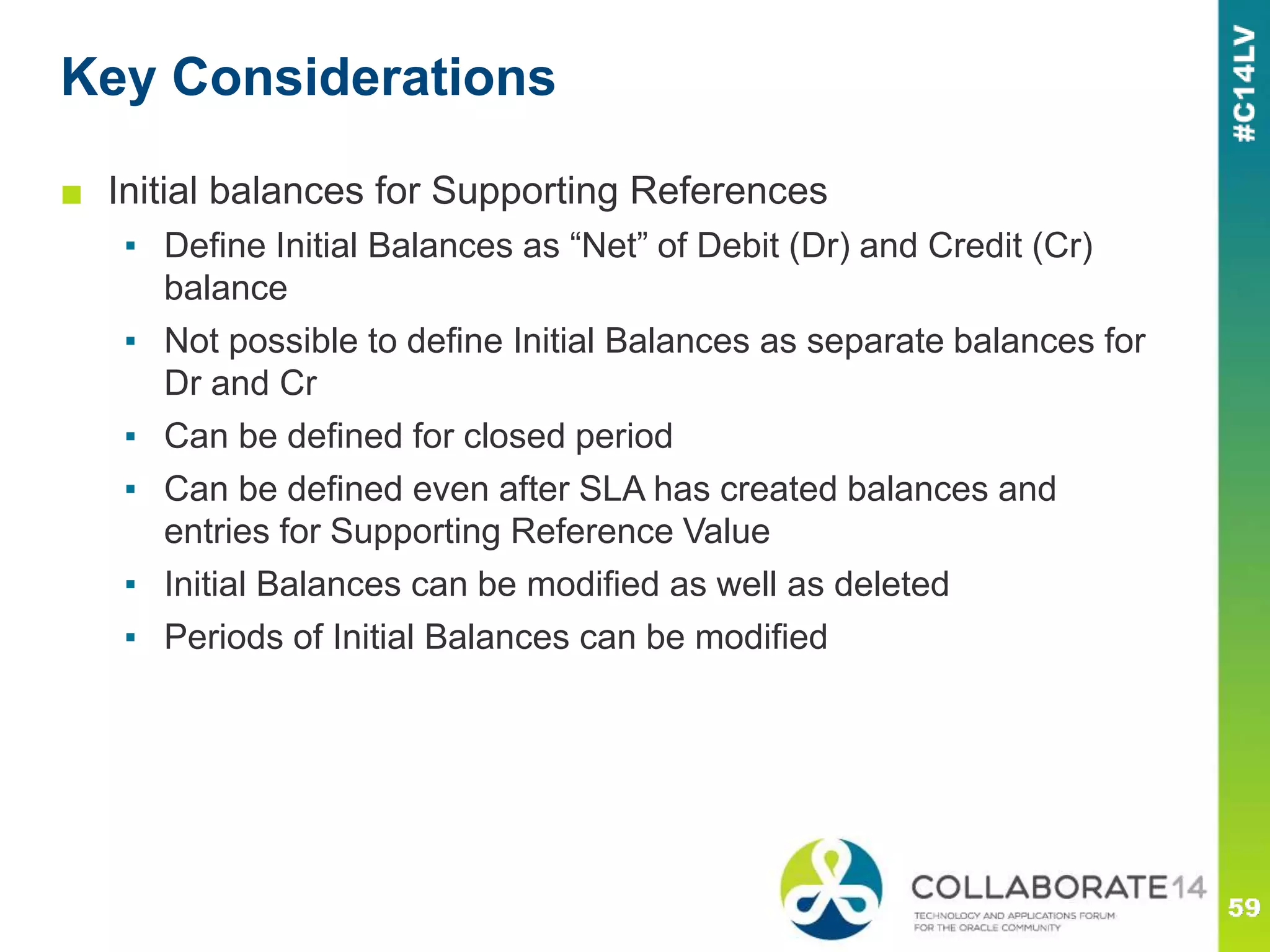

- 58. Key Considerations ■ Initialbalances for Supporting References ▪ Define Initial Balances as “Net” of Debit (Dr) and Credit (Cr) balance ▪ Not possible to define Initial Balances as separate balances for Dr and Cr ▪ Can be defined for closed period ▪ Can be defined even after SLA has created balances and entries for Supporting Reference Value ▪ Initial Balances can be modified as well as deleted ▪ Periods of Initial Balances can be modified

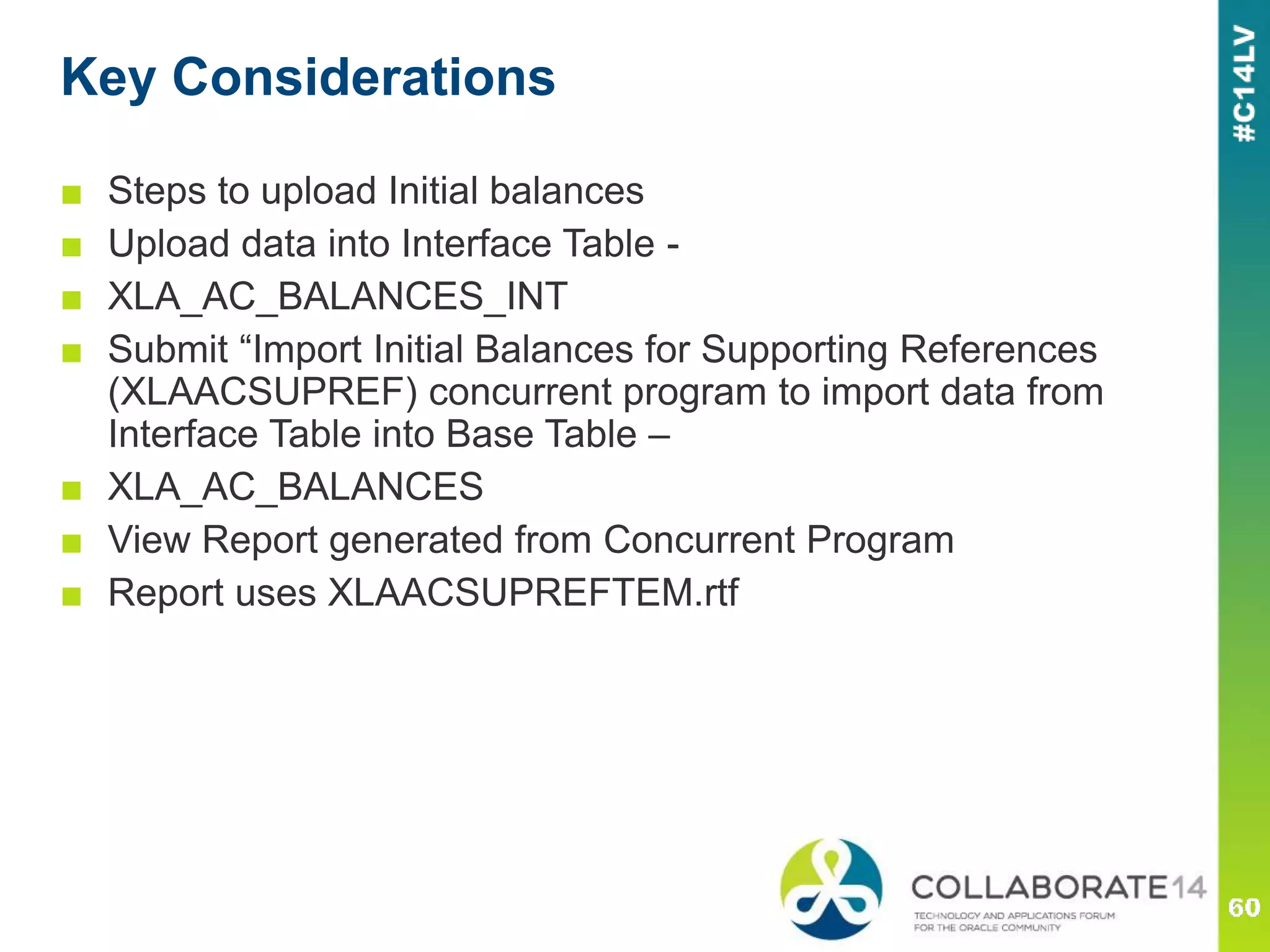

- 59. Key Considerations ■ Stepsto upload Initial balances ■ Upload data into Interface Table - ■ XLA_AC_BALANCES_INT ■ Submit “Import Initial Balances for Supporting References (XLAACSUPREF) concurrent program to import data from Interface Table into Base Table – ■ XLA_AC_BALANCES ■ View Report generated from Concurrent Program ■ Report uses XLAACSUPREFTEM.rtf
- 60.

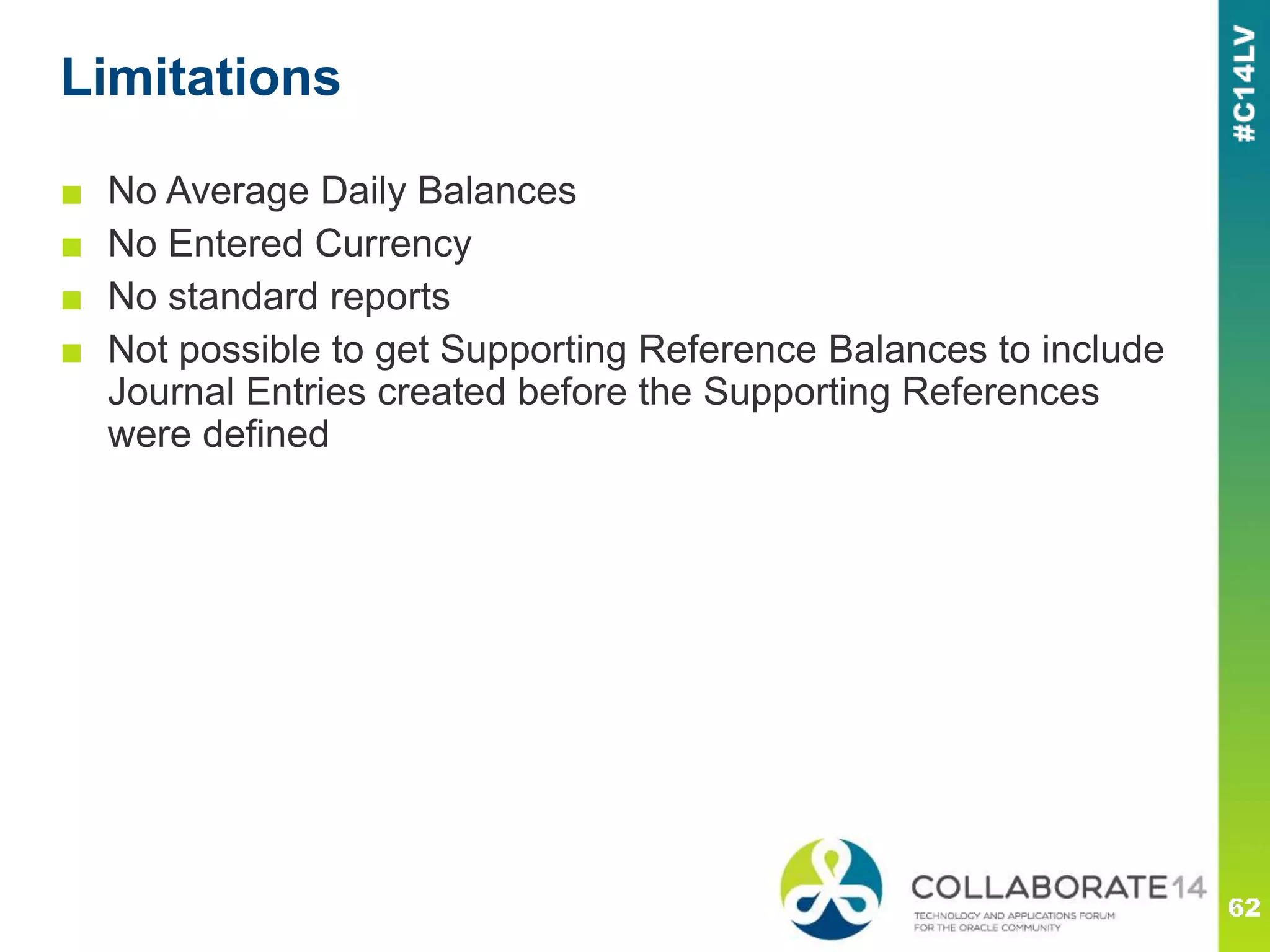

- 61. Limitations ■ No AverageDaily Balances ■ No Entered Currency ■ No standard reports ■ Not possible to get Supporting Reference Balances to include Journal Entries created before the Supporting References were defined
- 62.

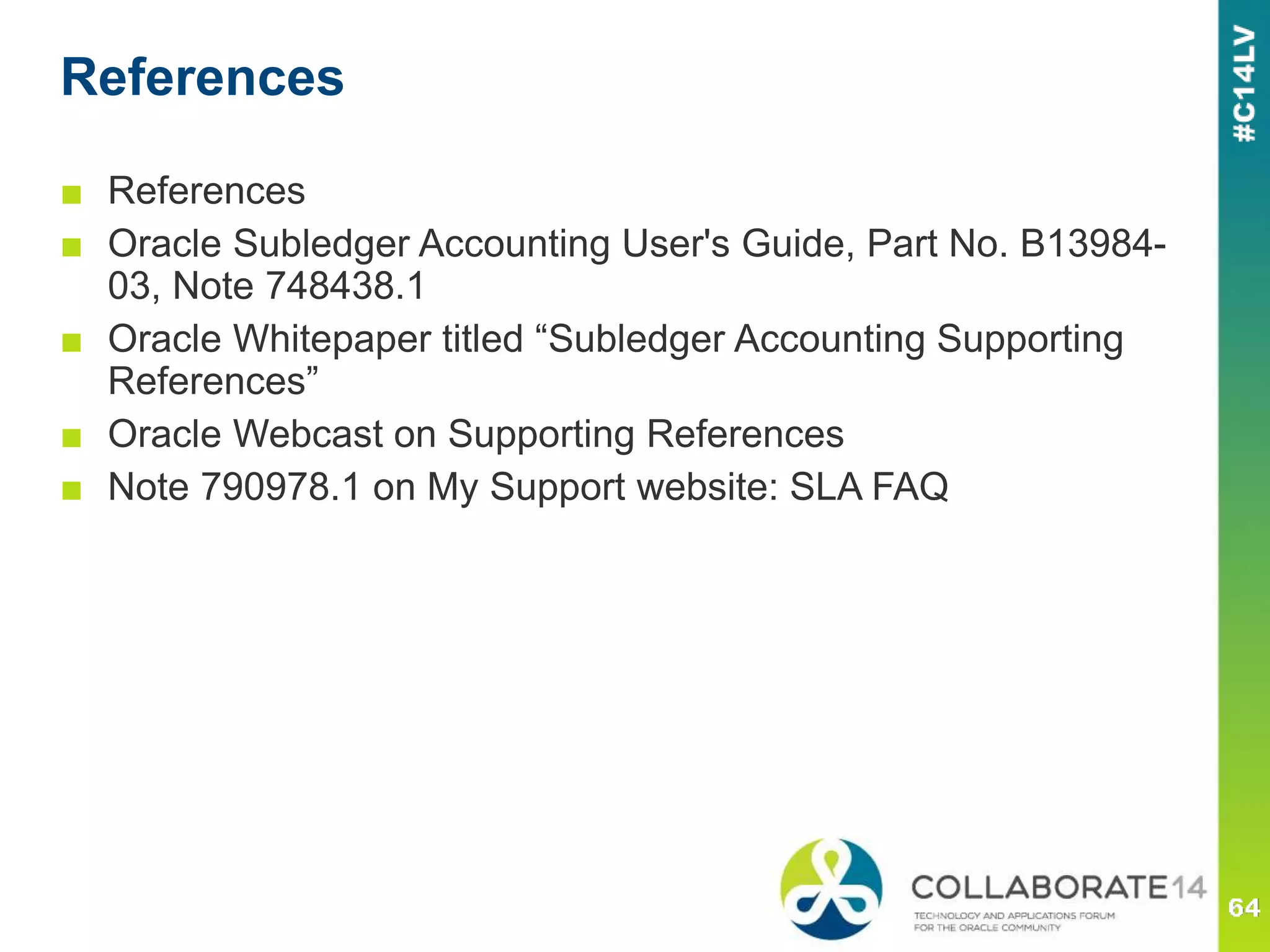

- 63. References ■ References ■ OracleSubledger Accounting User's Guide, Part No. B13984- 03, Note 748438.1 ■ Oracle Whitepaper titled “Subledger Accounting Supporting References” ■ Oracle Webcast on Supporting References ■ Note 790978.1 on My Support website: SLA FAQ
- 64. Q & A •Contact Email prithis.das@dynamique.us Cell +1.630.3649457 Website www.dynamique.us Additional questions?
- 65. Please complete thesession evaluation We appreciate your feedback and insight You may complete the session evaluation either on paper or online via the mobile app
