Nonlinear Analysis of Braced Frame with Hinge by Hinge Method in C programming
C program is written by Salar Delavar Ghashghaei – Publication Date: 10/November/2019
E-mail: salar.d.ghashghaei@gmail.com

C Code:#include <stdio.h>
#include <windows.h> // text color
#include <conio.h>
#define NN 6 // Degree of freedom
#define Ne 5 // number of element
#define ShowText01 "Graph-outputHTML.html"
void IMPORT_DATA01(double &Length,double Height[],double &EA,double &EI,double &Ultimate_Moment);
void Matrix_Stiffness(double EA,double EI,double L[],double lanX[],double lanY[],double A[],double B[],double C[],double D[],double E[],double K[][6],double K_G[][6],int I,int II);
void MatrixDetermination(double [][NN],int );
void MatrixInverse(double [][NN], double [][NN],int );
void MatrixMulti01(double [][NN], double [], double [],int );
void Matrix_Transpose(double A[6][6],double B[6][6]);
void Matrix_Multiplication(double A[6][6],double B[6][6],double C[6][6]);
void ElementInternalForce(double K[][6],double U[],double lanX[],double lanY[],double ee[][6],int I);// Calculate internal element force
void ELEMNT_FORCE_OUTPUT(double eleF[3][6],double ELE_FORCE[3][30],double SUM_ELE_FORCE[30],double u[],double sum_u[], int I);
double ABS(double);
double MAX_ABS(double A[],int n);
double MIN(double A[],int n);
double SQRT2(double D);
void MessageInitialData(double L,double H[],double EI,double EA,double Ultimate_Moment);
void MessageAnalysisReport();
void MessageErrorReportTEXT();
void MessageInputDataTEXT();
void MessageCheck_IMPORT_DATA01(double L,double Height[],double EI,double EA,double Ultimate_Moment);
void MessageResult(double A[],double B[5][6],int n);
void OUTPUT_excel(double A[4][6],double B[4],double C[4][30],int n);
void ANALYSIS(double Length,double Height[],double EI,double EA,double Ultimate_Moment);
void Distance(int);
void textcolor(int ForgC);
void DATE_TIME();
void OUTPUT_HTML_GRAPH(double X[],double Y[],int n,const char text1[],const char text2[],const char text3[]);
int main(){
double Length,EI,EA,Height[2],Ultimate_Moment;
IMPORT_DATA01(Length,Height,EA,EI,Ultimate_Moment);
MessageCheck_IMPORT_DATA01(Length,Height,EI,EA,Ultimate_Moment);
textcolor(14);
MessageInitialData(Length,Height,EI,EA,Ultimate_Moment);
textcolor(11);
MessageAnalysisReport();
ANALYSIS(Length,Height,EI,EA,Ultimate_Moment);
getch();
return 0;
}
void MatrixInverse(double A[][NN], double C[][NN],int n){
int i,j,l;
double c_A[n][n],B[n][n],m,Sum;
for (i=0;i<n;i++)
for (j=0;j<n;j++)
c_A[i][j]=A[i][j];
// Inverse [Kinit]
for (i=0;i<n;i++)
for (j=0;j<n;j++){
if (i==j)
B[i][j]=1;
else
B[i][j]=0;
}
for (j=0;j<n-1;j++)
for (i=j+1;i<n;i++){
m=c_A[i][j]/c_A[j][j];
for (l=0;l<n;l++){
c_A[i][l] -= m*c_A[j][l];
B[i][l] -= m*B[j][l];
}
}
// backward substitutions
for (i=n-1;i>=0;i--)
for (j=0;j<n;j++){
Sum=0;
for (l=i+1;l<n;l++)
Sum += c_A[i][l]*C[l][j];
C[i][j]=(B[i][j]-Sum)/c_A[i][i];
}
}
void ElementInternalForce(double K[][6],double U[],double lanX[],double lanY[],double ee[][6],int I){
double lan[6][6],UU[6],ff,ll[6][6];
int II;
lan[0][0]=lanX[I];lan[0][1]=lanY[I];lan[0][2]=0;lan[0][3]=0;lan[0][4]=0;lan[0][5]=0;
lan[1][0]=-lanY[I];lan[1][1]=lanX[I];lan[1][2]=0;lan[1][3]=0;lan[1][4]=0;lan[1][5]=0;
lan[2][0]=0;lan[2][1]=0;lan[2][2]=1;lan[2][3]=0;lan[2][4]=0;lan[2][5]=0;
lan[3][0]=0;lan[3][1]=0;lan[3][2]=0;lan[3][3]=lanX[I];lan[3][4]=lanY[I];lan[3][5]=0;
lan[4][0]=0;lan[4][1]=0;lan[4][2]=0;lan[4][3]=-lanY[I];lan[4][4]=lanX[I];lan[4][5]=0;
if (I == 0){
UU[0]=0;UU[1]=0;UU[2]=0;UU[3]=U[0];UU[4]=U[1];UU[5]=U[2];
}
if (I == 1){
UU[0]=0;UU[1]=0;UU[2]=0;UU[3]=U[3];UU[4]=U[4];UU[5]=U[5];
}
if (I == 2){
UU[0]=U[0];UU[1]=U[1];UU[2]=U[2];UU[3]=U[3];UU[4]=U[4];UU[5]=U[5];
}
int i,j;
for (i=0;i<6;i++)
for (j=0;j<6;j++)
ll[i][j]=0;
// [f] = [K] *[lan]* [u]
Matrix_Multiplication(K,lan,ll);
for (i=0; i<6; i++){
ff=0;
for (j=0; j<6; j++)
ff += ll[i][j]*UU[j];
ee[I][i] = ff;
}
}
void MatrixMulti01(double A[][NN], double B[], double C[],int n){
int i,j;
double ff;
// [u] = [Kinv] * [f]
for (i=0; i<n; i++)
{
ff=0;
for (j=0; j<n; j++)
ff += A[i][j]*B[j];
C[i] = ff;
}
}
double ABS(double B){
if (B < 0)
B = -B;//Absolute number
else
B = B;
return B;
}
double MIN(double A[],int n){
int i;
double Cmin;
Cmin = A[0];
// Max of abs
for (i=0;i<n;i++){
if(Cmin > A[i])
Cmin = A[i];
}
return Cmin;
}
void Distance(int i){
if (i < 10)
printf("bt");
if (i >= 10 && i <= 99)
printf("btb");
if (i >= 100 && i <= 999)
printf("btbb");
if (i >= 1000 && i <= 9999)
printf("btbbb");
if (i >= 10000 && i <= 20000)
printf("btbbbb");
}
void MessageInitialData(double L,double H[],double EI,double EA,double Ultimate_Moment){
char Qa,Qb,Qc,Qd,Qe,Qf,Qg,Qk;
int i;
Qa=201;Qb=205;Qc=187;Qd=200;Qe=188,Qf=186,Qg=204,Qk=185;
printf("tttt%c",Qa);
for (i=1;i<69;i++)
printf("%c",Qb);
printf("%cn",Qc);
printf("tttt%c >> IN THE NAME OF GOD << %cn",Qf,Qf);
printf("tttt%c Nonlinear Analysis of Frame and Brace with Hinge by Hinge Method %cn",Qf,Qf);
printf("tttt%c UNIT: Free Unit %cn",Qf,Qf);
printf("tttt%c",Qg);
for (i=1;i<69;i++)
printf("%c",Qb);
printf("%cn",Qk);
printf("tttt%c This program is written by Salar Delavar Ghashghaei %cn",Qf,Qf);
printf("tttt%c E-mail: salar.d.ghashghaei@gmail.com %cn",Qf,Qf);
printf("tttt%c",Qd);
for (i=1;i<69;i++)
printf("%c",Qb);
printf("%cn",Qe);
MessageInputDataTEXT();
printf(" Length of Frame: %.3en",L);
printf(" Height of Column 1: %.3en",H[0]);
printf(" Height of Column 2: %.3en",H[1]);
printf(" Section flextural rigidity - EI: %.3en",EI);
printf(" Section axial rigidity - EA: %.3en",EA);
printf(" Section ultimate capacity moment: %.3en",Ultimate_Moment);
}
void MessageAnalysisReport(){
int i;
char Ql=176;
printf("n ");
for (i=1;i<64;i++)

printf("%c",Ql);
printf(" Analysis Report ");
for (i=1;i<64;i++)
printf("%c",Ql);
printf("n");
}
void MessageCheck_IMPORT_DATA01(double L,double Height[],double EI,double EA,double Ultimate_Moment){
if ( L < 0 || Height[0] < 0 || Height[1] < 0 || EI < 0 || EA < 0 || Ultimate_Moment < 0 ){
MessageErrorReportTEXT();
printf(" Please check this file! -> [ PushoverHingeByHingeMethodFrameBrace-inputDATA.csv ]n");
printf(" *** Negative data input value is not acceptable ***n");
printf(" Length of Frame: %.3en",L);
printf(" Height of Column 1: %.3en",Height[0]);
printf(" Height of Column 2: %.3en",Height[1]);
printf(" Section flextural rigidity - EI: %.3en",EI);
printf(" Section axial rigidity - EA: %.3en",EA);
printf(" Section ultimate capacity moment: %.3en",Ultimate_Moment);
Sleep(40000);
exit(1);
}
}
void MessageErrorReportTEXT(){
int i;
char Ql;
Ql=176;
textcolor(12);
printf("an ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf(" Error Report ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf("n");
}
void MessageInputDataTEXT(){
int i;
char Ql=176;
printf("n ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf(" Input Data ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf("n");
}

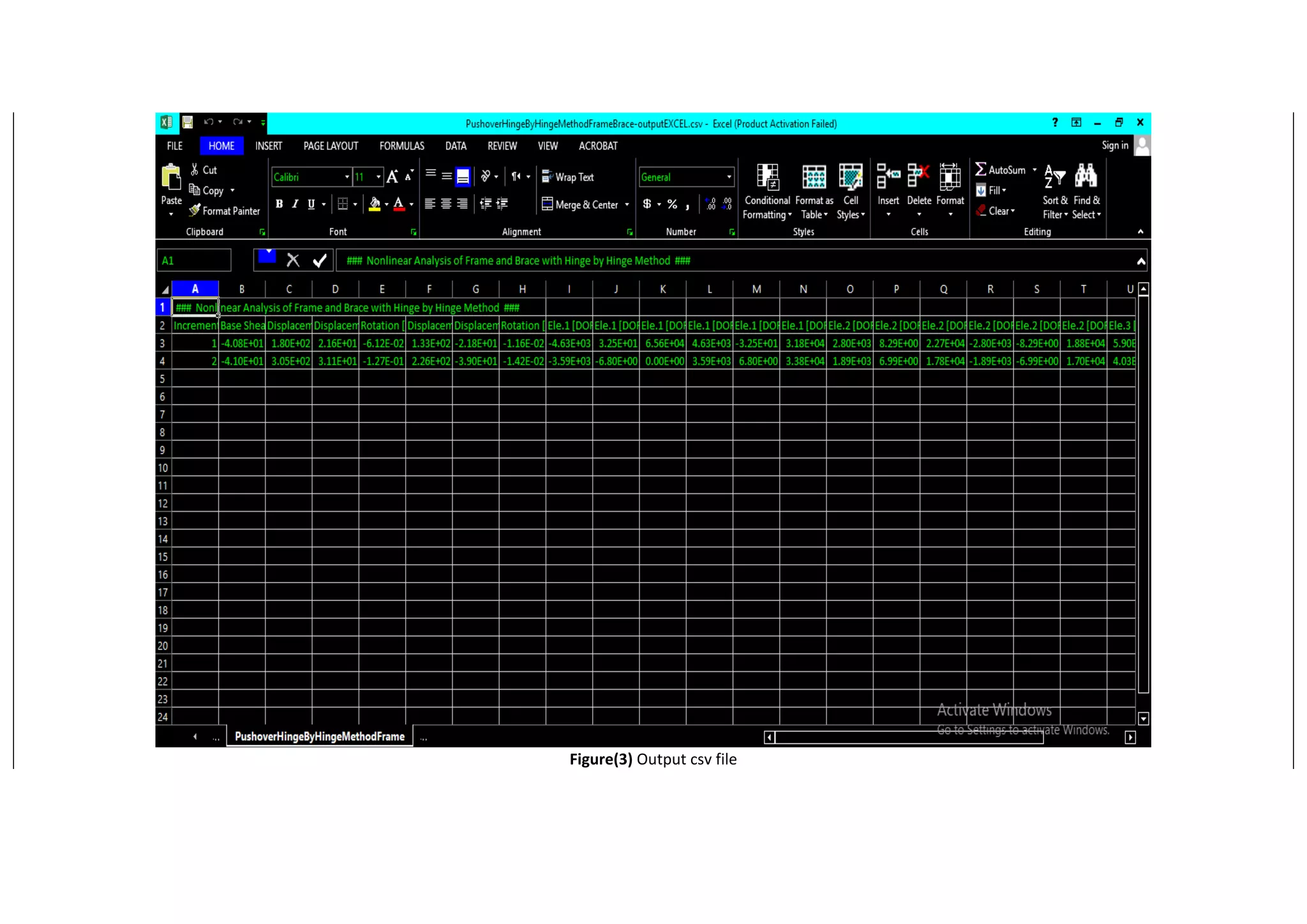

void OUTPUT_excel(double A[4][6],double B[4],double C[4][30],int n){
// EXCEL OUTPUT
int i;
FILE *OutputFile;
OutputFile = fopen("PushoverHingeByHingeMethodFrameBrace-outputEXCEL.csv", "w");
fprintf(OutputFile," ### Nonlinear Analysis of Frame and Brace with Hinge by Hinge Method ###n");
fprintf(OutputFile,"Increment,Base Shear[DOF(1)]+[DOF(4)],Displacement [DOF(7)],Displacement [DOF(8)],Rotation [DOF(9)],Displacement [DOF(10)],Displacement [DOF(11)],Rotation [DOF(12)],Ele.1 [DOF(1)],Ele.1 [DOF(2)],Ele.1 [DOF(3)],Ele.1 [DOF(7)],Ele.1 [DOF(8)],Ele.1 [DOF(9)],Ele.2 [DOF(4)],Ele.2 [DOF(5)],Ele.2 [DOF(6)],Ele.2 [DOF(10)],Ele.2 [DOF(11)],Ele.2 [DOF(12)],Ele.3 [DOF(7)],Ele.3 [DOF(8)],Ele.3 [DOF(9)],Ele.3 [DOF(10)],Ele.3 [DOF(11)],Ele.3 [DOF(12)]n");
for(i=0;i<n;i++)
fprintf(OutputFile,"%d,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%en",i+1,B[i],A[i][0],A[i][1],A[i][2],A[i][3],A[i][4],A[i][5],C[i][0],C[i][1],C[i][2],C[i][3],C[i][4],C[i][5],C[i][6],C[i][7],C[i][8],C[i][9],C[i][10],C[i][11],C[i][12],C[i][13],C[i][14],C[i][15],C[i][16],C[i][17]);
fclose(OutputFile);
}
void MatrixDetermination(double A[][NN],int n){
// row operations
int i,j,k;
double Product,m,B[n][n];
for (i=0;i<n;i++)
for (j=0;j<n;j++)
B[i][j]=A[i][j];
for (k=0;k<n-1;k++)
for (i=k+1;i<n;i++){
m = B[i][k]/B[k][k];
for (j=0;j<n;j++)
B[i][j] -= m*B[k][j];
}
Product=1;
for (i=0;i<n;i++)
Product *= B[i][i];
// display results
if (Product == 0){
printf("ant ### it Seens that Golobal Matrix is singular or structure is unstable!!! ###n");
Sleep(40000);
exit(1);
}
}
void IMPORT_DATA01(double &Length,double Height[],double &EA,double &EI,double &Ultimate_Moment){
double Import_Data[6];
int i=0;
FILE *InputFile;
InputFile = fopen("PushoverHingeByHingeMethodFrameBrace-inputDATA.csv", "r");
if (!InputFile){
MessageErrorReportTEXT();
printf(" File is not available! -> [PushoverHingeByHingeMethodFrameBrace-inputDATA.csv] n");
Sleep(6000);
exit(1);
}
char line[100],a[100];
while(i < 6 && fgets(line,sizeof(line),InputFile) != NULL){
sscanf(line,"%s",a);
//printf("a[%d]: %sn",i,a);
Import_Data[i]= atof(a);
i++;
}
Length=Import_Data[0];
Height[0]=Import_Data[1];
Height[1]=Import_Data[2];
EI=Import_Data[3];
EA=Import_Data[4];
Ultimate_Moment=Import_Data[5];
}
void textcolor(int ForgC){
WORD wColor;
//This handle is needed to get the current background attribute
HANDLE hStdOut = GetStdHandle(STD_OUTPUT_HANDLE);
CONSOLE_SCREEN_BUFFER_INFO csbi;
//csbi is used for wAttributes word
if(GetConsoleScreenBufferInfo(hStdOut, &csbi)){
//To mask out all but the background attribute, and to add the color
wColor = (csbi.wAttributes & 0xF0) + (ForgC & 0x0F);
SetConsoleTextAttribute(hStdOut, wColor);
}
return;
}
void ANALYSIS(double Length,double Height[],double EI,double EA,double Ultimate_Moment){
int i,j;
double K[NN][NN],Kinv[NN][NN],eleF[5][6],ELE_FORCE[3][30],SUM_ELE_FORCE[30];
double L[Ne],lanX[Ne],lanY[Ne],AA[Ne],BB[Ne],CC[Ne],DD[Ne],EE[Ne],F[NN],u[6],sum_u[6],Mi[6];
double output_u[3][6],output_base[3];
double MS[6][6],KG[6][6],LANNDA[6],LANNDA_min;
double x[4],y[4];
for (i=0;i<NN;i++)
for (j=0;j<NN;j++)
K[i][j]=0;
for (i=0;i<NN;i++){
F[i]=0;u[i] = 0;sum_u[i] = 0;Mi[i] = 0;
}
for(int j=0;j<3;j++){
for(i=0;i<6*Ne;i++)
ELE_FORCE[j][i] = 0;
}
for(i=0;i<6*Ne;i++)
SUM_ELE_FORCE[i] = 0;
// SATAGE: 01
F[0]=1;
x[0] = 0;y[0] = 0;
x[1] = Length;y[1] = 0;
x[2] = 0+sum_u[0];y[2] = Height[0]+sum_u[1];
x[3] = Length+sum_u[3];y[3] = Height[1]+sum_u[4];
L[0] = SQRT2((x[2]-x[0])*(x[2]-x[0])+(y[2]-y[0])*(y[2]-y[0]));
L[1] = SQRT2((x[3]-x[1])*(x[3]-x[1])+(y[3]-y[1])*(y[3]-y[1]));
L[2] = SQRT2((x[3]-x[2])*(x[3]-x[2])+(y[3]-y[2])*(y[3]-y[2]));
L[3] = SQRT2((x[3]-x[0])*(x[3]-x[0])+(y[3]-y[0])*(y[3]-y[0]));
L[4] = SQRT2((x[2]-x[1])*(x[2]-x[1])+(y[2]-y[1])*(y[2]-y[1]));
lanX[0] = (x[2]-x[0])/L[0];lanY[0] = (y[2]-y[0])/L[0];
lanX[1] = (x[3]-x[1])/L[1];lanY[1] = (y[3]-y[1])/L[1];
lanX[2] = (x[3]-x[2])/L[2];lanY[2] = (y[3]-y[2])/L[2];
lanX[3] = (x[3]-x[0])/L[3];lanY[3] = (y[3]-y[0])/L[3];
lanX[4] = (x[2]-x[1])/L[4];lanY[4] = (y[2]-y[1])/L[4];
Matrix_Stiffness(EA,EI,L,lanX,lanY,AA,BB,CC,DD,EE,MS,KG,0,1);
K[0][0]= KG[3][3];//DOF(7)
K[0][1]= KG[3][4];//DOF(7)
K[0][2]= KG[3][5];//DOF(7)
K[1][0]= KG[4][3];//DOF(8)
K[1][1]= KG[4][4];//DOF(8)
K[1][2]= KG[4][5];//DOF(8)
K[2][0]= KG[5][3];//DOF(9)
K[2][1]= KG[5][4];//DOF(9)
K[2][2]= KG[5][5];//DOF(9)
K[3][3]= KG[3][3];//DOF(10)
K[3][4]= KG[3][4];//DOF(10)
K[3][5]= KG[3][5];//DOF(10)
K[4][3]= KG[4][3];//DOF(11)
K[4][4]= KG[4][4];//DOF(11)
K[4][5]= KG[4][5];//DOF(11)
K[5][3]= KG[5][3];//DOF(12)
K[5][4]= KG[5][4];//DOF(12)
K[5][5]= KG[5][5];//DOF(12)
K[0][0]+= KG[0][0];//DOF(7)
K[0][1]+= KG[0][1];//DOF(7)
K[0][2]+= KG[0][2];//DOF(7)
K[1][0]+= KG[1][0];//DOF(8)
K[1][1]+= KG[1][1];//DOF(8)
K[1][2]+= KG[1][2];//DOF(8)

K[2][0]+= KG[2][0];//DOF(9)
K[2][1]+= KG[2][1];//DOF(9)
K[2][2]+= KG[2][2];//DOF(9)
K[3][3]+= KG[3][3];//DOF(10)
K[3][4]+= KG[3][4];//DOF(10)
K[3][5]+= KG[3][5];//DOF(10)
K[4][3]+= KG[4][3];//DOF(11)
K[4][4]+= KG[4][4];//DOF(11)
K[4][5]+= KG[4][5];//DOF(11)
K[5][3]+= KG[5][3];//DOF(12)
K[5][4]+= KG[5][4];//DOF(12)
K[5][5]+= KG[5][5];//DOF(12)
K[0][3]= KG[0][3];//DOF(7)
K[0][4]= KG[0][4];//DOF(7)
K[0][5]= KG[0][5];//DOF(7)
K[1][3]= KG[1][3];//DOF(8)
K[1][4]= KG[1][4];//DOF(8)
K[1][5]= KG[1][5];//DOF(8)
K[2][3]= KG[2][3];//DOF(9)
K[2][4]= KG[2][4];//DOF(9)
K[2][5]= KG[2][5];//DOF(9)
K[3][0]= KG[3][0];//DOF(10)
K[3][1]= KG[3][1];//DOF(10)
K[3][2]= KG[3][2];//DOF(10)
K[4][0]= KG[4][0];//DOF(11)
K[4][1]= KG[4][1];//DOF(11)
K[4][2]= KG[4][2];//DOF(11)
K[5][0]= KG[5][0];//DOF(12)
K[5][1]= KG[5][1];//DOF(12)
K[5][2]= KG[5][2];//DOF(12)
K[3][3]+= KG[3][3];//DOF(10)
K[3][4]+= KG[3][4];//DOF(10)
K[3][5]+= KG[3][5];//DOF(10)
K[4][3]+= KG[4][3];//DOF(11)
K[4][4]+= KG[4][4];//DOF(11)
K[4][5]+= KG[4][5];//DOF(11)
K[5][3]+= KG[5][3];//DOF(12)
K[5][4]+= KG[5][4];//DOF(12)
K[5][5]+= KG[5][5];//DOF(12)
K[0][0]+= KG[3][3];//DOF(7)
K[0][1]+= KG[3][4];//DOF(7)
K[0][2]+= KG[3][5];//DOF(7)
K[1][0]+= KG[4][3];//DOF(8)
K[1][1]+= KG[4][4];//DOF(8)
K[1][2]+= KG[4][5];//DOF(8)
K[2][0]+= KG[5][3];//DOF(9)
K[2][1]+= KG[5][4];//DOF(9)
K[2][2]+= KG[5][5];//DOF(9)
MatrixDetermination(K,NN);
MatrixInverse(K,Kinv,NN);// Inverse [Kinit]
MatrixMulti01(Kinv,F,u,NN);
ElementInternalForce(MS,u,lanX,lanY,eleF,0);
LANNDA[0]=(Ultimate_Moment-ABS(Mi[0]))/ABS(eleF[0][2]);
LANNDA_min = MIN(LANNDA,6);
for (i=0;i<NN;i++)
u[i]=LANNDA_min*u[i];
Mi[0]=eleF[0][2];
Mi[1]=eleF[0][5];
Mi[2]=eleF[1][2];
Mi[3]=eleF[1][5];
Mi[4]=eleF[2][2];
Mi[5]=eleF[2][5];
ELEMNT_FORCE_OUTPUT(eleF,ELE_FORCE,SUM_ELE_FORCE,u,sum_u,0);
for (i=0;i<NN;i++)
output_u[0][i]=sum_u[i];//output displacement
output_base[0]=-SUM_ELE_FORCE[1]-SUM_ELE_FORCE[7]-SUM_ELE_FORCE[19]-SUM_ELE_FORCE[25];//output base shear
// So plastic hinge has formed in 1 node
// SATAGE: 02
x[0] = 0;y[0] = 0;
x[1] = Length;y[1] = 0;
L[0] = SQRT2((x[2]-x[0])*(x[2]-x[0])+(y[2]-y[0])*(y[2]-y[0]));
L[1] = SQRT2((x[3]-x[1])*(x[3]-x[1])+(y[3]-y[1])*(y[3]-y[1]));
L[2] = SQRT2((x[3]-x[2])*(x[3]-x[2])+(y[3]-y[2])*(y[3]-y[2]));
L[3] = SQRT2((x[3]-x[0])*(x[3]-x[0])+(y[3]-y[0])*(y[3]-y[0]));
L[4] = SQRT2((x[2]-x[1])*(x[2]-x[1])+(y[2]-y[1])*(y[2]-y[1]));
lanX[0] = (x[2]-x[0])/L[0];lanY[0] = (y[2]-y[0])/L[0];
lanX[1] = (x[3]-x[1])/L[1];lanY[1] = (y[3]-y[1])/L[1];
lanX[2] = (x[3]-x[2])/L[2];lanY[2] = (y[3]-y[2])/L[2];
lanX[3] = (x[3]-x[0])/L[3];lanY[3] = (y[3]-y[0])/L[3];
lanX[4] = (x[2]-x[1])/L[4];lanY[4] = (y[2]-y[1])/L[4];
K[0][0]= KG[3][3];//DOF(7)
K[0][1]= KG[3][4];//DOF(7)
K[0][2]= KG[3][5];//DOF(7)
K[1][0]= KG[4][3];//DOF(8)
K[1][1]= KG[4][4];//DOF(8)
K[1][2]= KG[4][5];//DOF(8)
K[2][0]= KG[5][3];//DOF(9)
K[2][1]= KG[5][4];//DOF(9)
K[2][2]= KG[5][5];//DOF(9)
K[3][3]= KG[3][3];//DOF(10)
K[3][4]= KG[3][4];//DOF(10)
K[3][5]= KG[3][5];//DOF(10)
K[4][3]= KG[4][3];//DOF(11)
K[4][4]= KG[4][4];//DOF(11)
K[4][5]= KG[4][5];//DOF(11)
K[5][3]= KG[5][3];//DOF(12)
K[5][4]= KG[5][4];//DOF(12)
K[5][5]= KG[5][5];//DOF(12)
K[0][0]+= KG[0][0];//DOF(7)
K[0][1]+= KG[0][1];//DOF(7)
K[0][2]+= KG[0][2];//DOF(7)
K[1][0]+= KG[1][0];//DOF(8)
K[1][1]+= KG[1][1];//DOF(8)
K[1][2]+= KG[1][2];//DOF(8)
K[2][0]+= KG[2][0];//DOF(9)
K[2][1]+= KG[2][1];//DOF(9)
K[2][2]+= KG[2][2];//DOF(9)
K[3][3]+= KG[3][3];//DOF(10)
K[3][4]+= KG[3][4];//DOF(10)
K[3][5]+= KG[3][5];//DOF(10)
K[4][3]+= KG[4][3];//DOF(11)
K[4][4]+= KG[4][4];//DOF(11)
K[4][5]+= KG[4][5];//DOF(11)
K[5][3]+= KG[5][3];//DOF(12)
K[5][4]+= KG[5][4];//DOF(12)
K[5][5]+= KG[5][5];//DOF(12)
K[0][3]= KG[0][3];//DOF(7)
K[0][4]= KG[0][4];//DOF(7)
K[0][5]= KG[0][5];//DOF(7)
K[1][3]= KG[1][3];//DOF(8)
K[1][4]= KG[1][4];//DOF(8)
K[1][5]= KG[1][5];//DOF(8)
K[2][3]= KG[2][3];//DOF(9)
K[2][4]= KG[2][4];//DOF(9)
K[2][5]= KG[2][5];//DOF(9)
K[3][0]= KG[3][0];//DOF(10)
K[3][1]= KG[3][1];//DOF(10)
K[3][2]= KG[3][2];//DOF(10)
K[4][0]= KG[4][0];//DOF(11)
K[4][1]= KG[4][1];//DOF(11)
K[4][2]= KG[4][2];//DOF(11)
K[5][0]= KG[5][0];//DOF(12)
K[5][1]= KG[5][1];//DOF(12)
K[5][2]= KG[5][2];//DOF(12)

K[3][3]+= KG[3][3];//DOF(10)
K[3][4]+= KG[3][4];//DOF(10)
K[3][5]+= KG[3][5];//DOF(10)
K[4][3]+= KG[4][3];//DOF(11)
K[4][4]+= KG[4][4];//DOF(11)
K[4][5]+= KG[4][5];//DOF(11)
K[5][3]+= KG[5][3];//DOF(12)
K[5][4]+= KG[5][4];//DOF(12)
K[5][5]+= KG[5][5];//DOF(12)
K[0][0]+= KG[3][3];//DOF(7)
K[0][1]+= KG[3][4];//DOF(7)
K[0][2]+= KG[3][5];//DOF(7)
K[1][0]+= KG[4][3];//DOF(8)
K[1][1]+= KG[4][4];//DOF(8)
K[1][2]+= KG[4][5];//DOF(8)
K[2][0]+= KG[5][3];//DOF(9)
K[2][1]+= KG[5][4];//DOF(9)
K[2][2]+= KG[5][5];//DOF(9)
LANNDA[0]=1e+15;
for (i=0;i<NN;i++)
Mi[0]=eleF[0][2];
Mi[1]=eleF[0][5];
Mi[2]=eleF[1][2];
Mi[3]=eleF[1][5];
Mi[4]=eleF[2][2];
Mi[5]=eleF[2][5];
for (i=0;i<NN;i++)
// SATAGE: 03
x[0] = 0;y[0] = 0;
x[1] = Length;y[1] = 0;
L[0] = SQRT2((x[2]-x[0])*(x[2]-x[0])+(y[2]-y[0])*(y[2]-y[0]));
L[1] = SQRT2((x[3]-x[1])*(x[3]-x[1])+(y[3]-y[1])*(y[3]-y[1]));
L[2] = SQRT2((x[3]-x[2])*(x[3]-x[2])+(y[3]-y[2])*(y[3]-y[2]));
L[3] = SQRT2((x[3]-x[0])*(x[3]-x[0])+(y[3]-y[0])*(y[3]-y[0]));
L[4] = SQRT2((x[2]-x[1])*(x[2]-x[1])+(y[2]-y[1])*(y[2]-y[1]));
lanX[0] = (x[2]-x[0])/L[0];lanY[0] = (y[2]-y[0])/L[0];
lanX[1] = (x[3]-x[1])/L[1];lanY[1] = (y[3]-y[1])/L[1];
lanX[2] = (x[3]-x[2])/L[2];lanY[2] = (y[3]-y[2])/L[2];
lanX[3] = (x[3]-x[0])/L[3];lanY[3] = (y[3]-y[0])/L[3];
lanX[4] = (x[2]-x[1])/L[4];lanY[4] = (y[2]-y[1])/L[4];
K[0][0]= KG[3][3];//DOF(7)
K[0][1]= KG[3][4];//DOF(7)
K[0][2]= KG[3][5];//DOF(7)
K[1][0]= KG[4][3];//DOF(8)
K[1][1]= KG[4][4];//DOF(8)
K[1][2]= KG[4][5];//DOF(8)
K[2][0]= KG[5][3];//DOF(9)
K[2][1]= KG[5][4];//DOF(9)
K[2][2]= KG[5][5];//DOF(9)
K[3][3]= KG[3][3];//DOF(10)
K[3][4]= KG[3][4];//DOF(10)
K[3][5]= KG[3][5];//DOF(10)
K[4][3]= KG[4][3];//DOF(11)
K[4][4]= KG[4][4];//DOF(11)
K[4][5]= KG[4][5];//DOF(11)
K[5][3]= KG[5][3];//DOF(12)
K[5][4]= KG[5][4];//DOF(12)
K[5][5]= KG[5][5];//DOF(12)
K[0][0]+= KG[0][0];//DOF(7)
K[0][1]+= KG[0][1];//DOF(7)
K[0][2]+= KG[0][2];//DOF(7)
K[1][0]+= KG[1][0];//DOF(8)
K[1][1]+= KG[1][1];//DOF(8)
K[1][2]+= KG[1][2];//DOF(8)
K[2][0]+= KG[2][0];//DOF(9)
K[2][1]+= KG[2][1];//DOF(9)
K[2][2]+= KG[2][2];//DOF(9)
K[3][3]+= KG[3][3];//DOF(10)
K[3][4]+= KG[3][4];//DOF(10)
K[3][5]+= KG[3][5];//DOF(10)
K[4][3]+= KG[4][3];//DOF(11)
K[4][4]+= KG[4][4];//DOF(11)
K[4][5]+= KG[4][5];//DOF(11)
K[5][3]+= KG[5][3];//DOF(12)
K[5][4]+= KG[5][4];//DOF(12)
K[5][5]+= KG[5][5];//DOF(12)
K[0][3]= KG[0][3];//DOF(7)
K[0][4]= KG[0][4];//DOF(7)
K[0][5]= KG[0][5];//DOF(7)
K[1][3]= KG[1][3];//DOF(8)
K[1][4]= KG[1][4];//DOF(8)
K[1][5]= KG[1][5];//DOF(8)
K[2][3]= KG[2][3];//DOF(9)
K[2][4]= KG[2][4];//DOF(9)
K[2][5]= KG[2][5];//DOF(9)
K[3][0]= KG[3][0];//DOF(10)
K[3][1]= KG[3][1];//DOF(10)
K[3][2]= KG[3][2];//DOF(10)
K[4][0]= KG[4][0];//DOF(11)
K[4][1]= KG[4][1];//DOF(11)
K[4][2]= KG[4][2];//DOF(11)
K[5][0]= KG[5][0];//DOF(12)
K[5][1]= KG[5][1];//DOF(12)
K[5][2]= KG[5][2];//DOF(12)
K[3][3]+= KG[3][3];//DOF(10)
K[3][4]+= KG[3][4];//DOF(10)
K[3][5]+= KG[3][5];//DOF(10)
K[4][3]+= KG[4][3];//DOF(11)
K[4][4]+= KG[4][4];//DOF(11)
K[4][5]+= KG[4][5];//DOF(11)
K[5][3]+= KG[5][3];//DOF(12)
K[5][4]+= KG[5][4];//DOF(12)
K[5][5]+= KG[5][5];//DOF(12)
K[0][0]+= KG[3][3];//DOF(7)
K[0][1]+= KG[3][4];//DOF(7)
K[0][2]+= KG[3][5];//DOF(7)
K[1][0]+= KG[4][3];//DOF(8)
K[1][1]+= KG[4][4];//DOF(8)
K[1][2]+= KG[4][5];//DOF(8)
K[2][0]+= KG[5][3];//DOF(9)
K[2][1]+= KG[5][4];//DOF(9)
K[2][2]+= KG[5][5];//DOF(9)

for (i=0;i<NN;i++)
Mi[0]=eleF[0][2];
Mi[1]=eleF[0][5];
Mi[2]=eleF[1][2];
Mi[3]=eleF[1][5];
Mi[4]=eleF[2][2];
Mi[5]=eleF[2][5];
for (i=0;i<NN;i++)

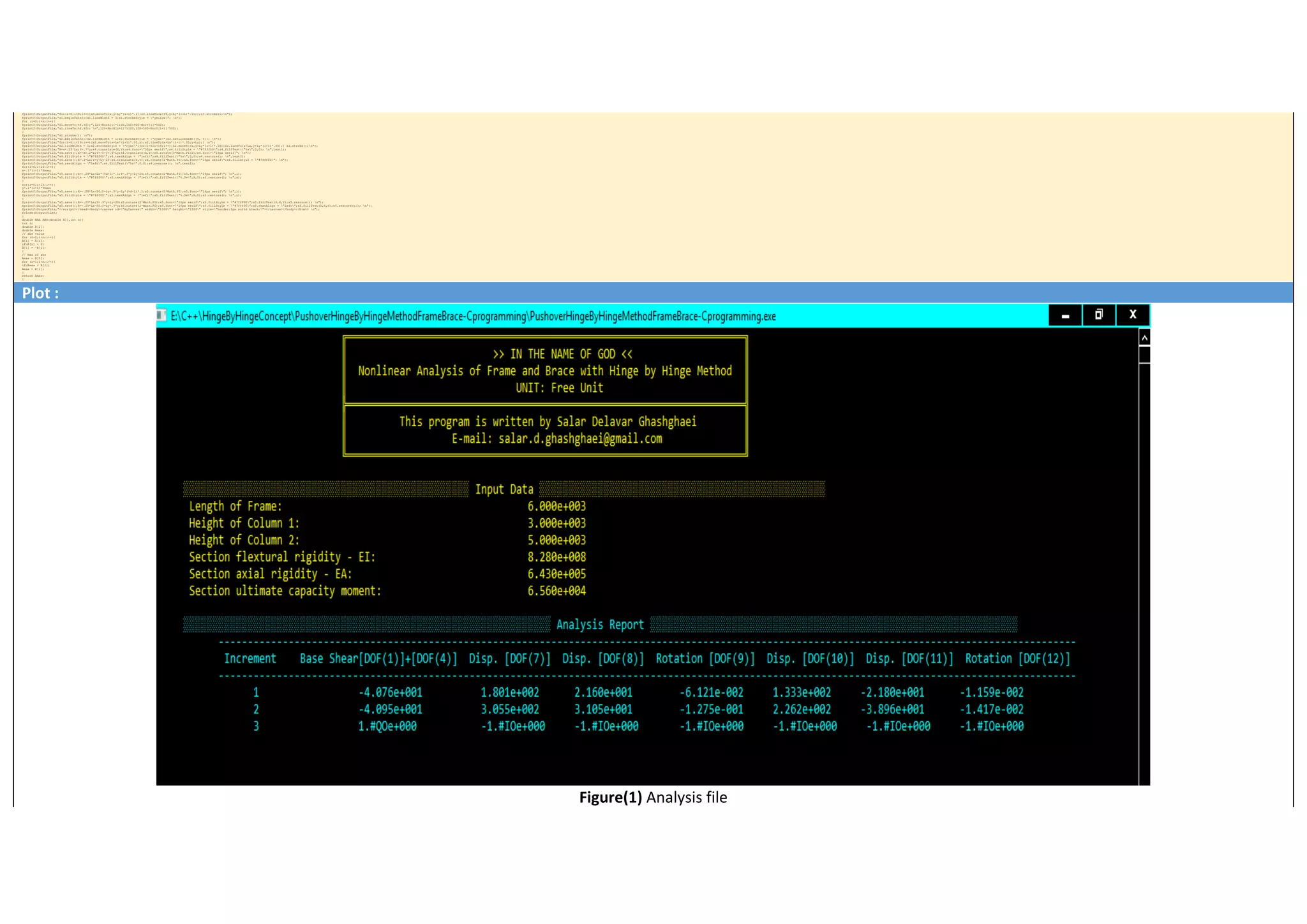

MessageResult(output_base,output_u,3);
OUTPUT_excel(output_u,output_base,ELE_FORCE,2);

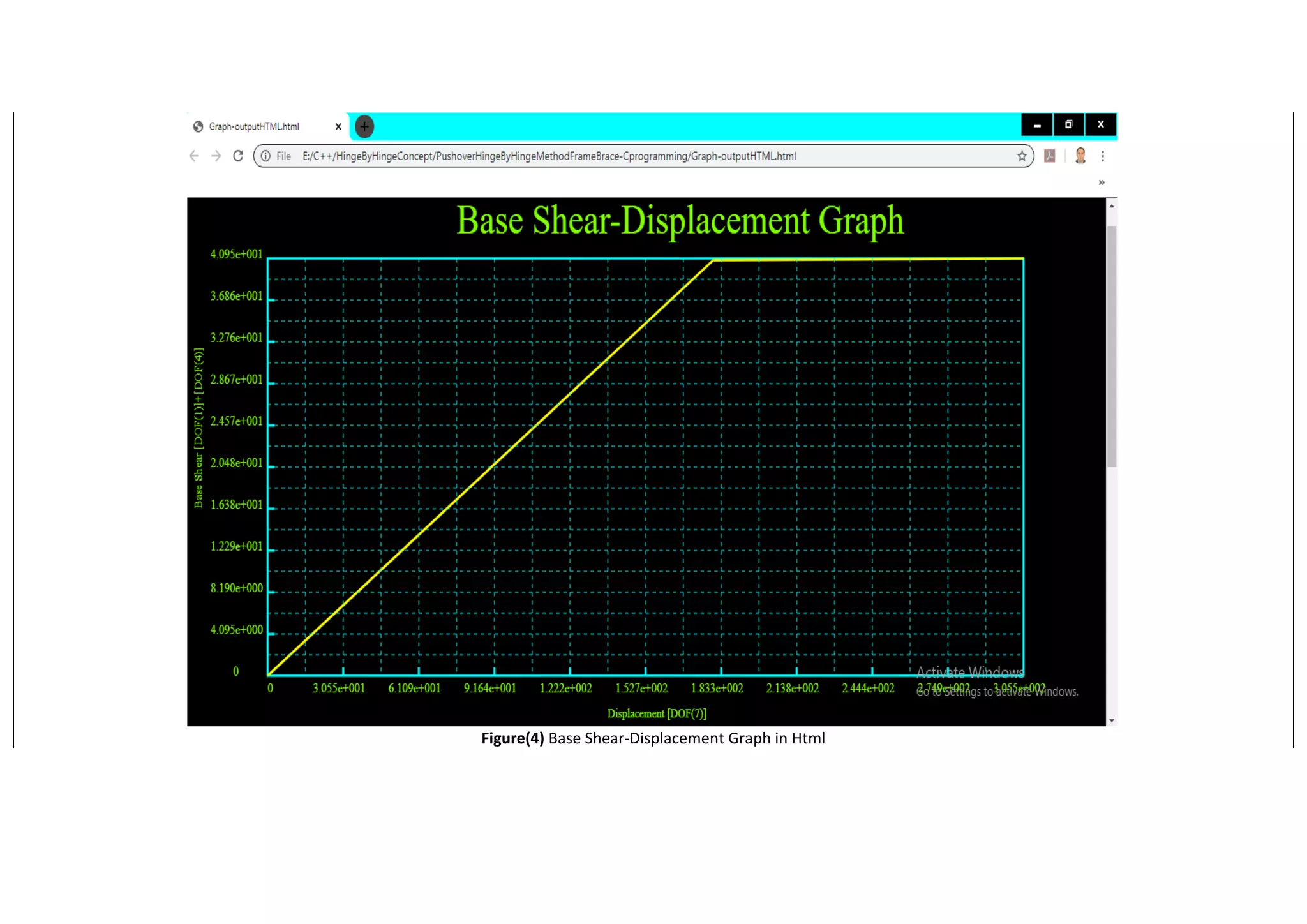

char text1[30]="Base Shear-Displacement Graph",text2[30]="Displacement [DOF(7)]",text3[30]="Base Shear [DOF(1)]+[DOF(4)]";
double X[2],Y[2];
for (i=0;i<2;i++){
X[i] = output_u[i][0];// Disp. DOF(7)
Y[i] = output_base[i];// Base Shear DOF(1)+DOF(4)
}
OUTPUT_HTML_GRAPH(X,Y,2,text1,text2,text3);
textcolor(15);
//printf("na - %s -n",ShowText01);
system("start /w Graph-outputHTML.html");
textcolor(15);
printf("na - Output data is written in Excel file -n");
DATE_TIME();
}
void DATE_TIME(){
printf("nt");
system("echo %date%");
printf("t");
system("echo %time%");
}
void Matrix_Stiffness(double EA,double EI,double L[],double lanX[],double lanY[],double A[],double B[],double C[],double D[],double E[],double K[][6],double K_G[][6],int I,int II){
double lan[6][6],lan_Tr[6][6],ans[6][6];
A[I] = 4*EI/L[I];
B[I] = 6*EI/(L[I]*L[I]);
C[I] = 2*EI/L[I];
D[I] = 12*EI/(L[I]*L[I]*L[I]);
E[I] = EA/L[I];
for (int i=0;i<6;i++)
for (int j=0;j<6;j++)
K[i][j] = 0;
//I:2 number of element - II: kind of stiffness matrix
if (II==1){// No plastic hinge
K[0][0]=E[I];K[0][1]=0;K[0][2]=0;K[0][3]=-E[I];K[0][4]=0;K[0][5]=0;
K[1][0]=0;K[1][1]=D[I];K[1][2]=B[I];K[1][3]=0;K[1][4]=-D[I];K[1][5]=B[I];
K[2][0]=0;K[2][1]=B[I];K[2][2]=A[I];K[2][3]=0;K[2][4]=-B[I];K[2][5]=C[I];
K[3][0]=-E[I];K[3][1]=0;K[3][2]=0;K[3][3]=E[I];K[3][4]=0;K[3][5]=0;
K[4][0]=0;K[4][1]=-D[I];K[4][2]=-B[I];K[4][3]=0;K[4][4]=D[I];K[4][5]=-B[I];
K[5][0]=0;K[5][1]=B[I];K[5][2]=C[I];K[5][3]=0;K[5][4]=-B[I];K[5][5]=A[I];
}
if (II==2){// plastic hinge at i
K[0][0]=E[I];K[0][1]=0;K[0][2]=0;K[0][3]=-E[I];K[0][4]=0;K[0][5]=0;
K[1][0]=0;K[1][1]=.25*D[I];K[1][2]=0;K[1][3]=0;K[1][4]=-.25*D[I];K[1][5]=.5*B[I];
K[2][0]=0;K[2][1]=0;K[2][2]=0;K[2][3]=0;K[2][4]=0;K[2][5]=0;
K[3][0]=-E[I];K[3][1]=0;K[3][2]=0;K[3][3]=E[I];K[3][4]=0;K[3][5]=0;
K[4][0]=0;K[4][1]=-.25*D[I];K[4][2]=0;K[4][3]=0;K[4][4]=.25*D[I];K[4][5]=-.5*B[I];
K[5][0]=0;K[5][1]=.5*B[I];K[5][2]=0;K[5][3]=0;K[5][4]=-.5*B[I];K[5][5]=(3/4)*A[I];
}
if (II==3){// plastic hinge at j
K[0][0]=E[I];K[0][1]=0;K[0][2]=0;K[0][3]=-E[I];K[0][4]=0;K[0][5]=0;
K[1][0]=0;K[1][1]=.25*D[I];K[1][2]=.5*B[I];K[1][3]=0;K[1][4]=-.25*D[I];K[1][5]=0;
K[2][0]=0;K[2][1]=.5*B[I];K[2][2]=(3/4)*A[I];K[2][3]=0;K[2][4]=-.5*B[I];K[2][5]=0;
K[3][0]=-E[I];K[3][1]=0;K[3][2]=0;K[3][3]=E[I];K[3][4]=0;K[3][5]=0;
K[4][0]=0;K[4][1]=-.25*D[I];K[4][2]=-.5*B[I];K[4][3]=0;K[4][4]=.25*D[I];K[4][5]=0;
K[5][0]=0;K[5][1]=0;K[5][2]=0;K[5][3]=0;K[5][4]=0;K[5][5]=0;
}
if (II==4){// plastic hinge at i and j
K[0][0]=E[I];K[0][1]=0;K[0][2]=0;K[0][3]=-E[I];K[0][4]=0;K[0][5]=0;
K[1][0]=0;K[1][1]=0;K[1][2]=0;K[1][3]=0;K[1][4]=0;K[1][5]=0;
K[2][0]=0;K[2][1]=0;K[2][2]=0;K[2][3]=0;K[2][4]=0;K[2][5]=0;
K[3][0]=-E[I];K[3][1]=0;K[3][2]=0;K[3][3]=E[I];K[3][4]=0;K[3][5]=0;
K[4][0]=0;K[4][1]=0;K[4][2]=0;K[4][3]=0;K[4][4]=0;K[4][5]=0;
K[5][0]=0;K[5][1]=0;K[5][2]=0;K[5][3]=0;K[5][4]=0;K[5][5]=0;
}
lan[0][0]=lanX[I];lan[0][1]=lanY[I];lan[0][2]=0;lan[0][3]=0;lan[0][4]=0;lan[0][5]=0;
lan[1][0]=-lanY[I];lan[1][1]=lanX[I];lan[1][2]=0;lan[1][3]=0;lan[1][4]=0;lan[1][5]=0;
lan[3][0]=0;lan[3][1]=0;lan[3][2]=0;lan[3][3]=lanX[I];lan[3][4]=lanY[I];lan[3][5]=0;
lan[4][0]=0;lan[4][1]=0;lan[4][2]=0;lan[4][3]=-lanY[I];lan[4][4]=lanX[I];lan[4][5]=0;
Matrix_Transpose(lan,lan_Tr);
Matrix_Multiplication(lan_Tr,K,ans);
Matrix_Multiplication(ans,lan,K_G);
}
void ELEMNT_FORCE_OUTPUT(double eleF[5][6],double ELE_FORCE[4][30],double SUM_ELE_FORCE[30],double u[],double sum_u[], int I){
int i;
for (i=0;i<6;i++)
ELE_FORCE[I][i]=eleF[0][i];
for (i=6;i<12;i++)
ELE_FORCE[I][i]=eleF[1][i-6];
for (i=12;i<18;i++)
for (i=18;i<24;i++)
for (i=24;i<30;i++)
for (i=0;i<6*Ne;i++)
SUM_ELE_FORCE[i] += ELE_FORCE[I][i];
for (i=0;i<NN;i++)
sum_u[i] += u[i];
}
double SQRT2(double D){
int it,itermax;
double residual,tolerance,x,dx,dx_ABS,f,df;
it = 0; // initialize iteration count
itermax = 100000;
residual = 100; // initialize residual
tolerance = 1e-8;
x = 1;// initialize answer
while (residual > tolerance){
f = x*x - D;
df = 2 * x;
dx = f/df;
x= x - dx;
residual = ABS(dx); // abs residual
it = it + 1; // increment iteration count
//printf("f: %f -tdx: %f -tresidual: %fn",f,dx,residual);
if (it == itermax){
//printf("tSQRT2(number,power) : SQRT2(%f) - iteration: %d -> ## The solution is not converged ##n",D,it);
break;
}
}
if (it < itermax){
//printf("tSQRT(number,power) - SQRT(%f,%f) : %f n",D,n, x);
return x;
}
}
void Matrix_Transpose(double A[6][6],double B[6][6]){
int i,j;
for (i=0;i<6;i++)
for (j=0;j<6;j++)
B[j][i]=A[i][j];
}
void Matrix_Multiplication(double A[6][6],double B[6][6],double C[6][6]){
int i,j,k;
double sum;
for (i=0;i<6;i++)
for (j=0;j<6;j++){
sum=0;
for (k=0;k<6;k++)
sum += A[i][k]*B[k][j];
C[i][j] = sum;
}
}
void MessageResult(double A[],double B[5][6],int n){
int i;
printf("t ");
for (i=0;i<147;i++)
printf("-");
printf("n");
printf("t Increment Base Shear[DOF(1)]+[DOF(4)] Disp. [DOF(7)] Disp. [DOF(8)] Rotation [DOF(9)] Disp. [DOF(10)] Disp. [DOF(11)] Rotation [DOF(12)]n");
printf("t ");
for (i=0;i<147;i++)
printf("-");
printf("n");
for (i=0;i<n;i++)
printf("tt %dtt %.3et %.3et%.3et %.3et %.3e %.3et %.3en",i+1,A[i],B[i][0],B[i][1],B[i][2],B[i][3],B[i][4],B[i][5]);
}
void OUTPUT_HTML_GRAPH(double X[],double Y[],int n,const char text1[],const char text2[],const char text3[]){
// HTML GRAPH OUTPUT
int i;
double x,y,Xnew[3],Ynew[3],NorX[3],NorY[3],Xmax,Ymax;
Xmax=MAX_ABS(X,n);
Ymax=MAX_ABS(Y,n);
Xnew[0]=0;Ynew[0]=0;
for (i=0;i<n;i++){
Xnew[i+1] = ABS(X[i]);
Ynew[i+1] = ABS(Y[i]);
}
for (i=0;i<n+1;i++){
NorX[i] = Xnew[i]/Xmax;
NorY[i] = Ynew[i]/Ymax;
//printf("t %f %f n",NorX[i],NorY[i]);
}
FILE *OutputFile;
OutputFile = fopen(ShowText01, "w");
fprintf(OutputFile,"<!DOCTYPE HTML><html><body style="background-color:black;"><font color="white"><head><script> n");
fprintf(OutputFile,"window.onload = function(){ n");
fprintf(OutputFile,"var canvas = document.getElementById("myCanvas");var s1 = canvas.getContext("2d");var s2 = canvas.getContext('2d'); n");
fprintf(OutputFile,"var s3 = canvas.getContext("2d");var s4 = canvas.getContext("2d");var s5 = canvas.getContext("2d"); n");
fprintf(OutputFile,"var x=120,y=100,X,Y,Lx=1100,Ly=500,i; n");
fprintf(OutputFile,"s3.beginPath();s3.lineWidth = 3;s3.strokeStyle = "cyan";s3.rect(x,y,Lx,Ly); n");
fprintf(OutputFile,"for(i=0;i<9;i++){s3.moveTo(x+Lx*(i+1)*.1,y+Ly);s3.lineTo(x+Lx*(i+1)*.1,y+Ly-10);}; n");

fprintf(OutputFile,"for(i=0;i<9;i++){s3.moveTo(x,y+Ly*(i+1)*.1);s3.lineTo(x+10,y+Ly*(i+1)*.1);};s3.stroke();n");
fprintf(OutputFile,"s1.beginPath();s1.lineWidth = 3;s1.strokeStyle = "yellow"; n");
for (i=0;i<n;i++){
fprintf(OutputFile,"s1.moveTo(%f,%f);",120+NorX[i]*1100,100+500-NorY[i]*500);
fprintf(OutputFile,"s1.lineTo(%f,%f); n",120+NorX[i+1]*1100,100+500-NorY[i+1]*500);
}
fprintf(OutputFile,"s1.stroke(); n");
fprintf(OutputFile,"s2.beginPath();s2.lineWidth = 1;s2.strokeStyle = "cyan";s2.setLineDash([5, 5]); n");
fprintf(OutputFile,"for(i=0;i<19;i++){s2.moveTo(x+Lx*(i+1)*.05,y);s2.lineTo(x+Lx*(i+1)*.05,y+Ly);} n");
fprintf(OutputFile,"s2.lineWidth = 1;s2.strokeStyle = "cyan";for(i=0;i<19;i++){s2.moveTo(x,y+Ly*(i+1)*.05);s2.lineTo(x+Lx,y+Ly*(i+1)*.05);} s2.stroke();n");
fprintf(OutputFile,"X=x+.25*Lx;Y=.7*y;s4.translate(X,Y);s4.font="50px serif";s4.fillStyle = "#7fff00";s4.fillText("%s",0,0); n",text1);
fprintf(OutputFile,"s4.save();X=-X+.2*x;Y=-Y+y+.6*Ly;s4.translate(X,Y);s4.rotate(3*Math.PI/2);s4.font="15px serif"; n");
fprintf(OutputFile,"s4.fillStyle = "#7fff00";s4.textAlign = "left";s4.fillText("%s",0,0);s4.restore(); n",text3);
fprintf(OutputFile,"s4.save();X=.2*Lx;Y=y+Ly-20;s4.translate(X,Y);s4.rotate(2*Math.PI);s4.font="15px serif";s4.fillStyle = "#7fff00"; n");
fprintf(OutputFile,"s4.textAlign = "left";s4.fillText("%s",0,0);s4.restore(); n",text2);
for(i=0;i<10;i++){
x=.1*(i+1)*Xmax;
fprintf(OutputFile,"s5.save();X=-.29*Lx+Lx*(%d+1)*.1;Y=.3*y+Ly+20;s5.rotate(2*Math.PI);s5.font="16px serif"; n",i);
fprintf(OutputFile,"s5.fillStyle = "#7fff00";s5.textAlign = "left";s5.fillText("%.3e",X,Y);s5.restore(); n",x);
}
for(i=0;i<10;i++){
y=.1*(i+1)*Ymax;
fprintf(OutputFile,"s5.save();X=-.28*Lx-50;Y=Ly+.3*y-Ly*(%d+1)*.1;s5.rotate(2*Math.PI);s5.font="16px serif"; n",i);
fprintf(OutputFile,"s5.fillStyle = "#7fff00";s5.textAlign = "left";s5.fillText("%.3e",X,Y);s5.restore(); n",y);
}
fprintf(OutputFile,"s5.save();X=-.25*Lx;Y=.3*y+Ly+20;s5.rotate(2*Math.PI);s5.font="16px serif";s5.fillStyle = "#7fff00";s5.fillText(0,X,Y);s5.restore(); n");
fprintf(OutputFile,"s5.save();X=-.25*Lx-50;Y=Ly+.3*y;s5.rotate(2*Math.PI);s5.font="16px serif";s5.fillStyle = "#7fff00";s5.textAlign = "left";s5.fillText(0,X,Y);s5.restore();}; n");
fprintf(OutputFile,"</script></head><body><canvas id="myCanvas" width="1300" height="1300" style="border:1px solid black;"></canvas></body></html> n");
fclose(OutputFile);
}
double MAX_ABS(double A[],int n){
int i;
double B[2];
double Amax;
// abs value
for (i=0;i<n;i++){
B[i] = A[i];
if(B[i] < 0)
B[i] = -B[i];
}
// Max of abs
Amax = B[0];
for (i=1;i<n;i++){
if(Amax < B[i])
Amax = B[i];
}
return Amax;
}
Plot :
Figure(1) Analysis file

Figure(4) Base Shear-Displacement Graph in Html

Nonlinear analysis of braced frame with hinge by hinge method in c programming

More Related Content

What's hot

Similar to Nonlinear analysis of braced frame with hinge by hinge method in c programming

More from Salar Delavar Qashqai

Recently uploaded

Nonlinear analysis of braced frame with hinge by hinge method in c programming
