Geometric and material nonlinearity analysis of 2 d truss with force control and ductility damage index control in c, matlab, seismo and abaqus

>> IN THE NAME OF GOD <<

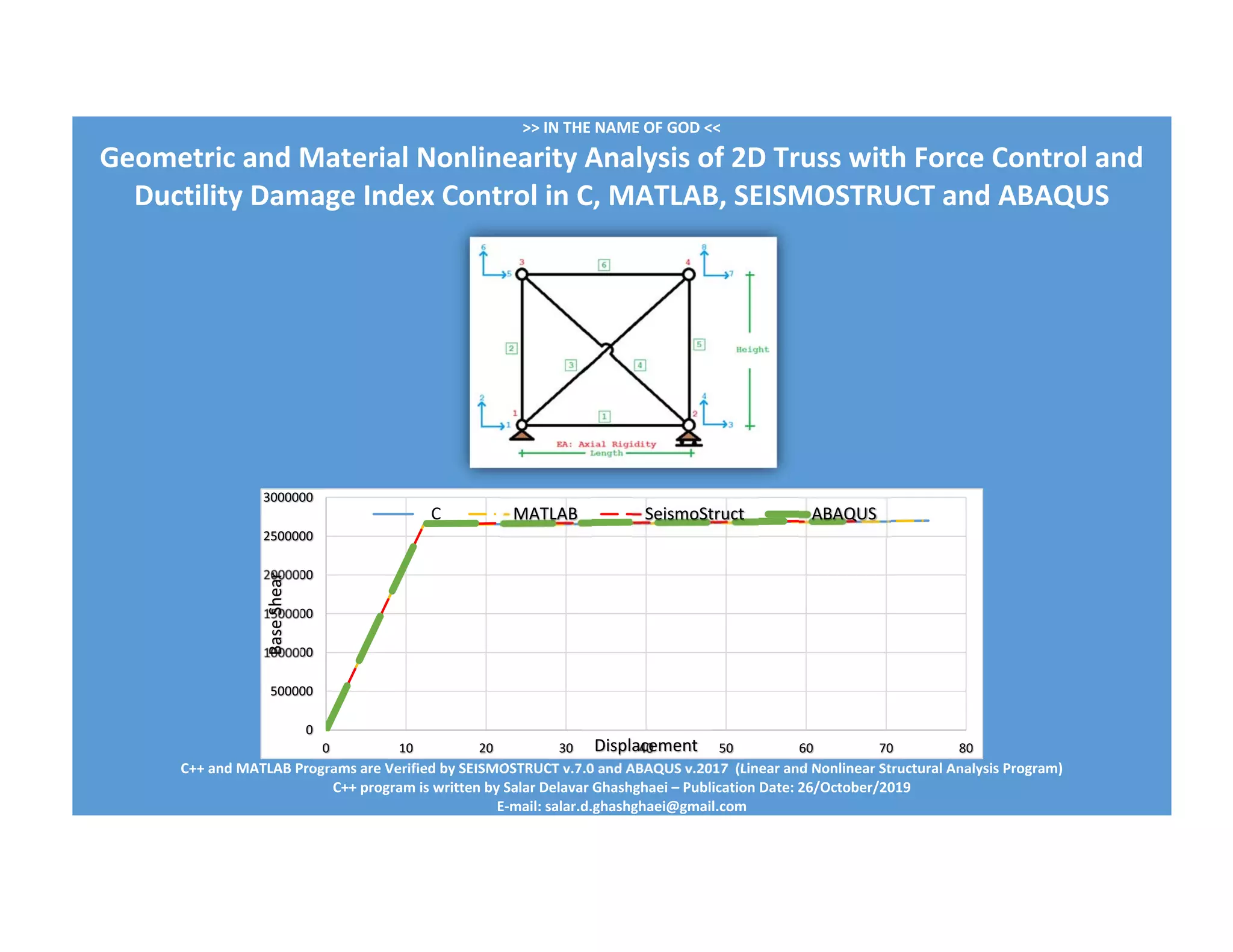

Geometric and Material Nonlinearity Analysis of 2D Truss with Force Control and
Ductility Damage Index Control in C, MATLAB, SEISMOSTRUCT and ABAQUS
C++ and MATLAB Programs are Verified by SEISMOSTRUCT v.7.0 and ABAQUS v.2017 (Linear and Nonlinear Structural Analysis Program)
C++ program is written by Salar Delavar Ghashghaei – Publication Date: 26/October/2019
E‐mail: salar.d.ghashghaei@gmail.com
0
500000
1000000
1500000
2000000
2500000
3000000

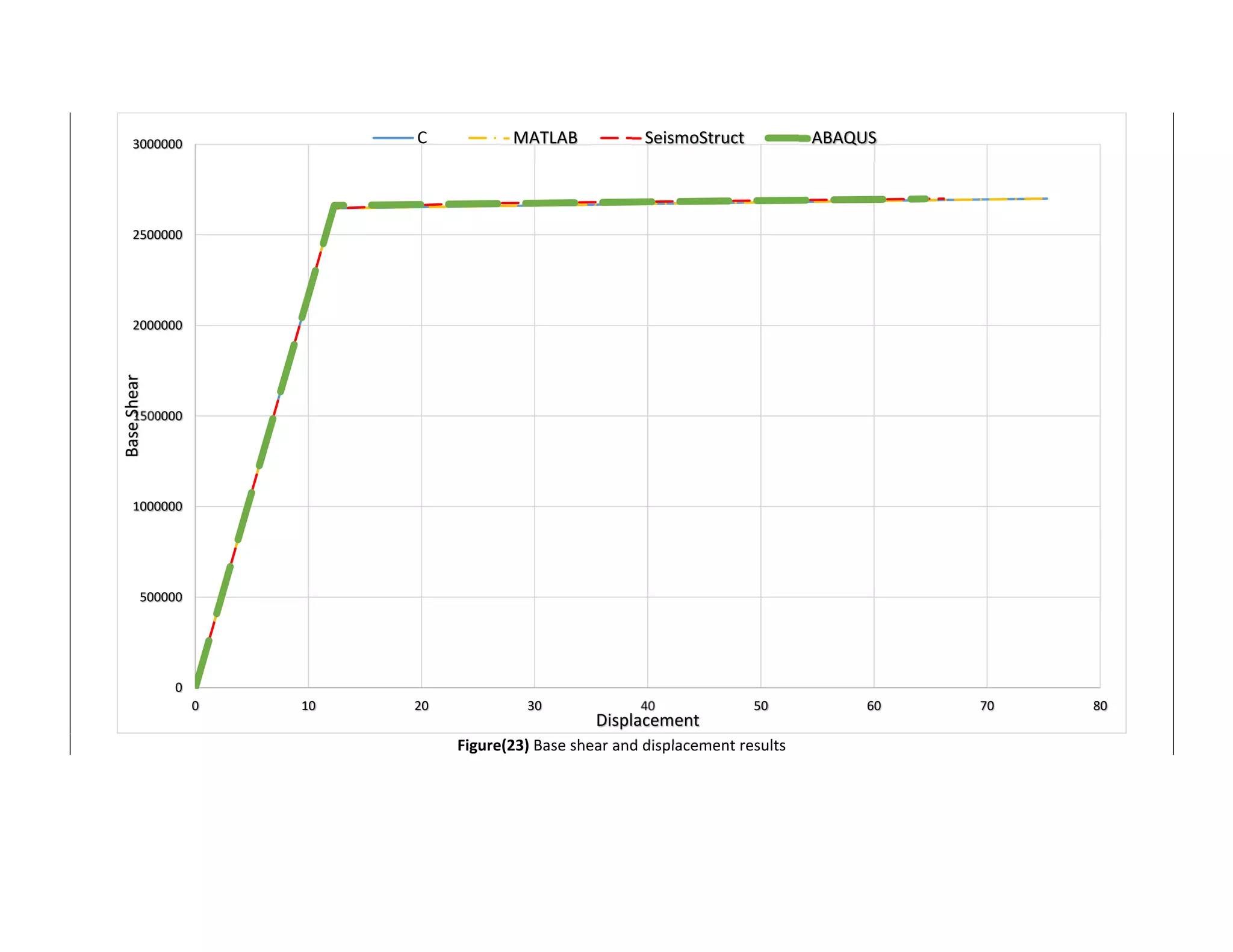

0 10 20 30 40 50 60 70 80
Base Shear
Displacement
C MATLAB SeismoStruct ABAQUS

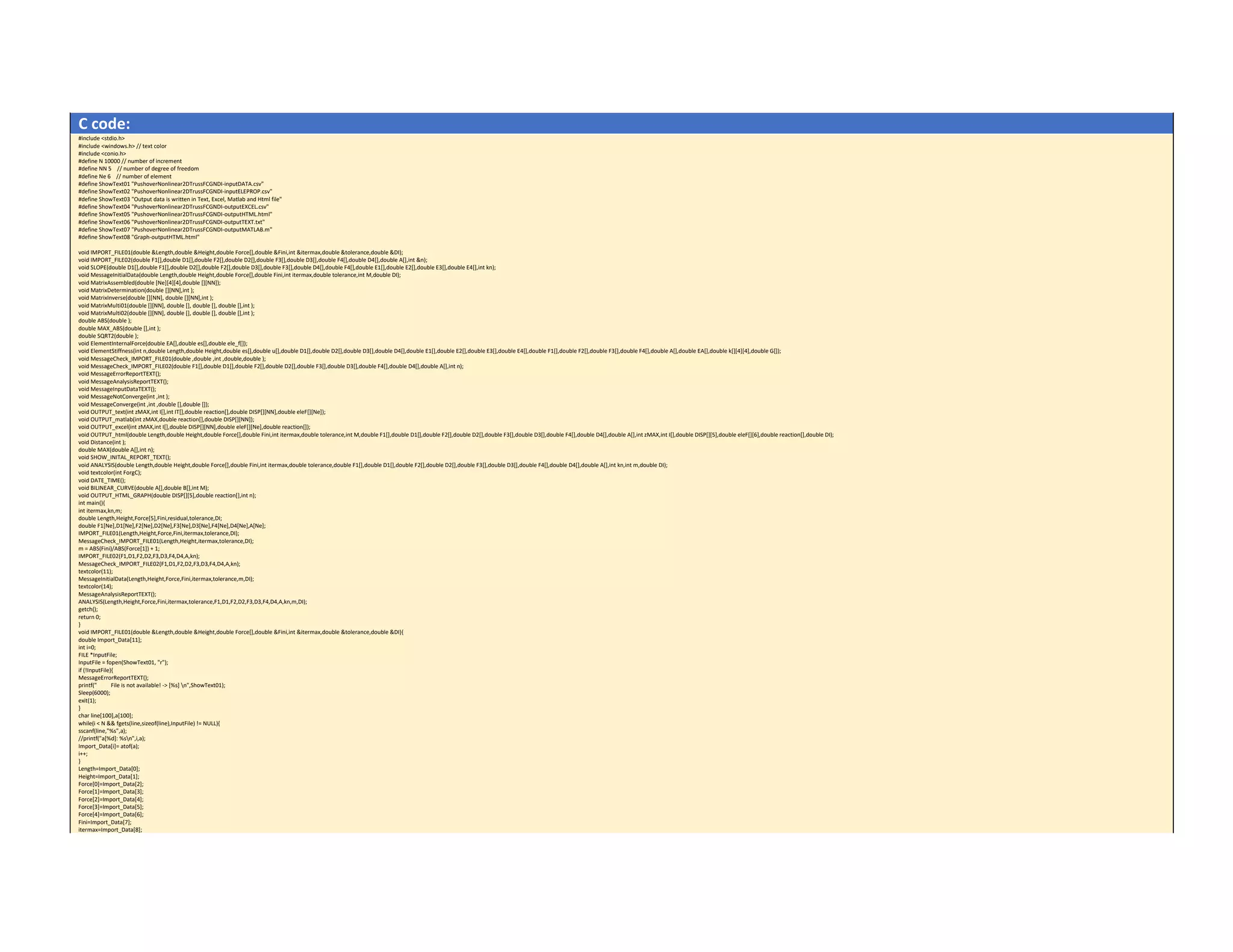

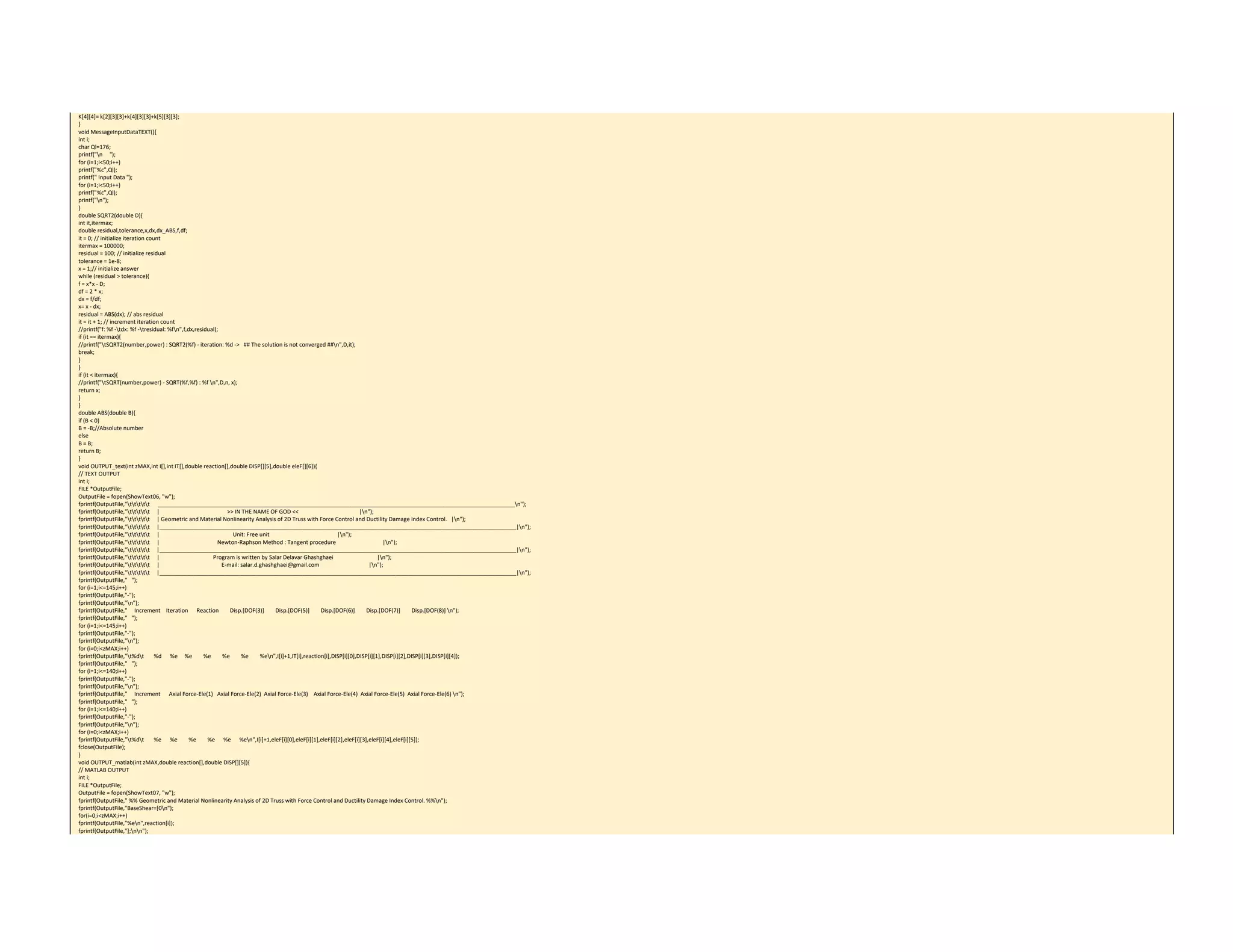

C code:
#include <stdio.h>
#include <windows.h> // text color
#include <conio.h>
#define N 10000 // number of increment
#define NN 5    // number of degree of freedom
#define Ne 6    // number of element
#define ShowText01 "PushoverNonlinear2DTrussFCGNDI‐inputDATA.csv"
#define ShowText02 "PushoverNonlinear2DTrussFCGNDI‐inputELEPROP.csv"
#define ShowText03 "Output data is written in Text, Excel, Matlab and Html file"
#define ShowText04 "PushoverNonlinear2DTrussFCGNDI‐outputEXCEL.csv"
#define ShowText05 "PushoverNonlinear2DTrussFCGNDI‐outputHTML.html"
#define ShowText06 "PushoverNonlinear2DTrussFCGNDI‐outputTEXT.txt"
#define ShowText07 "PushoverNonlinear2DTrussFCGNDI‐outputMATLAB.m"
#define ShowText08 "Graph‐outputHTML.html"

void IMPORT_FILE01(double &Length,double &Height,double Force[],double &Fini,int &itermax,double &tolerance,double &DI);
void IMPORT_FILE02(double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int &n);
void SLOPE(double D1[],double F1[],double D2[],double F2[],double D3[],double F3[],double D4[],double F4[],double E1[],double E2[],double E3[],double E4[],int kn);
void MessageInitialData(double Length,double Height,double Force[],double Fini,int itermax,double tolerance,int M,double DI);
void MatrixAssembled(double [Ne][4][4],double [][NN]);
void MatrixDetermination(double [][NN],int );
void MatrixInverse(double [][NN], double [][NN],int );
void MatrixMulti01(double [][NN], double [], double [], double [],int );
void MatrixMulti02(double [][NN], double [], double [], double [],int );
double ABS(double );
double MAX_ABS(double [],int );
double SQRT2(double );
void ElementInternalForce(double EA[],double es[],double ele_f[]);
void ElementStiffness(int n,double Length,double Height,double es[],double u[],double D1[],double D2[],double D3[],double D4[],double E1[],double E2[],double E3[],double E4[],double F1[],double F2[],double F3[],double F4[],double A[],double EA[],double k[][4][4],double G[]);
void MessageCheck_IMPORT_FILE01(double ,double ,int ,double,double );
void MessageCheck_IMPORT_FILE02(double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int n);
void MessageErrorReportTEXT();
void MessageAnalysisReportTEXT();
void MessageInputDataTEXT();
void MessageNotConverge(int ,int );
void MessageConverge(int ,int ,double [],double []);
void OUTPUT_text(int zMAX,int I[],int IT[],double reaction[],double DISP[][NN],double eleF[][Ne]);
void OUTPUT_matlab(int zMAX,double reaction[],double DISP[][NN]);
void OUTPUT_excel(int zMAX,int I[],double DISP[][NN],double eleF[][Ne],double reaction[]);
void OUTPUT_html(double Length,double Height,double Force[],double Fini,int itermax,double tolerance,int M,double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int zMAX,int I[],double DISP[][5],double eleF[][6],double reaction[],double DI);
void Distance(int );
double MAX(double A[],int n);
void SHOW_INITAL_REPORT_TEXT();
void ANALYSIS(double Length,double Height,double Force[],double Fini,int itermax,double tolerance,double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int kn,int m,double DI);
void textcolor(int ForgC);
void DATE_TIME();
void BILINEAR_CURVE(double A[],double B[],int M);
void OUTPUT_HTML_GRAPH(double DISP[][5],double reaction[],int n);
int main(){
int itermax,kn,m;
double Length,Height,Force[5],Fini,residual,tolerance,DI;
double F1[Ne],D1[Ne],F2[Ne],D2[Ne],F3[Ne],D3[Ne],F4[Ne],D4[Ne],A[Ne];
IMPORT_FILE01(Length,Height,Force,Fini,itermax,tolerance,DI);
MessageCheck_IMPORT_FILE01(Length,Height,itermax,tolerance,DI);
m = ABS(Fini)/ABS(Force[1]) + 1;
IMPORT_FILE02(F1,D1,F2,D2,F3,D3,F4,D4,A,kn);
MessageCheck_IMPORT_FILE02(F1,D1,F2,D2,F3,D3,F4,D4,A,kn);
textcolor(11);
MessageInitialData(Length,Height,Force,Fini,itermax,tolerance,m,DI);
textcolor(14);
MessageAnalysisReportTEXT();
ANALYSIS(Length,Height,Force,Fini,itermax,tolerance,F1,D1,F2,D2,F3,D3,F4,D4,A,kn,m,DI);
getch();
return 0;
}
void IMPORT_FILE01(double &Length,double &Height,double Force[],double &Fini,int &itermax,double &tolerance,double &DI){
double Import_Data[11];
int i=0;
FILE *InputFile;
InputFile = fopen(ShowText01, "r");
if (!InputFile){
MessageErrorReportTEXT();
printf("          File is not available! ‐> [%s] n",ShowText01);
Sleep(6000);
exit(1);
}
char line[100],a[100];
while(i < N && fgets(line,sizeof(line),InputFile) != NULL){
sscanf(line,"%s",a);
//printf("a[%d]: %sn",i,a);
Import_Data[i]= atof(a);
i++;
}
Length=Import_Data[0];
Height=Import_Data[1];
Force[0]=Import_Data[2];
Fini=Import_Data[7];
itermax=Import_Data[8];

tolerance=Import_Data[9];
DI=Import_Data[10];
}
void IMPORT_FILE02(double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int &n){
int i = 0;
FILE *InputFile;
InputFile = fopen(ShowText02, "r");
if (!InputFile){
printf("          File is not available! ‐> [%s] n",ShowText02);
Sleep(6000);
exit(1);
}
char line[1000];
do{
fscanf(InputFile,"%lf,%lf,%lf,%lf,%lf,%lf,%lf,%lf,%lf",&D1[i],&F1[i],&D2[i],&F2[i],&D3[i],&F3[i],&D4[i],&F4[i],&A[i]);
i++;
}
while(i < N && fgets(line,sizeof(line),InputFile) != NULL);
n = i‐1;
//printf("%dn",n);
}
void MessageInitialData(double Length,double Height,double Force[],double Fini,int itermax,double tolerance,int M,double DI){
char Qa,Qb,Qc,Qd,Qe,Qf,Qg,Qk;
int  i;
Qa=201;Qb=205;Qc=187;Qd=200;Qe=188,Qf=186,Qg=204,Qk=185;
printf("tttt%c",Qa);
for (i=1;i<80;i++)
printf("%c",Qb);
printf("%cn",Qc);
printf("tttt%c                         >> IN THE NAME OF GOD <<                              %cn",Qf,Qf);
printf("tttt%c  Geometric and Material Nonlinearity Analysis of 2D Truss with Force Control  %cn",Qf,Qf);
printf("tttt%c                     and Ductility Damage Index Control.                       %cn",Qf,Qf);
printf("tttt%c                             UNIT: Free Unit                                   %cn",Qf,Qf);
printf("tttt%c",Qg);
for (i=1;i<80;i++)
printf("%c",Qb);
printf("%cn",Qk);
printf("tttt%c                This program is written by Salar Delavar Ghashghaei            %cn",Qf,Qf);
printf("tttt%c                       E‐mail: salar.d.ghashghaei@gmail.com                    %cn",Qf,Qf);
printf("tttt%c",Qd);
for (i=1;i<80;i++)
printf("%c",Qb);
printf("%cn",Qe);

MessageInputDataTEXT();
printf("      Length of truss structure:                                             %.3en",Length);
printf("      Height of truss structure:                                             %.3en",Height);
printf("      External force [DOF(3)]:                                               %.3en",Force[0]);
printf("      Ultimate  external force [DOF(5)]:                                     %.3en",Fini);
printf("      Maximum number of iterations:                                          %.3en",itermax);// maximum number of iterations
printf("      Specified tolerance for convergence:                                   %.3en",tolerance);//  specified tolerance for convergence
printf("      Number of increments:                                                  %dn",M);
printf("      Ductility Damage Index:                                                %.3en",DI);
}
void MatrixInverse(double A[][NN], double C[][NN],int n){
int i,j,l;
double c_A[n][n],B[n][n],m,Sum;
for (i=0;i<n;i++)
for (j=0;j<n;j++)
c_A[i][j]=A[i][j];
// Inverse [Kinit]
for (i=0;i<n;i++)
for (j=0;j<n;j++){
if (i==j)
B[i][j]=1;
else
B[i][j]=0;
}

for (j=0;j<n‐1;j++)
for (i=j+1;i<n;i++){
m=c_A[i][j]/c_A[j][j];
for (l=0;l<n;l++){
c_A[i][l] ‐= m*c_A[j][l];
B[i][l] ‐= m*B[j][l];
}
}
// backward substitutions
for (i=n‐1;i>=0;i‐‐)
for (j=0;j<n;j++){
Sum=0;
for (l=i+1;l<n;l++)
Sum += c_A[i][l]*C[l][j];
C[i][j]=(B[i][j]‐Sum)/c_A[i][i];
}
}
void MatrixMulti01(double A[][NN], double B[], double C[], double D[],int n){
int i,j;
double ff;
// [f] = [Ktot] ‐ [u] ‐ [F]

for (i=0; i<n; i++){
ff=0;
for (j=0; j<n; j++)
ff += A[i][j]*B[j];

D[i] = ff‐C[i];
}
}
void MatrixMulti02(double A[][NN], double B[], double C[], double D[],int n){
int i,j;
double Dx;
// [du] = [InvKinit] * [f]
for (i=0; i<n; i++){
Dx=0;
for (j=0; j<n; j++)
Dx += A[i][j]* ‐B[j];

C[i]= Dx;
D[i] += C[i];// u= u+du
}
}
void ElementInternalForce(double EA[],double es[],double ele_f[]){
for (int I=0; I<6;I++)
ele_f[I] = EA[I]*(es[I]+.5*es[I]*es[I]);
}
void ElementStiffness(int n,double Length,double Height,double es[],double u[],double D1[],double D2[],double D3[],double D4[],double E1[],double E2[],double E3[],double E4[],double F1[],double F2[],double F3[],double F4[],double A[],double EA[],double k[][4][4],double G[]){
double x1,y1,x2,y2,x3,y3,x4,y4,L[6],Lpr[Ne],lanX[Ne],lanY[Ne],lanxx[Ne],lanxy[Ne],lanyy[Ne];
int i;
Lpr[0]=Length;Lpr[1]=Height;
Lpr[2]=SQRT2(Length*Length+Height*Height);Lpr[3]=SQRT2(Length*Length+Height*Height);
Lpr[4]=Height;Lpr[5]=Length;

x1=0;y1=0;
x2=Length+u[0];y2=0;
x3=u[1];y3=Height+u[2];
x4=Length+u[3];y4=Height+u[4];

L[0]=SQRT2((x2‐x1)*(x2‐x1)+(y2‐y1)*(y2‐y1));
L[1]=SQRT2((x3‐x1)*(x3‐x1)+(y3‐y1)*(y3‐y1));
L[2]=SQRT2((x4‐x1)*(x4‐x1)+(y4‐y1)*(y4‐y1));
L[3]=SQRT2((x3‐x2)*(x3‐x2)+(y3‐y2)*(y3‐y2));
L[4]=SQRT2((x4‐x2)*(x4‐x2)+(y4‐y2)*(y4‐y2));
L[5]=SQRT2((x4‐x3)*(x4‐x3)+(y4‐y3)*(y4‐y3));
lanX[0]=(x2‐x1)/L[0];lanY[0]=(y2‐y1)/L[0];
lanX[1]=(x3‐x1)/L[1];lanY[1]=(y3‐y1)/L[1];
lanX[2]=(x4‐x1)/L[2];lanY[2]=(y4‐y1)/L[2];
lanX[3]=(x3‐x2)/L[3];lanY[3]=(y3‐y2)/L[3];
lanX[4]=(x4‐x2)/L[4];lanY[4]=(y4‐y2)/L[4];
lanX[5]=(x4‐x3)/L[5];lanY[5]=(y4‐y3)/L[5];

for (i=0;i<n;i++){
es[i]=(L[i]‐Lpr[i])/Lpr[i];
if (ABS(es[i])>= 0 && ABS(es[i])<= D1[i])
EA[i] = E1[i]*A[i];
else if (ABS(es[i])> D1[i] && ABS(es[i])<= D2[i])
EA[i] = ((F1[i]+E2[i]*(ABS(es[i])‐D1[i]))/ABS(es[i]))*A[i];
else
EA[i] = 0;
// Element
G[i] = EA[i]/L[i];lanxx[i]=lanX[i]*lanX[i];lanxy[i]=lanX[i]*lanY[i];lanyy[i]=lanY[i]*lanY[i];
k[i][0][0]=G[i]*lanxx[i];k[i][0][1]=G[i]*lanxy[i];k[i][0][2]=‐G[i]*lanxx[i];k[i][0][3]=‐G[i]*lanxy[i];
k[i][1][0]=G[i]*lanxy[i];k[i][1][1]=G[i]*lanyy[i];k[i][1][2]=‐G[i]*lanxy[i];k[i][1][3]=‐G[i]*lanyy[i];
k[i][2][0]=‐G[i]*lanxx[i];k[i][2][1]=‐G[i]*lanxy[i];k[i][2][2]=G[i]*lanxx[i];k[i][2][3]=G[i]*lanxy[i];
k[i][3][0]=‐G[i]*lanxy[i];k[i][3][1]=‐G[i]*lanyy[i];k[i][3][2]=G[i]*lanxy[i];k[i][3][3]=G[i]*lanyy[i];
}
}
void MatrixAssembled(double k[Ne][4][4],double K[][NN]){
K[0][0]= k[0][2][2]+k[3][0][0]+k[4][0][0];
K[0][1]= k[3][0][2];
K[0][2]= k[3][0][3];
K[0][3]= k[4][0][2];
K[0][4]= k[4][0][3];
K[1][0]= k[3][2][0];
K[1][1]= k[1][2][2]+k[3][2][2]+k[5][0][0];
K[1][2]= k[1][2][3]+k[3][2][3]+k[5][0][1];
K[1][3]= k[5][0][2];
K[1][4]= k[5][0][3];
K[2][0]= k[3][3][0];
K[2][1]= k[1][3][2]+k[3][3][2]+k[5][1][0];
K[2][2]= k[1][3][3]+k[3][3][3]+k[5][1][1];
K[2][3]= k[5][1][2];
K[2][4]= k[5][1][3];
K[3][0]= k[4][2][0];
K[3][1]= k[5][2][0];
K[3][2]= k[4][2][1];
K[3][3]= k[2][2][2]+k[4][2][2]+k[5][2][2];
K[3][4]= k[2][2][3]+k[4][2][3]+k[5][2][3];
K[4][0]= k[4][3][0];
K[4][1]= k[5][3][0];
K[4][2]= k[5][3][1];
K[4][3]= k[2][2][2]+k[4][3][2]+k[5][3][2];

K[4][4]= k[2][3][3]+k[4][3][3]+k[5][3][3];
}
void MessageInputDataTEXT(){
int i;
char Ql=176;
printf("n     ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf(" Input Data ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf("n");
}
double SQRT2(double D){
int it,itermax;
double residual,tolerance,x,dx,dx_ABS,f,df;
it = 0; // initialize iteration count
itermax = 100000;
residual = 100; // initialize residual
tolerance = 1e‐8;
x = 1;// initialize answer
while (residual > tolerance){
f = x*x ‐ D;
df = 2 * x;
dx = f/df;
x= x ‐ dx;
residual = ABS(dx); // abs residual
it = it + 1; // increment iteration count
//printf("f: %f ‐tdx: %f ‐tresidual: %fn",f,dx,residual);
if (it == itermax){
//printf("tSQRT2(number,power) : SQRT2(%f) ‐ iteration: %d ‐>   ## The solution is not converged ##n",D,it);
break;
}
}
if (it < itermax){
//printf("tSQRT(number,power) ‐ SQRT(%f,%f) : %f n",D,n, x);
return x;
}
}
double ABS(double B){
if (B < 0)
B = ‐B;//Absolute number
else
B = B;
return B;
}
void OUTPUT_text(int zMAX,int I[],int IT[],double reaction[],double DISP[][5],double eleF[][6]){
// TEXT OUTPUT
int i;
FILE *OutputFile;
OutputFile = fopen(ShowText06, "w");
fprintf(OutputFile,"ttttt      ___________________________________________________________________________________________________________________n");
fprintf(OutputFile,"ttttt     |         >> IN THE NAME OF GOD <<    |n");
fprintf(OutputFile,"ttttt     | Geometric and Material Nonlinearity Analysis of 2D Truss with Force Control and Ductility Damage Index Control.   |n");
fprintf(OutputFile,"ttttt     |___________________________________________________________________________________________________________________|n");
fprintf(OutputFile,"ttttt     |                Unit: Free unit                     |n");
fprintf(OutputFile,"ttttt     |                   Newton‐Raphson Method : Tangent procedure                       |n");
fprintf(OutputFile,"ttttt     |                Program is written by Salar Delavar Ghashghaei                |n");
fprintf(OutputFile,"ttttt     |                      E‐mail: salar.d.ghashghaei@gmail.com               |n");
fprintf(OutputFile,"   ");
for (i=1;i<=145;i++)
fprintf(OutputFile,"‐");
fprintf(OutputFile,"n");
fprintf(OutputFile,"     Increment    Iteration      Reaction        Disp.[DOF(3)]        Disp.[DOF(5)]        Disp.[DOF(6)]        Disp.[DOF(7)]        Disp.[DOF(8)] n");
for (i=1;i<=145;i++)
for (i=0;i<zMAX;i++)
fprintf(OutputFile,"t%dt       %d      %e     %e        %e        %e        %e        %en",I[i]+1,IT[i],reaction[i],DISP[i][0],DISP[i][1],DISP[i][2],DISP[i][3],DISP[i][4]);
for (i=1;i<=140;i++)
fprintf(OutputFile,"     Increment      Axial Force‐Ele(1)   Axial Force‐Ele(2)  Axial Force‐Ele(3)    Axial Force‐Ele(4)  Axial Force‐Ele(5)  Axial Force‐Ele(6) n");
for (i=1;i<=140;i++)
for (i=0;i<zMAX;i++)
fprintf(OutputFile,"t%dt       %e      %e        %e        %e      %e      %en",I[i]+1,eleF[i][0],eleF[i][1],eleF[i][2],eleF[i][3],eleF[i][4],eleF[i][5]);
fclose(OutputFile);
}
void OUTPUT_matlab(int zMAX,double reaction[],double DISP[][5]){
// MATLAB OUTPUT
int i;
FILE *OutputFile;
fprintf(OutputFile," %% Geometric and Material Nonlinearity Analysis of 2D Truss with Force Control and Ductility Damage Index Control. %%n");
fprintf(OutputFile,"BaseShear=[0n");
for(i=0;i<zMAX;i++)
fprintf(OutputFile,"%en",reaction[i]);
fprintf(OutputFile,"];nn");

fprintf(OutputFile,"Displacement=[0n");
for(i=0;i<zMAX;i++)
fprintf(OutputFile,"%en",DISP[i][1]);
fprintf(OutputFile,"];nn");

fprintf(OutputFile,"figure(1)n");
fprintf(OutputFile,"plot(Displacement,BaseShear,'LineWidth',3);n");
fprintf(OutputFile,"title(['# BASESHEAR ‐ DISPLACEMENT DIAGRAM #'],'Color','b');n");
fprintf(OutputFile,"legend('C++','Location','NorthEastOutside');n");
fprintf(OutputFile,"xlabel('DISPLACEMENT [DOF(5)]');ylabel('BASESHEAR [DOF(1)]');grid on;n");
fclose(OutputFile);
}
void OUTPUT_excel(int zMAX,int I[],double DISP[][5],double eleF[][6],double reaction[]){
// EXCEL OUTPUT
int i;
FILE *OutputFile;
fprintf(OutputFile," ###     Geometric and Material Nonlinearity Analysis of 2D Truss with Force Control and Ductility Damage Index Control     ###n");
fprintf(OutputFile,"Increment,Base Shear [DOF(1)],Displacement  [DOF(3)],Displacement  [DOF(5)],Displacement  [DOF(6)],Displacement  [DOF(7)],Displacement  [DOF(8)],Axial Force‐Ele(1),Axial Force‐Ele(2),Axial Force‐Ele(3),Axial Force‐Ele(4),Axial Force‐Ele(5),Axial Force‐Ele(6)n");
for(i=0;i<zMAX;i++)
fprintf(OutputFile,"%d,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%e,%en",I[i]+1,reaction[i],DISP[i][0],DISP[i][1],DISP[i][2],DISP[i][3],DISP[i][4],eleF[i][0],eleF[i][1],eleF[i][2],eleF[i][3],eleF[i][4],eleF[i][5]);
fclose(OutputFile);
}
void OUTPUT_html(double Length,double Height,double Force[],double Fini,int itermax,double tolerance,int M,double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int zMAX,int I[],double DISP[][5],double eleF[][6],double reaction[],double DI){
// HTML OUTPUT
int i;
FILE *OutputFile;
fprintf(OutputFile,"<html> <body bgcolor="green">n");
// IMPORT IMAGE
fprintf(OutputFile,"<img src="PushoverNonlinear2DTrussFCGNDI‐image01.png" style="width:1000px ; height:500px" alt="analysis01"><br><br>n");
// TOP TITLE oF HTML FILE
fprintf(OutputFile,"<table style=”width:100%” border="2px" width="1000px" height="120px" bgcolor="yellow">n");
fprintf(OutputFile,"<th bgcolor="cyan"> Geometric and Material Nonlinearity Analysis of 2D Truss with Force Control and Ductility Damage Index Control. ‐ Output Report </th> n");
// TABLE 1
fprintf(OutputFile,"<tr><th colspan="2" bgcolor="orange"> Input Data </th> </tr>n");
fprintf(OutputFile,"<tr> <th bgcolor="orange">Length of truss structure: </th><th> %.3e </th> </tr>n",Length);
fprintf(OutputFile,"<tr> <th bgcolor="orange">Height of truss structure: </th><th> %.3e </th> </tr>n",Height);
fprintf(OutputFile,"<tr> <th bgcolor="orange">External force [DOF(3)]: </th><th> %.3e </th> </tr>n",Force[0]);
fprintf(OutputFile,"<tr> <th bgcolor="orange">Ultimate  external force [DOF(5)]: </th><th> %.3e </th> </tr>n",Fini);
fprintf(OutputFile,"<tr> <th bgcolor="orange">Number of increments: </th><th> %d </th> </tr>n",M);
fprintf(OutputFile,"<tr> <th bgcolor="orange">Maximum number of iterations: </th><th> %d </th> </tr>n",itermax);
fprintf(OutputFile,"<tr> <th bgcolor="orange">Specified tolerance for convergence: </th><th> %.3e </th> </tr>n",tolerance);
fprintf(OutputFile,"<tr> <th bgcolor="orange">Ductility Damage Index: </th><th> %.3e </th> </tr>n",DI);
// TABLE 2
fprintf(OutputFile,"<tr><th colspan="10" bgcolor="orange"> Elements Strain‐Stress </th> <tr>n");
fprintf(OutputFile,"<tr> <th bgcolor="orange"> Element Number </th> <th bgcolor="orange">Strain [1]</th> <th bgcolor="orange">Stress [1]</th><th bgcolor="orange">Strain [2]</th><th bgcolor="orange">Stress [2]</th><th bgcolor="orange">Strain [3]</th><th bgcolor="orange">Stress [3]</th><th bgcolor="orange">Strain [4]</th> <th bgcolor="orange">Stress [4]</th><th bgcolor="orange">Section Area
</th></tr>n");
for(i=0;i<6;i++){
fprintf(OutputFile,"<tr> <td align ="center"> %d </td> <td align ="center"> %.3e </td> <td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td></td> </tr>n",i+1,D1[i],F1[i],D2[i],F2[i],D3[i],F3[i],D4[i],F4[i],A[i]);
}
// TABLE 3
fprintf(OutputFile,"<tr><th colspan="6" bgcolor="orange"> Structral Deformation </th> <tr>n");
fprintf(OutputFile,"<tr> <th bgcolor="orange"> Increment </th> <th bgcolor="orange">Displacement  [DOF(3)]</th> <th bgcolor="orange">Displacement  [DOF(5)]</th><th bgcolor="orange">Displacement  [DOF(6)]</th><th bgcolor="orange">Displacement  [DOF(7)]</th><th bgcolor="orange">Displacement  [DOF(8)]</th></tr>n");
for(i=0;i<zMAX;i++){
fprintf(OutputFile,"<tr> <td align ="center"> %d </td> <td align ="center"> %.3e </td> </td> <td align ="center"> %.3e </td></td> <td align ="center"> %.3e </td></td> <td align ="center"> %.3e </td></td> <td align ="center"> %.3e </td></tr>n",i+1,DISP[i][0],DISP[i][1],DISP[i][2],DISP[i][3],DISP[i][4]);
}
// TABLE 4
fprintf(OutputFile,"<tr><th colspan="10" bgcolor="orange"> Structral Element Internal Forces </th> </tr>n");
fprintf(OutputFile,"<tr> <th bgcolor="orange"> Increment </th> <th bgcolor="orange">Base Shear [DOF(1)]</th> <th bgcolor="orange">Axial Force‐Ele(1)</th> <th bgcolor="orange">Axial Force‐Ele(2)</th> <th bgcolor="orange">Axial Force‐Ele(3)</th> <th bgcolor="orange">Axial Force‐Ele(4)</th> <th bgcolor="orange">Axial Force‐Ele(5)</th> <th bgcolor="orange">Axial Force‐Ele(6)</th></tr>n");
for(i=0;i<zMAX;i++){
fprintf(OutputFile,"<tr> <td align ="center"> %d </td> <td align ="center"> %.3e </td> <td align ="center"> %.3e </td> <td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td><td align ="center"> %.3e </td> <td align ="center"> %.3e </td> </tr>n",i+1,reaction[i],eleF[i][0],eleF[i][1],eleF[i][2],eleF[i][3],eleF[i][4],eleF[i][5]);
}
fprintf(OutputFile,"</table></body></html>n");
fclose(OutputFile);
}
void MatrixDetermination(double A[][NN],int n){
// row operations
int i,j,k;
double Product,m,B[n][n];
for (i=0;i<n;i++)
for (j=0;j<n;j++)
B[i][j]=A[i][j];

for (k=0;k<n‐1;k++)
for (i=k+1;i<n;i++)
{
m=B[i][k]/B[k][k];
for (j=0;j<n;j++)
B[i][j]‐=m*B[k][j];
}
Product=1;
for (i=0;i<n;i++)
Product *= B[i][i];

// display results

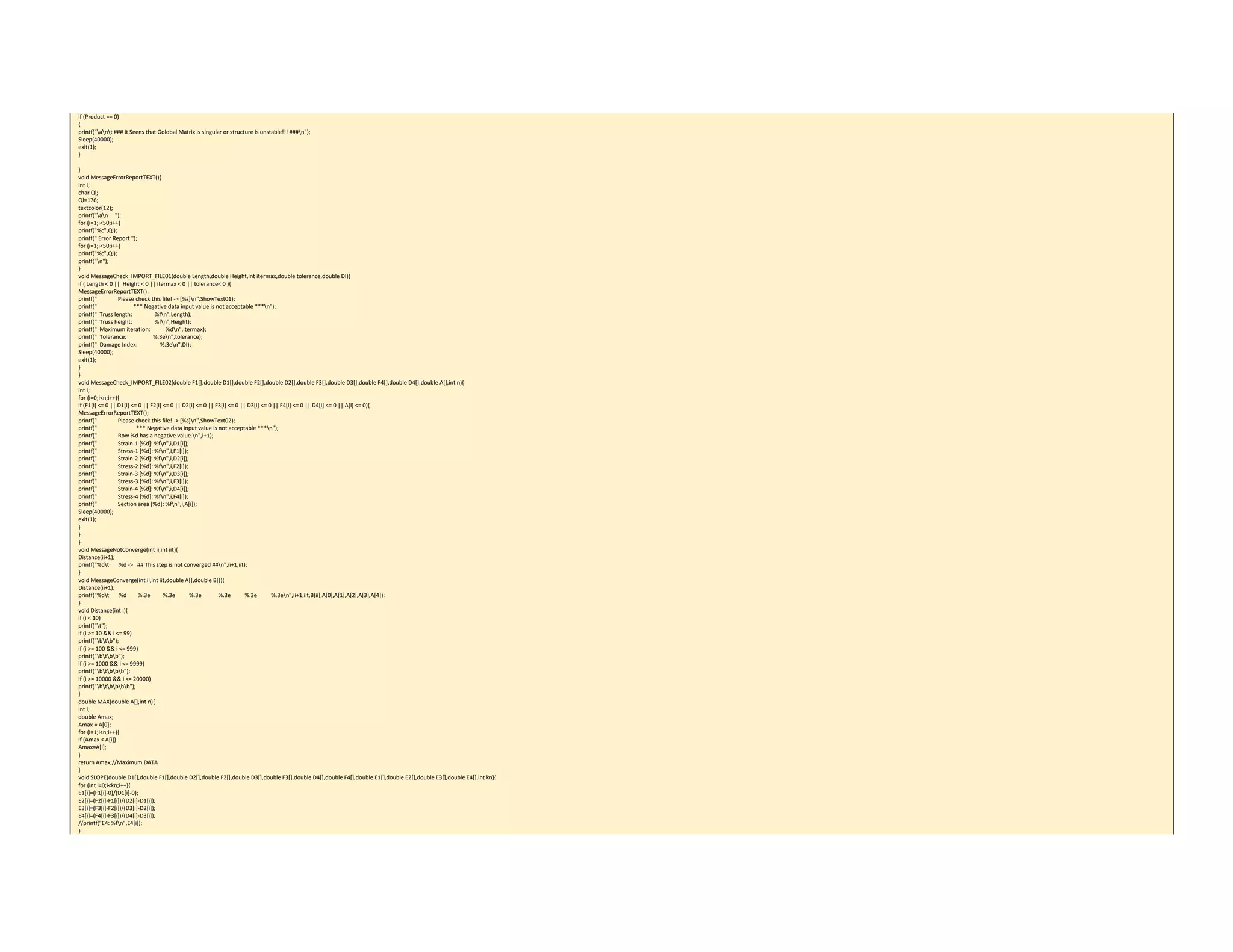

if (Product == 0)
{
printf("ant ### it Seens that Golobal Matrix is singular or structure is unstable!!! ###n");
Sleep(40000);
exit(1);
}

}
void MessageErrorReportTEXT(){
int i;
char Ql;
Ql=176;
textcolor(12);
printf("an     ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf(" Error Report ");
for (i=1;i<50;i++)
printf("%c",Ql);
printf("n");
}
void MessageCheck_IMPORT_FILE01(double Length,double Height,int itermax,double tolerance,double DI){
if ( Length < 0 ||  Height < 0 || itermax < 0 || tolerance< 0 ){
printf("               Please check this file! ‐> [%s]n",ShowText01);
printf("                          *** Negative data input value is not acceptable ***n");
printf("  Truss length:                %fn",Length);
printf("  Truss height:                %fn",Height);
printf("  Maximum iteration:           %dn",itermax);
printf("  Tolerance:                   %.3en",tolerance);
printf("  Damage Index:                %.3en",DI);
Sleep(40000);
exit(1);
}
}
void MessageCheck_IMPORT_FILE02(double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int n){
int i;
for (i=0;i<n;i++){
if (F1[i] <= 0 || D1[i] <= 0 || F2[i] <= 0 || D2[i] <= 0 || F3[i] <= 0 || D3[i] <= 0 || F4[i] <= 0 || D4[i] <= 0 || A[i] <= 0){
printf("               Please check this file! ‐> [%s]n",ShowText02);
printf("                            *** Negative data input value is not acceptable ***n");
printf("               Row %d has a negative value.n",i+1);
printf("               Strain‐1 [%d]: %fn",i,D1[i]);
printf("               Stress‐1 [%d]: %fn",i,F1[i]);
printf("               Section area [%d]: %fn",i,A[i]);
Sleep(40000);
exit(1);
}
}
}
void MessageNotConverge(int ii,int iit){
Distance(ii+1);
printf("%dt       %d ‐>   ## This step is not converged ##n",ii+1,iit);
}
void MessageConverge(int ii,int iit,double A[],double B[]){
Distance(ii+1);
printf("%dt       %d        %.3e         %.3e          %.3e            %.3e          %.3e          %.3en",ii+1,iit,B[ii],A[0],A[1],A[2],A[3],A[4]);
}
void Distance(int i){
if (i < 10)
printf("t");
if (i >= 10 && i <= 99)
printf("btb");
if (i >= 100 && i <= 999)
printf("btbb");
if (i >= 1000 && i <= 9999)
printf("btbbb");
if (i >= 10000 && i <= 20000)
printf("btbbbb");
}
double MAX(double A[],int n){
int i;
double Amax;
Amax = A[0];
for (i=1;i<n;i++){
if (Amax < A[i])
Amax=A[i];
}
return Amax;//Maximum DATA
}
void SLOPE(double D1[],double F1[],double D2[],double F2[],double D3[],double F3[],double D4[],double F4[],double E1[],double E2[],double E3[],double E4[],int kn){
for (int i=0;i<kn;i++){
E1[i]=(F1[i]‐0)/(D1[i]‐0);
E2[i]=(F2[i]‐F1[i])/(D2[i]‐D1[i]);
E3[i]=(F3[i]‐F2[i])/(D3[i]‐D2[i]);
E4[i]=(F4[i]‐F3[i])/(D4[i]‐D3[i]);
//printf("E4: %fn",E4[i]);
}

}

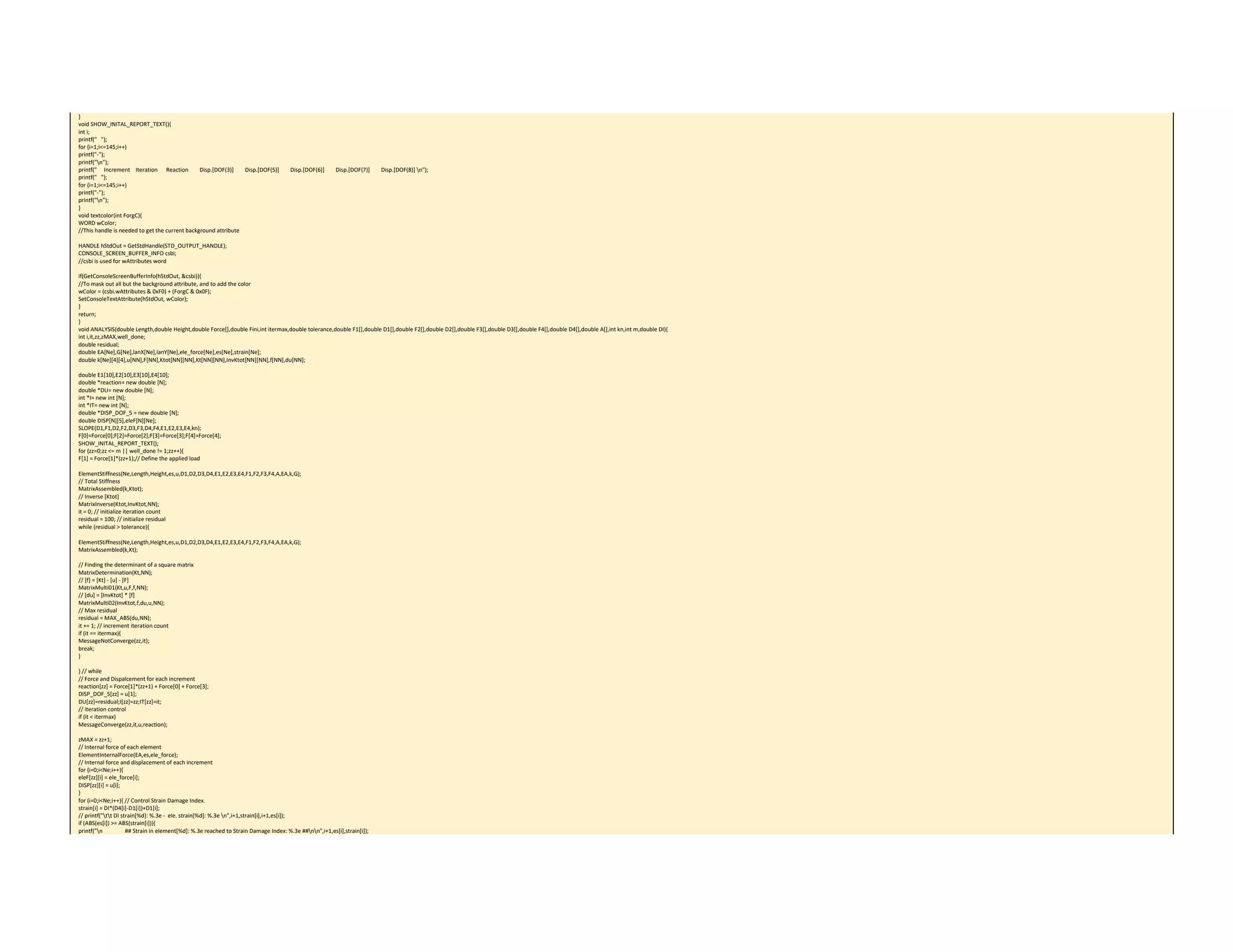

void SHOW_INITAL_REPORT_TEXT(){
int i;
printf("   ");
for (i=1;i<=145;i++)
printf("‐");
printf("n");
printf("     Increment    Iteration      Reaction        Disp.[DOF(3)]        Disp.[DOF(5)]        Disp.[DOF(6)]        Disp.[DOF(7)]        Disp.[DOF(8)] n");
printf("   ");
for (i=1;i<=145;i++)
printf("‐");
printf("n");
}
void textcolor(int ForgC){
WORD wColor;
//This handle is needed to get the current background attribute

HANDLE hStdOut = GetStdHandle(STD_OUTPUT_HANDLE);
CONSOLE_SCREEN_BUFFER_INFO csbi;
//csbi is used for wAttributes word

if(GetConsoleScreenBufferInfo(hStdOut, &csbi)){
//To mask out all but the background attribute, and to add the color
wColor = (csbi.wAttributes & 0xF0) + (ForgC & 0x0F);
SetConsoleTextAttribute(hStdOut, wColor);
}
return;
}
void ANALYSIS(double Length,double Height,double Force[],double Fini,int itermax,double tolerance,double F1[],double D1[],double F2[],double D2[],double F3[],double D3[],double F4[],double D4[],double A[],int kn,int m,double DI){
int i,it,zz,zMAX,well_done;
double residual;
double EA[Ne],G[Ne],lanX[Ne],lanY[Ne],ele_force[Ne],es[Ne],strain[Ne];
double k[Ne][4][4],u[NN],F[NN],Ktot[NN][NN],Kt[NN][NN],InvKtot[NN][NN],f[NN],du[NN];

double E1[10],E2[10],E3[10],E4[10];
double *reaction= new double [N];
double *DU= new double [N];
int *I= new int [N];
int *IT= new int [N];
double *DISP_DOF_5 = new double [N];
double DISP[N][5],eleF[N][Ne];
SLOPE(D1,F1,D2,F2,D3,F3,D4,F4,E1,E2,E3,E4,kn);
F[0]=Force[0];F[2]=Force[2];F[3]=Force[3];F[4]=Force[4];
SHOW_INITAL_REPORT_TEXT();
for (zz=0;zz <= m || well_done != 1;zz++){
F[1] = Force[1]*(zz+1);// Define the applied load

ElementStiffness(Ne,Length,Height,es,u,D1,D2,D3,D4,E1,E2,E3,E4,F1,F2,F3,F4,A,EA,k,G);
// Total Stiffness
MatrixAssembled(k,Ktot);
// Inverse [Ktot]
MatrixInverse(Ktot,InvKtot,NN);
it = 0; // initialize iteration count
residual = 100; // initialize residual
while (residual > tolerance){

ElementStiffness(Ne,Length,Height,es,u,D1,D2,D3,D4,E1,E2,E3,E4,F1,F2,F3,F4,A,EA,k,G);
MatrixAssembled(k,Kt);

// Finding the determinant of a square matrix
MatrixDetermination(Kt,NN);
// [f] = [Kt] ‐ [u] ‐ [F]
MatrixMulti01(Kt,u,F,f,NN);
// [du] = [InvKtot] * [f]
MatrixMulti02(InvKtot,f,du,u,NN);
// Max residual
residual = MAX_ABS(du,NN);
it += 1; // increment iteration count
if (it == itermax){
MessageNotConverge(zz,it);
break;
}

} // while
// Force and Dispalcement for each increment
reaction[zz] = Force[1]*(zz+1) + Force[0] + Force[3];
DISP_DOF_5[zz] = u[1];
DU[zz]=residual;I[zz]=zz;IT[zz]=it;
// iteration control
if (it < itermax)
MessageConverge(zz,it,u,reaction);

zMAX = zz+1;
// Internal force of each element
ElementInternalForce(EA,es,ele_force);
// Internal force and displacement of each increment
for (i=0;i<Ne;i++){
eleF[zz][i] = ele_force[i];
DISP[zz][i] = u[i];
}
for (i=0;i<Ne;i++){ // Control Strain Damage Index.
strain[i] = DI*(D4[i]‐D1[i])+D1[i];
// printf("tt DI strain[%d]: %.3e ‐  ele. strain[%d]: %.3e n",i+1,strain[i],i+1,es[i]);
if (ABS(es[i]) >= ABS(strain[i])){
printf("n                ## Strain in element[%d]: %.3e reached to Strain Damage Index: %.3e ##nn",i+1,es[i],strain[i]);

well_done = 1;
}
if (well_done == 1)
break;
}
if (ABS(u[0]) >= Fini){
printf("n                ## External force [DOF(5)] reached to ultimate force ##nn");
well_done = 1;
break;
}
if (ABS(reaction[zz]) >= Fini){
printf("n                ## External force [DOF(5)] reached to ultimate force ##nn");
well_done = 1;
break;
}
}// for ‐ force increment

if (well_done == 1 ){
if (zMAX >= 25) BILINEAR_CURVE(DISP_DOF_5,reaction,zMAX);
OUTPUT_text(zMAX,I,IT,reaction,DISP,eleF);
OUTPUT_matlab(zMAX,reaction,DISP);
OUTPUT_excel(zMAX,I,DISP,eleF,reaction);
OUTPUT_html(Length,Height,Force,Fini,itermax,tolerance,m,D1,F1,D2,F2,D3,F3,D4,F4,A,zMAX,I,DISP,eleF,reaction,DI);
OUTPUT_HTML_GRAPH(DISP,reaction,zMAX);
textcolor(15);
printf("na ‐ %s ‐",ShowText03);
system("start /w Graph‐outputHTML.html");
DATE_TIME();
}
}
void DATE_TIME(){
printf("nt");
system("echo %date%");
printf("t");
system("echo %time%");
}
void MessageAnalysisReportTEXT(){
int i;
char Ql;
Ql=176;
printf("an     ");
for (i=1;i<64;i++)
printf("%c",Ql);
printf(" Analysis Report ");
for (i=1;i<64;i++)
printf("%c",Ql);
printf("n");
}
void BILINEAR_CURVE(double A[],double B[],int M){
double AaSUM=0,B_max=0,k0;
int I,Mmax;
double *AA = (double *) malloc(N);
double *BB = (double *) malloc(N);
double C[6];
for (I=0;I<6;I++);
C[I] = 0;
Mmax=0;
for (I=0;I<M;I++){
if (ABS(B_max) < ABS(B[I])){
B_max = ABS(B[I]);
Mmax = I;
}//if
}//for
Mmax = I;
for (I=0;I<Mmax;I++){
AA[I+1]=ABS(A[I]);
BB[I+1]=ABS(B[I]);
}
for (I=0;I<Mmax;I++){ // Mmax‐1
AaSUM += ((BB[I]+BB[I+1])*0.5*(AA[I+1]‐AA[I]));;
}
C[1]=0;// C[0]=D_y ; C[1]=D_u ; C[2]=F_y ; C[3]=F_u ; C[4]=SC ; C[5]=OF ;
B_max=0;
for (I=0;I<Mmax+1;I++){ // find max
if(C[1] < AA[I])
C[1]=AA[I];
if(B_max < BB[I])
B_max = BB[I];
}
C[3]=BB[I‐1];//printf("t %fn",C[3]);
k0 =BB[4]/AA[4];//printf("t %fn",k0);
C[0] = (C[3]*C[1]*0.5‐AaSUM)/(C[3]*0.5 ‐ k0*C[1]*0.5);//printf("t %fn",C[0]);
C[2] = k0*C[0];
C[4]=C[1]/C[0];C[5]=C[3]/C[2];

printf("n     Structure ductility ratio:      %.5en",C[4]);
printf("     Structure over strength factor: %.5enn",C[5]);
printf("     ================================n");
printf("     =    Bilinear curve fitted     =n");
printf("     =  Displacaement    Reaction   =n");
printf("     =      DOF[5]        DOF[1]    =n");
printf("     ================================n");
printf("              0            0         n");
printf("t   %.3et%.3en",C[0],C[2]);
printf("t   %.3et%.3en",C[1],C[3]);

printf("     ================================nn");
}
double MAX_ABS(double A[],int n){
int i;
double B[N];
double Amax;
// abs value
for (i=0;i<n;i++){
B[i] = A[i];
if(B[i] < 0)
B[i] = ‐B[i];
}
// Max of abs
Amax = B[0];
for (i=1;i<n;i++){
if(Amax < B[i])
Amax = B[i];
}
return Amax;
}
void OUTPUT_HTML_GRAPH(double DISP[][5],double reaction[],int n){
// HTML GRAPH OUTPUT
int i;
double x,y,X[N],Y[N],Xnew[N],Ynew[N],NorX[N],NorY[N],Xmax,Ymax;
for (i=0;i<n;i++){
X[i] = ABS(DISP[i][1]);
Y[i] = ABS(reaction[i]);
}
Xmax=MAX_ABS(X,n);
Ymax=MAX_ABS(Y,n);
Xnew[0]=0;Ynew[0]=0;
for (i=0;i<n;i++){
Xnew[i+1] = X[i];
Ynew[i+1] = Y[i];
}
for (i=0;i<n+1;i++){
NorX[i] = Xnew[i]/Xmax;
NorY[i] = Ynew[i]/Ymax;
//printf("t %f   %f    n",NorX[i],NorY[i]);
}
FILE *OutputFile;
fprintf(OutputFile,"<!DOCTYPE HTML><html><body style="background‐color:black;"><font color="white"><head><script> n");
fprintf(OutputFile,"window.onload = function(){ n");
fprintf(OutputFile,"var canvas = document.getElementById("myCanvas");var s1 = canvas.getContext("2d");var s2 = canvas.getContext('2d'); n");
fprintf(OutputFile,"var s3 = canvas.getContext("2d");var s4 = canvas.getContext("2d");var s5 = canvas.getContext("2d"); n");
fprintf(OutputFile,"var x=120,y=80,X,Y,Lx=1100,Ly=500,i; n");
fprintf(OutputFile,"s3.beginPath();s3.lineWidth = 3;s3.strokeStyle = "cyan";s3.rect(x,y,Lx,Ly); n");
fprintf(OutputFile,"for(i=0;i<9;i++){s3.moveTo(x+Lx*(i+1)*.1,y+Ly);s3.lineTo(x+Lx*(i+1)*.1,y+Ly‐10);}; n");
fprintf(OutputFile,"for(i=0;i<9;i++){s3.moveTo(x,y+Ly*(i+1)*.1);s3.lineTo(x+10,y+Ly*(i+1)*.1);};s3.stroke();n");
fprintf(OutputFile,"s1.beginPath();s1.lineWidth = 3;s1.strokeStyle = "yellow"; n");
for (i=0;i<n;i++){
fprintf(OutputFile,"s1.moveTo(%f,%f);   ",120+NorX[i]*1100,80+500‐NorY[i]*500);
fprintf(OutputFile,"s1.lineTo(%f,%f); n",120+NorX[i+1]*1100,80+500‐NorY[i+1]*500);
}
fprintf(OutputFile,"s1.stroke(); n");
fprintf(OutputFile,"s2.beginPath();s2.lineWidth = 1;s2.strokeStyle = "cyan";s2.setLineDash([5, 5]); n");
fprintf(OutputFile,"for(i=0;i<19;i++){s2.moveTo(x+Lx*(i+1)*.05,y);s2.lineTo(x+Lx*(i+1)*.05,y+Ly);} n");
fprintf(OutputFile,"s2.lineWidth = 1;s2.strokeStyle = "cyan";for(i=0;i<19;i++){s2.moveTo(x,y+Ly*(i+1)*.05);s2.lineTo(x+Lx,y+Ly*(i+1)*.05);} s2.stroke();n");
fprintf(OutputFile,"X=x+.25*Lx;Y=.7*y;s4.translate(X,Y);s4.font="60px serif";s4.fillStyle = "#7fff00";s4.fillText("Base Shear‐Disp. Graph",0,0); n");
fprintf(OutputFile,"s4.save();X=‐X+.2*x;Y=‐Y+y+.6*Ly;s4.translate(X,Y);s4.rotate(3*Math.PI/2);s4.font="15px serif"; n");
fprintf(OutputFile,"s4.fillStyle = "#7fff00";s4.textAlign = "left";s4.fillText("Base Shear [DOF(1)]",0,0);s4.restore(); n");
fprintf(OutputFile,"s4.save();X=.2*Lx;Y=y+Ly‐20;s4.translate(X,Y);s4.rotate(2*Math.PI);s4.font="15px serif";s4.fillStyle = "#7fff00"; n");
fprintf(OutputFile,"s4.textAlign = "left";s4.fillText("Displacement [DOF(5)]",0,0);s4.restore(); n");
for(i=0;i<10;i++){
x=.1*(i+1)*Xmax;
fprintf(OutputFile,"s5.save();X=‐.29*Lx+Lx*(%d+1)*.1;Y=.3*y+Ly+20;s5.rotate(2*Math.PI);s5.font="16px serif"; n",i);
fprintf(OutputFile,"s5.fillStyle = "#7fff00";s5.textAlign = "left";s5.fillText("%.3e",X,Y);s5.restore(); n",x);
}
for(i=0;i<10;i++){
y=.1*(i+1)*Ymax;
fprintf(OutputFile,"s5.save();X=‐.28*Lx‐50;Y=Ly+.3*y‐Ly*(%d+1)*.1;s5.rotate(2*Math.PI);s5.font="16px serif"; n",i);
fprintf(OutputFile,"s5.fillStyle = "#7fff00";s5.textAlign = "left";s5.fillText("%.3e",X,Y);s5.restore(); n",y);
}
fprintf(OutputFile,"s5.save();X=‐.25*Lx;Y=.3*y+Ly+20;s5.rotate(2*Math.PI);s5.font="16px serif";s5.fillStyle = "#7fff00";s5.fillText(0,X,Y);s5.restore(); n");
fprintf(OutputFile,"s5.save();X=‐.25*Lx‐50;Y=Ly+.3*y;s5.rotate(2*Math.PI);s5.font="16px serif";s5.fillStyle = "#7fff00";s5.textAlign = "left";s5.fillText(0,X,Y);s5.restore();}; n");
fprintf(OutputFile,"</script></head><body><canvas id="myCanvas" width="1300" height="1300" style="border:1px solid black;"></canvas></body></html> n");
fclose(OutputFile);
}

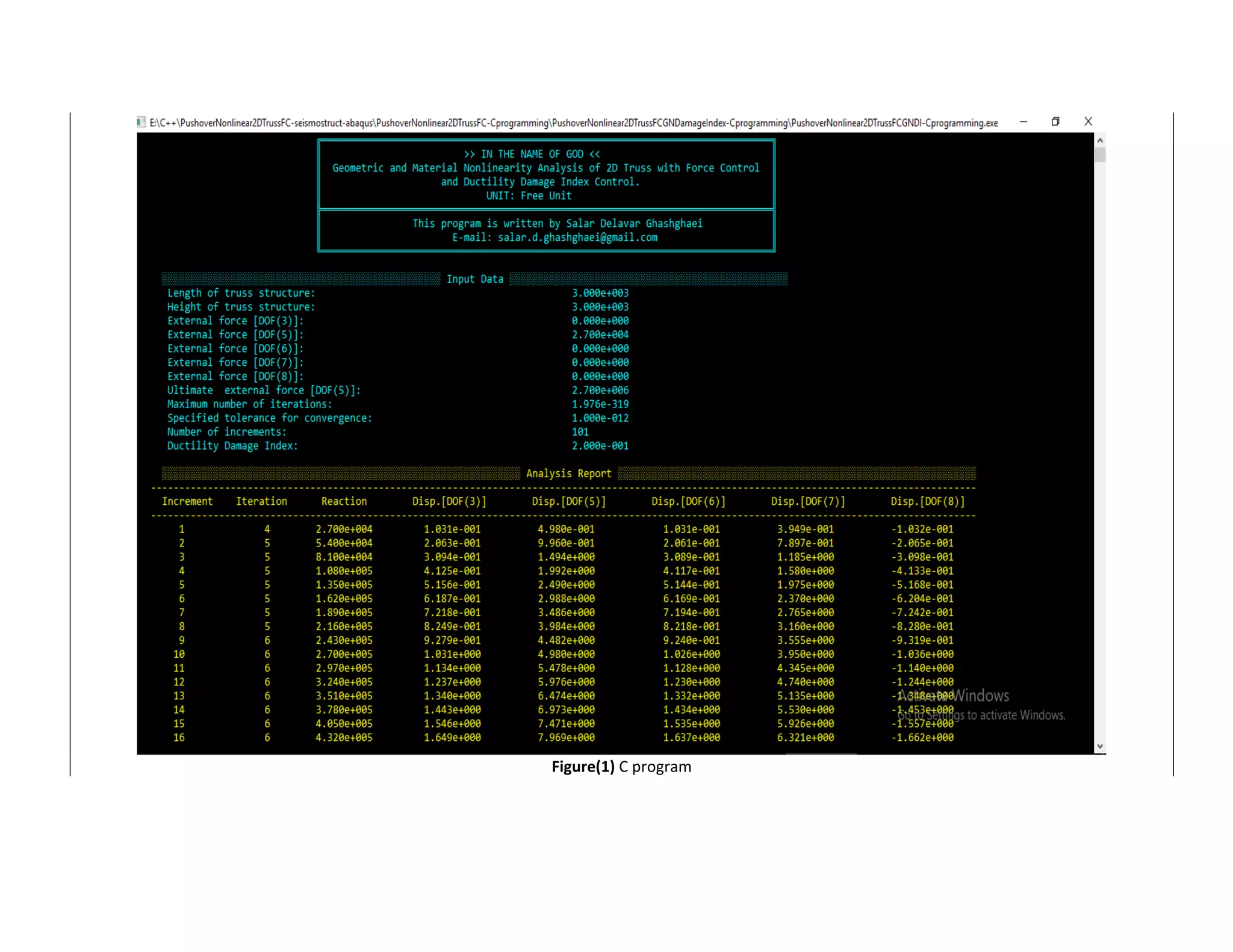

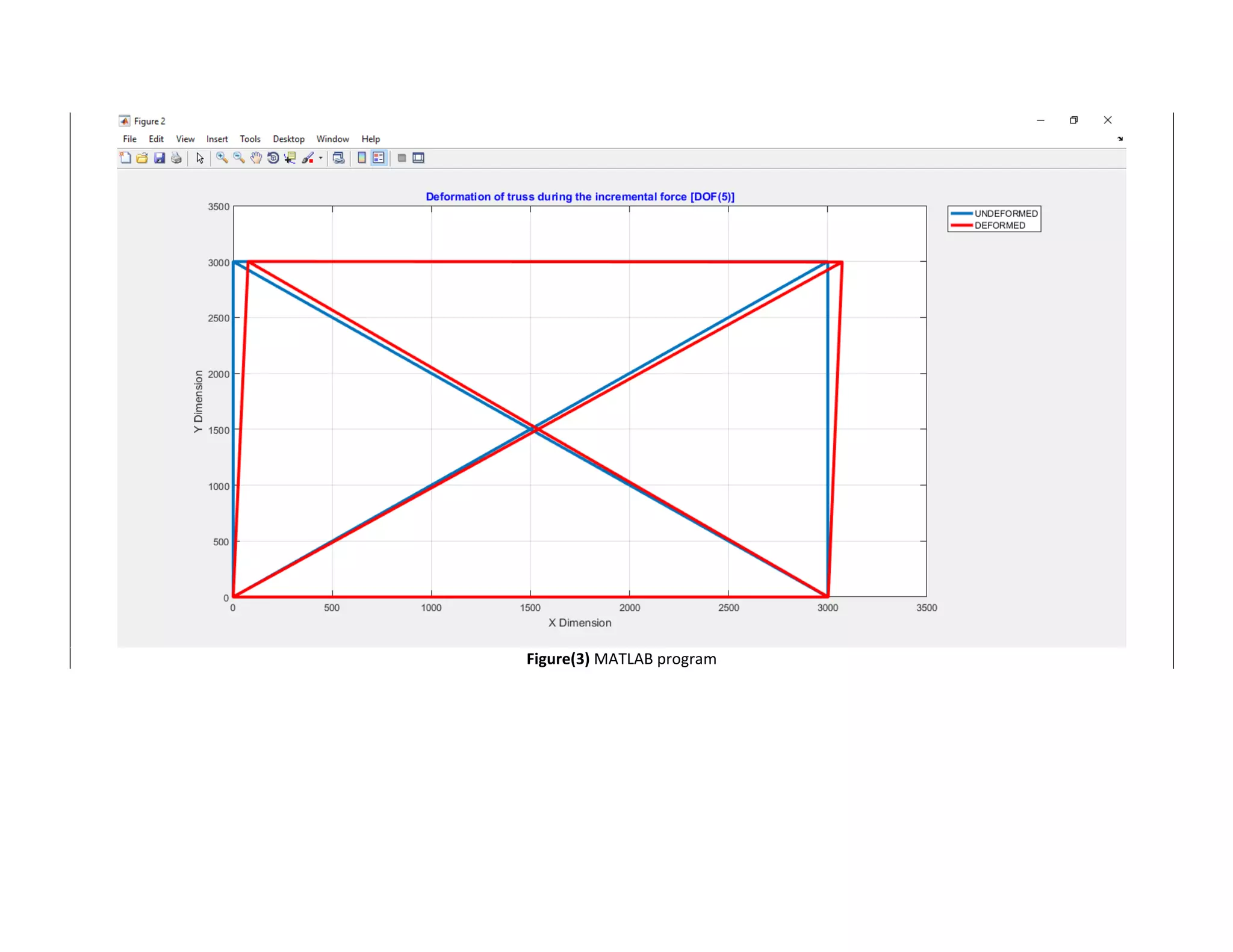

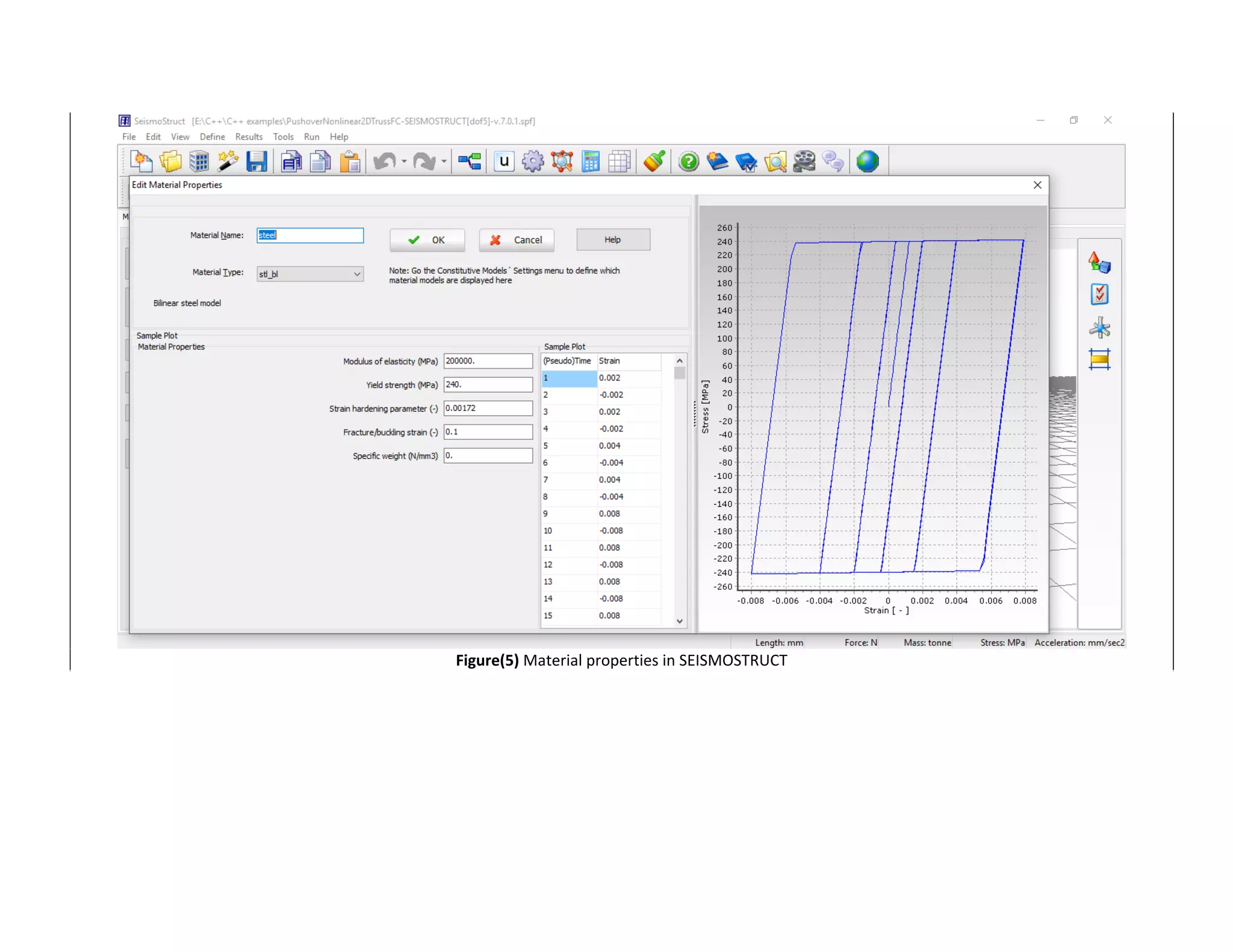

Figure(5) Material properties in SEISMOSTRUCT

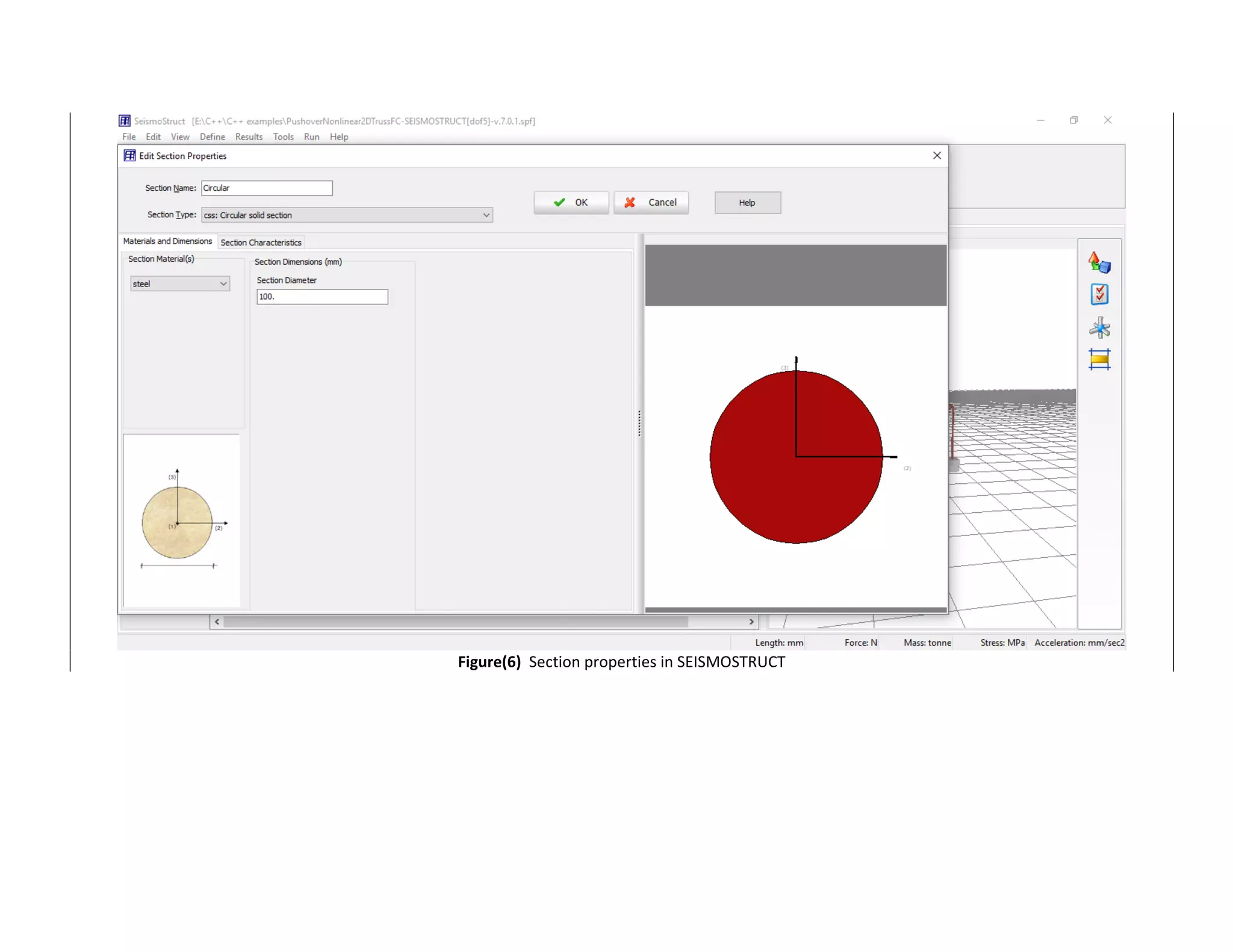

Figure(6) Section properties in SEISMOSTRUCT

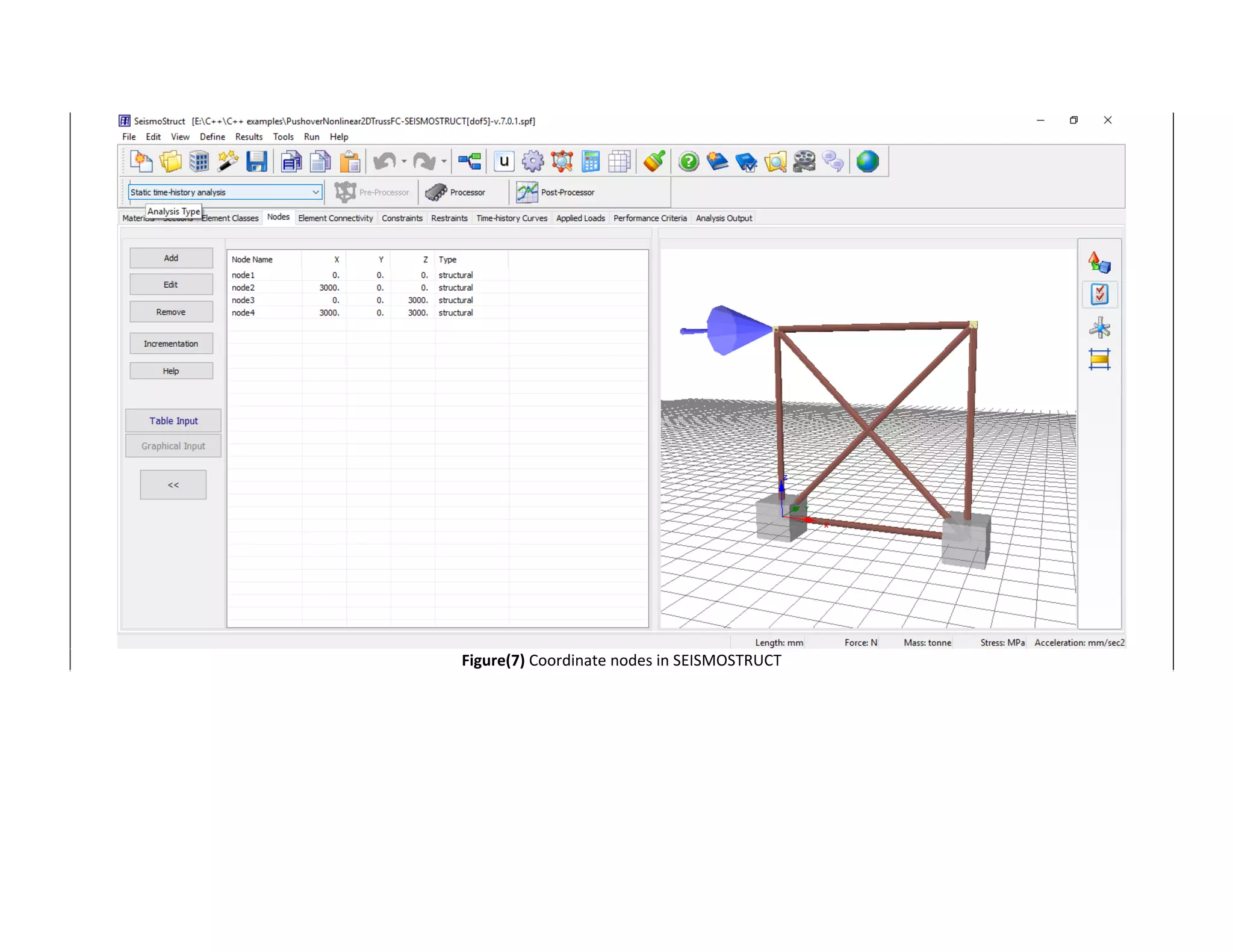

Figure(7) Coordinate nodes in SEISMOSTRUCT

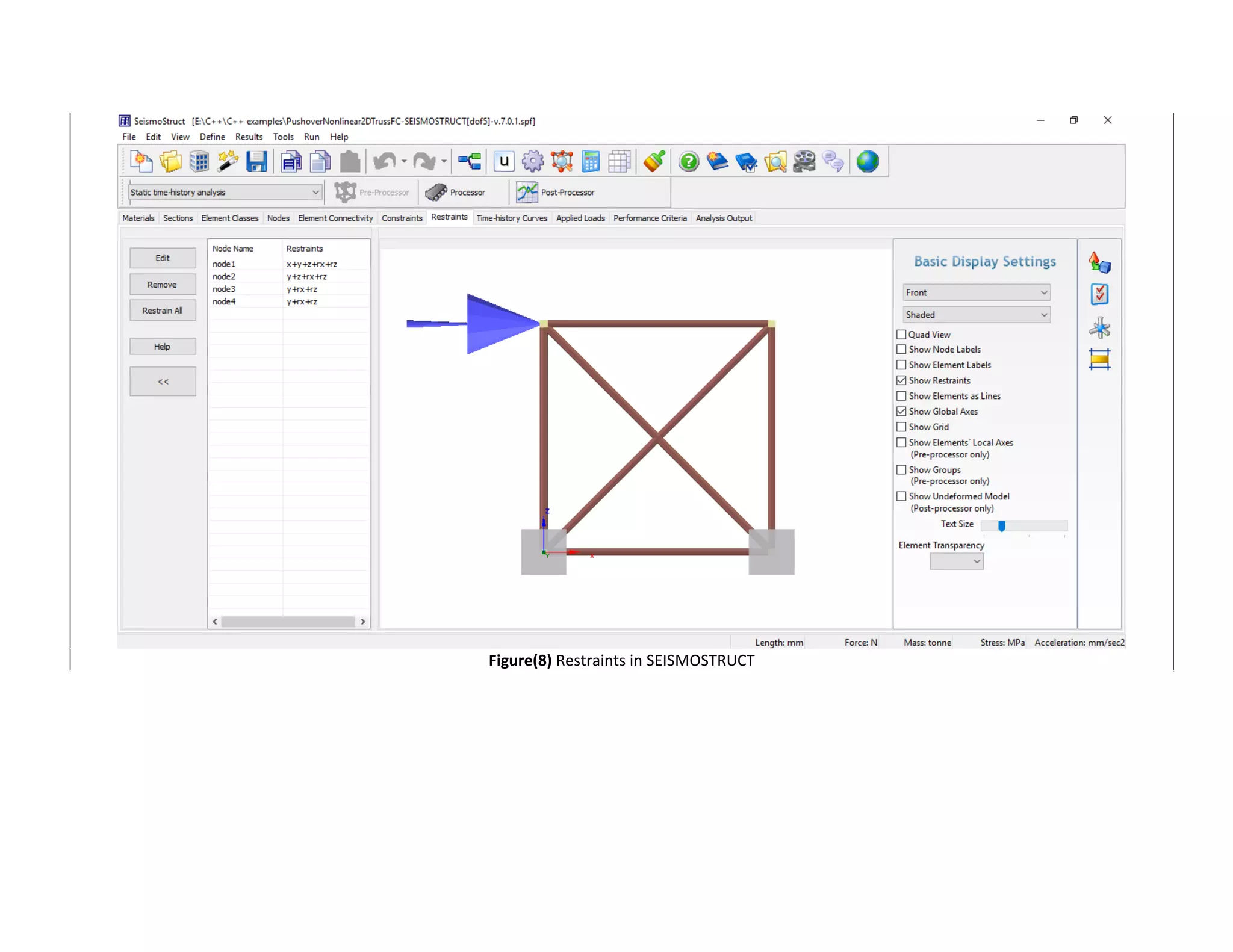

Figure(8) Restraints in SEISMOSTRUCT

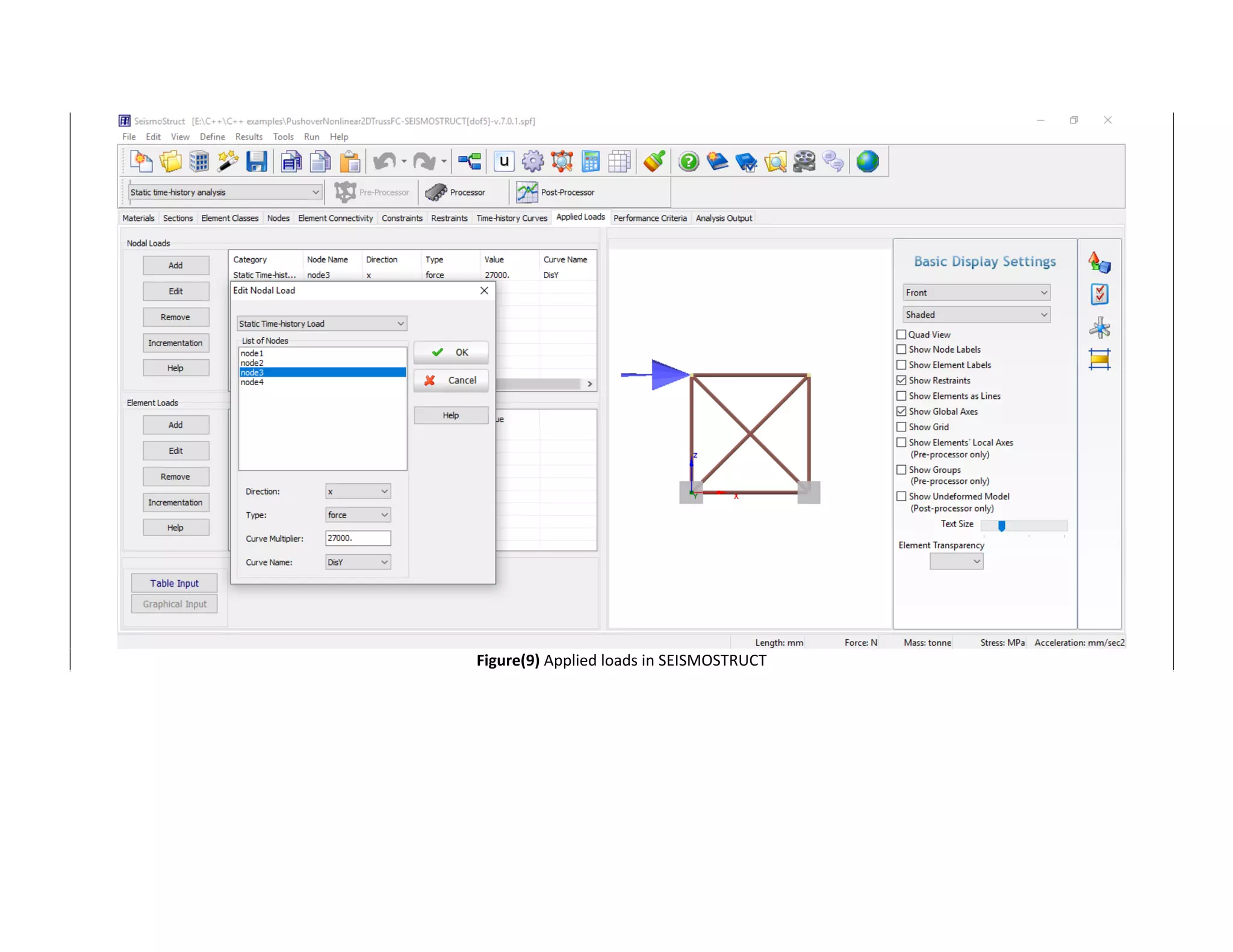

Figure(9) Applied loads in SEISMOSTRUCT

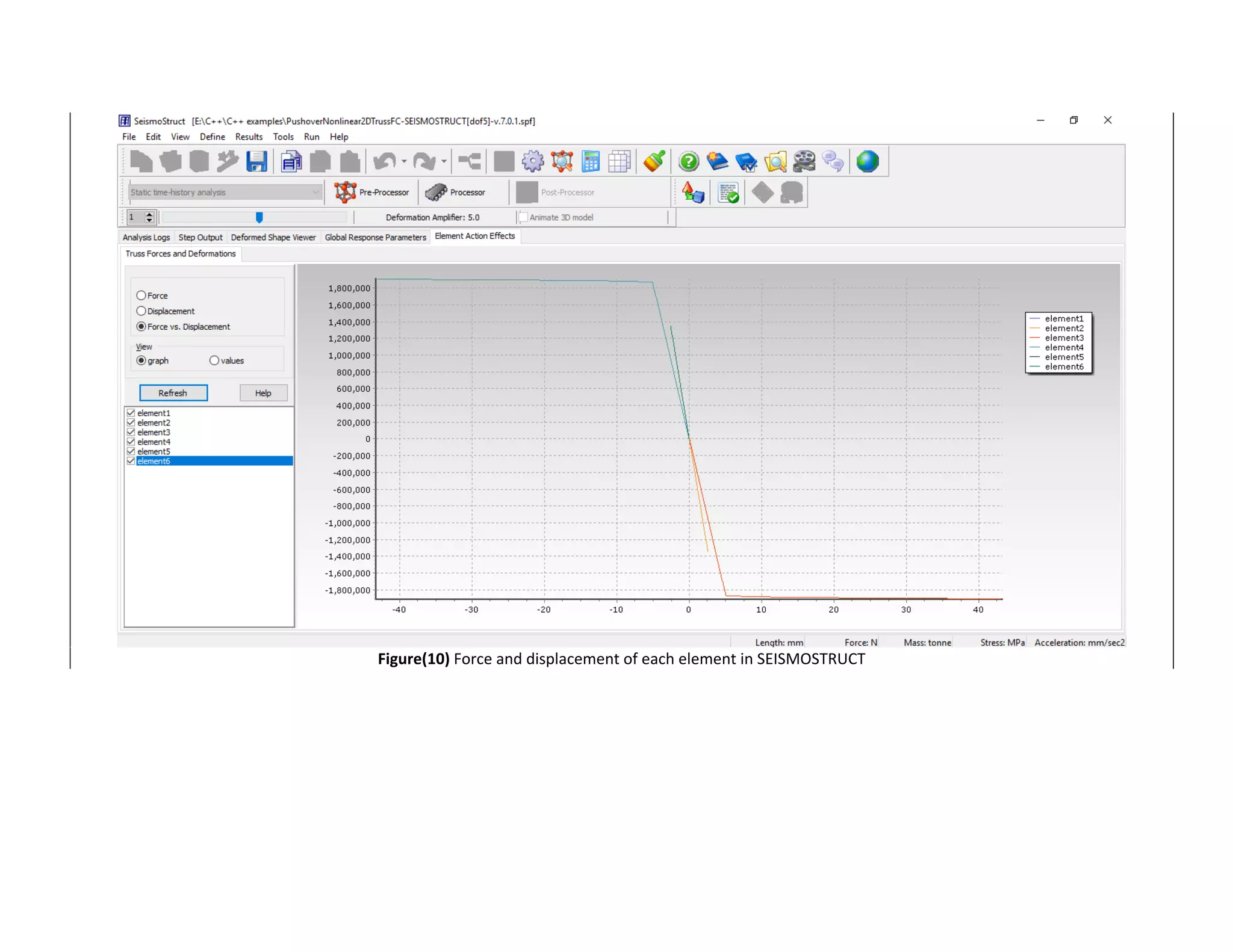

Figure(10) Force and displacement of each element in SEISMOSTRUCT

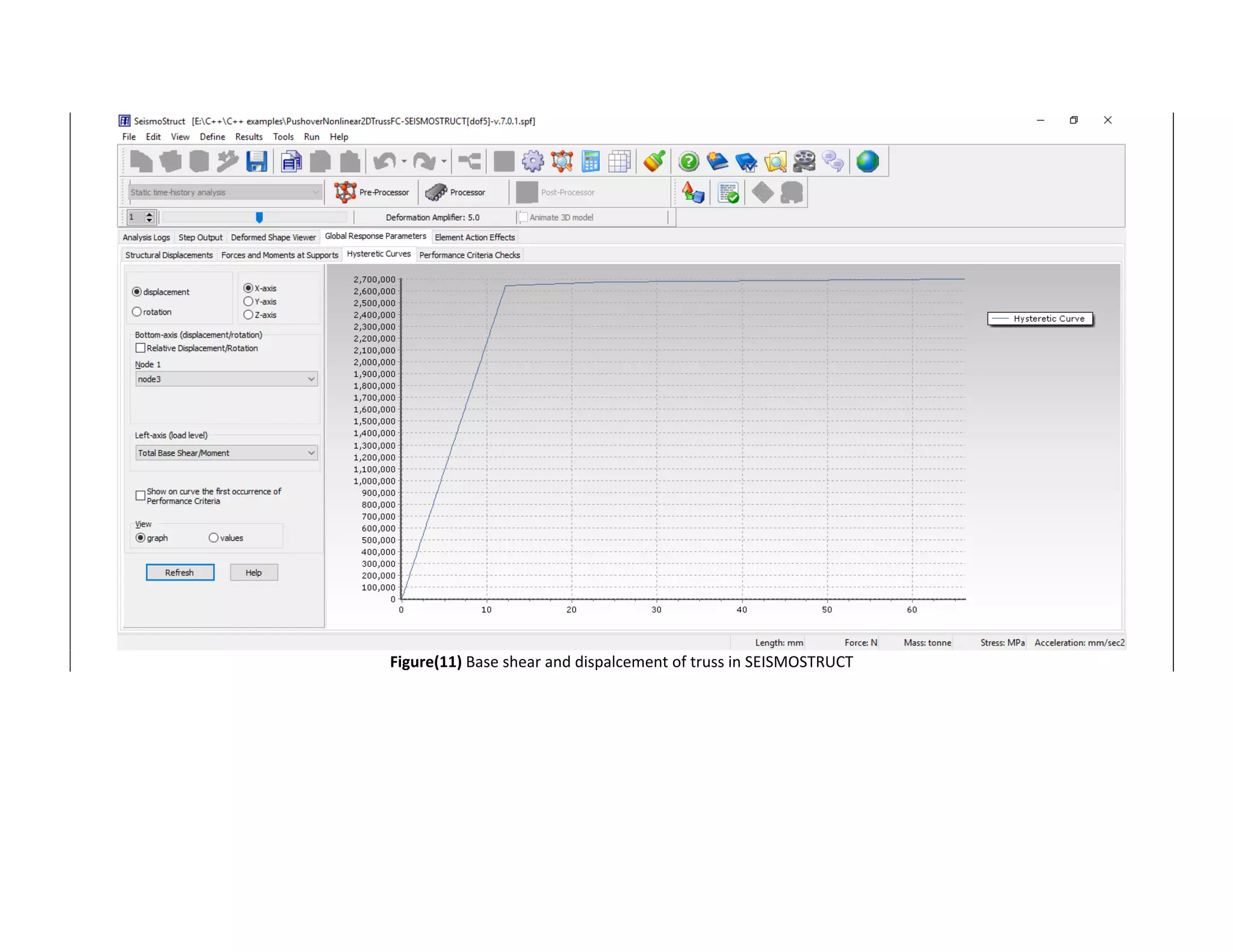

Figure(11) Base shear and dispalcement of truss in SEISMOSTRUCT

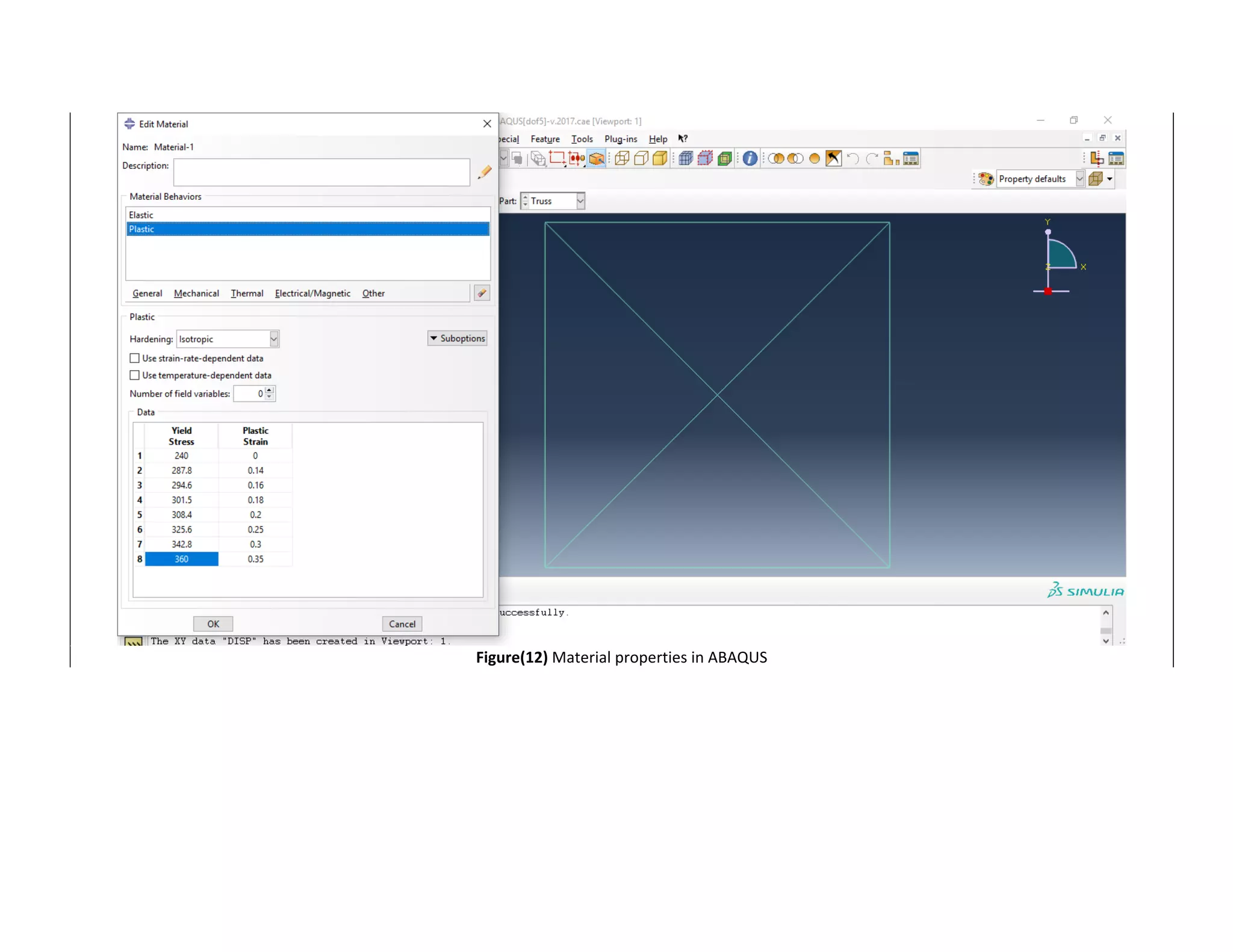

Figure(12) Material properties in ABAQUS

Figure(13) Applied load in ABAQUS

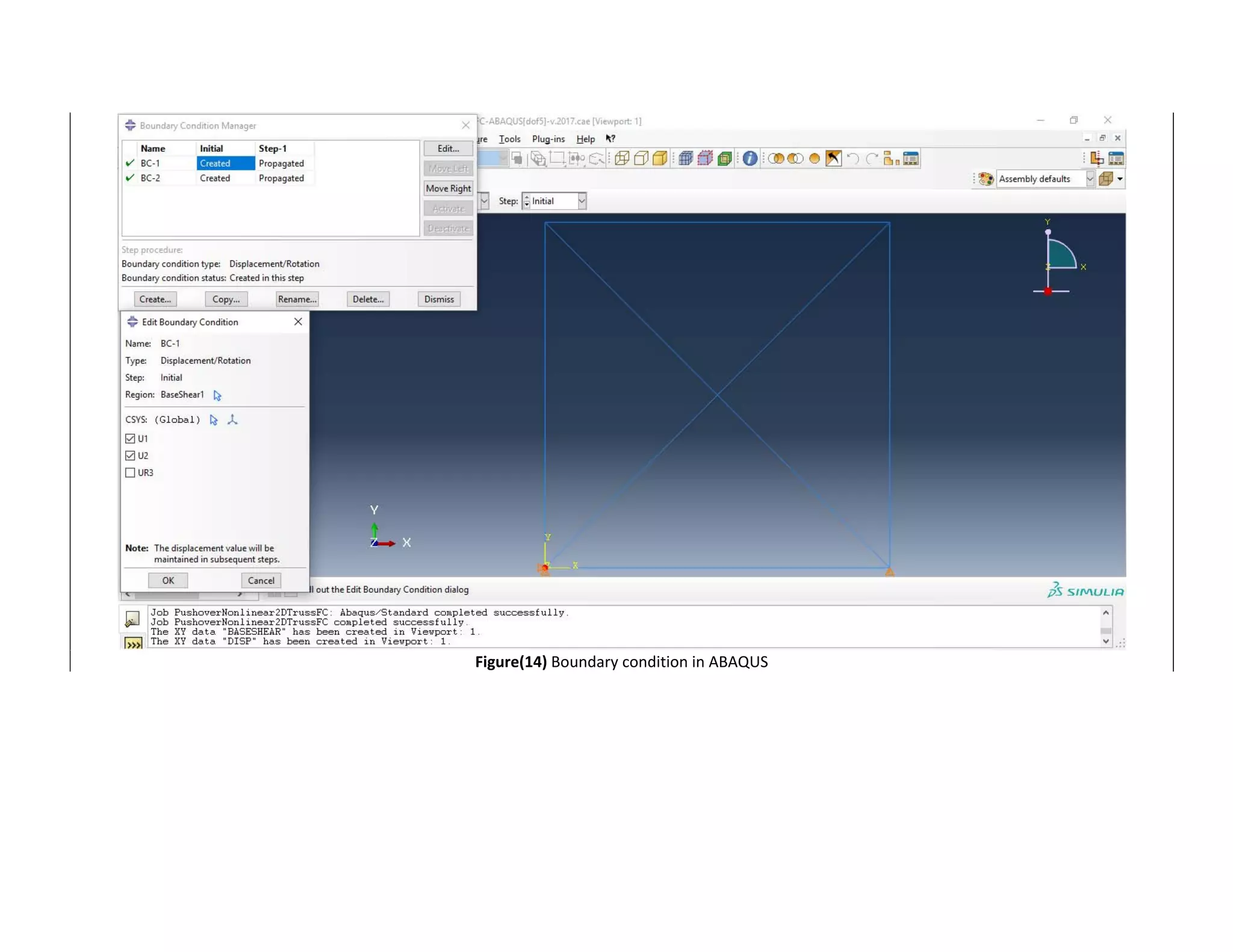

Figure(14) Boundary condition in ABAQUS

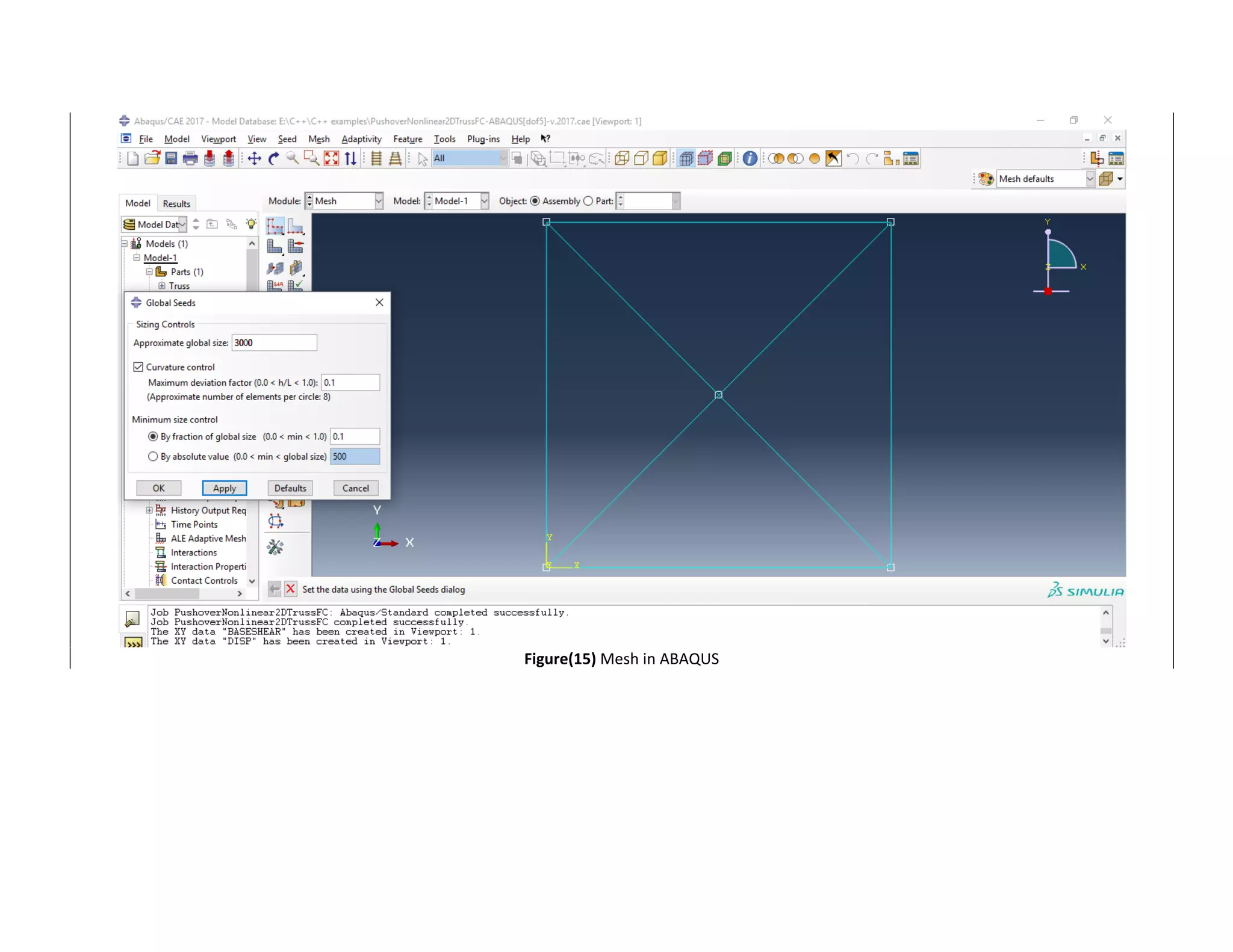

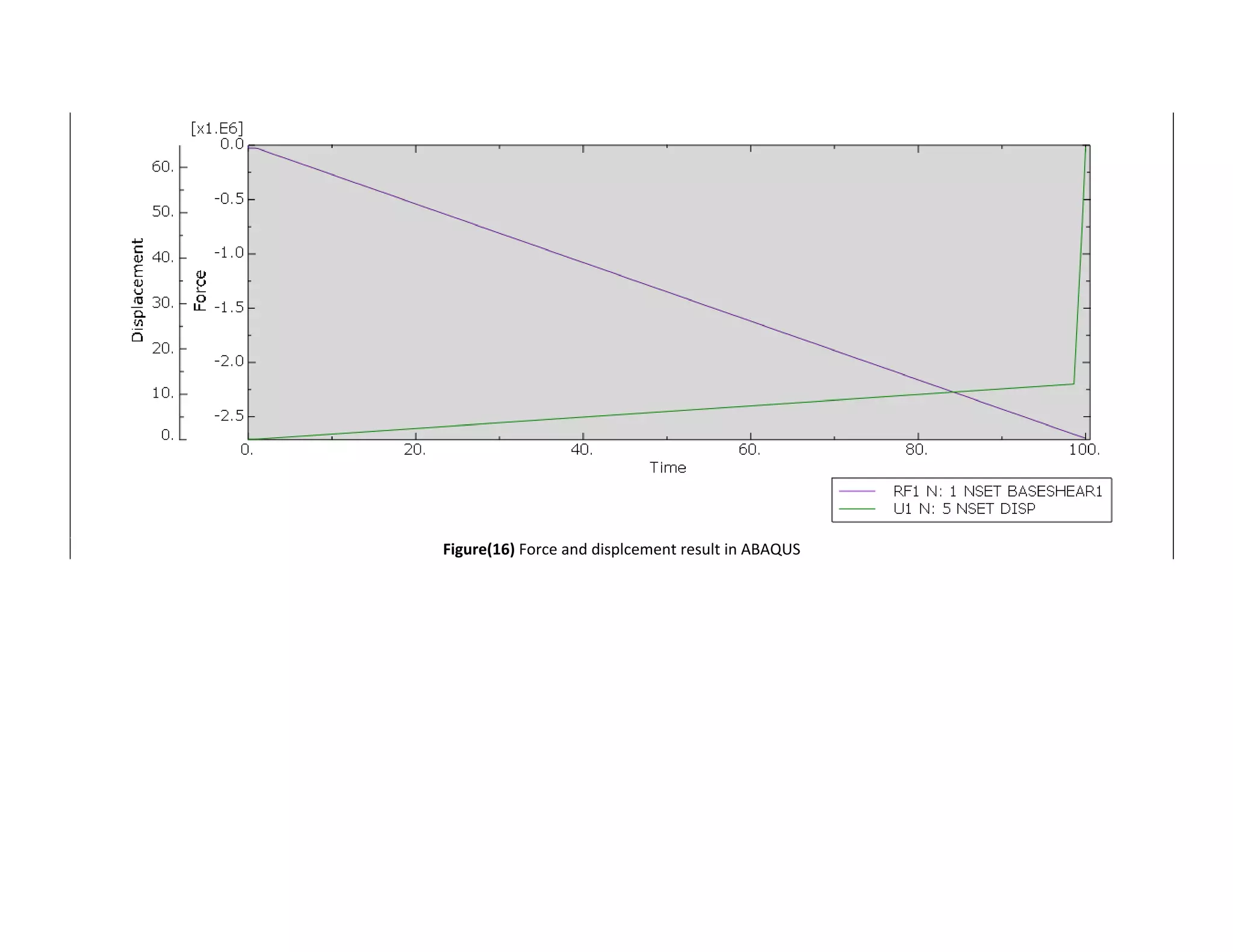

Figure(16) Force and displcement result in ABAQUS

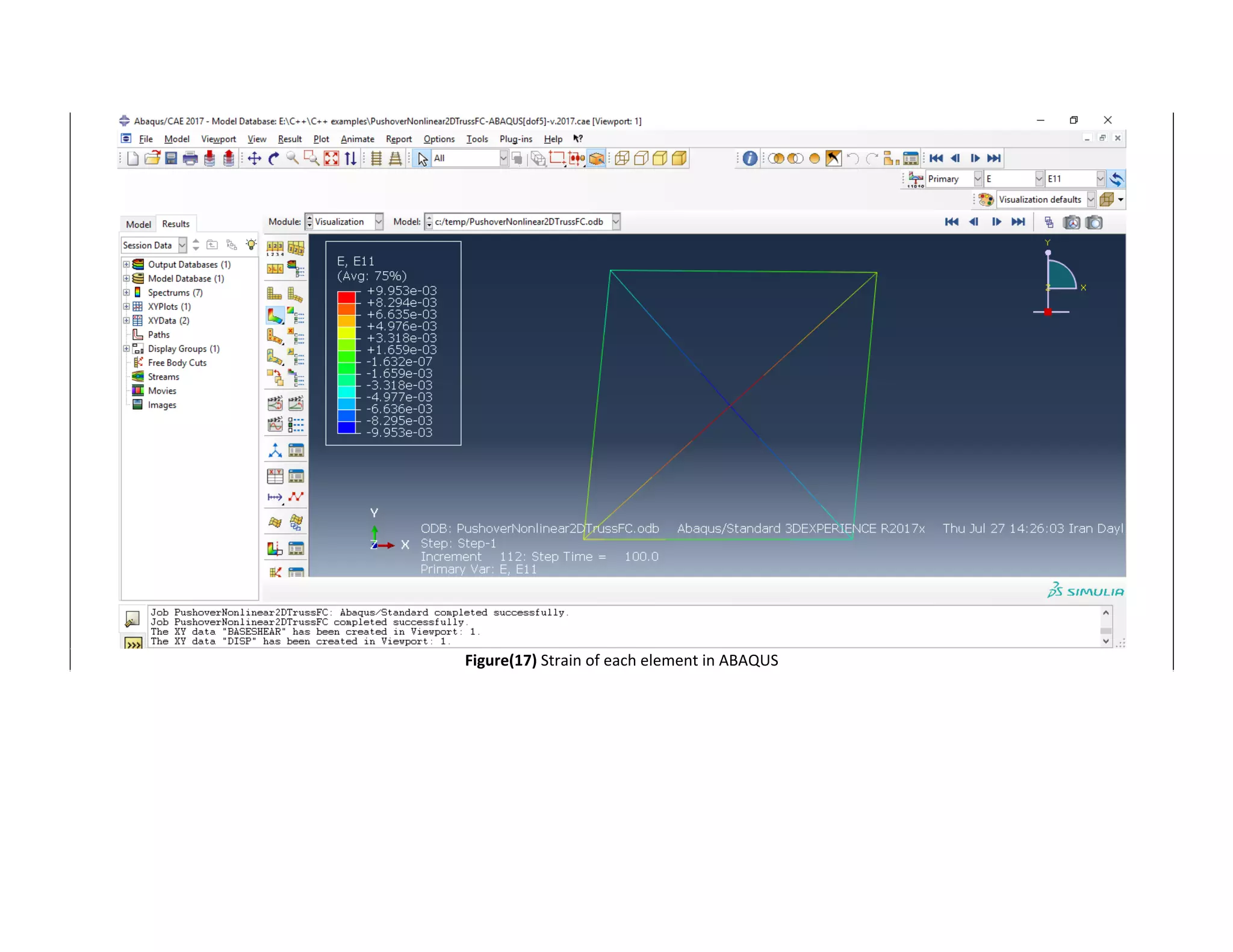

Figure(17) Strain of each element in ABAQUS

Figure(18) Stress of each element in ABAQUS

Figure(19) Reaction X of truss in ABAQUS

Figure(20) Reaction Y of truss in ABAQUS

Figure(21) Displacement X of truss in ABAQUS

Figure(22) Displacement Y of truss in ABAQUS

Figure(23) Base shear and displacement results
0
500000
1000000
1500000
2000000
2500000
3000000
0 10 20 30 40 50 60 70 80
Base Shear
Displacement
C MATLAB SeismoStruct ABAQUS

Geometric and material nonlinearity analysis of 2 d truss with force control and ductility damage index control in c, matlab, seismo and abaqus

More Related Content

What's hot

More from Salar Delavar Qashqai

Recently uploaded

Geometric and material nonlinearity analysis of 2 d truss with force control and ductility damage index control in c, matlab, seismo and abaqus
