Mca i-u-2-overview of register transfer, micro operations and basic computer organization and design

Overview of Register Transfer,
Micro Operations and Basic
Computer Organization and Design
Course: MCA-I
Subject: Computer Organization
And Architecture
Unit-2
1

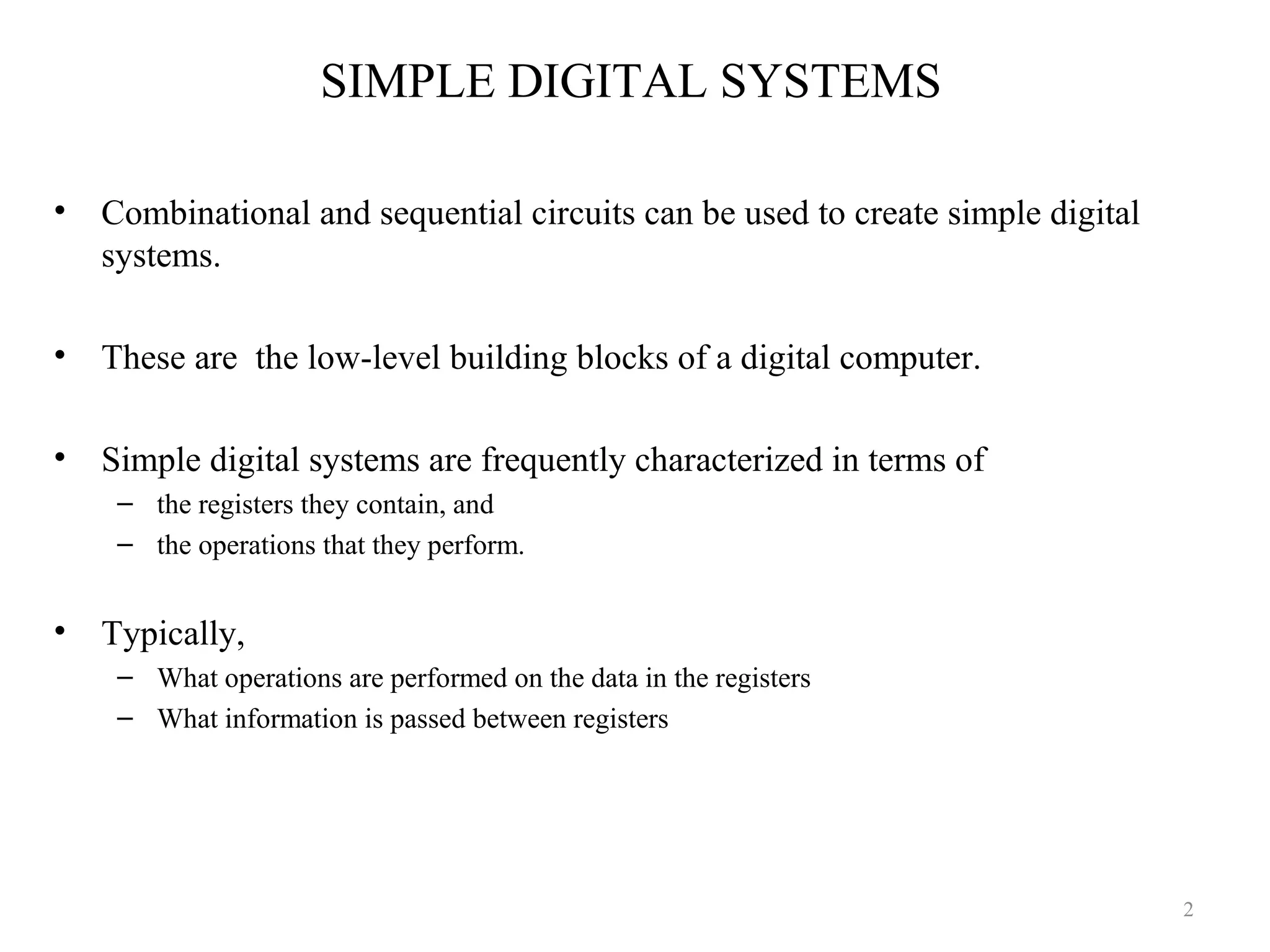

SIMPLE DIGITAL SYSTEMS
• Combinational and sequential circuits can be used to create simple digital
systems.
• These are the low-level building blocks of a digital computer.
• Simple digital systems are frequently characterized in terms of
– the registers they contain, and
– the operations that they perform.
• Typically,
– What operations are performed on the data in the registers
– What information is passed between registers
2

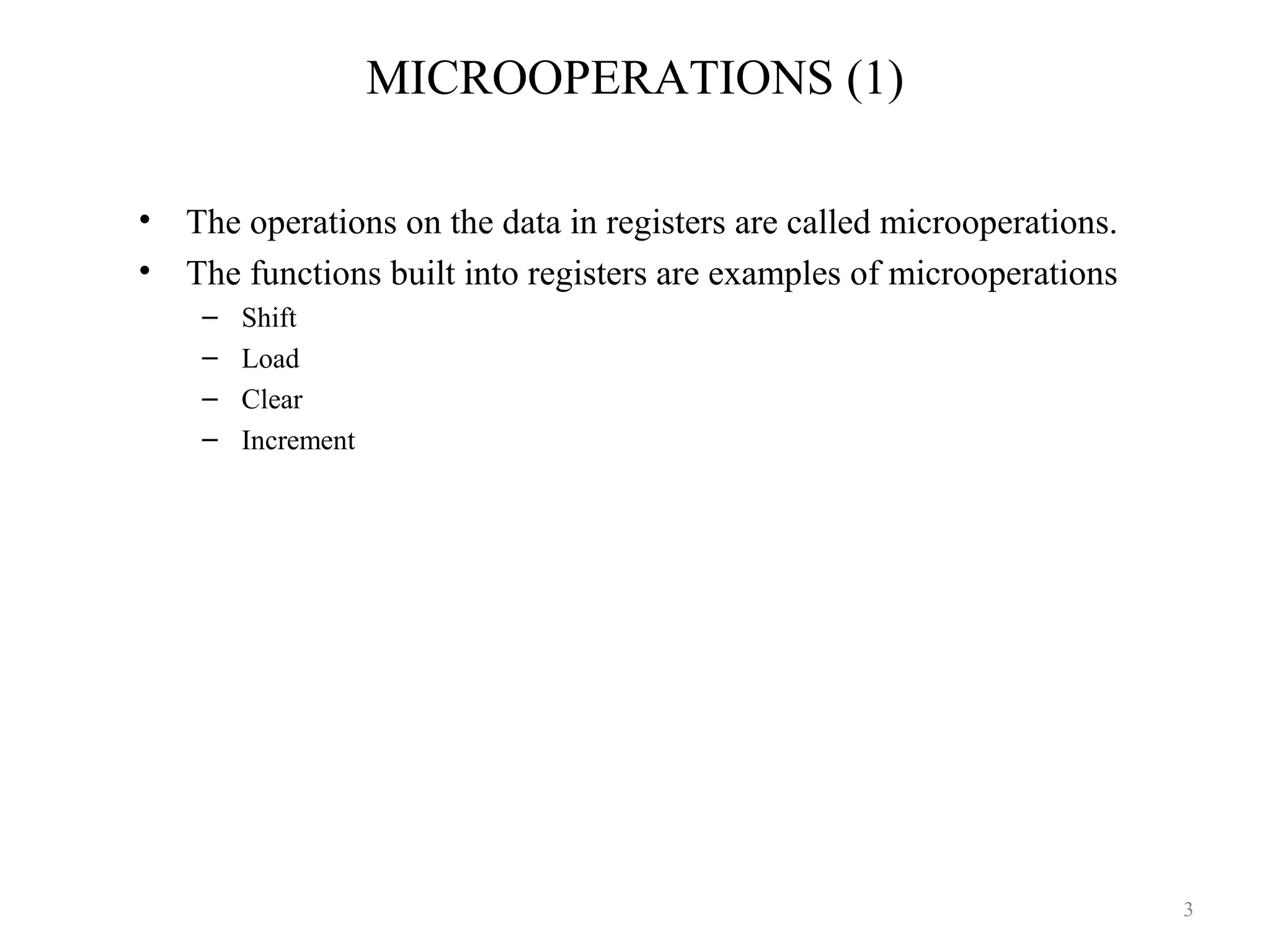

MICROOPERATIONS (1)
• The operations on the data in registers are called microoperations.
• The functions built into registers are examples of microoperations
– Shift
– Load
– Clear
– Increment
3

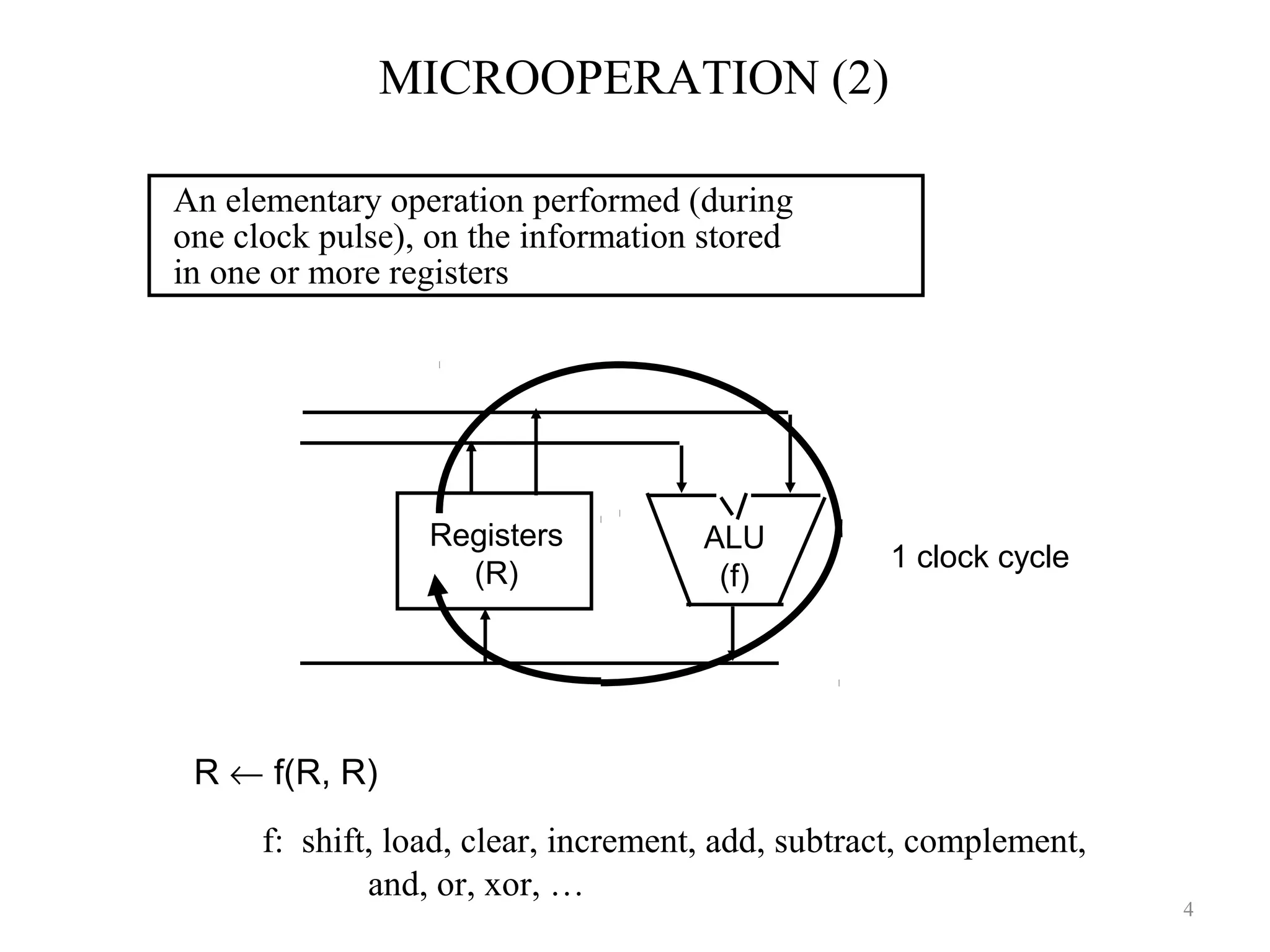

MICROOPERATION (2)
An elementary operation performed (during
one clock pulse), on the information stored
in one or more registers
R ← f(R, R)
f: shift, load, clear, increment, add, subtract, complement,
and, or, xor, …
ALU
(f)
Registers
(R)
1 clock cycle
4

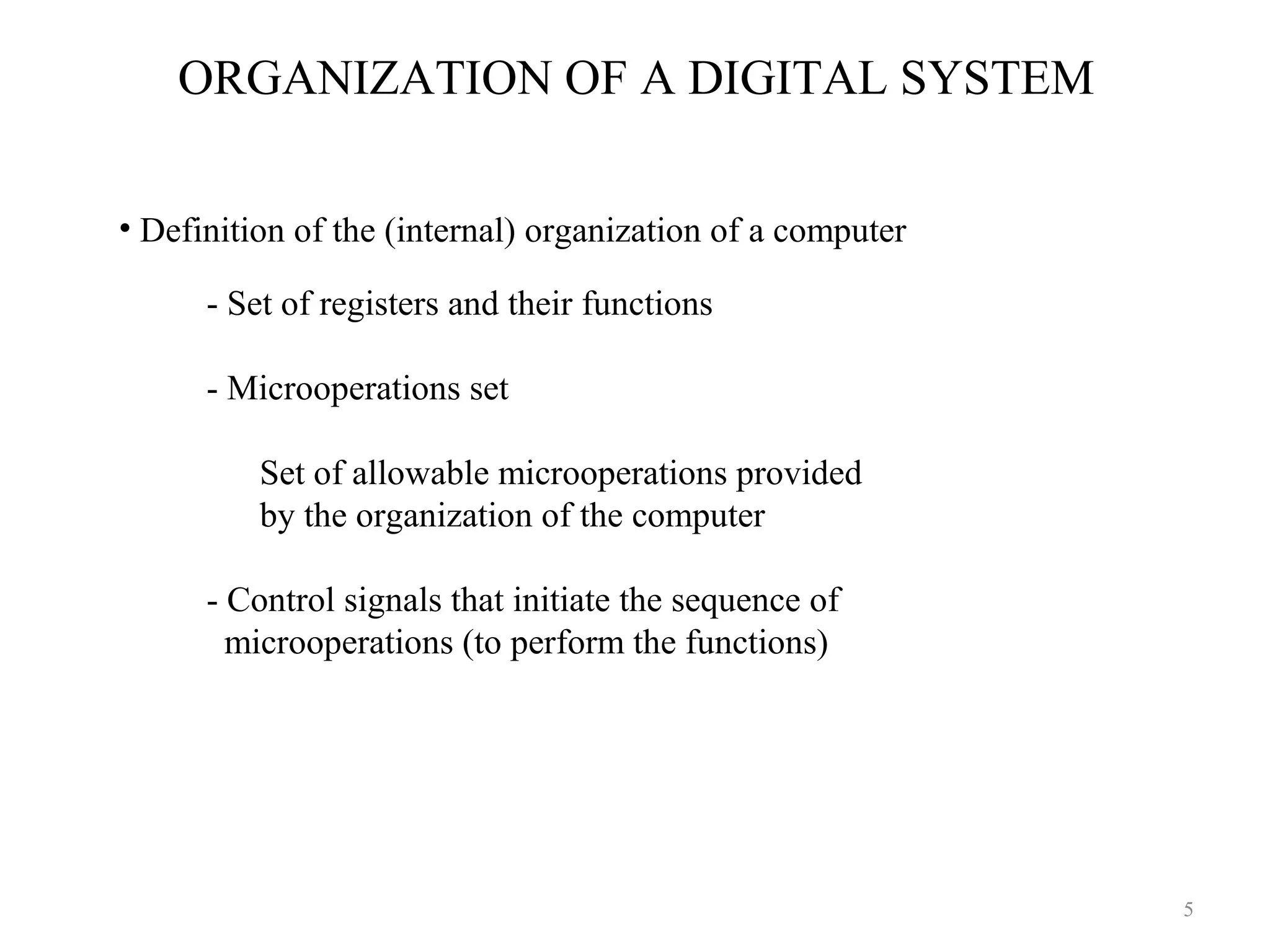

ORGANIZATION OF A DIGITAL SYSTEM
- Set of registers and their functions
- Microoperations set
Set of allowable microoperations provided
by the organization of the computer
- Control signals that initiate the sequence of
microoperations (to perform the functions)
• Definition of the (internal) organization of a computer
5

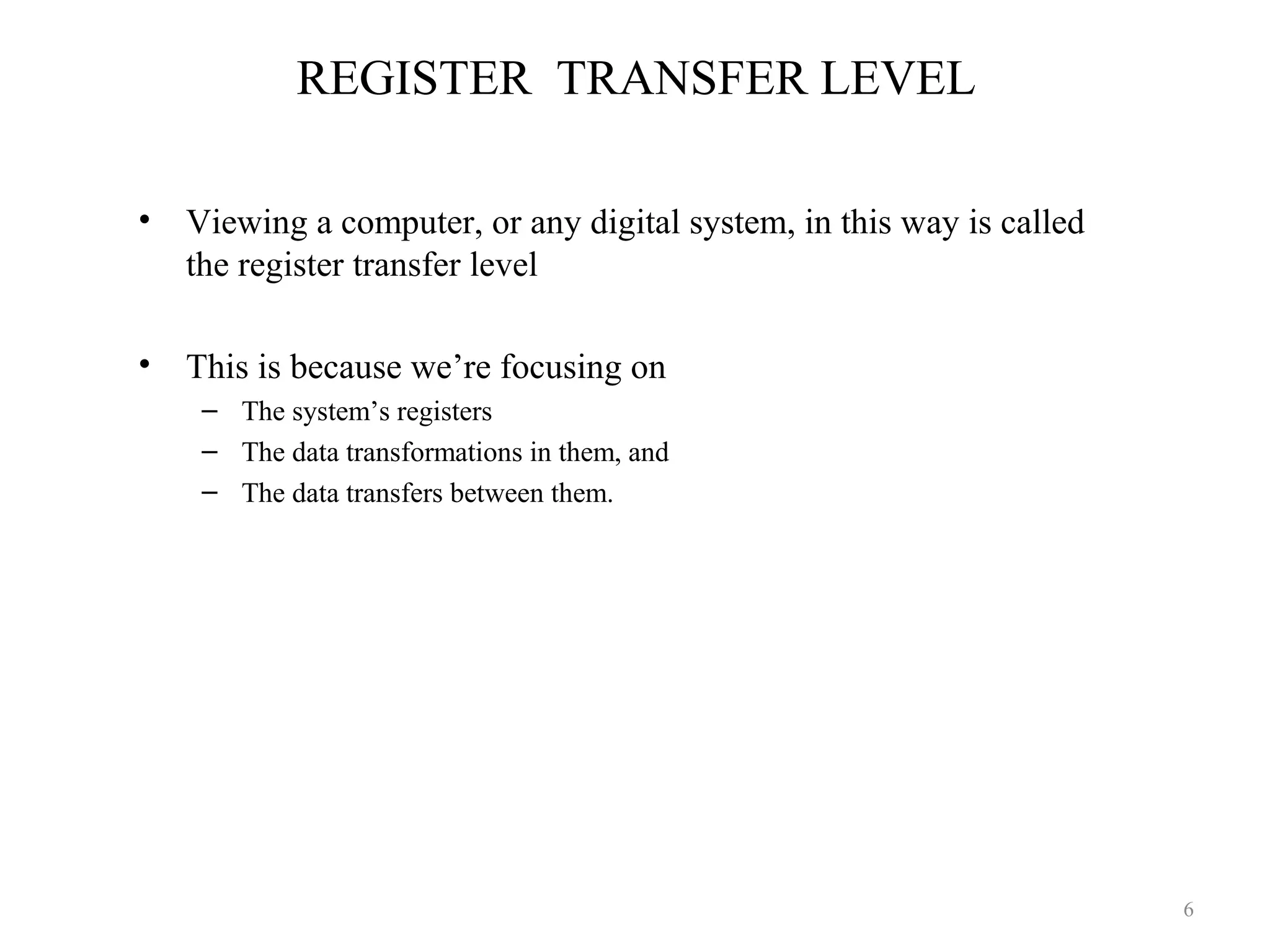

REGISTER TRANSFER LEVEL
• Viewing a computer, or any digital system, in this way is called
the register transfer level
• This is because we’re focusing on
– The system’s registers
– The data transformations in them, and
– The data transfers between them.
6

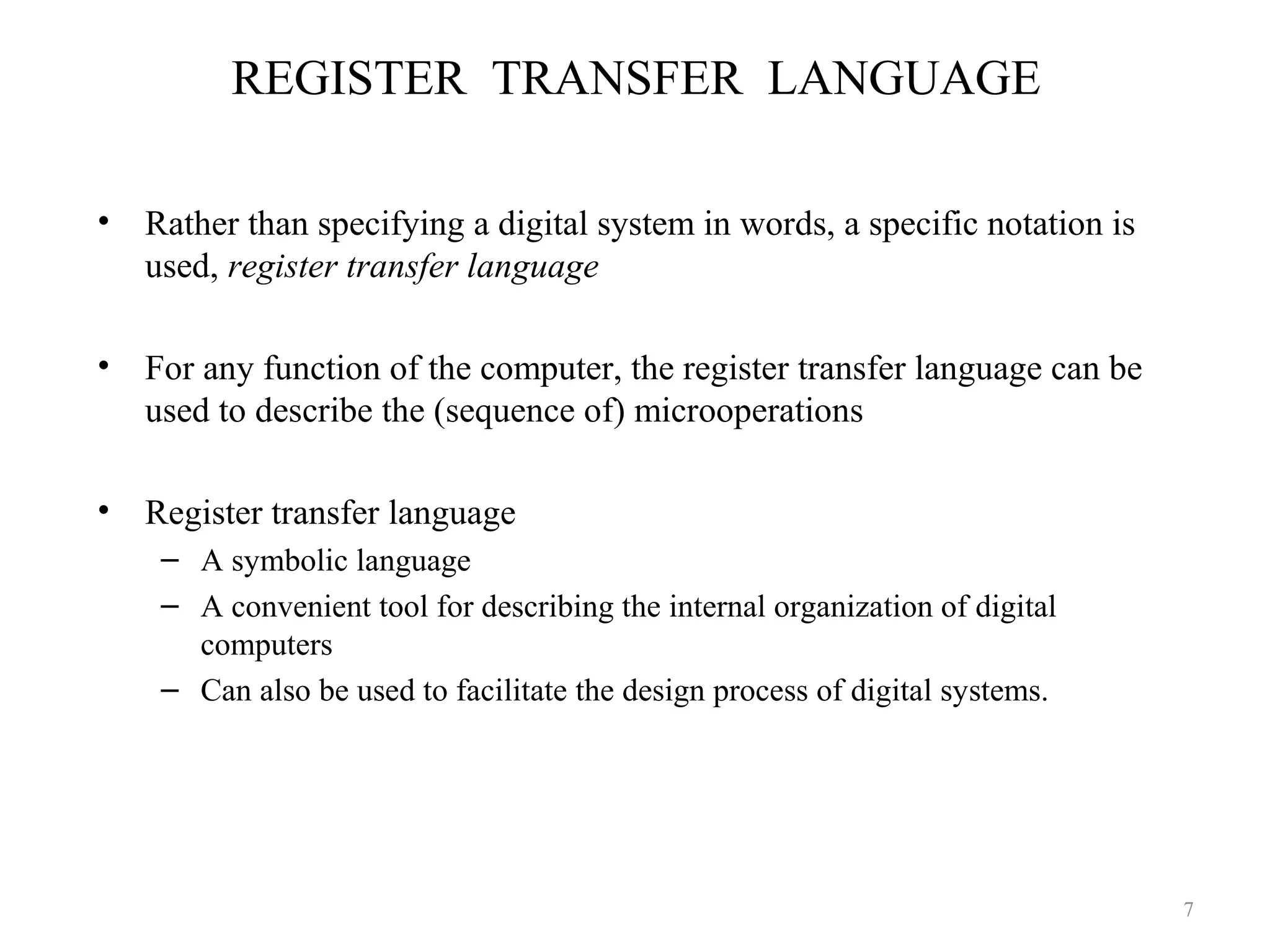

REGISTER TRANSFER LANGUAGE
• Rather than specifying a digital system in words, a specific notation is
used, register transfer language
• For any function of the computer, the register transfer language can be
used to describe the (sequence of) microoperations
• Register transfer language
– A symbolic language
– A convenient tool for describing the internal organization of digital
computers
– Can also be used to facilitate the design process of digital systems.
7

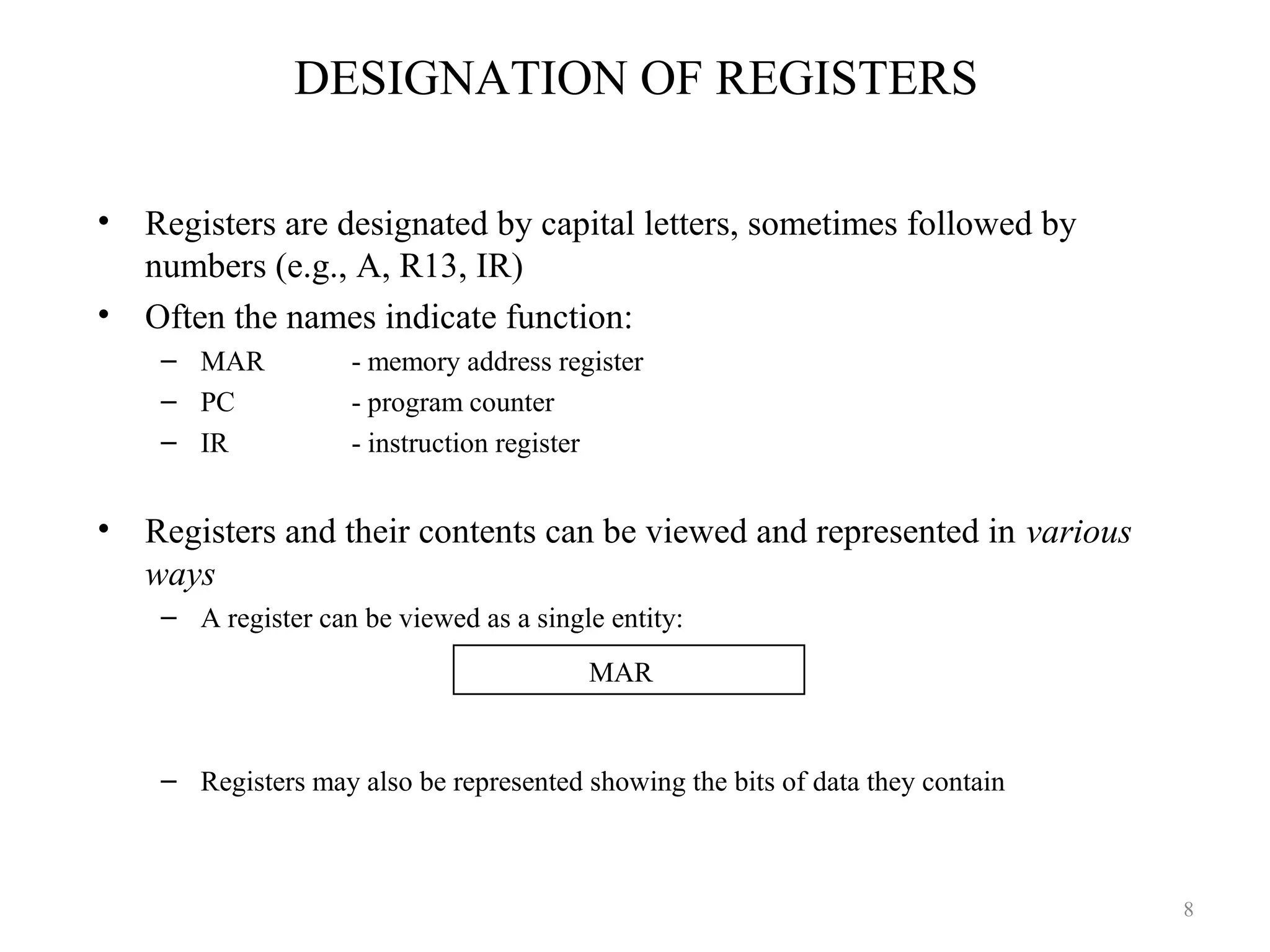

DESIGNATION OF REGISTERS
• Registers are designated by capital letters, sometimes followed by
numbers (e.g., A, R13, IR)
• Often the names indicate function:
– MAR - memory address register
– PC - program counter
– IR - instruction register
• Registers and their contents can be viewed and represented in various
ways
– A register can be viewed as a single entity:
– Registers may also be represented showing the bits of data they contain
MAR
8

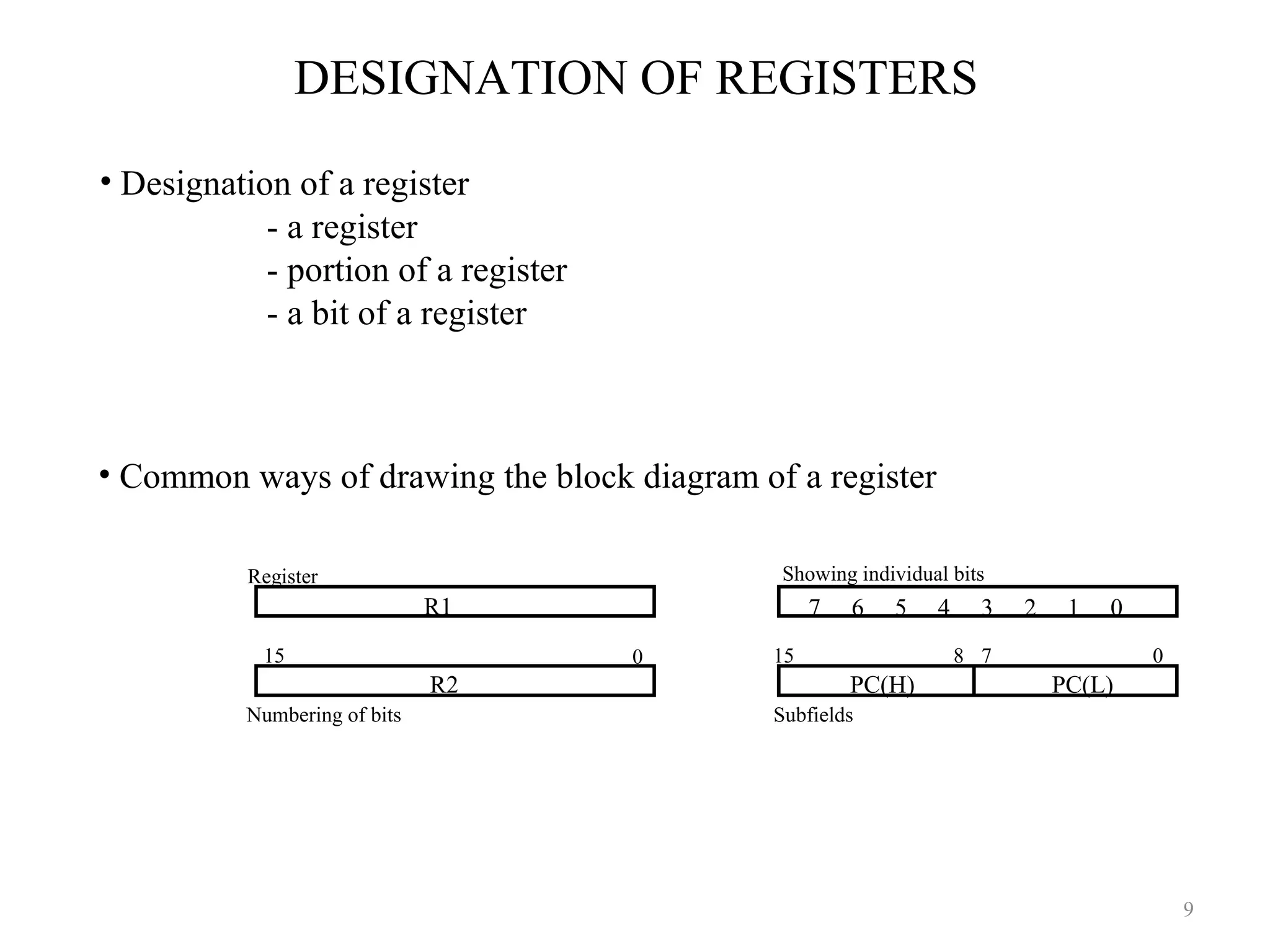

DESIGNATION OF REGISTERS
R1
Register
Numbering of bits
Showing individual bits
Subfields
PC(H) PC(L)
15 8 7 0
- a register
- portion of a register
- a bit of a register
• Common ways of drawing the block diagram of a register
7 6 5 4 3 2 1 0
R2
15 0
• Designation of a register
9

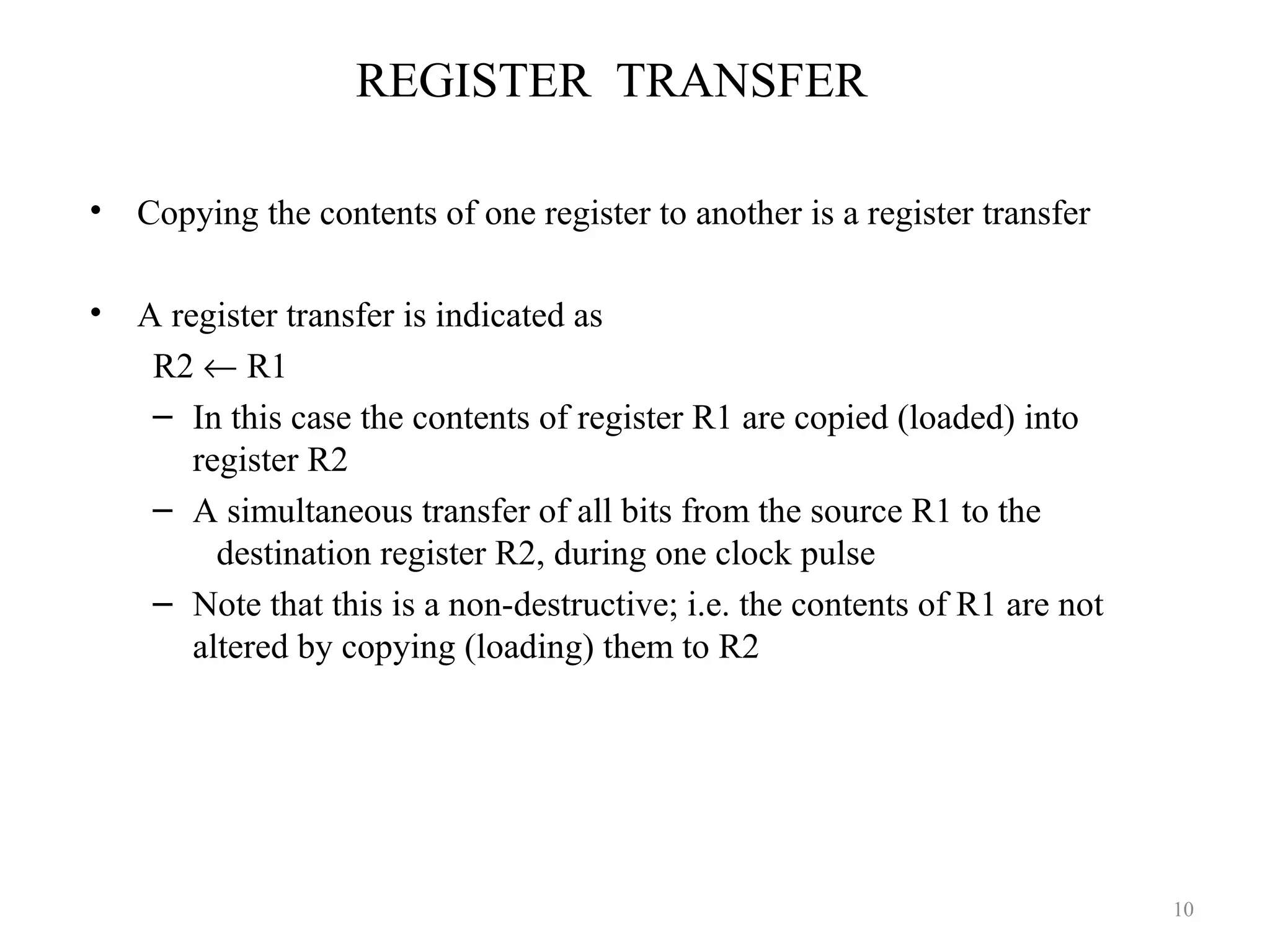

REGISTER TRANSFER
• Copying the contents of one register to another is a register transfer
• A register transfer is indicated as
R2 ← R1
– In this case the contents of register R1 are copied (loaded) into
register R2
– A simultaneous transfer of all bits from the source R1 to the
destination register R2, during one clock pulse
– Note that this is a non-destructive; i.e. the contents of R1 are not
altered by copying (loading) them to R2
10

REGISTER TRANSFER

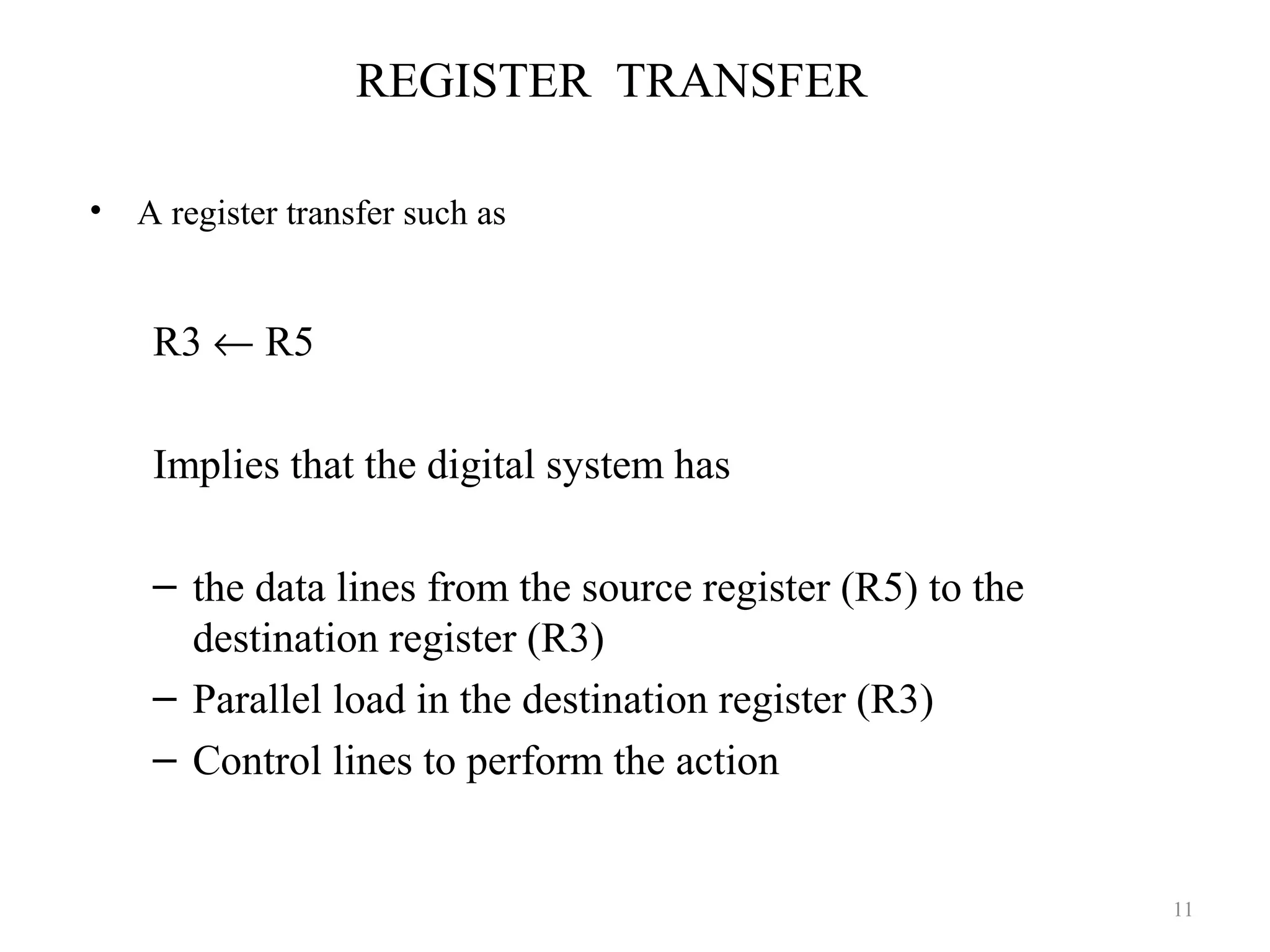

• A register transfer such as
R3 ← R5
Implies that the digital system has
– the data lines from the source register (R5) to the
destination register (R3)
– Parallel load in the destination register (R3)
– Control lines to perform the action
11

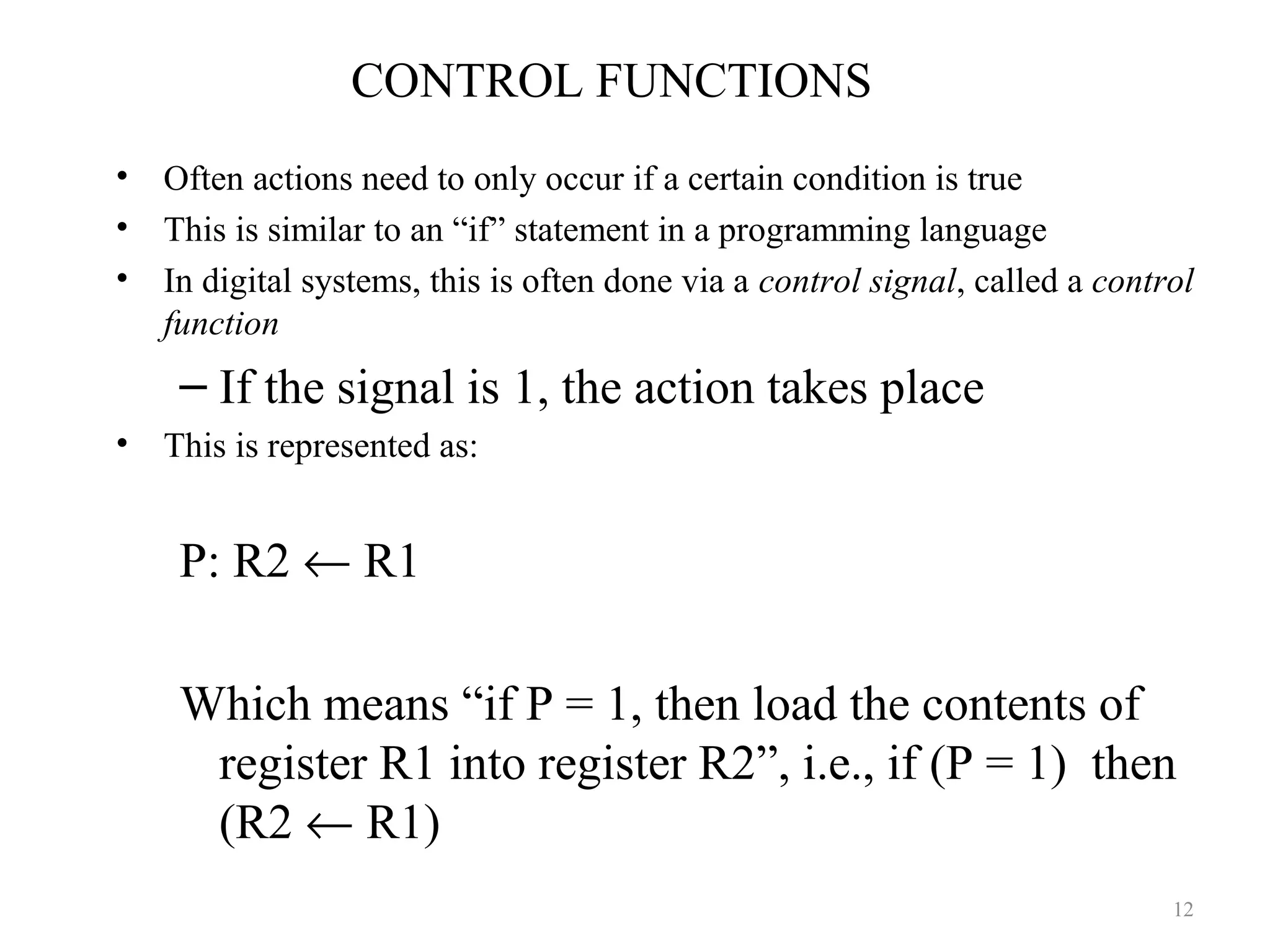

CONTROL FUNCTIONS
• Often actions need to only occur if a certain condition is true
• This is similar to an “if” statement in a programming language
• In digital systems, this is often done via a control signal, called a control
function
– If the signal is 1, the action takes place
• This is represented as:
P: R2 ← R1
Which means “if P = 1, then load the contents of
register R1 into register R2”, i.e., if (P = 1) then
(R2 ← R1)
12

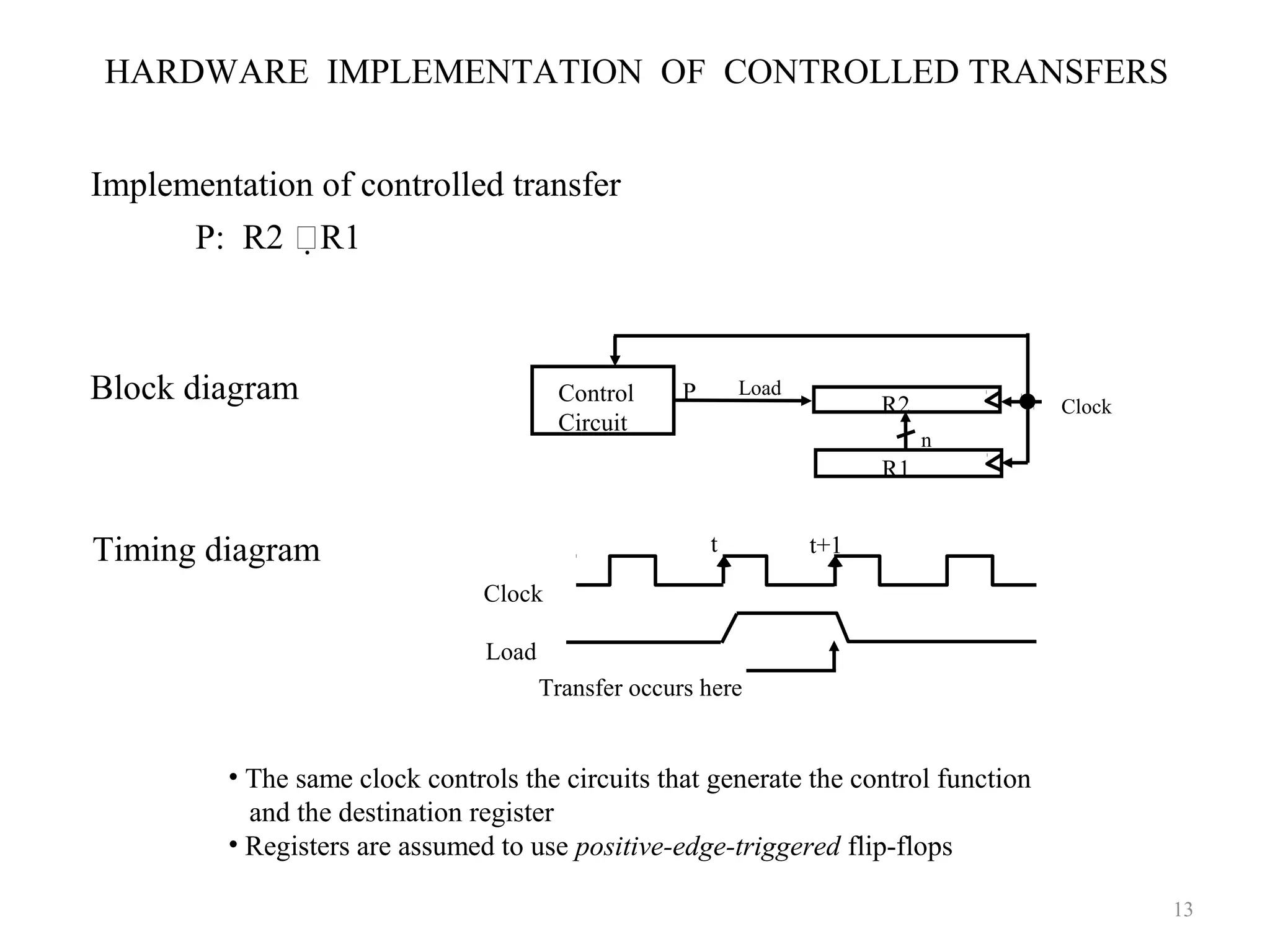

HARDWARE IMPLEMENTATION OF CONTROLLED TRANSFERS
Implementation of controlled transfer
P: R2 R1
Block diagram
Timing diagram
Clock
Transfer occurs here
R2
R1
Control
Circuit
LoadP
n
Clock
Load
t t+1
• The same clock controls the circuits that generate the control function
and the destination register
• Registers are assumed to use positive-edge-triggered flip-flops
13

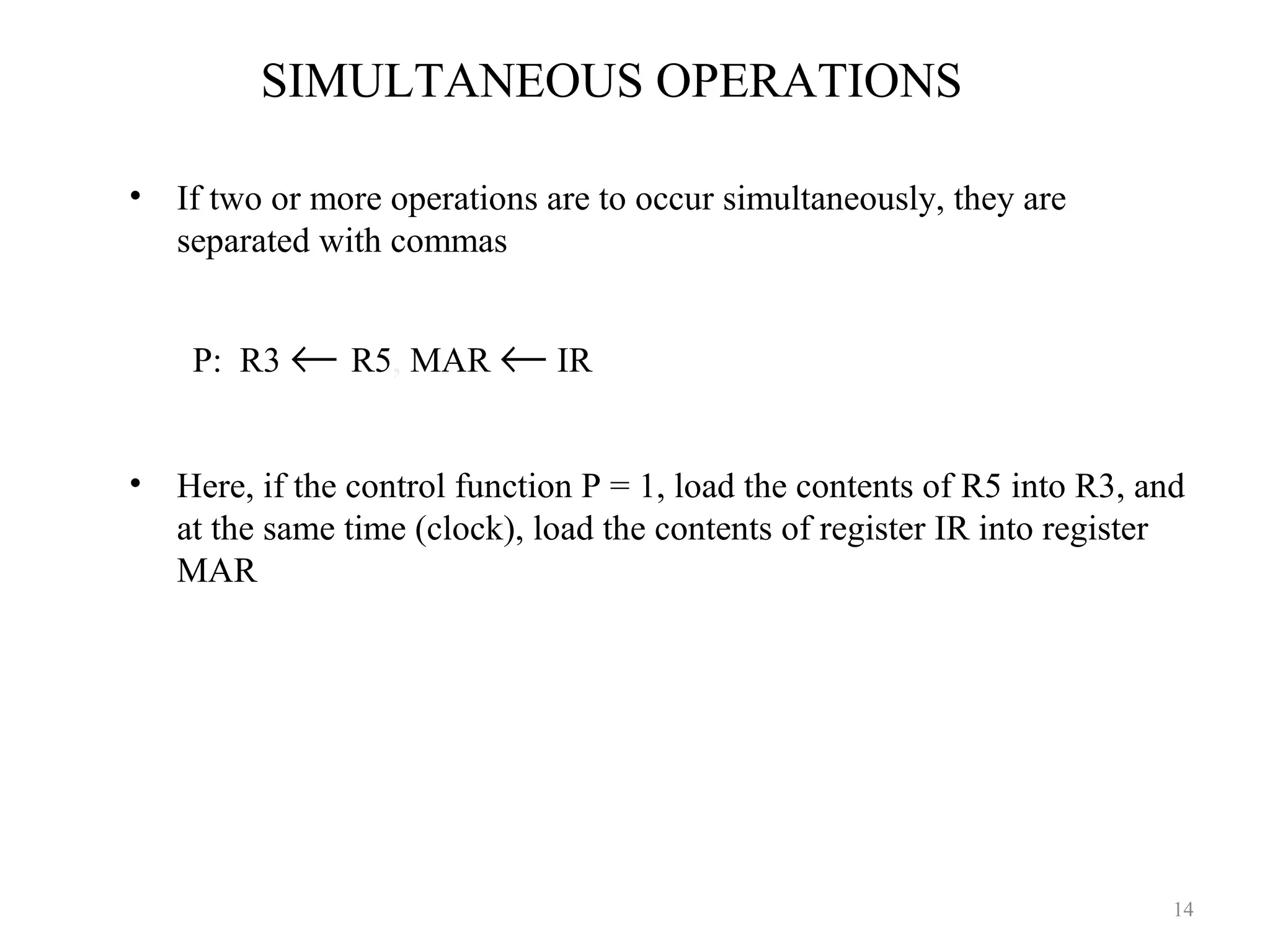

SIMULTANEOUS OPERATIONS
• If two or more operations are to occur simultaneously, they are
separated with commas
P: R3 ← R5, MAR ← IR
• Here, if the control function P = 1, load the contents of R5 into R3, and
at the same time (clock), load the contents of register IR into register
MAR
14

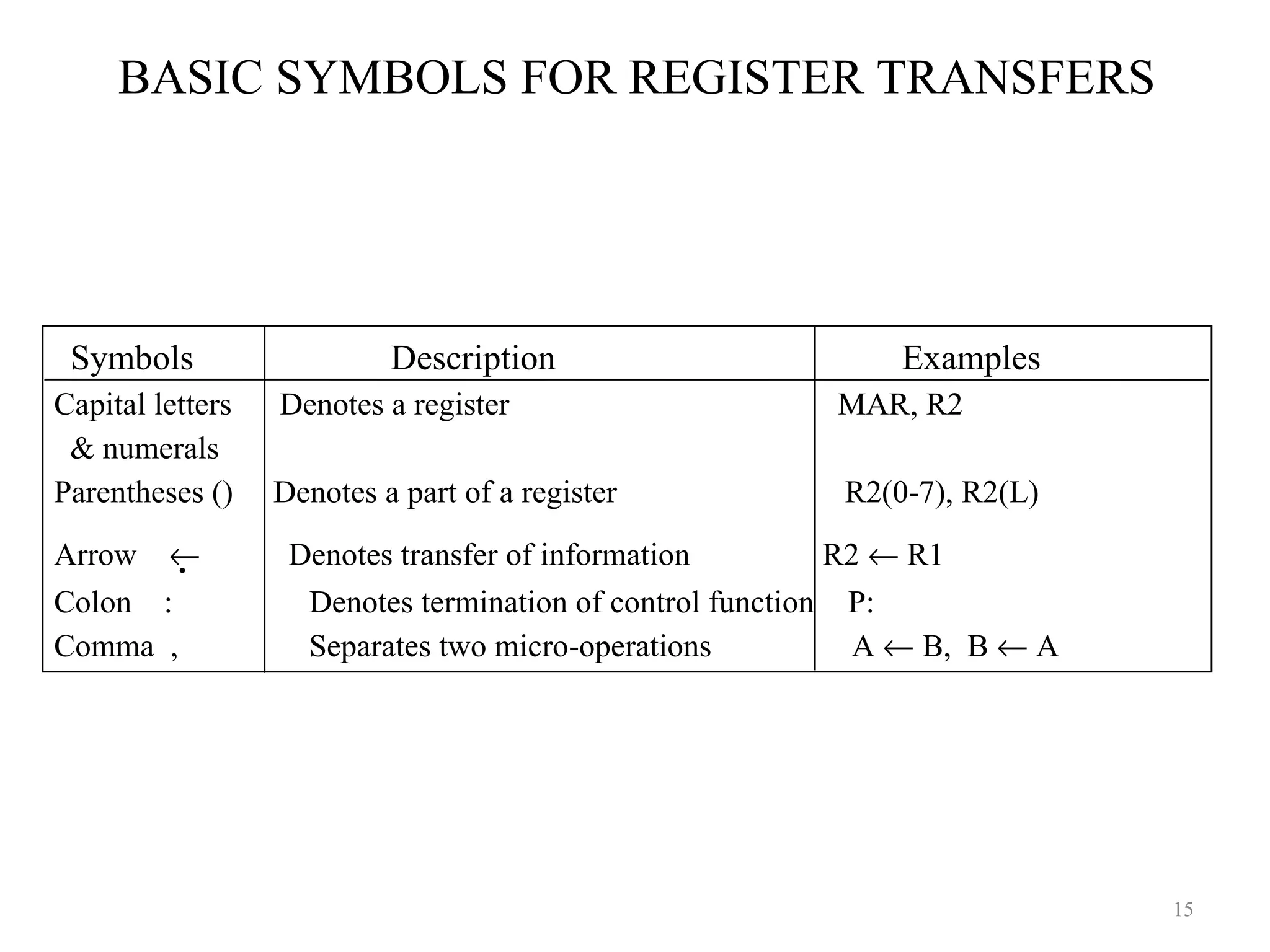

BASIC SYMBOLS FOR REGISTER TRANSFERS
Capital letters Denotes a register MAR, R2
& numerals
Parentheses () Denotes a part of a register R2(0-7), R2(L)
Arrow ← Denotes transfer of information R2 ← R1
Colon : Denotes termination of control function P:
Comma , Separates two micro-operations A ← B, B ← A
Symbols Description Examples
15

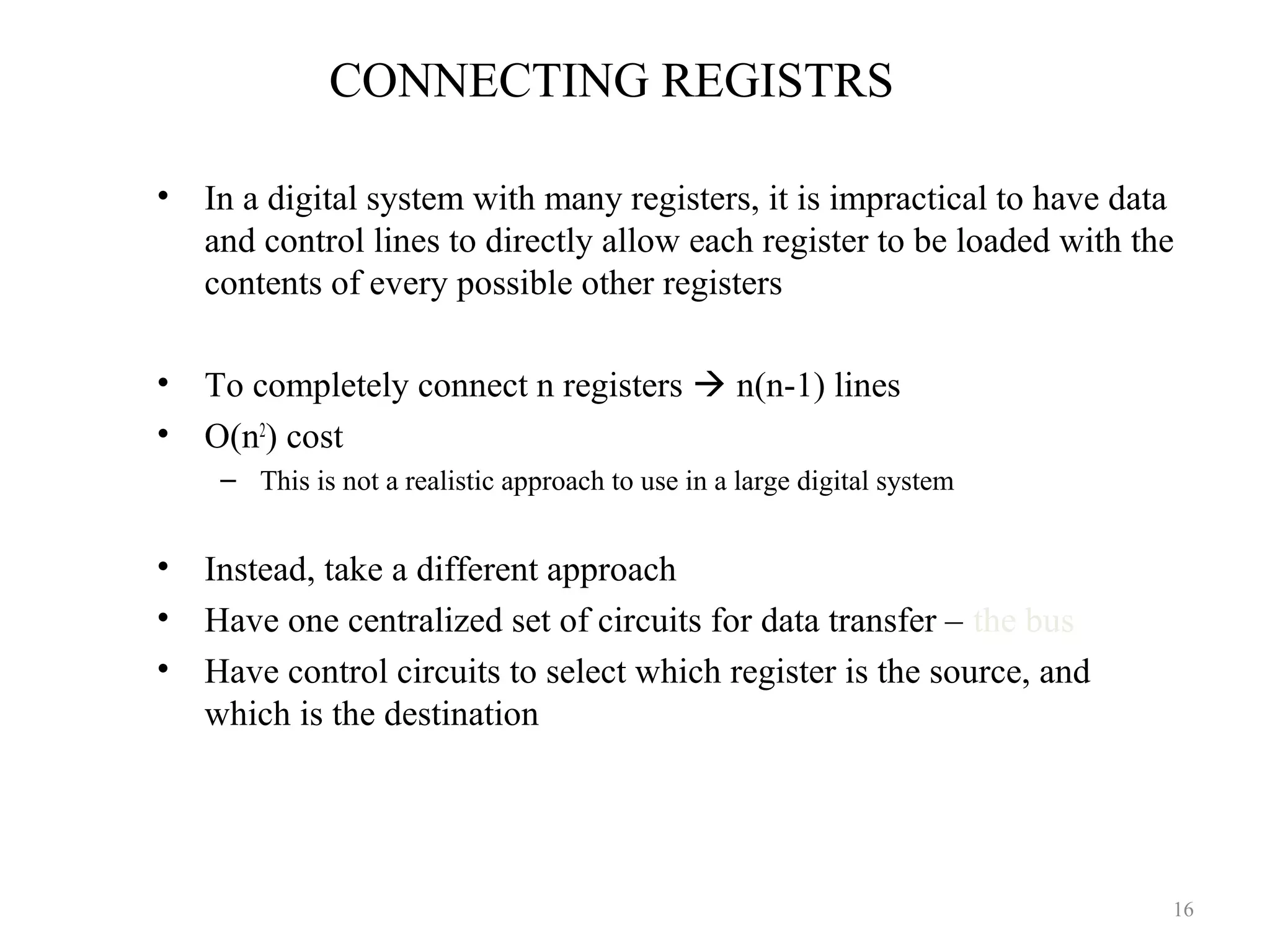

CONNECTING REGISTRS
• In a digital system with many registers, it is impractical to have data
and control lines to directly allow each register to be loaded with the
contents of every possible other registers
• To completely connect n registers  n(n-1) lines
• O(n2
) cost
– This is not a realistic approach to use in a large digital system
• Instead, take a different approach
• Have one centralized set of circuits for data transfer – the bus
• Have control circuits to select which register is the source, and
which is the destination
16

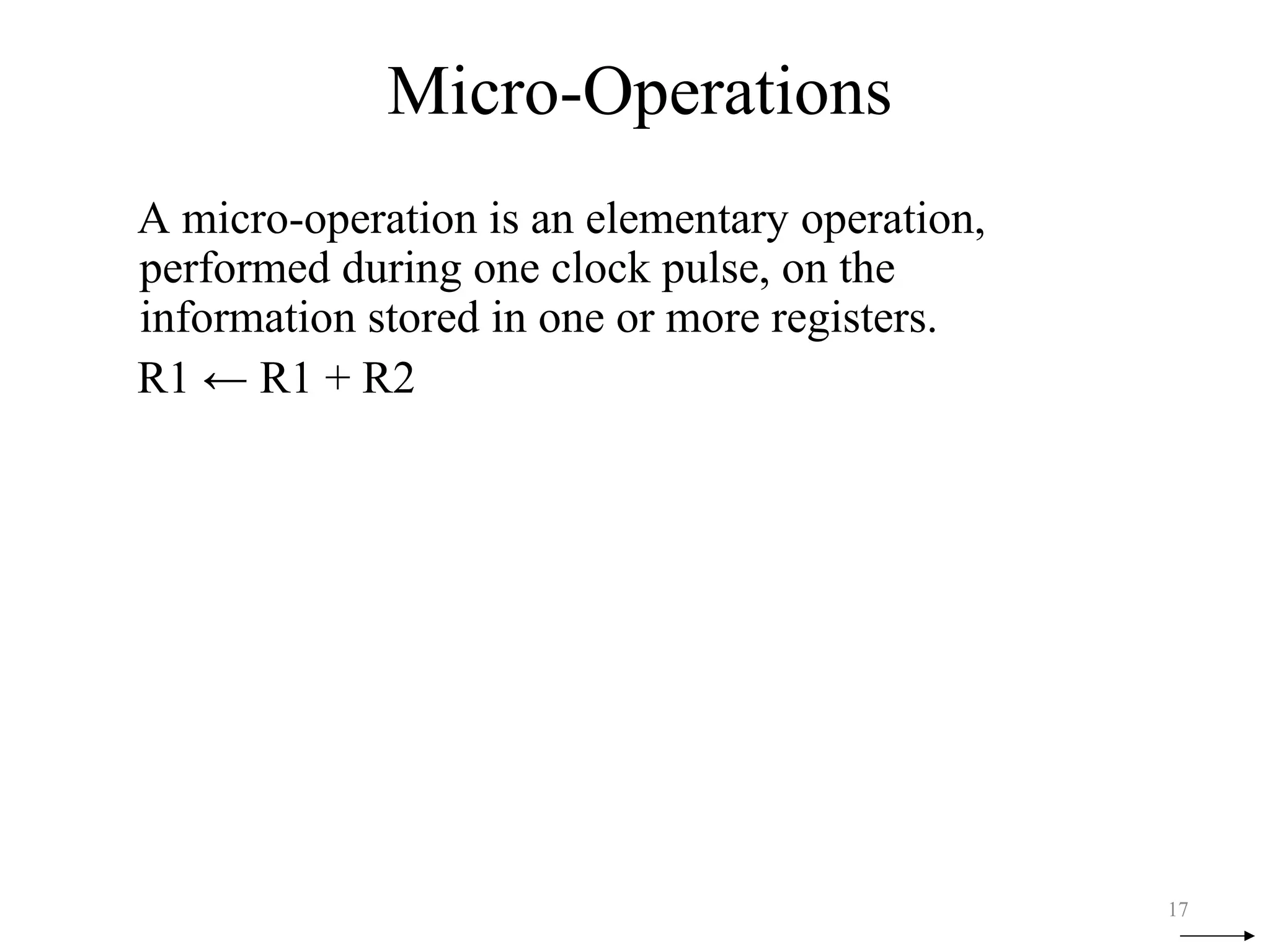

Micro-Operations
A micro-operation is an elementary operation,
performed during one clock pulse, on the
information stored in one or more registers.
R1 ← R1 + R2
17

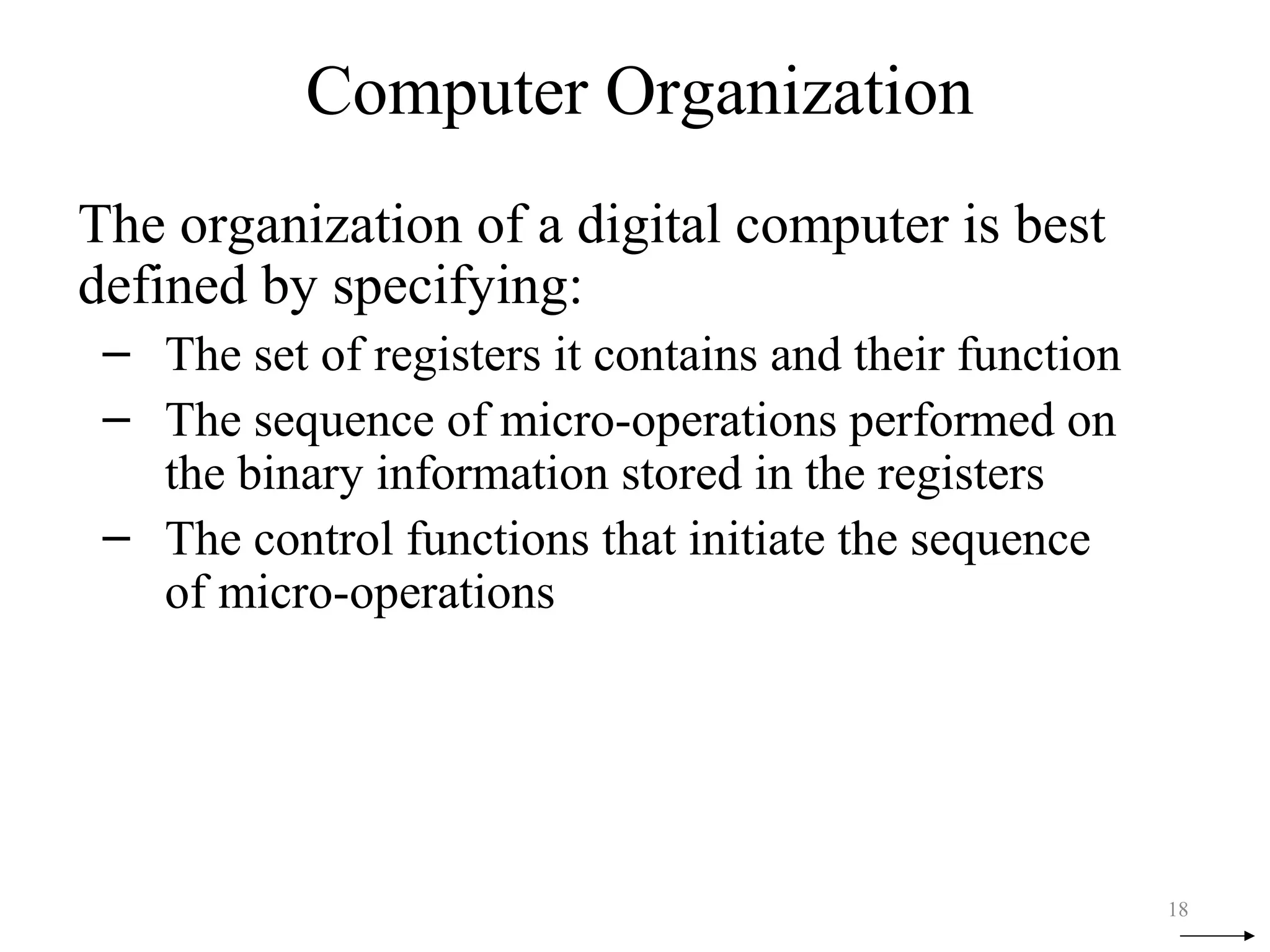

Computer Organization
The organization of a digital computer is best
defined by specifying:
– The set of registers it contains and their function
– The sequence of micro-operations performed on
the binary information stored in the registers
– The control functions that initiate the sequence
of micro-operations
18

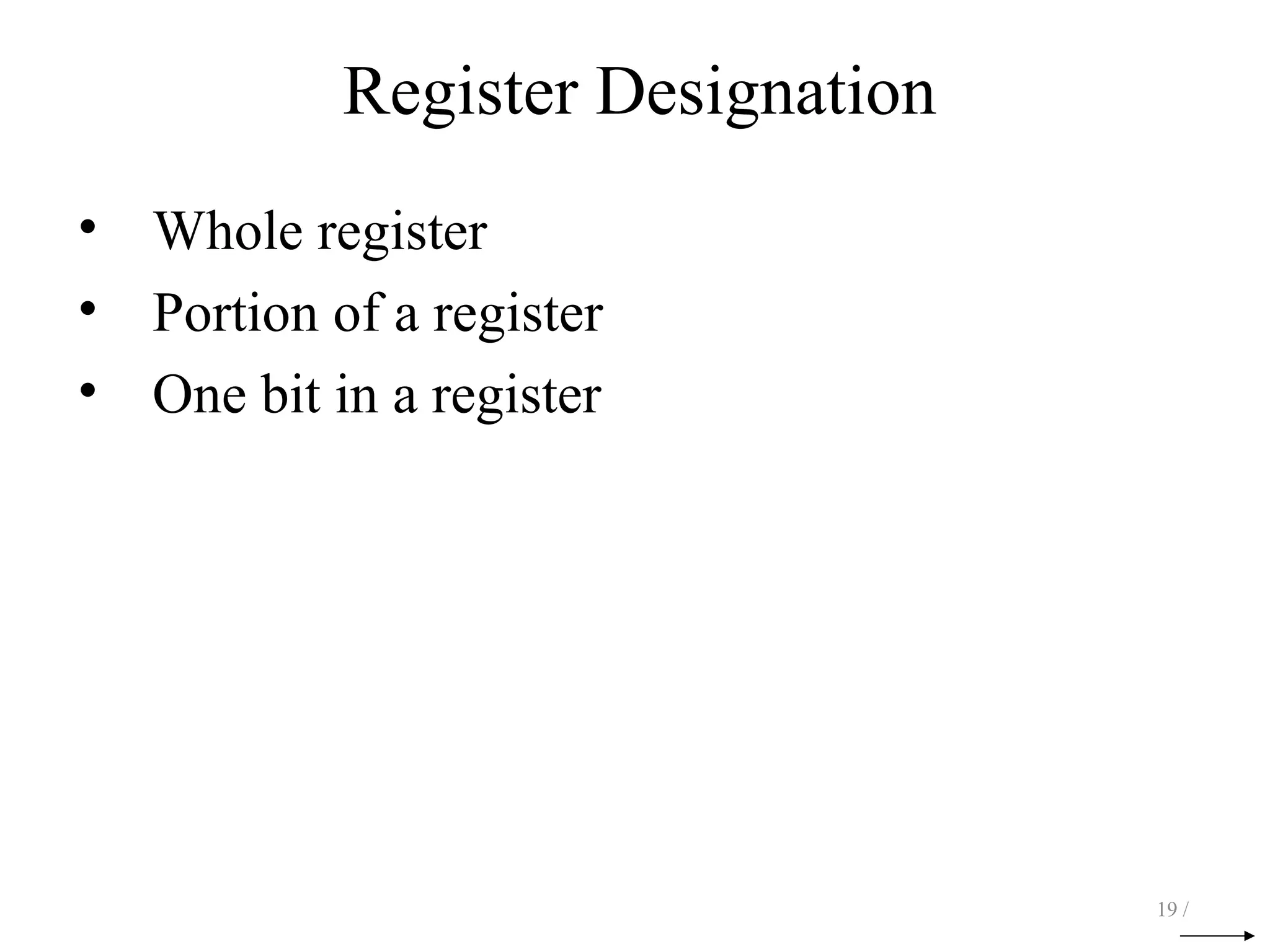

Register Designation
• Whole register
• Portion of a register
• One bit in a register
19 /

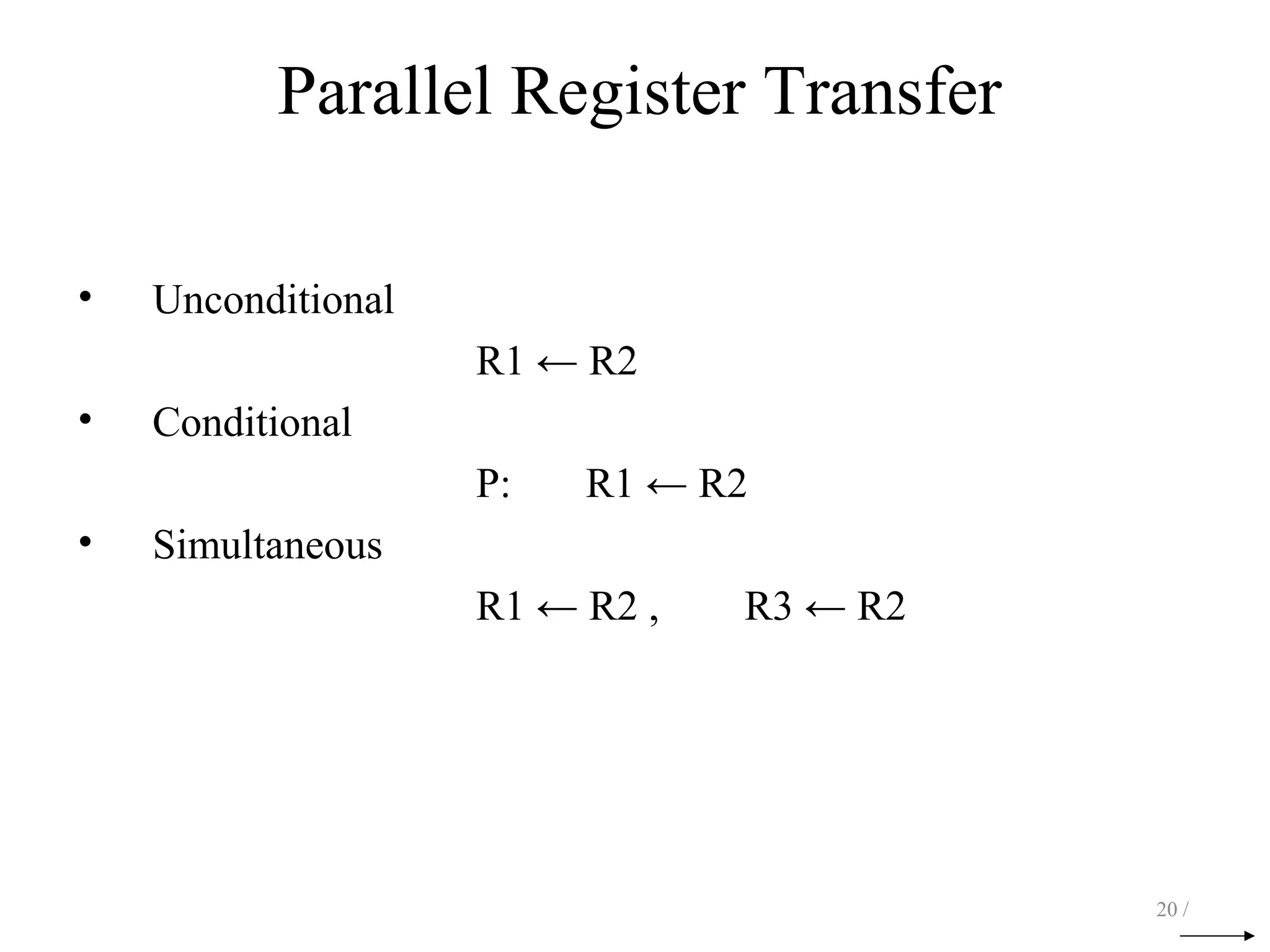

Parallel Register Transfer
• Unconditional
R1 ← R2
• Conditional
P: R1 ← R2
• Simultaneous
R1 ← R2 , R3 ← R2
20 /

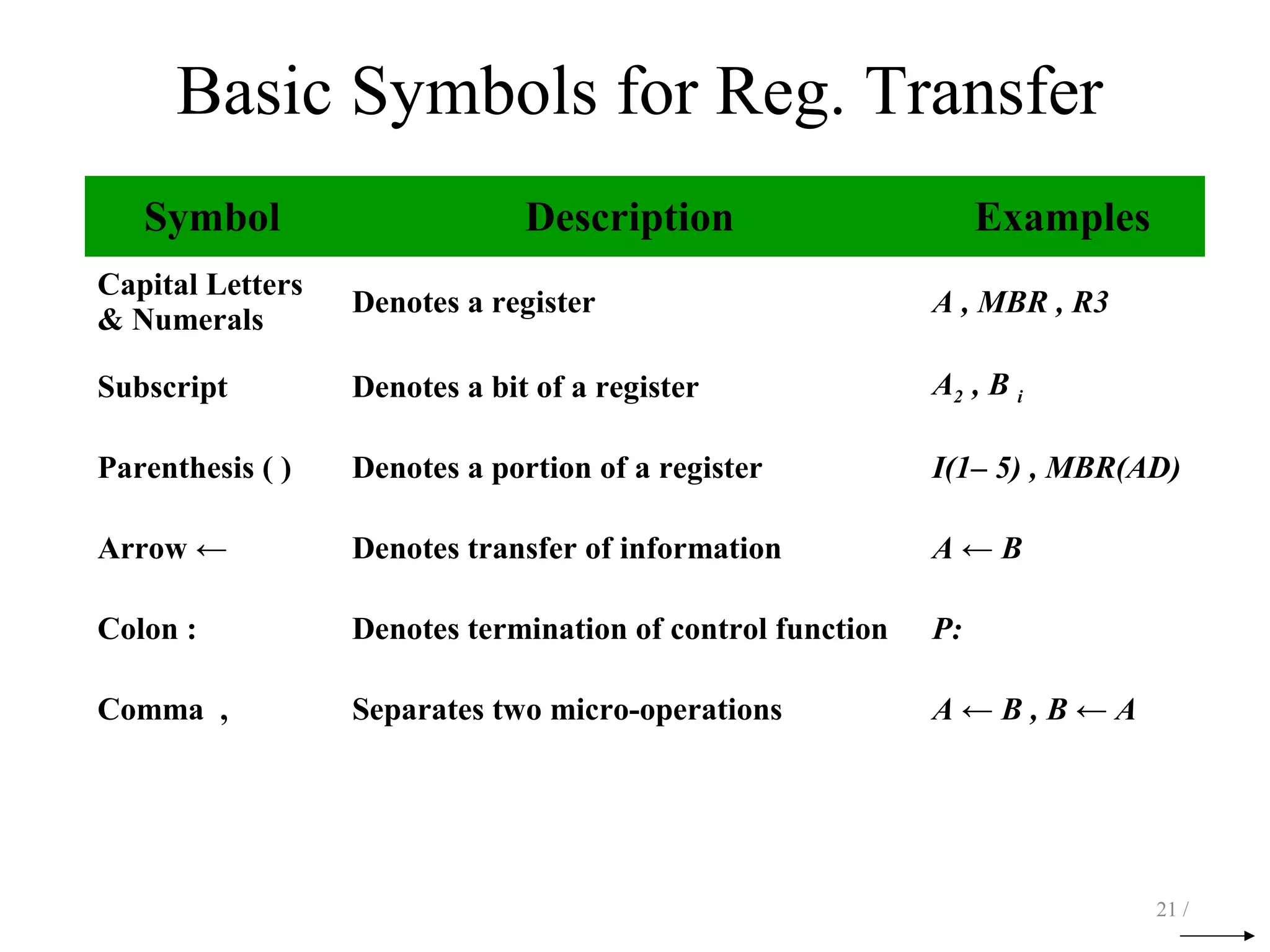

Basic Symbols for Reg. Transfer
21 /
Symbol Description Examples
Capital Letters
& Numerals
Denotes a register A , MBR , R3
Subscript Denotes a bit of a register A2 , B i
Parenthesis ( ) Denotes a portion of a register I(1– 5) , MBR(AD)
Arrow ← Denotes transfer of information A ← B
Colon : Denotes termination of control function P:
Comma , Separates two micro-operations A ← B , B ← A

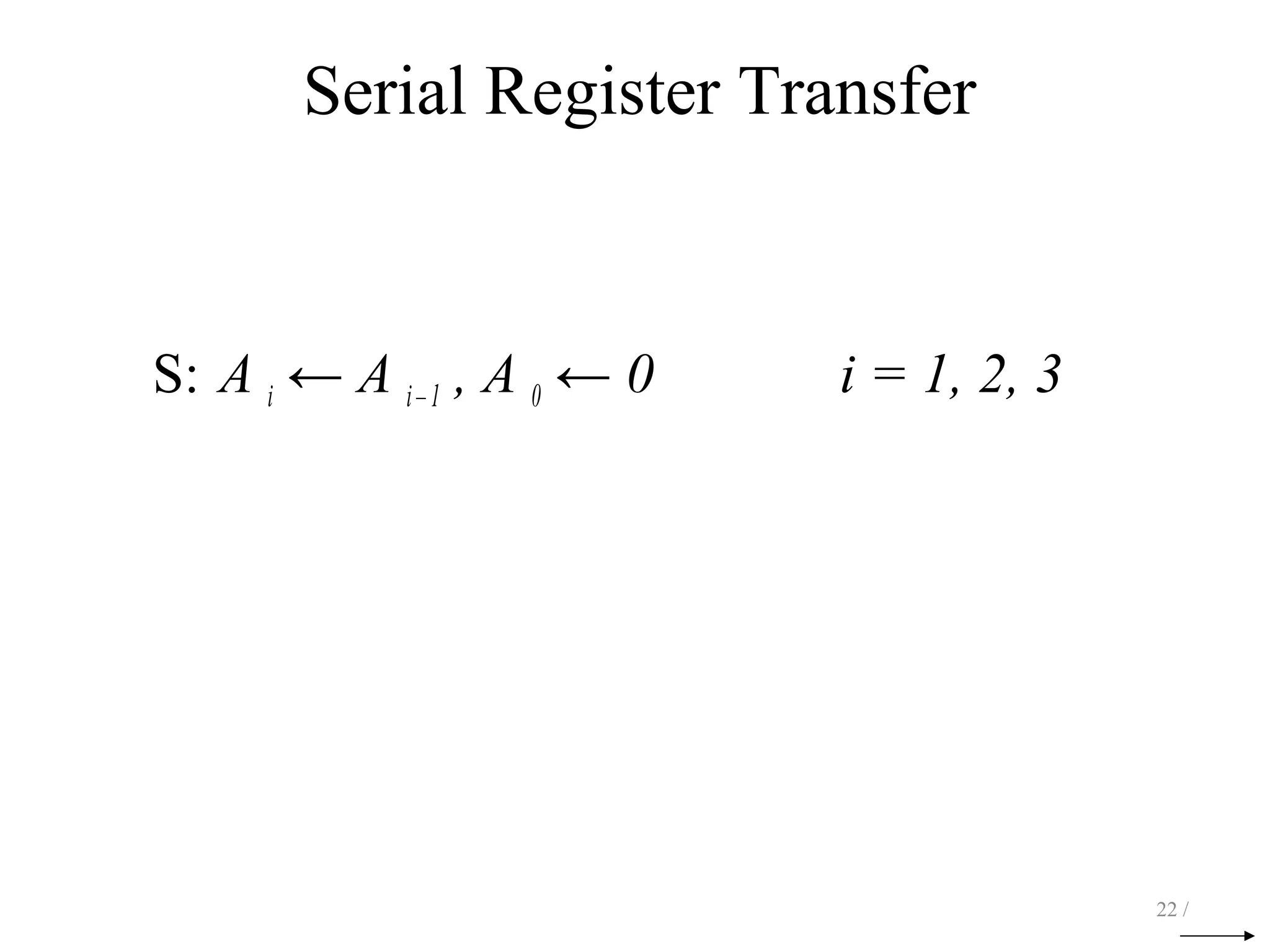

Serial Register Transfer
S: A i ← A i–1 , A 0 ← 0 i = 1, 2, 3
22 /

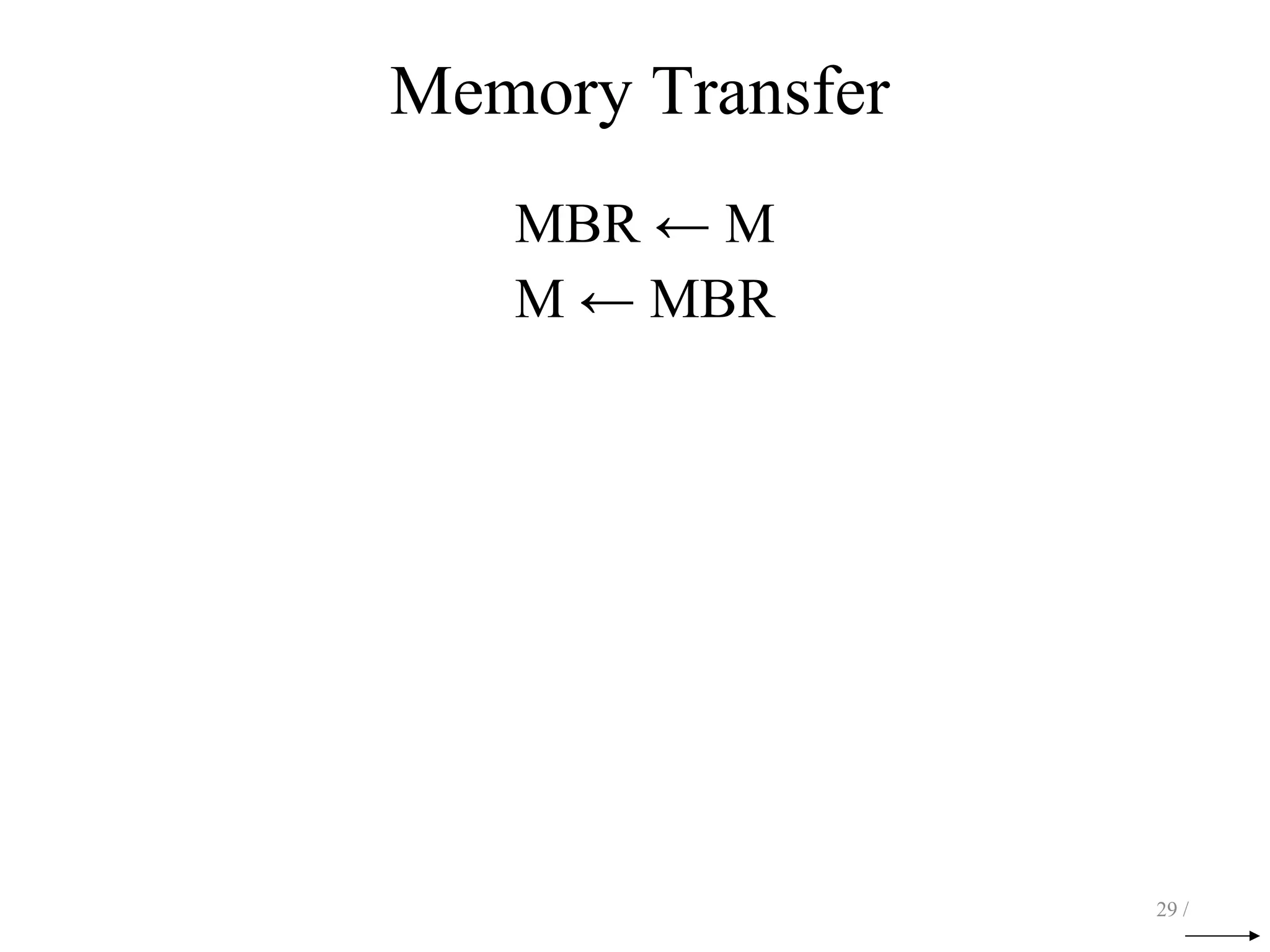

Memory Transfer
MBR ← M
M ← MBR
29 /

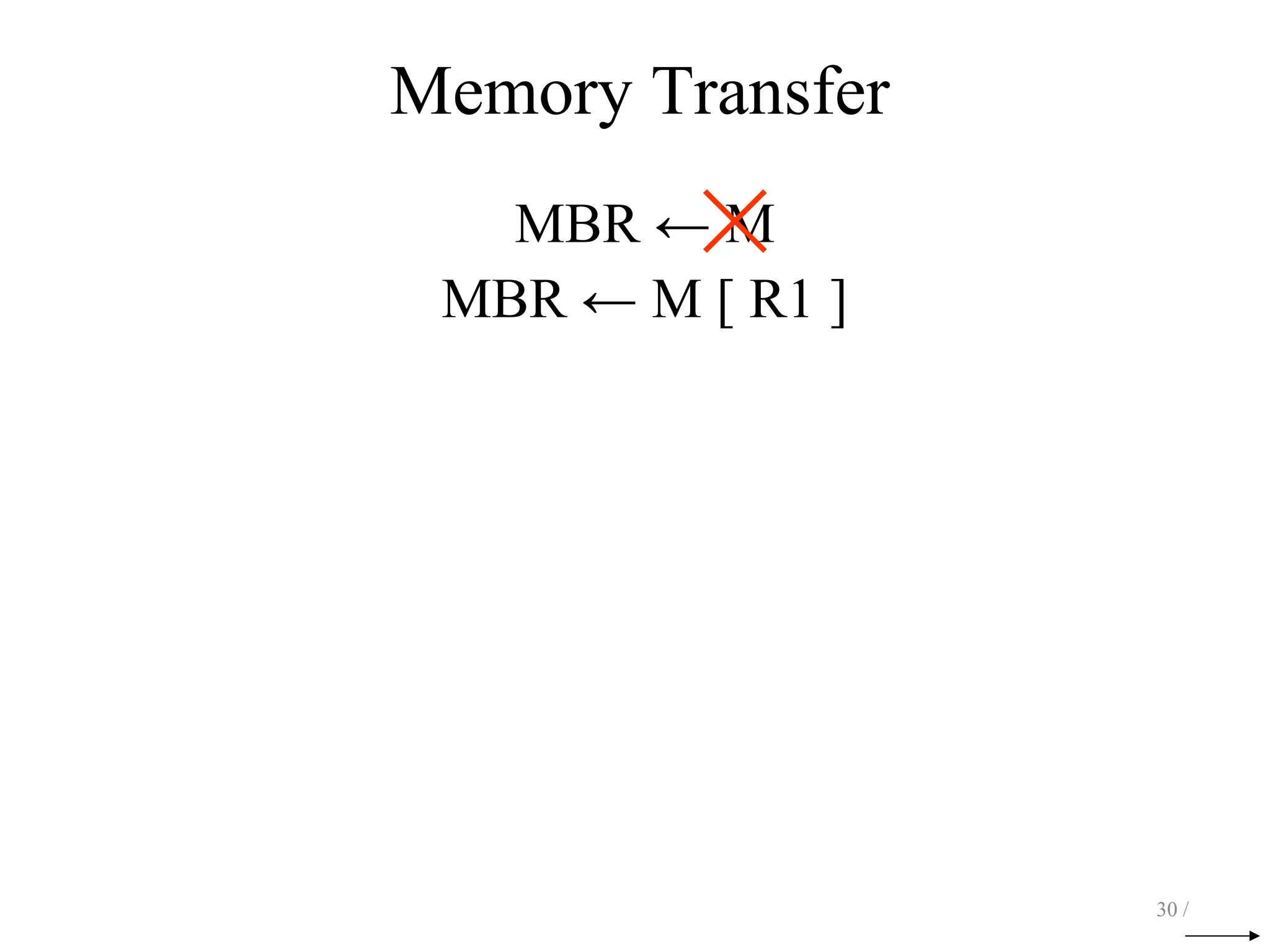

Memory Transfer
MBR ← M
MBR ← M [ R1 ]
30 /

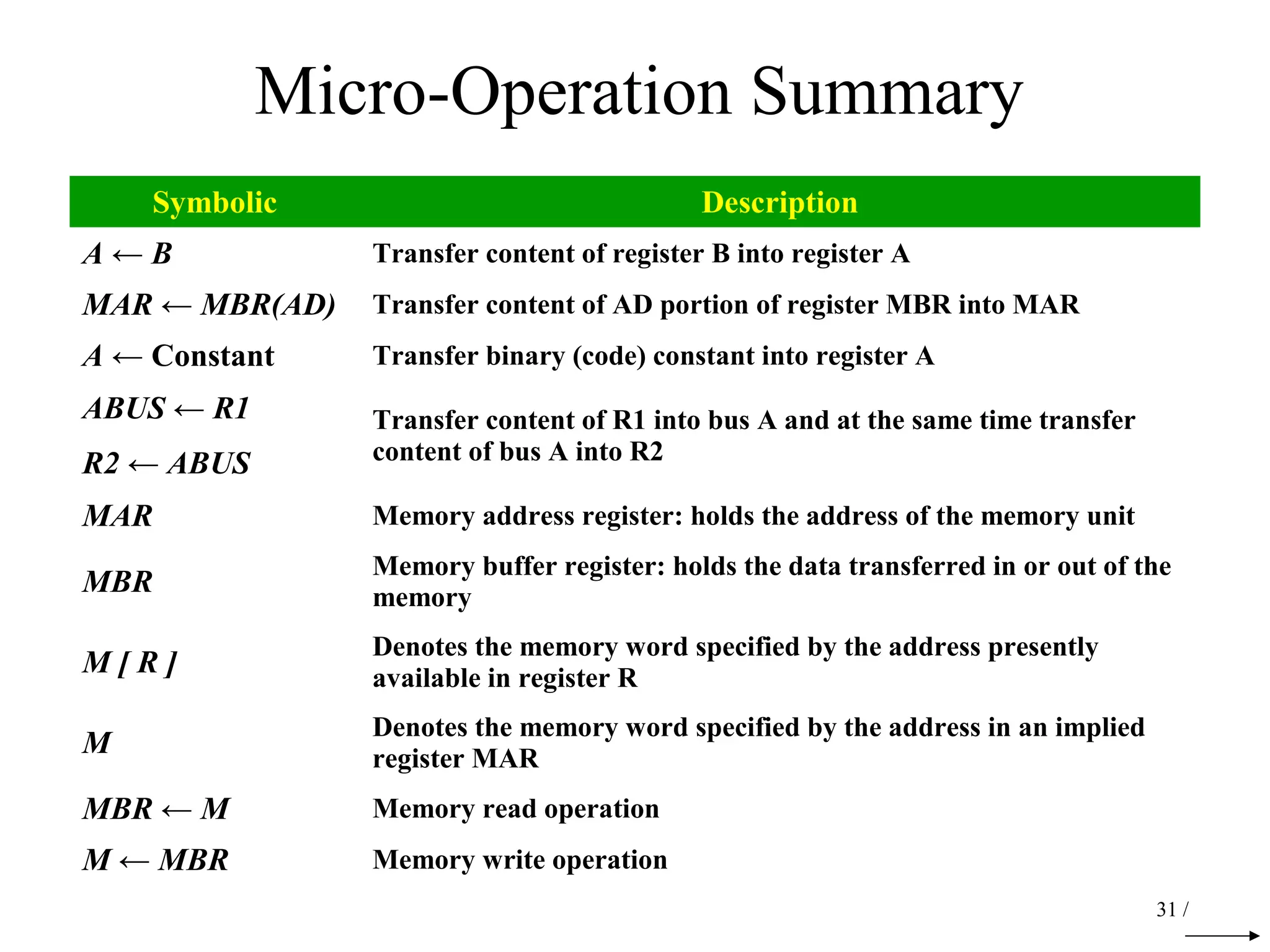

Micro-Operation Summary
31 /
Symbolic Description
A ← B Transfer content of register B into register A
MAR ← MBR(AD) Transfer content of AD portion of register MBR into MAR
A ← Constant Transfer binary (code) constant into register A
ABUS ← R1
R2 ← ABUS
Transfer content of R1 into bus A and at the same time transfer
content of bus A into R2
MAR Memory address register: holds the address of the memory unit
MBR
Memory buffer register: holds the data transferred in or out of the
memory
M [ R ]
Denotes the memory word specified by the address presently
available in register R
M
Denotes the memory word specified by the address in an implied
register MAR
MBR ← M Memory read operation
M ← MBR Memory write operation

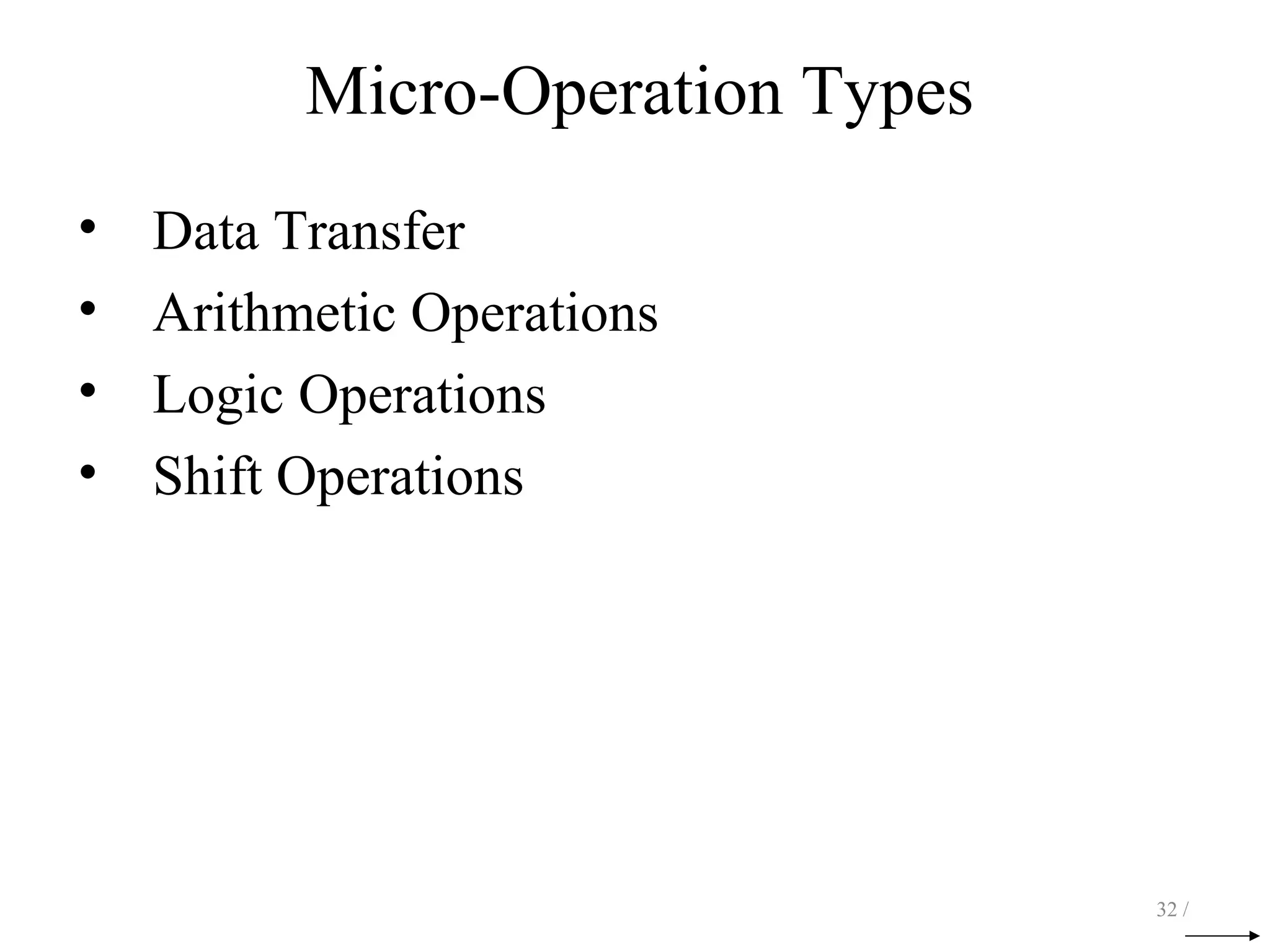

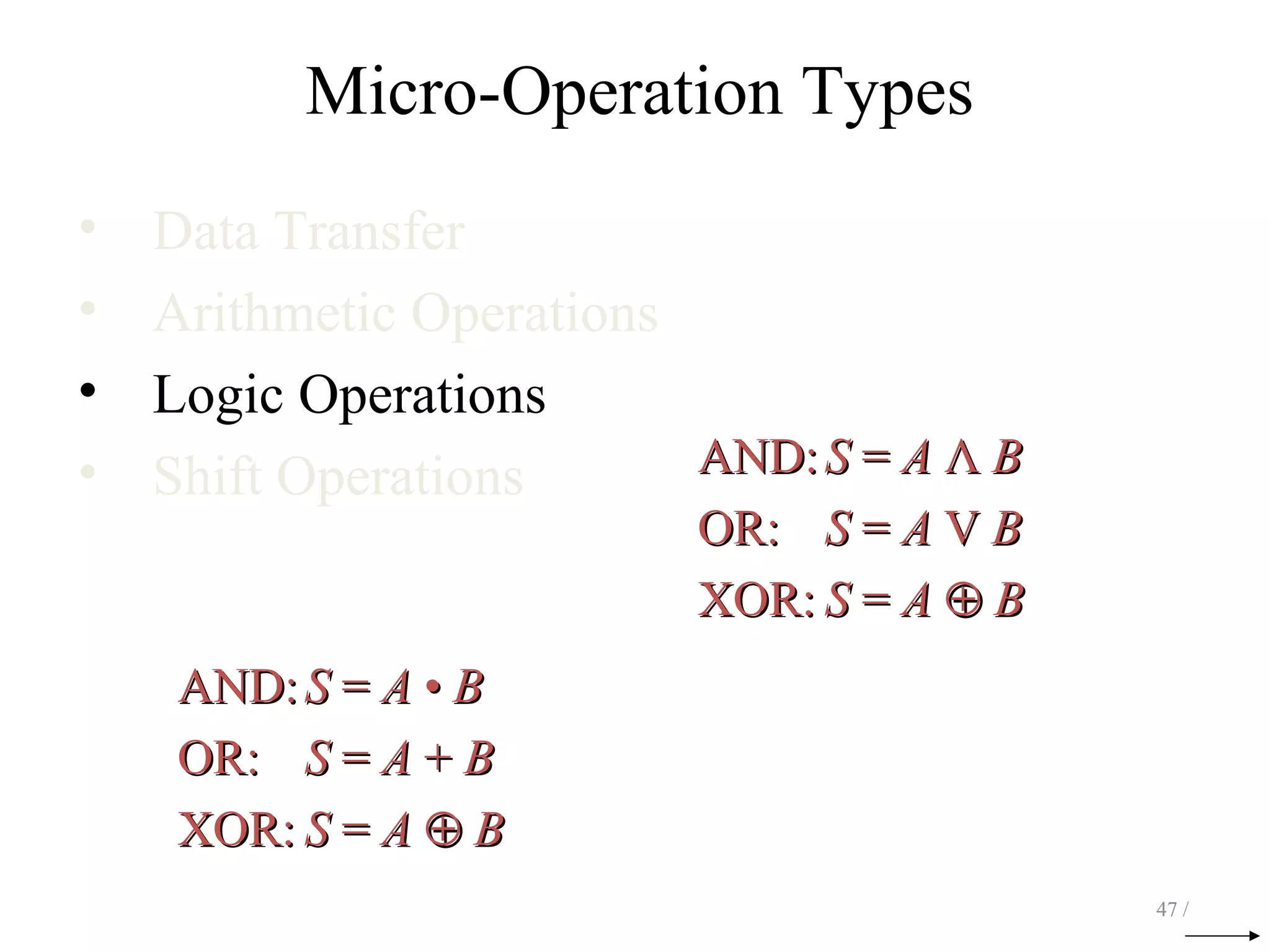

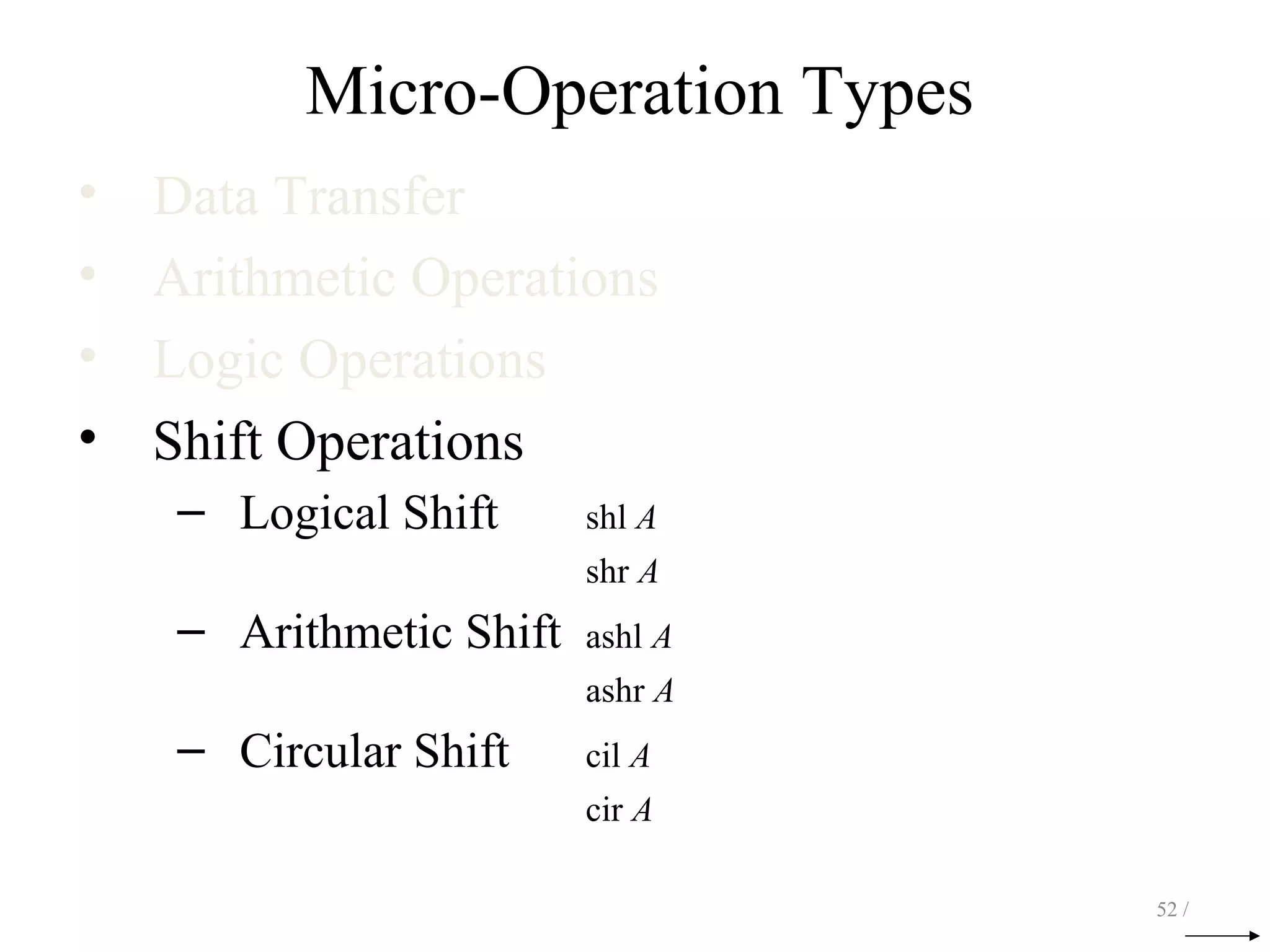

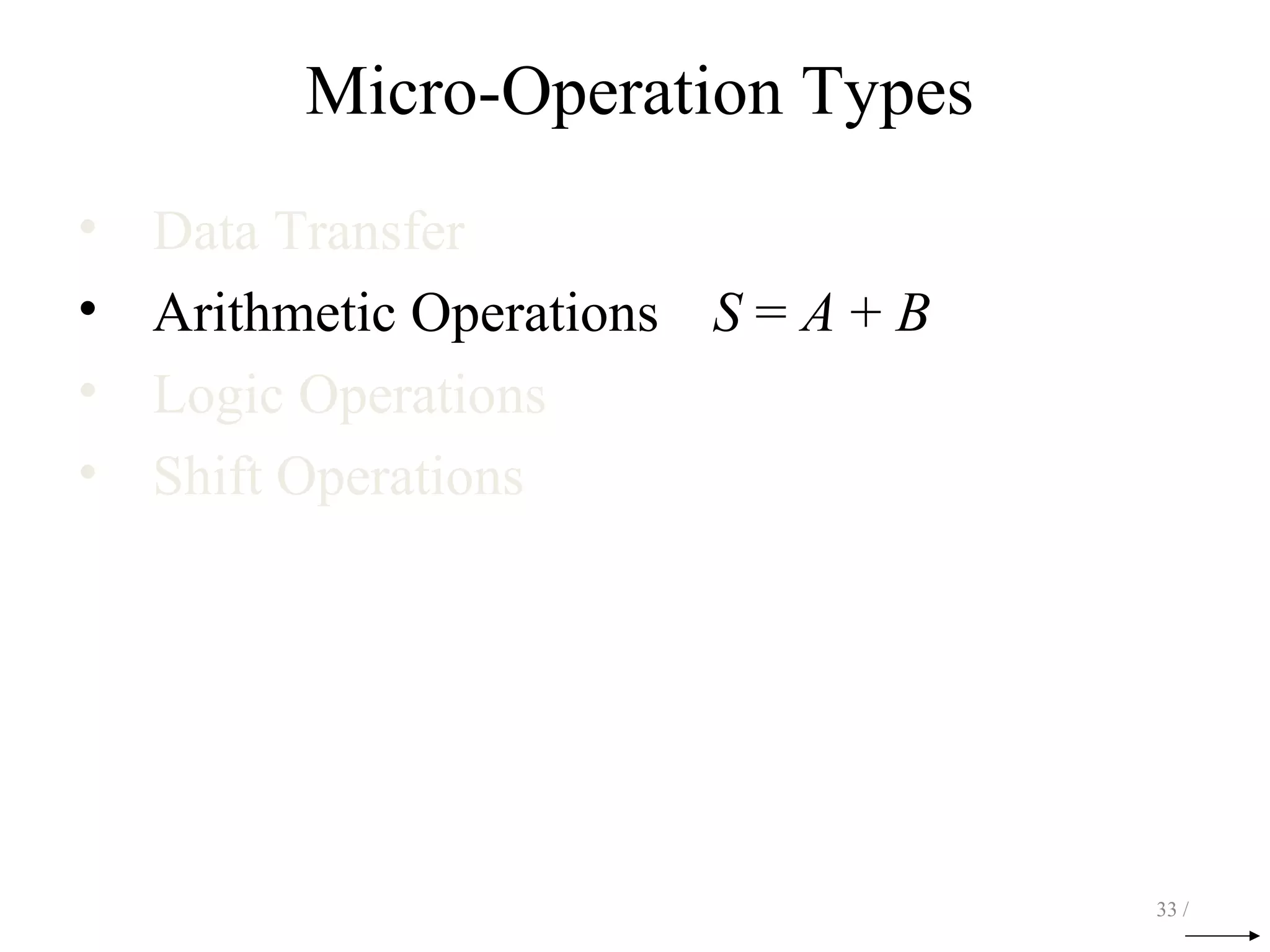

Micro-Operation Types
• Data Transfer
• Arithmetic Operations
• Logic Operations
• Shift Operations
32 /

• Data Transfer
• Arithmetic Operations S = A + B
33 /

Addition
S = A + B
34 /
Time (Propagation) delay = ?Time (Propagation) delay = ?

Addition
S = A + B
t = 0
35 /

Addition
S = A + B
t = τ
36 /

Addition
S = A + B
t = 2τ
37 /

Addition
S = A + B
t = 3τ
38 /

Addition
S = A + B
t = 4τ

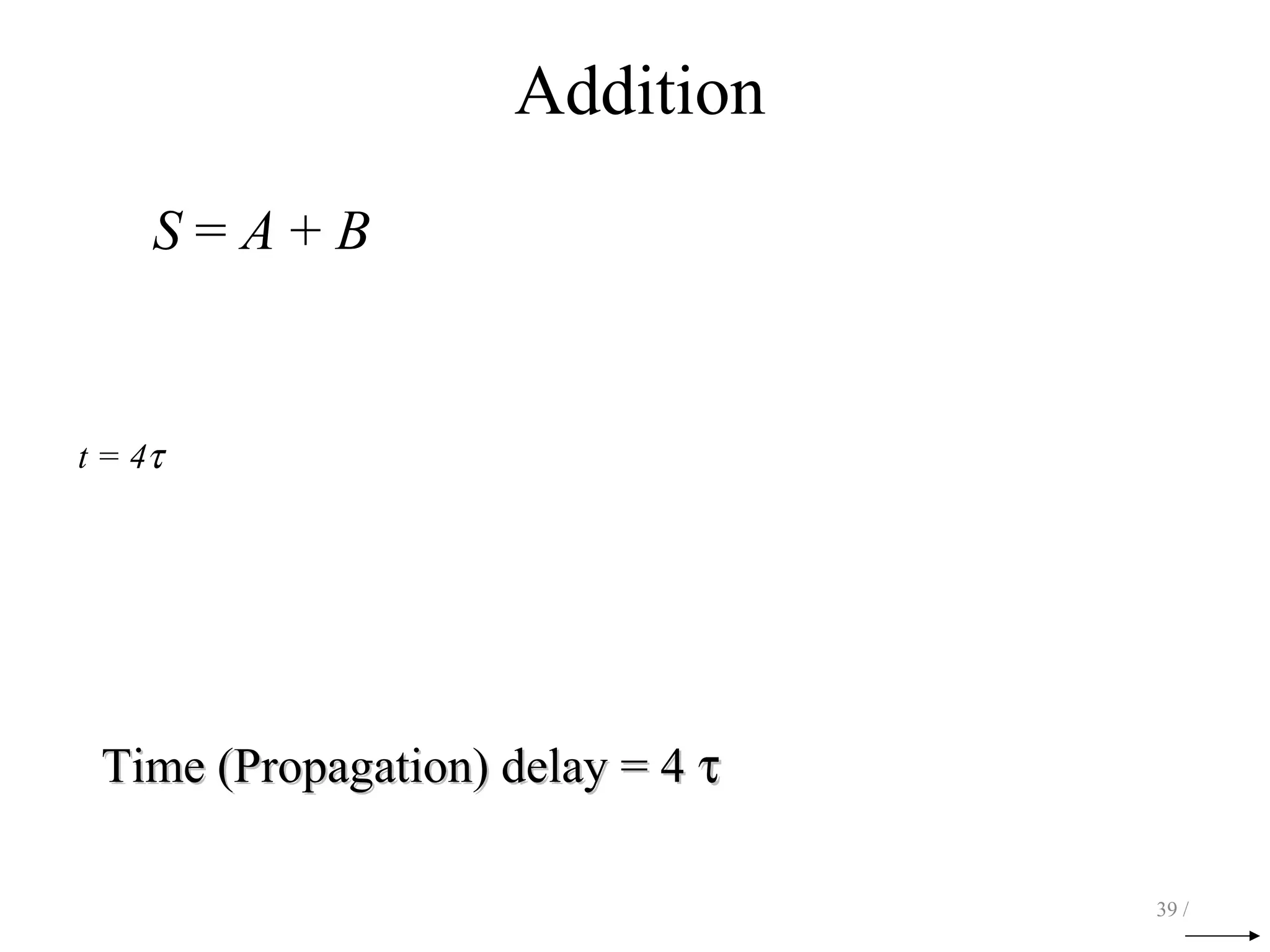

39 /
Time (Propagation) delay = 4Time (Propagation) delay = 4 ττ

Addition
EA ← A + B
40 /
FlagFlag

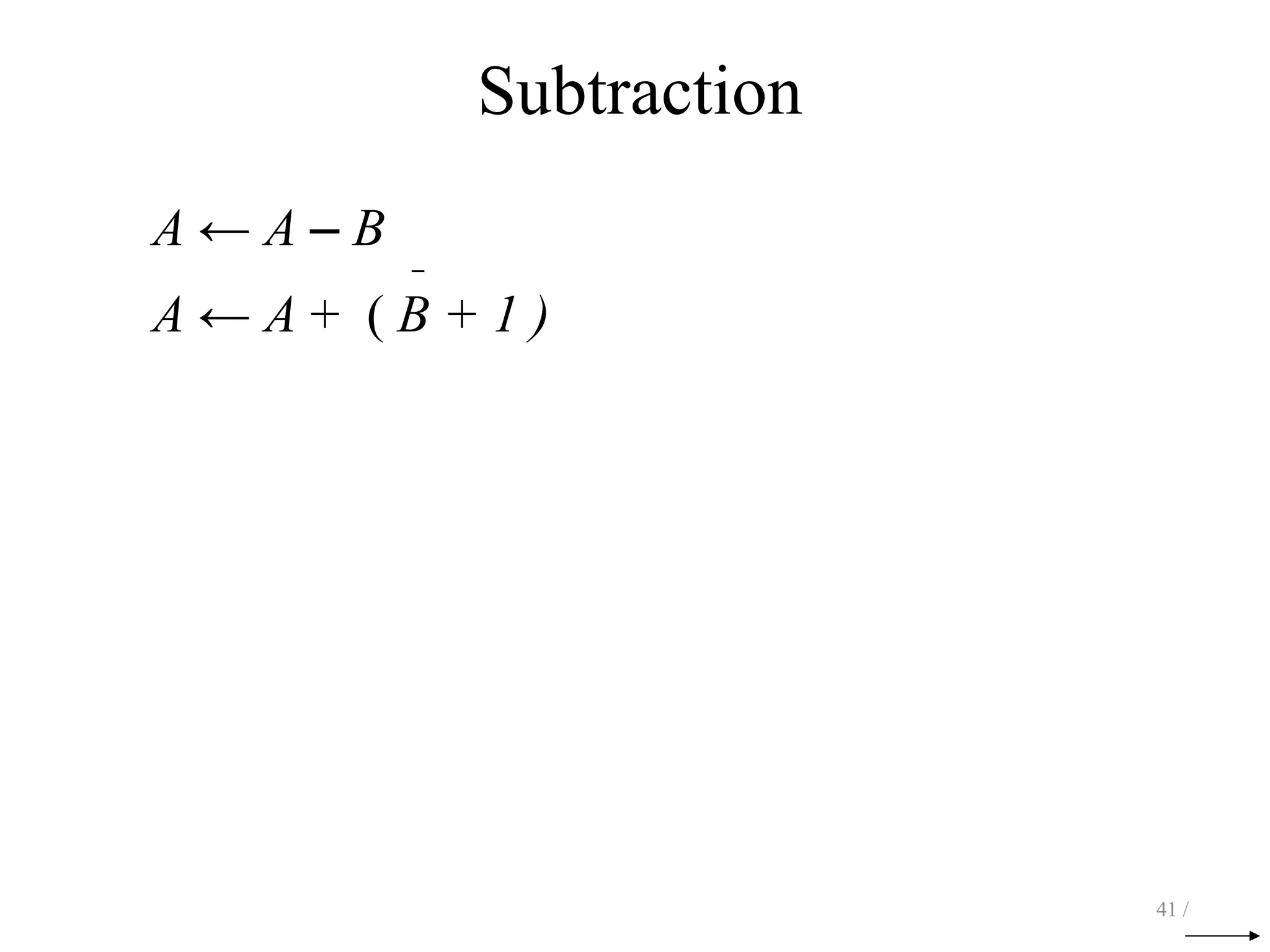

Subtraction
A ← A – B _
A ← A + ( B + 1 )
41 /

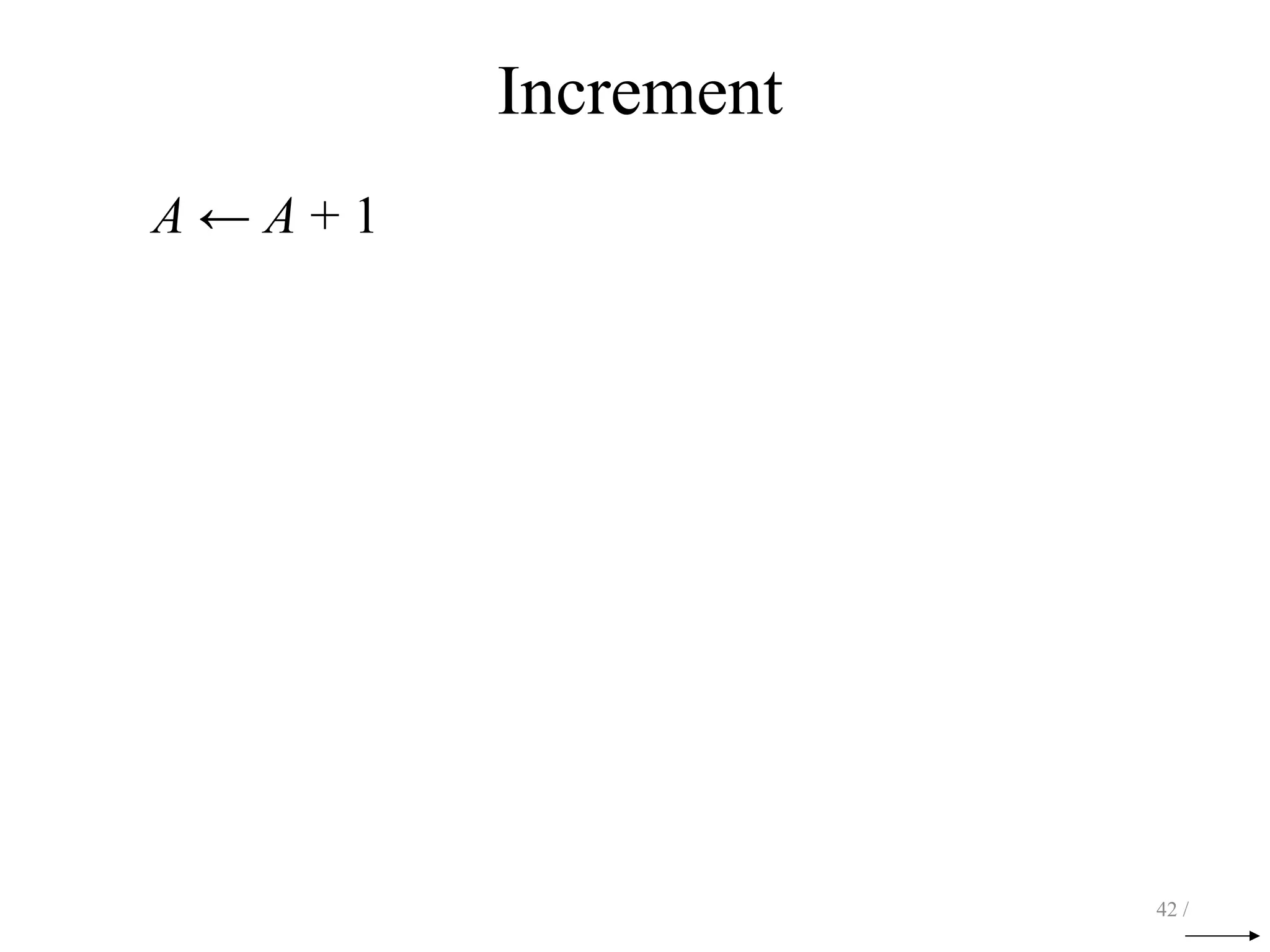

Arithmetic
45 /

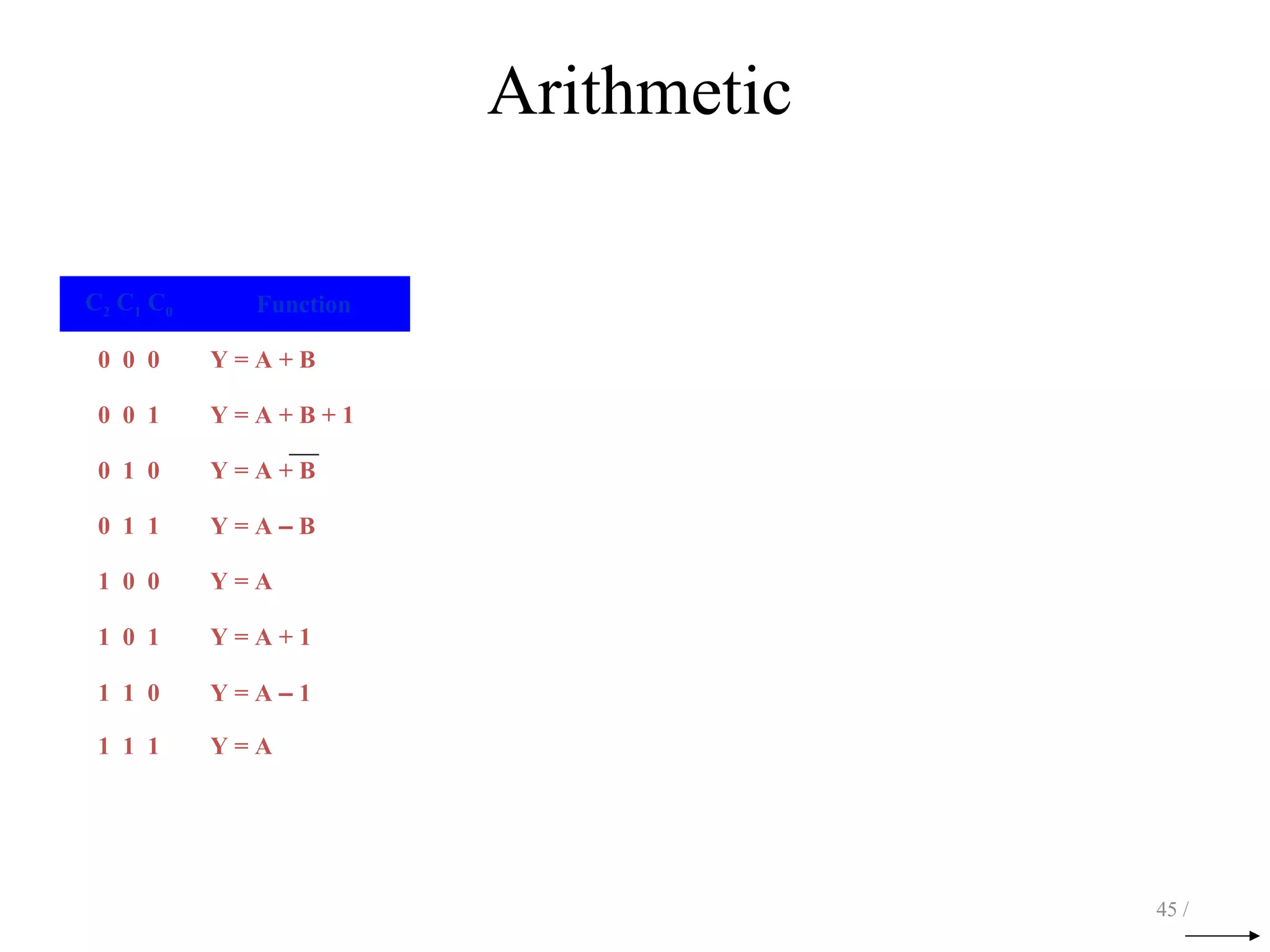

C2 C1 C0 Function
0 0 0 Y = A + B
0 0 1 Y = A + B + 1
0 1 0 Y = A + B
0 1 1 Y = A – B
1 0 0 Y = A
1 0 1 Y = A + 1
1 1 0 Y = A – 1
1 1 1 Y = A

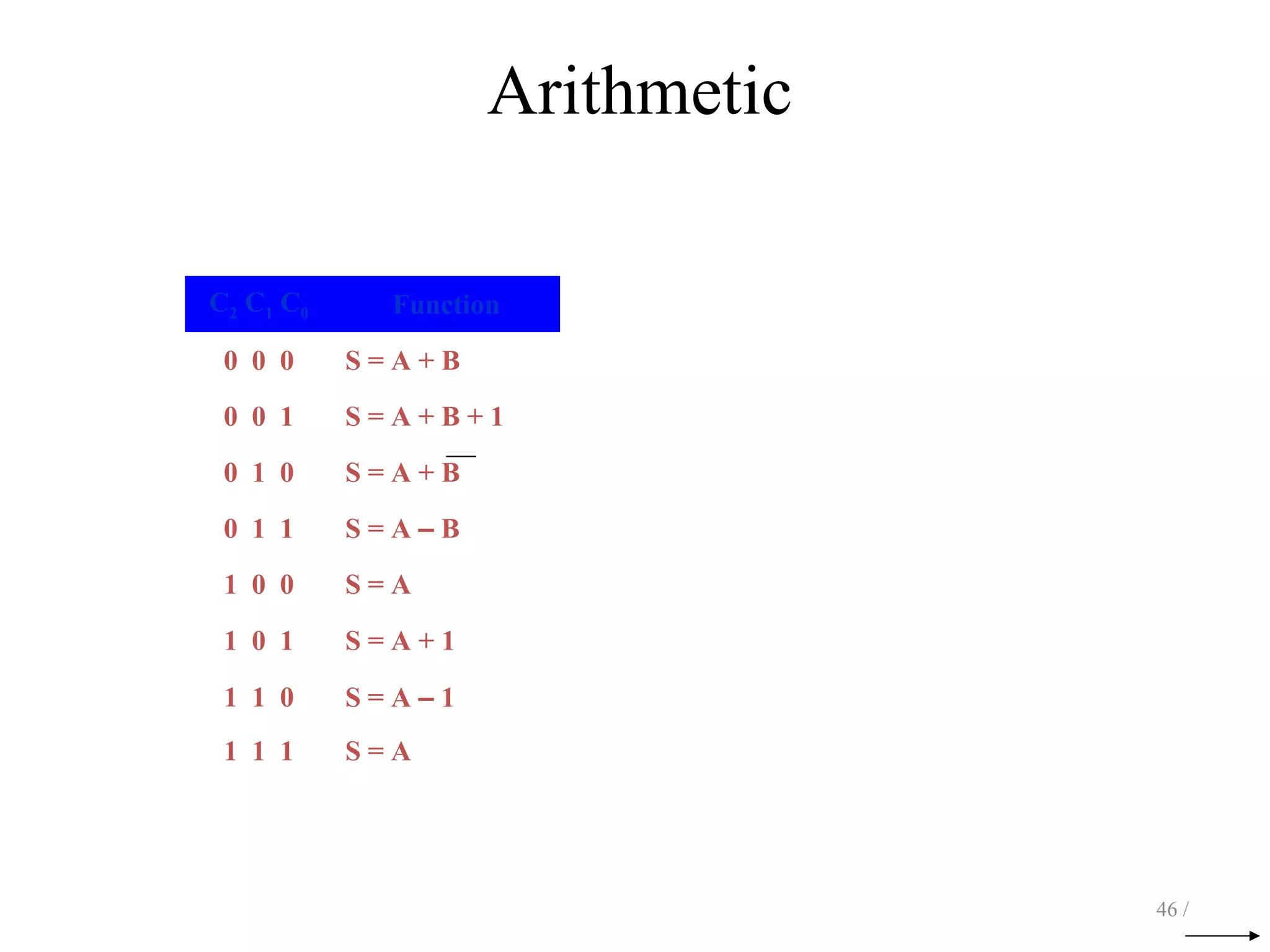

Arithmetic
46 /
C2 C1 C0 Function
0 0 0 S = A + B
0 0 1 S = A + B + 1
0 1 0 S = A + B
0 1 1 S = A – B
1 0 0 S = A
1 0 1 S = A + 1
1 1 0 S = A – 1
1 1 1 S = A

• Data Transfer
47 /
AND:AND: SS == AA ΛΛ BB
OR:OR: SS == AA VV BB
XOR:XOR: SS == AA ⊕⊕ BB
AND:AND: SS == AA •• BB
OR:OR: SS == AA ++ BB
XOR:XOR: SS == AA ⊕⊕ BB

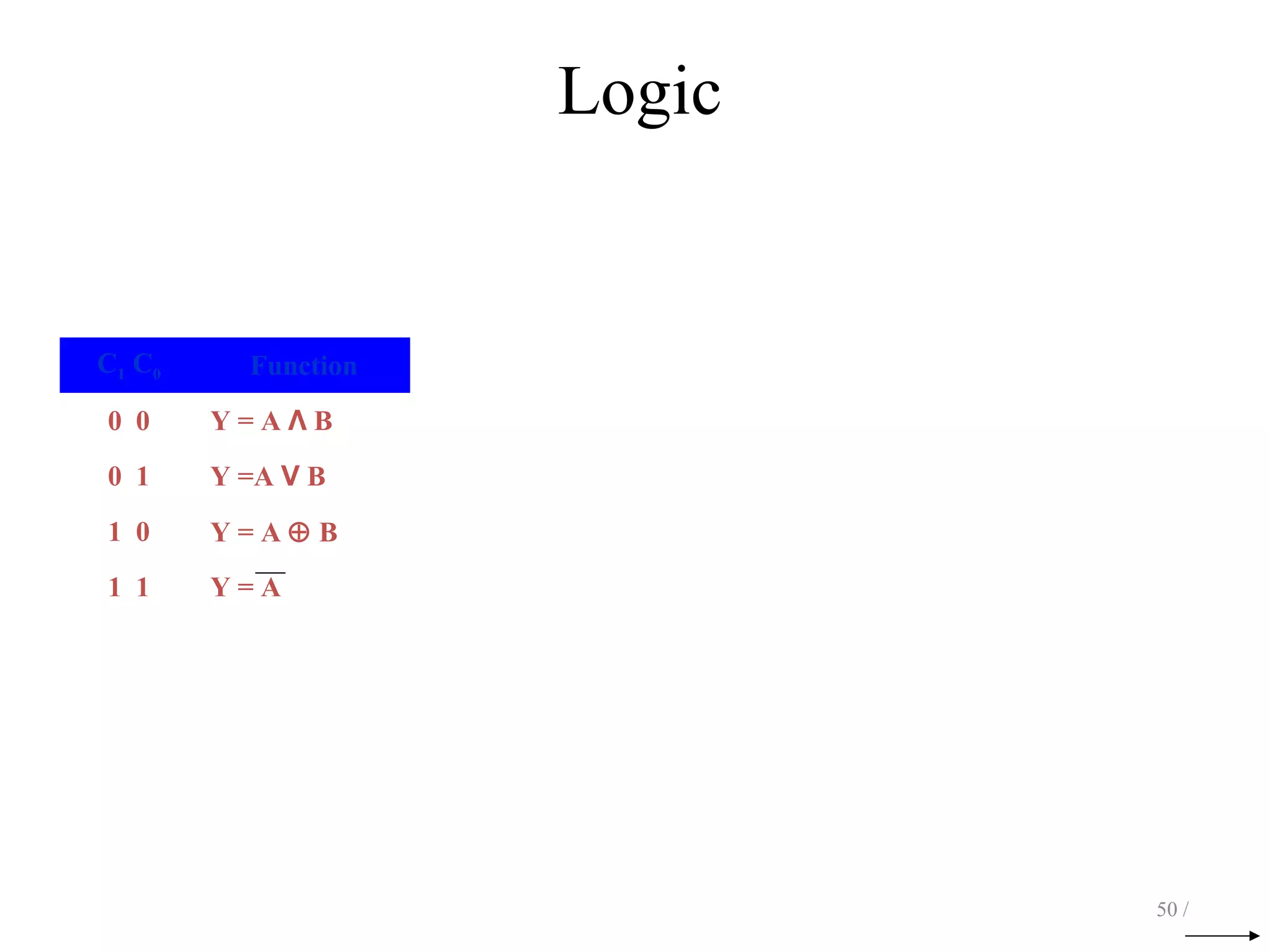

Logic
50 /
C1 C0 Function
0 0 Y = A Λ B
0 1 Y =A V B
1 0 Y = A ⊕ B
1 1 Y = A

Logic
51 /

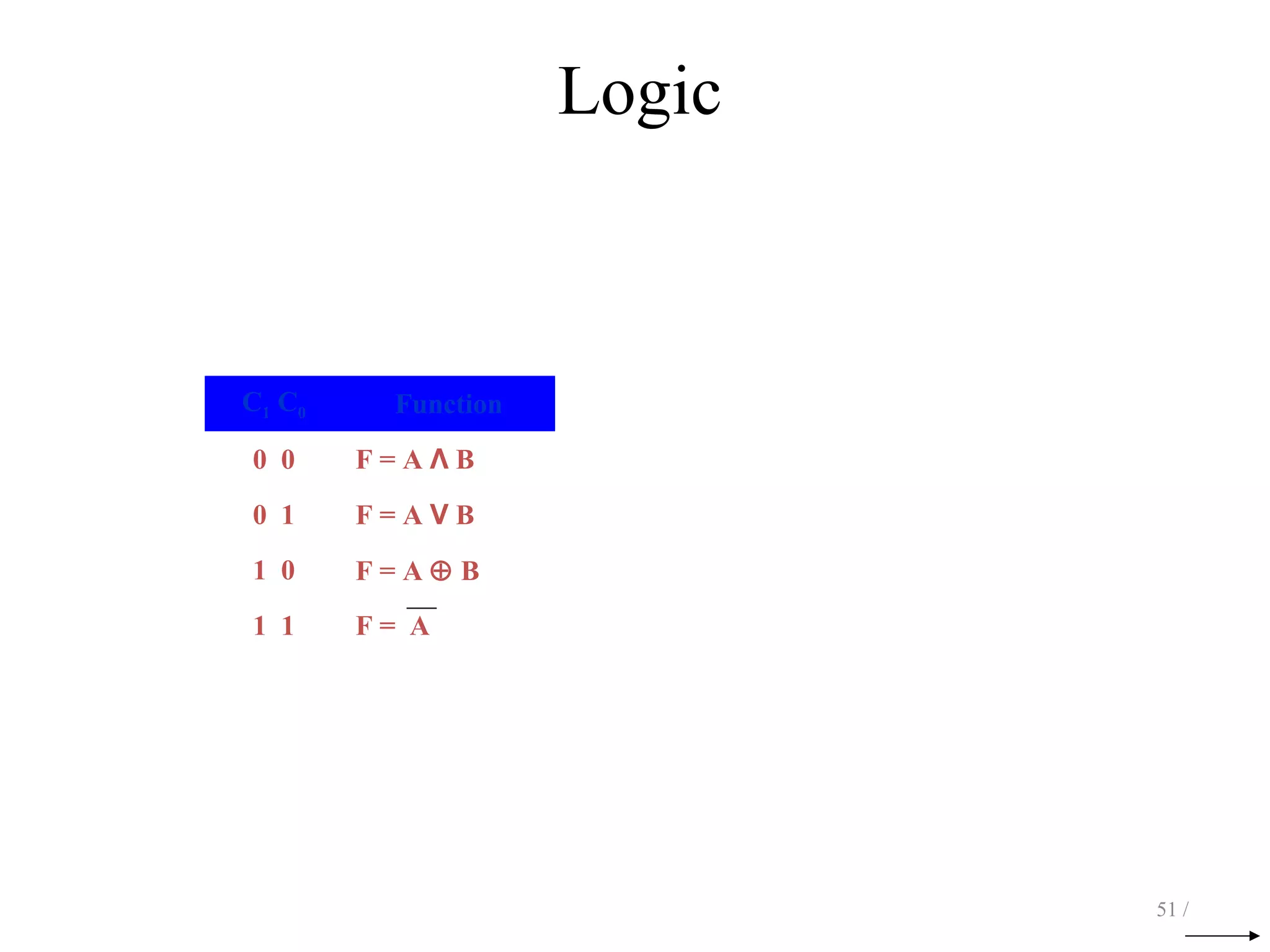

C1 C0 Function
0 0 F = A Λ B
0 1 F = A V B
1 0 F = A ⊕ B
1 1 F = A

• Data Transfer
– Logical Shift shl A
shr A
– Arithmetic Shift ashl A
ashr A
– Circular Shift cil A
cir A
52 /

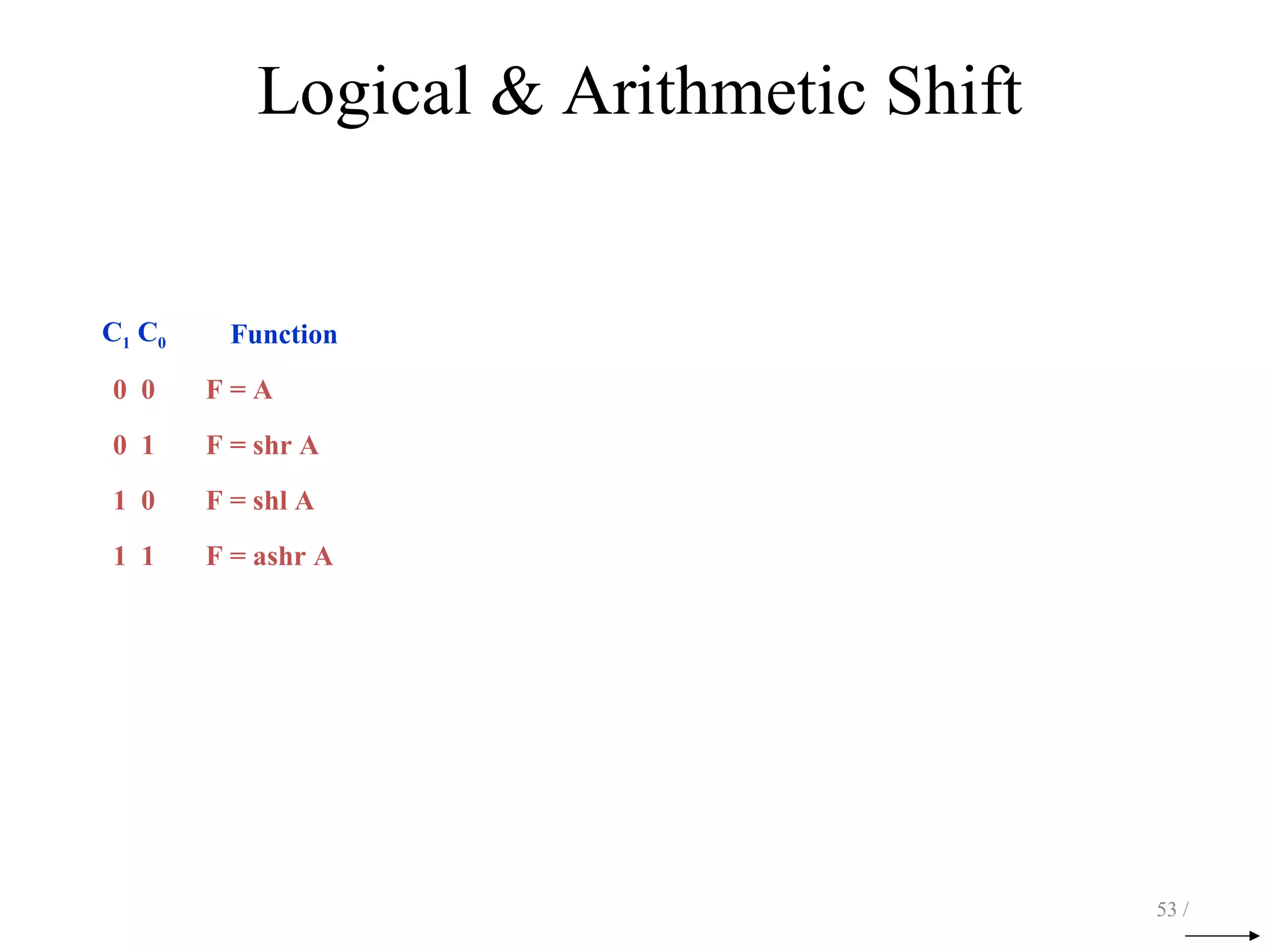

Logical & Arithmetic Shift
53 /
C1 C0 Function
0 0 F = A
0 1 F = shr A
1 0 F = shl A
1 1 F = ashr A

54 /
C1 C0 Function
0 0 F = A
0 1 F = shr A
1 0 F = shl A
1 1 F = ashr A

55 /
C1 C0 Function
0 0 F = A
0 1 F = shr A
1 0 F = shl A
1 1 F = ashr A

56 /
C1 C0 Function
0 0 F = A
0 1 F = shr A
1 0 F = shl A
1 1 F = ashr A

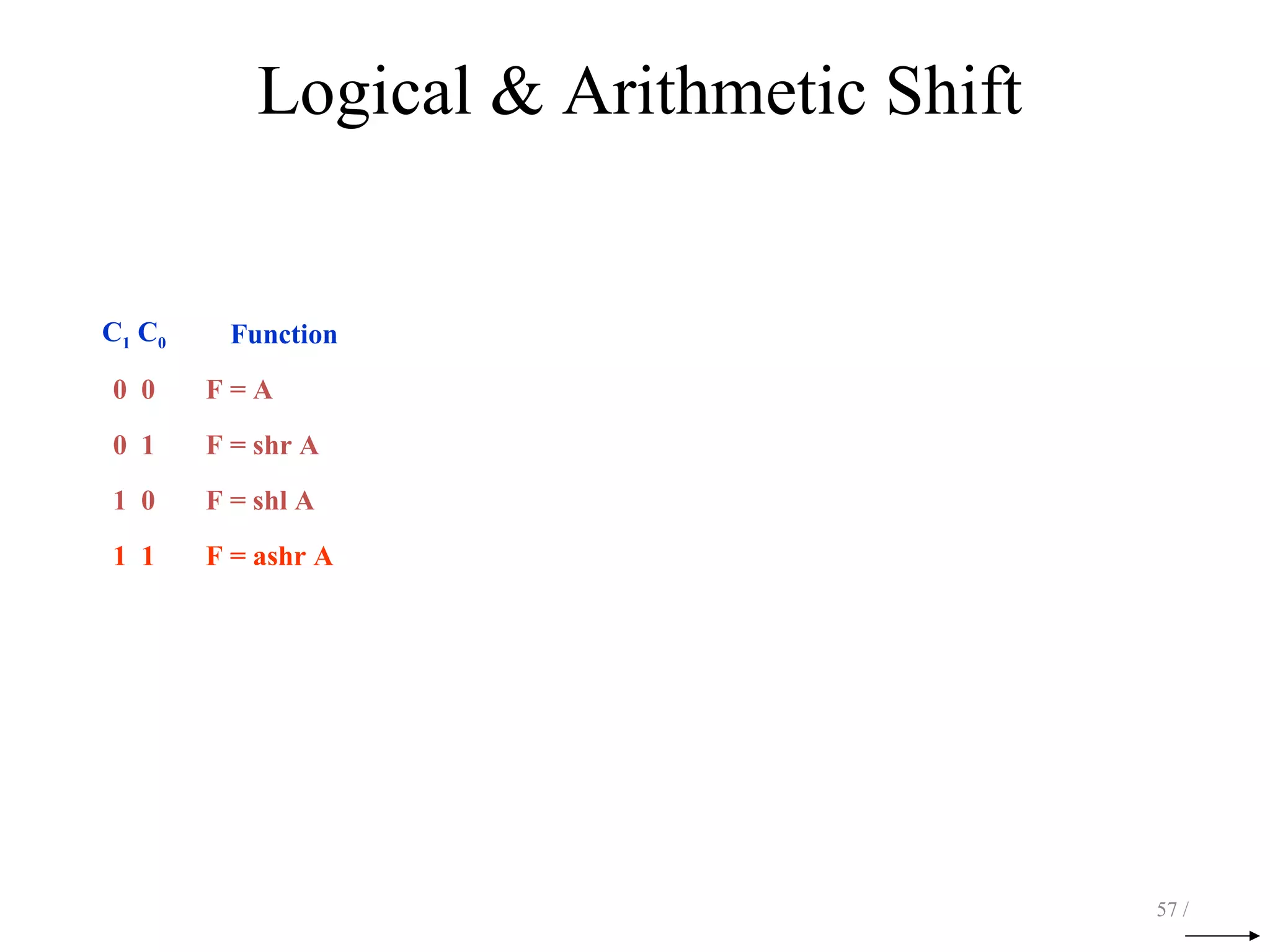

57 /
C1 C0 Function
0 0 F = A
0 1 F = shr A
1 0 F = shl A
1 1 F = ashr A

Logical, Arithmetic, & Circular
Shift
58 /

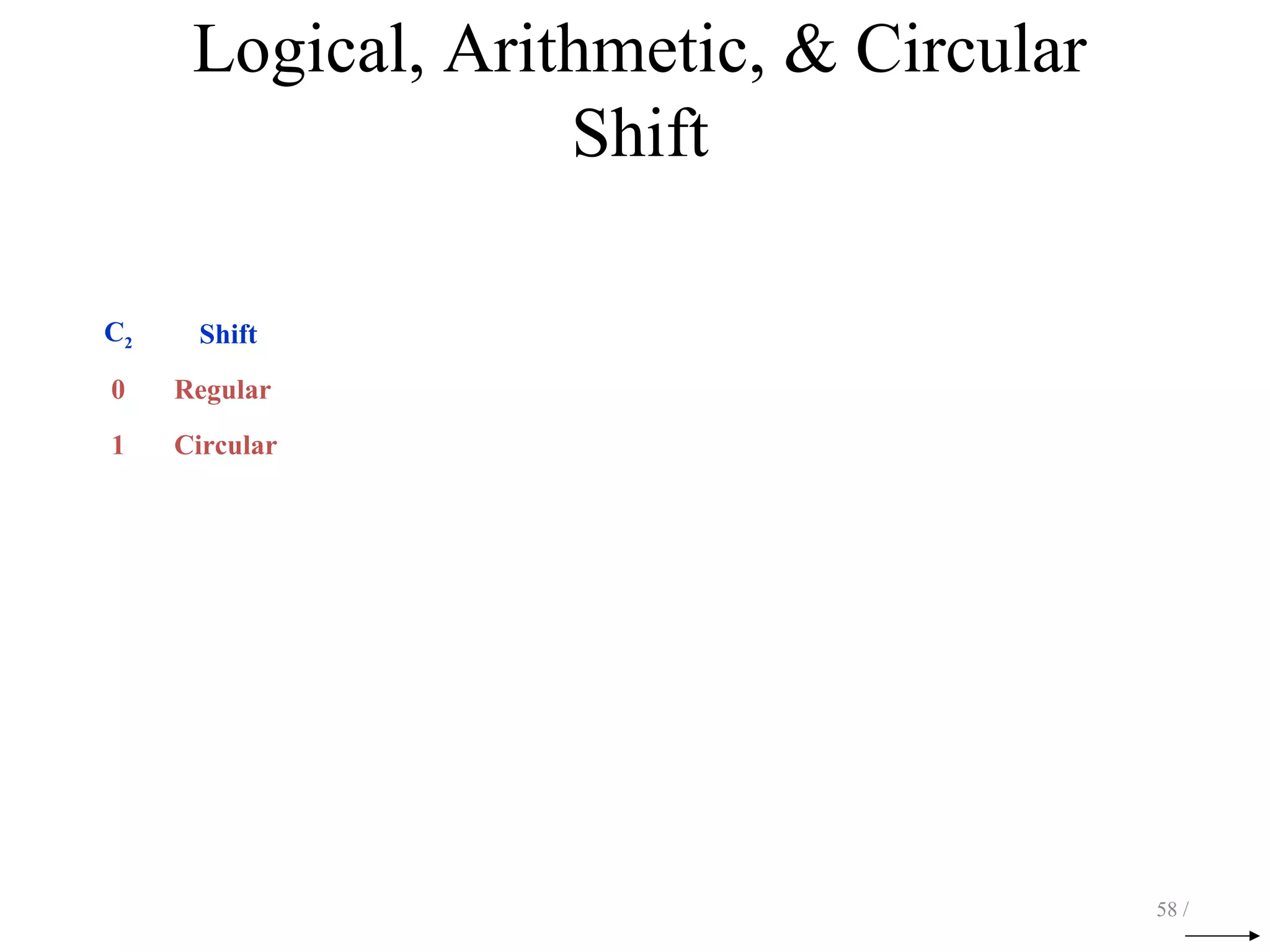

C2 Shift
0 Regular
1 Circular

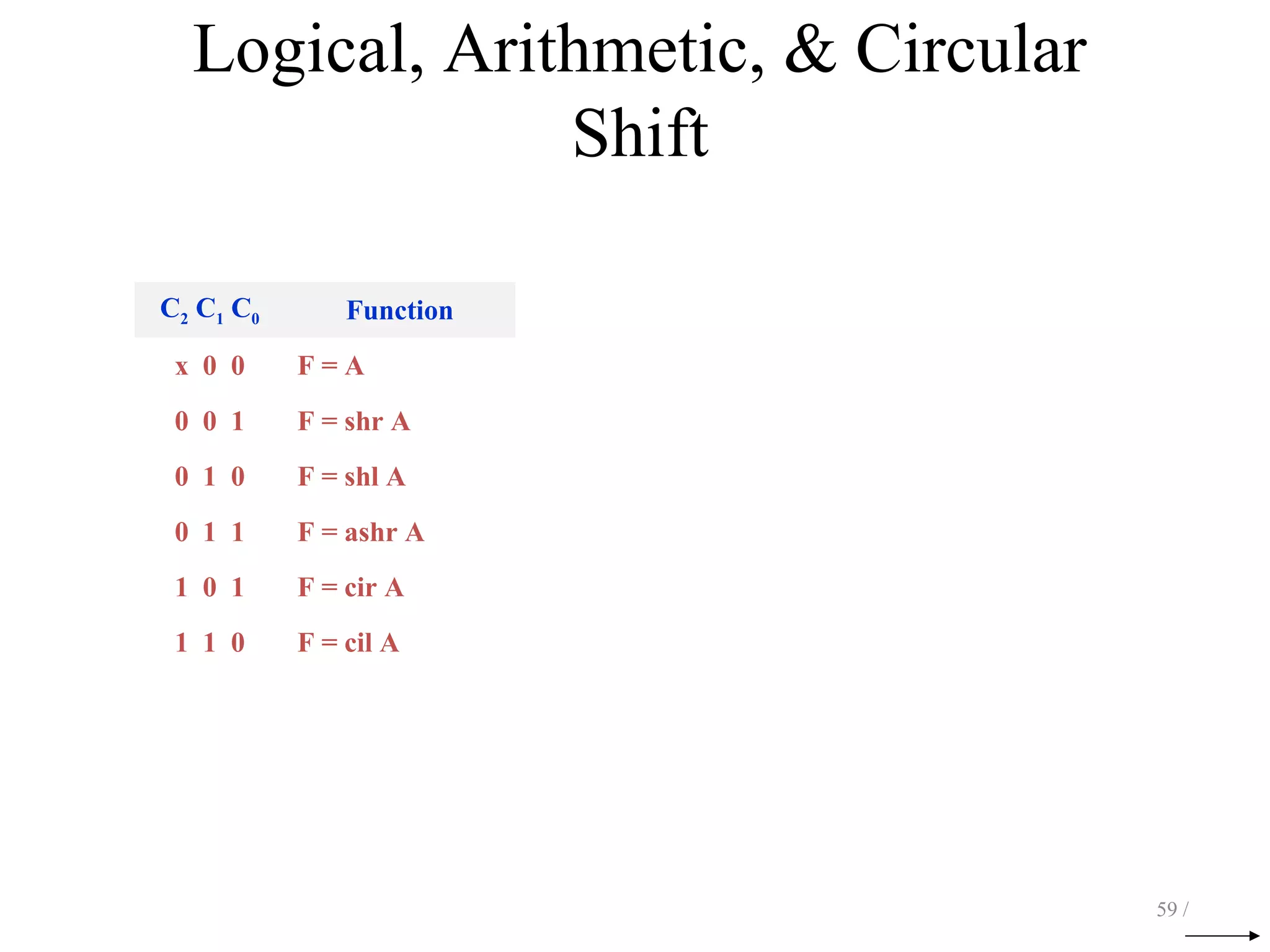

Logical, Arithmetic, & Circular
Shift
59 /
C2 C1 C0 Function
x 0 0 F = A
0 0 1 F = shr A
0 1 0 F = shl A
0 1 1 F = ashr A
1 0 1 F = cir A
1 1 0 F = cil A

Arithmetic and Logic Unit (ALU)
60 /

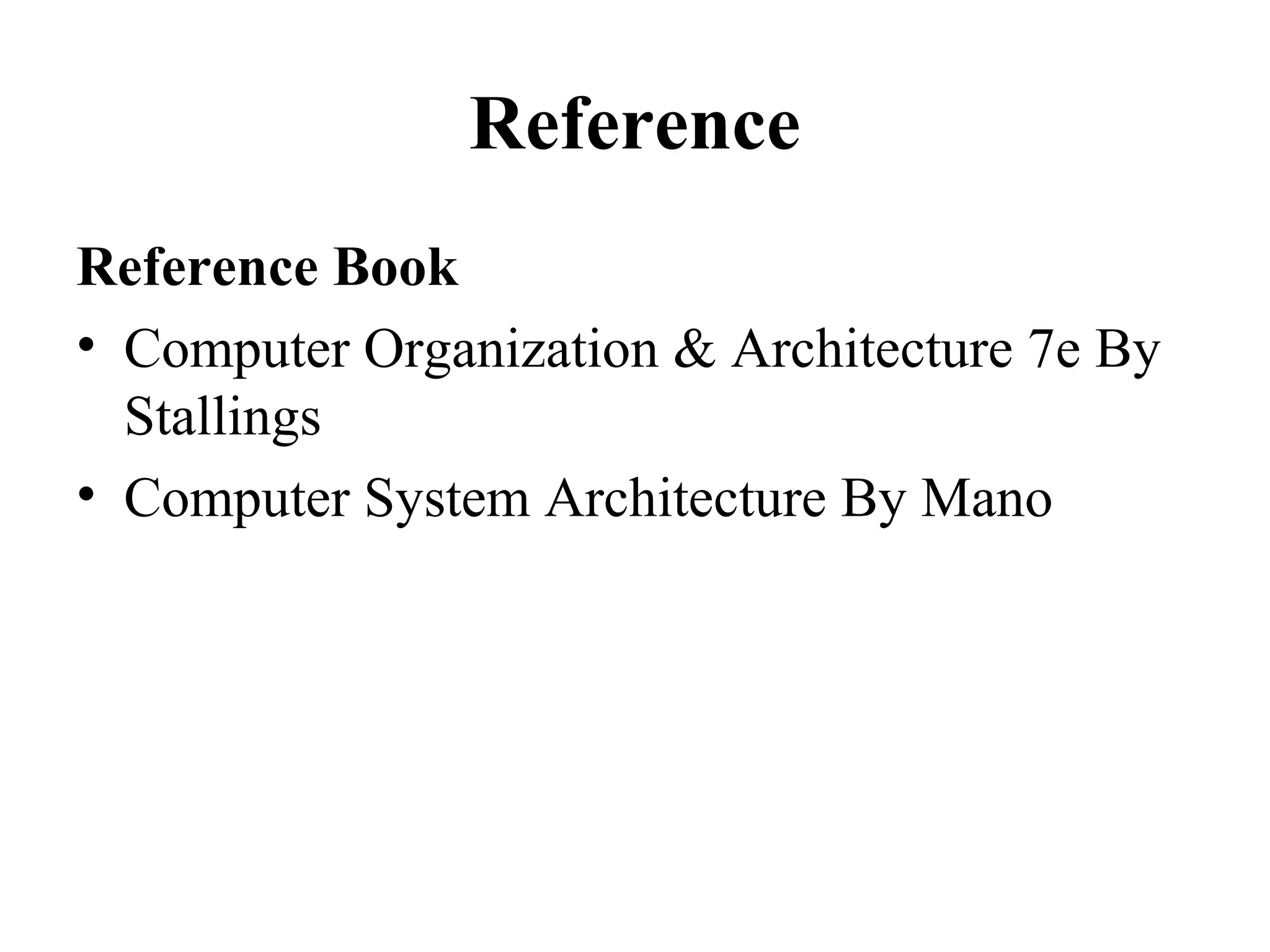

Reference
Reference Book
• Computer Organization & Architecture 7e By
Stallings
• Computer System Architecture By Mano
