PowerFlex 525 Embedded EtherNet/IP Adapter
User Manual

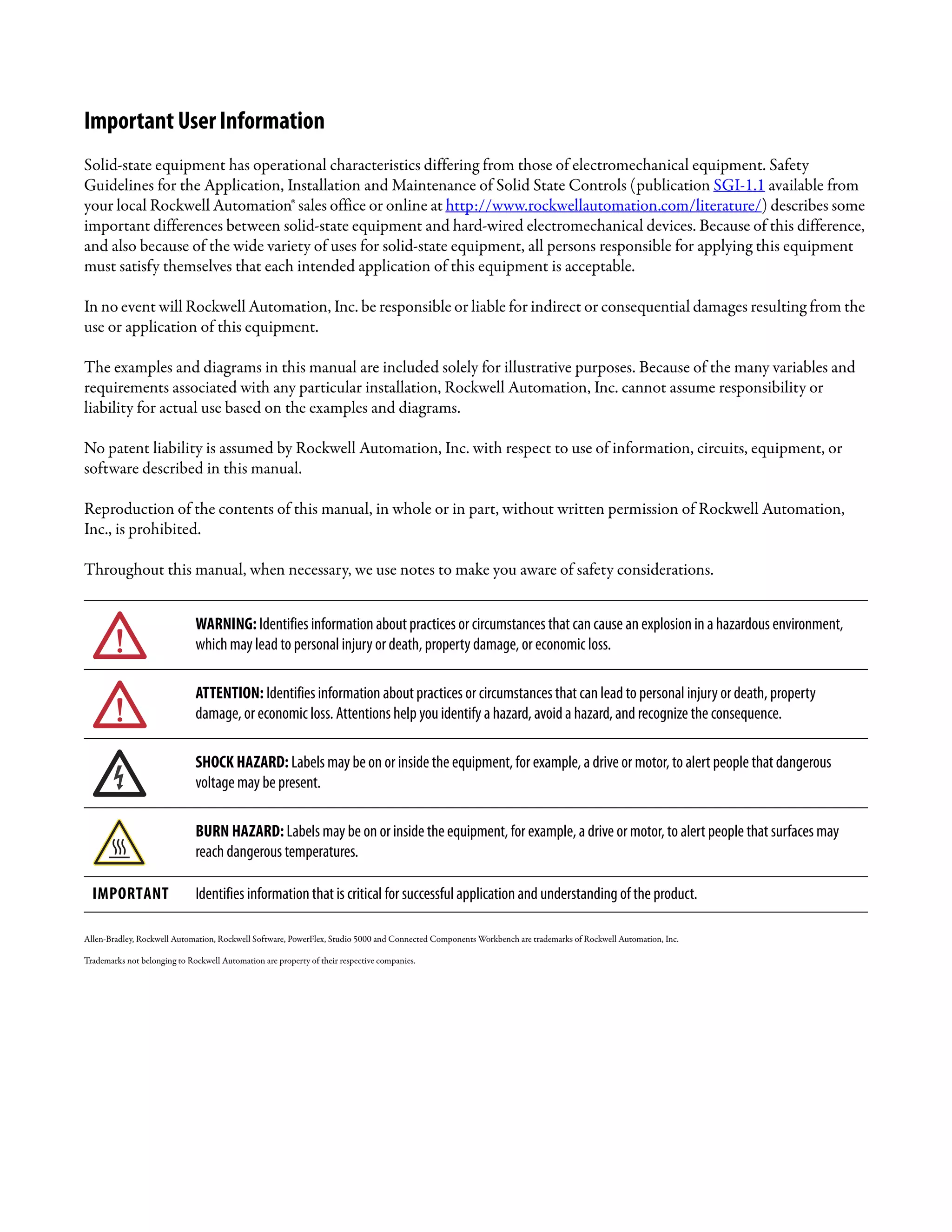

Important User Information
Solid-state equipment has operational characteristics differing from those of electromechanical equipment. Safety
Guidelines for the Application, Installation and Maintenance of Solid State Controls (publication SGI-1.1 available from
your local Rockwell Automation® sales office or online at http://www.rockwellautomation.com/literature/) describes some
important differences between solid-state equipment and hard-wired electromechanical devices. Because of this difference,
and also because of the wide variety of uses for solid-state equipment, all persons responsible for applying this equipment
must satisfy themselves that each intended application of this equipment is acceptable.
In no event will Rockwell Automation, Inc. be responsible or liable for indirect or consequential damages resulting from the
use or application of this equipment.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and
requirements associated with any particular installation, Rockwell Automation, Inc. cannot assume responsibility or
liability for actual use based on the examples and diagrams.
No patent liability is assumed by Rockwell Automation, Inc. with respect to use of information, circuits, equipment, or
software described in this manual.
Reproduction of the contents of this manual, in whole or in part, without written permission of Rockwell Automation,
Inc., is prohibited.
Throughout this manual, when necessary, we use notes to make you aware of safety considerations.
Allen-Bradley, Rockwell Automation, Rockwell Software, PowerFlex, Studio 5000 and Connected Components Workbench are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
WARNING: Identifies information about practices or circumstances that can cause an explosion in a hazardous environment,
which may lead to personal injury or death, property damage, or economic loss.
ATTENTION: Identifies information about practices or circumstances that can lead to personal injury or death, property
damage, or economic loss. Attentions help you identify a hazard, avoid a hazard, and recognize the consequence.
SHOCK HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that dangerous
voltage may be present.
BURN HAZARD: Labels may be on or inside the equipment, for example, a drive or motor, to alert people that surfaces may
reach dangerous temperatures.
IMPORTANT Identifies information that is critical for successful application and understanding of the product.

Rockwell Automation Publication 520COM-UM001B-EN-E - March 2013 3

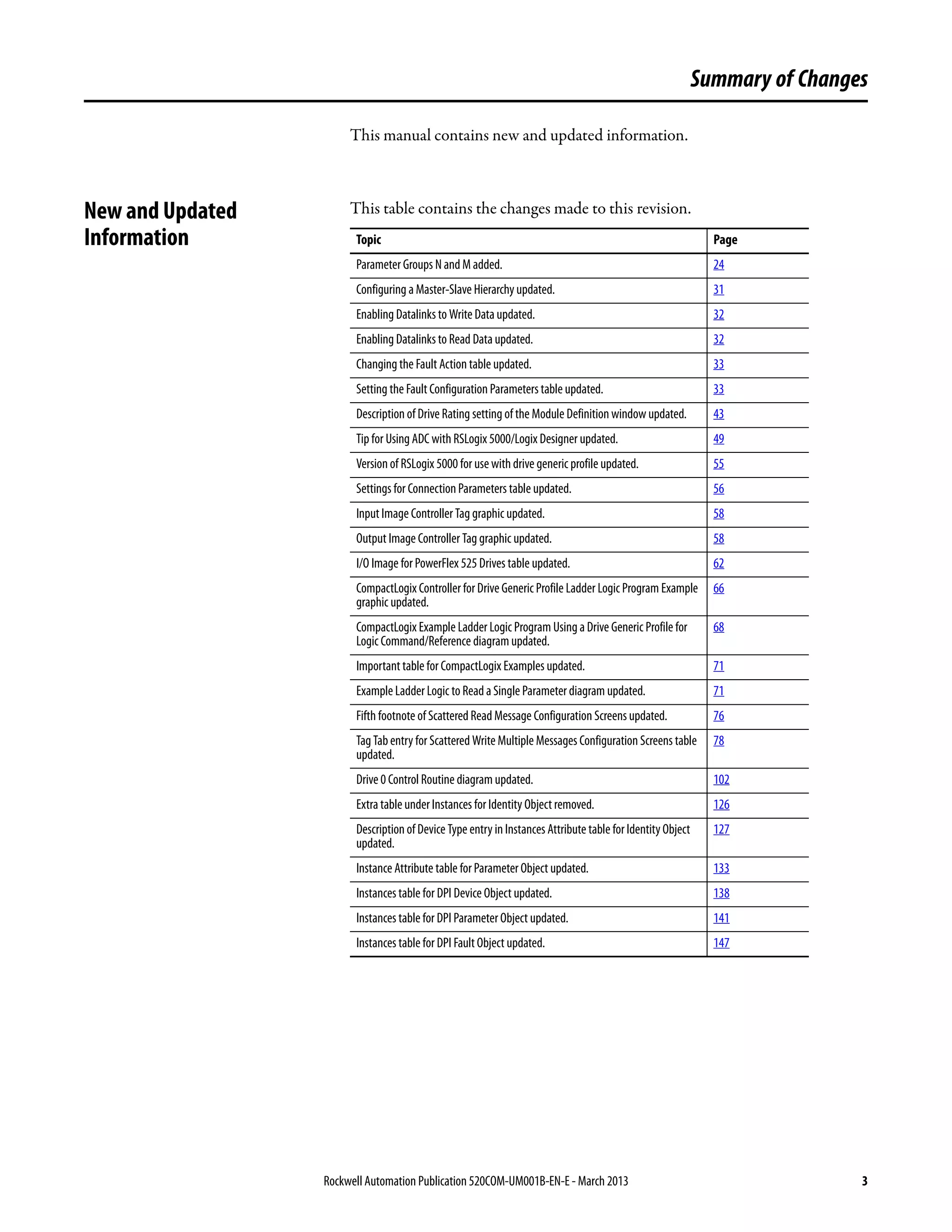

Summary of Changes
This manual contains new and updated information.
New and Updated
Information
This table contains the changes made to this revision.
Topic Page
Parameter Groups N and M added. 24

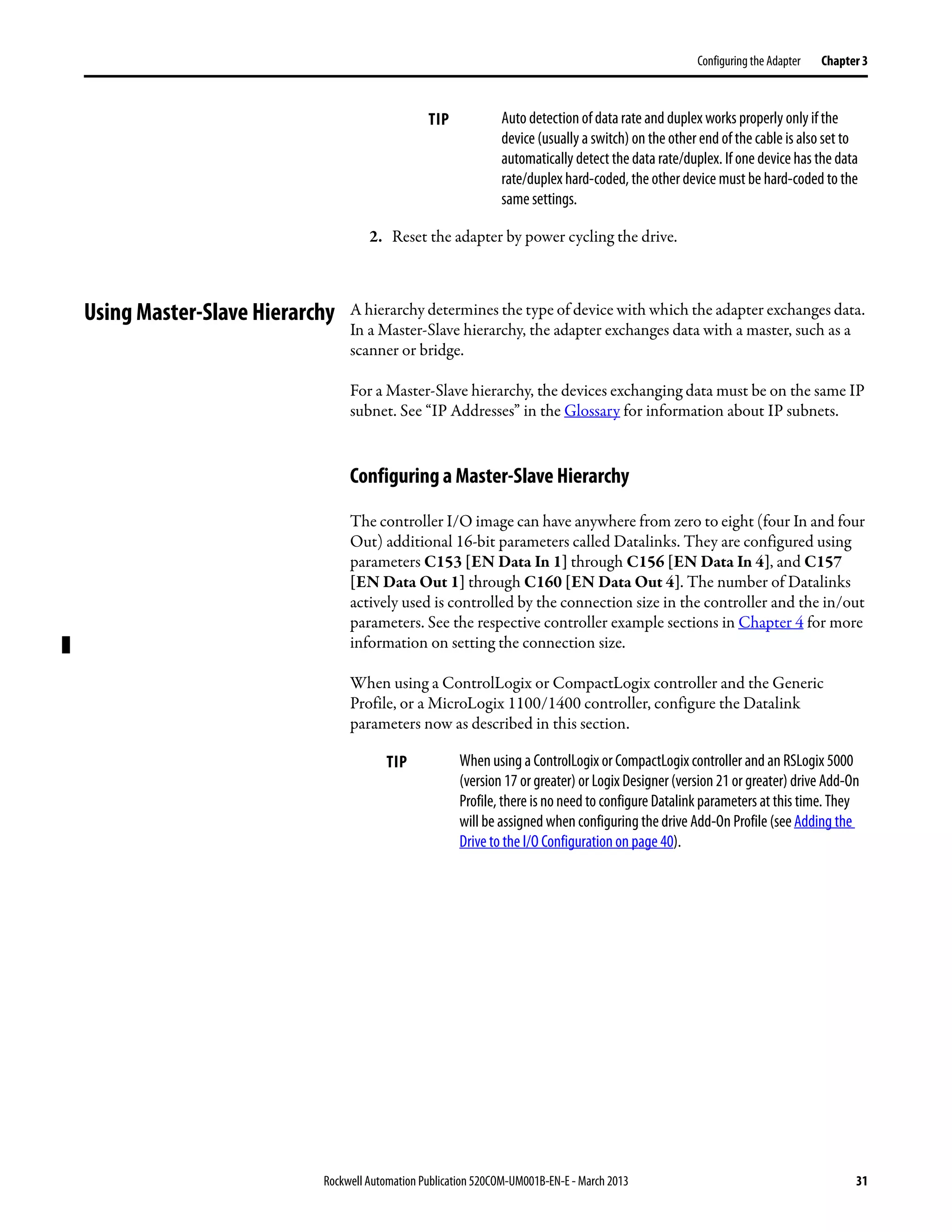

Configuring a Master-Slave Hierarchy updated. 31

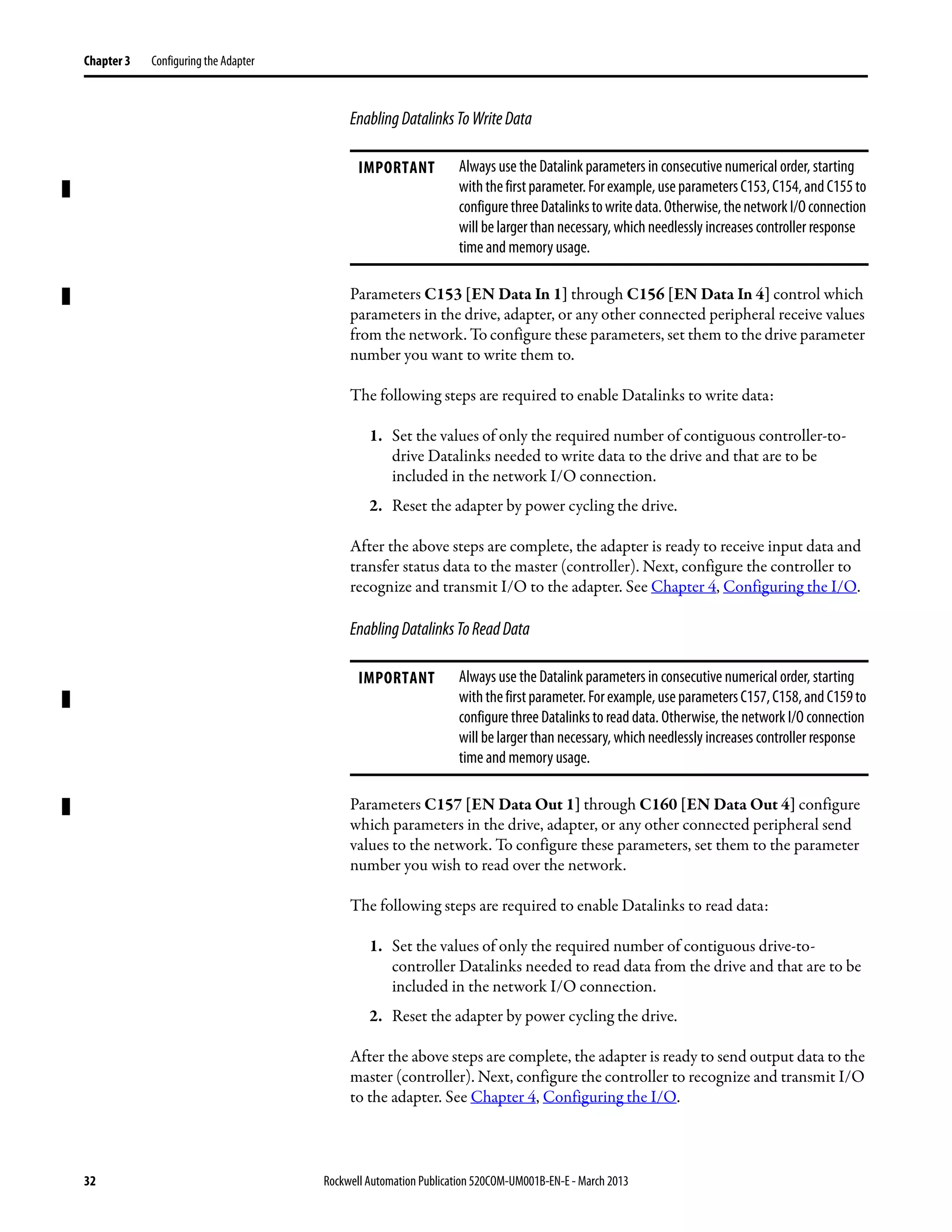

Enabling Datalinks to Write Data updated. 32
Enabling Datalinks to Read Data updated. 32
Changing the Fault Action table updated. 33
Setting the Fault Configuration Parameters table updated. 33
Description of Drive Rating setting of the Module Definition window updated. 43
Tip for Using ADC with RSLogix 5000/Logix Designer updated. 49
Version of RSLogix 5000 for use with drive generic profile updated. 55
Settings for Connection Parameters table updated. 56

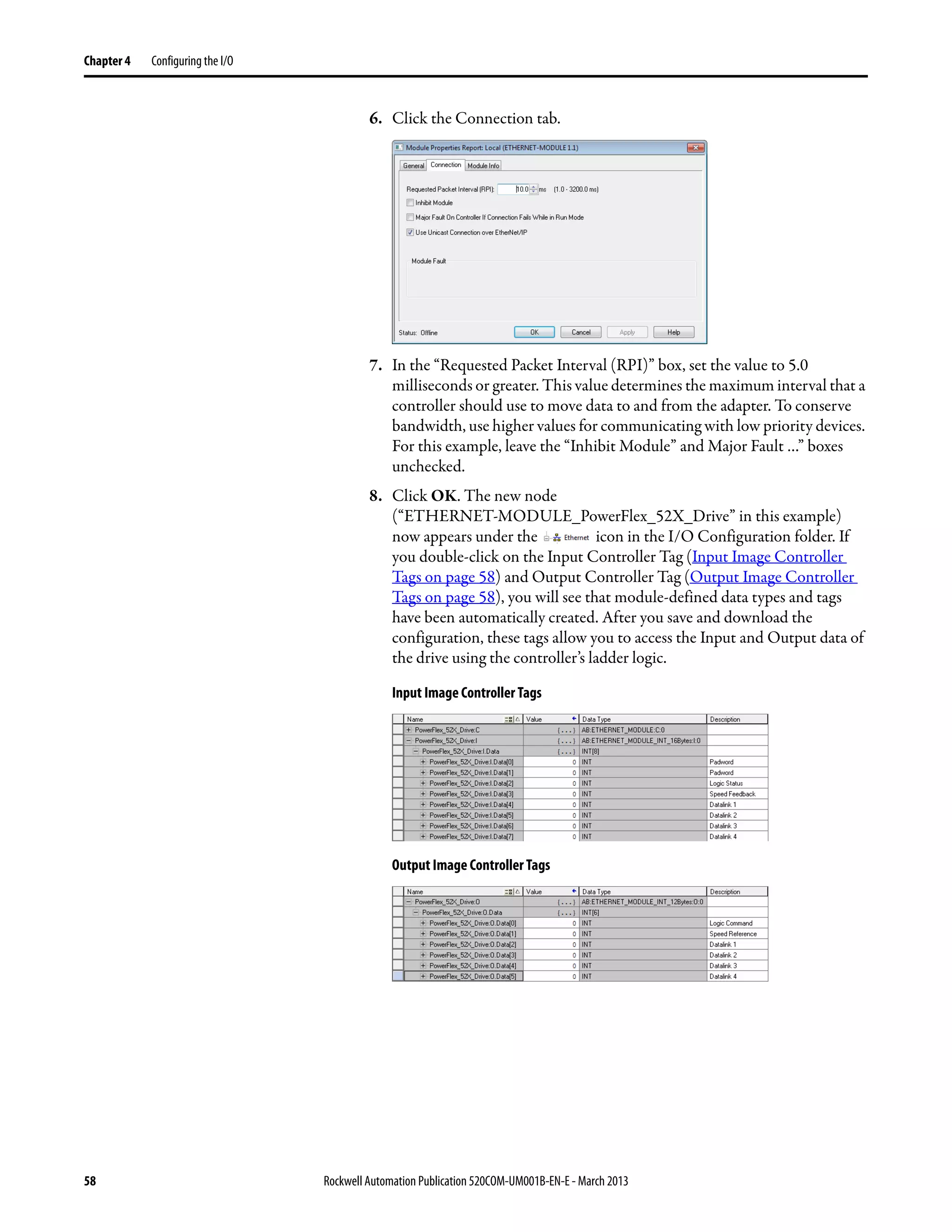

Input Image Controller Tag graphic updated. 58
Output Image Controller Tag graphic updated. 58
I/O Image for PowerFlex 525 Drives table updated. 62
CompactLogix Controller for Drive Generic Profile Ladder Logic Program Example
graphic updated.
66

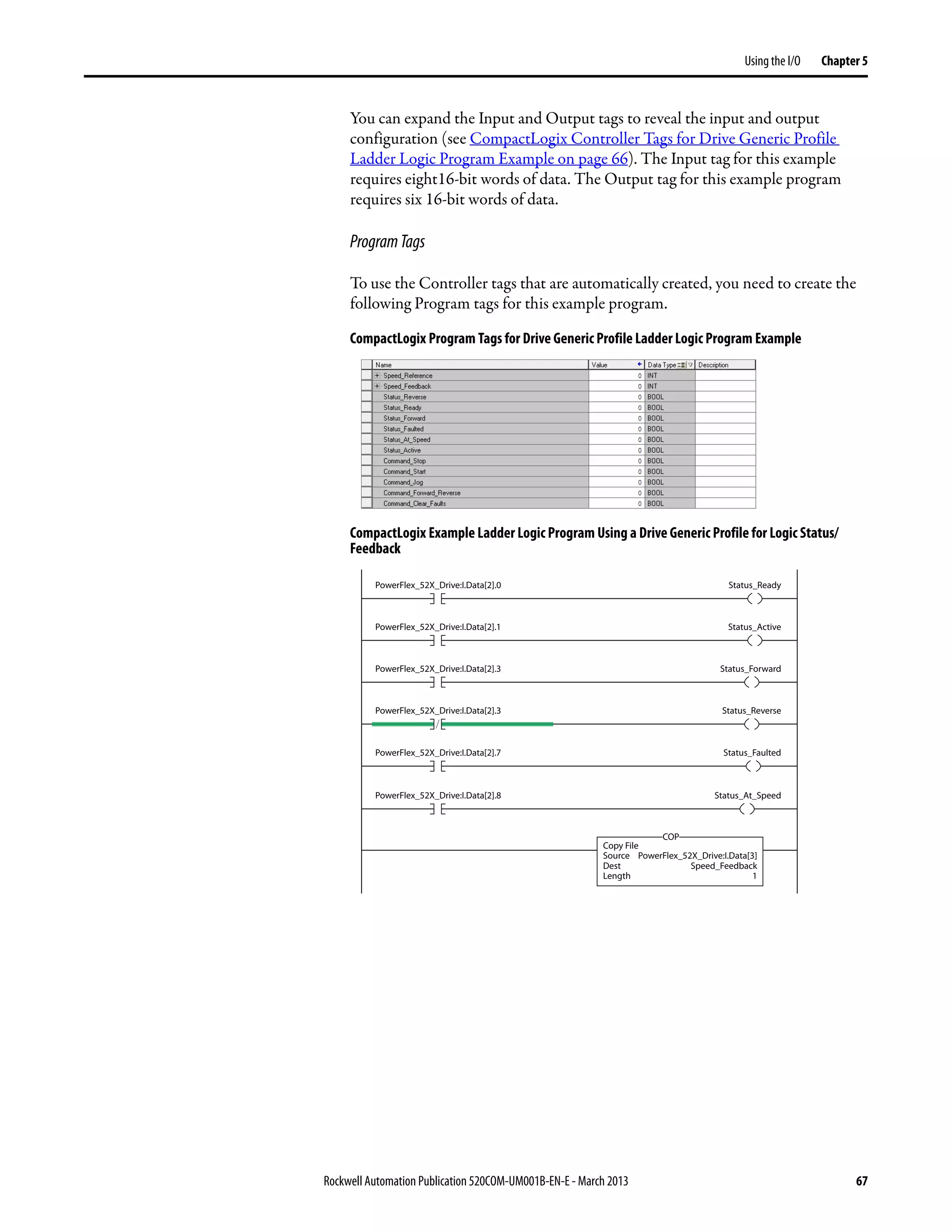

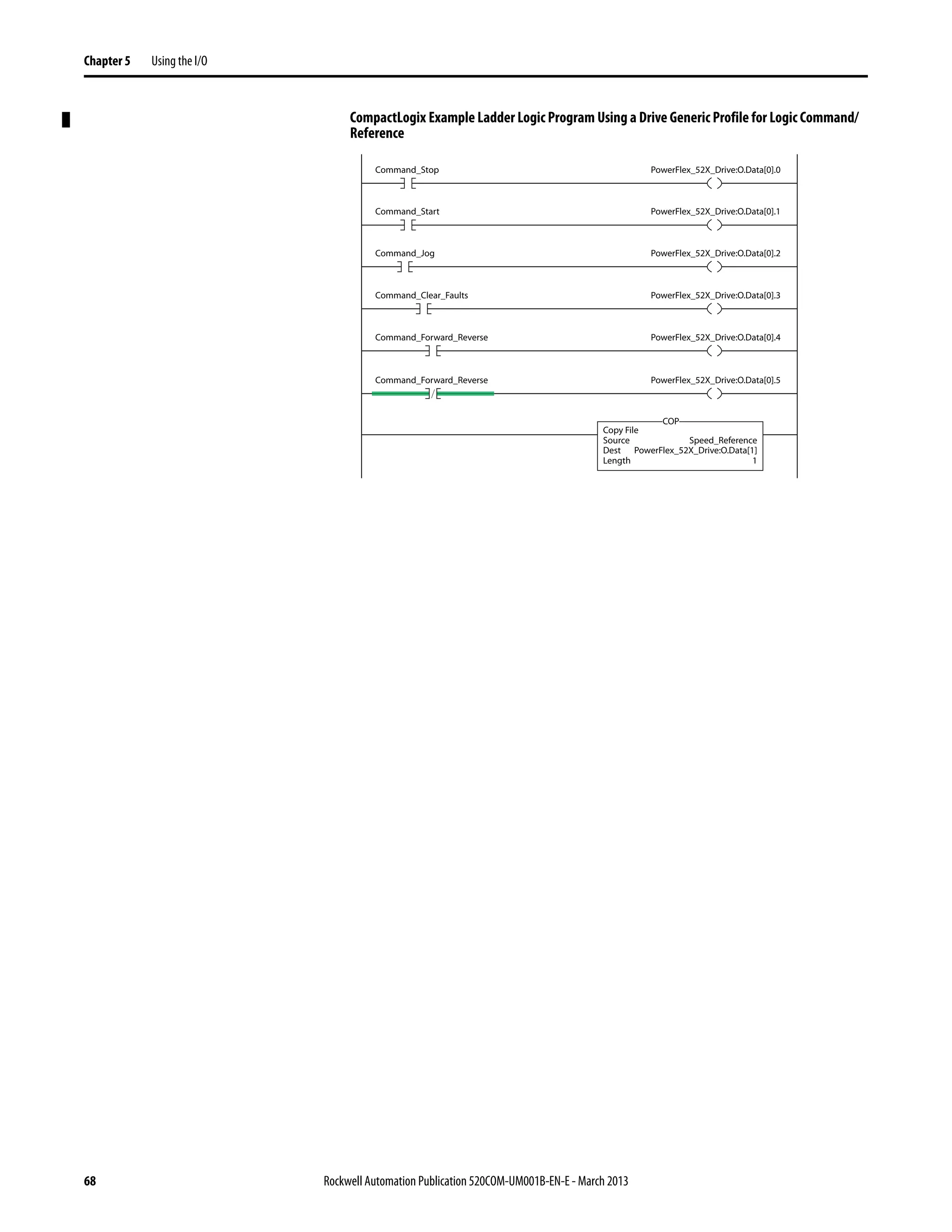

CompactLogix Example Ladder Logic Program Using a Drive Generic Profile for
Logic Command/Reference diagram updated.
68
Important table for CompactLogix Examples updated. 71

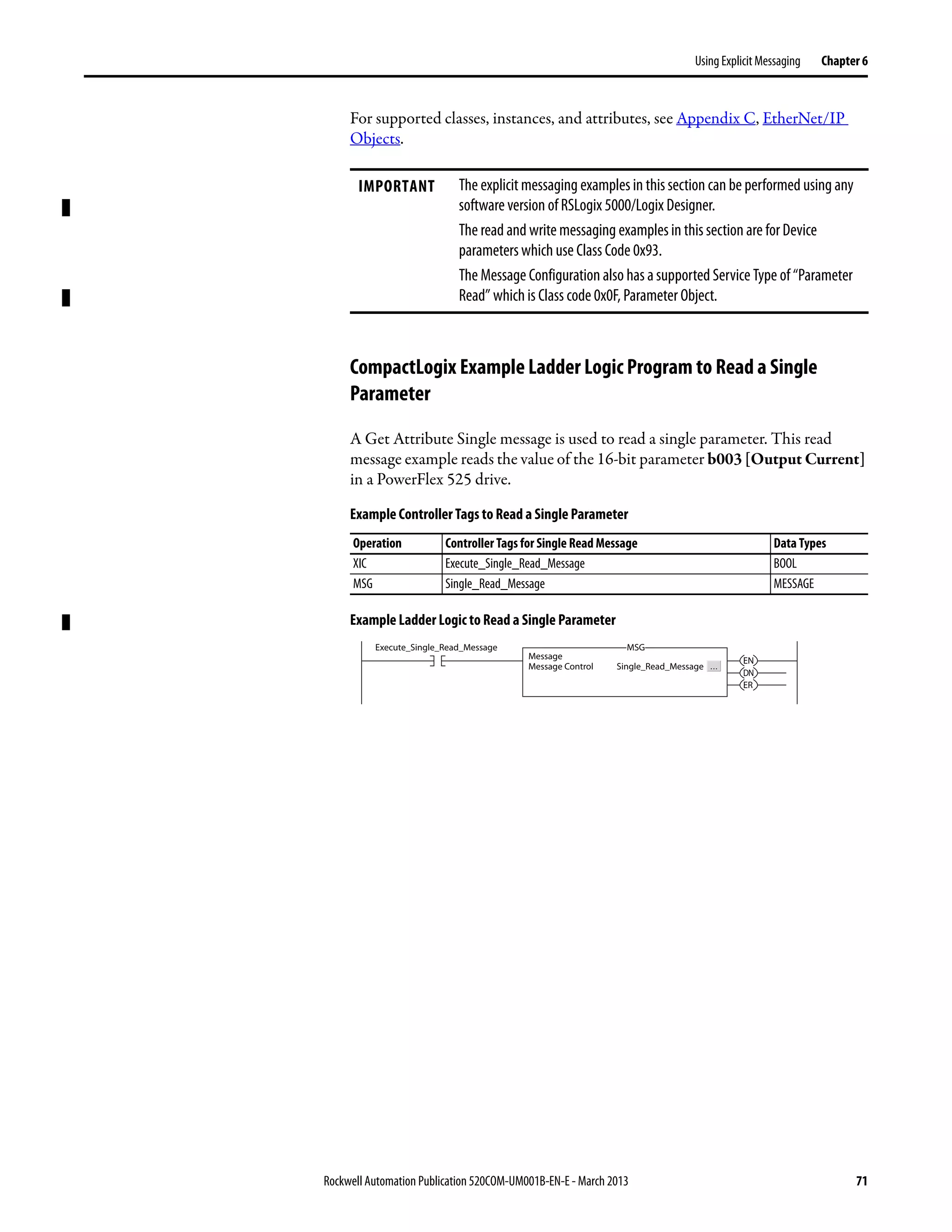

Example Ladder Logic to Read a Single Parameter diagram updated. 71
Fifth footnote of Scattered Read Message Configuration Screens updated. 76

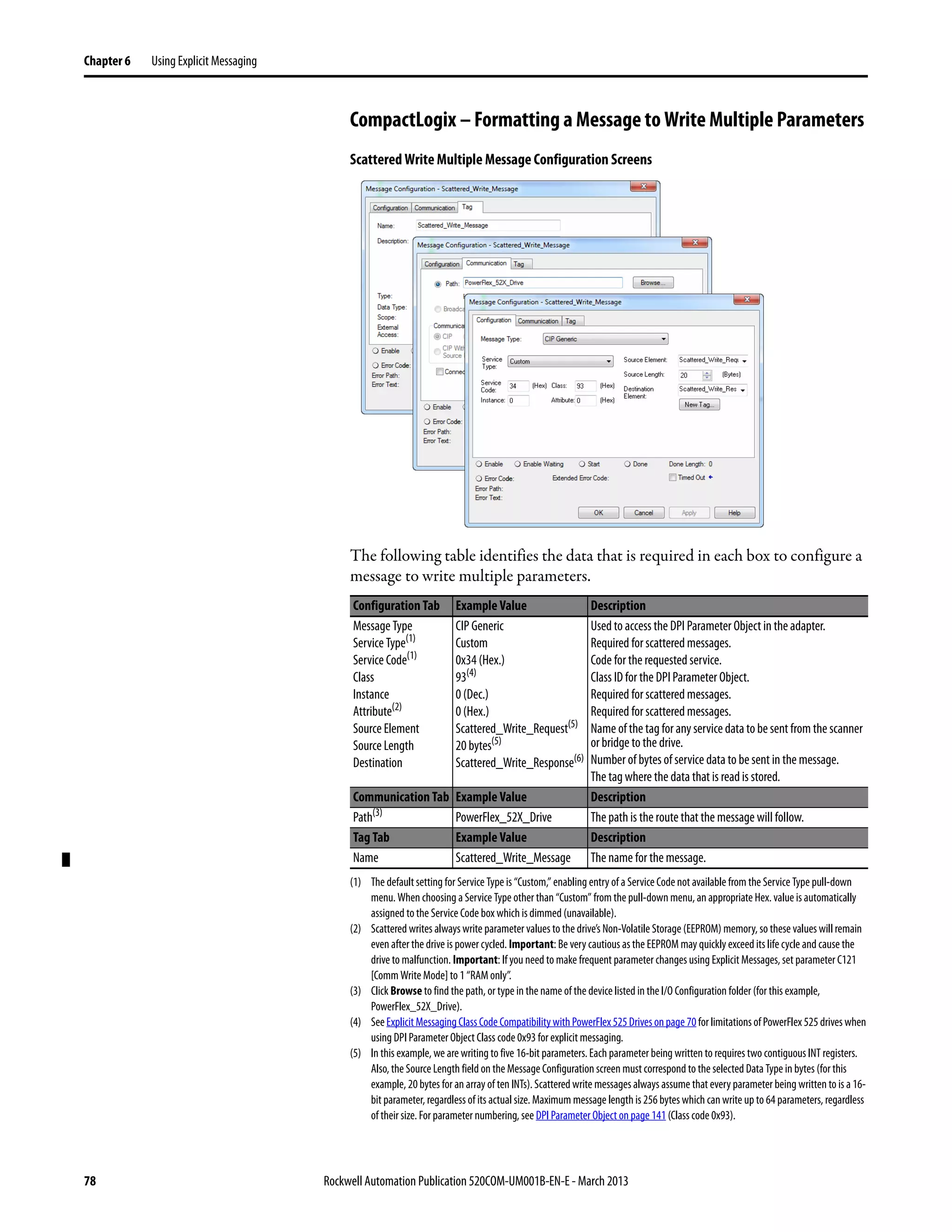

Tag Tab entry for Scattered Write Multiple Messages Configuration Screens table
updated.
78

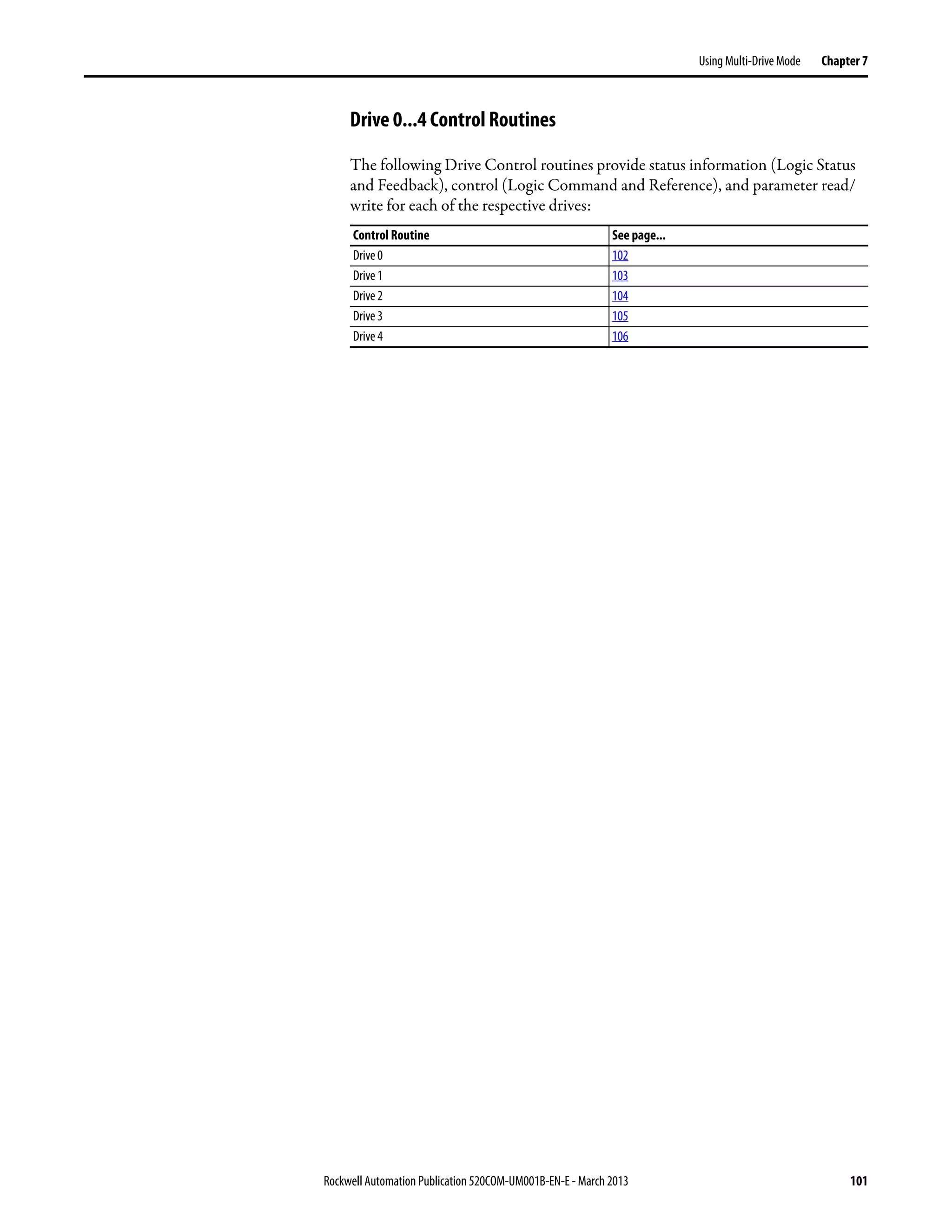

Drive 0 Control Routine diagram updated. 102
Extra table under Instances for Identity Object removed. 126
Description of Device Type entry in Instances Attribute table for Identity Object
updated.
127
Instance Attribute table for Parameter Object updated. 133
Instances table for DPI Device Object updated. 138
Instances table for DPI Parameter Object updated. 141
Instances table for DPI Fault Object updated. 147

4 Rockwell Automation Publication 520COM-UM001B-EN-E - March 2013
Summary of Changes

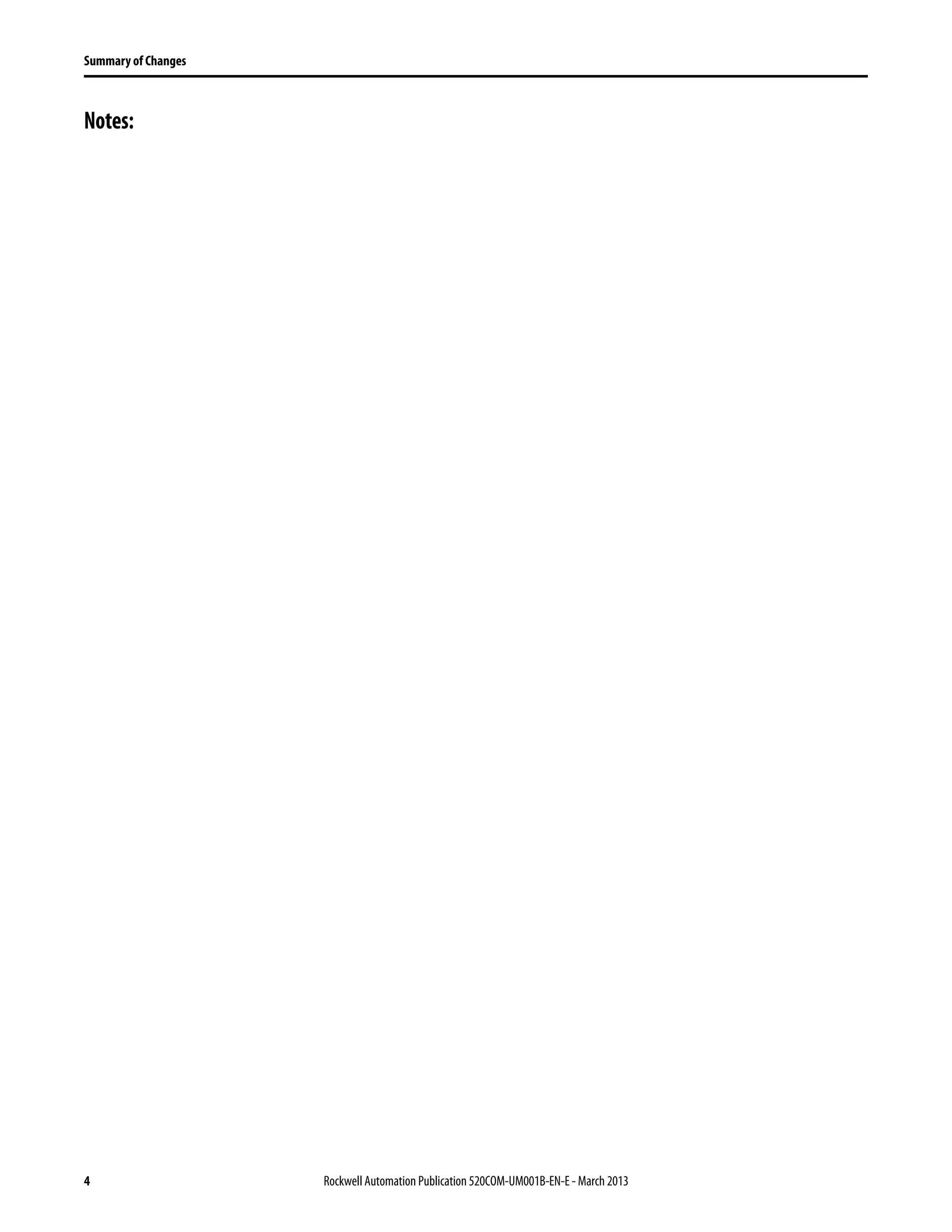

Notes:

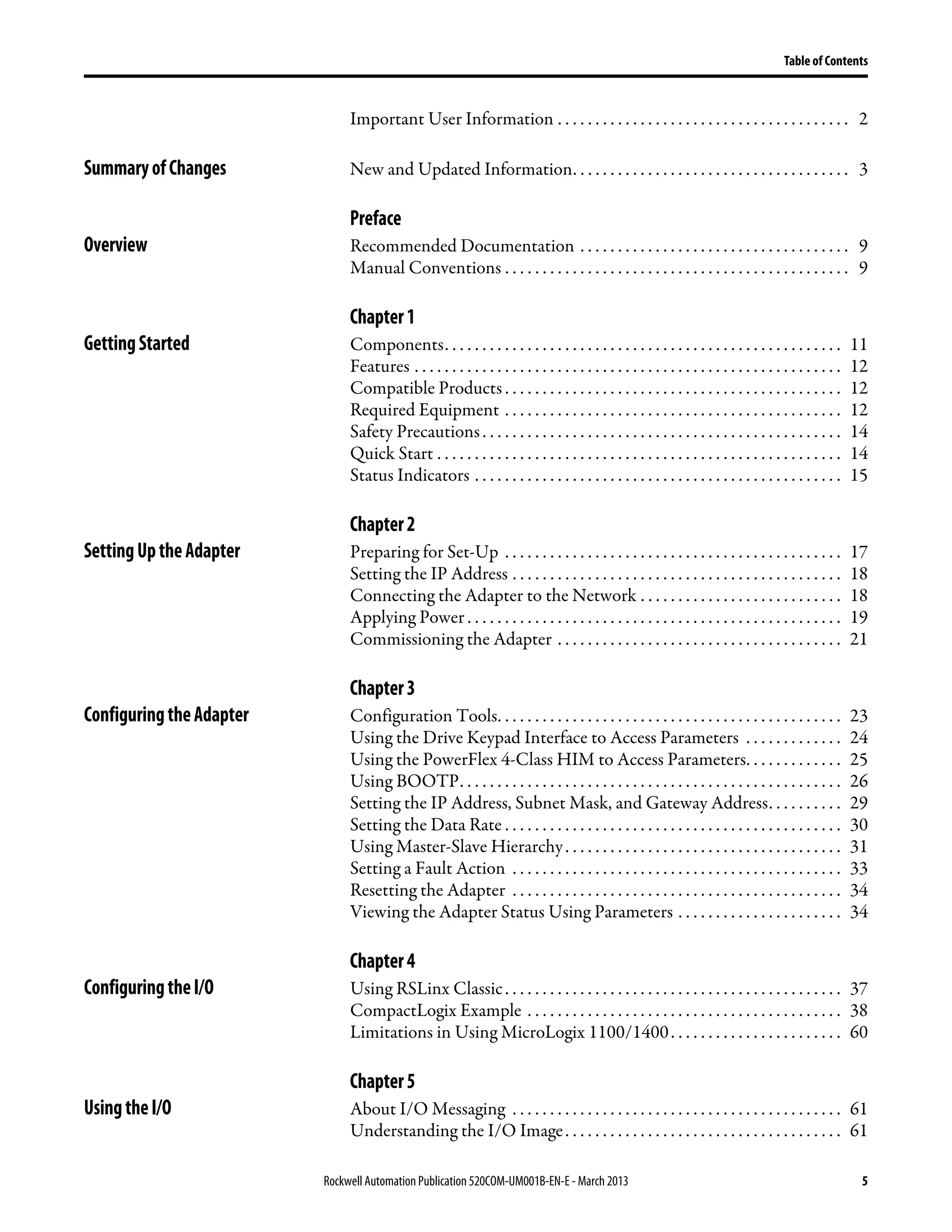

Table of Contents
Important User Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SummaryofChanges New and Updated Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Preface
Overview Recommended Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Chapter1
GettingStarted Components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Compatible Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

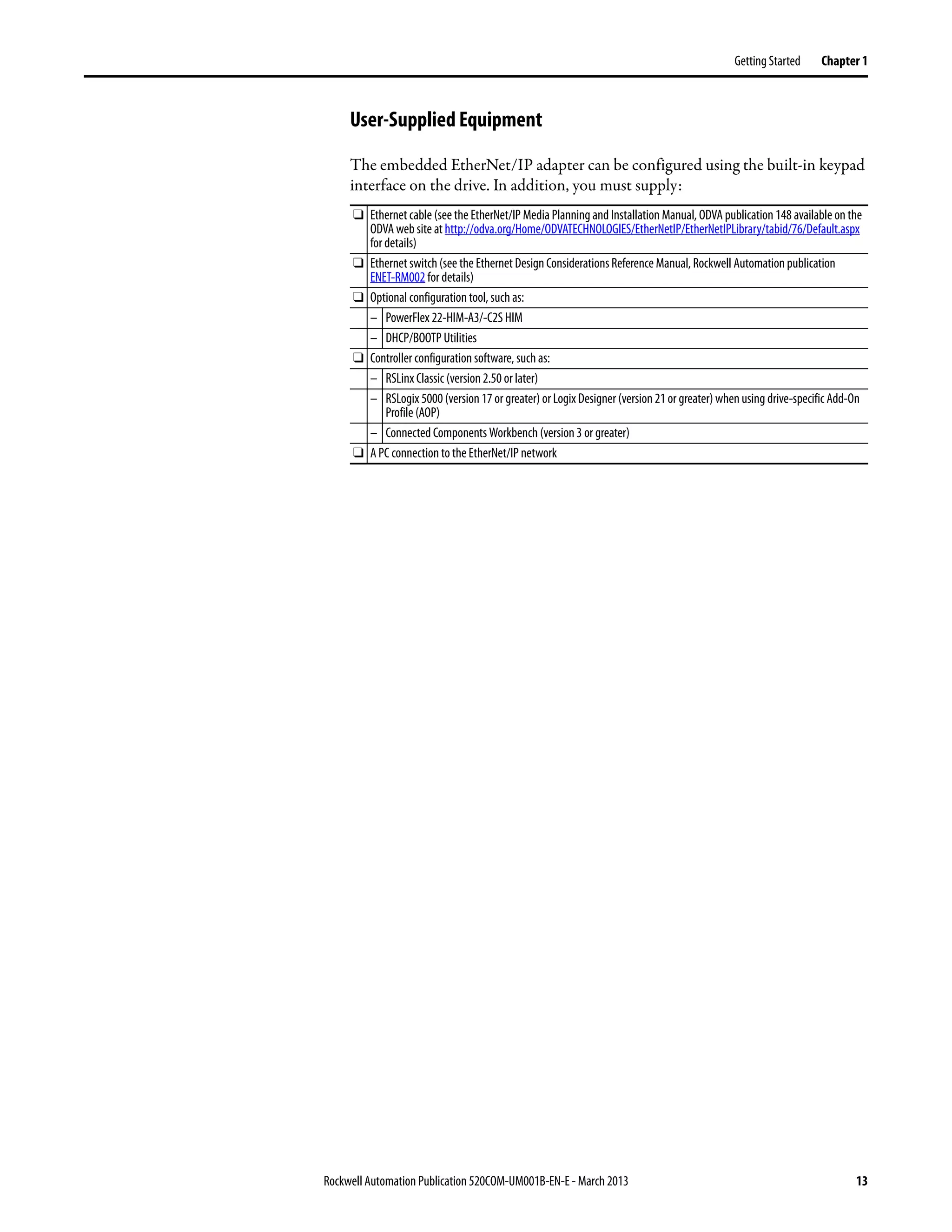

Required Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

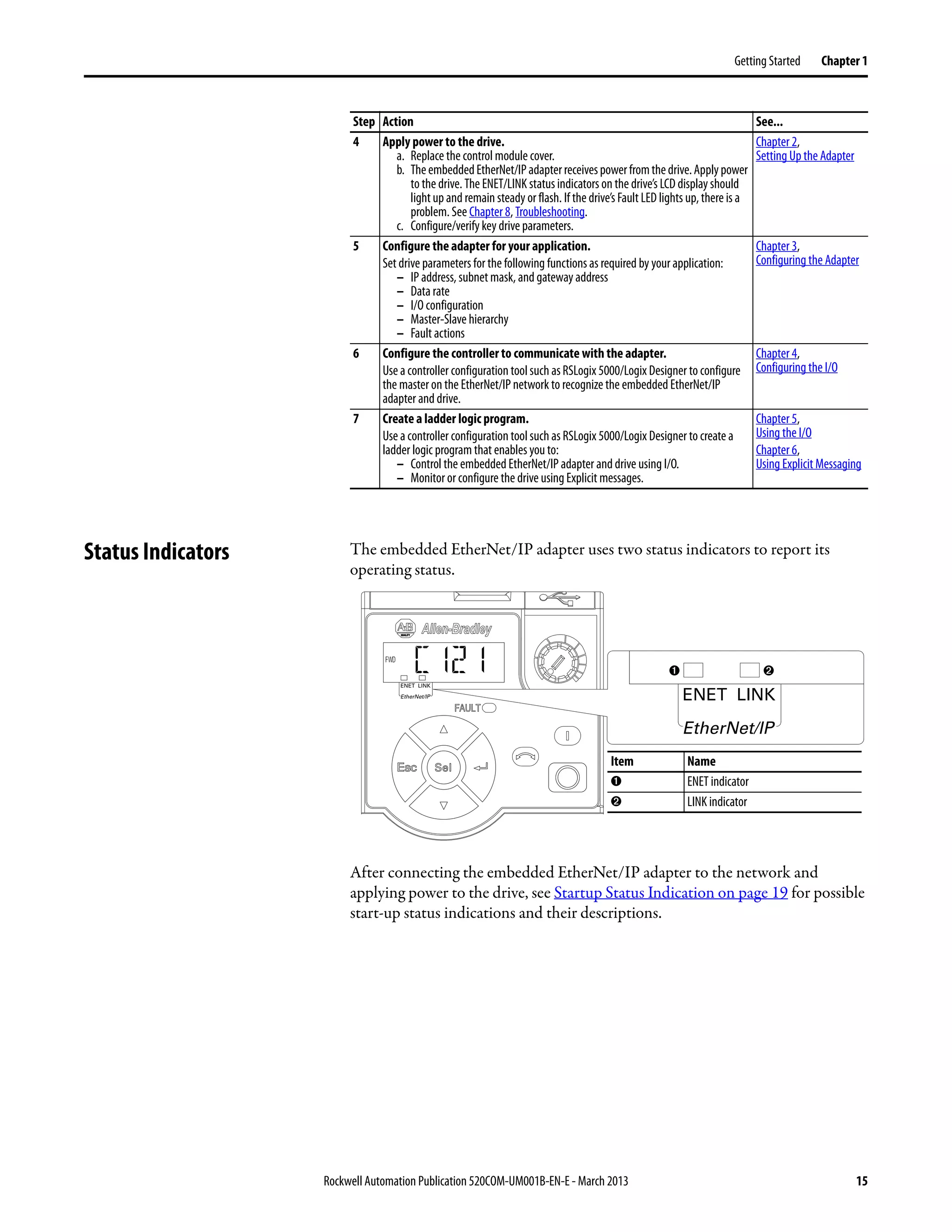

Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Chapter2
SettingUptheAdapter Preparing for Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Setting the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Connecting the Adapter to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Applying Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Commissioning the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Chapter3

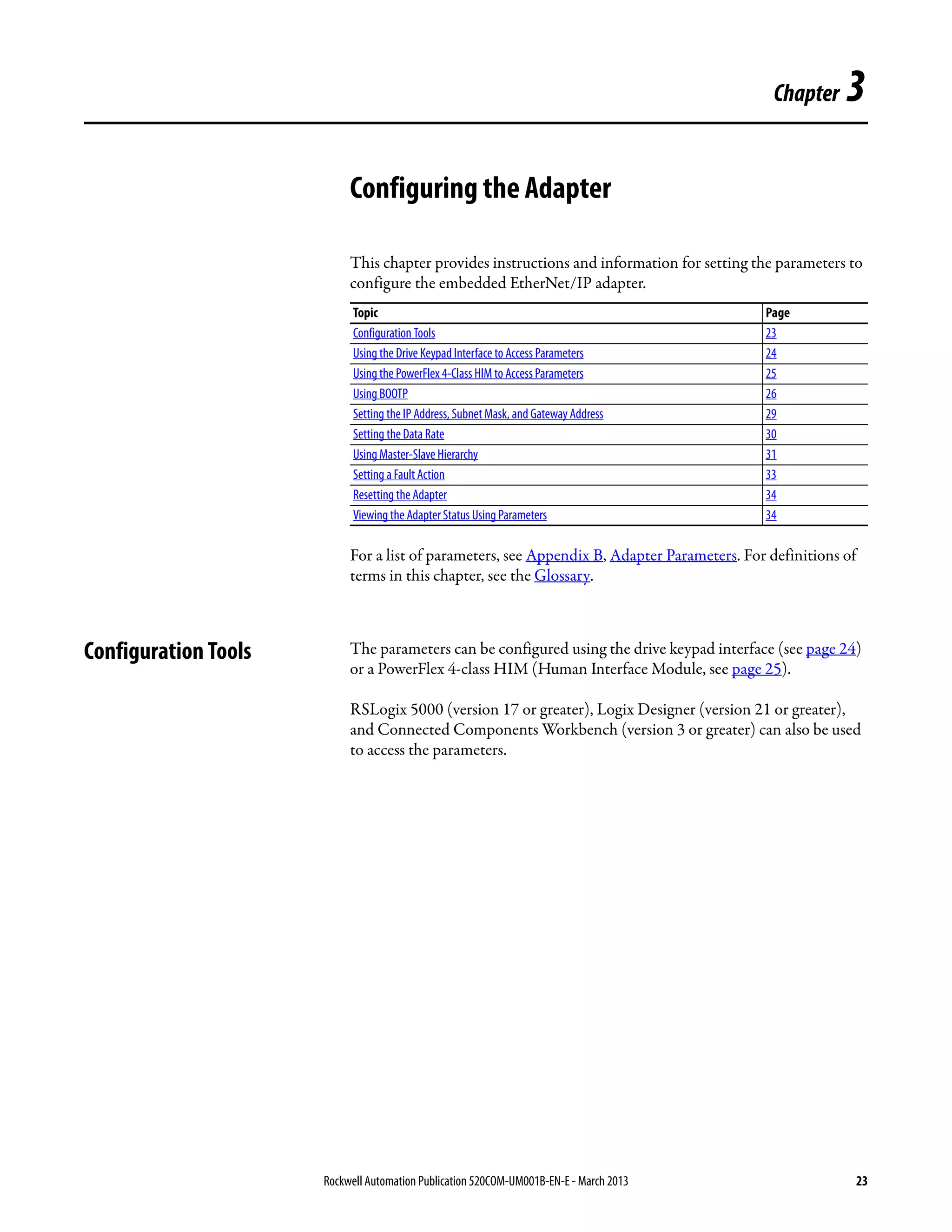

ConfiguringtheAdapter Configuration Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Using the Drive Keypad Interface to Access Parameters . . . . . . . . . . . . . 24

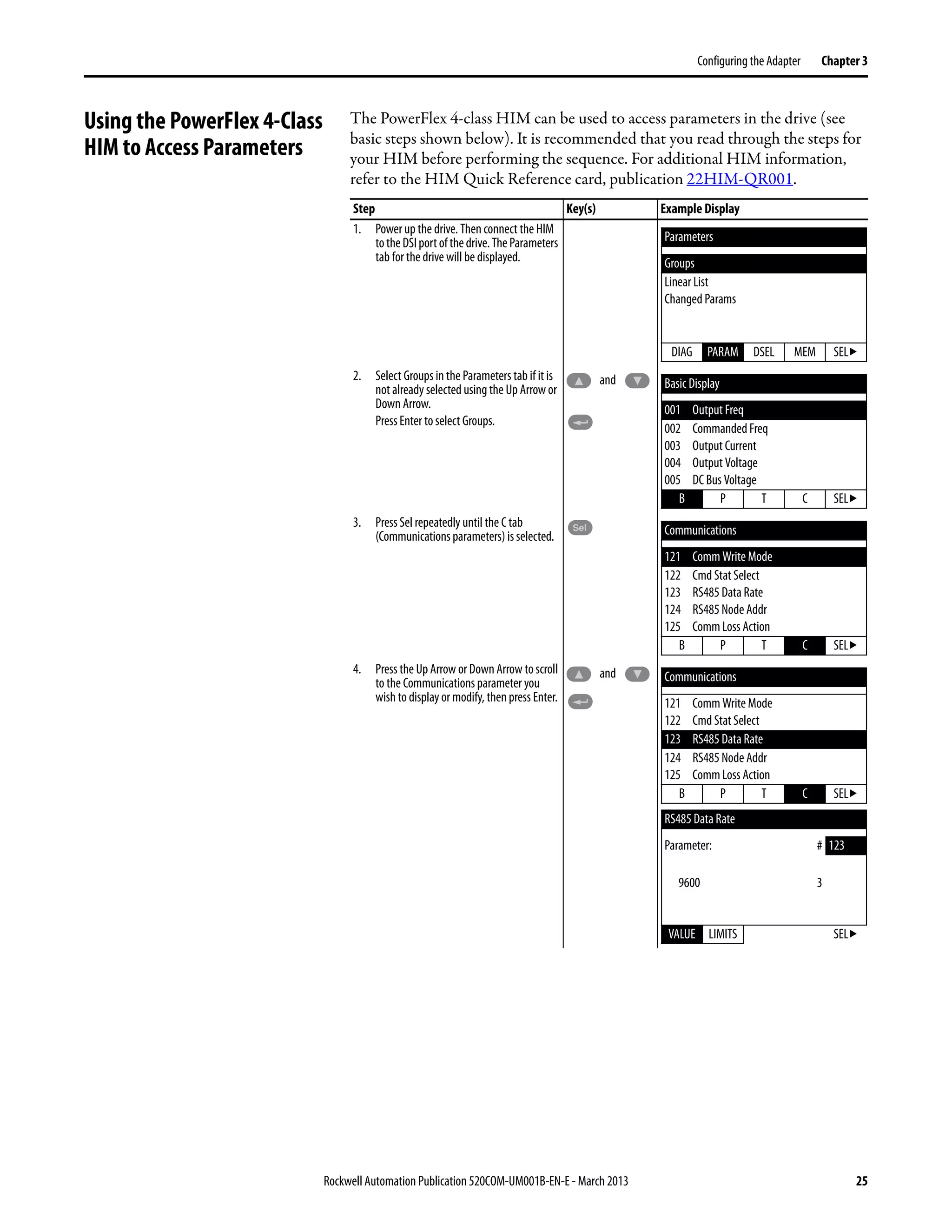

Using the PowerFlex 4-Class HIM to Access Parameters. . . . . . . . . . . . . 25
Using BOOTP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

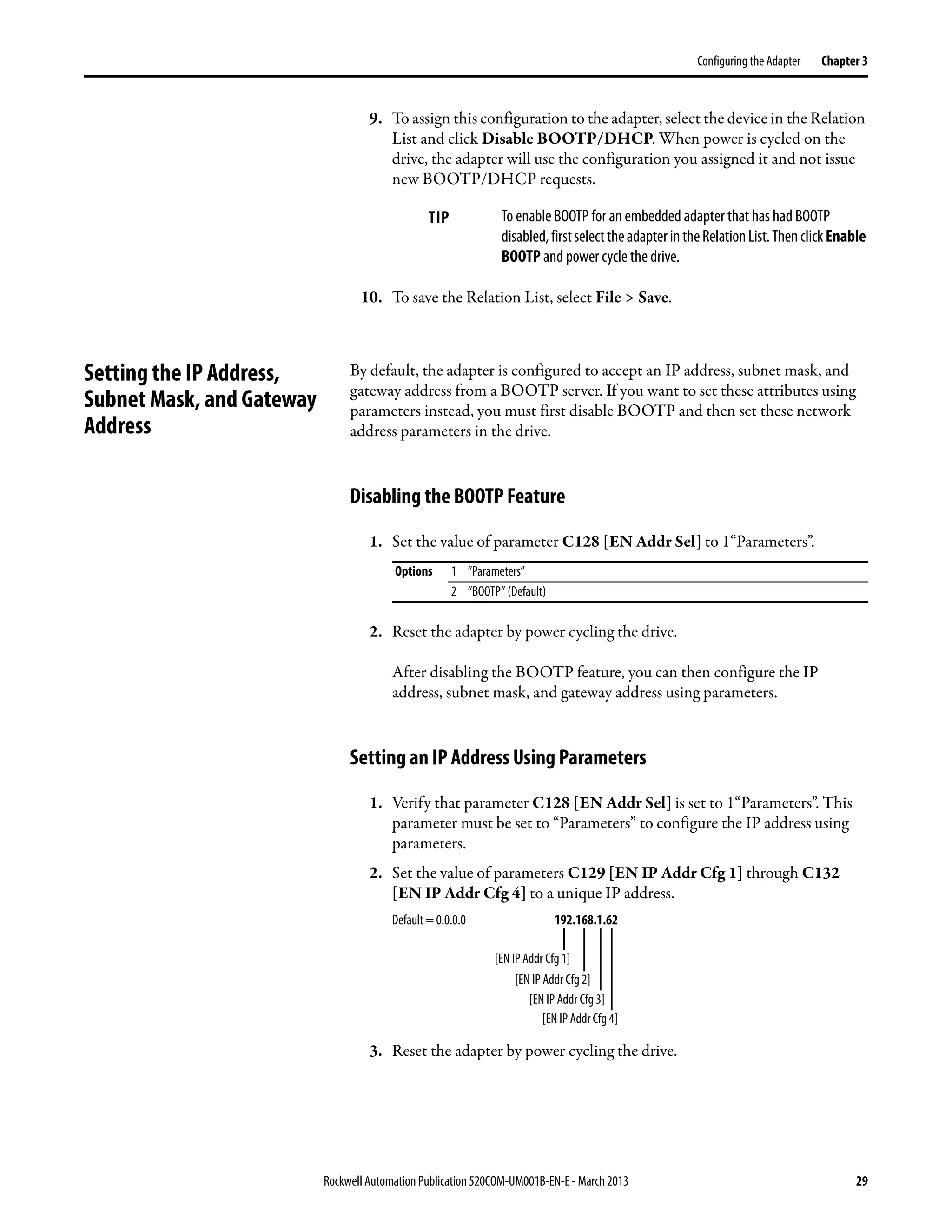

Setting the IP Address, Subnet Mask, and Gateway Address. . . . . . . . . . 29
Setting the Data Rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Using Master-Slave Hierarchy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

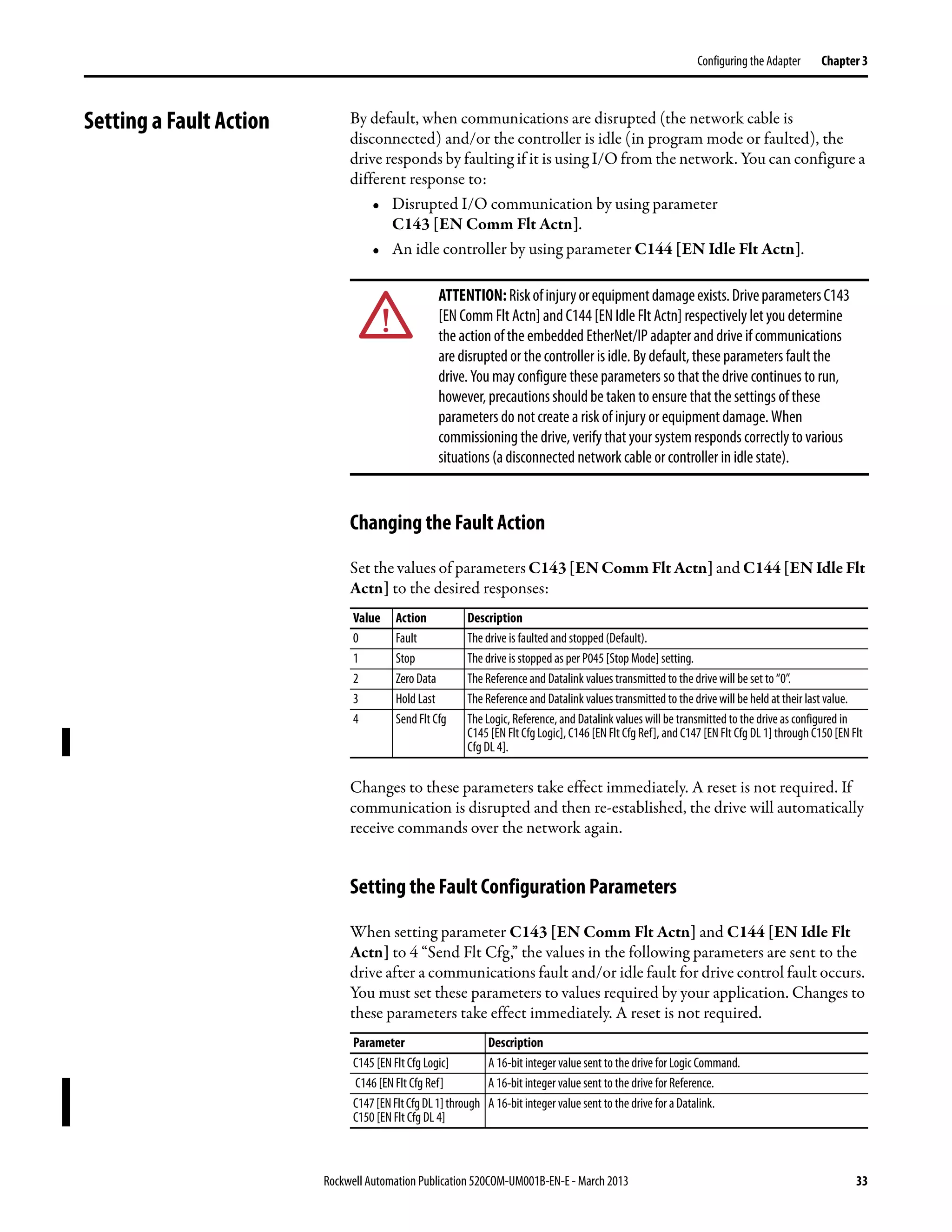

Setting a Fault Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

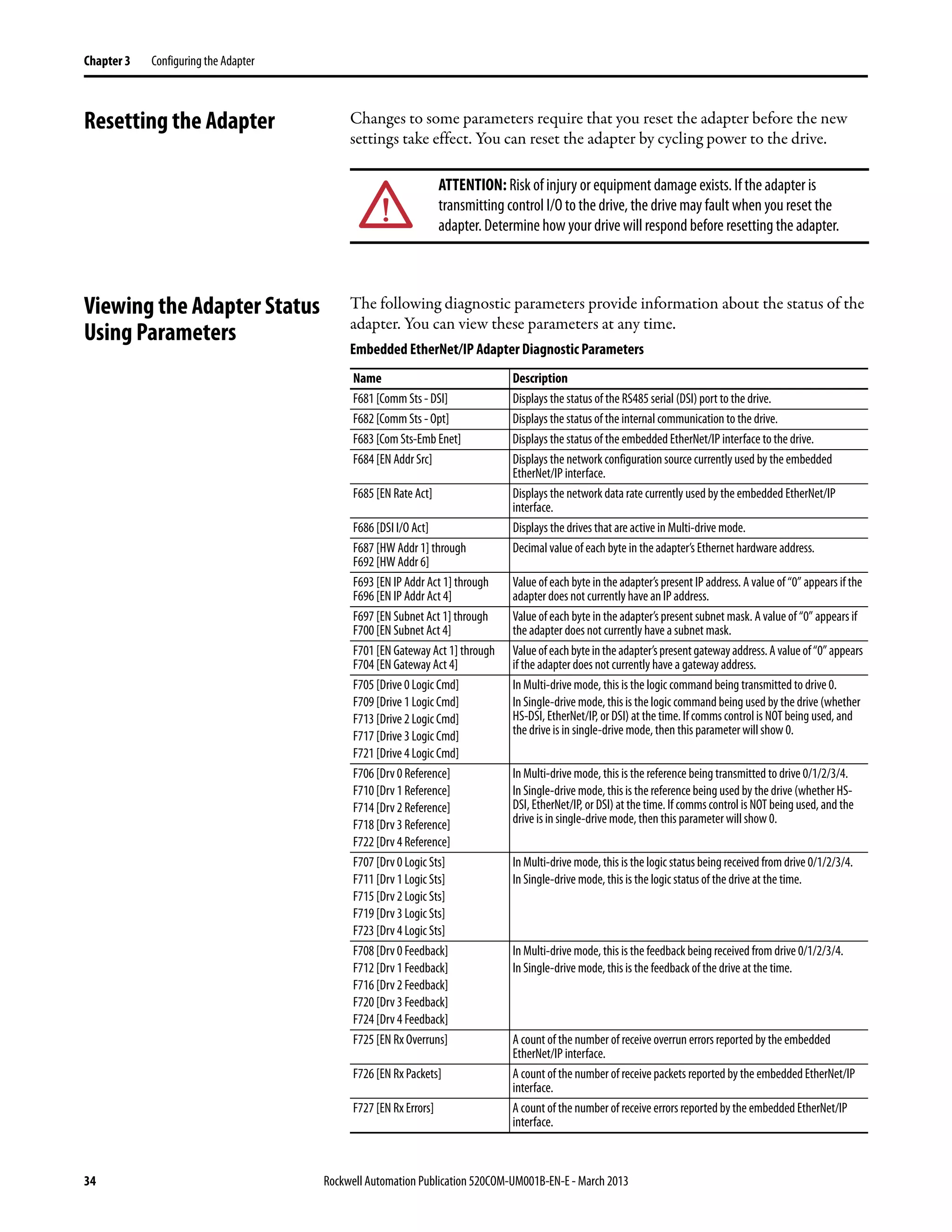

Resetting the Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Viewing the Adapter Status Using Parameters . . . . . . . . . . . . . . . . . . . . . . 34
Chapter4

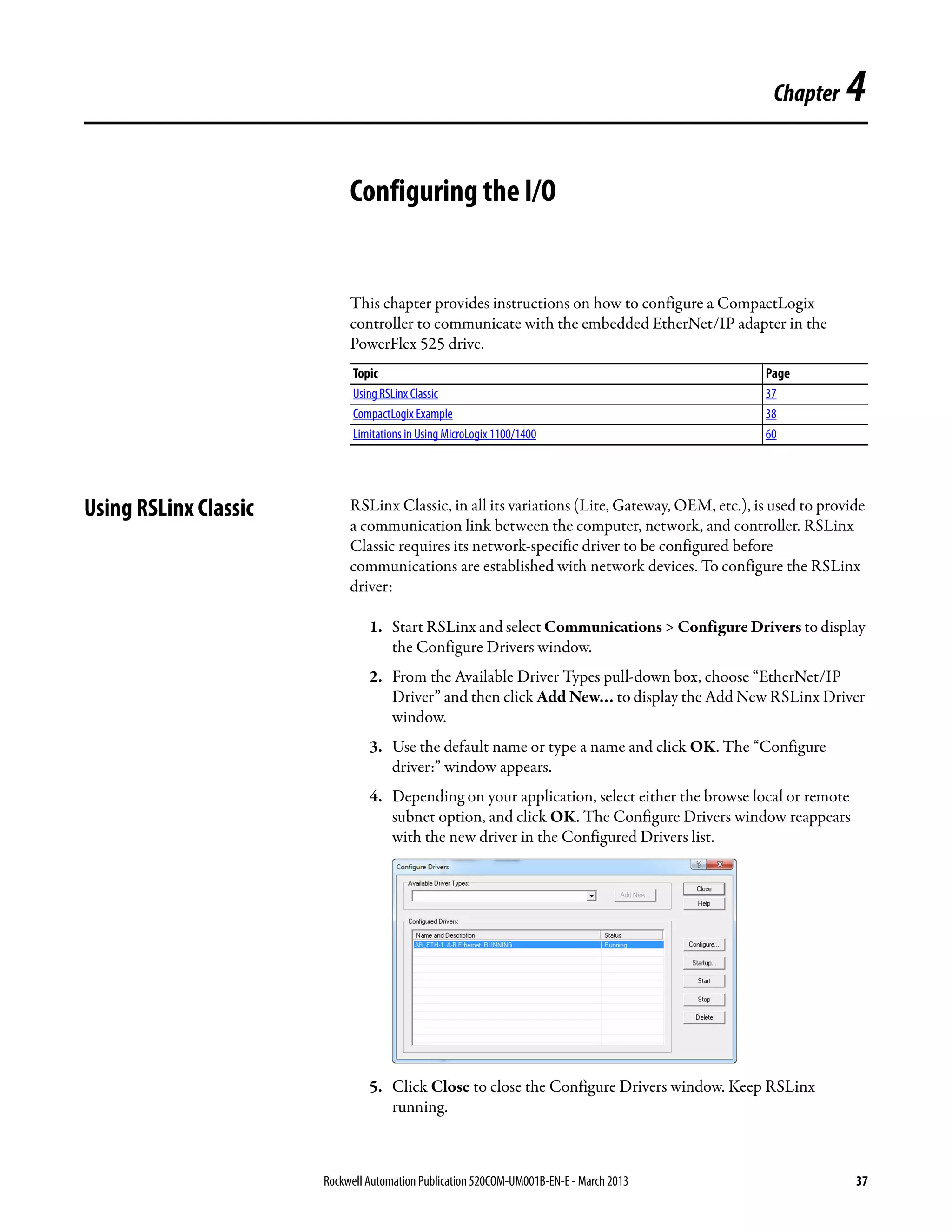

ConfiguringtheI/O Using RSLinx Classic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
CompactLogix Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Limitations in Using MicroLogix 1100/1400. . . . . . . . . . . . . . . . . . . . . . . 60
Chapter5
UsingtheI/O About I/O Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Understanding the I/O Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

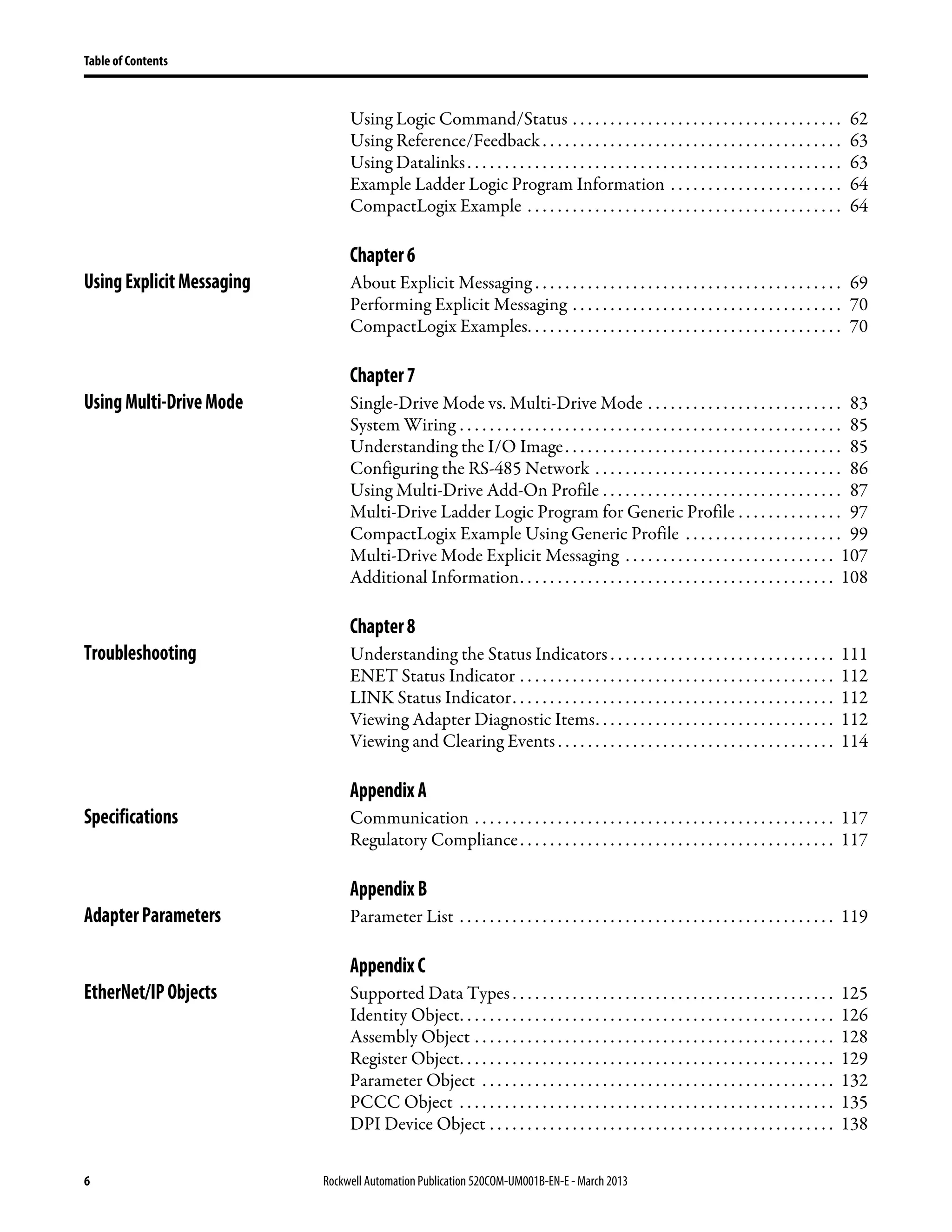

Table of Contents
Using Logic Command/Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Using Reference/Feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Using Datalinks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Example Ladder Logic Program Information . . . . . . . . . . . . . . . . . . . . . . . 64
CompactLogix Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Chapter6
UsingExplicitMessaging About Explicit Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

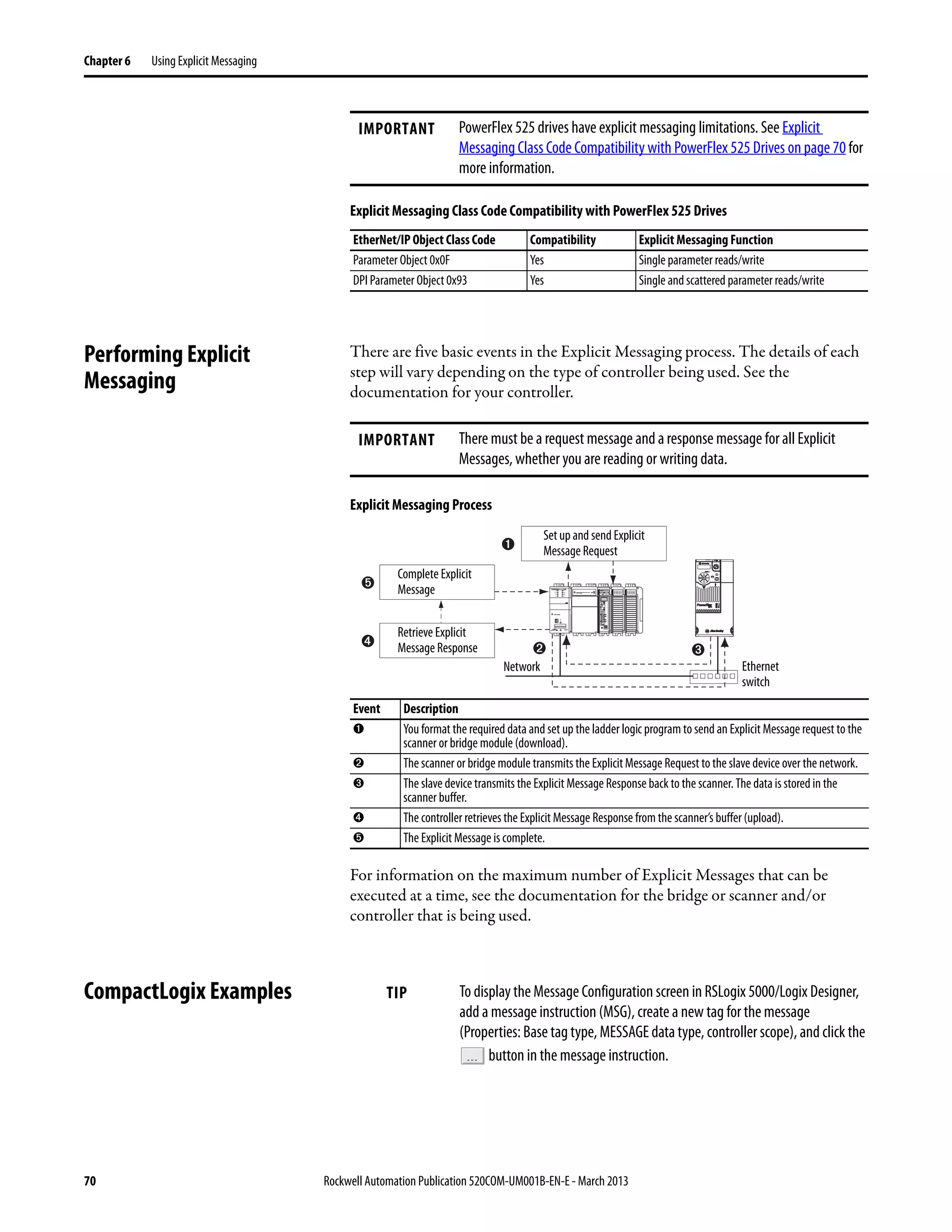

Performing Explicit Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

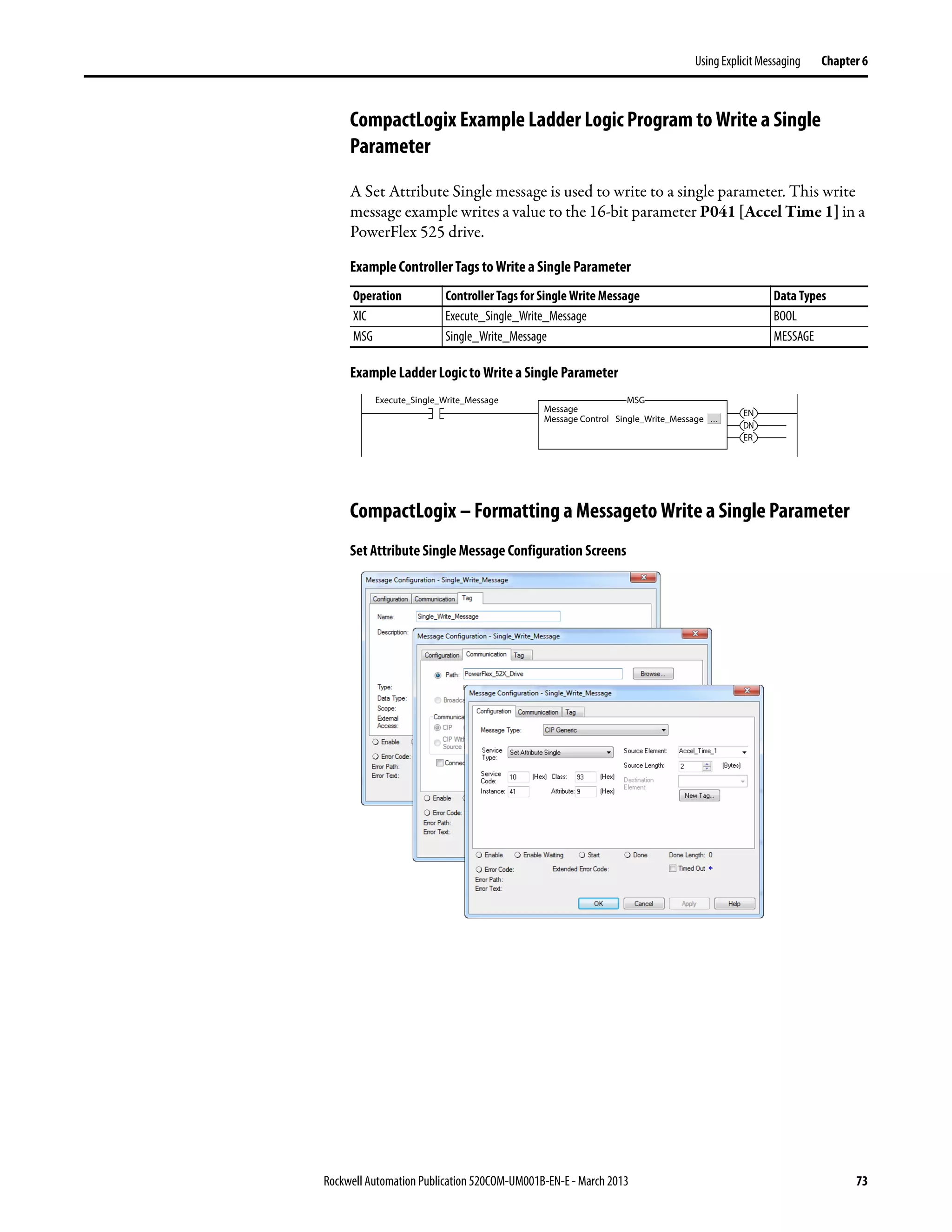

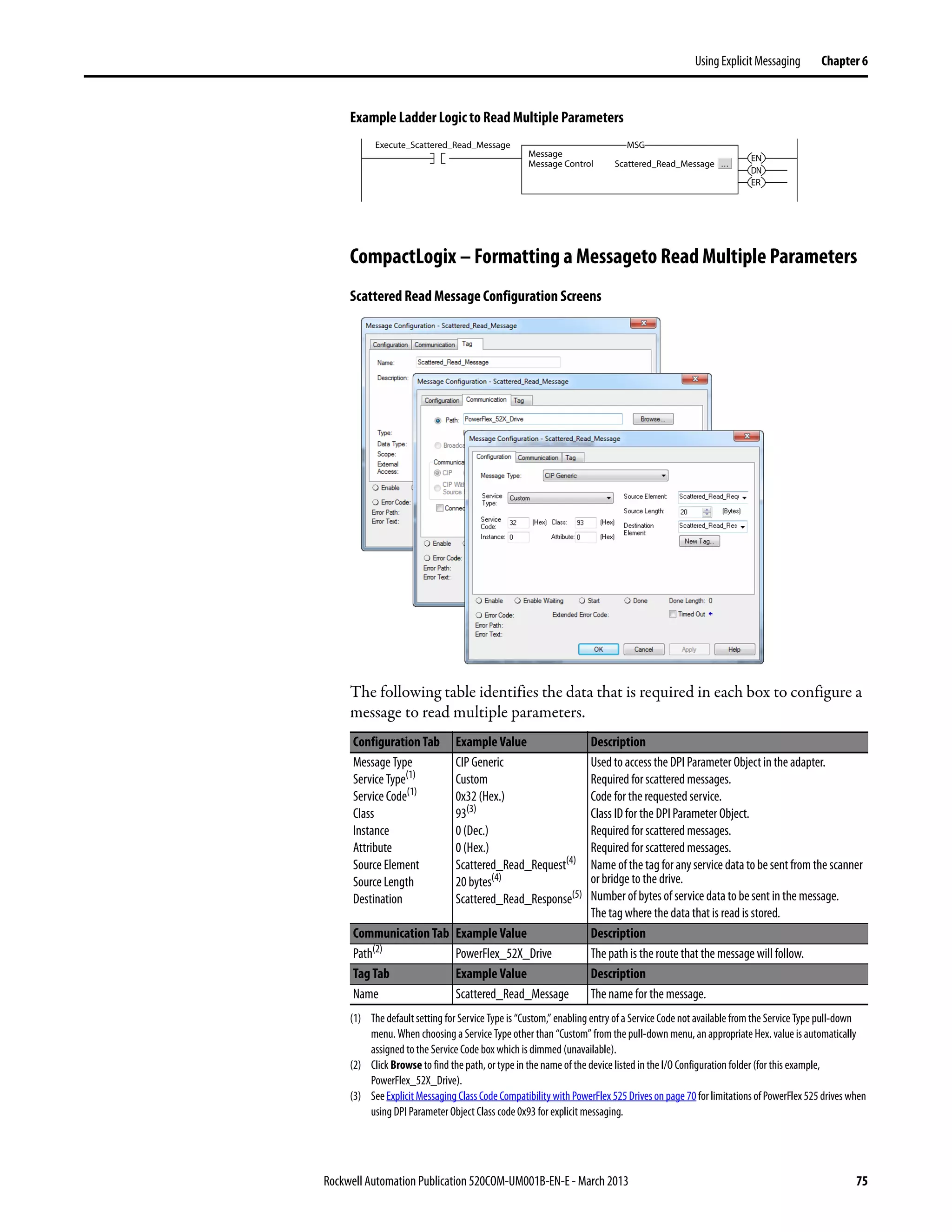

CompactLogix Examples. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Chapter7

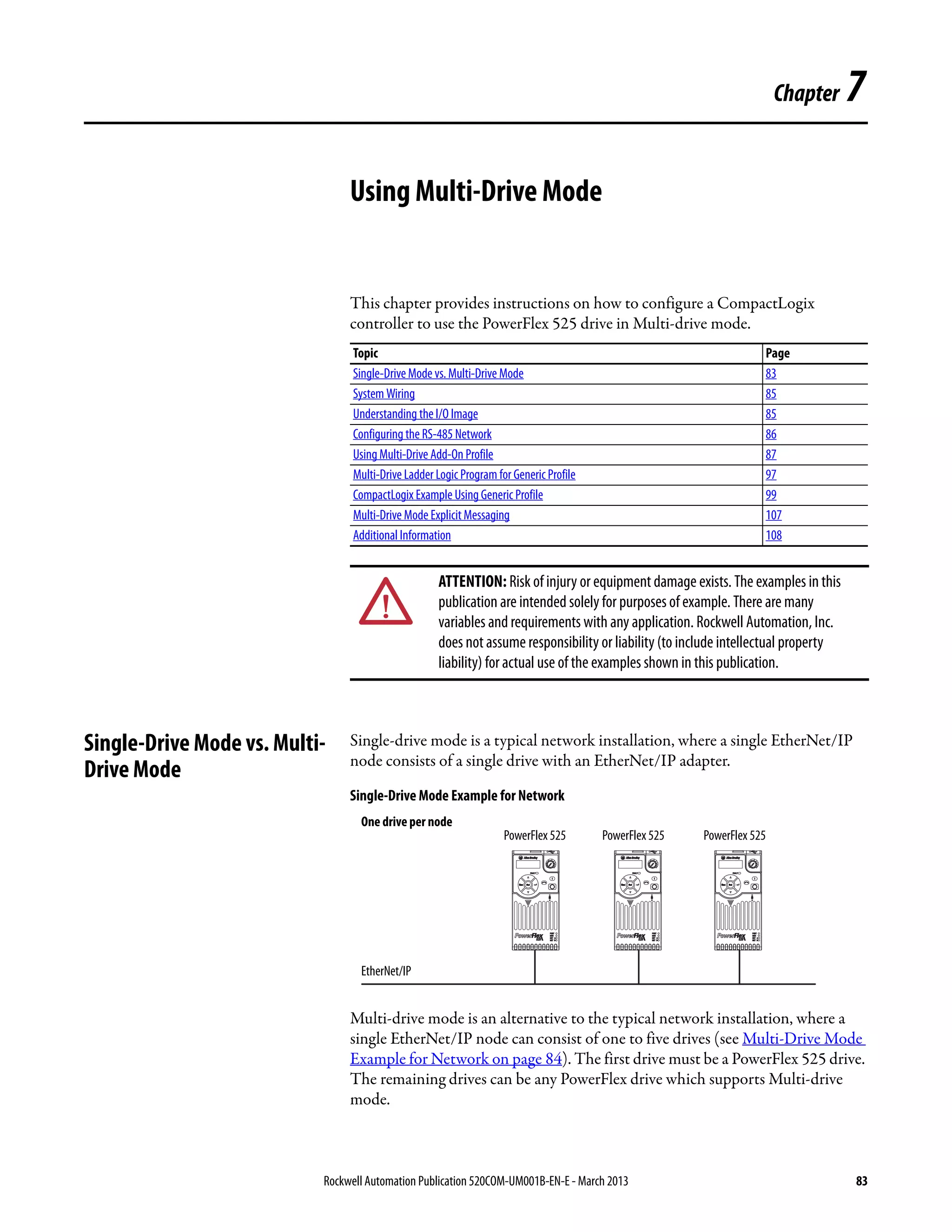

UsingMulti-DriveMode Single-Drive Mode vs. Multi-Drive Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 83

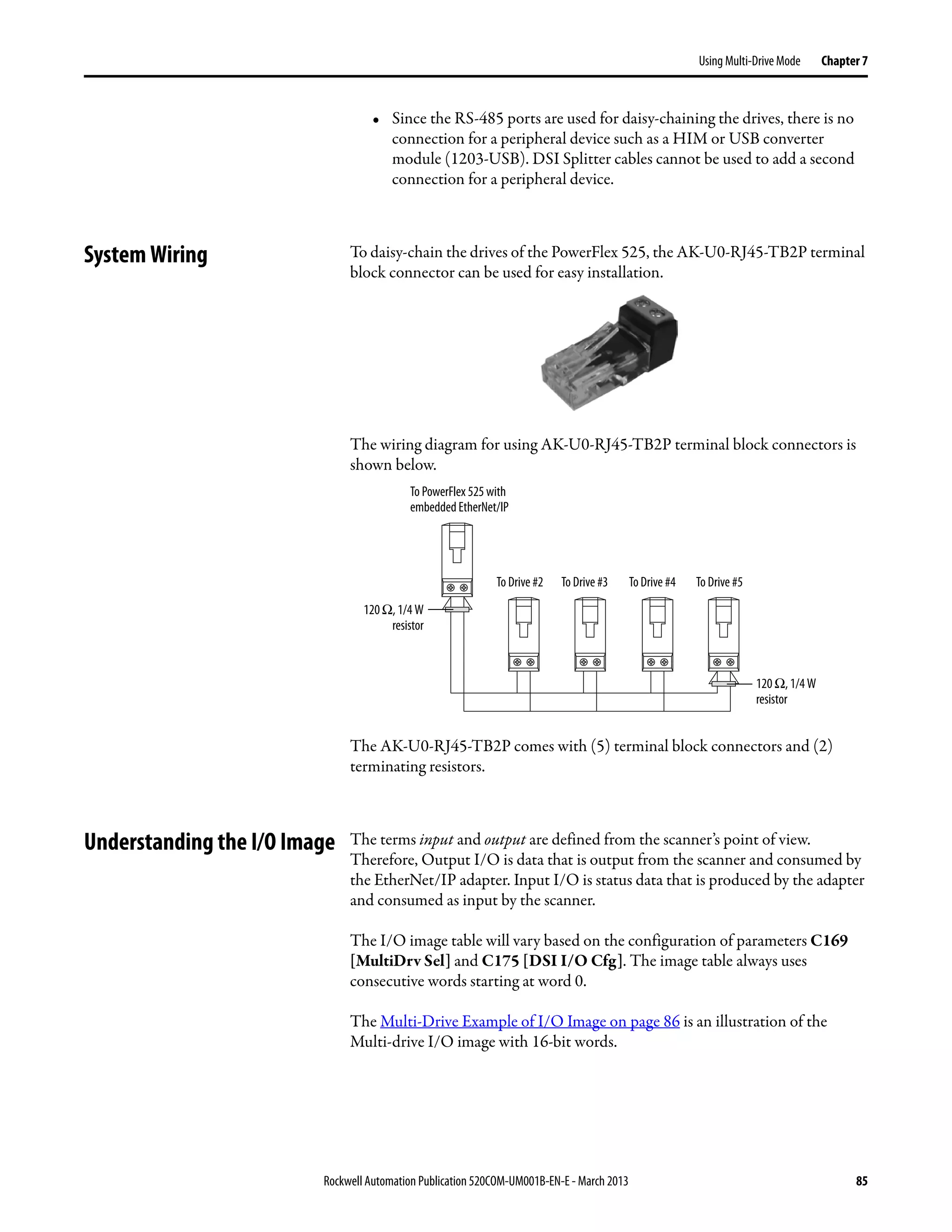

System Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Understanding the I/O Image. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Configuring the RS-485 Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

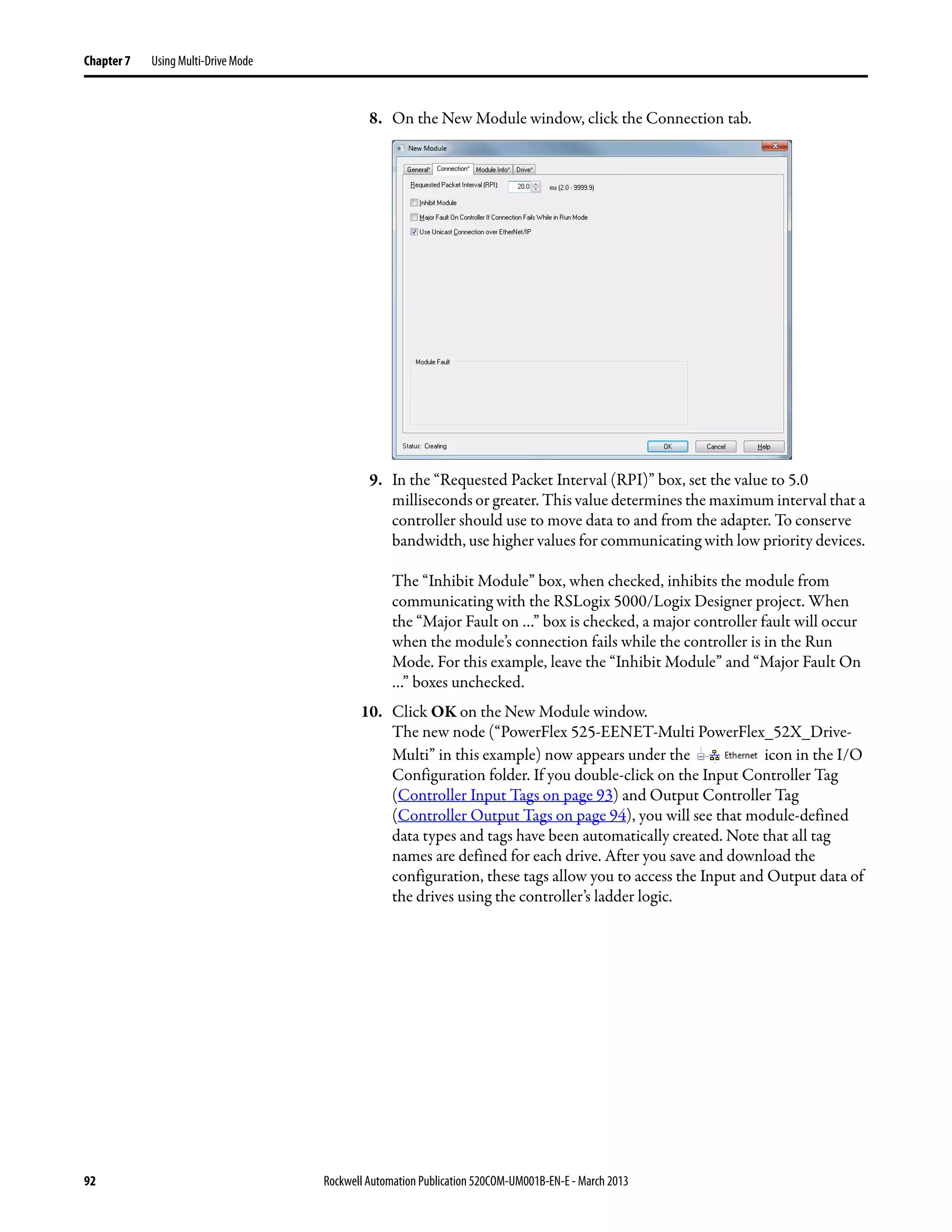

Using Multi-Drive Add-On Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Multi-Drive Ladder Logic Program for Generic Profile . . . . . . . . . . . . . . 97
CompactLogix Example Using Generic Profile . . . . . . . . . . . . . . . . . . . . . 99
Multi-Drive Mode Explicit Messaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Chapter8
Troubleshooting Understanding the Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
ENET Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
LINK Status Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

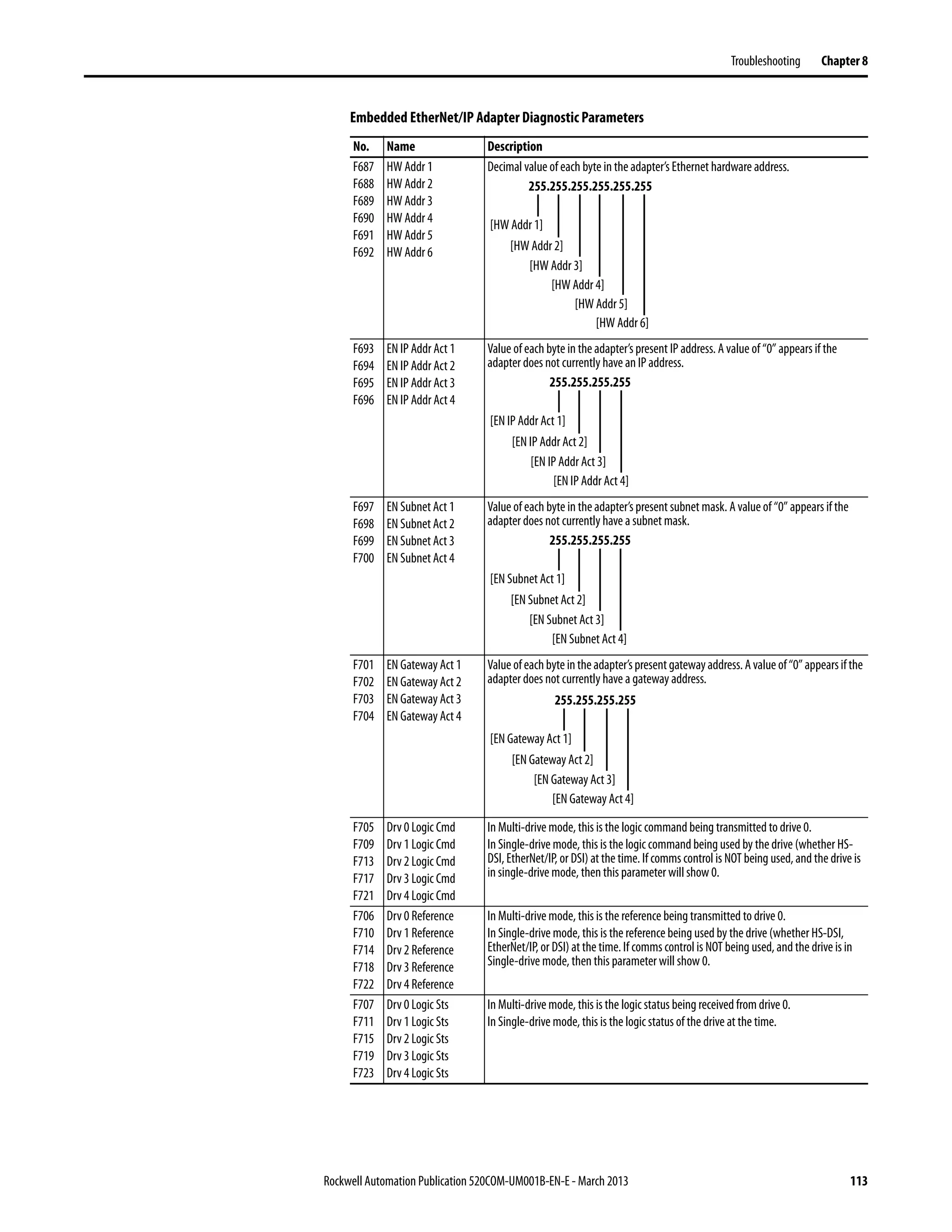

Viewing Adapter Diagnostic Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Viewing and Clearing Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
AppendixA

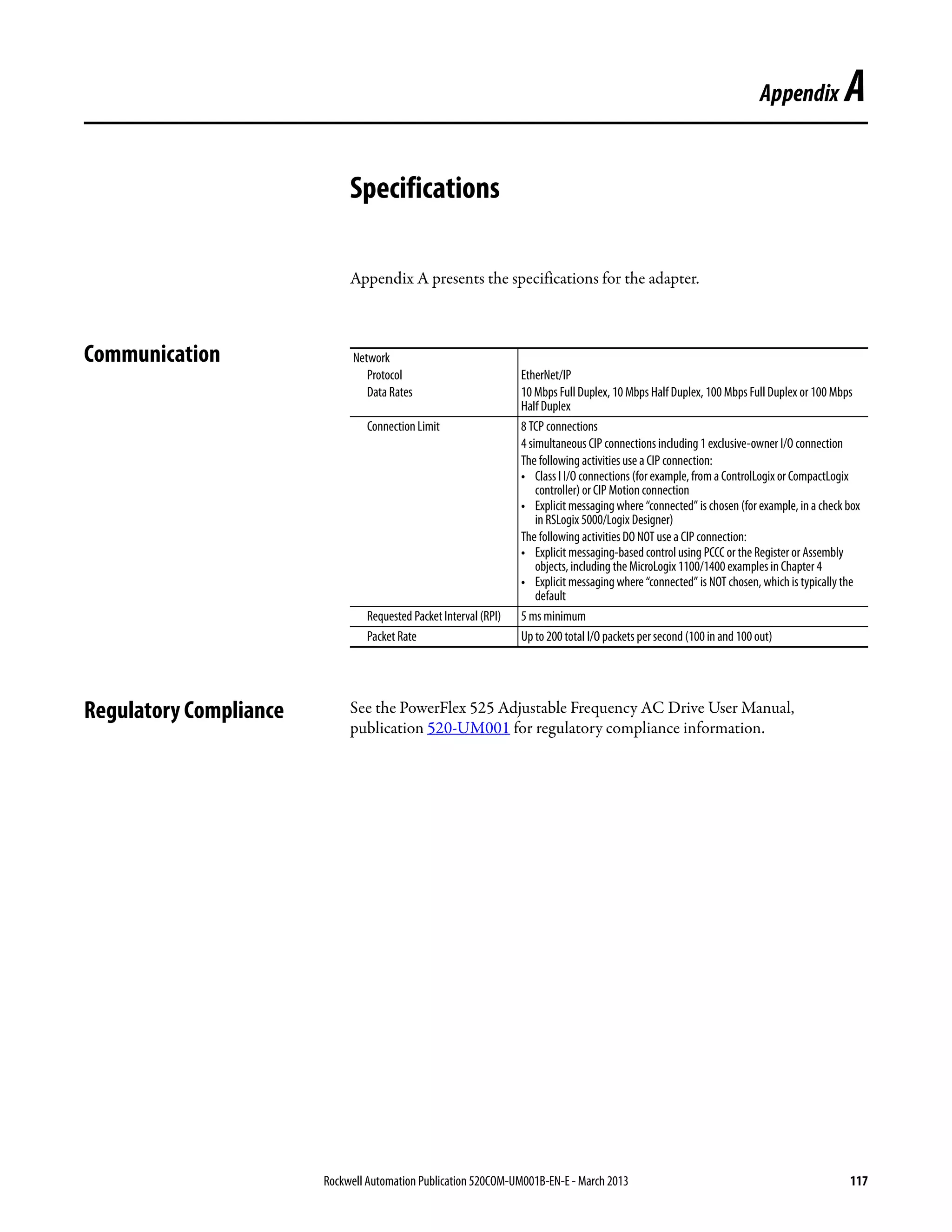

Specifications Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Regulatory Compliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
AppendixB

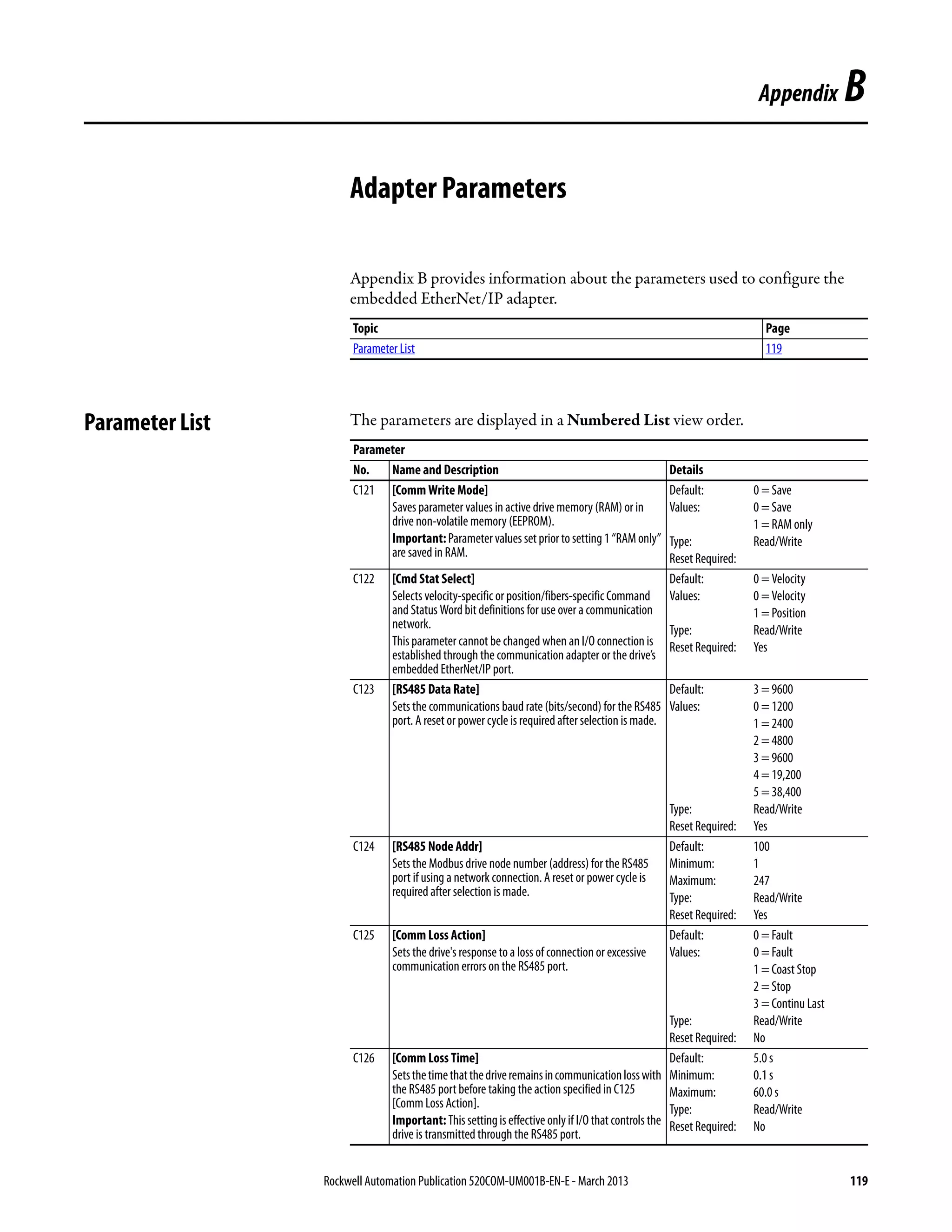

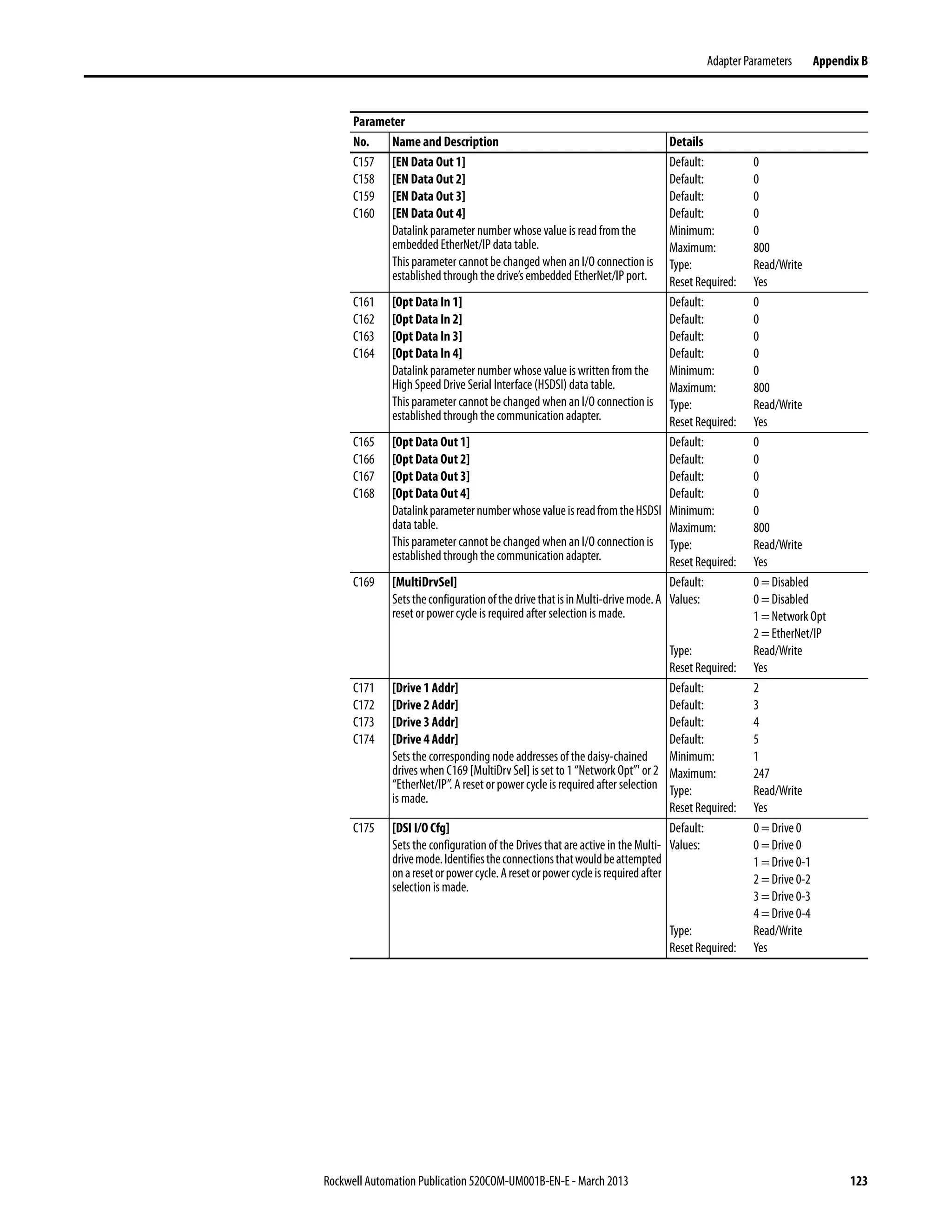

AdapterParameters Parameter List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
AppendixC

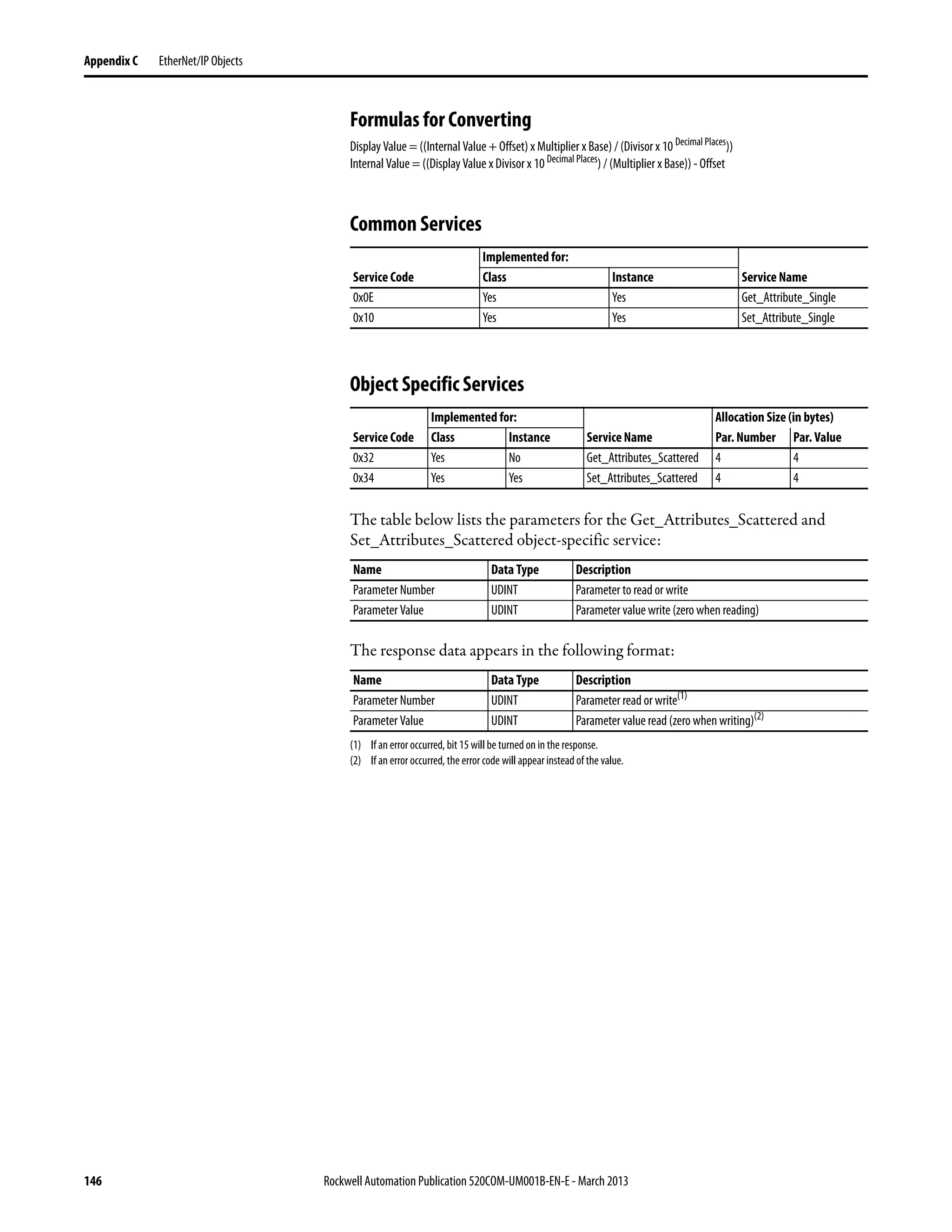

EtherNet/IPObjects Supported Data Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

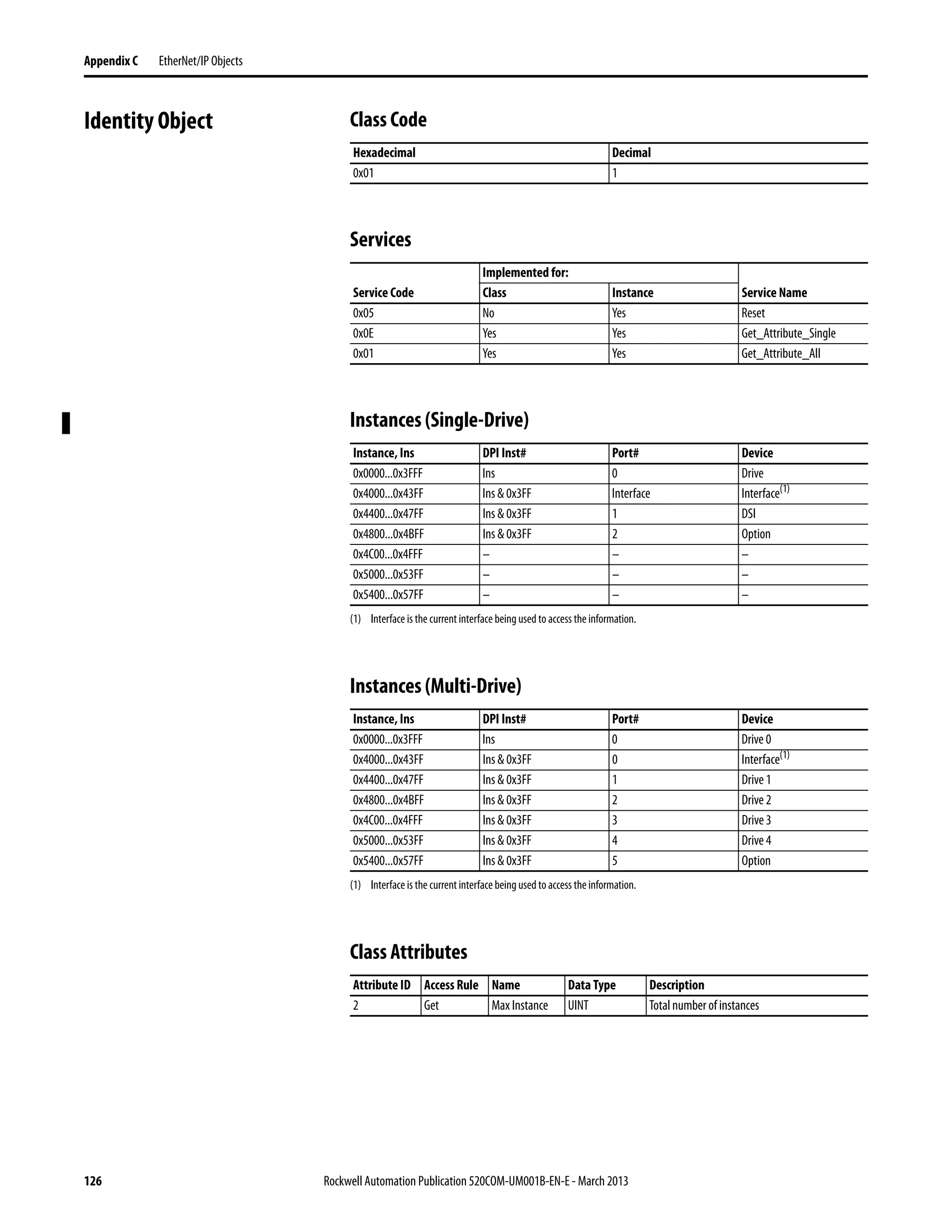

Identity Object. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Assembly Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

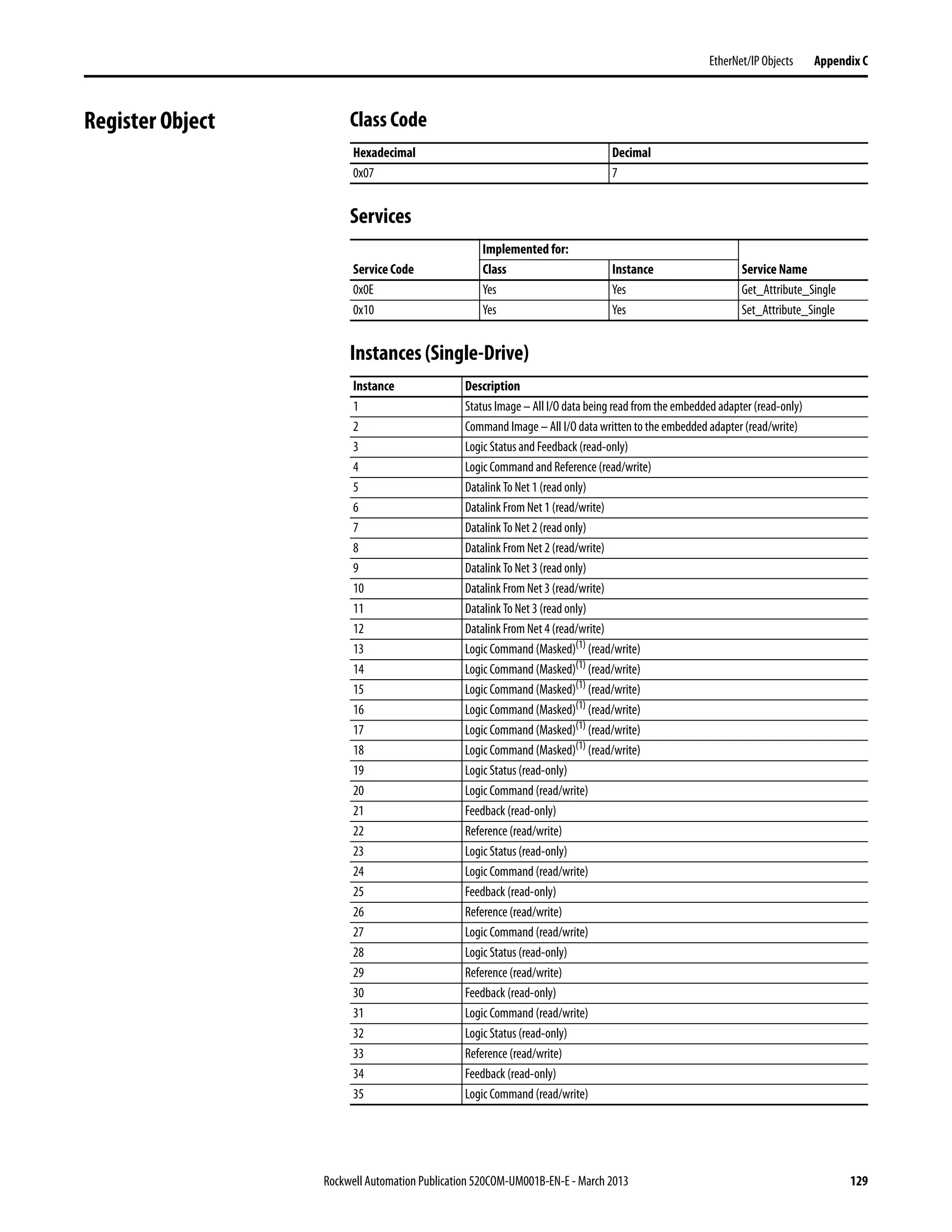

Register Object. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

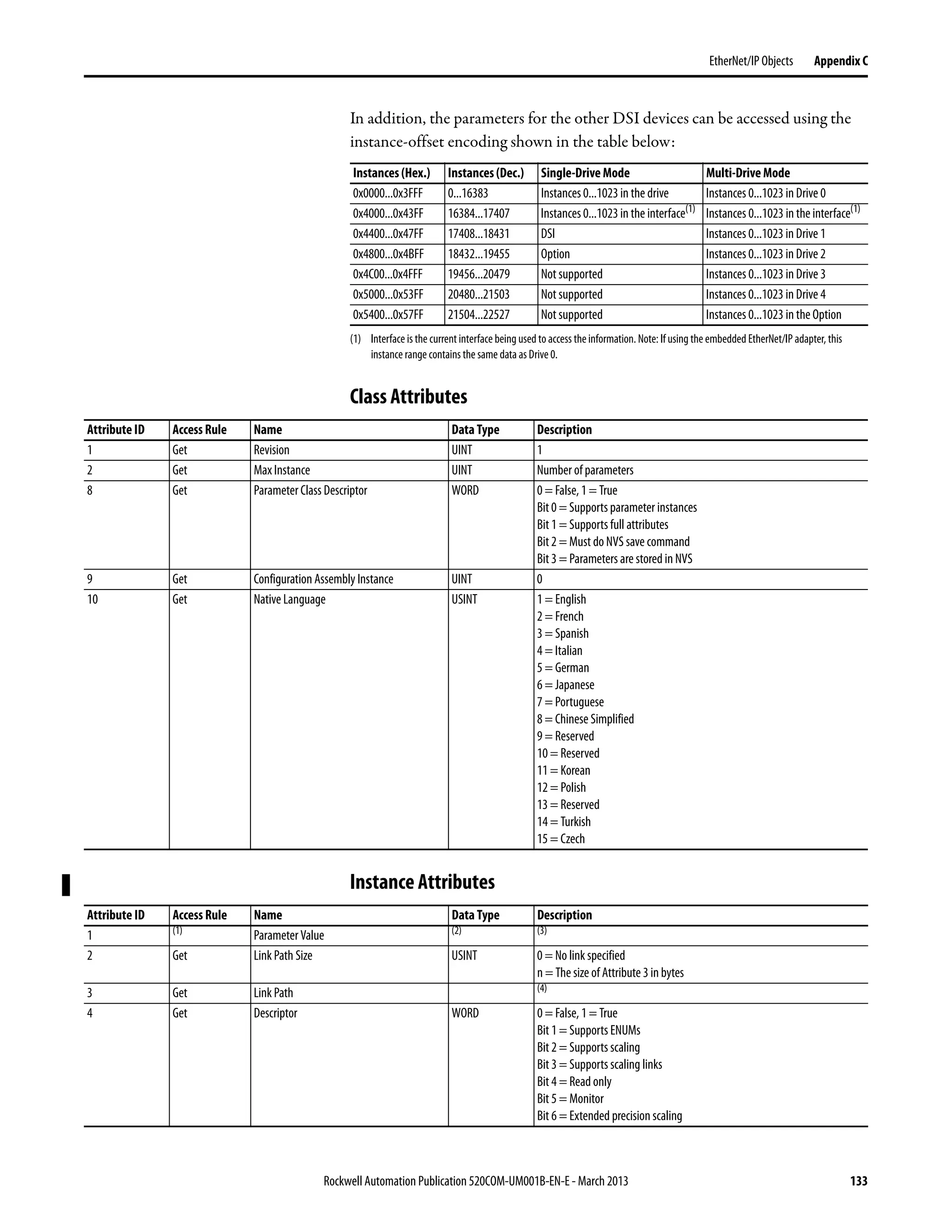

Parameter Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

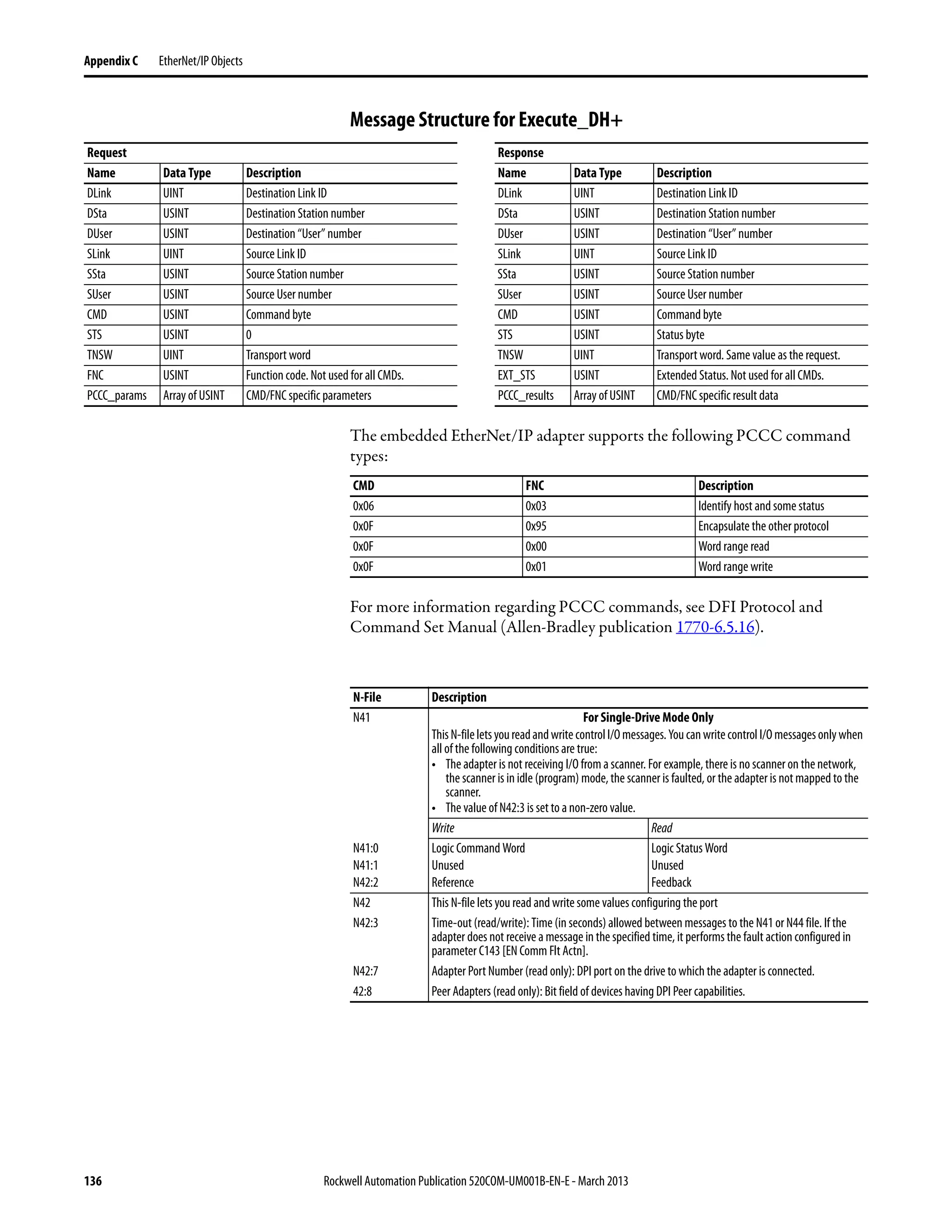

PCCC Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
DPI Device Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Table of Contents

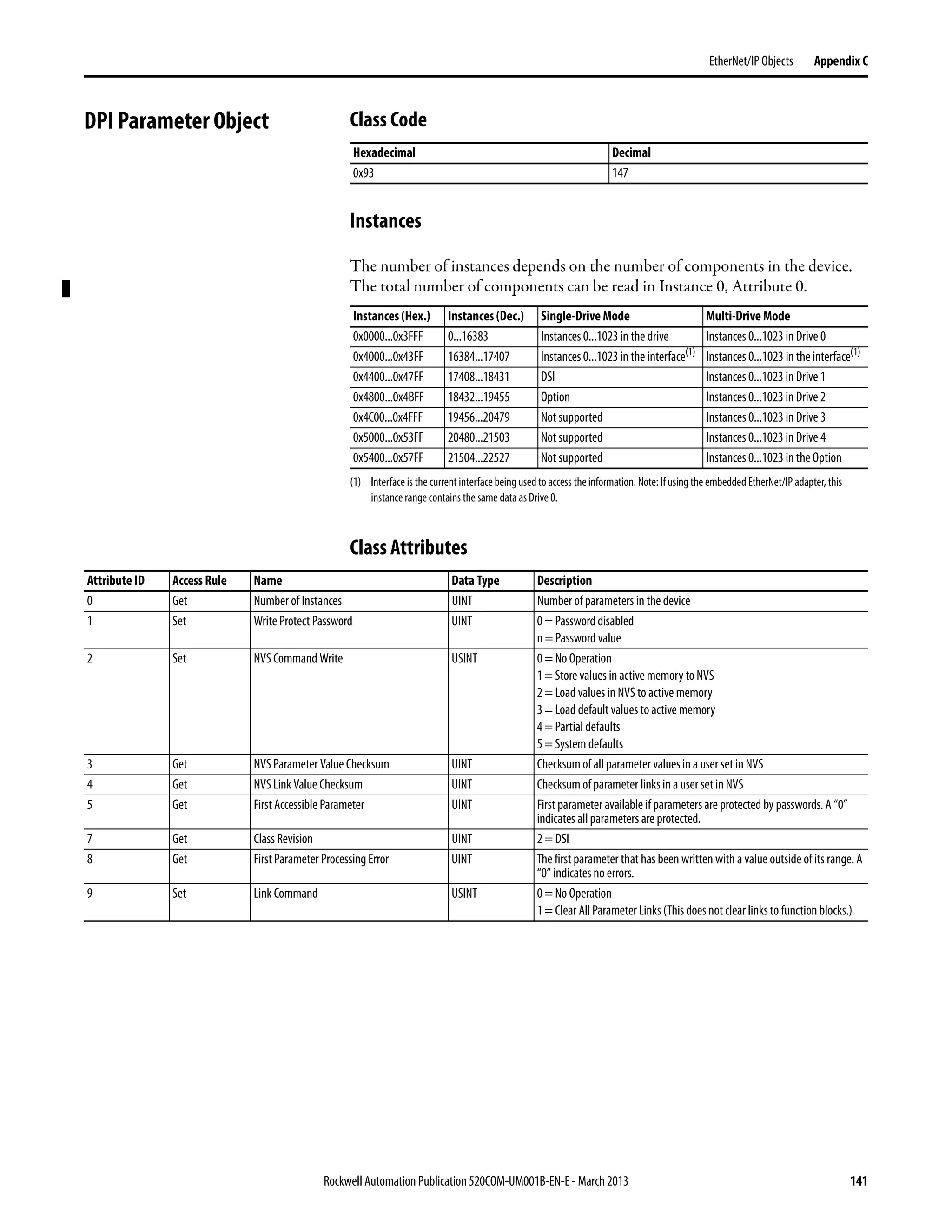

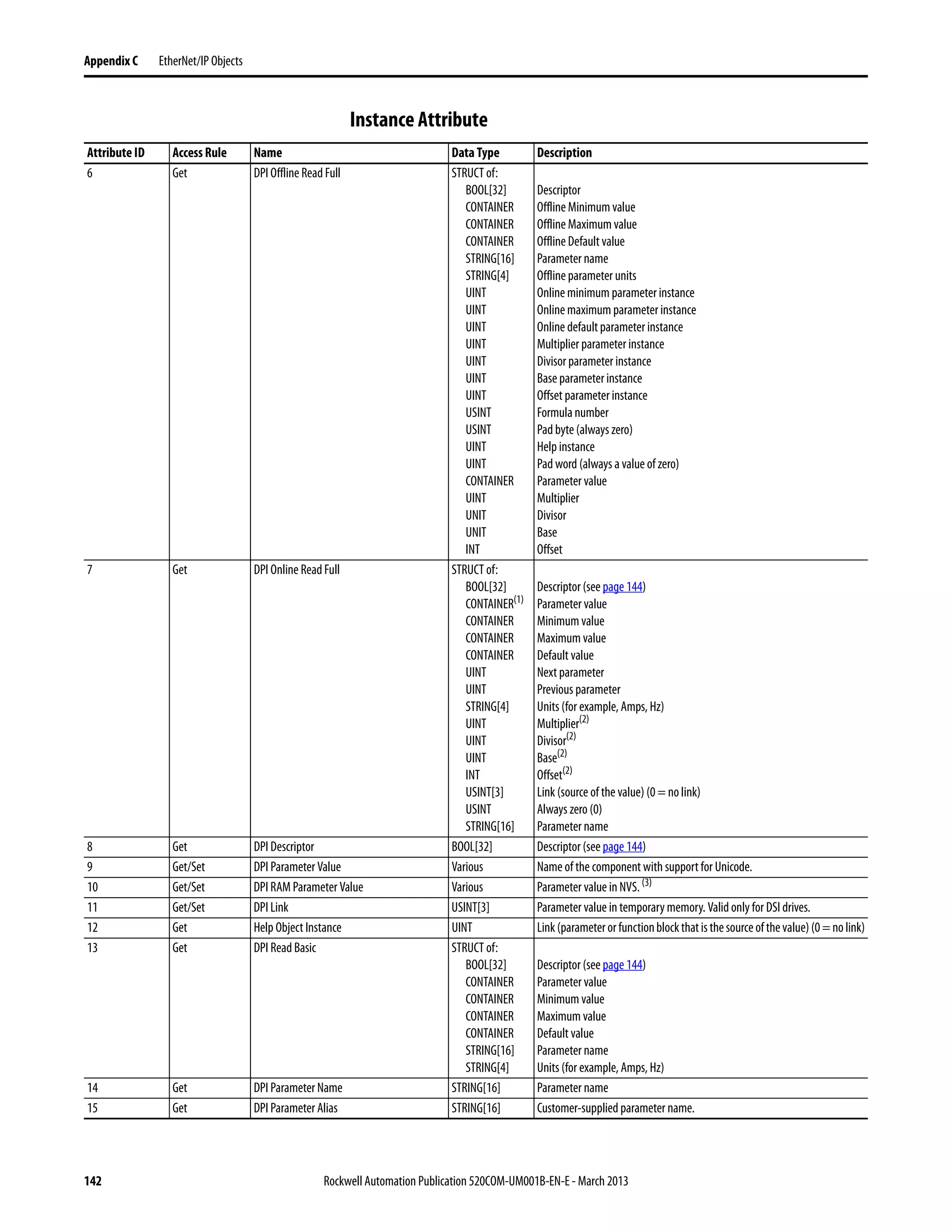

DPI Parameter Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

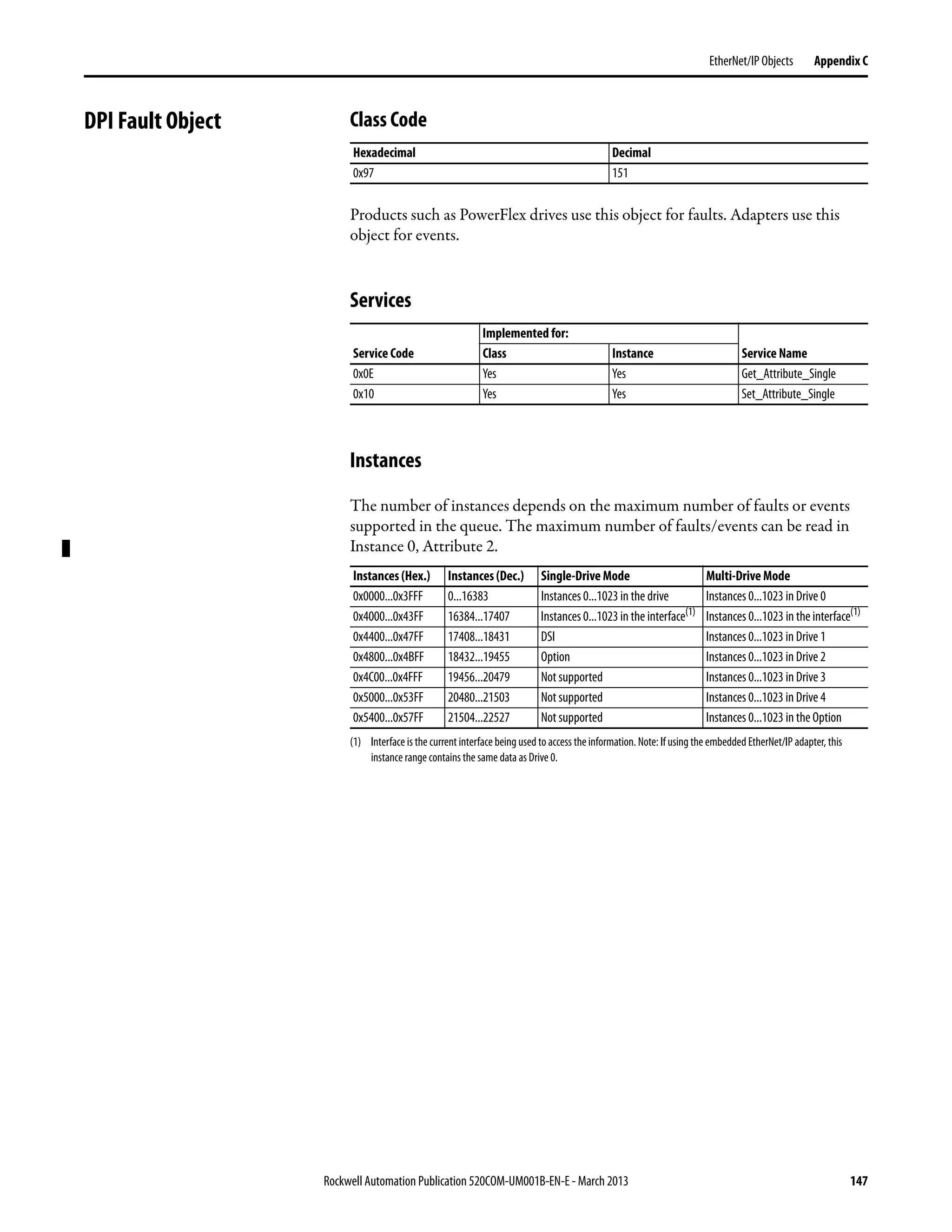

DPI Fault Object. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

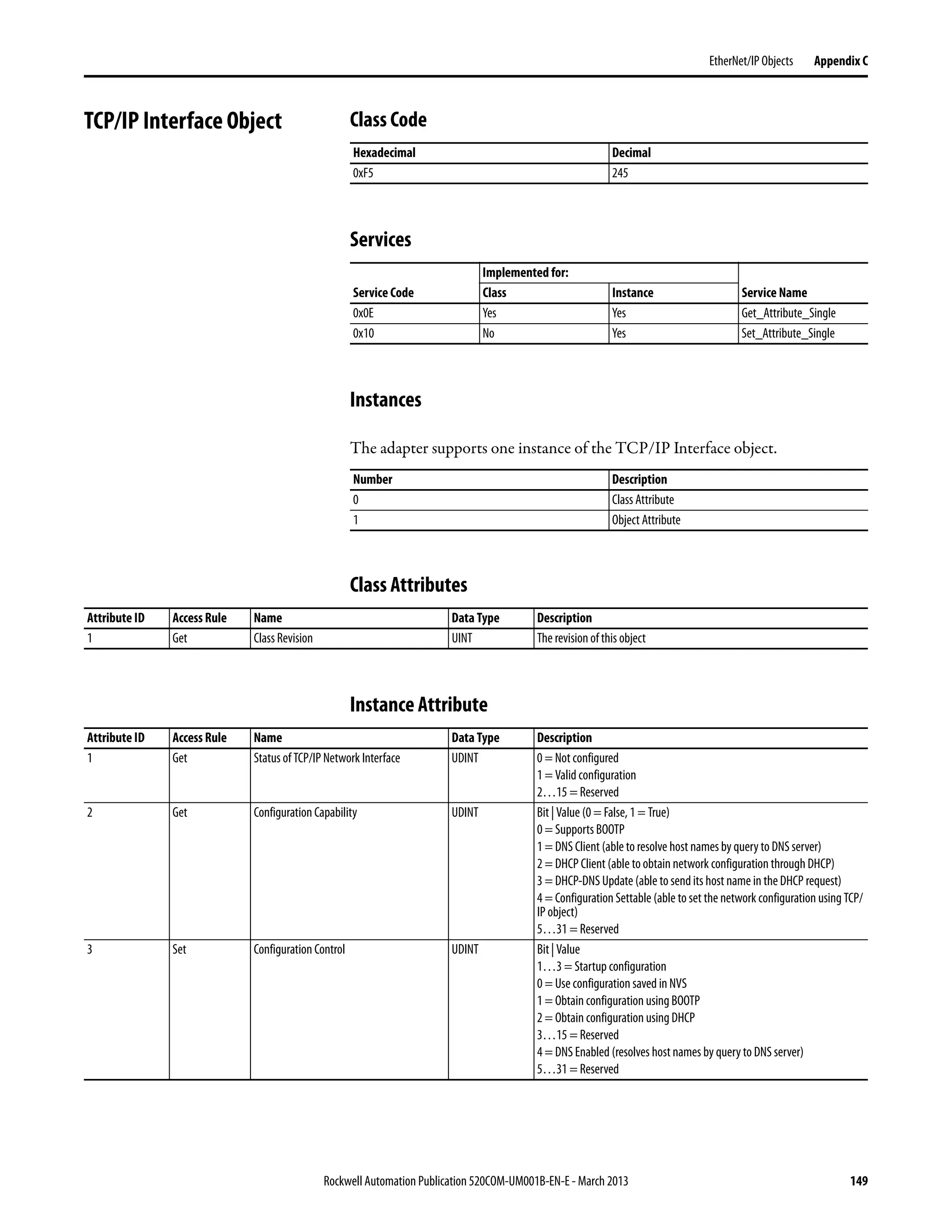

TCP/IP Interface Object . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

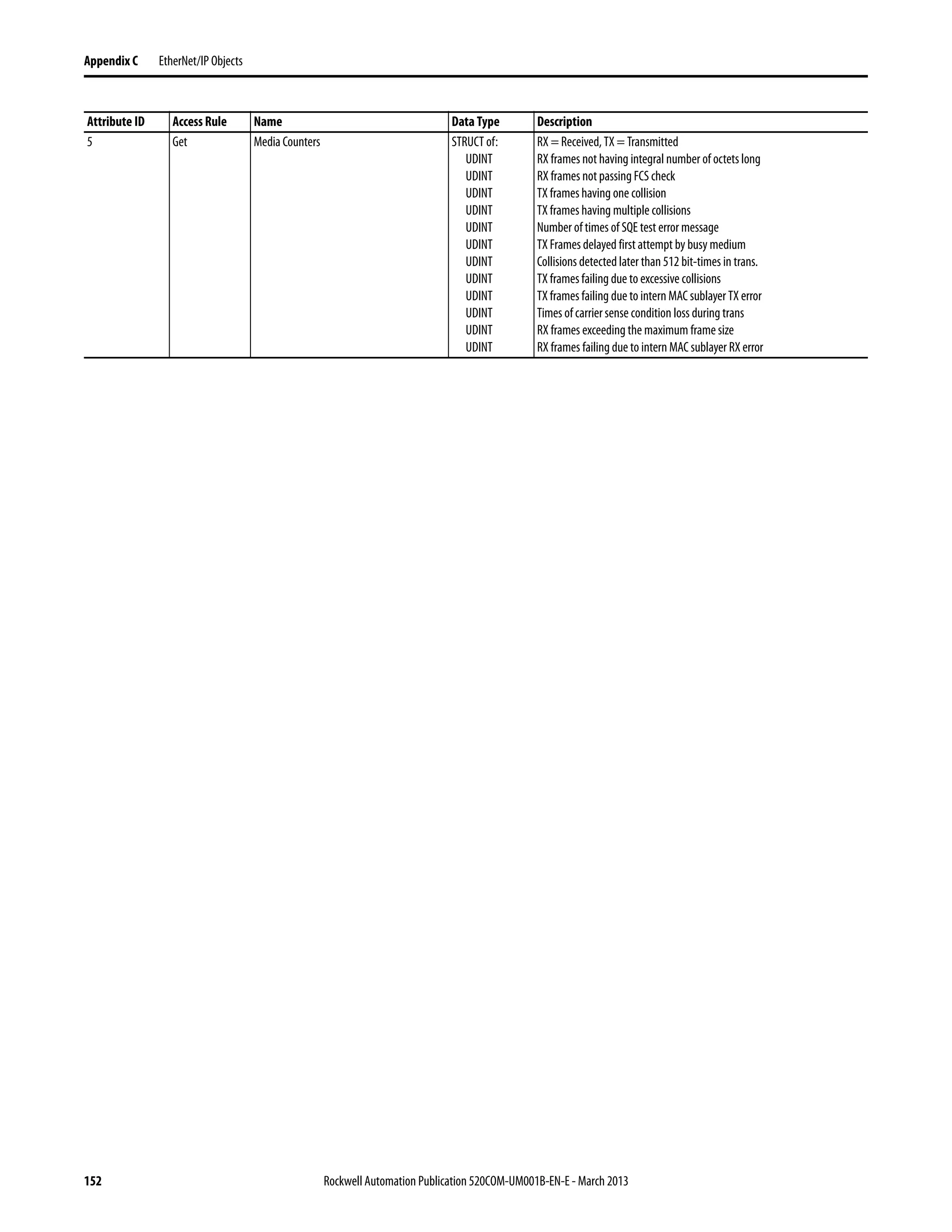

Ethernet Link Object. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
AppendixD
LogicCommand/StatusWords:
PowerFlex525Drives

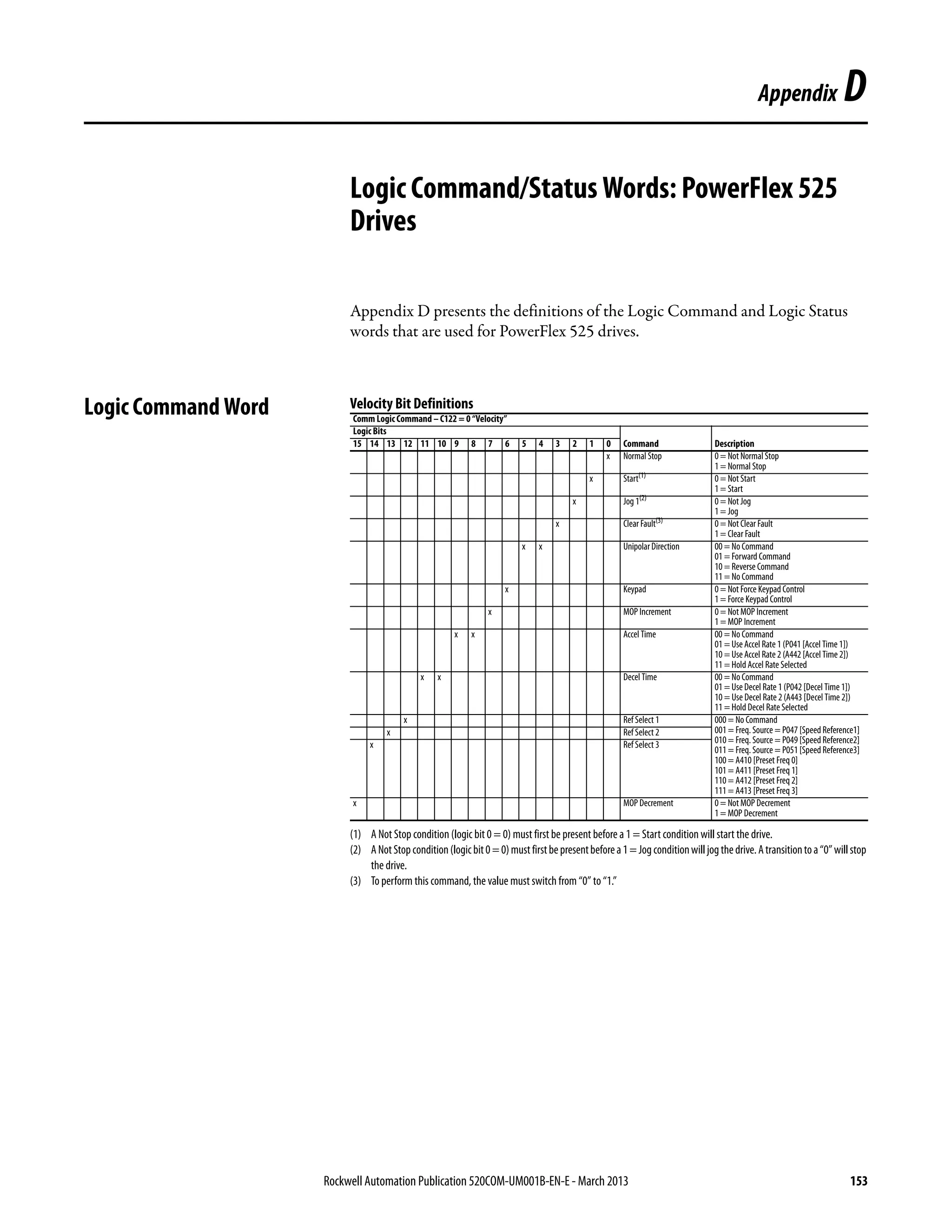

Logic Command Word . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

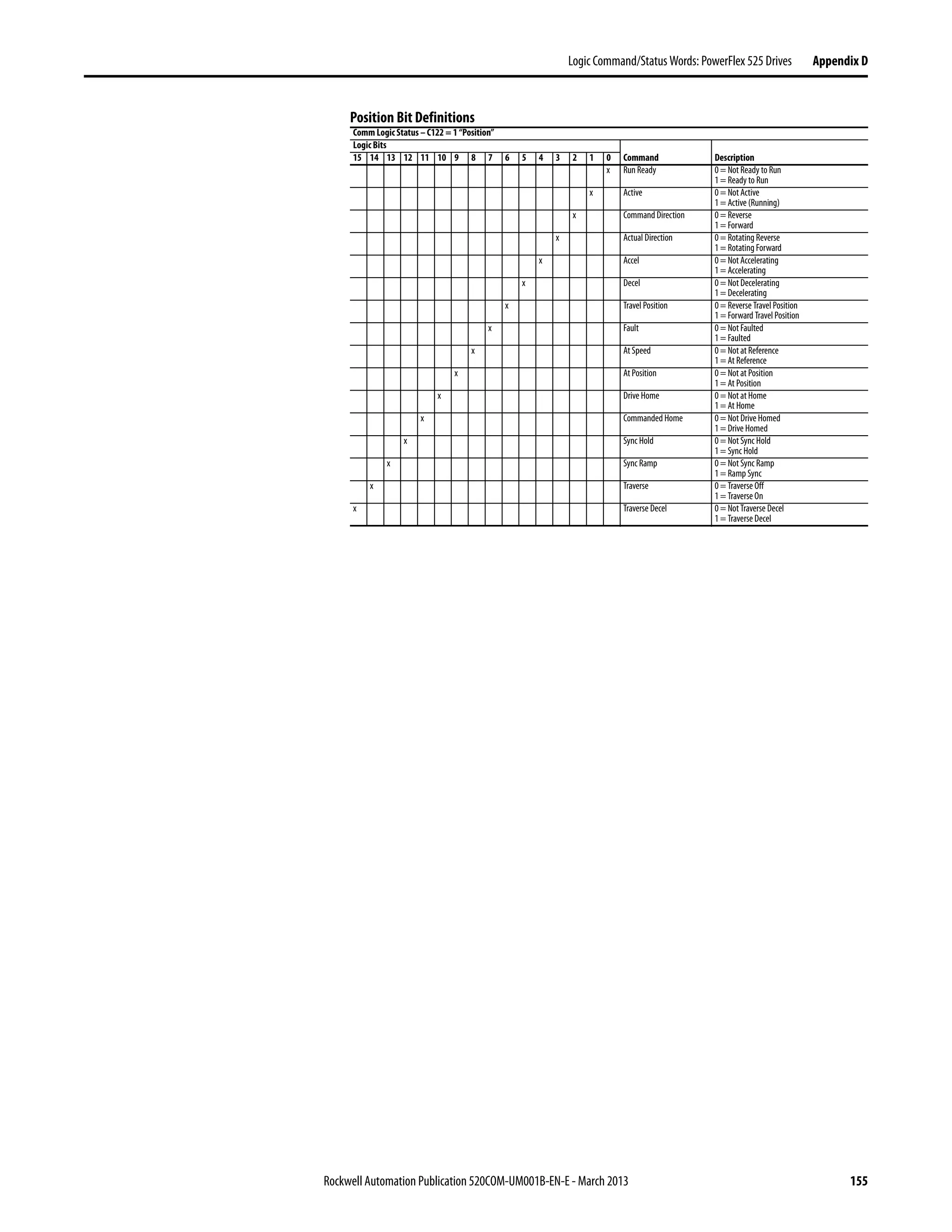

Logic Status Word . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

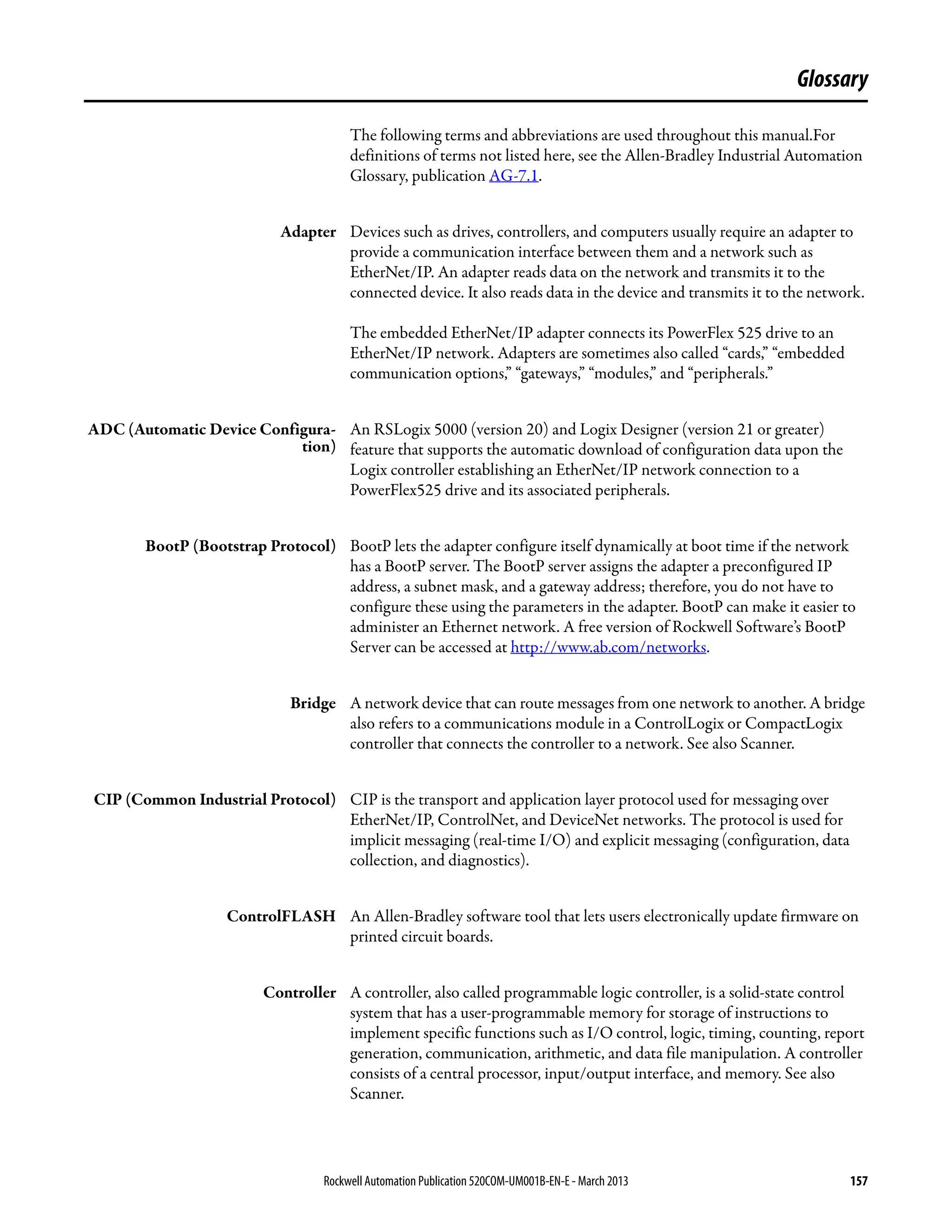

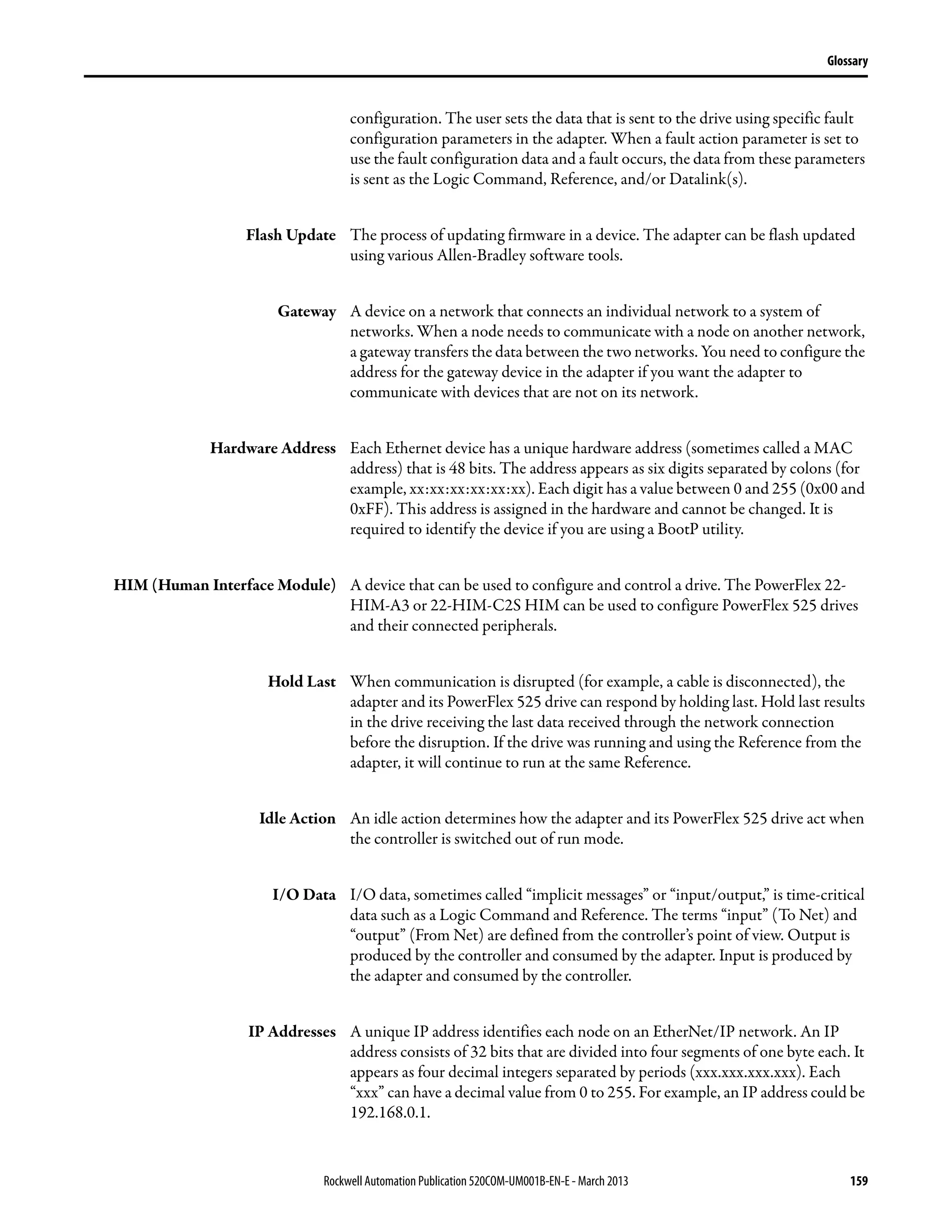

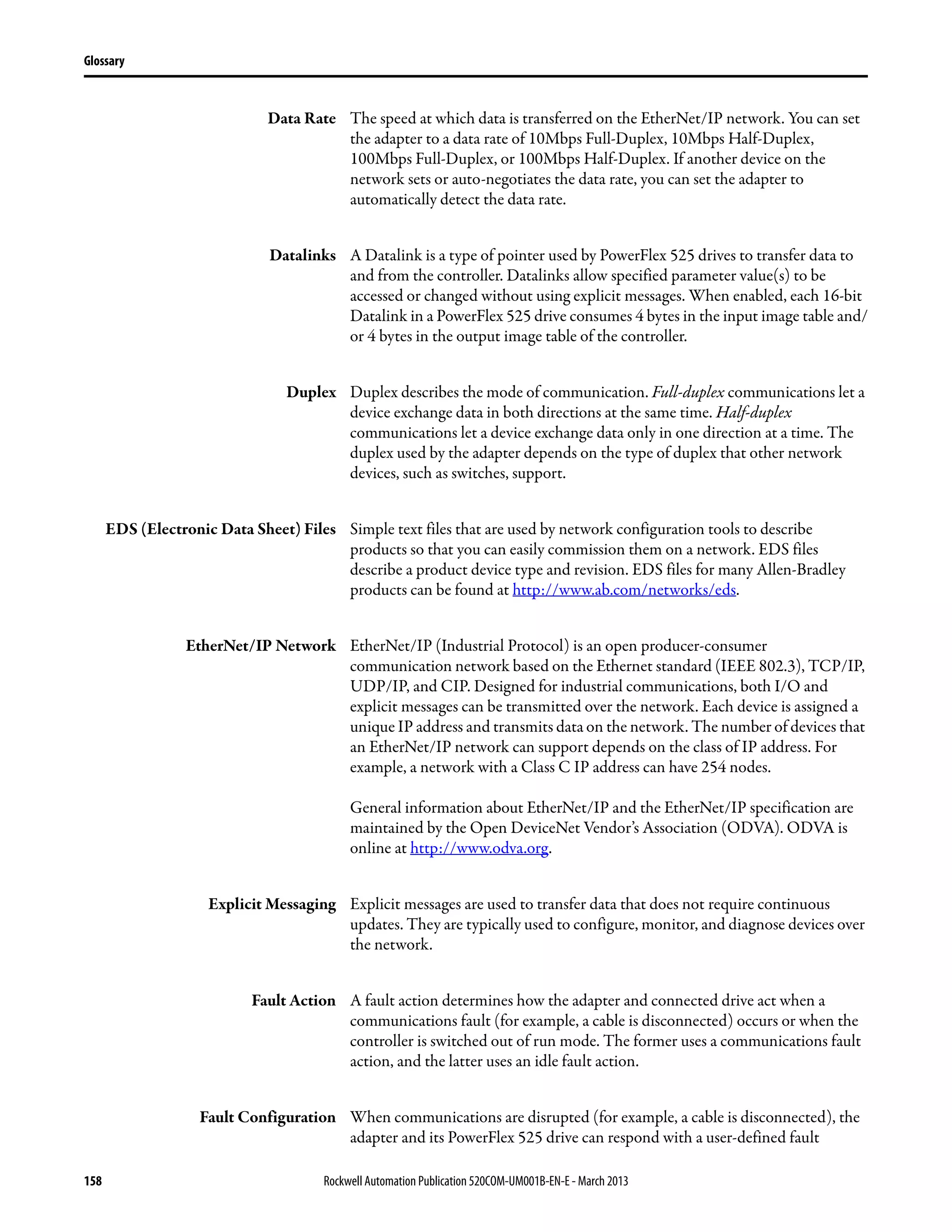

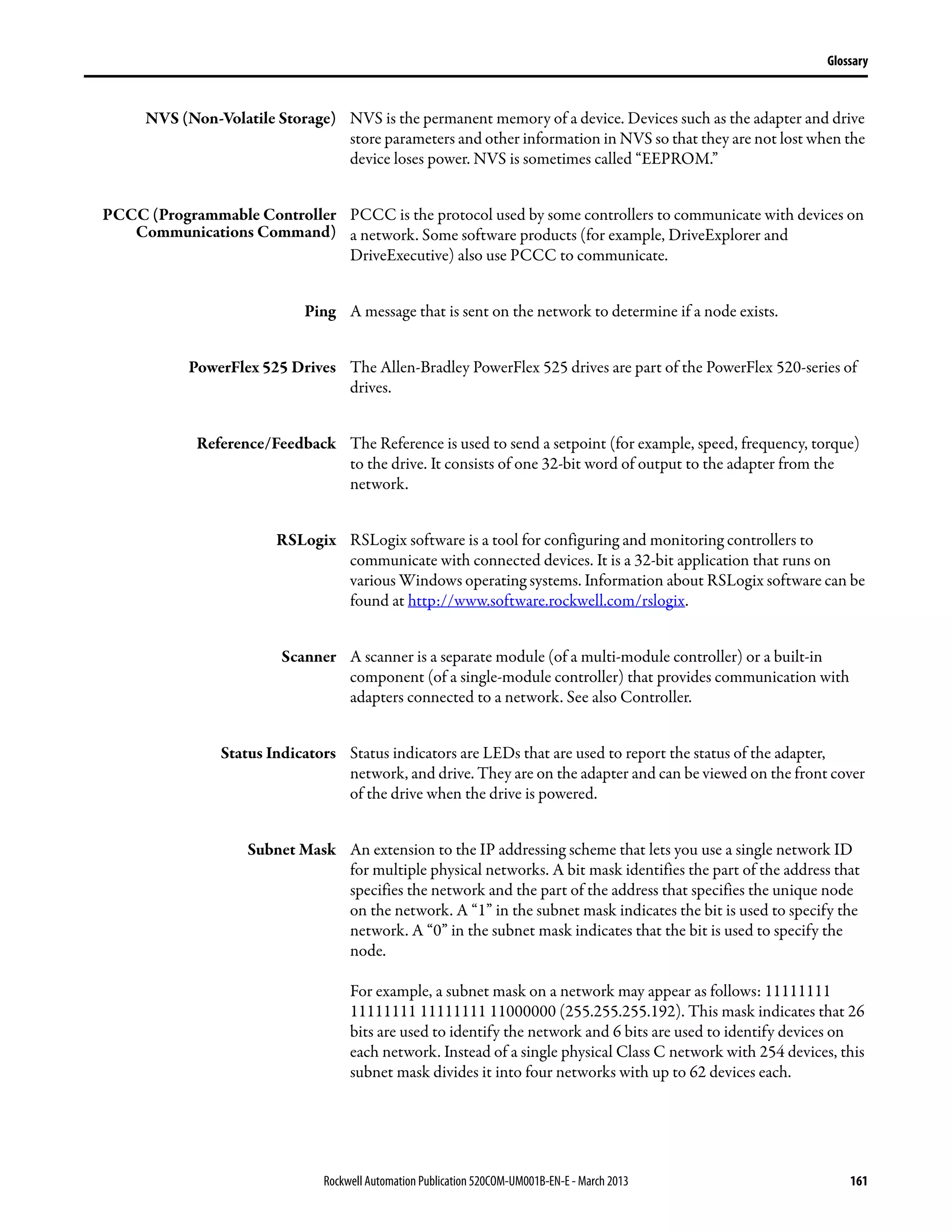

Glossary

Table of Contents

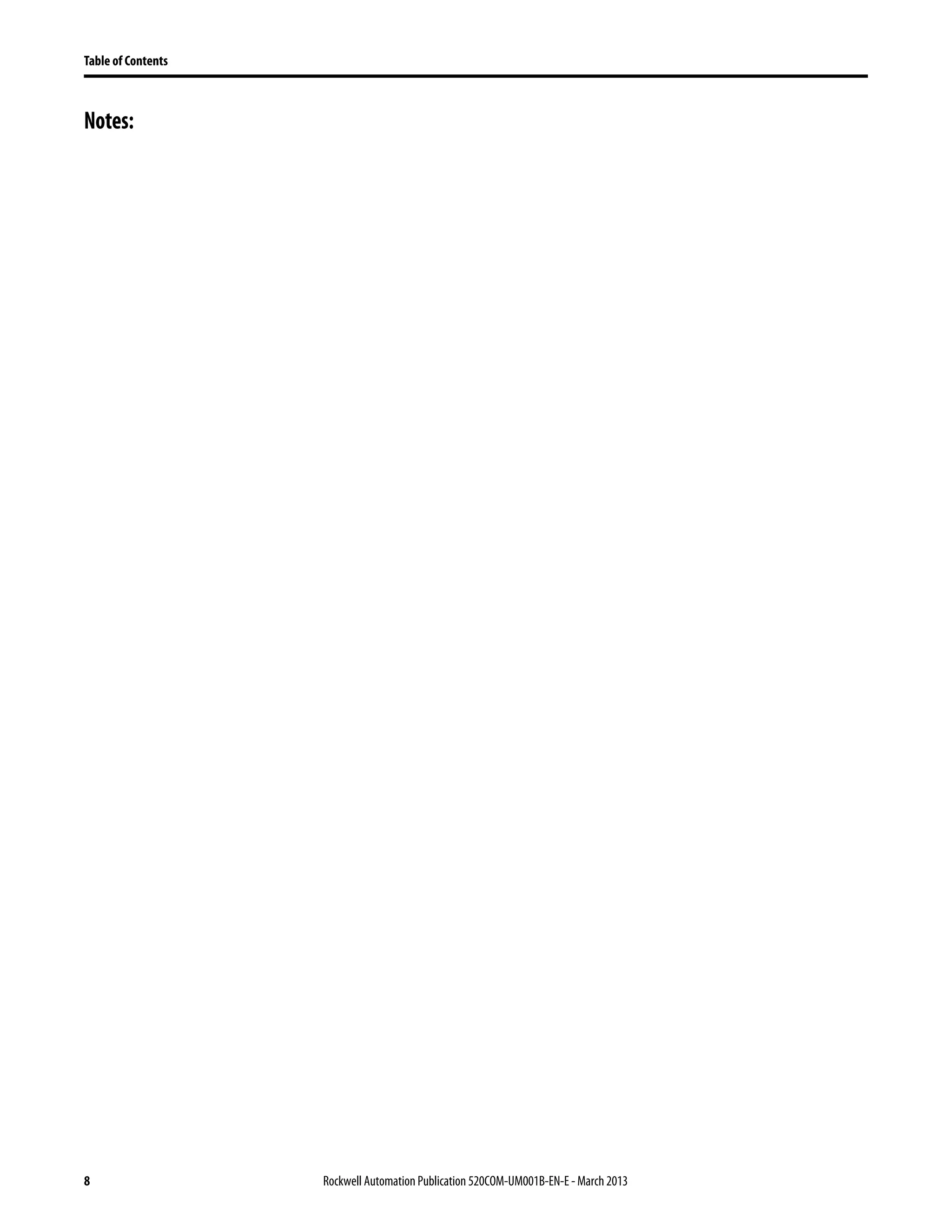

Notes:

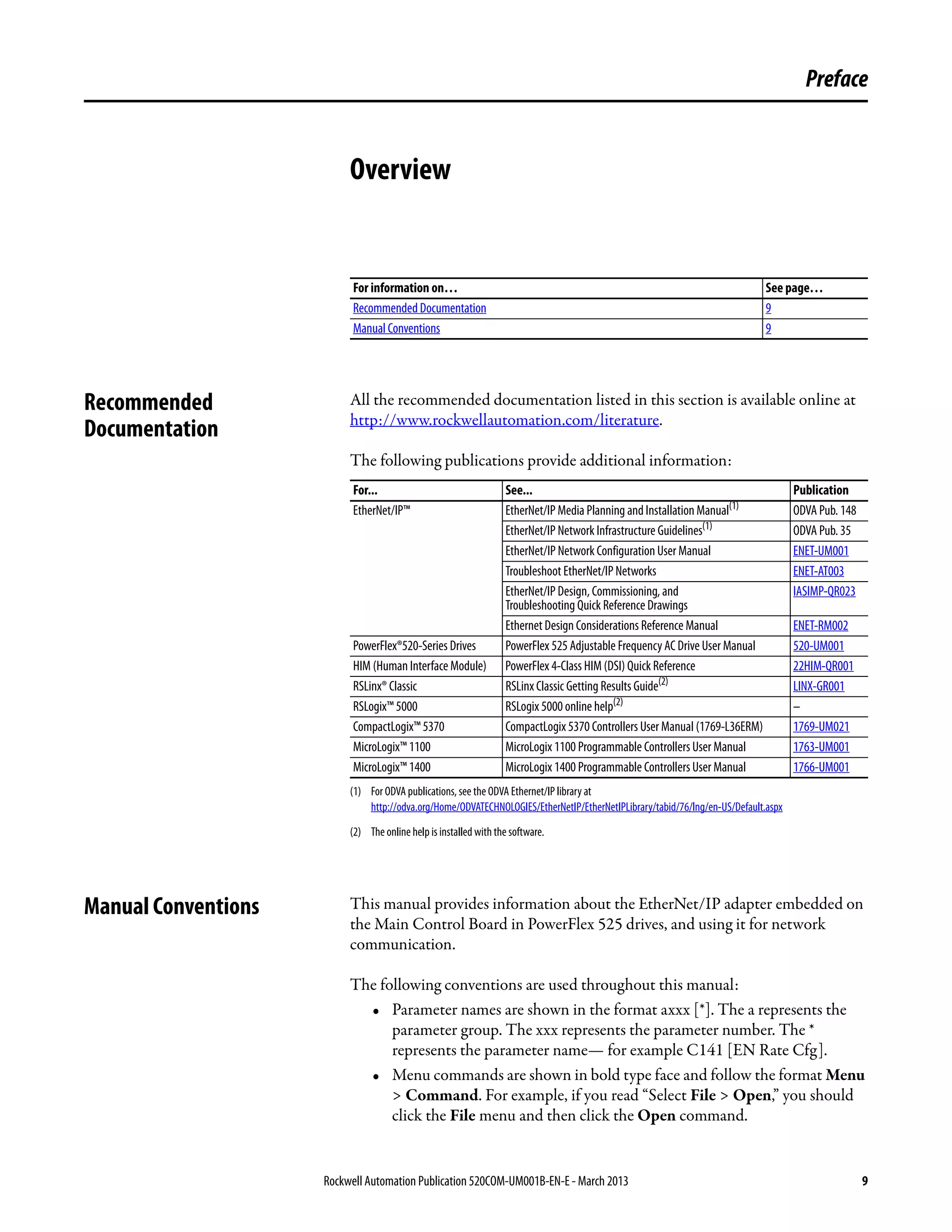

Preface
Overview
Recommended
Documentation
All the recommended documentation listed in this section is available online at
http://www.rockwellautomation.com/literature.
The following publications provide additional information:
Manual Conventions This manual provides information about the EtherNet/IP adapter embedded on
the Main Control Board in PowerFlex 525 drives, and using it for network
communication.
The following conventions are used throughout this manual:
• Parameter names are shown in the format axxx [*]. The a represents the
parameter group. The xxx represents the parameter number. The *
represents the parameter name— for example C141 [EN Rate Cfg].
• Menu commands are shown in bold type face and follow the format Menu
> Command. For example, if you read “Select File > Open,” you should
click the File menu and then click the Open command.
For information on… See page…
Recommended Documentation 9
Manual Conventions 9
For... See... Publication
EtherNet/IP™ EtherNet/IP Media Planning and Installation Manual(1)
(1) For ODVA publications, see the ODVA Ethernet/IP library at
http://odva.org/Home/ODVATECHNOLOGIES/EtherNetIP/EtherNetIPLibrary/tabid/76/lng/en-US/Default.aspx
ODVA Pub. 148
EtherNet/IP Network Infrastructure Guidelines(1) ODVA Pub. 35
EtherNet/IP Network Configuration User Manual ENET-UM001
Troubleshoot EtherNet/IP Networks ENET-AT003
EtherNet/IP Design, Commissioning, and
Troubleshooting Quick Reference Drawings
IASIMP-QR023
Ethernet Design Considerations Reference Manual ENET-RM002
PowerFlex®520-Series Drives PowerFlex 525 Adjustable Frequency AC Drive User Manual 520-UM001
HIM (Human Interface Module) PowerFlex 4-Class HIM (DSI) Quick Reference 22HIM-QR001
RSLinx® Classic RSLinx Classic Getting Results Guide(2)
(2) The online help is installed with the software.
LINX-GR001
RSLogix™ 5000 RSLogix 5000 online help(2) –
CompactLogix™ 5370 CompactLogix 5370 Controllers User Manual (1769-L36ERM) 1769-UM021
MicroLogix™ 1100 MicroLogix 1100 Programmable Controllers User Manual 1763-UM001
MicroLogix™ 1400 MicroLogix 1400 Programmable Controllers User Manual 1766-UM001

Preface Overview

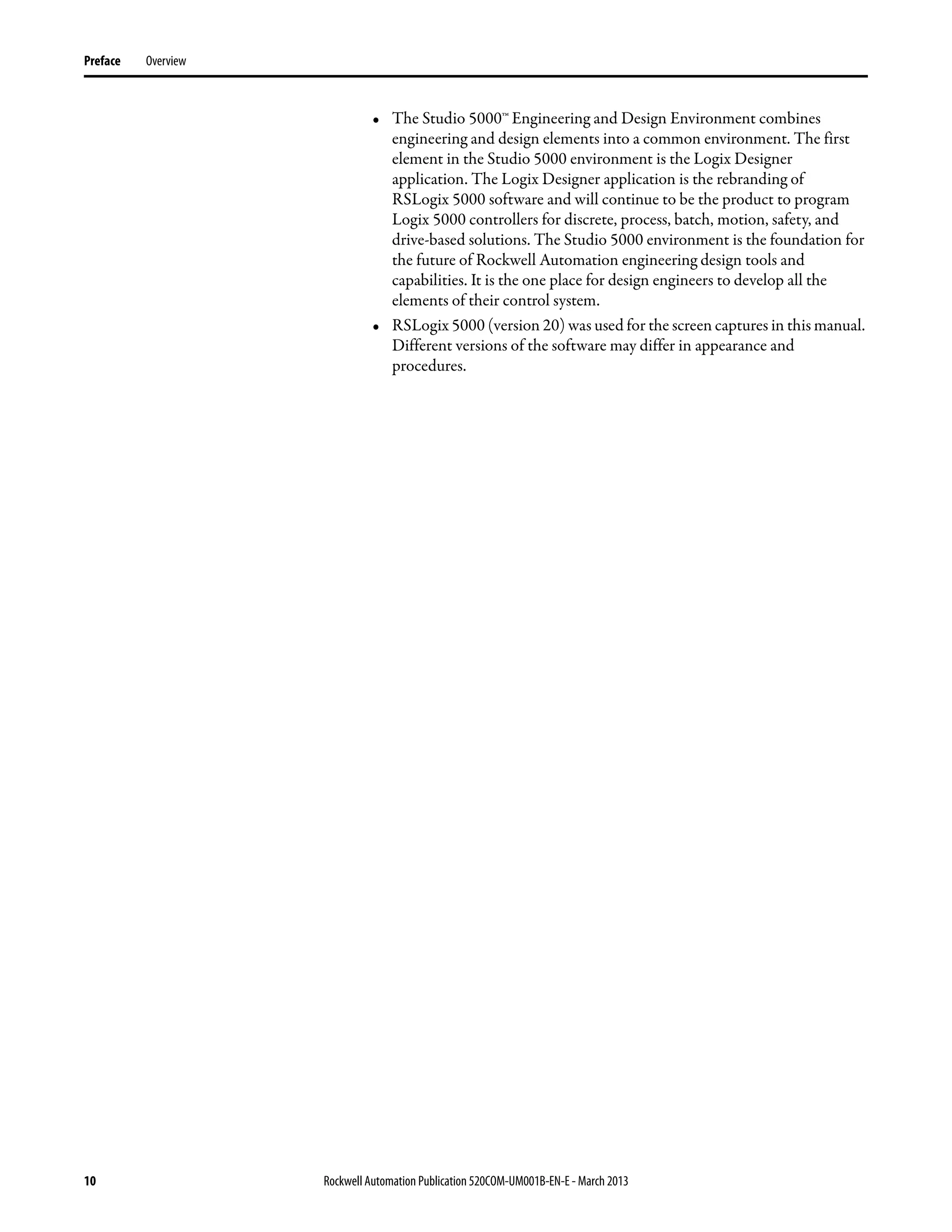

• The Studio 5000™ Engineering and Design Environment combines
engineering and design elements into a common environment. The first
element in the Studio 5000 environment is the Logix Designer
application. The Logix Designer application is the rebranding of
RSLogix 5000 software and will continue to be the product to program
Logix 5000 controllers for discrete, process, batch, motion, safety, and
drive-based solutions. The Studio 5000 environment is the foundation for
the future of Rockwell Automation engineering design tools and
capabilities. It is the one place for design engineers to develop all the
elements of their control system.
• RSLogix 5000 (version 20) was used for the screen captures in this manual.
Different versions of the software may differ in appearance and
procedures.

Chapter 1
Getting Started
The EtherNet/IP adapter, embedded on the Main Control Board in
PowerFlex 525 drives, is used for network communication.
Components Components of the Embedded EtherNet/IP Adapter
Topic Page
Components 11
Features 12
Compatible Products 12
Required Equipment 12
Safety Precautions 14
Quick Start 14
Status Indicators 15
FWD
ENET LINK
EtherNet/IP
Esc Sel
Item Part Description
➊ ENET status
indicator
TwoLEDsthatindicatethestatus
of the embedded EtherNet/IP
adapter and network
communications.
LINK status
indicator
➋ Ethernet port An RJ-45 connector for the
Ethernet cable. It is CAT-5
compliant to ensure reliable
data transfer on 100Base-Tx
Ethernet connections.
➌ DSI port An RS485 cable connection for
handheld and remote options.
Shown with control module cover removed
➊
➋ ➌

Chapter 1 Getting Started

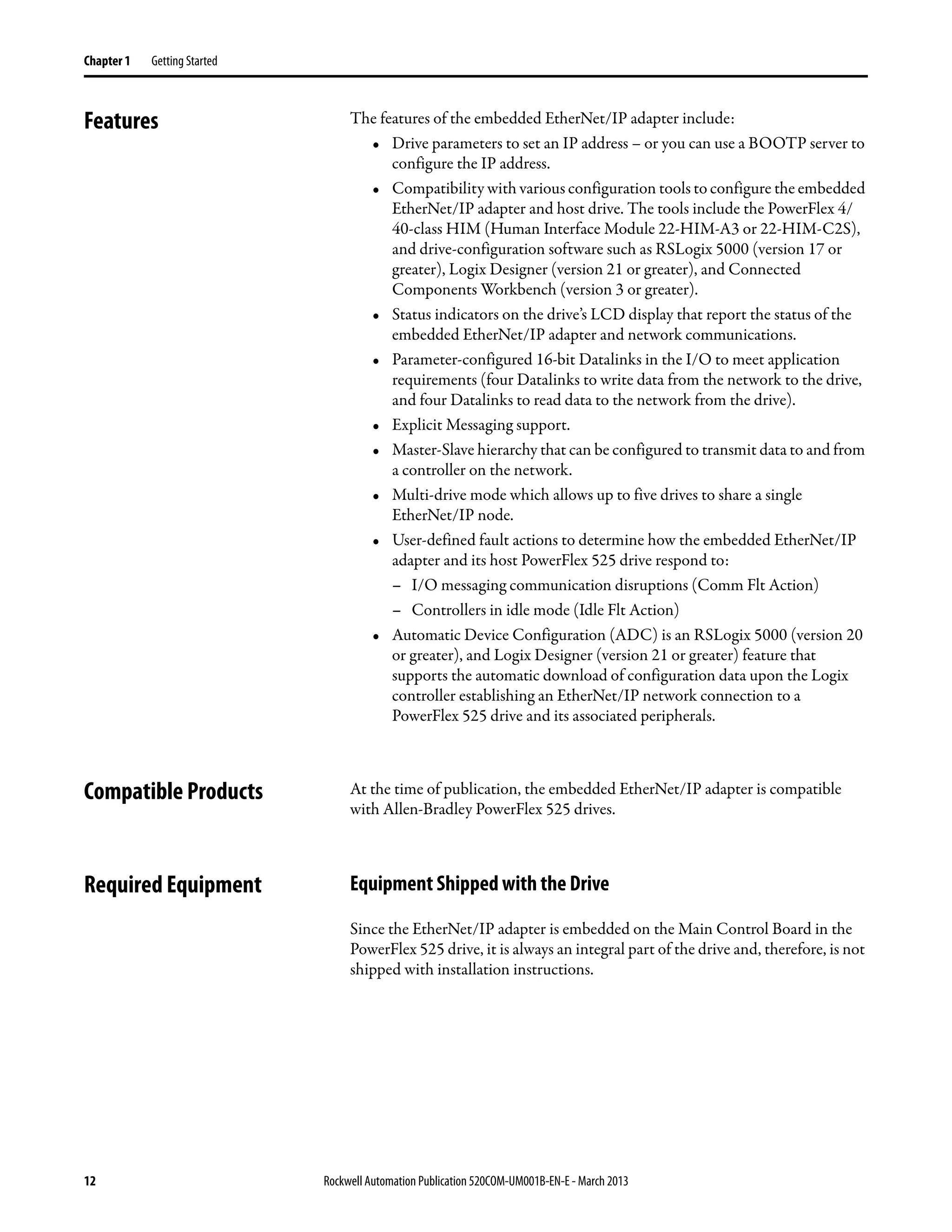

Features The features of the embedded EtherNet/IP adapter include:
• Drive parameters to set an IP address – or you can use a BOOTP server to
configure the IP address.
• Compatibility with various configuration tools to configure the embedded
EtherNet/IP adapter and host drive. The tools include the PowerFlex 4/
40-class HIM (Human Interface Module 22-HIM-A3 or 22-HIM-C2S),
and drive-configuration software such as RSLogix 5000 (version 17 or
greater), Logix Designer (version 21 or greater), and Connected
Components Workbench (version 3 or greater).
• Status indicators on the drive’s LCD display that report the status of the
embedded EtherNet/IP adapter and network communications.
• Parameter-configured 16-bit Datalinks in the I/O to meet application
requirements (four Datalinks to write data from the network to the drive,
and four Datalinks to read data to the network from the drive).
• Explicit Messaging support.
• Master-Slave hierarchy that can be configured to transmit data to and from
a controller on the network.
• Multi-drive mode which allows up to five drives to share a single
EtherNet/IP node.
• User-defined fault actions to determine how the embedded EtherNet/IP
adapter and its host PowerFlex 525 drive respond to:
– I/O messaging communication disruptions (Comm Flt Action)
– Controllers in idle mode (Idle Flt Action)
• Automatic Device Configuration (ADC) is an RSLogix 5000 (version 20
or greater), and Logix Designer (version 21 or greater) feature that
supports the automatic download of configuration data upon the Logix
controller establishing an EtherNet/IP network connection to a
PowerFlex 525 drive and its associated peripherals.
Compatible Products At the time of publication, the embedded EtherNet/IP adapter is compatible
with Allen-Bradley PowerFlex 525 drives.
Required Equipment Equipment Shipped with the Drive
Since the EtherNet/IP adapter is embedded on the Main Control Board in the
PowerFlex 525 drive, it is always an integral part of the drive and, therefore, is not
shipped with installation instructions.

Getting Started Chapter 1
User-Supplied Equipment
The embedded EtherNet/IP adapter can be configured using the built-in keypad
interface on the drive. In addition, you must supply:
❑ Ethernet cable (see the EtherNet/IP Media Planning and Installation Manual, ODVA publication 148 available on the
ODVA web site at http://odva.org/Home/ODVATECHNOLOGIES/EtherNetIP/EtherNetIPLibrary/tabid/76/Default.aspx
for details)
❑ Ethernet switch (see the Ethernet Design Considerations Reference Manual, Rockwell Automation publication
ENET-RM002 for details)
❑ Optional configuration tool, such as:
– PowerFlex 22-HIM-A3/-C2S HIM
– DHCP/BOOTP Utilities
❑ Controller configuration software, such as:
– RSLinx Classic (version 2.50 or later)
– RSLogix 5000 (version 17 or greater) or Logix Designer (version 21 or greater) when using drive-specific Add-On
Profile (AOP)
– Connected Components Workbench (version 3 or greater)
❑ A PC connection to the EtherNet/IP network

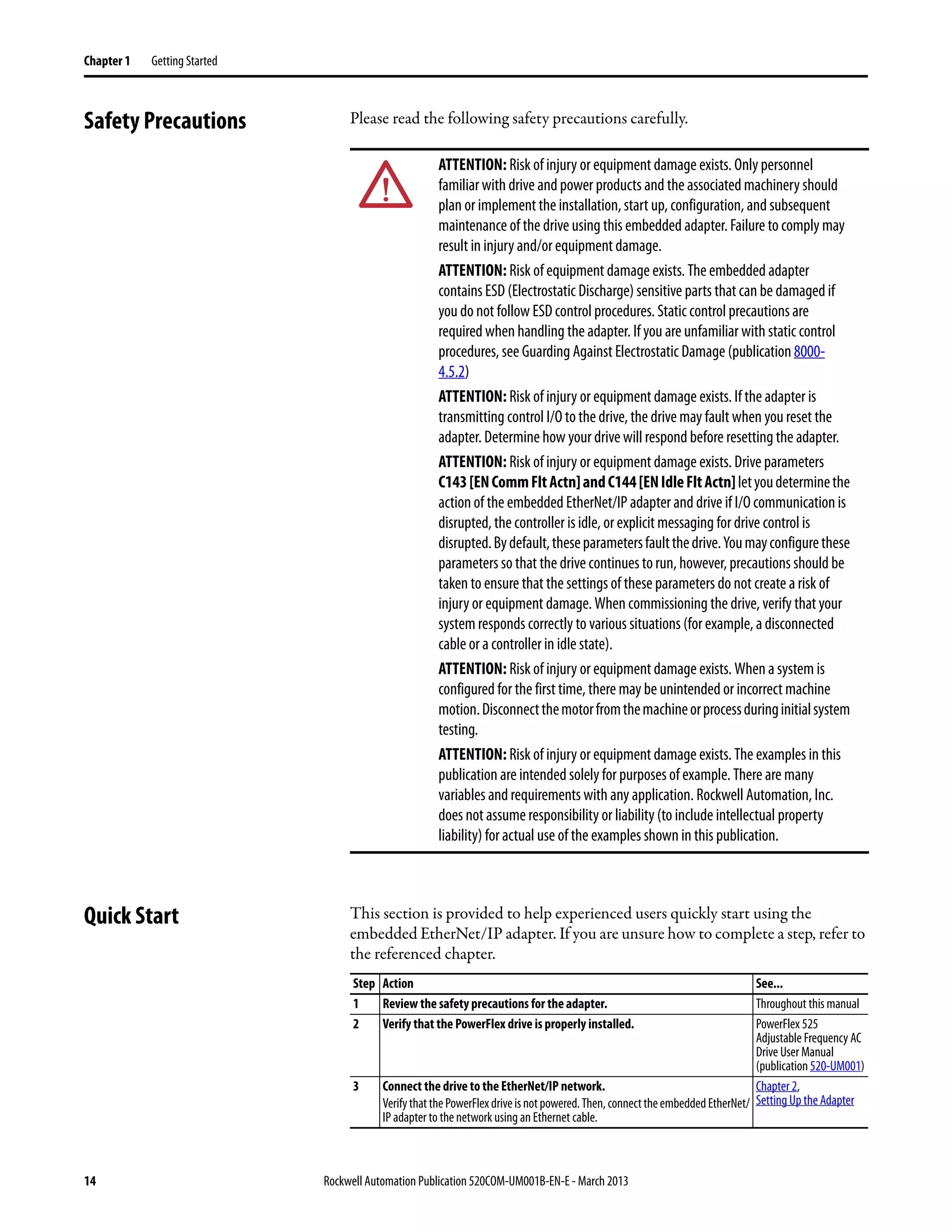

Safety Precautions Please read the following safety precautions carefully.
Quick Start This section is provided to help experienced users quickly start using the
embedded EtherNet/IP adapter. If you are unsure how to complete a step, refer to
the referenced chapter.
ATTENTION: Risk of injury or equipment damage exists. Only personnel
familiar with drive and power products and the associated machinery should
plan or implement the installation, start up, configuration, and subsequent
maintenance of the drive using this embedded adapter. Failure to comply may
result in injury and/or equipment damage.
ATTENTION: Risk of equipment damage exists. The embedded adapter
contains ESD (Electrostatic Discharge) sensitive parts that can be damaged if
you do not follow ESD control procedures. Static control precautions are
required when handling the adapter. If you are unfamiliar with static control
procedures, see Guarding Against Electrostatic Damage (publication 8000-
4.5.2)
ATTENTION: Risk of injury or equipment damage exists. If the adapter is
transmitting control I/O to the drive, the drive may fault when you reset the
adapter. Determine how your drive will respond before resetting the adapter.

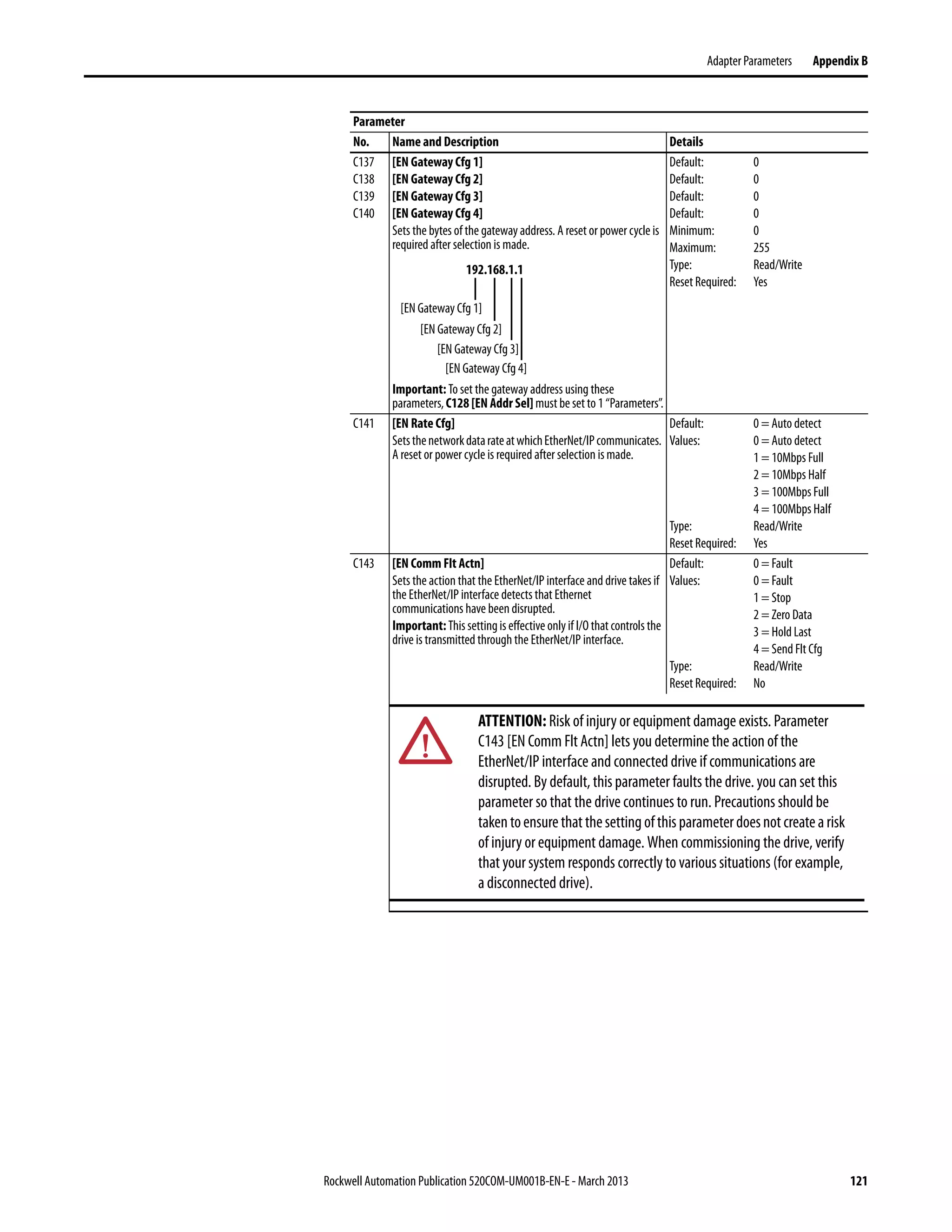

ATTENTION: Risk of injury or equipment damage exists. Drive parameters

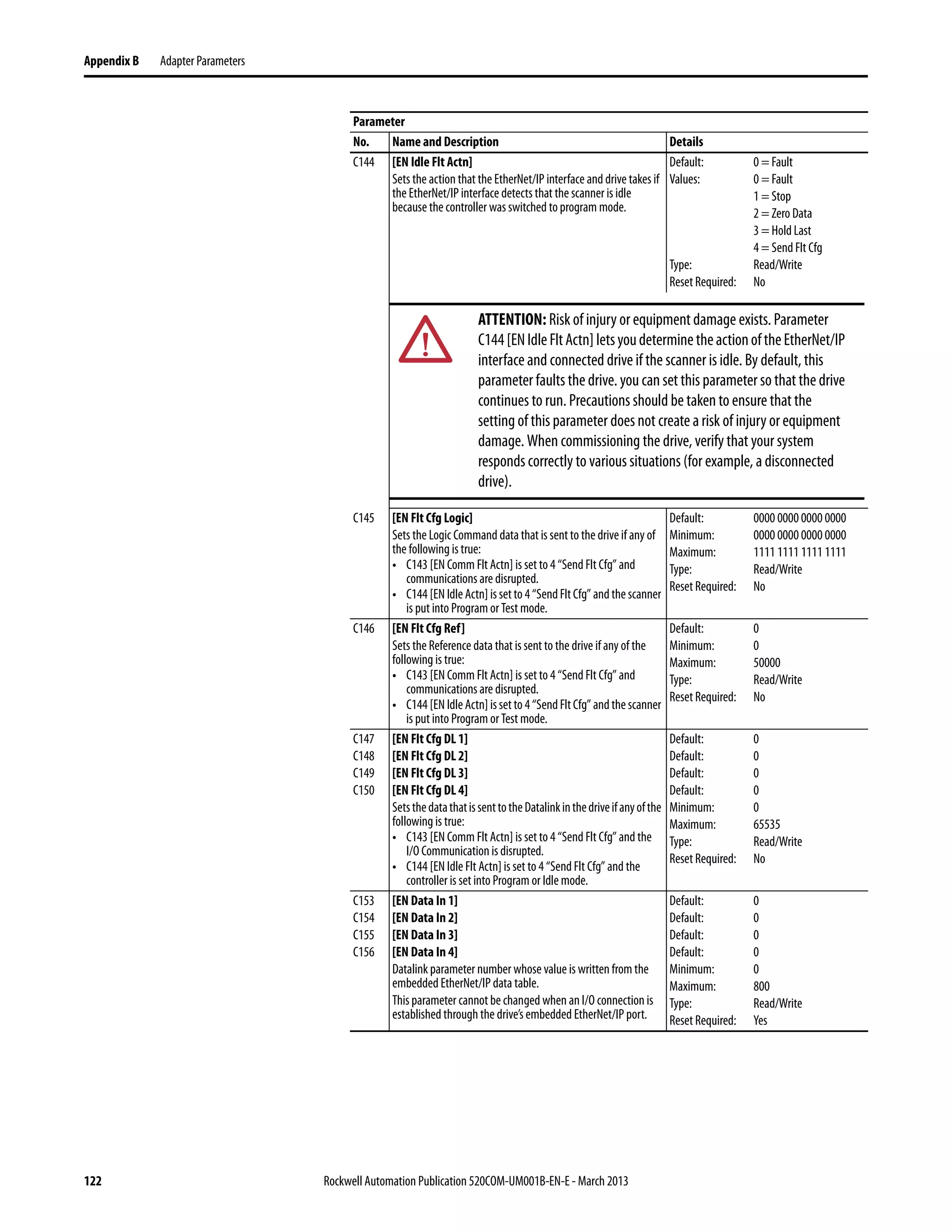

C143[ENCommFltActn]andC144[ENIdleFltActn]letyoudeterminethe
action of the embedded EtherNet/IP adapter and drive if I/O communication is
disrupted, the controller is idle, or explicit messaging for drive control is
disrupted.Bydefault,theseparametersfaultthedrive.Youmayconfigurethese
parameters so that the drive continues torun, however, precautions should be
taken to ensure that the settings of these parameters do not create a risk of
injury or equipment damage. When commissioning the drive, verify that your
system responds correctly to various situations (for example, a disconnected
cable or a controller in idle state).
ATTENTION: Risk of injury or equipment damage exists. When a system is
configured for the first time, there may be unintended or incorrect machine
motion.Disconnectthemotorfromthemachineorprocessduringinitialsystem
testing.
ATTENTION: Risk of injury or equipment damage exists. The examples in this
publication are intended solely for purposes of example. There are many
variables and requirements with any application. Rockwell Automation, Inc.
does not assume responsibility or liability (to include intellectual property
liability) for actual use of the examples shown in this publication.
Step Action See...
1 Review the safety precautions for the adapter. Throughout this manual
2 Verify that the PowerFlex drive is properly installed. PowerFlex 525
Adjustable Frequency AC
Drive User Manual
(publication 520-UM001)

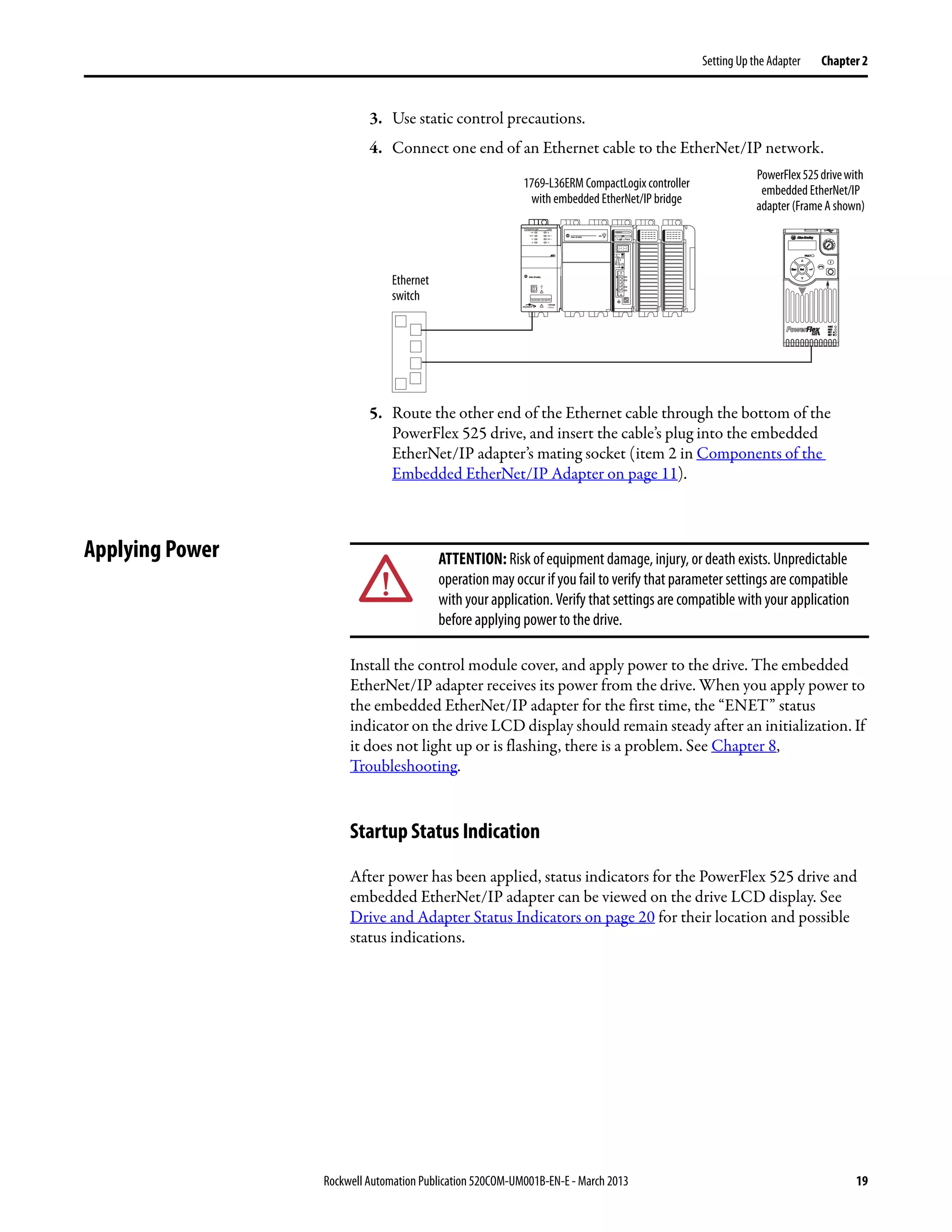

3 Connect the drive to the EtherNet/IP network.
VerifythatthePowerFlexdriveisnotpowered.Then,connecttheembeddedEtherNet/
IP adapter to the network using an Ethernet cable.
Chapter 2,
Setting Up the Adapter

Getting Started Chapter 1

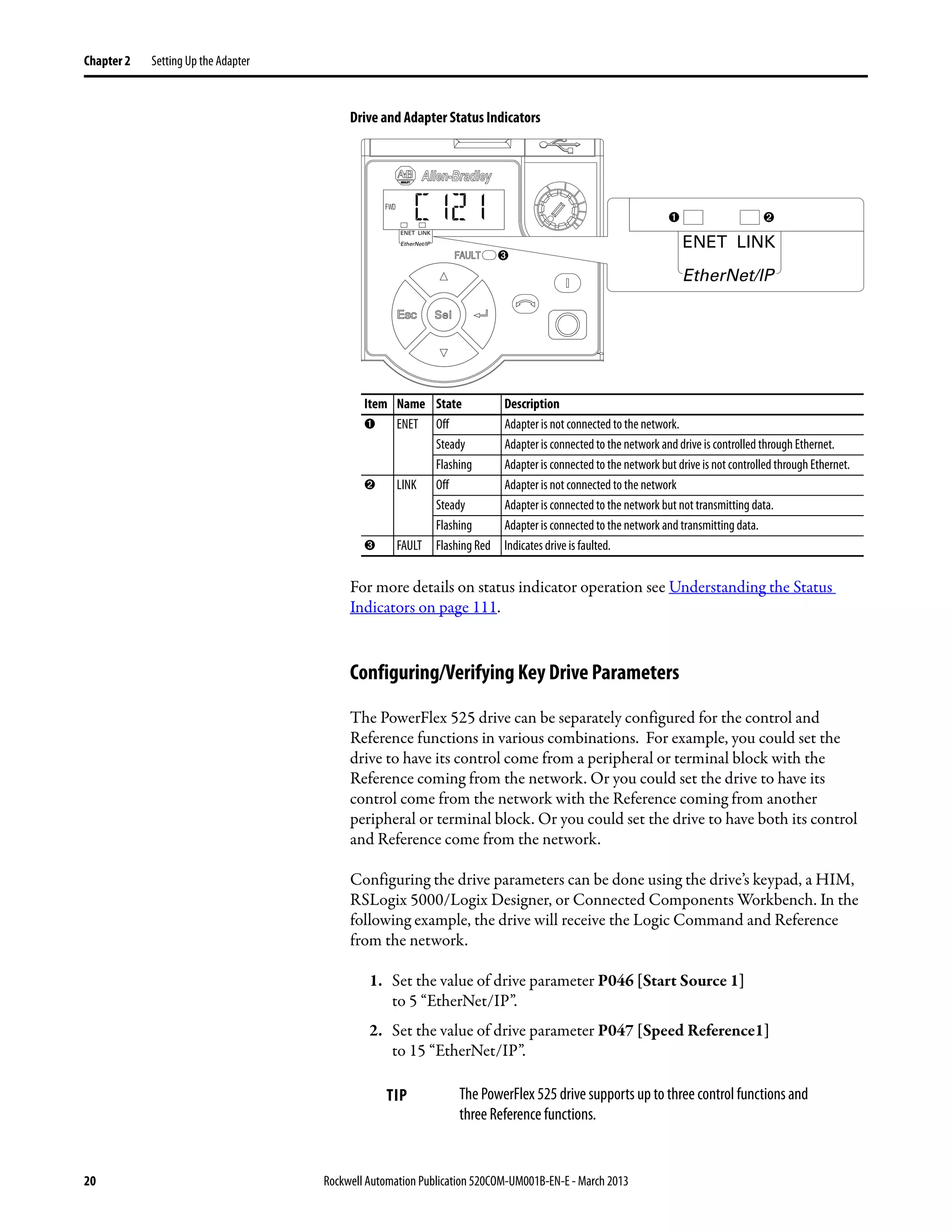

Status Indicators The embedded EtherNet/IP adapter uses two status indicators to report its
operating status.
After connecting the embedded EtherNet/IP adapter to the network and
applying power to the drive, see Startup Status Indication on page 19 for possible
start-up status indications and their descriptions.
4 Apply power to the drive.
a. Replace the control module cover.
b. TheembeddedEtherNet/IPadapterreceivespowerfromthedrive.Applypower
to the drive. The ENET/LINK status indicators on the drive’s LCD display should
light up and remain steady or flash. If the drive’s Fault LED lights up, there is a
problem. See Chapter 8, Troubleshooting.
c. Configure/verify key drive parameters.
Chapter 2,
5 Configure the adapter for your application.
Set drive parameters for the following functions as required by your application:
– IP address, subnet mask, and gateway address
– Data rate
– I/O configuration
– Master-Slave hierarchy
– Fault actions
Chapter 3,
Configuring the Adapter
6 Configure the controller to communicate with the adapter.
Use a controller configuration tool such asRSLogix 5000/Logix Designer to configure
the master on the EtherNet/IP network to recognize the embedded EtherNet/IP
adapter and drive.
Chapter 4,
Configuring the I/O
7 Create a ladder logic program.
Use a controller configuration tool such as RSLogix 5000/Logix Designer to create a
ladder logic program that enables you to:
– Control the embedded EtherNet/IP adapter and drive using I/O.
– Monitor or configure the drive using Explicit messages.

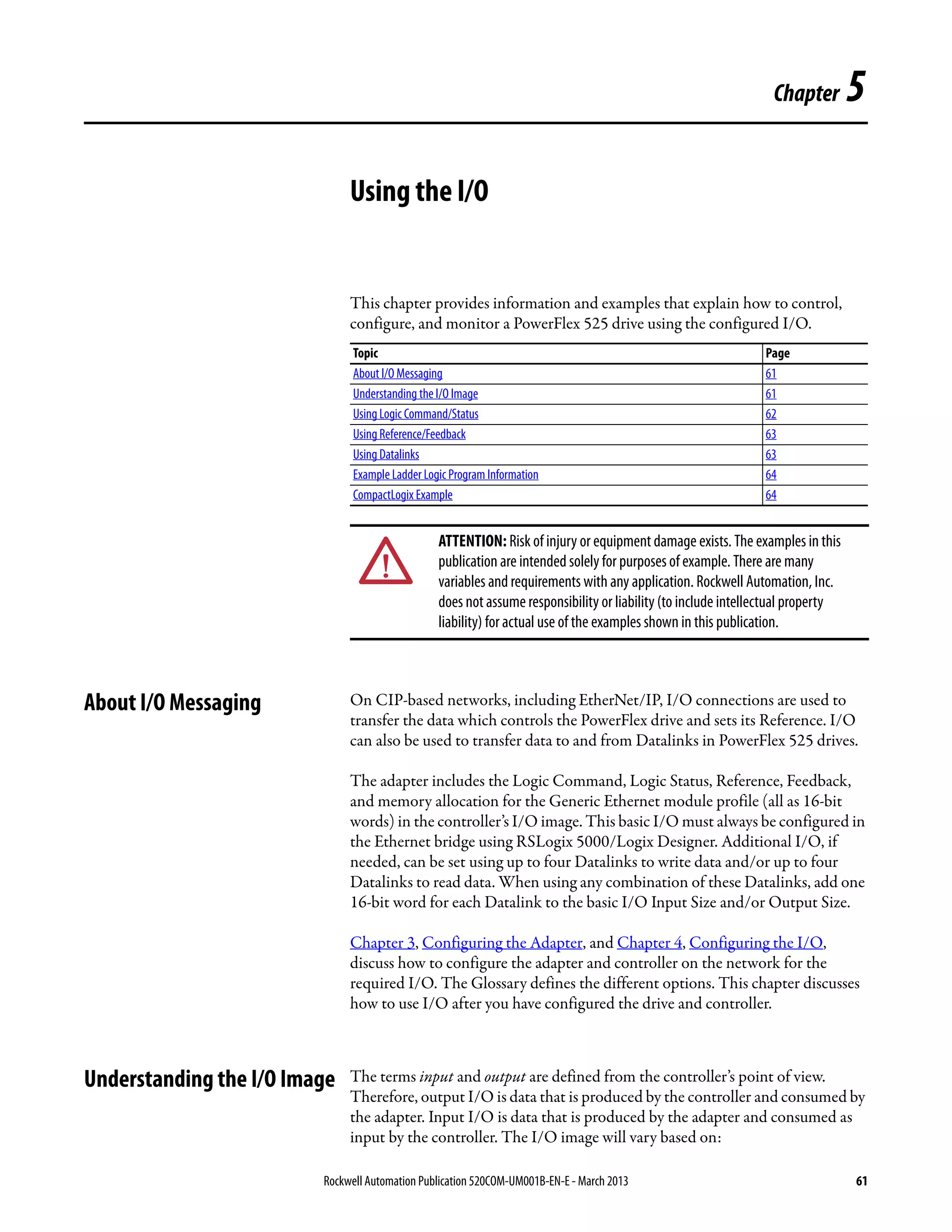

Chapter 5,
Using the I/O
Chapter 6,
Using Explicit Messaging
Step Action See...
Esc Sel
FWD
ENET LINK
EtherNet/IP ENET LINK
EtherNet/IP
Item Name
➊ ENET indicator
➋ LINK indicator
➊ ➋

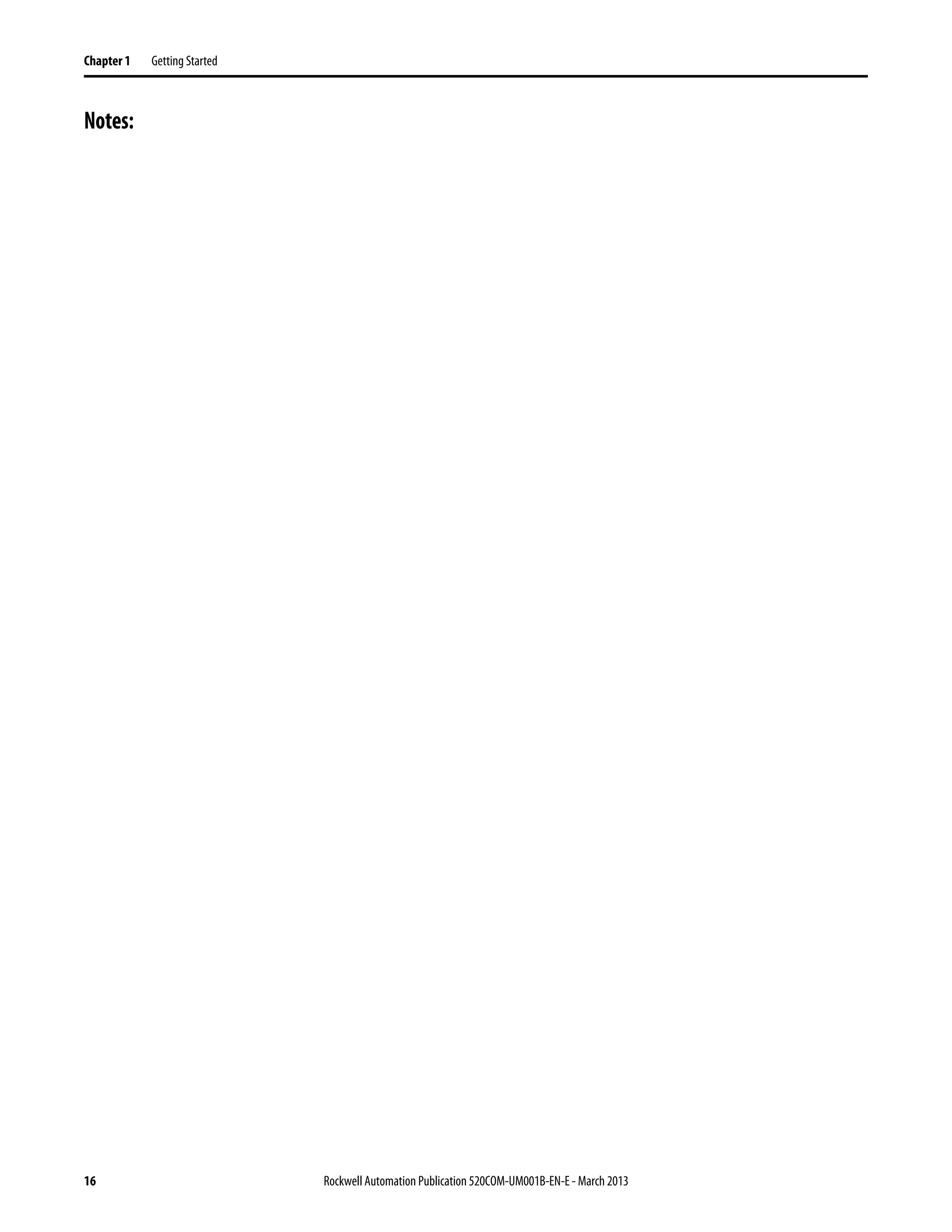

Notes:

Chapter 2
Since the EtherNet/IP adapter is embedded on the Main Control Board in the
PowerFlex 525 drive, the only required step is setting its IP address and
connecting it to the network.
Preparing for Set-Up Before setting up the embedded EtherNet/IP adapter:
• Make sure the Ethernet switch is the correct type. A “managed” switch that
supports IGMP snooping is usually recommended. An “unmanaged”
switch can be used instead if RSLogix 5000 (version 18 or greater) is used
and all devices on the network are configured for “unicast” I/O. For more
details, see the following documents:
– EtherNet/IP Media Planning and Installation Manual
(ODVA publication 148)
– EtherNet/IP Network Infrastructure Guidelines
(ODVA publication 35)
– Ethernet Design Considerations Reference Manual
(Rockwell Automation publication ENET-RM002)
• Understand IGMP Snooping/Ethernet Switches
The embedded EtherNet/IP adapter is a multicast device. In most
situations, an IGMP snooping (managed) switch is required. If more than
one or two embedded EtherNet/IP adapters are connected to the switch, a
managed switch is required—otherwise the drive may fault on a Net I/O
Timeout network loss. The embedded EtherNet/IP adapter,
RSLogix 5000 (version 18 or greater), and a ControlLogix or
CompactLogix controller will support unicast. Unicast setup is required
when adding the drive to the I/O. When all embedded EtherNet/IP
adapters are set up as unicast devices, then an IGMP snooping (managed)
switch is not needed.
Much of EtherNet/IP implicit (I/O) messaging uses IP multicast to
distribute I/O control data, which is consistent with the CIP producer/
consumer model. Historically, most switches have treated multicast
packets the same as broadcast packets. That is, all multicast packets are re-
transmitted to all ports.
Topic Page
Preparing for Set-Up 17
Setting the IP Address 18
Connecting the Adapter to the Network 18
Applying Power 19
Commissioning the Adapter 21

Chapter 2 Setting Up the Adapter
IGMP snooping constrains the flooding of multicast traffic by dynamically
configuring switch ports so that multicast traffic is forwarded only to ports
associated with a particular IP multicast group.
Switches that support IGMP snooping (managed switches) “learn” which
ports have devices that are part of a particular multicast group and only
forward the multicast packets to the ports that are part of the multicast
group.
Be careful as to what level of support a switch has of IGMP snooping.
Some layer 2 switches that support IGMP snooping require a router
(which could be a layer 3 switch) to send out IGMP polls to learn what
devices are part of the multicast group. Some layer 2 switches can use
IGMP snooping without a router sending polls. If your control system is a
stand-alone network or is required to continue performing if the router is
out of service, make sure the switch you are using supports IGMP
snooping without a router being present.
• See Appendix A for the number of CIP connections supported by the
embedded EtherNet/IP adapter.
• Verify that you have all required equipment. See Required Equipment on
page 12.
Setting the IP Address There are two methods for configuring the embedded EtherNet/IP adapter’s IP
address:
• BOOTP Server – Use BOOTP if you prefer to control the IP addresses of
devices using a BOOTP server. The IP address, subnet mask, and gateway
addresses will then be provided by the BOOTP server. This is enabled by
default.
• Parameters – Use parameters when you want more flexibility in setting up
the IP address, or need to communicate outside the control network using
a gateway. The IP address, subnet mask, and gateway addresses will then
come from the parameters you set.
Connecting the Adapter to
the Network
1. Remove power from the drive.
2. Remove the drive control module cover.
IMPORTANT Regardless of the method used to set the adapter’s IP address, each node on
the networkmust have aunique IP address. To change an IP address, you must
set the new value and then remove and reapply power to (or reset) the drive.
ATTENTION: Risk of injury or death exists. The PowerFlex drive may contain
highvoltagesthatcancauseinjuryordeath.Removepowerfromthedrive,and
then verify power has been discharged before connecting the embedded
EtherNet/IP adapter to the network.

Setting Up the Adapter Chapter 2
3. Use static control precautions.
4. Connect one end of an Ethernet cable to the EtherNet/IP network.
5. Route the other end of the Ethernet cable through the bottom of the
PowerFlex 525 drive, and insert the cable’s plug into the embedded
EtherNet/IP adapter’s mating socket (item 2 in Components of the
Embedded EtherNet/IP Adapter on page 11).
Applying Power
Install the control module cover, and apply power to the drive. The embedded
EtherNet/IP adapter receives its power from the drive. When you apply power to
the embedded EtherNet/IP adapter for the first time, the “ENET” status
indicator on the drive LCD display should remain steady after an initialization. If
it does not light up or is flashing, there is a problem. See Chapter 8,
Troubleshooting.
Startup Status Indication
After power has been applied, status indicators for the PowerFlex 525 drive and
embedded EtherNet/IP adapter can be viewed on the drive LCD display. See
Drive and Adapter Status Indicators on page 20 for their location and possible
status indications.
1 (Front)
1 (Front)
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
Esc Sel
Ethernet
switch
1769-L36ERM CompactLogix controller
with embedded EtherNet/IP bridge
PowerFlex525drivewith
embedded EtherNet/IP
adapter (Frame A shown)
ATTENTION: Risk of equipment damage, injury, or death exists. Unpredictable
operation may occur if you fail to verify that parameter settings are compatible
with your application. Verify that settings are compatible with your application
before applying power to the drive.

Drive and Adapter Status Indicators
For more details on status indicator operation see Understanding the Status
Indicators on page 111.
Configuring/Verifying Key Drive Parameters
The PowerFlex 525 drive can be separately configured for the control and
Reference functions in various combinations. For example, you could set the
drive to have its control come from a peripheral or terminal block with the
Reference coming from the network. Or you could set the drive to have its
control come from the network with the Reference coming from another
peripheral or terminal block. Or you could set the drive to have both its control
and Reference come from the network.
Configuring the drive parameters can be done using the drive’s keypad, a HIM,
RSLogix 5000/Logix Designer, or Connected Components Workbench. In the
following example, the drive will receive the Logic Command and Reference
from the network.
1. Set the value of drive parameter P046 [Start Source 1]
to 5 “EtherNet/IP”.
2. Set the value of drive parameter P047 [Speed Reference1]
to 15 “EtherNet/IP”.
TIP The PowerFlex 525 drive supports up to three control functions and
three Reference functions.
Esc Sel
FWD
ENET LINK
EtherNet/IP
Item Name State Description
➊ ENET Off Adapter is not connected to the network.
Steady Adapter is connected to the network and drive is controlled through Ethernet.
Flashing Adapter is connected to the network but drive is not controlled through Ethernet.
➋ LINK Off Adapter is not connected to the network
Steady Adapter is connected to the network but not transmitting data.
Flashing Adapter is connected to the network and transmitting data.
➌ FAULT Flashing Red Indicates drive is faulted.
➊ ➋
➌

Setting Up the Adapter Chapter 2
For more information on how to set different combinations of the control and
Reference functions, see the PowerFlex 525 drive user manual,
publication 520-UM001.
Commissioning the Adapter To commission the embedded EtherNet/IP adapter, you must set a unique IP
address. See the Glossary for details about IP addresses. Use either a BOOTP
server or parameters to set the IP address after connecting the adapter to the
network and applying power to the drive.
By default, the adapter is configured to accept an IP address from a BOOTP
server. For details, see Using BOOTP on page 26. To set the IP address using

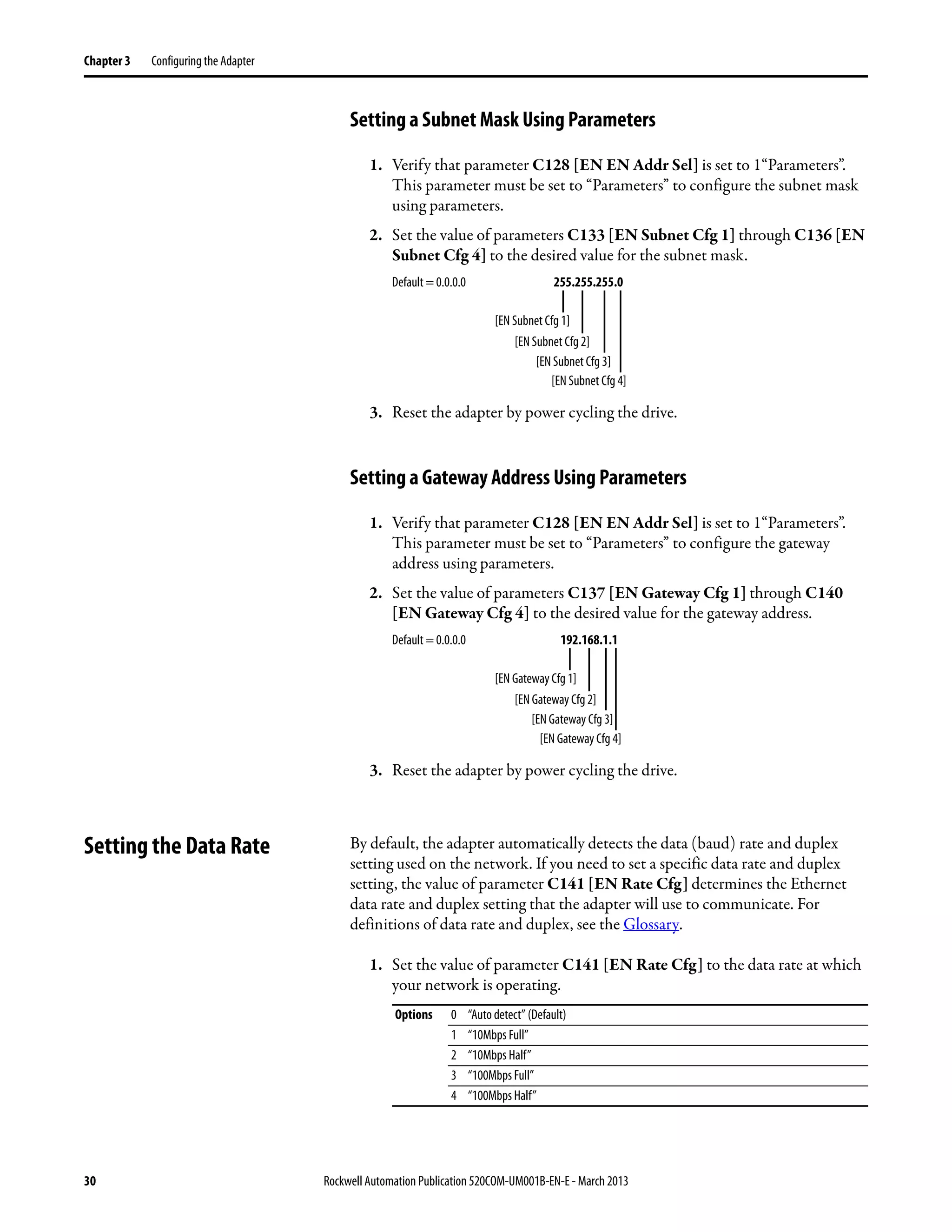

parameters, see Setting the IP Address, Subnet Mask, and Gateway Address on
page 29.

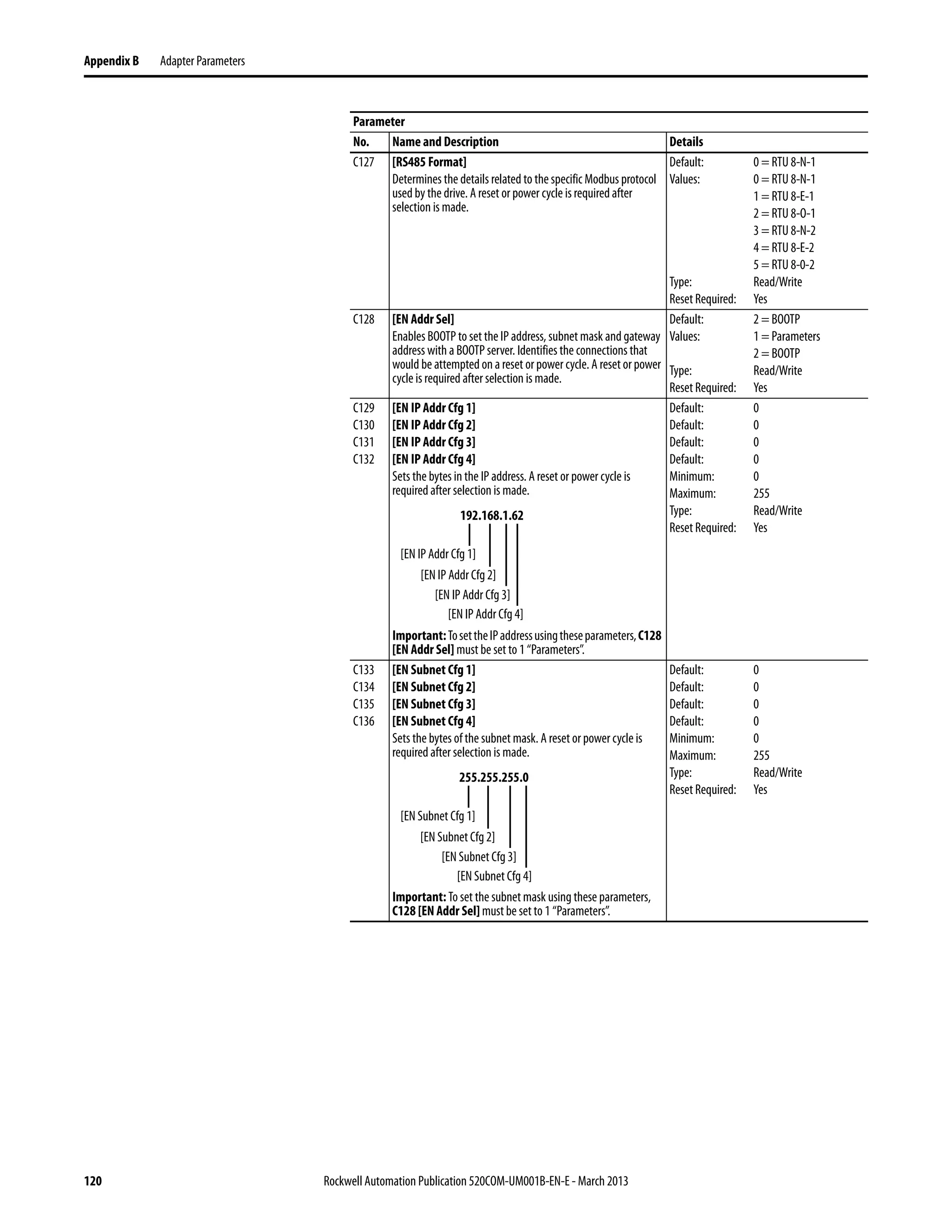

IMPORTANT New settings for some parameters (for example, parameters C129 [EN IP
Addr Cfg 1] through C132 [EN IP Addr Cfg 4]) are recognized only when
power is applied to the adapter. After you change parameter settings, cycle
drive power.

Notes:

Chapter 3
Configuring the Adapter
This chapter provides instructions and information for setting the parameters to
configure the embedded EtherNet/IP adapter.
For a list of parameters, see Appendix B, Adapter Parameters. For definitions of
terms in this chapter, see the Glossary.
Configuration Tools The parameters can be configured using the drive keypad interface (see page 24)
or a PowerFlex 4-class HIM (Human Interface Module, see page 25).
RSLogix 5000 (version 17 or greater), Logix Designer (version 21 or greater),
and Connected Components Workbench (version 3 or greater) can also be used
to access the parameters.
Topic Page
Configuration Tools 23
Using the Drive Keypad Interface to Access Parameters 24
Using the PowerFlex 4-Class HIM to Access Parameters 25
Using BOOTP 26
Setting the IP Address, Subnet Mask, and Gateway Address 29
Setting the Data Rate 30
Using Master-Slave Hierarchy 31
Setting a Fault Action 33
Resetting the Adapter 34

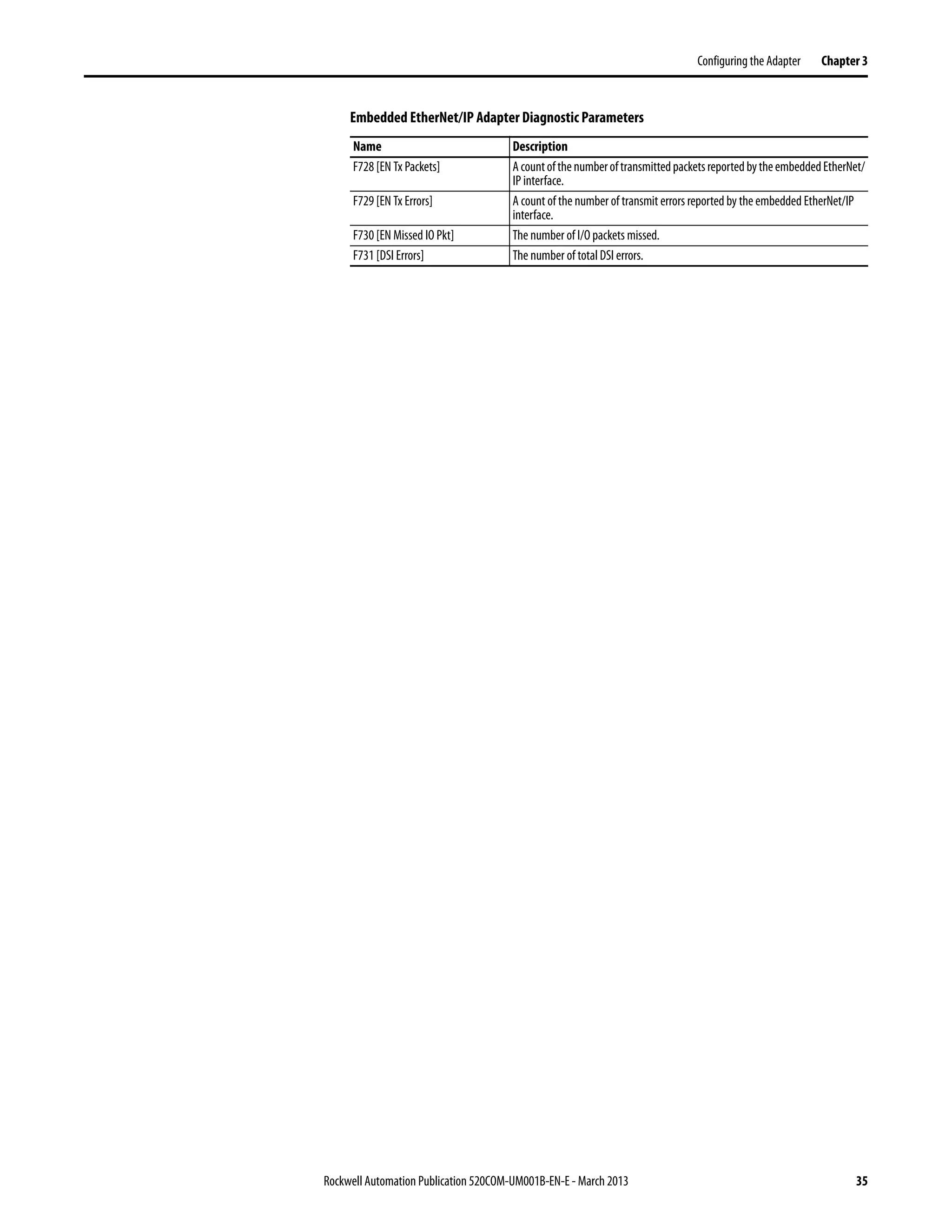

Viewing the Adapter Status Using Parameters 34

Chapter 3 Configuring the Adapter
Using the Drive Keypad
Interface to Access
Parameters
The following is an example of basic integral keypad and display functions. This
example provides basic navigation instructions and illustrates how to program a
parameter.
Step Key(s) Example Display
1. When power is applied, the last user-selected
BasicDisplayGroupparameternumberisbriefly
displayed with flashing characters. The display
then defaults to that parameter’s current value.
(Example shows the value of b001 [Output
Freq] with the drive stopped.)
2. Press Esc to display the Basic Display Group
parameter number shown on power-up. The
parameter number will flash.
3. Press Esc to enter the parameter group list. The
parameter group letter will flash.
4. Press the Up Arrow or Down Arrow to scroll
through the group list (b, P, t, C, L, d, A, f, N, M,
and Gx).
5. Press Enter or Sel to enter a group. The right
digitofthelastviewedparameterinthatgroup
will flash.
through the parameter list.
7. Press Enter to view the value of the parameter.
Or
Press Esc to return to the parameter list.
8. PressEnter or Sel to enterProgram Mode and
edit the value. The right digit will flash and the
word Program on the LCD display will light up.
9. Press the Up Arrow or Down Arrow to change
the parameter value.
10. If desired, press Sel to move from digit to digit
orbitto bit.Thedigitorbitthatyoucanchange
will flash.
11. Press Esc to cancel a change and exit Program
Mode.
Or
Press Enter to save a change and exit Program
Mode.
The digit will stop flashing and the word
Program on the LCD display will turn off.
12. Press Esc to return to the parameter list.
Continue to press Esc to back out of the
programming menu.
IfpressingEscdoesnotchangethedisplay,then
b001 [Output Freq] is displayed. Press Enter or
Sel to enter the group list again.
HERTZ
FWD
Esc
FWD
Esc
FWD
or
FWD
Sel
or
FWD
or
FWD
FWD
Sel
or PROGRAM
FWD
or
PROGRAM
FWD
Sel
PROGRAM
FWD
Esc or
FWD
FWD
or
Esc
FWD

Configuring the Adapter Chapter 3
Using the PowerFlex 4-Class
HIM to Access Parameters
The PowerFlex 4-class HIM can be used to access parameters in the drive (see
basic steps shown below). It is recommended that you read through the steps for
your HIM before performing the sequence. For additional HIM information,
refer to the HIM Quick Reference card, publication 22HIM-QR001.
1. Power up the drive. Then connect the HIM
totheDSIportofthedrive.The Parameters
tab for the drive will be displayed.
2. Select Groups in the Parameters tab if it is
not already selected using the Up Arrow or
Down Arrow.
Press Enter to select Groups.
3. Press Sel repeatedly until the C tab
(Communications parameters) is selected.
to the Communications parameter you
wish to display or modify, then press Enter.
Parameters
Groups
Linear List
Changed Params
DIAG PARAM DSEL MEM SEL
and Basic Display
001 Output Freq
002 Commanded Freq
003 Output Current
004 Output Voltage
005 DC Bus Voltage
B P T C SEL
Sel Communications
121 Comm Write Mode
122 Cmd Stat Select
123 RS485 Data Rate
124 RS485 Node Addr
125 Comm Loss Action
B P T C SEL
and Communications
121 Comm Write Mode
122 Cmd Stat Select
123 RS485 Data Rate
124 RS485 Node Addr
125 Comm Loss Action
B P T C SEL
RS485 Data Rate
Parameter: # 123
9600 3
VALUE LIMITS SEL

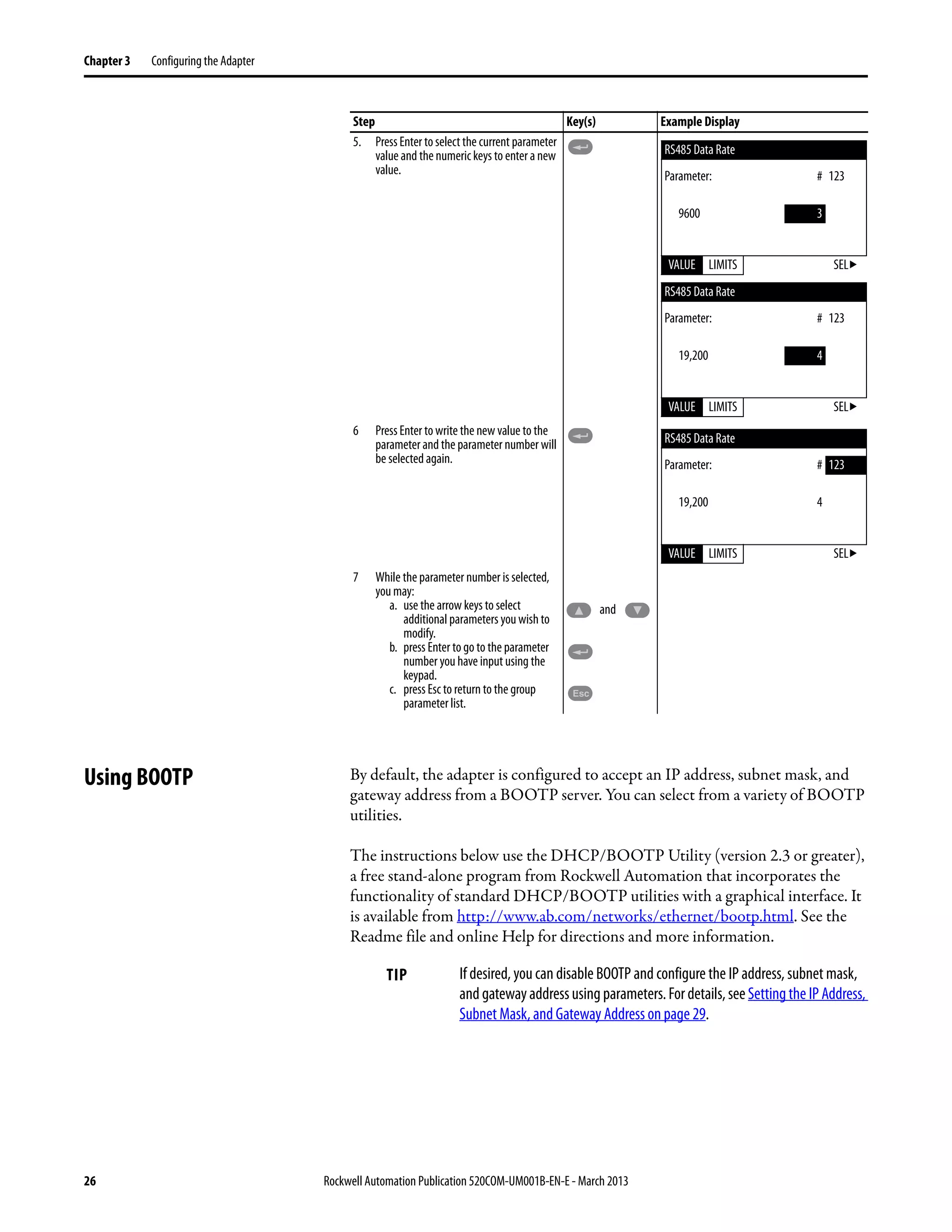

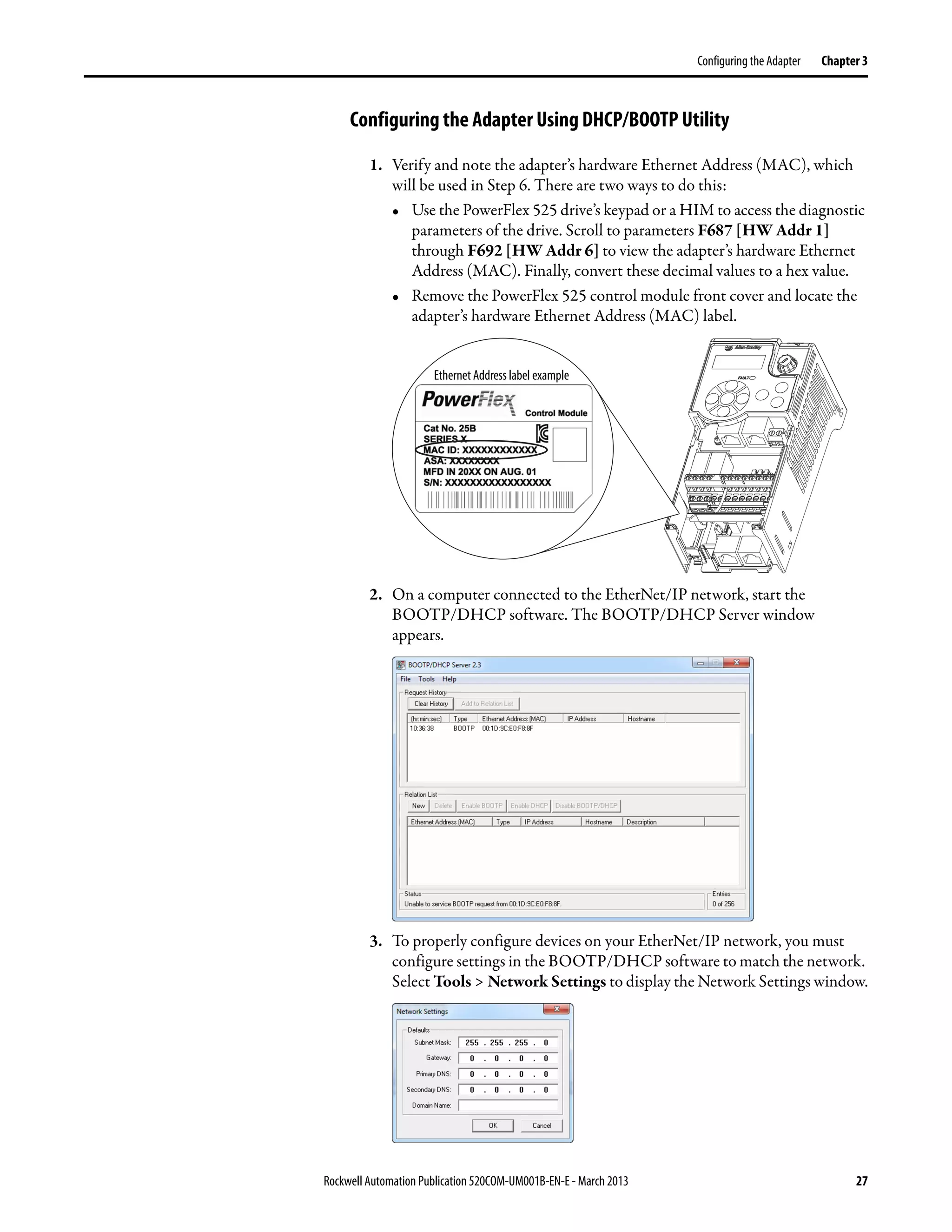

Using BOOTP By default, the adapter is configured to accept an IP address, subnet mask, and
gateway address from a BOOTP server. You can select from a variety of BOOTP
utilities.
The instructions below use the DHCP/BOOTP Utility (version 2.3 or greater),
a free stand-alone program from Rockwell Automation that incorporates the
functionality of standard DHCP/BOOTP utilities with a graphical interface. It
is available from http://www.ab.com/networks/ethernet/bootp.html. See the
Readme file and online Help for directions and more information.
5. Press Enter to select the current parameter
value and the numeric keys to enter a new
value.
6 Press Enter to write the new value to the
parameter and the parameter number will
be selected again.
7 While the parameter number is selected,
you may:
a. use the arrow keys to select
additional parameters you wish to
modify.
b. press Enter to go to the parameter
number you have input using the
keypad.
c. press Esc to return to the group
parameter list.
RS485 Data Rate
Parameter: # 123
9600 3
VALUE LIMITS SEL
RS485 Data Rate
Parameter: # 123
19,200 4
VALUE LIMITS SEL
RS485 Data Rate
Parameter: # 123
19,200 4
VALUE LIMITS SEL
and
Esc
TIP If desired, you can disable BOOTP and configure the IP address, subnet mask,
and gatewayaddressusing parameters.For details, see Setting the IP Address,
Subnet Mask, and Gateway Address on page 29.

Configuring the Adapter Using DHCP/BOOTP Utility
1. Verify and note the adapter’s hardware Ethernet Address (MAC), which
will be used in Step 6. There are two ways to do this:
• Use the PowerFlex 525 drive’s keypad or a HIM to access the diagnostic
parameters of the drive. Scroll to parameters F687 [HW Addr 1]
through F692 [HW Addr 6] to view the adapter’s hardware Ethernet
Address (MAC). Finally, convert these decimal values to a hex value.
• Remove the PowerFlex 525 control module front cover and locate the
adapter’s hardware Ethernet Address (MAC) label.
2. On a computer connected to the EtherNet/IP network, start the
BOOTP/DHCP software. The BOOTP/DHCP Server window
appears.
3. To properly configure devices on your EtherNet/IP network, you must
configure settings in the BOOTP/DHCP software to match the network.
Select Tools > Network Settings to display the Network Settings window.
Ethernet Address label example

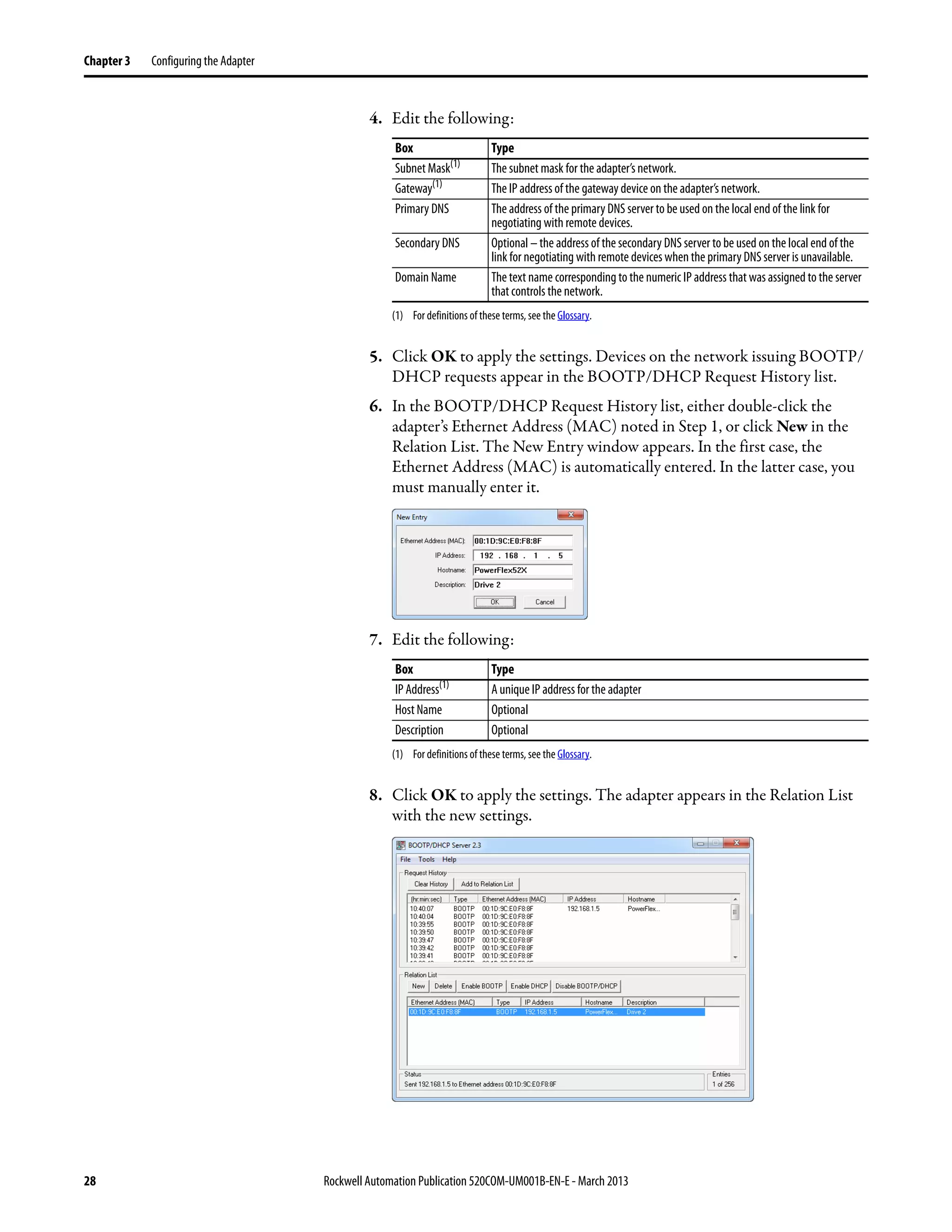

4. Edit the following:
5. Click OK to apply the settings. Devices on the network issuing BOOTP/
DHCP requests appear in the BOOTP/DHCP Request History list.
6. In the BOOTP/DHCP Request History list, either double-click the
adapter’s Ethernet Address (MAC) noted in Step 1, or click New in the
Relation List. The New Entry window appears. In the first case, the
Ethernet Address (MAC) is automatically entered. In the latter case, you
must manually enter it.
7. Edit the following:
8. Click OK to apply the settings. The adapter appears in the Relation List
with the new settings.
Box Type
Subnet Mask(1)
(1) For definitions of these terms, see the Glossary.
The subnet mask for the adapter’s network.
Gateway(1)
The IP address of the gateway device on the adapter’s network.
Primary DNS The address of the primary DNS server to be used on the local end of the link for
negotiating with remote devices.
Secondary DNS Optional – the address of the secondary DNS server to be used on the local end of the
link for negotiating with remote devices when the primary DNS server is unavailable.
Domain Name The text name corresponding to the numeric IP address that was assigned to the server
that controls the network.
Box Type
IP Address(1)
(1) For definitions of these terms, see the Glossary.
A unique IP address for the adapter
Host Name Optional
Description Optional

9. To assign this configuration to the adapter, select the device in the Relation
List and click Disable BOOTP/DHCP. When power is cycled on the
drive, the adapter will use the configuration you assigned it and not issue
new BOOTP/DHCP requests.
10. To save the Relation List, select File > Save.
Setting the IP Address,
Subnet Mask, and Gateway
Address
By default, the adapter is configured to accept an IP address, subnet mask, and
gateway address from a BOOTP server. If you want to set these attributes using
parameters instead, you must first disable BOOTP and then set these network
address parameters in the drive.
Disabling the BOOTP Feature
1. Set the value of parameter C128 [EN Addr Sel] to 1“Parameters”.
2. Reset the adapter by power cycling the drive.
After disabling the BOOTP feature, you can then configure the IP
address, subnet mask, and gateway address using parameters.
Setting an IP Address Using Parameters
1. Verify that parameter C128 [EN Addr Sel] is set to 1“Parameters”. This
parameter must be set to “Parameters” to configure the IP address using
parameters.
2. Set the value of parameters C129 [EN IP Addr Cfg 1] through C132
[EN IP Addr Cfg 4] to a unique IP address.
TIP To enable BOOTP for an embedded adapter that has had BOOTP
disabled,firstselecttheadapterintheRelationList.ThenclickEnable
BOOTP and power cycle the drive.
Options 1 “Parameters”
2 “BOOTP” (Default)
192.168.1.62
[EN IP Addr Cfg 1]
[EN IP Addr Cfg 2]
[EN IP Addr Cfg 3]
[EN IP Addr Cfg 4]
Default = 0.0.0.0

Setting a Subnet Mask Using Parameters
1. Verify that parameter C128 [EN EN Addr Sel] is set to 1“Parameters”.
This parameter must be set to “Parameters” to configure the subnet mask
using parameters.
2. Set the value of parameters C133 [EN Subnet Cfg 1] through C136 [EN
Subnet Cfg 4] to the desired value for the subnet mask.
Setting a Gateway Address Using Parameters
1. Verify that parameter C128 [EN EN Addr Sel] is set to 1“Parameters”.
This parameter must be set to “Parameters” to configure the gateway
address using parameters.
2. Set the value of parameters C137 [EN Gateway Cfg 1] through C140
[EN Gateway Cfg 4] to the desired value for the gateway address.
Setting the Data Rate By default, the adapter automatically detects the data (baud) rate and duplex
setting used on the network. If you need to set a specific data rate and duplex
setting, the value of parameter C141 [EN Rate Cfg] determines the Ethernet
data rate and duplex setting that the adapter will use to communicate. For
definitions of data rate and duplex, see the Glossary.
1. Set the value of parameter C141 [EN Rate Cfg] to the data rate at which
your network is operating.
Default = 0.0.0.0 255.255.255.0
[EN Subnet Cfg 1]
[EN Subnet Cfg 2]
[EN Subnet Cfg 3]
[EN Subnet Cfg 4]
Default = 0.0.0.0 192.168.1.1
[EN Gateway Cfg 1]
[EN Gateway Cfg 2]
[EN Gateway Cfg 3]
[EN Gateway Cfg 4]
Options 0 “Auto detect” (Default)
1 “10Mbps Full”
2 “10Mbps Half”
3 “100Mbps Full”
4 “100Mbps Half”

Using Master-Slave Hierarchy A hierarchy determines the type of device with which the adapter exchanges data.
In a Master-Slave hierarchy, the adapter exchanges data with a master, such as a
scanner or bridge.
For a Master-Slave hierarchy, the devices exchanging data must be on the same IP
subnet. See “IP Addresses” in the Glossary for information about IP subnets.
Configuring a Master-Slave Hierarchy
The controller I/O image can have anywhere from zero to eight (four In and four
Out) additional 16-bit parameters called Datalinks. They are configured using
parameters C153 [EN Data In 1] through C156 [EN Data In 4], and C157
[EN Data Out 1] through C160 [EN Data Out 4]. The number of Datalinks
actively used is controlled by the connection size in the controller and the in/out
parameters. See the respective controller example sections in Chapter 4 for more
information on setting the connection size.
When using a ControlLogix or CompactLogix controller and the Generic
Profile, or a MicroLogix 1100/1400 controller, configure the Datalink
parameters now as described in this section.
TIP Auto detection of data rate and duplex works properly only if the
device (usually a switch) on the other end of the cable is also set to
automatically detect the data rate/duplex. If one device has the data
rate/duplex hard-coded, the other device must be hard-coded to the
same settings.
TIP When using a ControlLogix or CompactLogix controller and an RSLogix 5000
(version 17 or greater) or Logix Designer(version 21 or greater) drive Add-On
Profile, there is no need to configure Datalink parameters at this time. They
will be assigned when configuring the drive Add-On Profile (see Adding the
Drive to the I/O Configuration on page 40).

EnablingDatalinksToWriteData
Parameters C153 [EN Data In 1] through C156 [EN Data In 4] control which
parameters in the drive, adapter, or any other connected peripheral receive values
from the network. To configure these parameters, set them to the drive parameter
number you want to write them to.
The following steps are required to enable Datalinks to write data:
1. Set the values of only the required number of contiguous controller-to-
drive Datalinks needed to write data to the drive and that are to be
included in the network I/O connection.
After the above steps are complete, the adapter is ready to receive input data and
transfer status data to the master (controller). Next, configure the controller to
recognize and transmit I/O to the adapter. See Chapter 4, Configuring the I/O.
EnablingDatalinksToReadData
Parameters C157 [EN Data Out 1] through C160 [EN Data Out 4] configure
which parameters in the drive, adapter, or any other connected peripheral send
values to the network. To configure these parameters, set them to the parameter
number you wish to read over the network.
The following steps are required to enable Datalinks to read data:
1. Set the values of only the required number of contiguous drive-to-
controller Datalinks needed to read data from the drive and that are to be
included in the network I/O connection.
After the above steps are complete, the adapter is ready to send output data to the
master (controller). Next, configure the controller to recognize and transmit I/O
to the adapter. See Chapter 4, Configuring the I/O.
IMPORTANT Always use the Datalink parameters in consecutive numerical order, starting
withthefirstparameter.Forexample,useparametersC153,C154,andC155to
configurethreeDatalinkstowritedata.Otherwise,thenetworkI/Oconnection
will be larger than necessary, which needlessly increases controller response
time and memory usage.
IMPORTANT Always use the Datalink parameters in consecutive numerical order, starting
withthefirstparameter.Forexample,useparametersC157,C158,andC159to
configure three Datalinks to read data. Otherwise, the network I/O connection
will be larger than necessary, which needlessly increases controller response
time and memory usage.

Setting a Fault Action By default, when communications are disrupted (the network cable is
disconnected) and/or the controller is idle (in program mode or faulted), the
drive responds by faulting if it is using I/O from the network. You can configure a
different response to:
• Disrupted I/O communication by using parameter
C143 [EN Comm Flt Actn].
• An idle controller by using parameter C144 [EN Idle Flt Actn].
Changing the Fault Action
Set the values of parameters C143 [EN Comm Flt Actn] and C144 [EN Idle Flt
Actn] to the desired responses:
Changes to these parameters take effect immediately. A reset is not required. If
communication is disrupted and then re-established, the drive will automatically
receive commands over the network again.
Setting the Fault Configuration Parameters
When setting parameter C143 [EN Comm Flt Actn] and C144 [EN Idle Flt
Actn] to 4 “Send Flt Cfg,” the values in the following parameters are sent to the
drive after a communications fault and/or idle fault for drive control fault occurs.
You must set these parameters to values required by your application. Changes to
these parameters take effect immediately. A reset is not required.
ATTENTION:Riskofinjuryorequipmentdamageexists.DriveparametersC143
[EN Comm Flt Actn] and C144 [EN Idle Flt Actn] respectively let you determine
the action of the embedded EtherNet/IP adapter and drive if communications
are disrupted or the controller is idle. By default, these parameters fault the
drive. You may configure these parameters so that the drive continues to run,
however, precautions should be taken to ensure that the settings of these
parameters do not create a risk of injury or equipment damage. When
commissioning the drive, verify that your system responds correctly to various
situations (a disconnected network cable or controller in idle state).
Value Action Description
0 Fault The drive is faulted and stopped (Default).
1 Stop The drive is stopped as per P045 [Stop Mode] setting.
2 Zero Data The Reference and Datalink values transmitted to the drive will be set to “0”.
3 Hold Last The Reference and Datalink values transmitted to the drivewill be held at their last value.
4 Send Flt Cfg The Logic, Reference,and Datalink values will be transmitted to the drive as configured in
C145 [EN Flt Cfg Logic], C146 [EN Flt Cfg Ref], and C147 [EN Flt Cfg DL 1] through C150 [EN Flt
Cfg DL 4].
Parameter Description
C145 [EN FltCfg Logic] A 16-bit integer value sent to the drive for LogicCommand.
C146 [EN Flt Cfg Ref] A 16-bit integer value sent to the drive for Reference.
C147[ENFltCfgDL1]through
C150 [EN Flt Cfg DL 4]
A 16-bit integer value sent to the drive for a Datalink.

Resetting the Adapter Changes to some parameters require that you reset the adapter before the new
settings take effect. You can reset the adapter by cycling power to the drive.
Viewing the Adapter Status
Using Parameters
The following diagnostic parameters provide information about the status of the
adapter. You can view these parameters at any time.
ATTENTION: Risk of injury or equipment damage exists. If the adapter is
transmitting control I/O to the drive, the drive may fault when you reset the
adapter. Determine how your drive will respond before resetting the adapter.
Embedded EtherNet/IP Adapter Diagnostic Parameters
Name Description
F681 [Comm Sts - DSI] Displays the status of the RS485 serial (DSI) port to the drive.
F682 [Comm Sts - Opt] Displays the status of the internal communication to the drive.
F683 [Com Sts-Emb Enet] Displays the status of the embedded EtherNet/IP interface to the drive.
F684 [EN Addr Src] Displays the network configuration source currently used by the embedded
EtherNet/IP interface.
F685 [EN Rate Act] Displays the network data rate currently used by the embedded EtherNet/IP
interface.
F686 [DSI I/O Act] Displays the drives that are active in Multi-drive mode.
F687 [HW Addr 1] through
F692 [HW Addr 6]
Decimal value of each byte in the adapter’s Ethernet hardware address.
F693 [EN IP Addr Act 1] through
F696 [EN IP Addr Act 4]
Value of each byte in the adapter’s present IP address. A value of “0” appears if the
adapter does not currently have an IP address.
F697 [EN Subnet Act 1] through
F700 [EN Subnet Act 4]
Value of each byte in the adapter’s present subnet mask. A value of “0” appears if
the adapter does not currently have a subnet mask.
F701 [EN Gateway Act 1] through
F704 [EN Gateway Act 4]
Valueofeachbyteintheadapter’spresentgatewayaddress.Avalueof“0”appears
if the adapter does not currently have a gateway address.
F705 [Drive 0 Logic Cmd]
In Multi-drive mode, this is the logic command being transmitted to drive 0.
In Single-drive mode, this is the logic command being used by the drive (whether
HS-DSI, EtherNet/IP, or DSI) at the time. If comms control is NOT being used, and
the drive is in single-drive mode, then this parameter will show 0.
F706 [Drv 0 Reference]
In Multi-drive mode, this is the reference being transmitted to drive 0/1/2/3/4.
In Single-drive mode, this is the reference being used by the drive (whether HS-
DSI, EtherNet/IP, or DSI) at the time. If comms control is NOT being used, and the
drive is in single-drive mode, then this parameter will show 0.
F707 [Drv 0 Logic Sts]
In Multi-drive mode, this is the logic status being received from drive 0/1/2/3/4.
In Single-drive mode, this is the logic status of the drive at the time.
F708 [Drv 0 Feedback]
In Multi-drive mode, this is the feedback being received from drive 0/1/2/3/4.
In Single-drive mode, this is the feedback of the drive at the time.
F725 [EN Rx Overruns] A count of the number of receive overrun errors reported by the embedded
EtherNet/IP interface.
F726 [EN Rx Packets] A count of the number of receive packets reported by the embedded EtherNet/IP
interface.
F727 [EN Rx Errors] A count of the number of receive errors reported by the embedded EtherNet/IP
interface.

F728 [EN Tx Packets] AcountofthenumberoftransmittedpacketsreportedbytheembeddedEtherNet/
IP interface.
F729 [EN Tx Errors] A count of the number of transmit errors reported by the embedded EtherNet/IP
interface.
F730 [EN Missed IO Pkt] The number of I/O packets missed.
F731 [DSI Errors] The number of total DSI errors.
Name Description

Notes:

Chapter 4
Configuring the I/O
This chapter provides instructions on how to configure a CompactLogix
controller to communicate with the embedded EtherNet/IP adapter in the
PowerFlex 525 drive.
Using RSLinx Classic RSLinx Classic, in all its variations (Lite, Gateway, OEM, etc.), is used to provide
a communication link between the computer, network, and controller. RSLinx
Classic requires its network-specific driver to be configured before
communications are established with network devices. To configure the RSLinx
driver:
1. Start RSLinx and select Communications > Configure Drivers to display
the Configure Drivers window.
2. From the Available Driver Types pull-down box, choose “EtherNet/IP
Driver” and then click Add New… to display the Add New RSLinx Driver
window.
3. Use the default name or type a name and click OK. The “Configure
driver:” window appears.
4. Depending on your application, select either the browse local or remote
subnet option, and click OK. The Configure Drivers window reappears
with the new driver in the Configured Drivers list.
5. Click Close to close the Configure Drivers window. Keep RSLinx
running.
Topic Page
Using RSLinx Classic 37
CompactLogix Example 38
Limitations in Using MicroLogix 1100/1400 60

Chapter 4 Configuring the I/O
6. Verify that your computer recognizes the drive. Select Communications >
RSWho and, in the menu tree, click the “+” symbol next to the Ethernet
driver.
7. Note that two other RSLinx drivers (Ethernet devices or Remote Devices
through Linx Gateway) may be used. Use one of these drivers if the
“EtherNet/IP Driver” cannot see your drive.

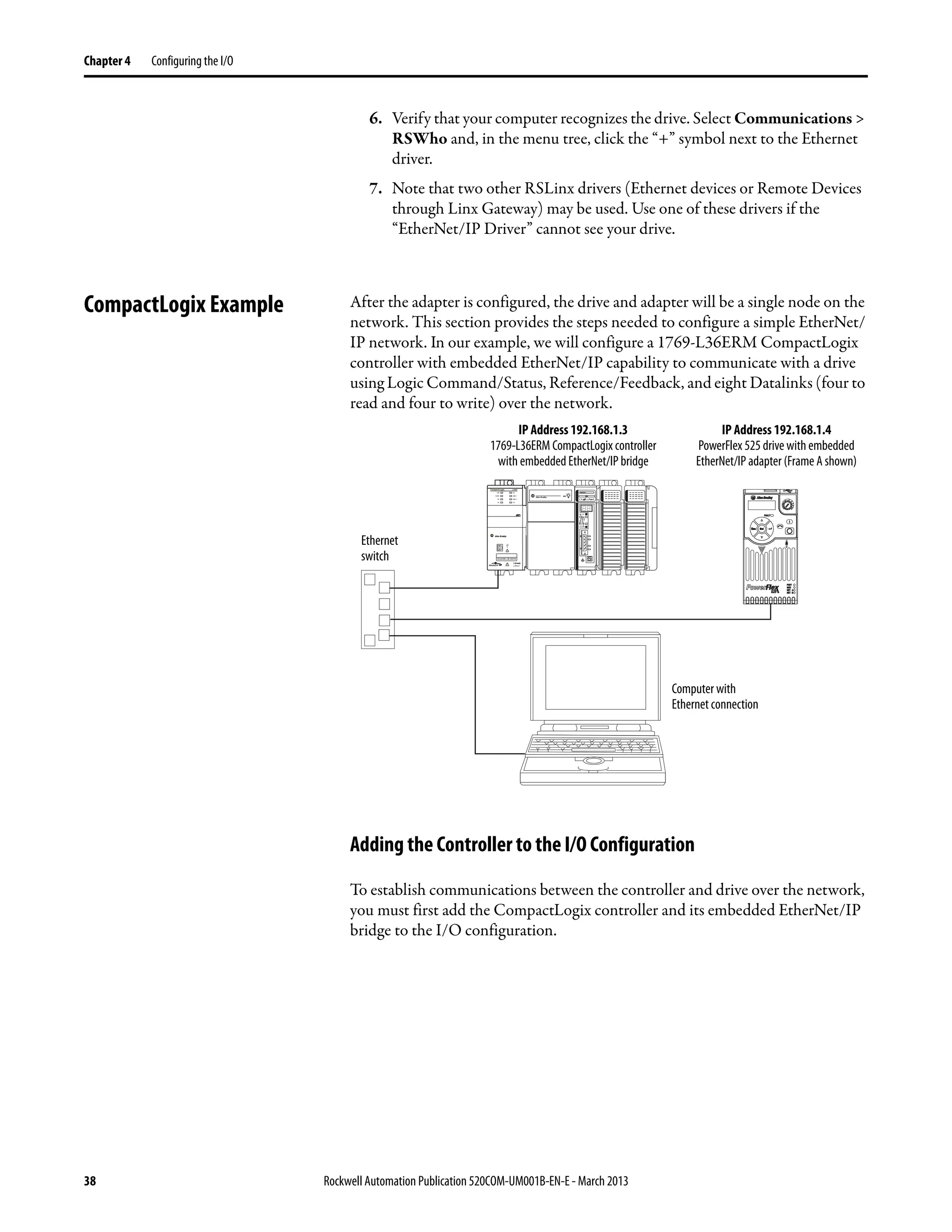

CompactLogix Example After the adapter is configured, the drive and adapter will be a single node on the
network. This section provides the steps needed to configure a simple EtherNet/
IP network. In our example, we will configure a 1769-L36ERM CompactLogix
controller with embedded EtherNet/IP capability to communicate with a drive
using Logic Command/Status, Reference/Feedback, and eight Datalinks (four to
read and four to write) over the network.
Adding the Controller to the I/O Configuration
To establish communications between the controller and drive over the network,
you must first add the CompactLogix controller and its embedded EtherNet/IP
bridge to the I/O configuration.
1 (Front)
1 (Front)
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
Esc Sel
Ethernet
switch
IP Address 192.168.1.3
1769-L36ERM CompactLogix controller
with embedded EtherNet/IP bridge
IP Address 192.168.1.4
PowerFlex 525 drive with embedded
EtherNet/IP adapter (Frame A shown)
Computer with
Ethernet connection

Configuring the I/O Chapter 4

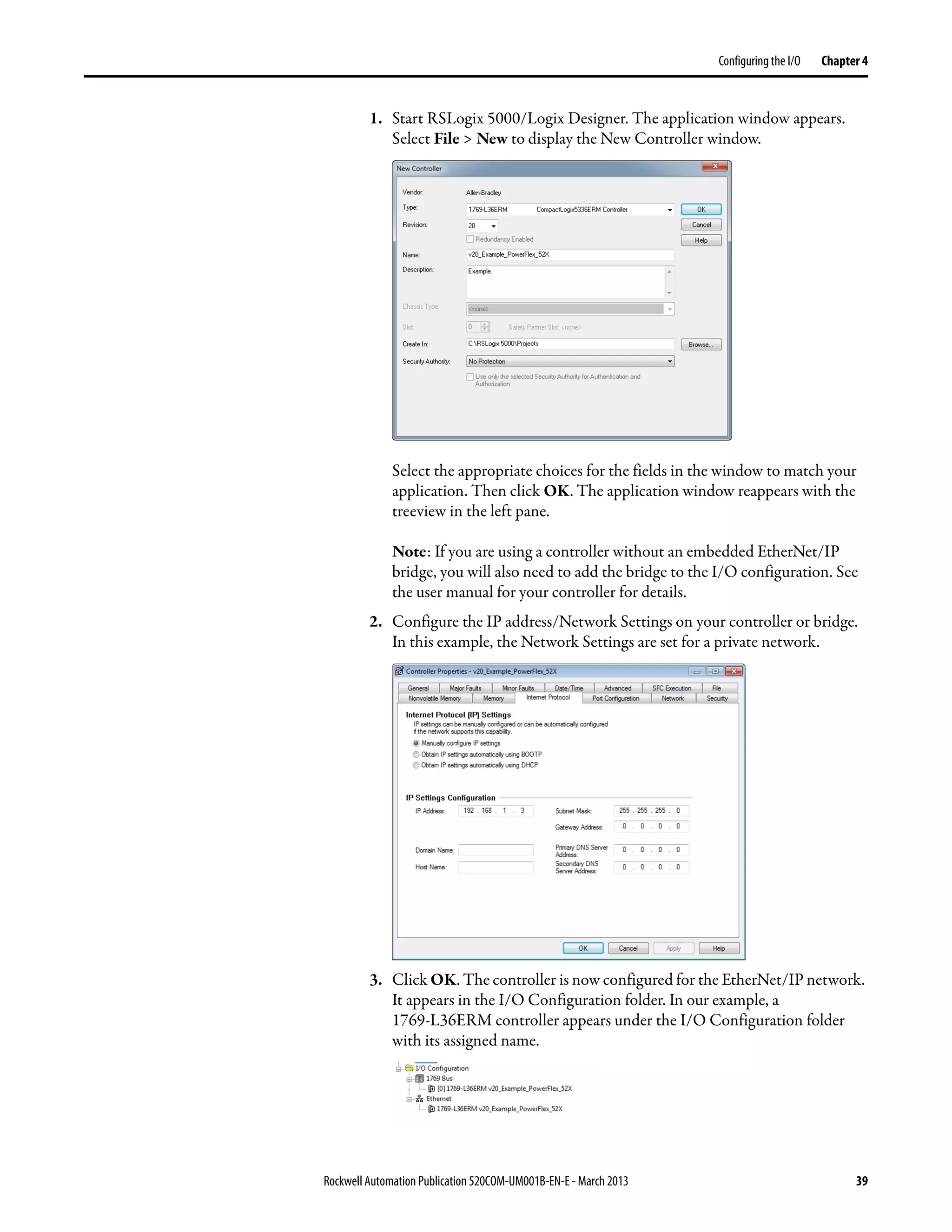

1. Start RSLogix 5000/Logix Designer. The application window appears.
Select File > New to display the New Controller window.
Select the appropriate choices for the fields in the window to match your
application. Then click OK. The application window reappears with the
treeview in the left pane.
Note: If you are using a controller without an embedded EtherNet/IP
bridge, you will also need to add the bridge to the I/O configuration. See
the user manual for your controller for details.
2. Configure the IP address/Network Settings on your controller or bridge.
In this example, the Network Settings are set for a private network.
3. Click OK. The controller is now configured for the EtherNet/IP network.
It appears in the I/O Configuration folder. In our example, a
1769-L36ERM controller appears under the I/O Configuration folder
with its assigned name.

There are two ways to add the embedded EtherNet/IP adapter into the I/O
configuration:
• Drive Add-On Profiles (RSLogix 5000 version 17 or greater, Logix
Designer version 21 or greater)
• Generic Profile (RSLogix 5000 or Logix Designer, all versions)
These are described in the following separate sections. If your version of
RSLogix 5000/Logix Designer supports drive Add-On Profiles, we highly
recommend using this method.
UsingDriveAdd-OnProfileswithRSLogix5000(version17orgreater)
or Logix Designer (version 21 or greater)
When compared to using the Generic Profile (all versions), the drive Add-On
Profiles provide these advantages:
• Profiles for specific drives that provide descriptive controller tags for basic
control I/O words (Logic Command/Status and Reference/Feedback)
and Datalinks. Additionally, Datalinks automatically take the name of the
drive parameter to which they are assigned. These profiles virtually
eliminate I/O mismatch errors and substantially reduce drive
configuration time.
• New Drive tab eliminates the need for a separate drive software
configuration tool.
• Drive configuration settings are saved as part of the RSLogix 5000/
Logix Designer project file (.ACD) and also downloaded to the controller.
• Unicast connection (RSLogix 5000 version 18 or greater, or Logix
Designer version 21 or greater)
• Drive Add-On Profiles enable I/O to be added online while the controller
is in the Run mode.
• Drive Add-On Profiles can be updated anytime. When a new drive is used
or to benefit from new updates for Add-On Profiles, you will need the
newest Add-On Profile update. Go to www.ab.com/support/abdrives/
webupdate to download the latest RSLogix 5000/Logix Designer drive
Add-On Profile.
AddingtheDrivetotheI/OConfiguration
To transmit data between the controller and the drive, you must add the drive as a
child device to the parent controller. In this example, RSLogix 5000 version 20 is
used with drive Add-On Profile version 1.01.

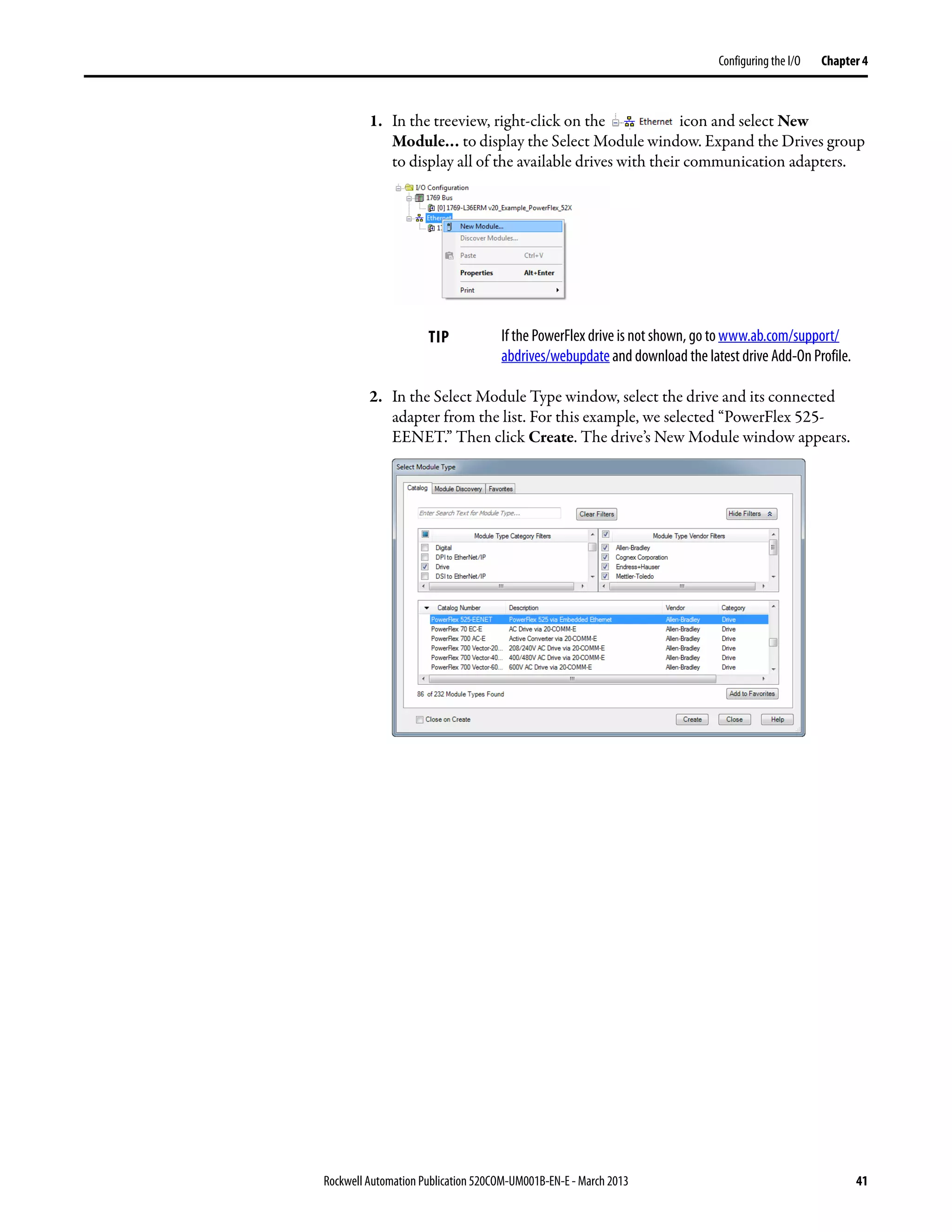

1. In the treeview, right-click on the icon and select New
Module… to display the Select Module window. Expand the Drives group
to display all of the available drives with their communication adapters.
2. In the Select Module Type window, select the drive and its connected
adapter from the list. For this example, we selected “PowerFlex 525-
EENET.” Then click Create. The drive’s New Module window appears.
TIP If the PowerFlex drive is not shown, go to www.ab.com/support/
abdrives/webupdate and download the latest drive Add-On Profile.

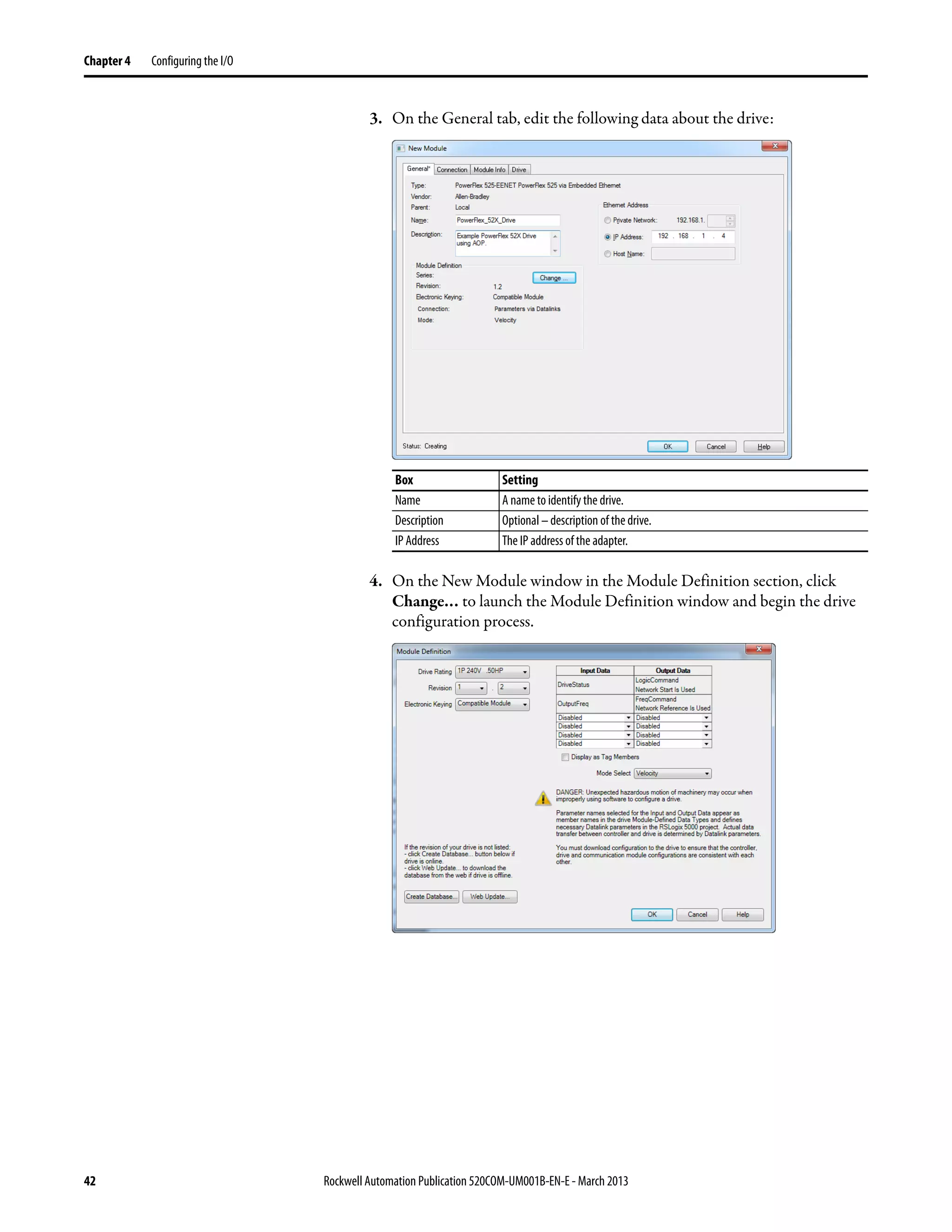

3. On the General tab, edit the following data about the drive:
4. On the New Module window in the Module Definition section, click
Change… to launch the Module Definition window and begin the drive
configuration process.
Box Setting
Name A name to identify the drive.
Description Optional – description of the drive.
IP Address The IP address of the adapter.

5. In the Module Definition window, edit the following information:
On the Module Definition window, notice that the automatically-assigned
controller tags Drive Status, Feedback, Logic Command, and Reference
are always used.
When using Datalinks you must still assign parameters C153 [EN Data In
1] through C156 [EN Data In 4] and C157 [EN Data Out 1] through
TIP You may create a database from a network accessible drive using the
Create Database... button (Recommended).
Box Setting
Drive Rating The voltage and horsepower rating of the drive. If the drive rating is not listed, the drive
database is not installed on your computer. To get the drive rating, use the Create
Database…, or Web Update… button described above.
Revision The major and minor revision of the firmware (database) in the drive. If the drive’s major
andminorrevisionisnotavailable,thedrivedatabaseisnotinstalledonyourcomputer.To
getthecorrectdatabaserevision,useoneofthefollowingbuttonsatthebottomleftofthe
Module Definition window:
• Create Database… Creates a database from an online network drive. Clicking this
button displays an RSLinx RSWho window. Browse to the online drive (PowerFlex 525),
select it, and click OK. The database will be uploaded and stored on the computer.
Thereafter, close the Module Definition window and then re-open it to display the new
revision.
• Web Update… When a drive is not available online, opens the Allen-Bradley Drives
Web Updates web site to download a specific database file. After downloading the file,
close the Module Definition window and then re-open it to display the new revision.
Electronic Keying Compatible Module. The “Compatible Module” setting for Electronic Keying ensures the
physical module is consistent with the software configuration before the controller and
bridge make a connection. Therefore, ensure that you have set the correct revision in this
window.Seethe online Helpfor additionalinformationonthisandotherElectronic Keying
settings.Ifkeyingisnotrequired,select“DisableKeying.”Drivesdonotrequirekeying,and
so “Disable Keying” is recommended.
When using RSLogix 5000 (version 20) or Logix Designer (version 21 or greater) and
Automatic Device Configuration (ADC) with Firmware Supervisor flash support to store
firmware for the drive, always choose “Exact Match.” See the table on page 51 for full
details when using ADC.
Input Data Assigns drive or connected peripheral parameters to be READ by the controller using
Datalinks.
Output Data Assigns drive or connected peripheral parameters to be WRITTEN by the controller using
Datalinks.
Mode Select Sets the I/O configuration to either Velocity or Position mode.

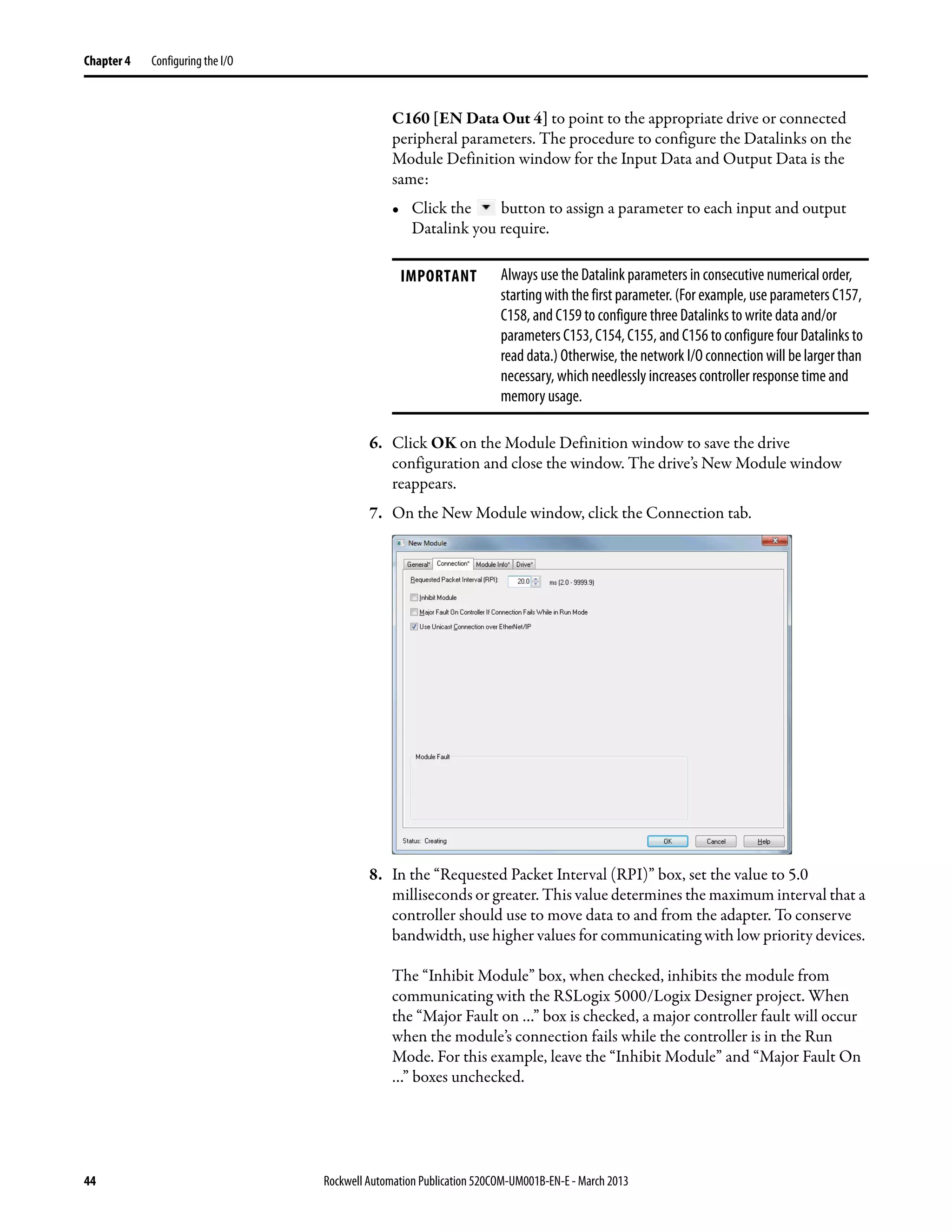

C160 [EN Data Out 4] to point to the appropriate drive or connected
peripheral parameters. The procedure to configure the Datalinks on the
Module Definition window for the Input Data and Output Data is the
same:
• Click the button to assign a parameter to each input and output
Datalink you require.
6. Click OK on the Module Definition window to save the drive
configuration and close the window. The drive’s New Module window
reappears.
7. On the New Module window, click the Connection tab.
8. In the “Requested Packet Interval (RPI)” box, set the value to 5.0
milliseconds or greater. This value determines the maximum interval that a
controller should use to move data to and from the adapter. To conserve
bandwidth, use higher values for communicating with low priority devices.
The “Inhibit Module” box, when checked, inhibits the module from
communicating with the RSLogix 5000/Logix Designer project. When
the “Major Fault on …” box is checked, a major controller fault will occur
when the module’s connection fails while the controller is in the Run
Mode. For this example, leave the “Inhibit Module” and “Major Fault On
…” boxes unchecked.
IMPORTANT Always use the Datalink parameters in consecutive numerical order,
starting with the first parameter. (For example, use parameters C157,
C158, and C159 to configure three Datalinks to write data and/or
parameters C153, C154, C155, and C156 to configure four Datalinks to
read data.) Otherwise, the network I/O connection will be larger than
necessary, which needlessly increases controller response time and
memory usage.

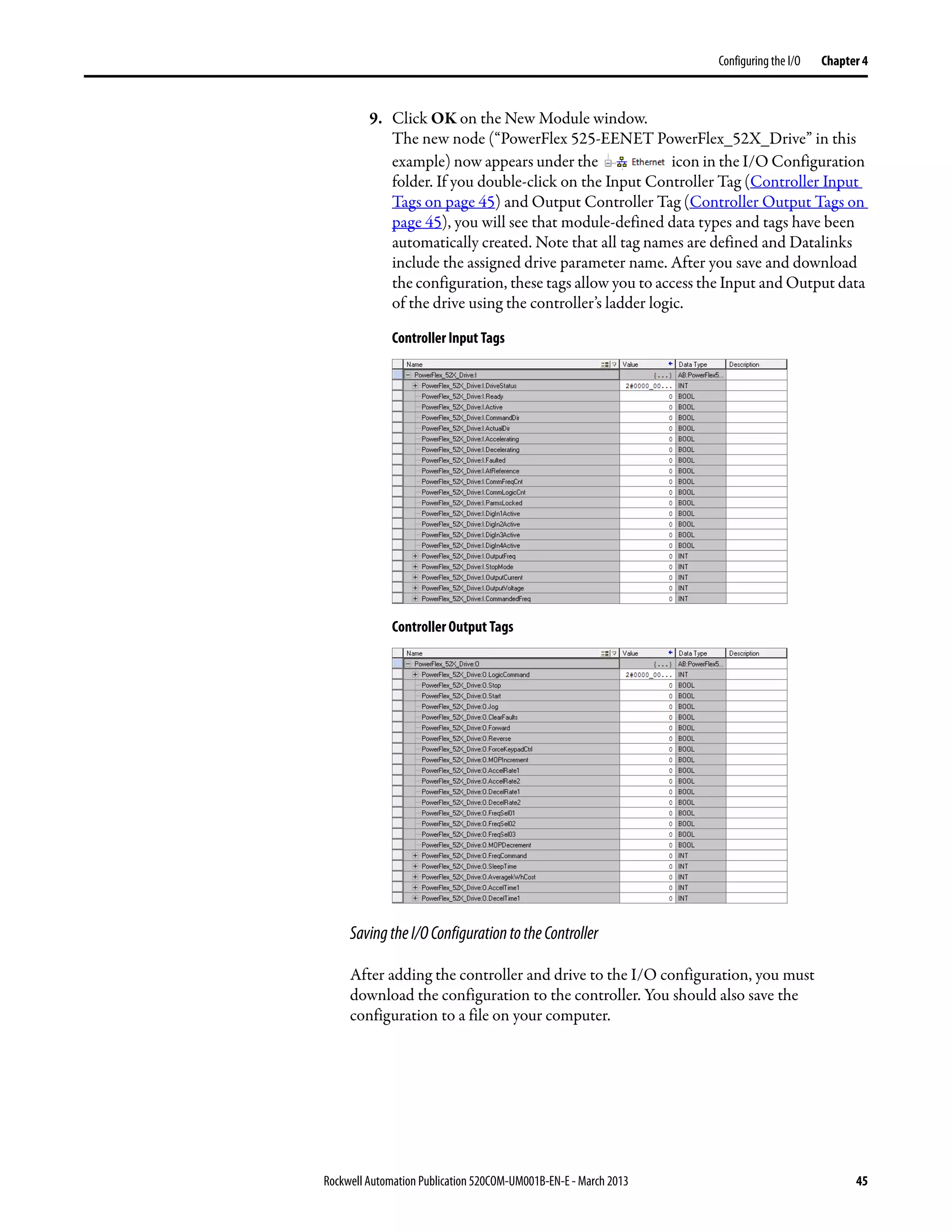

9. Click OK on the New Module window.
The new node (“PowerFlex 525-EENET PowerFlex_52X_Drive” in this
example) now appears under the icon in the I/O Configuration
folder. If you double-click on the Input Controller Tag (Controller Input
Tags on page 45) and Output Controller Tag (Controller Output Tags on
page 45), you will see that module-defined data types and tags have been
automatically created. Note that all tag names are defined and Datalinks
include the assigned drive parameter name. After you save and download
the configuration, these tags allow you to access the Input and Output data
of the drive using the controller’s ladder logic.
Controller Input Tags

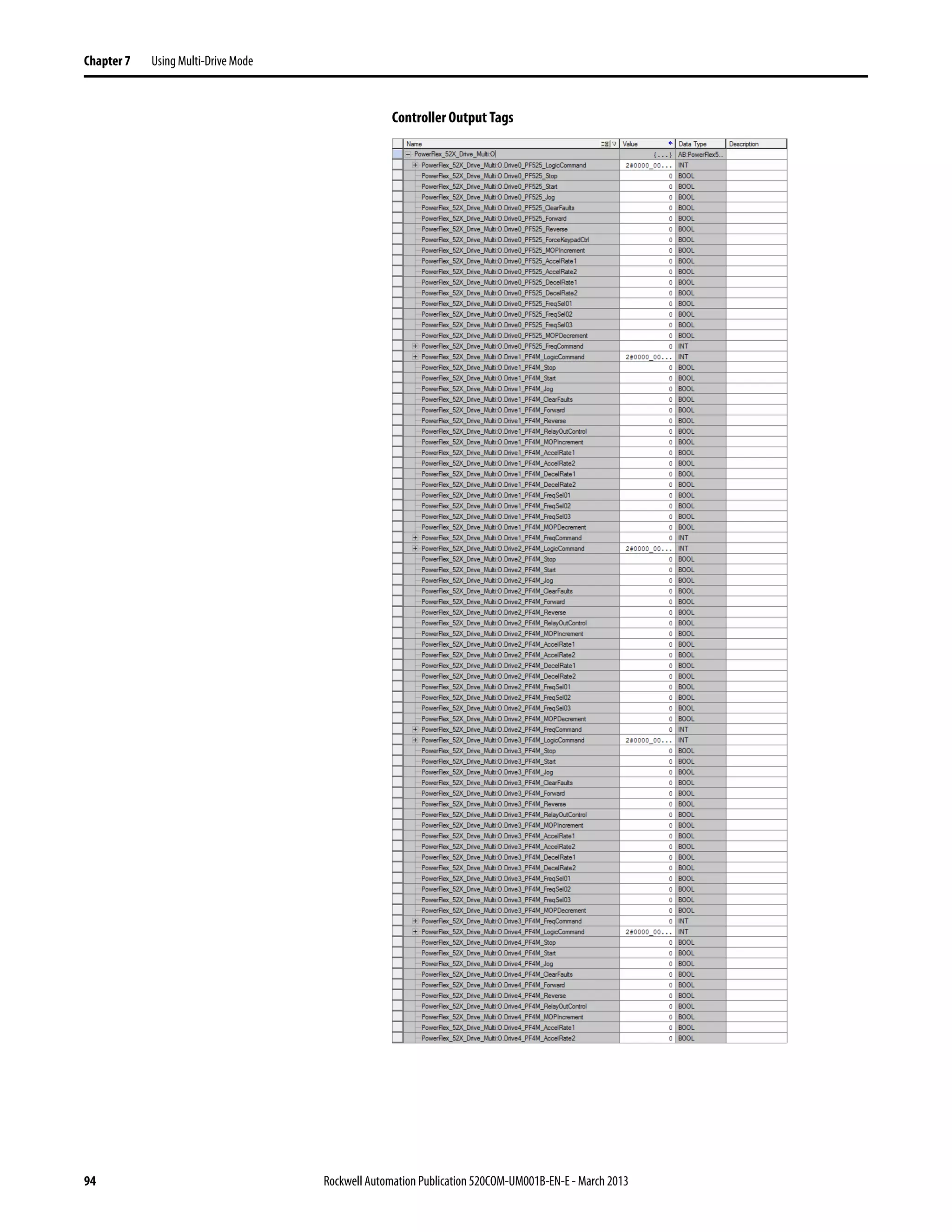

Controller Output Tags

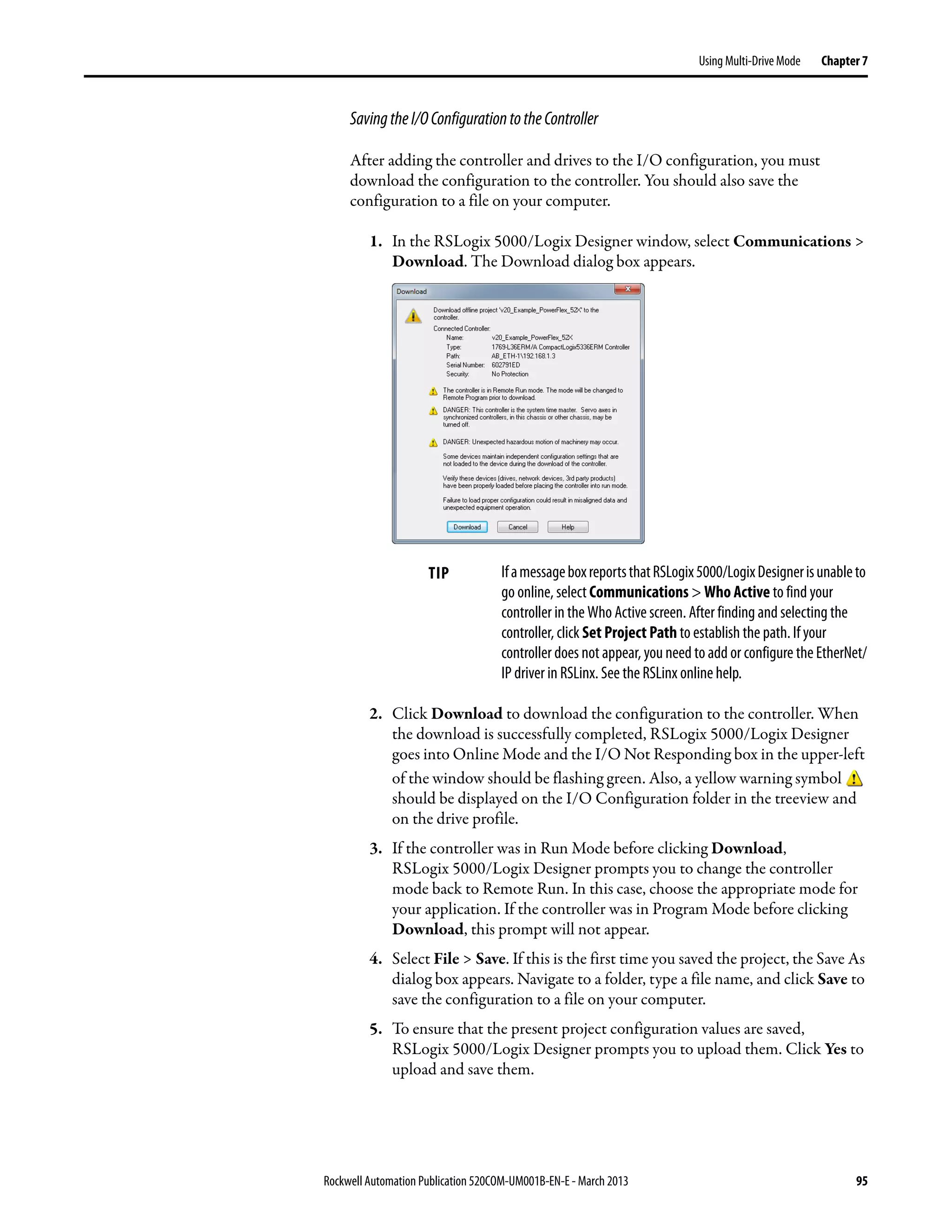

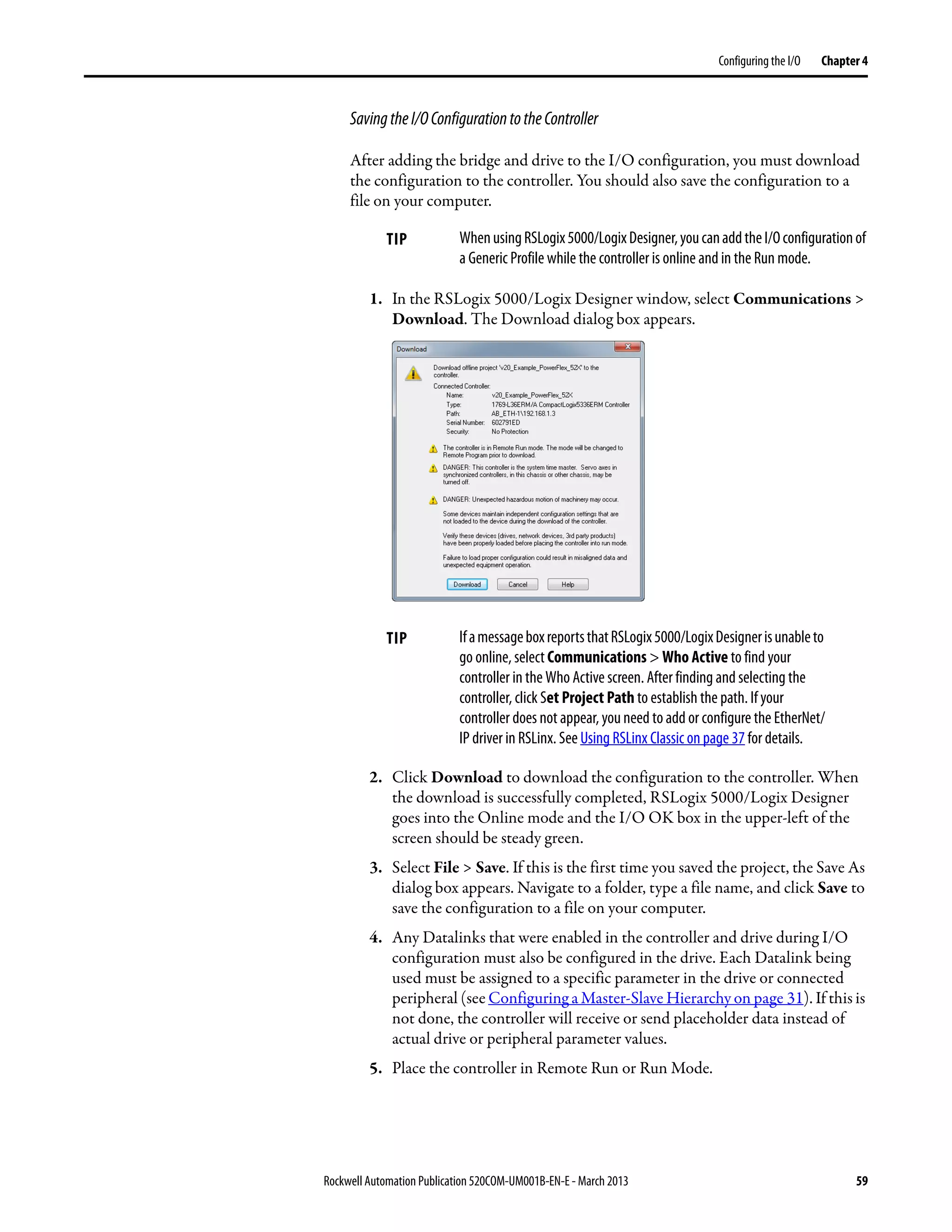

SavingtheI/OConfigurationtotheController
After adding the controller and drive to the I/O configuration, you must
download the configuration to the controller. You should also save the
configuration to a file on your computer.

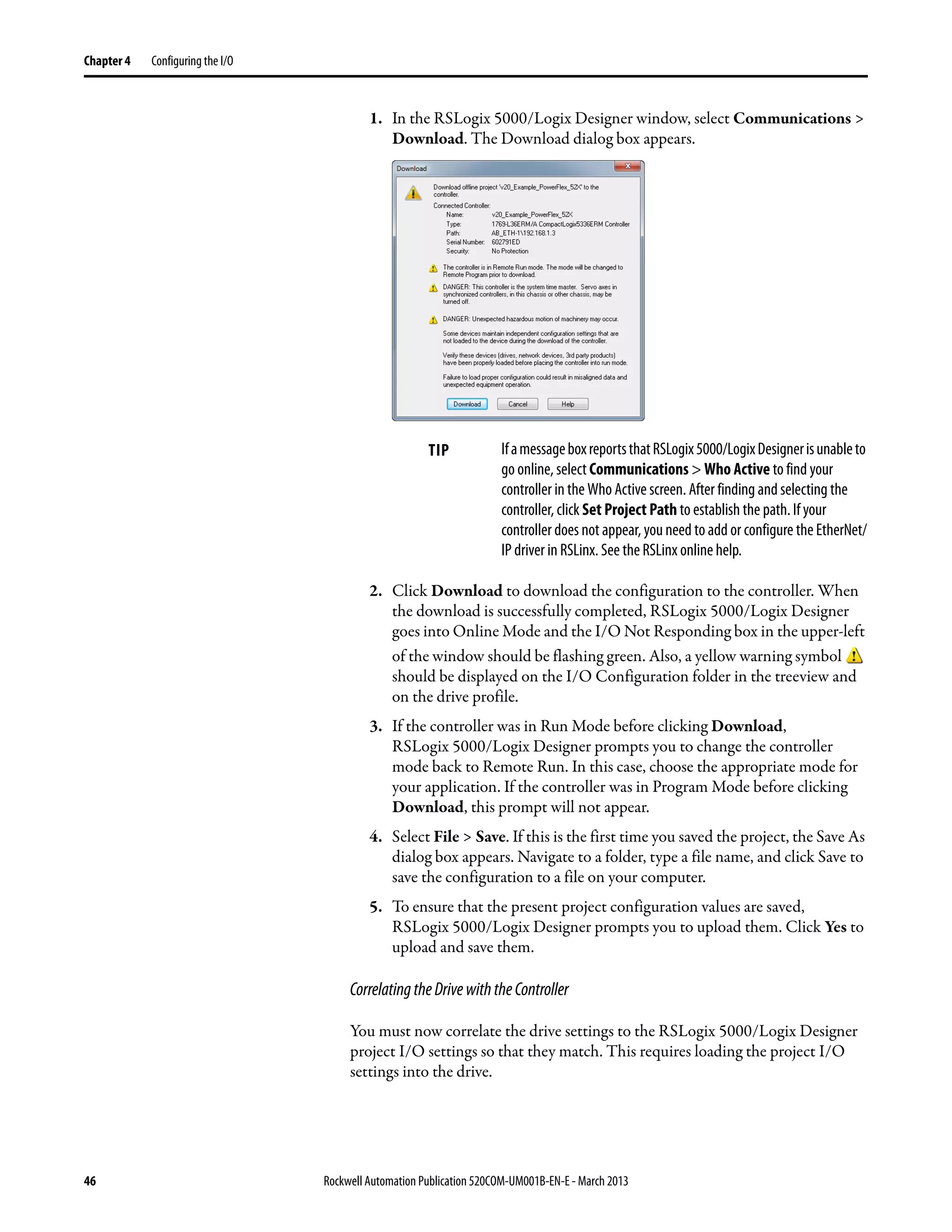

1. In the RSLogix 5000/Logix Designer window, select Communications >
Download. The Download dialog box appears.
2. Click Download to download the configuration to the controller. When
the download is successfully completed, RSLogix 5000/Logix Designer
goes into Online Mode and the I/O Not Responding box in the upper-left
of the window should be flashing green. Also, a yellow warning symbol
should be displayed on the I/O Configuration folder in the treeview and
on the drive profile.
3. If the controller was in Run Mode before clicking Download,
RSLogix 5000/Logix Designer prompts you to change the controller
mode back to Remote Run. In this case, choose the appropriate mode for
your application. If the controller was in Program Mode before clicking
Download, this prompt will not appear.
4. Select File > Save. If this is the first time you saved the project, the Save As
dialog box appears. Navigate to a folder, type a file name, and click Save to
save the configuration to a file on your computer.
5. To ensure that the present project configuration values are saved,
RSLogix 5000/Logix Designer prompts you to upload them. Click Yes to
upload and save them.
CorrelatingtheDrivewiththeController
You must now correlate the drive settings to the RSLogix 5000/Logix Designer
project I/O settings so that they match. This requires loading the project I/O
settings into the drive.
TIP IfamessageboxreportsthatRSLogix5000/LogixDesignerisunableto
go online, select Communications > Who Active to find your
controller in the Who Active screen. After finding and selecting the
controller, click Set Project Path to establish the path. If your
controller does not appear, you need to add or configure the EtherNet/
IP driver in RSLinx. See the RSLinx online help.

1. In the treeview under I/O Configuration, right-click on the drive profile
(for this example “PowerFlex 525-EENET PowerFlex_52X_Drive”) and
select Properties.
2. Select the Drive tab to begin the correlation process.
After the drive configuration data has been verified, the Drive tab will
display a request to synchronize the configuration with the drive. Click
Accept.
If the Differences Found Screen on page 48 appears—which is typical,
click Download. This will download the project settings from the
controller to the drive. If Upload is clicked, the drive settings are uploaded
to the controller.
TIP On subsequent connections to the drive (after the initial download),
select Upload.

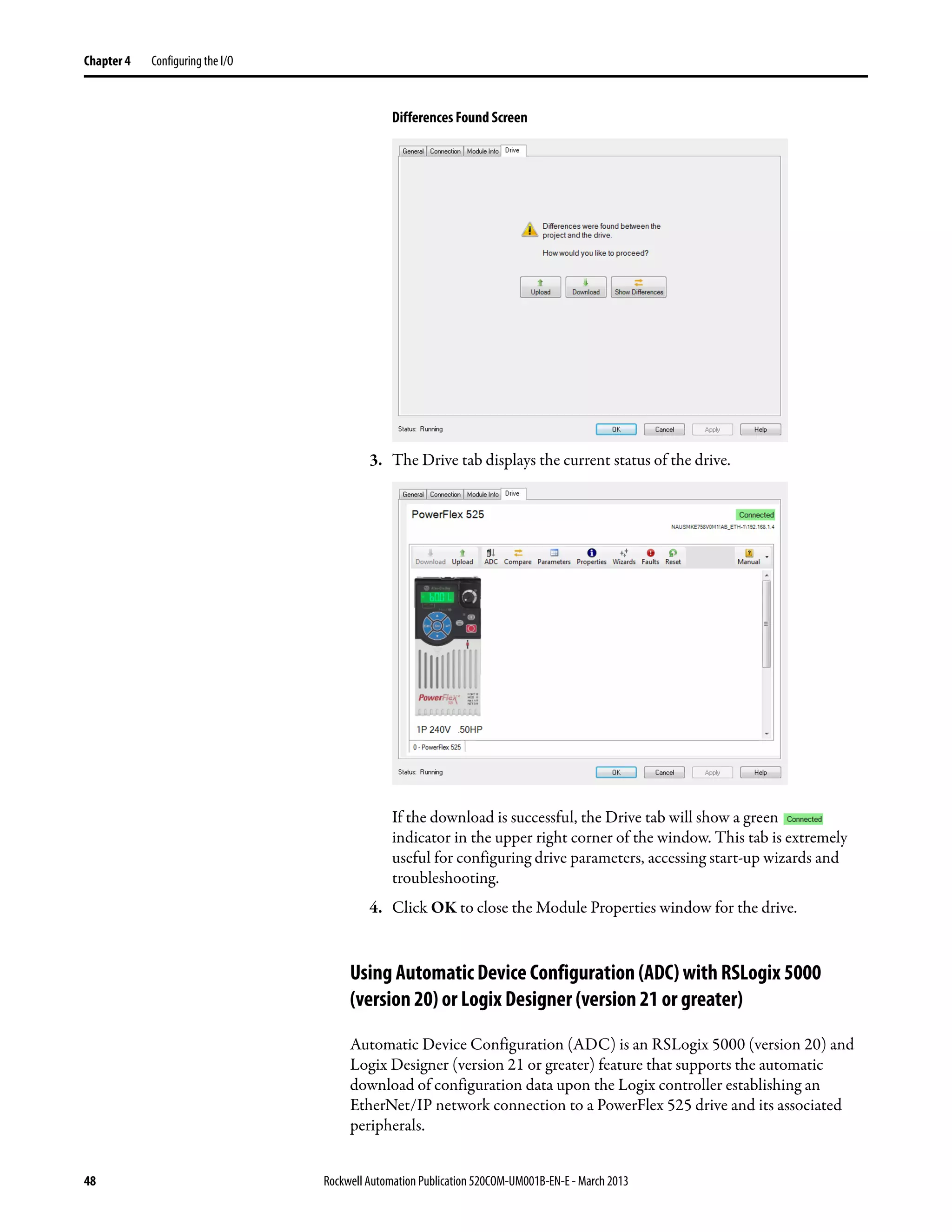

Differences Found Screen
3. The Drive tab displays the current status of the drive.
If the download is successful, the Drive tab will show a green
indicator in the upper right corner of the window. This tab is extremely
useful for configuring drive parameters, accessing start-up wizards and
troubleshooting.
4. Click OK to close the Module Properties window for the drive.
Using Automatic Device Configuration (ADC) with RSLogix 5000
(version 20) or Logix Designer (version 21 or greater)
Automatic Device Configuration (ADC) is an RSLogix 5000 (version 20) and
Logix Designer (version 21 or greater) feature that supports the automatic
download of configuration data upon the Logix controller establishing an
EtherNet/IP network connection to a PowerFlex 525 drive and its associated
peripherals.

An RSLogix 5000 (version 20) or Logix Designer (version 21 or greater) project
(.ACD file) contains the configuration settings for any PowerFlex drives in the
project. When the project is downloaded to the Logix controller, these settings
are also transferred and reside in the controller’s memory. Prior to ADC in
RSLogix 5000 (version 20) or Logix Designer (version 21 or greater),
downloading PowerFlex 525 configuration data was a manual process where the
user would open the Drive tab in the respective drive Add-On Profile (AOP) in
the application and click on the Download icon. ADC now automates the
process and saves the user time. It is particularly beneficial in a drive replacement
situation when a production line is down.
ADC can also work in tandem with Firmware Supervisor. If Firmware Supervisor
is set up and enabled for a drive (“Exact Match” keying must be used), the drive/
peripheral will be automatically flashed (if necessary) prior to any ADC
operation.
The drive AOP requires user action to enable ADC. This helps ensure that the
user understands ADC operation prior to turning it on. The drive AOPs also
have an ADC icon on the Drive tab to show general ADC enable/disable status
for the drive:
Clicking on the ADC icon will launch the ADC configuration window. This
provides a single, convenient location to enable/disable ADC on the drive.
IMPORTANT • ADC is not available for DSI peripherals.
• ADC is not available in Multi-drive mode.
• ADC is only available when the drive is connected using the embedded
EtherNet/IP adapter or future EtherNet/IP DLR adapter to a compatible
controller.
TIP Use with Stratix switches such as the Stratix 5700, Stratix 6000, and Stratix
8000 to provide dynamic IP address assignment by port. This eliminates the
need for theusertomanually enter the IPaddress,Subnetmask,andGateway
address prior to connecting a replacement drive to the Ethernet network.
IMPORTANT Logix“owns”theconfigurationofthedrive.ADCwillbetriggeredany
time the Logix controller detects a configuration signature mismatch
when establishing an EtherNet/IP network I/O connection. The use of
otherconfiguration tools, such asaHIM or ConnectedComponentsWorkbench
software should be minimized and restricted to monitor-only operation. Any
configurationchangesmadebythesetoolswillcauseaconfigurationsignature
mismatch the next time the Logix controller connects to the device and ADC
will write over any changes made by the other tool(s). Any drive configuration
changes should be made with the drive Add-On Profile.
Icon Meaning
No ports on the drive have ADC enabled.
At least one port on the drive has ADC enabled.
ADC is not supported.

ConfiguringaPowerFlex525DriveforADC
ADC is configured within the AOP of the PowerFlex 525 drive. Start by creating
or opening a PowerFlex 525 drive in the RSLogix 5000/Logix Designer I/O
Configuration folder.
1. In the Module Properties window, select the General tab and click
Change… to open the Module Definition window.

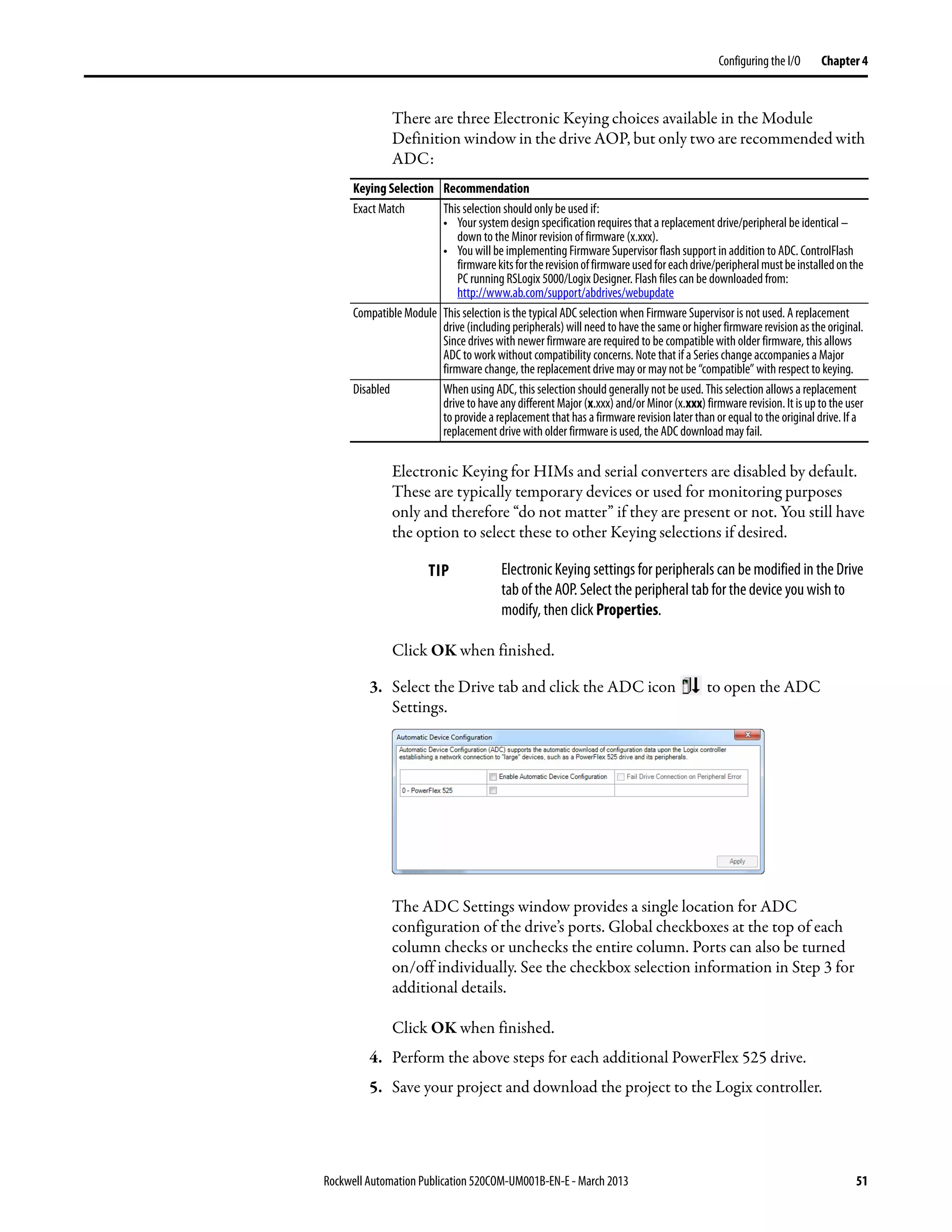

2. Select the appropriate Electronic Keying for your application.

There are three Electronic Keying choices available in the Module
Definition window in the drive AOP, but only two are recommended with
ADC:
Electronic Keying for HIMs and serial converters are disabled by default.
These are typically temporary devices or used for monitoring purposes
only and therefore “do not matter” if they are present or not. You still have
the option to select these to other Keying selections if desired.
Click OK when finished.
3. Select the Drive tab and click the ADC icon to open the ADC
Settings.
The ADC Settings window provides a single location for ADC
configuration of the drive’s ports. Global checkboxes at the top of each
column checks or unchecks the entire column. Ports can also be turned
on/off individually. See the checkbox selection information in Step 3 for
additional details.
Click OK when finished.
4. Perform the above steps for each additional PowerFlex 525 drive.
5. Save your project and download the project to the Logix controller.
Keying Selection Recommendation
Exact Match This selection should only be used if:
• Your system design specification requires that a replacement drive/peripheral be identical –
down to the Minor revision of firmware (x.xxx).
• You will be implementing Firmware Supervisor flash support in addition to ADC. ControlFlash
firmwarekitsfortherevisionoffirmwareusedforeachdrive/peripheralmustbeinstalledonthe
PC running RSLogix 5000/Logix Designer. Flash files can be downloaded from:
http://www.ab.com/support/abdrives/webupdate
Compatible Module This selection is the typical ADC selection when Firmware Supervisor is not used. A replacement
drive(includingperipherals)willneed to have the sameorhigher firmware revisionas the original.
Since drives with newer firmware are required to be compatible with older firmware, this allows
ADC to work without compatibility concerns. Note that if a Series change accompanies a Major
firmware change, the replacement drive may or may not be “compatible” with respect to keying.
Disabled When using ADC, this selection should generally not be used. This selection allows a replacement
drive to have anydifferent Major (x.xxx)and/or Minor (x.xxx) firmware revision.It is upto the user
to provide a replacement that has a firmware revision later than or equal to the original drive. If a
replacement drive with older firmware is used, the ADC download may fail.
TIP Electronic Keying settings for peripherals can be modified in the Drive
tab of the AOP. Select the peripheral tab for the device you wish to
modify, then click Properties.

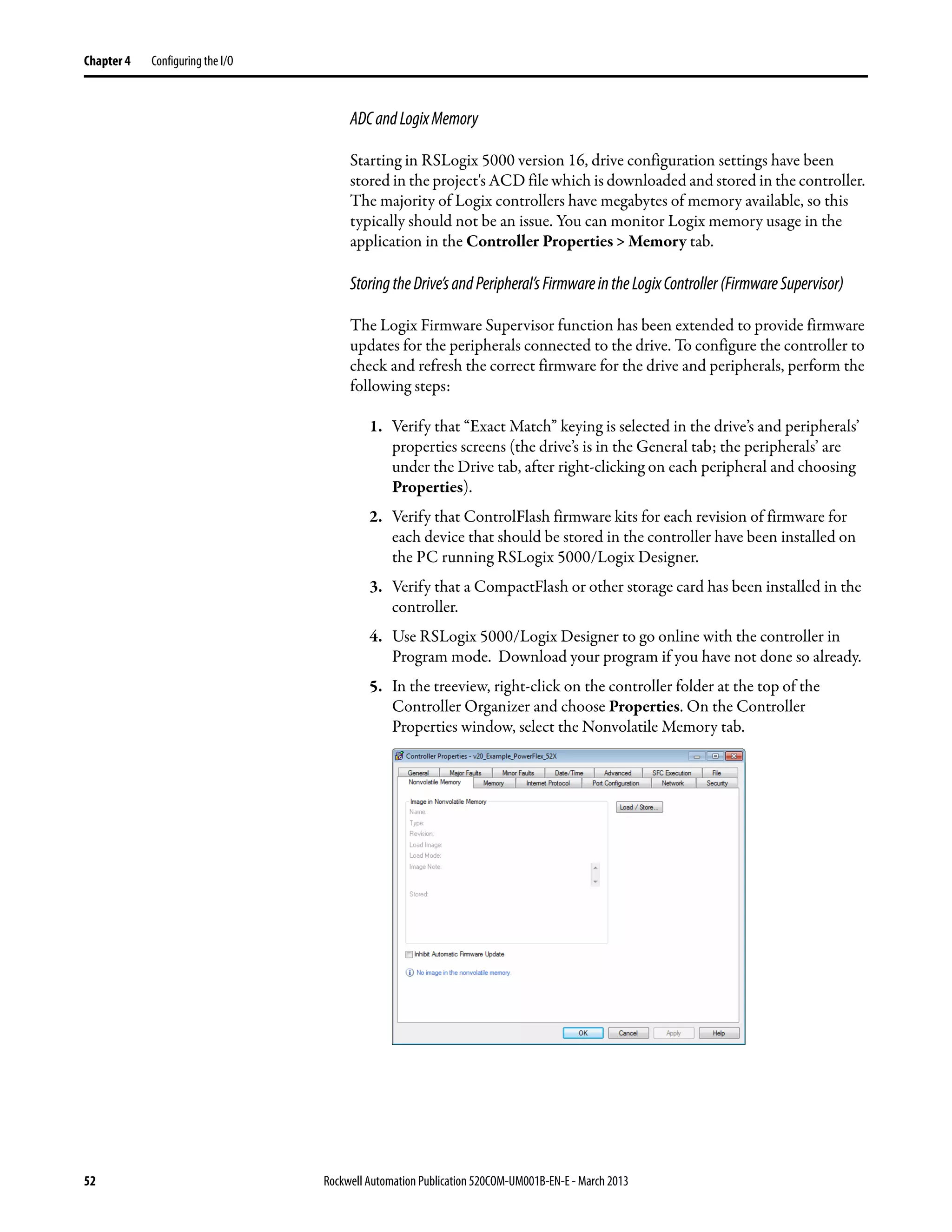

ADCandLogixMemory
Starting in RSLogix 5000 version 16, drive configuration settings have been
stored in the project's ACD file which is downloaded and stored in the controller.
The majority of Logix controllers have megabytes of memory available, so this
typically should not be an issue. You can monitor Logix memory usage in the
application in the Controller Properties > Memory tab.
StoringtheDrive’sandPeripheral’sFirmwareintheLogixController(FirmwareSupervisor)
The Logix Firmware Supervisor function has been extended to provide firmware
updates for the peripherals connected to the drive. To configure the controller to
check and refresh the correct firmware for the drive and peripherals, perform the
following steps:
1. Verify that “Exact Match” keying is selected in the drive’s and peripherals’
properties screens (the drive’s is in the General tab; the peripherals’ are
under the Drive tab, after right-clicking on each peripheral and choosing
Properties).
2. Verify that ControlFlash firmware kits for each revision of firmware for
each device that should be stored in the controller have been installed on
the PC running RSLogix 5000/Logix Designer.
3. Verify that a CompactFlash or other storage card has been installed in the
controller.
4. Use RSLogix 5000/Logix Designer to go online with the controller in
Program mode. Download your program if you have not done so already.
5. In the treeview, right-click on the controller folder at the top of the
Controller Organizer and choose Properties. On the Controller
Properties window, select the Nonvolatile Memory tab.

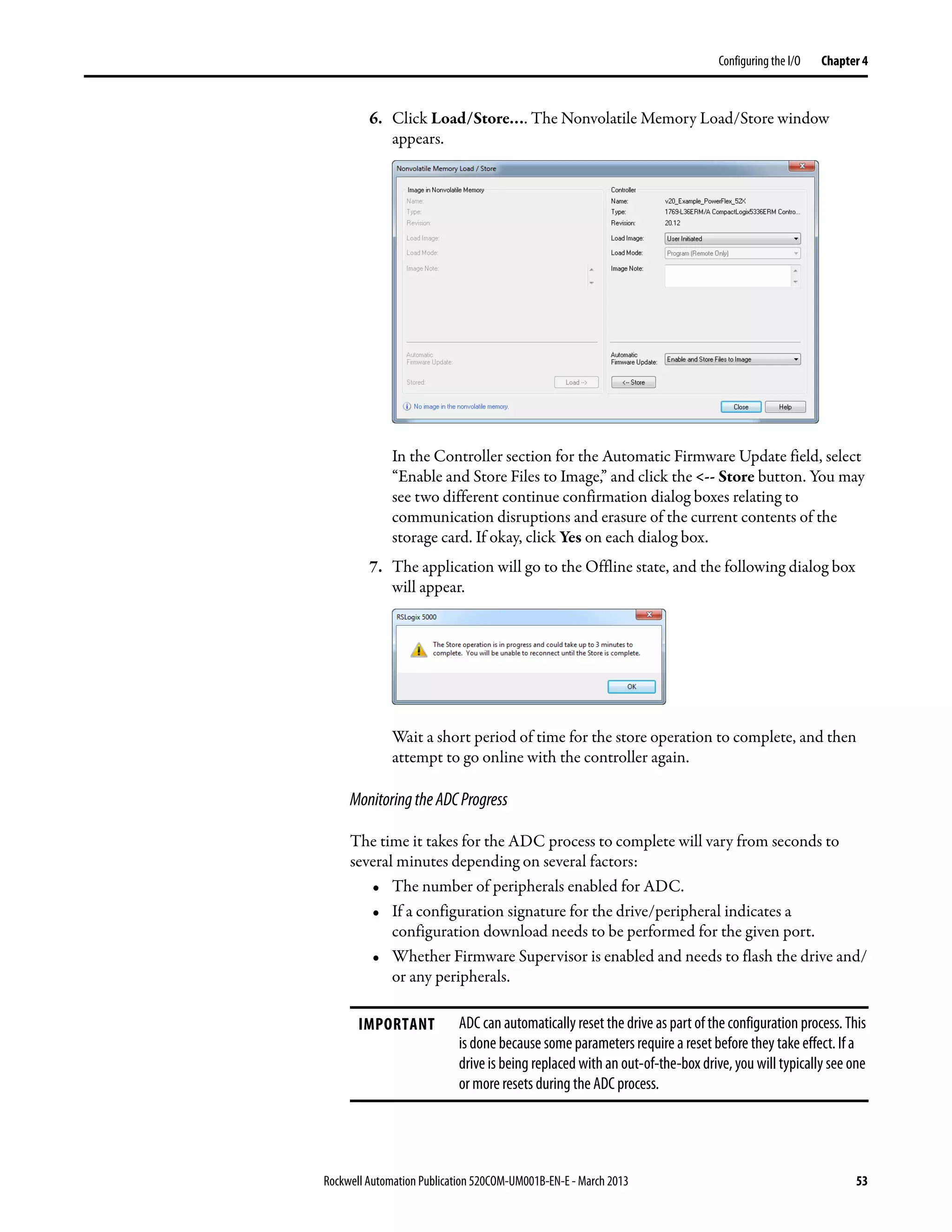

6. Click Load/Store…. The Nonvolatile Memory Load/Store window
appears.
In the Controller section for the Automatic Firmware Update field, select
“Enable and Store Files to Image,” and click the <-- Store button. You may
see two different continue confirmation dialog boxes relating to
communication disruptions and erasure of the current contents of the
storage card. If okay, click Yes on each dialog box.
7. The application will go to the Offline state, and the following dialog box
will appear.
Wait a short period of time for the store operation to complete, and then
attempt to go online with the controller again.
MonitoringtheADCProgress
The time it takes for the ADC process to complete will vary from seconds to
several minutes depending on several factors:
• The number of peripherals enabled for ADC.
• If a configuration signature for the drive/peripheral indicates a
configuration download needs to be performed for the given port.
• Whether Firmware Supervisor is enabled and needs to flash the drive and/
or any peripherals.
IMPORTANT ADC can automatically reset the drive as part of the configuration process. This
is done because some parameters require a reset before they take effect. If a
drive is being replaced with an out-of-the-box drive, you will typically see one
or more resets during the ADC process.

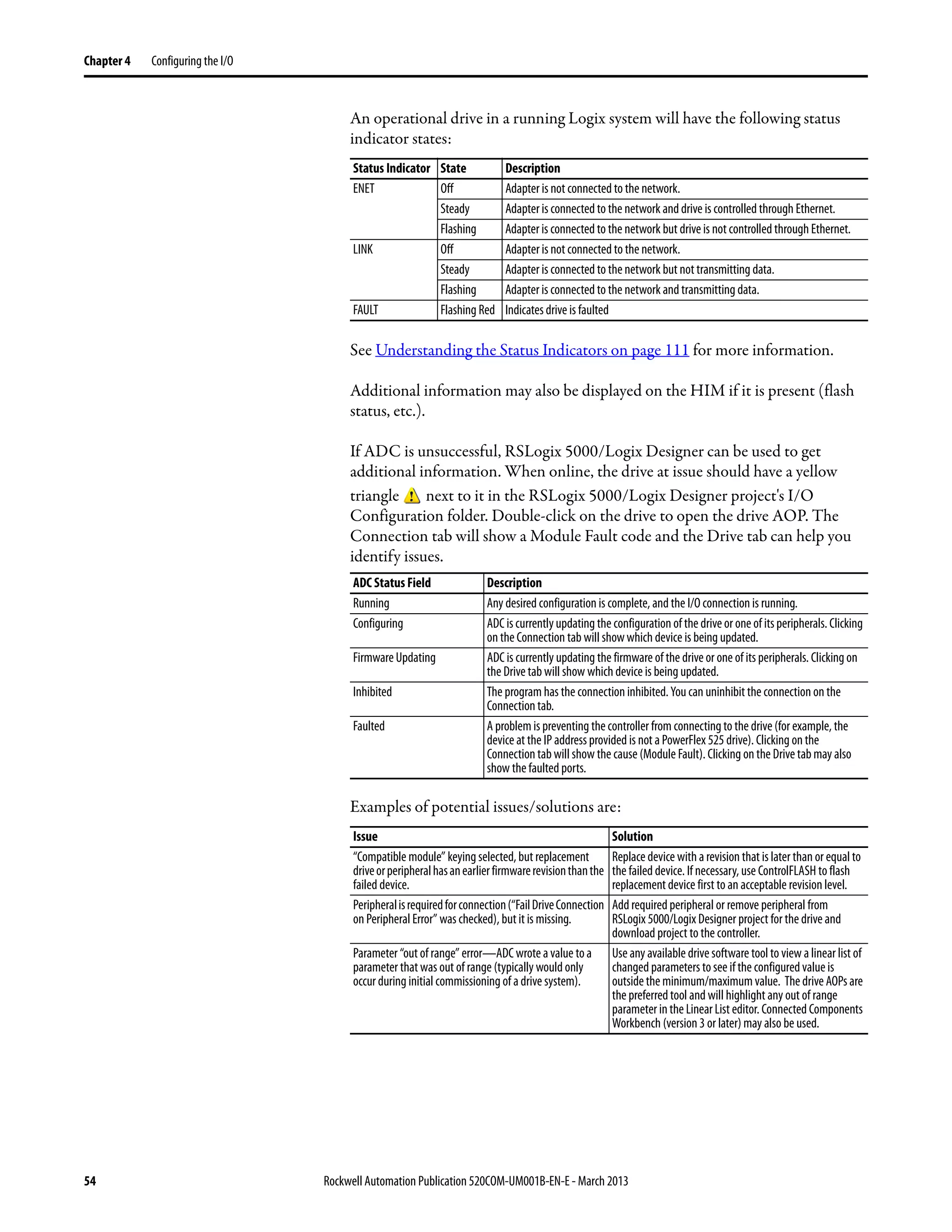

An operational drive in a running Logix system will have the following status
indicator states:
See Understanding the Status Indicators on page 111 for more information.
Additional information may also be displayed on the HIM if it is present (flash
status, etc.).
If ADC is unsuccessful, RSLogix 5000/Logix Designer can be used to get
additional information. When online, the drive at issue should have a yellow
triangle next to it in the RSLogix 5000/Logix Designer project's I/O
Configuration folder. Double-click on the drive to open the drive AOP. The
Connection tab will show a Module Fault code and the Drive tab can help you
identify issues.
Examples of potential issues/solutions are:
Status Indicator State Description
ENET Off Adapter is not connected to the network.
Steady Adapter is connected to the network and drive is controlled through Ethernet.
Flashing Adapter is connected to the network but drive is not controlled through Ethernet.
LINK Off Adapter is not connected to the network.
Steady Adapter is connected to the network but not transmitting data.
Flashing Adapter is connected to the network and transmitting data.
FAULT Flashing Red Indicates drive is faulted
ADC Status Field Description
Running Any desired configuration is complete, and the I/O connection is running.
Configuring ADC is currentlyupdating the configuration of the drive or one of its peripherals. Clicking
on the Connection tab will showwhich device is being updated.
Firmware Updating ADC is currently updating the firmware of the driveor one of its peripherals. Clicking on
the Drive tab will show which device is being updated.
Inhibited The program has the connection inhibited. You can uninhibit the connection on the
Connection tab.
Faulted A problem is preventing the controller from connecting to the drive (for example, the
device at the IP address provided is not a PowerFlex 525 drive). Clicking on the
Connection tab will show the cause (Module Fault). Clicking on the Drive tab may also
show the faulted ports.
Issue Solution
“Compatible module” keying selected, but replacement
driveorperipheralhasanearlierfirmwarerevisionthanthe
failed device.
Replace device with a revision that is later than or equal to
the failed device. If necessary, use ControlFLASH to flash
replacement device first to an acceptable revision level.
Peripheralisrequiredforconnection(“FailDriveConnection
on Peripheral Error” was checked), but it is missing.
Add required peripheral or remove peripheral from
RSLogix 5000/Logix Designer project for the drive and
download project to the controller.
Parameter “out of range” error—ADC wrote a value to a
parameter that was out of range (typically would only
occur during initial commissioning of a drive system).
Use any available drive software tool to view a linear list of
changed parameters to see if the configured value is
outsidethe minimum/maximum value. Thedrive AOPs are
the preferred tool and will highlight any out of range
parameter inthe Linear List editor. Connected Components
Workbench (version 3 or later) may also be used.

Using the RSLogix 5000 (all versions) or Logix Designer (version 21 or
greater) Generic Profile
The basic RSLogix 5000/Logix Designer Generic Profile is only recommended
when:
• A specific drive profile in other versions of RSLogix 5000/Logix Designer
is unavailable.
• Users are already familiar with a Generic Profile and do not want to
convert an existing project to a drive Add-On Profile (RSLogix 5000
version 17 or greater and Logix Designer version 21 or greater).
• A project must maintain specific revision level control.
• The controller cannot be taken offline. RSLogix 5000 (all versions) and
Logix Designer (version 21 or greater) enables the drive Generic Profile to
be added while the controller is online and in the Run mode.
To transmit data between the bridge and the drive, you must add the drive as a
child device to the parent bridge.
Module… to display the Select Module Type window. Expand the
Communications group to display all of the available communication
modules or search for “ETHERNET-MODULE”.
2. Select “ETHERNET-MODULE” from the list in the Select Module Type
window to configure the drive’s embedded EtherNet/IP adapter, and then
click Create. The drive’s New Module window appears.

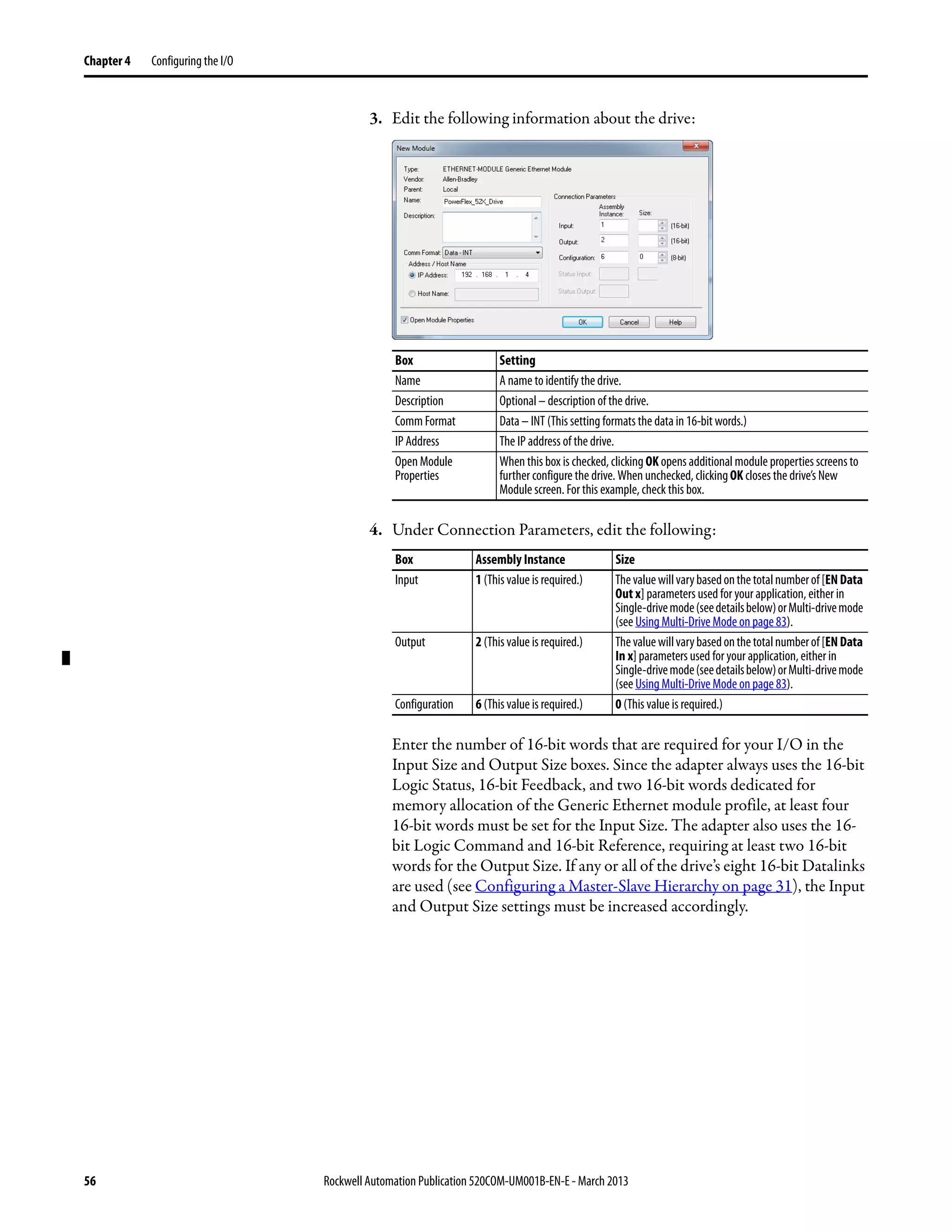

3. Edit the following information about the drive:
4. Under Connection Parameters, edit the following:
Enter the number of 16-bit words that are required for your I/O in the
Input Size and Output Size boxes. Since the adapter always uses the 16-bit
Logic Status, 16-bit Feedback, and two 16-bit words dedicated for
memory allocation of the Generic Ethernet module profile, at least four
16-bit words must be set for the Input Size. The adapter also uses the 16-
bit Logic Command and 16-bit Reference, requiring at least two 16-bit
words for the Output Size. If any or all of the drive’s eight 16-bit Datalinks
are used (see Configuring a Master-Slave Hierarchy on page 31), the Input
and Output Size settings must be increased accordingly.
Box Setting
Description Optional – description of the drive.
Comm Format Data – INT (This setting formats the data in 16-bit words.)
IP Address The IP address of the drive.
Open Module
Properties
When this box is checked, clicking OK opens additional module properties screens to
further configure the drive. When unchecked, clickingOK closes the drive’s New
Module screen. For this example, check this box.
Box Assembly Instance Size
Input 1 (This value is required.) Thevaluewillvarybasedonthetotalnumberof[ENData
Out x] parameters used for your application, either in
Single-drivemode(seedetailsbelow)orMulti-drivemode
(see Using Multi-Drive Mode on page 83).
Output 2 (This value is required.) Thevaluewillvarybasedonthetotalnumberof[ENData
In x] parameters used for your application, either in
Single-drivemode(seedetailsbelow)orMulti-drivemode
(see Using Multi-Drive Mode on page 83).
Configuration 6 (This value is required.) 0 (This value is required.)

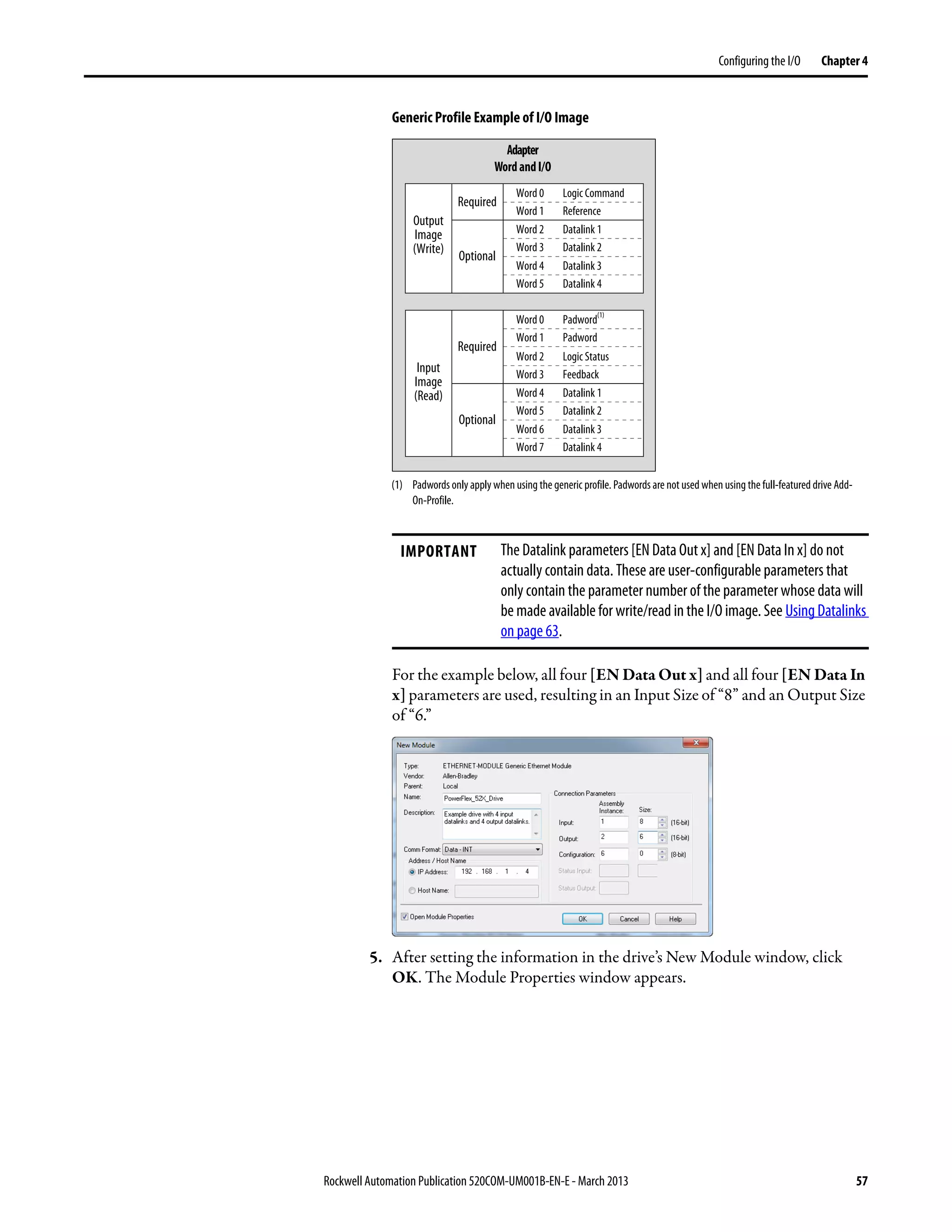

Generic Profile Example of I/O Image
For the example below, all four [EN Data Out x] and all four [EN Data In
x] parameters are used, resulting in an Input Size of “8” and an Output Size
of “6.”
5. After setting the information in the drive’s New Module window, click
OK. The Module Properties window appears.
IMPORTANT The Datalink parameters [EN Data Out x] and [EN Data In x] do not
actually contain data. These are user-configurable parameters that
only contain the parameter number of the parameter whose data will
be made available for write/read in the I/O image. See Using Datalinks
on page 63.
Adapter
Wordand I/O
Logic Command
Word 0
Reference
Word 1
Datalink 1
Word 2
Datalink 2
Word 3
Datalink 3
Word 4
Datalink 4
Word 5
Logic Status
Word 2
Feedback
Word 3
Required
Padword
(1)
Word 0
Padword
Word 1
Datalink 1
Word 4
Datalink 2
Word 5
Datalink 3
Word 6
Datalink 4
Word 7
Optional
Required
Optional
Output
(Write)
Input
(Read)
(1) Padwords only apply when using the generic profile. Padwords are not used when using the full-featured drive Add-
On-Profile.

6. Click the Connection tab.
For this example, leave the “Inhibit Module” and Major Fault …” boxes
unchecked.
8. Click OK. The new node
(“ETHERNET-MODULE_PowerFlex_52X_Drive” in this example)
now appears under the icon in the I/O Configuration folder. If
you double-click on the Input Controller Tag (Input Image Controller
Tags on page 58) and Output Controller Tag (Output Image Controller
Tags on page 58), you will see that module-defined data types and tags
have been automatically created. After you save and download the
configuration, these tags allow you to access the Input and Output data of
the drive using the controller’s ladder logic.
Input Image Controller Tags
Output Image Controller Tags

After adding the bridge and drive to the I/O configuration, you must download
the configuration to the controller. You should also save the configuration to a
file on your computer.
goes into the Online mode and the I/O OK box in the upper-left of the
screen should be steady green.
4. Any Datalinks that were enabled in the controller and drive during I/O
configuration must also be configured in the drive. Each Datalink being
used must be assigned to a specific parameter in the drive or connected
peripheral (see Configuring a Master-Slave Hierarchy on page 31). If this is
not done, the controller will receive or send placeholder data instead of
actual drive or peripheral parameter values.
5. Place the controller in Remote Run or Run Mode.
TIP WhenusingRSLogix5000/LogixDesigner,youcanaddtheI/Oconfigurationof
a Generic Profile while the controller is online and in the Run mode.
IP driver in RSLinx. See Using RSLinx Classic on page 37 for details.

Limitations in Using
MicroLogix 1100/1400
Controlling I/O with explicit messages is relatively complex compared to normal
implicit I/O control.
ControlLogix and CompactLogix controllers with EtherNet/IP provide the
easiest and most integrated form of implicit I/O control for a PowerFlex drive.
RSLogix 5000/Logix Designer programming software for ControlLogix and
CompactLogix controllers contains integrated profiles for PowerFlex drives that,
with a few clicks of the mouse, automatically create all controller tags and an
implicit connection at the specified Requested Packet Interval to control the
drive. This connection is monitored at both ends to ensure that the controller
and drive are communicating. A watchdog will cause a drive fault if the drive does
not respond within approximately 100 milliseconds. Therefore, using a
ControlLogix or CompactLogix controller is by far the much preferred method
of controlling drives on EtherNet/IP.
If you are not using either of these type of controllers, then PowerFlex drives on
EtherNet/IP can be controlled with explicit messages using
MicroLogix 1100/1400 controllers with the following limitations:
• An explicit message is a much slower form of control and is non-
deterministic. This means that you cannot guarantee how long the drive
will take to start up or stop when the command is given. Therefore, all
equipment used in this manner should be subject to a risk assessment,
taking into account the mechanical and electrical implementation.
• A timeout value (in seconds) in the embedded EtherNet/IP adapter will
issue a drive fault if a message is not received from the controller within the
specified time. However, the controller has no way of detecting a loss of
communications to the drive until the next cycle of explicit messages. This
is another factor in the risk assessment.
• Any additional drives to be controlled will require additional explicit
messages for their control, and they need to be carefully sequenced. Most
controllers have small communication queues (see its User Manual), which
need to be carefully managed if messages are not to be lost.
• Each controller has a limited number of communication connections (see
its User Manual for maximum connections), which will limit the number
of drives that can be connected.
In summary, unlike a ControlLogix or CompactLogix controller, programming a
MicroLogix 1100/1400 controller using RSLogix 500 software with explicit
messages is more difficult, and produces a more complex program.

Chapter 5
Using the I/O
This chapter provides information and examples that explain how to control,
configure, and monitor a PowerFlex 525 drive using the configured I/O.
About I/O Messaging On CIP-based networks, including EtherNet/IP, I/O connections are used to
transfer the data which controls the PowerFlex drive and sets its Reference. I/O
can also be used to transfer data to and from Datalinks in PowerFlex 525 drives.
The adapter includes the Logic Command, Logic Status, Reference, Feedback,
and memory allocation for the Generic Ethernet module profile (all as 16-bit
words) in the controller’s I/O image. This basic I/O must always be configured in
the Ethernet bridge using RSLogix 5000/Logix Designer. Additional I/O, if
needed, can be set using up to four Datalinks to write data and/or up to four
Datalinks to read data. When using any combination of these Datalinks, add one
16-bit word for each Datalink to the basic I/O Input Size and/or Output Size.
Chapter 3, Configuring the Adapter, and Chapter 4, Configuring the I/O,
discuss how to configure the adapter and controller on the network for the
required I/O. The Glossary defines the different options. This chapter discusses
how to use I/O after you have configured the drive and controller.
Understanding the I/O Image The terms input and output are defined from the controller’s point of view.
Therefore, output I/O is data that is produced by the controller and consumed by
the adapter. Input I/O is data that is produced by the adapter and consumed as
input by the controller. The I/O image will vary based on:
Topic Page
About I/O Messaging 61
Understanding the I/O Image 61
Using Logic Command/Status 62
Using Reference/Feedback 63
Using Datalinks 63
Example Ladder Logic Program Information 64
CompactLogix Example 64

Chapter 5 Using the I/O
• How many of the drive’s 16-bit Datalinks ([EN Data In 1...4] and [EN
Data Out 1...4]) are used.
• ControlLogix/CompactLogix Controllers only—The drive Add-On
Profile (AOP) used in RSLogix 5000 (version 17 or greater) or Logix
Designer (version 21 or greater), or the Generic Profile (all versions).
• If Multi-drive mode is enabled, and the number of daisy-chained drives
that are present.
I/O Controller Image
Since the drive Add-On Profile in RSLogix 5000 (version 17 or greater) and
Logix Designer (version 21 or greater) provides descriptive controller tags, the I/
O image (tag size and location) is automatically configured based on the drive
being used. When using the Generic Profile in RSLogix 5000/Logix Designer,
however, controller tags are not descriptive.
I/O Image for PowerFlex 525 Drives on page 62 shows the I/O image when using
all of the 16-bit Datalinks.
I/O Image for PowerFlex 525 Drives
(16-bit Logic Command/Status, Reference/Feedback, and Datalinks)
Using Logic Command/Status The Logic Command is a 16-bit word of control data produced by the controller
and consumed by the adapter. The Logic Status is a 16-bit word of status data
produced by the adapter and consumed by the controller.
When using a ControlLogix or CompactLogix controller, the Logic Command
word is always INT 0 in the output image and the Logic Status word is always:
• INT 0 in the input image when using the drive Add-On Profile.
• INT 2 when using the Generic Profile.
This manual contains the bit definitions for compatible products available at the
time of publication in Appendix D, Logic Command/Status Words: PowerFlex
525 Drives.
INT Output Input Using...
INT Drive Add-On Profile INT Generic Profile
0 Logic Command 0 Logic Status 0 Padword
1 Reference 1 Feedback 1 Padword
2 Datalink 1 2 Datalink 1 2 Logic Status
3 Datalink 2 3 Datalink 2 3 Feedback
4 Datalink 3 4 Datalink 3 4 Datalink 1
5 Datalink 4 5 Datalink 4 5 Datalink 2
6 Datalink 3
7 Datalink 4

Using the I/O Chapter 5

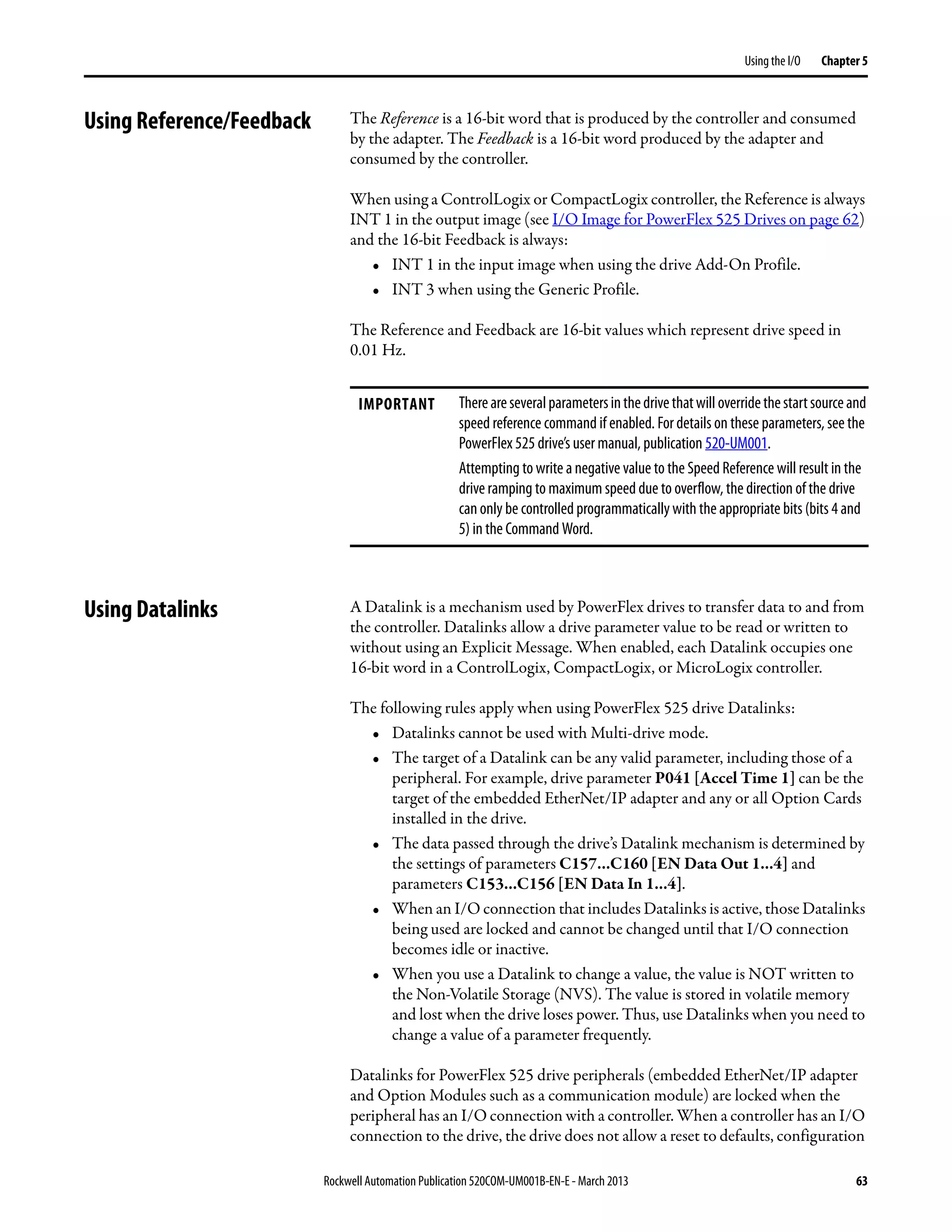

Using Reference/Feedback The Reference is a 16-bit word that is produced by the controller and consumed
by the adapter. The Feedback is a 16-bit word produced by the adapter and
consumed by the controller.
When using a ControlLogix or CompactLogix controller, the Reference is always
INT 1 in the output image (see I/O Image for PowerFlex 525 Drives on page 62)
and the 16-bit Feedback is always:
• INT 1 in the input image when using the drive Add-On Profile.
• INT 3 when using the Generic Profile.
The Reference and Feedback are 16-bit values which represent drive speed in
0.01 Hz.
Using Datalinks A Datalink is a mechanism used by PowerFlex drives to transfer data to and from
the controller. Datalinks allow a drive parameter value to be read or written to
without using an Explicit Message. When enabled, each Datalink occupies one
16-bit word in a ControlLogix, CompactLogix, or MicroLogix controller.
The following rules apply when using PowerFlex 525 drive Datalinks:
• Datalinks cannot be used with Multi-drive mode.
• The target of a Datalink can be any valid parameter, including those of a
peripheral. For example, drive parameter P041 [Accel Time 1] can be the
target of the embedded EtherNet/IP adapter and any or all Option Cards
installed in the drive.
• The data passed through the drive’s Datalink mechanism is determined by
the settings of parameters C157...C160 [EN Data Out 1...4] and
parameters C153...C156 [EN Data In 1...4].
• When an I/O connection that includes Datalinks is active, those Datalinks
being used are locked and cannot be changed until that I/O connection
becomes idle or inactive.
• When you use a Datalink to change a value, the value is NOT written to
the Non-Volatile Storage (NVS). The value is stored in volatile memory
and lost when the drive loses power. Thus, use Datalinks when you need to
change a value of a parameter frequently.
Datalinks for PowerFlex 525 drive peripherals (embedded EtherNet/IP adapter
and Option Modules such as a communication module) are locked when the
peripheral has an I/O connection with a controller. When a controller has an I/O
connection to the drive, the drive does not allow a reset to defaults, configuration
IMPORTANT Thereareseveralparametersinthedrivethatwilloverridethestartsourceand
speed reference command if enabled. For details on these parameters, see the
PowerFlex 525 drive’s user manual, publication 520-UM001.
Attempting to write a negative value to the Speed Reference will result in the
drive ramping to maximum speed due to overflow, the direction of the drive
can only be controlled programmatically with the appropriate bits (bits 4 and
5) in the Command Word.

download or anything else that could change the makeup of the I/O connection
in a running system. The I/O connection with the controller must first be
disabled to allow changes to the respective Datalinks.
Depending on the controller being used, the I/O connection can be disabled by:
• Inhibiting the module in RSLogix 5000/Logix Designer
• Putting the controller in Program mode
• Placing the scanner in idle mode
• Disconnecting the drive from the network
Example Ladder Logic
Program Information
The example ladder logic programs in the sections of this chapter are intended for
PowerFlex 525 drives.
Functions of the Example Programs
The example programs enable you to:
• Receive Logic Status information from the drive.
• Send a Logic Command to control the drive (for example, start, stop).
• Send a Reference to the drive and receive Feedback from the drive.
• Send/receive Datalink data to/from the drive.
Logic Command/Status Words
These examples use the Logic Command word and Logic Status word for
PowerFlex 525 drives. See Appendix D, Logic Command/Status Words:
PowerFlex 525 Drives to view details.
CompactLogix Example Creating Ladder Logic Using the RSLogix 5000/Logix Designer Drive
Add-On Profiles
Since the drive Add-On Profile automatically created descriptive controller tags
(see Controller Input Tags and Controller Output Tags on page 45) for the entire
I/O image in Chapter 4, you can use these tags to directly control and monitor
the drive without creating any ladder logic program. However, if you intend to
use Human Machine Interface devices (PanelView, etc.) to operate the drive and
view its status, you will need to create descriptive user-defined Program tags (see

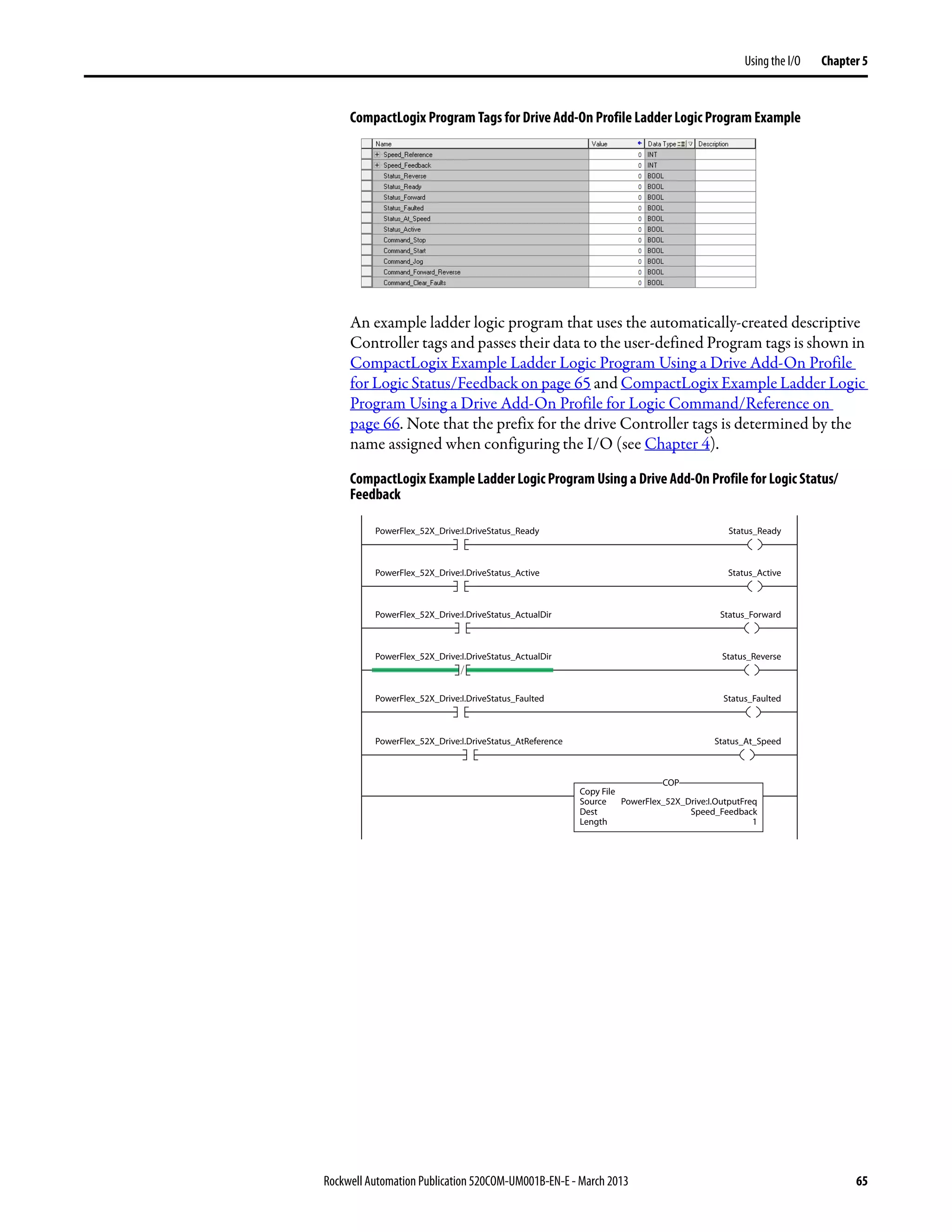

CompactLogix Program Tags for Drive Add-On Profile Ladder Logic Program
Example on page 65) and a ladder logic program that will pass the Controller tag
data to the Program tags.

CompactLogix Program Tags for Drive Add-On Profile Ladder Logic Program Example
An example ladder logic program that uses the automatically-created descriptive
Controller tags and passes their data to the user-defined Program tags is shown in
CompactLogix Example Ladder Logic Program Using a Drive Add-On Profile
for Logic Status/Feedback on page 65 and CompactLogix Example Ladder Logic
Program Using a Drive Add-On Profile for Logic Command/Reference on
page 66. Note that the prefix for the drive Controller tags is determined by the
name assigned when configuring the I/O (see Chapter 4).
CompactLogix Example Ladder Logic Program Using a Drive Add-On Profile for Logic Status/
Feedback
Copy File
Source
Dest
Length
PowerFlex_52X_Drive:I.OutputFreq
Speed_Feedback
1
COP
PowerFlex_52X_Drive:I.DriveStatus_Ready Status_Ready
PowerFlex_52X_Drive:I.DriveStatus_Active Status_Active
PowerFlex_52X_Drive:I.DriveStatus_ActualDir Status_Forward
PowerFlex_52X_Drive:I.DriveStatus_ActualDir Status_Reverse
PowerFlex_52X_Drive:I.DriveStatus_Faulted Status_Faulted
PowerFlex_52X_Drive:I.DriveStatus_AtReference Status_At_Speed

CompactLogix Example Ladder Logic Program Using a Drive Add-On Profile for Logic Command/
Reference
CreatingLadderLogicUsingtheRSLogix5000/LogixDesignerGeneric
Profile
ControllerTags
When you add the drive to the I/O configuration (see Chapter 4),
RSLogix 5000/Logix Designer automatically creates generic (non-descriptive)
controller tags. In this example program, the following controller tags are used.
CompactLogix Controller Tags for Drive Generic Profile Ladder Logic Program Example
Copy File
Source
Dest
Length
Speed_Reference
PowerFlex_52X_Drive:O.FreqCommand
1
COP
Command_Stop PowerFlex_52X_Drive:O.DriveLogicRslt_Stop
Command_Start PowerFlex_52X_Drive:O.DriveLogicRslt_Start
Command_Jog PowerFlex_52X_Drive:O.DriveLogicRslt_Jog
Command_Clear_Faults PowerFlex_52X_Drive:O.DriveLogicRslt_ClearFault
Command_Forward_Reverse PowerFlex_52X_Drive:O.DriveLogicRslt_Forward
Command_Forward_Reverse PowerFlex_52X_Drive:O.DriveLogicRslt_Reverse

You can expand the Input and Output tags to reveal the input and output
configuration (see CompactLogix Controller Tags for Drive Generic Profile
Ladder Logic Program Example on page 66). The Input tag for this example
requires eight16-bit words of data. The Output tag for this example program
requires six 16-bit words of data.
ProgramTags
To use the Controller tags that are automatically created, you need to create the
following Program tags for this example program.
CompactLogix Program Tags for Drive Generic Profile Ladder Logic Program Example
CompactLogix Example Ladder Logic Program Using a Drive Generic Profile for Logic Status/
Feedback
Copy File
Source
Dest
Length
PowerFlex_52X_Drive:I.Data[3]
Speed_Feedback
1
COP
PowerFlex_52X_Drive:I.Data[2].0 Status_Ready
PowerFlex_52X_Drive:I.Data[2].1 Status_Active
PowerFlex_52X_Drive:I.Data[2].3 Status_Forward
PowerFlex_52X_Drive:I.Data[2].3 Status_Reverse
PowerFlex_52X_Drive:I.Data[2].7 Status_Faulted
PowerFlex_52X_Drive:I.Data[2].8 Status_At_Speed

CompactLogix Example Ladder Logic Program Using a Drive Generic Profile for Logic Command/
Reference
Copy File
Source
Dest
Length
Speed_Reference
PowerFlex_52X_Drive:O.Data[1]
1
COP
Command_Stop PowerFlex_52X_Drive:O.Data[0].0
Command_Start PowerFlex_52X_Drive:O.Data[0].1
Command_Jog PowerFlex_52X_Drive:O.Data[0].2
Command_Clear_Faults PowerFlex_52X_Drive:O.Data[0].3
Command_Forward_Reverse PowerFlex_52X_Drive:O.Data[0].4
Command_Forward_Reverse PowerFlex_52X_Drive:O.Data[0].5

Chapter 6
Using Explicit Messaging
This chapter provides information and examples that explain how to use Explicit
Messaging to configure and monitor the PowerFlex 525 drive and embedded
EtherNet/IP adapter.
See Chapter 5, Using the I/O for information about the I/O Image, using Logic
Command/Status, Reference/Feedback, and Datalinks.
About Explicit Messaging Explicit Messaging is used to transfer data that does not require continuous
updates. With Explicit Messaging, you can configure and monitor a device’s
parameters on the network.
Topic Page
About Explicit Messaging 69
Performing Explicit Messaging 70
CompactLogix Examples 70
ATTENTION: Risk of equipment damage exists. If Explicit Messages are
programmedtowriteparameterdatatoNon-VolatileStorage(NVS)frequently,
the NVS will quickly exceed its life cycle and cause the drive to malfunction. Do
not create a program that frequently uses Explicit Messages to write parameter
data to NVS. Datalinks do not write to NVS and should be used for frequently
changed parameters.
ATTENTION: If you need to make frequent parameter changes using Explicit
Messages, set parameter C121 [Comm Write Mode] to 1 “RAM only”.
IMPORTANT When an explicit message is performed, by default no connection is made
sinceitisan“unconnected”message.Whentimingofthemessagetransaction
is important, you can create a dedicated message connection between the
controller and drive by checking the “Connected” box on the Communications
tab message configuration screen during message setup. These message
connections are in addition to the I/O connection. However, the trade off for
more message connections is decreased network performance. If your
application cannot tolerate this, do not check the “Connected” box, which is
recommended.

Chapter 6 Using Explicit Messaging
Explicit Messaging Class Code Compatibility with PowerFlex 525 Drives
Performing Explicit
Messaging
There are five basic events in the Explicit Messaging process. The details of each
step will vary depending on the type of controller being used. See the
documentation for your controller.
Explicit Messaging Process
For information on the maximum number of Explicit Messages that can be
executed at a time, see the documentation for the bridge or scanner and/or
controller that is being used.
CompactLogix Examples
IMPORTANT PowerFlex 525 drives have explicit messaging limitations. See Explicit
Messaging Class Code Compatibility with PowerFlex 525 Drives on page 70 for
more information.
EtherNet/IP Object Class Code Compatibility Explicit Messaging Function
Parameter Object 0x0F Yes Single parameter reads/write
DPI Parameter Object 0x93 Yes Single and scattered parameter reads/write
IMPORTANT There must be a request message and a response message for all Explicit
Messages, whether you are reading or writing data.
Event Description
➊ You format the required data and set up the ladder logic program to send an Explicit Message request to the
scanner or bridge module (download).
➋ The scanner or bridge module transmits the ExplicitMessage Request to the slave device over the network.
➌ The slave device transmits the Explicit Message Response back to the scanner. The data is stored in the
scanner buffer.
➍ The controller retrieves the Explicit Message Response from the scanner’s buffer (upload).
➎ The Explicit Message is complete.
➎
➊
➋ ➌
➍
Esc Sel
1 (Front)
1 (Front)
1 (Front)
2 (Rear)
00:00:BC:2E:69:F6
Complete Explicit
Message
Retrieve Explicit
Message Response
Set up and send Explicit
Message Request
Network Ethernet
switch
TIP To display the Message Configuration screen in RSLogix 5000/Logix Designer,
add a message instruction (MSG), create a new tag for the message
(Properties: Base tag type, MESSAGE data type, controller scope), and click the
button in the message instruction.

Using Explicit Messaging Chapter 6
For supported classes, instances, and attributes, see Appendix C, EtherNet/IP
Objects.
CompactLogix Example Ladder Logic Program to Read a Single
Parameter
A Get Attribute Single message is used to read a single parameter. This read
message example reads the value of the 16-bit parameter b003 [Output Current]
in a PowerFlex 525 drive.
Example Controller Tags to Read a Single Parameter
Example Ladder Logic to Read a Single Parameter
IMPORTANT The explicit messaging examples in this section can be performed using any
software version of RSLogix 5000/Logix Designer.
The read and write messaging examples in this section are for Device
parameters which use Class Code 0x93.
The Message Configuration also has a supported Service Type of “Parameter
Read” which is Class code 0x0F, Parameter Object.
Operation Controller Tags for Single Read Message Data Types
XIC Execute_Single_Read_Message BOOL
MSG Single_Read_Message MESSAGE
Execute_Single_Read_Message
Message
Message Control Single_Read_Message
MSG
EN
DN
ER

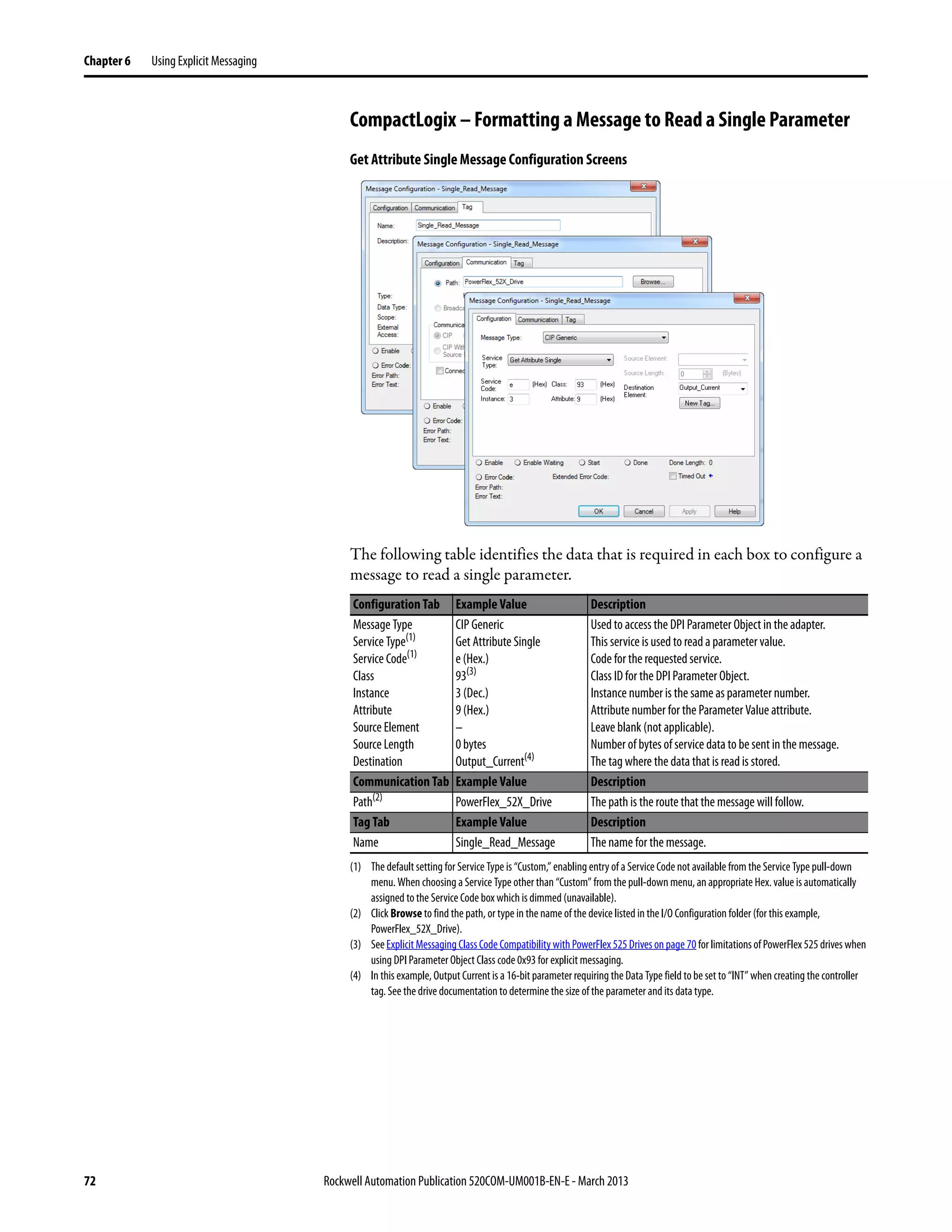

CompactLogix – Formatting a Message to Read a Single Parameter
Get Attribute Single Message Configuration Screens
The following table identifies the data that is required in each box to configure a
message to read a single parameter.
Configuration Tab Example Value Description
Message Type
Service Type(1)
Service Code(1)
Class
Instance
Attribute
Source Element
Source Length
Destination
(1) The default setting for Service Type is “Custom,” enabling entry of a Service Code not available from the Service Type pull-down
menu. When choosing a Service Type other than “Custom” from the pull-down menu, an appropriate Hex. value is automatically
assigned to the Service Code box which is dimmed (unavailable).
CIP Generic
Get Attribute Single
e (Hex.)
93(3)
3 (Dec.)
9 (Hex.)
–
0 bytes
Output_Current(4)
(3) SeeExplicit Messaging Class Code Compatibility withPowerFlex525Drives onpage 70forlimitationsofPowerFlex525drives when
using DPI Parameter Object Class code 0x93 for explicit messaging.
(4) In this example, Output Current is a 16-bit parameter requiring the Data Type field tobe set to “INT” when creating the controller
tag. See the drive documentation to determine the size of the parameter and its data type.
Used to access the DPI Parameter Object in the adapter.
This service is used to read a parameter value.
Code for the requested service.
Class ID for the DPI Parameter Object.
Instance number is the same as parameter number.
Attribute number for the Parameter Value attribute.
Leave blank (not applicable).
Number of bytes of service data to be sent in the message.
The tag where the data that is read is stored.
Communication Tab Example Value Description
Path(2)
(2) Click Browse to find the path, or type in the name of the device listed in the I/O Configuration folder (for this example,
PowerFlex_52X_Drive).
PowerFlex_52X_Drive The path is the route that the message will follow.
Tag Tab Example Value Description
Name Single_Read_Message The name for the message.

CompactLogix Example Ladder Logic Program to Write a Single
Parameter
A Set Attribute Single message is used to write to a single parameter. This write
message example writes a value to the 16-bit parameter P041 [Accel Time 1] in a
PowerFlex 525 drive.
Example Controller Tags to Write a Single Parameter
Example Ladder Logic to Write a Single Parameter
CompactLogix – Formatting a Messageto Write a Single Parameter
Set Attribute Single Message Configuration Screens
Operation Controller Tags for Single Write Message Data Types
XIC Execute_Single_Write_Message BOOL
MSG Single_Write_Message MESSAGE
Execute_Single_Write_Message
Message
Message Control Single_Write_Message
MSG
EN
DN
ER

message to write a single parameter.

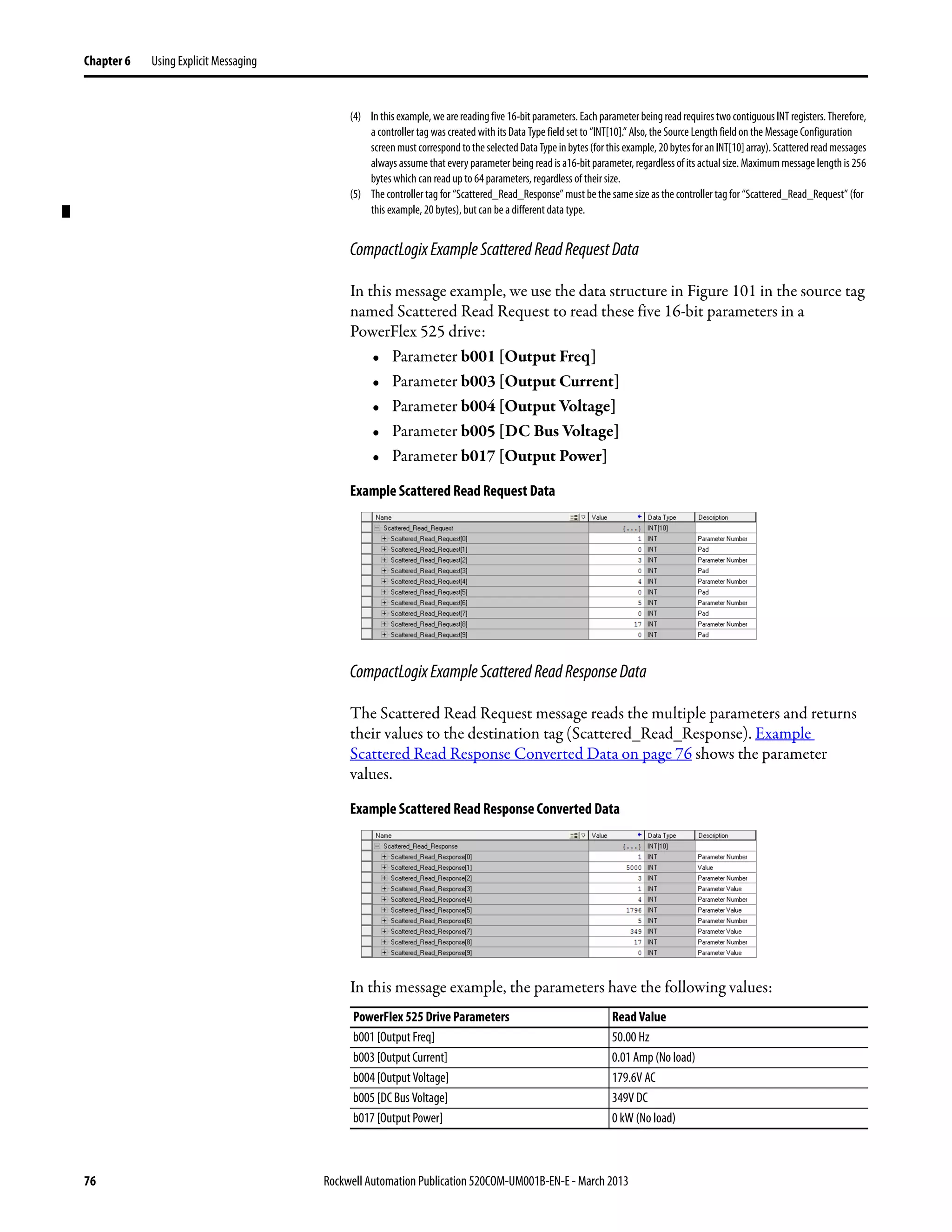

CompactLogix Example Ladder Logic Program to Read Multiple
Parameters

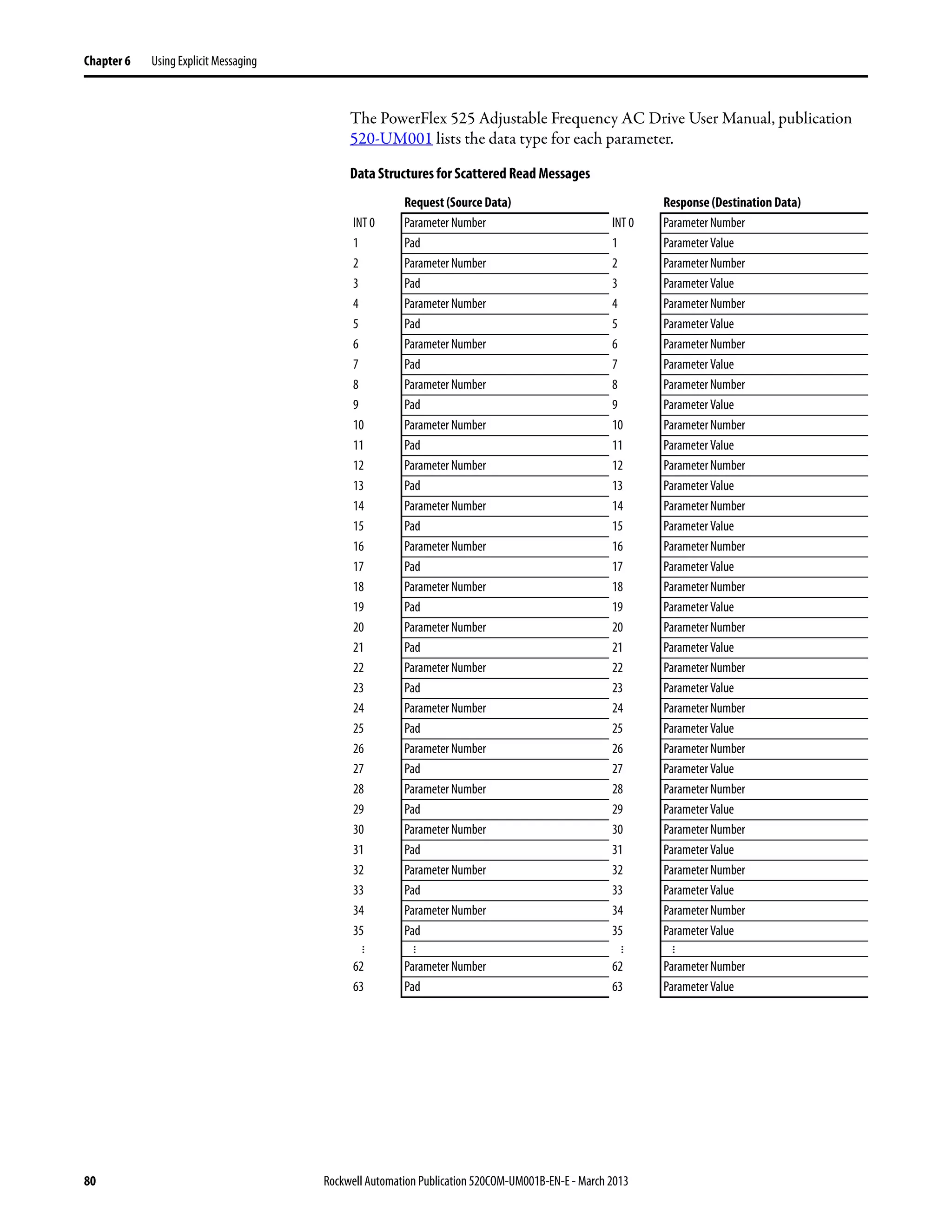

A Scattered Read message is used to read the values of multiple parameters. This
read message example reads the values of these five 16-bit parameters in a
PowerFlex 525 drive:
• Parameter b001[Output Freq]
• Parameter b003 [Output Current]
• Parameter b004 [Output Voltage]
• Parameter b005 [DC Bus Voltage]
• Parameter b017 [Output Power]
Example Controller Tags to Read Multiple Parameters
Message Type
Service Type(1)
Service Code(1)
Class
Instance(2)
Attribute(3)
Source Element
Source Length
Destination
(2) The instance is the parameter number in the drive.
(3) Setting the Attribute value to “9” will write the parameter value to the drive’s Non-Volatile Storage (EEPROM) memory, so the
parametervaluewillremainevenafterthedriveispowercycled. Important:Whensetto“9,”bevery cautiousastheEEPROMmay
quickly exceed its life cycle and cause the drive to malfunction. Setting the Attribute value to “A” will write the parameter value to
temporary memory, so the parameter value will be lost after the drive is power cycled. It is recommended to use the “A” setting
when frequentwritemessages are required. Important:If youneedto makefrequent parameterchangesusingExplicitMessages,
set parameter C121 [Comm Write Mode] to 1 “RAM only”.
CIP Generic
Get Attribute Single
10 (Hex.)
93(5)
41 (Dec.)
9 or A (Hex.)
Accel_Time_1(6)
2 bytes
–
(6) In this example, Accel Time 1 is a 16-bit parameter requiring the Data Type field to be set to“INT”when creating the controller tag.
Also,the Source Lengthfieldon theMessage Configurationscreen must correspond to the selectedDataTypein bytes (for example,
2 bytes for an INT).See the drive documentation to determine the size of the parameter and its data type.
This service is used to read a parameter value.
Instance number is the same as parameter number.
Attribute number for the Parameter Value attribute.
Name of the tag for any service datato be sent from the scanner
or bridge to the drive.
Leave blank (not applicable).
Path(4)
Name Single_Write_Message The name for the message.
Operation Controller Tags for Scattered Read Message Data Types
XIC Execute_Scattered_Read_Message BOOL
MSG Scattered_Read_Message MESSAGE

Example Ladder Logic to Read Multiple Parameters
CompactLogix – Formatting a Messageto Read Multiple Parameters
Scattered Read Message Configuration Screens
message to read multiple parameters.
Message Type
Service Type(1)
Service Code(1)
Class
Instance
Attribute
Source Element
Source Length
Destination
CIP Generic
Custom
0x32 (Hex.)
93(3)
0 (Dec.)
0 (Hex.)
Scattered_Read_Request(4)
20 bytes(4)
Scattered_Read_Response(5)
Required for scattered messages.
Path(2)
Name Scattered_Read_Message The name for the message.
Execute_Scattered_Read_Message
Message
Message Control Scattered_Read_Message
MSG
EN
DN
ER

CompactLogixExampleScatteredReadRequestData
In this message example, we use the data structure in Figure 101 in the source tag
named Scattered Read Request to read these five 16-bit parameters in a
• Parameter b001 [Output Freq]
• Parameter b003 [Output Current]
• Parameter b004 [Output Voltage]
• Parameter b005 [DC Bus Voltage]
• Parameter b017 [Output Power]
Example Scattered Read Request Data
CompactLogixExampleScatteredReadResponseData
The Scattered Read Request message reads the multiple parameters and returns
their values to the destination tag (Scattered_Read_Response). Example
Scattered Read Response Converted Data on page 76 shows the parameter
values.
Example Scattered Read Response Converted Data
In this message example, the parameters have the following values:
(4) In this example, wearereading five16-bitparameters. Each parameter being read requires two contiguousINT registers. Therefore,
a controller tag was created with its Data Type field set to “INT[10].” Also, the Source Length field on the Message Configuration
screenmustcorrespond tothe selectedDataTypeinbytes(forthis example, 20bytesforanINT[10]array).Scattered readmessages
always assume that everyparameterbeing read is a16-bitparameter, regardless of its actual size. Maximum message lengthis 256
bytes which can read up to 64 parameters, regardless of their size.
(5) The controller tag for “Scattered_Read_Response” must be the same size as the controller tag for “Scattered_Read_Request” (for
this example, 20 bytes), but can be a different data type.
PowerFlex 525 Drive Parameters Read Value
b001 [Output Freq] 50.00 Hz
b003 [Output Current] 0.01 Amp (No load)
b004 [Output Voltage] 179.6V AC
b005 [DC Bus Voltage] 349V DC
b017 [Output Power] 0 kW (No load)

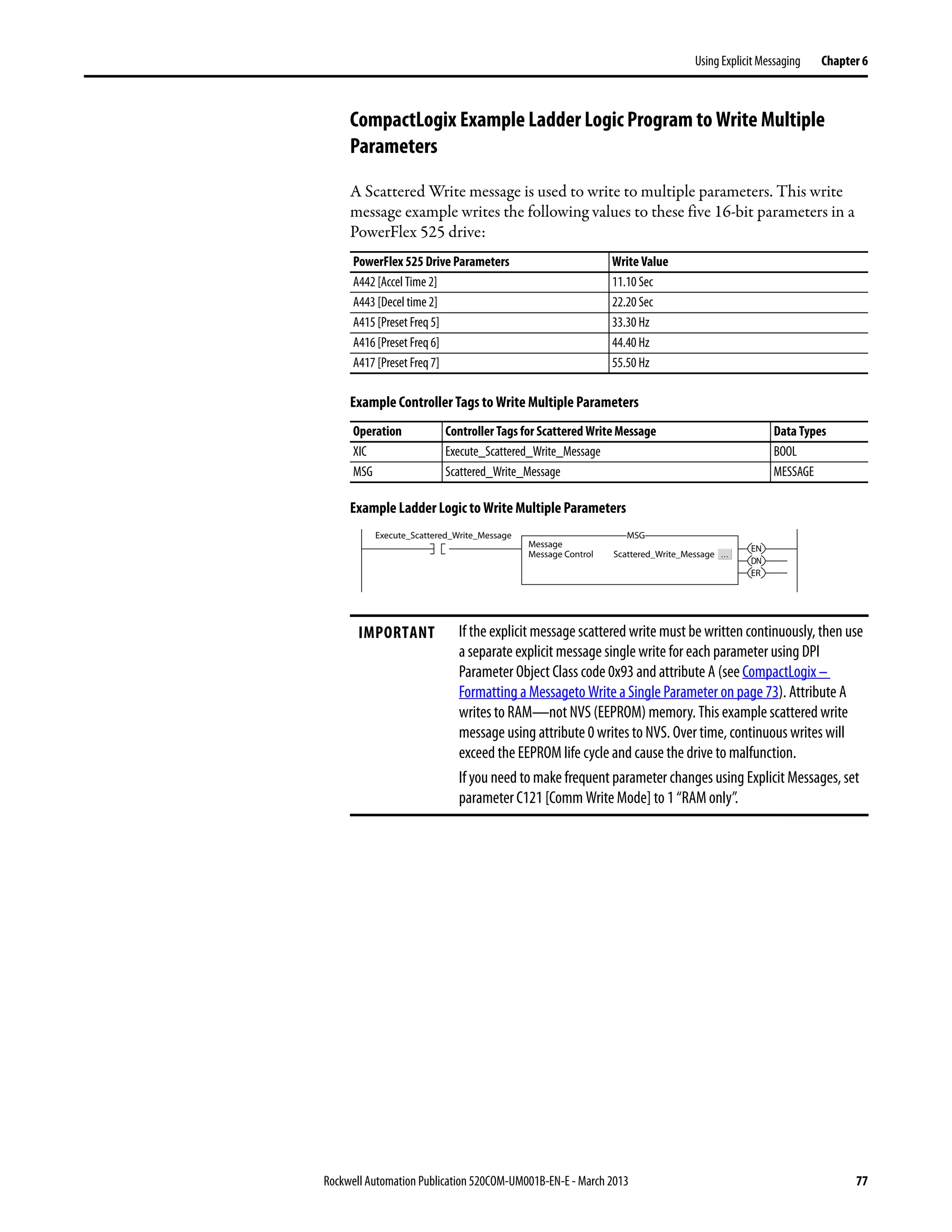

CompactLogix Example Ladder Logic Program to Write Multiple
Parameters
A Scattered Write message is used to write to multiple parameters. This write
message example writes the following values to these five 16-bit parameters in a
Example Controller Tags to Write Multiple Parameters
Example Ladder Logic to Write Multiple Parameters
PowerFlex 525 Drive Parameters Write Value
A442 [Accel Time 2] 11.10 Sec
A443 [Decel time 2] 22.20 Sec
A415 [Preset Freq 5] 33.30 Hz
Operation Controller Tags for Scattered Write Message Data Types
XIC Execute_Scattered_Write_Message BOOL
MSG Scattered_Write_Message MESSAGE
IMPORTANT If the explicit message scattered write must be written continuously, then use
a separate explicit message single write for each parameter using DPI
Parameter Object Class code 0x93 and attribute A (see CompactLogix –
Formatting a Messageto Write a Single Parameter on page 73). Attribute A
writes to RAM—not NVS (EEPROM) memory. This example scattered write
message using attribute 0 writes to NVS. Over time, continuous writes will
exceed the EEPROM life cycle and cause the drive to malfunction.
If you need to make frequent parameter changes using Explicit Messages, set
parameter C121 [Comm Write Mode] to 1 “RAM only”.
Execute_Scattered_Write_Message
Message
Message Control Scattered_Write_Message
MSG
EN
DN
ER

CompactLogix – Formatting a Message to Write Multiple Parameters
Scattered Write Multiple Message Configuration Screens
message to write multiple parameters.
Message Type
Service Type(1)
Service Code(1)
Class
Instance
Attribute(2)
Source Element
Source Length
Destination
(2) Scattered writes always write parameter values to the drive’s Non-Volatile Storage (EEPROM) memory, so these values will remain
even after the drive is power cycled. Important: Be very cautious as the EEPROM may quickly exceed its life cycle and cause the
drive to malfunction. Important: If you need to make frequent parameter changes using Explicit Messages, set parameter C121
[Comm Write Mode] to 1 “RAM only”.
CIP Generic
Custom
0x34 (Hex.)
93(4)
0 (Dec.)
0 (Hex.)
Scattered_Write_Request(5)
20 bytes(5)
Scattered_Write_Response(6)
(5) In this example, we are writing to five 16-bit parameters. Each parameter being written to requires two contiguous INT registers.
Also, the Source Length field on the Message Configuration screen must correspond to the selected Data Type in bytes (for this
example, 20 bytes for an array of ten INTs). Scattered write messages always assume that every parameter being written to is a 16-
bit parameter, regardless of its actual size. Maximum message length is 256 bytes which can write up to 64 parameters, regardless
of their size. For parameter numbering, see DPI Parameter Object on page 141 (Class code 0x93).
Path(3)
Name Scattered_Write_Message The name for the message.

CompactLogixExampleScatteredWriteRequestData
In this message example, we use the source tag (Scattered_Write_Request) to
write new values to these 16-bit parameters:
Example Scattered Write Request Converted Data on page 79 shows the
parameter values.
Example Scattered Write Request Converted Data
CompactLogixExampleScatteredWriteResponseData
The results of the message appear in the destination tag named
Scattered_Write_Response (Example Scattered Write Response Data on
page 79). Values of “0” indicate no errors occurred.
Example Scattered Write Response Data
CompactLogix – Explanation of Request and Response Data for Read/
Write Multiple Messaging
The data structures in Data Structures for Scattered Read Messages on page 80
and Data Structures for Scattered Write Messages on page 81 use 16-bit words
and can accommodate up to 64 parameters in a single message. In the Response
Message, a parameter number with Bit 15 set indicates that the associated
parameter value field contains an error code (parameter number in response data
will be negative).
(6) The controller tag for“Scattered_Write_Response” must bethe same sizeas the controller tagfor “Scattered_Write_Request” (for
this example, 20 bytes). An array of INTs is suggested to be able to read any error codes that are returned.
PowerFlex 525 Drive Parameters Write Value
A442 [Accel Time 2] 11.10 Sec
A443 [Decel time 2] 22.20 Sec

The PowerFlex 525 Adjustable Frequency AC Drive User Manual, publication
520-UM001 lists the data type for each parameter.
Data Structures for Scattered Read Messages
Request (Source Data) Response (Destination Data)
INT 0 Parameter Number INT 0 Parameter Number
1 Pad 1 Parameter Value
2 Parameter Number 2 Parameter Number
...
...
...
...

Data Structures for Scattered Write Messages
Request (Source Data) Response (Destination Data)
INT 0 Parameter Number INT 0 Parameter Number
1 Parameter Value 1 Pad
...
...
...
...

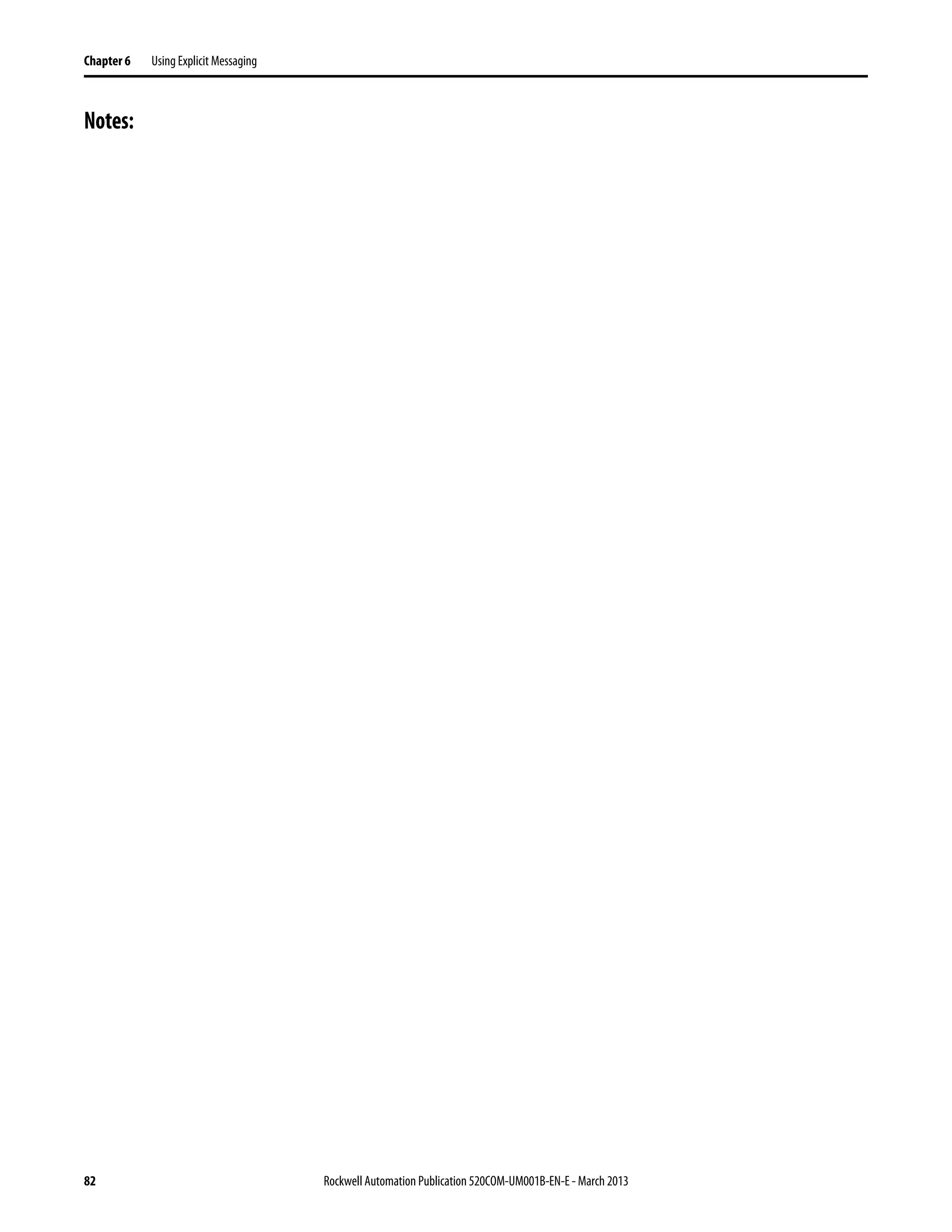

Notes:

Chapter 7
Using Multi-Drive Mode
This chapter provides instructions on how to configure a CompactLogix
controller to use the PowerFlex 525 drive in Multi-drive mode.
Single-Drive Mode vs. Multi-
Drive Mode
Single-drive mode is a typical network installation, where a single EtherNet/IP
node consists of a single drive with an EtherNet/IP adapter.
Single-Drive Mode Example for Network
Multi-drive mode is an alternative to the typical network installation, where a
single EtherNet/IP node can consist of one to five drives (see Multi-Drive Mode
Example for Network on page 84). The first drive must be a PowerFlex 525 drive.
The remaining drives can be any PowerFlex drive which supports Multi-drive
mode.
Topic Page
Single-Drive Mode vs. Multi-Drive Mode 83
System Wiring 85
Understanding the I/O Image 85
Configuring the RS-485 Network 86
Using Multi-Drive Add-On Profile 87
Multi-Drive Ladder Logic Program for GenericProfile 97

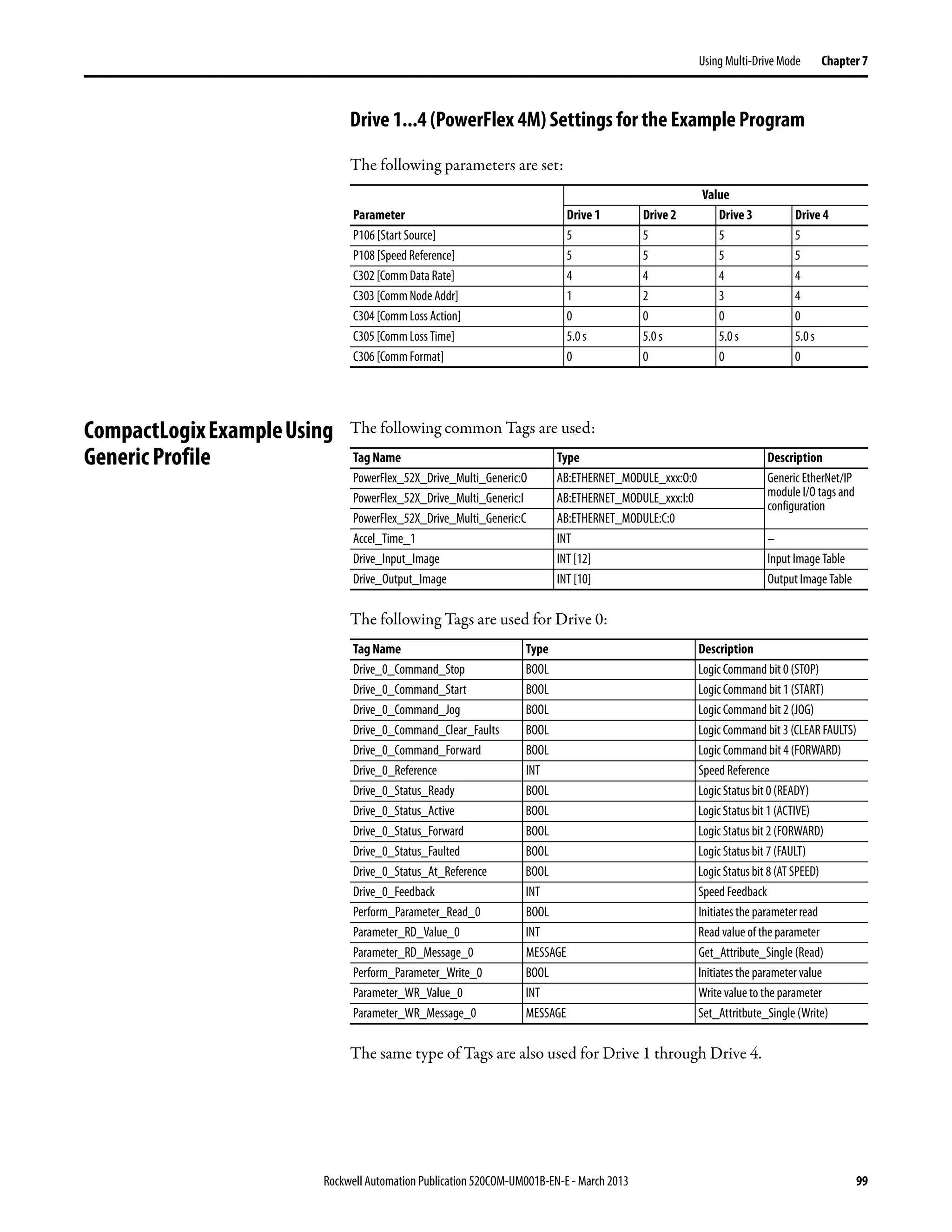

CompactLogix Example Using Generic Profile 99

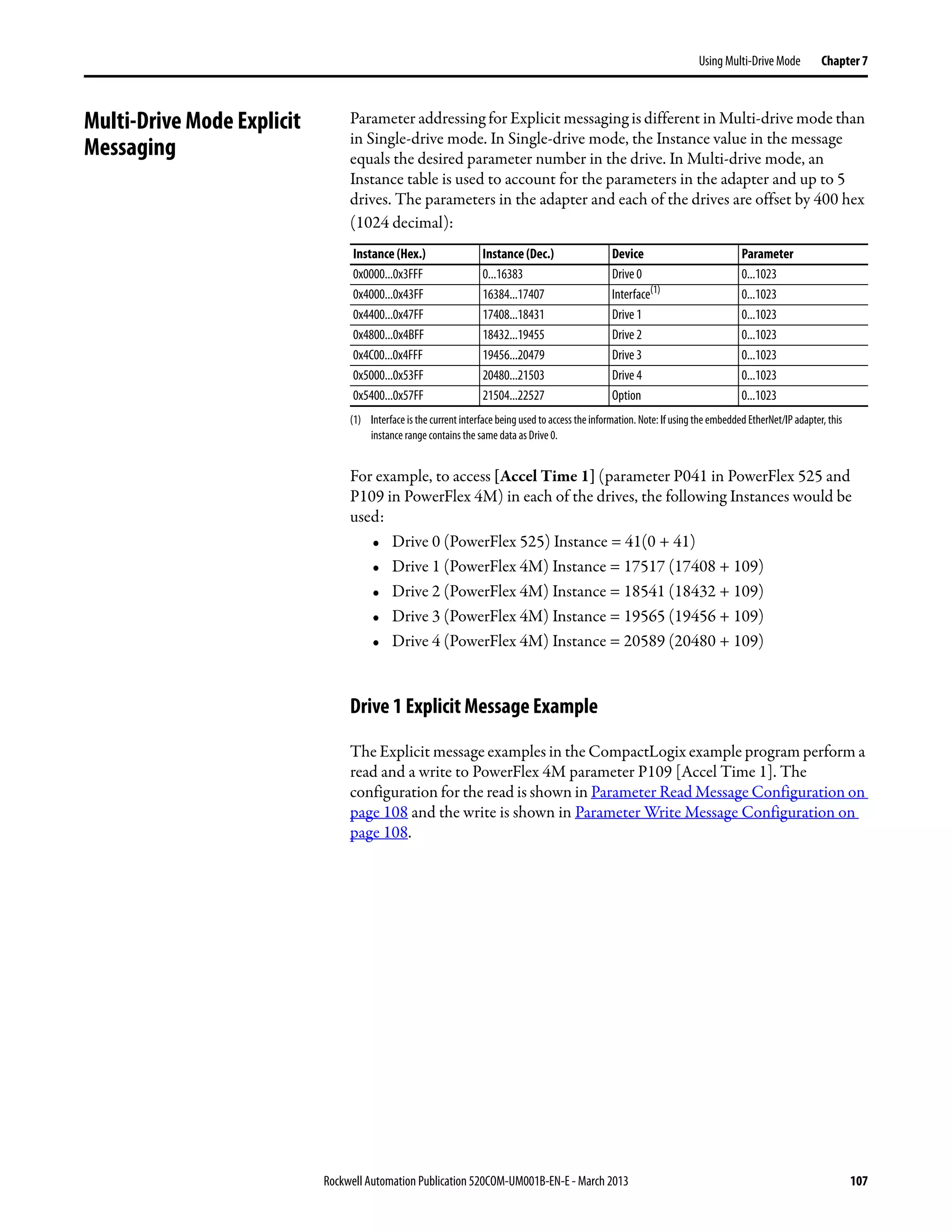

Multi-Drive Mode Explicit Messaging 107
Additional Information 108
Esc Sel Esc Sel Esc Sel
One drive per node
EtherNet/IP
PowerFlex 525 PowerFlex 525 PowerFlex 525

Chapter 7 Using Multi-Drive Mode
Multi-Drive Mode Example for Network
Benefits of Multi-drive mode include:
• Lower hardware costs. No need to purchase additional communication
adapters for daisy-chained drives.
• Reduces the network node count. For example, in Single-drive mode 30
drives would consume 30 nodes. In Multi-drive mode, 30 drives can be
connected in 6 nodes.
• Controller can control, monitor, and read/write parameters for all five
drives.
The trade-offs of Multi-drive mode include:
• If the PowerFlex 525 with embedded EtherNet/IP adapter is powered
down, then communications with the daisy-chained drives is disrupted
and the drives will take the appropriate communications loss action set in
each drive.
• Communications throughput to the daisy-chained drives will be slower
than if each drive was a separate node on EtherNet/IP (Single-drive
mode). This is because the embedded EtherNet/IP adapter must take the
EtherNet/IP data for the other drives and sequentially send the respective
data to each drive over RS-485. The approximate additional throughput
time for Logic Command/Reference to be transmitted and received by
each drive is:
IMPORTANT For the examples in the chapter, we will use the PowerFlex 525 as a master
drive with four daisy-chained PowerFlex 4M drives.
Drive Additional Throughput Time
versus Single-Drive Mode
PowerFlex 525 0 ms
PowerFlex 525 plus 1 drive +24 ms
PowerFlex 525 plus 2 drives +48 ms
Esc Sel
Up to 5 drives per node
EtherNet/IP
Up to four daisy-chained PowerFlex drives
(PowerFlex 4M shown)
RS-485 cable
PowerFlex 525
as master drive
AK-U0-RJ45-TB2P connector with
terminating resistor (120 Ω)
AK-U0-RJ45-TB2P connector with
terminating resistor (120 Ω)
AK-U0-RJ45-TB2P

Using Multi-Drive Mode Chapter 7
• Since the RS-485 ports are used for daisy-chaining the drives, there is no
connection for a peripheral device such as a HIM or USB converter
module (1203-USB). DSI Splitter cables cannot be used to add a second
connection for a peripheral device.
System Wiring To daisy-chain the drives of the PowerFlex 525, the AK-U0-RJ45-TB2P terminal
block connector can be used for easy installation.
The wiring diagram for using AK-U0-RJ45-TB2P terminal block connectors is
shown below.
The AK-U0-RJ45-TB2P comes with (5) terminal block connectors and (2)
terminating resistors.
Understanding the I/O Image The terms input and output are defined from the scanner’s point of view.
Therefore, Output I/O is data that is output from the scanner and consumed by
the EtherNet/IP adapter. Input I/O is status data that is produced by the adapter
and consumed as input by the scanner.
The I/O image table will vary based on the configuration of parameters C169
[MultiDrv Sel] and C175 [DSI I/O Cfg]. The image table always uses
consecutive words starting at word 0.
The Multi-Drive Example of I/O Image on page 86 is an illustration of the
Multi-drive I/O image with 16-bit words.
To PowerFlex 525 with
embedded EtherNet/IP
To Drive #2 To Drive #3 To Drive #4 To Drive #5
120Ω, 1/4 W
resistor
120 Ω, 1/4 W
resistor

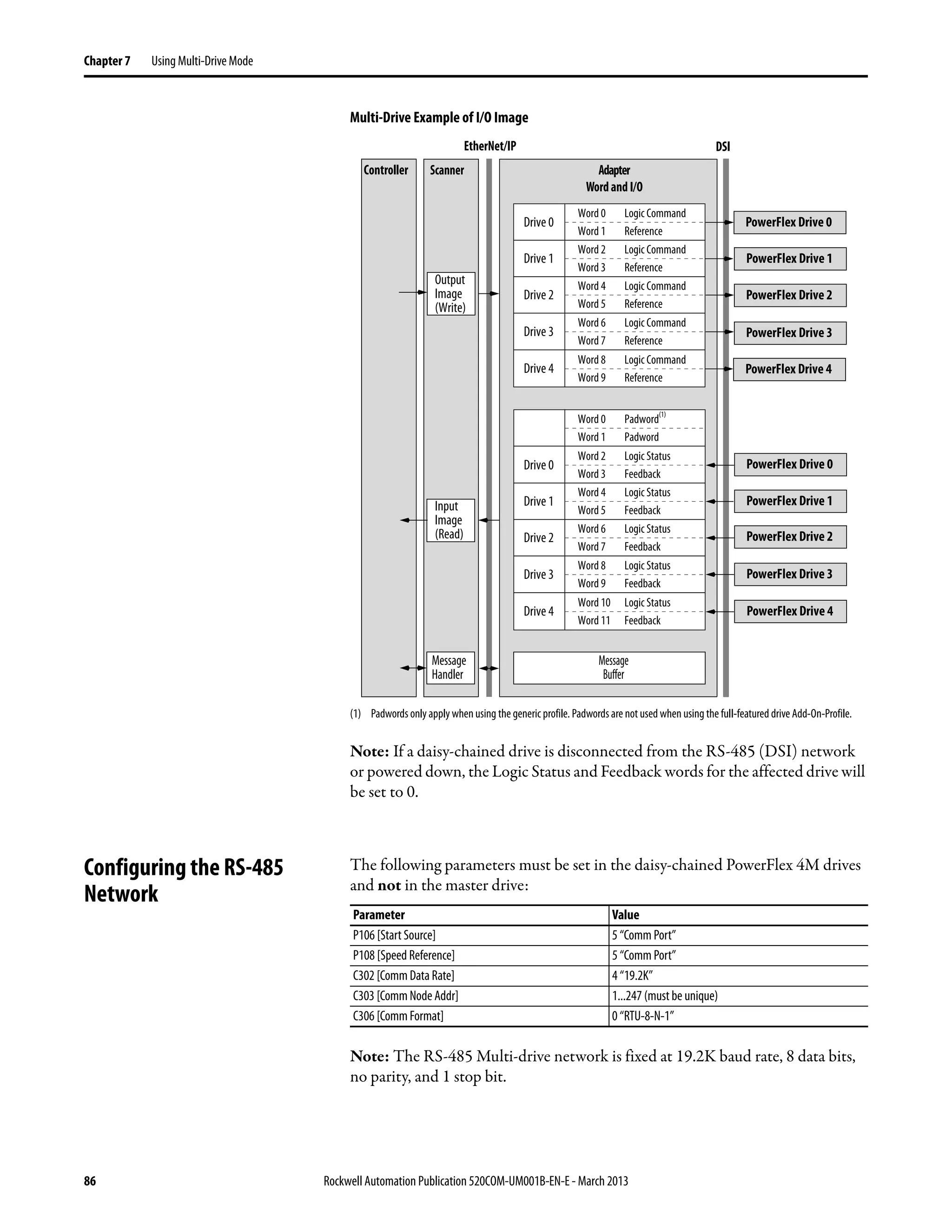

Multi-Drive Example of I/O Image
(1) Padwords only apply when using the generic profile. Padwords are not used when using the full-featured drive Add-On-Profile.
Note: If a daisy-chained drive is disconnected from the RS-485 (DSI) network
or powered down, the Logic Status and Feedback words for the affected drive will
be set to 0.
Configuring the RS-485
Network
The following parameters must be set in the daisy-chained PowerFlex 4M drives
and not in the master drive:
Note: The RS-485 Multi-drive network is fixed at 19.2K baud rate, 8 data bits,
no parity, and 1 stop bit.
Controller Scanner Adapter
Wordand I/O
EtherNet/IP DSI
Output
(Write)
Input
(Read)
Message
Handler
Message
Buffer
Logic Command
Word 0
Reference
Word 1
Drive 0
Logic Command
Word 2
Reference
Word 3
Logic Command
Word 4
Reference
Word 5
Logic Command
Word 6
Reference
Word 7
Logic Command
Word 8
Reference
Word 9
PowerFlex Drive 2
PowerFlex Drive 0
PowerFlex Drive 1
PowerFlex Drive 3
PowerFlex Drive 4
PowerFlex Drive 0
PowerFlex Drive 1
PowerFlex Drive 2
PowerFlex Drive 3
PowerFlex Drive 4
Drive 1
Drive 2
Drive 3
Drive 4
Logic Status
Word 2
Feedback
Word 3
Drive 0
Padword(1)
Word 0
Padword
Word 1
Logic Status
Word 4
Feedback
Word 5
Logic Status
Word 6
Feedback
Word 7
Logic Status
Word 8
Feedback
Word 9
Logic Status
Word 10
Feedback
Word 11
Drive 1
Drive 2
Drive 3
Drive 4
Parameter Value
P106 [Start Source] 5 “Comm Port”
P108 [Speed Reference] 5 “Comm Port”
C302 [Comm Data Rate] 4 “19.2K”
C303 [Comm Node Addr] 1...247 (must be unique)
C306 [Comm Format] 0 “RTU-8-N-1”

The following Multi-drive parameters must be set in the master PowerFlex 525
drive:
Using Multi-Drive Add-On
Profile
Before using the Multi-drive Add-On Profile, ensure that you have completed the
following steps:
• The master and daisy-chained drives are powered, networked, and
configured. See System Wiring on page 85.
• The RS-485 network is configured. See Configuring the RS-485 Network
on page 86.
• The controller has been added to the I/O configuration. See Adding the
Controller to the I/O Configuration on page 38.
To transmit data between the controller and the drive, you must add the drive as a
child device to the parent controller. In this example, RSLogix 5000 version 20 is
used with drive Add-On Profile version 1.01 or later.

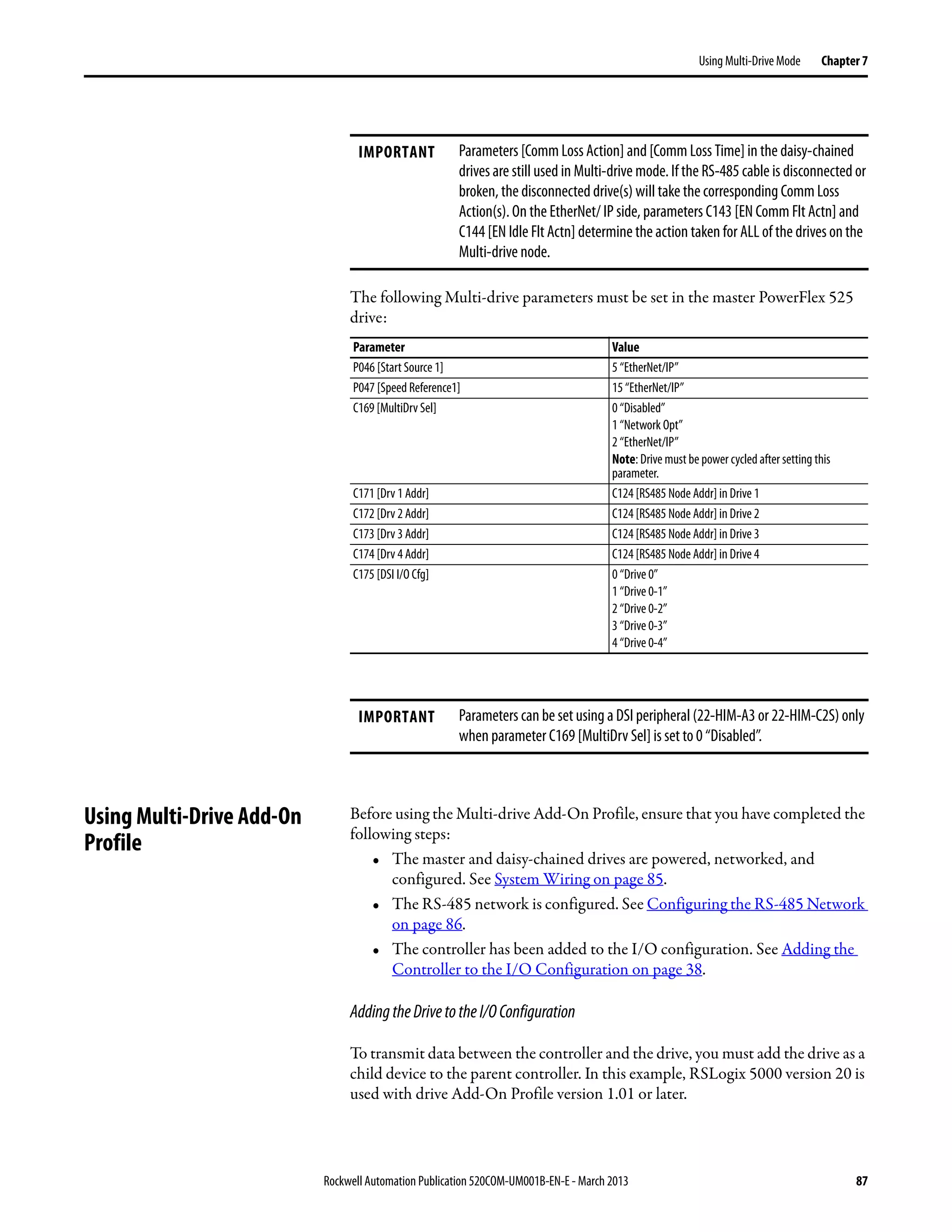

IMPORTANT Parameters [Comm Loss Action] and [Comm Loss Time] in the daisy-chained
drives are still used in Multi-drive mode. If the RS-485 cable is disconnected or
broken, the disconnected drive(s) will take the corresponding Comm Loss
Action(s). On the EtherNet/ IP side, parameters C143 [EN Comm Flt Actn] and
C144 [EN Idle Flt Actn] determine the action taken for ALL of the drives on the
Multi-drive node.
Parameter Value
P046 [Start Source 1] 5 “EtherNet/IP”
P047 [Speed Reference1] 15 “EtherNet/IP”
C169 [MultiDrv Sel] 0 “Disabled”
1 “Network Opt”
2 “EtherNet/IP”
Note: Drive must be power cycled after setting this
parameter.
C171 [Drv 1 Addr] C124 [RS485 Node Addr] in Drive 1
C175 [DSI I/O Cfg] 0 “Drive 0”
1 “Drive 0-1”
2 “Drive 0-2”
3 “Drive 0-3”
4 “Drive 0-4”
IMPORTANT Parameters can be set using a DSI peripheral (22-HIM-A3 or 22-HIM-C2S) only
when parameter C169 [MultiDrv Sel] is set to 0 “Disabled”.

Module… to display the Select Module window. Expand the Drives group
to display all of the available drives with their communication adapters.
2. In the Select Module Type window, select the drive and its connected
adapter from the list. For this example, we selected “PowerFlex 525-
EENET-Multi.” Then click Create. The drive’s New Module window
appears.
TIP If the PowerFlex drive is not shown, go to www.ab.com/support/
abdrives/webupdate and download the latest drive Add-On Profile.

3. On the General tab, edit the following data about the drive:
4. On the New Module window in the Module Definition section, click
Change… to launch the Module Definition window and begin the drive
configuration process.
Box Setting
Description Optional – description of the drive/adapter.
IP Address The IP address of the adapter.

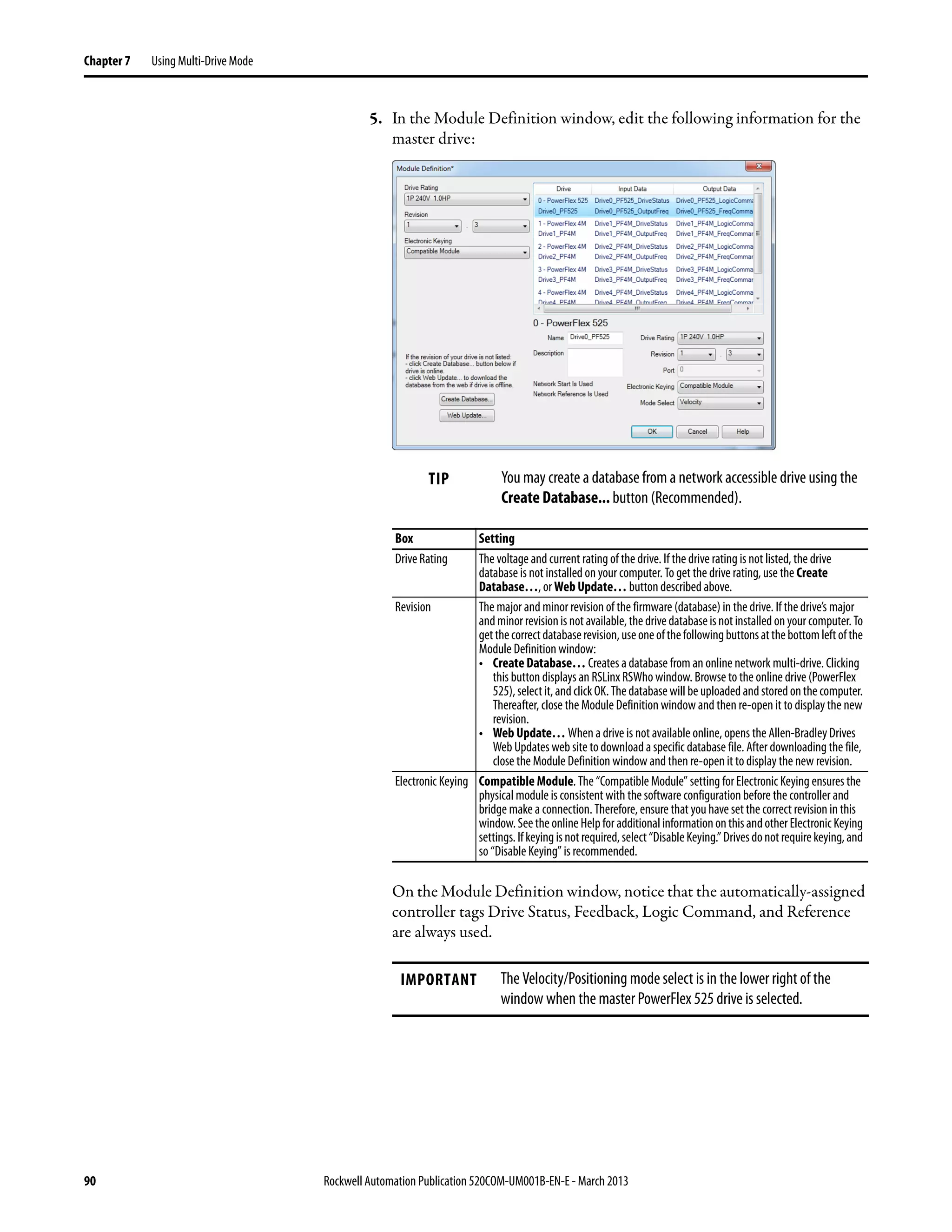

5. In the Module Definition window, edit the following information for the
master drive:
On the Module Definition window, notice that the automatically-assigned
controller tags Drive Status, Feedback, Logic Command, and Reference
are always used.
Box Setting
Drive Rating The voltage and current rating of the drive. If the drive rating is not listed, the drive
• Create Database… Creates a database from an online network multi-drive. Clicking
this button displays an RSLinx RSWho window. Browse to the online drive (PowerFlex
525),select it,andclickOK.Thedatabasewillbe uploadedandstoredonthecomputer.
revision.
IMPORTANT The Velocity/Positioning mode select is in the lower right of the
window when the master PowerFlex 525 drive is selected.

6. Click Add to select and define each daisy-chained drive:
7. Click OK on the Module Definition window to save the drive
configuration and close the window. The drive’s New Module window
reappears.
Box Setting
Name A name to identify an individual drive.
Description Optional –description of an individual drive.
Drive Rating The voltage and current rating of the drive. If the drive rating is not listed, the drive
• Create Database… Creates a database from an online network multi-drive. Clicking
this button displays an RSLinx RSWho window. Browse to the online drive (PowerFlex
525),select it,andclickOK.Thedatabasewillbe uploadedandstoredonthecomputer.
revision.
Port Port assignment for each drive
Mode Select Sets the I/O configuration to either Velocity or Position mode.

8. On the New Module window, click the Connection tab.
The “Inhibit Module” box, when checked, inhibits the module from
communicating with the RSLogix 5000/Logix Designer project. When
the “Major Fault on …” box is checked, a major controller fault will occur
when the module’s connection fails while the controller is in the Run
Mode. For this example, leave the “Inhibit Module” and “Major Fault On
…” boxes unchecked.
10. Click OK on the New Module window.
The new node (“PowerFlex 525-EENET-Multi PowerFlex_52X_Drive-
Multi” in this example) now appears under the icon in the I/O
Configuration folder. If you double-click on the Input Controller Tag
(Controller Input Tags on page 93) and Output Controller Tag
(Controller Output Tags on page 94), you will see that module-defined
data types and tags have been automatically created. Note that all tag
names are defined for each drive. After you save and download the
configuration, these tags allow you to access the Input and Output data of
the drives using the controller’s ladder logic.

Controller Input Tags

Controller Output Tags

After adding the controller and drives to the I/O configuration, you must
download the configuration to the controller. You should also save the
configuration to a file on your computer.
goes into Online Mode and the I/O Not Responding box in the upper-left
of the window should be flashing green. Also, a yellow warning symbol
should be displayed on the I/O Configuration folder in the treeview and
on the drive profile.
3. If the controller was in Run Mode before clicking Download,
RSLogix 5000/Logix Designer prompts you to change the controller
mode back to Remote Run. In this case, choose the appropriate mode for
your application. If the controller was in Program Mode before clicking
Download, this prompt will not appear.
5. To ensure that the present project configuration values are saved,
RSLogix 5000/Logix Designer prompts you to upload them. Click Yes to
upload and save them.
IP driver in RSLinx. See the RSLinx online help.

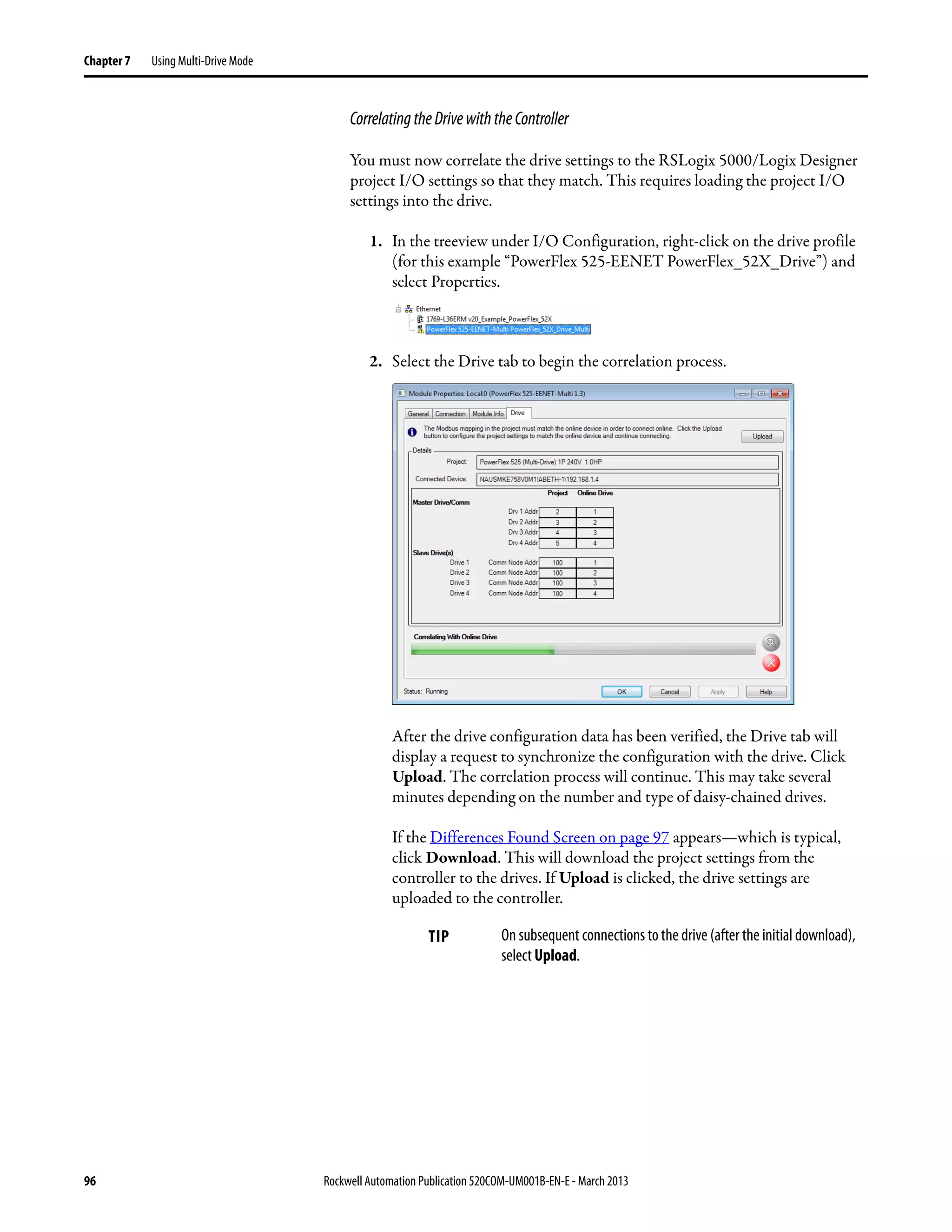

CorrelatingtheDrivewiththeController
You must now correlate the drive settings to the RSLogix 5000/Logix Designer
project I/O settings so that they match. This requires loading the project I/O
settings into the drive.
1. In the treeview under I/O Configuration, right-click on the drive profile
(for this example “PowerFlex 525-EENET PowerFlex_52X_Drive”) and
select Properties.
2. Select the Drive tab to begin the correlation process.
After the drive configuration data has been verified, the Drive tab will
display a request to synchronize the configuration with the drive. Click
Upload. The correlation process will continue. This may take several
minutes depending on the number and type of daisy-chained drives.
If the Differences Found Screen on page 97 appears—which is typical,
click Download. This will download the project settings from the
controller to the drives. If Upload is clicked, the drive settings are
uploaded to the controller.
TIP On subsequent connections to the drive (after the initial download),
select Upload.

Differences Found Screen
3. The Drive tab displays a screen of the drive.
If the download is successful, the Drive tab will show a green
indicator in the upper right corner of the window. This tab is extremely
useful for configuring drive parameters, accessing start-up wizards and
troubleshooting. Note that there is a tab for the master as well as each of
the daisy-chained drives.
4. Click OK to close the Module Properties window for the drive.
Multi-Drive Ladder Logic
Program for Generic Profile
The following is an example of the ladder logic program for the Generic Profile
and demonstrates using Multi-drive mode with five drives. See Multi-Drive
Mode Example for Network on page 84 for an example of a system layout
TIP You may now use the automatically generated tags to create your
controller logic.

diagram. If you have not set-up your drive using the Generic Profile, see Using the
RSLogix 5000 (all versions) or Logix Designer (version 21 or greater) Generic
Profile on page 55 for instructions.
See Multi-Drive Example of I/O Image on page 86 for the number of 16-bit
input and output words to use for your application. In this example, the number
of input words is 12 and the number of output words is 10.
Function of the Example Program
The example program provided is for the CompactLogix family, but other Logix-
based controllers can also be used similarly. This example program enables you
to:
• View status information from the drives such as Ready, Fault, At Speed,
and Feedback.
• Control the drives using various Logic Command bits (Stop, Start, etc.)
and Reference.
• Perform a single parameter read and write for each drive. The example uses
PowerFlex 4M drive parameter P109 [Accel Time 1] for both so you can
see (read) the change after a write is performed.
The same programming approach can be used with the tags generated by the
Multi-drive Add-On Profile. Note that the tags used in this example will be
different from those created by the Multi-drive Add-On Profile.
Drive 0 (PowerFlex 525) Settings for the Example Program
• Parameter C169 [MultiDrv Sel] is set to 2 “EtherNet/IP”.
• The following parameters are set:
Parameter Value Description
P046 [Start Source1] 5 “EtherNet/IP”
P047 [Speed Reference1] 15 “EtherNet/IP”
C175 [DSI I/O Cfg] 4 “Drive 0-4” (5 drives on 1 node)
C171 [Drv 1 Addr](1)
(1) The settings for these parameters must match the node address settings in the respective daisy-chained drives.
1 Modbus address of Drive 1
C172 [Drv 2 Addr] 2 Modbus address of Drive 2

Drive 1...4 (PowerFlex 4M) Settings for the Example Program
The following parameters are set:
CompactLogixExampleUsing
Generic Profile
The following common Tags are used:
The following Tags are used for Drive 0:
The same type of Tags are also used for Drive 1 through Drive 4.
Value
Parameter Drive 1 Drive 2 Drive 3 Drive 4
P106 [Start Source] 5 5 5 5
P108 [Speed Reference] 5 5 5 5
C302 [Comm Data Rate] 4 4 4 4
C303 [Comm Node Addr] 1 2 3 4
C304 [Comm Loss Action] 0 0 0 0
C305 [Comm Loss Time] 5.0 s 5.0 s 5.0 s 5.0 s
C306 [Comm Format] 0 0 0 0
Tag Name Type Description
PowerFlex_52X_Drive_Multi_Generic:O AB:ETHERNET_MODULE_xxx:O:0 Generic EtherNet/IP
module I/O tags and
configuration
PowerFlex_52X_Drive_Multi_Generic:I AB:ETHERNET_MODULE_xxx:I:0
PowerFlex_52X_Drive_Multi_Generic:C AB:ETHERNET_MODULE:C:0
Accel_Time_1 INT –
Drive_Input_Image INT [12] Input Image Table
Drive_Output_Image INT [10] Output Image Table
Tag Name Type Description
Drive_0_Command_Stop BOOL Logic Command bit 0 (STOP)
Drive_0_Command_Start BOOL Logic Command bit 1 (START)
Drive_0_Command_Jog BOOL Logic Command bit 2 (JOG)
Drive_0_Command_Clear_Faults BOOL Logic Command bit 3 (CLEAR FAULTS)
Drive_0_Command_Forward BOOL Logic Command bit 4 (FORWARD)
Drive_0_Reference INT Speed Reference
Drive_0_Status_Ready BOOL Logic Status bit 0 (READY)
Drive_0_Status_Active BOOL Logic Status bit 1 (ACTIVE)
Drive_0_Status_Forward BOOL Logic Status bit 2 (FORWARD)
Drive_0_Status_Faulted BOOL Logic Status bit 7 (FAULT)
Drive_0_Status_At_Reference BOOL Logic Status bit 8 (AT SPEED)
Drive_0_Feedback INT Speed Feedback
Perform_Parameter_Read_0 BOOL Initiates the parameter read
Parameter_RD_Value_0 INT Read value of the parameter
Parameter_RD_Message_0 MESSAGE Get_Attribute_Single (Read)
Perform_Parameter_Write_0 BOOL Initiates the parameter value
Parameter_WR_Value_0 INT Write value to the parameter
Parameter_WR_Message_0 MESSAGE Set_Attritbute_Single (Write)

Main Routine
The Main Routine reads the network Input Image from the scanner, calls the
various drive control subroutines, and writes the network Output Image to the
scanner. See Main Routine on page 100.

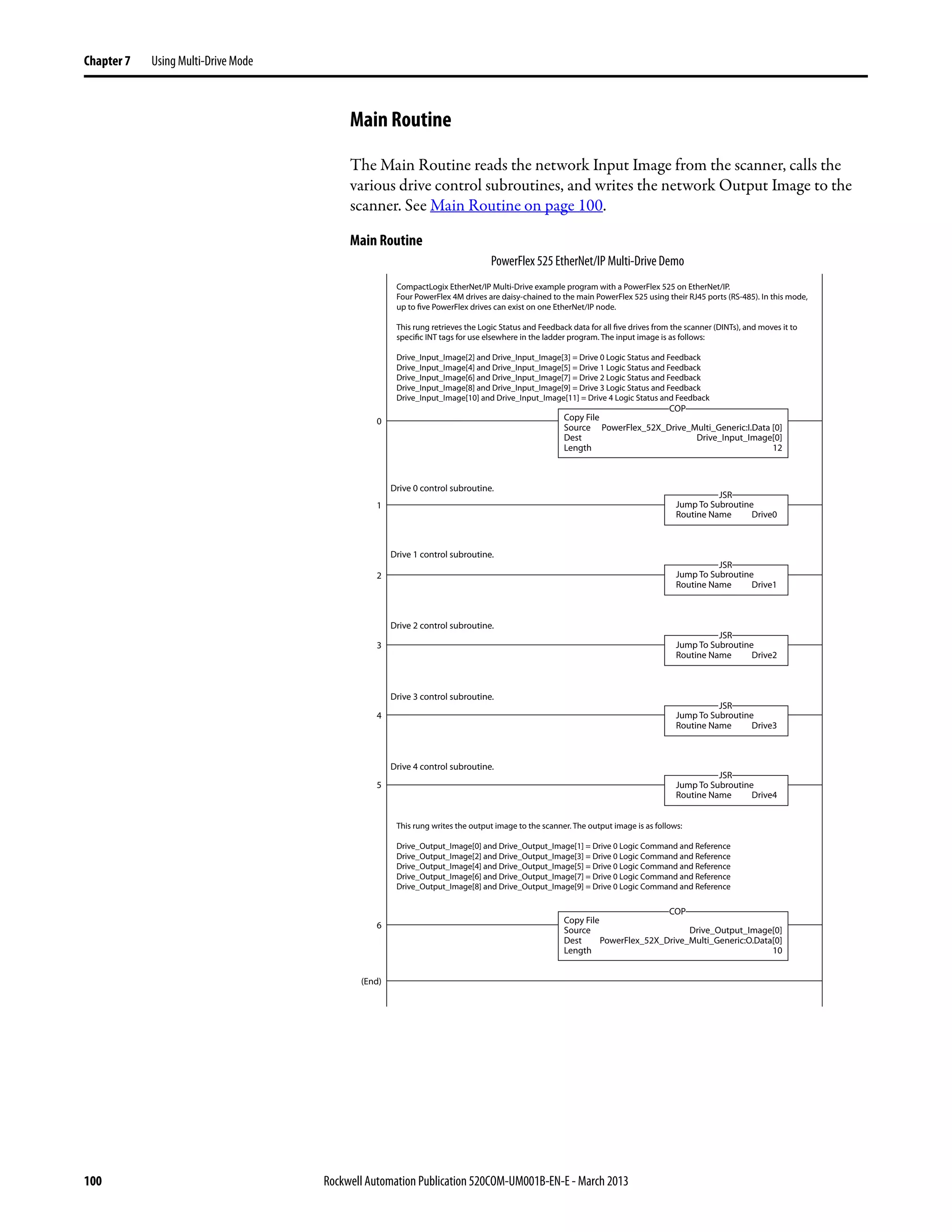

Main Routine
0
1
2
3
4
5
6
(End)
Copy File
Source
Dest
Length
PowerFlex_52X_Drive_Multi_Generic:I.Data [0]
Drive_Input_Image[0]
12
Jump To Subroutine
Routine Name Drive0
JSR
COP
Copy File
Source
Dest
Length
Drive_Output_Image[0]
PowerFlex_52X_Drive_Multi_Generic:O.Data[0]
10
COP
Jump To Subroutine
Routine Name Drive1
JSR
Jump To Subroutine
Routine Name Drive2
JSR
Jump To Subroutine
Routine Name Drive3
JSR
Jump To Subroutine
Routine Name Drive4
JSR
Drive 0 control subroutine.
CompactLogix EtherNet/IP Multi-Drive example program with a PowerFlex 525 on EtherNet/IP.
Four PowerFlex 4M drives are daisy-chained to the main PowerFlex 525 using their RJ45 ports (RS-485). In this mode,
up to five PowerFlex drives can exist on one EtherNet/IP node.
This rung retrieves the Logic Status and Feedback data for all five drives from the scanner (DINTs), and moves it to
specific INT tags for use elsewhere in the ladder program. The input image is as follows:
Drive_Input_Image[2] and Drive_Input_Image[3] = Drive 0 Logic Status and Feedback
This rung writes the output image to the scanner. The output image is as follows:
Drive_Output_Image[0] and Drive_Output_Image[1] = Drive 0 Logic Command and Reference
PowerFlex 525 EtherNet/IP Multi-Drive Demo

Drive 0...4 Control Routines
The following Drive Control routines provide status information (Logic Status
and Feedback), control (Logic Command and Reference), and parameter read/
write for each of the respective drives:
Control Routine See page...
Drive 0 102
Drive 1 103
Drive 2 104
Drive 3 105
Drive 4 106

Drive 0 Control Routine
0
5
(End)
Copy File
Source
Dest
Length
Drive_0_Feedback
1
COP
12
Copy File
Source
Dest
Length
Drive_0_Reference
1
COP
15 Return from Subroutine
RET
Drive_Input_Image[2].0 Drive_0_Status_Ready
This section takes the data from the input area and moves it to specific tags (Logic Status bits and Feedback) for use
elsewhere in the ladder program.
This section takes the data from specific tags (Logic Command bits and Reference) and moves them to the output
image area for transmission to the scanner.
Drive 0 parameters are accessed by referencing the desired parameter number. For example, to access parameter P041
an Instance of 41 is used.
1
Drive_Input_Image[2].1 Drive_0_Status_Active
2
Drive_Input_Image[2].3 Drive_0_Status_Forward
3
Drive_Input_Image[2].7 Drive_0_Status_Faulted
4
Drive_Input_Image[2].8 Drive_0_Status_At_Reference
6
Drive_0_Command_Stop Drive_Output_Image[0].0
7
Drive_0_Command_Start Drive_Output_Image[0].1
8
Drive_0_Command_Jog Drive_Output_Image[0].2
9
Drive_0_Command_Clear_Faults Drive_Output_Image[0].3
10
Drive_0_Command_Forward Drive_Output_Image[0].4
13
Perform_Parameter_Read_0
EN
DN
ER
11
Message
Message Control Parameter_RD_Message_0
MSG
14
Perform_Parameter_Write_0
EN
DN
ER
Message
Message Control Parameter_WR_Message_0
MSG
Explicit Messaging Example
Drive 0 Control Subroutine

0
5
(End)
Copy File
Source
Dest
Length
Drive_1_Feedback
1
COP
12
Copy File
Source
Dest
Length
Drive_1_Reference
1
COP
RET
Drive 1 parameters are accessed by adding 17408 decimal (4400 hex) to the desired parameter number. For example,
to access parameter P109 an Instance of 17517 (17408 + 109) is used.
1
2
3
4
6
7
8
9
10
13
EN
DN
ER
11
Message
MSG
14
EN
DN
ER
Message
MSG

0
5
(End)
Copy File
Source
Dest
Length
Drive_2_Feedback
1
COP
12
Copy File
Source
Dest
Length
Drive_2_Reference
1
COP
RET
1
2
3
4
6
7
8
9
10
13
EN
DN
ER
11
Message
MSG
14
EN
DN
ER
Message
MSG

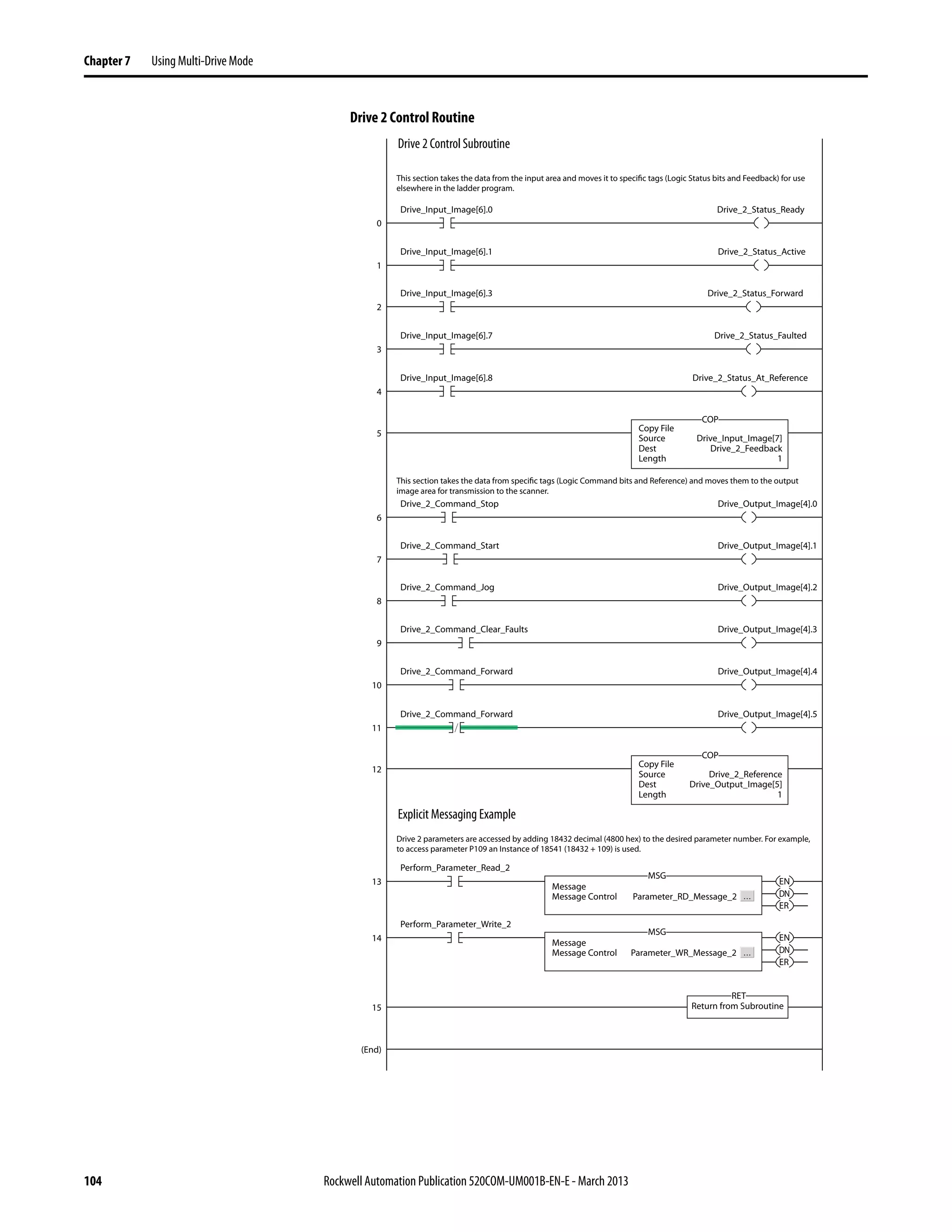

0
5
(End)
Copy File
Source
Dest
Length
Drive_3_Feedback
1
COP
12
Copy File
Source
Dest
Length
Drive_3_Reference
1
COP
RET
Drive 3 parameters are accessed by adding 19456 decimal (4C00 hex) to the desired parameter number. For example,
1
2
3
4
6
7
8
9
10
13
EN
DN
ER
11
Message
MSG
14
EN
DN
ER
Message
MSG

0
5
(End)
Copy File
Source
Dest
Length
Drive_4_Feedback
1
COP
12
Copy File
Source
Dest
Length
Drive_4_Reference
1
COP
RET
1
2
3
4
6
7
8
9
10
13
EN
DN
ER
11
Message
MSG
14
EN
DN
ER
Message
MSG

Multi-Drive Mode Explicit
Messaging
Parameter addressing for Explicit messaging is different in Multi-drive mode than
in Single-drive mode. In Single-drive mode, the Instance value in the message
equals the desired parameter number in the drive. In Multi-drive mode, an
Instance table is used to account for the parameters in the adapter and up to 5
drives. The parameters in the adapter and each of the drives are offset by 400 hex
(1024 decimal):
For example, to access [Accel Time 1] (parameter P041 in PowerFlex 525 and
P109 in PowerFlex 4M) in each of the drives, the following Instances would be
used:
• Drive 0 (PowerFlex 525) Instance = 41(0 + 41)
• Drive 1 (PowerFlex 4M) Instance = 17517 (17408 + 109)
Drive 1 Explicit Message Example
The Explicit message examples in the CompactLogix example program perform a
read and a write to PowerFlex 4M parameter P109 [Accel Time 1]. The
configuration for the read is shown in Parameter Read Message Configuration on
page 108 and the write is shown in Parameter Write Message Configuration on
page 108.
Instance (Hex.) Instance (Dec.) Device Parameter
0x0000...0x3FFF 0...16383 Drive 0 0...1023
0x4000...0x43FF 16384...17407 Interface(1)
(1) Interface is the current interface being used to access theinformation. Note: If using the embedded EtherNet/IP adapter, this
instance range contains the same data as Drive 0.
0...1023
0x4400...0x47FF 17408...18431 Drive 1 0...1023
0x4800...0x4BFF 18432...19455 Drive 2 0...1023
0x4C00...0x4FFF 19456...20479 Drive 3 0...1023
0x5000...0x53FF 20480...21503 Drive 4 0...1023
0x5400...0x57FF 21504...22527 Option 0...1023

Parameter Read Message Configuration
Parameter Write Message Configuration
The Class Code is “f ” for the Parameter Object and the Instance Attribute is “1”
to select retrieving the parameter value. See Appendix C, Parameter Object for
more information. The Instance value is “17517” to access parameter P109
[Accel Time 1] in the first daisy-chained drive.
The Explicit message for Drive 1 to Drive 4 are identical except for the Instance
values, see Multi-Drive Mode Explicit Messaging on page 107 for examples.
Additional Information • When the PowerFlex 525 drive (Drive 0) is powered up, all configured
daisy-chained drives must be present before an I/O connection is allowed
on EtherNet/IP (before the drives can be controlled).
• If the PowerFlex 525 drive (Drive 0) is powered down, communications
with the four daisy-chained drives (Drive 1 to Drive 4) are disrupted and
the drives will take their corresponding Comm Loss Actions.

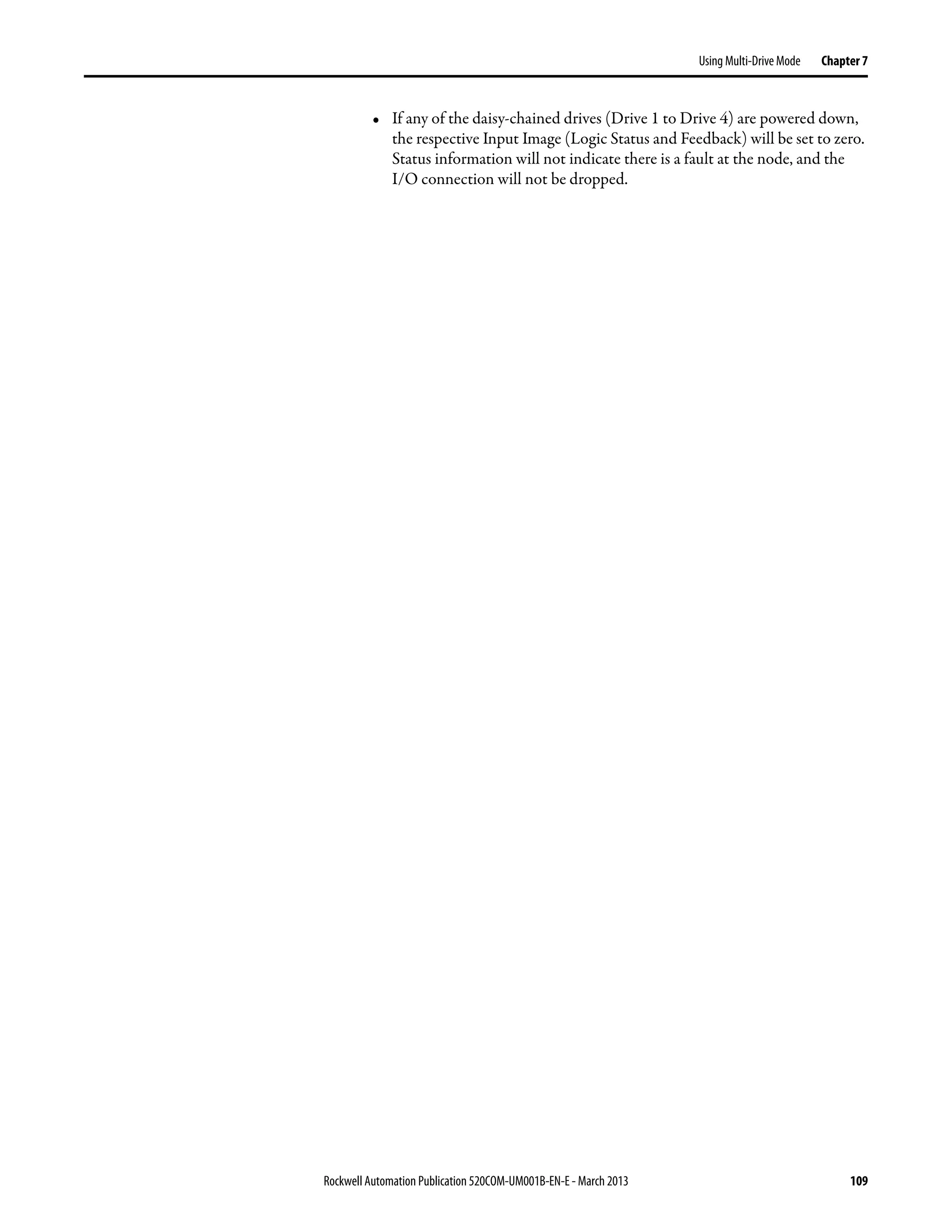

• If any of the daisy-chained drives (Drive 1 to Drive 4) are powered down,
the respective Input Image (Logic Status and Feedback) will be set to zero.
Status information will not indicate there is a fault at the node, and the
I/O connection will not be dropped.

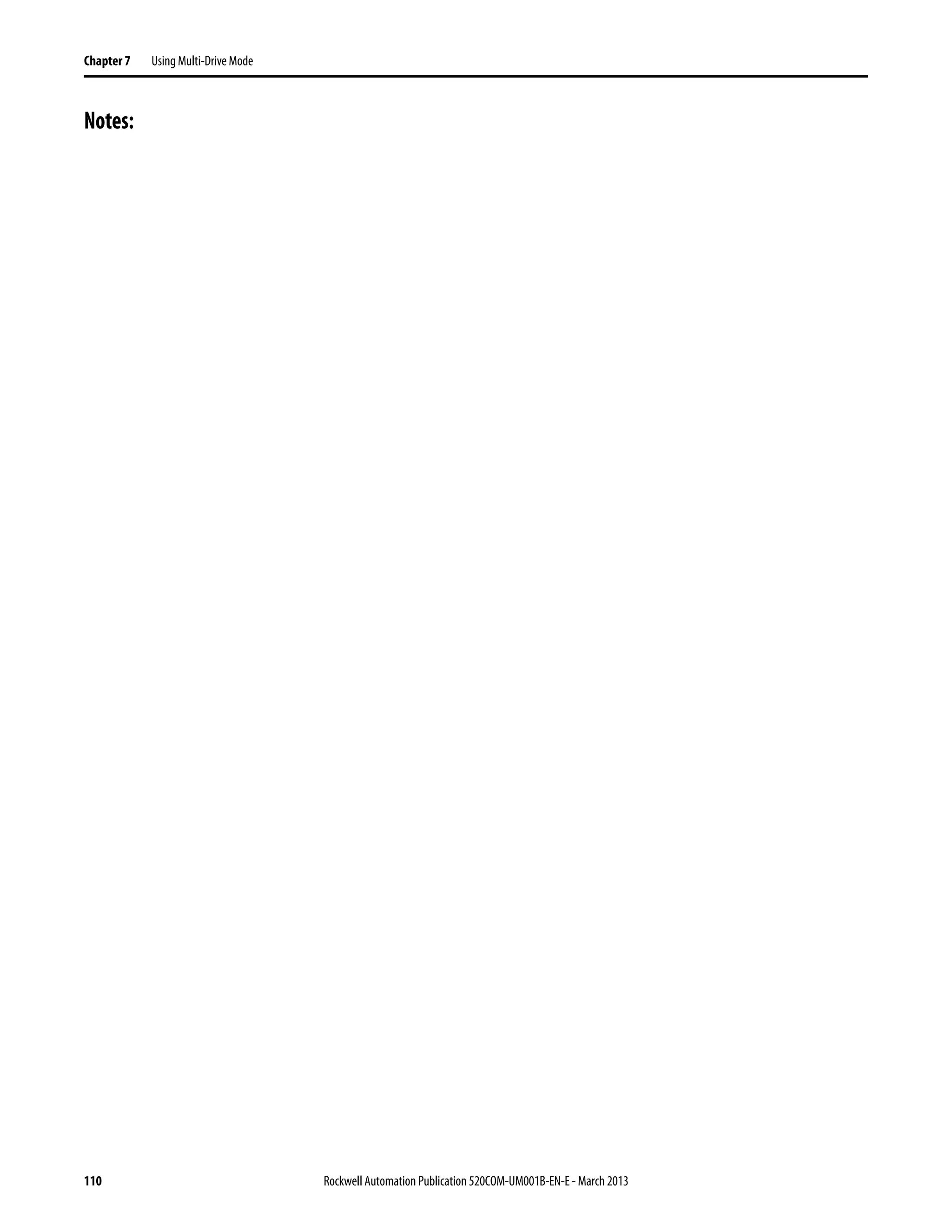

Notes:

Chapter 8
Troubleshooting
This chapter provides information for diagnosing and troubleshooting potential
problems with the adapter and network.
Understanding the Status
Indicators
The embedded EtherNet/IP adapter uses two status indicators located on the
drive LCD display.
Status Indicators
Topic Page
Understanding the Status Indicators 111
ENET Status Indicator 112
LINK Status Indicator 112
Viewing Adapter Diagnostic Items 112

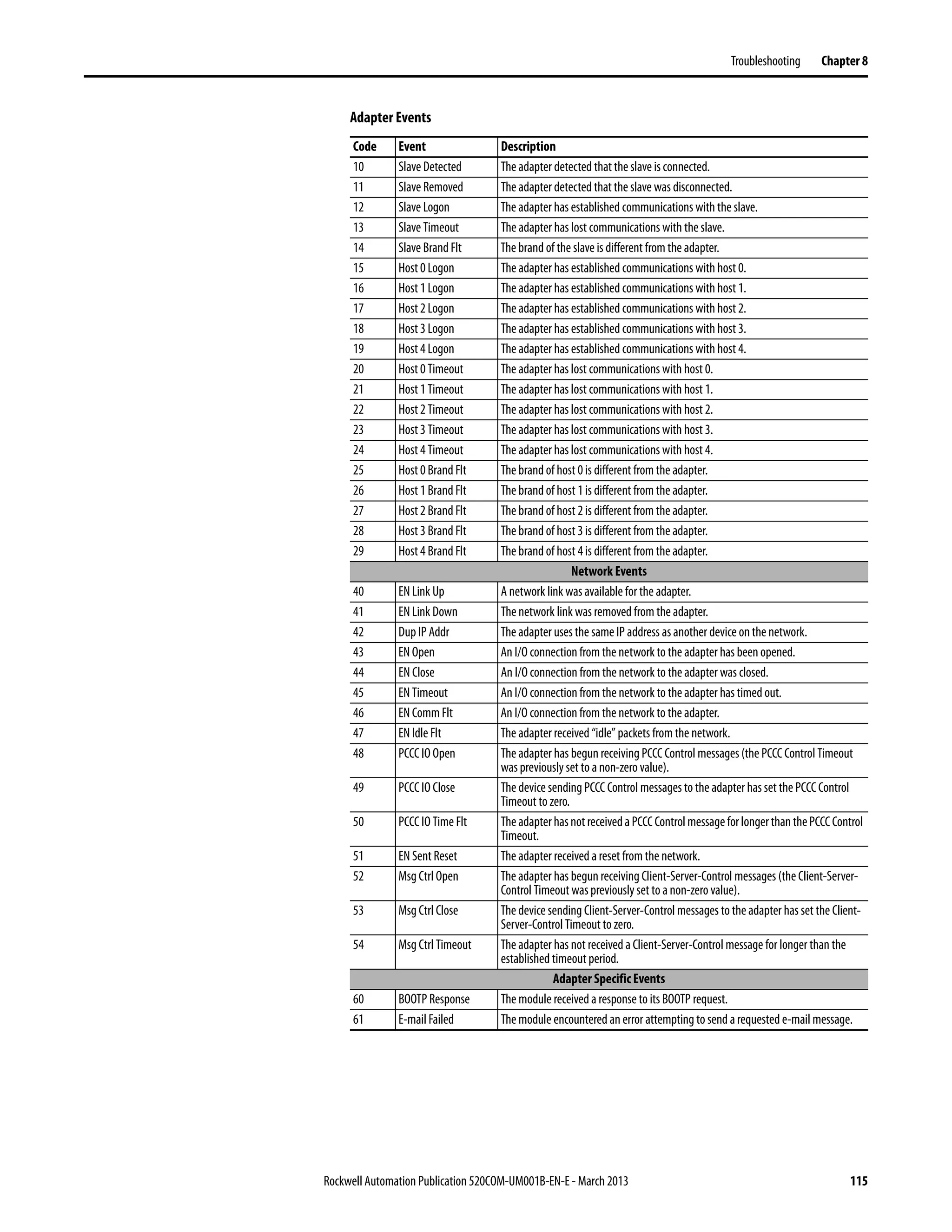

Viewing and Clearing Events 114
Esc Sel
FWD
ENET LINK
EtherNet/IP
Item Status Indicator Description Page
➊ ENET indicator EtherNet/IP Connection Status 112
➋ LINK indicator EtherNet/IP Transmit Status 112
➊ ➋

Chapter 8 Troubleshooting
ENET Status Indicator This green color LED indicates the status of the adapter’s network connection as
shown in the table below.
LINK Status Indicator This green LED indicates the status of the adapter transmitting on the network
as shown in the table below.
Viewing Adapter Diagnostic
Items
If you encounter unexpected communications problems, the adapter’s diagnostic
items may help you or Rockwell Automation personnel troubleshoot the
problem. The diagnostic parameters for the embedded EtherNet/IP adapter can
be viewed using the PowerFlex 22-HIM-A3/-C2S HIM.
Status Cause Corrective Actions
Off There is no network link (unplugged
Ethernet cable), the network configuration
is invalid or a duplicate IP address error has
been detected.
• Apply power to the drive.
• Securely connect the adapter to the network using an
Ethernet cable. Also, make sure the Ethernet cable is
correctly connected to the Ethernet connector.
• Set a unique IP address using the adapter switches, a
BOOTP server, or by disabling BOOTP and using adapter
parameters.
Flashing The adapter is properly connected to the
network but drive is not controlled through
Ethernet.
• Place the controller in RUN mode, or apply power to the
peer device that will send I/O.
• Program the controller or peer device to recognize and
transmit I/O or make a messaging connection to the
adapter.
• Configuretheadapterfortheprograminthecontrolleror
the I/O from the peer device.
Steady The adapter is properly connected to the
network and drive is controlled through
Ethernet.
No action required.
Status Cause Corrective Actions
Off There is no network link (unplugged
Ethernet cable) or a duplicate IP address
error has been detected.
• Apply power to the drive.
• Securely connect the adapter to the network using an
Ethernet cable. Also, make sure the Ethernet cable is
correctly connected to the Ethernet connector.
Flashing The adapter is properly connected to the
network and drive is transmitting data on
Ethernet.
No action required.
Steady The adapter is properly connected to the
network but drive is not transmitting data
on Ethernet.
• Set a unique IP address using the adapter switches, a
BOOTP server, or by disabling BOOTP and using adapter
parameters.
• Configure the adapter to use a unique IP address and
cycle power.
• Check the IP address in the adapter and scanner, and
verify that the controller can communicate with the
adapter.
• Ping the adapter.
Normal condition if the adapter is idle.
No. Name Description
F681 Comm Sts - DSI Displays the status of the RS485 serial (DSI) port to the drive.
F682 Comm Sts - Opt Displays the status of the internal communication to the drive.
F683 Com Sts-Emb Enet Displays the status of the embedded EtherNet/IP interface to the drive.
F684 EN Addr Src Displays the network configuration source currently used by the embedded EtherNet/IP
interface.
F685 EN Rate Act Displays the network data rate currently used by the embedded EtherNet/IP interface.
F686 DSI I/O Act Displays the drives that are active in Multi-drive mode.

Troubleshooting Chapter 8
F687
F688
F689
F690
F691
F692
HW Addr 1
HW Addr 2
HW Addr 3
HW Addr 4
HW Addr 5
HW Addr 6
Decimal value of each byte in the adapter’s Ethernet hardware address.
F693
F694
F695
F696
EN IP Addr Act 1
EN IP Addr Act 2
EN IP Addr Act 3
EN IP Addr Act 4
Value of each byte in the adapter’s present IP address. A value of “0” appears if the
adapter does not currently have an IP address.
F697
F698
F699
F700
EN Subnet Act 1
EN Subnet Act 2
EN Subnet Act 3
EN Subnet Act 4
Value of each byte in the adapter’s present subnet mask. A value of “0” appears if the
adapter does not currently have a subnet mask.
F701
F702
F703
F704
EN Gateway Act 1
EN Gateway Act 2
EN Gateway Act 3
EN Gateway Act 4
Value ofeachbyte intheadapter’spresentgatewayaddress.Avalue of“0”appearsifthe
adapter does not currently have a gateway address.
F705
F709
F713
F717
F721
Drv 0 Logic Cmd
Drv 1 Logic Cmd
Drv 2 Logic Cmd
Drv 3 Logic Cmd
Drv 4 Logic Cmd
In Multi-drive mode, this is the logic command being transmitted to drive 0.
In Single-drive mode, this is the logic command being used by the drive (whether HS-
DSI, EtherNet/IP, or DSI) at the time. If comms control is NOT being used, and the drive is
in single-drive mode, then this parameter will show 0.
F706
F710
F714
F718
F722
Drv 0 Reference
Drv 1 Reference
Drv 2 Reference
Drv 3 Reference
Drv 4 Reference
In Multi-drive mode, this is the reference being transmitted to drive 0.
In Single-drive mode, this is the reference being used by the drive (whether HS-DSI,
EtherNet/IP, or DSI) at the time. If comms control is NOT being used, and the drive is in
Single-drive mode, then this parameter will show 0.
F707
F711
F715
F719
F723
Drv 0 Logic Sts
Drv 1 Logic Sts
Drv 2 Logic Sts
Drv 3 Logic Sts
Drv 4 Logic Sts
In Multi-drive mode, this is the logic status being received from drive 0.
In Single-drive mode, this is the logic status of the drive at the time.
255.255.255.255.255.255
[HW Addr 1]
[HW Addr 2]
[HW Addr 3]
[HW Addr 4]
[HW Addr 5]
[HW Addr 6]
255.255.255.255
[EN IP Addr Act 1]
[EN IP Addr Act 2]
[EN IP Addr Act 3]
[EN IP Addr Act 4]
255.255.255.255
[EN Subnet Act 1]
[EN Subnet Act 2]
[EN Subnet Act 3]
[EN Subnet Act 4]
255.255.255.255
[EN Gateway Act 1]
[EN Gateway Act 2]
[EN Gateway Act 3]
[EN Gateway Act 4]

Viewing and Clearing Events The adapter has an event queue to record significant events that occur in the
operation of the adapter. When such an event occurs, an entry consisting of the
event’s numeric code and a timestamp is put into the event queue. You can view
the event queue using the PowerFlex 22-HIM-A3/-C2S HIM or Connected
Components Workbench.
The event queue can contain up to 32 entries, which are stored in RAM—
making the event queue volatile, meaning a power cycle will clear the event queue.
If the event queue becomes full, a new entry replaces the oldest entry. Only a
power cycle, event queue clear operation, or the corruption of the RAM group
containing the event queue will clear the event queue contents.
Many events in the event queue occur under normal operation. If you encounter
unexpected communications problems, the events may help you or Allen-Bradley
personnel troubleshoot the problem. The following events may appear in the
event queue:
F708
F712
F716
F720
F724
Drv 0 Feedback
Drv 1 Feedback
Drv 2 Feedback
Drv 3 Feedback
Drv 4 Feedback
In Multi-drive mode, this is the feedback being received from drive 0.
In Single-drive mode, this is the feedback of the drive at the time.
F725 EN Rx Overruns A count of the number of receive overrun errors reported bythe embedded EtherNet/IP
interface.
F726 EN Rx Packets A count of the number of Ethernet packets that the adapter has received.
F727 EN Rx Errors A count of the number of receive errors reported by the Ethernet hardware.
F728 EN Tx Packets A count of the number of Ethernet packets that the adapter has sent.
F729 EN Tx Errors A count of the number of transmit errors reported by the Ethernet hardware.
F730 EN Missed IO Pkt A count of the number of incoming I/O connection packets that the adapter did not
receive.
F731 DSI Errors A count of the number of DSI errors.
IMPORTANT The diagnostic parameters for the dual port EtherNet/IP adapter option card
cannot be viewed using the HIMs. Use Connected Components Workbench
instead.
Adapter Events
Code Event Description
Adapter Events
0 No Event Text displayed in an empty event queue entry.
1 Normal Startup Power is applied to the adapter.
2 Manual Reset The adapter was reset.
3 Watchdog T/O Flt The software watchdog detected a failure and reset the adapter.
4 App Updated The adapter application firmware was flash updated.
5 Boot Updated The adapter boot firmware was flash updated.
6 EEPROM Sum Flt The EEPROM checksum/CRC is incorrect, which limits adapter functionality. Default
parameter values must be loaded to clear this condition.
DSI Events

Troubleshooting Chapter 8
10 Slave Detected The adapter detected that the slave is connected.
11 Slave Removed The adapter detected that the slave was disconnected.
12 Slave Logon The adapter has established communications with the slave.
13 Slave Timeout The adapter has lost communications with the slave.
14 Slave Brand Flt The brand of the slave is different from the adapter.
15 Host 0 Logon The adapter has established communications with host 0.
20 Host 0 Timeout The adapter has lost communications with host 0.
25 Host 0 Brand Flt The brand of host 0 is different from the adapter.
Network Events
40 EN Link Up A network link was available for the adapter.
41 EN Link Down The network link was removed from the adapter.
42 Dup IP Addr The adapter uses the same IP address as another device on the network.
43 EN Open An I/O connection from the network to the adapter has been opened.
44 EN Close An I/O connection from the network to the adapter was closed.
45 EN Timeout An I/O connection from the network to the adapter has timed out.
46 EN Comm Flt An I/O connection from the network to the adapter.
47 EN Idle Flt The adapter received “idle” packets from the network.
48 PCCC IO Open The adapter has begun receiving PCCC Control messages (the PCCC Control Timeout
was previously set to a non-zero value).
49 PCCC IO Close The device sending PCCC Control messages to the adapter has set the PCCC Control
Timeout to zero.
50 PCCC IO Time Flt The adapterhasnotreceivedaPCCCControlmessageforlongerthanthePCCCControl
Timeout.
51 EN Sent Reset The adapter received a reset from the network.
52 Msg Ctrl Open The adapter has begun receiving Client-Server-Control messages (the Client-Server-
Control Timeout waspreviously set to a non-zero value).
53 Msg Ctrl Close The device sending Client-Server-Control messages to the adapter has set the Client-
Server-Control Timeout to zero.
54 Msg Ctrl Timeout The adapter has not received a Client-Server-Control message for longer than the
established timeout period.
Adapter Specific Events
60 BOOTP Response The module received a response to its BOOTP request.
61 E-mail Failed The module encountered an error attempting to send a requested e-mail message.
Adapter Events
Code Event Description

Notes:

Appendix A
Specifications
Appendix A presents the specifications for the adapter.
Communication
Regulatory Compliance See the PowerFlex 525 Adjustable Frequency AC Drive User Manual,
publication 520-UM001 for regulatory compliance information.
Network
Protocol
Data Rates
EtherNet/IP
10 Mbps Full Duplex, 10 Mbps Half Duplex, 100 Mbps Full Duplex or 100 Mbps
Half Duplex
Connection Limit 8 TCP connections
4 simultaneous CIP connections including 1 exclusive-owner I/O connection
The following activities use a CIP connection:
• Class I I/O connections (for example, from a ControlLogix or CompactLogix
controller) or CIP Motion connection
• Explicit messaging where “connected” is chosen (for example, in a check box
in RSLogix 5000/Logix Designer)
The following activities DO NOT use a CIP connection:
• Explicit messaging-based control using PCCC or the Register or Assembly
objects, including the MicroLogix 1100/1400 examples in Chapter 4
• Explicit messaging where “connected” is NOT chosen, which is typically the
default
Requested Packet Interval (RPI) 5 ms minimum
Packet Rate Up to 200 total I/O packets per second (100 in and 100 out)

Appendix A Specifications
Notes:

Appendix B
Adapter Parameters
Appendix B provides information about the parameters used to configure the
embedded EtherNet/IP adapter.
Parameter List The parameters are displayed in a Numbered List view order.
Topic Page
Parameter List 119
Parameter
No. Name and Description Details
C121 [Comm Write Mode]
Saves parameter values in active drive memory (RAM) or in
drive non-volatile memory (EEPROM).
Important:Parameter values setpriorto setting1“RAMonly”
are saved in RAM.
Default: 0 = Save
Values: 0 = Save
1 = RAM only
Type: Read/Write
Reset Required:
C122 [Cmd Stat Select]
Selects velocity-specific or position/fibers-specific Command
and Status Word bit definitions for use over a communication
network.
This parameter cannot be changed when an I/O connection is
established through the communication adapter or the drive’s
embedded EtherNet/IP port.
Default: 0 = Velocity
Values: 0 = Velocity
1 = Position
Type: Read/Write
Reset Required: Yes
C123 [RS485 Data Rate]
Sets the communications baud rate (bits/second) for the RS485
port. A reset or power cycle is required after selection is made.
Default: 3 = 9600
Values: 0 = 1200
1 = 2400
2 = 4800
3 = 9600
4 = 19,200
5 = 38,400
Type: Read/Write
Reset Required: Yes
C124 [RS485 Node Addr]
Sets the Modbus drive node number (address) for the RS485
port if using a network connection. A reset or power cycle is
required after selection is made.
Default: 100
Minimum: 1
Maximum: 247
Type: Read/Write
Reset Required: Yes
C125 [Comm Loss Action]
Sets the drive's response to a loss of connection or excessive
communication errors on the RS485 port.
Default: 0 = Fault
Values: 0 = Fault
1 = Coast Stop
2 = Stop
3 =Continu Last
Type: Read/Write
Reset Required: No
C126 [Comm Loss Time]
Setsthetimethatthedriveremainsincommunicationlosswith
the RS485 port before taking the action specified in C125
[Comm Loss Action].
Important:This settingis effective onlyif I/O that controls the
drive is transmitted through the RS485 port.
Default: 5.0 s
Minimum: 0.1 s
Maximum: 60.0 s
Type: Read/Write
Reset Required: No

Appendix B Adapter Parameters
C127 [RS485 Format]
Determines the details related to the specific Modbus protocol
used by the drive. A reset or power cycle is required after
selection is made.
Default: 0 = RTU 8-N-1
Values: 0 = RTU 8-N-1
1 = RTU 8-E-1
2 = RTU 8-O-1
3 = RTU 8-N-2
4 = RTU 8-E-2
5 = RTU 8-0-2
Type: Read/Write
Reset Required: Yes
C128 [EN Addr Sel]
Enables BOOTP to set the IP address, subnet mask and gateway
address with a BOOTP server. Identifies the connections that
would be attempted on a reset or power cycle. A reset or power
cycle is required after selection is made.
Default: 2 = BOOTP
Values: 1 = Parameters
2 = BOOTP
Type: Read/Write
Reset Required: Yes
C129
C130
C131
C132
[EN IP Addr Cfg 1]
[EN IP Addr Cfg 2]
[EN IP Addr Cfg 3]
[EN IP Addr Cfg 4]
Sets the bytes in the IP address. A reset or power cycle is
Important:TosettheIPaddressusingtheseparameters,C128
[EN Addr Sel] must be set to 1 “Parameters”.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 255
Type: Read/Write
Reset Required: Yes
C133
C134
C135
C136
[EN Subnet Cfg 1]
[EN Subnet Cfg 2]
[EN Subnet Cfg 3]
[EN Subnet Cfg 4]
Sets the bytes of the subnet mask. A reset or power cycle is
Important: To set the subnet mask using these parameters,
C128 [EN Addr Sel] must be setto 1 “Parameters”.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 255
Type: Read/Write
Reset Required: Yes
Parameter
192.168.1.62
[EN IP Addr Cfg 1]
[EN IP Addr Cfg 2]
[EN IP Addr Cfg 3]
[EN IP Addr Cfg 4]
255.255.255.0
[EN Subnet Cfg 1]
[EN Subnet Cfg 2]
[EN Subnet Cfg 3]
[EN Subnet Cfg 4]

Adapter Parameters Appendix B
C137
C138
C139
C140
[EN Gateway Cfg 1]
[EN Gateway Cfg 2]
[EN Gateway Cfg 3]
[EN Gateway Cfg 4]
Sets the bytes of the gateway address. A reset or power cycle is
Important: To set the gateway address using these
parameters,C128 [EN Addr Sel] must be set to 1 “Parameters”.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 255
Type: Read/Write
Reset Required: Yes
C141 [EN Rate Cfg]
SetsthenetworkdatarateatwhichEtherNet/IPcommunicates.
A reset or power cycle is required after selection is made.
Default: 0 = Auto detect
Values: 0 = Auto detect
1 = 10Mbps Full
2 = 10Mbps Half
3 = 100Mbps Full
4 = 100Mbps Half
Type: Read/Write
Reset Required: Yes
C143 [EN Comm Flt Actn]
Sets the action that the EtherNet/IP interface and drive takes if
the EtherNet/IP interface detects that Ethernet
communications have been disrupted.
Important:This settingis effective onlyif I/O that controls the
drive is transmitted through the EtherNet/IP interface.
Default: 0 = Fault
Values: 0 = Fault
1 = Stop
2 = Zero Data
3 = Hold Last
4 = Send Flt Cfg
Type: Read/Write
Reset Required: No
Parameter
192.168.1.1
[EN Gateway Cfg 1]
[EN Gateway Cfg 2]
[EN Gateway Cfg 3]
[EN Gateway Cfg 4]
ATTENTION: Risk of injury or equipment damage exists. Parameter
C143 [EN Comm Flt Actn] lets you determine the action of the
EtherNet/IP interface and connected drive if communications are
disrupted. By default, this parameter faults the drive. you can set this
parameter so that the drive continues to run. Precautions should be
takentoensurethatthesettingofthisparameterdoesnotcreatearisk
of injury or equipment damage. When commissioning the drive, verify
that your system responds correctly to various situations (for example,
a disconnected drive).

C144 [EN Idle Flt Actn]
Sets the action that the EtherNet/IP interface and drive takes if
the EtherNet/IP interface detectsthat the scanner is idle
because the controller was switched to program mode.
Default: 0 = Fault
Values: 0 = Fault
1 = Stop
2 = Zero Data
3 = Hold Last
4 = Send Flt Cfg
Type: Read/Write
Reset Required: No
C145 [EN Flt Cfg Logic]
Sets the Logic Command data that is sentto the driveif any of
the following is true:
• C143 [EN Comm Flt Actn] is set to 4 “Send Flt Cfg” and
communications are disrupted.
• C144 [ENIdleActn] issetto 4“SendFltCfg” andthe scanner
is put into Program or Test mode.
Default: 0000 0000 0000 0000
Minimum: 0000 0000 0000 0000
Maximum: 1111 1111 1111 1111
Type: Read/Write
Reset Required: No
C146 [EN Flt Cfg Ref]
Sets the Reference data that is sent to the drive if any of the
following is true:
• C143 [EN Comm Flt Actn] is set to 4 “Send Flt Cfg” and
communications are disrupted.
• C144 [ENIdleActn] issetto 4“SendFltCfg” andthe scanner
is put into Program or Test mode.
Default: 0
Minimum: 0
Maximum: 50000
Type: Read/Write
Reset Required: No
C147
C148
C149
C150
[EN Flt Cfg DL 1]
[EN Flt Cfg DL 2]
[EN Flt Cfg DL 3]
[EN Flt Cfg DL 4]
SetsthedatathatissenttotheDatalinkinthedriveifanyofthe
following is true:
• C143 [EN Comm Flt Actn] is set to 4 “Send Flt Cfg” and the
I/O Communication is disrupted.
• C144 [EN Idle Flt Actn] is set to 4 “Send Flt Cfg” and the
controller is set into Program or Idle mode.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 65535
Type: Read/Write
Reset Required: No
C153
C154
C155
C156
[EN Data In 1]
[EN Data In 2]
[EN Data In 3]
[EN Data In 4]
Datalink parameter number whose value is written from the
embedded EtherNet/IP data table.
established through the drive’s embedded EtherNet/IP port.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 800
Type: Read/Write
Reset Required: Yes
Parameter
ATTENTION: Risk of injury or equipment damage exists. Parameter
C144[ENIdleFltActn]letsyoudeterminetheactionoftheEtherNet/IP
interface and connected drive if the scanner is idle. By default, this
parameter faults the drive. you can set this parameter so that the drive
continues to run. Precautions should be taken to ensure that the
setting of this parameter does not create a risk of injury or equipment
damage. When commissioning the drive, verify that your system
responds correctly to various situations (for example, a disconnected
drive).

Adapter Parameters Appendix B
C157
C158
C159
C160
[EN Data Out 1]
[EN Data Out 2]
[EN Data Out 3]
[EN Data Out 4]
Datalink parameter number whose value is read from the
embedded EtherNet/IP data table.
established through the drive’s embedded EtherNet/IP port.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 800
Type: Read/Write
Reset Required: Yes
C161
C162
C163
C164
[Opt Data In 1]
[Opt Data In 2]
[Opt Data In 3]
[Opt Data In 4]
Datalink parameter number whose value is written from the
High Speed Drive Serial Interface (HSDSI) data table.
established through the communication adapter.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 800
Type: Read/Write
Reset Required: Yes
C165
C166
C167
C168
[Opt Data Out 1]
[Opt Data Out 2]
[Opt Data Out 3]
[Opt Data Out 4]
DatalinkparameternumberwhosevalueisreadfromtheHSDSI
data table.
established through the communication adapter.
Default: 0
Default: 0
Default: 0
Default: 0
Minimum: 0
Maximum: 800
Type: Read/Write
Reset Required: Yes
C169 [MultiDrvSel]
SetstheconfigurationofthedrivethatisinMulti-drivemode.A
reset or power cycle is required after selection is made.
Default: 0 = Disabled
Values: 0 = Disabled
1 = Network Opt
2 = EtherNet/IP
Type: Read/Write
Reset Required: Yes
C171
C172
C173
C174
[Drive 1 Addr]
[Drive 2 Addr]
[Drive 3 Addr]
[Drive 4 Addr]
Sets the corresponding node addresses of the daisy-chained
drives when C169 [MultiDrv Sel] is set to 1 “Network Opt”' or 2
“EtherNet/IP”. A reset or power cycle is required after selection
is made.
Default: 2
Default: 3
Default: 4
Default: 5
Minimum: 1
Maximum: 247
Type: Read/Write
Reset Required: Yes
C175 [DSI I/O Cfg]
Sets the configuration of the Drives that are active in the Multi-
drivemode.Identifiestheconnectionsthatwouldbeattempted
onaresetorpowercycle.Aresetorpowercycleisrequiredafter
selection is made.
Default: 0 = Drive 0
Values: 0 = Drive 0
1 = Drive 0-1
2 = Drive 0-2
3 = Drive 0-3
4 = Drive 0-4
Type: Read/Write
Reset Required: Yes
Parameter

Notes:

Appendix C
EtherNet/IP Objects
Appendix C presents information about the EtherNet/IP objects that can be
accessed using Explicit Messages. For information on the format of Explicit
Messages and example ladder logic programs, see Chapter 6, Using Explicit
Messaging.
Supported Data Types
Object Class Code Page Object Class Code Page
Hex. Dec. Hex. Dec.
Identity Object 0x01 1 126 DPI Device Object 0x92 146 138
Assembly Object 0x04 4 128 DPI Parameter Object 0x93 147 141
Register Object 0x07 7 129 DPI Fault Object 0x97 151 147
Parameter Object 0x0F 15 132 TCP/IP Interface Object 0xF5 245 149
PCCC Object 0x67 103 135 Ethernet Link Object 0xF6 246 151
TIP See the EtherNet/IP specification for more information about EtherNet/IP
objects. Information about the EtherNet/IP specification is available on the
ODVA web site (http://www.odva.org).
Data Type Description
BOOL 8-bit value – low bit is true or false
BOOL[x] Array of n bits
CONTAINER 32-bit parameter value - sign extended if necessary
DINT 32-bit signed integer
INT 16-bit signed integer
LWORD 64-bit unsigned integer
REAL 32-bit floating point
SHORT_STRING Struct of: USINT length indicator (L); USINT[L] characters
SINT 8-bit signed integer
STRINGN Struct of: UINT character length indicator (W); UINT length indicator (L); USINT[W x L] string data
STRING[x] Array of n characters
STRUCT Structure name only – no size in addition to elements
TCHAR 8 or 16-bit character
UDINT 32-bit unsigned integer
UINT 16-bit unsigned integer
USINT 8-bit unsigned integer

Appendix C EtherNet/IP Objects
Identity Object Class Code
Services
Instances (Single-Drive)
Instances (Multi-Drive)
Class Attributes
Hexadecimal Decimal
0x01 1
Implemented for:
Service Code Class Instance Service Name
0x05 No Yes Reset
0x0E Yes Yes Get_Attribute_Single
0x01 Yes Yes Get_Attribute_All
Instance, Ins DPI Inst# Port# Device
0x0000...0x3FFF Ins 0 Drive
0x4000...0x43FF Ins & 0x3FF Interface Interface(1)
(1) Interface is the current interface being used to access the information.
0x4400...0x47FF Ins & 0x3FF 1 DSI
0x4800...0x4BFF Ins & 0x3FF 2 Option
0x4C00...0x4FFF – – –
0x5000...0x53FF – – –
0x5400...0x57FF – – –
Instance, Ins DPI Inst# Port# Device
0x0000...0x3FFF Ins 0 Drive 0
0x4000...0x43FF Ins & 0x3FF 0 Interface(1)
(1) Interface is the current interface being used to access the information.
0x4400...0x47FF Ins & 0x3FF 1 Drive 1
0x4800...0x4BFF Ins & 0x3FF 2 Drive 2
0x4C00...0x4FFF Ins & 0x3FF 3 Drive 3
0x5000...0x53FF Ins & 0x3FF 4 Drive 4
0x5400...0x57FF Ins & 0x3FF 5 Option
Attribute ID Access Rule Name Data Type Description
2 Get Max Instance UINT Total number of instances

EtherNet/IP Objects Appendix C
Instance Attributes
1 Get Vendor ID UINT 1 = Allen-Bradley
2 Get Device Type UINT 150
3 Get Product Code UINT Number identifying product name and rating
4 Get Revision:
Major
Minor
STRUCT of:
USINT
USINT
Value varies
Value varies
5 Get Status UINT Bit 0 = Owned
Bit 8 = Minor recoverable fault
Bit 10 = Major recoverable fault
6 Get Serial Number UDINT Unique 32-bit number
7 Get Product Name SHORT_STRING Product name and rating
9 Get Configuration
Consistency
Value
UNIT Current Parameter NVS CRS value

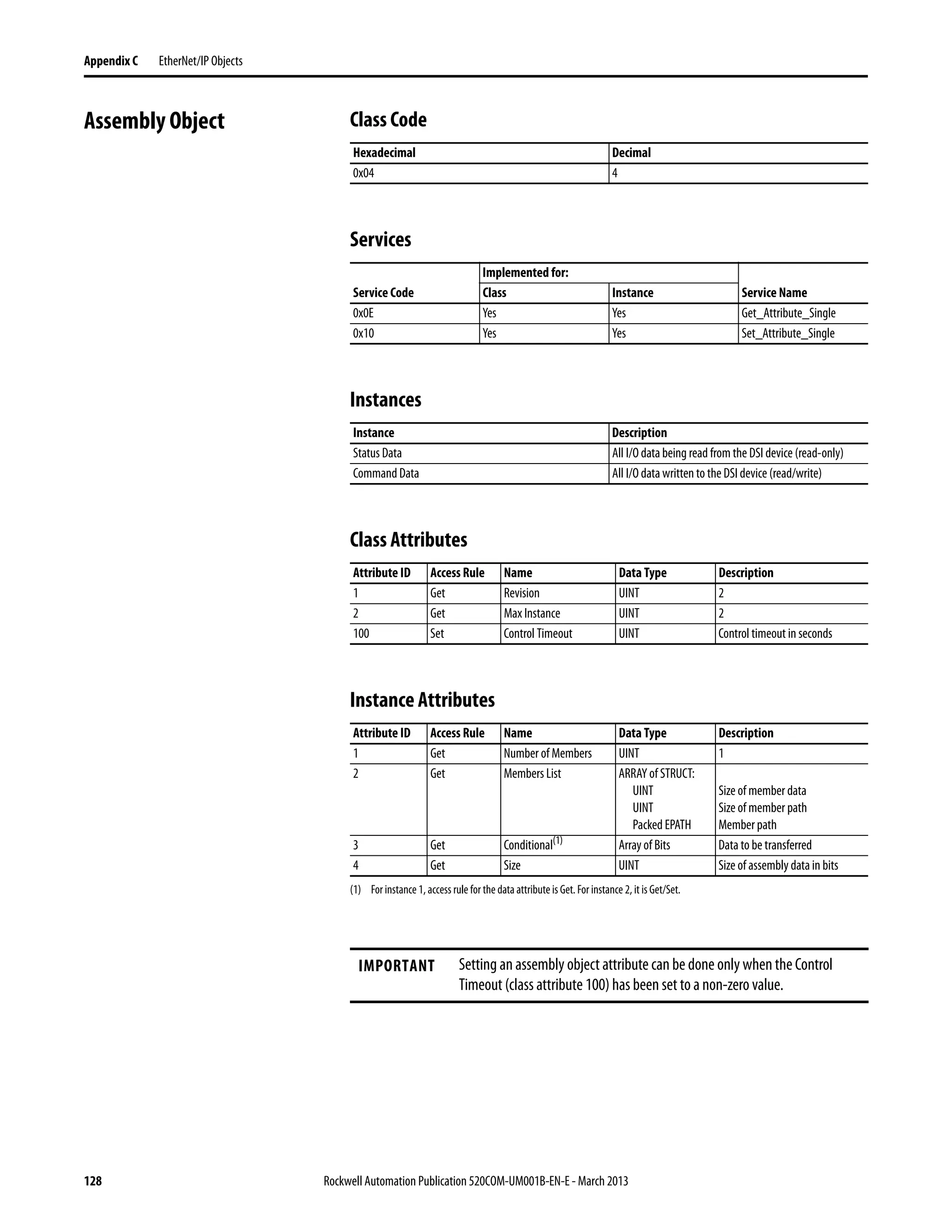

Assembly Object Class Code
Services
Instances
Class Attributes
Instance Attributes
Hexadecimal Decimal
0x04 4
Implemented for:
0x10 Yes Yes Set_Attribute_Single
Instance Description
Status Data All I/O data being read from the DSI device (read-only)
Command Data All I/O data written to the DSI device (read/write)
1 Get Revision UINT 2
2 Get Max Instance UINT 2
100 Set Control Timeout UINT Control timeout in seconds
1 Get Number of Members UINT 1
2 Get Members List ARRAY of STRUCT:
UINT
UINT
Packed EPATH
Size of member data
Size of member path
Member path
3 Get Conditional(1)
(1) For instance 1, access rule for the data attribute is Get. For instance 2, it is Get/Set.
Array of Bits Data to be transferred
4 Get Size UINT Size of assembly data in bits
IMPORTANT Setting an assembly object attribute can be done only when the Control
Timeout (class attribute 100) has been set to a non-zero value.

Register Object Class Code
Services
Hexadecimal Decimal
0x07 7
Implemented for:
1 Status Image – All I/O data being read from the embedded adapter (read-only)
2 Command Image – All I/O data written to the embedded adapter (read/write)
3 Logic Status and Feedback (read-only)
4 Logic Command and Reference (read/write)
5 Datalink To Net 1 (read only)
6 Datalink From Net 1 (read/write)
13 Logic Command (Masked)(1)
(read/write)
(read/write)
(read/write)
(read/write)
(read/write)
(read/write)
19 Logic Status (read-only)
20 Logic Command (read/write)
21 Feedback (read-only)
22 Reference (read/write)

(1) The mask command DWORD is set to the value of the first DWORD of the data where there are ones in the second DWORD of the
data. Only the bits of the Logic Command that have the corresponding mask bit set are applied.

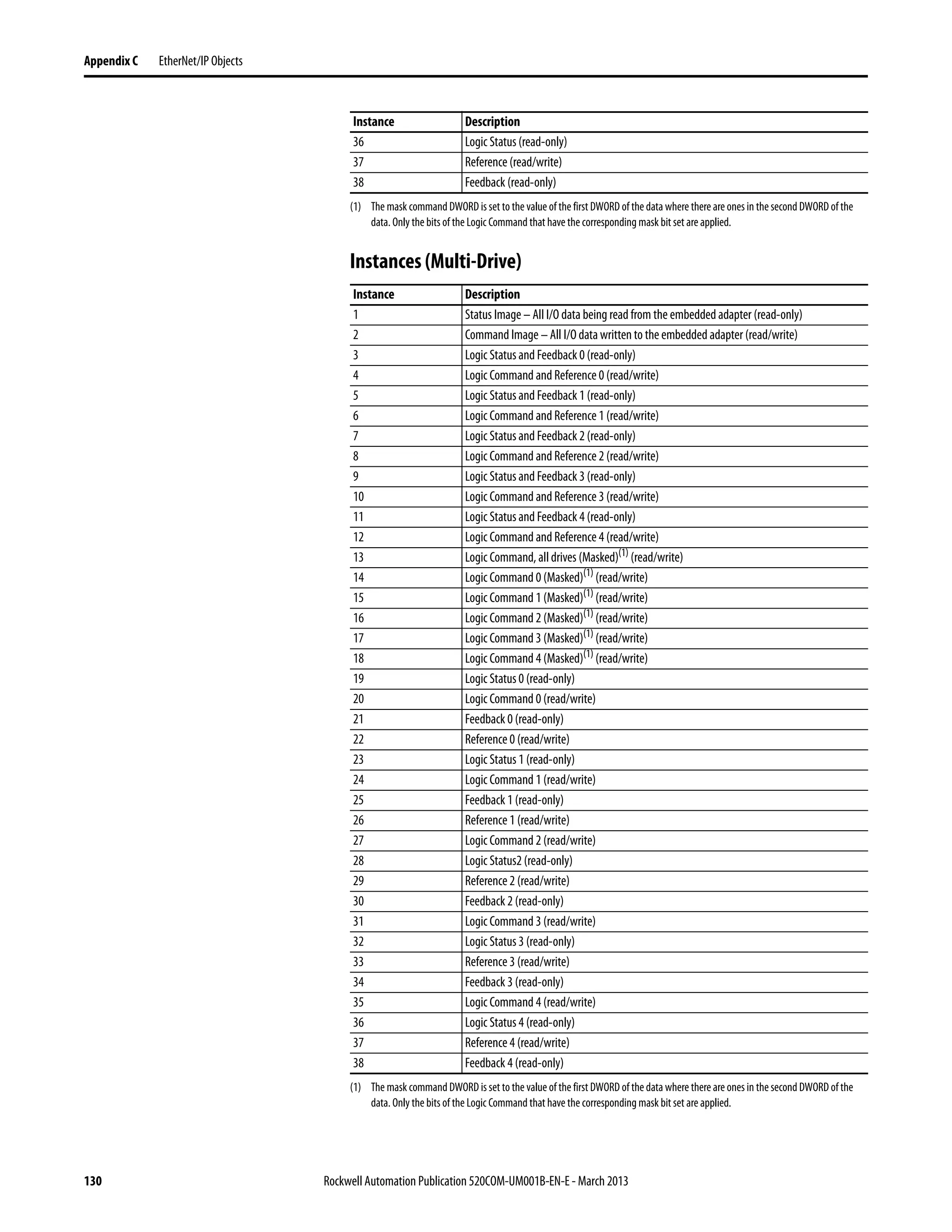

1 Status Image – All I/O data being read from the embedded adapter (read-only)
2 Command Image – All I/O data written to the embedded adapter (read/write)
3 Logic Status and Feedback 0 (read-only)
4 Logic Command and Reference 0 (read/write)
13 Logic Command, all drives (Masked)(1)
(read/write)
(1) The mask command DWORD is set to the value of the first DWORD of the data where there are ones in the second DWORD of the
data. Only the bits of the Logic Command that have the corresponding mask bit set are applied.
14 Logic Command 0 (Masked)(1)
(read/write)
(read/write)
(read/write)
(read/write)
(read/write)
19 Logic Status 0 (read-only)
20 Logic Command 0 (read/write)
21 Feedback 0 (read-only)
22 Reference 0 (read/write)
28 Logic Status2 (read-only)

Class Attributes
Instance Attributes
Attribute ID Access Rule Description
1 Read Revision
2 Read Maximum Instance
3 Read Number of Instance
100 Read/Write Timeout
1 Get Bad Flag BOOL If set to 1, then attribute 4 may contain invalid data.
0 = good
1 = bad
2 Get Direction BOOL Direction of data transfer
0 = Product Register (drive to network)
1 = Consume Register (network to drive)
3 Get Size UINT Size of register data in bits
4 Conditional(1)
(1) For instance 1, access rule for the data attribute is Get. For instance 2, it is Get/Set.
Data Array of Bits Size of assembly data in bits

Parameter Object Class Code
Services
Hexadecimal Decimal
0x0F 15
Implemented for:
0x01 Yes Yes Get_Attribute_All
0x05 Yes No Reset
0x0E Yes Yes Get_Atribute_Single
0x10 No Yes Set_Attribute_Single
0x4B No Yes Get_Enum_String
0 Class
1 Drive Parameter 1
...
...
n Drive Parameter n(1)
(1) n represents the number of parameters in the drive.
0 Class (Drive 0)
1 Drive 0 Parameter 1
...
...
n Drive 0 Parameter n(1)
(1) n represents the number of parameters in the drive.
16384 Class (Interface(2)
)
16384 + 1 Interface Parameter 1
...
...
16384 + n Interface Parameter n(1)
17408 Class (Drive 1)
17408 + 1 Drive 1 Parameter 1
...
...
17408 + n Drive 1 Parameter n(1)
...
...
...
...
...
...

In addition, the parameters for the other DSI devices can be accessed using the
instance-offset encoding shown in the table below:
Class Attributes
Instance Attributes
Instances (Hex.) Instances (Dec.) Single-Drive Mode Multi-Drive Mode
0x0000...0x3FFF 0...16383 Instances 0...1023 in the drive Instances 0...1023 in Drive 0
0x4000...0x43FF 16384...17407 Instances 0...1023 in the interface(1)
Instances 0...1023 in the interface(1)
0x4400...0x47FF 17408...18431 DSI Instances 0...1023 in Drive 1
0x4800...0x4BFF 18432...19455 Option Instances 0...1023 in Drive 2
0x4C00...0x4FFF 19456...20479 Not supported Instances 0...1023 in Drive 3
0x5000...0x53FF 20480...21503 Not supported Instances 0...1023 in Drive 4
0x5400...0x57FF 21504...22527 Not supported Instances 0...1023 in the Option
1 Get Revision UINT 1
2 Get Max Instance UINT Number of parameters
8 Get Parameter Class Descriptor WORD 0 = False, 1 = True
Bit 0 = Supports parameter instances
Bit 1 = Supports full attributes
Bit 2 = Must do NVS save command
Bit 3 = Parameters are stored in NVS
9 Get Configuration Assembly Instance UINT 0
10 Get Native Language USINT 1 = English
2 = French
3 = Spanish
4 = Italian
5 = German
6 = Japanese
7 = Portuguese
8 = Chinese Simplified
9 = Reserved
10 = Reserved
11 = Korean
12 = Polish
13 = Reserved
14 = Turkish
15 = Czech
1 (1) Parameter Value (2) (3)
2 Get Link Path Size USINT 0 = No link specified
n = The size of Attribute 3 in bytes
3 Get Link Path (4)
4 Get Descriptor WORD 0 = False, 1 = True
Bit 1 = Supports ENUMs
Bit 2 = Supports scaling
Bit 3 = Supports scaling links
Bit 4 = Read only
Bit 5 = Monitor
Bit 6 = Extended precision scaling

5 Get Data Type USINT 0xC2 = SINT (8-bits)
0xC3 = INT (16-bits)
0xC4 = DINT (32-bits)
0xC6 = USINT (8-bits)
0xC7 = UINT (16-bits)
0xCA = REAL (32-bits)
0xD2 = WORD (16-bits)
6 Get Data Size USINT (3)
7 Get Parameter Name String SHORT_STRING (3)
8 Get Units String SHORT_STRING (3)
9 Get Help String SHORT_STRING (3)
10 Get Minimum Value (1) (3)
11 Get Maximum Value (1) (3)
12 Get Default Value (1) (3)
13 Get Scaling Multiplier UINT (3)
14 Get Scaling Divisor UINT (3)
15 Get Scaling Base UINT (3)
16 Get Scaling Offset UINT (3)
17 Get Multiplier Link UINT (3)
18 Get Divisor Link UINT (3)
19 Get Base Link UINT (3)
20 Get Offset Link UINT (3)
21 Get Decimal Precision USINT (3)
(1) Access rule is defined in bit 4 of instance attribute 4. 0 = Get/Set, 1 = Get.
(2) Specified in descriptor, data type, and data size.
(3) Value varies based on parameter instance.
(4) Refer to the CIP Common specification for a description of the link path.

PCCC Object Class Code
Services
Instances
Supports Instance 1.
Class Attribute
Not supported.
Instance Attributes
Not supported.
Message Structure for Execute_PCCC
Hexadecimal Decimal
0x67 103
Implemented for:
0x4B No Yes Execute_PCCC
0x4C No Yes Execute_DH+
Request Response
Name Data Type Description Name Data Type Description
Length USINT Length of requestor ID Length USINT Length of requestor ID
Vendor UINT Vendor number of requestor Vendor UINT Vendor number of requestor
Serial Number UDINT ASA serial number of request Serial Number UDINT ASA serial number of request
Other Product Specific Identifier of user, task, etc. on the requestor Other Product Specific Identifier of user, task, etc. on the requestor
CMD USINT Command byte CMD USINT Command byte
STS USINT 0 STS USINT Status byte
TNSW UINT Transport word TNSW UINT Transport word. Same value as the request.
FNC USINT Function code. Not used for all CMDs. EXT_STS USINT Extended Status. Not used for all CMDs.
PCCC_params Array of USINT CMD/FNC specific parameters PCCC_results Array of USINT CMD/FNC specific result data

Message Structure for Execute_DH+
The embedded EtherNet/IP adapter supports the following PCCC command
types:
For more information regarding PCCC commands, see DFI Protocol and
Command Set Manual (Allen-Bradley publication 1770-6.5.16).
Request Response
Name Data Type Description Name Data Type Description
DLink UINT Destination Link ID DLink UINT Destination Link ID
DSta USINT Destination Station number DSta USINT Destination Station number
DUser USINT Destination “User” number DUser USINT Destination “User” number
SLink UINT Source Link ID SLink UINT Source Link ID
SSta USINT Source Station number SSta USINT Source Station number
SUser USINT Source User number SUser USINT Source User number
CMD USINT Command byte CMD USINT Command byte
STS USINT 0 STS USINT Status byte
TNSW UINT Transport word TNSW UINT Transport word. Same value as the request.
FNC USINT Function code. Not used for all CMDs. EXT_STS USINT Extended Status. Not used for all CMDs.
PCCC_params Array of USINT CMD/FNC specific parameters PCCC_results Array of USINT CMD/FNC specific result data
CMD FNC Description
0x06 0x03 Identify host and some status
0x0F 0x95 Encapsulate the other protocol
0x0F 0x00 Word range read
0x0F 0x01 Word range write
N-File Description
N41 For Single-Drive Mode Only
ThisN-fileletsyoureadandwritecontrolI/Omessages.YoucanwritecontrolI/Omessagesonlywhen
all of the following conditions are true:
• The adapter is not receiving I/O from a scanner. For example, there is no scanner on the network,
the scanner is in idle (program) mode, the scanner is faulted, or the adapter is not mapped to the
scanner.
• The value of N42:3 is set to a non-zero value.
Write Read
N41:0
N41:1
N42:2
Logic Command Word
Unused
Reference
Logic Status Word
Unused
Feedback
N42 This N-file lets you read and write some values configuring the port
N42:3 Time-out (read/write): Time (in seconds) allowed between messages to the N41 or N44 file. If the
adapter does not receive a message in the specified time, it performs the fault action configured in
parameter C143 [EN Comm Flt Actn].
N42:7 Adapter Port Number (read only): DPI port on the drive to which the adapter is connected.
42:8 Peer Adapters (read only): Bit field of devices having DPI Peer capabilities.

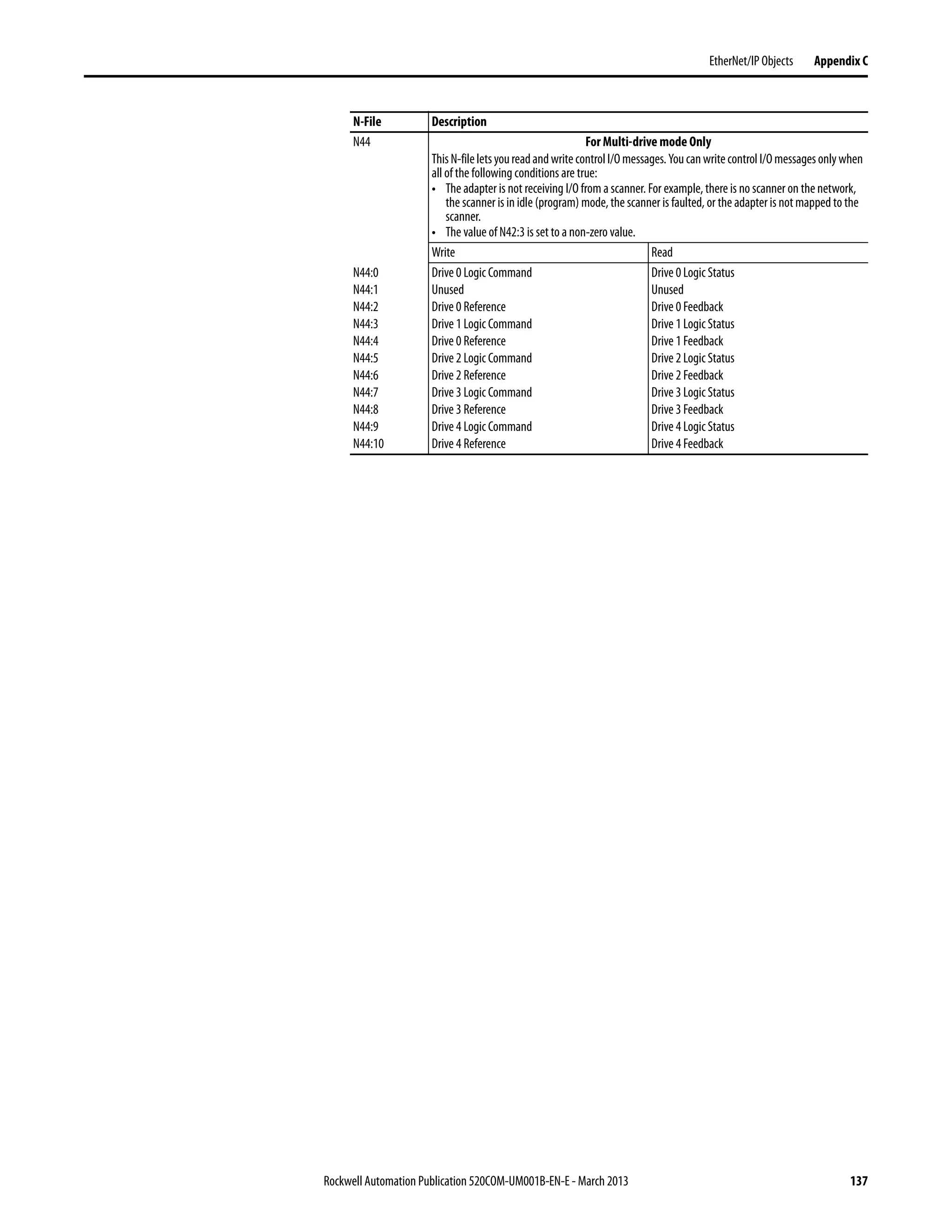

N44 For Multi-drive mode Only
ThisN-fileletsyoureadandwritecontrolI/Omessages.YoucanwritecontrolI/Omessagesonlywhen
all of the following conditions are true:
• The adapter is not receiving I/O from a scanner. For example, there is no scanner on the network,
the scanner is in idle (program) mode, the scanner is faulted, or the adapter is not mapped to the
scanner.
• The value of N42:3 is set to a non-zero value.
Write Read
N44:0
N44:1
N44:2
N44:3
N44:4
N44:5
N44:6
N44:7
N44:8
N44:9
N44:10
Drive 0 Logic Command
Unused
Drive 0 Reference
Drive 0 Reference
Drive 2 Reference
Drive 3 Reference
Drive 4 Reference
Drive 0 Logic Status
Unused
Drive 0 Feedback
Drive 1 Feedback
Drive 2 Feedback
Drive 3 Feedback
Drive 4 Feedback
N-File Description

DPI Device Object Class Code
Services
Instances
The number of instances depends on the number of components in the device.
The total number of components can be read in Instance 0, Class Attribute 4.
Hexadecimal Decimal
0x92 146
Implemented for:

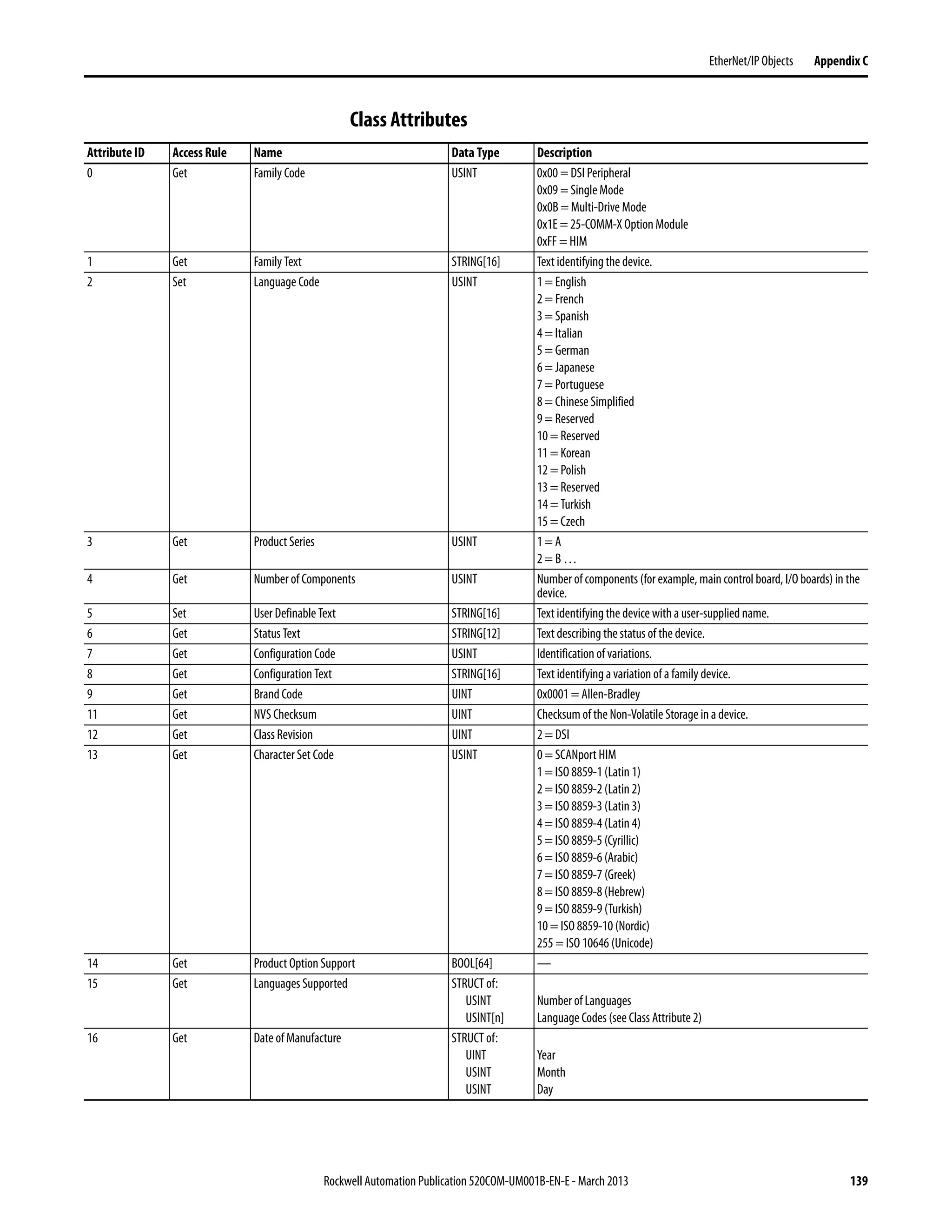

Class Attributes
0 Get Family Code USINT 0x00 = DSI Peripheral
0x09 =Single Mode
0x0B = Multi-Drive Mode
0x1E = 25-COMM-X Option Module
0xFF = HIM
1 Get Family Text STRING[16] Text identifying the device.
2 Set Language Code USINT 1 = English
2 = French
3 = Spanish
4 = Italian
5 = German
6 = Japanese
7 = Portuguese
8 = Chinese Simplified
9 = Reserved
10 = Reserved
11 = Korean
12 = Polish
13 = Reserved
14 = Turkish
15 = Czech
3 Get Product Series USINT 1 = A
2 = B …
4 Get Number of Components USINT Number of components (for example, main control board, I/O boards) in the
device.
5 Set User Definable Text STRING[16] Text identifying the device with a user-supplied name.
6 Get Status Text STRING[12] Text describing the status of the device.
7 Get Configuration Code USINT Identification of variations.
8 Get Configuration Text STRING[16] Text identifying a variation of a family device.
9 Get Brand Code UINT 0x0001 = Allen-Bradley
11 Get NVS Checksum UINT Checksum of the Non-Volatile Storage in a device.
12 Get Class Revision UINT 2 = DSI
13 Get Character Set Code USINT 0 = SCANport HIM
1 = ISO 8859-1 (Latin 1)
2 = ISO 8859-2 (Latin 2)
3 = ISO 8859-3 (Latin 3)
4 = ISO 8859-4 (Latin 4)
5 = ISO 8859-5 (Cyrillic)
6 = ISO 8859-6 (Arabic)
7 = ISO 8859-7 (Greek)
8 = ISO 8859-8 (Hebrew)
9 = ISO 8859-9 (Turkish)
10 = ISO 8859-10 (Nordic)
255 = ISO 10646 (Unicode)
14 Get Product Option Support BOOL[64] —
15 Get Languages Supported STRUCT of:
USINT
USINT[n]
Number of Languages
Language Codes (see Class Attribute 2)
16 Get Date of Manufacture STRUCT of:
UINT
USINT
USINT
Year
Month
Day

Instance Attribute

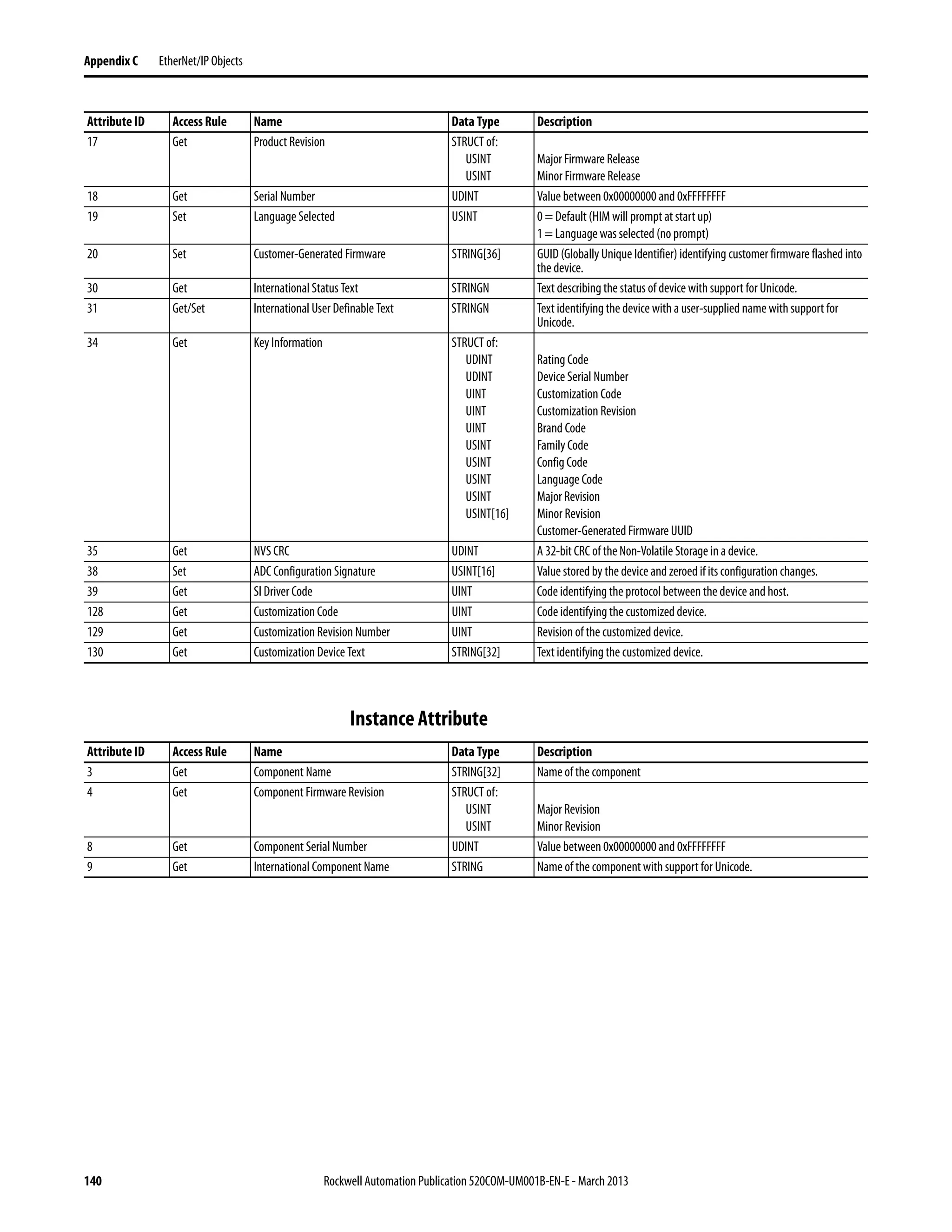

17 Get Product Revision STRUCT of:
USINT
USINT
Major Firmware Release
Minor Firmware Release
18 Get Serial Number UDINT Value between 0x00000000 and 0xFFFFFFFF
19 Set Language Selected USINT 0 = Default (HIM will prompt at start up)
1 = Language was selected (no prompt)
20 Set Customer-Generated Firmware STRING[36] GUID (Globally Unique Identifier) identifying customer firmware flashed into
the device.
30 Get International Status Text STRINGN Text describing the status of device with support for Unicode.
31 Get/Set International User Definable Text STRINGN Text identifying the device with a user-supplied name with support for
Unicode.
34 Get Key Information STRUCT of:
UDINT
UDINT
UINT
UINT
UINT
USINT
USINT
USINT
USINT
USINT[16]
Rating Code
Device Serial Number
Customization Code
Customization Revision
Brand Code
Family Code
Config Code
Language Code
Major Revision
Minor Revision
Customer-Generated Firmware UUID
35 Get NVS CRC UDINT A 32-bit CRC of theNon-Volatile Storage in a device.
38 Set ADC Configuration Signature USINT[16] Value stored by the device and zeroed if its configuration changes.
39 Get SI Driver Code UINT Code identifying the protocol between the device and host.
128 Get Customization Code UINT Code identifying the customized device.
129 Get Customization Revision Number UINT Revision of the customized device.
130 Get Customization Device Text STRING[32] Text identifying the customized device.
3 Get Component Name STRING[32] Name of the component
4 Get Component Firmware Revision STRUCT of:
USINT
USINT
Major Revision
Minor Revision
8 Get Component Serial Number UDINT Value between 0x00000000 and 0xFFFFFFFF
9 Get International Component Name STRING Name of the component with support for Unicode.

DPI Parameter Object Class Code
Instances
The number of instances depends on the number of components in the device.
The total number of components can be read in Instance 0, Attribute 0.
Class Attributes
Hexadecimal Decimal
0x93 147
0 Get Number of Instances UINT Number of parameters in the device
1 Set Write Protect Password UINT 0 = Password disabled
n = Password value
2 Set NVS Command Write USINT 0 = No Operation
1 = Store values in active memory to NVS
2 = Load values in NVS to active memory
3 = Load default values to active memory
4 = Partial defaults
5 = System defaults
3 Get NVS Parameter Value Checksum UINT Checksum of all parameter values in a user set in NVS
4 Get NVS Link Value Checksum UINT Checksum of parameter links in a user set in NVS
5 Get First Accessible Parameter UINT First parameter available if parameters are protected by passwords. A “0”
indicates all parameters are protected.
7 Get Class Revision UINT 2 = DSI
8 Get First Parameter Processing Error UINT The first parameter that has been written with a value outside of its range. A
“0” indicates no errors.
9 Set Link Command USINT 0 = No Operation
1 = Clear All Parameter Links (This does not clear links to function blocks.)

Instance Attribute
6 Get DPI Offline Read Full STRUCT of:
BOOL[32]
CONTAINER
CONTAINER
CONTAINER
STRING[16]
STRING[4]
UINT
UINT
UINT
UINT
UINT
UINT
UINT
USINT
USINT
UINT
UINT
CONTAINER
UINT
UNIT
UNIT
INT
Descriptor
Offline Minimum value
Offline Maximum value
Offline Default value
Parameter name
Offline parameter units
Online minimum parameter instance
Online maximum parameter instance
Online default parameter instance
Multiplier parameter instance
Divisor parameter instance
Base parameter instance
Offset parameter instance
Formula number
Pad byte (always zero)
Help instance
Pad word (always a value of zero)
Parameter value
Multiplier
Divisor
Base
Offset
7 Get DPI Online Read Full STRUCT of:
BOOL[32]
CONTAINER(1)
CONTAINER
CONTAINER
CONTAINER
UINT
UINT
STRING[4]
UINT
UINT
UINT
INT
USINT[3]
USINT
STRING[16]
Descriptor (see page 144)
Parameter value
Minimum value
Maximum value
Default value
Next parameter
Previous parameter
Units (for example, Amps, Hz)
Multiplier(2)
Divisor(2)
Base(2)
Offset(2)
Link (source of the value) (0 = no link)
Always zero (0)
Parameter name
8 Get DPI Descriptor BOOL[32] Descriptor (see page 144)
9 Get/Set DPI Parameter Value Various Name of the component with support for Unicode.
10 Get/Set DPI RAM Parameter Value Various Parameter value in NVS. (3)
11 Get/Set DPI Link USINT[3] Parameter value in temporary memory. Valid only for DSI drives.
12 Get Help Object Instance UINT Link(parameterorfunctionblockthatisthesourceofthevalue)(0=nolink)
13 Get DPI Read Basic STRUCT of:
BOOL[32]
CONTAINER
CONTAINER
CONTAINER
CONTAINER
STRING[16]
STRING[4]
Descriptor (see page 144)
Parameter value
Minimum value
Maximum value
Default value
Parameter name
Units (for example, Amps, Hz)
14 Get DPI Parameter Name STRING[16] Parameter name
15 Get DPI Parameter Alias STRING[16] Customer-supplied parameter name.

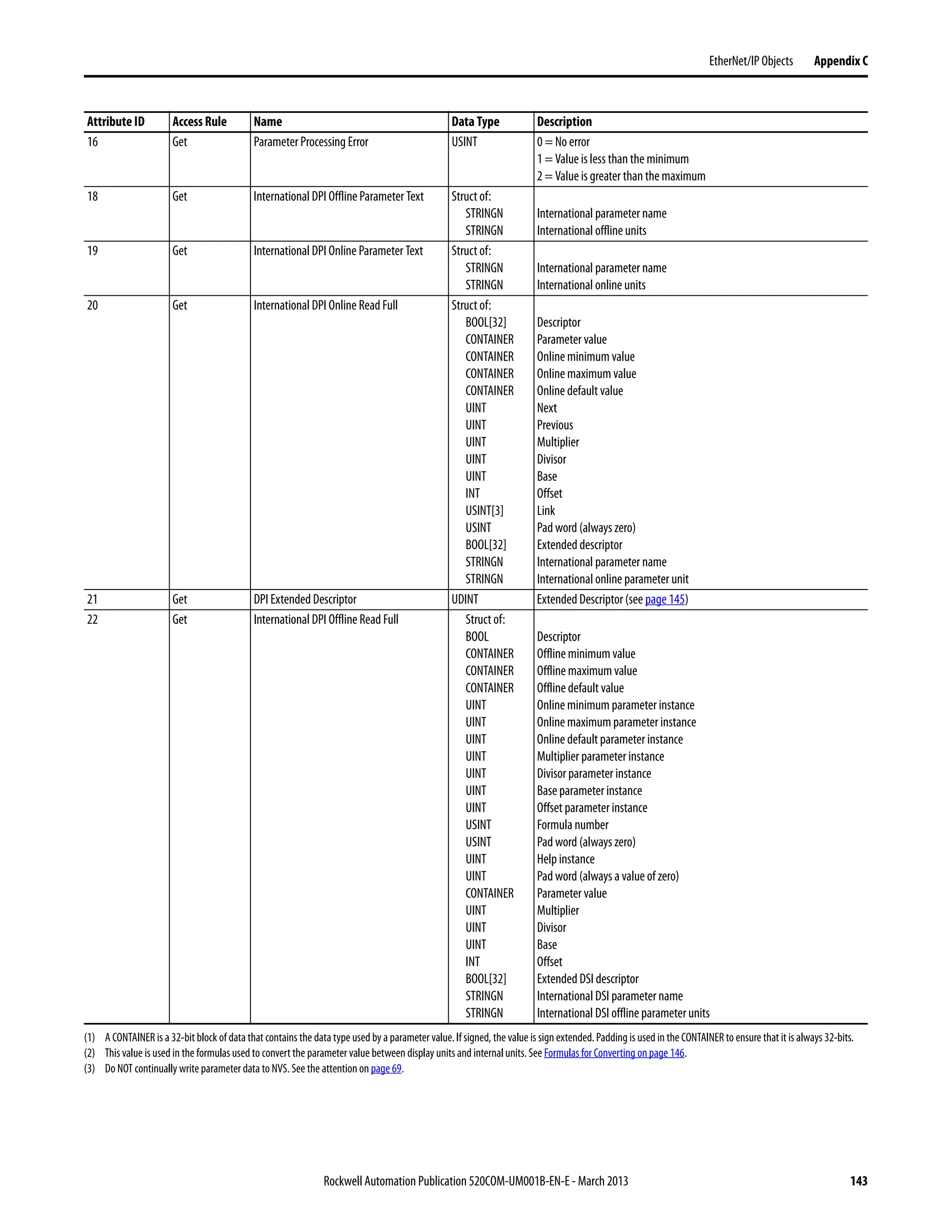

16 Get Parameter Processing Error USINT 0 = No error
1 = Value is less than the minimum
2 = Value is greater than the maximum
18 Get International DPI Offline Parameter Text Struct of:
STRINGN
STRINGN
International parameter name
International offline units
19 Get International DPI Online Parameter Text Struct of:
STRINGN
STRINGN
International online units
20 Get International DPI Online Read Full Struct of:
BOOL[32]
CONTAINER
CONTAINER
CONTAINER
CONTAINER
UINT
UINT
UINT
UINT
UINT
INT
USINT[3]
USINT
BOOL[32]
STRINGN
STRINGN
Descriptor
Parameter value
Online minimum value
Online maximum value
Online default value
Next
Previous
Multiplier
Divisor
Base
Offset
Link
Pad word (always zero)
Extended descriptor
International online parameter unit
21 Get DPI Extended Descriptor UDINT Extended Descriptor (see page 145)
22 Get International DPI Offline Read Full Struct of:
BOOL
CONTAINER
CONTAINER
CONTAINER
UINT
UINT
UINT
UINT
UINT
UINT
UINT
USINT
USINT
UINT
UINT
CONTAINER
UINT
UINT
UINT
INT
BOOL[32]
STRINGN
STRINGN
Descriptor
Offline minimum value
Offline maximum value
Offline default value
Online minimum parameter instance
Online maximum parameter instance
Online default parameter instance
Multiplier parameter instance
Divisor parameter instance
Base parameter instance
Offset parameter instance
Formula number
Pad word (always zero)
Help instance
Pad word (always a value of zero)
Parameter value
Multiplier
Divisor
Base
Offset
Extended DSI descriptor
International DSI parameter name
International DSI offline parameter units
(1) A CONTAINER is a 32-bit block of data that contains the data type used by a parameter value.If signed, the value is sign extended. Padding is used in the CONTAINER to ensure that it is always 32-bits.
(2) This value is used in the formulas used to convert the parameter value between display units and internal units. See Formulas for Converting onpage 146.
(3) Do NOT continually write parameter data to NVS. See the attention on page 69.

Descriptor Attributes
Bit Name Description
0 Data Type (Bit 1) Right bit is least significant bit (0).
000 = USINT used as an array of Boolean
001 = UINT used as an array of Boolean
010 = USINT (8-bit integer)
011 = UINT (16-bit integer)
100 = UDINT (32-bit integer)
101 = TCHAR ((8-bit (not Unicode) or 16-bits (Unicode))
110 = REAL (32-bit floating point value)
111 = Use bits 16, 17, 18
1 Data Type (Bit 2)
2 Data Type (Bit 3)
3 Sign Type 0 = unsigned
1 = signed
4 Hidden 0 = visible
1 = hidden
5 Not a Link Sink 0 = May be the sink end of a link
1 = May not be the sink end of a link
6 Not Recallable 0 = Recallable from NVS
1 = Not Recallable from NVS
7 ENUM 0 = No ENUMtext
1 = ENUMtext
8 Writable 0 = Read only
1 = Read/write
9 Not Writable When Enabled 0 = Read only
1 = Read/write
10 Instance 0 = Writable when enabled (e.g., drive running)
1 = Not writable when enabled
11 Uses Bit ENUM Mask This parameter instance supports the Bit ENUM Mask attribute. For more information, see the definition of the attribute.
12 Decimal Place (Bit 0) Number of digits to the right of the decimal point.
0000 = 0
1111 = 15
13 Decimal Place (Bit 1)
16 Extended Data Type (Bit 4) Bit 16 is the least significant bit.
000 = Reserved
001 = UDINT used as an array of Boolean
010 = Reserved
011 = Reserved
100 = Reserved
101 = Reserved
110 = Reserved
111 = Reserved
17 Extended Data Type (Bit 5)
18 Extended Data Type (Bit 6)
19 Parameter Exists Used to mark parameters that are not available to network tools.
20 Not Used Reserved
21 Formula Links Indicates the Formula Data is derived from other parameters.
22 Access Level (Bit 1) A 3-bit field used to control access to parameter data.
23 Access Level (Bit 2)
24 Access Level (Bit 3)
25 Writable ENUM ENUM text: 0 = Read Only, 1 = Read/Write
26 Not a Link Source 0 = May be the source end of a link
1 = May not be the source end of a link
27 Enhanced Bit ENUM Parameter supports enhanced bit ENUMs.
28 Enhanced ENUM Parameter supports enhanced ENUMs.
29 Uses DSI Limits Object Parameter uses the DSI Limits Object.
Intelligent offline tools make use of the Limits Object to select limits and units.
30 Extended Descriptor Parameter uses Extended Descriptor bits, which can be obtained by reading the DSI Extended Descriptor attribute for this parameter.
31 Always Upload/Download Parameter shall always be included in uploads and downloads.

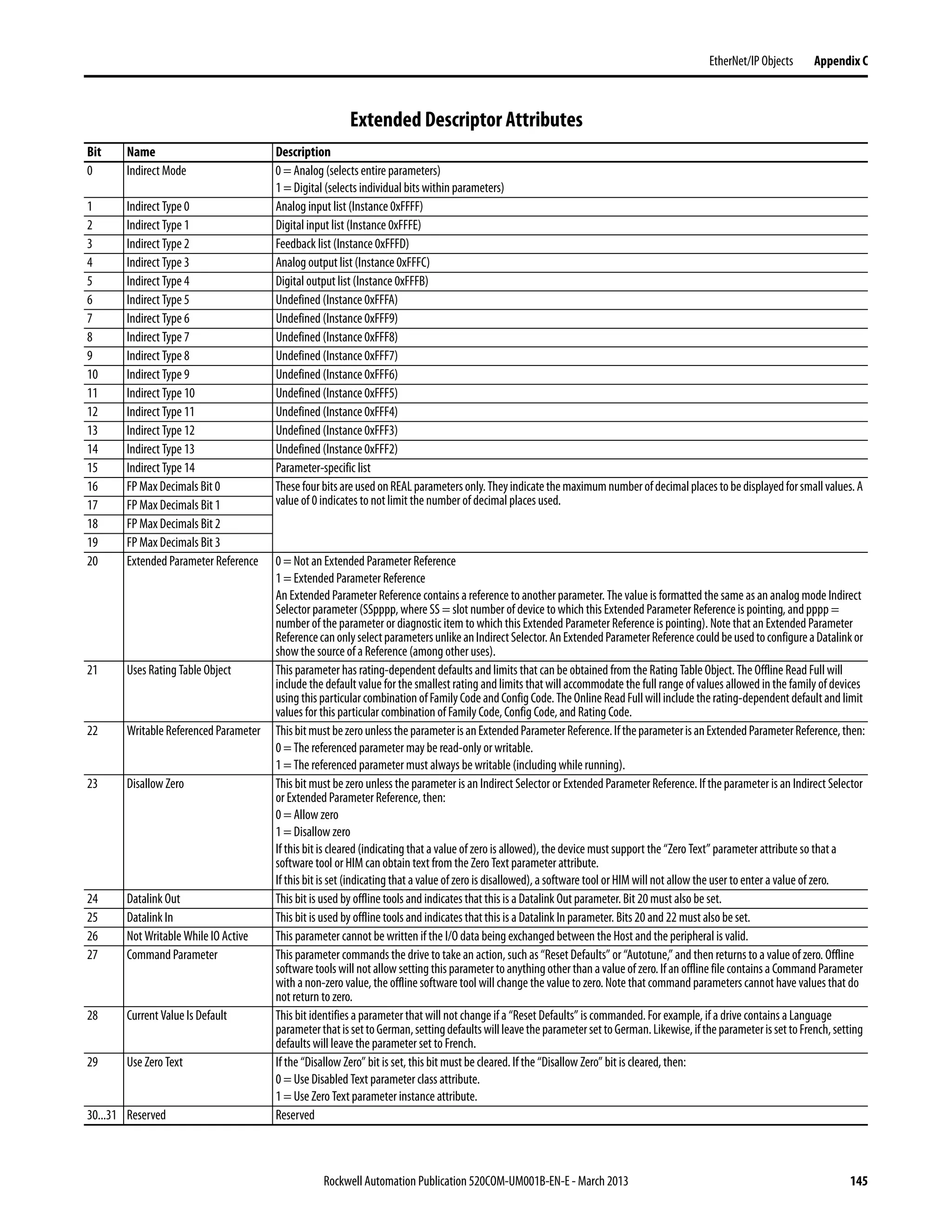

Extended Descriptor Attributes
Bit Name Description
0 Indirect Mode 0 = Analog (selects entire parameters)
1 = Digital (selects individual bits within parameters)
1 Indirect Type 0 Analog input list (Instance 0xFFFF)
2 Indirect Type 1 Digital input list (Instance 0xFFFE)
3 Indirect Type 2 Feedback list (Instance 0xFFFD)
4 Indirect Type 3 Analog output list (Instance 0xFFFC)
5 Indirect Type 4 Digital output list (Instance 0xFFFB)
6 Indirect Type 5 Undefined (Instance 0xFFFA)
7 Indirect Type 6 Undefined (Instance 0xFFF9)
15 Indirect Type 14 Parameter-specific list
16 FP Max Decimals Bit 0 ThesefourbitsareusedonREALparametersonly.Theyindicatethemaximumnumberofdecimalplacestobedisplayedforsmallvalues.A
value of 0 indicates to not limit the number of decimal places used.
17 FP Max Decimals Bit 1
20 Extended Parameter Reference 0 = Not an Extended Parameter Reference
1 = Extended Parameter Reference
An Extended Parameter Reference contains a reference to another parameter. The value is formatted the same as an analogmode Indirect
Selector parameter (SSpppp, where SS = slot number of device to which this Extended Parameter Reference is pointing, and pppp =
number of the parameter or diagnostic item to which this Extended Parameter Reference is pointing). Note that an Extended Parameter
ReferencecanonlyselectparametersunlikeanIndirectSelector.AnExtendedParameterReferencecouldbeusedtoconfigureaDatalinkor
show the source of a Reference (among other uses).
21 Uses Rating Table Object This parameter has rating-dependent defaults and limits that can be obtained from the Rating Table Object. The Offline Read Full will
include the default value for the smallest rating and limits that will accommodate the full range of values allowed in the family of devices
using this particular combinationofFamilyCode andConfigCode. The Online ReadFullwillinclude therating-dependent defaultand limit
values for this particular combination of Family Code, Config Code, and Rating Code.
22 Writable ReferencedParameter ThisbitmustbezerounlesstheparameterisanExtendedParameterReference.IftheparameterisanExtendedParameterReference,then:
0 = The referenced parameter may be read-only or writable.
1 = The referenced parameter must always be writable (including while running).
23 Disallow Zero This bit must be zero unless the parameter is an Indirect Selector or Extended Parameter Reference. If the parameter is an Indirect Selector
or Extended Parameter Reference, then:
0 = Allow zero
1 = Disallow zero
If this bit is cleared (indicating that a value of zero is allowed), the device must support the “Zero Text” parameter attribute so that a
software tool or HIM can obtain text from the Zero Text parameter attribute.
If this bit is set (indicating that a value of zero is disallowed), a software tool or HIM will not allow the user to enter a value of zero.
24 Datalink Out This bit is used by offline tools and indicates that this is a Datalink Out parameter. Bit 20 must also be set.
25 Datalink In This bit is used by offline tools and indicates thatthis is a Datalink In parameter. Bits 20 and 22 must also be set.
26 Not Writable While IO Active This parameter cannot be written if the I/O data being exchanged between the Host and the peripheral is valid.
27 Command Parameter This parameter commands the drive to take an action, such as “Reset Defaults” or “Autotune,” and then returns to a value of zero. Offline
software tools will not allow setting this parameter to anythingother than a value of zero. If an offline file contains a Command Parameter
with a non-zero value, the offline software tool will change the value to zero.Note that command parameters cannot have values that do
not return to zero.
28 Current Value Is Default This bit identifies a parameter that will not change if a “Reset Defaults” is commanded. For example, if a drive contains a Language
parameterthatissettoGerman,settingdefaultswillleavetheparametersettoGerman.Likewise,iftheparameterissettoFrench,setting
defaults will leave the parameter set to French.
29 Use Zero Text If the “Disallow Zero” bit is set, this bit must be cleared. If the “Disallow Zero” bit is cleared, then:
0 = Use Disabled Text parameter class attribute.
1 = Use Zero Text parameter instance attribute.
30...31 Reserved Reserved

Formulas for Converting
Display Value = ((Internal Value + Offset) x Multiplier x Base) / (Divisor x 10 Decimal Places
))
Internal Value = ((Display Value x Divisor x 10 Decimal Places
) / (Multiplier x Base)) - Offset
Common Services
Object Specific Services
The table below lists the parameters for the Get_Attributes_Scattered and
Set_Attributes_Scattered object-specific service:
The response data appears in the following format:
Implemented for:
Implemented for: Allocation Size (in bytes)
Service Code Class Instance ServiceName Par. Number Par. Value
0x32 Yes No Get_Attributes_Scattered 4 4
0x34 Yes Yes Set_Attributes_Scattered 4 4
Name Data Type Description
Parameter Number UDINT Parameter to read or write
Parameter Value UDINT Parameter value write (zero when reading)
Name Data Type Description
Parameter Number UDINT Parameter read or write(1)
(1) If an error occurred, bit 15 will be turned on in the response.
Parameter Value UDINT Parameter value read (zero when writing)(2)
(2) If an error occurred, the error code will appear instead of the value.

DPI Fault Object Class Code
Products such as PowerFlex drives use this object for faults. Adapters use this
object for events.
Services
Instances
The number of instances depends on the maximum number of faults or events
supported in the queue. The maximum number of faults/events can be read in
Instance 0, Attribute 2.
Hexadecimal Decimal
0x97 151
Implemented for:

Class Attributes
Instance Attribute
1 Get Class Revision UINT Revision of object
2 Get Number of Instances UINT Maximum number of faults/events that the device can record in its queue
3 Set Fault Command Write USINT 0 = No Operation
1 = Clear Fault/Event
2 = Clear Fault/Event Queue
3 = Reset Device
4 Get Fault Trip Instance Read UINT Fault that tripped the device. For adapters, this value is always 1 when
faulted.
5 Get Fault Data List STRUCT of:
USINT
USINT
UINT[n]
Reserved
6 Get Number of Recorded Faults UINT Number of faults/events in the queue. A “0” indicates the fault queue is
empty.
7 Get Fault Parameter Reference UINT Reserved
0 Get Full/All Information STRUCT of UINT
STRUCT of:
USINT
USINT
STRING[16]
STRUCT of:
LWORD
BOOL[16]
UINT
CONTAINER[n]
Fault code
Fault source
DSI port
DSI Device Object
Fault text
Fault time stamp
Timer value (0 = timer not supported)
BOOL[0]: (0 = invalid data, 1 = valid data)
BOOL[1]: (0 = elapsed time, 1 = real time)
BOOL[2…15]: Not used
Reserved
Reserved
1 Get Basic Information STRUCT of UINT
STRUCT of:
USINT
USINT
STRUCT of:
LWORD
BOOL[16]
Fault code
Fault source
DSI port
DSI Device Object
Fault time stamp
Timer value (0 = timer not supported)
BOOL[0]: (0 = invalid data, 1 = valid data)
BOOL[1]: (0 = elapsed time, 1 = real time)
BOOL[2…15]: Not used
2 Get International Fault Text STRINGN Text describing the fault with support for Unicode.

TCP/IP Interface Object Class Code
Services
Instances
The adapter supports one instance of the TCP/IP Interface object.
Class Attributes
Instance Attribute
Hexadecimal Decimal
0xF5 245
Implemented for:
0x10 No Yes Set_Attribute_Single
Number Description
0 Class Attribute
1 Object Attribute
1 Get Class Revision UINT The revision of this object
1 Get Status of TCP/IP Network Interface UDINT 0 = Not configured
1 = Valid configuration
2…15 = Reserved
2 Get Configuration Capability UDINT Bit | Value (0 = False, 1 = True)
0 = Supports BOOTP
1 = DNS Client (able to resolve host names by query to DNS server)
2 = DHCP Client (able to obtain network configuration through DHCP)
3 = DHCP-DNS Update (able to sendits host name in the DHCP request)
4 = Configuration Settable (able to set the network configuration using TCP/
IP object)
5…31 = Reserved
3 Set Configuration Control UDINT Bit| Value
1…3 = Startup configuration
0 = Use configuration saved in NVS
1 = Obtain configuration using BOOTP
2 = Obtain configuration using DHCP
3…15 = Reserved
4 = DNS Enabled (resolves host names by query to DNS server)
5…31 = Reserved

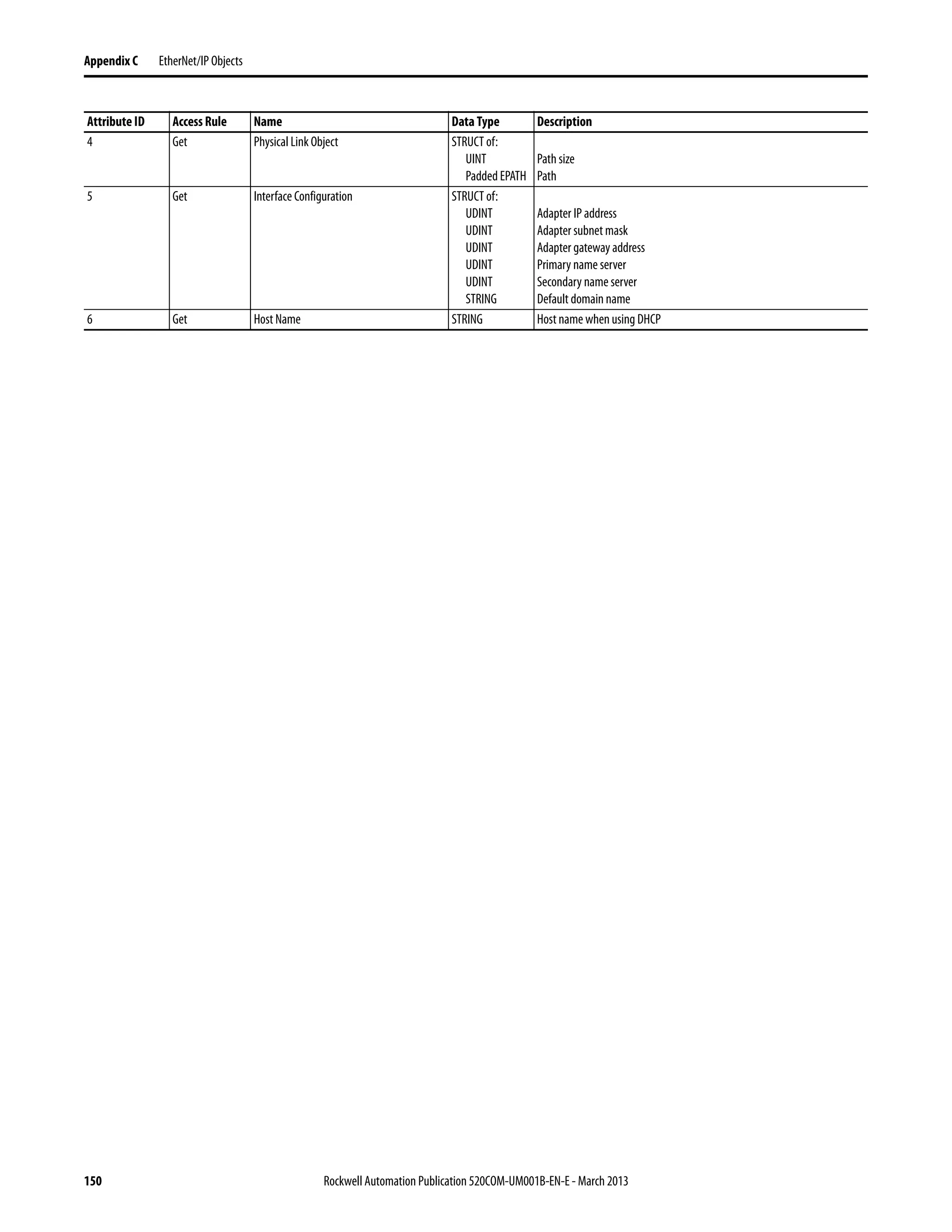

4 Get Physical Link Object STRUCT of:
UINT
Padded EPATH
Path size
Path
5 Get Interface Configuration STRUCT of:
UDINT
UDINT
UDINT
UDINT
UDINT
STRING
Adapter IP address
Adapter subnet mask
Adapter gateway address
Primary name server
Secondary name server
Default domain name
6 Get Host Name STRING Host name when using DHCP

Ethernet Link Object Class Code
Services
Instances
The adapter supports one instance of the TCP/IP Interface object.
Class Attributes
Instance Attribute
Hexadecimal Decimal
0xF6 246
Implemented for:
0x4C No Yes Get_and_Clear
Number Description
0 Class Attribute
1 Object Attribute
1 Get Class Revision UINT The revision of this object
1 Get Interface Speed UDINT Speed in megabits per second (Mbs)
2 Get Interface Flags UDINT Bit | Value
0 = Link status (0 = inactive, 1 = active)
1 = Duplex (0 = half duplex, 1 = full duplex)
2…31 = Reserved
3 Set Physical Address USINT[6] MAC address (XX-XX-XX-XX-XX-XX)
The first octet (USINT[0]) is on the left.
4 Get Interface Counters STRUCT of:
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
Octets received
Unicast packets received
Non-unicast packets received
Inbound packets received but discarded
Inbound packets with errors (not discarded)
Inbound packets with unknown protocol
Octets sent
Unicast packets sent
Non-unicast packets sent
Outbound packets discarded
Outbound packets with errors

5 Get Media Counters STRUCT of:
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
UDINT
RX =Received,TX = Transmitted
RX frames not having integral number of octets long
RX frames not passing FCS check
TX frames having one collision
TX frames having multiple collisions
Number of times of SQE test error message
TX Frames delayed first attempt by busy medium
Collisions detected later than 512 bit-times in trans.
TX frames failing due to excessive collisions
TX frames failing due to intern MAC sublayer TX error
Times of carriersense condition loss during trans
RX frames exceeding the maximum frame size
RX frames failing due to intern MAC sublayer RX error

Appendix D
Logic Command/Status Words: PowerFlex 525
Drives
Appendix D presents the definitions of the Logic Command and Logic Status
words that are used for PowerFlex 525 drives.
Logic Command Word Velocity Bit Definitions
Comm Logic Command – C122 = 0 “Velocity”
Logic Bits
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0 Command Description
x Normal Stop 0 = Not Normal Stop
1 = Normal Stop
x Start(1)
(1) A Not Stop condition (logic bit 0 = 0) must first be present before a 1 = Start condition will start the drive.
0 = Not Start
1 = Start
x Jog 1(2)
(2) ANotStopcondition(logicbit0=0)mustfirstbepresentbeforea1=Jogconditionwilljogthedrive.Atransitiontoa“0”willstop
the drive.
0 = Not Jog
1 = Jog
x Clear Fault(3)
(3) To perform this command, the value must switch from “0” to “1.”
0 = Not Clear Fault
1 = Clear Fault
x x Unipolar Direction 00 = No Command
01 = Forward Command
10 = Reverse Command
11 = No Command
x Keypad 0 = Not Force Keypad Control
1 = Force Keypad Control
x MOP Increment 0 = Not MOP Increment
1 = MOP Increment
x x Accel Time 00 = No Command
01 = Use Accel Rate 1 (P041 [Accel Time 1])
10 = Use Accel Rate 2 (A442 [Accel Time 2])
11 = Hold Accel Rate Selected
x x Decel Time 00 = No Command
01 = Use Decel Rate 1 (P042 [Decel Time 1])
10 = Use Decel Rate 2 (A443 [DecelTime 2])
11 = Hold Decel Rate Selected
x Ref Select 1 000 = No Command
001 = Freq. Source = P047 [Speed Reference1]
100 = A410 [Preset Freq 0]
x Ref Select 2
x Ref Select 3
x MOP Decrement 0 = Not MOP Decrement
1 = MOP Decrement

Appendix D Logic Command/Status Words: PowerFlex 525 Drives
Position Bit Definitions
Logic Status Word Velocity Bit Definitions
Comm Logic Command – C122 = 1 “Position”
Logic Bits
x Normal Stop 0 = Not Normal Stop
1 = Normal Stop
x Start(1)
(1) A Not Stop condition (logic bit 0 = 0) must first be present before a 1 = Start condition will start the drive.
0 = Not Start
1 = Start
x Jog 1(2)
(2) ANotStopcondition(logicbit0=0)mustfirstbepresentbeforea1=Jogconditionwilljogthedrive.Atransitiontoa“0”willstop
the drive.
0 = Not Jog
1 = Jog
x Clear Fault(3)
(3) To perform this command, the value must switch from “0” to “1.”
0 = Not Clear Fault
1 = Clear Fault
x x Unipolar Direction 00 = No Command
01 = Forward Command
10 = Reverse Command
11 = No Command
x Logic Input 1 1 = Logic In 1
x Logic Input 2 1 = Logic In 2
x x x Frequency and Position
Steps
000 = Frequency and Position Step 0
x Find Home 1 = Find Home
x Hold Step 1 = Hold Step
x Redefine Position 1 = Pos Redefine
x Enable Sync 1 = Sync Enable
x Disable Travel 1 = Travel Disable
Comm Logic Status – C122 = 0 “Velocity”
Logic Bits
x Run Ready 0 = Not Ready to Run
1 = Ready to Run
x Active 0 = Not Active
1 = Active (Running)
x Command Direction 0 = Reverse
1 = Forward
x Actual Direction 0 = Rotating Reverse
1 = Rotating Forward
x Accel 0 = Not Accelerating
1 = Accelerating
x Decel 0 = Not Decelerating
1 = Decelerating
x Reserved –
x Fault 0 = Not Faulted
1 = Faulted
x At Speed 0 = Not at Reference
1 = At Reference
x Main Frequency 0 = Not Controlled by Active Com
1 = Controlled by Active Com
x Operation Command 0 = Not Controlled by Active Com
1 = Controlled by Active Com
x Parameters 0 = Not Locked
1 = Locked
x Digital Input 1 Status –

Logic Command/Status Words: PowerFlex 525 Drives Appendix D
Position Bit Definitions
Comm Logic Status – C122 = 1 “Position”
Logic Bits
x Run Ready 0 = Not Ready to Run
1 = Ready to Run
x Active 0 = Not Active
1 = Active (Running)
x Command Direction 0 = Reverse
1 = Forward
x Actual Direction 0 = Rotating Reverse
1 = Rotating Forward
x Accel 0 = Not Accelerating
1 = Accelerating
x Decel 0 = Not Decelerating
1 = Decelerating
x Travel Position 0 = Reverse Travel Position
1 = Forward Travel Position
x Fault 0 = Not Faulted
1 = Faulted
x At Speed 0 = Not at Reference
1 = At Reference
x At Position 0 = Not at Position
1 = At Position
x Drive Home 0 = Not at Home
1 = At Home
x Commanded Home 0 = Not Drive Homed
1 = Drive Homed
x Sync Hold 0 = Not Sync Hold
1 = Sync Hold
x Sync Ramp 0 = Not Sync Ramp
1 = Ramp Sync
x Traverse 0 = Traverse Off
1 = Traverse On
x Traverse Decel 0 = Not Traverse Decel
1 = Traverse Decel

Appendix D Logic Command/Status Words: PowerFlex 525 Drives
Notes:

Glossary
The following terms and abbreviations are used throughout this manual.For
definitions of terms not listed here, see the Allen-Bradley Industrial Automation
Glossary, publication AG-7.1.
Adapter Devices such as drives, controllers, and computers usually require an adapter to
provide a communication interface between them and a network such as
EtherNet/IP. An adapter reads data on the network and transmits it to the
connected device. It also reads data in the device and transmits it to the network.
The embedded EtherNet/IP adapter connects its PowerFlex 525 drive to an
EtherNet/IP network. Adapters are sometimes also called “cards,” “embedded
communication options,” “gateways,” “modules,” and “peripherals.”
ADC (Automatic Device Configura-
tion)
An RSLogix 5000 (version 20) and Logix Designer (version 21 or greater)
feature that supports the automatic download of configuration data upon the
Logix controller establishing an EtherNet/IP network connection to a
PowerFlex525 drive and its associated peripherals.
BootP (Bootstrap Protocol) BootP lets the adapter configure itself dynamically at boot time if the network
has a BootP server. The BootP server assigns the adapter a preconfigured IP
address, a subnet mask, and a gateway address; therefore, you do not have to
configure these using the parameters in the adapter. BootP can make it easier to
administer an Ethernet network. A free version of Rockwell Software’s BootP
Server can be accessed at http://www.ab.com/networks.
Bridge A network device that can route messages from one network to another. A bridge
also refers to a communications module in a ControlLogix or CompactLogix
controller that connects the controller to a network. See also Scanner.
CIP (Common Industrial Protocol) CIP is the transport and application layer protocol used for messaging over
EtherNet/IP, ControlNet, and DeviceNet networks. The protocol is used for
implicit messaging (real-time I/O) and explicit messaging (configuration, data
collection, and diagnostics).
ControlFLASH An Allen-Bradley software tool that lets users electronically update firmware on
printed circuit boards.
Controller A controller, also called programmable logic controller, is a solid-state control
system that has a user-programmable memory for storage of instructions to
implement specific functions such as I/O control, logic, timing, counting, report
generation, communication, arithmetic, and data file manipulation. A controller
consists of a central processor, input/output interface, and memory. See also
Scanner.

Glossary
Data Rate The speed at which data is transferred on the EtherNet/IP network. You can set
the adapter to a data rate of 10Mbps Full-Duplex, 10Mbps Half-Duplex,
100Mbps Full-Duplex, or 100Mbps Half-Duplex. If another device on the
network sets or auto-negotiates the data rate, you can set the adapter to
automatically detect the data rate.
Datalinks A Datalink is a type of pointer used by PowerFlex 525 drives to transfer data to
and from the controller. Datalinks allow specified parameter value(s) to be
accessed or changed without using explicit messages. When enabled, each 16-bit
Datalink in a PowerFlex 525 drive consumes 4 bytes in the input image table and/
or 4 bytes in the output image table of the controller.
Duplex Duplex describes the mode of communication. Full-duplex communications let a
device exchange data in both directions at the same time. Half-duplex
communications let a device exchange data only in one direction at a time. The
duplex used by the adapter depends on the type of duplex that other network
devices, such as switches, support.
EDS (Electronic Data Sheet) Files Simple text files that are used by network configuration tools to describe
products so that you can easily commission them on a network. EDS files
describe a product device type and revision. EDS files for many Allen-Bradley
products can be found at http://www.ab.com/networks/eds.
EtherNet/IP Network EtherNet/IP (Industrial Protocol) is an open producer-consumer
communication network based on the Ethernet standard (IEEE 802.3), TCP/IP,
UDP/IP, and CIP. Designed for industrial communications, both I/O and
explicit messages can be transmitted over the network. Each device is assigned a
unique IP address and transmits data on the network. The number of devices that
an EtherNet/IP network can support depends on the class of IP address. For
example, a network with a Class C IP address can have 254 nodes.
General information about EtherNet/IP and the EtherNet/IP specification are
maintained by the Open DeviceNet Vendor’s Association (ODVA). ODVA is
online at http://www.odva.org.
Explicit Messaging Explicit messages are used to transfer data that does not require continuous
updates. They are typically used to configure, monitor, and diagnose devices over
the network.
Fault Action A fault action determines how the adapter and connected drive act when a
communications fault (for example, a cable is disconnected) occurs or when the
controller is switched out of run mode. The former uses a communications fault
action, and the latter uses an idle fault action.
Fault Configuration When communications are disrupted (for example, a cable is disconnected), the
adapter and its PowerFlex 525 drive can respond with a user-defined fault

Glossary
configuration. The user sets the data that is sent to the drive using specific fault
configuration parameters in the adapter. When a fault action parameter is set to
use the fault configuration data and a fault occurs, the data from these parameters
is sent as the Logic Command, Reference, and/or Datalink(s).
Flash Update The process of updating firmware in a device. The adapter can be flash updated
using various Allen-Bradley software tools.
Gateway A device on a network that connects an individual network to a system of
networks. When a node needs to communicate with a node on another network,
a gateway transfers the data between the two networks. You need to configure the
address for the gateway device in the adapter if you want the adapter to
communicate with devices that are not on its network.
Hardware Address Each Ethernet device has a unique hardware address (sometimes called a MAC
address) that is 48 bits. The address appears as six digits separated by colons (for
example, xx:xx:xx:xx:xx:xx). Each digit has a value between 0 and 255 (0x00 and
0xFF). This address is assigned in the hardware and cannot be changed. It is
required to identify the device if you are using a BootP utility.
HIM (Human Interface Module) A device that can be used to configure and control a drive. The PowerFlex 22-
HIM-A3 or 22-HIM-C2S HIM can be used to configure PowerFlex 525 drives
and their connected peripherals.
Hold Last When communication is disrupted (for example, a cable is disconnected), the
adapter and its PowerFlex 525 drive can respond by holding last. Hold last results
in the drive receiving the last data received through the network connection
before the disruption. If the drive was running and using the Reference from the
adapter, it will continue to run at the same Reference.
Idle Action An idle action determines how the adapter and its PowerFlex 525 drive act when
the controller is switched out of run mode.
I/O Data I/O data, sometimes called “implicit messages” or “input/output,” is time-critical
data such as a Logic Command and Reference. The terms “input” (To Net) and
“output” (From Net) are defined from the controller’s point of view. Output is
produced by the controller and consumed by the adapter. Input is produced by
the adapter and consumed by the controller.
IP Addresses A unique IP address identifies each node on an EtherNet/IP network. An IP
address consists of 32 bits that are divided into four segments of one byte each. It
appears as four decimal integers separated by periods (xxx.xxx.xxx.xxx). Each
“xxx” can have a decimal value from 0 to 255. For example, an IP address could be
192.168.0.1.

Glossary
An IP address has two parts: a network ID and a host ID. The class of network
determines the format of the address.
The number of devices on your EtherNet/IP network will vary depending on the
number of bytes that are used for the network address. In many cases you are
given a network with a Class C address, in which the first three bytes contain the
network address (subnet mask = 255.255.255.0). This leaves 8 bits or 256
addresses on your network. Because two addresses are reserved for special uses (0
is an address for the network usually used by the router, and 255 is an address for
broadcast messages to all network devices), you have 254 addresses to use on a
Class C address block.
To ensure that each device on the Internet has a unique address, contact your
network administrator or Internet Service Provider for unique fixed IP addresses.
You can then set the unique IP address for the adapter by using a BootP server or
by manually configuring parameters in the adapter. The adapter reads the values
of these parameters only at power-up.
Logic Command/Logic Status The Logic Command is used to control the PowerFlex 525 drive (for example,
start, stop, direction). It consists of one 32-bit word of output to the adapter from
the network. The definitions of the bits in this word are shown in Appendix D.
The Logic Status is used to monitor the PowerFlex 525 drive (for example,
operating state, motor direction). It consists of one 32-bit word of input from the
adapter to the network. The definitions of the bits in this word are shown in
Appendix D.
Logix Designer The Logix Designer application is the rebranding of RSLogix 5000 software and
will continue to be the product to program Logix 5000 controllers for discrete,
process, batch, motion, safety, and drive-based solutions. It is a 32-bit application
that runs on various Windows operating systems. Information about Logix
Designer software can be found at http://www.software.rockwell.com/rslogix.
Master-Slave Hierarchy An adapter configured for a master-slave hierarchy exchanges data with the
master device. Usually, a network has one scanner which is the master device, and
all other devices (for example, drives connected to EtherNet/IP adapters) are
slave devices.
On a network with multiple scanners (called a multi-master hierarchy), each slave
device must have a scanner specified as a master.
0 1 7 15 23 31
Class A 0 Network ID Host ID
0 1 7 15 23 31
Class B 1 0 Network ID Host ID
0 1 2 7 15 23 31
Class C 1 1 0 Network ID Host ID

Glossary
NVS (Non-Volatile Storage) NVS is the permanent memory of a device. Devices such as the adapter and drive
store parameters and other information in NVS so that they are not lost when the
device loses power. NVS is sometimes called “EEPROM.”
PCCC (Programmable Controller
Communications Command)
PCCC is the protocol used by some controllers to communicate with devices on
a network. Some software products (for example, DriveExplorer and
DriveExecutive) also use PCCC to communicate.
Ping A message that is sent on the network to determine if a node exists.
PowerFlex 525 Drives The Allen-Bradley PowerFlex 525 drives are part of the PowerFlex 520-series of
drives.
Reference/Feedback The Reference is used to send a setpoint (for example, speed, frequency, torque)
to the drive. It consists of one 32-bit word of output to the adapter from the
network.
RSLogix RSLogix software is a tool for configuring and monitoring controllers to
communicate with connected devices. It is a 32-bit application that runs on
various Windows operating systems. Information about RSLogix software can be
found at http://www.software.rockwell.com/rslogix.
Scanner A scanner is a separate module (of a multi-module controller) or a built-in
component (of a single-module controller) that provides communication with
adapters connected to a network. See also Controller.
Status Indicators Status indicators are LEDs that are used to report the status of the adapter,
network, and drive. They are on the adapter and can be viewed on the front cover
of the drive when the drive is powered.
Subnet Mask An extension to the IP addressing scheme that lets you use a single network ID
for multiple physical networks. A bit mask identifies the part of the address that
specifies the network and the part of the address that specifies the unique node
on the network. A “1” in the subnet mask indicates the bit is used to specify the
network. A “0” in the subnet mask indicates that the bit is used to specify the
node.
For example, a subnet mask on a network may appear as follows: 11111111
11111111 11111111 11000000 (255.255.255.192). This mask indicates that 26
bits are used to identify the network and 6 bits are used to identify devices on
each network. Instead of a single physical Class C network with 254 devices, this
subnet mask divides it into four networks with up to 62 devices each.

Glossary
Switches Network devices that provide virtual connections that help to control collisions
and reduce traffic on the network. They are able to reduce network congestion by
transmitting packets to an individual port only if they are destined for the
connected device. In a control application, in which real time data access is
critical, network switches may be required in place of hubs.
TCP (Transmission Control Proto-
col)
EtherNet/IP uses this protocol to transfer Explicit Messaging packets using IP.
TCP guarantees delivery of data through the use of retries.
UDP (User Datagram Protocol) EtherNet/IP uses this protocol to transfer I/O packets using IP. UDP provides a
simple, but fast capability to send I/O messaging packets between devices. This
protocol ensures that adapters transmit the most recent data because it does not
use acknowledgements or retries.
UDDT (User-Defined Data Type) A structure data type that you define during the development of an application
(for example, to convert 32-bit REAL parameter data to correctly write and read
their values).
Zero Data When communications are disrupted (for example, a cable is disconnected), the
adapter and drive can respond with zero data. Zero data results in the drive
receiving zero as values for Logic Command, Reference, and Datalink data. If the
drive was running and using the Reference from the adapter, it will stay running
but at zero Reference.

A
adapter
adding the drive to the I/O configuration, 40, 55, 87
applying power, 19
commissioning, 21
components, 11
configuration tools, 23
configuring the IP address, 18
connecting to the network, 18
definition, 157
diagnostic parameters, 34, 112
events, 114
features, 12
parameters, 119
resetting, 34
single-drive/multi-drive mode, 83
specifications, 117
status indicators, 20, 111
troubleshooting, 111
ADC (Automatic Device Configuration)
configuring, 50
definition, 157
monitoring progress, 53
using, 48
B
BOOTP (Bootstrap Protocol)
definition, 157
disabling, 29
downloading a BOOTP utility, 26
using, 26
using the BOOTP utility, 27
bridge
definition, 157
example, 19, 38
C
CIP (Common Industrial Protocol)
connections, 117
definition, 157
CompactLogix
example program for Explicit Messages, 71, 73, 74,
77
example program for multi-drive mode, 99
example program for single-drive mode, 64, 66
formatting Explicit Messages, 72, 73, 75, 78
ControlFLASH, 157
controller
adding to I/O configuration, 38
correlating with the drive, 46, 96
definition, 157
I/O image, 62
saving the I/O configuration, 45, 59, 95
D
data rate
definition, 158
setting, 30
Datalinks
definition, 158
enabling to read/write data, 32
I/O image, 62
using, 63
duplex
definition, 158
setting, 30
E
EDS (Electronic Data Sheet) files, 158
EtherNet/IP
network definition, 158
network example, 19
network example for single-drive/multi-drivemode,
83, 84
network set-up, 17
objects, 125
Explicit Messages
about, 69
definition, 158
examples, 70
multi-drive mode, 107
performing, 70
F
fault action
definition, 158
setting, 33
fault configuration
definition, 158
setting, 33
flash update, 159
G
gateway, 159
gateway address
setting with BOOTP, 26
setting with parameters, 30
H
hardware address
definition, 159
location of label, 27
HIM (Human Interface Module)
definition, 159
using, 25
hold last
definition, 159
setting the fault action, 33
I
I/O
about, 61
configuring, 37

definition, 159
image, 61, 62
using, 61
idle action
definition, 159
fault action parameter, 33
IP address
definition, 159
L
Logic Command/Status
bit definitions, 153, 154
definition, 160
in I/O image, 62
using, 62
Logix Designer
adding devices to the I/O configuration, 40, 55, 87
configuring a drive for ADC, 50
correlating the drive with the controller, 46, 96
definition, 160
using RSLinx with, 37
M
master-slave hierarchy
configuring, 31
definition, 160
N
NVS (Non-Volatile Storage), 161
P
PCCC (Programmable Controller Communications
Command)
definition, 161
object, 135
ping, 161
R
Reference/Feedback
definition, 161
in I/O image, 62
using, 63
RSLogix
adding devices to the I/O configuration, 40, 55, 87
configuring a drive for ADC, 50
correlating the drive with the controller, 46, 96
definition, 161
using RSLinx with, 37
S
scanner, 161
status indicators
behavior, 112
definition, 161
locating, 111
troubleshooting, 112
subnet mask
definition, 161
switches, 162
T
TCP (Transmission Control Protocol), 162
U
UDDT (User-Defined Data Type), 162
UDP (User Datagram Protocol), 162
Z
zero data
definition, 162
setting the fault action, 33

Publication 520COM-UM001B-EN-E - March 2013
Supersedes Publication 520COM-UM001A-EN-E - February 2013 Copyright © 2013 Rockwell Automation, Inc. All rights reserved.
Rockwell Automation Support
Rockwell Automation provides technical information on the Web to assist you in using its products.
At http://www.rockwellautomation.com/support/, you can find technical manuals, a knowledge base of FAQs, technical and
application notes, sample code and links to software service packs, and a MySupport feature that you can customize to
make the best use of these tools.
For an additional level of technical phone support for installation, configuration, and troubleshooting, we offer
TechConnect support programs. For more information, contact your local distributor or Rockwell Automation
representative, or visit http://www.rockwellautomation.com/support/.
Installation Assistance
If you experience a problem within the first 24 hours of installation, review the information that is contained in this
manual. You can contact Customer Support for initial help in getting your product up and running.
New Product Satisfaction Return
Rockwell Automation tests all of its products to ensure that they are fully operational when shipped from the
manufacturing facility. However, if your product is not functioning and needs to be returned, follow these procedures.
Documentation Feedback
Your comments will help us serve your documentation needs better. If you have any suggestions on how to improve this
document, complete this form, publication RA-DU002, available at http://www.rockwellautomation.com/literature/.
United States or Canada 1.440.646.3434
Outside United States or Canada Use the Worldwide Locator at http://www.rockwellautomation.com/support/americas/phone_en.html, or contact your local Rockwell
Automation representative.
United States Contact your distributor. You must provide a Customer Support case number (call the phone number above to obtain one) to your
distributor to complete the return process.
Outside United States Please contact your local Rockwell Automation representative for the return procedure.
