- 1. ANATOMIE EINER HEXAGONALEN ARCHITEKTUR Lightweight JavaUser Group München 20. März 2023
- 2. OTTO Solutions Architect @Comsysto Reply SVEN Solutions Architect @ Comsysto Reply
- 3. A little bitof history …

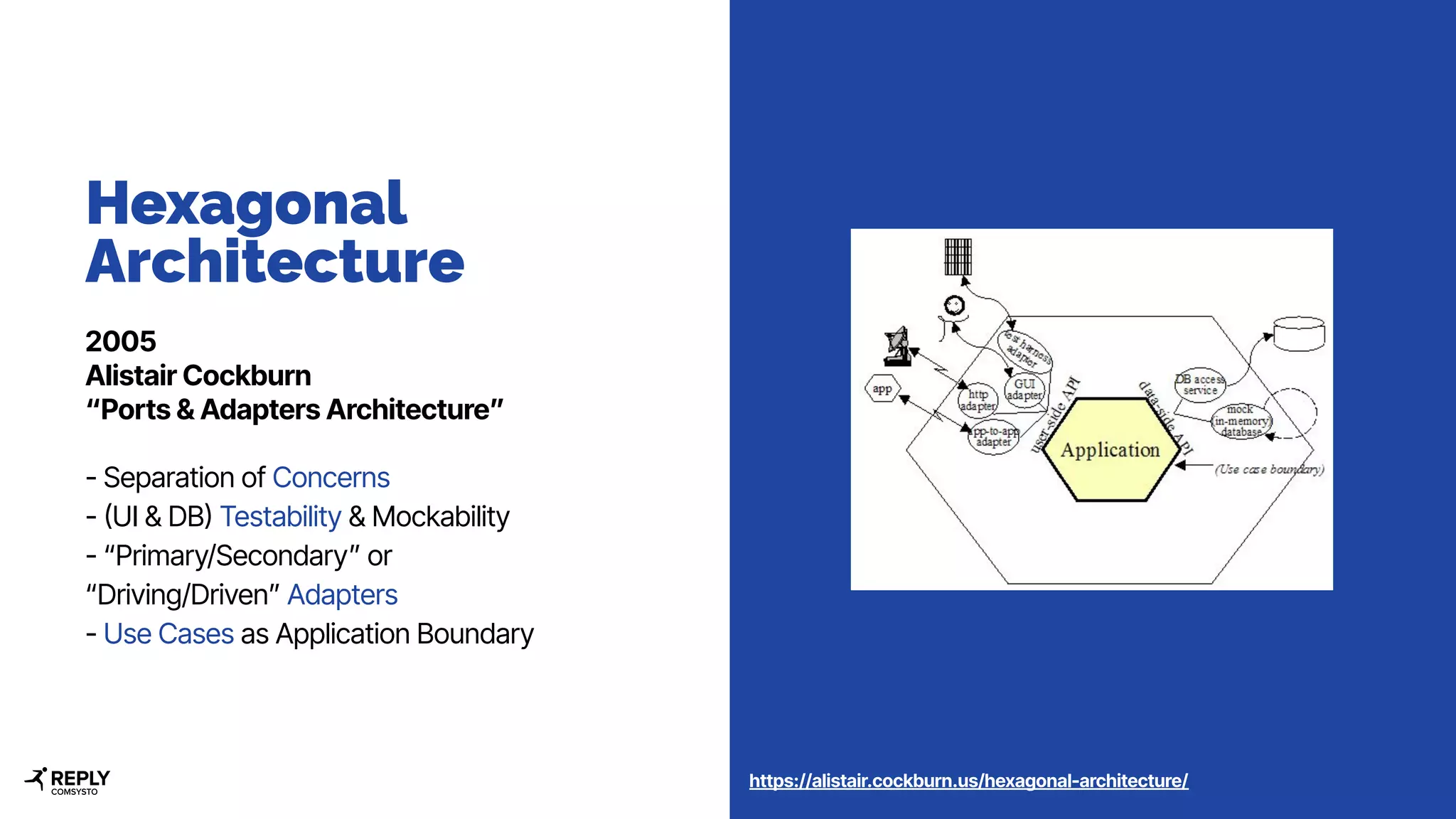

- 4. Hexagonal Architecture 2005 Alistair Cockburn “Ports &Adapters Architecture” - Separation of Concerns - (UI & DB) Testability & Mockability - “Primary/Secondary” or “Driving/Driven” Adapters - Use Cases as Application Boundary https://alistair.cockburn.us/hexagonal-architecture/

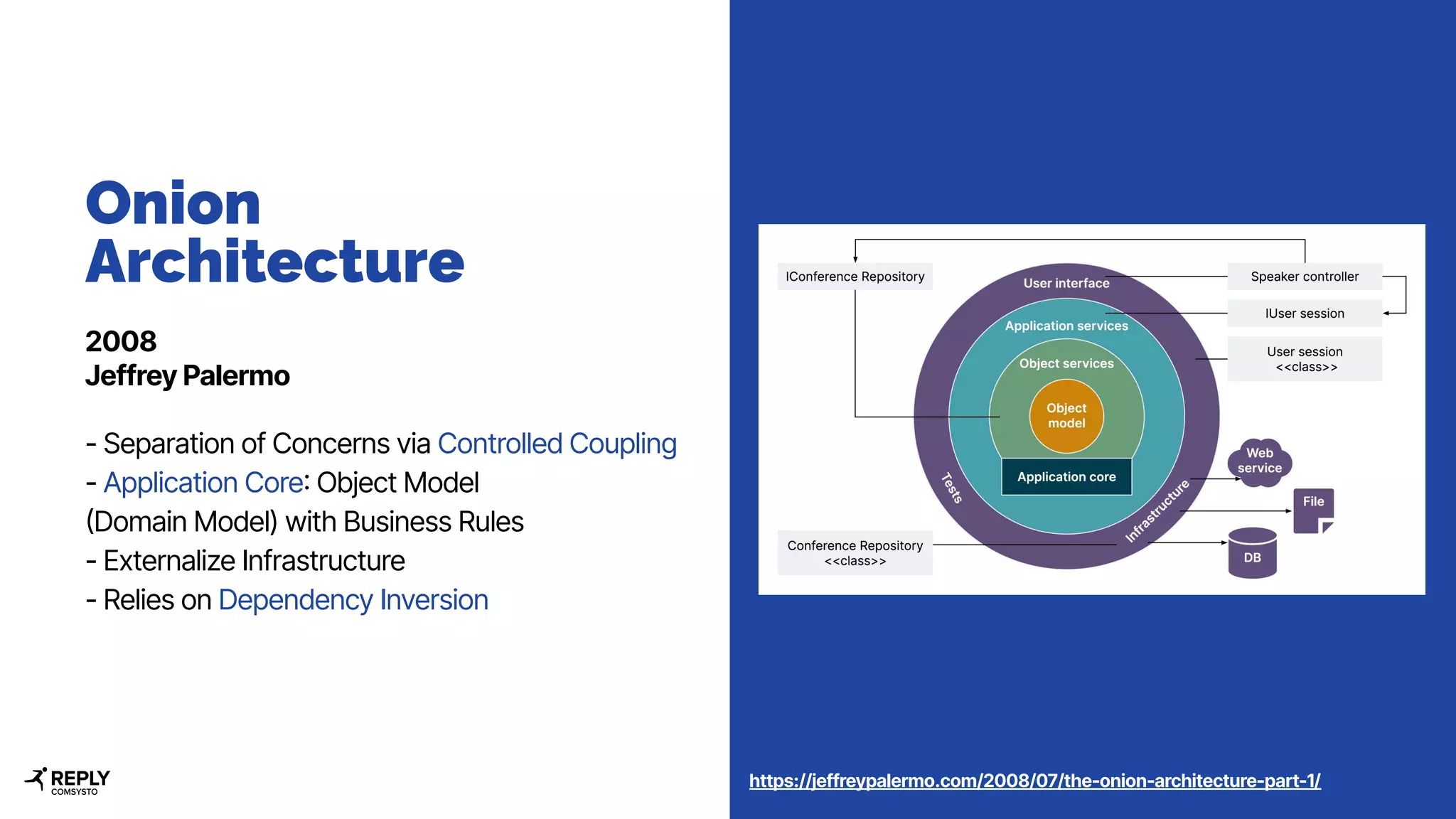

- 5. Onion Architecture 2008 Jeffrey Palermo - Separationof Concerns via Controlled Coupling - Application Core: Object Model (Domain Model) with Business Rules - Externalize Infrastructure - Relies on Dependency Inversion https://jeffreypalermo.com/2008/07/the-onion-architecture-part-1/

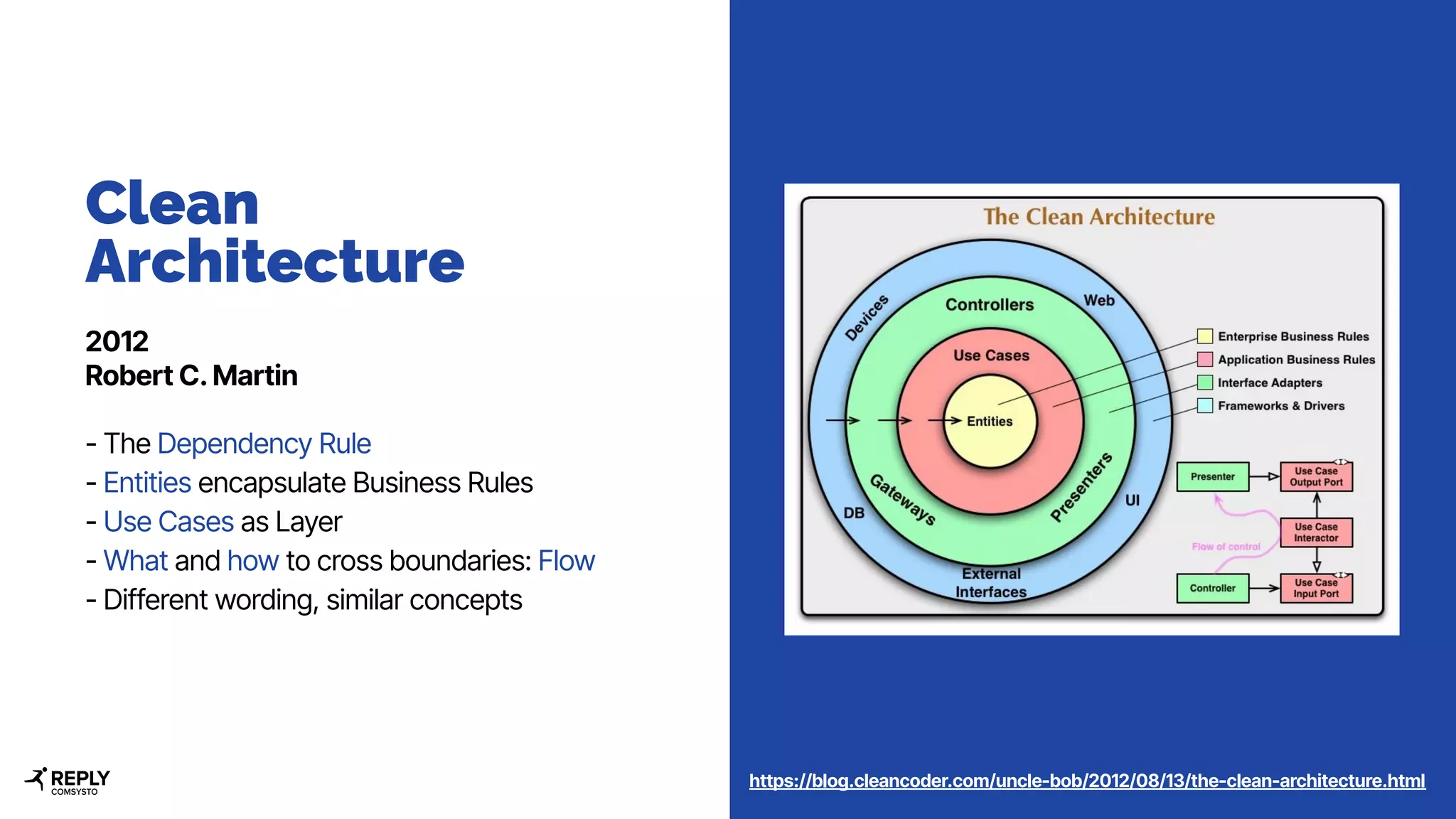

- 6. Clean Architecture 2012 Robert C. Martin -The Dependency Rule - Entities encapsulate Business Rules - Use Cases as Layer - What and how to cross boundaries: Flow - Different wording, similar concepts https://blog.cleancoder.com/uncle-bob/2012/08/13/the-clean-architecture.html

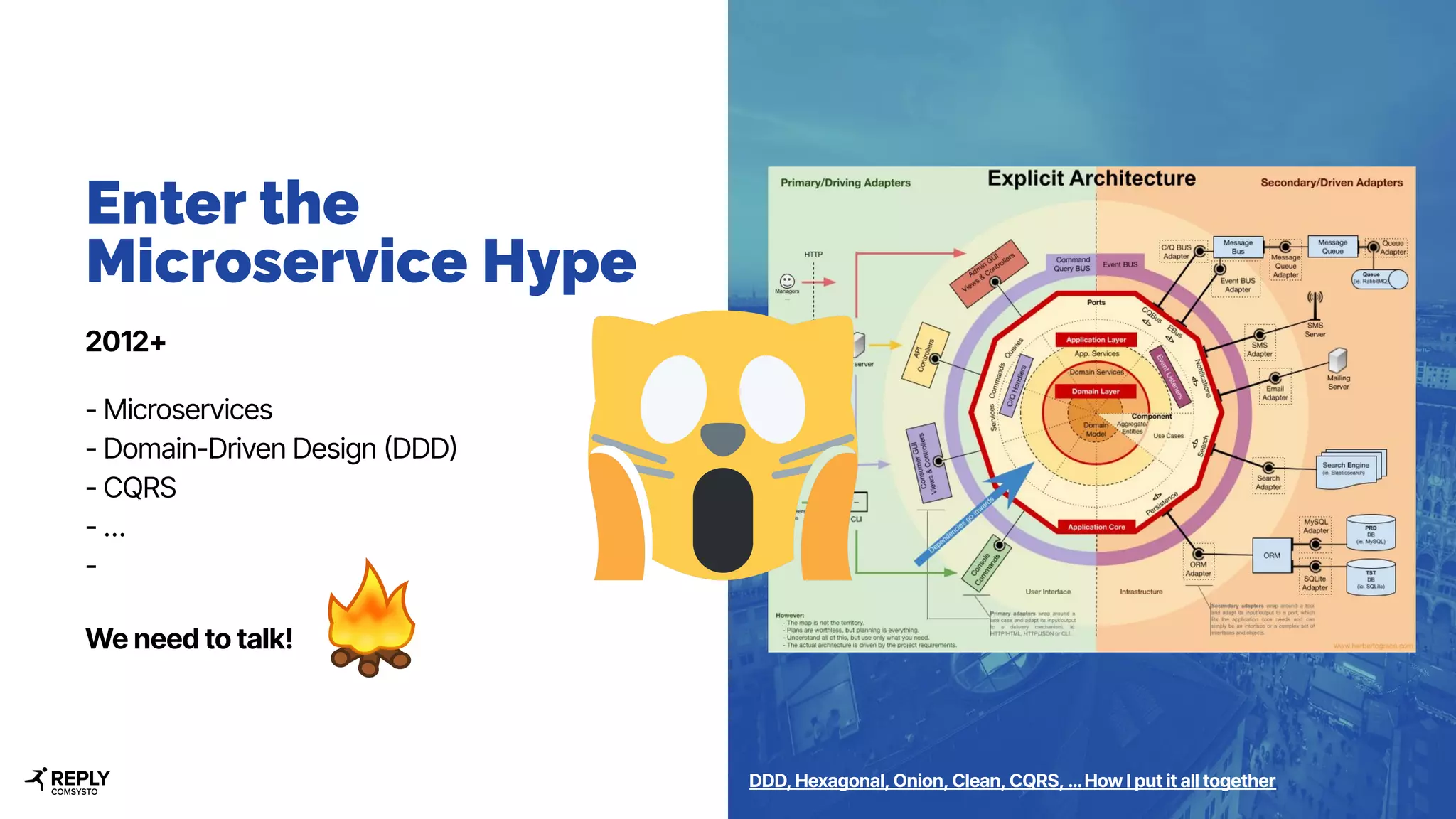

- 7. Enter the Microservice Hype 2012+ -Microservices - Domain-Driven Design (DDD) - CQRS - … - We need to talk! DDD, Hexagonal, Onion, Clean, CQRS, … How I put it all together
- 8. Let’s start withthe essentials …

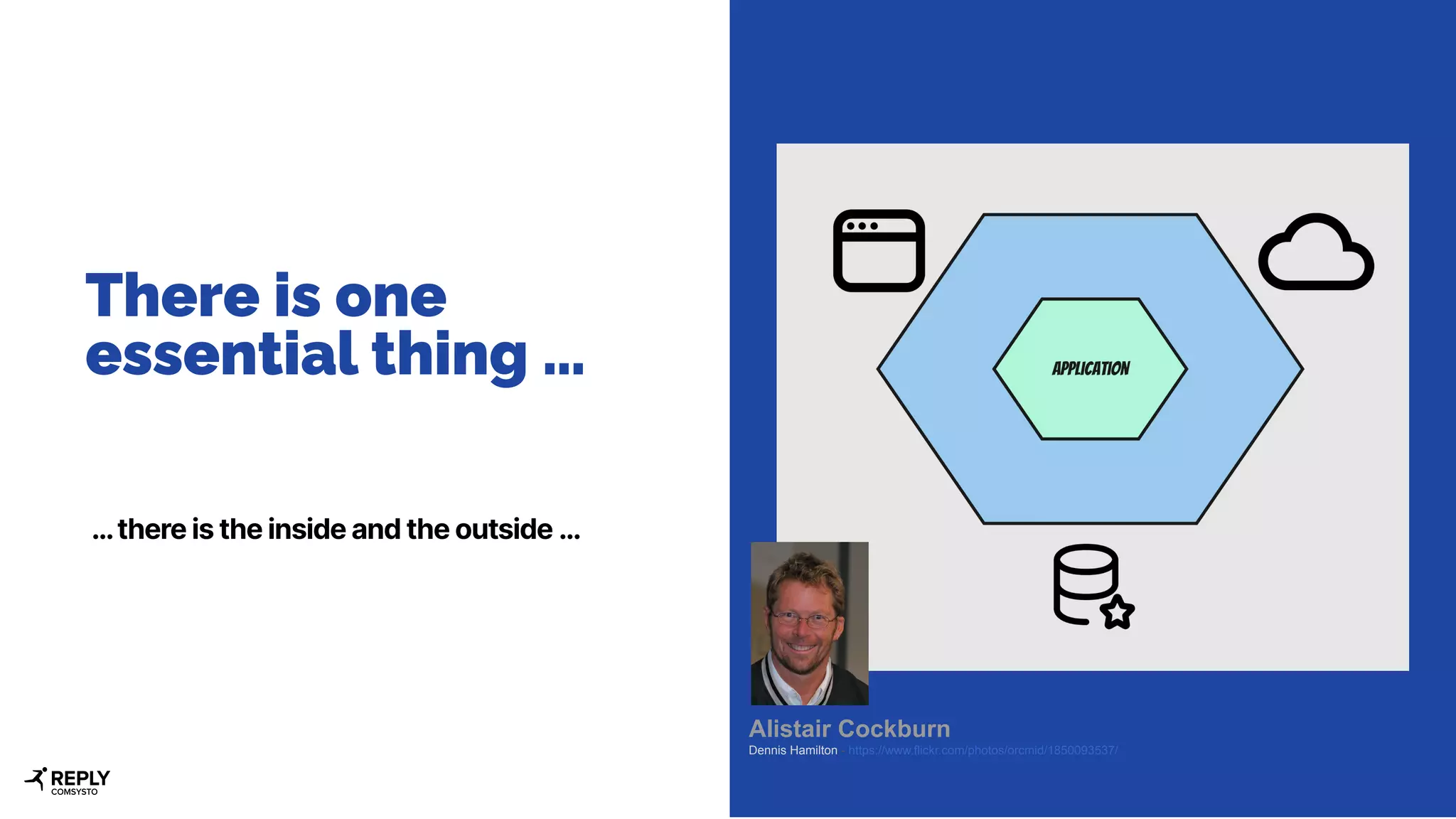

- 9. There is one essentialthing … … there is the inside and the outside … Alistair Cockburn Dennis Hamilton - https://www.flickr.com/photos/orcmid/1850093537/

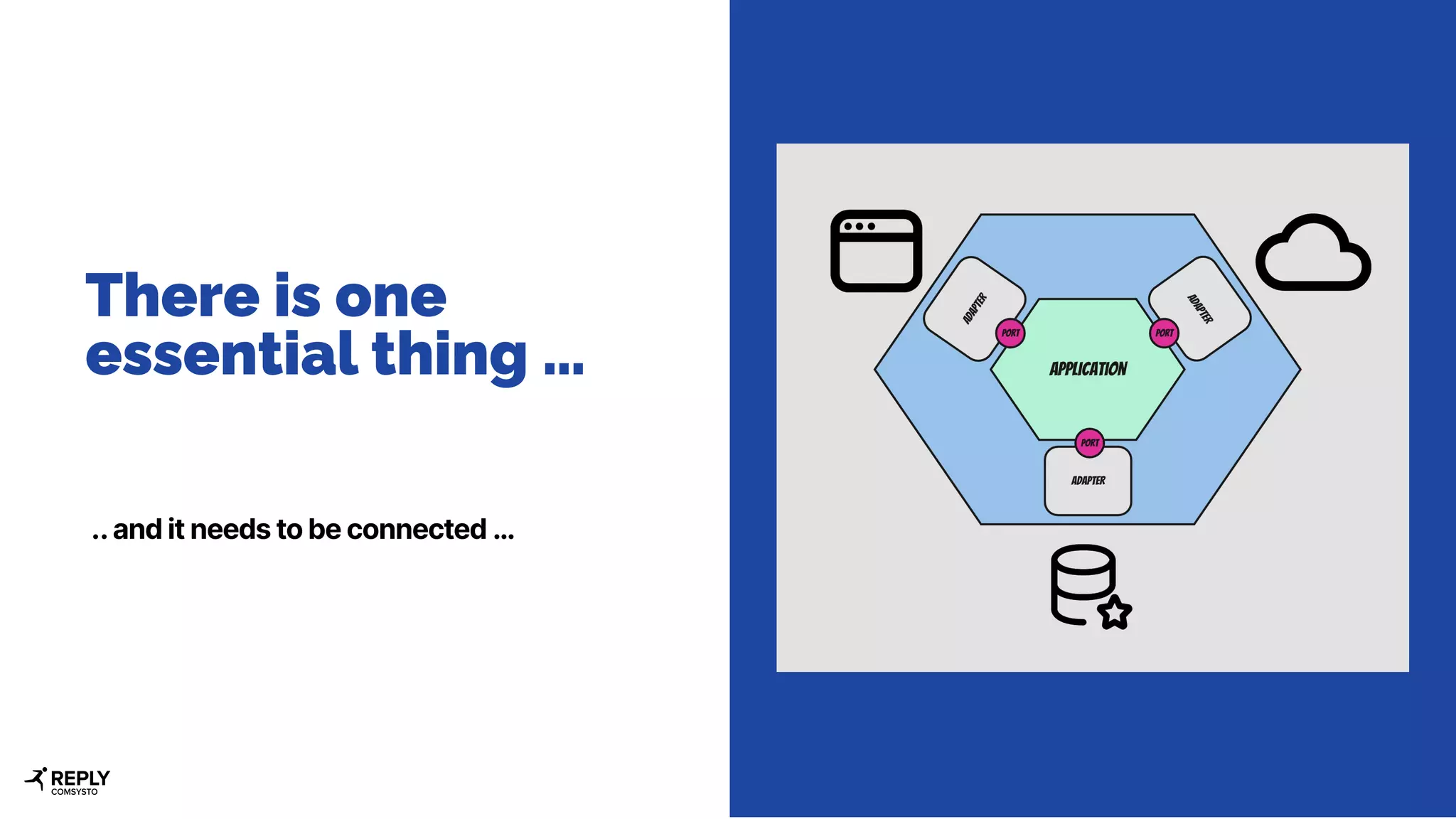

- 10. There is one essentialthing … .. and it needs to be connected …
- 11. Why should Icare?

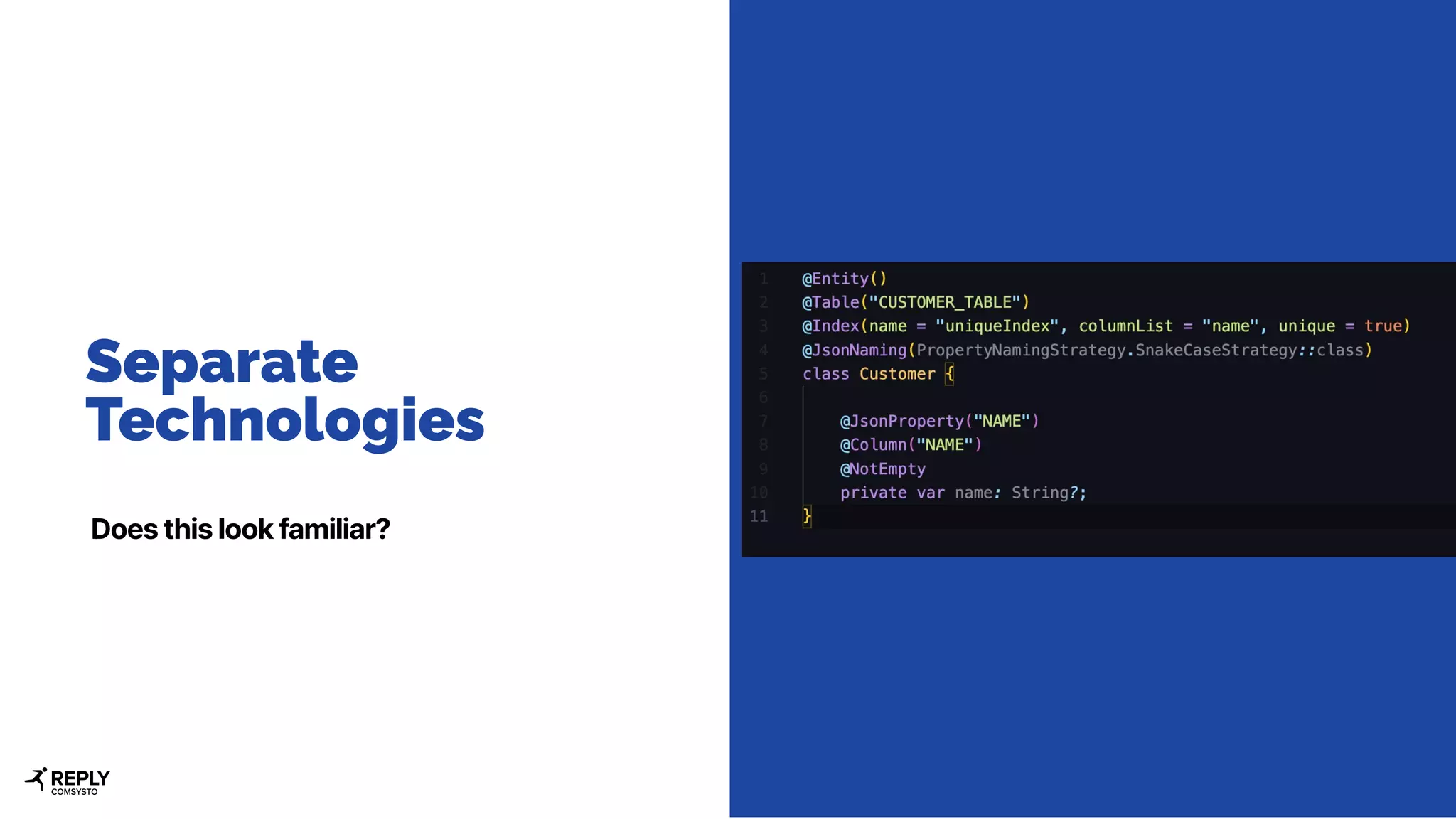

- 12. Separate Technologies Does this lookfamiliar?

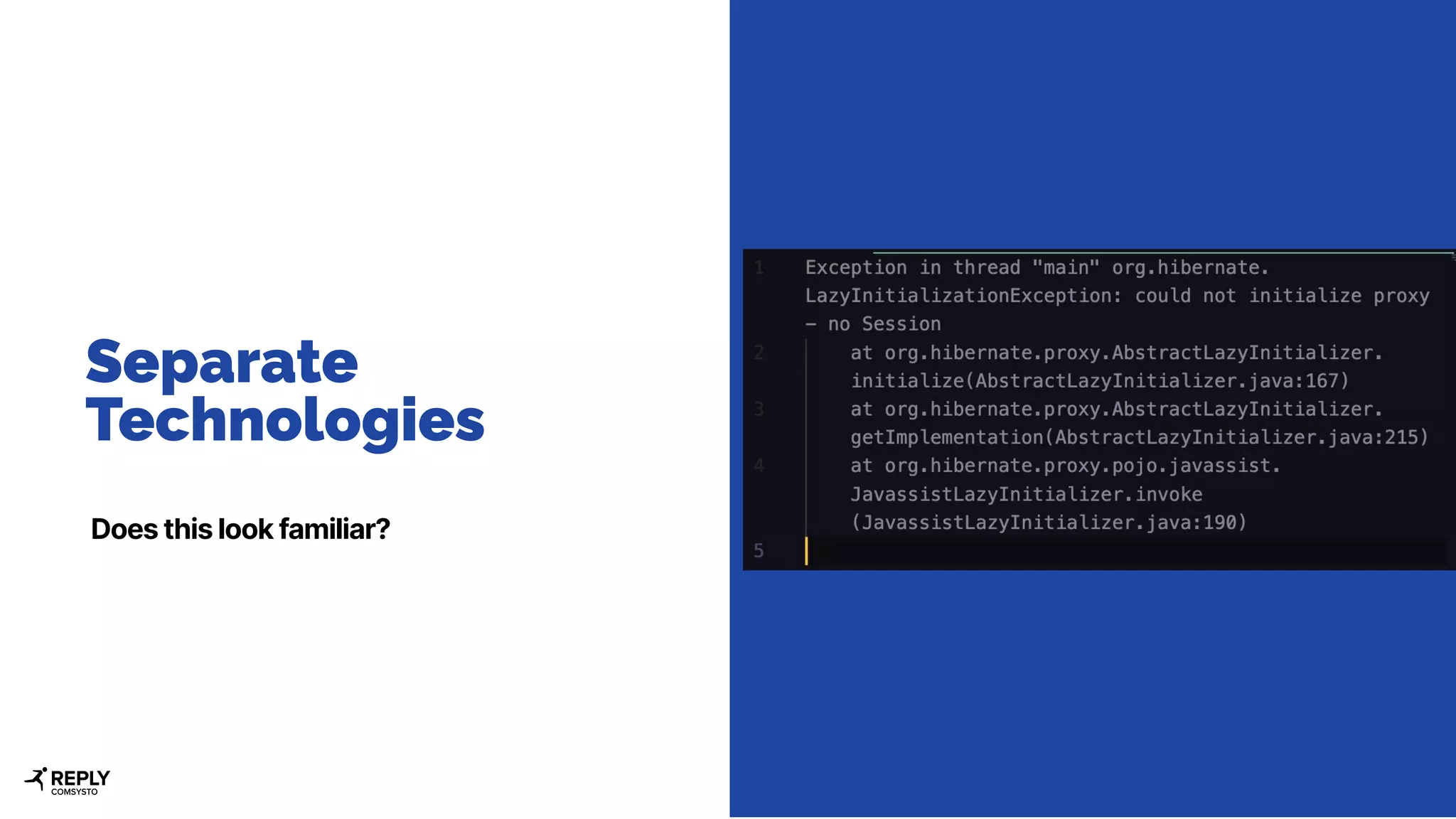

- 13. Does this lookfamiliar? Separate Technologies
- 14.
- 15. Okay, what doI have to do?

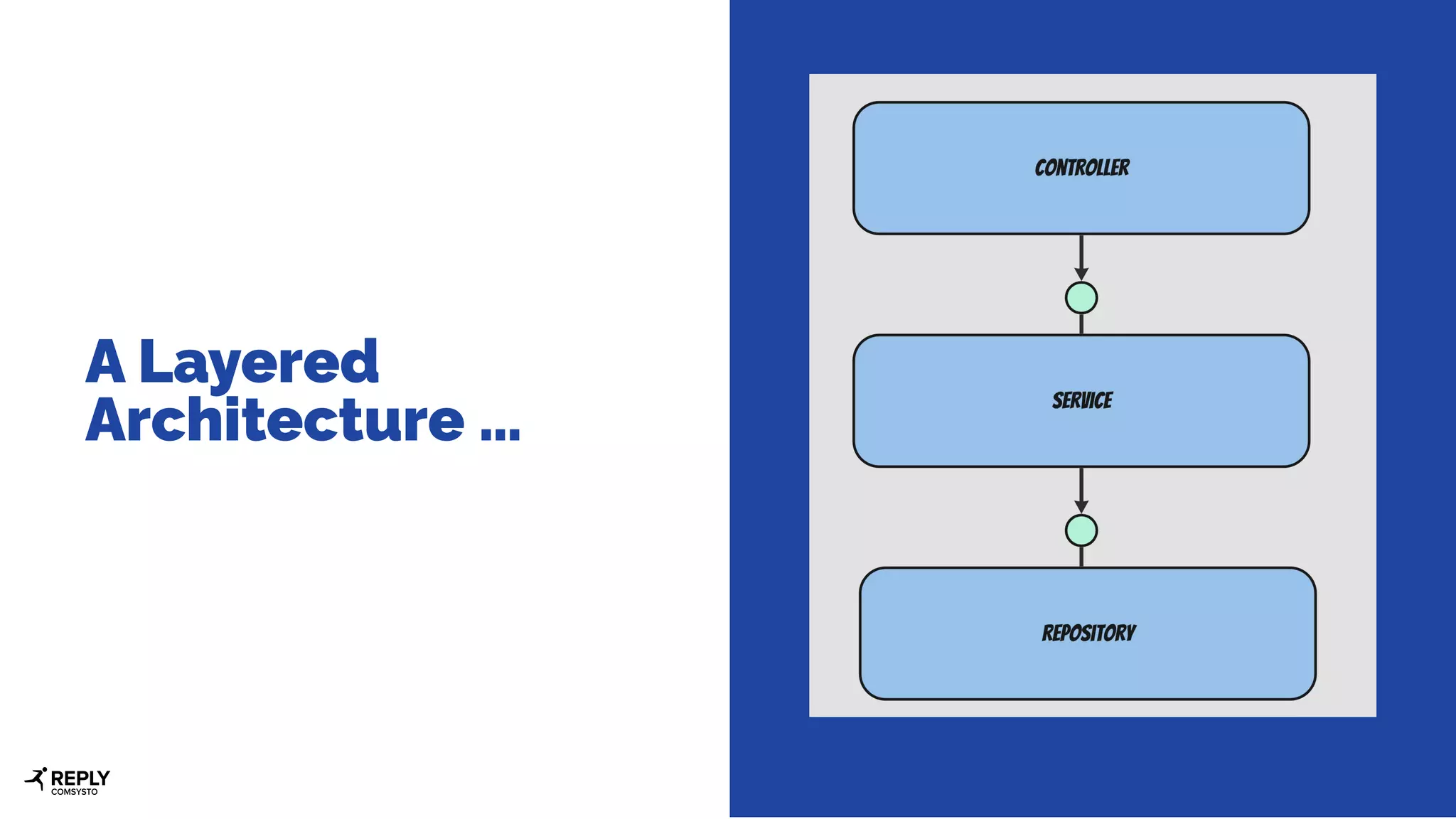

- 16.

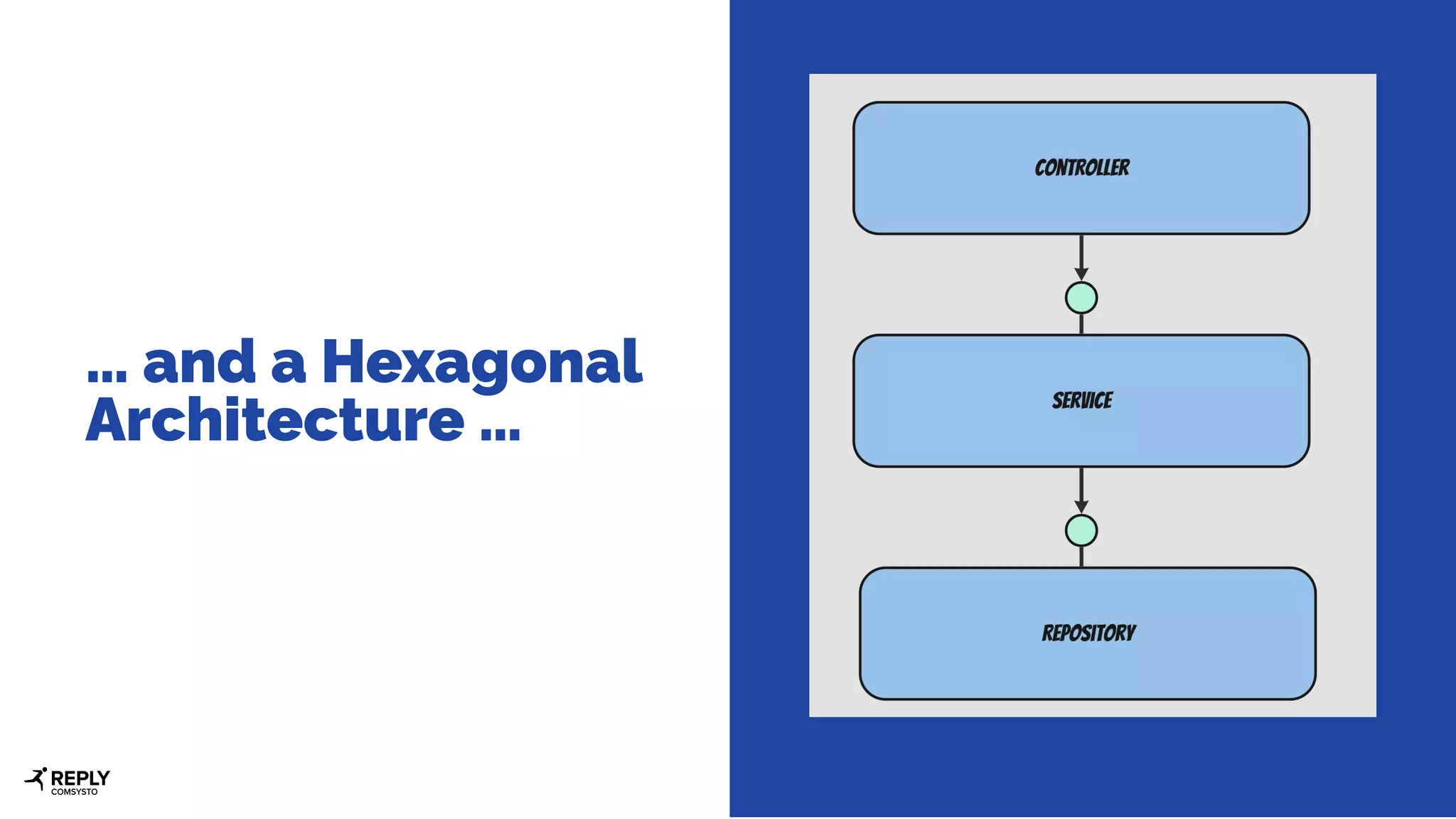

- 17. … and aHexagonal Architecture …

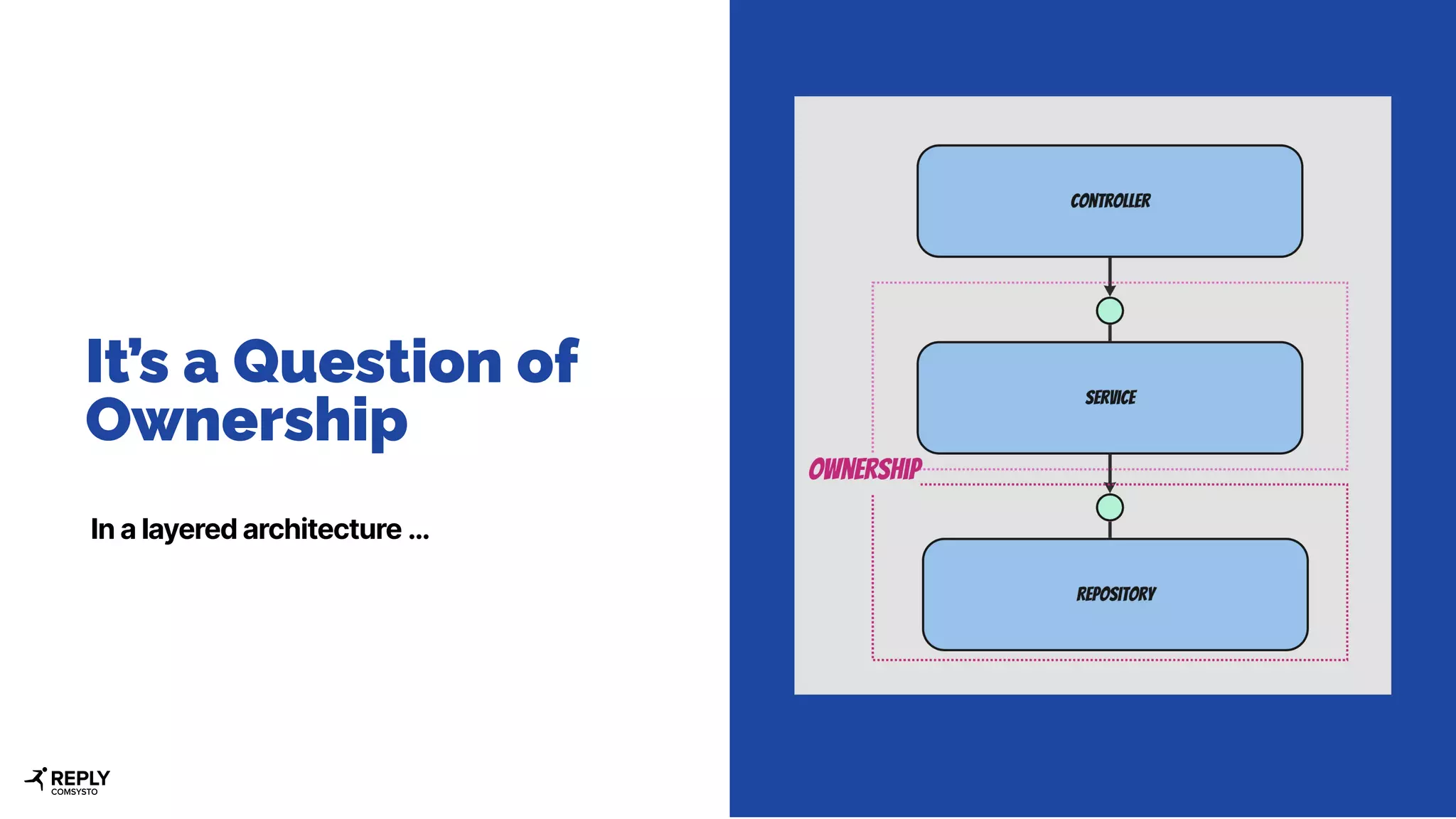

- 18. It’s a Questionof Ownership In a layered architecture …

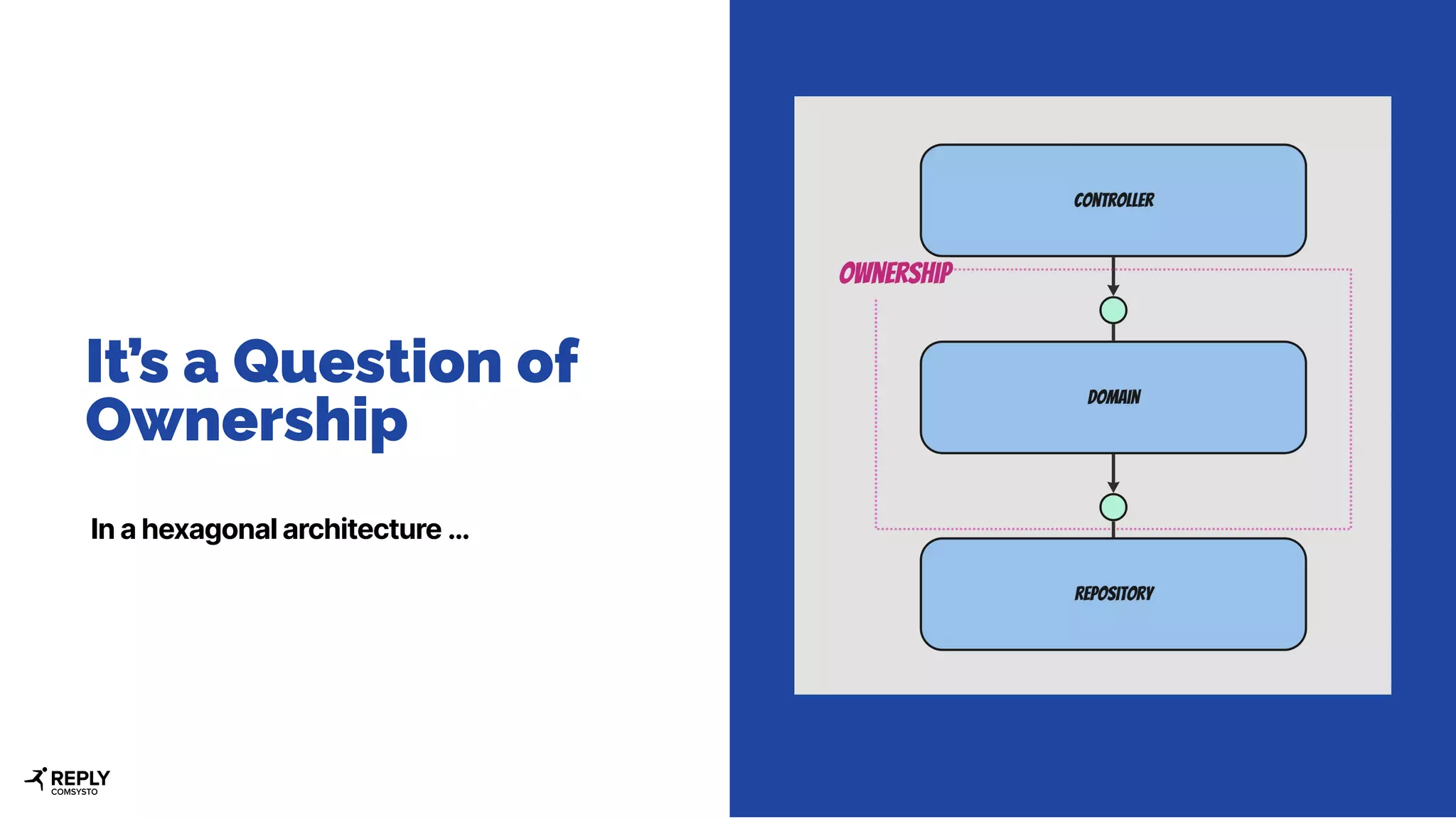

- 19. It’s a Questionof Ownership In a hexagonal architecture …

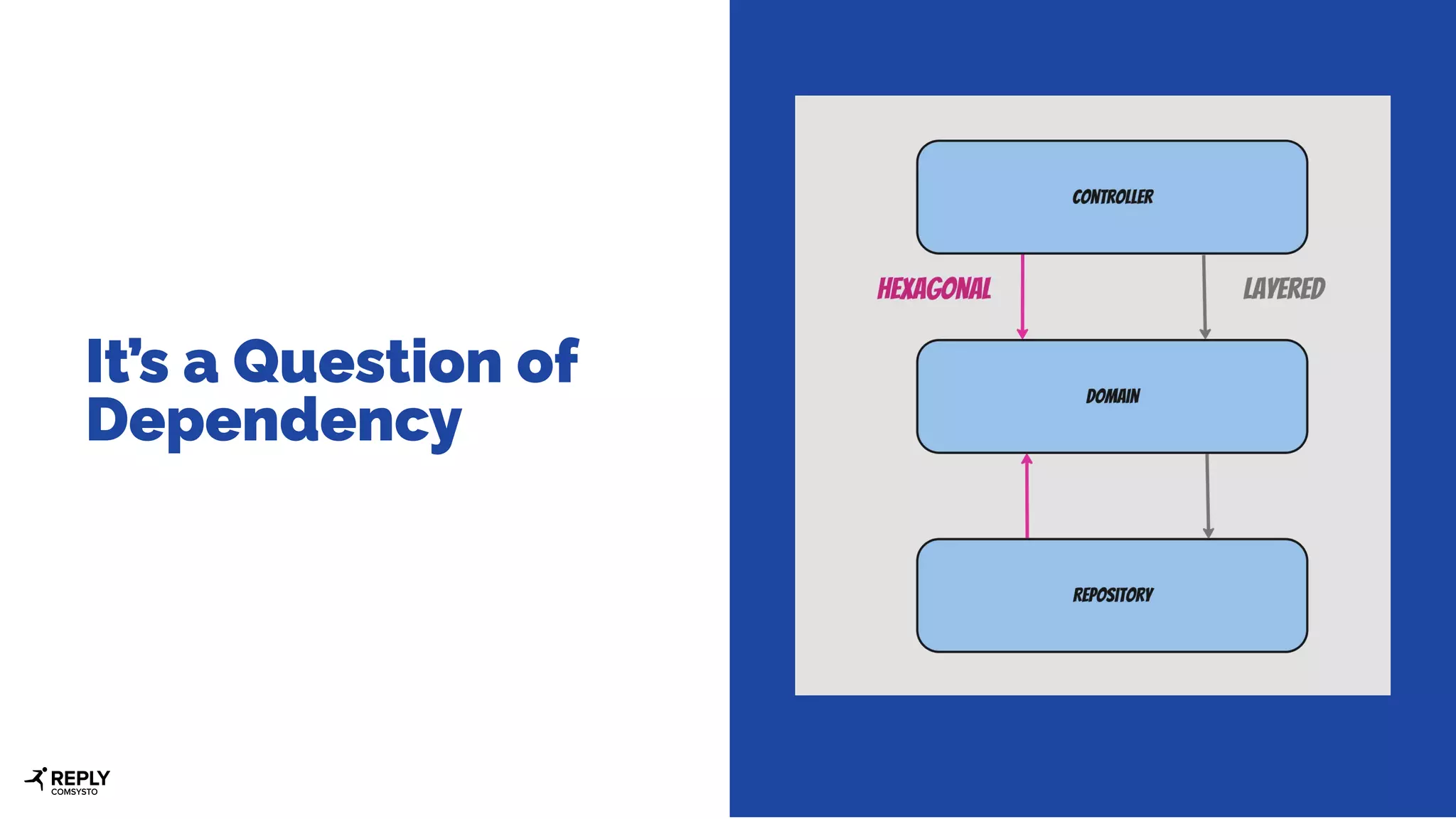

- 20. It’s a Questionof Dependency

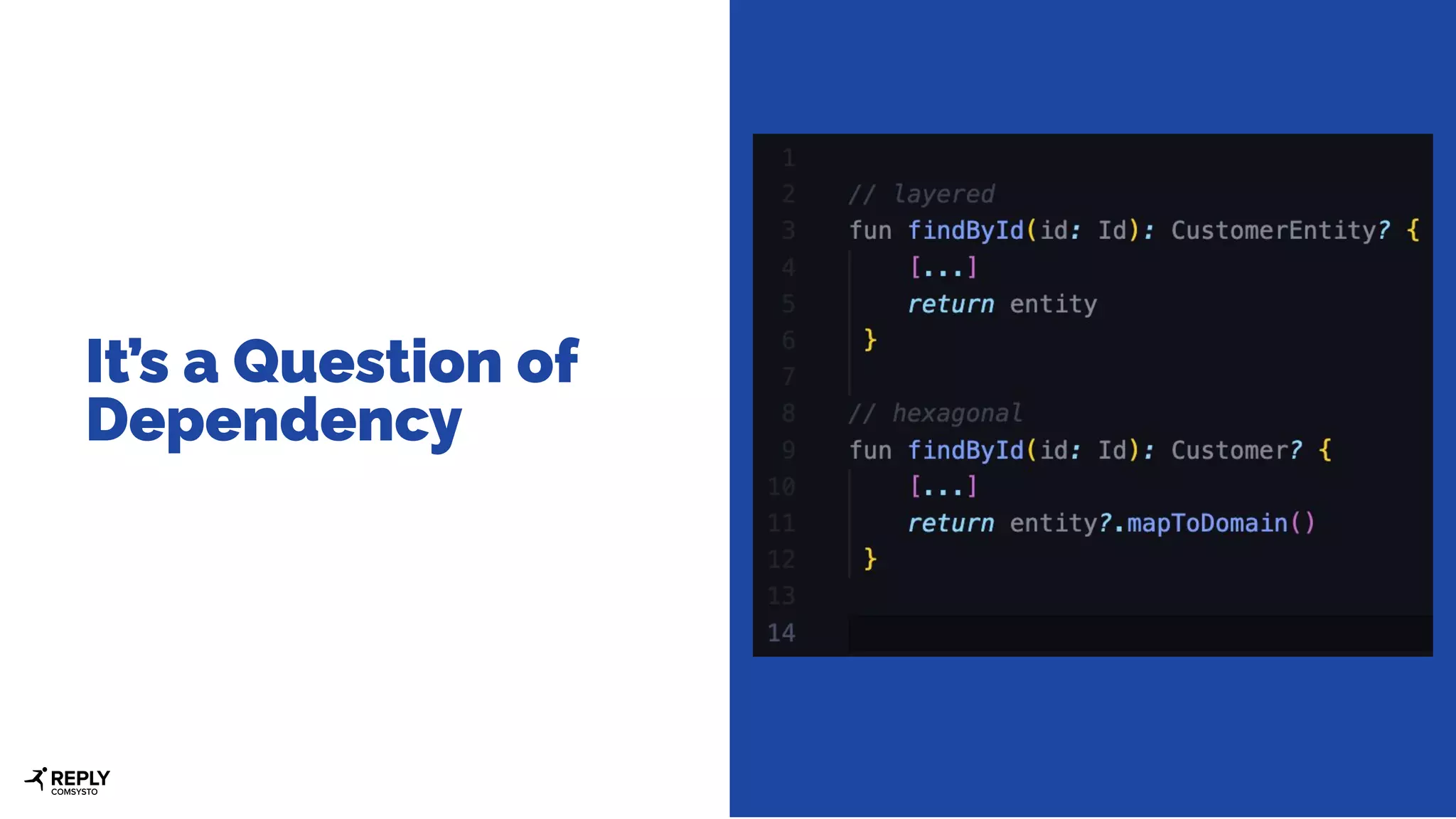

- 21. It’s a Questionof Dependency
- 22.
- 23.
- 24.

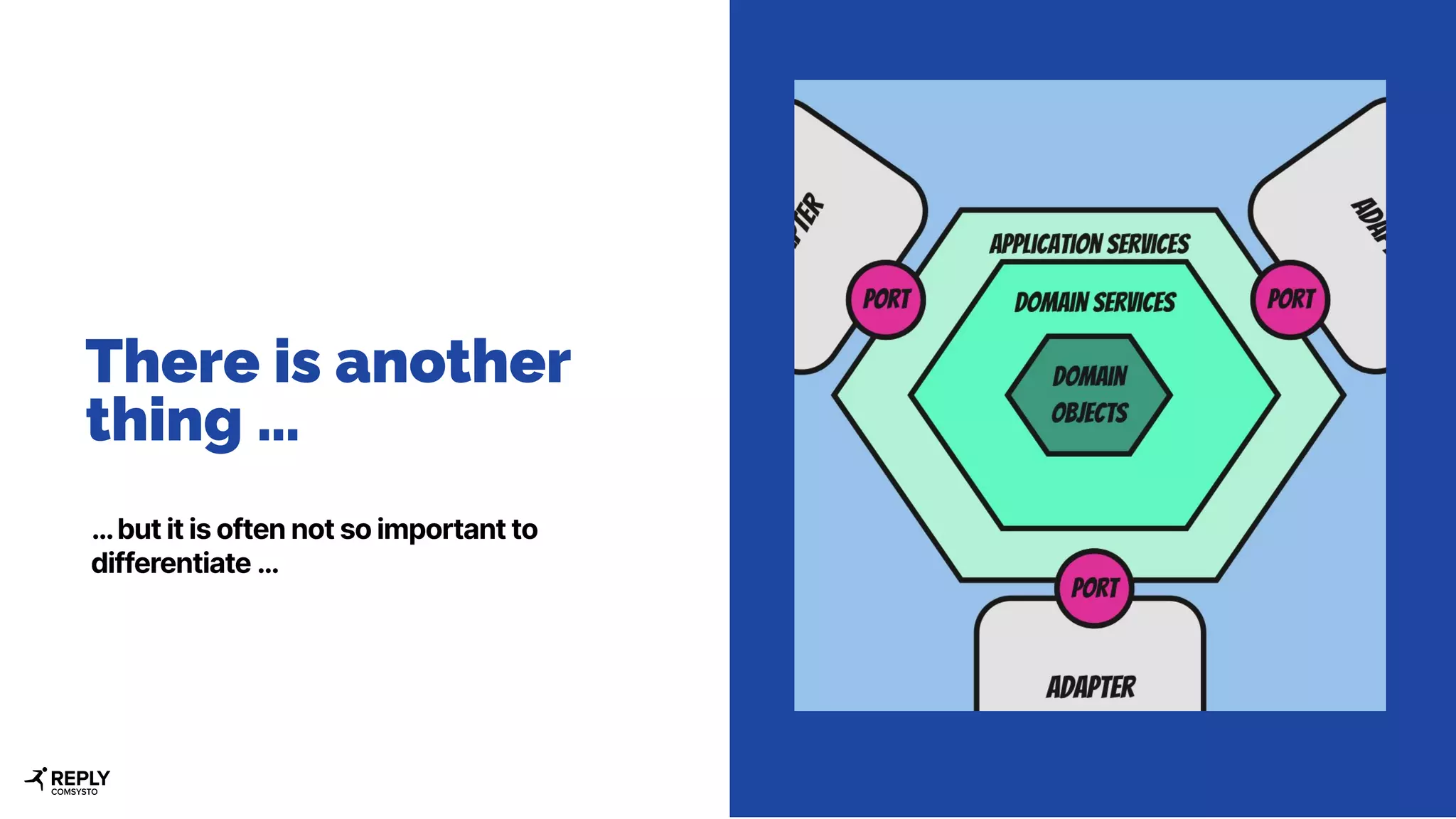

- 25. There is another thing… … but it is often not so important to differentiate …
- 26. Things to noteabout ports …

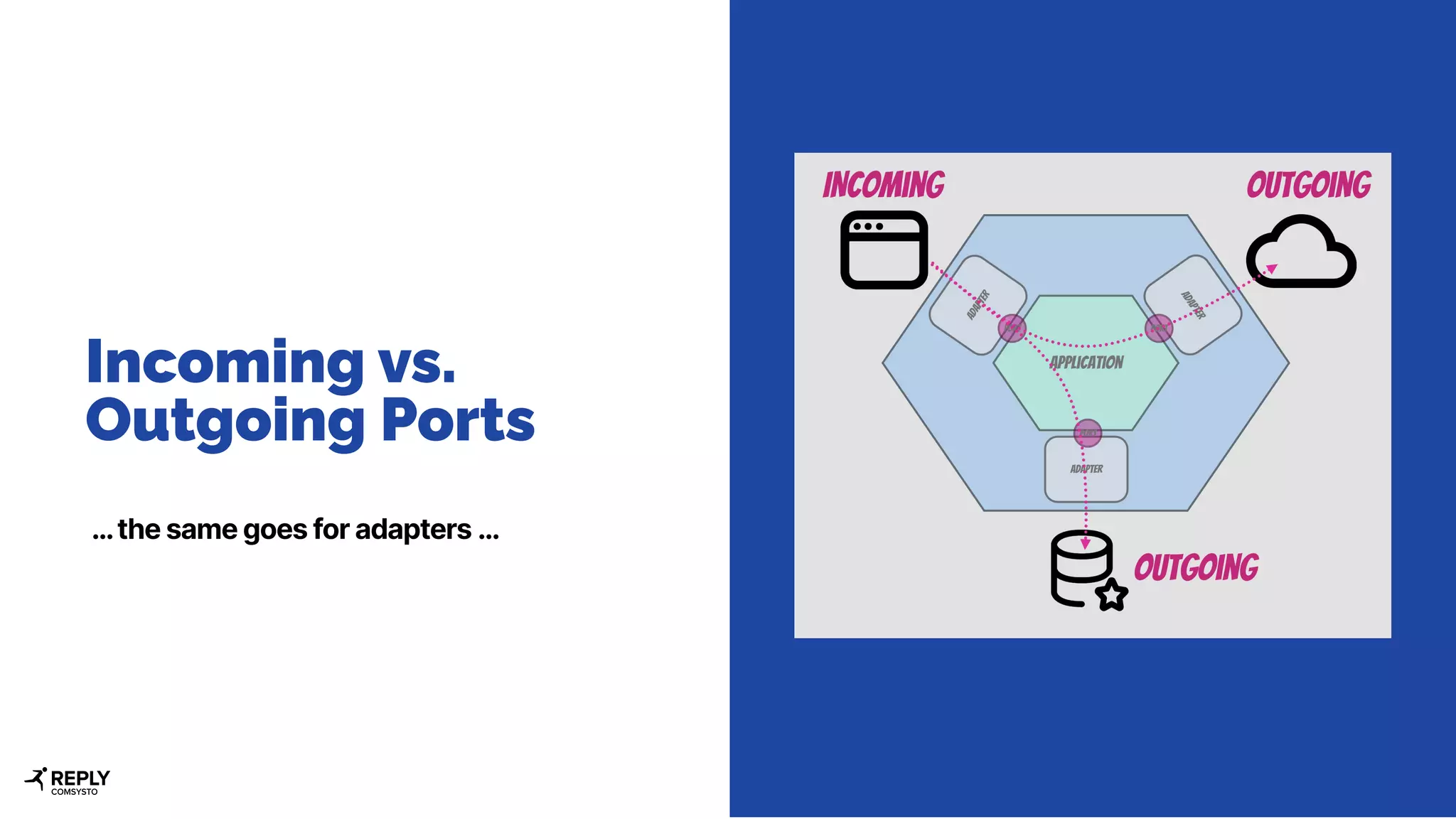

- 27. Incoming vs. Outgoing Ports …the same goes for adapters …
- 28. Incoming Ports … areoften use case centric …

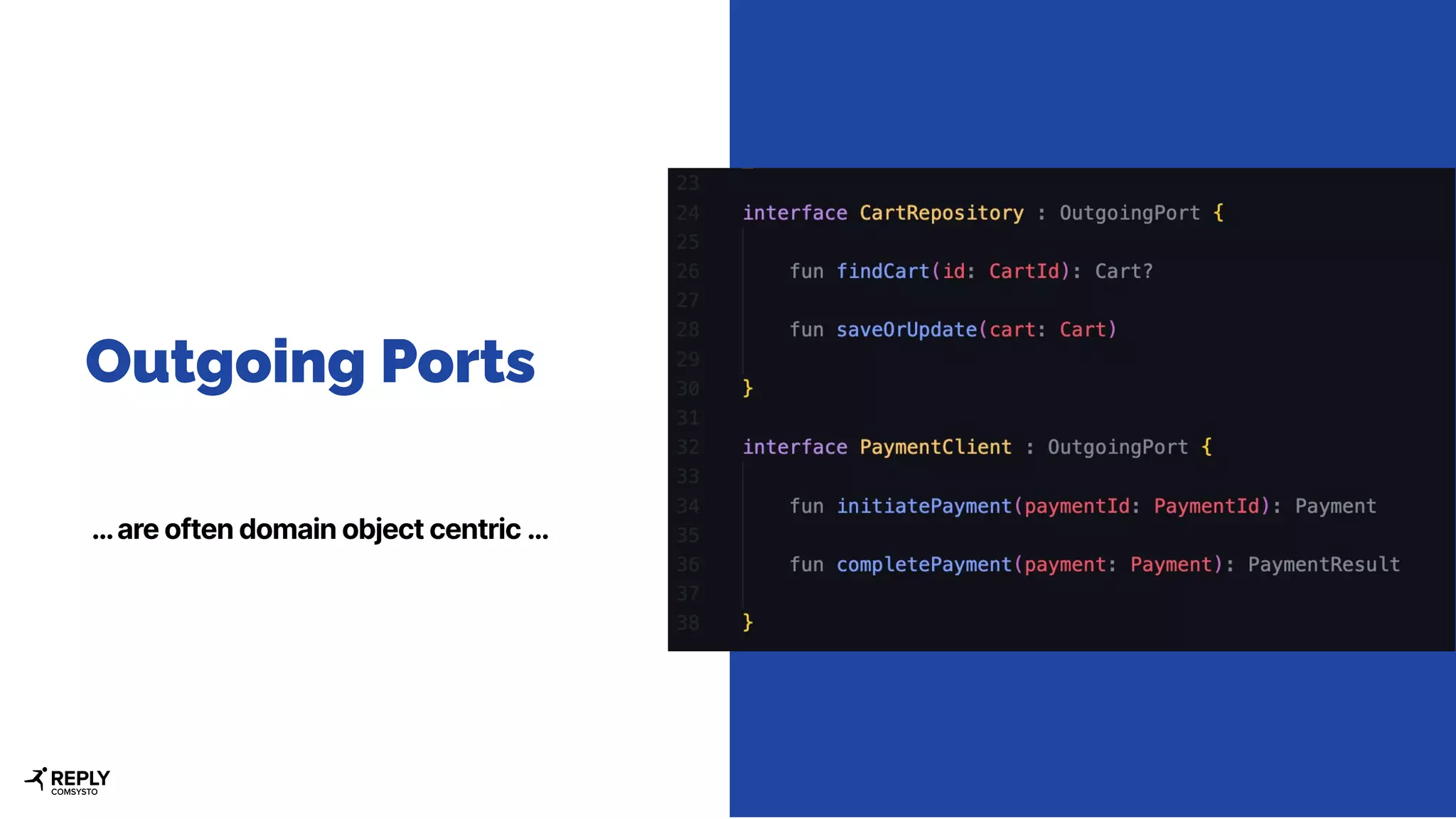

- 29. Outgoing Ports … areoften domain object centric …
- 30. What is mydomain?

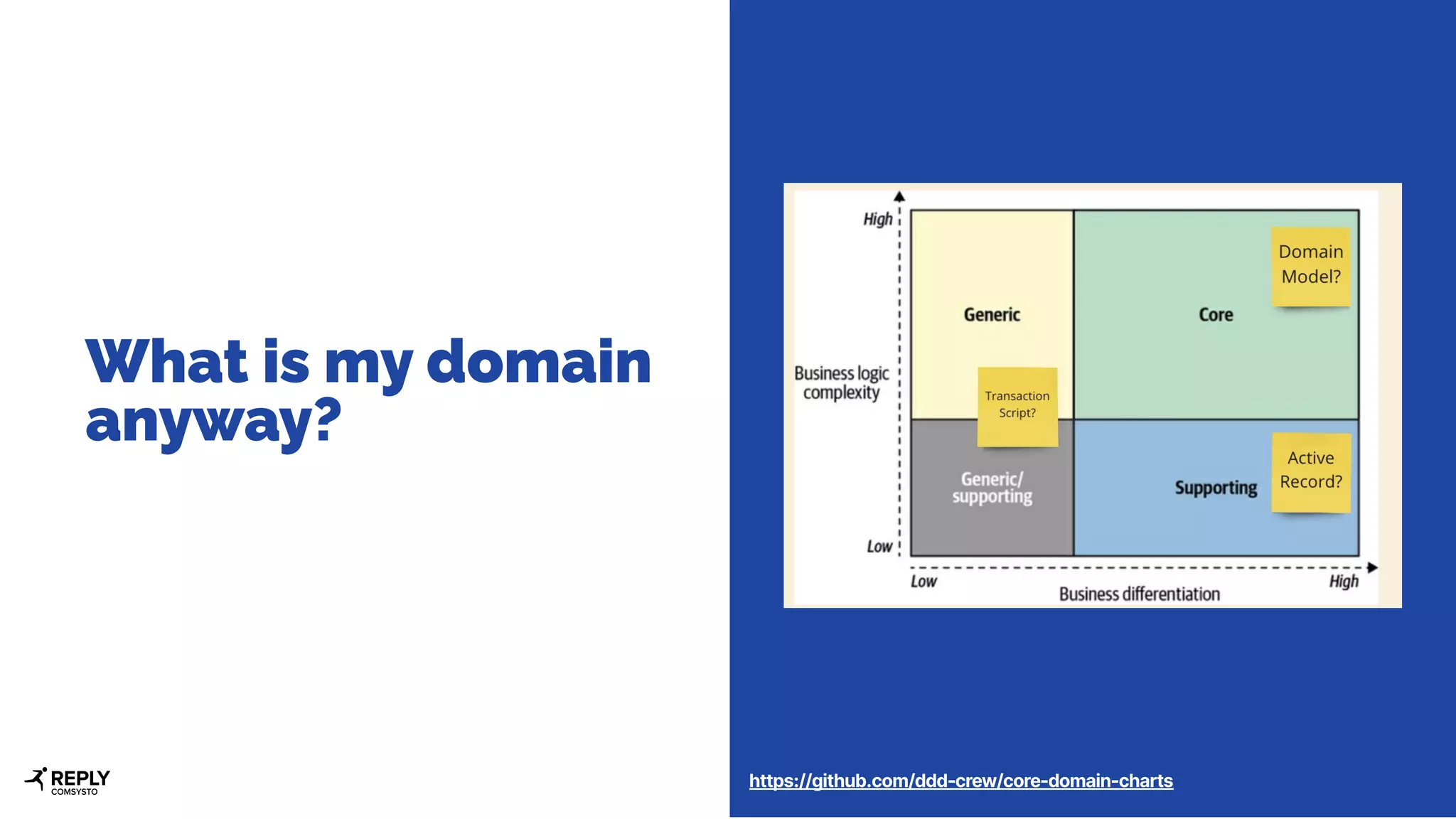

- 31. What is mydomain anyway? https://github.com/ddd-crew/core-domain-charts
- 32.

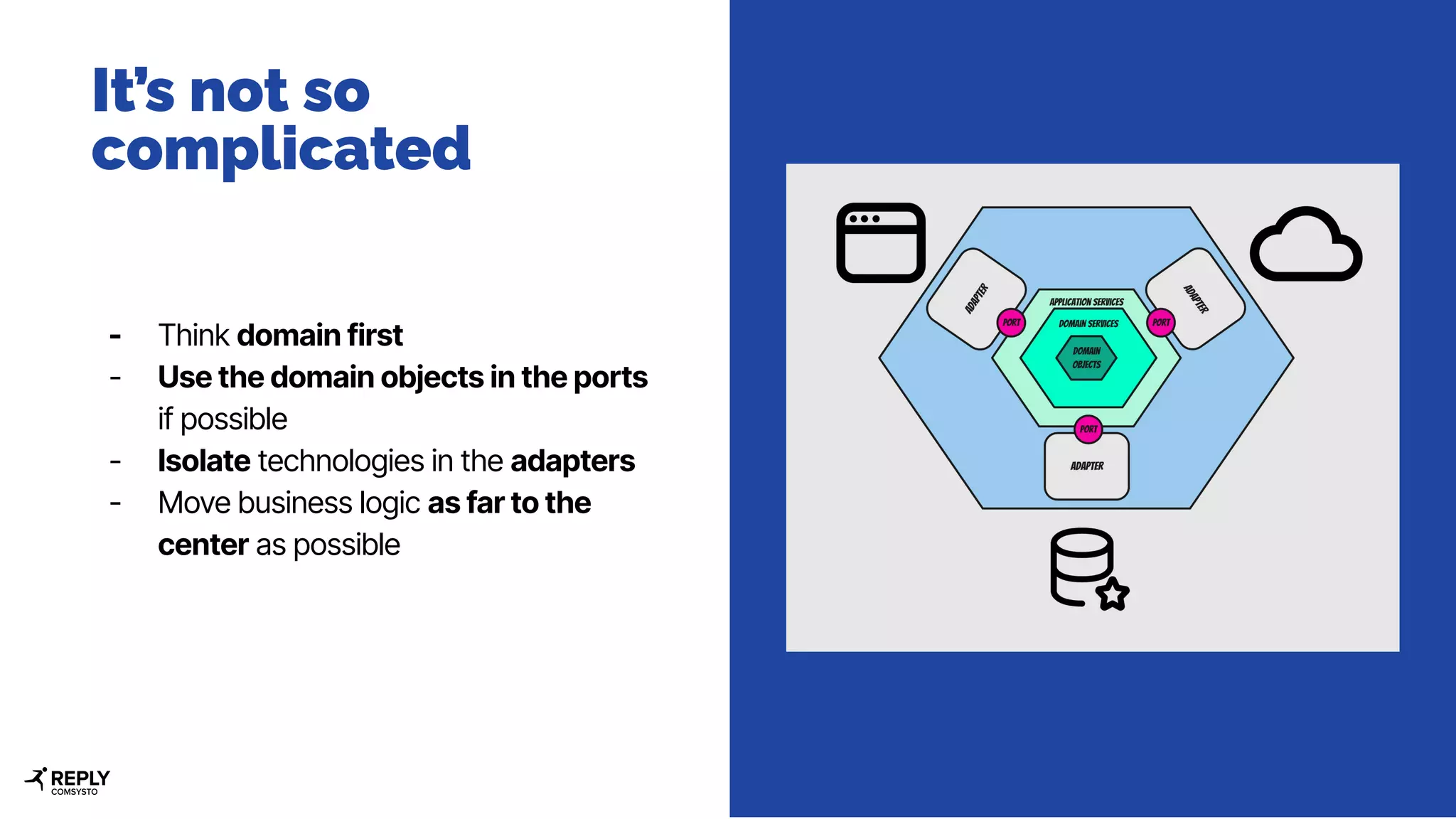

- 33. - Think domainfirst - Use the domain objects in the ports if possible - Isolate technologies in the adapters - Move business logic as far to the center as possible It’s not so complicated

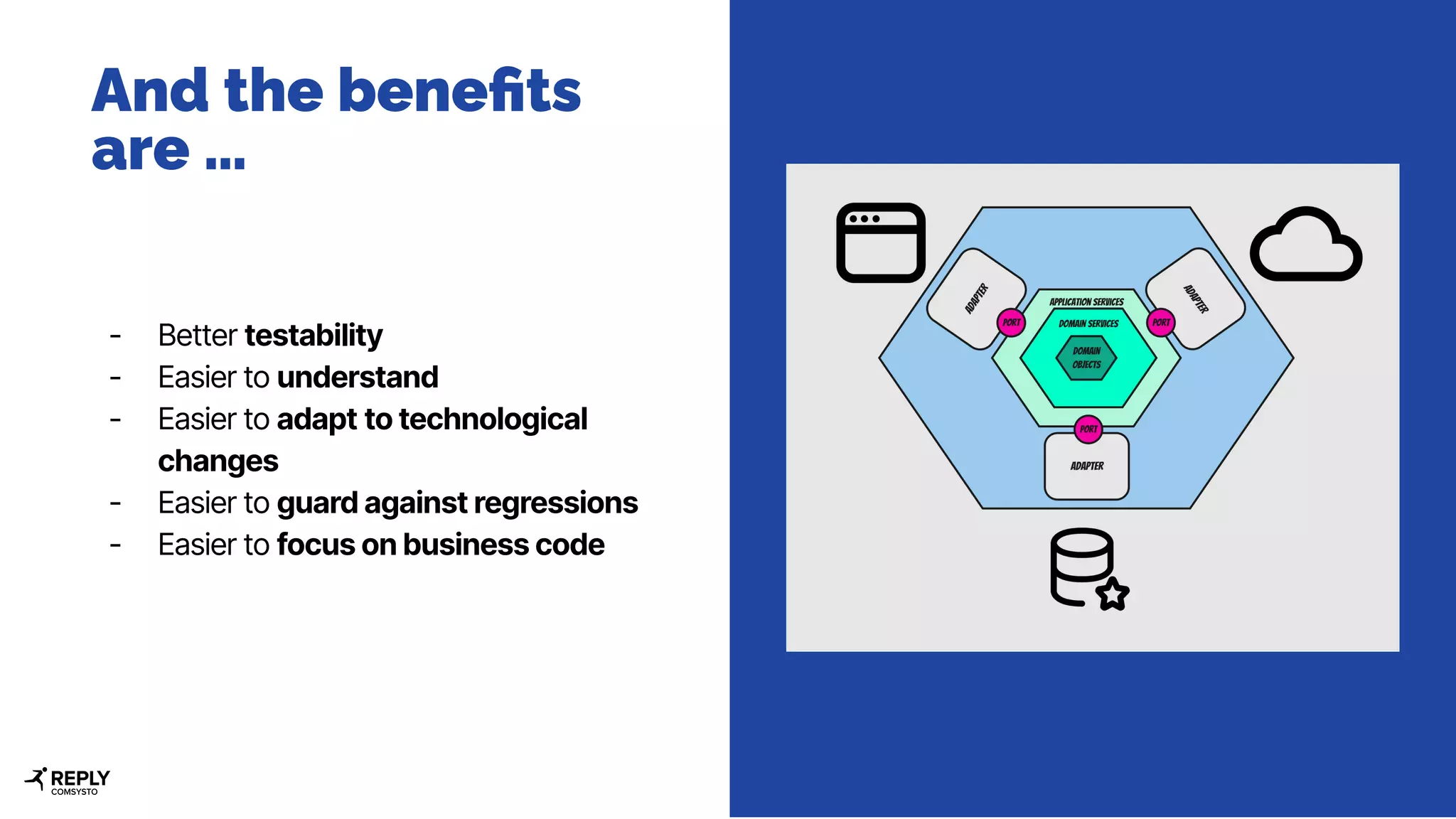

- 34. - Better testability -Easier to understand - Easier to adapt to technological changes - Easier to guard against regressions - Easier to focus on business code And the benefits are …
- 35.
