CS 332: Algorithms Introduction to heapsort

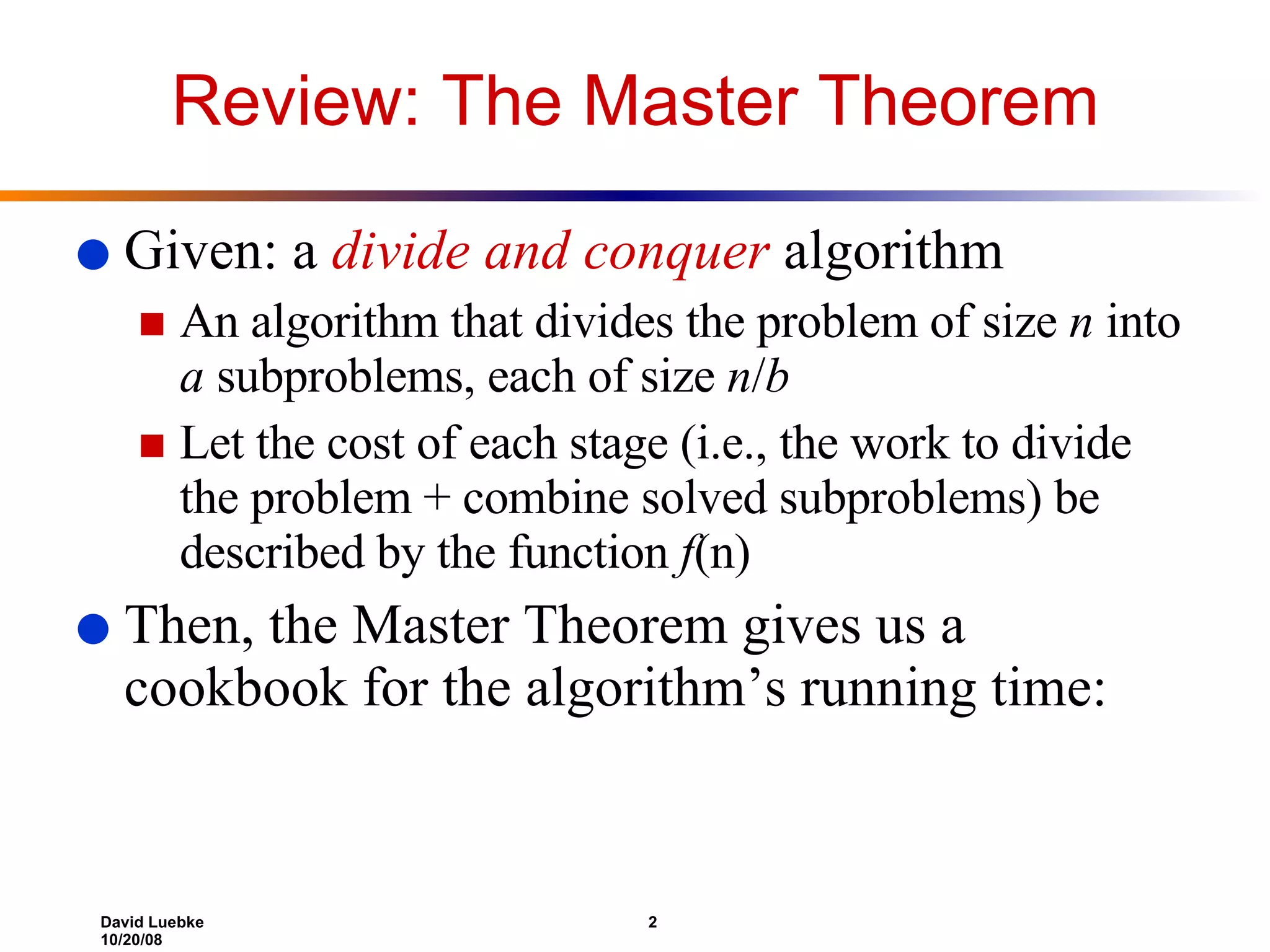

Review: The Master Theorem Given: a divide and conquer algorithm An algorithm that divides the problem of size n into a subproblems, each of size n / b Let the cost of each stage (i.e., the work to divide the problem + combine solved subproblems) be described by the function f (n) Then, the Master Theorem gives us a cookbook for the algorithm’s running time:

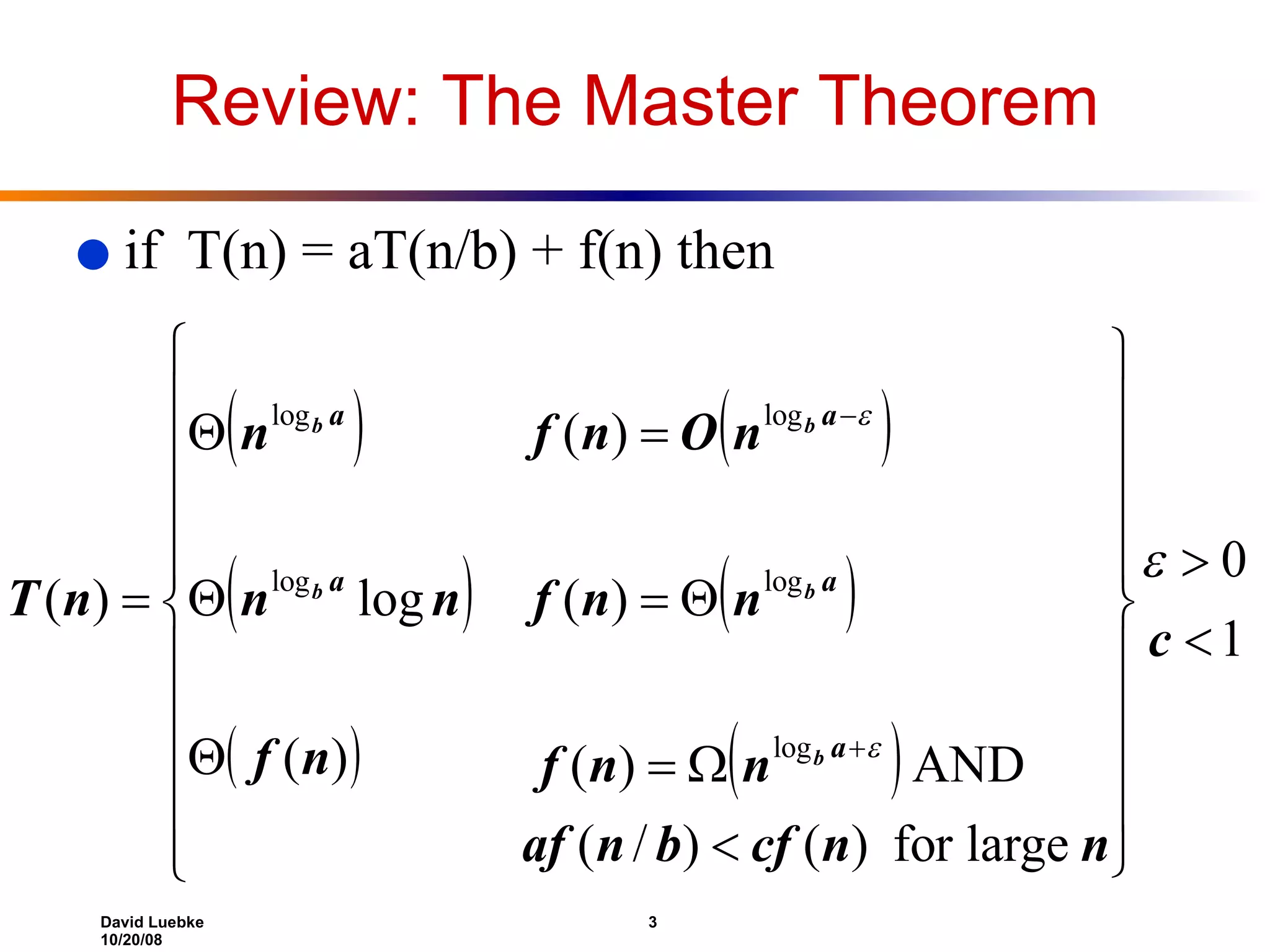

Review: The Master Theorem if T(n) = aT(n/b) + f(n) then

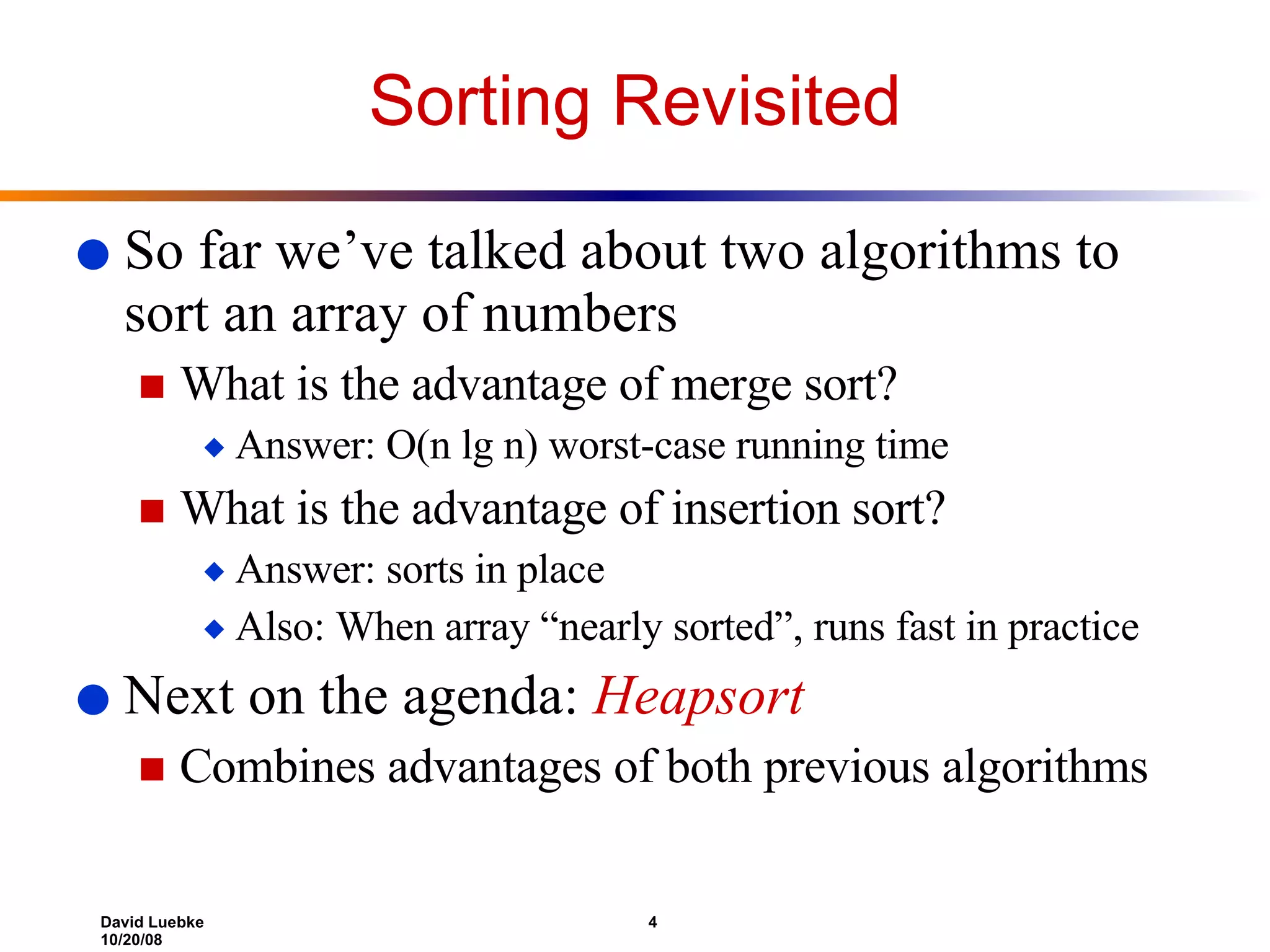

Sorting Revisited So far we’ve talked about two algorithms to sort an array of numbers What is the advantage of merge sort? Answer: O(n lg n) worst-case running time What is the advantage of insertion sort? Answer: sorts in place Also: When array “nearly sorted”, runs fast in practice Next on the agenda: Heapsort Combines advantages of both previous algorithms

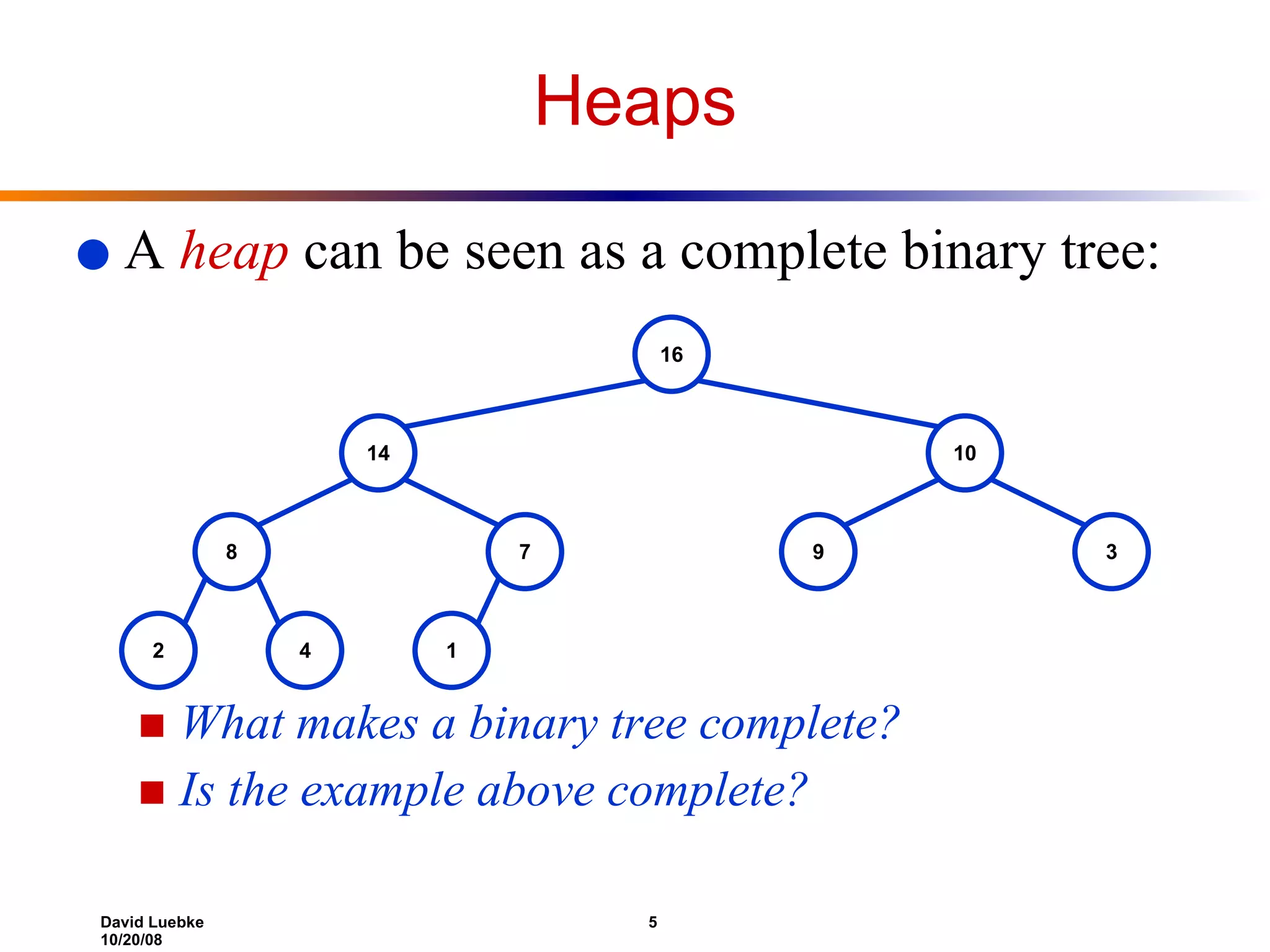

A heap can be seen as a complete binary tree: What makes a binary tree complete? Is the example above complete? Heaps 16 14 10 8 7 9 3 2 4 1

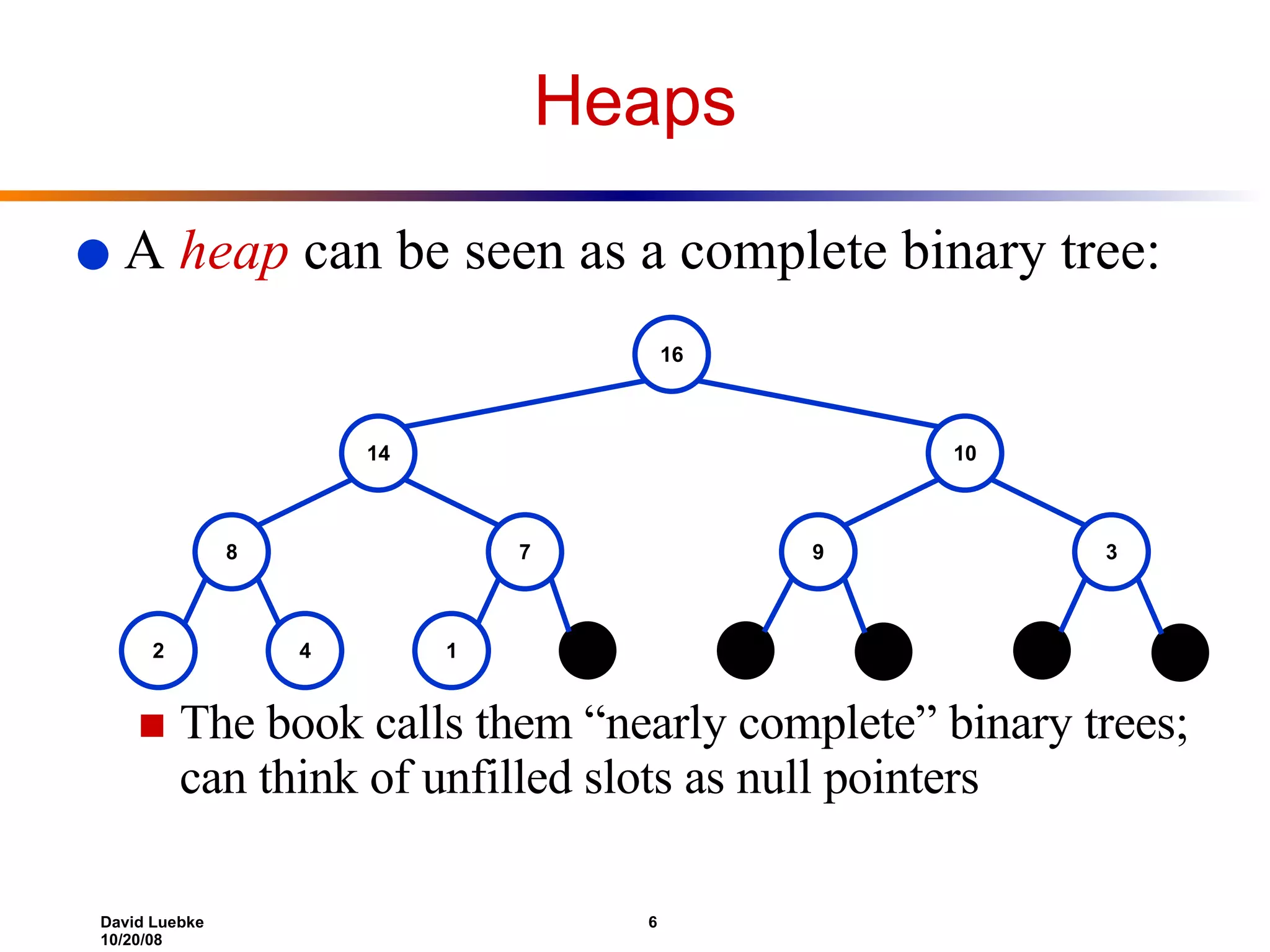

A heap can be seen as a complete binary tree: The book calls them “nearly complete” binary trees; can think of unfilled slots as null pointers Heaps 16 14 10 8 7 9 3 2 4 1 1 1 1 1 1

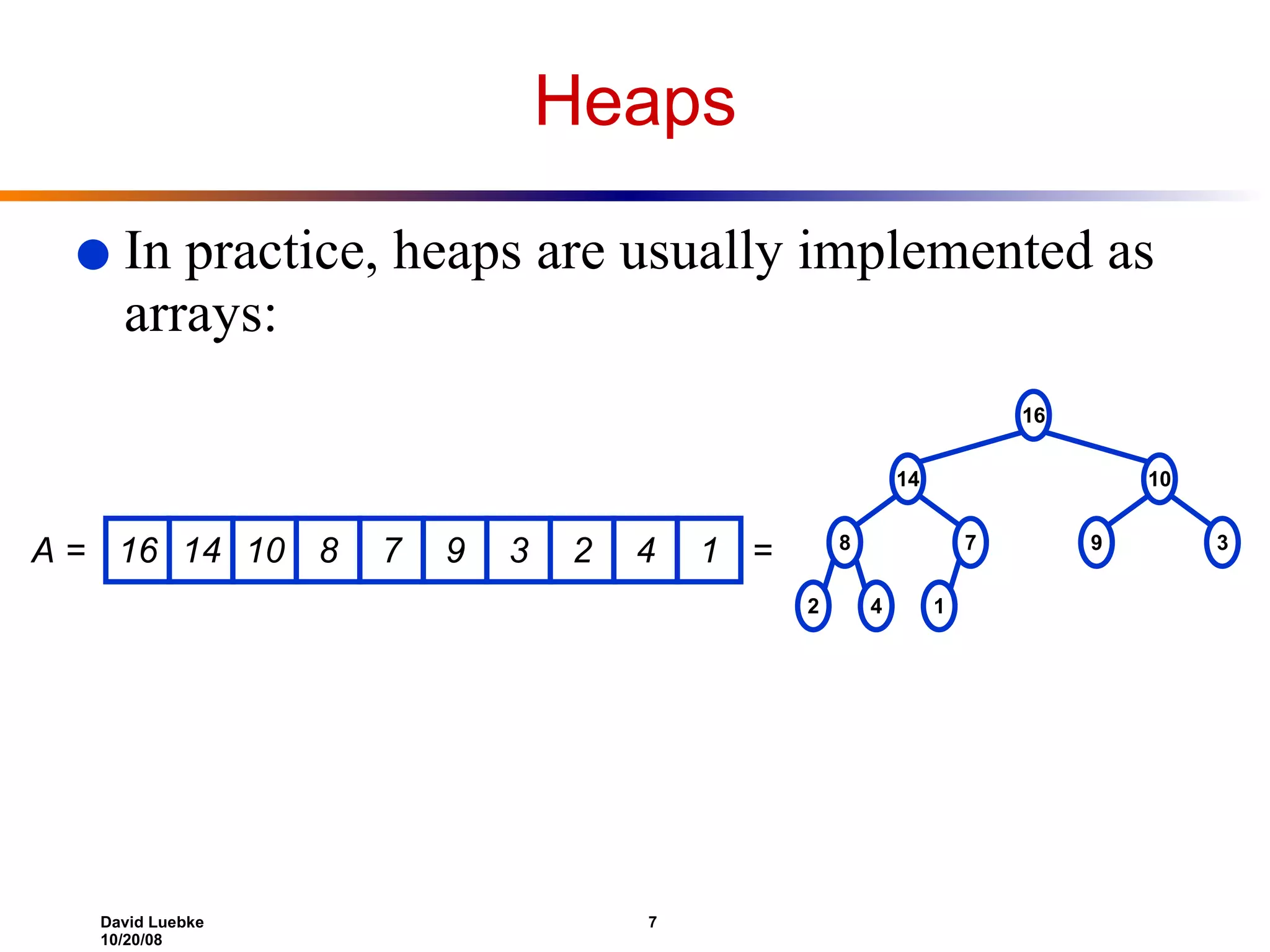

Heaps In practice, heaps are usually implemented as arrays: 16 14 10 8 7 9 3 2 4 1 A = = 16 14 10 8 7 9 3 2 4 1

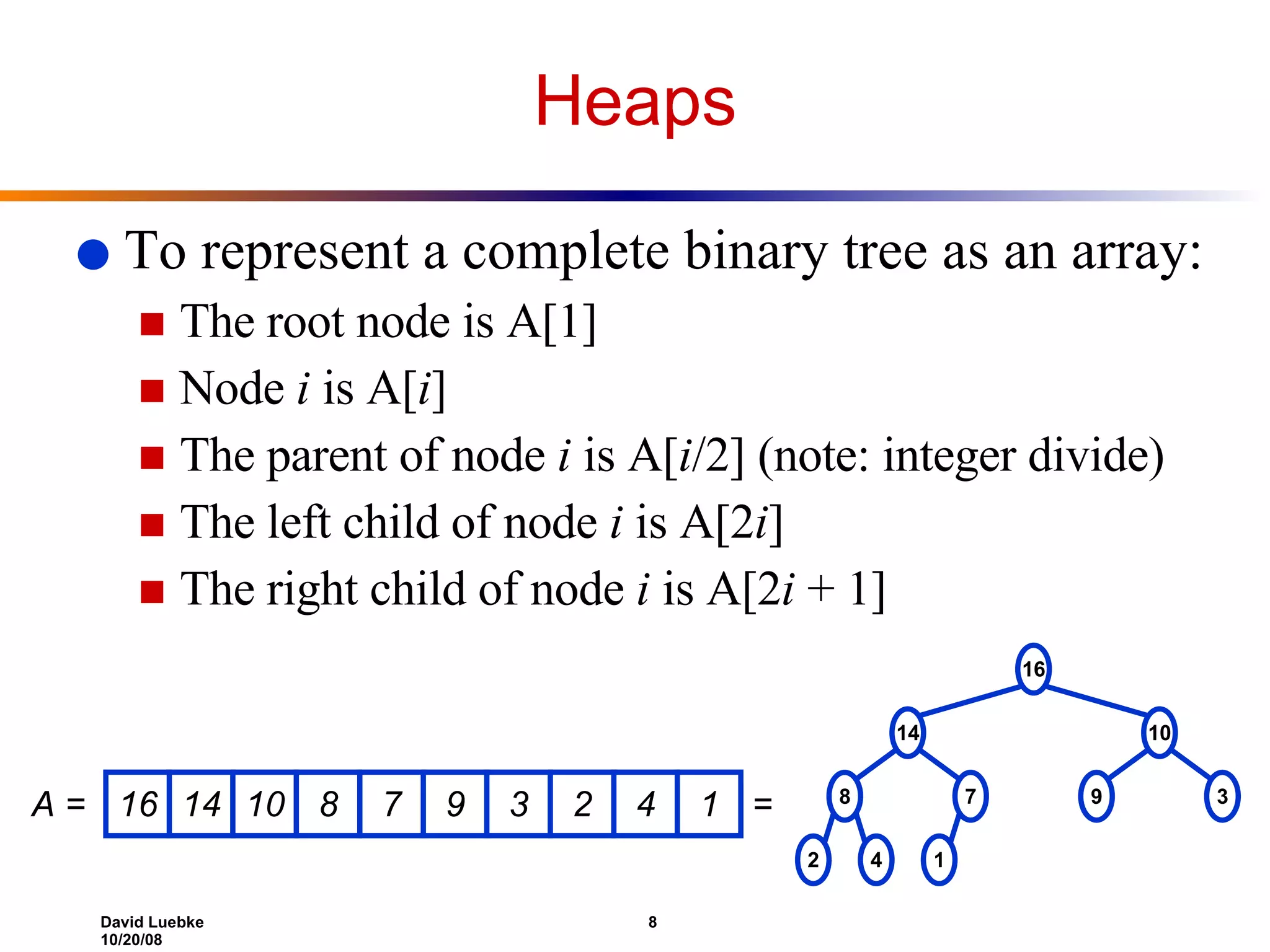

Heaps To represent a complete binary tree as an array: The root node is A[1] Node i is A[ i ] The parent of node i is A[ i /2] (note: integer divide) The left child of node i is A[2 i ] The right child of node i is A[2 i + 1] 16 14 10 8 7 9 3 2 4 1 A = = 16 14 10 8 7 9 3 2 4 1

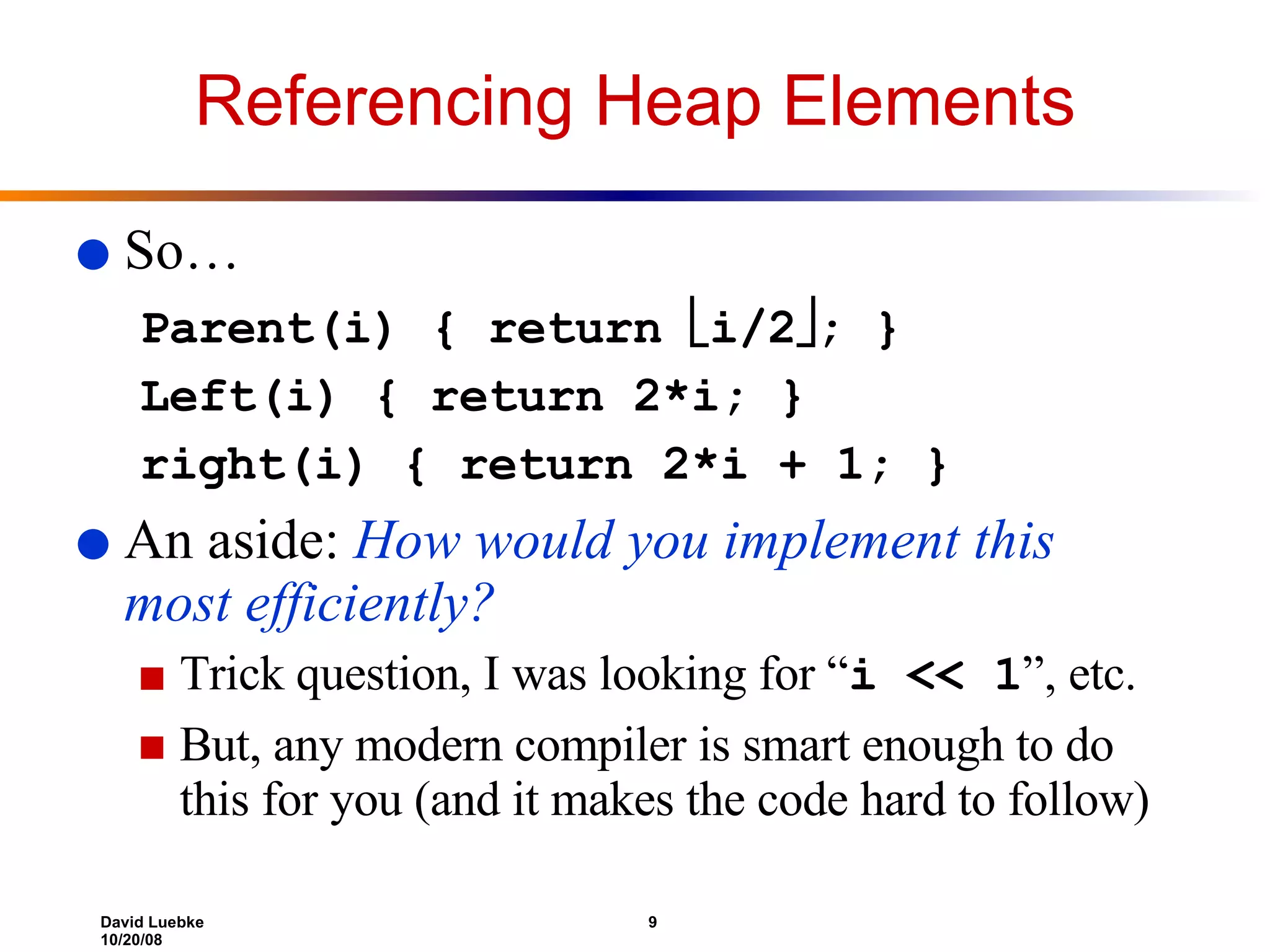

Referencing Heap Elements So… Parent(i) { return  i/2  ; } Left(i) { return 2*i; } right(i) { return 2*i + 1; } An aside: How would you implement this most efficiently? Trick question, I was looking for “ i << 1 ”, etc. But, any modern compiler is smart enough to do this for you (and it makes the code hard to follow)

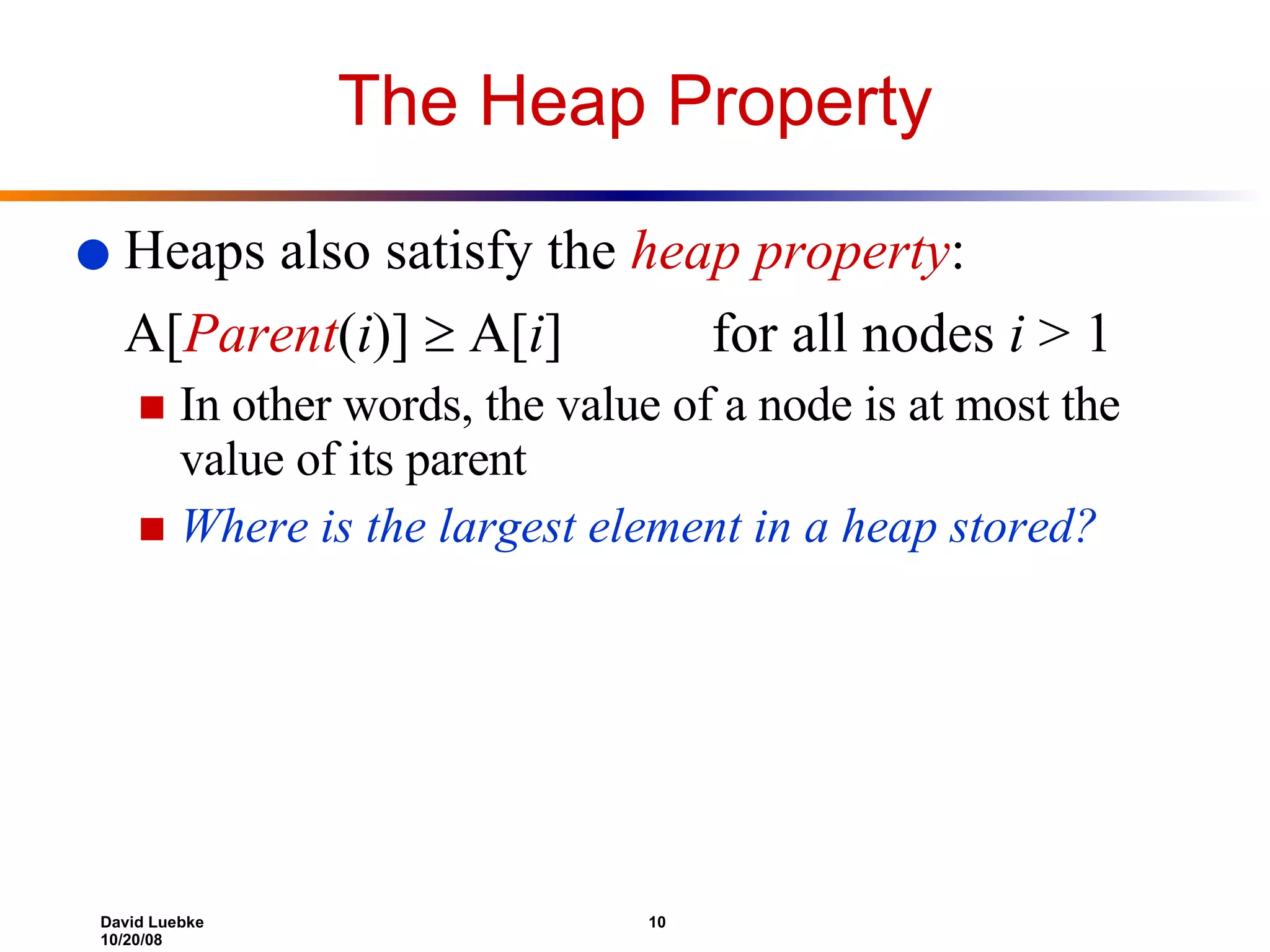

The Heap Property Heaps also satisfy the heap property : A[ Parent ( i )]  A[ i ] for all nodes i > 1 In other words, the value of a node is at most the value of its parent Where is the largest element in a heap stored?

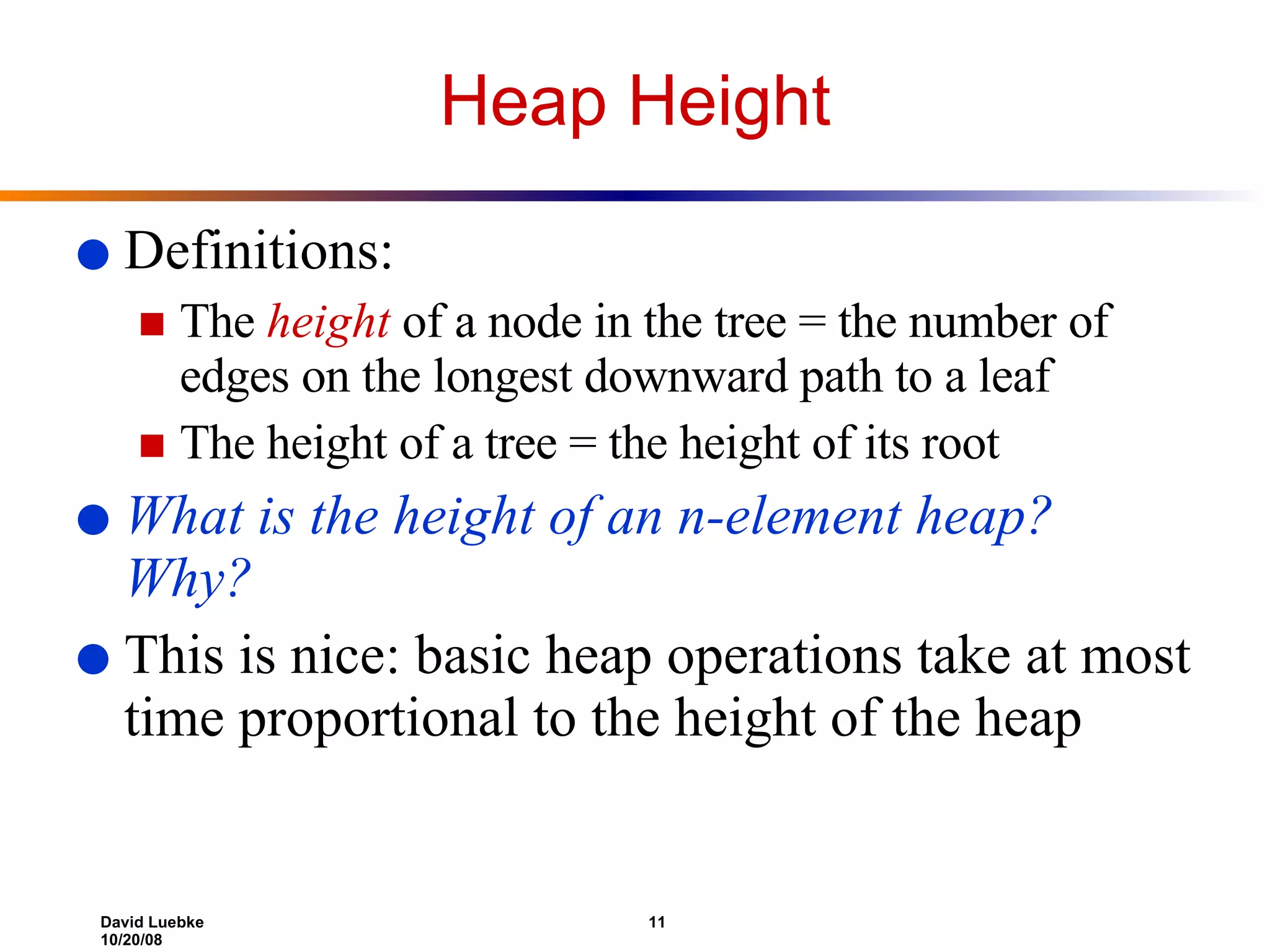

Heap Height Definitions: The height of a node in the tree = the number of edges on the longest downward path to a leaf The height of a tree = the height of its root What is the height of an n-element heap? Why? This is nice: basic heap operations take at most time proportional to the height of the heap

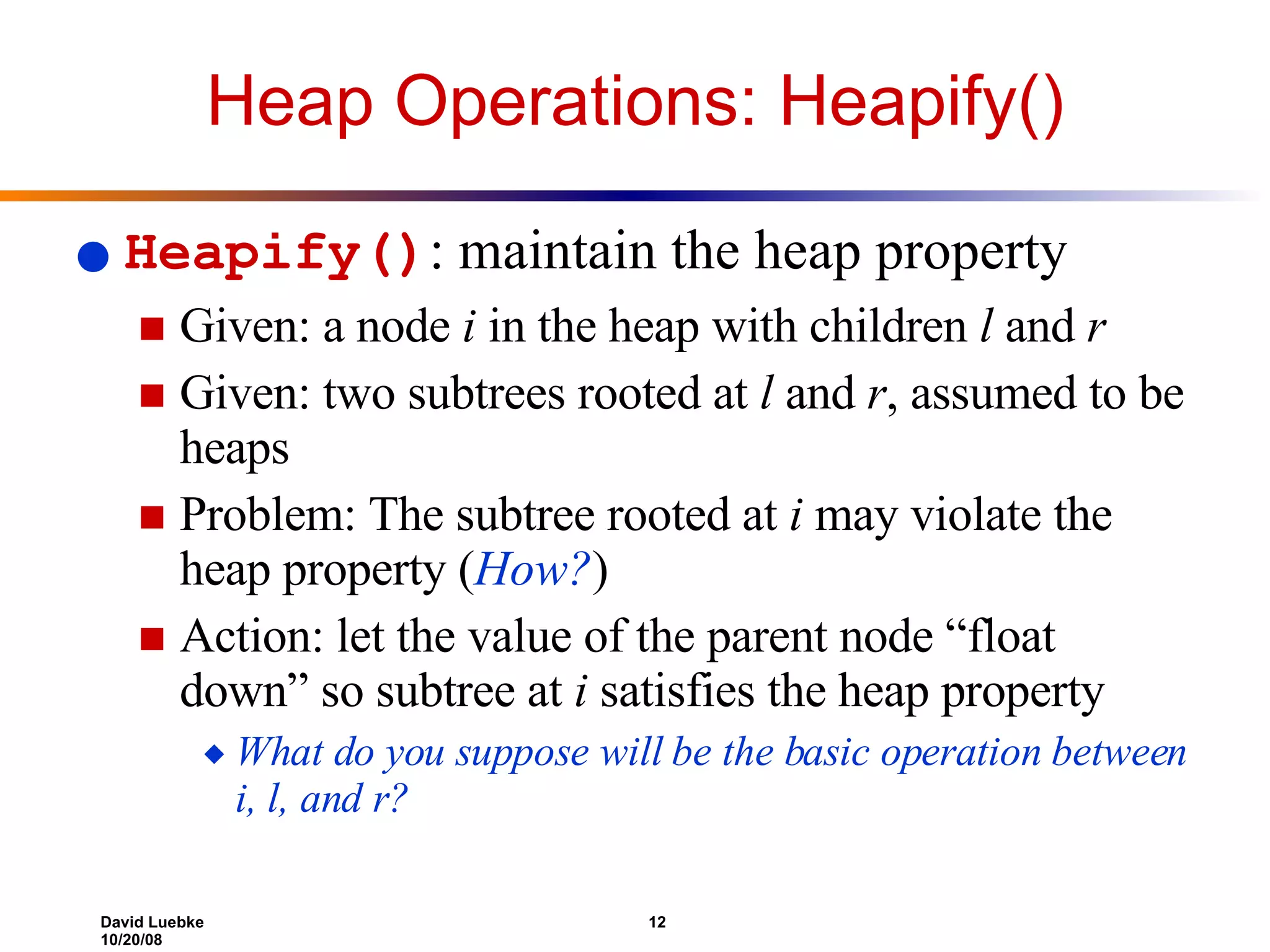

Heap Operations: Heapify() Heapify() : maintain the heap property Given: a node i in the heap with children l and r Given: two subtrees rooted at l and r , assumed to be heaps Problem: The subtree rooted at i may violate the heap property ( How? ) Action: let the value of the parent node “float down” so subtree at i satisfies the heap property What do you suppose will be the basic operation between i, l, and r?

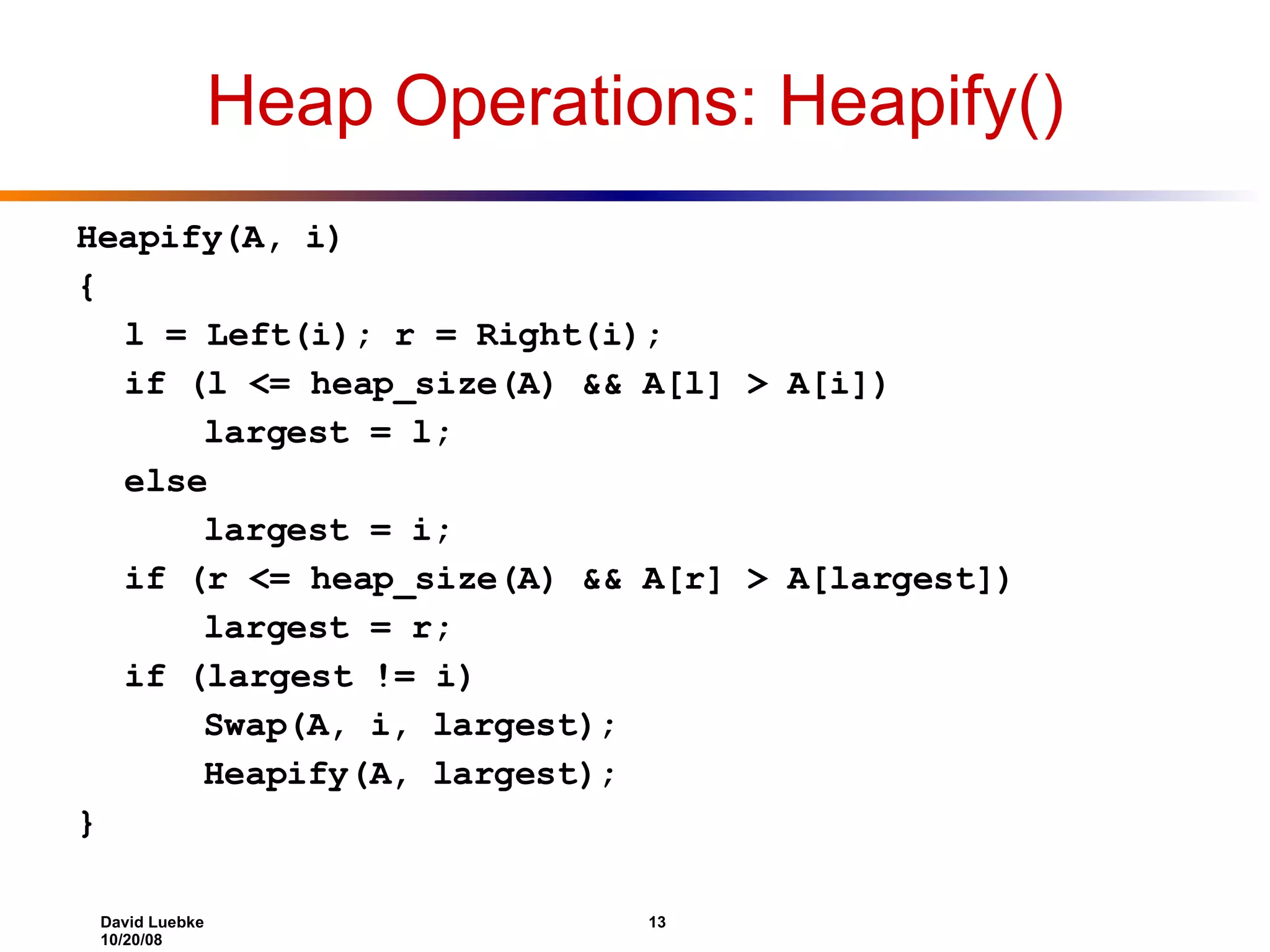

Heap Operations: Heapify() Heapify(A, i) { l = Left(i); r = Right(i); if (l <= heap_size(A) && A[l] > A[i]) largest = l; else largest = i; if (r <= heap_size(A) && A[r] > A[largest]) largest = r; if (largest != i) Swap(A, i, largest); Heapify(A, largest); }

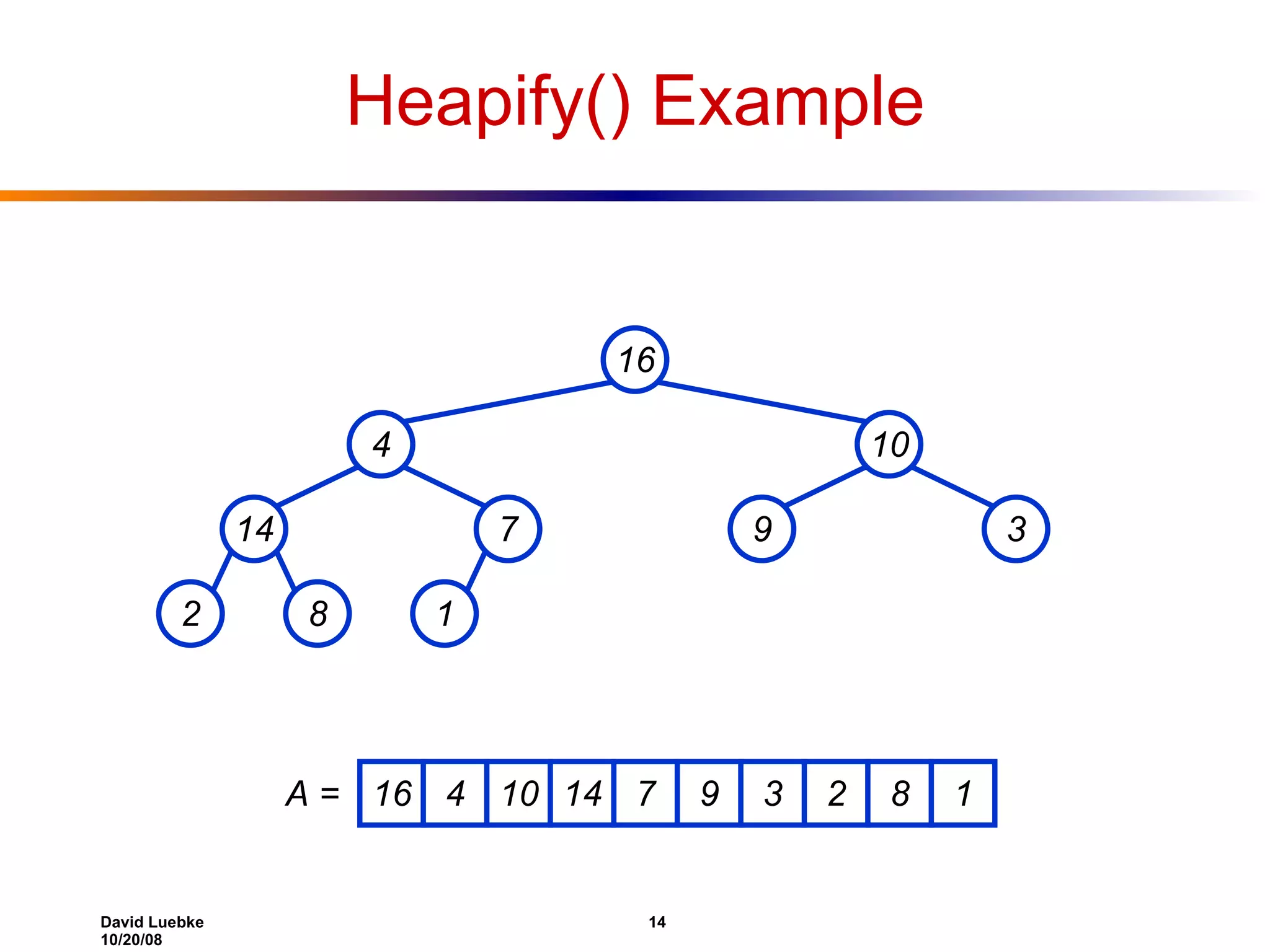

Heapify() Example 16 4 10 14 7 9 3 2 8 1 16 4 10 14 7 9 3 2 8 1 A =

Heapify() Example 16 4 10 14 7 9 3 2 8 1 16 10 14 7 9 3 2 8 1 A = 4

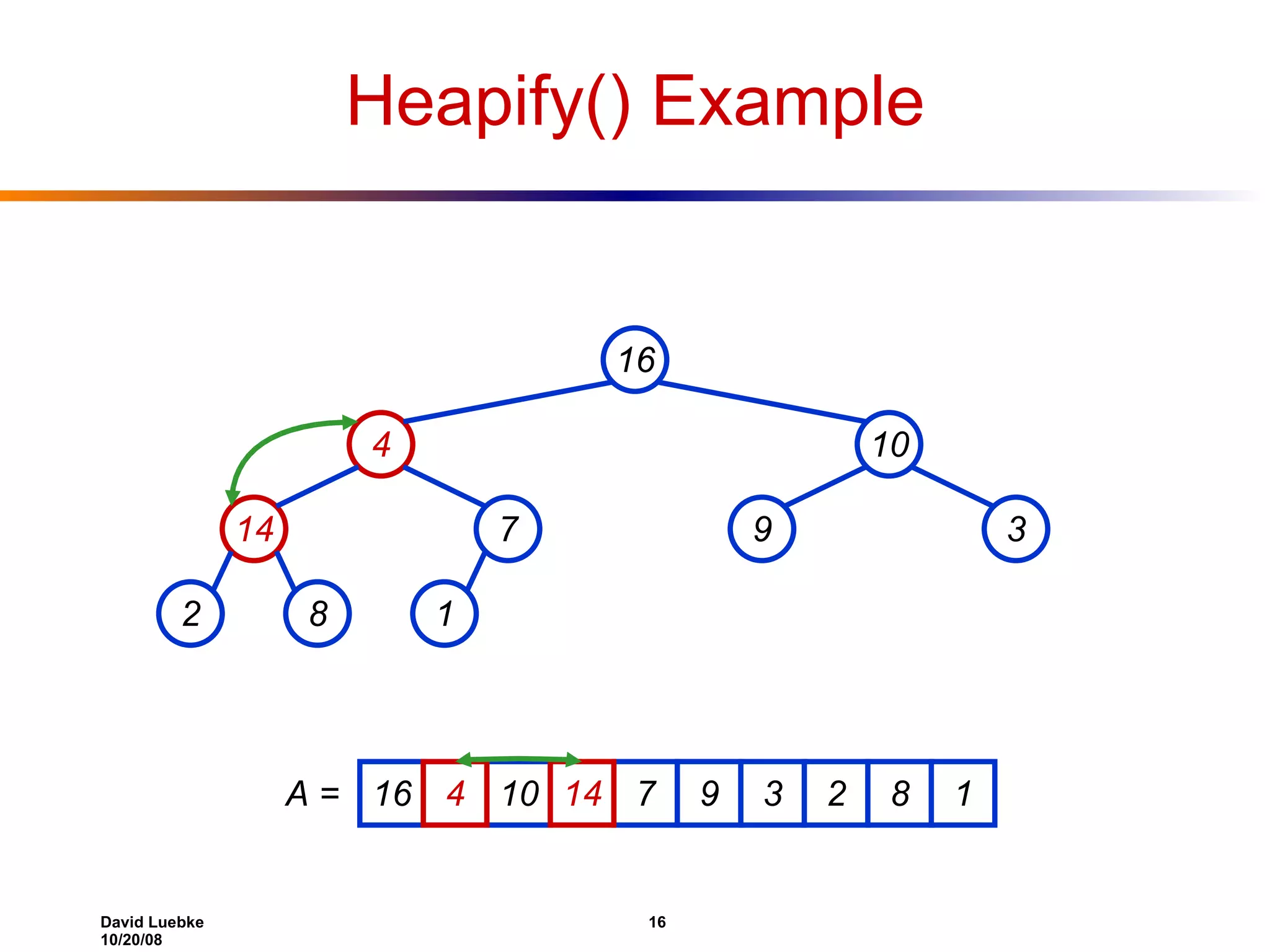

Heapify() Example 16 4 10 14 7 9 3 2 8 1 16 10 7 9 3 2 8 1 A = 4 14

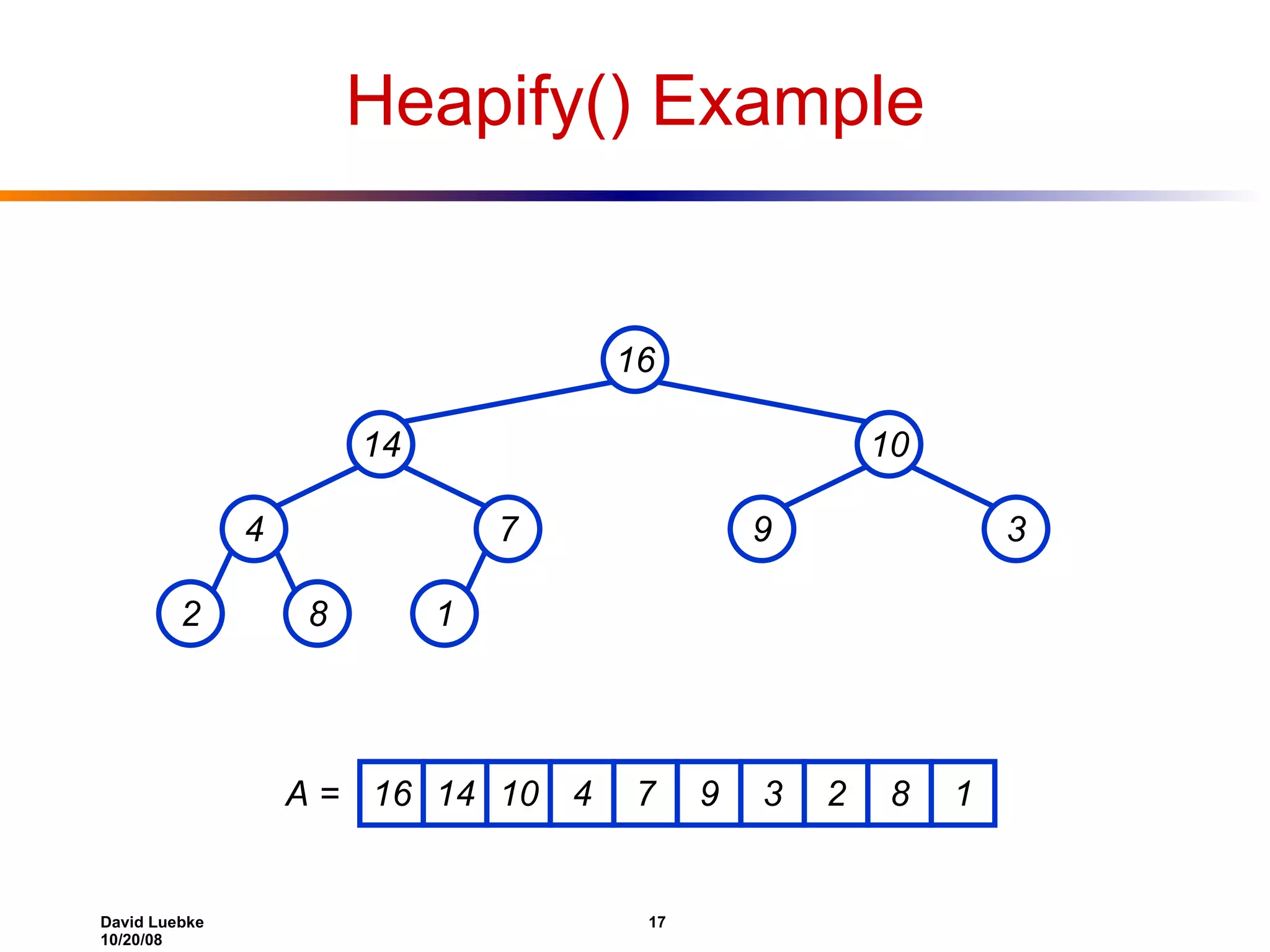

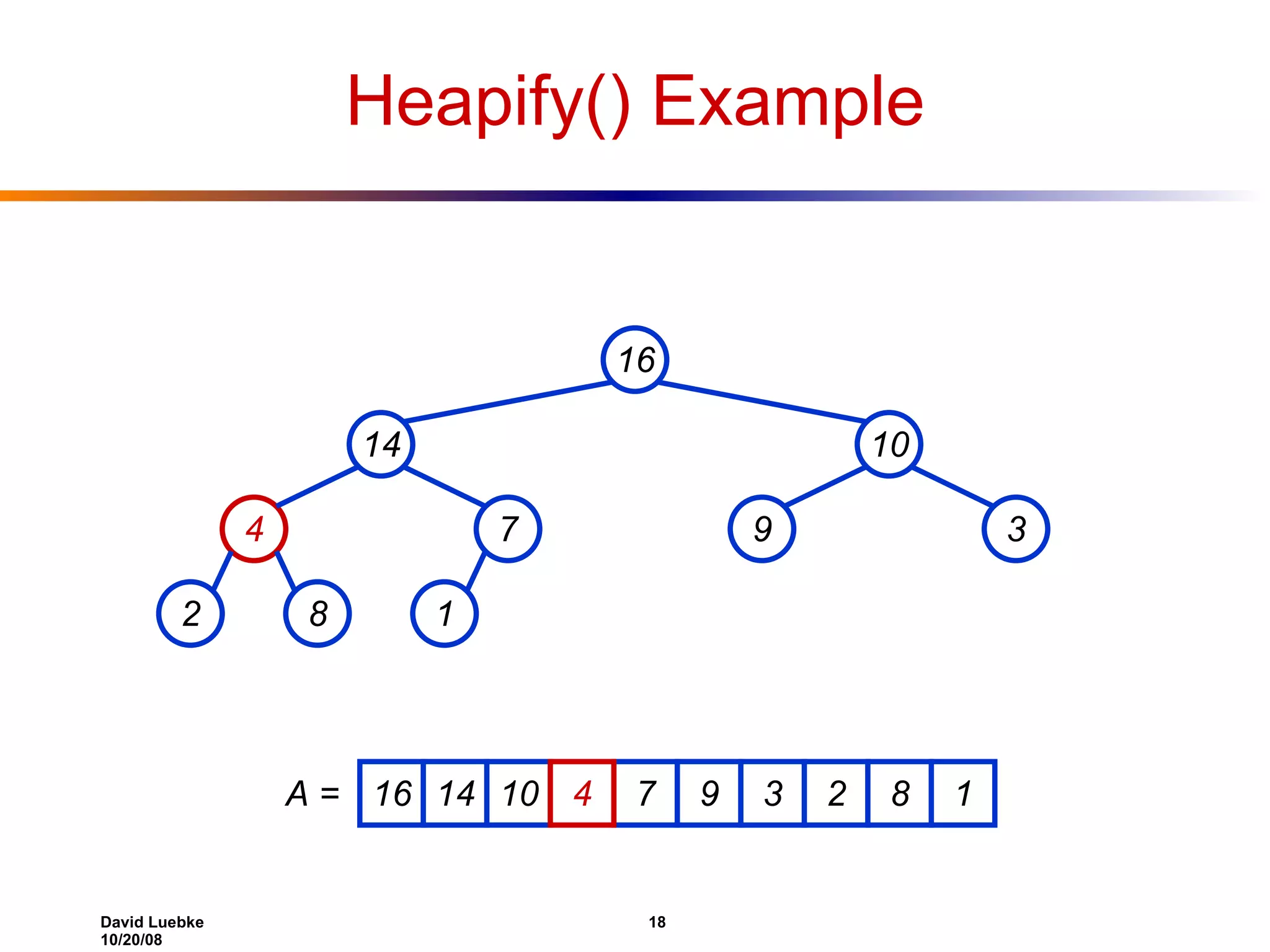

Heapify() Example 16 14 10 4 7 9 3 2 8 1 16 14 10 7 9 3 2 1 A = 4 8

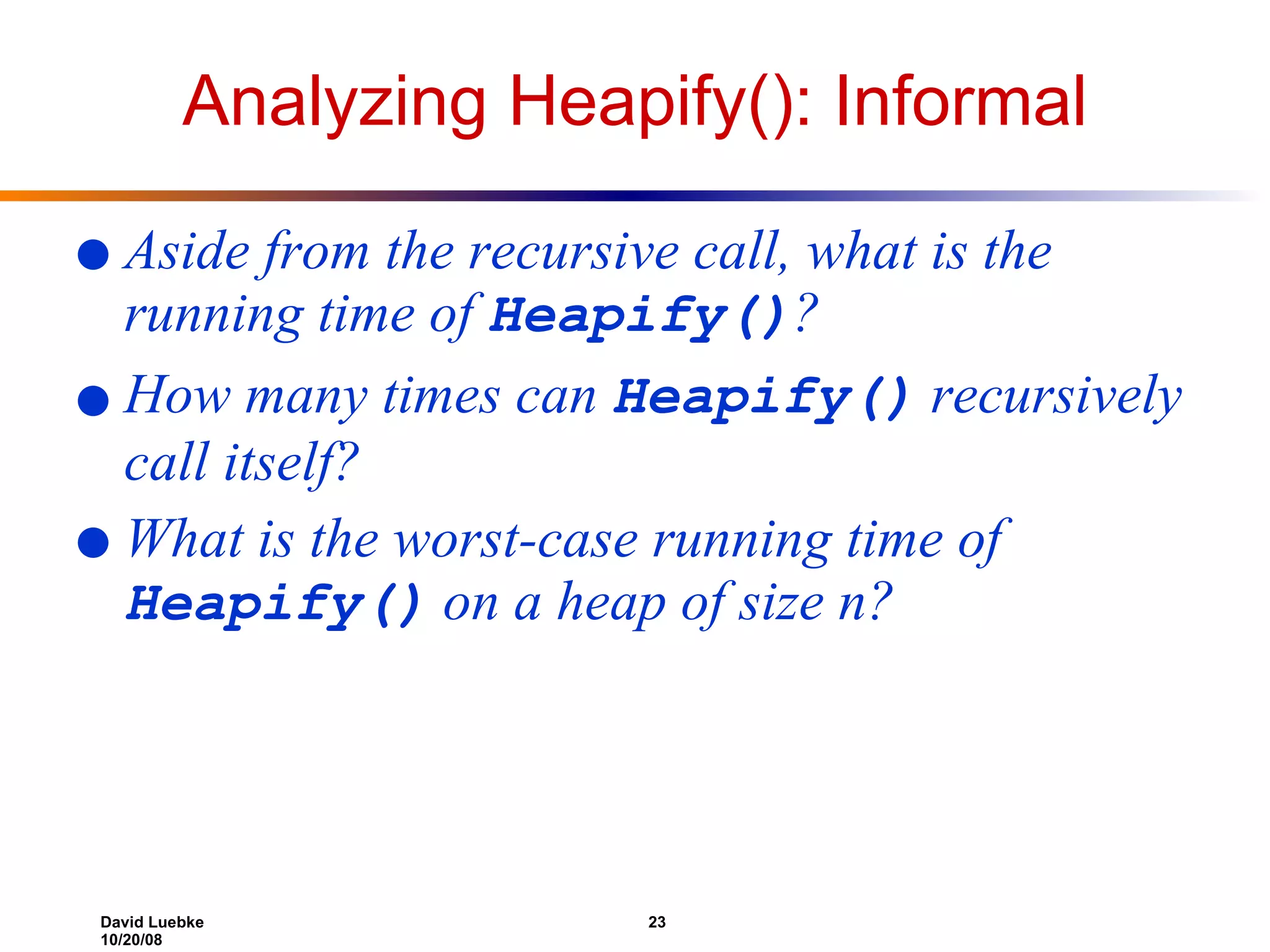

Analyzing Heapify(): Informal Aside from the recursive call, what is the running time of Heapify() ? How many times can Heapify() recursively call itself? What is the worst-case running time of Heapify() on a heap of size n?

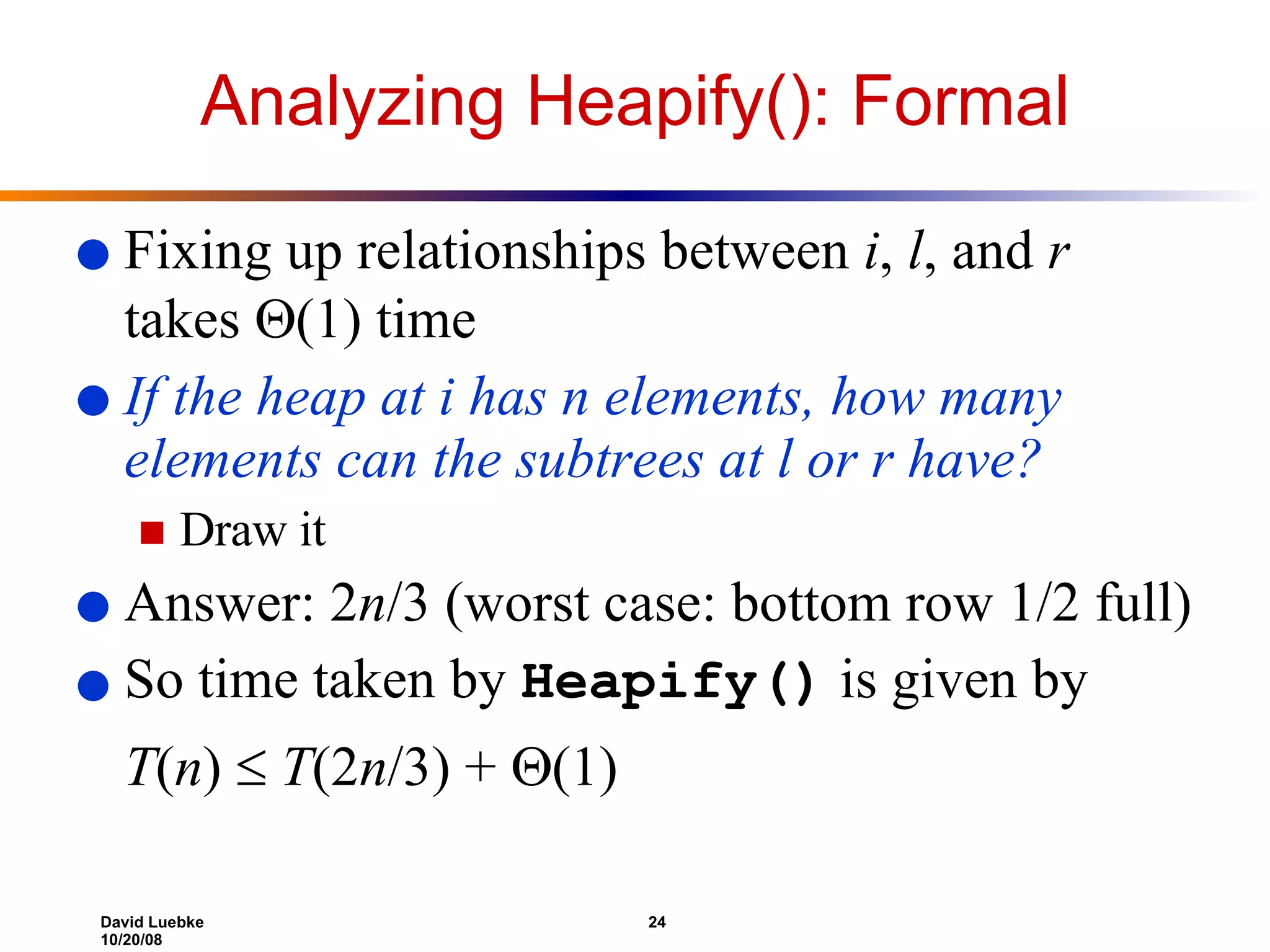

Analyzing Heapify(): Formal Fixing up relationships between i , l , and r takes  (1) time If the heap at i has n elements, how many elements can the subtrees at l or r have? Draw it Answer: 2 n /3 (worst case: bottom row 1/2 full) So time taken by Heapify() is given by T ( n )  T (2 n /3) +  (1)

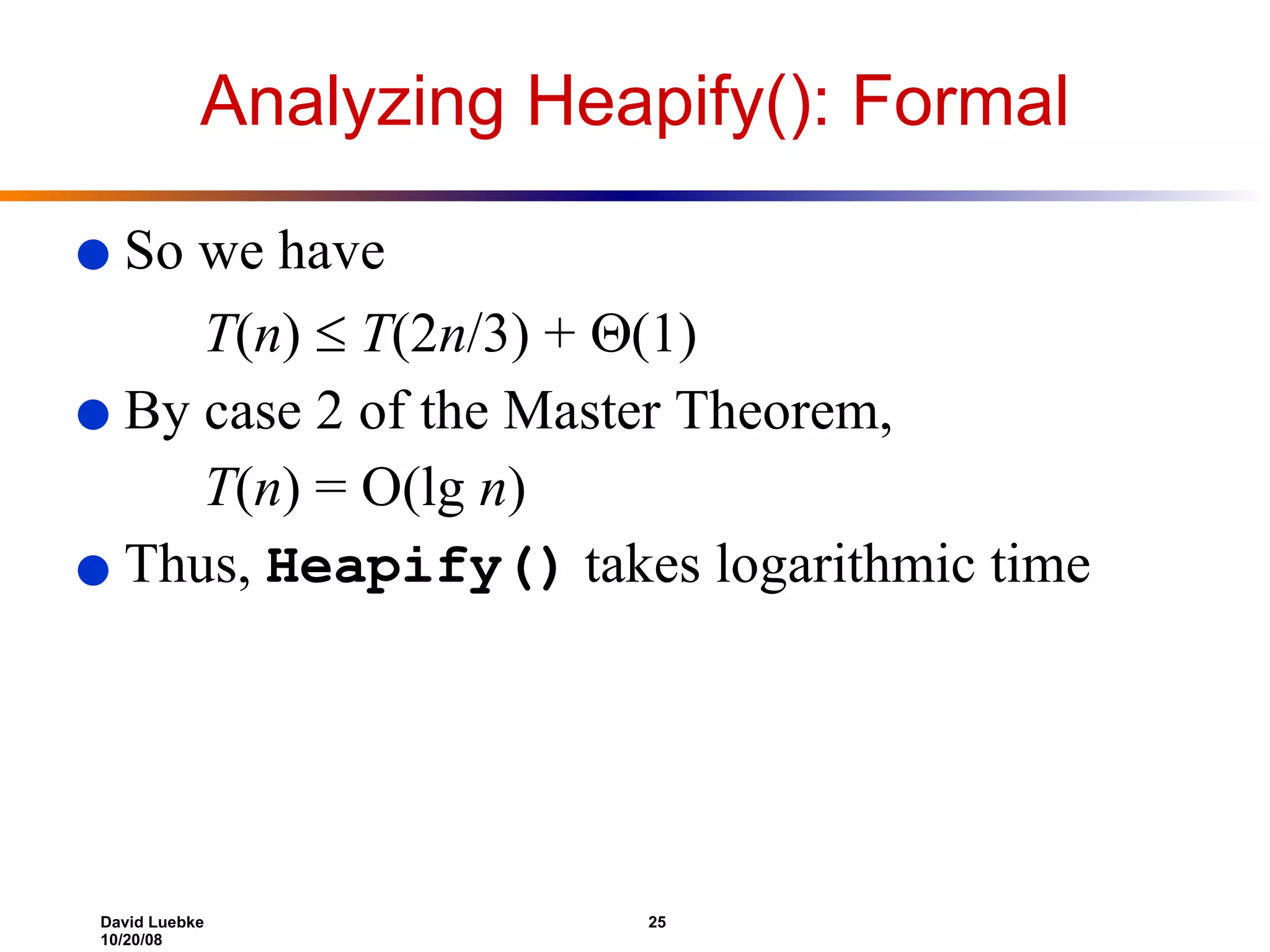

Analyzing Heapify(): Formal So we have T ( n )  T (2 n /3) +  (1) By case 2 of the Master Theorem, T ( n ) = O(lg n ) Thus, Heapify() takes logarithmic time

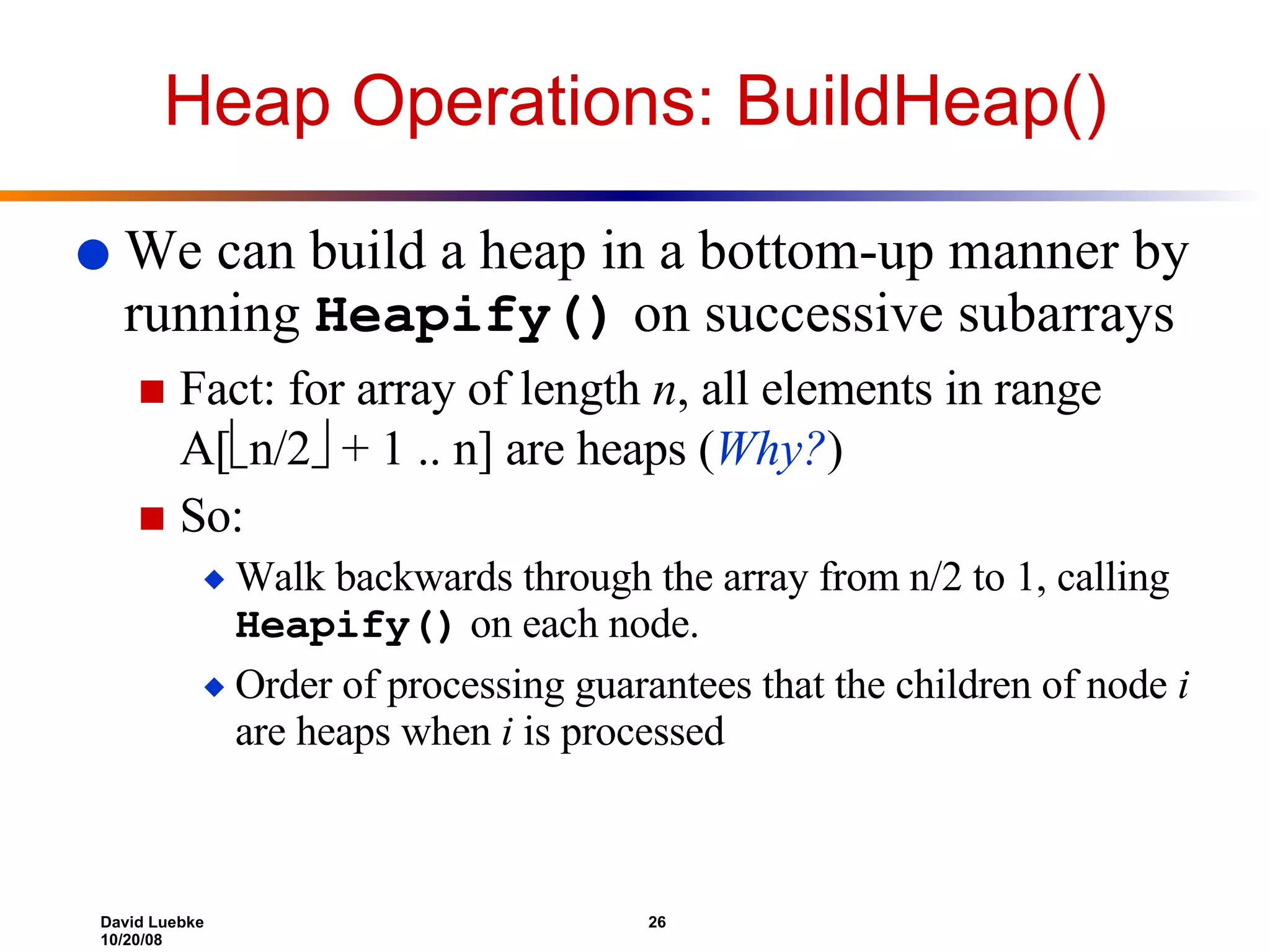

Heap Operations: BuildHeap() We can build a heap in a bottom-up manner by running Heapify() on successive subarrays Fact: for array of length n , all elements in range A[  n/2  + 1 .. n] are heaps ( Why? ) So: Walk backwards through the array from n/2 to 1, calling Heapify() on each node. Order of processing guarantees that the children of node i are heaps when i is processed

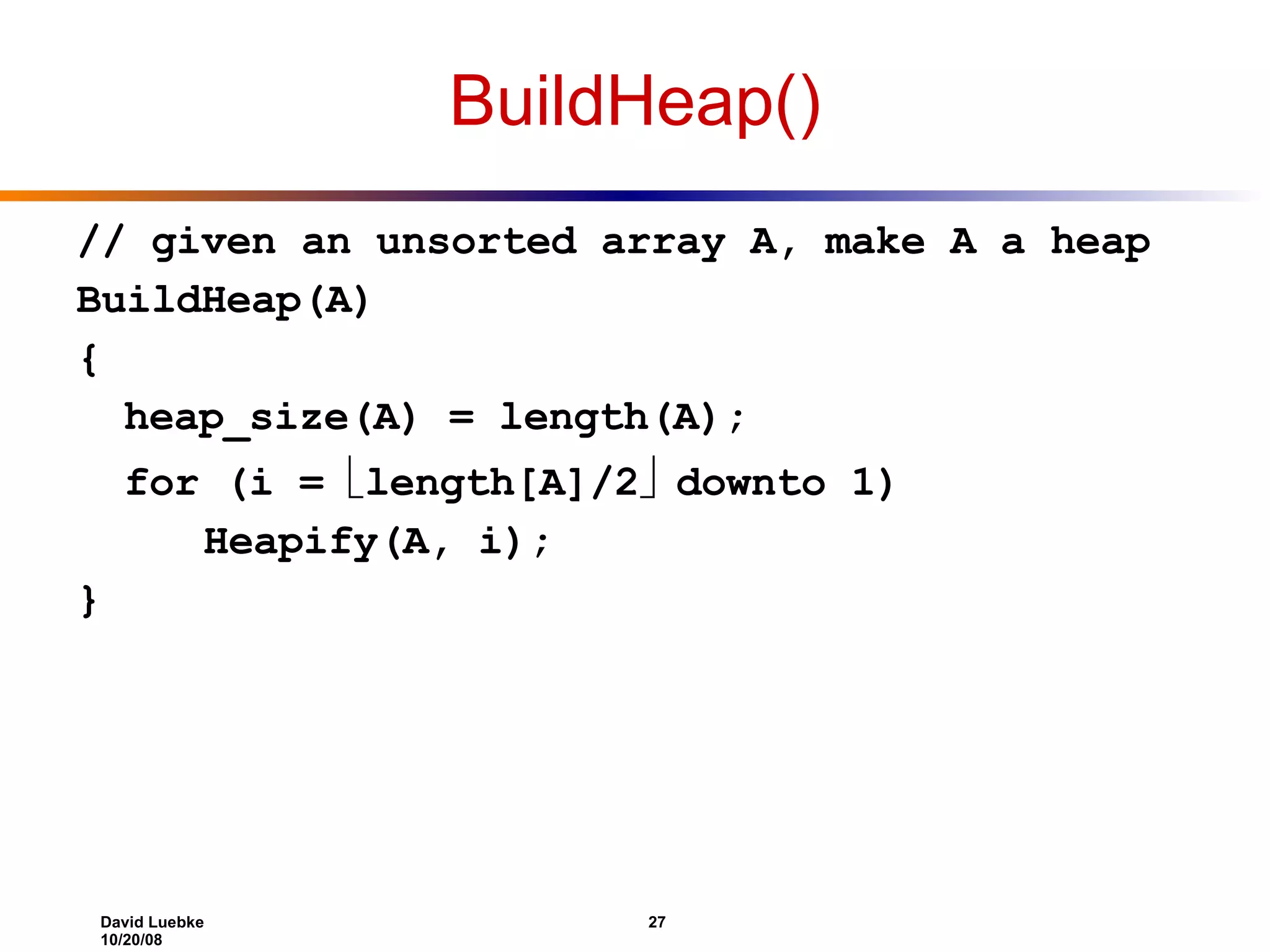

BuildHeap() // given an unsorted array A, make A a heap BuildHeap(A) { heap_size(A) = length(A); for (i =  length[A]/2  downto 1) Heapify(A, i); }

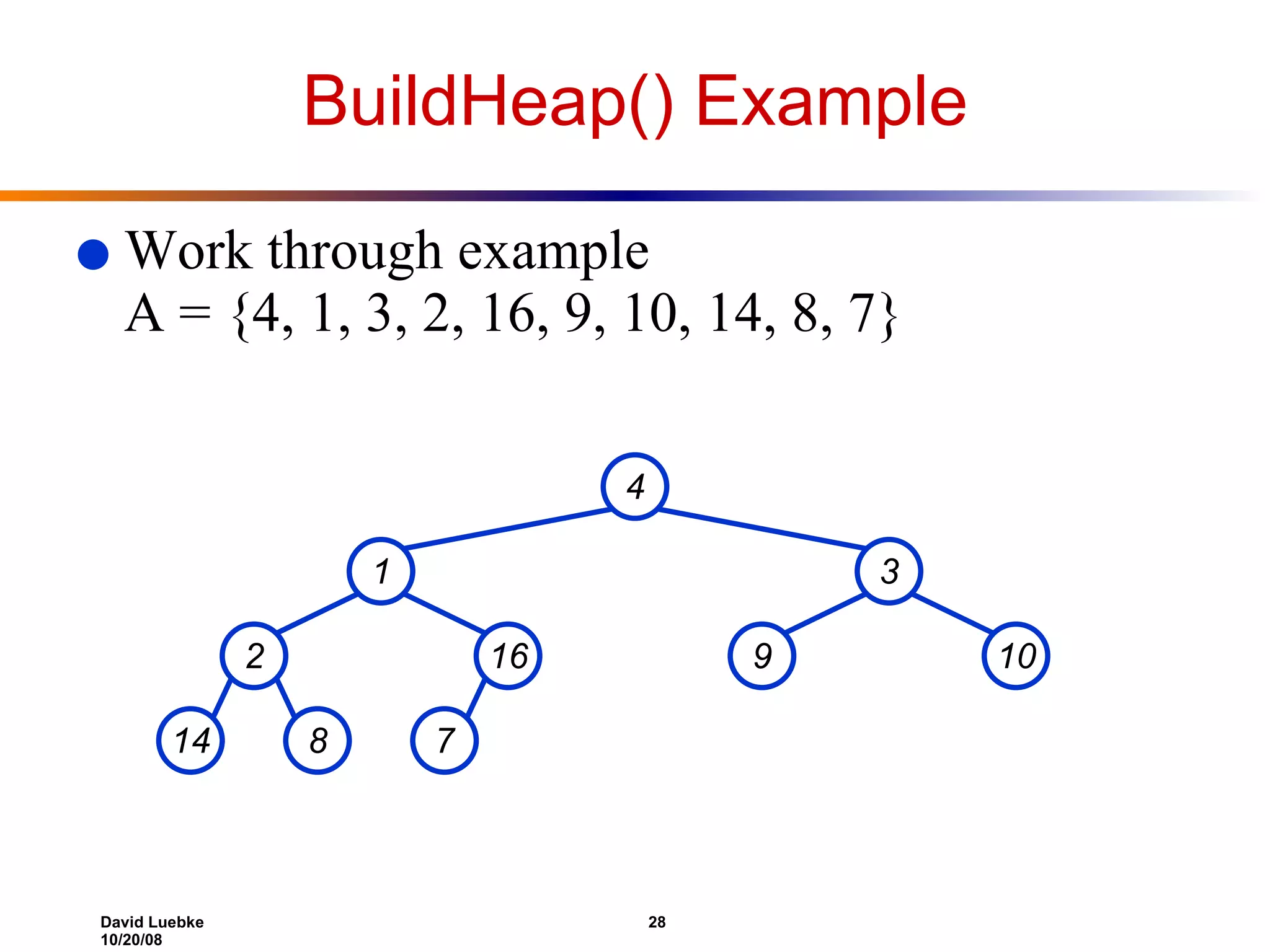

BuildHeap() Example Work through example A = {4, 1, 3, 2, 16, 9, 10, 14, 8, 7} 4 1 3 2 16 9 10 14 8 7

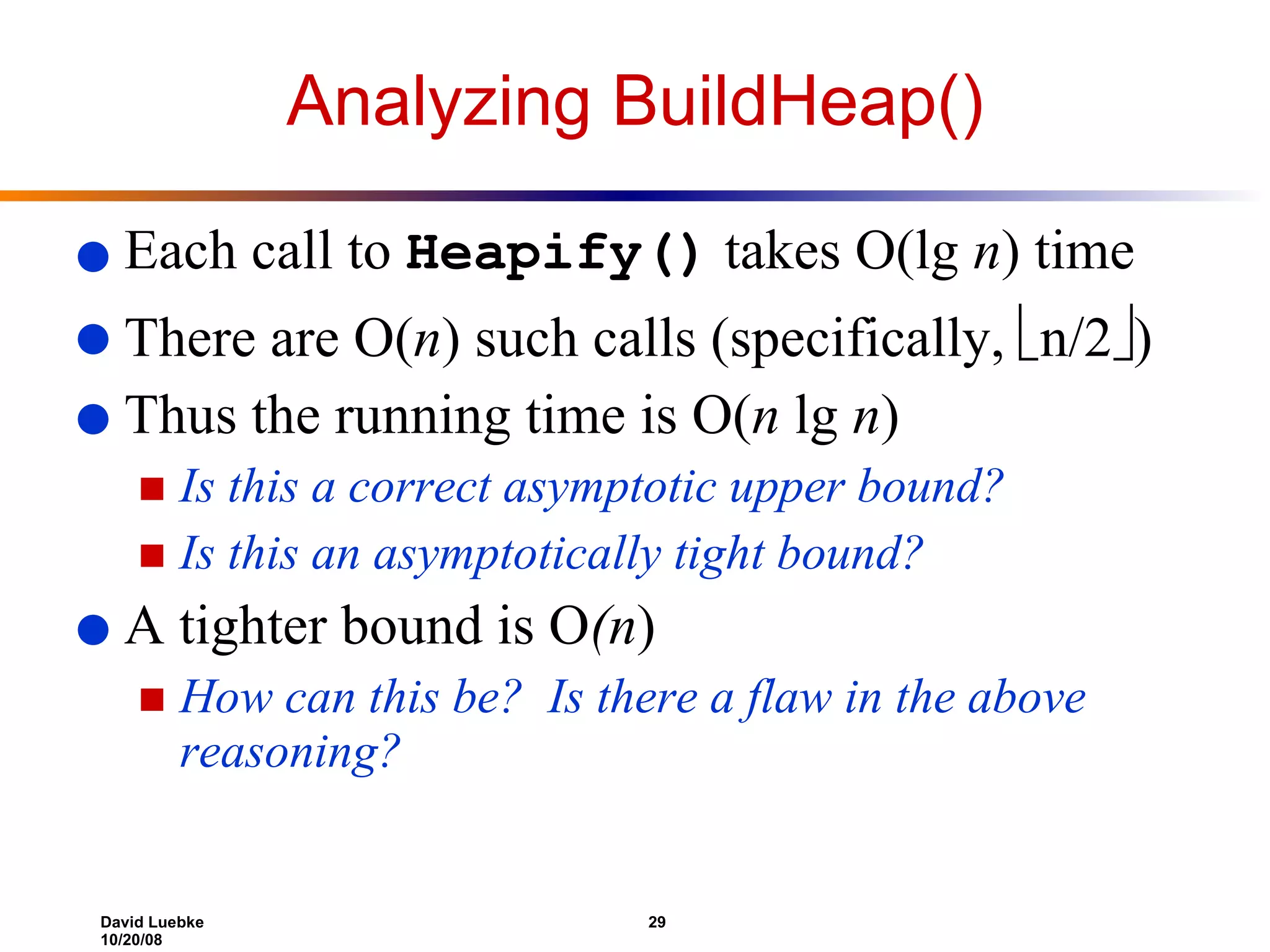

Analyzing BuildHeap() Each call to Heapify() takes O(lg n ) time There are O( n ) such calls (specifically,  n/2  ) Thus the running time is O( n lg n ) Is this a correct asymptotic upper bound? Is this an asymptotically tight bound? A tighter bound is O (n ) How can this be? Is there a flaw in the above reasoning?

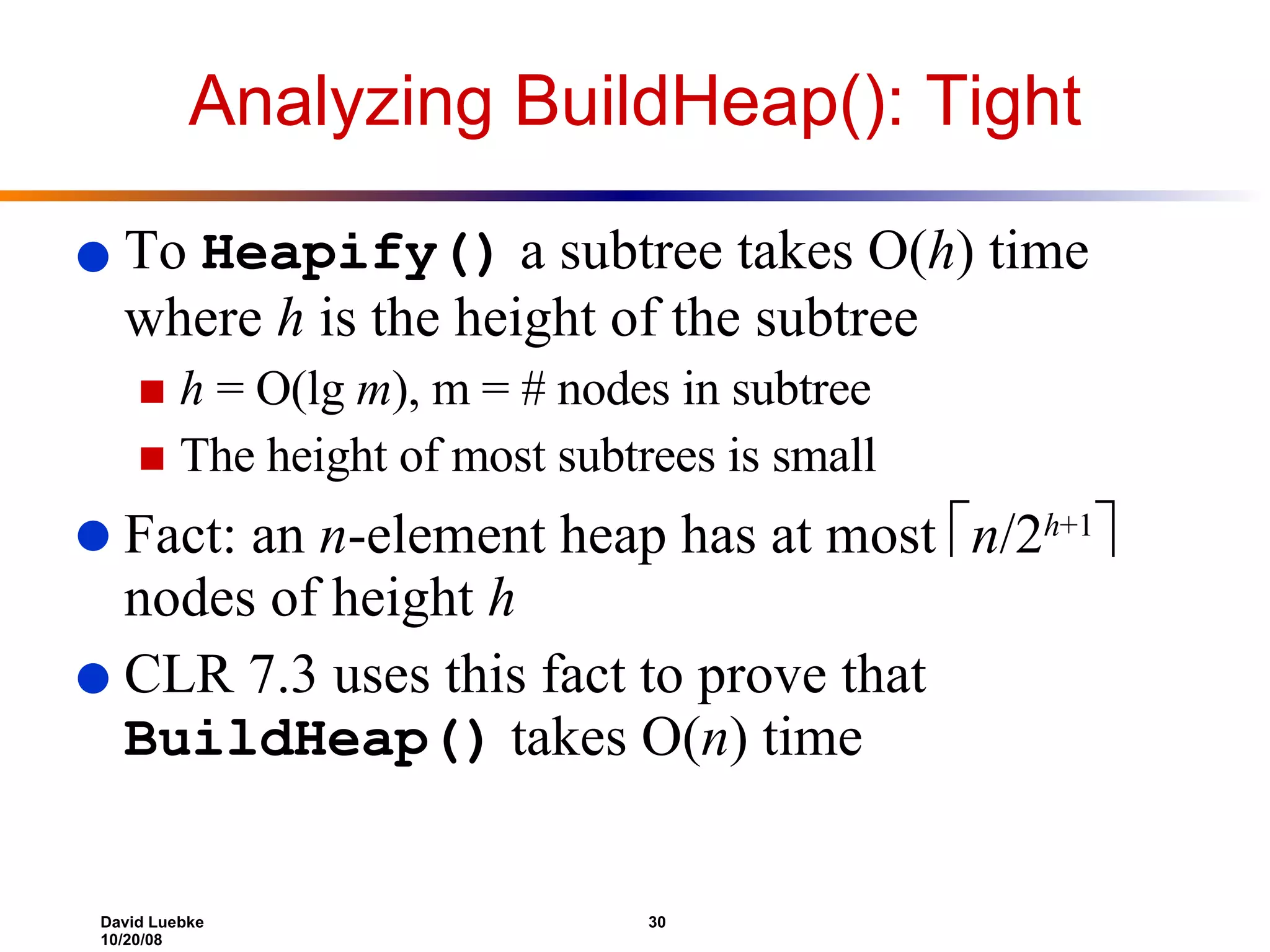

Analyzing BuildHeap(): Tight To Heapify() a subtree takes O( h ) time where h is the height of the subtree h = O(lg m ), m = # nodes in subtree The height of most subtrees is small Fact: an n -element heap has at most  n /2 h +1  nodes of height h CLR 7.3 uses this fact to prove that BuildHeap() takes O( n ) time

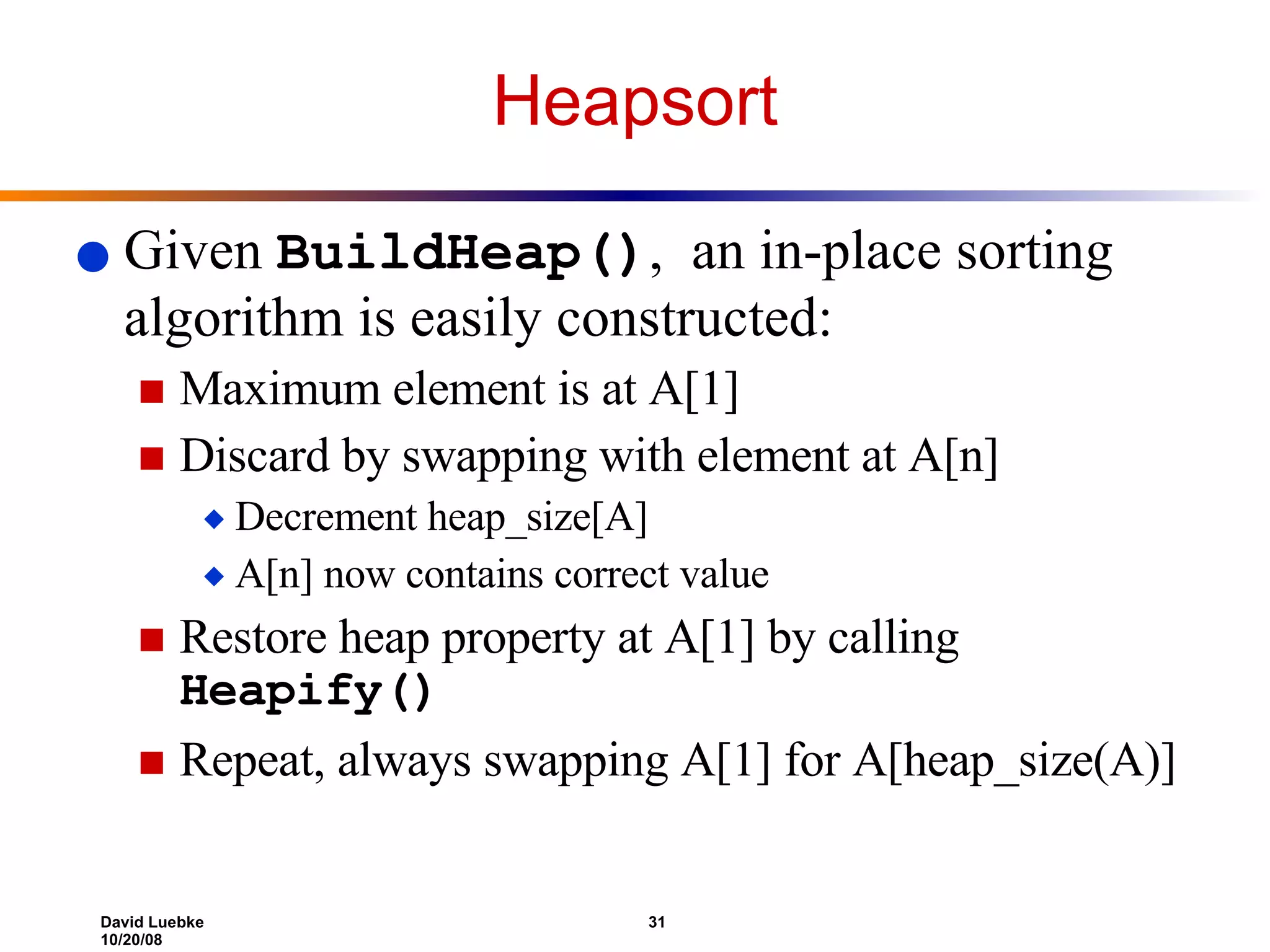

Heapsort Given BuildHeap() , an in-place sorting algorithm is easily constructed: Maximum element is at A[1] Discard by swapping with element at A[n] Decrement heap_size[A] A[n] now contains correct value Restore heap property at A[1] by calling Heapify() Repeat, always swapping A[1] for A[heap_size(A)]

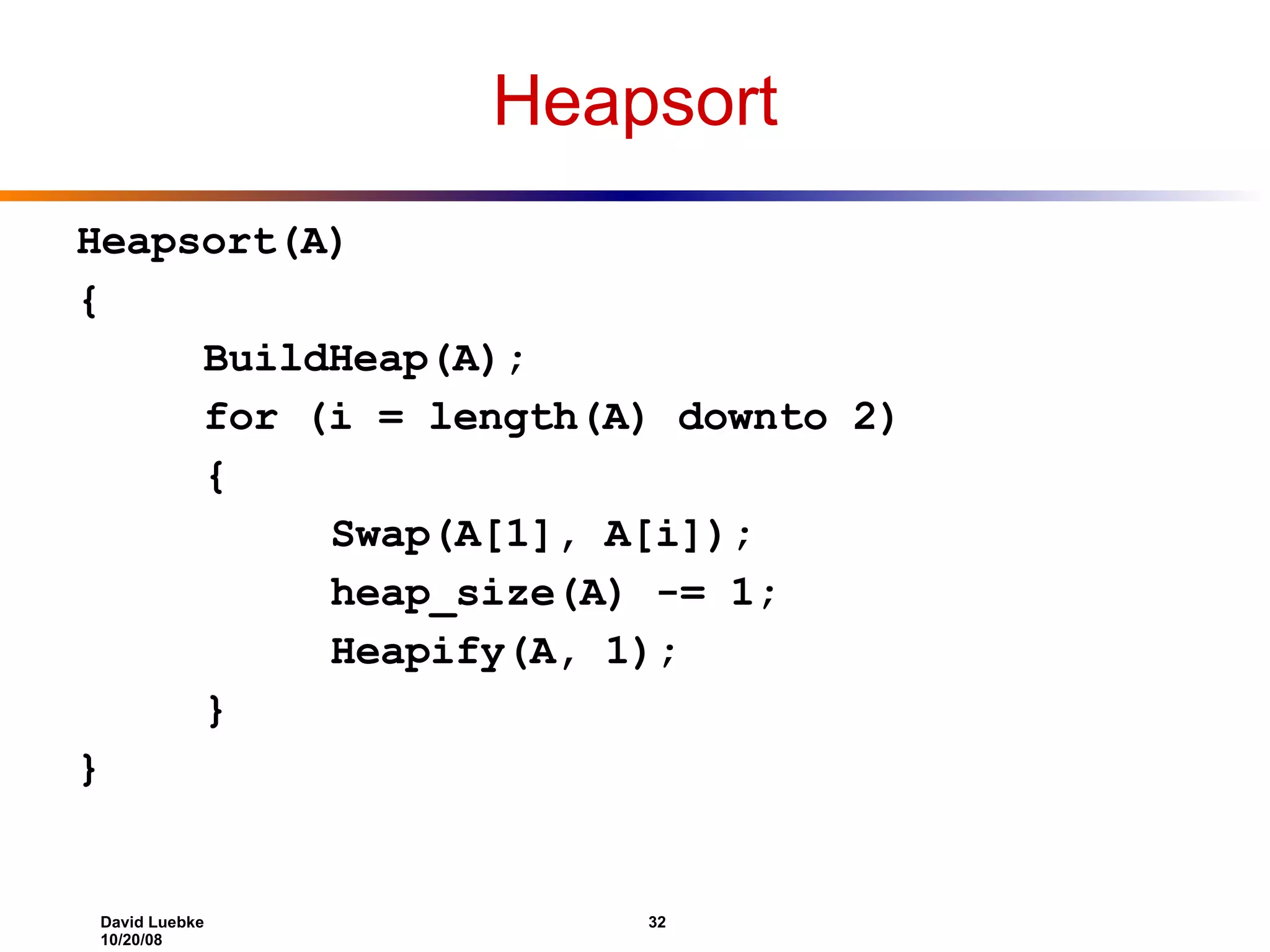

Heapsort Heapsort(A) { BuildHeap(A); for (i = length(A) downto 2) { Swap(A[1], A[i]); heap_size(A) -= 1; Heapify(A, 1); } }

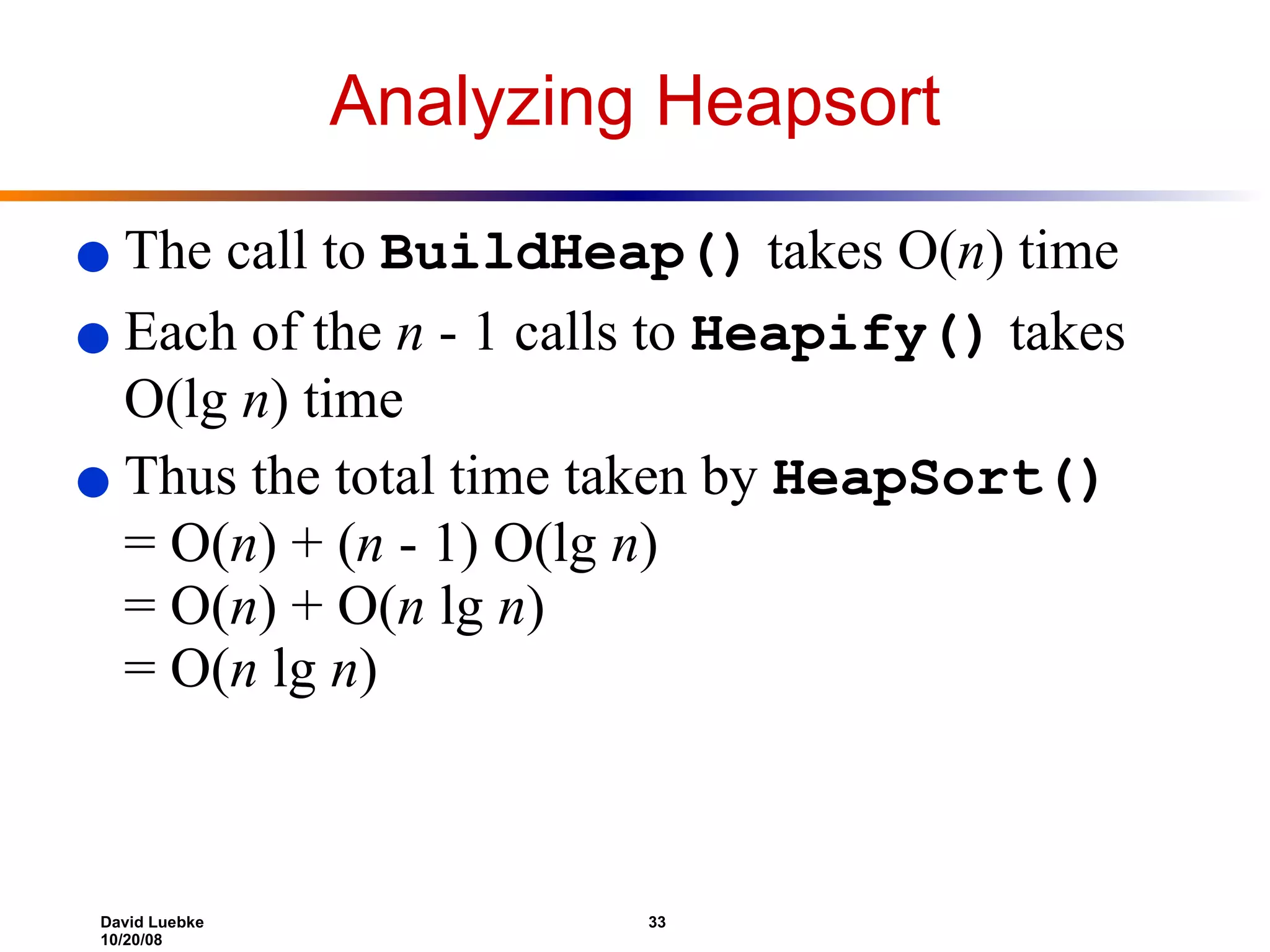

Analyzing Heapsort The call to BuildHeap() takes O( n ) time Each of the n - 1 calls to Heapify() takes O(lg n ) time Thus the total time taken by HeapSort() = O( n ) + ( n - 1) O(lg n ) = O( n ) + O( n lg n ) = O( n lg n )

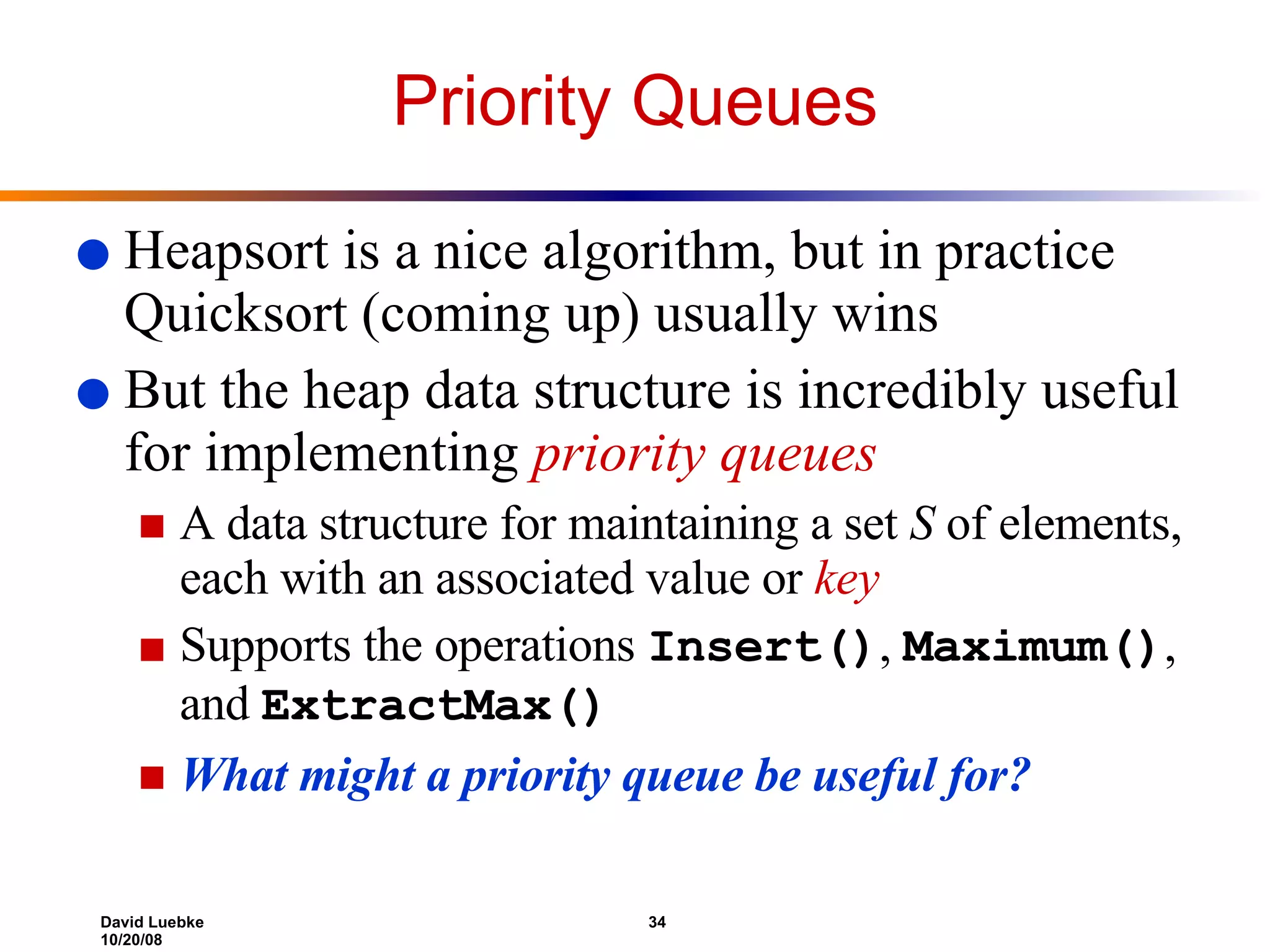

Priority Queues Heapsort is a nice algorithm, but in practice Quicksort (coming up) usually wins But the heap data structure is incredibly useful for implementing priority queues A data structure for maintaining a set S of elements, each with an associated value or key Supports the operations Insert() , Maximum() , and ExtractMax() What might a priority queue be useful for?

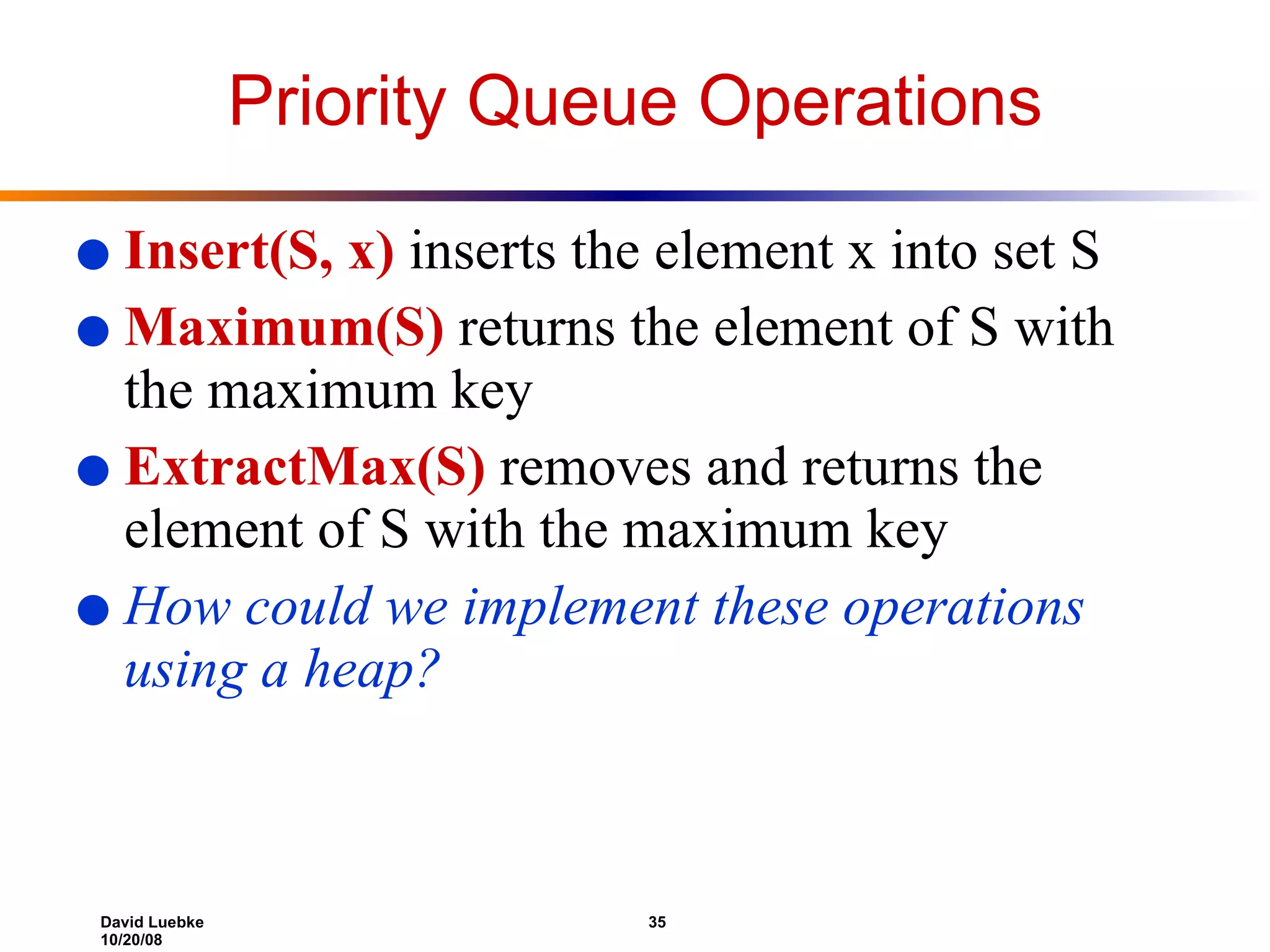

Priority Queue Operations Insert(S, x) inserts the element x into set S Maximum(S) returns the element of S with the maximum key ExtractMax(S) removes and returns the element of S with the maximum key How could we implement these operations using a heap?
