Introduction to Threads, User and Kernel threads .pdf

Silberschatz, Galvin and Gagne ©2018
Operating System Concepts – 10th Edition
Chapter 4: Threads
Operating Systems
Lecturer: Dalya Samer

4.2 Silberschatz, Galvin and Gagne ©2018
Chapter4 Outlines
▪ Introduction
▪ Multicore Programming
▪ Multithreading Models
▪ Benefits of threads
▪ Thread Libraries

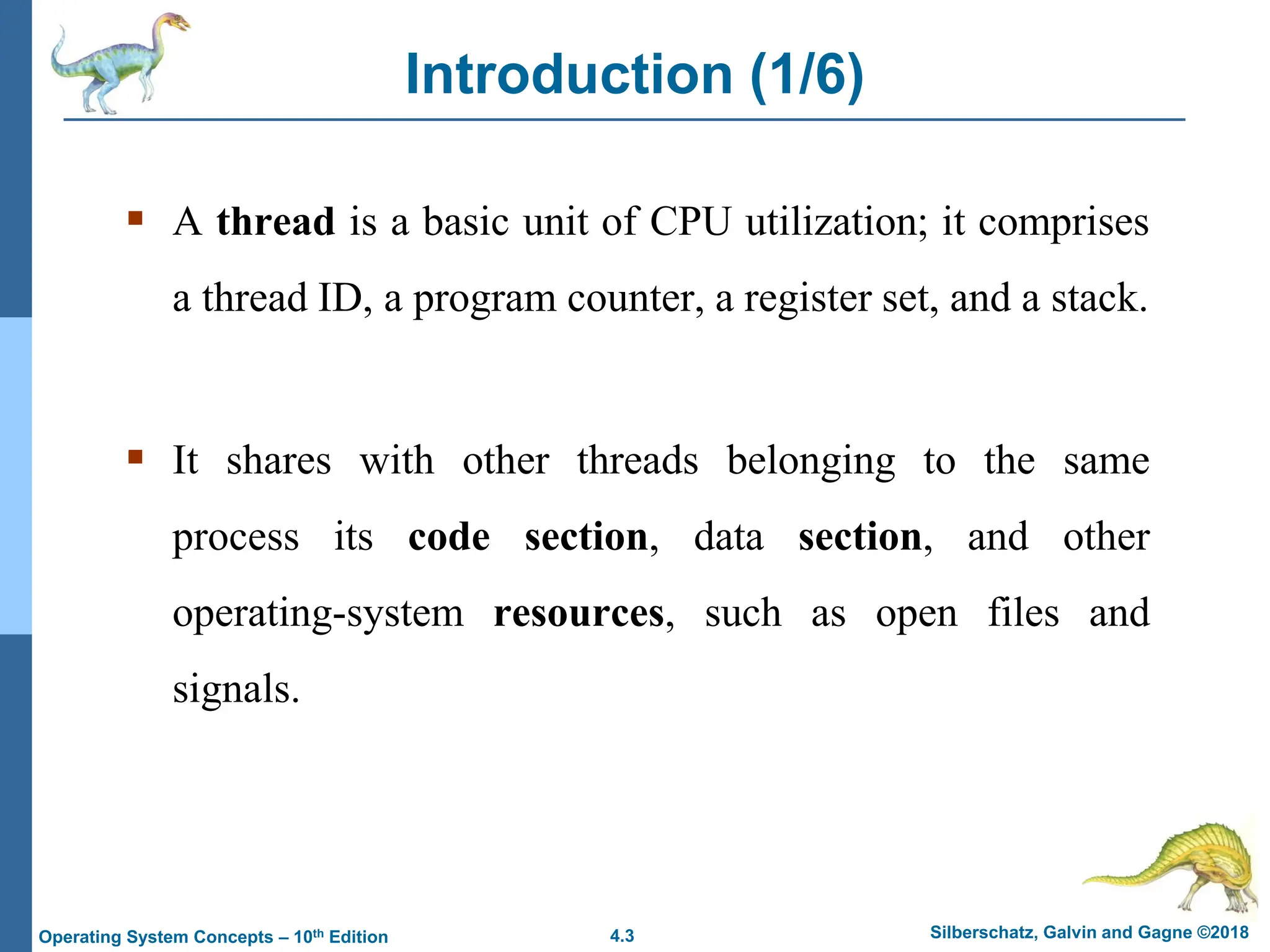

Introduction (1/6)
▪ A thread is a basic unit of CPU utilization; it comprises
a thread ID, a program counter, a register set, and a stack.
▪ It shares with other threads belonging to the same
process its code section, data section, and other
operating-system resources, such as open files and
signals.

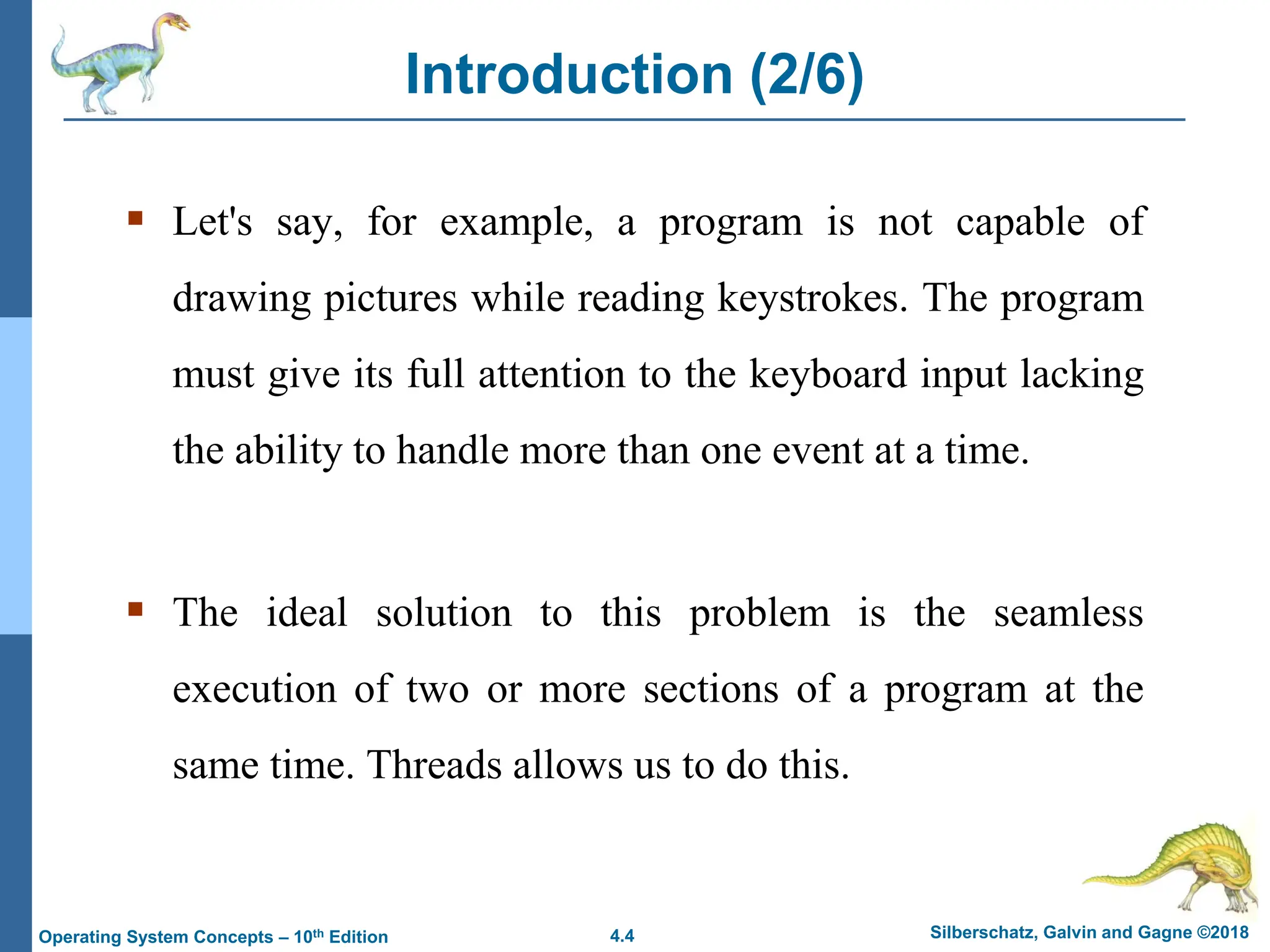

Introduction (2/6)
▪ Let's say, for example, a program is not capable of
drawing pictures while reading keystrokes. The program
must give its full attention to the keyboard input lacking
the ability to handle more than one event at a time.
▪ The ideal solution to this problem is the seamless
execution of two or more sections of a program at the
same time. Threads allows us to do this.

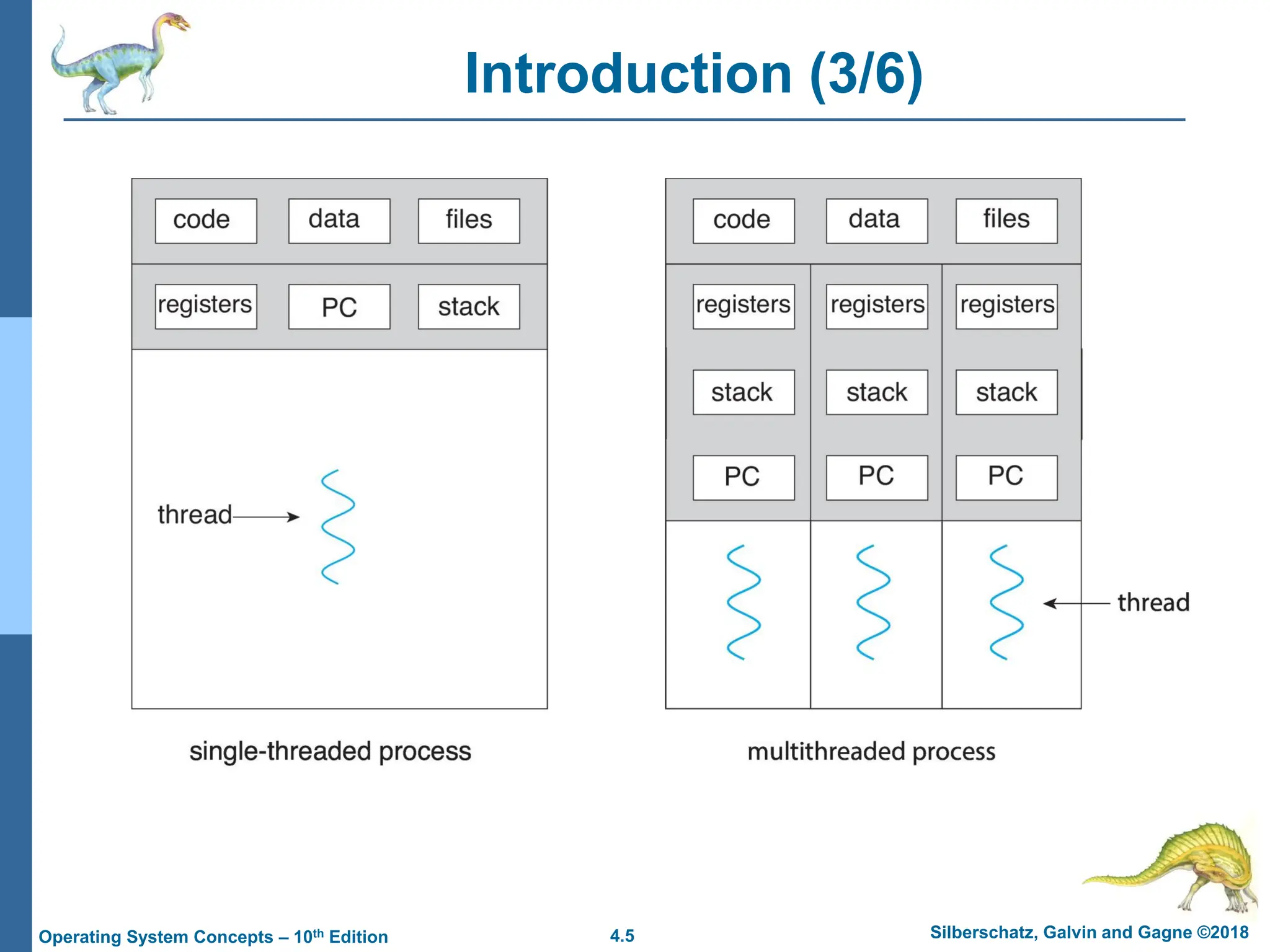

Introduction (3/6)

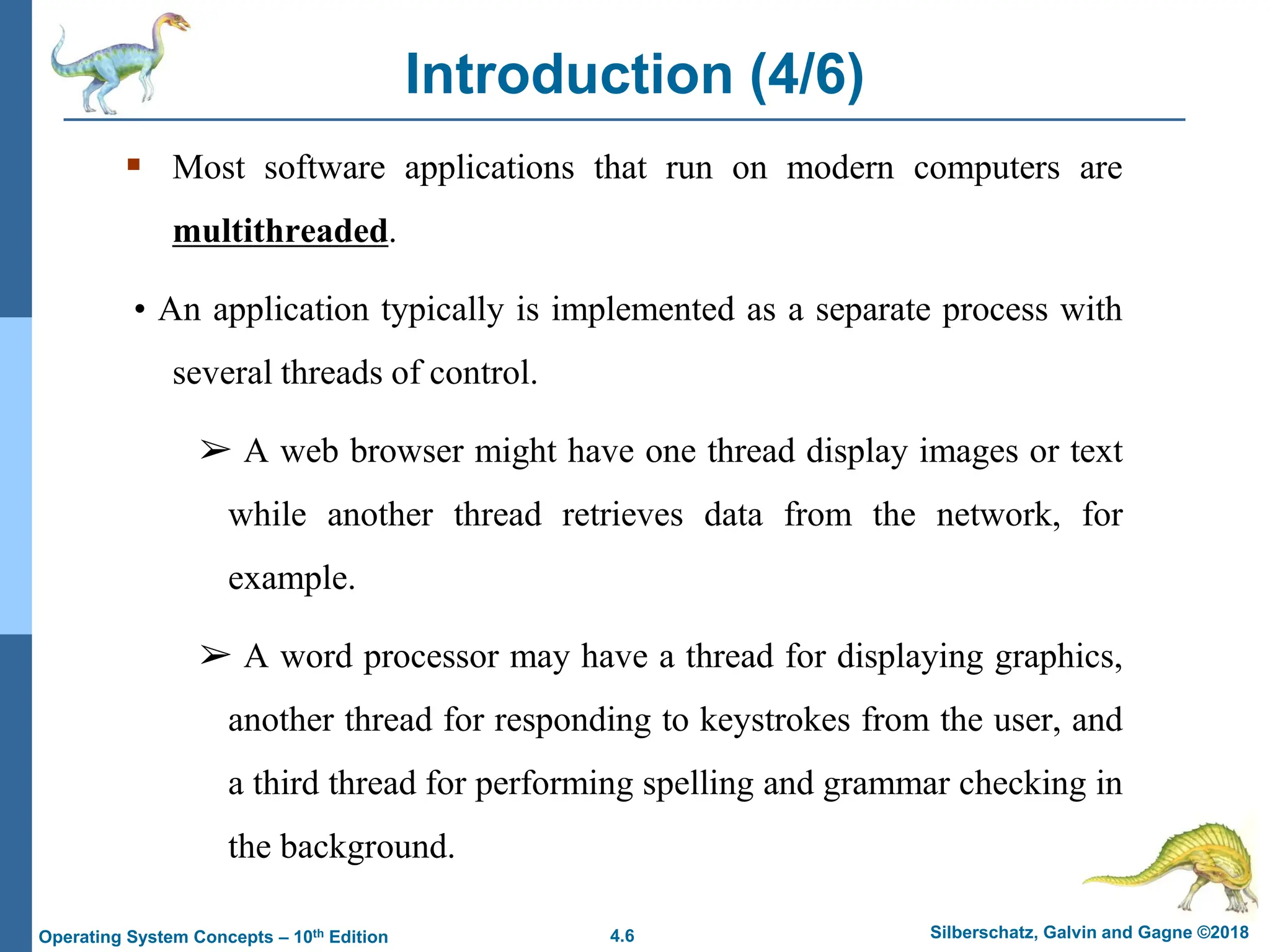

Introduction (4/6)
▪ Most software applications that run on modern computers are
multithreaded.
• An application typically is implemented as a separate process with
several threads of control.
➢ A web browser might have one thread display images or text
while another thread retrieves data from the network, for
example.
➢ A word processor may have a thread for displaying graphics,
another thread for responding to keystrokes from the user, and
a third thread for performing spelling and grammar checking in
the background.

Introduction (5/6)

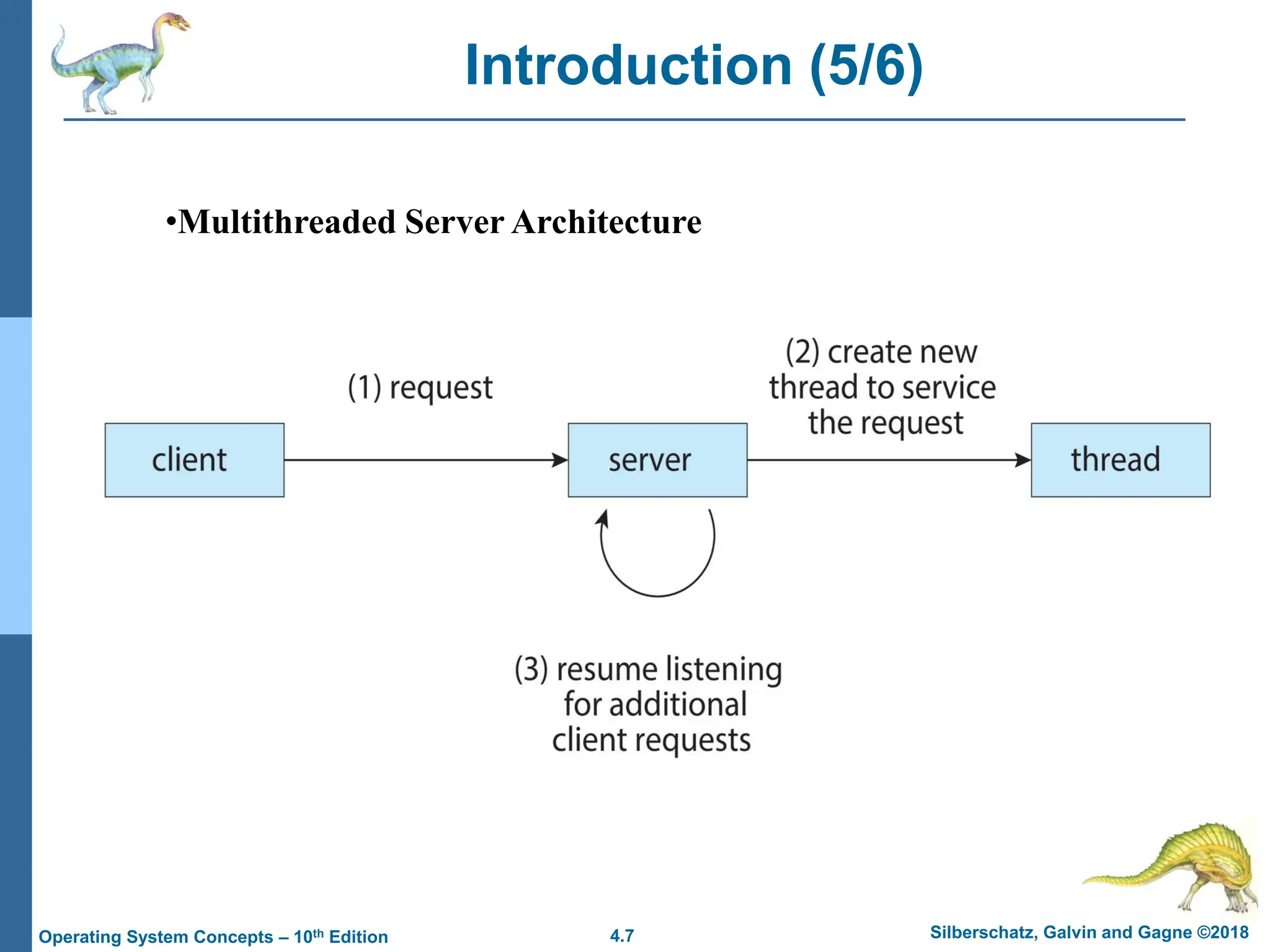

•Multithreaded Server Architecture

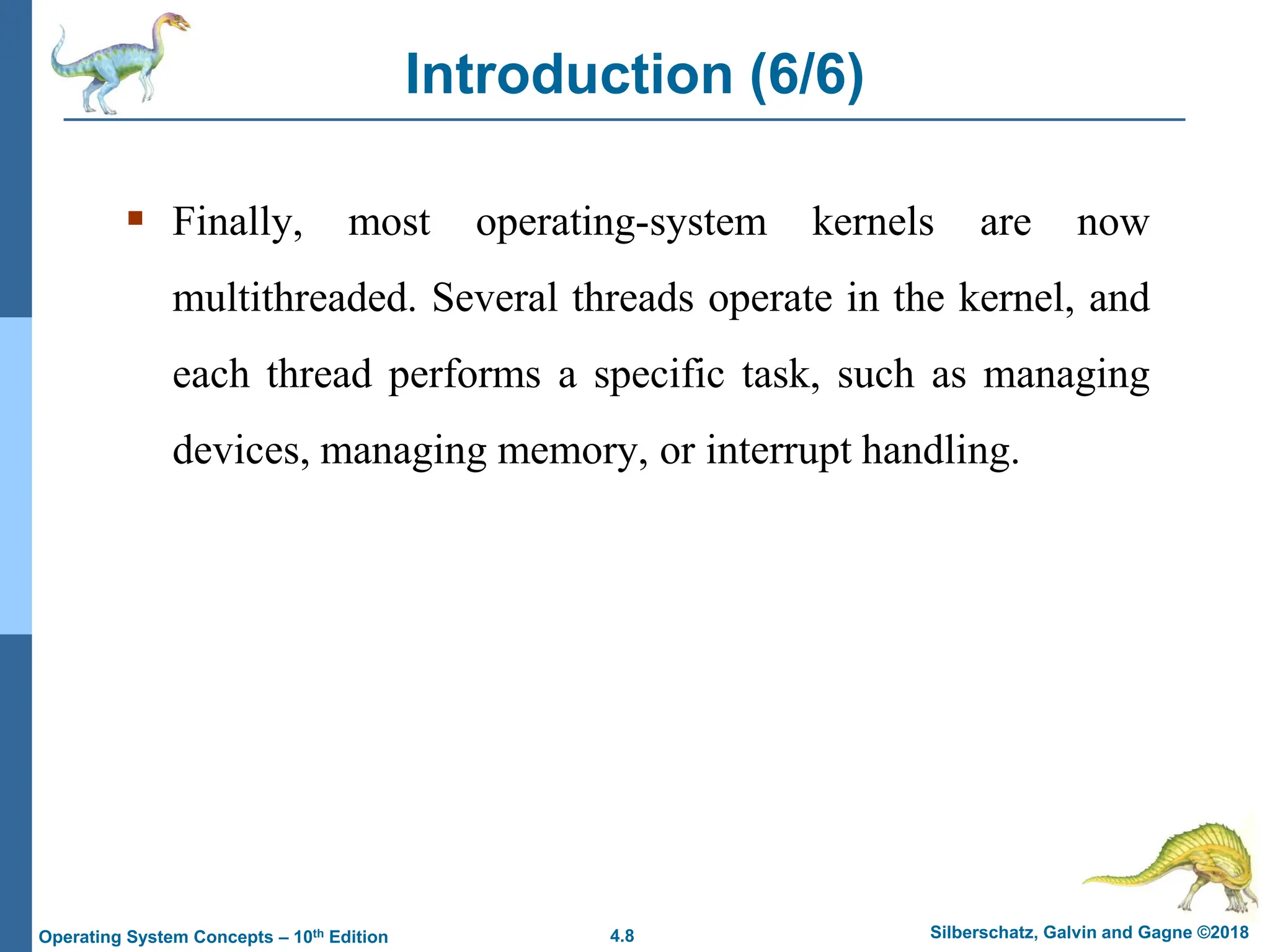

Introduction (6/6)
▪ Finally, most operating-system kernels are now
multithreaded. Several threads operate in the kernel, and
each thread performs a specific task, such as managing
devices, managing memory, or interrupt handling.

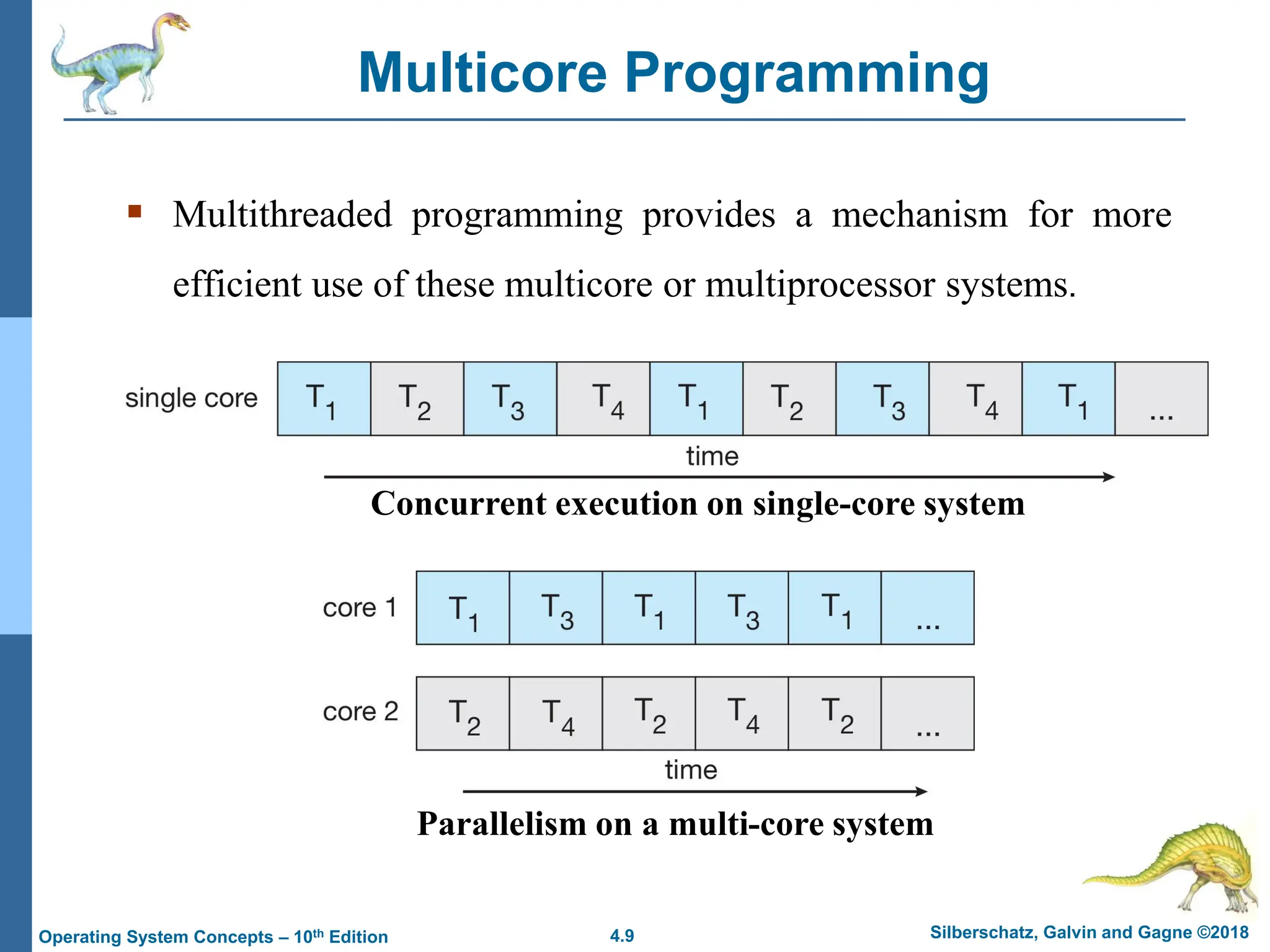

Multicore Programming
▪ Multithreaded programming provides a mechanism for more
efficient use of these multicore or multiprocessor systems.
Concurrent execution on single-core system
Parallelism on a multi-core system

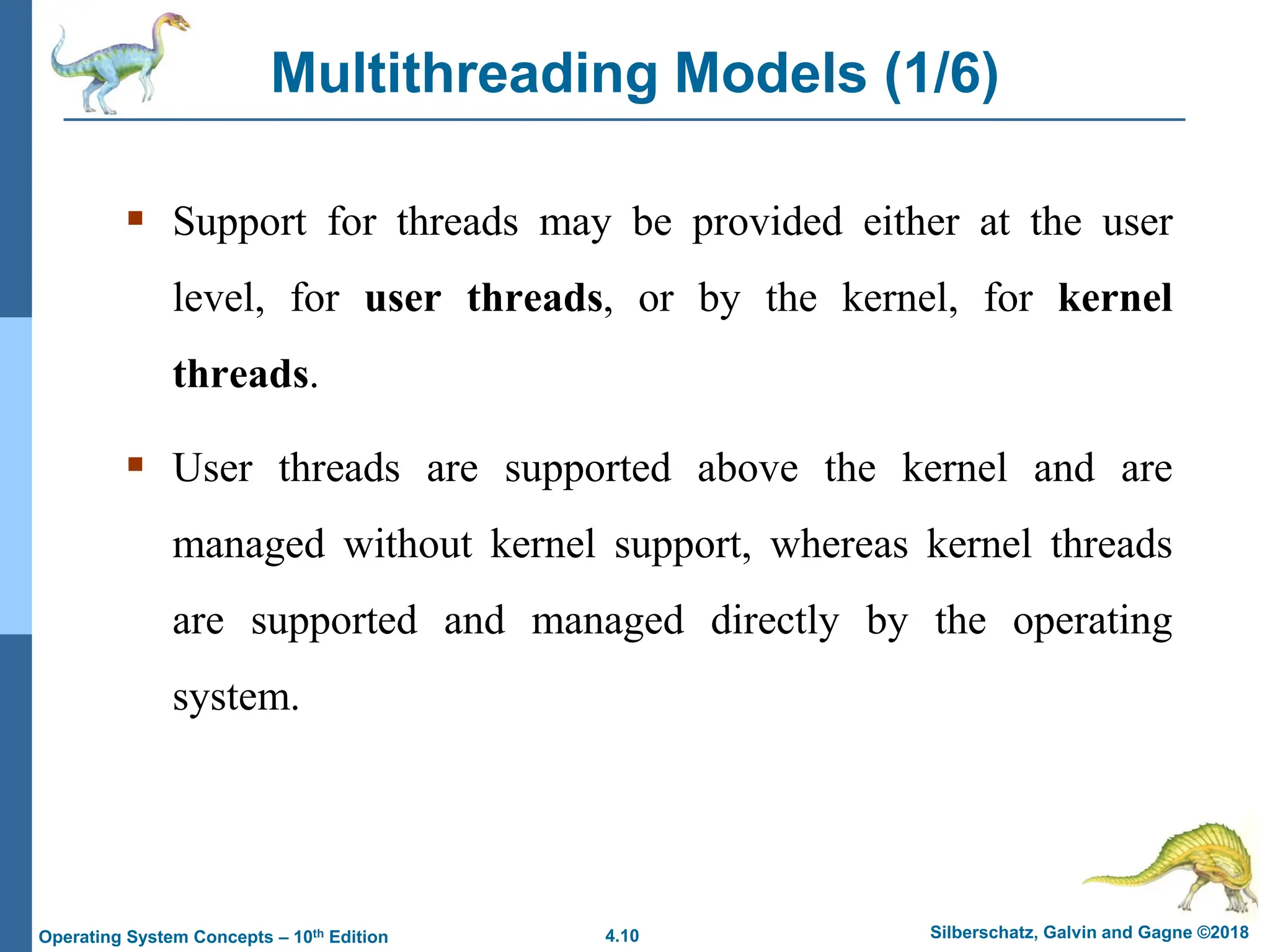

Multithreading Models (1/6)
▪ Support for threads may be provided either at the user
level, for user threads, or by the kernel, for kernel
threads.
▪ User threads are supported above the kernel and are
managed without kernel support, whereas kernel threads
are supported and managed directly by the operating
system.

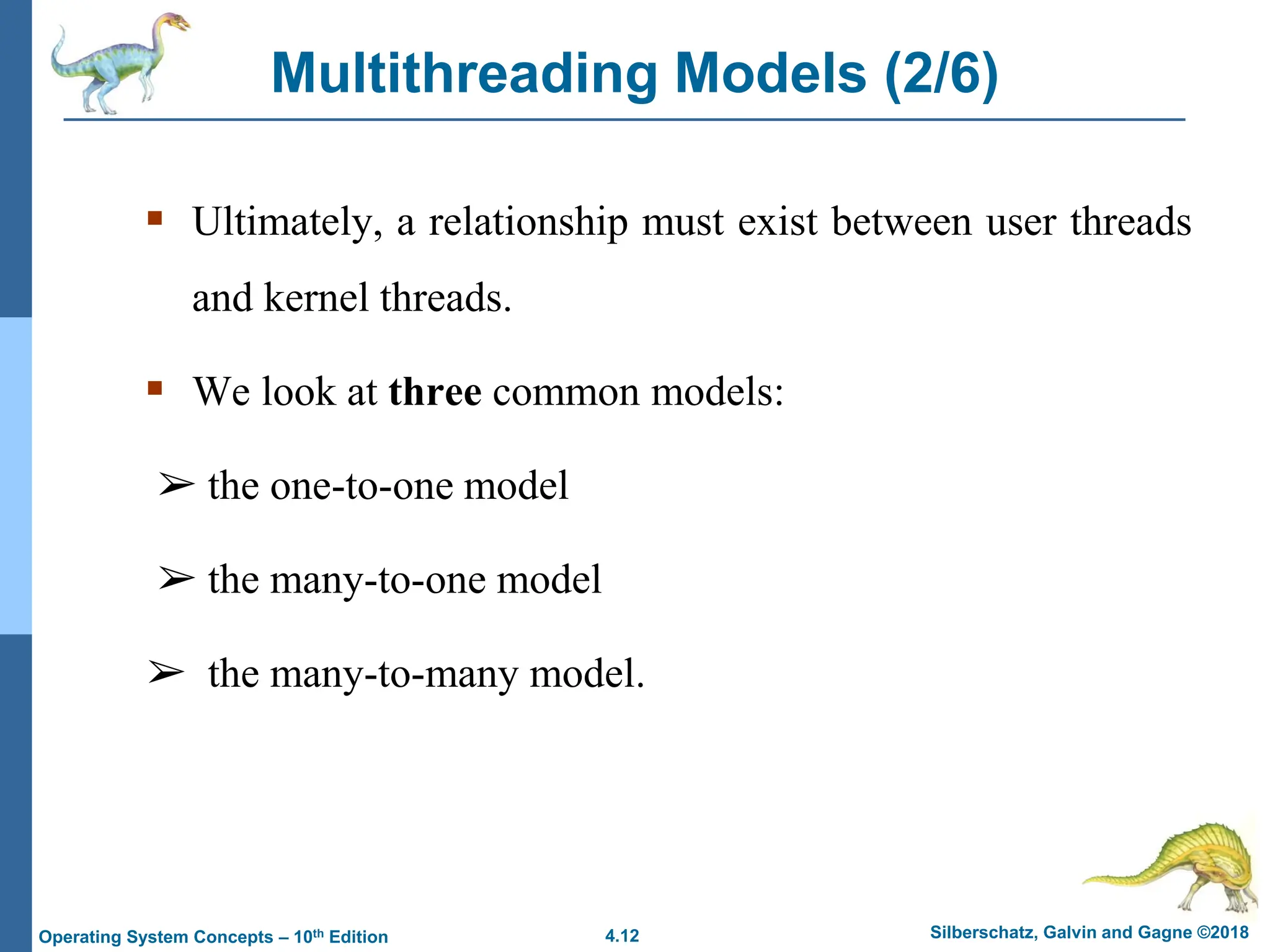

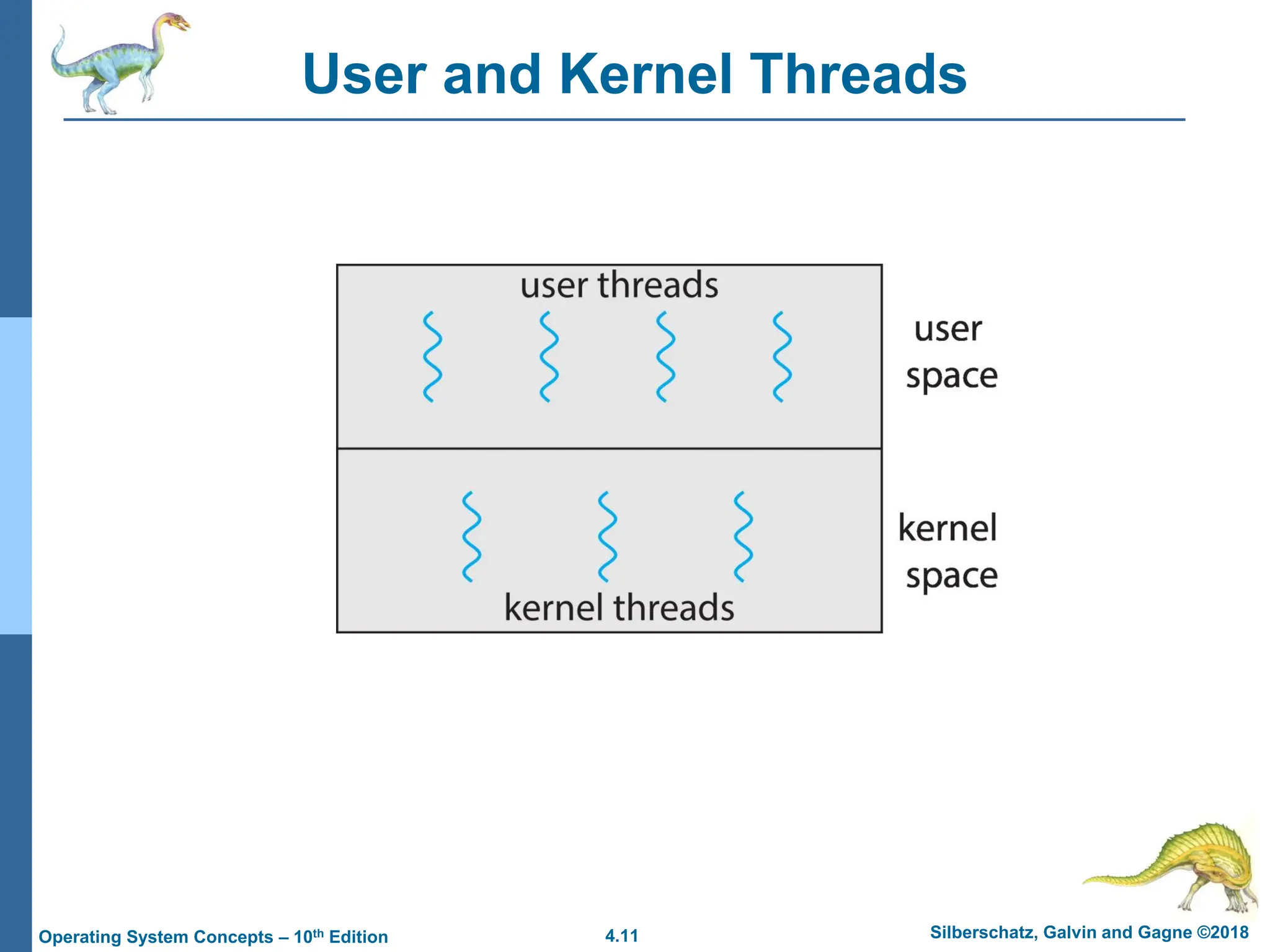

User and Kernel Threads

▪ Ultimately, a relationship must exist between user threads
and kernel threads.
▪ We look at three common models:
➢ the one-to-one model
➢ the many-to-one model
➢ the many-to-many model.

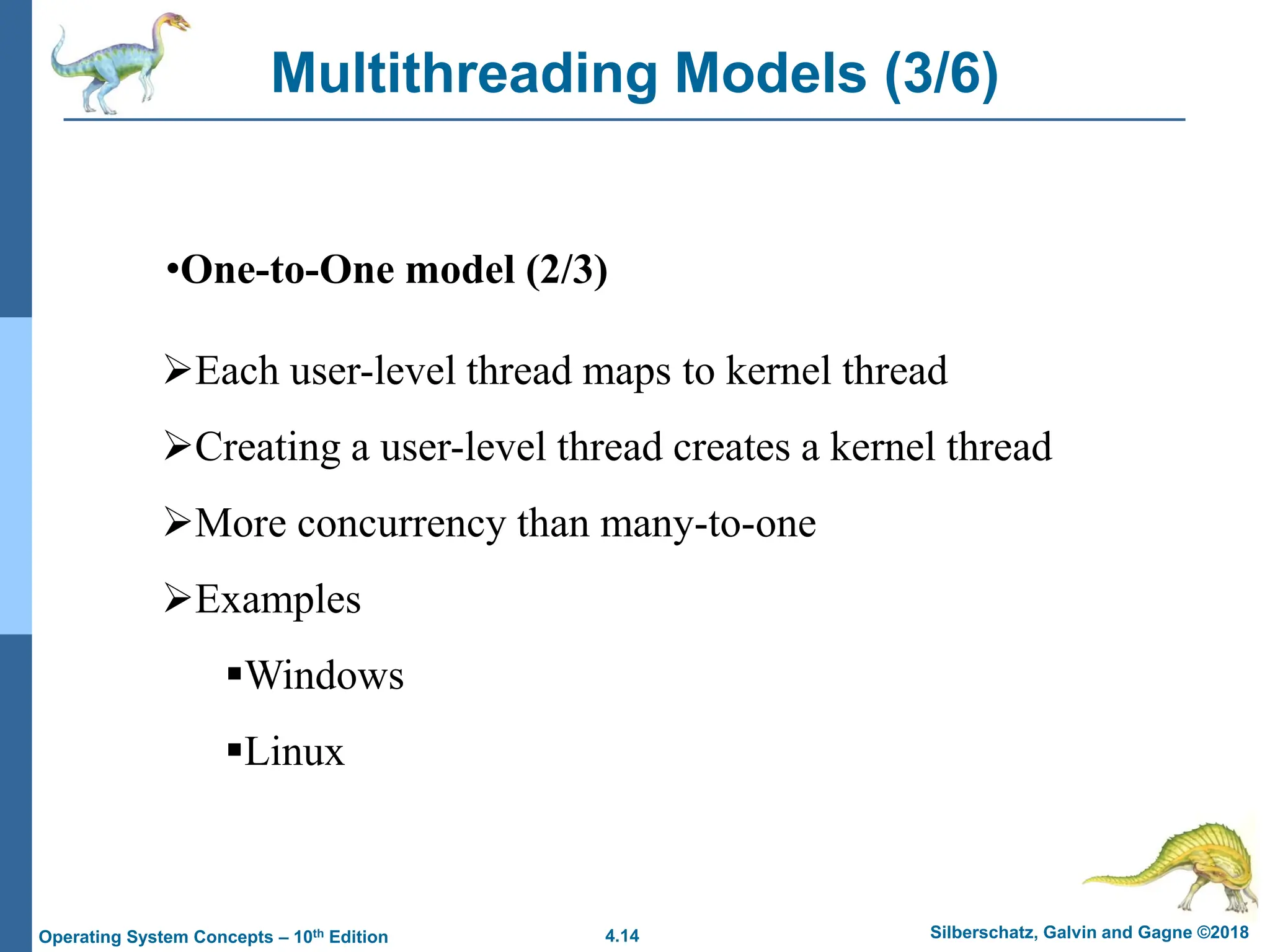

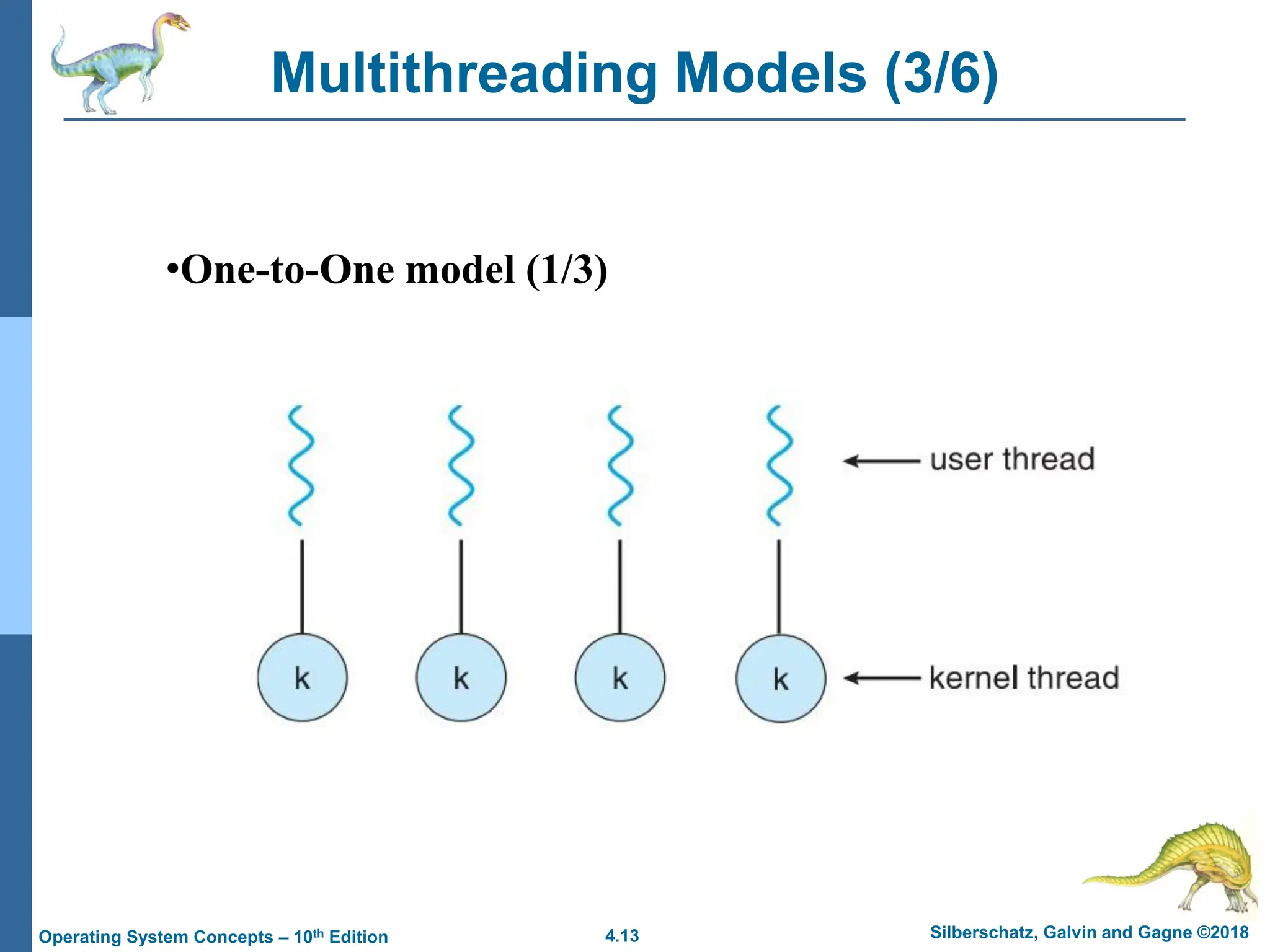

•One-to-One model (1/3)

➢Each user-level thread maps to kernel thread
➢Creating a user-level thread creates a kernel thread
➢More concurrency than many-to-one
➢Examples
▪Windows
▪Linux

➢The only drawback to this model is that creating a user
thread requires creating the corresponding kernel thread.
Because the overhead of creating kernel threads can burden
the performance of an application, most implementations of
this model restrict the number of threads supported by the
system. Linux, along with the family of Windows operating
systems, implement the one-to-one model.

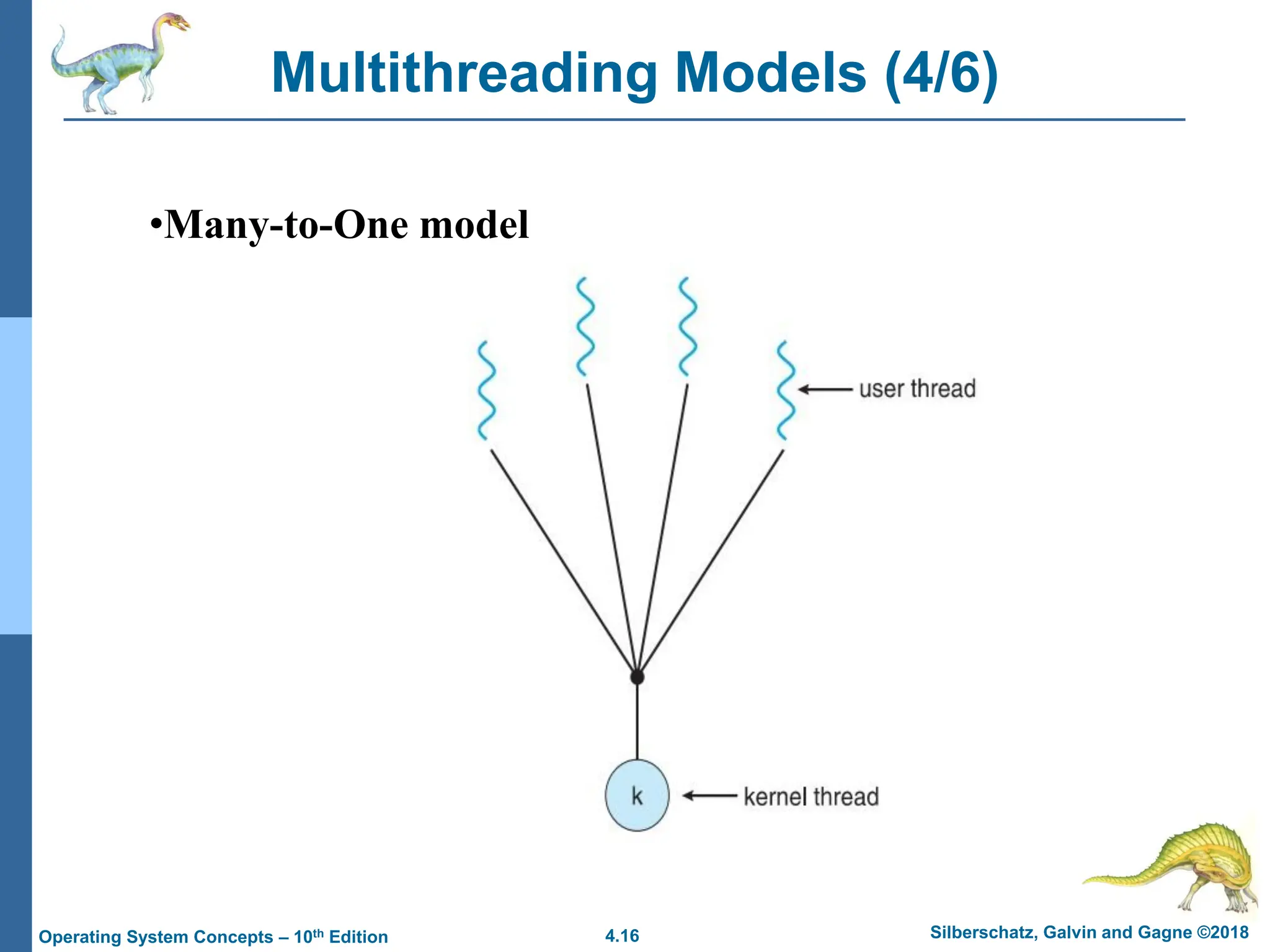

•Many-to-One model

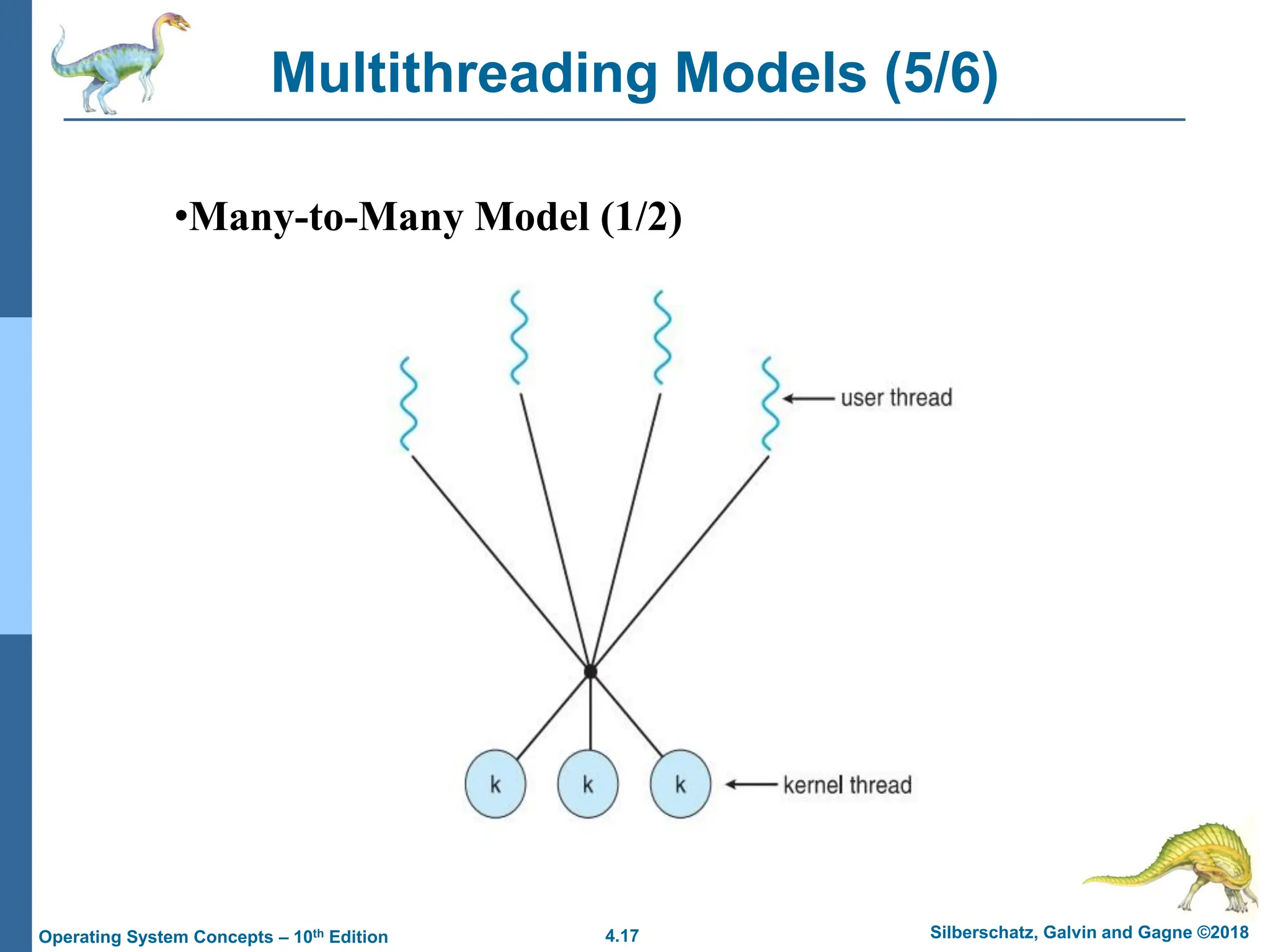

•Many-to-Many Model (1/2)

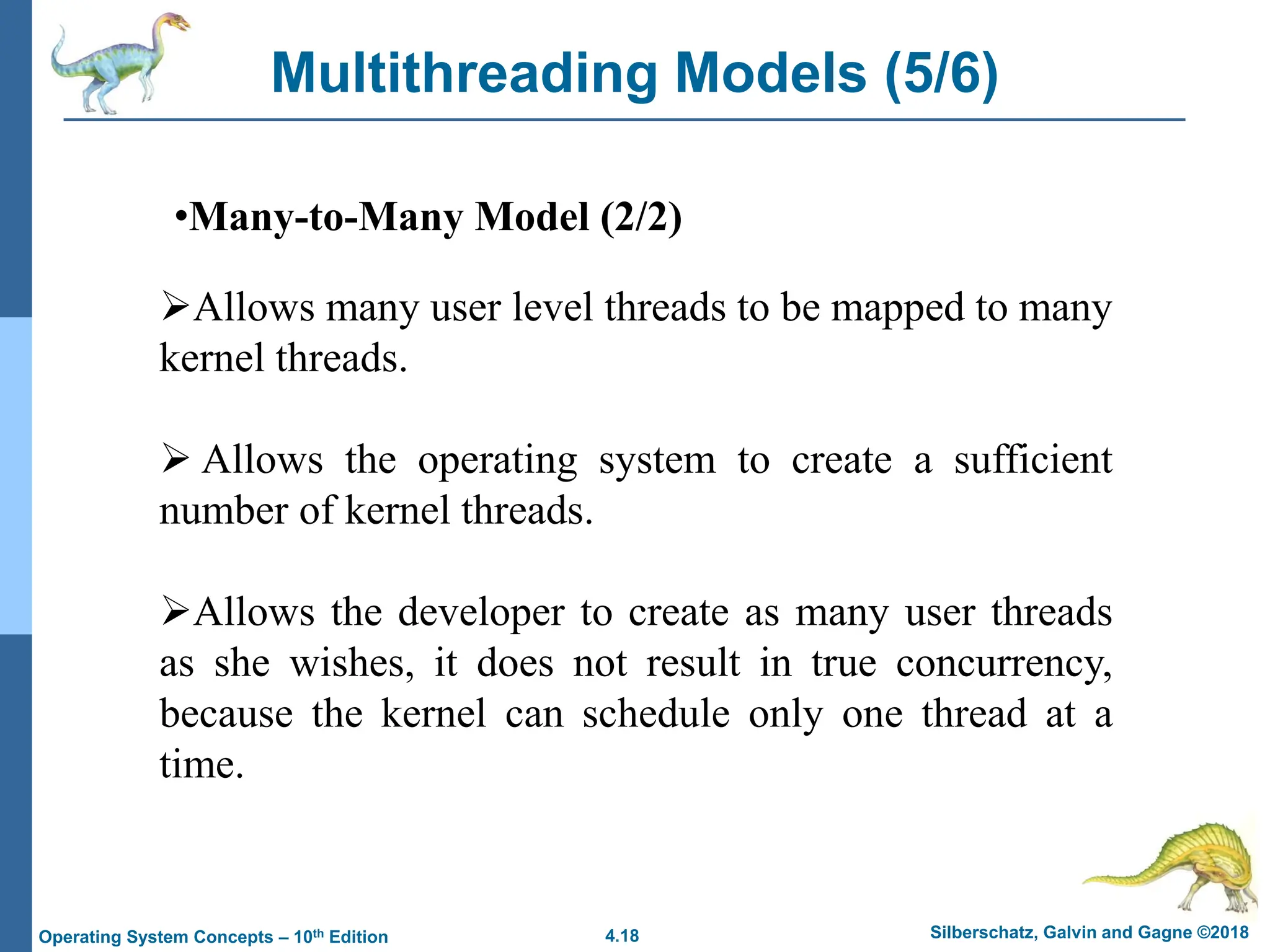

•Many-to-Many Model (2/2)
➢Allows many user level threads to be mapped to many
kernel threads.
➢ Allows the operating system to create a sufficient
number of kernel threads.
➢Allows the developer to create as many user threads
as she wishes, it does not result in true concurrency,
because the kernel can schedule only one thread at a
time.

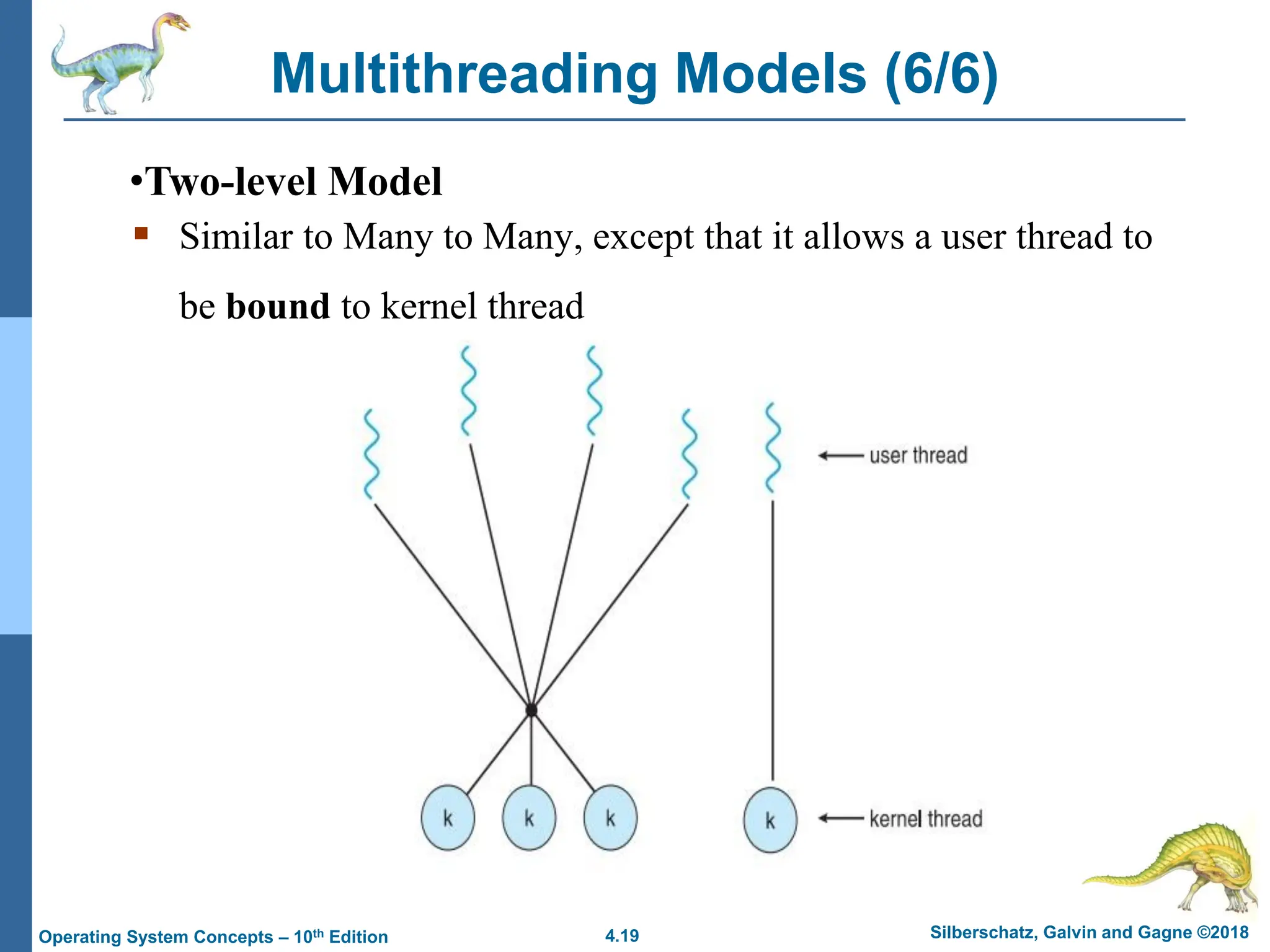

▪ Similar to Many to Many, except that it allows a user thread to
be bound to kernel thread
•Two-level Model

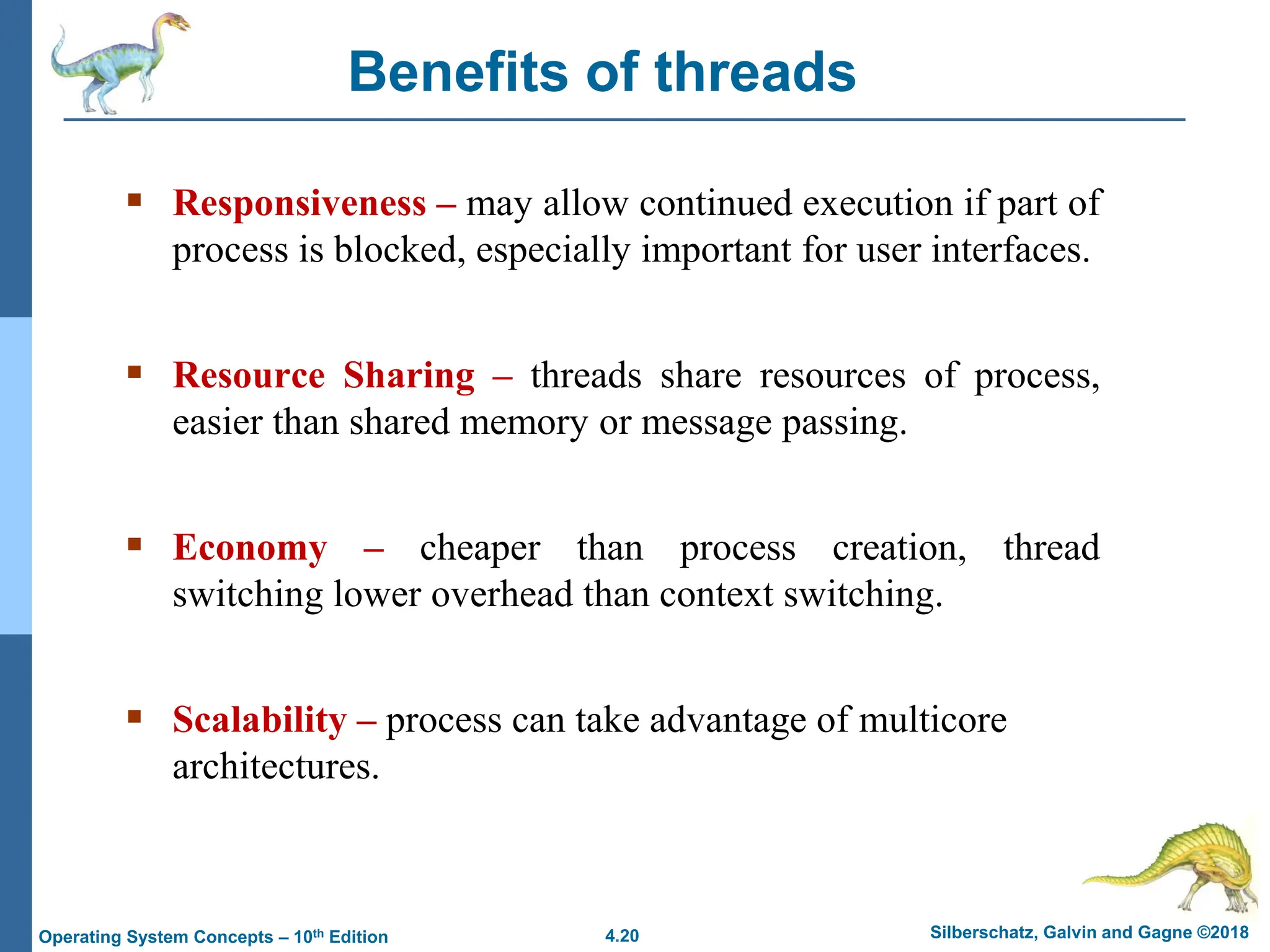

Benefits of threads
▪ Responsiveness – may allow continued execution if part of
process is blocked, especially important for user interfaces.
▪ Resource Sharing – threads share resources of process,
easier than shared memory or message passing.
▪ Economy – cheaper than process creation, thread
switching lower overhead than context switching.
▪ Scalability – process can take advantage of multicore
architectures.

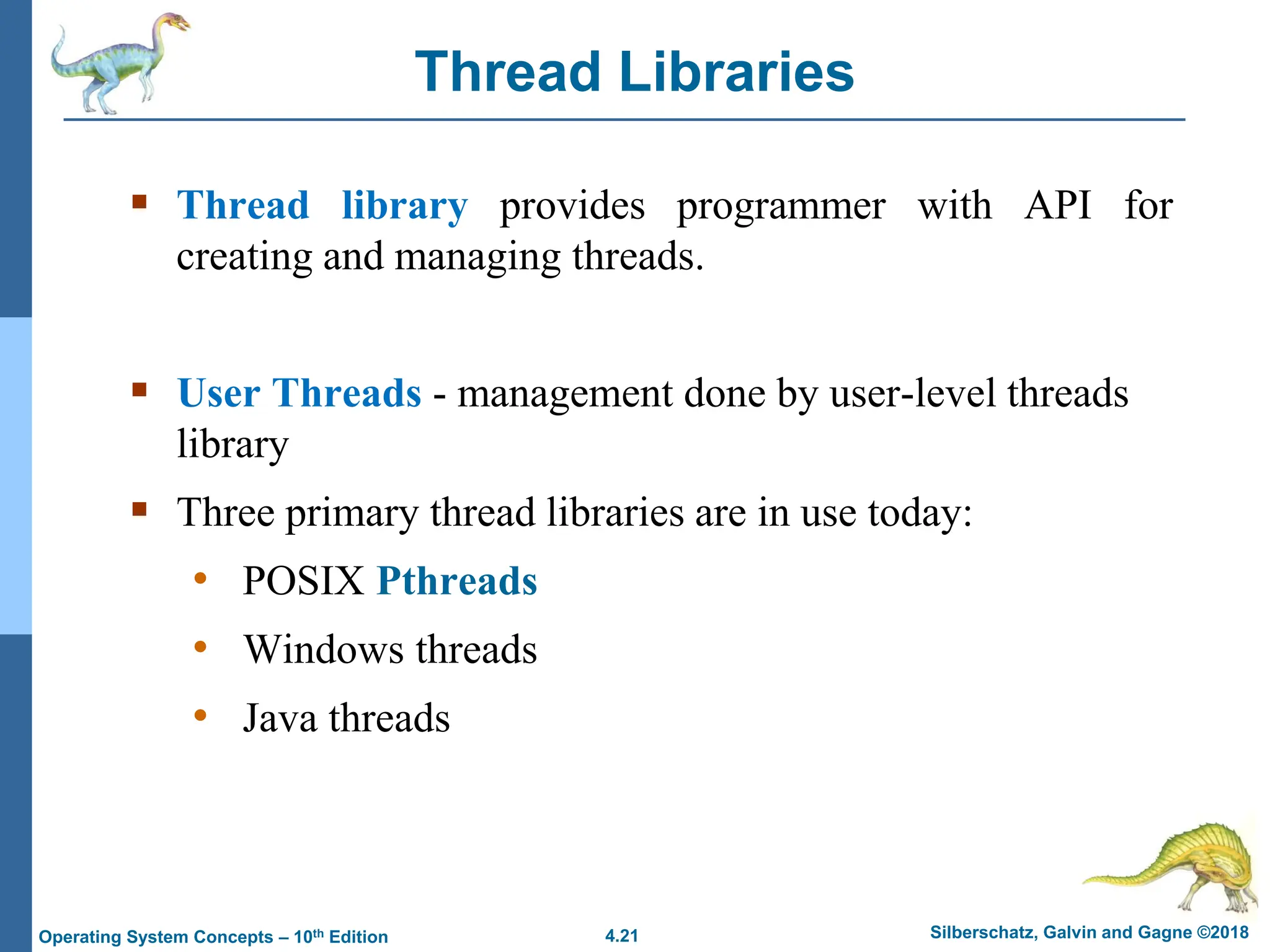

Thread Libraries
▪ Thread library provides programmer with API for
creating and managing threads.
▪ User Threads - management done by user-level threads
library
▪ Three primary thread libraries are in use today:
• POSIX Pthreads
• Windows threads
• Java threads

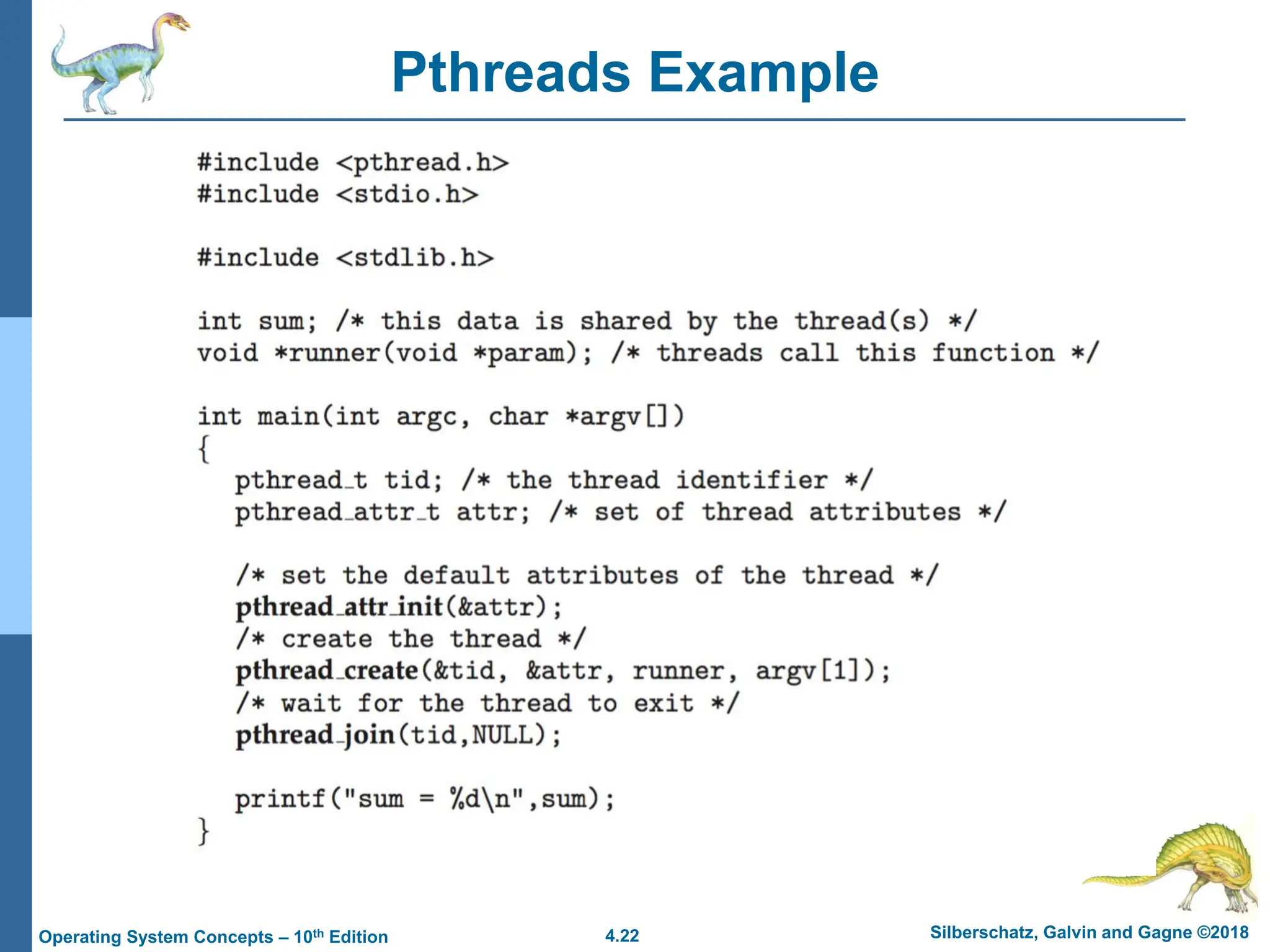

Pthreads Example

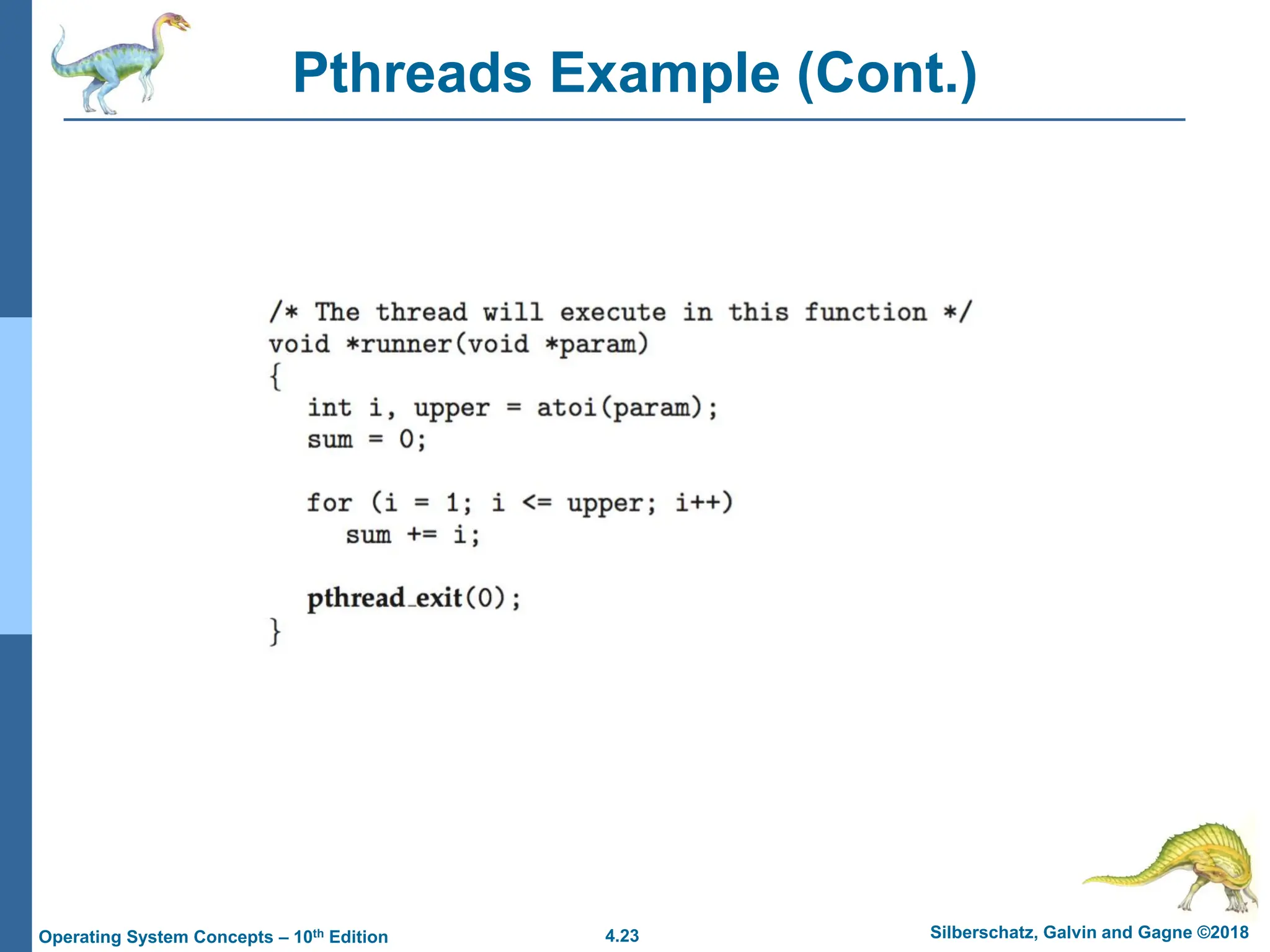

Pthreads Example (Cont.)

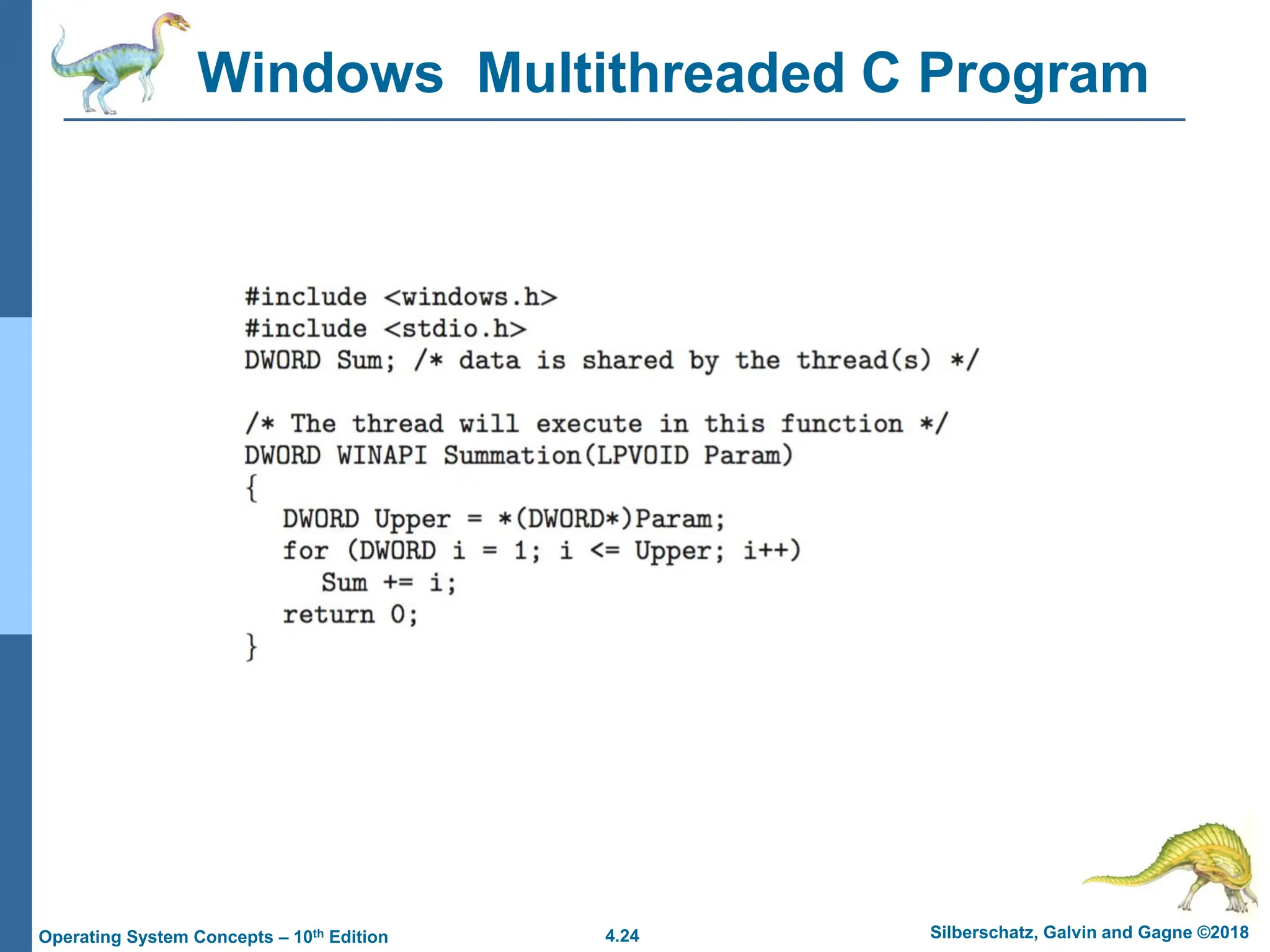

Windows Multithreaded C Program

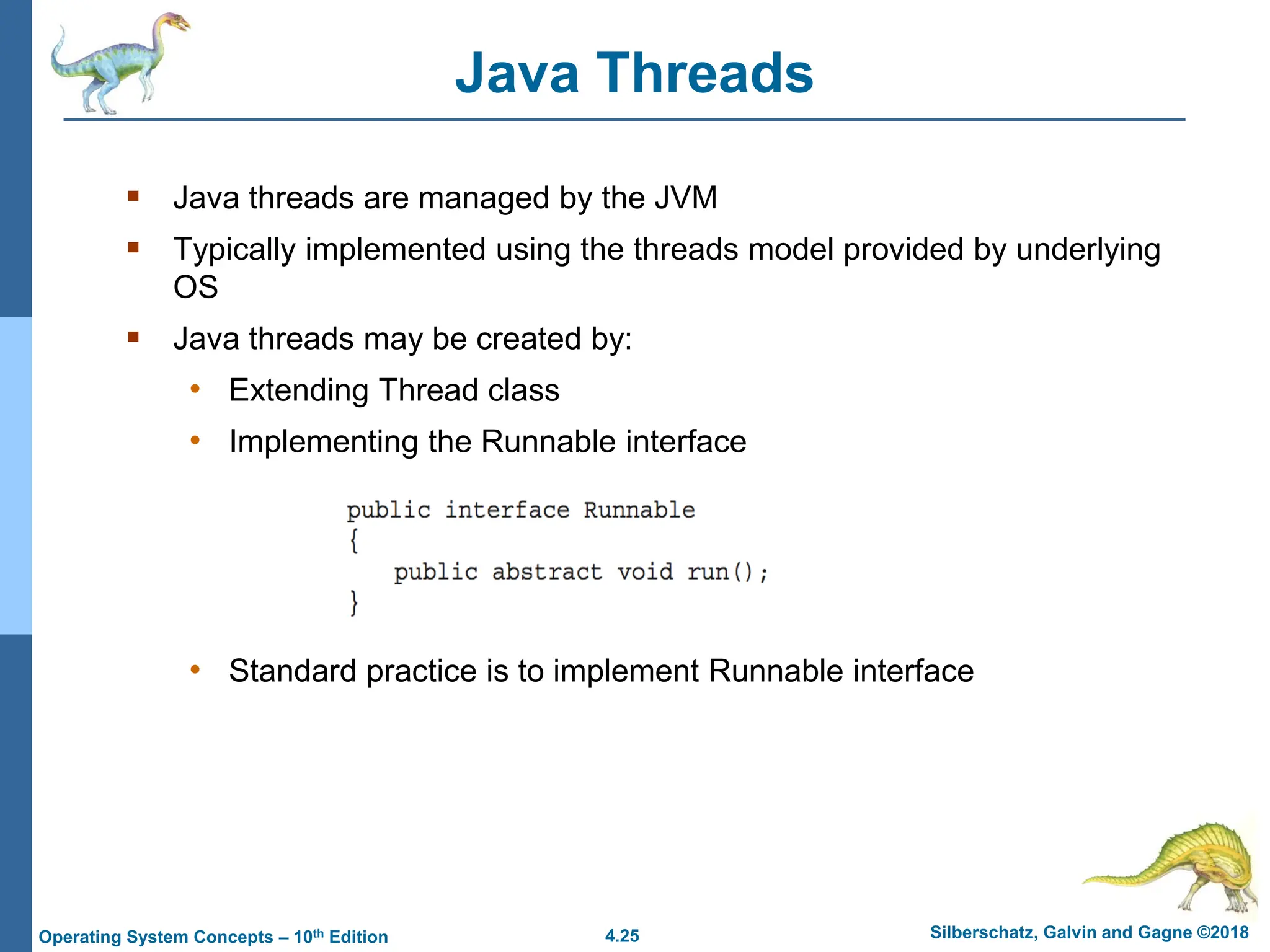

Java Threads
▪ Java threads are managed by the JVM
▪ Typically implemented using the threads model provided by underlying
OS
▪ Java threads may be created by:
• Extending Thread class
• Implementing the Runnable interface
• Standard practice is to implement Runnable interface

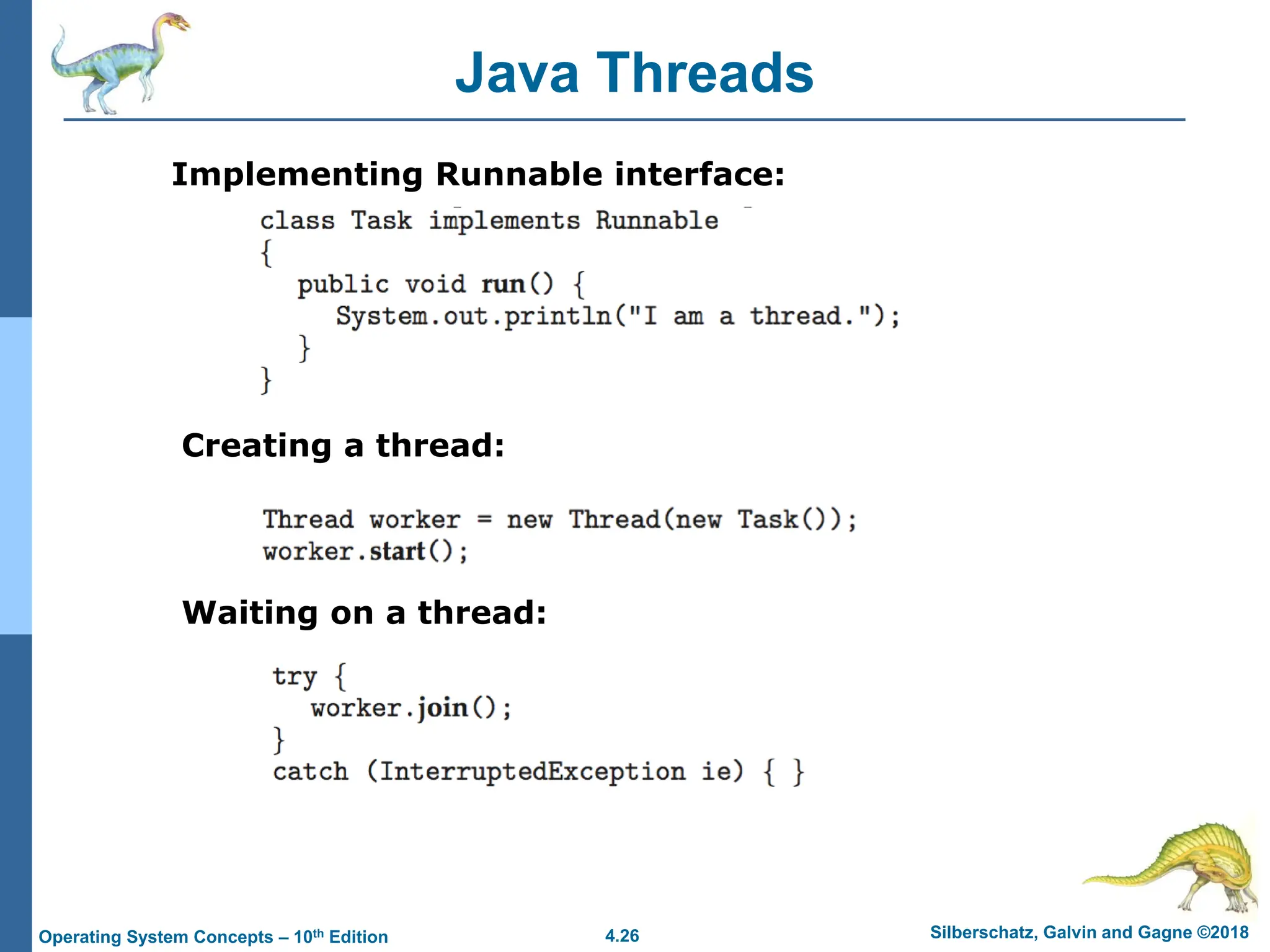

Java Threads
Implementing Runnable interface:
Creating a thread:
Waiting on a thread:
