Introduction to Apache Amaterasu (Incubating): CD Framework For Your Big Data Pipelines
The document outlines a framework for deploying big data applications called Amaterasu, designed to simplify and standardize the deployment of data pipelines using various programming languages. It highlights the need for robust source control, CI processes, configuration management, and monitoring for effective deployment. Amaterasu's YAML-defined pipelines facilitate easy deployments across multiple environments, while emphasizing a strong integration of data-centric methodologies.
More Related Content
Similar to Introduction to Apache Amaterasu (Incubating): CD Framework For Your Big Data Pipelines
More from DataWorks Summit
Introduction to Apache Amaterasu (Incubating): CD Framework For Your Big Data Pipelines
- 1. A CD FrameworkFor Data Pipelines Yaniv Rodenski @YRodenski yaniv@apache.org
- 2. Archetypes of DataPipelines Builders • Exploratory workloads • Data centric • Simple Deployment Data People (Data Scientist/ Analysts/BI Devs) Software Developers • Code centric • Heavy on methodologies • Heavy tooling • Very complex deployment “Scientists”
- 4.

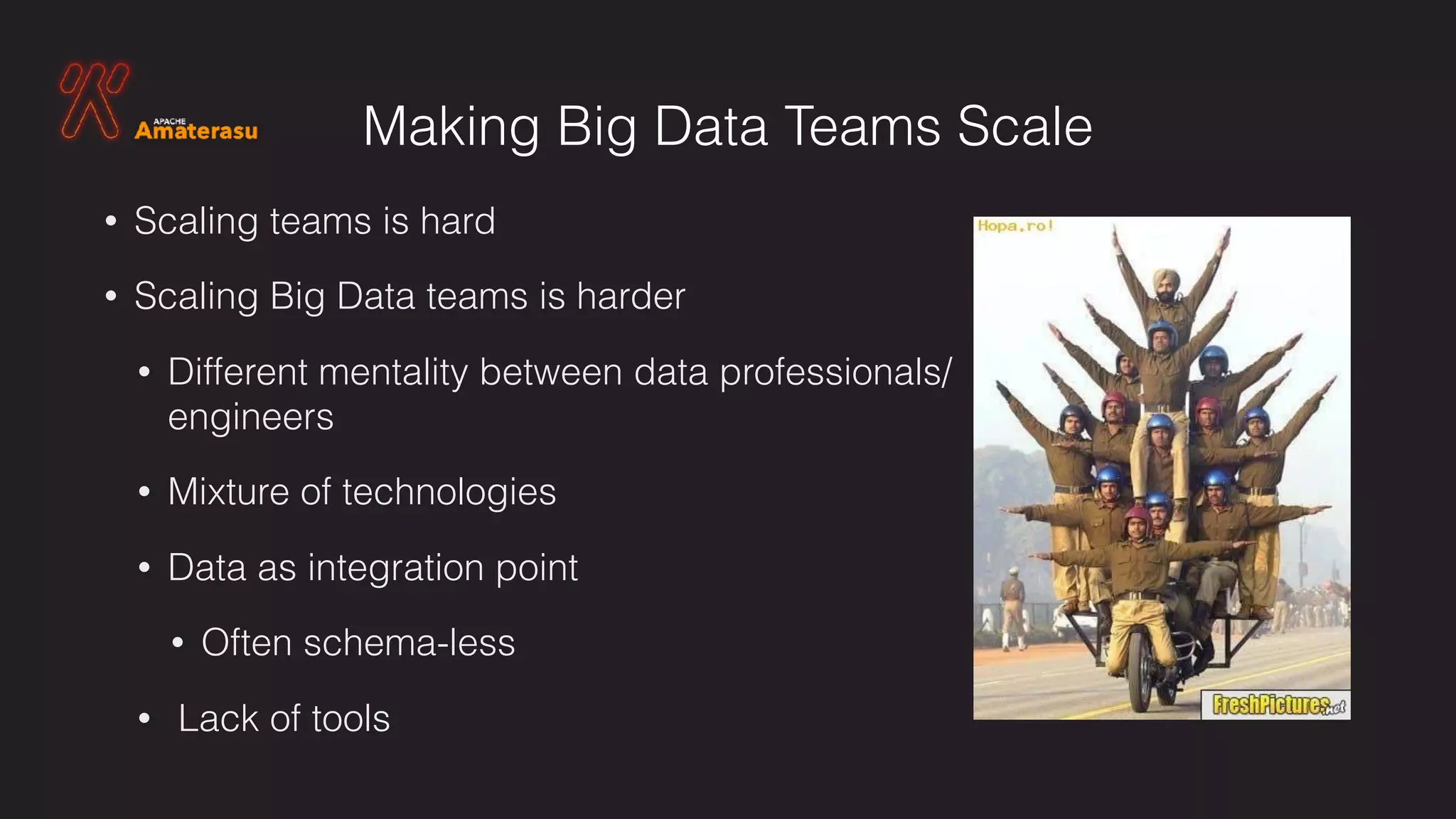

- 5. Making Big DataTeams Scale • Scaling teams is hard • Scaling Big Data teams is harder • Different mentality between data professionals/ engineers • Mixture of technologies • Data as integration point • Often schema-less • Lack of tools

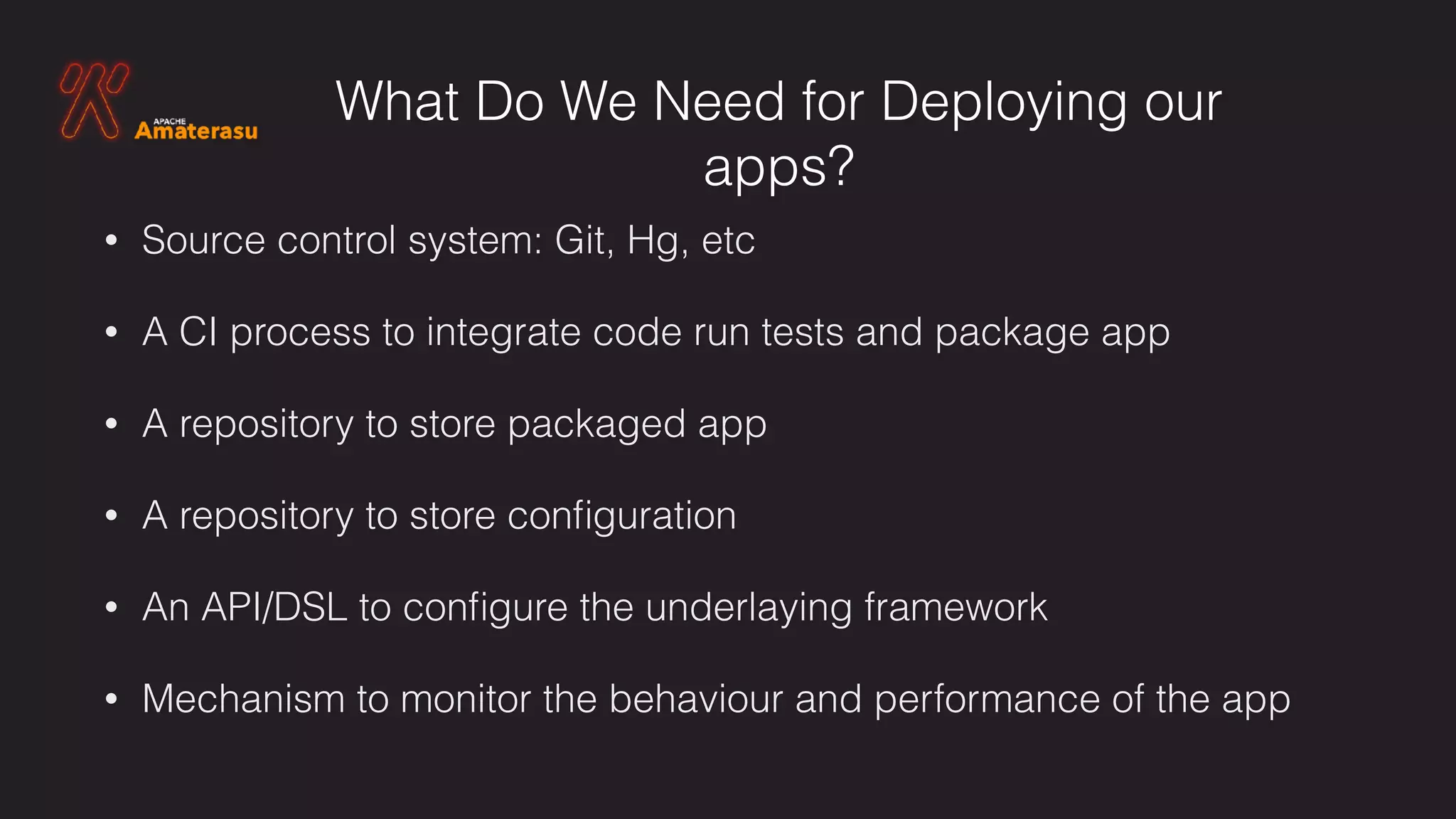

- 6. What Do WeNeed for Deploying our apps? • Source control system: Git, Hg, etc • A CI process to integrate code run tests and package app • A repository to store packaged app • A repository to store configuration • An API/DSL to configure the underlaying framework • Mechanism to monitor the behaviour and performance of the app

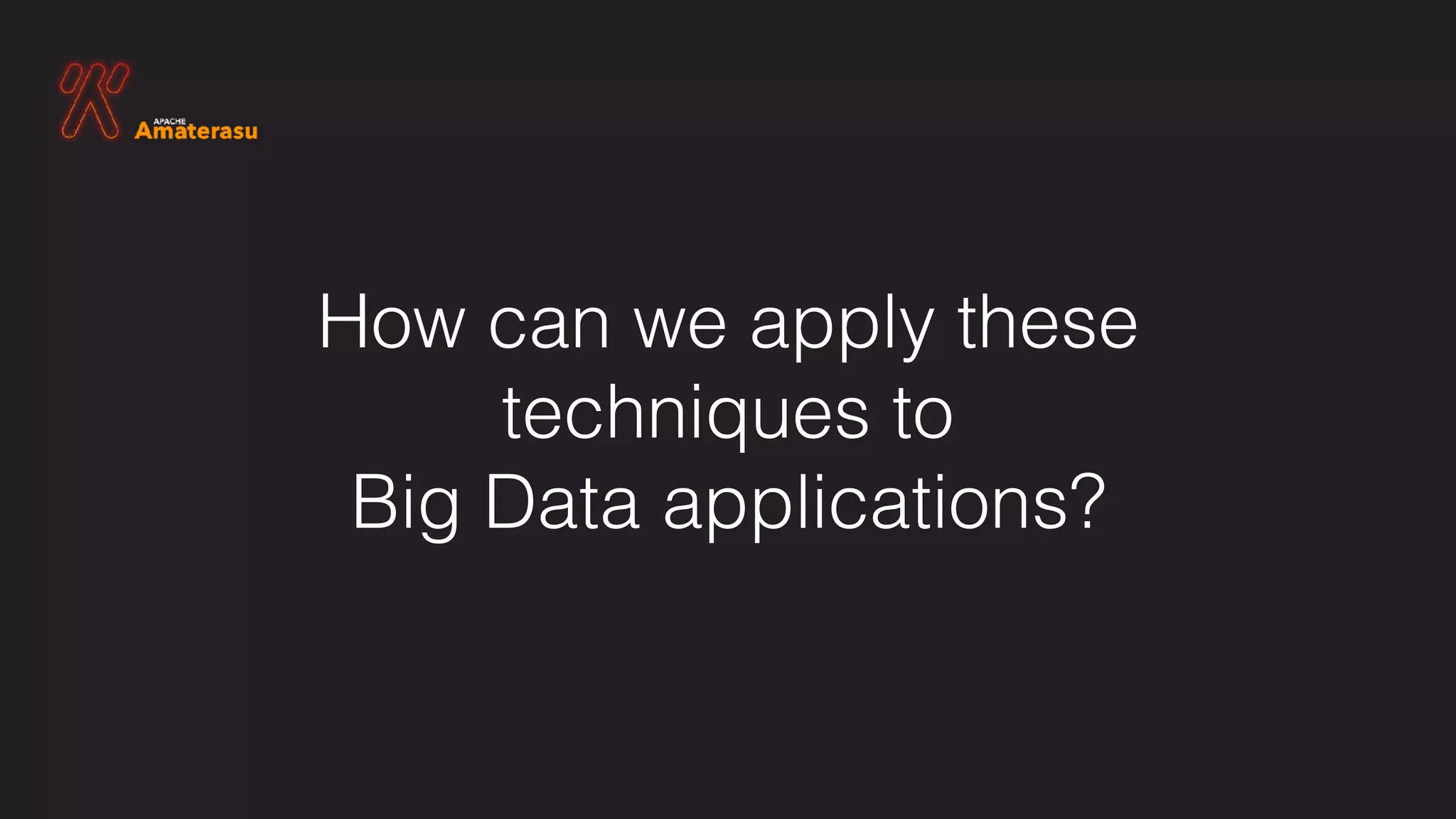

- 7. How can weapply these techniques to Big Data applications?
- 8. Who are we? Softwaredevelopers with years of Big Data experience What do we want? Simple and robust way to deploy Big Data pipelines How will we get it? Write tens thousands of lines of code in Scala

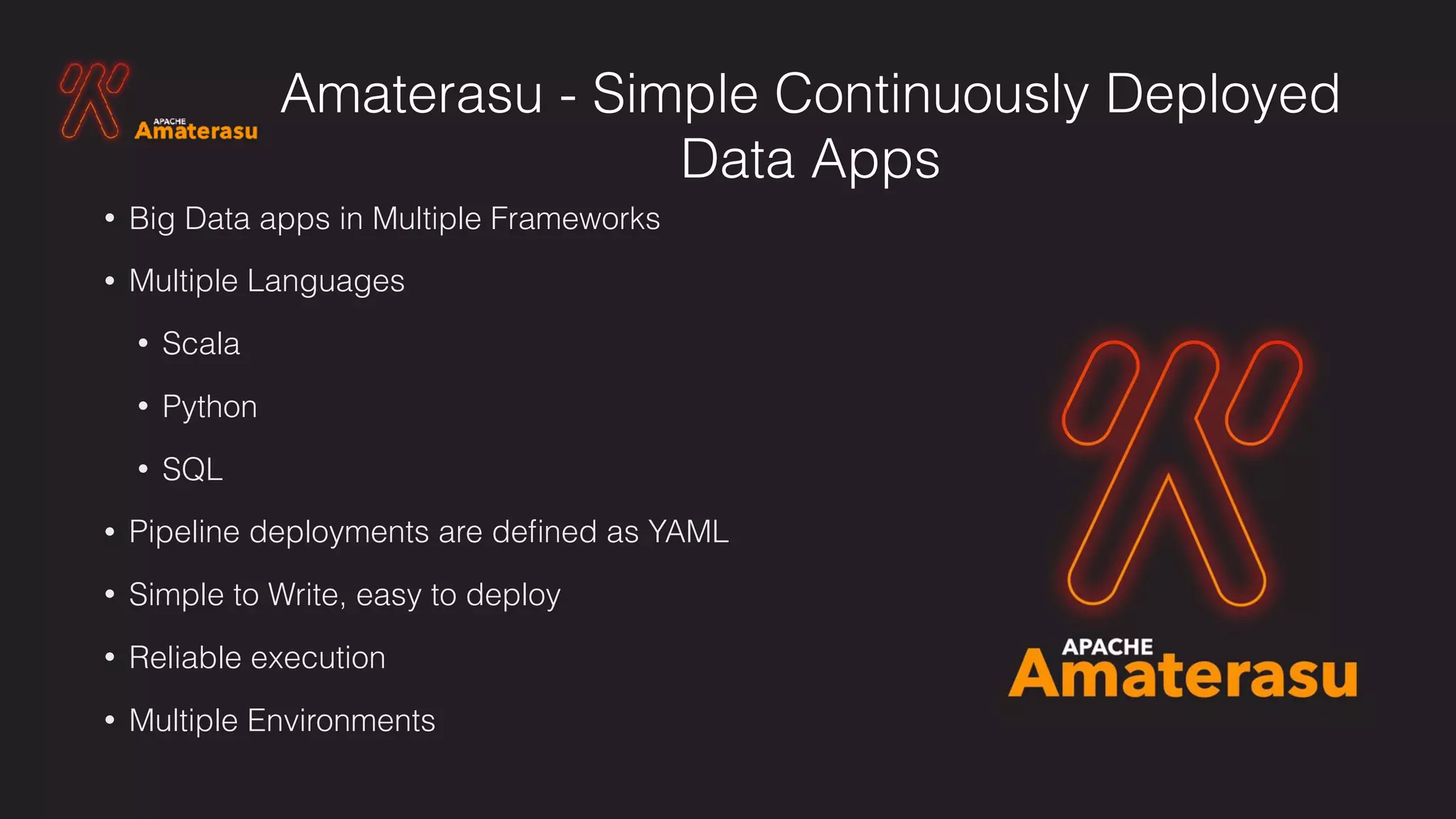

- 9. Amaterasu - SimpleContinuously Deployed Data Apps • Big Data apps in Multiple Frameworks • Multiple Languages • Scala • Python • SQL • Pipeline deployments are defined as YAML • Simple to Write, easy to deploy • Reliable execution • Multiple Environments

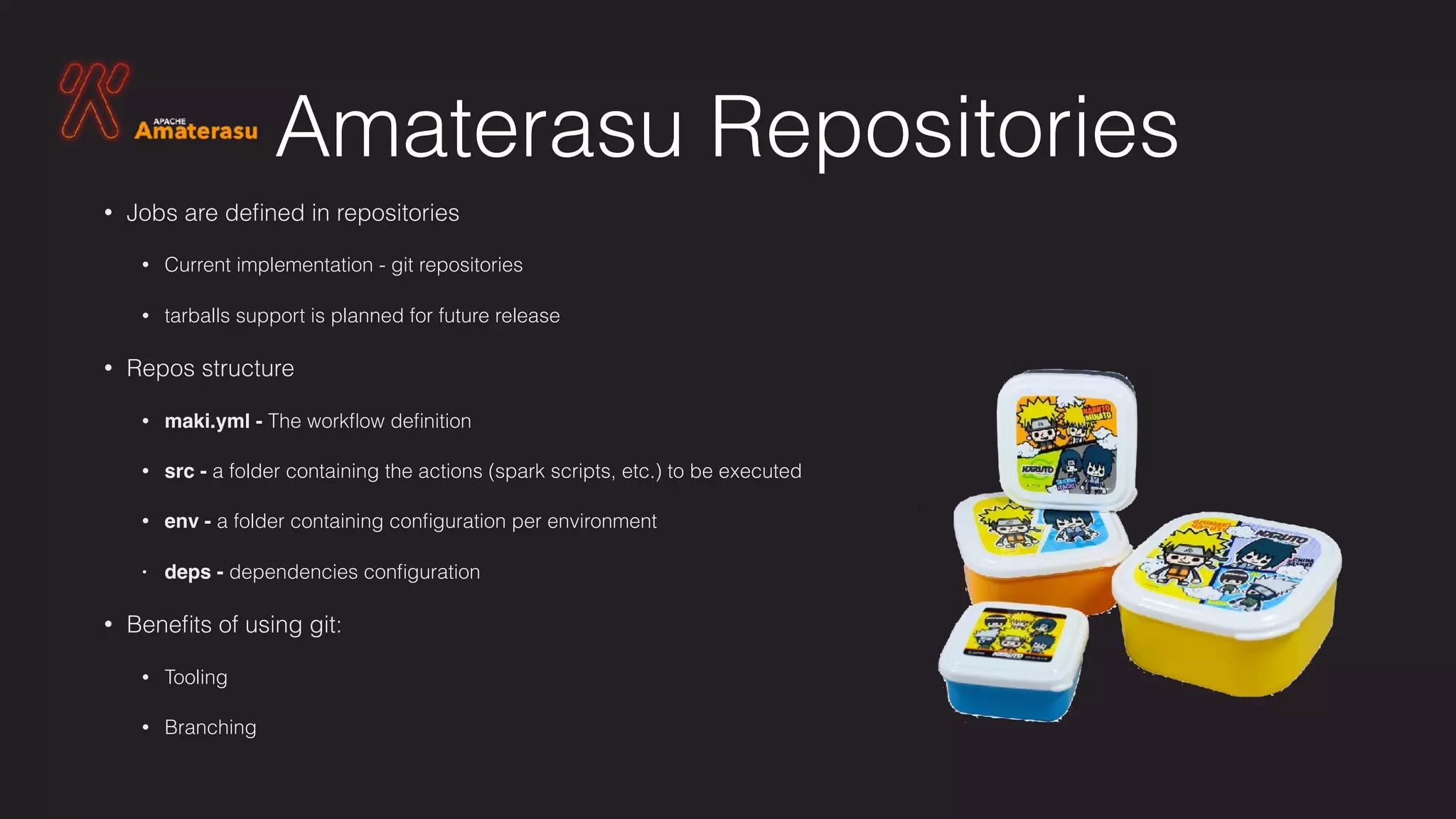

- 10. Amaterasu Repositories • Jobsare defined in repositories • Current implementation - git repositories • tarballs support is planned for future release • Repos structure • maki.yml - The workflow definition • src - a folder containing the actions (spark scripts, etc.) to be executed • env - a folder containing configuration per environment • deps - dependencies configuration • Benefits of using git: • Tooling • Branching

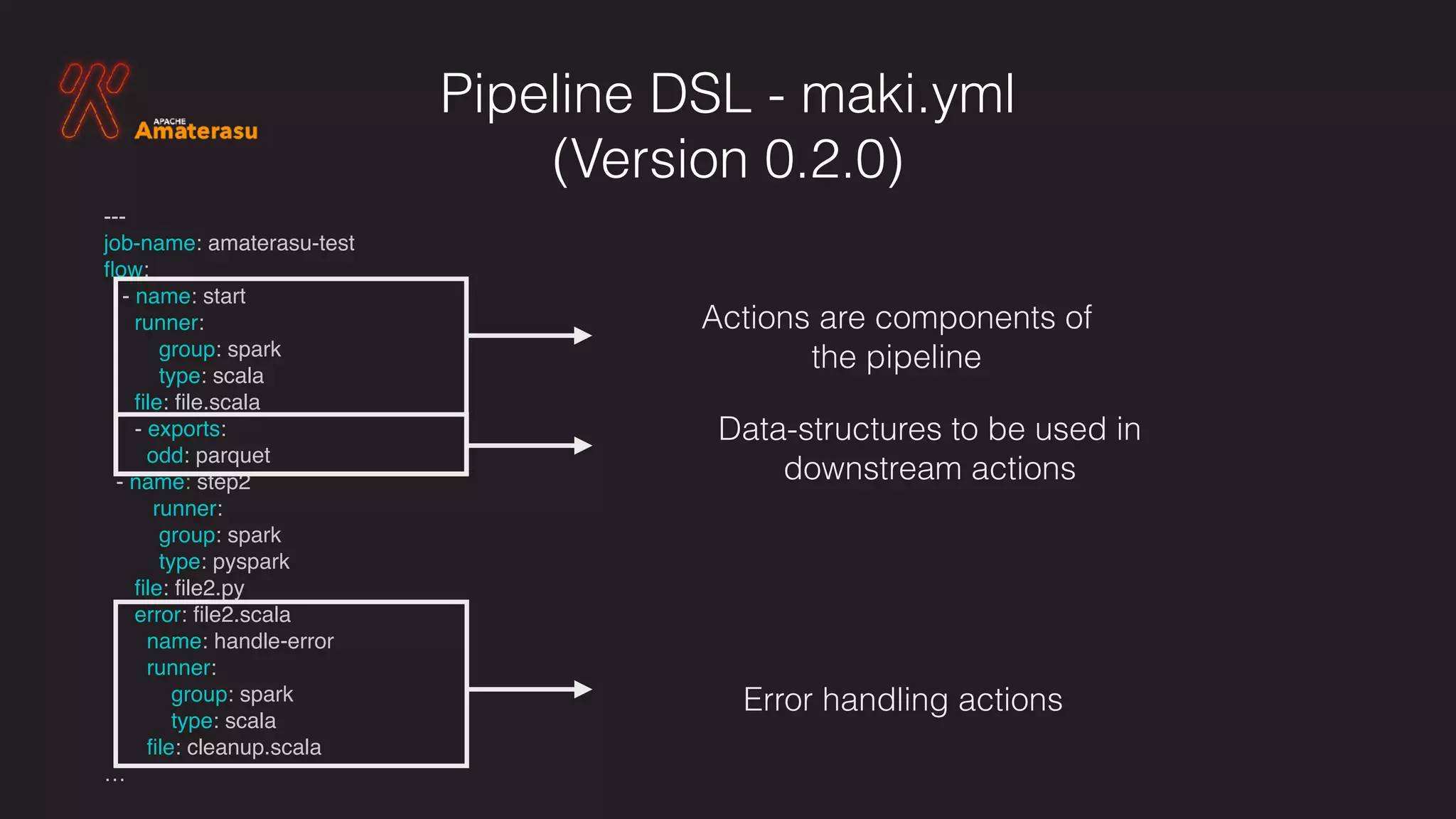

- 11. Pipeline DSL -maki.yml (Version 0.2.0) --- job-name: amaterasu-test flow: - name: start runner: group: spark type: scala file: file.scala - exports: odd: parquet - name: step2 runner: group: spark type: pyspark file: file2.py error: file2.scala name: handle-error runner: group: spark type: scala file: cleanup.scala … Data-structures to be used in downstream actions Actions are components of the pipeline Error handling actions

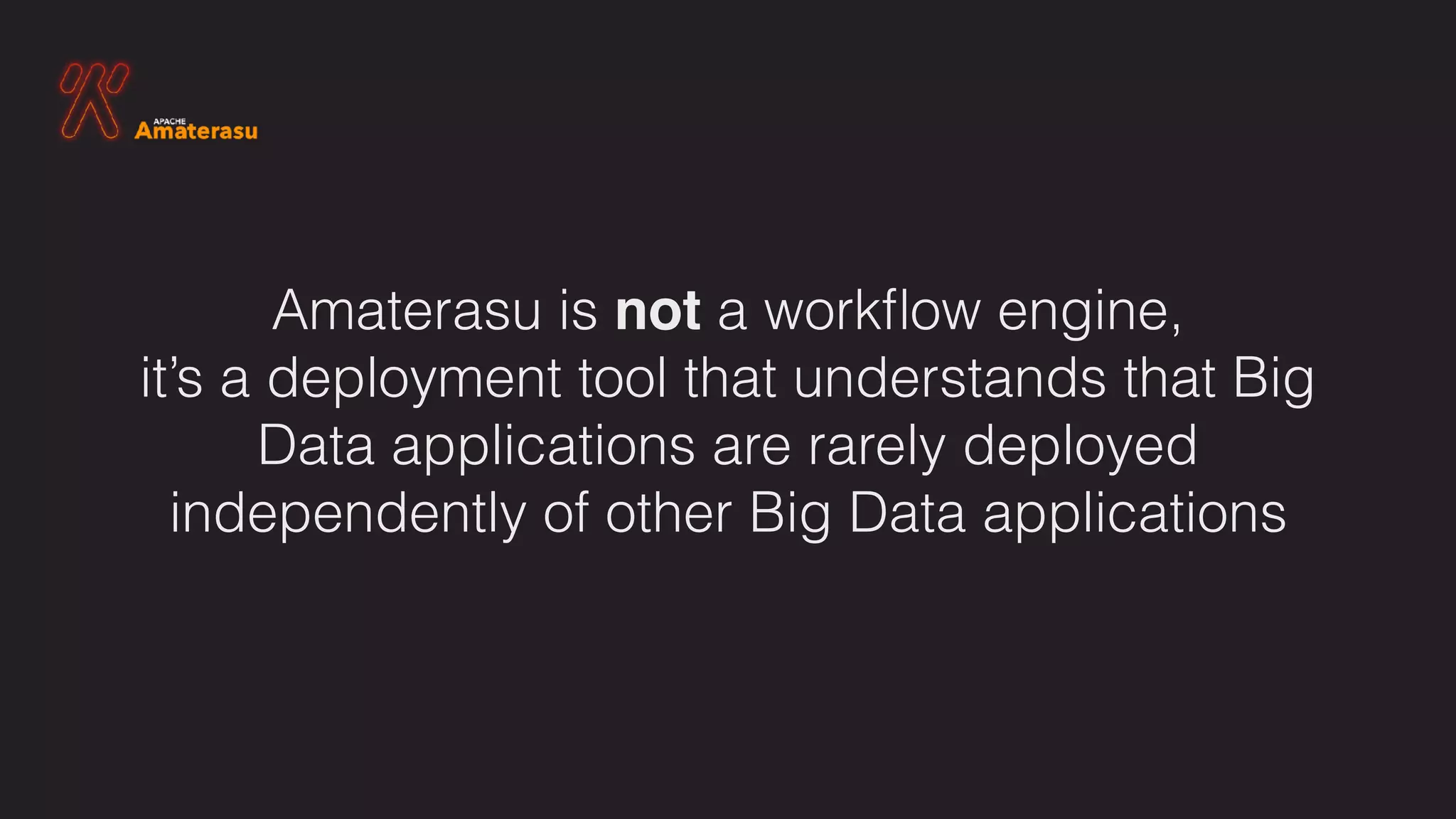

- 12. Amaterasu is nota workflow engine, it’s a deployment tool that understands that Big Data applications are rarely deployed independently of other Big Data applications
- 13.

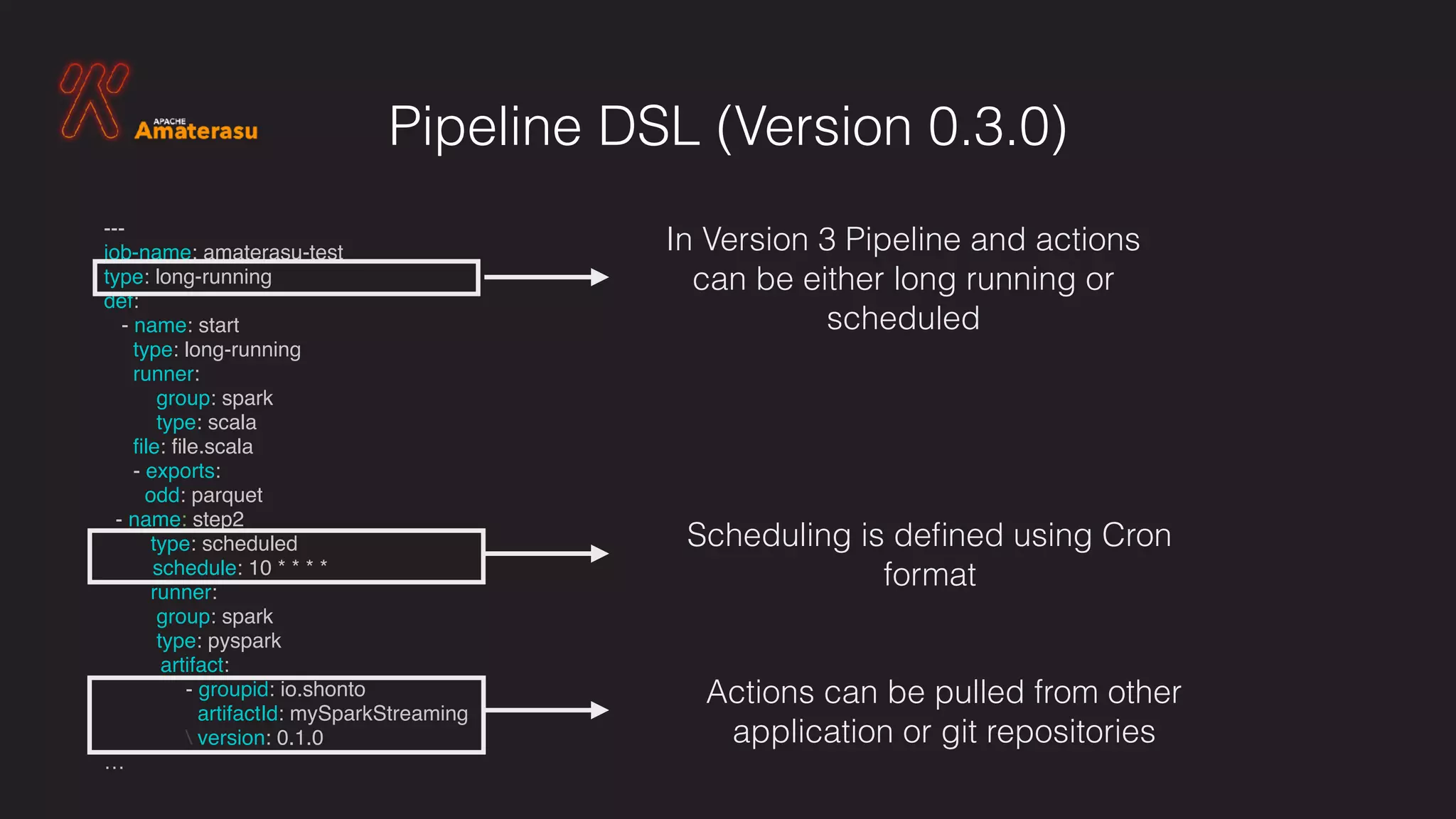

- 14. Pipeline DSL (Version0.3.0) --- job-name: amaterasu-test type: long-running def: - name: start type: long-running runner: group: spark type: scala file: file.scala - exports: odd: parquet - name: step2 type: scheduled schedule: 10 * * * * runner: group: spark type: pyspark artifact: - groupid: io.shonto artifactId: mySparkStreaming version: 0.1.0 … Scheduling is defined using Cron format In Version 3 Pipeline and actions can be either long running or scheduled Actions can be pulled from other application or git repositories

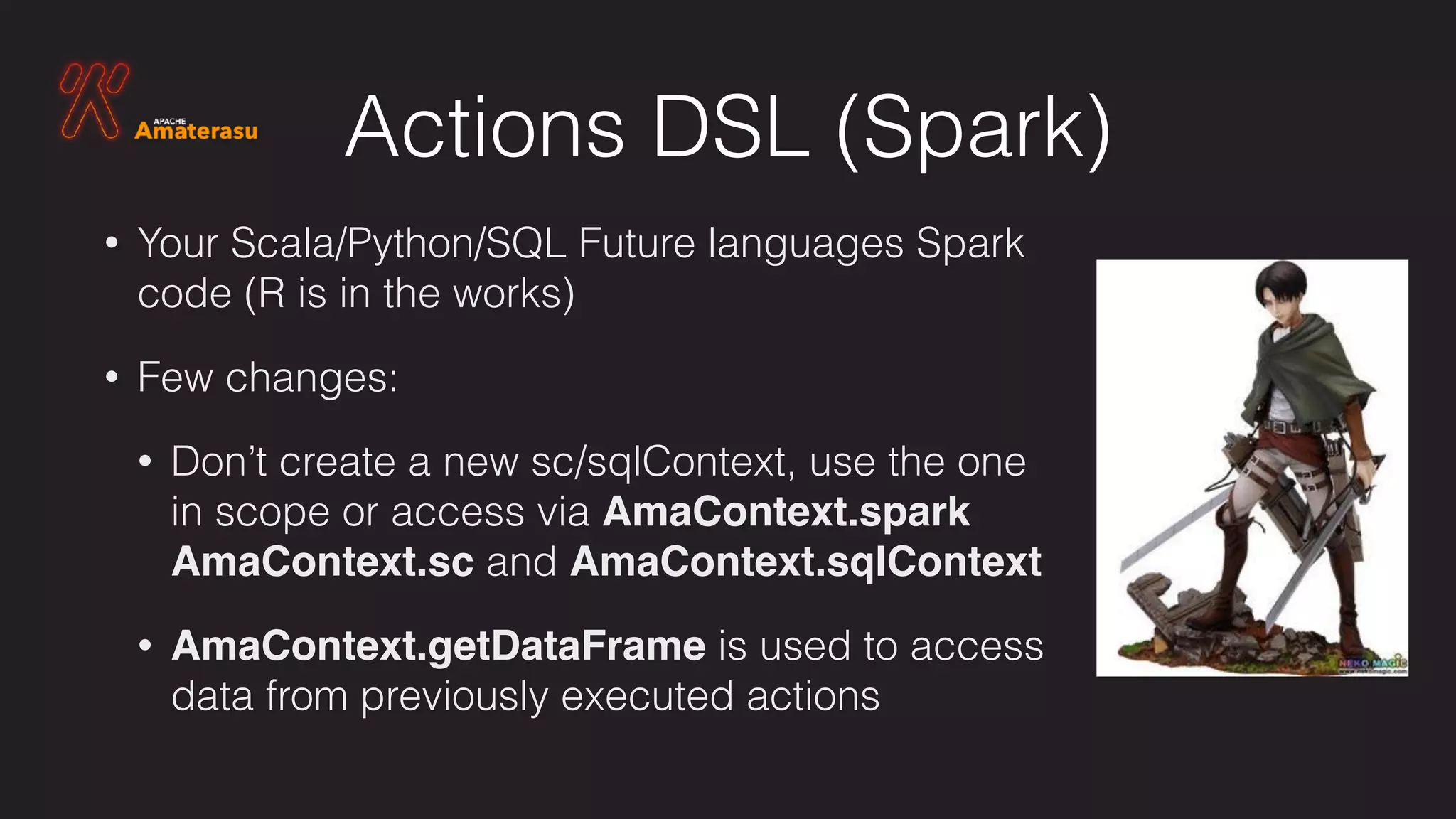

- 15. Actions DSL (Spark) •Your Scala/Python/SQL Future languages Spark code (R is in the works) • Few changes: • Don’t create a new sc/sqlContext, use the one in scope or access via AmaContext.spark AmaContext.sc and AmaContext.sqlContext • AmaContext.getDataFrame is used to access data from previously executed actions

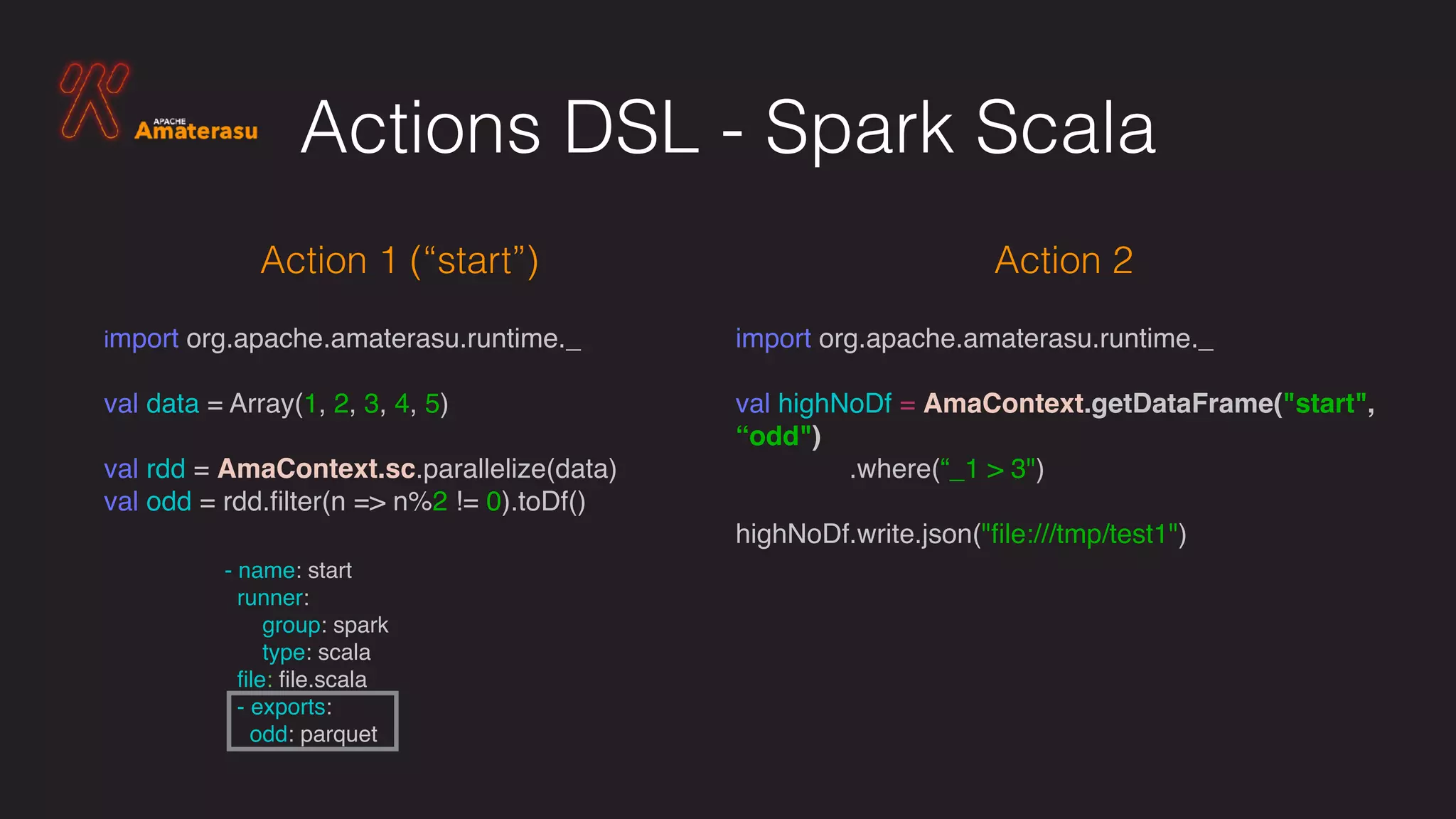

- 16. import org.apache.amaterasu.runtime._ val highNoDf= AmaContext.getDataFrame("start", “odd") .where(“_1 > 3") highNoDf.write.json("file:///tmp/test1") Actions DSL - Spark Scala import org.apache.amaterasu.runtime._ val data = Array(1, 2, 3, 4, 5) val rdd = AmaContext.sc.parallelize(data) val odd = rdd.filter(n => n%2 != 0).toDf() Action 1 (“start”) Action 2 - name: start runner: group: spark type: scala file: file.scala - exports: odd: parquet

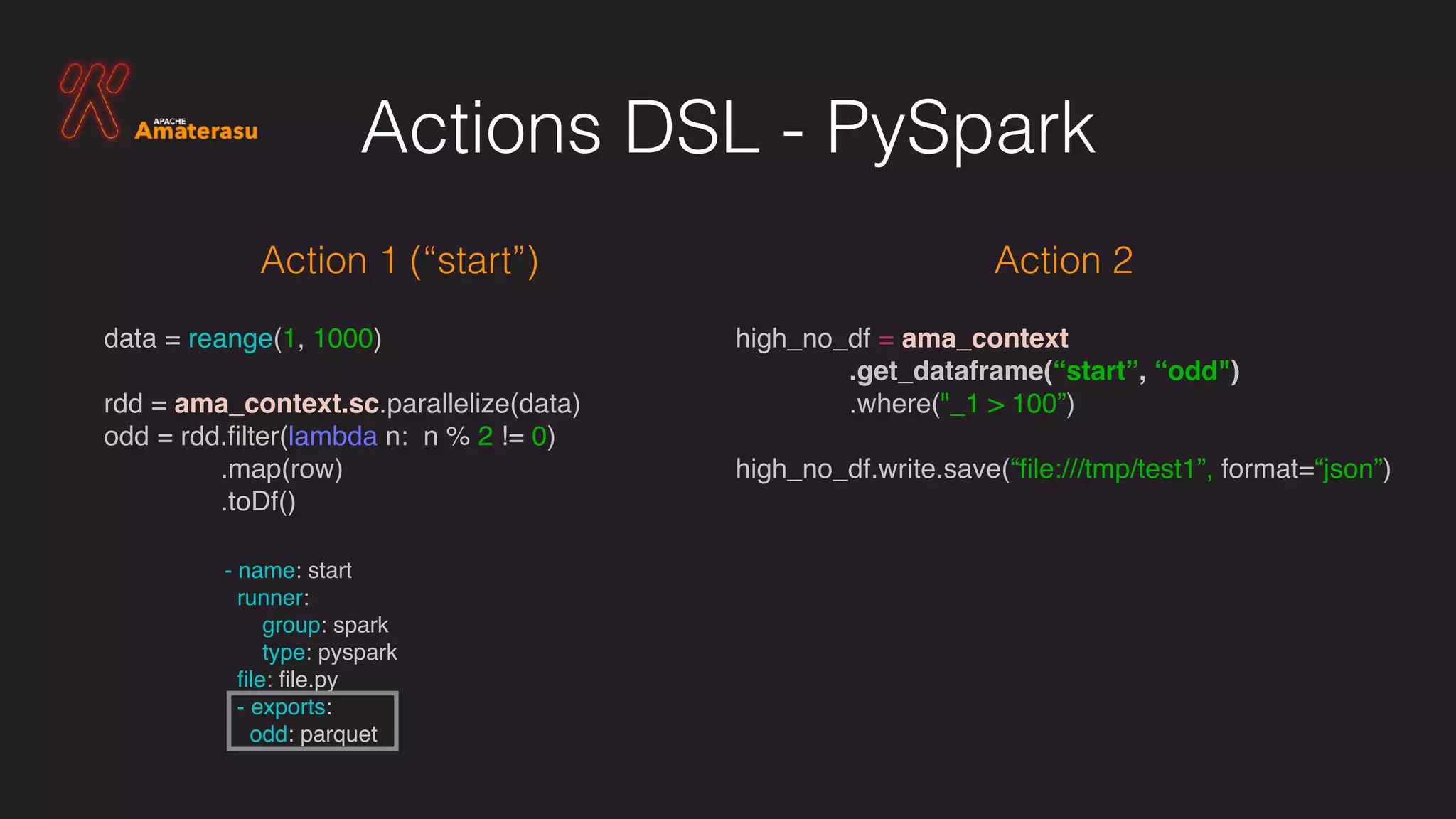

- 17. high_no_df = ama_context .get_dataframe(“start”,“odd") .where("_1 > 100”) high_no_df.write.save(“file:///tmp/test1”, format=“json”) Actions DSL - PySpark data = reange(1, 1000) rdd = ama_context.sc.parallelize(data) odd = rdd.filter(lambda n: n % 2 != 0) .map(row) .toDf() Action 1 (“start”) Action 2 - name: start runner: group: spark type: pyspark file: file.py - exports: odd: parquet

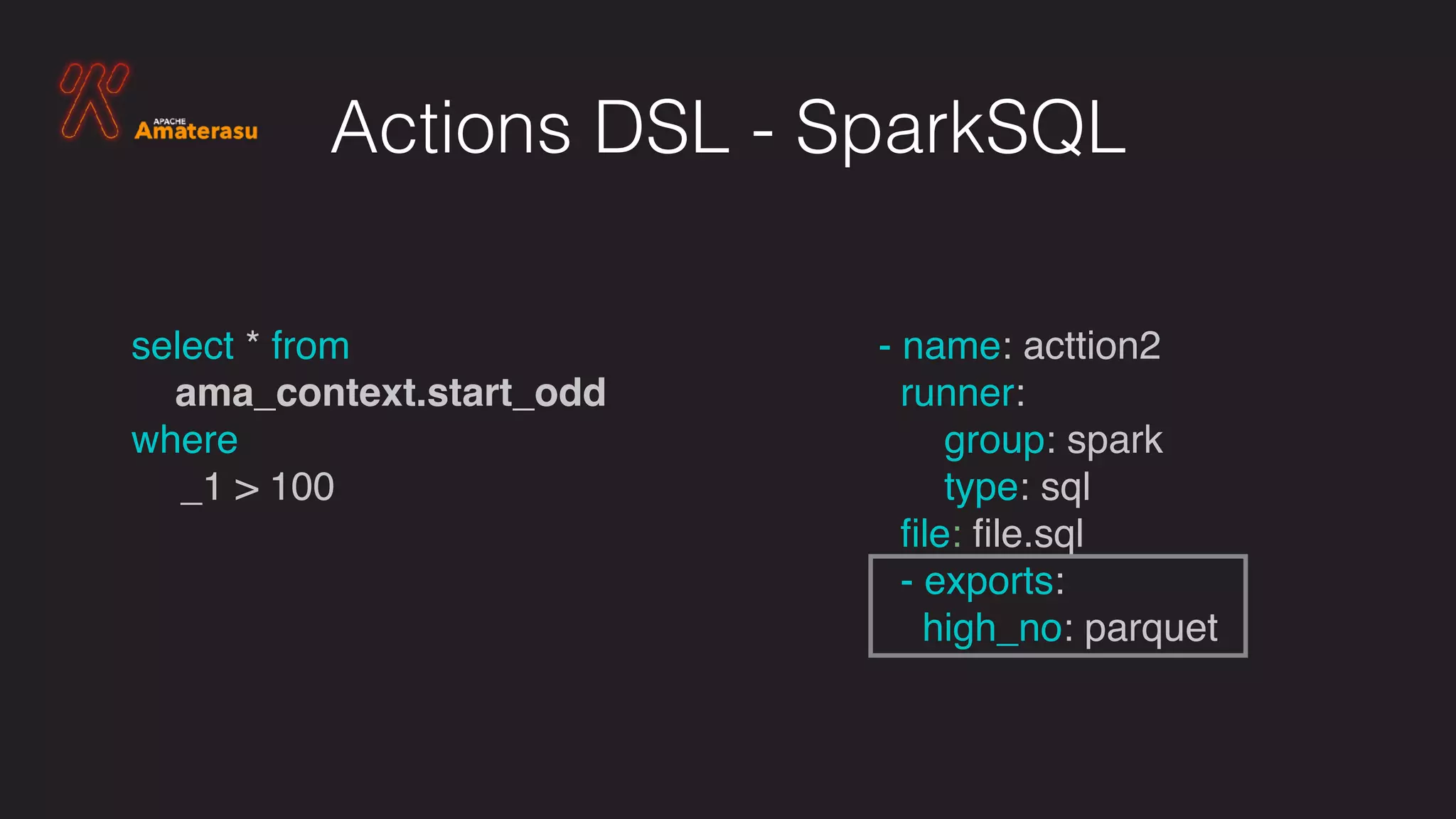

- 18. Actions DSL -SparkSQL select * from ama_context.start_odd where _1 > 100 - name: acttion2 runner: group: spark type: sql file: file.sql - exports: high_no: parquet

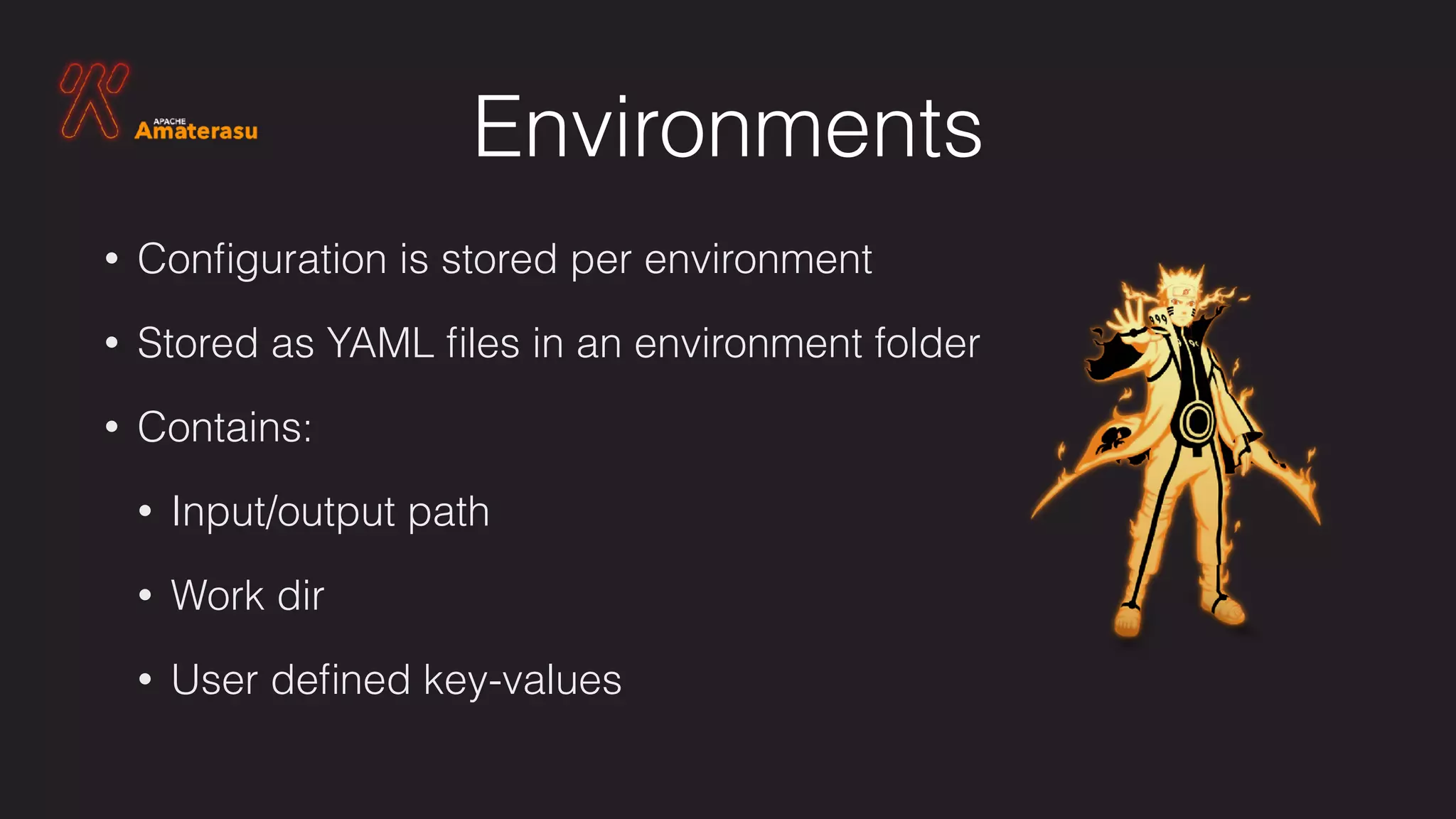

- 19. Environments • Configuration isstored per environment • Stored as YAML files in an environment folder • Contains: • Input/output path • Work dir • User defined key-values

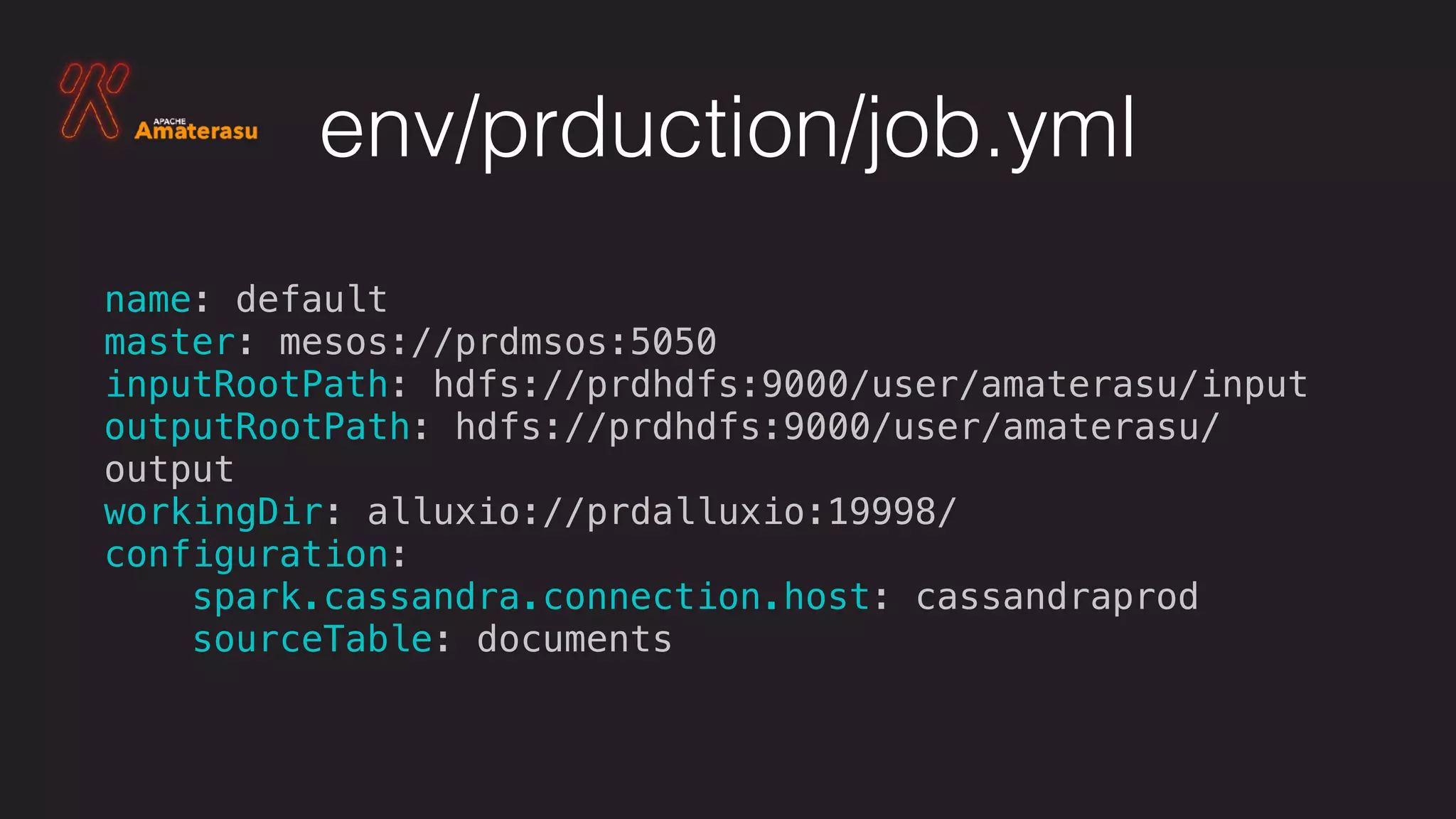

- 20. env/prduction/job.yml name: default master: mesos://prdmsos:5050 inputRootPath:hdfs://prdhdfs:9000/user/amaterasu/input outputRootPath: hdfs://prdhdfs:9000/user/amaterasu/ output workingDir: alluxio://prdalluxio:19998/ configuration: spark.cassandra.connection.host: cassandraprod sourceTable: documents

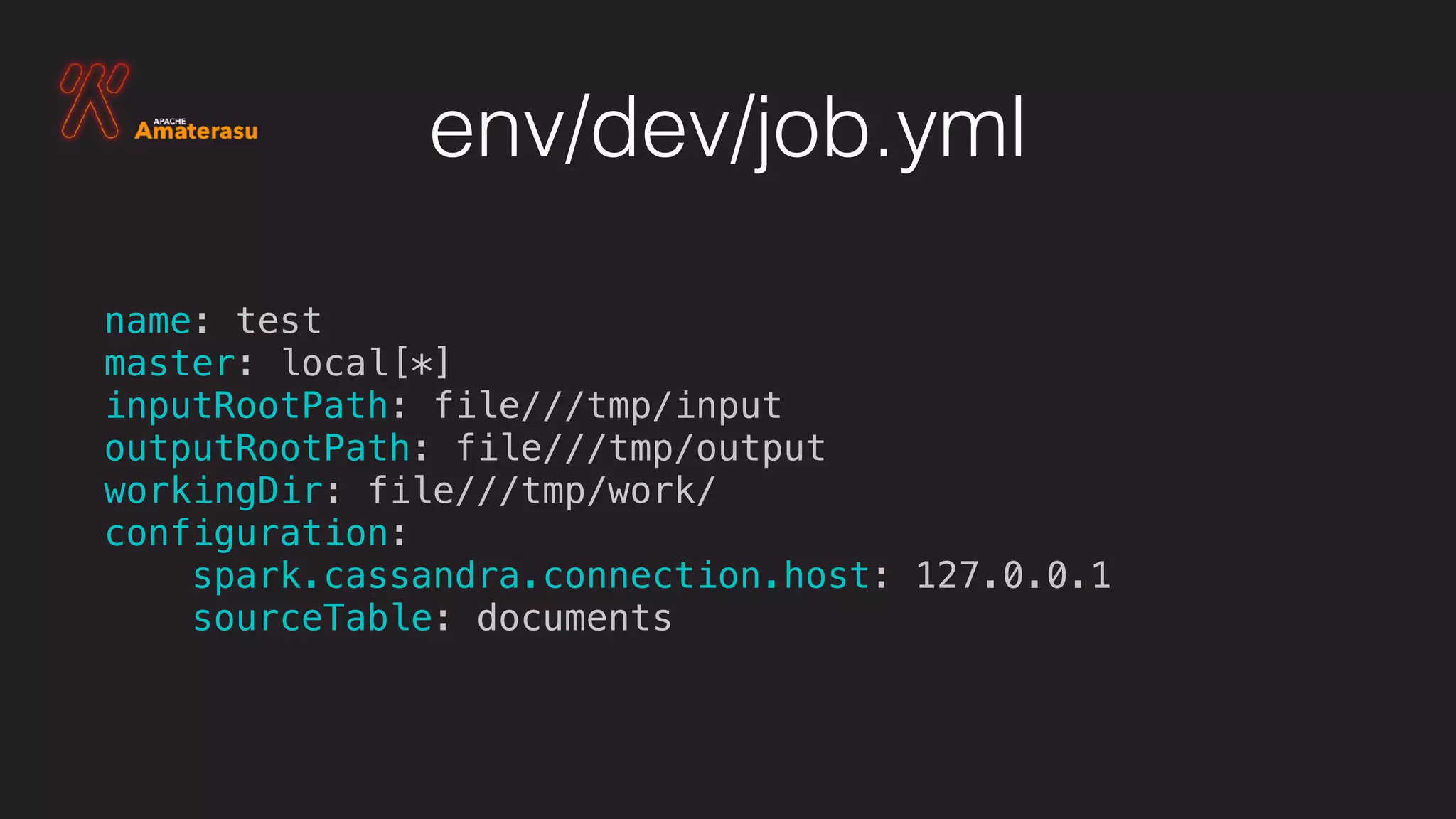

- 21. env/dev/job.yml name: test master: local[*] inputRootPath:file///tmp/input outputRootPath: file///tmp/output workingDir: file///tmp/work/ configuration: spark.cassandra.connection.host: 127.0.0.1 sourceTable: documents

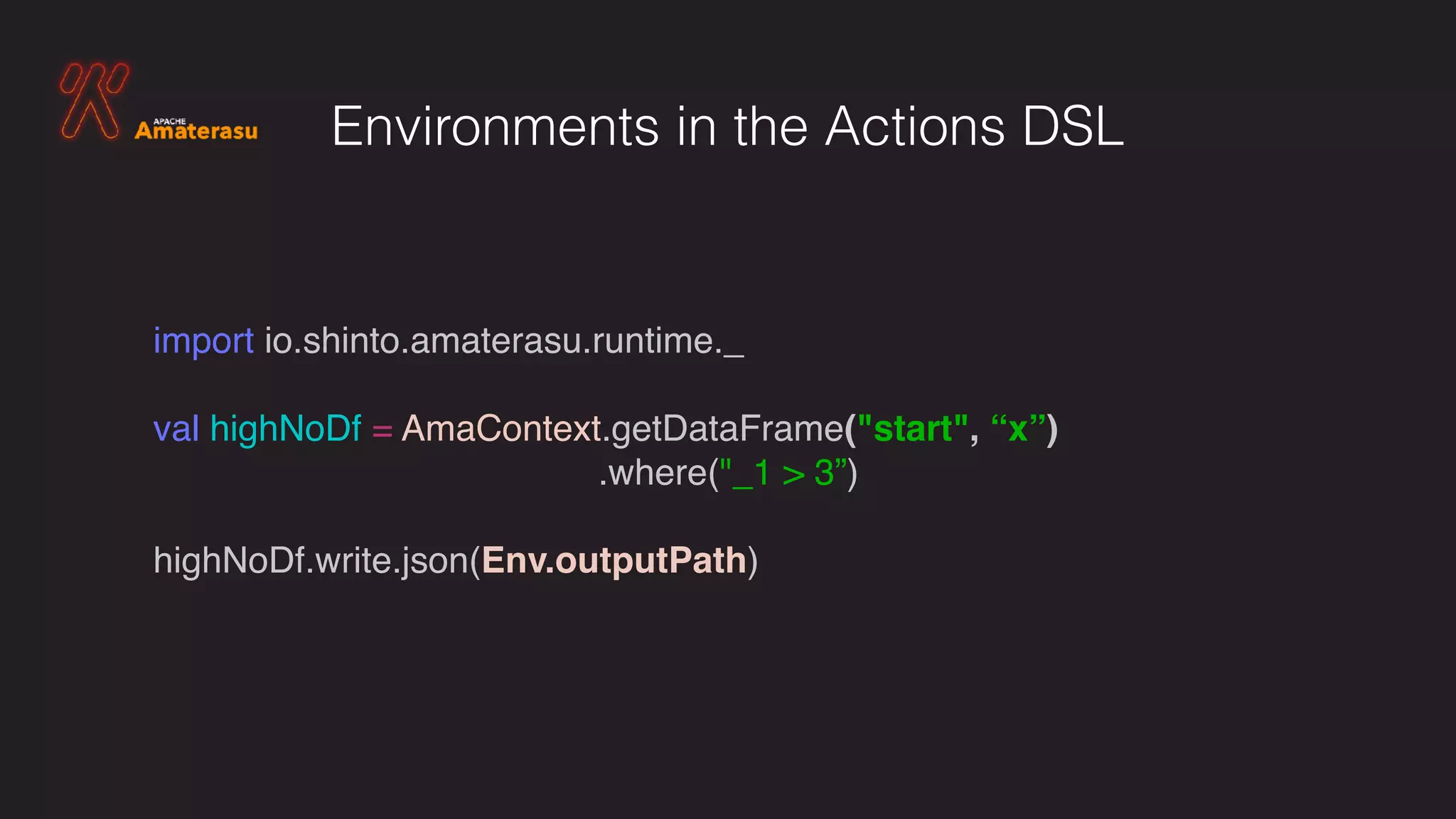

- 22. import io.shinto.amaterasu.runtime._ val highNoDf= AmaContext.getDataFrame("start", “x”) .where("_1 > 3”) highNoDf.write.json(Env.outputPath) Environments in the Actions DSL
- 23.

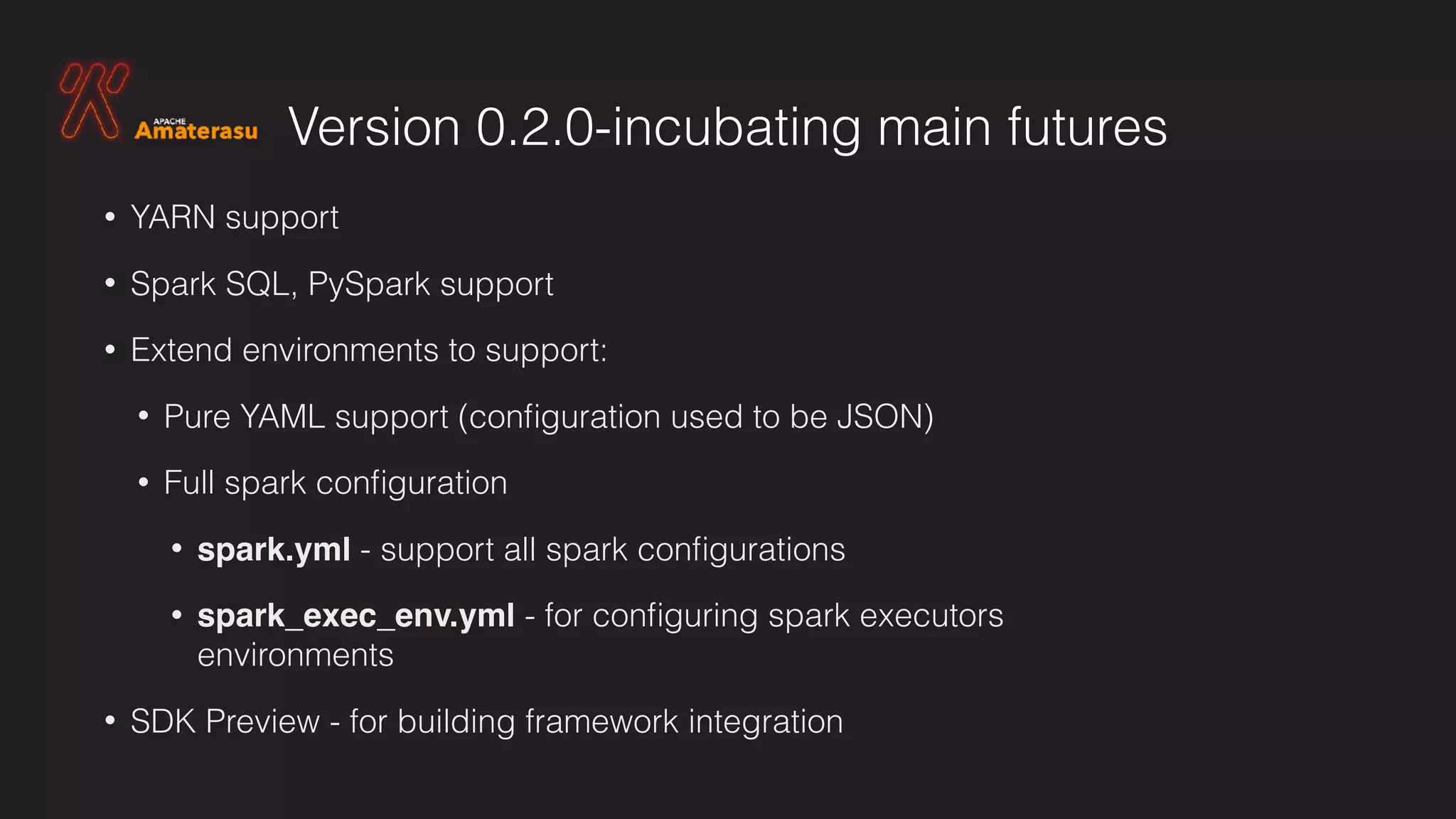

- 24. Version 0.2.0-incubating mainfutures • YARN support • Spark SQL, PySpark support • Extend environments to support: • Pure YAML support (configuration used to be JSON) • Full spark configuration • spark.yml - support all spark configurations • spark_exec_env.yml - for configuring spark executors environments • SDK Preview - for building framework integration

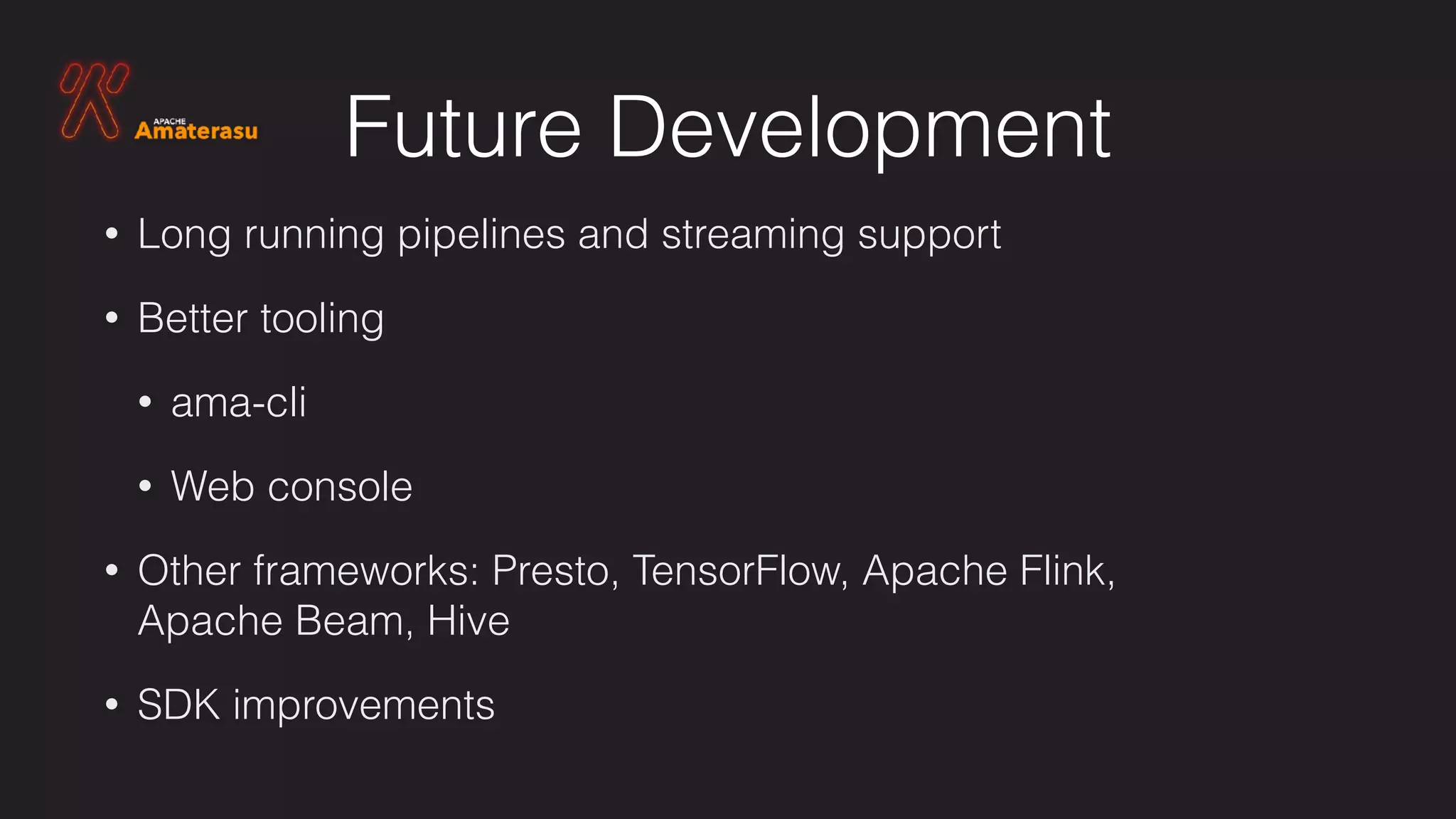

- 25. Future Development • Longrunning pipelines and streaming support • Better tooling • ama-cli • Web console • Other frameworks: Presto, TensorFlow, Apache Flink, Apache Beam, Hive • SDK improvements
- 26.
- 27.
