I Love APIs 2015 API Lab Design-first API Development Using Node and Swagger

1
WORKSHOP
Design-First API Development Using Swagger & Node
Apigee Engineering

Agenda
2
1.
What is Design-First API
Development?
2. Installation
3. The famous hello-world
4. Project Conventions
5. Mock mode i.e response simulation
6. Query Parameters
7. Adding a new operation
8. How about POST?
©2015 Apigee. All Rights Reserved.

Some social media love
3©2015 Apigee. All Rights Reserved.

Some social media love
@apigee Awesome API development workshop #iloveapis #nodejs

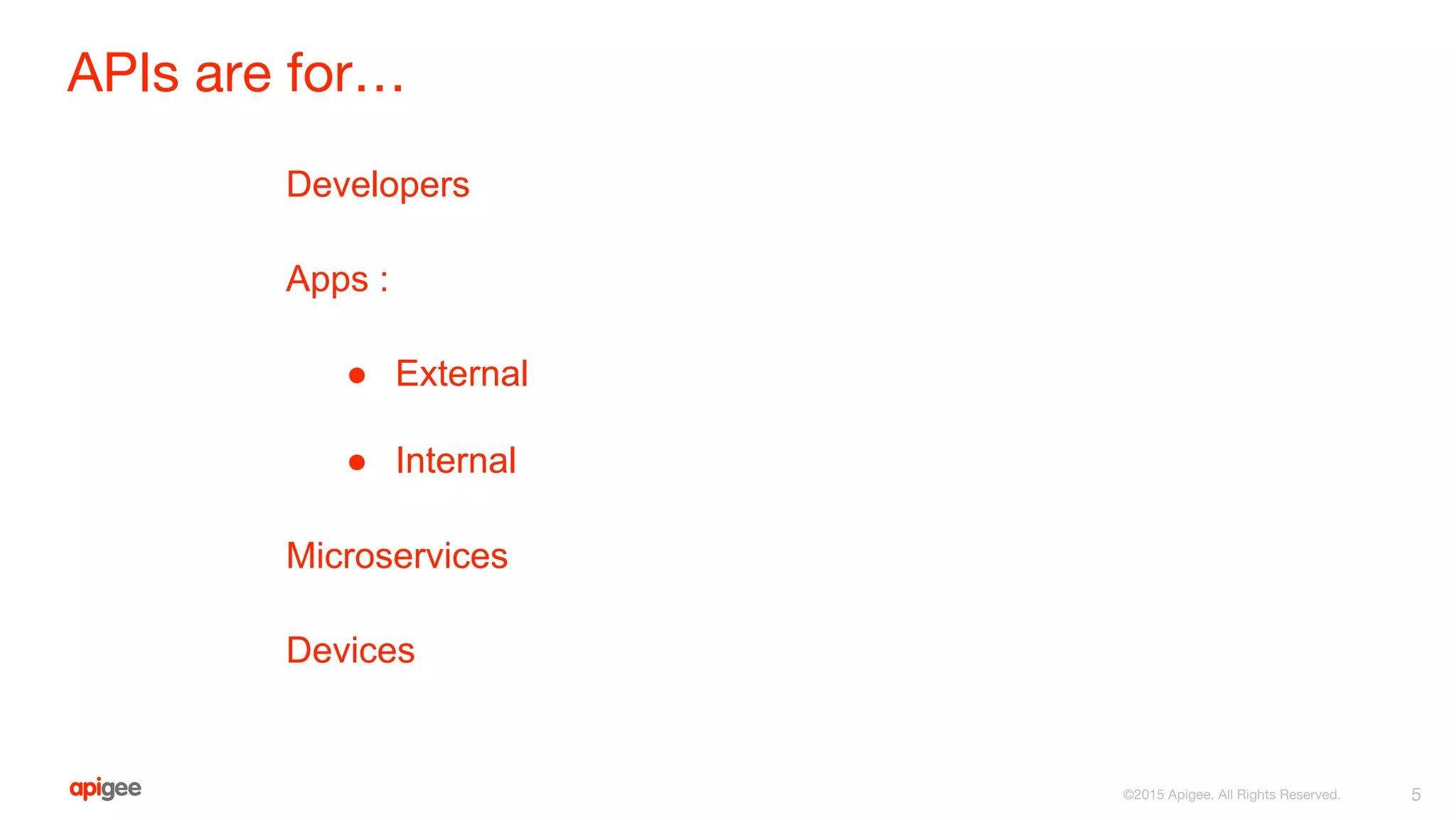

APIs are for…
Developers
Apps :
● External
● Internal
Microservices
Devices

Design-First API
Development
6

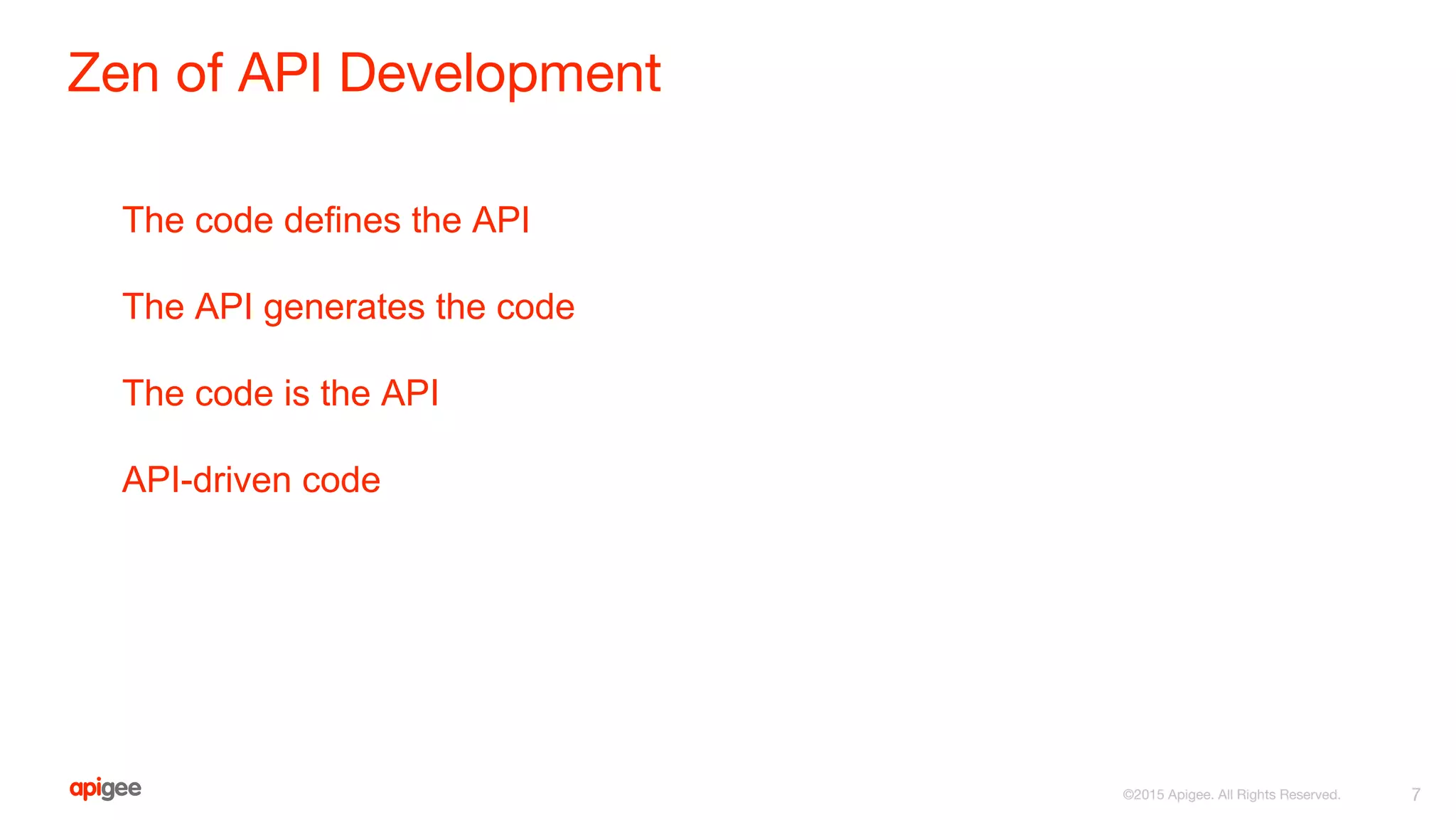

Zen of API Development
The code defines the API
The API generates the code
The code is the API
API-driven code

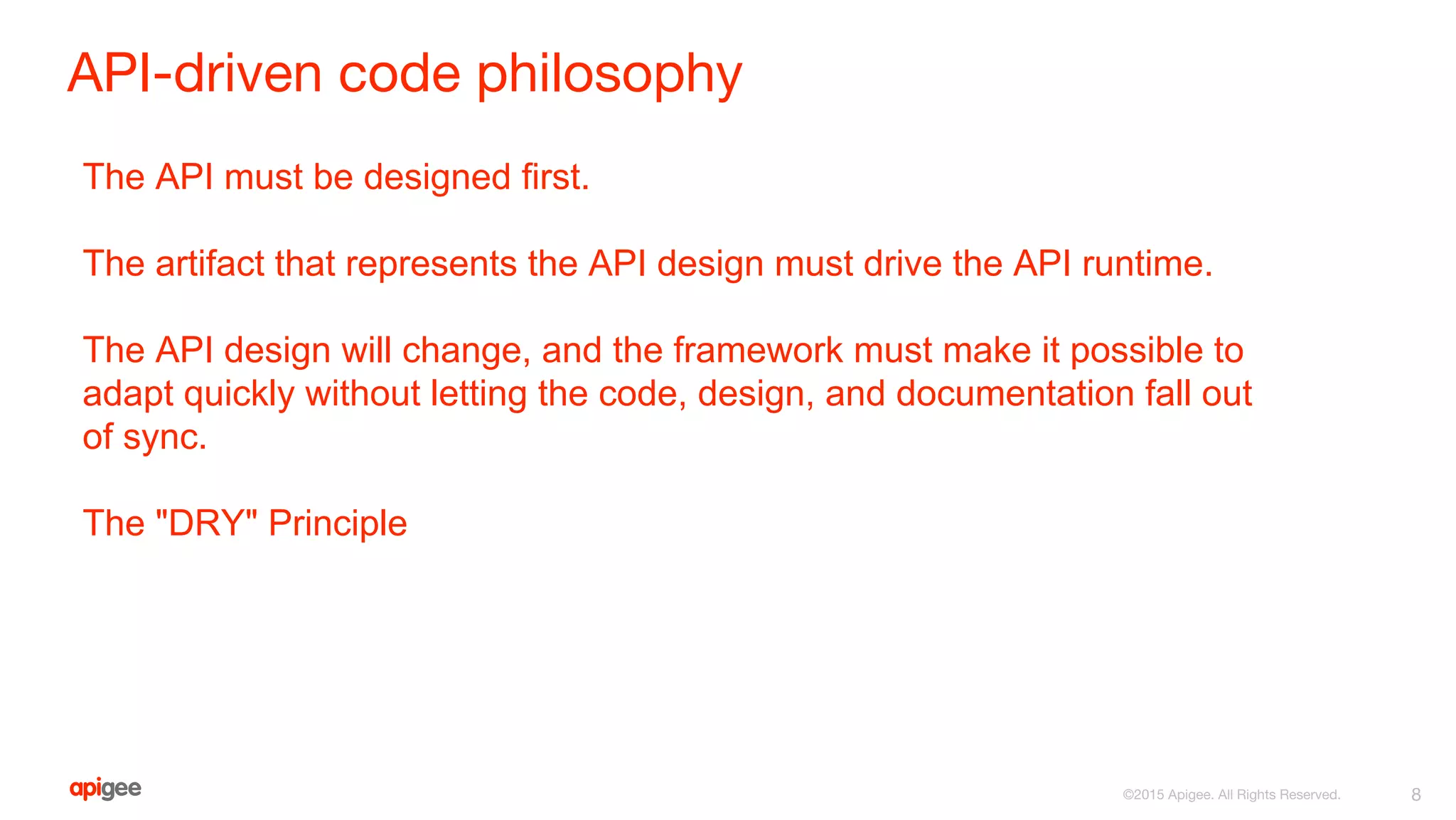

API-driven code philosophy
The API must be designed first.
The artifact that represents the API design must drive the API runtime.
The API design will change, and the framework must make it possible to
adapt quickly without letting the code, design, and documentation fall out
of sync.
The "DRY" Principle

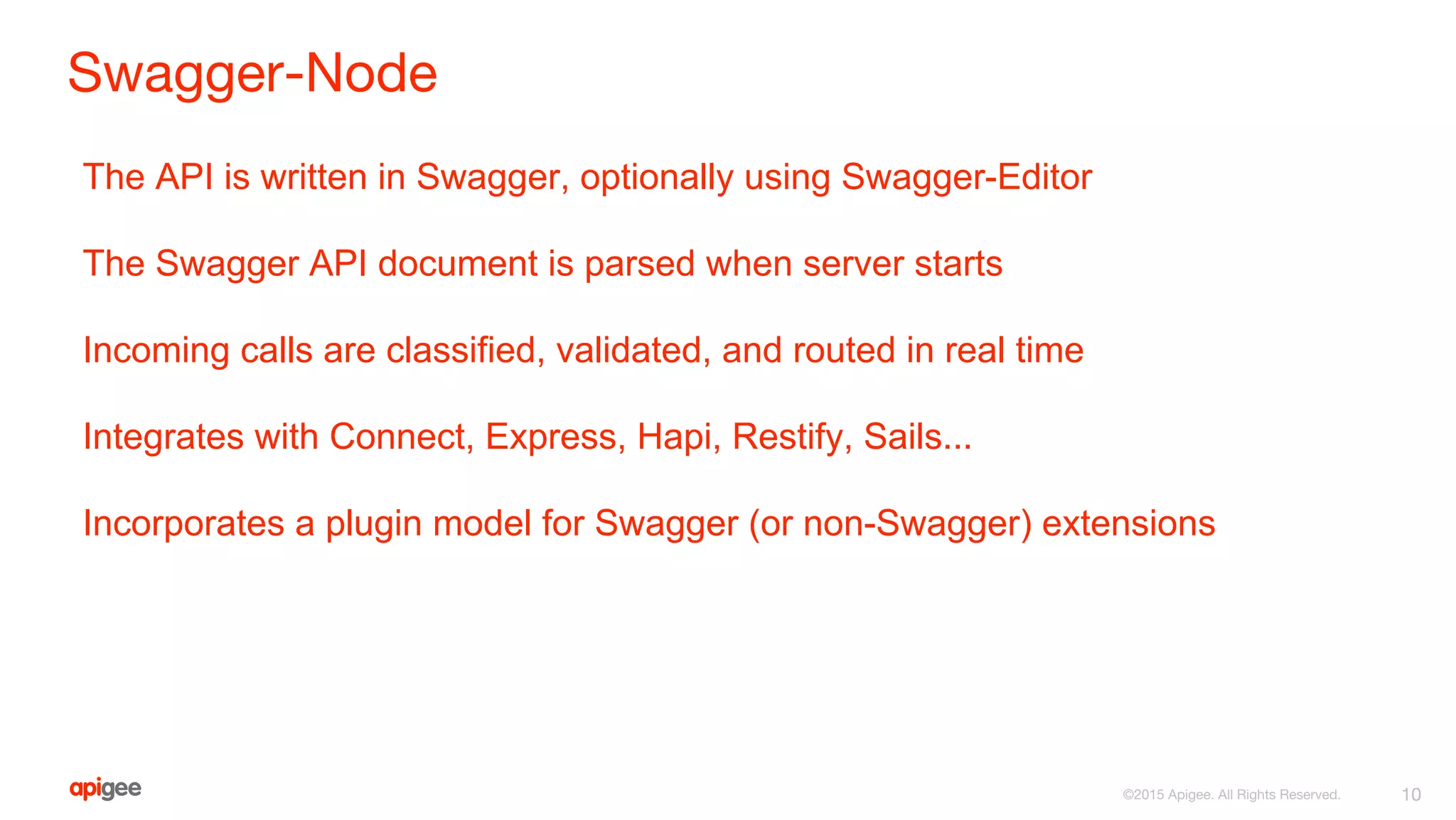

Swagger-Node
The API is written in Swagger, optionally using Swagger-Editor
The Swagger API document is parsed when server starts
Incoming calls are classified, validated, and routed in real time
Integrates with Connect, Express, Hapi, Restify, Sails...
Incorporates a plugin model for Swagger (or non-Swagger) extensions

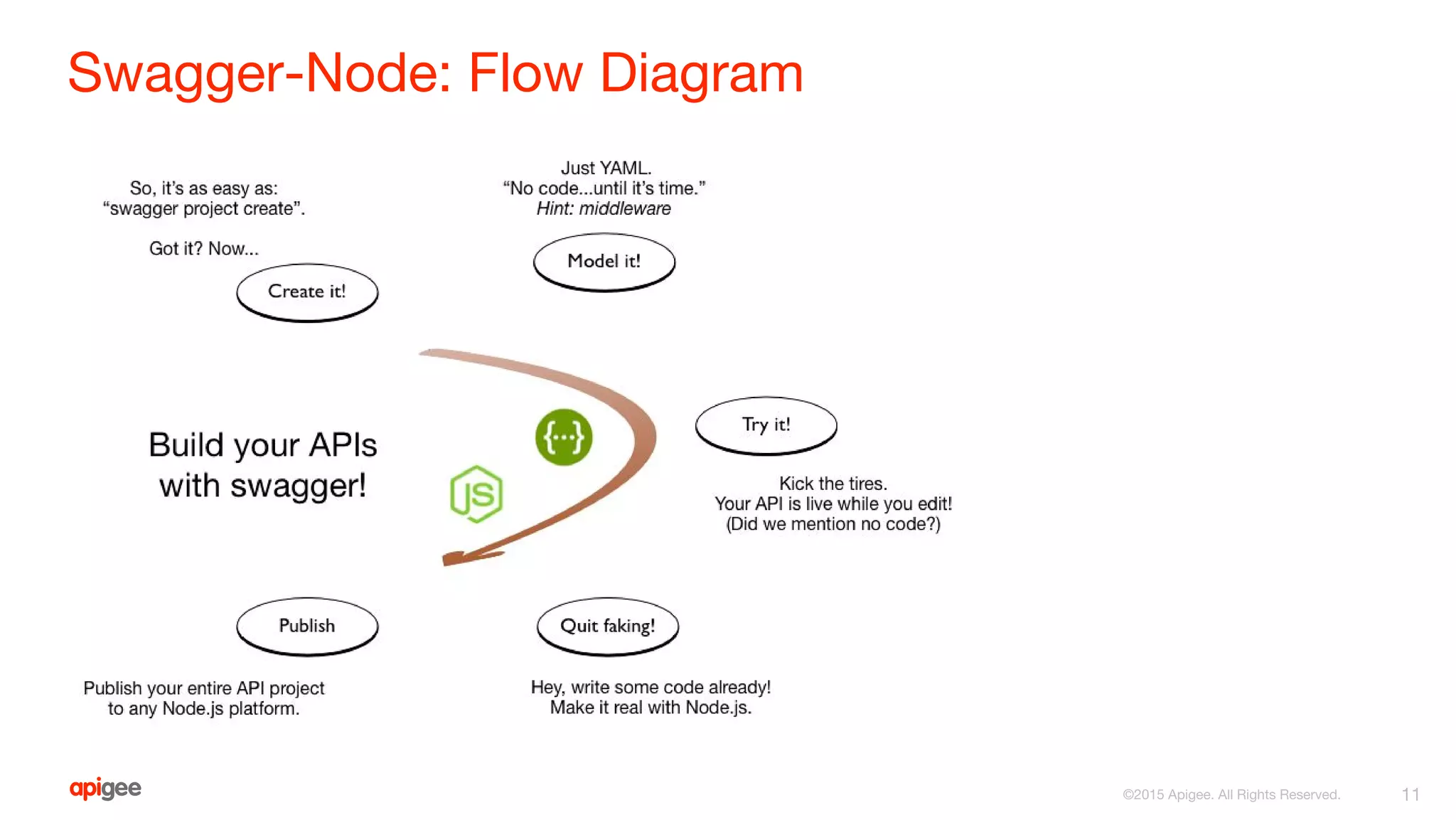

Swagger-Node: Flow Diagram

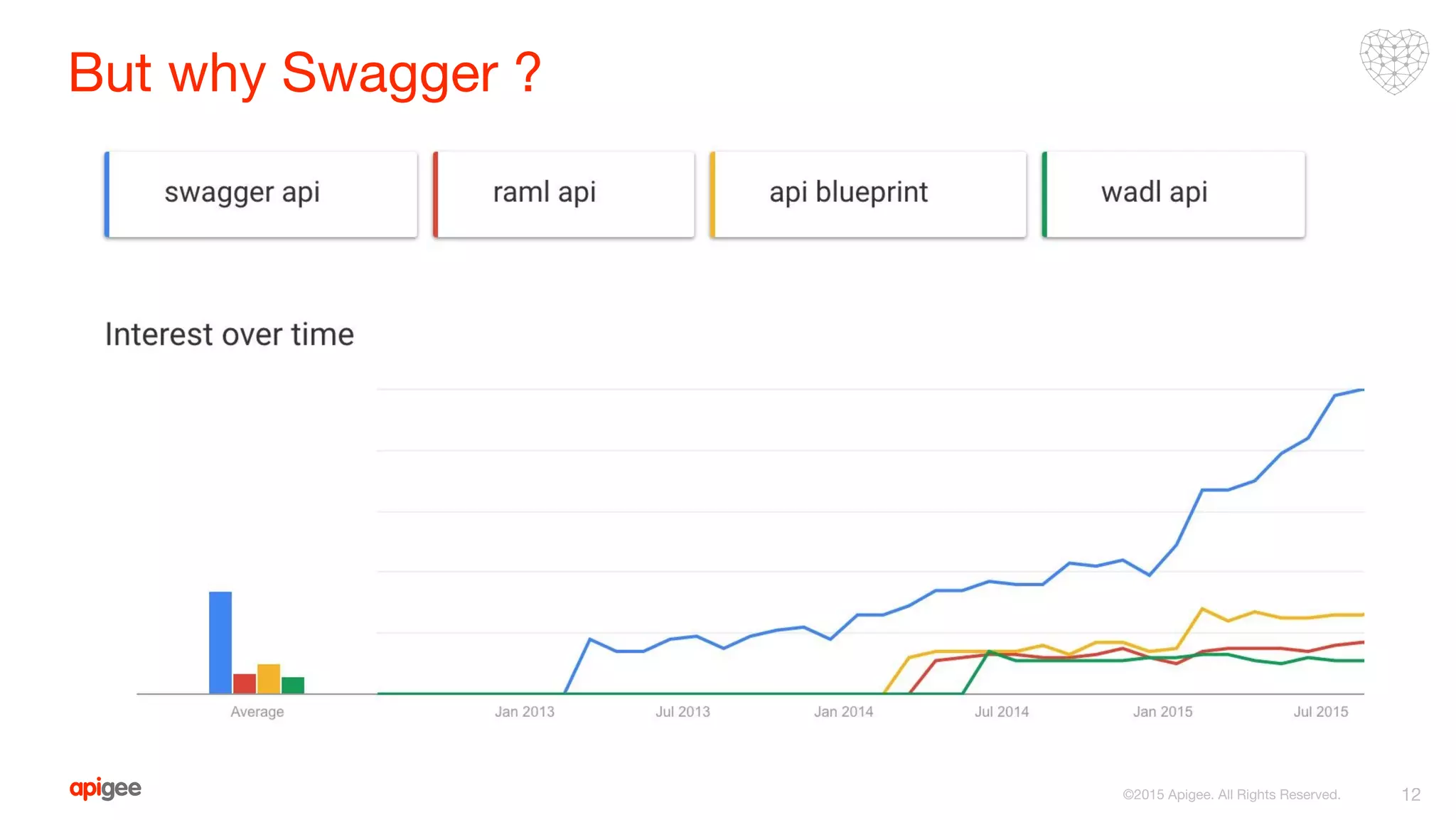

But why Swagger ?

But why Node.js ?

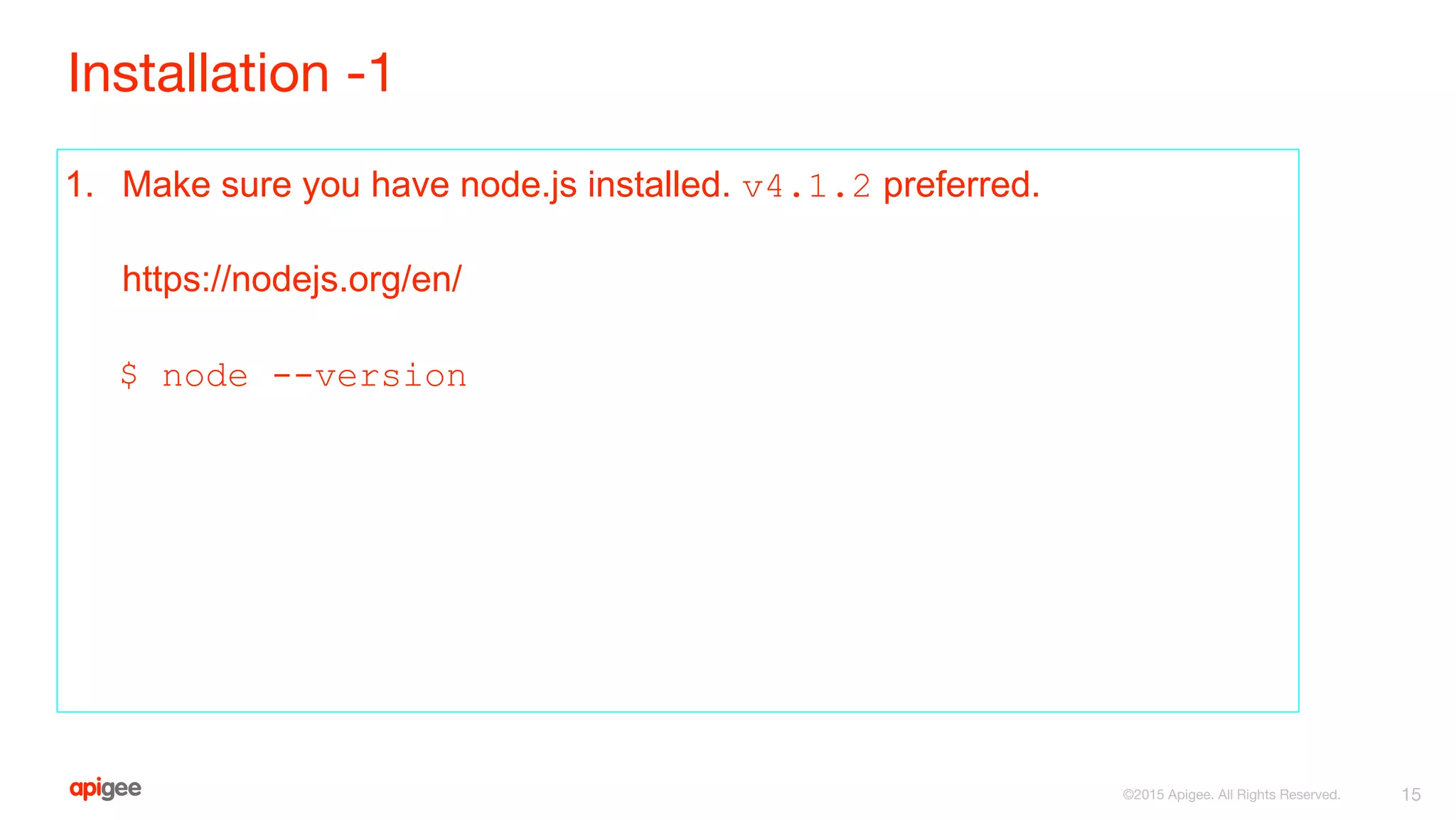

Installation -1
1. Make sure you have node.js installed. v4.1.2 preferred.
https://nodejs.org/en/
$ node --version

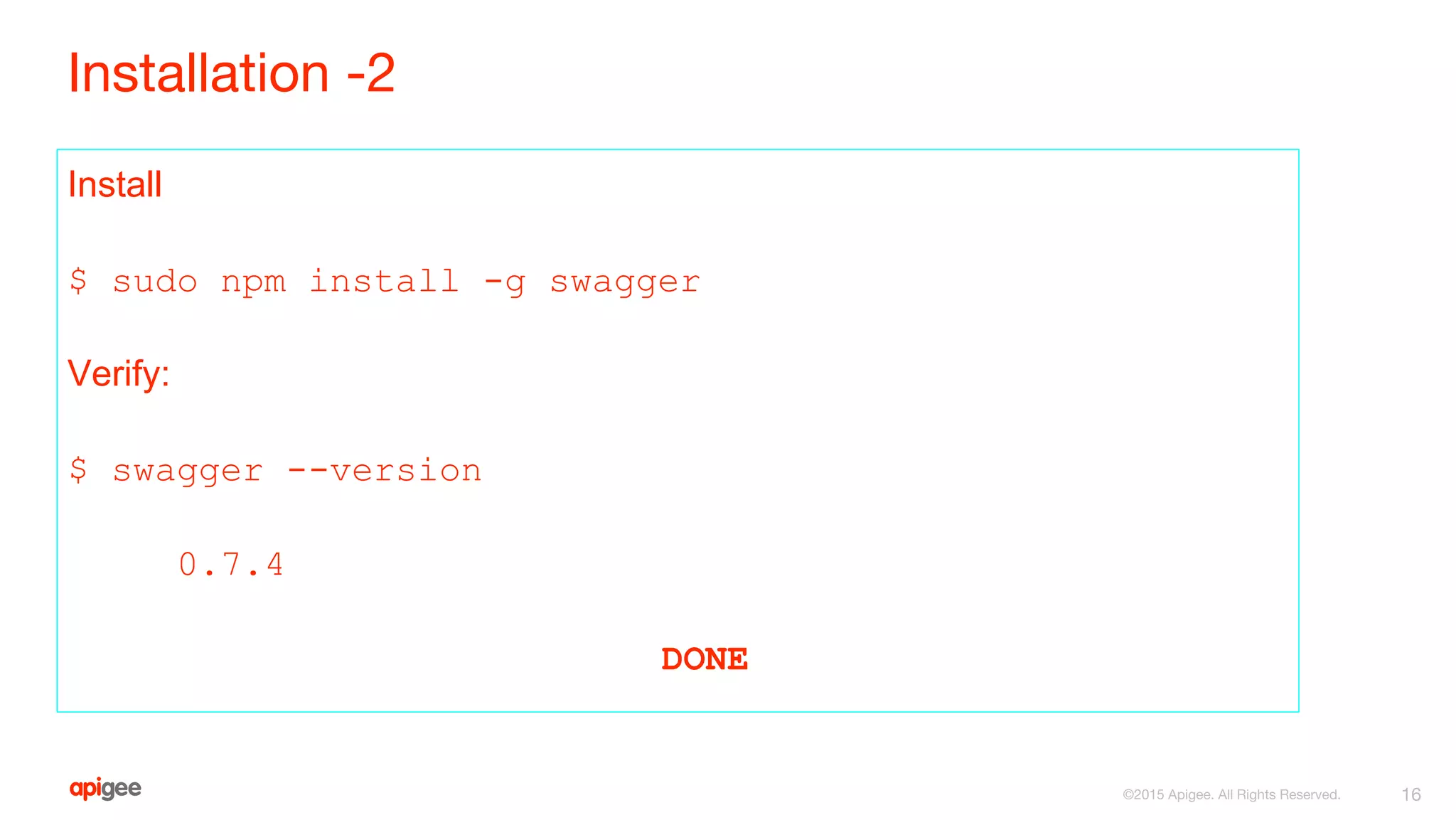

Installation -2
Install
$ sudo npm install -g swagger
Verify:
$ swagger --version
0.7.4
DONE

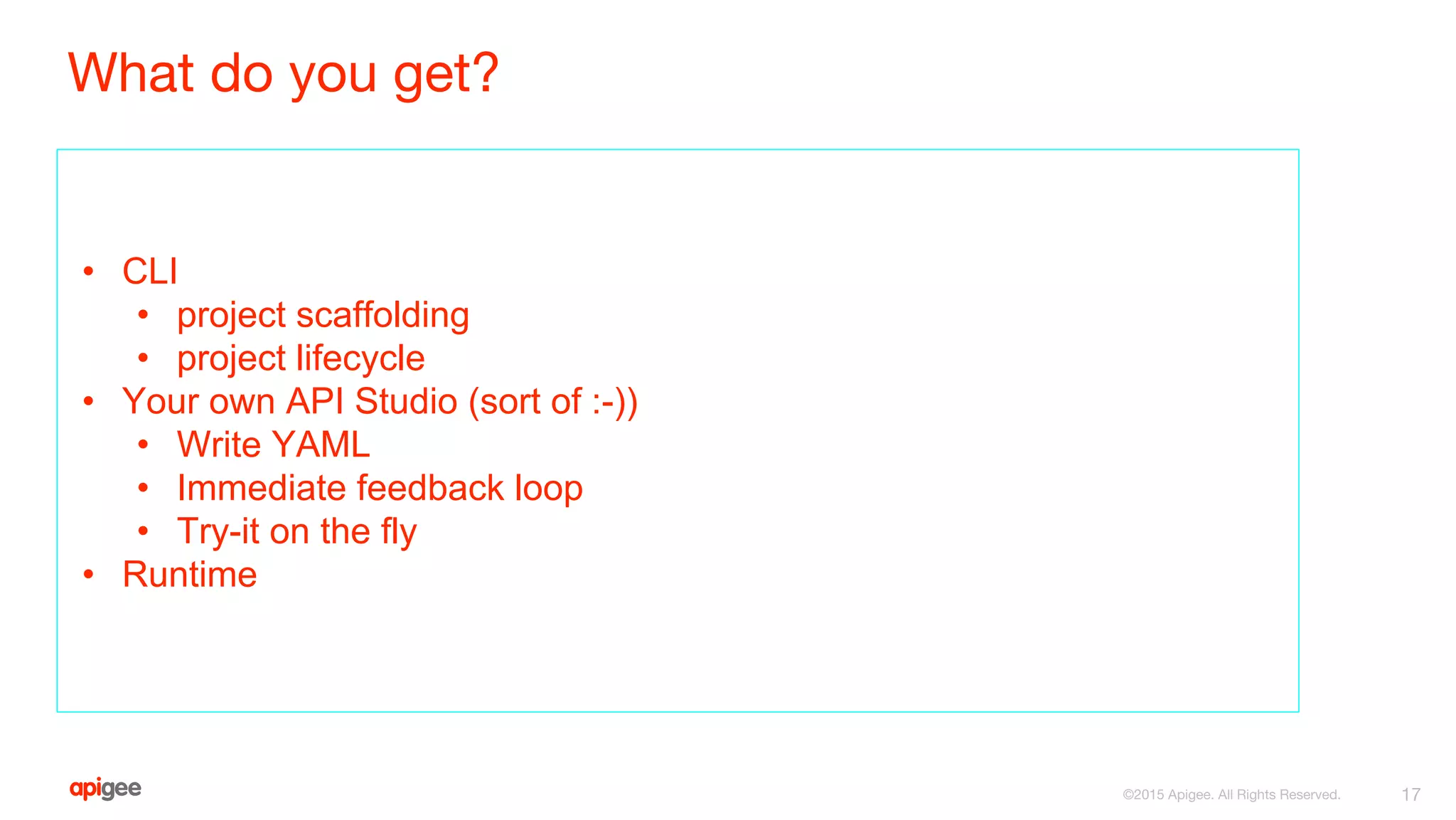

What do you get?
• CLI
• project scaffolding
• project lifecycle
• Your own API Studio (sort of :-))
• Write YAML
• Immediate feedback loop
• Try-it on the fly
• Runtime

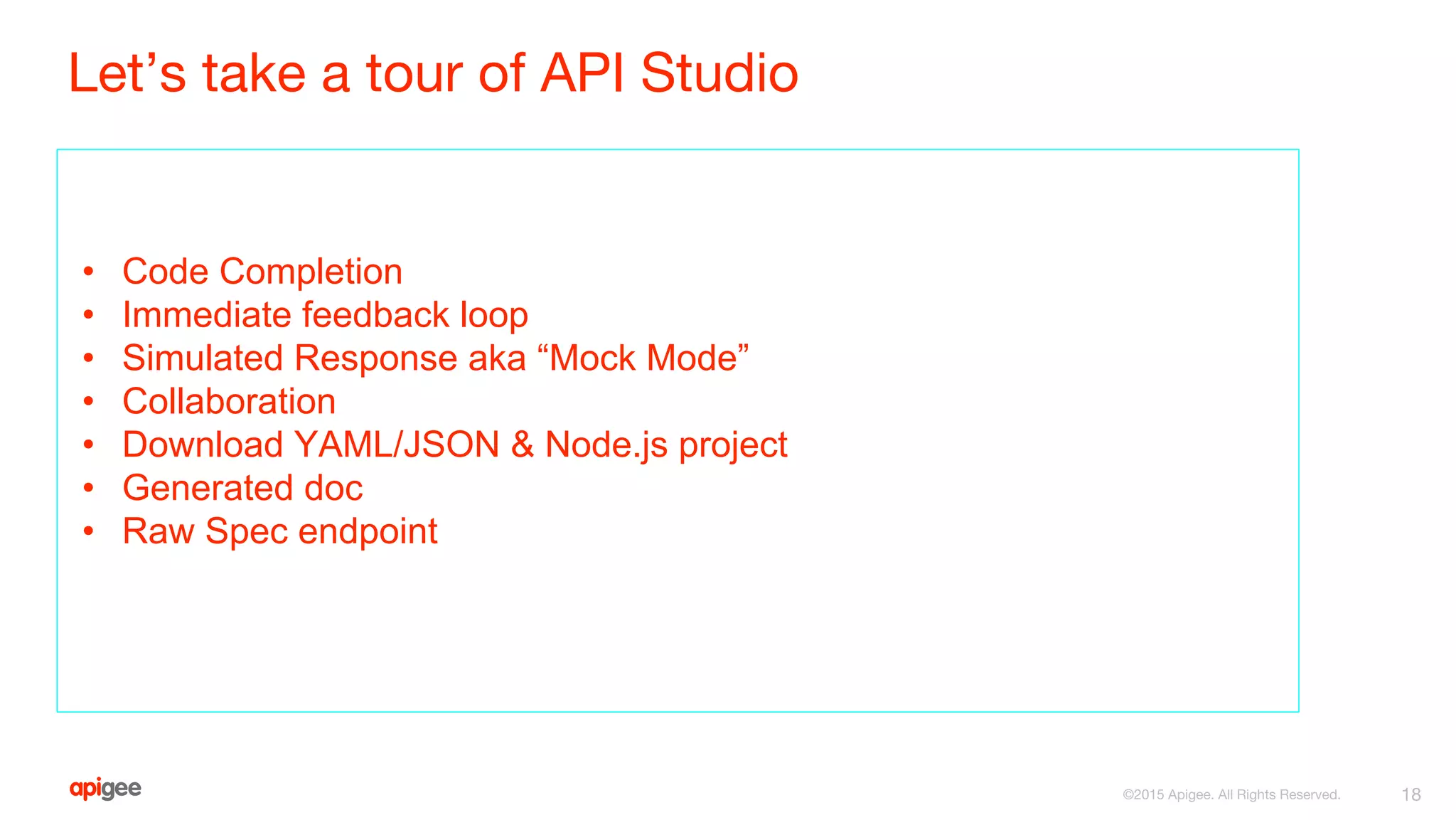

Let’s take a tour of API Studio
• Code Completion
• Immediate feedback loop
• Simulated Response aka “Mock Mode”
• Collaboration
• Download YAML/JSON & Node.js project
• Generated doc
• Raw Spec endpoint

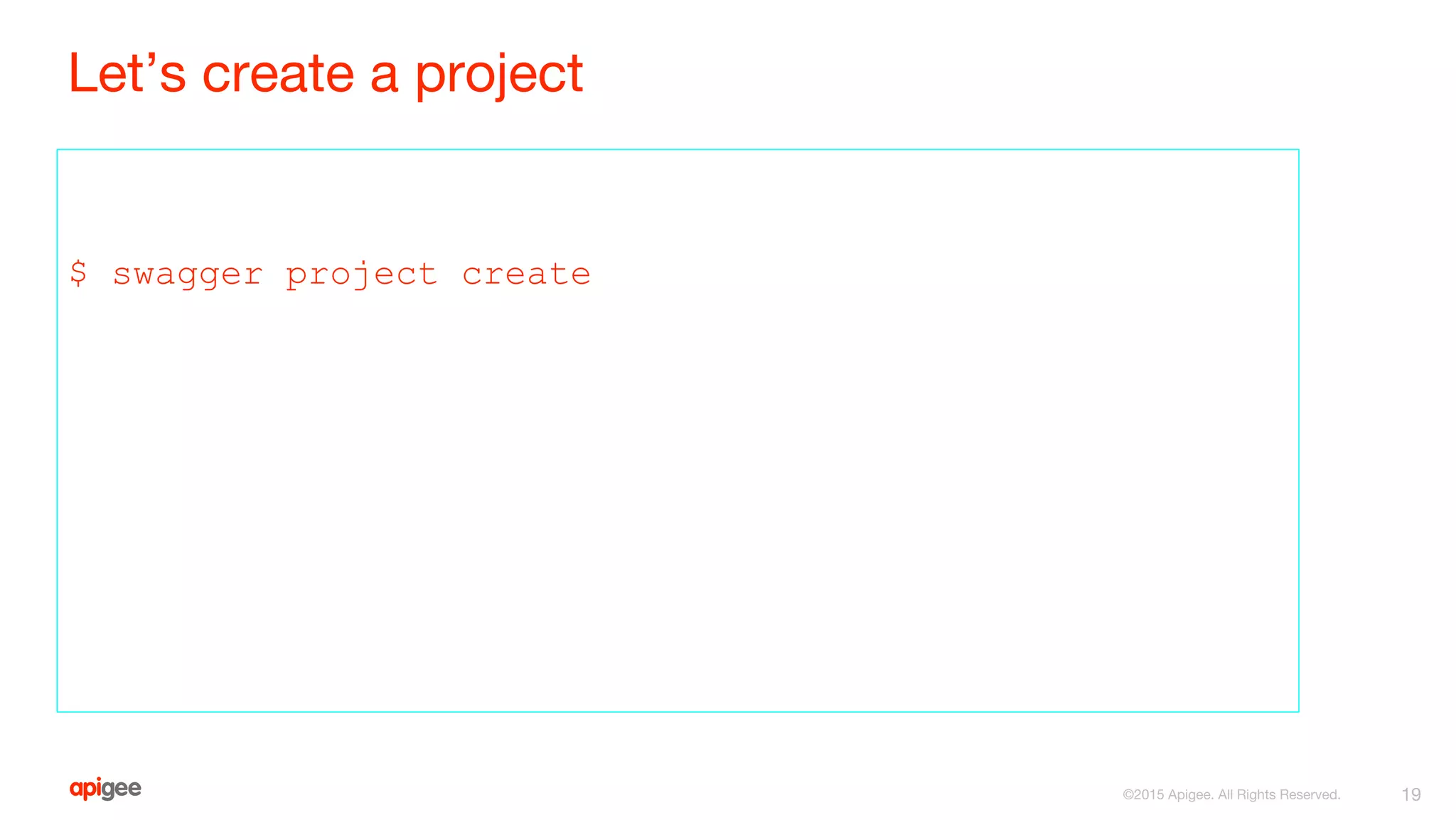

Let’s create a project
$ swagger project create

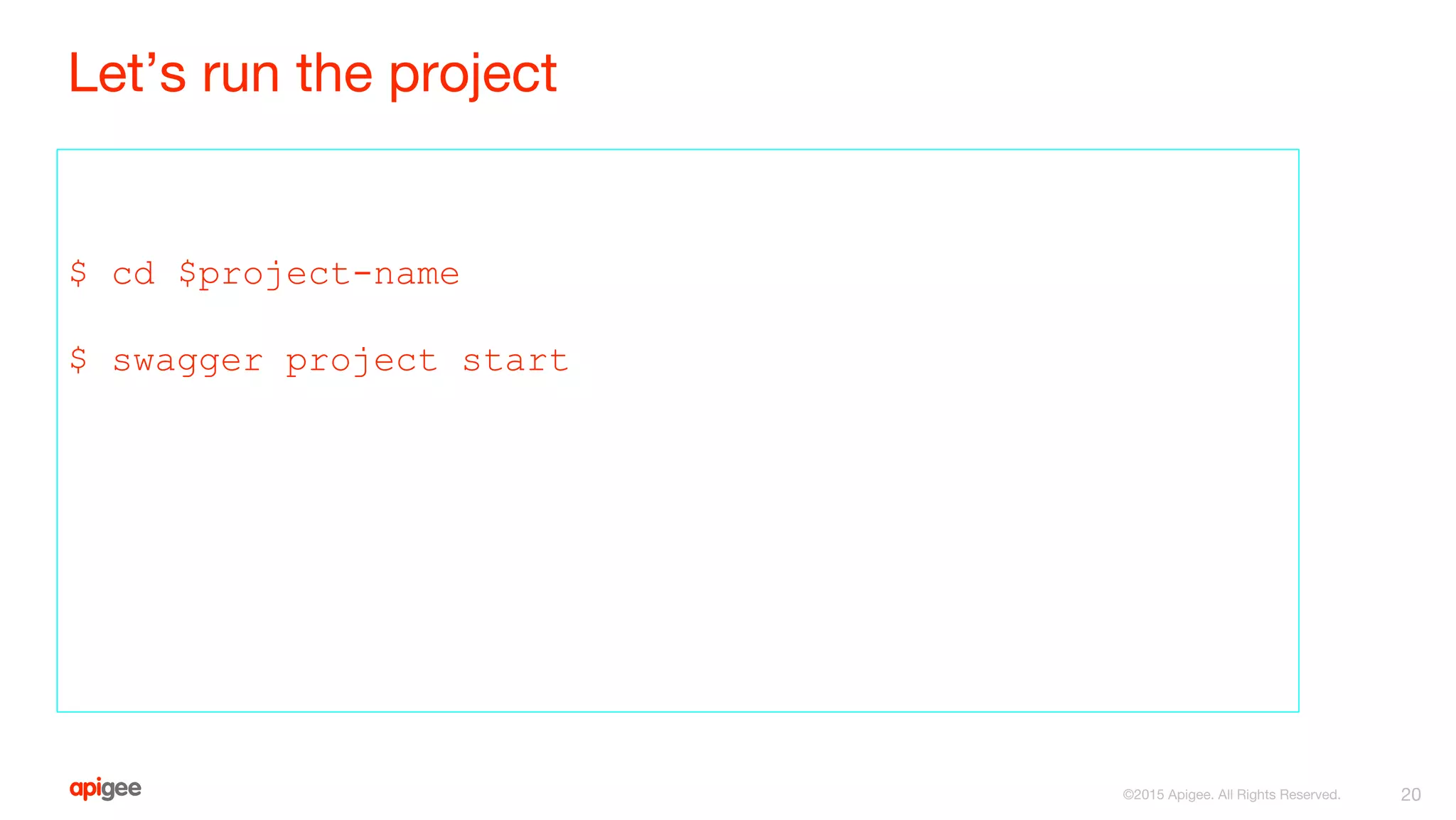

Let’s run the project
$ cd $project-name
$ swagger project start

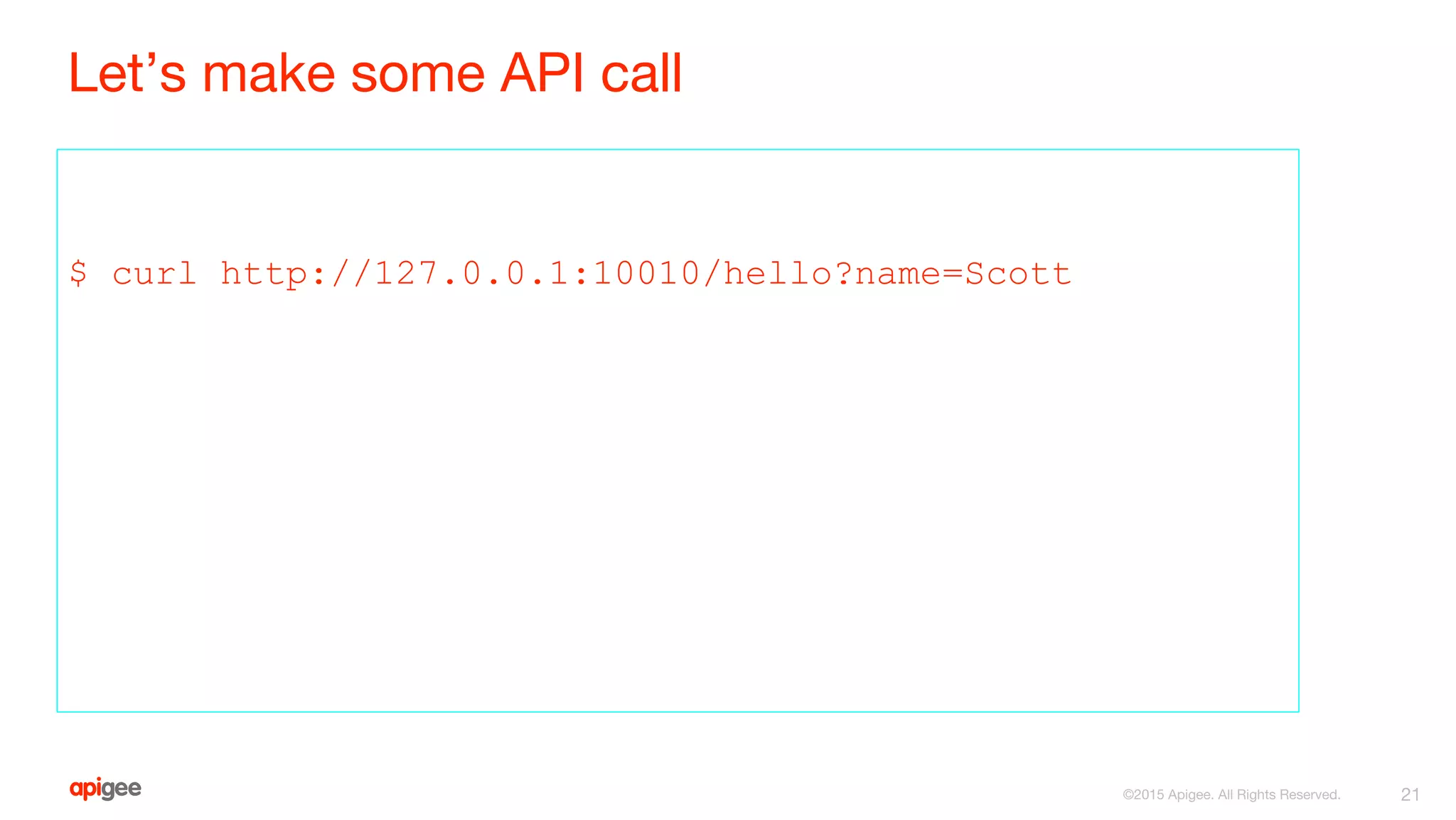

Let’s make some API call
$ curl http://127.0.0.1:10010/hello?name=Scott

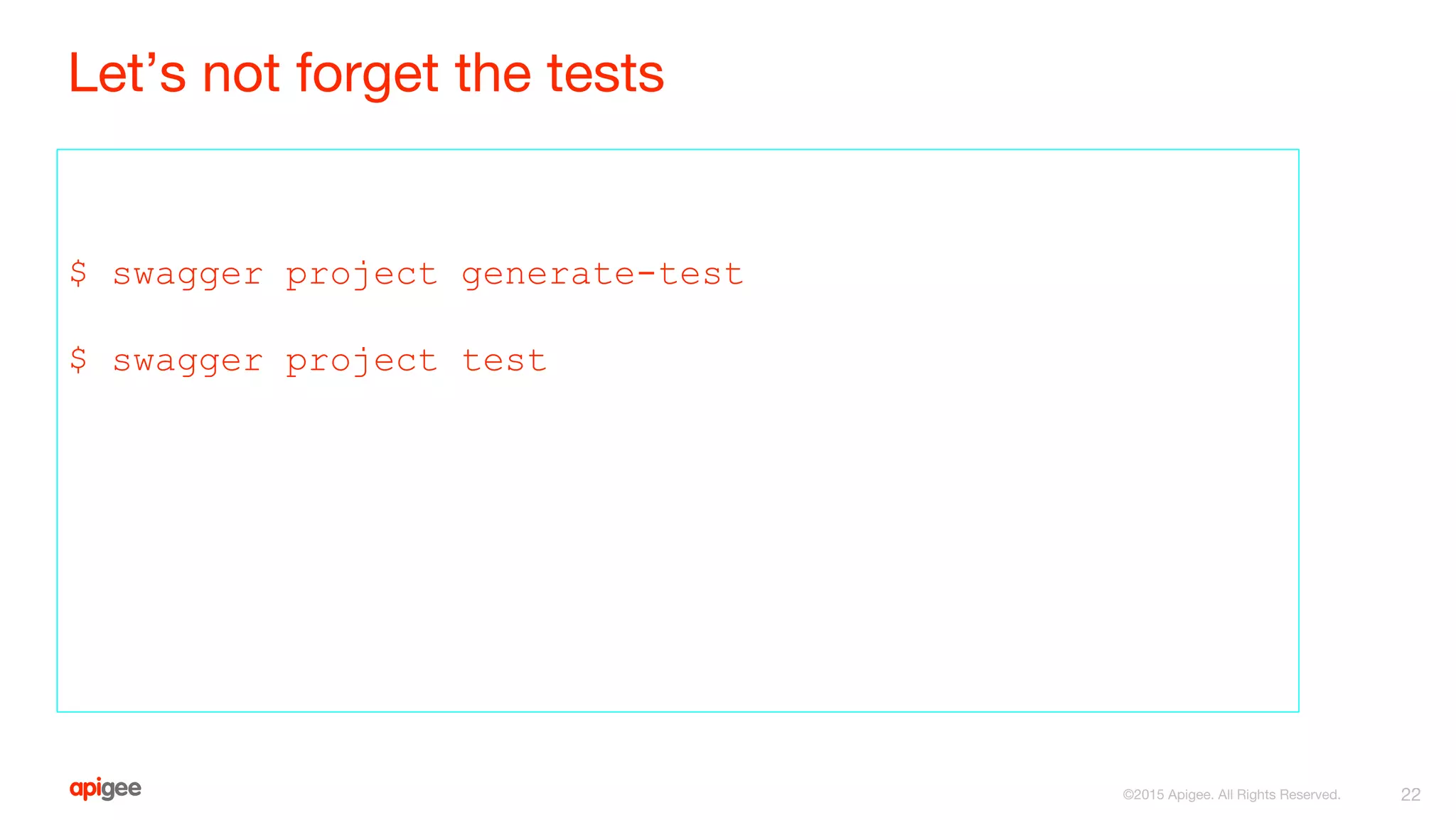

Let’s not forget the tests
$ swagger project generate-test
$ swagger project test

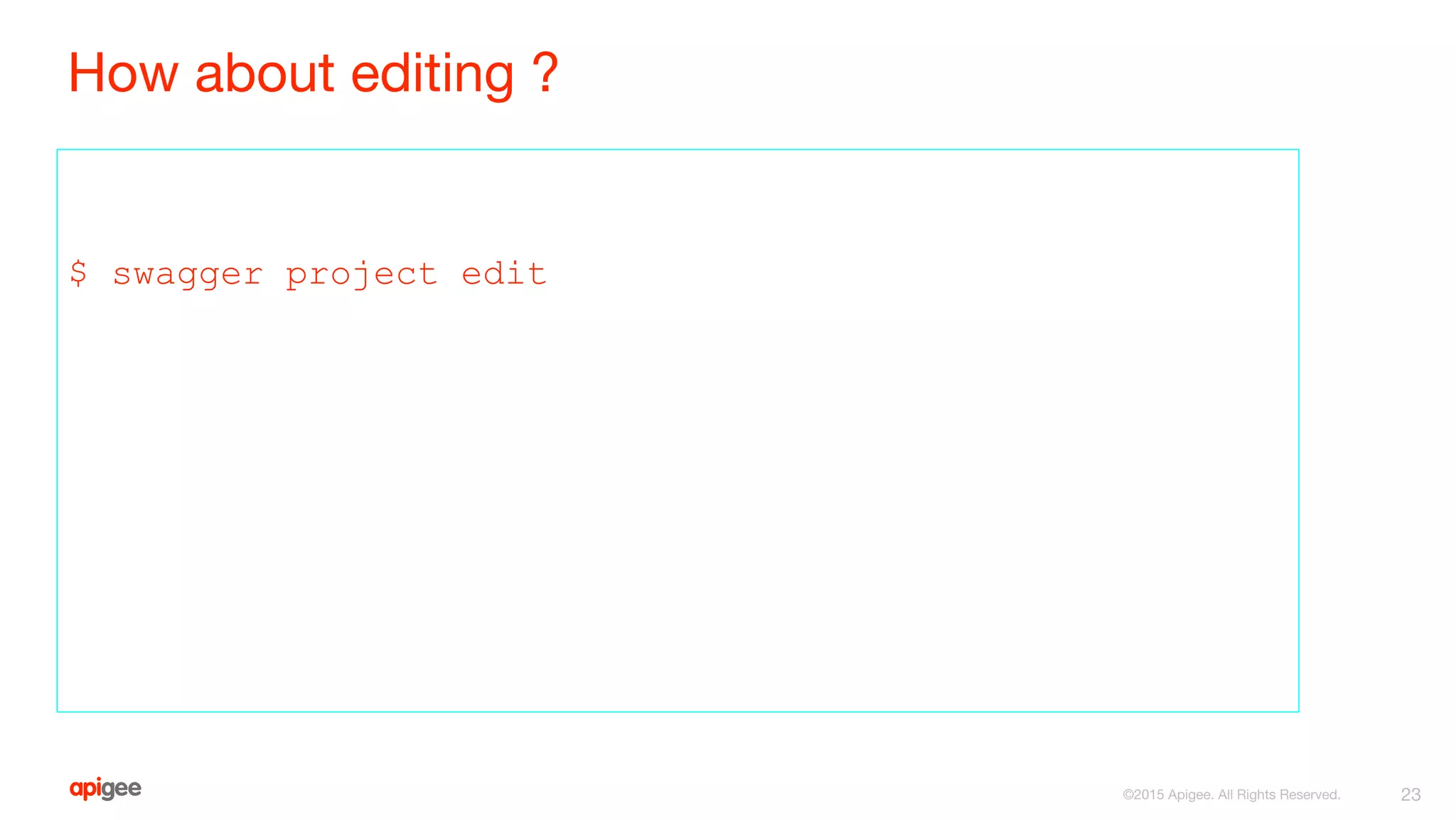

How about editing ?
$ swagger project edit

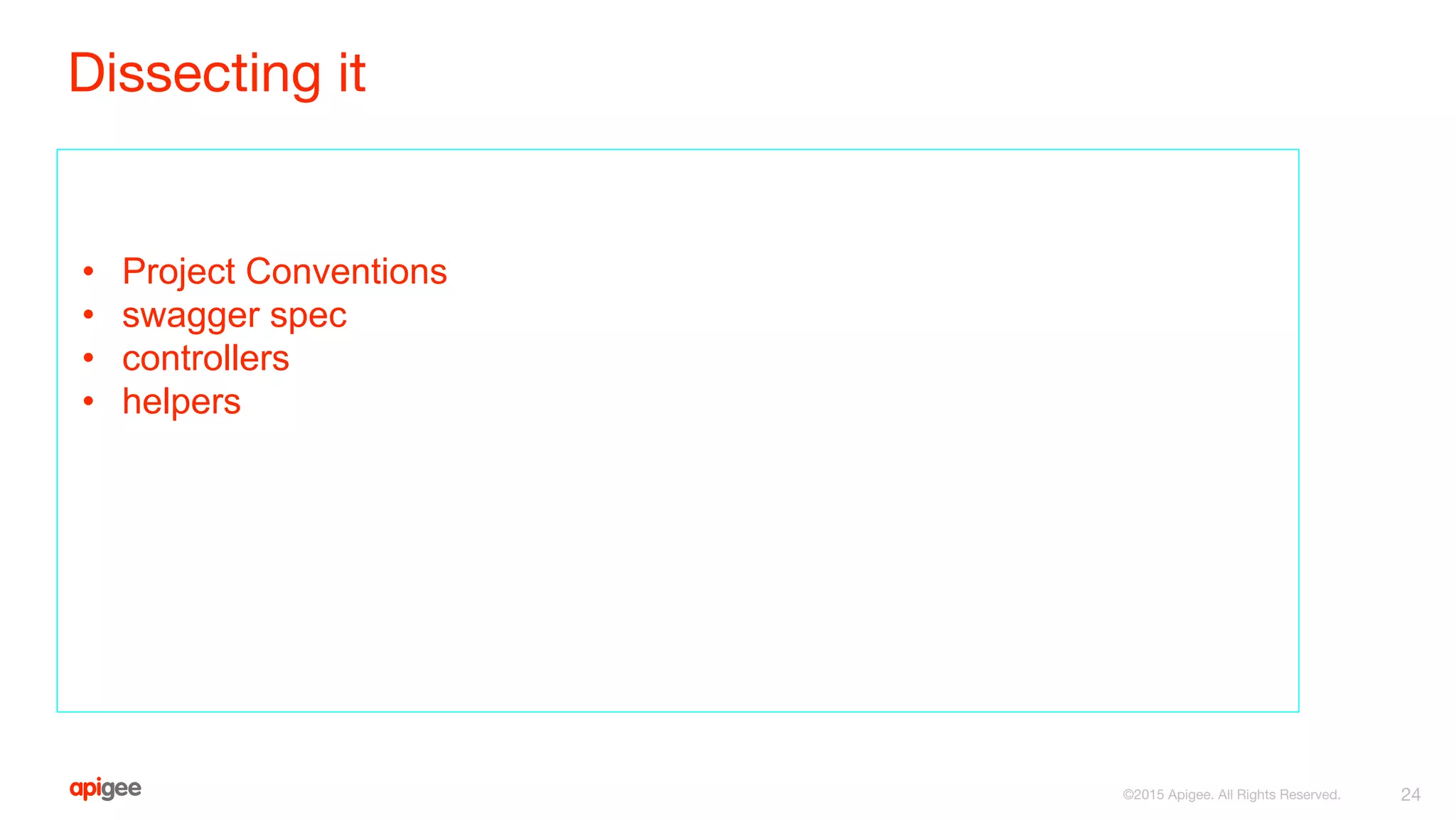

Dissecting it
• Project Conventions
• swagger spec
• controllers
• helpers

Let’s add something new
• A new path that uses POST operation

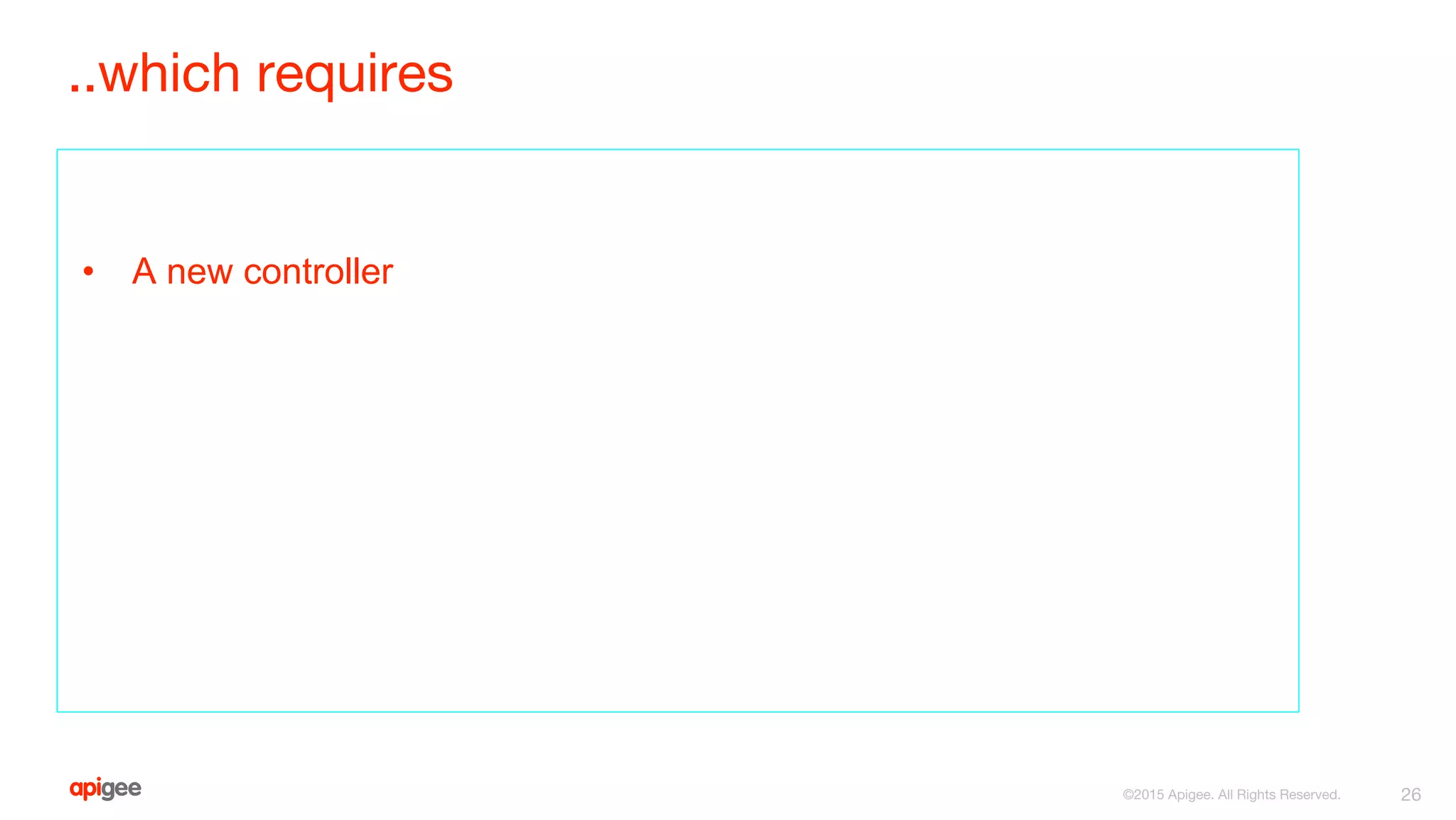

..which requires
• A new controller

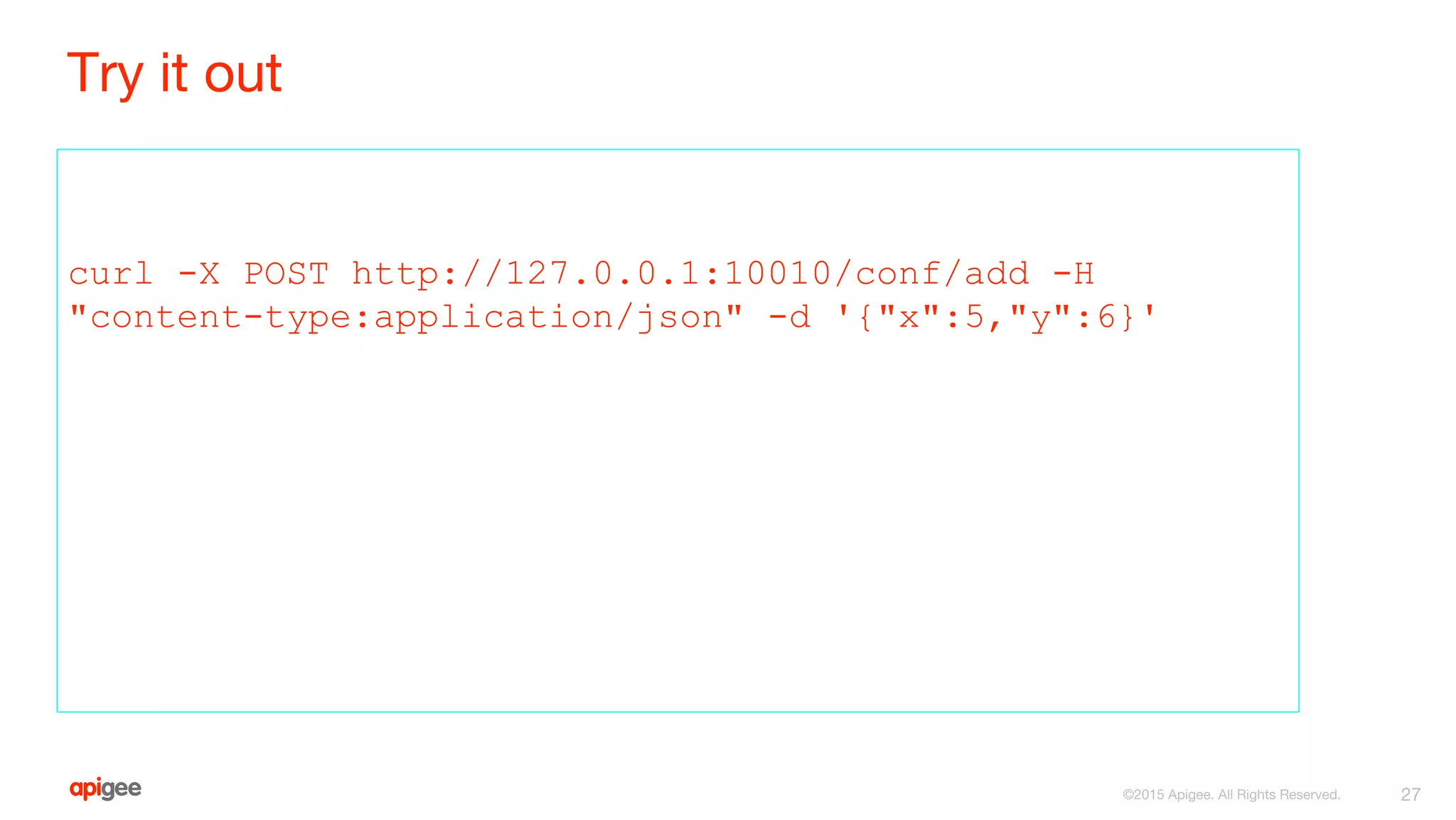

Try it out
curl -X POST http://127.0.0.1:10010/conf/add -H
"content-type:application/json" -d '{"x":5,"y":6}'

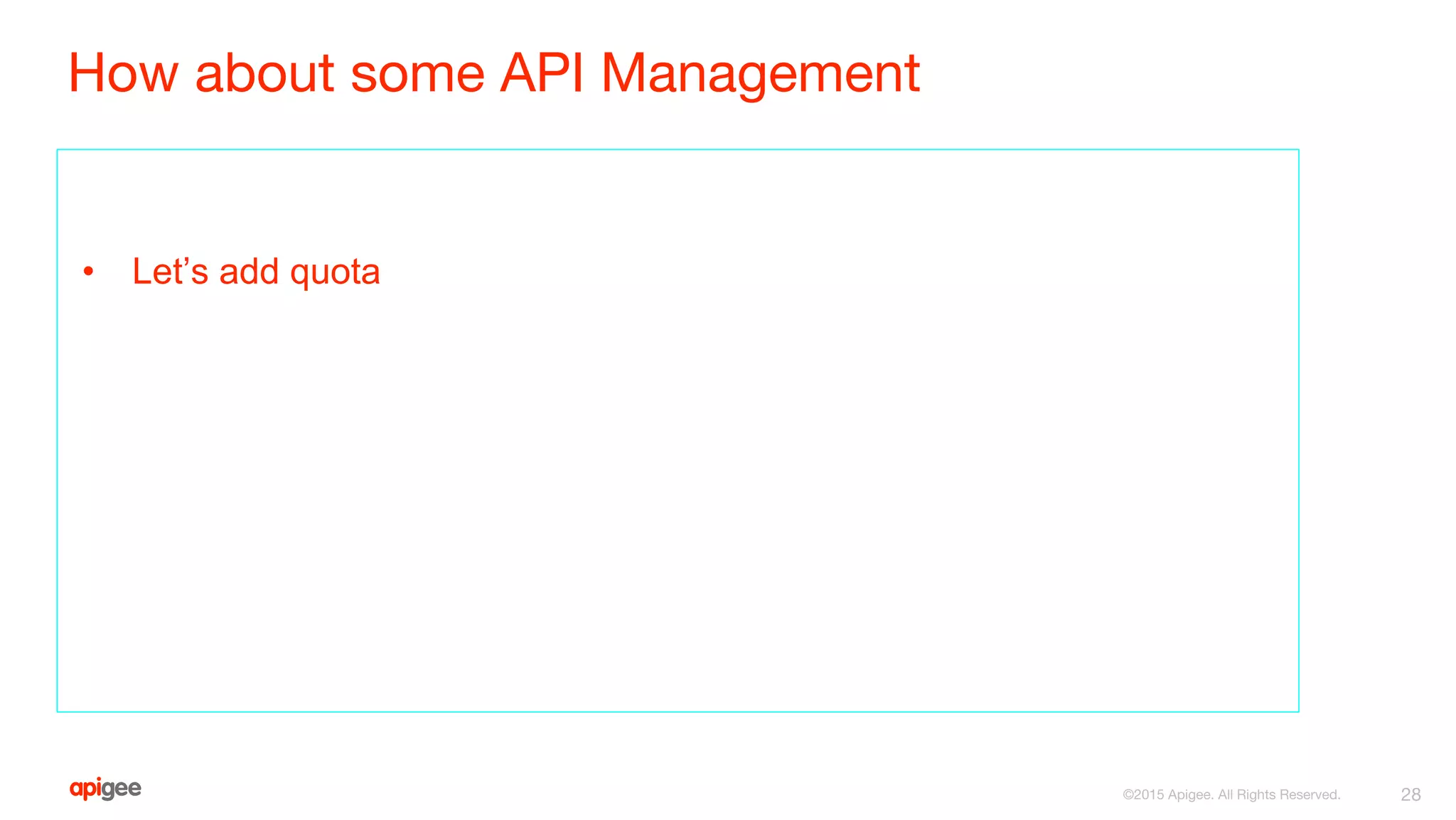

How about some API Management
• Let’s add quota

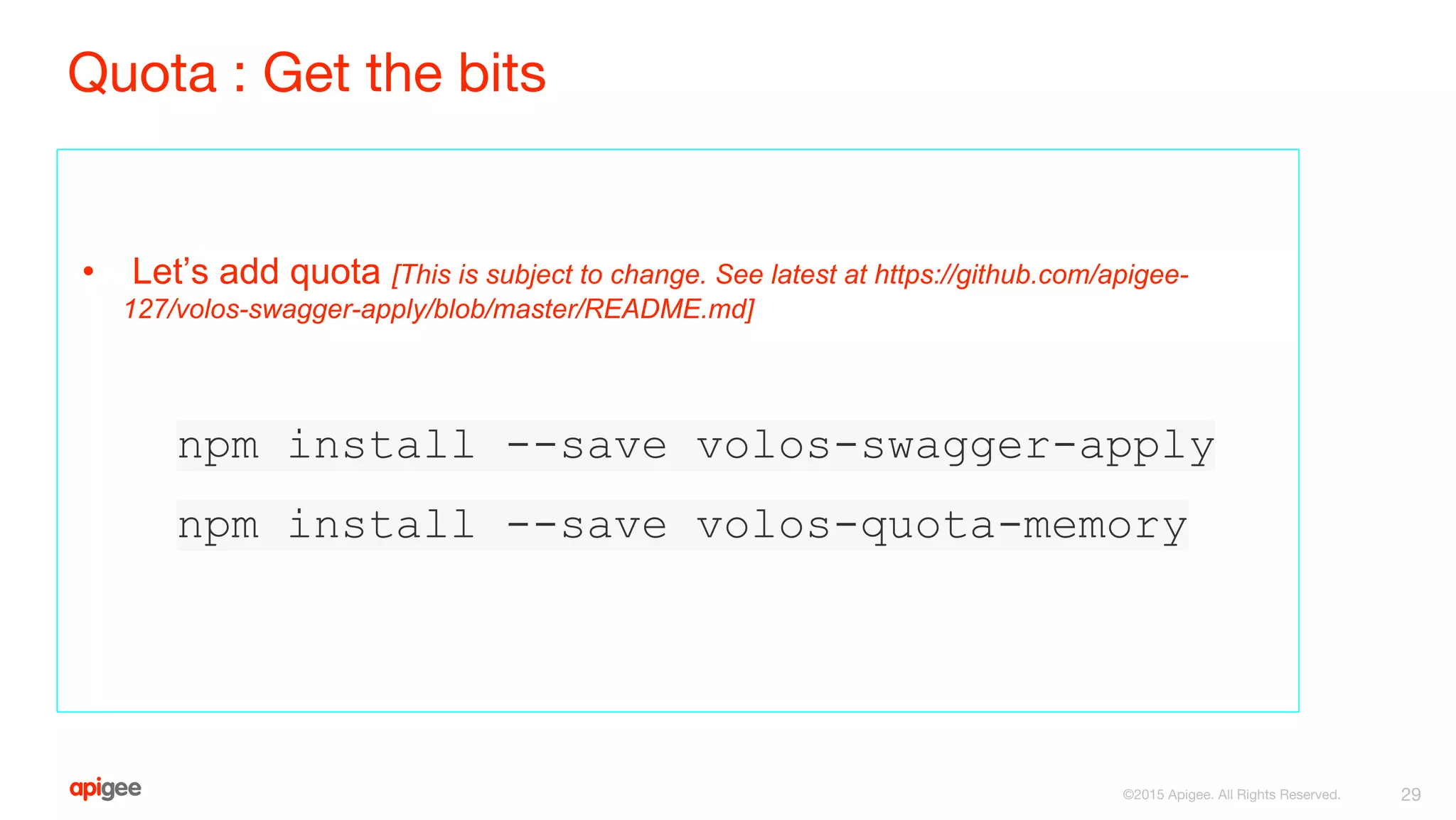

Quota : Get the bits
• Let’s add quota [This is subject to change. See latest at https://github.com/apigee-
127/volos-swagger-apply/blob/master/README.md]
npm install --save volos-swagger-apply
npm install --save volos-quota-memory

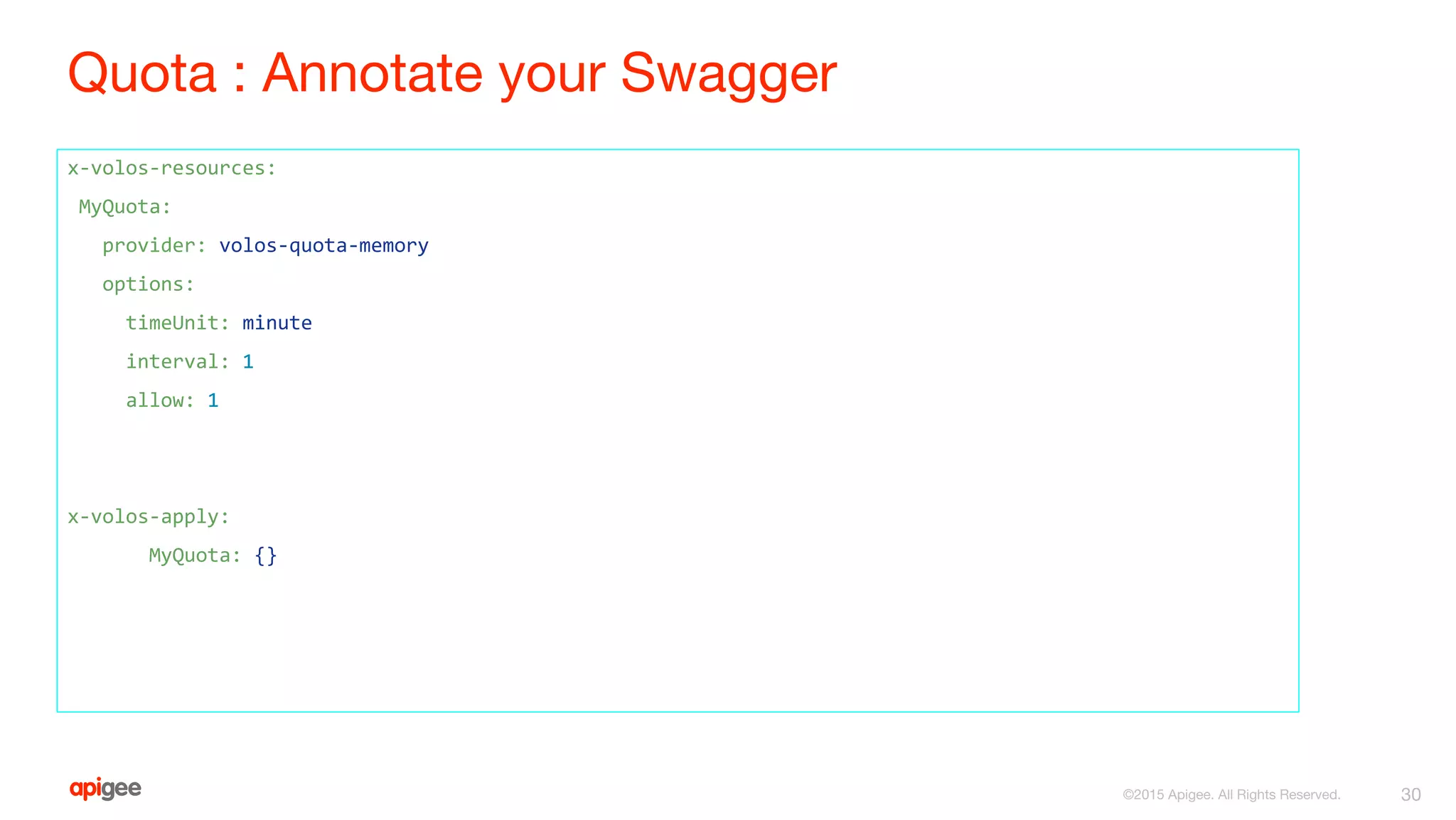

Quota : Annotate your Swagger
x-volos-resources:
MyQuota:
provider: volos-quota-memory
options:
timeUnit: minute
interval: 1
allow: 1
x-volos-apply:
MyQuota: {}

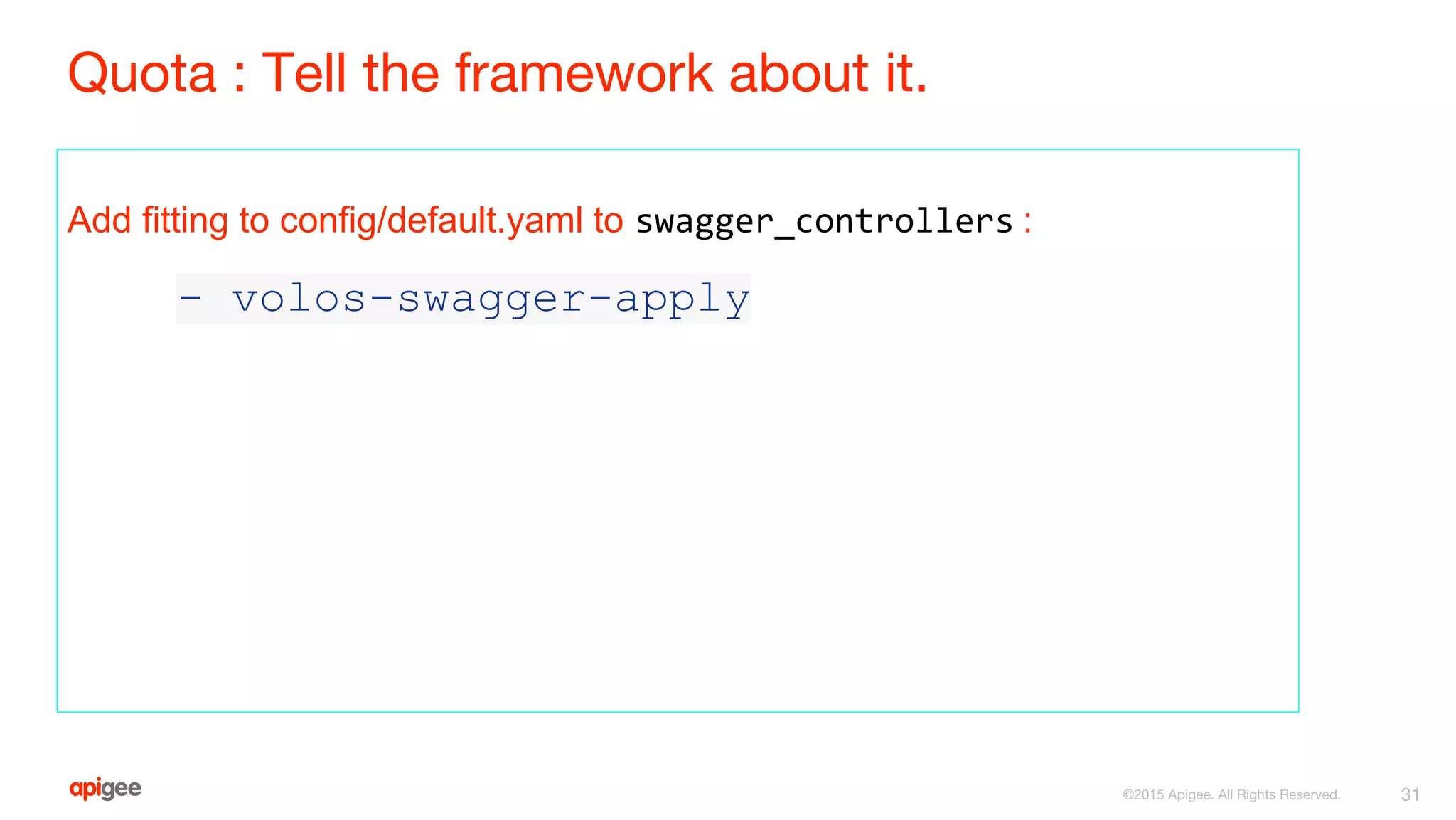

Quota : Tell the framework about it.
Add fitting to config/default.yaml to swagger_controllers :
- volos-swagger-apply

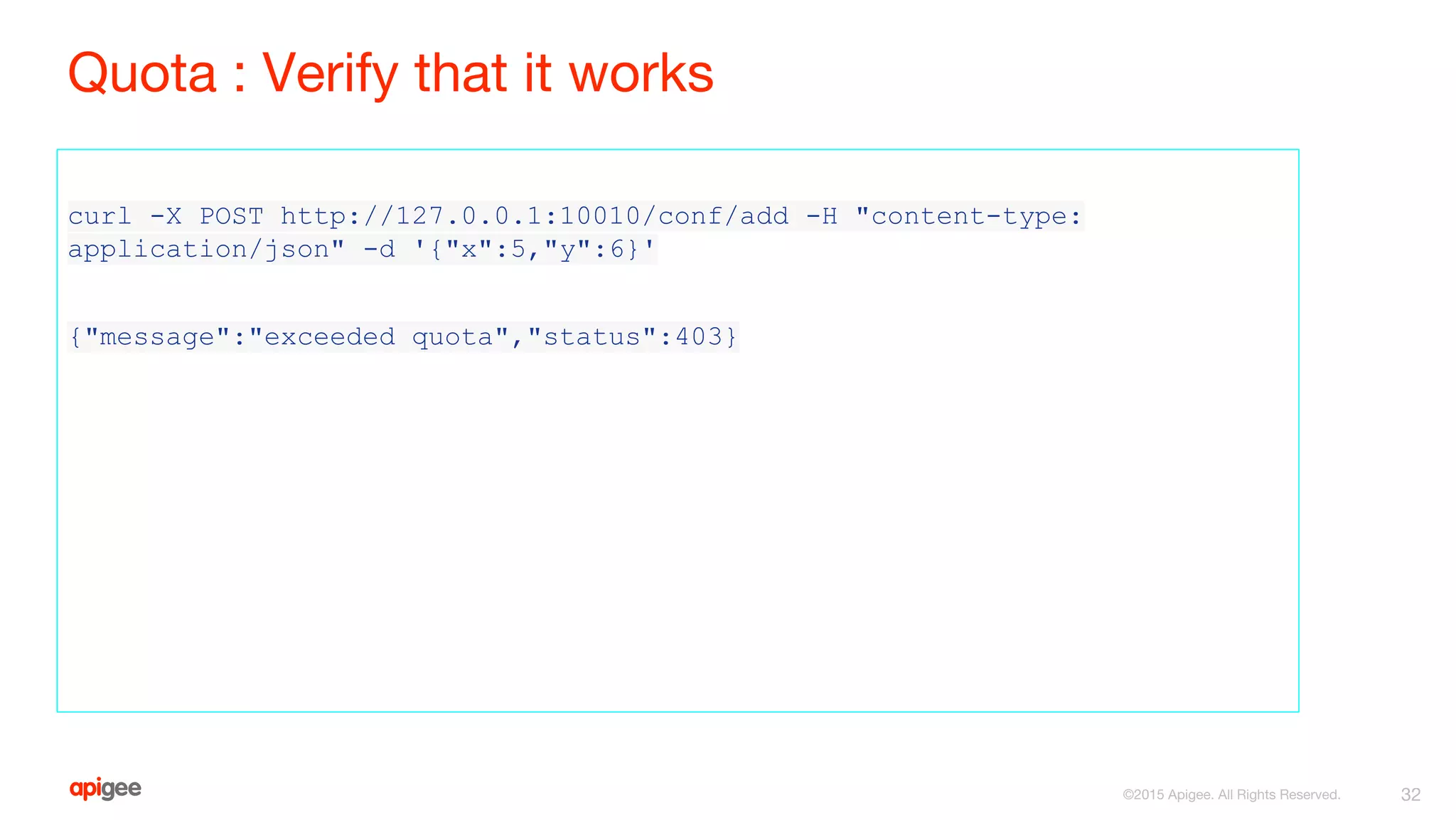

Quota : Verify that it works
curl -X POST http://127.0.0.1:10010/conf/add -H "content-type:
application/json" -d '{"x":5,"y":6}'
{"message":"exceeded quota","status":403}

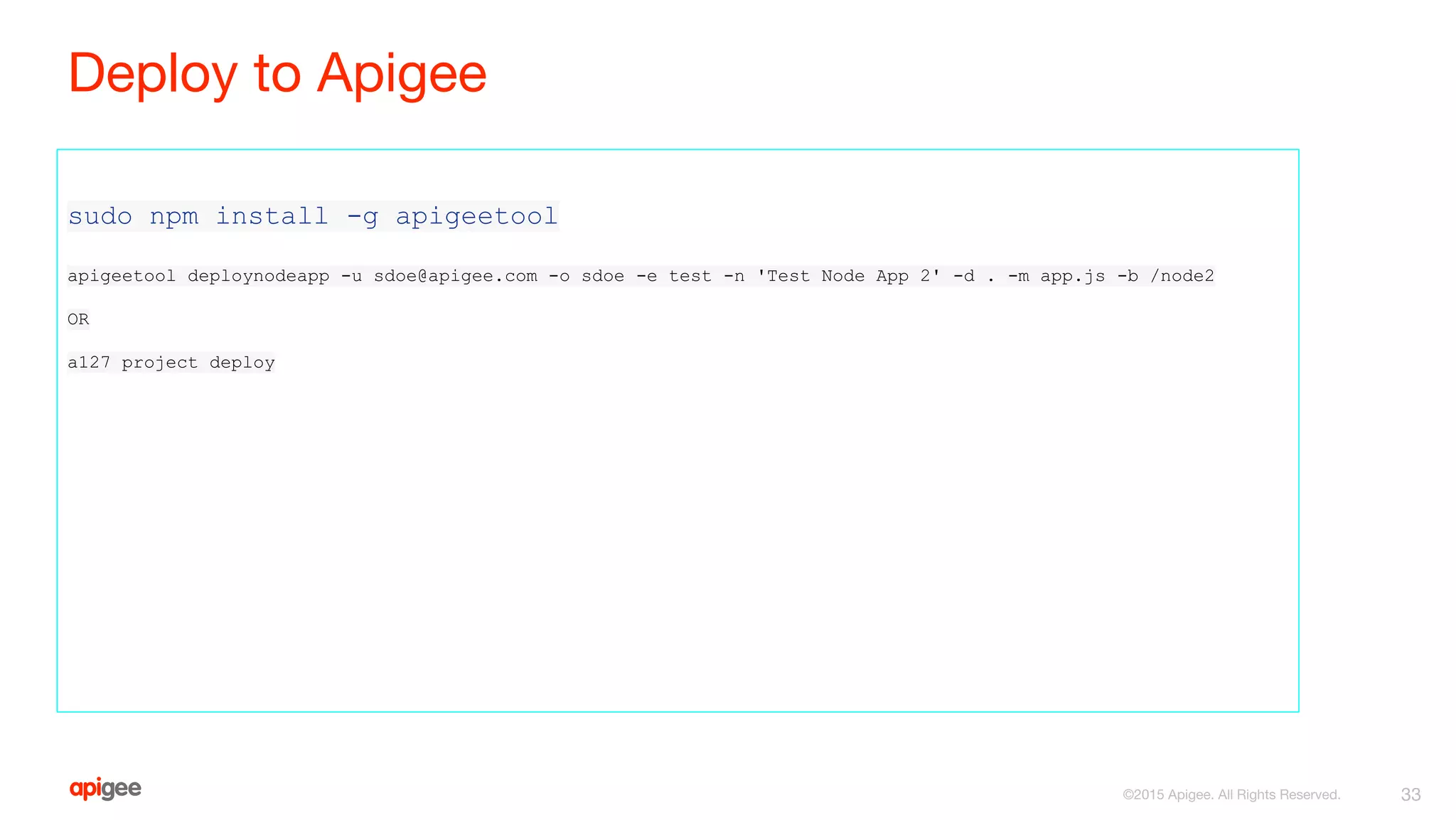

Deploy to Apigee
sudo npm install -g apigeetool
apigeetool deploynodeapp -u sdoe@apigee.com -o sdoe -e test -n 'Test Node App 2' -d . -m app.js -b /node2
OR
a127 project deploy

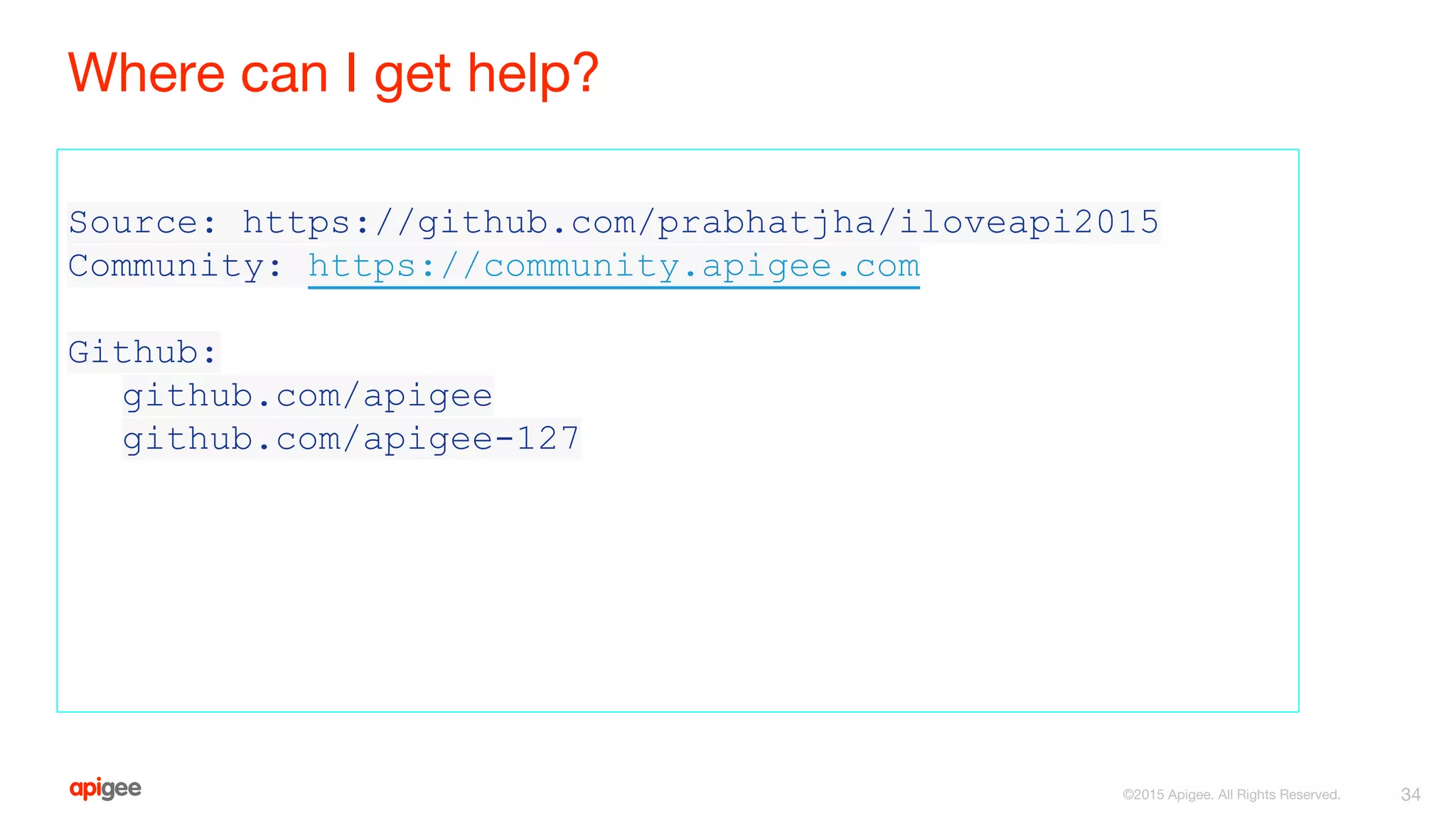

Source: https://github.com/prabhatjha/iloveapi2015
Community: https://community.apigee.com
Github:
github.com/apigee
github.com/apigee-127
Where can I get help?
