End to End Testing: Bug Squashing for API Developers
- 1. 1 END TO ENDTESTING: BUG SQUASHING FOR API DEVELOPERS! Ozan Seymen – Apigee Principal Architect Sean Davis – Apigee Technical Specialist
- 2. API Testing -Agenda 2 ©2016 Apigee. All Rights Reserved. • Popular testing methodologies • API testing best practices • Popular open source tools
- 3.

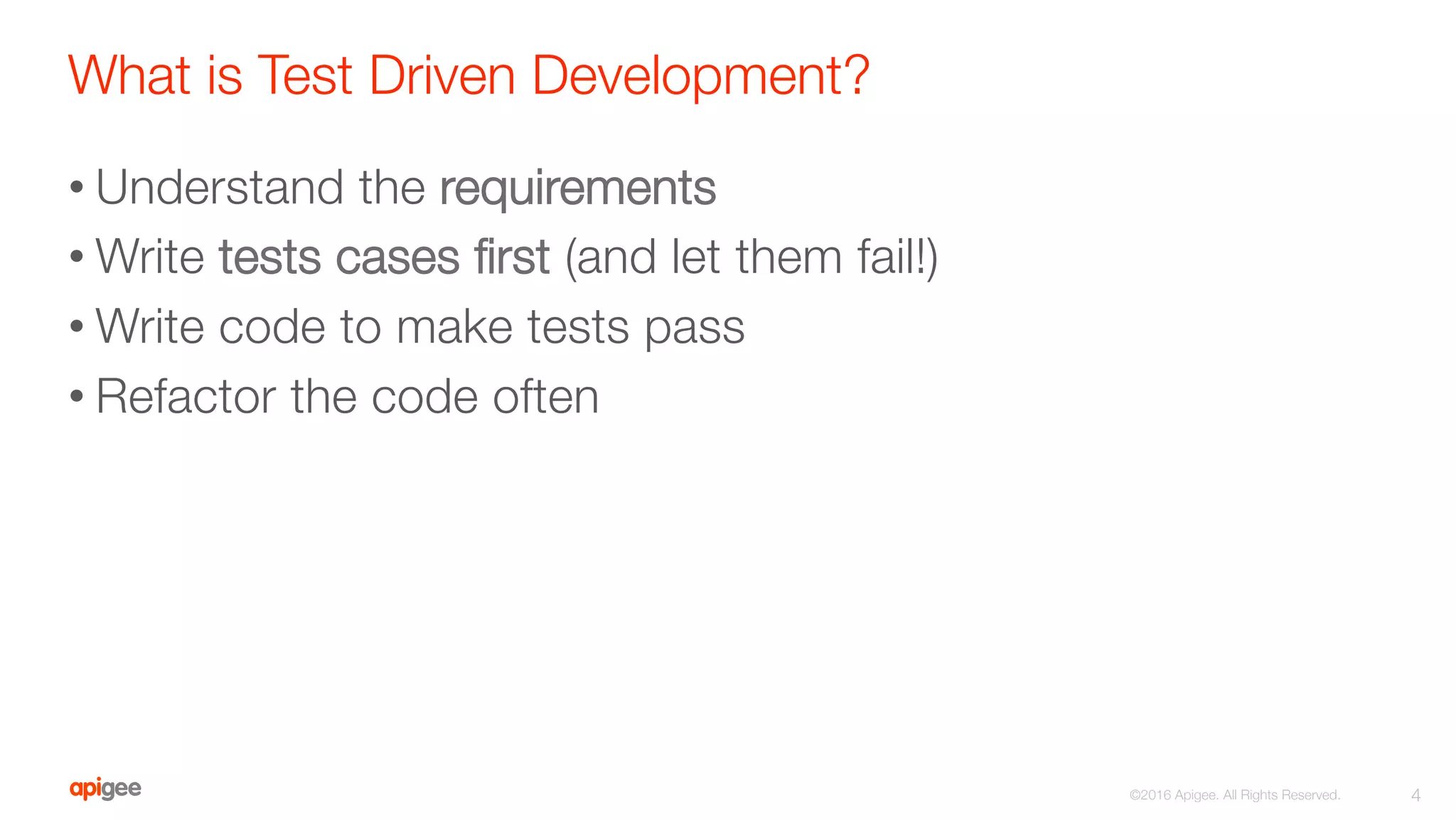

- 4. What is TestDriven Development? • Understand the requirements • Write tests cases first (and let them fail!) • Write code to make tests pass • Refactor the code often 4 ©2016 Apigee. All Rights Reserved.

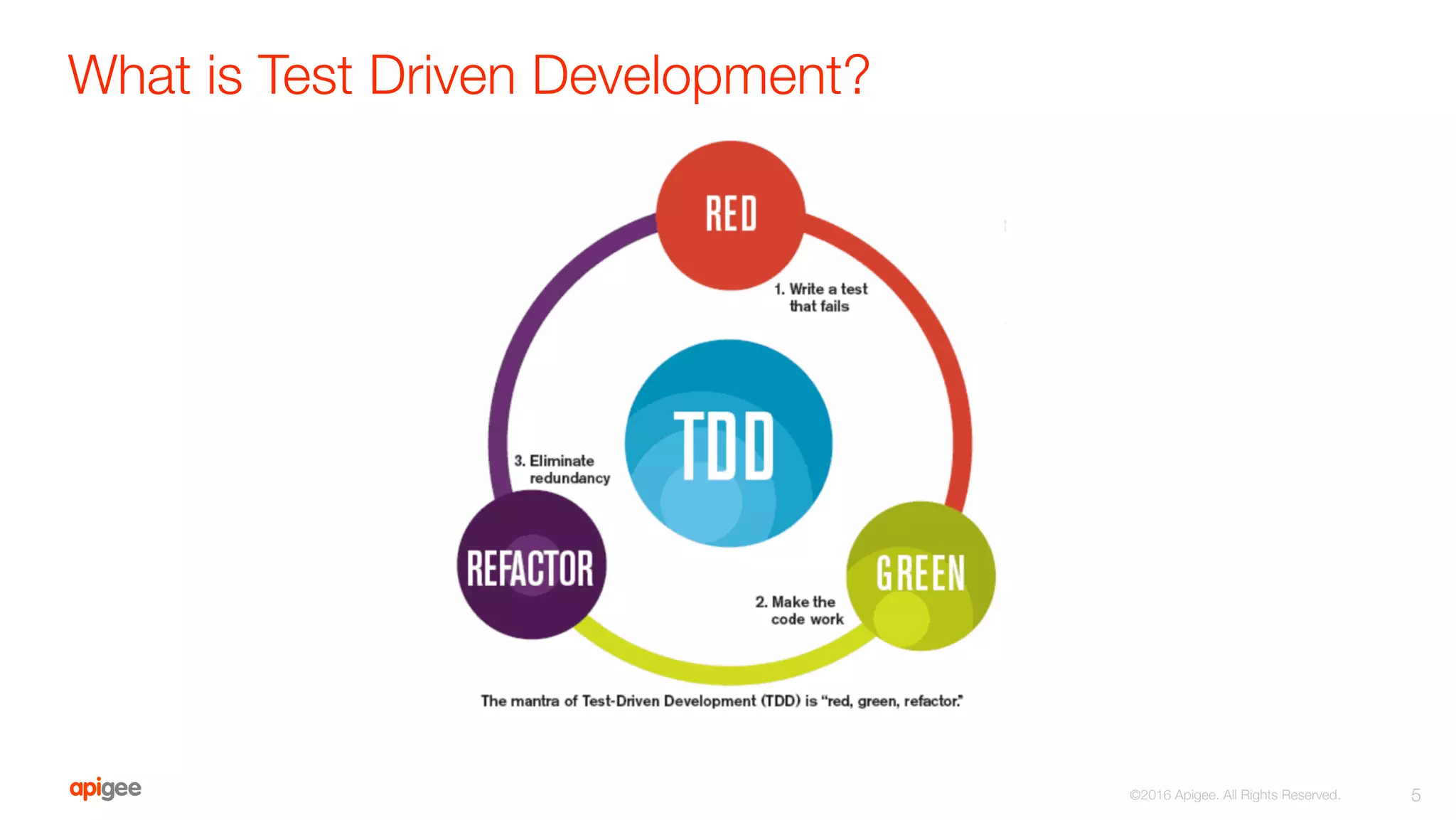

- 5. What is TestDriven Development? 5 ©2016 Apigee. All Rights Reserved.

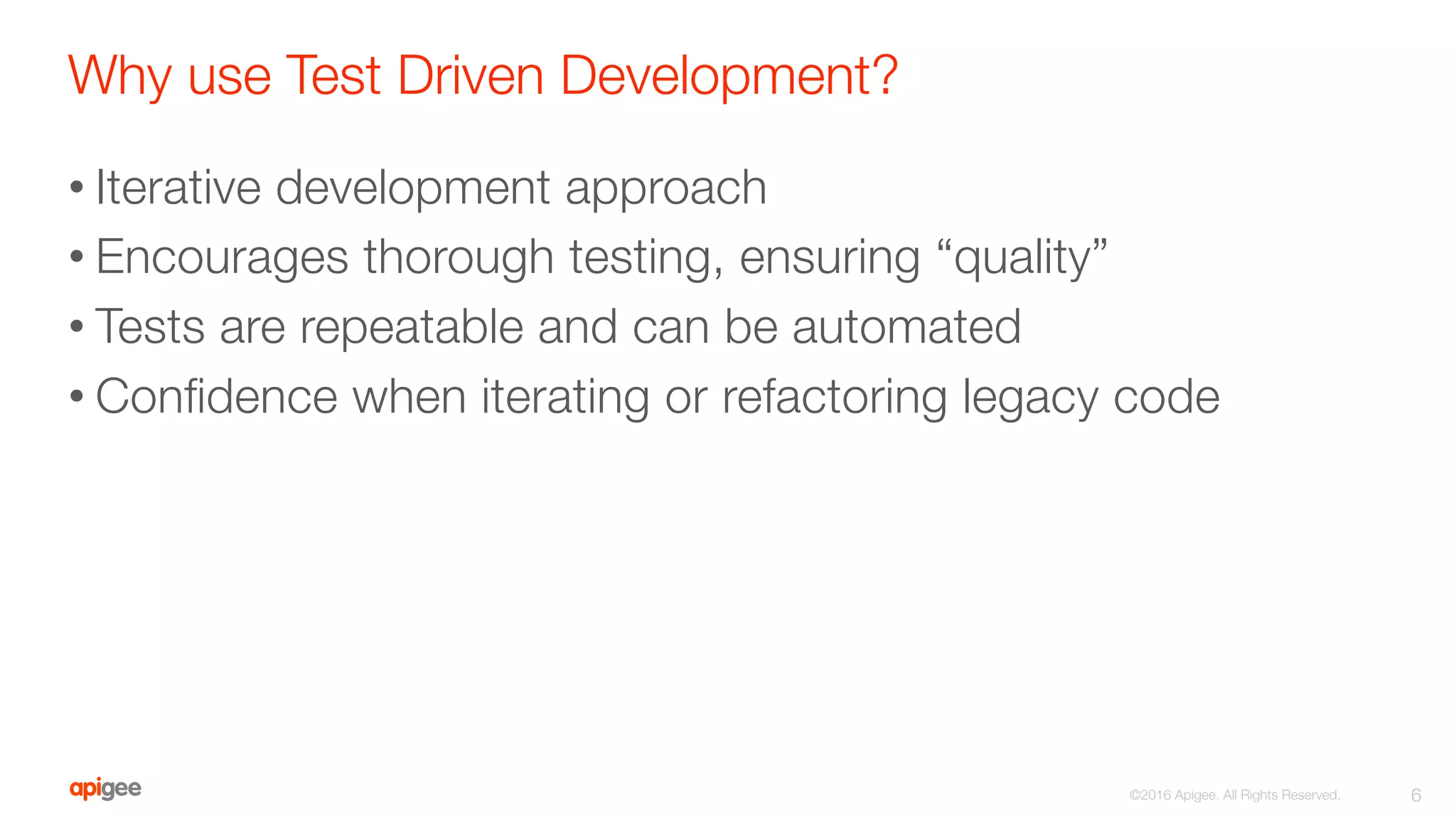

- 6. Why use TestDriven Development? • Iterative development approach • Encourages thorough testing, ensuring “quality” • Tests are repeatable and can be automated • Confidence when iterating or refactoring legacy code 6 ©2016 Apigee. All Rights Reserved.

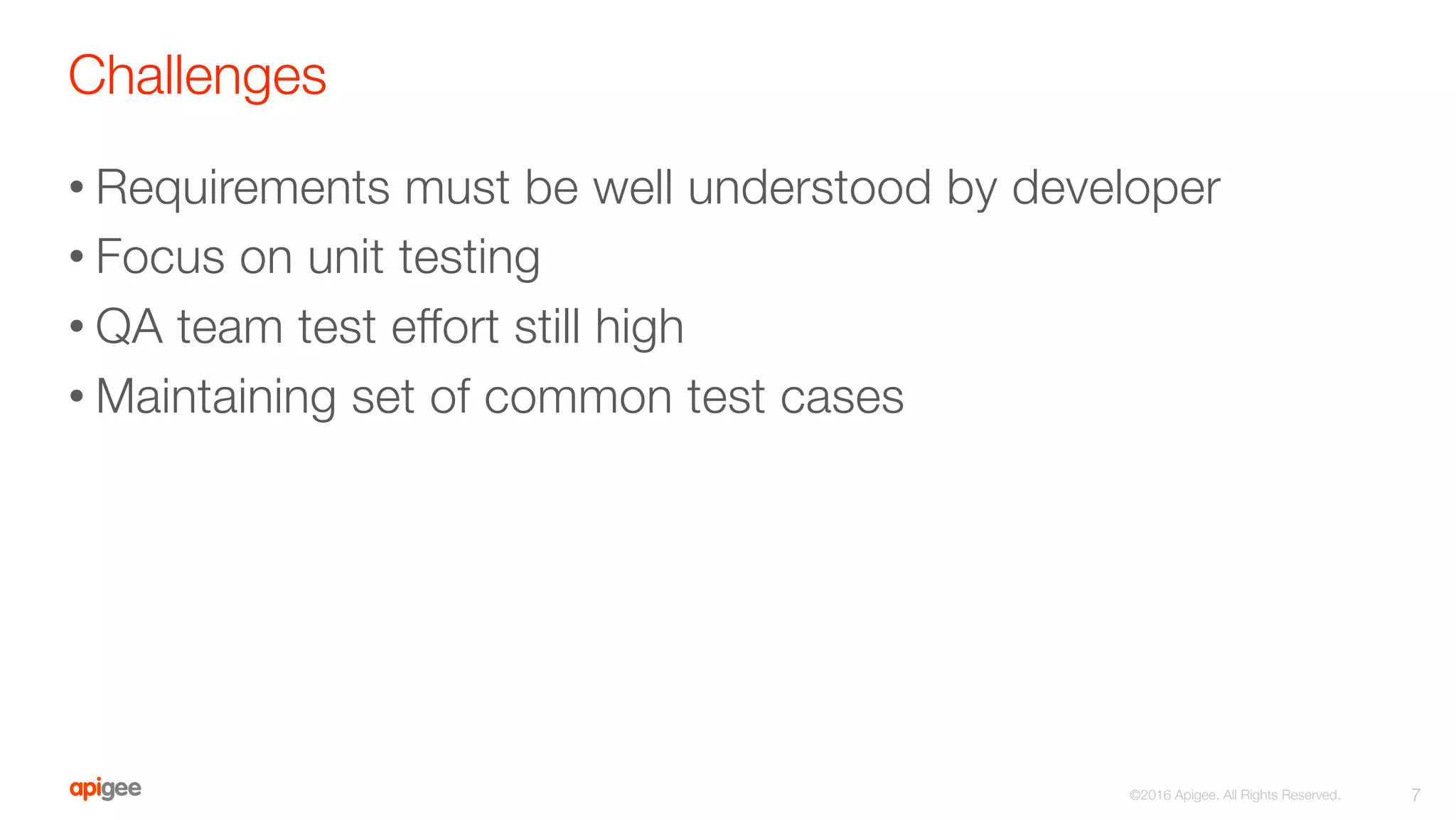

- 7. Challenges • Requirements must bewell understood by developer • Focus on unit testing • QA team test effort still high • Maintaining set of common test cases 7 ©2016 Apigee. All Rights Reserved.
- 8.
- 9. BDD 9 ©2016 Apigee. AllRights Reserved. BDD is a software development process with TDD in its heart
- 10. BDD – asoftware development process 10 ©2016 Apigee. All Rights Reserved.
- 11. BDD – asoftware development process 11 ©2016 Apigee. All Rights Reserved. Business analyst developer tester

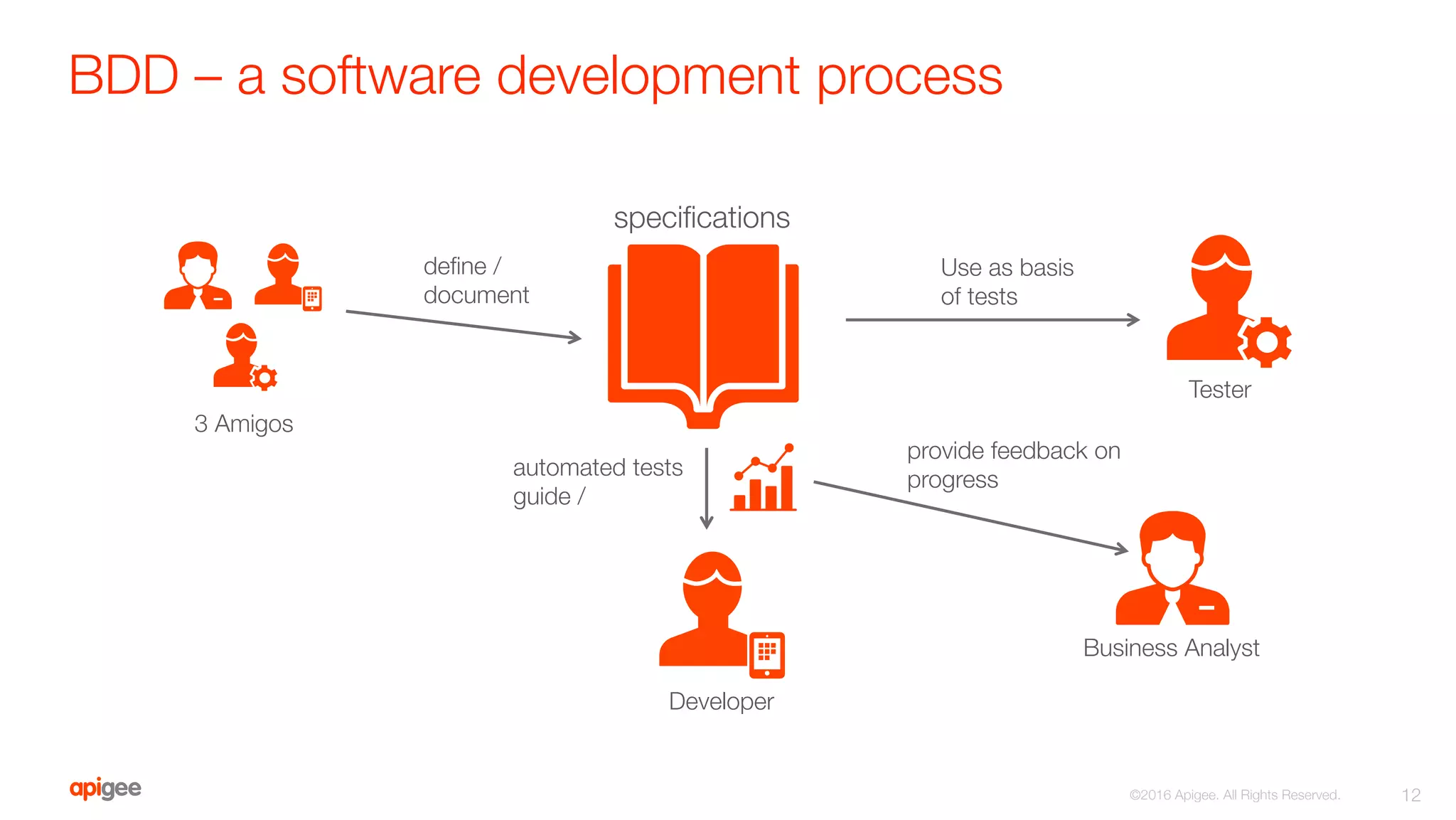

- 12. BDD – asoftware development process 12 ©2016 Apigee. All Rights Reserved. define / document automated tests guide / provide feedback on progress specifications Use as basis of tests 3 Amigos Developer Tester Business Analyst

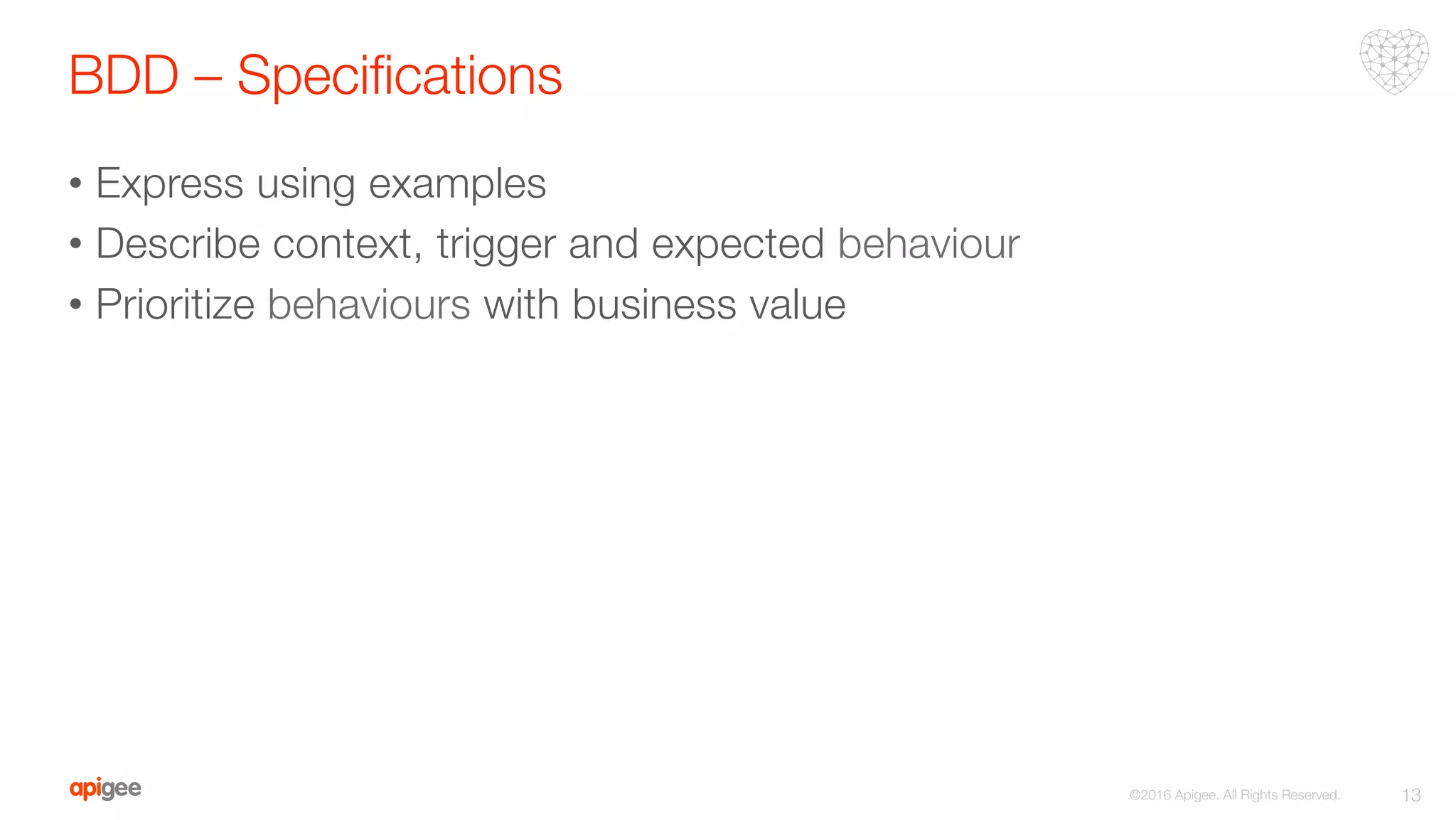

- 13. BDD – Specifications • Express using examples • Describe context, trigger and expected behaviour • Prioritize behaviours with business value 13 ©2016 Apigee. All Rights Reserved.
- 14. BDD – Gherkin 14 ©2016Apigee. All Rights Reserved. • When you come to document behavior, you need a language • Understood by humans and code • Gherkin - business readable, domain specific language

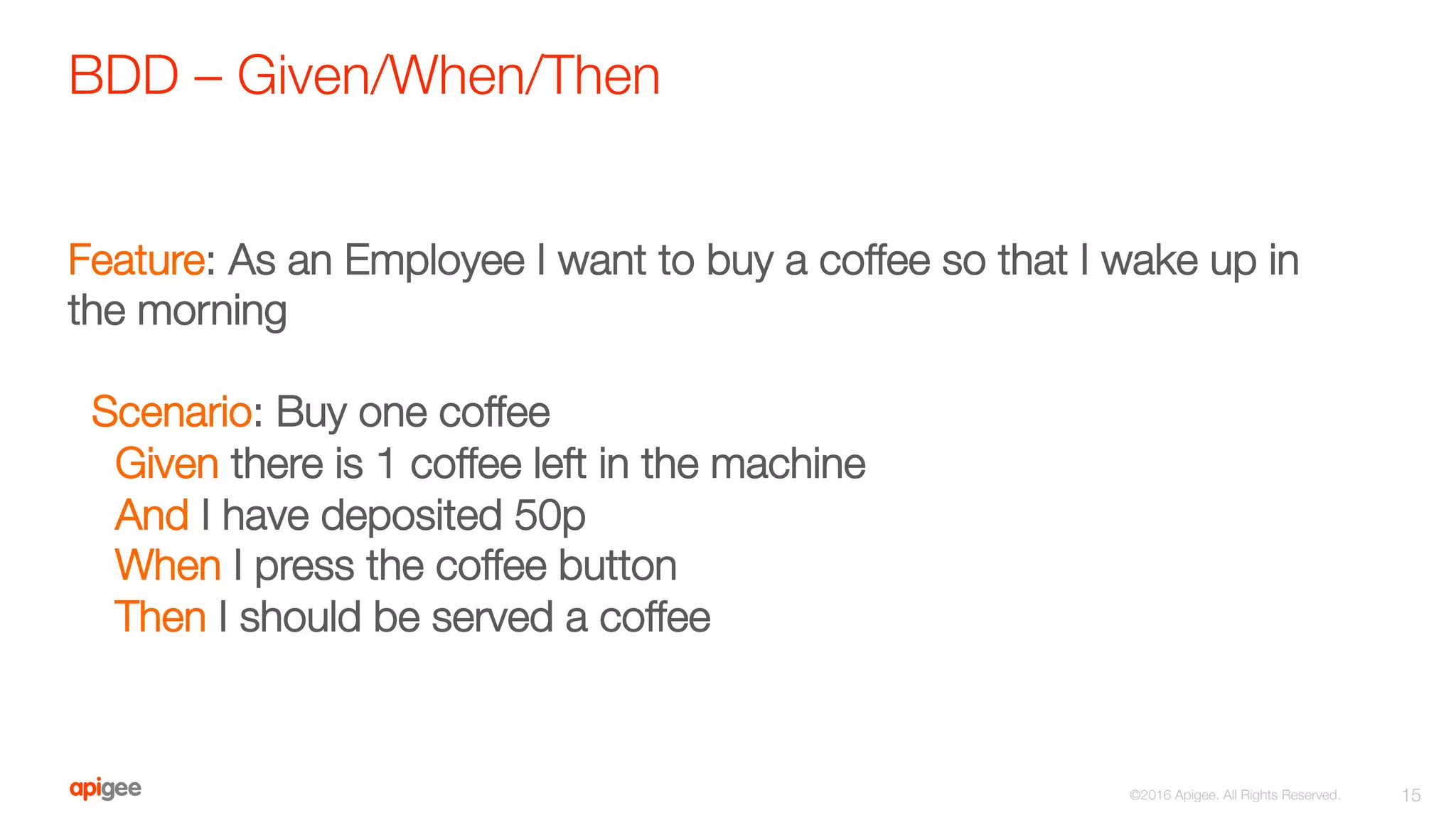

- 15. BDD – Given/When/Then 15 ©2016Apigee. All Rights Reserved. Feature: As an Employee I want to buy a coffee so that I wake up in the morning Scenario: Buy one coffee Given there is 1 coffee left in the machine And I have deposited 50p When I press the coffee button Then I should be served a coffee

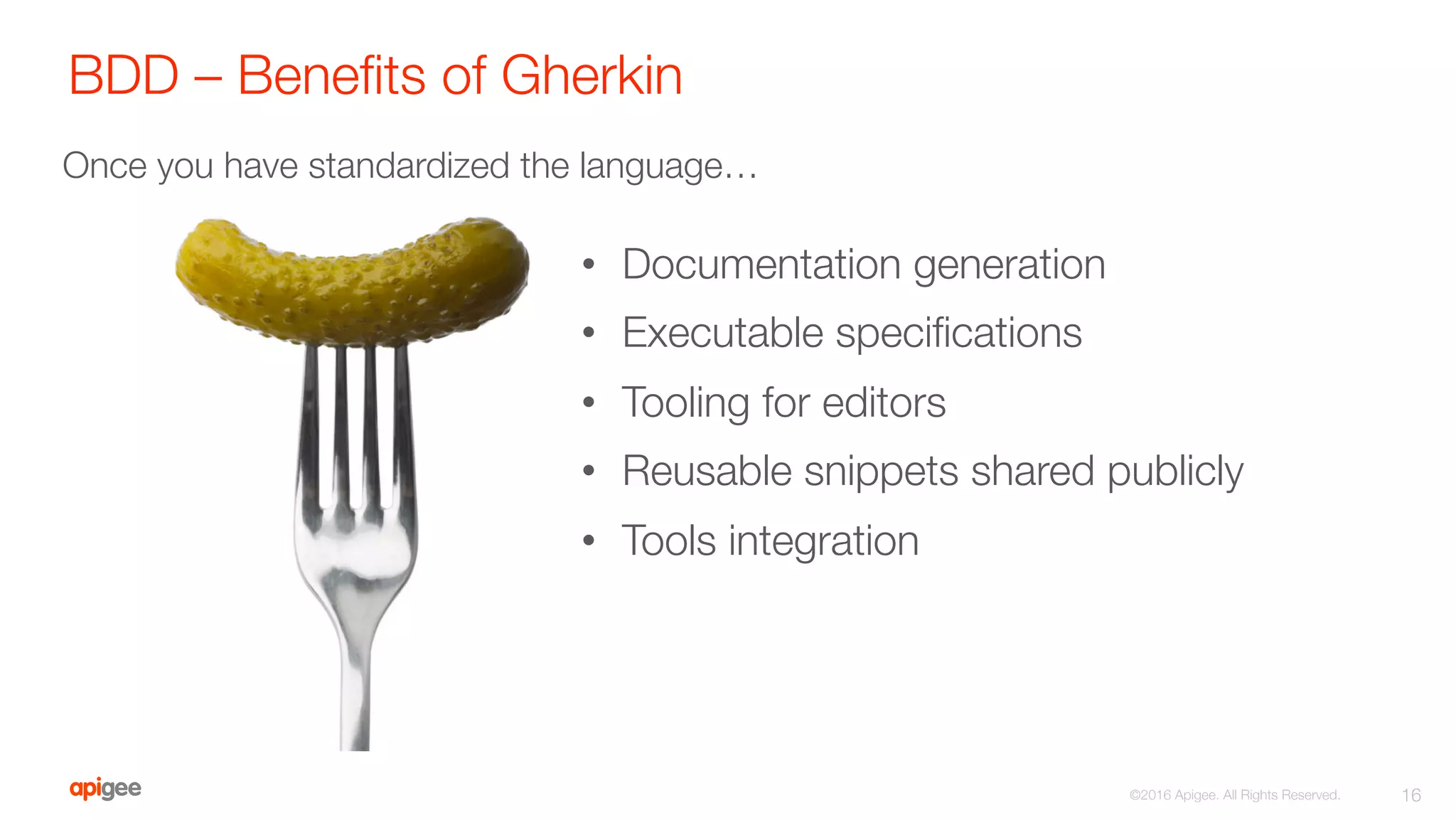

- 16. BDD – Benefitsof Gherkin 16 ©2016 Apigee. All Rights Reserved. • Documentation generation • Executable specifications • Tooling for editors • Reusable snippets shared publicly • Tools integration Once you have standardized the language…

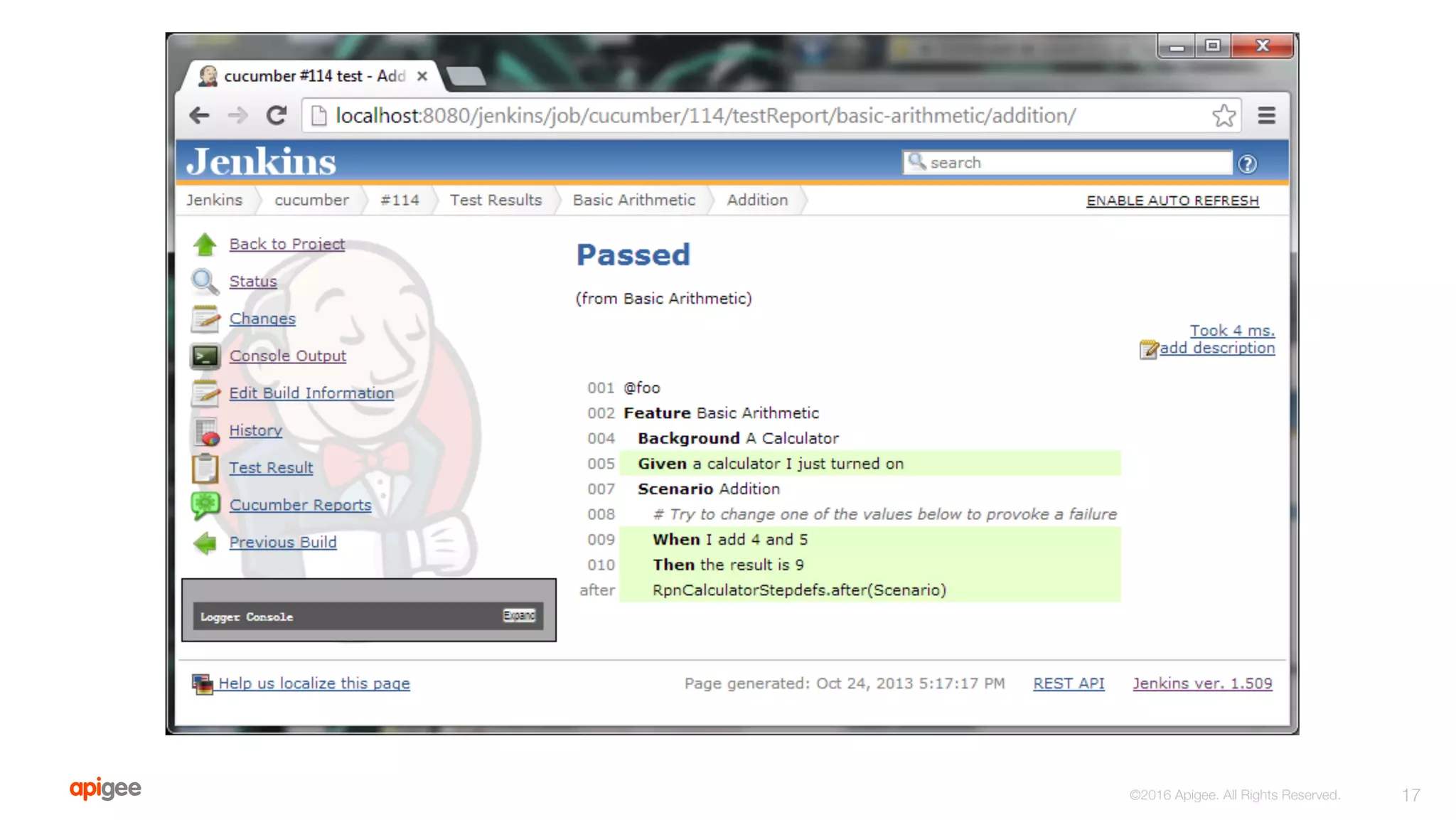

- 17. 17 ©2016 Apigee. AllRights Reserved.
- 18. BDD – Toolingfor Automated Testing 18 ©2016 Apigee. All Rights Reserved. APICLI YADDA

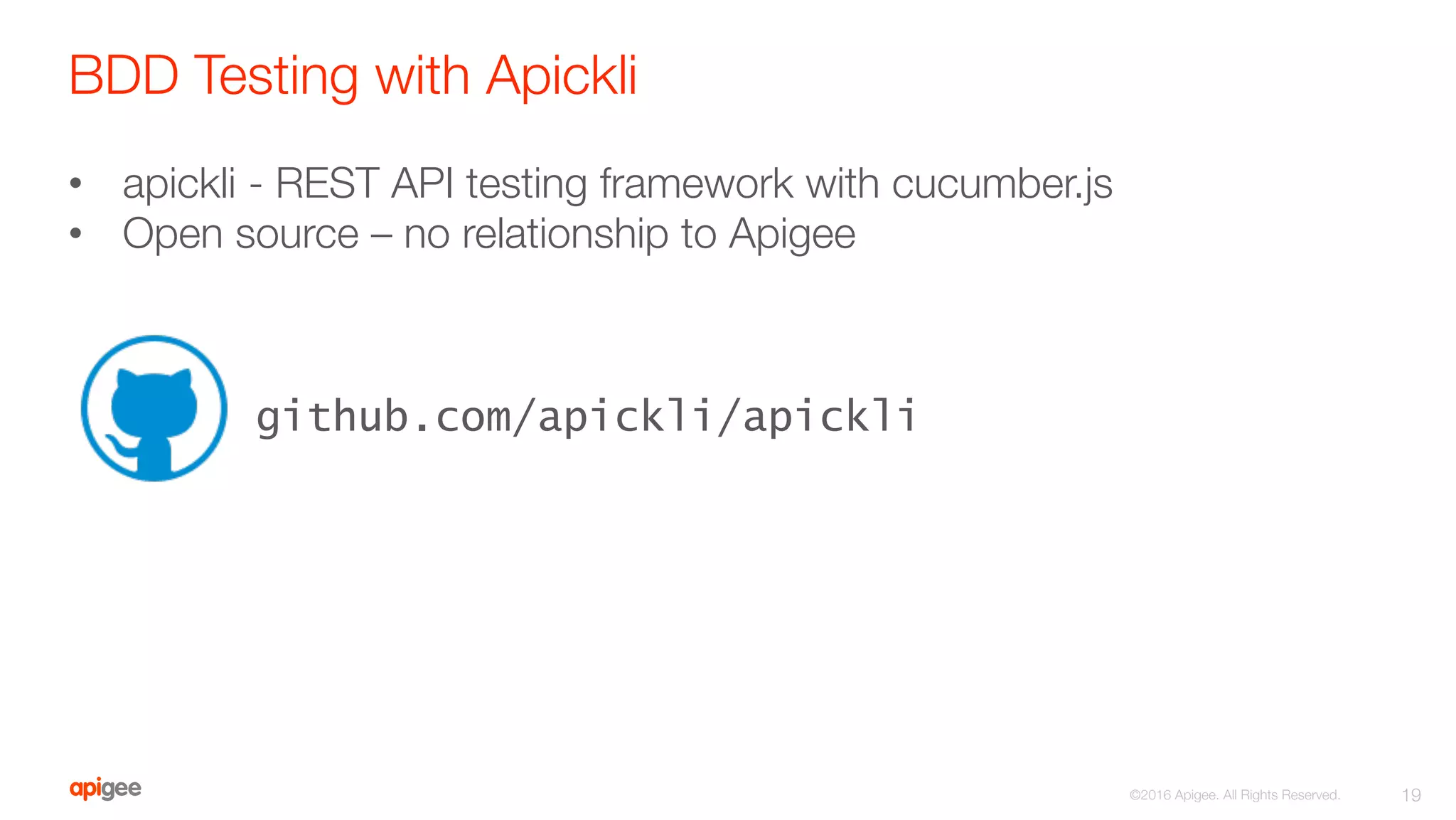

- 19. BDD Testing withApickli 19 github.com/apickli/apickli • apickli - REST API testing framework with cucumber.js • Open source – no relationship to Apigee ©2016 Apigee. All Rights Reserved.
- 20.

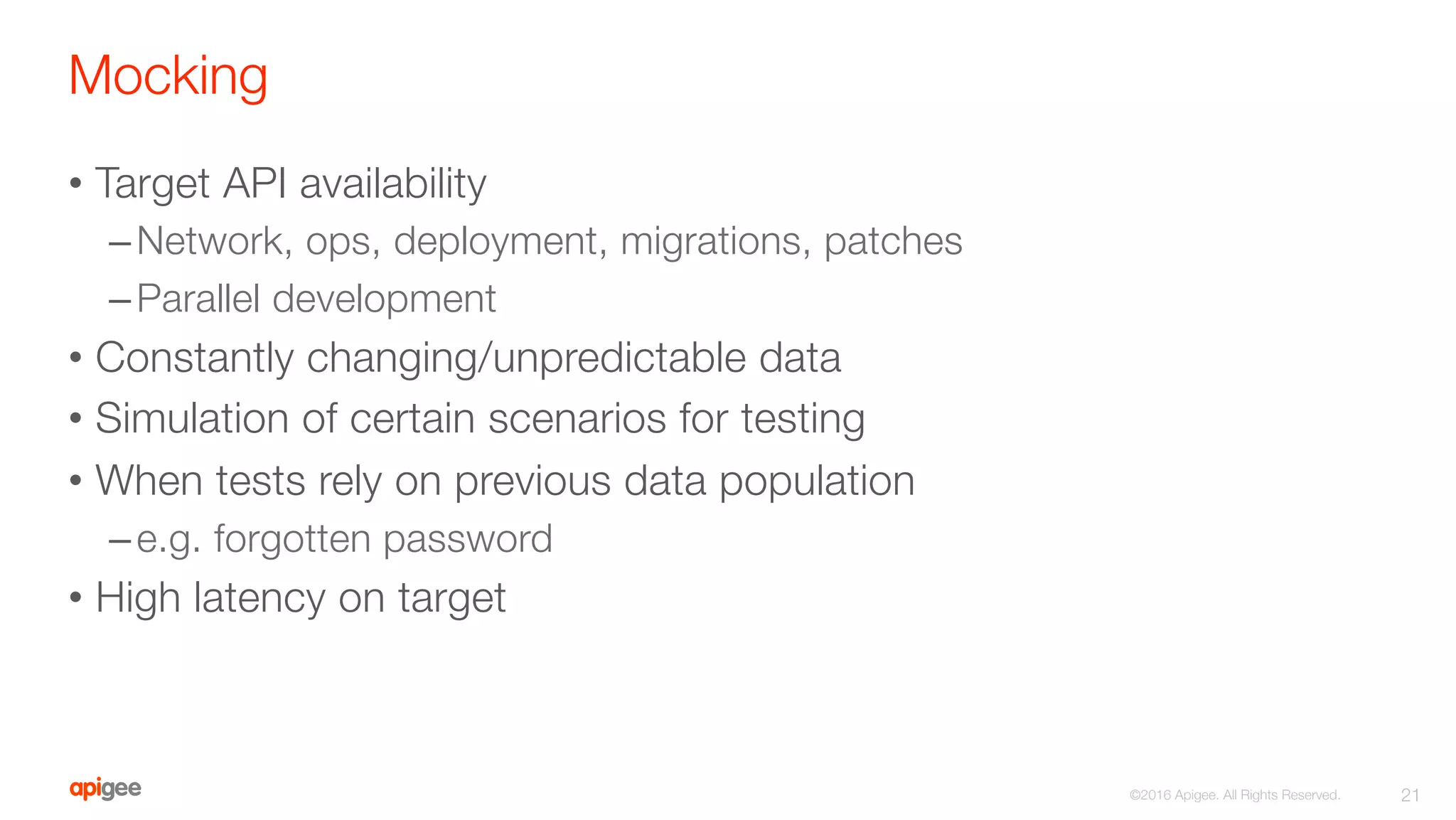

- 21. Mocking • Target APIavailability – Network, ops, deployment, migrations, patches – Parallel development • Constantly changing/unpredictable data • Simulation of certain scenarios for testing • When tests rely on previous data population – e.g. forgotten password • High latency on target 21 ©2016 Apigee. All Rights Reserved.

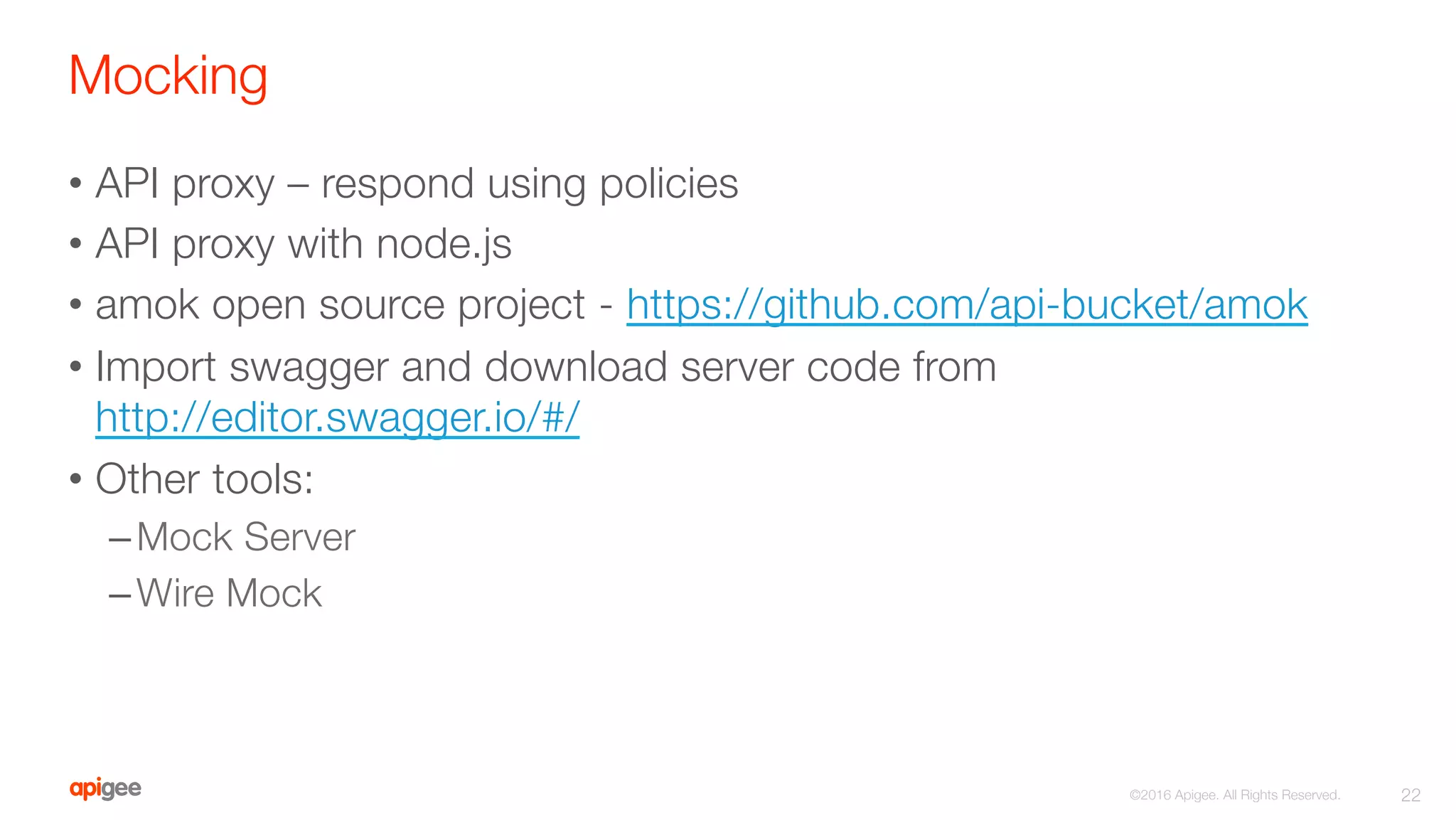

- 22. Mocking • API proxy– respond using policies • API proxy with node.js • amok open source project - https://github.com/api-bucket/amok • Import swagger and download server code from http://editor.swagger.io/#/ • Other tools: – Mock Server – Wire Mock 22 ©2016 Apigee. All Rights Reserved.

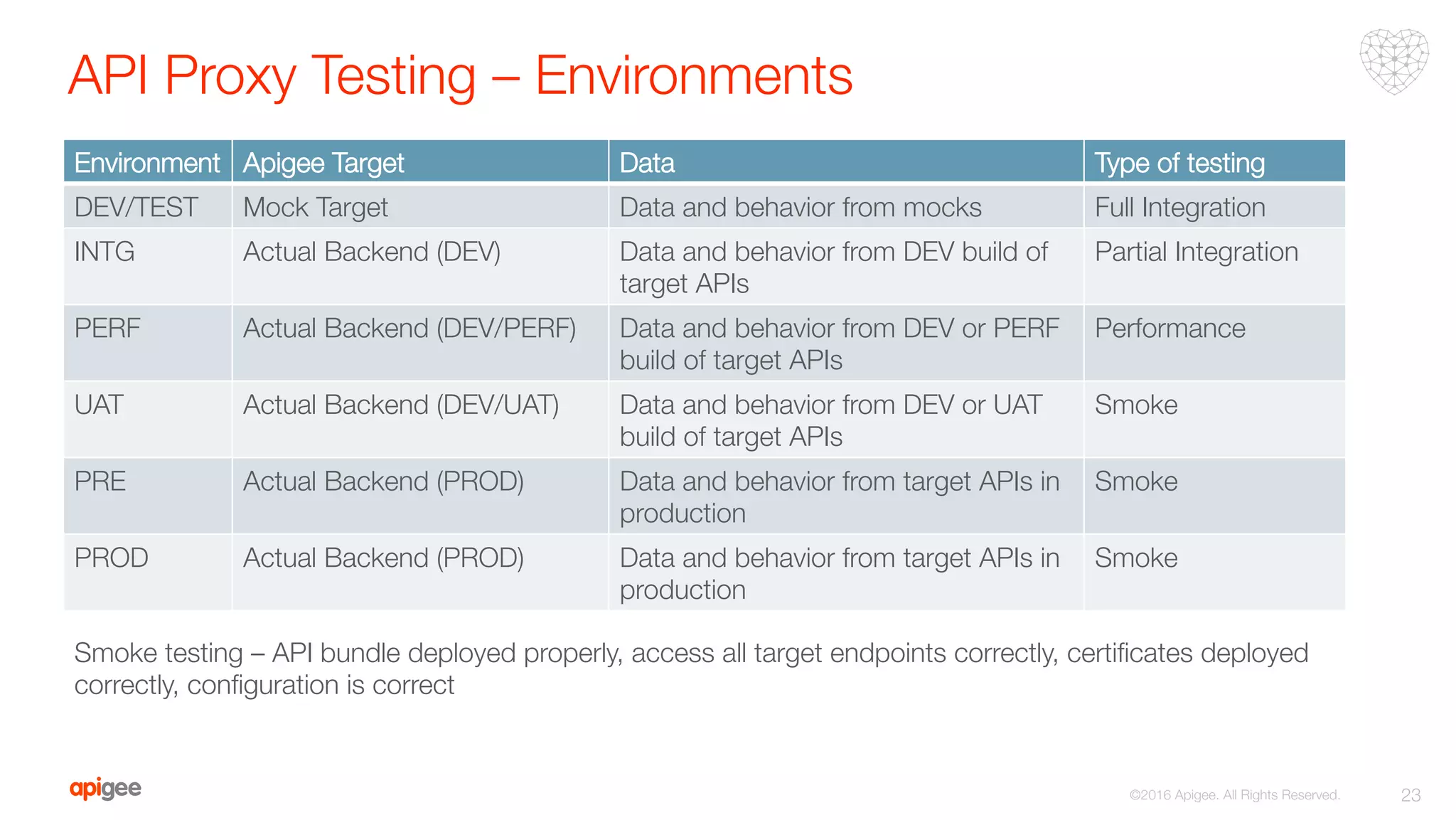

- 23. API Proxy Testing– Environments 23 ©2016 Apigee. All Rights Reserved. Environment Apigee Target Data Type of testing DEV/TEST Mock Target Data and behavior from mocks Full Integration INTG Actual Backend (DEV) Data and behavior from DEV build of target APIs Partial Integration PERF Actual Backend (DEV/PERF) Data and behavior from DEV or PERF build of target APIs Performance UAT Actual Backend (DEV/UAT) Data and behavior from DEV or UAT build of target APIs Smoke PRE Actual Backend (PROD) Data and behavior from target APIs in production Smoke PROD Actual Backend (PROD) Data and behavior from target APIs in production Smoke Smoke testing – API bundle deployed properly, access all target endpoints correctly, certificates deployed correctly, configuration is correct
- 24.

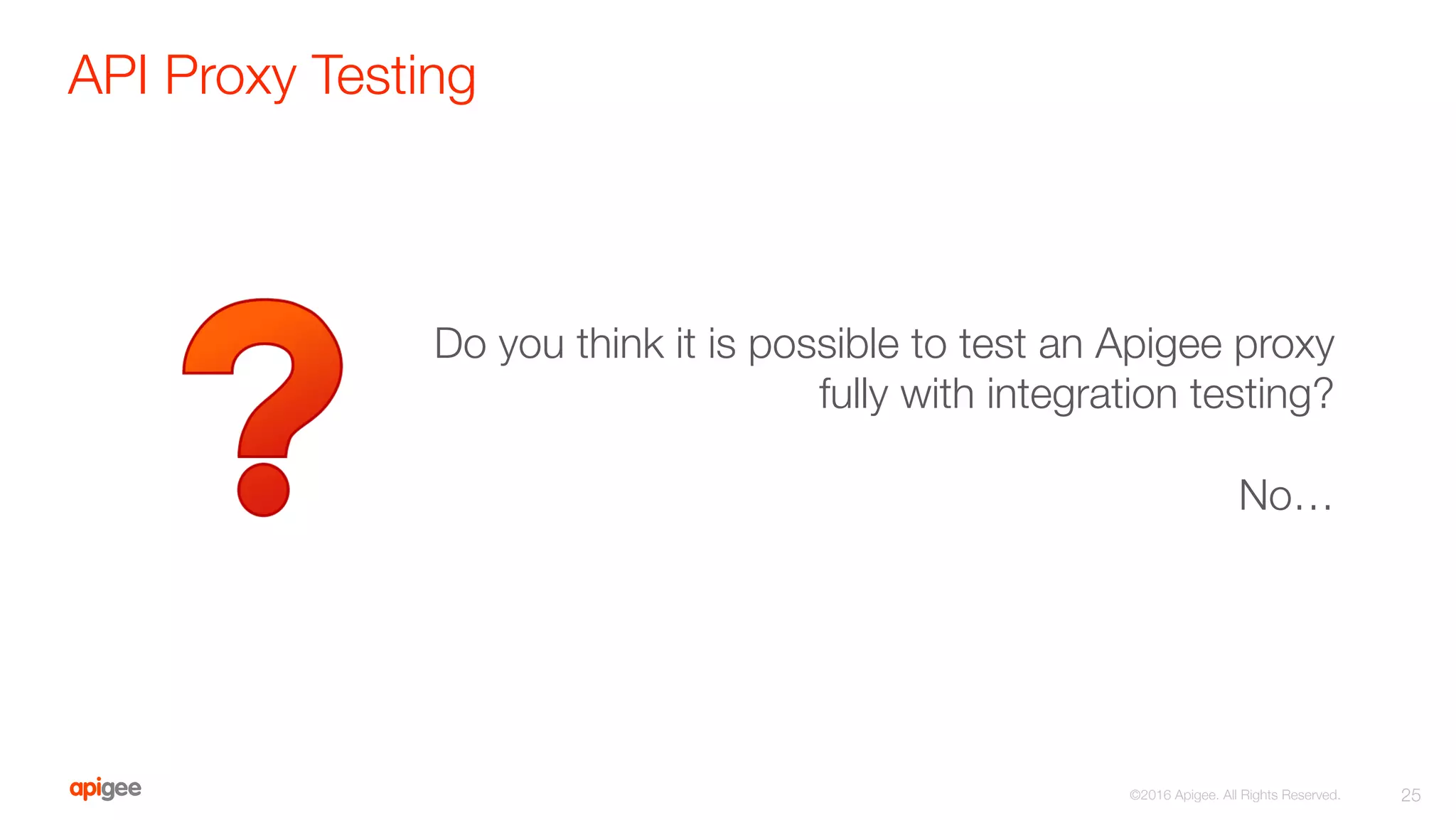

- 25. API Proxy Testing 25 ©2016Apigee. All Rights Reserved. Do you think it is possible to test an Apigee proxy fully with integration testing? No…

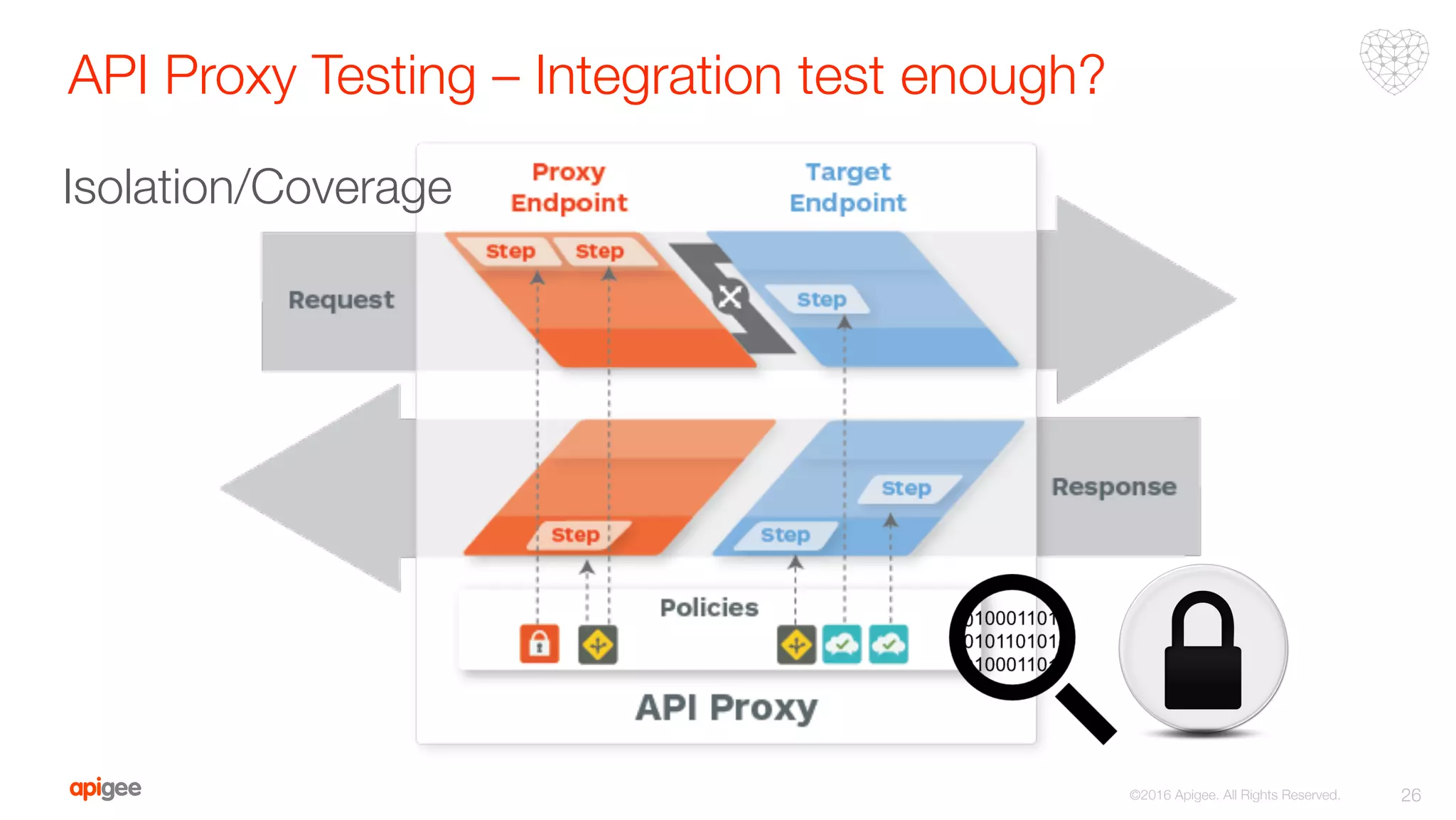

- 26. API Proxy Testing– Integration test enough? 26 ©2016 Apigee. All Rights Reserved. Isolation/Coverage

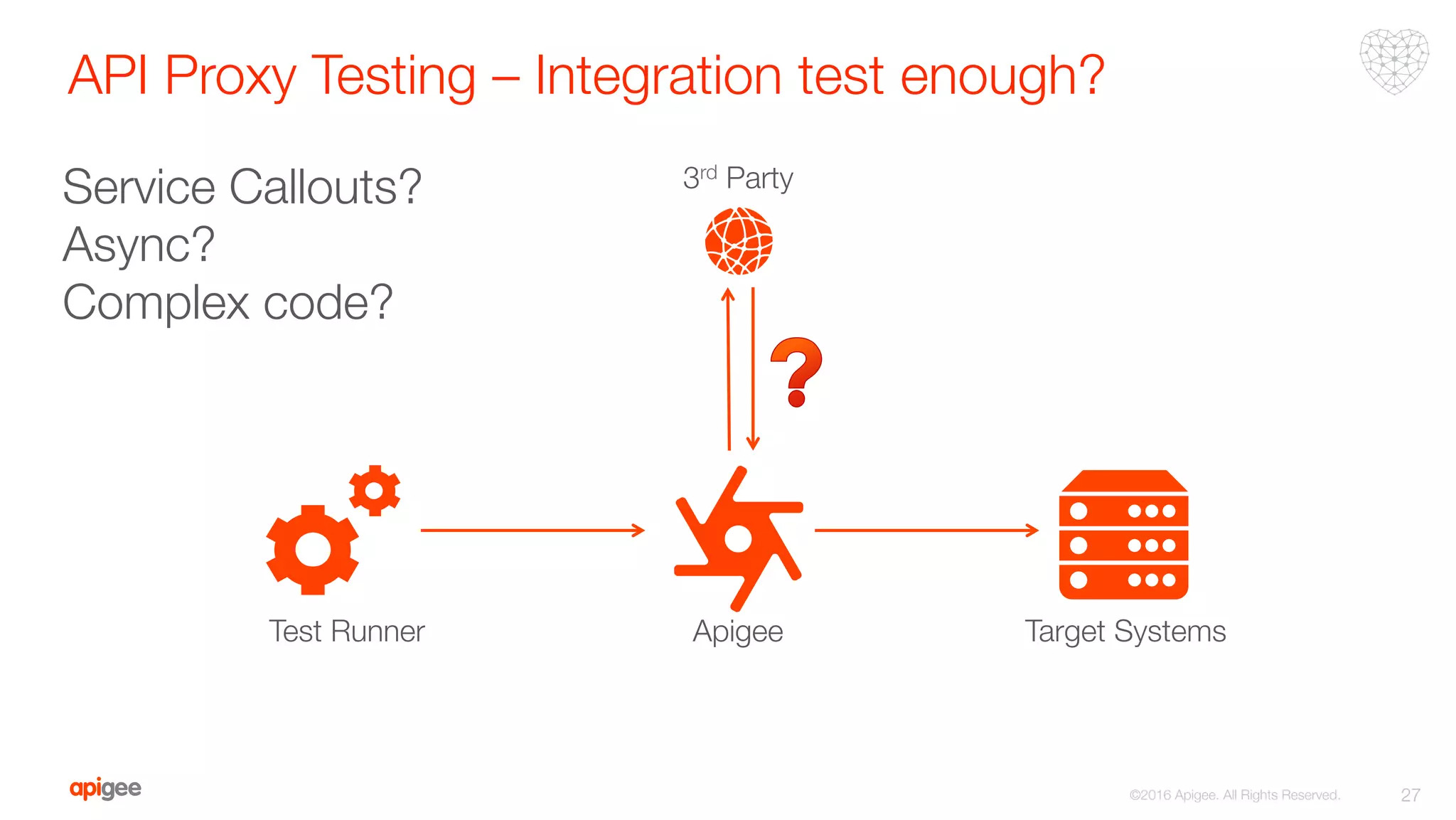

- 27. API Proxy Testing– Integration test enough? 27 ©2016 Apigee. All Rights Reserved. Test Runner Apigee Target Systems 3rd Party Service Callouts? Async? Complex code?

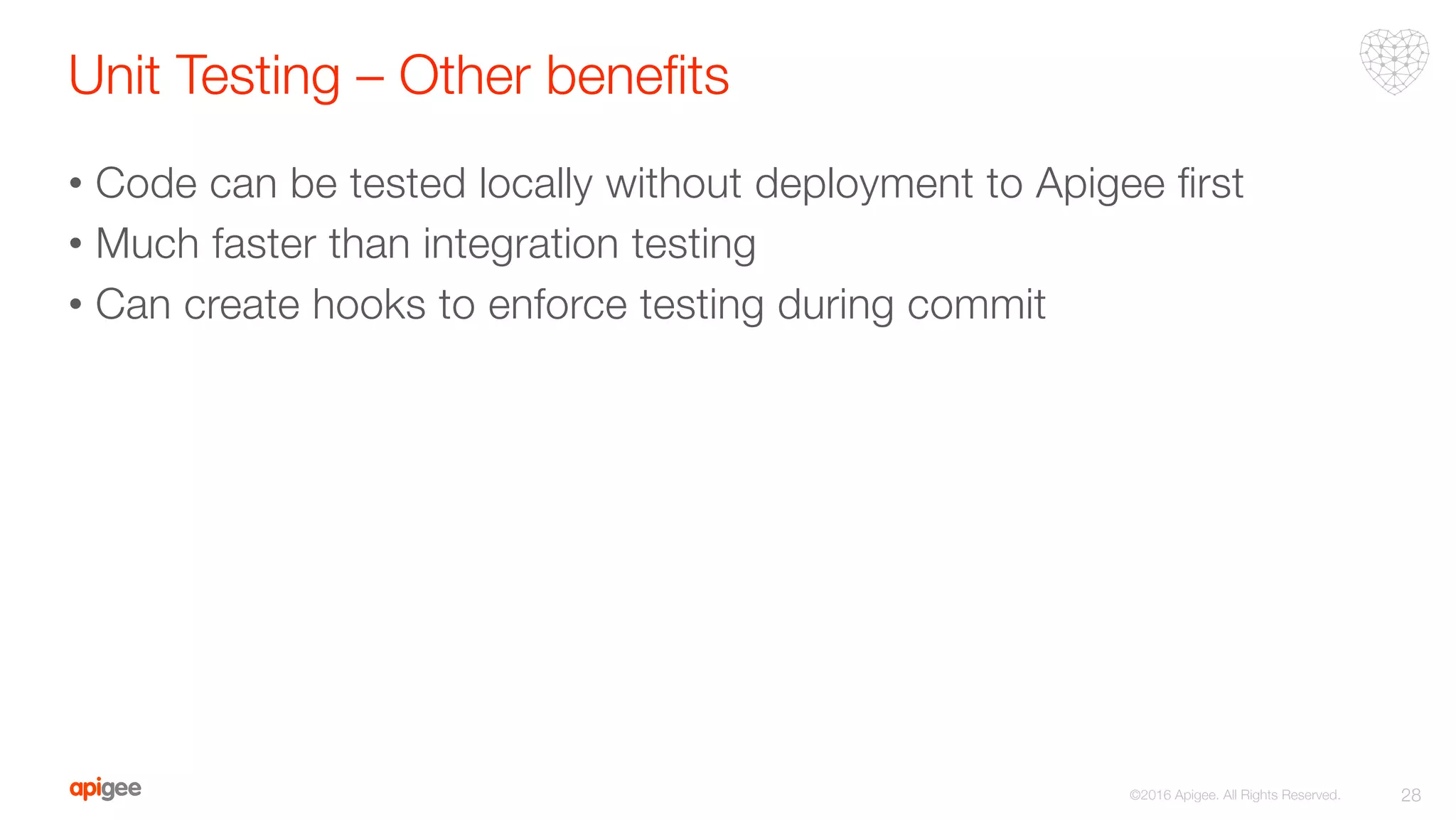

- 28. Unit Testing –Other benefits • Code can be tested locally without deployment to Apigee first • Much faster than integration testing • Can create hooks to enforce testing during commit 28 ©2016 Apigee. All Rights Reserved.

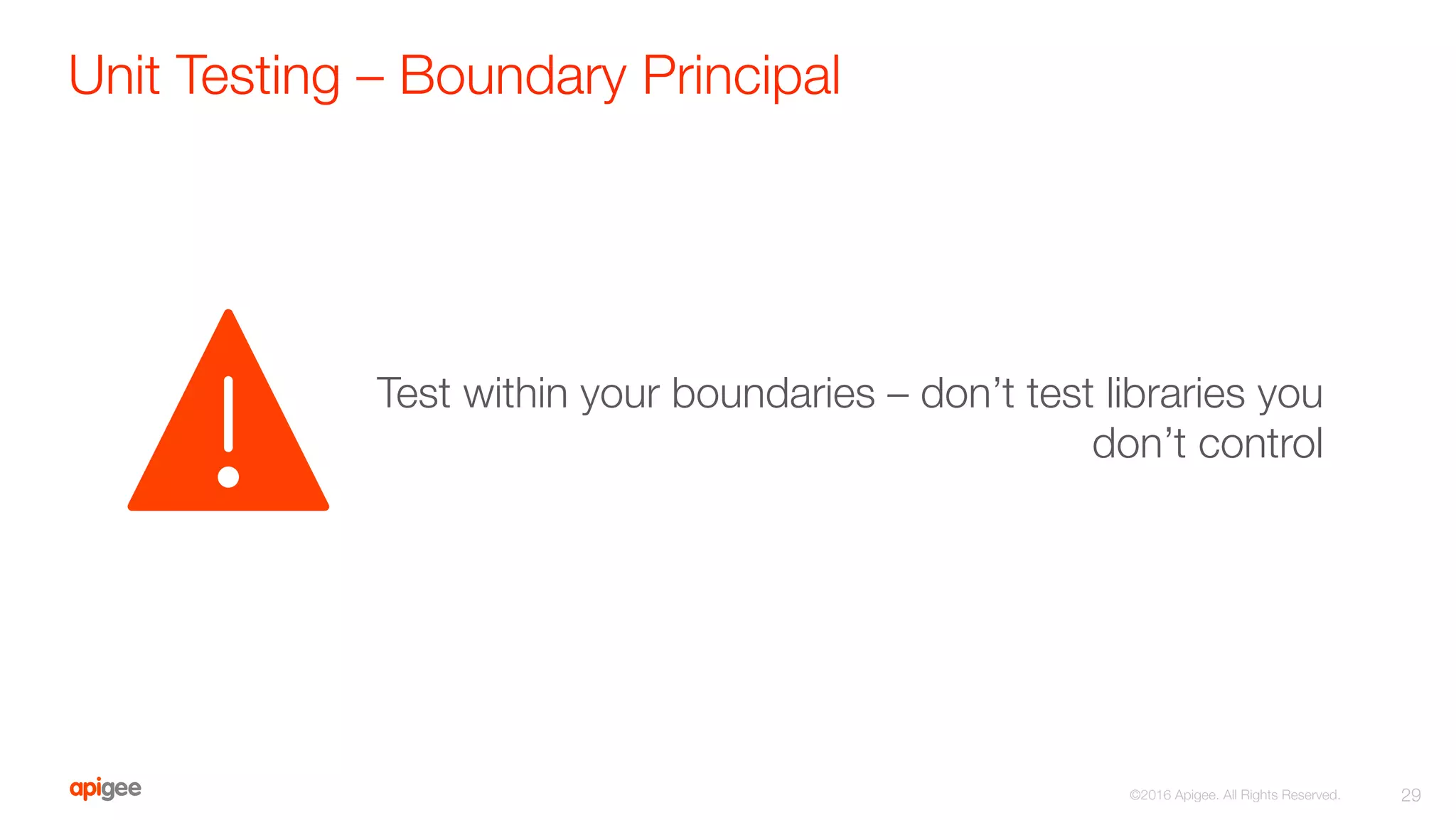

- 29. Unit Testing –Boundary Principal 29 ©2016 Apigee. All Rights Reserved. Test within your boundaries – don’t test libraries you don’t control

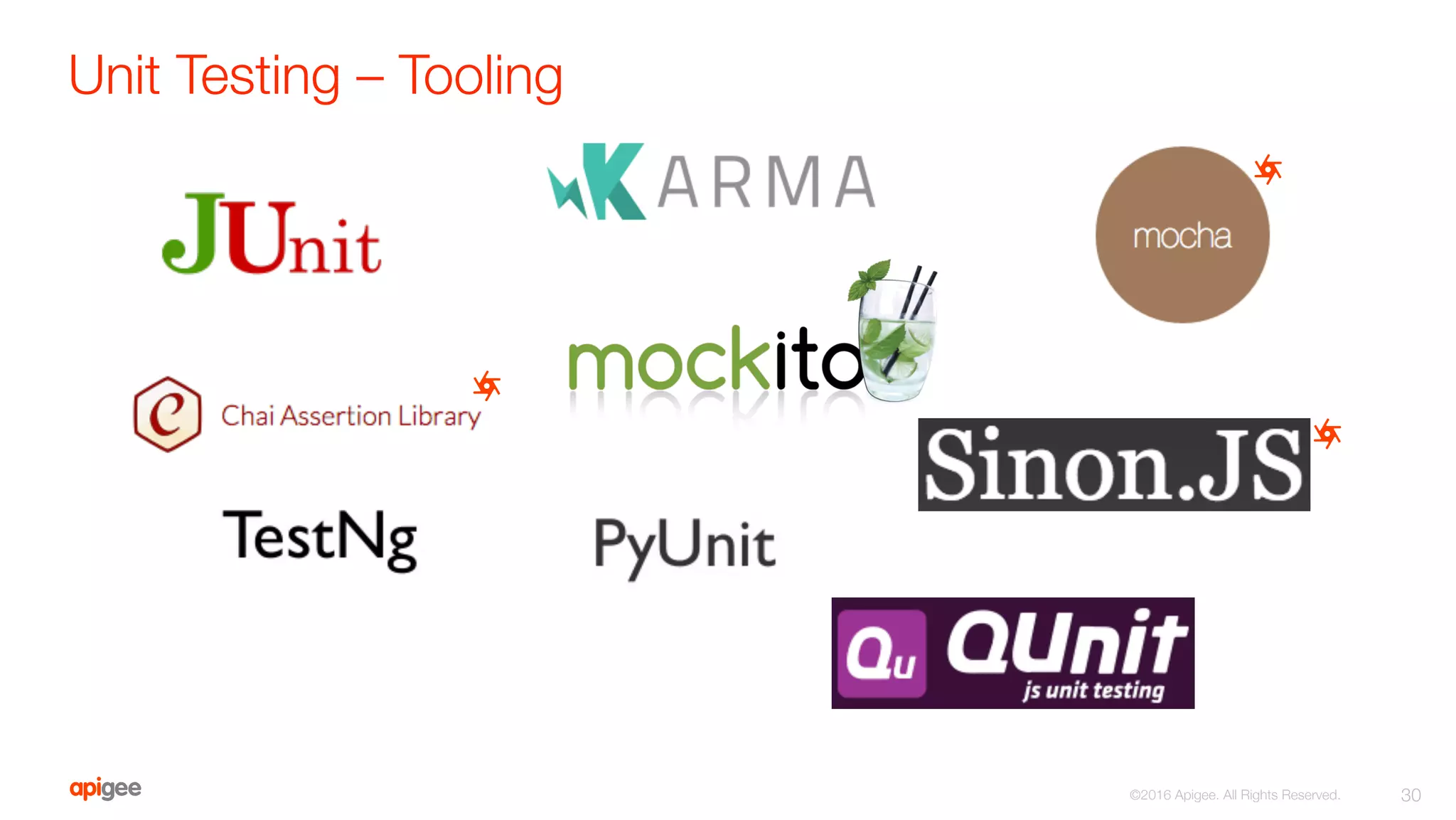

- 30. Unit Testing –Tooling 30 ©2016 Apigee. All Rights Reserved.
- 31.
- 32.
