gaussian filter seminar ppt
- 1. Gaussian filtering SACHIN KUMARRAJPUT ROLL NO: 1402710922

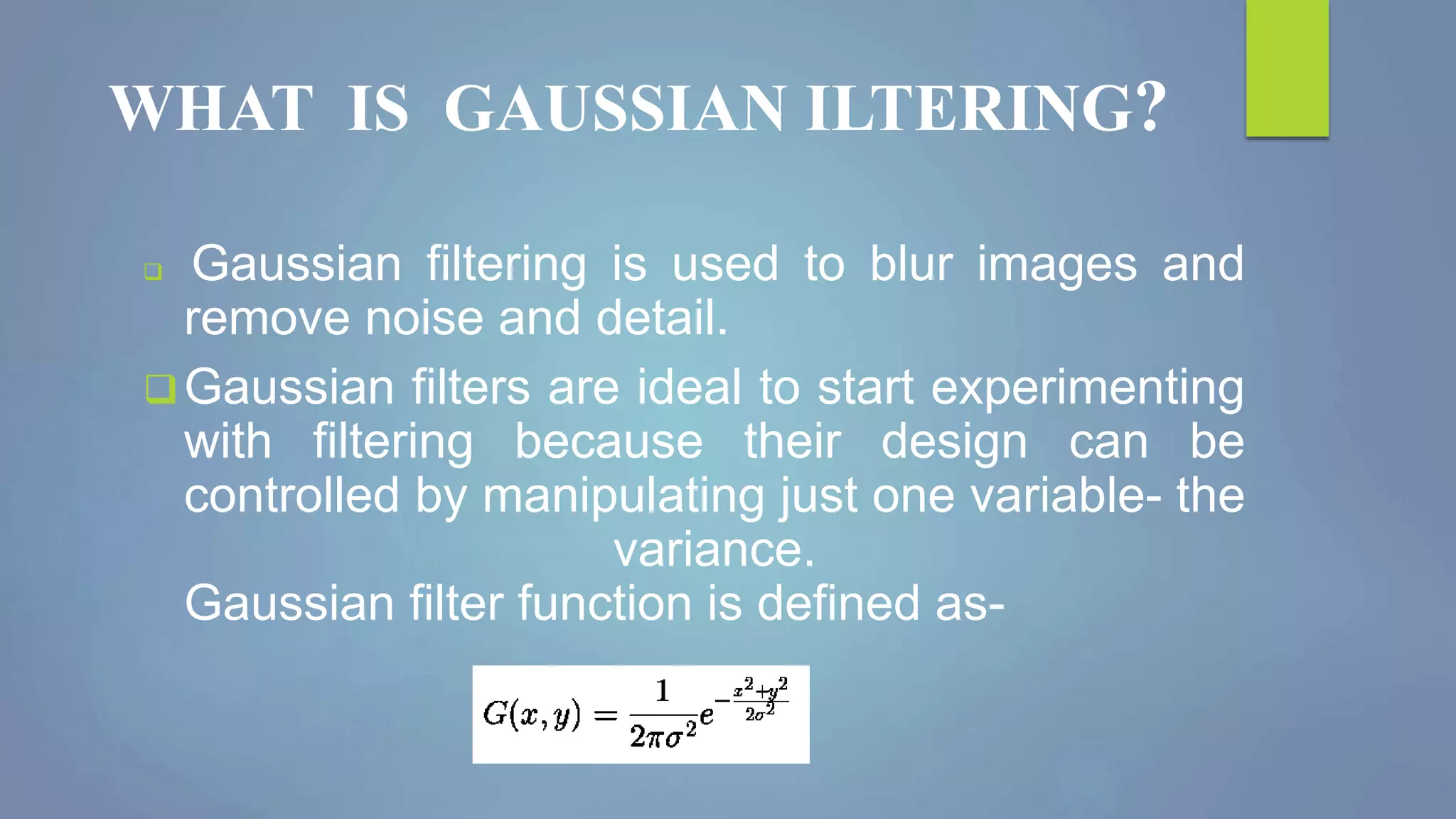

- 2. WHAT IS GAUSSIANILTERING? Gaussian filtering is used to blur images and remove noise and detail. Gaussian filters are ideal to start experimenting with filtering because their design can be controlled by manipulating just one variable- the variance. Gaussian filter function is defined as-

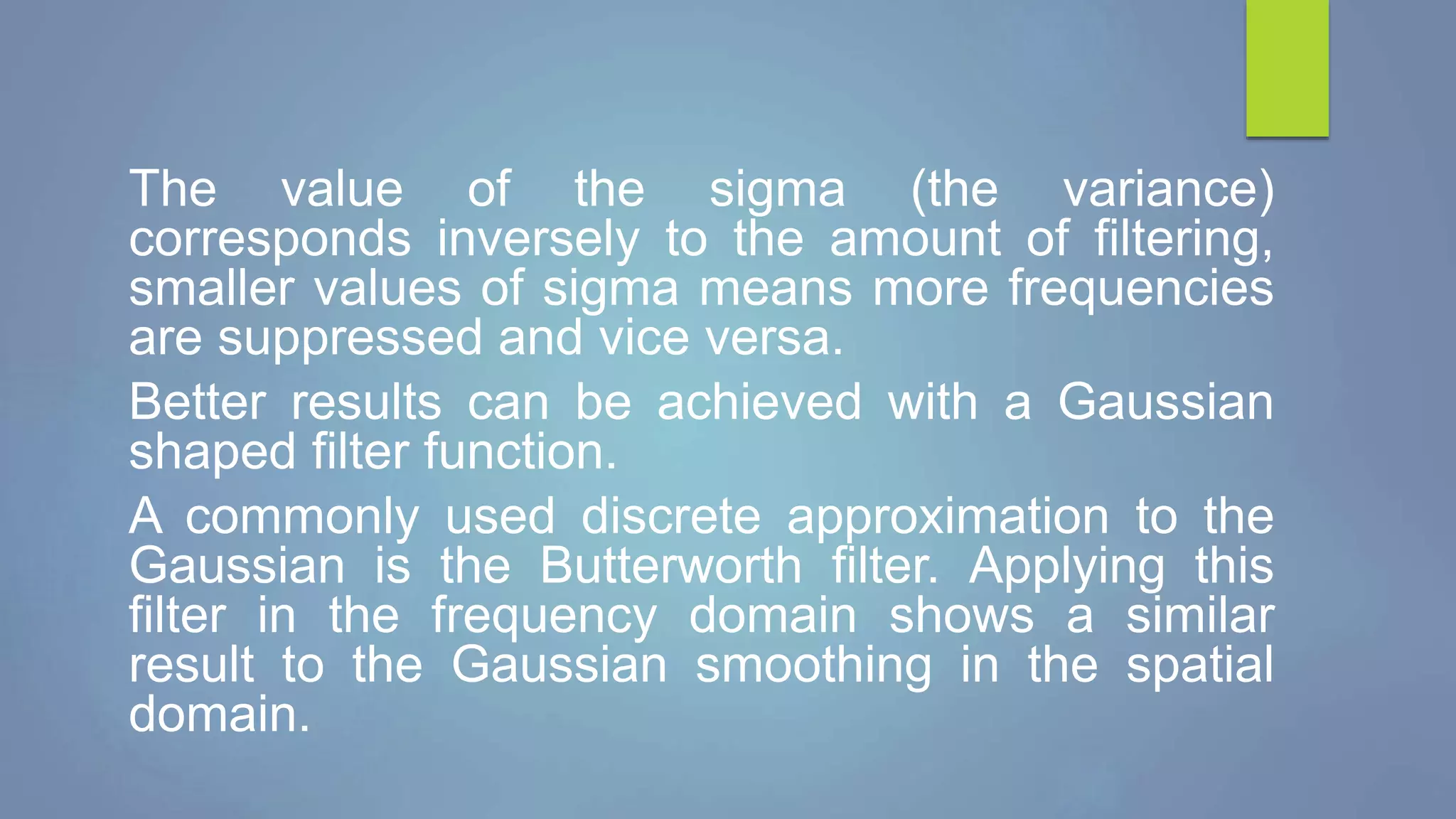

- 3. The value ofthe sigma (the variance) corresponds inversely to the amount of filtering, smaller values of sigma means more frequencies are suppressed and vice versa. Better results can be achieved with a Gaussian shaped filter function. A commonly used discrete approximation to the Gaussian is the Butterworth filter. Applying this filter in the frequency domain shows a similar result to the Gaussian smoothing in the spatial domain.

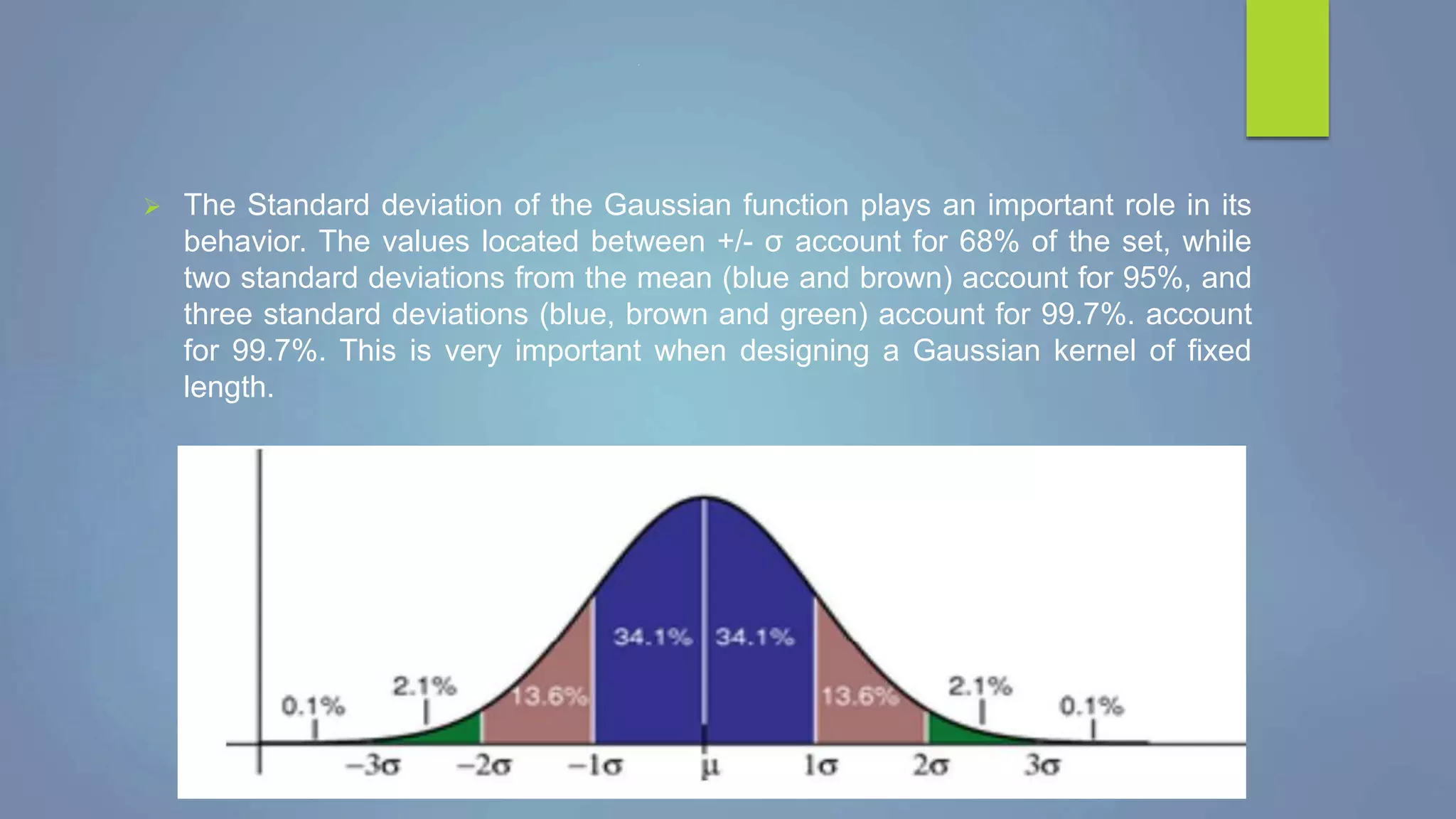

- 4. . The Standarddeviation of the Gaussian function plays an important role in its behavior. The values located between +/- σ account for 68% of the set, while two standard deviations from the mean (blue and brown) account for 95%, and three standard deviations (blue, brown and green) account for 99.7%. account for 99.7%. This is very important when designing a Gaussian kernel of fixed length.

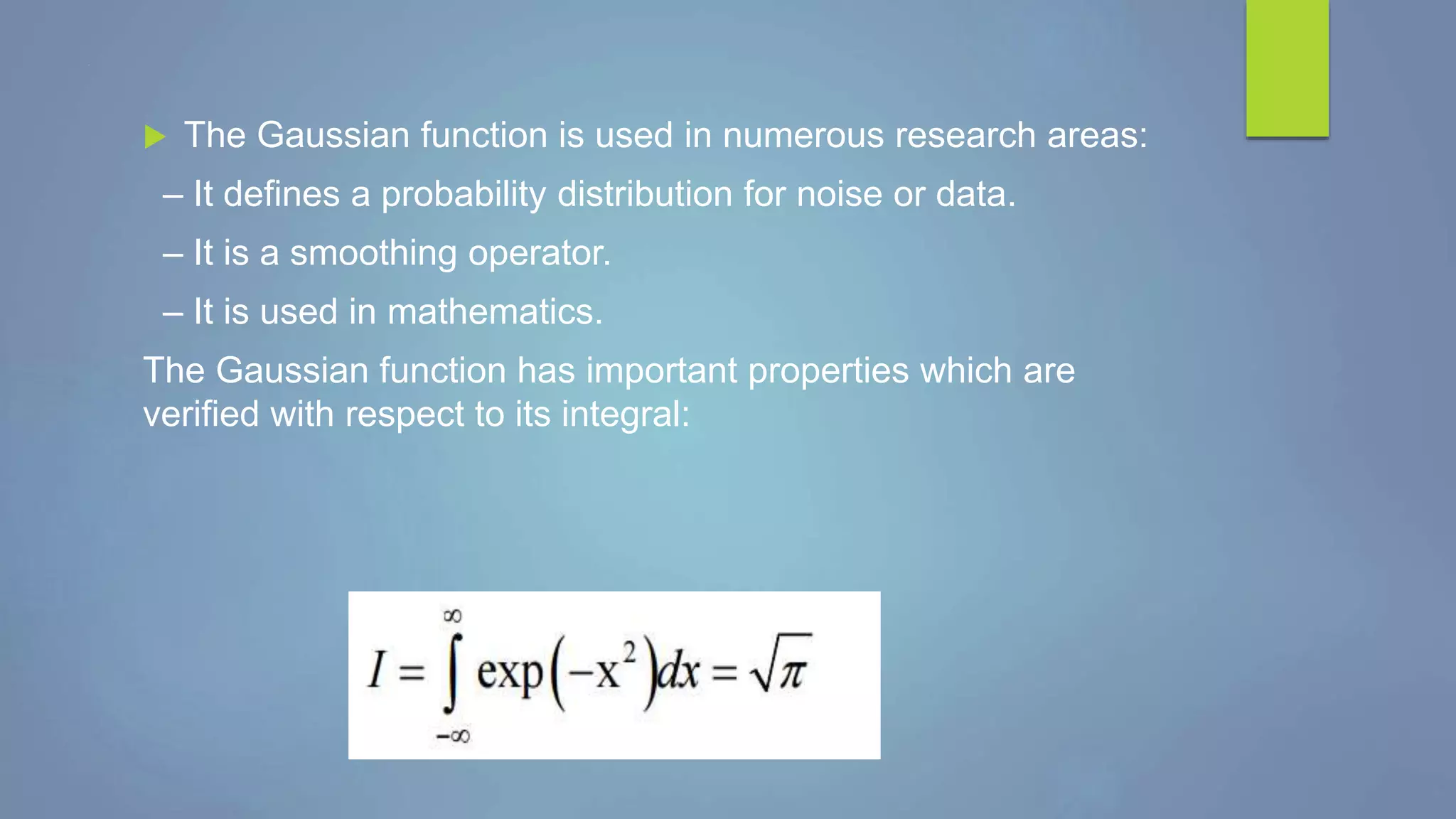

- 5. . The Gaussianfunction is used in numerous research areas: – It defines a probability distribution for noise or data. – It is a smoothing operator. – It is used in mathematics. The Gaussian function has important properties which are verified with respect to its integral:

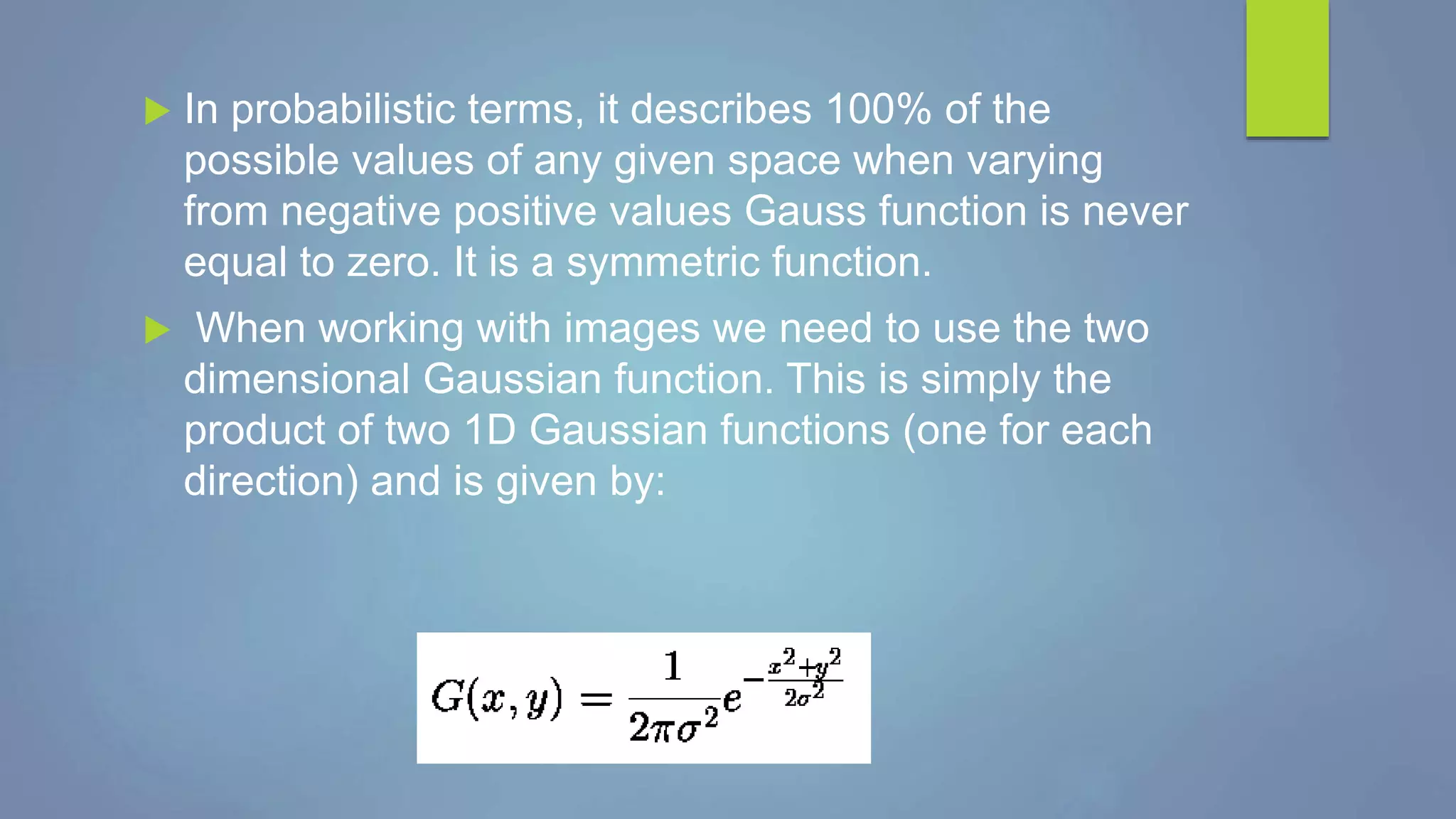

- 6. In probabilisticterms, it describes 100% of the possible values of any given space when varying from negative positive values Gauss function is never equal to zero. It is a symmetric function. When working with images we need to use the two dimensional Gaussian function. This is simply the product of two 1D Gaussian functions (one for each direction) and is given by:

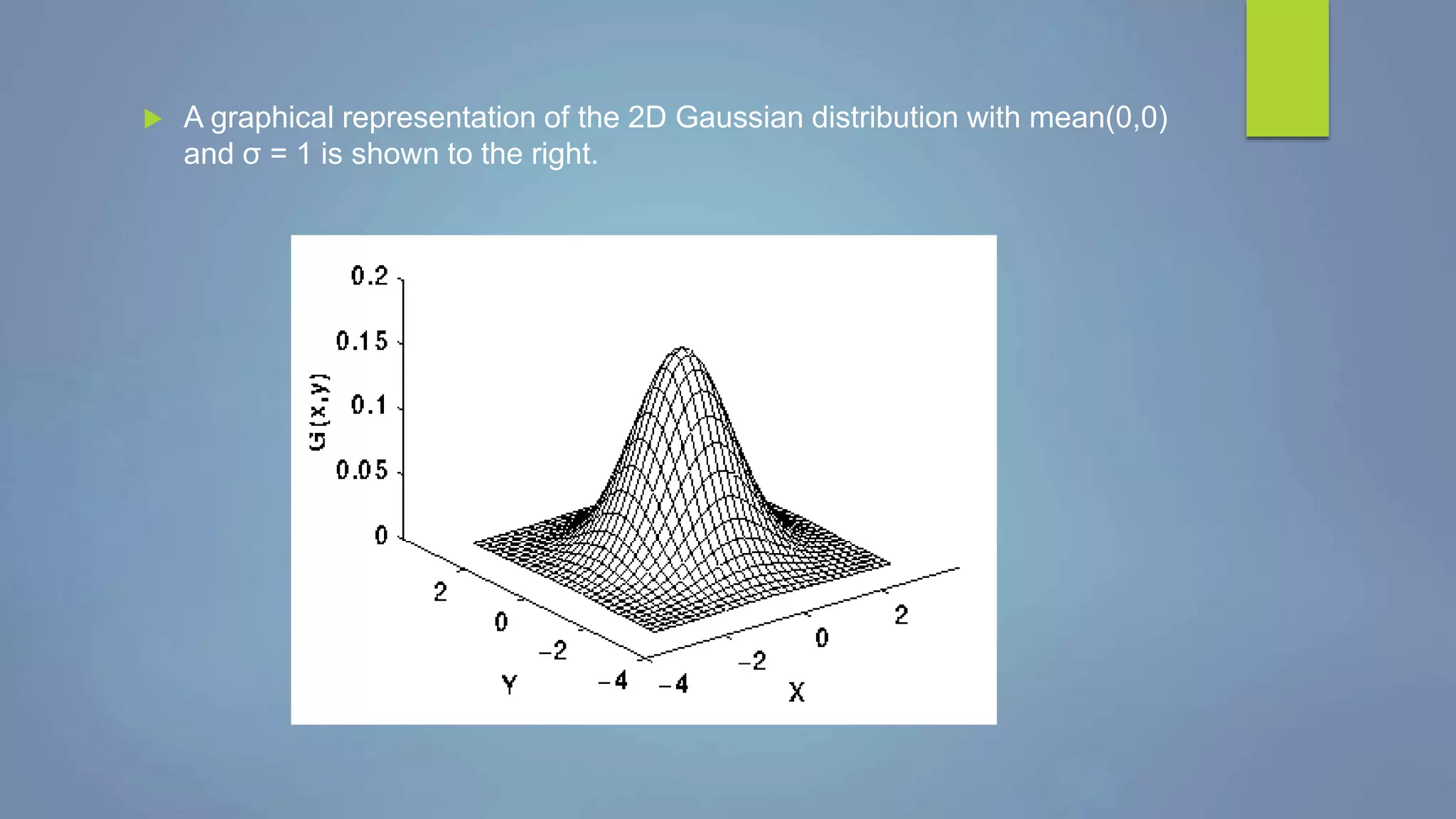

- 7. A graphicalrepresentation of the 2D Gaussian distribution with mean(0,0) and σ = 1 is shown to the right.

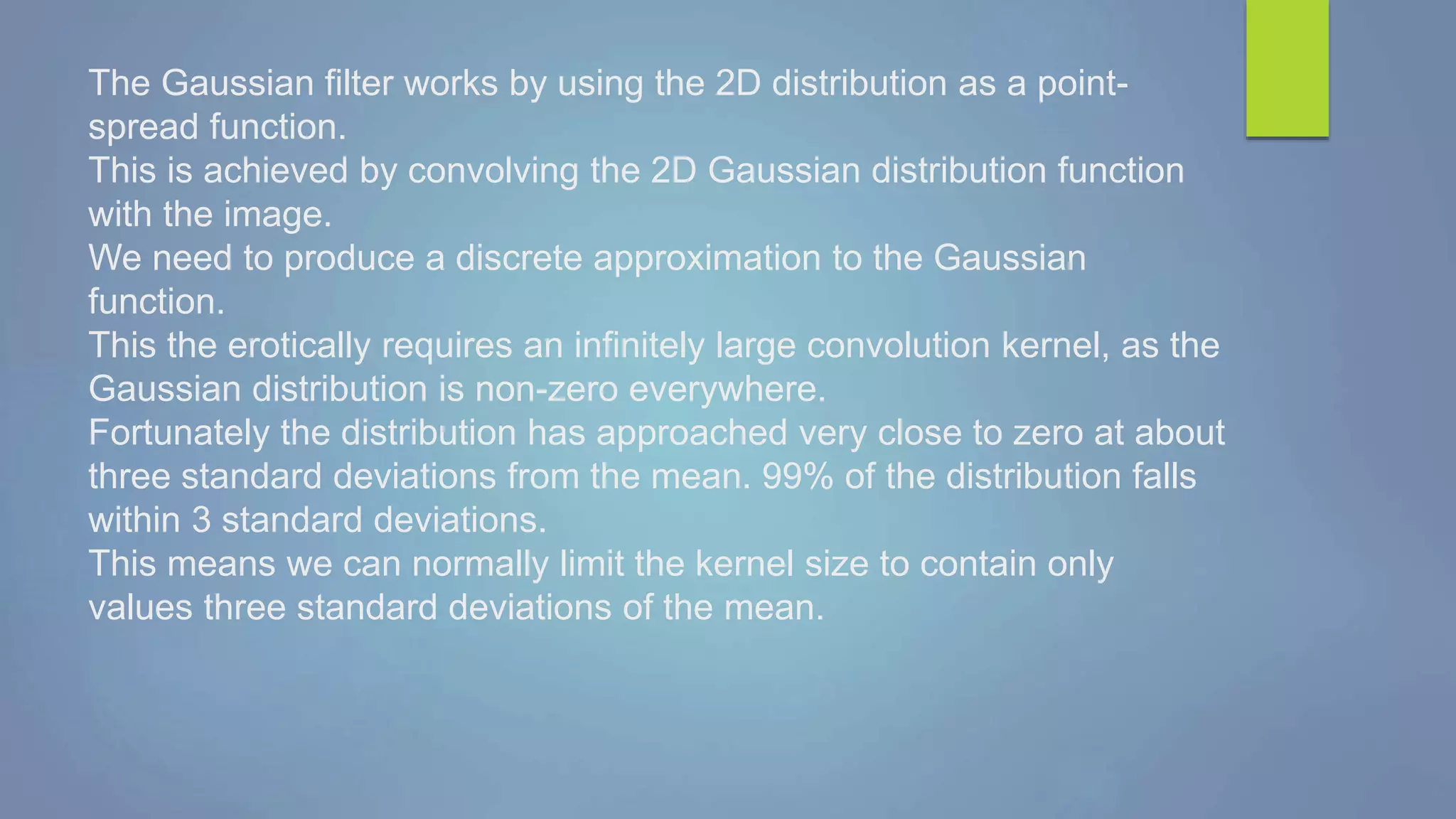

- 8. The Gaussian filterworks by using the 2D distribution as a point- spread function. This is achieved by convolving the 2D Gaussian distribution function with the image. We need to produce a discrete approximation to the Gaussian function. This the erotically requires an infinitely large convolution kernel, as the Gaussian distribution is non-zero everywhere. Fortunately the distribution has approached very close to zero at about three standard deviations from the mean. 99% of the distribution falls within 3 standard deviations. This means we can normally limit the kernel size to contain only values three standard deviations of the mean.

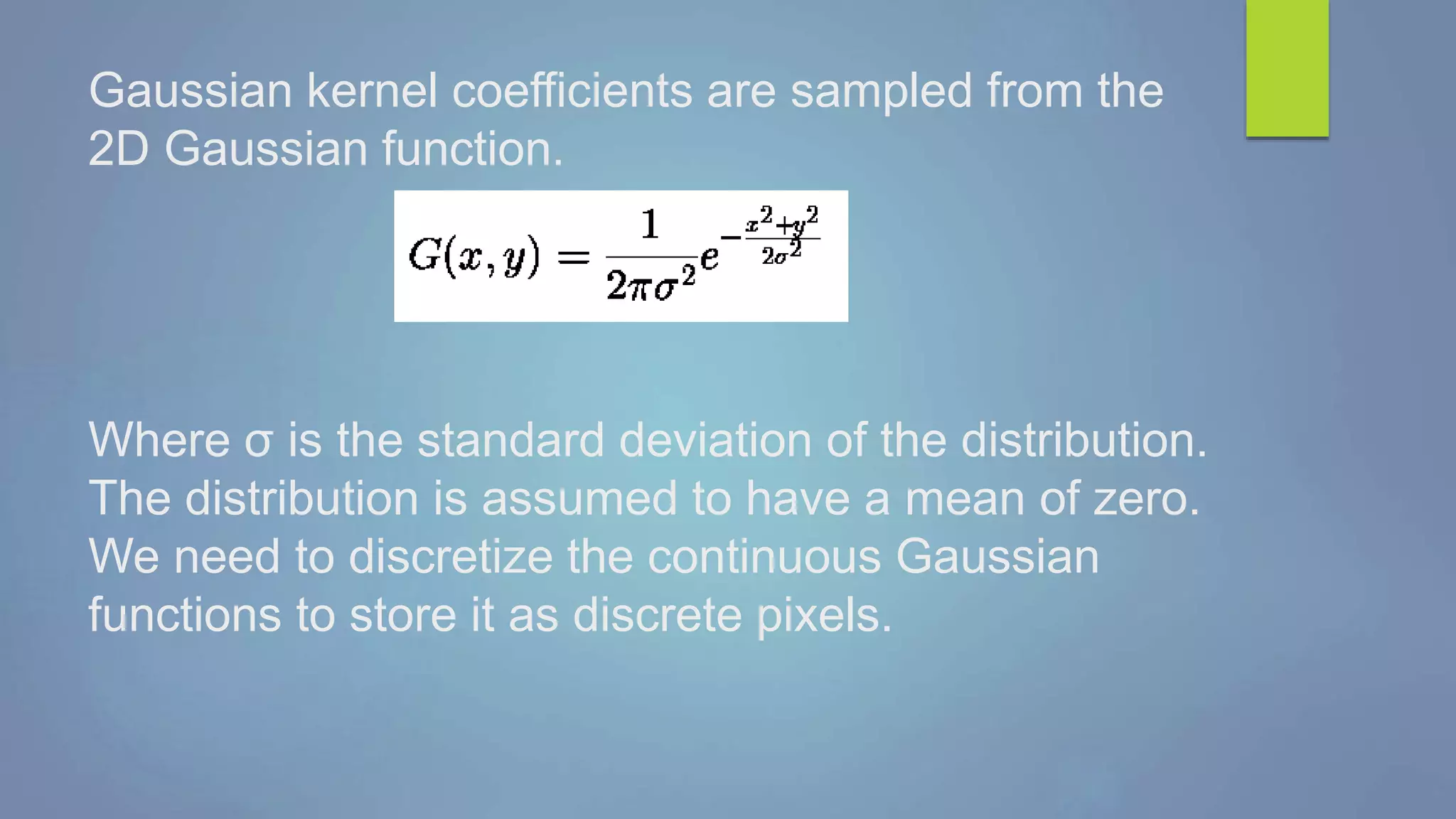

- 9. Gaussian kernel coefficientsare sampled from the 2D Gaussian function. Where σ is the standard deviation of the distribution. The distribution is assumed to have a mean of zero. We need to discretize the continuous Gaussian functions to store it as discrete pixels.

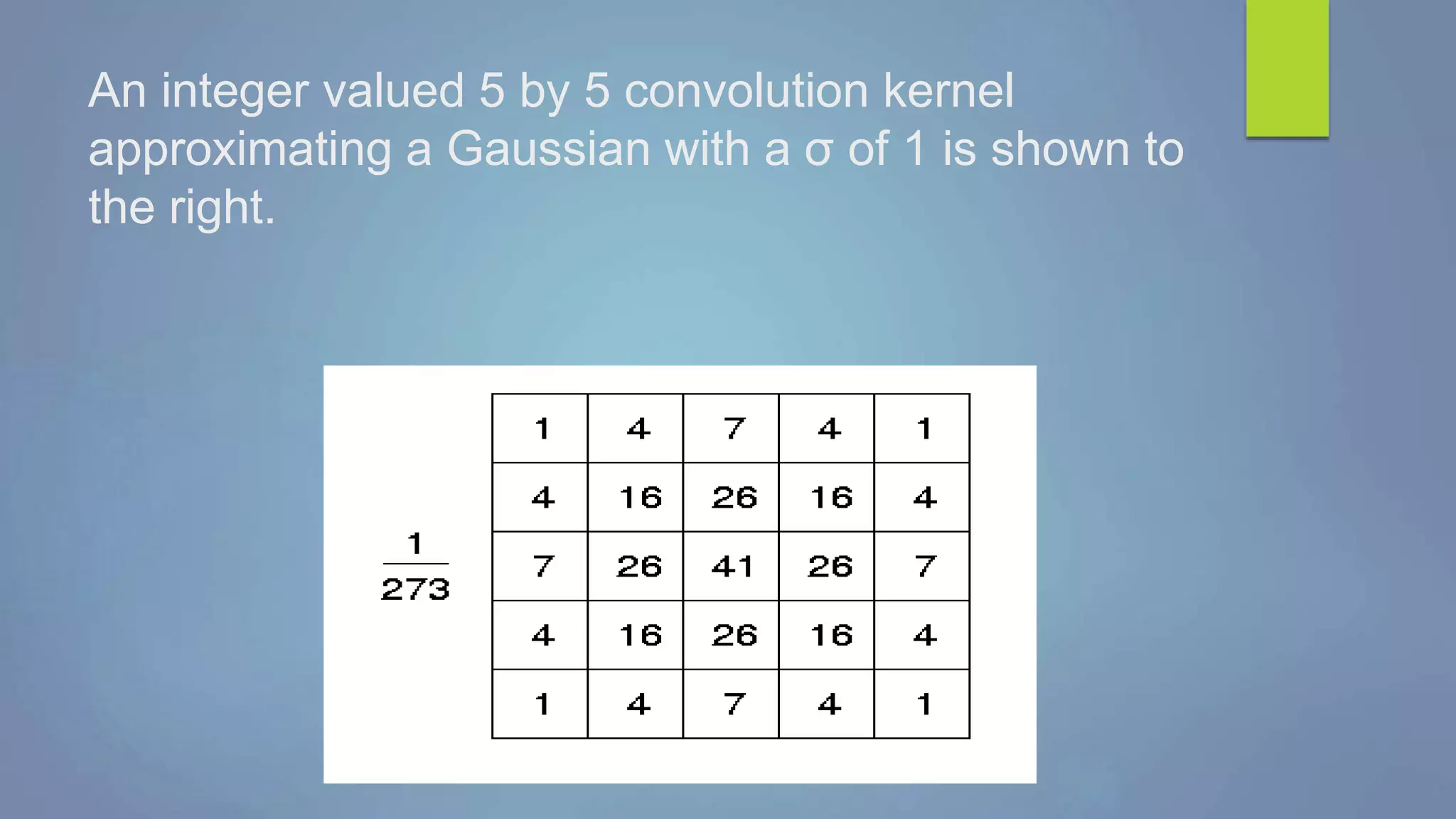

- 10. An integer valued5 by 5 convolution kernel approximating a Gaussian with a σ of 1 is shown to the right.

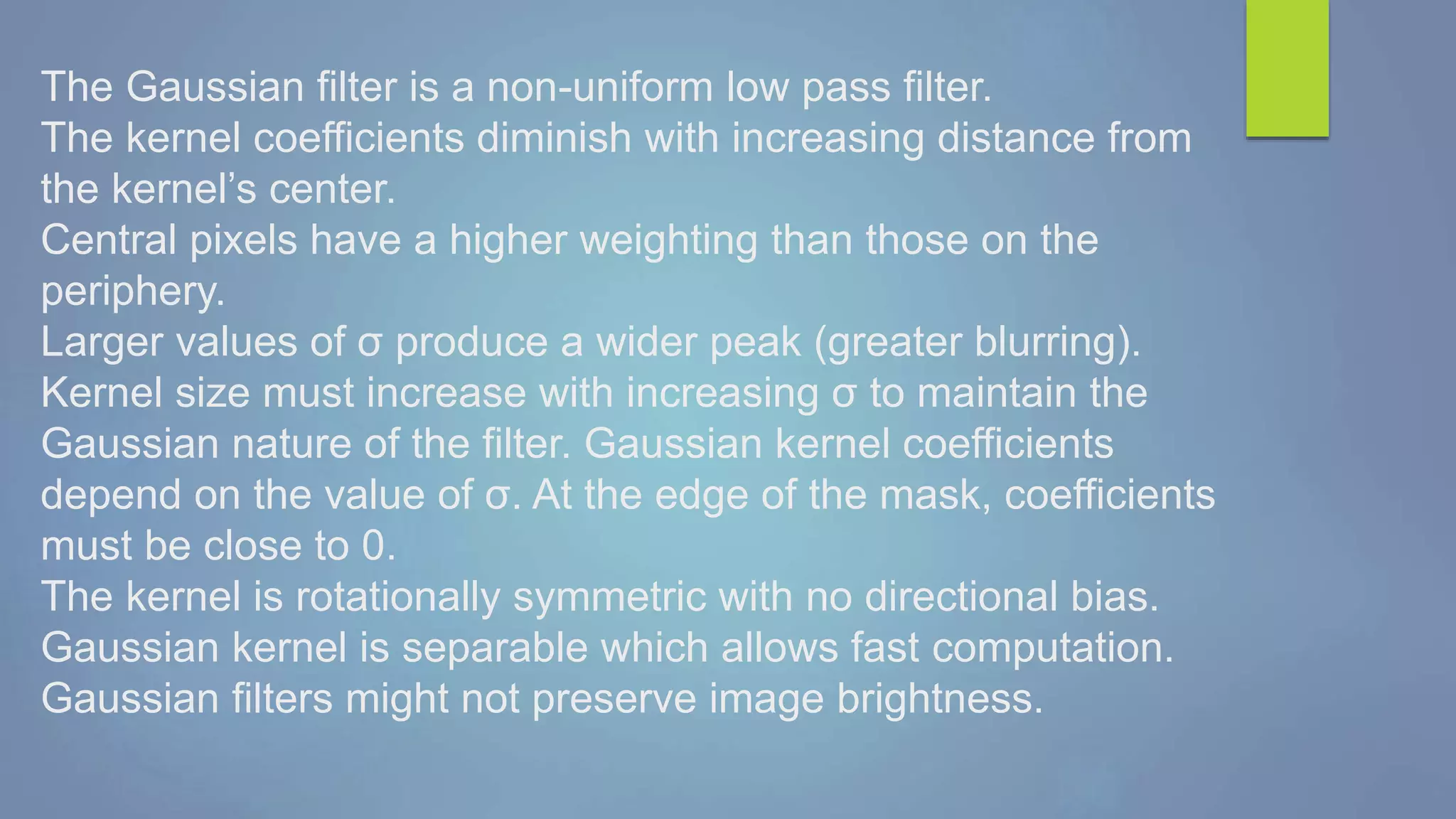

- 11. The Gaussian filteris a non-uniform low pass filter. The kernel coefficients diminish with increasing distance from the kernel’s center. Central pixels have a higher weighting than those on the periphery. Larger values of σ produce a wider peak (greater blurring). Kernel size must increase with increasing σ to maintain the Gaussian nature of the filter. Gaussian kernel coefficients depend on the value of σ. At the edge of the mask, coefficients must be close to 0. The kernel is rotationally symmetric with no directional bias. Gaussian kernel is separable which allows fast computation. Gaussian filters might not preserve image brightness.

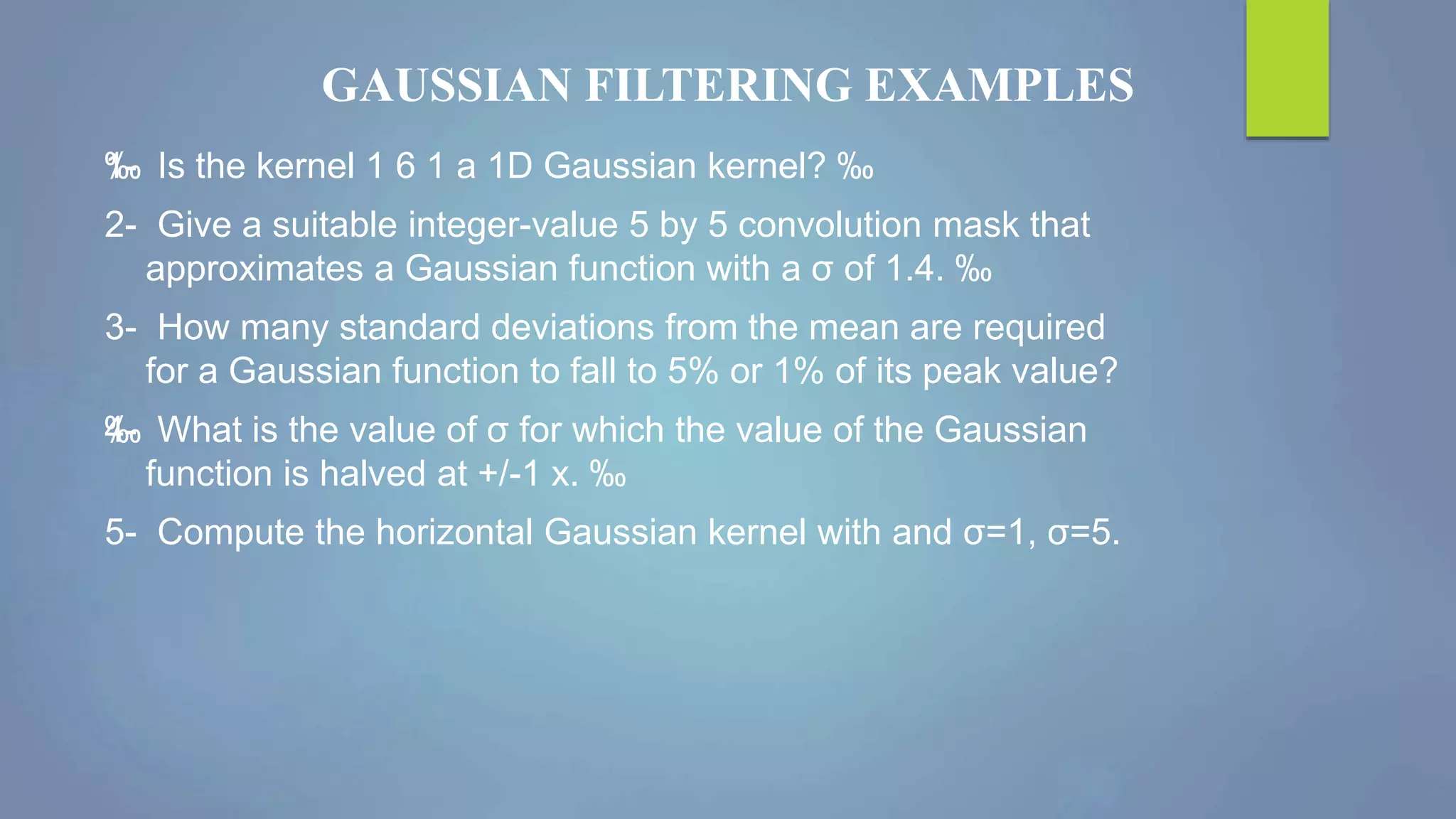

- 12. GAUSSIAN FILTERING EXAMPLES ‰1-Is the kernel 1 6 1 a 1D Gaussian kernel? ‰ 2- Give a suitable integer-value 5 by 5 convolution mask that approximates a Gaussian function with a σ of 1.4. ‰ 3- How many standard deviations from the mean are required for a Gaussian function to fall to 5% or 1% of its peak value? ‰4- What is the value of σ for which the value of the Gaussian function is halved at +/-1 x. ‰ 5- Compute the horizontal Gaussian kernel with and σ=1, σ=5.

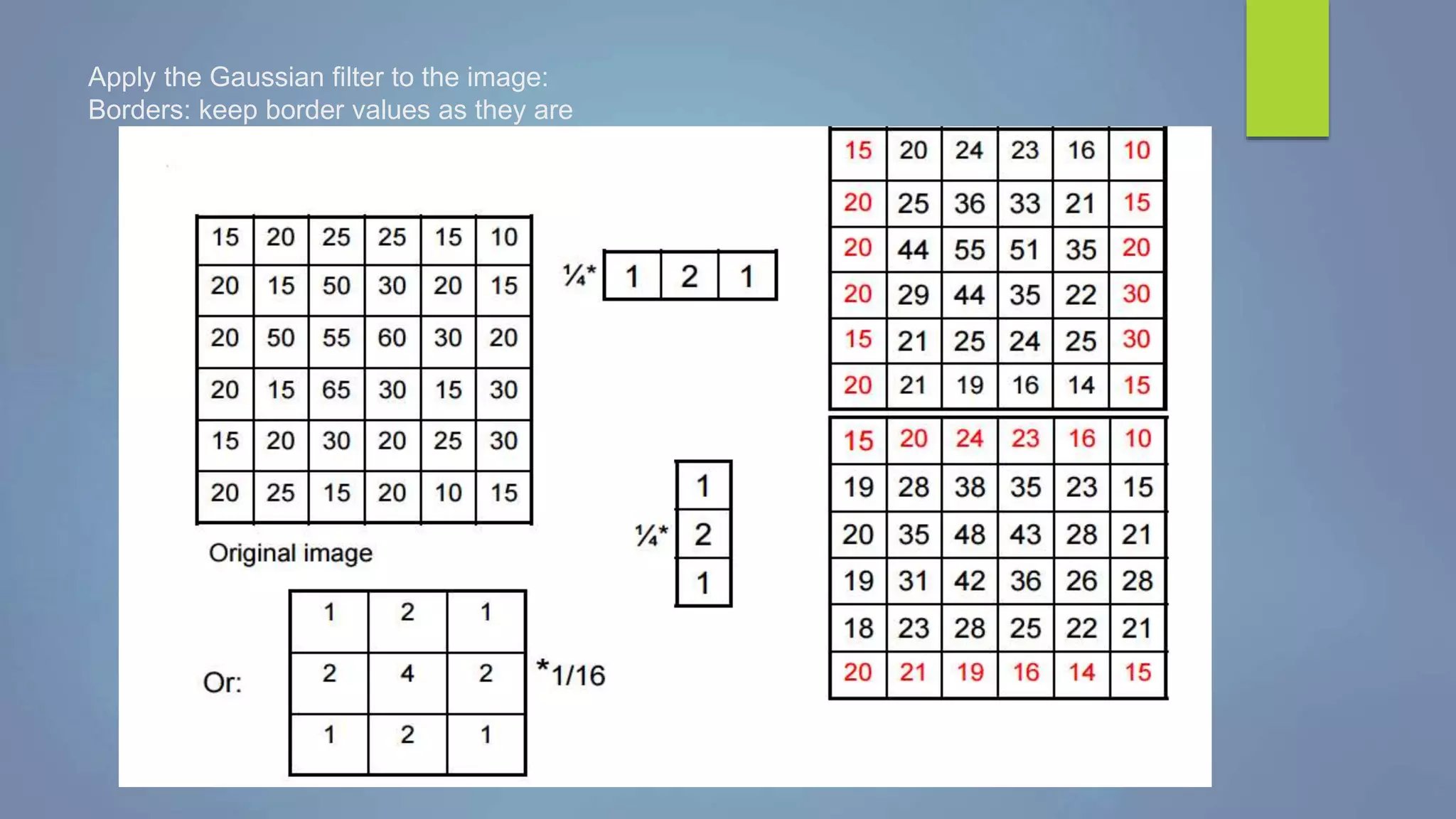

- 13. Apply the Gaussianfilter to the image: Borders: keep border values as they are

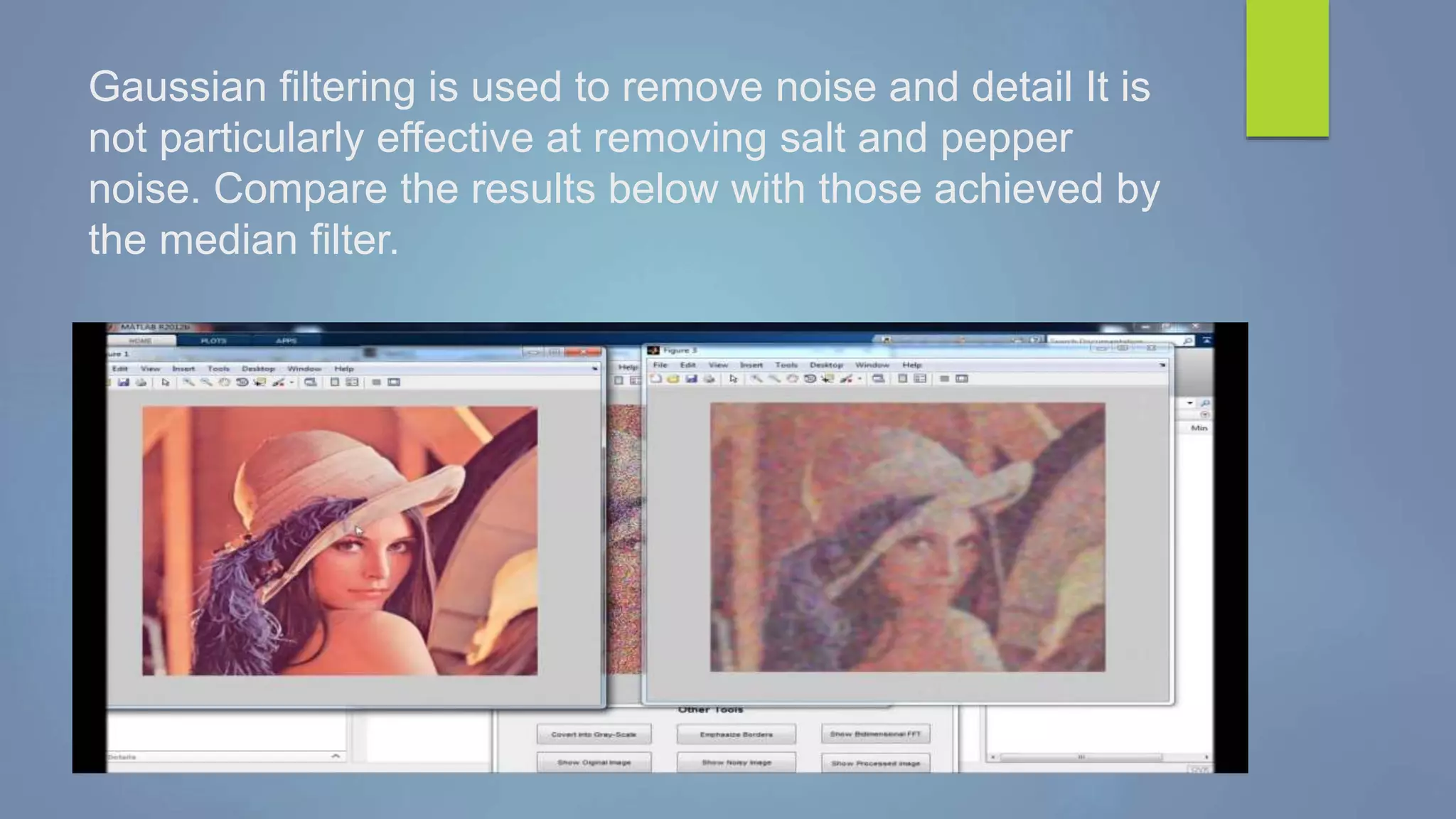

- 14. Gaussian filtering isused to remove noise and detail It is not particularly effective at removing salt and pepper noise. Compare the results below with those achieved by the median filter.

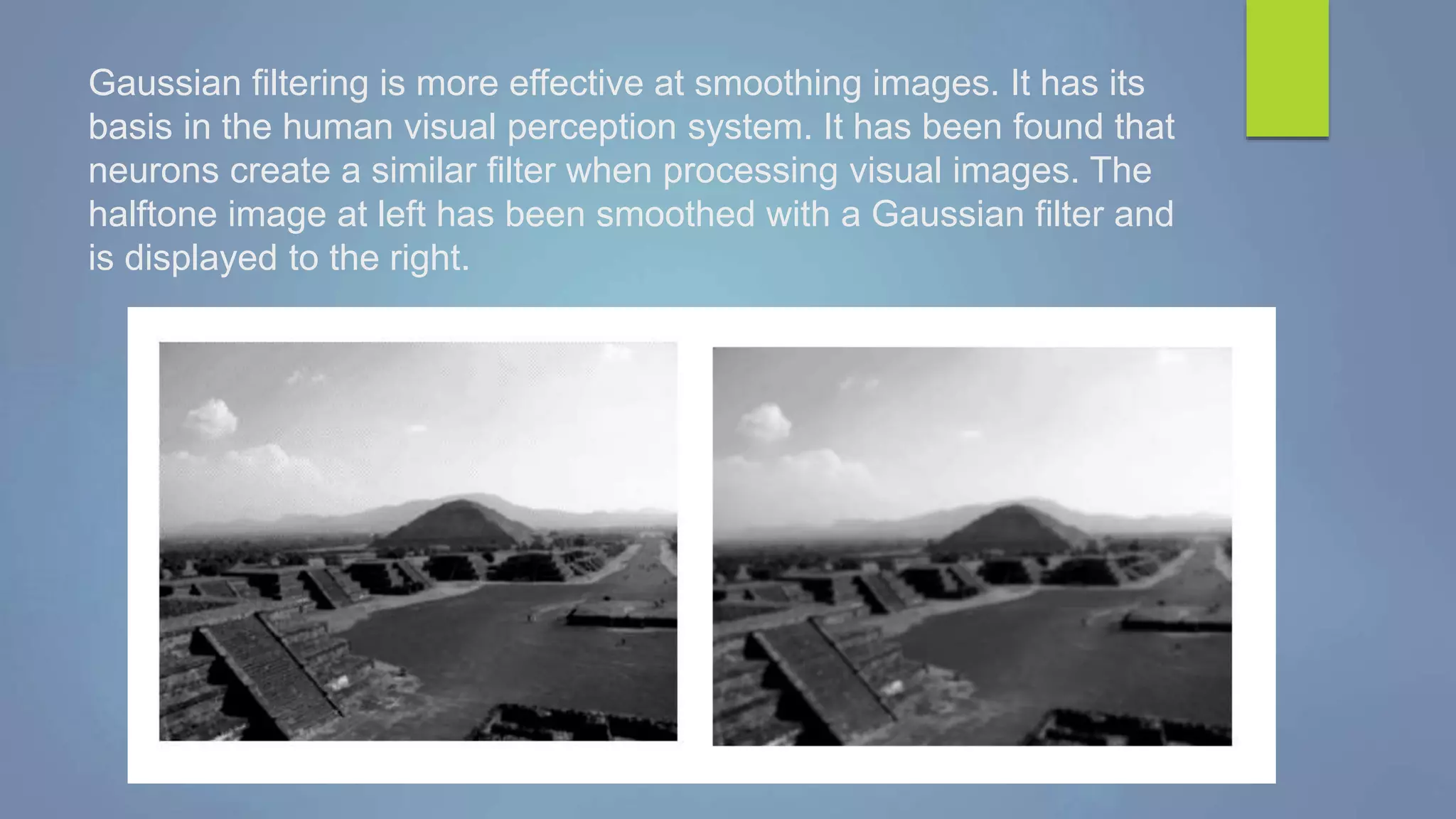

- 15. Gaussian filtering ismore effective at smoothing images. It has its basis in the human visual perception system. It has been found that neurons create a similar filter when processing visual images. The halftone image at left has been smoothed with a Gaussian filter and is displayed to the right.

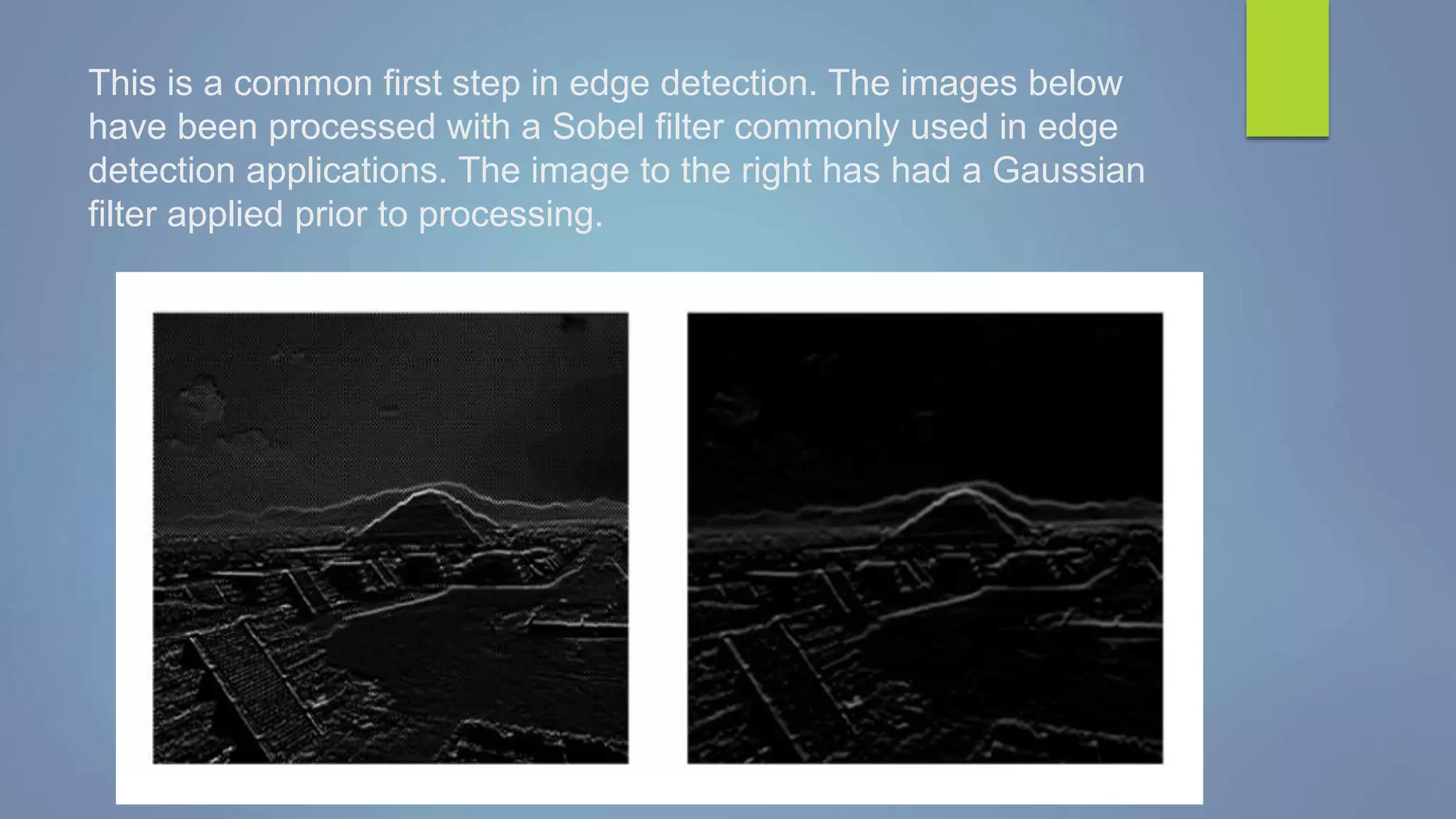

- 16. This is acommon first step in edge detection. The images below have been processed with a Sobel filter commonly used in edge detection applications. The image to the right has had a Gaussian filter applied prior to processing.

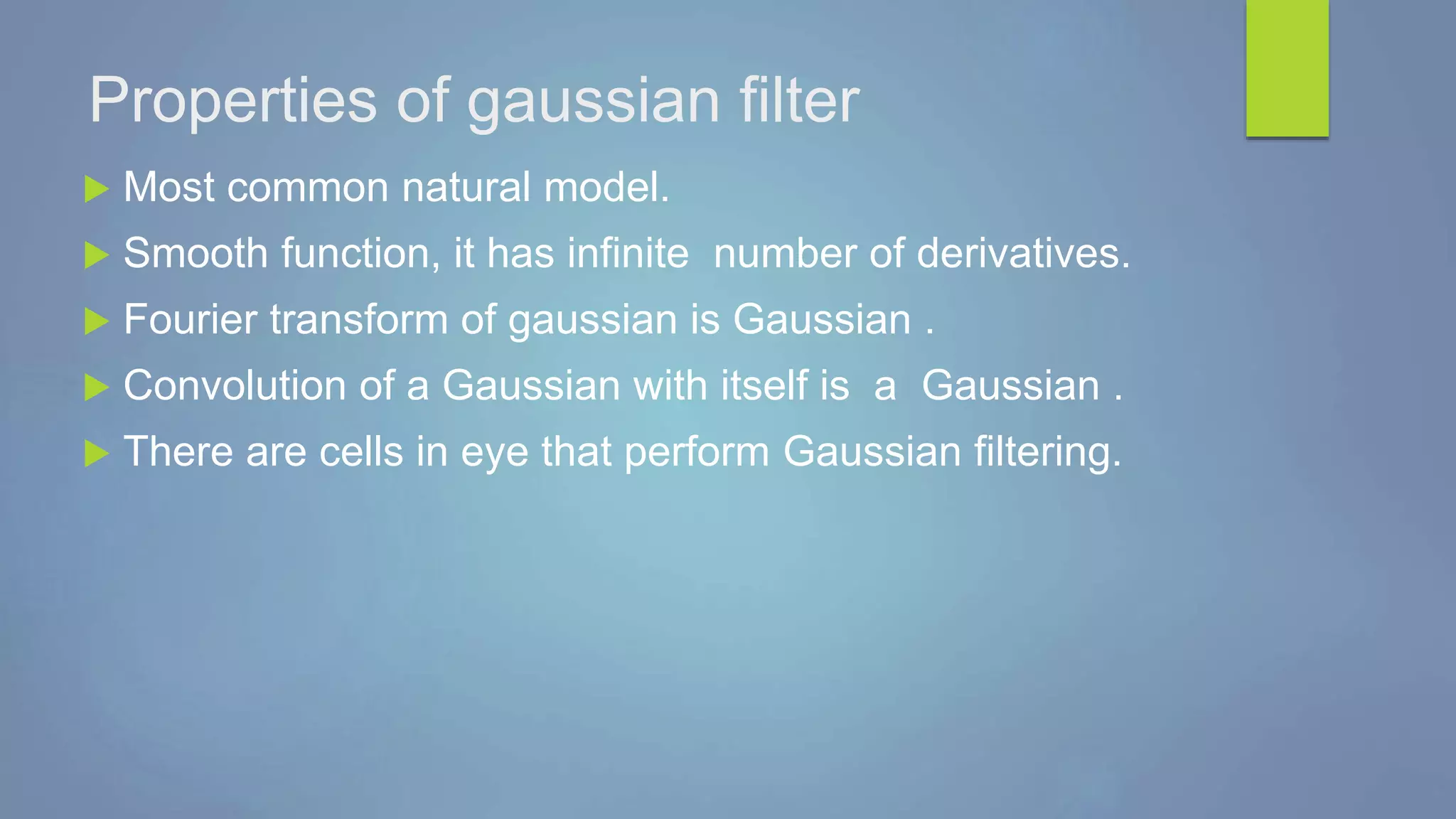

- 17. Properties of gaussianfilter Most common natural model. Smooth function, it has infinite number of derivatives. Fourier transform of gaussian is Gaussian . Convolution of a Gaussian with itself is a Gaussian . There are cells in eye that perform Gaussian filtering.

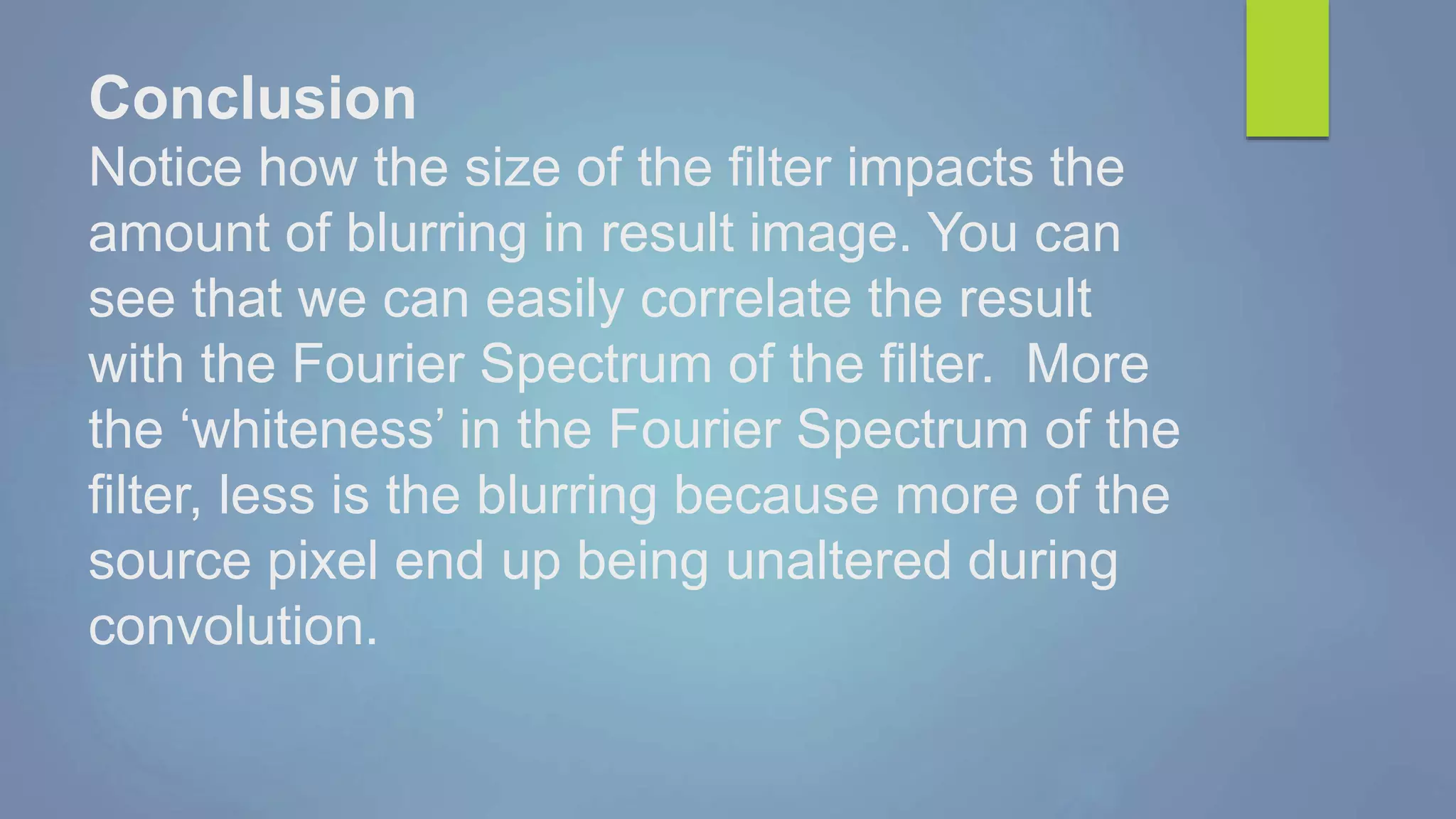

- 18. Conclusion Notice how thesize of the filter impacts the amount of blurring in result image. You can see that we can easily correlate the result with the Fourier Spectrum of the filter. More the ‘whiteness’ in the Fourier Spectrum of the filter, less is the blurring because more of the source pixel end up being unaltered during convolution.
