  Lecture on MS-DOS Functionsand BIOS Calls Application Program Command Processor COMMAND.COM MS-DOS Kernel MSDOS.SYS BIOS ROM pulse IO.SYS System Hardware • BIOS is hardware specific • BIOS is supplied by the computer manufacturer • Resident portion which resides in ROM and nonresident portion IO.SYS which provides a convenient way of adding new features to the BIOS
• 2.
  80x86 Interrupts • Aninterrupt is an event that causes the processor to suspend its present task and transfer control to a new program called the interrupt service routine (ISR) • There are three sources of interrupts – Processor interrupts – Software interrupts – Hardware interrupts • Each interrupt must supply a type number which is used by the processor as a pointer to an interrupt vector table (IVT) to determine the address of that interrupt’s service routine
• 3.

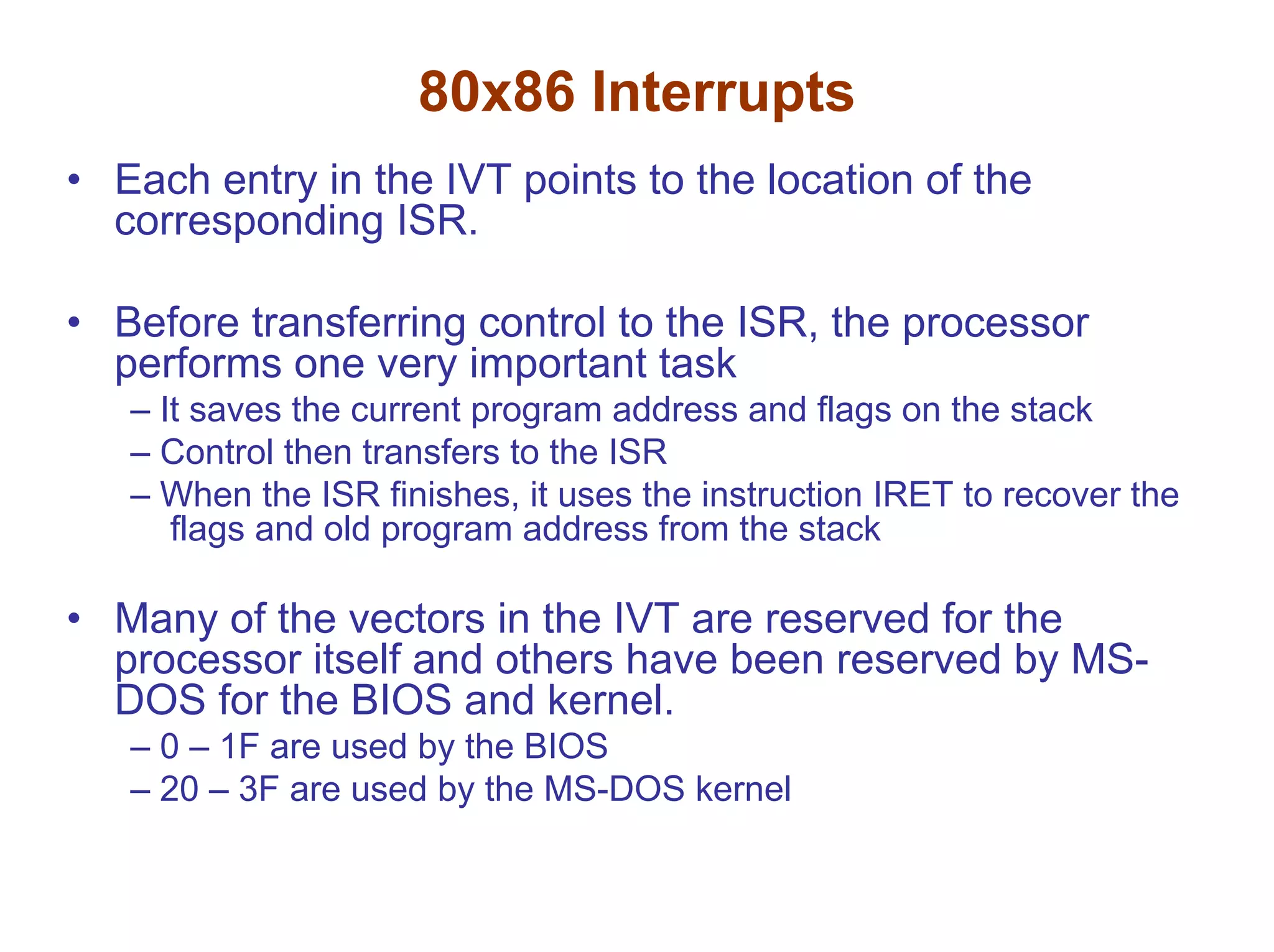

  80x86 Interrupts • Eachentry in the IVT points to the location of the corresponding ISR. • Before transferring control to the ISR, the processor performs one very important task – It saves the current program address and flags on the stack – Control then transfers to the ISR – When the ISR finishes, it uses the instruction IRET to recover the flags and old program address from the stack • Many of the vectors in the IVT are reserved for the processor itself and others have been reserved by MSDOS for the BIOS and kernel. – 0 – 1F are used by the BIOS – 20 – 3F are used by the MS-DOS kernel
• 4.

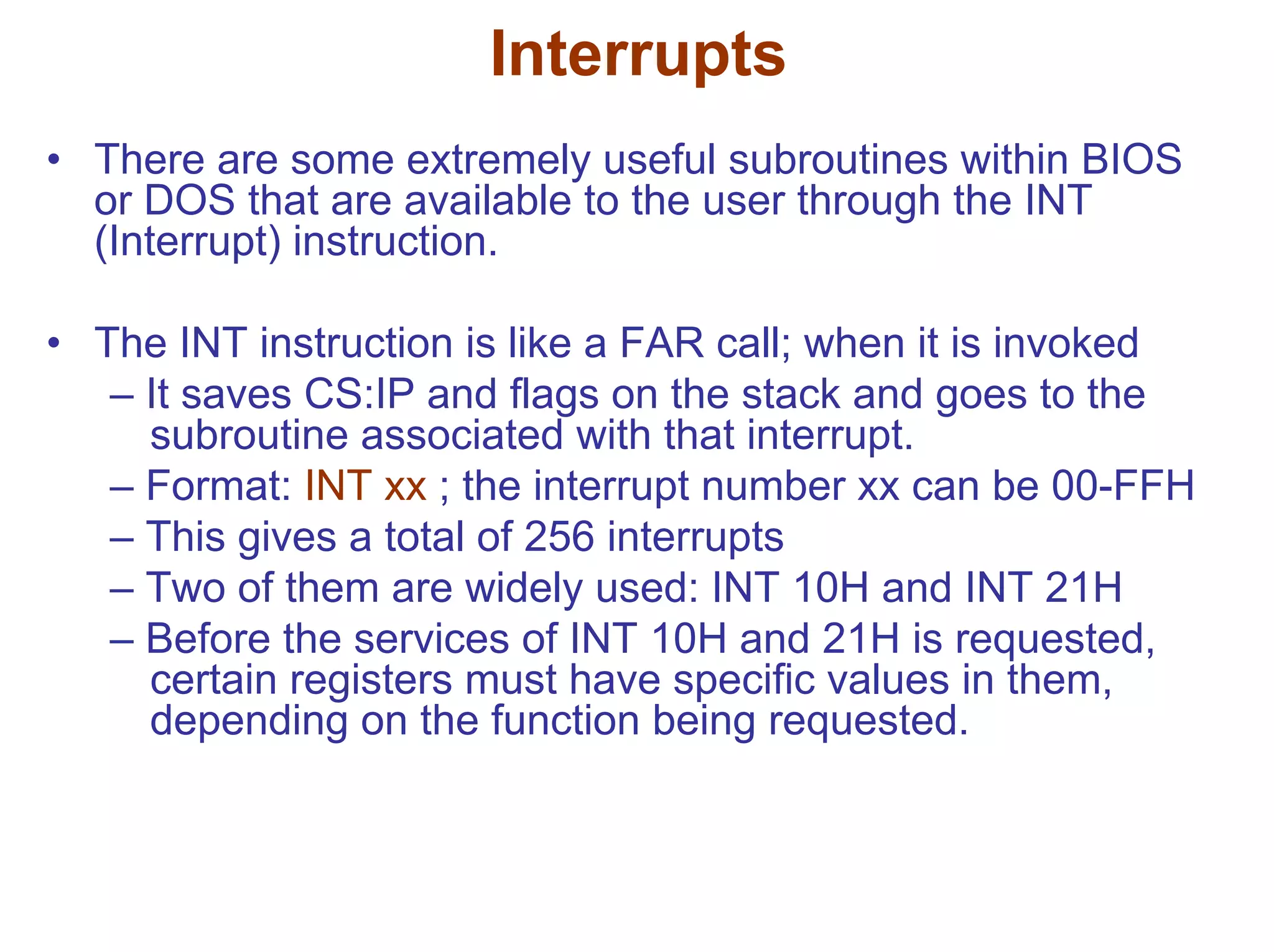

  Interrupts • There aresome extremely useful subroutines within BIOS or DOS that are available to the user through the INT (Interrupt) instruction. • The INT instruction is like a FAR call; when it is invoked – It saves CS:IP and flags on the stack and goes to the subroutine associated with that interrupt. – Format: INT xx ; the interrupt number xx can be 00-FFH – This gives a total of 256 interrupts – Two of them are widely used: INT 10H and INT 21H – Before the services of INT 10H and 21H is requested, certain registers must have specific values in them, depending on the function being requested.
• 5.

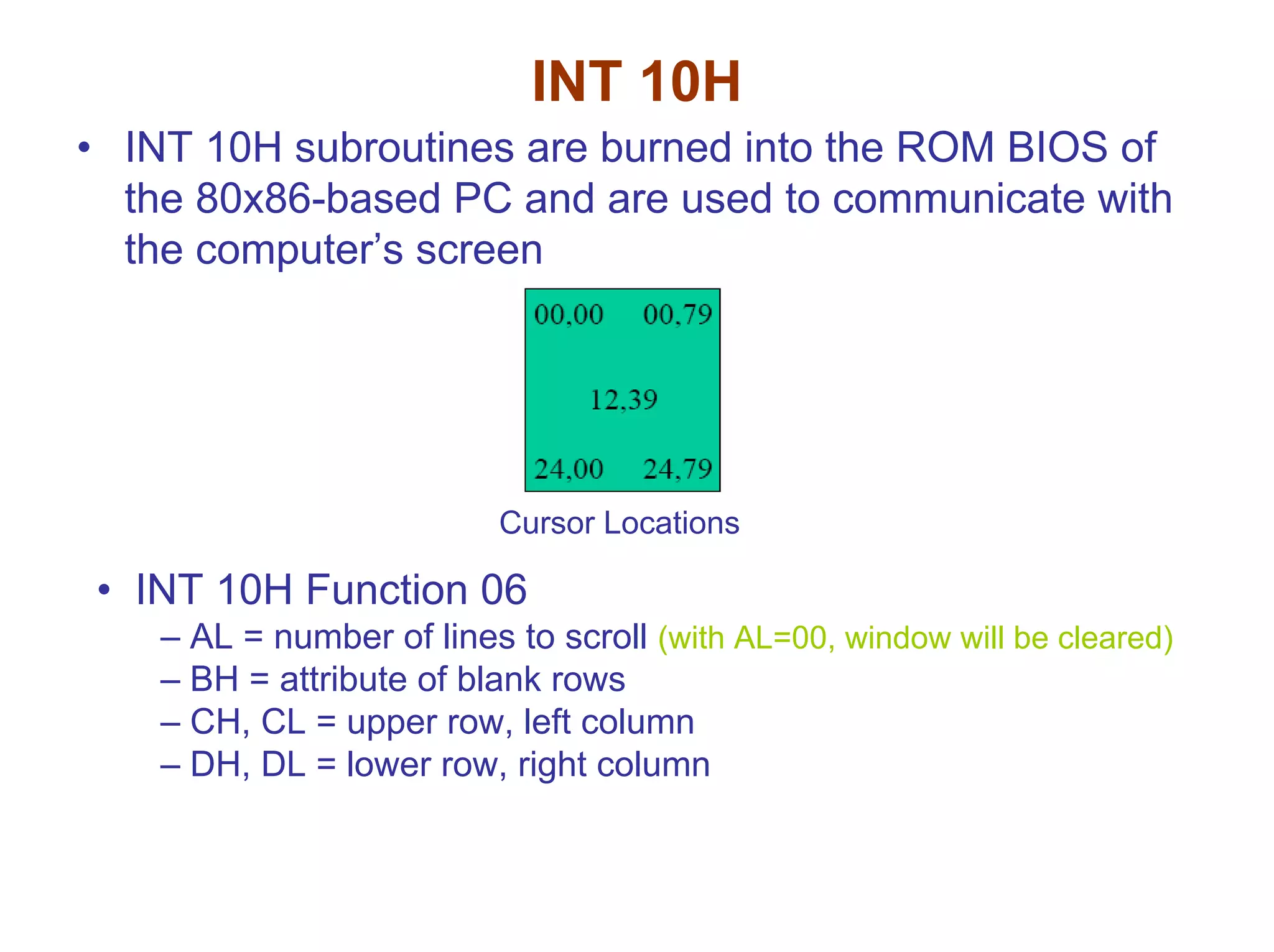

  INT 10H • INT10H subroutines are burned into the ROM BIOS of the 80x86-based PC and are used to communicate with the computer’s screen Cursor Locations • INT 10H Function 06 – AL = number of lines to scroll (with AL=00, window will be cleared) – BH = attribute of blank rows – CH, CL = upper row, left column – DH, DL = lower row, right column
• 6.

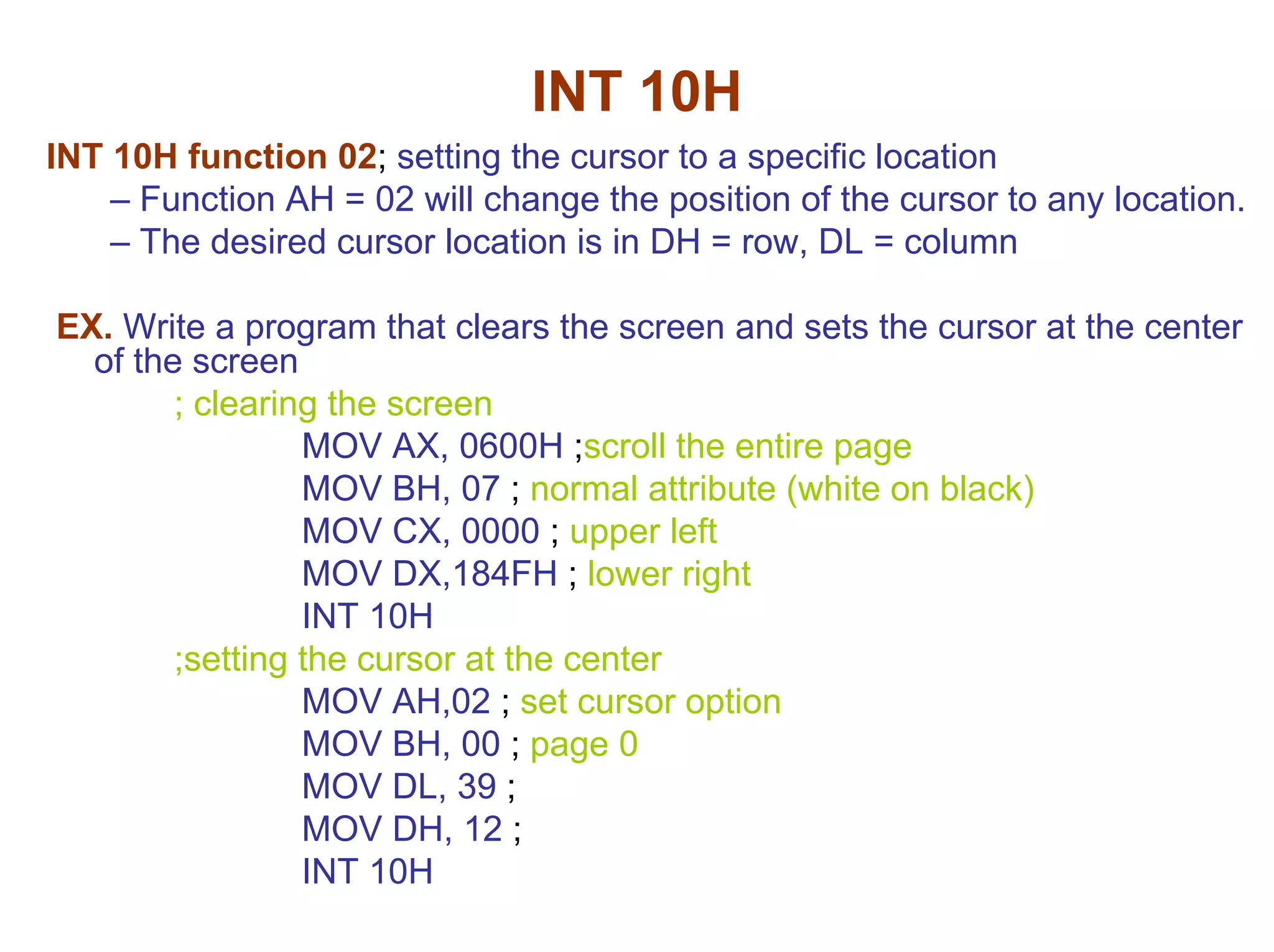

  INT 10H INT 10Hfunction 02; setting the cursor to a specific location – Function AH = 02 will change the position of the cursor to any location. – The desired cursor location is in DH = row, DL = column EX. Write a program that clears the screen and sets the cursor at the center of the screen ; clearing the screen MOV AX, 0600H ;scroll the entire page MOV BH, 07 ; normal attribute (white on black) MOV CX, 0000 ; upper left MOV DX,184FH ; lower right INT 10H ;setting the cursor at the center MOV AH,02 ; set cursor option MOV BH, 00 ; page 0 MOV DL, 39 ; MOV DH, 12 ; INT 10H
• 7.

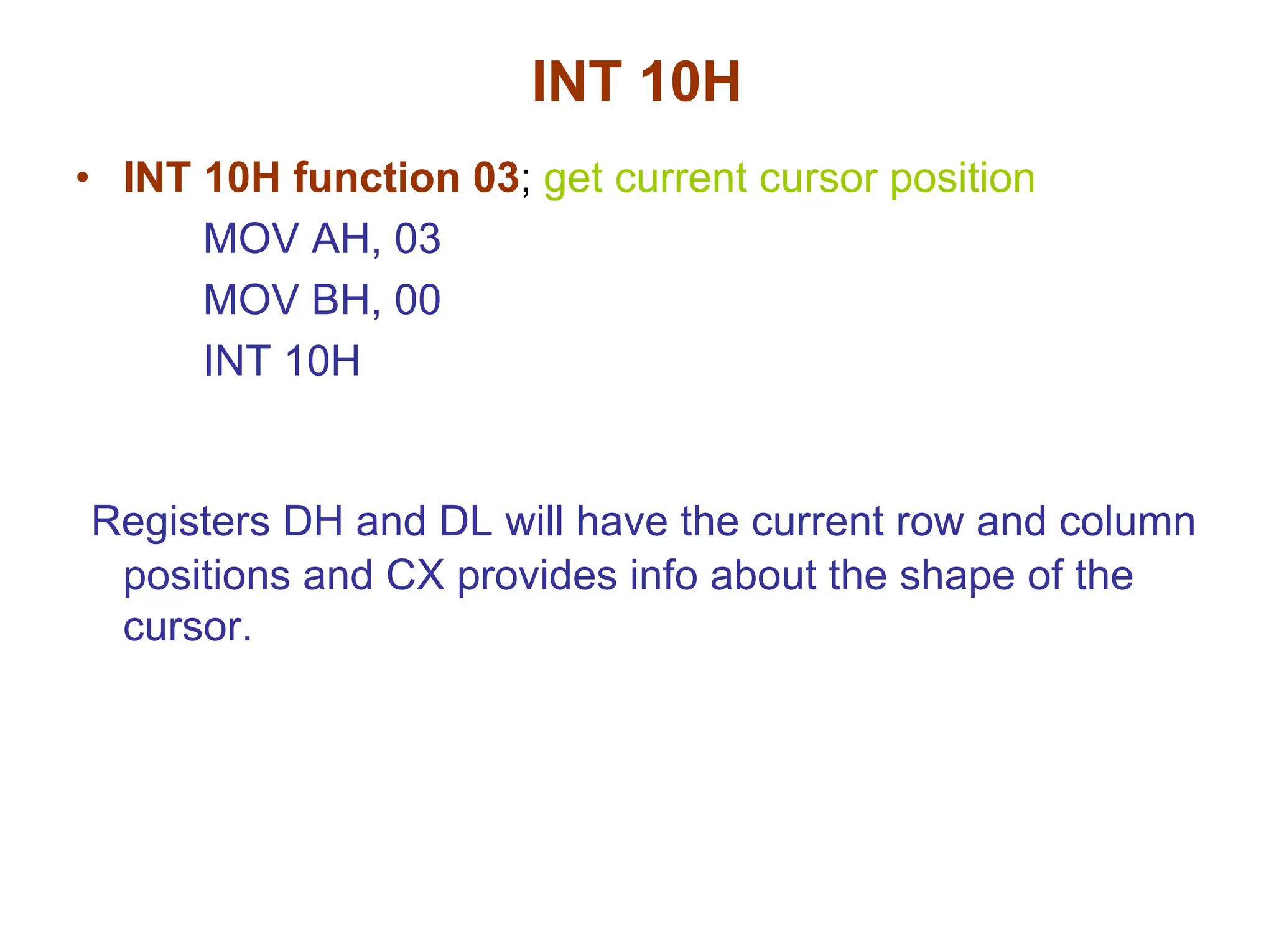

  INT 10H • INT10H function 03; get current cursor position MOV AH, 03 MOV BH, 00 INT 10H Registers DH and DL will have the current row and column positions and CX provides info about the shape of the cursor.
• 8.

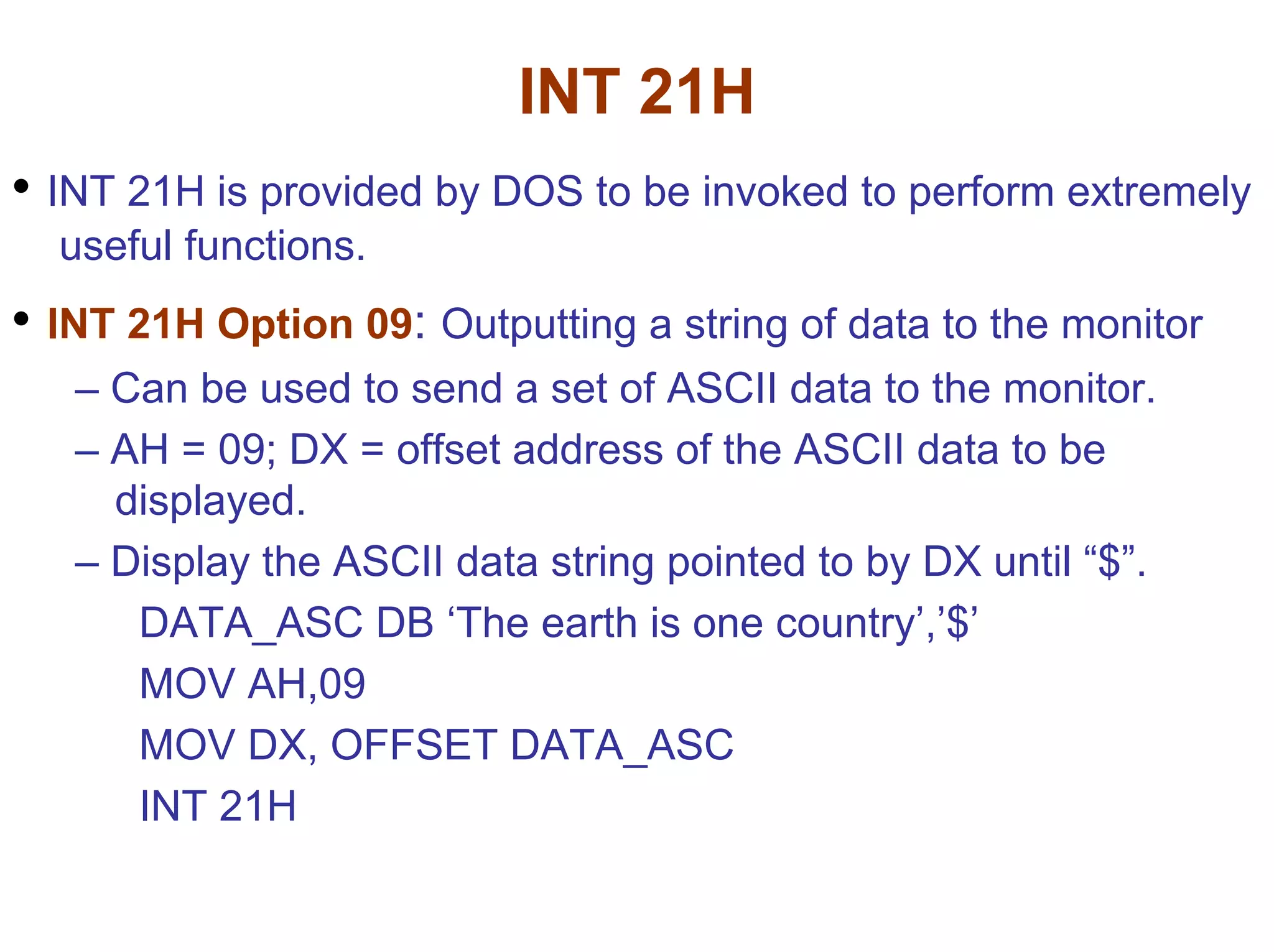

  INT 21H • INT21H is provided by DOS to be invoked to perform extremely useful functions. • INT 21H Option 09: Outputting a string of data to the monitor – Can be used to send a set of ASCII data to the monitor. – AH = 09; DX = offset address of the ASCII data to be displayed. – Display the ASCII data string pointed to by DX until “$”. DATA_ASC DB ‘The earth is one country’,’$’ MOV AH,09 MOV DX, OFFSET DATA_ASC INT 21H
• 9.

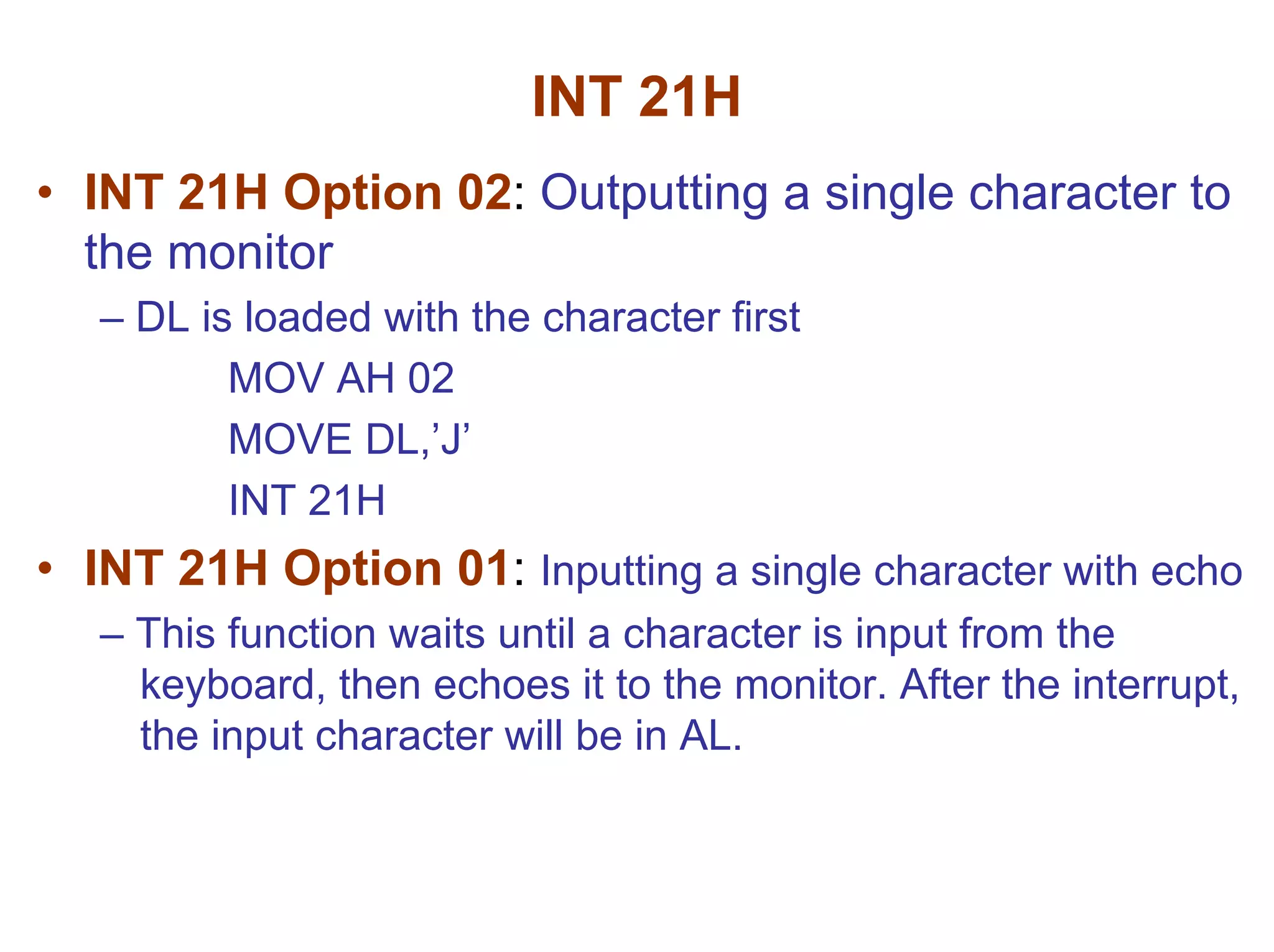

  INT 21H • INT21H Option 02: Outputting a single character to the monitor – DL is loaded with the character first MOV AH 02 MOVE DL,’J’ INT 21H • INT 21H Option 01: Inputting a single character with echo – This function waits until a character is input from the keyboard, then echoes it to the monitor. After the interrupt, the input character will be in AL.
• 10.

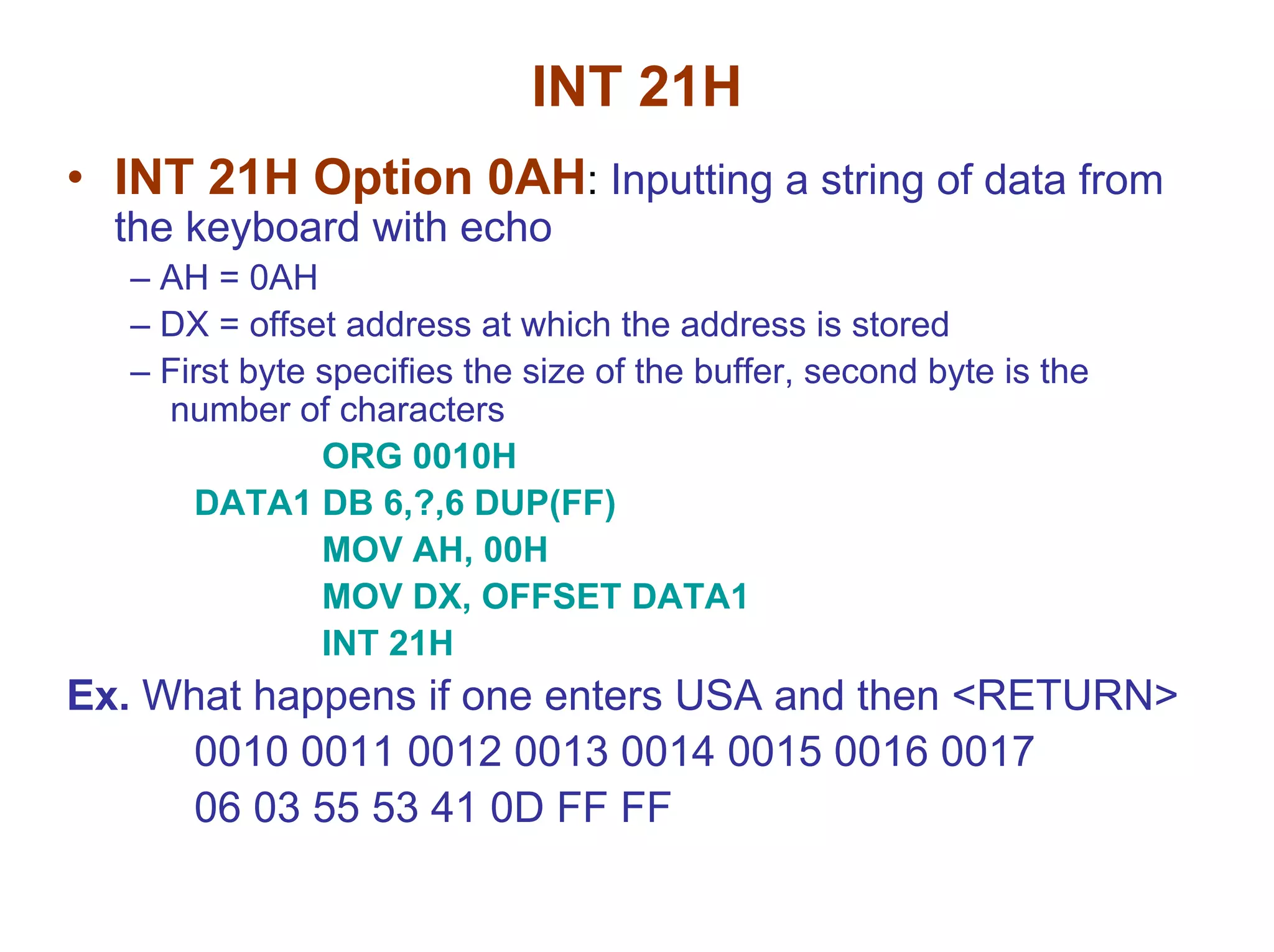

  INT 21H • INT21H Option 0AH: Inputting a string of data from the keyboard with echo – AH = 0AH – DX = offset address at which the address is stored – First byte specifies the size of the buffer, second byte is the number of characters ORG 0010H DATA1 DB 6,?,6 DUP(FF) MOV AH, 00H MOV DX, OFFSET DATA1 INT 21H Ex. What happens if one enters USA and then <RETURN> 0010 0011 0012 0013 0014 0015 0016 0017 06 03 55 53 41 0D FF FF
