![Searching with pushdown
SELECT [ProductID]
FROM [Sales].[SalesOrderDetail]
WHERE [ModifiedDate] BETWEEN '2011-01-01' AND '2012-01-01'
AND [OrderQty] >= 10
ModifiedDate ProductID StoreID OrderQty SalesAmount
2010-12-31 106 01 12 30
2011-01-07 103 04 1 17
2011-01-07 109 04 7 20
2011-02-12 103 03 5 40
2011-03-08 106 05 7 25
2011-04-16 106 02 10 40
2011-07-20 102 02 12 50
2011-10-21 106 03 16 55
2011-12-15 103 03 20 55
(…) (…) (…) (…) (…)
2012-01-01 109 01 11 16
2012-01-11 102 05 5 10
Sales.SalesOrderDetail
ModifiedDate ProductID StoreID OrderQty SalesAmount
2010-12-31 106 01 12 30
2011-01-07 103 04 1 17
2011-01-07 109 04 7 20
2011-02-12 103 03 5 40
2011-03-08 106 05 7 25
2011-04-16 106 02 10 40
2011-07-20 102 02 12 50
2011-10-21 106 03 16 55
2011-12-15 103 03 20 55
(…) (…) (…) (…) (…)
2012-01-01 109 01 11 16
2012-01-11 102 05 5 10
ModifiedDate ProductID StoreID OrderQty SalesAmount
2011-04-16 106 02 10 40
2011-07-20 102 02 12 50
2011-10-21 106 03 16 55
2011-12-15 103 03 20 55
(…) (…) (…) (…) (…)
2012-01-01 109 01 11 16
Result Set
Actual
Rows](https://image.slidesharecdn.com/enhancementsthatwillmakeyoursqldatabaseroarsp1editionsqlbits2017-170407164810/75/Enhancements-that-will-make-your-sql-database-roar-sp1-edition-sql-bits-2017-25-2048.jpg)
![SELECT AddressID
FROM Person.[Address]
WHERE City = N'Ballard'
AND [PostalCode] = '98107'
OPTION (QUERYTRACEON 9481)
SELECT AddressID
FROM Person.[Address]
WHERE City = N'Ballard'
AND [PostalCode] = '98107'
OPTION (USE HINT('FORCE_LEGACY_CARDINALITY_ESTIMATION'))](https://image.slidesharecdn.com/enhancementsthatwillmakeyoursqldatabaseroarsp1editionsqlbits2017-170407164810/75/Enhancements-that-will-make-your-sql-database-roar-sp1-edition-sql-bits-2017-29-2048.jpg)
![Searching with pushdown
SELECT [ProductID]
FROM [Sales].[SalesOrderDetail]
WHERE [ModifiedDate] BETWEEN '2011-01-01' AND '2012-01-01'
AND [OrderQty] >= 10
ModifiedDate ProductID StoreID OrderQty SalesAmount
2010-12-31 106 01 12 30
2011-01-07 103 04 1 17
2011-01-07 109 04 7 20
2011-02-12 103 03 5 40
2011-03-08 106 05 7 25
2011-04-16 106 02 10 40
2011-07-20 102 02 12 50
2011-10-21 106 03 16 55
2011-12-15 103 03 20 55
(…) (…) (…) (…) (…)
2012-01-01 109 01 11 16
2012-01-11 102 05 5 10
Sales.SalesOrderDetail
ModifiedDate ProductID StoreID OrderQty SalesAmount
2010-12-31 106 01 12 30
2011-01-07 103 04 1 17
2011-01-07 109 04 7 20
2011-02-12 103 03 5 40
2011-03-08 106 05 7 25
2011-04-16 106 02 10 40
2011-07-20 102 02 12 50
2011-10-21 106 03 16 55
2011-12-15 103 03 20 55
(…) (…) (…) (…) (…)
2012-01-01 109 01 11 16
2012-01-11 102 05 5 10
ModifiedDate ProductID StoreID OrderQty SalesAmount
2011-04-16 106 02 10 40
2011-07-20 102 02 12 50
2011-10-21 106 03 16 55
2011-12-15 103 03 20 55
(…) (…) (…) (…) (…)
2012-01-01 109 01 11 16
Result Set
Actual
Rows](https://crownmelresort.com/image.slidesharecdn.com/enhancementsthatwillmakeyoursqldatabaseroarsp1editionsqlbits2017-170407164810/75/Enhancements-that-will-make-your-sql-database-roar-sp1-edition-sql-bits-2017-25-2048.jpg)
![SELECT AddressID
FROM Person.[Address]
WHERE City = N'Ballard'
AND [PostalCode] = '98107'
OPTION (QUERYTRACEON 9481)
SELECT AddressID
FROM Person.[Address]
WHERE City = N'Ballard'
AND [PostalCode] = '98107'
OPTION (USE HINT('FORCE_LEGACY_CARDINALITY_ESTIMATION'))](https://crownmelresort.com/image.slidesharecdn.com/enhancementsthatwillmakeyoursqldatabaseroarsp1editionsqlbits2017-170407164810/75/Enhancements-that-will-make-your-sql-database-roar-sp1-edition-sql-bits-2017-29-2048.jpg)
More Related Content
![Real Time Operational Analytics with Microsoft Sql Server 2016 [Liviu Ieran]](https://cdn.slidesharecdn.com/ss_thumbnails/realtimeoperationalanalyticswithmicrosoftsqlserver2016liviuieran-161102082504-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Enhancements that will make your sql database roar sp1 edition sql bits 2017
Enhancements that will make your sql database roar sp1 edition sql bits 2017
- 1.

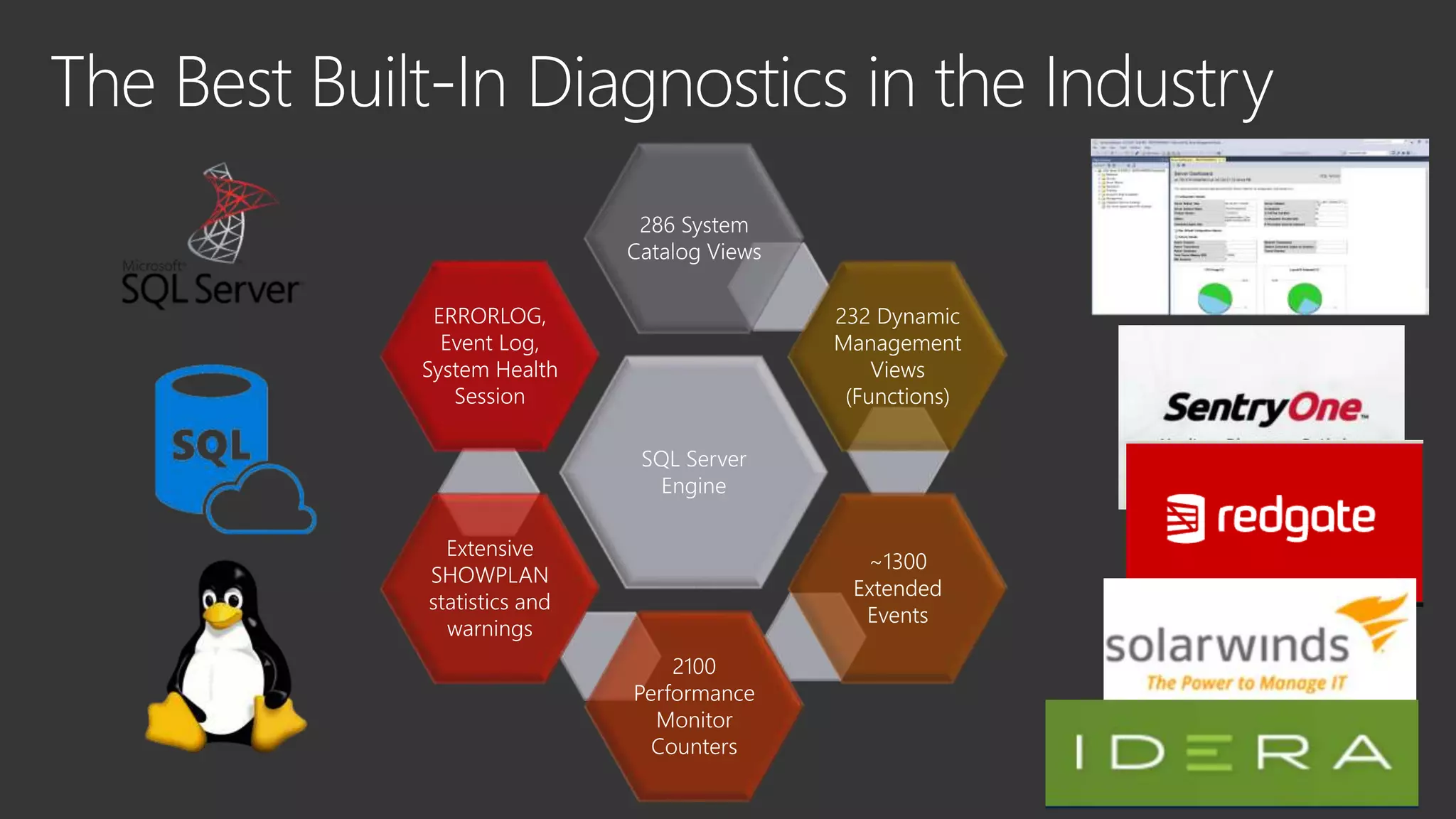

- 4. SQL Server Engine 286 System CatalogViews 232 Dynamic Management Views (Functions) ~1300 Extended Events 2100 Performance Monitor Counters Extensive SHOWPLAN statistics and warnings ERRORLOG, Event Log, System Health Session

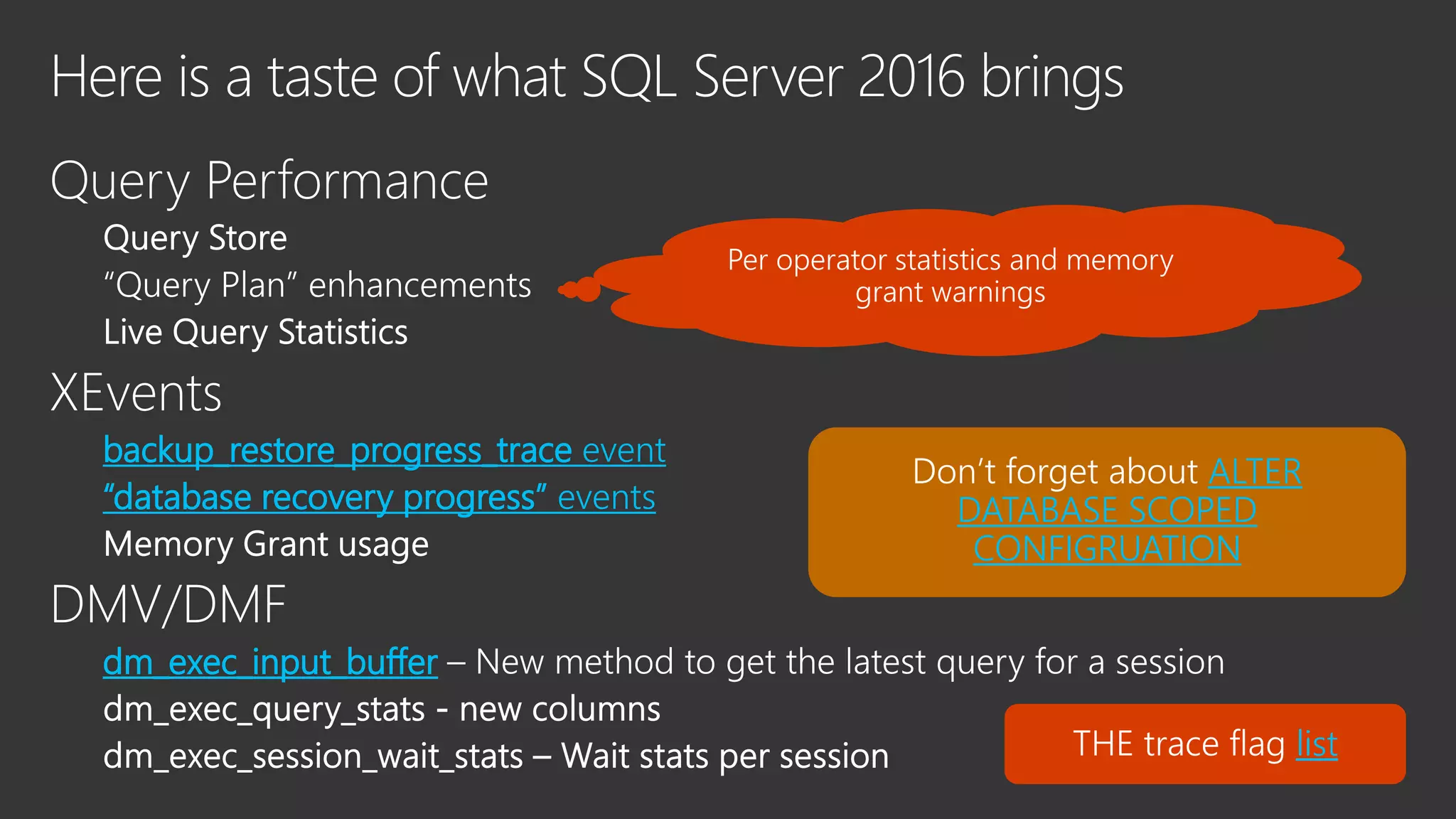

- 5. backup_restore_progress_trace event “database recoveryprogress” events dm_exec_input_buffer ALTER DATABASE SCOPED CONFIGRUATION list
- 8.

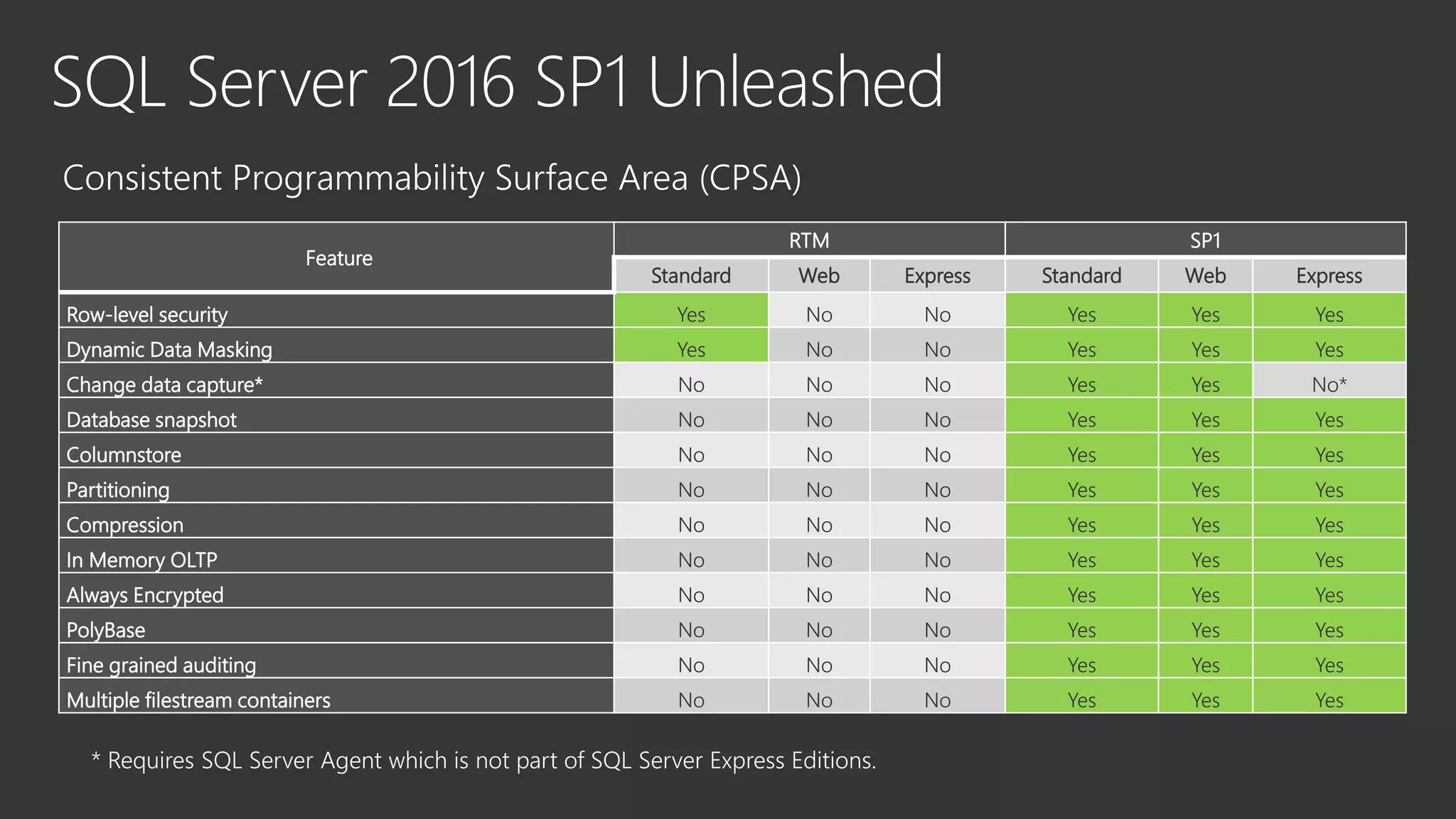

- 9. Feature RTM SP1 Standard WebExpress Standard Web Express Row-level security Yes No No Yes Yes Yes Dynamic Data Masking Yes No No Yes Yes Yes Change data capture* No No No Yes Yes No* Database snapshot No No No Yes Yes Yes Columnstore No No No Yes Yes Yes Partitioning No No No Yes Yes Yes Compression No No No Yes Yes Yes In Memory OLTP No No No Yes Yes Yes Always Encrypted No No No Yes Yes Yes PolyBase No No No Yes Yes Yes Fine grained auditing No No No Yes Yes Yes Multiple filestream containers No No No Yes Yes Yes * Requires SQL Server Agent which is not part of SQL Server Express Editions.

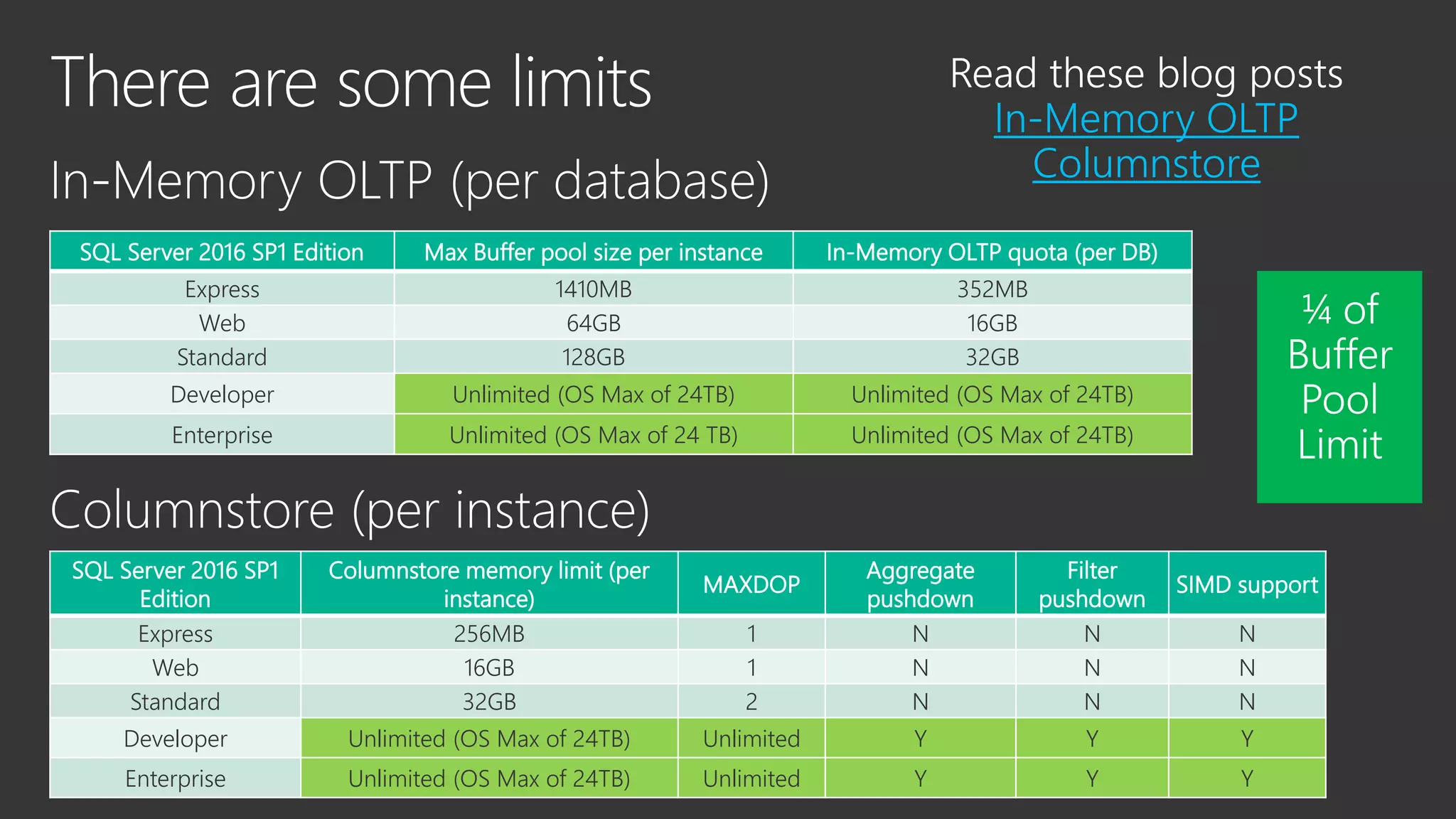

- 10. SQL Server 2016SP1 Edition Max Buffer pool size per instance In-Memory OLTP quota (per DB) Express 1410MB 352MB Web 64GB 16GB Standard 128GB 32GB Developer Unlimited (OS Max of 24TB) Unlimited (OS Max of 24TB) Enterprise Unlimited (OS Max of 24 TB) Unlimited (OS Max of 24TB) SQL Server 2016 SP1 Edition Columnstore memory limit (per instance) MAXDOP Aggregate pushdown Filter pushdown SIMD support Express 256MB 1 N N N Web 16GB 1 N N N Standard 32GB 2 N N N Developer Unlimited (OS Max of 24TB) Unlimited Y Y Y Enterprise Unlimited (OS Max of 24TB) Unlimited Y Y Y In-Memory OLTP Columnstore

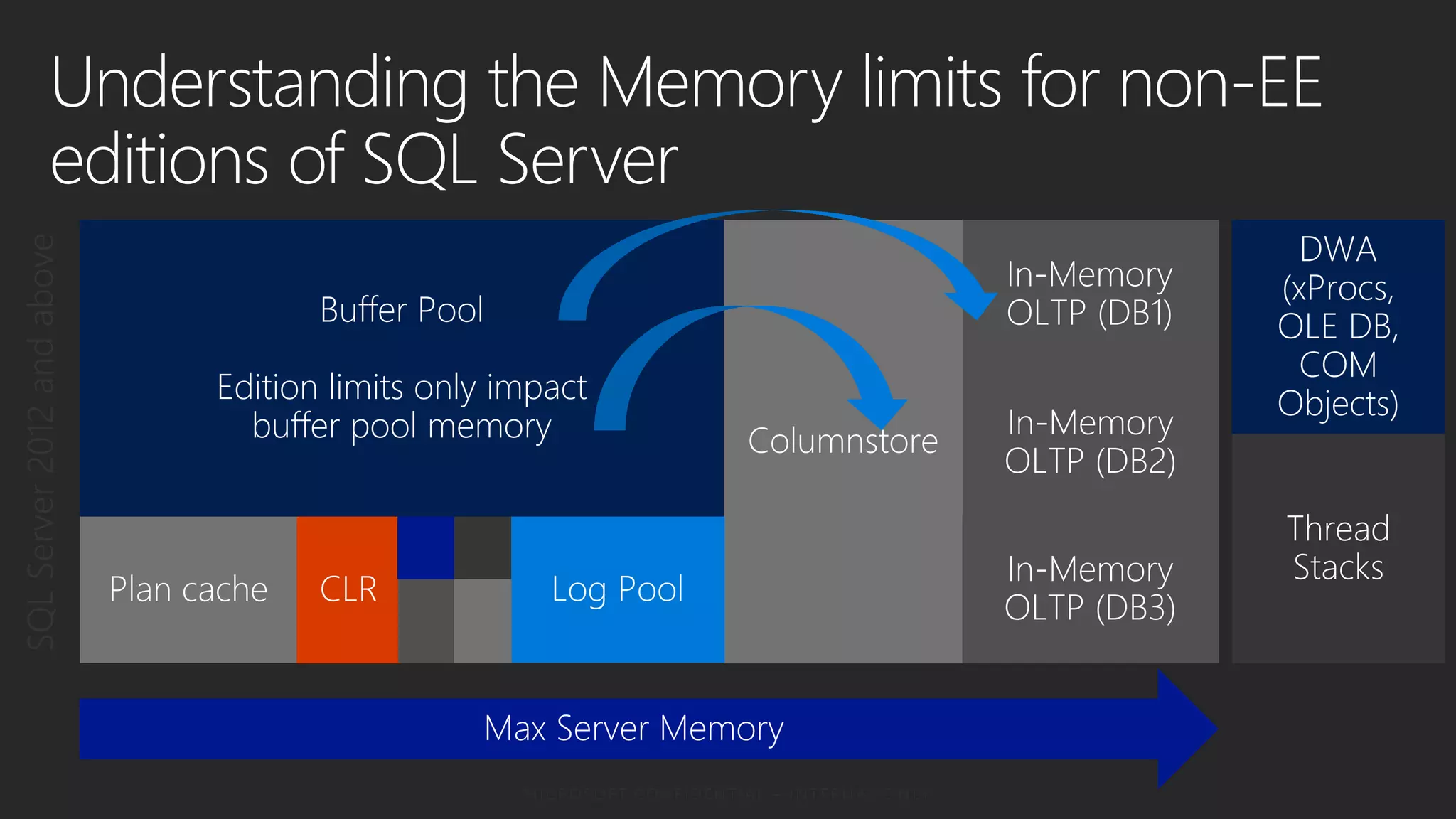

- 11. Understanding the Memorylimits for non-EE editions of SQL Server Edition limits only impact buffer pool memory

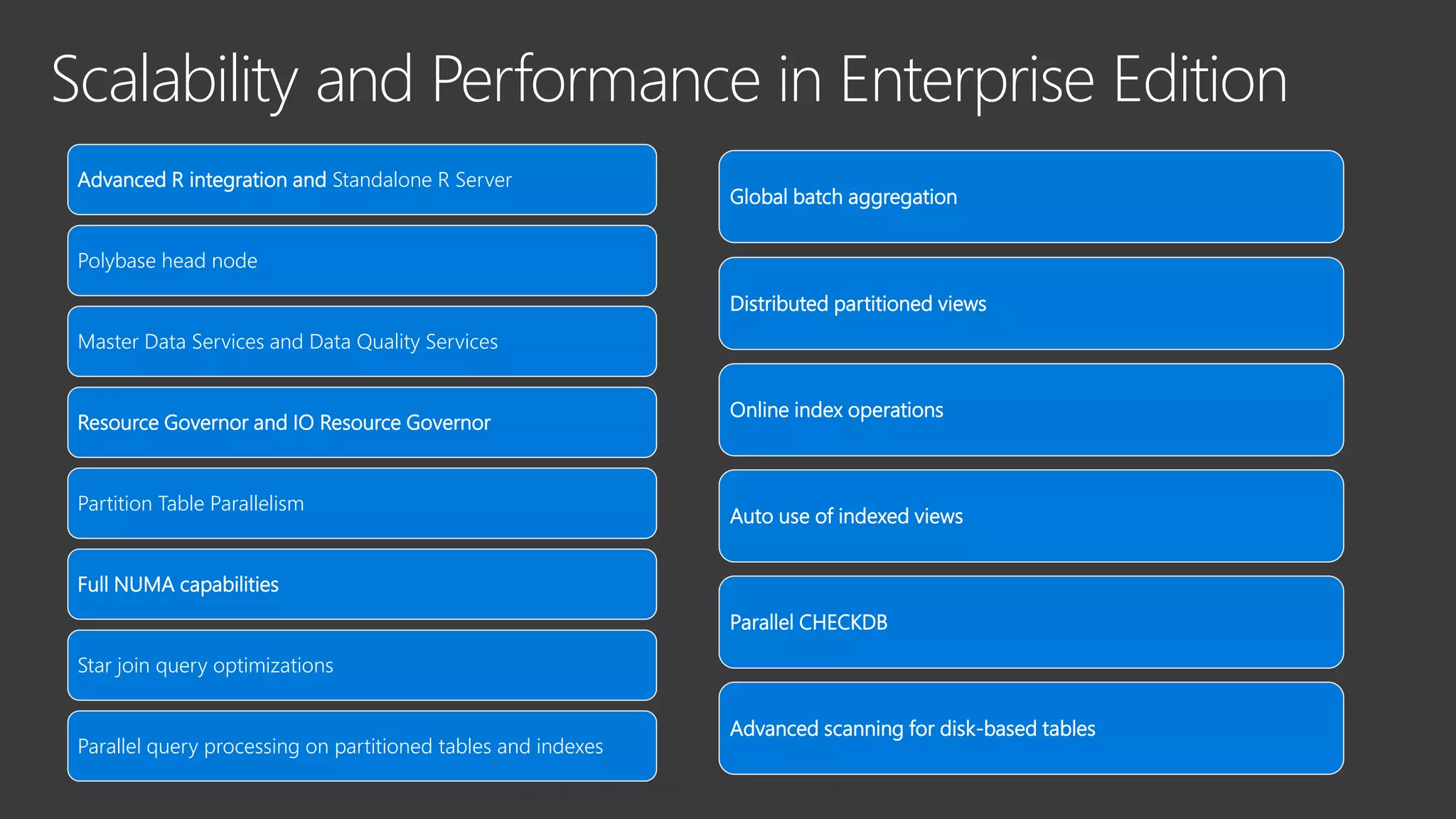

- 12. Advanced R integrationand Standalone R Server Polybase head node Master Data Services and Data Quality Services Resource Governor and IO Resource Governor Partition Table Parallelism Full NUMA capabilities Star join query optimizations Parallel query processing on partitioned tables and indexes Scalability and Performance in Enterprise Edition Global batch aggregation Distributed partitioned views Online index operations Auto use of indexed views Parallel CHECKDB Advanced scanning for disk-based tables

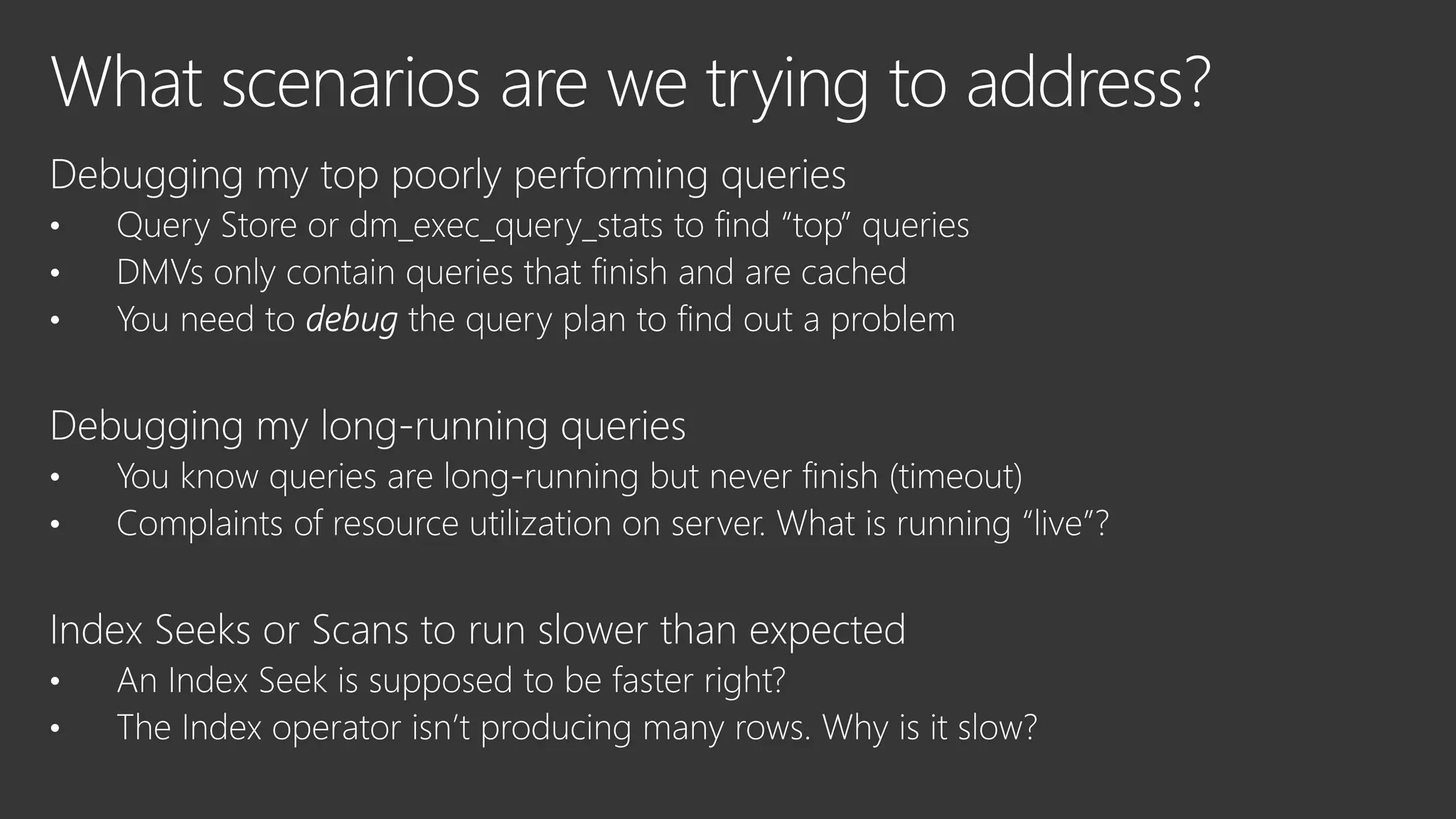

- 13. I found thequery with the problem, now what do I do? I have “runaway” queries Why isn’t this seek working?

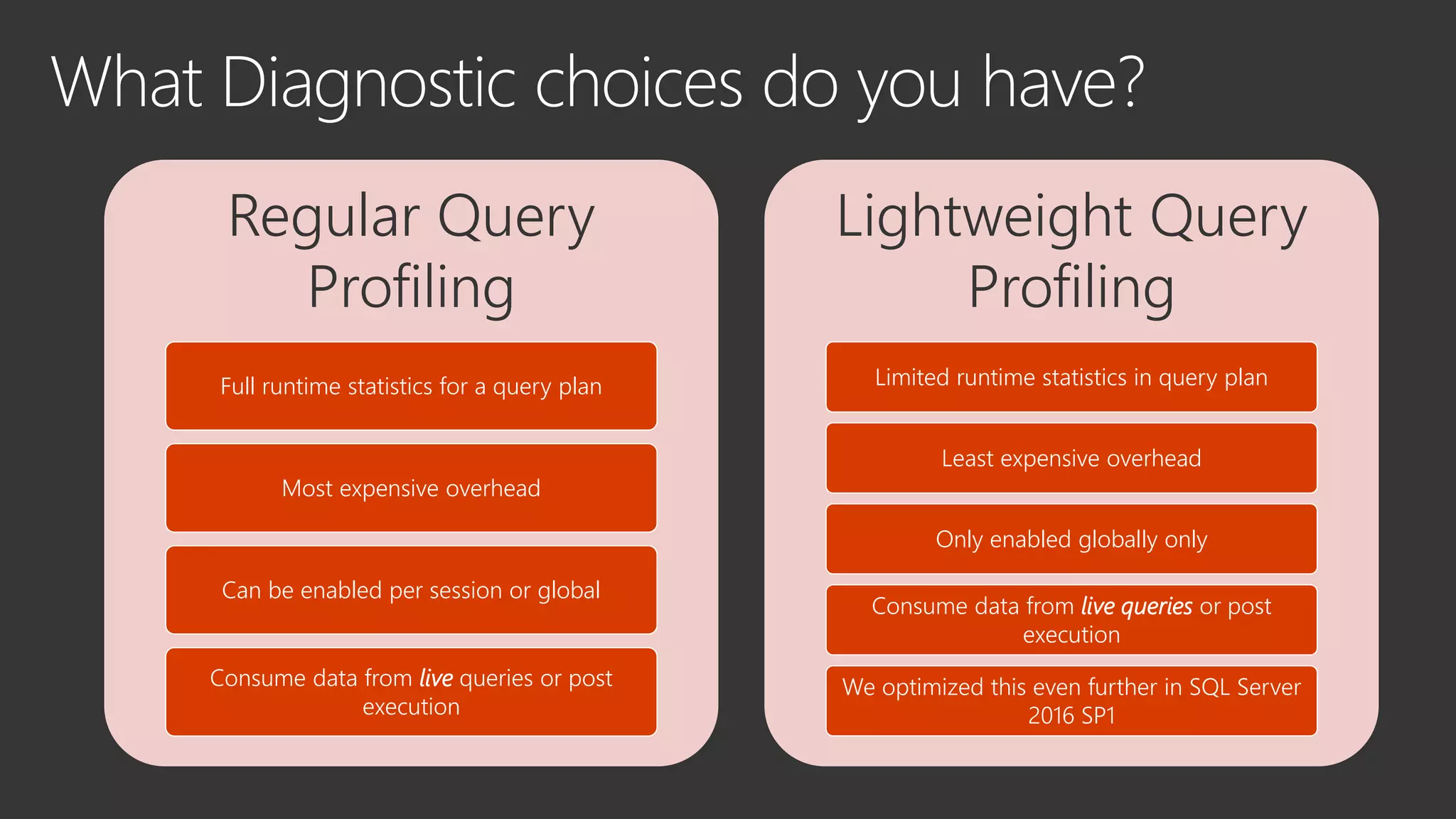

- 15. Regular Query Profiling Full runtimestatistics for a query plan Most expensive overhead Can be enabled per session or global Consume data from live queries or post execution Lightweight Query Profiling Limited runtime statistics in query plan Least expensive overhead Only enabled globally only Consume data from live queries or post execution We optimized this even further in SQL Server 2016 SP1

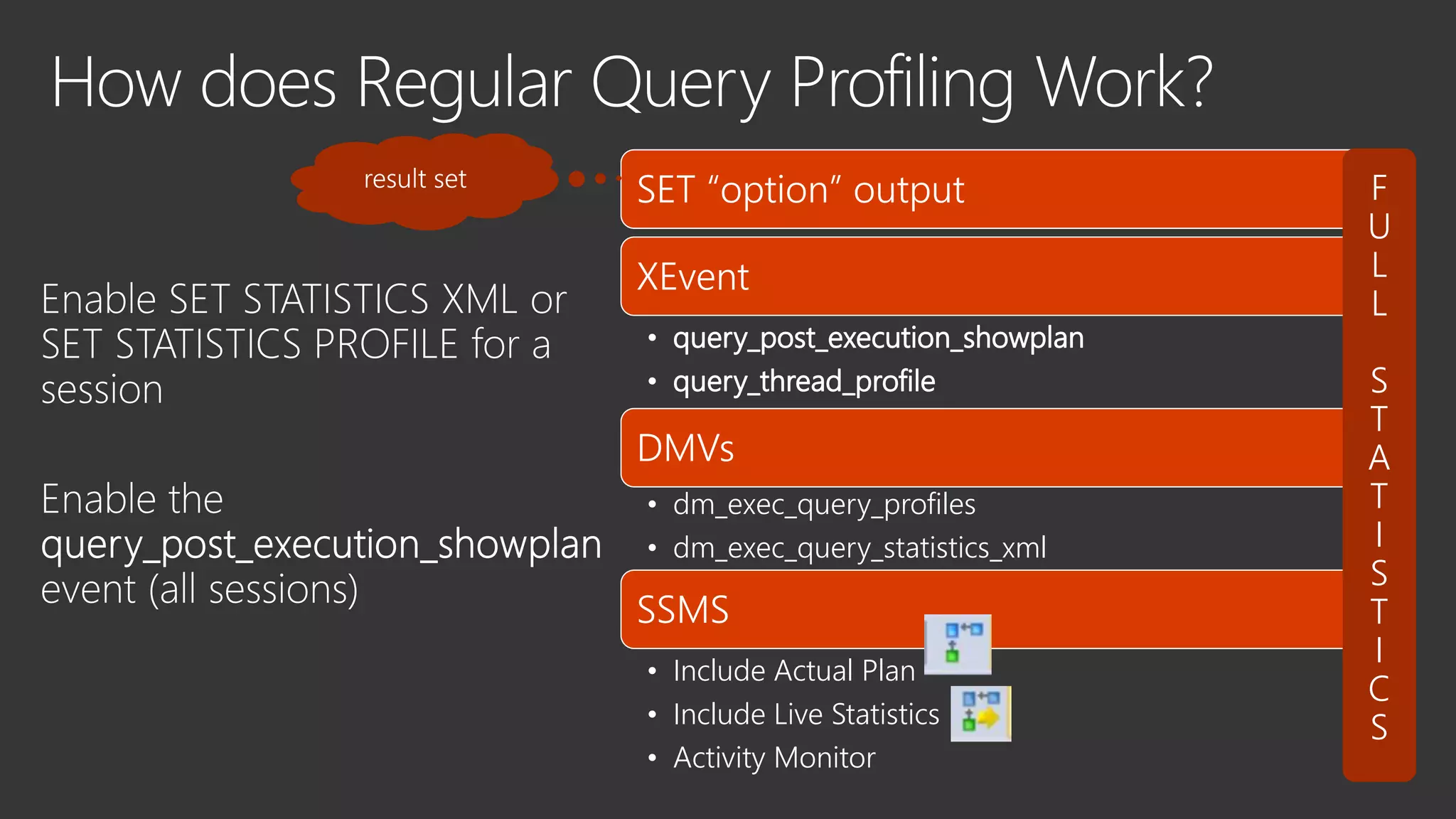

- 16. SET “option” output XEvent •query_post_execution_showplan • query_thread_profile DMVs • dm_exec_query_profiles • dm_exec_query_statistics_xml SSMS • Include Actual Plan • Include Live Statistics • Activity Monitor

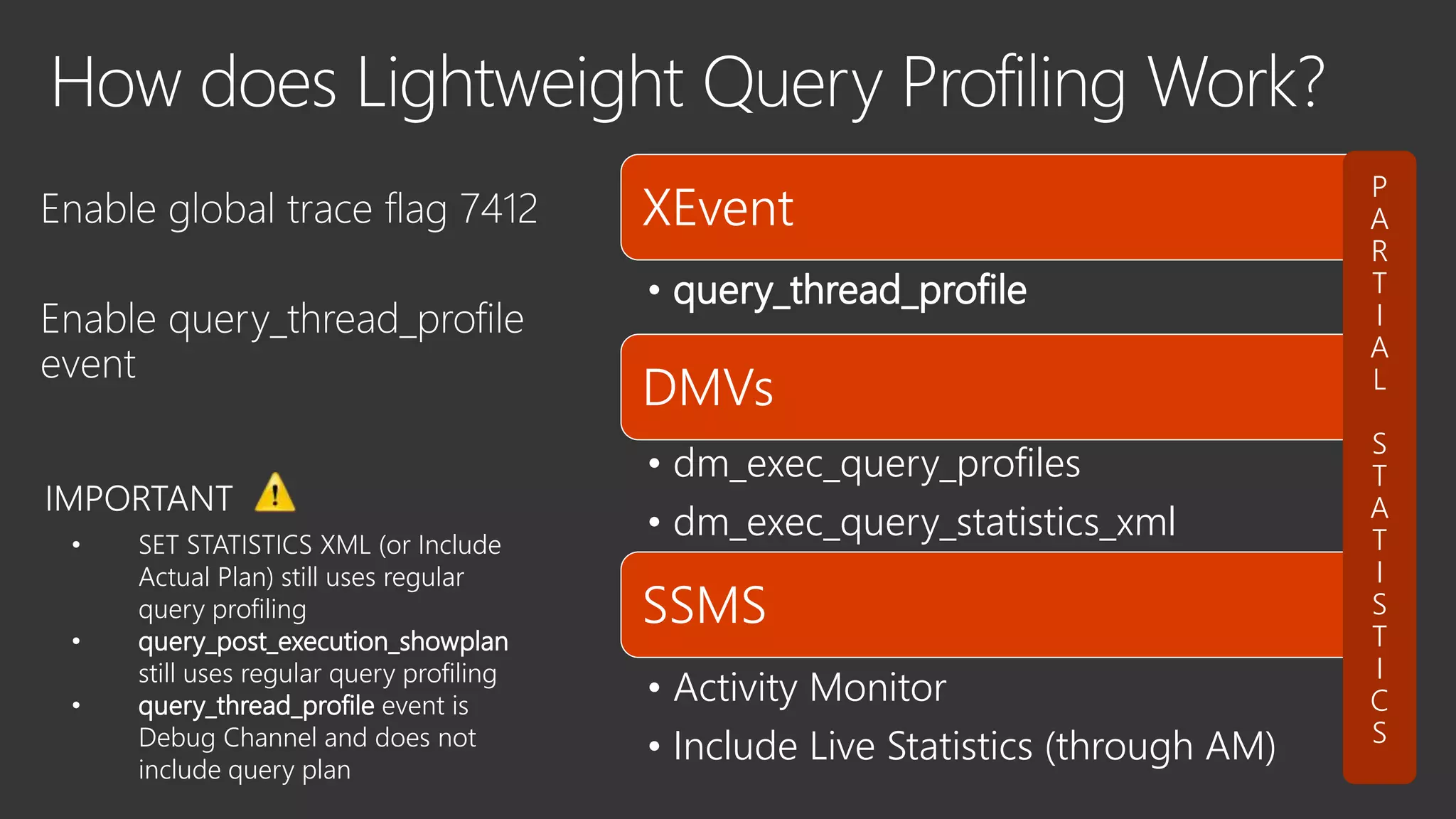

- 17. XEvent • query_thread_profile DMVs • dm_exec_query_profiles •dm_exec_query_statistics_xml SSMS • Activity Monitor • Include Live Statistics (through AM) • SET STATISTICS XML (or Include Actual Plan) still uses regular query profiling • query_post_execution_showplan still uses regular query profiling • query_thread_profile event is Debug Channel and does not include query plan

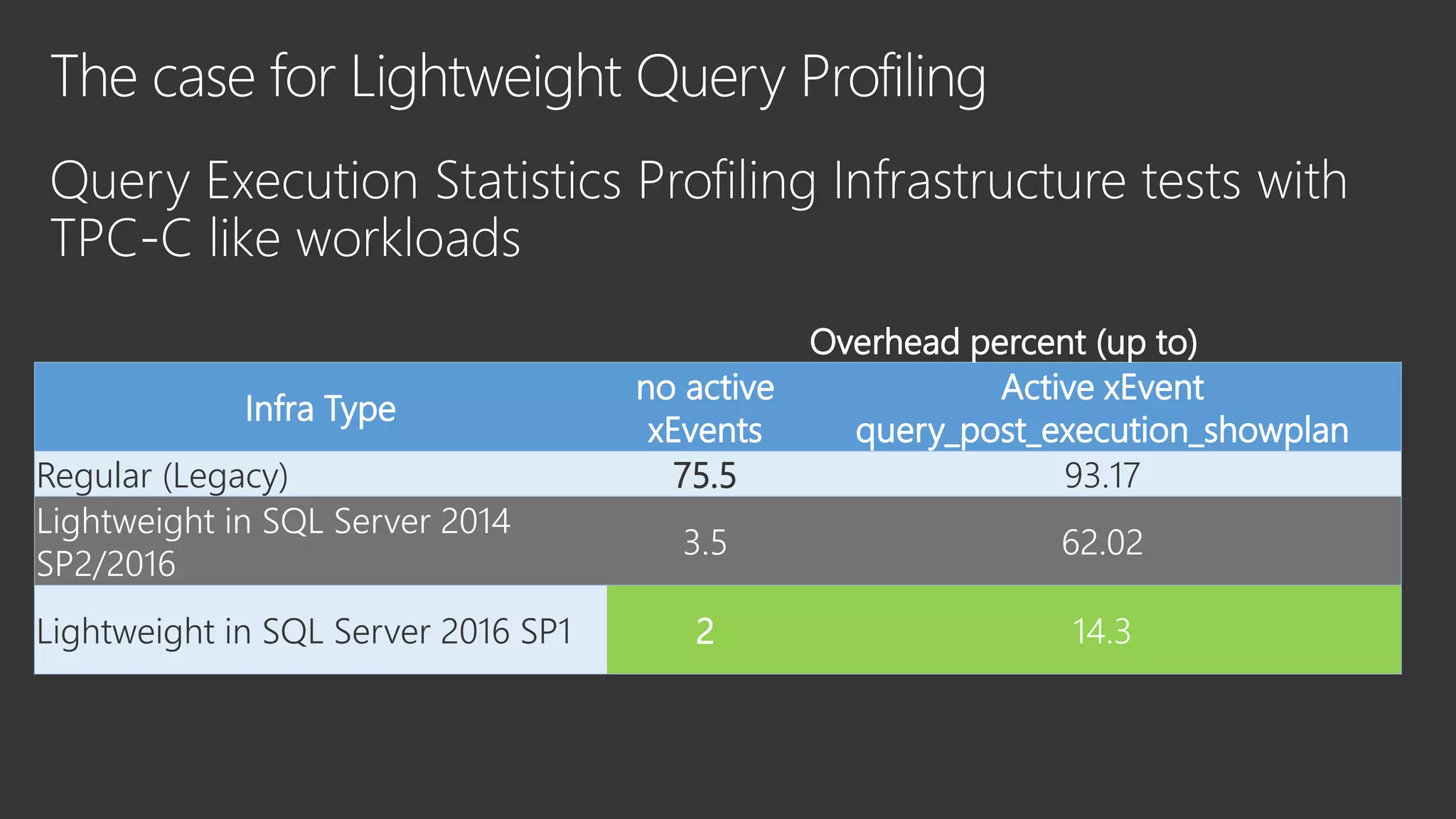

- 18. Overhead percent (upto) Infra Type no active xEvents Active xEvent query_post_execution_showplan Regular (Legacy) 75.5 93.17 Lightweight in SQL Server 2014 SP2/2016 3.5 62.02 Lightweight in SQL Server 2016 SP1 2 14.3

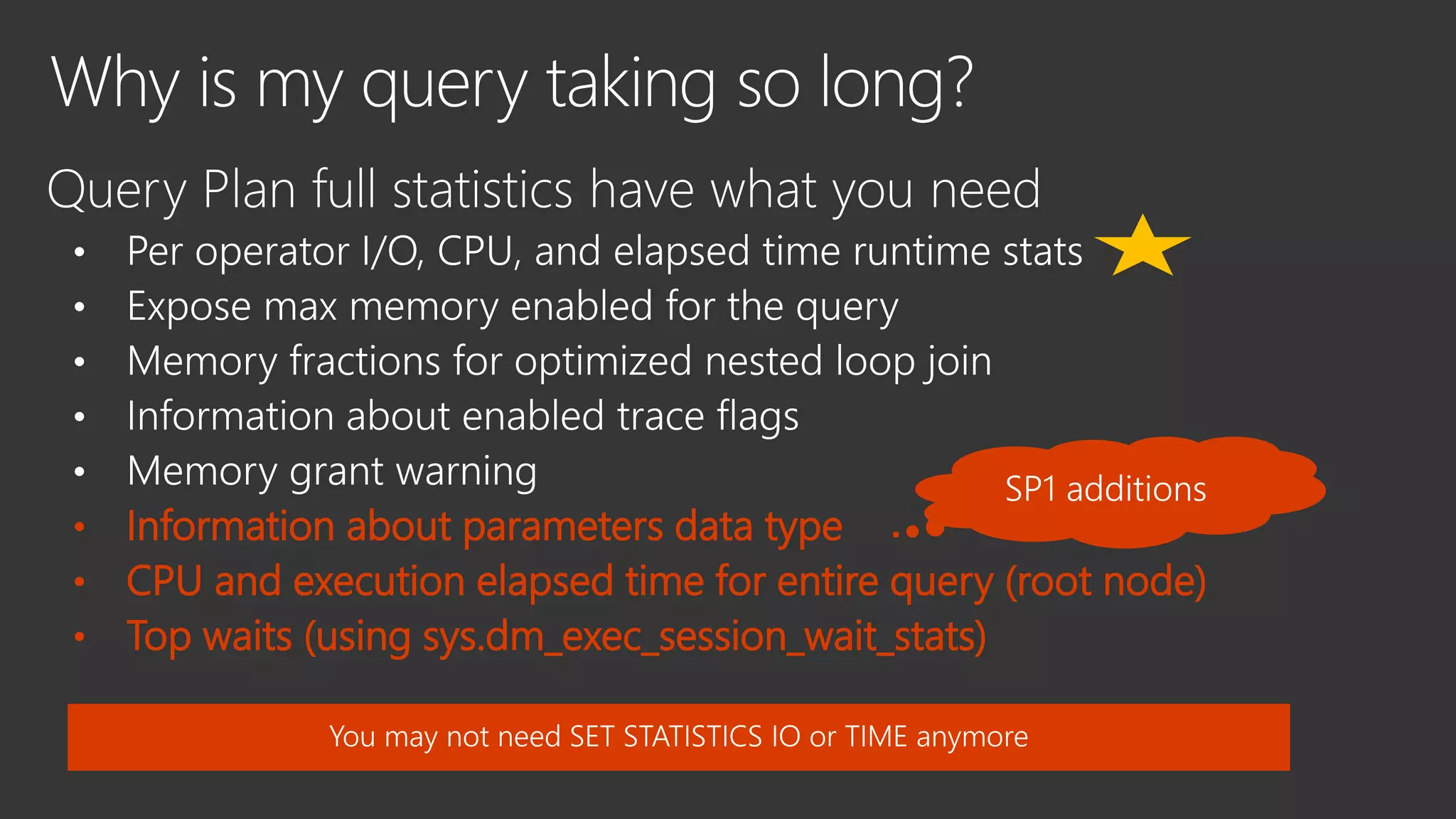

- 20. • Information aboutparameters data type • CPU and execution elapsed time for entire query (root node) • Top waits (using sys.dm_exec_session_wait_stats)

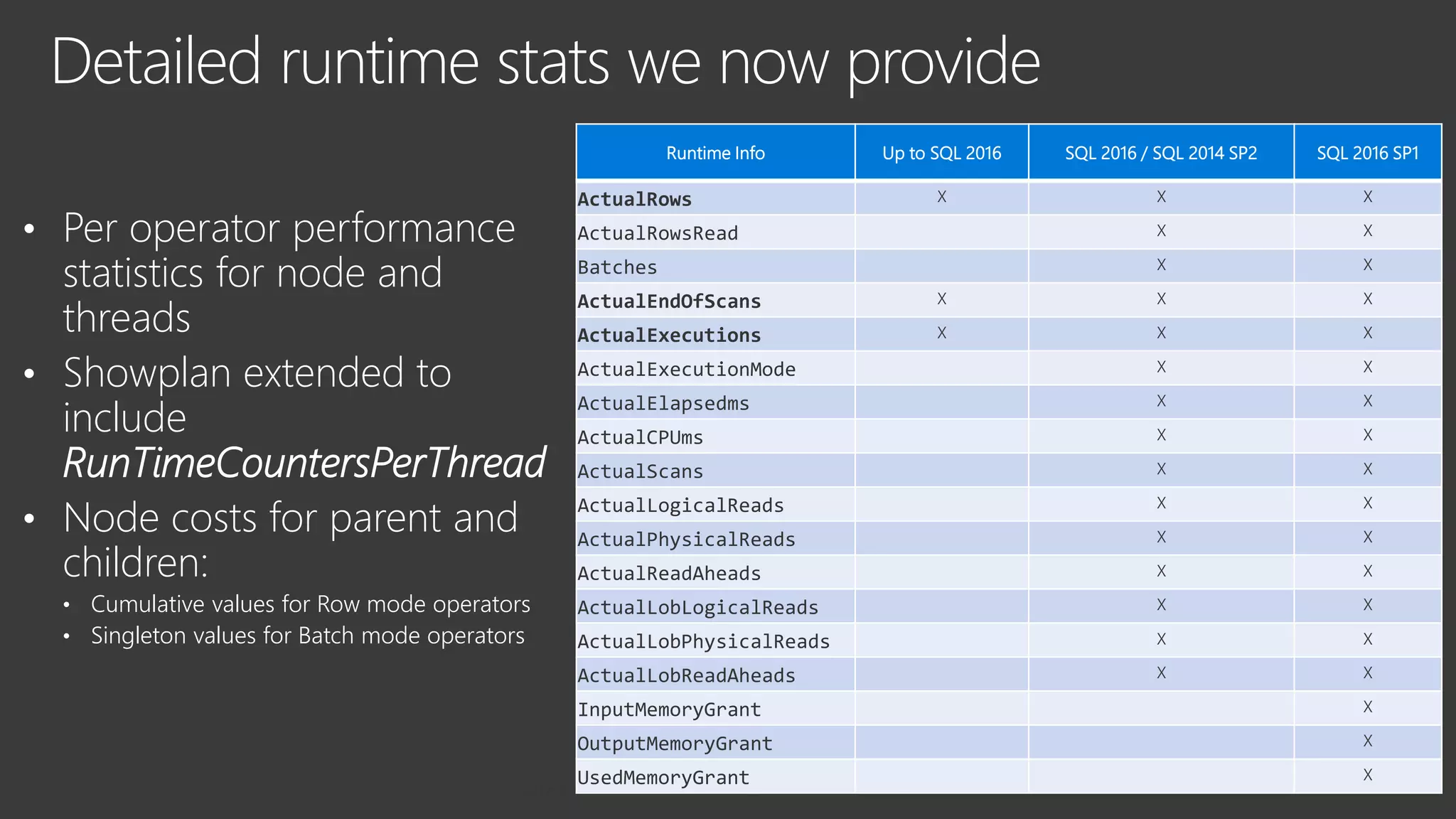

- 21. • Per operatorperformance statistics for node and threads • Showplan extended to include RunTimeCountersPerThread • Node costs for parent and children: • Cumulative values for Row mode operators • Singleton values for Batch mode operators Detailed runtime stats we now provide Runtime Info Up to SQL 2016 SQL 2016 / SQL 2014 SP2 SQL 2016 SP1 ActualRows X X X ActualRowsRead X X Batches X X ActualEndOfScans X X X ActualExecutions X X X ActualExecutionMode X X ActualElapsedms X X ActualCPUms X X ActualScans X X ActualLogicalReads X X ActualPhysicalReads X X ActualReadAheads X X ActualLobLogicalReads X X ActualLobPhysicalReads X X ActualLobReadAheads X X InputMemoryGrant X OutputMemoryGrant X UsedMemoryGrant X

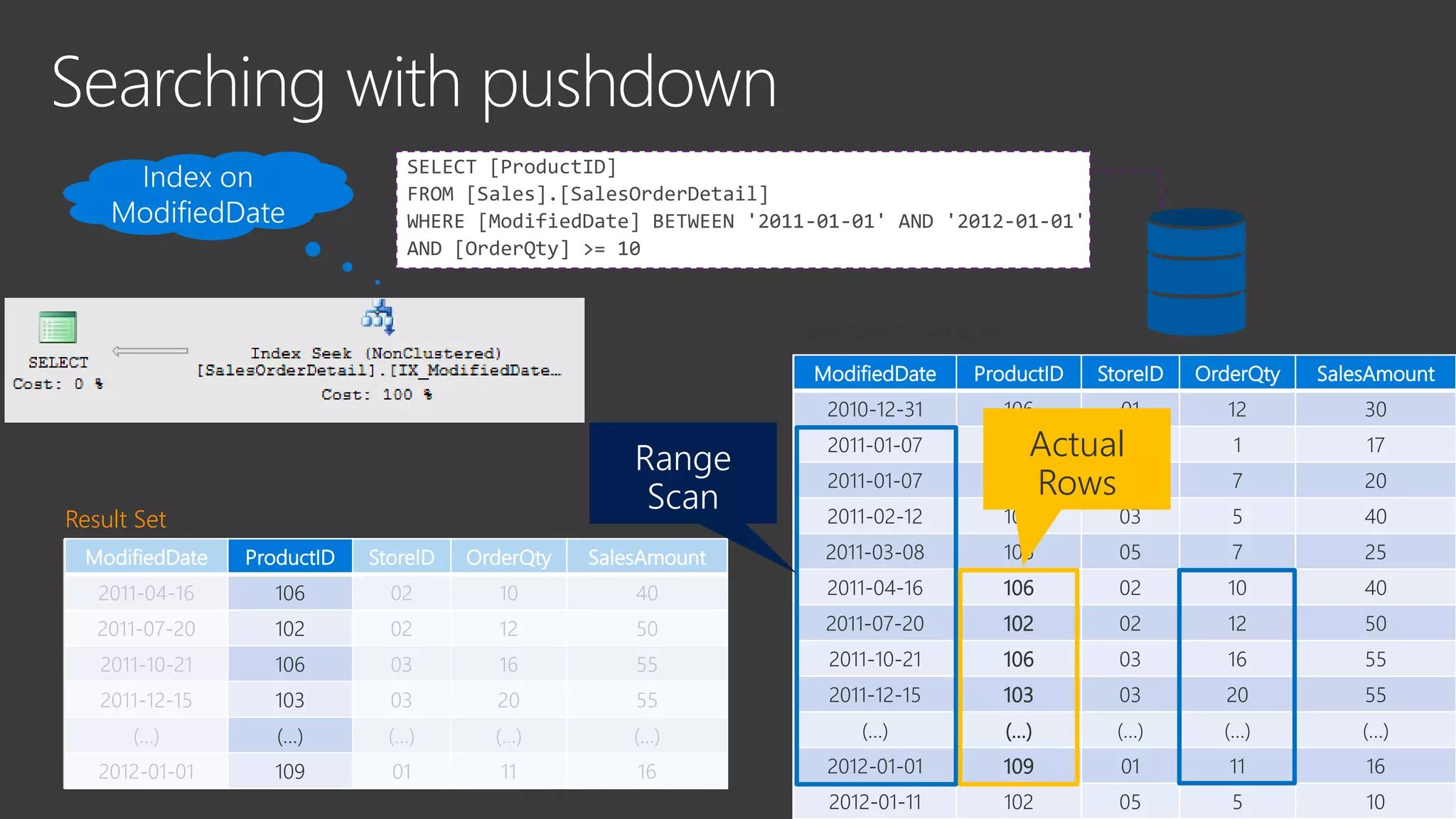

- 25. Searching with pushdown SELECT[ProductID] FROM [Sales].[SalesOrderDetail] WHERE [ModifiedDate] BETWEEN '2011-01-01' AND '2012-01-01' AND [OrderQty] >= 10 ModifiedDate ProductID StoreID OrderQty SalesAmount 2010-12-31 106 01 12 30 2011-01-07 103 04 1 17 2011-01-07 109 04 7 20 2011-02-12 103 03 5 40 2011-03-08 106 05 7 25 2011-04-16 106 02 10 40 2011-07-20 102 02 12 50 2011-10-21 106 03 16 55 2011-12-15 103 03 20 55 (…) (…) (…) (…) (…) 2012-01-01 109 01 11 16 2012-01-11 102 05 5 10 Sales.SalesOrderDetail ModifiedDate ProductID StoreID OrderQty SalesAmount 2010-12-31 106 01 12 30 2011-01-07 103 04 1 17 2011-01-07 109 04 7 20 2011-02-12 103 03 5 40 2011-03-08 106 05 7 25 2011-04-16 106 02 10 40 2011-07-20 102 02 12 50 2011-10-21 106 03 16 55 2011-12-15 103 03 20 55 (…) (…) (…) (…) (…) 2012-01-01 109 01 11 16 2012-01-11 102 05 5 10 ModifiedDate ProductID StoreID OrderQty SalesAmount 2011-04-16 106 02 10 40 2011-07-20 102 02 12 50 2011-10-21 106 03 16 55 2011-12-15 103 03 20 55 (…) (…) (…) (…) (…) 2012-01-01 109 01 11 16 Result Set Actual Rows

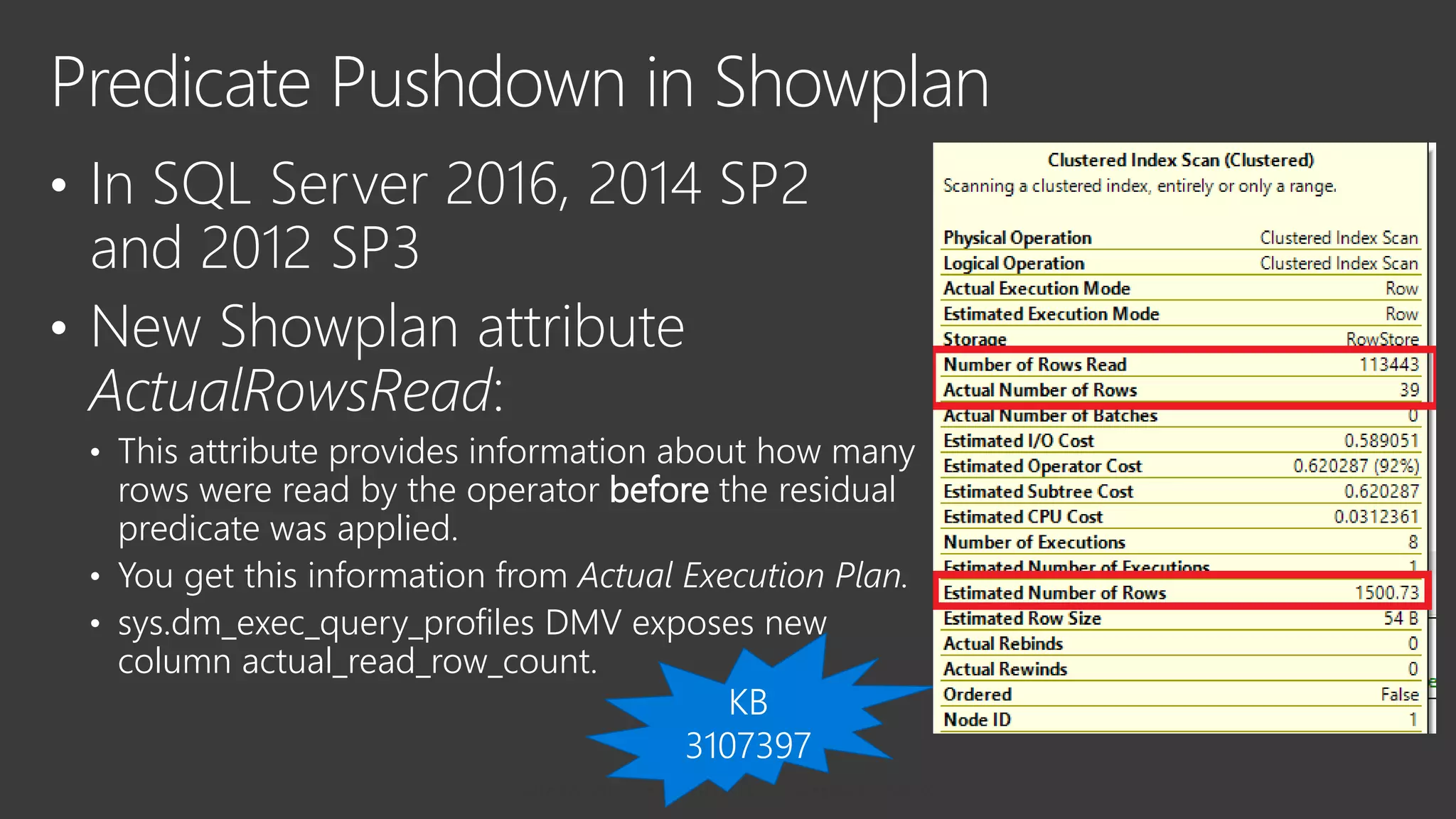

- 26. • In SQLServer 2016, 2014 SP2 and 2012 SP3 • New Showplan attribute ActualRowsRead: • This attribute provides information about how many rows were read by the operator before the residual predicate was applied. • You get this information from Actual Execution Plan. • sys.dm_exec_query_profiles DMV exposes new column actual_read_row_count. Predicate Pushdown in Showplan

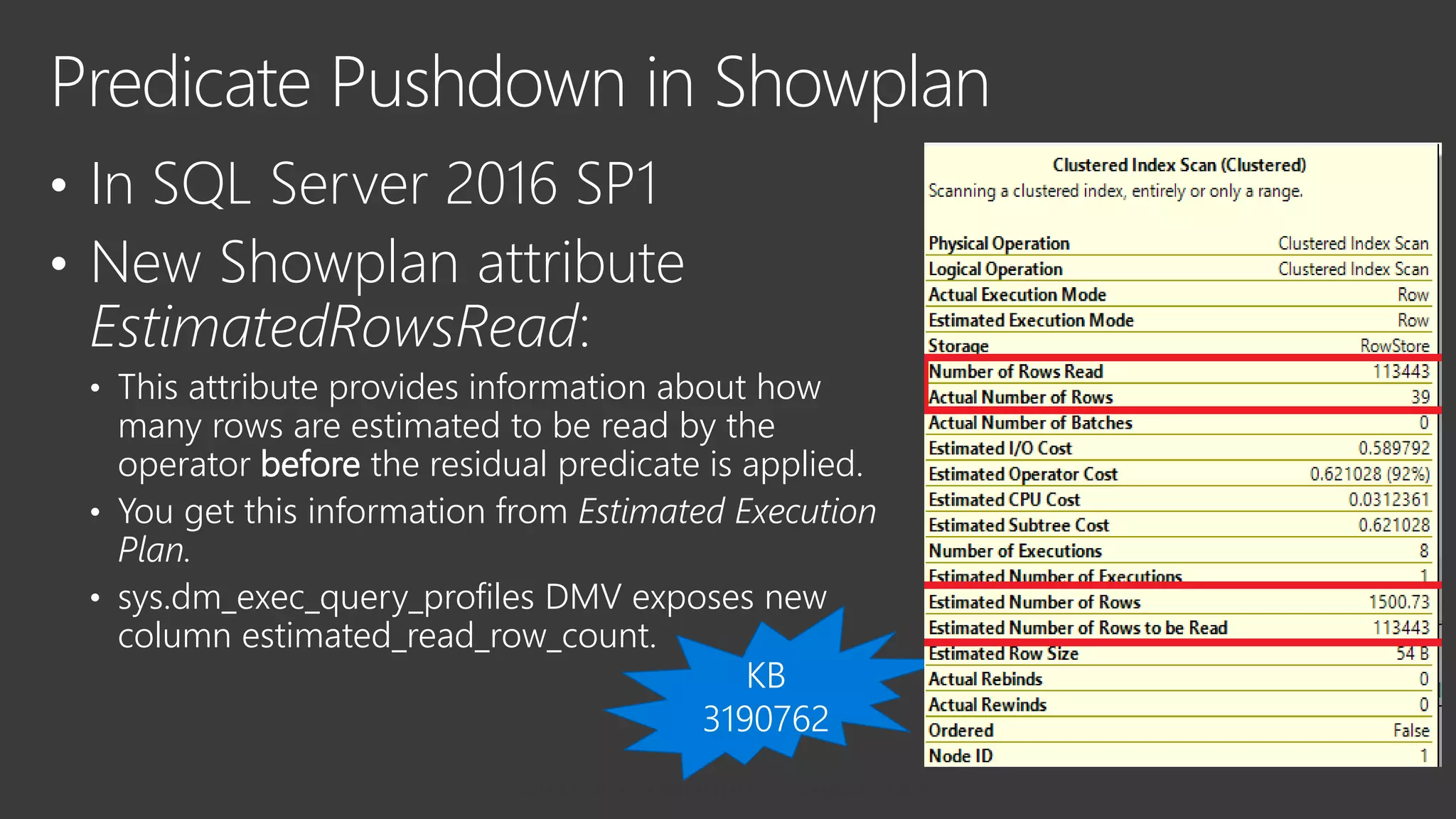

- 27. • In SQLServer 2016 SP1 • New Showplan attribute EstimatedRowsRead: • This attribute provides information about how many rows are estimated to be read by the operator before the residual predicate is applied. • You get this information from Estimated Execution Plan. • sys.dm_exec_query_profiles DMV exposes new column estimated_read_row_count. Predicate Pushdown in Showplan

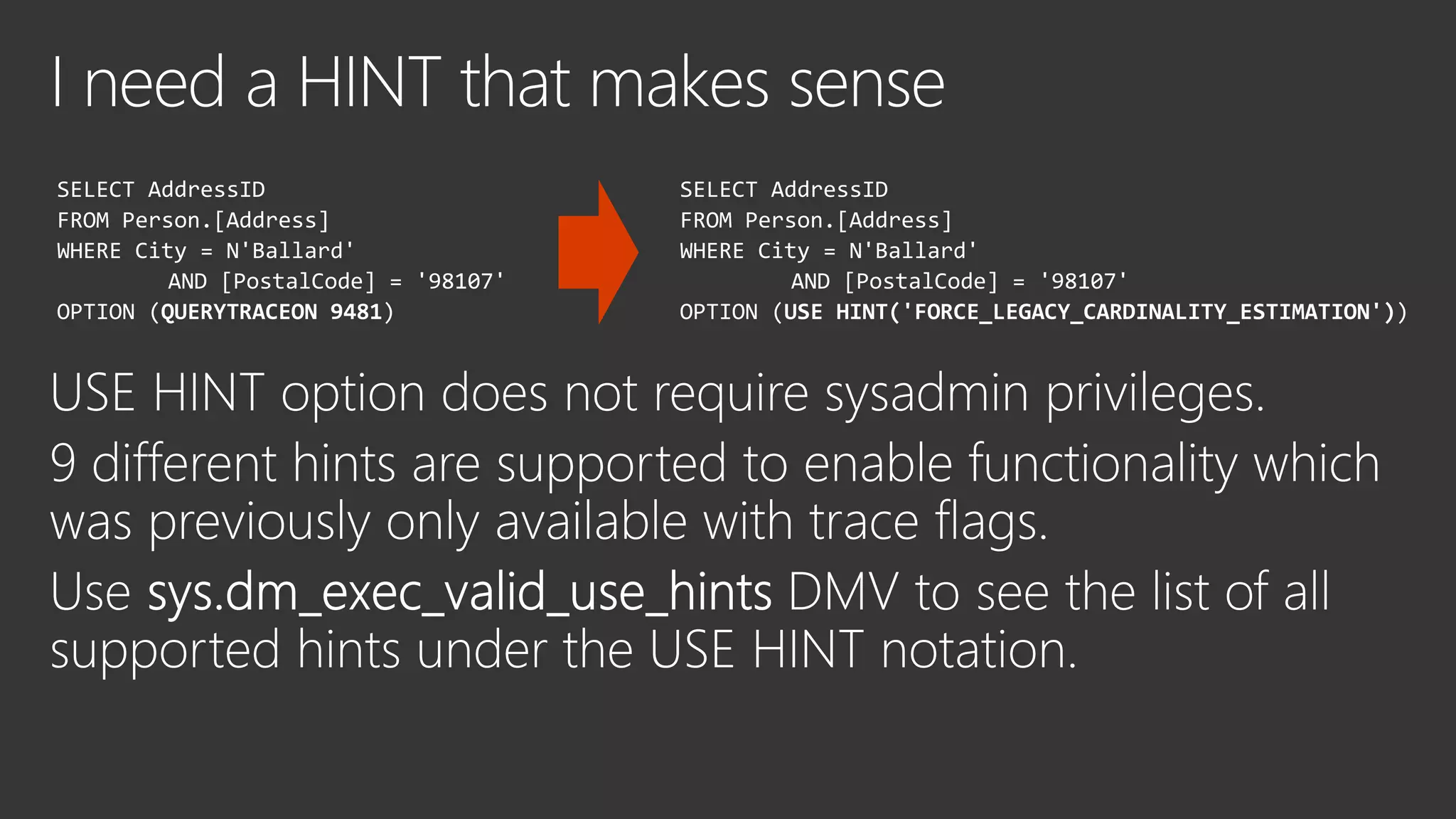

- 29. SELECT AddressID FROM Person.[Address] WHERECity = N'Ballard' AND [PostalCode] = '98107' OPTION (QUERYTRACEON 9481) SELECT AddressID FROM Person.[Address] WHERE City = N'Ballard' AND [PostalCode] = '98107' OPTION (USE HINT('FORCE_LEGACY_CARDINALITY_ESTIMATION'))

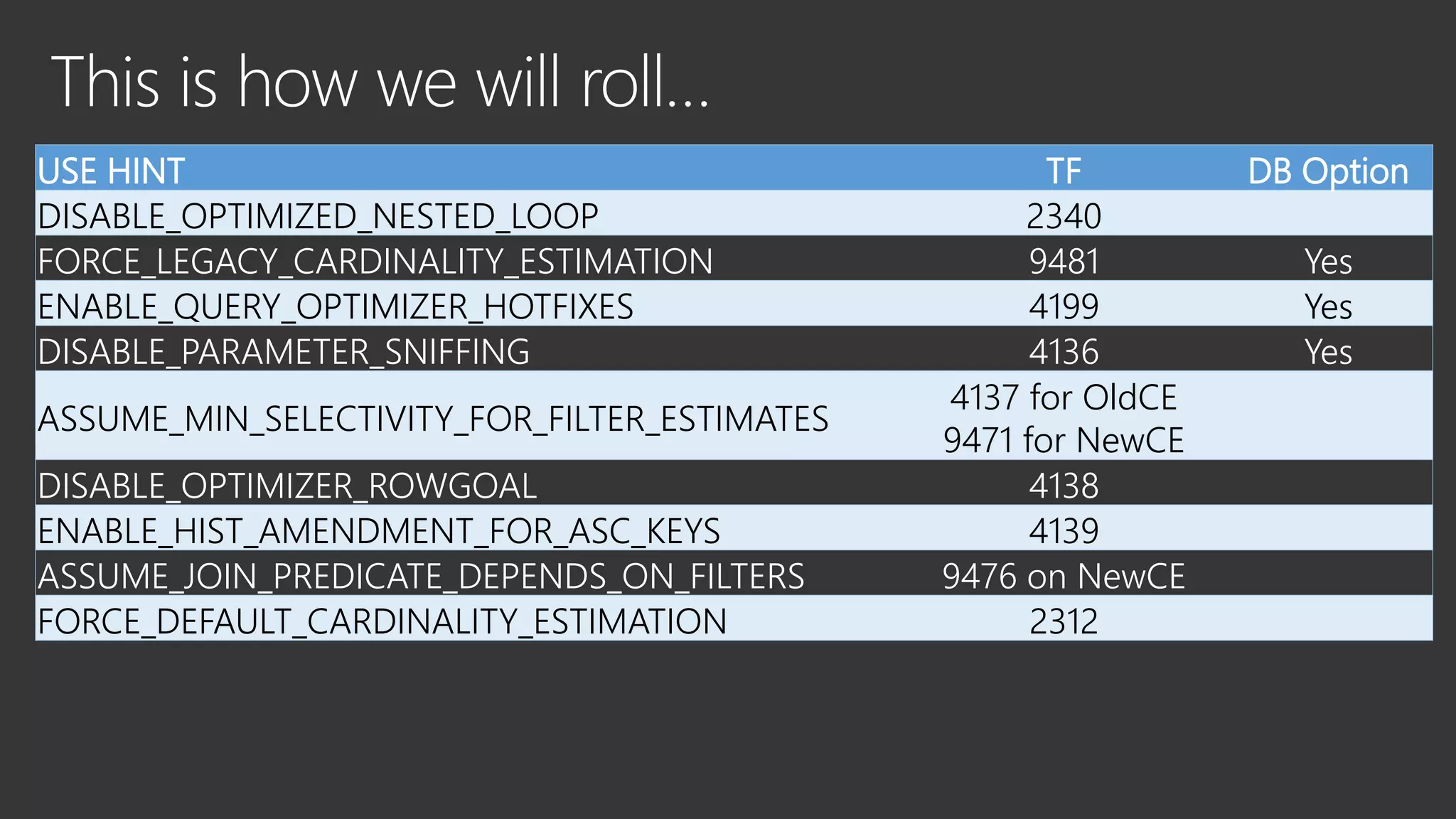

- 30. USE HINT TFDB Option DISABLE_OPTIMIZED_NESTED_LOOP 2340 FORCE_LEGACY_CARDINALITY_ESTIMATION 9481 Yes ENABLE_QUERY_OPTIMIZER_HOTFIXES 4199 Yes DISABLE_PARAMETER_SNIFFING 4136 Yes ASSUME_MIN_SELECTIVITY_FOR_FILTER_ESTIMATES 4137 for OldCE 9471 for NewCE DISABLE_OPTIMIZER_ROWGOAL 4138 ENABLE_HIST_AMENDMENT_FOR_ASC_KEYS 4139 ASSUME_JOIN_PREDICATE_DEPENDS_ON_FILTERS 9476 on NewCE FORCE_DEFAULT_CARDINALITY_ESTIMATION 2312

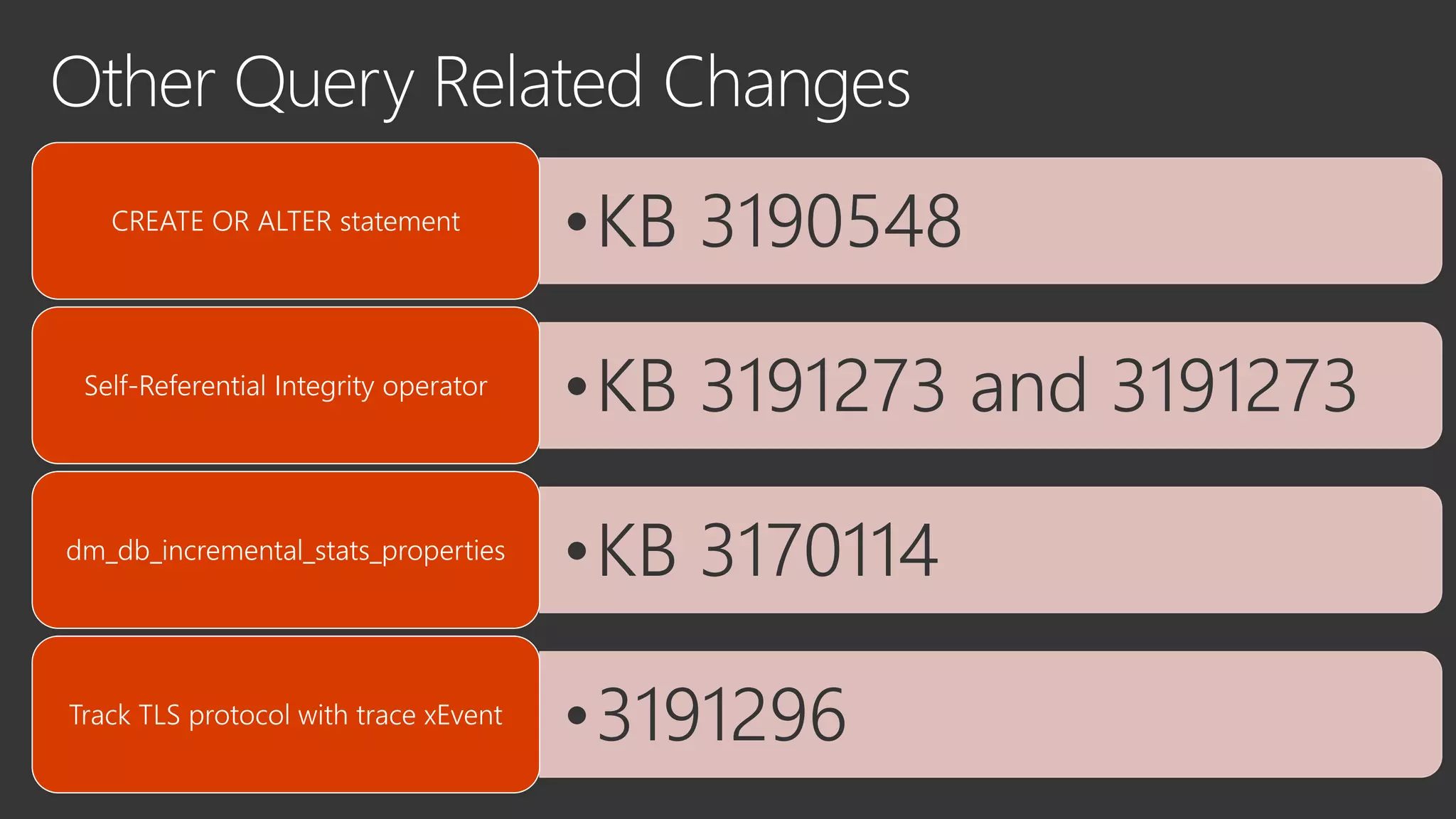

- 32. •KB 3190548CREATE ORALTER statement •KB 3191273 and 3191273Self-Referential Integrity operator •KB 3170114dm_db_incremental_stats_properties •3191296Track TLS protocol with trace xEvent

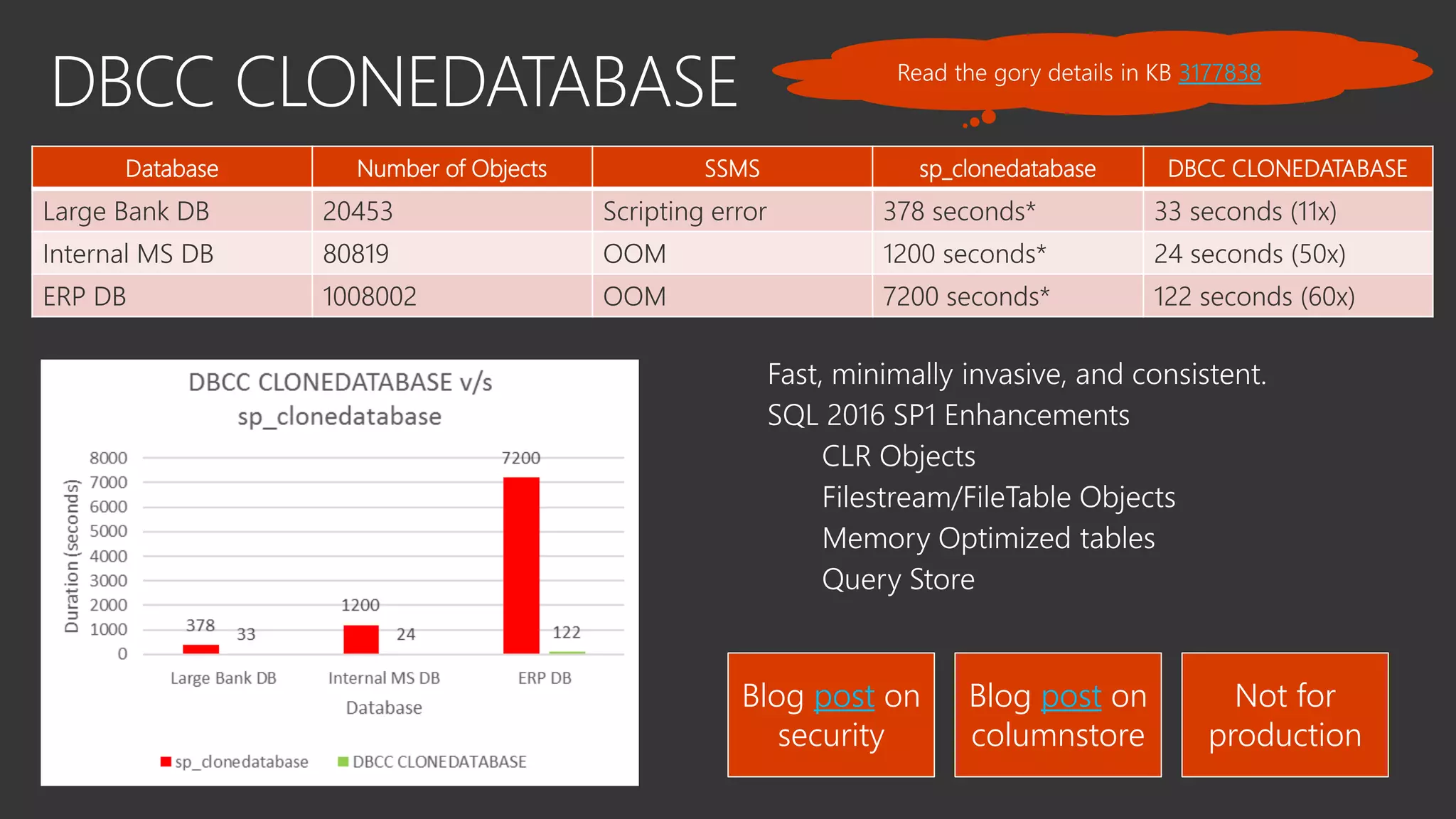

- 36. Database Number ofObjects SSMS sp_clonedatabase DBCC CLONEDATABASE Large Bank DB 20453 Scripting error 378 seconds* 33 seconds (11x) Internal MS DB 80819 OOM 1200 seconds* 24 seconds (50x) ERP DB 1008002 OOM 7200 seconds* 122 seconds (60x) 3177838 Blog post on security Blog post on columnstore Not for production

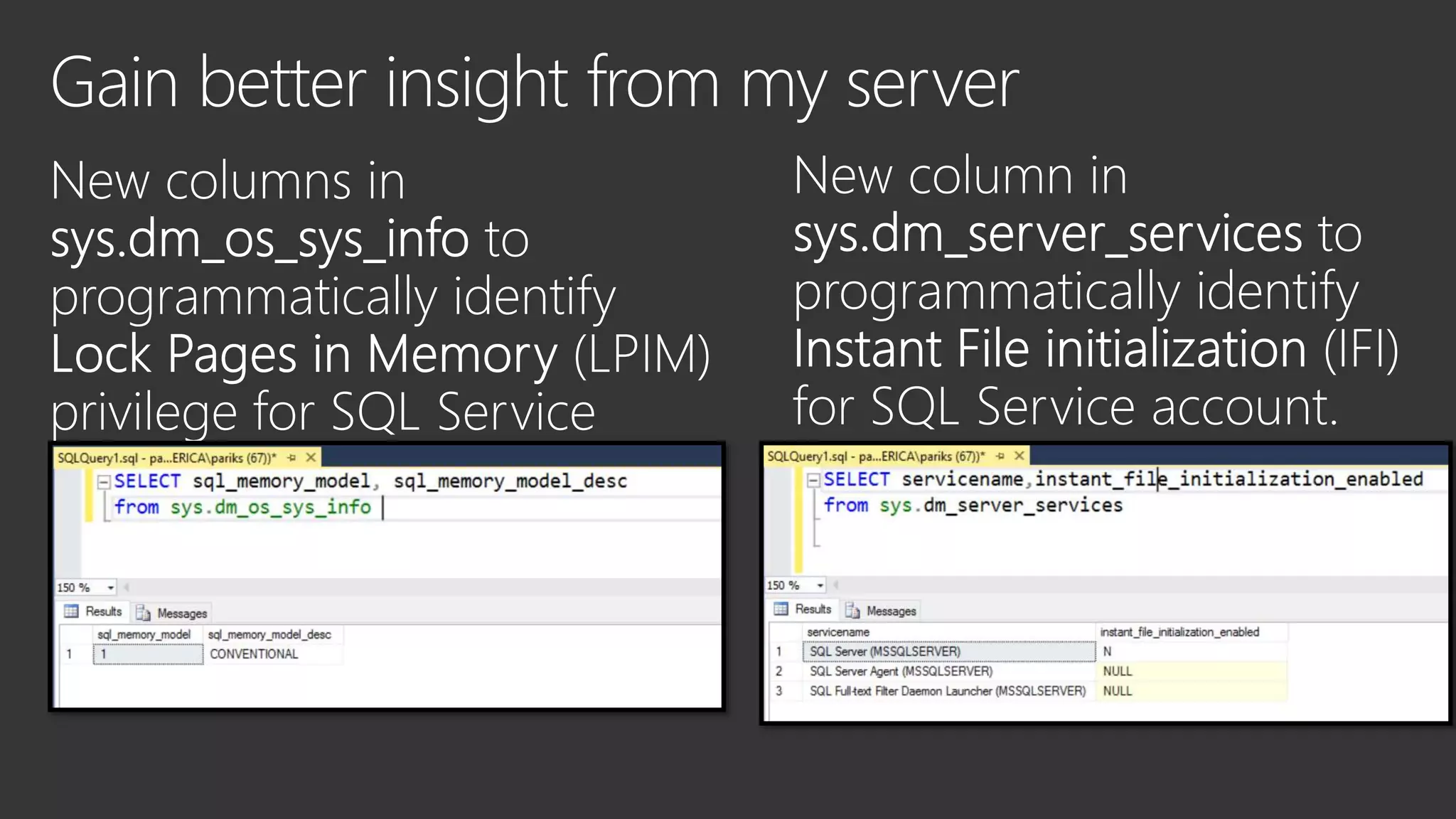

- 37. 1 = ConventionalMemory Model 2 = Lock Pages in Memory 3 = Large Pages in Memory
- 38.
- 40.
- 42.
- 43.

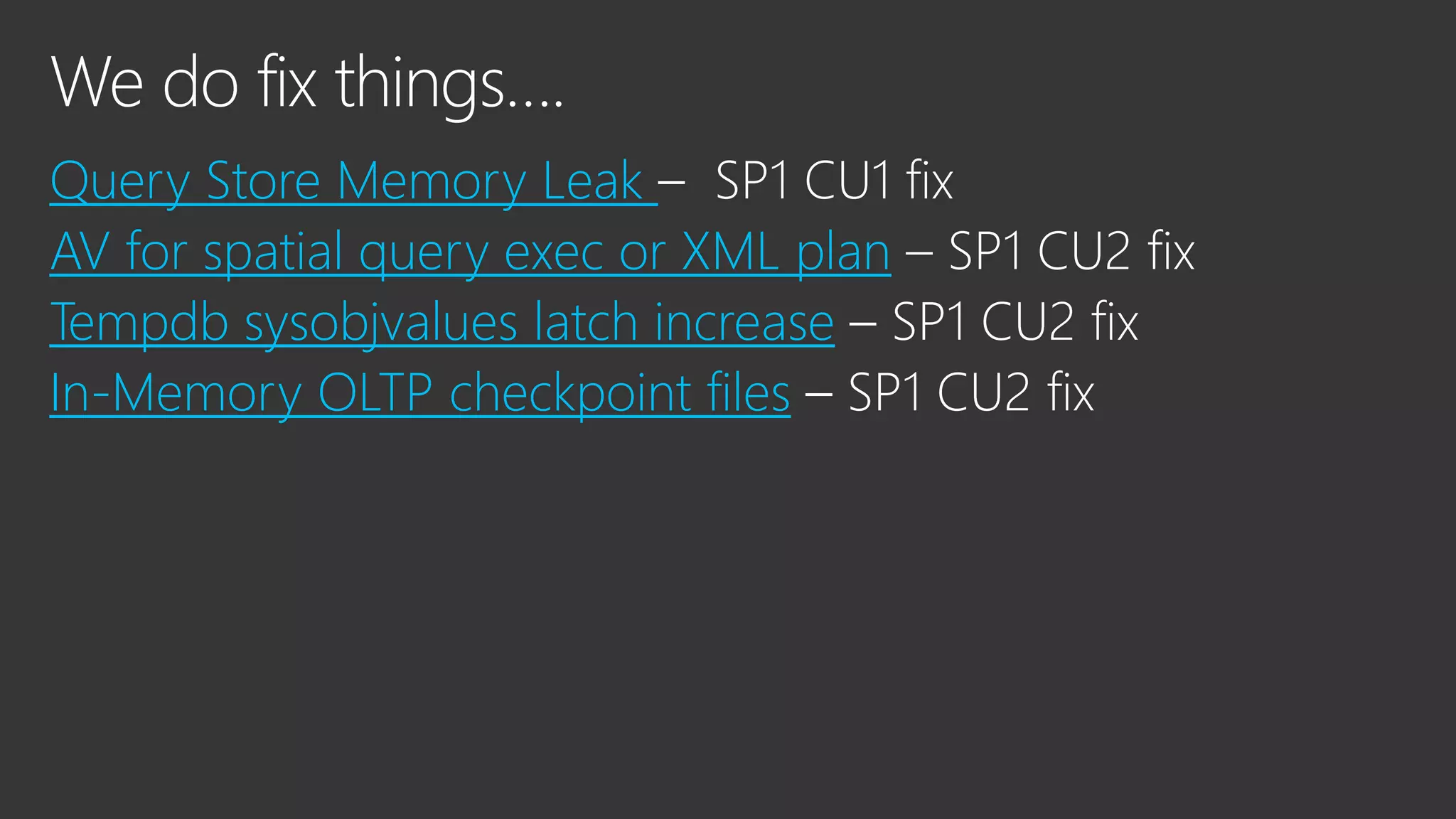

- 44. Query Store MemoryLeak AV for spatial query exec or XML plan Tempdb sysobjvalues latch increase In-Memory OLTP checkpoint files

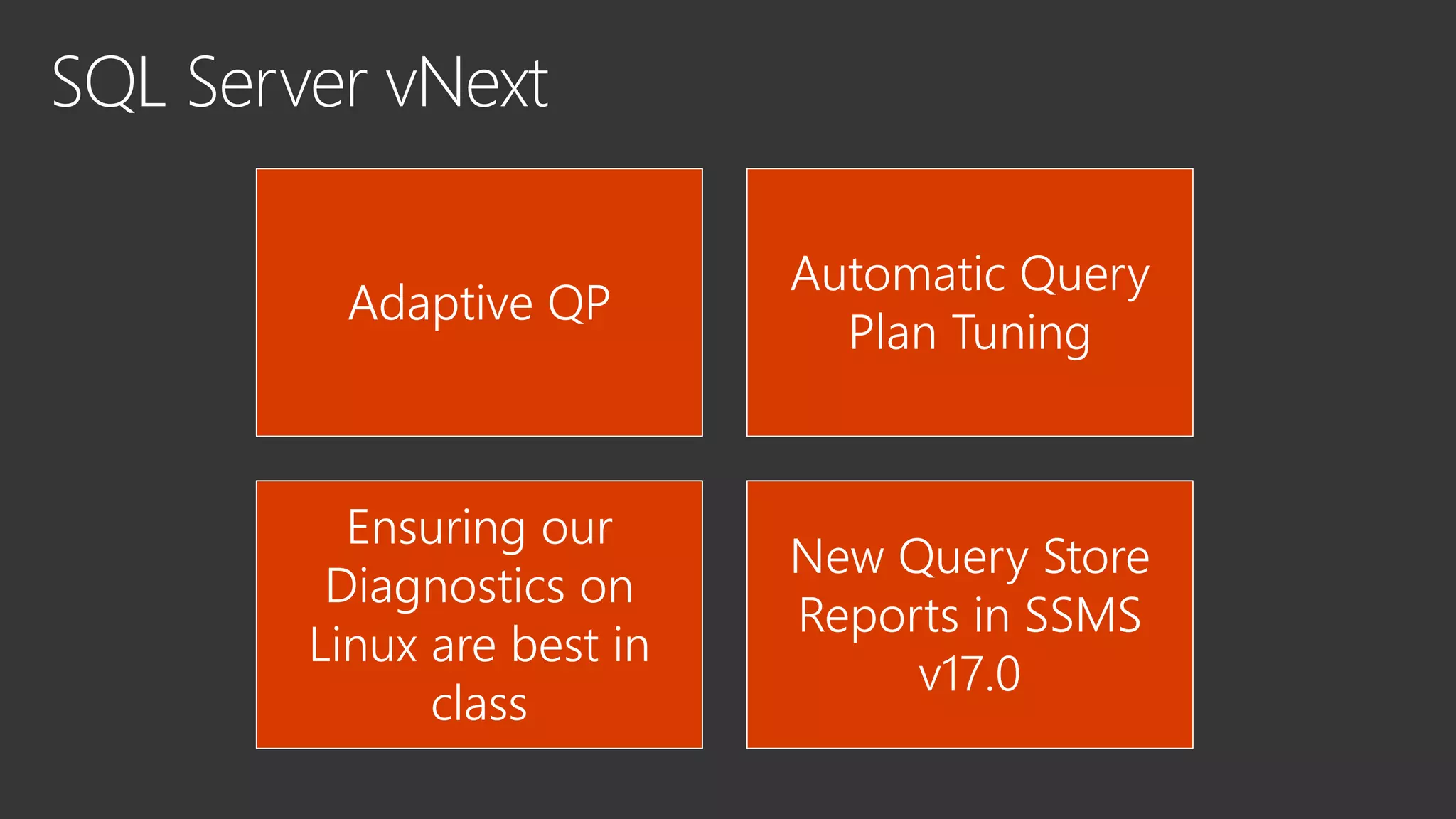

- 46. Adaptive QP Automatic Query PlanTuning Ensuring our Diagnostics on Linux are best in class New Query Store Reports in SSMS v17.0

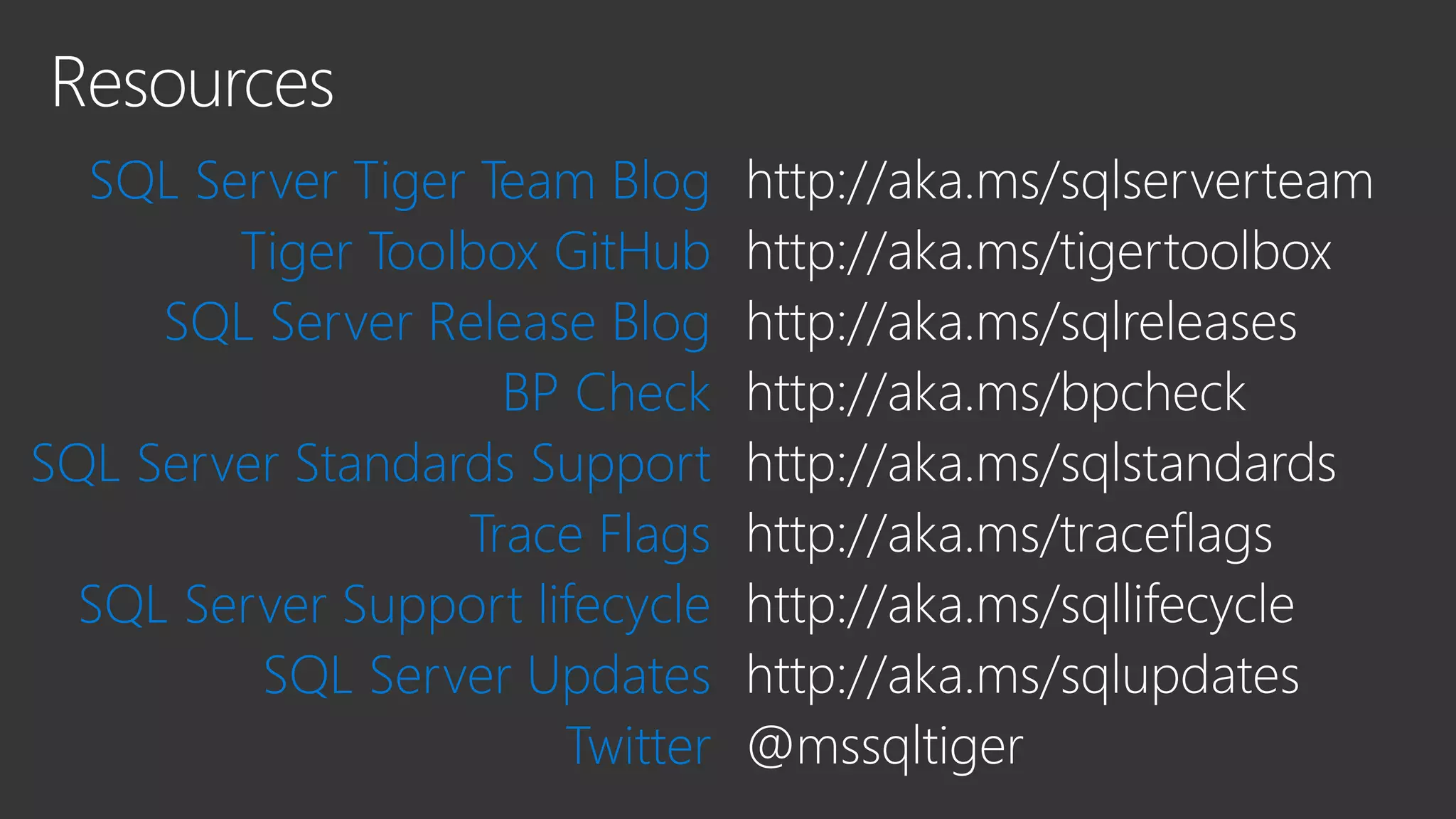

- 47. SQL Server TigerTeam Blog Tiger Toolbox GitHub SQL Server Release Blog BP Check SQL Server Standards Support Trace Flags SQL Server Support lifecycle SQL Server Updates Twitter
Editor's Notes
- #7 Follow the readme.txt in demo1_2016_diagnostics
- #13 Why do I need SQL Server Enterprise edition now with so many programming features in Standard edition? Enterprise edition continues to deliver the highest levels of mission critical scalability, availability, and performance, advanced business intelligence and analytics, as well as maximum virtualization with software assurance. As an example, customers with mission critical enterprise applications and Enterprise Data Warehouses will need SQL Server Enterprise for Mission Critical high availability using Always On, to enable high-density database computing using maximum virtualization available with software assurance, and for maximum performance and scale above what is provided by Standard Edition (128GB all-up and 32GB for In-memory technologies) with up to 24TB of addressable memory and OS max processors when used with Windows Server 2016. In addition, SQL Server Enterprise supports much higher scale limits and grants special virtualization rights for volume license customers. Maximum Virtualization will continue to be a Software Assurance benefit that is only available to Enterprise Edition customers. More details are covered later in this FAQ.
- #22 When you are troubleshooting query performance, metrics are never too much. With that in mind, based on customer feedback, but also our own CSS support, we have added runtime information to Showplan, and exposed a new Extended Event in SQL Server 2016. Regarding Showplan, take a test query on which we are doing a Clustered index Scan, and look the information available until SQL Server 2014: <RunTimeInformation> <RunTimeCountersPerThread Thread="0" ActualRows="8001" ActualEndOfScans="1" ActualExecutions="1" /> </RunTimeInformation> We can see the scan returned 8001 rows, but that doesn’t give you much insight regarding performance of the scan. But below we can observe what kind of detail we can get from runtime stats in SQL Server 2016 RC0. These include the actual rows read, I/O Reads, CPU time, and elapsed time, all exposed per-thread: <RunTimeInformation> <RunTimeCountersPerThread Thread="0" ActualRows="8001" ActualRowsRead="10000000" Batches="0" ActualEndOfScans="1" ActualExecutions="1" ActualExecutionMode="Row" ActualElapsedms="965" ActualCPUms="965" ActualScans="1" ActualLogicalReads="26073" ActualPhysicalReads="0" ActualReadAheads="0" ActualLobLogicalReads="0" ActualLobPhysicalReads="0" ActualLobReadAheads="0" InputMemoryGrant="115008" OutputMemoryGrant="4400" UsedMemoryGrant="2208“ /> </RunTimeInformation> We have also introduced a new Extended Event (query_thread_profile), allowing more insight on the performance of each node and thread: Note: Showplan time scale is shown in milliseconds, while the xEvent shows microseconds for CPU and total time.
- #24 Follow the instructions in demo2__query_diagnostics
- #29 © 2014 Microsoft Corporation. All rights reserved. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
- #30 © 2014 Microsoft Corporation. All rights reserved. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
- #31 Follow the instructions in readme.txt in demo3_pred_push

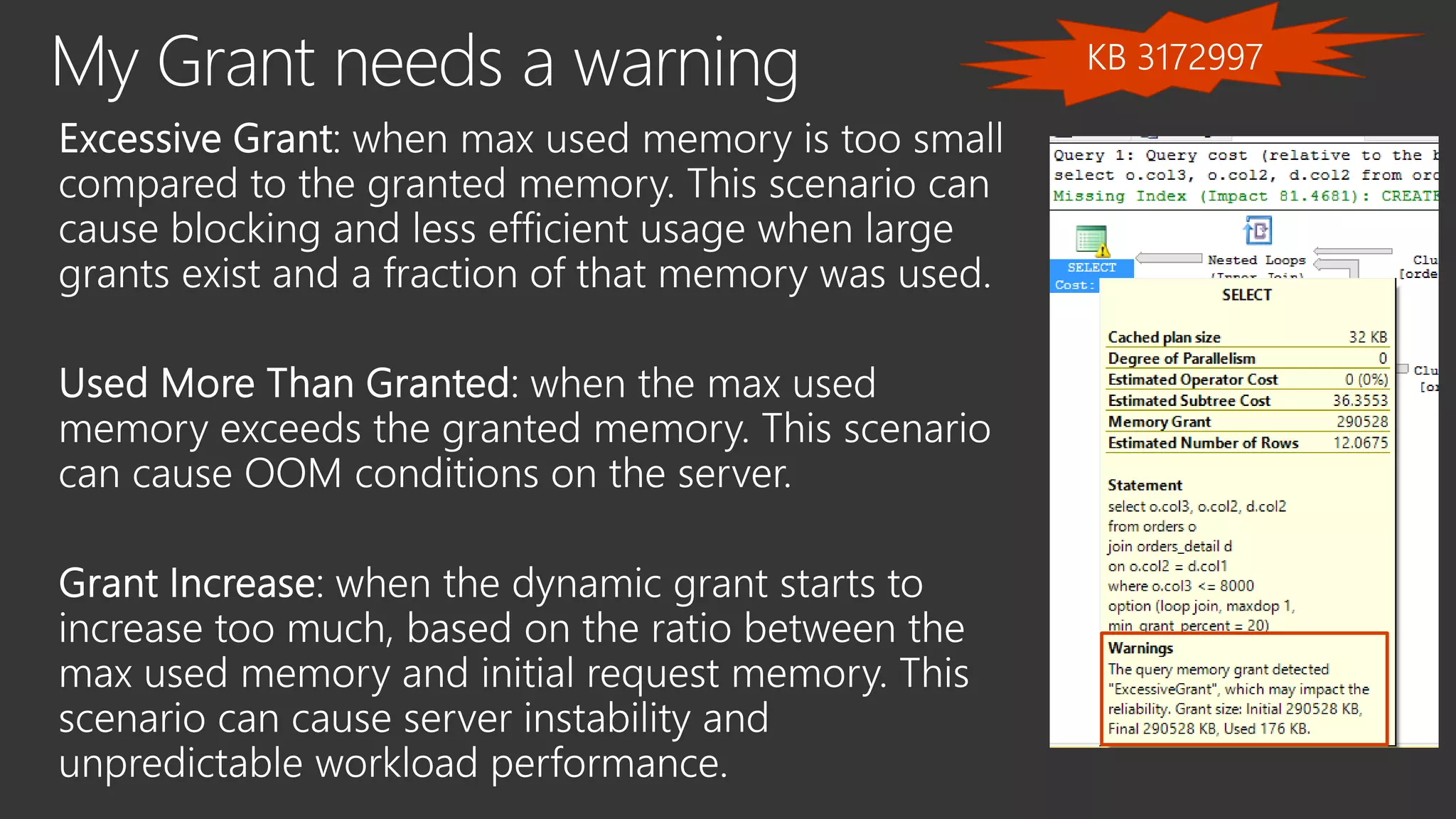

- #34 Ex. For excessive mem grant, you can see how to improve estimations (perhaps update stats), or administratively by using MIN_PERCENT_GRANT and /or MAX_PERCENT_GRANT query hints.
- #36 Follow the instructions in demo4_grant_warning
