Advanced tips for making Oracle databases faster

Advanced Performance
Tuning Tips
Janis Griffin
Senior DBA
1

Who Am I?
» Senior DBA for Solarwinds
 Janis.Griffin@solarwinds.com
 Twitter - @DoBoutAnything
 Current – 25+ Years in Oracle, Sybase, SQL Server
 DBA and Developer
» Specialize in Performance Tuning
» Review Database Performance for Customers and Prospects
» Common Thread – Paralyzed by Tuning
2

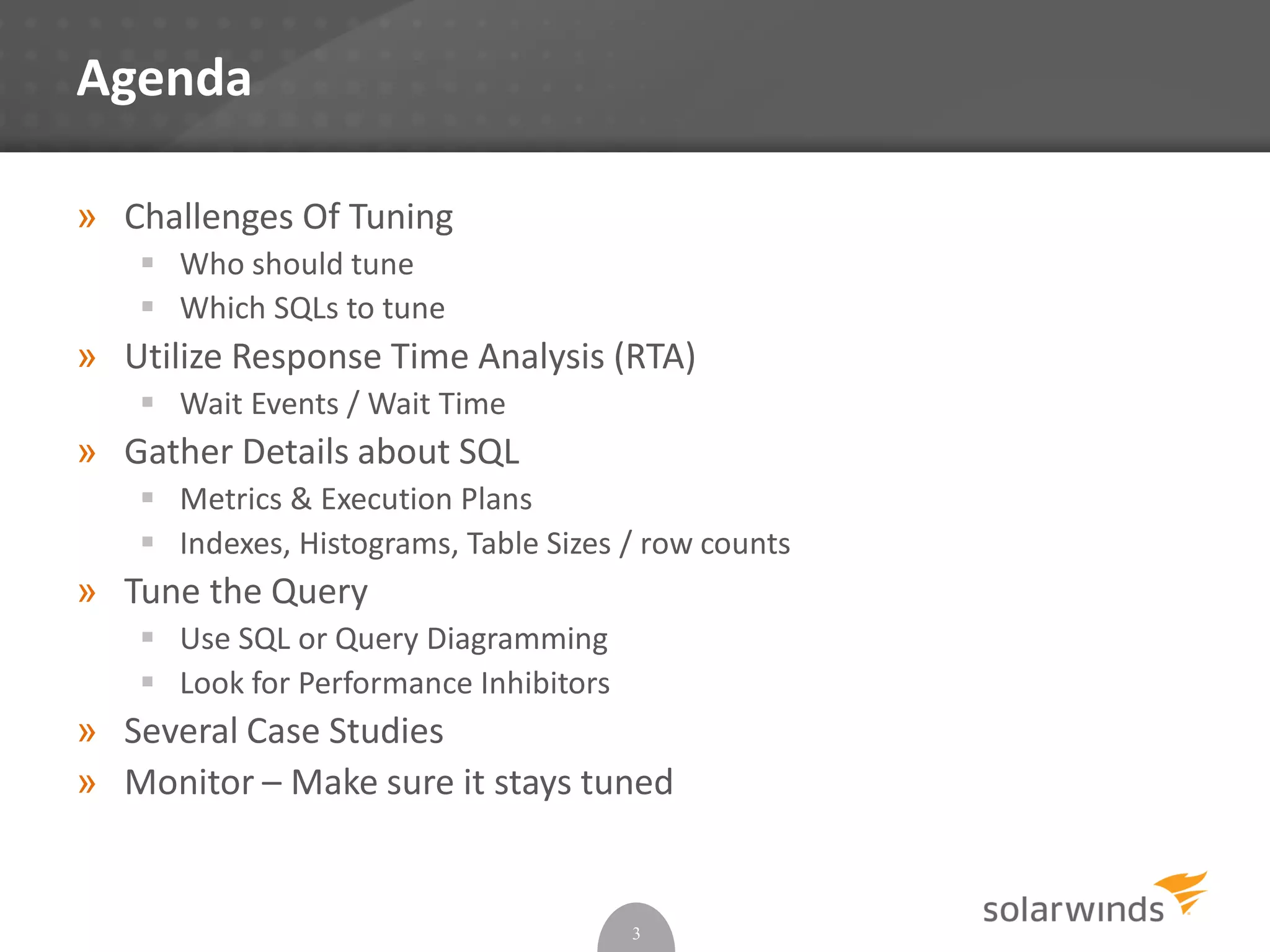

Agenda
» Challenges Of Tuning
 Who should tune
 Which SQLs to tune
» Utilize Response Time Analysis (RTA)
 Wait Events / Wait Time
» Gather Details about SQL
 Metrics & Execution Plans
 Indexes, Histograms, Table Sizes / row counts
» Tune the Query
 Use SQL or Query Diagramming
 Look for Performance Inhibitors
» Several Case Studies
» Monitor – Make sure it stays tuned
3

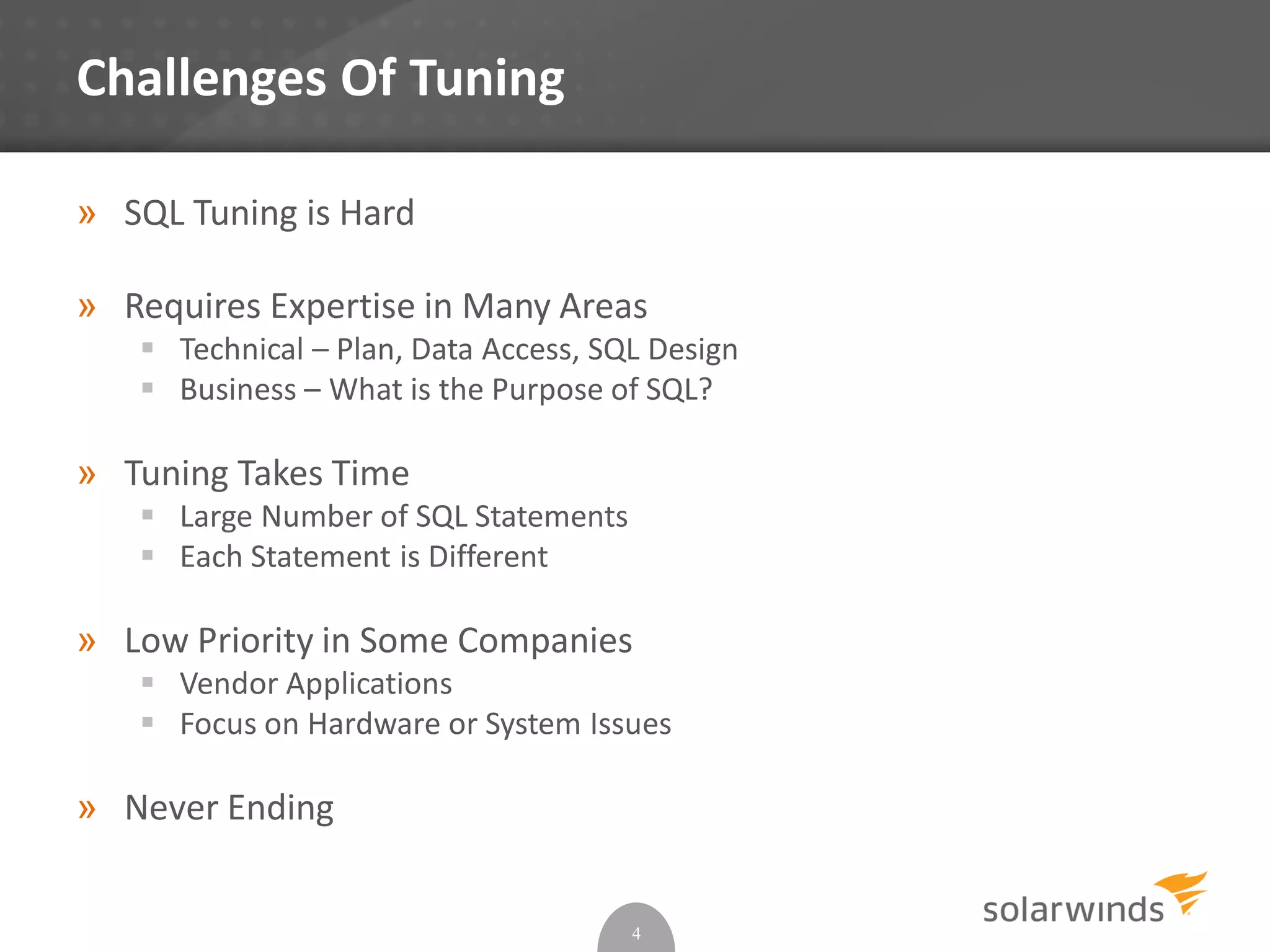

Challenges Of Tuning
» SQL Tuning is Hard
» Requires Expertise in Many Areas
 Technical – Plan, Data Access, SQL Design
 Business – What is the Purpose of SQL?
» Tuning Takes Time
 Large Number of SQL Statements
 Each Statement is Different
» Low Priority in Some Companies
 Vendor Applications
 Focus on Hardware or System Issues
» Never Ending
4

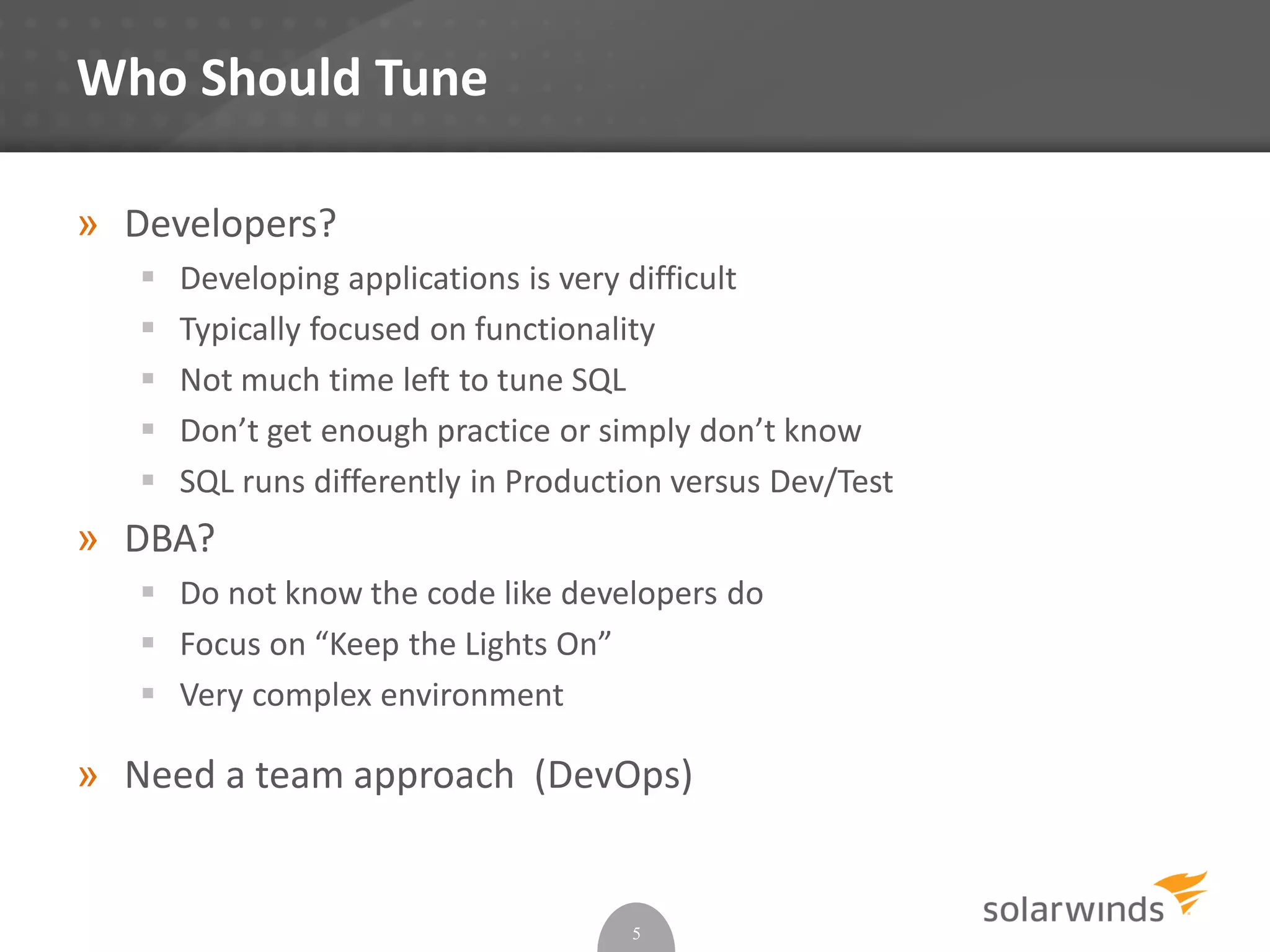

Who Should Tune
» Developers?
 Developing applications is very difficult
 Typically focused on functionality
 Not much time left to tune SQL
 Don’t get enough practice or simply don’t know
 SQL runs differently in Production versus Dev/Test
» DBA?
 Do not know the code like developers do
 Focus on “Keep the Lights On”
 Very complex environment
» Need a team approach (DevOps)
5

Which SQL to Tune
Methods for Identifying
» User / Batch Job Complaints
 Known Poorly Performing SQL
 Trace Session/Process
» Queries Performing Most I/O (LIO, PIO)
 Table or Index Scans
» Queries Consuming CPU
» Highest Response Times - DPA (formally Ignite)
6

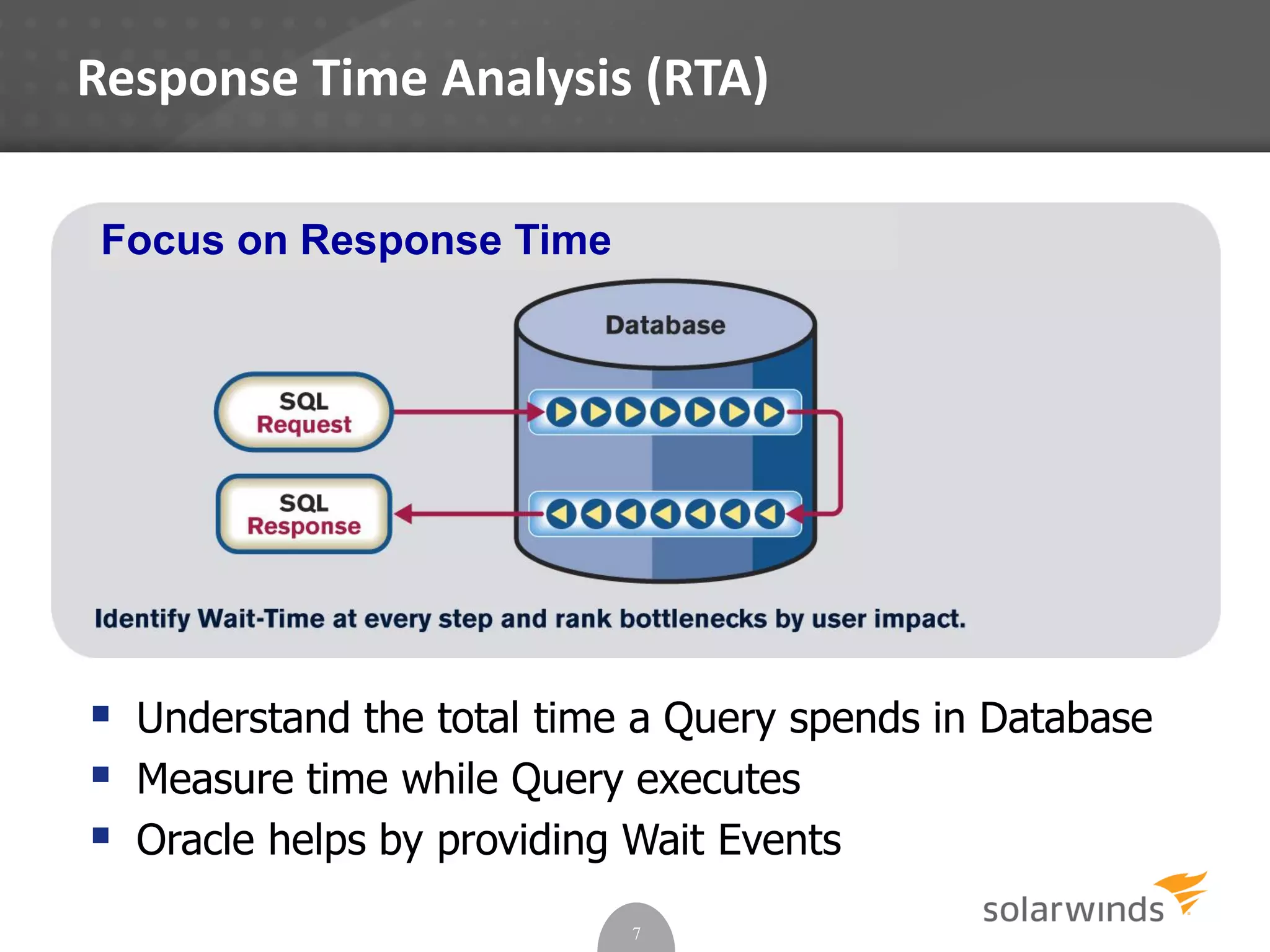

Response Time Analysis (RTA)
7
 Understand the total time a Query spends in Database
 Measure time while Query executes
 Oracle helps by providing Wait Events
Focus on Response Time

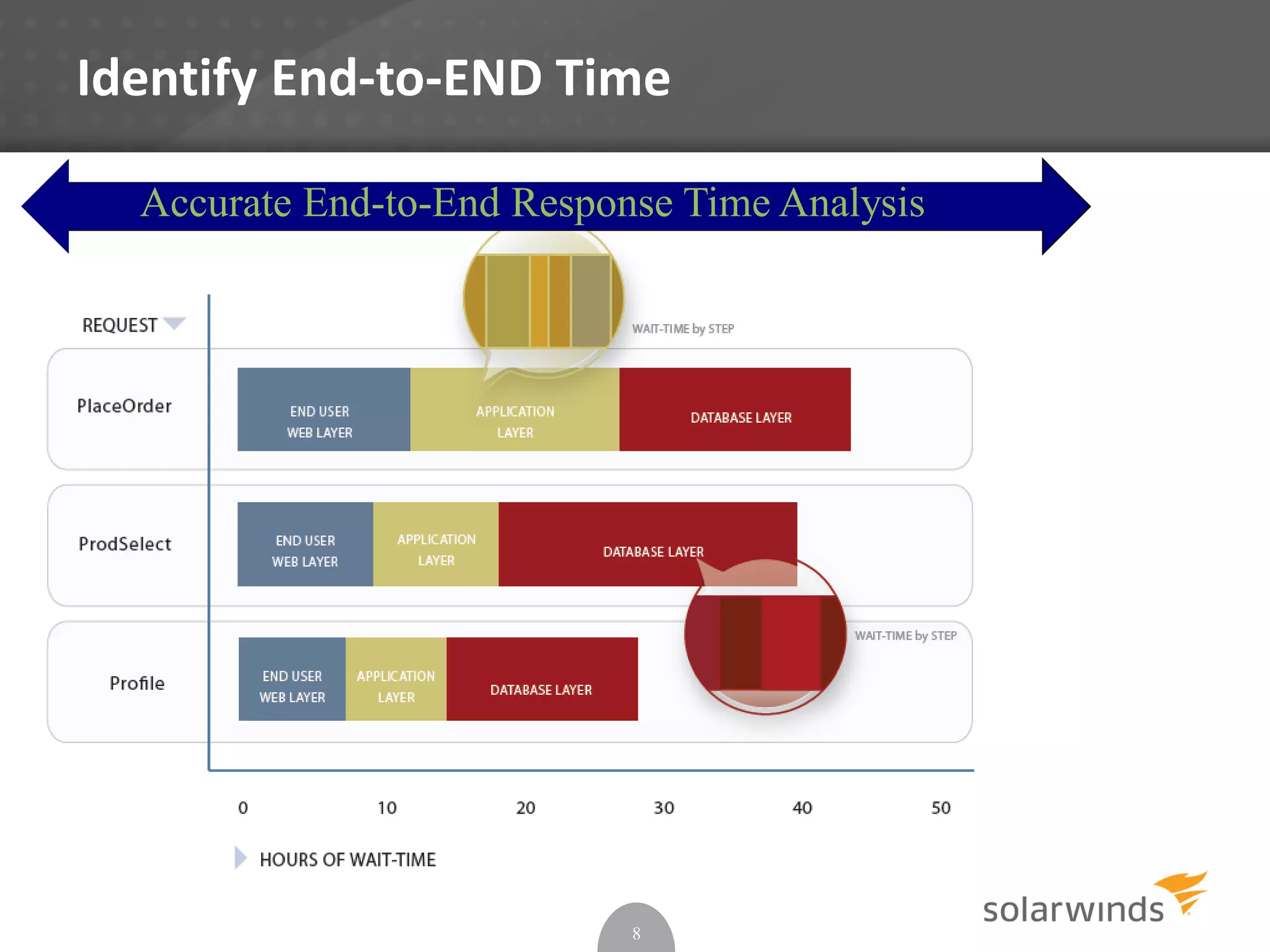

Identify End-to-END Time
8
Accurate End-to-End Response Time Analysis

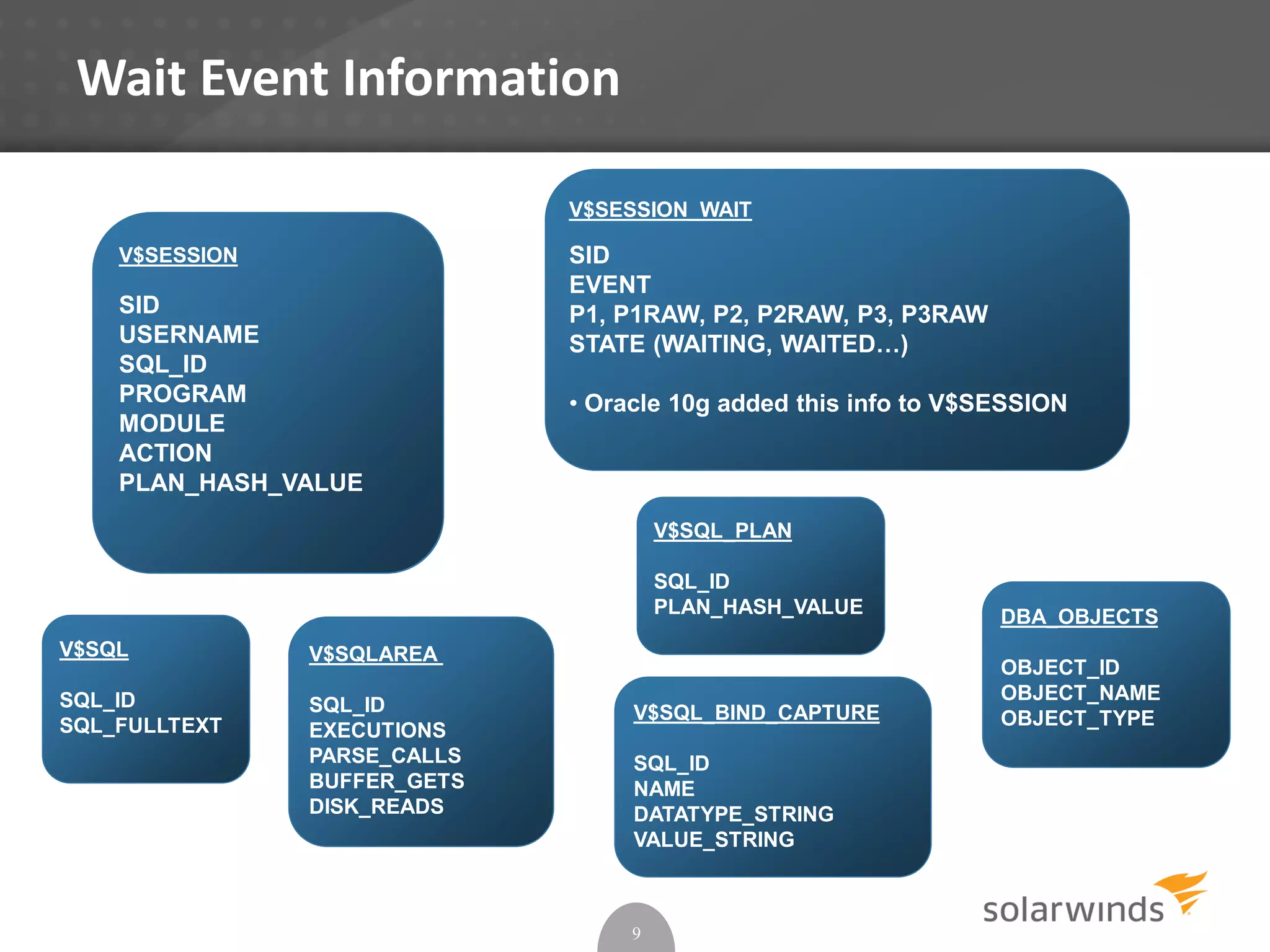

Wait Event Information
9
V$SESSION
SID
USERNAME
SQL_ID
PROGRAM
MODULE
ACTION
PLAN_HASH_VALUE
V$SQL_PLAN
SQL_ID
PLAN_HASH_VALUE DBA_OBJECTS
OBJECT_ID
OBJECT_NAME
OBJECT_TYPEV$SQL_BIND_CAPTURE
SQL_ID
NAME
DATATYPE_STRING
VALUE_STRING
V$SQL
SQL_ID
SQL_FULLTEXT
V$SESSION
SID
USERNAME
SQL_ID
PROGRAM
MODULE
ACTION
PLAN_HASH_VALUE
V$SQLAREA
SQL_ID
EXECUTIONS
PARSE_CALLS
BUFFER_GETS
DISK_READS
V$SESSION_WAIT
SID
EVENT
P1, P1RAW, P2, P2RAW, P3, P3RAW
STATE (WAITING, WAITED…)
• Oracle 10g added this info to V$SESSION

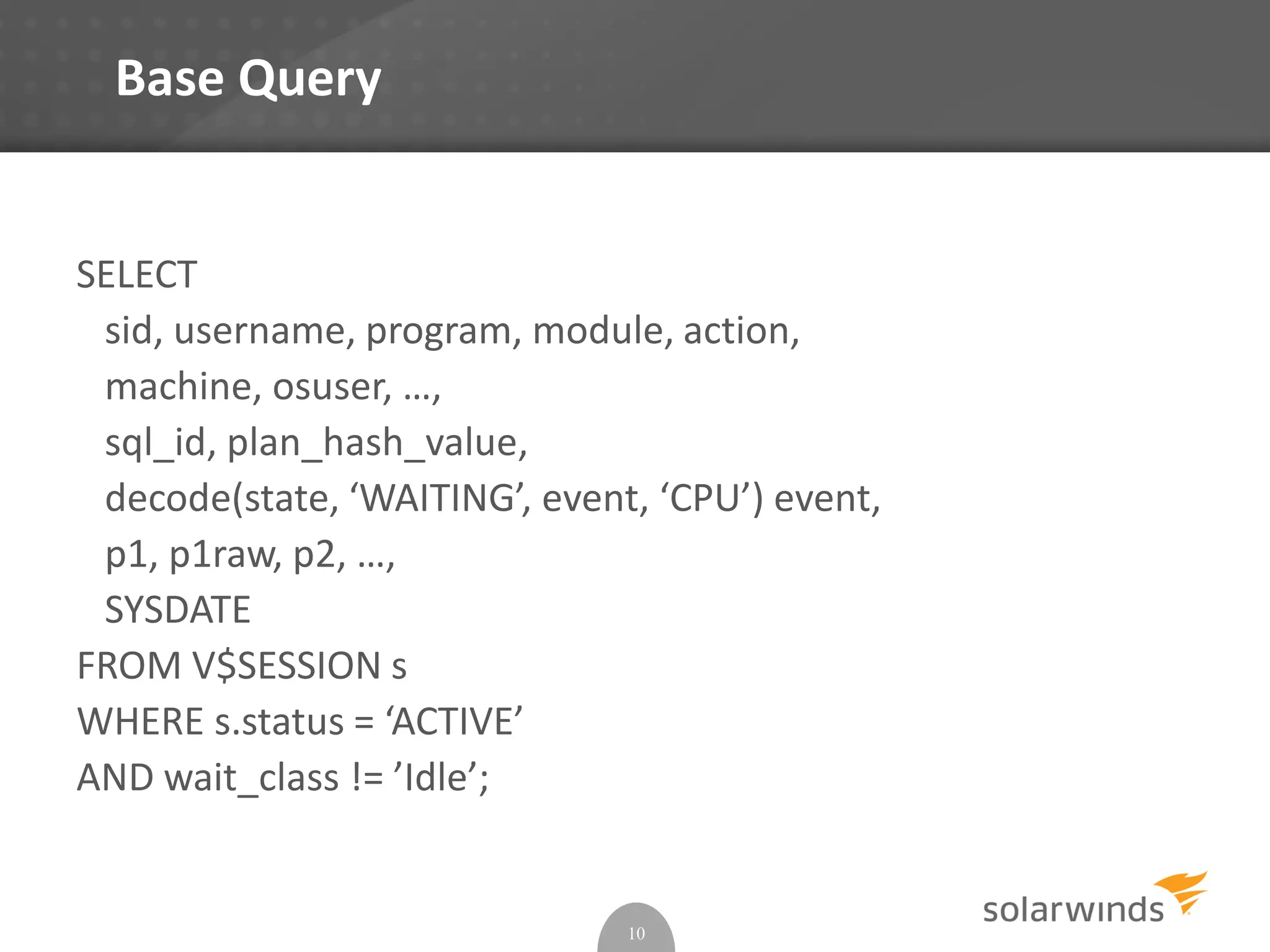

Base Query
SELECT
sid, username, program, module, action,
machine, osuser, …,
sql_id, plan_hash_value,
decode(state, ‘WAITING’, event, ‘CPU’) event,
p1, p1raw, p2, …,
SYSDATE
FROM V$SESSION s
WHERE s.status = ‘ACTIVE’
AND wait_class != ’Idle’;
10

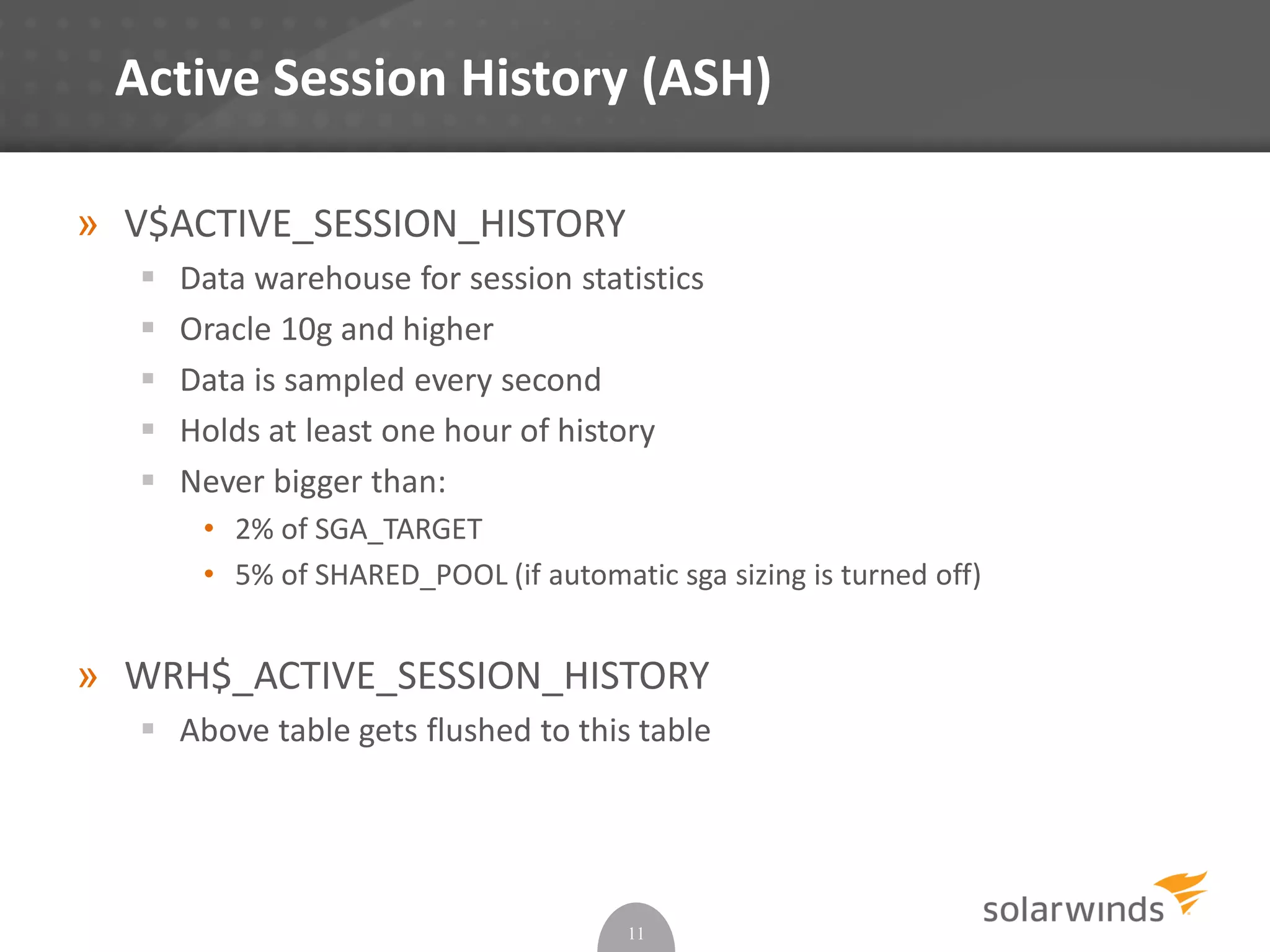

Active Session History (ASH)
» V$ACTIVE_SESSION_HISTORY
 Data warehouse for session statistics
 Oracle 10g and higher
 Data is sampled every second
 Holds at least one hour of history
 Never bigger than:
• 2% of SGA_TARGET
• 5% of SHARED_POOL (if automatic sga sizing is turned off)
» WRH$_ACTIVE_SESSION_HISTORY
 Above table gets flushed to this table
11

RTA - Wait Time & Events
12
12
Approx 1 hr of time
in database. 69% is
spent on CPU
resource
Almost half of the
time is spent on
latching issues
Top SQL Statements | SPRD2_PROD2 | January 20, 2014 8:00AM to 9 :00AM

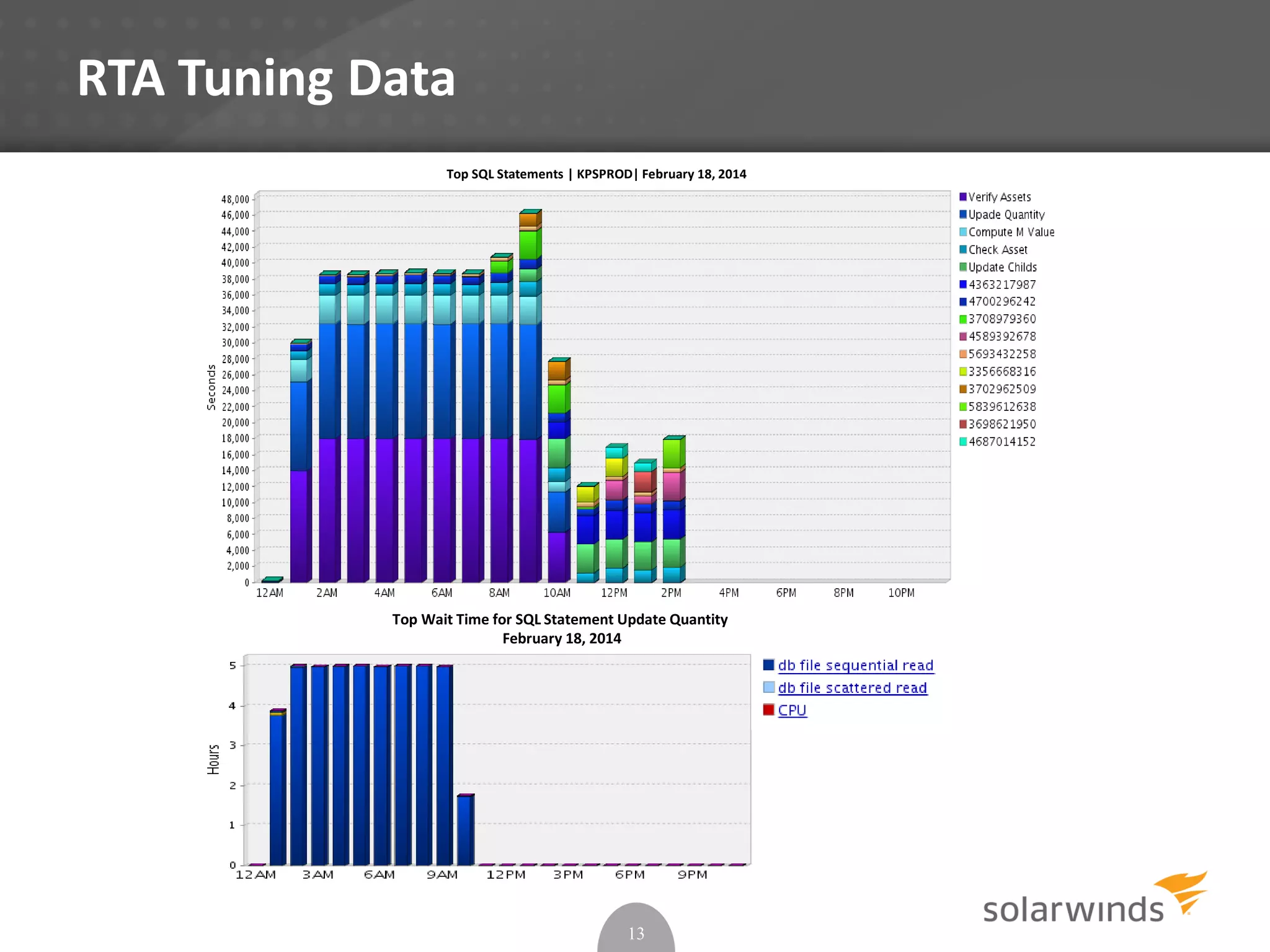

RTA Tuning Data
13
Top SQL Statements | KPSPROD| February 18, 2014
Top Wait Time for SQL Statement Update Quantity
February 18, 2014

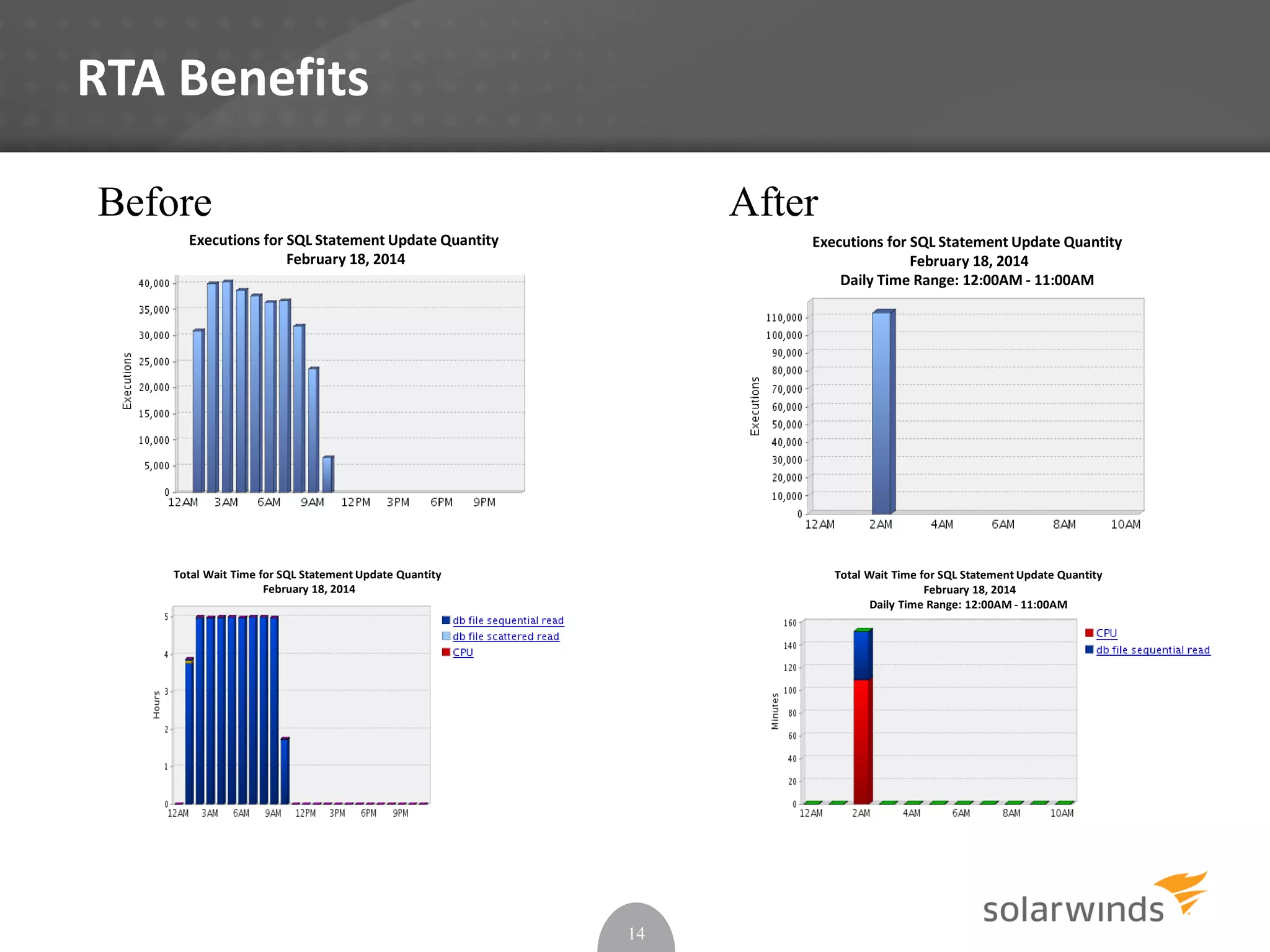

RTA Benefits
14
Before After
Executions for SQL Statement Update Quantity
February 18, 2014
Total Wait Time for SQL Statement Update Quantity
February 18, 2014
Total Wait Time for SQL Statement Update Quantity
February 18, 2014
Daily Time Range: 12:00AM - 11:00AM
Executions for SQL Statement Update Quantity
February 18, 2014
Daily Time Range: 12:00AM - 11:00AM

Get Execution Plan
» EXPLAIN PLAN
 Estimated plan - can be wrong for many reasons
• Best Guess, Blind to Bind Variables or Data types
• Explain Plan For … sql statement
• Set autotrace (on | trace | exp | stat | off)
» V$SQL_PLAN (Oracle 9i+)
 Actual execution plan
 Use DBMS_XPLAN for display
» Tracing (all versions) / TKPROF
 Get all sorts of good information
 Works when you know a problem will occur
» Historical Plans – AWR, Solarwinds DPA
 Shows plan changes over time
15

View Using Display Plan
EXPLAIN PLAN
SET STATEMENT_ID = 'inventory' FOR
SELECT PRODUCTS.PRODUCT_ID, PRODUCT_NAME, PRODUCT_DESCRIPTION,CATEGORY_ID, WEIGHT_CLASS,
WARRANTY_PERIOD, SUPPLIER_ID, PRODUCT_STATUS,
LIST_PRICE,MIN_PRICE, CATALOG_URL, QUANTITY_ON_HAND
FROM PRODUCTS,
INVENTORIES
WHERE INVENTORIES.PRODUCT_ID = PRODUCTS.PRODUCT_ID
AND PRODUCTS.CATEGORY_ID = :B3
AND INVENTORIES.WAREHOUSE_ID = :B2
AND ROWNUM < :B1;
set pages 0 head off
set linesize 132
set long 1000000
col xplan format a100
spool inventory.html
SELECT dbms_xplan.display_plan(statement_id => 'inventory',type=>'HTML') AS XPLAN
FROM dual;
spool off;
17

View Using Display Plan
18
Free Graphical tool: http://www.epviewer.bplaced.net/epviewer

© 2014 SOLARWINDS WORLDWIDE, LLC. ALL RIGHTS
RESERVED.
Examine the Execution Plan
» Is Execution Plan Supported by:
 SQL Plan Management or Baselines
 Dynamic Statistics or a SQL Directive
• Histograms
 Adaptive plans or Adaptive Cursor Sharing
» Find Expensive Operators
 Examine cost, row counts and time of each step
 Look for full table or index scans
» Review the Predicate Information
 Know how bind variables are being interpreted
• Review the data types
• Implicit conversions
 Know which step filtering predicate is applied

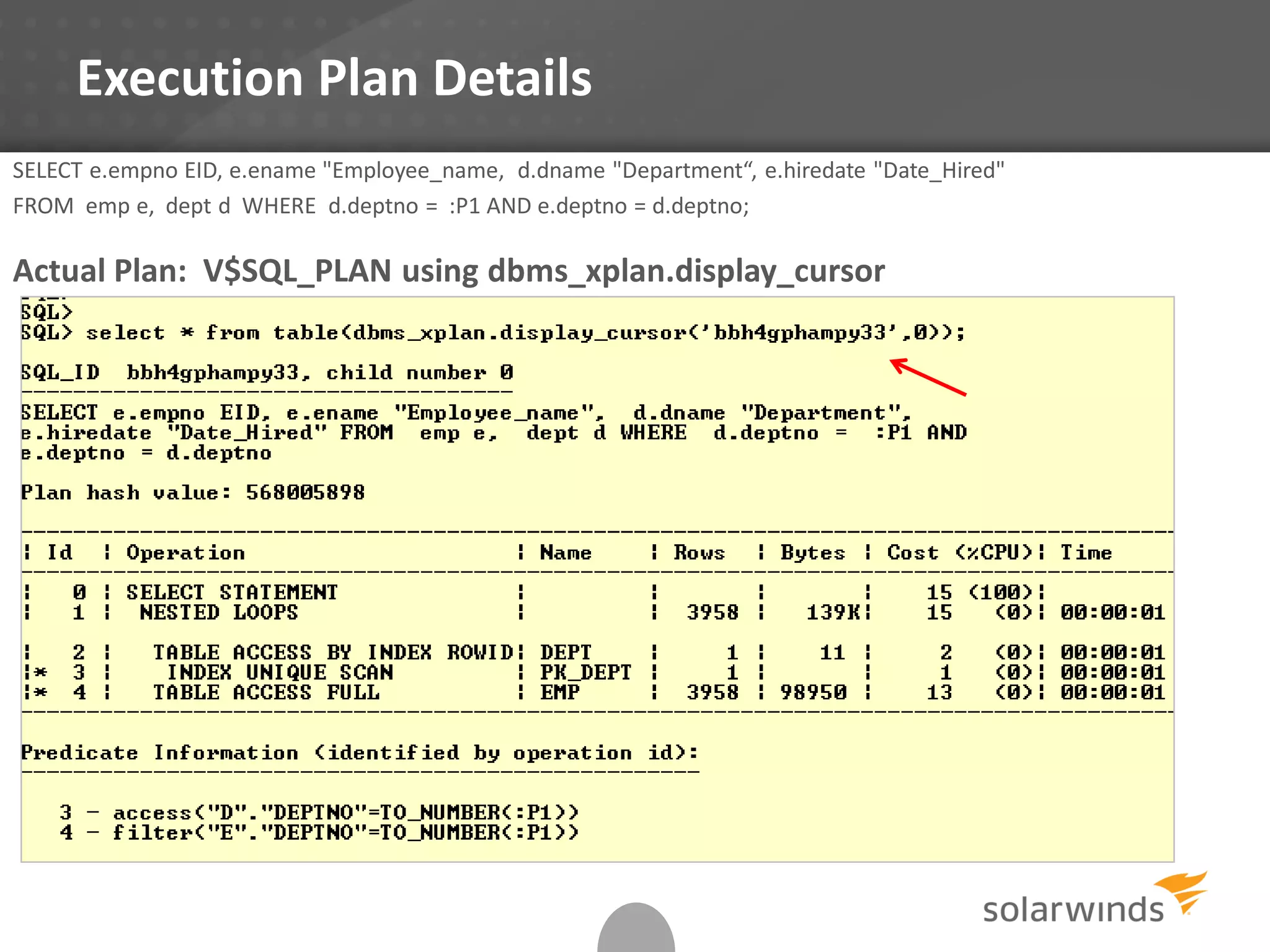

Execution Plan Details
SELECT e.empno EID, e.ename "Employee_name, d.dname "Department“, e.hiredate "Date_Hired"
FROM emp e, dept d WHERE d.deptno = :P1 AND e.deptno = d.deptno;
Actual Plan: V$SQL_PLAN using dbms_xplan.display_cursor

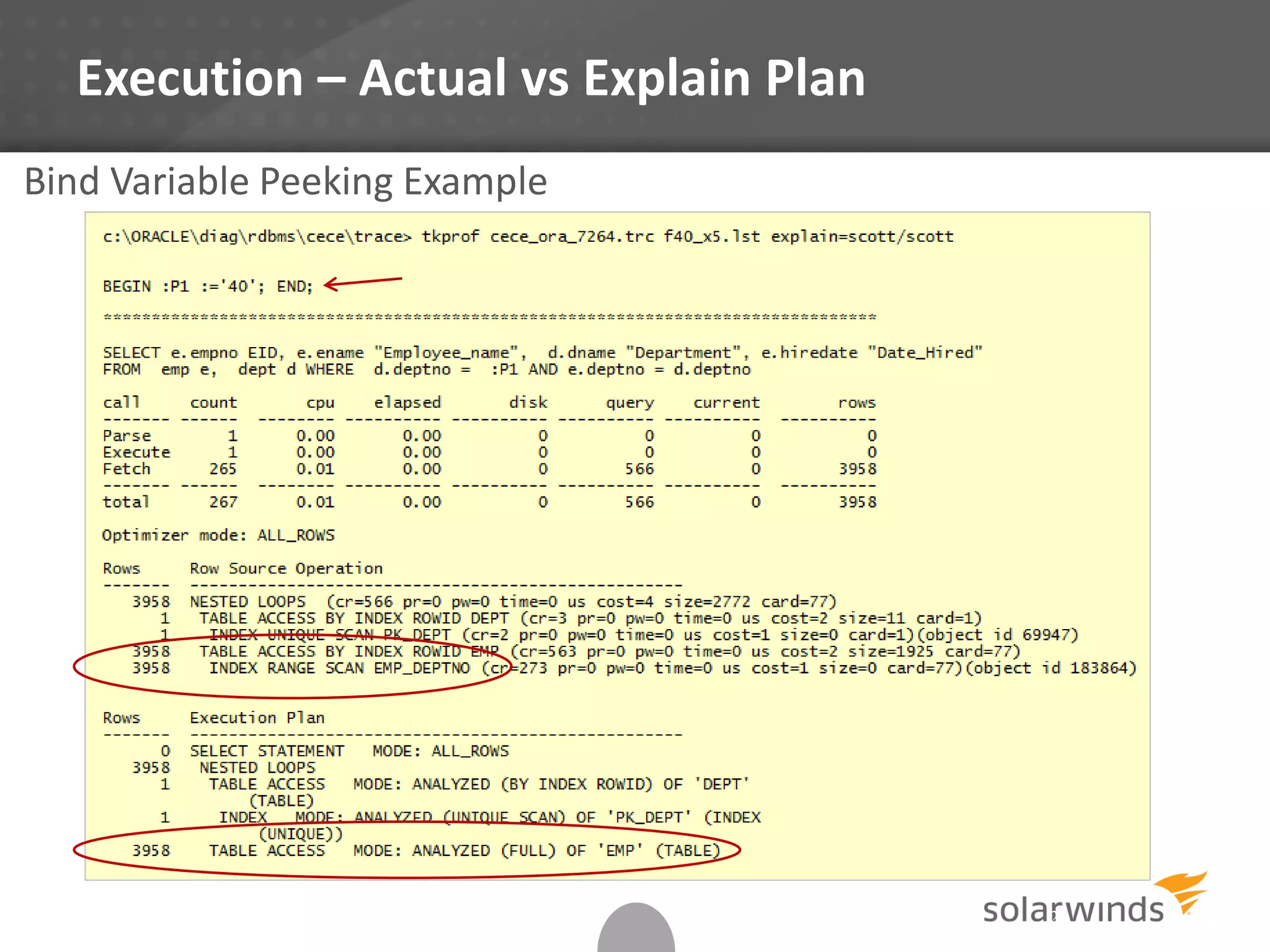

Execution – Actual vs Explain Plan
Bind Variable Peeking Example
21

RESERVED.
Execution Plan using SPM (11g)
Select * from dba_sql_plans_baselines;

Adaptive Execution Plan (12c)
2323
Adapted on first execution
alter session set optimizer_adaptive_reporting_only=FALSE;

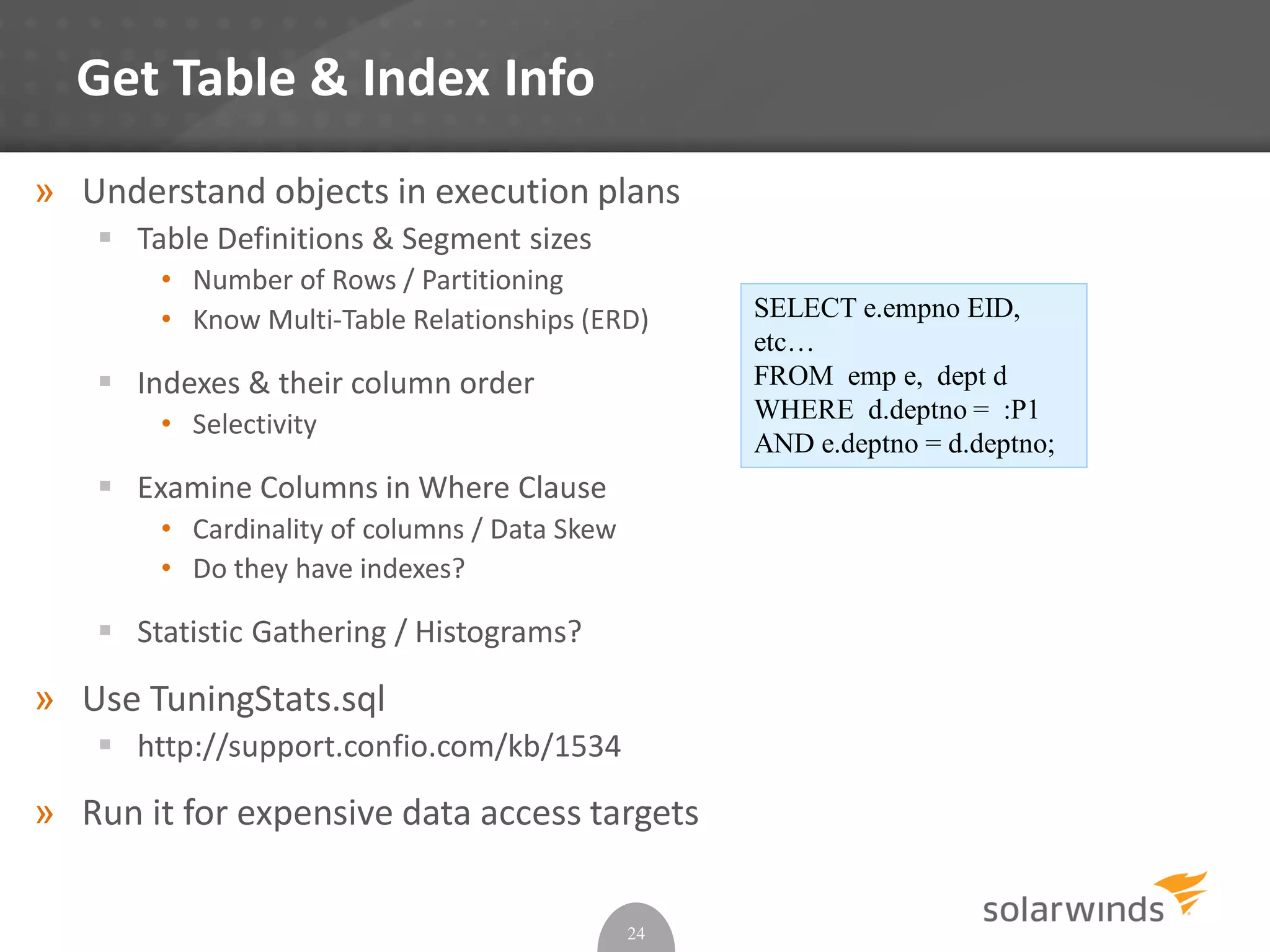

Get Table & Index Info
» Understand objects in execution plans
 Table Definitions & Segment sizes
• Number of Rows / Partitioning
• Know Multi-Table Relationships (ERD)
 Indexes & their column order
• Selectivity
 Examine Columns in Where Clause
• Cardinality of columns / Data Skew
• Do they have indexes?
 Statistic Gathering / Histograms?
» Use TuningStats.sql
 http://support.confio.com/kb/1534
» Run it for expensive data access targets
24
SELECT e.empno EID,
etc…
FROM emp e, dept d
WHERE d.deptno = :P1
AND e.deptno = d.deptno;

RESERVED.
Table & Column Statistics
SELECT count(*) FROM EMP;
COUNT(*)
-------------
6013
SELECT 6013/4 dist FROM DUAL;
DIST
------
1503
SELECT column_name, num_distinct, num_nulls, num_buckets, density, sample_size
FROM user_tab_columns
WHERE table_name = ’EMP’
ORDER BY column_name;
SELECT DEPTNO, count(*) FROM EMP
GROUP BY DEPTNO;
DEPTNO COUNT(*)
---------- -------------
10 77
20 1500
30 478
40 3958
Would an index on EMP.DEPTNO increase performance?

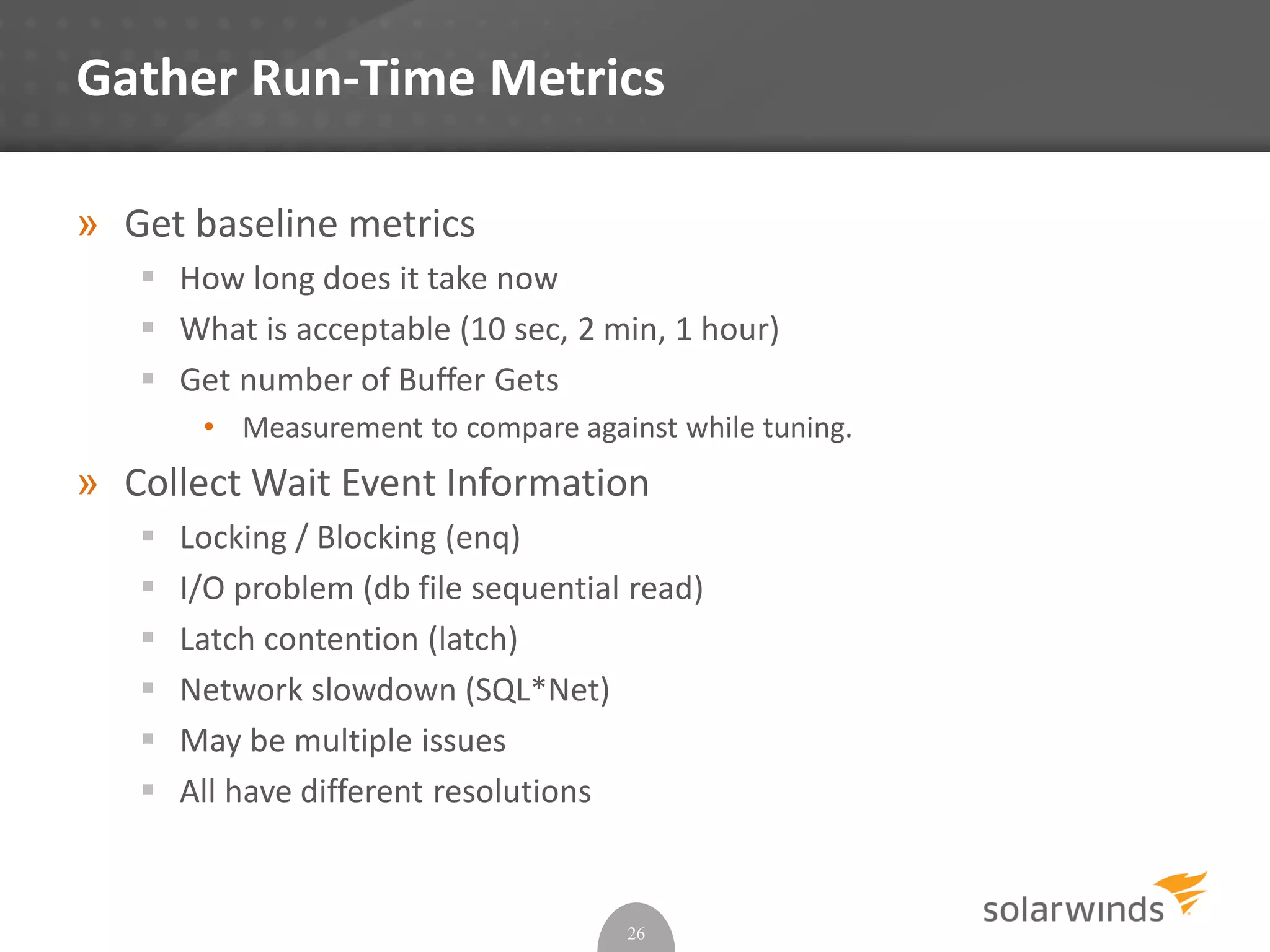

Gather Run-Time Metrics
» Get baseline metrics
 How long does it take now
 What is acceptable (10 sec, 2 min, 1 hour)
 Get number of Buffer Gets
• Measurement to compare against while tuning.
» Collect Wait Event Information
 Locking / Blocking (enq)
 I/O problem (db file sequential read)
 Latch contention (latch)
 Network slowdown (SQL*Net)
 May be multiple issues
 All have different resolutions
26

RESERVED.

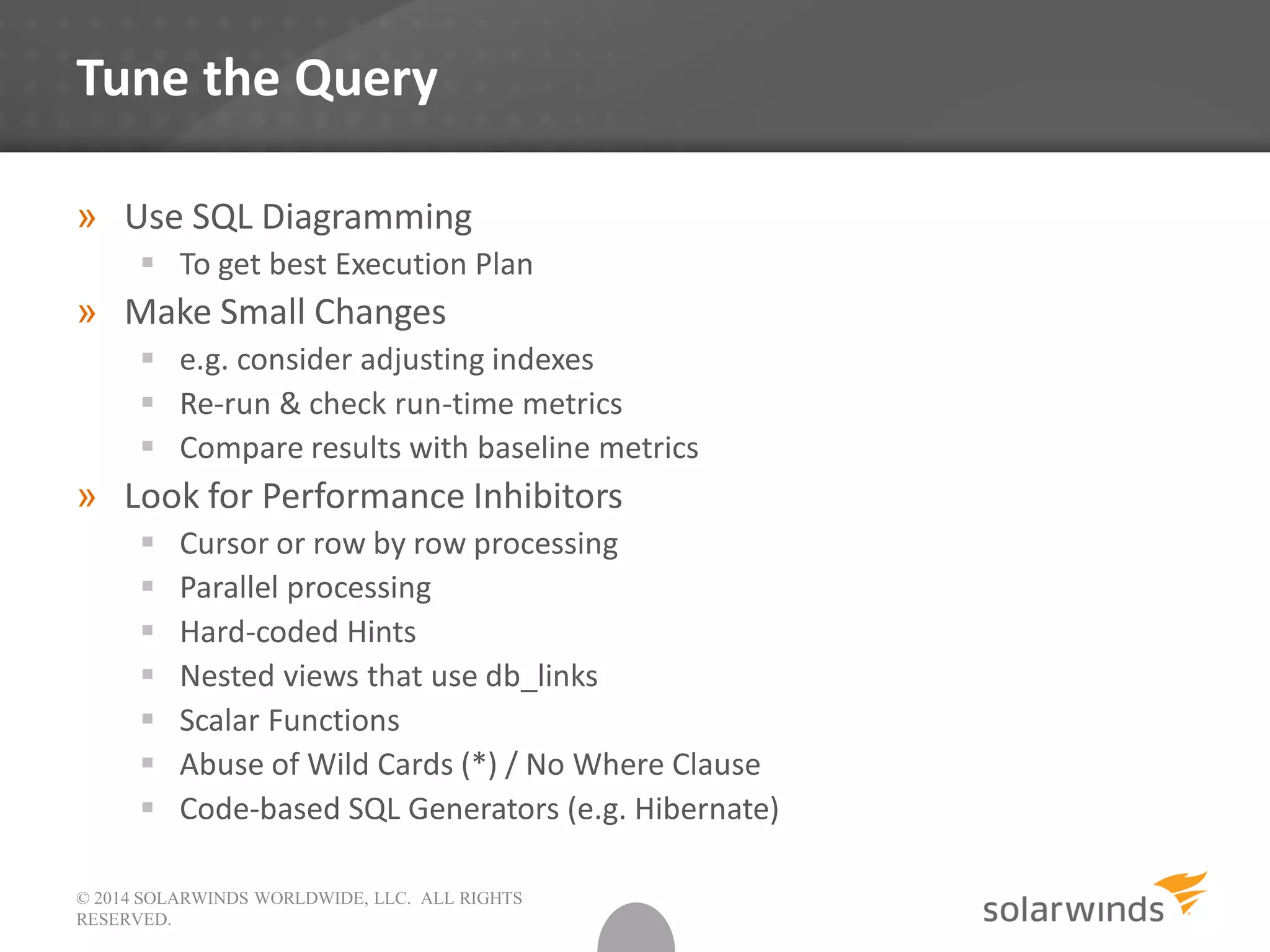

Tune the Query
» Use SQL Diagramming
 To get best Execution Plan
» Make Small Changes
 e.g. consider adjusting indexes
 Re-run & check run-time metrics
 Compare results with baseline metrics
» Look for Performance Inhibitors
 Cursor or row by row processing
 Parallel processing
 Hard-coded Hints
 Nested views that use db_links
 Scalar Functions
 Abuse of Wild Cards (*) / No Where Clause
 Code-based SQL Generators (e.g. Hibernate)

Case Studies
» Who registered yesterday for Tuning Class
» Lookup paycheck information
» Inventory lookup for new orders by customer
28

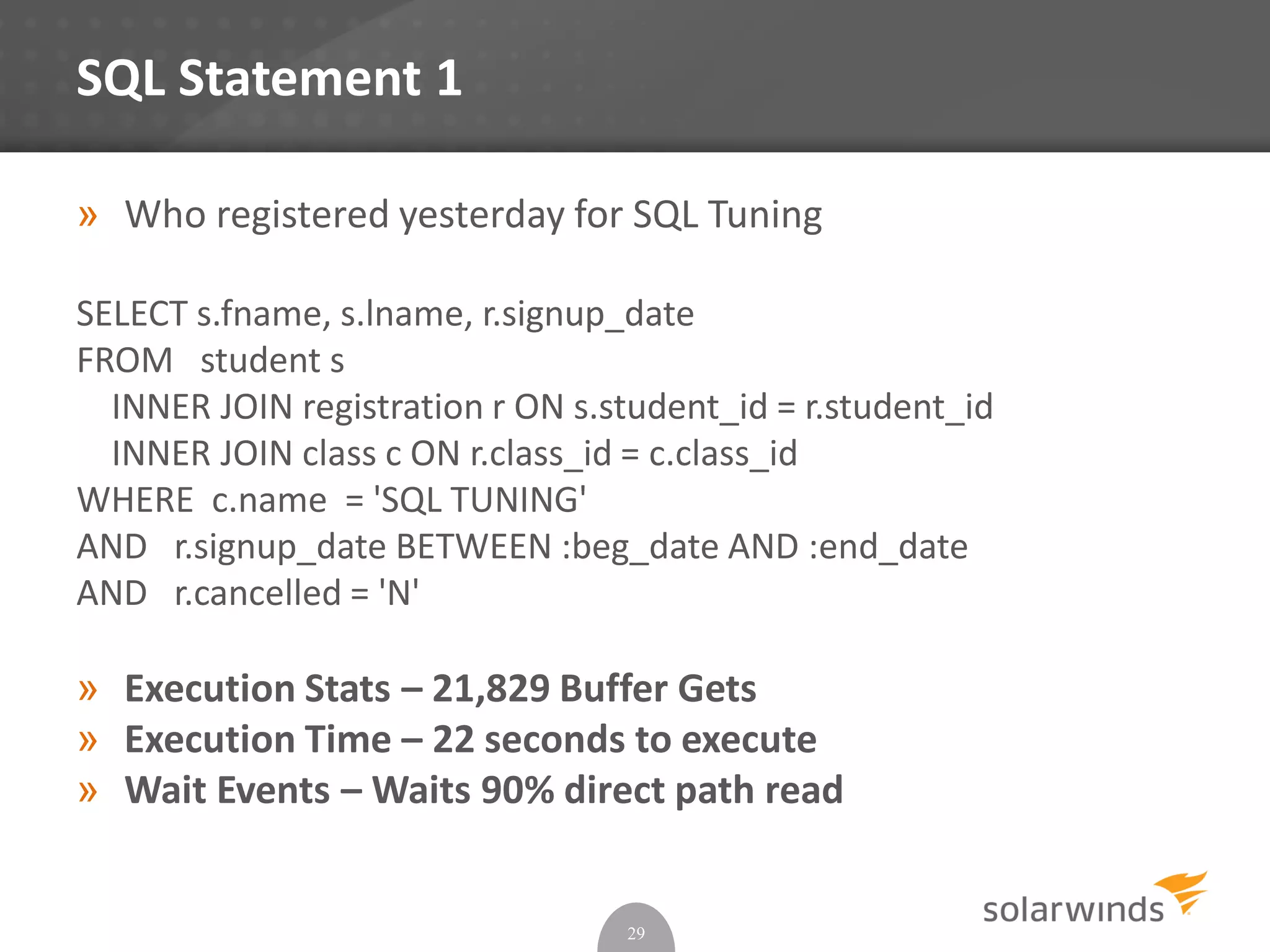

SQL Statement 1
» Who registered yesterday for SQL Tuning
SELECT s.fname, s.lname, r.signup_date
FROM student s
INNER JOIN registration r ON s.student_id = r.student_id
INNER JOIN class c ON r.class_id = c.class_id
WHERE c.name = 'SQL TUNING'
AND r.signup_date BETWEEN :beg_date AND :end_date
AND r.cancelled = 'N'
» Execution Stats – 21,829 Buffer Gets
» Execution Time – 22 seconds to execute
» Wait Events – Waits 90% direct path read
29

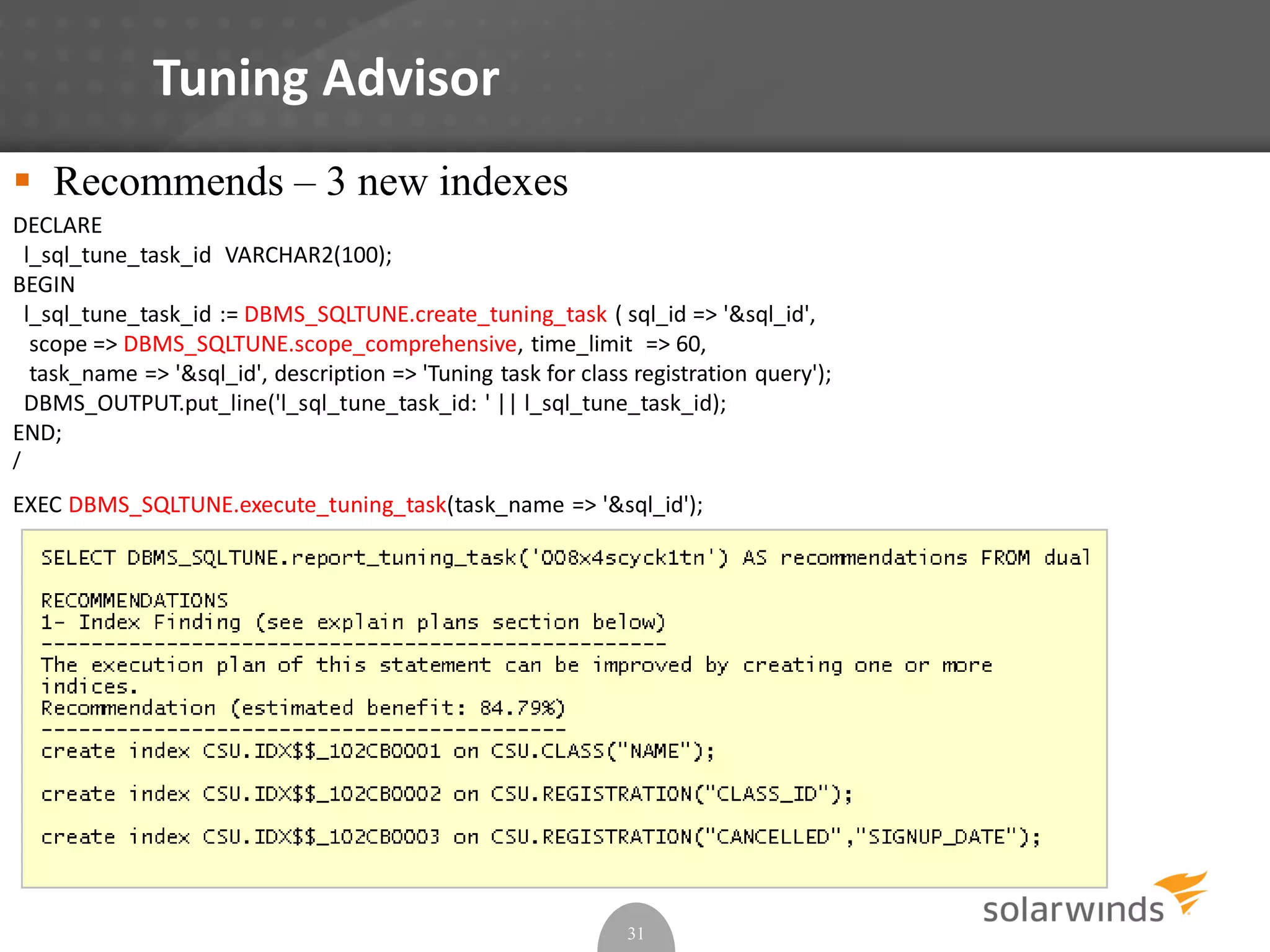

Tuning Advisor
31
 Recommends – 3 new indexes
DECLARE
l_sql_tune_task_id VARCHAR2(100);
BEGIN
l_sql_tune_task_id := DBMS_SQLTUNE.create_tuning_task ( sql_id => '&sql_id',
scope => DBMS_SQLTUNE.scope_comprehensive, time_limit => 60,
task_name => '&sql_id', description => 'Tuning task for class registration query');
DBMS_OUTPUT.put_line('l_sql_tune_task_id: ' || l_sql_tune_task_id);
END;
/
EXEC DBMS_SQLTUNE.execute_tuning_task(task_name => '&sql_id');

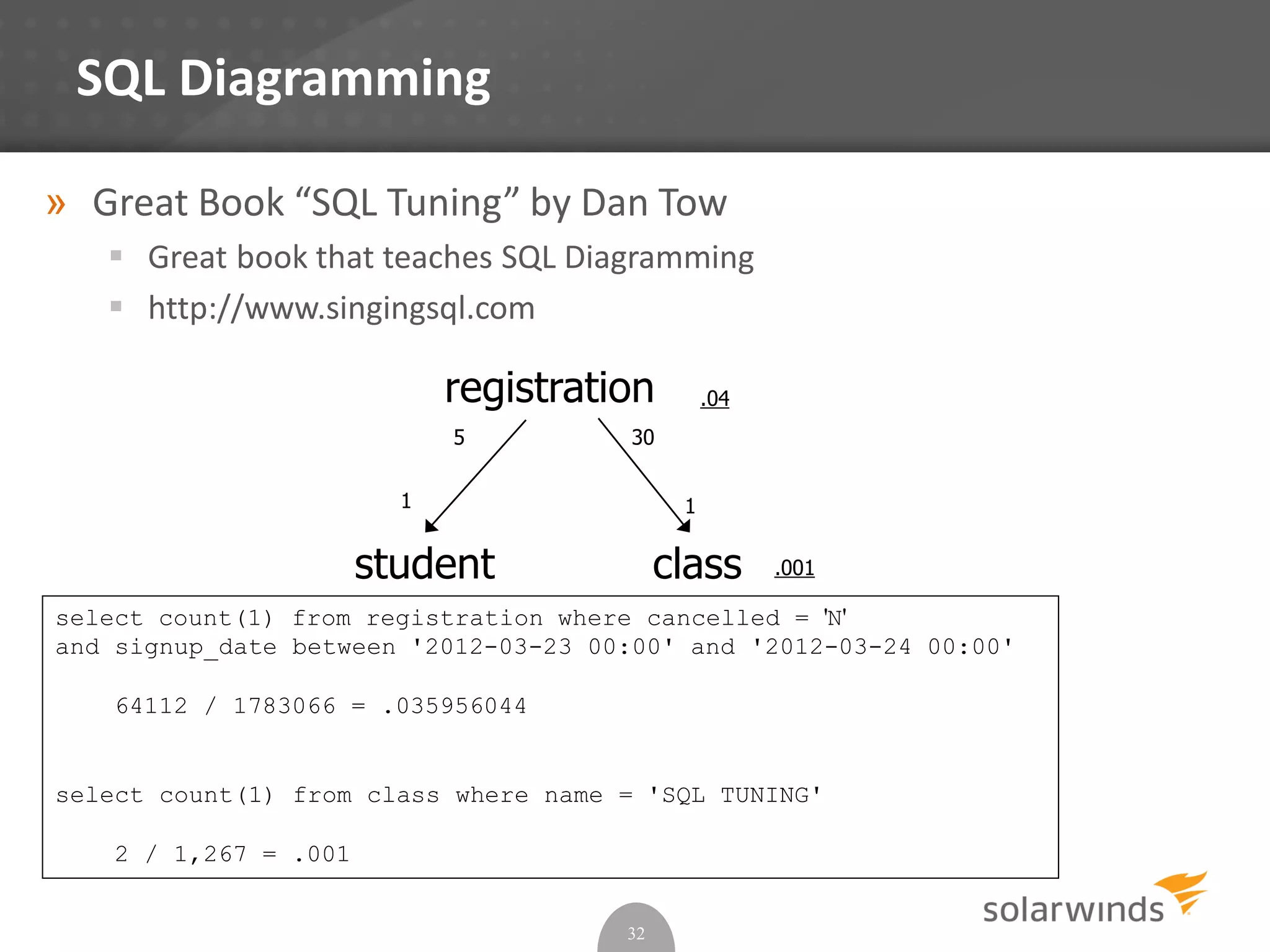

SQL Diagramming
» Great Book “SQL Tuning” by Dan Tow
 Great book that teaches SQL Diagramming
 http://www.singingsql.com
32
registration
student class
5
1
30
1
.04
.001
select count(1) from registration where cancelled = 'N'
and signup_date between '2012-03-23 00:00' and '2012-03-24 00:00'
64112 / 1783066 = .035956044
select count(1) from class where name = 'SQL TUNING'
2 / 1,267 = .001

New Execution Plan
34
 Execution Stats – 20,348 buffer gets
 Why is a full table scan still occurring on REGISTRATION?

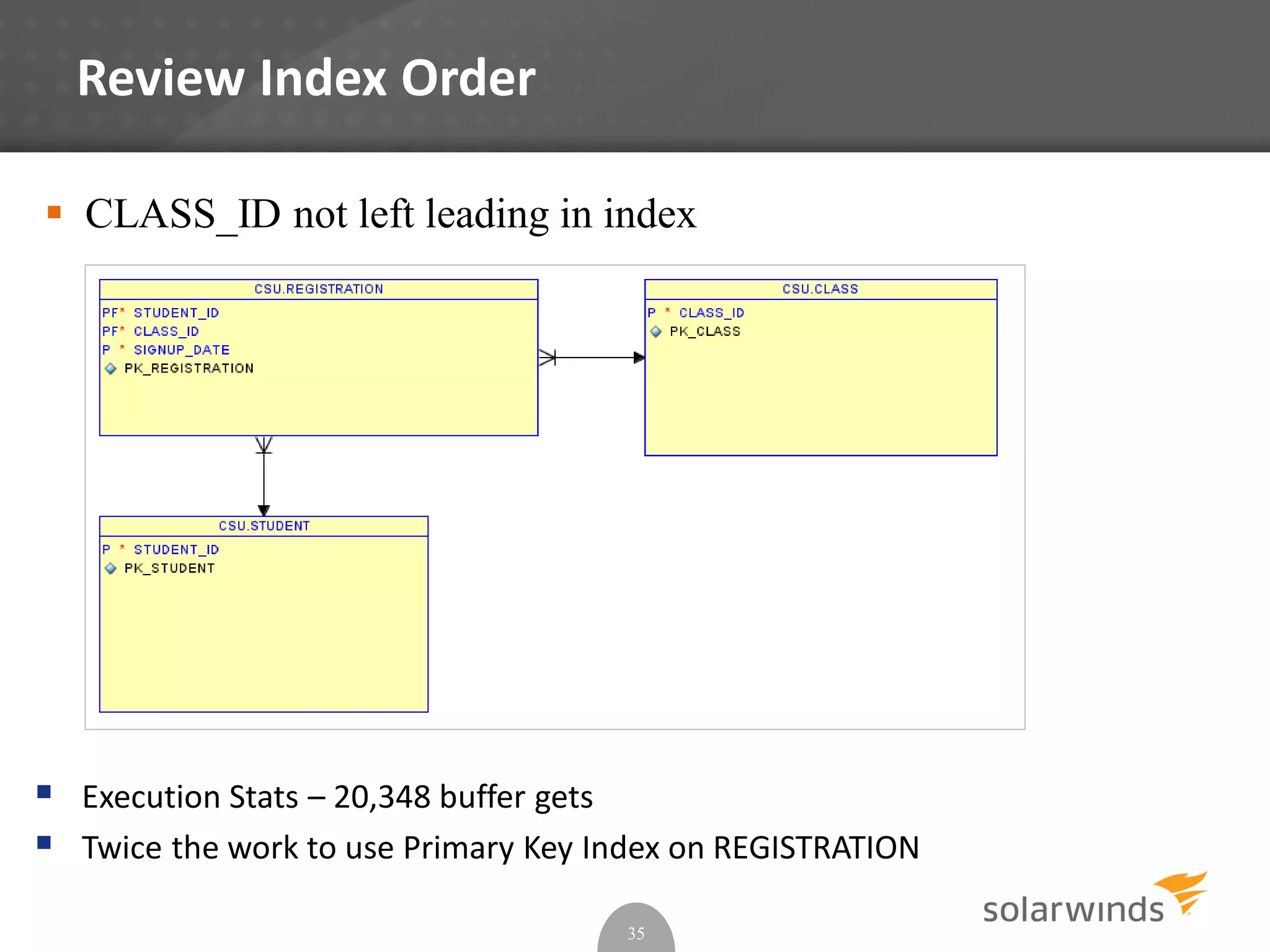

Review Index Order
35
 Execution Stats – 20,348 buffer gets
 Twice the work to use Primary Key Index on REGISTRATION
 CLASS_ID not left leading in index

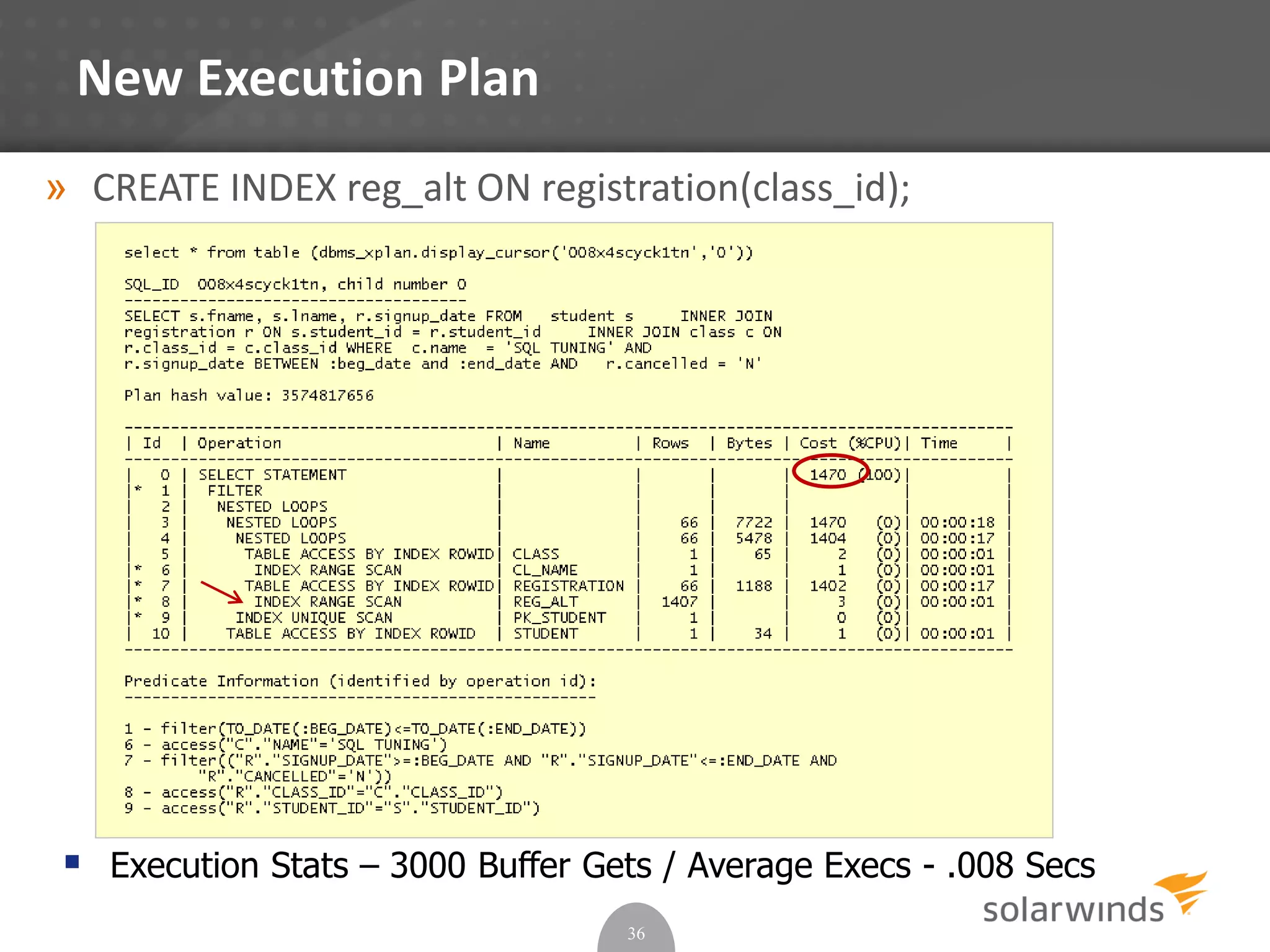

New Execution Plan
» CREATE INDEX reg_alt ON registration(class_id);
36
 Execution Stats – 3000 Buffer Gets / Average Execs - .008 Secs

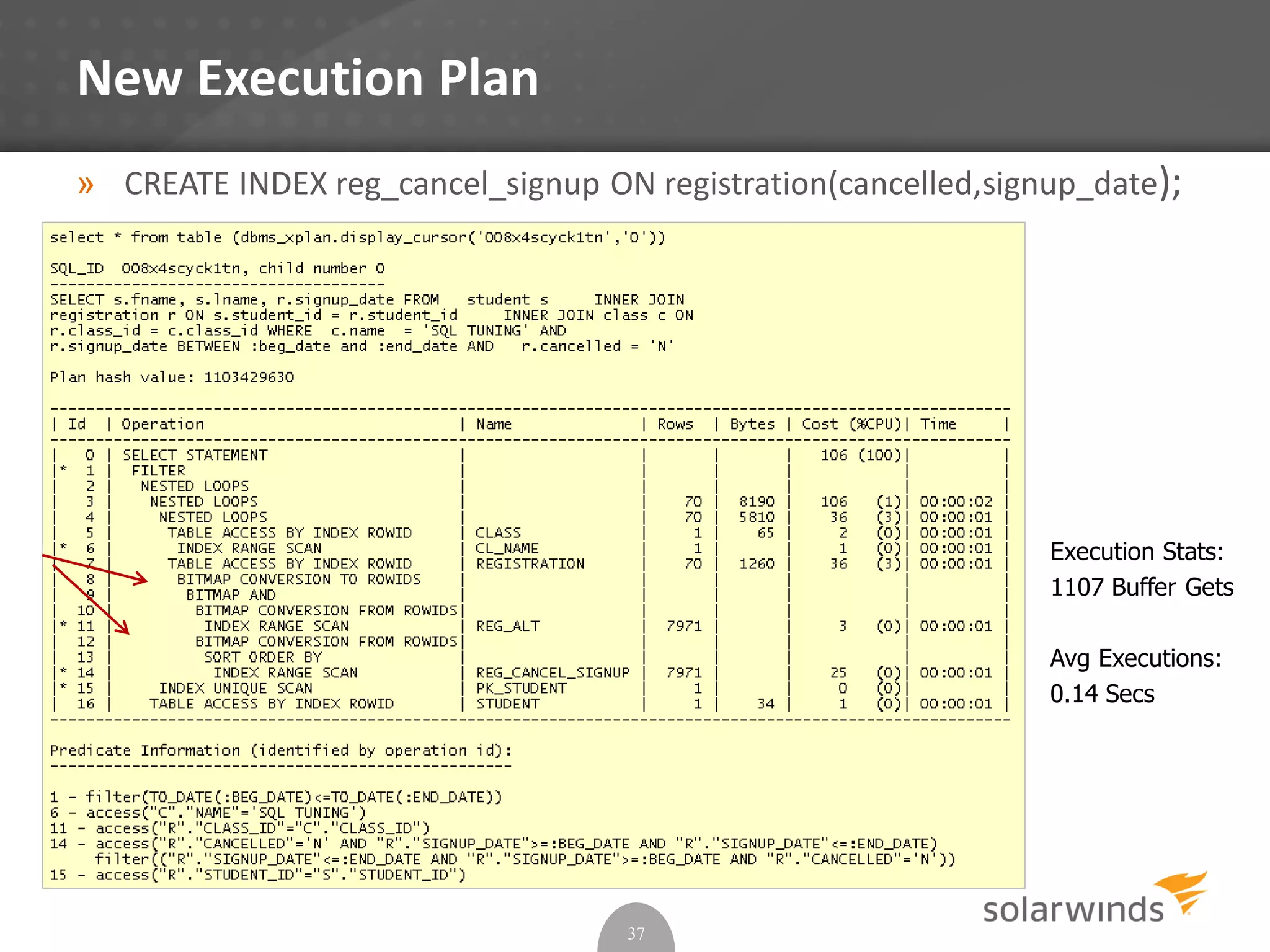

New Execution Plan
» CREATE INDEX reg_cancel_signup ON registration(cancelled,signup_date);
37
Execution Stats:
1107 Buffer Gets
Avg Executions:
0.14 Secs

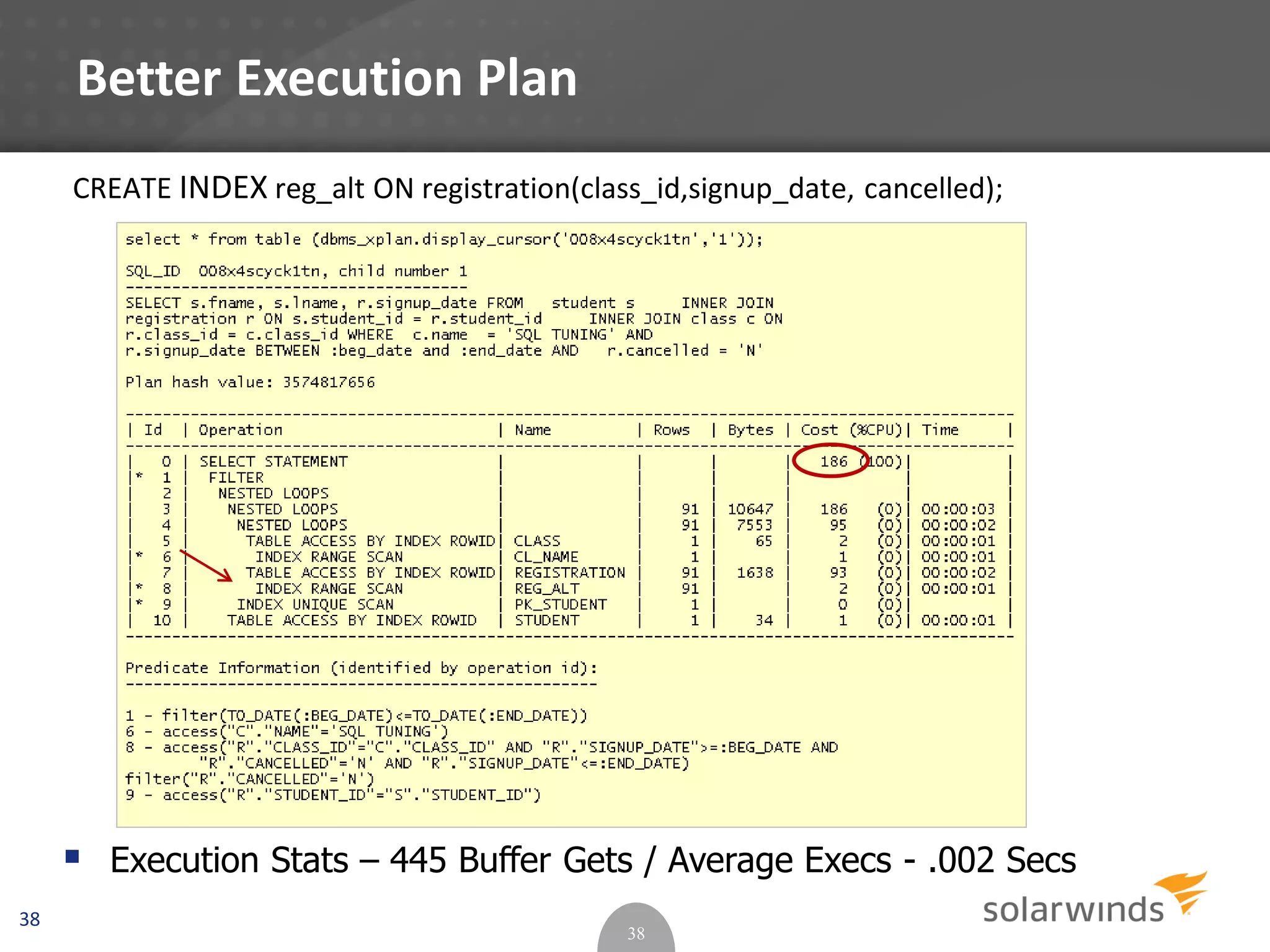

Better Execution Plan
38
38
CREATE INDEX reg_alt ON registration(class_id,signup_date, cancelled);

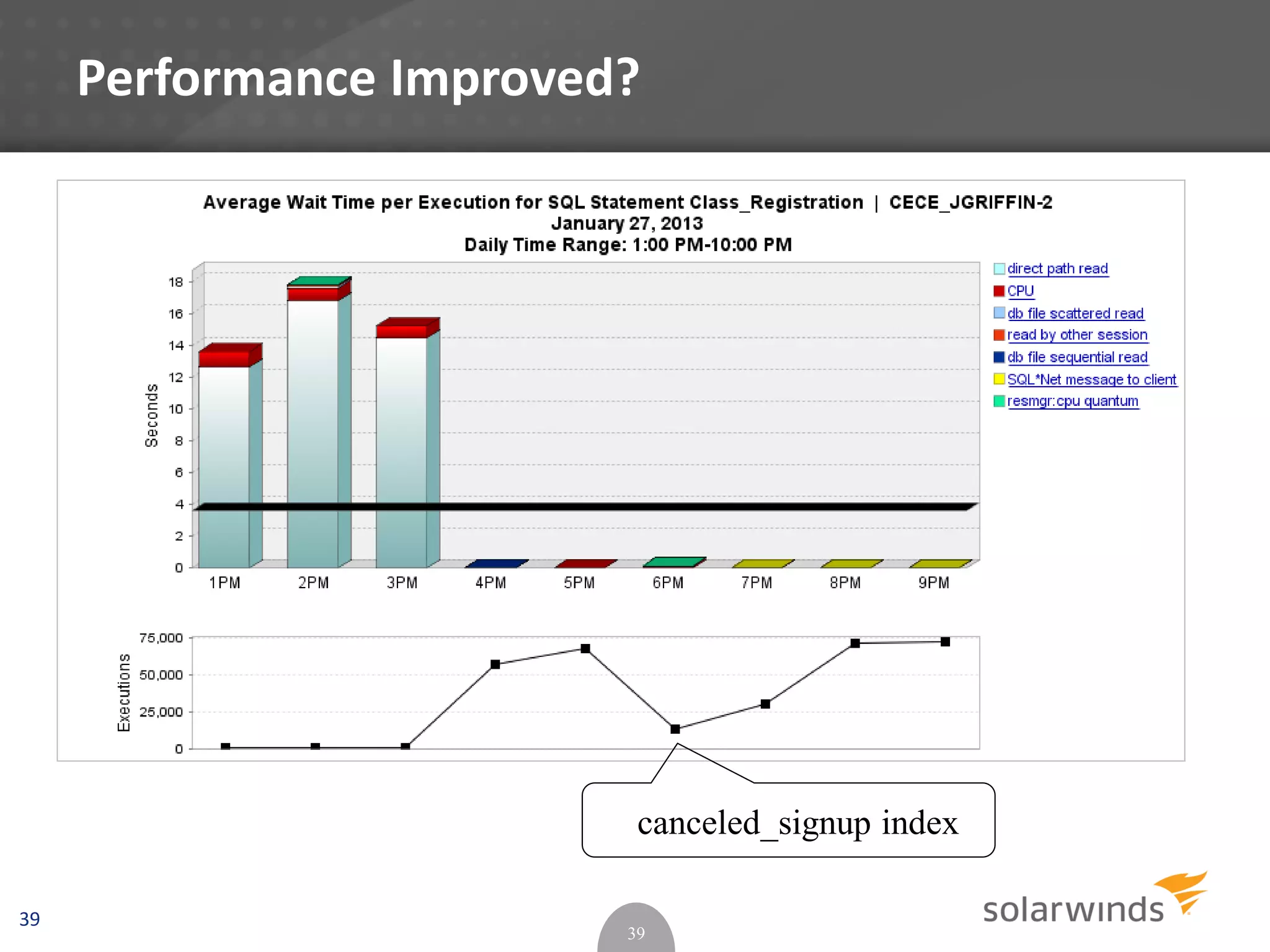

Performance Improved?
39
39
canceled_signup index

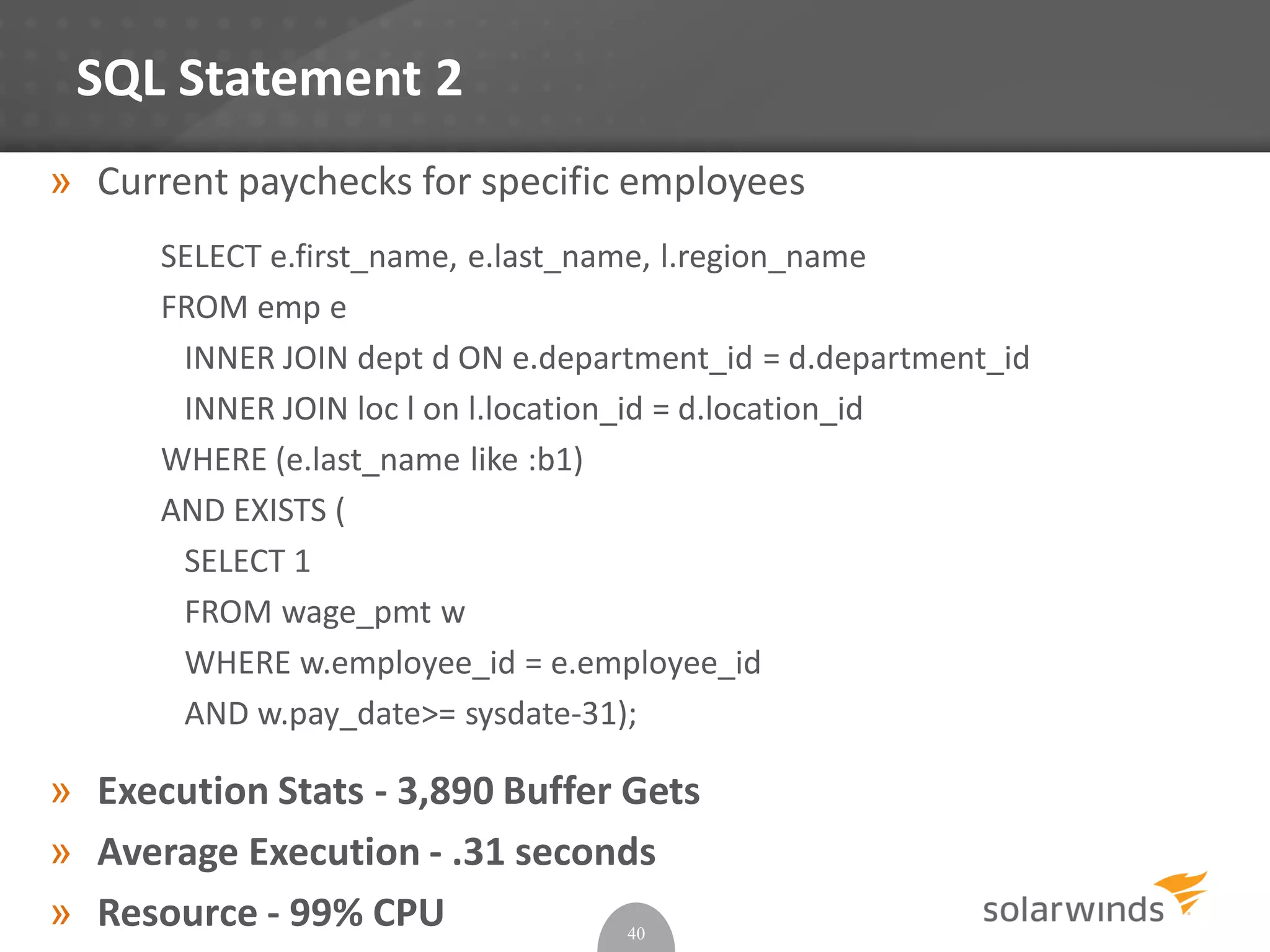

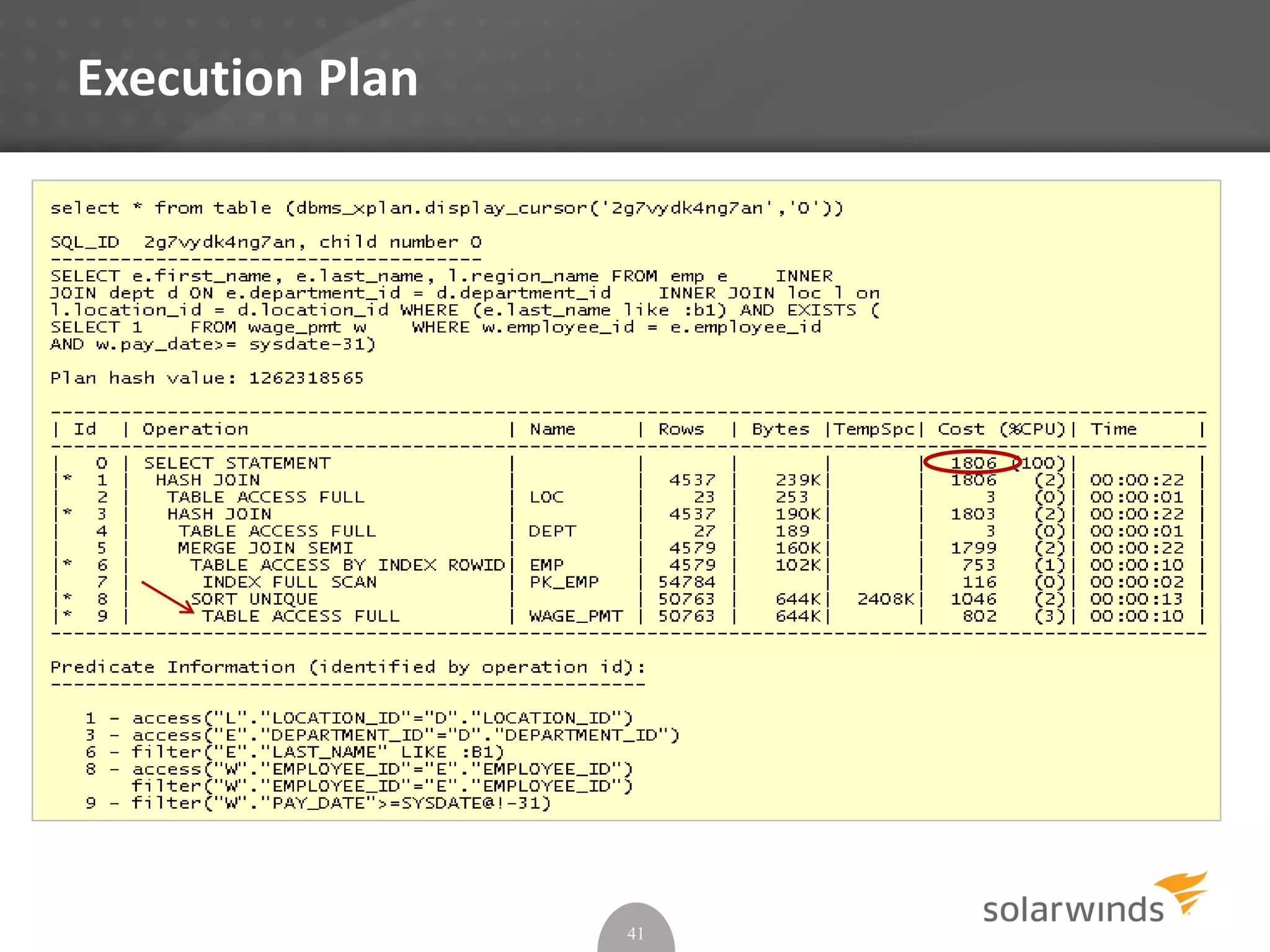

SQL Statement 2
» Current paychecks for specific employees
SELECT e.first_name, e.last_name, l.region_name
FROM emp e
INNER JOIN dept d ON e.department_id = d.department_id
INNER JOIN loc l on l.location_id = d.location_id
WHERE (e.last_name like :b1)
AND EXISTS (
SELECT 1
FROM wage_pmt w
WHERE w.employee_id = e.employee_id
AND w.pay_date>= sysdate-31);
» Execution Stats - 3,890 Buffer Gets
» Average Execution - .31 seconds
» Resource - 99% CPU 40

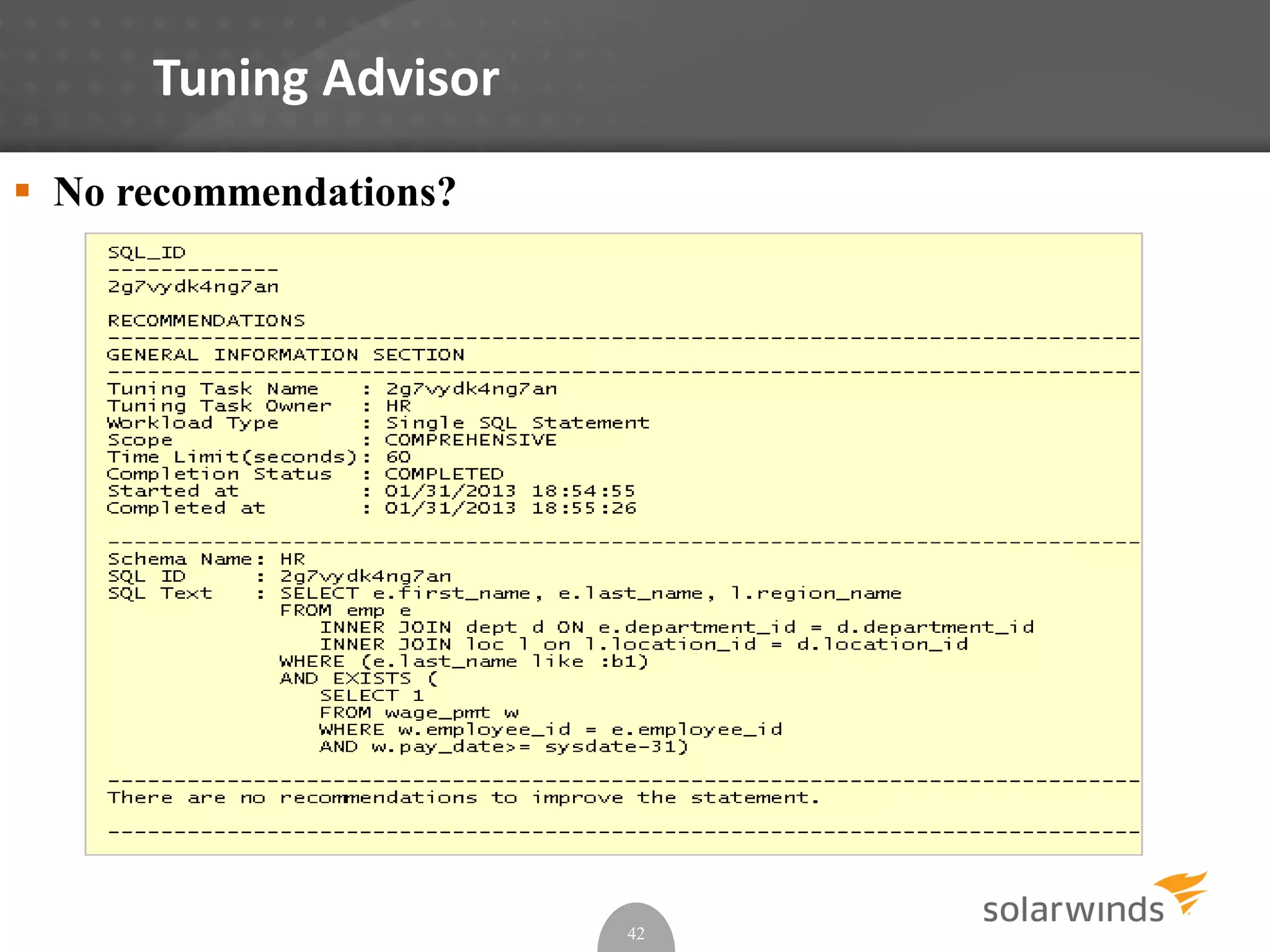

Tuning Advisor
42
 No recommendations?

SQL Diagramming
43
select count(1) from wage_pmt
where pay_date >= sysdate - 31
54,784 / 821,760 = .066
select max(cnt), min(cnt)
from (select last_name, count(1) cnt from emp group by last_name)
1,024 / 54,784 = .018 – max
512 / 54,784 = .009 – min
emp
dept
wage_pmt
4565
1
18
1
.02
.07
loc
1
9
.009

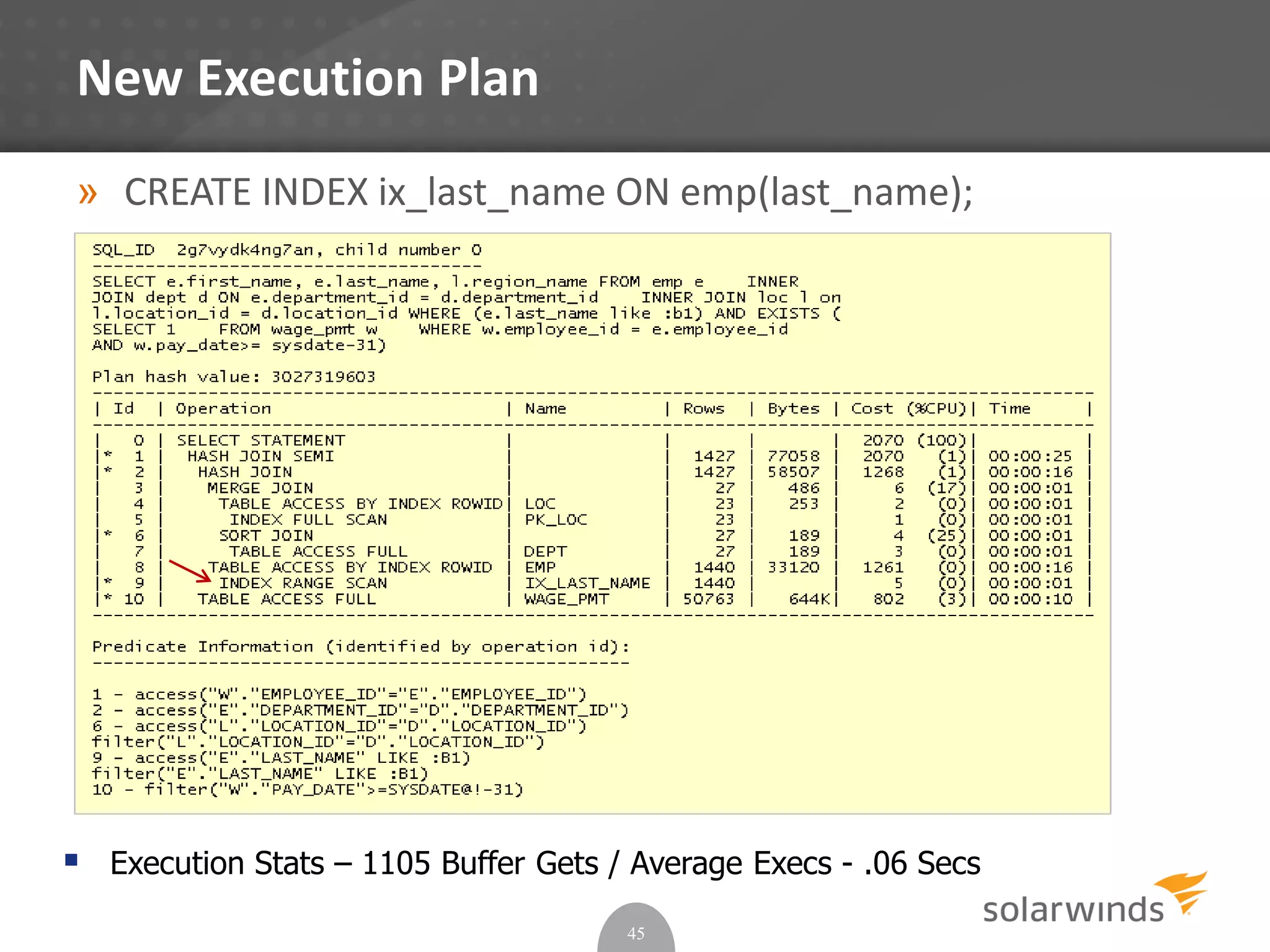

New Execution Plan
» CREATE INDEX ix_last_name ON emp(last_name);
45

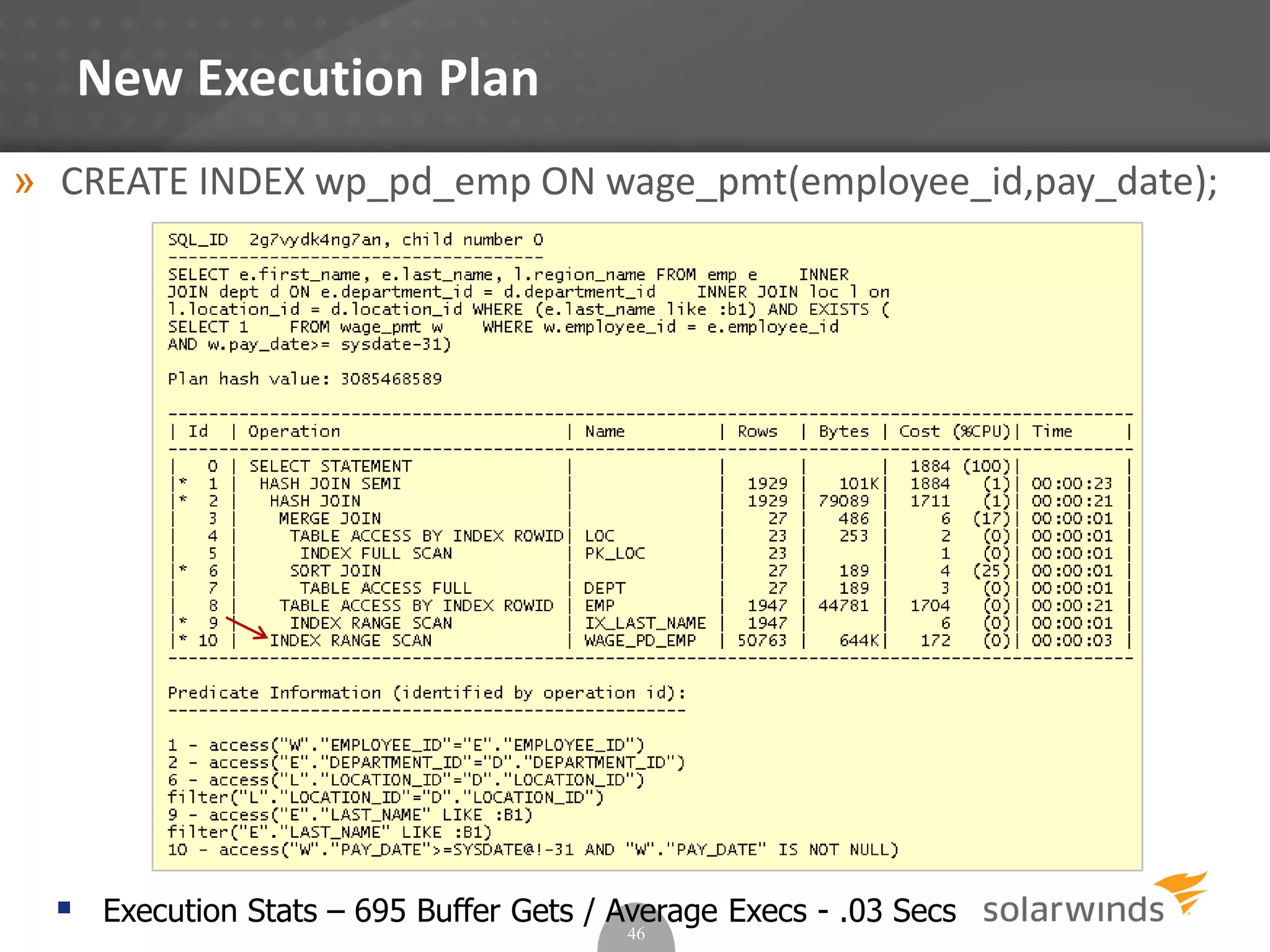

New Execution Plan
» CREATE INDEX wp_pd_emp ON wage_pmt(employee_id,pay_date);
46

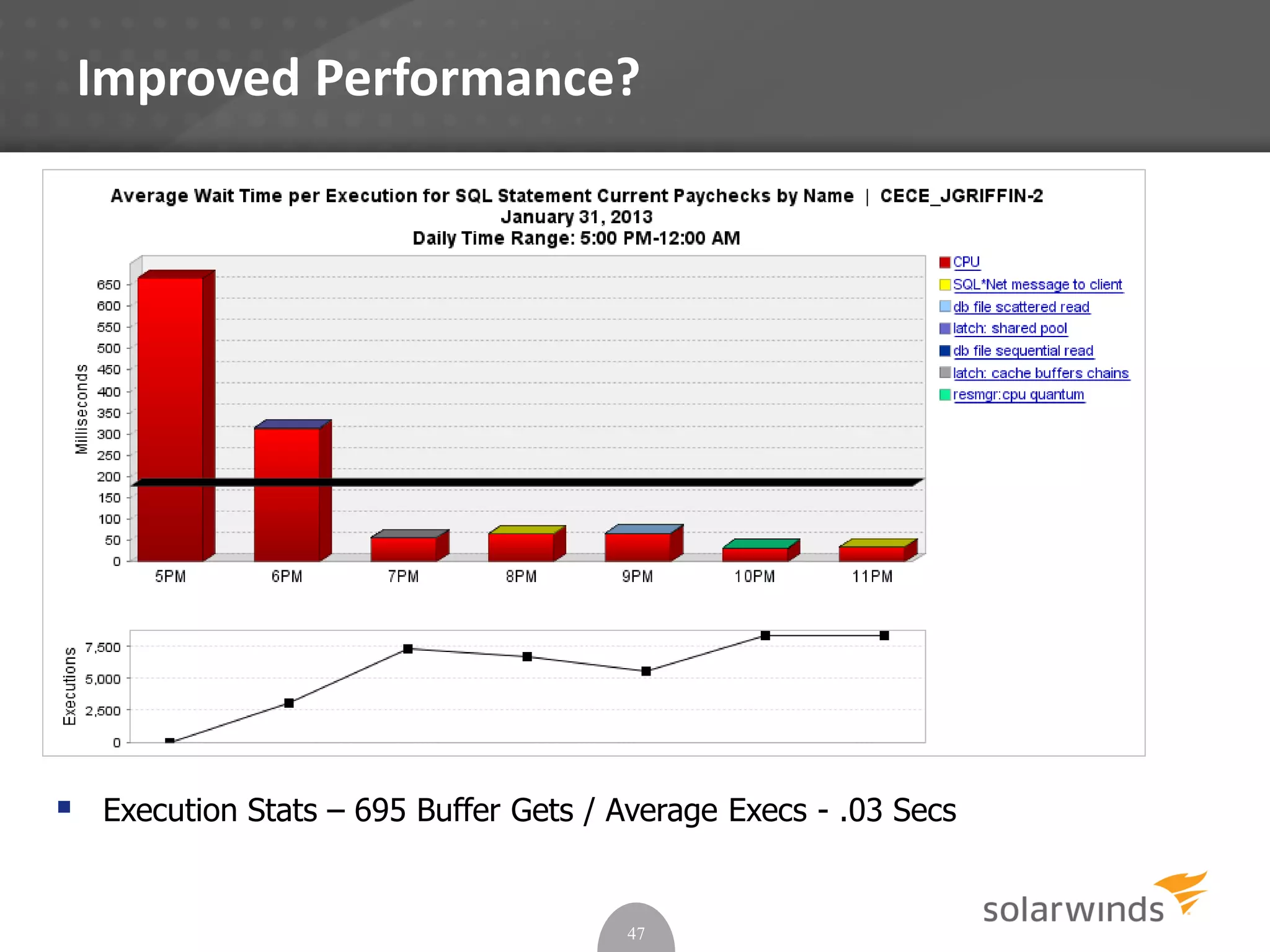

Improved Performance?
47

SQL Statement 3
» Inventory lookup for New Orders by Customer
SELECT c.cust_first_name, c.cust_last_name,o.order_date, o.order_status, o.order_mode,
i.line_item_id, p.product_Description, i.unit_price * i.quantity total_price, quantity quantity_ordered,
ip.total_on_hand
FROM orders o, order_Items i, customers c, product p,
(SELECT product_id, sum(quantity_on_hand) total_on_hand
FROM inventories
GROUP BY product_id) ip
WHERE i.order_id = o.order_id AND c.customer_id = o.customer_id
AND p.product_id = i.product_id AND p.product_id = ip.product_id
AND c.cust_last_name = :B1 AND o.order_status = 0
AND o.order_date between to_date(:BEG_DATE,'mm/dd/yyyy') and to_date(:END_DATE,'mm/dd/yyyy')

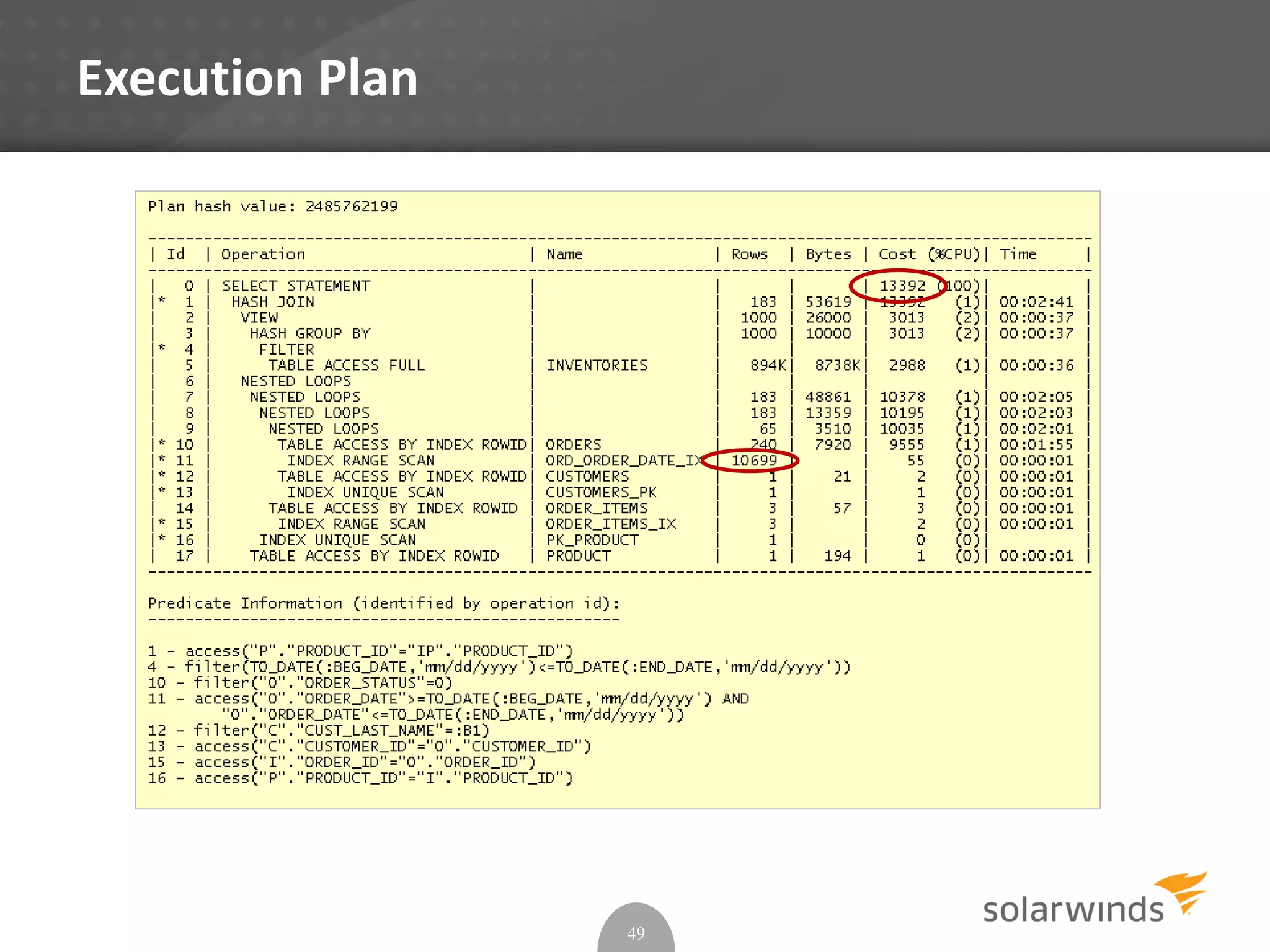

» Execution Stats: 73,392 Buffer Gets
48

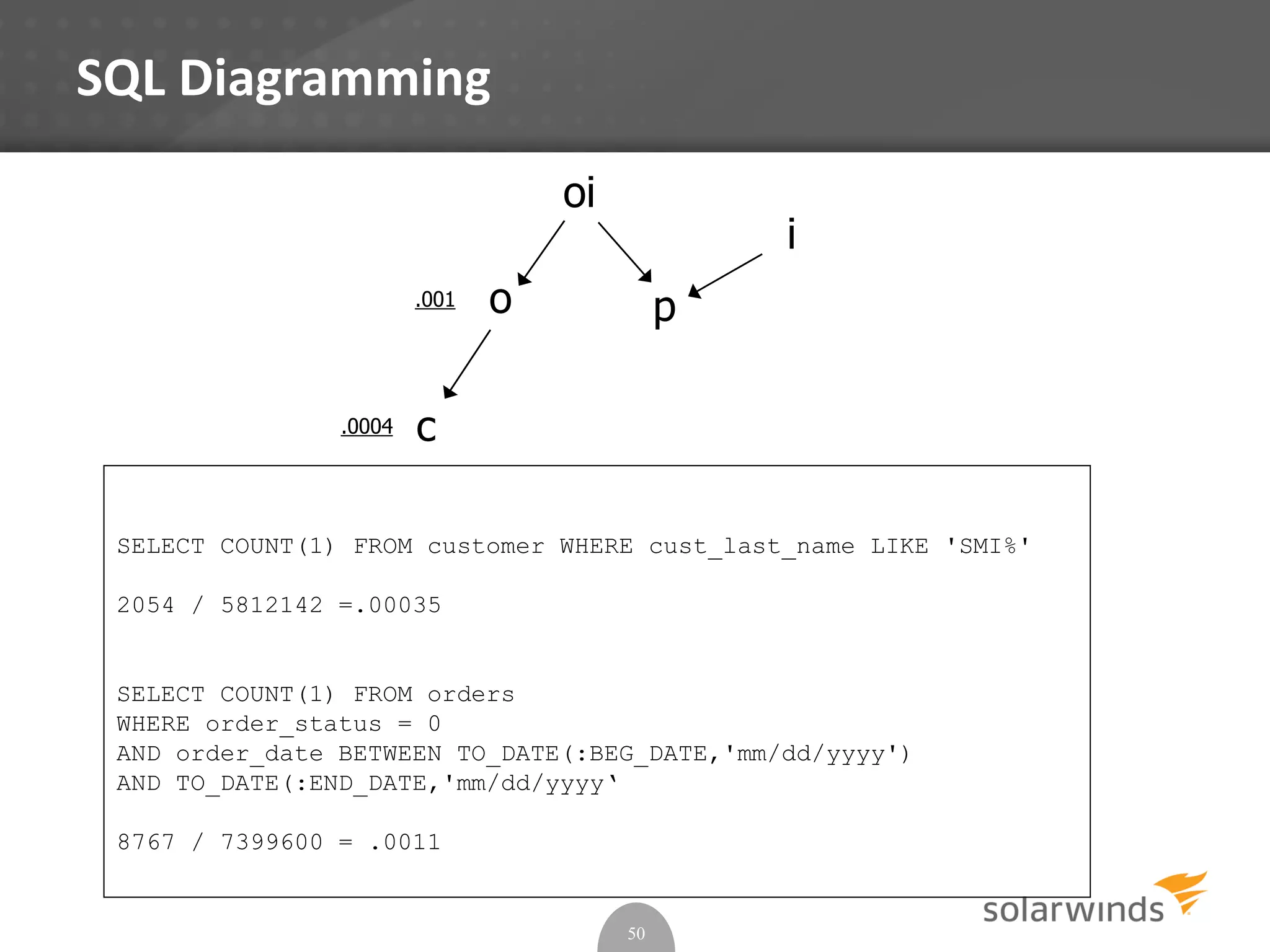

SQL Diagramming
50
SELECT COUNT(1) FROM customer WHERE cust_last_name LIKE 'SMI%'
2054 / 5812142 =.00035
SELECT COUNT(1) FROM orders
WHERE order_status = 0
AND order_date BETWEEN TO_DATE(:BEG_DATE,'mm/dd/yyyy')
AND TO_DATE(:END_DATE,'mm/dd/yyyy‘
8767 / 7399600 = .0011
oi
p
c
o
i
.001
.0004

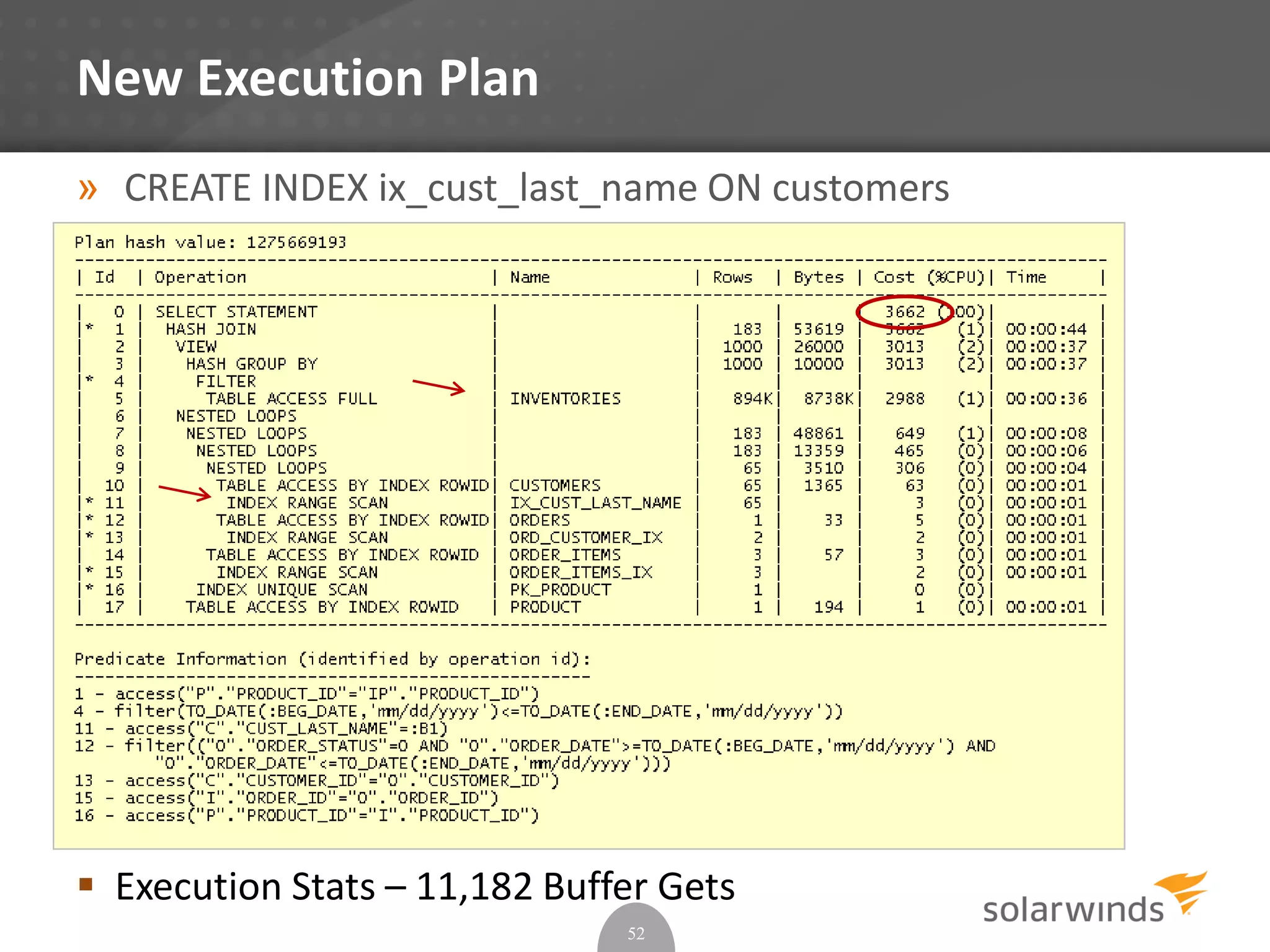

New Execution Plan
» CREATE INDEX ix_cust_last_name ON customers
(cust_last_name);
52
 Execution Stats – 11,182 Buffer Gets

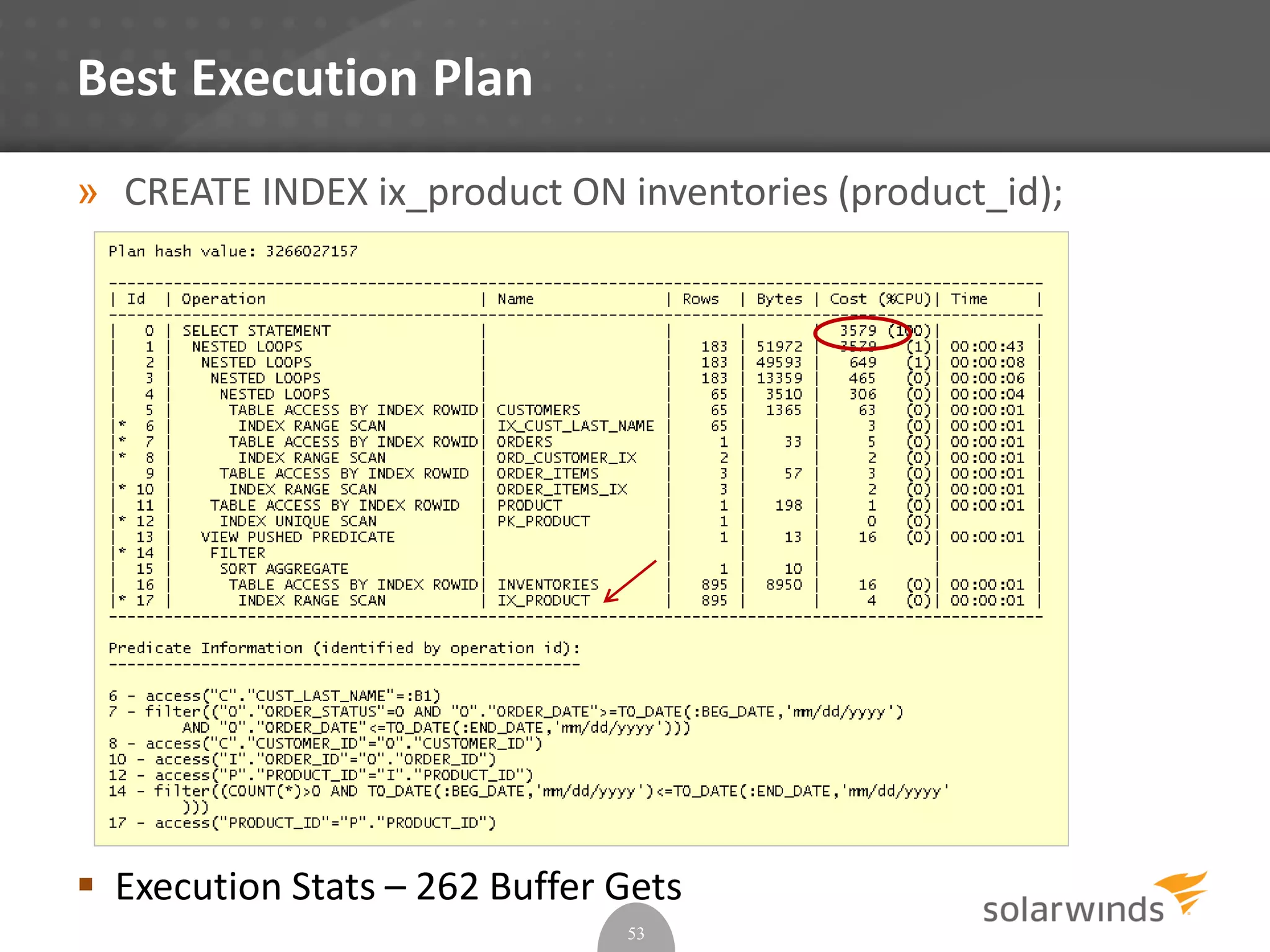

Best Execution Plan
» CREATE INDEX ix_product ON inventories (product_id);
53
 Execution Stats – 262 Buffer Gets

Monitor
» Monitor the improvement
 Be able to prove that tuning made a difference
 Take new metric measurements
 Compare them to initial readings
 Brag about the improvements – no one else will
» Monitor for next tuning opportunity
 Tuning is iterative
 There is always room for improvement
 Make sure you tune things that make a difference
» Shameless Product Pitch - DPA
55

RESERVED.

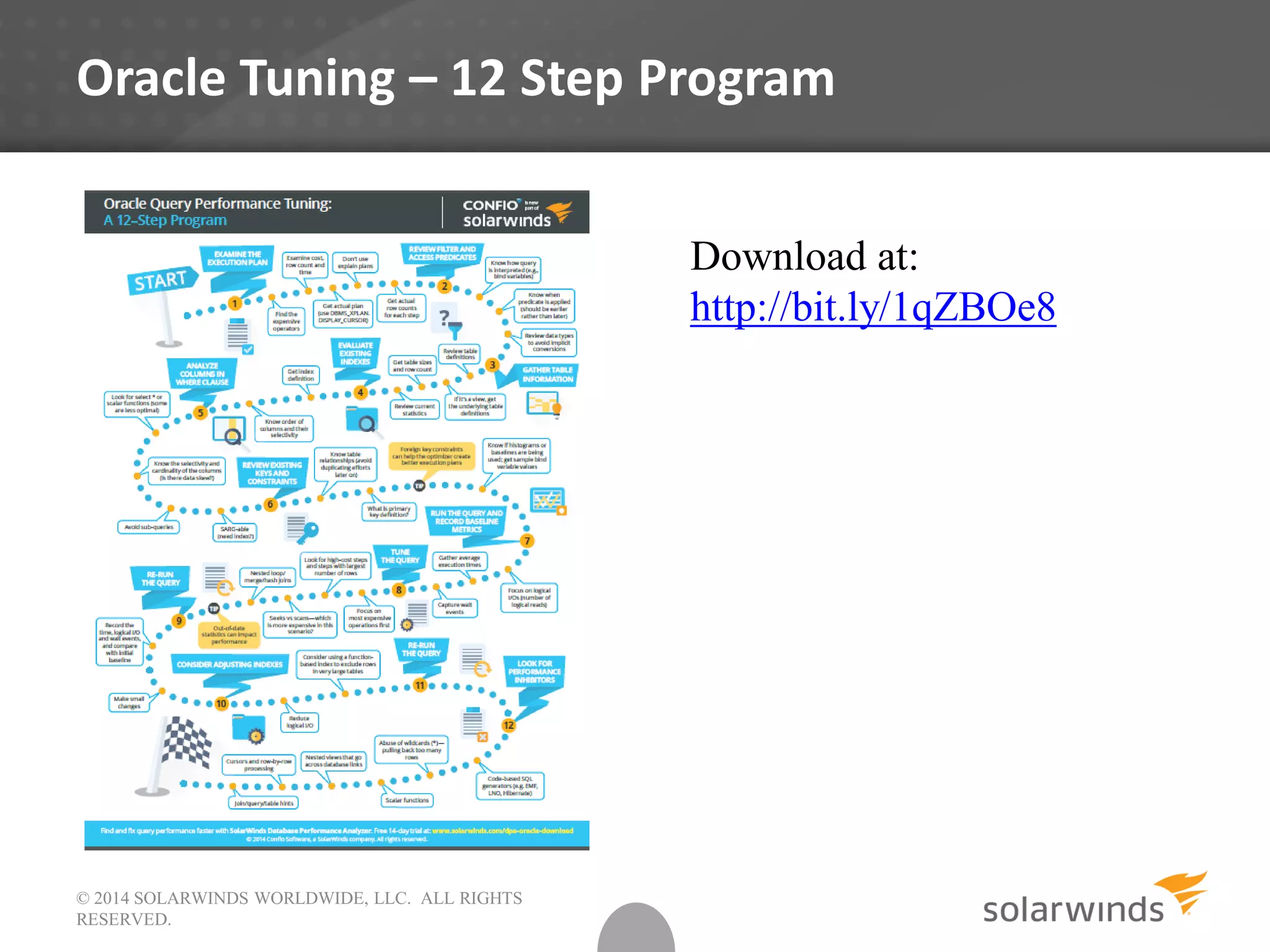

Oracle Tuning – 12 Step Program
Download at:
http://bit.ly/1qZBOe8

RESERVED.
Resolve performance issues quickly—free trial
» Try Database Performance Analyzer FREE for 14 days
» Improve root cause of slow performance
 Quickly identify root cause of issues that impact end-user response
time
 See historical trends over days, months, and years
 Understand impact of VMware® performance
 Agentless architecture with no dependence on Oracle Packs, installs in
minutes
www.solarwinds.com/dpa-download/

RESERVED.
Thank You!
The SOLARWINDS and SOLARWINDS & Design marks are the exclusive
property of SolarWinds Worldwide, LLC, are registered with the U.S.
Patent and Trademark Office, and may be registered or pending
registration in other countries. All other SolarWinds trademarks, service
marks, and logos may be common law marks, registered or pending
registration in the United States or in other countries. All other
trademarks mentioned herein are used for identification purposes only
and may be or are trademarks or registered trademarks of their respective
companies.

Advanced tips for making Oracle databases faster

More Related Content

What's hot

Viewers also liked

Similar to Advanced tips for making Oracle databases faster

More from SolarWinds

Recently uploaded

Advanced tips for making Oracle databases faster
