  ClustrixDB @ Samsung Cloud KwangbockLee Lead Database Architect Samsung Electronics
• 2.

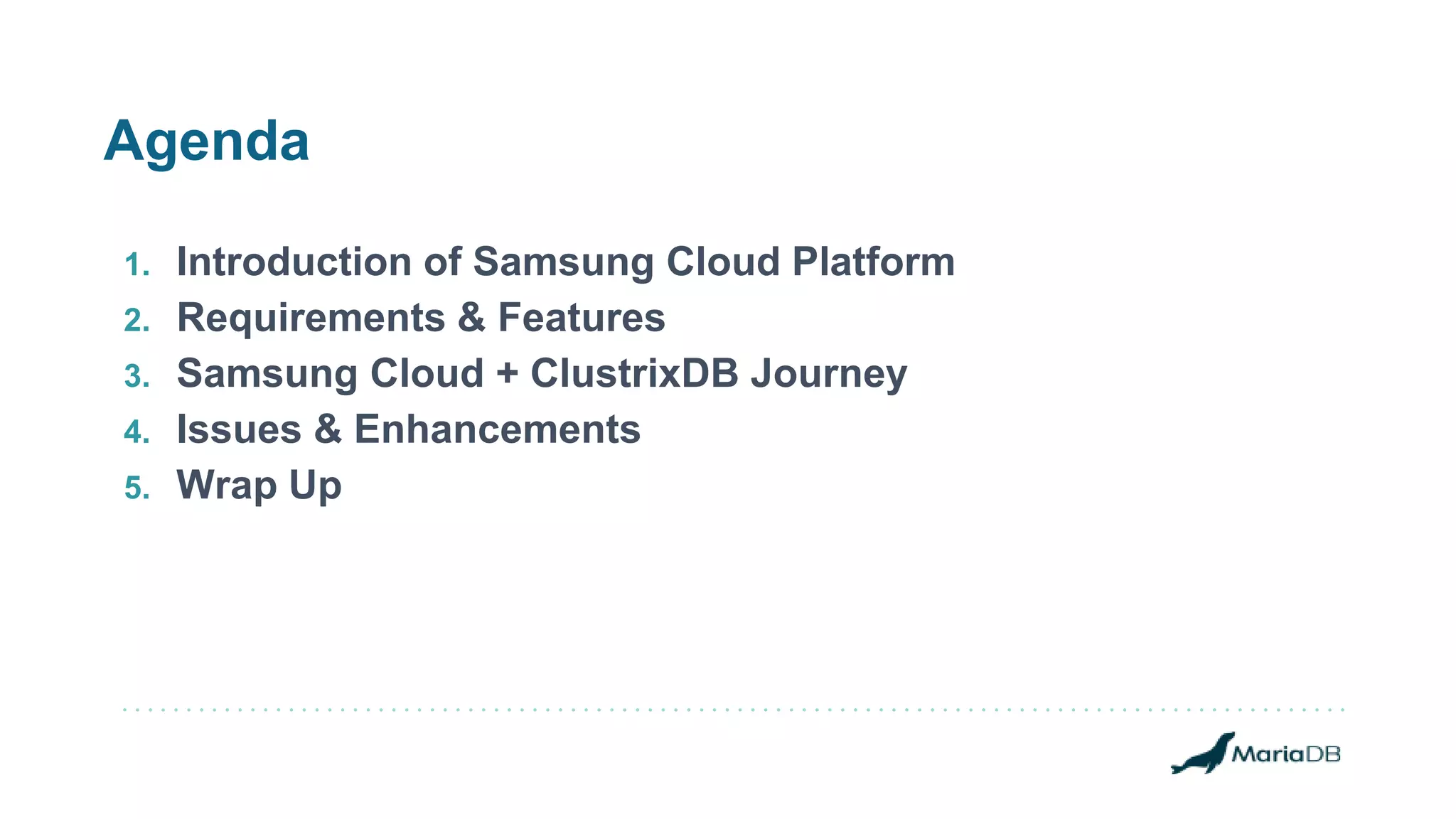

  Agenda 1. Introduction ofSamsung Cloud Platform 2. Requirements & Features 3. Samsung Cloud + ClustrixDB Journey 4. Issues & Enhancements 5. Wrap Up
• 4.
  User Benefit Backup andrestore data and settings Your photos on multiple devices any time 15 GB of free storage, Upgrade for more - Home screen, App data, Contact, Messages, Device settings, Music, Documents, etc. - Sync photos, videos, notes using native applications across Samsung devices - Premium Plans . Korea, 29 countries in EU (’16, Nov) . US models (excl. VZW. ATT, ’17, Feb) . Brazil (unlock devices, ‘18, Mar) * No. 1 request from customers
• 5.
  Figures of SamsungCloud Hundreds of millions Members Tens of billions Daily Request Hundreds of PiB Storage ClustrixDB Cassandra MySQL DynamoDB
• 6.

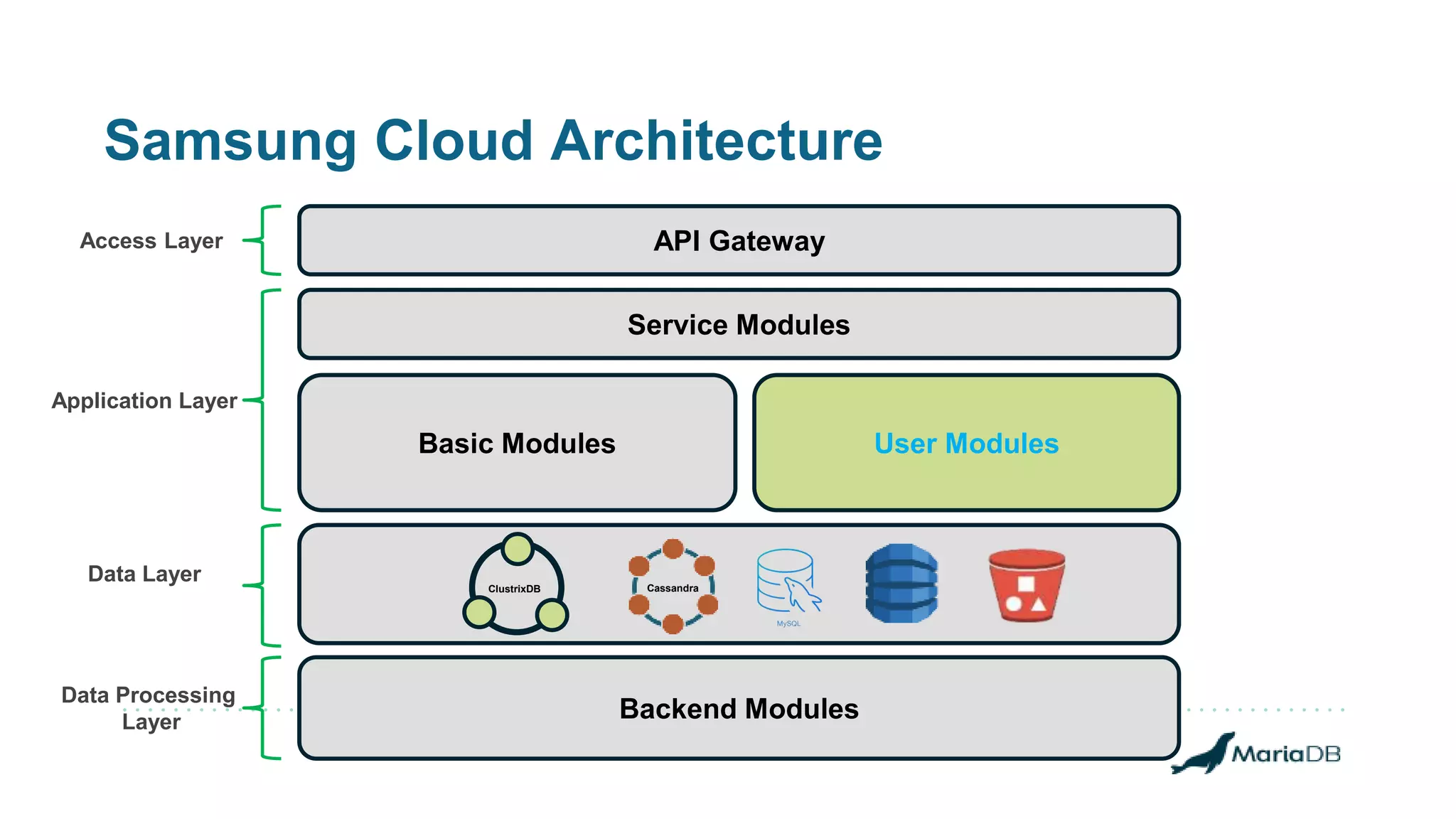

  Samsung Cloud Architecture DataProcessing Layer Backend Modules Service Modules Basic Modules User Modules Data Layer API Gateway Application Layer Access Layer ClustrixDB Cassandra
• 7.

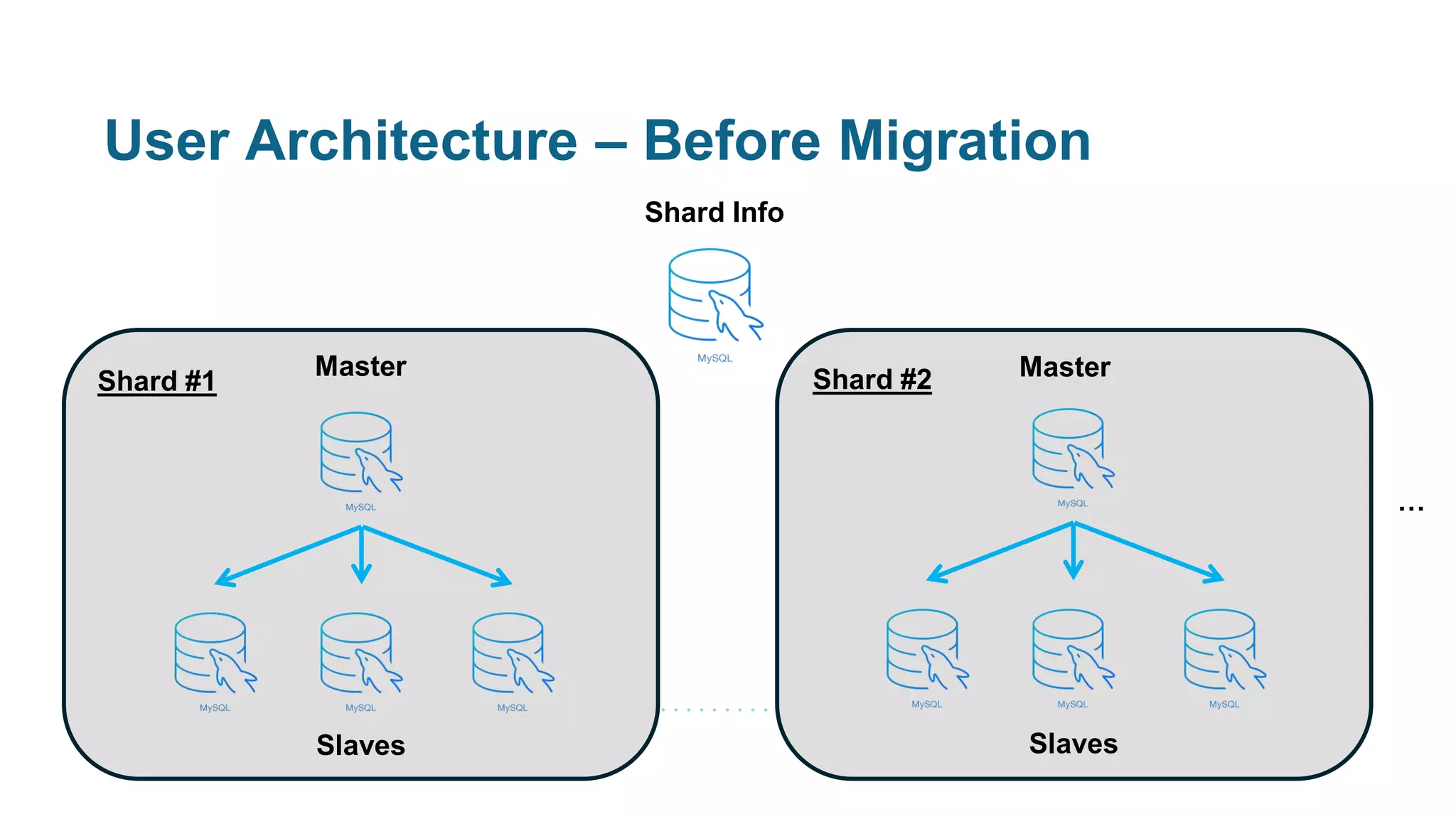

  User Architecture –Before Migration Master Slaves Master Slaves Shard Info … Shard #1 Shard #2
• 8.

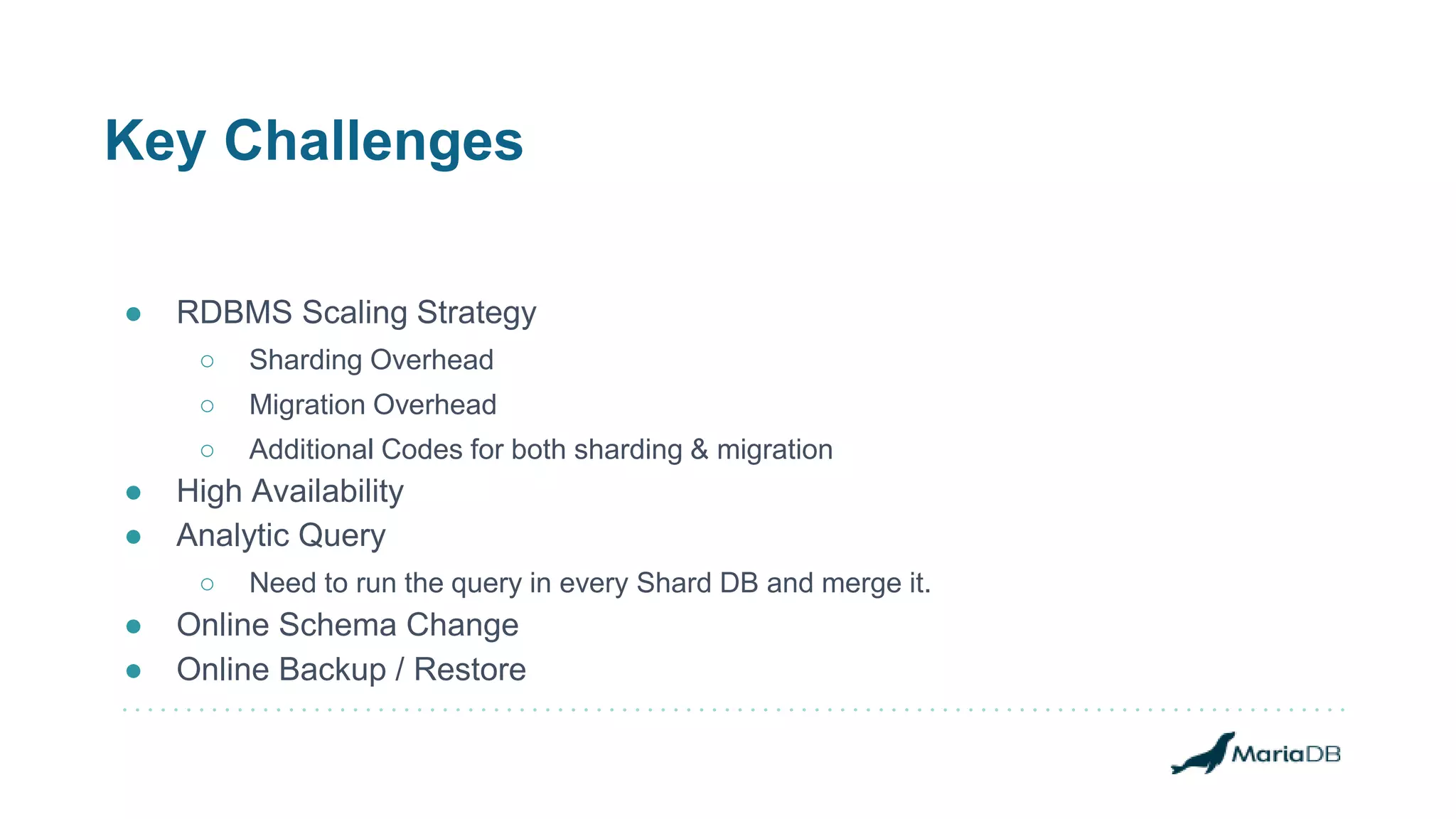

  Key Challenges ● RDBMSScaling Strategy ○ Sharding Overhead ○ Migration Overhead ○ Additional Codes for both sharding & migration ● High Availability ● Analytic Query ○ Need to run the query in every Shard DB and merge it. ● Online Schema Change ● Online Backup / Restore
• 9.

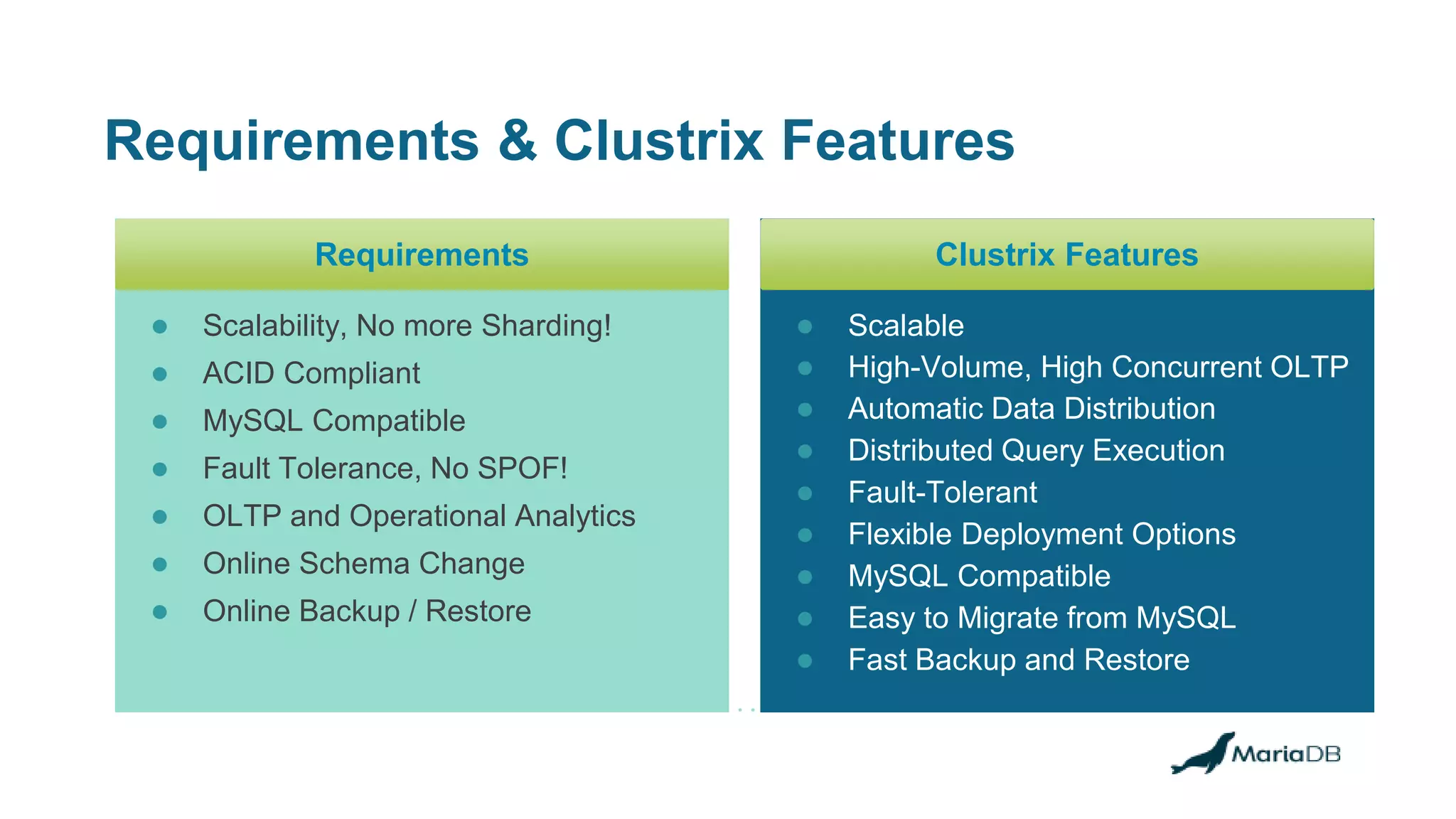

  Requirements & ClustrixFeatures ● Scalability, No more Sharding! ● ACID Compliant ● MySQL Compatible ● Fault Tolerance, No SPOF! ● OLTP and Operational Analytics ● Online Schema Change ● Online Backup / Restore ● Scalable ● High-Volume, High Concurrent OLTP ● Automatic Data Distribution ● Distributed Query Execution ● Fault-Tolerant ● Flexible Deployment Options ● MySQL Compatible ● Easy to Migrate from MySQL ● Fast Backup and Restore Requirements Clustrix Features

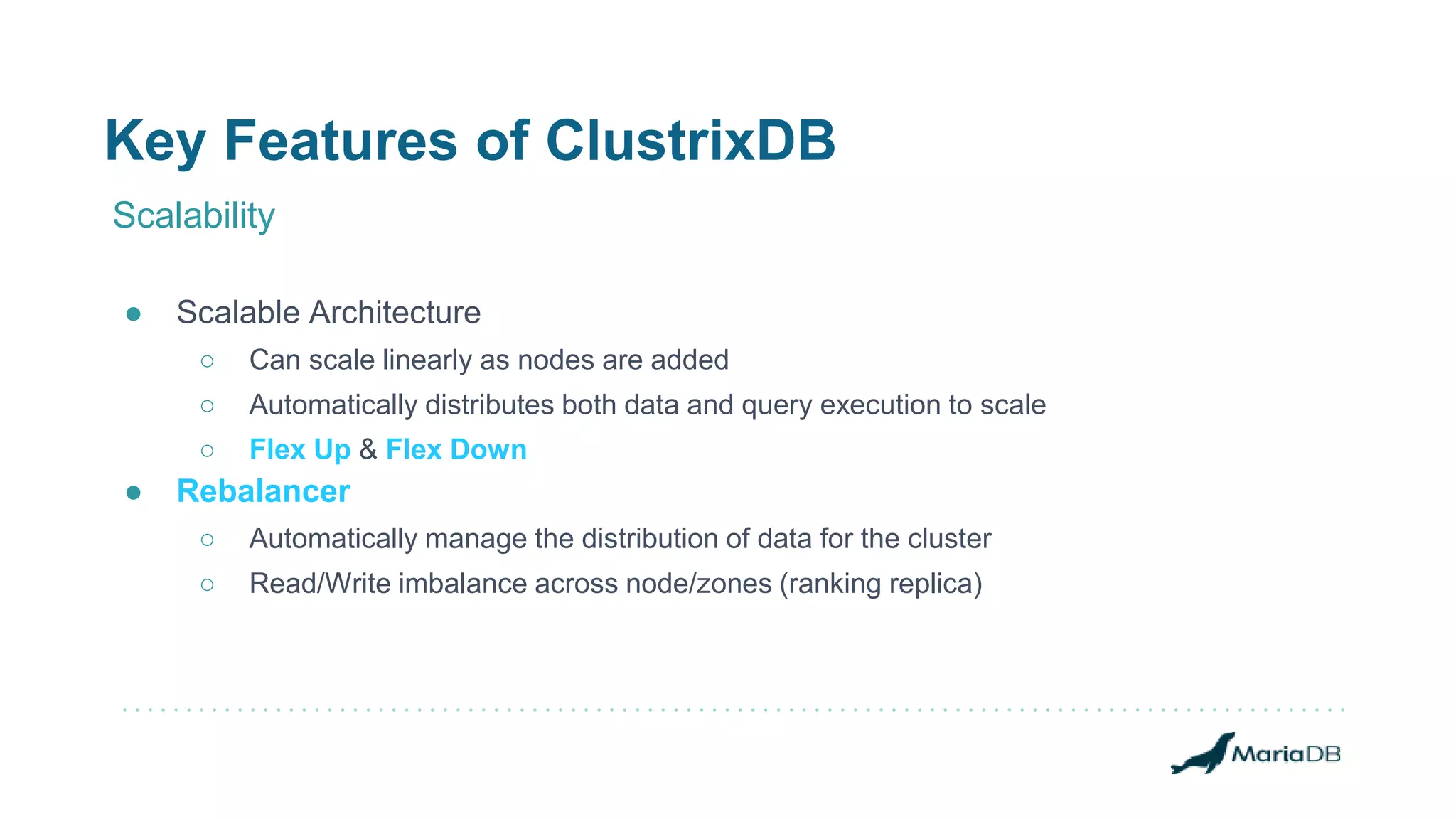

• 10.
  Key Features ofClustrixDB Scalability ● Scalable Architecture ○ Can scale linearly as nodes are added ○ Automatically distributes both data and query execution to scale ○ Flex Up & Flex Down ● Rebalancer ○ Automatically manage the distribution of data for the cluster ○ Read/Write imbalance across node/zones (ranking replica)

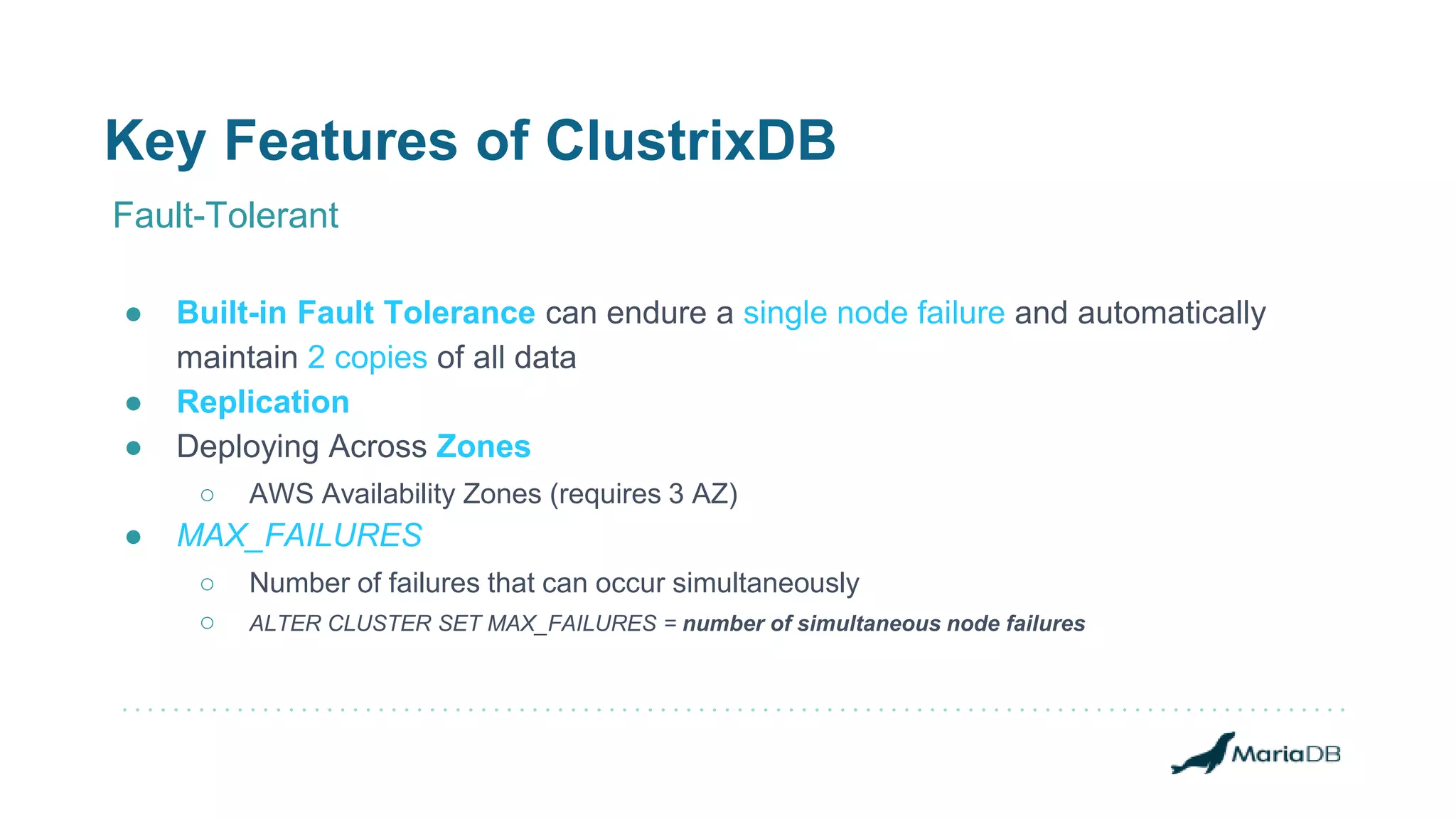

• 11.
  Key Features ofClustrixDB Fault-Tolerant ● Built-in Fault Tolerance can endure a single node failure and automatically maintain 2 copies of all data ● Replication ● Deploying Across Zones ○ AWS Availability Zones (requires 3 AZ) ● MAX_FAILURES ○ Number of failures that can occur simultaneously ○ ALTER CLUSTER SET MAX_FAILURES = number of simultaneous node failures

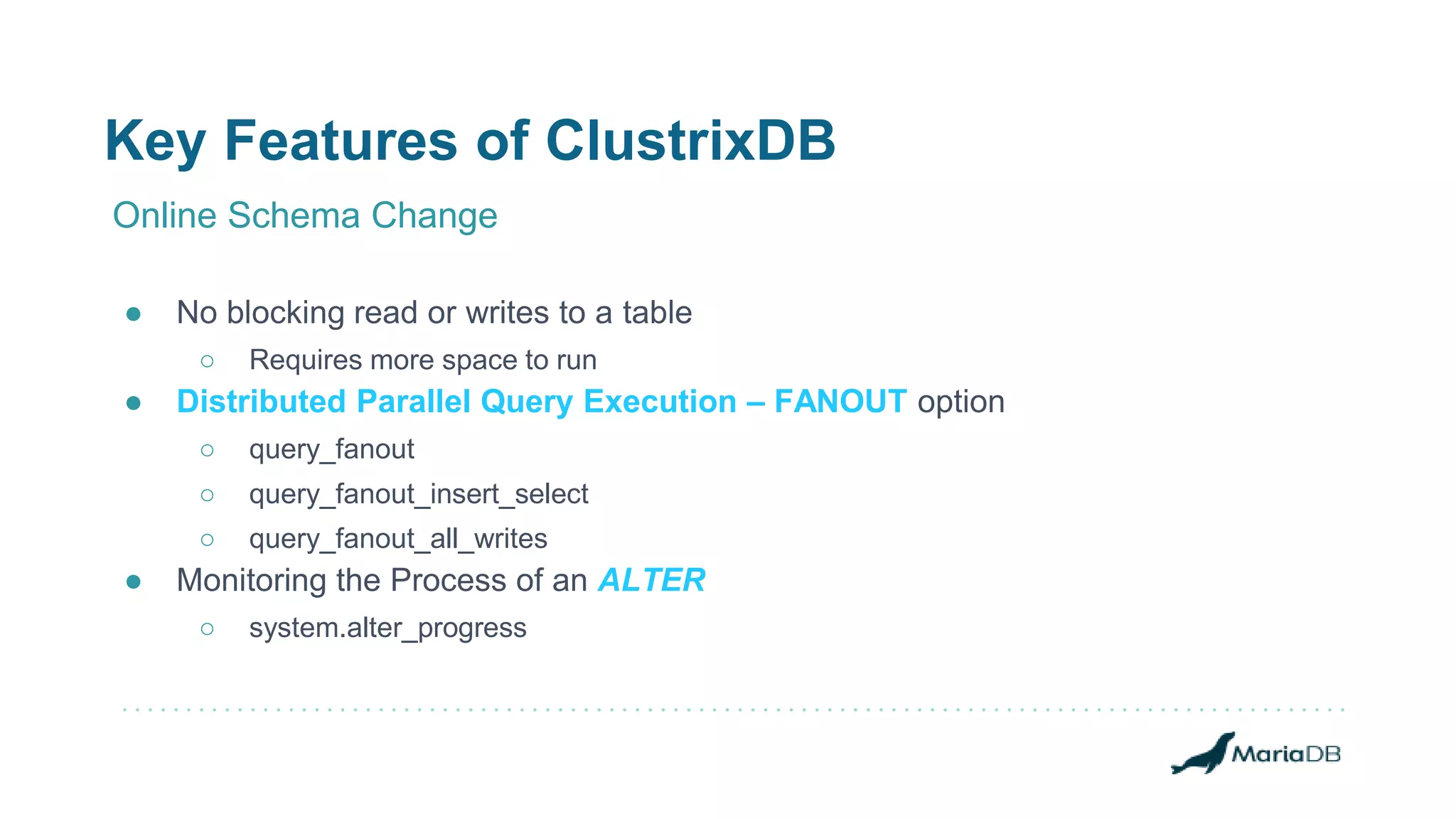

• 12.
  Key Features ofClustrixDB Online Schema Change ● No blocking read or writes to a table ○ Requires more space to run ● Distributed Parallel Query Execution – FANOUT option ○ query_fanout ○ query_fanout_insert_select ○ query_fanout_all_writes ● Monitoring the Process of an ALTER ○ system.alter_progress
• 13.

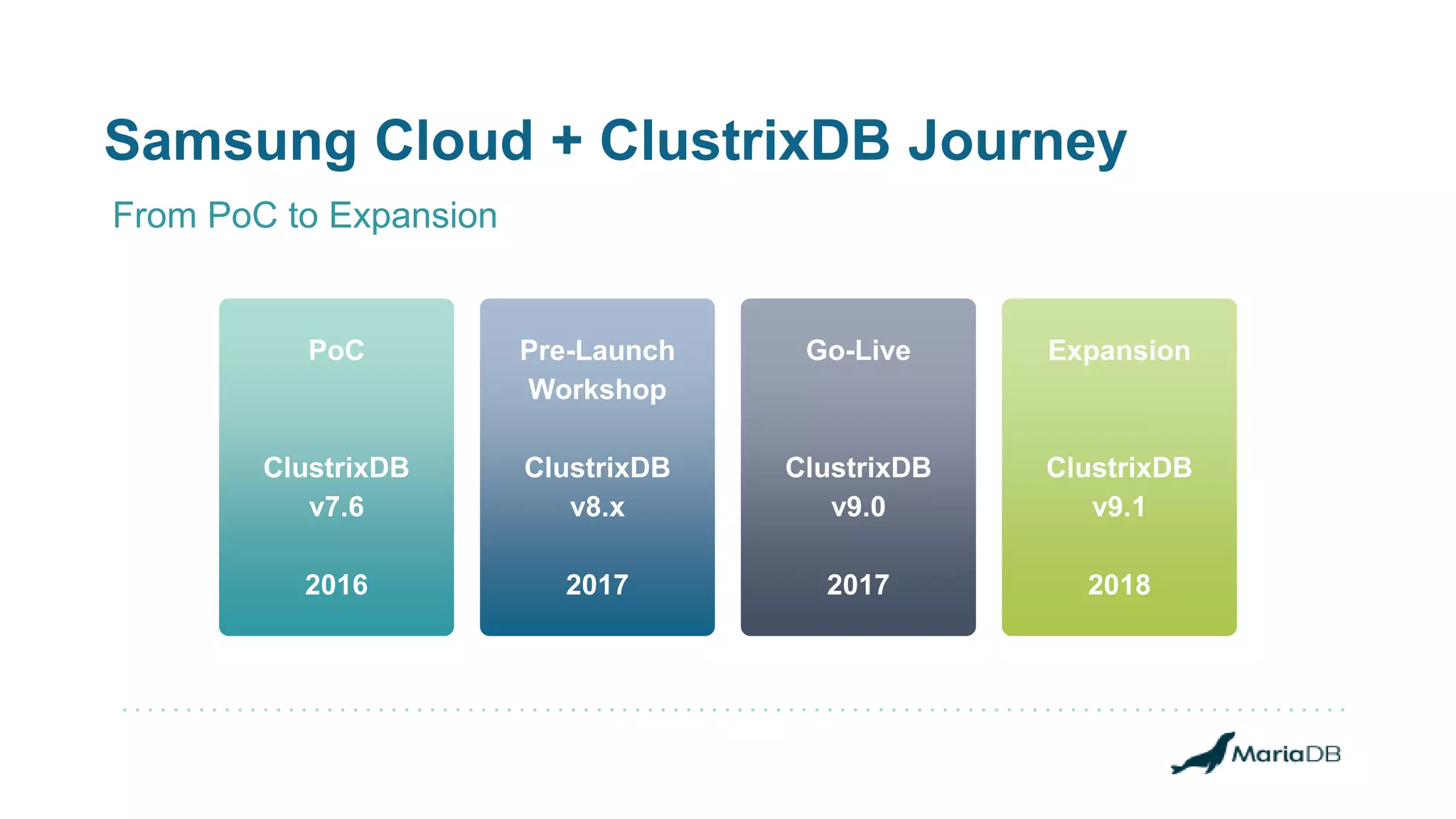

  Samsung Cloud +ClustrixDB Journey From PoC to Expansion PoC ClustrixDB v7.6 2016 Pre-Launch Workshop ClustrixDB v8.x 2017 Go-Live ClustrixDB v9.0 2017 Expansion ClustrixDB v9.1 2018
• 14.

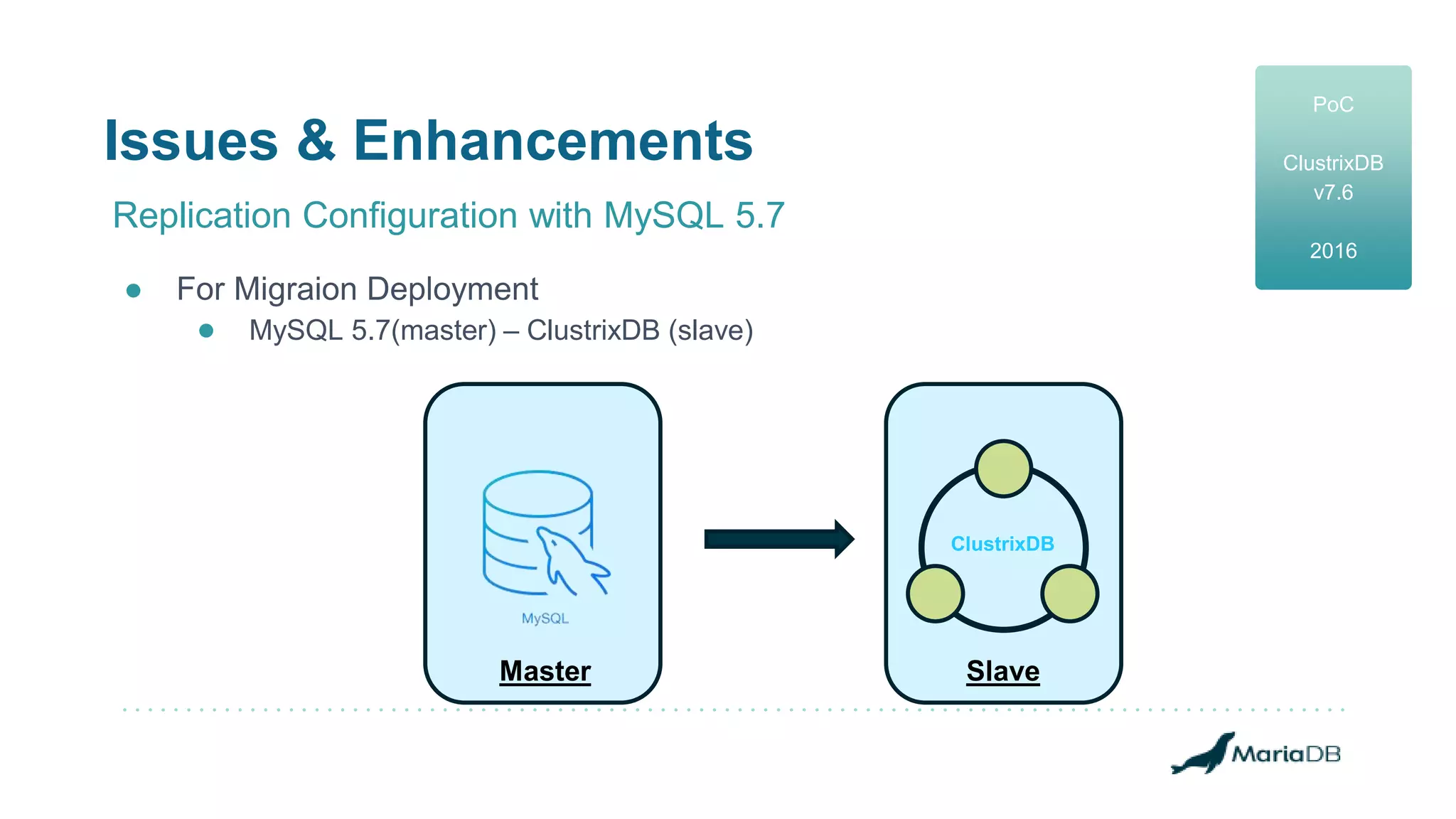

  Issues & Enhancements ReplicationConfiguration with MySQL 5.7 ● For Migraion Deployment ● MySQL 5.7(master) – ClustrixDB (slave) PoC ClustrixDB v7.6 2016 Master Slave ClustrixDB

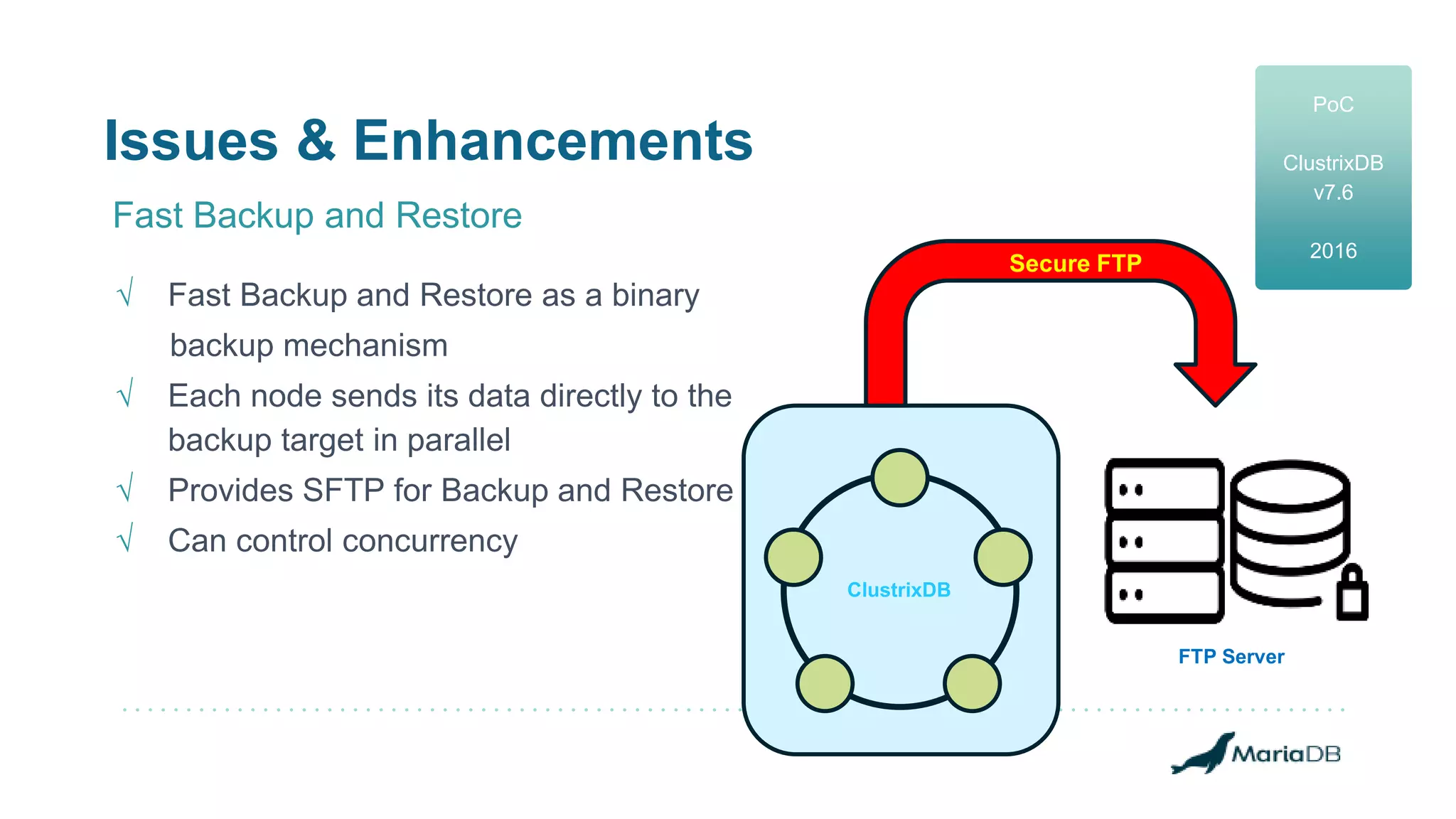

• 15.
  Issues & Enhancements FastBackup and Restore √ Fast Backup and Restore as a binary backup mechanism √ Each node sends its data directly to the backup target in parallel √ Provides SFTP for Backup and Restore √ Can control concurrency ClustrixDB PoC ClustrixDB v7.6 2016 FTP Server Secure FTP

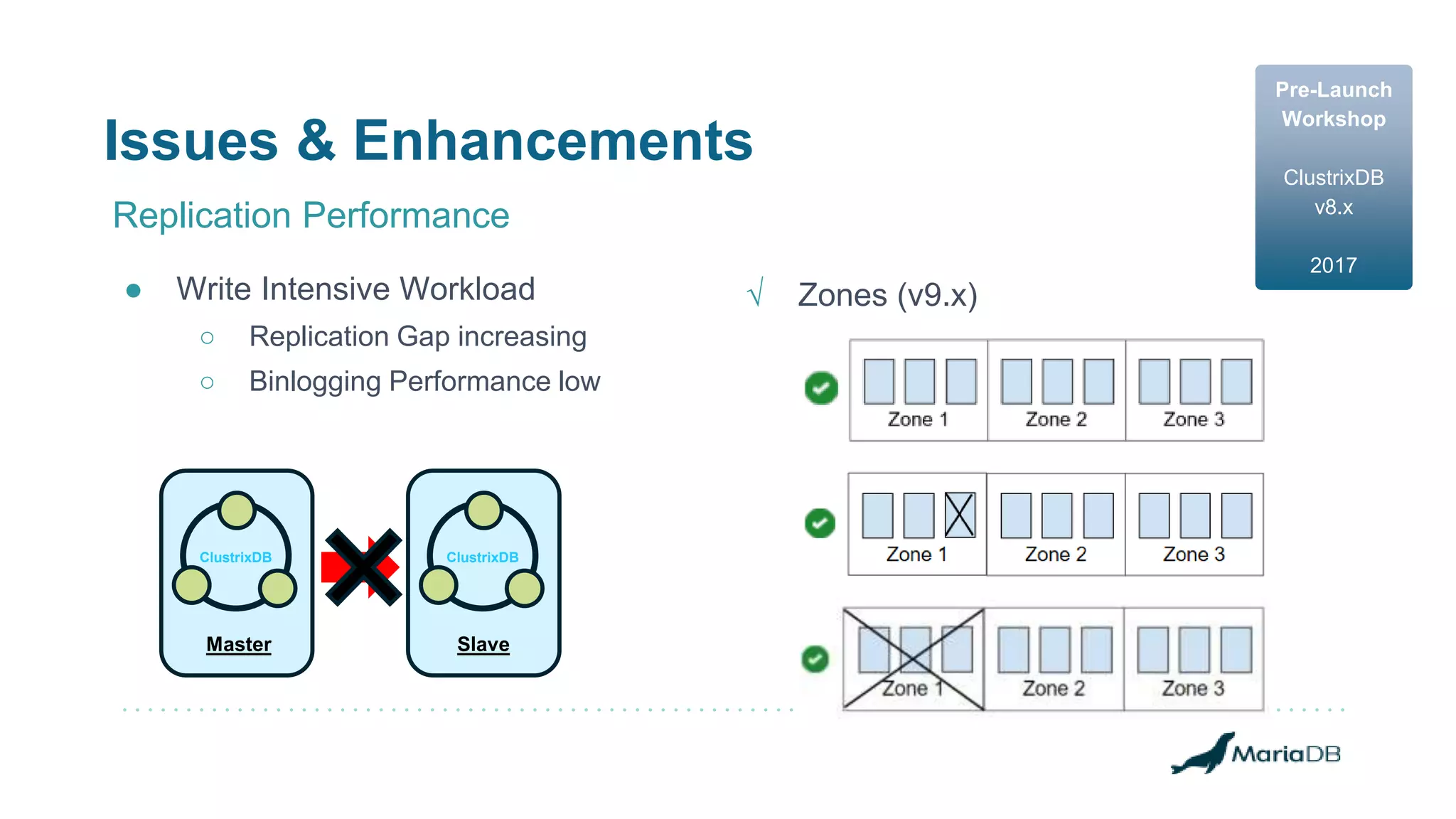

• 16.
  Issues & Enhancements ReplicationPerformance ● Write Intensive Workload ○ Replication Gap increasing ○ Binlogging Performance low Pre-Launch Workshop ClustrixDB v8.x 2017 Master ClustrixDB Slave ClustrixDB √ Zones (v9.x)

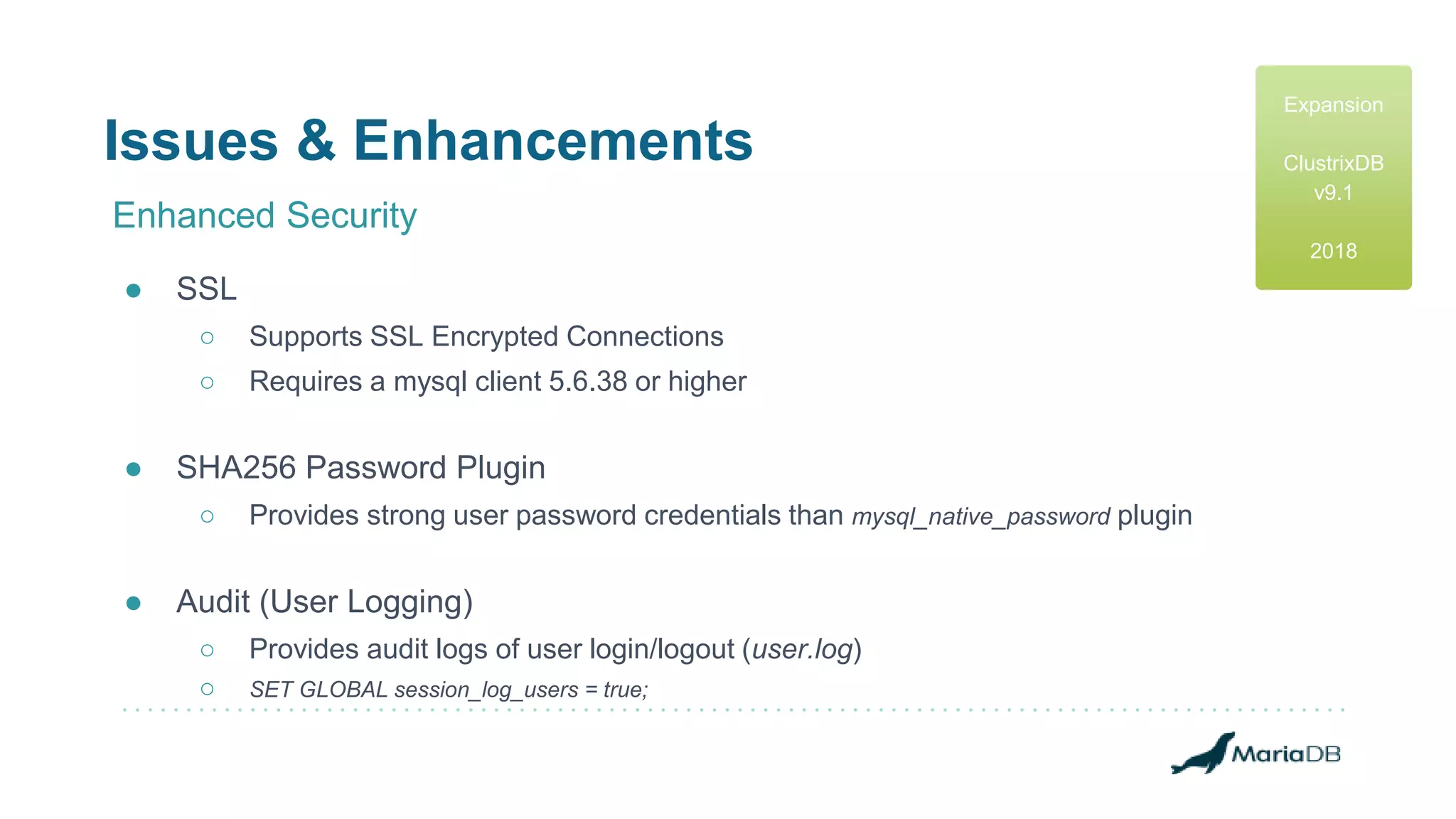

• 17.
  Issues & Enhancements EnhancedSecurity ● SSL ○ Supports SSL Encrypted Connections ○ Requires a mysql client 5.6.38 or higher ● SHA256 Password Plugin ○ Provides strong user password credentials than mysql_native_password plugin ● Audit (User Logging) ○ Provides audit logs of user login/logout (user.log) ○ SET GLOBAL session_log_users = true; Expansion ClustrixDB v9.1 2018
• 18.

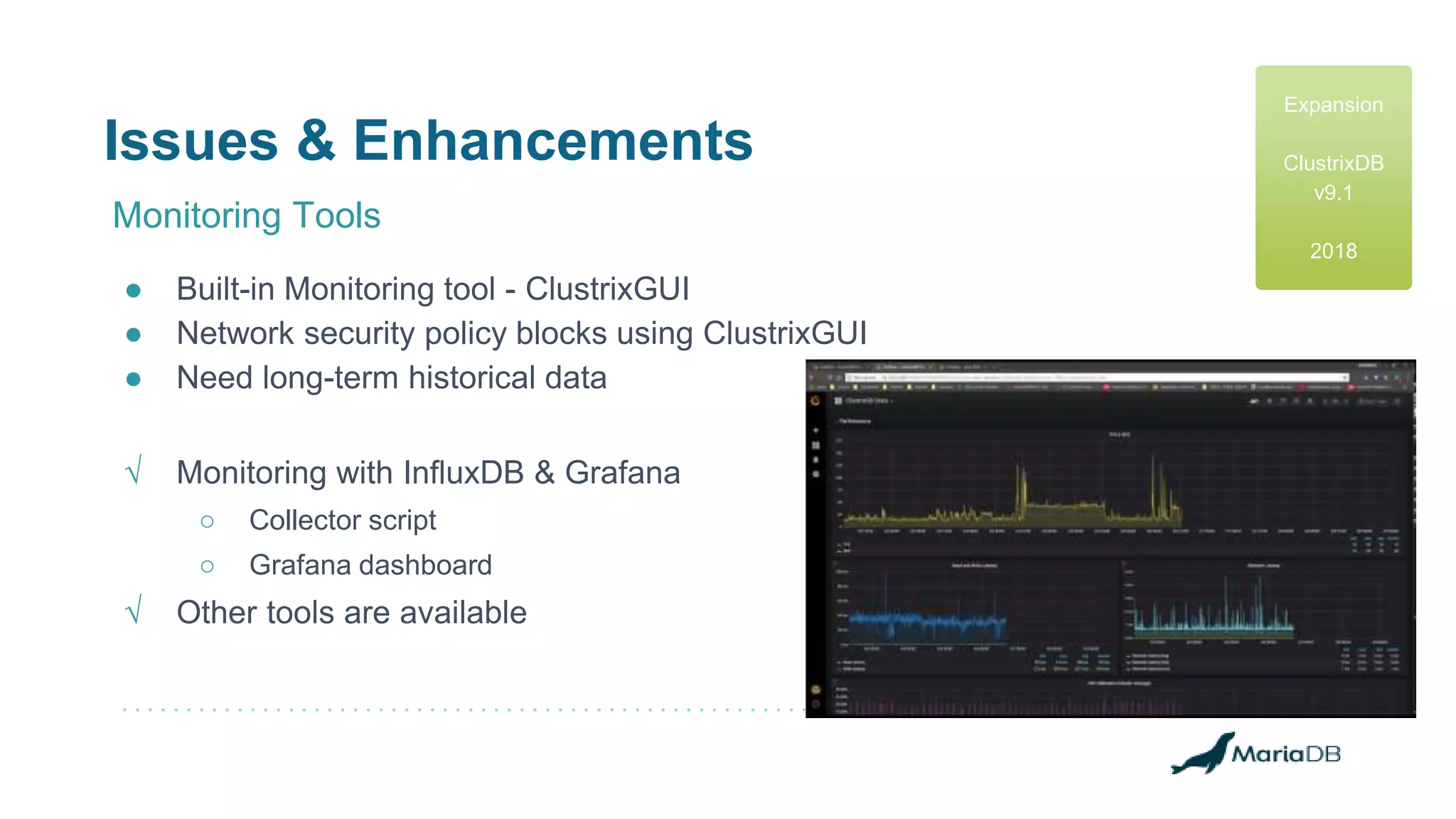

  Issues & Enhancements MonitoringTools ● Built-in Monitoring tool - ClustrixGUI ● Network security policy blocks using ClustrixGUI ● Need long-term historical data √ Monitoring with InfluxDB & Grafana ○ Collector script ○ Grafana dashboard √ Other tools are available Expansion ClustrixDB v9.1 2018
• 19.

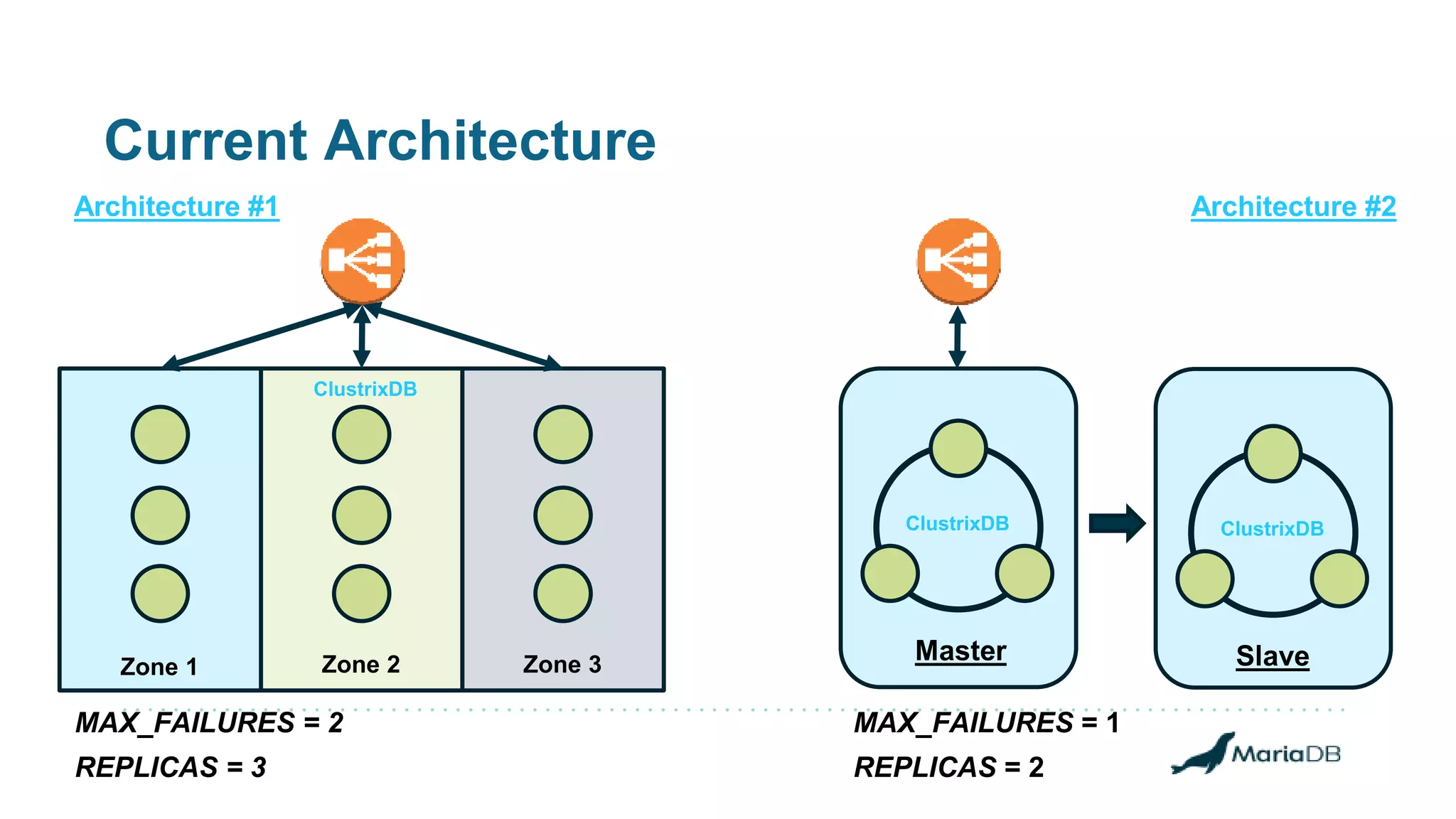

  Current Architecture Architecture #1 Zone1 Zone 2 Zone 3 Master Slave ClustrixDBClustrixDB Architecture #2 MAX_FAILURES = 2 REPLICAS = 3 MAX_FAILURES = 1 REPLICAS = 2 ClustrixDB
• 20.

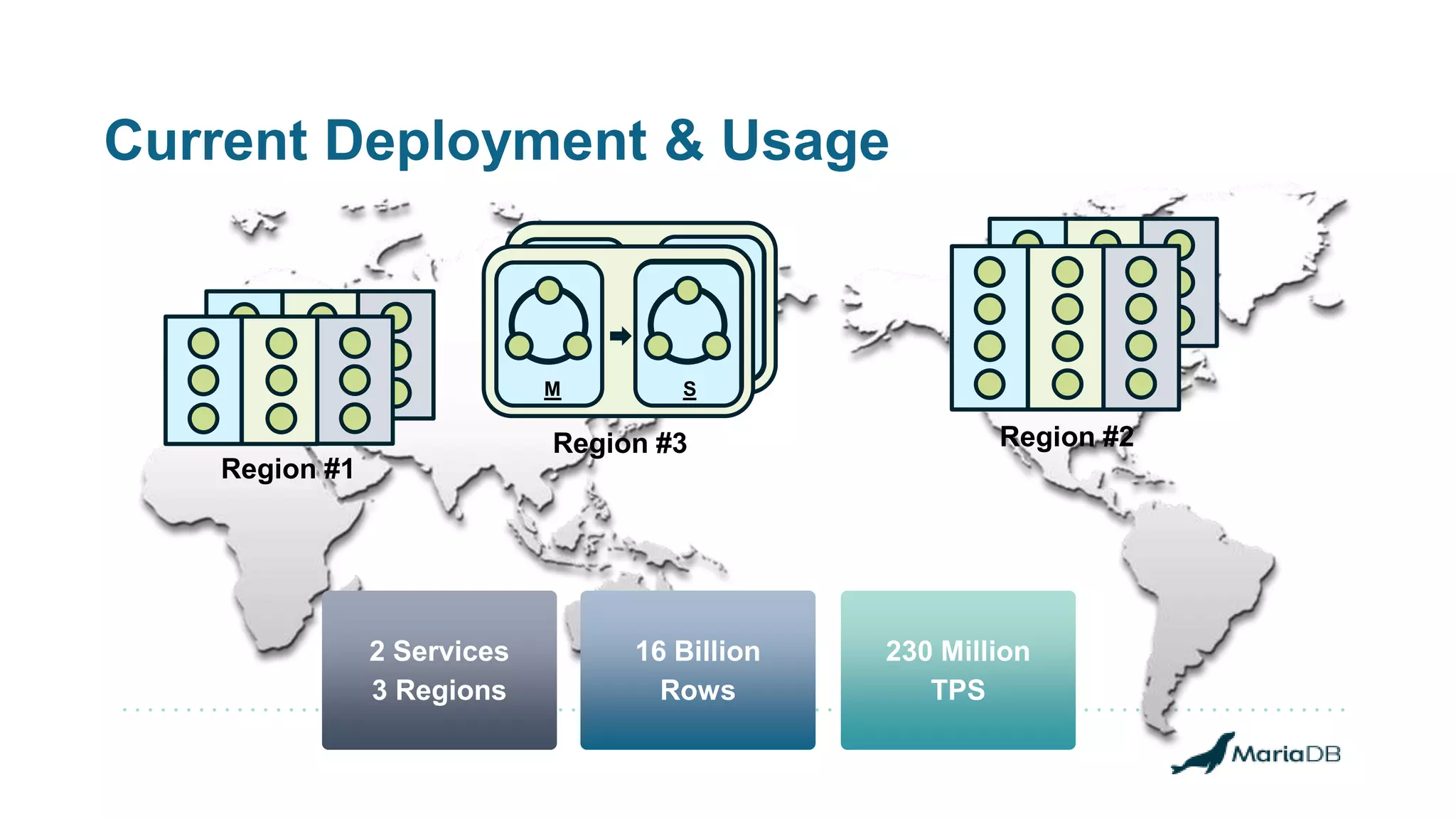

  Current Deployment &Usage Region #2 Region #1 Region #3 M SS M SS 230 Million TPS 16 Billion Rows 2 Services 3 Regions
• 21.

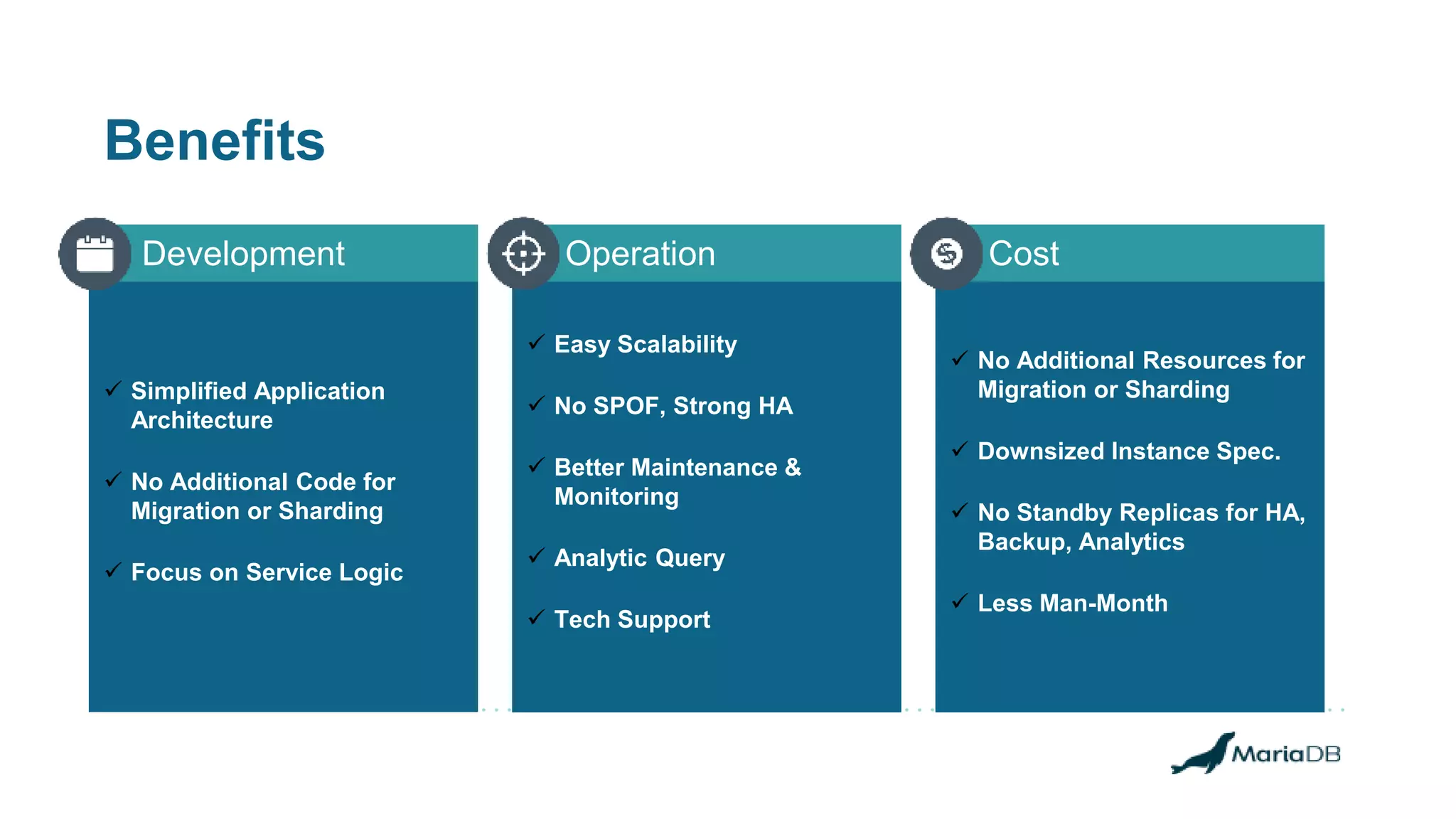

   No AdditionalResources for Migration or Sharding  Downsized Instance Spec.  No Standby Replicas for HA, Backup, Analytics  Less Man-Month  Easy Scalability  No SPOF, Strong HA  Better Maintenance & Monitoring  Analytic Query  Tech Support  Simplified Application Architecture  No Additional Code for Migration or Sharding  Focus on Service Logic Development Benefits Operation Cost
• 22.

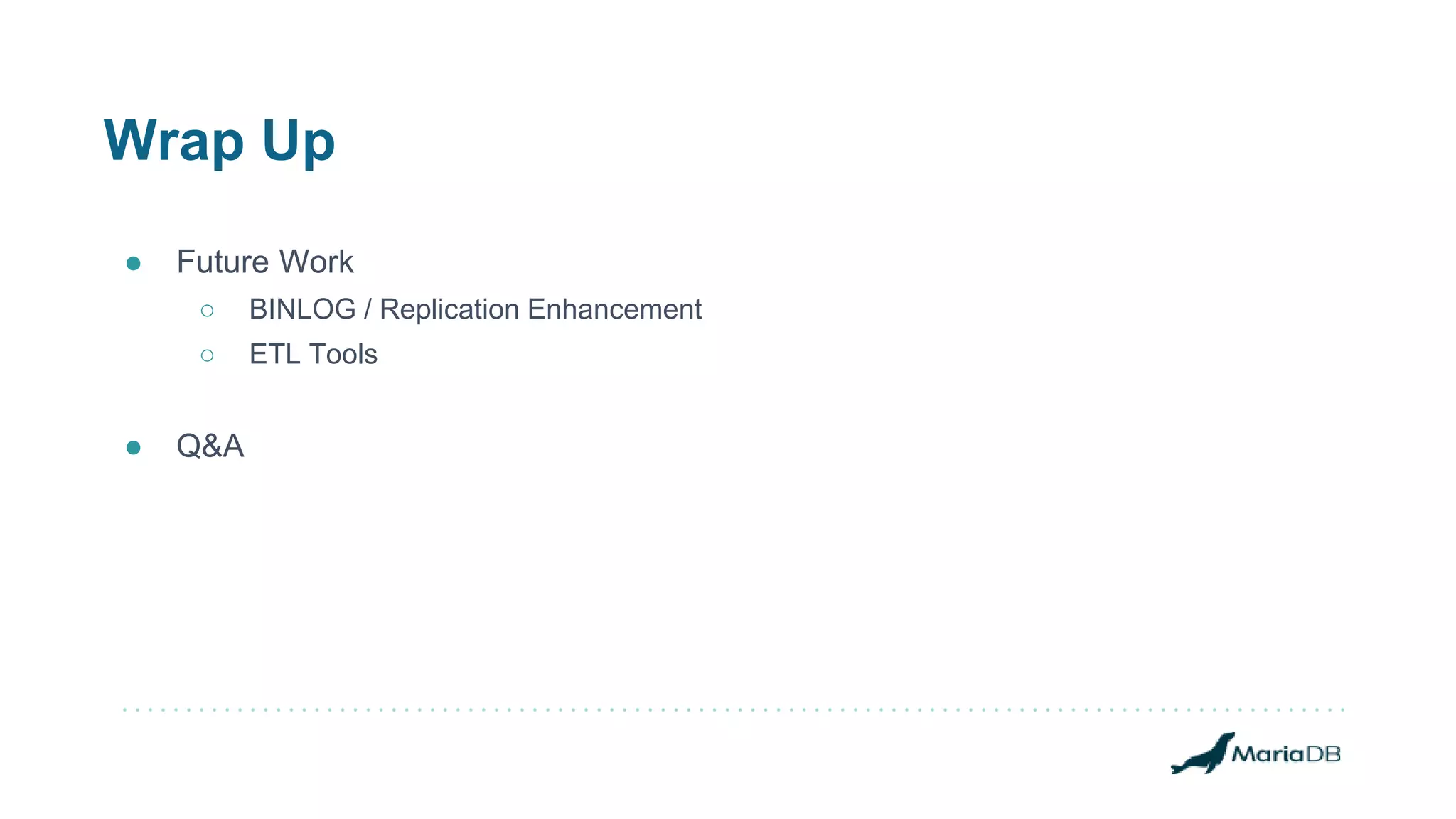

  Wrap Up ● FutureWork ○ BINLOG / Replication Enhancement ○ ETL Tools ● Q&A
