Cloud Computing
Judy Flavia B / A.P CSE

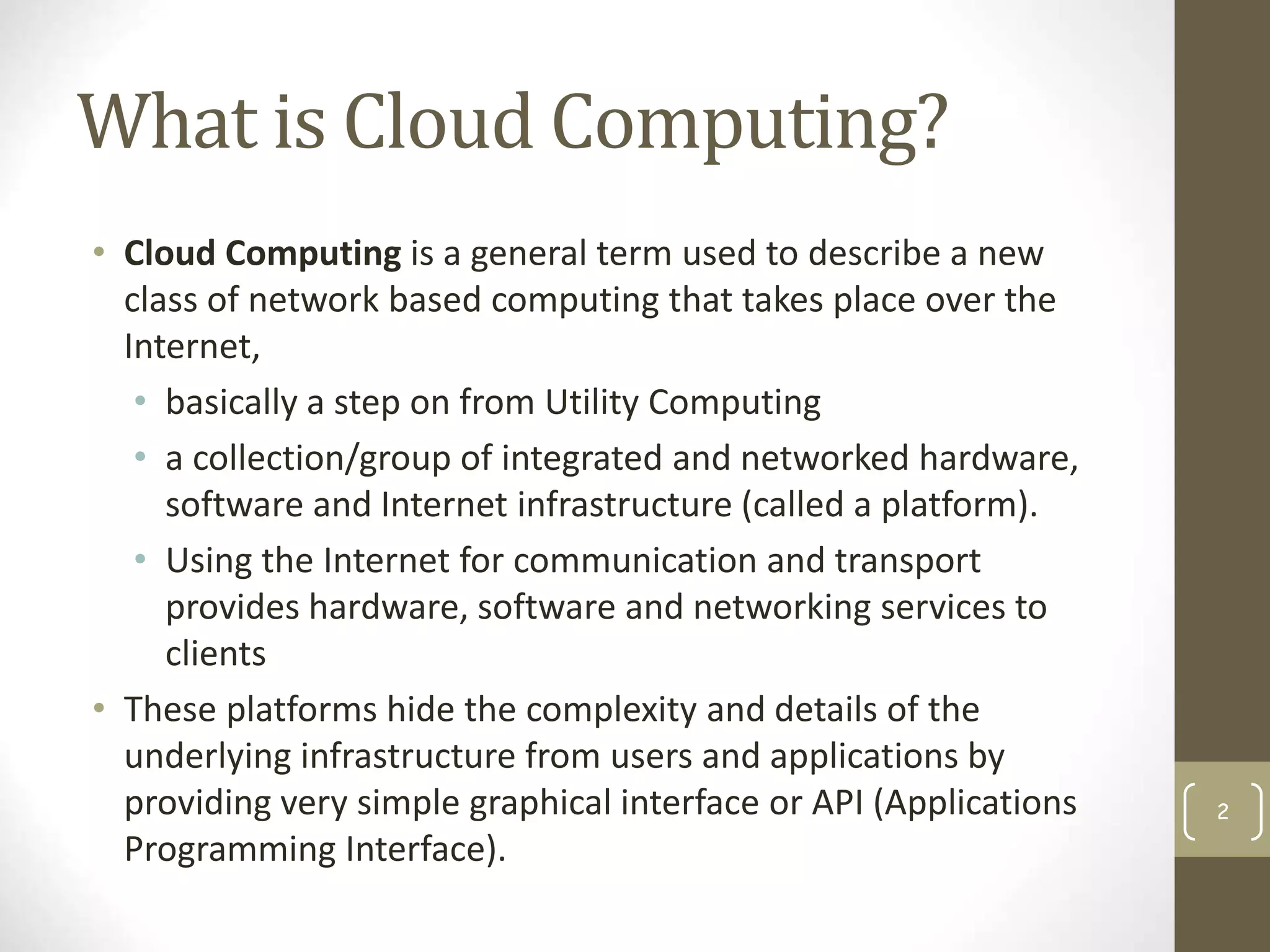

What is Cloud Computing?
• Cloud Computing is a general term used to describe a new
class of network based computing that takes place over the
Internet,
• basically a step on from Utility Computing
• a collection/group of integrated and networked hardware,
software and Internet infrastructure (called a platform).
• Using the Internet for communication and transport
provides hardware, software and networking services to
clients
• These platforms hide the complexity and details of the
underlying infrastructure from users and applications by
providing very simple graphical interface or API (Applications
Programming Interface).
2

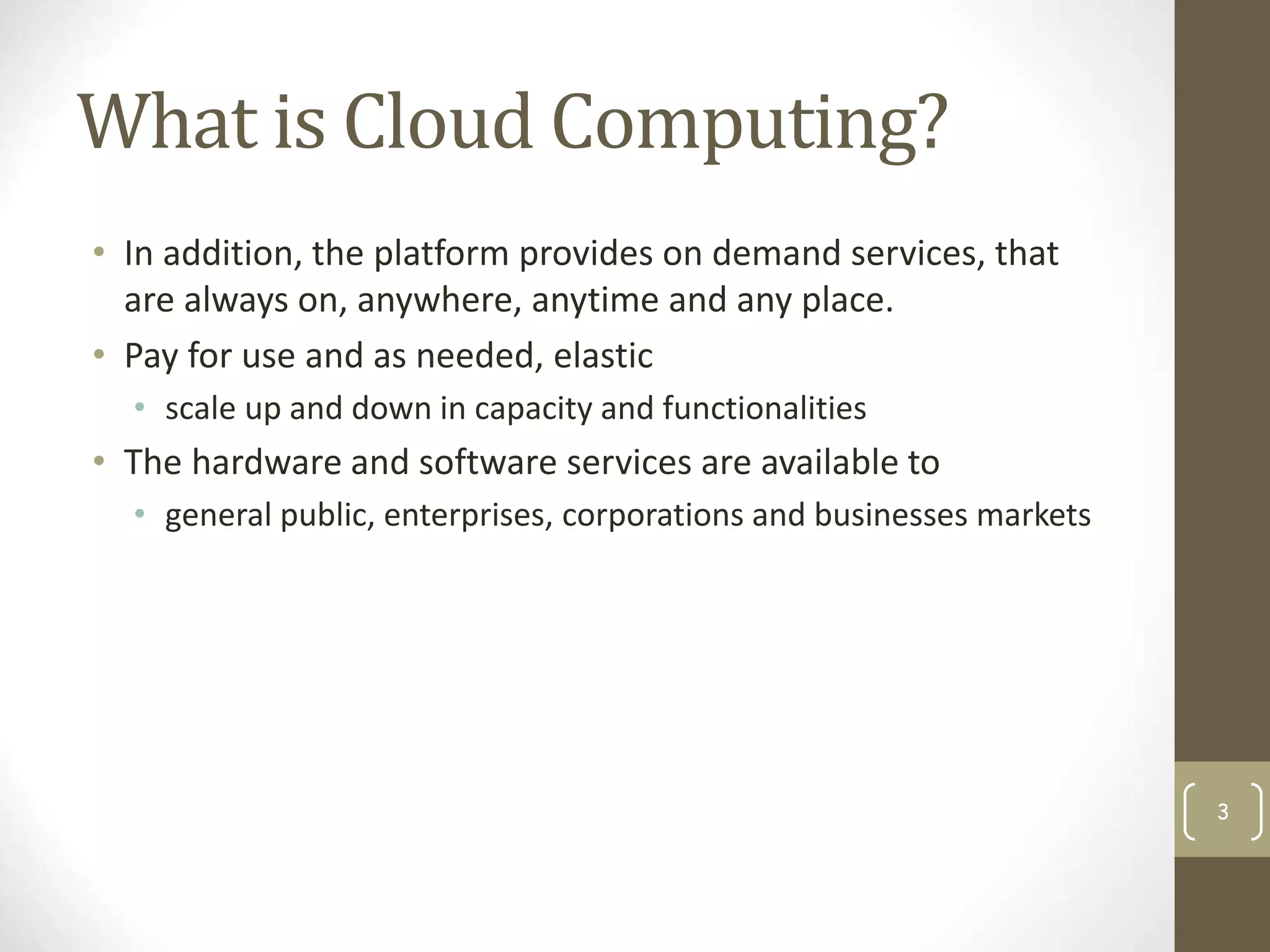

What is Cloud Computing?
• In addition, the platform provides on demand services, that
are always on, anywhere, anytime and any place.
• Pay for use and as needed, elastic
• scale up and down in capacity and functionalities
• The hardware and software services are available to
• general public, enterprises, corporations and businesses markets
3

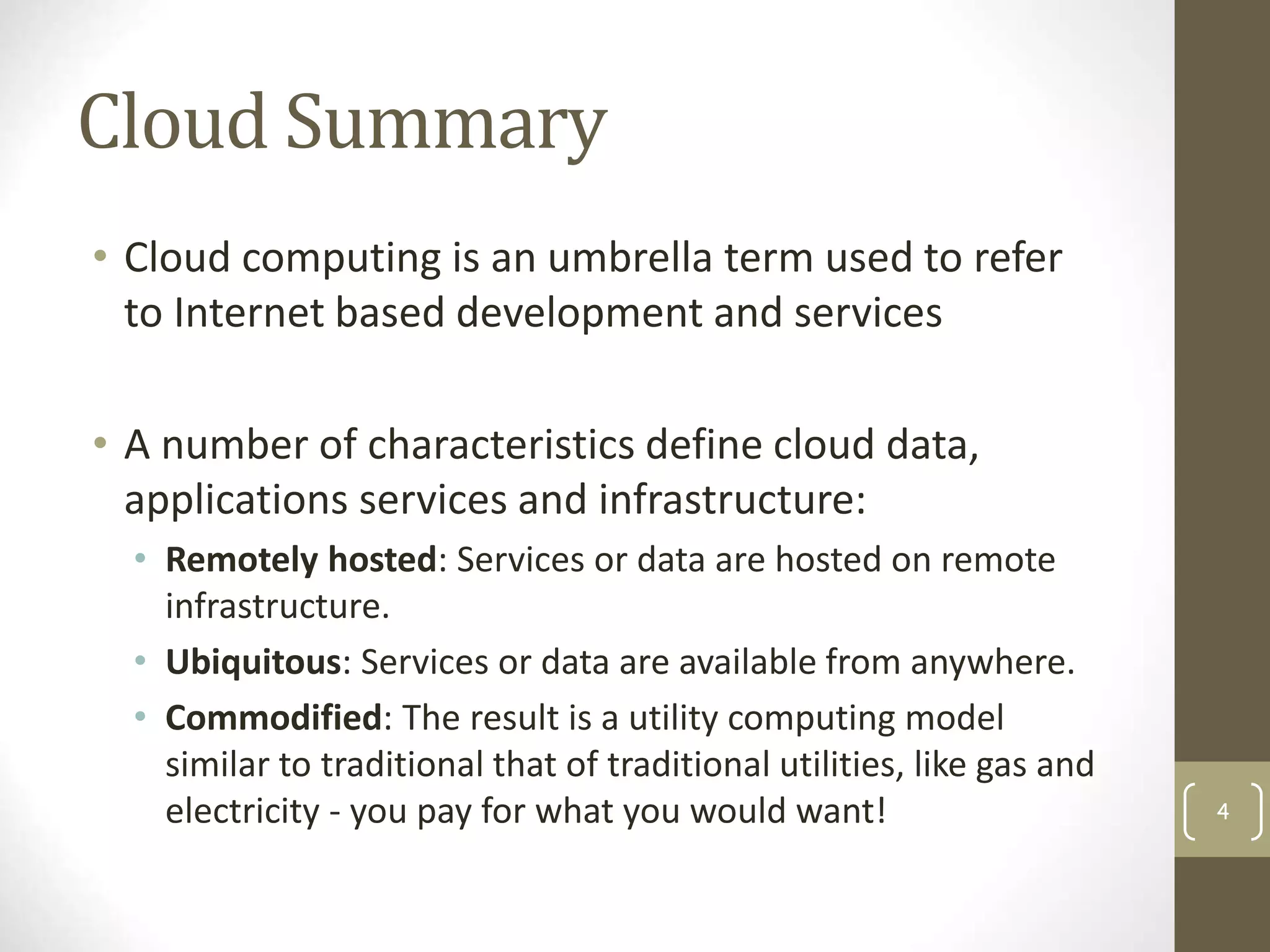

Cloud Summary
• Cloud computing is an umbrella term used to refer
to Internet based development and services
• A number of characteristics define cloud data,
applications services and infrastructure:
• Remotely hosted: Services or data are hosted on remote
infrastructure.
• Ubiquitous: Services or data are available from anywhere.
• Commodified: The result is a utility computing model
similar to traditional that of traditional utilities, like gas and
electricity - you pay for what you would want! 4

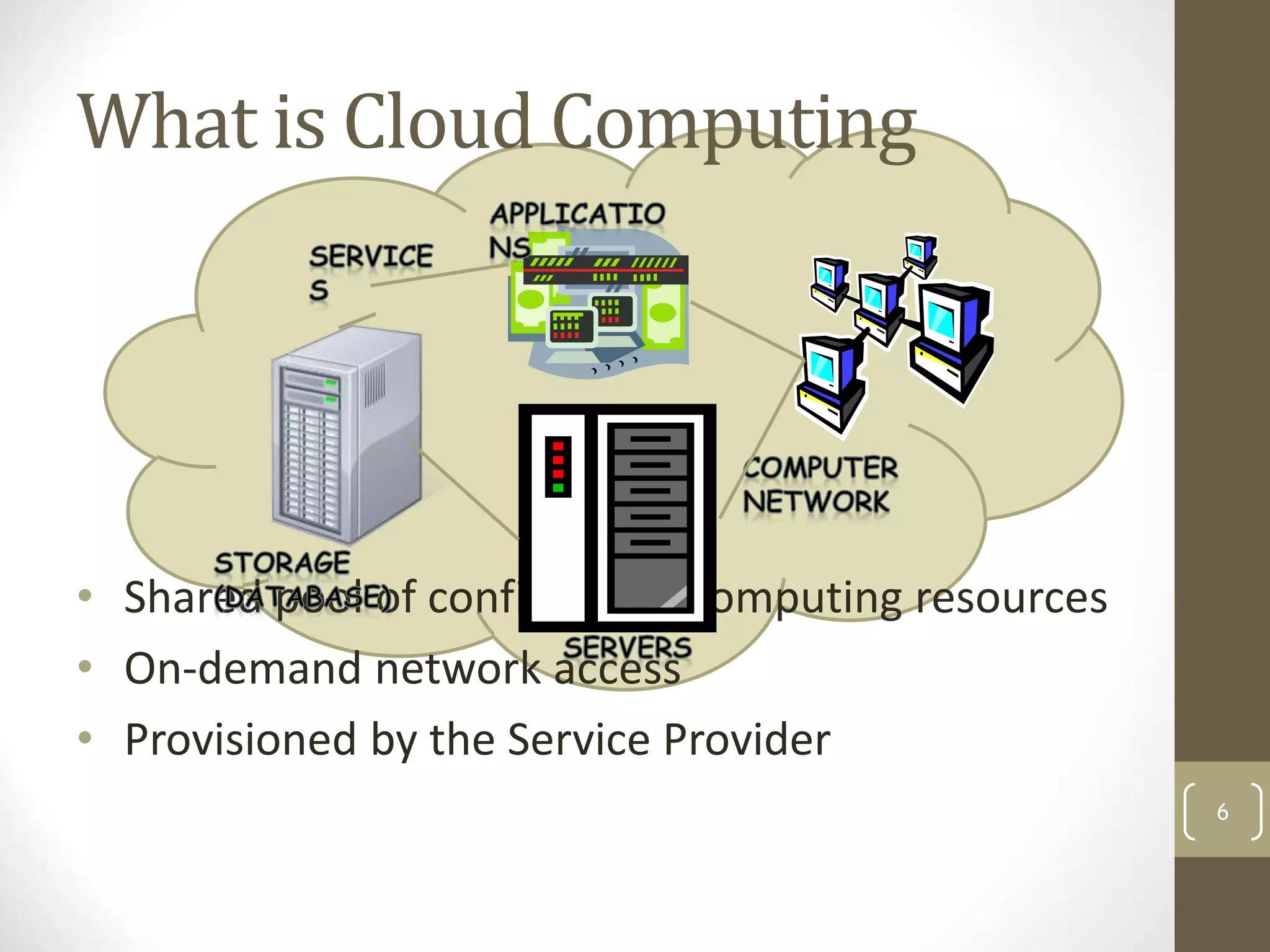

What is Cloud Computing
• Shared pool of configurable computing resources
• On-demand network access
• Provisioned by the Service Provider
6
Adopted from: Effectively and Securely Using the Cloud Computing Paradigm by peter Mell, Tim
Grance

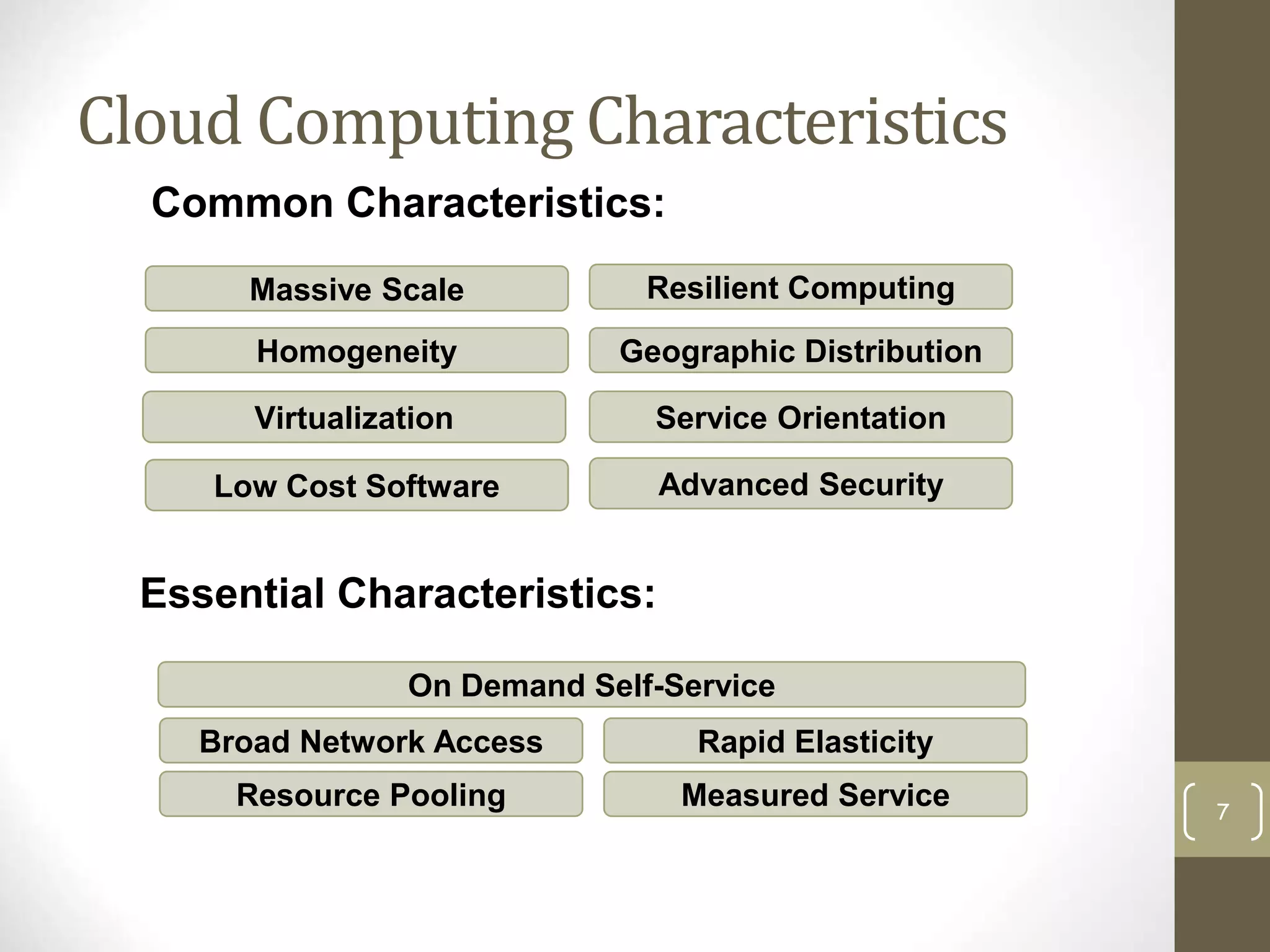

Cloud Computing Characteristics
7
Common Characteristics:
Low Cost Software
Virtualization Service Orientation
Advanced Security
Homogeneity
Massive Scale Resilient Computing
Geographic Distribution
Essential Characteristics:
Resource Pooling
Broad Network Access Rapid Elasticity
Measured Service
On Demand Self-Service
Grance

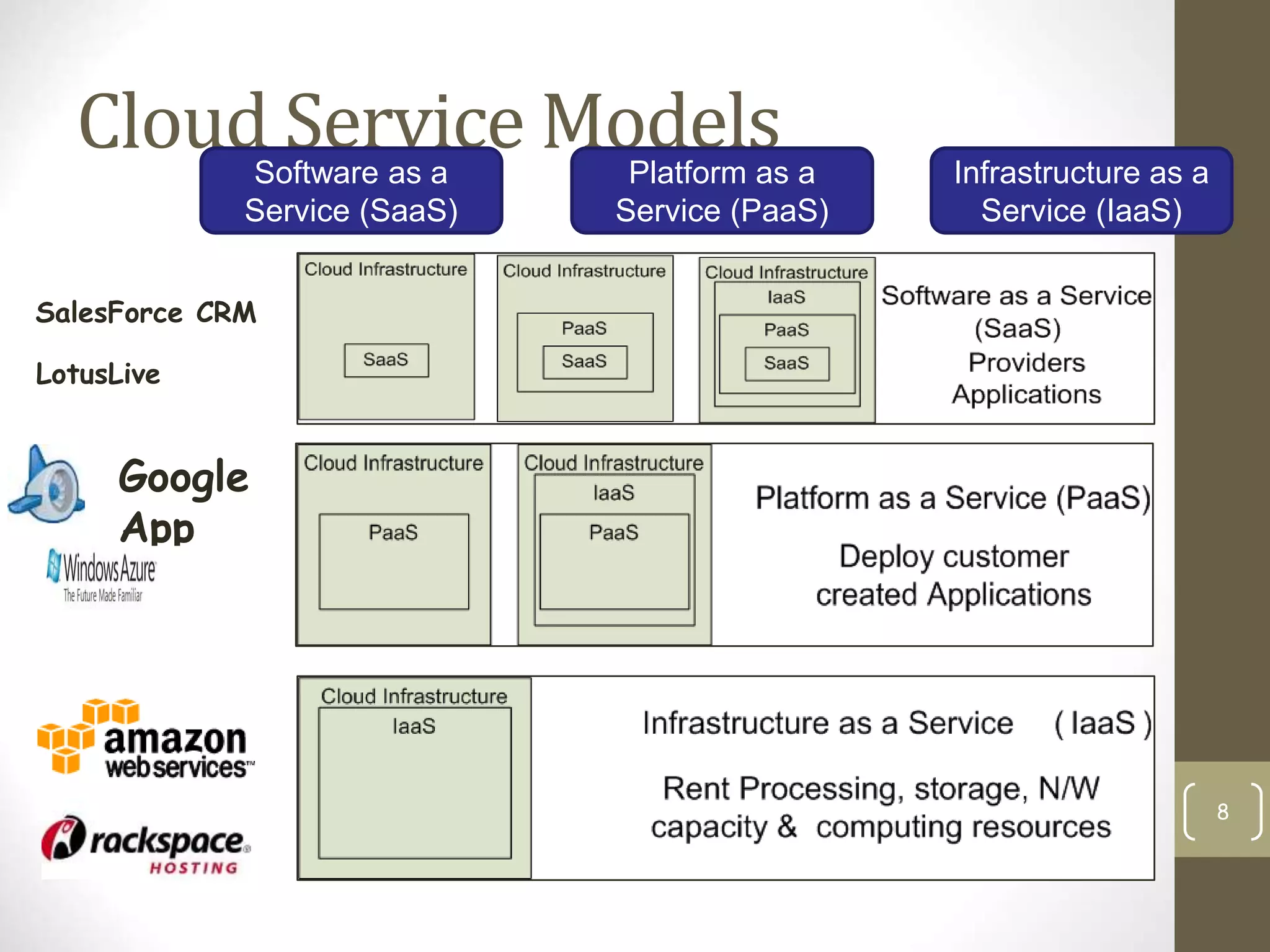

Cloud Service Models
8
Software as a
Service (SaaS)
Platform as a
Service (PaaS)
Infrastructure as a
Service (IaaS)
Google
App
Engine
SalesForce CRM
LotusLive
Grance

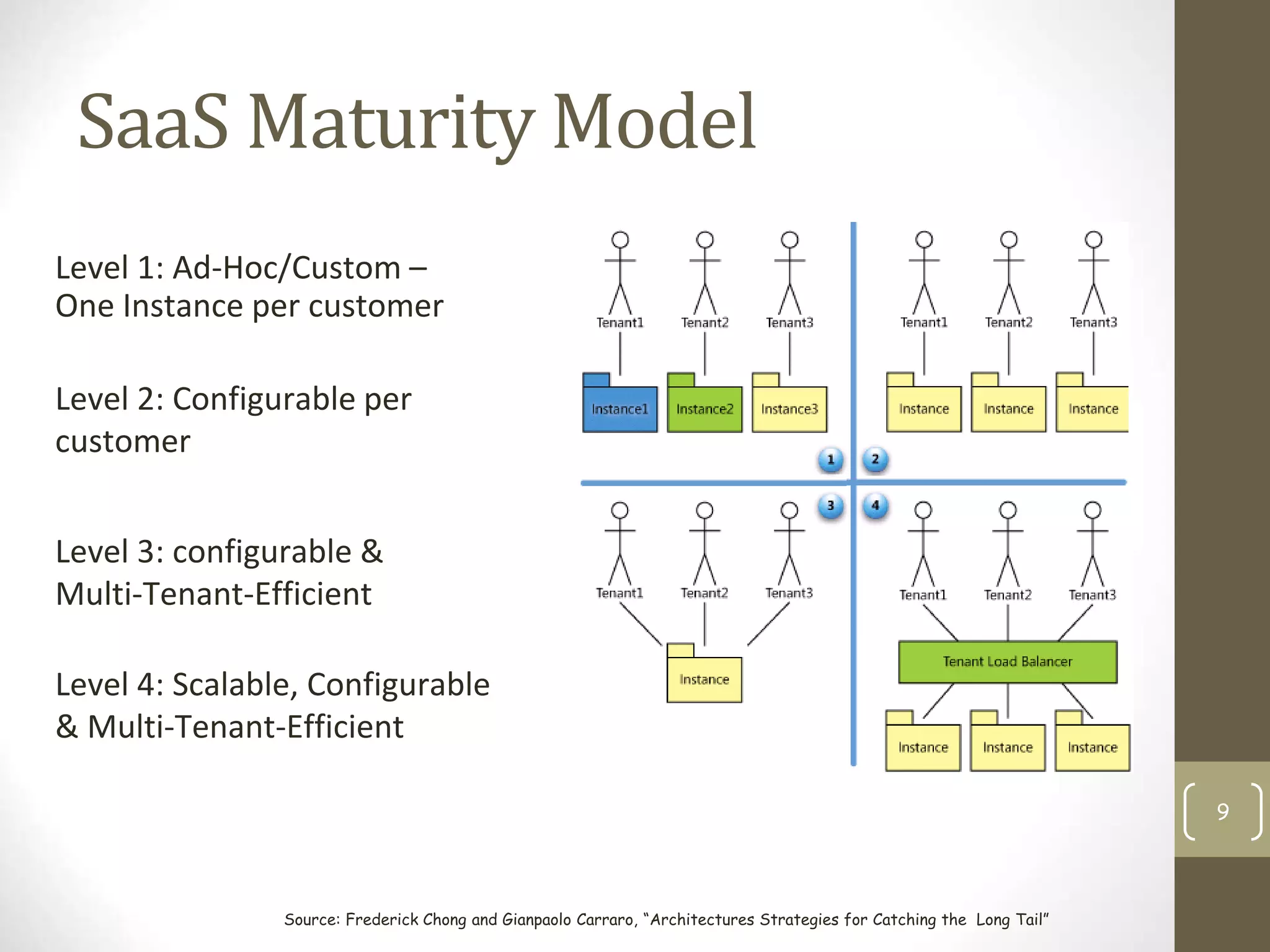

SaaS Maturity Model
Level 2: Configurable per
customer
9
Source: Frederick Chong and Gianpaolo Carraro, “Architectures Strategies for Catching the Long Tail”
Level 3: configurable &
Multi-Tenant-Efficient
Level 1: Ad-Hoc/Custom –
One Instance per customer
Level 4: Scalable, Configurable
& Multi-Tenant-Efficient

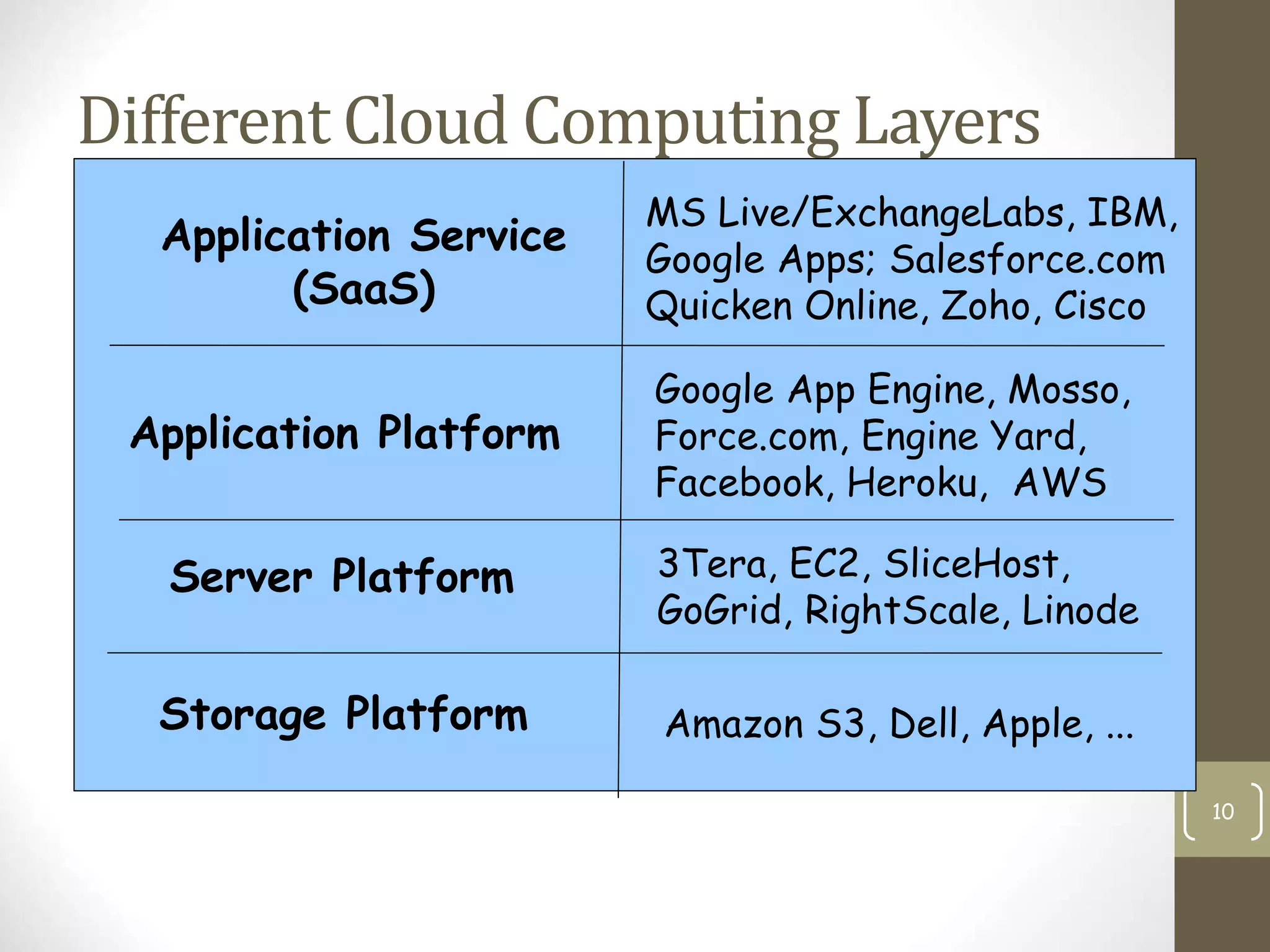

Different Cloud Computing Layers
10
Application Service
(SaaS)
Application Platform
Server Platform
Storage Platform Amazon S3, Dell, Apple, ...
3Tera, EC2, SliceHost,
GoGrid, RightScale, Linode
Google App Engine, Mosso,
Force.com, Engine Yard,
Facebook, Heroku, AWS
MS Live/ExchangeLabs, IBM,
Google Apps; Salesforce.com
Quicken Online, Zoho, Cisco

Services
Application
Development
Platform
Storage
Hosting

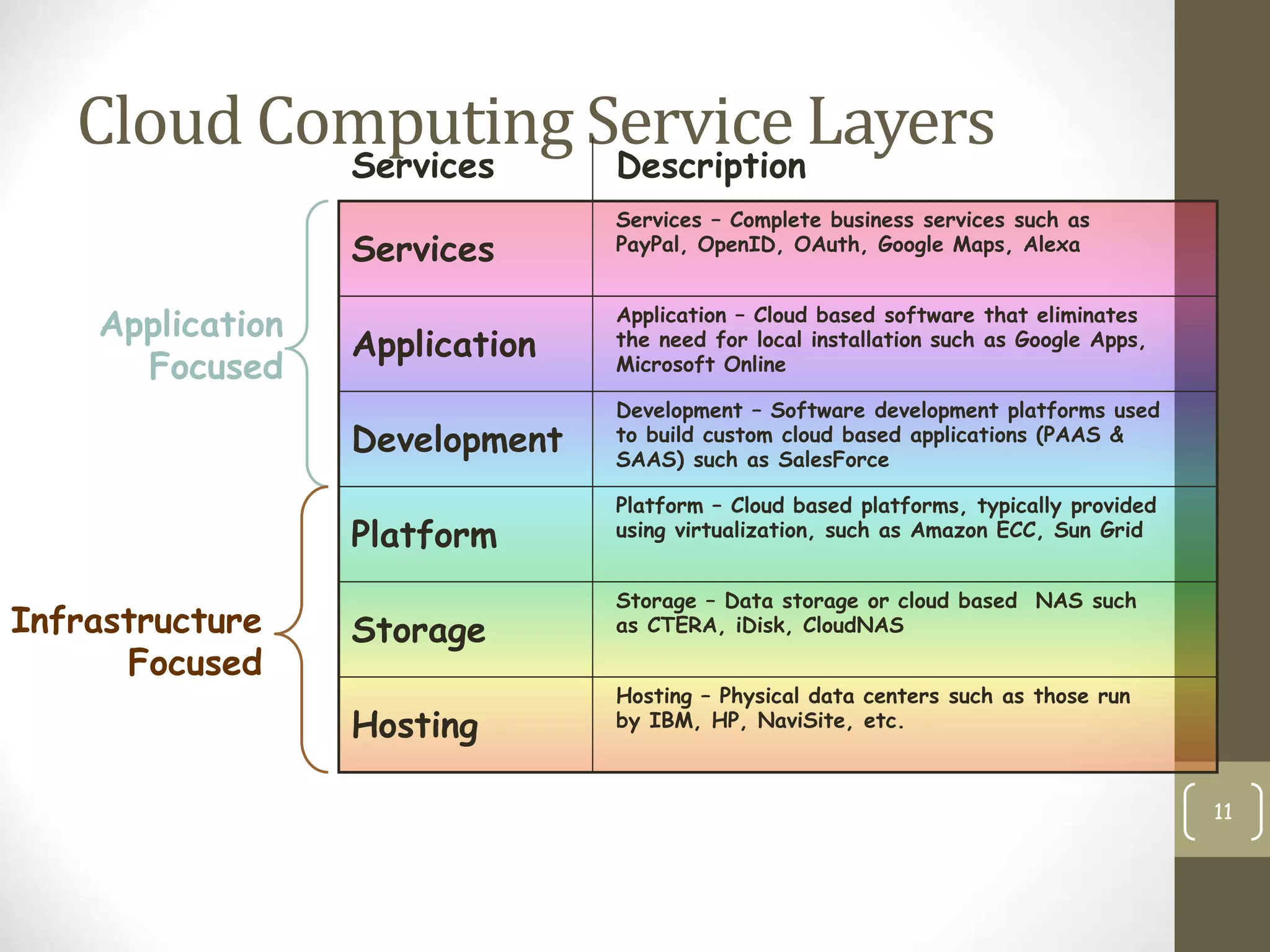

Cloud Computing Service Layers
11
Description
Services – Complete business services such as
PayPal, OpenID, OAuth, Google Maps, Alexa
Services
Application
Focused
Infrastructure
Focused
Application – Cloud based software that eliminates
the need for local installation such as Google Apps,
Microsoft Online
Storage – Data storage or cloud based NAS such
as CTERA, iDisk, CloudNAS
Development – Software development platforms used
to build custom cloud based applications (PAAS &
SAAS) such as SalesForce
Platform – Cloud based platforms, typically provided
using virtualization, such as Amazon ECC, Sun Grid
Hosting – Physical data centers such as those run
by IBM, HP, NaviSite, etc.

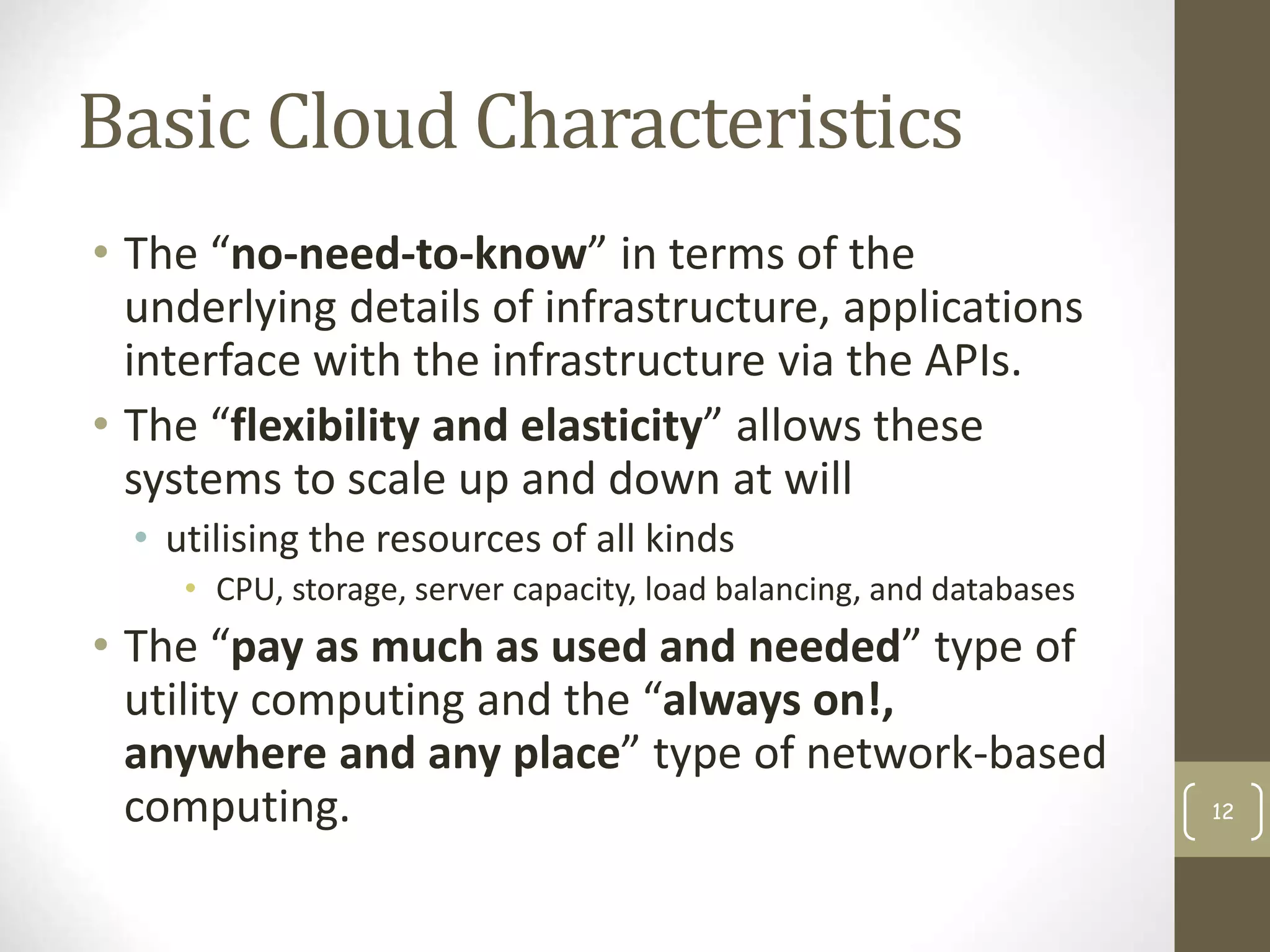

Basic Cloud Characteristics
• The “no-need-to-know” in terms of the
underlying details of infrastructure, applications
interface with the infrastructure via the APIs.
• The “flexibility and elasticity” allows these
systems to scale up and down at will
• utilising the resources of all kinds
• CPU, storage, server capacity, load balancing, and databases
• The “pay as much as used and needed” type of
utility computing and the “always on!,
anywhere and any place” type of network-based
computing. 12

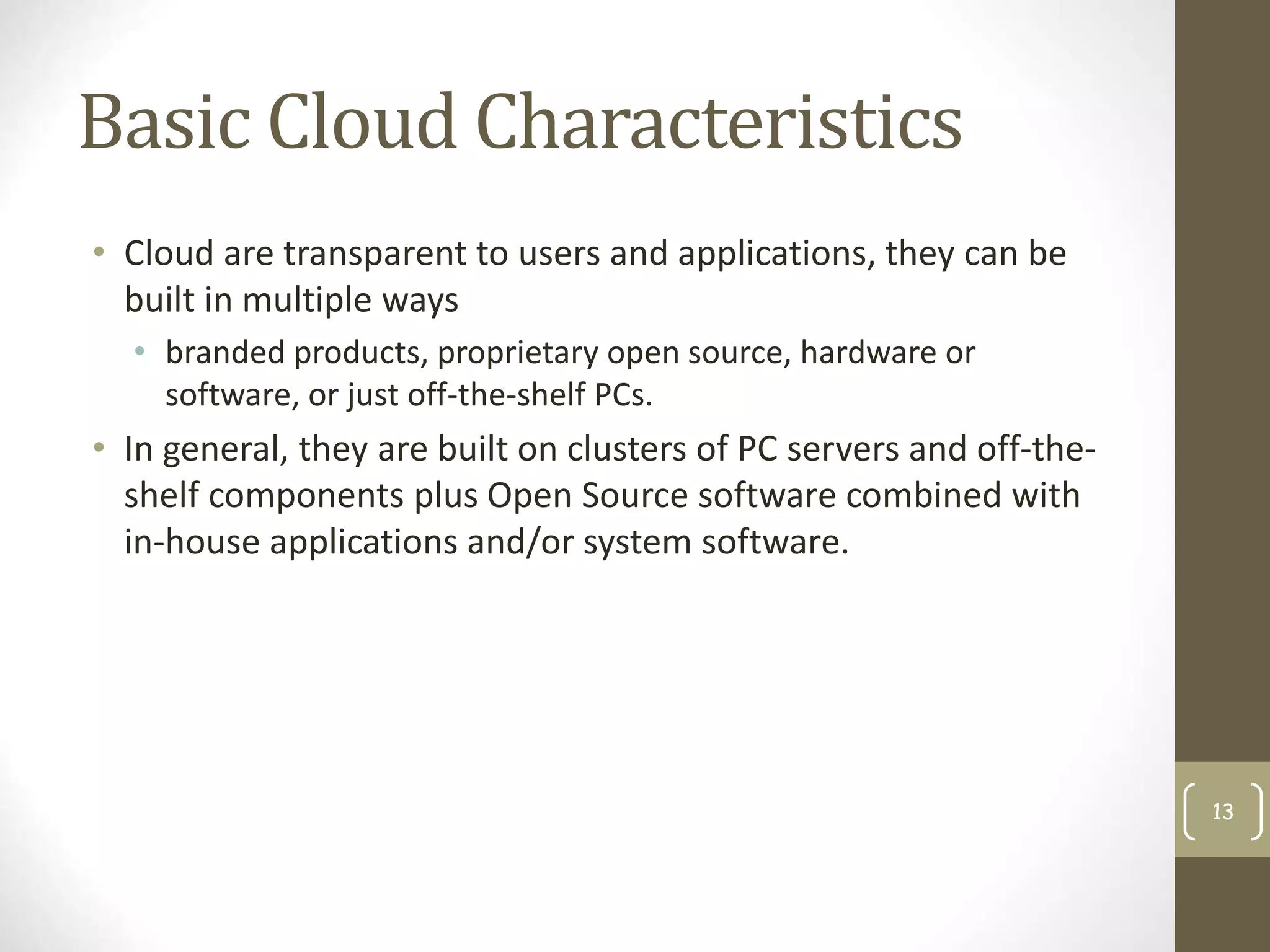

Basic Cloud Characteristics
• Cloud are transparent to users and applications, they can be
built in multiple ways
• branded products, proprietary open source, hardware or
software, or just off-the-shelf PCs.
• In general, they are built on clusters of PC servers and off-the-
shelf components plus Open Source software combined with
in-house applications and/or system software.
13

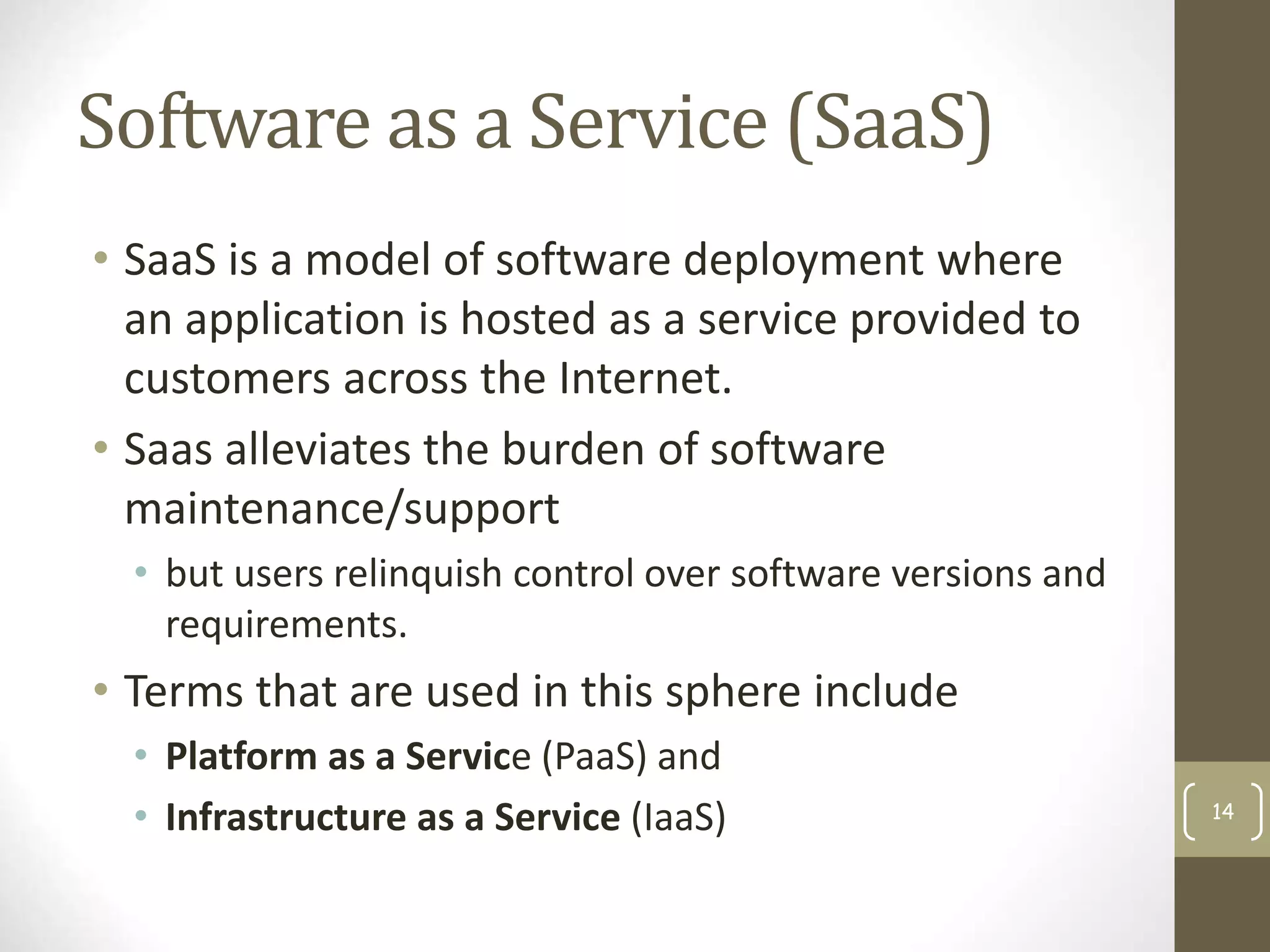

Software as a Service (SaaS)
• SaaS is a model of software deployment where
an application is hosted as a service provided to
customers across the Internet.
• Saas alleviates the burden of software
maintenance/support
• but users relinquish control over software versions and
requirements.
• Terms that are used in this sphere include
• Platform as a Service (PaaS) and
• Infrastructure as a Service (IaaS) 14

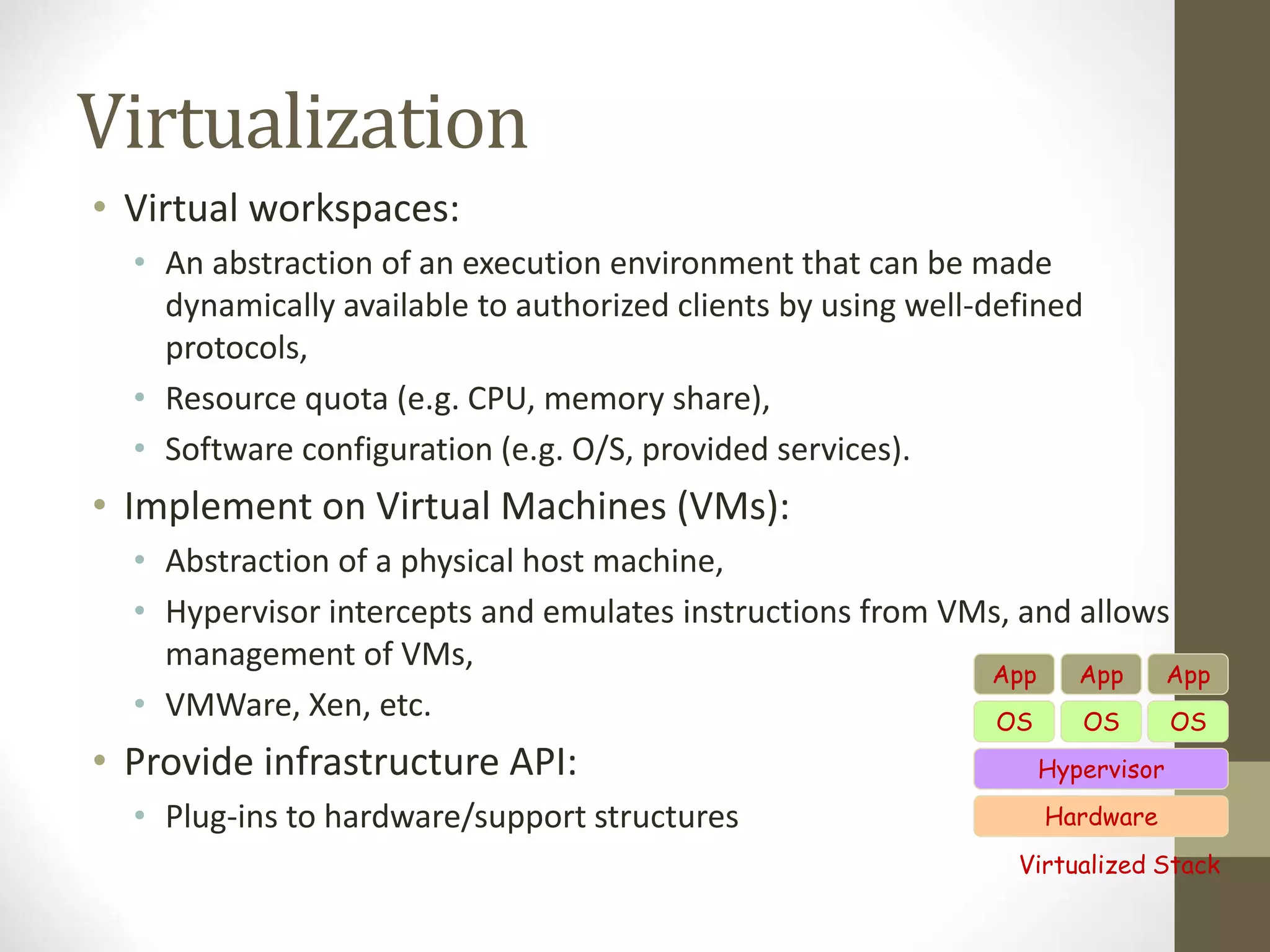

Virtualization
• Virtual workspaces:
• An abstraction of an execution environment that can be made
dynamically available to authorized clients by using well-defined
protocols,
• Resource quota (e.g. CPU, memory share),
• Software configuration (e.g. O/S, provided services).
• Implement on Virtual Machines (VMs):
• Abstraction of a physical host machine,
• Hypervisor intercepts and emulates instructions from VMs, and allows
management of VMs,
• VMWare, Xen, etc.
• Provide infrastructure API:
• Plug-ins to hardware/support structures Hardware
OS
App App App
Hypervisor
OS OS
Virtualized Stack

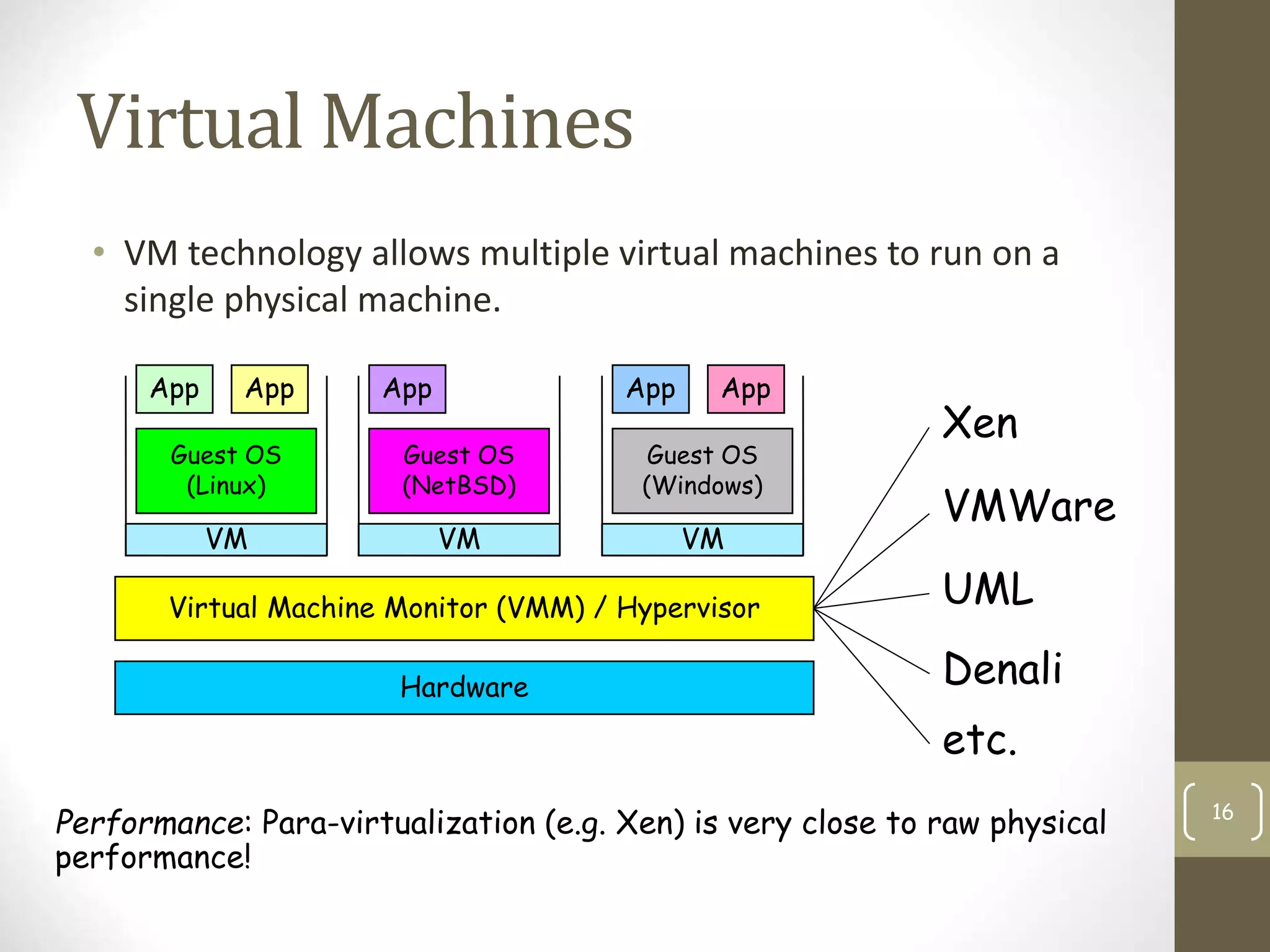

Virtual Machines
• VM technology allows multiple virtual machines to run on a
single physical machine.
16
Hardware
Virtual Machine Monitor (VMM) / Hypervisor
Guest OS
(Linux)
Guest OS
(NetBSD)
Guest OS
(Windows)
VM VM VM
App
App App
App
App
Xen
VMWare
UML
Denali
etc.
Performance: Para-virtualization (e.g. Xen) is very close to raw physical
performance!

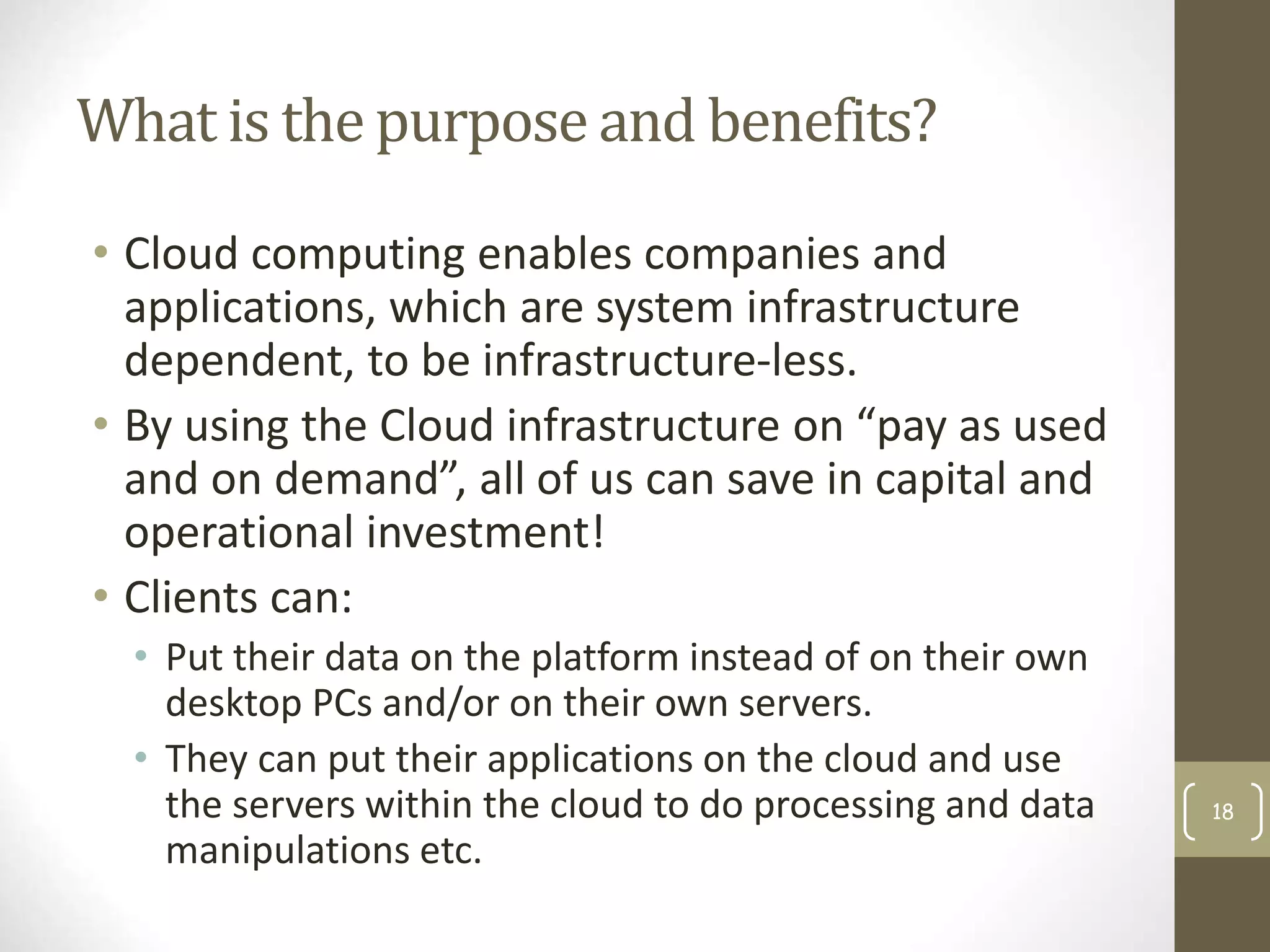

What is the purpose and benefits?
• Cloud computing enables companies and
applications, which are system infrastructure
dependent, to be infrastructure-less.
• By using the Cloud infrastructure on “pay as used
and on demand”, all of us can save in capital and
operational investment!
• Clients can:
• Put their data on the platform instead of on their own
desktop PCs and/or on their own servers.
• They can put their applications on the cloud and use
the servers within the cloud to do processing and data
manipulations etc.
18

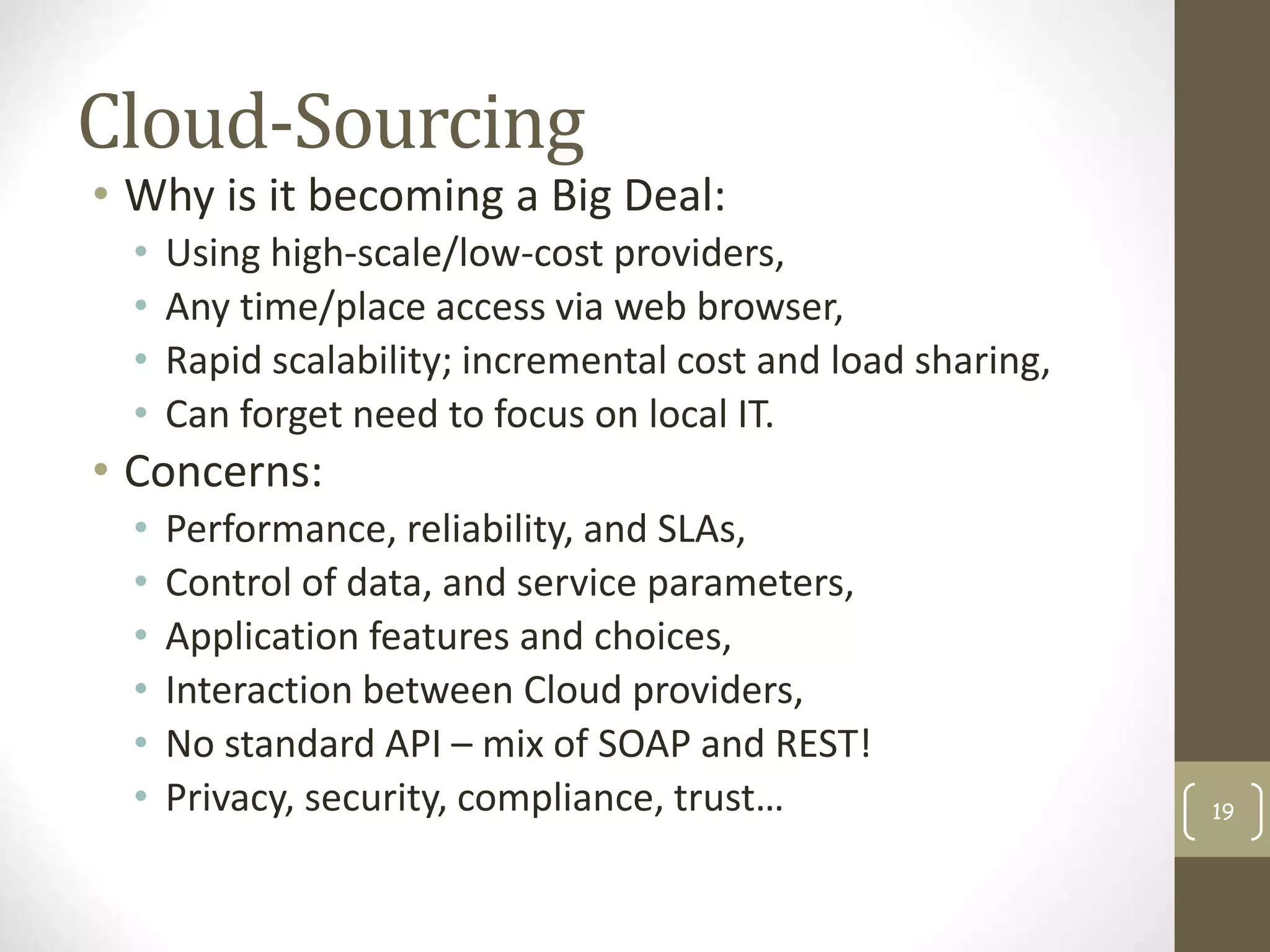

Cloud-Sourcing
• Why is it becoming a Big Deal:
• Using high-scale/low-cost providers,
• Any time/place access via web browser,
• Rapid scalability; incremental cost and load sharing,
• Can forget need to focus on local IT.
• Concerns:
• Performance, reliability, and SLAs,
• Control of data, and service parameters,
• Application features and choices,
• Interaction between Cloud providers,
• No standard API – mix of SOAP and REST!
• Privacy, security, compliance, trust… 19

Some Commercial Cloud Offerings
20

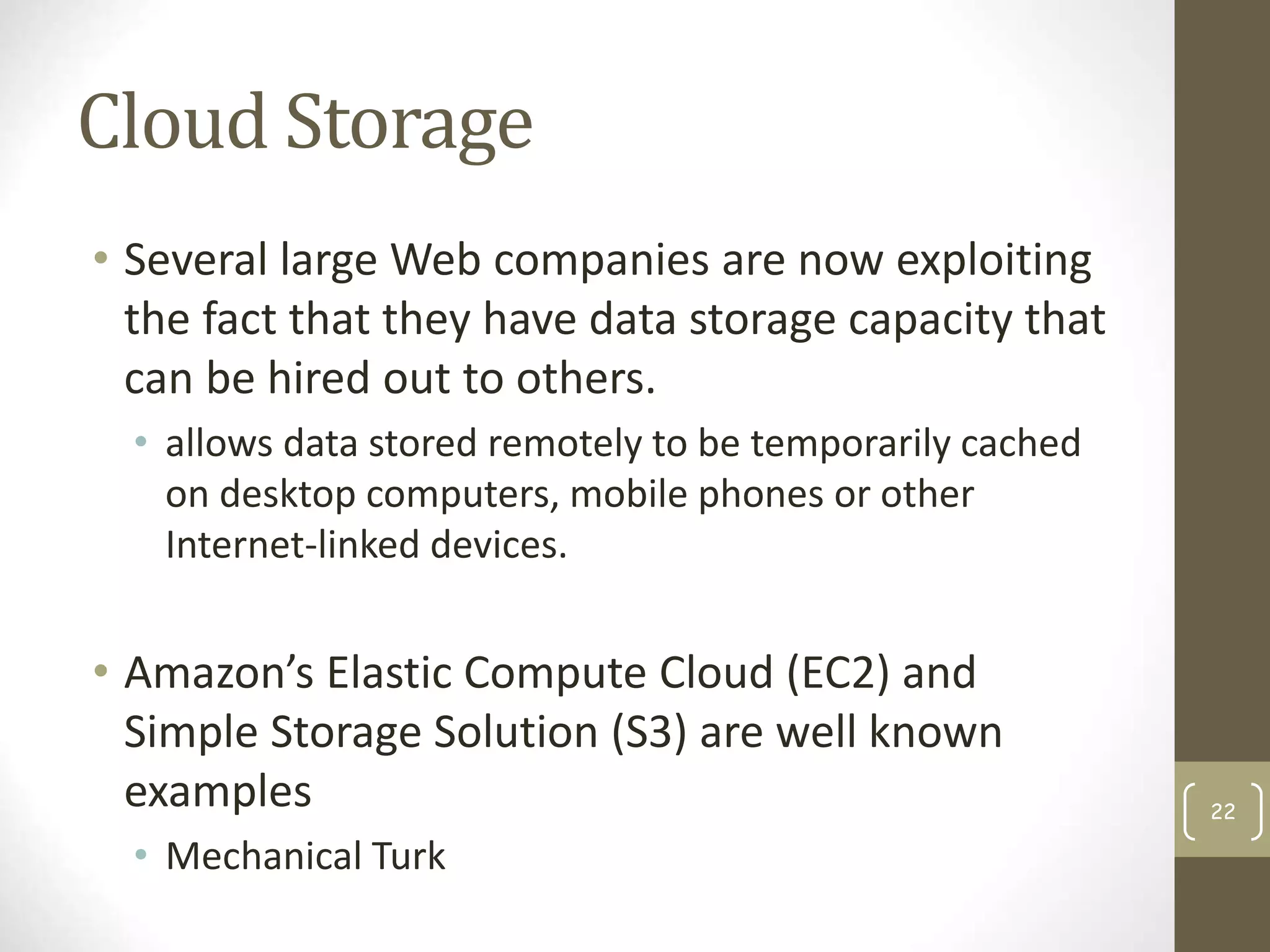

Cloud Storage
• Several large Web companies are now exploiting
the fact that they have data storage capacity that
can be hired out to others.
• allows data stored remotely to be temporarily cached
on desktop computers, mobile phones or other
Internet-linked devices.
• Amazon’s Elastic Compute Cloud (EC2) and
Simple Storage Solution (S3) are well known
examples
• Mechanical Turk
22

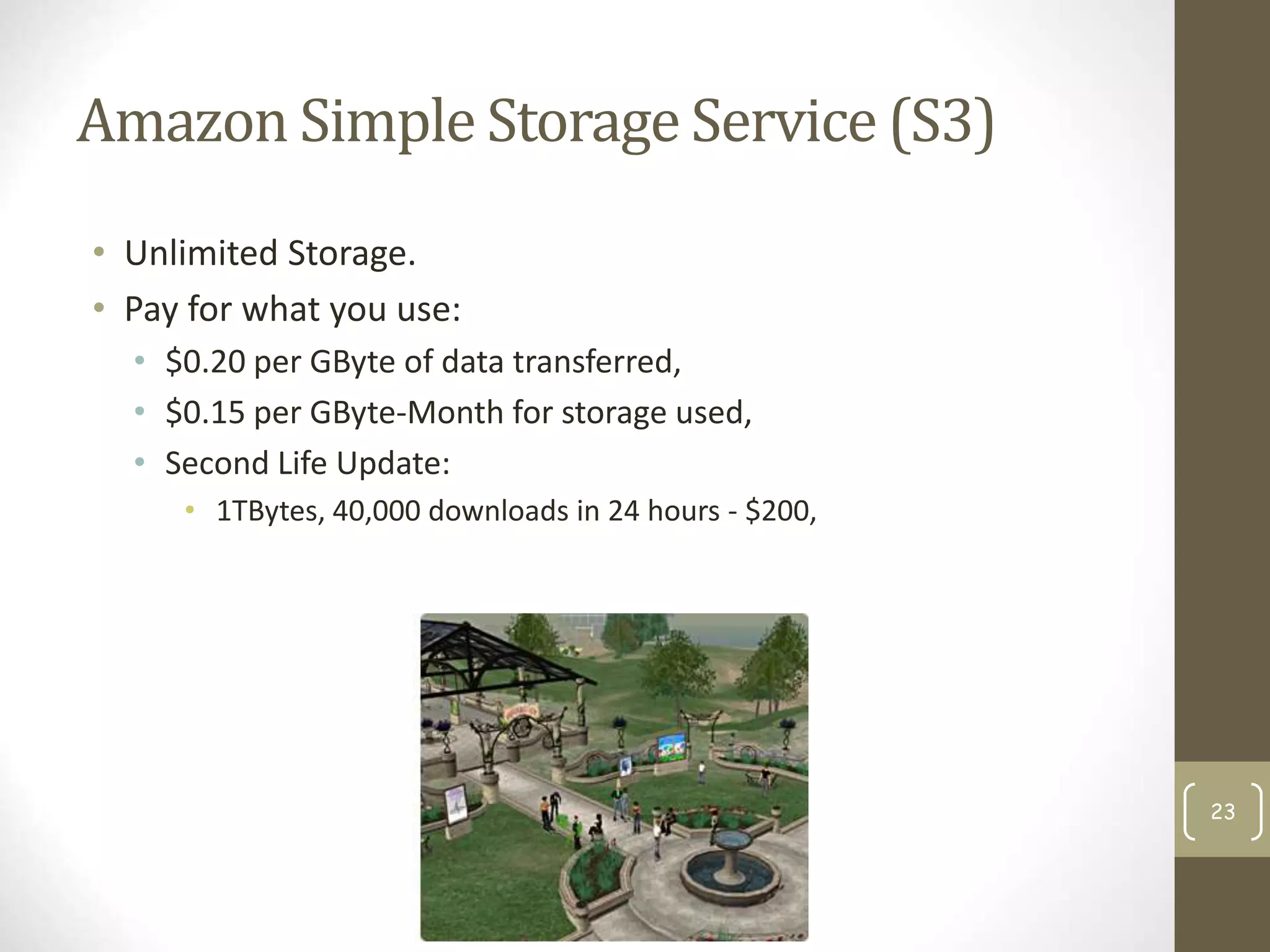

Amazon Simple Storage Service (S3)
• Unlimited Storage.
• Pay for what you use:
• $0.20 per GByte of data transferred,
• $0.15 per GByte-Month for storage used,
• Second Life Update:
• 1TBytes, 40,000 downloads in 24 hours - $200,
23

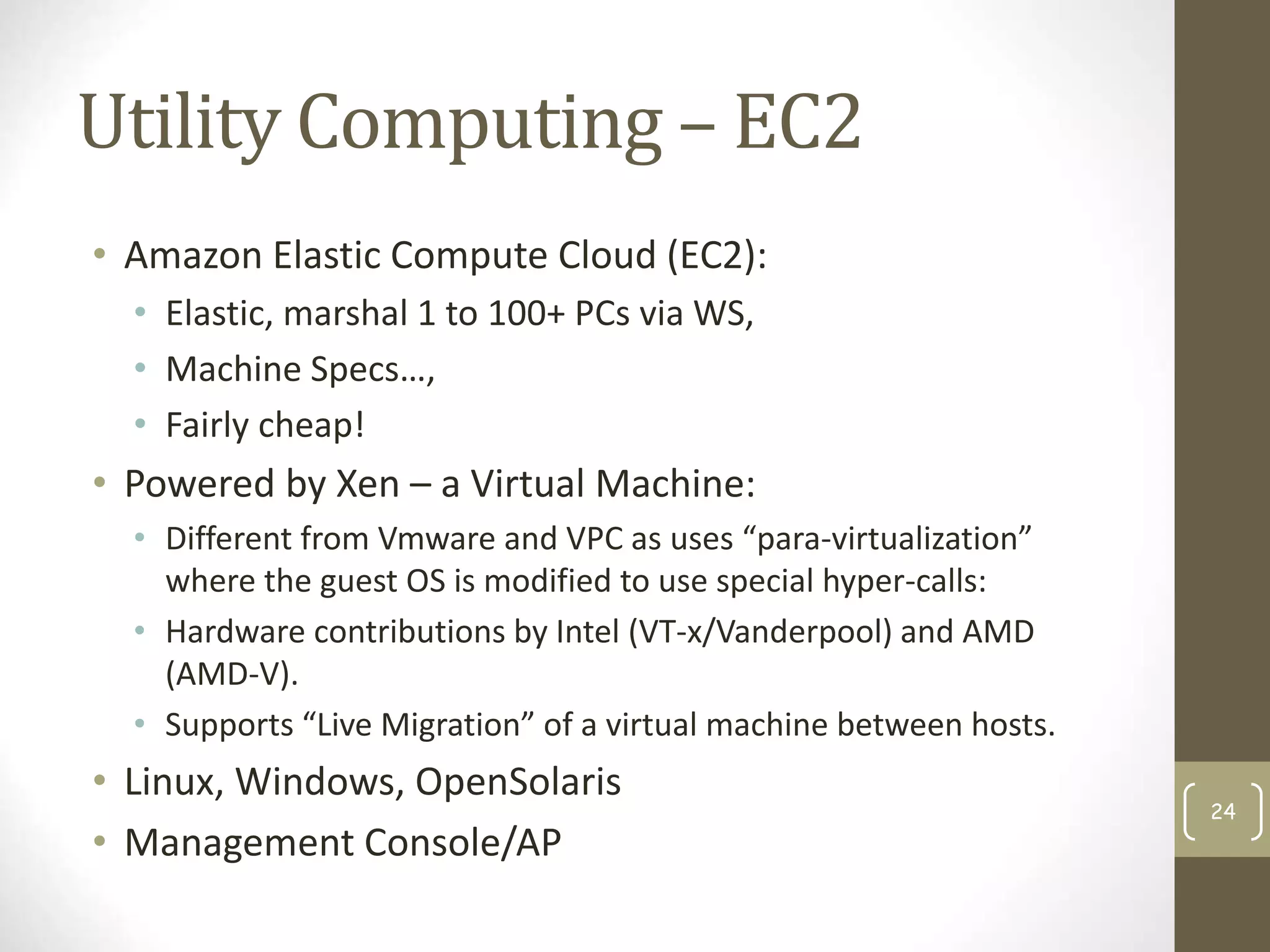

Utility Computing – EC2
• Amazon Elastic Compute Cloud (EC2):
• Elastic, marshal 1 to 100+ PCs via WS,
• Machine Specs…,
• Fairly cheap!
• Powered by Xen – a Virtual Machine:
• Different from Vmware and VPC as uses “para-virtualization”
where the guest OS is modified to use special hyper-calls:
• Hardware contributions by Intel (VT-x/Vanderpool) and AMD
(AMD-V).
• Supports “Live Migration” of a virtual machine between hosts.
• Linux, Windows, OpenSolaris
• Management Console/AP
24

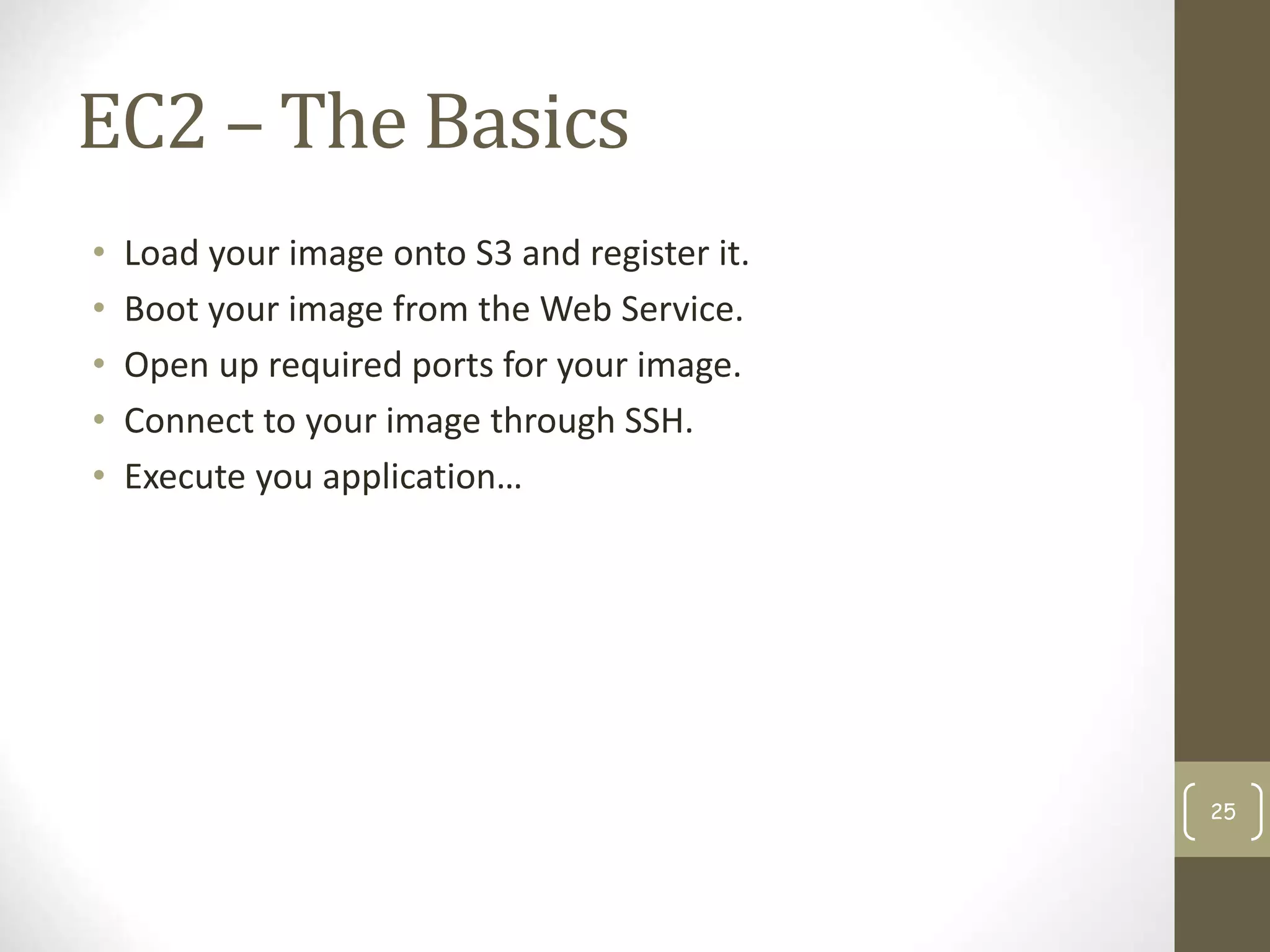

EC2 – The Basics
• Load your image onto S3 and register it.
• Boot your image from the Web Service.
• Open up required ports for your image.
• Connect to your image through SSH.
• Execute you application…
25

Opportunities and Challenges
• The use of the cloud provides a number of
opportunities:
• It enables services to be used without any
understanding of their infrastructure.
• Cloud computing works using economies of scale:
• It potentially lowers the outlay expense for start up
companies, as they would no longer need to buy their own
software or servers.
• Cost would be by on-demand pricing.
• Vendors and Service providers claim costs by establishing an
ongoing revenue stream.
• Data and services are stored remotely but accessible
from “anywhere”. 26

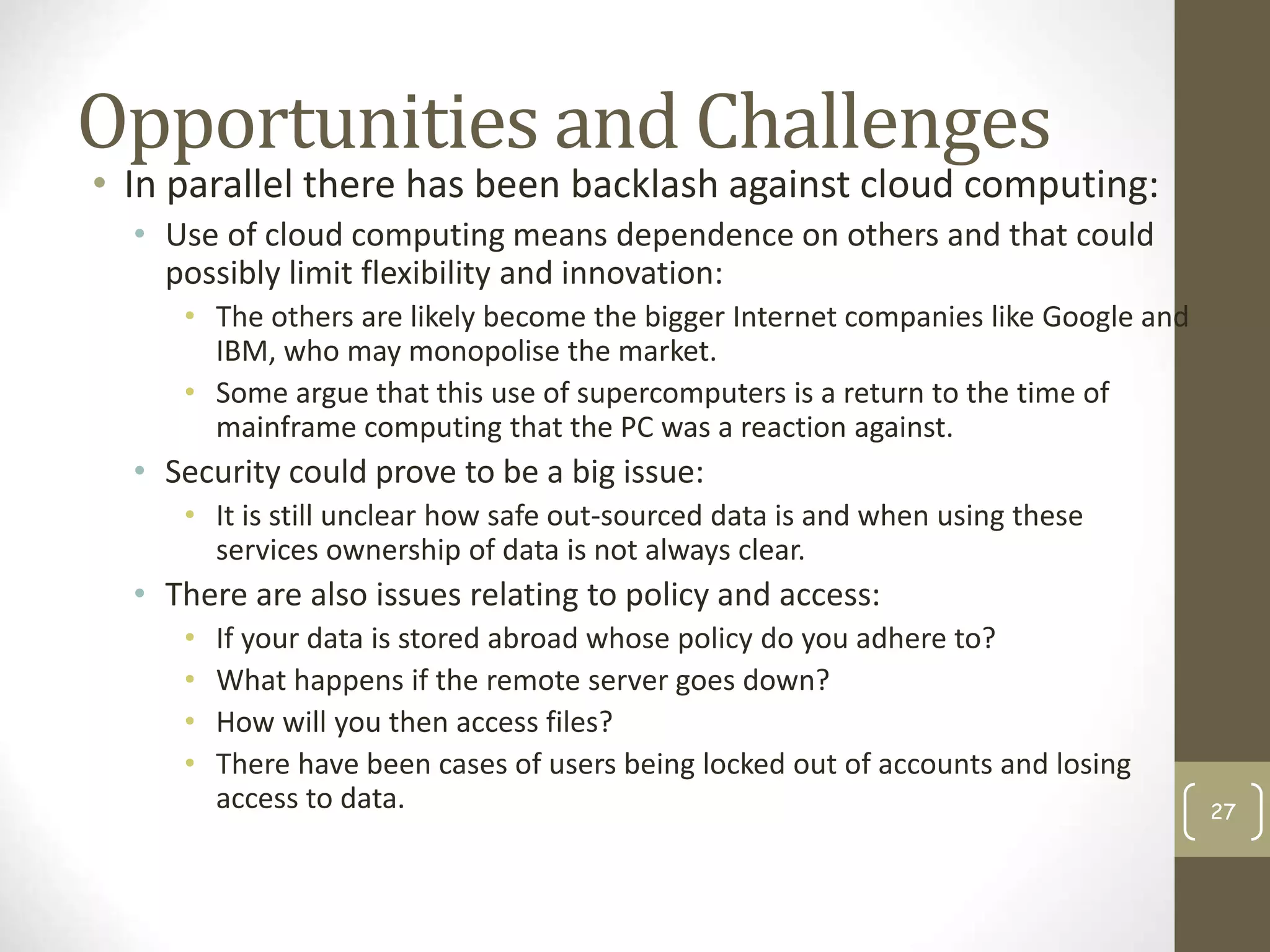

Opportunities and Challenges
• In parallel there has been backlash against cloud computing:
• Use of cloud computing means dependence on others and that could
possibly limit flexibility and innovation:
• The others are likely become the bigger Internet companies like Google and
IBM, who may monopolise the market.
• Some argue that this use of supercomputers is a return to the time of
mainframe computing that the PC was a reaction against.
• Security could prove to be a big issue:
• It is still unclear how safe out-sourced data is and when using these
services ownership of data is not always clear.
• There are also issues relating to policy and access:
• If your data is stored abroad whose policy do you adhere to?
• What happens if the remote server goes down?
• How will you then access files?
• There have been cases of users being locked out of accounts and losing
access to data. 27

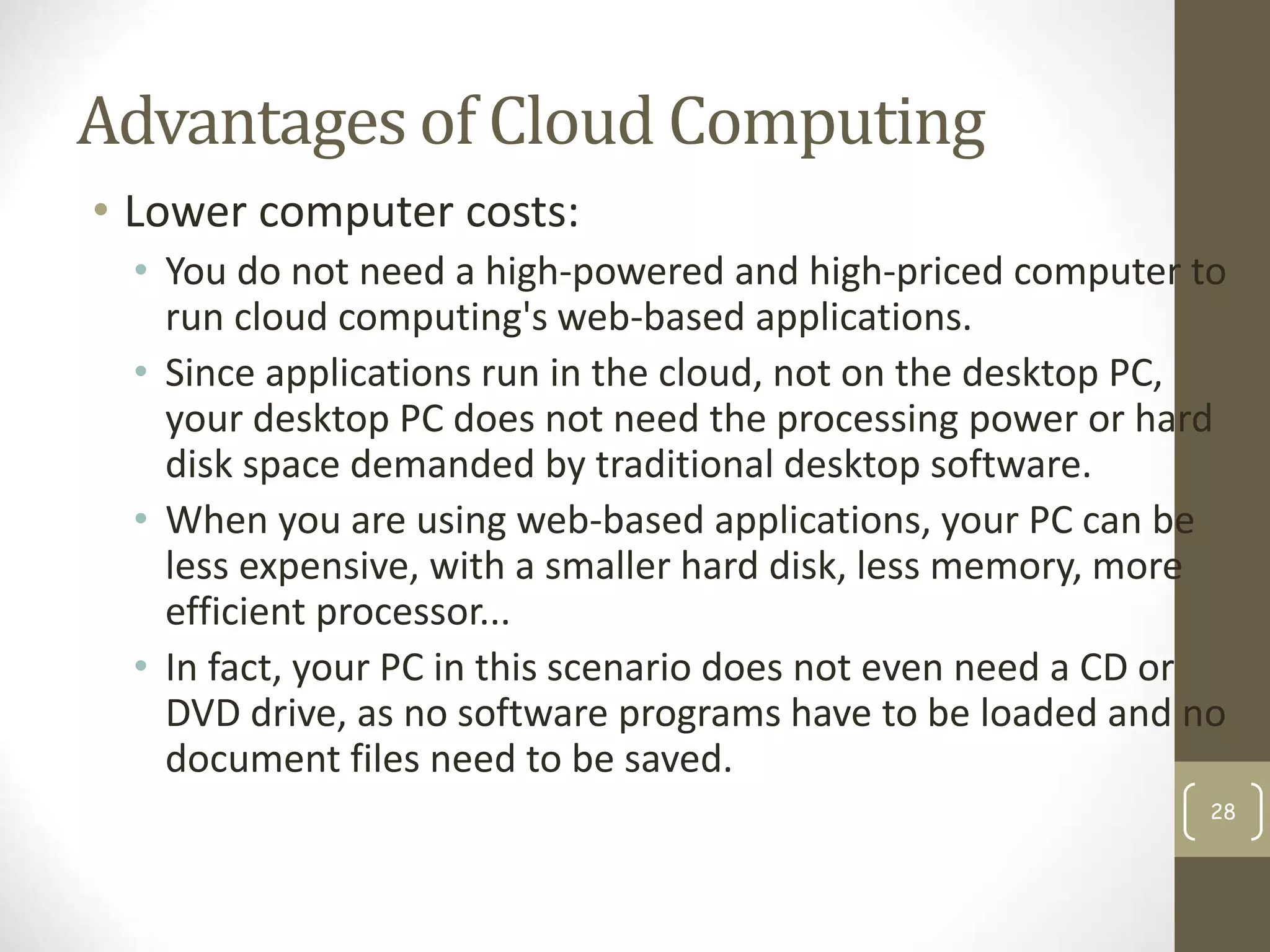

Advantages of Cloud Computing
• Lower computer costs:
• You do not need a high-powered and high-priced computer to
run cloud computing's web-based applications.
• Since applications run in the cloud, not on the desktop PC,
your desktop PC does not need the processing power or hard
disk space demanded by traditional desktop software.
• When you are using web-based applications, your PC can be
less expensive, with a smaller hard disk, less memory, more
efficient processor...
• In fact, your PC in this scenario does not even need a CD or
DVD drive, as no software programs have to be loaded and no
document files need to be saved.
28

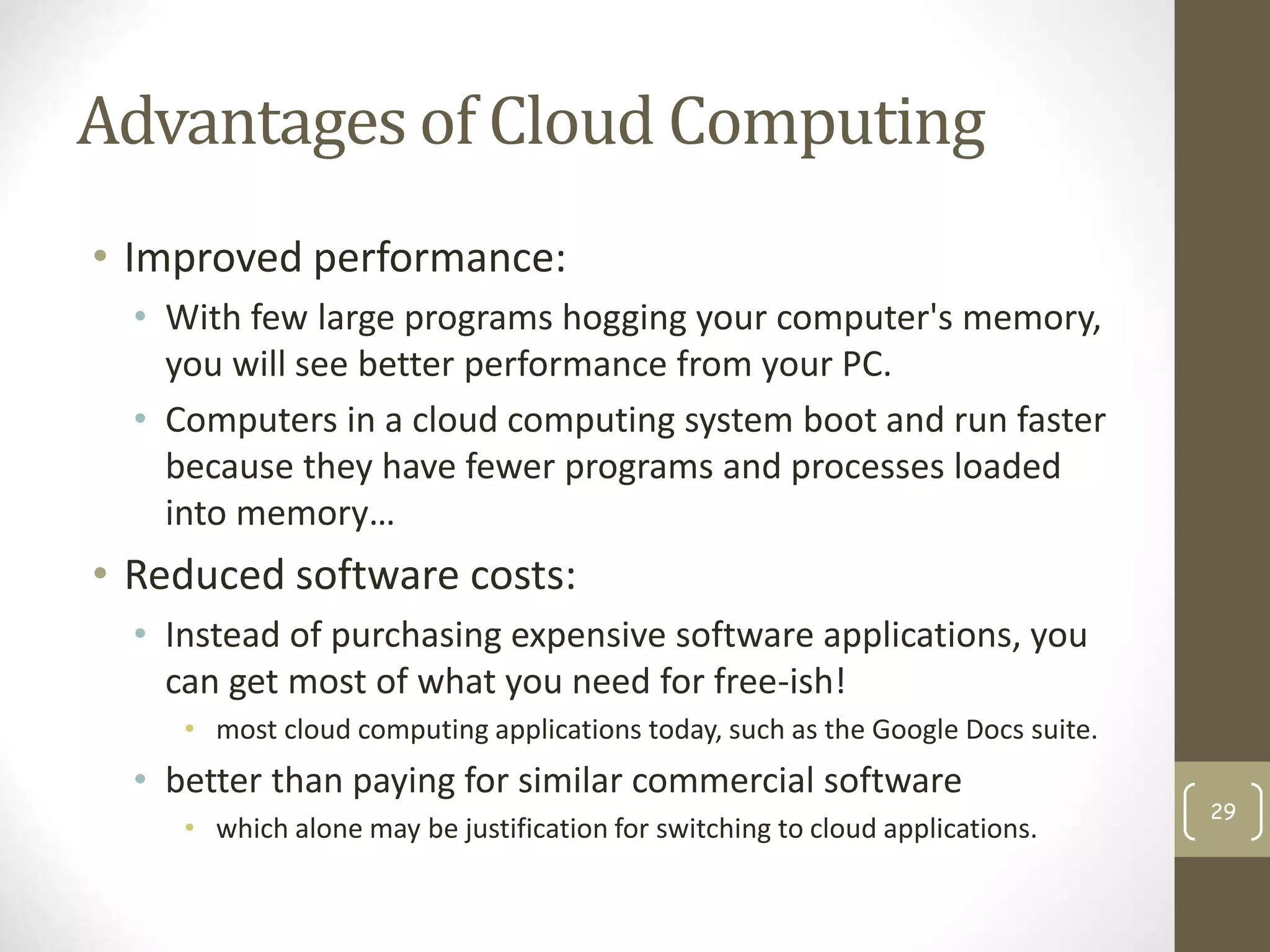

• Improved performance:
• With few large programs hogging your computer's memory,
you will see better performance from your PC.
• Computers in a cloud computing system boot and run faster
because they have fewer programs and processes loaded
into memory…
• Reduced software costs:
• Instead of purchasing expensive software applications, you
can get most of what you need for free-ish!
• most cloud computing applications today, such as the Google Docs suite.
• better than paying for similar commercial software
• which alone may be justification for switching to cloud applications.
29

• Instant software updates:
• Another advantage to cloud computing is that you are no longer
faced with choosing between obsolete software and high upgrade
costs.
• When the application is web-based, updates happen automatically
• available the next time you log into the cloud.
• When you access a web-based application, you get the latest version
• without needing to pay for or download an upgrade.
• Improved document format compatibility.
• You do not have to worry about the documents you create on your
machine being compatible with other users' applications or OSes
• There are potentially no format incompatibilities when everyone is
sharing documents and applications in the cloud.
30

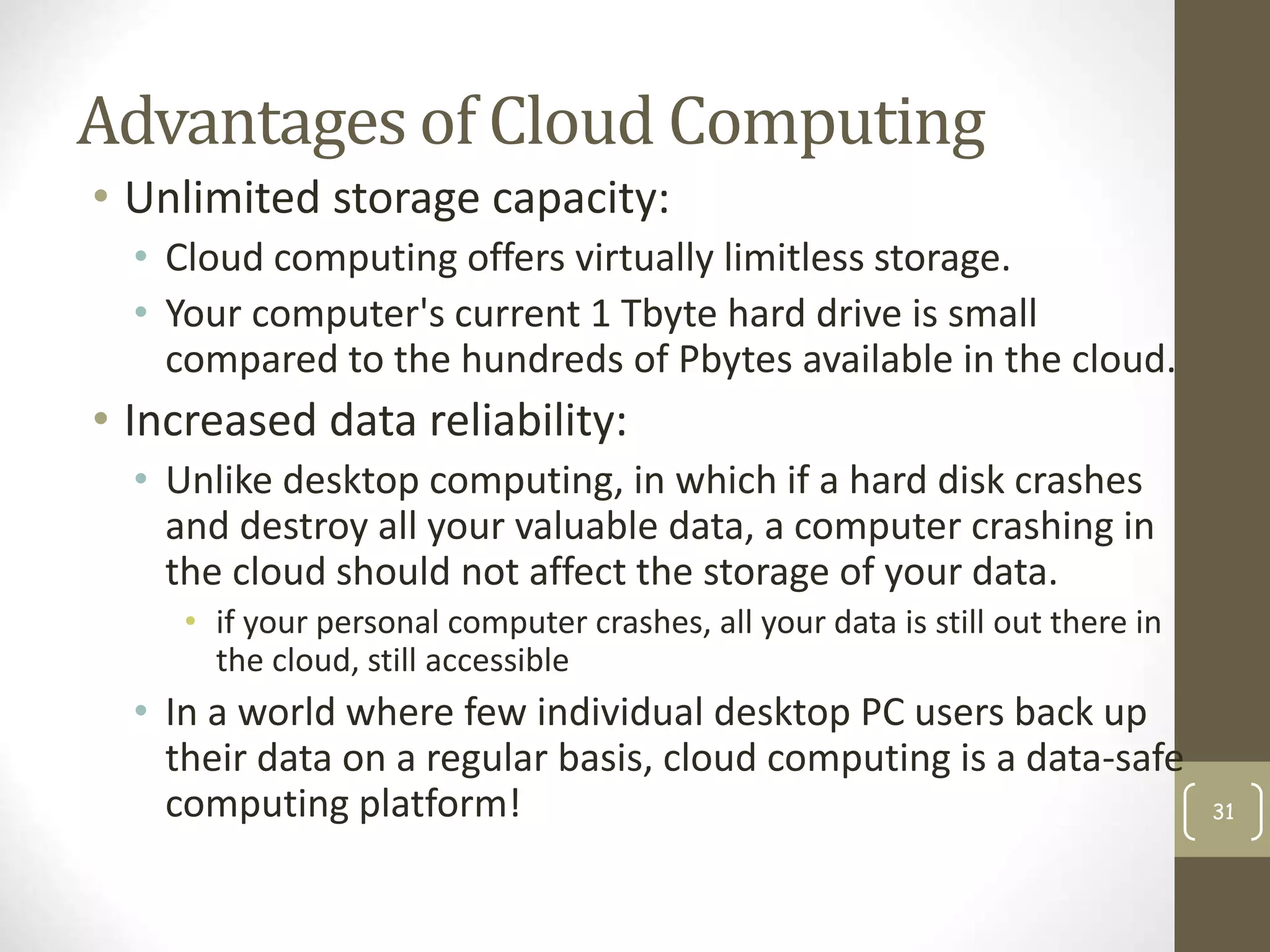

• Unlimited storage capacity:
• Cloud computing offers virtually limitless storage.
• Your computer's current 1 Tbyte hard drive is small
compared to the hundreds of Pbytes available in the cloud.
• Increased data reliability:
• Unlike desktop computing, in which if a hard disk crashes
and destroy all your valuable data, a computer crashing in
the cloud should not affect the storage of your data.
• if your personal computer crashes, all your data is still out there in
the cloud, still accessible
• In a world where few individual desktop PC users back up
their data on a regular basis, cloud computing is a data-safe
computing platform! 31

• Universal document access:
• That is not a problem with cloud computing, because you do
not take your documents with you.
• Instead, they stay in the cloud, and you can access them
whenever you have a computer and an Internet connection
• Documents are instantly available from wherever you are
• Latest version availability:
• When you edit a document at home, that edited version is
what you see when you access the document at work.
• The cloud always hosts the latest version of your documents
• as long as you are connected, you are not in danger of having an outdated
version
32

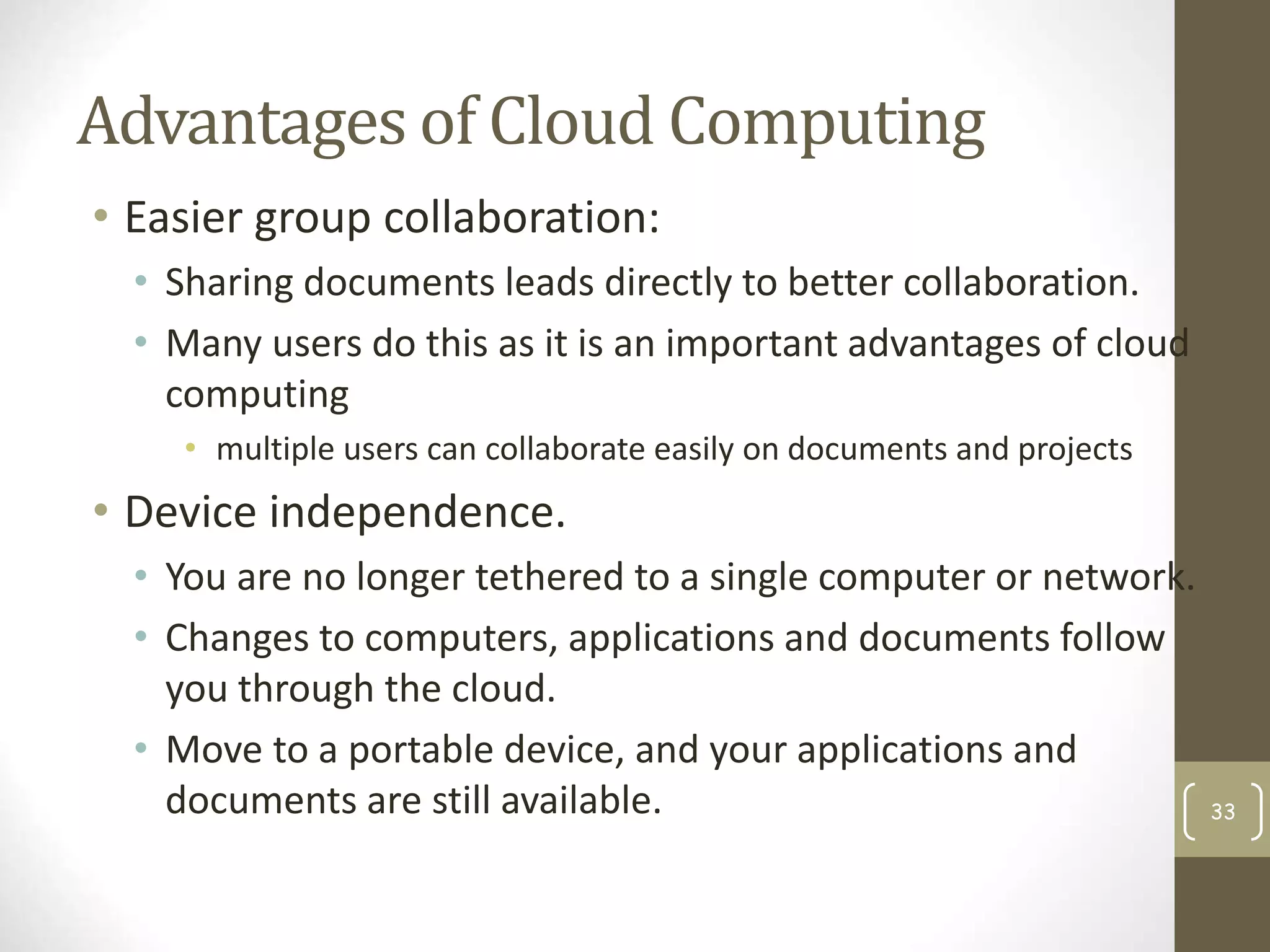

• Easier group collaboration:
• Sharing documents leads directly to better collaboration.
• Many users do this as it is an important advantages of cloud
computing
• multiple users can collaborate easily on documents and projects
• Device independence.
• You are no longer tethered to a single computer or network.
• Changes to computers, applications and documents follow
you through the cloud.
• Move to a portable device, and your applications and
documents are still available. 33

Disadvantages of Cloud Computing
• Requires a constant Internet connection:
• Cloud computing is impossible if you cannot connect
to the Internet.
• Since you use the Internet to connect to both your
applications and documents, if you do not have an
Internet connection you cannot access anything, even
your own documents.
• A dead Internet connection means no work and in
areas where Internet connections are few or
inherently unreliable, this could be a deal-breaker.
34

• Does not work well with low-speed connections:
• Similarly, a low-speed Internet connection, such as
that found with dial-up services, makes cloud
computing painful at best and often impossible.
• Web-based applications require a lot of bandwidth to
download, as do large documents.
• Features might be limited:
• This situation is bound to change, but today many
web-based applications simply are not as full-featured
as their desktop-based applications.
• For example, you can do a lot more with Microsoft
PowerPoint than with Google Presentation's web-based
offering
35

• Can be slow:
• Even with a fast connection, web-based applications
can sometimes be slower than accessing a similar
software program on your desktop PC.
• Everything about the program, from the interface to
the current document, has to be sent back and forth
from your computer to the computers in the cloud.
• If the cloud servers happen to be backed up at that
moment, or if the Internet is having a slow day, you
would not get the instantaneous access you might
expect from desktop applications. 36

• Stored data might not be secure:
• With cloud computing, all your data is stored on the cloud.
• The questions is How secure is the cloud?
• Can unauthorised users gain access to your confidential data?
• Stored data can be lost:
• Theoretically, data stored in the cloud is safe, replicated across
multiple machines.
• But on the off chance that your data goes missing, you have
no physical or local backup.
• Put simply, relying on the cloud puts you at risk if the cloud lets you
down.
37

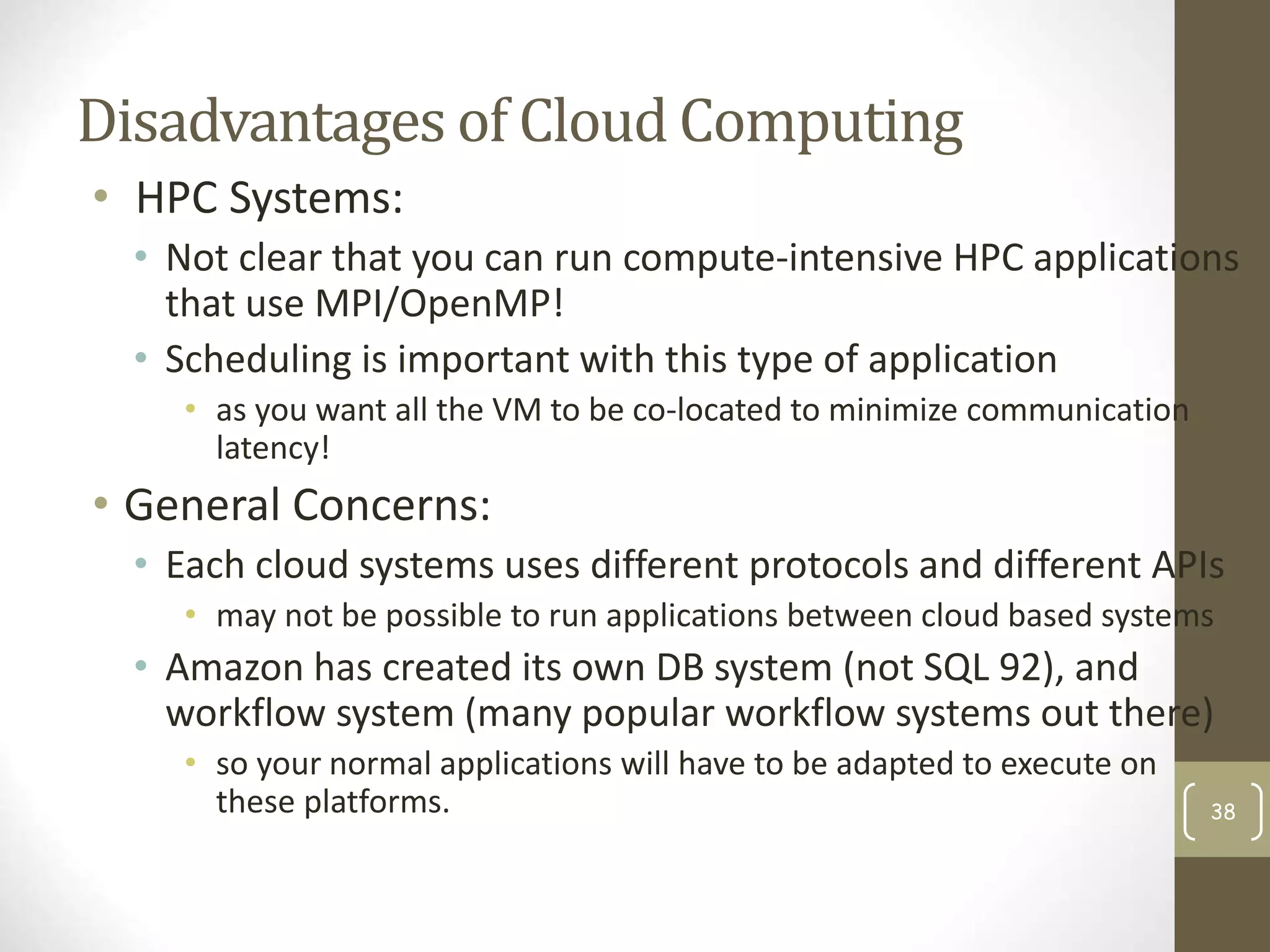

• HPC Systems:
• Not clear that you can run compute-intensive HPC applications
that use MPI/OpenMP!
• Scheduling is important with this type of application
• as you want all the VM to be co-located to minimize communication
latency!
• General Concerns:
• Each cloud systems uses different protocols and different APIs
• may not be possible to run applications between cloud based systems
• Amazon has created its own DB system (not SQL 92), and
workflow system (many popular workflow systems out there)
• so your normal applications will have to be adapted to execute on
these platforms. 38

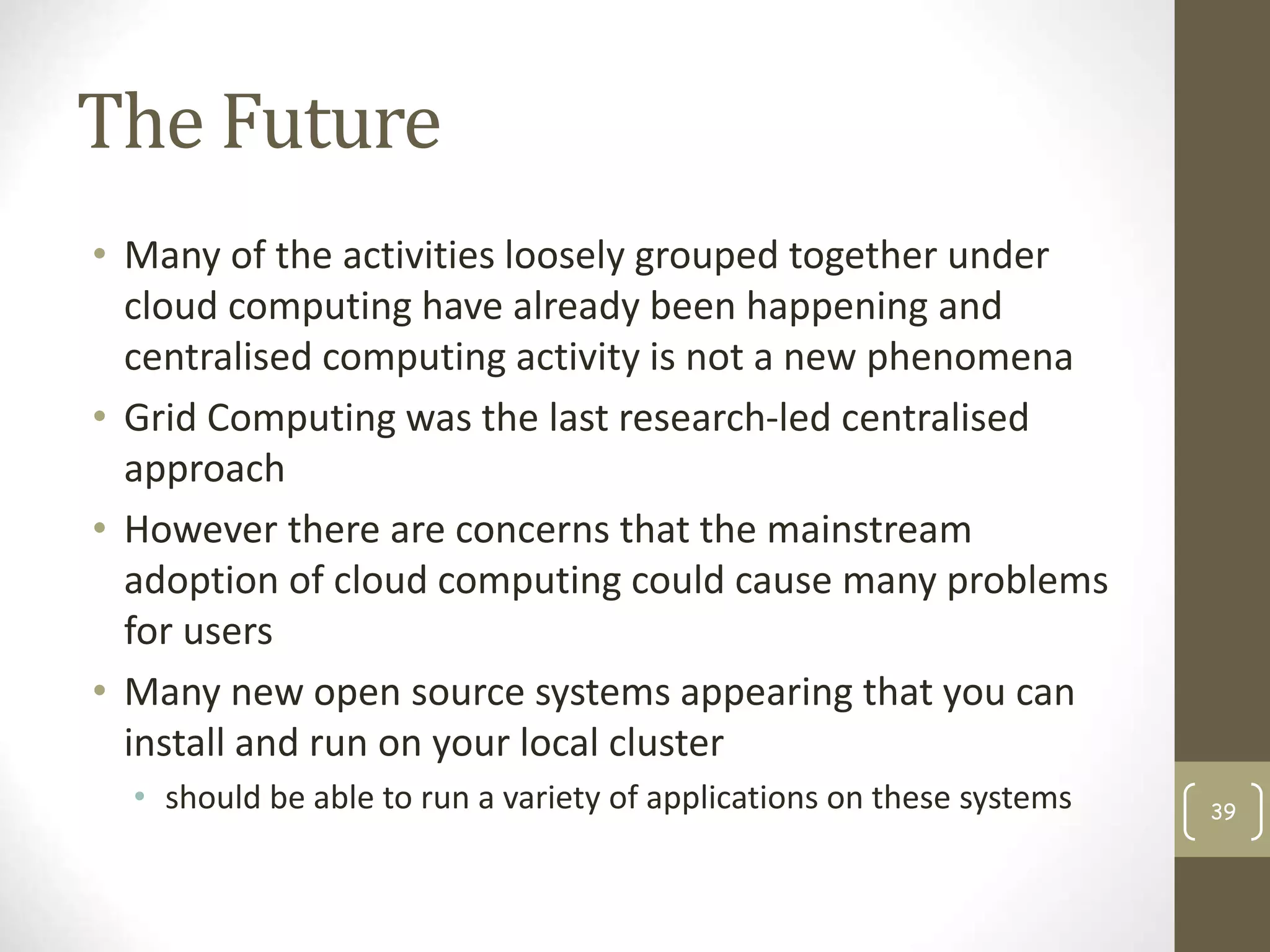

The Future
• Many of the activities loosely grouped together under
cloud computing have already been happening and
centralised computing activity is not a new phenomena
• Grid Computing was the last research-led centralised
approach
• However there are concerns that the mainstream
adoption of cloud computing could cause many problems
for users
• Many new open source systems appearing that you can
install and run on your local cluster
• should be able to run a variety of applications on these systems 39

Cloud computing-2 (1)

More Related Content

What's hot

Similar to Cloud computing-2 (1)

Recently uploaded

Cloud computing-2 (1)
