Analysis of algorithn class 2
This document discusses analysis of algorithms. It covers computation models like Turing machine and RAM models. It then discusses measuring the time complexity, space complexity, and order of growth of algorithms. Time complexity is measured based on the number of basic operations like comparisons. Space complexity depends on memory required. Order of growth classifies algorithms based on how their running time grows with input size (n), such as O(n), O(log n) etc. Asymptotic notations like Big O, Omega and Theta are used to represent the asymptotic time complexity of algorithms.
More Related Content
Similar to Analysis of algorithn class 2
Analysis of algorithn class 2
- 1.
- 2. Computation Models • TuringMachine Model • Random Access Machine (RAM) Model.

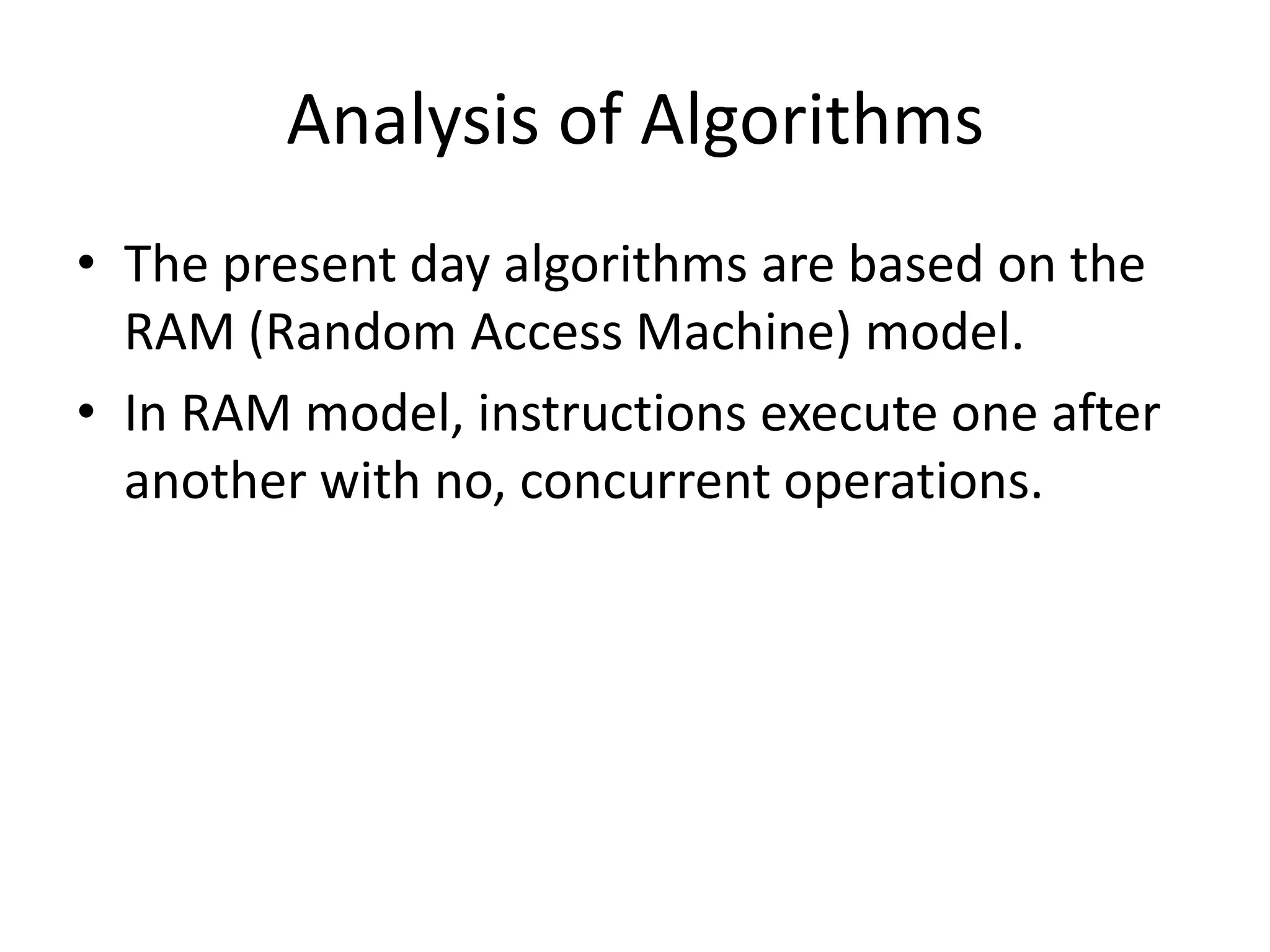

- 3. Analysis of Algorithms •The present day algorithms are based on the RAM (Random Access Machine) model. • In RAM model, instructions execute one after another with no, concurrent operations.

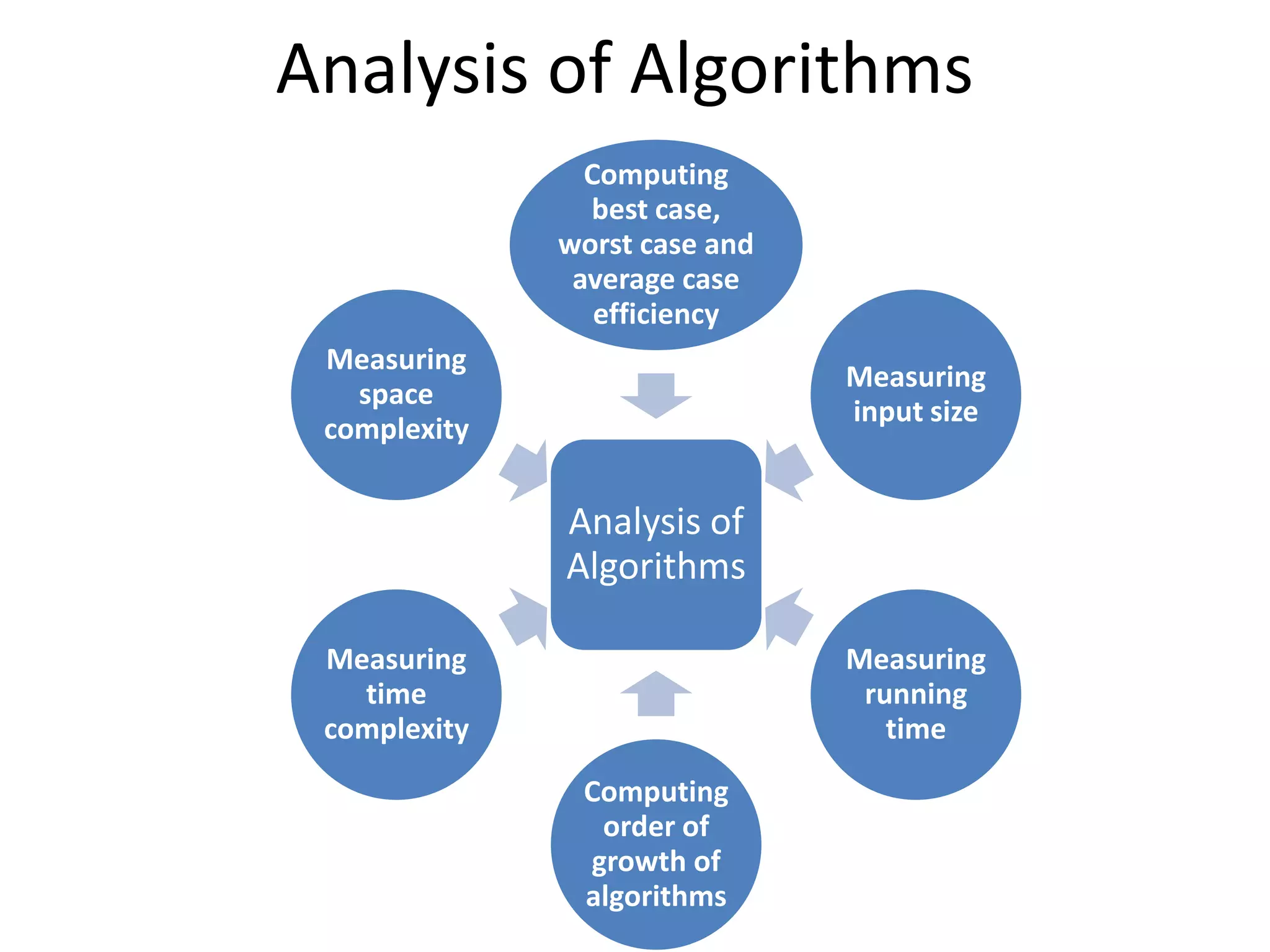

- 4. Analysis of Algorithms Computing bestcase, worst case and average case efficiency Measuring space complexity Measuring input size Analysis of Algorithms Measuring time complexity Measuring running time Computing order of growth of algorithms

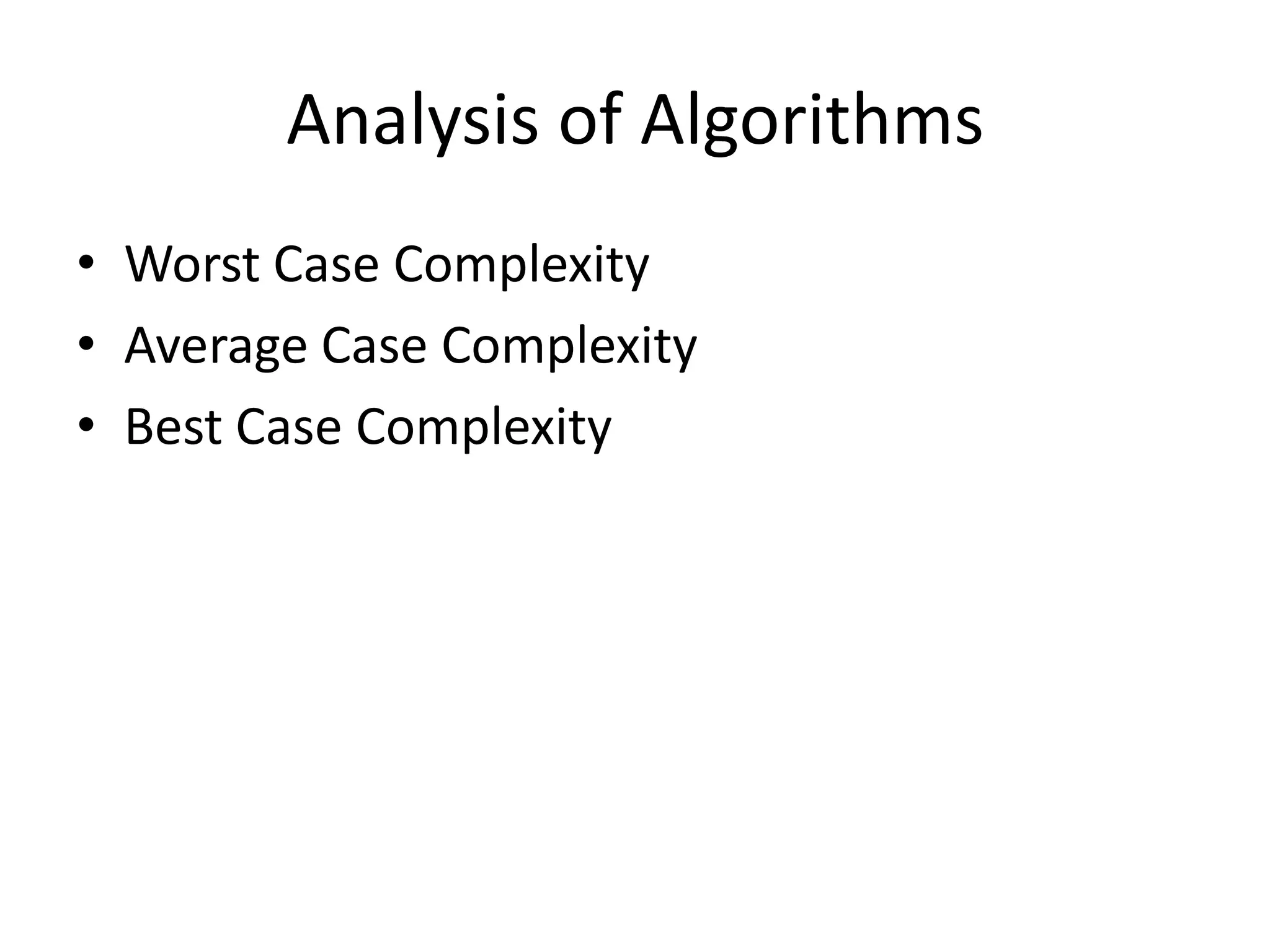

- 5. Analysis of Algorithms •Worst Case Complexity • Average Case Complexity • Best Case Complexity

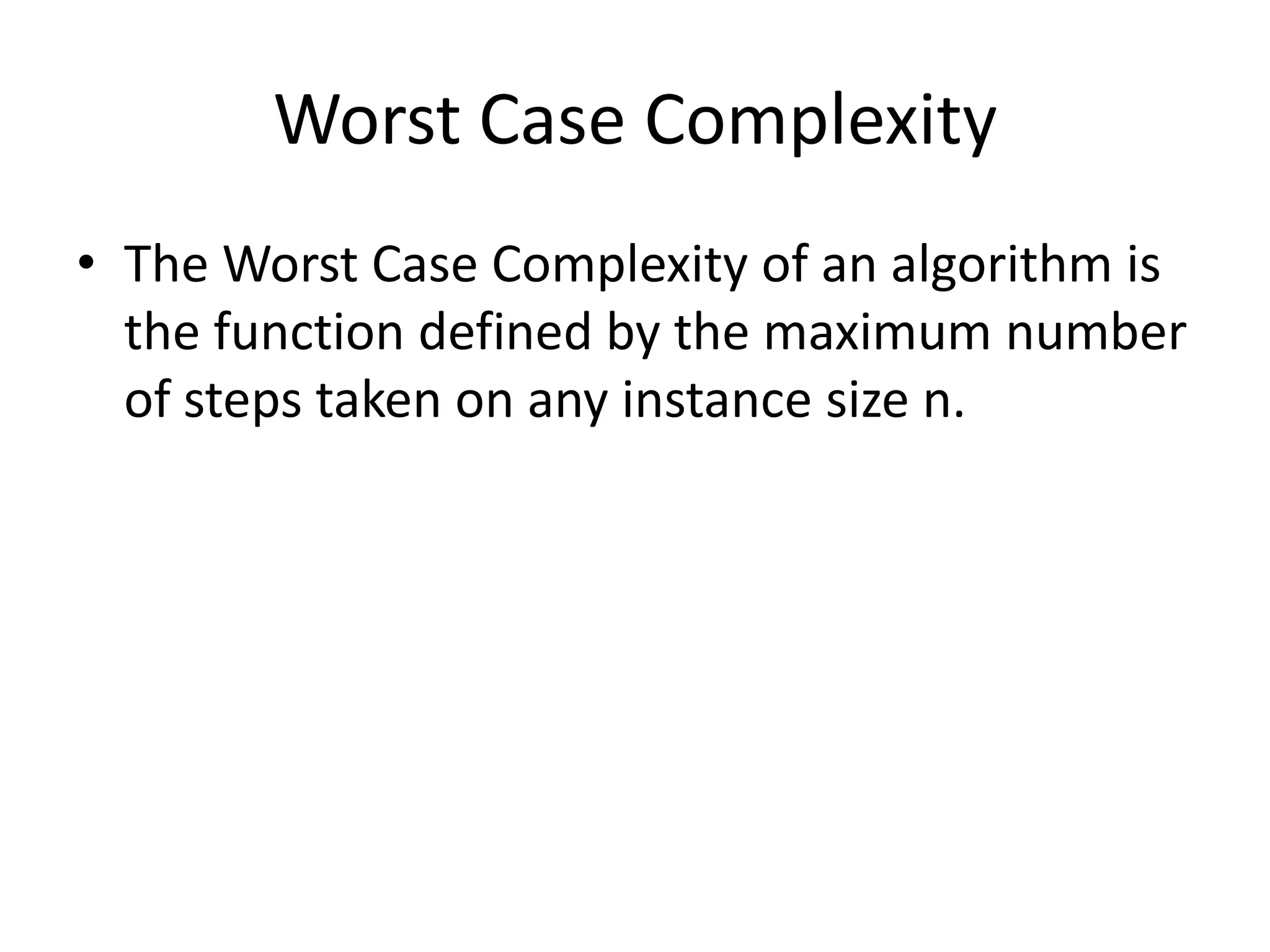

- 6. Worst Case Complexity •The Worst Case Complexity of an algorithm is the function defined by the maximum number of steps taken on any instance size n.

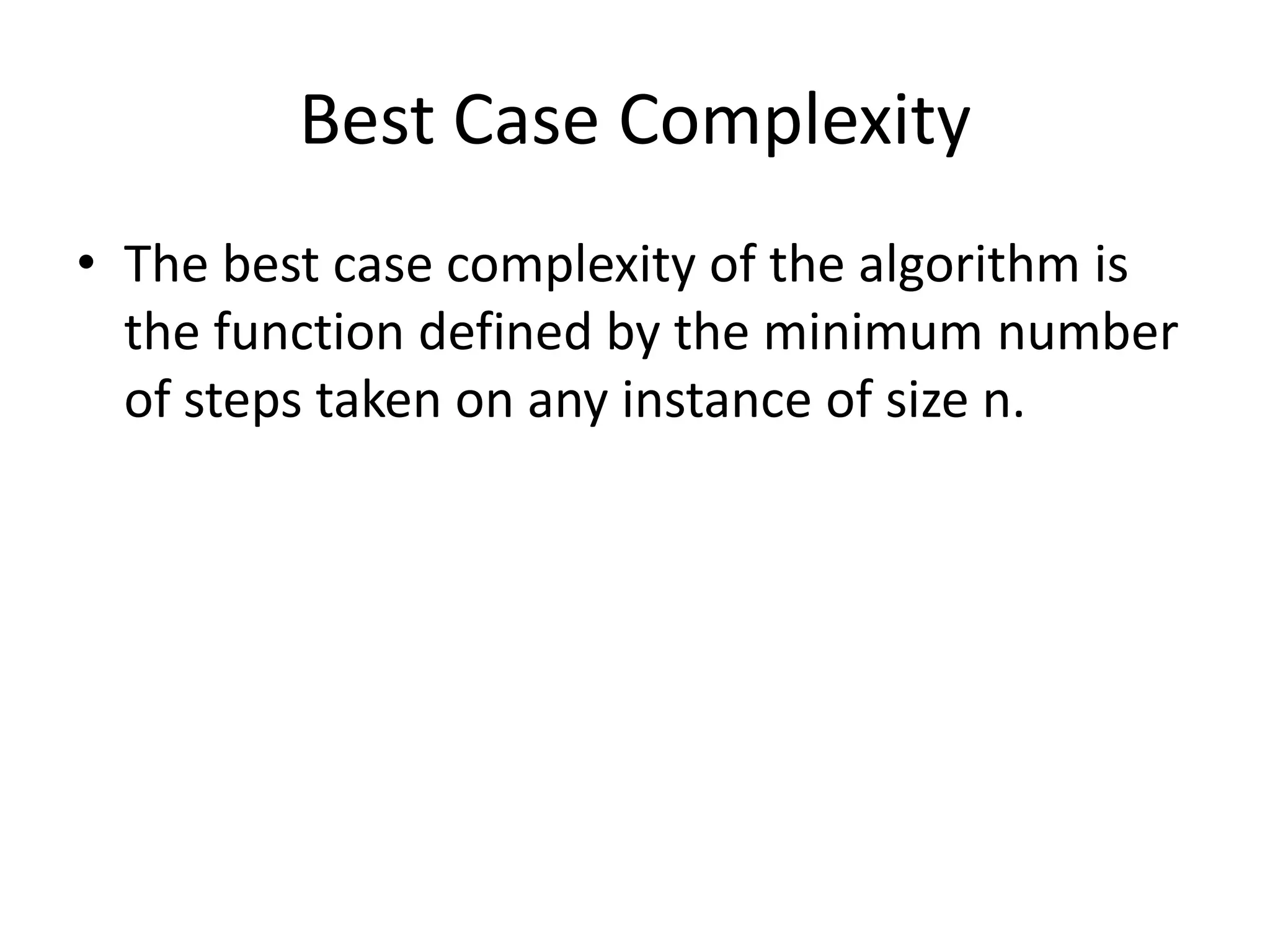

- 7. Best Case Complexity •The best case complexity of the algorithm is the function defined by the minimum number of steps taken on any instance of size n.

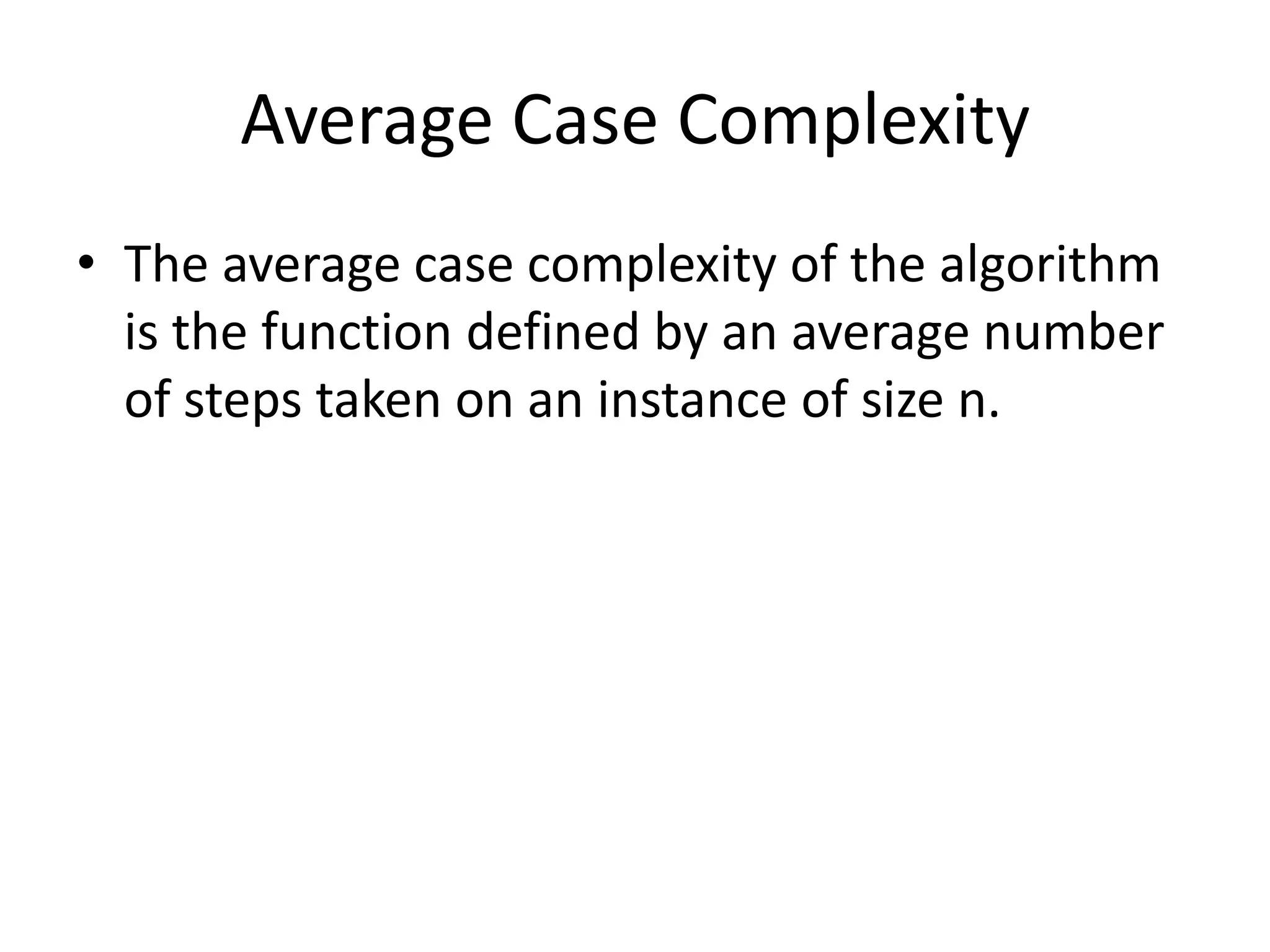

- 8. Average Case Complexity •The average case complexity of the algorithm is the function defined by an average number of steps taken on an instance of size n.

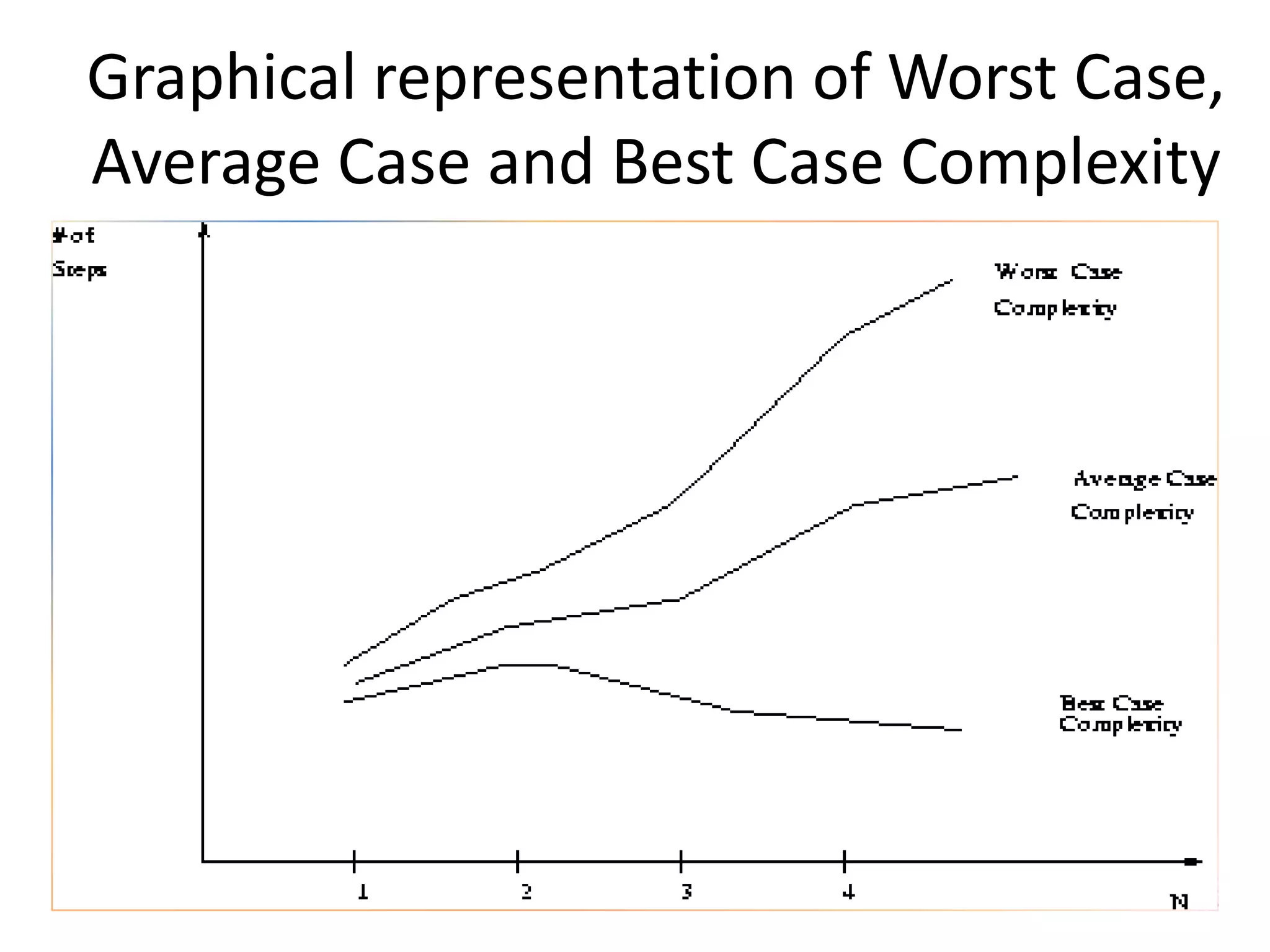

- 9. Graphical representation ofWorst Case, Average Case and Best Case Complexity

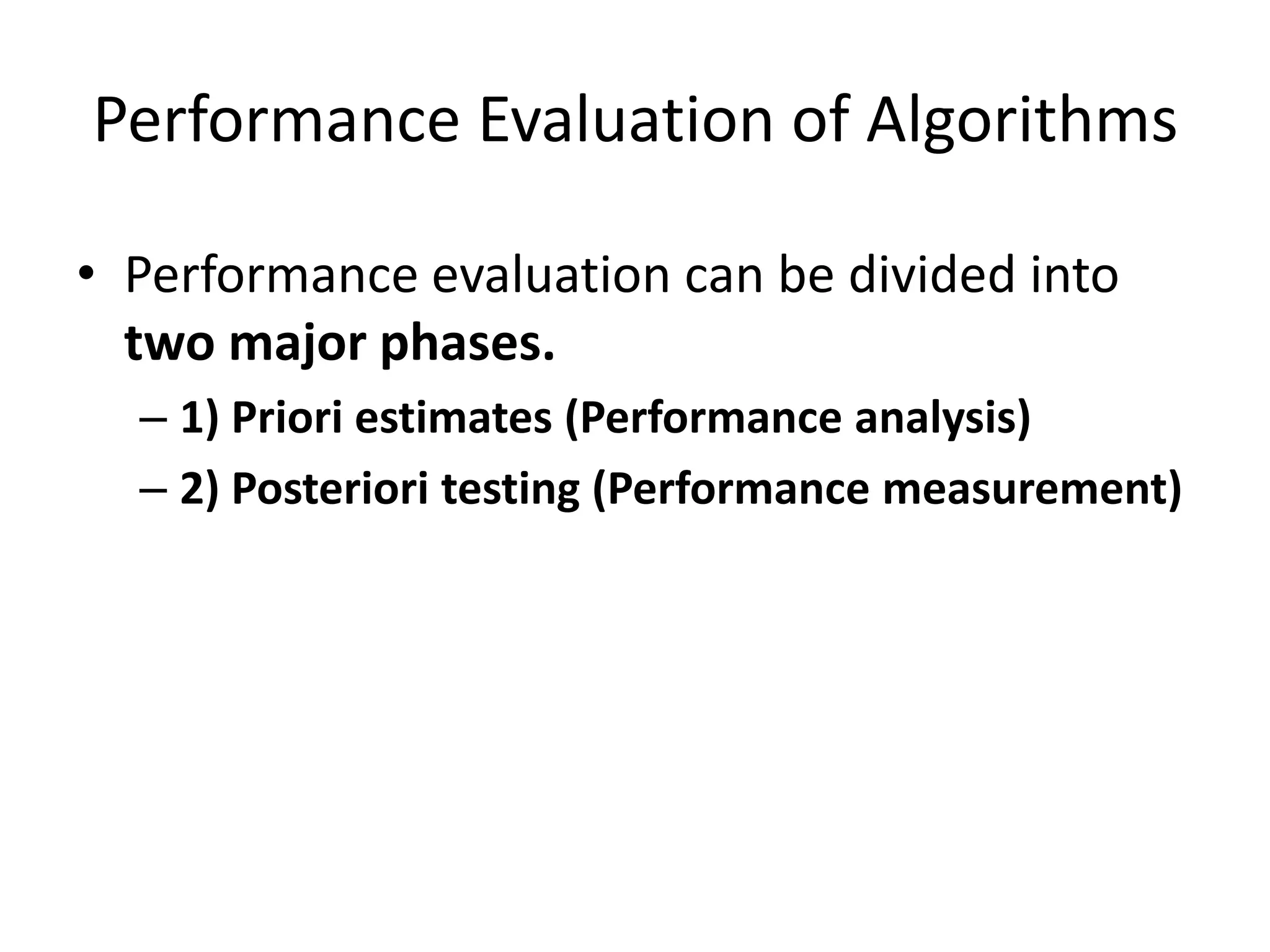

- 10. Performance Evaluation ofAlgorithms • Performance evaluation can be divided into two major phases. – 1) Priori estimates (Performance analysis) – 2) Posteriori testing (Performance measurement)

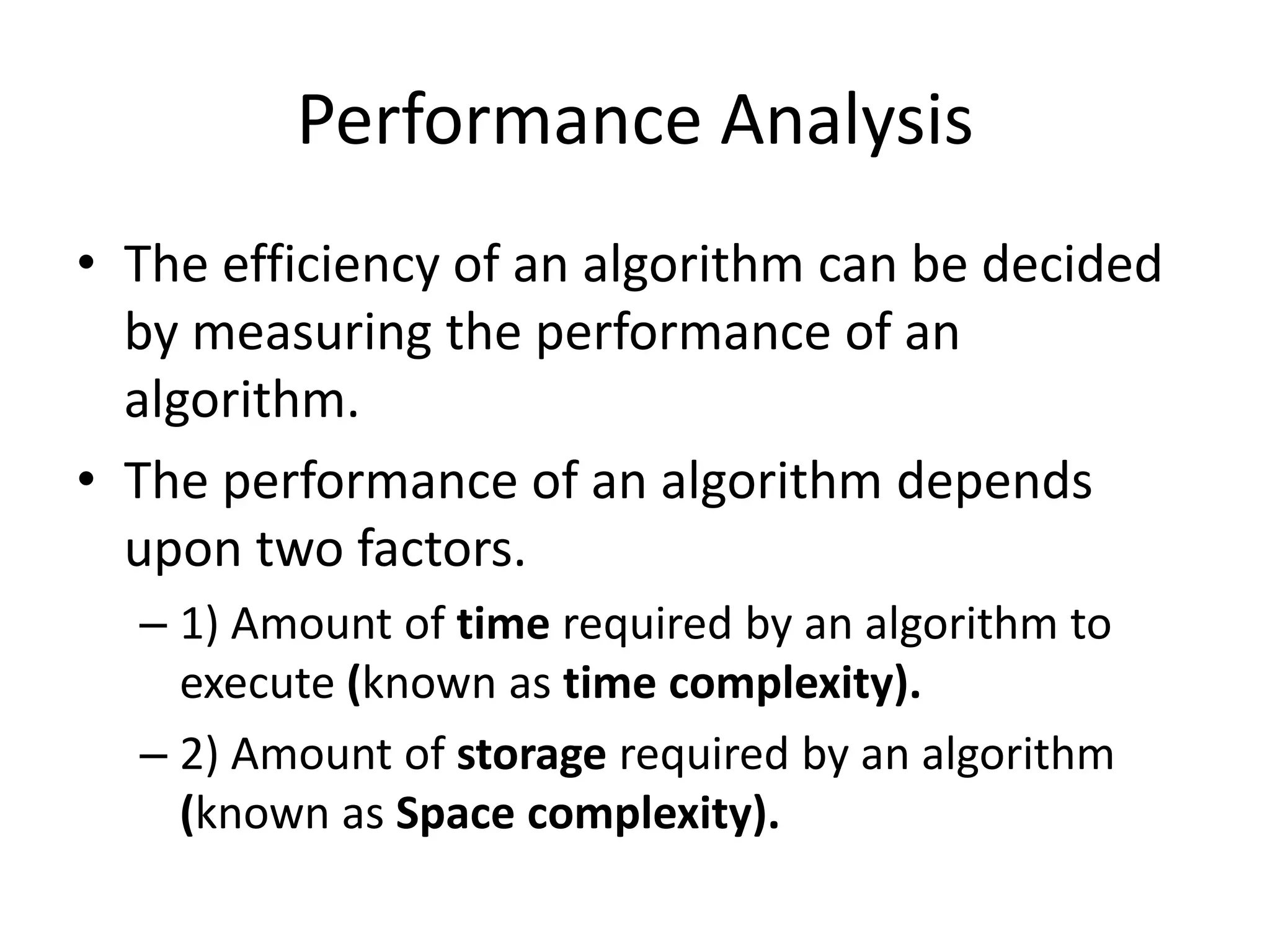

- 11. Performance Analysis • Theefficiency of an algorithm can be decided by measuring the performance of an algorithm. • The performance of an algorithm depends upon two factors. – 1) Amount of time required by an algorithm to execute (known as time complexity). – 2) Amount of storage required by an algorithm (known as Space complexity).

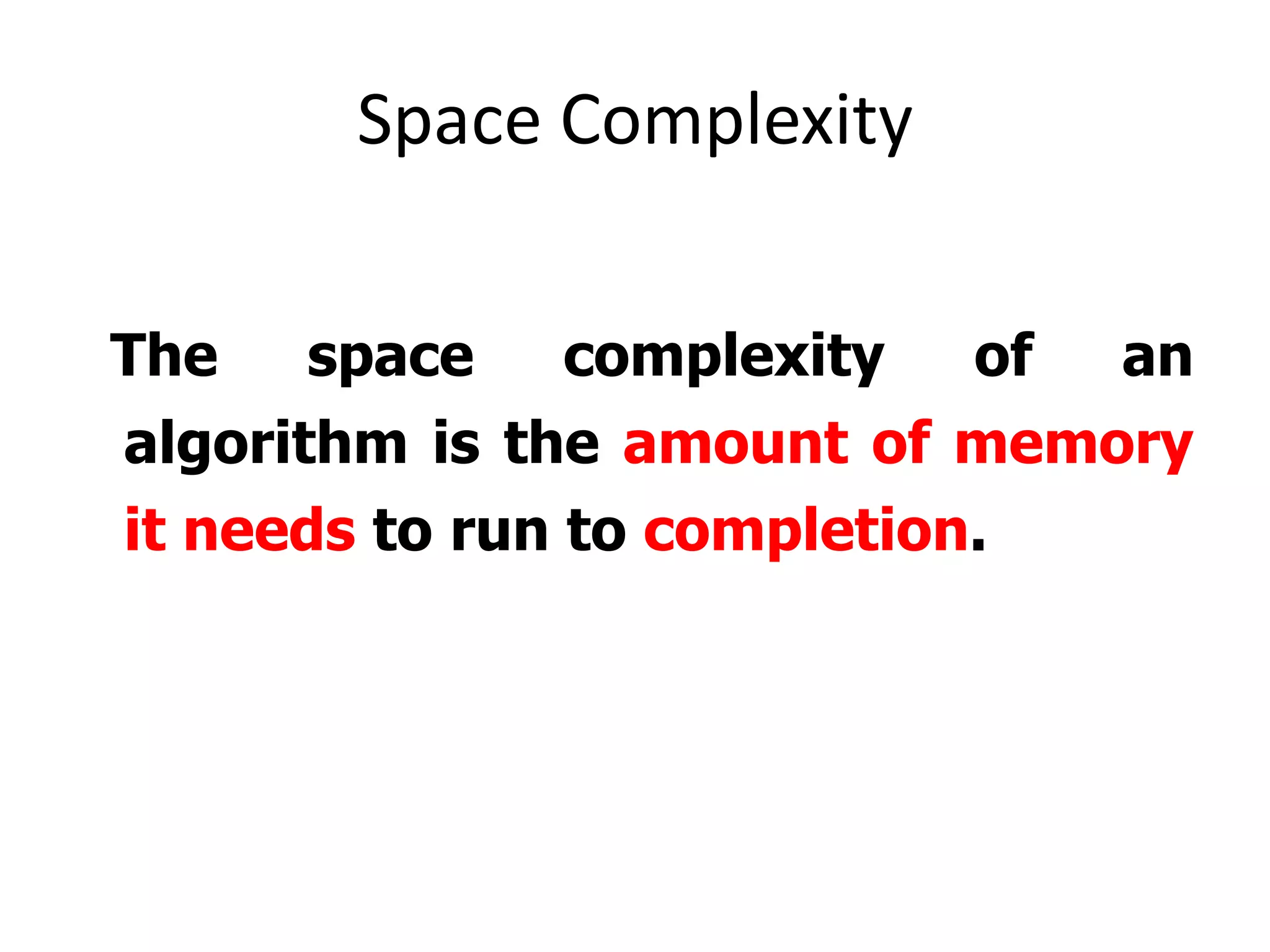

- 12. Space Complexity The space complexity of an algorithm isthe amount of memory it needs to run to completion.

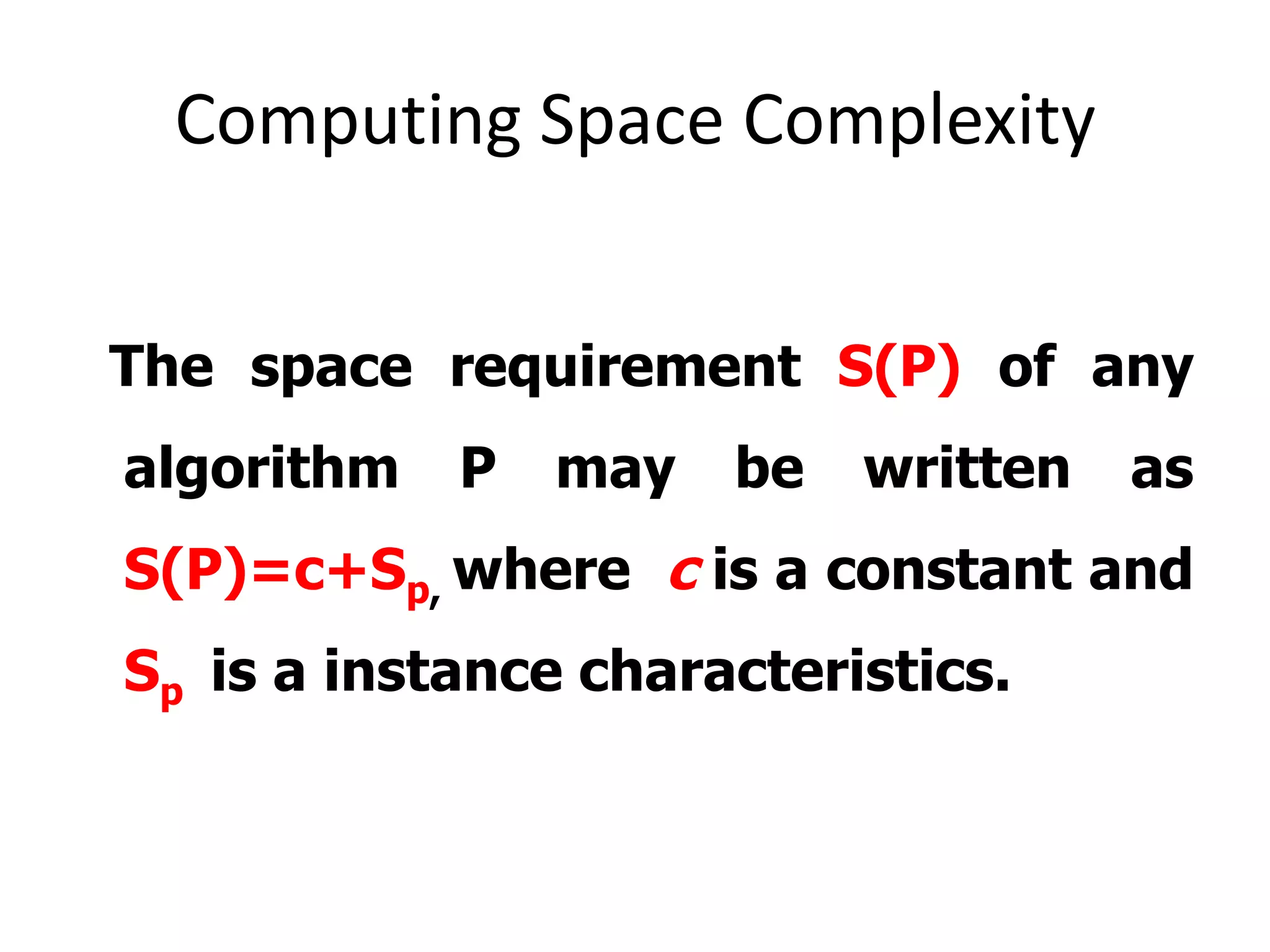

- 13. Computing Space Complexity Thespace requirement S(P) of any algorithm P may be written as S(P)=c+Sp, where c is a constant and Sp is a instance characteristics.

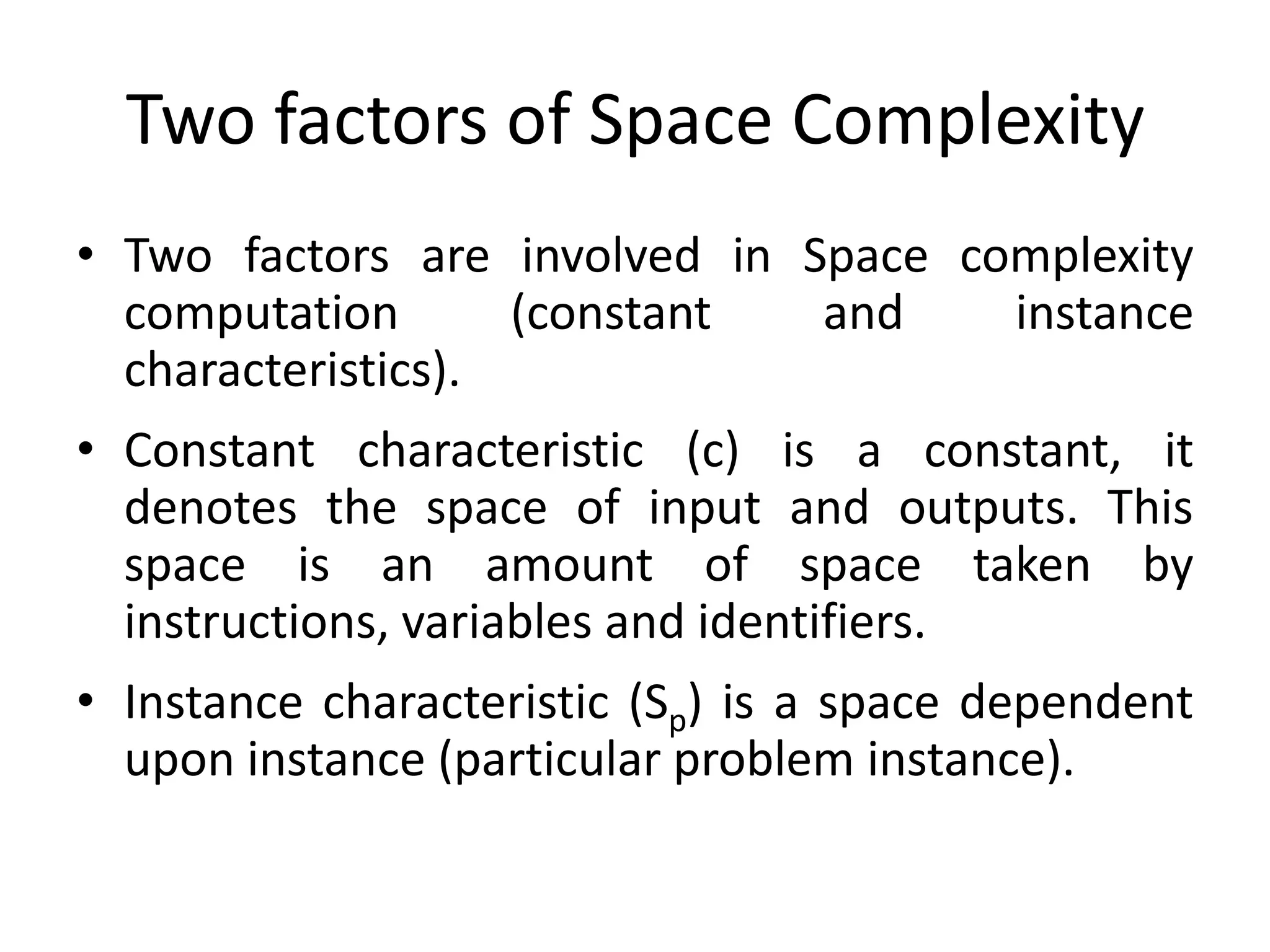

- 14. Two factors ofSpace Complexity • Two factors are involved in Space complexity computation (constant and instance characteristics). • Constant characteristic (c) is a constant, it denotes the space of input and outputs. This space is an amount of space taken by instructions, variables and identifiers. • Instance characteristic (Sp) is a space dependent upon instance (particular problem instance).

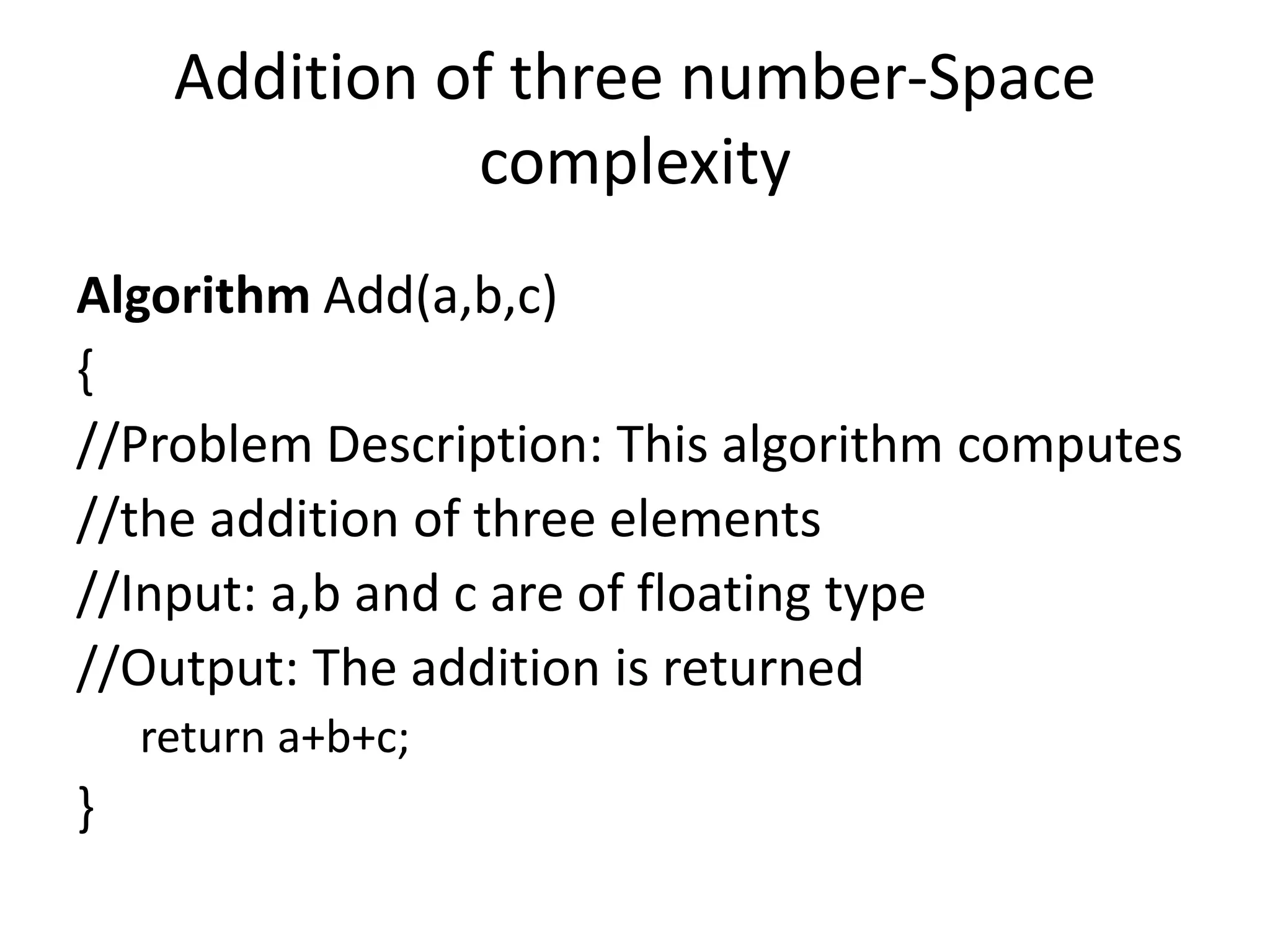

- 15. Addition of threenumber-Space complexity Algorithm Add(a,b,c) { //Problem Description: This algorithm computes //the addition of three elements //Input: a,b and c are of floating type //Output: The addition is returned return a+b+c; }

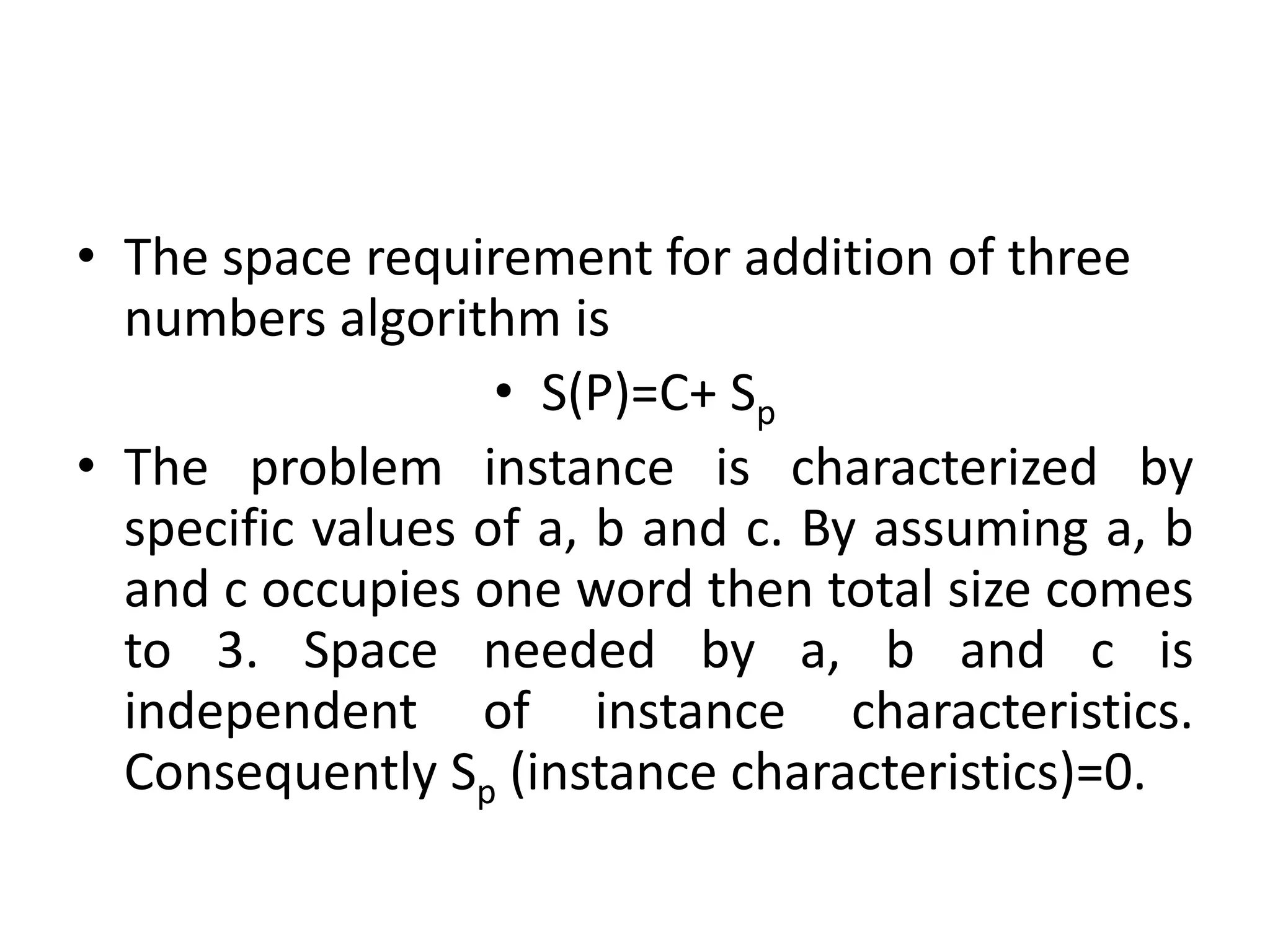

- 16. • The spacerequirement for addition of three numbers algorithm is • S(P)=C+ Sp • The problem instance is characterized by specific values of a, b and c. By assuming a, b and c occupies one word then total size comes to 3. Space needed by a, b and c is independent of instance characteristics. Consequently Sp (instance characteristics)=0.

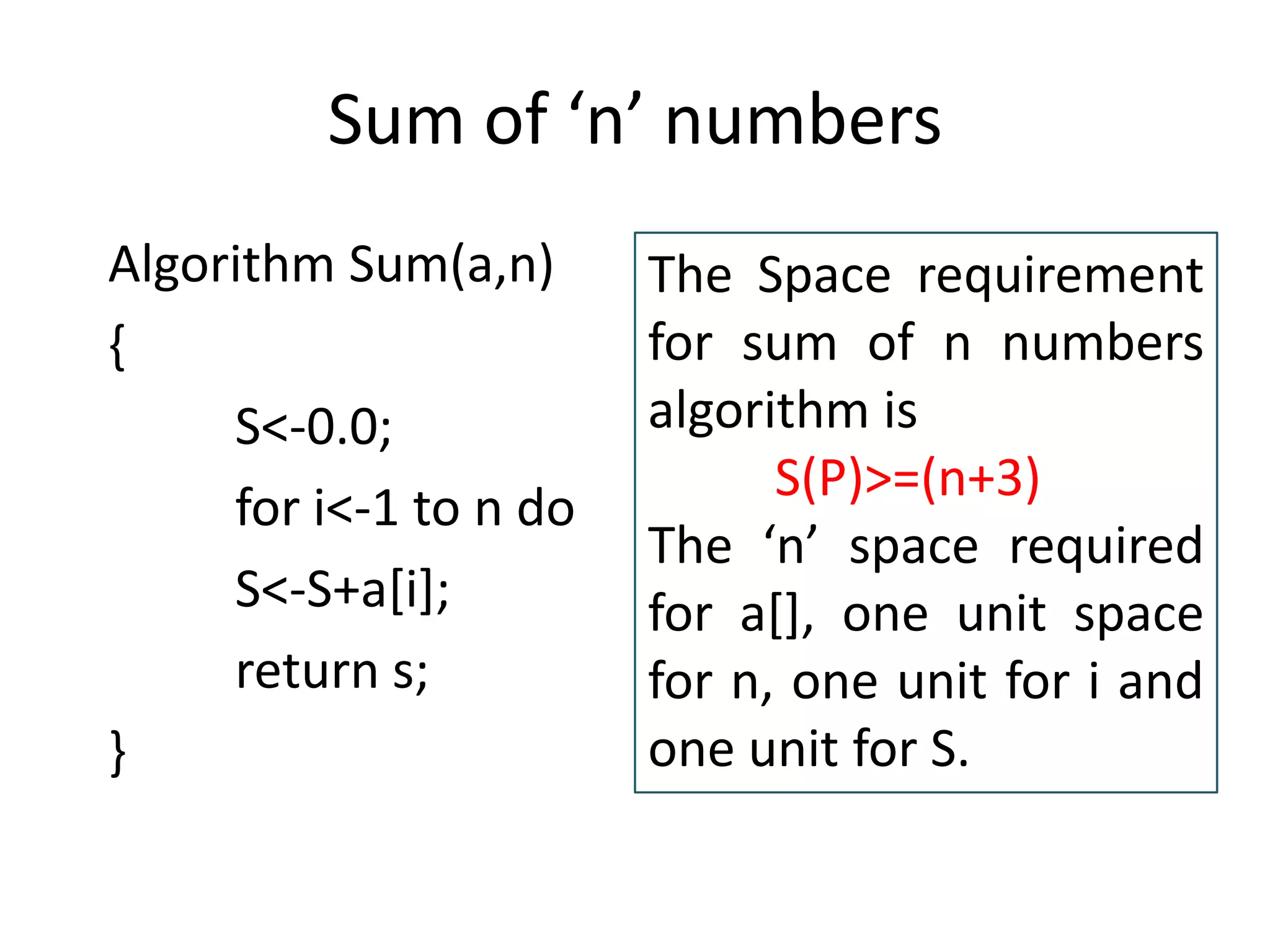

- 17. Sum of ‘n’numbers Algorithm Sum(a,n) { S<-0.0; for i<-1 to n do S<-S+a[i]; return s; } The Space requirement for sum of n numbers algorithm is S(P)>=(n+3) The ‘n’ space required for a[], one unit space for n, one unit for i and one unit for S.

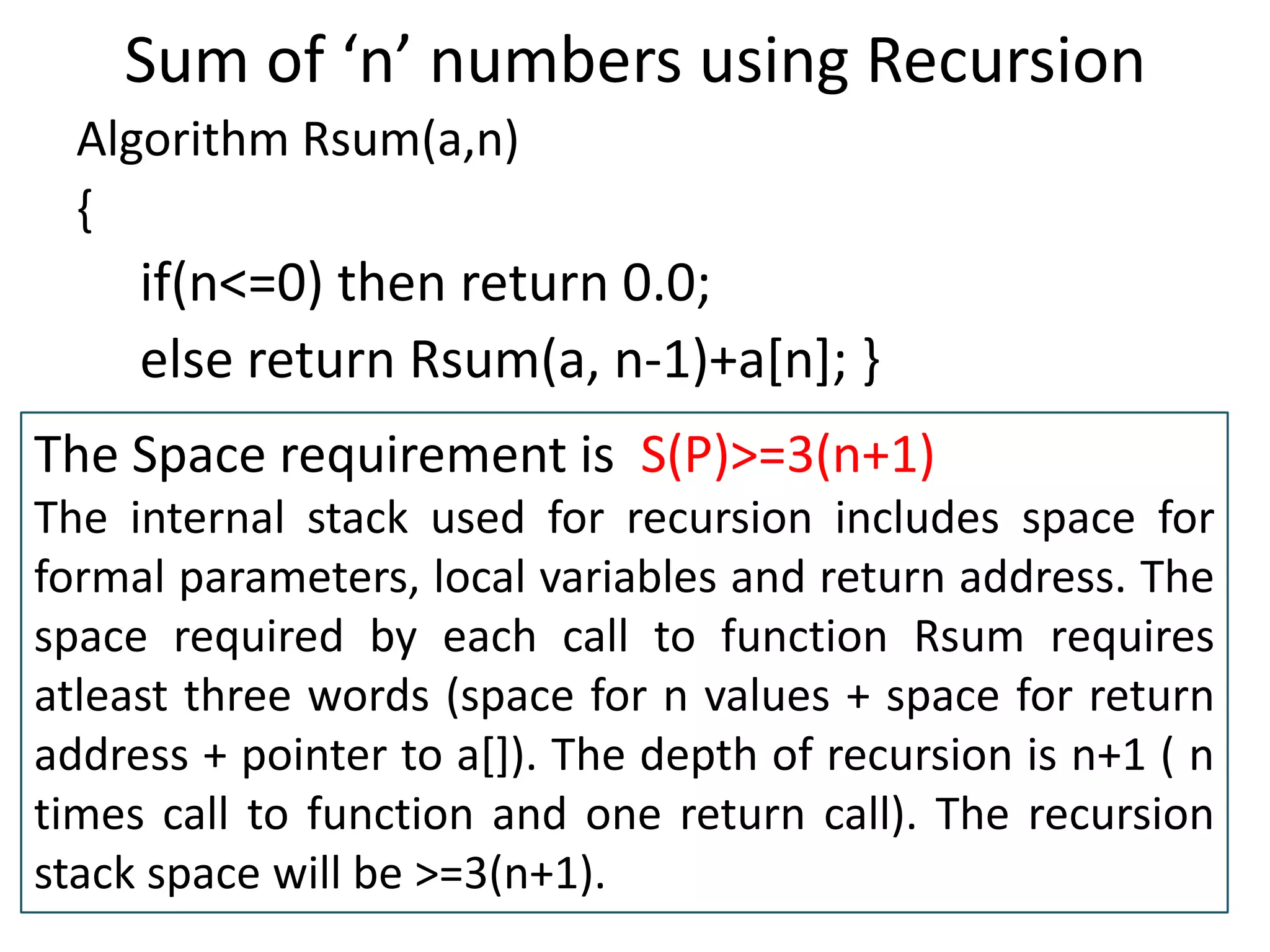

- 18. Sum of ‘n’numbers using Recursion Algorithm Rsum(a,n) { if(n<=0) then return 0.0; else return Rsum(a, n-1)+a[n]; } The Space requirement is S(P)>=3(n+1) The internal stack used for recursion includes space for formal parameters, local variables and return address. The space required by each call to function Rsum requires atleast three words (space for n values + space for return address + pointer to a[]). The depth of recursion is n+1 ( n times call to function and one return call). The recursion stack space will be >=3(n+1).

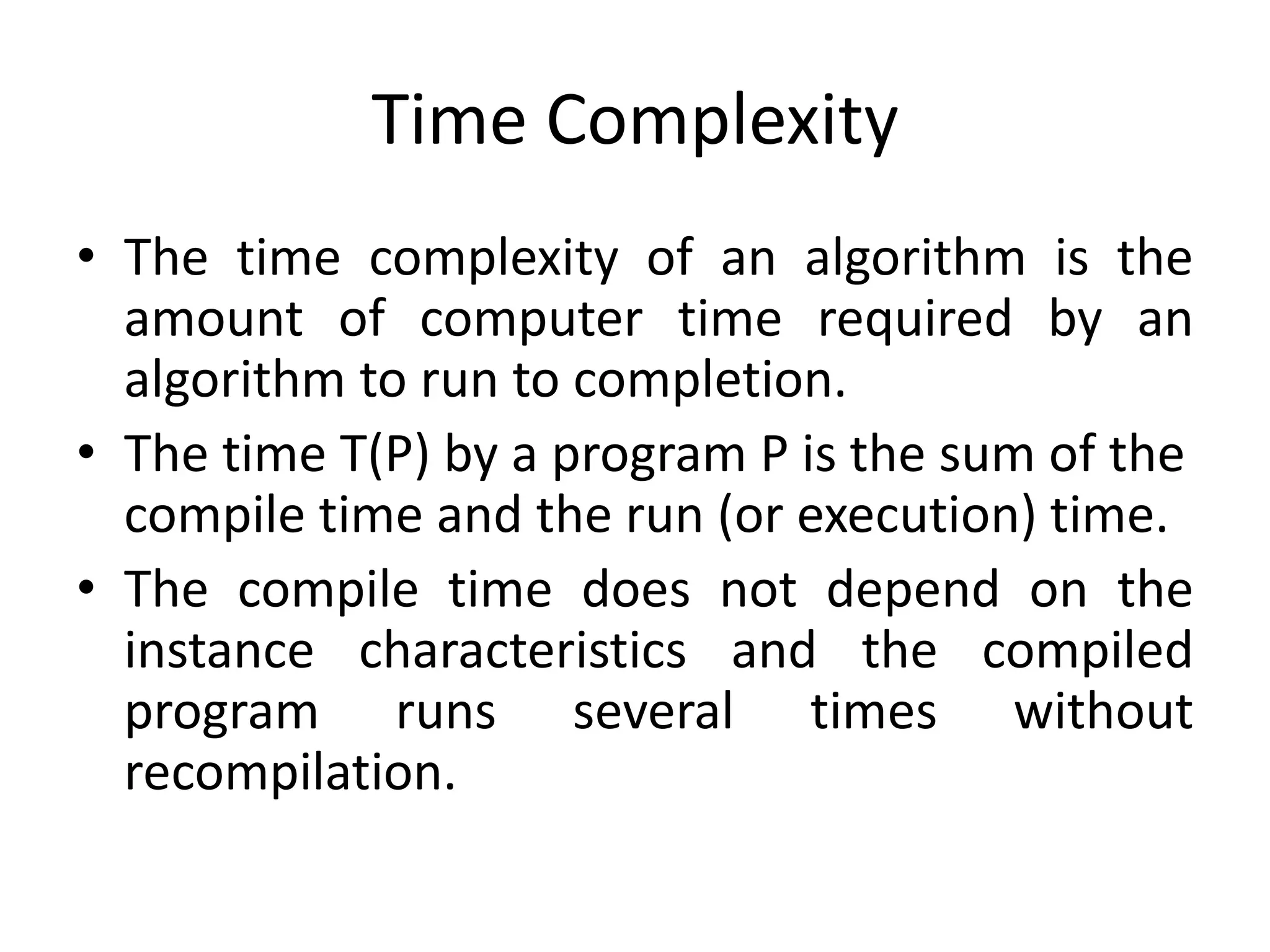

- 19. Time Complexity • Thetime complexity of an algorithm is the amount of computer time required by an algorithm to run to completion. • The time T(P) by a program P is the sum of the compile time and the run (or execution) time. • The compile time does not depend on the instance characteristics and the compiled program runs several times without recompilation.

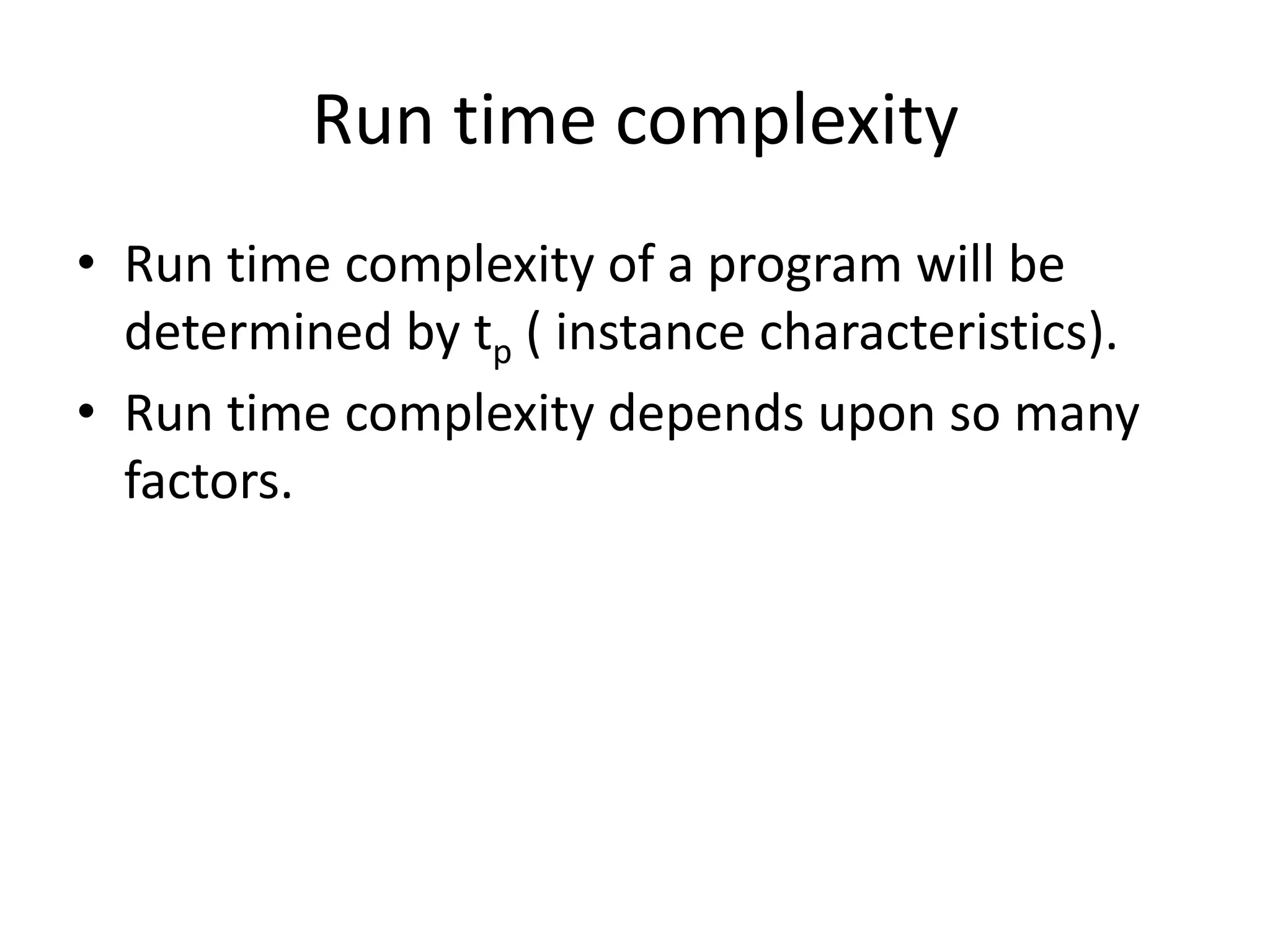

- 20. Run time complexity •Run time complexity of a program will be determined by tp ( instance characteristics). • Run time complexity depends upon so many factors.

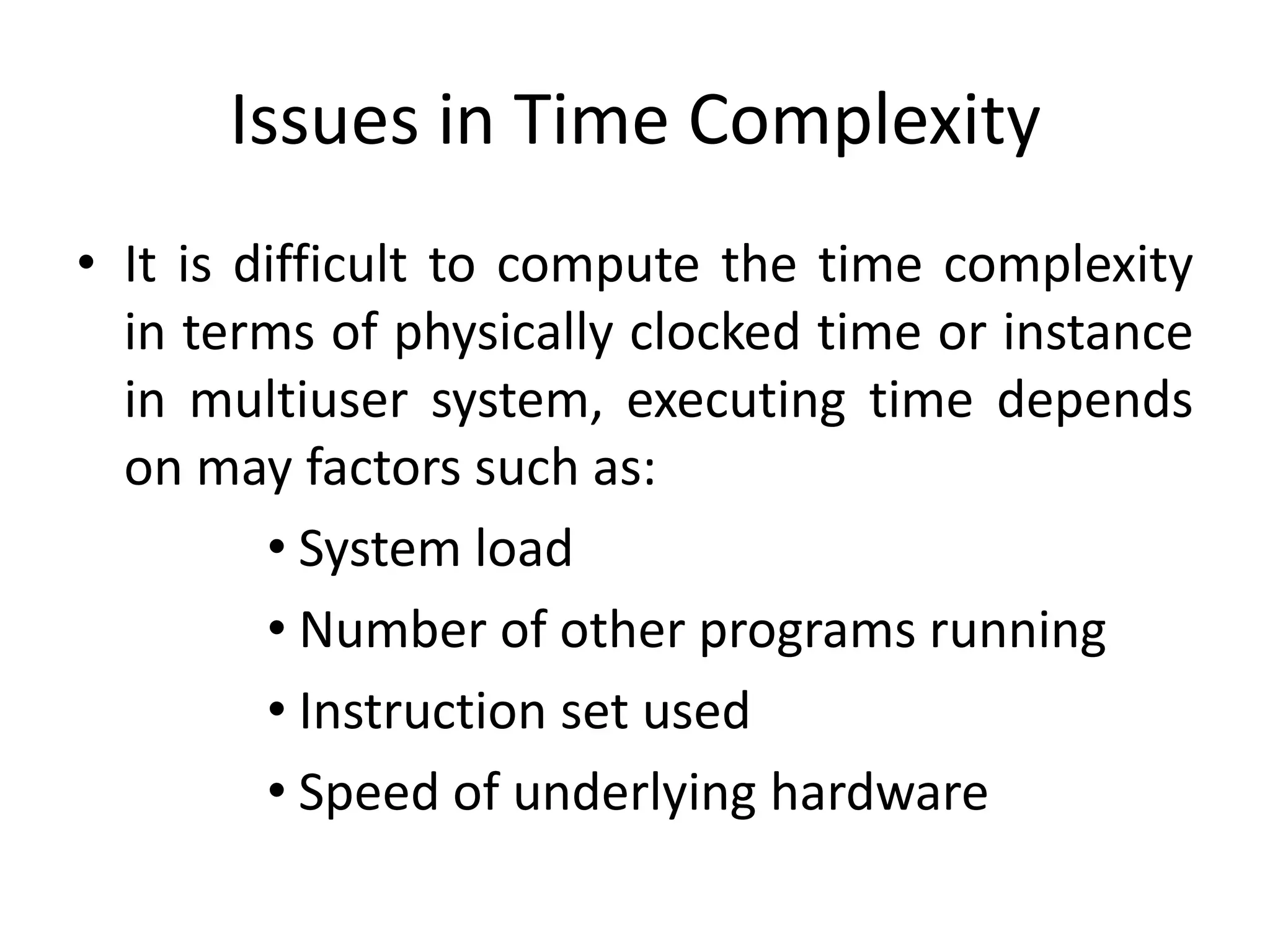

- 21. Issues in TimeComplexity • It is difficult to compute the time complexity in terms of physically clocked time or instance in multiuser system, executing time depends on may factors such as: • System load • Number of other programs running • Instruction set used • Speed of underlying hardware

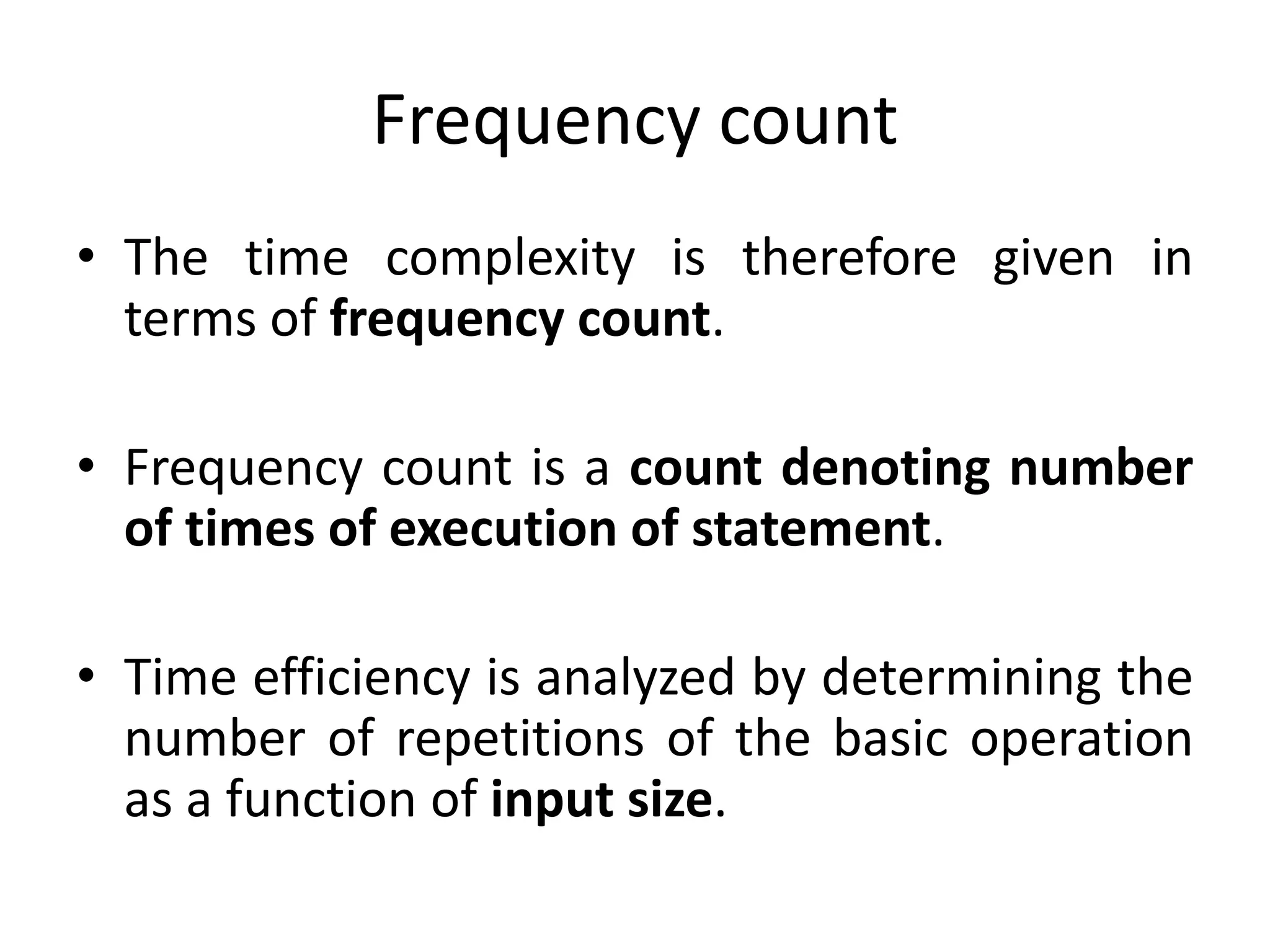

- 22. Frequency count • Thetime complexity is therefore given in terms of frequency count. • Frequency count is a count denoting number of times of execution of statement. • Time efficiency is analyzed by determining the number of repetitions of the basic operation as a function of input size.

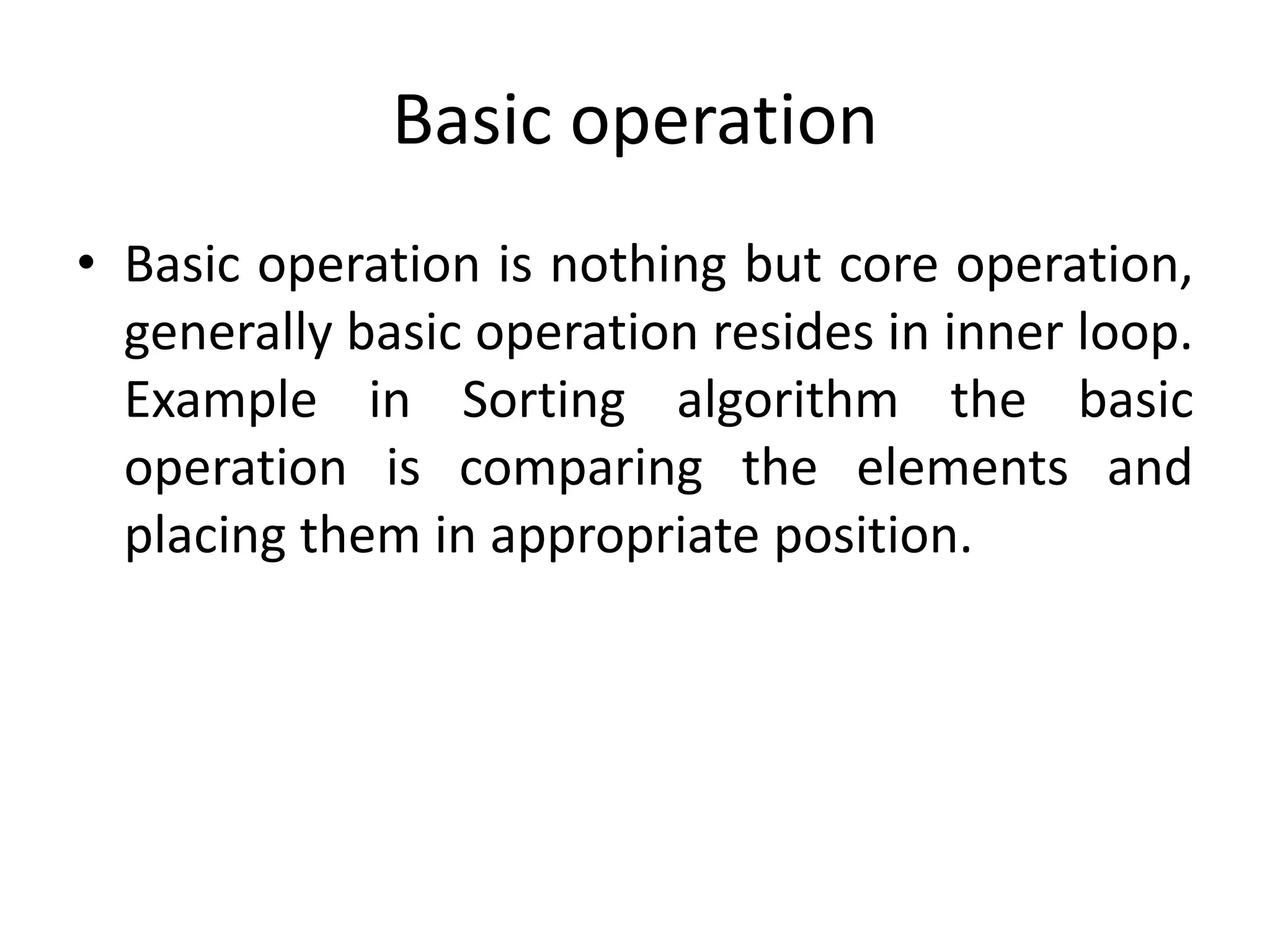

- 23. Basic operation • Basicoperation is nothing but core operation, generally basic operation resides in inner loop. Example in Sorting algorithm the basic operation is comparing the elements and placing them in appropriate position.

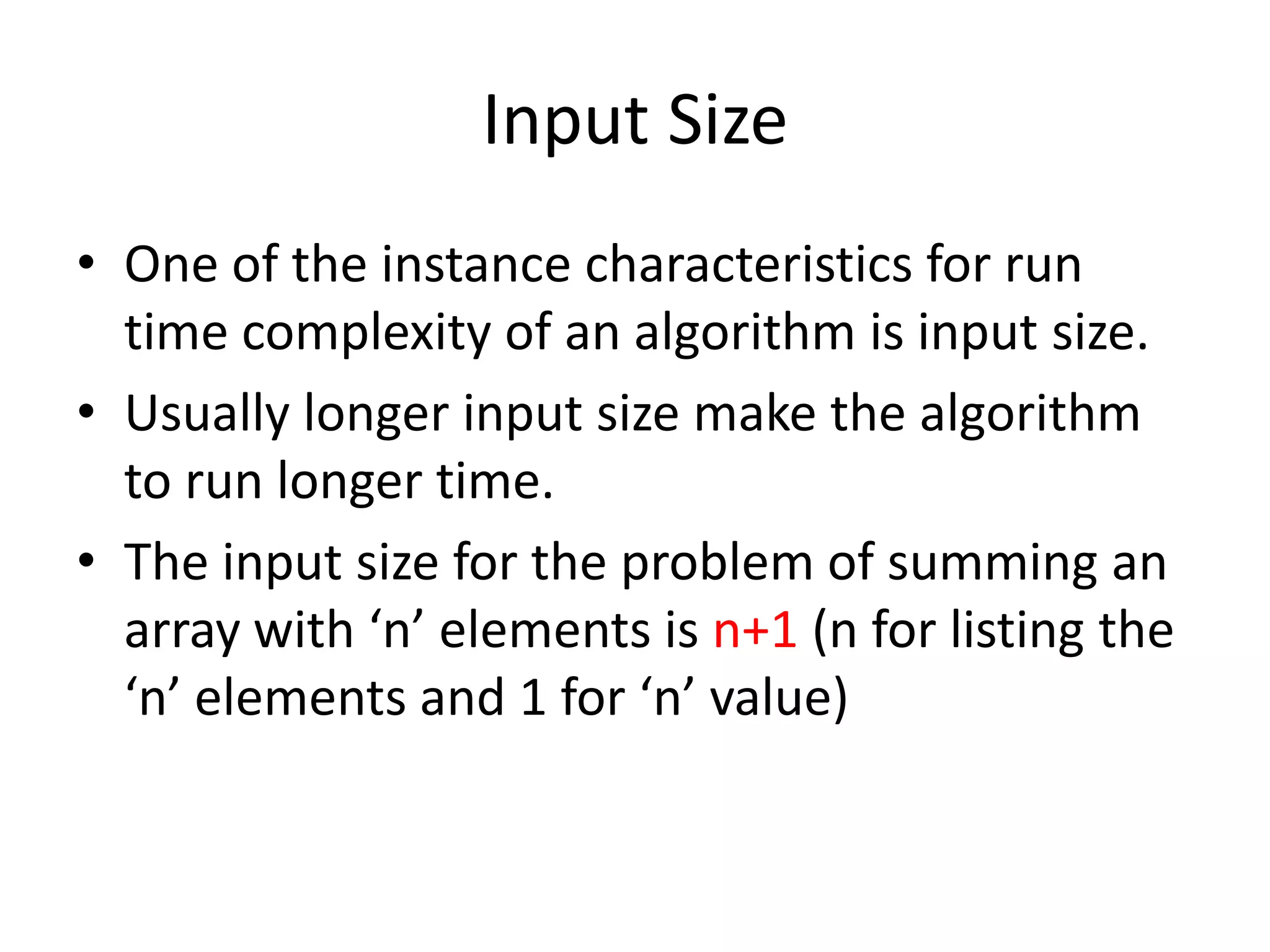

- 24. Input Size • Oneof the instance characteristics for run time complexity of an algorithm is input size. • Usually longer input size make the algorithm to run longer time. • The input size for the problem of summing an array with ‘n’ elements is n+1 (n for listing the ‘n’ elements and 1 for ‘n’ value)

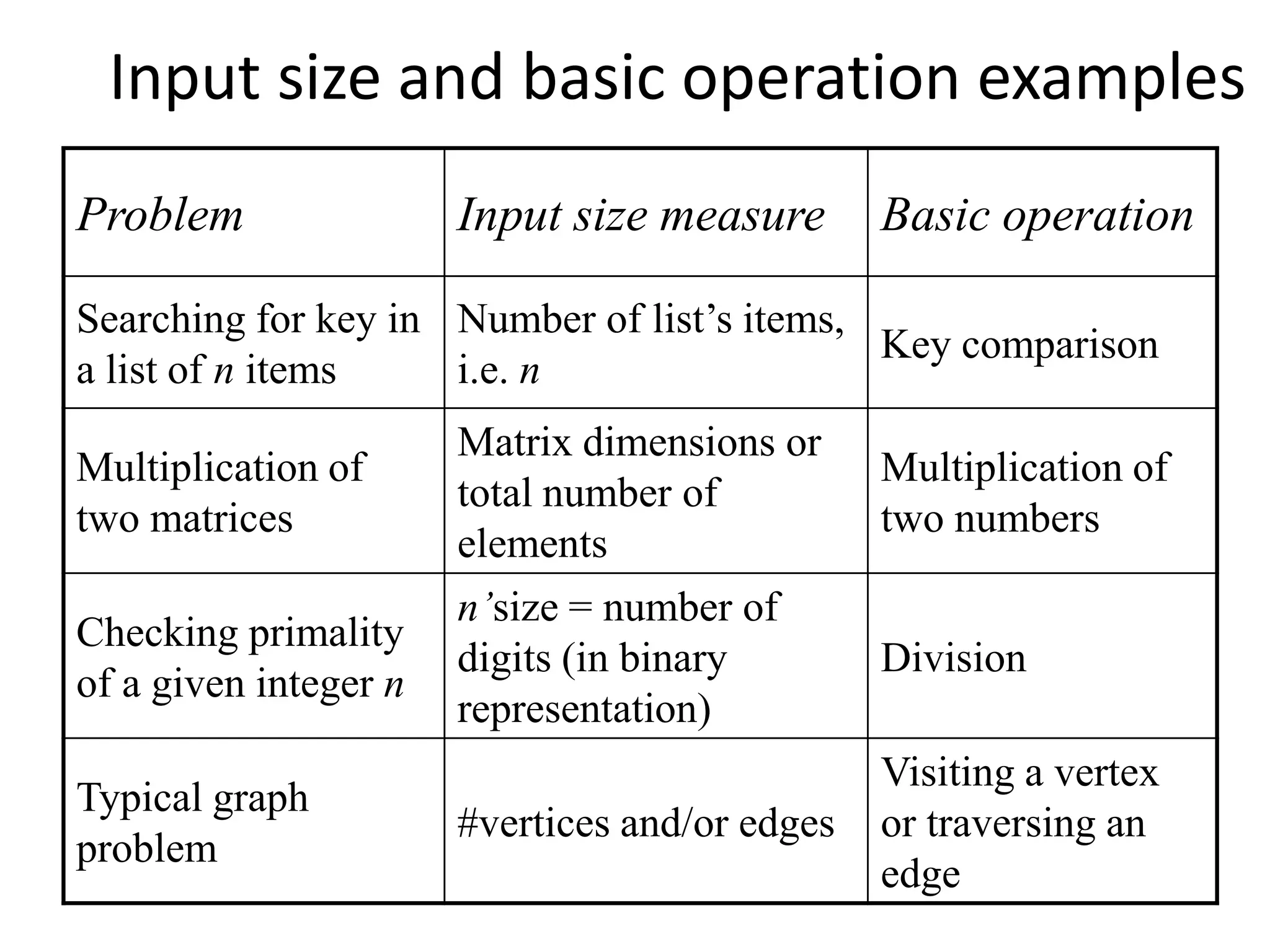

- 25. Input size andbasic operation examples Problem Input size measure Basic operation Searching for key in Number of list’s items, Key comparison a list of n items i.e. n Multiplication of two matrices Matrix dimensions or total number of elements Multiplication of two numbers Checking primality of a given integer n n’size = number of digits (in binary representation) Division #vertices and/or edges Visiting a vertex or traversing an edge Typical graph problem

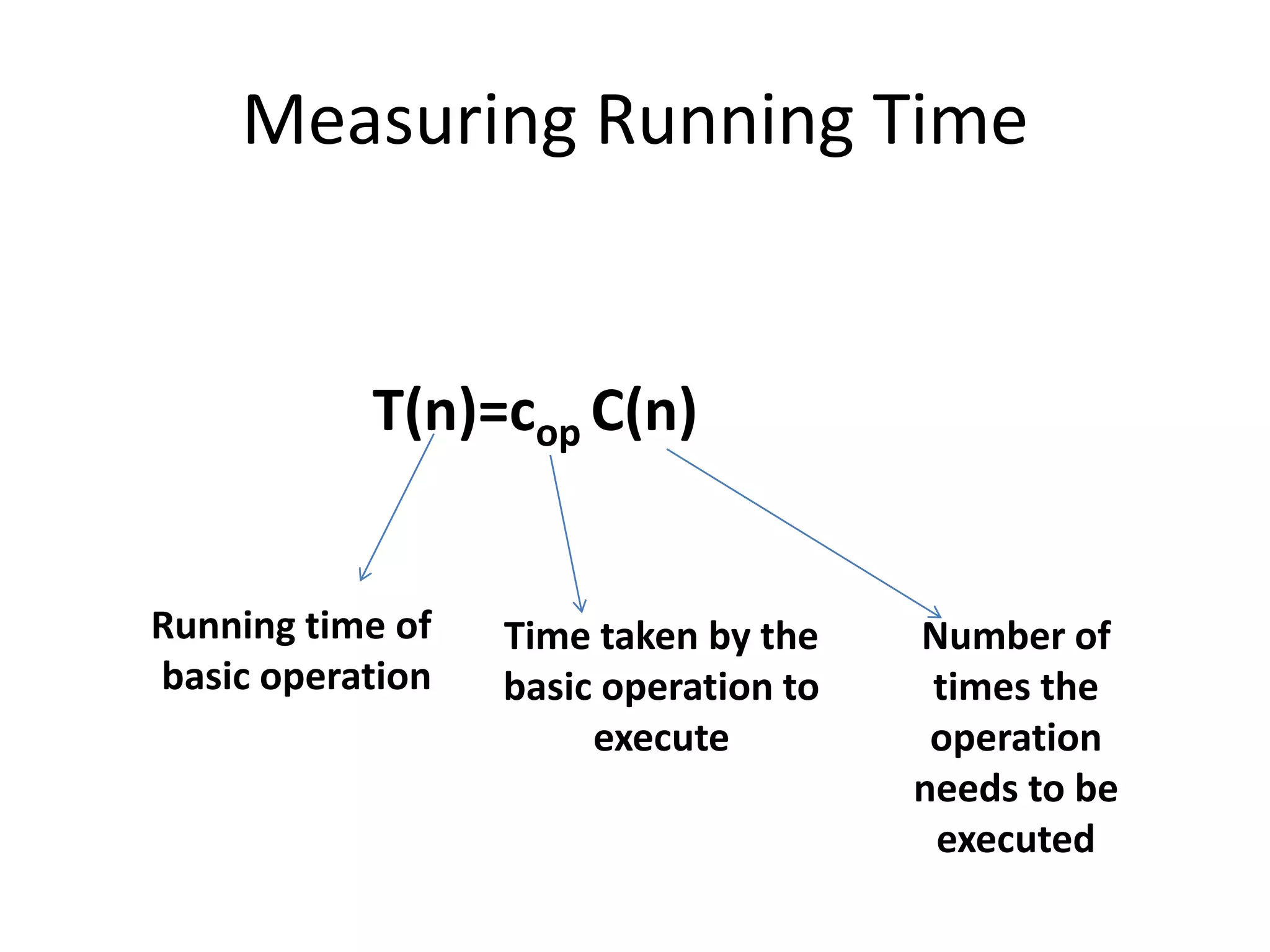

- 26. Measuring Running Time T(n)=copC(n) Running time of basic operation Time taken by the basic operation to execute Number of times the operation needs to be executed

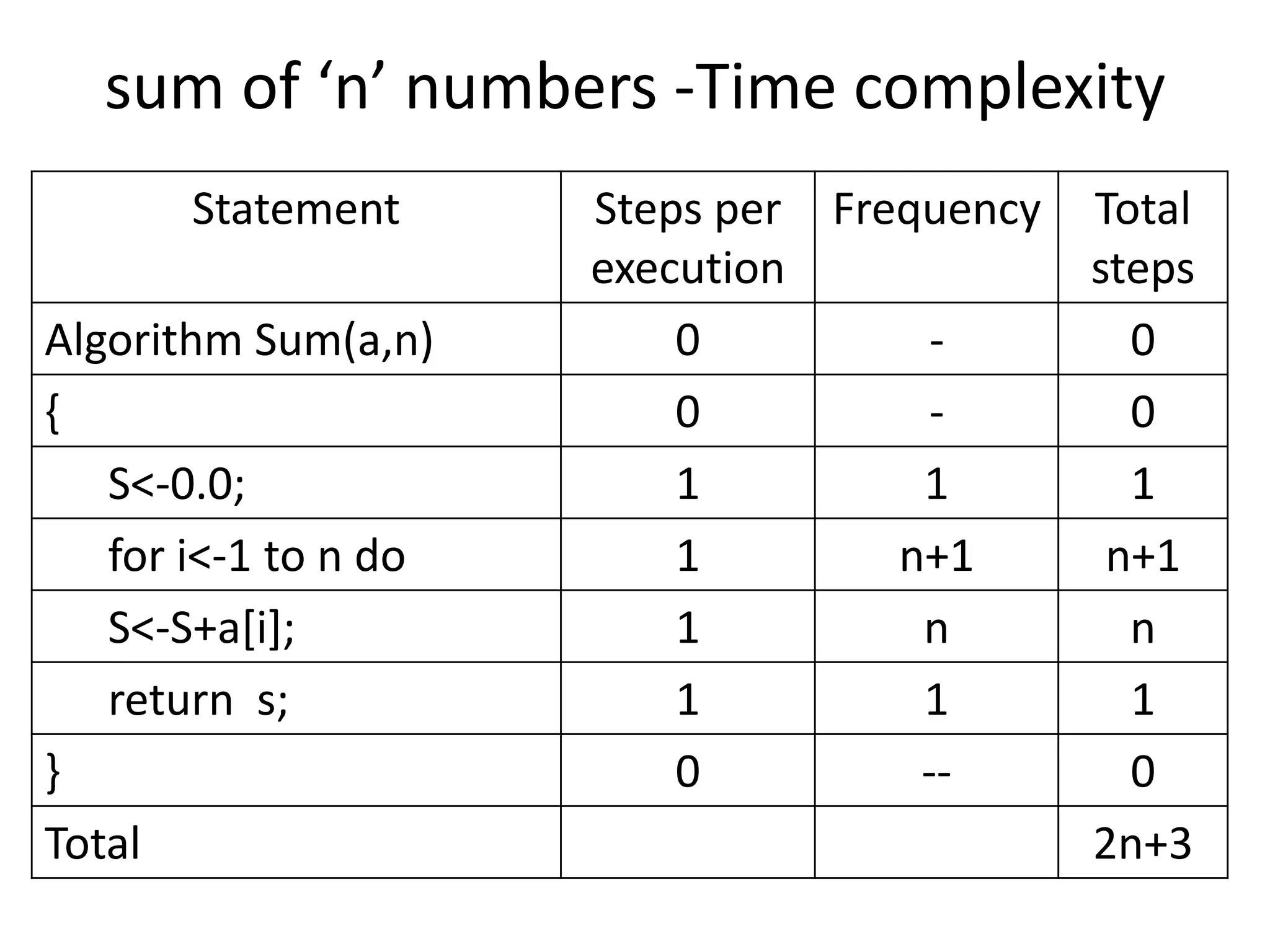

- 27. sum of ‘n’numbers -Time complexity Statement Algorithm Sum(a,n) { S<-0.0; for i<-1 to n do S<-S+a[i]; return s; } Total Steps per Frequency execution 0 0 1 1 1 n+1 1 n 1 1 0 -- Total steps 0 0 1 n+1 n 1 0 2n+3

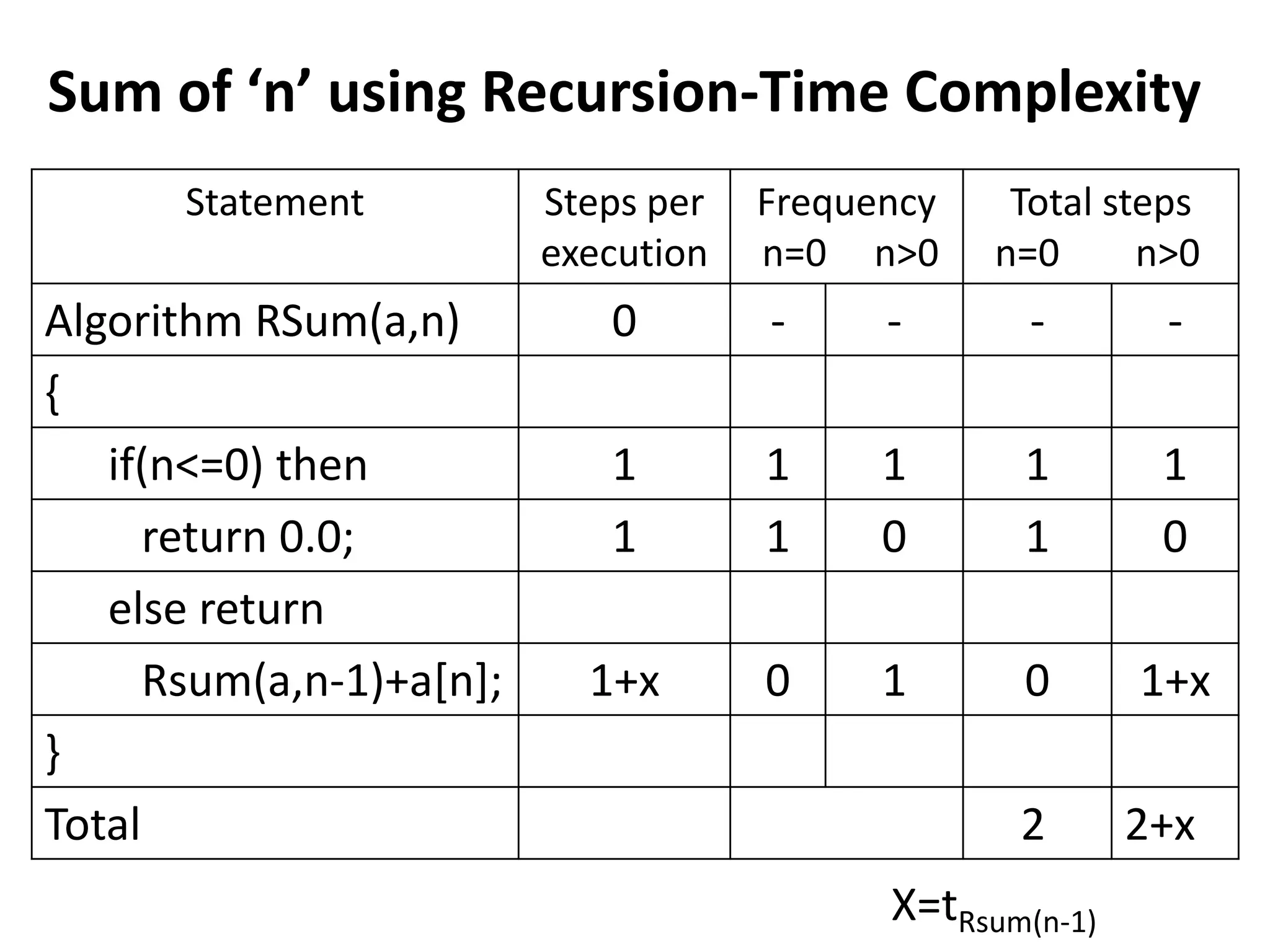

- 28. Sum of ‘n’using Recursion-Time Complexity Statement Steps per execution Frequency n=0 n>0 Total steps n=0 n>0 Algorithm RSum(a,n) { if(n<=0) then return 0.0; else return Rsum(a,n-1)+a[n]; } Total 0 - - - - 1 1 1 1 1 0 1 1 1 0 1+x 0 1 0 1+x 2 X=tRsum(n-1) 2+x

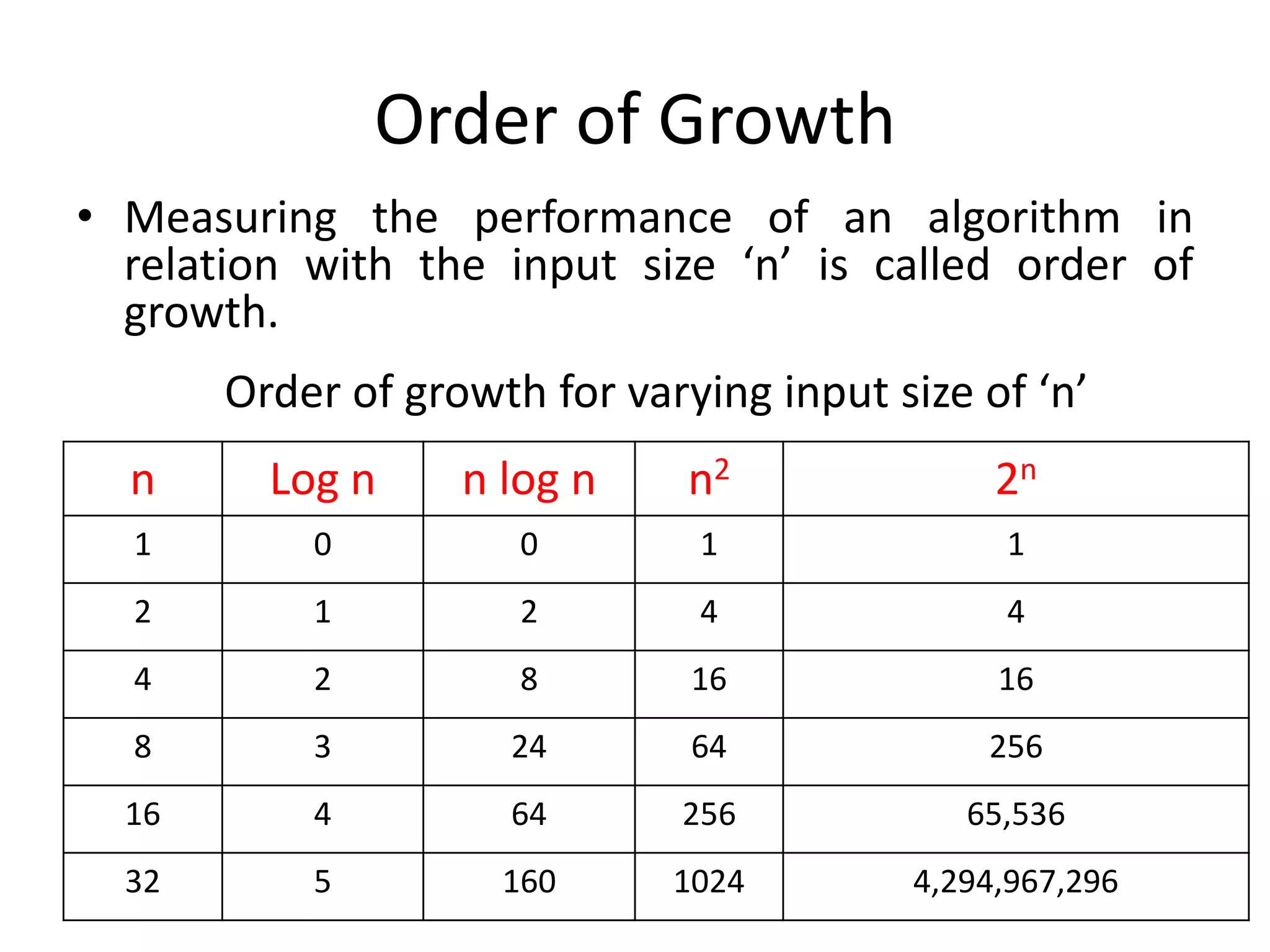

- 29. Order of Growth •Measuring the performance of an algorithm in relation with the input size ‘n’ is called order of growth. Order of growth for varying input size of ‘n’ n Log n n log n n2 2n 1 0 0 1 1 2 1 2 4 4 4 2 8 16 16 8 3 24 64 256 16 4 64 256 65,536 32 5 160 1024 4,294,967,296

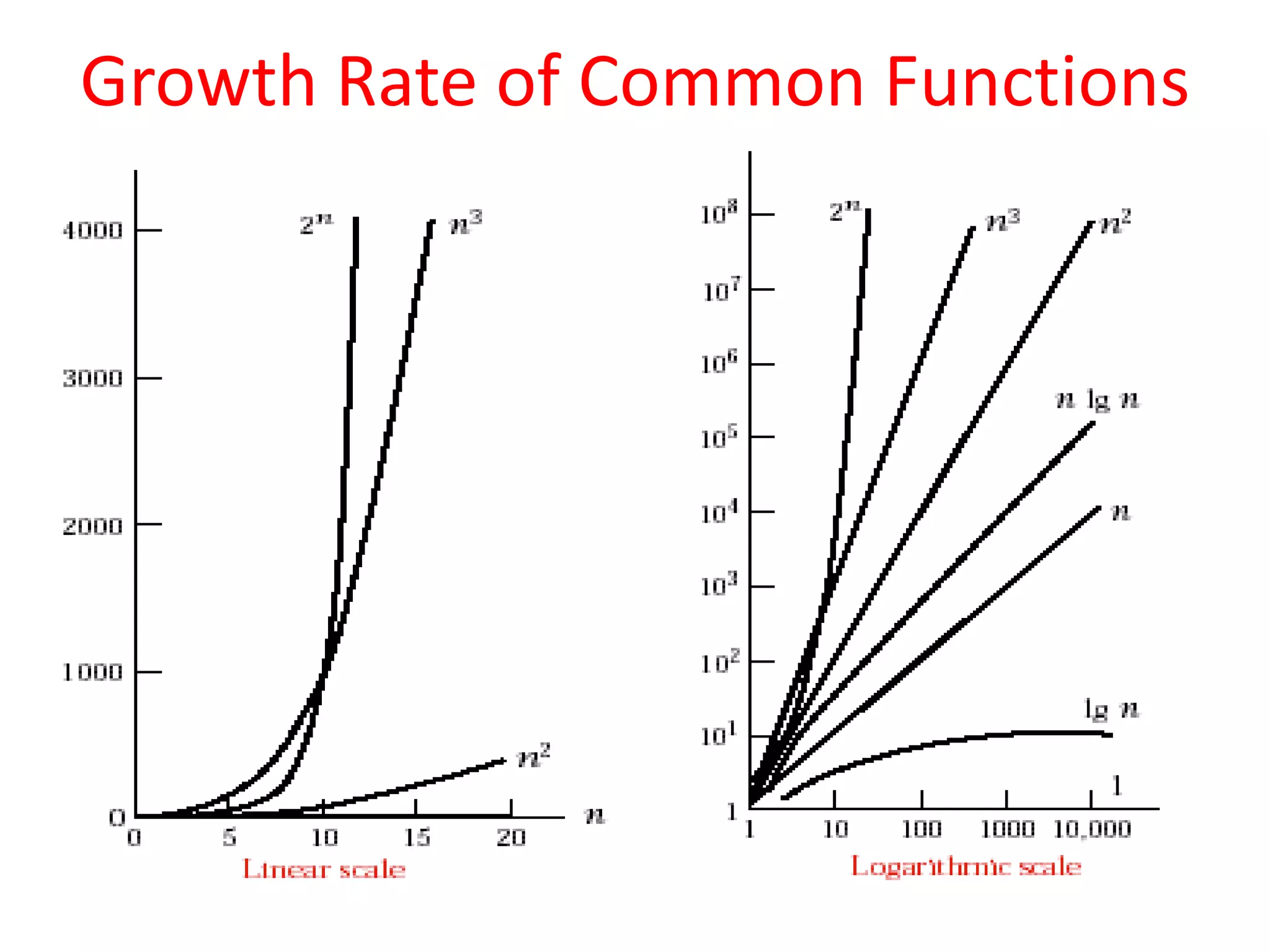

- 30. Growth Rate ofCommon Functions

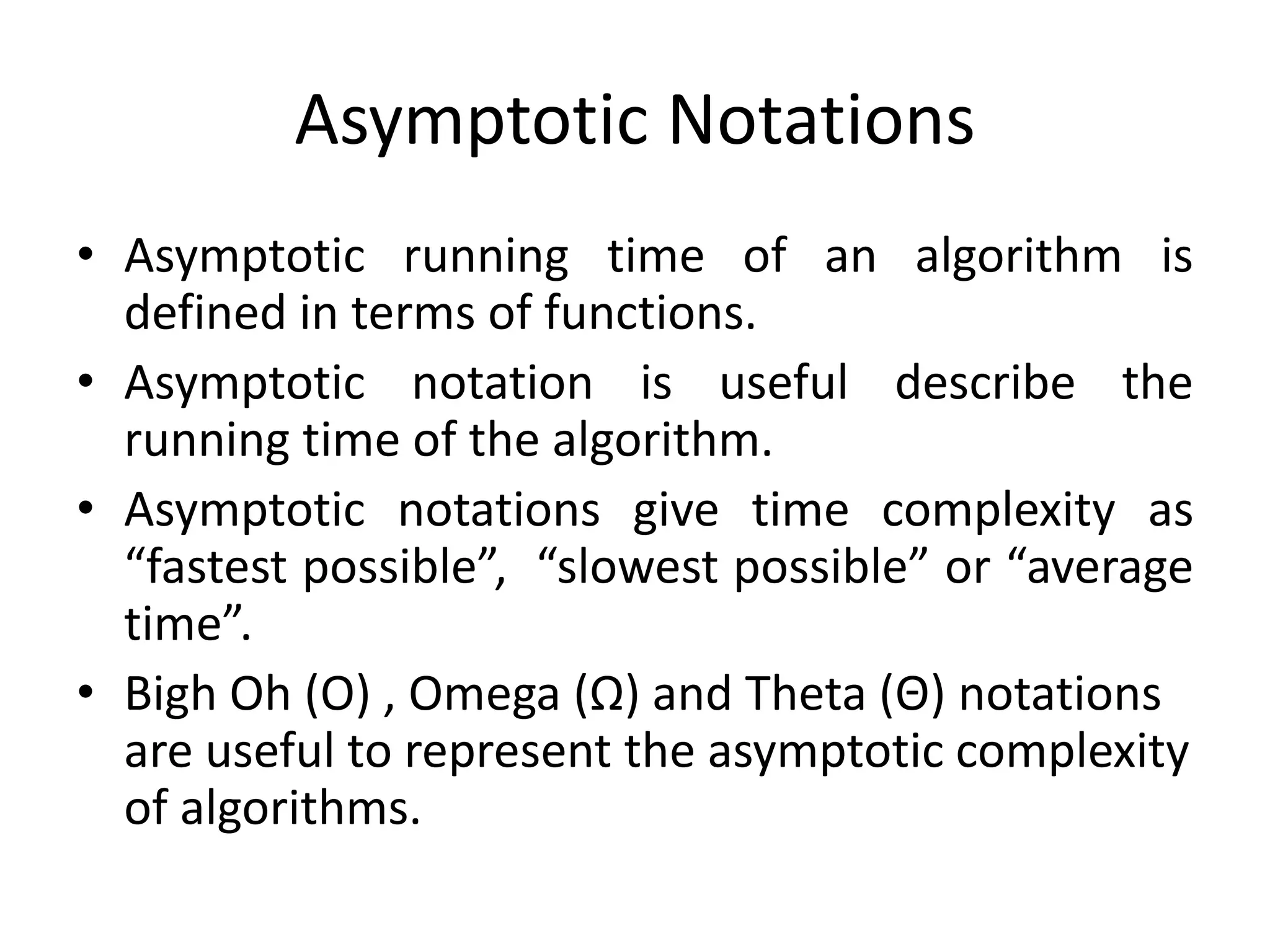

- 32. Asymptotic Notations • Asymptoticrunning time of an algorithm is defined in terms of functions. • Asymptotic notation is useful describe the running time of the algorithm. • Asymptotic notations give time complexity as “fastest possible”, “slowest possible” or “average time”. • Bigh Oh (Ο) , Omega (Ω) and Theta (Θ) notations are useful to represent the asymptotic complexity of algorithms.
