Uploaded byVishal Aditya
Amity Raspberry Jam
This document summarizes an event about the Raspberry Pi microcontroller and its uses in robotics, automation, and the Internet of Things. The agenda includes live demonstrations of RPi projects, an introduction to RPi for beginners and advanced users, and experiences with hardware, software, sensors, and applications. Examples of cool projects discussed are face detection, self-driving vehicles, smart gardening, automation with voice control, and a 17 degree of freedom humanoid robot. The document promotes exploring the unlimited possibilities of the small, low-cost RPi computer.
More Related Content
Similar to Amity Raspberry Jam
![Securing Firmware Updates [FOTA/OTA DFU]](https://cdn.slidesharecdn.com/ss_thumbnails/securingfirmwareupdatesfotaotadfu-210227100204-thumbnail.jpg?width=640&height=640&fit=bounds)
![ANPARA THERMAL POWER STATION[1] sangam.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/anparathermalpowerstation1sangam-251121115219-9261cde4-thumbnail.jpg?width=640&height=640&fit=bounds)
Amity Raspberry Jam
- 1. Raspberry JamOFFICIAL RASPBERRYPI EVENT AMITY
- 2. WHY ARE WEHERE? This event/workshop is to aware about the Raspberry Pi micro-controller and its utilization in Robotics, Automation & Internet of Things. Agenda: • Live project demonstrations based on RPi computer and its usage. • RPi Beginners to Advance Guide. • Hardware & Software Experience. • Internet of Things & Automation. • Robotic Platforms & Solutions. • Analog & Digital Sensors Integration.
- 4.
- 5.
- 6.
- 7.

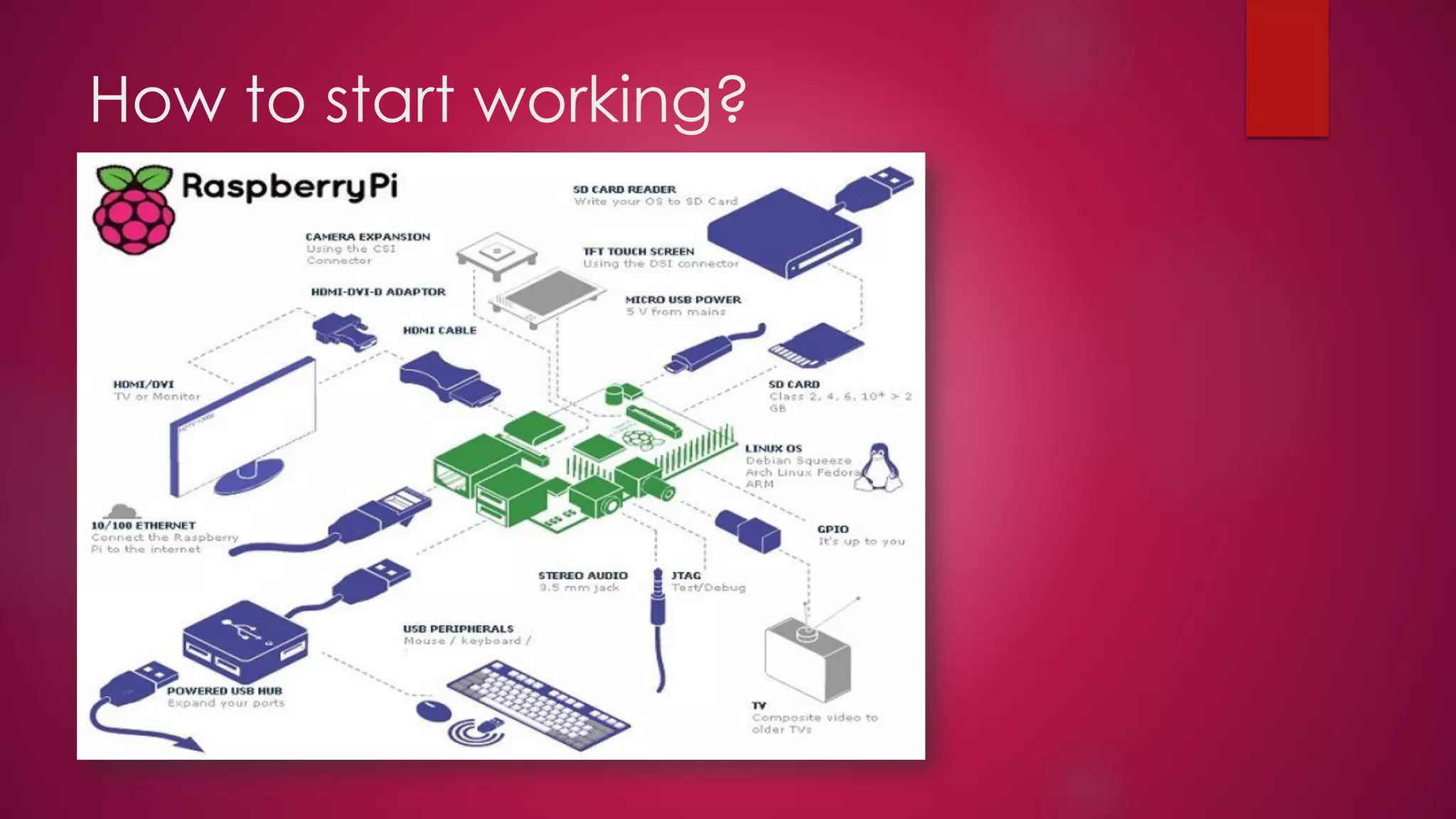

- 8. How to startworking?
- 9. What cool thingsyou can do?

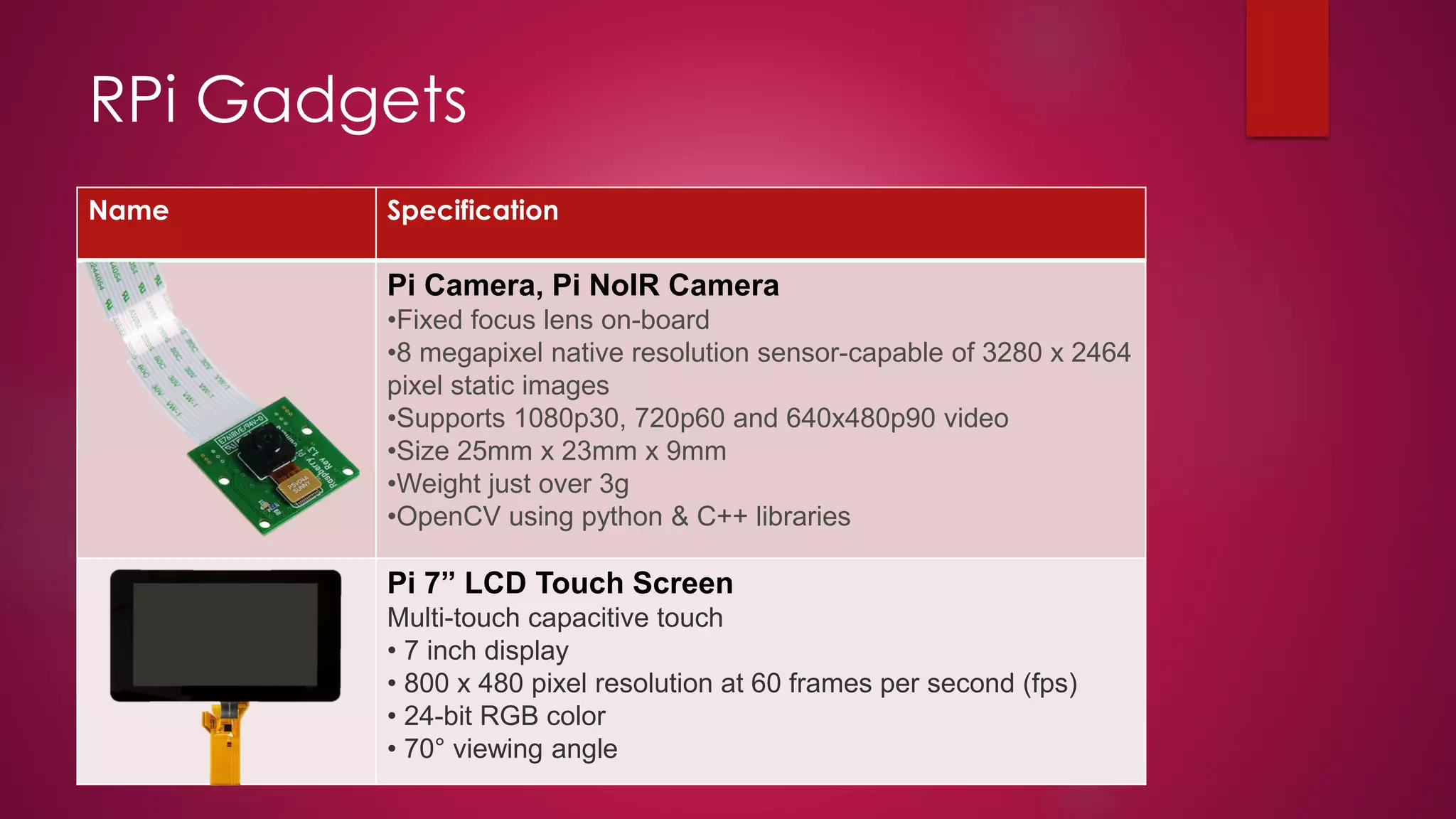

- 10. RPi Gadgets Name Specification PiCamera, Pi NoIR Camera •Fixed focus lens on-board •8 megapixel native resolution sensor-capable of 3280 x 2464 pixel static images •Supports 1080p30, 720p60 and 640x480p90 video •Size 25mm x 23mm x 9mm •Weight just over 3g •OpenCV using python & C++ libraries Pi 7” LCD Touch Screen Multi-touch capacitive touch • 7 inch display • 800 x 480 pixel resolution at 60 frames per second (fps) • 24-bit RGB color • 70° viewing angle
- 11.

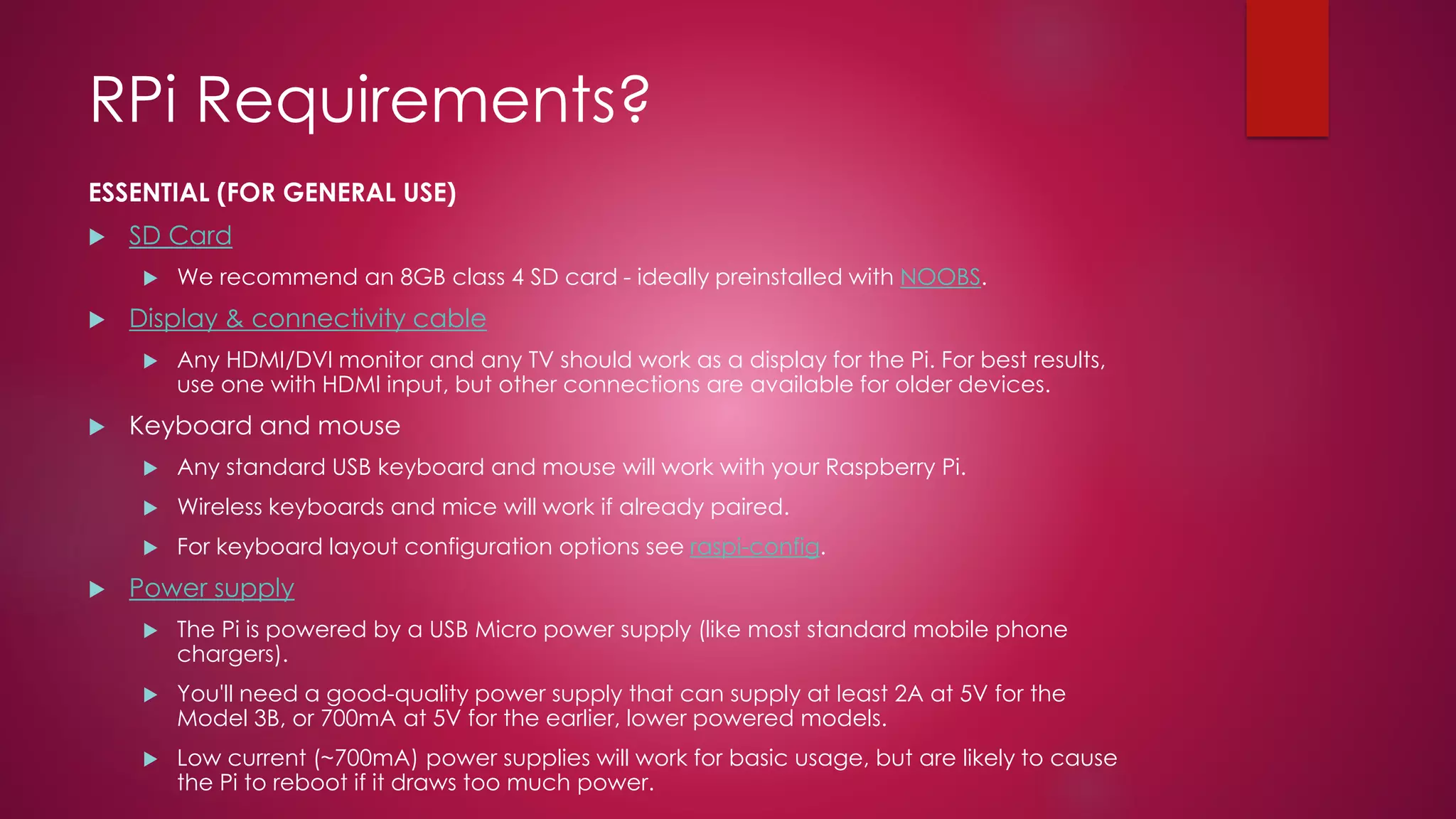

- 12. RPi Requirements? ESSENTIAL (FORGENERAL USE) SD Card We recommend an 8GB class 4 SD card - ideally preinstalled with NOOBS. Display & connectivity cable Any HDMI/DVI monitor and any TV should work as a display for the Pi. For best results, use one with HDMI input, but other connections are available for older devices. Keyboard and mouse Any standard USB keyboard and mouse will work with your Raspberry Pi. Wireless keyboards and mice will work if already paired. For keyboard layout configuration options see raspi-config. Power supply The Pi is powered by a USB Micro power supply (like most standard mobile phone chargers). You'll need a good-quality power supply that can supply at least 2A at 5V for the Model 3B, or 700mA at 5V for the earlier, lower powered models. Low current (~700mA) power supplies will work for basic usage, but are likely to cause the Pi to reboot if it draws too much power.

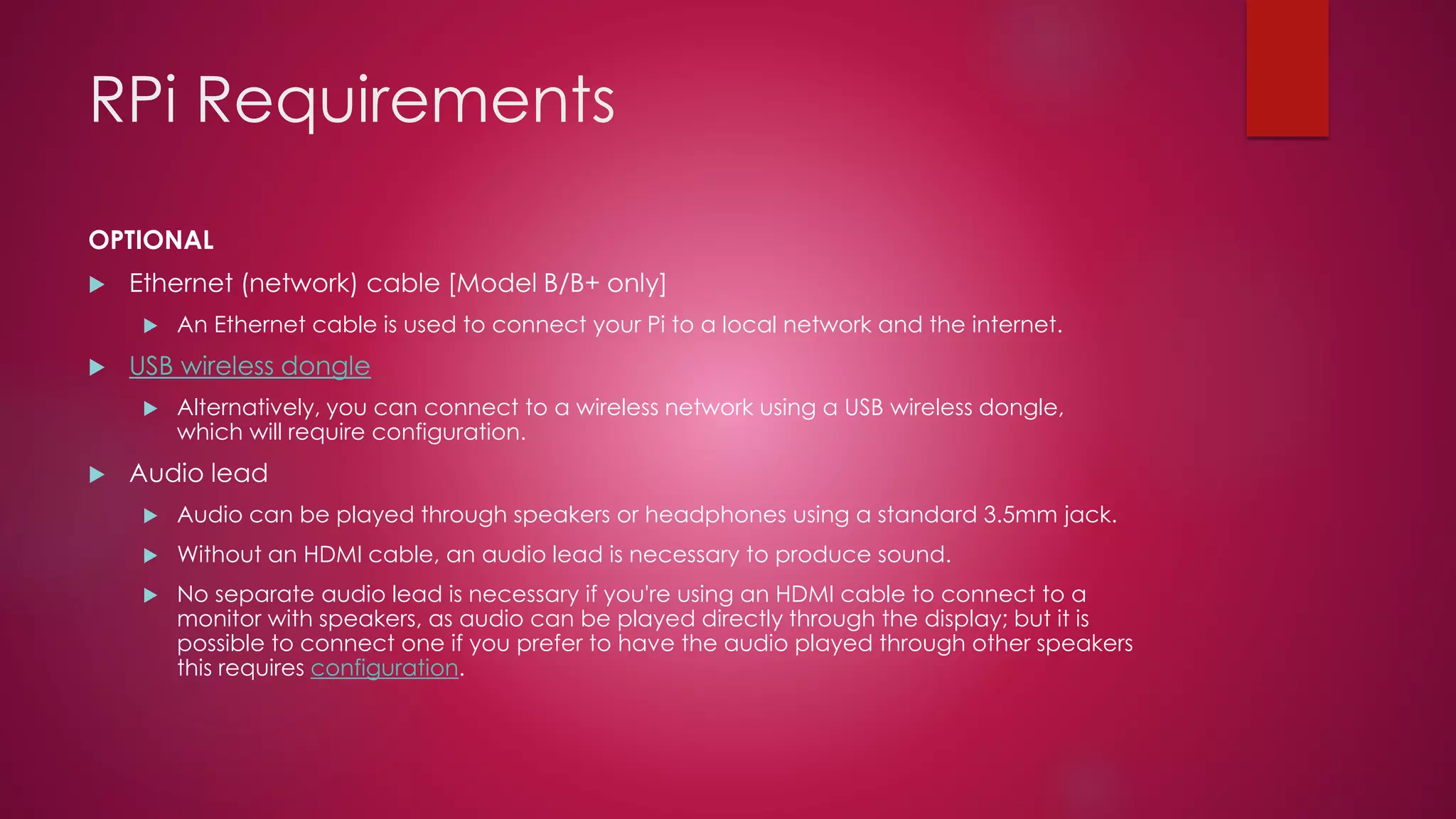

- 13. RPi Requirements OPTIONAL Ethernet(network) cable [Model B/B+ only] An Ethernet cable is used to connect your Pi to a local network and the internet. USB wireless dongle Alternatively, you can connect to a wireless network using a USB wireless dongle, which will require configuration. Audio lead Audio can be played through speakers or headphones using a standard 3.5mm jack. Without an HDMI cable, an audio lead is necessary to produce sound. No separate audio lead is necessary if you're using an HDMI cable to connect to a monitor with speakers, as audio can be played directly through the display; but it is possible to connect one if you prefer to have the audio played through other speakers this requires configuration.
- 14.

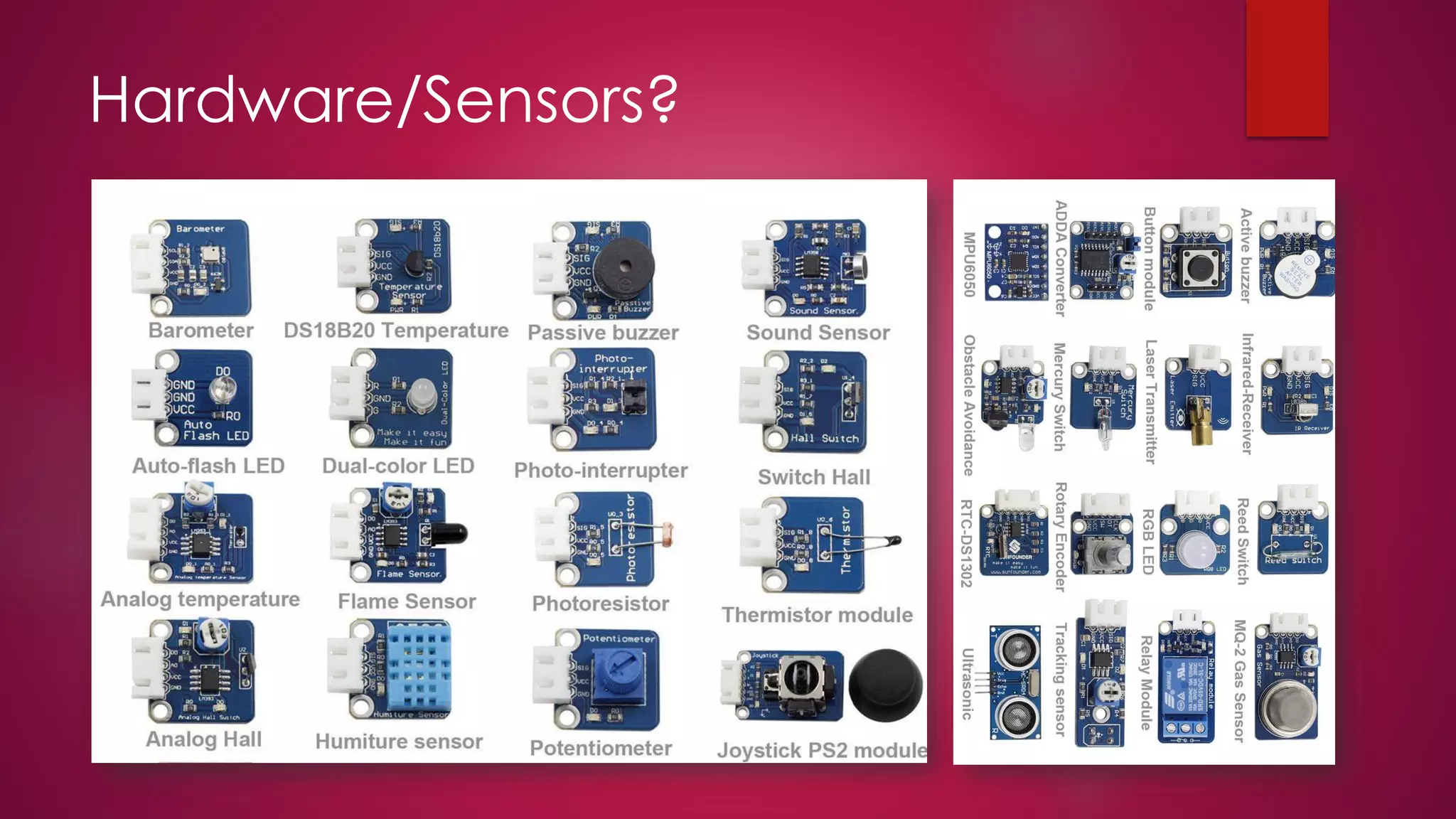

- 15.

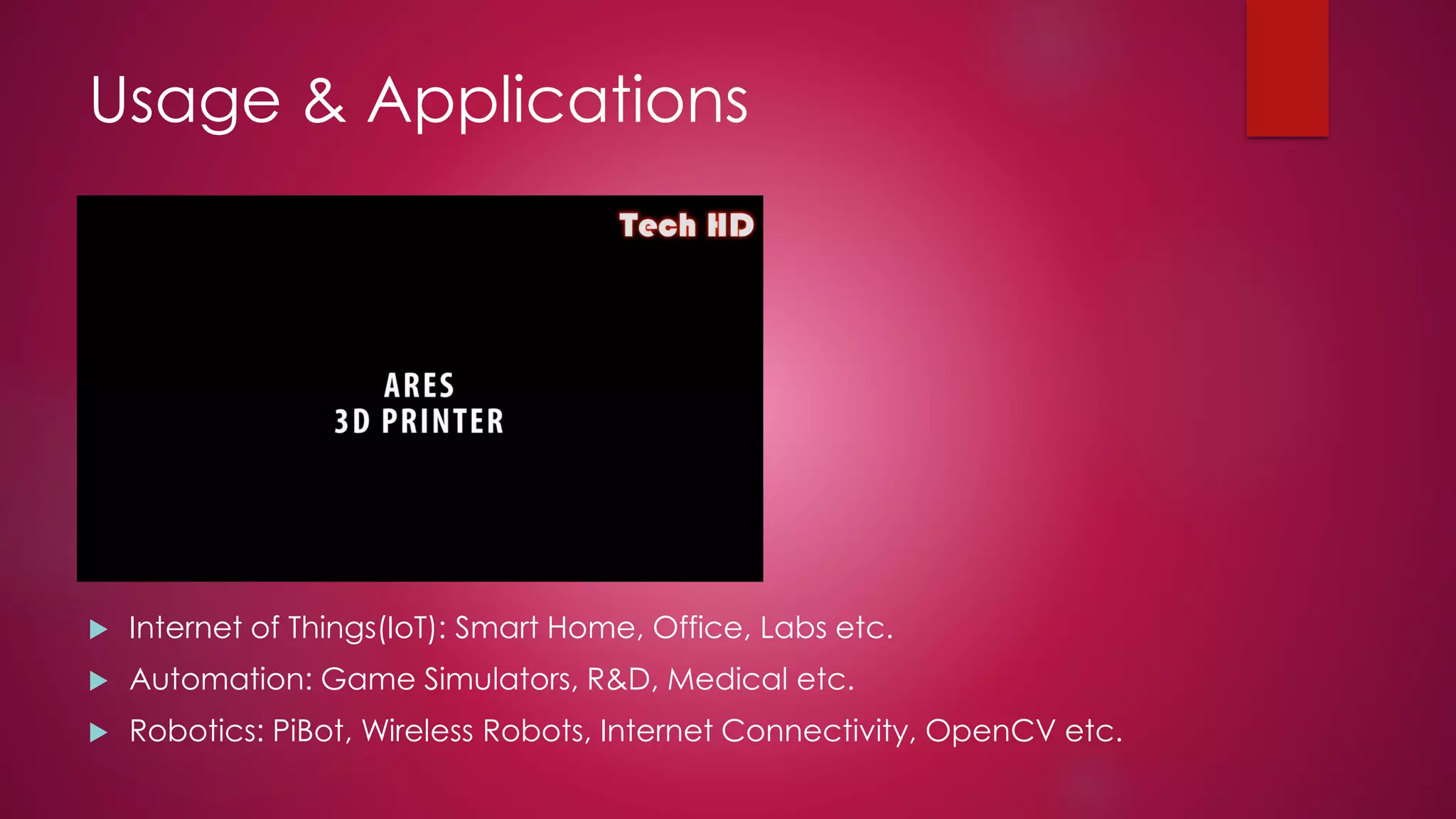

- 16. Usage & Applications Internet of Things(IoT): Smart Home, Office, Labs etc. Automation: Game Simulators, R&D, Medical etc. Robotics: PiBot, Wireless Robots, Internet Connectivity, OpenCV etc.

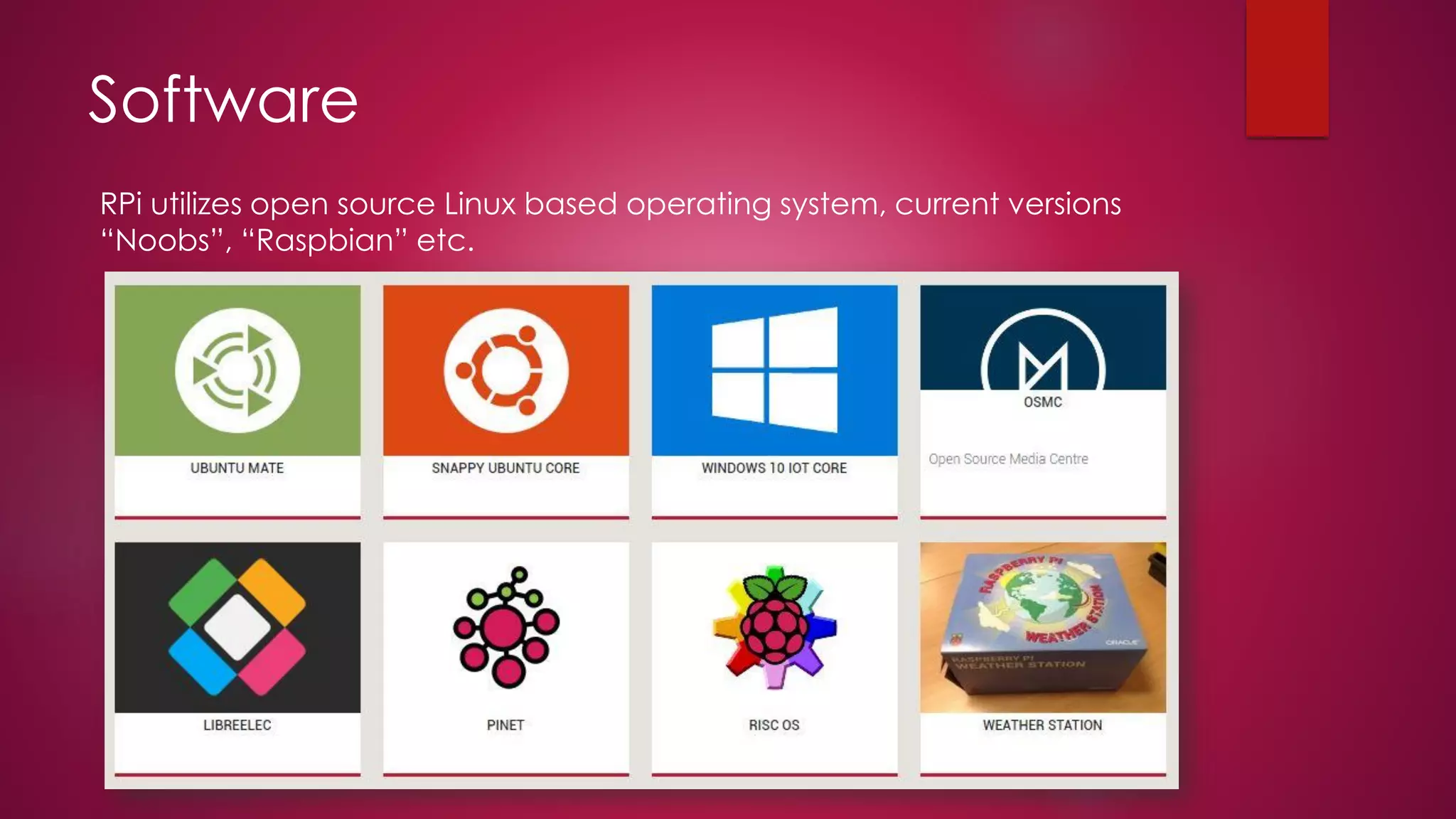

- 17. Software RPi utilizes opensource Linux based operating system, current versions “Noobs”, “Raspbian” etc.

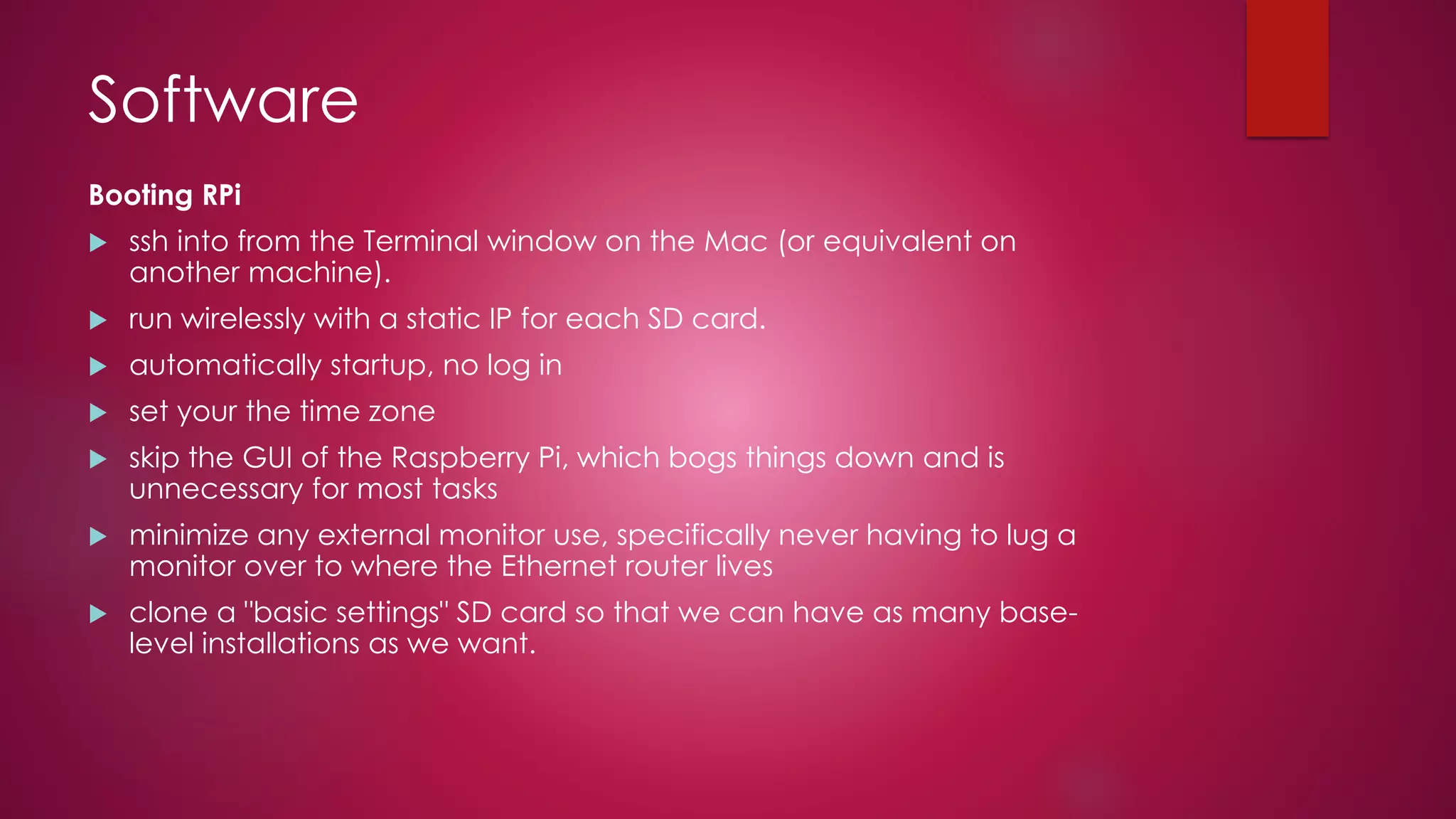

- 18. Software Booting RPi sshinto from the Terminal window on the Mac (or equivalent on another machine). run wirelessly with a static IP for each SD card. automatically startup, no log in set your the time zone skip the GUI of the Raspberry Pi, which bogs things down and is unnecessary for most tasks minimize any external monitor use, specifically never having to lug a monitor over to where the Ethernet router lives clone a "basic settings" SD card so that we can have as many base- level installations as we want.

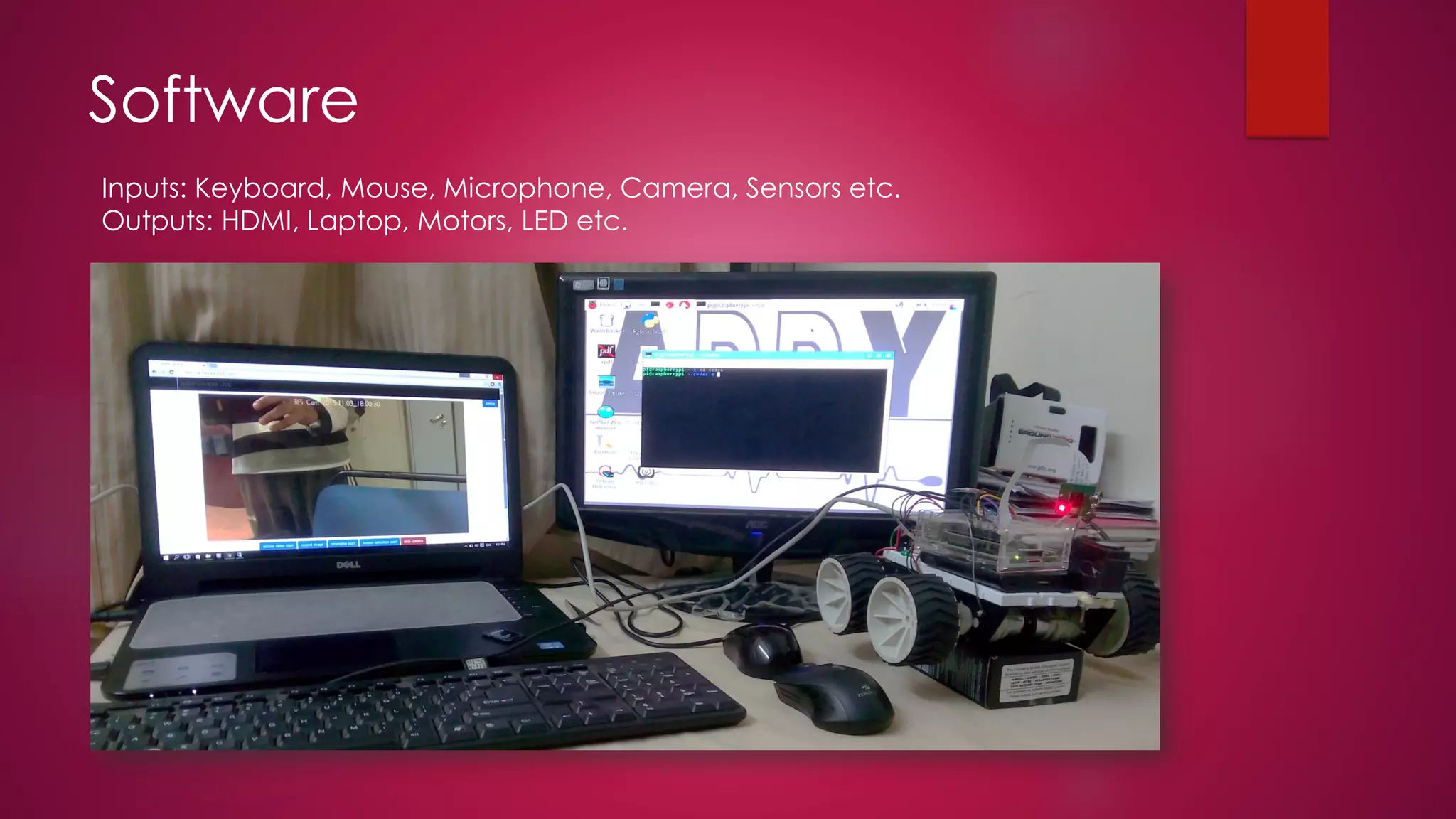

- 19. Software Inputs: Keyboard, Mouse,Microphone, Camera, Sensors etc. Outputs: HDMI, Laptop, Motors, LED etc.

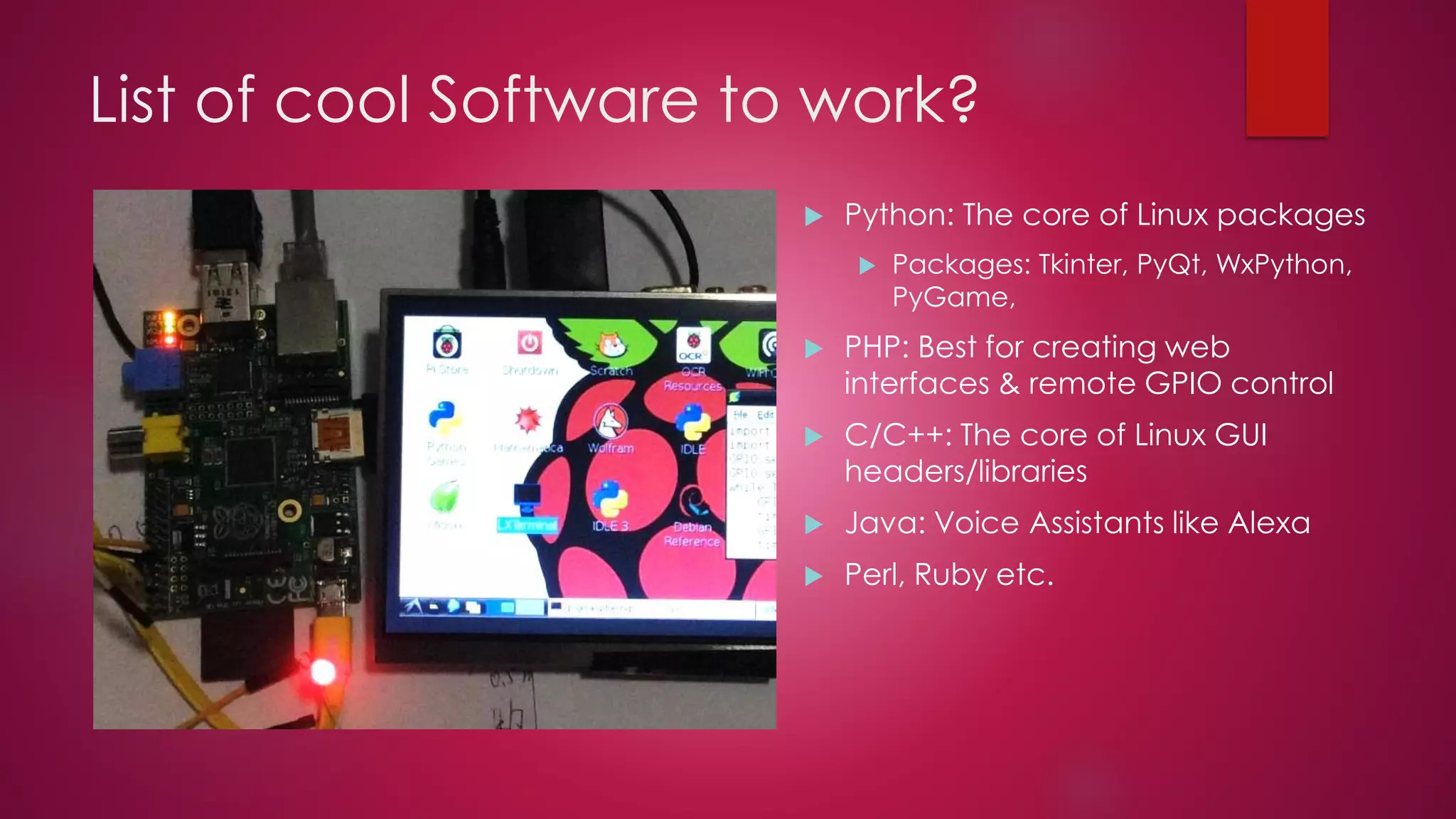

- 20. List of coolSoftware to work? Python: The core of Linux packages Packages: Tkinter, PyQt, WxPython, PyGame, PHP: Best for creating web interfaces & remote GPIO control C/C++: The core of Linux GUI headers/libraries Java: Voice Assistants like Alexa Perl, Ruby etc.

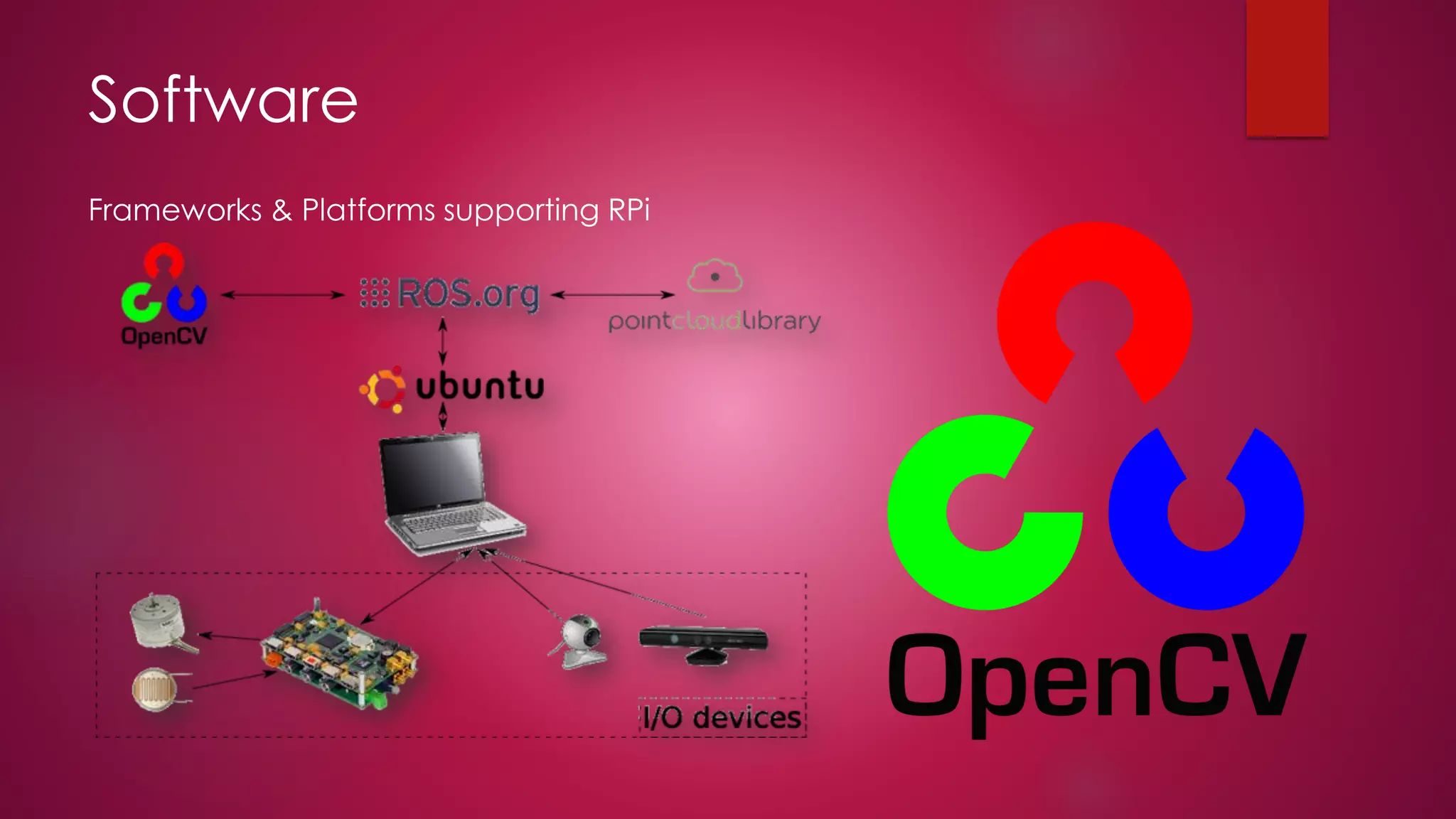

- 21. Software Frameworks & Platformssupporting RPi
- 22.

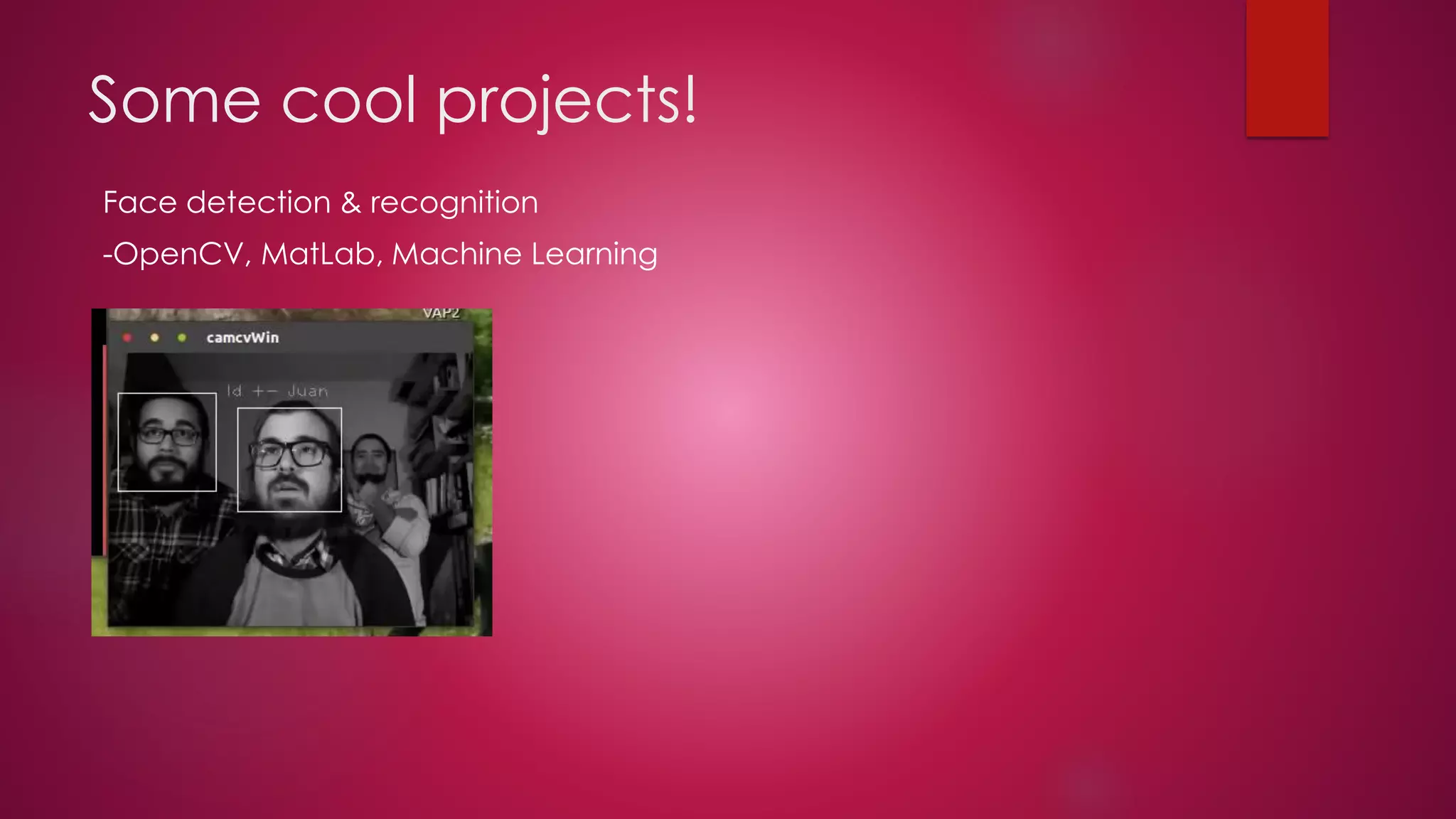

- 23. Some cool projects! Facedetection & recognition -OpenCV, MatLab, Machine Learning
- 24. Some cool projects! OpenCVSelf-Driving Vehicles :Path Follower, Color Detection, Traffic Signals Support
- 25. Some cool projects! Howself-driving cars work? Answer lies in Sensors, Computer Vision, Machine Learning & AI
- 26. Some cool projects! Demoof Smart Gardening Using Arduino!

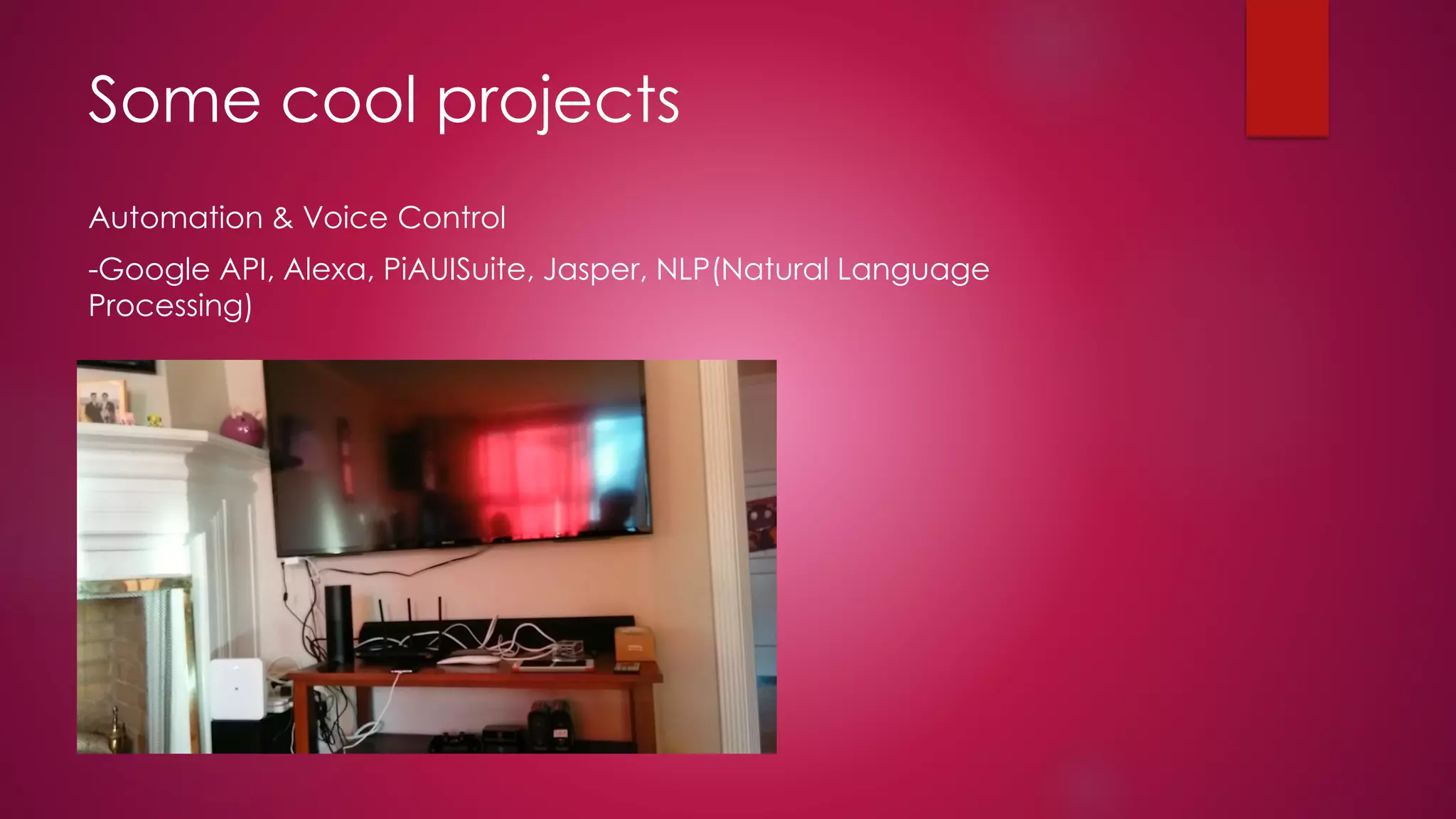

- 27. Some cool projects Automation& Voice Control -Google API, Alexa, PiAUISuite, Jasper, NLP(Natural Language Processing)
- 28. Some cool projects! HandGesture Game Simulator

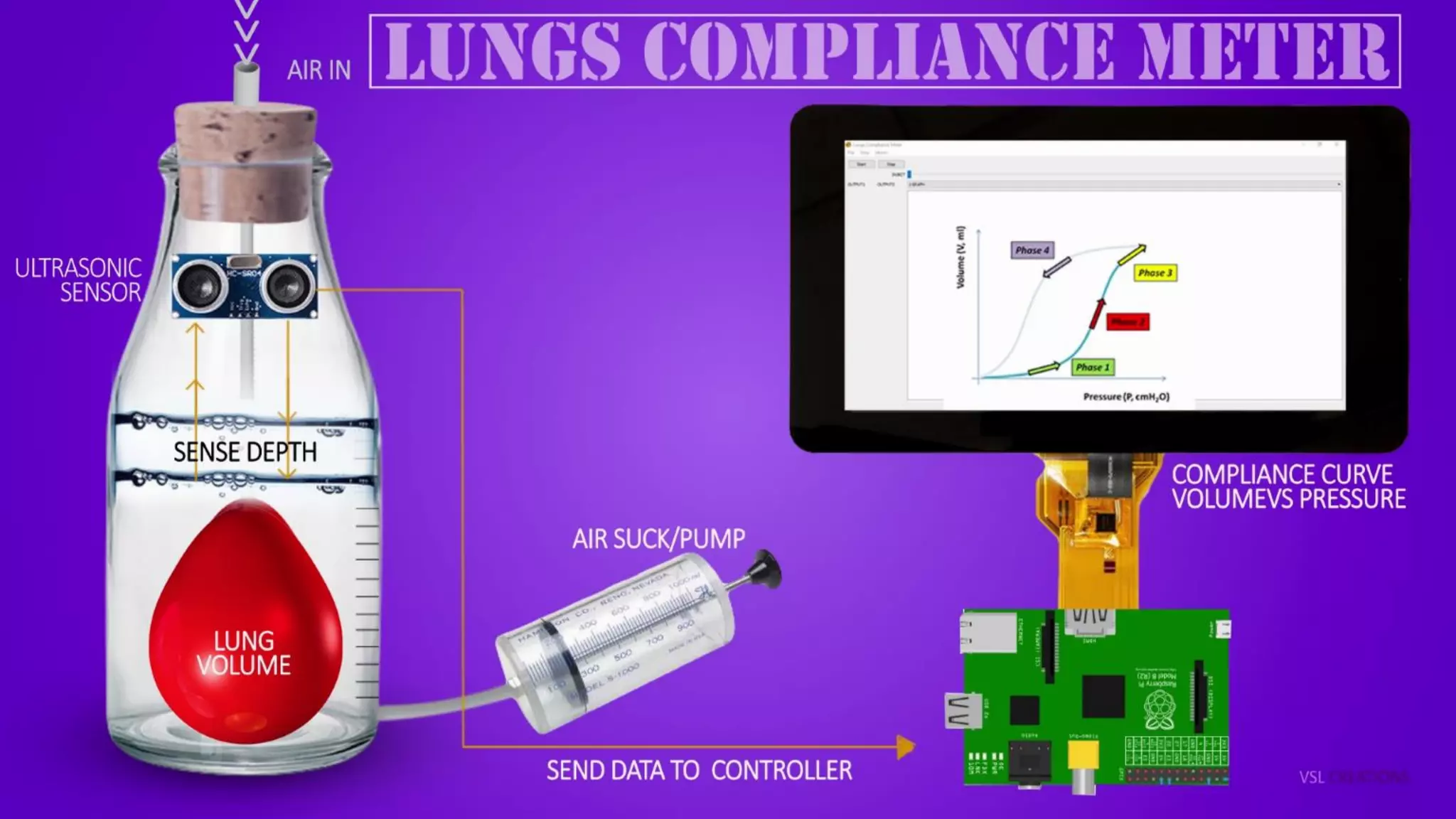

- 30. Some cool projects! LungsCompliance Meter. A new step towards medical field!
- 31. Some cool projects 17DOFHumanoid using Arduino & RPi.

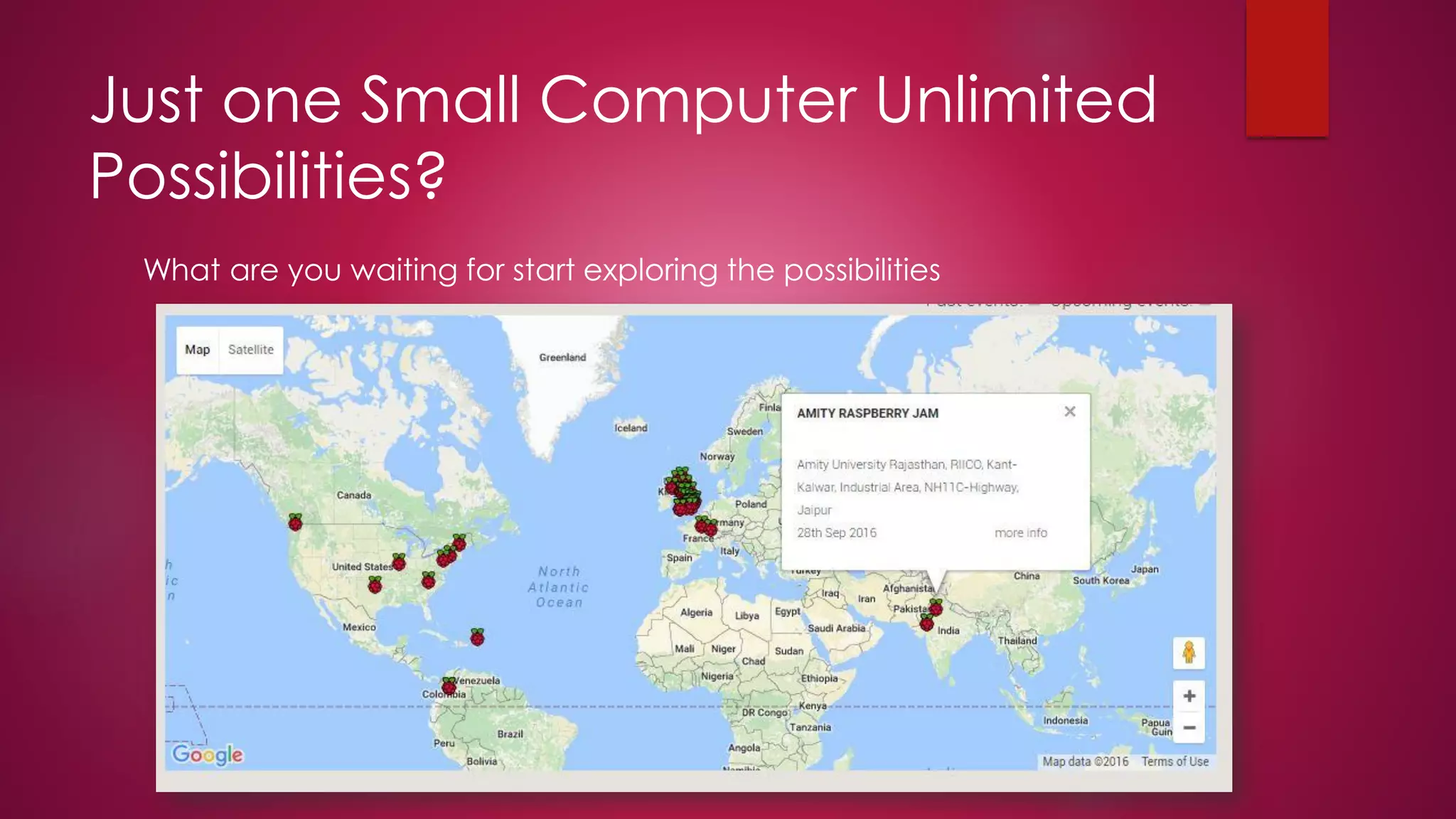

- 32. Just one SmallComputer Unlimited Possibilities? What are you waiting for start exploring the possibilities
- 33. Thank You Amity RaspberryJam Official RPi. Event www.raspberrypi.org/jam 28-09-2016 Presented By: Vishal Aditya B.Tech-CSE 7th SEM Links & Contacts Mail any queries! Email: er.vishaladitya.tech@gmail.com Blog: www.vslcreations.blogspot.in GitHub: www.github.com/vsl-tech LinkedIn: www.linkedin.com/in/vslcreations
