• 1.
  Geometric Transformation inQuery Processing and Optimization Geometric transformations are essential in various areas of computer science, particularly in computer graphics, computer vision, and spatial databases. In query processing and optimization, geometric transformations are used to efficiently manage and query spatial data. Below are some key points on this topic: 1. Understanding Geometric Transformations ● Types of Transformations: o Translation: Shifting all points of an object a certain distance in a specified direction. o Rotation: Rotating an object around a pivot point. o Scaling: Resizing an object by a scale factor. o Reflection: Flipping an object over a specified axis. o Shearing: Distorting an object such that the shape is altered. ● Matrix Representation: Transformations can be represented using matrices, allowing for easy combination and application to spatial objects. For instance, a transformation matrix can be applied to a point or an object in space to perform the transformation. 2. Spatial Databases and Queries ● Spatial Data Types: Data types like points, lines, polygons, and polyhedra are used to represent spatial data. ● Spatial Indexing: Efficient indexing mechanisms such as R-trees, Quad-trees, and KD-trees are used to optimize the storage and retrieval of spatial data. ● Query Types: o Range Queries: Finding all objects within a certain distance from a point or within a specific area. o Nearest Neighbor Queries: Finding the closest objects to a given point. o Spatial Joins: Combining two datasets based on their spatial relationship (e.g., intersection, containment). 3. Query Optimization Techniques ● Transformation Techniques: Optimizing queries by transforming them into a more efficient form without changing their semantics. For example, applying geometric transformations to spatial queries to minimize the search space. ● Cost-Based Optimization: Evaluating different query execution plans based on their estimated cost and selecting the most efficient one. ● Heuristics: Using rules of thumb to reduce the search space for query optimization. This might include reordering of operations, simplifying expressions, or using approximation techniques. 4. Application in Spatial Query Processing ● Clipping Algorithms: Used in spatial databases to optimize the intersection of spatial objects by reducing the search space. ● Geometric Primitives: Simplifying complex geometric objects into simpler forms (e.g., bounding boxes) for faster processing. ● Spatial Join Algorithms: Optimizing spatial joins by using techniques like the plane-sweep algorithm, which efficiently processes spatial data by sweeping a line across the plane.
• 2.
  5. Challenges andConsiderations ● Complexity: Geometric transformations can be computationally intensive, especially with large datasets. ● Precision: Ensuring accuracy in transformations and query results is critical. ● Data Representation: Efficient data representation and storage techniques are essential to minimize space and enhance retrieval performance. 6. Tools and Libraries ● PostGIS: An extension of PostgreSQL that supports geographic objects and spatial queries. ● GEOS (Geometry Engine - Open Source): A C++ library providing spatial operations and geometric functions. ● Shapely: A Python package for manipulation and analysis of planar geometric objects. Query Processing and Optimization 1. Query Processing Query processing involves the steps taken by a database management system (DBMS) to translate a high-level query, typically written in SQL, into a series of low-level operations that can be executed efficiently to retrieve the desired results. Key Steps in Query Processing: 1. Parsing: o The query is parsed to check its syntax and semantics. The output is a parse tree or syntax tree, representing the structure of the query. o Any syntactical errors in the query are caught during this stage. 2. Translation: o The parse tree is converted into a relational algebra expression or an intermediate form that represents the logical steps to execute the query. o The translation also includes the identification of relations (tables), attributes (columns), and operations (like joins, selections, projections). 3. Optimization: o The intermediate query representation is optimized to generate a more efficient execution plan. This involves selecting the best possible execution strategy based on cost estimates. o Optimization can be done at two levels: ▪ Logical Optimization: Transforming the query into an equivalent but potentially more efficient form. Examples include reordering joins, pushing down selections, and combining operations. ▪ Physical Optimization: Deciding on the specific algorithms and data structures to use for executing each operation (e.g., which join algorithm to use, how to access data). 4. Execution: o The DBMS executes the optimized query plan by interacting with the storage system to retrieve or update data. o The result of the query is returned to the user. 2. Query Optimization Process
• 3.

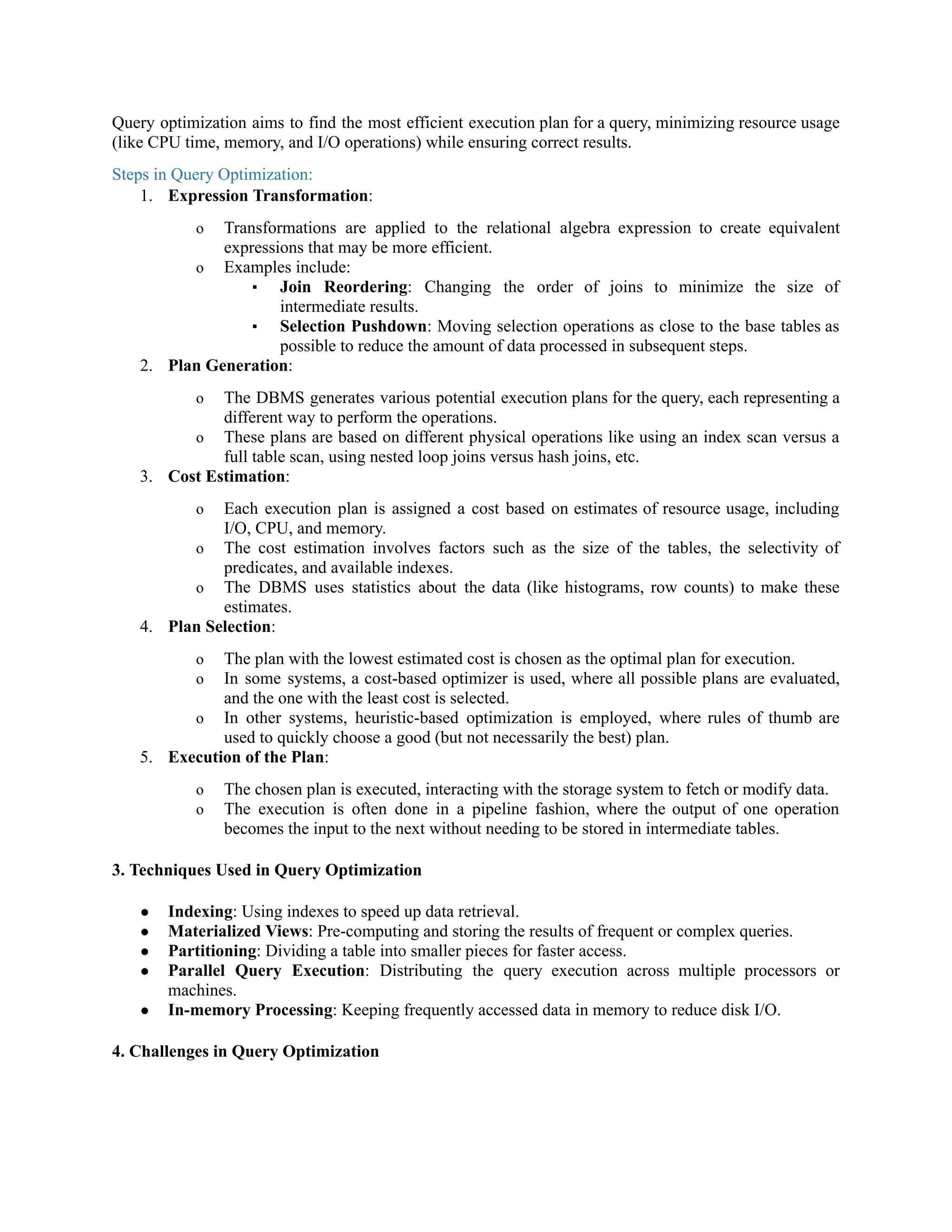

  Query optimization aimsto find the most efficient execution plan for a query, minimizing resource usage (like CPU time, memory, and I/O operations) while ensuring correct results. Steps in Query Optimization: 1. Expression Transformation: o Transformations are applied to the relational algebra expression to create equivalent expressions that may be more efficient. o Examples include: ▪ Join Reordering: Changing the order of joins to minimize the size of intermediate results. ▪ Selection Pushdown: Moving selection operations as close to the base tables as possible to reduce the amount of data processed in subsequent steps. 2. Plan Generation: o The DBMS generates various potential execution plans for the query, each representing a different way to perform the operations. o These plans are based on different physical operations like using an index scan versus a full table scan, using nested loop joins versus hash joins, etc. 3. Cost Estimation: o Each execution plan is assigned a cost based on estimates of resource usage, including I/O, CPU, and memory. o The cost estimation involves factors such as the size of the tables, the selectivity of predicates, and available indexes. o The DBMS uses statistics about the data (like histograms, row counts) to make these estimates. 4. Plan Selection: o The plan with the lowest estimated cost is chosen as the optimal plan for execution. o In some systems, a cost-based optimizer is used, where all possible plans are evaluated, and the one with the least cost is selected. o In other systems, heuristic-based optimization is employed, where rules of thumb are used to quickly choose a good (but not necessarily the best) plan. 5. Execution of the Plan: o The chosen plan is executed, interacting with the storage system to fetch or modify data. o The execution is often done in a pipeline fashion, where the output of one operation becomes the input to the next without needing to be stored in intermediate tables. 3. Techniques Used in Query Optimization ● Indexing: Using indexes to speed up data retrieval. ● Materialized Views: Pre-computing and storing the results of frequent or complex queries. ● Partitioning: Dividing a table into smaller pieces for faster access. ● Parallel Query Execution: Distributing the query execution across multiple processors or machines. ● In-memory Processing: Keeping frequently accessed data in memory to reduce disk I/O. 4. Challenges in Query Optimization
• 4.

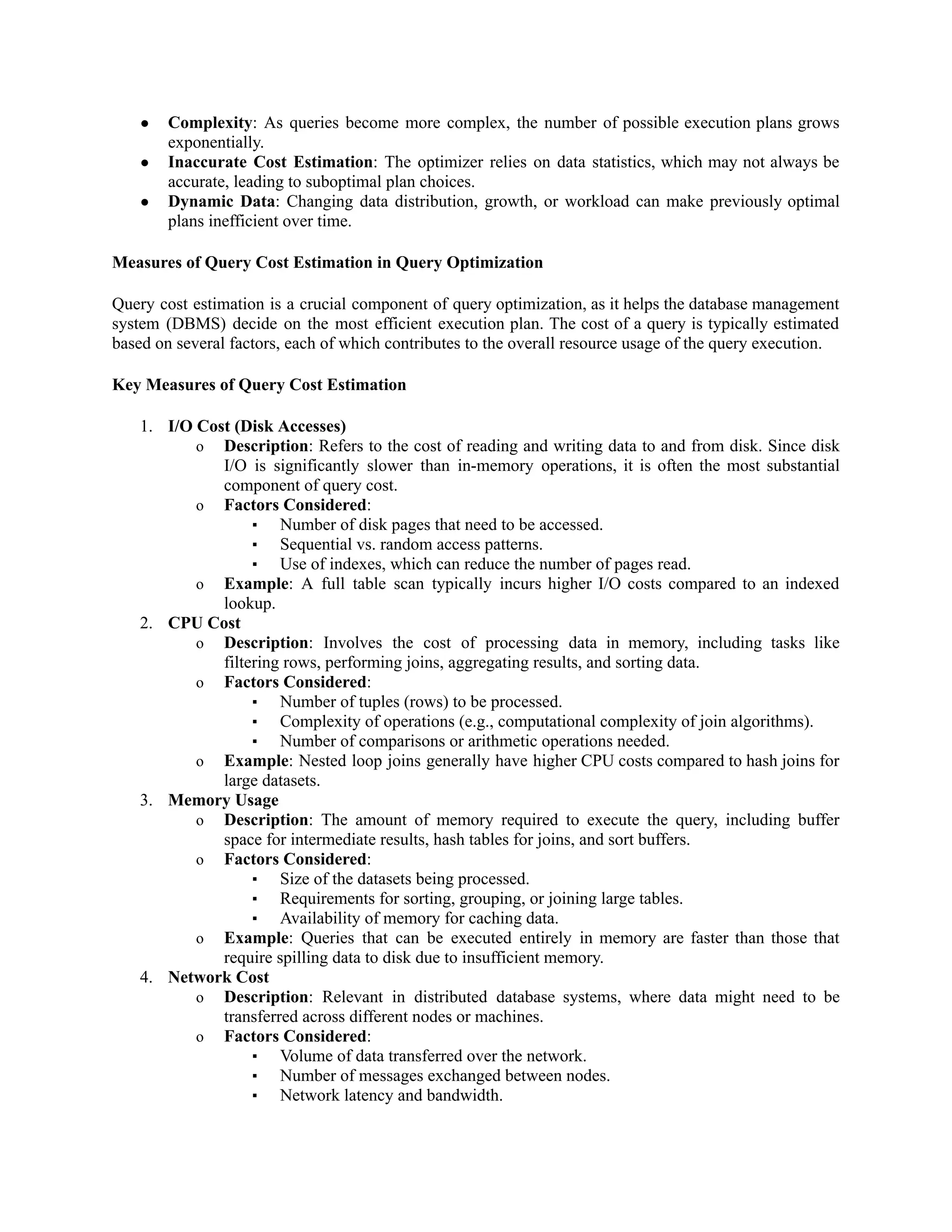

  ● Complexity: Asqueries become more complex, the number of possible execution plans grows exponentially. ● Inaccurate Cost Estimation: The optimizer relies on data statistics, which may not always be accurate, leading to suboptimal plan choices. ● Dynamic Data: Changing data distribution, growth, or workload can make previously optimal plans inefficient over time. Measures of Query Cost Estimation in Query Optimization Query cost estimation is a crucial component of query optimization, as it helps the database management system (DBMS) decide on the most efficient execution plan. The cost of a query is typically estimated based on several factors, each of which contributes to the overall resource usage of the query execution. Key Measures of Query Cost Estimation 1. I/O Cost (Disk Accesses) o Description: Refers to the cost of reading and writing data to and from disk. Since disk I/O is significantly slower than in-memory operations, it is often the most substantial component of query cost. o Factors Considered: ▪ Number of disk pages that need to be accessed. ▪ Sequential vs. random access patterns. ▪ Use of indexes, which can reduce the number of pages read. o Example: A full table scan typically incurs higher I/O costs compared to an indexed lookup. 2. CPU Cost o Description: Involves the cost of processing data in memory, including tasks like filtering rows, performing joins, aggregating results, and sorting data. o Factors Considered: ▪ Number of tuples (rows) to be processed. ▪ Complexity of operations (e.g., computational complexity of join algorithms). ▪ Number of comparisons or arithmetic operations needed. o Example: Nested loop joins generally have higher CPU costs compared to hash joins for large datasets. 3. Memory Usage o Description: The amount of memory required to execute the query, including buffer space for intermediate results, hash tables for joins, and sort buffers. o Factors Considered: ▪ Size of the datasets being processed. ▪ Requirements for sorting, grouping, or joining large tables. ▪ Availability of memory for caching data. o Example: Queries that can be executed entirely in memory are faster than those that require spilling data to disk due to insufficient memory. 4. Network Cost o Description: Relevant in distributed database systems, where data might need to be transferred across different nodes or machines. o Factors Considered: ▪ Volume of data transferred over the network. ▪ Number of messages exchanged between nodes. ▪ Network latency and bandwidth.
• 5.

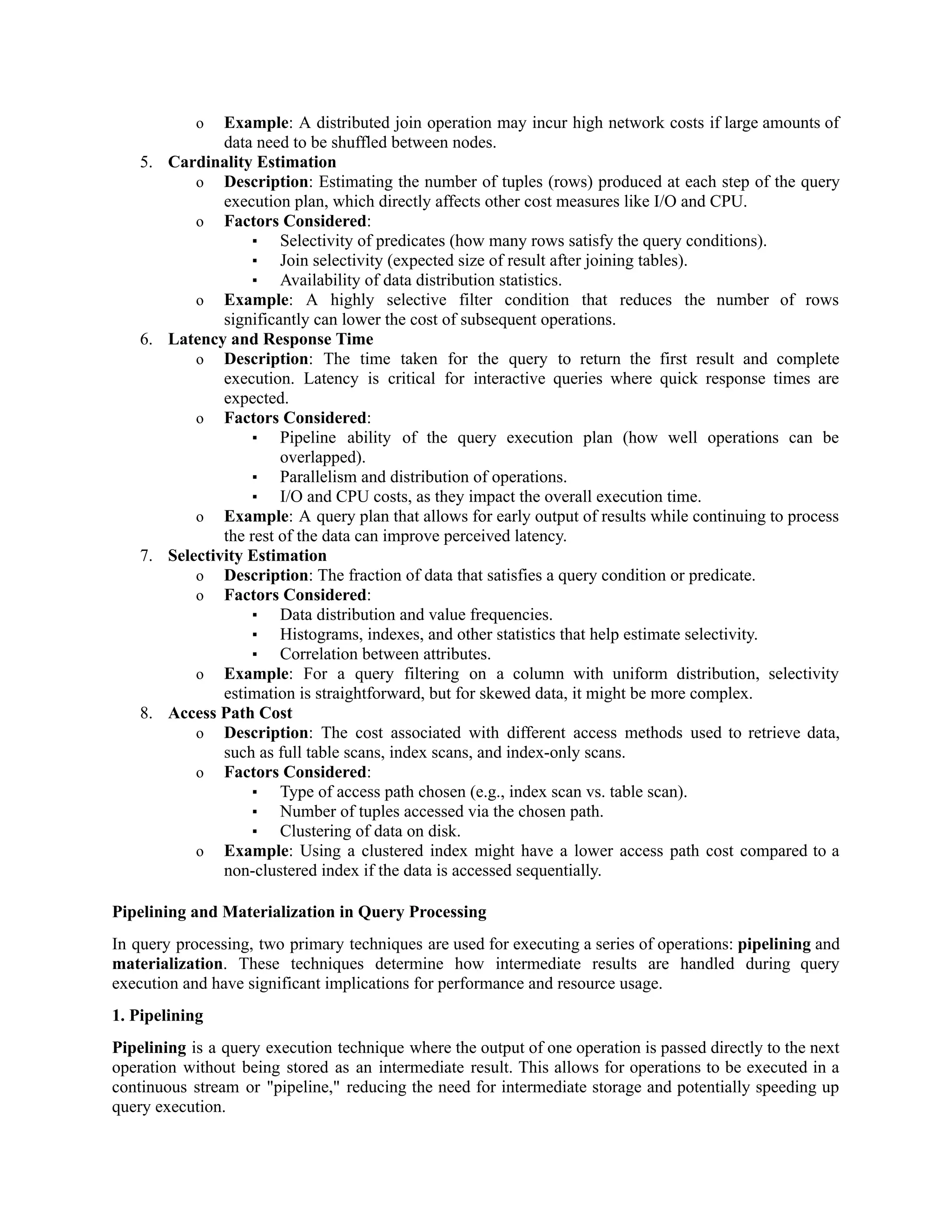

  o Example: Adistributed join operation may incur high network costs if large amounts of data need to be shuffled between nodes. 5. Cardinality Estimation o Description: Estimating the number of tuples (rows) produced at each step of the query execution plan, which directly affects other cost measures like I/O and CPU. o Factors Considered: ▪ Selectivity of predicates (how many rows satisfy the query conditions). ▪ Join selectivity (expected size of result after joining tables). ▪ Availability of data distribution statistics. o Example: A highly selective filter condition that reduces the number of rows significantly can lower the cost of subsequent operations. 6. Latency and Response Time o Description: The time taken for the query to return the first result and complete execution. Latency is critical for interactive queries where quick response times are expected. o Factors Considered: ▪ Pipeline ability of the query execution plan (how well operations can be overlapped). ▪ Parallelism and distribution of operations. ▪ I/O and CPU costs, as they impact the overall execution time. o Example: A query plan that allows for early output of results while continuing to process the rest of the data can improve perceived latency. 7. Selectivity Estimation o Description: The fraction of data that satisfies a query condition or predicate. o Factors Considered: ▪ Data distribution and value frequencies. ▪ Histograms, indexes, and other statistics that help estimate selectivity. ▪ Correlation between attributes. o Example: For a query filtering on a column with uniform distribution, selectivity estimation is straightforward, but for skewed data, it might be more complex. 8. Access Path Cost o Description: The cost associated with different access methods used to retrieve data, such as full table scans, index scans, and index-only scans. o Factors Considered: ▪ Type of access path chosen (e.g., index scan vs. table scan). ▪ Number of tuples accessed via the chosen path. ▪ Clustering of data on disk. o Example: Using a clustered index might have a lower access path cost compared to a non-clustered index if the data is accessed sequentially. Pipelining and Materialization in Query Processing In query processing, two primary techniques are used for executing a series of operations: pipelining and materialization. These techniques determine how intermediate results are handled during query execution and have significant implications for performance and resource usage. 1. Pipelining Pipelining is a query execution technique where the output of one operation is passed directly to the next operation without being stored as an intermediate result. This allows for operations to be executed in a continuous stream or "pipeline," reducing the need for intermediate storage and potentially speeding up query execution.
• 6.

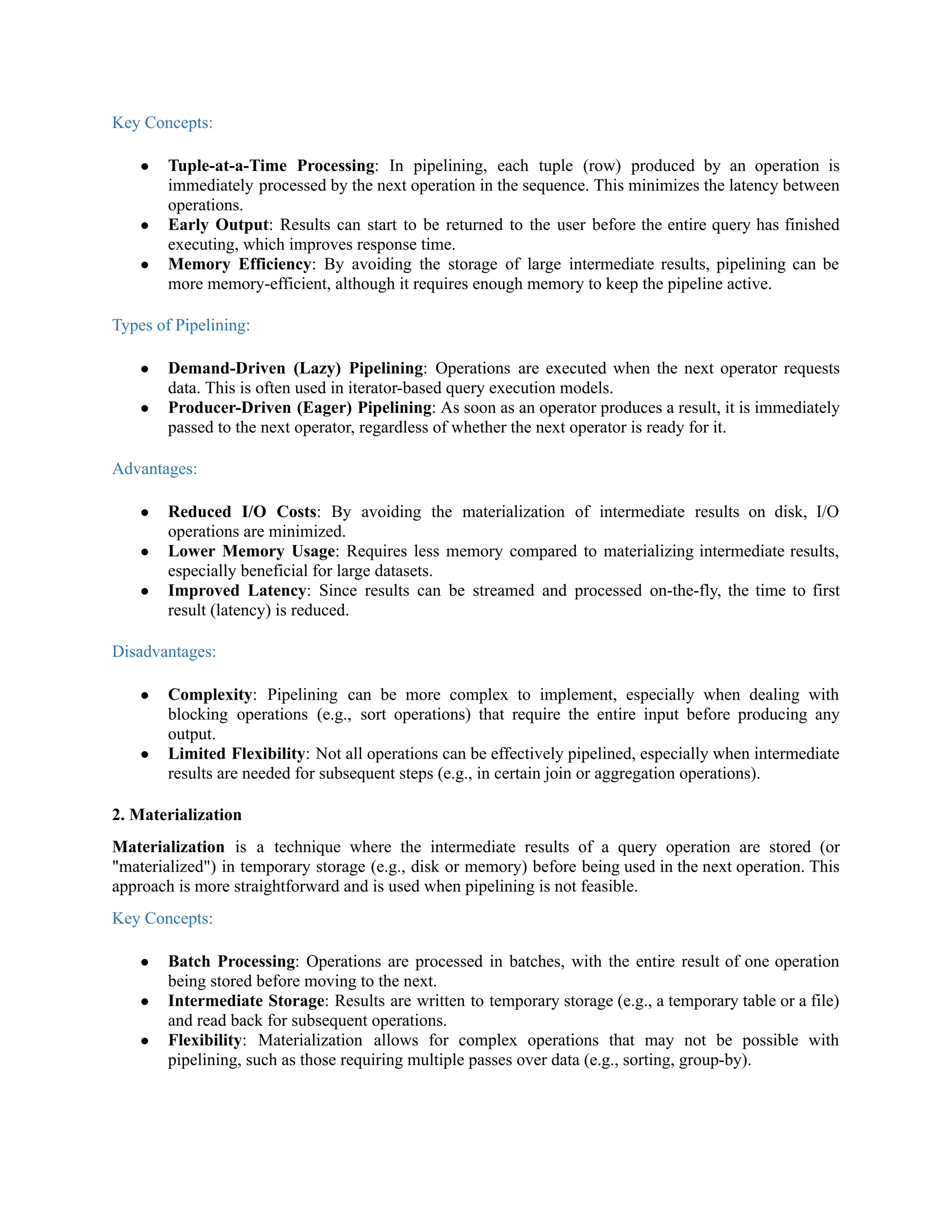

  Key Concepts: ● Tuple-at-a-TimeProcessing: In pipelining, each tuple (row) produced by an operation is immediately processed by the next operation in the sequence. This minimizes the latency between operations. ● Early Output: Results can start to be returned to the user before the entire query has finished executing, which improves response time. ● Memory Efficiency: By avoiding the storage of large intermediate results, pipelining can be more memory-efficient, although it requires enough memory to keep the pipeline active. Types of Pipelining: ● Demand-Driven (Lazy) Pipelining: Operations are executed when the next operator requests data. This is often used in iterator-based query execution models. ● Producer-Driven (Eager) Pipelining: As soon as an operator produces a result, it is immediately passed to the next operator, regardless of whether the next operator is ready for it. Advantages: ● Reduced I/O Costs: By avoiding the materialization of intermediate results on disk, I/O operations are minimized. ● Lower Memory Usage: Requires less memory compared to materializing intermediate results, especially beneficial for large datasets. ● Improved Latency: Since results can be streamed and processed on-the-fly, the time to first result (latency) is reduced. Disadvantages: ● Complexity: Pipelining can be more complex to implement, especially when dealing with blocking operations (e.g., sort operations) that require the entire input before producing any output. ● Limited Flexibility: Not all operations can be effectively pipelined, especially when intermediate results are needed for subsequent steps (e.g., in certain join or aggregation operations). 2. Materialization Materialization is a technique where the intermediate results of a query operation are stored (or "materialized") in temporary storage (e.g., disk or memory) before being used in the next operation. This approach is more straightforward and is used when pipelining is not feasible. Key Concepts: ● Batch Processing: Operations are processed in batches, with the entire result of one operation being stored before moving to the next. ● Intermediate Storage: Results are written to temporary storage (e.g., a temporary table or a file) and read back for subsequent operations. ● Flexibility: Materialization allows for complex operations that may not be possible with pipelining, such as those requiring multiple passes over data (e.g., sorting, group-by).
• 7.

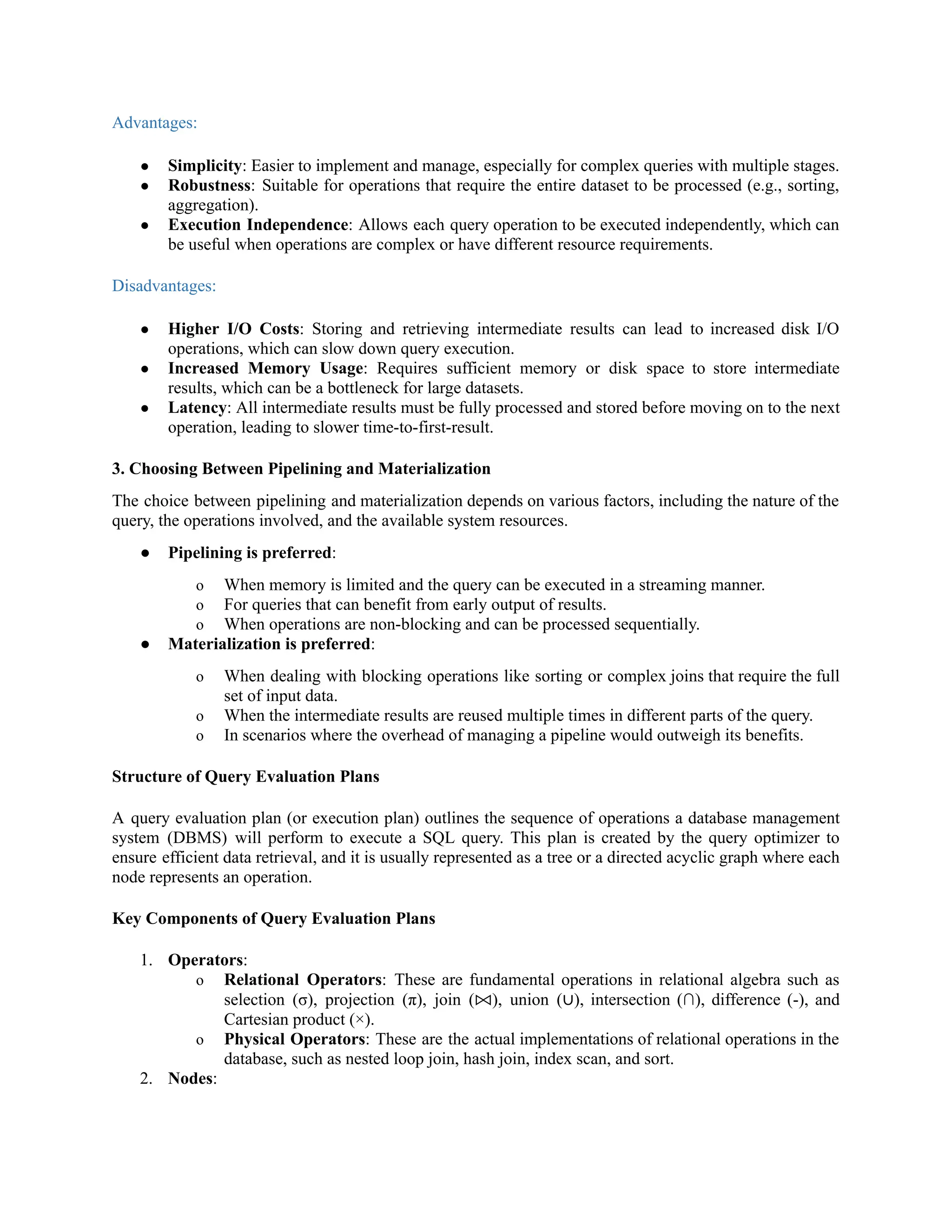

  Advantages: ● Simplicity: Easierto implement and manage, especially for complex queries with multiple stages. ● Robustness: Suitable for operations that require the entire dataset to be processed (e.g., sorting, aggregation). ● Execution Independence: Allows each query operation to be executed independently, which can be useful when operations are complex or have different resource requirements. Disadvantages: ● Higher I/O Costs: Storing and retrieving intermediate results can lead to increased disk I/O operations, which can slow down query execution. ● Increased Memory Usage: Requires sufficient memory or disk space to store intermediate results, which can be a bottleneck for large datasets. ● Latency: All intermediate results must be fully processed and stored before moving on to the next operation, leading to slower time-to-first-result. 3. Choosing Between Pipelining and Materialization The choice between pipelining and materialization depends on various factors, including the nature of the query, the operations involved, and the available system resources. ● Pipelining is preferred: o When memory is limited and the query can be executed in a streaming manner. o For queries that can benefit from early output of results. o When operations are non-blocking and can be processed sequentially. ● Materialization is preferred: o When dealing with blocking operations like sorting or complex joins that require the full set of input data. o When the intermediate results are reused multiple times in different parts of the query. o In scenarios where the overhead of managing a pipeline would outweigh its benefits. Structure of Query Evaluation Plans A query evaluation plan (or execution plan) outlines the sequence of operations a database management system (DBMS) will perform to execute a SQL query. This plan is created by the query optimizer to ensure efficient data retrieval, and it is usually represented as a tree or a directed acyclic graph where each node represents an operation. Key Components of Query Evaluation Plans 1. Operators: o Relational Operators: These are fundamental operations in relational algebra such as selection (σ), projection (π), join (⨝), union (∪), intersection (∩), difference (-), and Cartesian product (×). o Physical Operators: These are the actual implementations of relational operations in the database, such as nested loop join, hash join, index scan, and sort. 2. Nodes:
• 8.

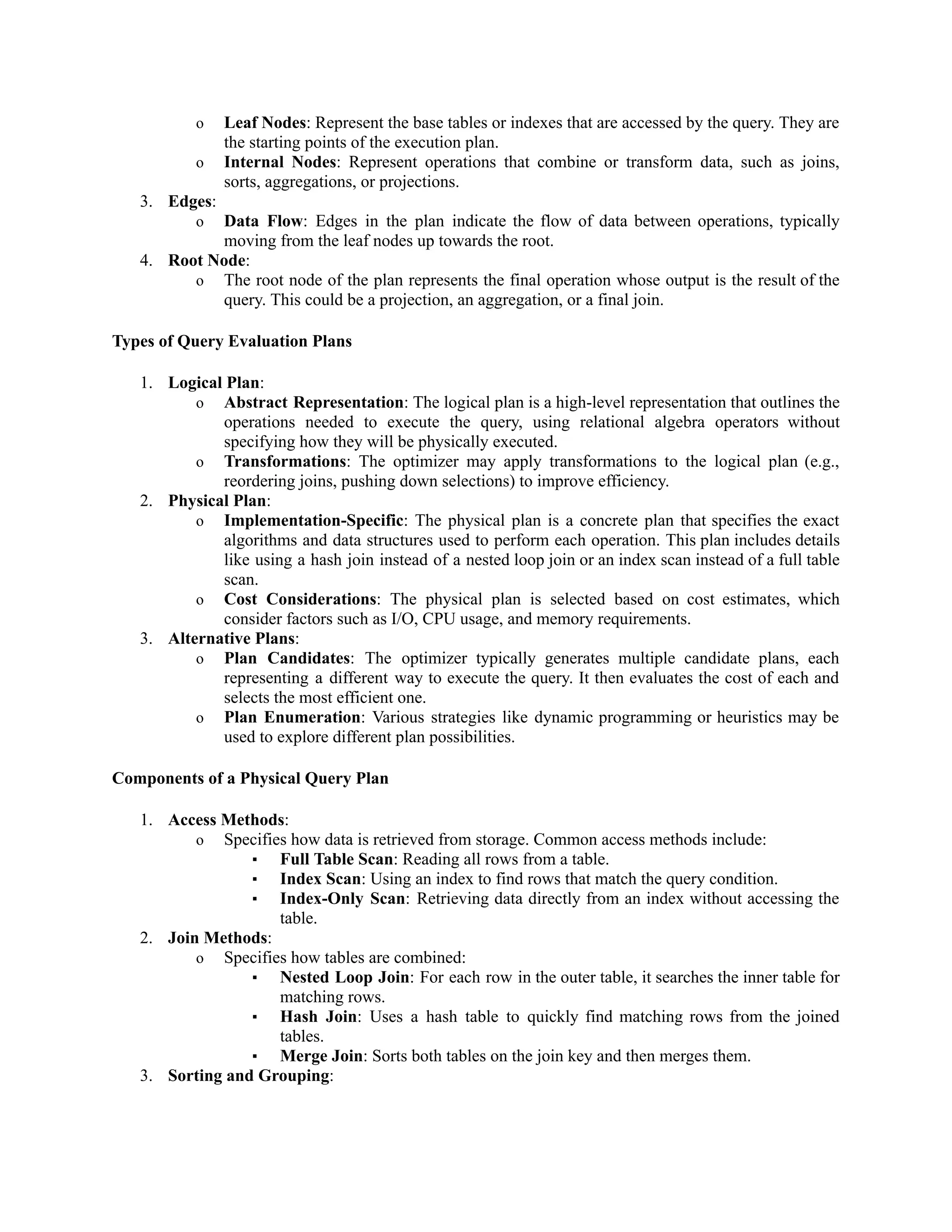

  o Leaf Nodes:Represent the base tables or indexes that are accessed by the query. They are the starting points of the execution plan. o Internal Nodes: Represent operations that combine or transform data, such as joins, sorts, aggregations, or projections. 3. Edges: o Data Flow: Edges in the plan indicate the flow of data between operations, typically moving from the leaf nodes up towards the root. 4. Root Node: o The root node of the plan represents the final operation whose output is the result of the query. This could be a projection, an aggregation, or a final join. Types of Query Evaluation Plans 1. Logical Plan: o Abstract Representation: The logical plan is a high-level representation that outlines the operations needed to execute the query, using relational algebra operators without specifying how they will be physically executed. o Transformations: The optimizer may apply transformations to the logical plan (e.g., reordering joins, pushing down selections) to improve efficiency. 2. Physical Plan: o Implementation-Specific: The physical plan is a concrete plan that specifies the exact algorithms and data structures used to perform each operation. This plan includes details like using a hash join instead of a nested loop join or an index scan instead of a full table scan. o Cost Considerations: The physical plan is selected based on cost estimates, which consider factors such as I/O, CPU usage, and memory requirements. 3. Alternative Plans: o Plan Candidates: The optimizer typically generates multiple candidate plans, each representing a different way to execute the query. It then evaluates the cost of each and selects the most efficient one. o Plan Enumeration: Various strategies like dynamic programming or heuristics may be used to explore different plan possibilities. Components of a Physical Query Plan 1. Access Methods: o Specifies how data is retrieved from storage. Common access methods include: ▪ Full Table Scan: Reading all rows from a table. ▪ Index Scan: Using an index to find rows that match the query condition. ▪ Index-Only Scan: Retrieving data directly from an index without accessing the table. 2. Join Methods: o Specifies how tables are combined: ▪ Nested Loop Join: For each row in the outer table, it searches the inner table for matching rows. ▪ Hash Join: Uses a hash table to quickly find matching rows from the joined tables. ▪ Merge Join: Sorts both tables on the join key and then merges them. 3. Sorting and Grouping:
• 9.

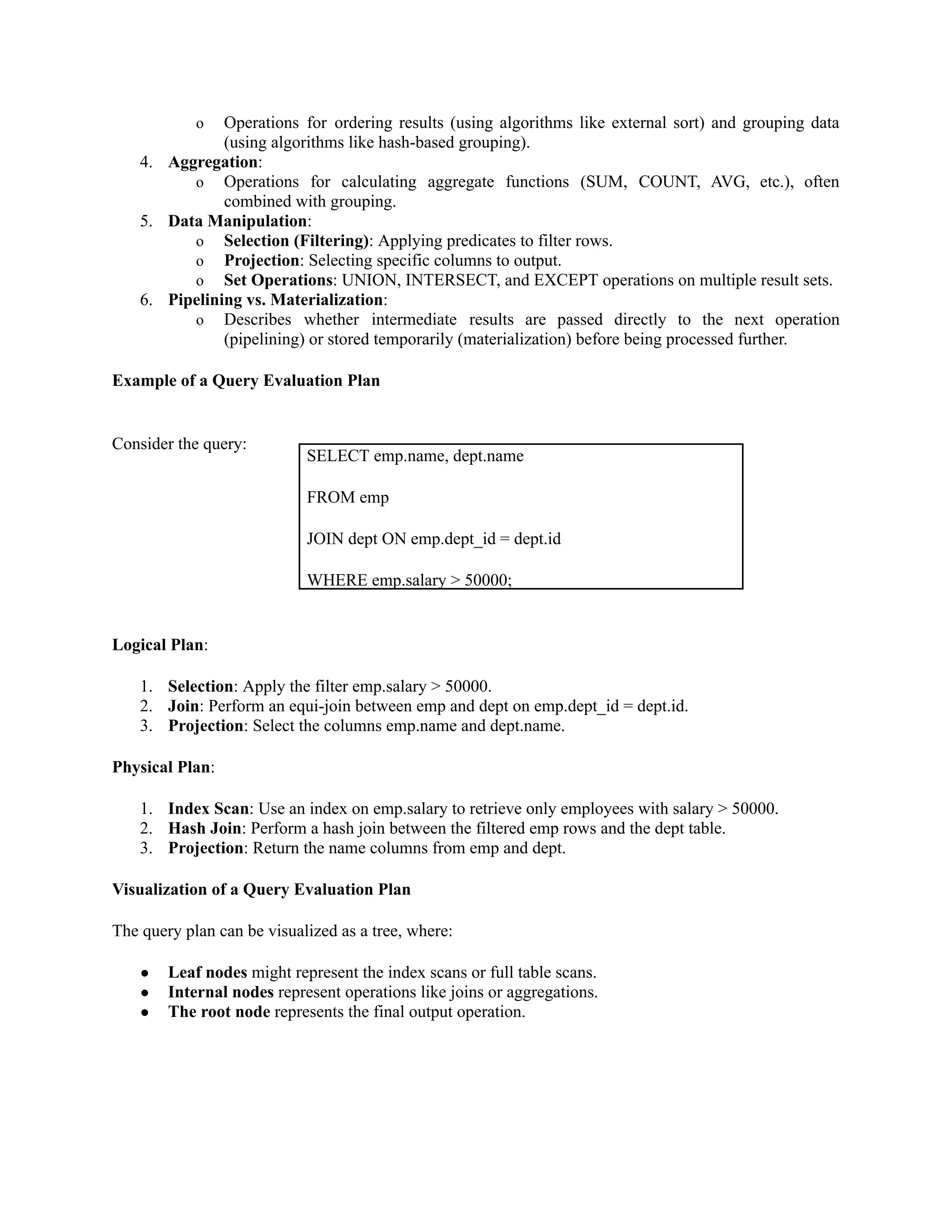

  o Operations forordering results (using algorithms like external sort) and grouping data (using algorithms like hash-based grouping). 4. Aggregation: o Operations for calculating aggregate functions (SUM, COUNT, AVG, etc.), often combined with grouping. 5. Data Manipulation: o Selection (Filtering): Applying predicates to filter rows. o Projection: Selecting specific columns to output. o Set Operations: UNION, INTERSECT, and EXCEPT operations on multiple result sets. 6. Pipelining vs. Materialization: o Describes whether intermediate results are passed directly to the next operation (pipelining) or stored temporarily (materialization) before being processed further. Example of a Query Evaluation Plan Consider the query: Logical Plan: 1. Selection: Apply the filter emp.salary > 50000. 2. Join: Perform an equi-join between emp and dept on emp.dept_id = dept.id. 3. Projection: Select the columns emp.name and dept.name. Physical Plan: 1. Index Scan: Use an index on emp.salary to retrieve only employees with salary > 50000. 2. Hash Join: Perform a hash join between the filtered emp rows and the dept table. 3. Projection: Return the name columns from emp and dept. Visualization of a Query Evaluation Plan The query plan can be visualized as a tree, where: ● Leaf nodes might represent the index scans or full table scans. ● Internal nodes represent operations like joins or aggregations. ● The root node represents the final output operation. SELECT emp.name, dept.name FROM emp JOIN dept ON emp.dept_id = dept.id WHERE emp.salary > 50000;
