- 1. Dean Wampler (Typesafe),Patrick Di Loreto (William Hill) Cassandra, Spark and Kafka: The Streaming Data Troika

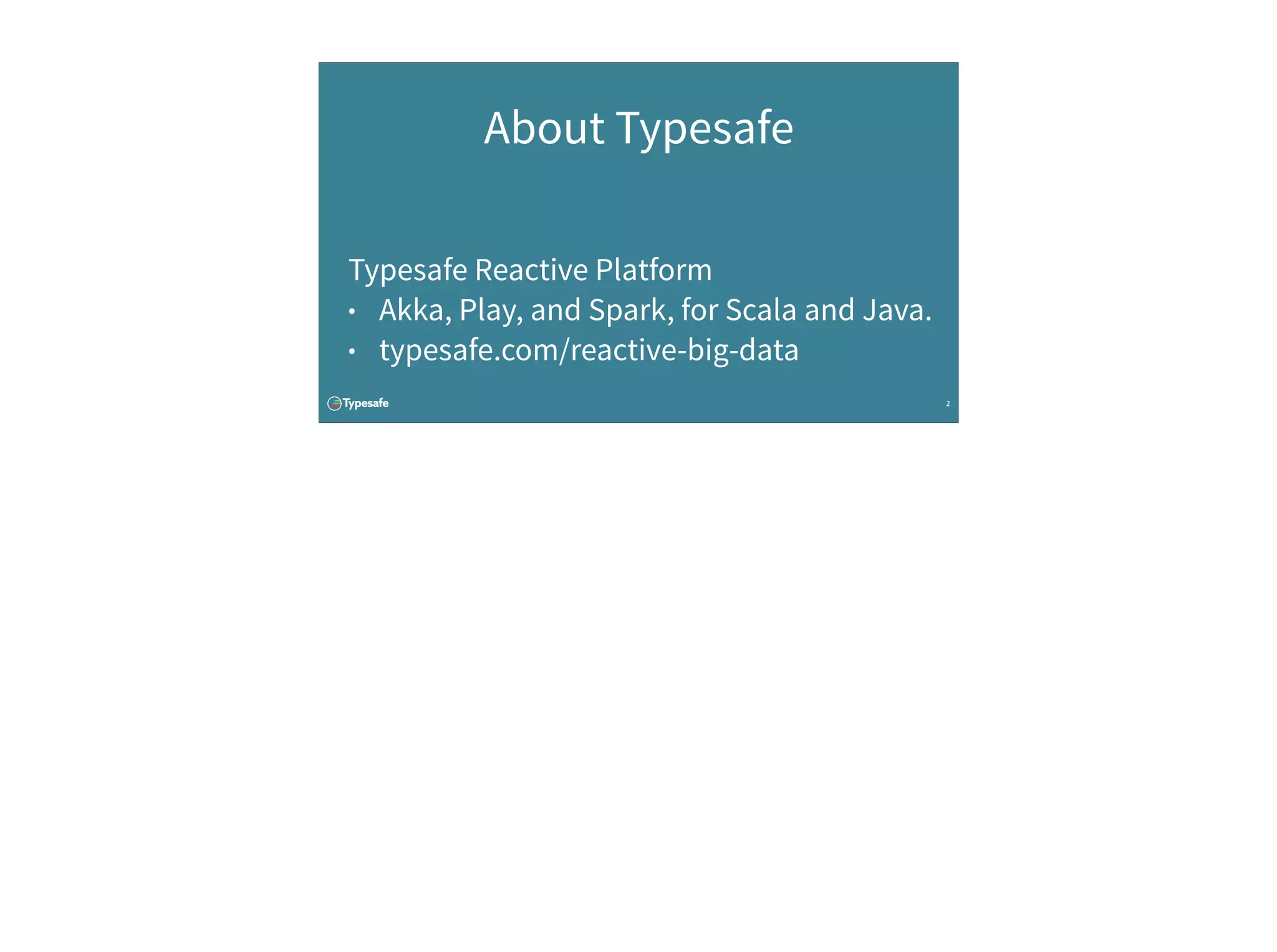

- 2. 2 About Typesafe Typesafe ReactivePlatform • Akka, Play, and Spark, for Scala and Java. • typesafe.com/reactive-big-data
- 3.

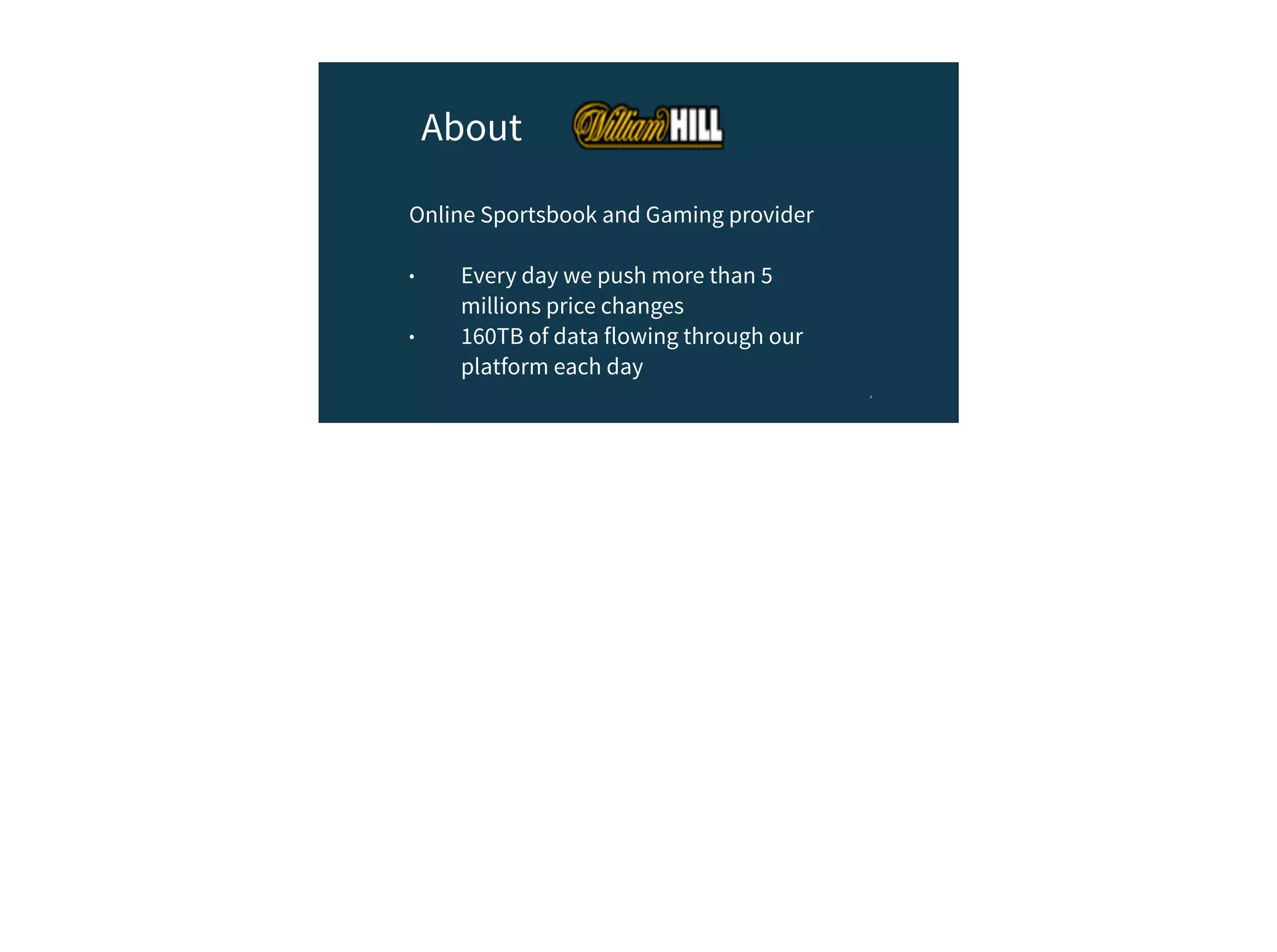

- 4. 4 About Online Sportsbook andGaming provider • Every day we push more than 5 millions price changes • 160TB of data flowing through our platform each day
- 5. We're Hiring https://careers.williamhill.com WH AppleWatch App Interactive Scoreboard Virtual Reality Horse Race Oculus Rift
- 6. 6 Big Data Circa2010

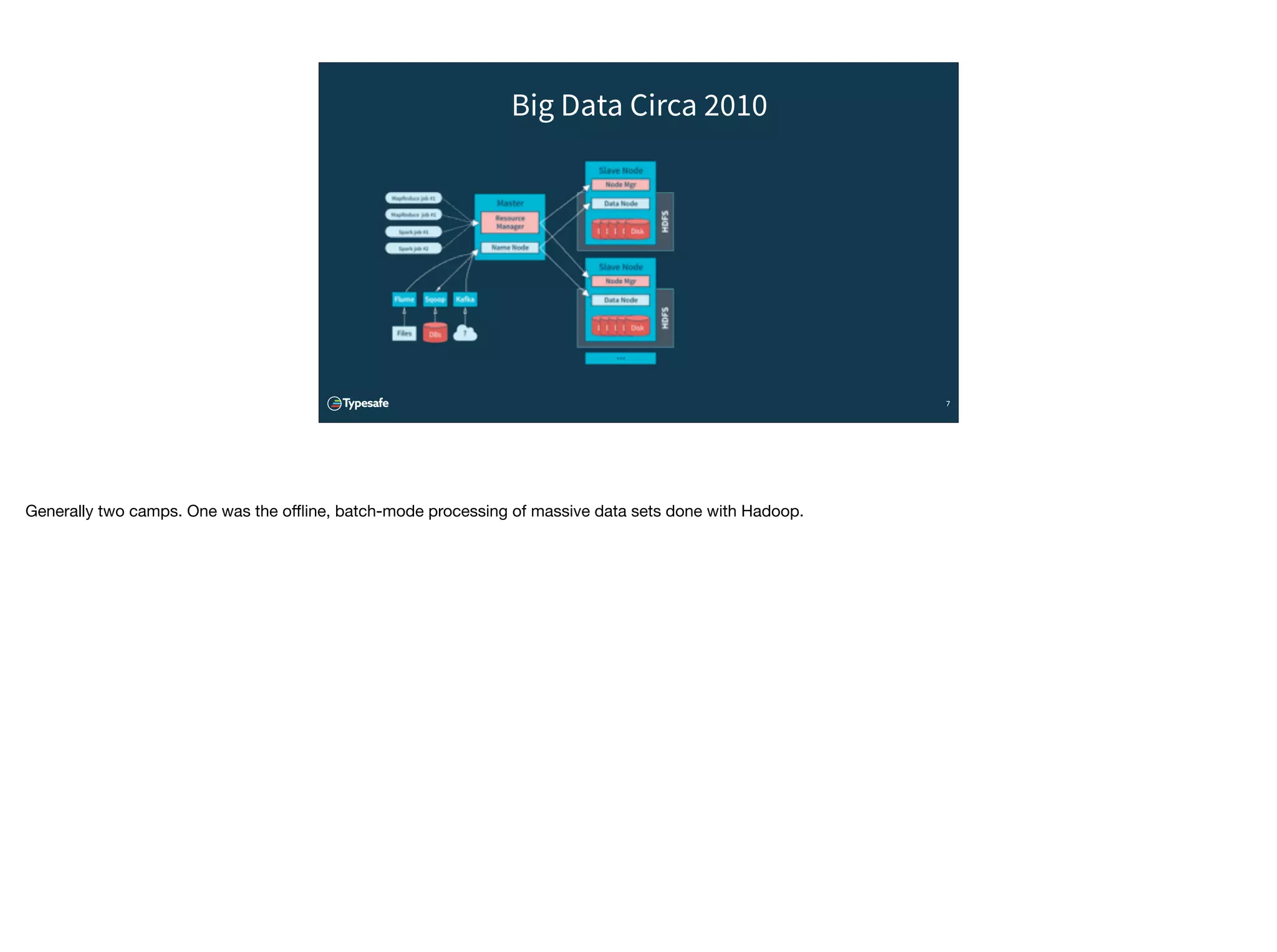

- 7. 7 Big Data Circa2010 Generally two camps. One was the offline, batch-mode processing of massive data sets done with Hadoop.

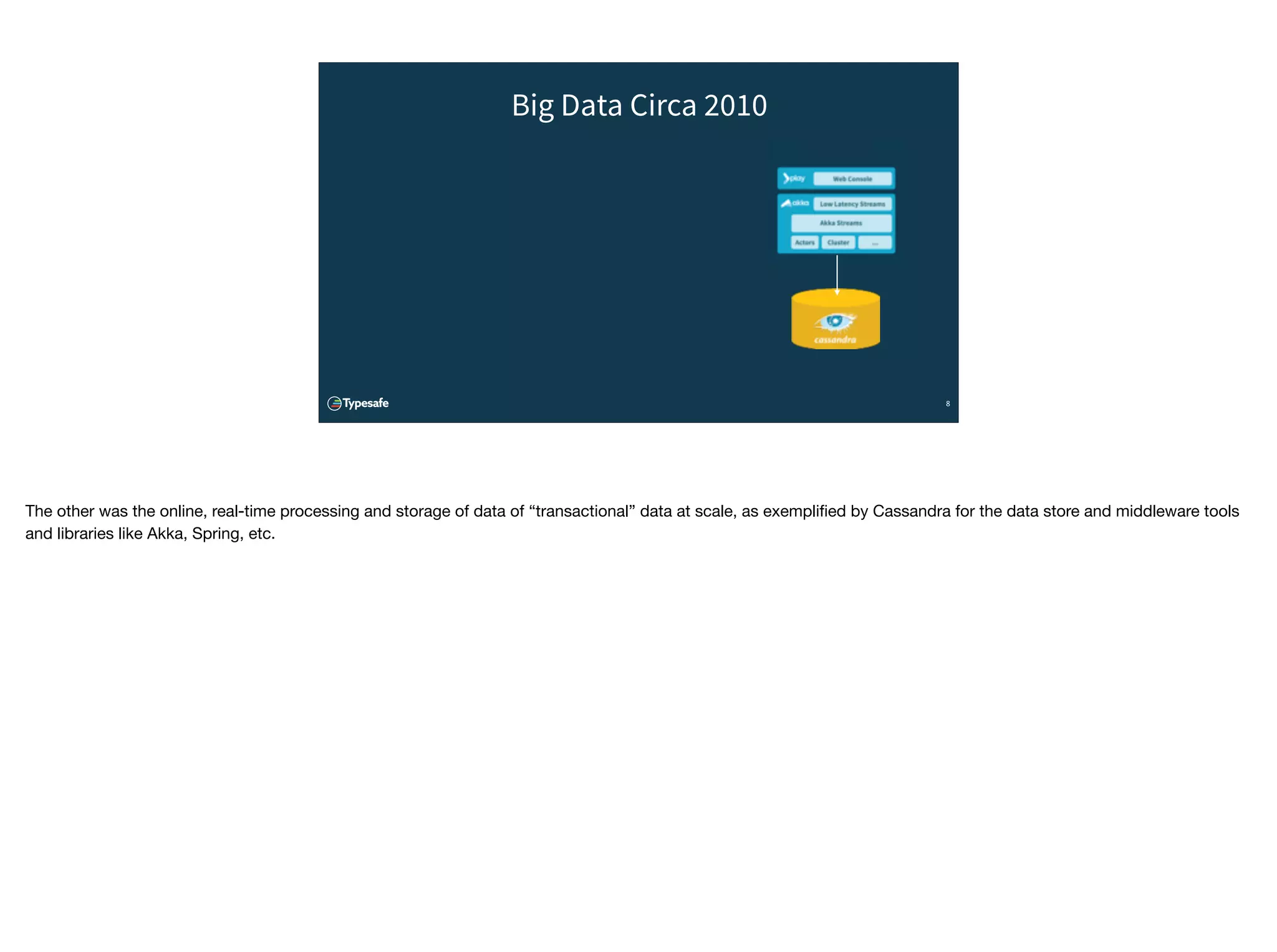

- 8. 8 Big Data Circa2010 Akka The other was the online, real-time processing and storage of data of “transactional” data at scale, as exemplified by Cassandra for the data store and middleware tools and libraries like Akka, Spring, etc.

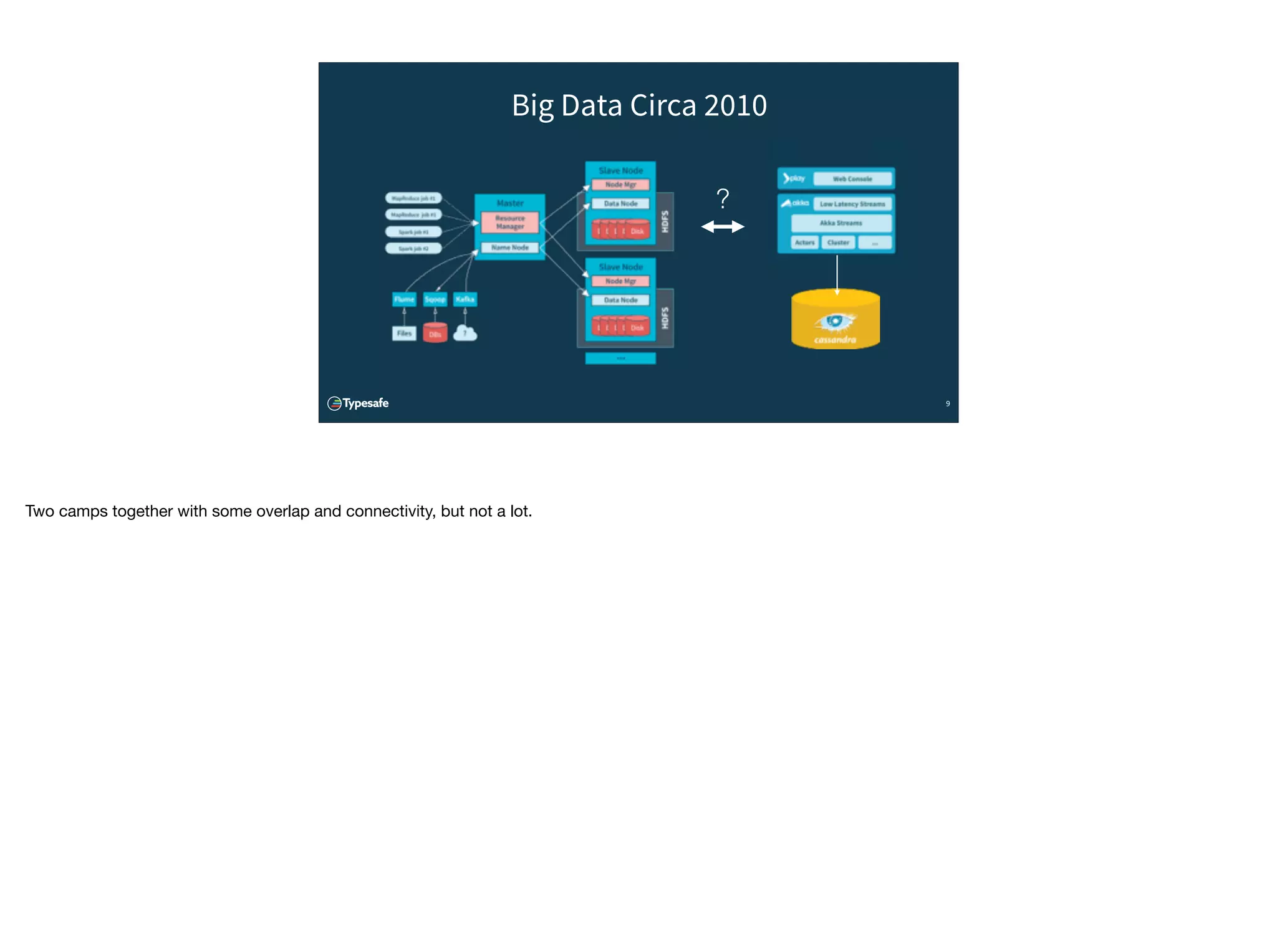

- 9. 9 Big Data Circa2010 Akka ? Two camps together with some overlap and connectivity, but not a lot.
- 10.

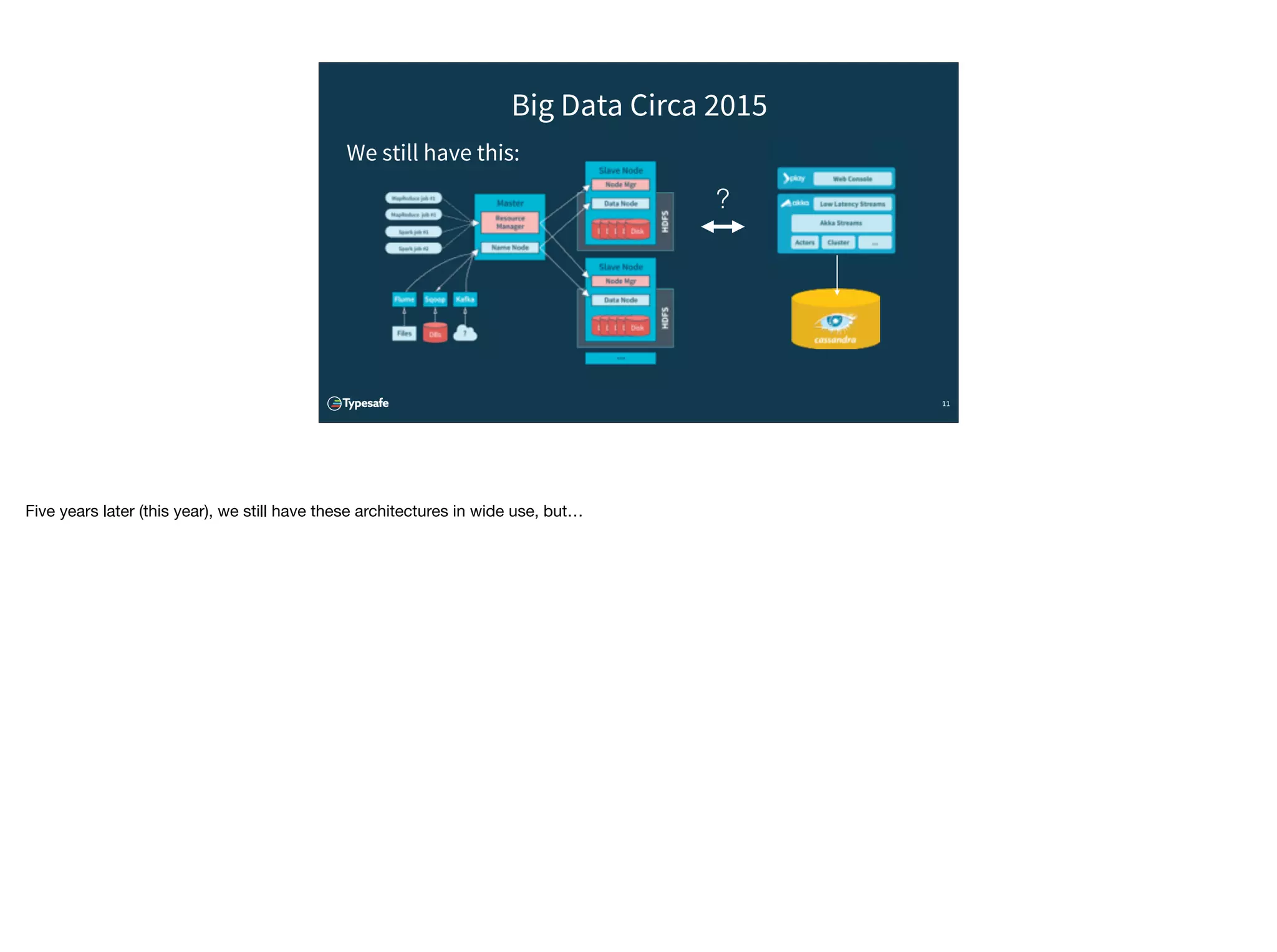

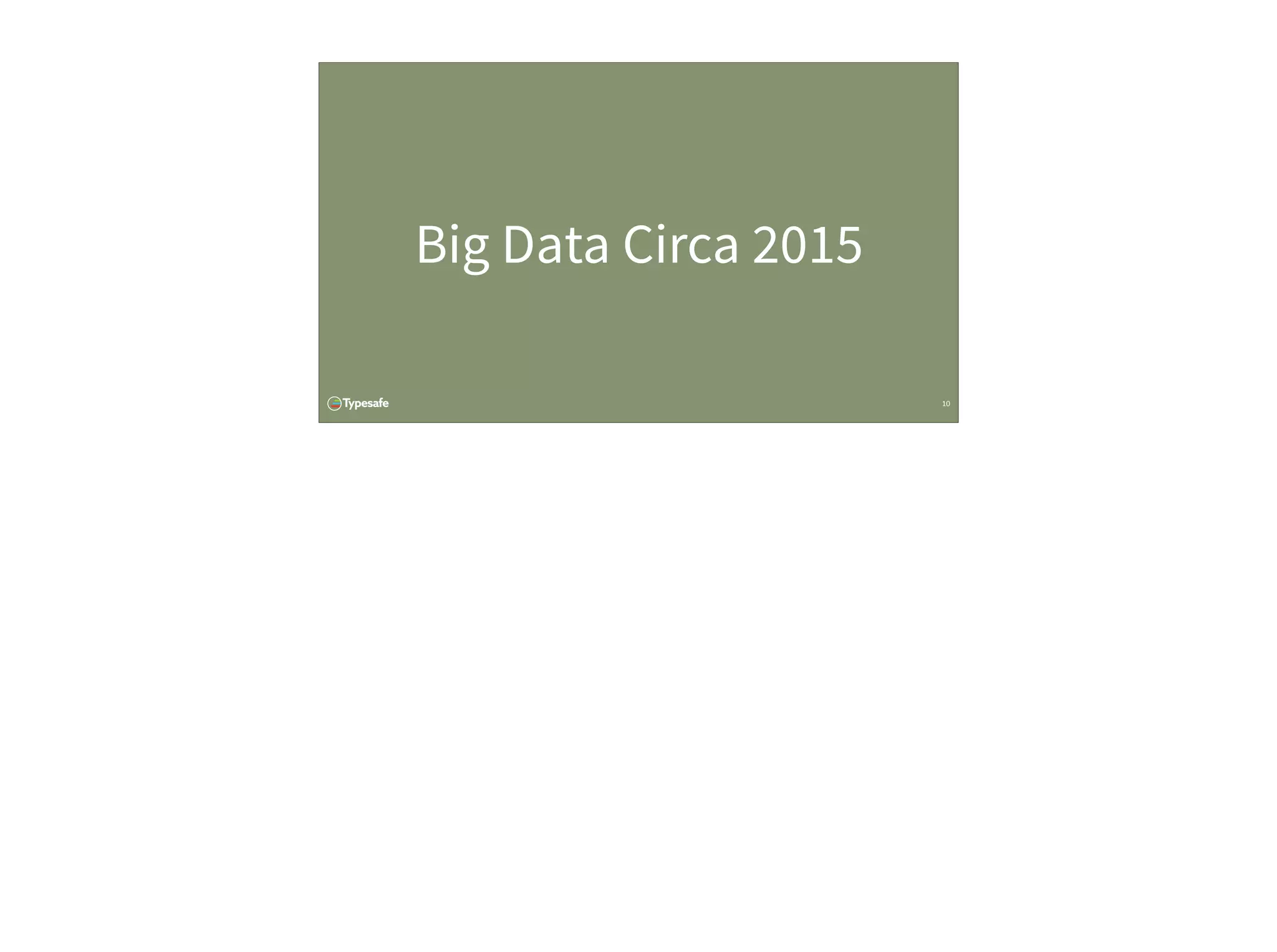

- 11. 11 Big Data Circa2015 We still have this: Akka ? Five years later (this year), we still have these architectures in wide use, but…

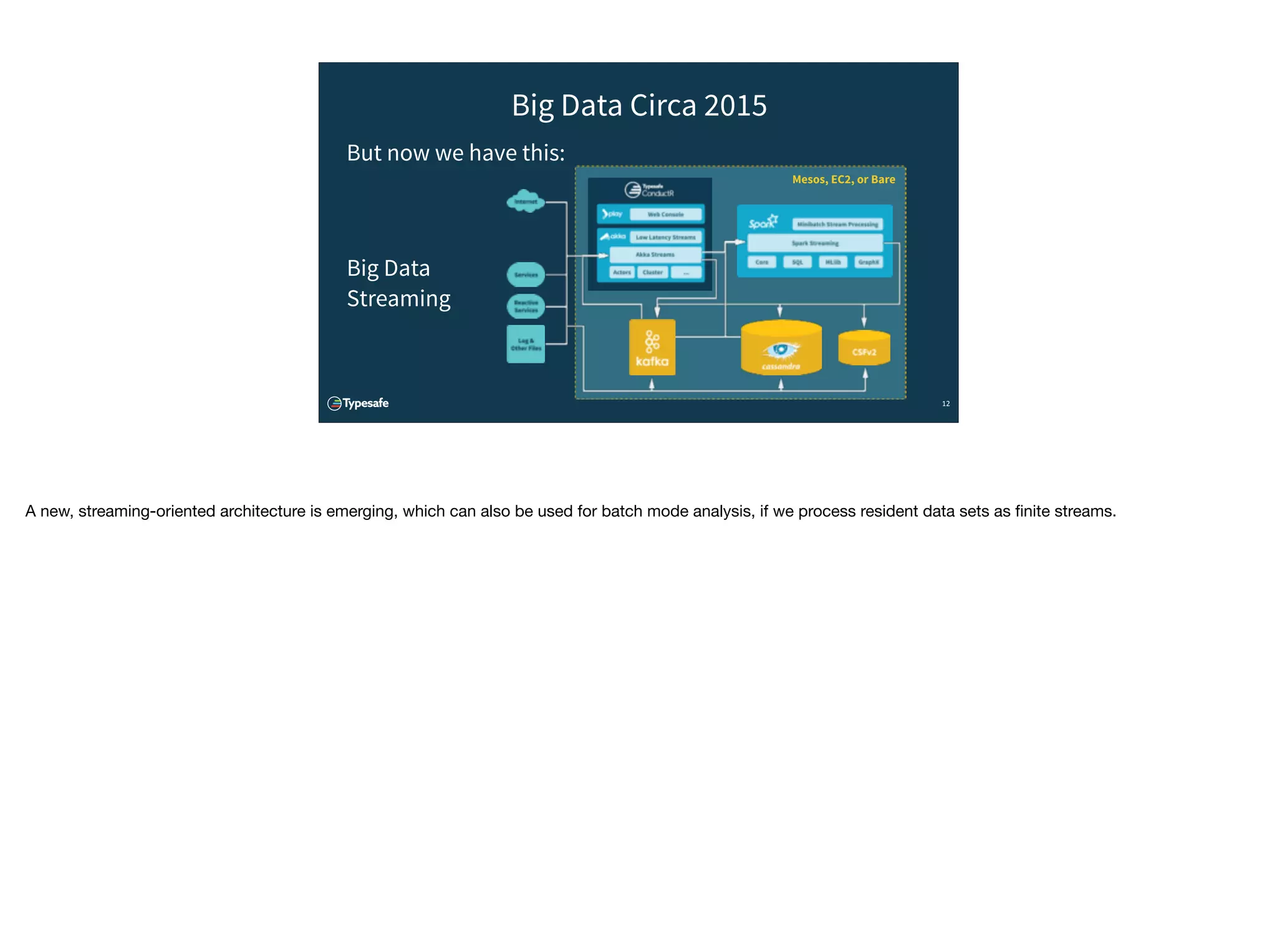

- 12. 12 Big Data Circa2015 But now we have this: Big Data Streaming Mesos, EC2, or Bare A new, streaming-oriented architecture is emerging, which can also be used for batch mode analysis, if we process resident data sets as finite streams.

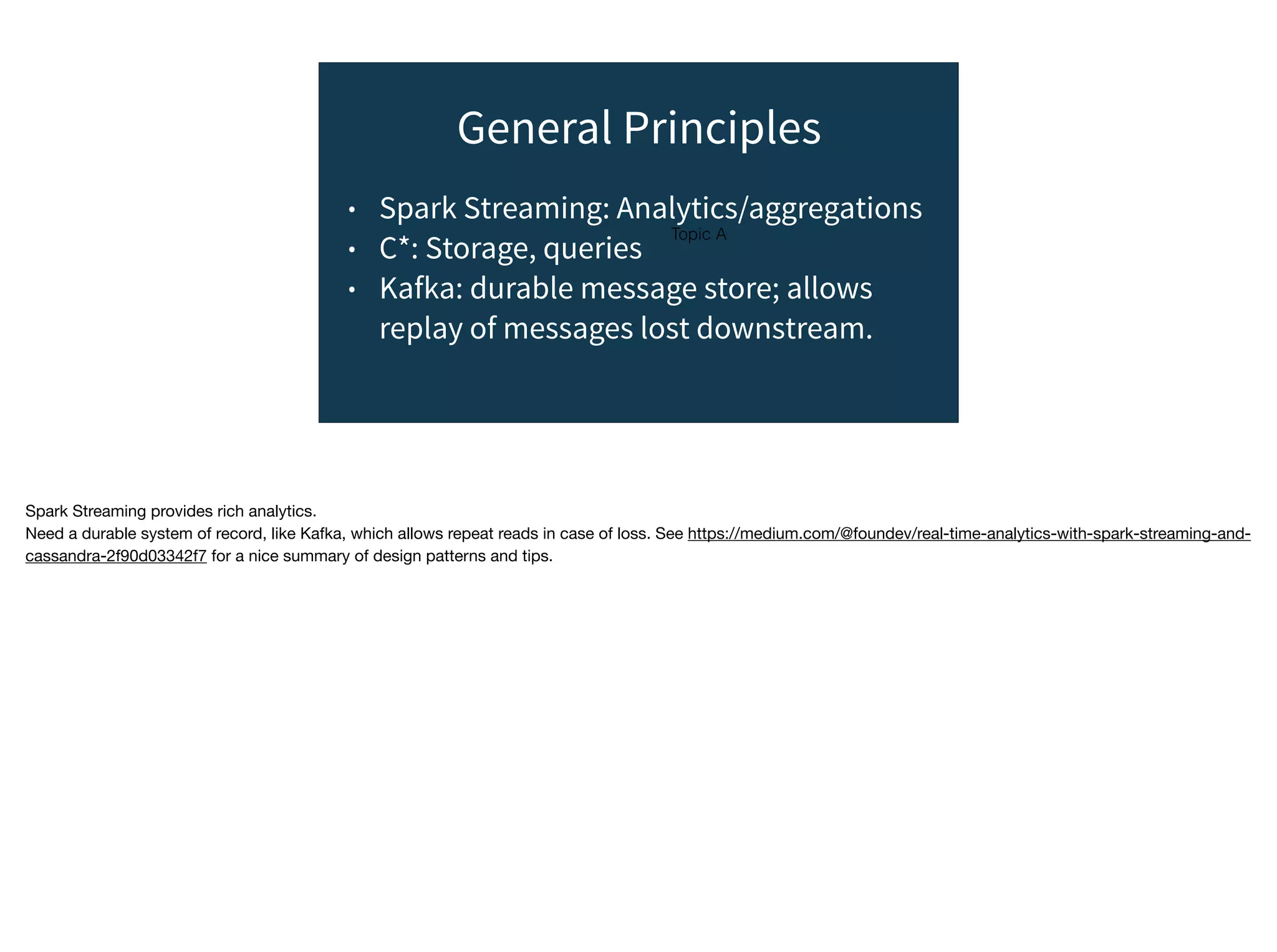

- 13. Topic A General Principles •Spark Streaming: Analytics/aggregations • C*: Storage, queries • Kafka: durable message store; allows replay of messages lost downstream. Spark Streaming provides rich analytics. Need a durable system of record, like Kafka, which allows repeat reads in case of loss. See https://medium.com/@foundev/real-time-analytics-with-spark-streaming-and- cassandra-2f90d03342f7 for a nice summary of design patterns and tips.

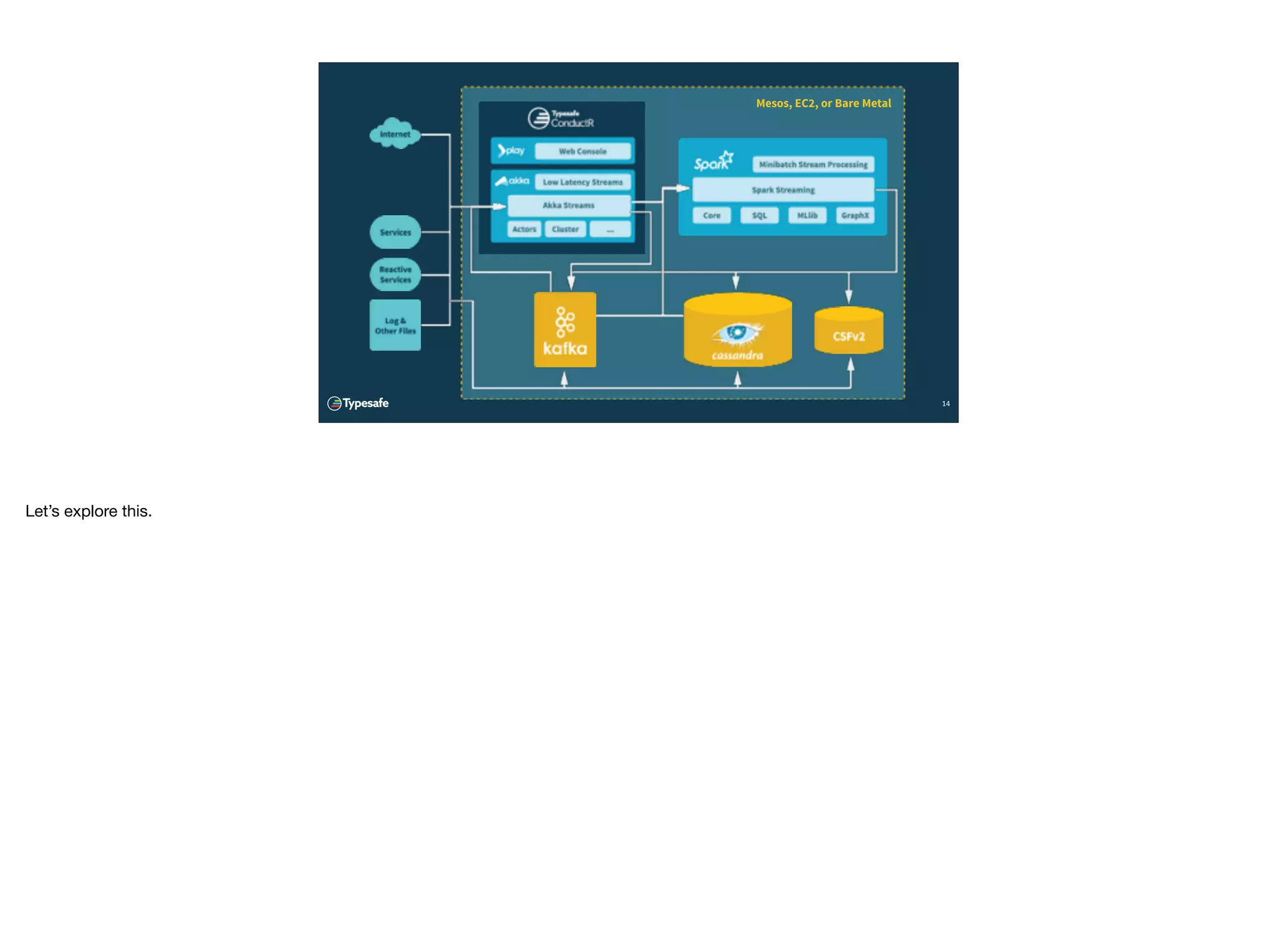

- 14. Mesos, EC2, orBare Metal 14 Let’s explore this.

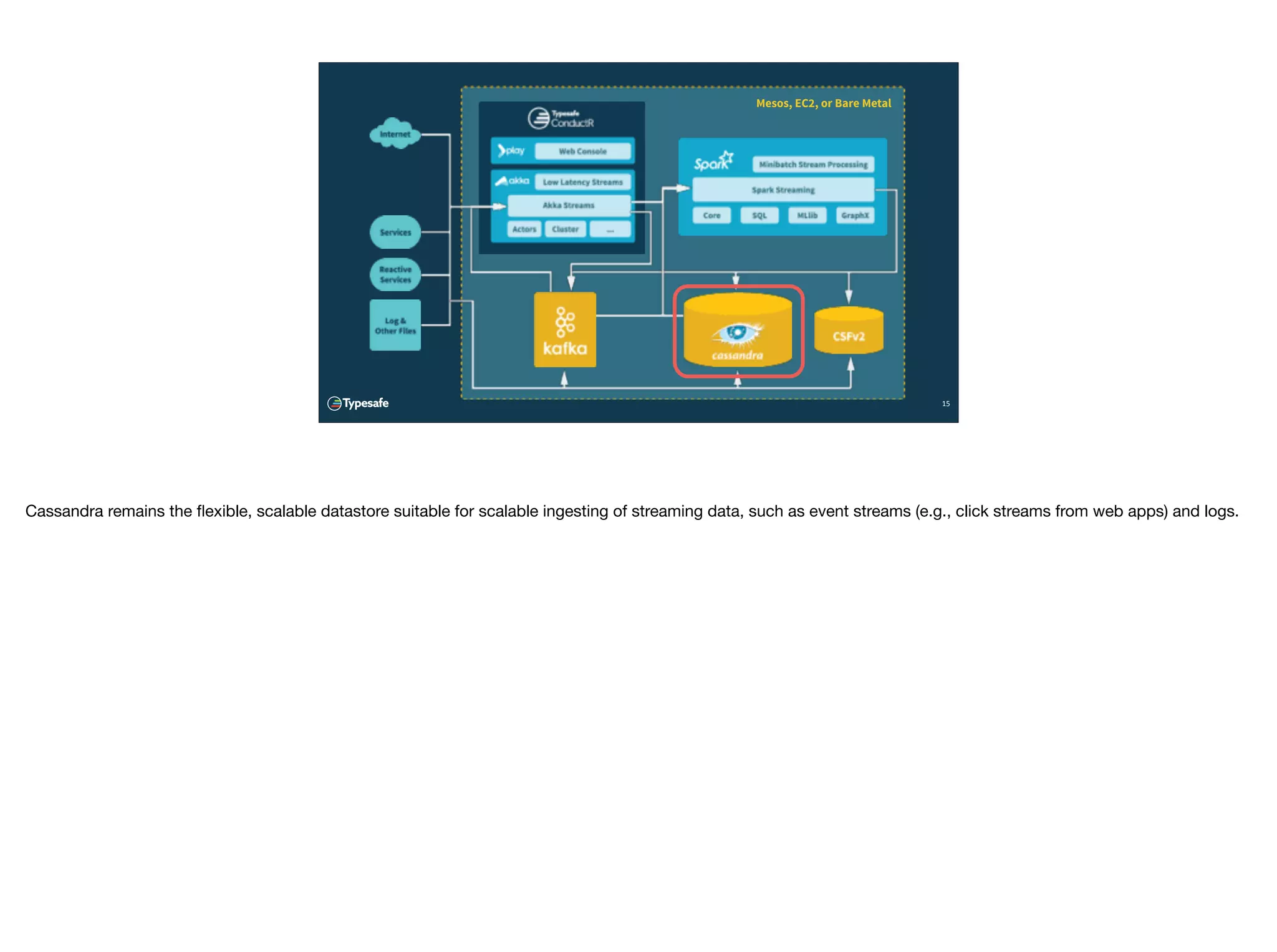

- 15. Mesos, EC2, orBare Metal 15 Cassandra remains the flexible, scalable datastore suitable for scalable ingesting of streaming data, such as event streams (e.g., click streams from web apps) and logs.
- 16. Mesos, EC2, orBare Metal 16 Kafka is growing popular as a tool for durable ingestion of diverse event streams with partitioning for scale and organization into topics (like a typical message queue) for downstream consumers.

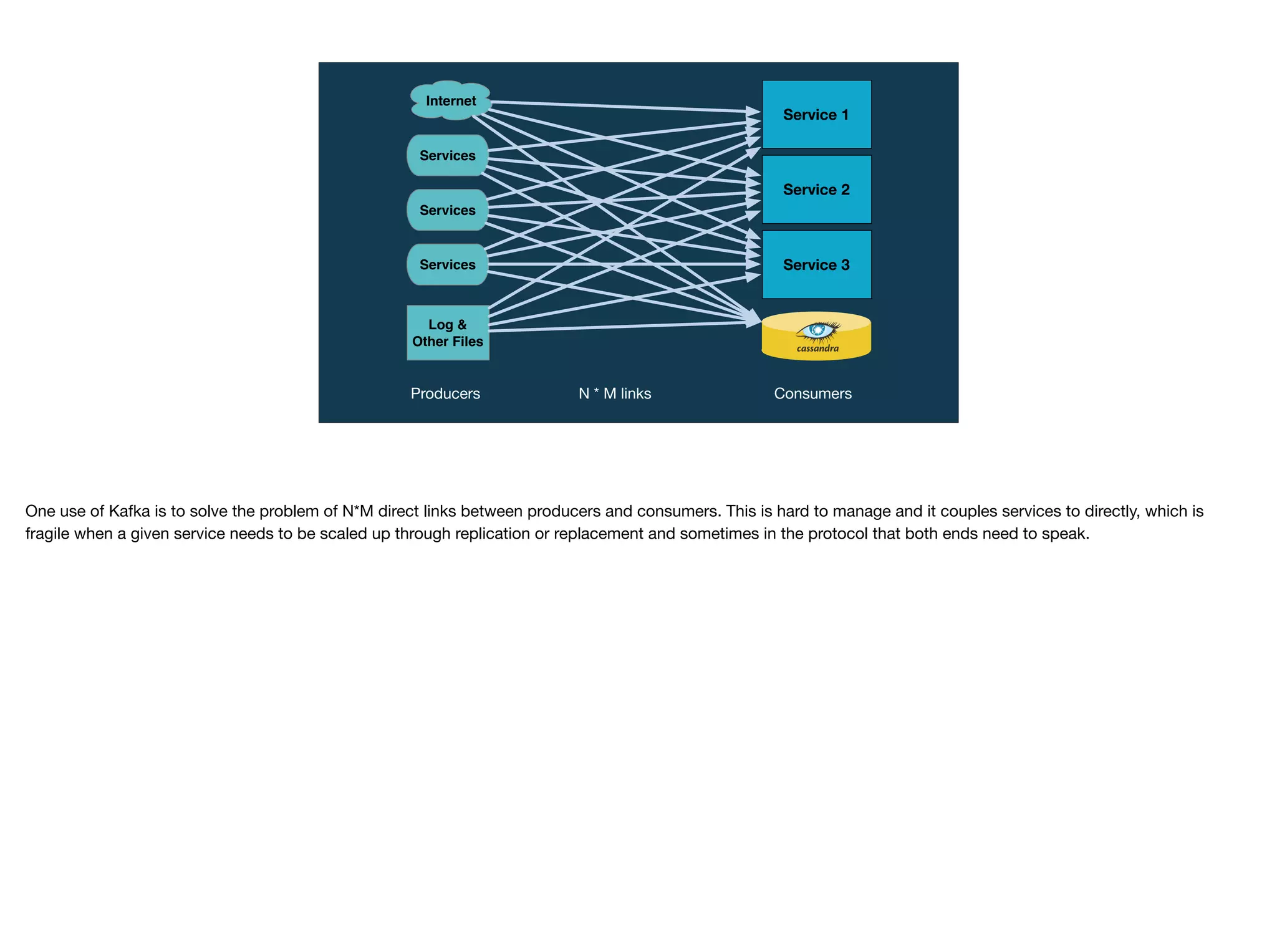

- 17. Service 1 Log & OtherFiles Internet Services Service 2 Service 3 Services Services N * M links ConsumersProducers One use of Kafka is to solve the problem of N*M direct links between producers and consumers. This is hard to manage and it couples services to directly, which is fragile when a given service needs to be scaled up through replication or replacement and sometimes in the protocol that both ends need to speak.

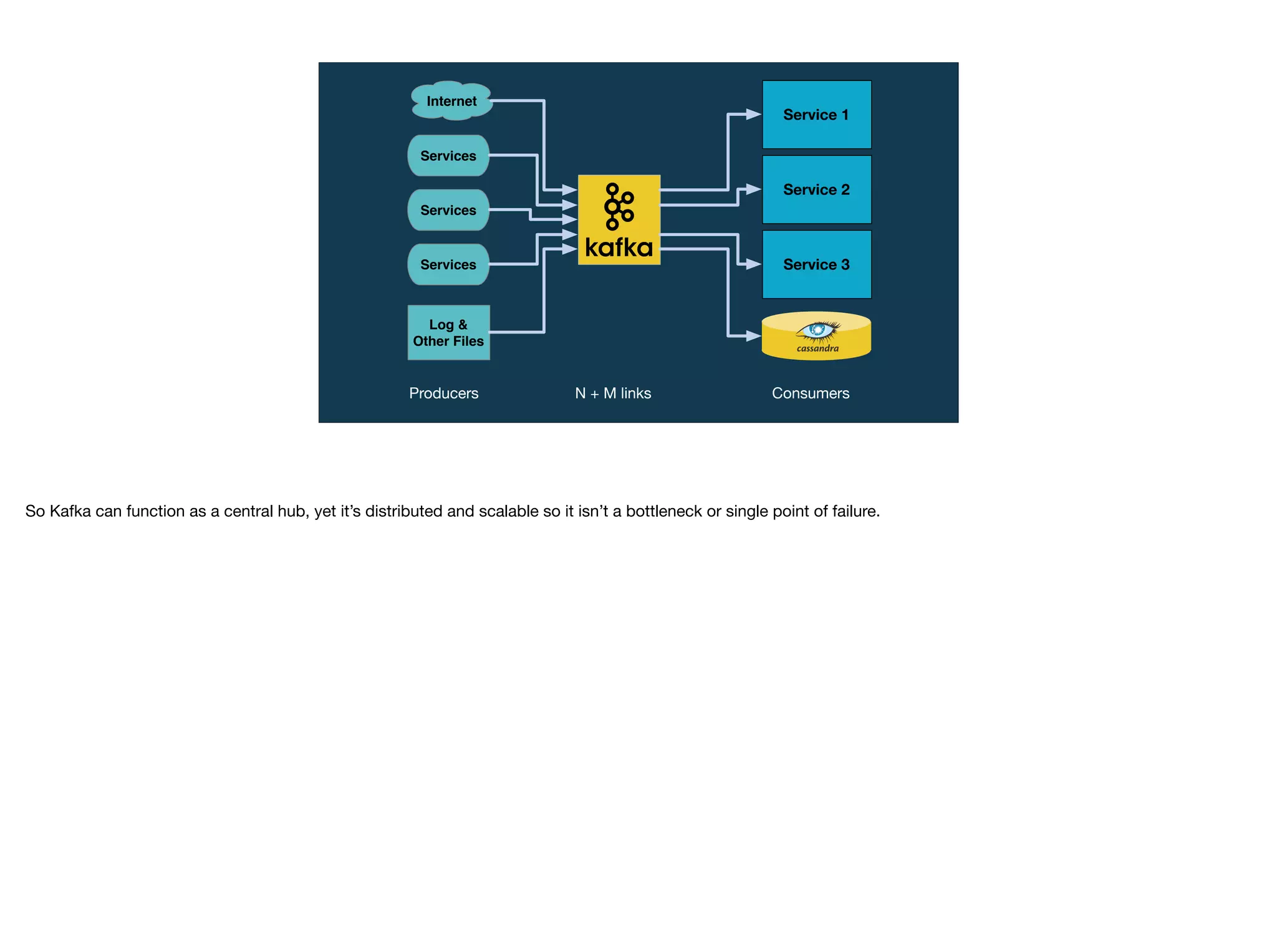

- 18. Service 1 Log & OtherFiles Internet Services Service 2 Service 3 Services Services N + M links ConsumersProducers So Kafka can function as a central hub, yet it’s distributed and scalable so it isn’t a bottleneck or single point of failure.

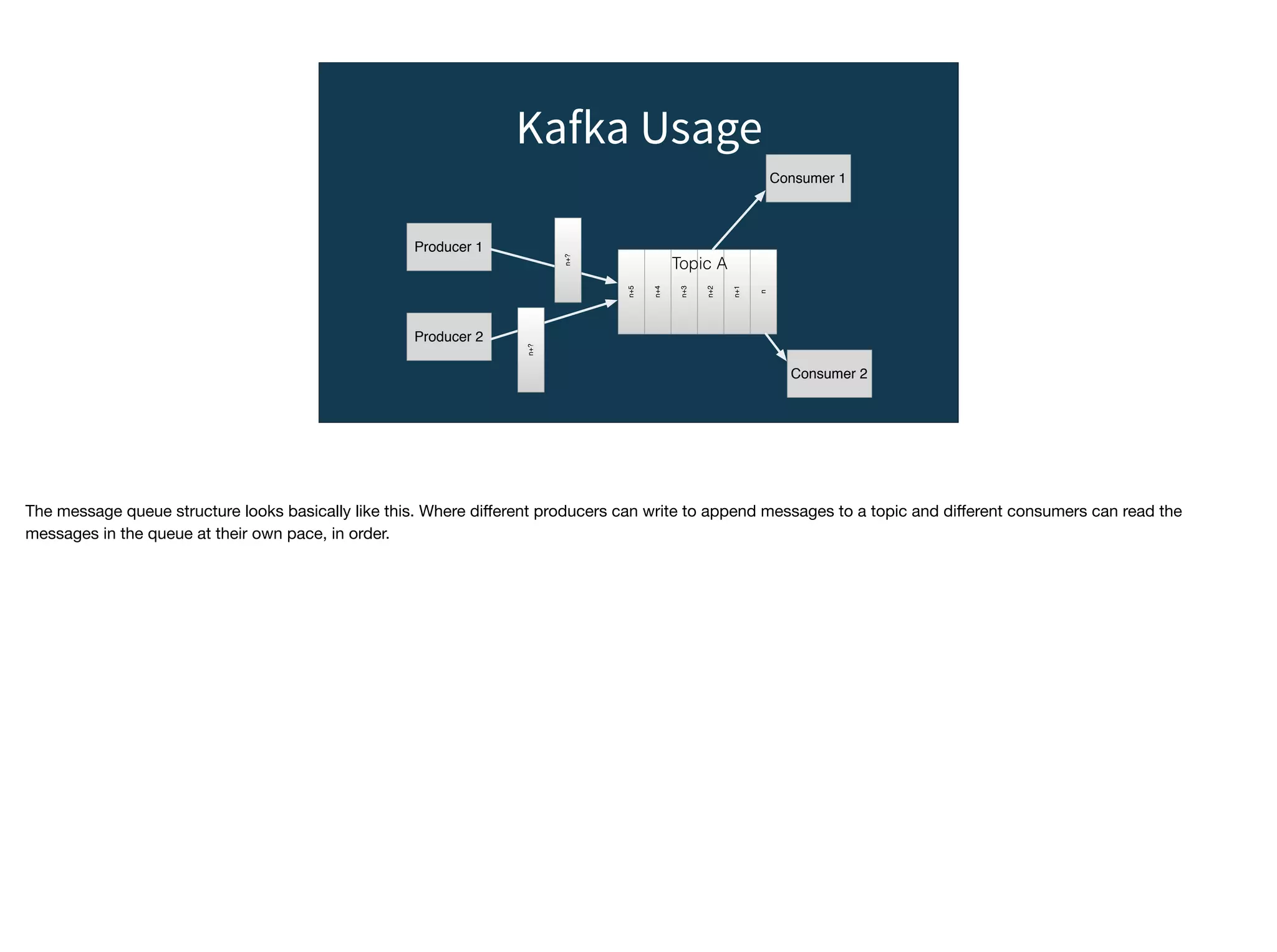

- 19. n+5 n+4 n+3 n+2 n+1 n Consumer 1 Producer 1 Producer2 n+? n+? Consumer 2 Kafka Usage Topic A The message queue structure looks basically like this. Where different producers can write to append messages to a topic and different consumers can read the messages in the queue at their own pace, in order.

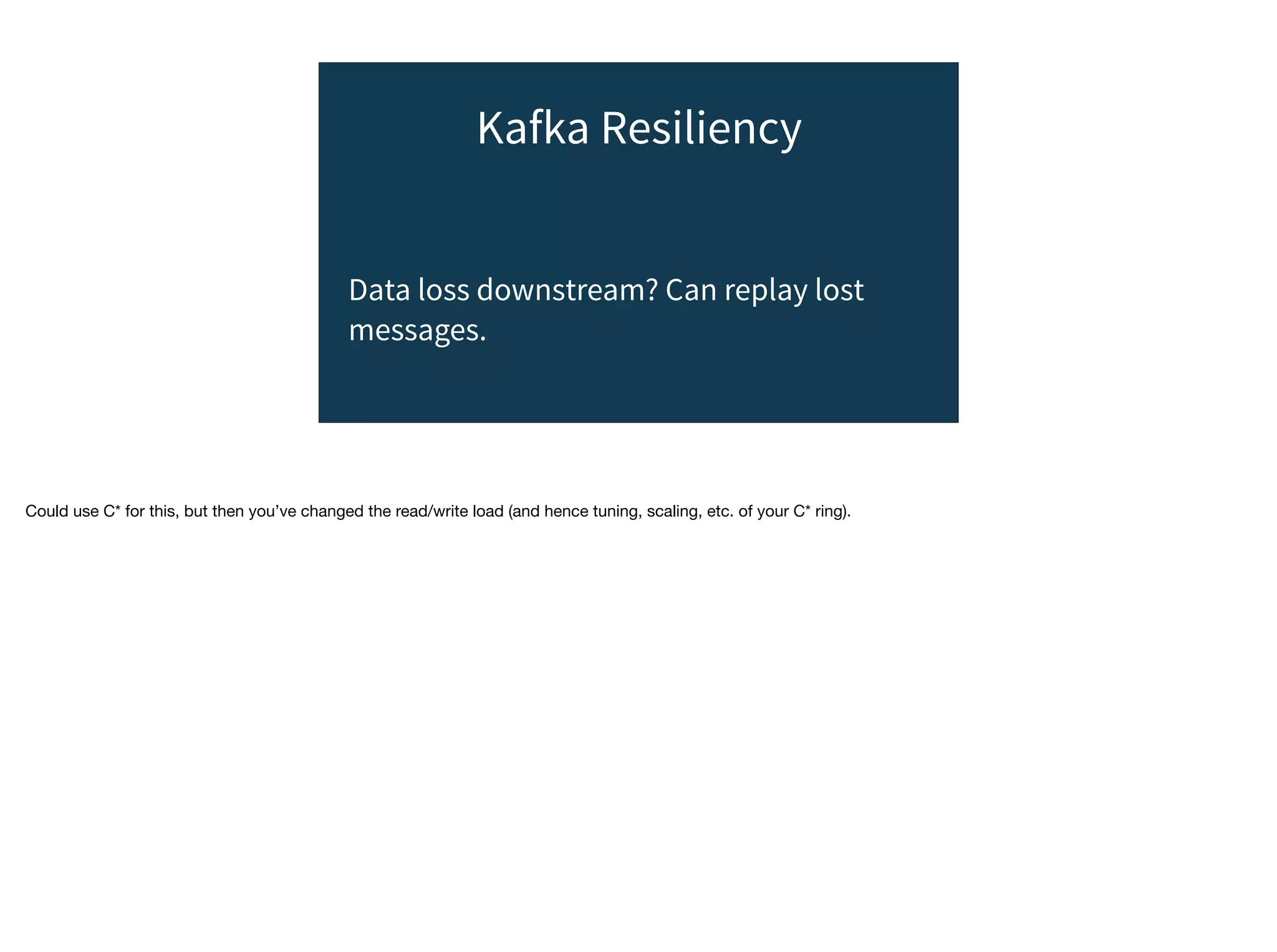

- 20. Kafka Resiliency Data lossdownstream? Can replay lost messages. Could use C* for this, but then you’ve changed the read/write load (and hence tuning, scaling, etc. of your C* ring).

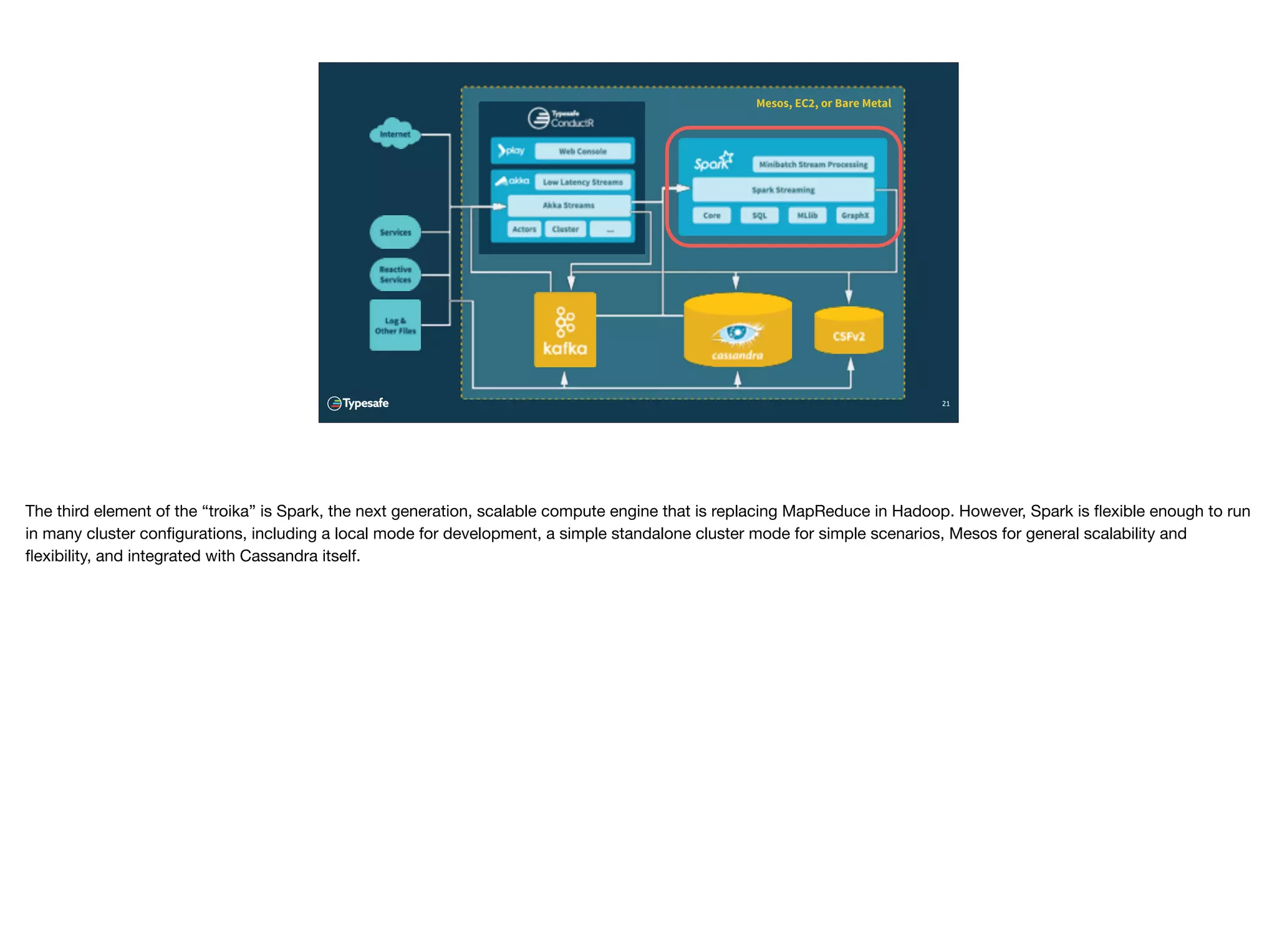

- 21. Mesos, EC2, orBare Metal 21 The third element of the “troika” is Spark, the next generation, scalable compute engine that is replacing MapReduce in Hadoop. However, Spark is flexible enough to run in many cluster configurations, including a local mode for development, a simple standalone cluster mode for simple scenarios, Mesos for general scalability and flexibility, and integrated with Cassandra itself.

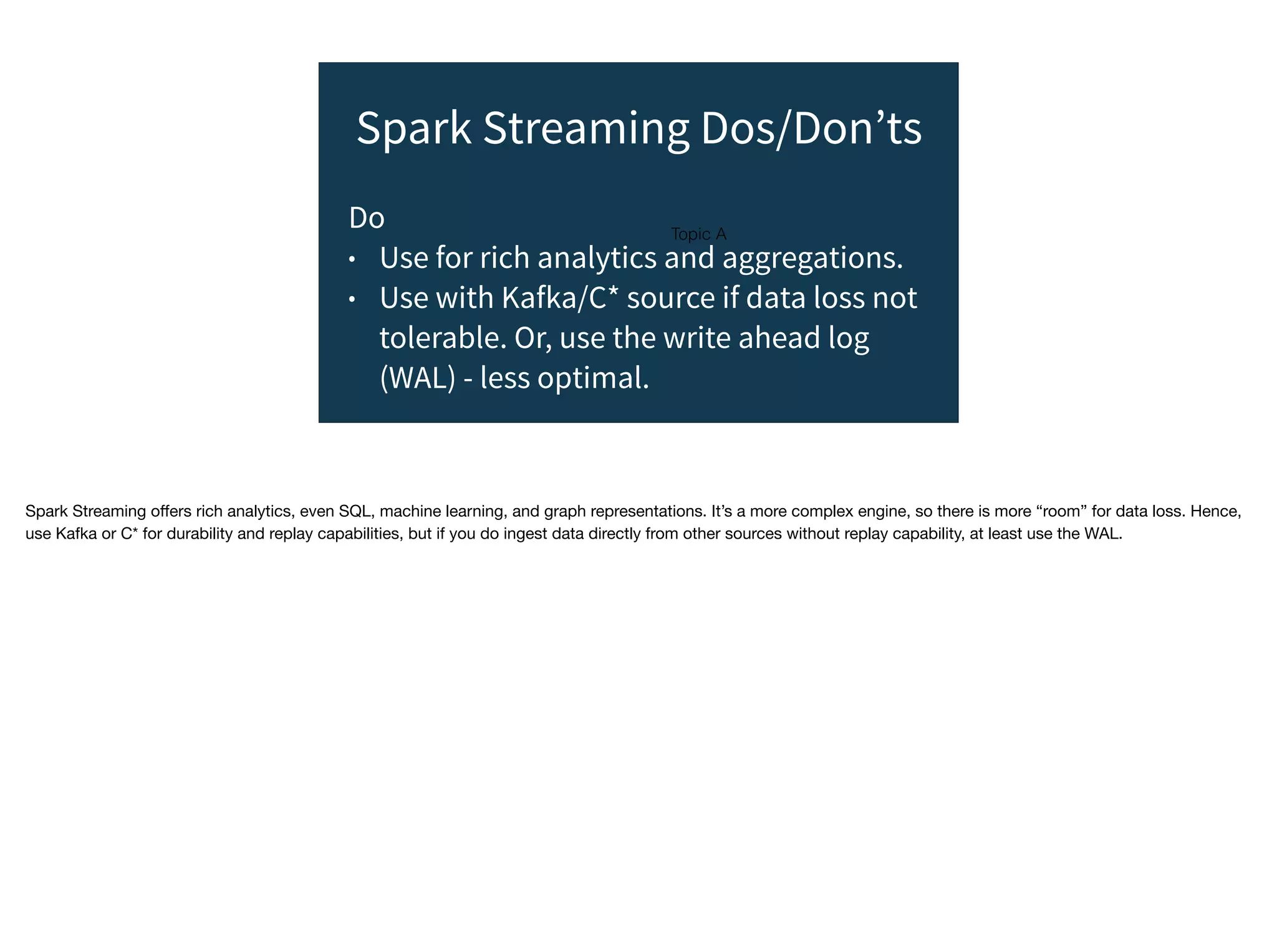

- 22. Topic A Spark StreamingDos/Don’ts Do • Use for rich analytics and aggregations. • Use with Kafka/C* source if data loss not tolerable. Or, use the write ahead log (WAL) - less optimal. Spark Streaming offers rich analytics, even SQL, machine learning, and graph representations. It’s a more complex engine, so there is more “room” for data loss. Hence, use Kafka or C* for durability and replay capabilities, but if you do ingest data directly from other sources without replay capability, at least use the WAL.

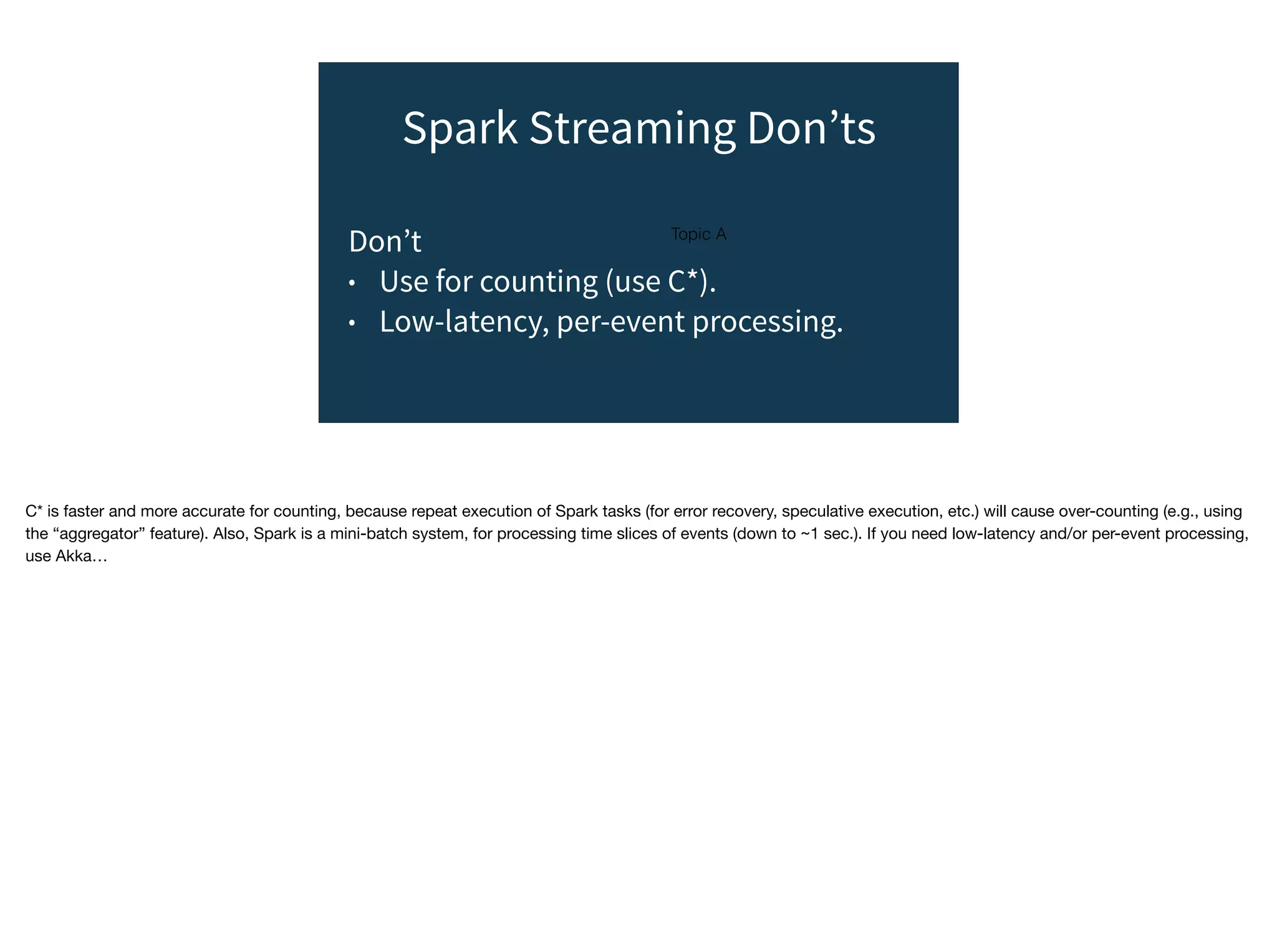

- 23. Topic A Spark StreamingDon’ts Don’t • Use for counting (use C*). • Low-latency, per-event processing. C* is faster and more accurate for counting, because repeat execution of Spark tasks (for error recovery, speculative execution, etc.) will cause over-counting (e.g., using the “aggregator” feature). Also, Spark is a mini-batch system, for processing time slices of events (down to ~1 sec.). If you need low-latency and/or per-event processing, use Akka…

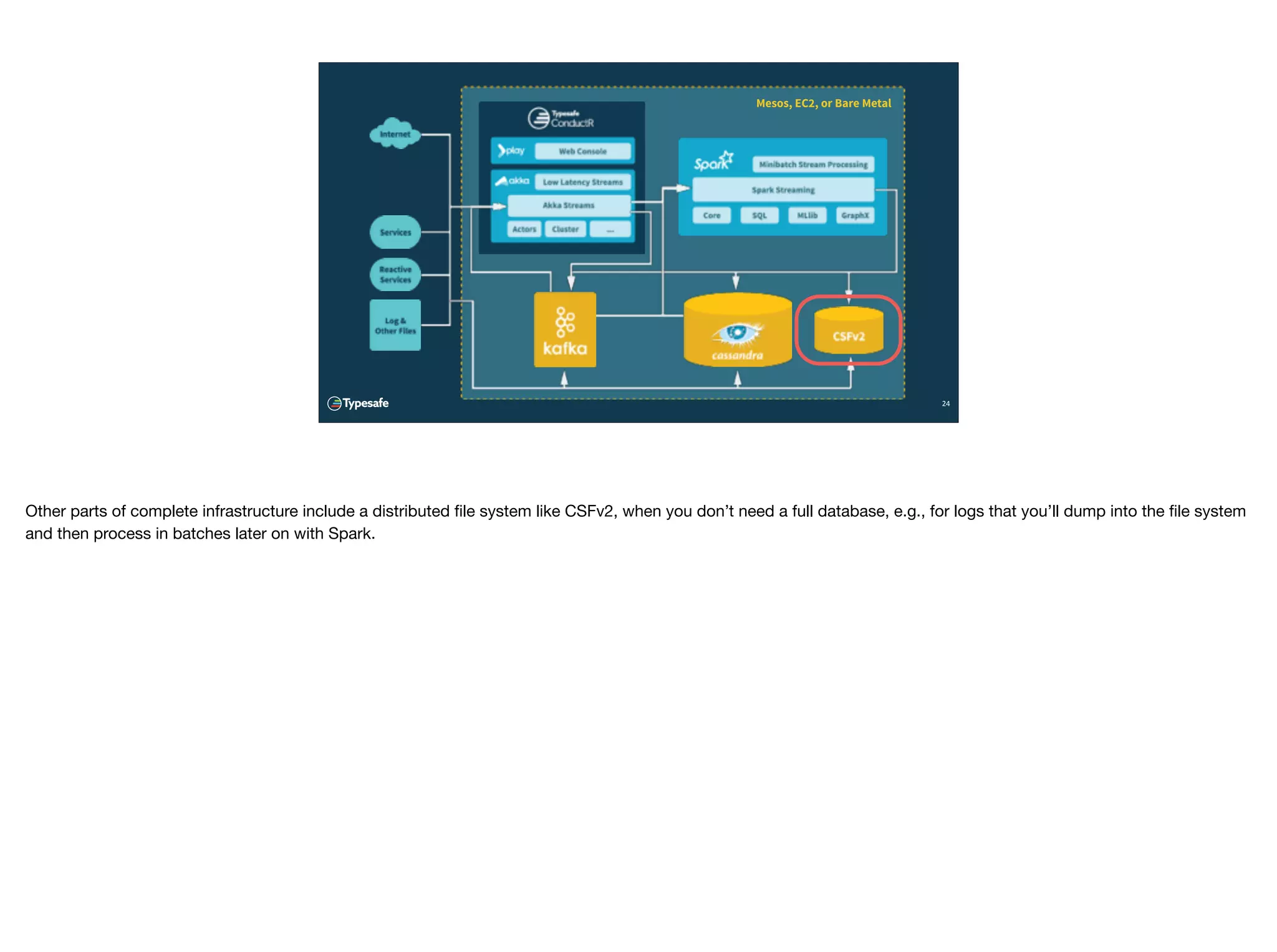

- 24. Mesos, EC2, orBare Metal 24 Other parts of complete infrastructure include a distributed file system like CSFv2, when you don’t need a full database, e.g., for logs that you’ll dump into the file system and then process in batches later on with Spark.

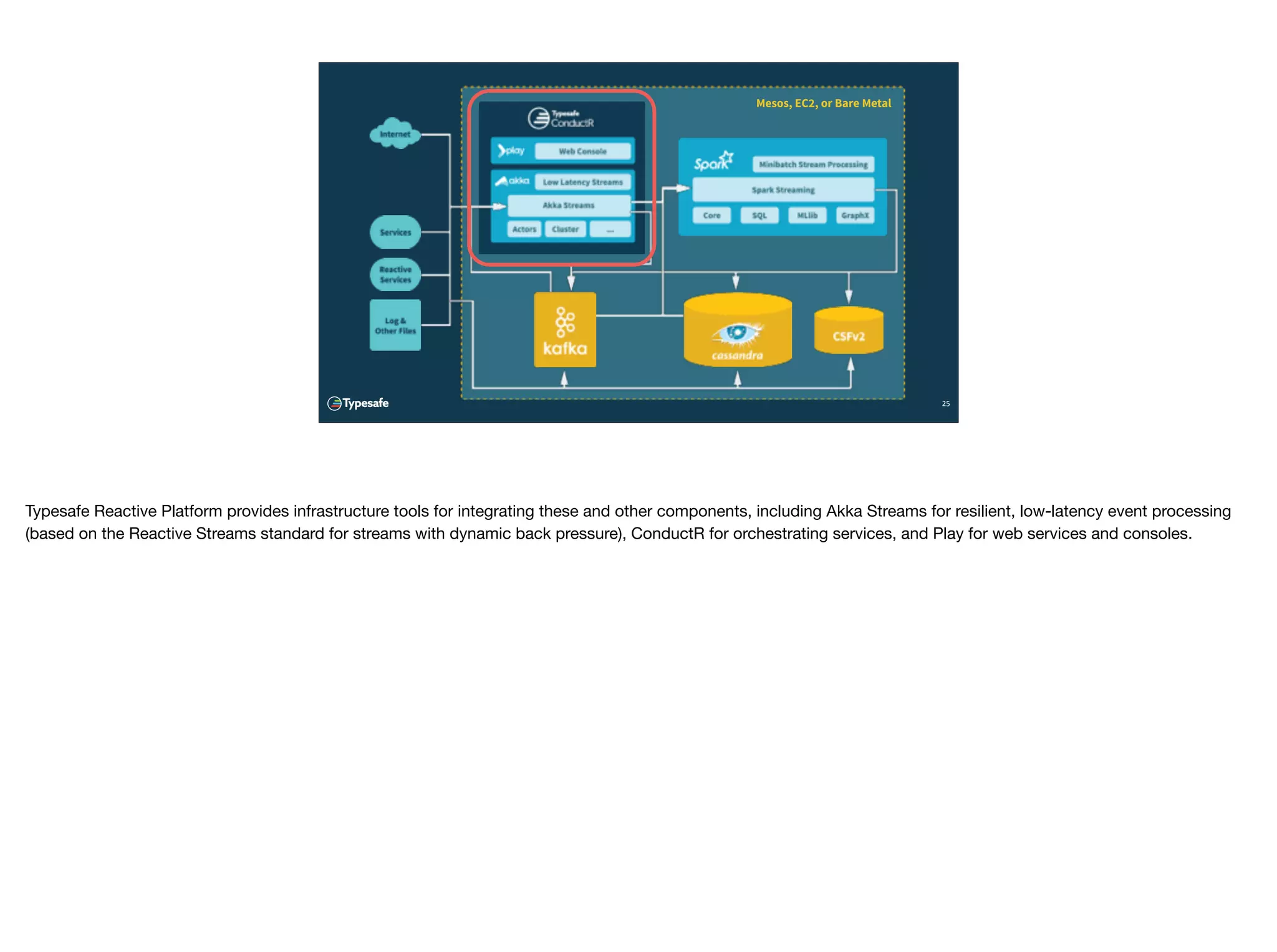

- 25. Mesos, EC2, orBare Metal 25 Typesafe Reactive Platform provides infrastructure tools for integrating these and other components, including Akka Streams for resilient, low-latency event processing (based on the Reactive Streams standard for streams with dynamic back pressure), ConductR for orchestrating services, and Play for web services and consoles.

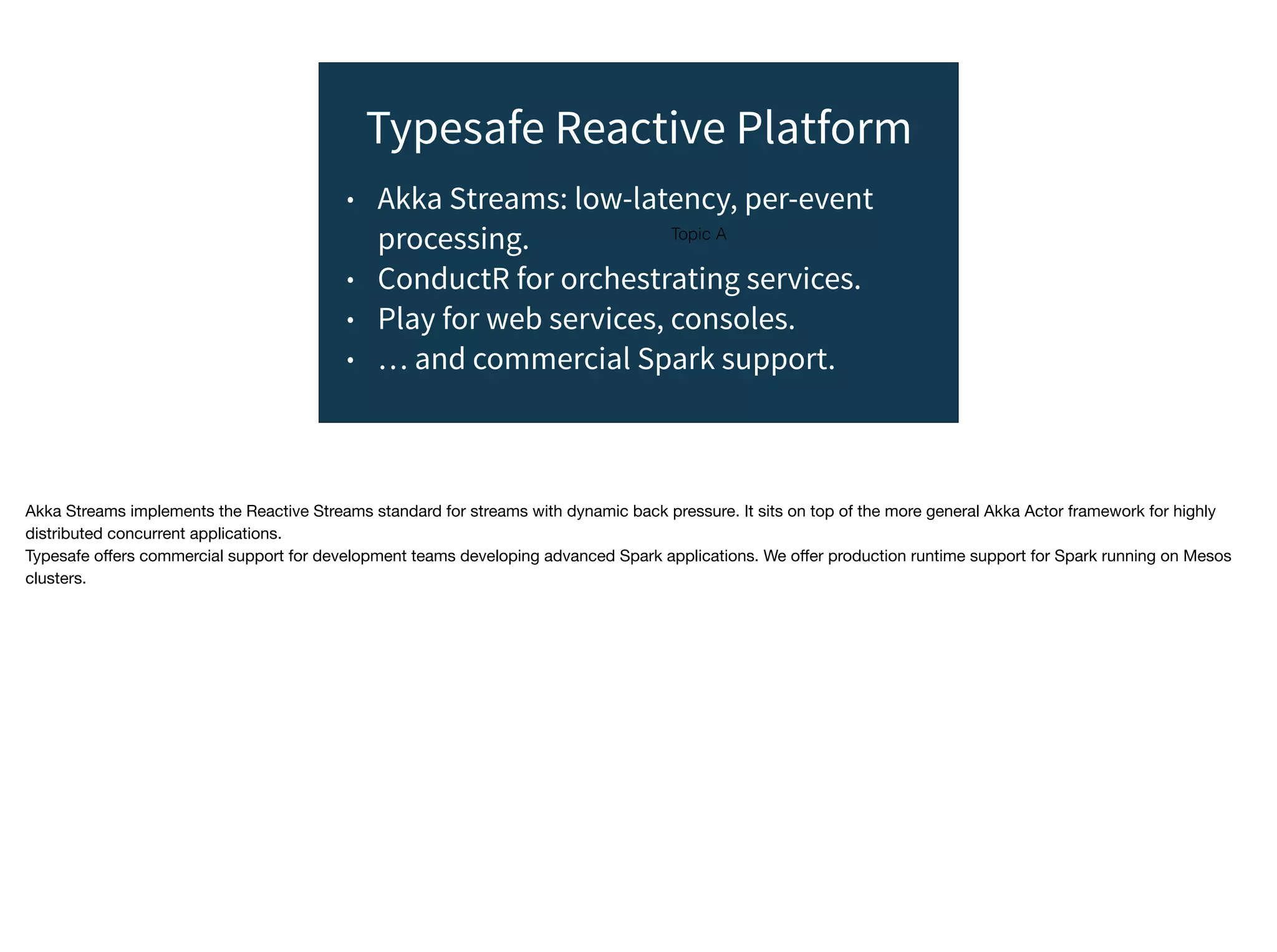

- 26. Topic A Typesafe ReactivePlatform • Akka Streams: low-latency, per-event processing. • ConductR for orchestrating services. • Play for web services, consoles. • … and commercial Spark support. Akka Streams implements the Reactive Streams standard for streams with dynamic back pressure. It sits on top of the more general Akka Actor framework for highly distributed concurrent applications. Typesafe offers commercial support for development teams developing advanced Spark applications. We offer production runtime support for Spark running on Mesos clusters.

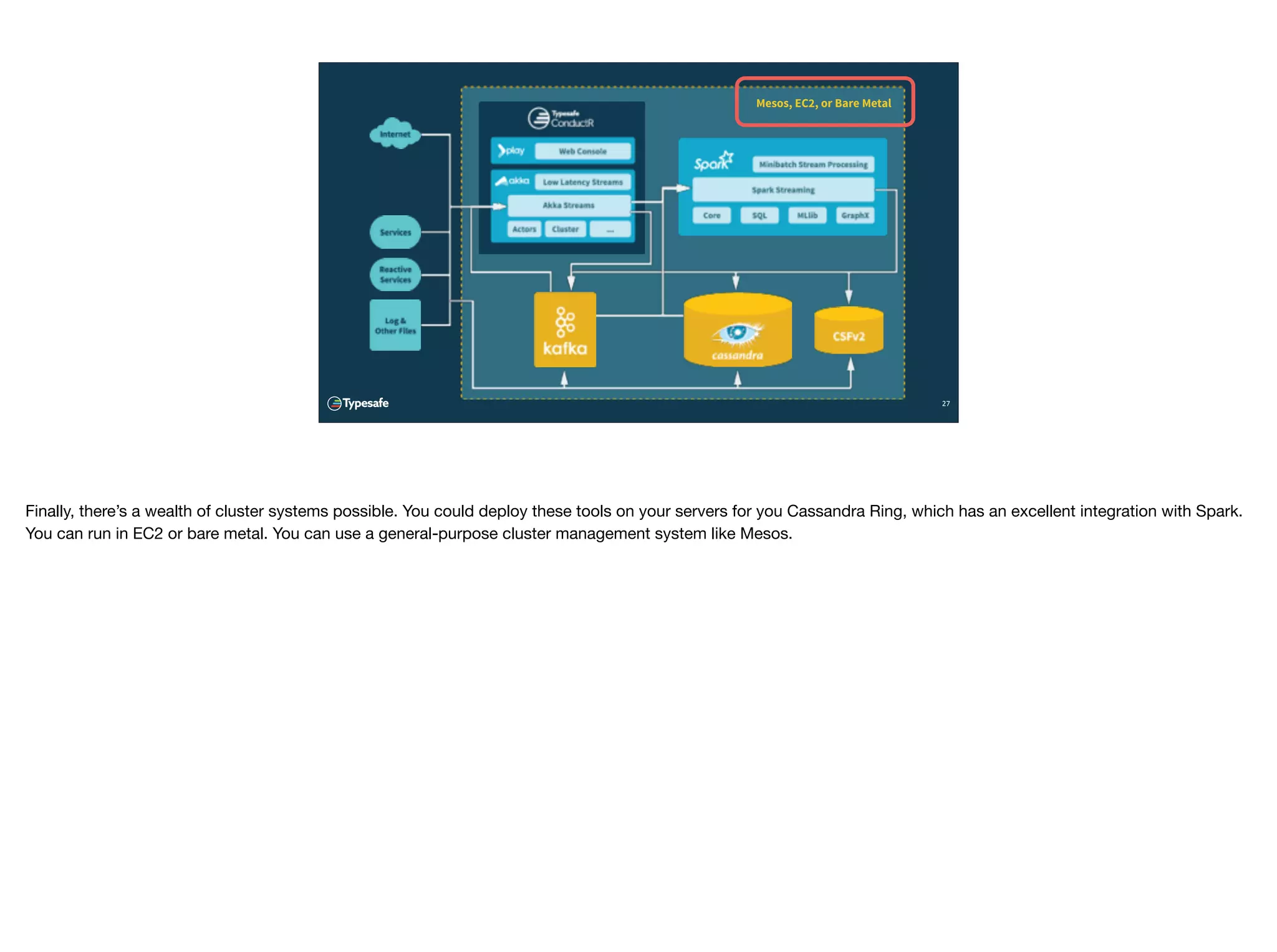

- 27. Mesos, EC2, orBare Metal 27 Finally, there’s a wealth of cluster systems possible. You could deploy these tools on your servers for you Cassandra Ring, which has an excellent integration with Spark. You can run in EC2 or bare metal. You can use a general-purpose cluster management system like Mesos.

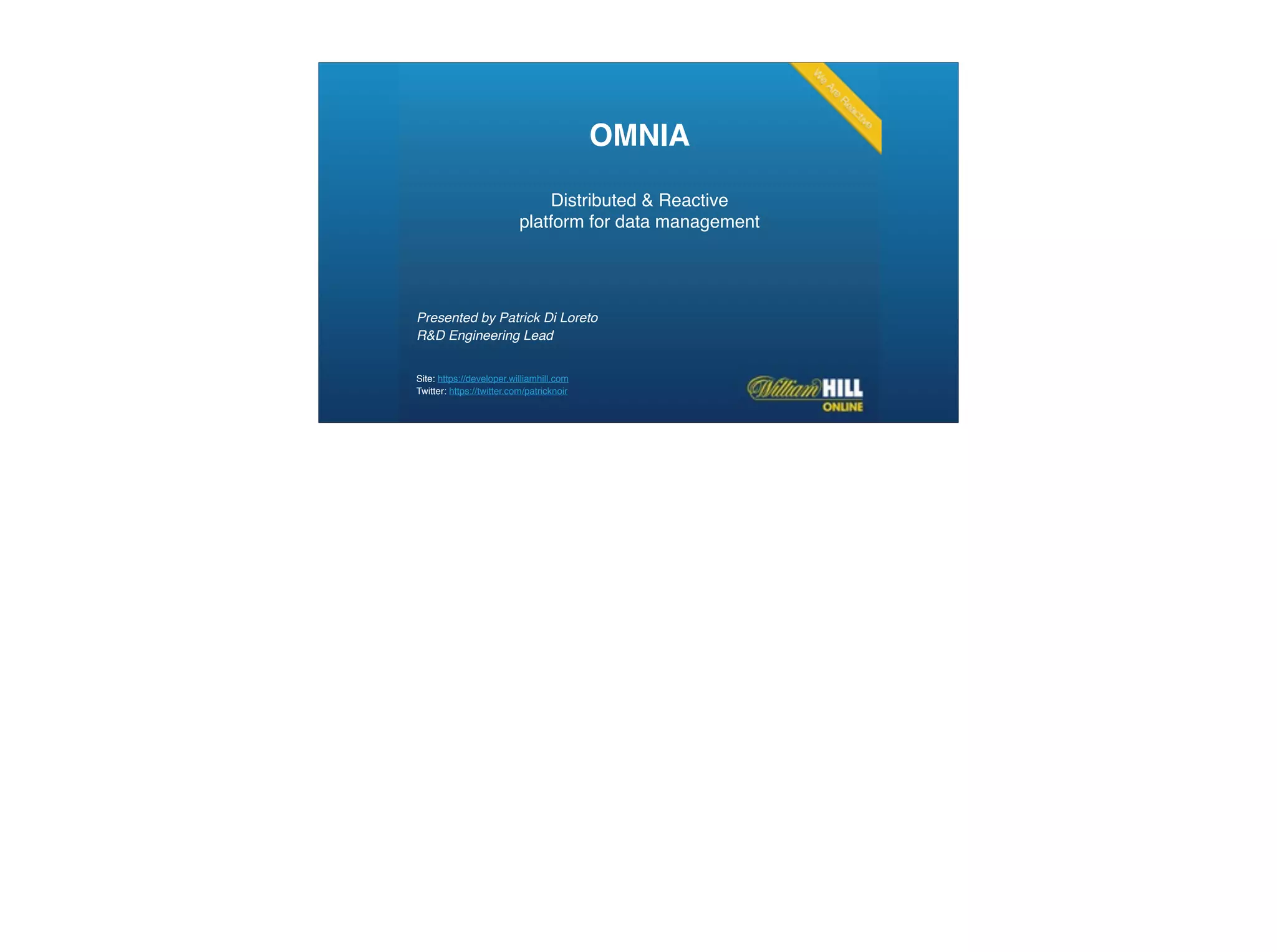

- 28. Presented by PatrickDi Loreto R&D Engineering Lead Site: https://developer.williamhill.com Twitter: https://twitter.com/patricknoir OMNIA Distributed & Reactive platform for data management

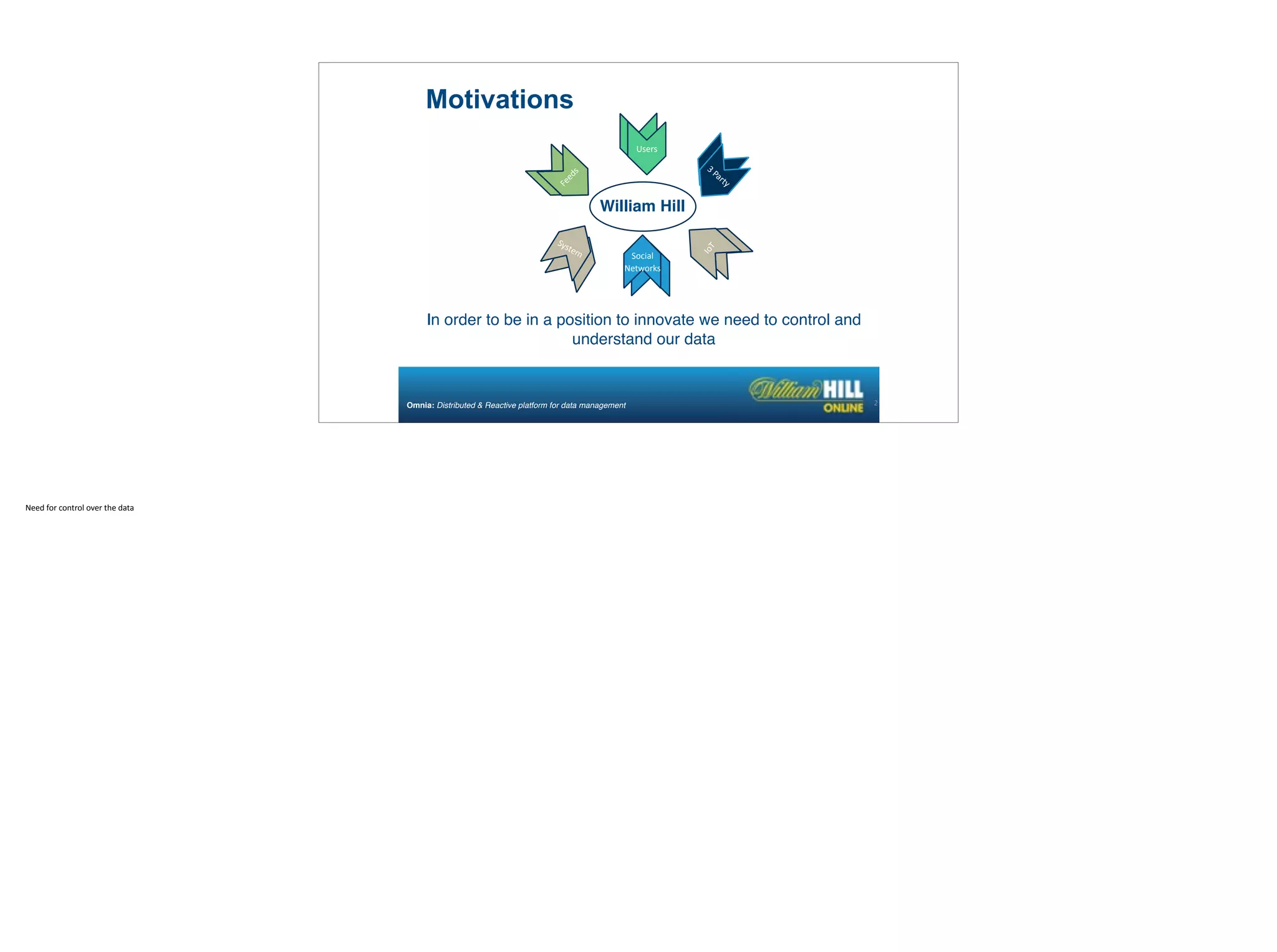

- 29. Motivations 29Omnia: Distributed &Reactive platform for data management Users Feeds System 3 Party In order to be in a position to innovate we need to control and understand our data Social Networks IoT William Hill Need for control over the data

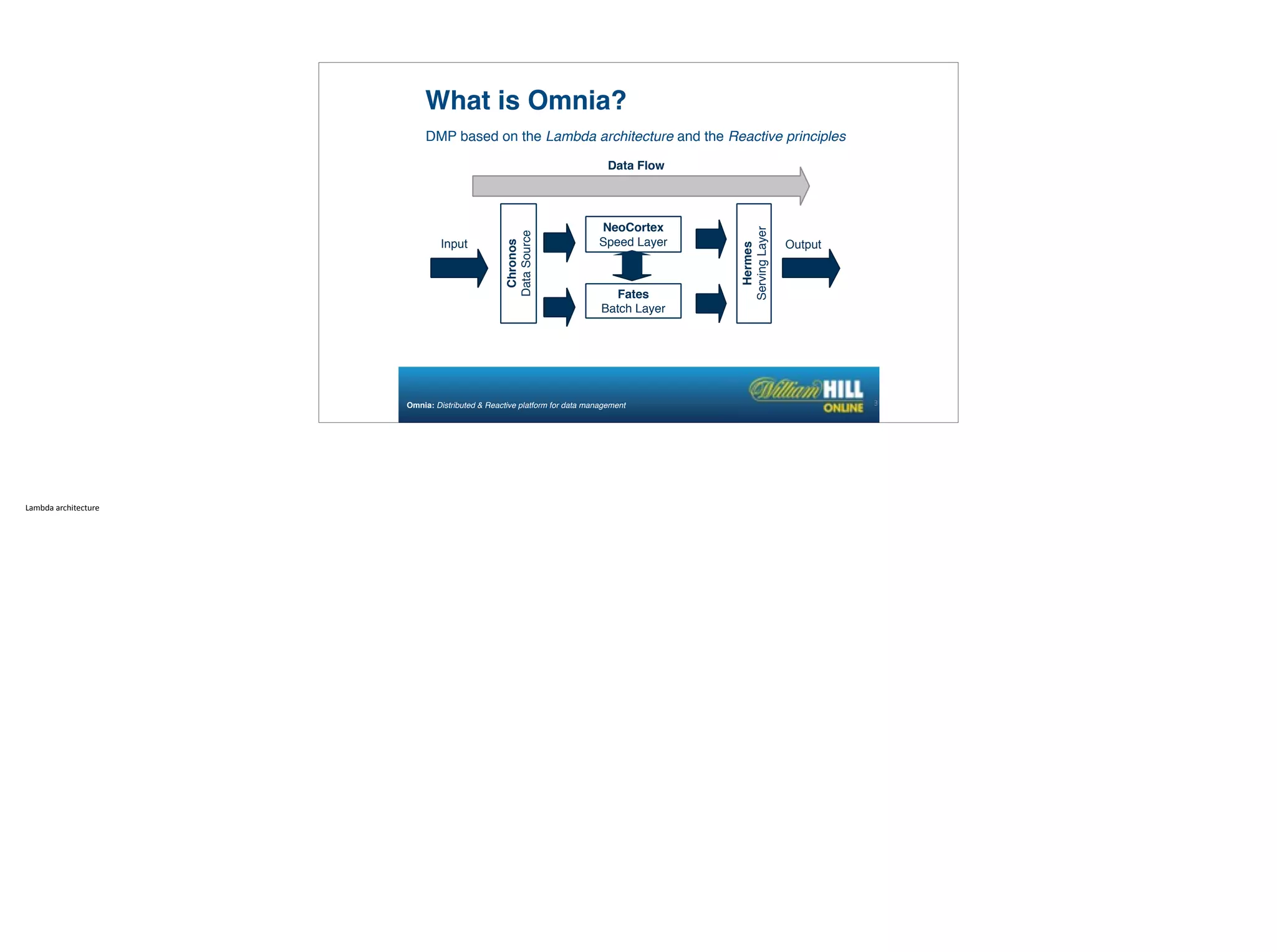

- 30. DMP based onthe Lambda architecture and the Reactive principles What is Omnia? 30 Chronos DataSource NeoCortex Speed Layer Fates Batch Layer Hermes ServingLayer Data Flow Input Output Omnia: Distributed & Reactive platform for data management Lambda architecture

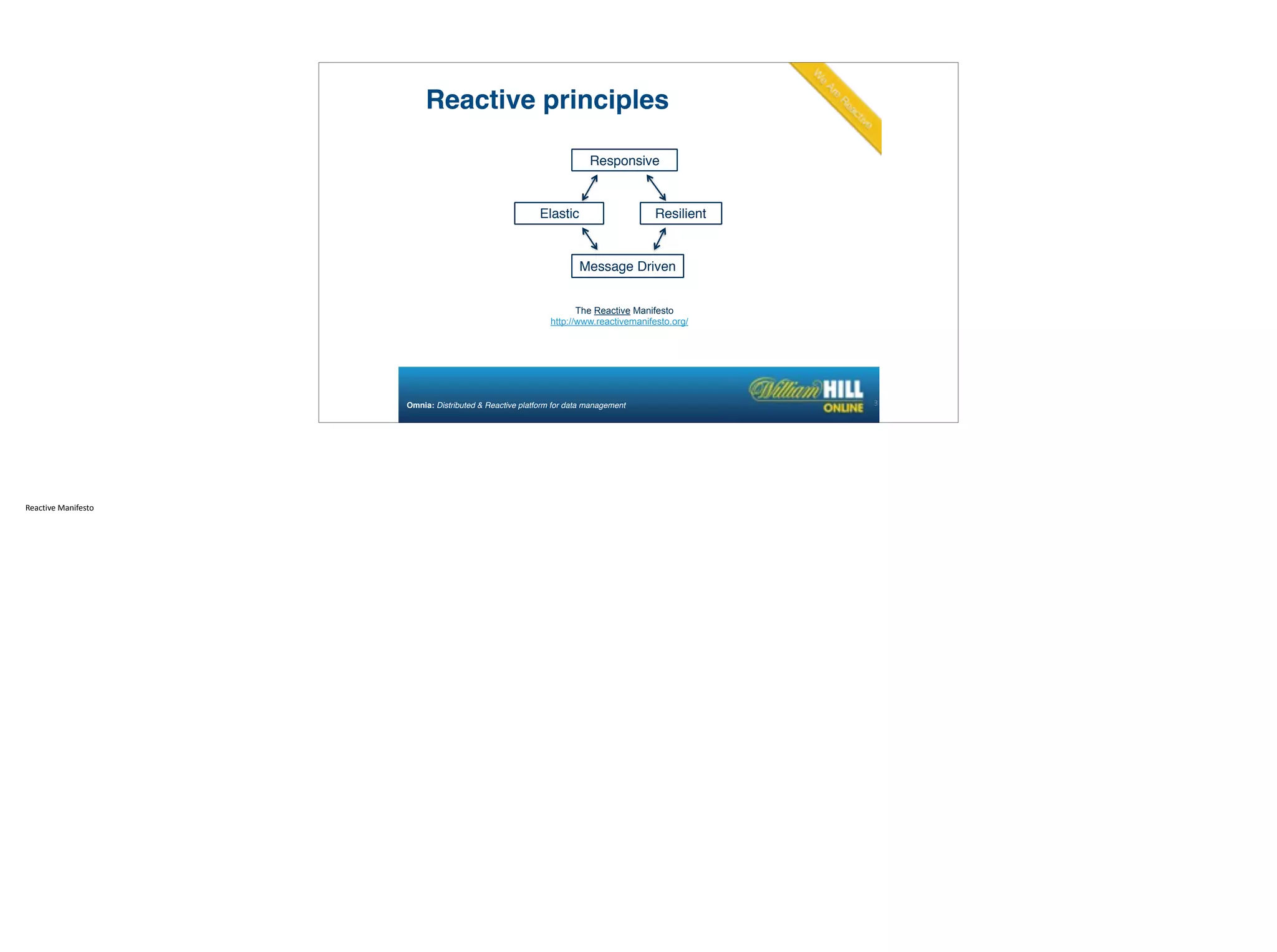

- 31. Reactive principles 31 Responsive Resilient Message Driven Elastic TheReactive Manifesto http://www.reactivemanifesto.org/ Omnia: Distributed & Reactive platform for data management Reactive Manifesto

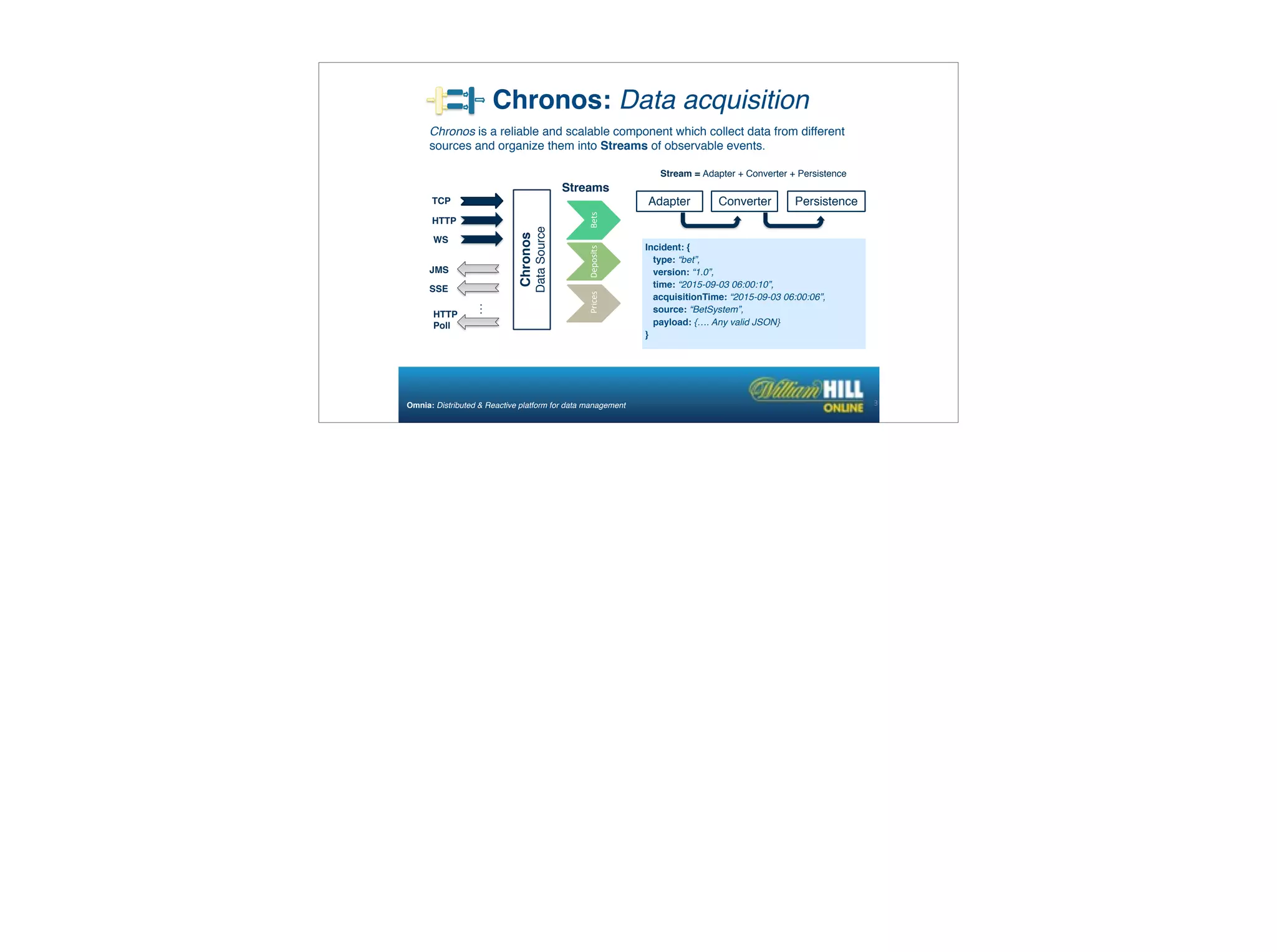

- 32. Chronos is areliable and scalable component which collect data from different sources and organize them into Streams of observable events. Chronos: Data acquisition 32 Incident: { type: “bet”, version: “1.0”, time: “2015-09-03 06:00:10”, acquisitionTime: “2015-09-03 06:00:06”, source: “BetSystem”, payload: {…. Any valid JSON} } Omnia: Distributed & Reactive platform for data management Chronos DataSource TCP HTTP WS … JMS HTTP Poll SSE Adapter Streams Converter Persistence BetsDeposits Prices Stream = Adapter + Converter + Persistence

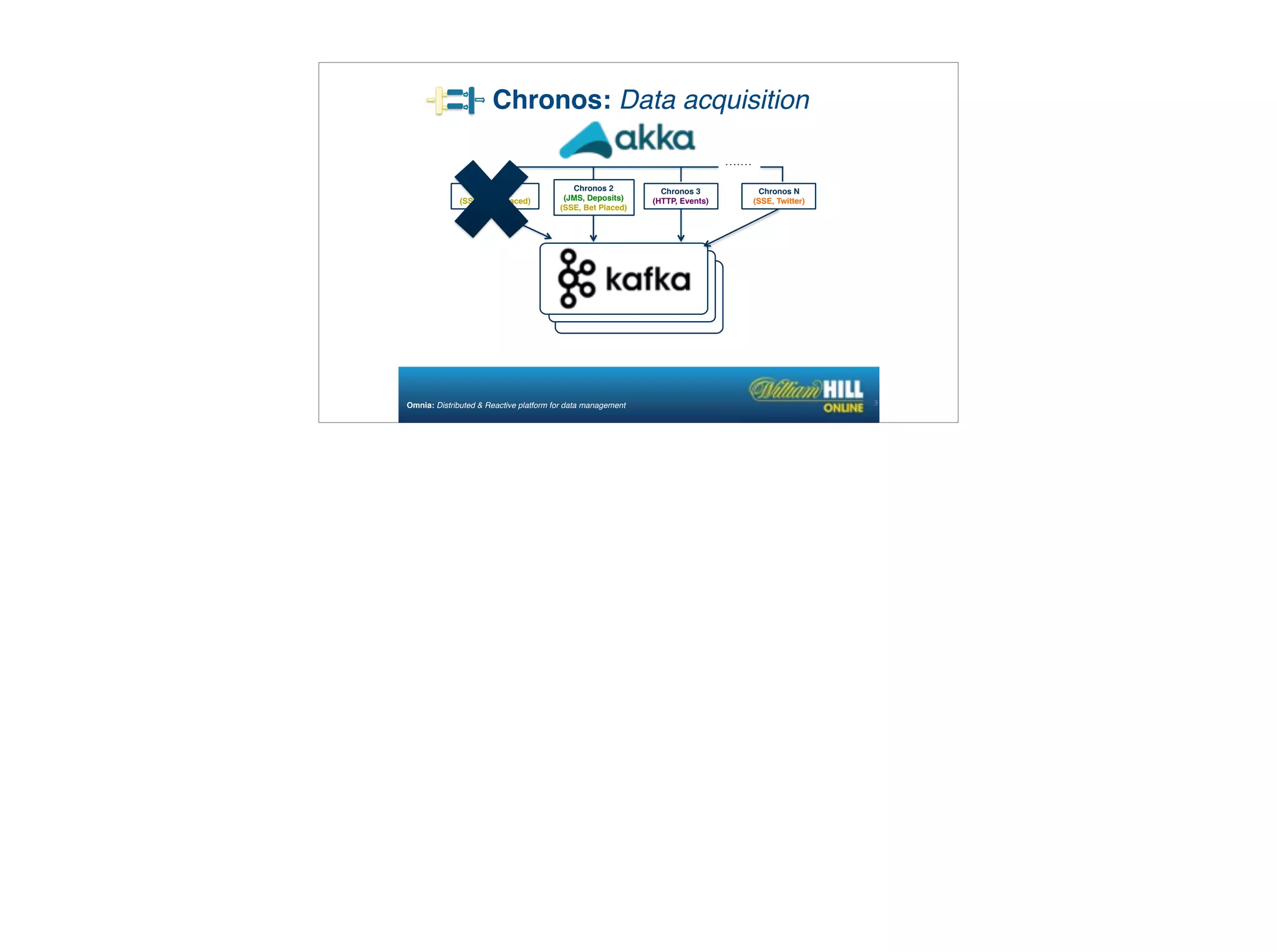

- 33. Chronos: Data acquisition 33Omnia:Distributed & Reactive platform for data management Chronos 1 (SSE, Bets placed) Chronos 2 (JMS, Deposits) Chronos 3 (HTTP, Events) Chronos N (SSE, Twitter) ….… Chronos 2 (JMS, Deposits) (SSE, Bet Placed)

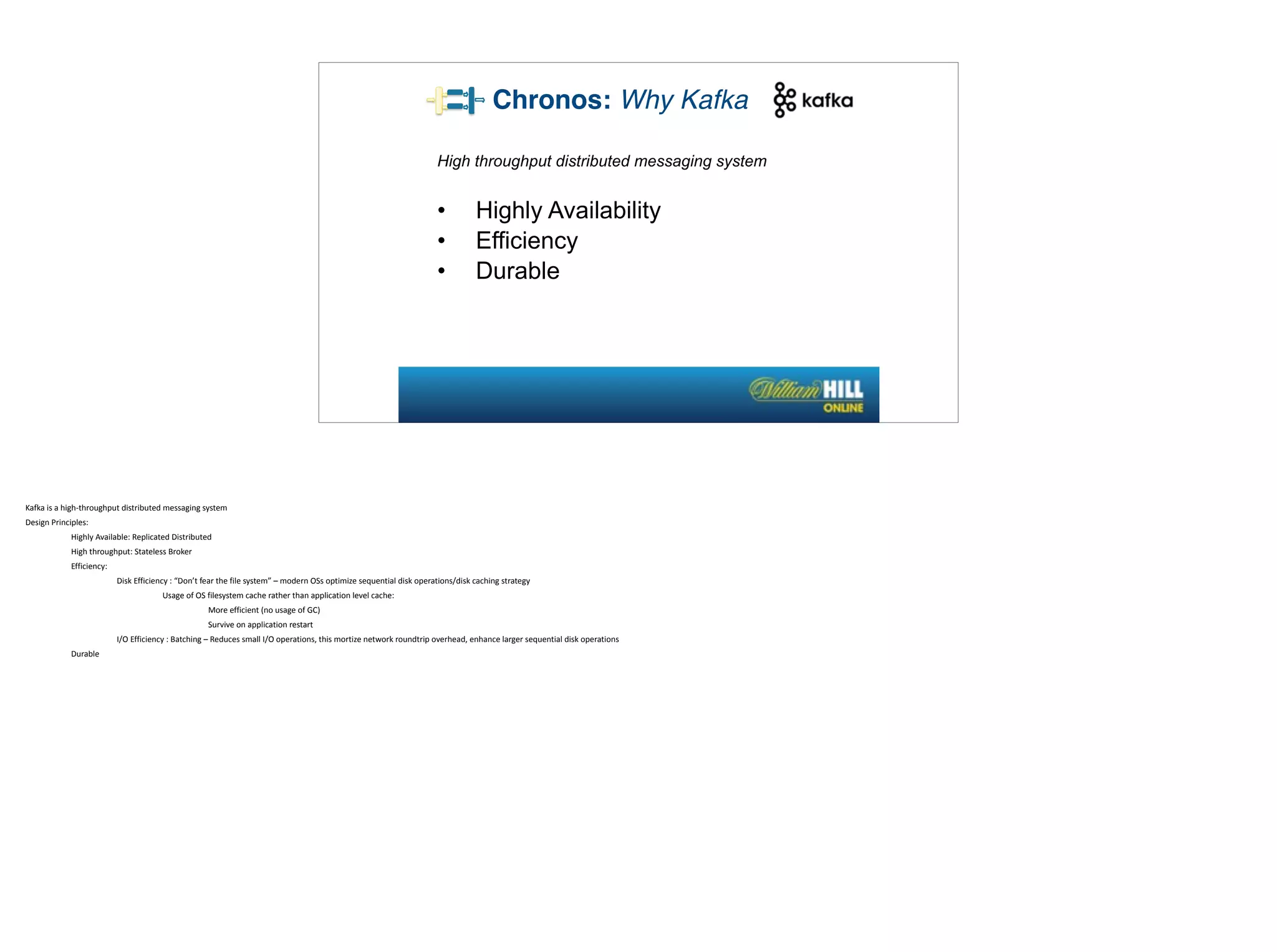

- 34. High throughput distributedmessaging system • Highly Availability • Efficiency • Durable Chronos: Why Kafka Kafka is a high-‐throughput distributed messaging system Design Principles: Highly Available: Replicated Distributed High throughput: Stateless Broker Efficiency: Disk Efficiency : “Don’t fear the file system” – modern OSs optimize sequential disk operations/disk caching strategy Usage of OS filesystem cache rather than application level cache: More efficient (no usage of GC) Survive on application restart I/O Efficiency : Batching – Reduces small I/O operations, this mortize network roundtrip overhead, enhance larger sequential disk operations Durable

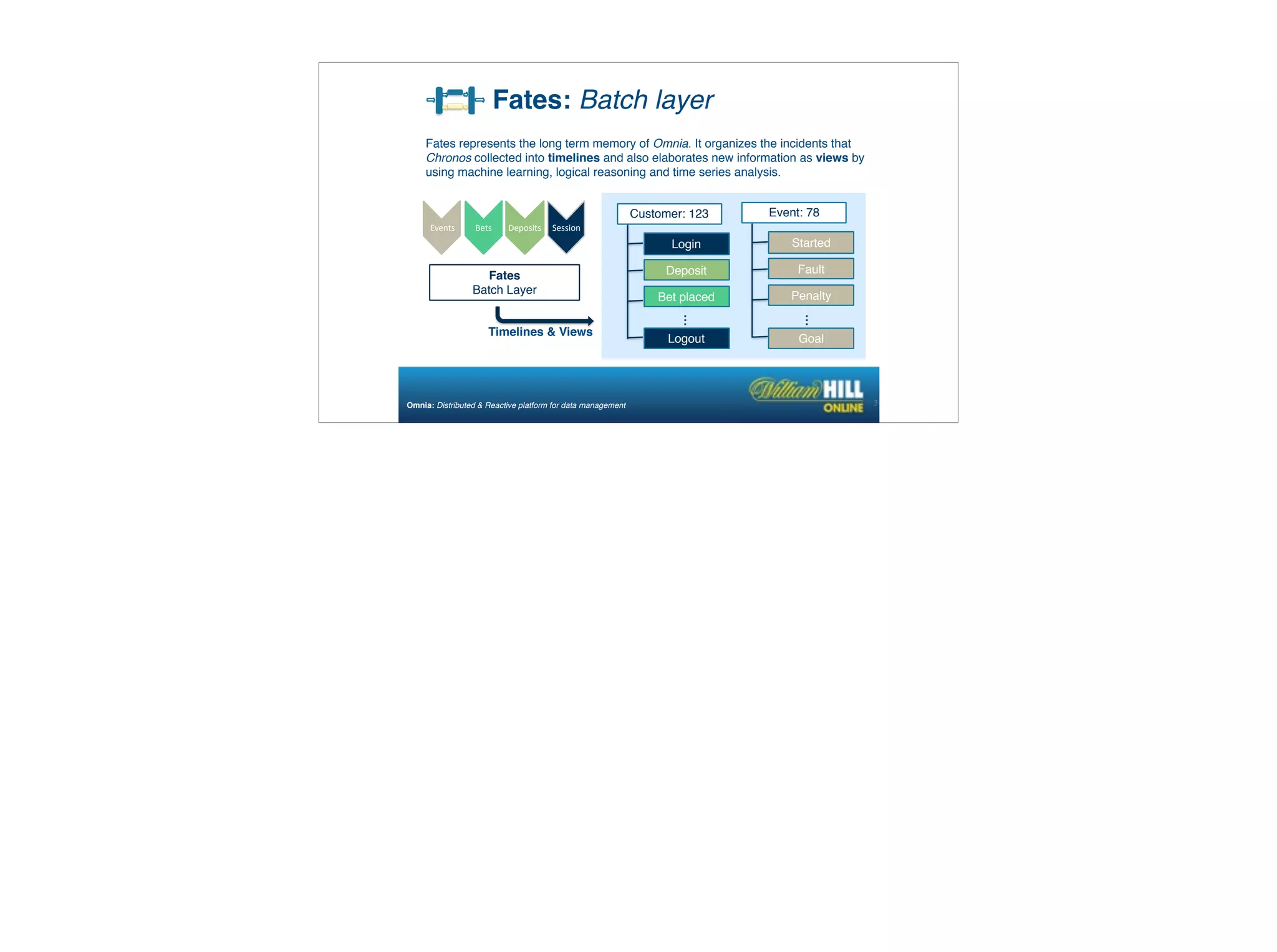

- 35. Fates represents thelong term memory of Omnia. It organizes the incidents that Chronos collected into timelines and also elaborates new information as views by using machine learning, logical reasoning and time series analysis. Fates: Batch layer 35Omnia: Distributed & Reactive platform for data management Customer: 123 Login Deposit Bet placed … Logout Event: 78 Started Fault Penalty … Goal Timelines & Views Bets Deposits Events Session Fates Batch Layer

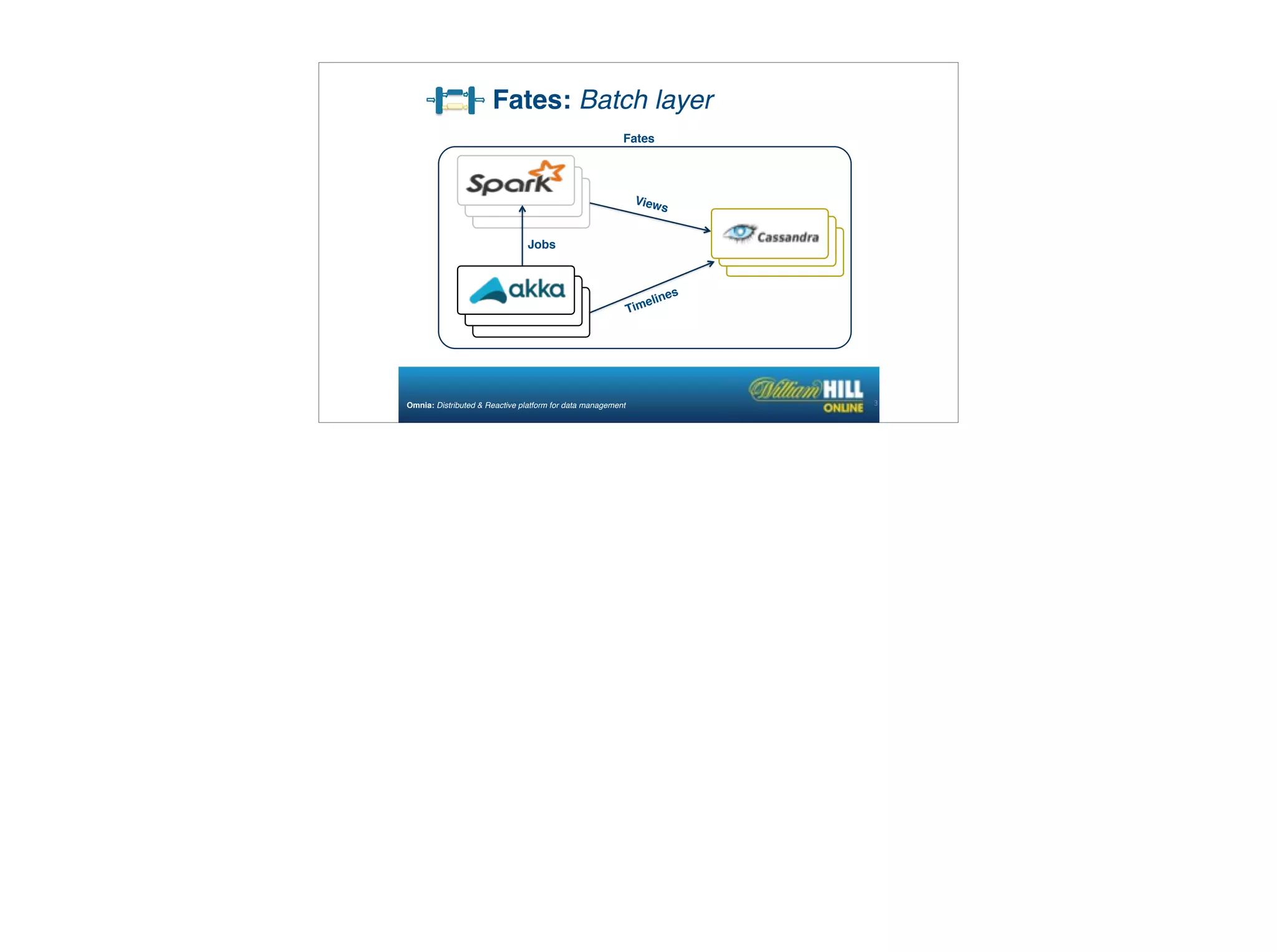

- 36. Fates: Batch layer 36Omnia:Distributed & Reactive platform for data management Timelines Views Jobs Fates

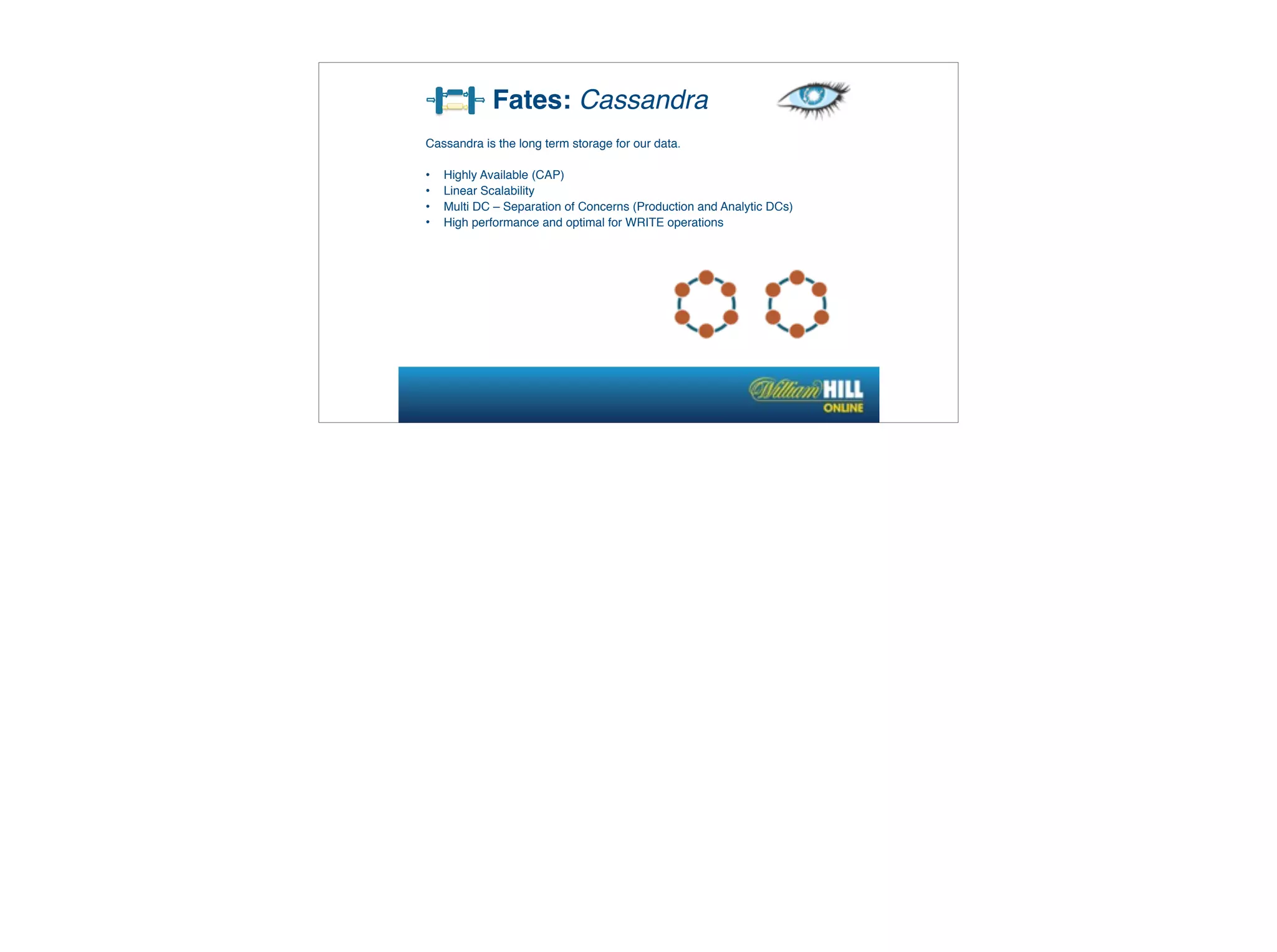

- 37. Fates: Cassandra Cassandra isthe long term storage for our data. • Highly Available (CAP) • Linear Scalability • Multi DC – Separation of Concerns (Production and Analytic DCs) • High performance and optimal for WRITE operations

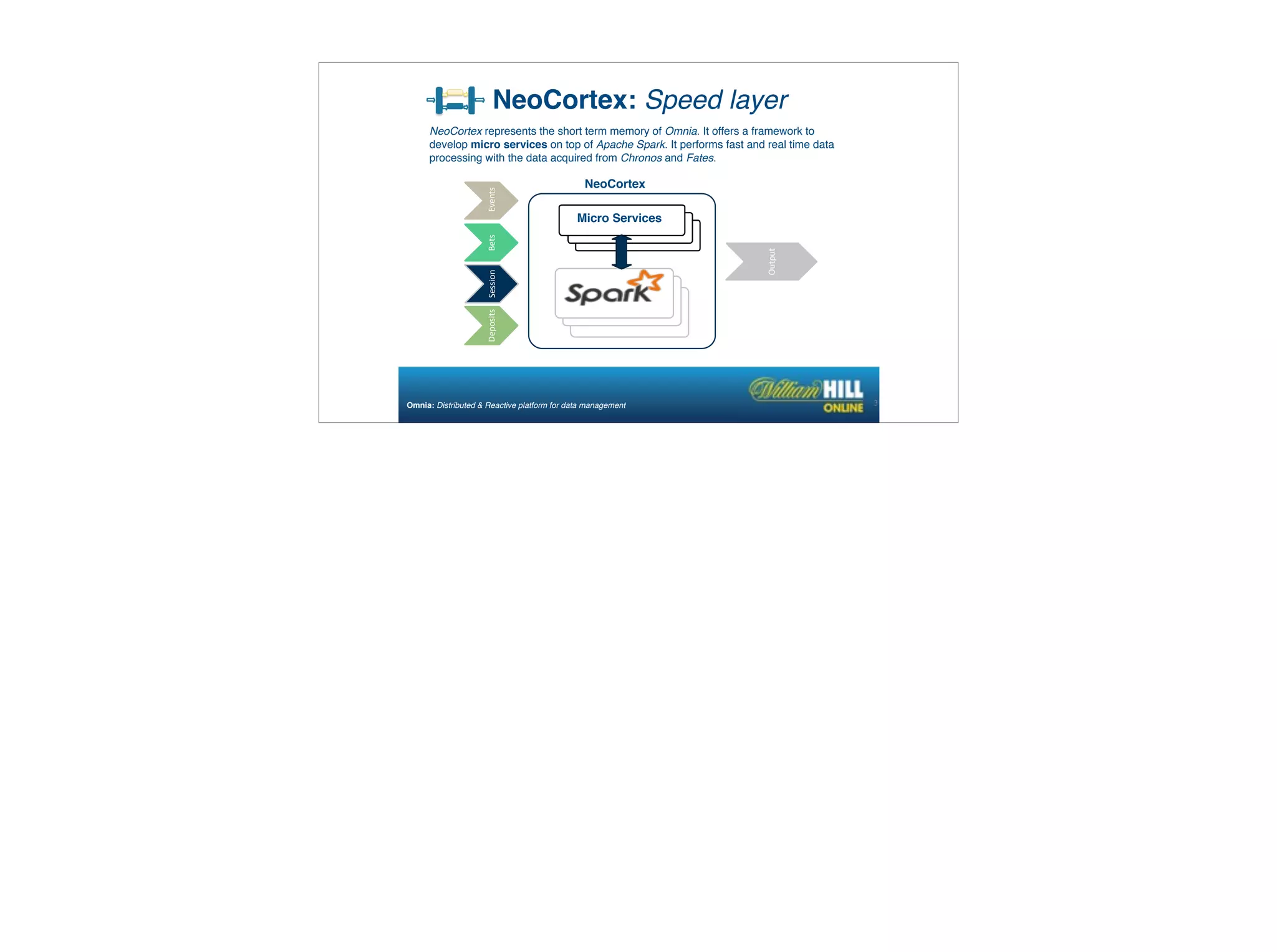

- 38. NeoCortex represents theshort term memory of Omnia. It offers a framework to develop micro services on top of Apache Spark. It performs fast and real time data processing with the data acquired from Chronos and Fates. NeoCortex: Speed layer 38Omnia: Distributed & Reactive platform for data management NeoCortex BetsDeposits EventsSession Micro Services Output

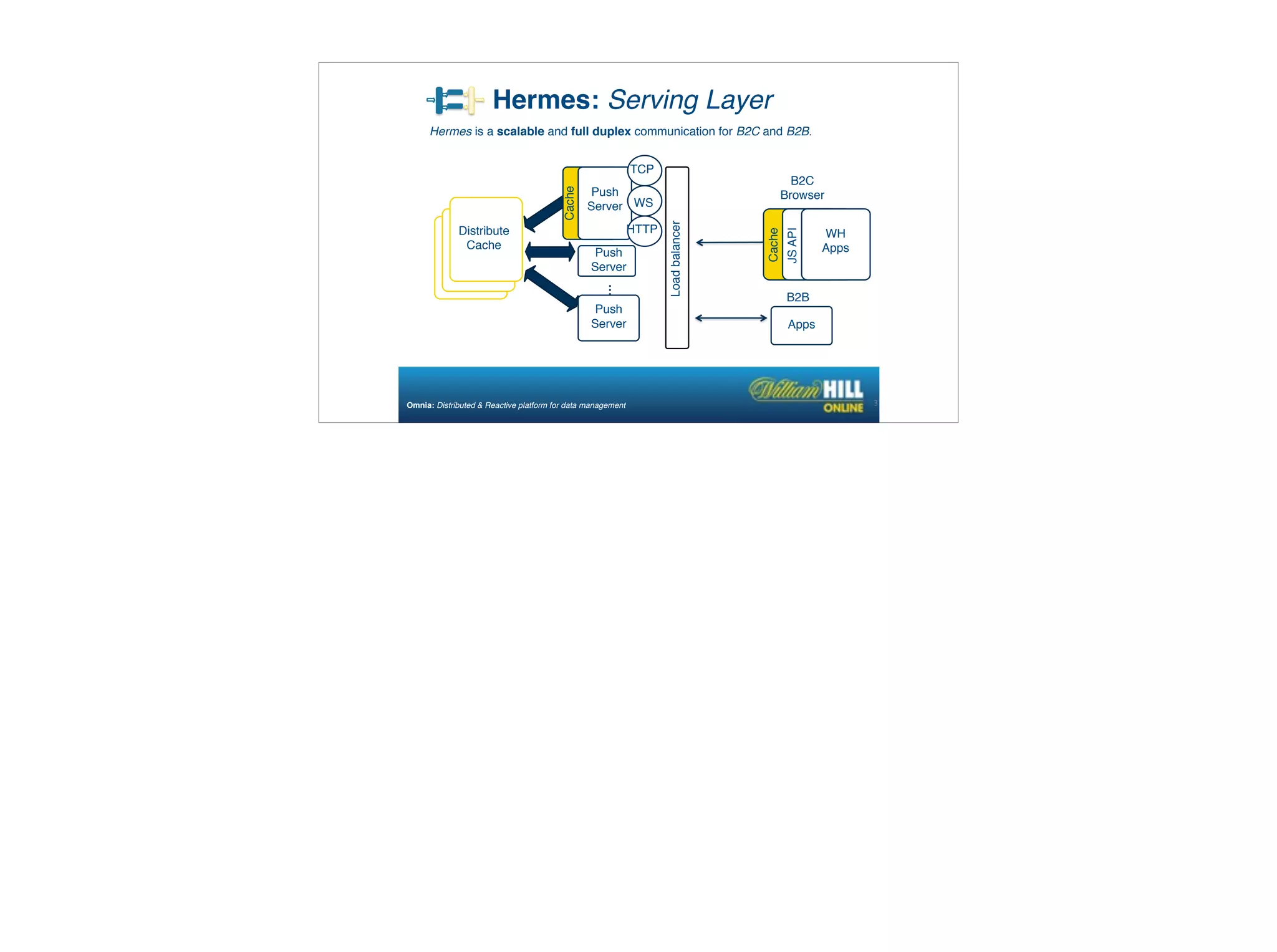

- 39. Hermes is ascalable and full duplex communication for B2C and B2B. Hermes: Serving Layer 39Omnia: Distributed & Reactive platform for data management B2C Browser B2B Loadbalancer Push Server Distribute Cache Push Server Push Server … TCP WS HTTP JSAPI WH Apps Cache Cache Apps

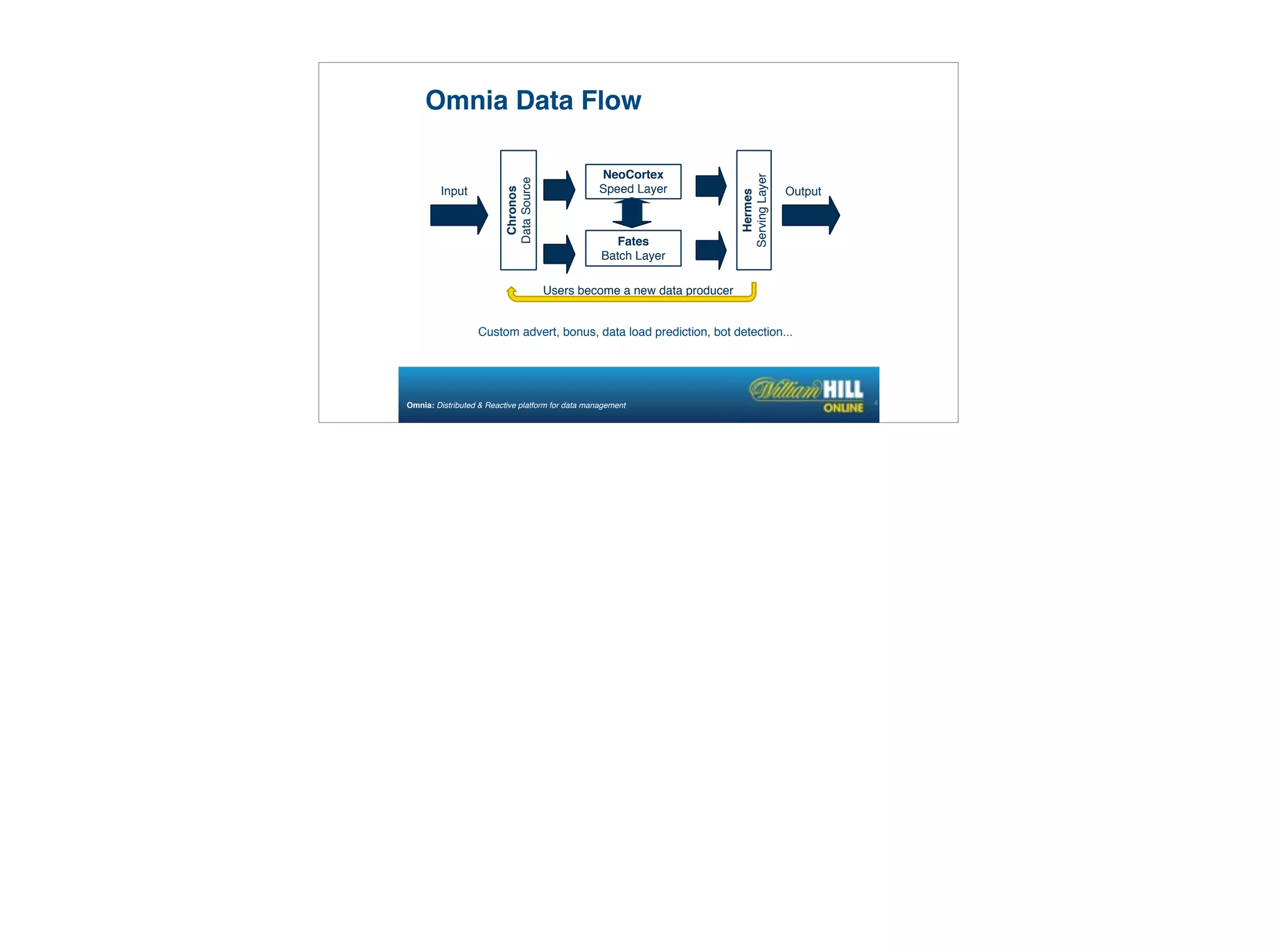

- 40. Custom advert, bonus,data load prediction, bot detection... Omnia Data Flow 40 Chronos DataSource NeoCortex Speed Layer Fates Batch Layer Hermes ServingLayer Input Output Omnia: Distributed & Reactive platform for data management Users become a new data producer

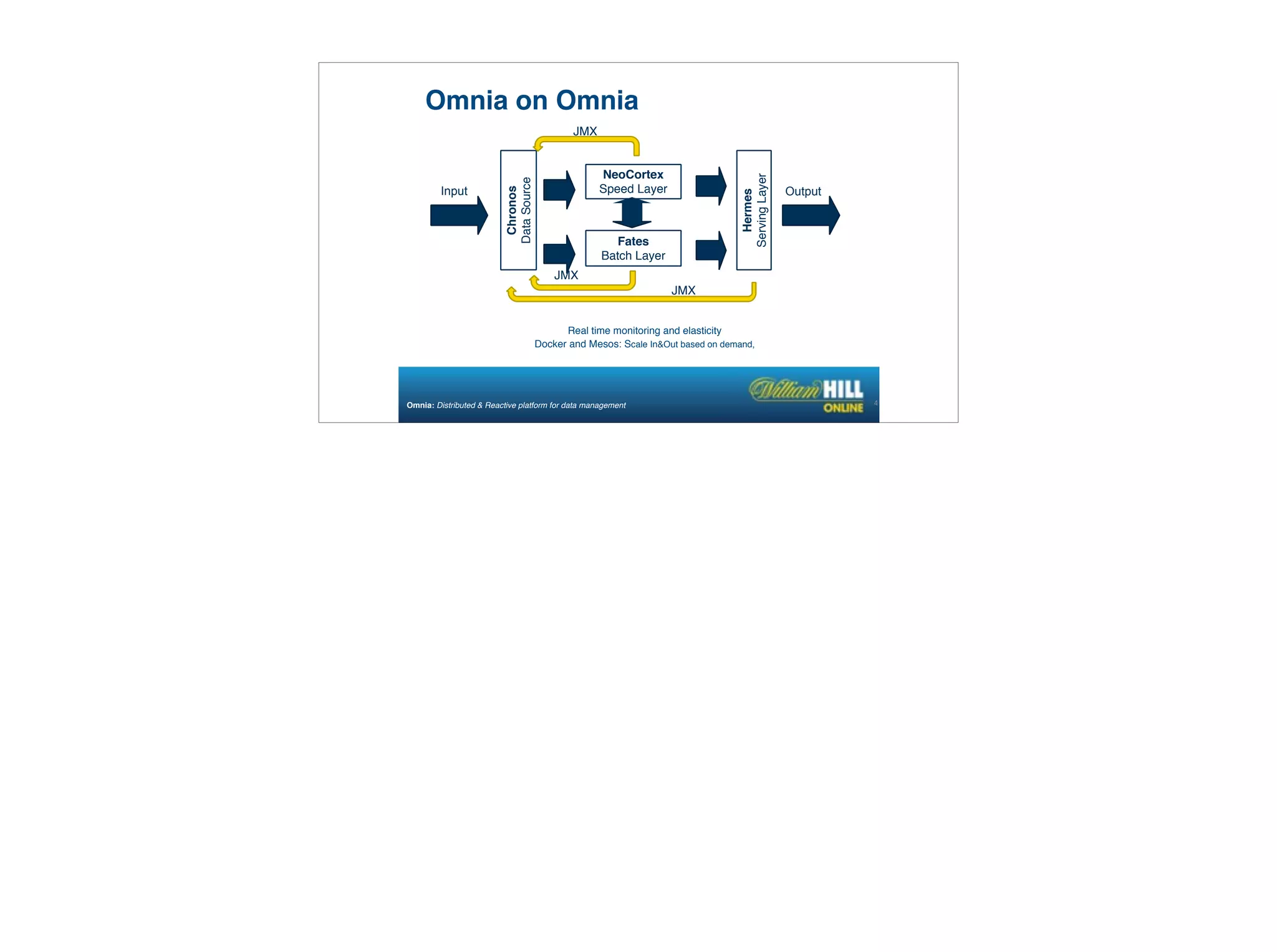

- 41. Real time monitoringand elasticity Docker and Mesos: Scale In&Out based on demand, Omnia on Omnia 41 Chronos DataSource NeoCortex Speed Layer Fates Batch Layer Hermes ServingLayer Input Output Omnia: Distributed & Reactive platform for data management JMX JMX JMX

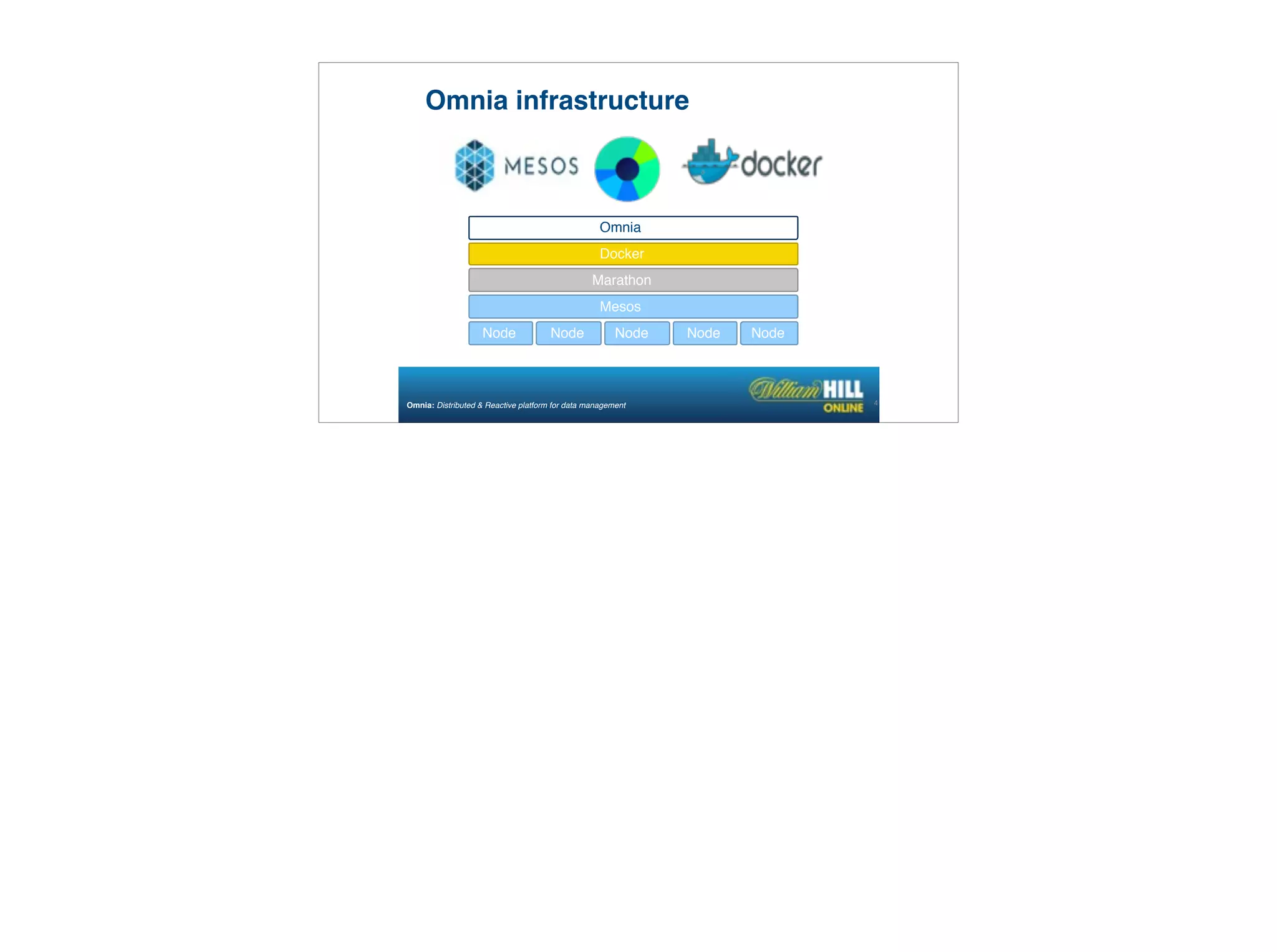

- 42. Omnia infrastructure 42Omnia: Distributed& Reactive platform for data management Omnia Docker Marathon Mesos Node Node NodeNodeNode
