Tips and Tricks for Graph Data Modeling

The document provides tips and tricks for graph modeling, focusing on how to effectively query and find similar meetup groups on meetup.com using Neo4j. It discusses different querying strategies, optimizing for performance by modeling relationships and properties accurately, and making implicit relationships explicit. Additionally, it covers profiling queries to decrease database hits and the benefits of using specific relationship types in Neo4j.

Embed presentation

Download as PDF, PPTX
Graph Modeling Tips and Tricks Mark Needham @markhneedham
Introducing our data set...

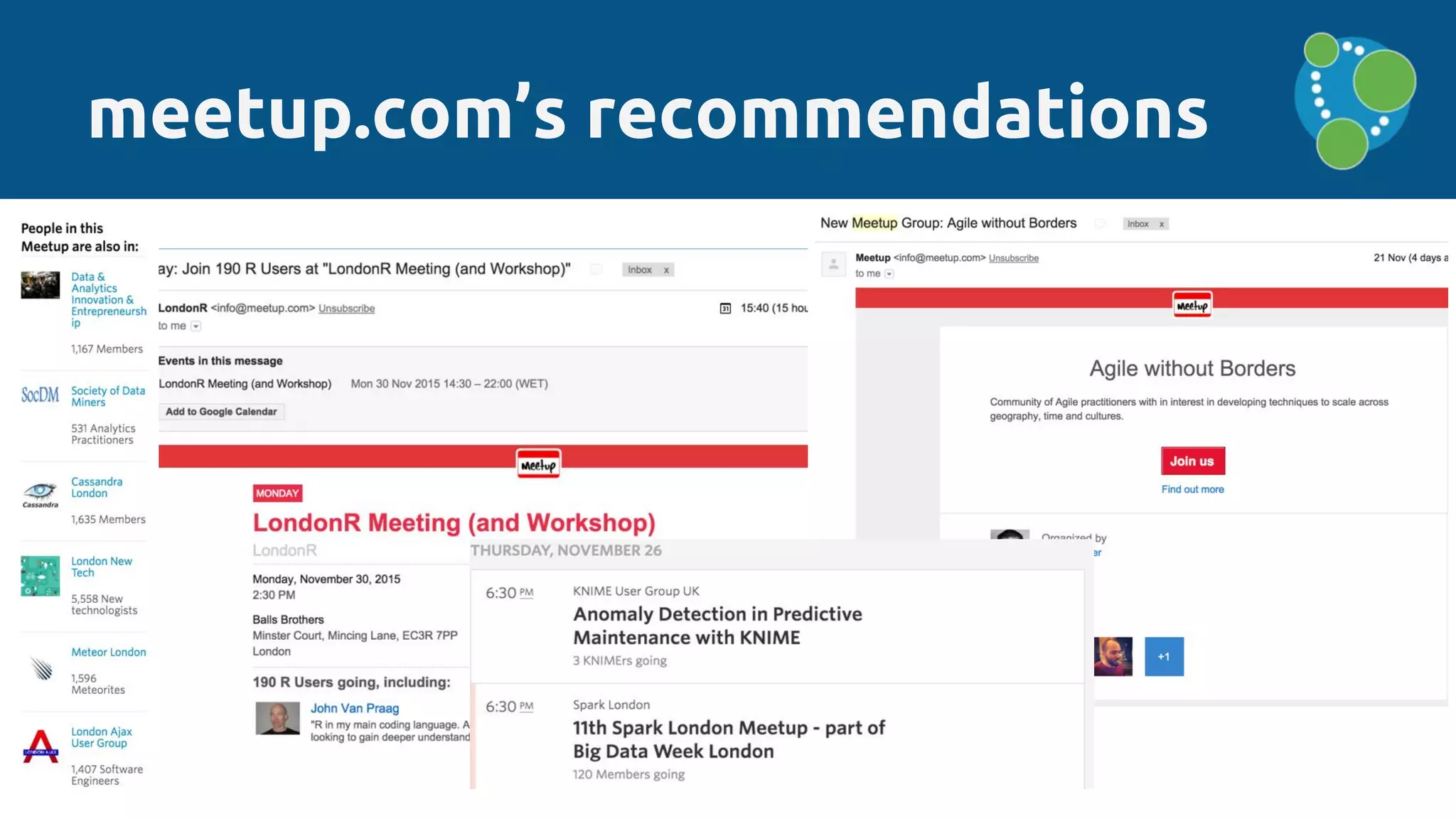

meetup.com’s recommendations

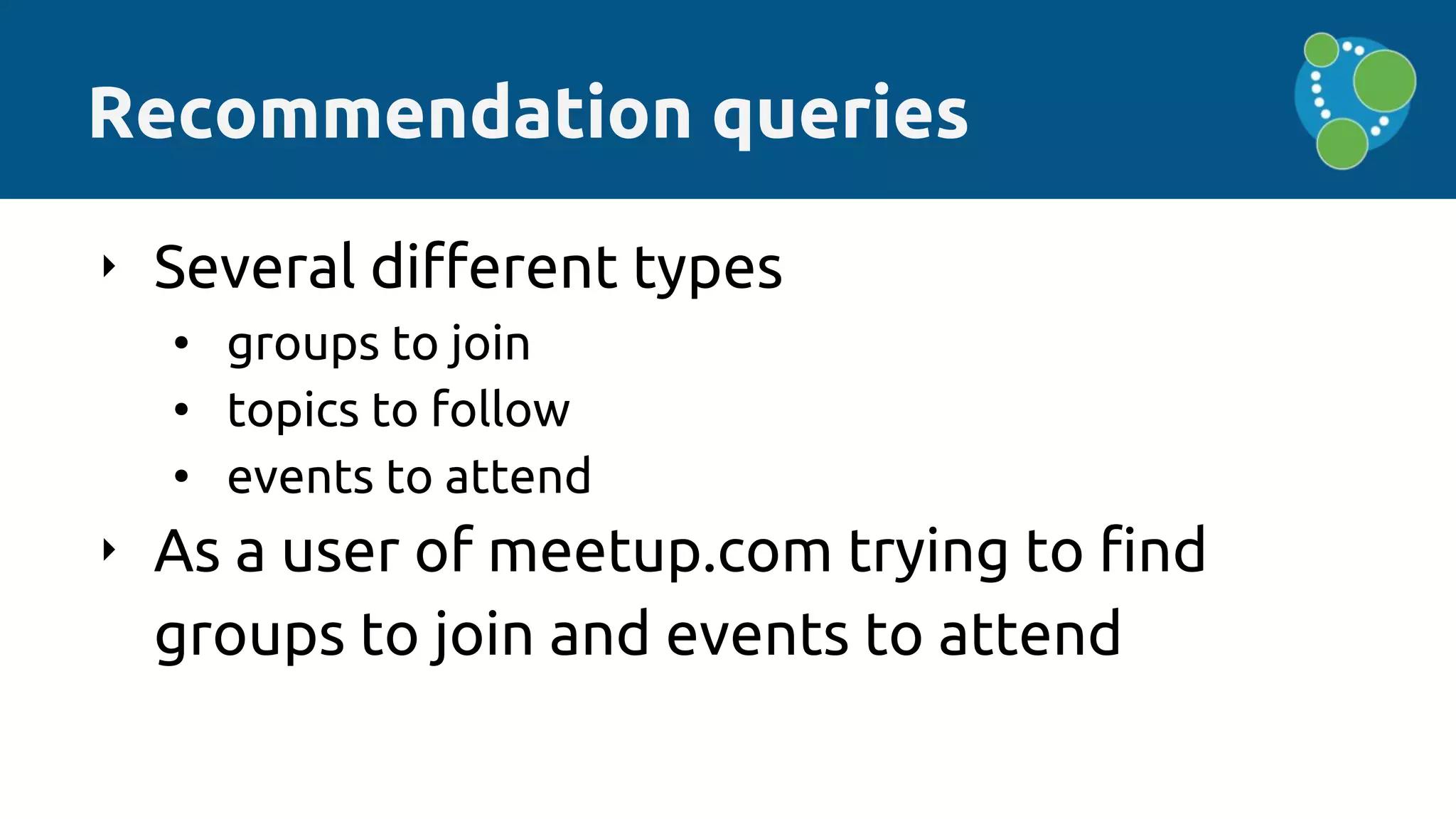

Recommendation queries ‣ Several different types • groups to join • topics to follow • events to attend ‣ As a user of meetup.com trying to find groups to join and events to attend
How will this talk be structured?

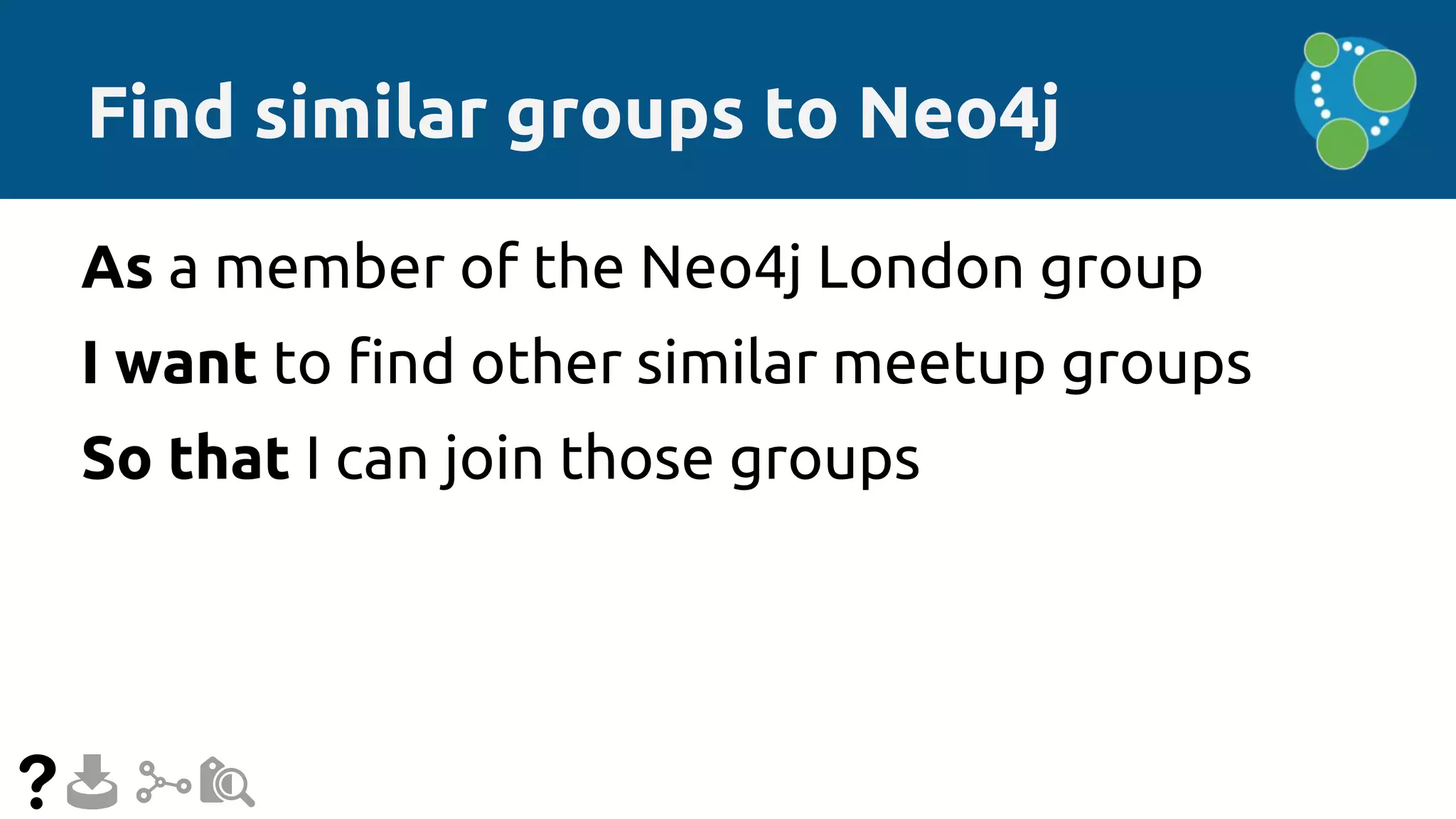

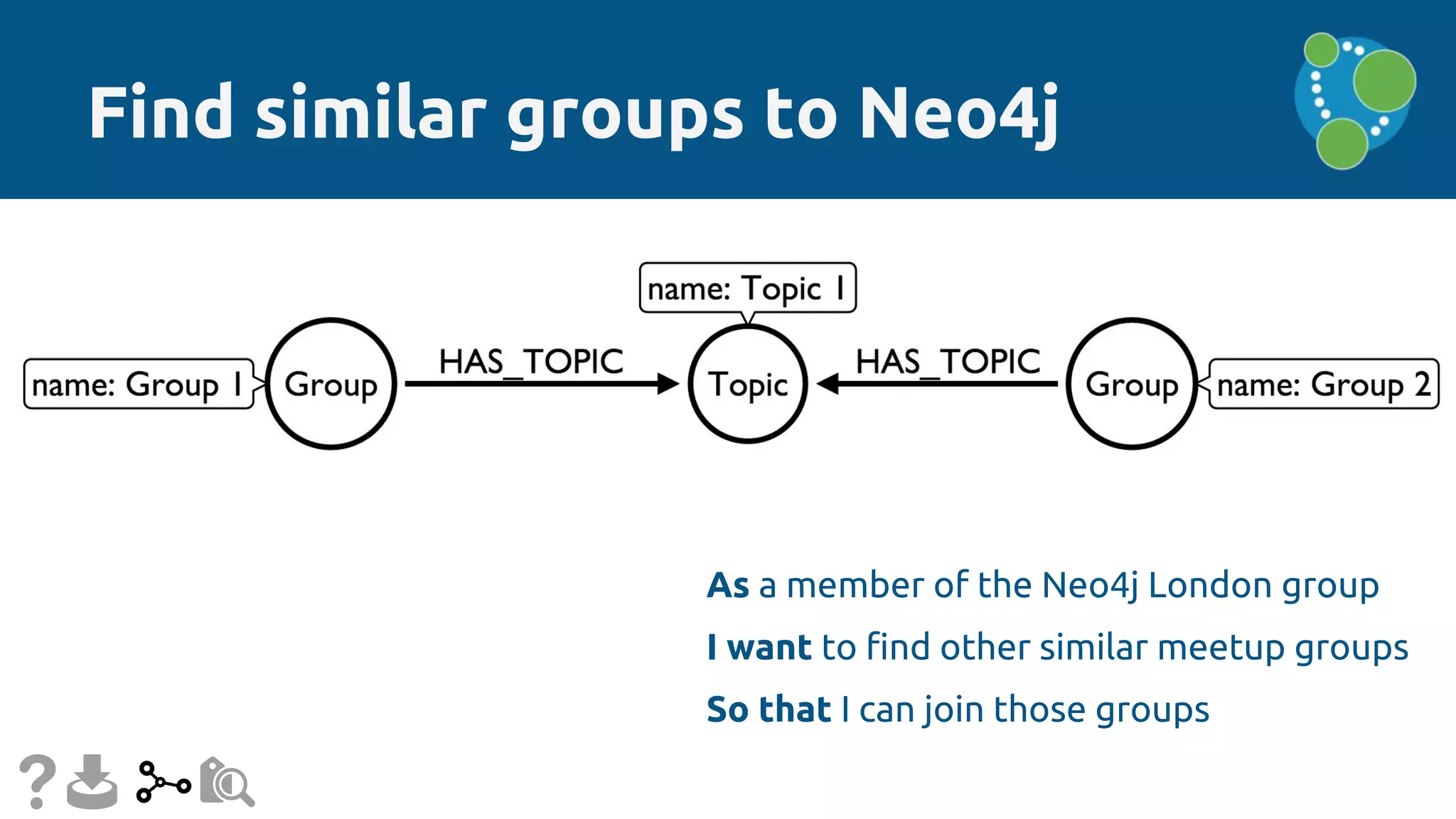

Find similar groups to Neo4j As a member of the Neo4j London group I want to find other similar meetup groups So that I can join those groups

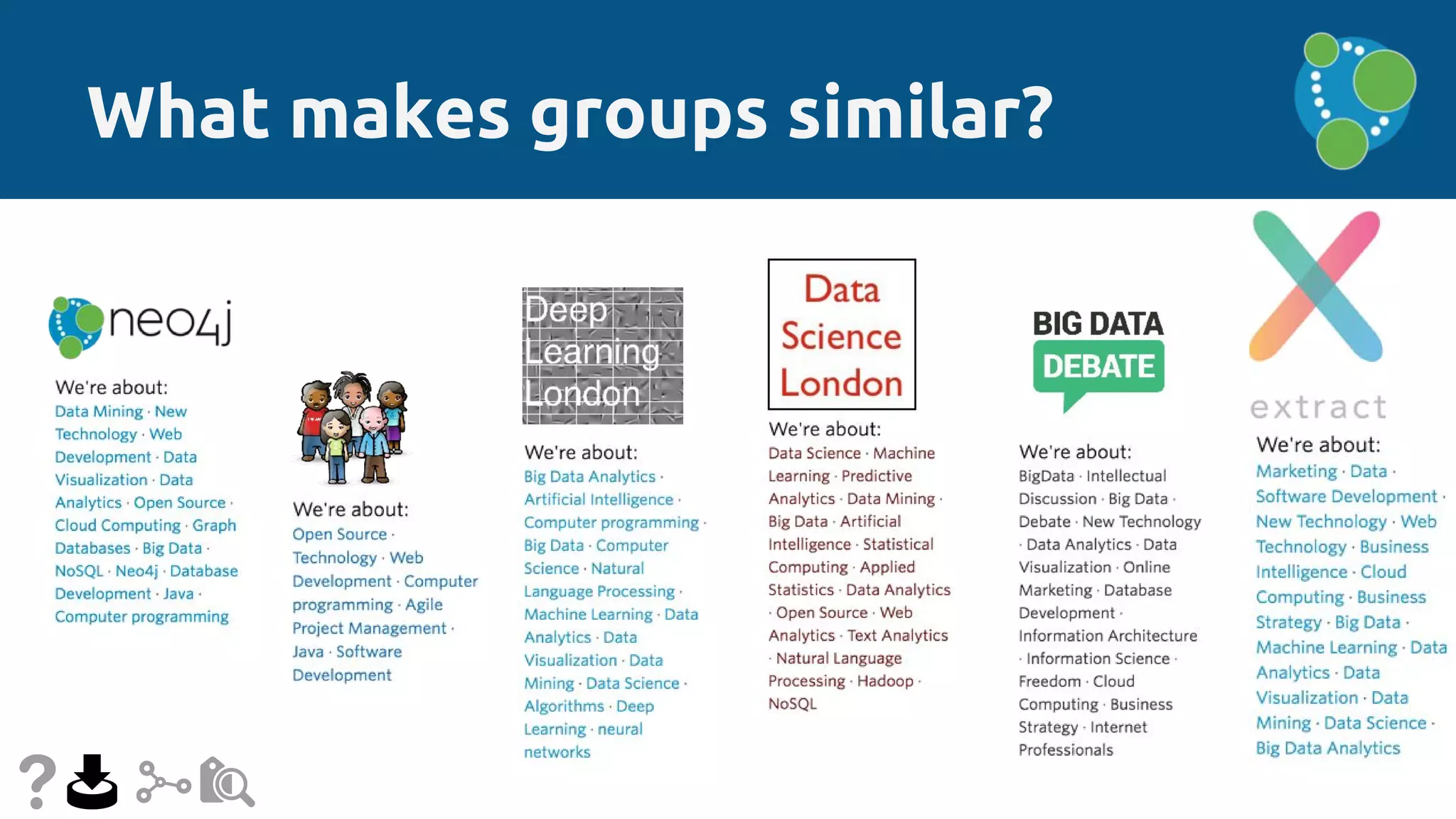

What makes groups similar?

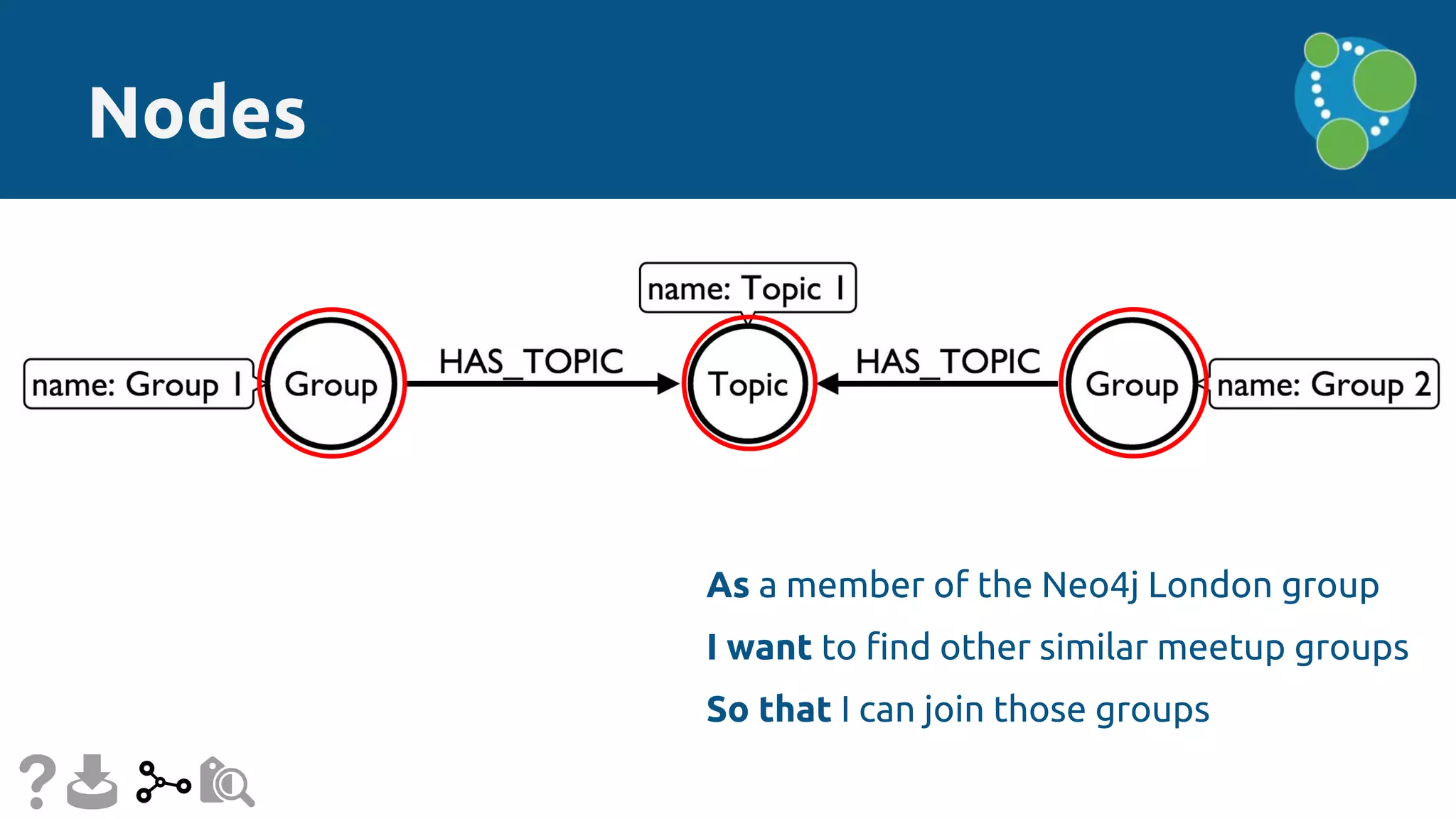

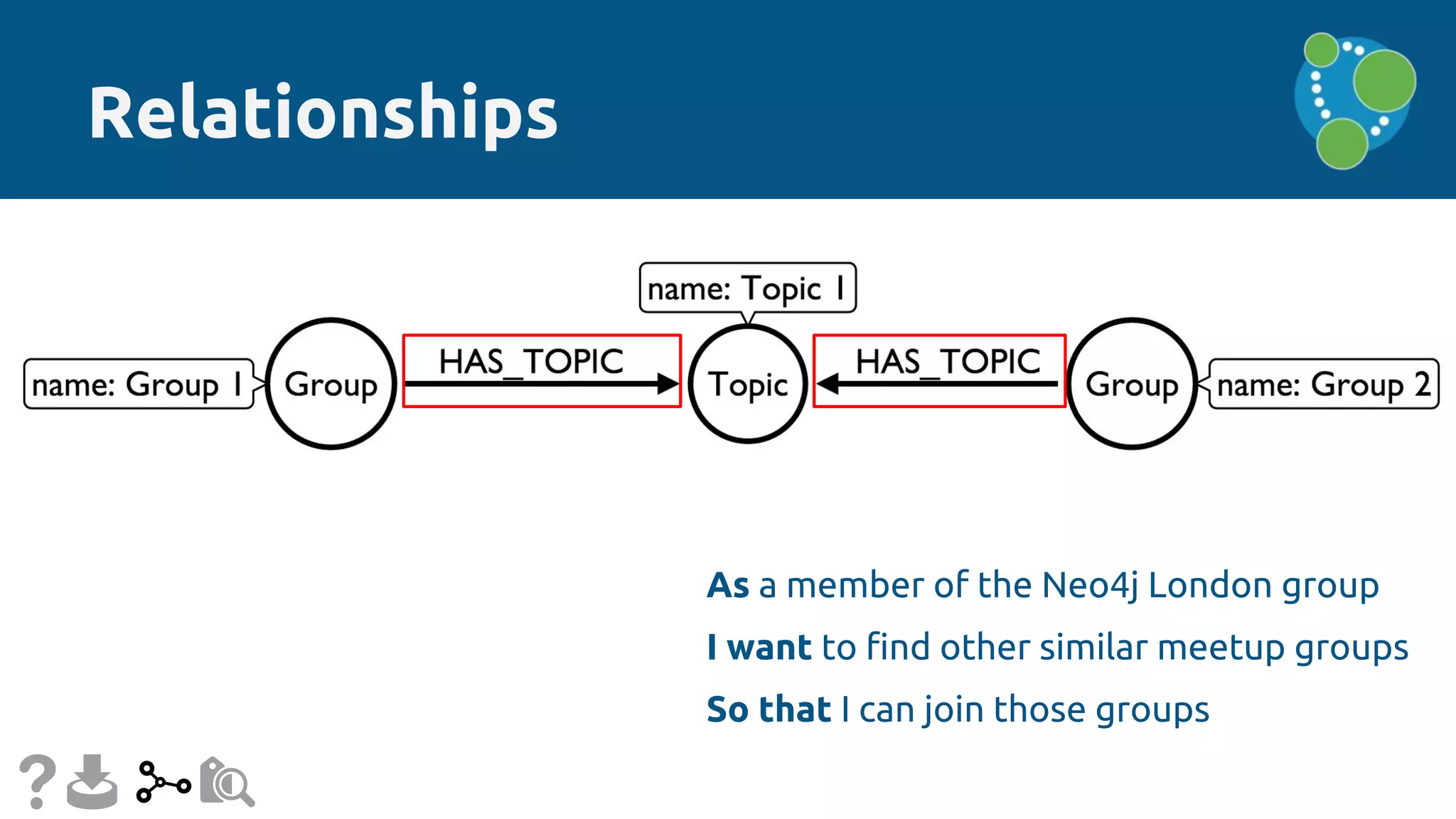

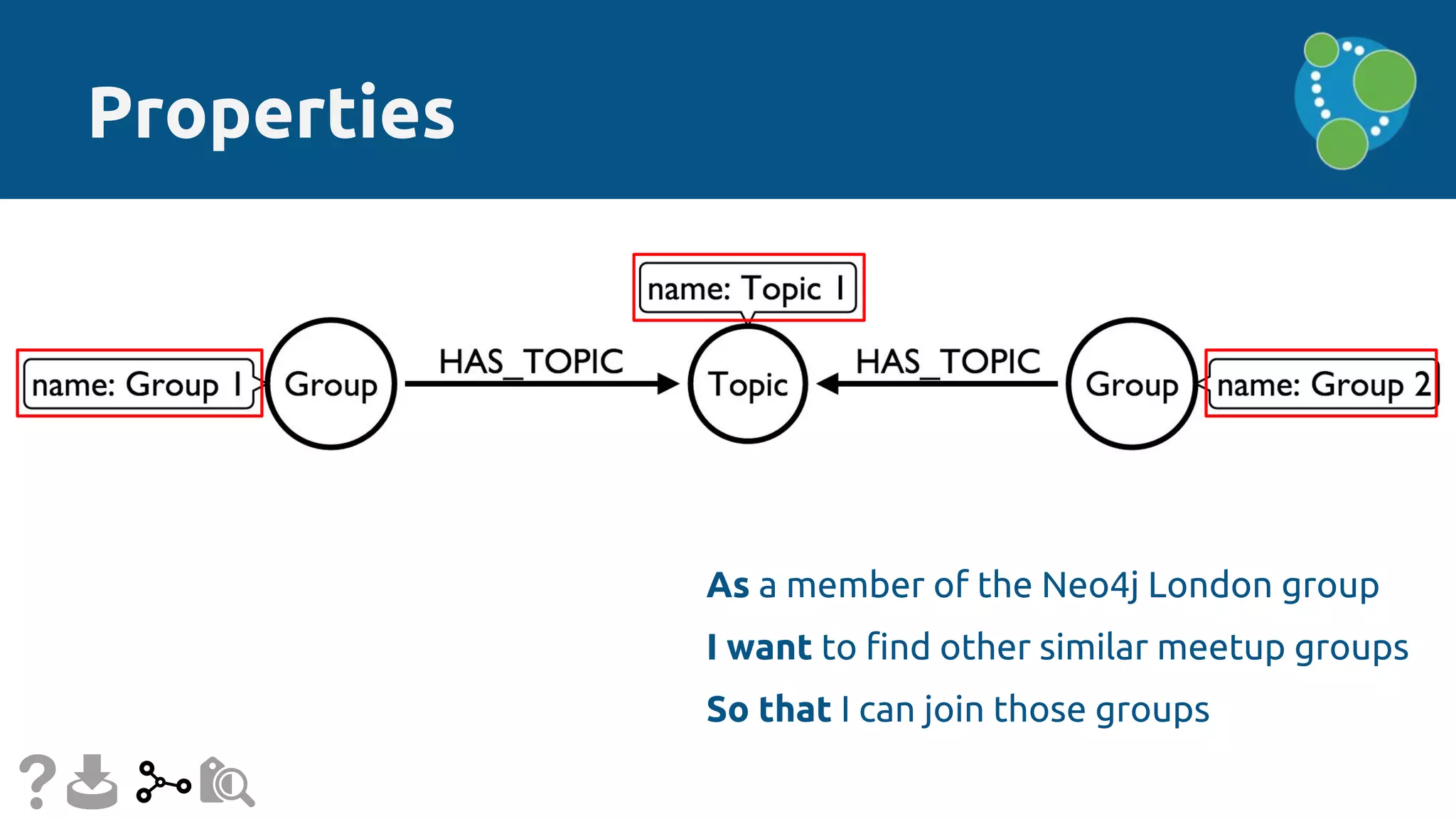

As a member of the Neo4j London group I want to find other similar meetup groups So that I can join those groups Find similar groups to Neo4j
As a member of the Neo4j London group I want to find other similar meetup groups So that I can join those groups Nodes
As a member of the Neo4j London group I want to find other similar meetup groups So that I can join those groups Relationships
As a member of the Neo4j London group I want to find other similar meetup groups So that I can join those groups Labels
As a member of the Neo4j London group I want to find other similar meetup groups So that I can join those groups Properties

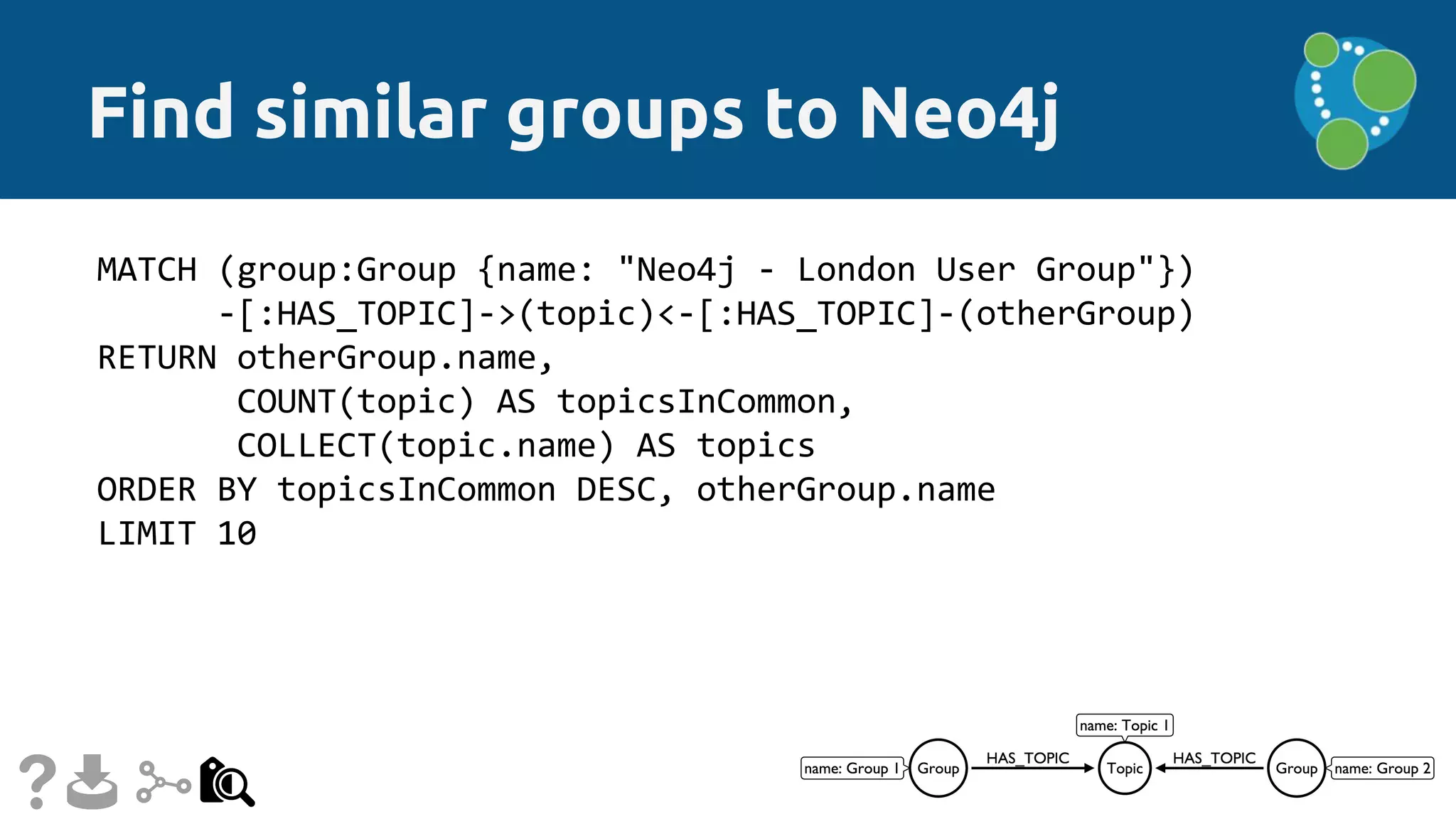

Find similar groups to Neo4j MATCH (group:Group {name: "Neo4j - London User Group"}) -[:HAS_TOPIC]->(topic)<-[:HAS_TOPIC]-(otherGroup) RETURN otherGroup.name, COUNT(topic) AS topicsInCommon, COLLECT(topic.name) AS topics ORDER BY topicsInCommon DESC, otherGroup.name LIMIT 10

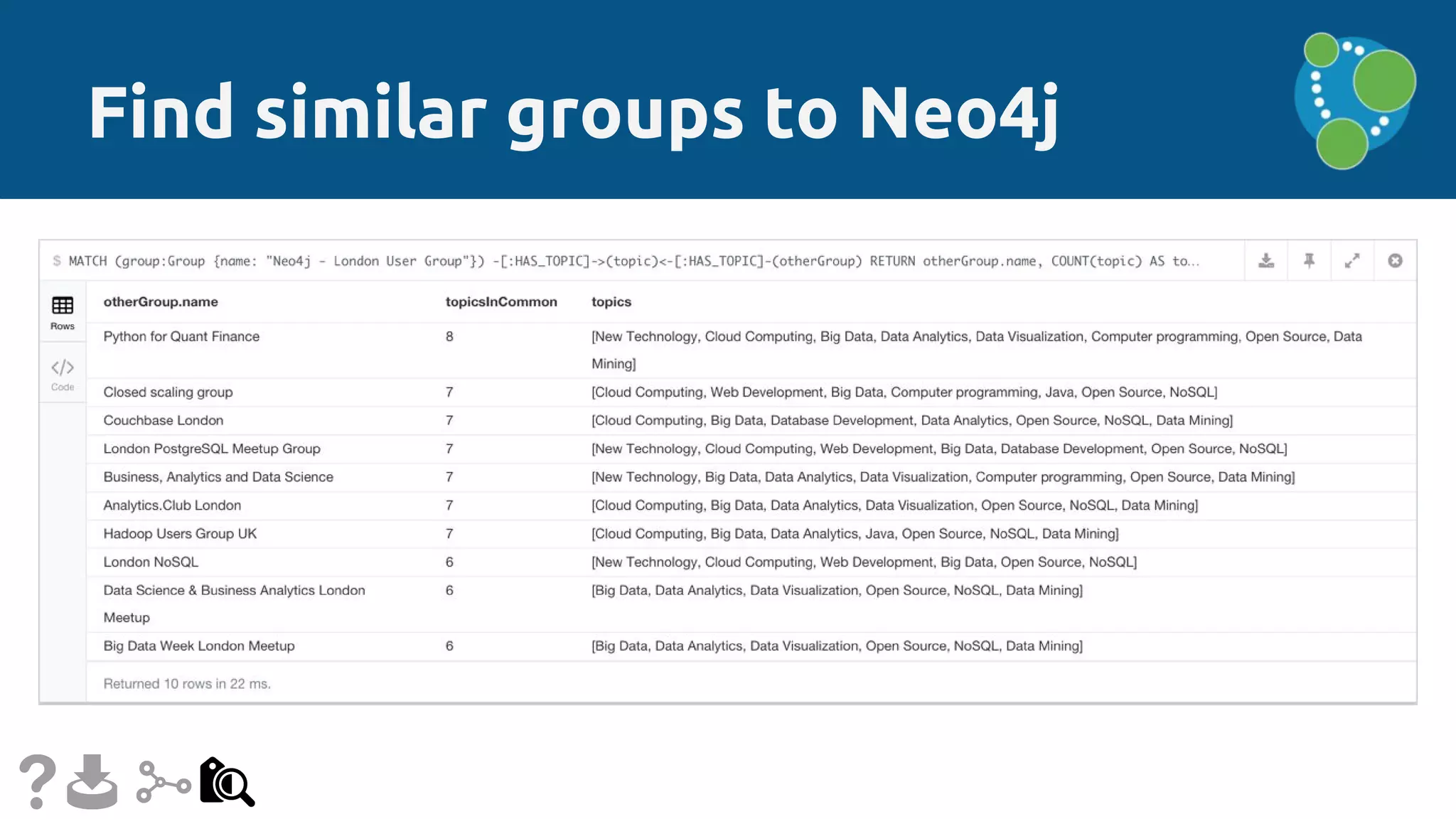

Find similar groups to Neo4j
Tip: Model incrementally ‣ Build the model for the question we need to answer now then move onto the next question

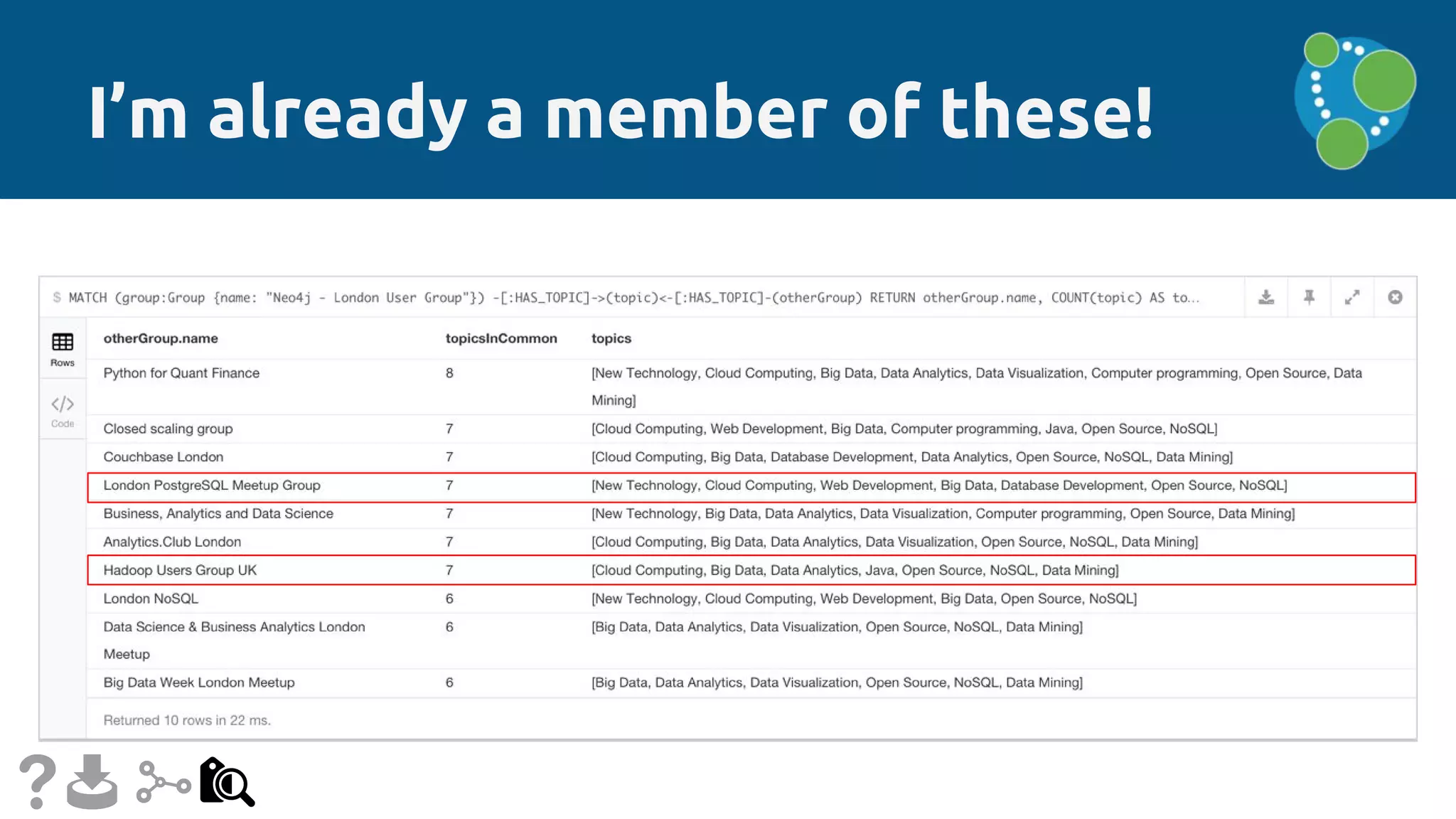

I’m already a member of these!

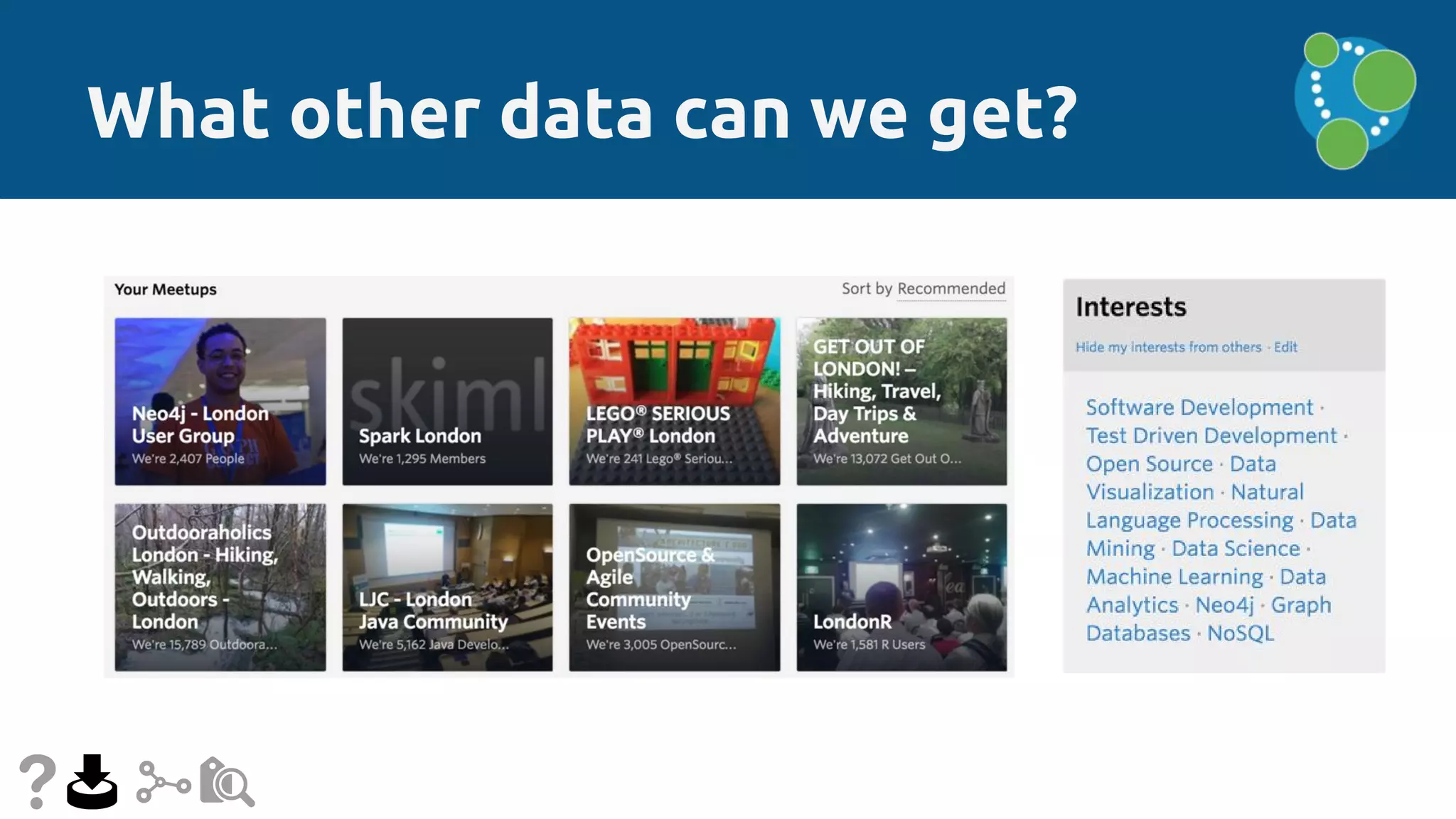

What other data can we get?

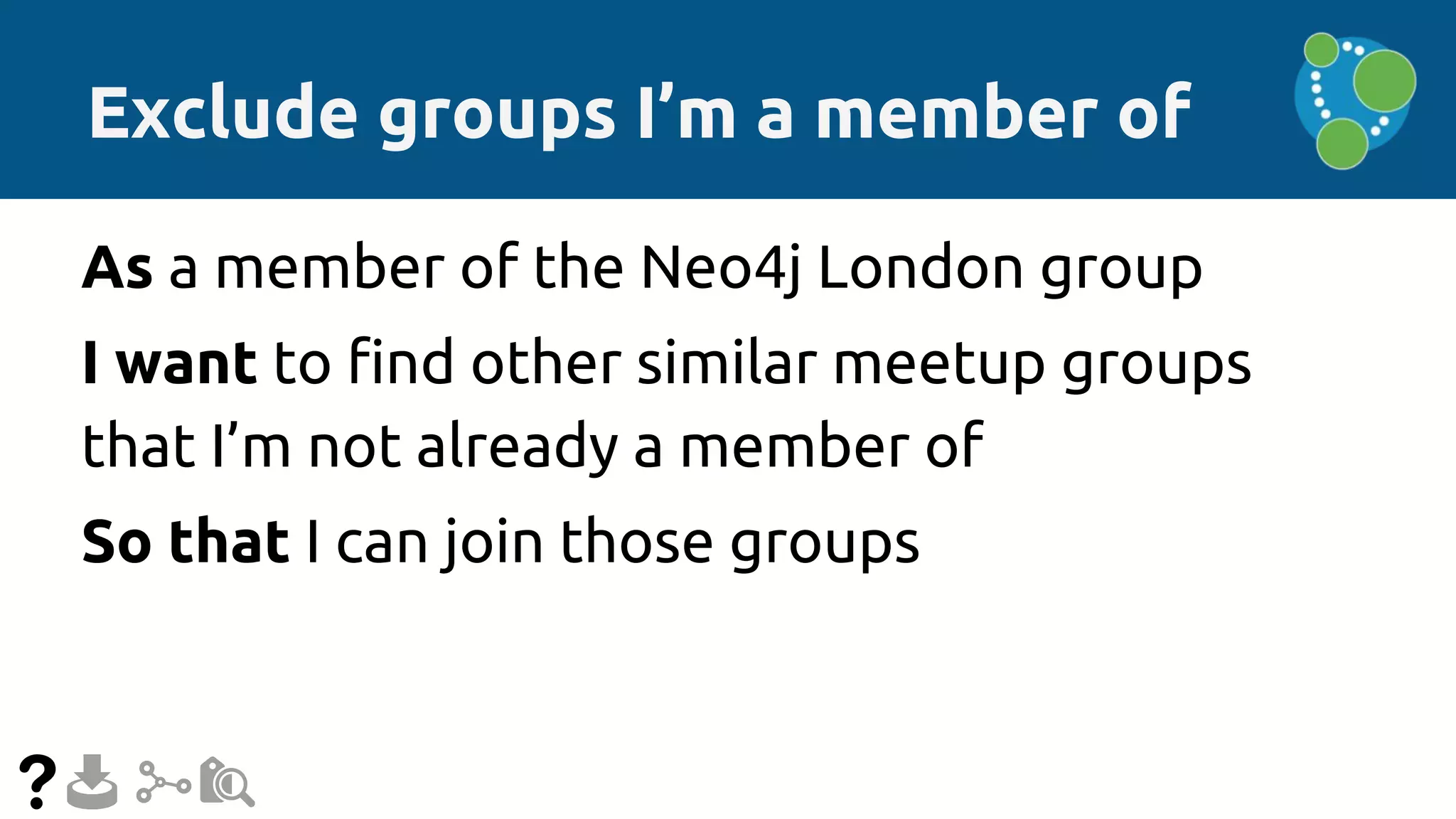

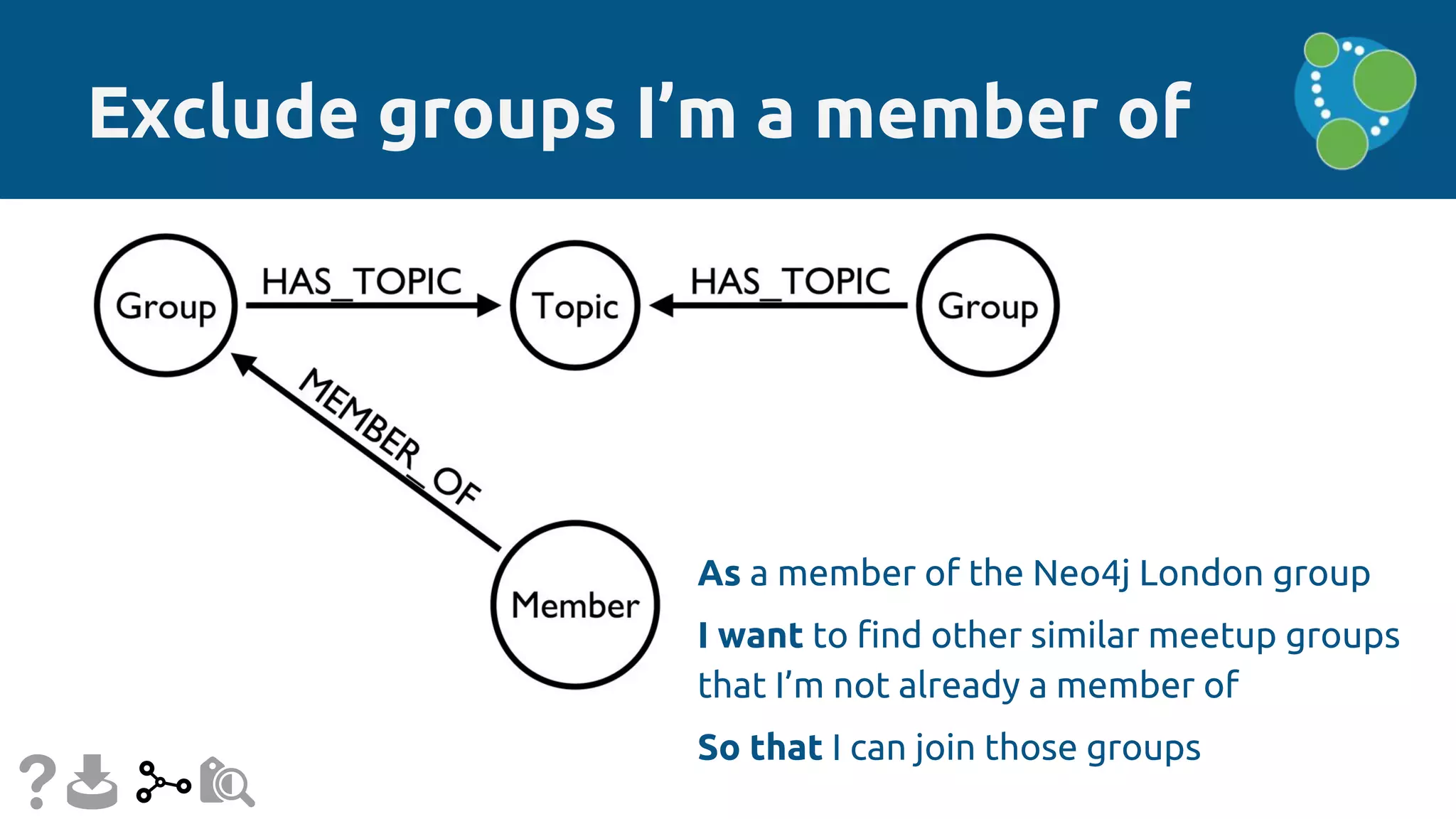

Exclude groups I’m a member of As a member of the Neo4j London group I want to find other similar meetup groups that I’m not already a member of So that I can join those groups
Exclude groups I’m a member of As a member of the Neo4j London group I want to find other similar meetup groups that I’m not already a member of So that I can join those groups

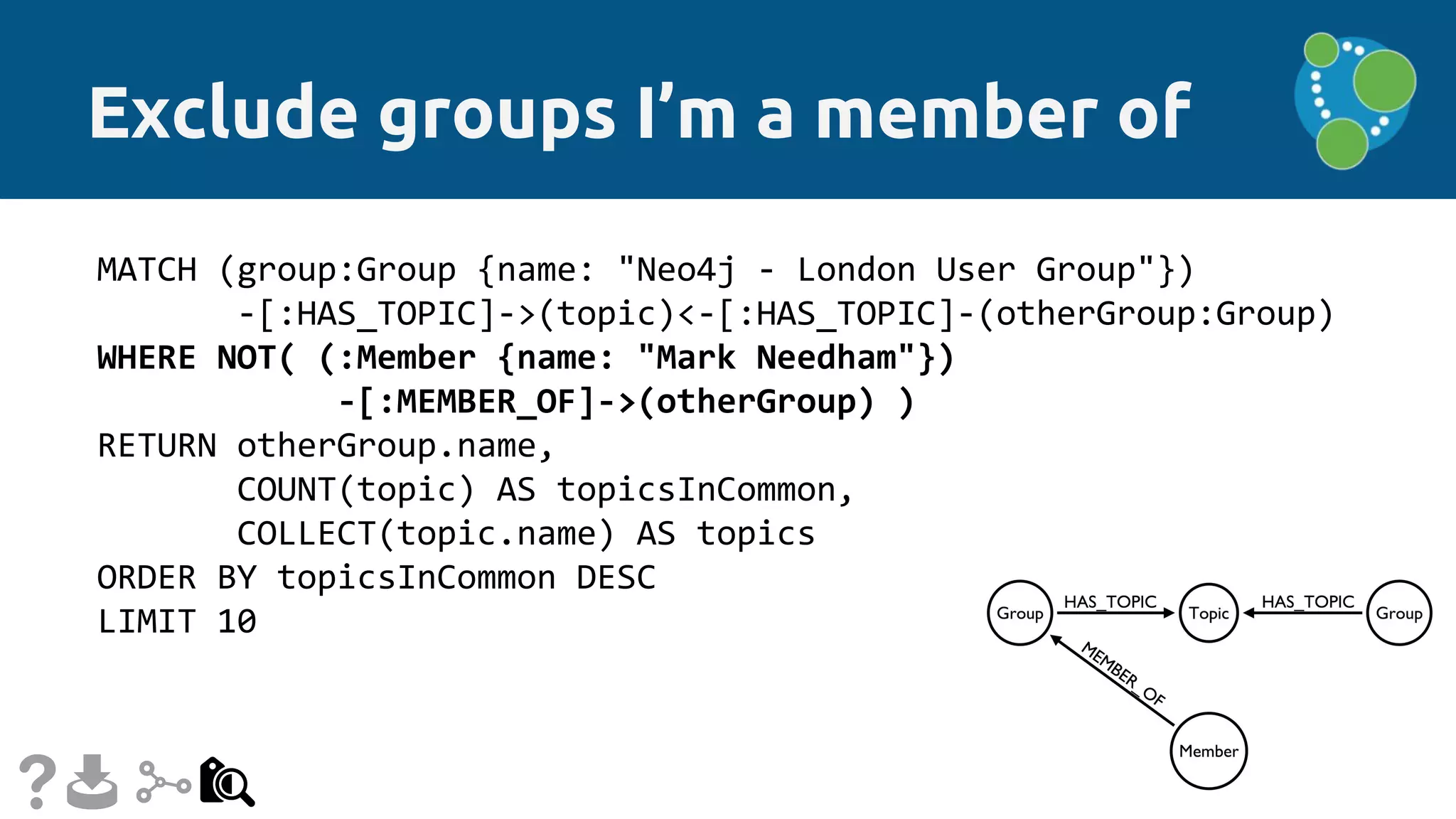

Exclude groups I’m a member of MATCH (group:Group {name: "Neo4j - London User Group"}) -[:HAS_TOPIC]->(topic)<-[:HAS_TOPIC]-(otherGroup:Group) RETURN otherGroup.name, COUNT(topic) AS topicsInCommon, EXISTS((:Member {name: "Mark Needham"}) -[:MEMBER_OF]->(otherGroup)) AS alreadyMember, COLLECT(topic.name) AS topics ORDER BY topicsInCommon DESC LIMIT 10

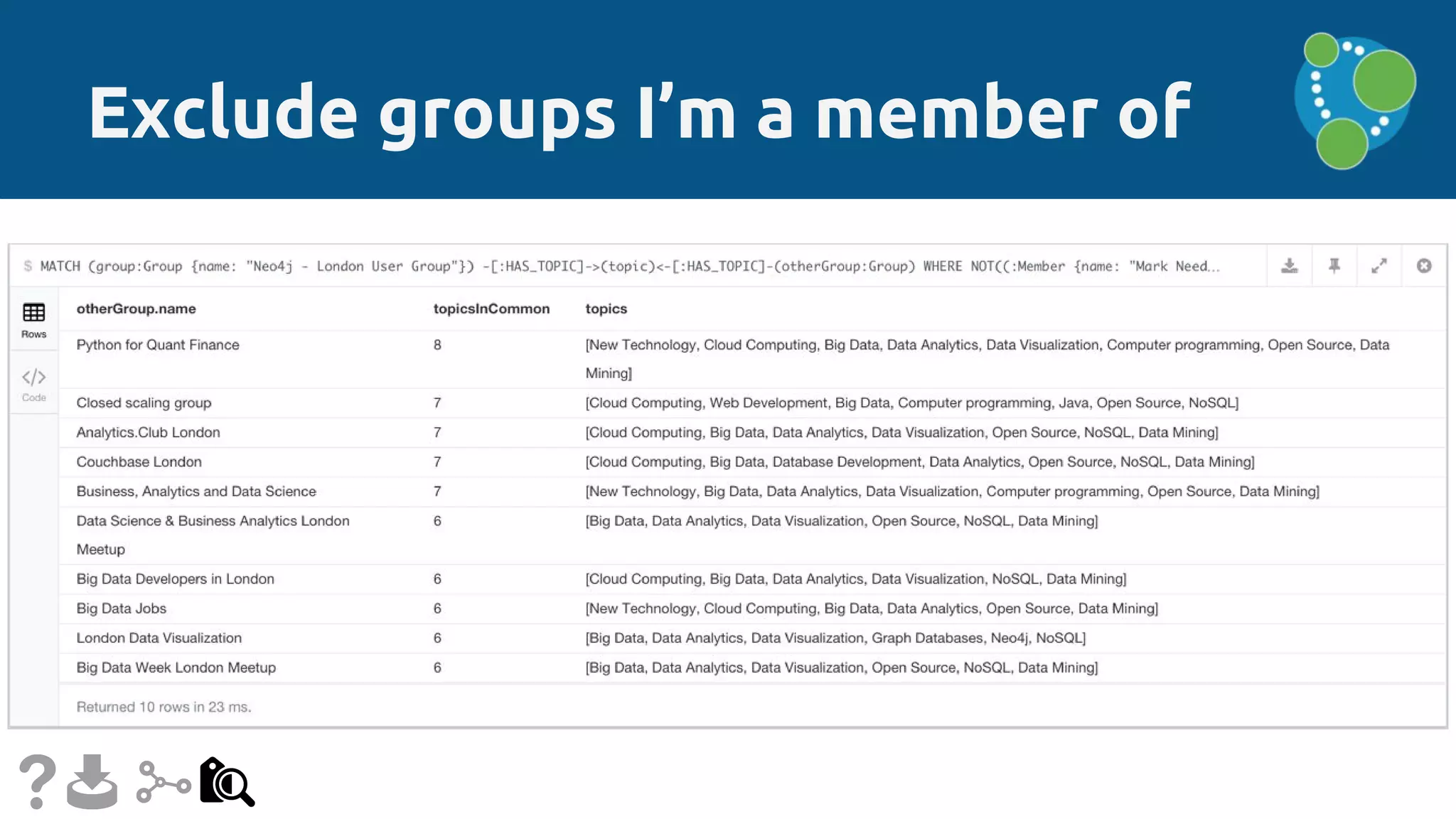

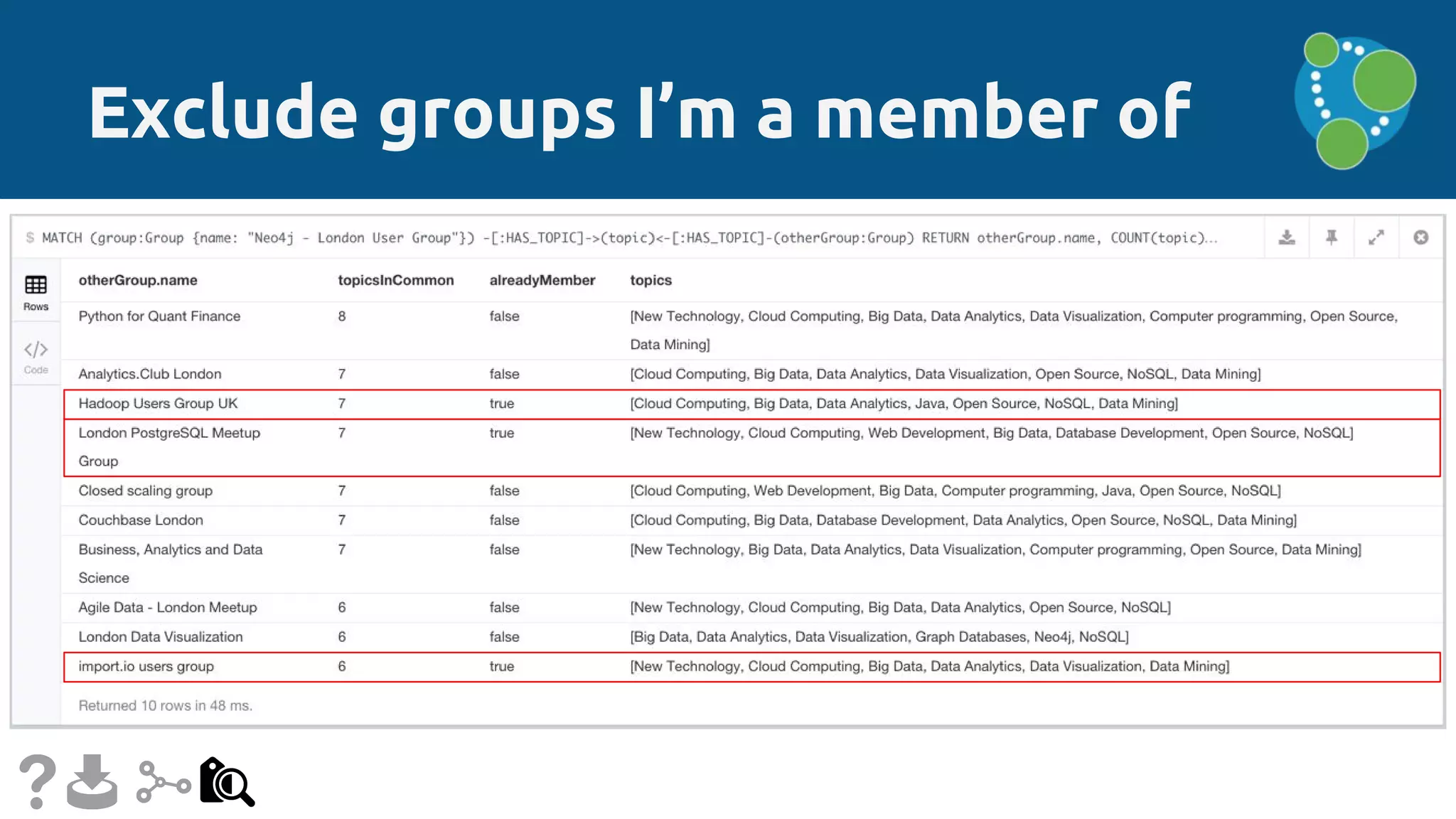

Exclude groups I’m a member of

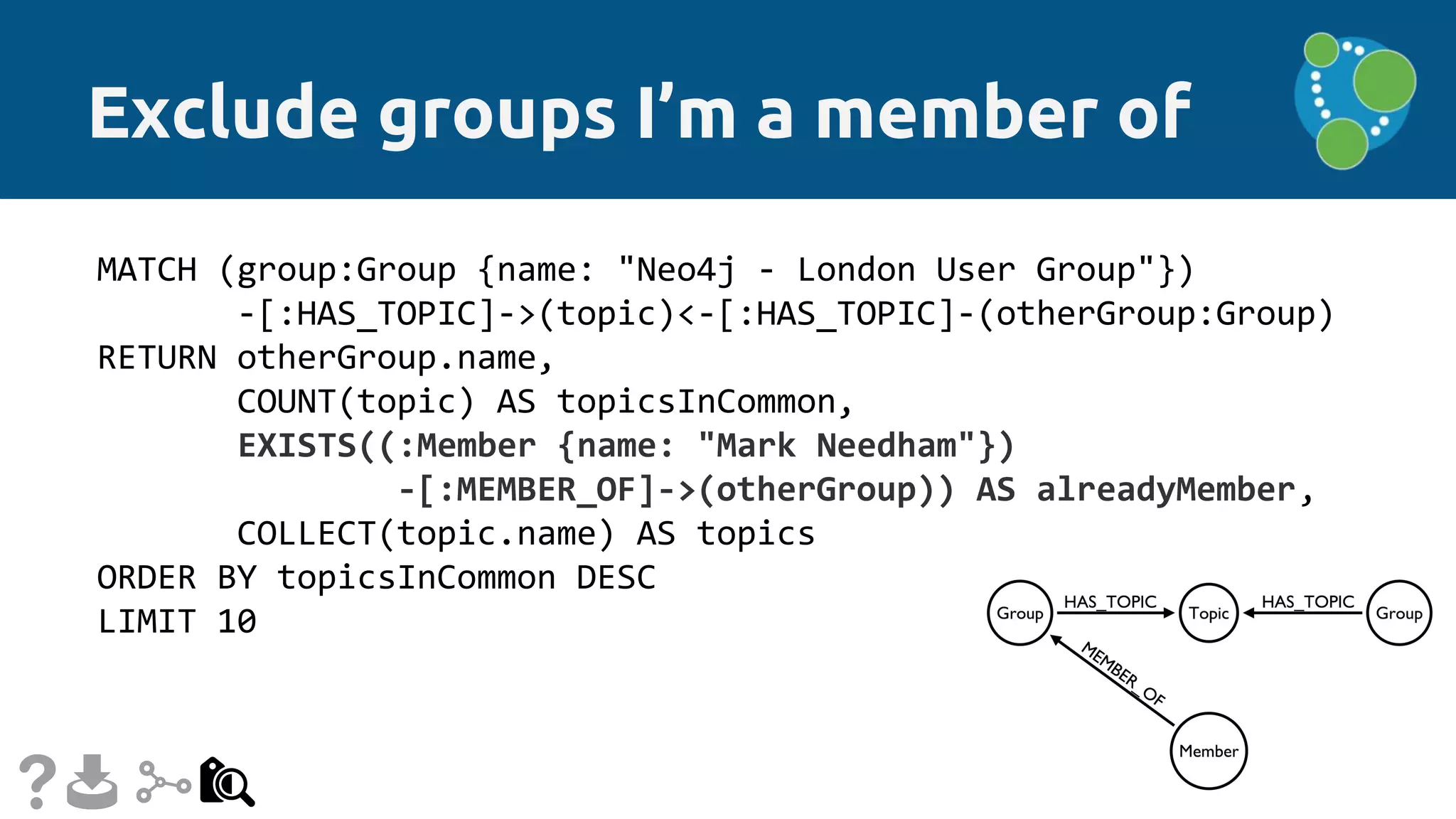

Exclude groups I’m a member of MATCH (group:Group {name: "Neo4j - London User Group"}) -[:HAS_TOPIC]->(topic)<-[:HAS_TOPIC]-(otherGroup:Group) WHERE NOT( (:Member {name: "Mark Needham"}) -[:MEMBER_OF]->(otherGroup) ) RETURN otherGroup.name, COUNT(topic) AS topicsInCommon, COLLECT(topic.name) AS topics ORDER BY topicsInCommon DESC LIMIT 10
Exclude groups I’m a member of

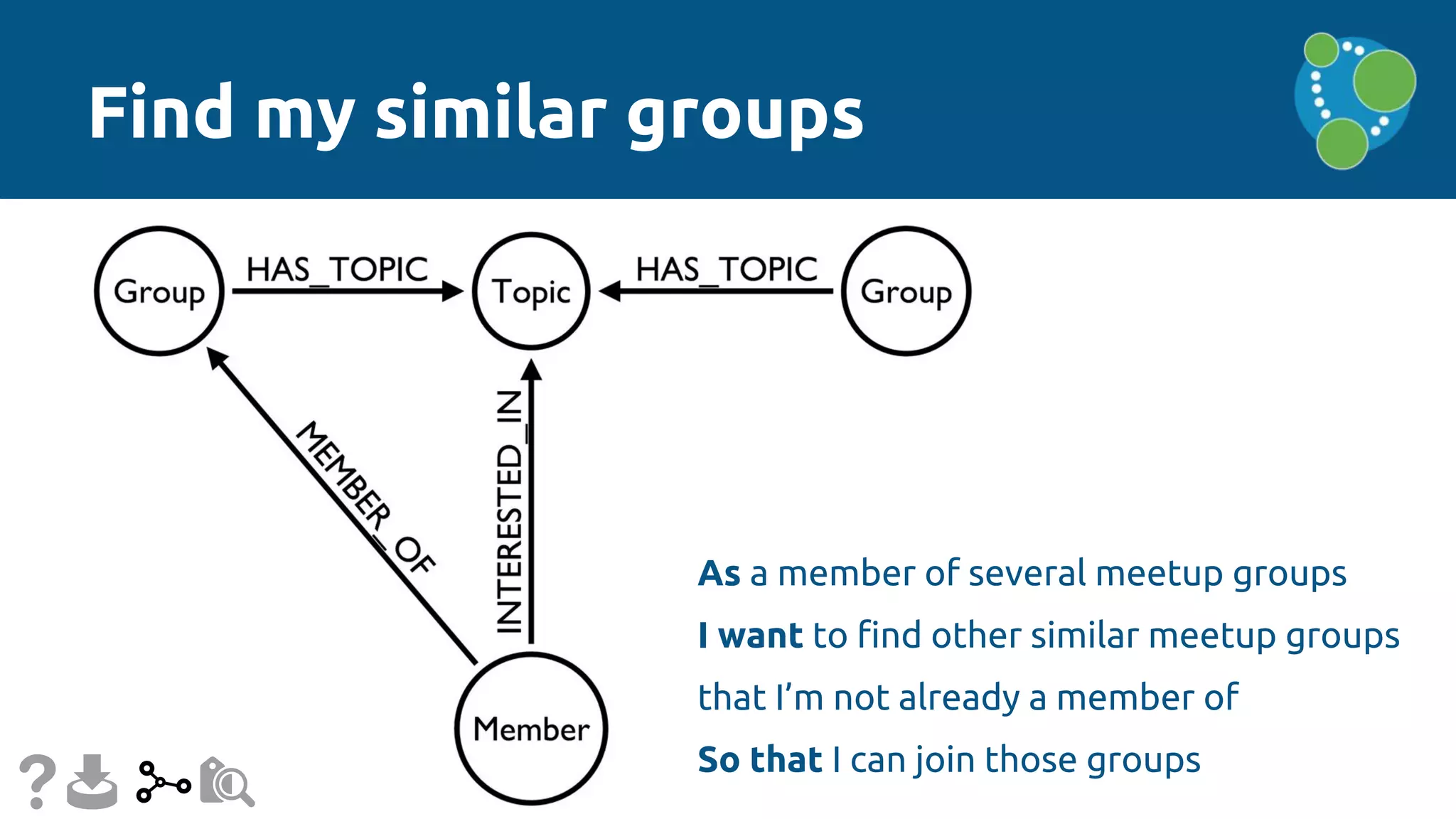

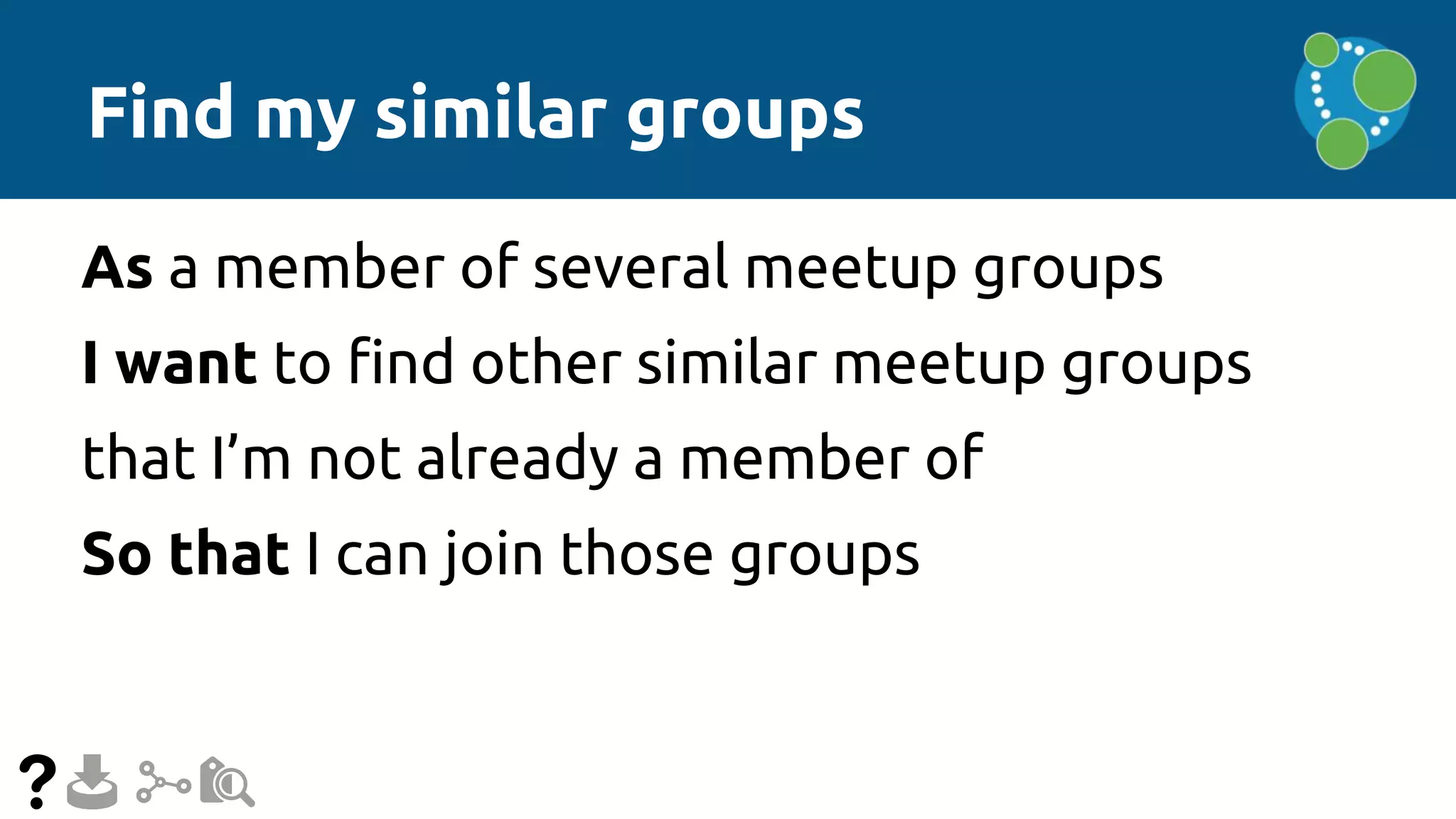

Find my similar groups As a member of several meetup groups I want to find other similar meetup groups that I’m not already a member of So that I can join those groups
Find my similar groups As a member of several meetup groups I want to find other similar meetup groups that I’m not already a member of So that I can join those groups

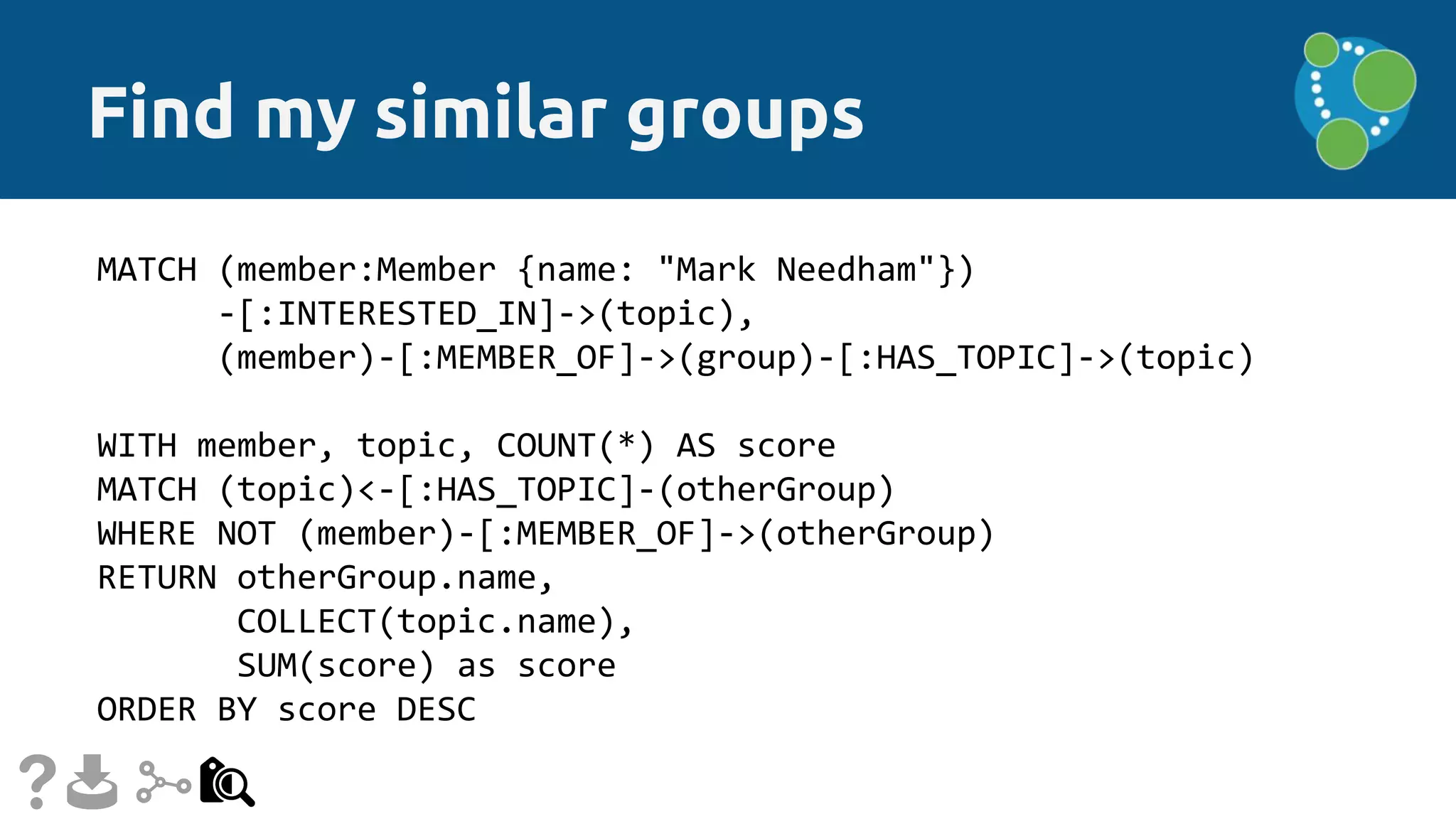

Find my similar groups MATCH (member:Member {name: "Mark Needham"}) -[:INTERESTED_IN]->(topic), (member)-[:MEMBER_OF]->(group)-[:HAS_TOPIC]->(topic) WITH member, topic, COUNT(*) AS score MATCH (topic)<-[:HAS_TOPIC]-(otherGroup) WHERE NOT (member)-[:MEMBER_OF]->(otherGroup) RETURN otherGroup.name, COLLECT(topic.name), SUM(score) as score ORDER BY score DESC

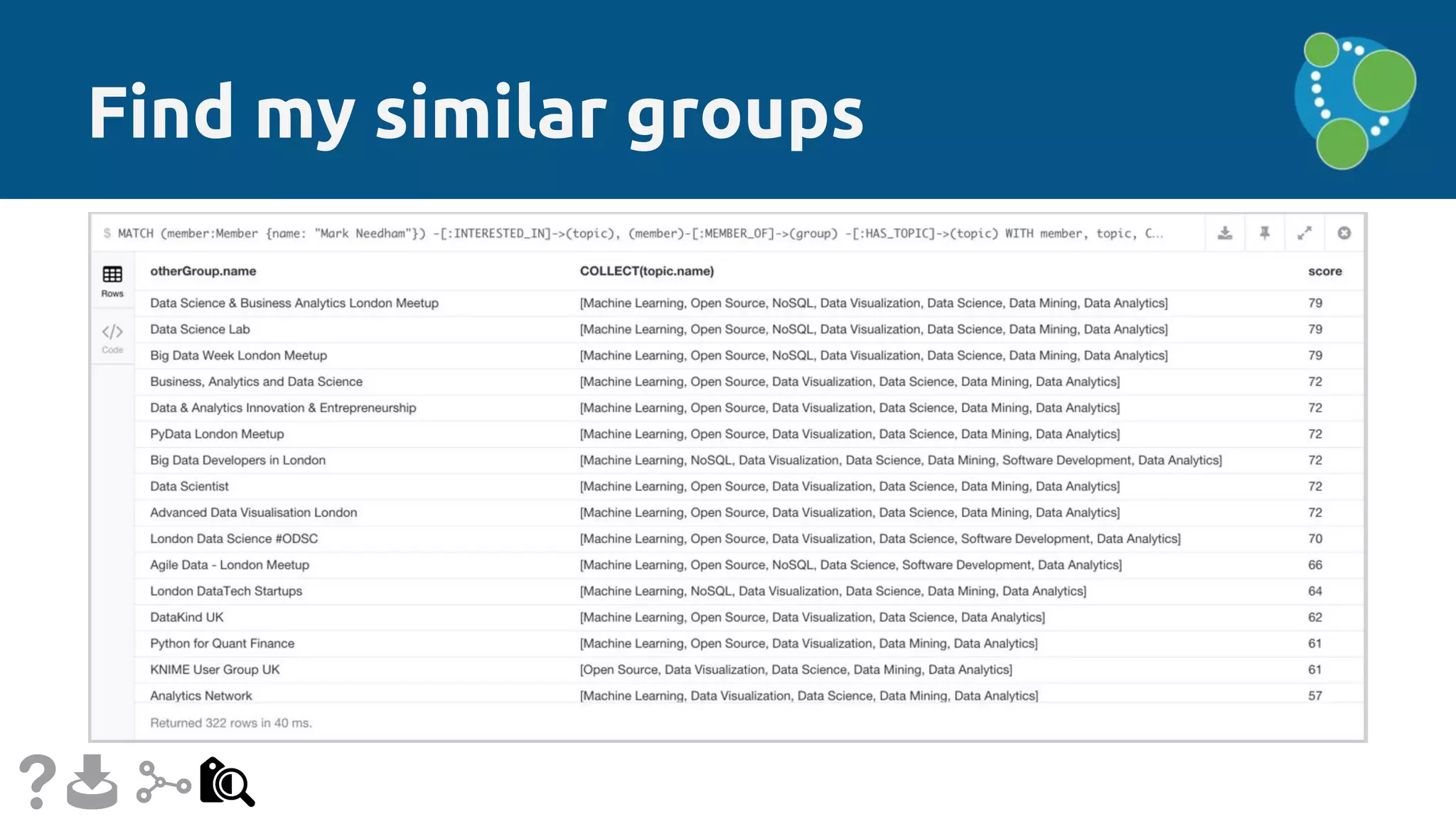

Find my similar groups

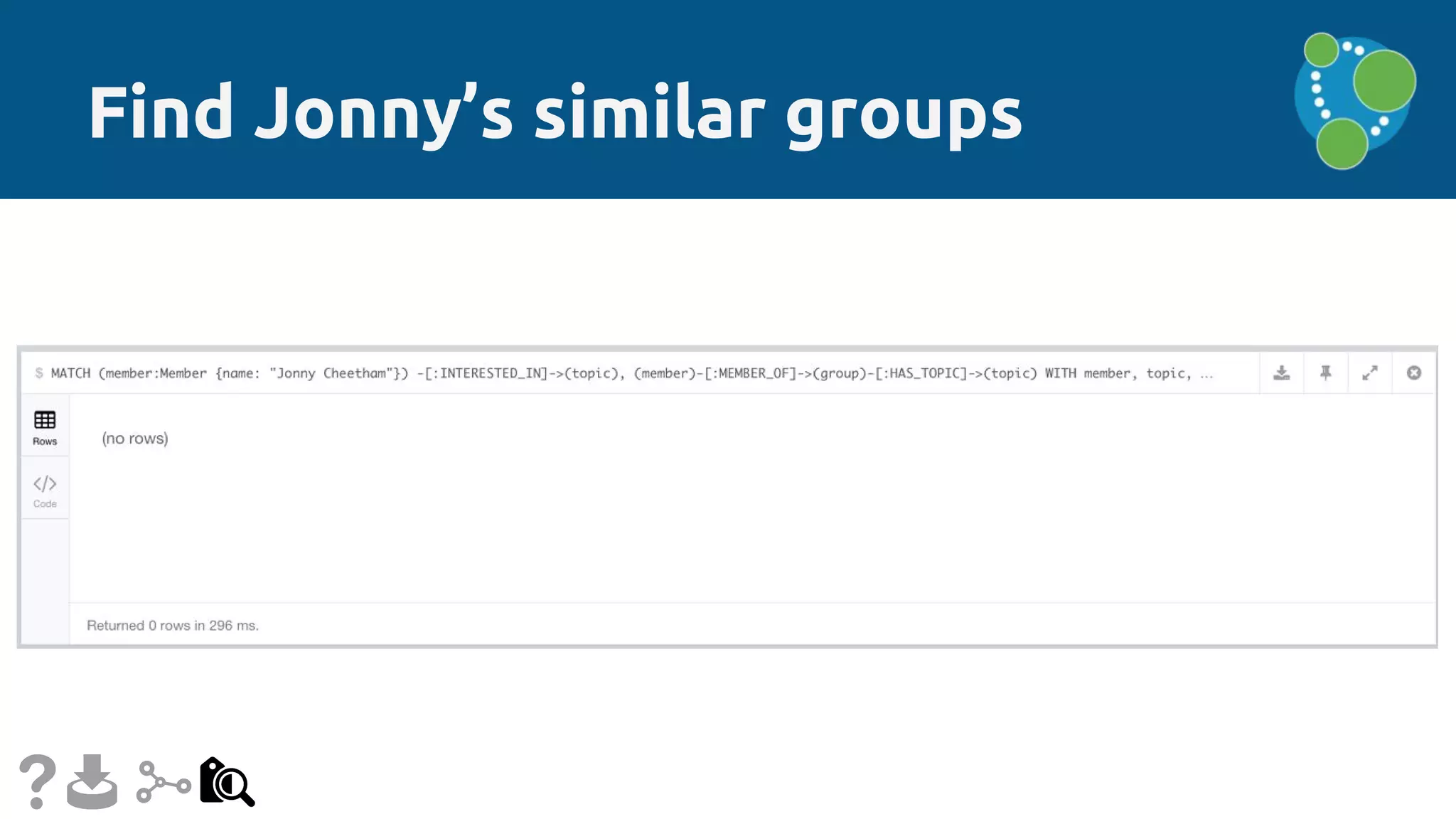

Find Jonny’s similar groups

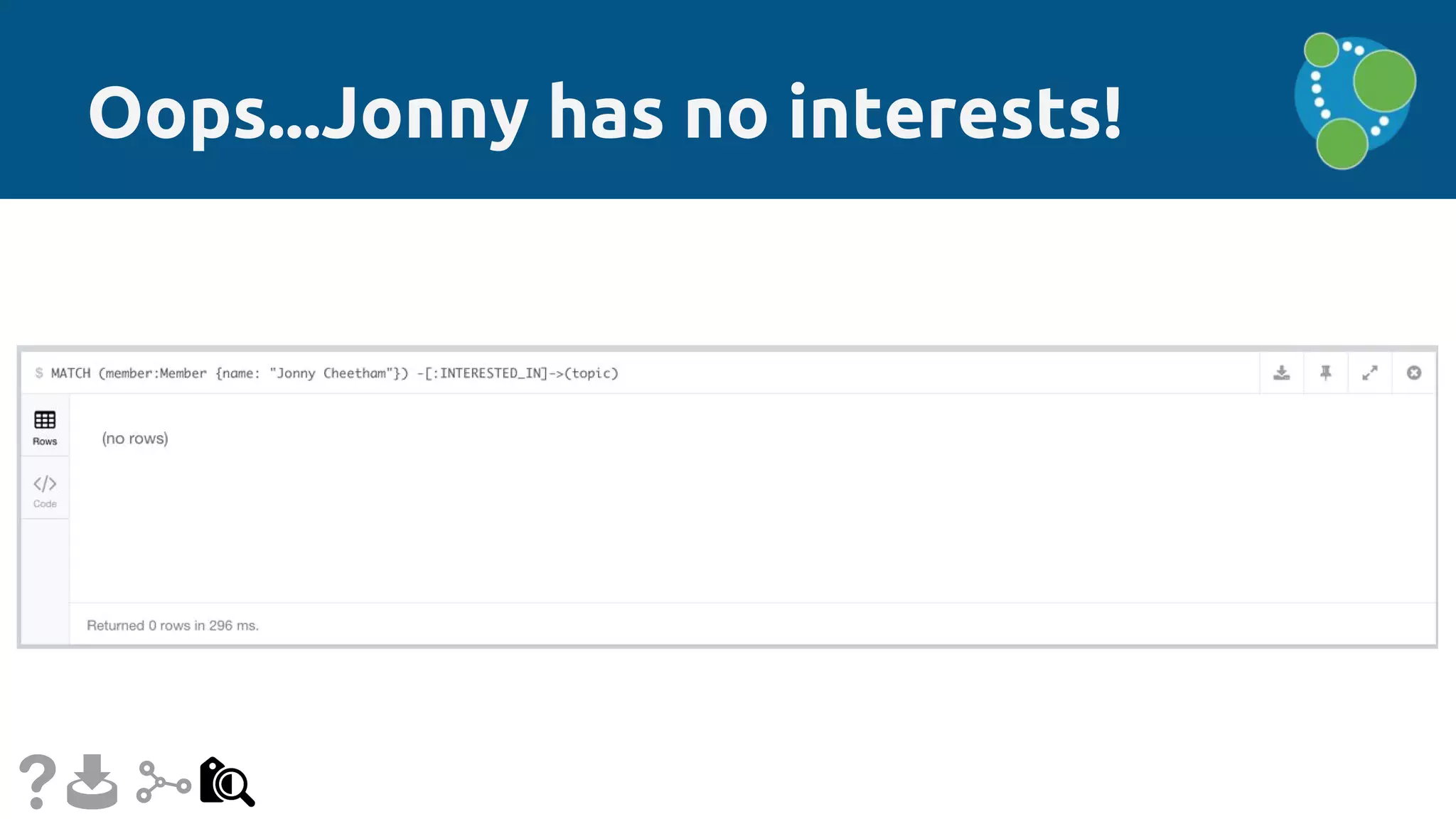

Oops...Jonny has no interests!

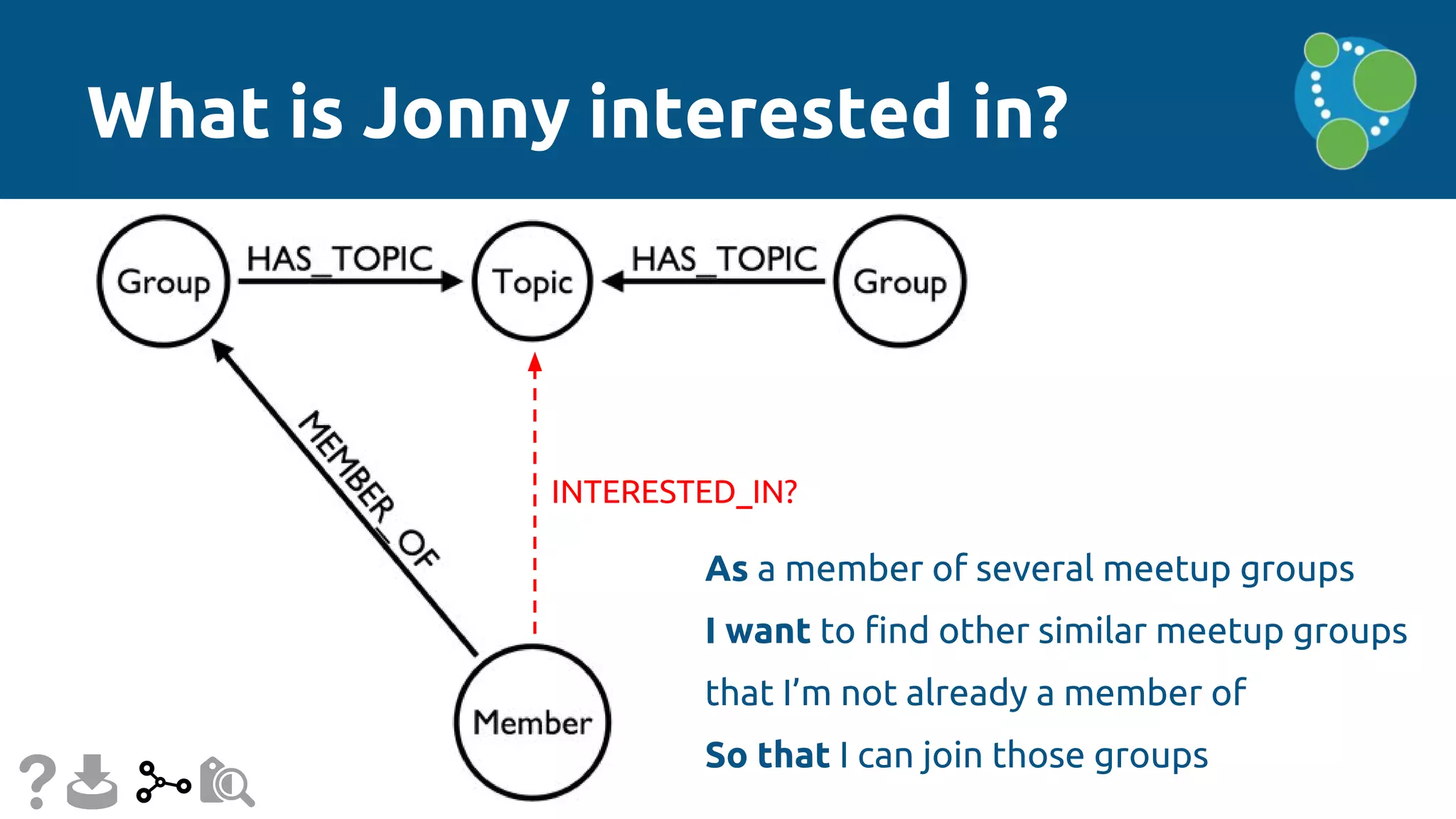

What is Jonny interested in? As a member of several meetup groups I want to find other similar meetup groups that I’m not already a member of So that I can join those groups INTERESTED_IN?

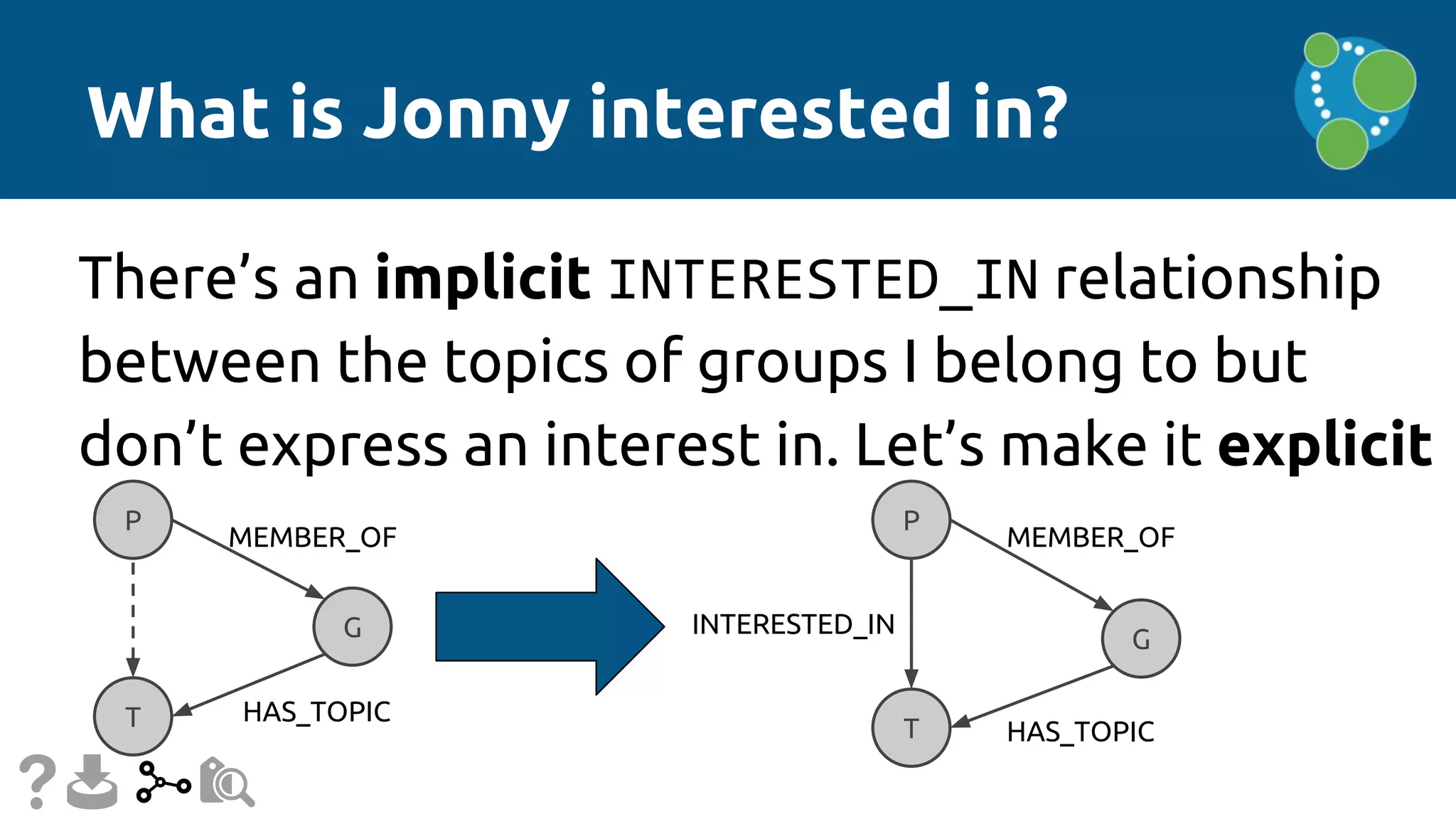

What is Jonny interested in? There’s an implicit INTERESTED_IN relationship between the topics of groups I belong to but don’t express an interest in. Let’s make it explicit P G T MEMBER_OF HAS_TOPIC P G T MEMBER_OF HAS_TOPIC INTERESTED_IN

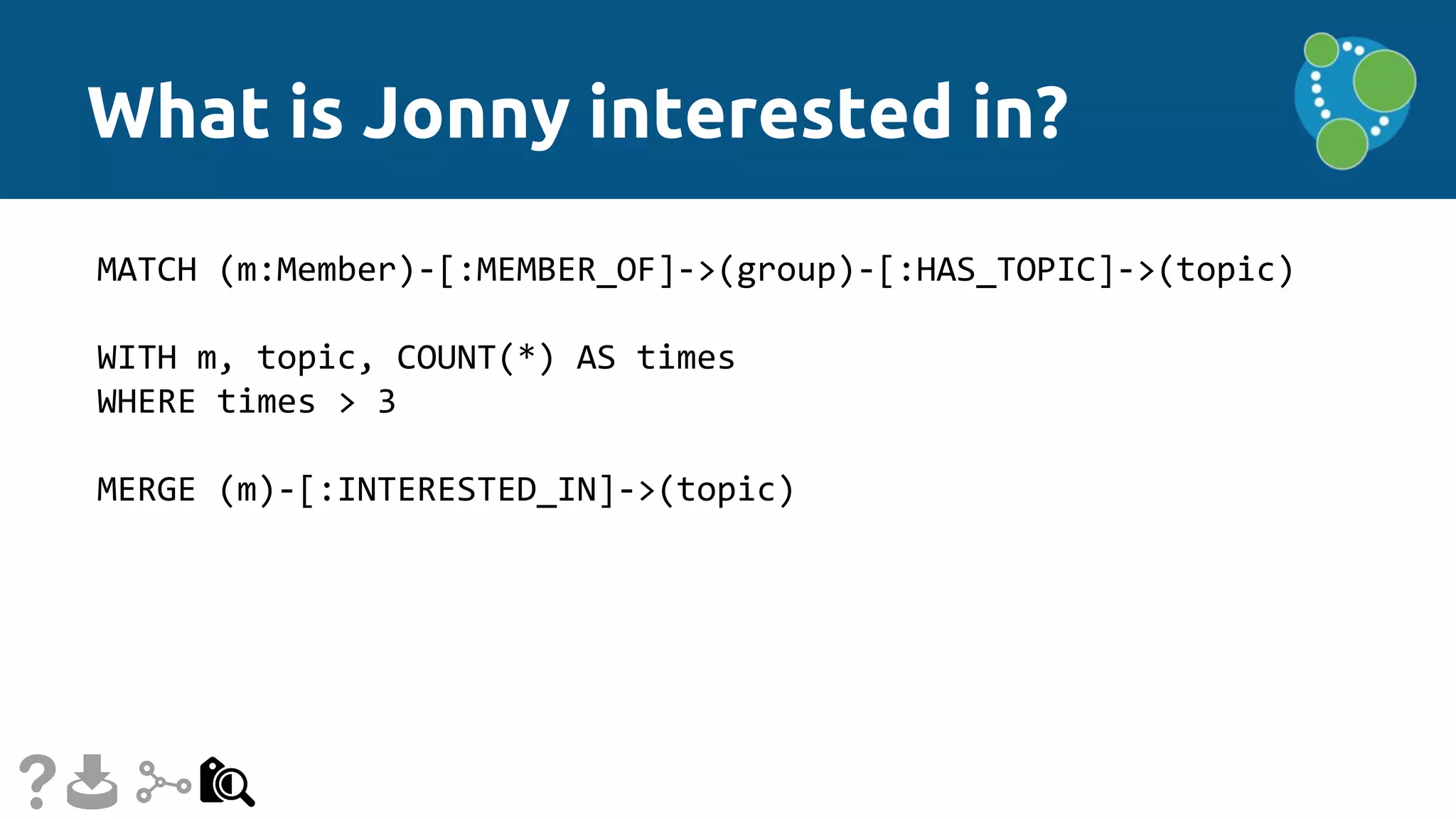

What is Jonny interested in? MATCH (m:Member)-[:MEMBER_OF]->(group)-[:HAS_TOPIC]->(topic) WITH m, topic, COUNT(*) AS times WHERE times > 3 MERGE (m)-[:INTERESTED_IN]->(topic)

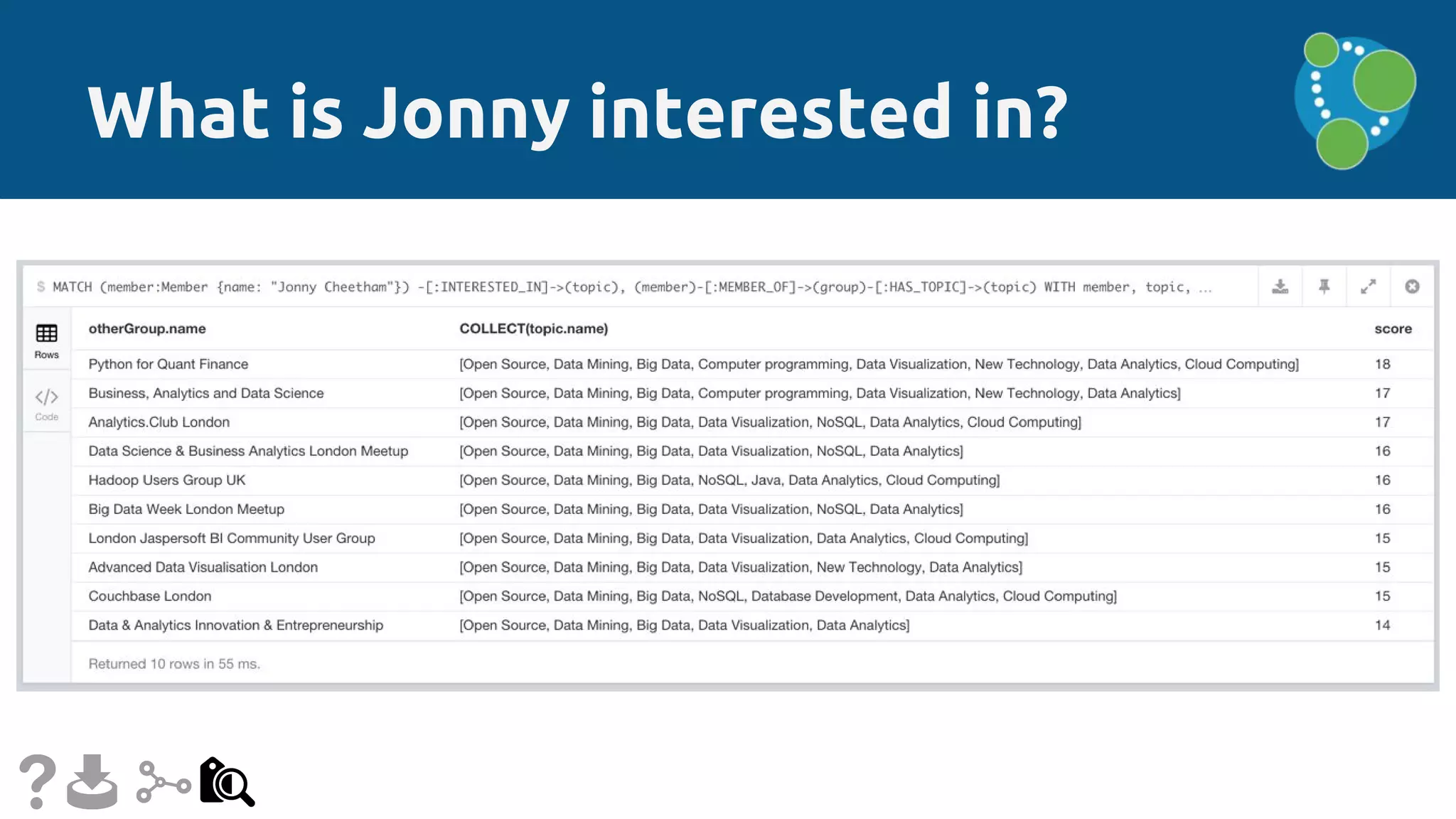

What is Jonny interested in?
Tip: Make the implicit explicit ‣ Fill in the missing links in the graph ‣ You could run this type of query once a day during a quiet period ‣ On bigger graphs we’d run it in batches to avoid loading the whole database into memory

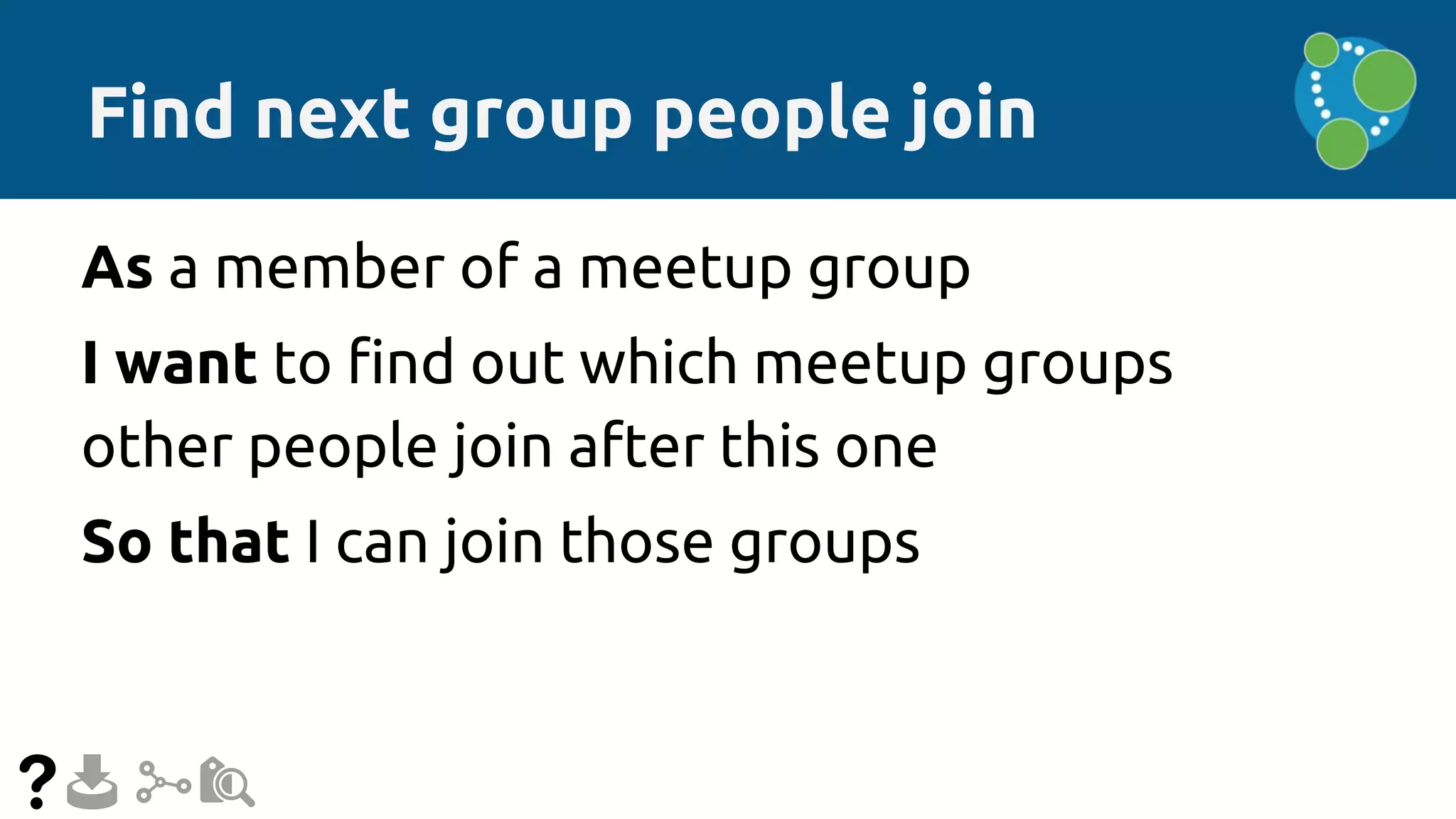

Find next group people join As a member of a meetup group I want to find out which meetup groups other people join after this one So that I can join those groups

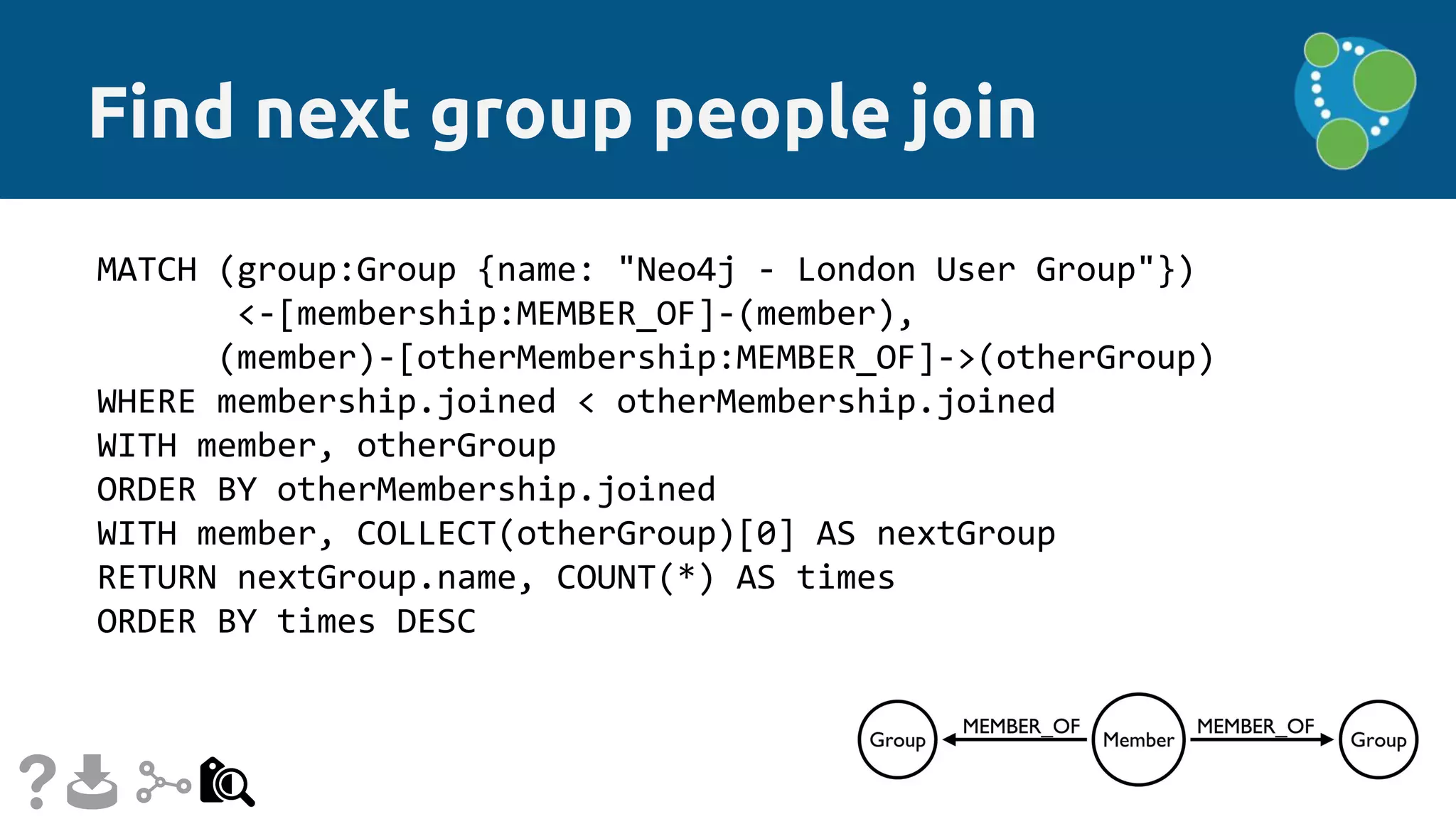

Find next group people join MATCH (group:Group {name: "Neo4j - London User Group"}) <-[membership:MEMBER_OF]-(member), (member)-[otherMembership:MEMBER_OF]->(otherGroup) WHERE membership.joined < otherMembership.joined WITH member, otherGroup ORDER BY otherMembership.joined WITH member, COLLECT(otherGroup)[0] AS nextGroup RETURN nextGroup.name, COUNT(*) AS times ORDER BY times DESC

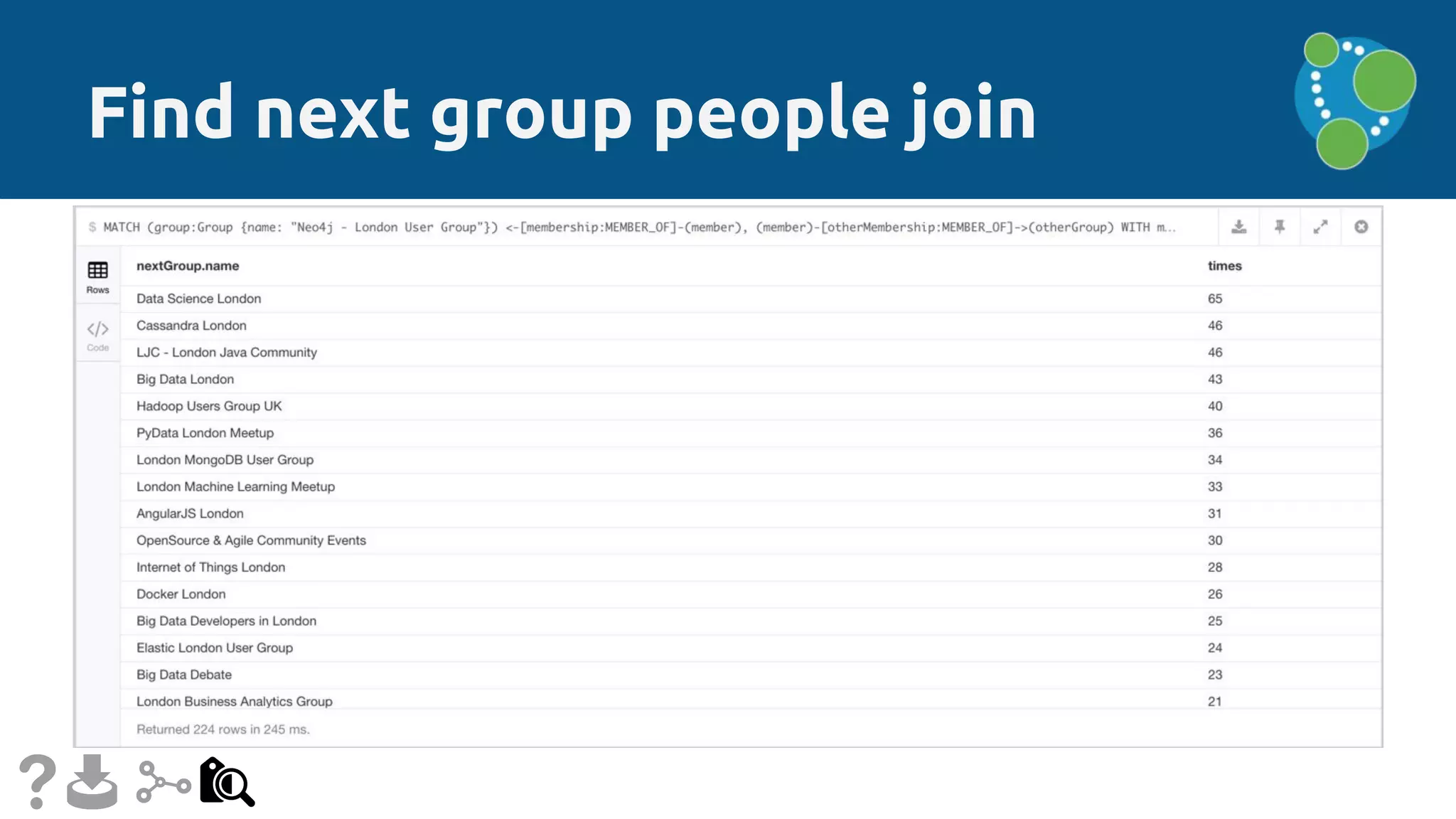

Find next group people join

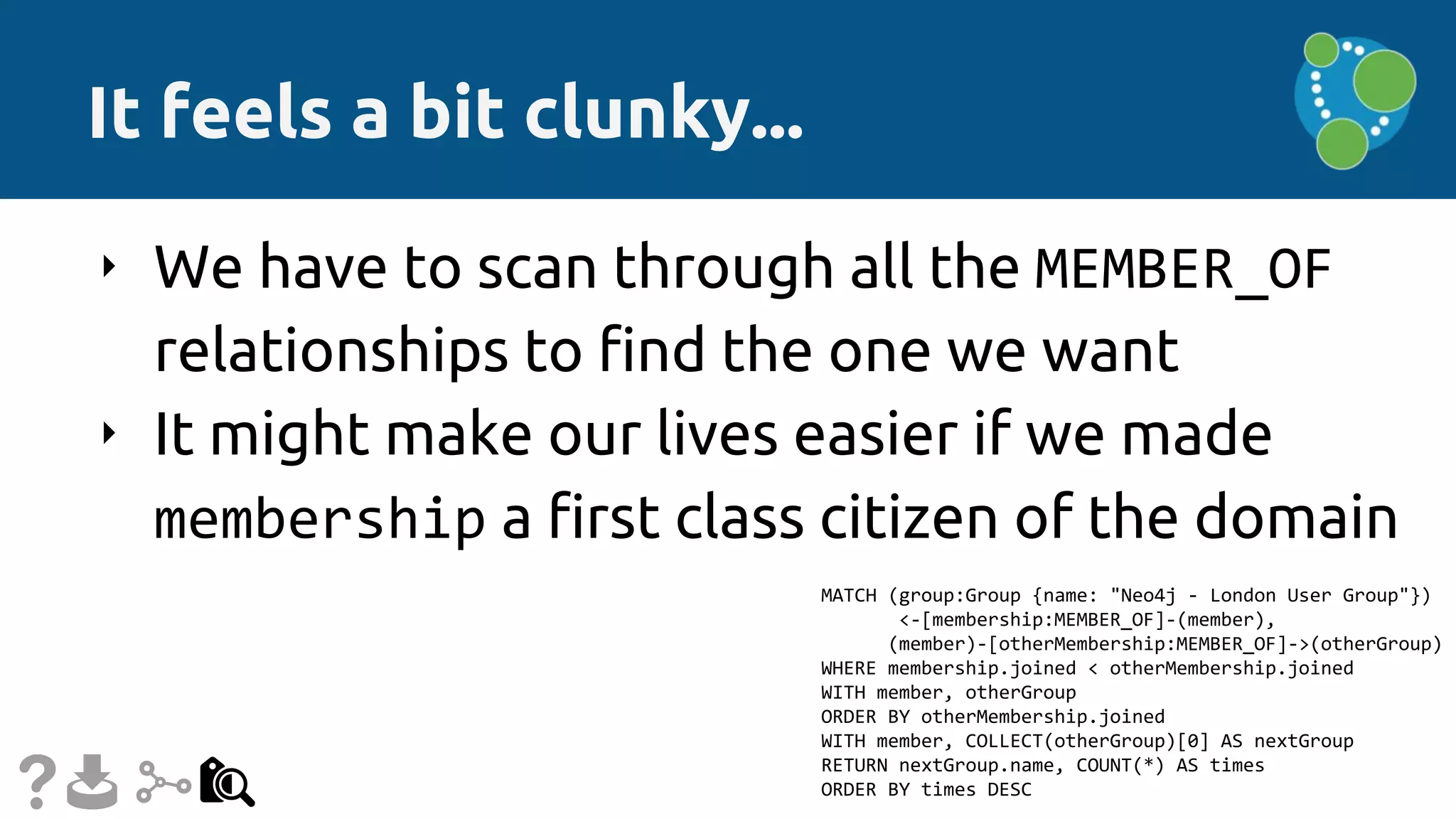

It feels a bit clunky... MATCH (group:Group {name: "Neo4j - London User Group"}) <-[membership:MEMBER_OF]-(member), (member)-[otherMembership:MEMBER_OF]->(otherGroup) WHERE membership.joined < otherMembership.joined WITH member, otherGroup ORDER BY otherMembership.joined WITH member, COLLECT(otherGroup)[0] AS nextGroup RETURN nextGroup.name, COUNT(*) AS times ORDER BY times DESC ‣ We have to scan through all the MEMBER_OF relationships to find the one we want ‣ It might make our lives easier if we made membership a first class citizen of the domain

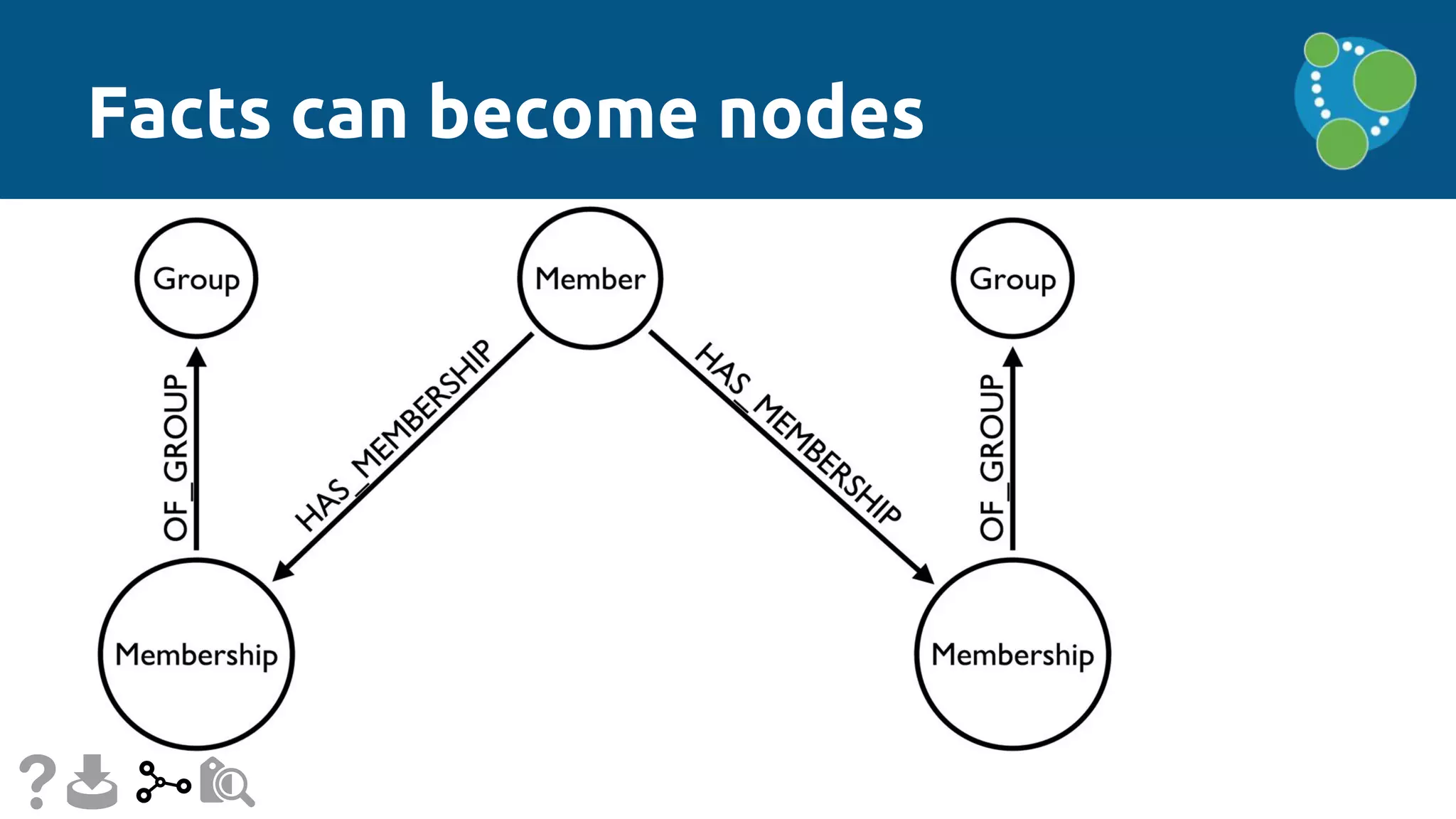

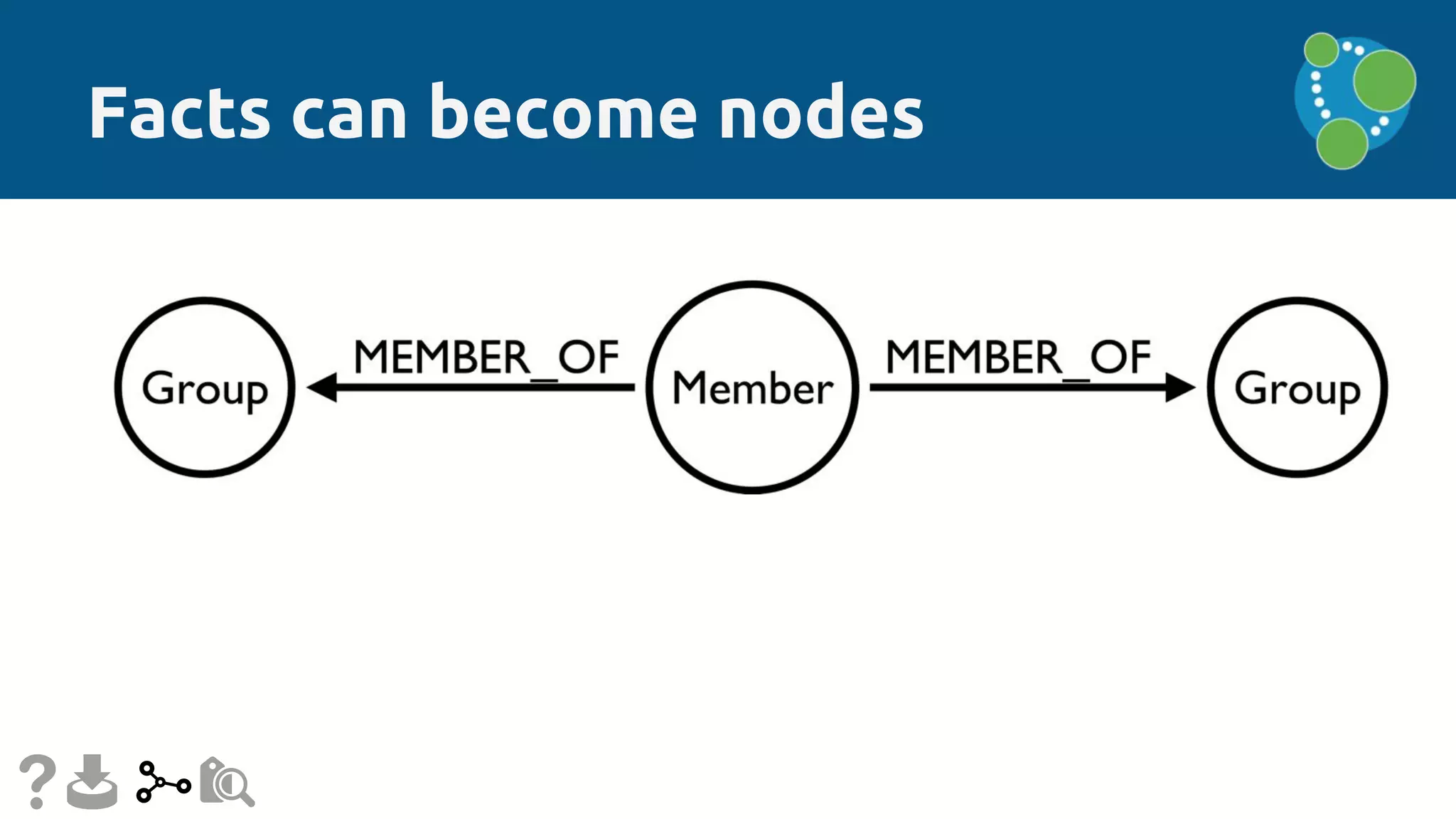

Facts can become nodes
Facts can become nodes

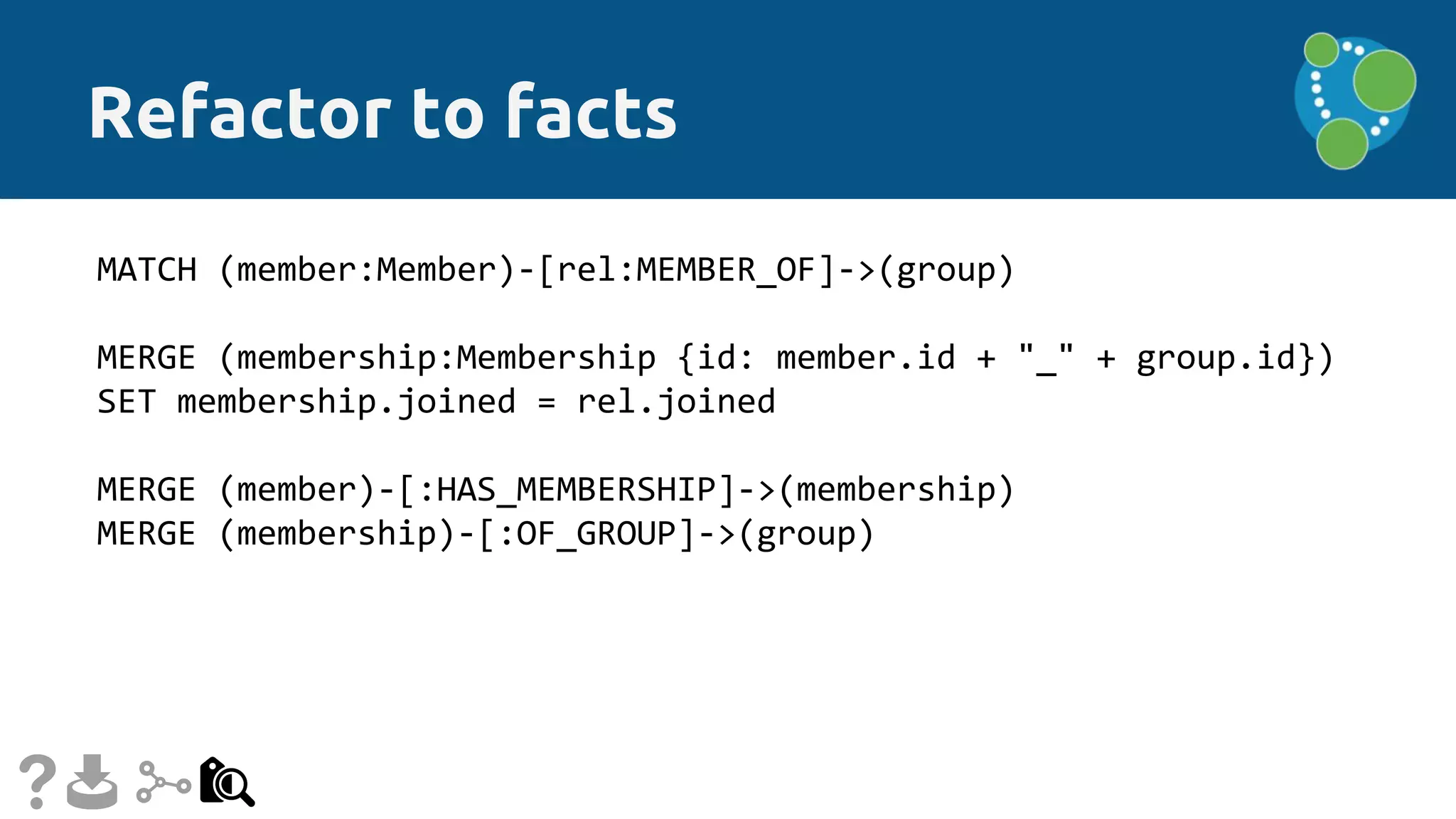

Refactor to facts MATCH (member:Member)-[rel:MEMBER_OF]->(group) MERGE (membership:Membership {id: member.id + "_" + group.id}) SET membership.joined = rel.joined MERGE (member)-[:HAS_MEMBERSHIP]->(membership) MERGE (membership)-[:OF_GROUP]->(group)

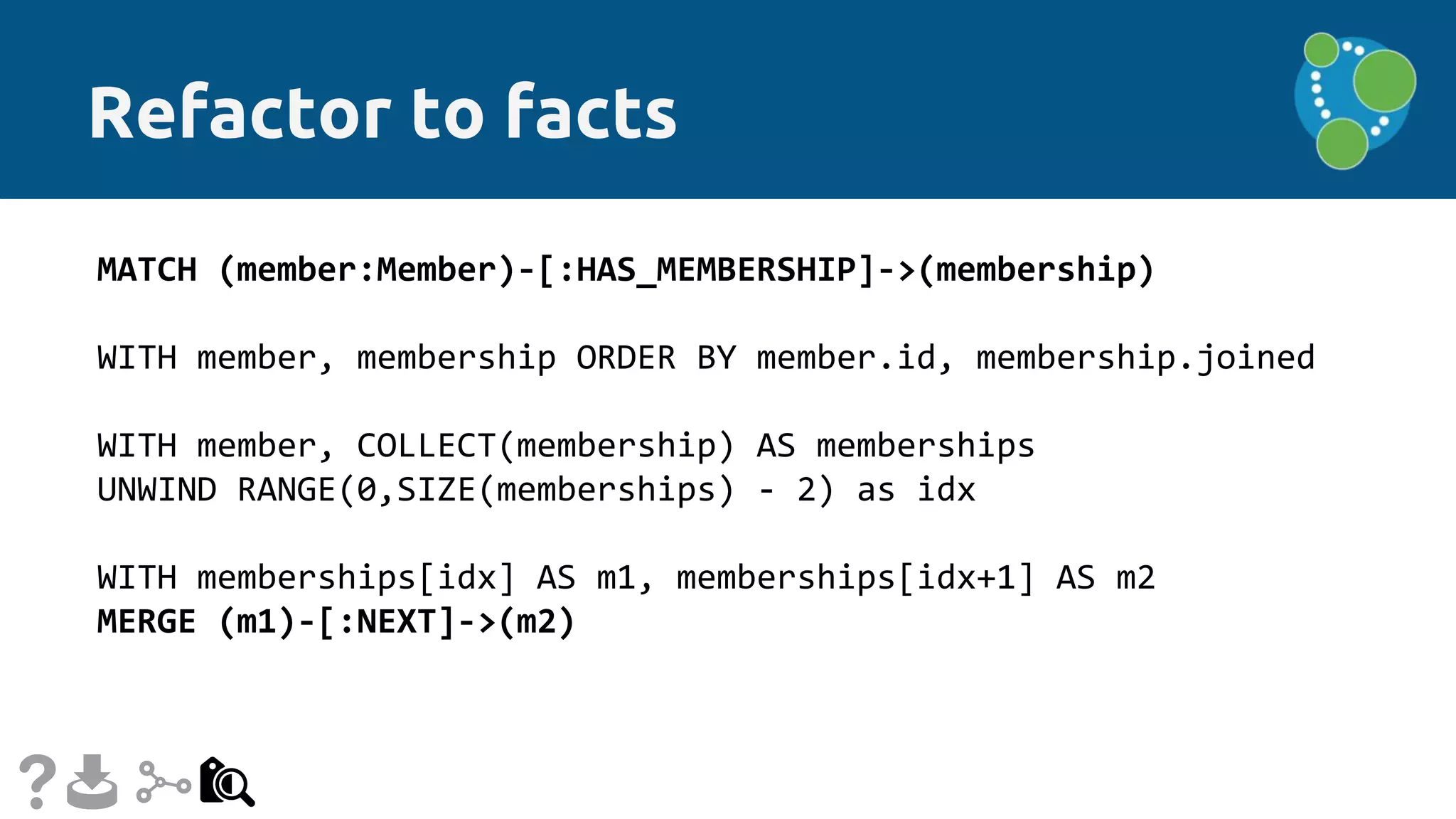

Refactor to facts MATCH (member:Member)-[:HAS_MEMBERSHIP]->(membership) WITH member, membership ORDER BY member.id, membership.joined WITH member, COLLECT(membership) AS memberships UNWIND RANGE(0,SIZE(memberships) - 2) as idx WITH memberships[idx] AS m1, memberships[idx+1] AS m2 MERGE (m1)-[:NEXT]->(m2)

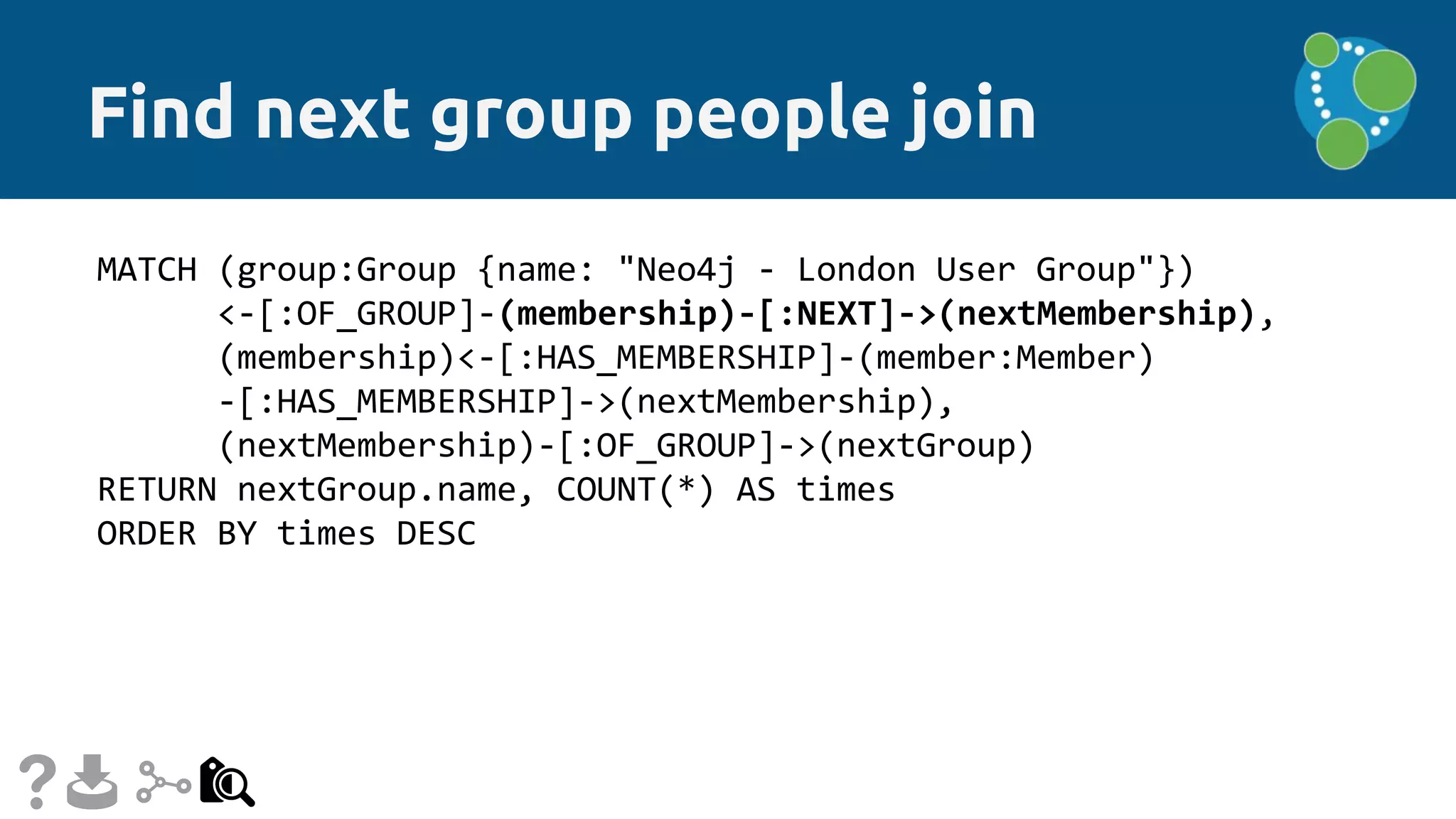

Find next group people join MATCH (group:Group {name: "Neo4j - London User Group"}) <-[:OF_GROUP]-(membership)-[:NEXT]->(nextMembership), (membership)<-[:HAS_MEMBERSHIP]-(member:Member) -[:HAS_MEMBERSHIP]->(nextMembership), (nextMembership)-[:OF_GROUP]->(nextGroup) RETURN nextGroup.name, COUNT(*) AS times ORDER BY times DESC

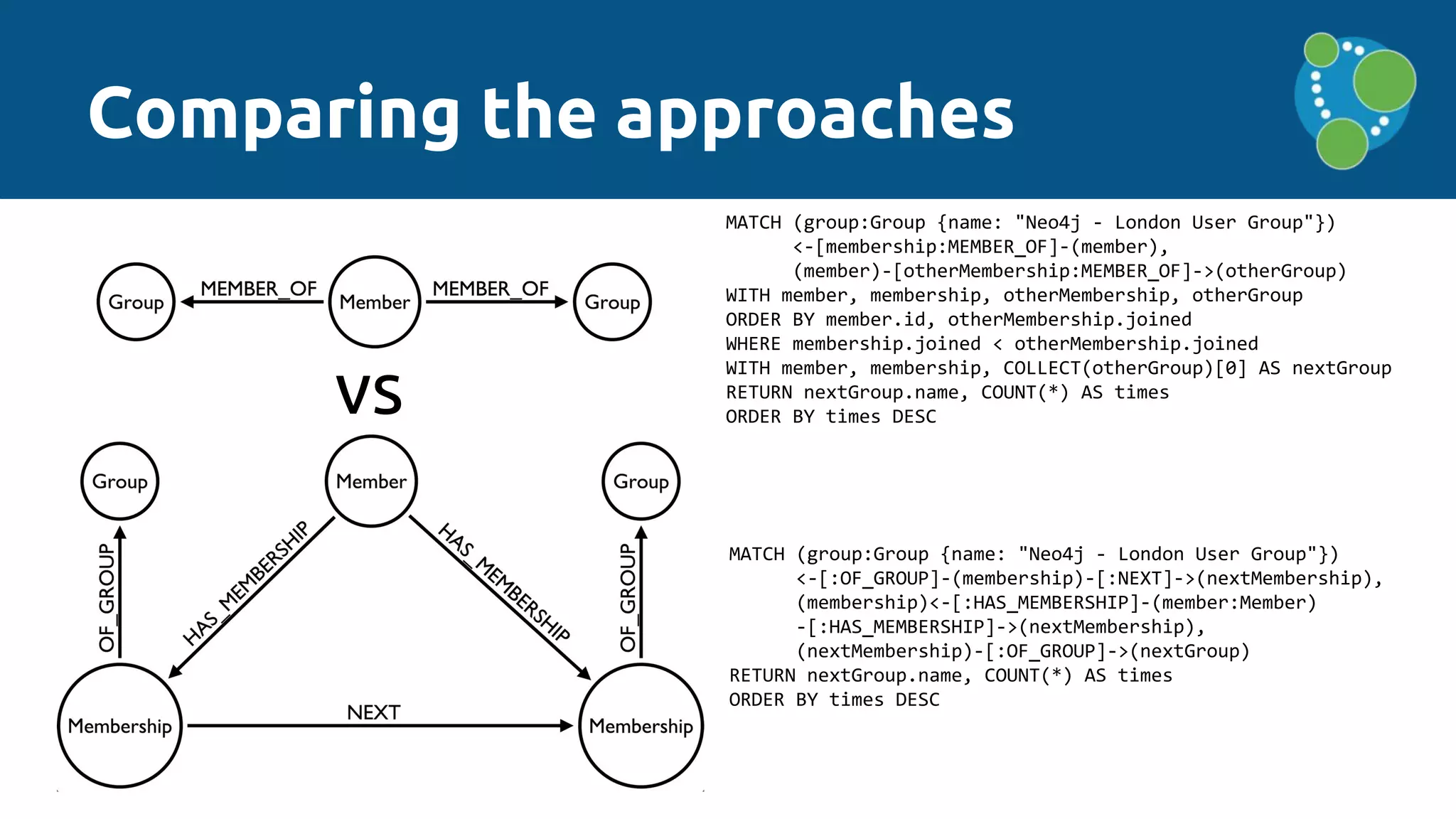

Comparing the approaches vs MATCH (group:Group {name: "Neo4j - London User Group"}) <-[membership:MEMBER_OF]-(member), (member)-[otherMembership:MEMBER_OF]->(otherGroup) WITH member, membership, otherMembership, otherGroup ORDER BY member.id, otherMembership.joined WHERE membership.joined < otherMembership.joined WITH member, membership, COLLECT(otherGroup)[0] AS nextGroup RETURN nextGroup.name, COUNT(*) AS times ORDER BY times DESC MATCH (group:Group {name: "Neo4j - London User Group"}) <-[:OF_GROUP]-(membership)-[:NEXT]->(nextMembership), (membership)<-[:HAS_MEMBERSHIP]-(member:Member) -[:HAS_MEMBERSHIP]->(nextMembership), (nextMembership)-[:OF_GROUP]->(nextGroup) RETURN nextGroup.name, COUNT(*) AS times ORDER BY times DESC

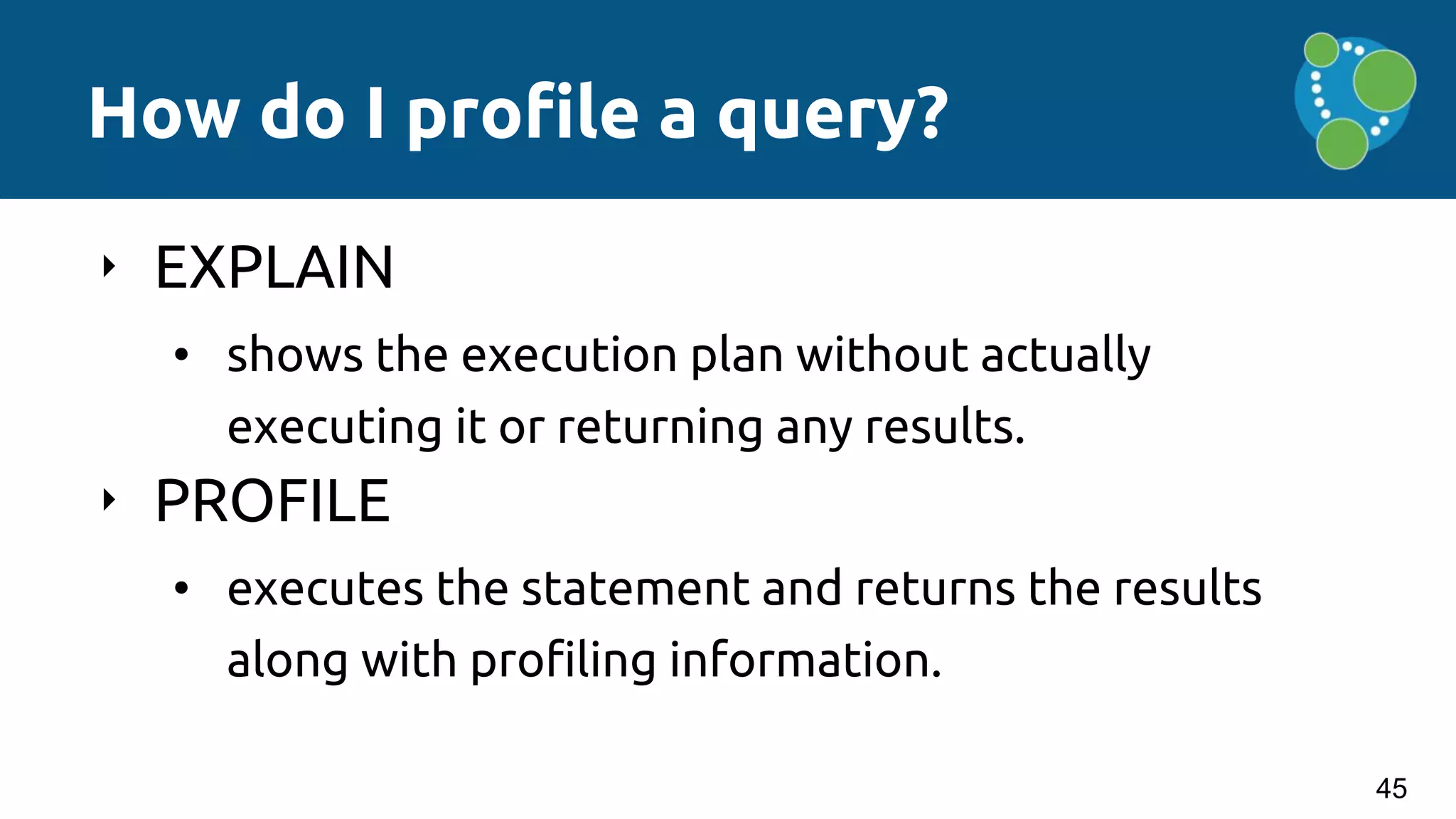

How do I profile a query? ‣ EXPLAIN • shows the execution plan without actually executing it or returning any results. ‣ PROFILE • executes the statement and returns the results along with profiling information. 45

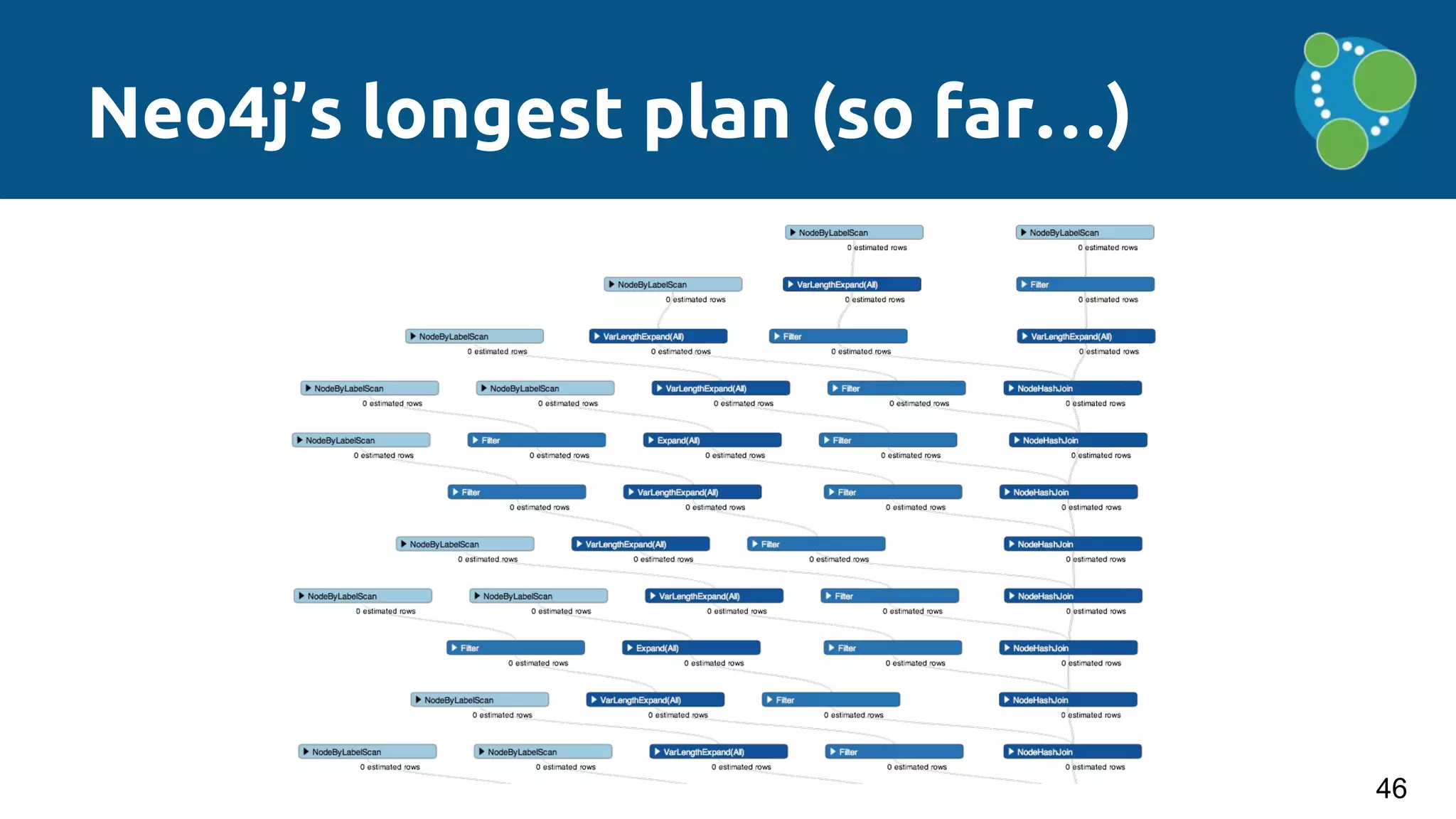

Neo4j’s longest plan (so far…) 46

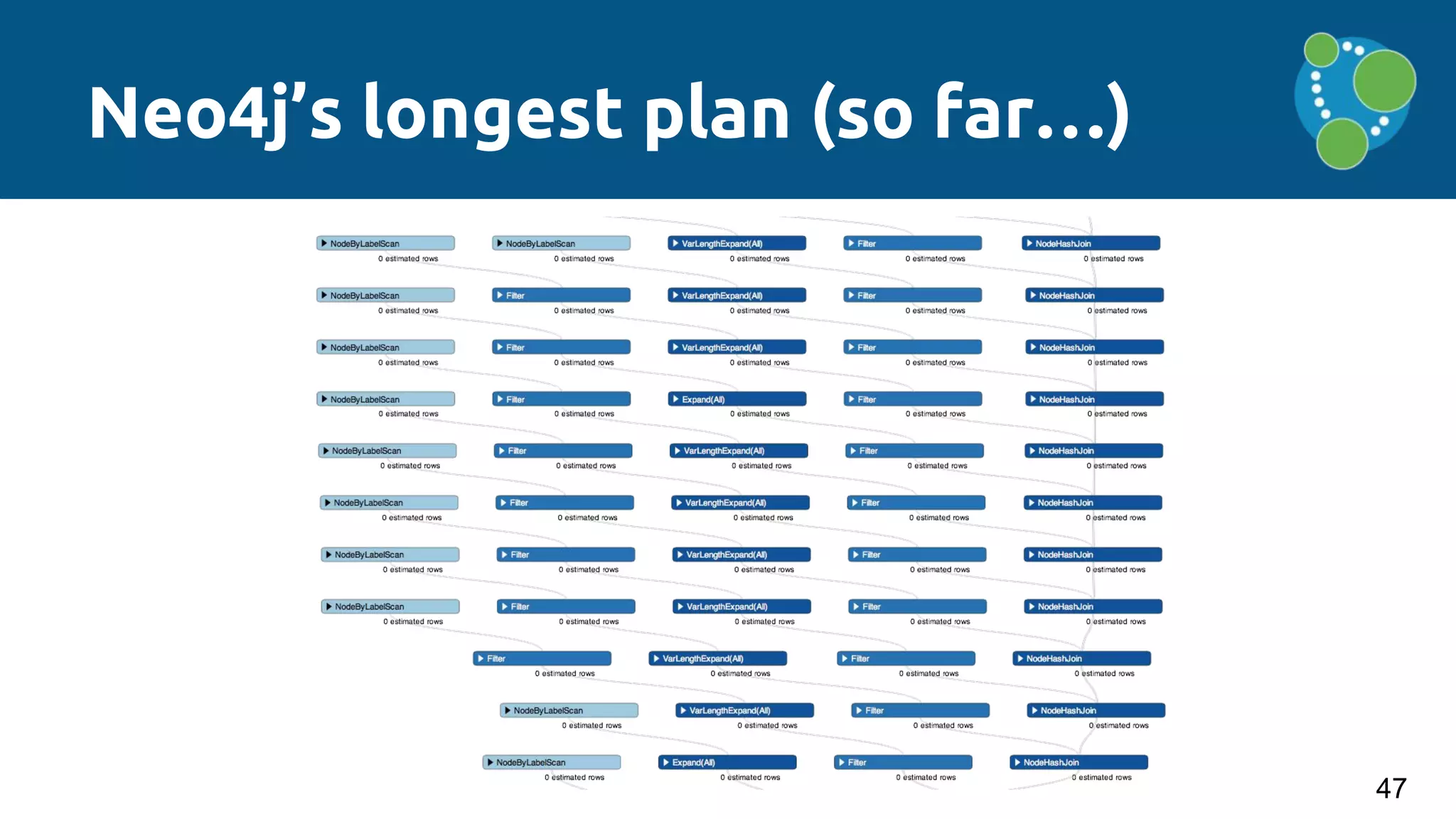

Neo4j’s longest plan (so far…) 47

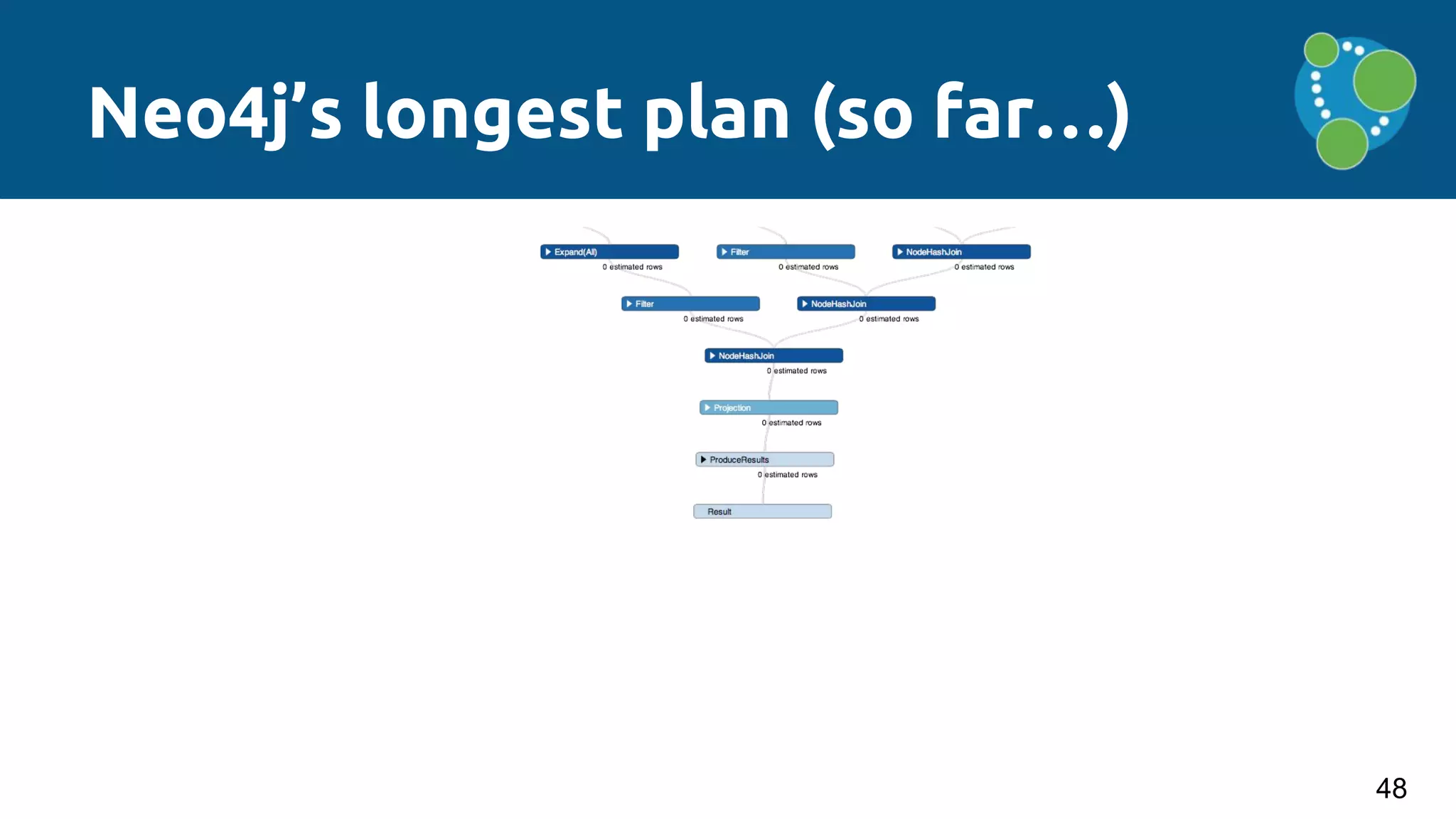

Neo4j’s longest plan (so far…) 48
What is our goal? At a high level, the goal is simple: get the number of db hits down. 49
an abstract unit of storage engine work. What is a database hit? “ ” 50

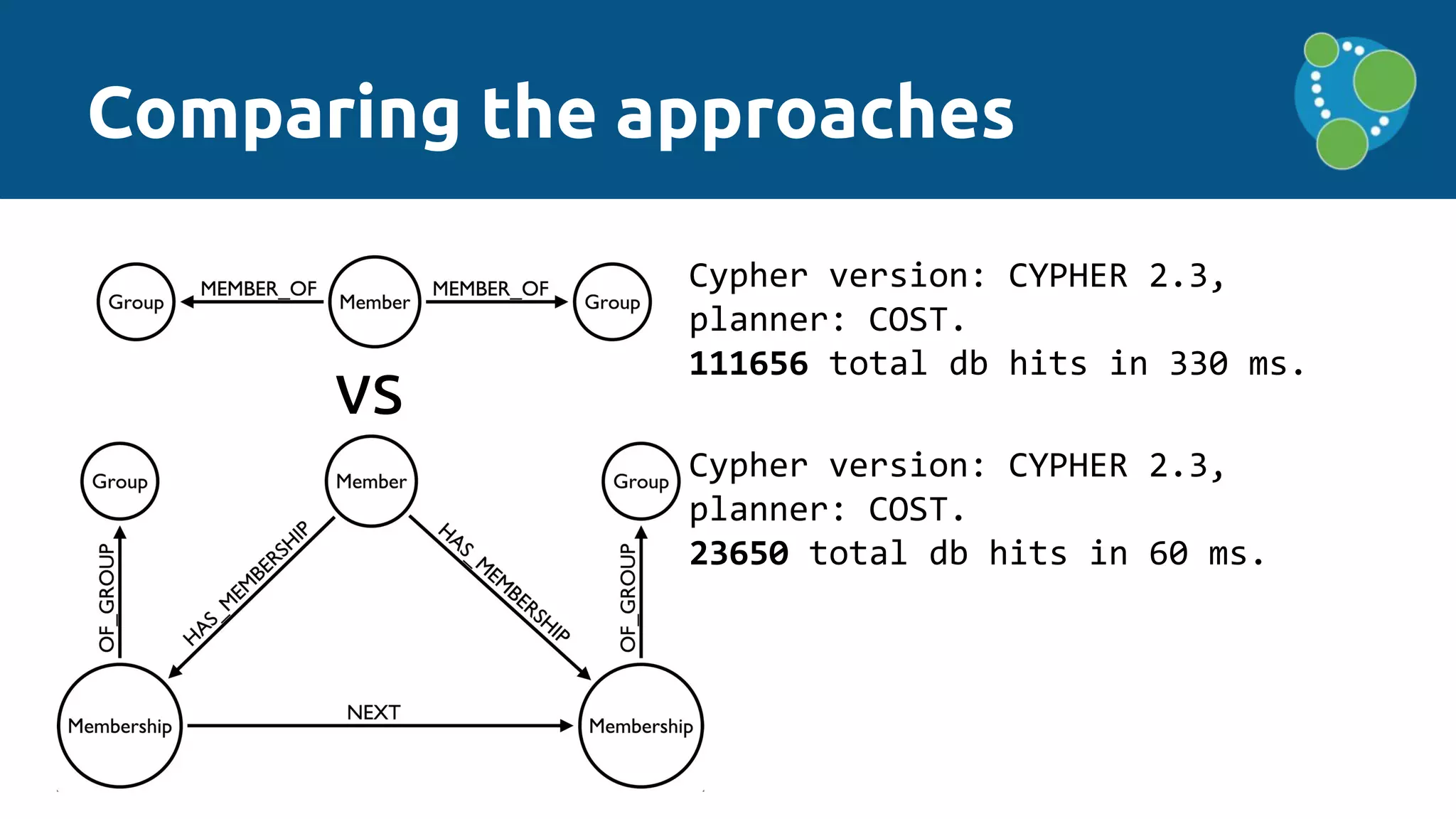

Comparing the approaches Cypher version: CYPHER 2.3, planner: COST. 111656 total db hits in 330 ms. vs Cypher version: CYPHER 2.3, planner: COST. 23650 total db hits in 60 ms.
Tip: Profile your queries ‣ Spike the different models and see which one performs the best

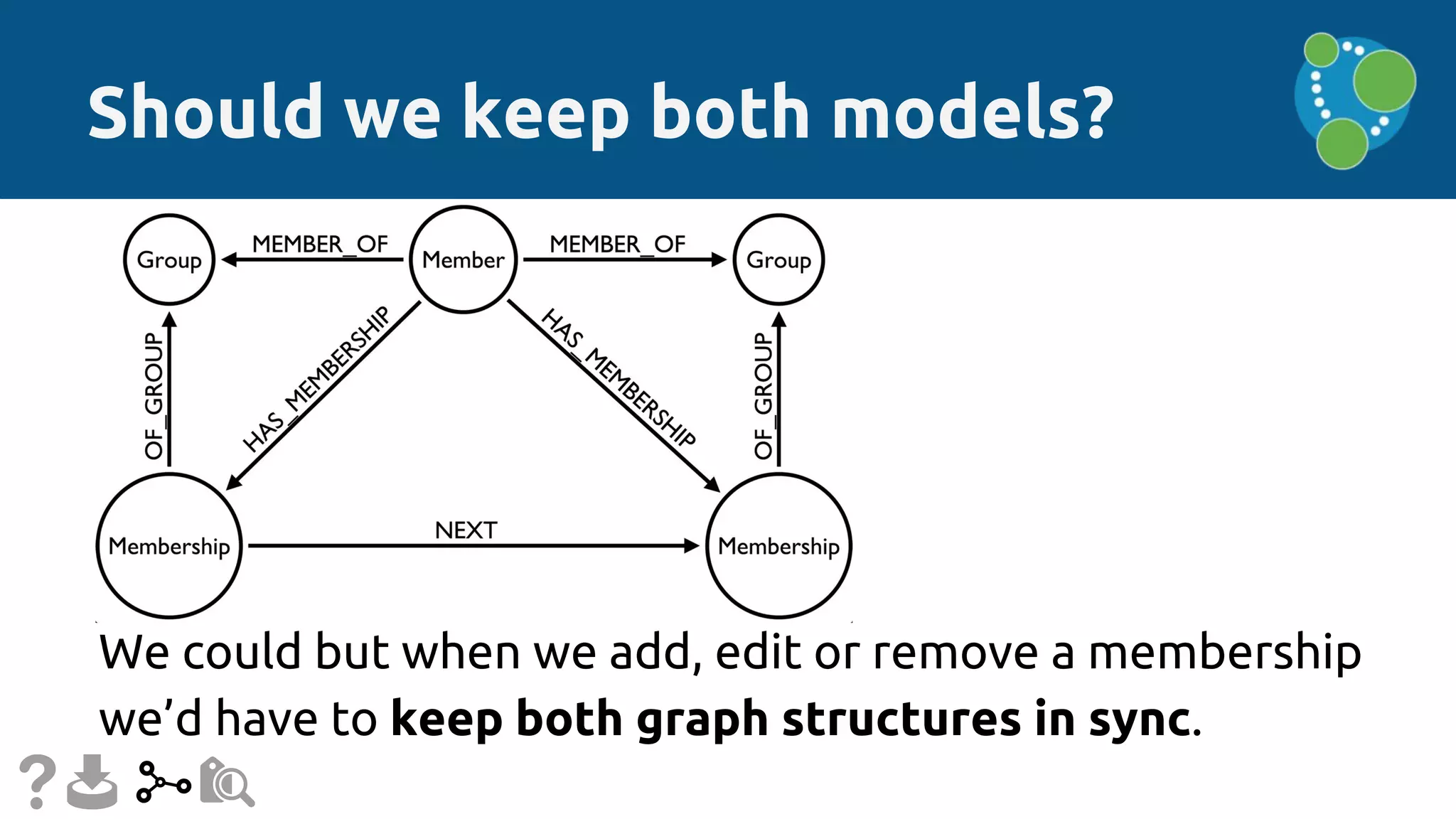

Should we keep both models? We could but when we add, edit or remove a membership we’d have to keep both graph structures in sync.

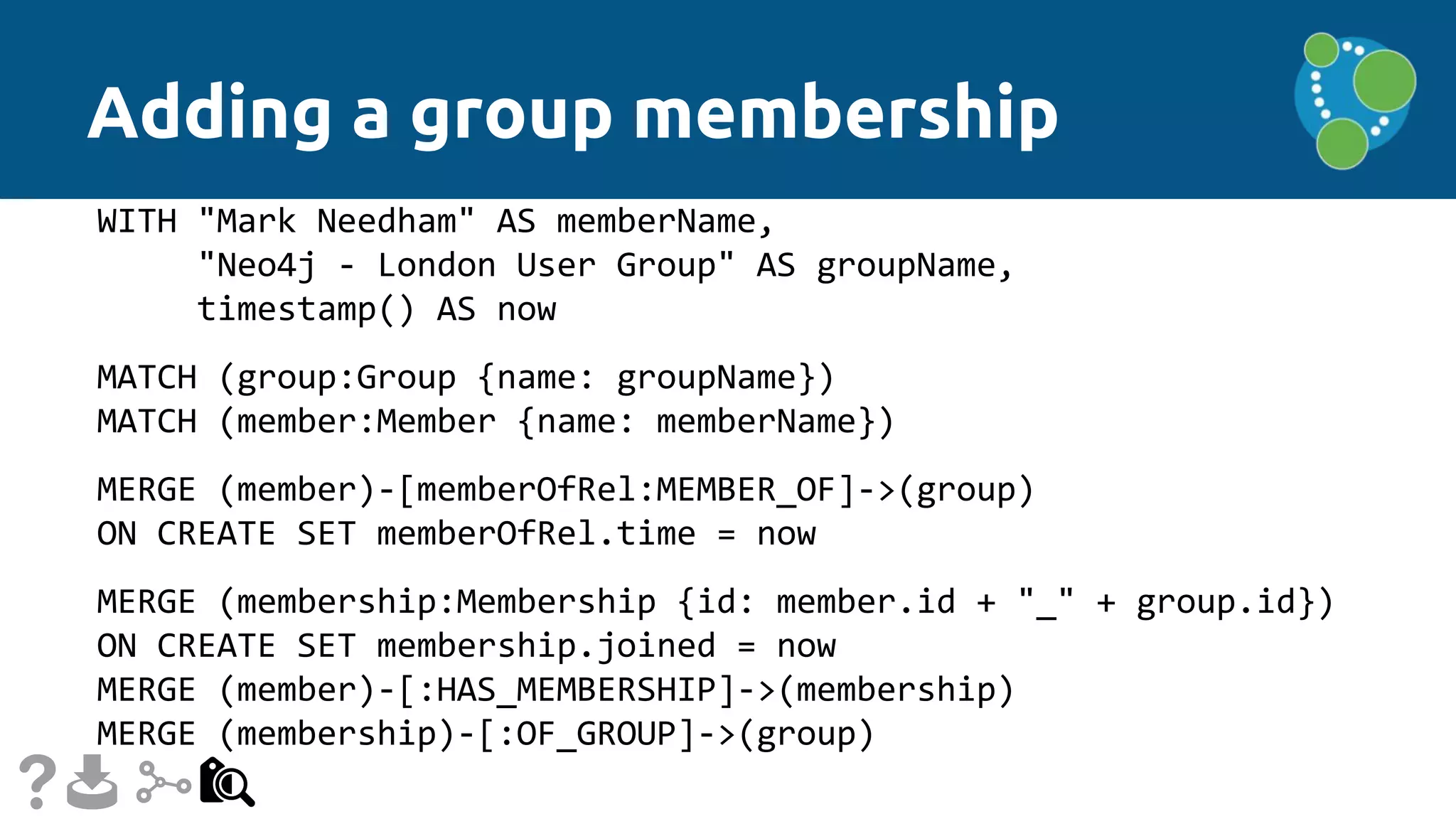

Adding a group membership WITH "Mark Needham" AS memberName, "Neo4j - London User Group" AS groupName, timestamp() AS now MATCH (group:Group {name: groupName}) MATCH (member:Member {name: memberName}) MERGE (member)-[memberOfRel:MEMBER_OF]->(group) ON CREATE SET memberOfRel.time = now MERGE (membership:Membership {id: member.id + "_" + group.id}) ON CREATE SET membership.joined = now MERGE (member)-[:HAS_MEMBERSHIP]->(membership) MERGE (membership)-[:OF_GROUP]->(group)

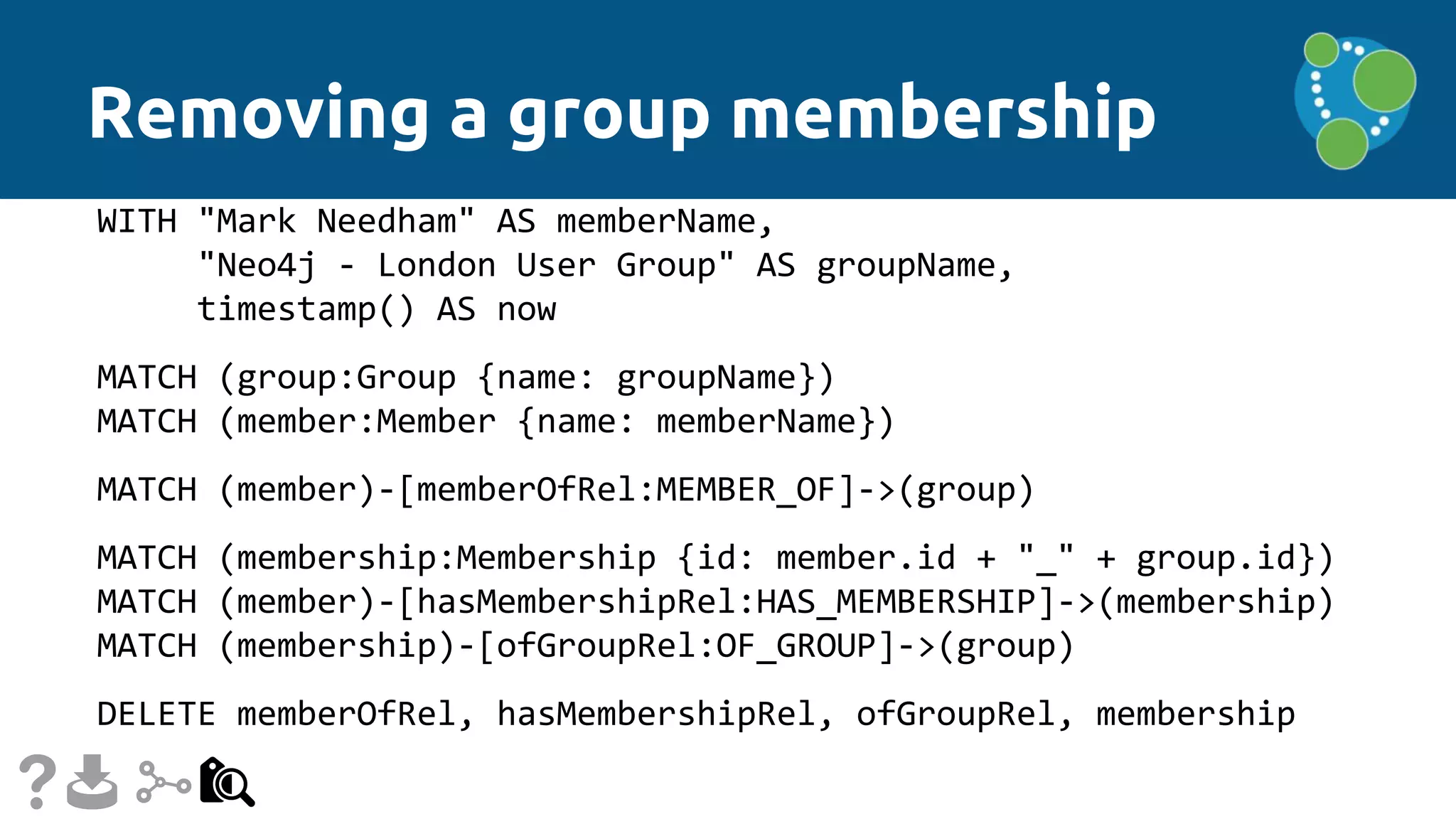

Removing a group membership WITH "Mark Needham" AS memberName, "Neo4j - London User Group" AS groupName, timestamp() AS now MATCH (group:Group {name: groupName}) MATCH (member:Member {name: memberName}) MATCH (member)-[memberOfRel:MEMBER_OF]->(group) MATCH (membership:Membership {id: member.id + "_" + group.id}) MATCH (member)-[hasMembershipRel:HAS_MEMBERSHIP]->(membership) MATCH (membership)-[ofGroupRel:OF_GROUP]->(group) DELETE memberOfRel, hasMembershipRel, ofGroupRel, membership

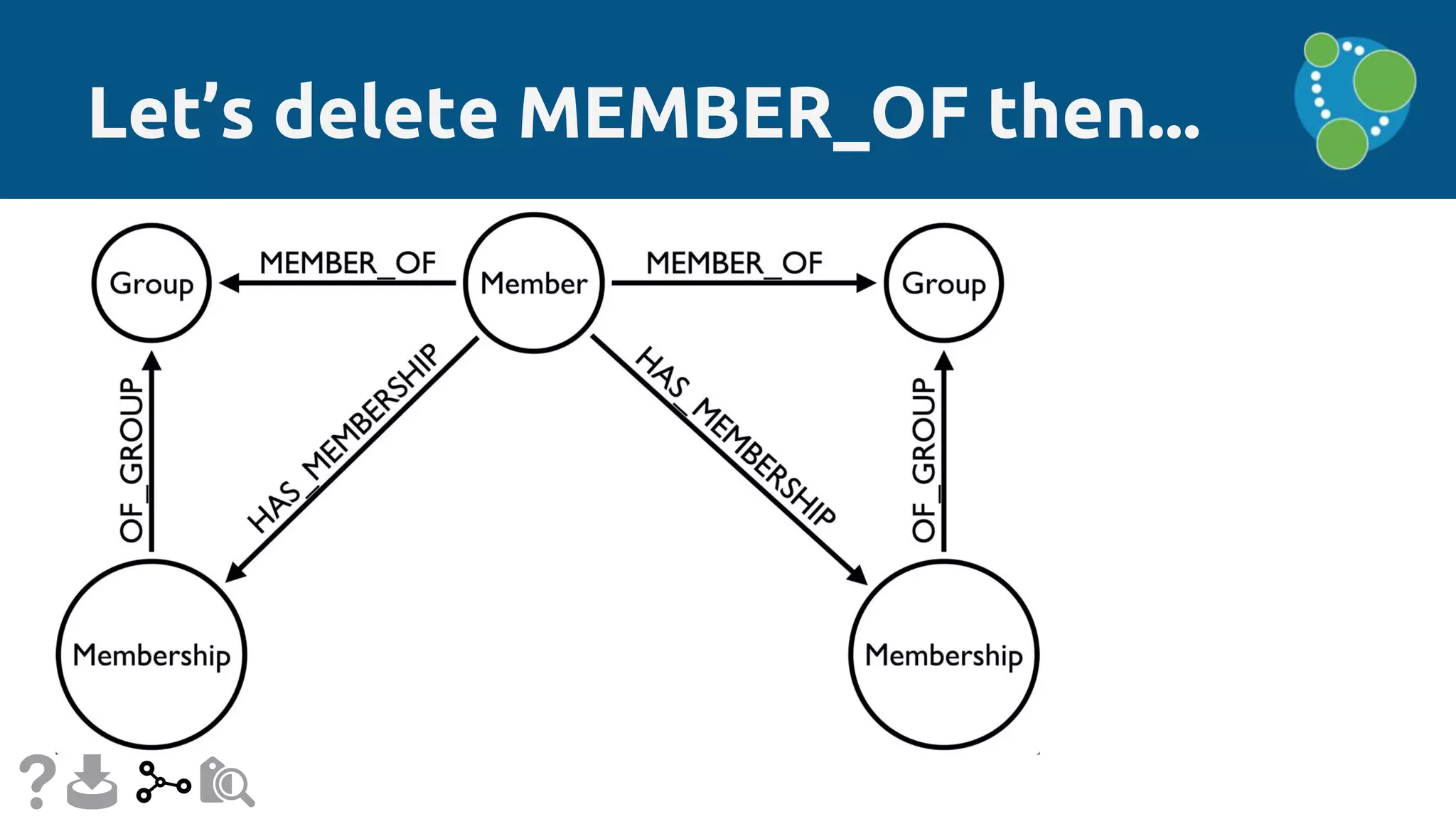

Let’s delete MEMBER_OF then...

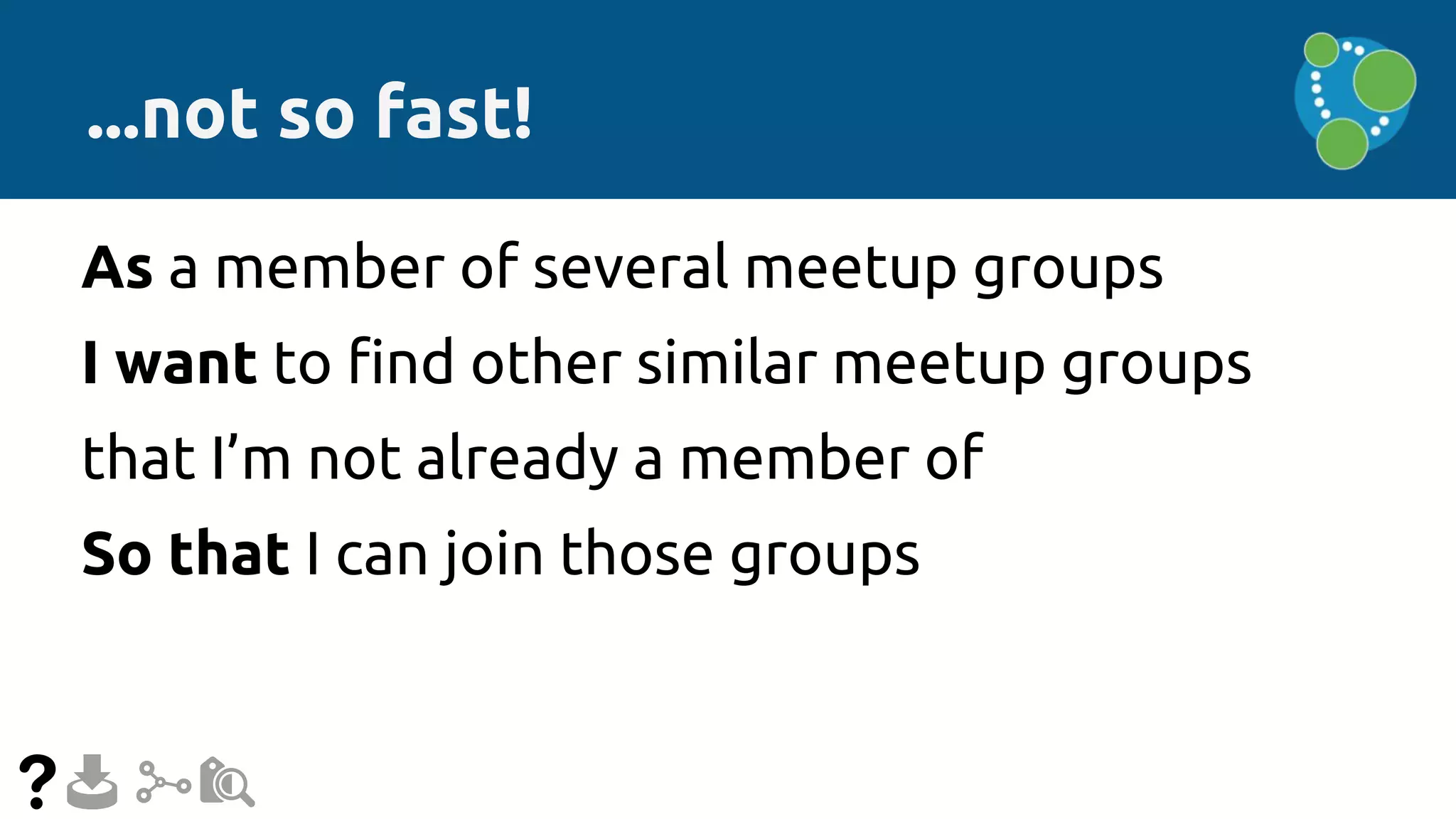

...not so fast! As a member of several meetup groups I want to find other similar meetup groups that I’m not already a member of So that I can join those groups

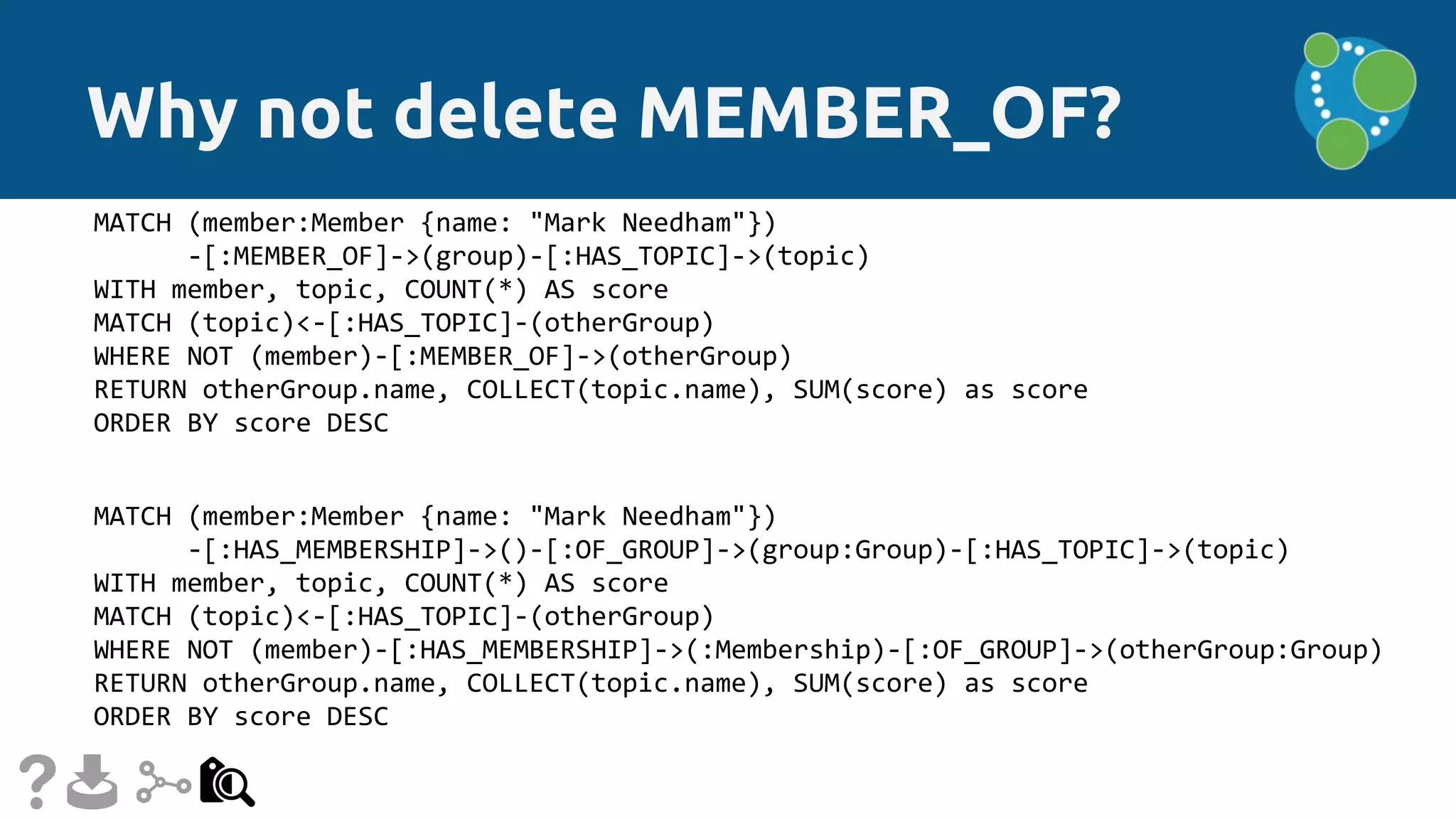

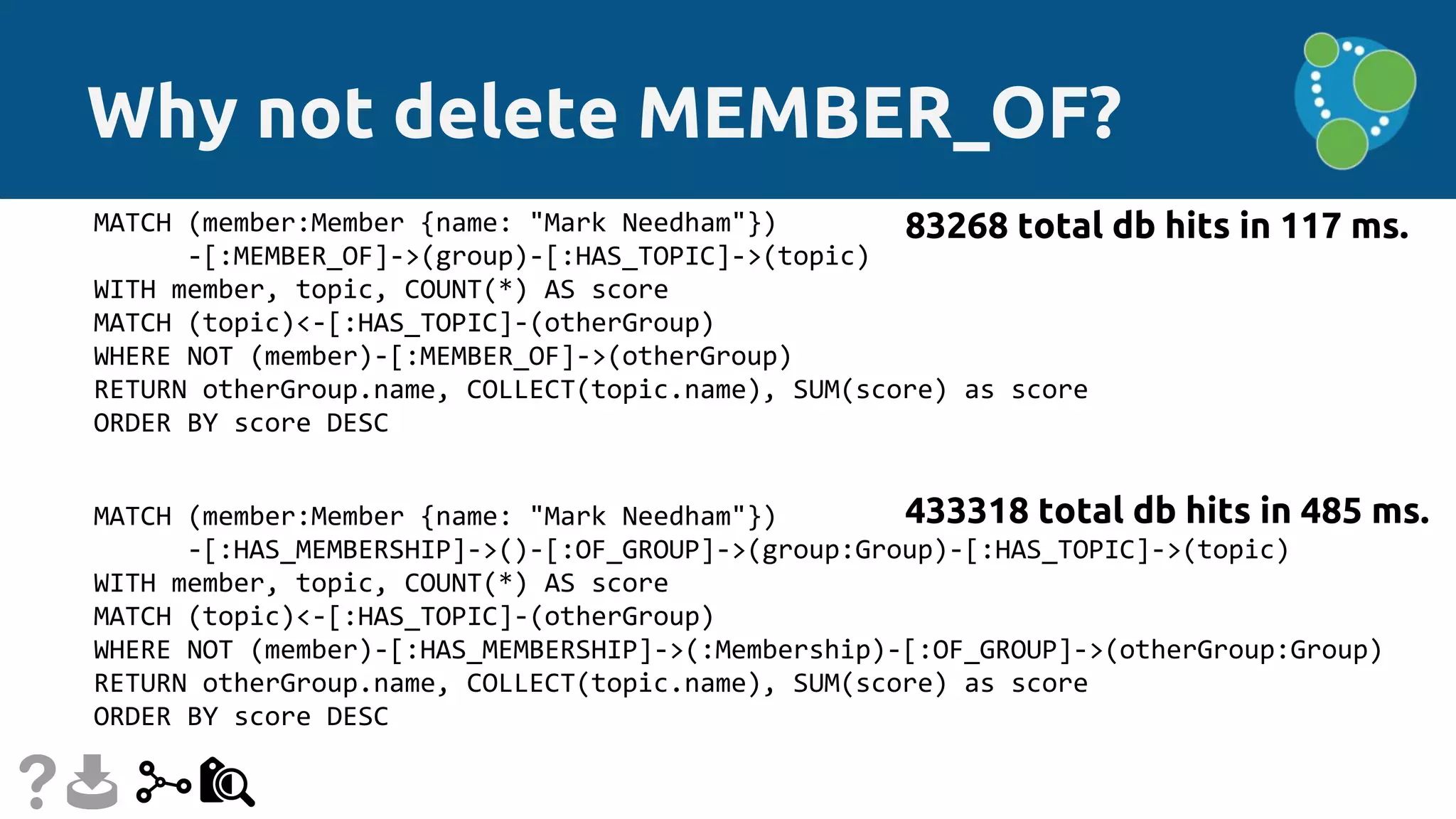

Why not delete MEMBER_OF? MATCH (member:Member {name: "Mark Needham"}) -[:MEMBER_OF]->(group)-[:HAS_TOPIC]->(topic) WITH member, topic, COUNT(*) AS score MATCH (topic)<-[:HAS_TOPIC]-(otherGroup) WHERE NOT (member)-[:MEMBER_OF]->(otherGroup) RETURN otherGroup.name, COLLECT(topic.name), SUM(score) as score ORDER BY score DESC MATCH (member:Member {name: "Mark Needham"}) -[:HAS_MEMBERSHIP]->()-[:OF_GROUP]->(group:Group)-[:HAS_TOPIC]->(topic) WITH member, topic, COUNT(*) AS score MATCH (topic)<-[:HAS_TOPIC]-(otherGroup) WHERE NOT (member)-[:HAS_MEMBERSHIP]->(:Membership)-[:OF_GROUP]->(otherGroup:Group) RETURN otherGroup.name, COLLECT(topic.name), SUM(score) as score ORDER BY score DESC
Why not delete MEMBER_OF? MATCH (member:Member {name: "Mark Needham"}) -[:MEMBER_OF]->(group)-[:HAS_TOPIC]->(topic) WITH member, topic, COUNT(*) AS score MATCH (topic)<-[:HAS_TOPIC]-(otherGroup) WHERE NOT (member)-[:MEMBER_OF]->(otherGroup) RETURN otherGroup.name, COLLECT(topic.name), SUM(score) as score ORDER BY score DESC MATCH (member:Member {name: "Mark Needham"}) -[:HAS_MEMBERSHIP]->()-[:OF_GROUP]->(group:Group)-[:HAS_TOPIC]->(topic) WITH member, topic, COUNT(*) AS score MATCH (topic)<-[:HAS_TOPIC]-(otherGroup) WHERE NOT (member)-[:HAS_MEMBERSHIP]->(:Membership)-[:OF_GROUP]->(otherGroup:Group) RETURN otherGroup.name, COLLECT(topic.name), SUM(score) as score ORDER BY score DESC 433318 total db hits in 485 ms. 83268 total db hits in 117 ms.
Tip: Maintaining multiple models ‣ Different models perform better for different queries but worse for others ‣ Optimising for reads may mean we pay a write and maintenance penalty

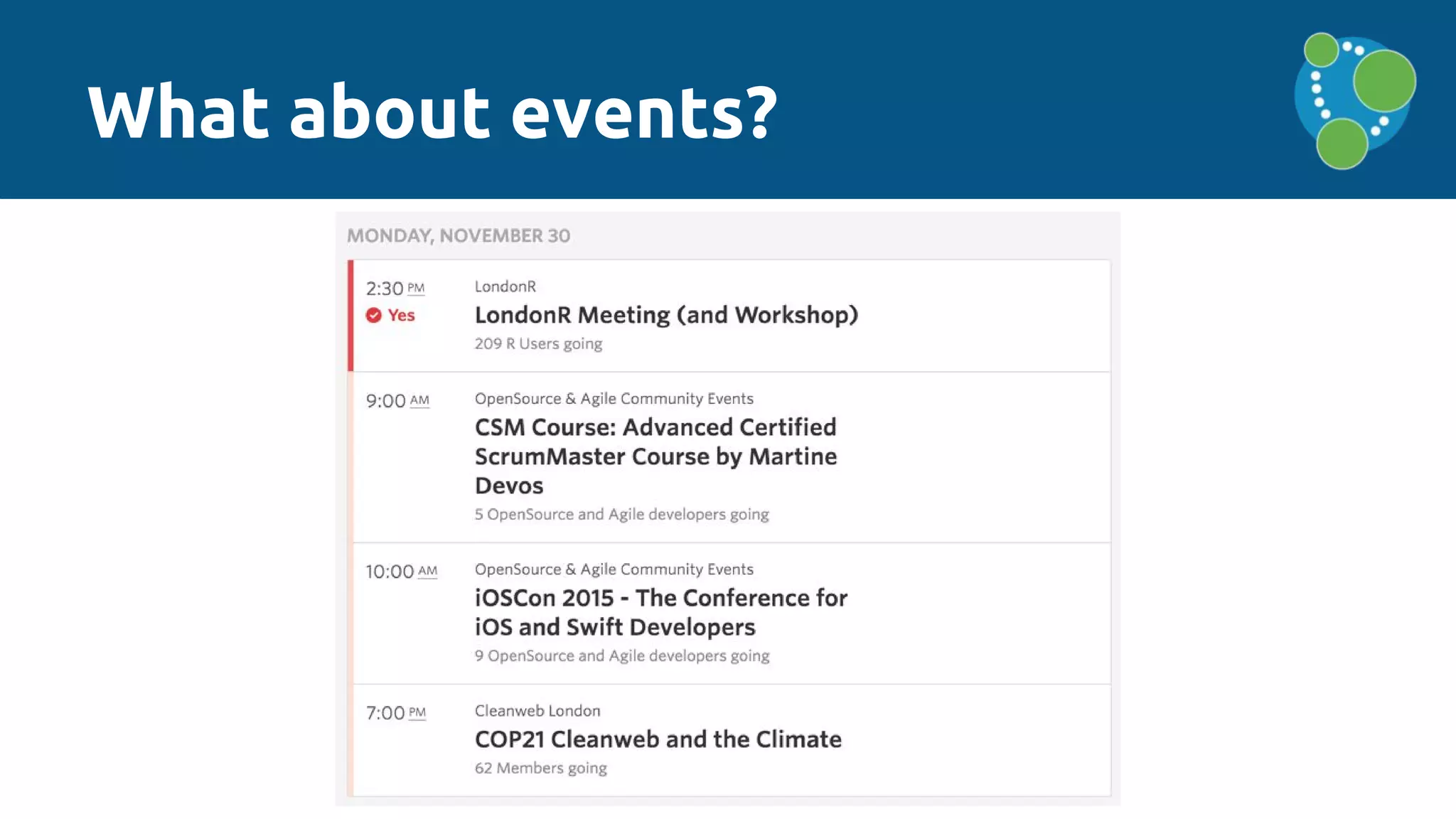

What about events?

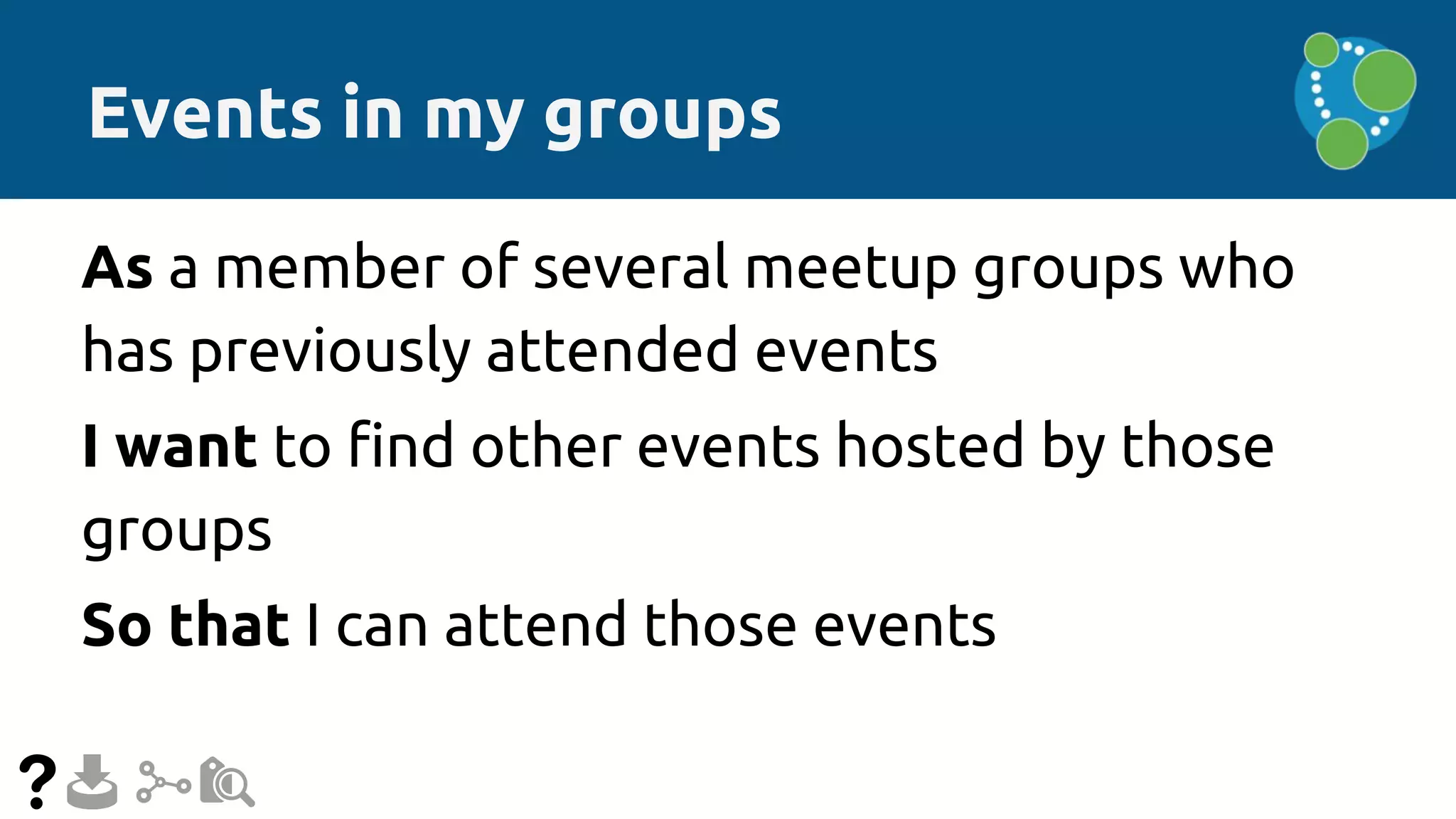

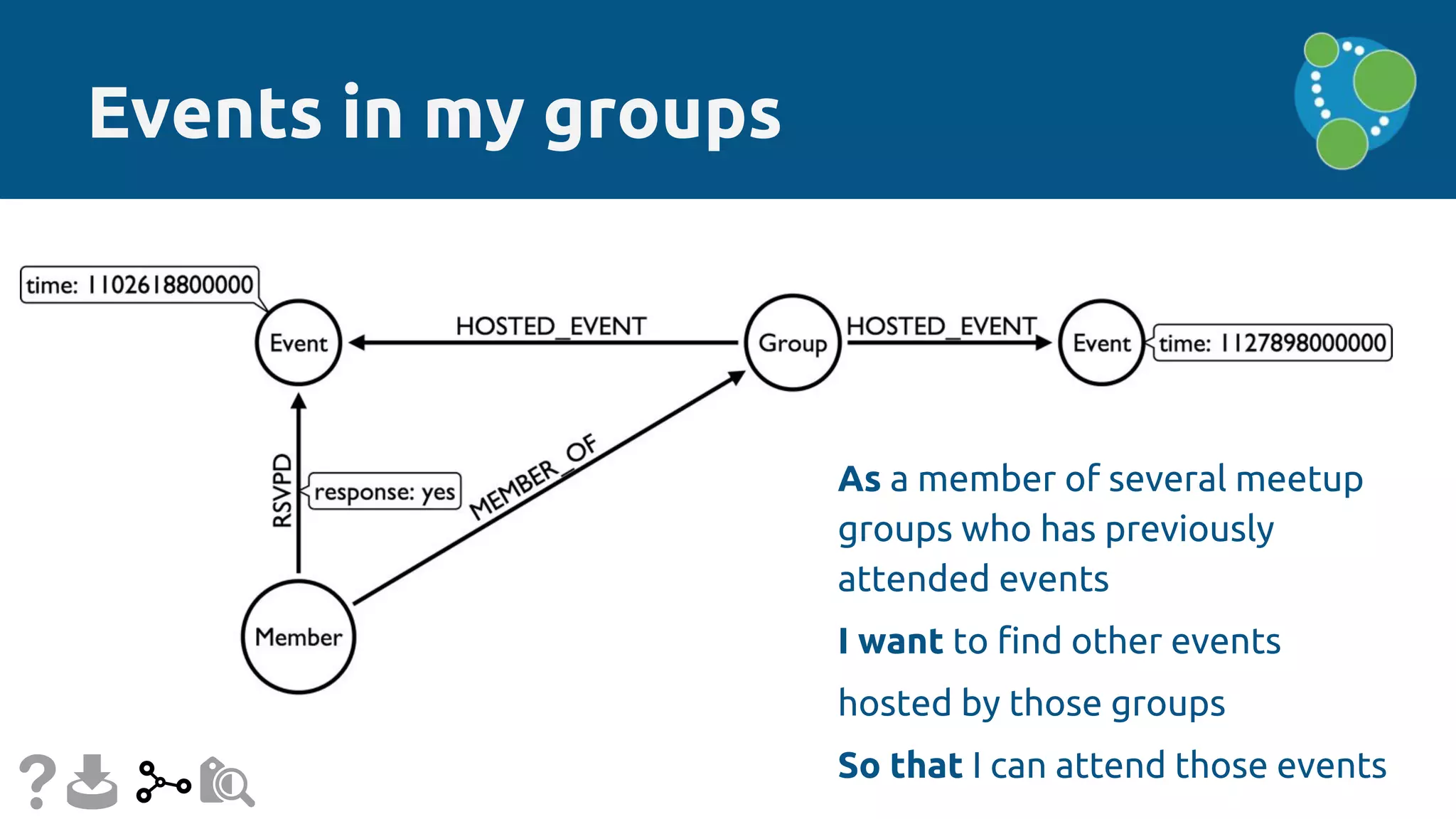

Events in my groups As a member of several meetup groups who has previously attended events I want to find other events hosted by those groups So that I can attend those events
Events in my groups As a member of several meetup groups who has previously attended events I want to find other events hosted by those groups So that I can attend those events

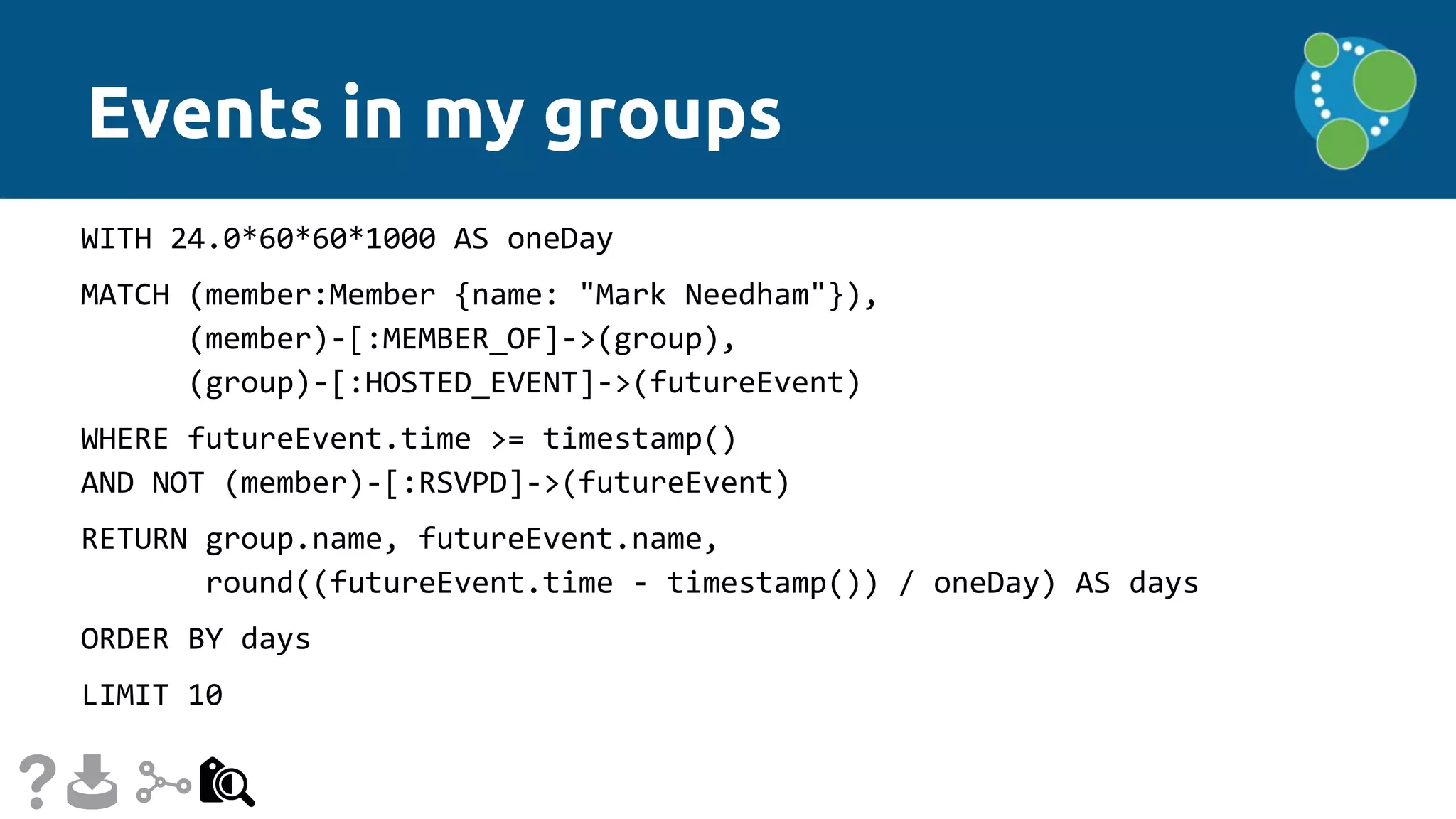

WITH 24.0*60*60*1000 AS oneDay MATCH (member:Member {name: "Mark Needham"}), (member)-[:MEMBER_OF]->(group), (group)-[:HOSTED_EVENT]->(futureEvent) WHERE futureEvent.time >= timestamp() AND NOT (member)-[:RSVPD]->(futureEvent) RETURN group.name, futureEvent.name, round((futureEvent.time - timestamp()) / oneDay) AS days ORDER BY days LIMIT 10 Events in my groups

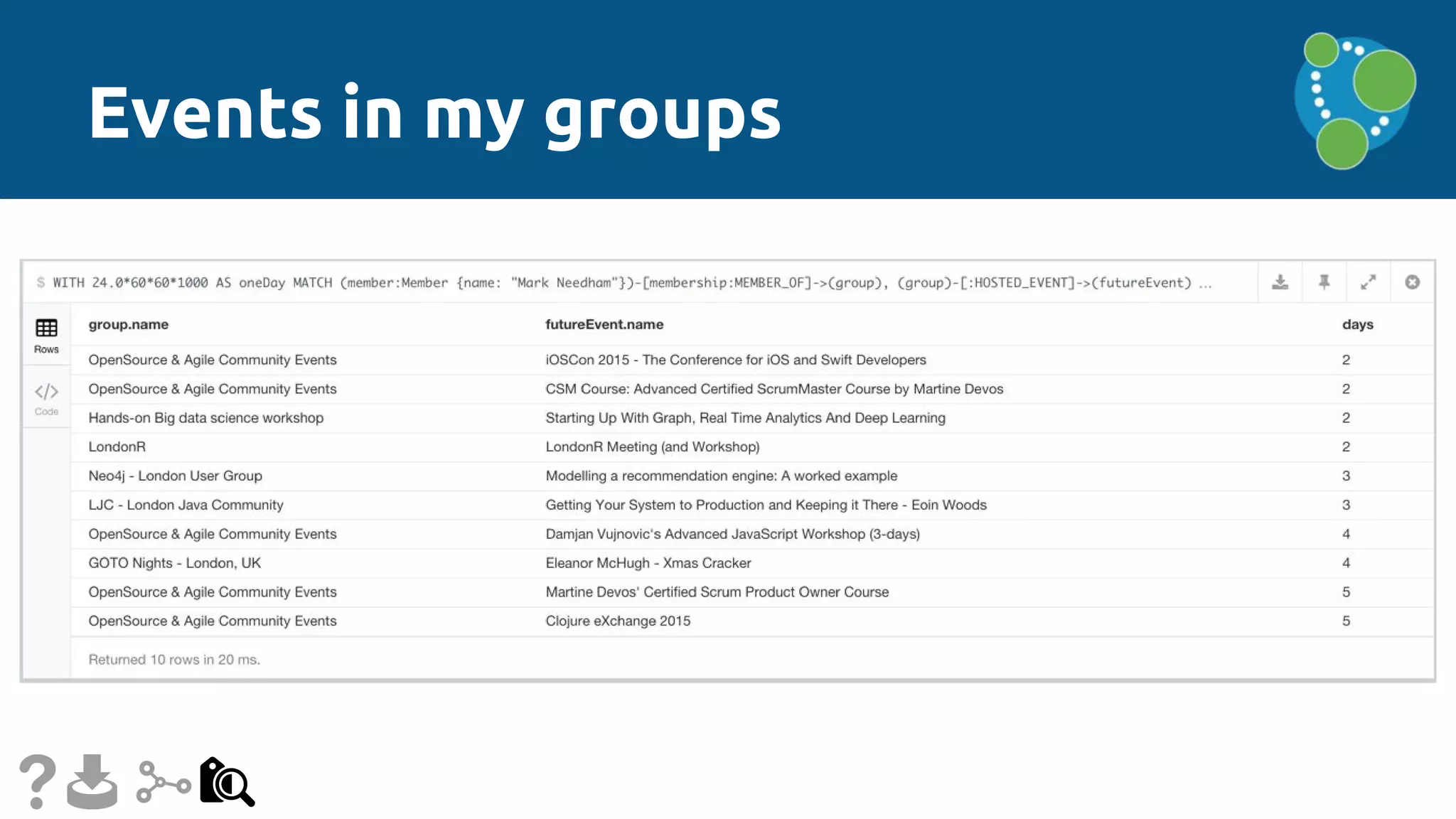

Events in my groups

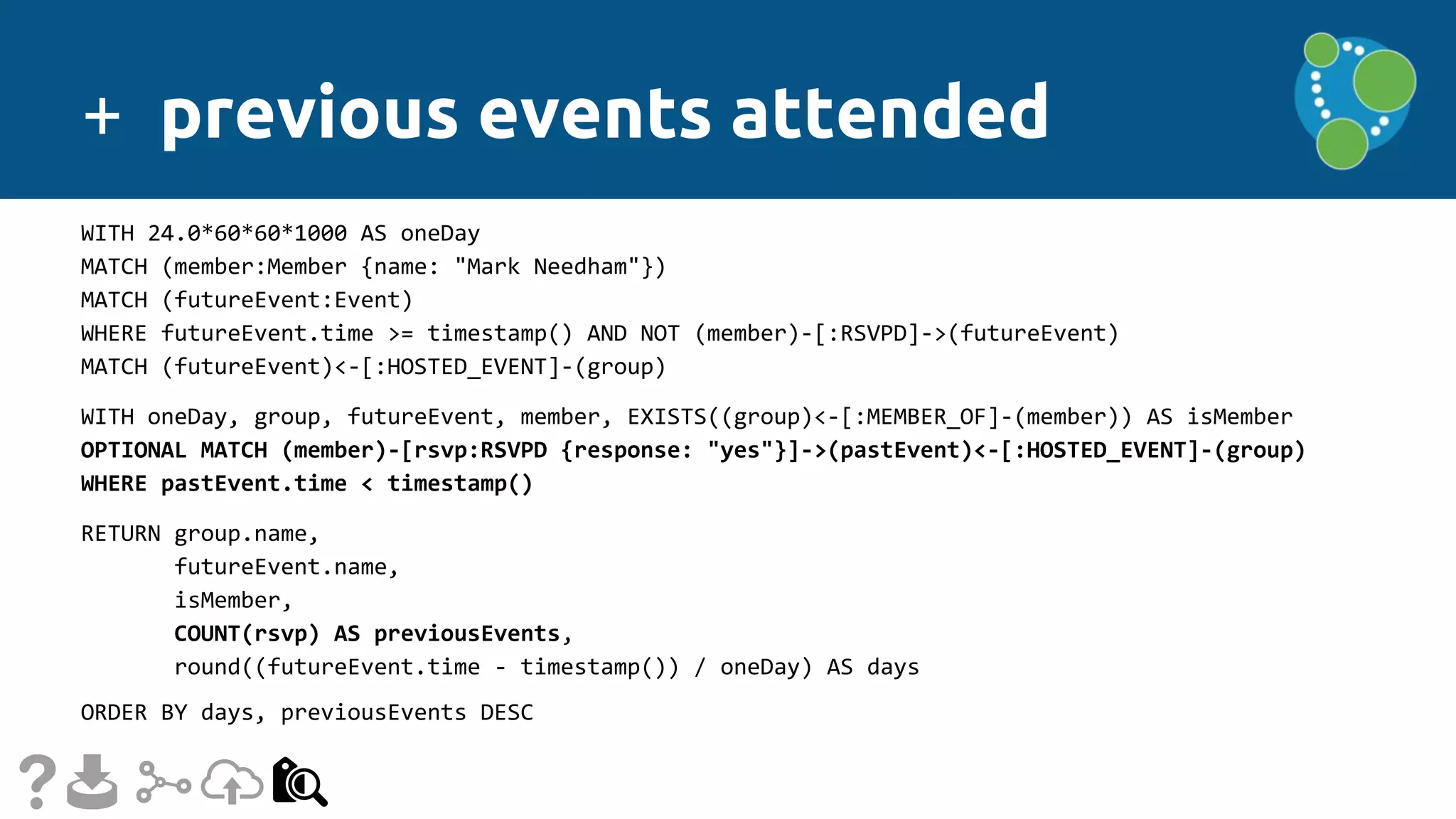

+ previous events attended WITH 24.0*60*60*1000 AS oneDay MATCH (member:Member {name: "Mark Needham"}) MATCH (futureEvent:Event) WHERE futureEvent.time >= timestamp() AND NOT (member)-[:RSVPD]->(futureEvent) MATCH (futureEvent)<-[:HOSTED_EVENT]-(group) WITH oneDay, group, futureEvent, member, EXISTS((group)<-[:MEMBER_OF]-(member)) AS isMember OPTIONAL MATCH (member)-[rsvp:RSVPD {response: "yes"}]->(pastEvent)<-[:HOSTED_EVENT]-(group) WHERE pastEvent.time < timestamp() RETURN group.name, futureEvent.name, isMember, COUNT(rsvp) AS previousEvents, round((futureEvent.time - timestamp()) / oneDay) AS days ORDER BY days, previousEvents DESC

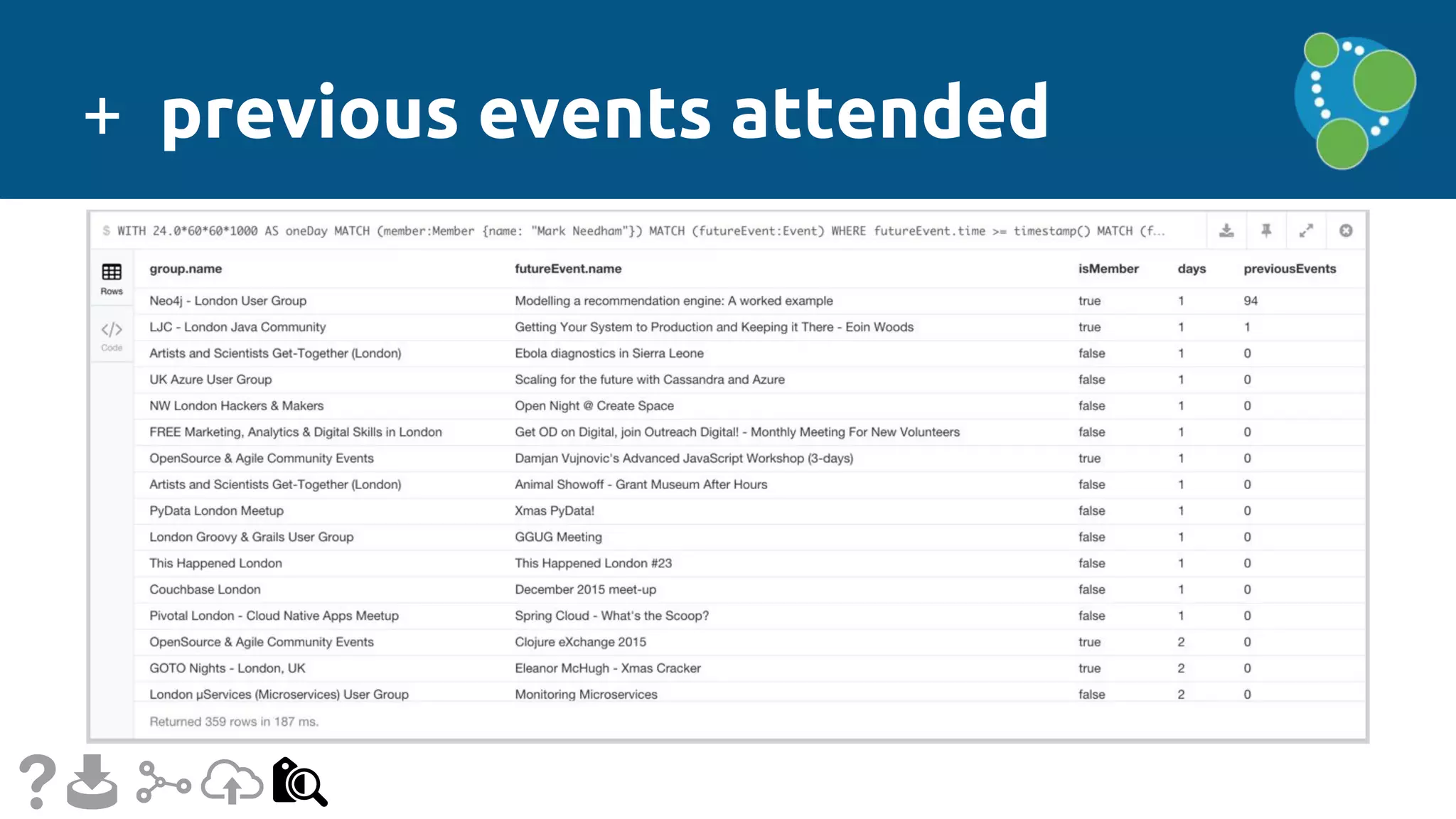

+ previous events attended

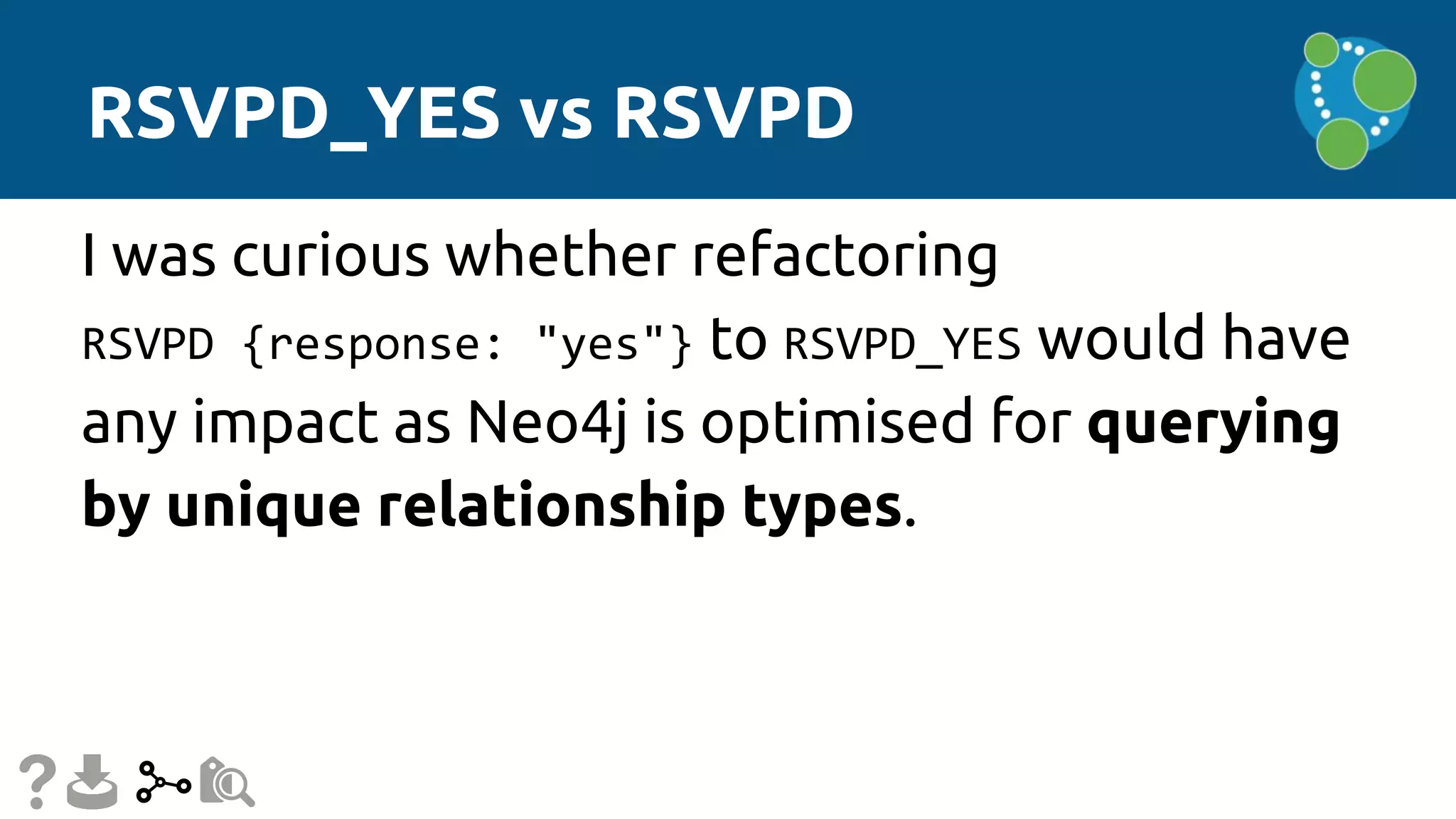

RSVPD_YES vs RSVPD I was curious whether refactoring RSVPD {response: "yes"} to RSVPD_YES would have any impact as Neo4j is optimised for querying by unique relationship types.

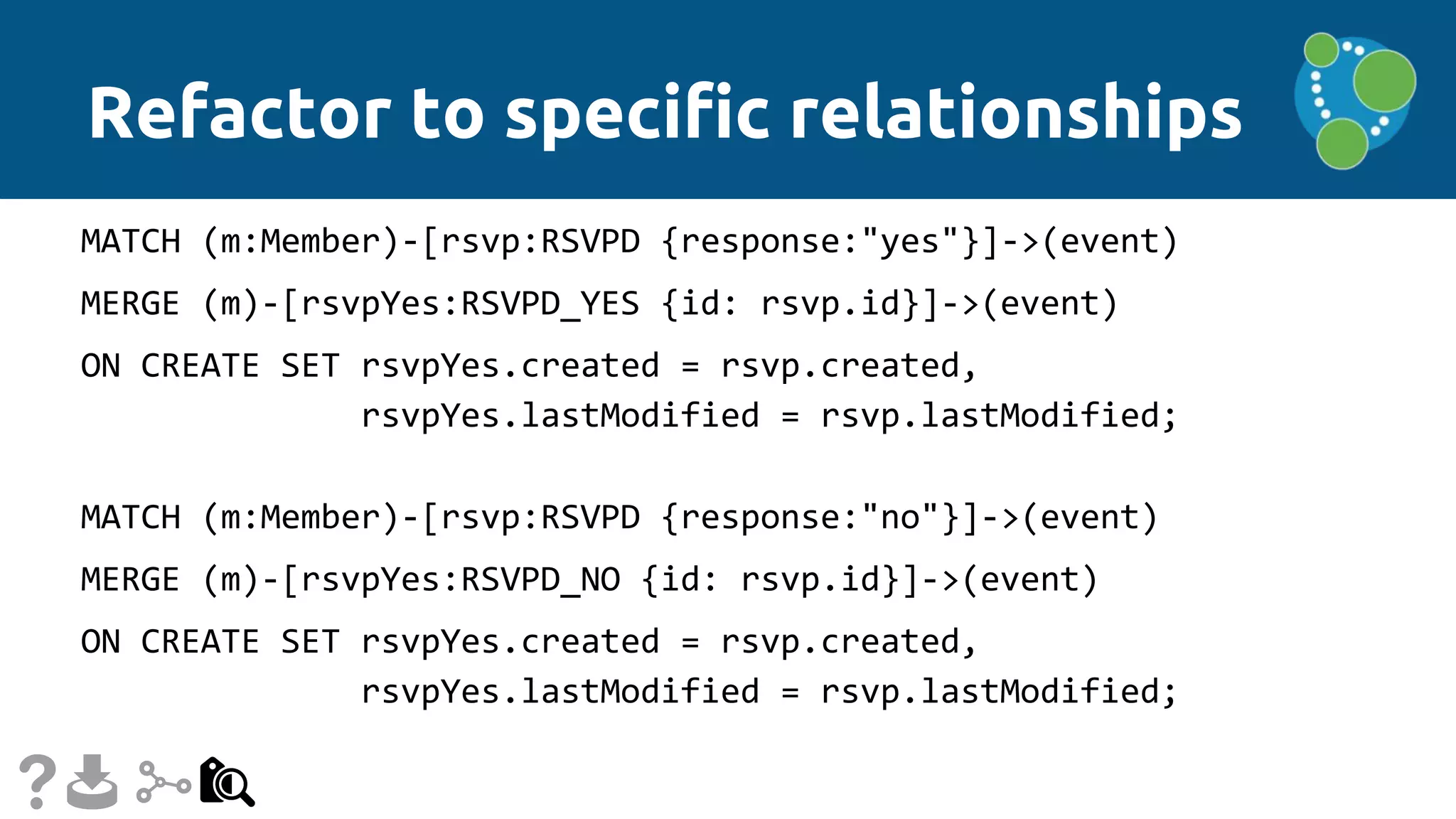

Refactor to specific relationships MATCH (m:Member)-[rsvp:RSVPD {response:"yes"}]->(event) MERGE (m)-[rsvpYes:RSVPD_YES {id: rsvp.id}]->(event) ON CREATE SET rsvpYes.created = rsvp.created, rsvpYes.lastModified = rsvp.lastModified; MATCH (m:Member)-[rsvp:RSVPD {response:"no"}]->(event) MERGE (m)-[rsvpYes:RSVPD_NO {id: rsvp.id}]->(event) ON CREATE SET rsvpYes.created = rsvp.created, rsvpYes.lastModified = rsvp.lastModified;

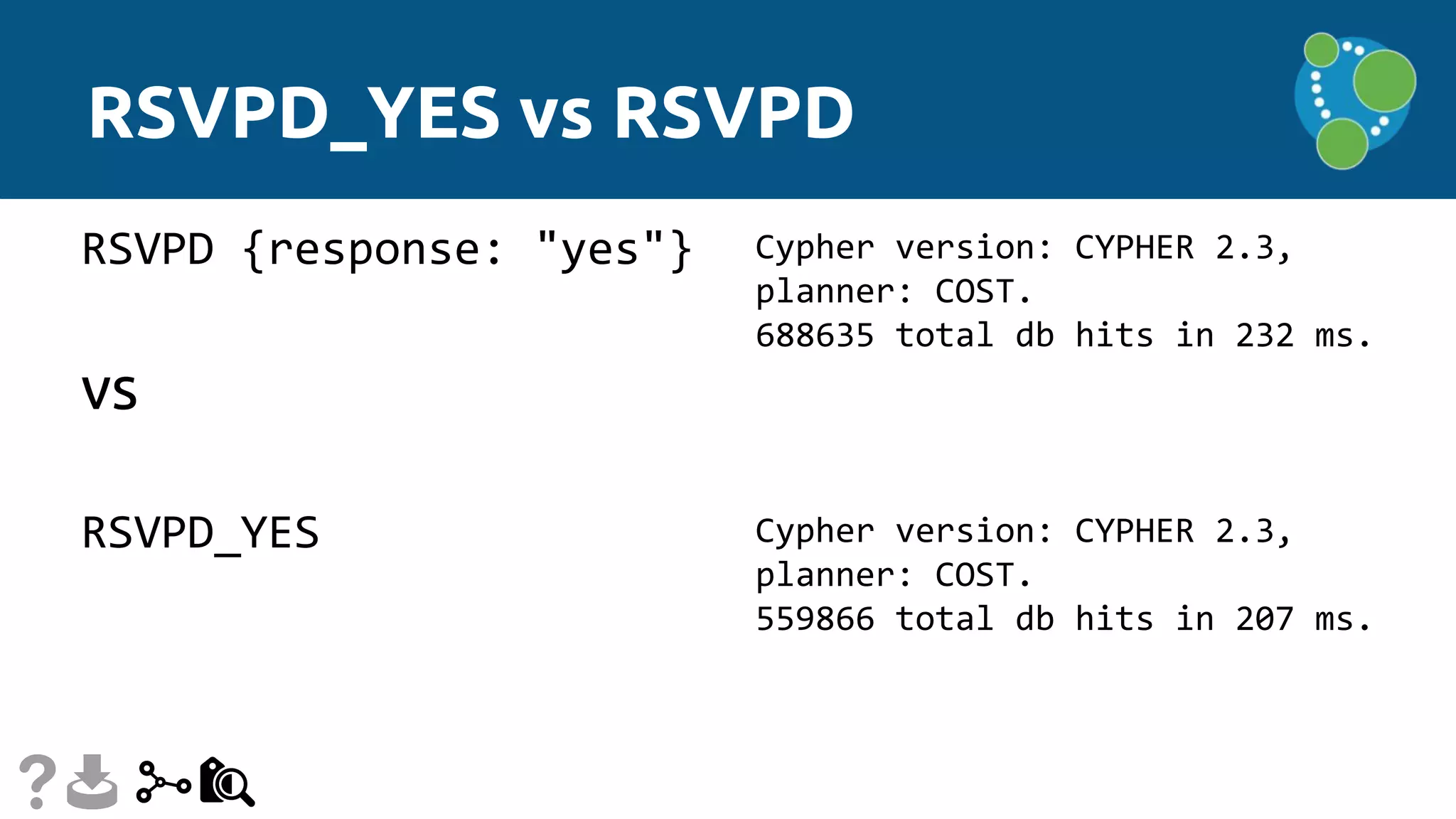

RSVPD_YES vs RSVPD RSVPD {response: "yes"} vs RSVPD_YES Cypher version: CYPHER 2.3, planner: COST. 688635 total db hits in 232 ms. Cypher version: CYPHER 2.3, planner: COST. 559866 total db hits in 207 ms.

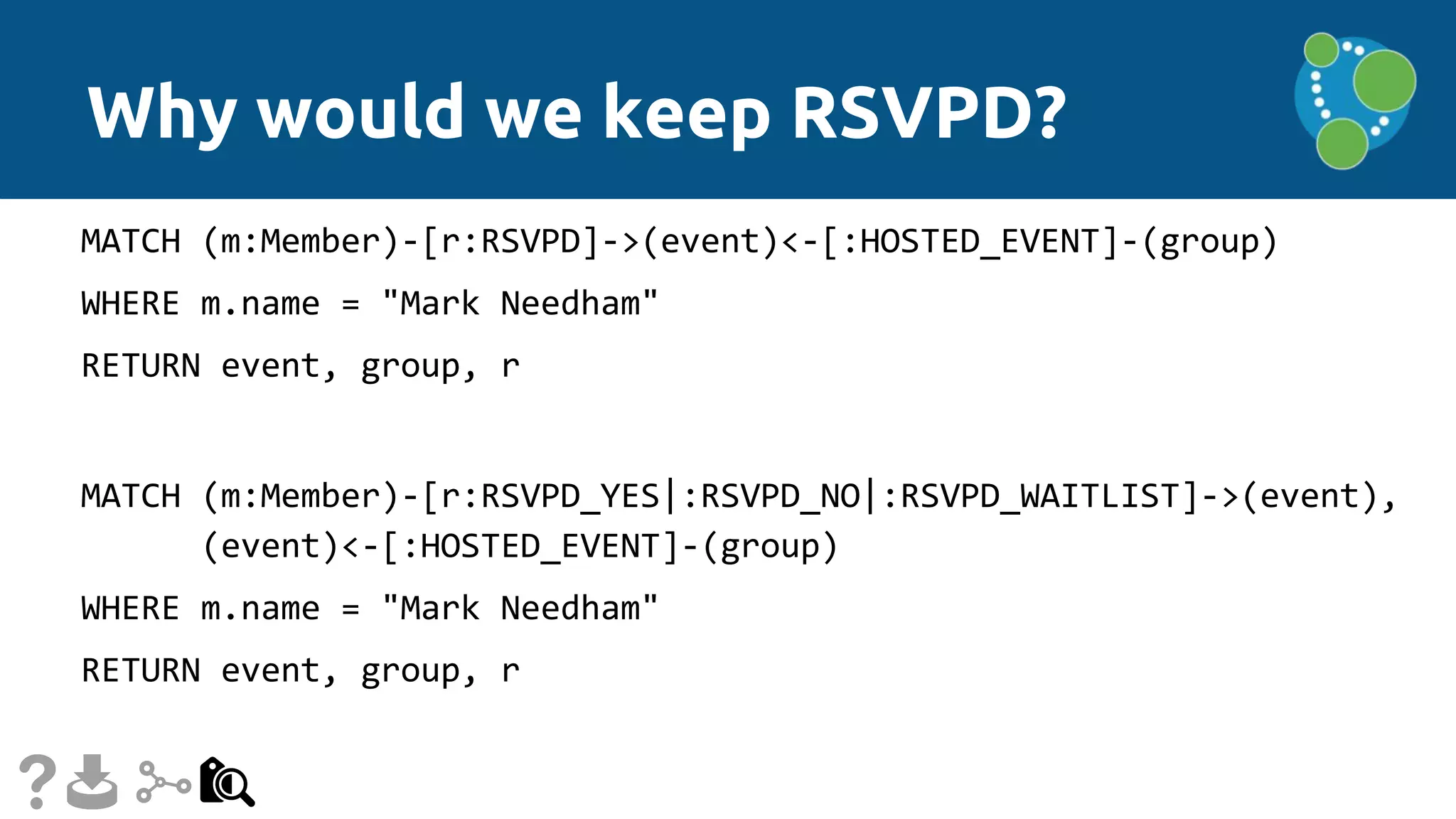

Why would we keep RSVPD? MATCH (m:Member)-[r:RSVPD]->(event)<-[:HOSTED_EVENT]-(group) WHERE m.name = "Mark Needham" RETURN event, group, r MATCH (m:Member)-[r:RSVPD_YES|:RSVPD_NO|:RSVPD_WAITLIST]->(event), (event)<-[:HOSTED_EVENT]-(group) WHERE m.name = "Mark Needham" RETURN event, group, r
Tip: Specific relationships ‣ Neo4j is optimised for querying by unique relationship types… ‣ ...but sometimes we pay a query maintenance cost to achieve this

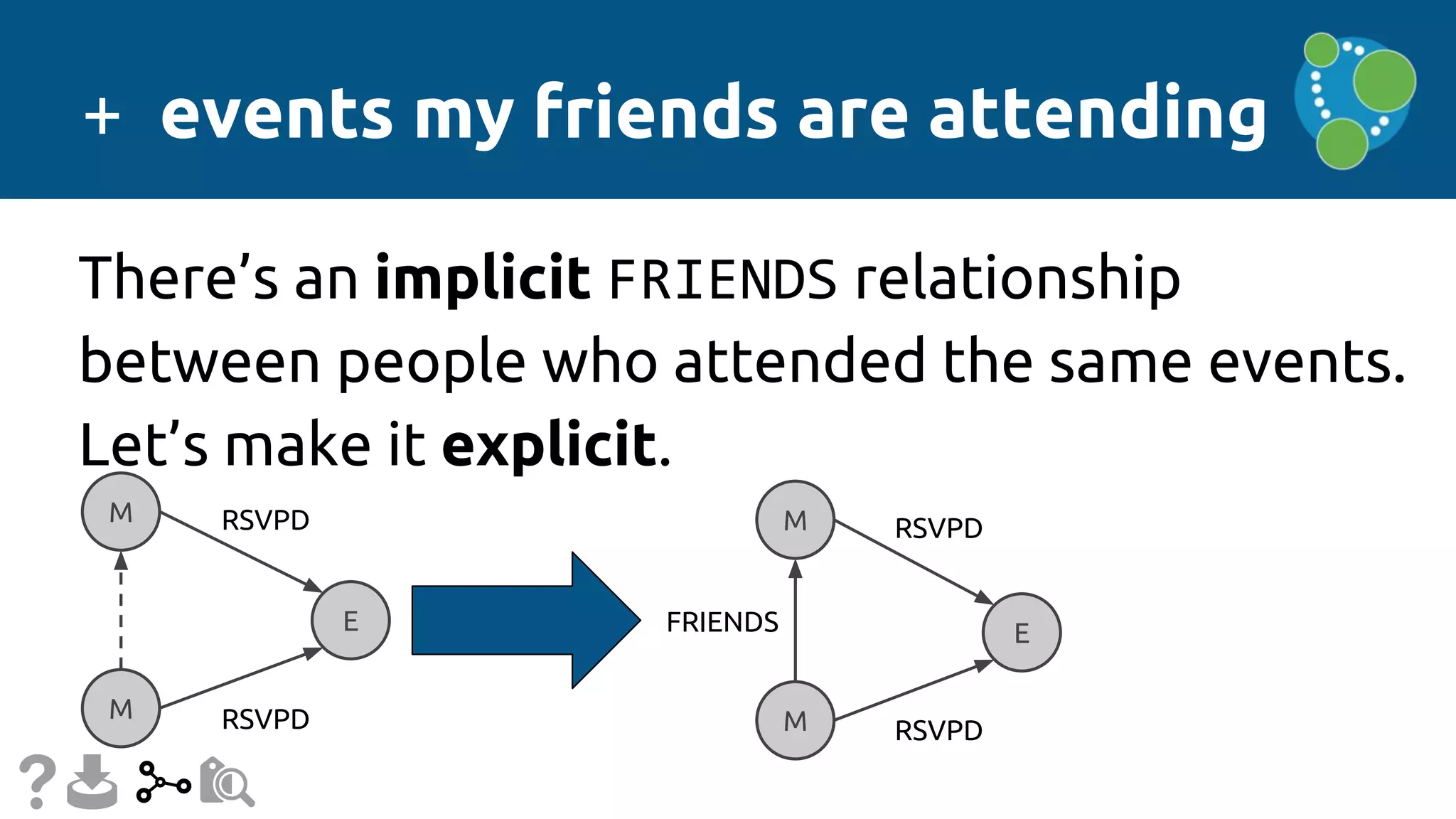

+ events my friends are attending There’s an implicit FRIENDS relationship between people who attended the same events. Let’s make it explicit. M E M RSVPD RSVPD FRIENDS M E M RSVPD RSVPD

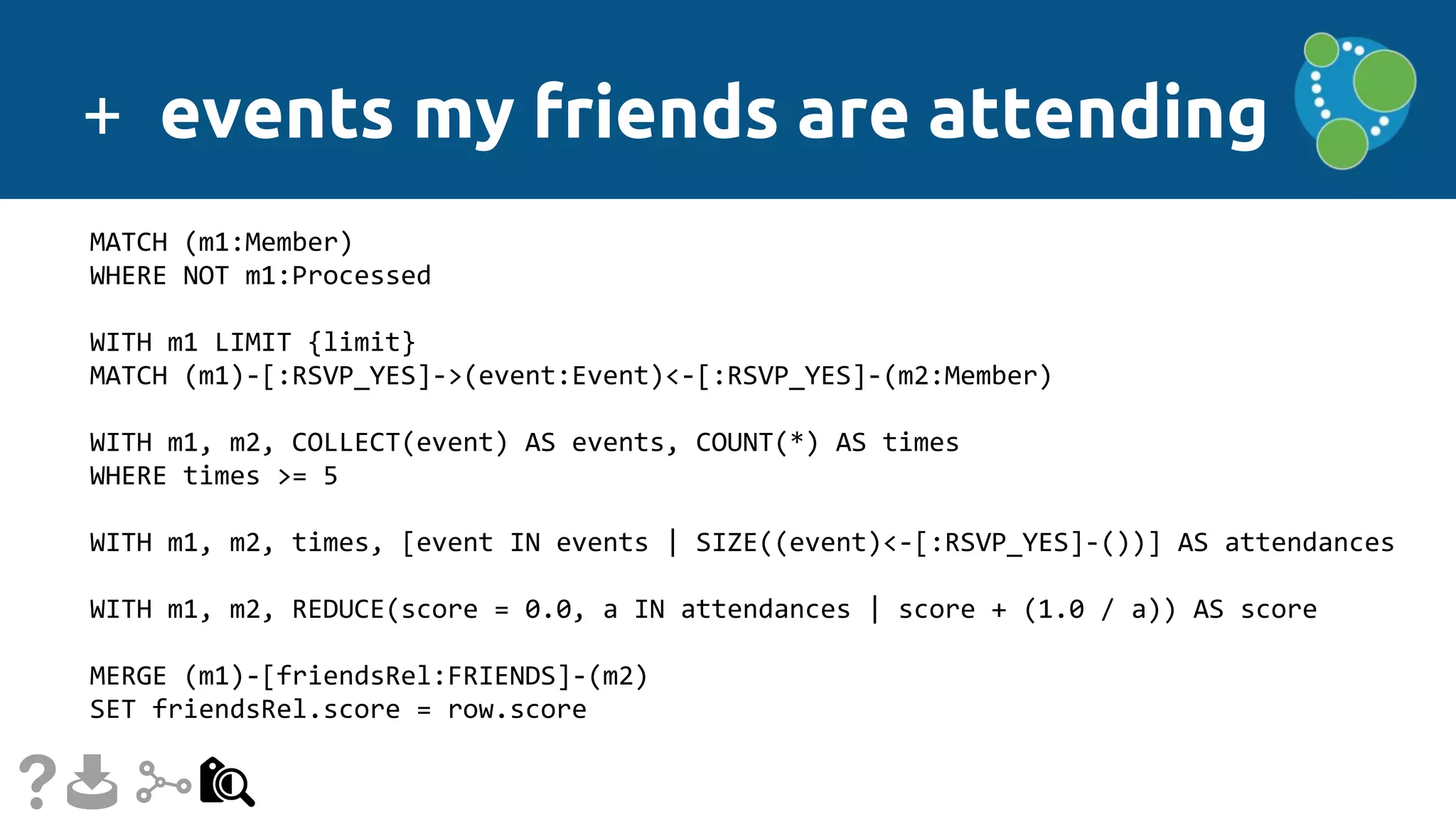

+ events my friends are attending MATCH (m1:Member) WHERE NOT m1:Processed WITH m1 LIMIT {limit} MATCH (m1)-[:RSVP_YES]->(event:Event)<-[:RSVP_YES]-(m2:Member) WITH m1, m2, COLLECT(event) AS events, COUNT(*) AS times WHERE times >= 5 WITH m1, m2, times, [event IN events | SIZE((event)<-[:RSVP_YES]-())] AS attendances WITH m1, m2, REDUCE(score = 0.0, a IN attendances | score + (1.0 / a)) AS score MERGE (m1)-[friendsRel:FRIENDS]-(m2) SET friendsRel.score = row.score

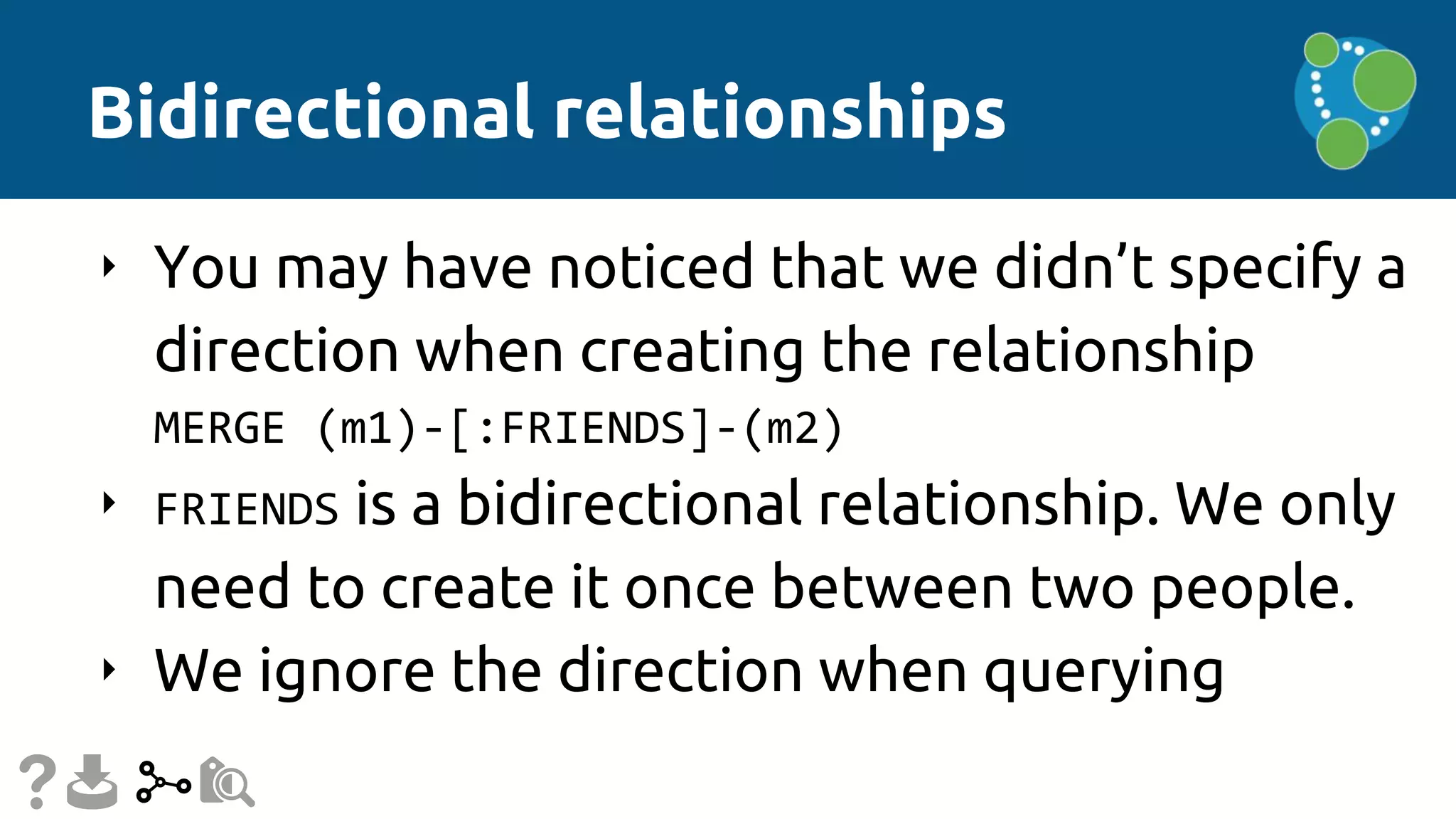

Bidirectional relationships ‣ You may have noticed that we didn’t specify a direction when creating the relationship MERGE (m1)-[:FRIENDS]-(m2) ‣ FRIENDS is a bidirectional relationship. We only need to create it once between two people. ‣ We ignore the direction when querying

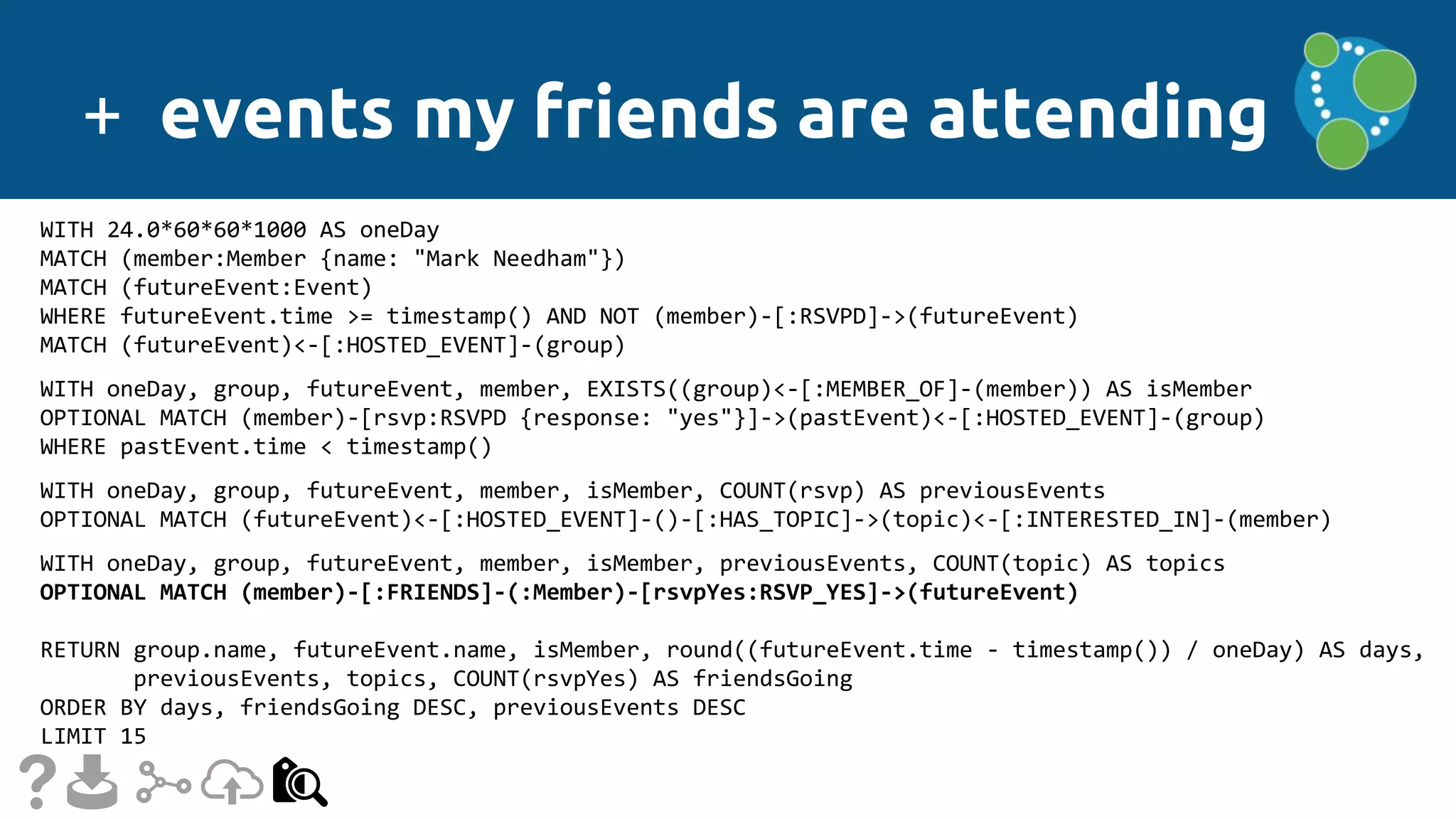

+ events my friends are attending WITH 24.0*60*60*1000 AS oneDay MATCH (member:Member {name: "Mark Needham"}) MATCH (futureEvent:Event) WHERE futureEvent.time >= timestamp() AND NOT (member)-[:RSVPD]->(futureEvent) MATCH (futureEvent)<-[:HOSTED_EVENT]-(group) WITH oneDay, group, futureEvent, member, EXISTS((group)<-[:MEMBER_OF]-(member)) AS isMember OPTIONAL MATCH (member)-[rsvp:RSVPD {response: "yes"}]->(pastEvent)<-[:HOSTED_EVENT]-(group) WHERE pastEvent.time < timestamp() WITH oneDay, group, futureEvent, member, isMember, COUNT(rsvp) AS previousEvents OPTIONAL MATCH (futureEvent)<-[:HOSTED_EVENT]-()-[:HAS_TOPIC]->(topic)<-[:INTERESTED_IN]-(member) WITH oneDay, group, futureEvent, member, isMember, previousEvents, COUNT(topic) AS topics OPTIONAL MATCH (member)-[:FRIENDS]-(:Member)-[rsvpYes:RSVP_YES]->(futureEvent) RETURN group.name, futureEvent.name, isMember, round((futureEvent.time - timestamp()) / oneDay) AS days, previousEvents, topics, COUNT(rsvpYes) AS friendsGoing ORDER BY days, friendsGoing DESC, previousEvents DESC LIMIT 15

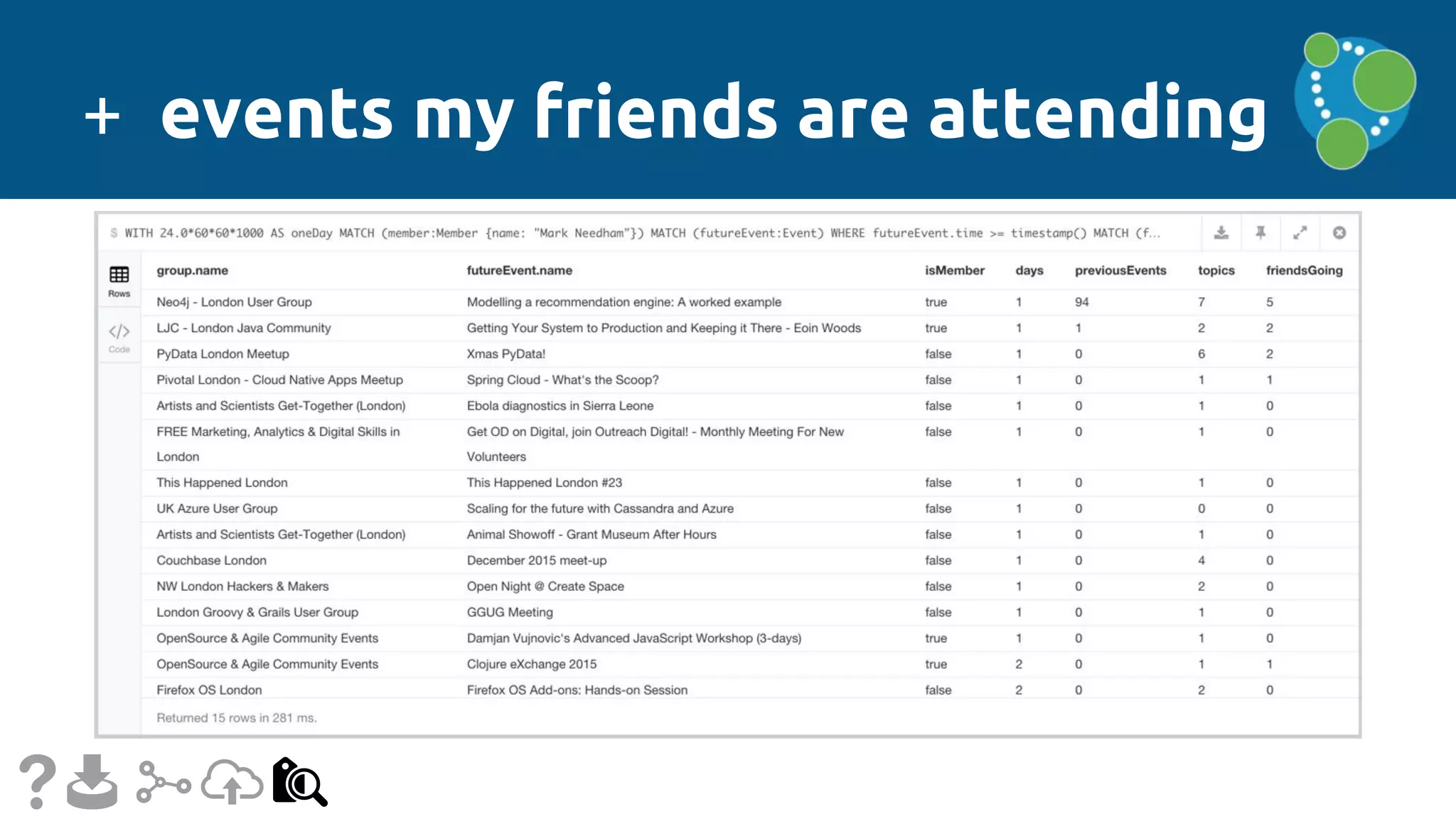

+ events my friends are attending
Tip: Bidirectional relationships ‣ Some relationships are bidirectional in nature ‣ Neo4j always stores relationships with a direction but we can choose to ignore that when we query

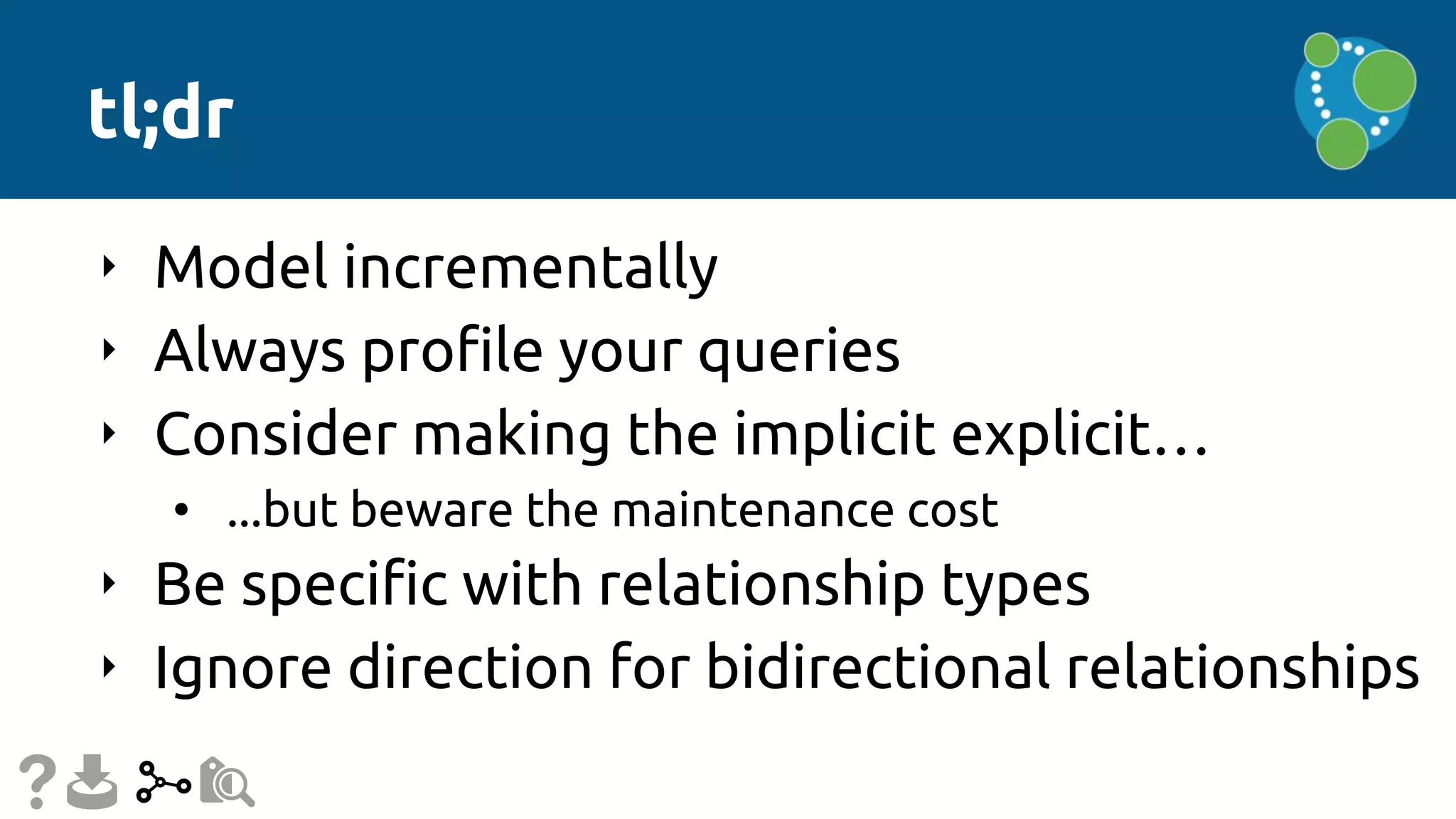

tl;dr ‣ Model incrementally ‣ Always profile your queries ‣ Consider making the implicit explicit… • ...but beware the maintenance cost ‣ Be specific with relationship types ‣ Ignore direction for bidirectional relationships
That’s all for today! Questions? :-) Mark Needham @markhneedham https://github.com/neo4j-meetups/modeling-worked-example
