Open data with Neo4j and Kotlin

Open data with Neo4j
From ideation to production

Our (fictional) customer
Investigation journalist

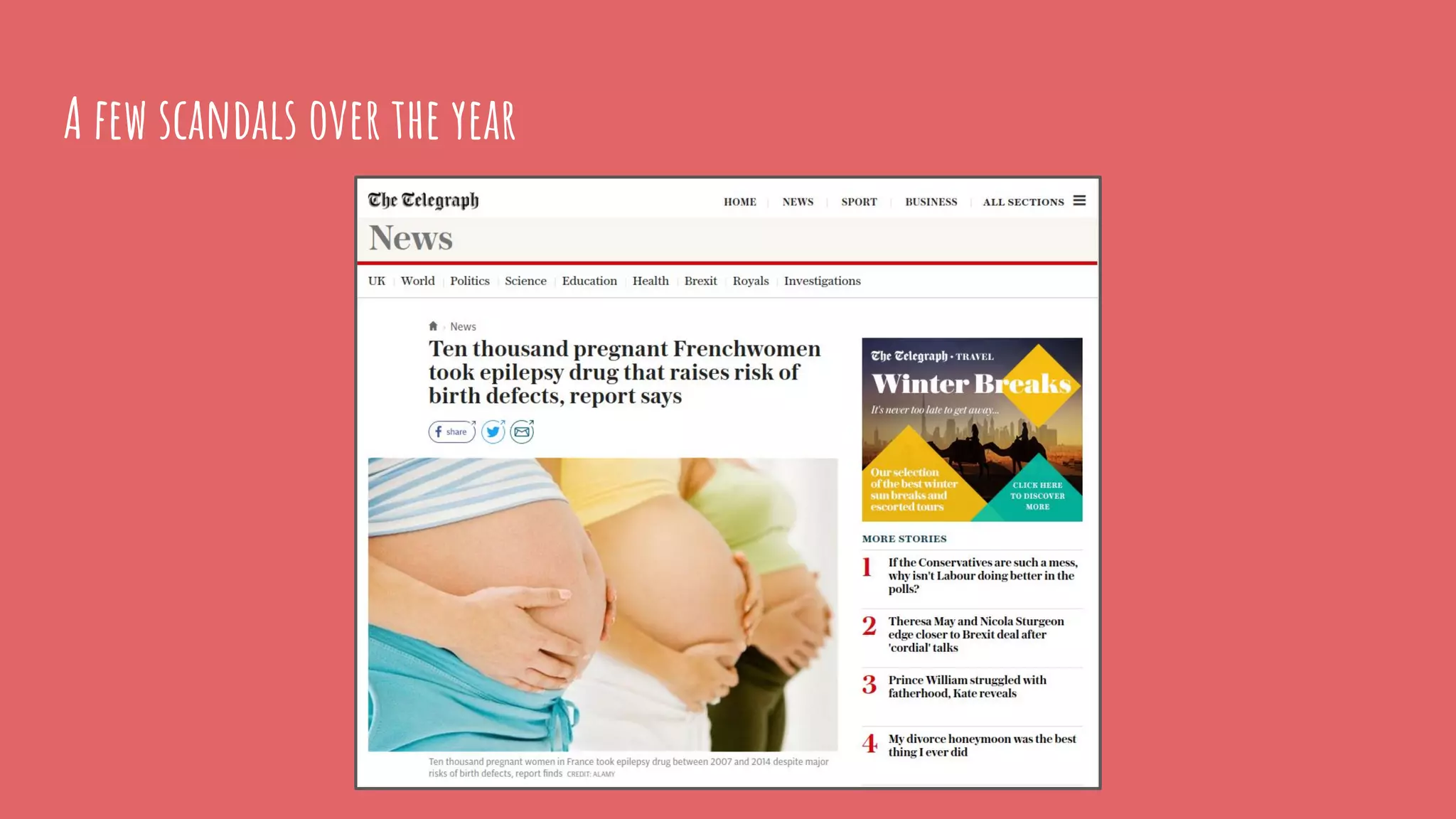

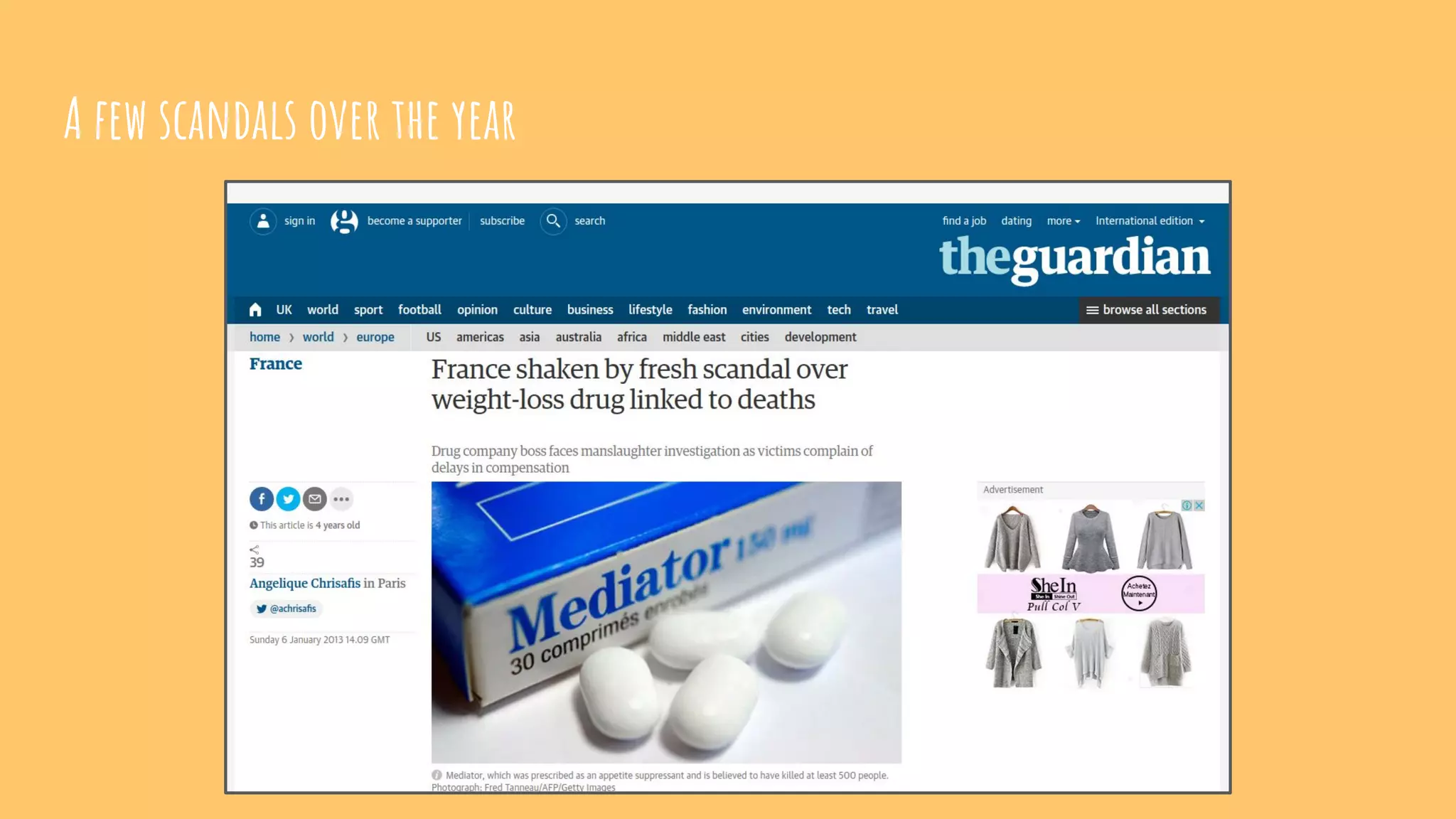

Specializes in health-related scandales
Nominated for the Pulitzer prize in 2017

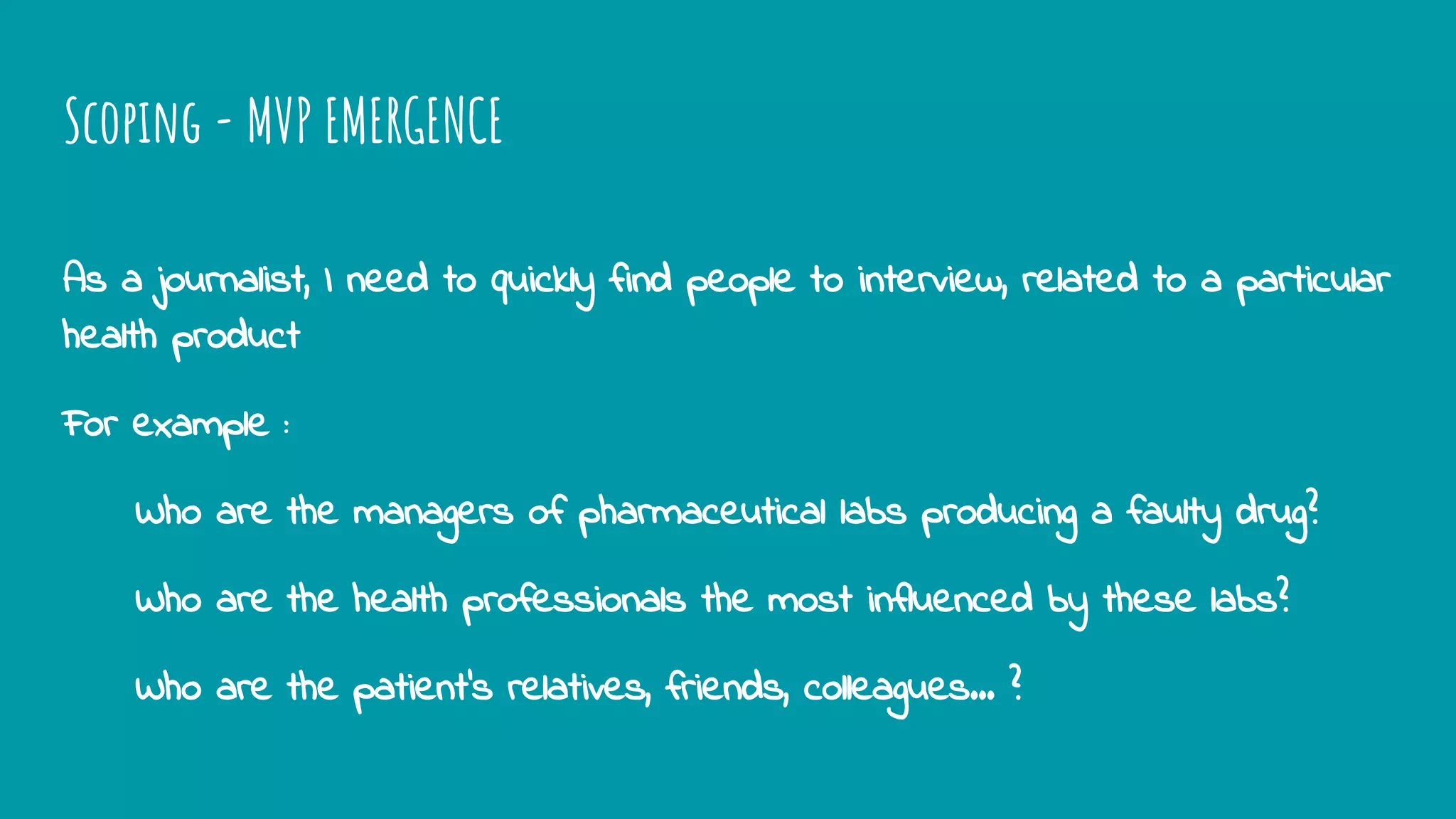

Scoping - MVP EMERGENCE
As a journalist, I need to quickly find people to interview, related to a particular
health product
For example :
Who are the managers of pharmaceutical labs producing a faulty drug?
Who are the health professionals the most influenced by these labs?
Who are the patient’s relatives, friends, colleagues... ?

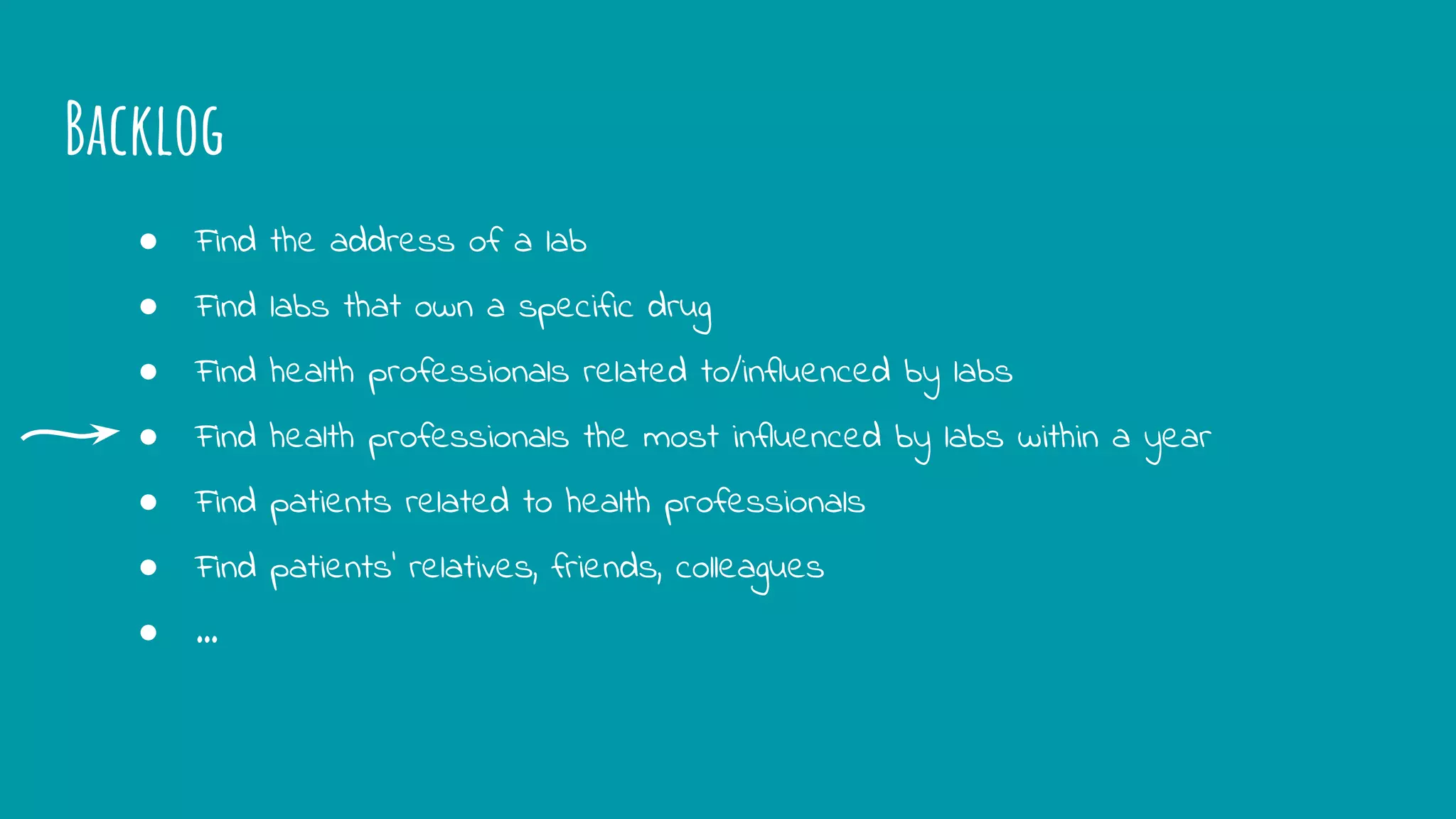

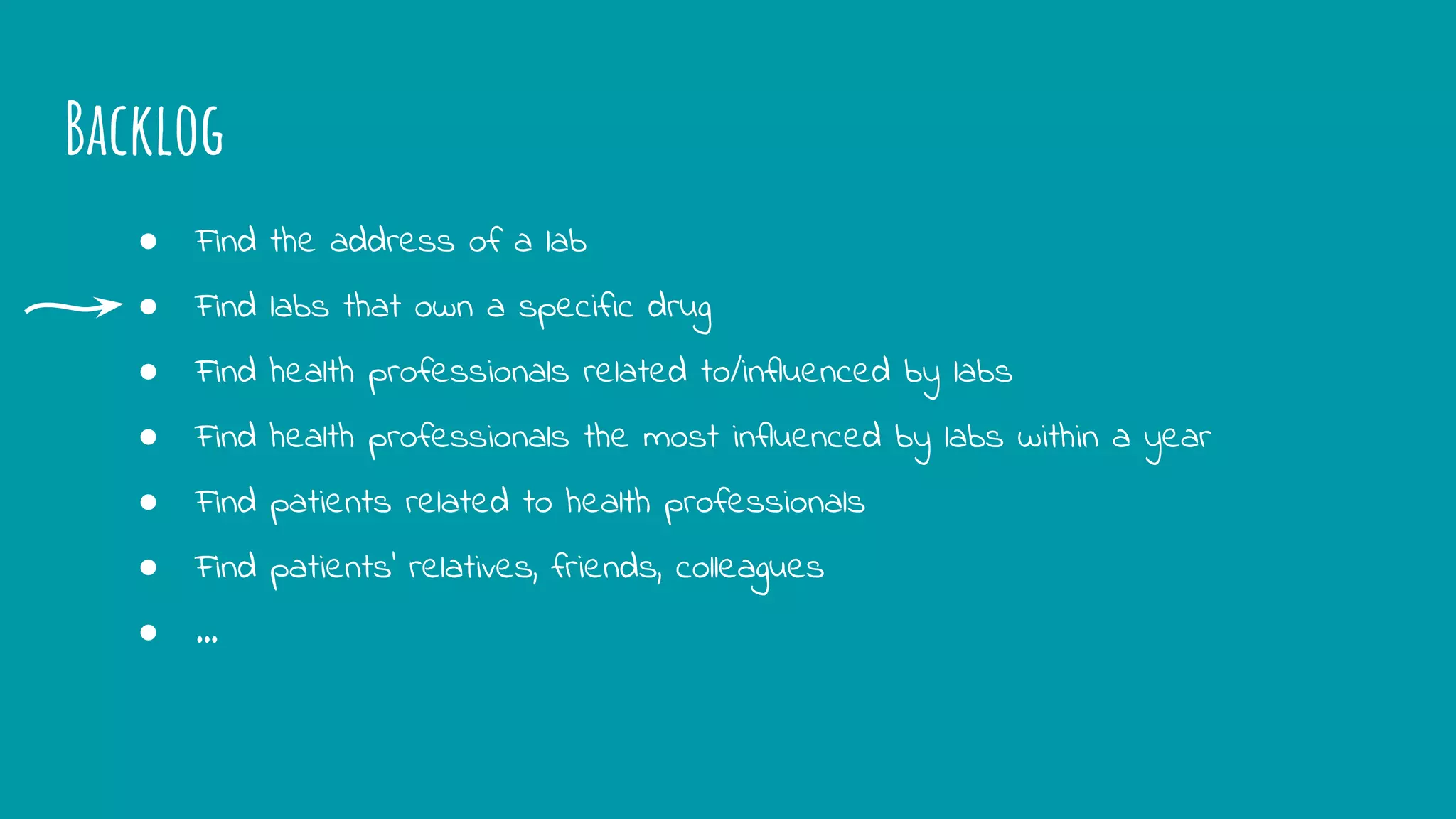

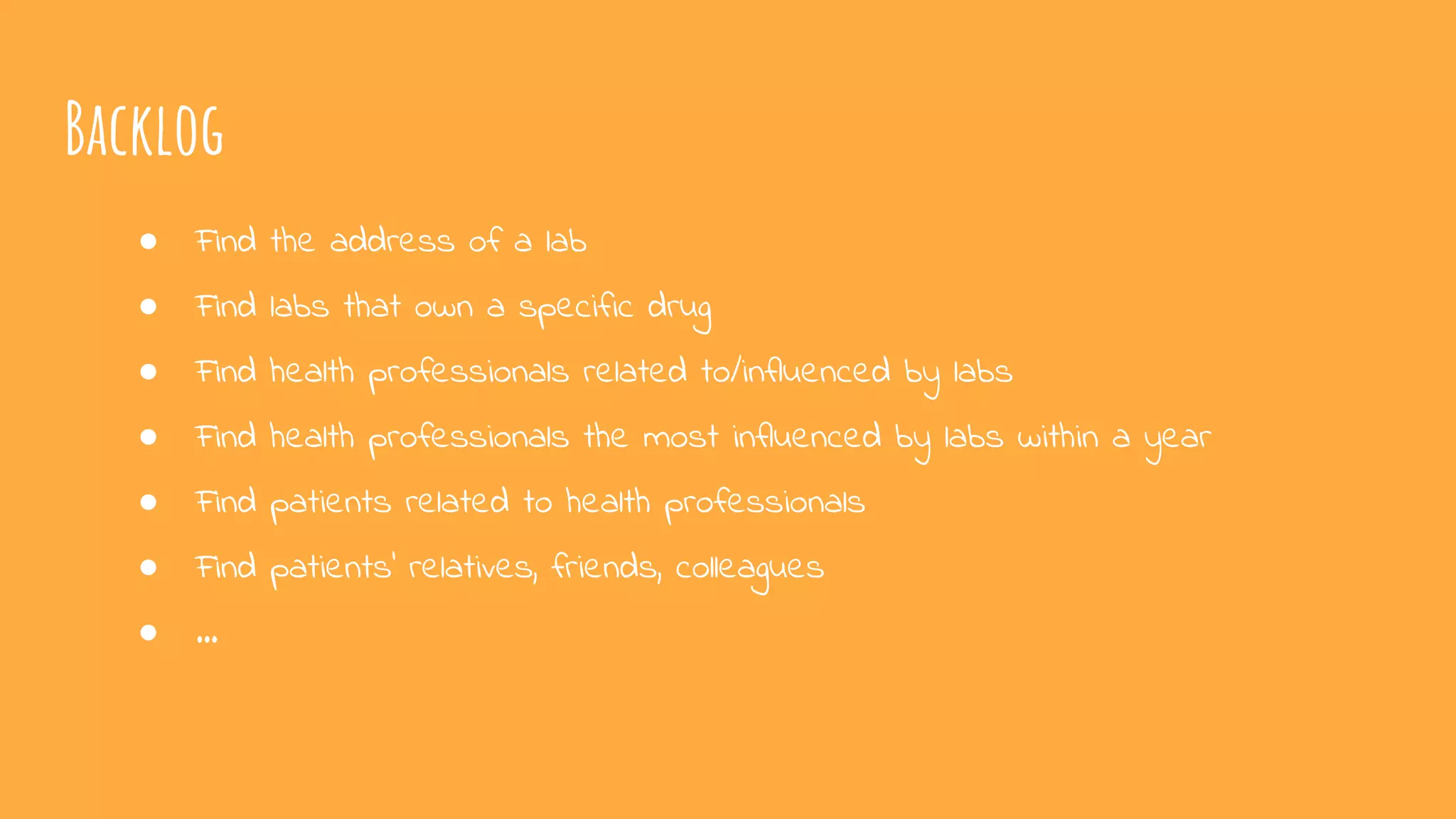

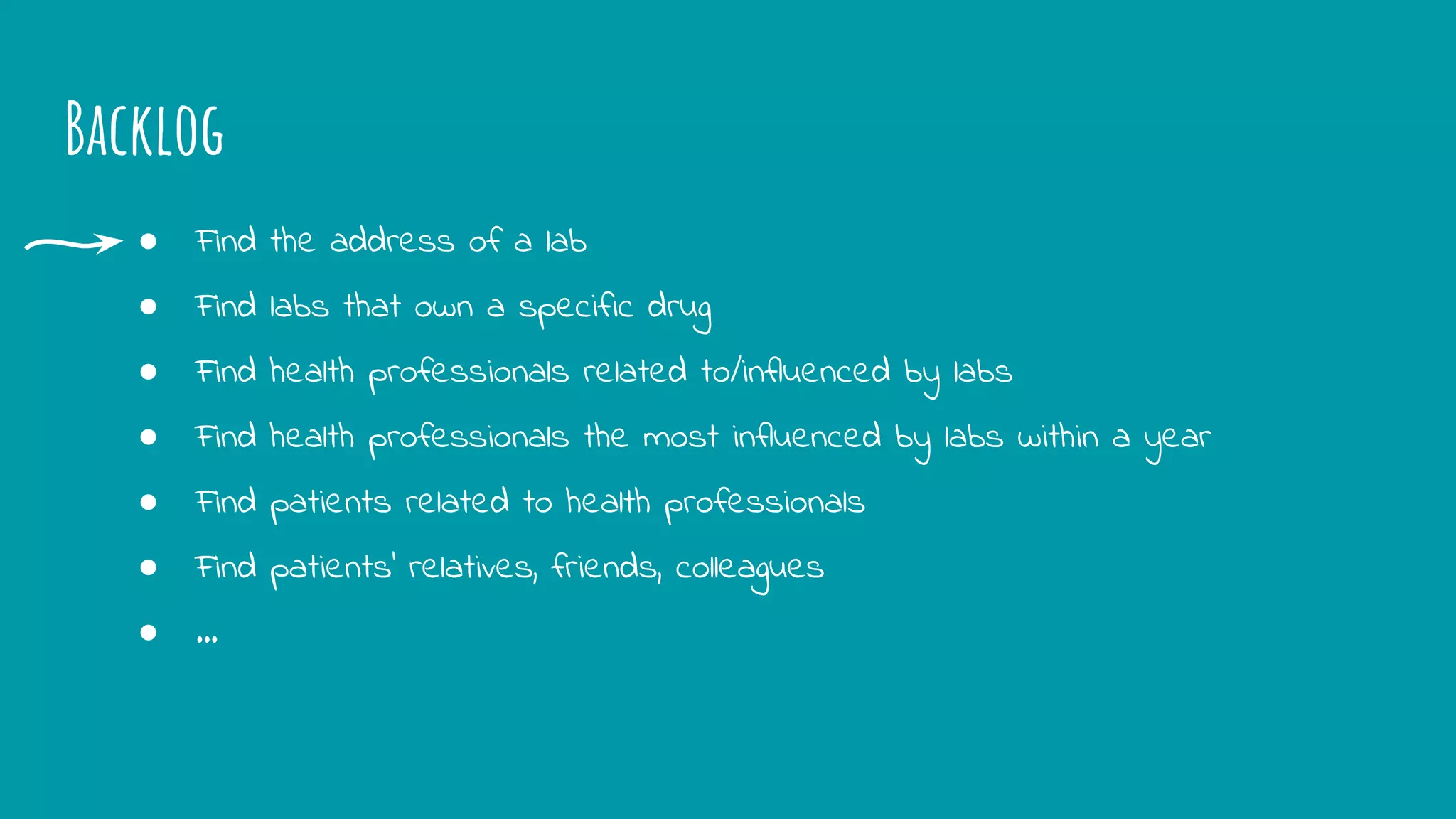

Backlog
● Find the address of a lab
● Find labs that own a specific drug
● Find health professionals related to/influenced by labs
● Find health professionals the most influenced by labs within a year
● Find patients related to health professionals
● Find patients’ relatives, friends, colleagues
● ...

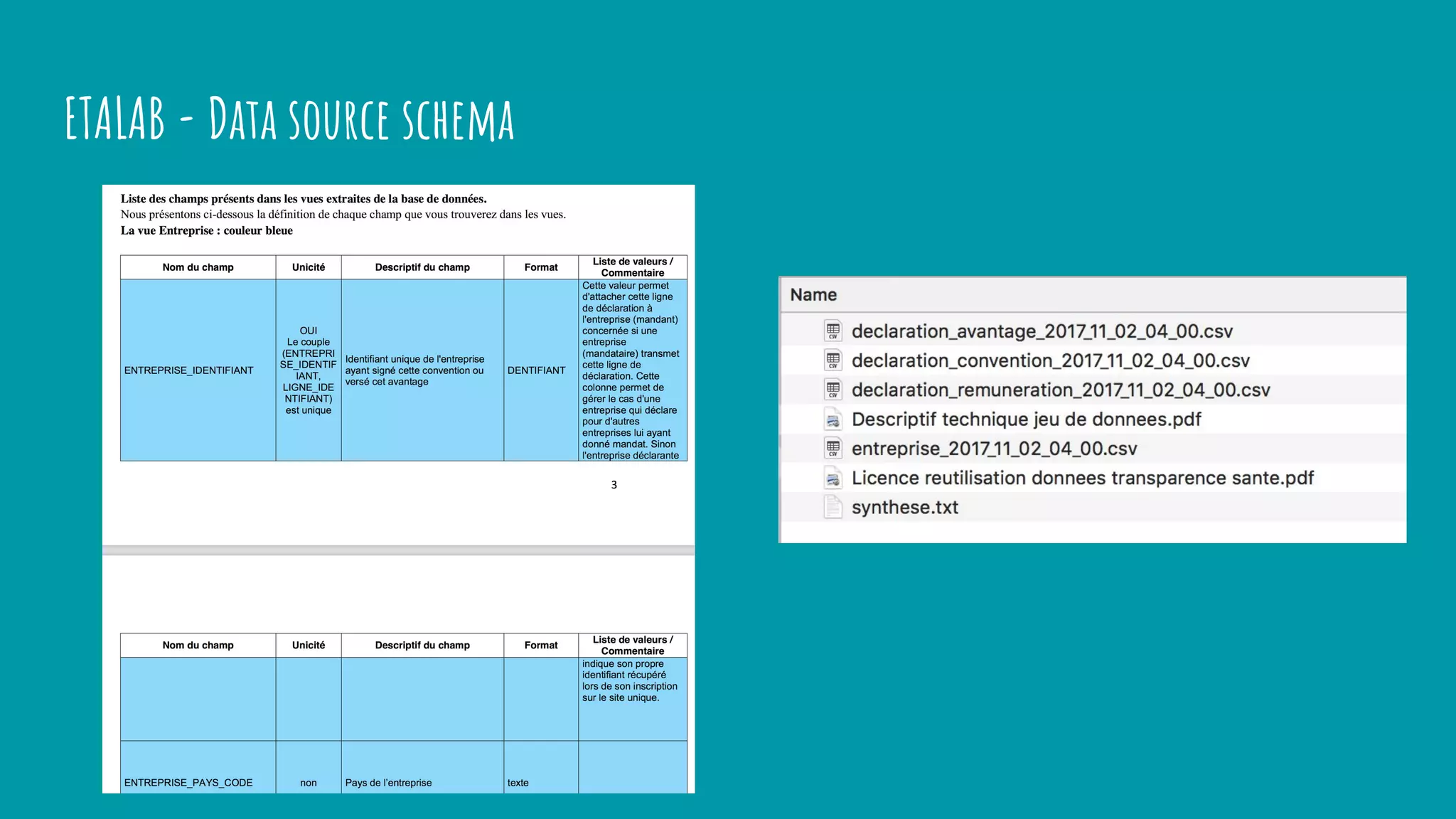

Data sources ?
Public data of gifts by
pharmaceutical labs to
health professionals

Technical Stakeholder interview
“
Why would anyone use a graph database?
we are using Oracle 12c !

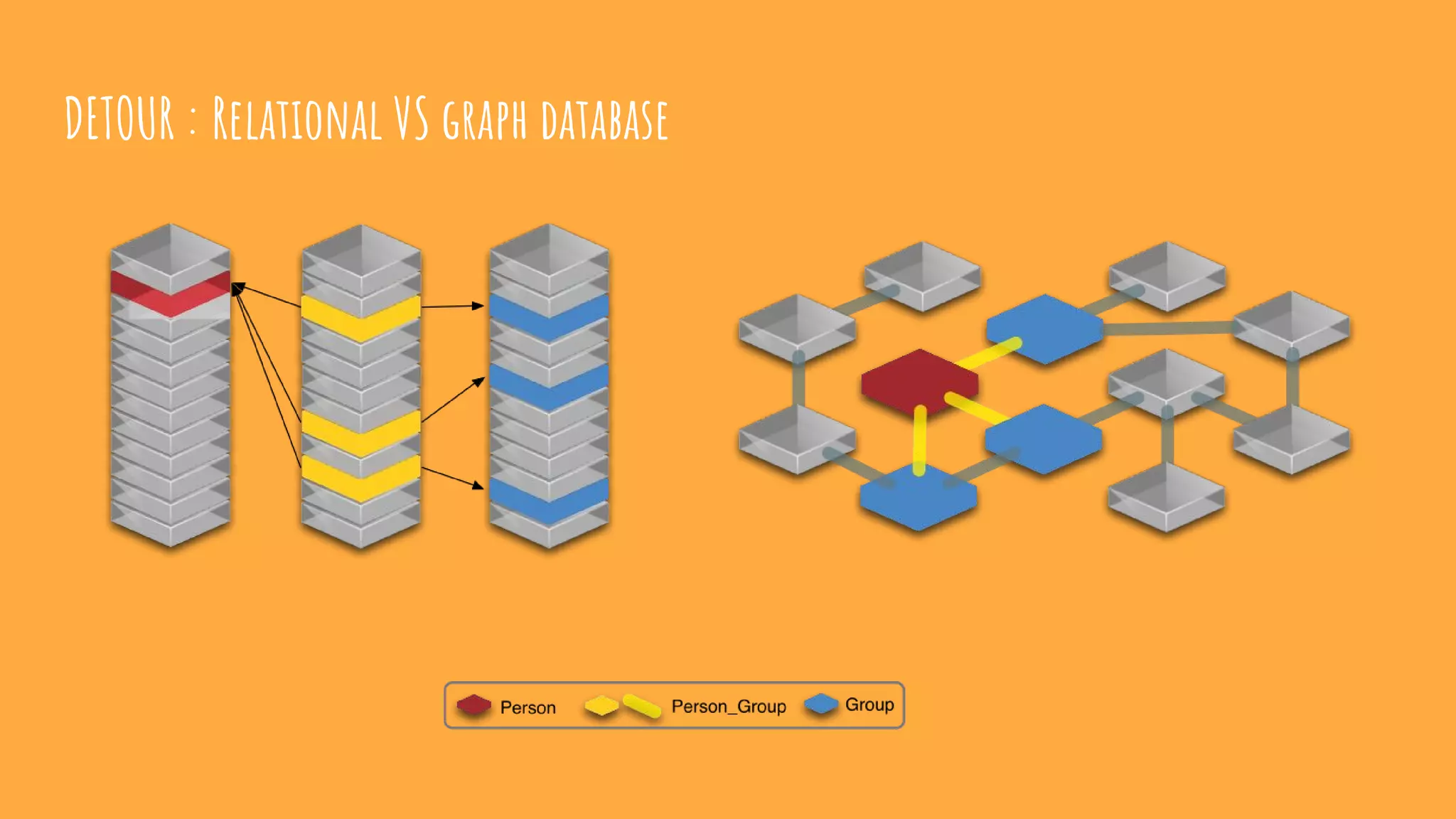

DETOUR : Relational VS graph database

“
NEO4J INC. IS LIKE NOSQL, IT HAS NO FUTURE, RIGHT?

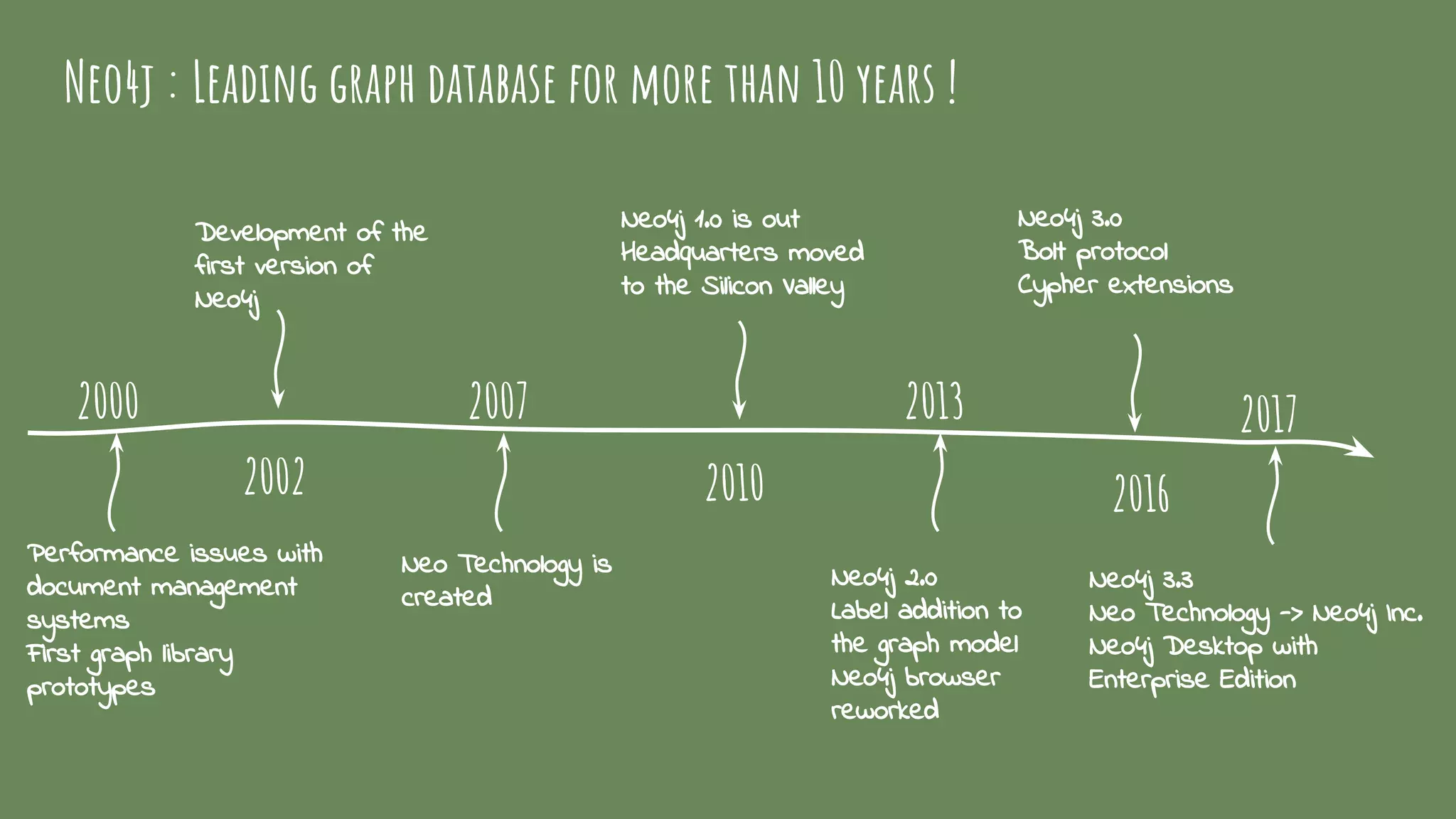

Performance issues with
document management
systems
First graph library
prototypes
2000
2002
2007
2010
2013
Neo4j 2.0
Label addition to
the graph model
Neo4j browser
reworked
2016
Neo4j 3.0
Bolt protocol
Cypher extensions
2017
Neo4j 3.3
Neo Technology -> Neo4j Inc.
Neo4j Desktop with
Enterprise Edition
Development of the
first version of
Neo4j
Neo4j 1.0 is out
Headquarters moved
to the Silicon Valley
Neo4j : Leading graph database for more than 10 years !
Neo Technology is
created

“
But then, why Neo4j and
NOT another graph database?

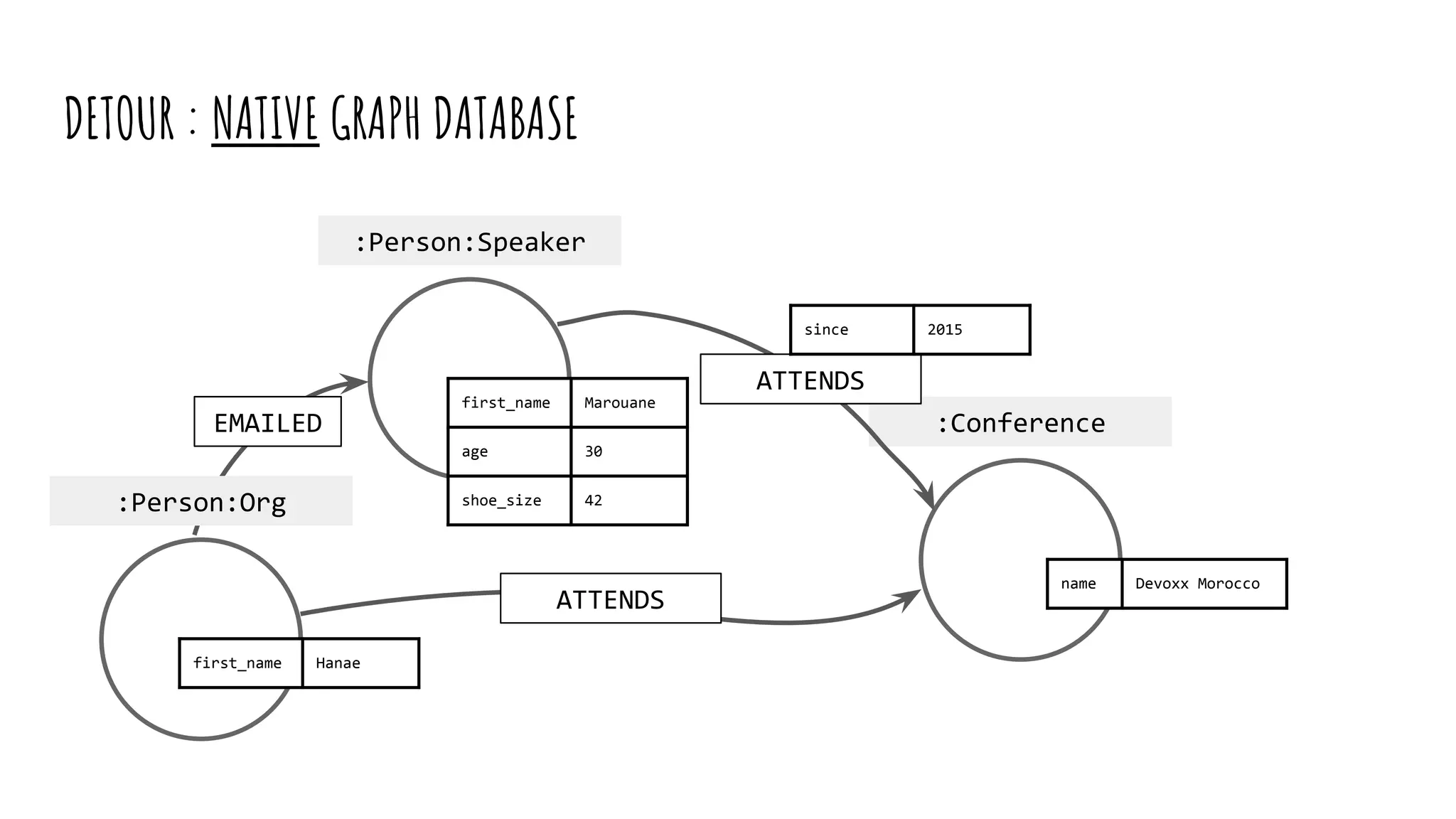

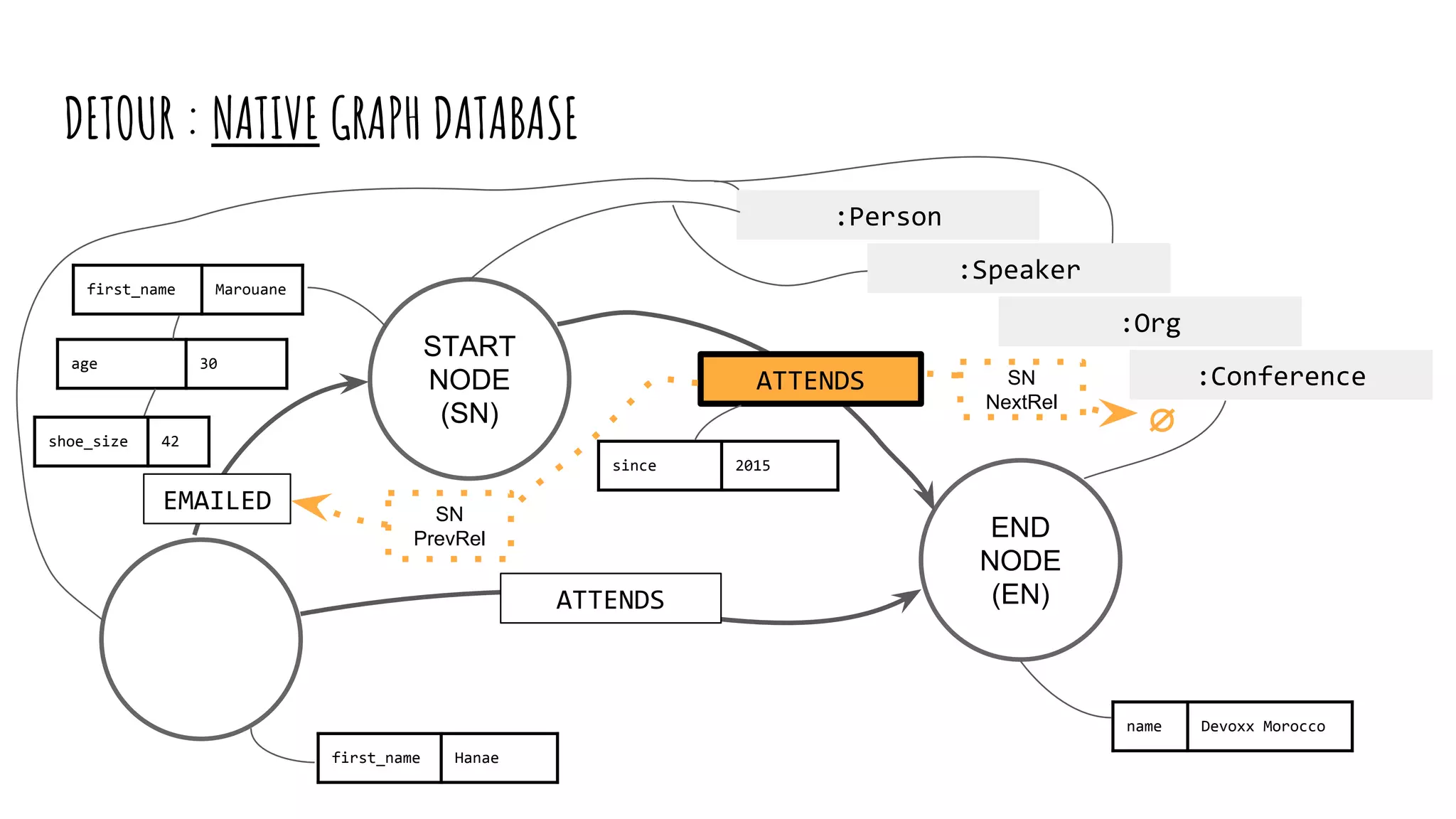

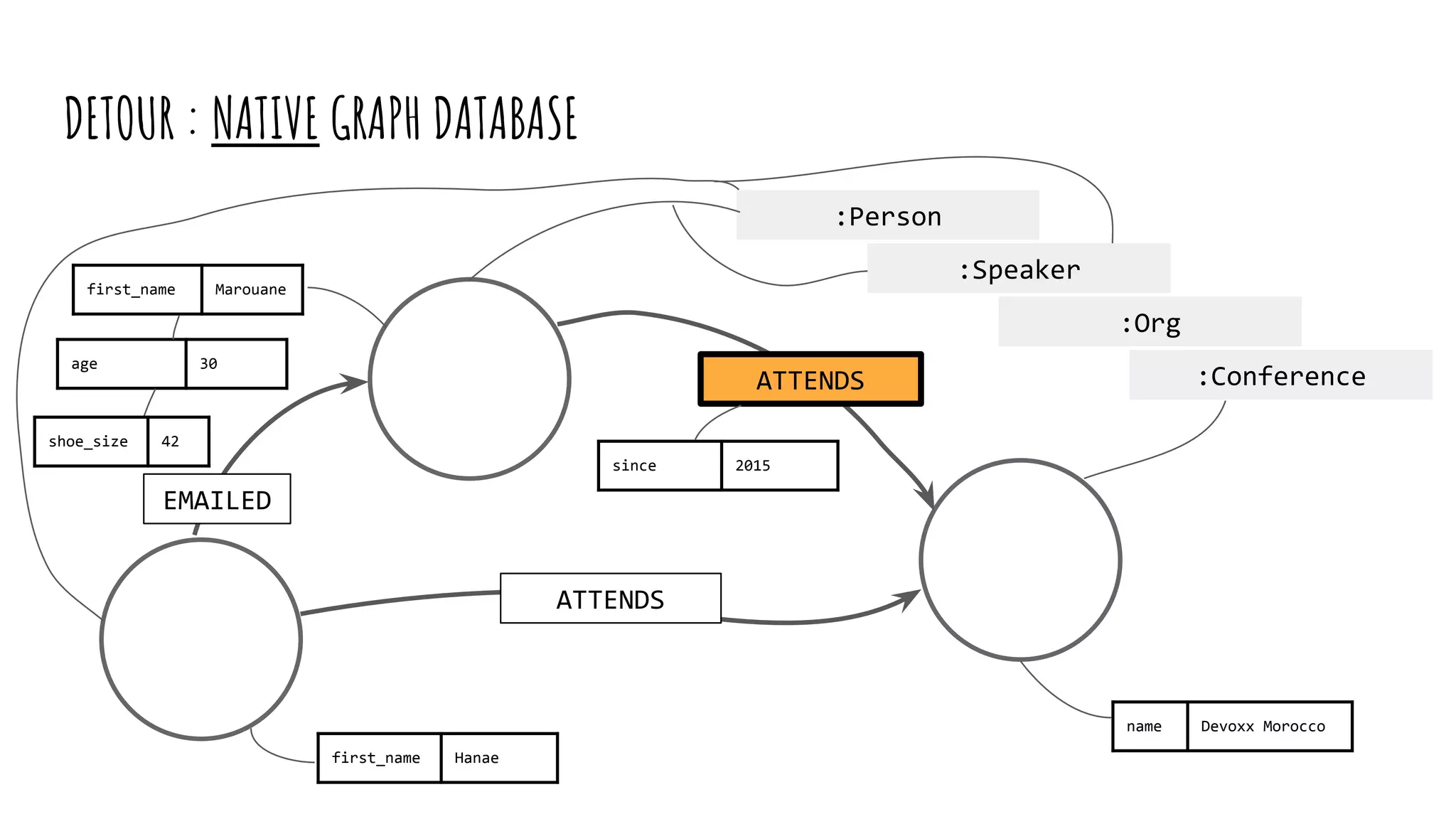

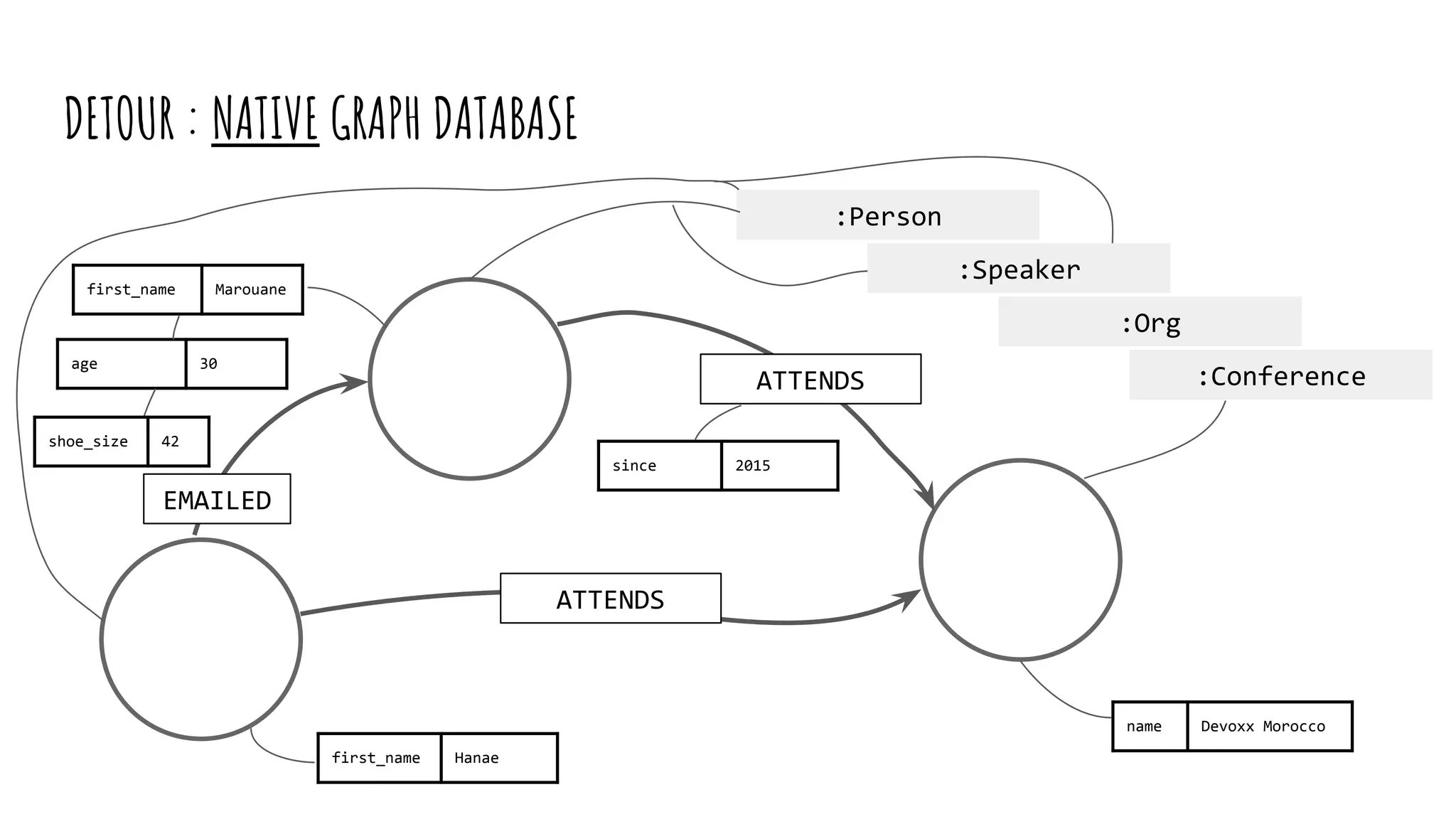

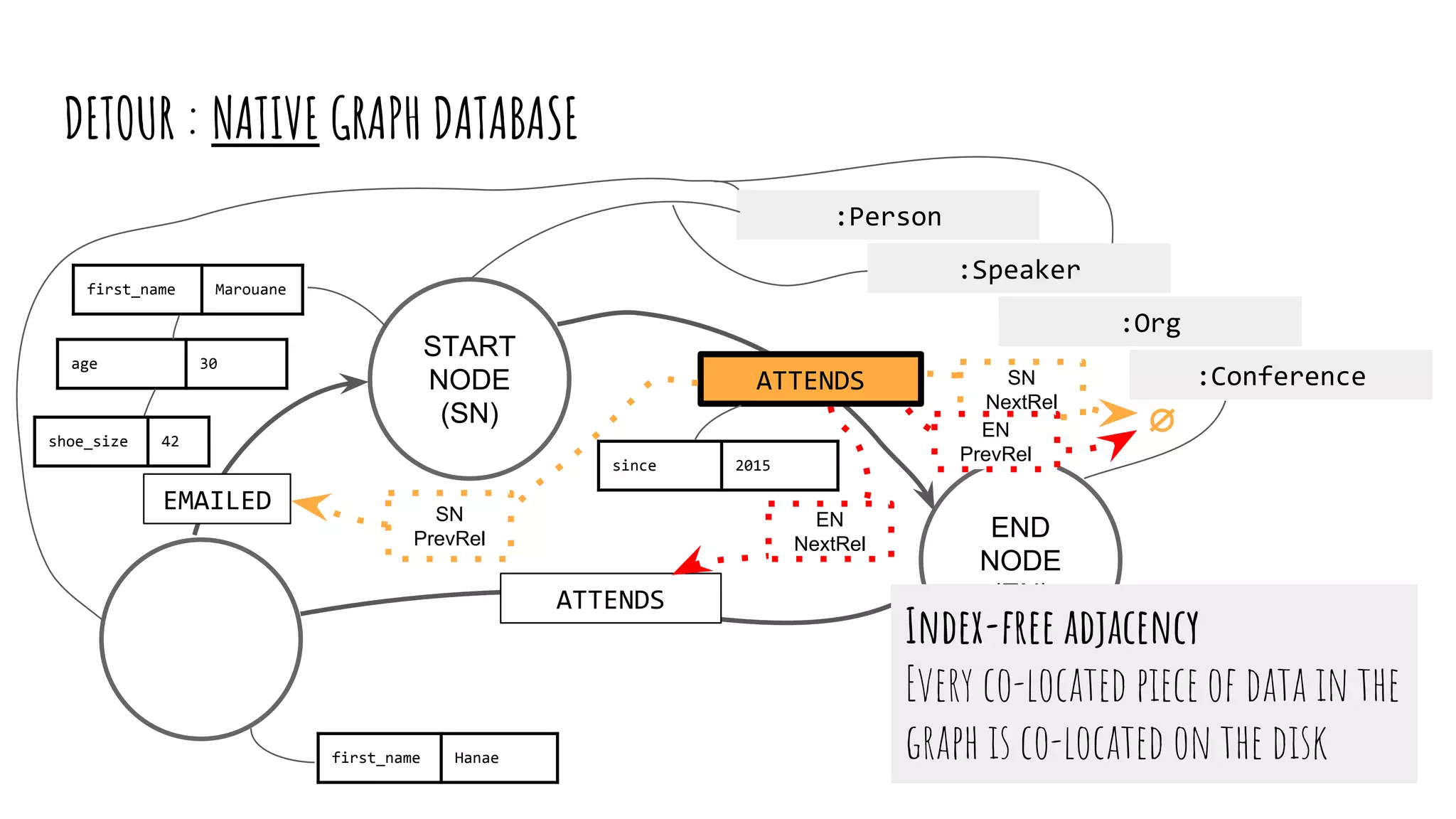

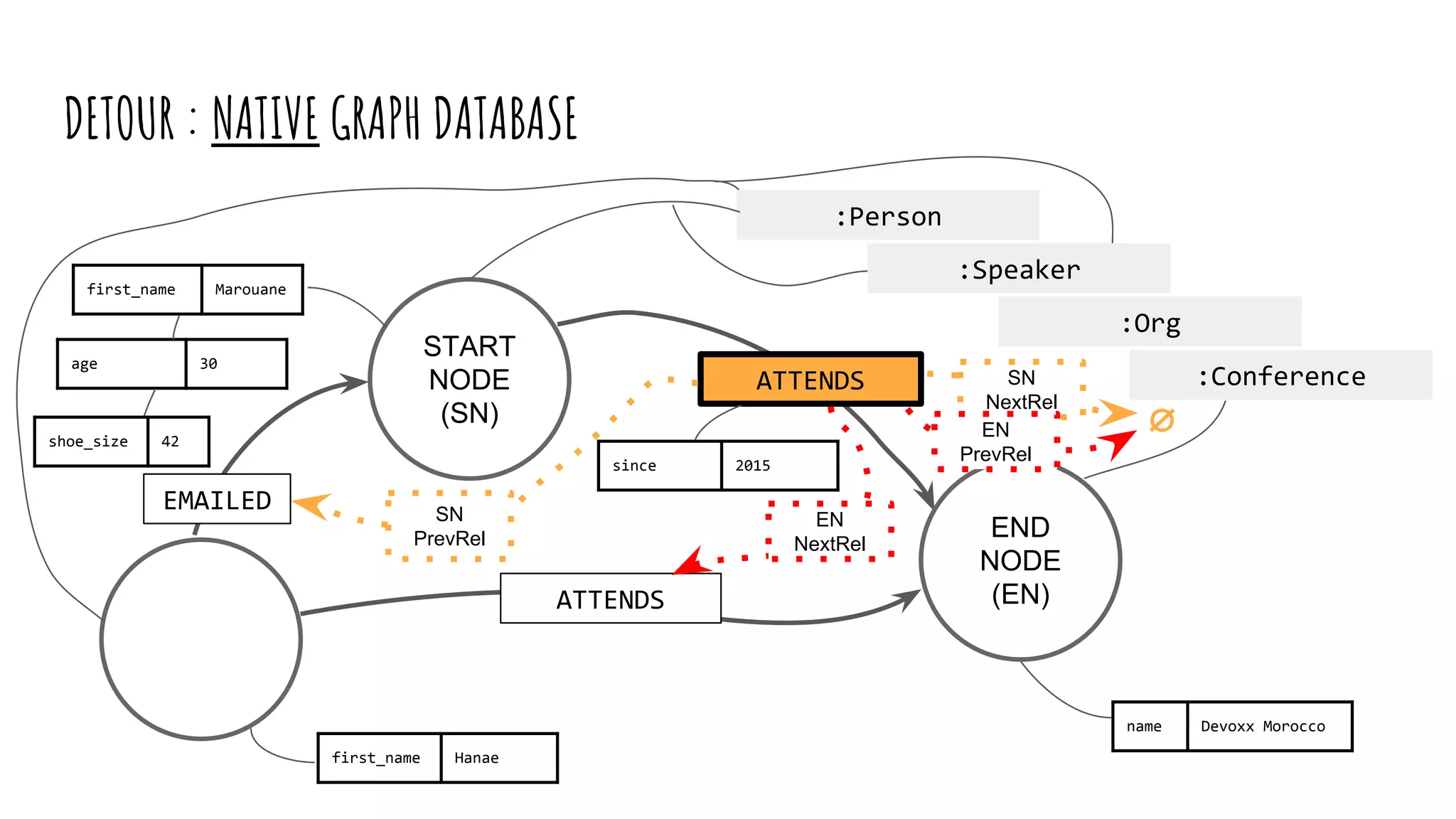

DETOUR : NATIVE GRAPH DATABASE
:Person:Speaker
first_name Marouane
age 30
shoe_size 42
:Conference
name Devoxx Morocco
ATTENDS
first_name Hanae
ATTENDS
since 2015
:Person:Org
EMAILED

name Devoxx Morocco
ATTENDS
first_name Hanae
ATTENDS
first_name Marouane
age 30
:Person
:Org
:Conference
:Speaker
EMAILED
shoe_size 42
since 2015

name Devoxx Morocco
ATTENDS
first_name Hanae
ATTENDS
first_name Marouane
age 30
:Person
:Org
:Conference
:Speaker
since 2015
EMAILED
shoe_size 42

START
NODE
(SN)
END
NODE
(EN)
name Devoxx Morocco
ATTENDS
first_name Hanae
ATTENDS
first_name Marouane
age 30
:Person
:Org
:Speaker
since 2015
EMAILED
shoe_size 42
SN
PrevRel
∅
SN
NextRel
:Conference

START
NODE
(SN)
name Devoxx Morocco
ATTENDS
first_name Hanae
ATTENDS
first_name Marouane
age 30
:Person
:Org
:Speaker
since 2015
EMAILED
shoe_size 42
SN
PrevRel
∅
SN
NextRel
:Conference
END
NODE
(EN)
EN
PrevRel
EN
NextRel

START
NODE
(SN)
name Devoxx Morocco
ATTENDS
first_name Hanae
ATTENDS
first_name Marouane
age 30
:Person
:Org
:Speaker
since 2015
EMAILED
shoe_size 42
SN
PrevRel
∅
SN
NextRel
:Conference
END
NODE
(EN)
EN
PrevRel
EN
NextRel
Index-free adjacency
Every co-located piece of data in the
graph is co-located on the disk

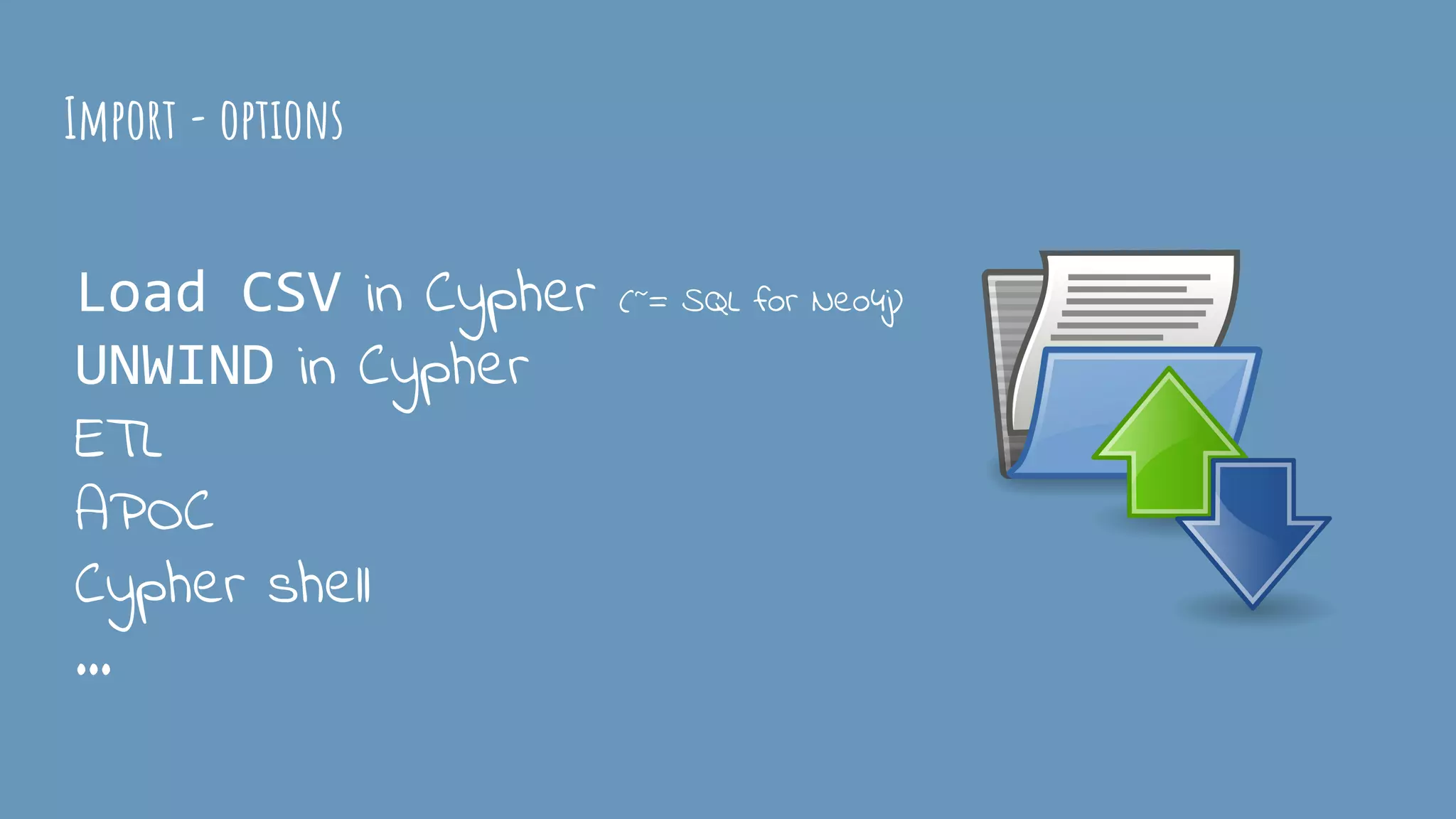

Import - options
Load CSV in Cypher (~= SQL for Neo4j)
UNWIND in Cypher
ETL
APOC
Cypher shell
...

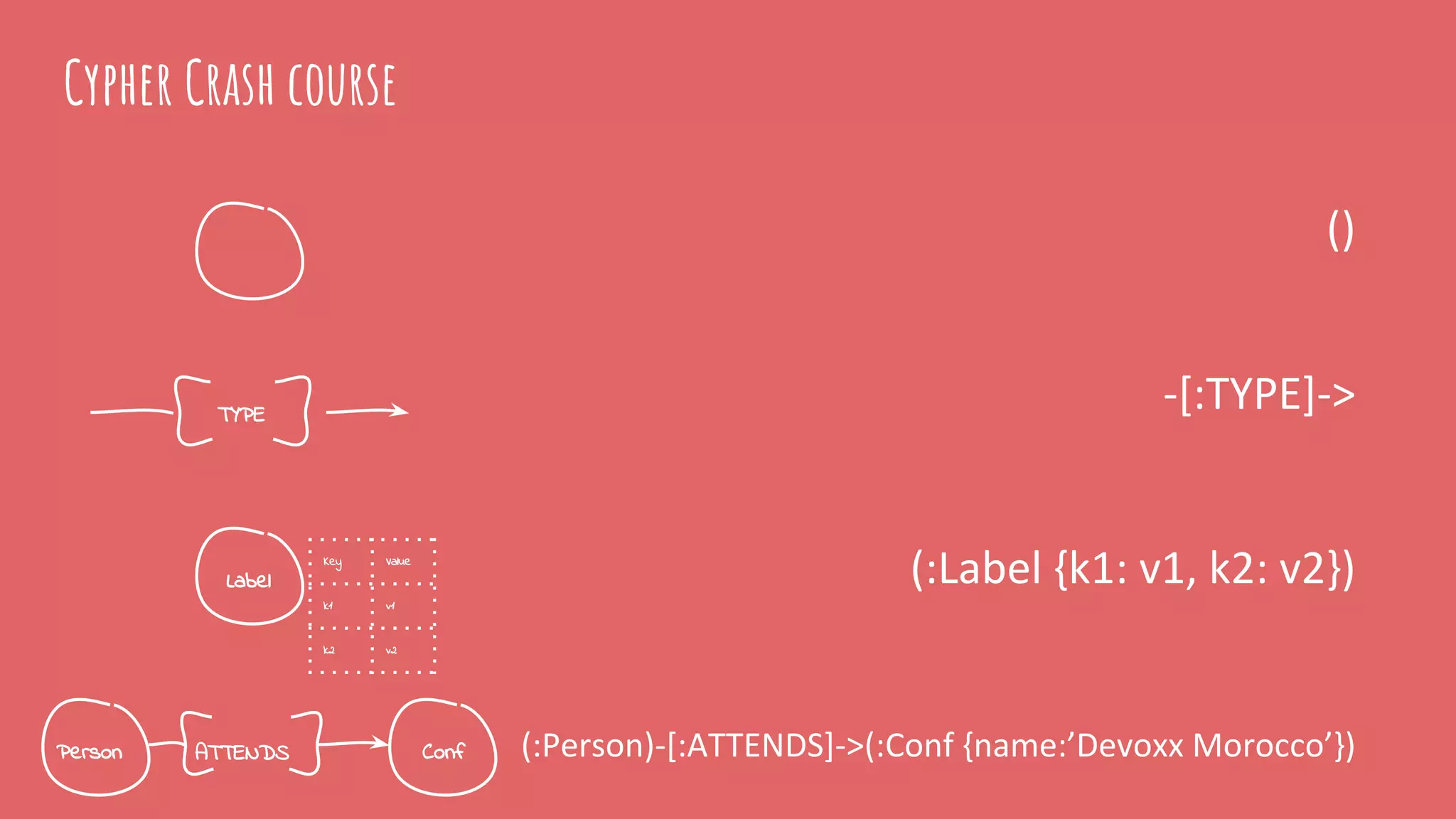

Cypher Crash course
Label
Person ConfATTENDS
TYPE
Key Value
k1 v1
k2 v2

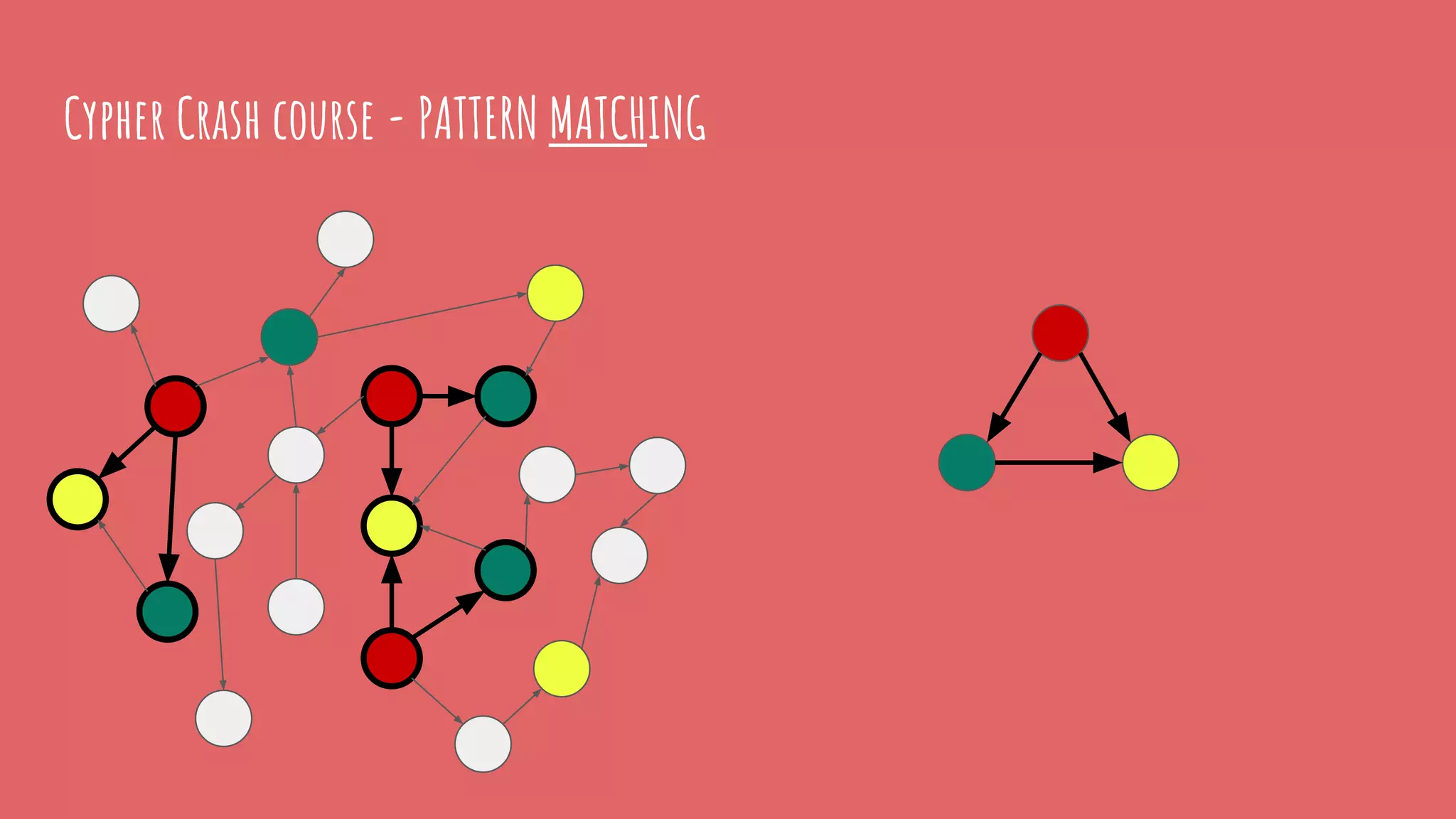

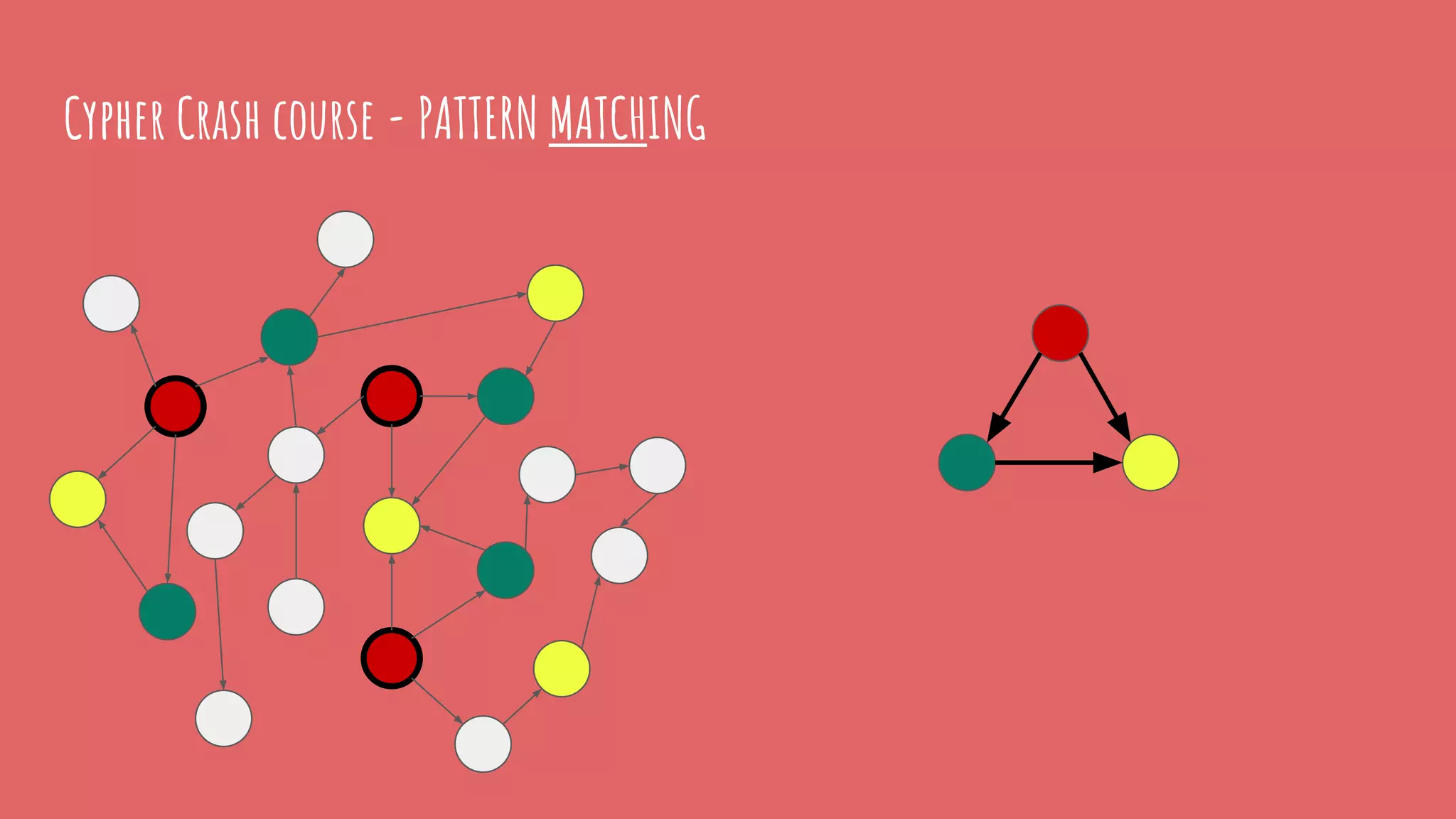

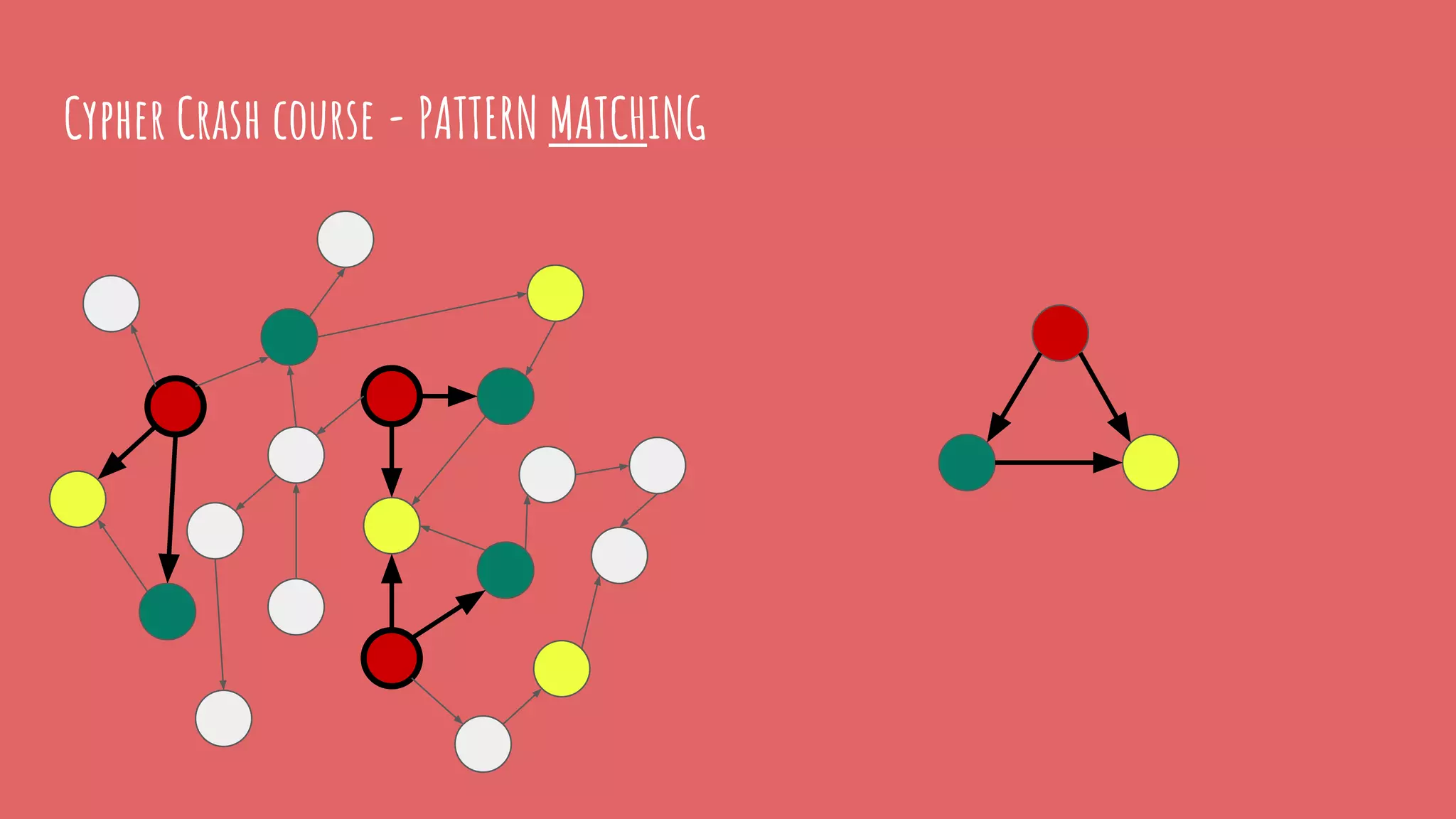

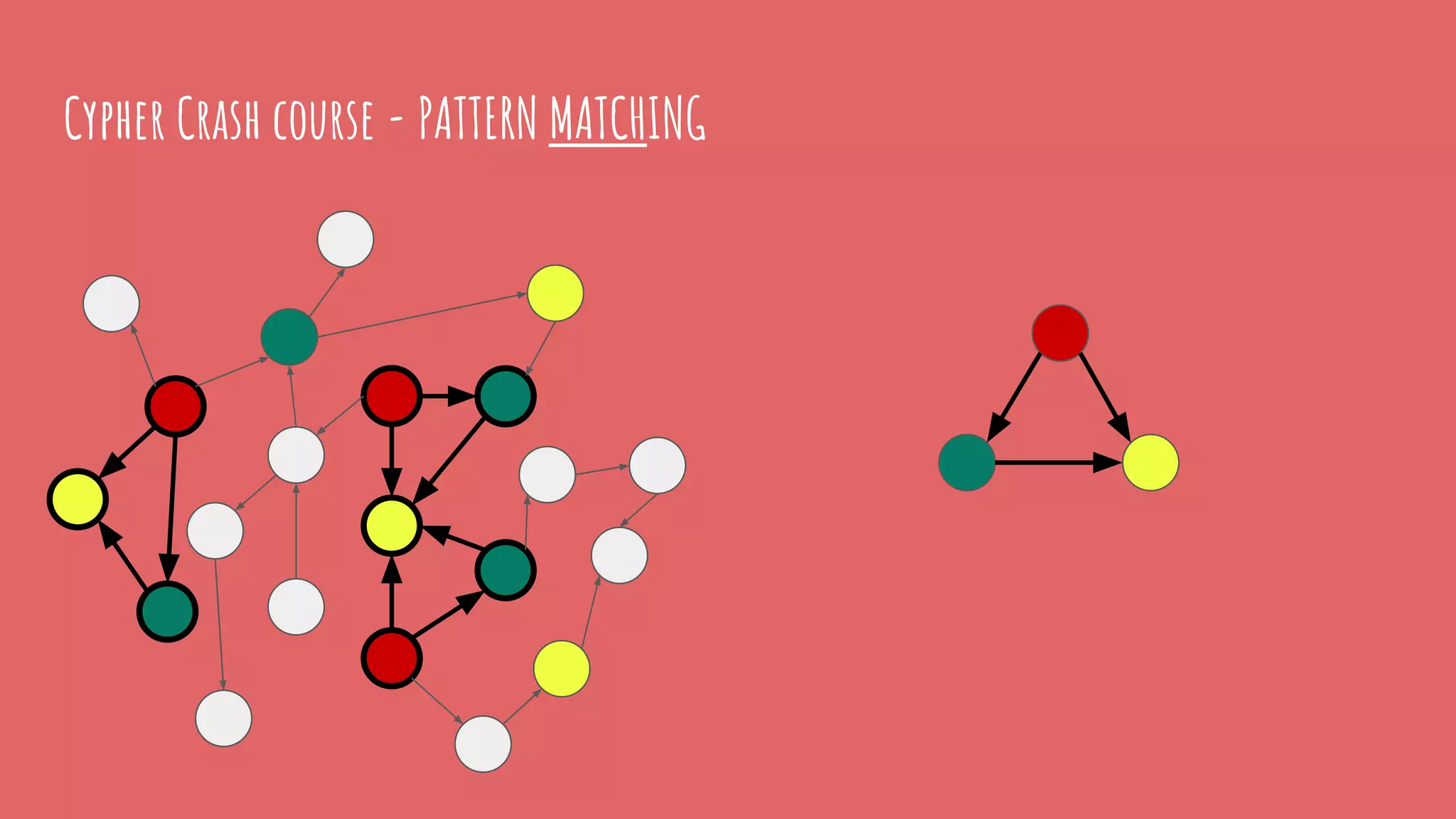

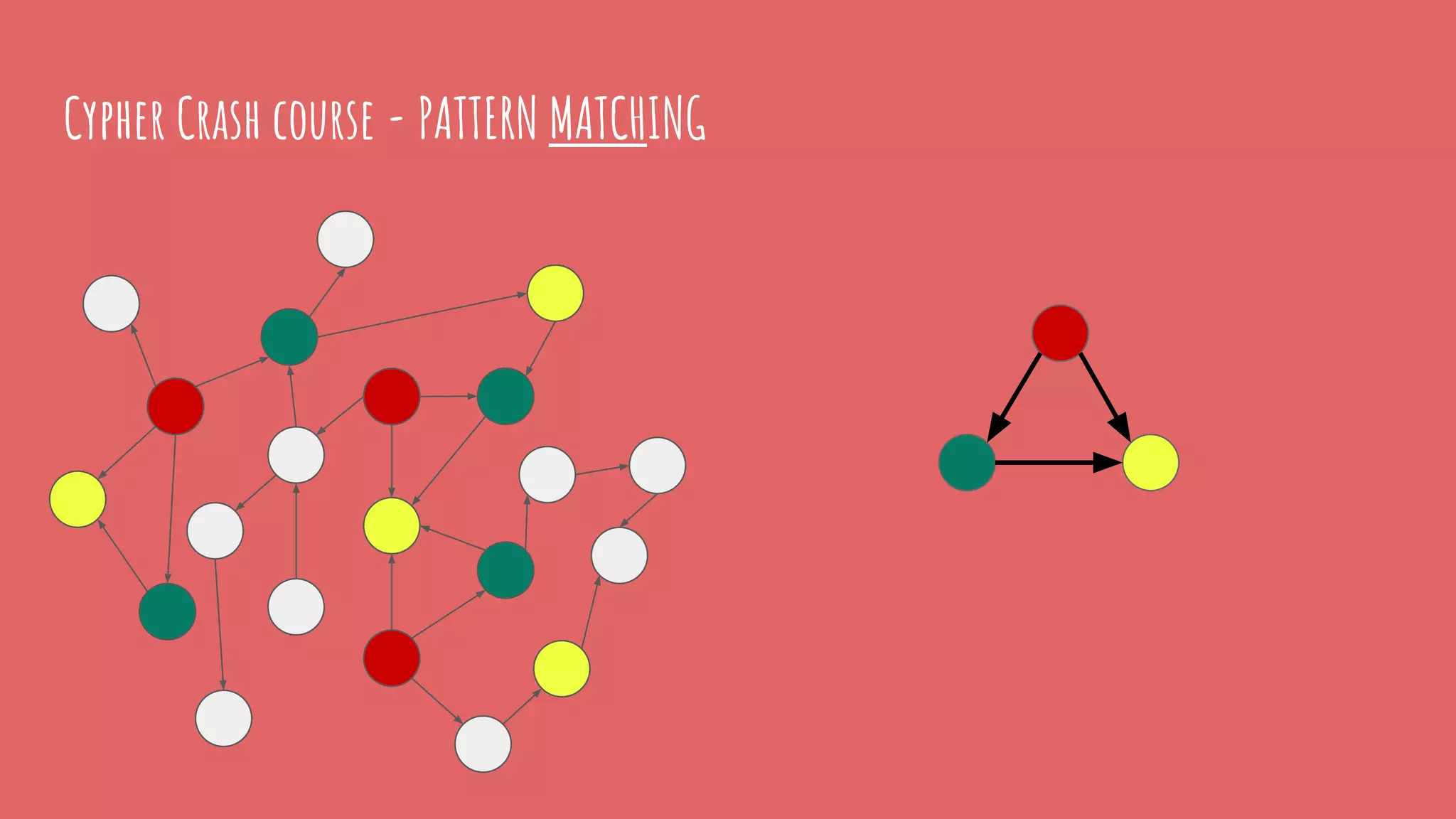

Cypher Crash course - PATTERN MATCHING

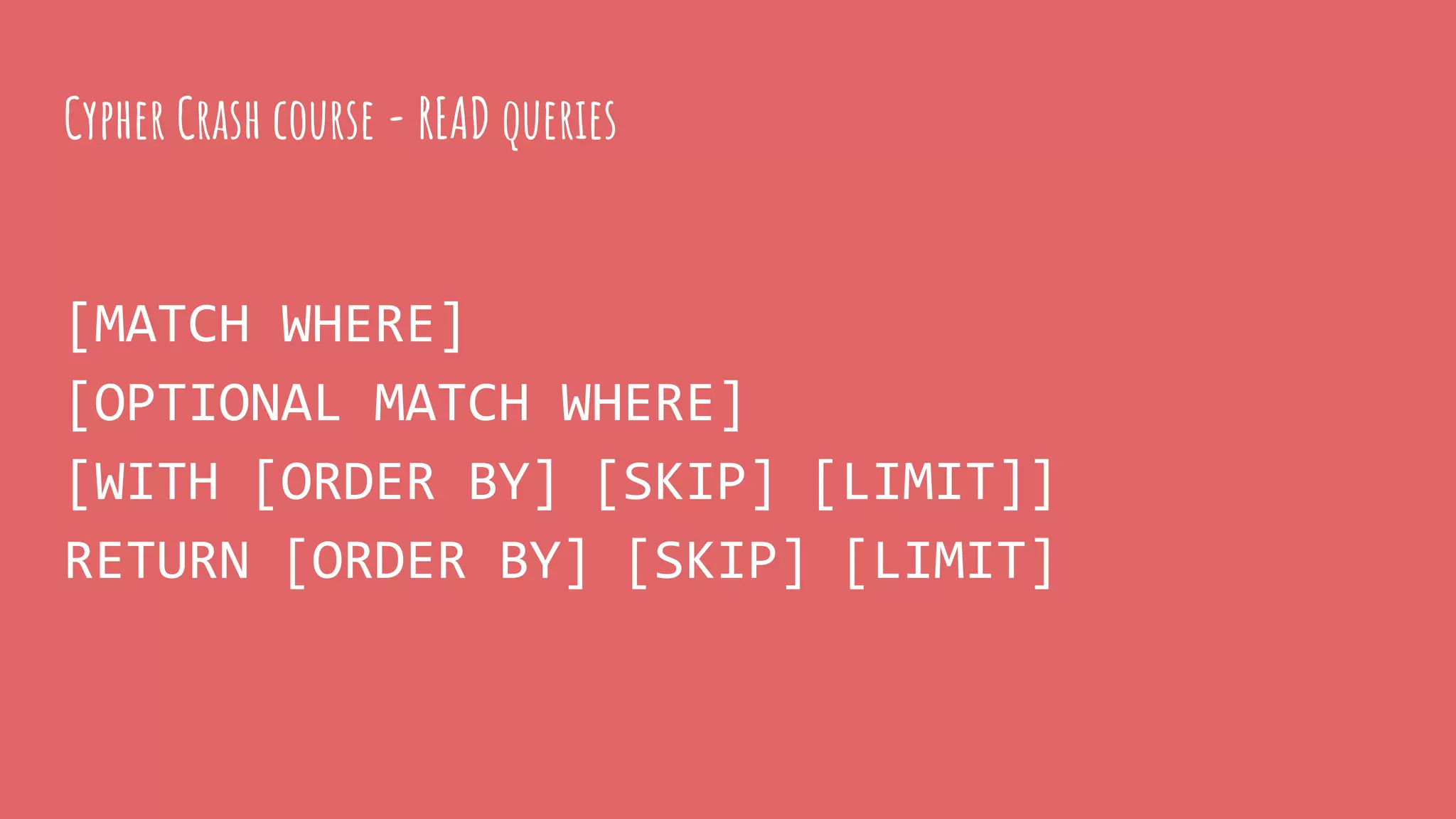

Cypher Crash course - READ queries
[MATCH WHERE]
[OPTIONAL MATCH WHERE]
[WITH [ORDER BY] [SKIP] [LIMIT]]
RETURN [ORDER BY] [SKIP] [LIMIT]

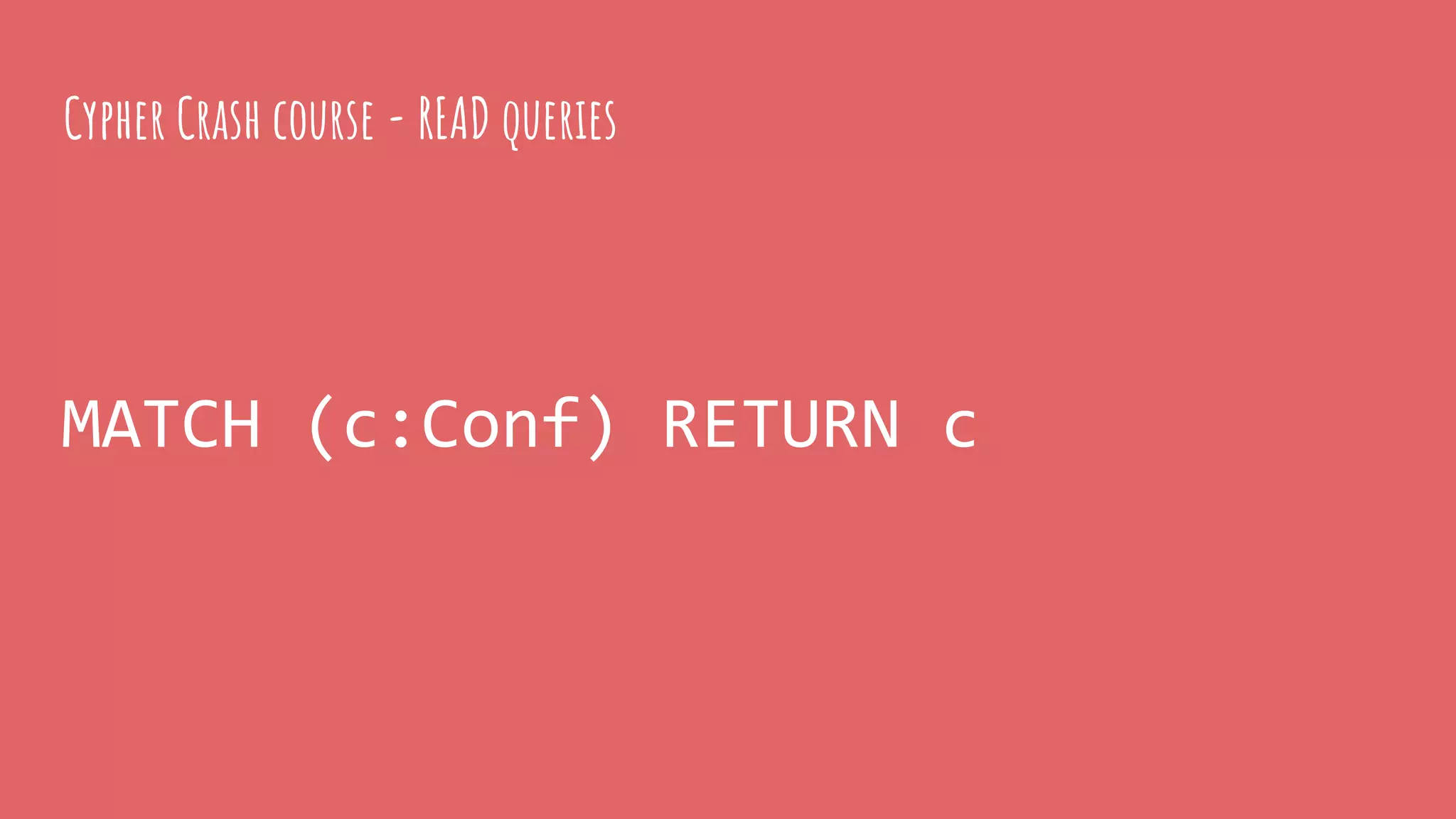

MATCH (c:Conf) RETURN c

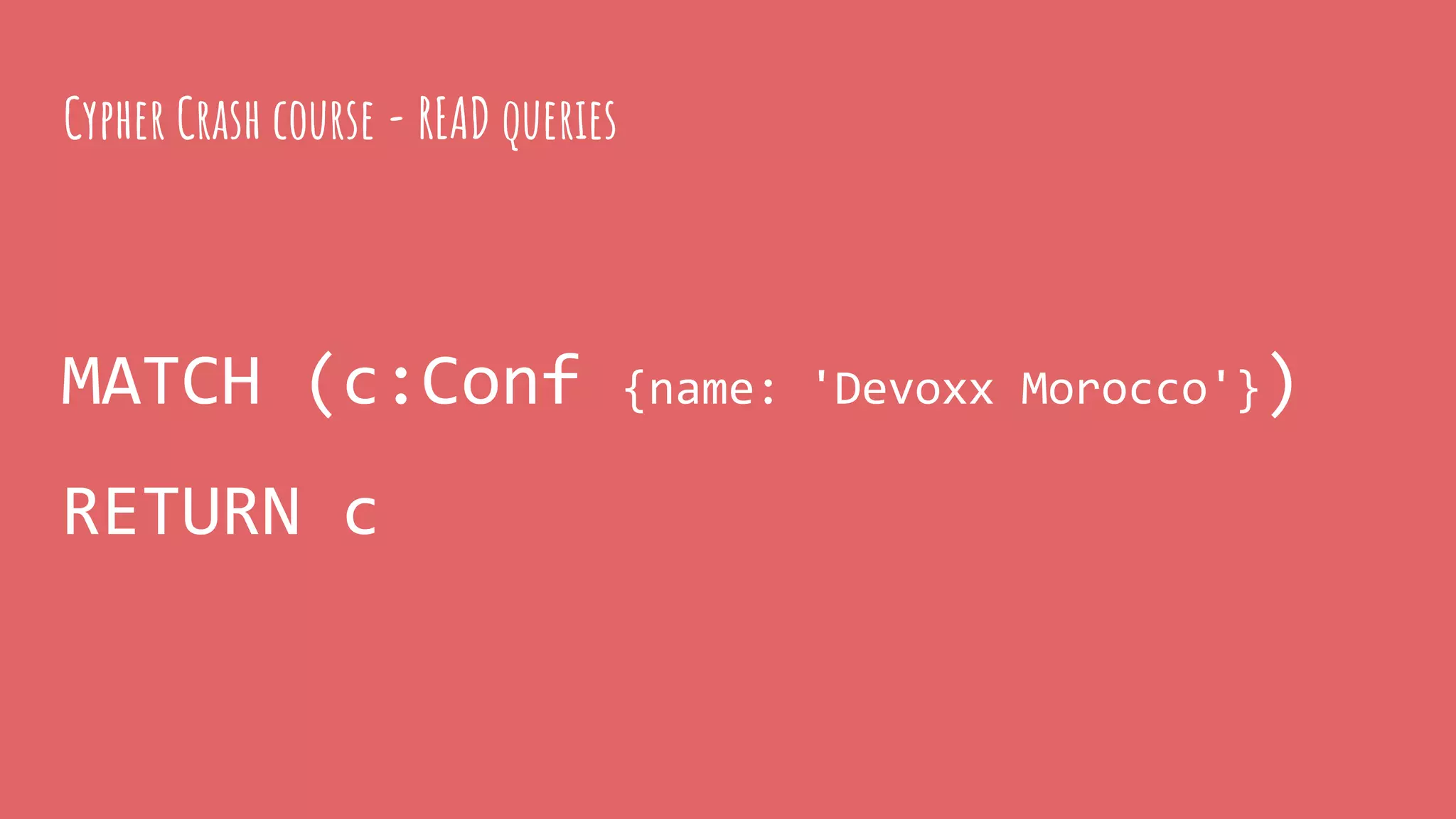

MATCH (c:Conf {name: 'Devoxx Morocco'})
RETURN c

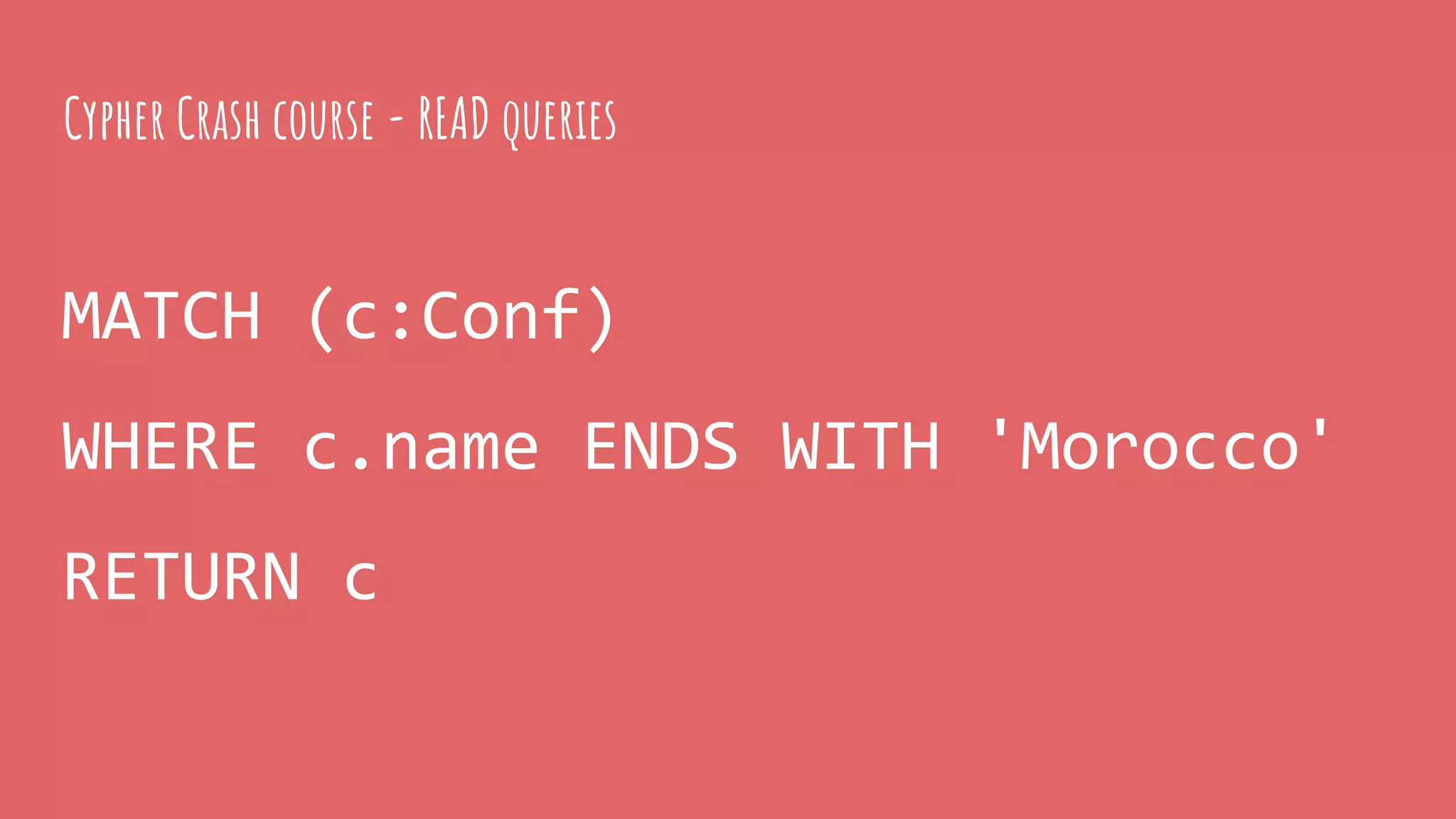

MATCH (c:Conf)
WHERE c.name ENDS WITH 'Morocco'
RETURN c

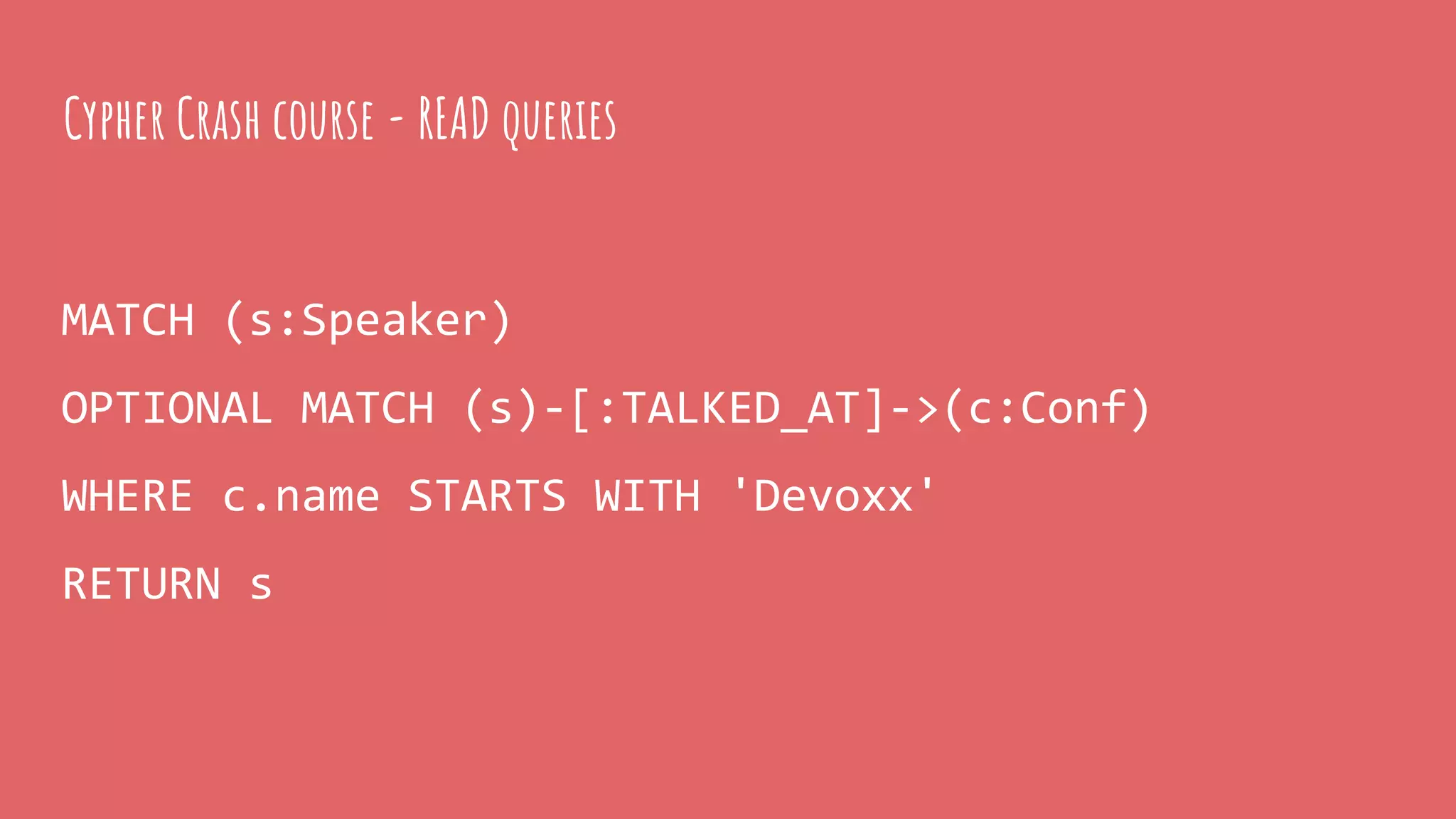

MATCH (s:Speaker)
OPTIONAL MATCH (s)-[:TALKED_AT]->(c:Conf)
WHERE c.name STARTS WITH 'Devoxx'
RETURN s

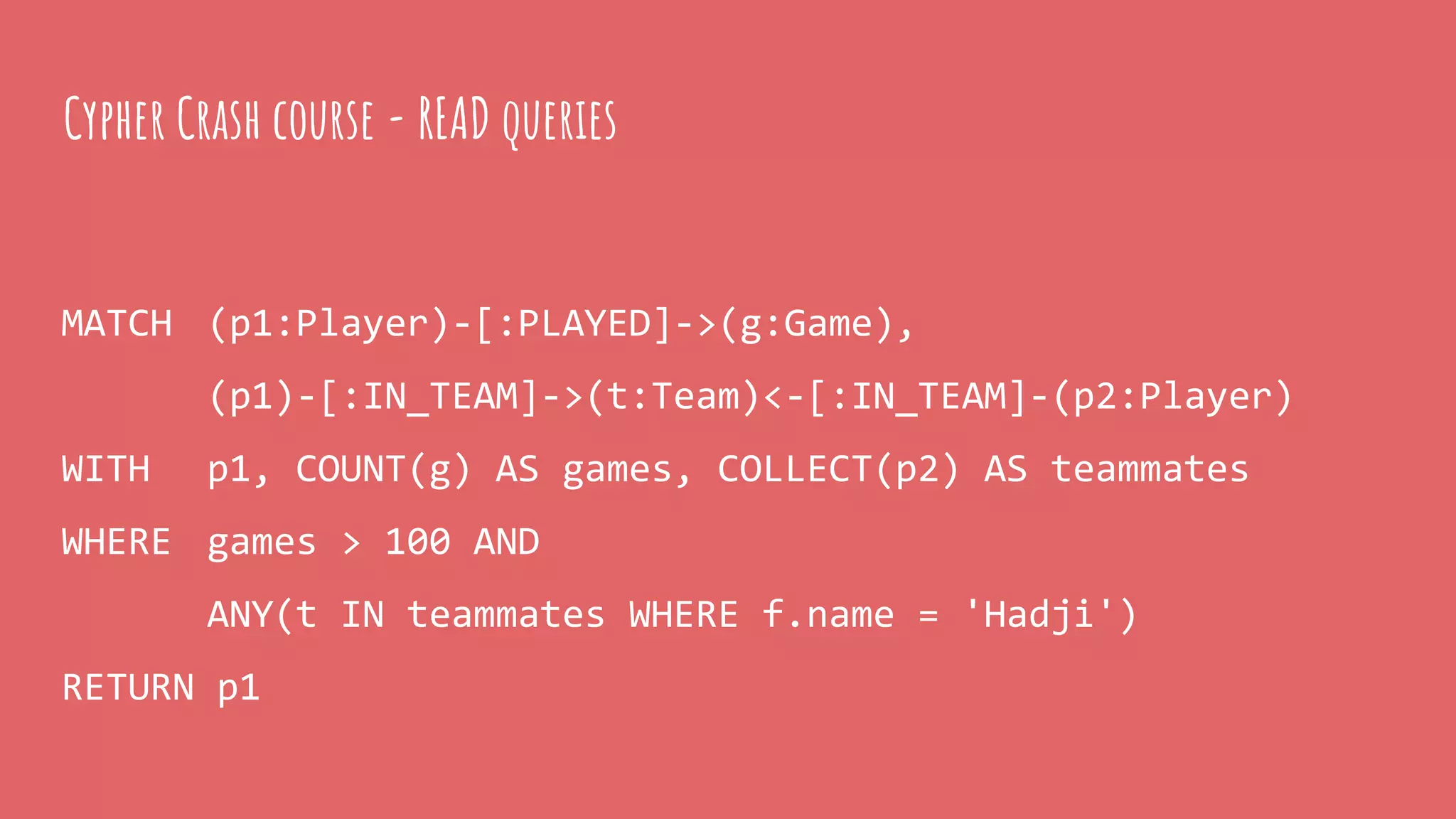

MATCH (p1:Player)-[:PLAYED]->(g:Game),
(p1)-[:IN_TEAM]->(t:Team)<-[:IN_TEAM]-(p2:Player)
WITH p1, COUNT(g) AS games, COLLECT(p2) AS teammates
WHERE games > 100 AND
ANY(t IN teammates WHERE f.name = 'Hadji')
RETURN p1

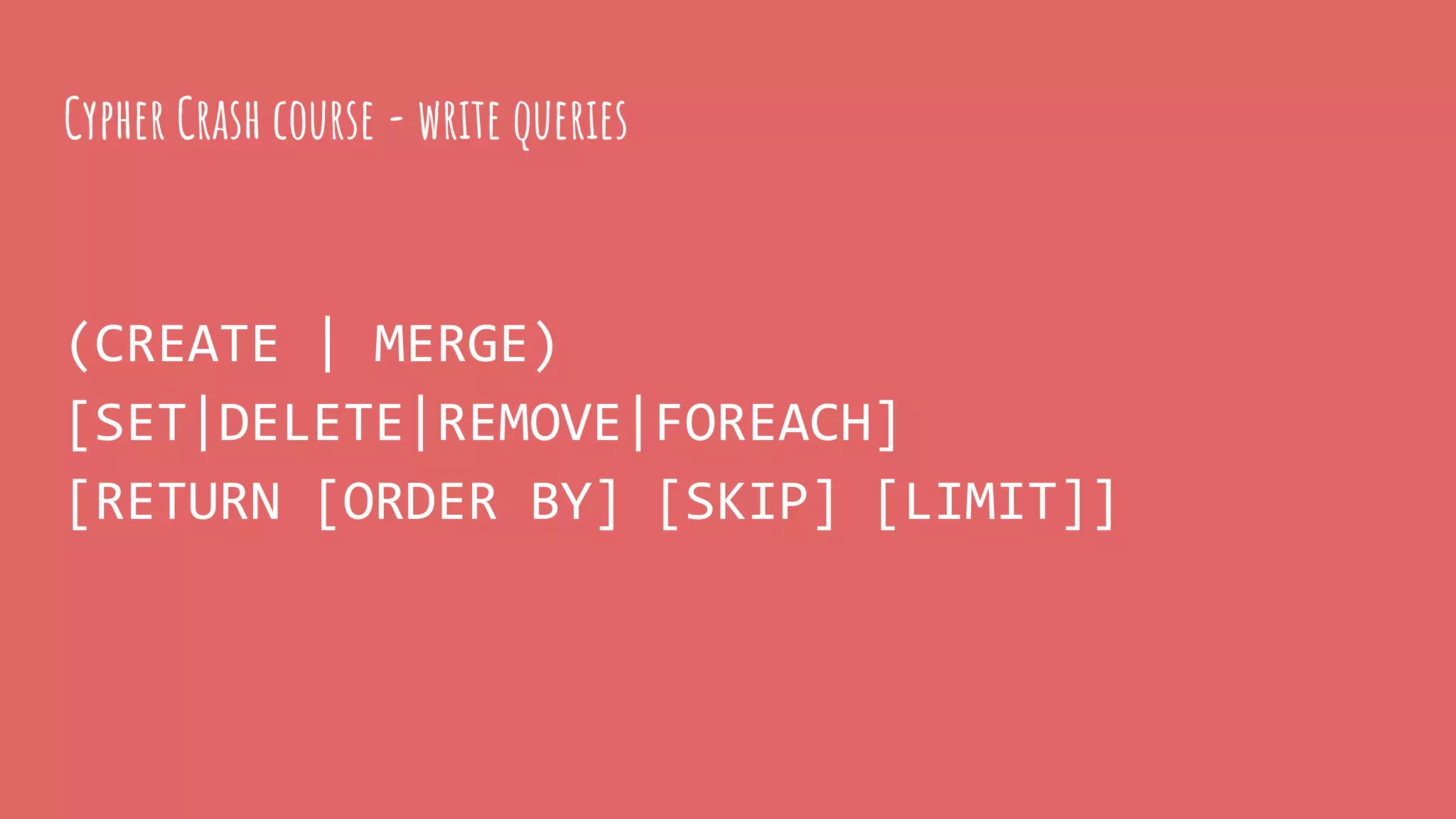

(CREATE | MERGE)
[SET|DELETE|REMOVE|FOREACH]
[RETURN [ORDER BY] [SKIP] [LIMIT]]

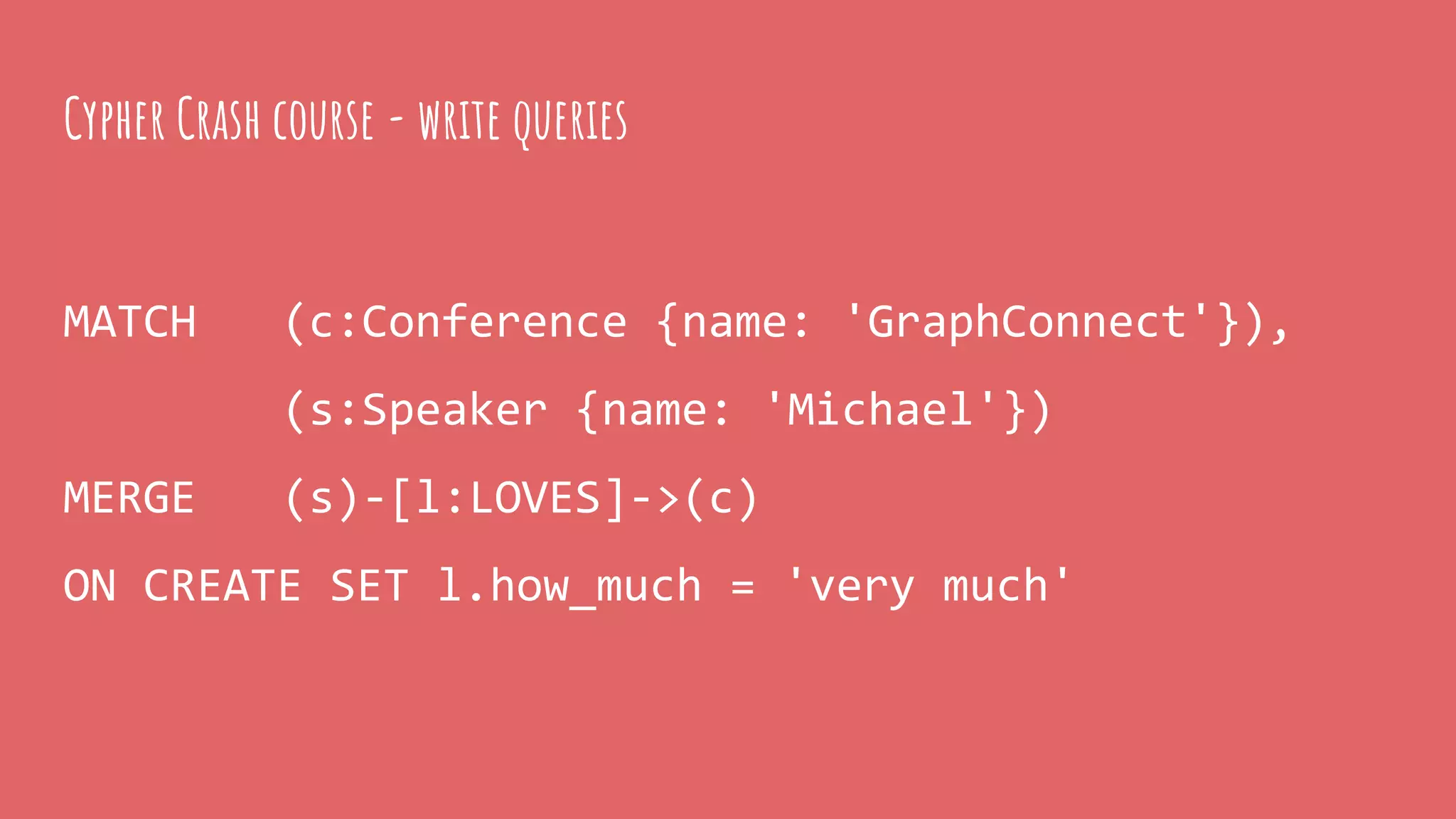

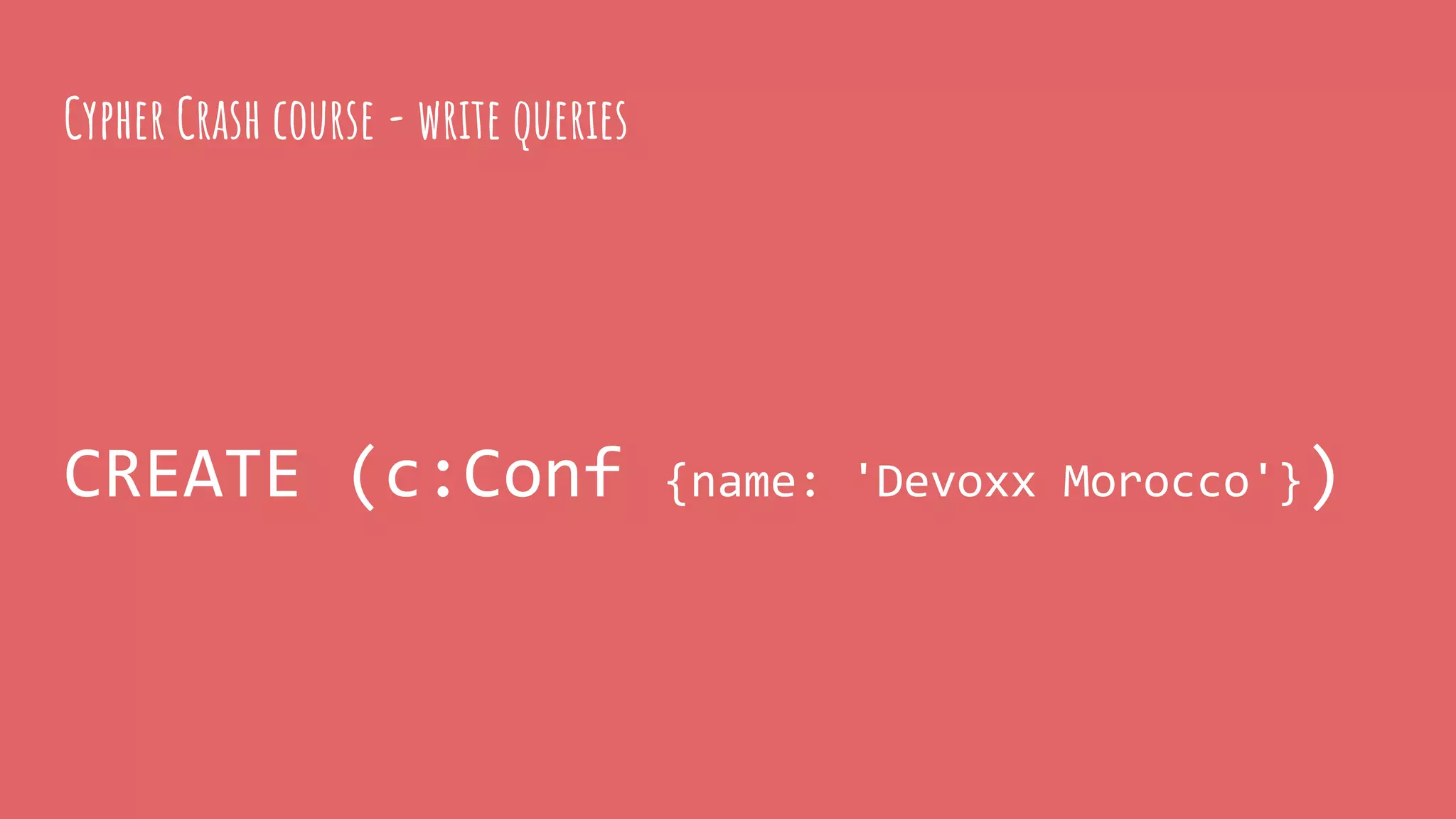

Cypher Crash course - write queries

CREATE (c:Conf {name: 'Devoxx Morocco'})

MATCH (c:Conference {name: 'GraphConnect'}),
(s:Speaker {name: 'Michael'})
MERGE (s)-[l:LOVES]->(c)
ON CREATE SET l.how_much = 'very much'

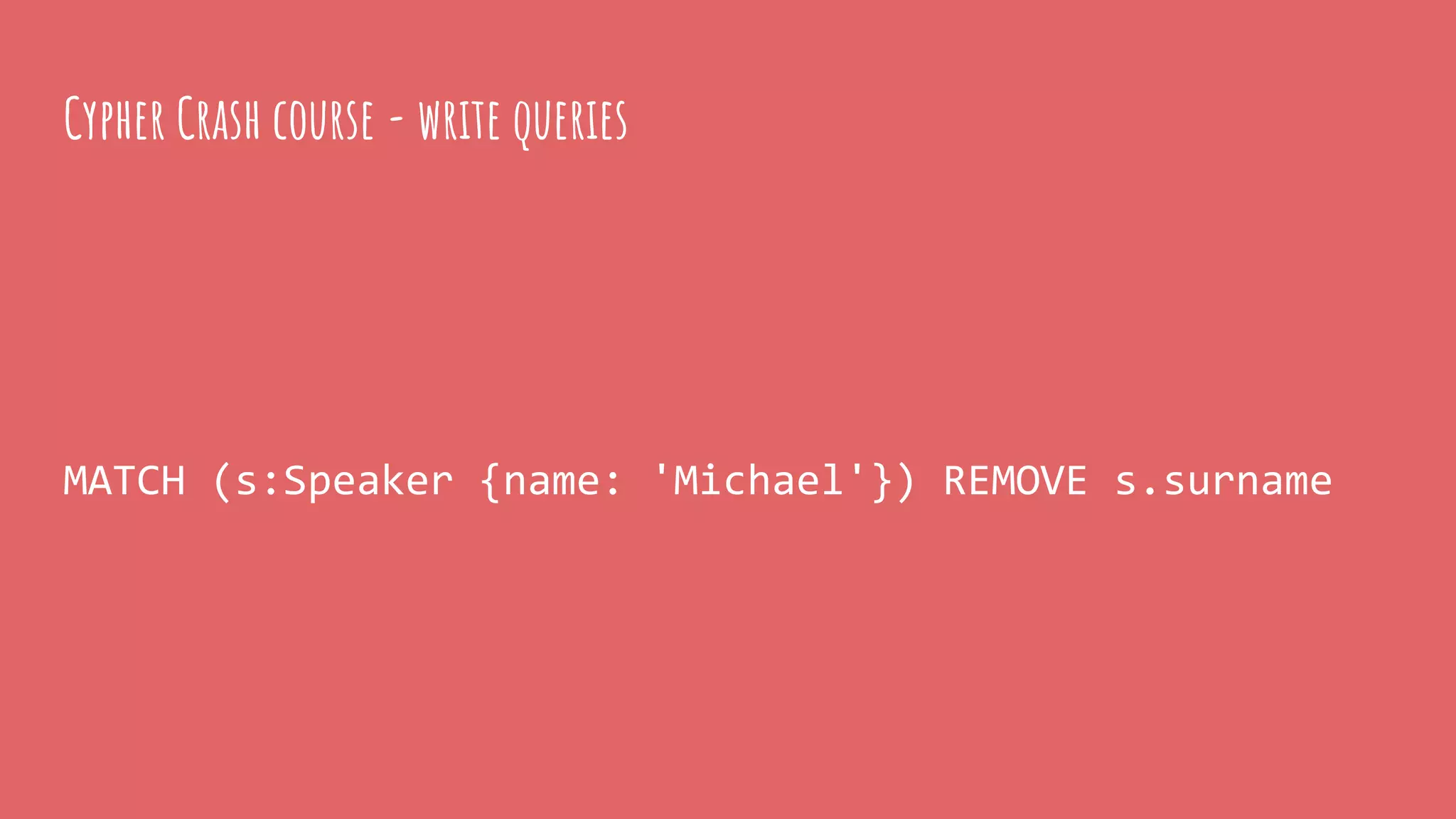

MATCH (s:Speaker {name: 'Michael'}) REMOVE s.surname

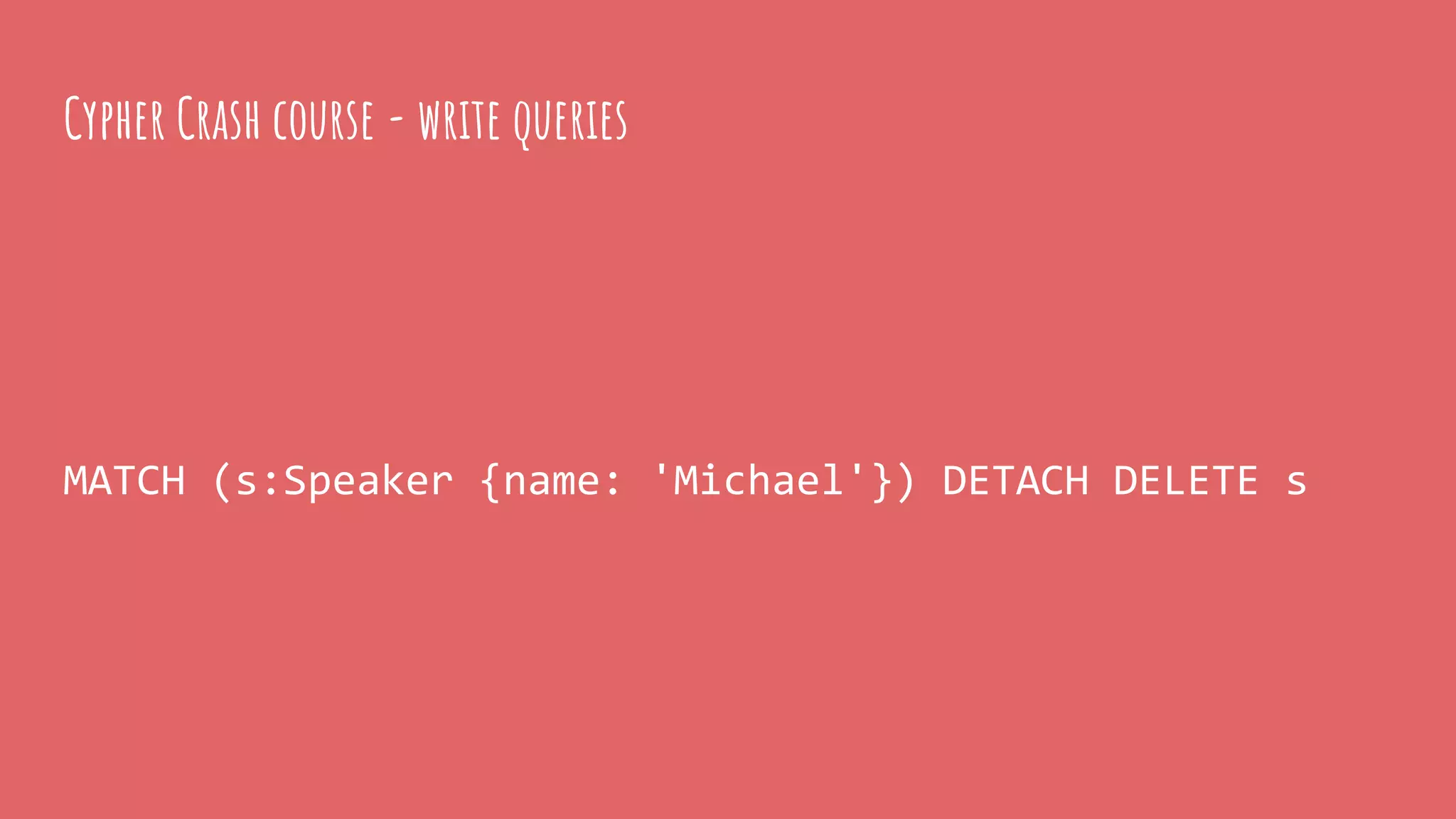

MATCH (s:Speaker {name: 'Michael'}) DETACH DELETE s

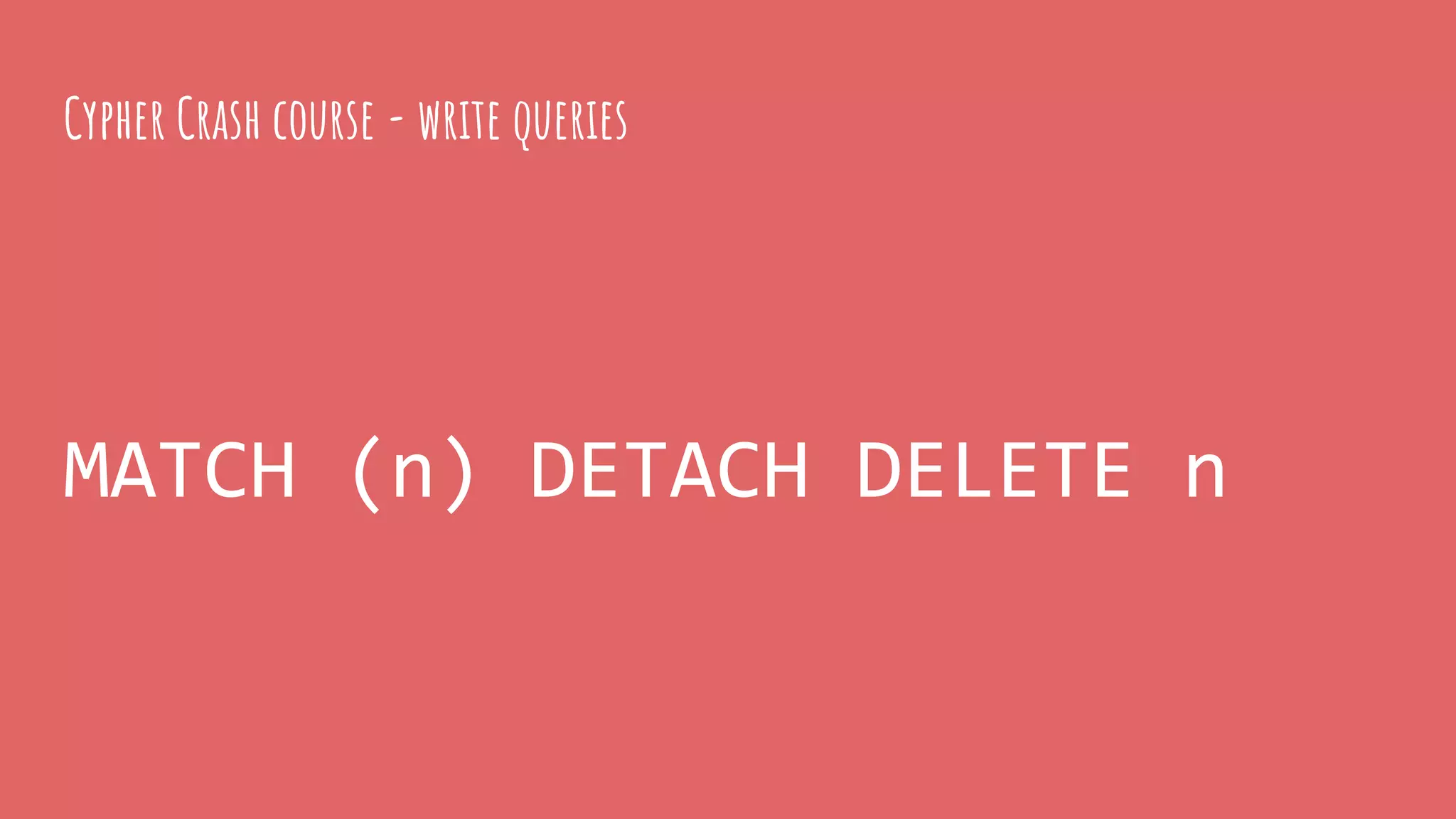

MATCH (n) DETACH DELETE n

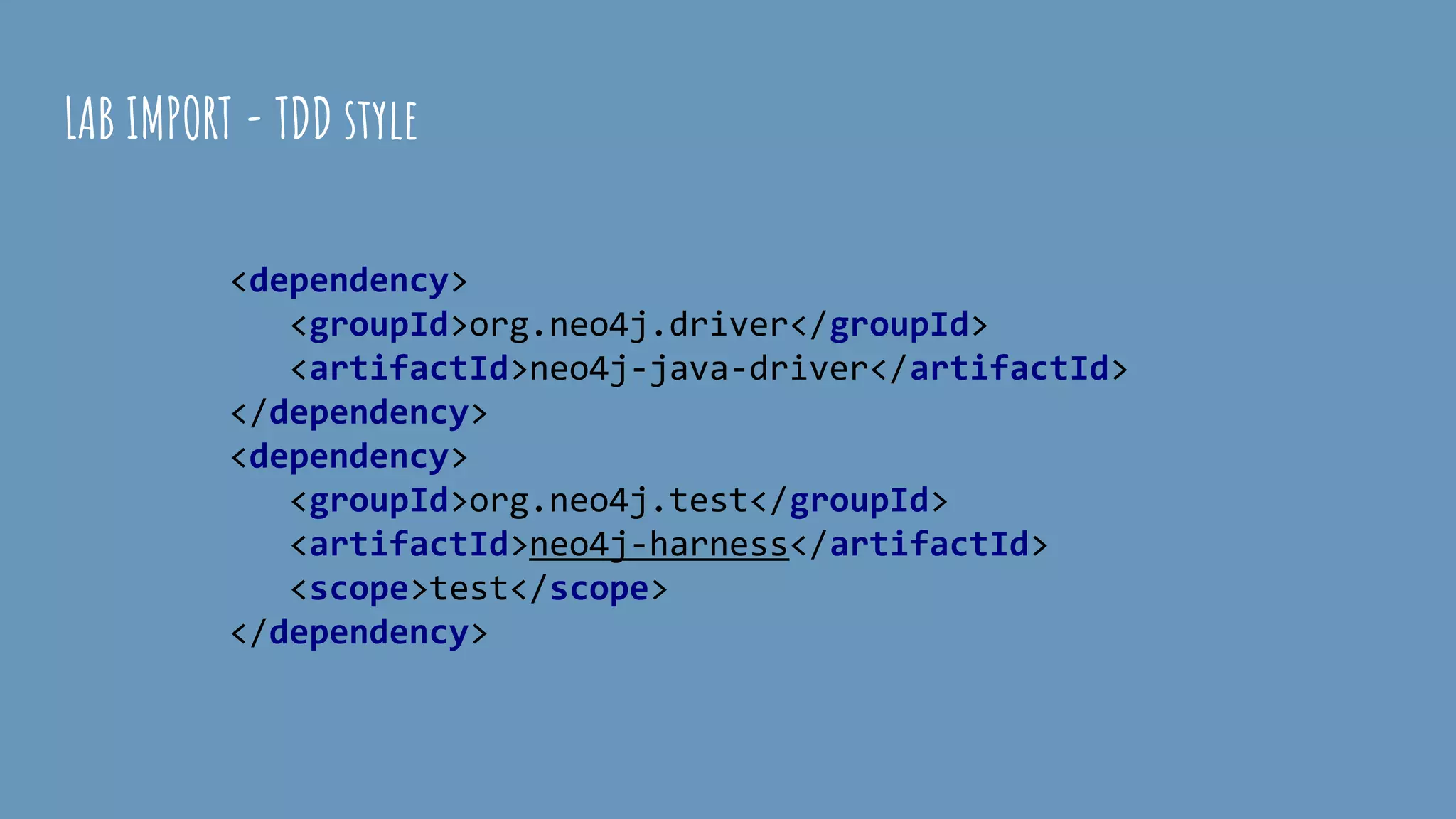

LAB IMPORT - TDD style
<dependency>
<groupId>org.neo4j.driver</groupId>
<artifactId>neo4j-java-driver</artifactId>
</dependency>
<dependency>
<groupId>org.neo4j.test</groupId>
<artifactId>neo4j-harness</artifactId>
<scope>test</scope>
</dependency>

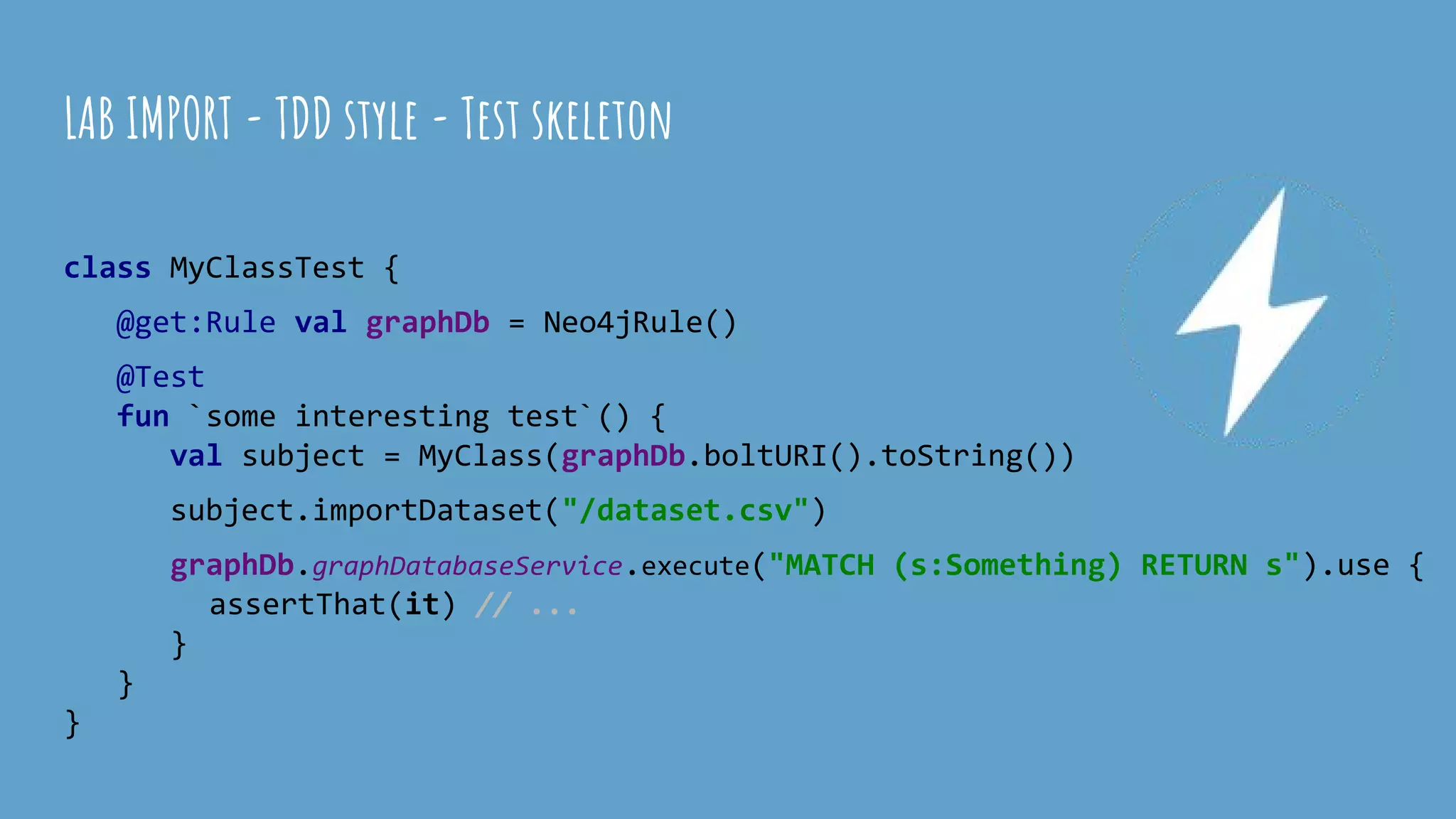

class MyClassTest {
@get:Rule val graphDb = Neo4jRule()
@Test
fun `some interesting test`() {
val subject = MyClass(graphDb.boltURI().toString())
subject.importDataset("/dataset.csv")
graphDb.graphDatabaseService.execute("MATCH (s:Something) RETURN s").use {
assertThat(it) // ...
}
}
}
LAB IMPORT - TDD style - Test skeleton

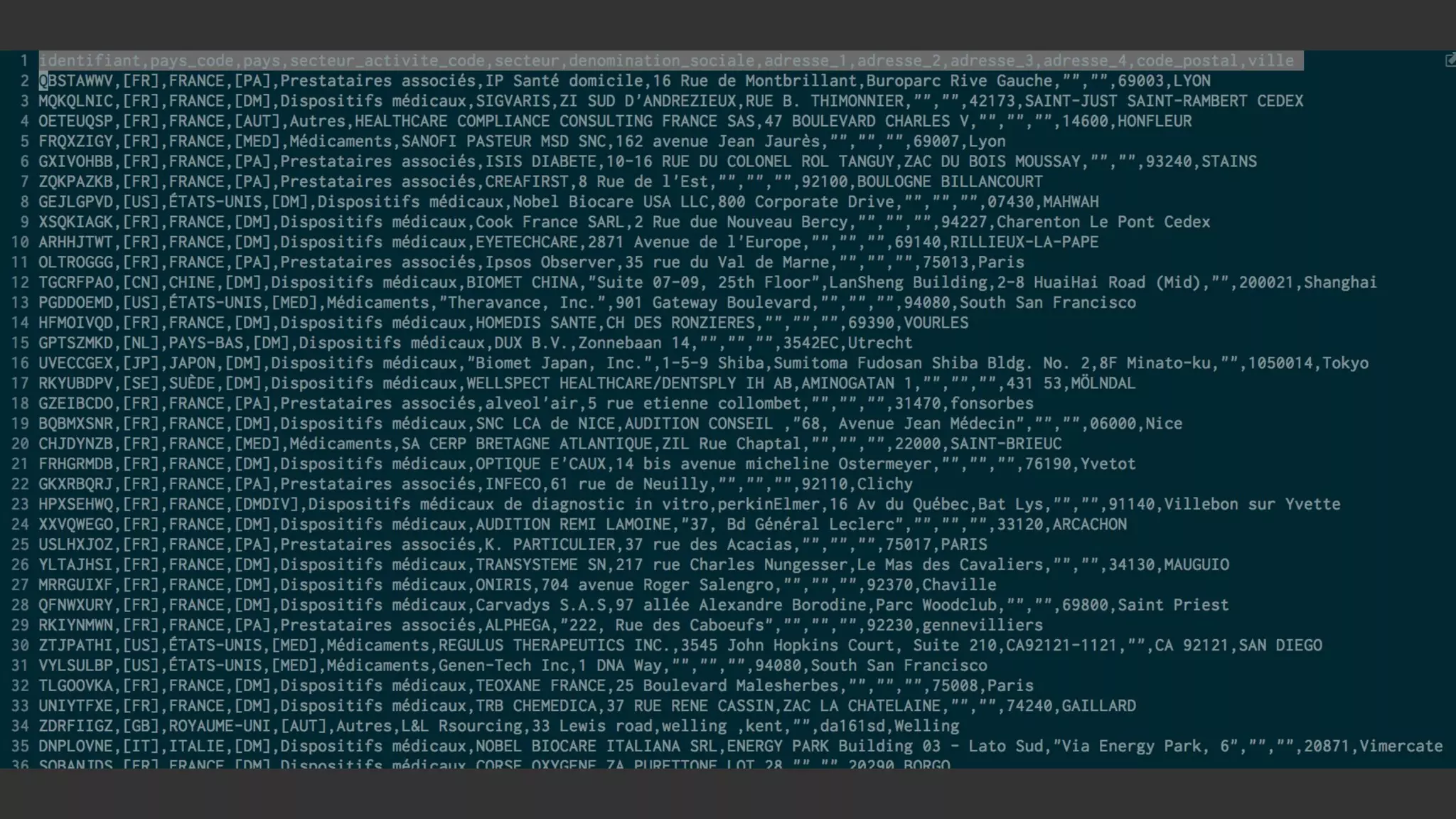

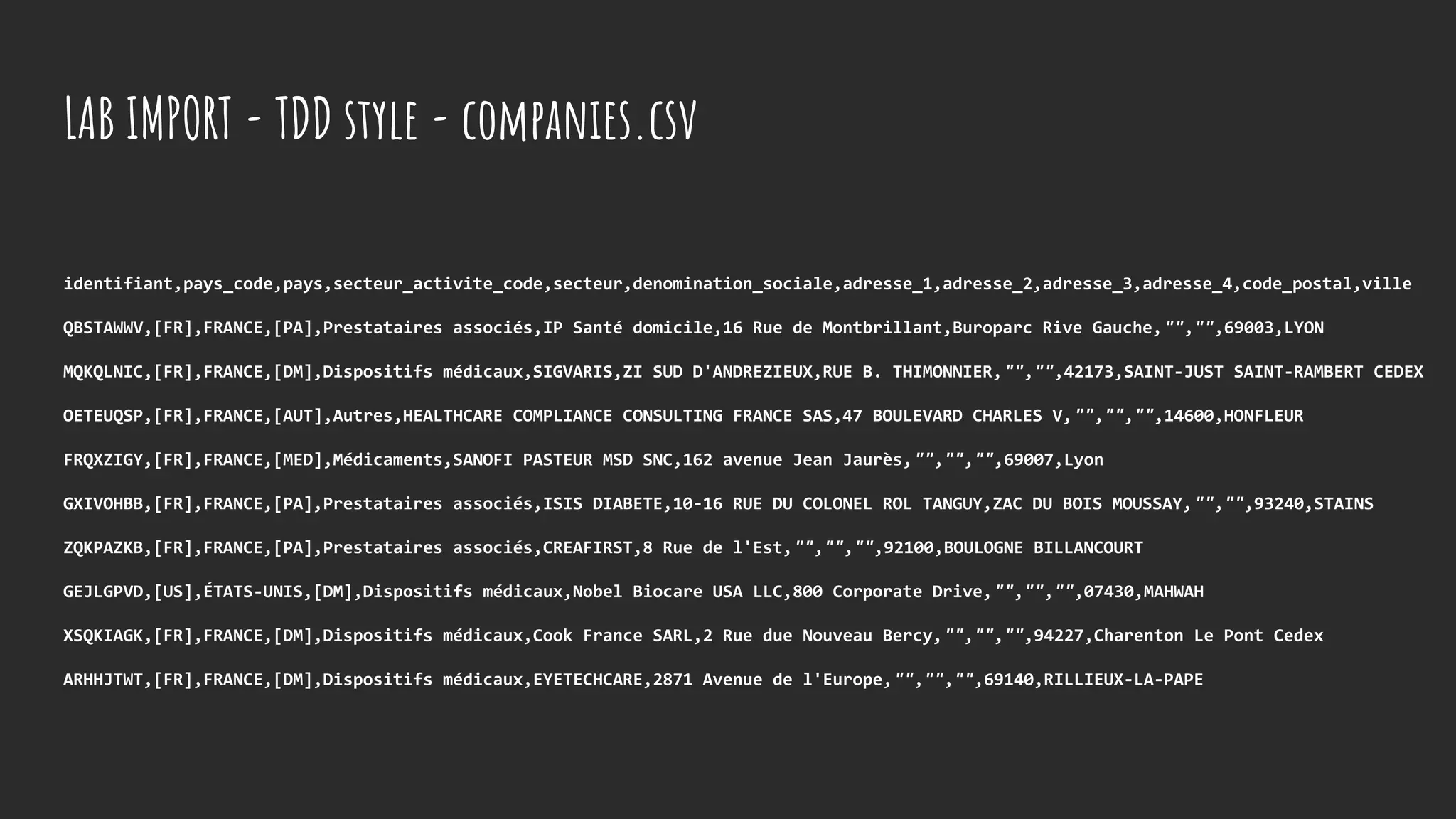

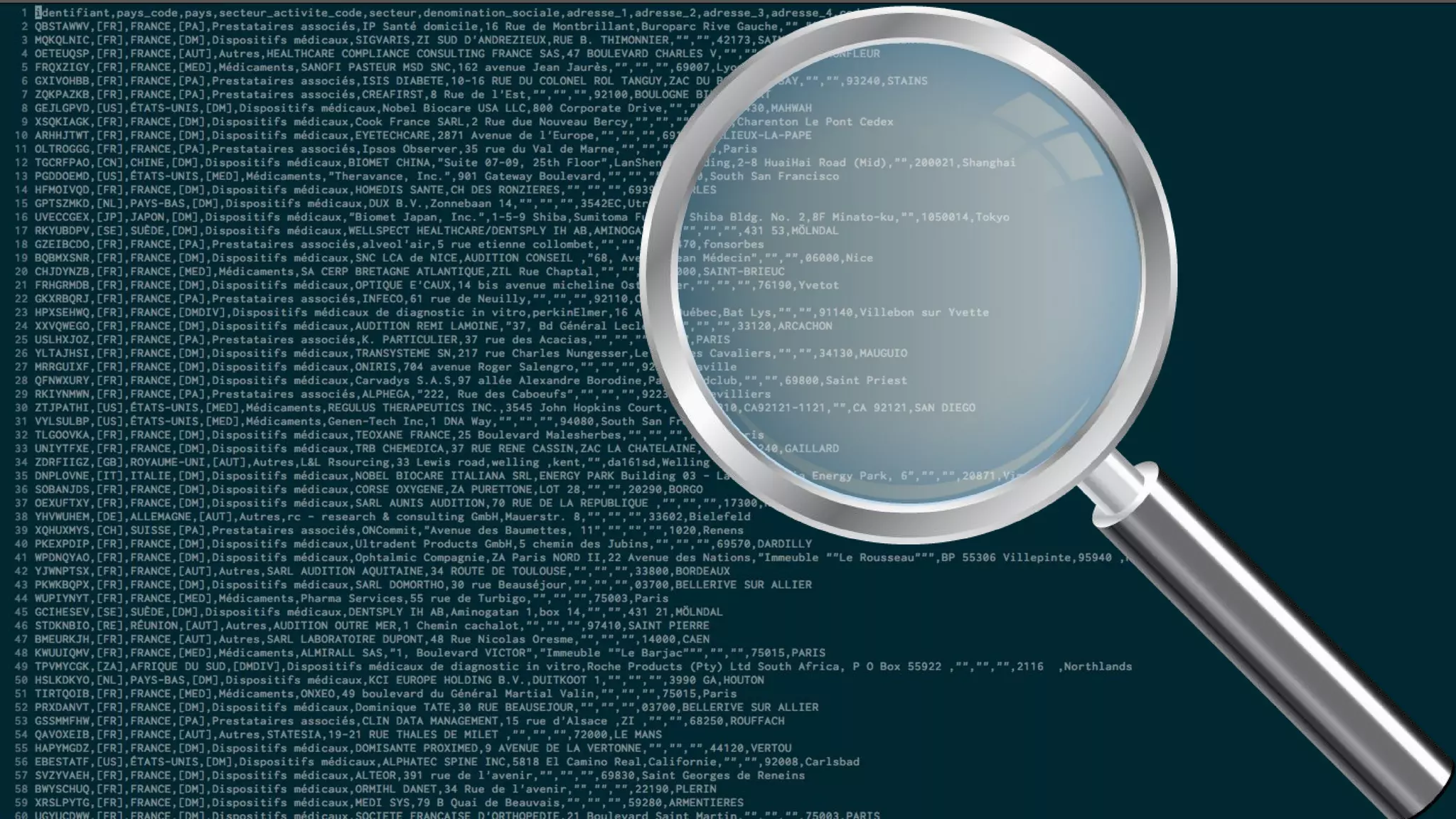

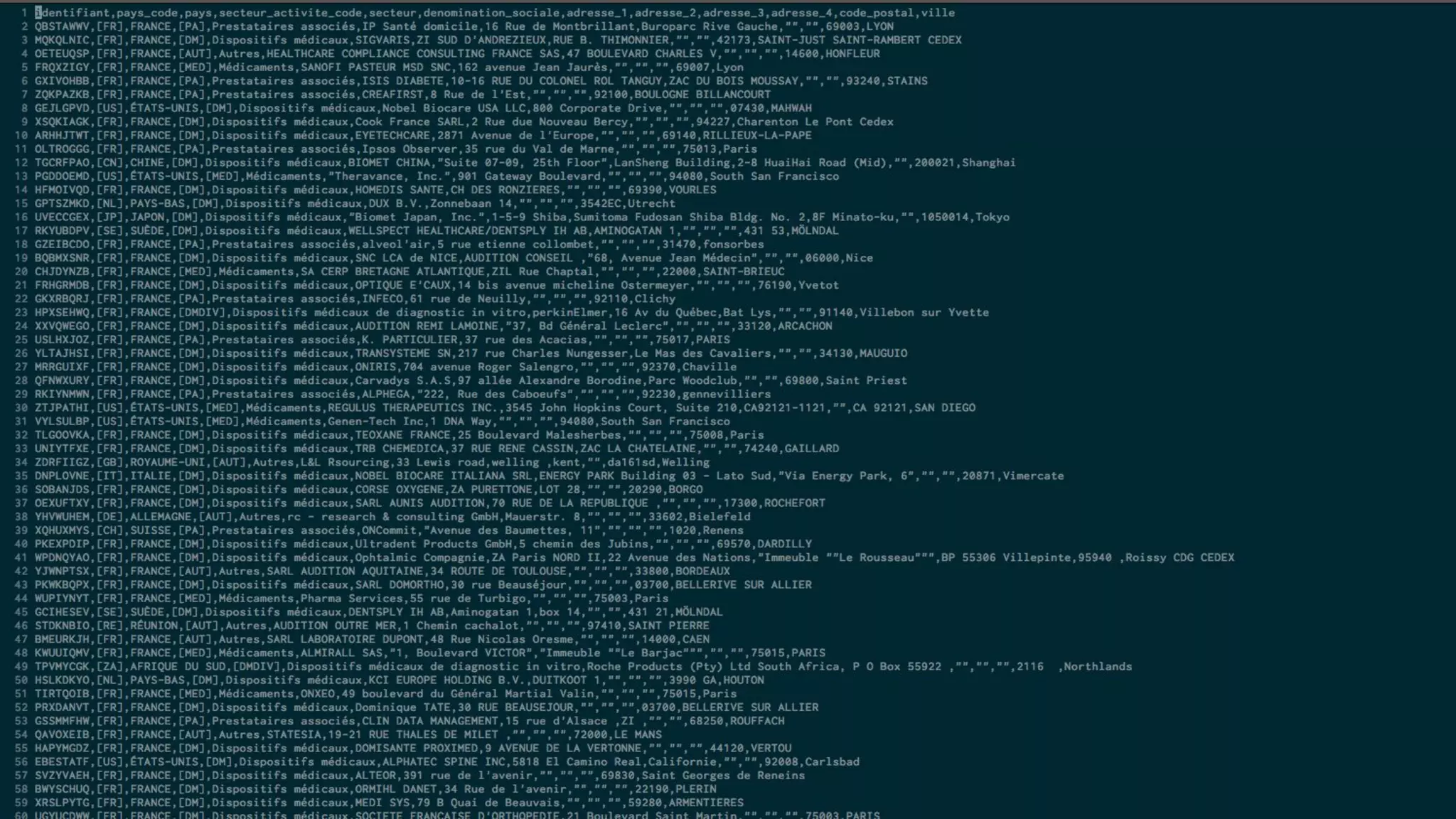

identifiant,pays_code,pays,secteur_activite_code,secteur,denomination_sociale,adresse_1,adresse_2,adresse_3,adresse_4,code_postal,ville
QBSTAWWV,[FR],FRANCE,[PA],Prestataires associés,IP Santé domicile,16 Rue de Montbrillant,Buroparc Rive Gauche,"","",69003,LYON
MQKQLNIC,[FR],FRANCE,[DM],Dispositifs médicaux,SIGVARIS,ZI SUD D'ANDREZIEUX,RUE B. THIMONNIER,"","",42173,SAINT-JUST SAINT-RAMBERT CEDEX
OETEUQSP,[FR],FRANCE,[AUT],Autres,HEALTHCARE COMPLIANCE CONSULTING FRANCE SAS,47 BOULEVARD CHARLES V,"","","",14600,HONFLEUR
FRQXZIGY,[FR],FRANCE,[MED],Médicaments,SANOFI PASTEUR MSD SNC,162 avenue Jean Jaurès,"","","",69007,Lyon
GXIVOHBB,[FR],FRANCE,[PA],Prestataires associés,ISIS DIABETE,10-16 RUE DU COLONEL ROL TANGUY,ZAC DU BOIS MOUSSAY,"","",93240,STAINS
ZQKPAZKB,[FR],FRANCE,[PA],Prestataires associés,CREAFIRST,8 Rue de l'Est,"","","",92100,BOULOGNE BILLANCOURT
GEJLGPVD,[US],ÉTATS-UNIS,[DM],Dispositifs médicaux,Nobel Biocare USA LLC,800 Corporate Drive,"","","",07430,MAHWAH
XSQKIAGK,[FR],FRANCE,[DM],Dispositifs médicaux,Cook France SARL,2 Rue due Nouveau Bercy,"","","",94227,Charenton Le Pont Cedex
ARHHJTWT,[FR],FRANCE,[DM],Dispositifs médicaux,EYETECHCARE,2871 Avenue de l'Europe,"","","",69140,RILLIEUX-LA-PAPE
LAB IMPORT - TDD style - companies.csv

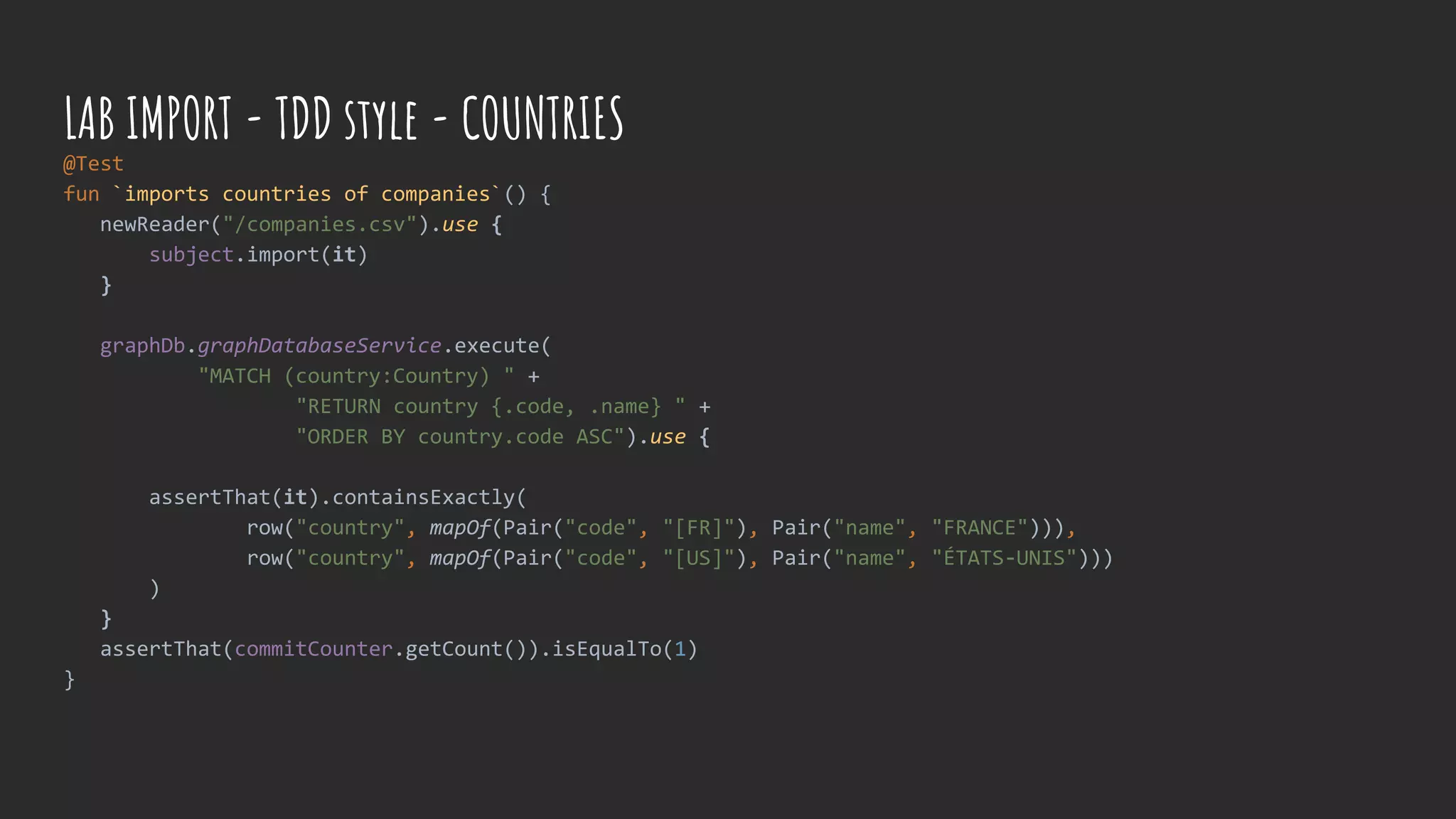

@Test
fun `imports countries of companies`() {
newReader("/companies.csv").use {
subject.import(it)
}
graphDb.graphDatabaseService.execute(
"MATCH (country:Country) " +
"RETURN country {.code, .name} " +
"ORDER BY country.code ASC").use {
assertThat(it).containsExactly(
row("country", mapOf(Pair("code", "[FR]"), Pair("name", "FRANCE"))),
row("country", mapOf(Pair("code", "[US]"), Pair("name", "ÉTATS-UNIS")))
)
}

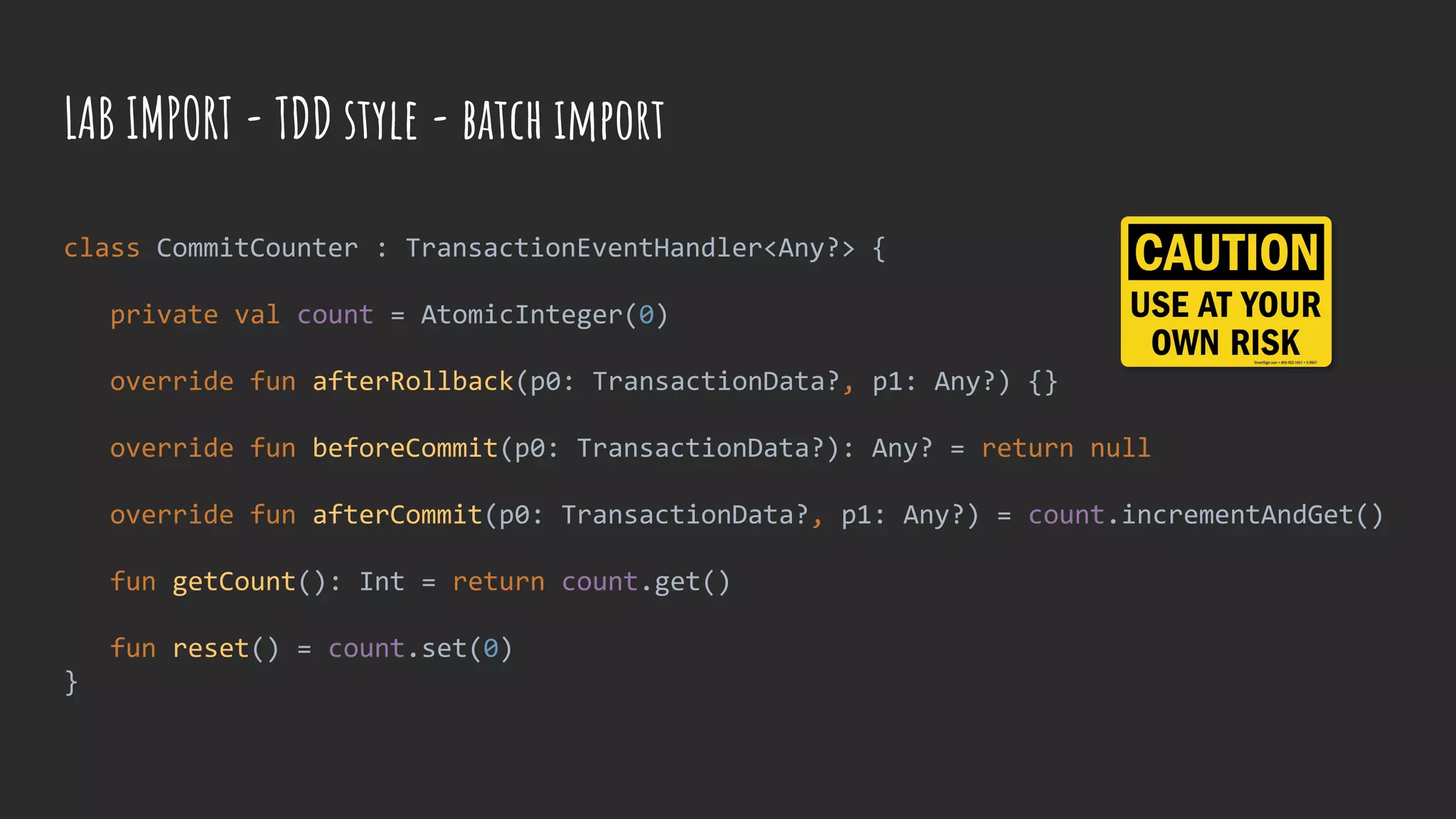

assertThat(commitCounter.getCount()).isEqualTo(1)
}

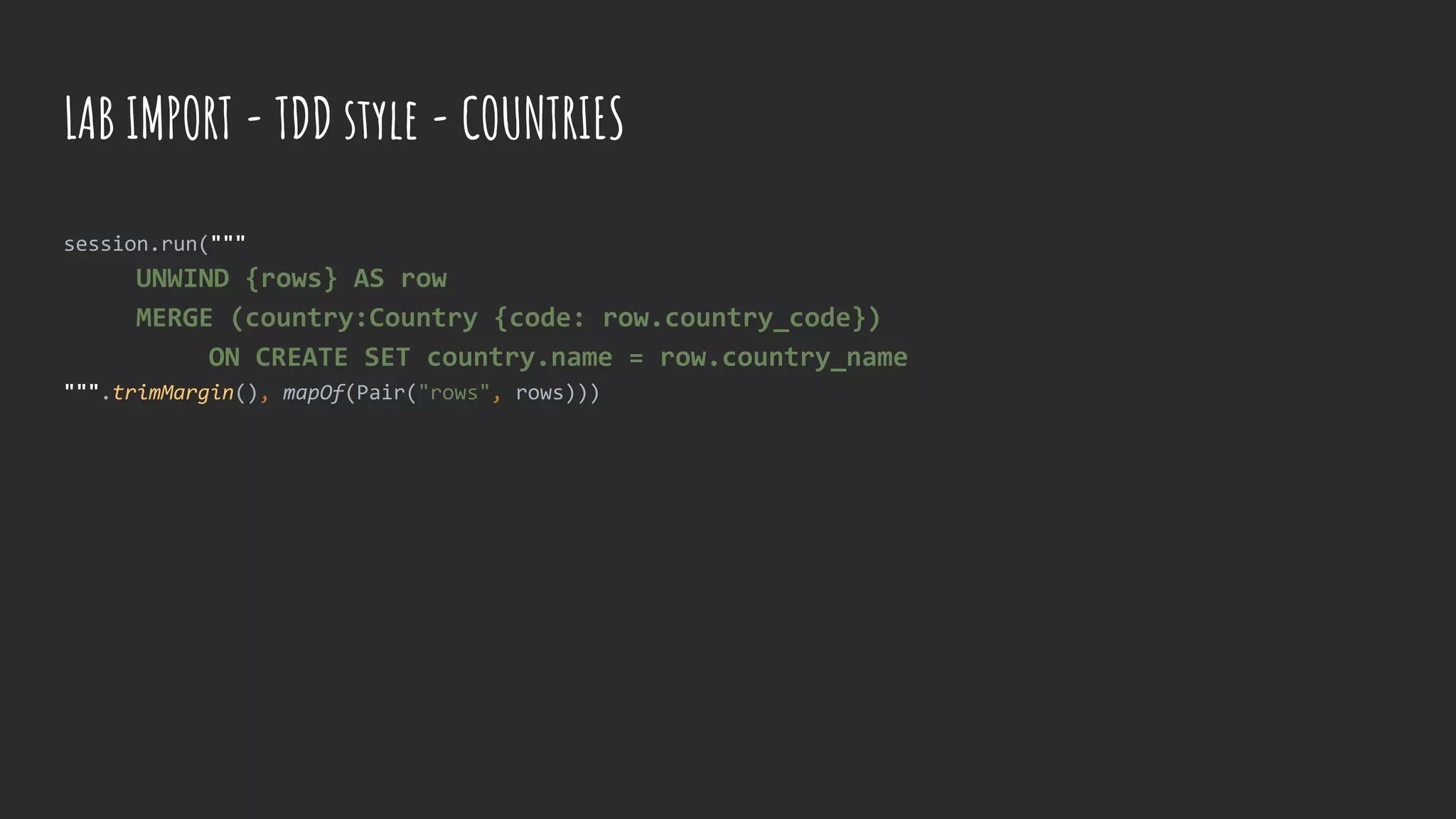

LAB IMPORT - TDD style - COUNTRIES

session.run("""
UNWIND {rows} AS row
MERGE (country:Country {code: row.country_code})
ON CREATE SET country.name = row.country_name
""".trimMargin(), mapOf(Pair("rows", rows)))

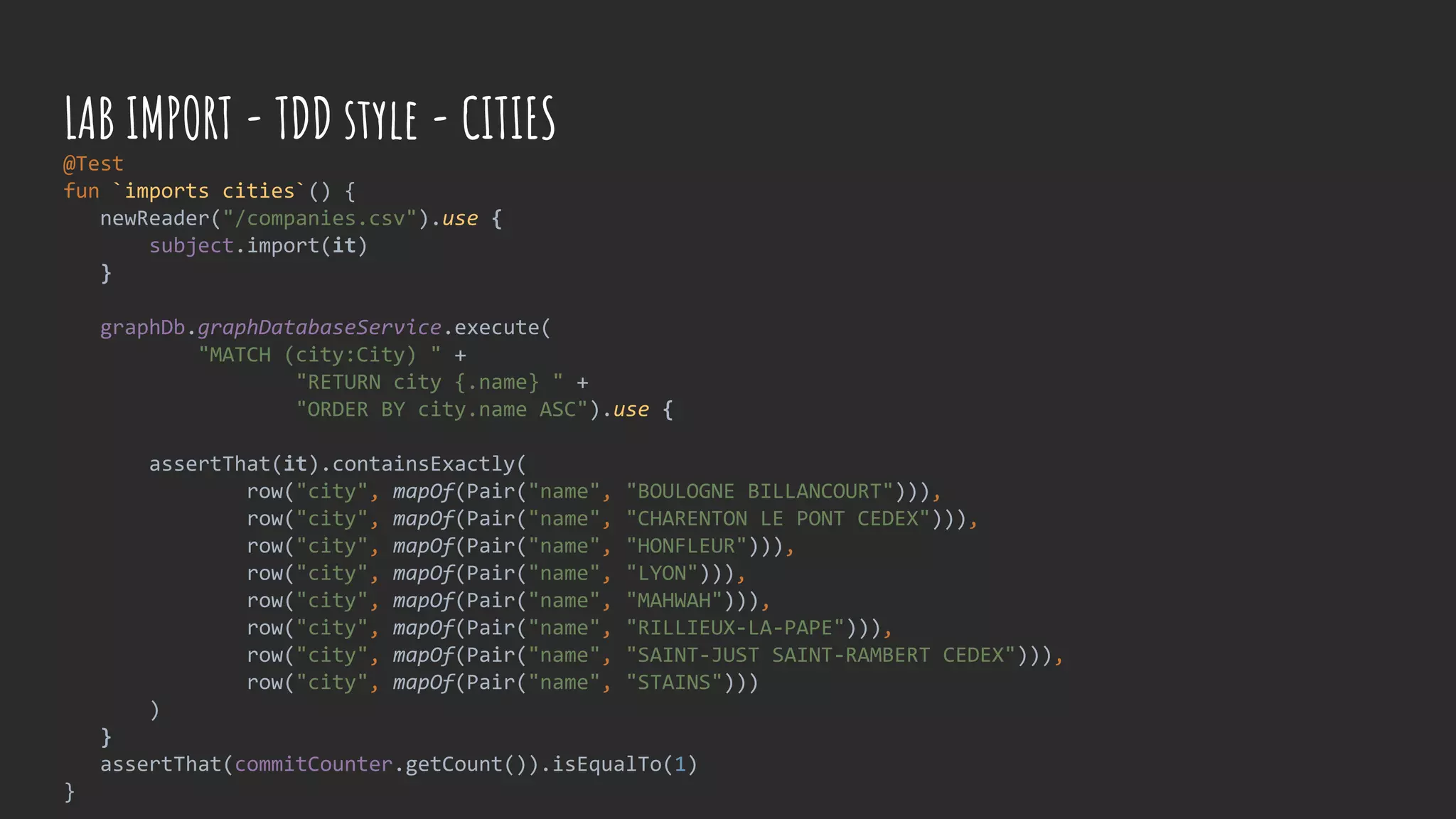

LAB IMPORT - TDD style - COUNTRIES

@Test
fun `imports cities`() {
subject.import(it)
}
"MATCH (city:City) " +
"RETURN city {.name} " +
"ORDER BY city.name ASC").use {
row("city", mapOf(Pair("name", "BOULOGNE BILLANCOURT"))),
row("city", mapOf(Pair("name", "CHARENTON LE PONT CEDEX"))),
row("city", mapOf(Pair("name", "HONFLEUR"))),
row("city", mapOf(Pair("name", "LYON"))),
row("city", mapOf(Pair("name", "MAHWAH"))),
row("city", mapOf(Pair("name", "RILLIEUX-LA-PAPE"))),
row("city", mapOf(Pair("name", "SAINT-JUST SAINT-RAMBERT CEDEX"))),
row("city", mapOf(Pair("name", "STAINS")))
)
}
}

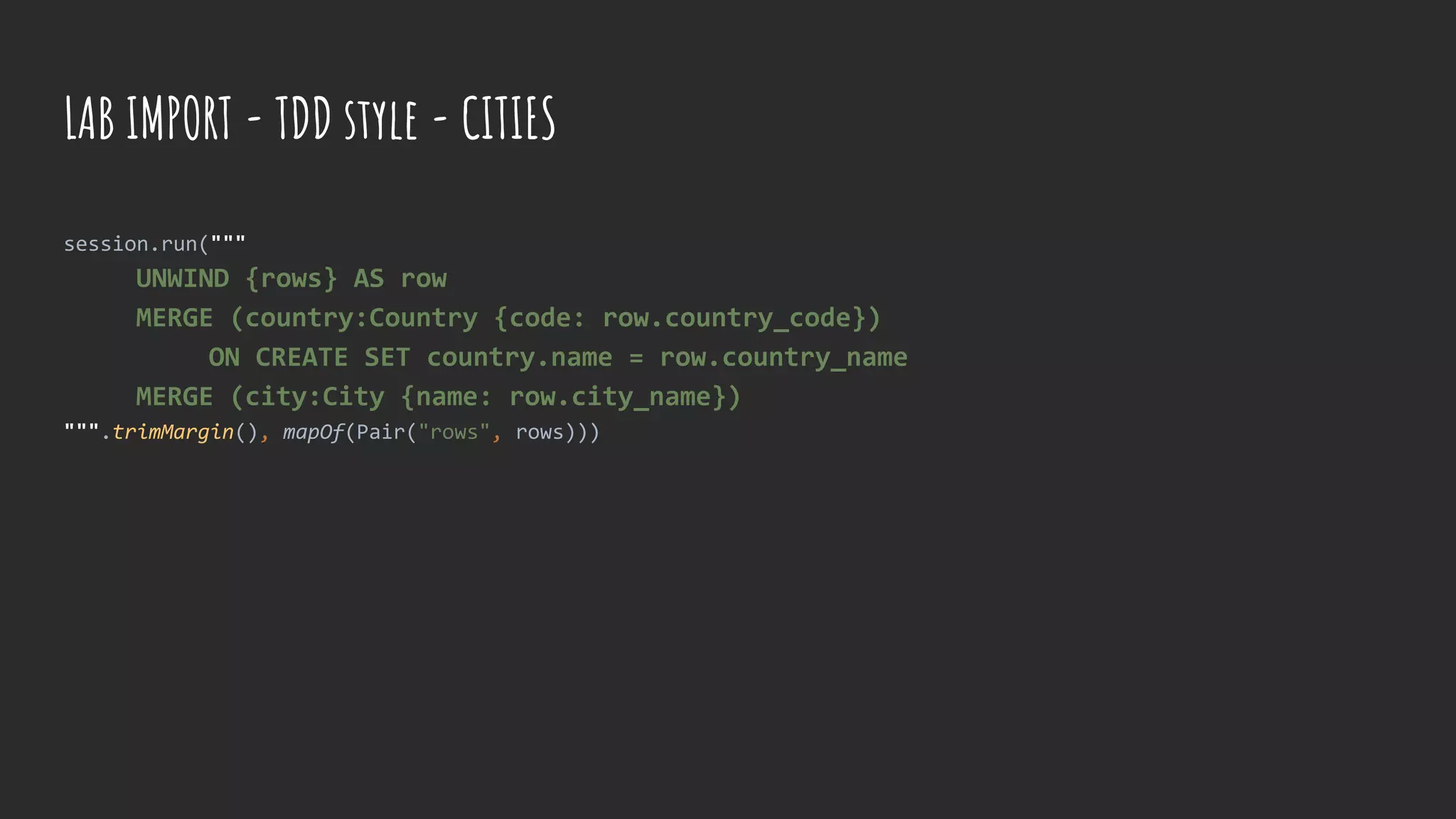

LAB IMPORT - TDD style - CITIES

session.run("""
MERGE (city:City {name: row.city_name})
LAB IMPORT - TDD style - CITIES

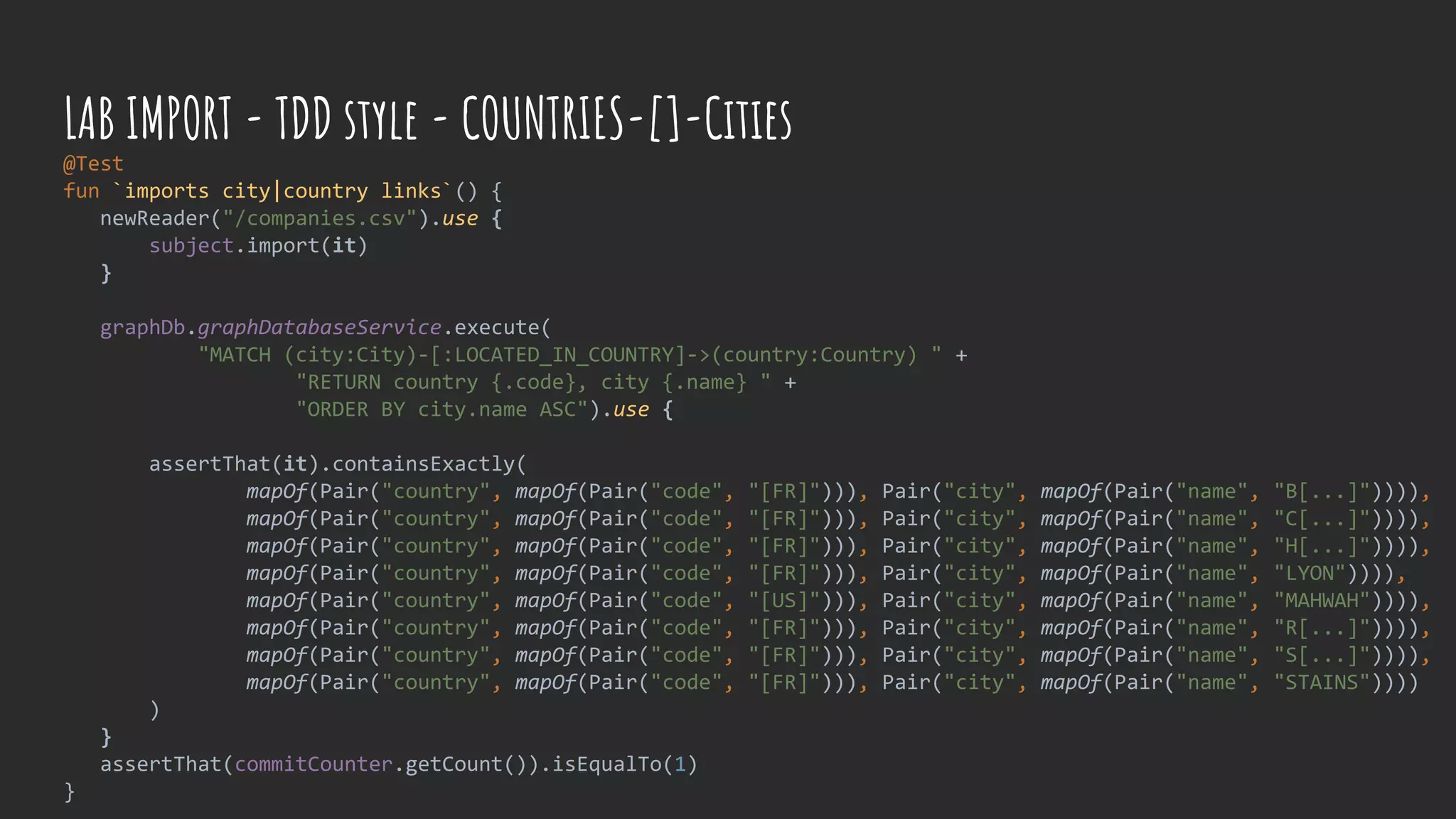

@Test
fun `imports city|country links`() {
subject.import(it)
}
"MATCH (city:City)-[:LOCATED_IN_COUNTRY]->(country:Country) " +
"RETURN country {.code}, city {.name} " +
"ORDER BY city.name ASC").use {
mapOf(Pair("country", mapOf(Pair("code", "[FR]"))), Pair("city", mapOf(Pair("name", "B[...]")))),
mapOf(Pair("country", mapOf(Pair("code", "[FR]"))), Pair("city", mapOf(Pair("name", "C[...]")))),
mapOf(Pair("country", mapOf(Pair("code", "[FR]"))), Pair("city", mapOf(Pair("name", "H[...]")))),
mapOf(Pair("country", mapOf(Pair("code", "[FR]"))), Pair("city", mapOf(Pair("name", "LYON")))),
mapOf(Pair("country", mapOf(Pair("code", "[US]"))), Pair("city", mapOf(Pair("name", "MAHWAH")))),
mapOf(Pair("country", mapOf(Pair("code", "[FR]"))), Pair("city", mapOf(Pair("name", "R[...]")))),
mapOf(Pair("country", mapOf(Pair("code", "[FR]"))), Pair("city", mapOf(Pair("name", "S[...]")))),
mapOf(Pair("country", mapOf(Pair("code", "[FR]"))), Pair("city", mapOf(Pair("name", "STAINS"))))
)
}
}

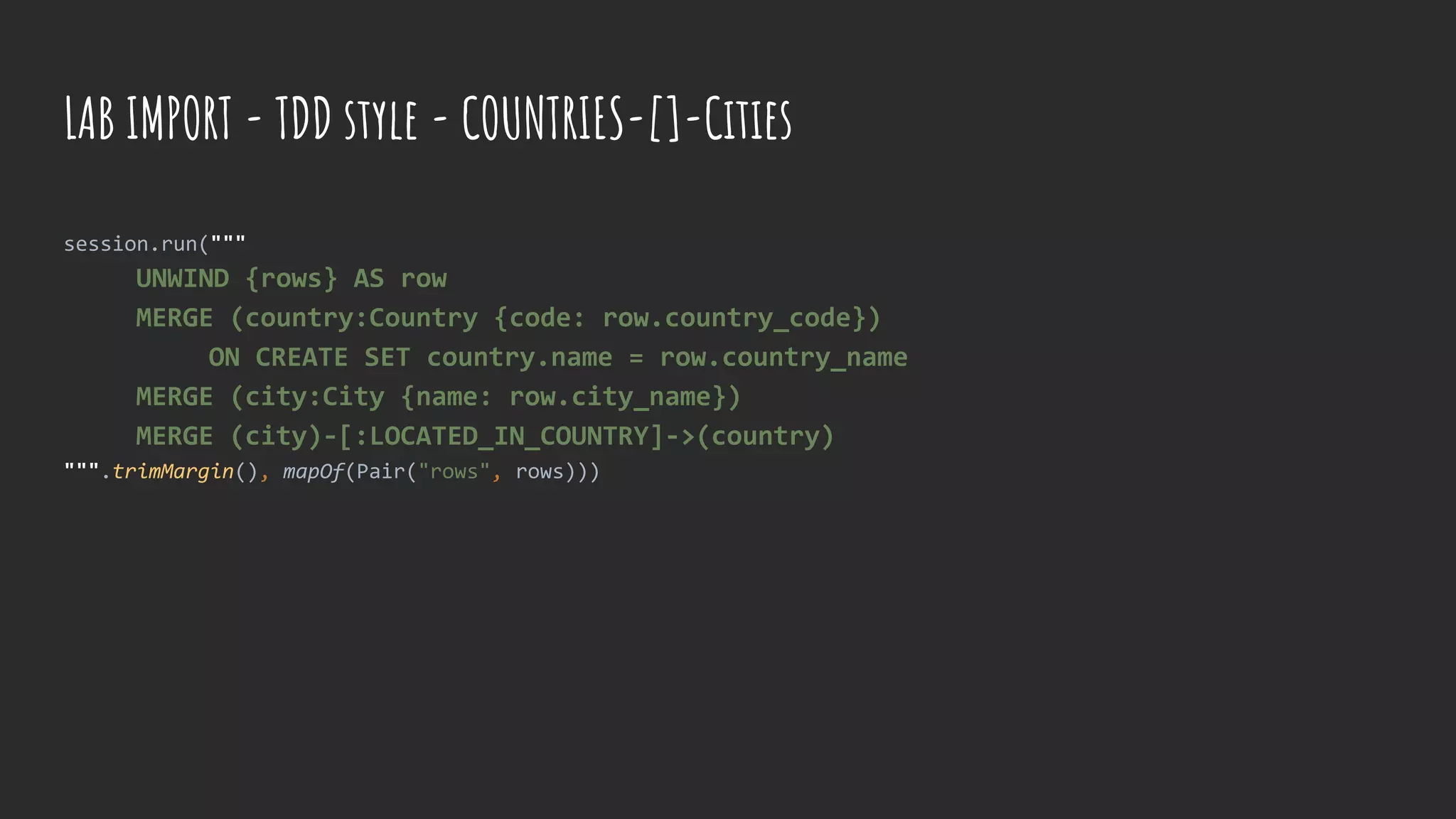

LAB IMPORT - TDD style - COUNTRIES-[]-Cities

session.run("""
MERGE (city)-[:LOCATED_IN_COUNTRY]->(country)
LAB IMPORT - TDD style - COUNTRIES-[]-Cities

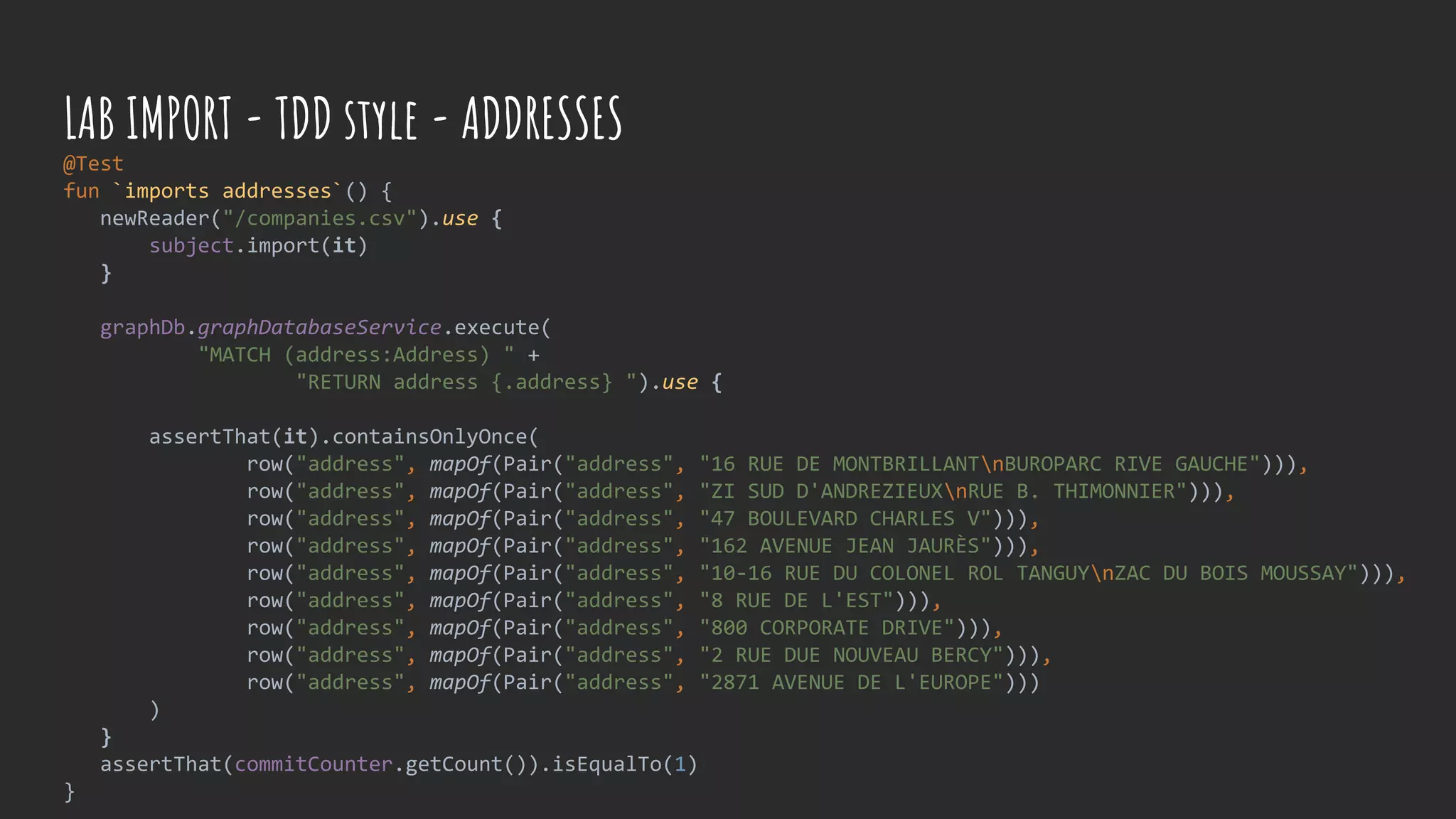

@Test
fun `imports addresses`() {
subject.import(it)
}
"MATCH (address:Address) " +
"RETURN address {.address} ").use {
assertThat(it).containsOnlyOnce(
row("address", mapOf(Pair("address", "16 RUE DE MONTBRILLANTnBUROPARC RIVE GAUCHE"))),
row("address", mapOf(Pair("address", "ZI SUD D'ANDREZIEUXnRUE B. THIMONNIER"))),
row("address", mapOf(Pair("address", "47 BOULEVARD CHARLES V"))),
row("address", mapOf(Pair("address", "162 AVENUE JEAN JAURÈS"))),
row("address", mapOf(Pair("address", "10-16 RUE DU COLONEL ROL TANGUYnZAC DU BOIS MOUSSAY"))),
row("address", mapOf(Pair("address", "8 RUE DE L'EST"))),
row("address", mapOf(Pair("address", "800 CORPORATE DRIVE"))),
row("address", mapOf(Pair("address", "2 RUE DUE NOUVEAU BERCY"))),
row("address", mapOf(Pair("address", "2871 AVENUE DE L'EUROPE")))
)
}
}

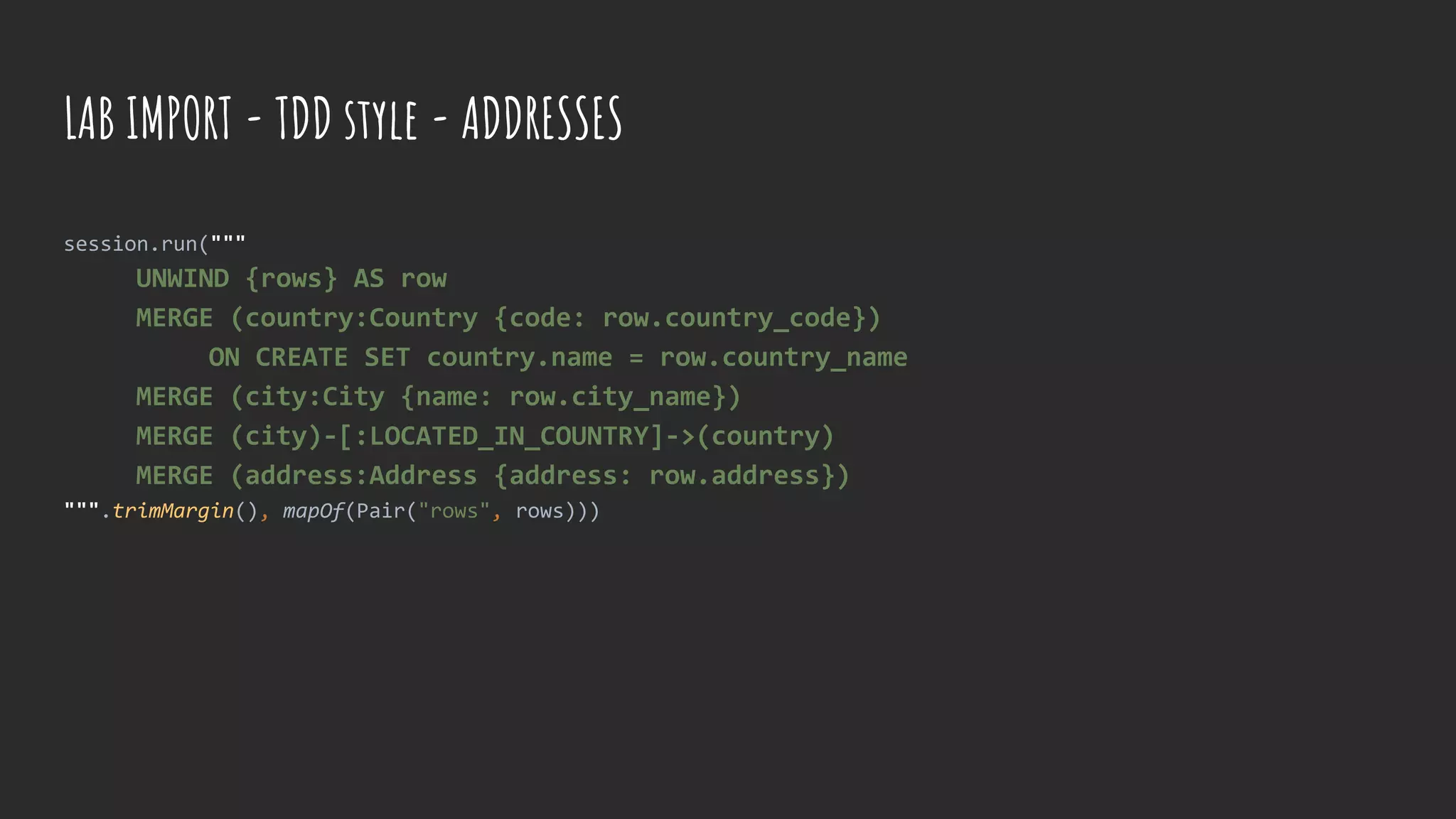

LAB IMPORT - TDD style - ADDRESSES

session.run("""
MERGE (address:Address {address: row.address})
LAB IMPORT - TDD style - ADDRESSES

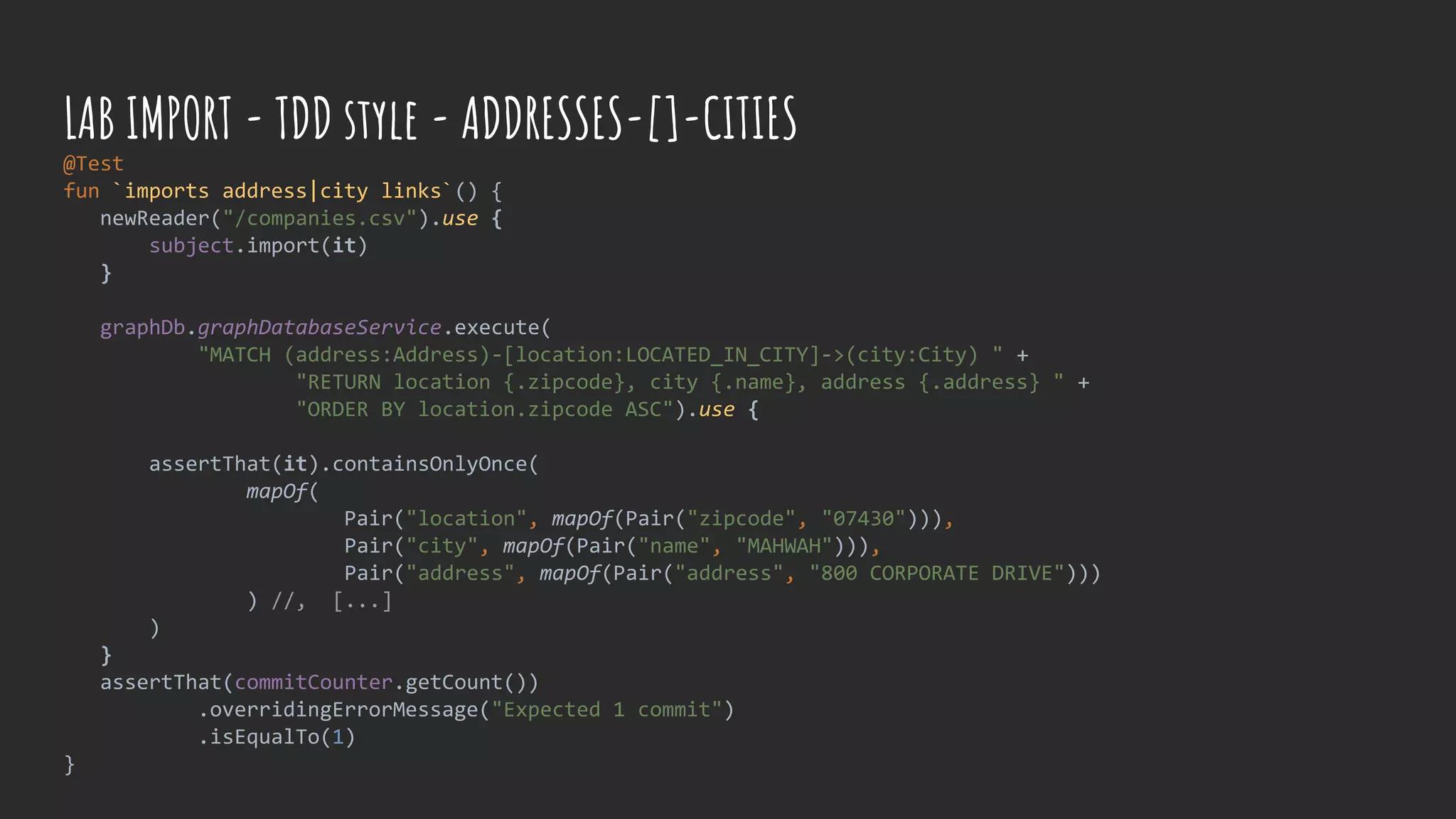

@Test
fun `imports address|city links`() {
subject.import(it)
}
"MATCH (address:Address)-[location:LOCATED_IN_CITY]->(city:City) " +
"RETURN location {.zipcode}, city {.name}, address {.address} " +
"ORDER BY location.zipcode ASC").use {
mapOf(
Pair("location", mapOf(Pair("zipcode", "07430"))),
Pair("city", mapOf(Pair("name", "MAHWAH"))),
Pair("address", mapOf(Pair("address", "800 CORPORATE DRIVE")))
) //, [...]
)
}
assertThat(commitCounter.getCount())
.overridingErrorMessage("Expected 1 commit")
.isEqualTo(1)
}

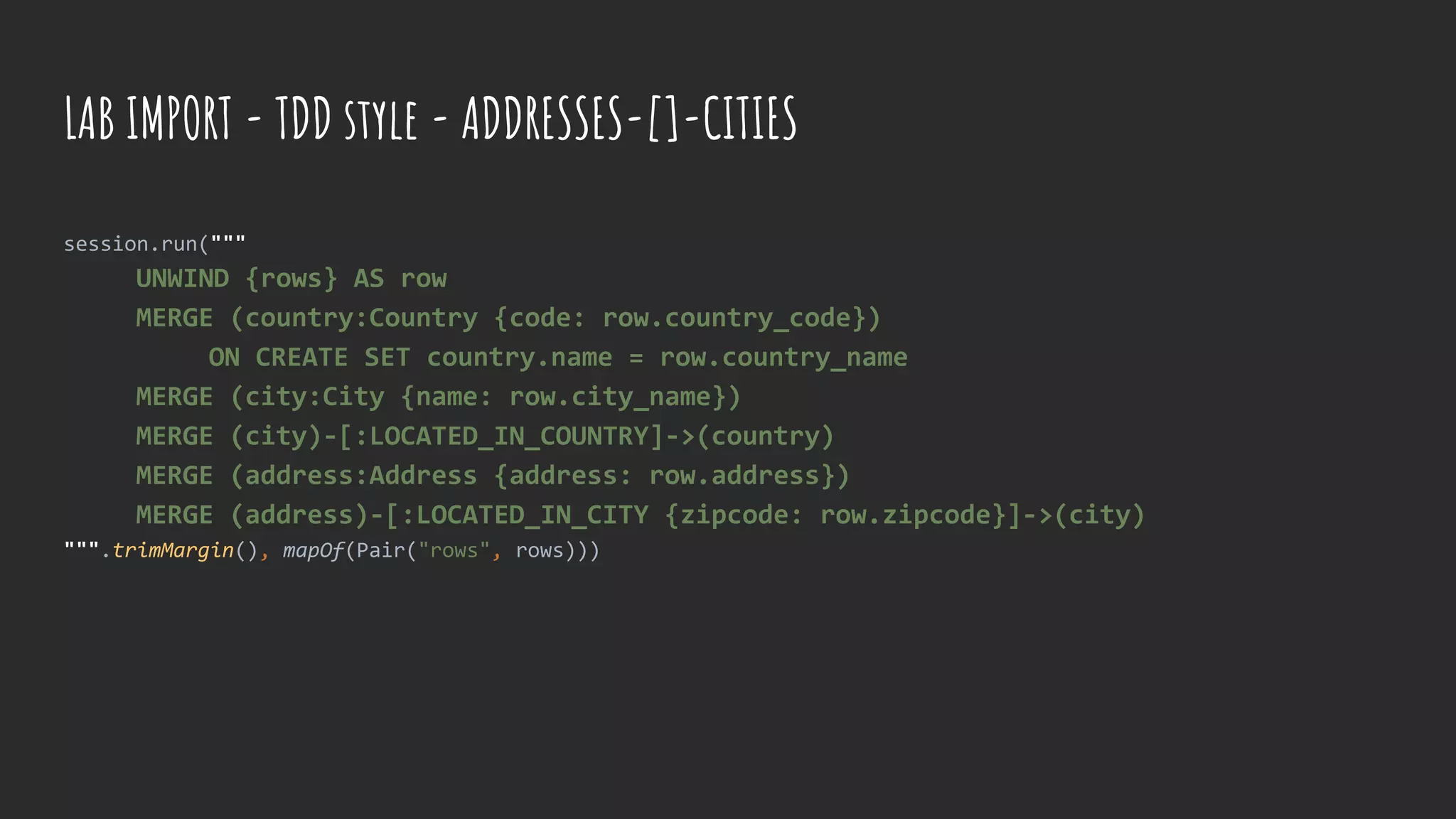

LAB IMPORT - TDD style - ADDRESSES-[]-CITIES

session.run("""
MERGE (address)-[:LOCATED_IN_CITY {zipcode: row.zipcode}]->(city)
LAB IMPORT - TDD style - ADDRESSES-[]-CITIES

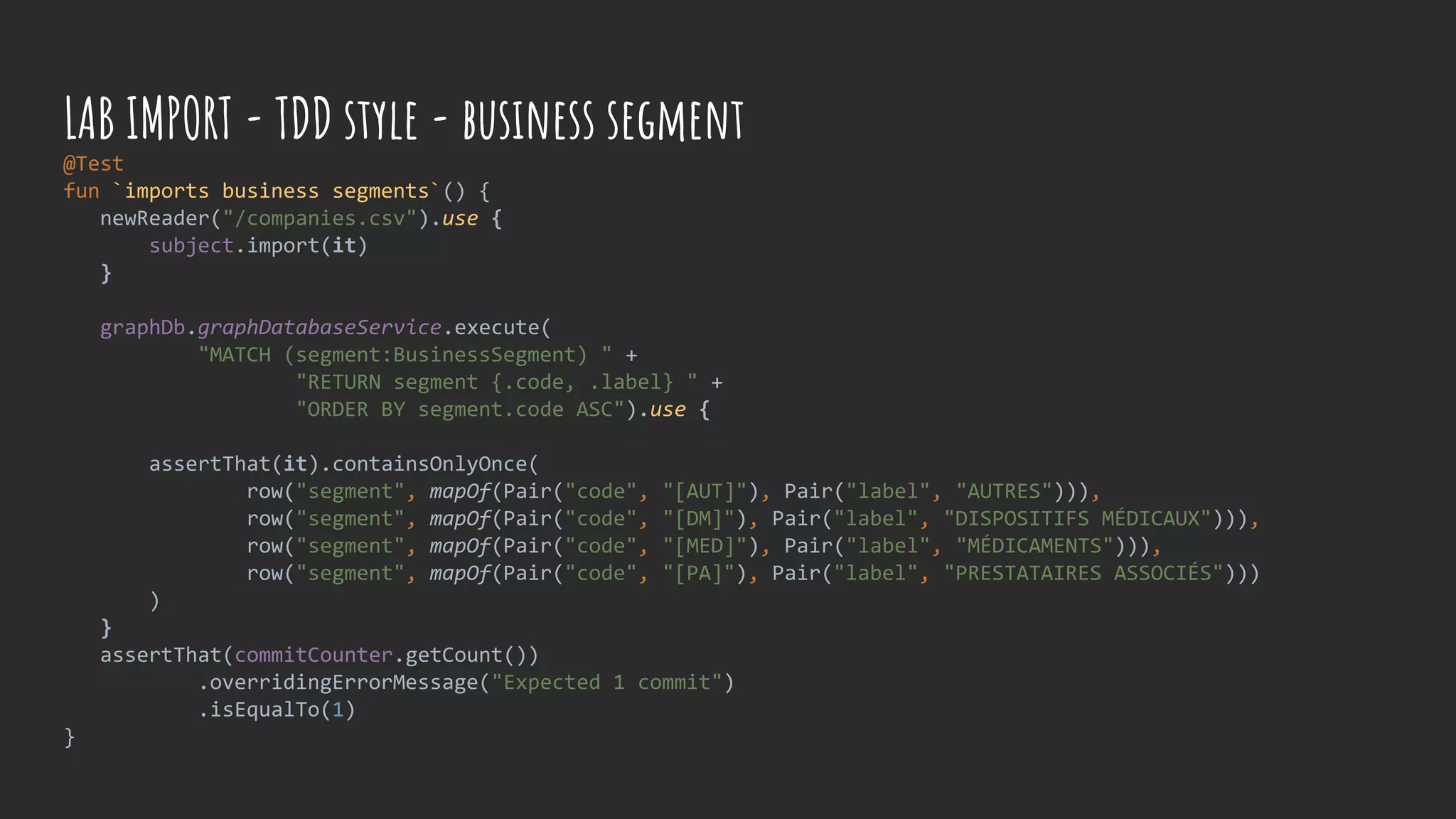

@Test
fun `imports business segments`() {
subject.import(it)
}
"MATCH (segment:BusinessSegment) " +
"RETURN segment {.code, .label} " +
"ORDER BY segment.code ASC").use {
row("segment", mapOf(Pair("code", "[AUT]"), Pair("label", "AUTRES"))),
row("segment", mapOf(Pair("code", "[DM]"), Pair("label", "DISPOSITIFS MÉDICAUX"))),
row("segment", mapOf(Pair("code", "[MED]"), Pair("label", "MÉDICAMENTS"))),
row("segment", mapOf(Pair("code", "[PA]"), Pair("label", "PRESTATAIRES ASSOCIÉS")))
)
}
.isEqualTo(1)
}
LAB IMPORT - TDD style - business segment

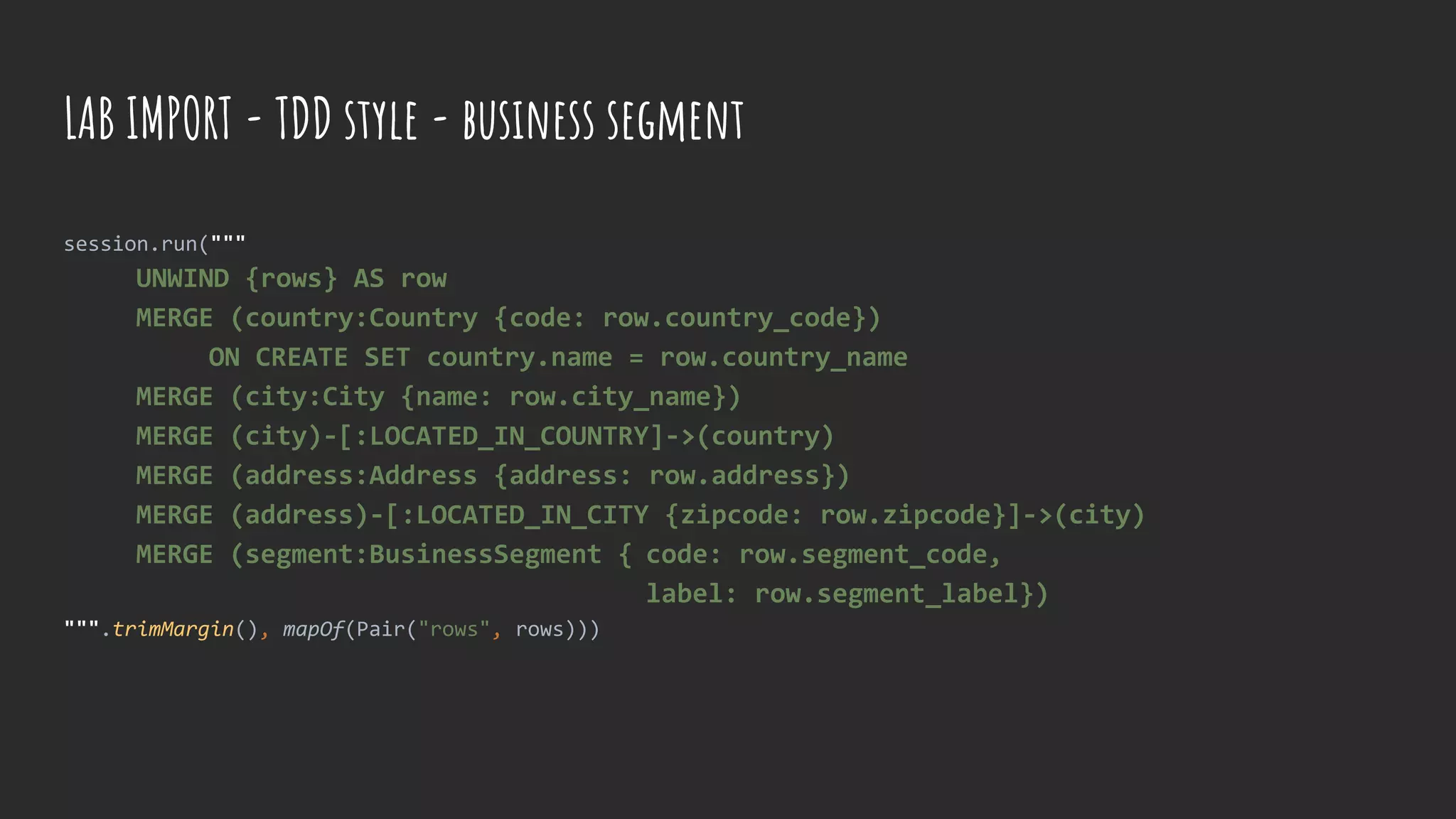

session.run("""
MERGE (segment:BusinessSegment { code: row.segment_code,
label: row.segment_label})
LAB IMPORT - TDD style - business segment

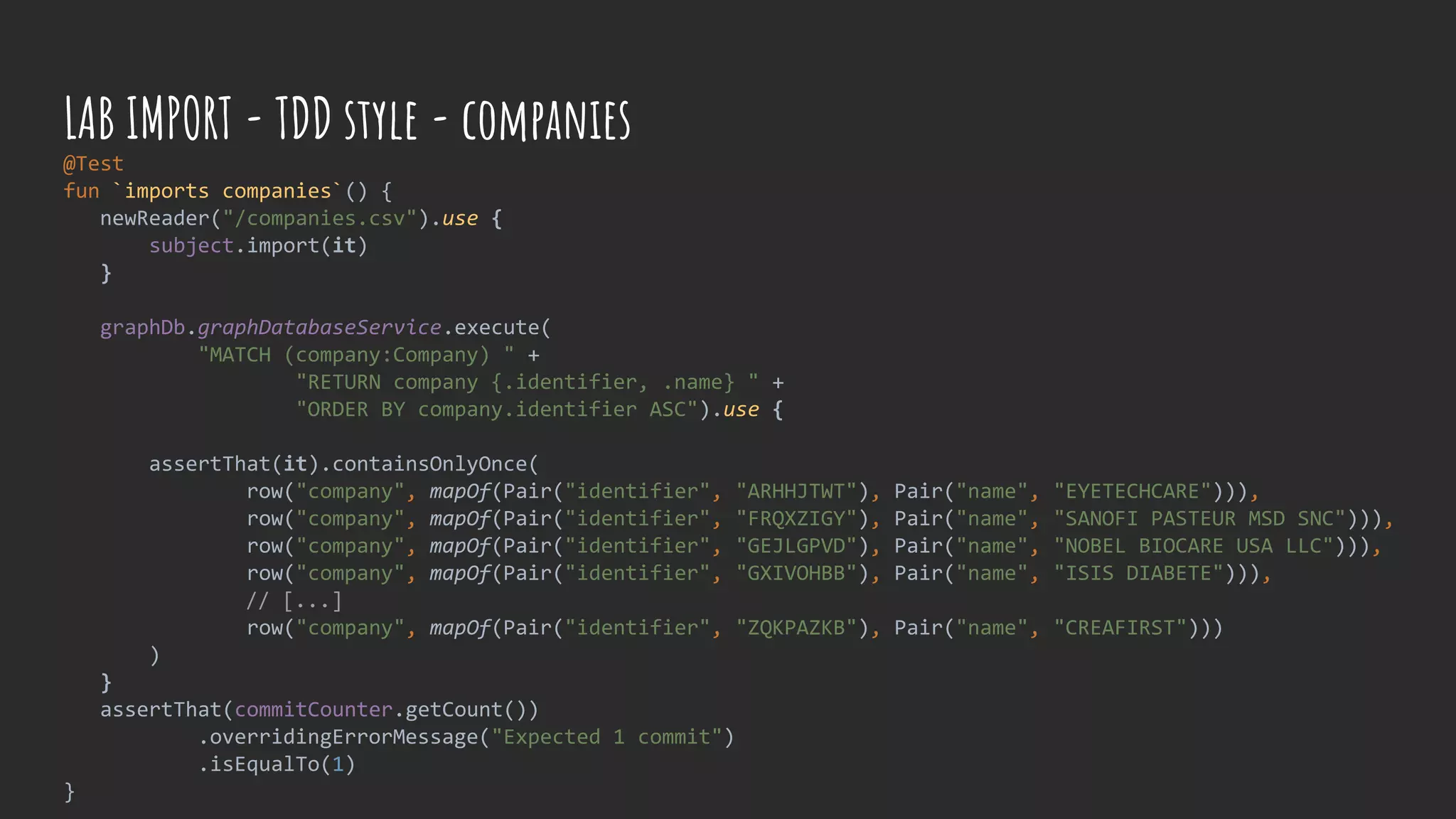

@Test
fun `imports companies`() {
subject.import(it)
}
"MATCH (company:Company) " +
"RETURN company {.identifier, .name} " +
"ORDER BY company.identifier ASC").use {
row("company", mapOf(Pair("identifier", "ARHHJTWT"), Pair("name", "EYETECHCARE"))),
row("company", mapOf(Pair("identifier", "FRQXZIGY"), Pair("name", "SANOFI PASTEUR MSD SNC"))),
row("company", mapOf(Pair("identifier", "GEJLGPVD"), Pair("name", "NOBEL BIOCARE USA LLC"))),
row("company", mapOf(Pair("identifier", "GXIVOHBB"), Pair("name", "ISIS DIABETE"))),
// [...]
row("company", mapOf(Pair("identifier", "ZQKPAZKB"), Pair("name", "CREAFIRST")))
)
}
.isEqualTo(1)
}

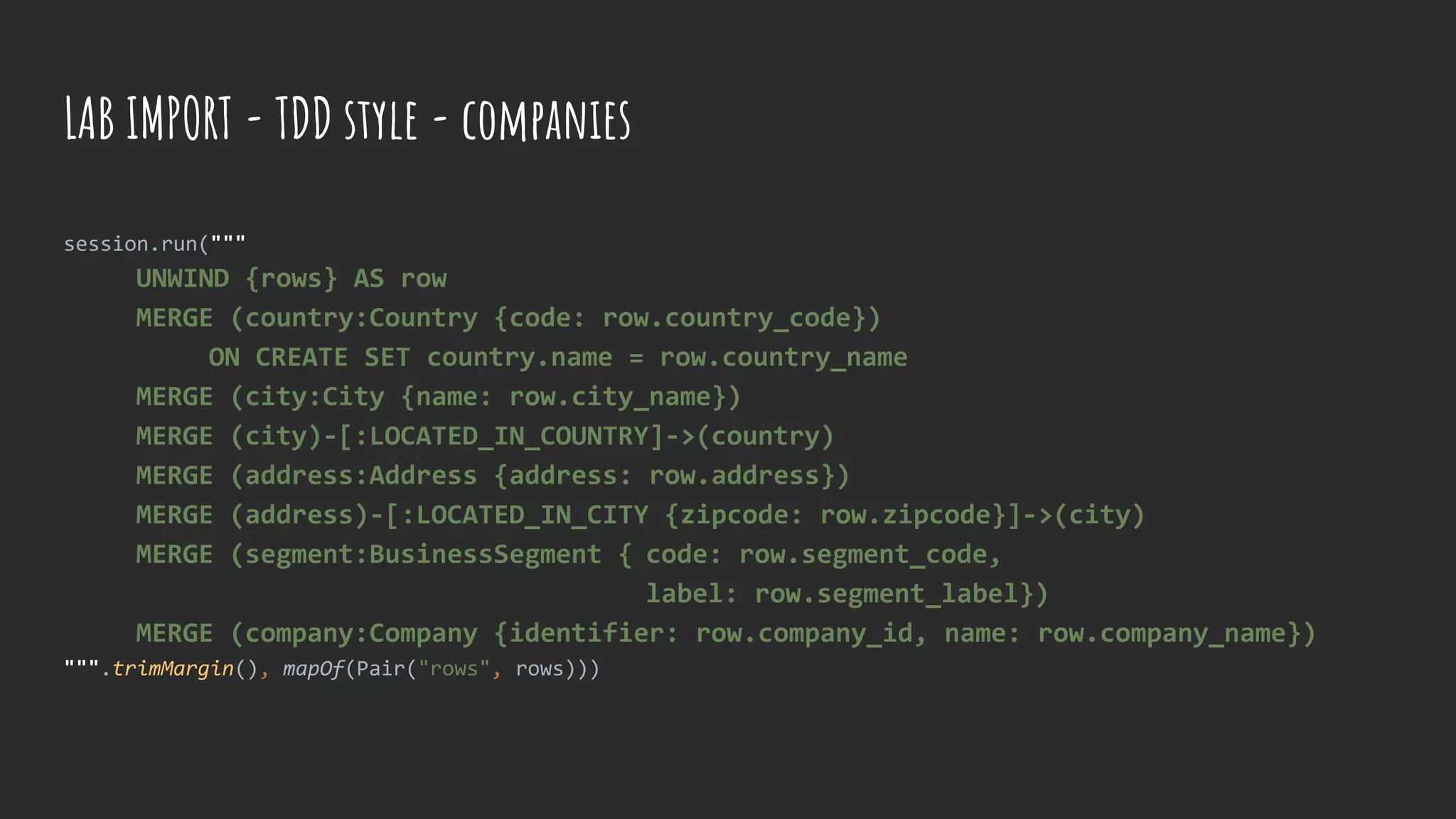

LAB IMPORT - TDD style - companies

session.run("""
MERGE (company:Company {identifier: row.company_id, name: row.company_name})
LAB IMPORT - TDD style - companies

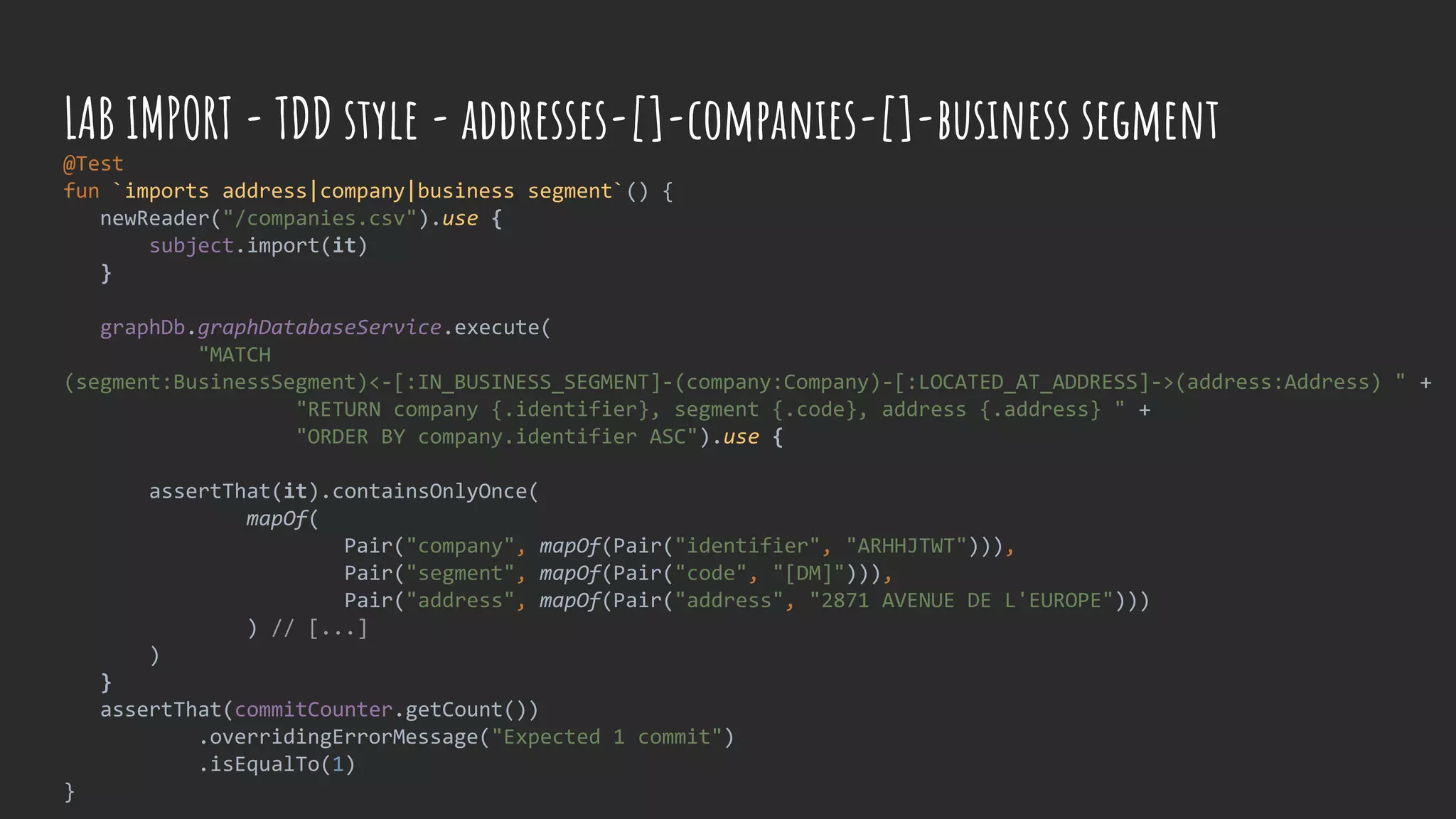

@Test
fun `imports address|company|business segment`() {
subject.import(it)
}
"MATCH
(segment:BusinessSegment)<-[:IN_BUSINESS_SEGMENT]-(company:Company)-[:LOCATED_AT_ADDRESS]->(address:Address) " +
"RETURN company {.identifier}, segment {.code}, address {.address} " +
"ORDER BY company.identifier ASC").use {
mapOf(
Pair("company", mapOf(Pair("identifier", "ARHHJTWT"))),
Pair("segment", mapOf(Pair("code", "[DM]"))),
Pair("address", mapOf(Pair("address", "2871 AVENUE DE L'EUROPE")))
) // [...]
)
}
.isEqualTo(1)
}
LAB IMPORT - TDD style - addresses-[]-companies-[]-business segment

session.run("""
MERGE (company:Company {identifier: row.company_id, name: row.company_name})
MERGE (company)-[:IN_BUSINESS_SEGMENT]->(segment)
MERGE (company)-[:LOCATED_AT_ADDRESS]->(address)
LAB IMPORT - TDD style - addresses-[]-companies-[]-business segment

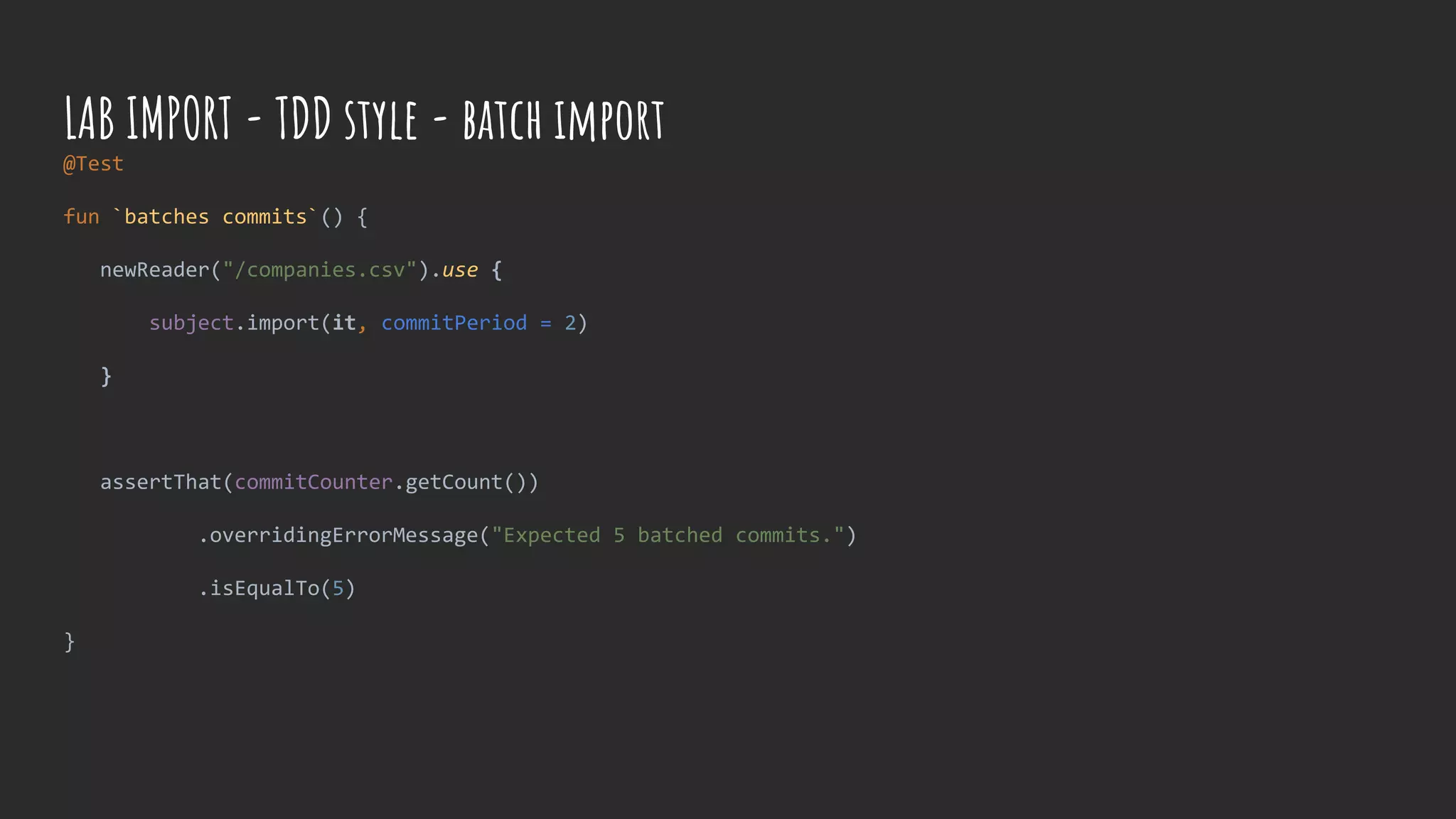

@Test
fun `batches commits`() {
subject.import(it, commitPeriod = 2)
}
.overridingErrorMessage("Expected 5 batched commits.")
.isEqualTo(5)
}
LAB IMPORT - TDD style - batch import

class CommitCounter : TransactionEventHandler<Any?> {
private val count = AtomicInteger(0)
override fun afterRollback(p0: TransactionData?, p1: Any?) {}
override fun beforeCommit(p0: TransactionData?): Any? = return null
override fun afterCommit(p0: TransactionData?, p1: Any?) = count.incrementAndGet()
fun getCount(): Int = return count.get()
fun reset() = count.set(0)
}
LAB IMPORT - TDD style - batch import

data sources - PROBLEM ?
Lab name mismatch >_<

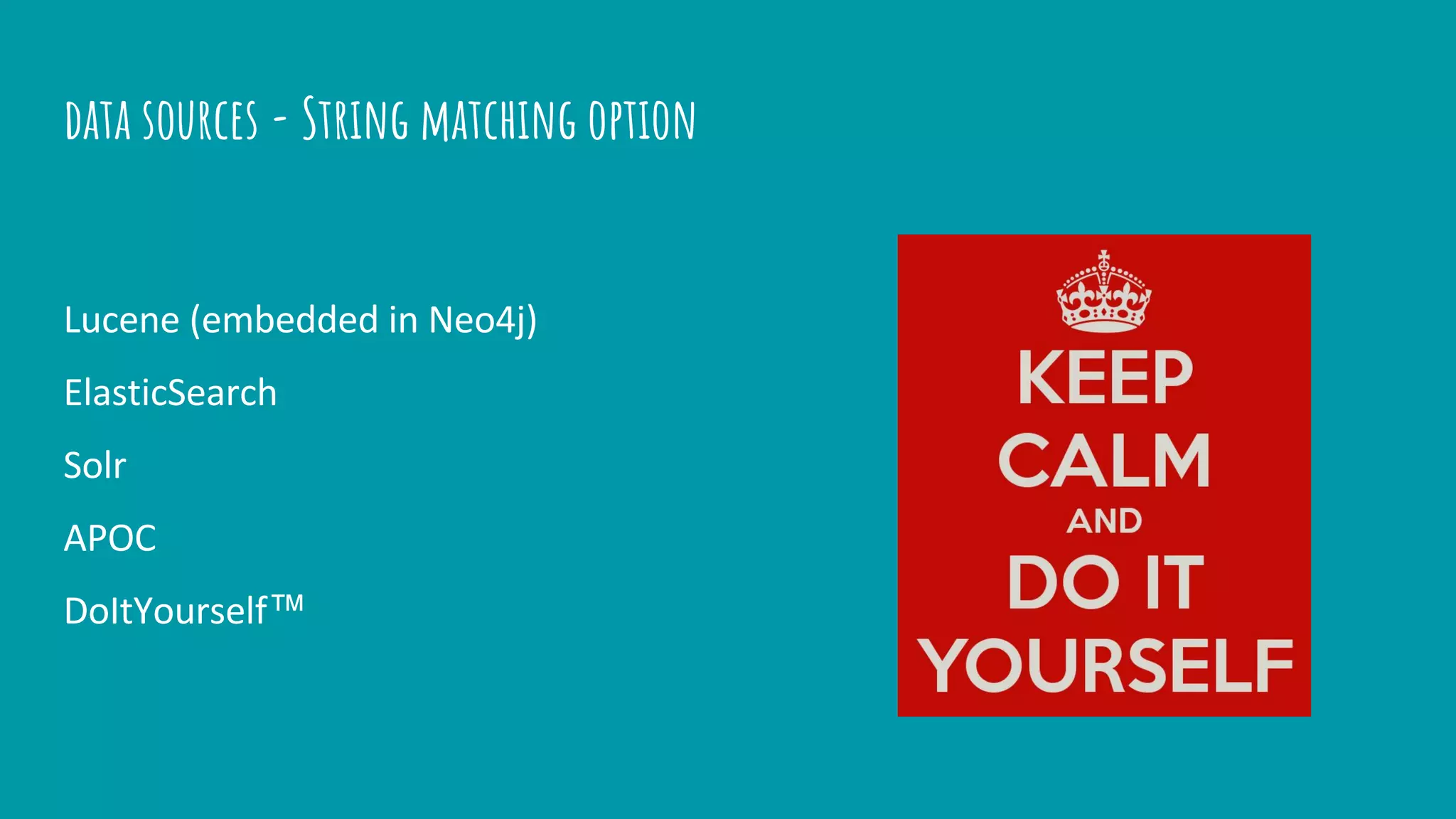

data sources - String matching option
™

data sources - Stack Overflow-DRIVEN DEVELOPMENT !

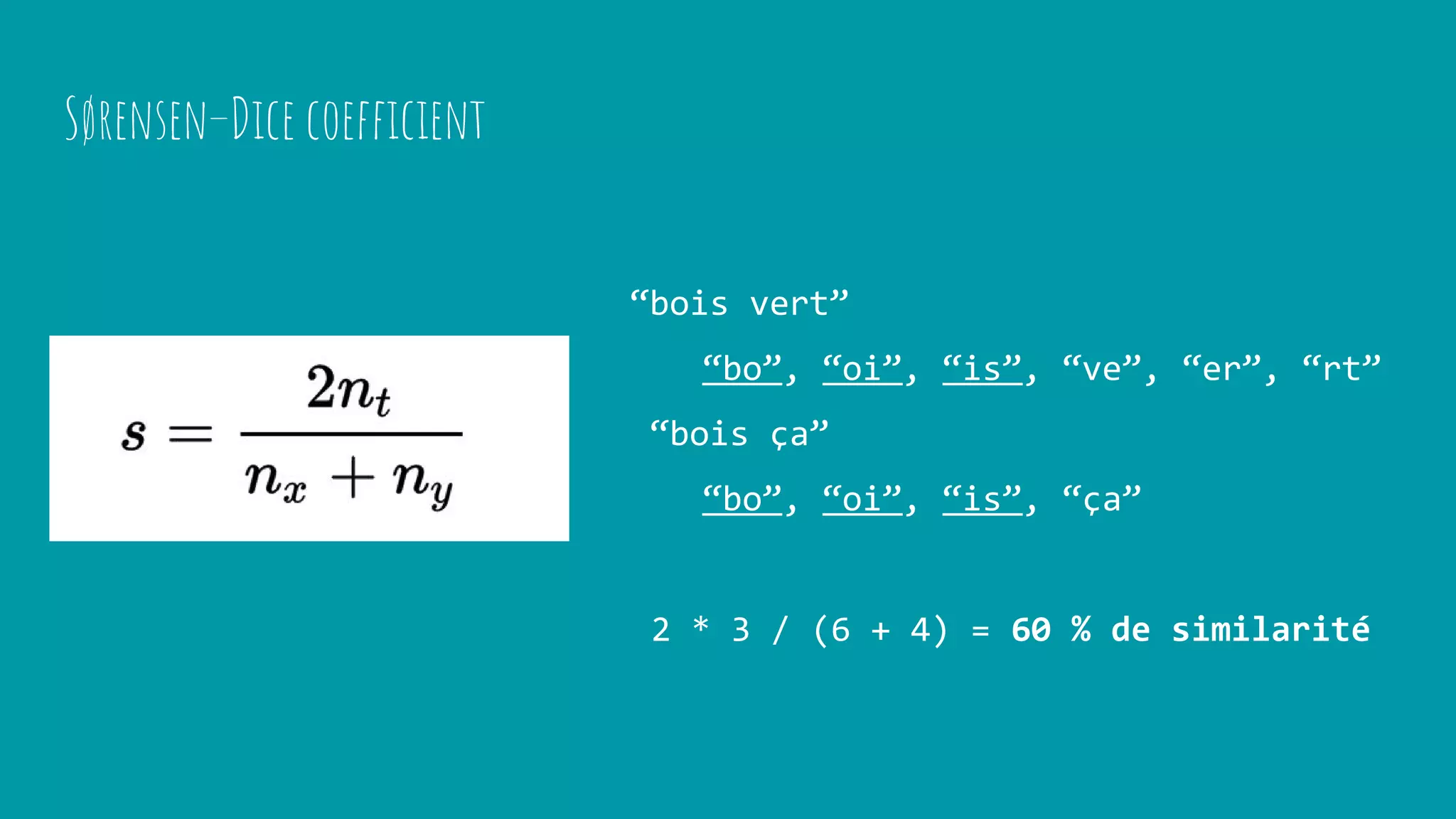

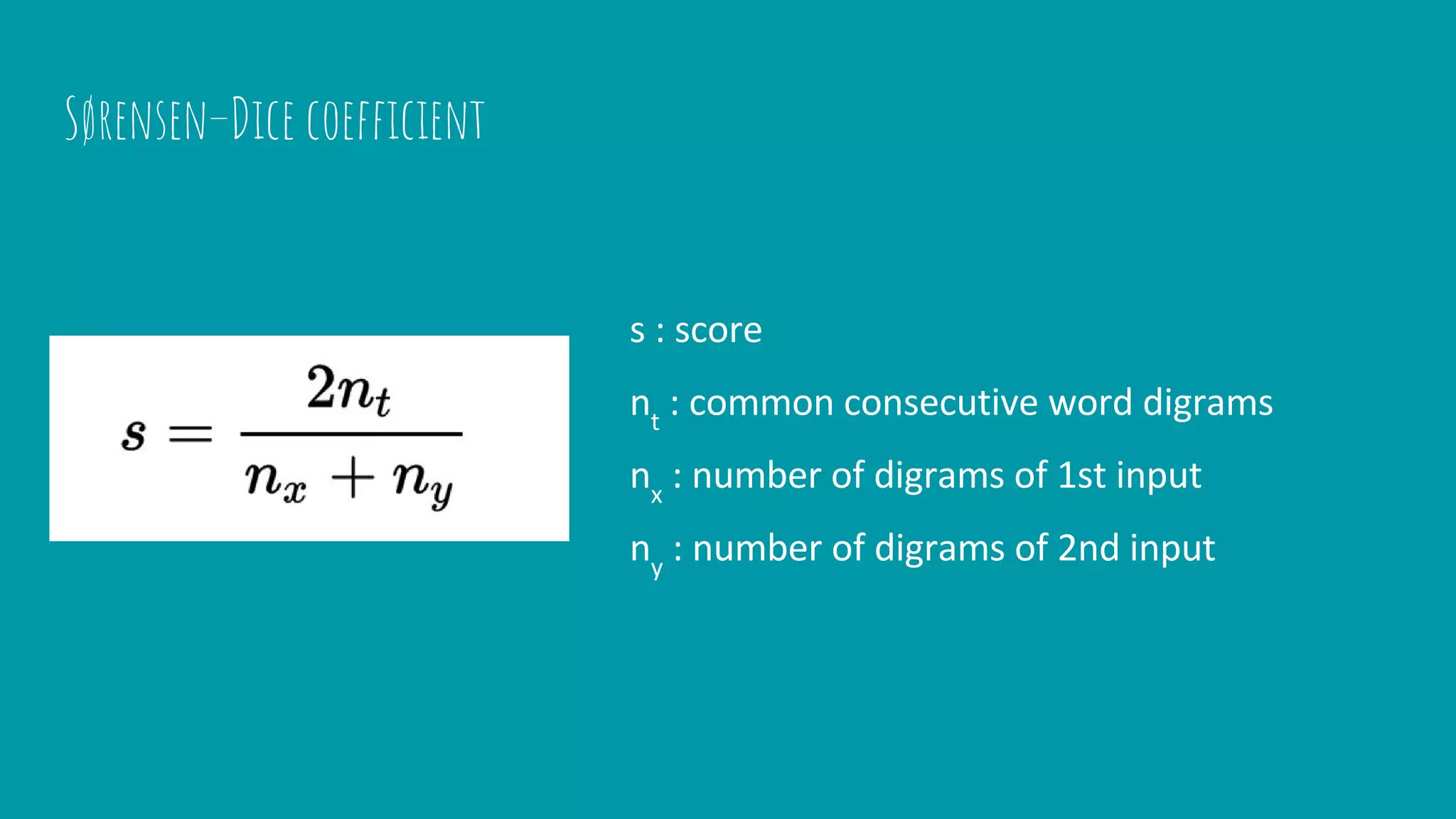

Sørensen–Dice coefficient
“bois vert”
“bo”, “oi”, “is”, “ve”, “er”, “rt”
“bois ça”
“bo”, “oi”, “is”, “ça”
2 * 3 / (6 + 4) = 60 % de similarité

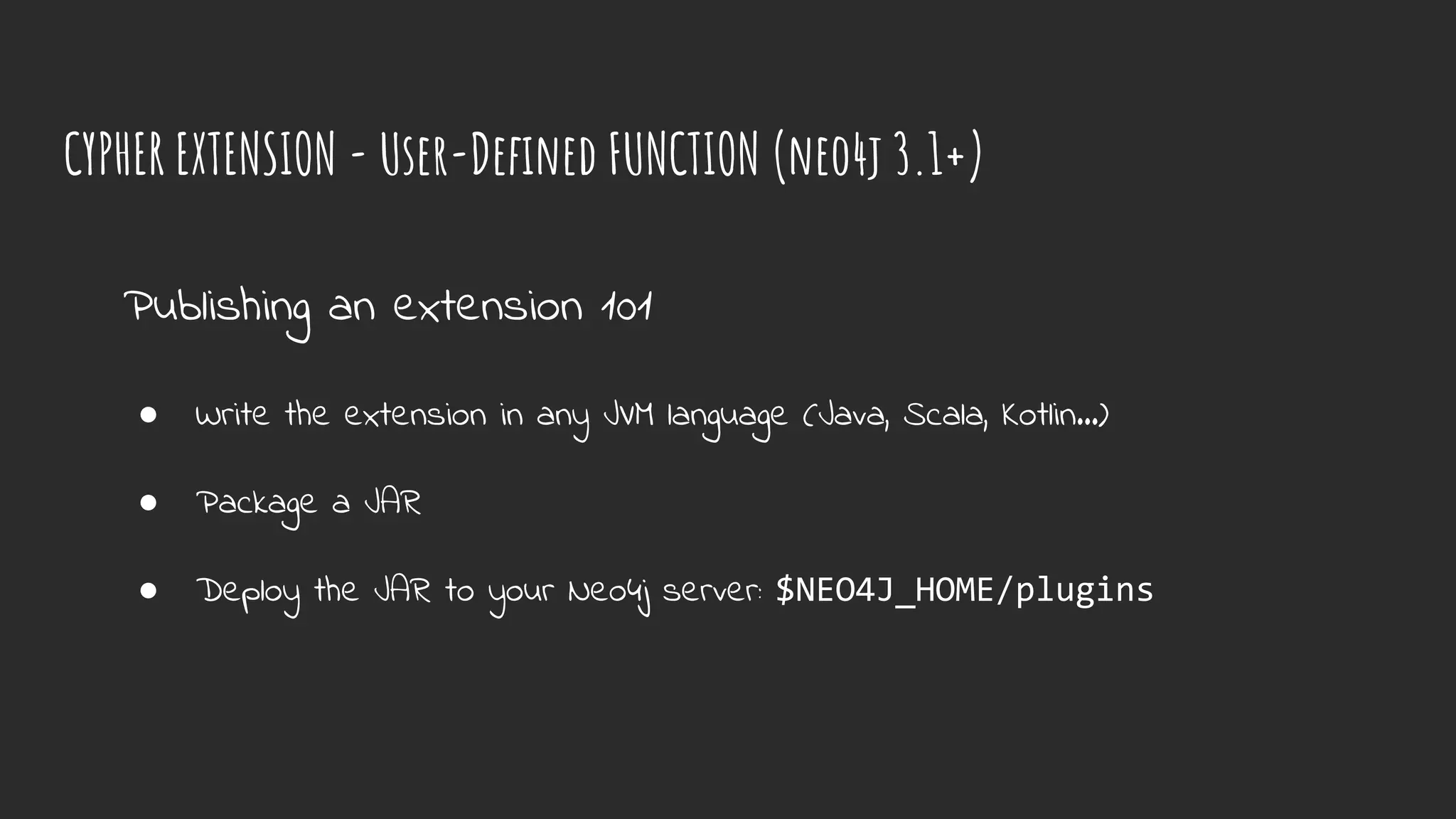

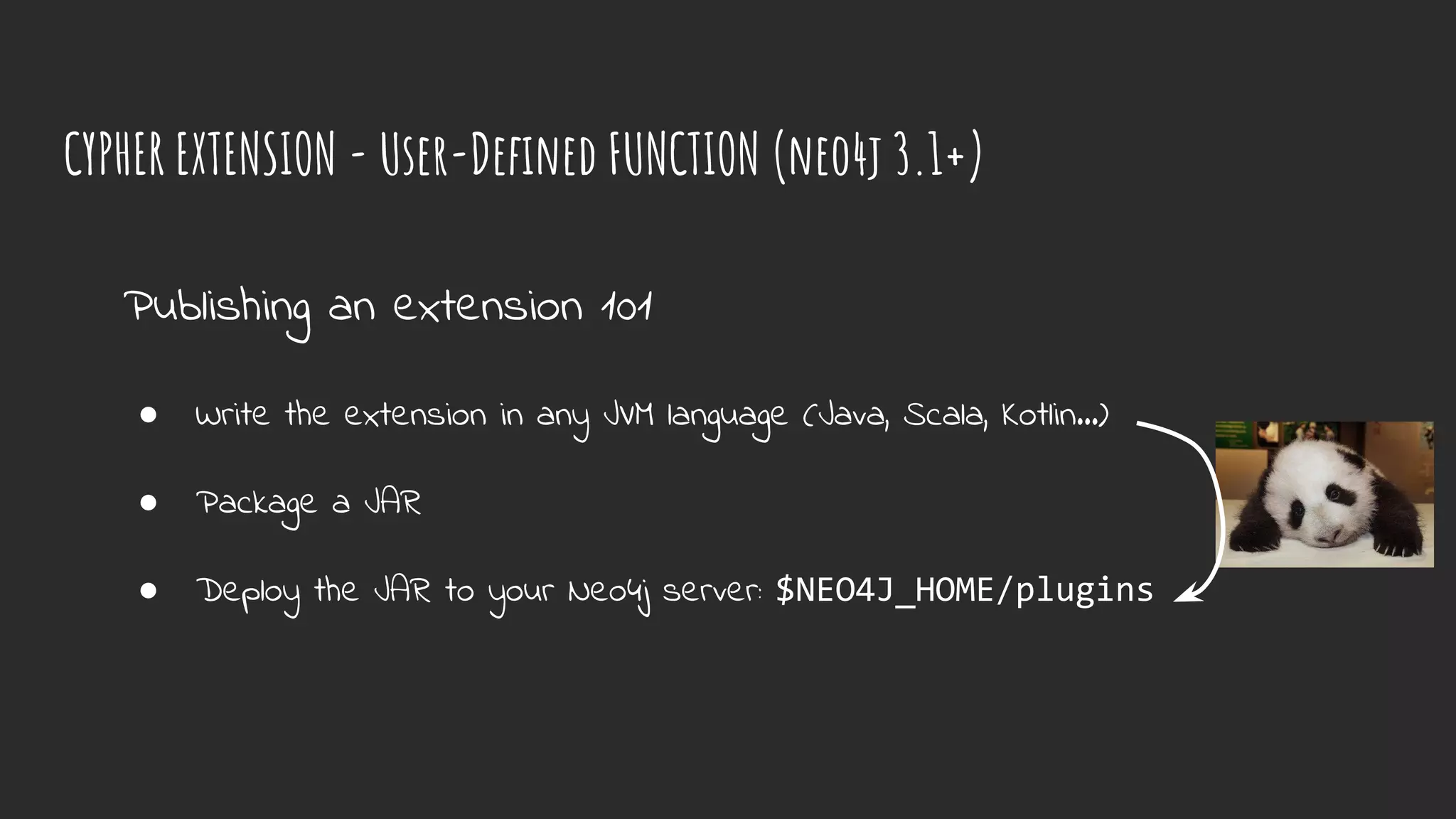

CYPHER EXTENSION - User-Defined FUNCTION (neo4j 3.1+)
Publishing an extension 101
● Write the extension in any JVM language (Java, Scala, Kotlin…)
● Package a JAR
● Deploy the JAR to your Neo4j server: $NEO4J_HOME/plugins

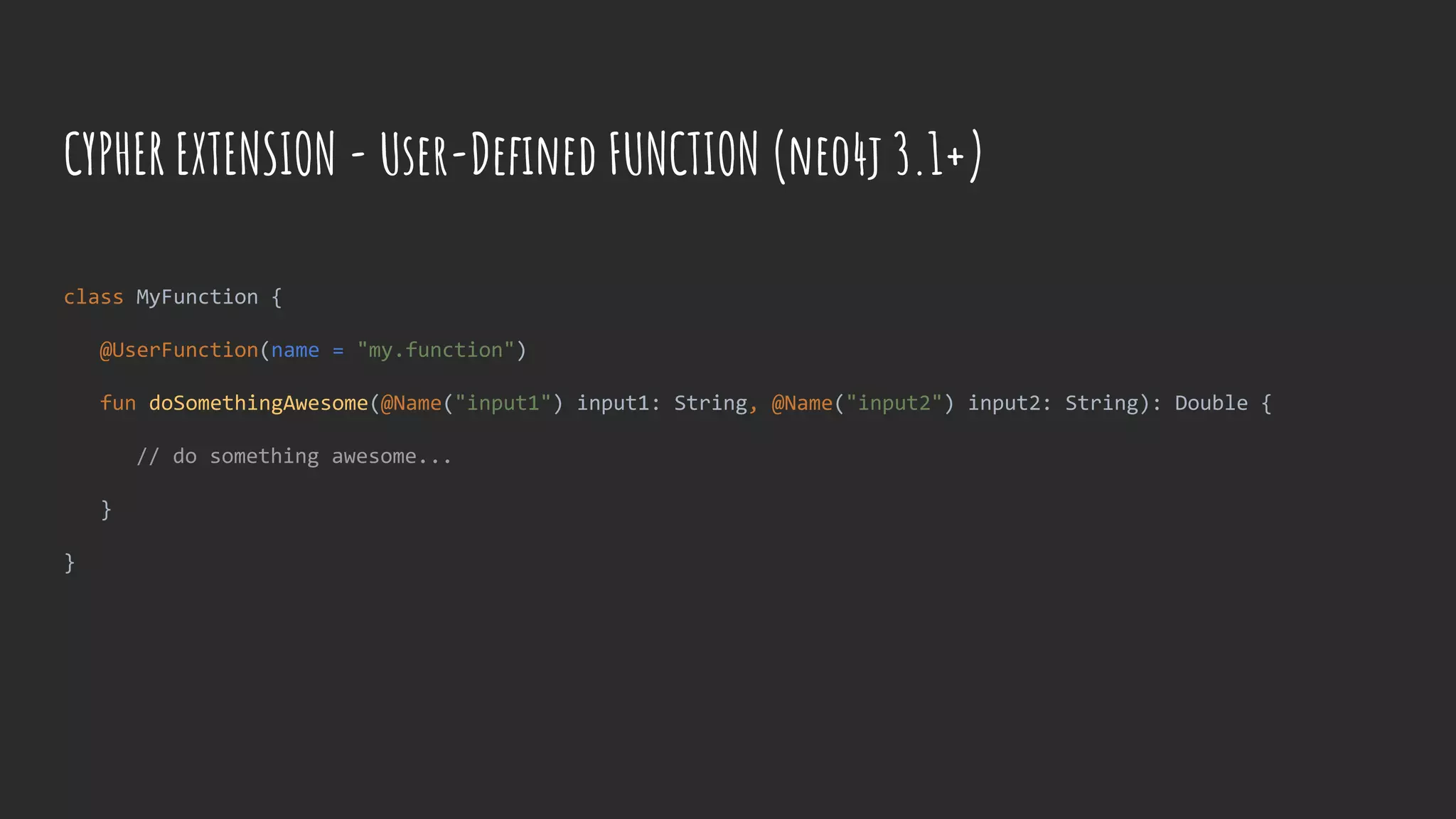

class MyFunction {
@UserFunction(name = "my.function")
fun doSomethingAwesome(@Name("input1") input1: String, @Name("input2") input2: String): Double {
// do something awesome...
}
}

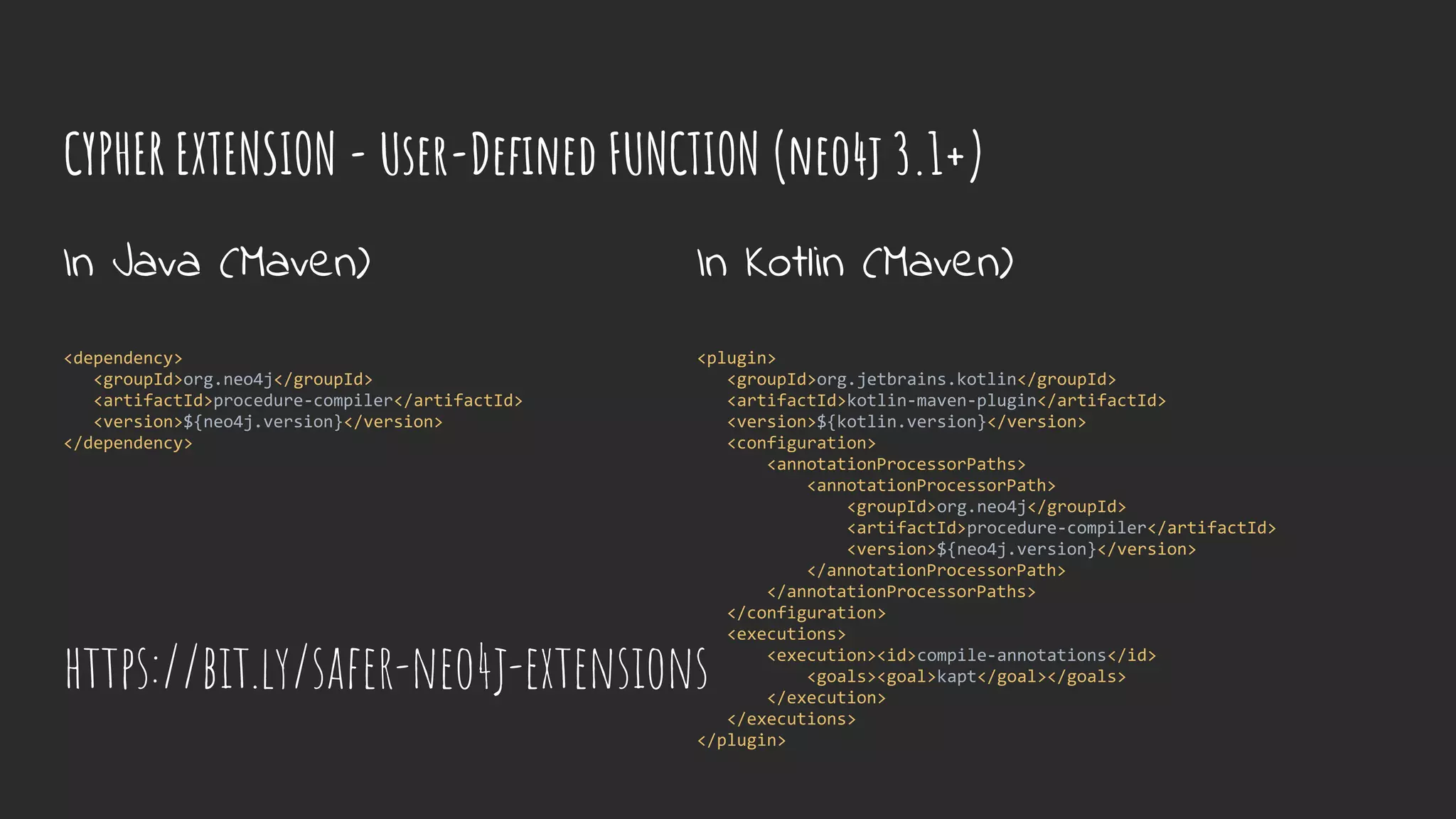

In Java (Maven)
<dependency>
<groupId>org.neo4j</groupId>
<artifactId>procedure-compiler</artifactId>
<version>${neo4j.version}</version>
</dependency>
In Kotlin (Maven)
<plugin>
<groupId>org.jetbrains.kotlin</groupId>
<artifactId>kotlin-maven-plugin</artifactId>
<version>${kotlin.version}</version>
<configuration>
<annotationProcessorPaths>
<annotationProcessorPath>
<groupId>org.neo4j</groupId>
<artifactId>procedure-compiler</artifactId>
<version>${neo4j.version}</version>
</annotationProcessorPath>
</annotationProcessorPaths>
</configuration>
<executions>
<execution><id>compile-annotations</id>
<goals><goal>kapt</goal></goals>
</execution>
</executions>
</plugin>
https://bit.ly/safer-neo4j-extensions

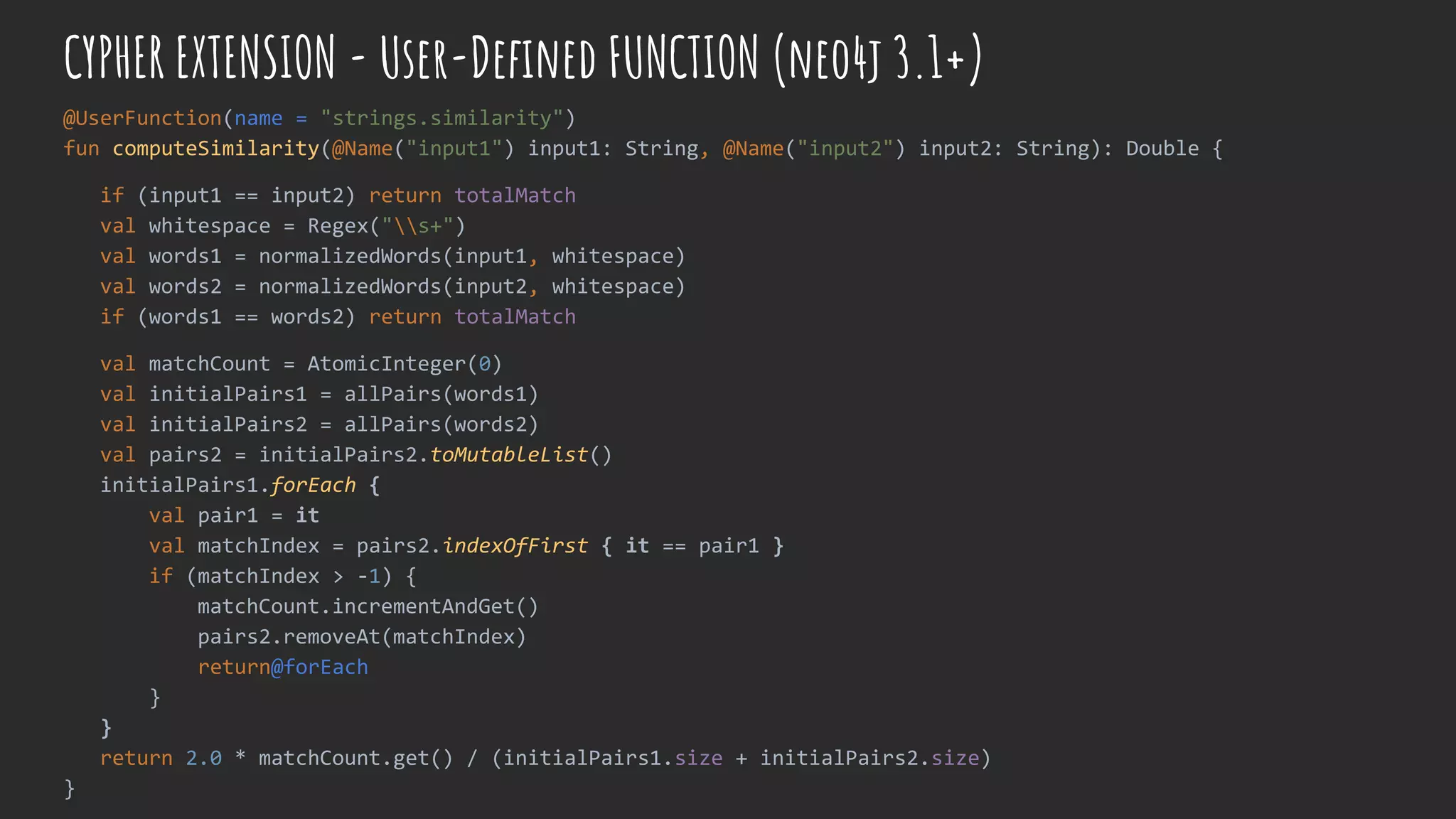

@UserFunction(name = "strings.similarity")
fun computeSimilarity(@Name("input1") input1: String, @Name("input2") input2: String): Double {
if (input1 == input2) return totalMatch
val whitespace = Regex("s+")
val words1 = normalizedWords(input1, whitespace)
if (words1 == words2) return totalMatch
val matchCount = AtomicInteger(0)
val initialPairs1 = allPairs(words1)
val pairs2 = initialPairs2.toMutableList()
initialPairs1.forEach {
val pair1 = it
val matchIndex = pairs2.indexOfFirst { it == pair1 }
if (matchIndex > -1) {
matchCount.incrementAndGet()
pairs2.removeAt(matchIndex)
return@forEach
}
}
return 2.0 * matchCount.get() / (initialPairs1.size + initialPairs2.size)
}

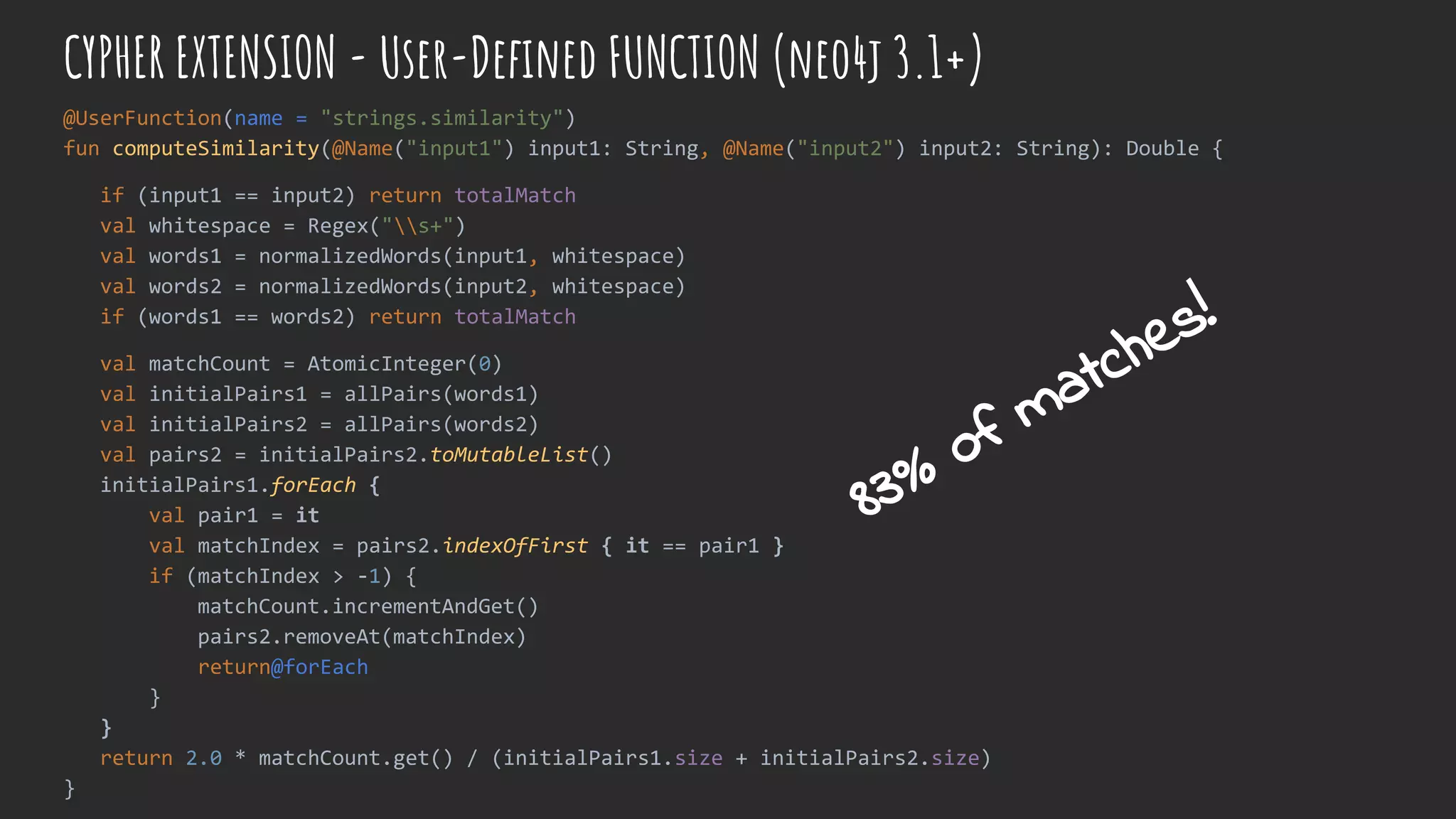

@UserFunction(name = "strings.similarity")
fun computeSimilarity(@Name("input1") input1: String, @Name("input2") input2: String): Double {
if (input1 == input2) return totalMatch
val whitespace = Regex("s+")
if (words1 == words2) return totalMatch
val matchCount = AtomicInteger(0)
val pairs2 = initialPairs2.toMutableList()
initialPairs1.forEach {
val pair1 = it
val matchIndex = pairs2.indexOfFirst { it == pair1 }
if (matchIndex > -1) {
matchCount.incrementAndGet()
pairs2.removeAt(matchIndex)
return@forEach
}
}
return 2.0 * matchCount.get() / (initialPairs1.size + initialPairs2.size)
}
83% of matches!

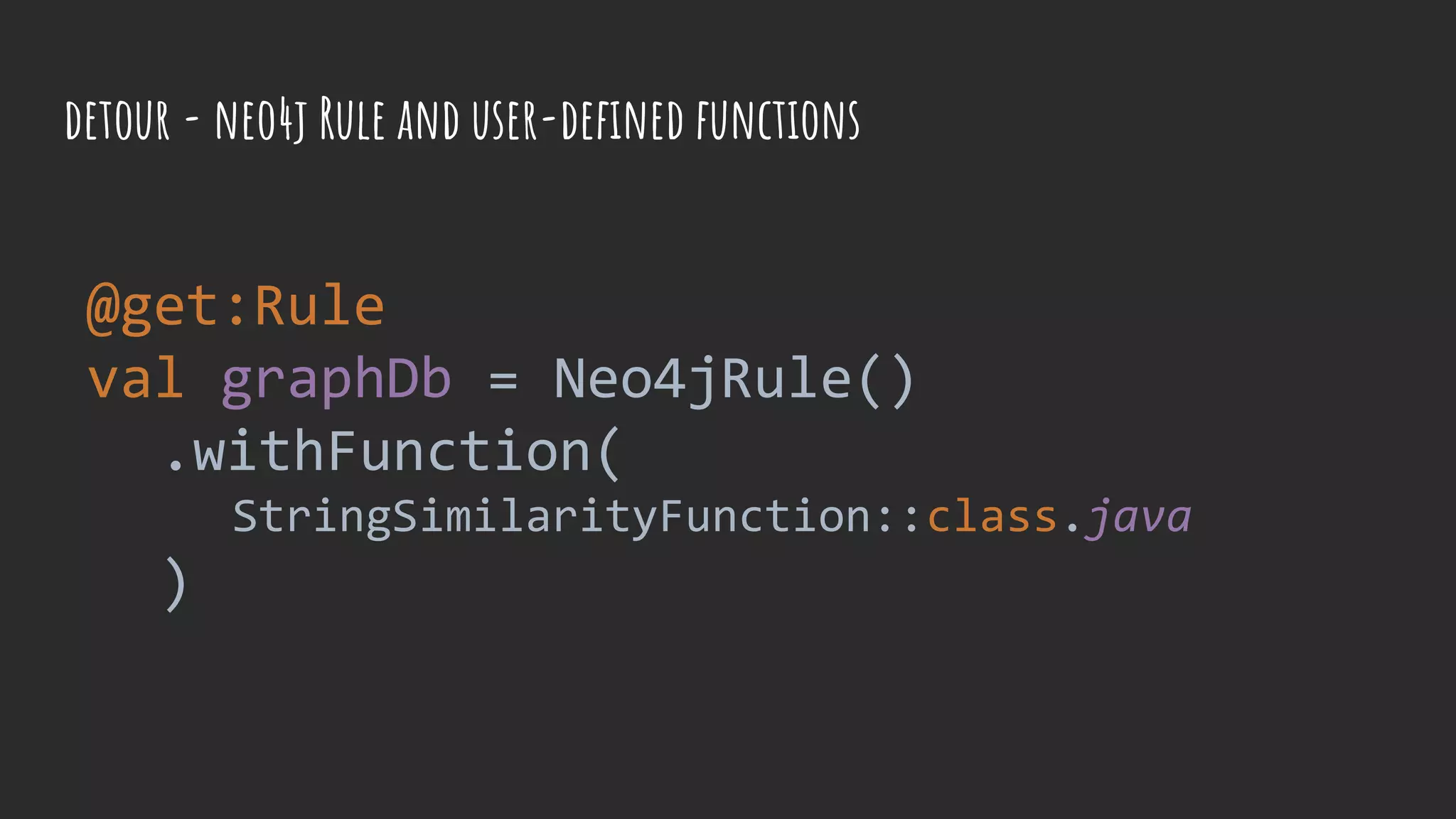

detour - neo4j Rule and user-defined functions
@get:Rule
val graphDb = Neo4jRule()
.withFunction(
StringSimilarityFunction::class.java
)

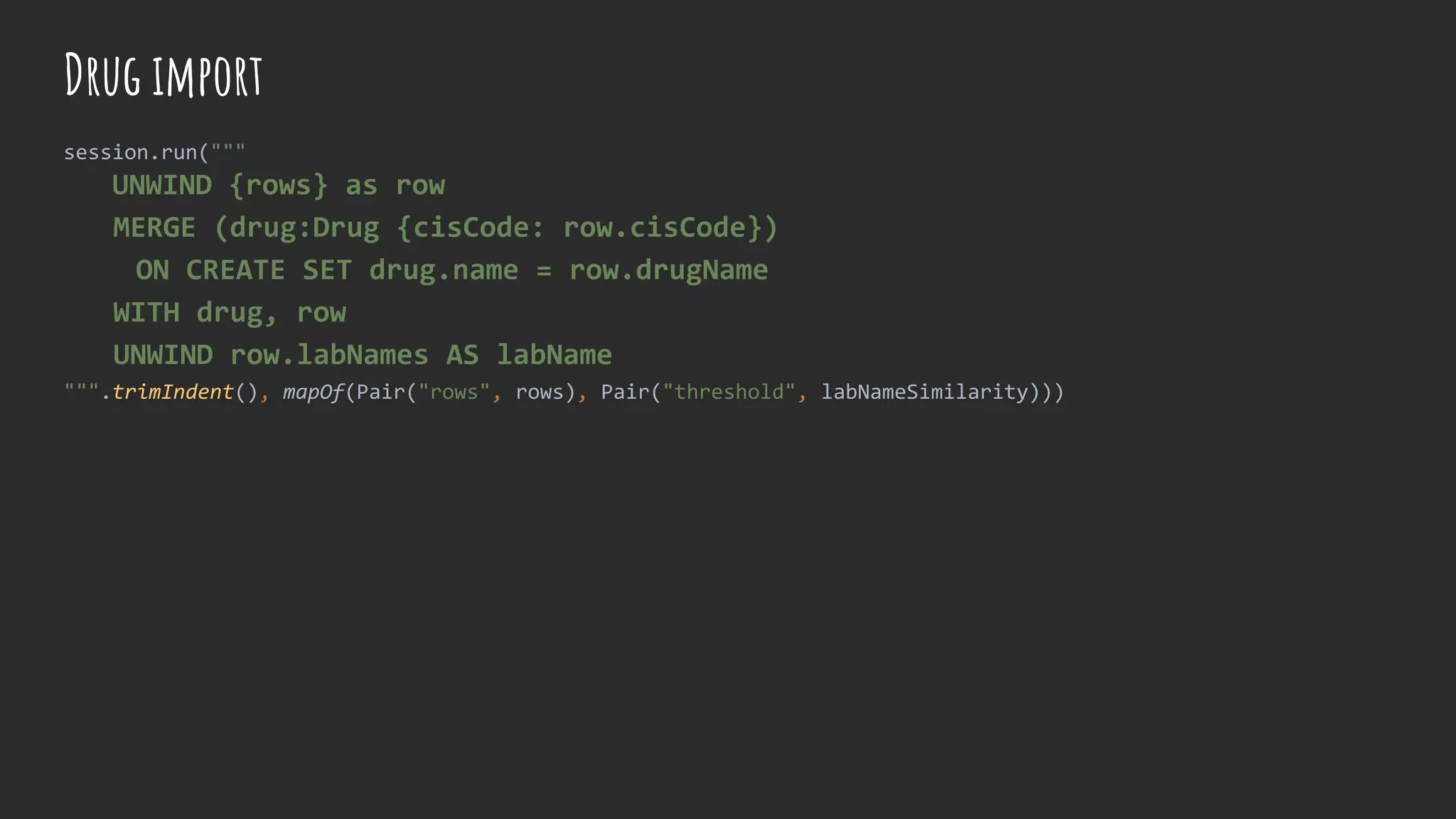

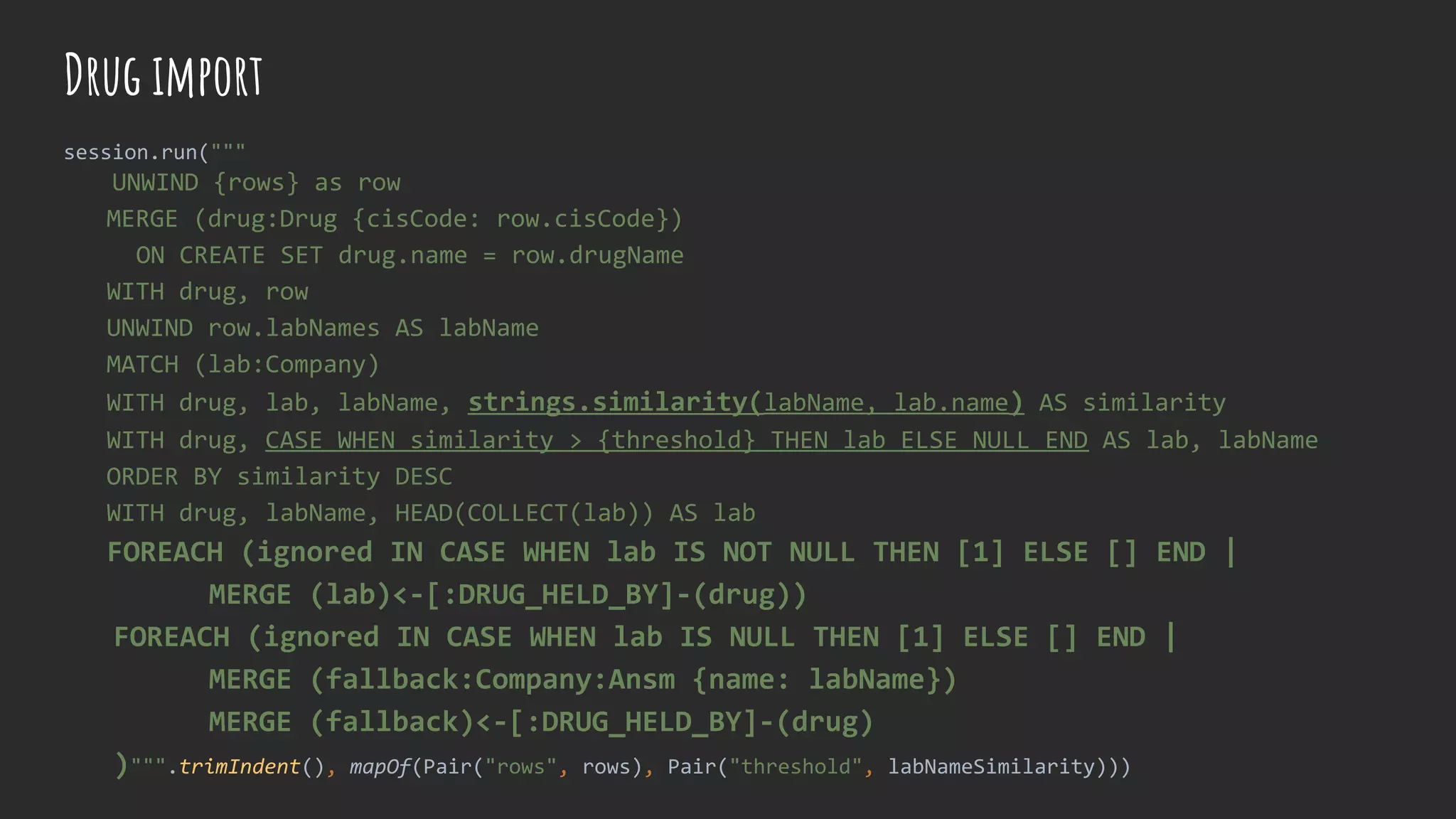

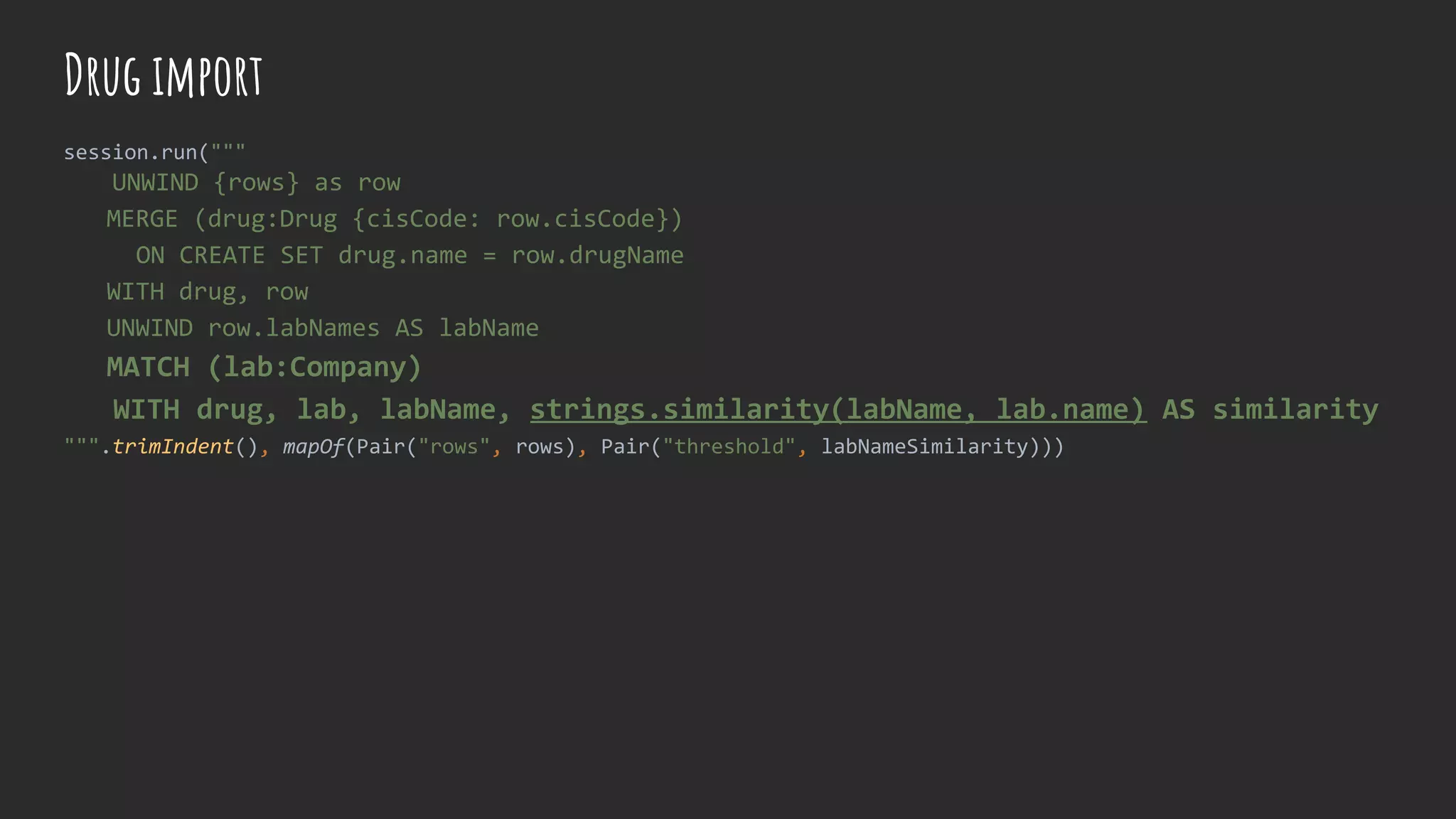

Drug import
session.run("""
UNWIND {rows} as row
MERGE (drug:Drug {cisCode: row.cisCode})
ON CREATE SET drug.name = row.drugName
WITH drug, row
UNWIND row.labNames AS labName
""".trimIndent(), mapOf(Pair("rows", rows), Pair("threshold", labNameSimilarity)))

session.run("""
WITH drug, row
MATCH (lab:Company)
WITH drug, lab, labName, strings.similarity(labName, lab.name) AS similarity

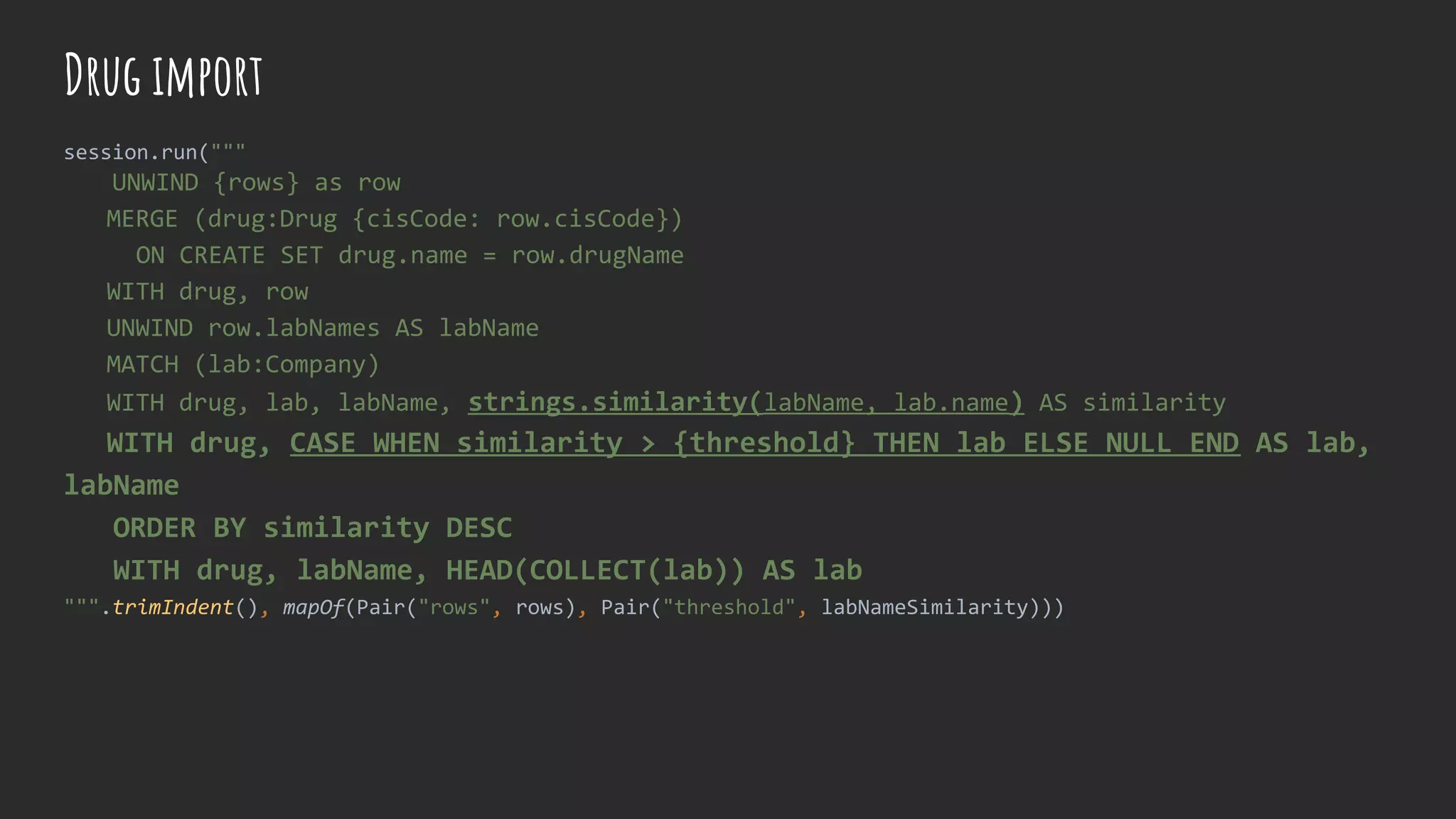

Drug import

session.run("""
WITH drug, row
MATCH (lab:Company)
WITH drug, CASE WHEN similarity > {threshold} THEN lab ELSE NULL END AS lab,
labName
ORDER BY similarity DESC
WITH drug, labName, HEAD(COLLECT(lab)) AS lab
Drug import

session.run("""
WITH drug, row
MATCH (lab:Company)
WITH drug, CASE WHEN similarity > {threshold} THEN lab ELSE NULL END AS lab, labName
ORDER BY similarity DESC
WITH drug, labName, HEAD(COLLECT(lab)) AS lab
FOREACH (ignored IN CASE WHEN lab IS NOT NULL THEN [1] ELSE [] END |
MERGE (lab)<-[:DRUG_HELD_BY]-(drug))
FOREACH (ignored IN CASE WHEN lab IS NULL THEN [1] ELSE [] END |
MERGE (fallback:Company:Ansm {name: labName})
MERGE (fallback)<-[:DRUG_HELD_BY]-(drug)
)""".trimIndent(), mapOf(Pair("rows", rows), Pair("threshold", labNameSimilarity)))
Drug import

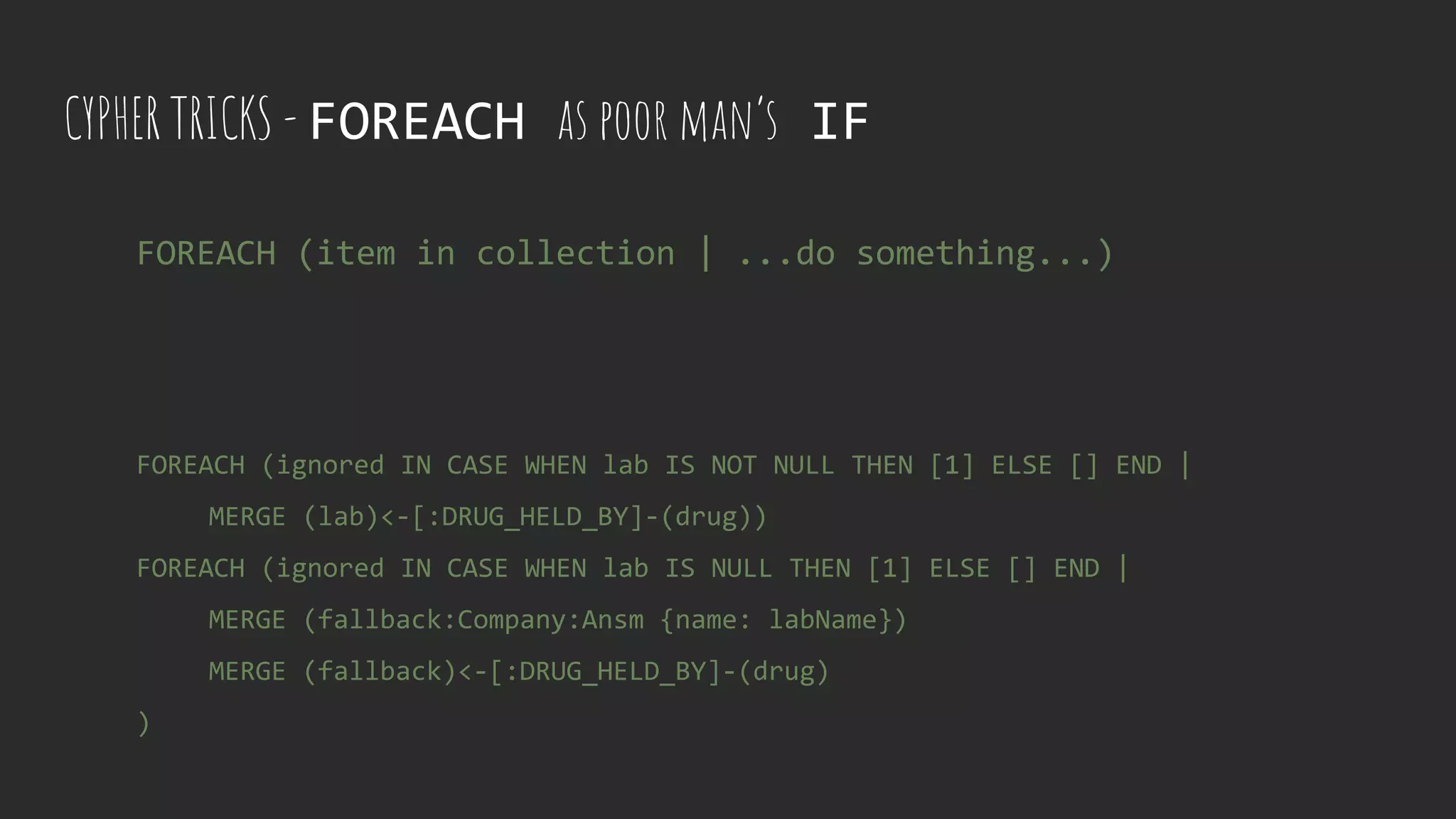

CYPHER TRICKS - FOREACH as poor man’s IF
FOREACH (ignored IN CASE WHEN lab IS NOT NULL THEN [1] ELSE [] END |
MERGE (lab)<-[:DRUG_HELD_BY]-(drug))
FOREACH (ignored IN CASE WHEN lab IS NULL THEN [1] ELSE [] END |
MERGE (fallback:Company:Ansm {name: labName})
MERGE (fallback)<-[:DRUG_HELD_BY]-(drug)
)
FOREACH (item in collection | ...do something...)

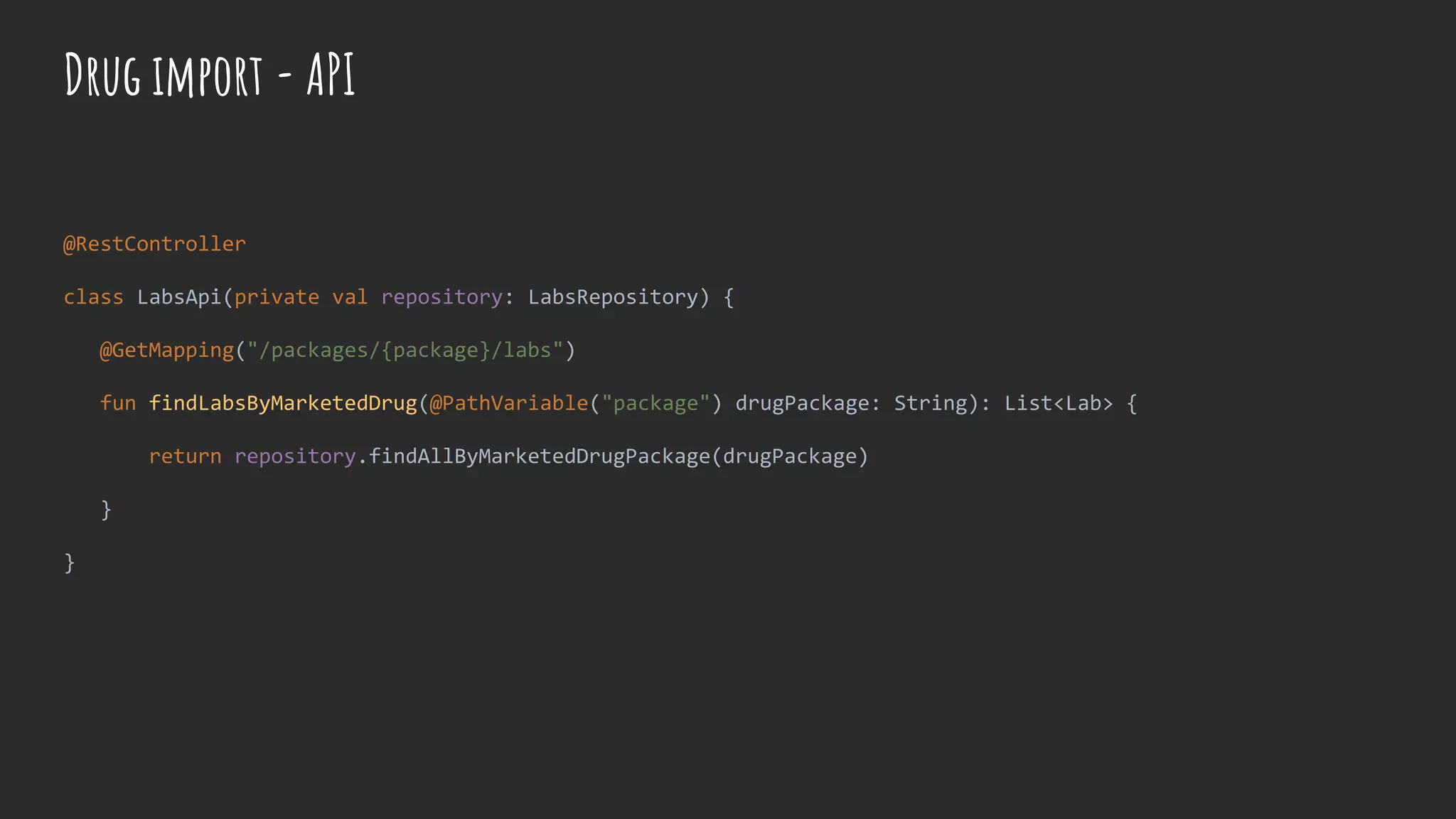

@RestController
class LabsApi(private val repository: LabsRepository) {
@GetMapping("/packages/{package}/labs")
fun findLabsByMarketedDrug(@PathVariable("package") drugPackage: String): List<Lab> {
return repository.findAllByMarketedDrugPackage(drugPackage)
}
}
Drug import - API

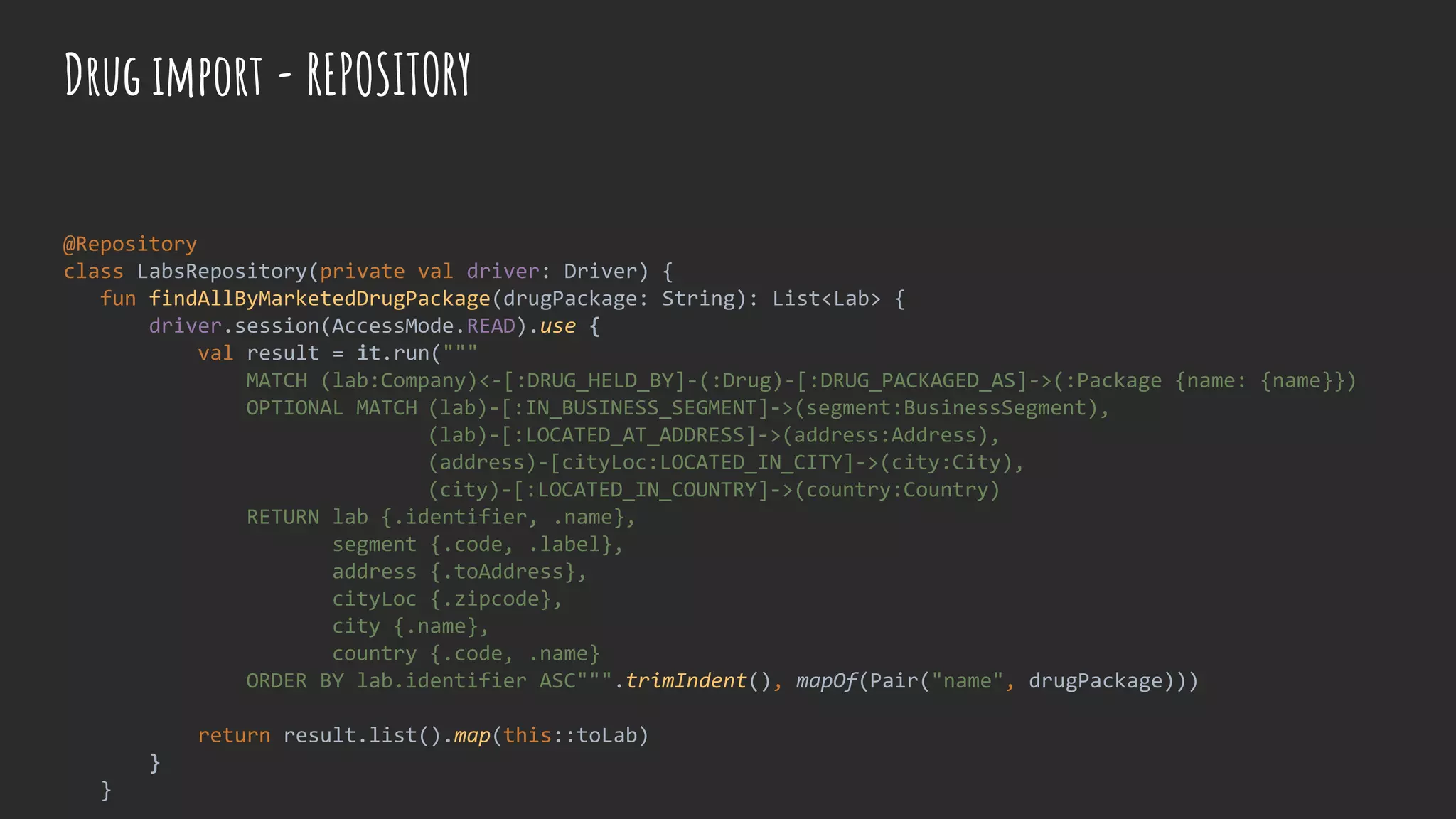

@Repository
class LabsRepository(private val driver: Driver) {
fun findAllByMarketedDrugPackage(drugPackage: String): List<Lab> {
driver.session(AccessMode.READ).use {
val result = it.run("""
MATCH (lab:Company)<-[:DRUG_HELD_BY]-(:Drug)-[:DRUG_PACKAGED_AS]->(:Package {name: {name}})
OPTIONAL MATCH (lab)-[:IN_BUSINESS_SEGMENT]->(segment:BusinessSegment),
(lab)-[:LOCATED_AT_ADDRESS]->(address:Address),
(address)-[cityLoc:LOCATED_IN_CITY]->(city:City),
(city)-[:LOCATED_IN_COUNTRY]->(country:Country)
RETURN lab {.identifier, .name},
segment {.code, .label},
address {.toAddress},
cityLoc {.zipcode},
city {.name},
country {.code, .name}
ORDER BY lab.identifier ASC""".trimIndent(), mapOf(Pair("name", drugPackage)))
return result.list().map(this::toLab)
}
}
Drug import - REPOSITORY

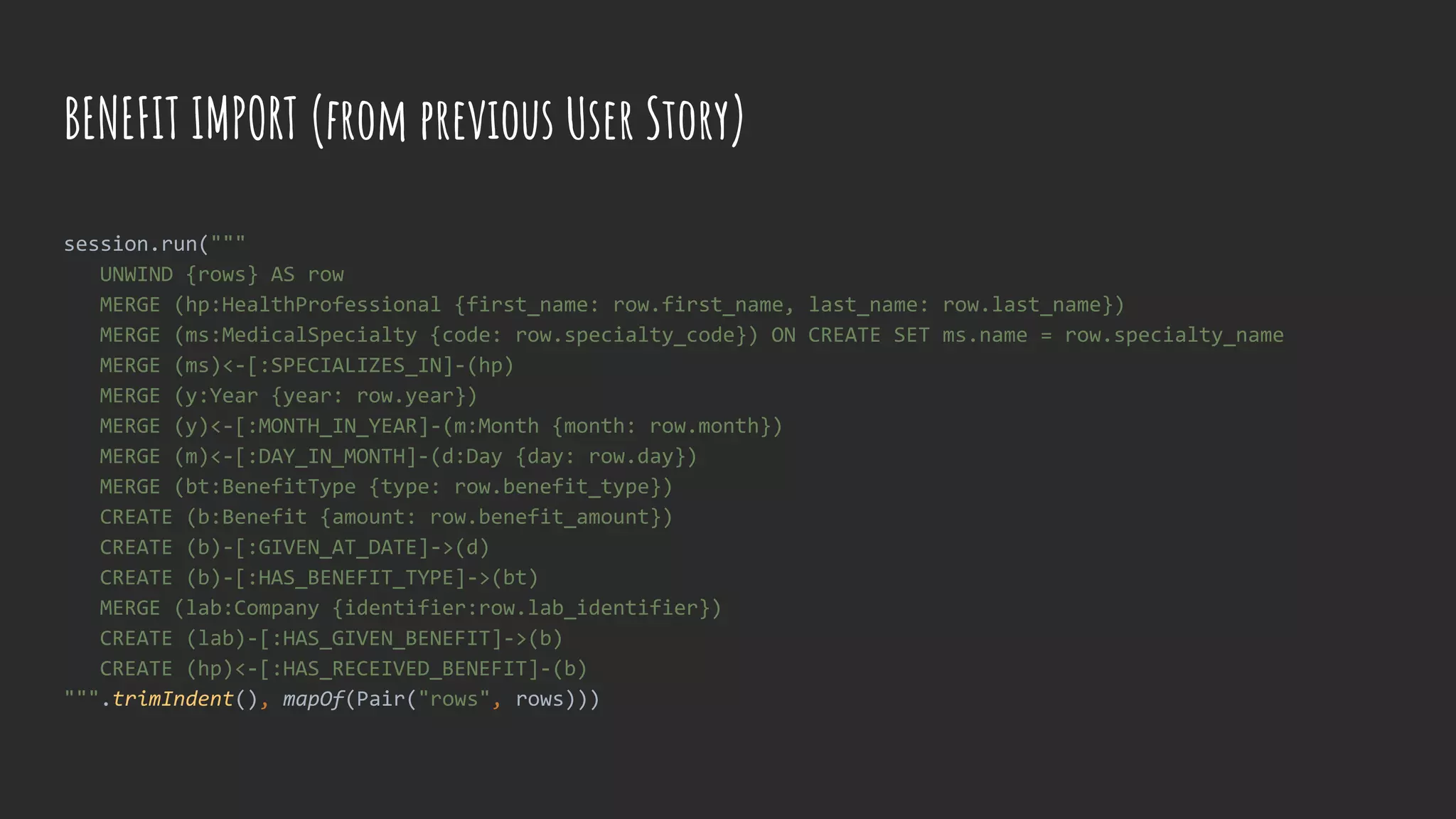

BENEFIT IMPORT (from previous User Story)
session.run("""
MERGE (hp:HealthProfessional {first_name: row.first_name, last_name: row.last_name})
MERGE (ms:MedicalSpecialty {code: row.specialty_code}) ON CREATE SET ms.name = row.specialty_name
MERGE (ms)<-[:SPECIALIZES_IN]-(hp)
MERGE (y:Year {year: row.year})
MERGE (y)<-[:MONTH_IN_YEAR]-(m:Month {month: row.month})
MERGE (m)<-[:DAY_IN_MONTH]-(d:Day {day: row.day})
MERGE (bt:BenefitType {type: row.benefit_type})
CREATE (b:Benefit {amount: row.benefit_amount})
CREATE (b)-[:GIVEN_AT_DATE]->(d)
CREATE (b)-[:HAS_BENEFIT_TYPE]->(bt)
MERGE (lab:Company {identifier:row.lab_identifier})
CREATE (lab)-[:HAS_GIVEN_BENEFIT]->(b)
CREATE (hp)<-[:HAS_RECEIVED_BENEFIT]-(b)
""".trimIndent(), mapOf(Pair("rows", rows)))

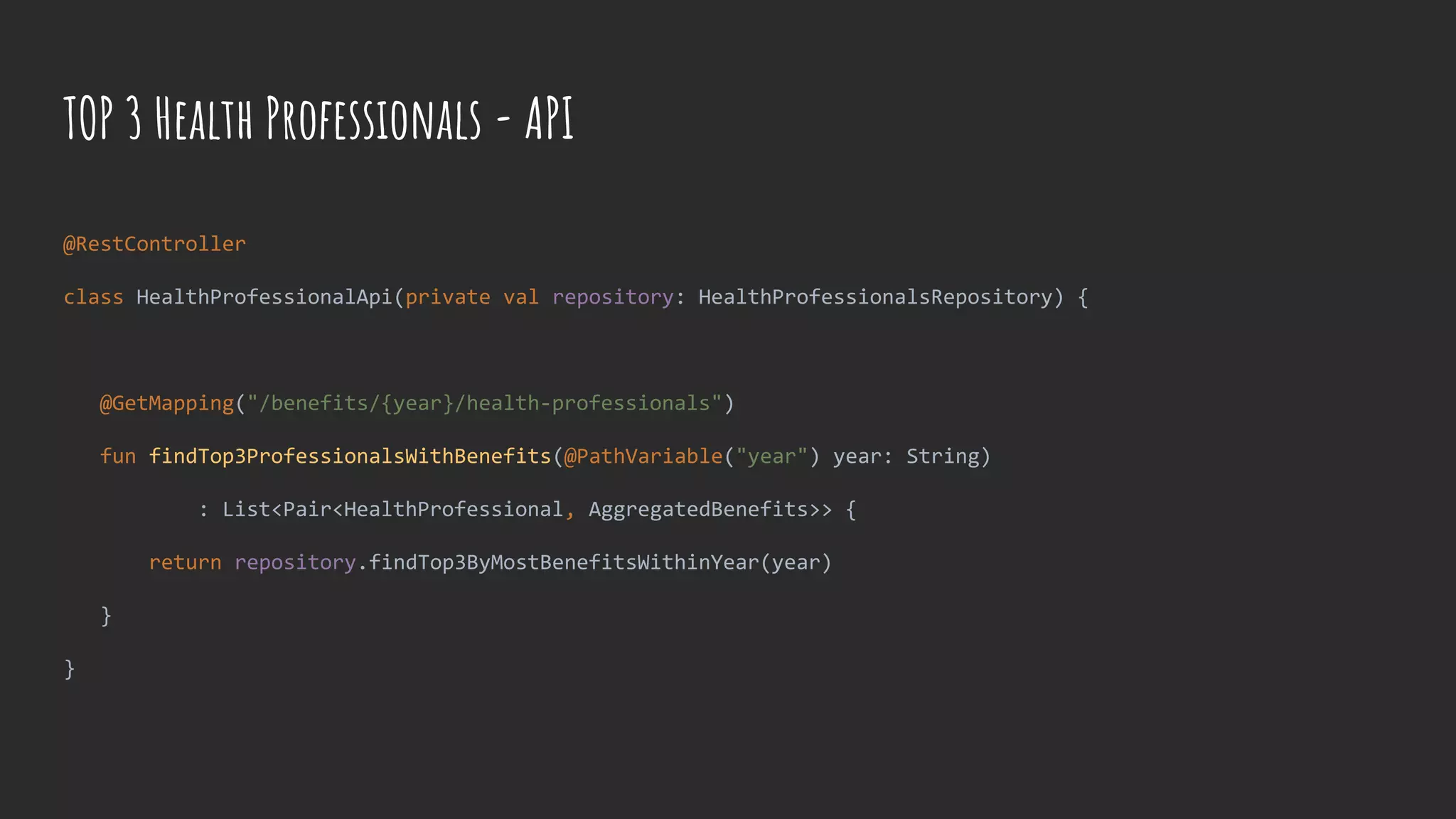

TOP 3 Health Professionals - API
@RestController
class HealthProfessionalApi(private val repository: HealthProfessionalsRepository) {
@GetMapping("/benefits/{year}/health-professionals")
fun findTop3ProfessionalsWithBenefits(@PathVariable("year") year: String)
: List<Pair<HealthProfessional, AggregatedBenefits>> {
return repository.findTop3ByMostBenefitsWithinYear(year)
}
}

TOP 3 Health Professionals - API

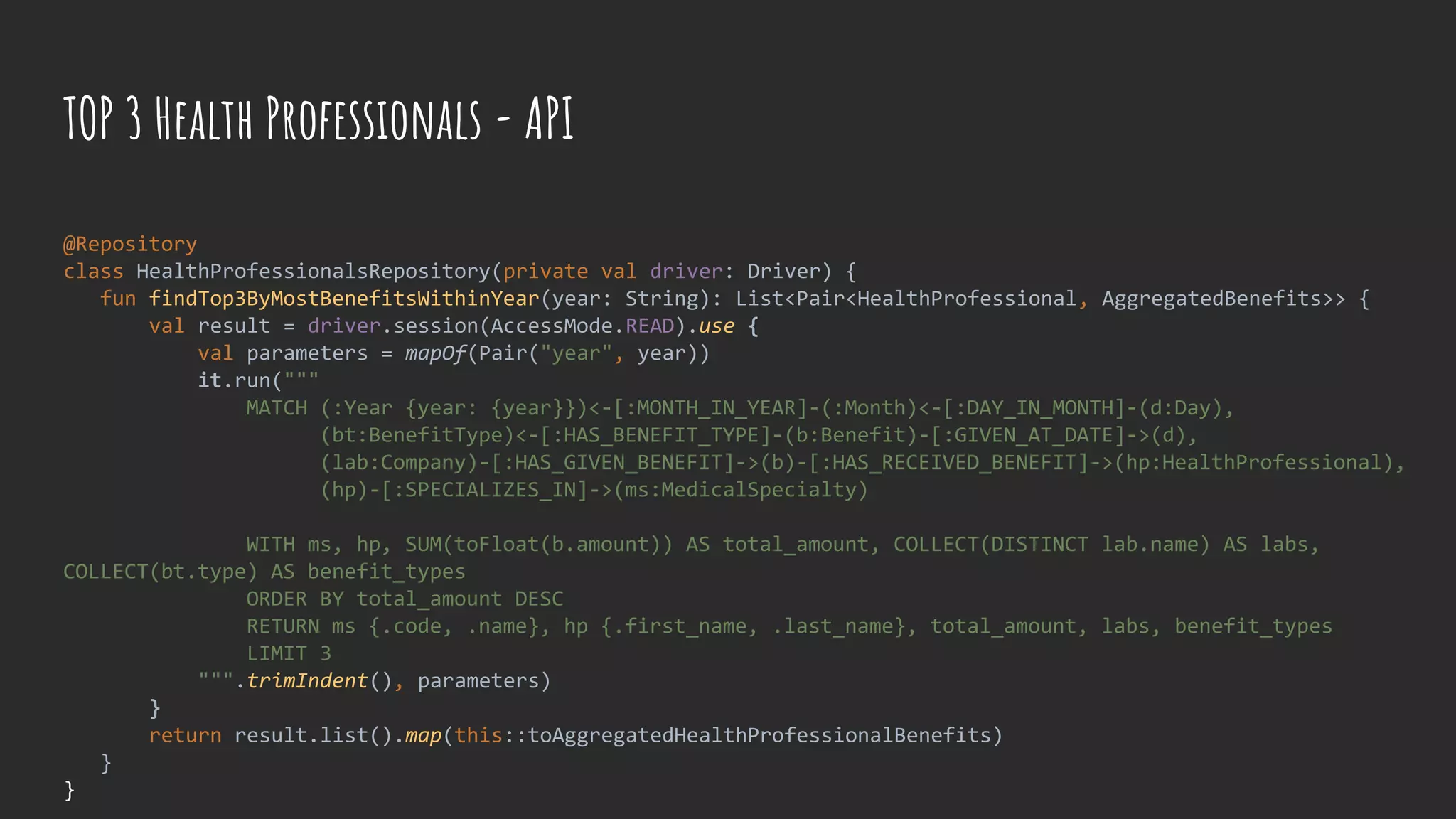

@Repository
class HealthProfessionalsRepository(private val driver: Driver) {
fun findTop3ByMostBenefitsWithinYear(year: String): List<Pair<HealthProfessional, AggregatedBenefits>> {
val result = driver.session(AccessMode.READ).use {
val parameters = mapOf(Pair("year", year))
it.run("""
MATCH (:Year {year: {year}})<-[:MONTH_IN_YEAR]-(:Month)<-[:DAY_IN_MONTH]-(d:Day),
(bt:BenefitType)<-[:HAS_BENEFIT_TYPE]-(b:Benefit)-[:GIVEN_AT_DATE]->(d),
(lab:Company)-[:HAS_GIVEN_BENEFIT]->(b)-[:HAS_RECEIVED_BENEFIT]->(hp:HealthProfessional),
(hp)-[:SPECIALIZES_IN]->(ms:MedicalSpecialty)
WITH ms, hp, SUM(toFloat(b.amount)) AS total_amount, COLLECT(DISTINCT lab.name) AS labs,
COLLECT(bt.type) AS benefit_types
ORDER BY total_amount DESC
RETURN ms {.code, .name}, hp {.first_name, .last_name}, total_amount, labs, benefit_types
LIMIT 3
""".trimIndent(), parameters)
}
return result.list().map(this::toAggregatedHealthProfessionalBenefits)
}
}

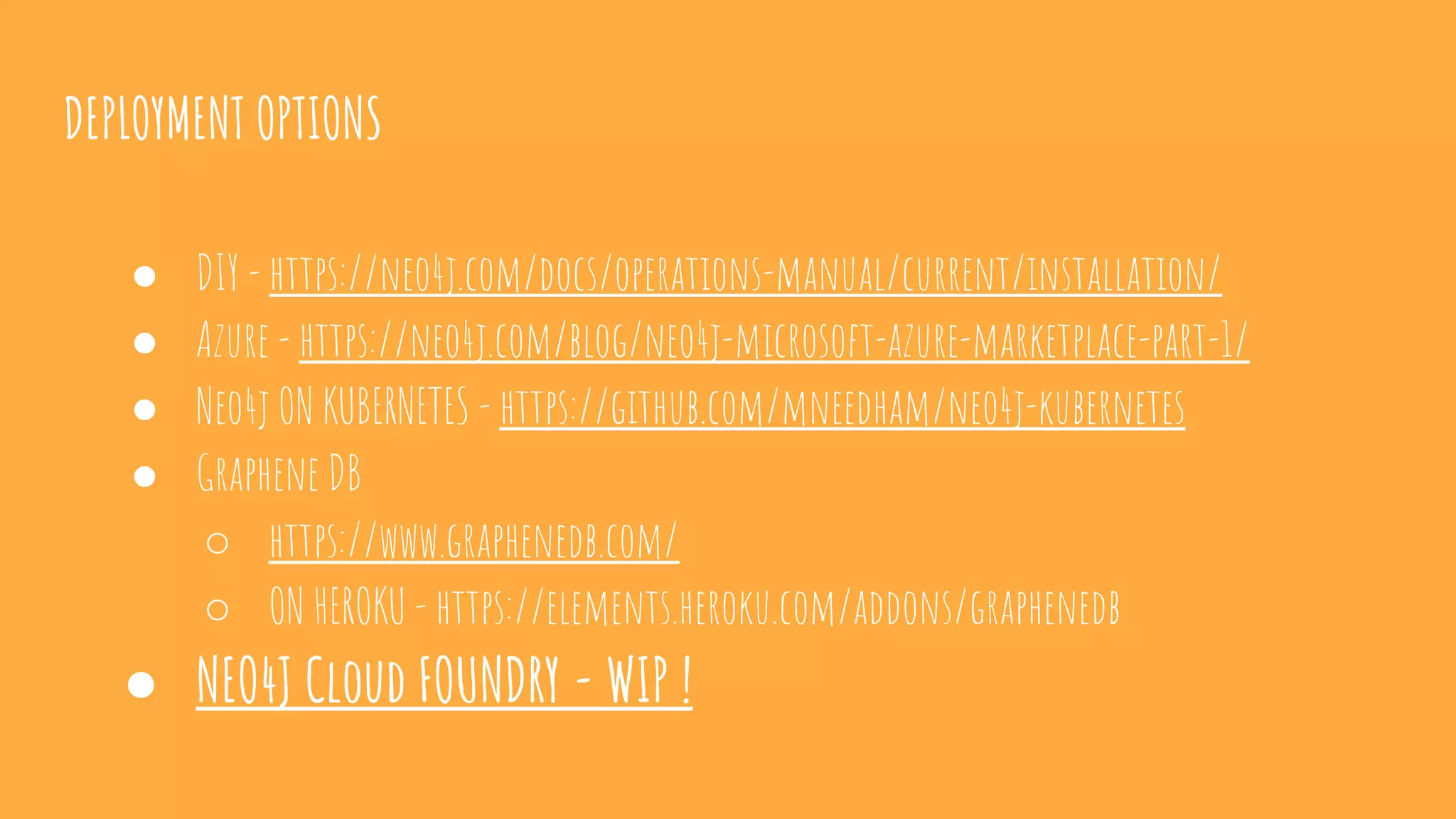

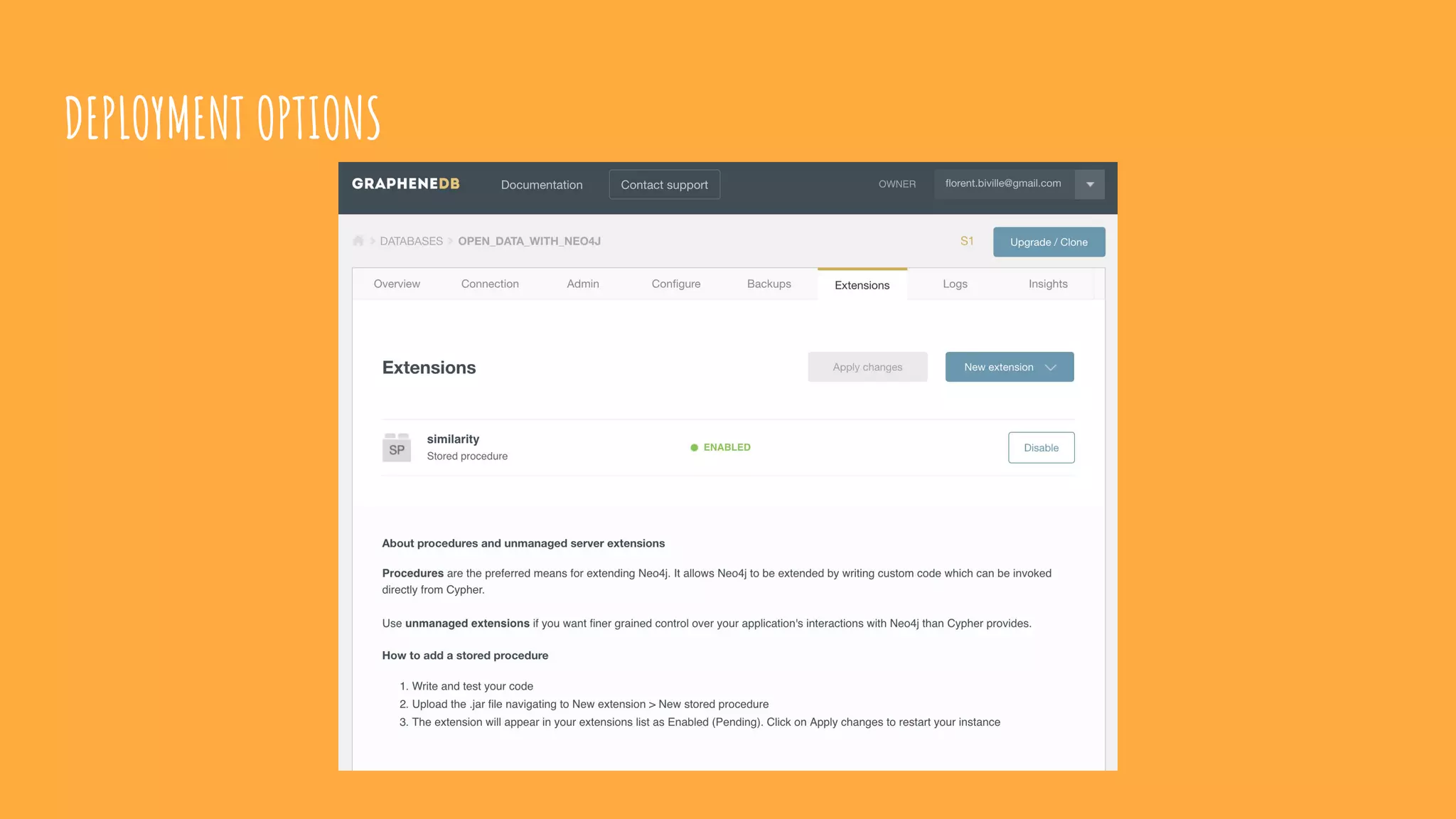

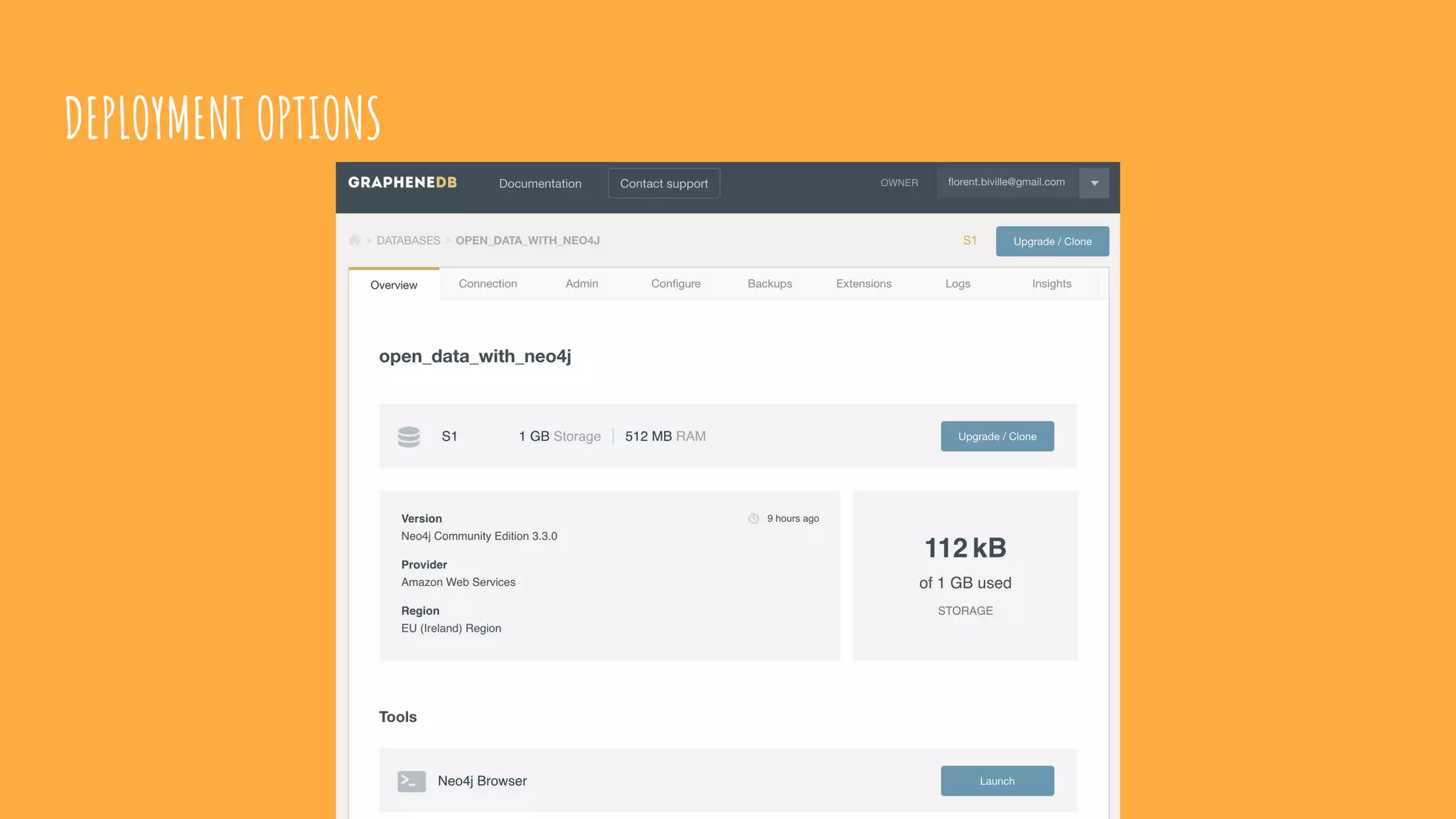

DEPLOYMENT OPTIONS
● DIY - https://neo4j.com/docs/operations-manual/current/installation/
● Azure - https://neo4j.com/blog/neo4j-microsoft-azure-marketplace-part-1/
● Neo4j ON KUBERNETES - https://github.com/mneedham/neo4j-kubernetes
● Graphene DB
○ https://www.graphenedb.com/
○ ON HEROKU - https://elements.heroku.com/addons/graphenedb
● NEO4J Cloud FOUNDRY - WIP !

“Nothing is ever finished” - TODO list
Optimize the import
Use Spring Data Neo4j
Use “graphier” algorithms (shortest paths, page rank…)
Expose GraphQL API - http://grandstack.io/

Thank you !
Florent Biville (@fbiville) Marouane Gazanayi (@mgazanayi)
https://github.com/graph-labs/open-data-with-neo4j

Little ad for a friend (jérôme ;-))

Open data with Neo4j and Kotlin

More Related Content

Similar to Open data with Neo4j and Kotlin

More from Neo4j

Recently uploaded

Open data with Neo4j and Kotlin
